Crestron CWD6790R1
Two-Way RF Transceiver Module
Operations Guide
![](/img.php?id=2070532&img=bg2.png)
This document was written by the Technical Publications department at Crestron.
©2013 Crestron Electronics, Inc.
Regulatory Compliance
Federal Communications Commission (FCC) Compliance Statement
This device complies with part 15 of the FCC Rules. Operation is subject to the following conditions: (1) this device may
not cause interference and (2) this device must accept any interference received, including interference that may cause
undesired operation.
CAUTION: Changes or modifications not expressly approved by the manufacturer responsible for compliance could
void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna
Increase the separation between the equipment and receiver
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected
Consult the dealer or an experienced radio/TV technician for help
Industry Canada (IC) Compliance Statement
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two
conditions: (1) this device may not cause interference and (2) this device must accept any interference, including
interference that may cause undesired operation of the device.
Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or
lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the
antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than
that necessary for successful communication.
Industrie Canada (IC) Déclaration de conformité
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence.
L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2)
l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en
compromettre le fonctionnement.
Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un
type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques
de brouillage radioélectrique à l'intention des autres utilisateurs, il faut choisir le type d'antenne et son gain de sorte que
la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire à l'établissement d'une
communication satisfaisante.
To satisfy RF exposure requirements, this device and its antenna must operate with a separation distance of at least 20
centimeters from all persons and must not be collocated or operating in conjunction with any other antenna or
transmitter.
![](/img.php?id=2070532&img=bg3.png)
Crestron CWD6790R1 Two-Way RF Transceiver Module
Operations Guide - DOC. 7559A Contents i
Contents
Two-Way RF Transceiver Module: CWD6790R1 ......................................... 1
Functions and Features .............................................................................................................. 1
Specifications ............................................................................................................................. 2
Physical Description .................................................................................................................. 2
Setup .......................................................................................................................................... 4
Labeling ..................................................................................................................................... 4
Documentation ........................................................................................................................... 4
![](/img.php?id=2070532&img=bg5.png)
Crestron CWD6790R1 Two-Way RF Transceiver Module
Operations Guide - DOC. 7559A Two-Way RF Transceiver Module: CWD6790R1 1
2.4 GHz frequency band, IEEE 802.15.4 specification
Range from 3 feet to 50 ft.
Operates on one of sixteen available channels to establish optimal
signal quality
Two-Way RF Transceiver Module:
CWD6790R1
Functions and Features
The CWD6790R1 (hereafter referred to as “module”) is a two-way radio frequency (RF) module that
utilizes the 2.4 GHz frequency band to communicate with other devices.
The module operates according to the IEEE 802.15.4 specification and can be configured to minimize
the possibility of interference with other devices.
The module receives RF signals from one or more Crestron devices and can transmit these signals over
the air for further processing (depending on the application).
Functional Summary
![](/img.php?id=2070532&img=bg6.png)
Two-Way RF Transceiver Module Crestron CWD6790R1
2 Two-Way RF Transceiver Module: CWD6790R1 Operations Guide - DOC. 7559A
Specifications
The table below is a summary of specifications for the CWD6790R1.
Specifications of the CWD06790R1
SPECIFICATION DETAILS
Power Requirements 0.58 W (5.0 Vdc @ 0.115 A)
Operating Frequency 2400 MHz to 2483.5 MHz (802.15.4 compliant)
Operating Ranges*
Minimum Distance
Maximum Distance Indoors
(without repeater device)
3 ft
50 ft
Available Channels 16 (numbered 11 through 26 per 802.15.4)
RF Output Power 1.7 mW
Dimensions Width: 1.64 in (4.15 cm)
Height: 2.35 in (5.98 cm)
Depth: 0.66 in (1.68 cm)
Antenna Gain: 3.98 dBi max.
Type: 5/8-wavelength, Inverted-F,
Center Frequency 2.45 GHz
Construction: Post and strip
* The location and orientation of the module are important factors in the RF performance. With the unit located outside of
any metal enclosures, the antenna is adjusted to achieve the best range. The range is dependent on its placement and the
building in which it is used. The construction of the building, obstructions, and RF interference from other devices are
factors determining the effective range of the unit. To prevent unit-to-unit RF interference, multiple modules operating at
the same frequencies should not be installed within 3-5 feet of each other.
Physical Description

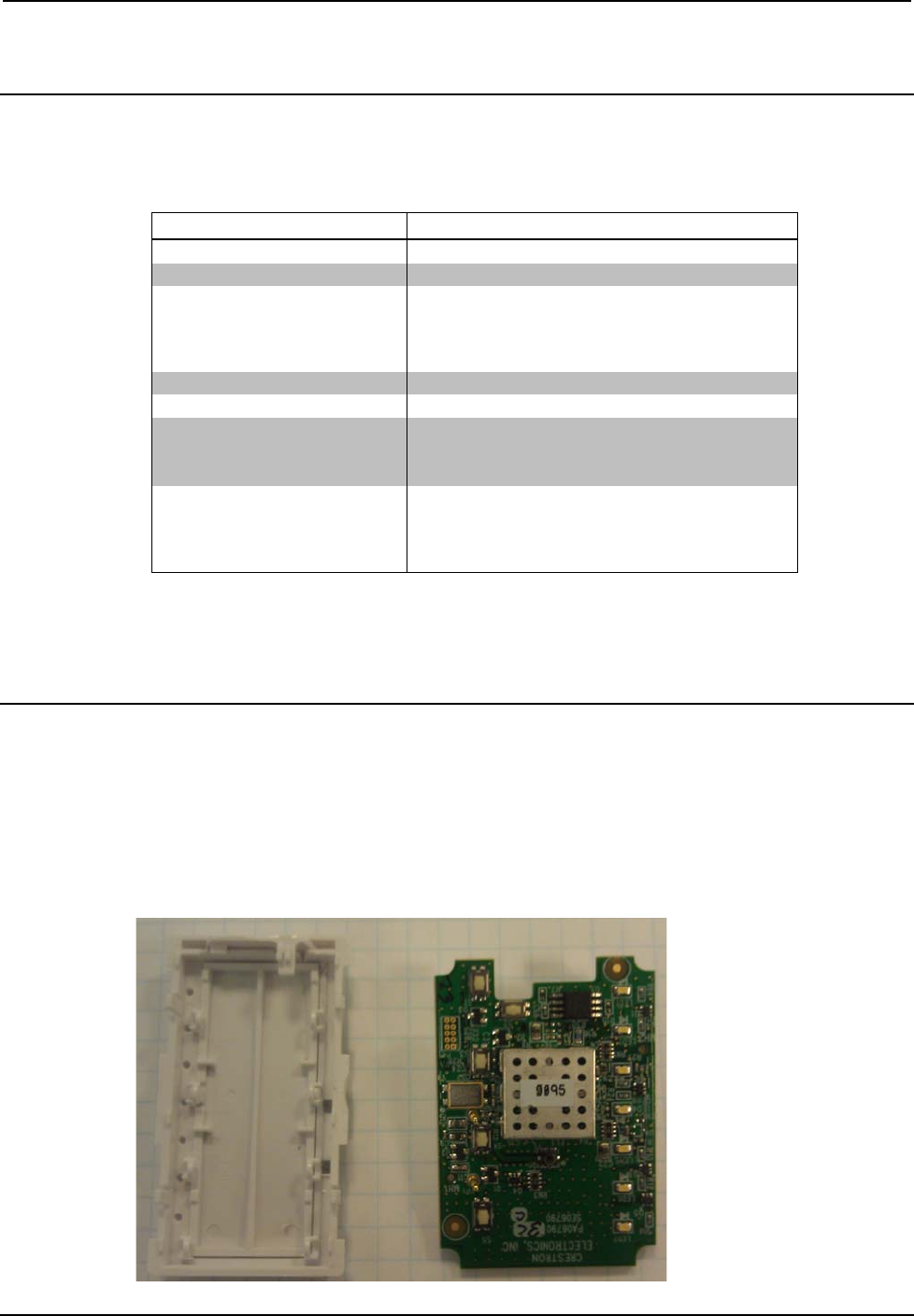

The module, shown below, consists of various components attached to a printed circuit board. A set of
spring loaded pogo-pins connect to the antenna that is mounted in the plastic button frame. A 10-pin
header is provided for the application-specific installation.
There are six (6) different build options for this module. The options specify the number of installed
push buttons/switches, the number and color of installed LEDs.
Physical View of CWD6790R1 (with all switches and LEDs installed)
![](/img.php?id=2070532&img=bg7.png)
Crestron CWD6790R1 Two-Way RF Transceiver Module
Operations Guide - DOC. 7559A Two-Way RF Transceiver Module: CWD6790R1 3

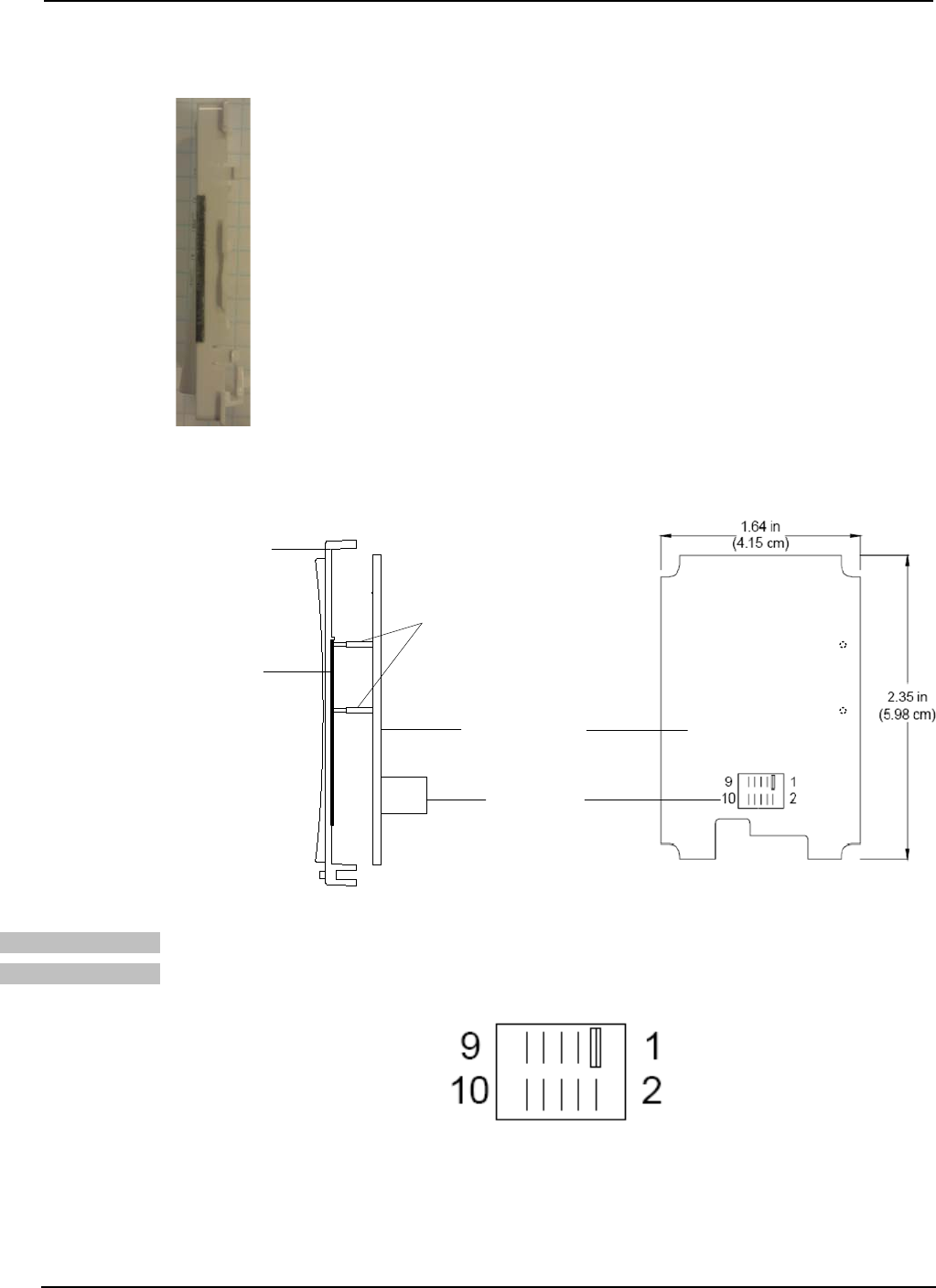

Side View of Antenna
CWD6790R1 Detail Views
SIDE BACK
Antenna
Antenna Feed Pogo-pins
10-pin Mating
Connector
PCB with Radio
Plastic Button Frame
with Antenna
Ports The module contains a 10-pin connector. Refer to the diagrams and descriptions that follow.
Power/I-O The 10 pin connector provides power to the module as well as communications between the module and
wired devices. Refer to the following table for pin assignments of the module interface connector.
NOTE: Pin 1 provides power to the circuit card.
![](/img.php?id=2070532&img=bg8.png)
Two-Way RF Transceiver Module Crestron CWD6790R1
4 Two-Way RF Transceiver Module: CWD6790R1 Operations Guide - DOC. 7559A
Power/I-O Pinout Signals
Pin # Signal Pin # Signal
1 +5V 6 REMOTE_B/CONFIG
2 TRIAC/RELAY 7 GND
3 ZERO_X 8 3.3V
4 REMOTE_A/RELAY 9 GND
5 GND 10 GND
Setup
Hardware Hookup

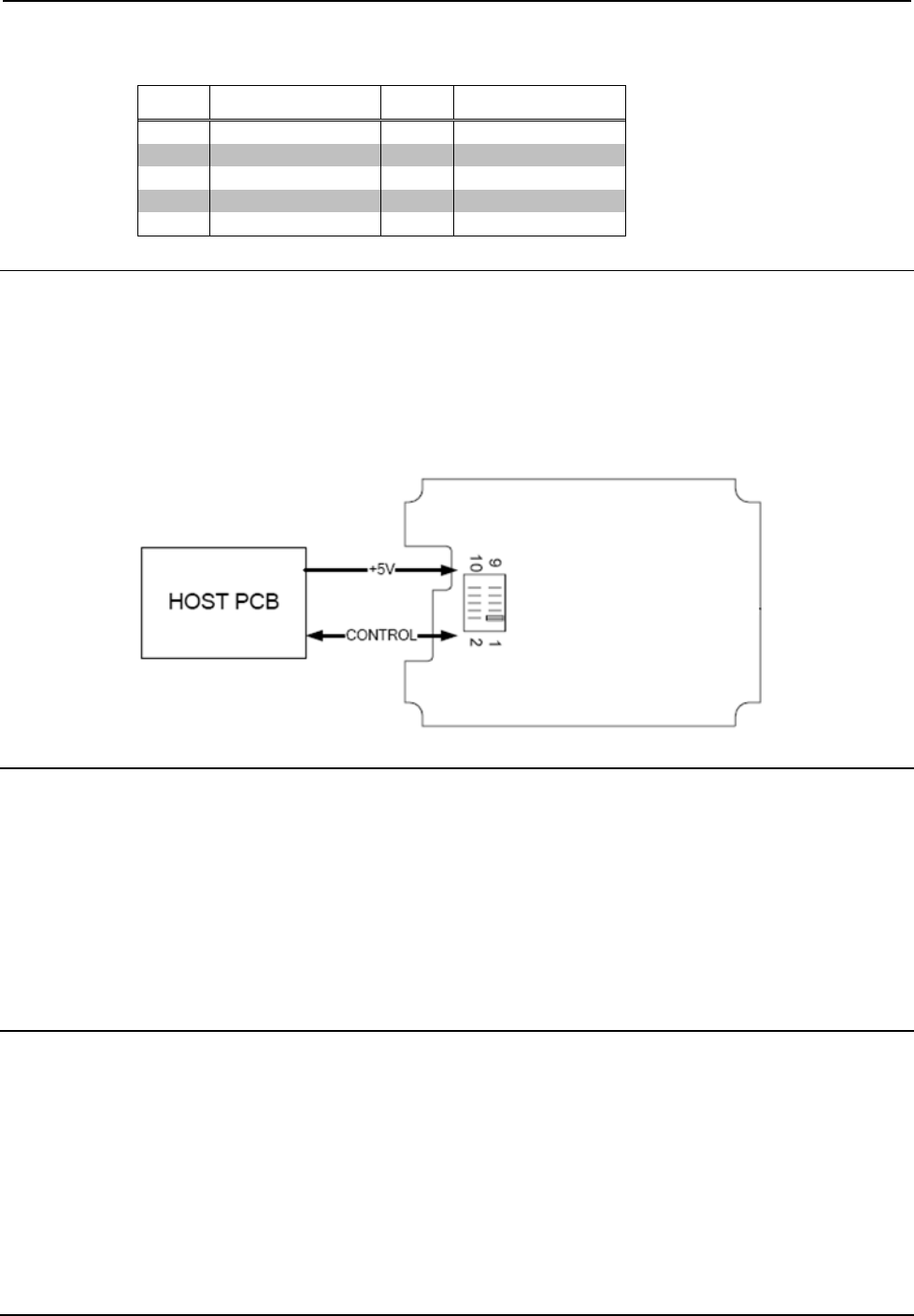

Refer to the hookup diagram below, which shows the connections made to the module. Complete the
connections in any order.
NOTE: To prevent unit-to-unit RF interference, multiple modules operating at the same frequencies
should not be installed within three to five feet of each other.
Labeling Requirements for the Host Device
The host device shall be properly labeled to identify the modules within the host device.
The FCC and Industry Canada certification label of a module shall be clearly visible at all times when
installed in the host device, otherwise the host device must be labeled to display the FCC and Industry
Canada certification numbers of the module, proceeded by the words “Contains Transmitter Module”,
or the word “Contains”, or similar wording expressing the same meaning as follows:
Contains FCC ID: EROCWD6790R1
Contains IC: 5683C-CWD6790R1
Documentation
The OEM integrator has to be aware not to provide information to the end user regarding how to install
or remove this RF module in the users manual of the end product.
The users manual for OEM integrators must include the following information in a prominent location
“IMPORTANT NOTE: To comply with FCC RF exposure compliance
requirements, the antenna used for this transmitter must be installed to provide a
separation distance of at least 20 cm from all persons and must not be co-located
or operating in conjunction with any other antenna or transmitter.”
![](/img.php?id=2070532&img=bg9.png)
Crestron CWD6790R1 Two-Way RF Transceiver Module
Operations Guide - DOC. 7559A Two-Way RF Transceiver Module: CWD6790R1 5
This page intentionally left blank.
