Users Manual
Crestron MP-FS-RX1/RX2
FreeSpeech™ Single/Dual-Channel
Wireless Mic Receiver
Operations & Installation Guide
This document was prepared and written by the Technical Documentation department at:
Crestron Electronics, Inc.
15 Volvo Drive
Rockleigh, NJ 07647
1-888-CRESTRON
Regulatory Compliance
Federal Communications Commission (FCC) Compliance Statement
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
Industry Canada (IC) Compliance Statement
This device complies with part 15 of the FCC Rules. Operation is subject to the following conditions:
(1) This device may not cause harmful interference and (2) this device must accept any interference received,
including interference that may cause undesired operation.
CAUTION: Changes or modifications not expressly approved by the manufacturer responsible for compliance
could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
Reorient or relocate the receiving antenna
Increase the separation between the equipment and receiver
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected
Consult the dealer or an experienced radio/TV technician for help
As of the date of manufacture, the MP-FS-RX1 and MP-FS-RX2 have been tested and found to comply with
specifications for CE marking and standards per EMC and Radiocommunications Compliance Labelling.
Crestron, the Crestron logo, Crestron Toolbox, and FreeSpeech are trademarks or registered
trademarks of Crestron Electronics, Inc. in the United States and other countries. Other
trademarks, registered trademarks, and trade names may be used in this document
to refer to either the entities claiming the marks and names or their products.
Crestron disclaims any proprietary interest in the marks and names of others.
©2011 Crestron Electronics, Inc.
Crestron MP-FS-RX1/RX2 Single/Dual-Channel Wireless Mic Receiver
Contents
Single/Dual-Channel Wireless Mic Receiver: MP-FS-RX1/RX2 1
Introduction ...............................................................................................................................1
Features and Functions................................................................................................1
Specifications ..............................................................................................................2
Physical Description....................................................................................................4
Setup..........................................................................................................................................8
Installation...................................................................................................................8
Hardware Hookup .......................................................................................................8
Uploading and Upgrading..........................................................................................................9
Establishing Communication.......................................................................................9
Firmware .....................................................................................................................9
Operation .................................................................................................................................10
Basic Procedures .......................................................................................................10
Receiver Controls - Default Settings.........................................................................11
Problem Solving ......................................................................................................................12
Troubleshooting.........................................................................................................12
Further Inquiries........................................................................................................12
Future Updates ..........................................................................................................12
Return and Warranty Policies..................................................................................................13
Merchandise Returns / Repair Service ......................................................................13
CRESTRON Limited Warranty.................................................................................13
Operations & Installation Guide – DOC. 7164A Contents • i
Crestron MP-FS-RX1/RX2 Single/Dual-Channel Wireless Mic Receiver
Single/Dual-Channel Wireless Mic
Receiver: MP-FS-RX1/RX2
Introduction
Crestron® FreeSpeech systems provide a very simple and affordable solution for
adding speech reinforcement as part of a complete classroom media presentation
system. The MP-FS-RX1 is a single-channel receiver, capable of supporting one
wireless microphone (MP-FSMIC*). The MP-FS-RX2 is a dual-channel receiver
capable of supporting two wireless microphones. Built-in amplification provides
everything needed to drive a set of speakers (sold separately), and even allows for
the connection of a DVD player, computer, or other program audio sources.
Features and Functions
• Single- or dual-channel receiver for one or two FreeSpeech™ wireless
microphones
• Advanced combined RF/IR wireless operation ensures trouble-free
performance
• 2.4GHz RF technology with “error recovery” minimizes noise and
feedback
• “Automatic Gain Control” maintains consistent speech levels
• Built-in 30 Watt stereo amplifier drives one or two pairs of speakers
• Line output enables connection to an external amplifier or video projector
• Two stereo line inputs provide amplification for a DVD player, laptop
computer, or other program sources
• Speech and program audio signals are independently adjustable via a
control on the wireless mic*
• “Ducking” feature automatically turns down the program source
whenever the instructor speaks
• Built-in master volume, bass, and treble adjustment helps optimize the
overall sound quality
• High-efficiency, energy-saving design minimizes power consumption
during operation and while idle
• Includes external power pack and external antenna(s)
*Item sold separately or as part of a MP-FS100_PAK or MP-FS200_PAK system package.
Operations & Installation Guide – DOC. 7164A Single/Dual-Channel Wireless Mic Receiver: MP-FS-RX1/RX2 • 1
Single/Dual-Channel Wireless Mic Receiver Crestron MP-FS-RX1/RX2
Specifications
Specifications for the MP-FS-RX1/RX2 are listed in the following table.
MP-FS-RX1/RX2 Specifications
SPECIFICATION DETAILS
Communications
Wireless
RF
2.4 GHz ISM Device; 79 channels, FHSS
(2402 to 2480 MHz)
IR 38 kHz (requires MP-FSIR IR Beacon Sensor*)
Range (typical) 50 ft (~15 m) indoor, subject to site-specific
conditions
Wired
USB USB host port for firmware update and
configuration
Audio
A-D/D-A Conversion 16-bit, 44.1 kHz
Master Volume Range -55dB to +20dB
Bass Gain Range ±15dB @ 100Hz
Treble Gain Range ±15dB @ 10kHz
Ducking Adjustment Software adjustable Threshold, Depth, Attack,
and Release
Alert Tone Software configurable functionality
Frequency Response 20 Hz to 20 kHz ±0.5 dB
S/N Ratio 75 dB 20 Hz to 20 kHz A-weighted
THD+N 0.7% 20 Hz to 20 kHz
Output Power 15 Watts per channel at 8 or 4 Ohms
Amplifier Protection Electronic short-circuit and overload protection
Power Requirements
Power Pack 2.0 Amps @ 24 Volts DC, 100-240 Volts AC,
50/60 Hz power pack, included
Environmental
Temperature 41° to 104° F (5° to 40° C)
Humidity 10% to 90% RH (non-condensing)
Heat Dissipation 35 BTU/Hr
Enclosure
Chassis Metal with polycarbonate label overlay
Faceplate Plastic with polycarbonate label overlay
Mounting Freestanding
Dimensions
Height 2.36 in (60 mm)
Width 8.12 in (207 mm)
Depth 5.95 in (152 mm)
(Continued on following page)
2 • Single/Dual-Channel Wireless Mic Receiver: MP-FS-RX1/RX2 Operations & Installation Guide – DOC. 7164A
Crestron MP-FS-RX1/RX2 Single/Dual-Channel Wireless Mic Receiver
MP-FS-RX1/RX2 Specifications (Continued)
SPECIFICATION DETAILS
Weight
MP-FS-RX1 2.3 lbs (1.1 kg)
MP-FS-RX2 2.4 lbs (1.1 kg)
Included Accessory
Power Pack Desktop, 24VDC, 2A (50 Watts), Regulated,
US/International
Available Accessories
CBL-KAUDIO-RCAM2-L-P-50 RCA Stereo Audio Cable Kit, Plenum, 50 ft
CBL-RCA2-1.5 Crestron Certified RCA Stereo Audio Interface
Cable, 1.5 ft
CBL-RCA2-3 Crestron Certified RCA Stereo Audio Interface
Cable, 3 ft
CBL-RCA2-6 Crestron Certified RCA Stereo Audio Interface
Cable, 6 ft
CBL-RCA2-12 Crestron Certified RCA Stereo Audio Interface
Cable, 12 ft
CBL-SPK-P-35 Speaker Cable, 16AWG, Plenum, 35 ft
FS6 6.5” 2-Way Surface Mount Speakers, Pair
FSDI8 8” Drop-in Ceiling Speakers, Pair
MP-FSIR FreeSpeech IR Beacon
MP-FSMIC FreeSpeech Wireless Microphone
MP-FS-PAS FreeSpeech PA Audio Sensor
*Item sold separately or as part of a MP-FS100_PAK or MP-FS200_PAK system package.
Operations & Installation Guide – DOC. 7164A Single/Dual-Channel Wireless Mic Receiver: MP-FS-RX1/RX2 • 3
Single/Dual-Channel Wireless Mic Receiver Crestron MP-FS-RX1/RX2
Physical Description
This section provides information on the connections, controls and indicators
available on your MP-FS-RX1/RX2.
MP-FS-RX1 Front View
MP-FS-RX2 Front View
MP-FS-RX1/RX2 Rear View
4 • Single/Dual-Channel Wireless Mic Receiver: MP-FS-RX1/RX2 Operations & Installation Guide – DOC. 7164A
Crestron MP-FS-RX1/RX2 Single/Dual-Channel Wireless Mic Receiver

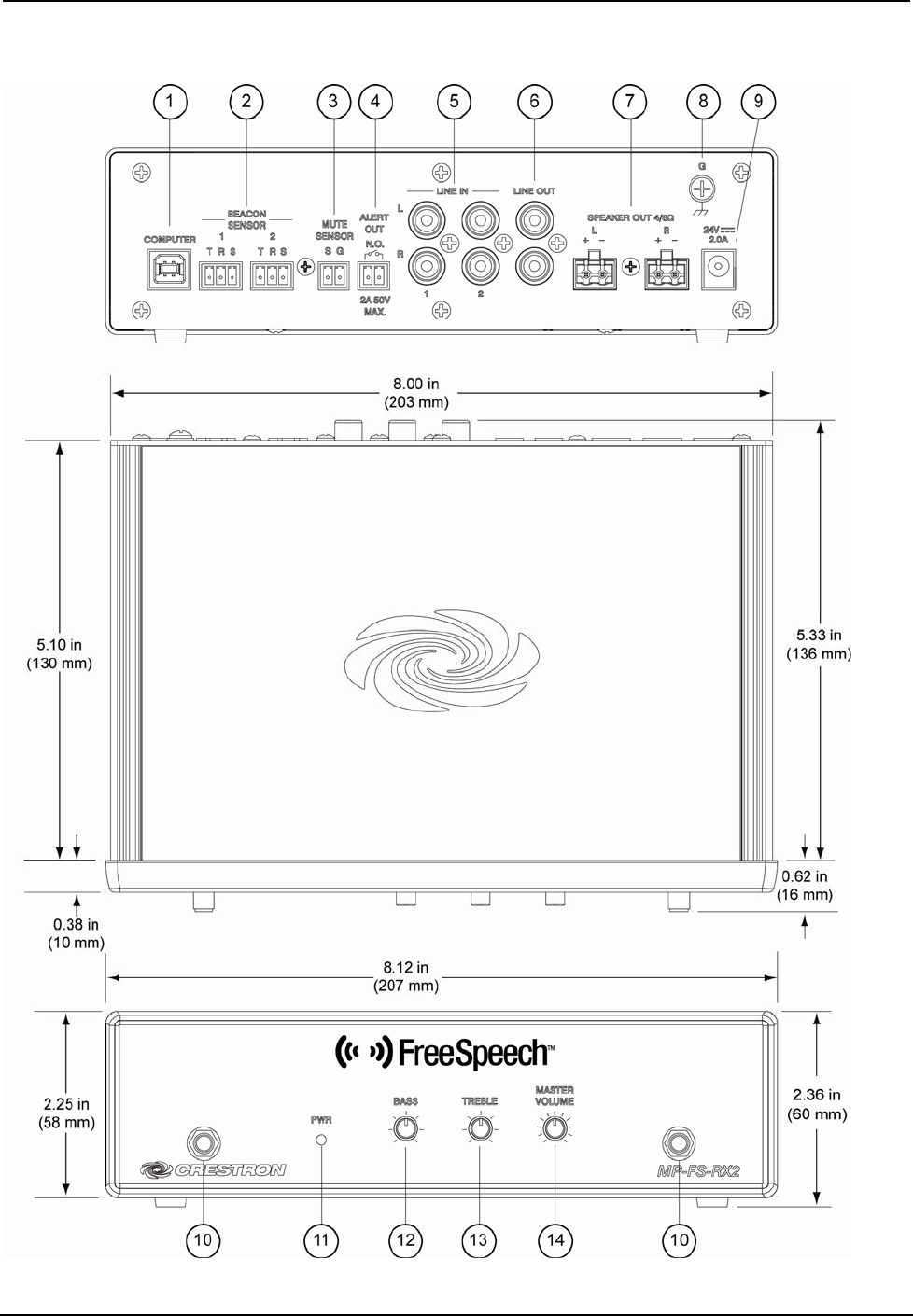

MP-FS-RX1/RX2 Overall Dimensions (MP-FS-RX2 Shown)
Operations & Installation Guide – DOC. 7164A Single/Dual-Channel Wireless Mic Receiver: MP-FS-RX1/RX2 • 5
Single/Dual-Channel Wireless Mic Receiver Crestron MP-FS-RX1/RX2

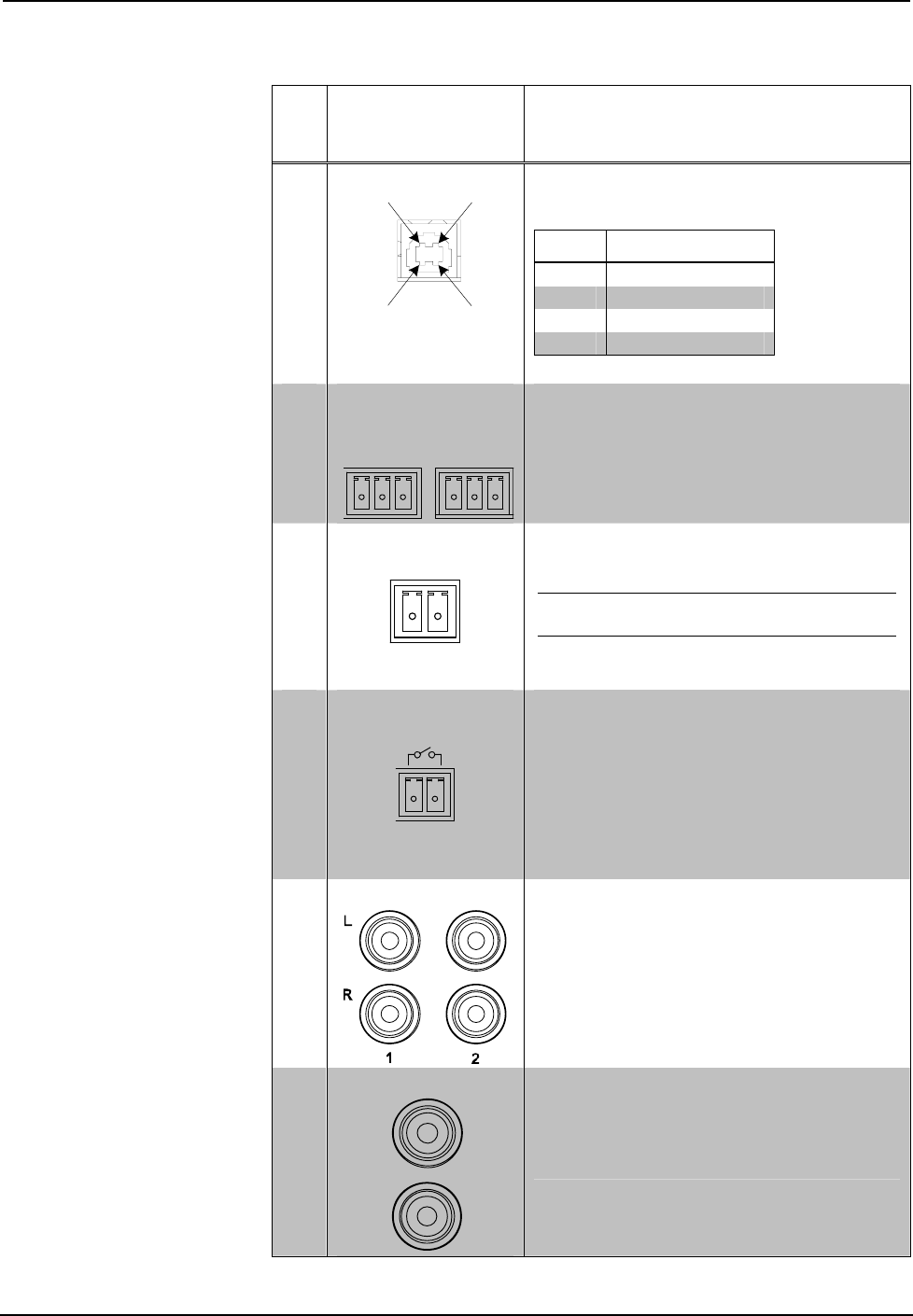

Connectors, Controls & Indicators
# CONNECTORS1,
CONTROLS &
INDICATORS
DESCRIPTION
1 COMPUTER
USB
Pin 2 Pin 1
Pin 3 Pin 4
(1) USB Type B female; USB computer
console port for firmware update and
configuration only
PIN DESCRIPTION
1 +5 VDC
2 Data -
3 Data +
4 Ground
2 Beacon Sensor 1 – 2
1 2
T R S T R S
(2) 3-pin 3.5mm detachable terminal blocks;
Interface for up to (2) MP-FSIR IR Beacon
Sensors2 per terminal block; (4) beacon
sensors, total
3 MUTE SENSOR
S G
(1) 2-pin 3.5mm detachable terminal block;
Contact closure sensing input, or interface for
MP-FS-PAS PA Audio Sensor2;
NOTE: Sensor black wire connects to terminal
G; red wire connects to terminal S.
Mutes all audio outputs when a contact closure
or PA audio signal is sensed
4 ALERT OUT
N.O.
2A 50V
MAX.
(1) 2-pin 3.5mm detachable terminal block;
Normally open isolated relay, software
configurable functionality;
Rated 2 Amp, 50 Volts maximum;
Controlled by mic ALERT button. (Hold button
for 8 seconds, alert relay closes, speakers emit
two beeps)
5 LINE IN 1 – 2
(4) RCA female comprising (2) unbalanced
stereo line-level audio inputs;
Maximum Input Level: 2 Vrms
Input Impedance: 18k Ohms nominal
6 LINE OUT
(2) RCA female;
Unbalanced stereo line-level audio output;
Maximum Output Level: 2 Vrms
Output Impedance: 100 Ohms nominal
(Continued on following page)
6 • Single/Dual-Channel Wireless Mic Receiver: MP-FS-RX1/RX2 Operations & Installation Guide – DOC. 7164A
Crestron MP-FS-RX1/RX2 Single/Dual-Channel Wireless Mic Receiver

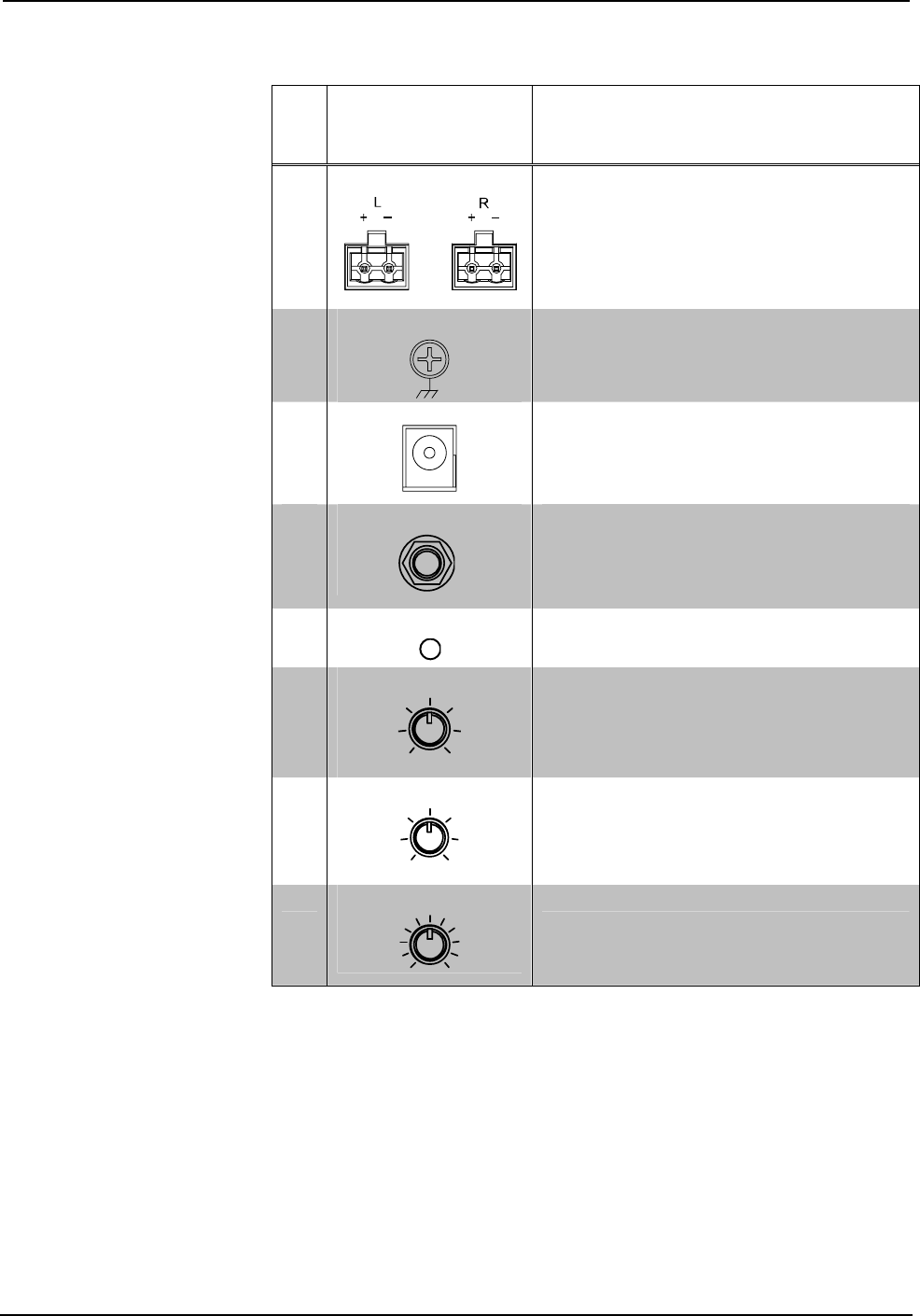

Connectors, Controls & Indicators (Continued)
# CONNECTORS1,
CONTROLS &
INDICATORS
DESCRIPTION
7 SPEAKER OUT 4/8Ω:
(2) 2-pin 5mm detachable terminal blocks
Left & right channel speaker-level audio
outputs;
Wire Size: Connector accepts 14AWG
maximum;
Output Power: 15 Watts per channel at 8 or 4
Ohms
8 G
(1) 6-32 screw, chassis ground lug
9 24 VDC 2.0A (1) 2.0mm barrel DC power jack;
24 Volt DC power input (power pack included)
10 Antenna
(1) Connection for supplied antenna
(MP-FS-RX1)
(2) Connection for supplied antennas
(MP-FS-RX2)
11 PWR
Green LED, indicates operating power supplied
from external power pack
12 BASS
Rotary low frequency boost/cut adjustment
13 TREBLE
Rotary high frequency boost/cut adjustment
14 MASTER VOLUME
Rotary master level adjustment
1. Interface connectors for BEACON SENSOR, MUTE SENSOR and ALERT OUT ports are
provided with the unit.
2. Item sold separately or as part of a MP-FS100_PAK or MP-FS200_PAK system package.
Operations & Installation Guide – DOC. 7164A Single/Dual-Channel Wireless Mic Receiver: MP-FS-RX1/RX2 • 7
Single/Dual-Channel Wireless Mic Receiver Crestron MP-FS-RX1/RX2
Setup
Installation
The MP-FS-RX1/RX2 can be placed on any convenient flat surface in the room,
such as a desk, shelf, table, or ceiling-mounted third-party equipment platform.
• Install all accessory hardware, including power pack, MP-FSIR Beacon
Sensor(s), MP-FS-PAS Audio Sensor, FS6 or FSDI8 speakers, following
their supplied instructions.
• For the MP-FS-RX1, attach the supplied single antenna; for the
MP-FS-RX2, attach the cables from the two supplied antennas (the antennas
should be spaced at least 6 feet (~ 2 meters) apart.
• Orientation of antennas for desk, shelf, or table mounting installations
should be straight up. For ceiling mounted installations (including the
MP-FS-RX1 on a third-party ceiling-mounted equipment platform), antenna
orientation should be straight down. For wall-mounted installations, the
antennas should be at a 45° angle, either up or down, from the wall.
• Install all other required interconnecting cables.
Hardware Hookup
Make the necessary connections as called out in the illustration that follows this
paragraph. Apply power after all connections have been made.
When making connections to the MP-FS-RX1/RX2, note the following:
• Use Crestron power supplies for Crestron equipment.

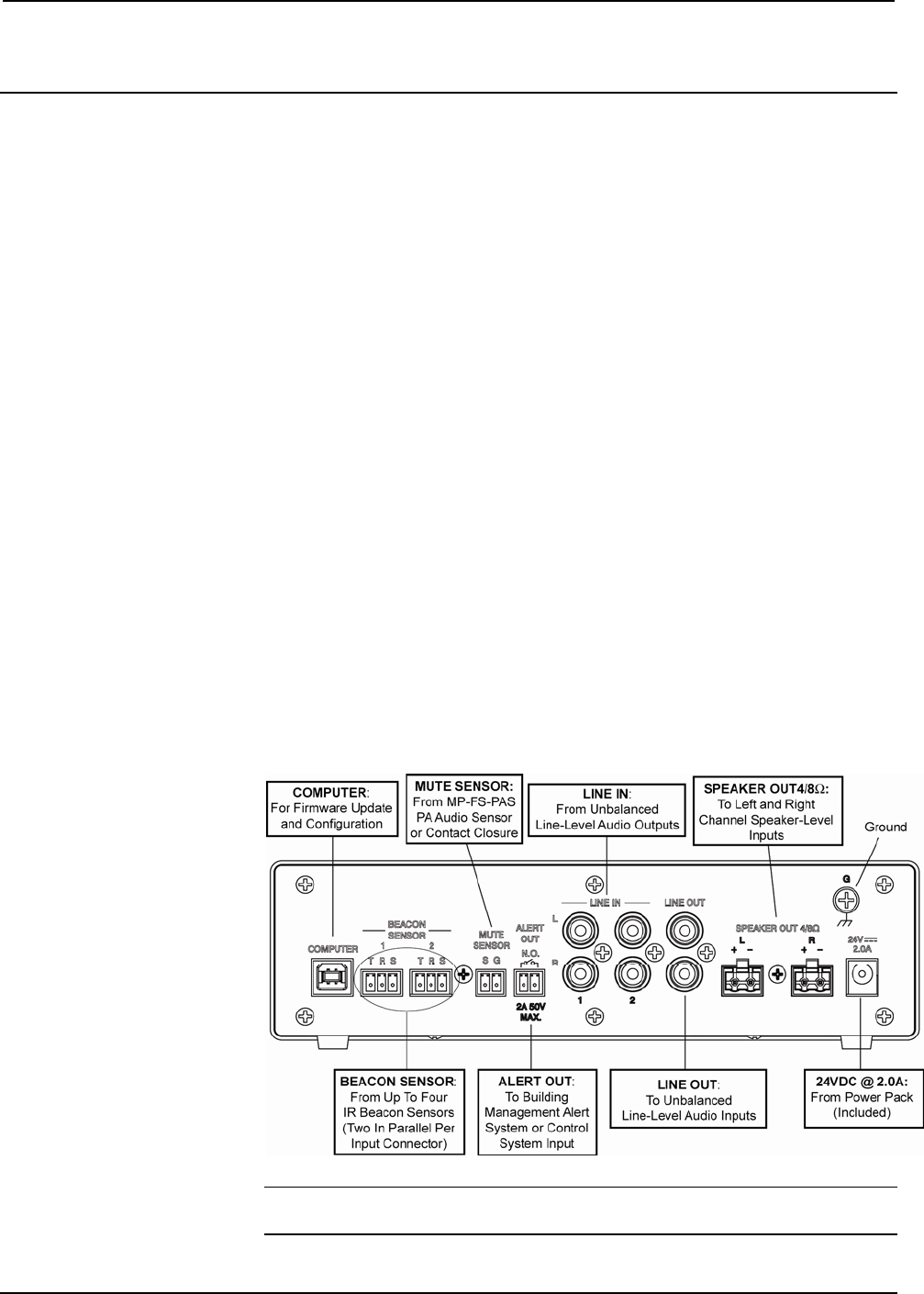

Hardware Connections for the MP-FS-RX1/RX2
NOTE: Ensure the unit is properly grounded by connecting the chassis ground lug
to an earth ground (building steel).
8 • Single/Dual-Channel Wireless Mic Receiver: MP-FS-RX1/RX2 Operations & Installation Guide – DOC. 7164A
Crestron MP-FS-RX1/RX2 Single/Dual-Channel Wireless Mic Receiver
Uploading and Upgrading
Crestron recommends that each device contains the latest firmware to take advantage
of the most recently released features. However, before attempting to upload or
upgrade it is necessary to establish communication. Once communication has been
established, firmware can be transferred to the device.
Establishing Communication
Use Crestron Toolbox™ for communicating with the MP-FS-RX1/RX2; refer to the
Crestron Toolbox help file for details. There is a single method of communication:
USB communication.

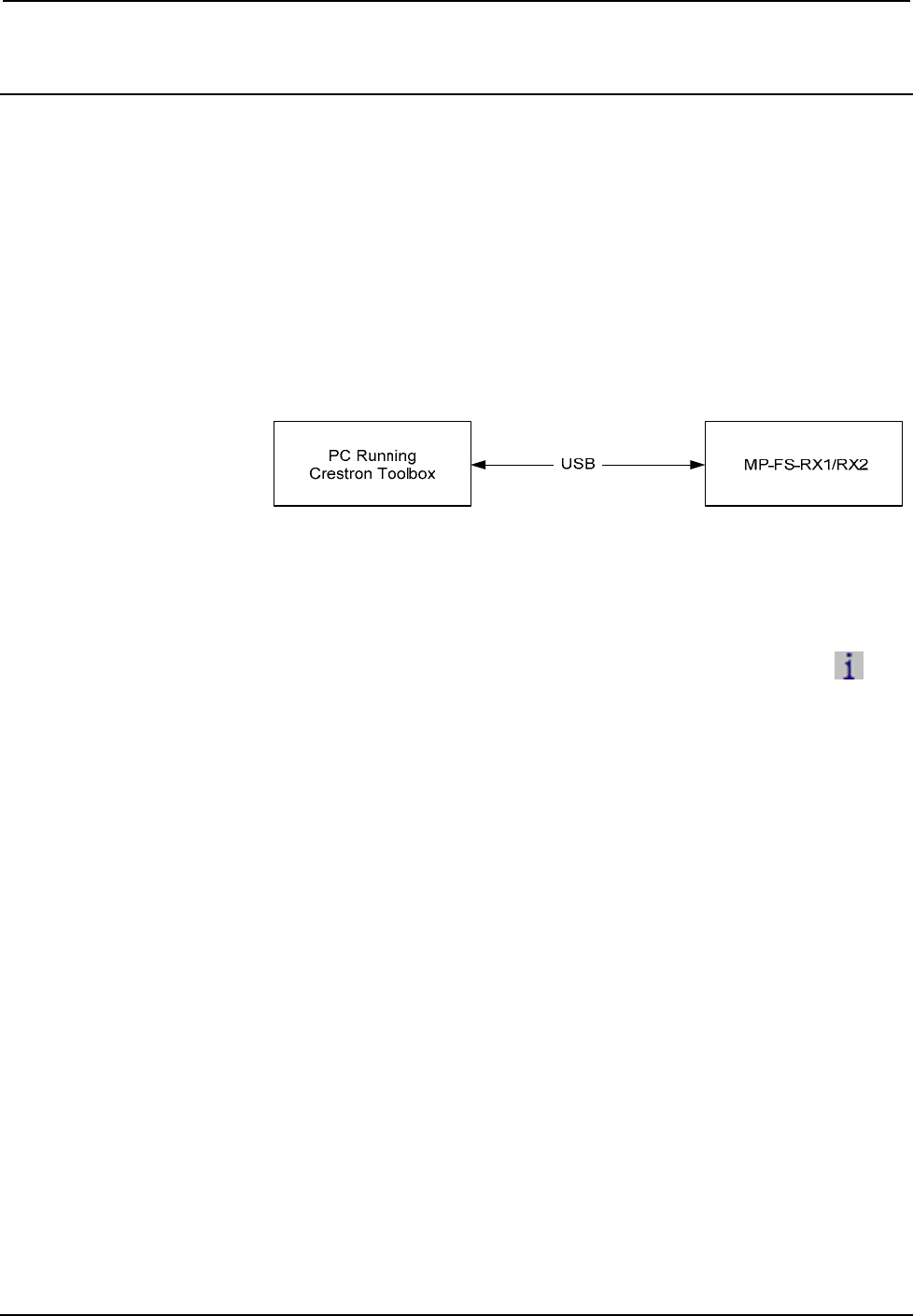

USB Communication
The COMPUTER port on the MP-FS-RX1/RX2 connects to the USB port on the
PC via the included Type A to Type B USB cable:
1. Use the Address Book in Crestron Toolbox to create an entry using the
expected communication protocol (USB).
2. Display the MP-FS-RX1/RX2’s “System Info” window (click the
icon); communications are confirmed when the device information is
displayed.
Firmware
Firmware files may be distributed from programmers to installers or from Crestron
to dealers. Firmware upgrades are available from the Crestron Web site as new
features are developed after product releases. Upgrade via the Crestron Toolbox. For
details on upgrading, refer to the Crestron Toolbox help file.
Operations & Installation Guide – DOC. 7164A Single/Dual-Channel Wireless Mic Receiver: MP-FS-RX1/RX2 • 9
Single/Dual-Channel Wireless Mic Receiver Crestron MP-FS-RX1/RX2
Operation
Basic Procedures
Before beginning, ensure that the MP-FS-RX1/RX2 receiver is installed and
connected as instructed in “Setup” on page 8, that power is on (the green LED is on),
that line level audio is supplied from a DVD player, a laptop computer, or other
device, and that the MP-FSMIC microphone has been fully charged.

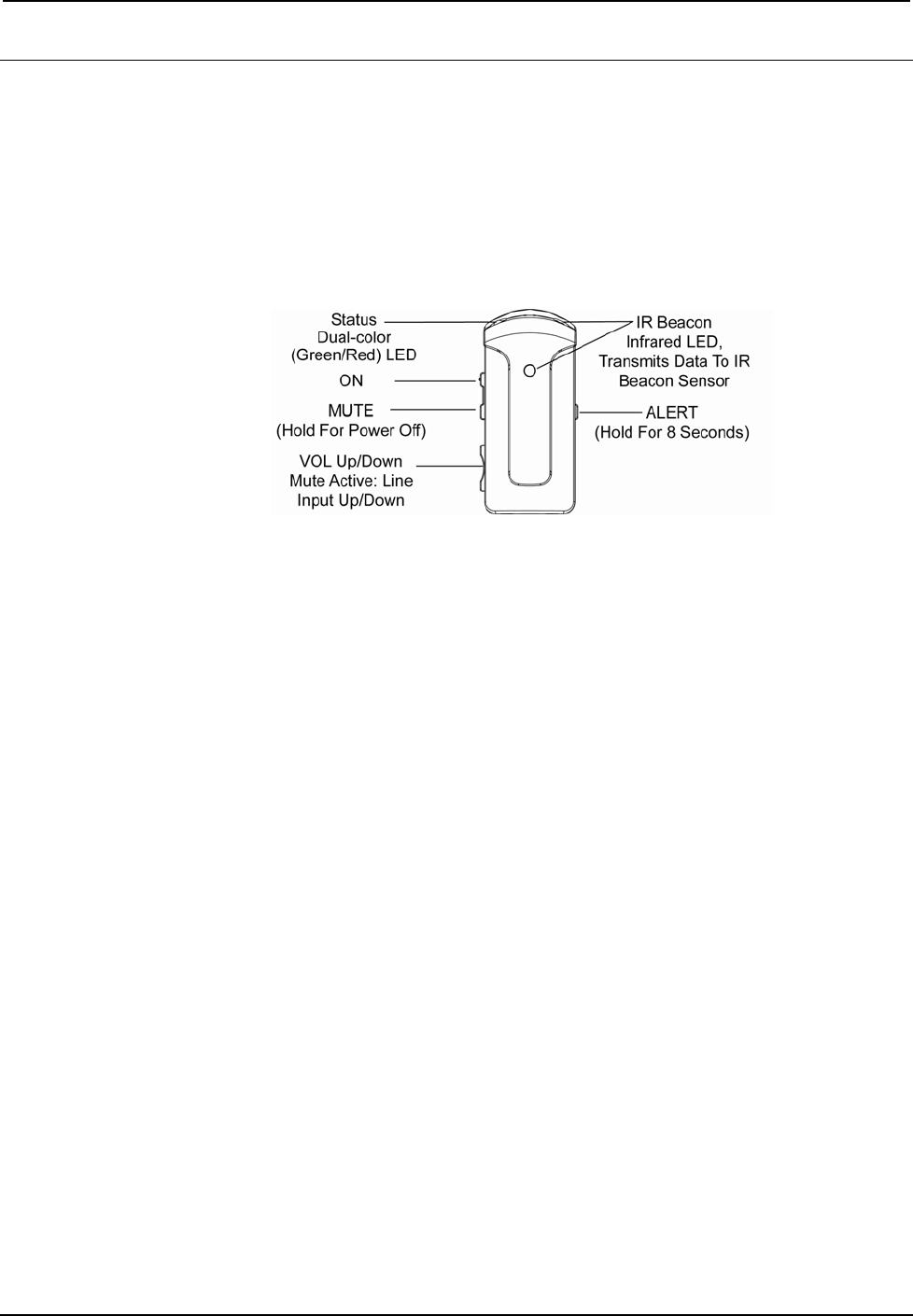

Microphone Button/LED Functions
During the following verification procedures, refer to the illustration above.
Pair Microphone with Receiver
1. Hold the MP-FSMIC ON button until the mic Status LED rapidly flashes green.
2. The mic will begin pairing with the receiver. Make sure the mic has line of sight
proximity to the MP-FSIR. When pairing is complete, the Status LED will
slowly blink green. Time to pair is typically between five and ten seconds.
The mic must be turned off and turned on again to pair to another receiver.
Mute and Volume Adjustments
1. Press the MUTE button to mute the mic (observe the blink pattern); press it
again to un-mute. When muted, the mic automatically turns off after two
minutes.
2. When the mic is not muted, the VOL button can be used to adjust the mic
volume.
3. When the mic is muted, the VOL button adjusts the line level audio volume.
4. Line volume is automatically “ducked” (reduced) when the user talks into the
mic.
5. Hold the MUTE button for five seconds to turn off the mic (turns off
automatically if muted for two minutes, or when placed in the charger.)
6. If the mic loses sight of the MP-FSIR for seven seconds (time is configurable),
the mic will automatically mute (turns off automatically if muted for two
minutes).
7. If RF link is lost for 10 seconds, mic turns off.
Emergency Trigger
Hold the ALERT button for eight seconds (time is configurable) to generate two
beeps from the speakers and close the alert relay contacts until the button is released.
10 • Single/Dual-Channel Wireless Mic Receiver: MP-FS-RX1/RX2 Operations & Installation Guide – DOC. 7164A
Crestron MP-FS-RX1/RX2 Single/Dual-Channel Wireless Mic Receiver
Receiver Controls - Default Settings
BASS and TREBLE: Typically, set these controls to their center detent positions.
Slightly reducing treble can help to reduce feedback.
MASTER VOLUME: Have the instructor speak from the most likely position in the
room and adjust this control clockwise so that the speakers just begin to exhibit
feedback, and then reduce the setting slightly by turning counterclockwise.
Operations & Installation Guide – DOC. 7164A Single/Dual-Channel Wireless Mic Receiver: MP-FS-RX1/RX2 • 11
Single/Dual-Channel Wireless Mic Receiver Crestron MP-FS-RX1/RX2
Problem Solving
Troubleshooting
The following table provides corrective action for possible trouble situations. If
further assistance is required, please contact a Crestron customer service
representative.
MP-FS-RX1/RX2 Troubleshooting
TROUBLE POSSIBLE CAUSE(S) CORRECTIVE ACTION
Mic mutes. Loss of IR signal Make certain beacon sensor
is not mounted near window
or lighting fixture.
Make certain IR beacon LEDs
are not blocked by clothing or
by being held.
Low battery Charge the mic.
High-pitch noise
(feedback) Mic is picking up sound
from speakers Turn down mic volume,
decrease master volume,
move speakers to a location
that the mic is not typically
close to, e.g., the back of the
room.
Poor sound
quality. Cables improperly
connected. Verify all cables are secure.
For MP-FS-RX2,
antennas not 6 feet (2
meters) apart.
Adjust antenna spacing to 6
feet (2 meters) minimum.
Further Inquiries
If you cannot locate specific information or have questions after reviewing this
guide, please take advantage of Crestron's award winning customer service team by
calling Crestron at 1-888-CRESTRON [1-888-273-7876]. For assistance in your
region, please refer to the Crestron Web site (www.crestron.com) for a listing of
Crestron worldwide offices.
You can also log onto the online help section of the Crestron Web site
(www.crestron.com/onlinehelp) to ask questions about Crestron products. First-time
users will need to establish a user account to fully benefit from all available features.
Future Updates
As Crestron improves functions, adds new features and extends the capabilities of
the MP-FS-RX1/RX2, additional information may be made available as manual
updates. These updates are solely electronic and serve as intermediary supplements
prior to the release of a complete technical documentation revision.
Check the Crestron Web site periodically for manual update availability and its
relevance. Updates are identified as an “Addendum” in the Download column.
12 • Single/Dual-Channel Wireless Mic Receiver: MP-FS-RX1/RX2 Operations & Installation Guide – DOC. 7164A
Crestron MP-FS-RX1/RX2 Single/Dual-Channel Wireless Mic Receiver
Return and Warranty Policies
Merchandise Returns / Repair Service
1. No merchandise may be returned for credit, exchange or service without prior authorization
from CRESTRON. To obtain warranty service for CRESTRON products, contact an
authorized CRESTRON dealer. Only authorized CRESTRON dealers may contact the factory
and request an RMA (Return Merchandise Authorization) number. Enclose a note specifying
the nature of the problem, name and phone number of contact person, RMA number and
return address.
2. Products may be returned for credit, exchange or service with a CRESTRON Return
Merchandise Authorization (RMA) number. Authorized returns must be shipped freight
prepaid to CRESTRON, 6 Volvo Drive, Rockleigh, N.J. or its authorized subsidiaries, with
RMA number clearly marked on the outside of all cartons. Shipments arriving freight collect
or without an RMA number shall be subject to refusal. CRESTRON reserves the right in its
sole and absolute discretion to charge a 15% restocking fee plus shipping costs on any
products returned with an RMA.
3. Return freight charges following repair of items under warranty shall be paid by CRESTRON,
shipping by standard ground carrier. In the event repairs are found to be non-warranty, return
freight costs shall be paid by the purchaser.
CRESTRON Limited Warranty
CRESTRON ELECTRONICS, Inc. warrants its products to be free from manufacturing defects in materials
and workmanship under normal use for a period of three (3) years from the date of purchase from
CRESTRON, with the following exceptions: disk drives and any other moving or rotating mechanical
parts, pan/tilt heads and power supplies are covered for a period of one (1) year; touchscreen display and
overlay components are covered for 90 days; batteries and incandescent lamps are not covered.
This warranty extends to products purchased directly from CRESTRON or an authorized CRESTRON
dealer. Purchasers should inquire of the dealer regarding the nature and extent of the dealer's warranty, if
any.
CRESTRON shall not be liable to honor the terms of this warranty if the product has been used in any
application other than that for which it was intended or if it has been subjected to misuse, accidental
damage, modification or improper installation procedures. Furthermore, this warranty does not cover any
product that has had the serial number altered, defaced or removed.
This warranty shall be the sole and exclusive remedy to the original purchaser. In no event shall
CRESTRON be liable for incidental or consequential damages of any kind (property or economic damages
inclusive) arising from the sale or use of this equipment. CRESTRON is not liable for any claim made by a
third party or made by the purchaser for a third party.
CRESTRON shall, at its option, repair or replace any product found defective, without charge for parts or
labor. Repaired or replaced equipment and parts supplied under this warranty shall be covered only by the
unexpired portion of the warranty.
Except as expressly set forth in this warranty, CRESTRON makes no other warranties, expressed or
implied, nor authorizes any other party to offer any warranty, including any implied warranties of
merchantability or fitness for a particular purpose. Any implied warranties that may be imposed by law are
limited to the terms of this limited warranty. This warranty statement supersedes all previous warranties.
Operations & Installation Guide – DOC. 7164A Single/Dual-Channel Wireless Mic Receiver: MP-FS-RX1/RX2 • 13
Single/Dual-Channel Wireless Mic Receiver Crestron MP-FS-RX1/RX2
This page is intentionally left blank.
14 • Single/Dual-Channel Wireless Mic Receiver: MP-FS-RX1/RX2 Operations & Installation Guide – DOC. 7164A
Crestron MP-FS-RX1/RX2 Single/Dual-Channel Wireless Mic Receiver
This page is intentionally left blank.
Operations & Installation Guide – DOC. 7164A Single/Dual-Channel Wireless Mic Receiver: MP-FS-RX1/RX2 • 15
Crestron Electronics, Inc. Operations & Installation Guide – DOC. 7164A
15 Volvo Drive Rockleigh, NJ 07647 (2030215)
Tel: 888.CRESTRON 05.11
Fax: 201.767.7576 Specifications subject to
www.crestron.com change without notice.
