WWW.CROUZET-AUTOMATION.COM
alert,
THE BEST NANO-PLC
FOR COMMUNICATING VIA TEXT, EMAIL OR FTP
FTP
The programmable logic controller which sends alerts via text messaging,
stores data logs in .csv format (Excel) and sends them by email or FTP.
alert,
A MOUNTAIN OF OPPORTUNITIES...
For complete access to your equipment:
*
The FTP (File Transfer Protocol) server transfers files via the Internet or a local computer network (intranet). Any person with the appropriate permission can upload and
send files to a remote computer running such a server.
**
Text file which can be manipulated in an Excel spreadsheet.
Whether you are an installer, electrician, integrator, manufacturer of small machines or
you work in a design ofce or local authority, em4 alert is perfectly suited to your needs.
Crouzet
Automation
has identied
four application
examples where
em4 alert is
particularly
appropriate.
ACCESS CONTROL
COMPACTOR
PUMPING / LIFTING
BUILDING APPLICATIONS
Start, stop, control
Monitor and control your
application from your mobile
phone or PC
Essential information
Save data (data log) from your
installation and periodically
receive a .csv file** by email or
FTP server*
Event notifications
Receive events (alarms) by email
or SMS
Simplified process
Optimize your machine's process
by remotely modifying its program
via an FTP server*
FTP
FTP
› Easier to learn
and use
› More efficient
maintenance
› Reduced
transport costs
› Reduced
operating costs
› Better energy
management
› Easier data
archiving
› Accurate
measurements
from your
industrial sensors
› No training costs
to consider
The most
intelligent
and easiest
solution for
remotely
managing
your
installations
Watch the em4
alert videos
THE alert RANGE
em4 alert
Event management by text
message or email
Receive a text message or email,
as soon as an event occurs in your
application
Simple monitoring and control
via text messaging
Display and check the data values
from your application via text
messaging
Remote directory management
Remotely manage telephone
numbers and email addresses via
text messaging
em4 tool box
soft
Remote monitoring of an installation by SMS or email
› The installation sends an alert if an event occurs
› Sends data logs
› Machines can exchange messages with each other
Small programmable logic controller which alerts you
by text message or email
› Programming the application and communication
functions, using unique software, em4 soft
› Secure solution, only identified users can interact with it
› Data logging via email or FTP
› Directory updated remotely
› Programs downloaded remotely via an FTP server
Remotely update the application
program
Remotely update your application
program via FTP server and SMS
commands
Communication between logic
controllers via text messaging
Data exchange between logic
controllers via text messaging
Data report via text message,
data log via email or FTP
Receive periodic reports by text
message or email and .csv files via
email or FTP
FTP
FTP
Data logging once a day a .csv format le (Excel) via
email or FTP.
Alarm notications by text message or email
Control via text messaging (closing the windows in
several greenhouses).
Information exchanges between products by text
message (wind speed).
Feature allowing the installer/electrician to change the
application program remotely.
Optimize your installations with alert
DEDICATED APPLICATIONS
Example:
greenhouse
management
Your needs
You want to measure the
temperature, hygrometry,
light intensity or even the wind
speed?
You want to control heating,
irrigation and window opening
remotely, carry out daily dosing?
You want to be sure that you
have stored the daily history for
this information? You want early
warning of any deviation from
these values?
You want to detect any intrusion
on your premises?
You have several installations
and you want to remotely control
them all at the same time
(weather alerts)
You want to minimize the cost of
your installation (example: one
anemometer to cover
several greenhouses)?
You want to manage changes
and optimize the operation of
your greenhouses?
the solution
4-20mA, 0-10V analog inputs, temperature measurement
via NTC and light levels by LDR with no need for a
converter, quick effective inputs (60 kHz).
Interrogations and modications to parameters by
text messaging (temperature set-point, etc.). Send
commands via text message (heating on/off). Intuitive
functional blocks for time management and time slots
(timer, calendar). Accurate regulation by self-adapting
PID controller.

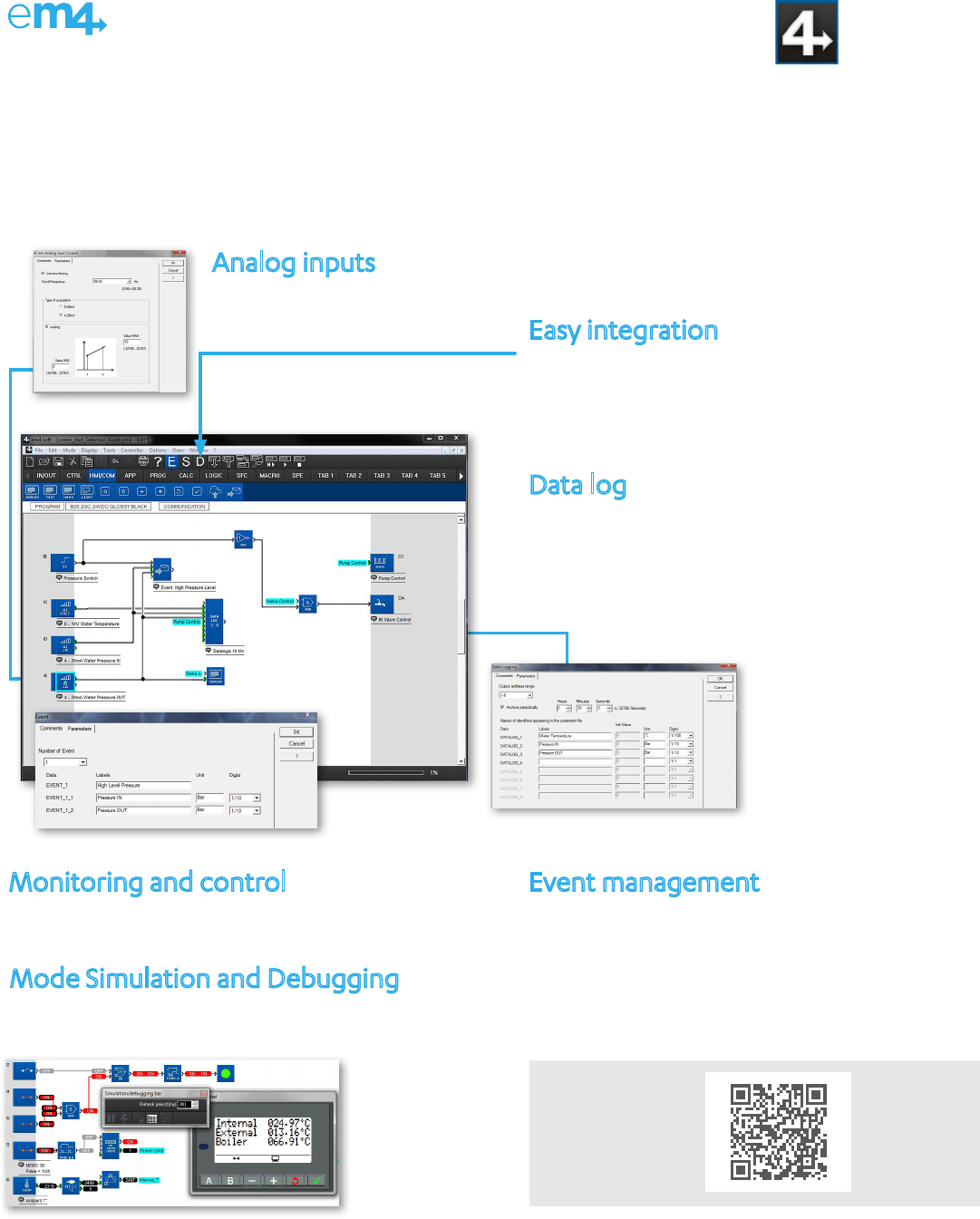

Easy integration
› Editing, Simulation and Debug modes
allow you to set up and configure your
application program.
Analog inputs
› Analog input blocks integrating
a scale factor and filtering
function.
THE MOST INTUITIVE ON THE MARKET
Event management
› Up to 24 functional "Event" blocks for sending
customizable alert messages which can be
understood by recipients or interpreted by
your remote management application.
Data log
› Up to three functional blocks allow the his-
tory of 24 values to be saved by sending
a .csv file by email or FTP.
Mode Simulation and Debugging
› Optimized mode simulation
› Colors make active signals clearly visible
Monitoring and control
› Functional monitoring blocks for remotely changing or reading
values in the application program.
soft,
› Saves time when designing your application and remote functions by using a graphical
programming language.
The most intuitive, free programming software on the market, em4 soft, includes all remote
management functions in a single tool.
Download em4
soft free of
charge.
ABOUT
CROUZET AUTOMATION
Supported by an experienced technical team, Crouzet Automation is a pioneer in the
simplication of programming. The brand offers the easiest-to-use and most adaptable
alternative automation solution for specialized and demanding needs.
Crouzet Automation is a brand of InnoVista Sensors™.
www.crouzet-automation.com
Contact:
Tel.: +1 (800) 677 5311
Fax: +1 (800) 677 3865
Email: americas.custserv@crouzet.com
InnoVista Sensors™: your trusted partner of choice to face industrial challenges of today
and tomorrow.
InnoVista Sensors™ is a worldwide industrial specialist of sensors, controllers and
actuators for automated systems.
Through its brands, Crouzet Aerospace, Crouzet Automation, Crouzet Control,
Crouzet Motors, Crouzet Switches and Systron Donner Inertial, InnoVista Sensors™
offers a wide range of reliable, efcient and customizable components dedicated to the
Aerospace & Defense, Transportation and Industrial market and segments.
Thanks to the recognized expertise of its teams and a strong innovation policy,
InnoVista Sensors™ brings performance enhancing solutions to its customers
worldwide.
www.innovistasensors.com
Contact us!
Follow us
E10R digital extension
em4 base - General data
Main features
Power supply 24 V DC (-15% / +20%) 4W-6.5W
Operating temperature -20°C to 60°C
MMI 4 lines of 18 characters (black and white)
6-button keypad
Programming FBD (including SFC)
Large capacity memory ~1000 functional blocks
Clock Backed up by a recyclable internal battery with a 10-year
lifespan
Connections Mobile or Ethernet network
Optional interfaces USB, RS485 slave Modbus
Protection
IP20 on I/O terminals
IP40 on the Glossy front panel
IP50 on the Robust front panel
Certication CE, cULus listed
No. Main features
2
Static 24 V DC 0.5A digital outputs
10 bit PWM 24 V DC analog outputs
(0-10V or 4-20mA with an external converter)
2250 V AC / 6A relay outputs
6250 V AC / 8A relay outputs
One with NO/NC contact
em4 base - Outputs
No. Main features
6
24 V DC on/off inputs
12-bit analog inputs (Potent. or 0-28.8V ±2%) for digital time converter, LDR
10-bit analog inputs (0-10V ±1.1%)
2250 V AC relay outputs / 6A digital outputs
2250 V AC relay outputs / 8A digital outputs
Accuracy of analog inputs at 25°C
Ref. 6700116/B US - 03/2016 - Photography - Visuals: Preview / Crouzet Automation
E10A analog extension
em4 alert nano-PLC
em4 extensions
alert TECHNICAL DATA
No. Main features
4
24 V DC on/off inputs
Quick encoder inputs (20kHz or 40kHz), counter (60kHz), tachometer, timer,
time interval meter
8
24 V DC on/off inputs
12-bit analog inputs (Potent. or 0-28,8V ±2%) for NTC, LDR
10-bit analog inputs -10V ±1.1%)
4
24 V DC on/off inputs
12-bit analog inputs (0-10V ±0.8%)
11-bit analog inputs (0-20mA / 4-20mA ±1.2%)
Accuracy of analog inputs at 25°C
em4 base - Inputs
No. Principal features
6
24 V DC on/off inputs
12-bit analog inputs (0-10V ±0.8%)
11-bit analog inputs (0-20 / 4-20mA ±1.2%)
2
24 V DC 0.5A static outputs
24 V DC PWM analog outputs
(0-10V or 4-20mA outputs with external converter)
210-bit 0-10V analog outputs (±1%)
Accuracy of analog inputs and outputs at 25°C
em4 alert
product pages
X2 maximum
em4 References
Description Reference
Glossy Black
em4 alert 2G 88 981 113
em4 alert 3G 88 981 123
Starter kit em4 alert 2G 88 981 116
Starter kit em4 alert 3G 88 981 126
em4 digital expansion E10R 88 982 113
em4 analog expansion E10A 88 982 213
Antenna 3 m standard 88 980 160
em4 USB interface black 88 980 110
