www.crouzet.com
Control & Automation Overview
Behind every project,
technologies and expertise
• Timers
• Control relays
• Counters and
Ratemeters
• Temperature
controllers
• Safety relays
• Logic controllers
l Panorama Crouzet Control / Crouzet Automation
3
I www.crouzet.com
2
P. 4-7
P. 9-24
P. 25-36
P. 37-50
P. 51-58
P. 59-66
P. 67-81
P. 82-91
DIN rail mounted Panel mounted
Electronic Electromechanical
Modular casing Industrial casing
Digital Accessories
Relevelling control Machine safety
AccessoriesMillenium 3
Crouzet Control
• Presentation P. 4
• Expertise P. 6

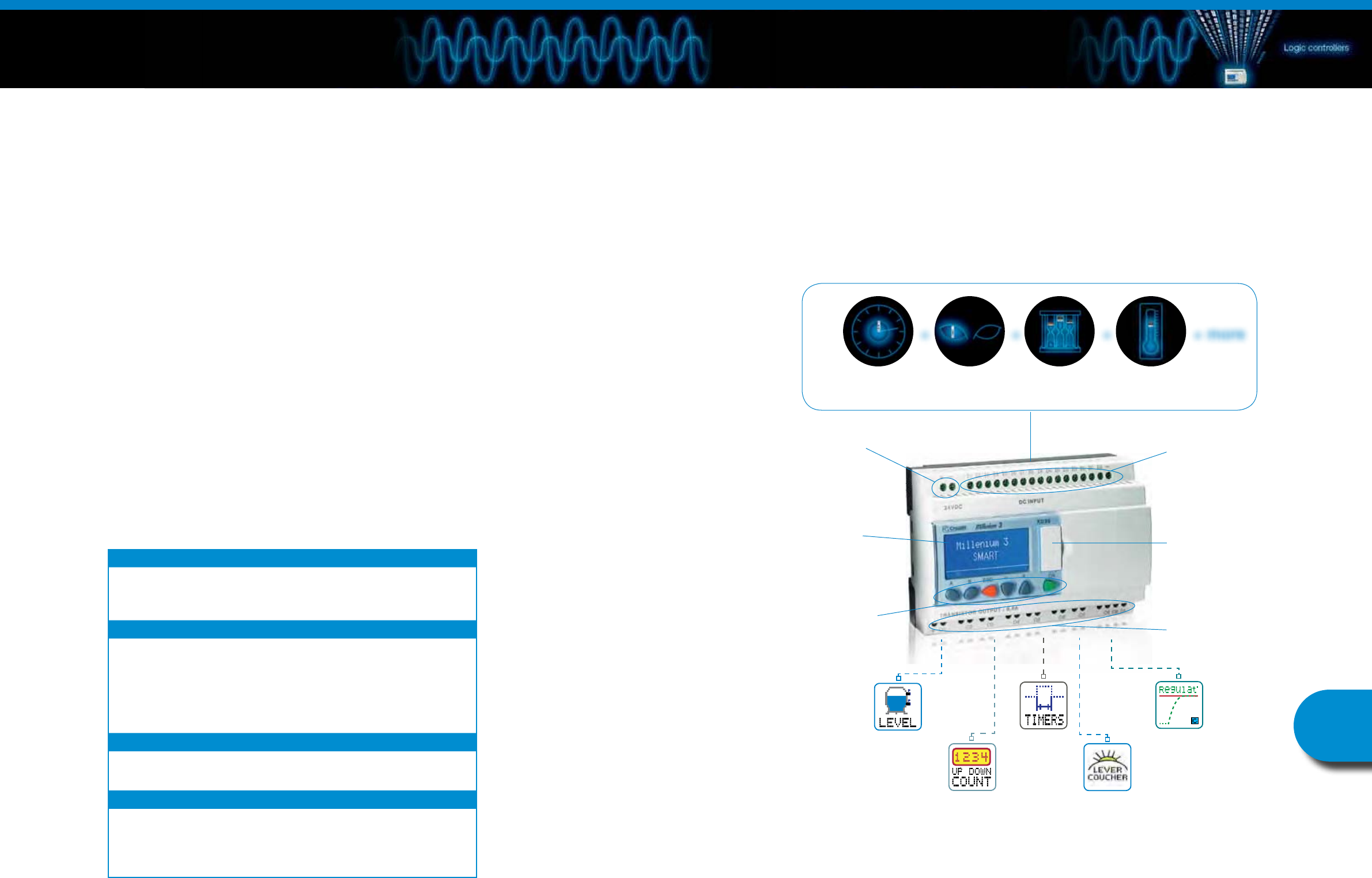

Logic controllers
• The basics P. 66
• Millenium 3 P. 69
• The range P. 70
• Accessories P. 71
• Communication solutions P. 72

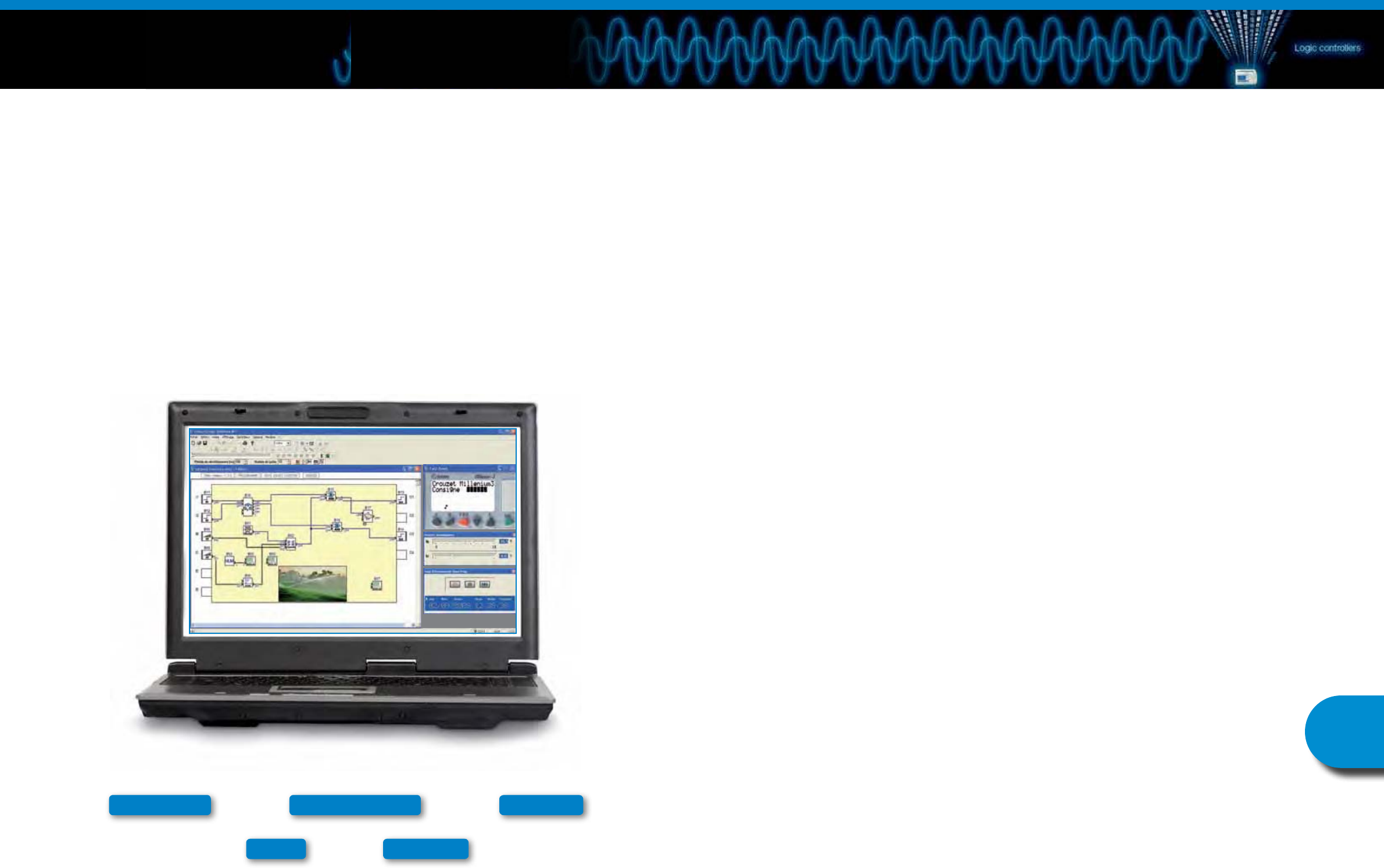

• M3 Soft software P. 74

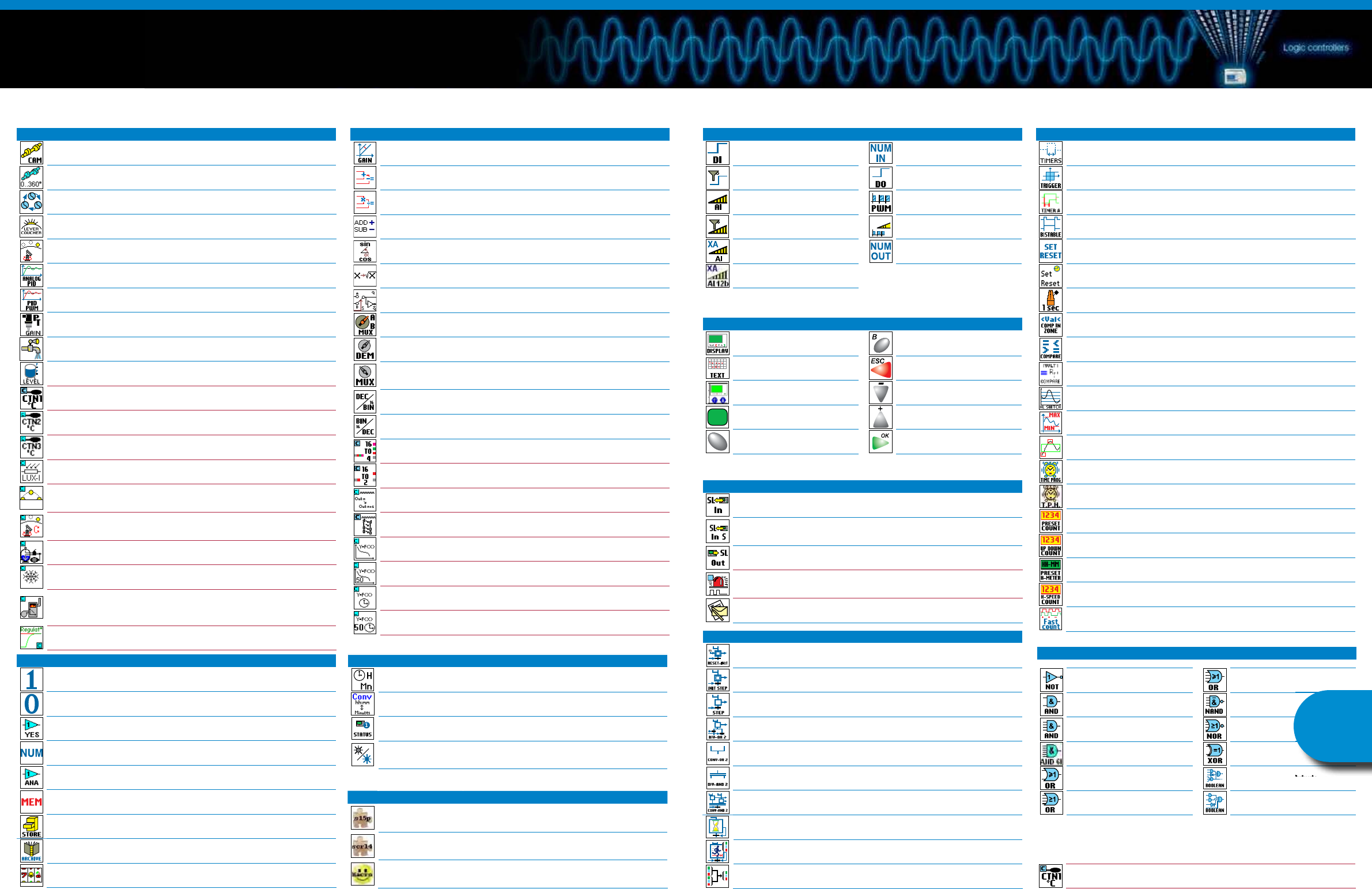

• Function blocks P. 76

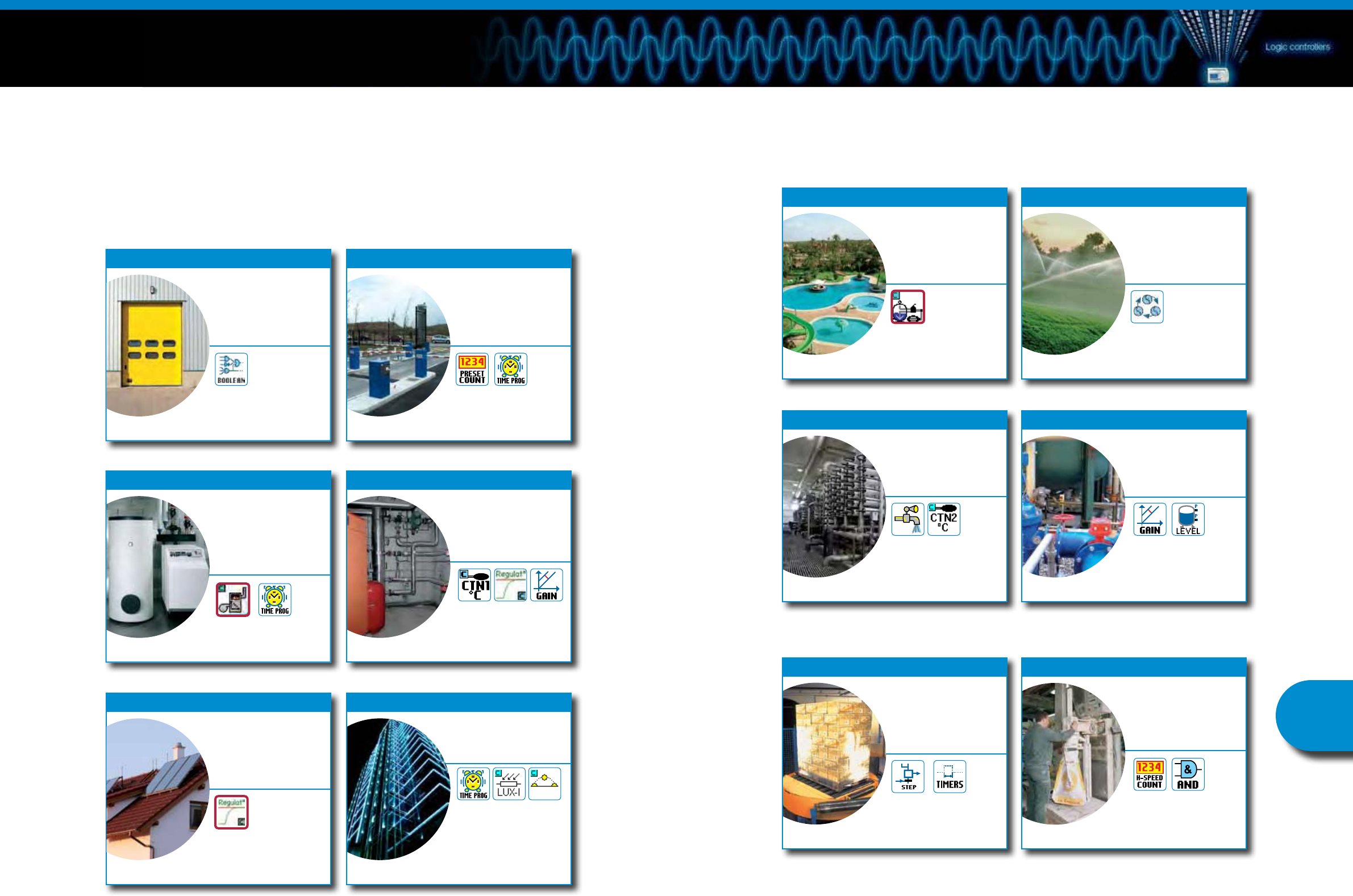

• Applications P. 78

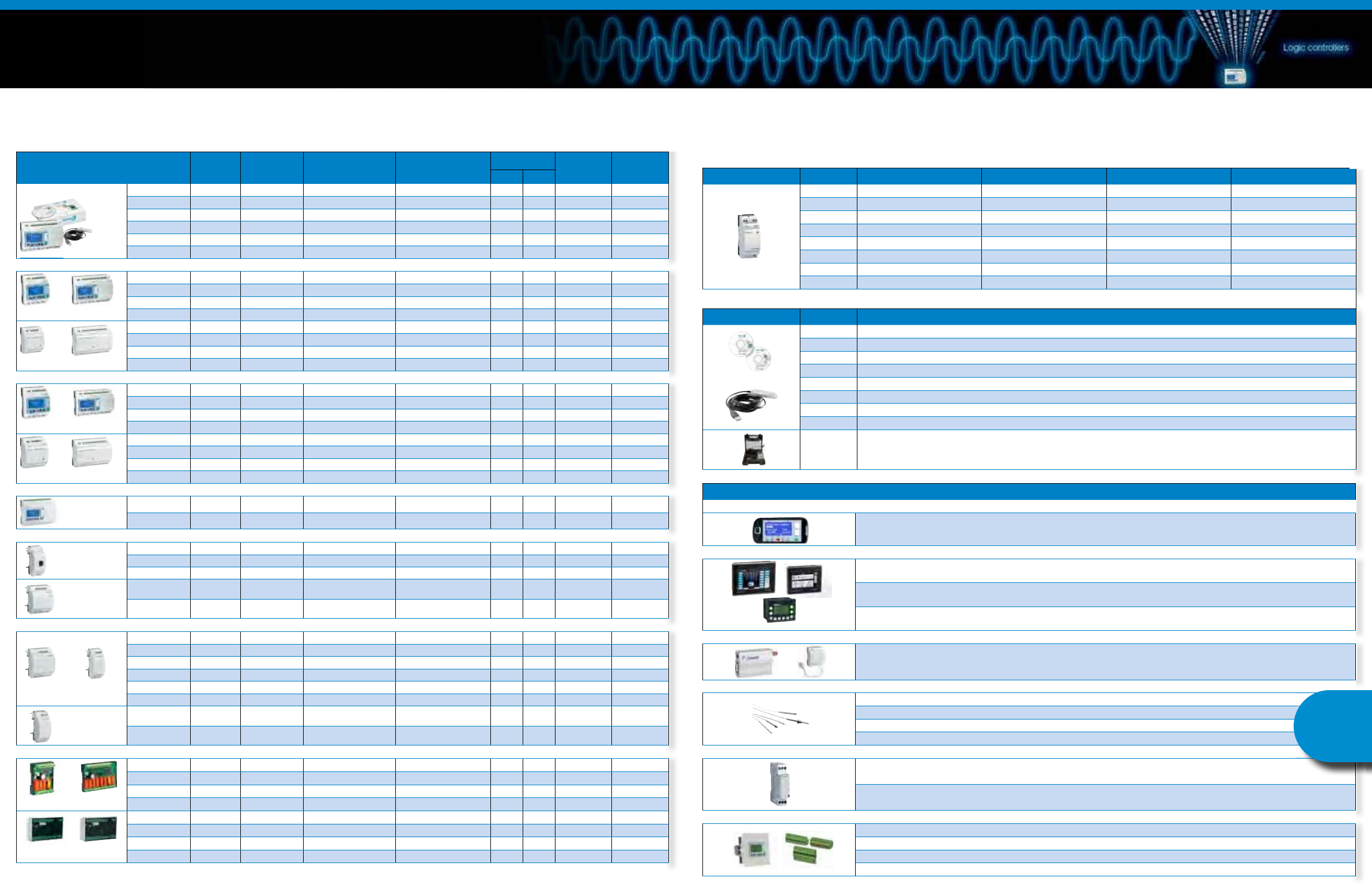

• Selection guide P. 80

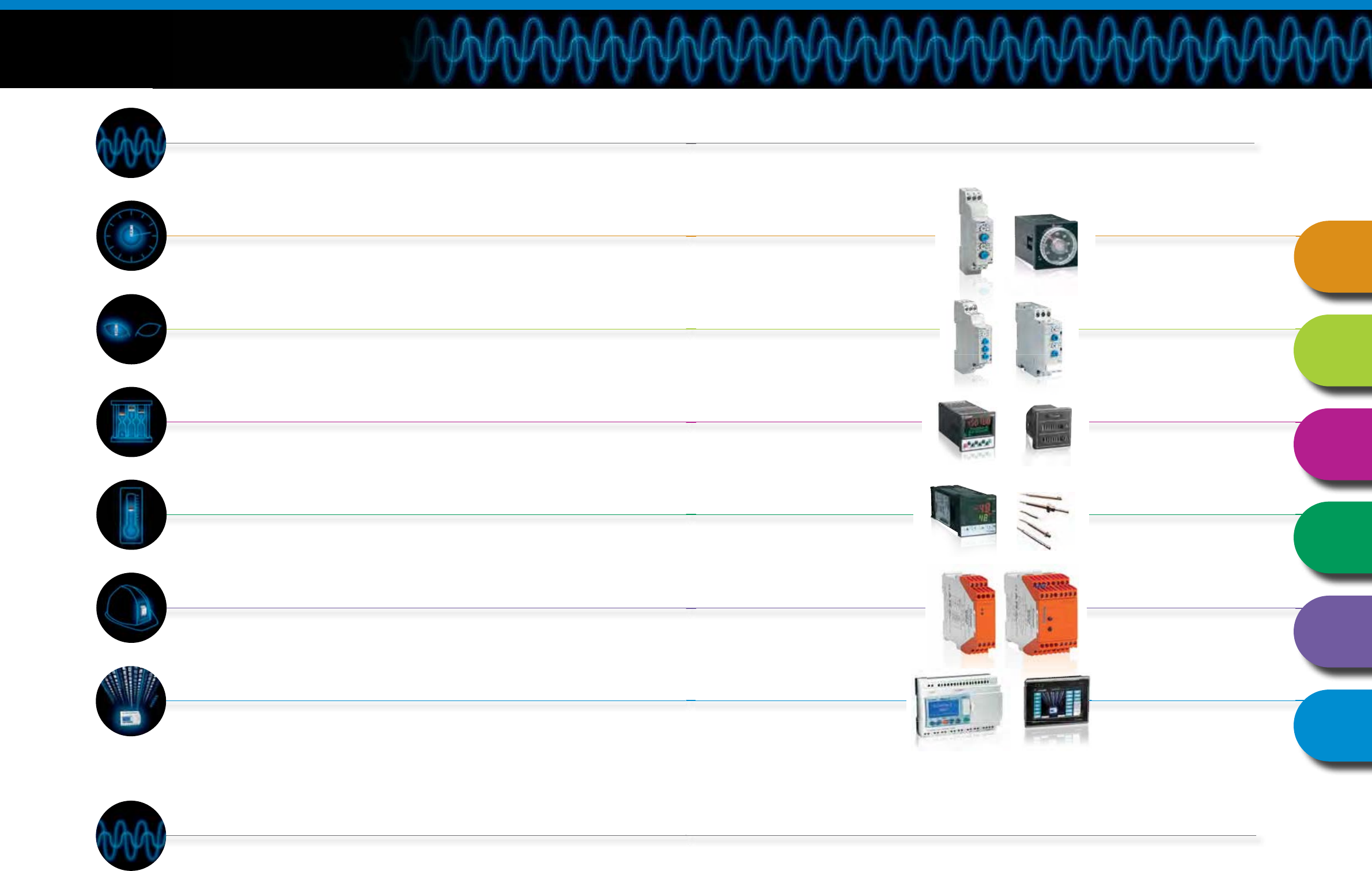

Contents
Timers
Control
relays
Counters
and
Ratemeters
Temperature
controllers
Safety
relays
Logic
controllers
Timers
• The basics P. 10
• Applications P. 12
• Selection guide P. 14

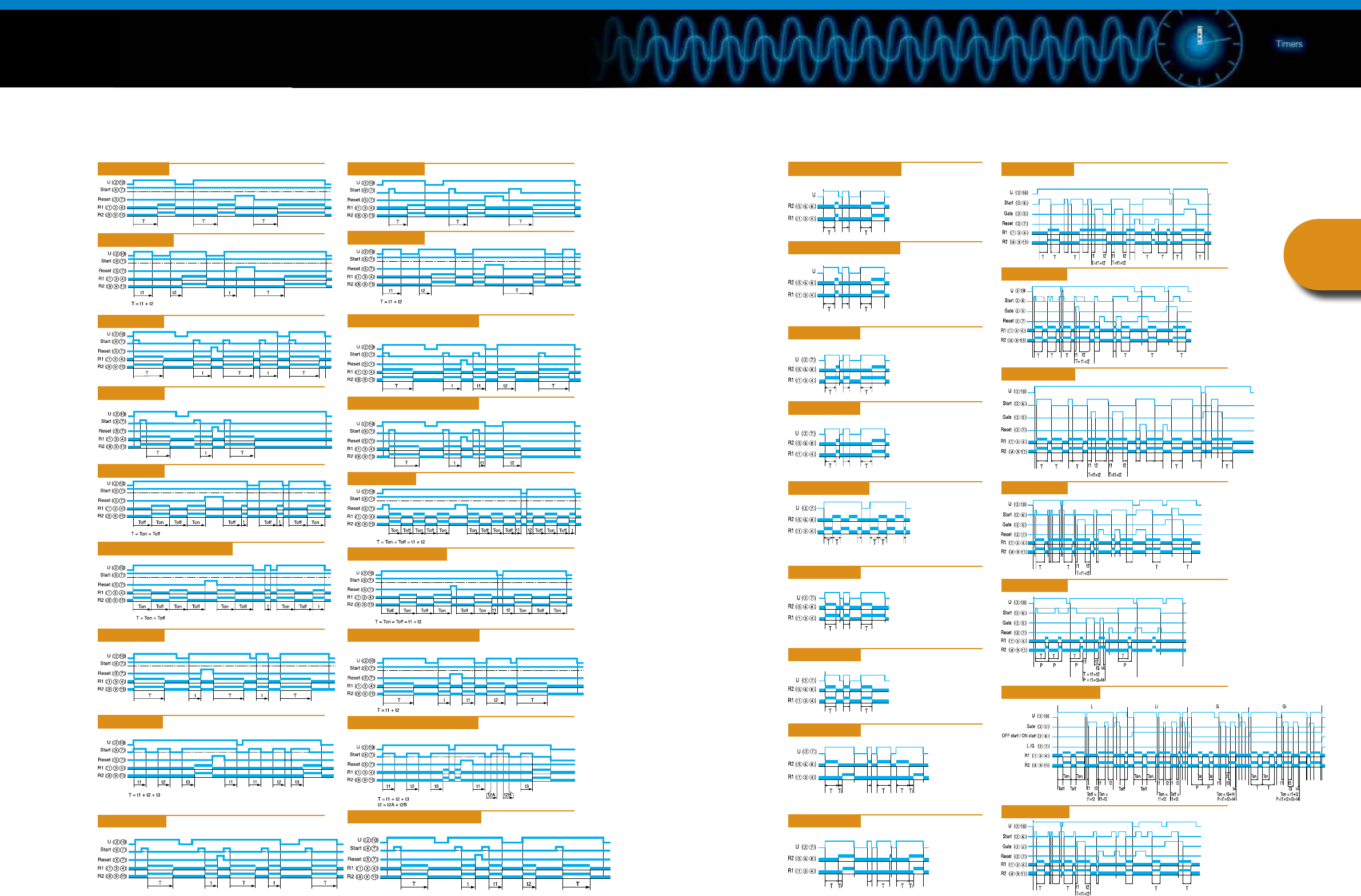

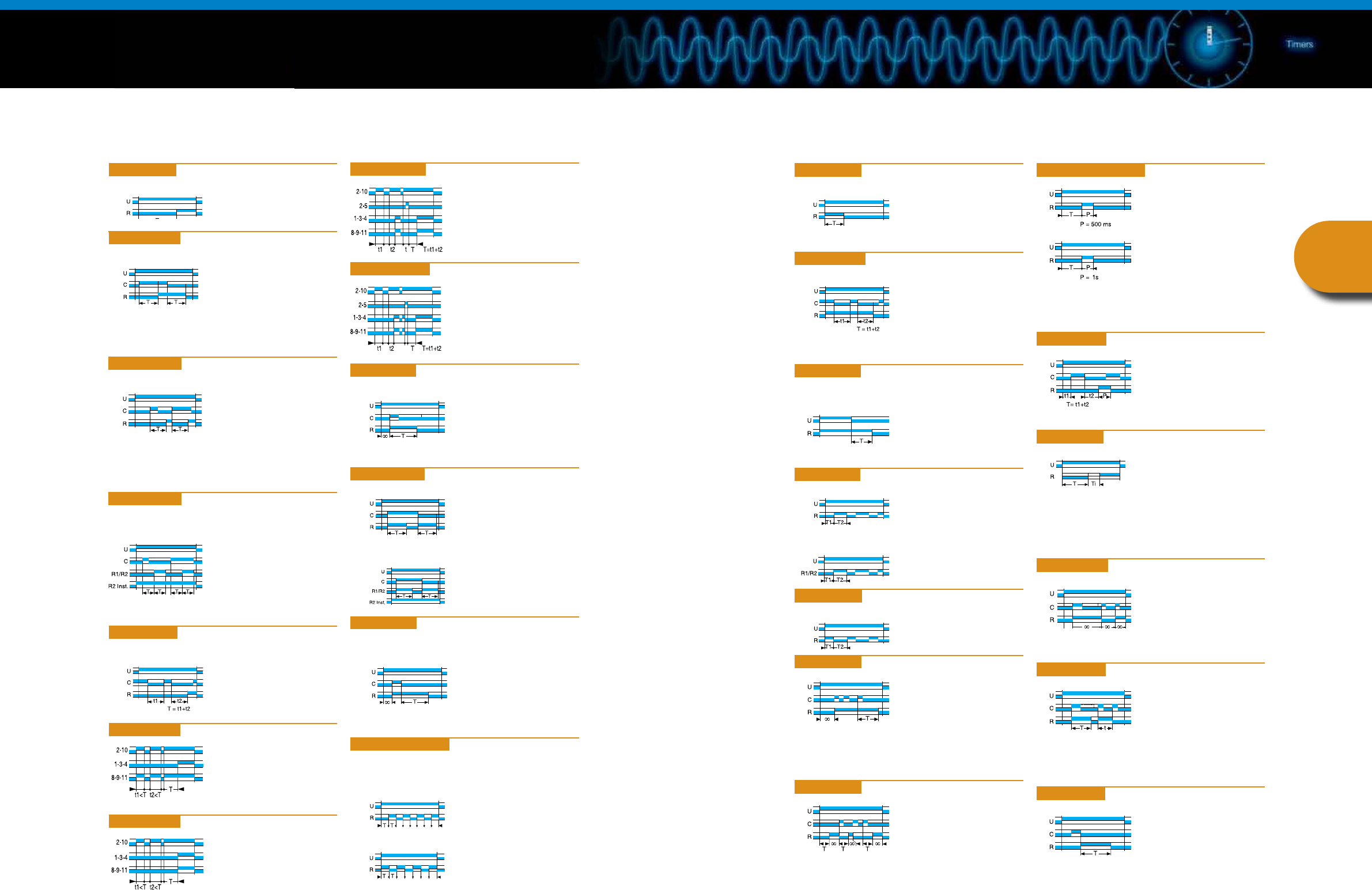

• Function diagrams P. 20
Control relays
• The basics P. 26

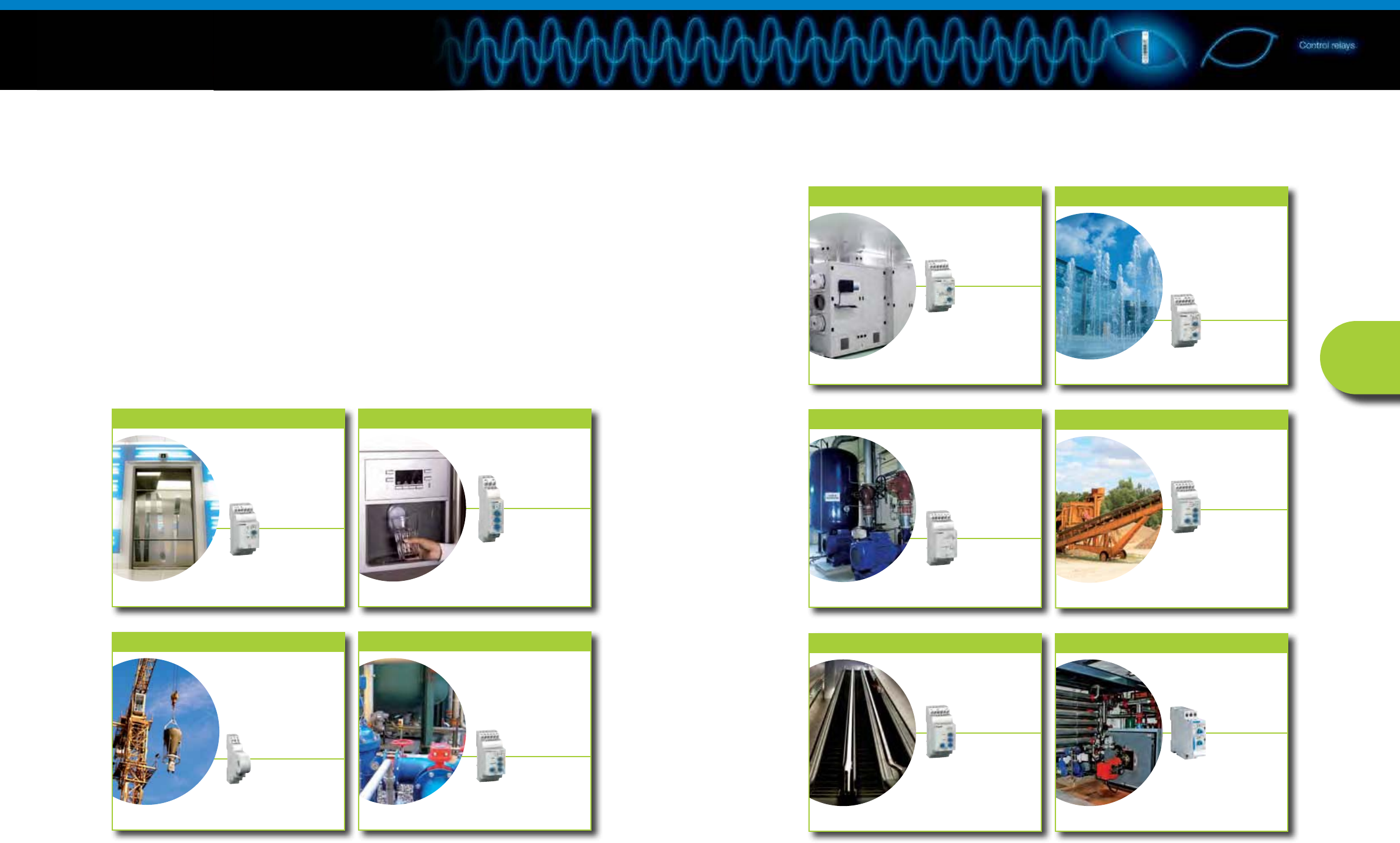

• Applications P. 28
• Selection guide P. 30

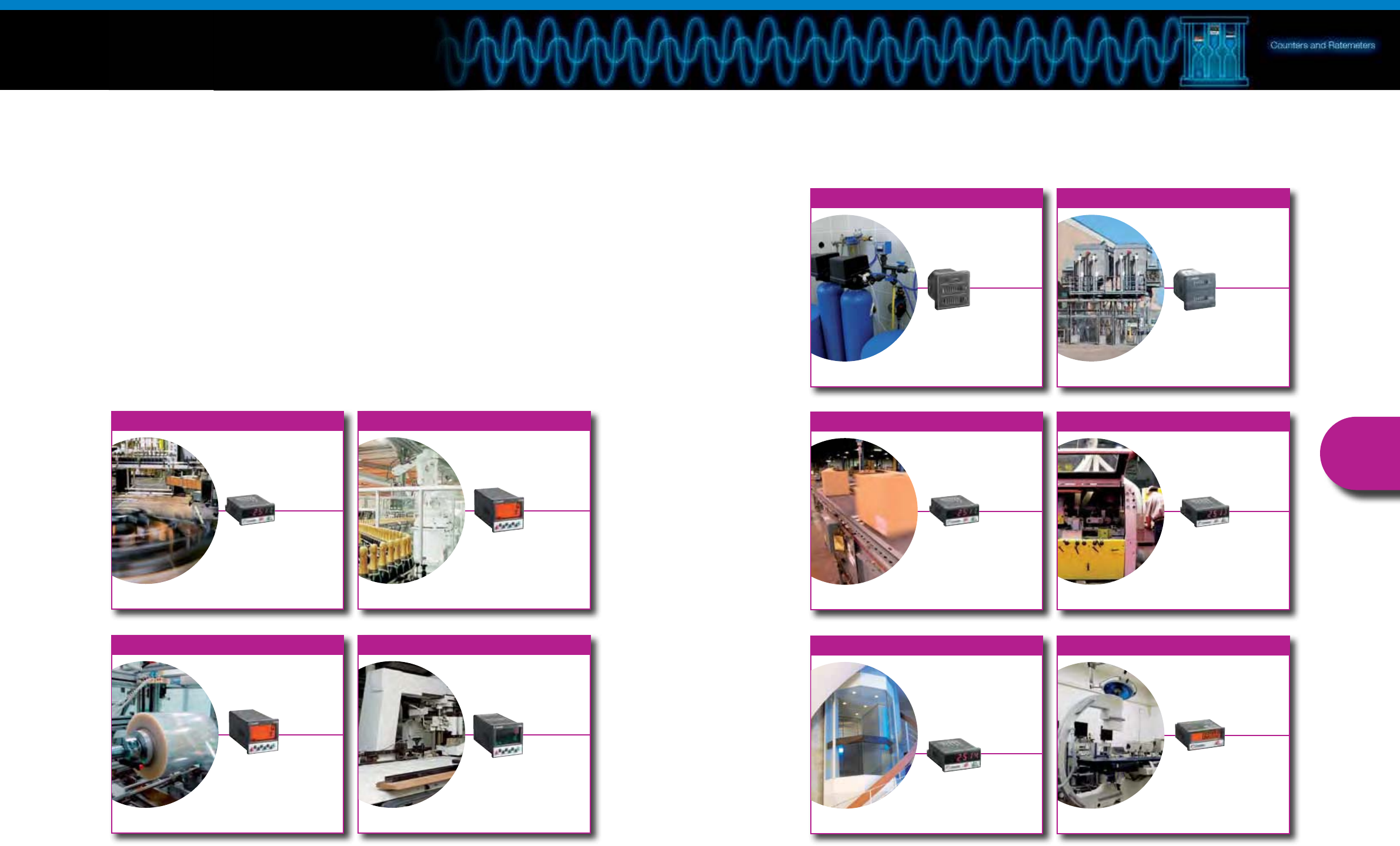

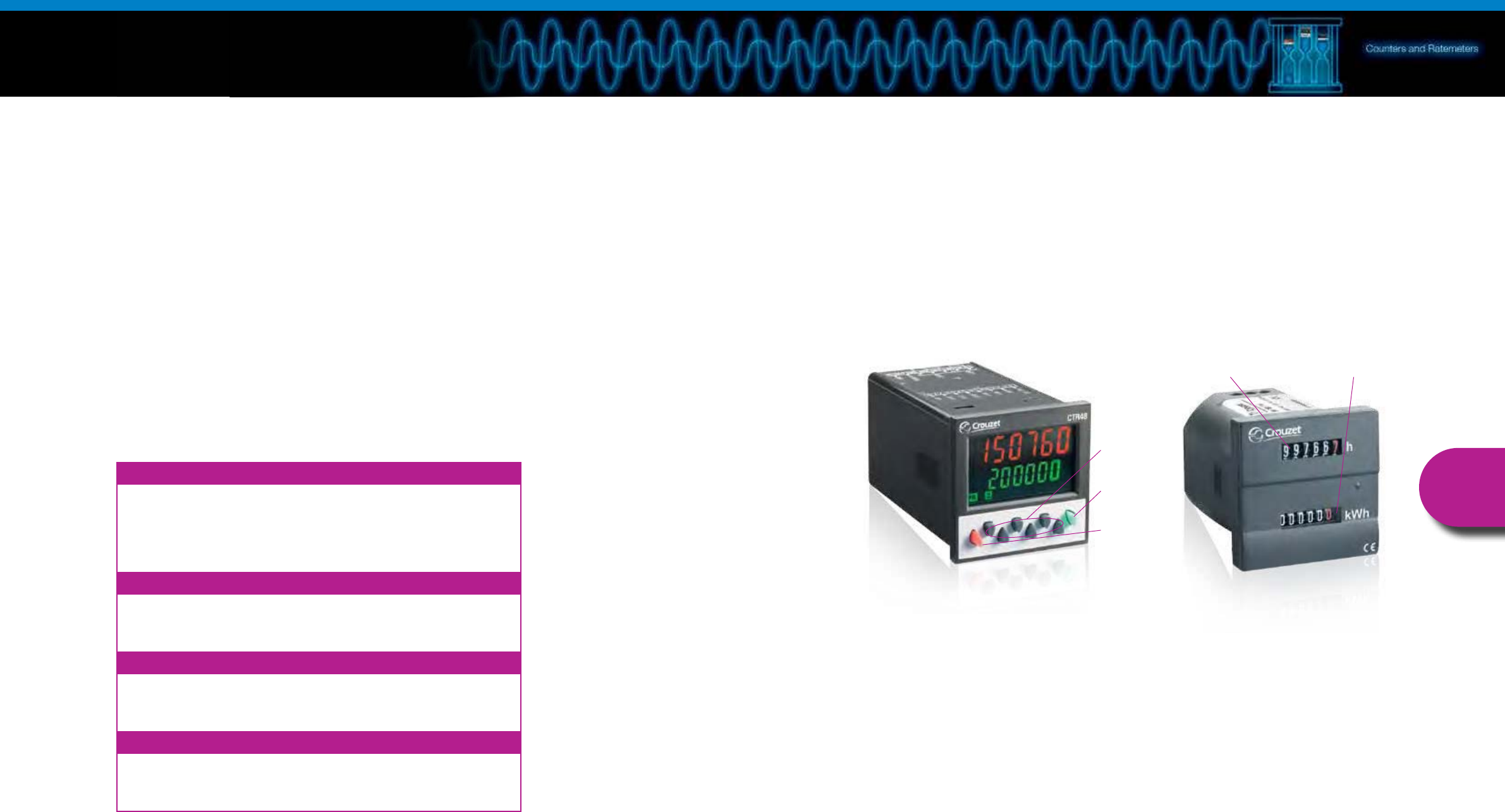

Counters and Ratemeters
• The basics P. 38
• Applications P. 40

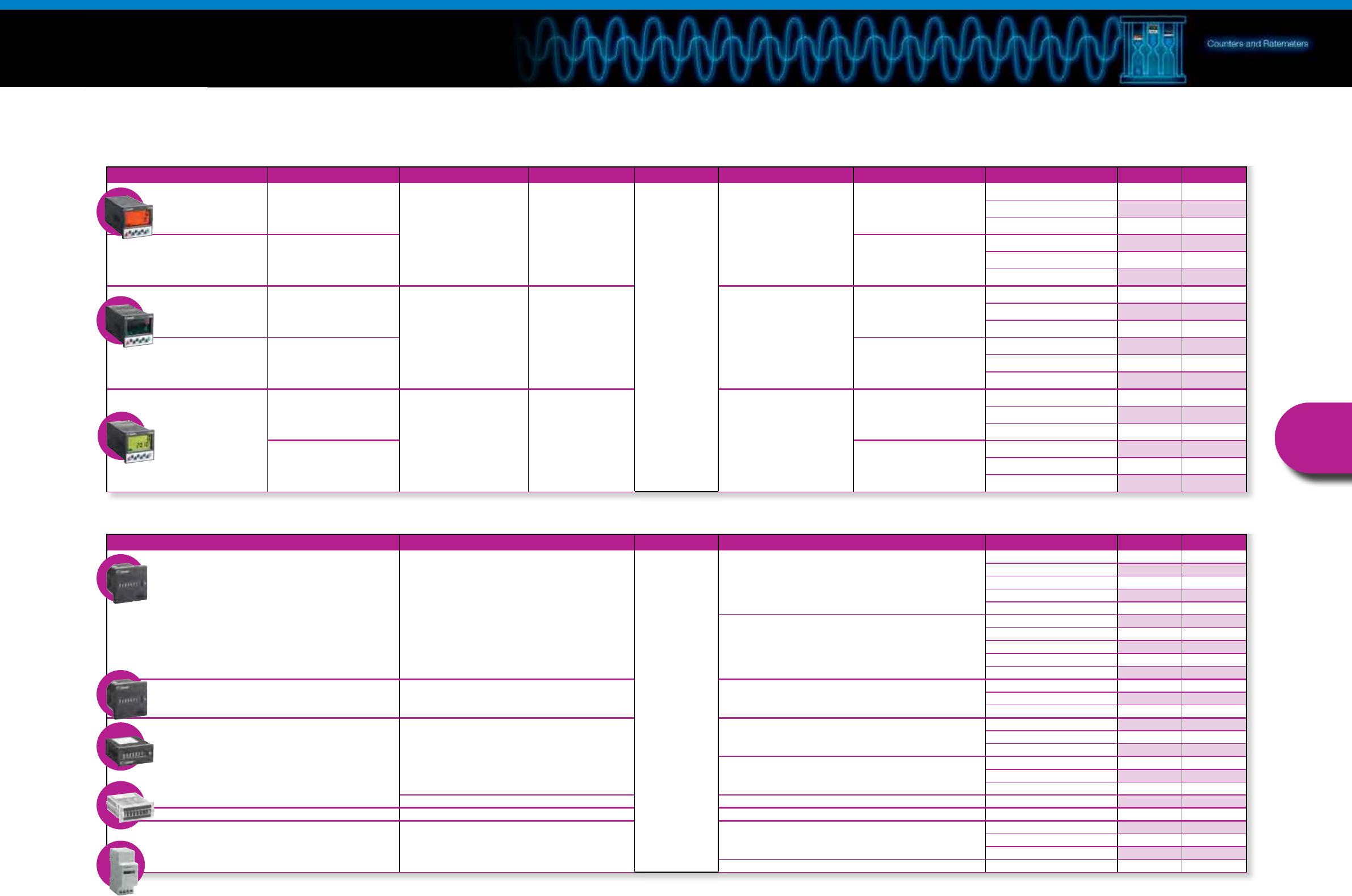

• Selection guide P. 42

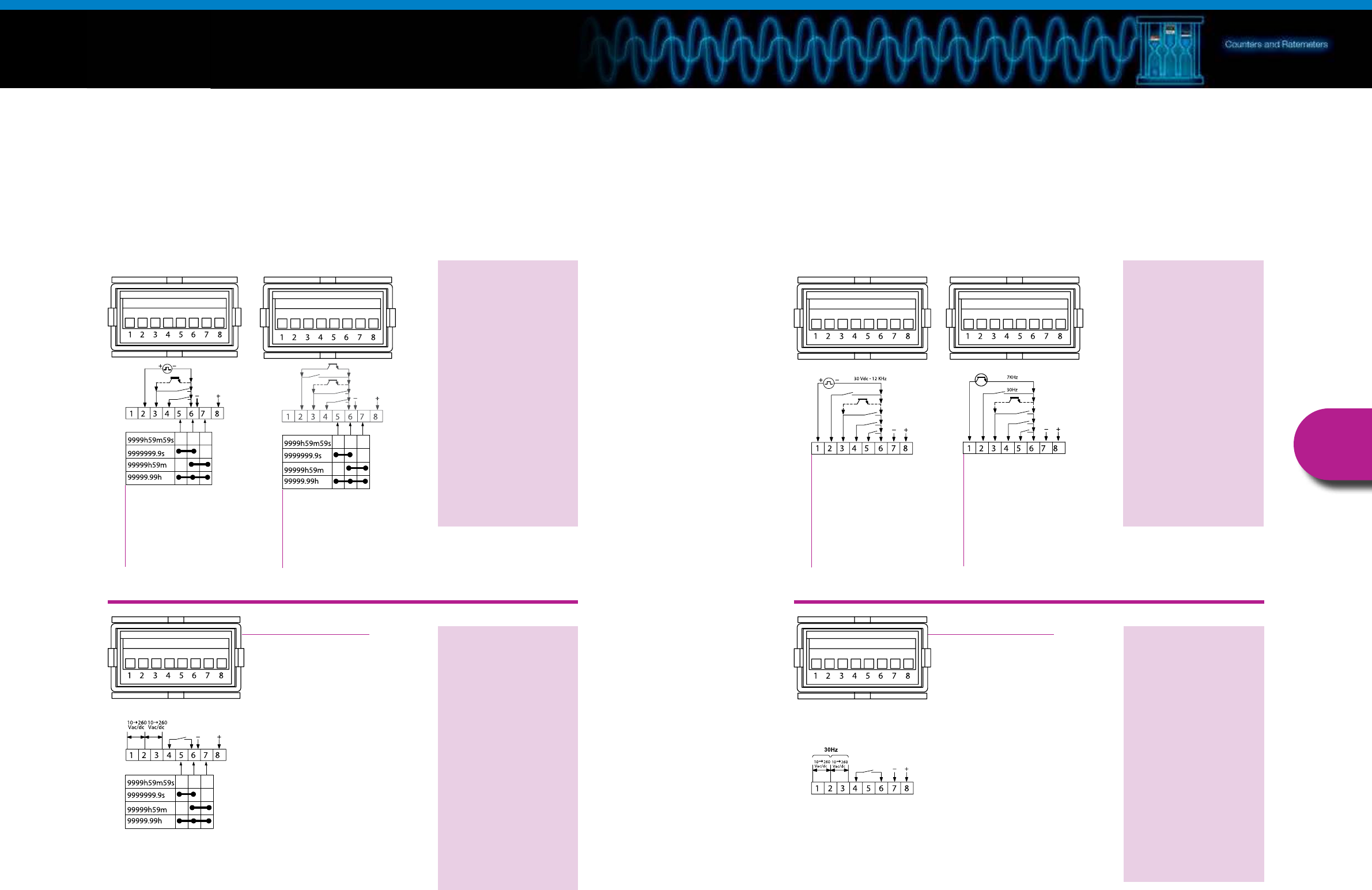

• Connection diagrams P. 48
Temperature controllers
• The basics P. 52

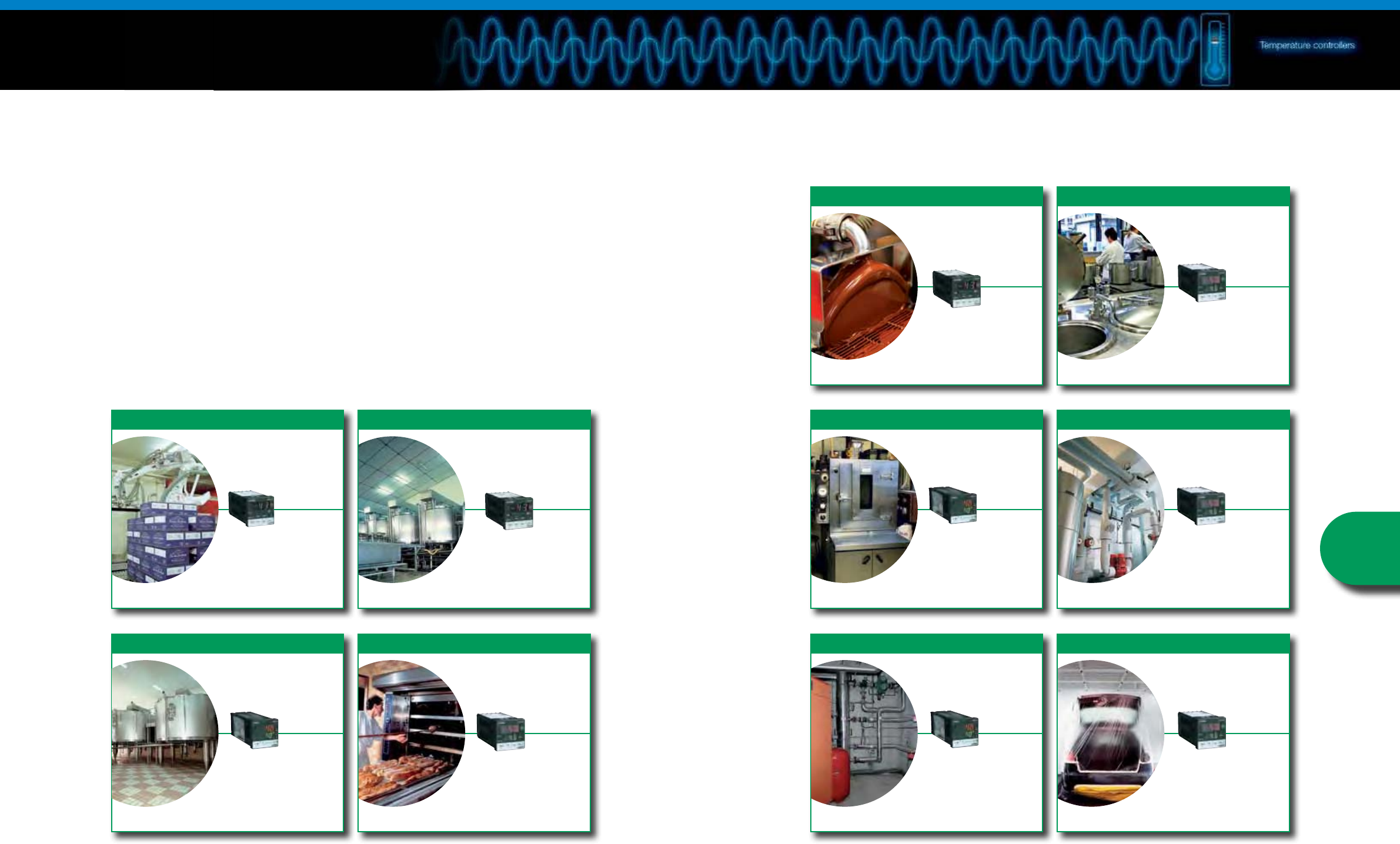

• Applications P. 54
• Selection guide P. 56

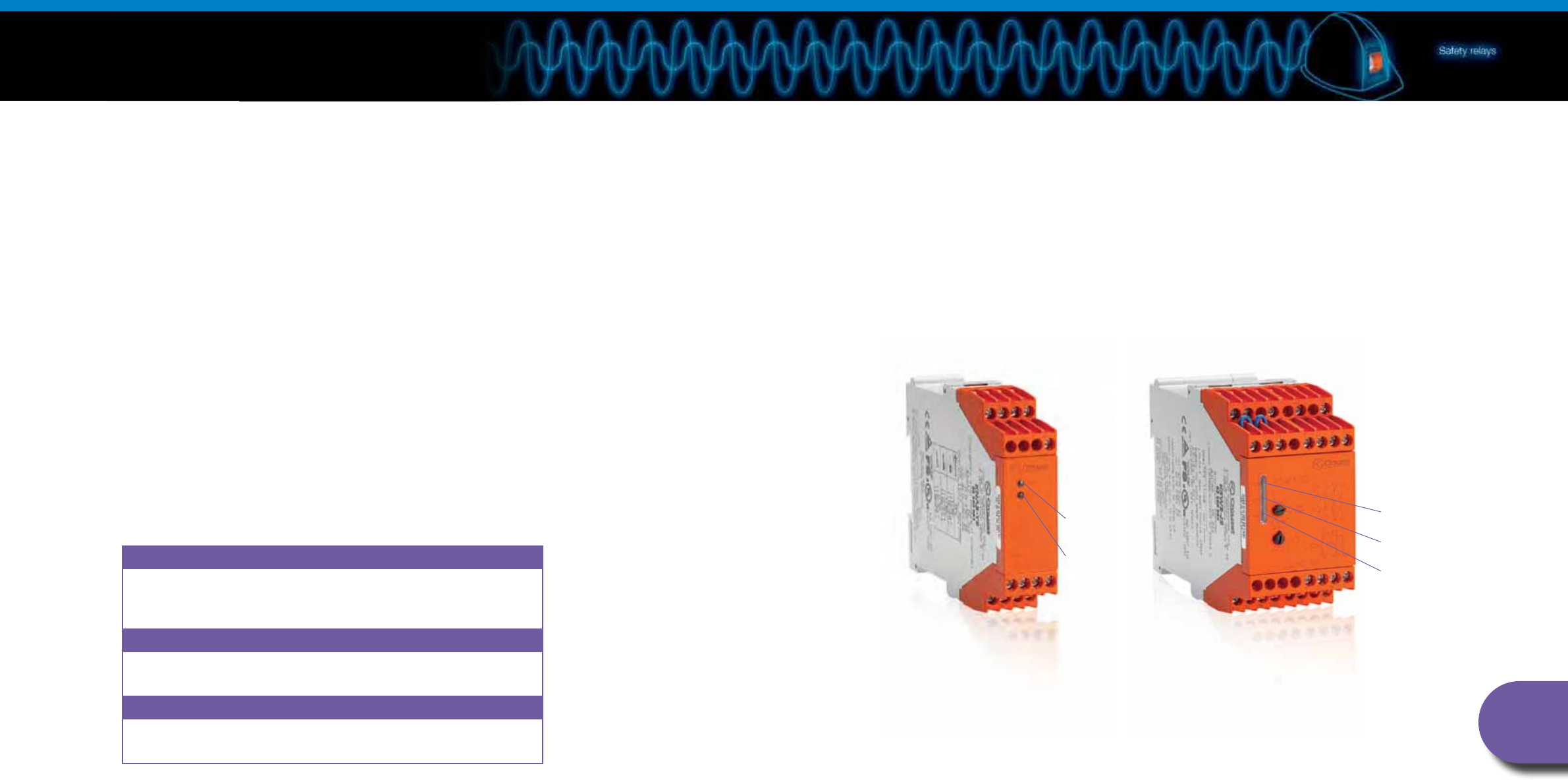

Safety relays
• The basics P. 60
• Selection guide P. 62
• Applications P. 64
Part numbers index
l Panorama Crouzet Control / Crouzet Automation
I www.crouzet.com
4 5
Presentation
Production
Sales subsidiaries
Widely recognised for over 50 years as the specialist in electromechanical, electronic technology
and software engineering, Crouzet Control experience in time management, physical and
mechanical values has resulted in an extensive automation components offer that includes logic
controllers, timers, control relays, counters, ratemeters, machine safety equipment, and
temperature controllers.
Simple to use, Crouzet Control products are easy to program and install.
With operations around the globe, Crouzet Control is constantly monitoring its customers' needs.
Its sales teams, technicians and designers combine all their skills to adapt products to customer
specifications, both in terms of the application and cost.
Crouzet Control also ensures that its products are manufactured in compliance with quality and
environmental standards (factories certified ISO 9001, 14001 and OHSAS 18001, eco-design).
With its industrial and logistic flexibility Crouzet Control is able to deliver products, whether
small-scale or mass production items, in the best possible timescale.
In this new Panorama,
Crouzet Control presents:
A new range of redesigned Safety Relays for machine safety applications with new functions
and easy installation.
New Chronos 2 timers (17.5 mm) substituting the existing range with an improved electronic
and mechanical design allowing added robustness and reliability.
Crouzet Control / Crouzet Automation team worldwide.
Crouzet Automation, supported by an experienced sales and technical team and an easy-to-
use software, is the adaptable alternative for any automation solution. Crouzet Automation is the
perfect solution for any specialized or demanding need.
These products are specifically suited for integration in a wide range of applications such as
waste and water treatment, access control, renewable energies, building equipment, industrial
machines and transportation.
InnoVista Sensors™
your trusted partner of choice to
face industrial challenges of today
and tomorrow
InnoVista Sensors™ is a worldwide industrial specialist of sensors, controllers and actuators for
automated systems.
Through its brands, Crouzet Aerospace, Crouzet Automation, Crouzet Control, Crouzet Motors,
Crouzet Switches and Systron Donner Inertial, InnoVista Sensors™ offers a wide range of reliable,
efficient and customizable components dedicated to the Ae ospace & Defence, Transportation
and Industrial market and segments.
Thanks to the recognized expertise of its teams and a strong innovation policy, InnoVista Sensors™
brings performance enhancing solutions to its customers worldwide.
l Panorama Crouzet Control / Crouzet Automation
I www.crouzet.com
6 7
Specific
products
Adapted
products
Standard
products
Products with
added value
The Crouzet Control process
In addition to high-performance products,
advice and support, Crouzet Control offers
tailor-made solutions for any application.
Expertise:
• UNDERSTANDING how applications
work.
• INTEGRATING environmental constraints
and quality requirements.
• PROPOSING technical and economic
solutions which fully meet the needs
of customers.
Analysis of customer
requirements
Expertise:
• CAPITALISING on the expertise of Crouzet
engineers in mechanical, electrical and electronic
engineering, software engineering and networks.
• ADAPTING products to ensure innovation
and differentiation.
•
DEVELOPING AND INDUSTRIALIZING
custom products.
Customer Adaptation
Centre and Design Offic
Expertise:
• PROVIDING an optimum level of service
and GUARANTEEING a prompt delivery
schedule, whatever the type of order: small-scale
or mass production, standard or adapted products.
• TRACKING all orders in real time on
www.crouzet.com
Logistics and After-Sales Service
Expertise:
• MEETING all needs, standard or specific, small-scale or mas
production, thanks to the industrial flexibility of C ouzet's factories.
• GUARANTEEING the quality and reliability of products: all
Crouzet’s production sites are certified ISO 9001 and ISO 14001
and use quality tools such as 6 SIGMA.
• INTEGRATING eco-design into manufacturing processes to
MINIMIZE the environmental impact of products throughout
their life cycle.
Production
• Application-based marketing
• Electronic and software design
• Prototyping
• Mechanical engineering
• Production
• EMC tests and approvals
• Sales and logistics follow-up
A multi-skilled team
Expertise
I www.crouzet.com
8 9
Crouzet Control
Behind every project,
technologies and expertise
• Local support for all industrial projects.
• A multi-skilled team.
• A sales presence in over 40 countries.
• A Premium offer designed to ensure the excellence of products and services.
• Eco-design integrated in Crouzet's
"
Offer Creation Process
"
.
•Certifications: ISO 9001, ISO 14001, OHSAS 18001.
• Products which comply with international standards (UL, CSA, EC).
• A dynamic R&D department.
In addition to this catalogue, the www.crouzet.com website offers
the latest tools, available as free downloads, including, technical data
sheets and installation manuals for each product.
www.crouzet.com
Timers
Time management
l Panorama Crouzet Control
I www.crouzet.com
10 11
A timer is a simple automation component which is used to manage actions over a period
of time or control how long actions last.The timer is a control device which triggers an
action according to a time and a function. After a predefined time has elapsed, the timer
closes or opens one or more contacts.
Timing cycles, whether single shot or repetitive, are started by latching inputs or pulsed inputs,
allowing a wide variety of functions to be created.
• Available in mono or multifunction versions
(analogue or digital, with or without memory),
to meet the specific needs of each applica-
tion.
• A timing range of up to 9,999 hrs to cope with
prolonged processing operations.
• A range of supply voltages from 12 to 240 V
in one unit for optimised stocks.
• Recognised quality and reliability ensures the
correct operation of equipment.
Triggering
Actuating
Delaying
Flashing
In addition to this catalogue, the www.crouzet.com website offers technical
data sheets and installation manuals for each product, available as free
downloads.
A timer
How can it be defined in simple terms
Crouzet Control, timers
A panel mounted range and
a DIN rail mounted range
A timer
To execute which actions?
Crouzet Control, timers
Their features:
Triggering, Actuating
A timer can be used to trigger an action according to a predefined time.
It can also be used to stagger actions over a period of time.
Delaying, Flashing
In any time-related application, the timer can play a role and can be
used to:
• Run installations according to times that can be adjusted by the user.
•Calibrate a machine running time.
•Allow or prevent an action.
•Delay an action.
• Manage stopping/starting of a motor, pump, etc. (star delta).
• Make an LED flas .

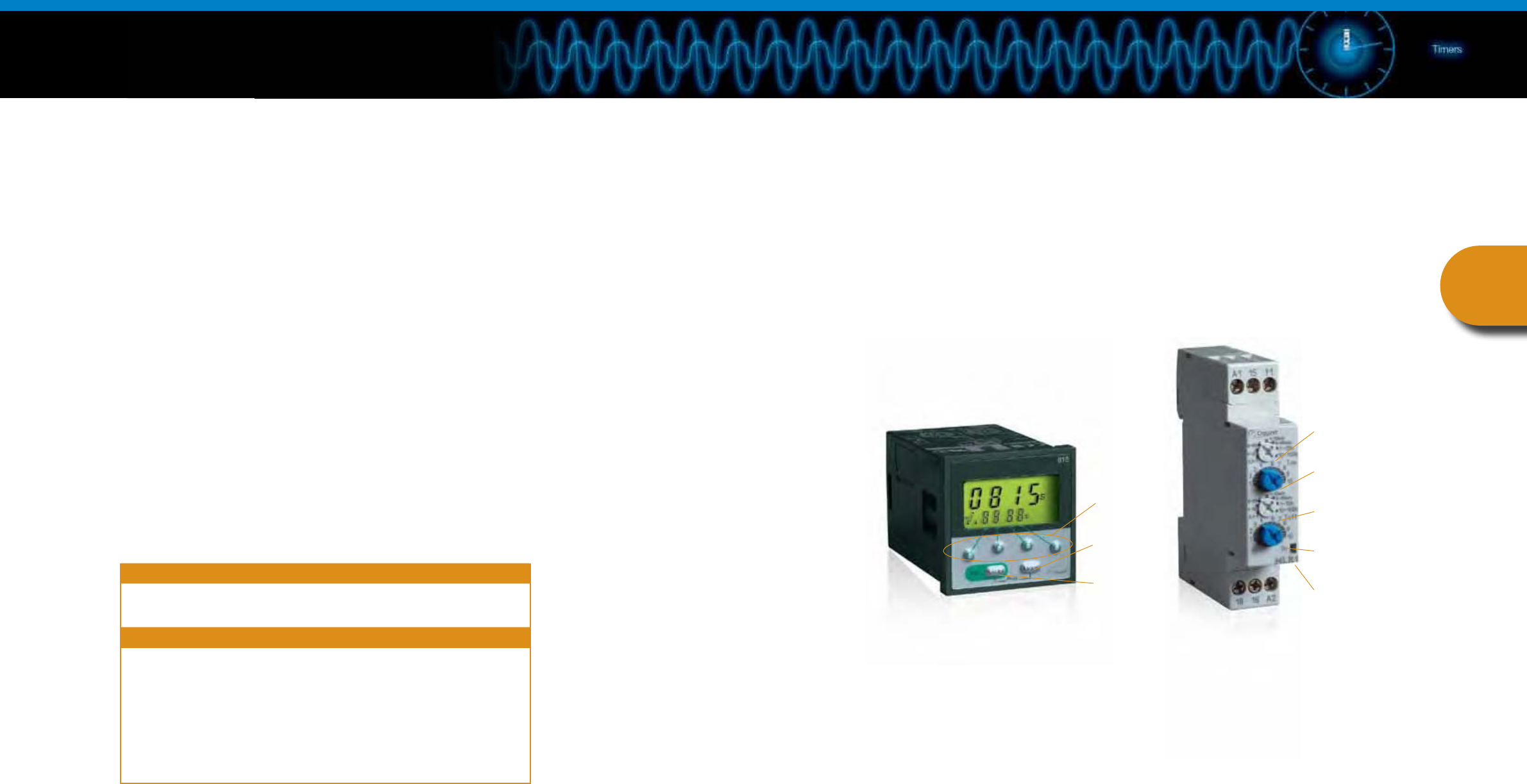

Timing range 1
Time setting 1
Timing range 2
Time setting 2
Power supply LED
MLR1815 timer
Setpoint
settings
Mode
Reset
+ enable
The basics
Timers
l Panorama Crouzet Control
I www.crouzet.com
12 13

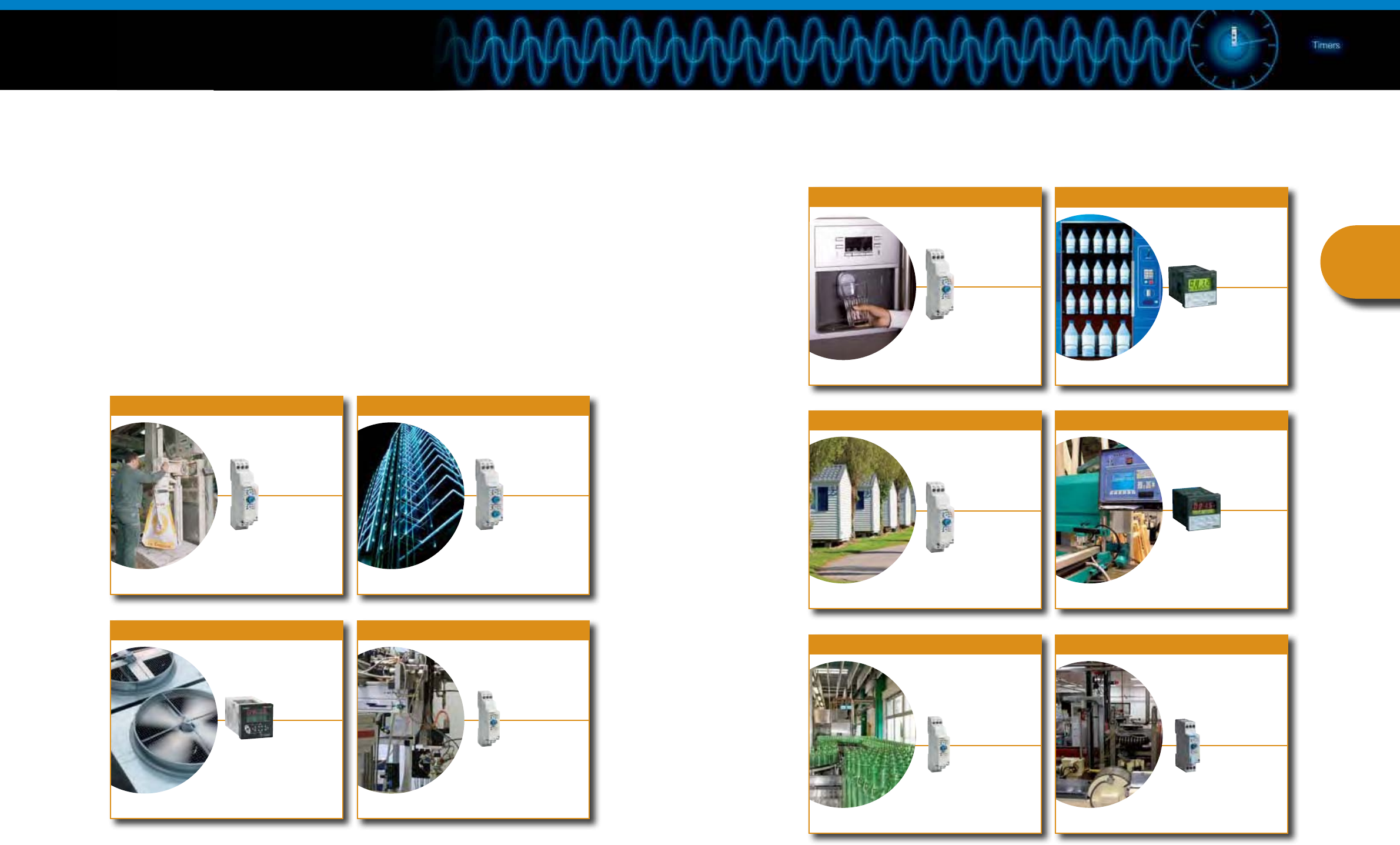

Controlling heat sealing
times on blister packs,
packaging bags, etc.
TIMER
MUR1, MXR1, MAR1
Packaging
Managing the duration of
outdoor lighting of a mobile
home if the light switch is left
switched on.
TIMED IMPULSE RELAy
MXR
Lighting for mobile homes
Managing the duration
of refrigeration.
TIMER
TUR1, MUR1, MAR
Ice maker
Time management for delayed
fan start-up.
TIMER
(TMR48, TIMER 81X)
Fan
Managing the operation of
a conveyor belt based on
the time interval between
products on the belt.
TIMER
MCR1
Sensing on assembly line
Managing flashing
on illuminated signs.
TIMER
MLR
Illuminated signs
Control of maintenance periods.
TIMER
TMR48, TIMER 81X
Machine tools
Timed management
of delivery of drinks.
TIMER
TMR48, TIMER 81X
Drink vending machine
Managing maintenance of the
power supply in the event of a
mains power failure, switching
on an external backup power
source for a given time.
TIMER
TK2R1
Remote machinery
Time management for
distribution of glue, varnish ...
TIMER
MBR1
Dosage
Crouzet Control, timers
Where are they found?
In electrical cabinets associated with other automation functions for the following markets:
•Food industry
•Industrial automation systems
•Lighting
•Building equipment
•HVAC
•Small or large industrial machines
Applications
Timers
l Panorama Crouzet Control
I www.crouzet.com
14 15

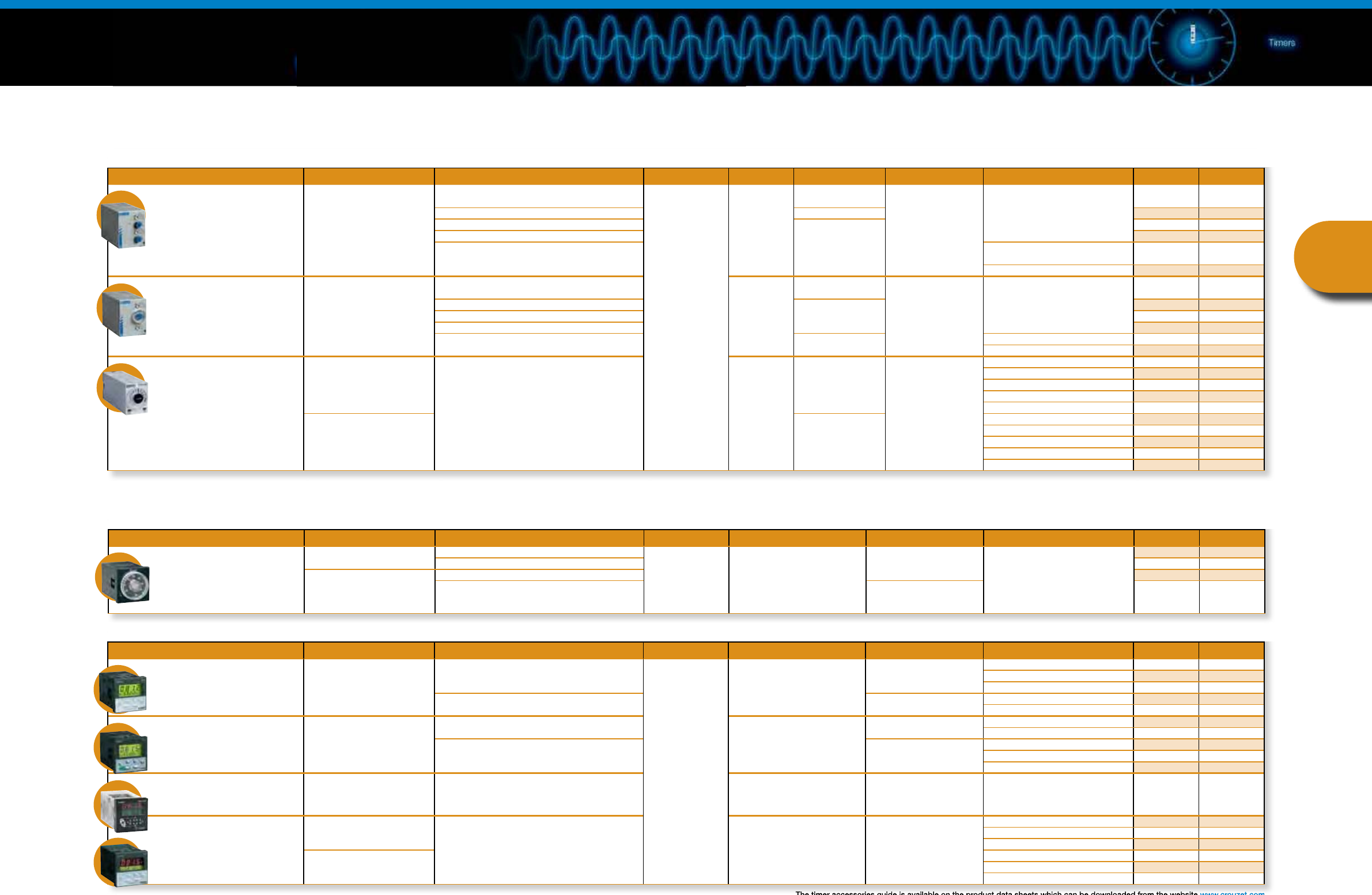

Selection guide
DIN rail modular casings
Casing width (mm) Connections Functions Type of output Output(s) Timing Supply Part number Type
17.5 Screw terminals
A / At / B / C / H / Ht
Di / D / Ac / Bw
Relay 1 x 8 A changeover 0.1 s C 100 h
24 V c / 24 C 240 V a
88 827 105 MUR1
A / At 88 827 115 MAR1
B88 827 125 MBR1
C88 827 135 MCR1
H / Ht 88 827 145 MHR1
L / Li 12 V z88 827 150 MLR4
24 V c / 24 C 240 V a88 827 155 MLR1
17.5
Screw terminals A / At / B / C / H / Ht
Di / D / Ac / Bw Relay 1 x 8 A changeover 0.1 s C 100 h
12 V z88 827 100 MUR4
12 C 240 V z88 827 103 MUR3
Spring terminals 88 827 503 MURc3
Screw terminals Ad / Ah / N / O / P
Pt / TL / Tt / W 24 V c / 24 C 240 V a88 827 185 MXR1
17.5 Screw terminals
A / At / B / C / H / Ht
Di / D / Ac / Bw
Solid state 0.7 A 0.1 s C 100 h
24 C 240 V a88 827 004 MUS2
A 24 C 240 V z88 827 014 MAS5
H / Ht 24 C 240 V a88 827 044 MHS2
L / Li 88 827 054 MLS2
17.5 Screw terminals
A
Relay 1 x 5A changeover 0.1 s C 20 h
240 V a88 829 117 EMAR7
110 V a88 829 112 EMAR2
24 V z88 829 119 EMAR9
A / At / B / C / H / Ht
Di / D / W / Pe
12 C 240 V c /
24 C 240 V a88 829 198 EMER8
17.5 Screw terminals Ac / Ad / Bw / Cx / N / O / Tt Relay 1 x 5 A changeover 0.1 s => 20 h 12 C 240 V c /
24 C 240 V a88 829 108 EMYR8
DIN rail industrial casings
Casing width (mm) Connections Functions Type of output Output(s) Timing Supply Part number Type
22.5 Screw terminals
A / At / B / C / H / Ht
Di / D / Ac / Bw
Relay 1 x 8 A changeover 0.1 s C 100 h 24 V c / 24 C 240 V a
88 865 105 TUR1
A / At 88 865 115 TAR1
B88 865 125 TBR1
C88 865 135 TCR1
H / Ht 88 865 145 THR1
L / Li 88 865 155 TLR1
Q88 865 175 TQR1
88 866 175* RQR1*
K 2 x 8 A changeover 0.1 s C 160 s 88 865 265 TK2R1
22.5 Screw terminals
A / At / B / C / H / Ht
Di / D / Ac / Bw
Relay
1 x 8 A changeover
1 inst. or timed 8 A
0.1 s C 100 h
12 V z88 865 300 TU2R4
88 866 300* RU2R4*
1 x 8 A changeover 88 865 100 TUR4
A / At 2 x 8 A changeover 24 V c / 24 C 240 V a88 865 215 TA2R1
88 866 215* RA2R1*
A / At / B / C / H / Ht
Di / D / Ac / Bw 1 x 8 A changeover 12 C 240 V z88 865 103 TUR3
Spring terminals 88 865 503 TURc3
22.5 Screw terminals
Ad / Ah / N / O / P
Pt / TL / Tt / W
Relay
1 x 8 A changeover
1 inst. or timed 8 A
0.1 s C 100 h
24 V c / 24 C 240 V a88 865 385 TX2R1
88 866 385* RX2R1*
1 x 8 A changeover
88 865 185 TXR1
Q 230 C 440 V a88 865 176 TQR6
88 866 176* RQR6*
A / At / B / C / H / Ht
Di / D / Ac / Bw
1 x 8 A changeover
1 inst. or timed 8 A
12 C 240 V z88 865 303 TU2R3
88 866 303* RU2R3*
24 V c / 24 C 240 V a88 865 305 TU2R1
88 866 305* RU2R1*
* Available in 2014. The casing of the new range will be different from the ones presented here.
Further information can be found on the data sheets available at www.crouzet.com
Chronos 2 DIN rail mounted, Timers
Timers
l Panorama Crouzet Control
I www.crouzet.com
16 17
Selection guide
Analogue - TMR48 series
Dimensions (mm) Connections Functions (Detail on pages 20 to 23) Type of output Output(s) Supply Part number Type
48 x 48
Plug-in
11-pin base
L / Li - G / Gi
Relay
2 timed changeover
2 x 5 A 12 C 240 V c
24 C 240 V a
88 886 516 TMR 48 L
A, B, C, W, G, Ac, Bw 88 886 016 TMR 48 U
Plug-in
8-pin base
A88 886 106 TMR 48 A
A1, A2, H1, H2, Q1, Q2, D-Di
2 timed changeover or
1 timed and 1 instantaneous
(2 x 5 A)
88 886 116 TMR 48 X
"Panel mounted", Timers
The timer accessories guide is available on the product data sheets which can be downloaded from the website www.crouzet.com
Plug-in industrial casings
Casing width (mm) Connections Functions (detail on pages 20 to 23) Type of output Output(s) Timing Supply Part number Type
35 Plug-in
8-pin base
A / At / B / C / H / Ht
Di / D / Ac / Bw
Relay
1 x 8 A changeover
0.1s C 100 h
24 V c / 24 C 240 V a
88 867 105 OUR1
A 2 x 8 A changeover 88 867 215 OA2R1
C
1 x 8 A changeover
88 867 135 OCR1
L / Li 88 867 155 OLR1
A / At / B / C / H / Ht
Di / D / Ac / Bw
12 V z88 867 100 OUR4
12 C 240 V z88 867 103 OUR3
35 Plug-in
11-pin base
A / At / B / C / H / Ht
Di / D / Ac / Bw
Relay
1 x 8 A changeover
1 inst. or timed 8 A
0.1s C 100 h
24 V c / 24 C 240 V a
88 867 305 PU2R1
A
2 x 8 A changeover
88 867 415 PA2R1
C88 867 435 PC2R1
L / Li 88 867 455 PL2R1
A / At / B / C / H / Ht
Di / D / Ac / Bw
1 x 8 A changeover
1 inst. or timed 8 A
12 V z88 867 300 PU2R4
12 C 240 V z88 867 303 PU2R3
21
Plug-in
8-pin base
A Relay
2 x 5 A changeover
0.1s C 100 h
12 V c88 895 201 RTMA2
24 V c88 895 202 RTMA2
24 V a88 895 203 RTMA2
110 V a88 895 206 RTMA2
230 V a88 895 207 RTMA2
Plug-in
14-pin base 4 x 3 A changeover
12 V c88 896 201 RTMA4
24 V c88 896 202 RTMA4
24 V a88 896 203 RTMA4
110 V a88 896 206 RTMA4
230 V a88 896 207 RTMA4
The timer accessories guide is available on the product data sheets which can be downloaded from the website
www.crouzet.com
Digital
Dimensions (mm) Connections Functions (Detail on pages 20 to 23) Type of output Output(s) Supply Part number Type
48 x 48 Plug-in
8-pin base
A
Relay
2 timed changeover
2 x 5 A
24 V z88 857 409 Timer 812
110 V a88 857 406 Timer 812
220 C 240 V a88 857 400 Timer 812
A, B, C, D, Di, H 1 x 8 A timed changeover 12 V c / 24 C 48 V z88 857 003 Timer 814
24 V z / 110 C 240 V a88 857 005 Timer 814
48 x 48 Plug-in
11-pin base
A, B, C, D, Di, H
Relay
1 x 8 A timed changeover 12 V c / 24 C 48 V z88 857 103 Timer 814
24 V z / 110 C 240 V a88 857 105 Timer 814
A1, A2, AM, AMt
2 timed changeover or
1 timed and
1 instantaneous (2 x 8 A)
12 V c / 42 C 48 V z88 857 302 Timer 815
24 V z / 110 V a88 857 307 Timer 815
24 V c / 220 C 240 V a88 857 301 Timer 815
48 x 48 Plug-in
11-pin base
A1, A1C, A2, A2C, AM, AMt, B, BM, C, CM, D,
Di, DiM, Dpause, H, HM, T,TM, W, WM Relay
2 timed changeover or
1 timed and
1 instantaneous (2 x 5 A)
12-24 V z / 100C240 V a88 857 311 Timer 815E
48 x 48
Plug-in
8-pin base
A, B, C, D, Di, H Relay 1 x 8 A timed changeover
24 V z / 48 V z88 857 604 Timer 816
24 V z / 110 V a88 857 607 Timer 816
24 V z / 220 C 240 V a88 857 601 Timer 816
Plug-in
11-pin base
24 V z / 48 V z88 857 704 Timer 816
24 V z / 110 V a88 857 707 Timer 816
24 V z / 220 C 240 V a88 857 701 Timer 816
Accessories available: base socket 8-pin for DIN Rail mount 25 622 130, base socket 11-pin for DIN Rail mount 25 622 080.
Timers
l Panorama Crouzet Control
I www.crouzet.com
18 19
Selection guide
MBA series
Casing width (mm) Connections Functions (Detail on pages 20 to 23) Type of output Output(s) Timing Supply Part number Type
22 (diameter) Screw terminals A Solid state 400 mA
0.1 s C 1 s
100 C 240 V z
88 901 308 MBA2F
0.5 s C 10 s 88 901 328 MBA2F
3 s C 60 s 88 901 348 MBA2F
0.5 min C 10 min 88 901 378 MBA2F
3 min C 60 min 88 901 398 MBA2F
22 (diameter) Screw terminals A Solid state 200 mA
0.1 s C 1 s
24 V c
88 901 302 MBA3F
0.5 s C 10 s 88 901 322 MBA3F
3 s C 60 s 88 901 342 MBA3F
0.5 min C 10 min 88 901 372 MBA3F
3 min C 60 min 88 901 392 MBA3F
The timer accessories guide is available on the product data sheets which can be downloaded from the website www.crouzet.com
The timer accessories guide is available on the product data sheets which can be downloaded from the website
www.crouzet.com
Manual reset
Casing width (mm) Connections Functions (Detail on pages 20 to 23) Type of output Output(s) Timing Supply Part number Type
55 Faston connectors
6.35 mm A Relay 1 x 16 A timed
changeover
5 min (Max.display time : 4 min 40 s)
127 / 230 V a
50 Hz
88 256 401 88 256 4
15 min (Max.display time : 14 min) 88 256 402 88 256 4
30 min (Max.display time : 28 min) 88 256 403 88 256 4
60 min (Max.display time : 56 min) 88 256 404 88 256 4
120 min (Max.display time : 1 h 53 min) 88 256 405 88 256 4
5 h (Max.display time : 4 h 43 min) 88 256 406 88 256 4
15 h (Max.display time : 14 h 10 min) 88 256 407 88 256 4
30 h (Max.display time : 28 h 20 min) 88 256 408 88 256 4
55 Faston connectors
6.35 mm A Relay 2 x 16 A timed
changeover
5 min (Max.display time : 4 min 40 s)
127 / 230 V a
50 Hz
88 256 506 88 256 5
15 min (Max.display time : 14 min) 88 256 507 88 256 5
30 min (Max.display time : 28 min) 88 256 508 88 256 5
60 min (Max.display time : 56 min) 88 256 509 88 256 5
120 min (Max.display time : 1 h 53 min) 88 256 510 88 256 5
5 h (Max.display time : 4 h 43 min) 88 256 511 88 256 5
15 h (Max.display time : 14 h 10 min) 88 256 512 88 256 5
30 h (Max.display time : 28 h 20 min) 88 256 513 88 256 5
55 Faston connectors
6.35 mm A Relay 3 x 16 A timed
changeover
5 min (Max.display time : 4 min 40 s)
127 / 230 V a
50 Hz
88 256 906 88 256 9
15 min (Max.display time : 14 min) 88 256 907 88 256 9
30 min (Max.display time : 28 min) 88 256 908 88 256 9
60 min (Max.display time : 56 min) 88 256 909 88 256 9
120 min (Max.display time : 1 h 53 min) 88 256 910 88 256 9
5 h (Max.display time : 4 h 43 min) 88 256 911 88 256 9
15 h (Max.display time : 14 h 10 min) 88 256 912 88 256 9
30 h (Max.display time : 28 h 20 min) 88 256 913 88 256 9
Electromechanical - Top 2000 range
Casing width (mm) Connections Functions (Detail on pages 20 to 23) Type of output Output(s) Timing Supply Part number Type
48 x 48
Screw terminals
2-3-4 Relay
1 timed changeover and
1 timed instantaneous
(2 x 5 A) 6 s C 12 mn
24 V a88 226 013 Top 2 000
42 C 48 V a88 226 019 Top 2 000
110 C 127 V a88 226 012 Top 2 000
220 C 240 V a88 226 011 Top 2 000
Plug-in 8-pin base
24 V a88 226 501 Top 2 000
42 C 48 V a88 226 502 Top 2 000
110 C 127 V a88 226 503 Top 2 000
220 C 240 V a88 226 504 Top 2 000
48 x 48
Screw terminals
2-3-4 Relay
1 timed changeover and
1 timed instantaneous
(2 x 5 A) 6 mn C 12 h
24 V a88 226 016 Top 2 000
24 V a88 226 505 Top 2 000
42 C 48 V a88 226 017 Top 2 000
42 C 48 V a88 226 506 Top 2 000
Plug-in 8-pin base
110 C 127 V a88 226 015 Top 2 000
110 C 127 V a88 226 507 Top 2 000
220 C 240 V a88 226 014 Top 2 000
220 C 240 V a88 226 508 Top 2 000
Timers
l Panorama Crouzet Control
I www.crouzet.com
20 21
Function diagrams
Timers
U : Supply
R : Output relay
or load
T : Timing
∞ : Infinit
C (y 1) : Command
U : Supply
R : Output relay
or load
T : Timing
∞ : Infinit
C (y 1) : Command
• A function: Delay on energisation
1 relay
Single shot timing which starts
on energisation.
• Ad function: Delay on energisation
(cannot be reset)
1 relay
After energisation, a control pulse
or latching contact starts timing.
At the end of timing, the output
is excited. The output will be reset
when a new control pulse or
latching contact occurs.
• Ac function: Timing after closing and opening
of control contact
1 relay
After energisation, closing of the
control contact results in starting
of the time delay T.
Output relay "R" (or the load)
changes state at the end of
this time delay. After opening of
contact C (Y1), relay "R" drops out
after a second time delay T.
• At function: Timing on energisation
with memory
1 relay
Adds up the opening time
of a contact.
Output relay "R" (or the load)
changes state at the end of timing.
• A1 function: Delay on energisation
1 timer
1 instantaneous relay
• A2 function: Delay on energisation
2 timers.
• AM function: Delay on energisation
Latching during the time delay.
• AMt function: Delay on energisation
Latching during and after
the time delay.
• B function: Timing on impulse (one shot) -
Shaping (cannot be reset)
1 relay
After energisation, an impulse
(≥ 50 ms) or a latching contact
causes a change in state of the
output relay "R" (or the load)
which drops out at the end
of timing.
• Bw function: Pulse output (adjustable)
1 relay
On closing and opening
of the control contact C (Y1),
the output relay "R" (or the
load) changes state for as long
as the time delay lasts.
2 timers or
2 relays including 1 instantaneous
• C function: Timing after impulse
True delay off
(without auxiliary power supply)
1 relay
After energisation, closing of the
control contact C (Y1) results in
the change of state of output relay
"R" (or the load).
Timing will only start when this
contact opens.
• D or Di functions: Symmetrical flashin
Repetitive cycle which alternately sets the output relay "R"
(or the load) to operating and rest position for equal periods
of time.
1 relay
D function:
The cycle starts with relay
"R" in rest position.
1 relay
Di function:
The cycle starts with relay
"R" in operating position.
• H function: Timing on energisation -
Pulse output (adjustable)
1 relay
On energisation, the output relay
"R" (or the load) changes state, and
stays there for the whole duration of
the time delay and drops out at the
end of the single shot cycle.
• Ht function: Delay on energisation with memory
1 relay
Adds up the total opening time
of a contact.
On energisation, the output relay
"R" (or the load)
changes state, and stays there for
the whole duration of the time delay
and drops out at the end of the
single shot cycle.
• K function: Delay on de-energisation
True delay off
(without auxiliary power supply)
1 relay
On energisation, the output relay
"R" (or the load) changes state.
On de-energisation timing starts
and the relay "R" will only drop out
at the end of this time delay.
• L function: Asymmetrical flashin
1 relay
Repetitive cycle with two times
which can be set independently.
Each time delay alternates with a
different state of the output relay
"R" (or the load).
Note: The cycle starts with
the relay
"
R
"
in the rest position.
2 timers or
2 relays including
1 instantaneous
• Li function: Asymmetrical flashin
1 relay
Repetitive cycle with two times
which can be set independently.
• N function: "Safe-guard"
On the first cont ol pulse,
the output is excited.
If the interval between two
impulses is longer than the timing
value, this occurs normally and the
output relay "R" (or the load)
will change state at the end of
timing. Otherwise, relay "R" stays
in its original state until the
condition is fulfilled
• O function: "Delayed safe-guard"
On energisation, a first timer
runs and the output relay "R"
(or the load) changes state.
On the appearance of a control
pulse, relay "R" returns to its initial
position and stays there as long as
the time interval between 2 impulses is less than the timing value.
Otherwise, relay "R" will change state at the end of timing.
Generic functions
• Ah function: Single shot flip-flo
(cannot be reset)
After energisation, a control pulse
or latching contact starts timing.
At the end of timing, the output is
excited. The time delay is then
reset. At the end of this new time
delay, the output reverts to its initial
value.
2 timers or
2 relays including
1 instantaneous
• P and Pe functions: Impulse counter (delay on)
P function:
Timing starts on energisation.
At the end of timing, the output
relay "R" (or the load) changes
state for approximately 500 ms.
Pe function:
On energisation.
At the end of timing, the output
relay "R" (or the load) changes
state for approximately 1 s.
• Pt function: Impulse counter (delay on)
Adds up the total opening time
of a contact.
At the end of timing, the output is
excited for approximately 500 ms.
• Q function: "Star-delta" starting
On energisation, the "star"
contact closes instantaneously
and timing starts.
At the end of timing the Ti "star"
contact opens. After a pause
of 40 to 100 ms the "delta" contact
closes.
• TL function: Impulse relay
After energisation, a control pulse
or latching contact closes the
relay. A second control pulse
opens the relay.
• Tt function: Timed impulse relay
After energisation, a control pulse
or latching contact closes the relay
and starts timing.
The relay opens at the end of timing
or on a second control pulse.
• W function: Timing after pulse on control contact
After energisation, opening of the
control contact results in a change
in the state of output "R" (or the
load) and timing starting.
l Panorama Crouzet Control
I www.crouzet.com
22 23
Function diagrams
Timers
U : Supply
R : Output relay
or load
T : Timing
∞ : Infinit
C (y 1) : Command
Start : Start timing
Reset : Reset to zero
U : Supply
R : Output relay
or load
T : Timing
∞ : Infinit
C (y 1) : Command
TMR48 dedicated functions
• Ac function: Timing after closing and
opening of control contact
• TMR48 A A function: Delay on
energisation
• B function: Timing on impulse (one shot)
• W function: Off-delay
• Bw function: Pulse output (adjustable)
• C function: Off-delay
• G function: Cyclical function
• L/LiG/Gi function: Cyclical flashing timer
• TMR48 U A function: On-delay
• A1 function: Delay on energisation
• A2 function: Delay on energisation
• H1 function: Timing on energisation
• H2 function: Timing on energisation
• Q1 function: Star-delta "starting"
• Q2 function: "Star-delta 2" starting
• D-Di function: Symmetrical flashin
815E dedicated functions
• A2c function: Delay on energisation
• B function with latching: Timing on impulse
(one shot)
• AMt function:
Delay on energisation
Latching during the time delay
• C function with latching:
Timing after impulse
• Di function: Flip-flo
• D pause function: Flip-flo
• H function with latching:
Timing on
energisation
• T function with latching:
Timing on
energisation
• W function with latching: Off-delay timer
• A2 function: Delay on energisation
• B function: Timing on impulse (one shot)
• AM function:
Delay on energisation
Latching during the time delay
• C function: Timing after impulse
• D function: Flip-flo
• Di function with latching: Flip-flo
• H function: Timing on energisation
• T function: Timing on energisation
• W function:
Off-delay
I www.crouzet.com
24 25
Crouzet Control
Behind every project,
technologies and expertise
• Local support for all industrial projects.
• A multi-skilled team.
• A sales presence in over 40 countries.
• A Premium offer designed to ensure the excellence of products and services.
• Eco-design integrated in Crouzet's
"
Offer Creation Process
"
.
• Certifications: ISO 9001, ISO 14001, OHSAS 18001.
• Products which comply with international standards (UL, CSA, EC).
• A dynamic R&D department.
In addition to this catalogue, the www.crouzet.com website offers
the latest tools, available as free downloads, including technical data
sheets and installation manuals for each product.
www.crouzet.com
Control relays
Instinctive control
l Panorama Crouzet Control
I www.crouzet.com
26 27
The basics
In addition to this catalog, the www.crouzet.com website offers technical data
sheets and installation manuals for each product, available as free downloads.
Protection
Monitoring
Sensing
Alerting
Controlling
Triggering
The control relay is an electronic device which can be used to detect and monitor
physical values or electrical values.
If a device is found to be operating abnormally, the control relay trips to halt its operation.
A control relay
How can it be defined in simple terms
A control relay
To execute which actions?
Protecting, Monitoring
The control relay is used to protect machines by monitoring values
such as current, voltage, phase presence and sequence, levels, etc.
The control relay ensures total availability of equipment, a major
challenge for industries keen to improve their productivity and operating
profits
It is one of the indispensable monitoring components for ensuring
continuity of service of each installation.
Sensing, Alerting
If a fault is detected, the machine is not allowed to run and the user is
informed of the anomaly by a visual signal.
Thus alerted, the user can then correct any malfunctions. This avoids
expensive breakdowns, synonymous with production delays and loss
of profitabilit .
Controlling, Triggering
In level control, the control relay takes on a different role: it controls
the pump in order to manage the level of water in a container (tank,
swimming pool, sink, etc). Directly interfacing with probes, it triggers
a signal and thus safeguards against machine breakdowns due to
threshold adjustment.

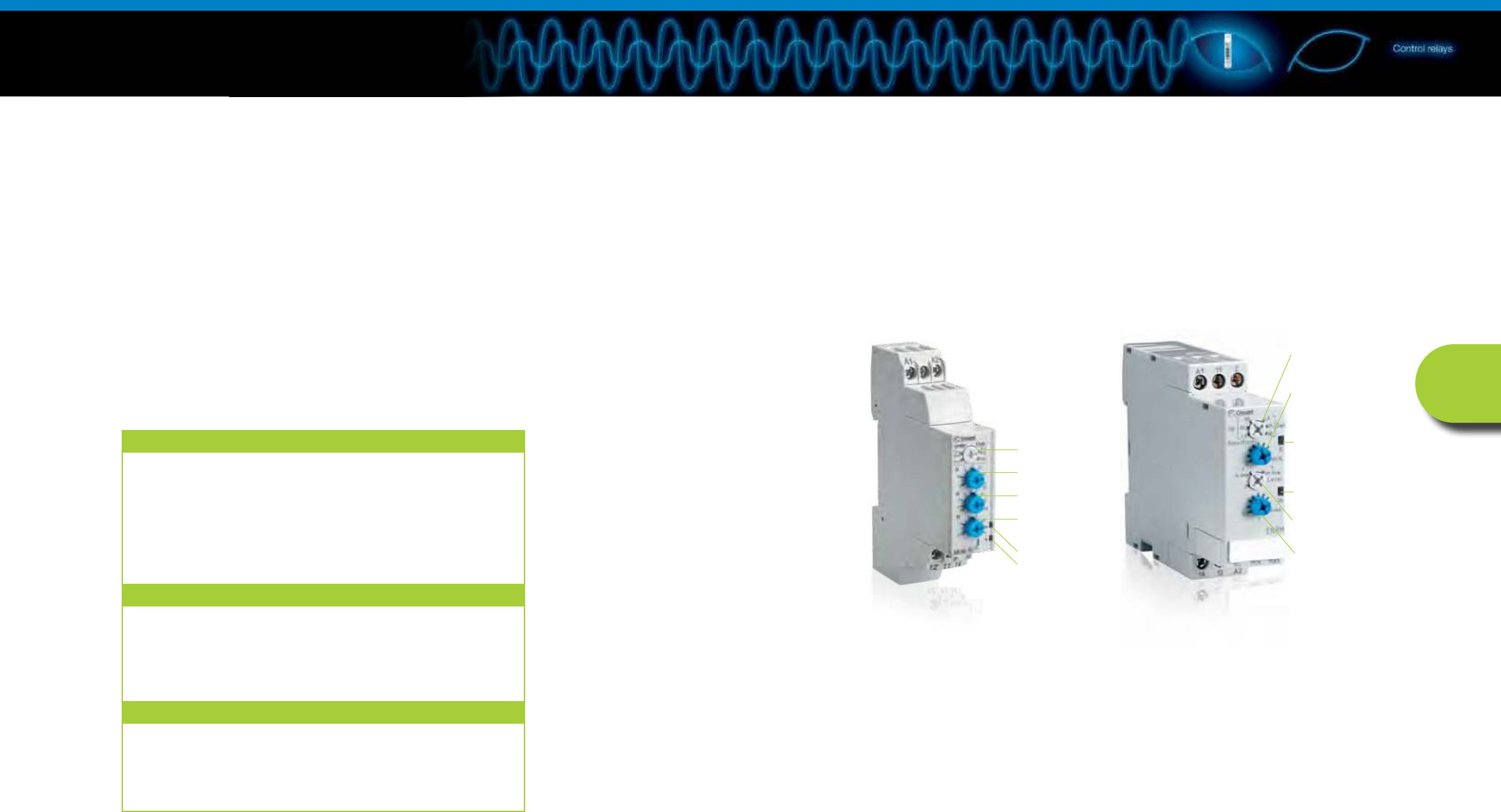

Power supply LED
Relay output LED
Operating mode
Sensitivity
Timing
Threshold
Operating mode
Threshold
Hysteresis
Power supply LED
Relay output LED
Timing
• Positive logic output to protect installations
in the event of a power failure.
•
True RMS guaranteed regardless of inter-
ference on the electrical supply.
• Better integration in industrial and commercial
cabinets thanks to modular casings and
industrial casings.
• Simplifi d installation thanks to a power
supply for single-phase products and a
self-powered version for three-phase
products.
• The combination of a number of control
functions in one unit optimises wiring time
and simplifies installation.
• A range of power supplies from 24 to 240 V
in one unit for optimised stocks.
Crouzet Control, control relays
Their features:
Crouzet Control, control relays
C-Lynx modular housing
and E, F, L industrial housing
MUS (C-Lynx) ENRM (E, F, L)
Control
relays
l Panorama Crouzet Control
I www.crouzet.com
28 29
Monitoring the internal
temperature of the PTC
probe. For lift machine
rooms, monitoring the
temperature between
4° and 40°C according
to standard EN81.
C-Ly NX THERMOCONTROL
RELAy S FOR LIFTS
HWT81
Lift
Monitoring overcurrent in the
event of motor overload. When
too high an overload occurs,
the current exceeds the
fixed th eshold and the
relay contact closes.
CURRENT CONTROL RELAy
MIC
Cranes
Crouzet Control, control relays
Where are they found?
In electrical cabinets associated with other automation functions for the following markets:
Fluid management: cold
management compressor
current control.
CURRENT CONTROL RELAy
MUS
Ice maker
Frequency control in
generating sets or detection
of backup units.
C-Ly NX CONTROL RELAy
(UNDeRf ReQUeNCy/
Ove Rf ReQUeNCy)
HHZ
Generating set
Detection of obstruction
or jamming.
CURRENT CONTROL RELAy
HIH
Crushers
Control/detection of phase
sequence and failure
on motors.
PHASE CONTROL RELAy
HWUA
Escalators
Level control (maintaining
a constant level).
LEvEL CONTROL RELAy S
ENRM
Steam systems
Control of mains voltage
(prevents overheating,
destruction of insulation
and change of direction).
Motor protection,
detection of anomalies
(temperature too high,
motor stopping).
MOTOR TEMPERATURE
CONTROL RELAy
HWTM
Motors
Maintaining an adequate
water level for the pumps
or water jet to work
properly, preventing
no-load operation
(which often irreparably
damages the pumps,
and always stops the
water jet effect).
CONTROL RELAy
HNM
Fountains
Protecting the pump: detection
of no-load operation by
undercurrent control,
detection of jamming
by overcurrent control.
CURRENT CONTROL RELAy
HIH
Pump management
•Food industry
•Industrial automation systems
•Quarries
•Building equipment
•Water treatment
•Transport
Applications
Control
relays
l Panorama Crouzet Control
I www.crouzet.com
30 31

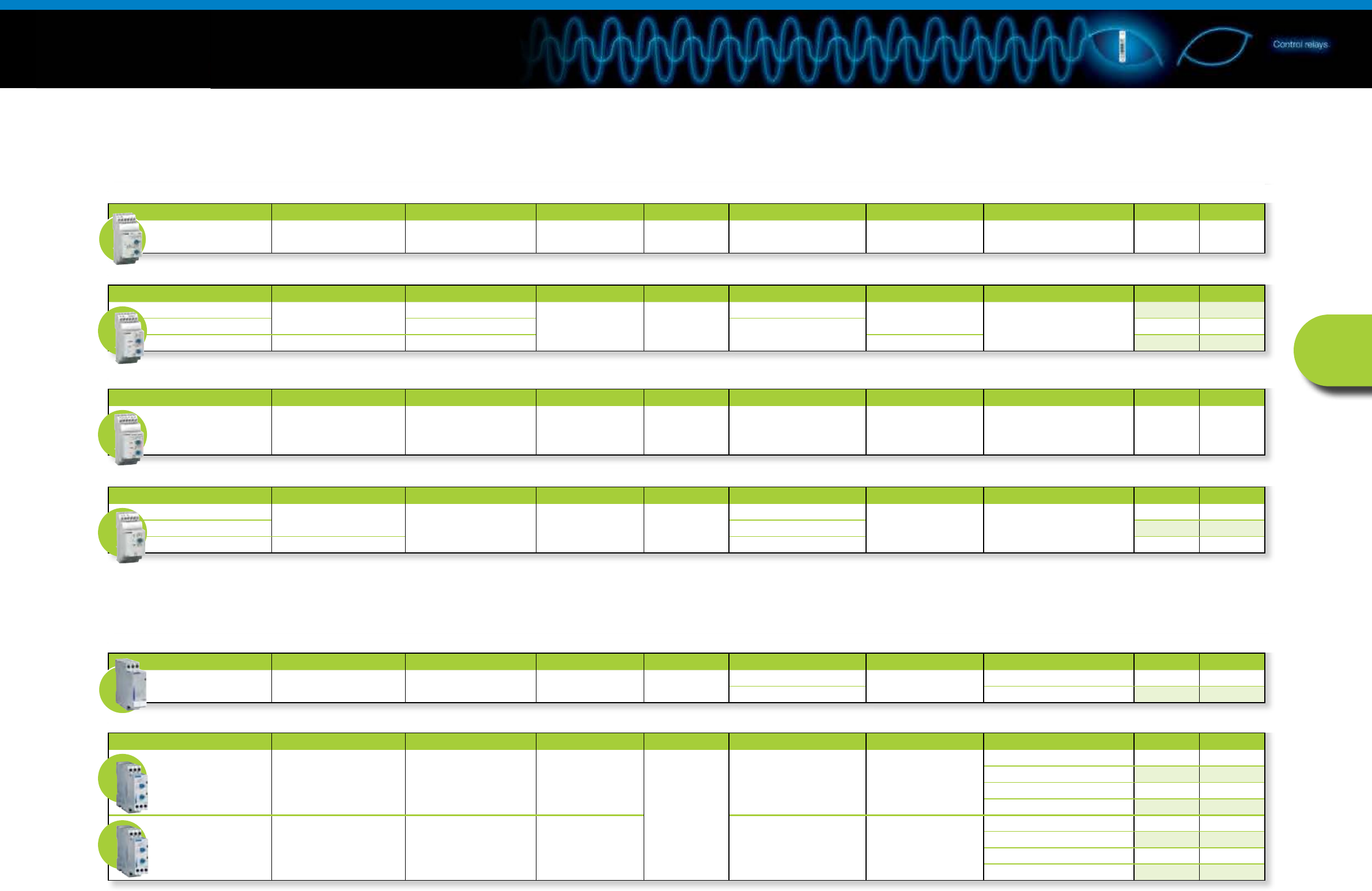

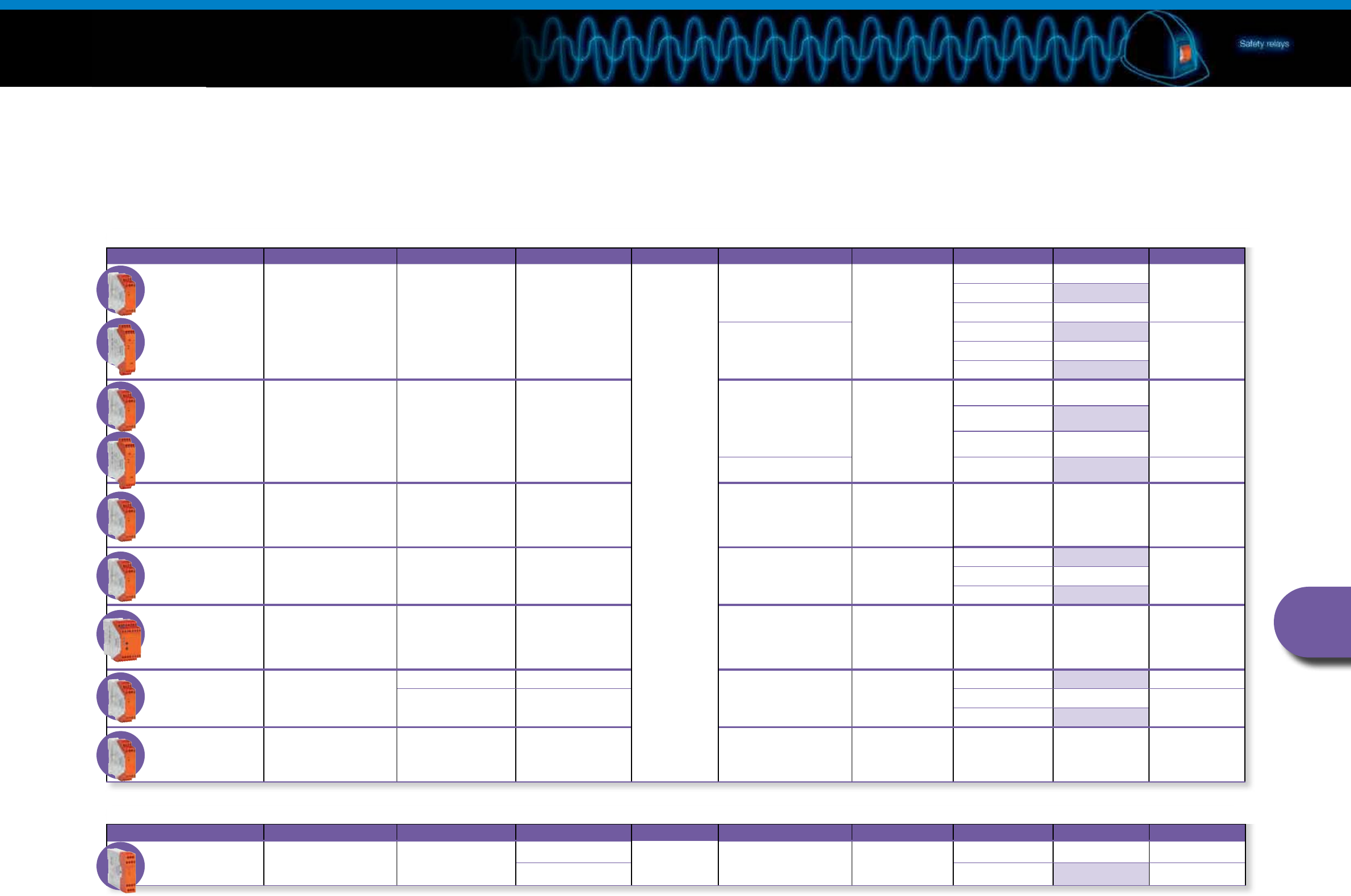

Selection guide
C-Lynx modular housing, Control relays
Phase control (3-phase supply)
Phase failure
Regeneration Sequence / Asymmetry Overvoltage / Undervoltage Timing Output(s) Casing width (mm) Meas. range (Self-powered) Part number Type
With
70 % regeneration
Yes / No
No / No No
1 x 5 A changeover 17.5 208 C 480 V a - 50 / 60 Hz
84 873 022 MWG
No / -20 % C -2 %
0.1 C 10 s
84 873 023 MWU
Yes / 5 C 15 %
No / No 84 873 024 MWA
Window +2 C +20 %
-20 C -2 % 84 873 025 MWUA
Without
regeneration
Yes / No No / No No
1 x 5 A changeover
17.5
208 C 480 V a - 50 / 60 Hz 84 873 020 MWS
1 x 5 A changeover 84 903 020 EMWS
2 x 5 A changeover 208 C 440 V a - 50 / 60 Hz 84 873 021 MWS2
No / No
+2 C +20% / -20 C -2 %
0.3 C 30 s 1 x 5 A changeover 208 C 480 V a - 50 / 60 Hz 84 873 222 M3US
Yes / 5 C 15% 0.1 C 10 s 2 x 5 A changeover 35 220 C 480 V a - 50 / 60 Hz
84 873 026 HWUA
No / No 0.3 C 30 s 84 873 220 H3US
Loss of phase and neutral
Regeneration Sequence / Asymmetry Overvoltage / Undervoltage Timing Output relay Casing width (mm)
Meas. range (Self-powered)
Part number Type
Without
regeneration No / No +2 C +20 % / -20 C -2 % 0.3 C 30 s 2 x 5 A changeover 35 120 C 277 V a - 50 / 60 Hz 84 873 221 H3USN
Motor temperature control and phase sequence and failure
Sensor Test Latching Supply voltage Output relay Casing width (mm) Supply Part number Type
PTC
No No
24 C 240 V z2 x 5 A NO 35 208 C 480 V a
84 873 027 HWTM
Reset on front panel Ye s 84 873 028 HWTM2
Single-phase DC voltage control with selectable latching
Measurement range Functions Hysteresis Timing Output relay Casing width (mm) Supply Part number Type
9 C 15 V c
Over / Undervoltage 5 % C 20 % 0.1 C 10 s 1 x 5 A changeover 17.5 Monitors its own
supply voltage
84 872 140 MUS
20 C 80 V z84 872 141 MUS
65 C 260 V z84 872 142 MUS
0.2 C 60 V z
Over or Undervoltage 5 % C 50 % 0.1 C 3 s 2 x 5 A changeover 35 24 C 240 V z84 872 120 HUL
15 C 600 V z84 872 130 HUH
20 C 80 V z
Window 3% fixe 0.1 C 10 s 1 x 5 A changeover 17.5 Monitors its own
supply voltage
84 872 151 MUSF
65 C 260 V z84 872 152 MUSF
Current control (over or undercurrent)
Measurement range Built-in CT Hysteresis Latching / Timing Output relay Casing width (mm) Supply Part number Type
2 C 20 A aYes 15% fixe No / No 1 x 5 A changeover 17.5
24 C 240 V z
84 871 122 MIC
2 C 500 mA z
No 5 % C 50 % Yes / 0.1 C 3 s 2 x 5 A changeover 35
84 871 120 HIL
0.1 C 10 A z84 871 130 HIH
The control relay accessories guide is available on the product data sheets which can be downloaded from the website www.crouzet.com
Control
relays
l Panorama Crouzet Control
I www.crouzet.com
32 33
Selection guide
Industrial housing E, F, L, Control relays
Phase sequence or phase failure control
Regeneration Sequence / Asymmetry Overvoltage / Undervoltage Timing Output relay Casing width (mm) Meas. range (Self-powered) Part number Type
None Yes / No No / No No 1 x 8 A changeover 22.5 200 C 500 V a84 892 299 EWS
2 x 8 A changeover 200 C 460 V a84 873 004 EWS2
voltage control with selectable latching
Measurement range Functions Hysteresis Timing Output relay Casing width (mm) Supply Part number Type
0.2 C 60 V zOver / Undervoltage 5 % C 50 % 0.1 C 3 s 1 x 8 A changeover 22.5
24 V c84 872 020 EUL
24 V a84 872 021 EUL
120 V a84 872 023 EUL
230 V a84 872 024 EUL
15 C 600 V zOver / Undervoltage 5 % C 50 % 0.1 C 3 s 1 x 8 A changeover 22.5
24 V c84 872 030 EUH
24 V a84 872 031 EUH
120 V a84 872 033 EUH
230 V a84 872 034 EUH
Over/underspeed control
Sensor Measurement range Hysteresis Timing Output relay Casing width (mm) Supply Part number Type
3-wire NPN/PNP sen-
sor,
0 C 30 V, NAMUR
Volt-free contact
0.05 s C 10 min 5 % fixe 0.6 C 60 s 1 x 5 A changeover 35 24 C 240 V z84 874 320 HSV
Temperature control with window (lifts) according to EN81
Sensor Built-in phase control Measurement range Timing Output relay Casing width (mm) Supply Part number Type
3-wire Pt100
No Low threshold -1 C +11°C
High threshold +34 C +46°C 0.1 C 10 s
1 x 5 A changeover
35 24 C 240 V z
84 874 110 HT81
3-wire Pt100 2 x 5 A NO 84 874 120 HT81-2
3-wire Pt100 Yes 480 V 2 x 5 A NO 84 874 130 HWT81
Frequency control with window
Measurement range Selectable latching Hysteresis Timing Output relay Casing width (mm)
Supply
Part number Type
40 C 70 Hz Yes 0.3 Hz fixe 0.1 C 10 s 2 x 5 A changeover 35 120 C 277 V a84 872 501 HHZ
Level control
Probe Emptying / Filling Level / Measurement range Timing Output relay Casing width (mm) Supply Part number Type
Resistive Yes / Yes 1 or 2 / 250 C 1 MΩ
0.1 C 5 s
2 x 5 A changeover 35 24 C 240 V z
84 870 700 HNM
Digital or PNP / NPN 1 or 2 / None 1 x 5 A changeover 84 870 710 HNE
Digital No / Yes 1 / None 17.5 84 870 720 MNS
The control relay accessories guide is available on the product data sheets which can be downloaded from the website www.crouzet.com
Control
relays
l Panorama Crouzet Control
I www.crouzet.com
34 35
Selection guide
Motor temperature control
Sensor Test Latching Manual reset Output relay Casing width (mm) Supply Part number Type
PTC No
Yes No 1 x 8 A NO
22.5
24 V a84 874 015 ETM
120 V a84 874 013 ETM
230 V a84 874 014 ETM
Yes Yes 1 x 8 A changeover
24 V a84 874 025 ETM 2
120 V a84 874 023 ETM 2
230 V a84 874 024 ETM 2
PTC No Yes Yes 2 x 8 A changeover 22.5
24 V a84 874 035 ETM 22
120 V a84 874 033 ETM 22
230 V a84 874 034 ETM 22
Motor temperature control
Level control
Probe Emptying / Filling Level / Measurement range Timing Output relay Casing width (mm) Supply Part number Type
Resistive Yes / Yes 1 or 2 / 5 C 100 KΩNo 1 x 8 A changeover 22.5
24 V a84 870 201 ENR
48 V a84 870 202 ENR
120 V a84 870 203 ENR
230 V a84 870 204 ENR
24 C 240 V a84 870 200* ENR*
Resistive Yes / Yes 2 / 250 Ω C 1 MΩ0.1 C 5 s 1 x 8 A changeover 22.5
24 V a84 870 211 ENRM
48 V a84 870 212 ENRM
120 V a84 870 213 ENRM
230 V a84 870 214 ENRM
24 C 240 V a84 870 210* ENRM*
Resistive Yes / Yes 1 or 2 / 5 C 100 KΩNo 1 x 8 A changeover
39
Plug-in
8-pin base
24 V a84 870 301 LN
120 V a84 870 303 LN
230 V a84 870 304 LN
39
Plug-in
11-pin base
24 V a84 870 306 LN
120 V a84 870 308 LN
230 V a84 870 309 LN
Resistive Combined with
monitoring of wells 2 / 5 C 100 KΩNo 1 x 8 A changeover
39
Plug-in
11-pin base
24 V a84 870 401 L2N
120 V a84 870 403 L2N
230 V a84 870 404 L2N
Resistive Yes / Yes
+ Alarm
2 / 5 C 100 KΩ
No 2 changeover 45
24 V a84 870 501 FN
48 V a84 870 502 FN
120 V a84 870 503 FN
230 V a84 870 504 FN
2 / 250 Ω C 5 KΩ84 870 803 FN LS
Level control
Current control (over / undercurrent)
Measurement range With CT Hysteresis Latching / Timing Output relay Casing width (mm) Supply Part number Type
2 C 500 mA No 5 % C 50 % Yes / 0.1 C 3 s 1 x 8 A changeover 22.5
24 V c84 871 020 EIL
24 V a84 871 021 EIL
48 V a84 871 022 EIL
120 V a84 871 023 EIL
230 V a84 871 024 EIL
0.1 C 10 A No 5 % C 50 % Yes / 0.1 C 3 s 1 x 8 A changeover 22.5
24 V c84 871 030 EIH
24 V a84 871 031 EIH
48 V a84 871 032 EIH
120 V a84 871 033 EIH
230 V a84 871 034 EIH
10 C 100 A 26 852 304 5 % C 50 % Yes / 0.1 C 3 s 1 x 8 A changeover 22.5
24 V c84 871 040 EIT
24 V a84 871 041 EIT
48 V a84 871 042 EIT
120 V a84 871 043 EIT
230 V a84 871 044 EIT
The control relay accessories guide is available on the product data sheets which can be downloaded from the website www.crouzet.com
* Available in 2014. The casing of the new range will be different from the ones presented here.
Further information can be found on the data sheets available at www.crouzet.com
Control
relays
I www.crouzet.com
36 37
Crouzet Control
Behind every project,
technologies and expertise
• Local support for all industrial projects.
• A multi-skilled team.
• A sales presence in over 40 countries.
• A Premium offer designed to ensure the excellence of products and services.
• Eco-design integrated in Crouzet's
"
Offer Creation Process
"
.
• Certifications: ISO 9001, ISO 14001, OHSAS 18001.
• Products which comply with international standards (UL, CSA, EC).
• A dynamic R&D department.
In addition to this catalogue, the www.crouzet.com website offers
the latest tools, available as free downloads, including technical data
sheets and installation manuals for each product.
www.crouzet.com
Counters and Ratemeters
Counting accuracy
l Panorama Crouzet Control
I www.crouzet.com
38 39
A counter, a ratemeter
How can they be defined in simple terms
A counter, a ratemeter
To execute which actions?
Crouzet Control, counters and ratemeters
A digital range and
an electromechanical range
• For fast count applications, a high-speed
counting frequency: up to 50 kHz.
• A two-colour or backlit LCD dual display
for ease of reading.
• Considerable space saving due to dual-
function electromechanical and electronic
ranges.
• A complete output operating logic to cover
complex applications.
• Easier maintenance thanks to removable
connectors (CTR48).
• An enhanced multifunction electronic range
for optimised stocks.
Crouzet Control, counters and ratemeters
Their features:
Up counting
Down counting
Informing
Displaying
Triggering
Actuating
Measuring
Chronometer timing
Up counting, Down counting
For up counting or down counting a number of parts, events, a
running time, the counter is the ideal solution. There are different
types of counter with the following functions: up/down counter, batch
counter, ratemeter, chronometer, multi-totalizer, elapsed time counter,
impulse counter.
Informing, Displaying
A counter can allow a user to be informed and to display data and
quantities easily. The data displayed can be read directly on the front
panel.
Triggering, Actuating
A counter can be used to trigger an action or an intervention on a
machine. The outputs actuate directly and/or transmit data to the
control system.
Measuring, Chronometer timing
A counter can be used to schedule preventive maintenance. The
machine running time is measured and the duration of an action
timed with a chronometer.
In addition to this catalogue, the www.crouzet.com website offers technical
data sheets and installation manuals for each product, available as free
downloads.
A counter can be used to count a number of actions or events.
It thus participates in production management and preventive maintenance.
A ratemeter can be used to display the speed of rotation of a motor in real time.
CEM48CTR48
Operating time Power used
Mode
Enable
Preset
settings
The basics
Counters
and
Ratemeters
l Panorama Crouzet Control
I www.crouzet.com
40 41
Speed measurement and control
on shrink wrapping machine.
Control of conveyor
movement speed.
Counting operating hours
and counting the number
of starts.
Calculation of cut length on
wood and paper machines.
Combined impulse and hour
counters - Maintenance.
Start counters and
operating time counters.
Managing quantities -
Packaging by unit, batch or
series of batches.
Combined ratemeter and
counter for controlling the
position and speed of
a router.
Counting operating hours,
energy consumption.
Managing quantities -
Calculation of distance
of travel.
Counting and display of
operating times.
Event management,
wear control.
ELECTRONIC COUNTER
CTR24L 2511
RATEMETER
CTR24L 2511
ELECTROMECHANICAL
HOUR AND IMPULSE
COUNTER
CMM48
ELECTRONIC COUNTER
CTR48
ELECTRONIC COUNTER
CTR24L 2514
ELECTRONIC COUNTER
CTR48
ELECTRONIC RATEMETER AND
COUNTERS
CTR24L 2513
ELECTROMECHANICAL
HOUR AND eNeRGy
COUNTER
CEM48
ELECTRONIC COUNTER
CTR48
HOUR COUNTER
CTR24 2323
Tachometer systems Assembly line speed
Compressors
Length measurement Lifts
Counting quantities Milling machine
Dehumidifier
Position control Uv lamp
Crouzet Control, counters and ratemeters
Where are they found?
In electrical cabinets associated with other automation functions for the following markets:
•Industrial automation systems
•Building equipment
•Industrial machines
•Medical
Applications
Counters
and
Ratemeters
l Panorama Crouzet Control
I www.crouzet.com
42 43

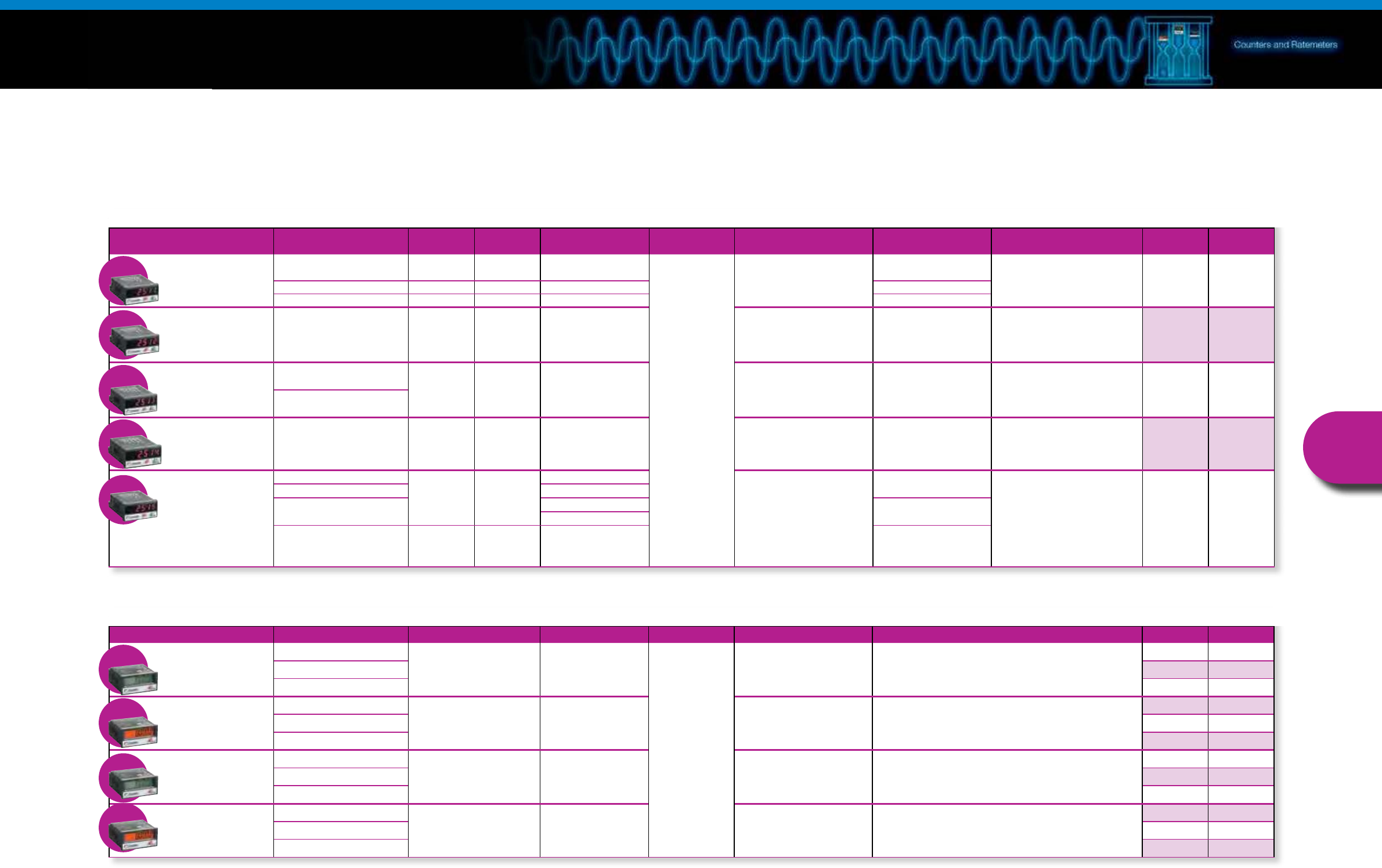

Selection guide
Electronic counters
24 x 48 multifunction counters without preselection
Functions Modes Multiplication
coefficient
Decimal
point Max. counting speed Display Counting capacity Supply Part number Type
Totalizer
or Hour counter
or Ratemeter
Dir / up.dn / up.up
Ph / 2-ph / 4-ph Yes Yes 50 kHz (DIR mode)
LED
999,999
10 C 30 V c87 623 570 CTR24L - 2511
Start / Stop No Ye s 999,999 hrs 0.001 s C 999,999 hrs
sec -1 / min -1 Yes Yes 50 kHz 999,999
Double totalizer
Independent inputs
(A and B)
Counting
A / B / A-B / A+B
AdivB / %AB
Yes Yes 25 kHz LED 999,999 10 C 30 V c87 623 571 CTR24L - 2512
Totalizer and
Ratemeter
Independent inputs
Dir / up.dn / up.up
Ph / 2-ph / 4-ph Yes Yes 30 kHz LED 999,999 10 C 30 V c87 623 572 CTR24L - 2513
sec -1 / min -1
Double totalizer
Common input
Counting
(total / partial) Yes Yes 50 kHz LED 999,999 10 C 30 V c87 623 573 CTR24L - 2514
Totalizer
+ Ratemeter
or Totalizer
+ Totalizer
or Totalizer + Hour
or Hour + Hour
Counting + sec -1 / min -1
Yes Yes
35 kHz
LED
999,999
10 C 30 V c87 623 574 CTR24L - 2515
Counting 50 kHz
Counting + Start / Stop 40 kHz 999,999
0.001 s C 999,999 hrs
999,999 hrs
Start / Stop No Ye s 999,999 hrs 0.001 s C 999,999 hrs
24 x 48 counters without preselection
Functions Inputs / Reset Max. counting speed Display Counting capacity Supply Part number Type
Hour
PNP / Contact
99,999.99 hrs LCD 0.1 s C 99,999.99 hrs Lithium battery
87 622 161 CTR24 - 2223
NPN or contact / Contact 87 622 162 CTR24 - 2233
Voltage / Contact 87 622 170 CTR24 - 2224
Hour
PNP / Contact
99,999.99 hrs Orange
(backlit) 0.1 s C 99,999.99 hrs Lithium battery
87 622 181 CTR24 - 2323
NPN or contact / Contact 87 622 182 CTR24 - 2333
Voltage / Contact 87 622 190 CTR24 - 2324
Totalizer
PNP / Contact
99,999,999 LCD 99,999,999 Lithium battery
87 622 061 CTR24 - 2241
NPN or contact / Contact 87 622 062 CTR24 - 2251
Voltage / Contact 87 622 070 CTR24 - 2242
Totalizer
PNP / Contact
99,999,999 Orange
(backlit) 99,999,999 Lithium battery
87 622 081 CTR24 - 2341
NPN or contact / Contact 87 622 082 CTR24 - 2351
Voltage / Contact 87 622 090 CTR24 - 2342
The counters and ratemeters accessories guide is available on the product data sheets which can be downloaded from the website www.crouzet.com
Counters
and
Ratemeters
l Panorama Crouzet Control
I www.crouzet.com
44 45
48 x 48 multifunction counters with preselection
Functions Number of preset(s) Max. counting speed Display Counting capacity Outputs Supply Part number Type
Preselection counter
Ratemeter
Chronometer
Multi-totalizer
1
40 KHz
Backlit LCD (orange)
extra-bright
2 lines
-999,999 C 999,999
1 x 5 A changeover
1 solid state
10 C 30 V c87 621 111 CTR48
24 V a87 621 112 CTR48
90 C 260 V a87 621 115 CTR48
Preselection counter
Ratemeter
Chronometer
Multi-totalizer
Batch counter
2
1 x 5 A changeover
1 x 5 A NO
2 solid state
10 C 30 V c87 621 121 CTR48
24 V a87 621 122 CTR48
90 C 260 V a87 621 125 CTR48
Preselection counter
Ratemeter
Chronometer
Multi-totalizer
1
40 KHz
Two-colour LCD
(red and green)
2 lines
-999,999 C 999,999
1 x 5 A changeover
1 solid state
10 C 30 V c87 621 211 CTR48
24 V a87 621 212 CTR48
90 C 260 V a87 621 215 CTR48
Preselection counter
Ratemeter
Chronometer
Multi-totalizer
Batch counter
2
1 x 5 A changeover
1 x 5 A NO
2 solid state
10 C 30 V c87 621 221 CTR48
24 V a87 621 222 CTR48
90 C 260 V a87 621 225 CTR48
Preselection counter
Chronomètre
1
5 KHz Backlit LCD (green)
2 lines -999,999 C 999,999
1 x 3 A changeover
11 C 30 V c87 629 111 CTR48E
115 V a87 629 113 CTR48E
230 V a87 629 114 CTR48E
21 x 3 A changeover
1 x 3 A NO
11 C 30 V c87 629 121 CTR48E
115 V a87 629 123 CTR48E
230 V a87 629 124 CTR48E
Hour counters
Dimensions (mm) Counting capacity Frequency Supply Part number Type
48 x 48 99,999.99
50 Hz a
20 C 30 V a99 772 710 CHM48
42 C 48 V a99 772 711 CHM48
100 C 130 V a99 772 712 CHM48
360 C 440 V a99 772 713 CHM48
187 C 264 V a99 772 714 CHM48
60 Hz a
20 C 30 V a99 772 718 CHM48
42 C 48 V a99 772 719 CHM48
100 C 130 V a99 772 715 CHM48
187 C 264 V a99 772 716 CHM48
360 C 440 V a99 772 717 CHM48
48 x 48 999,999.99 c
10 C 30 V c99 772 810 CHM48
36 C 80 V c99 772 811 CHM48
100 C 130 V c99 772 812 CHM48
24 x 48 99,999.99
50 Hz a
20 C 30 V a99 782 710 CHM24
100 C 130 V a99 782 712 CHM24
187 C 264 V a99 782 714 CHM24
60 Hz a
20 C 30 V a99 782 718 CHM24
100 C 130 V a99 782 715 CHM24
187 C 264 V a99 782 716 CHM24
999,999.99 c10 C 30 V c99 782 810 CHM24
15 x 32 99,999.99 c4.5 C 35 V c99 792 810 CHM15
Modular
Rail Din
35 mm
99,999.99 50 Hz a
24 V a99 793 710 CHMDR
115 V a99 793 712 CHMDR
230 V a99 793 714 CHMDR
c10 C 27 V c99 793 810 CHMDR
Electromechanical counters
The counters and ratemeters accessories guide is available on the product data sheets which can be downloaded from the website www.crouzet.com
Selection guide
Counters
and
Ratemeters
l Panorama Crouzet Control
I www.crouzet.com
46 47

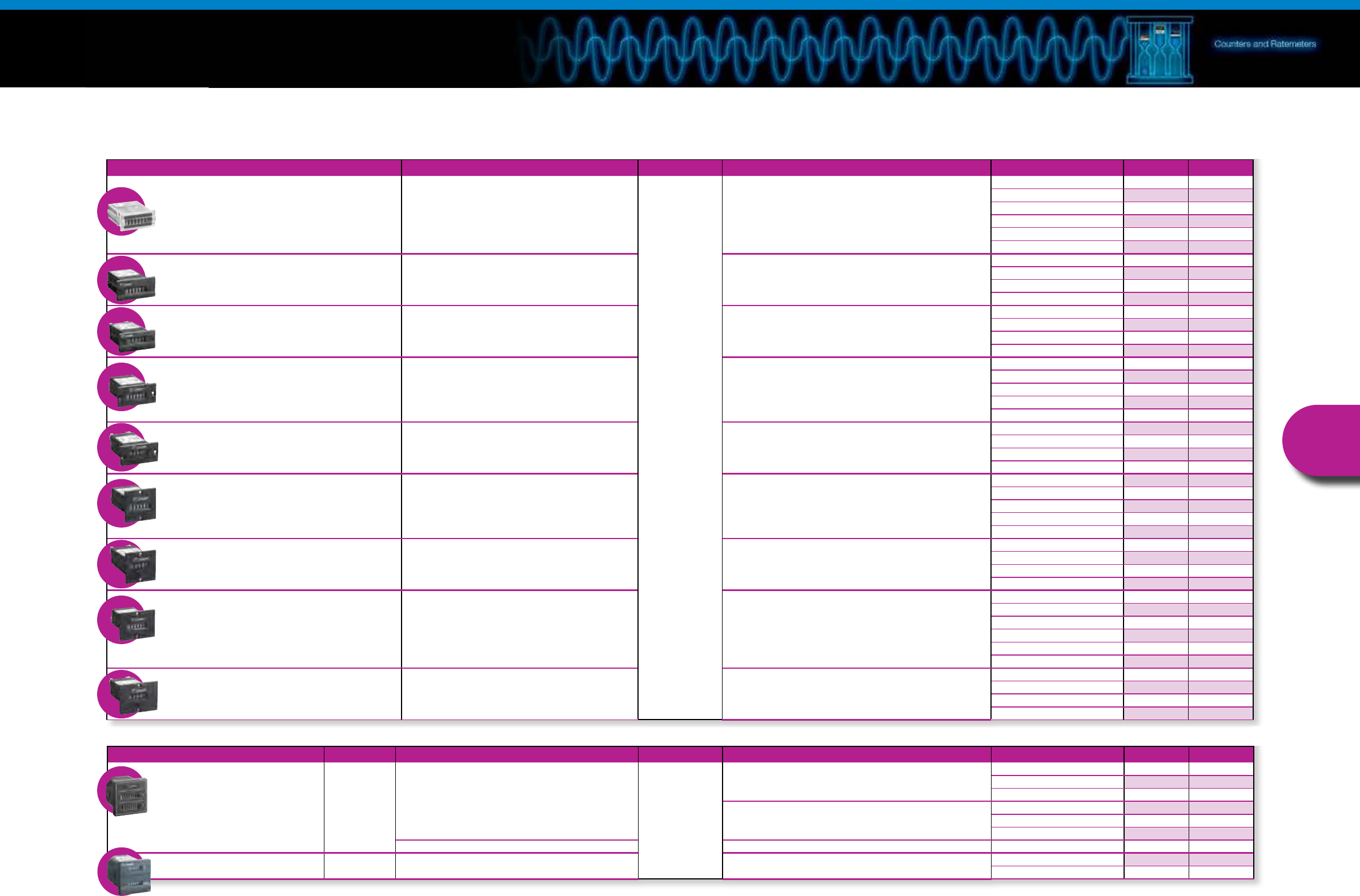

Impulse counters
Dimensions (mm) Reset to zero Counting capacity Supply Part number Type
15 x 32
Clip-fixin No 9,999,999
24 V a - 50 / 60 Hz 99 778 710 CIM15
115 V a - 50 / 60 Hz 99 778 712 CIM15
230 V a - 50 / 60 Hz 99 778 714 CIM15
5 V c99 778 805 CIM15
12 V c99 778 806 CIM15
24 V c99 778 810 CIM15
24 x 48
Clip-fixin No 999,999
24 V a - 50/60Hz 99 777 710 CIM 24
230 V a - 50/60Hz 99 777 714 CIM 24
12 V c99 777 815 CIM 24
24 V c99 777 810 CIM 24
24 x 48
Clip-fixin Yes 99,999
24 V a - 50/60Hz 99 777 720 CIM 24
230 V a - 50/60Hz 99 777 724 CIM 24
12 V c99 777 825 CIM 24
24 V c99 777 820 CIM 24
24 x 48
Screw-fixin No 999,999
24 V a - 50/60Hz 99 776 904 CIM 24 x 48
115 V a - 50/60Hz 99 776 902 CIM 24 x 48
230 V a - 50/60Hz 99 776 901 CIM 24 x 48
24 V c99 776 907 CIM 24 x 48
110 V c99 776 905 CIM 24 x 48
24 x 48
Screw-fixin Yes 999,999
24 V a - 50/60Hz 99 776 924 CIM 24 x 48
115 V a - 50/60Hz 99 776 922 CIM 24 x 48
230 V a - 50/60Hz 99 776 921 CIM 24 x 48
24 V c99 776 927 CIM 24 x 48
36 x 37
Screw-fixin No 999,999
24 V a - 50/60Hz 99 776 604 CIM 36 x 37
115 V a - 50/60Hz 99 776 602 CIM 36 x 37
230 V a - 50/60Hz 99 776 601 CIM 36 x 37
24 V c99 776 607 CIM 36 x 37
110 V c99 776 605 CIM 36 x 37
36 x 37
Screw-fixin Yes 999,999
24 V a - 50/60Hz 99 776 613 CIM 36 x 37
115 V a - 50/60Hz 99 776 611 CIM 36 x 37
230 V a - 50/60Hz 99 776 610 CIM 36 x 37
24 V c99 776 616 CIM 36 x 37
36 x 48
Screw-fixin No 999,999
24 V a - 50/60Hz 99 776 704 CIM 36 x 48
115 V a - 50/60Hz 99 776 702 CIM 36 x 48
230 V a - 50/60Hz 99 776 701 CIM 36 x 48
24 V c99 776 707 CIM 36 x 48
48 V c99 776 736 CIM 36 x 48
110 V c99 776 705 CIM 36 x 48
36 x 48
Screw-fixin Yes 999,999
24 V a - 50/60Hz 99 776 713 CIM 36 x 48
115 V a - 50/60Hz 99 776 711 CIM 36 x 48
230 V a - 50/60Hz 99 776 710 CIM 36 x 48
24 V c99 776 716 CIM 36 x 48
Dual function 48 x 48 counters
Functions Reset to zero Counting capacity Frequency Supply Part number Type
Impulse
Hour No
9,999,999
99,999.99 hrs
50 Hz a
20 C 30 V a99 779 710 CMM48
100 C 130 V a99 779 712 CMM48
187 C 264 V a99 779 714 CMM48
60 Hz a
20 C 30 V a99 779 718 CMM48
100 C 130 V a99 779 715 CMM48
187 C 264 V a99 779 716 CMM48
9,999,999 / 999,999.99 hrs c10 C 30 V c99 779 810 CMM48
Power
Hour No 9,999,999
99,999.99 kw/hrs 50/60 Hz a115 V a99 780 712 CEM48
230 V a99 780 714 CEM48
The counters and ratemeters accessories guide is available on the product data sheets which can be downloaded from the website www.crouzet.com
Selection guide
Counters
and
Ratemeters
l Panorama Crouzet Control
I www.crouzet.com
48 49
Connection diagrams
CTR24 counters
Connections
Hour counters Impulse counters
Types 2223 and 2323:
Part numbers:
•87 622 161
•87 622 181
Types 2241 and 2341:
Part numbers:
•87 622 061
•87 622 081
Types 2233 and 2333:
Part numbers:
•87 622 162
•87 622 182
Types 2251 and 2351:
Part numbers:
•87 622 062
•87 622 082
1. NC
2. Start / Stop input
3. Reset input
4. Enable front panel
Reset
5. Mode 1
(Time selection)
6. GND / Optional
backlighting -
(only 23xx)
7. Mode 2
(Time selection)
8. Optional
backlighting +
(only 23xx)
1. Common z
2. Start / Stop input
3. Reset input
4. Enable front panel
Reset
5. Mode 1
(Time selection)
6. GND / Optional
backlighting -
(only 23xx)
7. Mode 2
(Time selection)
8. Optional
backlighting +
(only 23xx)
1. Fast count
2. Common z
3. Reset input
4. Enable front panel
Reset
5. NC
6. GND
7. Optional
backlighting -
(only 23xx)
8. Optional
backlighting +
(only 23xx)
1. Fast count
2. Slow count
3. Reset input
4. Enable front panel
Reset
5. Counting (counting
direction)
6. GND
7. Optional
backlighting -
(only 23xx)
8. Optional
backlighting +
(only 23xx)
Types 2224 and 2324:
Part numbers:
•87 622 170
•87 622 190
Types 2242 and 2342:
Part numbers:
•87 622 070
•87 622 090
Counters
and
Ratemeters
I www.crouzet.com
50 51
Crouzet Control
Behind every project,
technologies and expertise
• Local support for all industrial projects.
• A multi-skilled team.
• A sales presence in over 40 countries.
• A Premium offer designed to ensure the excellence of products and services.
• Eco-design integrated in Crouzet's
"
Offer Creation Process
"
.
• Certifications: ISO 9001, ISO 14001, OHSAS 18001.
• Products which comply with international standards (UL, CSA, EC).
• A dynamic R&D department.
In addition to this catalogue, the www.crouzet.com website offers
the latest tools, available as free downloads, including technical data
sheets and installation manuals for each product.
www.crouzet.com
Temperature controllers
A degree of constancy
l Panorama Crouzet Control
I www.crouzet.com
52 53
• Adaptive tuning products which manage
their parameters independently: PID,
temperature rise and inertia curve to simplify
the installation.
• A sophisticated control algorithm to
obtain a temperature as close as possible
to the setpoint.
• A dual display makes it user-friendly and
easy to use.
• Compatibility with all types of probe thanks
to a "Multi-technology probe input".
• Multiple outputs (logic and/or relay) for
optimum integration in any system.

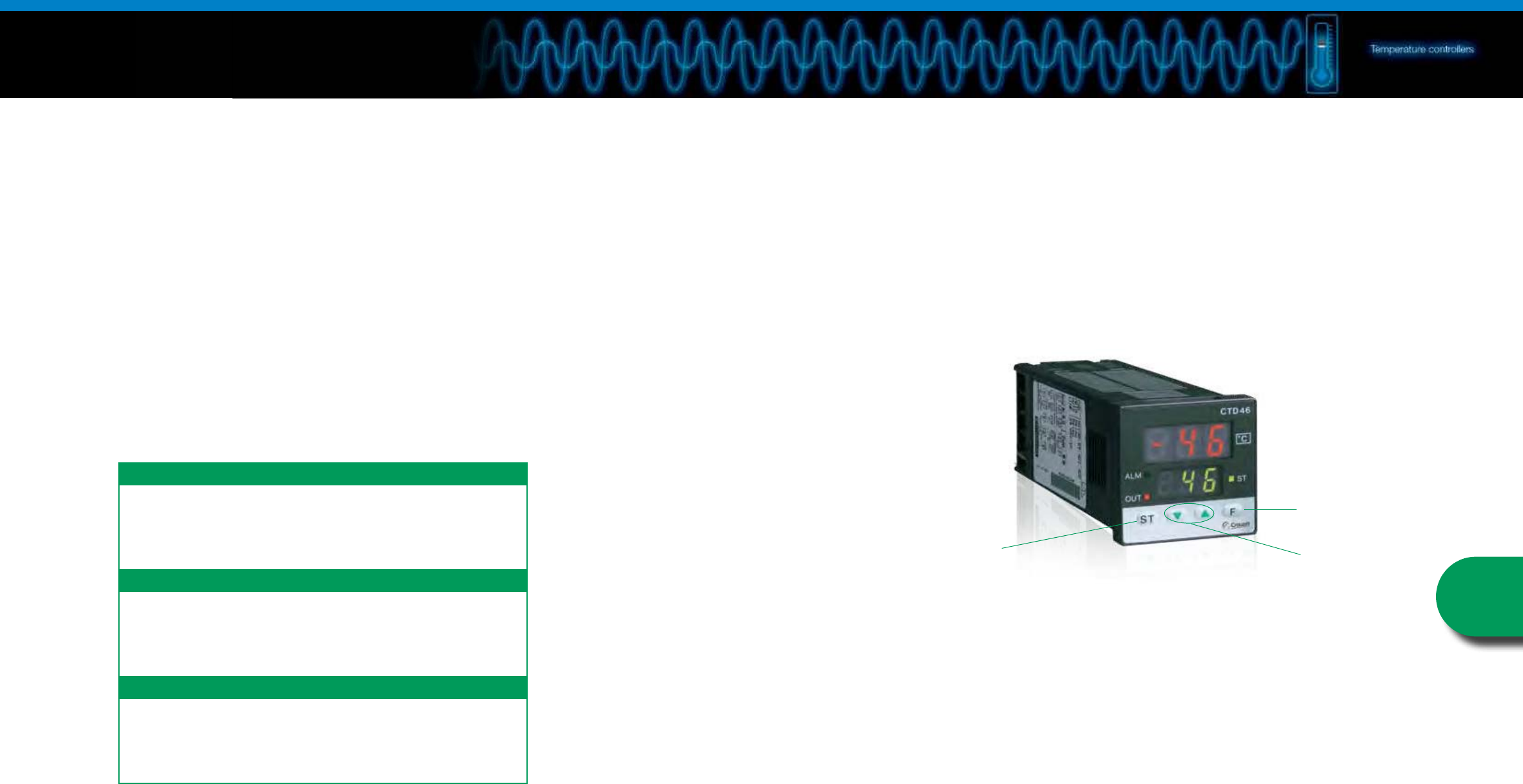

The basics
A temperature controller
How can it be defined in simple terms
A temperature controller is an electronic device which is used to monitor and ensure a constant
temperature according to a setpoint.
A temperature controller
To execute which actions?
Measuring
Controlling
Displaying
Alerting
Monitoring
Measuring
The temperature controller is used to measure and maintain the
temperature of a room, an enclosure, a liquid.
It guarantees a constant temperature and ensures optimum use of
the systems in which it is found: ovens, baths, cold rooms, machines.
Controlling, Displaying, Alerting
Directly interfacing with probes, the temperature controller controls
and displays the temperature of the enclosure.
It can be used to set an alert in the event of an anomaly (low and/or
high temperature).
Monitoring
The temperature controller action is not limited to monitoring. It senses
and controls the temperature, acting on the system heating or cooling.
If the controlled temperature does not conform to the setpoint,
the controller implements a heating or cooling action.
In addition to this catalogue, the www.crouzet.com website offers technical
data sheets and installation manuals for each product, available as free
downloads.
Crouzet Control, temperature controllers
A complete range
Crouzet Control, temperature controllers
Their features:
CTD46
Functions
Setpoint
settings
Programming
mode
Temperature
controllers
l Panorama Crouzet Control
I www.crouzet.com
54 55
Monitoring the heating
temperature of the various
packages.
Managing the temperature of an
oven with change of setpoint
possible via MODBUS.
Managing the temperature of
the liquid chocolate before
it is poured into a mould.
Managing cooling of
fermentation tanks.
Maintaining forced air at
the correct temperature.
Maintaining the temperature
of a ceramic oven.
Maintaining a storage room at
freezing temperature.
Maintaining the temperature
of a bain-marie during cooking.
Control of industrial ovens. Temperature control for "paint
curing" in the motor vehicle
industry.
TEMPERATURE CONTROLLER
MIC48 TEMPERATURE CONTROLLER
MIC48
TEMPERATURE CONTROLLER
CTD43
TEMPERATURE CONTROLLER
MIC48
TEMPERATURE CONTROLLER
MIC48
TEMPERATURE CONTROLLER
CTD43 TEMPERATURE CONTROLLER
CTD46
TEMPERATURE CONTROLLER
CTD46
TEMPERATURE CONTROLLER
CTD46
TEMPERATURE CONTROLLER
CTD46
Packaging Oven
Chocolate factory
Brewing Air treatment plant
Fluid management Cold room
Bain-Marie
Cooking Spray booth
Crouzet Control, temperature controllers
Where are they found?
In electrical cabinets associated with other automation functions for the following markets:
• Industrial automation systems
• Building equipment
• Food industry
Applications
Temperature
controllers
l Panorama Crouzet Control
I www.crouzet.com
56 57
Temperature controllers
Accessories
Description Part number
Current transformer for MIC 48 (10 A / 50 mA) 26 852 301
Current transformer for MIC 48 (25 A / 50 mA) 26 852 302
Current transformer for MIC 48 (50 A / 50 mA) 26 852 303
Current transformer for MIC 48 (100 A / 50 mA) 26 852 304
Thermocouple probe J with nickel-plated brass eyelet - max: 400°C 79 696 030
Thermocouple probe J with 304 stainless steel casing - max: 600°C 79 696 031
Accessories (continued)
Description Part number
Thermocouple probe J with 316 stainless steel sheath - diameter 6 mm - max: 400°C 79 696 032
Thermocouple probe J with 316 stainless steel sheath - diameter 5 mm - max: 400°C 79 696 033
Thermocouple probe K with 304 stainless steel casing - max: 1100°C 79 696 034
Pt100 probe Class B with 316 stainless steel sheath - max: 200°C 79 696 035
Pt100 probe Class B with 316 stainless steel sheath - max: 400°C 79 696 036
Pt100 probe Class B with aluminium V6 sheath - max: 200°C 79 696 037
48 x 48 digital
Functions Type of control Alarm Input Output Display Supply Part number Type
Heating or Cooling PID with auto-tune
and adaptive tune 1 alarm
3-wire Pt100
or Thermocouple
J, K, L, N
1 x 3 A output
1 x 1 A output 1 line (3 digits)
24 V z89 421 102 CTD43
100 C 240 V a89 421 108 CTD43
1 voltage logic
1 x 1 A relay
24 V z89 421 112 CTD43
100 C 240 V a89 421 118 CTD43
Heating or Cooling PID with auto-tune
and adaptive tune 1 alarm
3-wire Pt100
or Thermocouple
J, K, L, N
1 x 3 A output
1 x 1 A output 2 lines (3 digits)
24 V z89 422 102 CTD46
100 C 240 V a89 422 108 CTD46
1 voltage logic
1 x 1 A relay
24 V z89 422 112 CTD46
100 C 240 V a89 422 118 CTD46
Heating and Cooling PID with auto-tune
and adaptive tune No
3-wire Pt100
or Thermocouple
J, K, L, N
1 x 3 A output
1 x 1 A output 2 lines (3 digits)
24 V z89 422 502 CTH46
100 C 240 V a89 422 508 CTH46
1 voltage logic
1 x 1 A relay
24 V z89 422 512 CTH46
100 C 240 V a89 422 518 CTH46
Heating and / or Cooling
PID with auto-tune
and adaptive tune
Load break monitoring
2 alarms
3-wire Pt100
or Thermocouple
J, K, R, S,T, L, N
or voltage
or current
1 x 3 A output
1 x 1 A output 2 lines (4 digits)
24 V z89 422 002 MIC48
100 C 240 V a89 422 008 MIC48
1 voltage logic
1 x 1 A relay
24 V z89 422 012 MIC48
100 C 240 V a89 422 018 MIC48
Selection guide
Temperature
controllers
I www.crouzet.com
58 59
Crouzet Control
Behind every project,
technologies and expertise
• Local support for all industrial projects.
• A multi-skilled team.
• A sales presence in over 40 countries.
• A Premium offer designed to ensure the excellence of products and services.
• Eco-design integrated in Crouzet's
"
Offer Creation Process
"
.
•Certifications: ISO 9001, ISO 14001, OHSAS 18001.
• Products which comply with international standards (UL, CSA, EC).
• A dynamic R&D department.
In addition to this catalogue, the www.crouzet.com website offers
the latest tools, available as free downloads, including technical data
sheets and installation manuals for each product.
www.crouzet.com
Safety relays
User protection
l Panorama Crouzet Control
I www.crouzet.com
60 61
The basics
• A range covering machine applications:
emergency stop and mobile guard
monitoring, emergency stop with timed
contact, two-hand control, zero speed
monitoring, expansion module and power
supply accessory. A relevelling control
relay for the lift market.
• A safety component with one or two
channels.
• Prohibition of machine starting if a problem
becomes apparent through self-checking
of the integrity of the control devices.
• A range conforming to:
- Performance Level (PL) e a n d
category 4 according to EN ISO 13849-1
- Limit value SIL 3 (SIL CL) according to
IEC/EN 62061
Crouzet Control, safety relays
A relevelling range
and a machine safety range
Crouzet Control, safety relays
Their features:
KNA3-y S KSW3-JS
Power supply
LED
Power supply LED
Relay output
LED
Relay output LED
Error indication LED
A safety relay
How can it be defined in simple
terms?
A safety relay is an automation component which is part of a machine's safety system, thus
contributing to the safety of people around it.
It is essential for compliance with machine safety standards (EN ISO 13849-1 and
IEC/EN 62061).
A safety relay
To execute which actions?
Protecting
Controlling
Monitoring
Sensing
Actuating
Protecting, Controlling
The safety relay protects people. It controls a user's action to ensure
that this does not lead to anything that may damage his health, either
voluntarily or accidentally.
Monitoring, Sensing
When a machine may be dangerous for the user, it is necessary to
monitor all hazardous operations, and detect the slightest anomaly.
Actuating
It is then necessary to actuate safety contacts to stop cutting,
rotating, burning items, etc which could be hazardous for the user.
In addition to this catalogue, technical data sheets for each product are
available as free downloads on the www.crouzet.com website.
Safety
relays
l Panorama Crouzet Control
I www.crouzet.com
62 63
Selection guide
Machine safety
Function(s) Safety category Safety contacts Data contact Connection Casing width (mm) Supply Part number Type
Emergency stop &
Safety guard
monitoring with
1 channel
3 3 x NO 1 x NC
Screw terminals
22.5
24 V c85 102 031
KNA3-YS
110 V a85 102 034
230 V a85 102 035
Removable spring terminals
24 V c85 103 031
KNAC3-YS
110 V a85 103 034
230 V a85 103 035
Emergency stop &
Safety guard
monitoring with
2 channels
4 3 x NO 1 x NC
Screw terminals
22.5
24 V z85 102 436
KNE3-YS
110 - 115 V a85 102 434
230 V a85 102 435
Removable spring terminals 24 V z85 103 436 KNEC3-YS
Timed contacts
1 C 10 s 42 x NO (instantaneous)
1 x NO (timed) - Screw terminals 22.5 24 V z85 102 736 KZR3-YS
Expansion module
for safety relays
4
(combined with
a level 4 safety relay)
5 x NO 1 x NC
(feedback loop) Screw terminals 22.5
24 V z85 102 956
KZE5-YS
110 - 115 V a85 102 954
230 - 240 V a85 102 955
Zero speed
monitoring 43 x NO
1 x NC
1 x NO
2 x solid state outputs Screw terminals 45 24 V c85 102 331 KSW3-JS
Two-hand control 4
2 x NO -
Screw terminals 22.5
24 V c85 102 621 KZH2-Y2
3 x NO 1 x NC
24 V c85 102 631
KZH3-YS
24 V a85 102 632
Power supply for
24 V c safety relays - - - Screw terminals 22.5 85 C 265 V z85 102 208 KPS0-YS
Relevelling control according to EN 81-1, -2 (lift standard)
Function(s) Safety category Safety contacts Data contact Connection Casing width (mm) Supply Part number Type
Relevelling zone con-
trol for lifts 4 2 x NO
-
Removable screw terminals 22.5
24 V z85 102 826 KZHNU-YS
1 x NC 24 V z85 102 526 KZHNV-YS
Crouzet Control, safety relays,
How to choose?
Safety
relays
l Panorama Crouzet Control
I www.crouzet.com
64 65
Crouzet Control
Behind every project,
technologies and expertise
• Local support for all industrial projects.
• A multi-skilled team.
• A sales presence in over 40 countries.
• A Premium offer designed to ensure the excellence of products and services.
• Eco-design integrated in Crouzet's
"
Offer Creation Process
"
.
•Certifications: ISO 9001, ISO 14001, OHSAS 18001.
• Products which comply with international standards (UL, CSA, EC).
• A dynamic R&D department.
In addition to this catalogue, the www.crouzet.com website offers
the latest tools, available as free downloads, including technical data
sheets and installation manuals for each product.

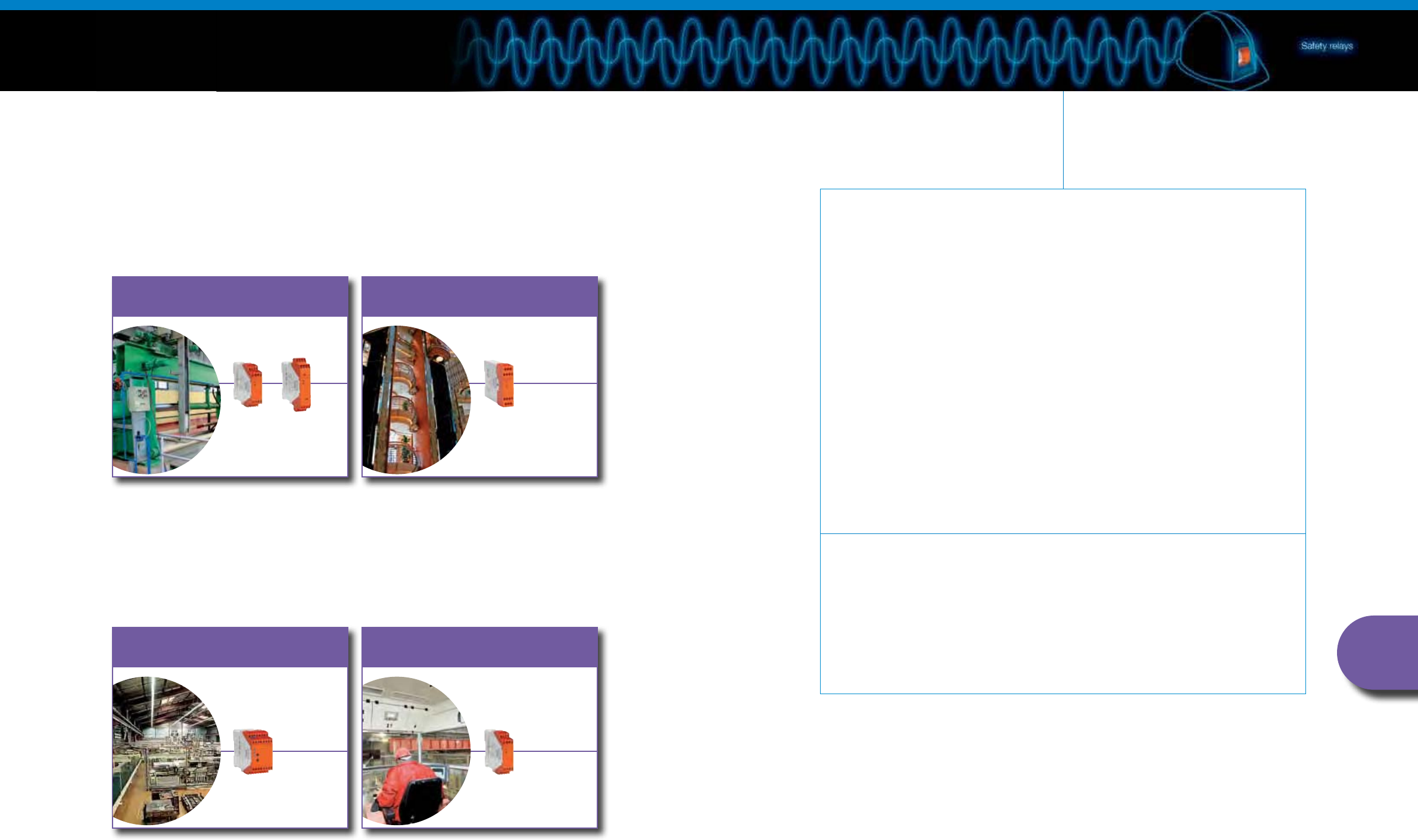

Applications
Control of two-hand control
console
Emergency stop modules with
1 or 2 channels
Sensorless control for stopping
electric motors
KZH2-y S and KZH3-y S
SAFETy RELAy S
KNA3-y S and KNE3-y S,
KNAC3-y S and KNEC3-y S
SAFETy RELAy S
SiNGLe OR THRee- PHASe
KSW3-JS
SAFETy RELAy S
Two-hand control
Emergency stop and guard
monitoring
Zero speed monitoring
Levelling the landing
and the lift car
KZHNU-y S and KZHNv-y S
SAFETy RELAy S
Relevelling lift cars
Crouzet Control, safety relays
Where are they found?
They can be found in electrical cabinets, associated with other automation functions in the following
markets:
•Building equipment •Industrial automation systems
Safety
relays
I www.crouzet.com
66 67
Notes
Logic controllers
Concentrated performance
Smart & Essential
www.crouzet.com
l Panorama Crouzet Automation
I www.crouzet.com
68 69
A logic controller is a programmable module which is used to control small automation systems
or small installations. It is an electronic device which combines all of Crouzet's historic expertise.
The logic controller is a plural solution in a control system since it contains solutions that can
replace a number of products: timers, counters, control relays, temperature controllers, impulse
relays, etc.
The logic controller operates as the brain of applications. It is capable of retrieving information
and triggering actions; it can be adapted to suit the needs of customer applications.
Controlling
Measuring
Operator dialogue
Managing
Communicating
Triggering
A logic controller
How can it be defined in simple terms?
A logic controller
To execute which actions?
Controlling
The logic controller controls and automates a set of actuators
according to the state of the sensors, the passing of time and the
program created using the M3 Soft software.
Measuring, Operator dialogue
The logic controller integrates a local screen, a true operator interface,
where the user can view the measured values. The buttons on
the front panel are configurable and can be used in programs. The
M3 Soft software can be used to design an installation easily, test it
using simulation mode and communicate with the application with
monitoring mode.
Managing
The logic controller easily performs and manages complex control system
sequences, by means of integrated functions.
Communicating, Triggering
The logic controller can be used to communicate remotely with PCs
or mobile phones via SMS across a network.
It also incorporates a calendar to ensure the setting and triggering
of actions.
The basics
Calculation of
level of liquid in
a tank
External preset
Up/Down counter
Timers Digital or
adaptive tune PID
regulation
Sunrise Sunset Time
The Millenium 3 Smart logic controller is a programmable logic controller which enables the
control and monitoring of machines or automation installations with up to 50 I/O.
To tackle simpler applications that still require a powerful logic controller, Crouzet Automation
offers the Millenium 3 “Essential” range. The 12 VDC or 24 VDC Millenium 3 Essential range
includes a variety of versions and is compatible with a large range of accessories. It is the right
solution for simple needs.
Crouzet Automation Logic Controllers
Millenium 3, concentrated performance
+ + + + more
Temperature
controllers
Control relays CountersTimers
Input terminals
Power supply
terminals
Blue screen
with 4 lines
of 18 characters
6 programmable
buttons
Programming port
Output terminals
Millenium 3
Logic
controllers
l Panorama Crouzet Automation
I www.crouzet.com
70 71

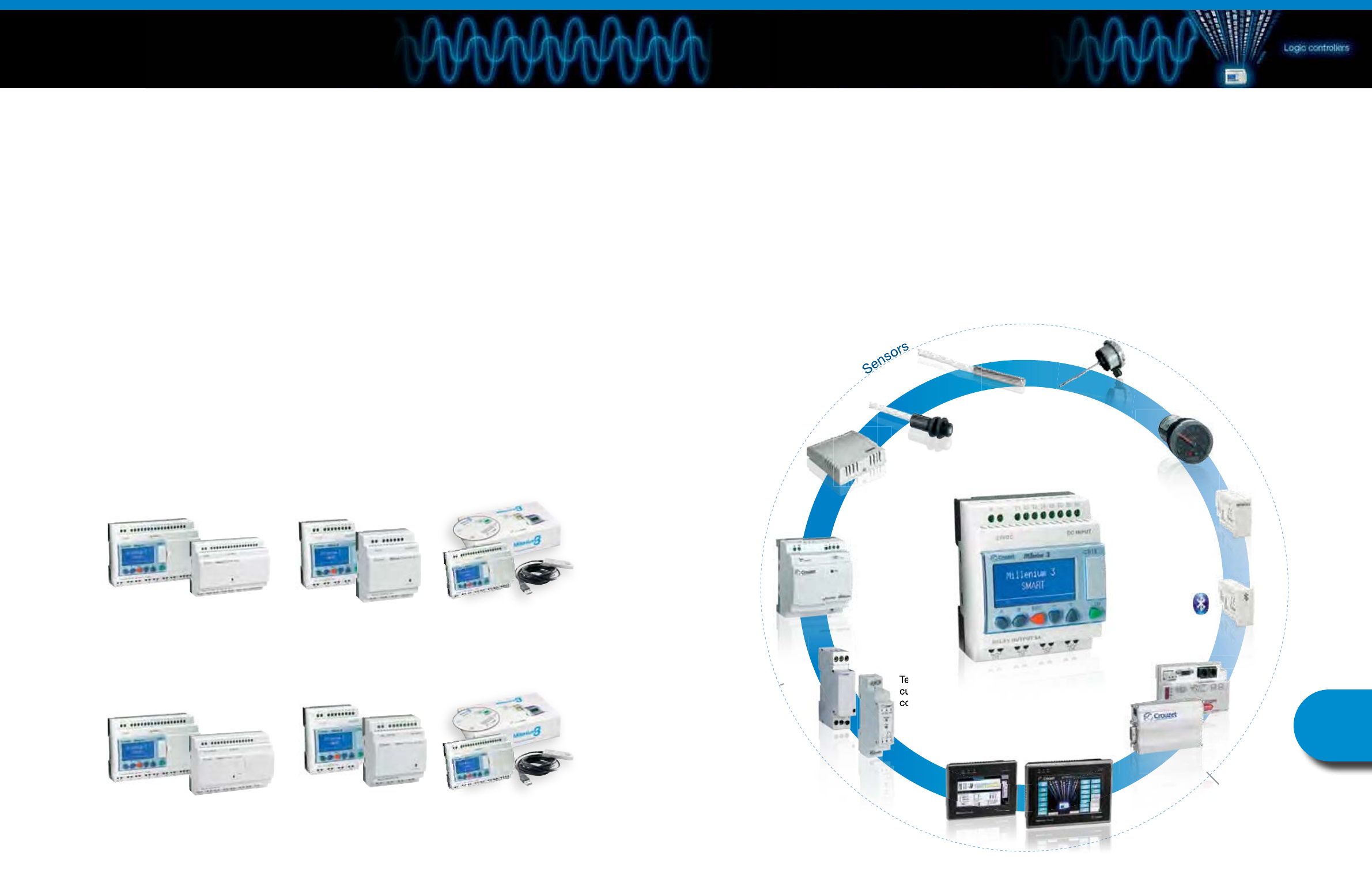

The range Accessories
Crouzet Automation Logic Controllers
The Millenium 3 Smart range
• Multiple configuration option derived from an extensive product range with numerous
accessories
•Simplified connectivity making integration of communication systems easy
•Easy implementation supported by free, user-friendly programming software (M3 Soft)
•Application-specific solutions thanks to dedicated and easy to use specific function blocks
•Enhanced visibility on the display with high contrast, blue back lit LCD screen
Expandable versions
Compact versions
XD26
CD20
XD10
CD12
XB26
CB20
XB10
CB12 Compact kit
Expandable kit
I
A
c
c
e
s
s
o
r
i
e
s
I
C
o
m
m
u
n
i
c
a
t
i
o
n
s
o
l
u
t
i
o
n
s
I
I
I
P
o
w
e
r
s
u
p
p
l
i
e
s
I
S
e
n
s
o
r
s
I
I
I
I
o
r
s
S
e
n
e
n
s
o
r
s
Crouzet Automation Logic Controllers
Accessories
Sensors, power supplies, converters, remote screens and communication accessories offer
solutions to control your automation systems with the greatest ease of use.
Power supplies
from 7.5 to 240 W
5, 12 or 24 V
STN and GSM
modems
Programmable
touchpanels
Ambient
temperature
sensor
Ventilation
duct
temperature
sensor
Light
sensor
NTC
temperature
probes
Temperature and
current/voltage
converters
Memory
cartridge
Bluetooth®
interface
Potentiometer
Temperature and
current/voltage
converters
R
e
m
o
t
e
s
c
r
e
e
n
s
C
o
n
v
e
r
t
e
r
s
Logic
controllers
l Panorama Crouzet Automation
I www.crouzet.com
72 73

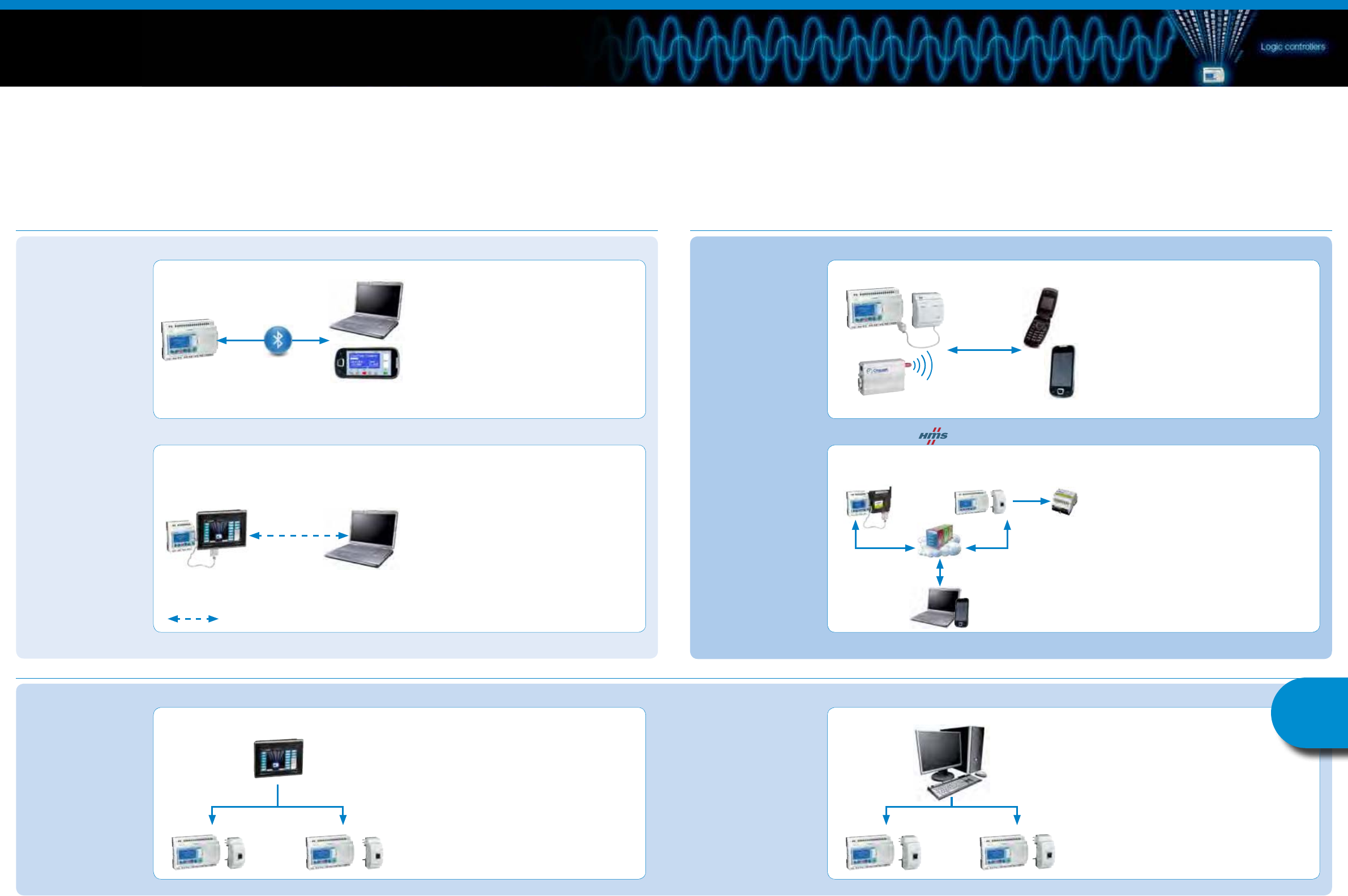

Crouzet Automation Logic Controllers
Extensive Connectivity Options
Solutions with close proximity to your installation
Local Area Network (LAN) solutions
Millenium 3 Virtual Display - Bluetooth® or USB
Programmable touch panels and communication extensions – Modbus networks Communication extensions - Modbus RS485 or Modbus Ethernet TCP/IP
M3MOD - GSM modem communication interface
Remote management solutions with (2) - Cloud
MTP programmable touch panels - RS232 cable
Your requirements
• viewing setpoints on a
panel less than 10 m away
• Changing and modifying
setpoints
• Locating the Millenium 3
display unit remotely
• Reading counters in the
vicinity
Your requirements
• Managing a group of
machines or an installation
on a local area network
• Centralizing data
• Displaying data on a
graphic panel
• Modifying setpoints from
the panel
• Accessing the system
locally in real time
Your requirements
• Managing a group of
machines or an installation
on a local area network
• Centralizing data
• Accessing the system
locally in real time
Your requirements
• Receiving remote early
warning of an event
• Consulting a value or an
internal state
• Occasionally modifying
setpoints
Your requirements
• Supervising and
monitoring installations
with up to 50 remote I/O
• Managing an installed
base of machines
• Accessing your data
remotely, 24/7
• Optimizing your
maintenance operations
Your requirements
• Displaying data on a
graphic panel
• Modifying setpoints from
the touch panel
• Taking control of the
remote panel from a
distance
Our solution
Our solution Our solution
Our solution
Main functions
• Remote viewing of the Millenium 3 display unit
- on an Android smartphone via Bluetooth®
- on a PC via Bluetooth® or USB
• Display/modificatio of program setpoints
• Access to a virtual panel (Millenium 3 without display unit)
In summary
• Bluetooth® interface (10 m): Millenium 3 accessory
• Two versions: Lite (ESC/ENTER buttons disabled) &
Standard
Main functions
• Automatic notificatio of alarms via SMS
• Input and output states, as well as all program values, can
be polled and controlled remotely
• Reports can be produced using the available variables
• Management of telephone contacts
In summary
• Reliable plug & play solution that is simple to install
• Solution managed using M3 Soft software
• Option to send SMS messages via a telecom operator
service
Main functions
• Remote control of an automated application
• Display of Millenium 3 program parameters and values
via the internet
• Remote setpoint modificatio
• Data logging
• Management of events sent via emails or SMS
In summary
• Direct communication between Netbiter and Millenium 3
via the SLin/SLout protocol or via Modbus
• GPRS: SIM card procured via HMS
• Cloud solution: secure remote server
• Easy to set up and use
• Several Millenium 3 can be connected via Modbus
Main functions
• Supervision of your installation
• Use of Millenium 3 internal data, processing alarms and
recipes
• Display of text, data, graphics, animations
• Archiving of data
• Customization of interfaces (picture library)
• Remote control of panel
In summary
• Storage: 128 MB flash memory, SD card and USB key
• Direct communication using the Millenium 3
programming port
• Programmable with EB software (compatible with
Windows 2000/XP/Vista/7)
• Extensive connectivity
Main functions
• See MTP programmable touch panels solution
• Management and centralizing of data in a single place
• Display of Millenium 3 program values
• Remote setpoint modificatio
In summary
• MTP panel Modbus master
• XN05 extension: Modbus ethernet TCP/iP
• XN06 extension: Modbus RS485 RTU
Main functions
• Can be combined with distributed
automation
• Management and centralizing of data in a
single place
• Display of Millenium 3 program values
• Remote setpoint modificatio
In summary
• Uses Modbus protocol
• XN05 extension: Modbus ethernet TCP/iP
• XN06 extension: Modbus RS485 RTU
• Compatible with standard supervisors
(1) VNC: Virtual Network Computing. Allows a device to be controlled remotely. (2) Partnership solutions with the HMS company, validated by Crouzet Automation and HMS. Information relating to the products has been provided by the supplier of each product respectively, and they are
wholly responsible for its accuracy in addition to supplying and providing backup for their products.
VNC link (1)
Option
Internet
Internet (via router or
ADSL box)
GPRS
Millenium 3
Netbiter EC150
Millenium 3
Netbiter EC220
Modbus
Modbus
GSM
Modbus
Wide Area Network (WAN) solutions
Our solutionOur solution
Communication solutions
Logic
controllers
l Panorama Crouzet Automation
I www.crouzet.com
74 75
M3 Soft software
M3 Soft software
Its features
Crouzet Automation Logic Controllers
Millenium 3 and M3 Soft
Free
The Millenium 3 programming software (M3 Soft) can be
downloaded free of charge
from
the Crouzet website at
www.crouzet.com
The M3 Soft is a
high-performance
software platform used to program the Millenium 3 logic
controller and
optimize
design times.
Simple
• Quick, simple and intuitive programming requires no specialist knowledge
• Self-teaching made easier thanks to a user-friendly online help guide and programming
examples
• A simulation mode that consistently represents controller operation
Powerful
• A complete range of basic functions: counting, timing, comparison, display, logic, gain, sin/cos,
etc are also available
• A wide range of dedicated functions: pump rotation, PID regulation, movement, pressure, level,
water ratio, solar tracking, and flo
User-friendly and ergonomic
• Software available in 5 languages: English, French, Italian, German and Spanish
• Function block programming is fun and very visual
• Blocks simply organized by function for quick access
• Help associated with each function block accessible at the click of a button
• Programming langages: FBD (Function Bloc Diagram) and SFC (Sequential Function Chart/
Grafcet) or LD (Ladder Diagram)
User-definable and effective
• Possibility of creating and saving custom macros in the macro tab allowing the user to
simplify programs and utilize their expertise
• Possibility of protecting macros by locking them with a password for greater security
Move one or more blocks without
disconnecting the wires Choice of
programming language
Customized password
protection
Clear work
area
Blocks can be wired in wiring
mode or text mode
Logic
controllers
l Panorama Crouzet Automation
I www.crouzet.com
76 77
Display
Text
Menu Scroll
LCD Backlight Output
A Button
B Button
ESC Button
Minus Button
Plus Button
OK Button
APPLICATION
Cam Bloc Control of a group of 8 integral cam wheels.
Angular Cam Timer Cam timer with the angle made by the cams as the
command input.
Pumps management Pumps Management (Tank Management with circular pump
changeover).
Sunrise Sunset Time Calculation of the sunrise and sunset time in relation to the latitude
and longitude.
Solar Tracking one Axis Calculation of the sun's position so that a sun dial can
be placed.
Analog PID Regulation
(8 bits) Temperature control (pressure or other) with 8 bitsanalog output.
PWM PID Regulation
(8 bits) Temperature control (pressure or other) with 8 bitsdigital output.
Pressure Gain Interface between a Pressure Sensor and the Millenium 3 logic
controller.
Flow Calculation of the flow of a liquid in a pipe using a differential
pressure element or by measuring the dynamic pressure.
Level Calculation of the level of a liquid with or without constant density, in
an open or closed tank, using pressure sensors.
CTN 1 Temperature measurement
It is dedicated to CTN1 (-25 to +85 °C).
CTN 2 Temperature measurement.
It is designed for CTN2 type CTNs (-35°C to +120°C).
CTN 3 Temperature measurement.
It is designed for CTN3 type CTNs (0°C to +200°C).
LUX-I Light measurement It is designed for photoresistors and
internal light meters.
Twilight
Calculation of the sunrise and sunset times and also the twilight
times in relation to the latitude and longitude read on the function
block inputs.
Solar Tracking Dual Axis
Calculation of the sun's position so that a sun dial can be placed. This
positioning depends on the two angles calculated by the function: the
elevation angle and the azimuth angle.
Swimming Pool Filtration Filtration time information in relation to the water
temperature.
Defrost Defrost cycle management
Heat Curve
Modulation of the heating water temperature according to the
atmospheric conditions. The function uses automatic regulation
depending on the temperature outdoors called the temperature curve
or "water ratio".
Analog PID Regulator
(Auto-tuning)
Auto-tuning proportional-integral-derivative (PID)
controller.
CONTROL
Timer Large set of timer functions (A/C, BW, B/H,Li/L, Totalizer)
Schmitt Trigger Monitoring of an analog value in relation to two thresholds.
Timer A Delay of actions for a predefined time.
Bistable Impulse relay function.
Set Reset Bistable memory - Priority assigned to either SET or RESET.
Timer Set Reset Trigger of operation of a particular device at a fixed time for a period
set by the user.
One Second Clock The blinking input function is active every second.
Compare in Zone Comparison of a value between two setpoints (the MIN and MAX
values determine the zone).
Compare Comparison of two analog values using the =, >, <, >=, <=, =/=
operators.
MULTI COMPARE Activation of the output corresponding to the value present on the
"Value" input.
HL Switch Comparison of a value against 5 thresholds.
Min Max Saving of the minimum and maximum values of a variable signal.
Reduced Average Update of the configured average of a number of values by deleting
the minimum and maximum values.
Time Prog Daily, weekly, monthly and yearly time programmer.
Weekly Time Prog Daily, weekly, monthly and yearly time programmer.
Preset Counter Preset up/down counter
Up Down Counter External preset up/down counter.
Preset H Meter Preset hour counter (preselection of hour, minute).
High speed count Counting of the pulses arriving at the inputs of a controller powered
by a DC supply at rates in excess of one pulse every 6 ms.
Fast count Counting of the pulses arriving at the input at rates in excess of one
pulse every 10 ms.
Discrete Input
Filtered Digital Input
Analog Input 0..10V
Filtered Analog Input
Analog Input Expansion 10 bits
Analog Input Expansion 12 bits
Integer Input
Discrete Output
PWM Output
XA
Analog Output Expansions 10 bits
Integer Output
CALCUL
Gain Conversion of an analog value by changing the scale and offset.
Add/Subb Simple operations on integers: Addition and/or Subtraction.
Mul/Div Simple operations on integers: Multiplication and/or Division.
ADD/SUB 2 Inputs The ADD-SUB (Addition or Subtraction) function is used to perform
simple operations on integers.
Sin/Cos Calculation of the cos and sin of an angle between 0° and 90°.
Square Root Calculation of the square root of the number present as an input with
accuracy to two decimal points.
Bit Multiplexer Copy of the selected A or B input to the outputs Q and/Q.
Multiplexer A B Multiplexing function on 2 analog values.
Demultiplexer Demultiplexing of integers.
Used to direct the value of the input to one of the 4 outputs.
Multiplexer
Multiplexing word inputs.
Used to direct the value of one of the selected inputs to a predefined
output.
Dec/Bin Break down of an integer type input (16 bits) into 16
bit type outputs.
Bin/Dec Make up of an integer type output (16 bits) from 16 bit type inputs.
SPLIT 16 bits to 4 Split of a 16-bit word into four 16-bit words with values between 0
and 15.
SPLIT 16 bits to 2 Split of a 16-bit word into two 16-bit words with values between 0
and 255.
Word Shift Register Shifting of the 16-bit words on each rising edge of the clock.
Shift Register Shifting of information by saving it to the memory (shifting of bits in a
16-bit word on each rising edge of the clock).
Transfer Function Table of correspondence between the X input and the Y output.The
table of correspondence is created from a csv file
Transfer Function 50
values
Table of correspondence between the X input and the Y output.The
table of correspondence (50 rows max) is created from a sv file
Timer Transfer Function Correspondence table for the Minutes operating time and the Y
output.
Timer Transfer Function
50 values
Correspondence table for the Minutes operating time and the Y
output. (50 Values)
COMMUNICATION
SL In Writing via serial link of data stored in the controller’s fixed addresses
SL_In S (saved)
Data transmission via a programming port to memory space in
the controller’s fixed addresses. Data is protected in the event of
disconnection of the controller
SL Out Reading via programming port of data stored in the
controller’s fixed addresses.
c
Alarm
Control of 10 alarm levels and distribution of a serial data to a digital
output, connected to a modem digital input. For example to send a
SMS.
Message distribution of alarm messages to mobile phones, to the Millenium 3
Alarm tool or to e-mail addresses via the M3MOD
PROG
Constant On Constant On
Constant Off Constant Off
Yes Bit Copy of the input to the output. (very helpful when macros are being
used)
Numerical Constant Integer with a value between -32768 and +32767.
Yes Num Copy of the input to the output. (very helpful when macros are being
used)
Memory Saving of a value between -32768 and 32767.
Storage Storage of data values with an average value.
Archive Saving of two values simultaneously with the
information relating to their time-stamping.
Random Generation of a pseudo-random value between the min
and max values set by the user.
GRAFCET SFC
Resettable Initial Step
When RESET function is activated, activation of the STEP OUTPUT for the
function, which is the initial step, and reinitialization of all of the ther active steps.
Initial Step Initial step of an SFC chart
Step A step of an SFC chart.
Or Divergence Step Transition of one step to be simultaneously made toward one or two
steps.
Or Convergence Transition of one to four step(s) to be simultaneously made toward
one step.
And Divergence Transition of one or two steps to be simultaneously made toward two
steps.
And Convergence Step Transition of two steps to be simultaneously made toward one step.
Wait SFC Step Set up of a wait phase or step for a PLC or a device.
Move SFC Step Set up of a move step for a motor controlled by the PLC to a position
specified on the TARGET input.
Motor Multiplexer Combination of the motor control signals produced by two linked
MOVE SFC steps.
PROG
Hour Minute Indication of the time from the controller (hour and minutes).
Hr Mn Converter Conversion of a time period in the "hour : minute" format to minutes
and vice versa.
Controller Status Access to the controller states and modify the behaviour of its FBD
and/or SFC program depending on these states.
Summertime Active function throughout summer time, and inactive throughout
winter time.
MACROS
Display 15 texts Display of 15 texts one after each other with 15 Displays Function
Blocs
Scroll 4 lines Scroll down of a text of four lines on the screen of the Controller
My Macro Possibility to create a personal macro library and to store them in the
Macro tab.
Not
And 2 Inputs
And 4 Inputs
And 6 Inputs
Or 2 Inputs
Or 4 Inputs
Or 6 Inputs
Nand 4 Inputs
Nor 4 Inputs
Xor 2 Inputs
Boolean 6 Inputs/2 Outputs
Boolean
HMI
LOGIC
INPUTS/OUTPUTS
Function block marked in red:
CTN 1 Available only for the Millenium 3 Smart Range
Function blocks
Boolean 6 Inputs/2 Outputs
Logic
controllers
l Panorama Crouzet Automation
I www.crouzet.com
78 79
Other typical applications:
Medical, Solar, Agricultural Equipment, Transportation, Hoisting, Handling…
Opening control for doors and
other associated security
devices for restricting access;
synchronization between the
various doors
BOOLEAN OR LOGIC
Create logic equations between the
connected inputs
Opening control for doors
Control barriers with automatic
detection of vehicles.
Function for selecting opening
times / days.
UP/DOWN COUNTER
Up/Down counter with external preset
Automatic barriers
Management of various parameters
such as heating, cooling, flui
temperatures, operation,
calendar-based function,
frost protection mode, alarm
management, etc
WATER RATIO
Water temperature control
CLOCK
Weekly and yearly time programmer
Heat pump
Maintaining forced air at the
correct temperature
NTC1
Temperature measurement
REGULATION
Analog PID regulation
GAIN
Conversion of an analog value by changing the
scale and datum point
Air treatment plant
Automation of operation and
heating regulation, remote
management of the installation
TEMPERATURE CONTROL
(pressure or other)
Solar water heating
Managing flashing on illuminated
signs
WEEKLY TIME PROGRAMMER
Programming of time slots during
which it will be possible to execute
actions
LUX-I
Measurement of the light level
TWILIGHT
Calculation of the sunrise and sunset times
Illuminated signs
Irrigation control based on
temperature, humidity, and
day/night cycle
PUMP MANAGEMENT
Pump rotation function
irrigation/Sprinklers
Managing circulation pumps,
monitoring levels, temperature
and conductivity of the water
FILTRATION
Filtration duration settings depending
on the water temperature
Swimming pools, fountains, spas
Controlling the motor that unrolls
the packing film. Cont ols cutting
of the film after heat sealing
and monitors the duration of
the motor cycles
GRAFCET SFC FUNCTIONS
For sequential automation systems
(Sequential Function Chart)
TIMERS (TEMPORISATEURS)
A/C function - BW function -
B/H function - Li/L function
Stretch wrapping machines
Controlling heat sealing times
on blister packs, packaging
bags, etc
HiGH SPee D COUNT
Counting of pulses
AND
Logical AND with 2 inputs
Packaging
Circulation pumps management,
supervision of levels and
pressure
Pump management
Circulation pumps management,
supervision of flow p essure
and temperature of osmosis
processed water
FLOW
Calculation of the flow of a liquid i
a pipe
CTN
Temperature measurement (-35 to +120 °C)
GAiN
Conversion of an analog value by
changing the scale and datum point
LEvEL
Calculation of the level of liquid in a tank
Reverse osmosis
Crouzet Automation Logic Controllers
Where are they found?
Buidling Equipment
Infrastructure and Energy
Industrial OEMs
Access Control
Fluid management
Packing machines
Water treatment
HVAC
Building Automation
Applications
Logic
controllers
l Panorama Crouzet Automation
I www.crouzet.com
80 81
* Millenium 3 Smart: backlit blue LCD display. Extended operating temperature range and function block library
**Millenium 3 Essential: Logic Controller with green screen and industrial temperature range * Data sheets can be downloaded from the website www.crouzet.com
Name
Millenium 3 virtual Display
Android smartphone and tablet as well as Windows XP/7 PC application
Man/Machine interface
TFT-LCD compact 4.3" and 7" resistive touch panels - MTP6/50 (Réf 88 970 492), MTP8/50 (Réf 88 970 494) & MTP8/70 (Réf 88 970 496)*
Plug & Play remote LCD displays/keypads (Réf 88 970 410)*
Remote LED display - Input 0-10 V (Réf 88 950 400)*
Remote control communication solutions
Modem communication solutions M3MOD (Réf 88 970 117), GSM Modem (Réf 88 970 119) and STN Modem (Réf 88 970 118)*
Temperature probes and light sensors
NTC Temperature probes CTN2 PVC (Réf 89 750 174) / CTN2 Inox (Réf 89 750 182) / CTN3 Silicone (Réf 89 750 186)*
LDR Light sensors (Réf 89 750 183)*
0-10 V Temperature sensors (Réf 89 750 150 / 89 750 151 / 89 750 152 / 89 750 153)*
Temperature probes Pt100 & Thermocouple
(Rèf 79 696 030 / 79 696 031 / 79 696 032 / 79 696 033 / 79 696 034 / 79 696 035 / 79 696 036)
Temperature and signal converters
Thermocouple Pt100/Pt1000 C 0-10 V (Réf 88 950 150 / 88 950 151 / 88 950 152 / 88 950 153 / 88 950 154 / 88 950 155)*
PWM to 0-10 V/4-20 mA (Réf 88 950 112) to 0-10 V (Réf 88 950 108)*
Other accessories and kits
Standard Smart and Essential product kits
Removable connectors
Potentiometer ø 22 mm
Faceplates
Millenium 3 accessories
Millenium 3 range
Type Part number Supply Inputs Outputs Available in
Available with Solid
State Output 0.5
A/PWM
Available in /
compatible with the
Essential version **
12 V c24 V a
M3 Smart kits Kit 12 Smart* 88 974 080 24 V c
8 (4 configurable as analog)
4 relays 8 A
Kit 12 Smart* 88 974 081 100 C 240 V a8
4 relays 8 A
Kit 20 Smart* 88 974 082 24 V c
12 (6 configurable as analog)
8 relays 8 A
Kit 20 Smart* 88 974 083 100 C 240 V a12
8 relays 8 A
Kit 26 Smart* 88 974 084 24 V c
16 (6 configurable as analog)
8 relays 8 A and 2 relays 5 A
Kit 26 Smart* 88 974 085 100 C 240 V a16
8 relays 8 A and 2 relays 5 A
Compact versions
CD12 Smart* 88 974 041 24 V c
8 (4 configurable as analog)
4 relays 8 A
• • •
CD12 Smart* 88 974 043 100 C 240 V a8
4 relays 8 A
•
CD20 Smart* 88 974 051 24 V c
12 (6 configurable as analog)
8 relays 8 A
• • •
With display CD20 Smart* 88 974 053 100 C 240 V a12
8 relays 8 A
•
CB12 Smart* 88 974 021 24 V c
8 (4 configurable as analog)
4 relays 8 A
• •
CB12 Smart* 88 974 023 100 C 240 V a8
4 relays 8 A
•
CB20 Smart* 88 974 031 24 V c
12 (6 configurable as analog)
8 relays 8 A
•
Without display CB20 Smart* 88 974 033 100 C 240 V a12
8 relays 8 A
•
Expandable versions
XD10 Smart* 88 974 141 24 V c
6 (4 configurable as analog)
4 relays 8 A
• • •
XD10 Smart* 88 974 143 100 C 240 V a6
4 relays 8 A
•
XD26 Smart* 88 974 161 24 V c
16 (6 configurable as analog)
8 relays 8 A and 2 relays 5 A
• • •
With display XD26 Smart* 88 974 163 100 C 240 V a16
8 relays 8 A and 2 relays 5 A
•
XB10 Smart* 88 974 131 24 V c
6 (4 configurable as analog)
4 relays 8 A
• • •
XB10 Smart* 88 974 133 100 C 240 V a6
4 relays 8 A
•
XB26 Smart* 88 974 151 24 V c
16 (6 configurable as analog)
8 relays 8 A and 2 relays 5 A
• • •
Without display XB26 Smart* 88 974 153 100 C 240 V a16
8 relays 8 A and 2 relays 5 A
•
With Removable Terminal Blocks
CD12 RBT Smart* 88 974 441 24 V c
8 (4 configurable as analog)
4 relays 8 A
XD26 RBT Smart* 88 974 561 24 V c
16 (6 configurable as analog)
8 relays 8 A and 2 relays 5 A
Sandwich extensions
XN05 Modbus TCP/IP 88 970 270 24 V c•
Communication XN06 Modbus RS485 88 972 250 24 V c•
XN07 Master RS485 88 974 250 24 V c
Digital
XE10 88 970 321 24 V c6
4 relays 5 A
•
XE10 88 970 323 100 C 240 V a6
4 relays 5 A
• •
Termination Extensions
XR06 88 970 211 24 V c4
2 relays 8 A
• •
XR06 88 970 213 100 C 240 V a4
2 relays 8 A
• •
XR10 88 970 221 24 V c6
4 relays 8 A
• •
XR10 88 970 223 100 C 240 V a6
4 relays 8 A
• •
XR14 88 970 231 24 V c8
4 relays 8 A and 2 relays 5 A
• •
Digital XR14 88 970 233 100 C 240 V a8
4 relays 8 A and 2 relays 5 A
• •
Analog
XA03 3xPt100 88 970 800 24 V c3 analog (Pt100)
XA04 2AI/2AO 88 970 241 24 V c2 analog 0-10V/0-20mA
(1 Pt100)
2 analog 0-10V/PWM
•
Bare board and resin board versions
NB12 88 970 001 24 V c
8 (4 configurable as analog)
4 relays 8 A
•
NB12 88 970 003 100 C 240 V a8
4 relays 8 A
NB20 88 970 011 24 V c
12 (6 configurable as analog)
8 relays 8 A
Bare board NB20 88 970 013 100 C 240 V a12
8 relays 8 A
NBR12 88 973 001 24 V c
8 (4 configurable as analog)
4 relays 8 A
• •
NBR26 88 973 061 24 V c
16 (6 configurable as analog)
10 relays 8 A
• •
NBR32 88 973 211 24 V c
20 (6 configurable as analog)
12 relays 8 A
•
Resin board NBR40 88 973 231 24 V c
24 (6 configurable as analog)
16 relays 8 A
•
Power supplies and DC/DC converters in modular casings
Part number Tension d'entrée Input voltage Nominal power Output current
88 950 303 100 C 240 V a24 V c7.5 W 0.3 A
88 950 304 100 C 240 V a24 V c15 W 0.6 A
88 950 307 100 C 240 V a24 V c30 W 1.2 A
88 950 302 100 C 240 V a24 V c60 W 2.5 A
88 950 305 100 C 240 V a5 V c 20 W 4 A
88 950 306 100 C 240 V a12 V c24 W 2 A
88 950 320 9.2 C 18 V c12 V c10 W 0.8 A
88 950 321 9.2 C 36 V c24 V c6 C10 W 0.4 A
Connection accessories, tools and programming software
Part number Name
88 970 111 M3 Soft: Millenium 3 programming software (CD-ROM)
88 970 108 Memory cartridge for transfer and saving of programms
88 970 102 3 m serial link cable: PC DB9 F C Millenium 3
88 974 104 Millenium 3 C Bluetooth® interface (class A 10 m)
88 970 109 3 m USB link cable: PC C Millenium 3
88 970 110 Bluetooth® adaptor C USB (class A 10 m)
88 970 123 1.80 m serial link cable: DB9 M/DB9 F
88 970 510 0.5 m serial link cable: Millenium 3 C DB9 M
88 974 106
Ready to use Millenium 3 Smart democase including:
- a CD12 Smart, a CTN probe, a LDR probe, an I/O simulator
- a 3 m USB link cable: PC C Millenium 3, a M3 Soft CD
- a power supply 110 V-230 Va
Selection guide
Logic
controllers
l Panorama Crouzet Control / Crouzet Automation
I www.crouzet.com
83
I www.crouzet.com
82
Part numbers index
PART
NUMBER DESCRIPTION TYPE PAGES PART
NUMBER DESCRIPTION TYPE PAGES
26 000 000
26 852 301 Current transformer for MIC 48 (10 A/50 mA) Accessory 56-57
26 852 302 Current transformer for MIC 48 (25 A/50 mA) Accessory 56-57
26 852 303 Current transformer for MIC 48 (50 A/50 mA) Accessory 56-57
26 852 304 Current transformer for MIC 48 (100 A/50 mA) Accessory 56-57
79 000 000
79 696 030 Thermocouple probe J Accessory 56-57
79 696 031 Thermocouple probe J Accessory 56-57
79 696 032 Thermocouple probe J Accessory 56-57
79 696 033 Thermocouple probe J Accessory 56-57
79 696 034 Thermocouple probe K Accessory 56-57
79 696 035 Pt100 temperature probe Accessory 56-57
79 696 036 Pt100 temperature probe Accessory 56-57
79 696 037 Pt100 temperature probe Accessory 56-57
84 000 000
84 870 200 Level control relay ENR 34-35
84 870 201 Level control relay ENR 34-35
84 870 202 Level control relay ENR 34-35
84 870 203 Level control relay ENR 34-35
84 870 204 Level control relay ENR 34-35
84 870 210 Level control relay ENRM 34-35
84 870 211 Level control relay ENRM 34-35
84 870 212 Level control relay ENRM 34-35
84 870 213 Level control relay ENRM 34-35
84 870 214 Level control relay ENRM 34-35
84 870 301 Level control relay - Plug-in LN 34-35
84 870 303 Level control relay - Plug-in LN 34-35
84 870 304 Level control relay - Plug-in LN 34-35
84 870 306 Level control relay - Plug-in LN 34-35
84 870 308 Level control relay - Plug-in LN 34-35
84 870 309 Level control relay - Plug-in LN 34-35
84 870 401 Level control relay - Plug-in L2N 34-35
84 870 403 Level control relay - Plug-in L2N 34-35
84 870 404 Level control relay - Plug-in L2N 34-35
84 870 501 Level control relay FN 34-35
84 870 502 Level control relay FN 34-35
84 870 503 Level control relay FN 34-35
84 870 504 Level control relay FN 34-35
84 870 700 Level control relay HNM 32-33
84 870 710 Level control relay HNE 32-33
84 870 720 Level control relay MNS 32-33
84 870 803 Level control relay FN LS 34-35
84 871 020 Current control relay EIL 34-35
84 871 021 Current control relay EIL 34-35
84 871 022 Current control relay EIL 34-35
84 871 023 Current control relay EIL 34-35
84 871 024 Current control relay EIL 34-35
84 871 030 Current control relay EIH 34-35
84 871 031 Current control relay EIH 34-35
84 871 032 Current control relay EIH 34-35
84 871 033 Current control relay EIH 34-35
84 871 034 Current control relay EIH 34-35
84 871 040 Current control relay EIT 34-35
84 871 041 Current control relay EIT 34-35
84 871 042 Current control relay EIT 34-35
84 871 043 Current control relay EIT 34-35
84 871 044 Current control relay EIT 34-35
84 871 120 Multifunction current control relay HIL 30-31
84 871 122 Mono-function toroidal current control relay MIC 30-31
84 871 130 Multifunction current control relay HIH 30-31
84 872 020 Voltage control relay EUL 32-33
84 872 021 Voltage control relay EUL 32-33
84 872 023 Voltage control relay EUL 32-33
84 872 024 Voltage control relay EUL 32-33
84 872 030 Voltage control relay EUH 32-33
84 872 031 Voltage control relay EUH 32-33
84 872 033 Voltage control relay EUH 32-33
84 872 034 Voltage control relay EUH 32-33
84 872 120 Multifunction voltage control relay HUL 30-31
84 872 130 Multifunction voltage control relay HUH 30-31
84 872 140 Voltage control relay MUS 30-31
84 872 141 Voltage control relay MUS 30-31
84 872 142 Voltage control relay MUS 30-31
84 872 151 Voltage control relay MUSF 30-31
84 872 152 Voltage control relay MUSF 30-31
84 872 501 Frequency control relay HHZ 32-33
84 873 004 Phase control relay EWS2 32-33
84 873 020 Mono-function phase control relay MWS 30-31
84 873 021 Mono-function phase control relay MWS2 30-31
84 873 022 Multifunction phase control relay MWG 30-31
84 873 023 Multifunction phase control relay MWU 30-31
84 873 024 Multifunction phase control relay MWA 30-31
84 873 025 Multifunction phase control relay MWUA 30-31
84 873 026 Multifunction phase control relay HWUA 30-31
84 873 027 Motor temperature and phase control relay HWTM 30-31
84 873 028 Motor temperature and phase control relay HWTM2 30-31
84 873 220 Phase control relay - Three-phase voltage H3US 30-31
84 873 221 Phase control relay - Three-phase voltage H3USN 30-31
84 873 222 Phase control relay - Three-phase voltage M3US 30-31
84 874 013 Motor temperature control relay - Thermal protection ETM 34-35
84 874 014 Motor temperature control relay - Thermal protection ETM 34-35
84 874 015 Motor temperature control relay - Thermal protection ETM 34-35
84 874 023 Motor temperature control relay - Thermal protection ETM 2 34-35
84 874 024 Motor temperature control relay - Thermal protection ETM 2 34-35
84 874 025 Motor temperature control relay - Thermal protection ETM 2 34-35
84 874 033 Motor temperature control relay - Thermal protection ETM 22 34-35
84 874 034 Motor temperature control relay - Thermal protection ETM 22 34-35
84 874 035 Motor temperature control relay - Thermal protection ETM 22 34-35
84 874 110 Lift temperature control relay, according to EN81 HT81 32-33
84 874 120 Lift temperature control relay, according to EN81 HT81-2 32-33
l Panorama Crouzet Control / Crouzet Automation
I www.crouzet.com
84 85
Part numbers index
PART
NUMBER DESCRIPTION TYPE PAGES PART
NUMBER DESCRIPTION TYPE PAGES
87 622 190 24 x 48 electronic hour counter - backlit LCD (orange) CTR24 - 2324 42-43
87 623 570 multifunction counters without preselection CTR24L - 2511 42-43
87 623 571 multifunction counters without preselection - Double totalizer CTR24L - 2512 42-43
87 623 572 multifunction counters without preselection - Totalizer and Ratemete CTR24L - 2513 42-43
87 623 573 multifunction counters without preselection - Double totalizer Common input CTR24L - 2514 42-43
87 623 574 multifunction counters without preselection - Duo CTR24L - 2515 42-43
87 629 111 "Essential" multifunction counters with 1 preselection CTR48E 44-45
87 629 113 "Essential" multifunction counters with 1 preselection CTR48E 44-45
87 629 114 "Essential" multifunction counters with 1 preselection CTR48E 44-45
87 629 121 "Essential" multifunction counters with 2 preselection CTR48E 44-45
87 629 123 "Essential" multifunction counters with 2 preselection CTR48E 44-45
87 629 124 "Essential" multifunction counters with 2 preselection CTR48E 44-45
88 000 000
88 226 011 "Panel mounted" timer Top 2 000 Top 2 000 18-19
88 226 012 "Panel mounted" timer Top 2 000 Top 2 000 18-19
88 226 013 "Panel mounted" timer Top 2 000 Top 2 000 18-19
88 226 014 "Panel mounted" timer Top 2 000 Top 2 000 18-19
88 226 015 "Panel mounted" timer Top 2 000 Top 2 000 18-19
88 226 016 "Panel mounted" timer Top 2 000 Top 2 000 18-19
88 226 017 "Panel mounted" timer Top 2 000 Top 2 000 18-19
88 226 019 "Panel mounted" timer Top 2 000 Top 2 000 18-19
88 226 501 "Panel mounted" timer Top 2 000 Top 2 000 18-19
88 226 502 "Panel mounted" timer Top 2 000 Top 2 000 18-19
88 226 503 "Panel mounted" timer Top 2 000 Top 2 000 18-19
88 226 504 "Panel mounted" timer Top 2 000 Top 2 000 18-19
88 226 505 "Panel mounted" timer Top 2 000 Top 2 000 18-19
88 226 506 "Panel mounted" timer Top 2 000 Top 2 000 18-19
88 226 507 "Panel mounted" timer Top 2 000 Top 2 000 18-19
88 226 508 "Panel mounted" timer Top 2 000 Top 2 000 18-19
88 256 401 Manual reset "Panel mounted" timer 88 256 4 18-19
88 256 402 Manual reset "Panel mounted" timer 88 256 4 18-19
88 256 403 Manual reset "Panel mounted" timer 88 256 4 18-19
88 256 404 Manual reset "Panel mounted" timer 88 256 4 18-19
88 256 405 Manual reset "Panel mounted" timer 88 256 4 18-19
88 256 406 Manual reset "Panel mounted" timer 88 256 4 18-19
88 256 407 Manual reset "Panel mounted" timer 88 256 4 18-19
88 256 408 Manual reset "Panel mounted" timer 88 256 4 18-19
88 256 506 Manual reset "Panel mounted" timer 88 256 5 18-19
88 256 507 Manual reset "Panel mounted" timer 88 256 5 18-19
88 256 508 Manual reset "Panel mounted" timer 88 256 5 18-19
88 256 509 Manual reset "Panel mounted" timer 88 256 5 18-19
88 256 510 Manual reset "Panel mounted" timer 88 256 5 18-19
88 256 511 Manual reset "Panel mounted" timer 88 256 5 18-19
88 256 512 Manual reset "Panel mounted" timer 88 256 5 18-19
88 256 513 Manual reset "Panel mounted" timer 88 256 5 18-19
88 256 906 Manual reset "Panel mounted" timer 88 256 9 18-19
88 256 907 Manual reset "Panel mounted" timer 88 256 9 18-19
88 256 908 Manual reset "Panel mounted" timer 88 256 9 18-19
88 256 909 Manual reset "Panel mounted" timer 88 256 9 18-19
84 874 130 Lift temperature control relay, according to EN81 HWT81 32-33
84 874 320 Speed control relay HSV 32-33
84 892 299 Phase control relay EWS 32-33
84 903 020 Phase control relay EMWS 30-31
85 000 000
85 102 031 Safety relay - Emergency stop and/or safety guards KNA3-YS 62-63
85 102 034 Safety relay - Emergency stop and/or safety guards KNA3-YS 62-63
85 102 035 Safety relay - Emergency stop and/or safety guards KNA3-YS 62-63
85 102 208 Safety relay - Power supply for 24 V c safety relays KPS0-YS 62-63
85 102 331 Safety relay - Zero speed monitoring KSW3-JS 62-63
85 102 434 Safety relay - Emergency stop and/or safety guards KNE3-YS 62-63
85 102 435 Safety relay - Emergency stop and/or safety guards KNE3-YS 62-63
85 102 436 Safety relay - Emergency stop and/or safety guards KNE3-YS 62-63
85 102 526 Safety relay - Relevelling zone control for lifts KZHNV-YS 62-63
85 102 621 Safety relay - Two-hand control KZH2-Y2 62-63
85 102 631 Safety relay - Two-hand control KZH3-YS 62-63
85 102 632 Safety relay - Two-hand control KZH3-YS 62-63
85 102 736 Safety relay - Timed contacts 1 > 10 s KZR3-YS 62-63
85 102 826 Safety relay - Relevelling zone control for lifts KZHNU-YS 62-63
85 102 954 Safety relay - Extension KZE5-YS 62-63
85 102 955 Safety relay - Extension KZE5-YS 62-63
85 102 956 Safety relay - Extension KZE5-YS 62-63
85 103 031 Safety relay - Emergency stop & Safety guard monitoring with 1 channel KNAC3-YS 62-63
85 103 034 Safety relay - Emergency stop & Safety guard monitoring with 1 channel KNAC3-YS 62-63
85 103 035 Safety relay - Emergency stop & Safety guard monitoring with 1 channel KNAC3-YS 62-63
85 103 436 Safety relay - Emergency stop & Safety guard monitoring with 2 channels KNEC3-YS 62-63
87 000 000
87 621 111 Multifunction electronic up/down counter with preselection - backlit LCD (orange) CTR48 44-45
87 621 112 Multifunction electronic up/down counter with preselection - backlit LCD (orange) CTR48 44-45
87 621 115 Multifunction electronic up/down counter with preselection - backlit LCD (orange) CTR48 44-45
87 621 121 Multifunction electronic up/down counter with preselection - backlit LCD (orange) CTR48 44-45
87 621 122 Multifunction electronic up/down counter with preselection - backlit LCD (orange) CTR48 44-45
87 621 125 Multifunction electronic up/down counter with preselection - backlit LCD (orange) CTR48 44-45
87 621 211 Multifunction electronic up/down counter with preselection - multicoloured LCD (green-red) CTR48 44-45
87 621 212 Multifunction electronic up/down counter with preselection - multicoloured LCD (green-red) CTR48 44-45
87 621 215 Multifunction electronic up/down counter with preselection - multicoloured LCD (green-red) CTR48 44-45
87 621 221 Multifunction electronic up/down counter with preselection - multicoloured LCD (green-red) CTR48 44-45
87 621 222 Multifunction electronic up/down counter with preselection - multicoloured LCD (green-red) CTR48 44-45
87 621 225 Multifunction electronic up/down counter with preselection - multicoloured LCD (green-red) CTR48 44-45
87 622 062 24 x 48 counter without preselection - LCD without backlighting CTR24 - 2242 42-43
87 622 070 24 x 48 counter without preselection - LCD without backlighting CTR24 - 2341 42-43
87 622 081 24 x 48 counter without preselection - backlit LCD (orange) CTR24 - 2341 42-43
87 622 082 24 x 48 counter without preselection - backlit LCD (orange) CTR24 - 2342 42-43
87 622 090 24 x 48 counter without preselection - backlit LCD (orange) CTR24 - 2340 42-43
87 622 161 24 x 48 electronic hour counter - LCD without backlighting CTR24 - 2223 42-43
87 622 162 24 x 48 electronic hour counter - LCD without backlighting CTR24 - 2233 42-43
87 622 170 24 x 48 electronic hour counter - LCD without backlighting CTR24 - 2224 42-43
87 622 181 24 x 48 electronic hour counter - backlit LCD (orange) CTR24 - 2323 42-43
87 622 182 24 x 48 electronic hour counter - backlit LCD (orange) CTR24 - 2333 42-43
l Panorama Crouzet Control / Crouzet Automation
I www.crouzet.com
86 87
Part numbers index
PART
NUMBER DESCRIPTION TYPE PAGES PART
NUMBER DESCRIPTION TYPE PAGES
88 865 176 Chronos 2 "DIN rail mounted" timer - 22.5 mm TQR6 14-15
88 865 185 Chronos 2 "DIN rail mounted" timer - 22.5 mm TXR1 14-15
88 865 215 Chronos 2 "DIN rail mounted" timer - 22.5 mm TA2R1 14-15
88 865 265 Chronos 2 "DIN rail mounted" timer - 22.5 mm TK2R1 14-15
88 865 300 Chronos 2 "DIN rail mounted" timer - 22.5 mm TU2R4 14-15
88 865 303 Chronos 2 "DIN rail mounted" timer - 22.5 mm TU2R3 14-15
88 865 305 Chronos 2 "DIN rail mounted" timer - 22.5 mm TU2R1 14-15
88 865 385 Chronos 2 "DIN rail mounted" timer - 22.5 mm TX2R1 14-15
88 865 503 Chronos 2 "DIN rail mounted" timer - 22.5 mm TURc3 14-15
88 866 175 Chronos 2 "DIN rail mounted" timer - 22.5 mm RQR1 14-15
88 866 176 Chronos 2 "DIN rail mounted" timer - 22.5 mm RQR6 14-15
88 866 215 Chronos 2 "DIN rail mounted" timer - 22.5 mm RA2R1 14-15
88 866 305 Chronos 2 "DIN rail mounted" timer - 22.5 mm RU2R1 14-15
88 867 100 Chronos 2 "DIN rail mounted" timer - Plug-in OUR4 16-17
88 867 103 Chronos 2 "DIN rail mounted" timer - Plug-in OUR3 16-17
88 867 105 Chronos 2 "DIN rail mounted" timer - Plug-in OUR1 16-17
88 867 135 Chronos 2 "DIN rail mounted" timer - Plug-in OCR1 16-17
88 867 155 Chronos 2 "DIN rail mounted" timer - Plug-in OLR1 16-17
88 867 215 Chronos 2 "DIN rail mounted" timer - Plug-in OA2R1 16-17
88 867 300 Chronos 2 "DIN rail mounted" timer - Plug-in PU2R4 16-17
88 867 303 Chronos 2 "DIN rail mounted" timer - Plug-in PU2R3 16-17
88 867 305 Chronos 2 "DIN rail mounted" timer - Plug-in PU2R1 16-17
88 867 415 Chronos 2 "DIN rail mounted" timer - Plug-in PA2R1 16-17
88 867 435 Chronos 2 "DIN rail mounted" timer - Plug-in PC2R1 16-17
88 867 455 Chronos 2 "DIN rail mounted" timer - Plug-in PL2R1 16-17
88 886 016 TMR 48 analogue "Panel mounted" timer TMR 48 U 16-17
88 886 106 TMR 48 analogue "Panel mounted" timer TMR 48 A 16-17
88 886 116 TMR 48 analogue "Panel mounted" timer TMR 48 X 16-17
88 886 516 TMR 48 analogue "Panel mounted" timer TMR 48 L 16-17
88 895 201 Miniature "DIN rail mounted" timer RTMA2 16-17
88 895 202 Miniature "DIN rail mounted" timer RTMA2 16-17
88 895 203 Miniature "DIN rail mounted" timer RTMA2 16-17
88 895 206 Miniature "DIN rail mounted" timer RTMA2 16-17
88 895 207 Miniature "DIN rail mounted" timer RTMA2 16-17
88 896 201 Miniature "DIN rail mounted" timer RTMA4 16-17
88 896 202 Miniature "DIN rail mounted" timer RTMA4 16-17
88 896 203 Miniature "DIN rail mounted" timer RTMA4 16-17
88 896 206 Miniature "DIN rail mounted" timer RTMA4 16-17
88 896 207 Miniature "DIN rail mounted" timer RTMA4 16-17
88 901 302 Miniature "DIN rail mounted" timer MBA3F 18-19
88 901 308 MBA analogue "Panel mounted" timer MBA2F 18-19
88 901 322 MBA analogue "Panel mounted" timer MBA3F 18-19
88 901 328 MBA analogue "Panel mounted" timer MBA2F 18-19
88 901 342 MBA analogue "Panel mounted" timer MBA3F 18-19
88 901 348 MBA analogue "Panel mounted" timer MBA2F 18-19
88 901 372 MBA analogue "Panel mounted" timer MBA3F 18-19
88 901 378 MBA analogue "Panel mounted" timer MBA2F 18-19
88 901 392 MBA analogue "Panel mounted" timer MBA3F 18-19
88 901 398 MBA analogue "Panel mounted" timer MBA2F 18-19
88 256 910 Manual reset "Panel mounted" timer 88 256 9 18-19
88 256 911 Manual reset "Panel mounted" timer 88 256 9 18-19
88 256 912 Manual reset "Panel mounted" timer 88 256 9 18-19
88 256 913 Manual reset "Panel mounted" timer 88 256 9 18-19
88 827 004 Chronos 2 "DIN rail mounted" timer - 17.5 mm MUS2 14-15
88 827 014 Chronos 2 "DIN rail mounted" timer - 17.5 mm MAS5 14-15
88 827 044 Chronos 2 "DIN rail mounted" timer - 17.5 mm MHS2 14-15
88 827 054 Chronos 2 "DIN rail mounted" timer - 17.5 mm MLS2 14-15
88 827 100 Chronos 2 "DIN rail mounted" timer - 17.5 mm MUR4 14-15
88 827 103 Chronos 2 "DIN rail mounted" timer - 17.5 mm MUR3 14-15
88 827 105 Chronos 2 "DIN rail mounted" timer - 17.5 mm MUR1 14-15
88 827 115 Chronos 2 "DIN rail mounted" timer - 17.5 mm MAR1 14-15
88 827 125 Chronos 2 "DIN rail mounted" timer - 17.5 mm MBR1 14-15
88 827 135 Chronos 2 "DIN rail mounted" timer - 17.5 mm MCR1 14-15
88 827 145 Chronos 2 "DIN rail mounted" timer - 17.5 mm MHR1 14-15
88 827 150 Chronos 2 "DIN rail mounted" timer - 17.5 mm MLR4 14-15
88 827 155 Chronos 2 "DIN rail mounted" timer - 17.5 mm MLR1 14-15
88 827 185 Chronos 2 "DIN rail mounted" timer - 17.5 mm MXR1 14-15
88 827 503 Chronos 2 "DIN rail mounted" timer - 17.5 mm MURc3 14-15
88 829 108 Chronos 2 "DIN rail mounted" timer - 17.5 mm EMYRR8 14-15
88 829 117 Essential "DIN rail mounted" timer EMAR7 14-15
88 829 119 Essential "DIN rail mounted" timer EMAR9 14-15
88 829 198 Essential "DIN rail mounted" timer EMER8 14-15
88 857 003 814 digital "Panel mounted" timer 814 timer 16-17
88 857 005 814 digital "Panel mounted" timer 814 timer 16-17
88 857 103 814 digital "Panel mounted" timer 814 timer 16-17
88 857 105 814 digital "Panel mounted" timer 814 timer 16-17
88 857 301 815 digital "Panel mounted" timer 815 timer 16-17
88 857 302 815 digital "Panel mounted" timer 815 timer 16-17
88 857 307 815 digital "Panel mounted" timer 815 timer 16-17
88 857 311 815E digital "Panel mounted" timer 815E timer 16-17
88 857 400 812 digital "Panel mounted" timer 812 timer 16-17
88 857 406 812 digital "Panel mounted" timer 812 timer 16-17
88 857 409 812 digital "Panel mounted" timer 812 timer 16-17
88 857 601 816 digital "Panel mounted" timer 816 timer 16-17
88 857 604 816 digital "Panel mounted" timer 816 timer 16-17
88 857 607 816 digital "Panel mounted" timer 816 timer 16-17
88 857 701 816 digital "Panel mounted" timer 816 timer 16-17
88 857 704 816 digital "Panel mounted" timer 816 timer 16-17
88 857 707 816 digital "Panel mounted" timer 816 timer 16-17
88 865 100 Chronos 2 "DIN rail mounted" timer - 22.5 mm TUR4 14-15
88 865 103 Chronos 2 "DIN rail mounted" timer - 22.5 mm TUR3 14-15
88 865 105 Chronos 2 "DIN rail mounted" timer - 22.5 mm TUR1 14-15
88 865 115 Chronos 2 "DIN rail mounted" timer - 22.5 mm TAR1 14-15
88 865 125 Chronos 2 "DIN rail mounted" timer - 22.5 mm TBR1 14-15
88 865 135 Chronos 2 "DIN rail mounted" timer - 22.5 mm TCR1 14-15
88 865 145 Chronos 2 "DIN rail mounted" timer - 22.5 mm THR1 14-15
88 865 155 Chronos 2 "DIN rail mounted" timer - 22.5 mm TLR1 14-15
88 865 175 Chronos 2 "DIN rail mounted" timer - 22.5 mm TQR1 14-15
l Panorama Crouzet Control / Crouzet Automation
I www.crouzet.com
88 89
Part numbers index
PART
NUMBER DESCRIPTION TYPE PAGES PART
NUMBER DESCRIPTION TYPE PAGES
88 973 211 Bare board and resin board versions NBR32 80-81
88 973 231 Bare board and resin board versions NBR40 80-81
88 974 021 "Compact" version M3 Smart logic controller without display CB12 Smart 80-81
88 974 023 "Compact" version M3 Smart logic controller without display CB12 Smart 80-81
88 974 031 "Compact" version M3 Smart logic controller without display CB20 Smart 80-81
88 974 033 "Compact" version M3 Smart logic controller without display CB20 Smart 80-81
88 974 041 "Compact" version M3 Smart logic controller with display CD12 Smart 80-81
88 974 043 "Compact" version M3 Smart logic controller with display CD12 Smart 80-81
88 974 051 "Compact" version M3 Smart logic controller with display CD20 Smart 80-81
88 974 053 "Compact" version M3 Smart logic controller with display CD20 Smart 80-81
88 974 080 Millenium 3 Smart user kit (Millenium 3 Smart, M3 Soft software, USB programming cable) Kit 12 Smart 80-81
88 974 081 Millenium 3 Smart user kit (Millenium 3 Smart, M3 Soft software, USB programming cable) Kit 12 Smart 80-81
88 974 082 Millenium 3 Smart user kit (Millenium 3 Smart, M3 Soft software, USB programming cable) Kit 20 Smart 80-81
88 974 083 Millenium 3 Smart user kit (Millenium 3 Smart, M3 Soft software, USB programming cable) Kit 20 Smart 80-81
88 974 084 Millenium 3 Smart user kit (Millenium 3 Smart, M3 Soft software, USB programming cable) Kit 26 Smart 80-81
88 974 085 Millenium 3 Smart user kit (Millenium 3 Smart, M3 Soft software, USB programming cable) Kit 26 Smart 80-81
88 974 104 Millenium 3 -> Bluetooth® interface (class A 10 m) Accessory 80-81
88 974 106 Democase Accessorys Accessory 80-81
88 974 131 "Expandable" version M3 Smart logic controller without display Smart XB10 80-81
88 974 133 "Expandable" version M3 Smart logic controller without display Smart XB10 80-81
88 974 141 "Expandable" version M3 Smart logic controller without display Smart XD10 80-81
88 974 143 "Expandable" version M3 Smart logic controller without display Smart XD10 80-81
88 974 151 "Expandable" version M3 Smart logic controller without display Smart XB26 80-81
88 974 153 "Expandable" version M3 Smart logic controller without display Smart XB26 80-81
88 974 161 "Expandable" version M3 Smart logic controller without display Smart XD26 80-81
88 974 163 "Expandable" version M3 Smart logic controller without display Smart XD26 80-81
88 974 250 Sandwich extensions XN07 80-81
88 974 441 Logic controllers compact Smart CD12 RBT 80-81
88 974 561 Electric controller expandable Smart XD26 RBT 80-81
89 000 000
89 421 102 Digital temperature controller CTD43 56-57
89 421 108 Digital temperature controller CTD43 56-57
89 421 112 Digital temperature controller CTD43 56-57
89 421 118 Digital temperature controller CTD43 56-57
89 422 002 Digital temperature controller MIC48 56-57
89 422 008 Digital temperature controller MIC48 56-57
89 422 012 Digital temperature controller MIC48 56-57
89 422 018 Digital temperature controller MIC48 56-57
89 422 102 Digital temperature controller CTD46 56-57
89 422 108 Digital temperature controller CTD46 56-57
89 422 112 Digital temperature controller CTD46 56-57
89 422 118 Digital temperature controller CTD46 56-57
89 422 502 Digital temperature controller CTH46 56-57
89 422 508 Digital temperature controller CTH46 56-57
89 422 512 Digital temperature controller CTH46 56-57
89 422 518 Digital temperature controller CTH46 56-57
89 750 150 Ambient temperature sensor (0-10 V), -10 C -> +40 °C Accessory 80-81
89 750 151 Ventilation duct (0-10 V), -10 -> +60°C Accessory 80-81
88 950 108 PWM to 0-10 V/4-20 mA Accessory 80-81
88 950 112 PWM to 0-10 V/4-20 mA Accessory 80-81
88 950 150 Thermocouple Pt100/Pt1000 -> 0-10 V Accessory 80-81
88 950 151 Thermocouple Pt100/Pt1000 -> 0-10 V Accessory 80-81
88 950 152 Thermocouple Pt100/Pt1000 -> 0-10 V Accessory 80-81
88 950 153 Thermocouple Pt100/Pt1000 -> 0-10 V Accessory 80-81
88 950 154 Thermocouple Pt100/Pt1000 -> 0-10 V Accessory 80-81
88 950 155 Thermocouple Pt100/Pt1000 -> 0-10 V Accessory 80-81
88 950 302 Power supplies and DC/DC converters in modular casings - Millenium Range Supply 80-81
88 950 303 Power supplies and DC/DC converters in modular casings - Millenium Range Supply 80-81
88 950 304 Power supplies and DC/DC converters in modular casings - Millenium Range Supply 80-81
88 950 305 Power supplies and DC/DC converters in modular casings - Millenium Range Supply 80-81
88 950 306 Power supplies and DC/DC converters in modular casings - Millenium Range Supply 80-81
88 950 307 Power supplies and DC/DC converters in modular casings - Millenium Range Supply 80-81
88 950 320 Power supplies and DC/DC converters in modular casings Converters 80-81
88 950 321 Power supplies and DC/DC converters in modular casings Converters 80-81
88 950 400 Remote LED display - Input 0-10 V Accessory 80-81
88 970 001 Bare board and resin board versions NB12 80-81
88 970 003 Bare board and resin board versions NB12 80-81
88 970 011 Bare board and resin board versions NB20 80-81
88 970 013 Bare board and resin board versions NB20 80-81
88 970 102 3 m serial link cable: PC DB9 F -> Millenium 3 Accessory 80-81
88 970 108 Memory cartridge for transfer and saving of programms Accessory 80-81
88 970 109 3 m USB link cable: PC -> Millenium 3 Accessory 80-81
88 970 110 Bluetooth® adaptor Accessory 80-81
88 970 111 M3 Soft: Millenium 3 programming software (CD-ROM) M3 Soft 80-81
88 970 117 Modem communication solutions M3MOD Accessory 80-81
88 970 118 Modem communication solutions RTC Accessory 80-81
88 970 119 Modem communication solutions GSM Accessory 80-81
88 970 123 1.80 m serial link cable: DB9 M/DB9 F Accessory 80-81
88 970 211 Digital termination extension for XD10/XB10 and XD26/XB26 XR06 80-81
88 970 213 Digital termination extension for XD10/XB10 and XD26/XB26 XR06 80-81
88 970 221 Digital termination extension for XD10/XB10 and XD26/XB26 XR10 80-81
88 970 223 Digital termination extension for XD10/XB10 and XD26/XB26 XR10 80-81
88 970 231 Digital termination extension for XD10/XB10 and XD26/XB26 XR14 80-81
88 970 233 Digital termination extension for XD10/XB10 and XD26/XB26 XR14 80-81
88 970 241 Analogue termination extension for XD10/XB10 and XD26/XB26 XA04 80-81
88 970 270 Sandwich communication extension for XD10/XB10 and XD26/XB26 XN05 80-81
88 970 321 Digital "Sandwich" extension for XD10/XB10 and XD26/XB26 XE10 80-81
88 970 323 Digital "Sandwich" extension for XD10/XB10 and XD26/XB27 XE10 80-81
88 970 410 Plug & Play remote LCD displays/keypads Accessory 80-81
88 970 492 TFT-LCD compact 4"3 and 7" resistive touch panels - MTP6/50 Accessory 80-81
88 970 494 TFT-LCD compact 4"3 and 7" resistive touch panels - MTP8/50 Accessorys 80-81
88 970 496 TFT-LCD compact 4"3 and 7" resistive touch panels - MTP8/70 Accessorys 80-81
88 970 510 0.5 m serial link cable: Millenium 3 -> DB9 M Accessorys 80-81
88 970 800 Termination Extensions analog XA03 80-81
88 972 250 Sandwich communication extension for XD10/XB10 and XD26/XB26 XN06 80-81
88 973 001 Bare board and resin board versions NBR12 80-81
88 973 061 Bare board and resin board versions NBR26 80-81
I www.crouzet.com
90 91
l Panorama Crouzet Control / Crouzet Automation
Part numbers index
PART
NUMBER DESCRIPTION TYPE PAGES PART
NUMBER DESCRIPTION TYPE PAGES
99 777 714 24 x 48 electromechanical impulse counter - Frequency between 50 and 60 Hz CIM24 46-47
99 777 720 24 x 48 electromechanical impulse counter - Frequency between 50 and 60 Hz CIM24 46-47
99 777 724 24 x 48 electromechanical impulse counter - Frequency between 50 and 60 Hz CIM24 46-47
99 777 810 24 x 48 electromechanical impulse counter - DC version CIM24 46-47
99 777 815 24 x 48 electromechanical impulse counter - DC version CIM24 46-47
99 777 820 24 x 48 electromechanical impulse counter - DC version CIM24 46-47
99 777 825 24 x 48 electromechanical impulse counter - DC version CIM24 46-47
99 778 710 15 x 32 electromechanical impulse counter - Frequency between 50 and 60 Hz CIM15 46-47
99 778 712 15 x 32 electromechanical impulse counter - Frequency between 50 and 60 Hz CIM15 46-47
99 778 714 15 x 32 electromechanical impulse counter - Frequency between 50 and 60 Hz CIM15 46-47
99 778 805 Electromechanical impulse counter 15 x 32 - DC version CIM15 46-47
99 778 806 Electromechanical impulse counter 15 x 32 - DC version CIM15 46-47
99 778 810 Electromechanical impulse counter 15 x 32 - DC version CIM15 46-47
99 779 710 Dual function 48 x 48 electromechanical counter - Hour and impulse CMM48 46-47
99 779 712 Dual function 48 x 48 electromechanical counter - Hour and impulse CMM48 46-47
99 779 714 Dual function 48 x 48 electromechanical counter - Hour and impulse CMM48 46-47
99 779 715 Dual function 48 x 48 electromechanical counter - Hour and impulse CMM48 46-47
99 779 716 Dual function 48 x 48 electromechanical counter - Hour and impulse CMM48 46-47
99 779 718 Dual function 48 x 48 electromechanical counter - Hour and impulse CMM48 46-47
99 779 810 Dual function 48 x 48 electromechanical counter - Hour and impulse CMM48 46-47
99 780 712 Dual function 48 x 48 electromechanical counter - Hour and energy CEM48 46-47
99 780 714 Dual function 48 x 48 electromechanical counter - Hour and energy CEM48 46-47
99 782 710 24 x 48 electromechanical hour counter - 50 Hz CHM24 44-45
99 782 712 24 x 48 electromechanical hour counter - 50 Hz CHM24 44-45
99 782 714 24 x 48 electromechanical hour counter - 50 Hz CHM24 44-45
99 782 715 24 x 48 electromechanical hour counter - 60 Hz CHM24 44-45
99 782 716 24 x 48 electromechanical hour counter - 60 Hz CHM24 44-45
99 782 718 24 x 48 electromechanical hour counter - 60 Hz CHM24 44-45
99 782 810 24 x 48 electromechanical hour counter - DC version CHM24 44-45
99 792 810 24 x 48 electromechanical hour counter - DC version CHM15 44-45
99 793 710 Electromechanical hour counter rail DIN - 50 Hz CHMDR 44-45
99 793 712 Electromechanical hour counter rail DIN - 50 Hz CHMDR 44-45
99 793 714 Electromechanical hour counter rail DIN - 50 Hz CHMDR 44-45
99 793 810 Electromechanical hour counter rail DIN - DC version CHMDR 44-45
89 750 152 Outdoor sensor (0-10 V), -10 -> +40°C Accessory 80-81
89 750 153 Remote/submersible probe (0-10 V), -10 -> +150 °C Accessory 80-81
89 750 182 NTC2 probe 305 stainless steel -35°C C +120°C Accessory 80-81
89 750 183 LDR1 light sensor 10°C C 3000 Lux Accessory 80-81
89 750 186 NTC Temperature probes CTN3 Silicone Accessory 80-81
89 750 174 NTC Temperature probes CTN2 PVC Accessory 80-81
99 000 000
99 772 710 48 x 48 electromechanical hour counter - 50 Hz CHM48 44-45
99 772 711 48 x 48 electromechanical hour counter - 50 Hz CHM48 44-45
99 772 712 48 x 48 electromechanical hour counter - 50 Hz CHM48 44-45
99 772 713 48 x 48 electromechanical hour counter - 50 Hz CHM48 44-45
99 772 714 48 x 48 electromechanical hour counter - 50 Hz CHM48 44-45
99 772 715 48 x 48 electromechanical hour counter - 60 Hz CHM48 44-45
99 772 716 48 x 48 electromechanical hour counter - 60 Hz CHM48 44-45
99 772 717 48 x 48 electromechanical hour counter - 60 Hz CHM48 44-45
99 772 718 48 x 48 electromechanical hour counter - 60 Hz CHM48 44-45
99 772 719 48 x 48 electromechanical hour counter - 60 Hz CHM48 44-45
99 772 810 48 x 48 electromechanical hour counter - DC version CHM48 44-45
99 772 811 48 x 48 electromechanical hour counter - DC version CHM48 44-45
99 772 812 48 x 48 electromechanical hour counter - DC version CHM48 44-45
99 776 601 36 x 37 electromechanical impulse counter - Frequency between 50 and 60 Hz CIM 36 x 37 46-47
99 776 602 36 x 37 electromechanical impulse counter - Frequency between 50 and 60 Hz CIM 36 x 37 46-47
99 776 604 36 x 37 electromechanical impulse counter - Frequency between 50 and 60 Hz CIM 36 x 37 46-47
99 776 605 36 x 37 electromechanical impulse counter - DC version CIM 36 x 37 46-47
99 776 607 36 x 37 electromechanical impulse counter - DC version CIM 36 x 37 46-47
99 776 610 36 x 37 electromechanical impulse counter - Frequency between 50 and 60 Hz CIM 36 x 37 46-47
99 776 611 36 x 37 electromechanical impulse counter - Frequency between 50 and 60 Hz CIM 36 x 37 46-47
99 776 613 36 x 37 electromechanical impulse counter - Frequency between 50 and 60 Hz CIM 36 x 37 46-47
99 776 616 36 x 37 electromechanical impulse counter - DC version CIM 36 x 37 46-47
99 776 701 36 x 48 electromechanical impulse counter - Frequency between 50 and 60 Hz CIM 36 x 48 46-47
99 776 702 36 x 48 electromechanical impulse counter - Frequency between 50 and 60 Hz CIM 36 x 48 46-47
99 776 704 36 x 48 electromechanical impulse counter - Frequency between 50 and 60 Hz CIM 36 x 48 46-47
99 776 705 36 x 48 electromechanical impulse counter - DC version CIM 36 x 48 46-47
99 776 707 36 x 48 electromechanical impulse counter - DC version CIM 36 x 48 46-47
99 776 710 36 x 48 electromechanical impulse counter - Frequency between 50 and 60 Hz CIM 36 x 48 46-47
99 776 711 36 x 48 electromechanical impulse counter - Frequency between 50 and 60 Hz CIM 36 x 48 46-47
99 776 713 36 x 48 electromechanical impulse counter - Frequency between 50 and 60 Hz CIM 36 x 48 46-47
99 776 716 36 x 48 electromechanical impulse counter - DC version CIM 36 x 48 46-47
99 776 736 36 x 48 electromechanical impulse counter - DC version CIM 36 x 48 46-47
99 776 901 24 x 48 electromechanical impulse counter - Screw fixing - Frequency between 50 and 60 Hz CIM 24 x 48 46-47
99 776 902 24 x 48 electromechanical impulse counter - Screw fixing - Frequency between 50 and 60 Hz CIM 24 x 48 46-47
99 776 904 24 x 48 electromechanical impulse counter - Screw fixing - Frequency between 50 and 60 Hz CIM 24 x 48 46-47
99 776 905 24 x 48 electromechanical impulse counter - Screw fixing - DC version CIM 24 x 48 46-47
99 776 907 24 x 48 electromechanical impulse counter - Screw fixing - DC version CIM 24 x 48 46-47
99 776 921 24 x 48 electromechanical impulse counter - Screw fixing - Frequency between 50 and 60 Hz CIM 24 x 48 46-47
99 776 922 24 x 48 electromechanical impulse counter - Screw fixing - Frequency between 50 and 60 Hz CIM 24 x 48 46-47
99 776 924 24 x 48 electromechanical impulse counter - Screw fixing - Frequency between 50 and 60 Hz CIM 24 x 48 46-47
99 776 927 24 x 48 electromechanical impulse counter - Screw fixing - DC version CIM 24 x 48 46-47
99 777 710 24 x 48 electromechanical impulse counter - Frequency between 50 and 60 Hz CIM24 46-47
New_CROUZET sans marque.indd 1 10/10/2013 11:07:15
Warning:
The product information contained in this catalogue is given purely as information and does not constitute a representation, warrantly or any form of contractual commitment. Crouzet
Automatismes SAS and its subsidiaries reserve the right to modify their products without notice. It is imperative that we should be consulted over any particular use or application of our
products and it is the responsability of the buyer to establish, particularly through all the appropriate tests, that the product is suitable for the use or application. Under no circumstances
will our warranty apply, nor shall we be held responsible for any application (such as any modication, addition, deletion, use in conjunction with other electrical or electronic components,
circuits or assemblies, or any other unsuitable material or substance) which has not been expressly agreed by us prior to the sale of our products.
AMERICAS EUROPE / MIDDLE EAST / AFRICA ASIA / PACIFIC
WWW.CROUZET-CONTROL.COM WWW.INNOVISTASENSORS.COM
SPAIN / PORTUGAL
InnoVista Sensors™
C/Lleó, 11-13 2º4ª
08911 Badalona - Barcelona
ESPAÑA
Tel.: +34 (93) 484 39 70
Fax: +34 (93) 484 39 73
atencionalcliente@crouzet.com
SWITZERLAND
InnoVista Sensors™
Gewerbepark - Postfach 56
5506 Mägenwil - SCHWEIZ
Tel.: +49 (0) 2103/980-0
Fax: +49 (0) 2103/980-222
kundenservice@crouzet.com
THE NETHERLANDS
InnoVista Sensors™
Industrieweg 17
2382 NR Zoeterwoude
NEDERLAND
Tel.: +31 (0) 71-581 20 30
Fax: +31 (0) 71-541 35 74
klantenservice@crouzet.com
COUNTRIES NOT LISTED
InnoVista Sensors™
2 rue du Docteur Henri Abel,
CS 60059
26902 Valence Cedex 9
FRANCE
Tel.: +33 (0) 475 802 102
Fax: +33 (0) 475 828 900
customer.relation@crouzet.com
CANADA
InnoVista Sensors™
1461 Lawrence Drive
Thousand Oaks, CA 91320
USA
Tel.: +1 (800) 677 5311
Fax: +1 (800) 677 3865
customer.service@us.crouzet.com
MEXICO
InnoVista Sensors™
Calzada Zavaleta 2505-C
Santa Cruz Buenavista
Puebla, 72150 - MEXICO
Tel.: +52 (222) 409 7000
mexico@crouzet.com
USA
InnoVista Sensors™
1461 Lawrence Drive
Thousand Oaks, CA 91320
USA
Tel.: +1 (800) 677 5311
Fax: +1 (800) 677 3865
customer.service@us.crouzet.com
COUNTRIES NOT LISTED
InnoVista Sensors™
1461 Lawrence Drive
Thousand Oaks, CA 91320
USA
Tel.: +1 (800) 677 5311
Fax: +1 (800) 677 3865
customer.service@us.crouzet.com
BELGIUM
InnoVista Sensors™
Dieweg 3 B
1180 Uccle - BELGIQUE
Tel.: +32 (0) 2 462 07 30
Fax: +32 (0) 2 461 00 23
klantenservice@crouzet.com
FRANCE
InnoVista Sensors™
2 rue du Docteur Henri Abel,
CS 60059
26902 Valence Cedex 9
FRANCE
Tel.: +33 (0) 475 802 101
Fax: +33 (0) 475 828 900
relationclient@crouzet.com
GERMANY / AUSTRIA
InnoVista Sensors™
Otto-Hahn-Str. 3
40721 Hilden
DEUTSCHLAND
Tel.: +49 (0) 2103/980-0
Fax: +49 (0) 2103/980-222
kundenservice@crouzet.com
ITALY
InnoVista Sensors™
Via Viganò De Vizzi, 93/95
20092 Cinisello Balsamo (Mi)
ITALIA
Tel.: +39 (02) 66 599 211
Fax: +39 (02) 66 599 218
assistenzaclienti@crouzet.com
www.crouzet.it
CHINA
InnoVista Sensors™
11th oor, Chang Feng
International Tower,
89 Yunling Road (East),
Putuo District,
Shanghai 200 062 - CHINA
Tel.: +86 (21) 8025 7166
Fax: +86 (21) 6107 1771
china@crouzet.com
INDIA
InnoVista Sensors™
4th oor, Trident Towers, #23 100
Feet Ashoka Pillar Road,
2nd Block, Jaynagar
Bangalore 560 011 - INDIA
Tel.: +91 (80) 4113 2204/05
Fax: +91 (80) 4113 2206
india@crouzet.com
SOUTH KOREA
InnoVista Sensors™
14F, Kbiz DMC Tower,
189, Seongam-Ro, Mapo-Gu,
Seoul 121-904
SOUTH KOREA
Tel.: +82 (2) 2629 8312
Fax: +82 (2) 2630 9800
korea@crouzet.com
EAST ASIA PACIFIC
InnoVista Sensors™
10/F, Wharf T&T Centre, Harbour
City, 7 Canton Road, Tsim Sha Tsui,
Kowloon, HONG KONG
Tel.: +86 (21) 8025 7177
Fax: +86 (21) 6107 1771
eap@crouzet.com
