Manually Operated Switches Momentary 83 542 0 1 Pole Telescopic Button Part Number 835420
2016-06-27
: Crouzet Manually-Operated-Switches-Momentary-83-542-0-1-Pole-Telescopic-Button-Part Number-835420 manually-operated-switches-momentary-83-542-0-1-pole-telescopic-button-Part number-835420 english datasheets
Open the PDF directly: View PDF
.
Page Count: 4

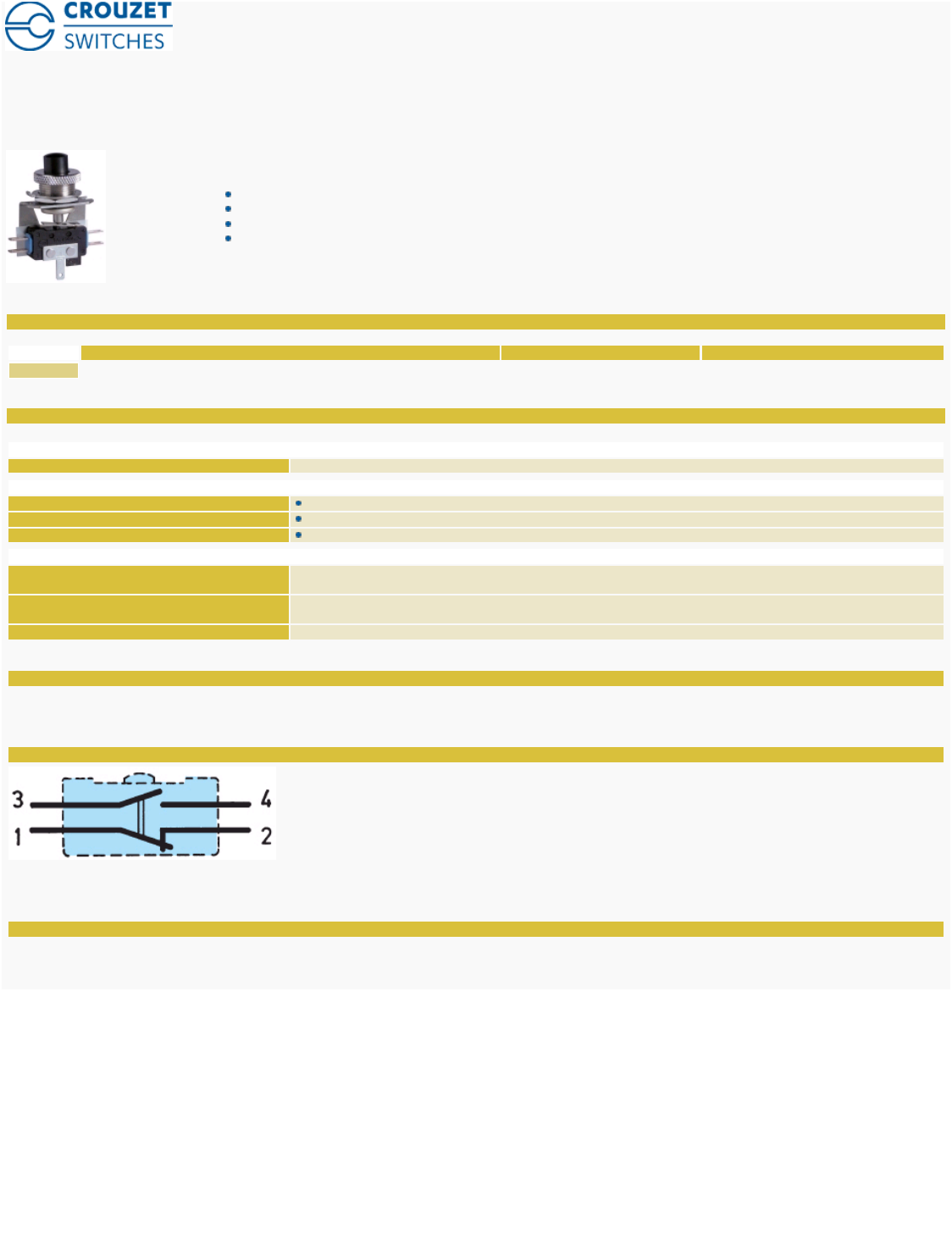

83 542 0 1
-
pole
-
telescopic button Part number 835420
High switch rating
Low level
Long mechanical life
Reliability
Part numbers
Specifications
Type
Functions
Connections
83 542 0
1 -
pole
- telescopic button
Changeover
W2 solder
General characteristics
Microswitche
83 132 0
Presentation
Threaded barrel
Chrome
-plated nuts
Locating washer
Mechanical characteristics
Protection against electric shocks to IEC 536 and NF
20030
Class I
Mechanical durability of operating device (operating
cycles)
5 x 105
Weight (g)
25
Other characterisitcs
<T1>
Mounting - Operation
</T1>
See basic technical concepts on page 2/4
Principles

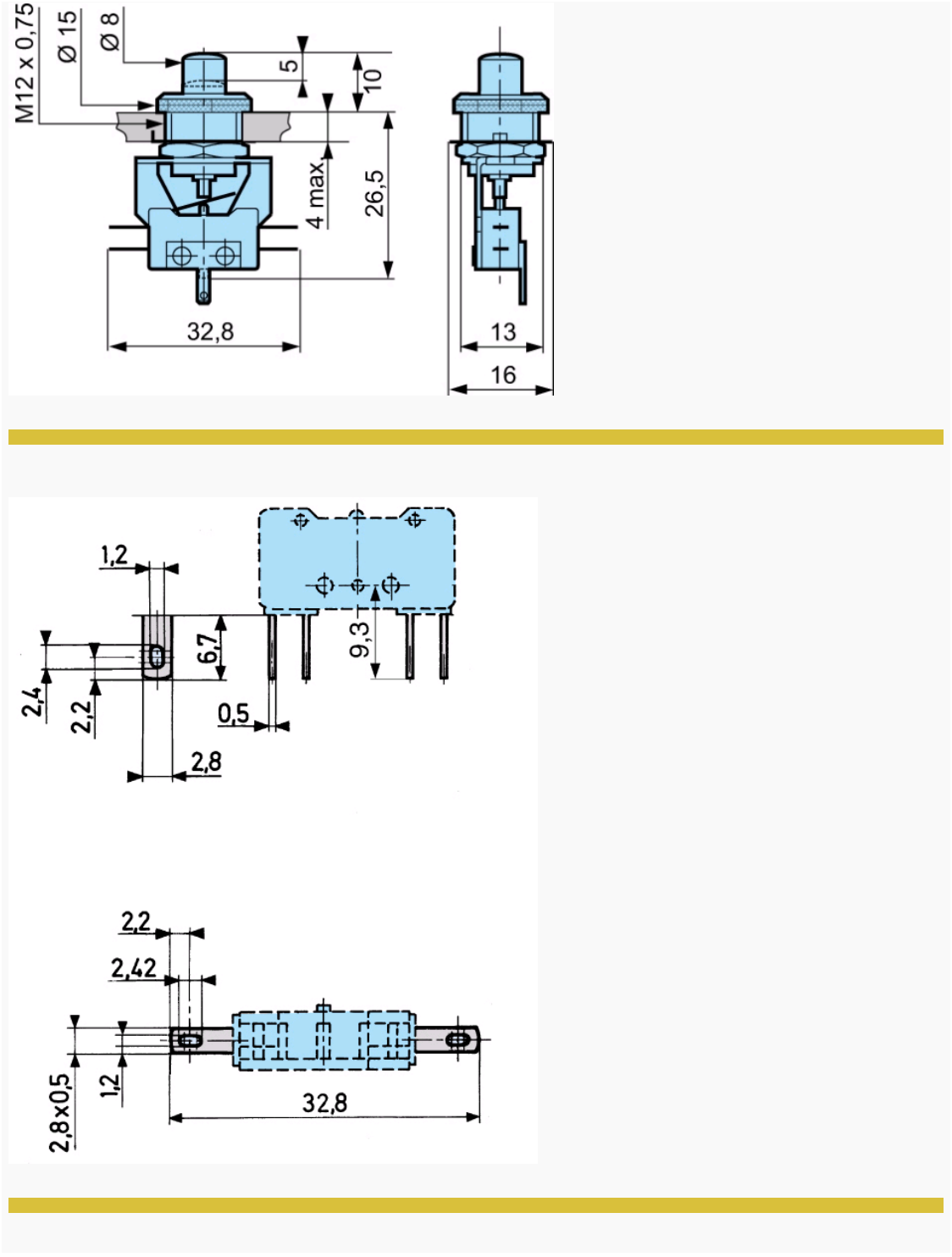

Dimensions (mm)
Product
83 542
Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
02/11/2015 www.crouzet.com
Dimensions (mm)
Connections
W2 à souder
Dimensions (mm)
Drilling
Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
02/11/2015 www.crouzet.com
Perçage panneau 83 542 - 83 543

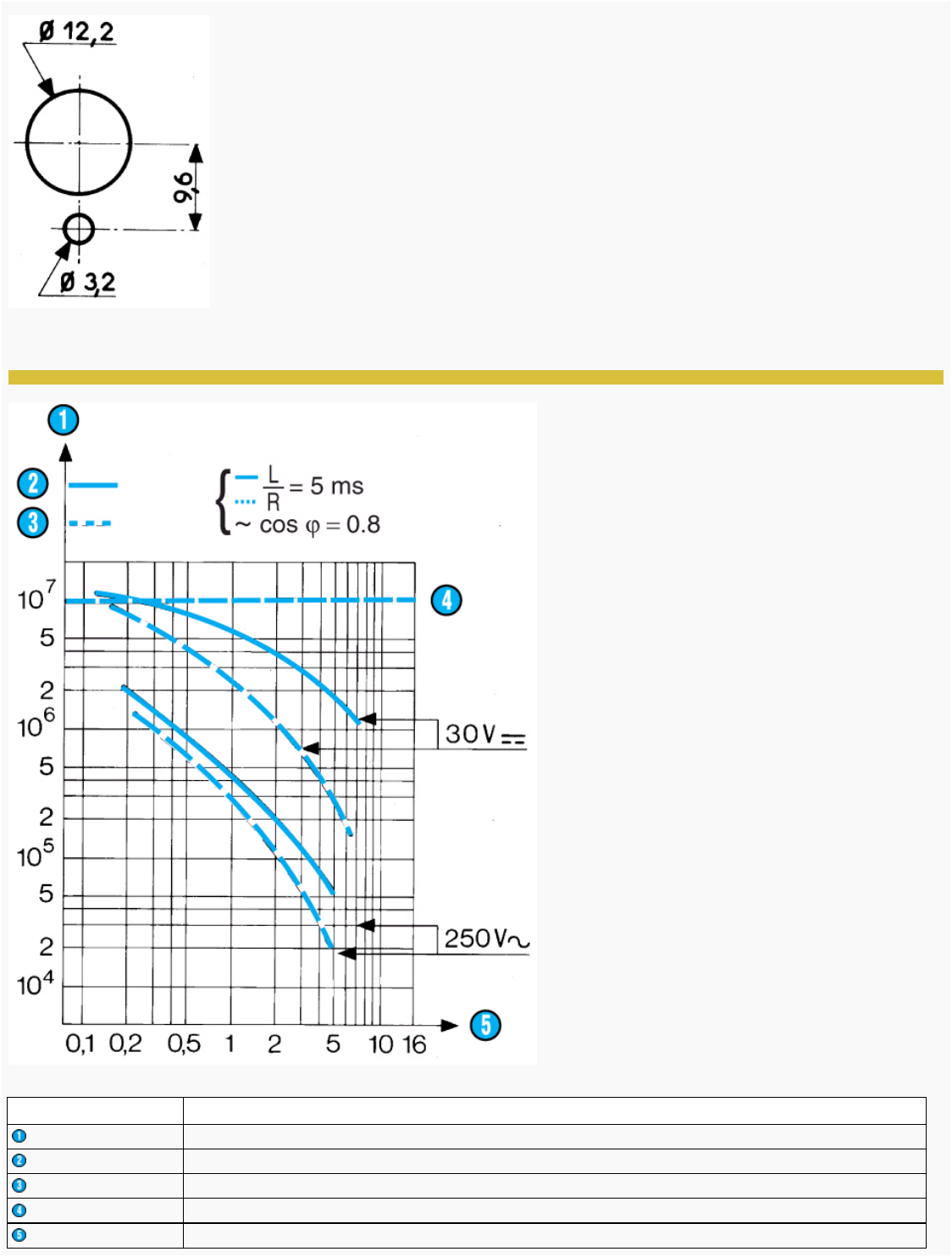

Curves
Courbe d'emploi pour types 83 542 - 83 543 - 83 547 - 83 563
N
o
Legend
Number of cycles
Resistive circuit
Inductive circuit
Mechanical life limit
Rating in Amps
Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
02/11/2015 www.crouzet.com
Other information
Accessories : please consult us.
Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
02/11/2015 www.crouzet.com
