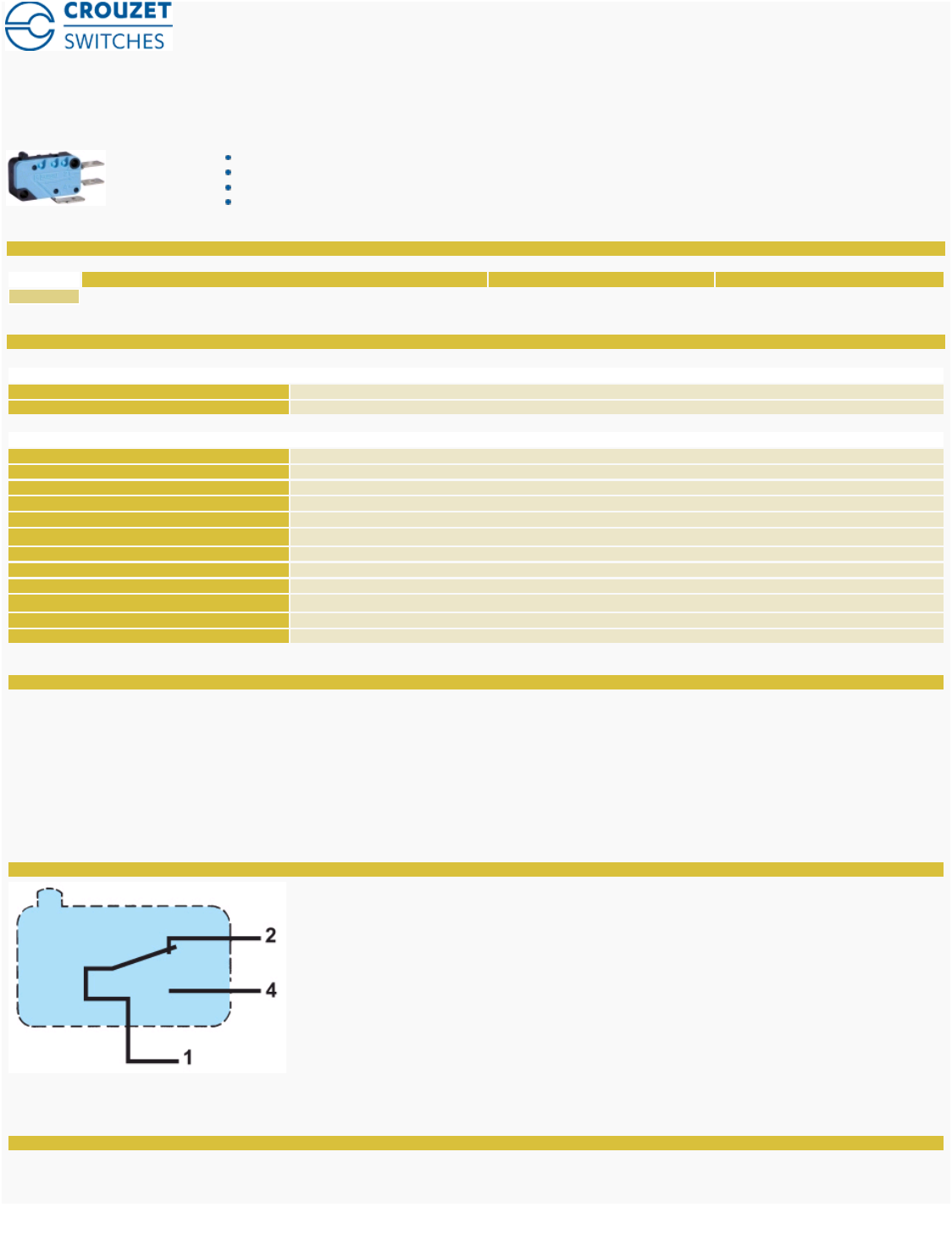

V3 83161 High release force 831611 Part number 83161102
Nominal ratings 0.1 A to 20 A / 250 VAC
Operating temperature up to +125 °C
Conforming to EN 61058 and UL 1054
Choice of actuators with 4 possible fixing positions
Part numbers
Specifications
Type
Function
Connections
83161102
High release force 831611
I (changeover)
W2
Rating nominal / 250 VAC (A)
16
Rating thermal / 250 VAC (A)
20
Maximum operating force (N)
3
Min. Release force (N)
1
Maximum total travel force (N)
4,5
Max. permitted overtravel force (N)
20
Maximum rest position (mm)
16,1
Operating position (mm)
14,7
±
0,4
Maximum differential travel (mm)
0,35
Min. overtravel CRA (mm)
1,1
Ambient operating temperature (°C)
-
20→+125
Mechanical life for 2/3 CRA (operations)
107
Contact gap (mm)
0,4
Weight (g)
5,6
Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
02/11/2015 www.crouzet.com
N
o
Legend
OL
Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
02/11/2015 www.crouzet.com
Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
02/11/2015 www.crouzet.com

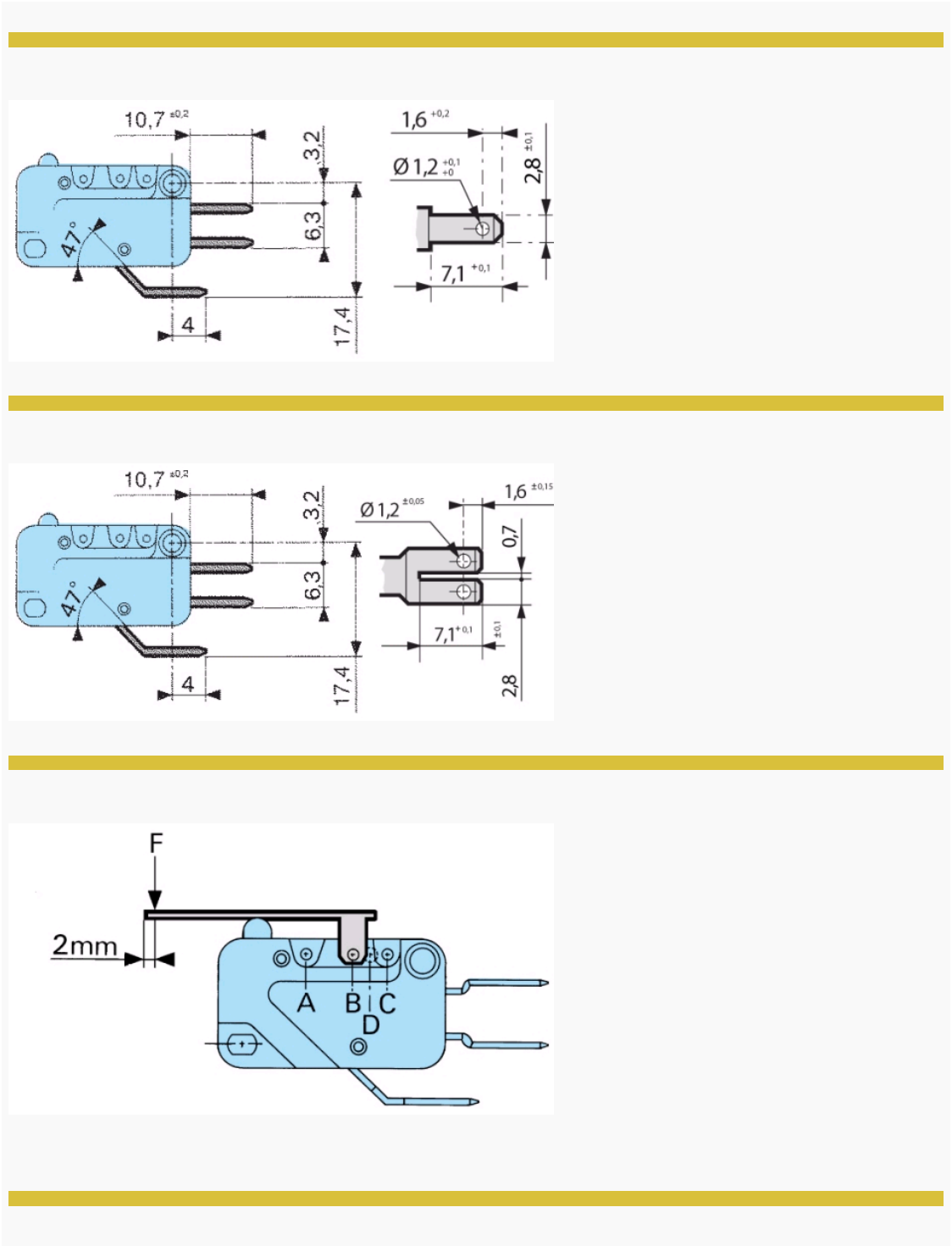

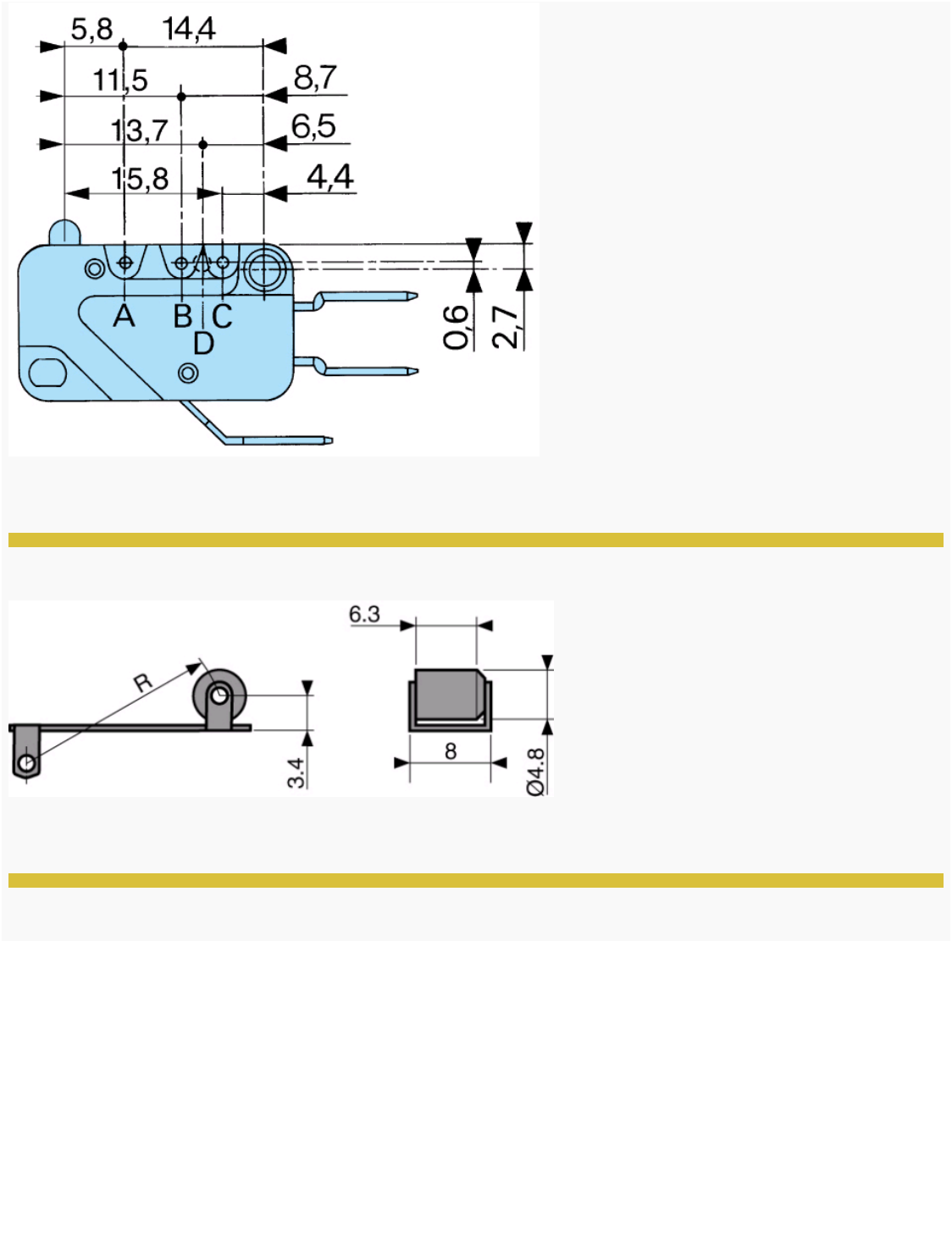

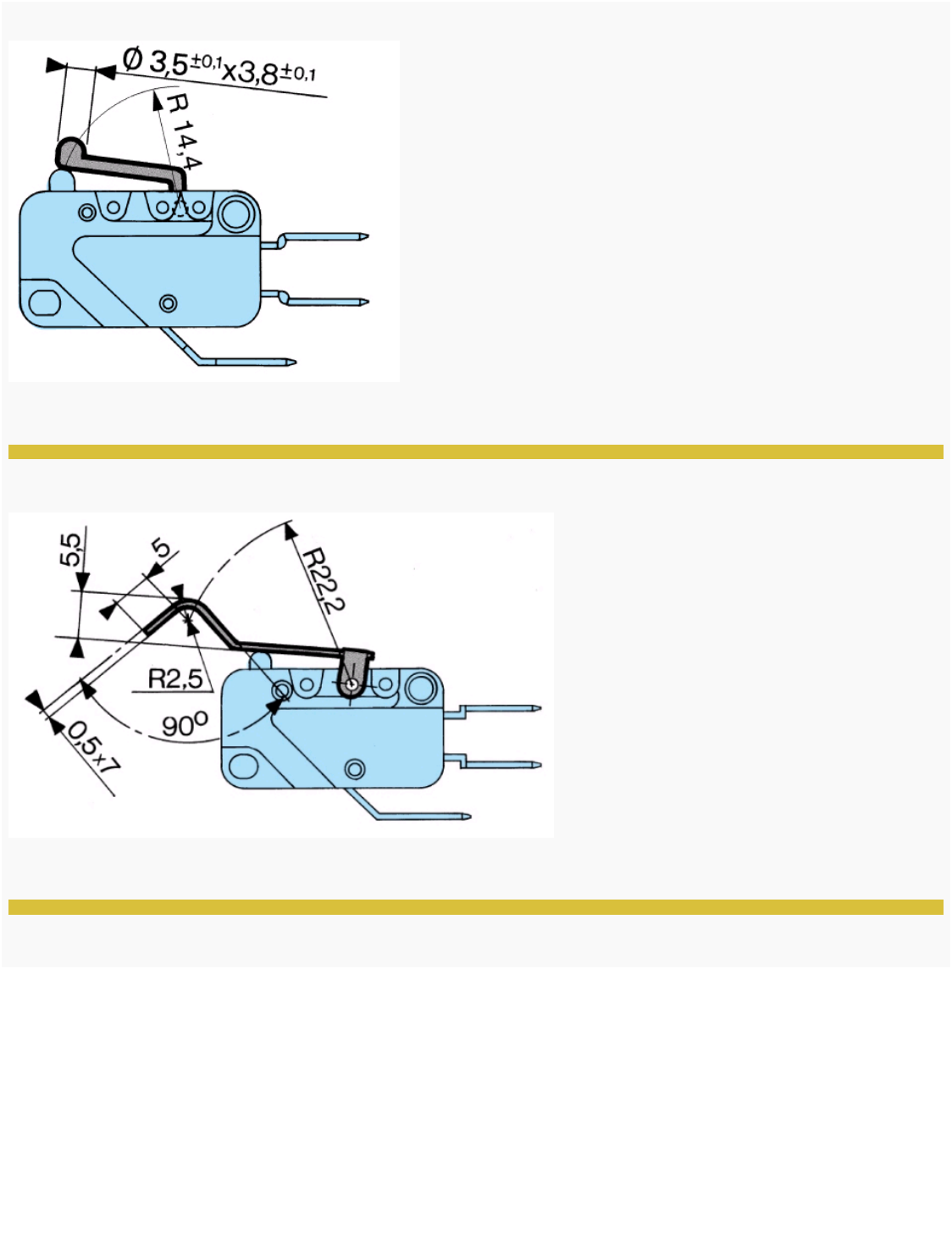

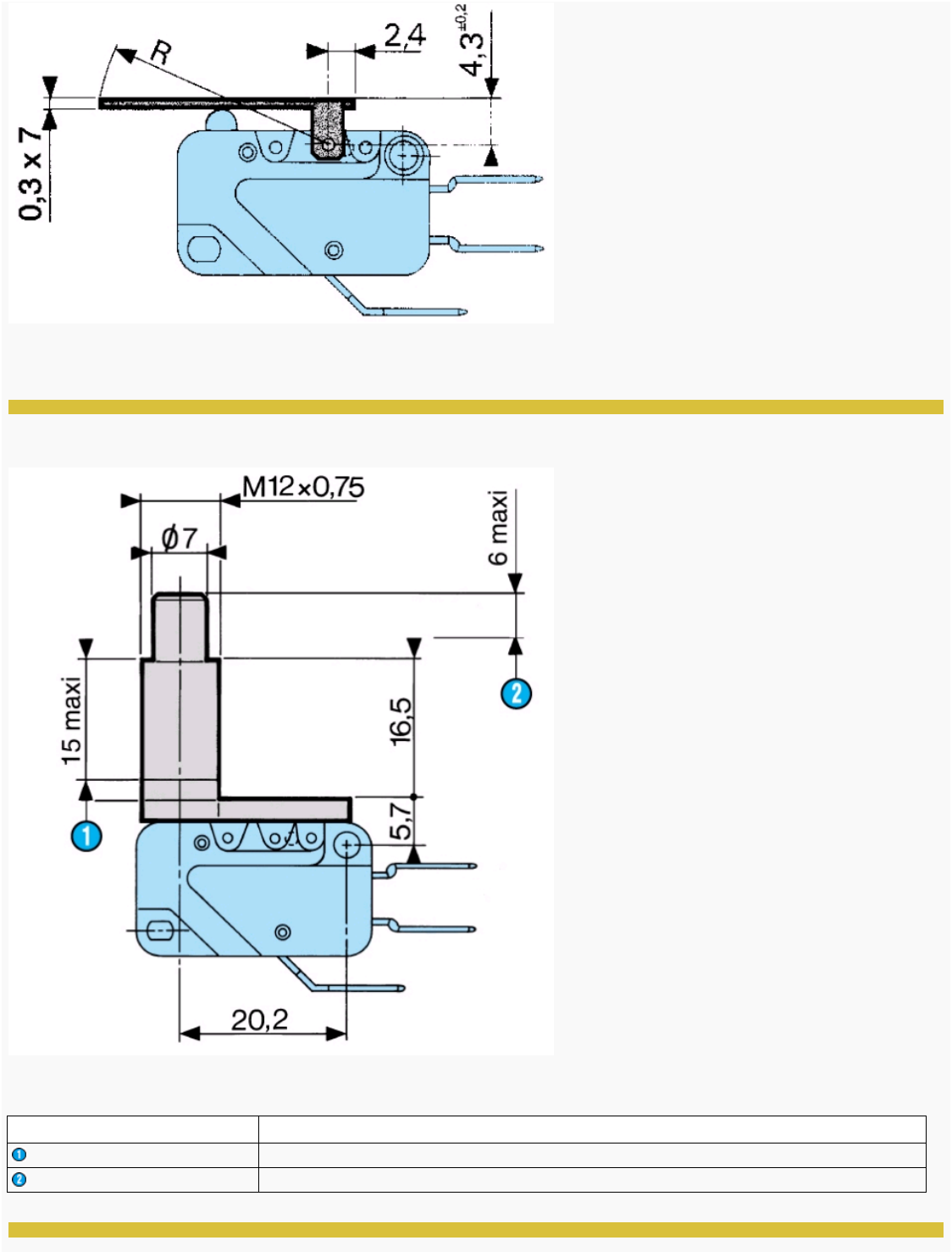

To calculate force Divide the switch force by the coefficient given in the table. To calculate travel Multiply the switch travel by the same coefficient. Example : 83 161 3 with lever 161 A -
R 25.4
position A (coeff. 4) Operating force : 0.8 : 4 = 0.2 N
Pre
-
travel : 1.4 x 4 = 5.6 mm
Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
02/11/2015 www.crouzet.com
To calculate force Divide the switch force by the coefficient given in the table. To calculate travel Multiply the switch travel by the same coefficient. Example : 83 161 3 with lever 161 A -
R 25.4
position A (coeff. 4) Operating force : 0.8 : 4 = 0.2 N
Pre
-
travel : 1.4 x 4 = 5.6 mm
To calculate force Divide the switch force by the coefficient given in the table. To calculate travel Multiply the switch travel by the same coefficient. Example : 83 161 3 with lever 161 A -
R 25.4
position A (coeff. 4) Operating force : 0.8 : 4 = 0.2 N
Pre
-
travel : 1.4 x 4 = 5.6 mm
Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
02/11/2015 www.crouzet.com
To calculate force Divide the switch force by the coefficient given in the table. To calculate travel Multiply the switch travel by the same coefficient. Example : 83 161 3 with lever 161 A -
R 25.4
position A (coeff. 4) Operating force : 0.8 : 4 = 0.2 N
Pre
-
travel : 1.4 x 4 = 5.6 mm

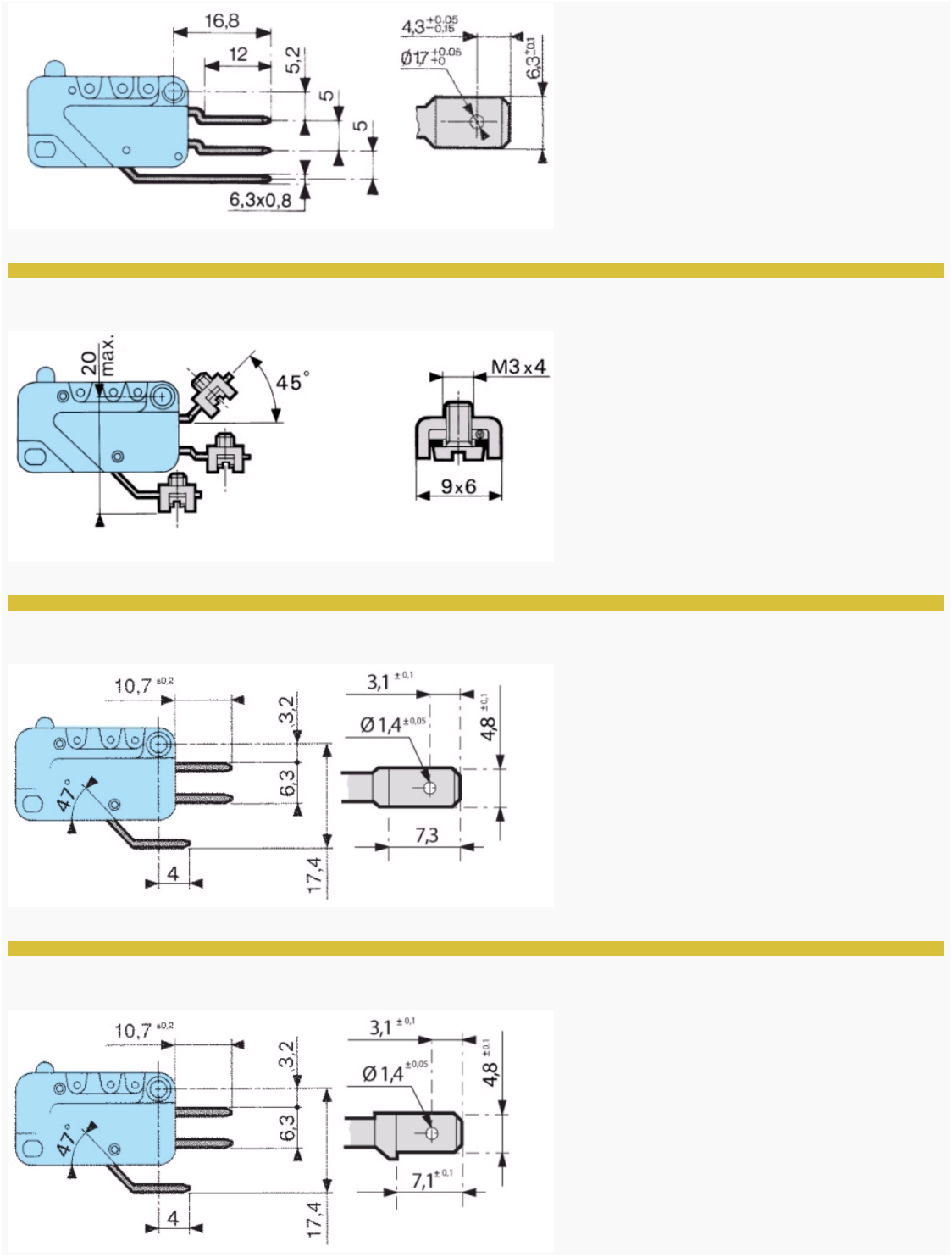

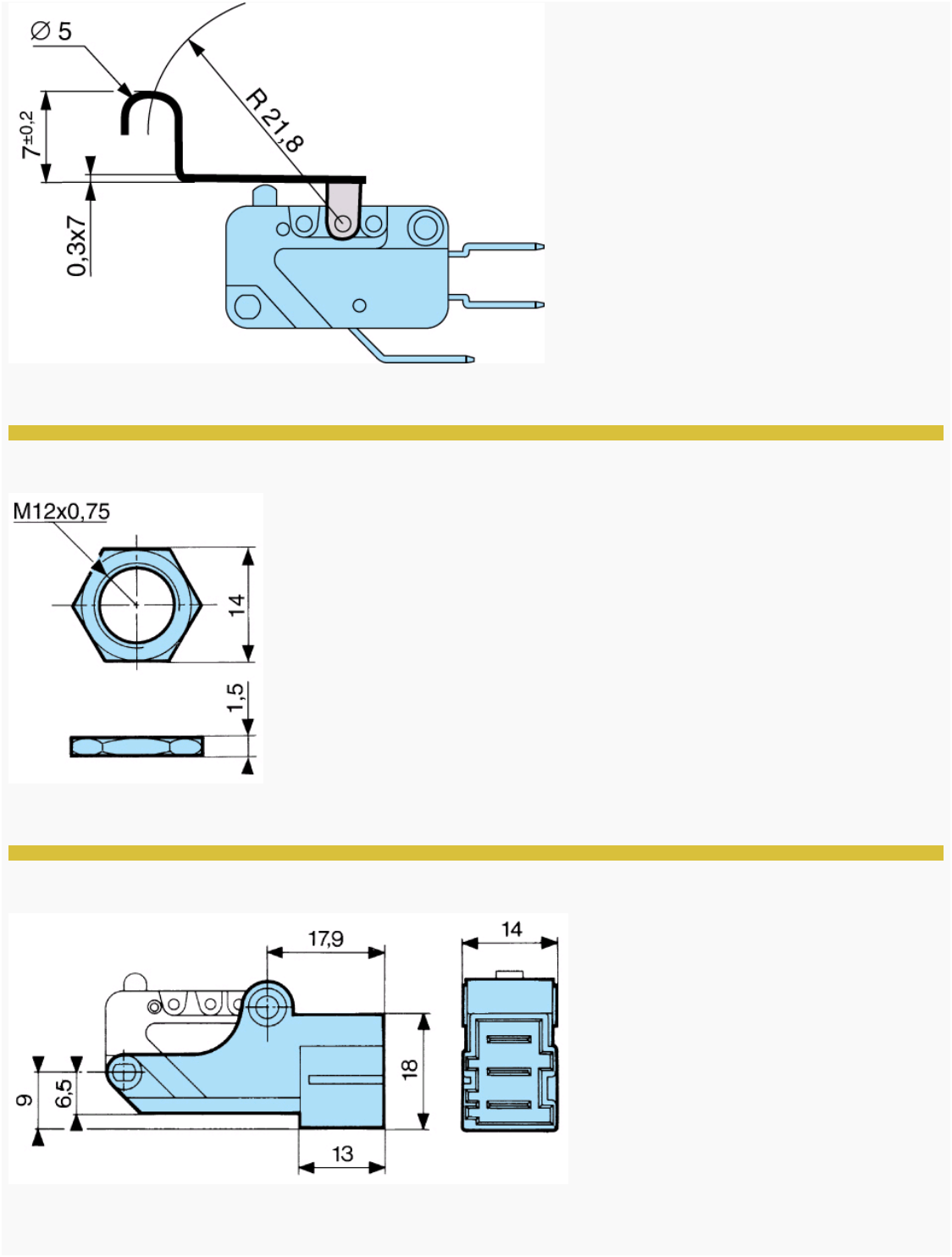

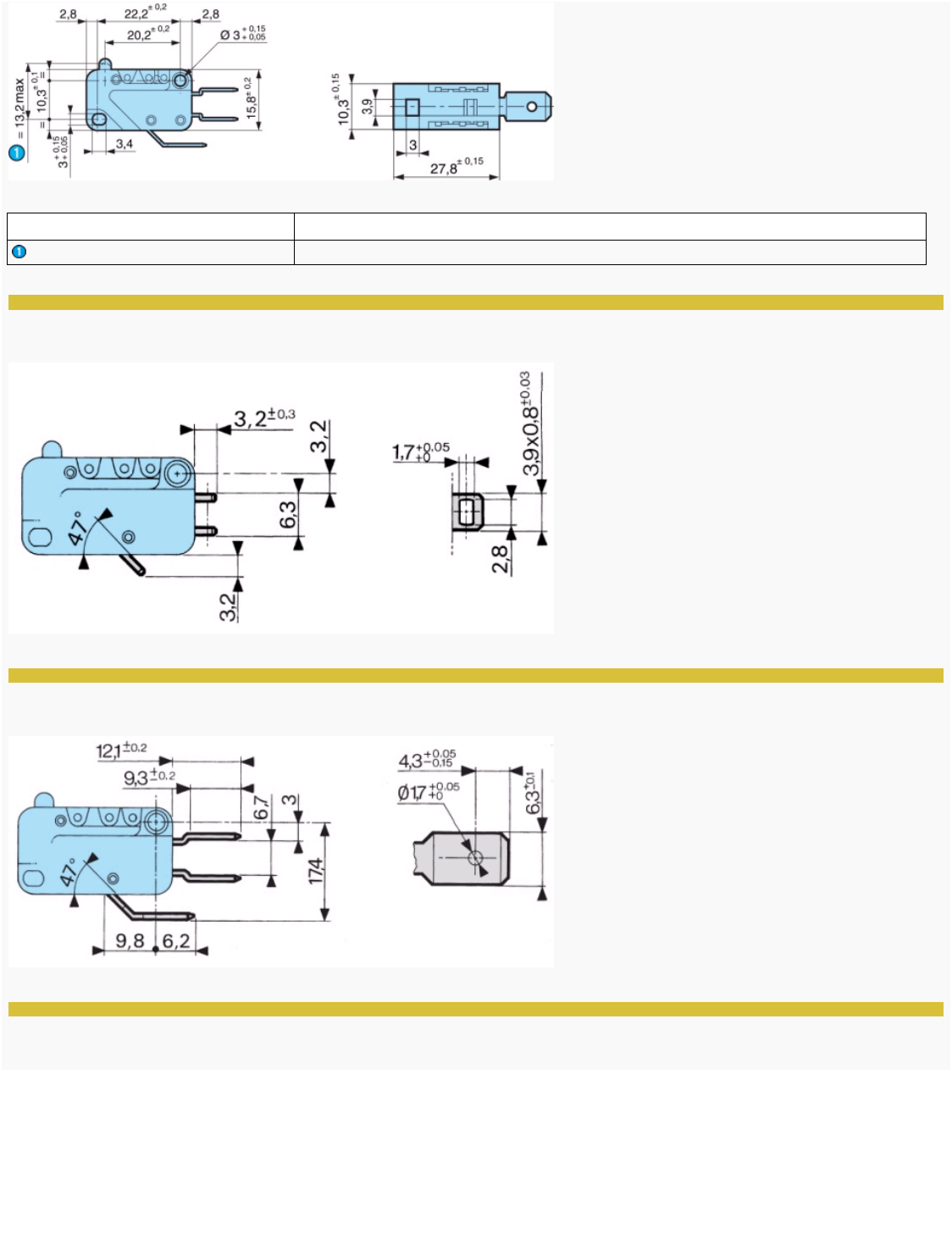

Nut thickness Max. torque
1.5 mm
5 Cm N
2 mm
7 Cm N
2.5 mm
10 Cm N
N
o
Legend
Thread
Total travel
Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
02/11/2015 www.crouzet.com
Nut thickness Max. torque
1.5 mm
5 Cm N
2 mm
7 Cm N
2.5 mm
10 Cm N
Nut thickness Max. torque
1.5 mm
5 Cm N
2 mm
7 Cm N
2.5 mm
10 Cm N
Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
02/11/2015 www.crouzet.com
Nut thickness Max. torque
1.5 mm
5 Cm N
2 mm
7 Cm N
2.5 mm
10 Cm N
Nut thickness Max. torque
1.5 mm
5 Cm N
2 mm
7 Cm N
2.5 mm
10 Cm N
Nut thickness Max. torque
1.5 mm
5 Cm N
2 mm
7 Cm N
2.5 mm
10 Cm N
Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
02/11/2015 www.crouzet.com
N
o
Legend

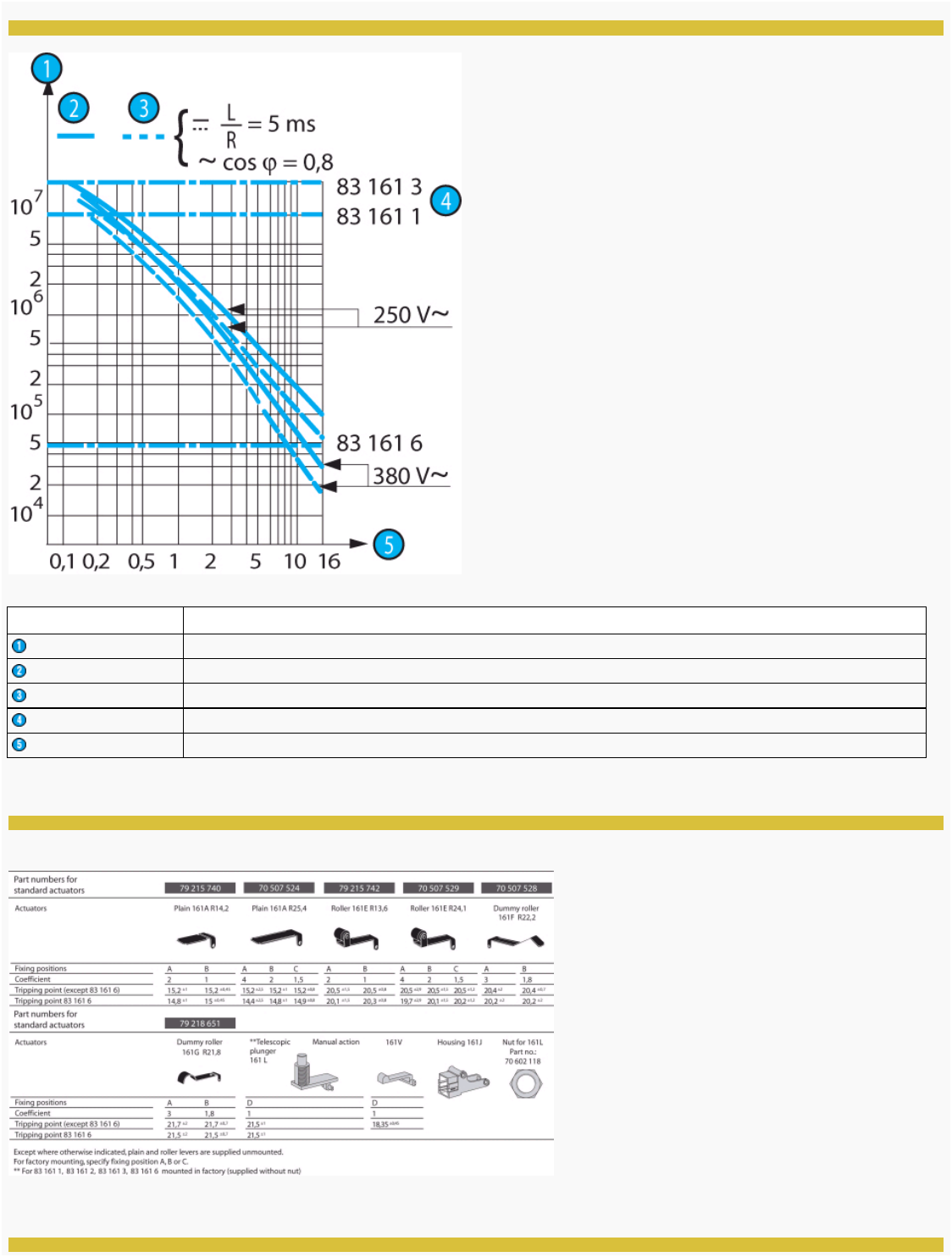

Number of cycles
Resistive circuit
Inductive circuit
Mechanical life limit
Current in Amps
Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
02/11/2015 www.crouzet.com
Special levers
Special connections
Specific fixing
High operating temperature
Special operating force
Approvals : UL -
cUL
