March 2010 1/83
MTP01 screen & Millenium3
Tutorial
This powerpoint will show you the programming functions of MTPWIN, it will take you to
open MTP01 and Millenium3 programs to discover the mode of its operation.
The Tutorial is an interactive document containing links.
The 'arrows', which are usually placed at the top of the documents,
allow to jump between the different chapters of the document.
The blue rectangles connect to other documents,
videos and the example programs.
March 2010 2/83

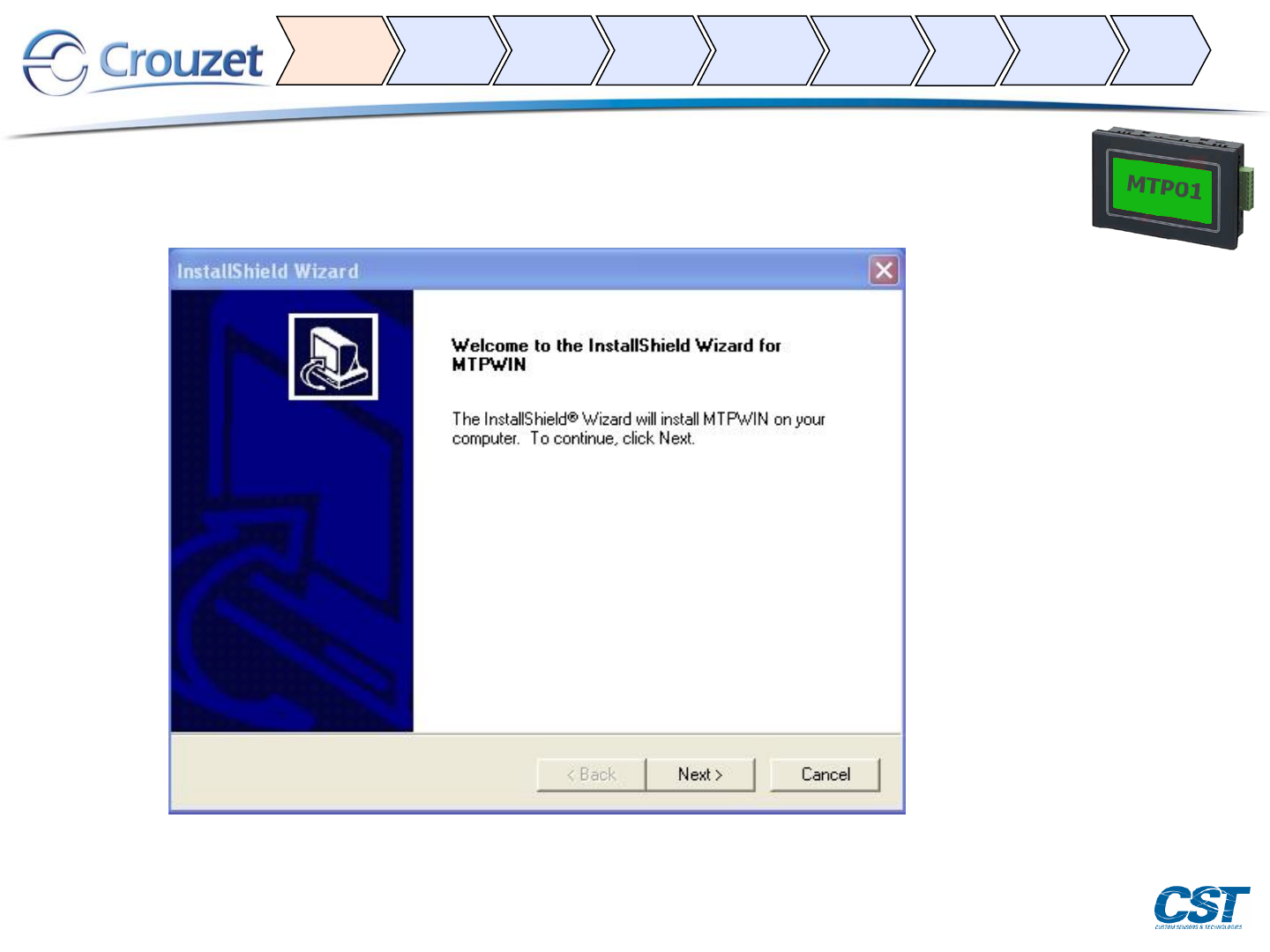

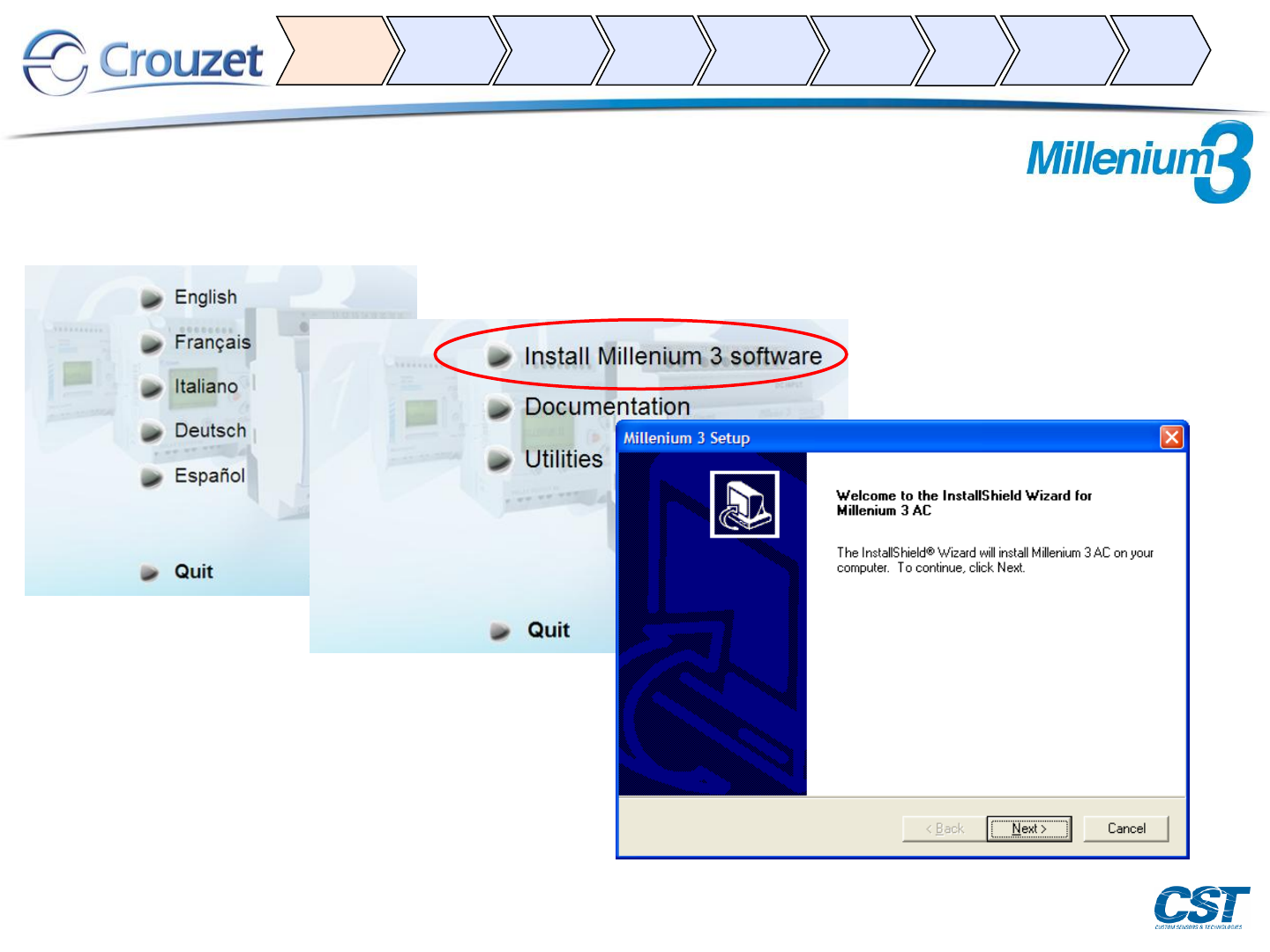

•Software installation and wiring
•The various functionalities of the MTP01 (links to the program descriptions)
•Basics
-Addressing
-Configurating the address zone to pilot MTP01 by Millenium3 (M3)
•MTP01 presentation

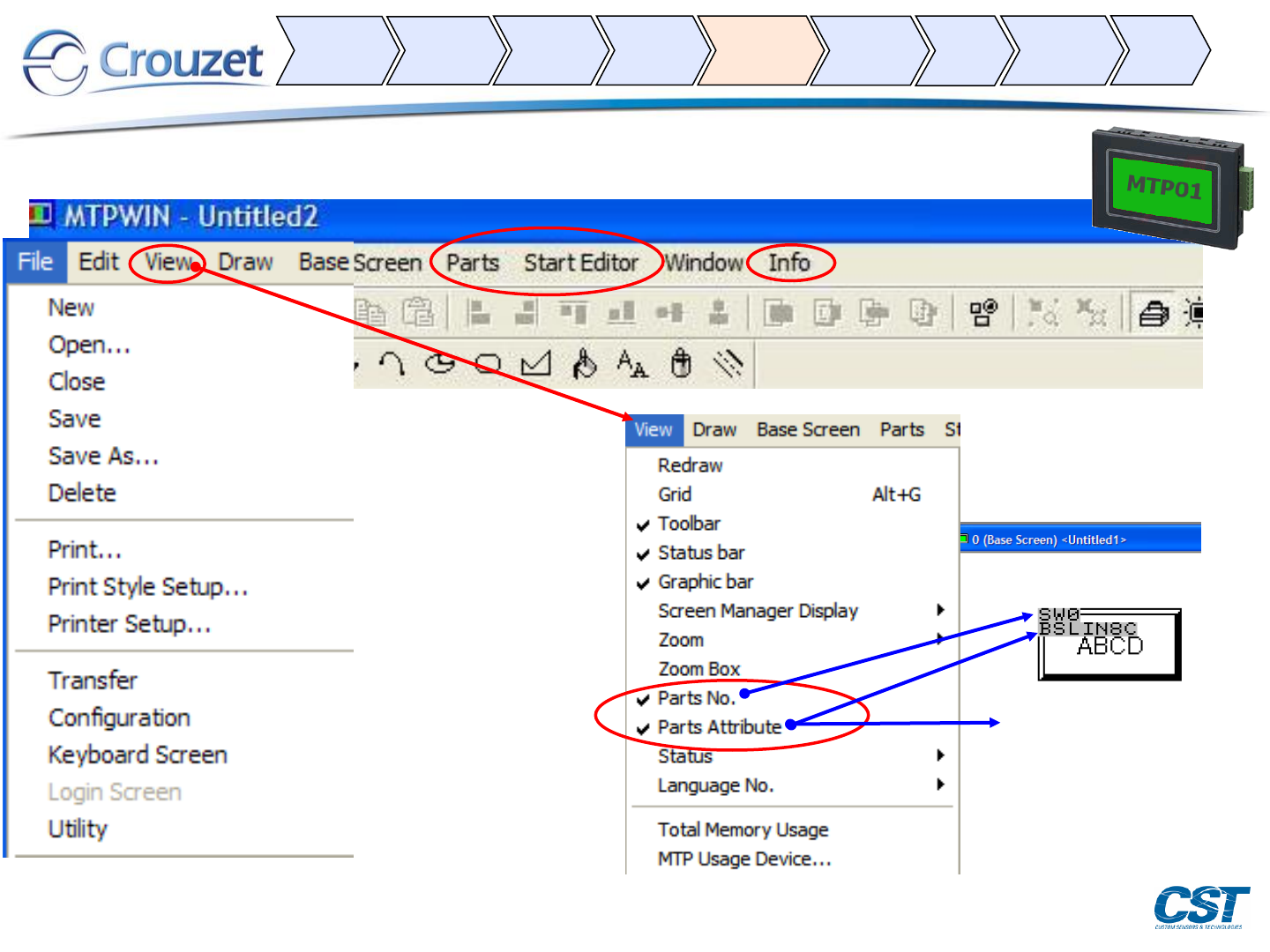

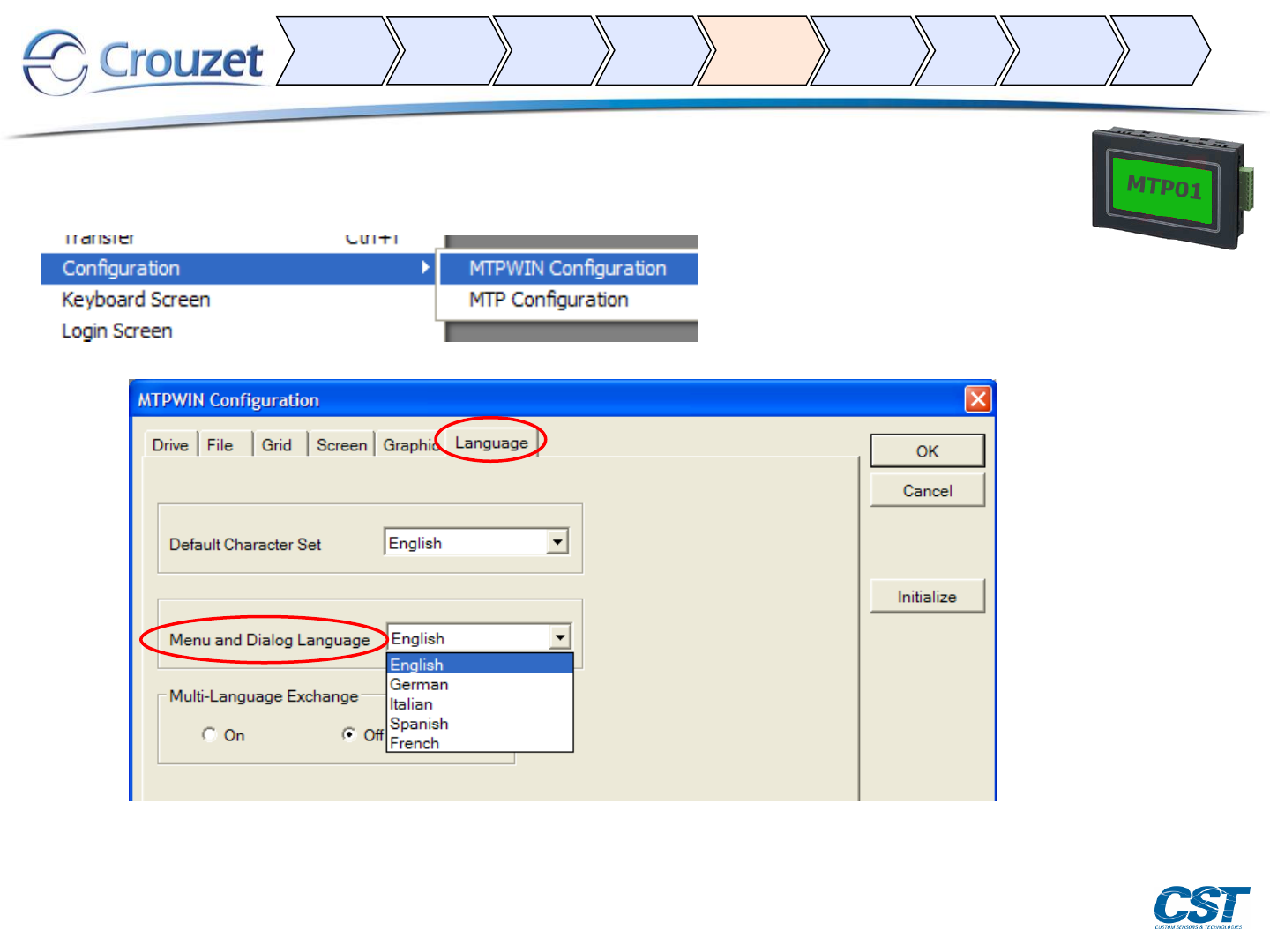

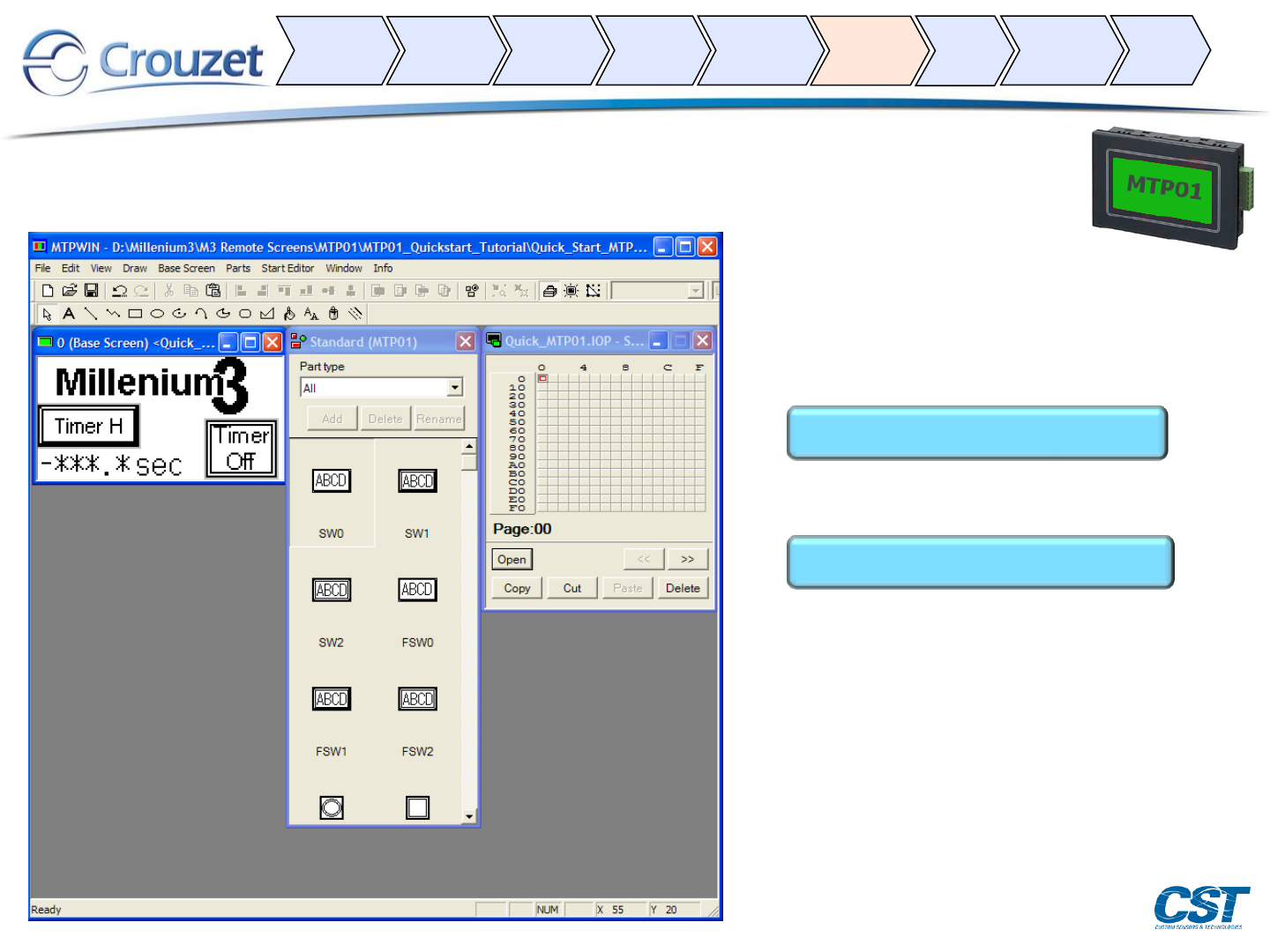

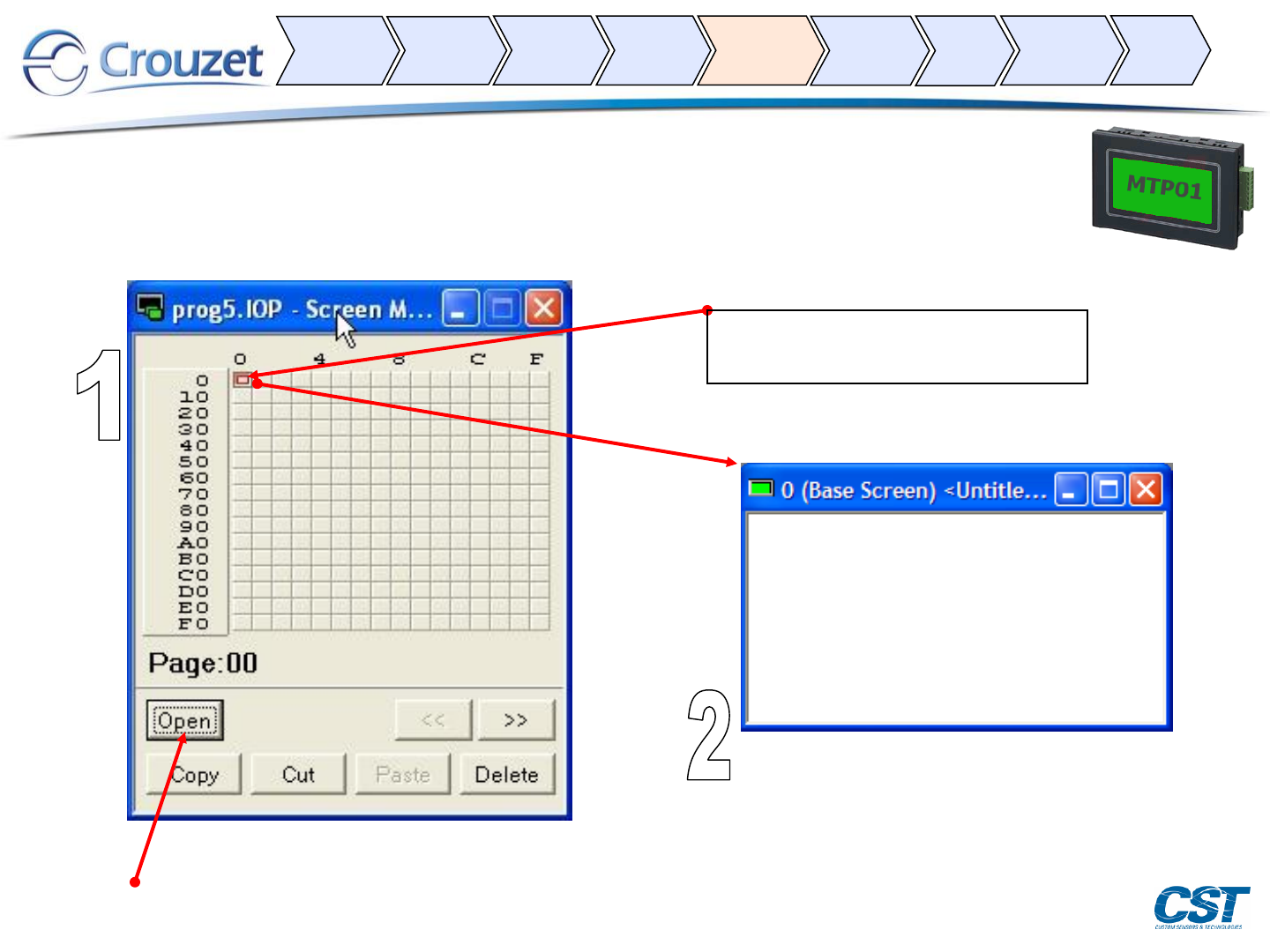

-Introducing MTPWIN
-Wiring and commissioning an M3 –MTP01 data exchange
-Read/write word/bit

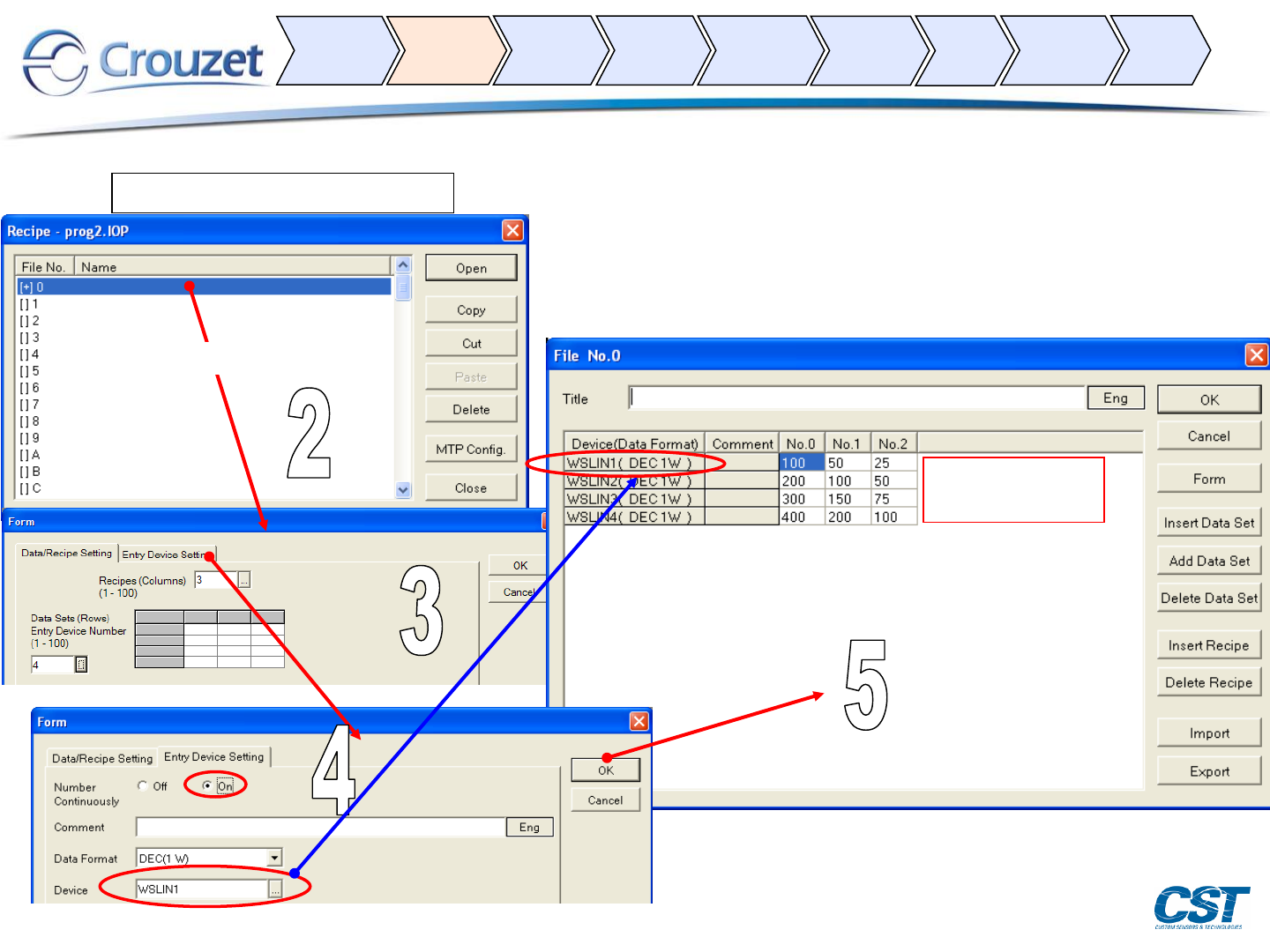

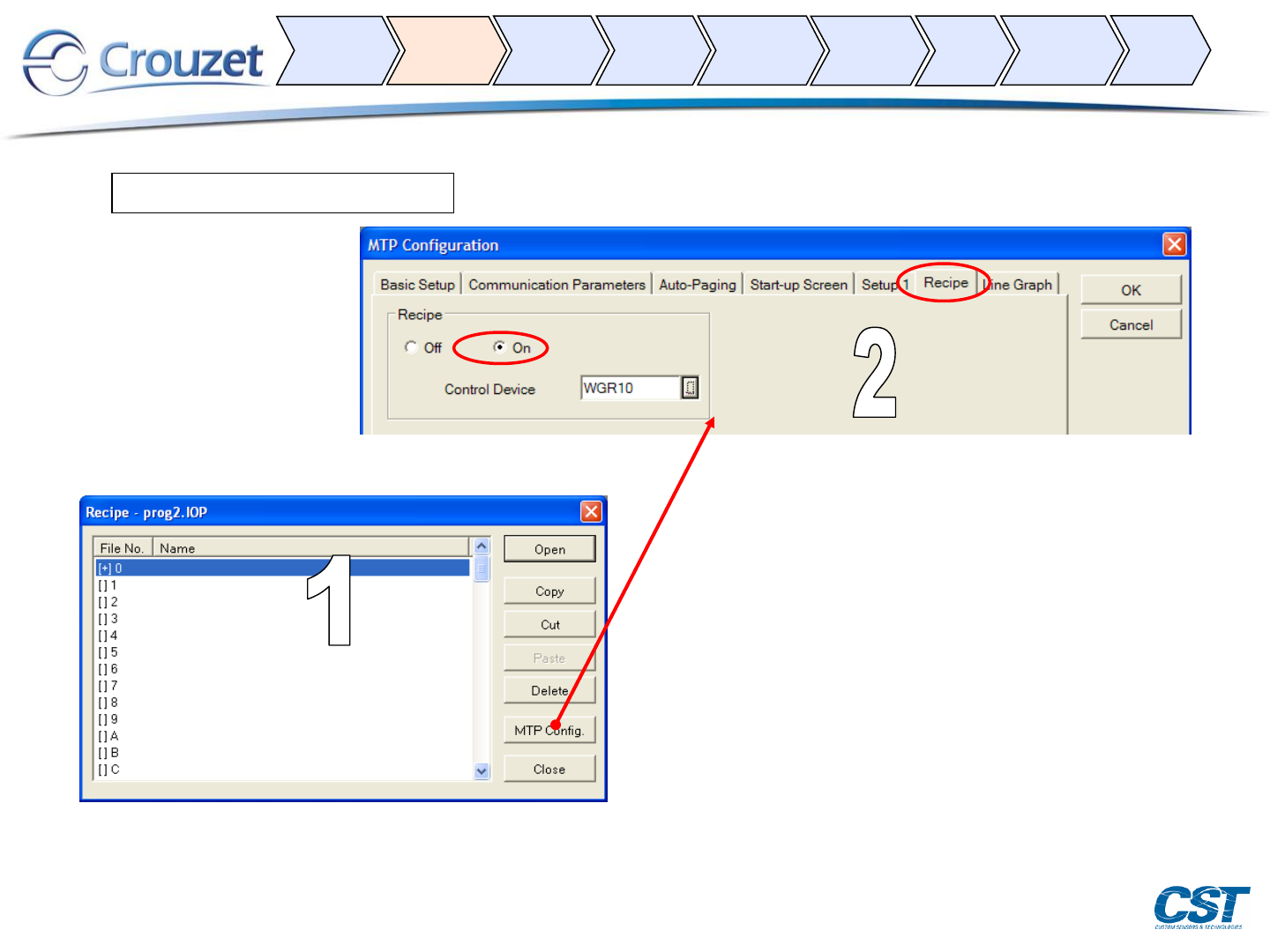

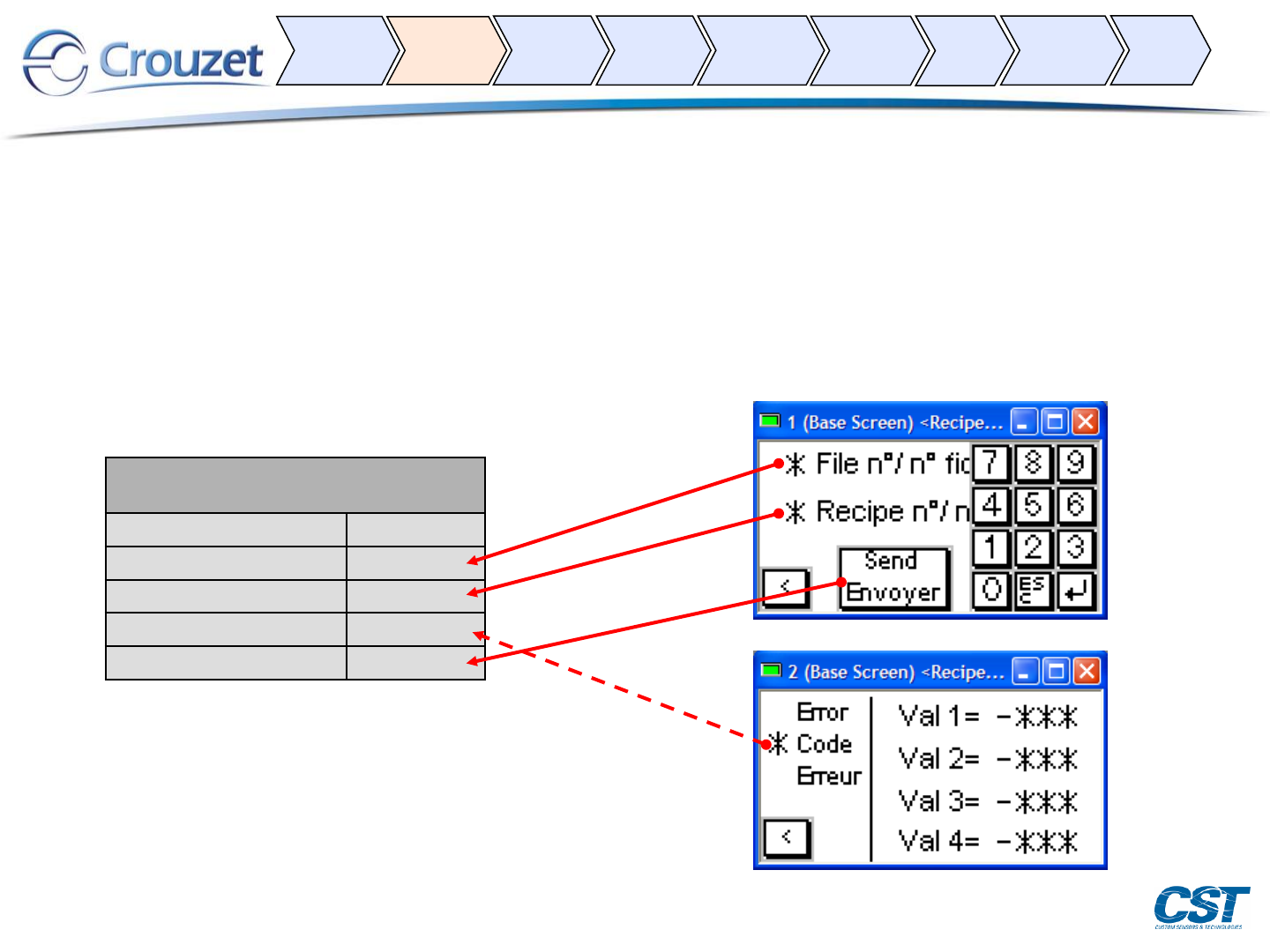

-Recipe

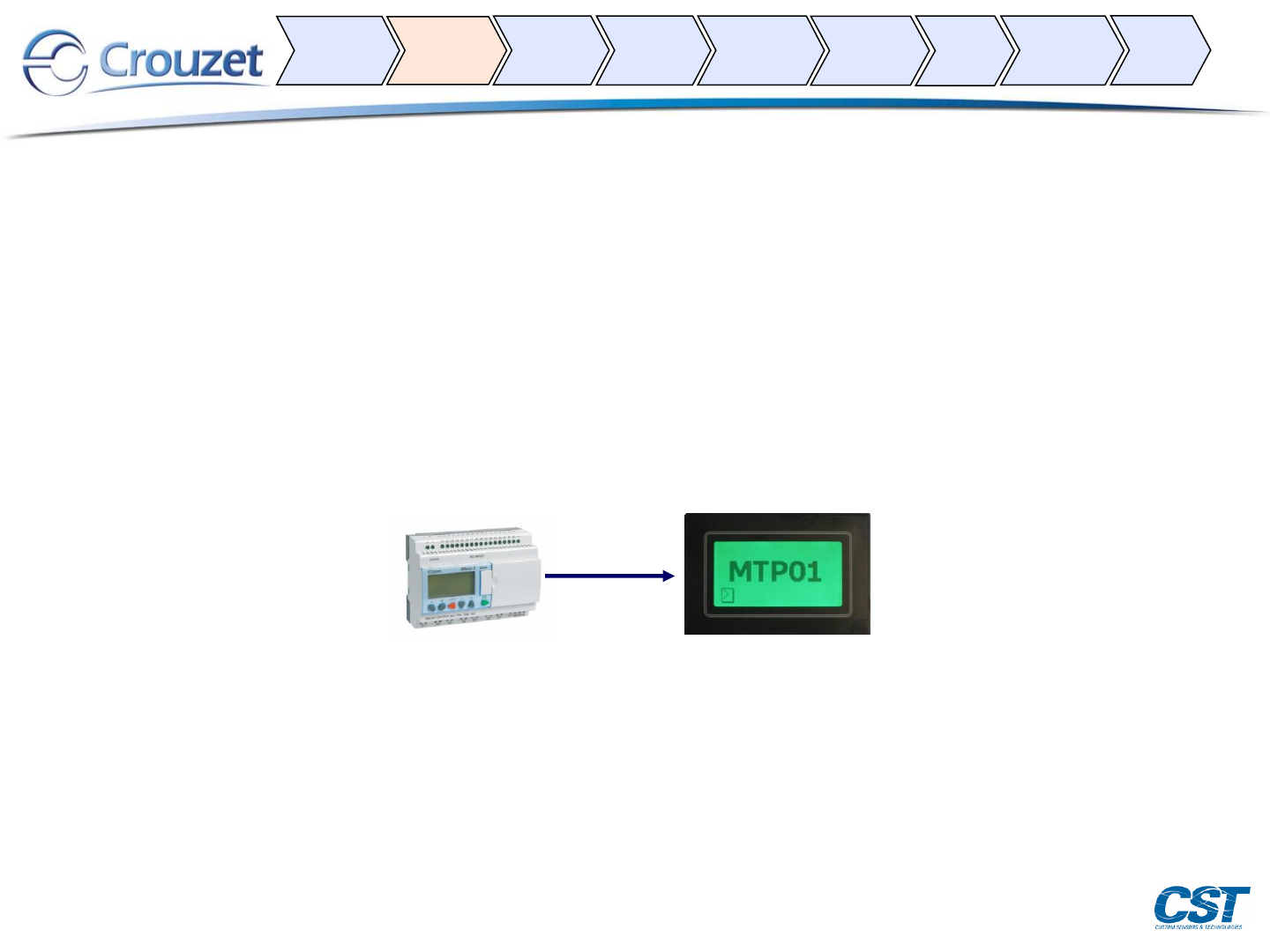

-Pilot MTP01 by M3
-Read/write parameters M3

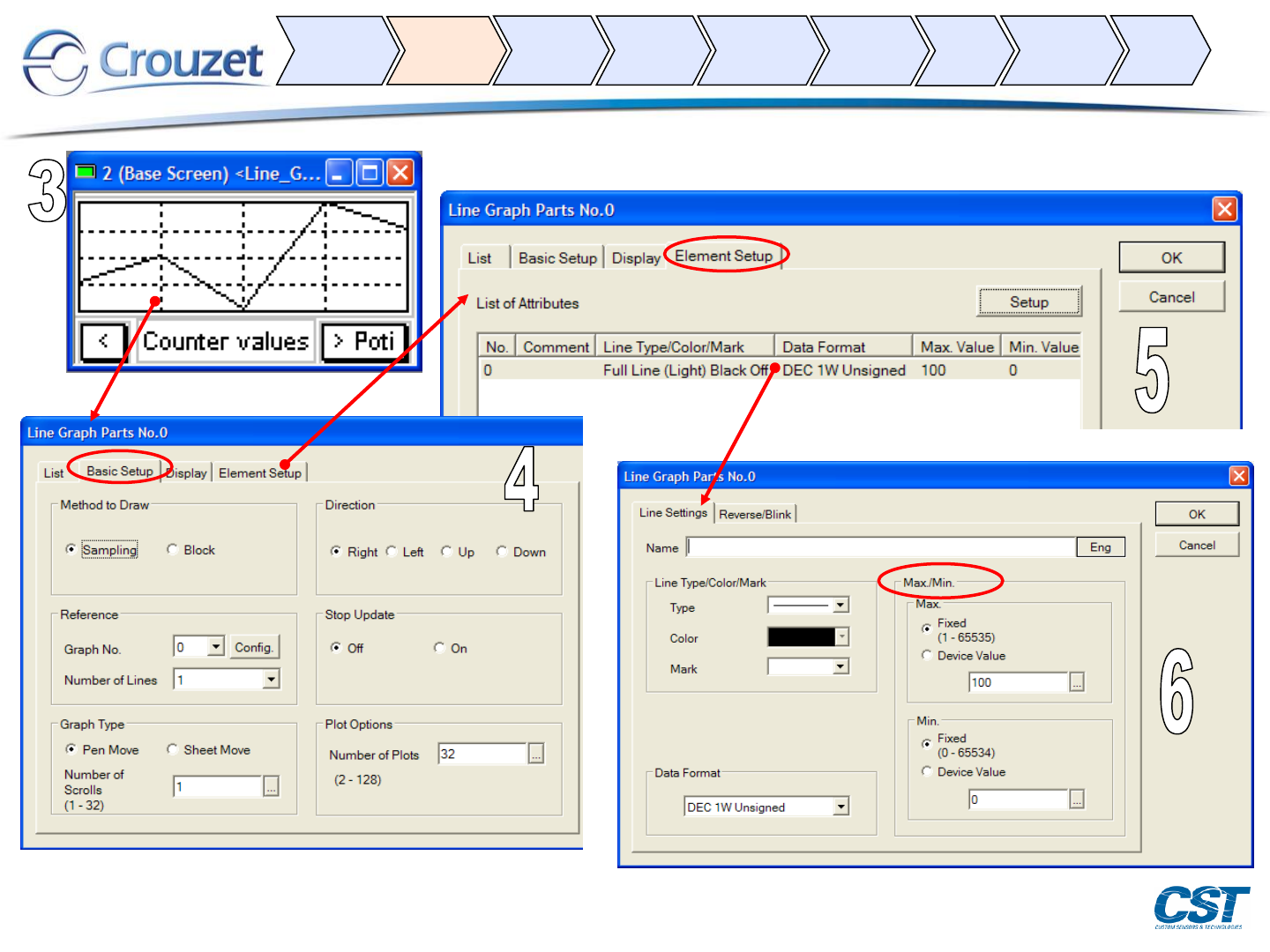

-Line graph

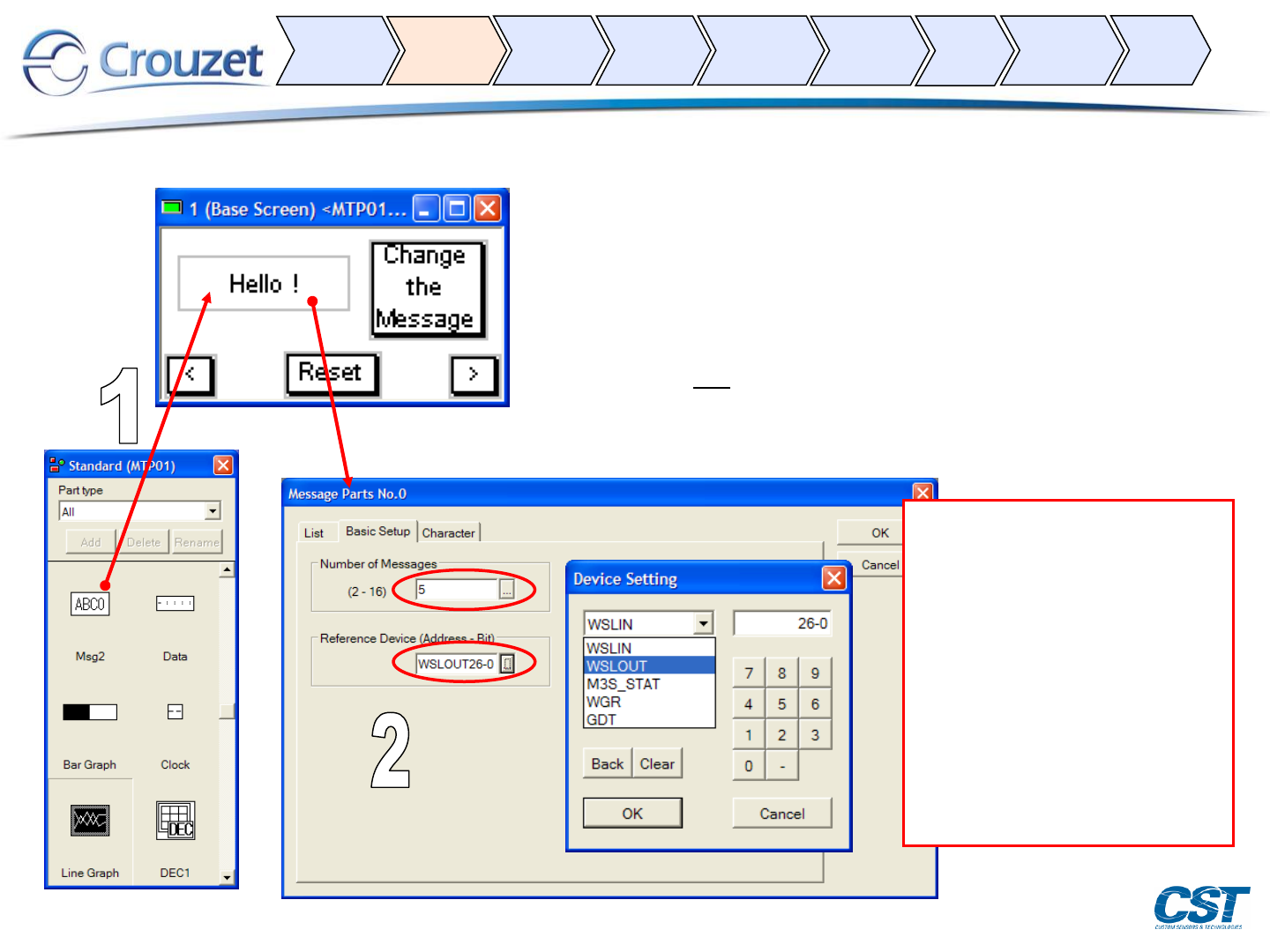

-Messages

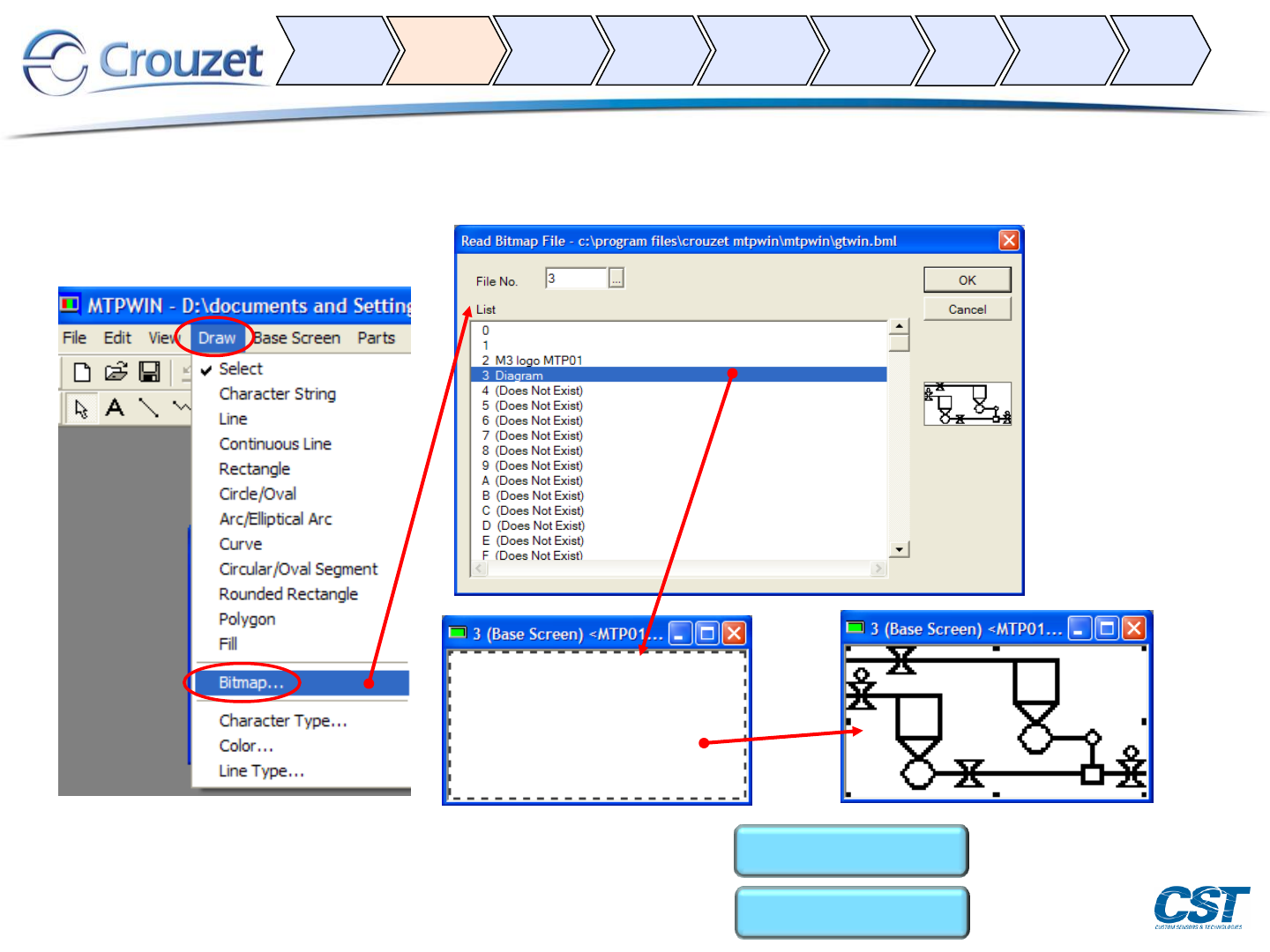

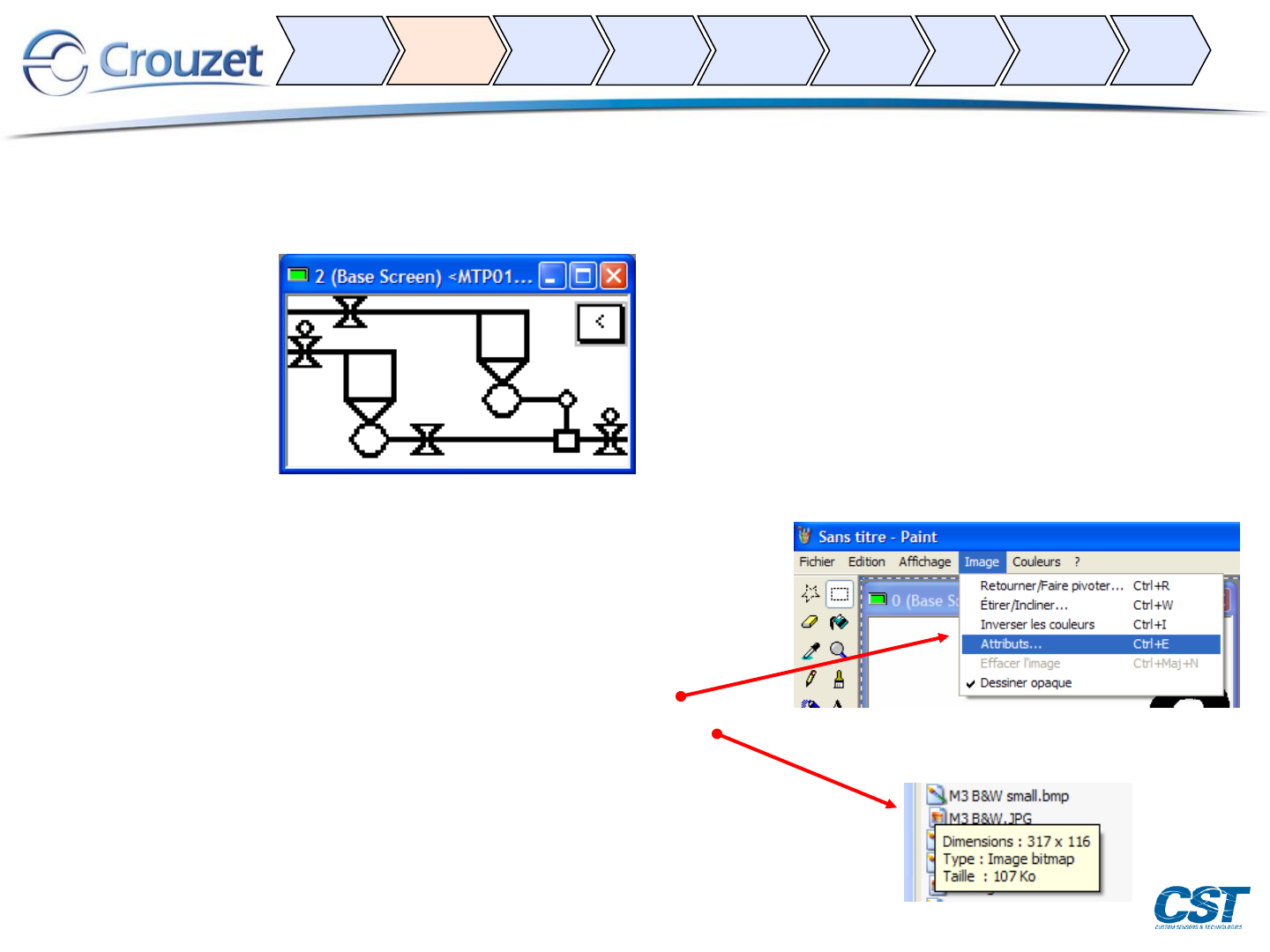

-Bitmaps

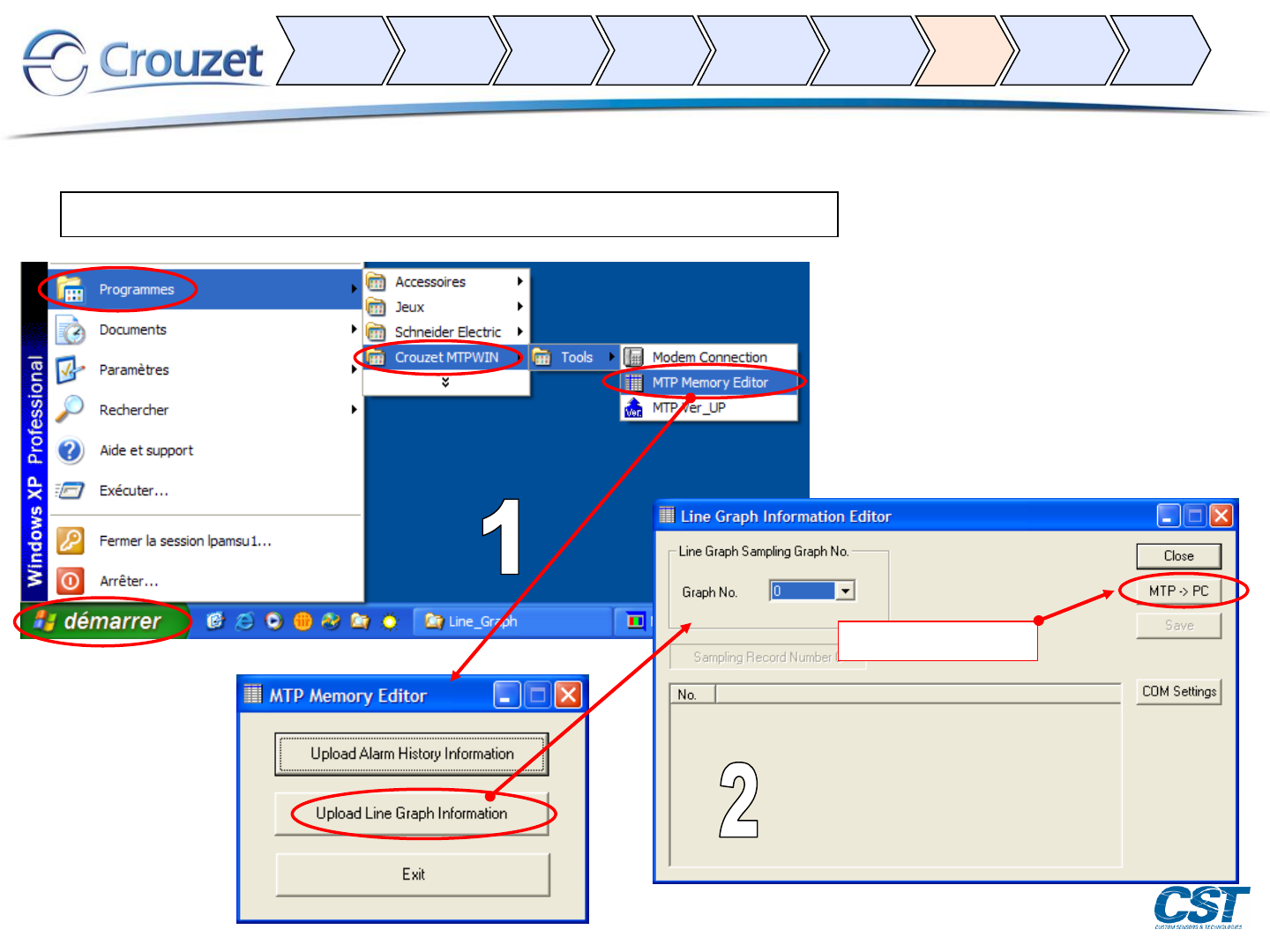

-Reading out sample data
-Links to MTP01 / M3 programs
•Glossary
Contents
Software
Installation
and Wiring
MTP01
Functiona-
lities
Addressing
Internal
Address
Zone
MTPWIN
Introduction
Links to
M3 + MTP01
Programs
Data
Backup Glossary
Commi-
sioning
M3+MTP01

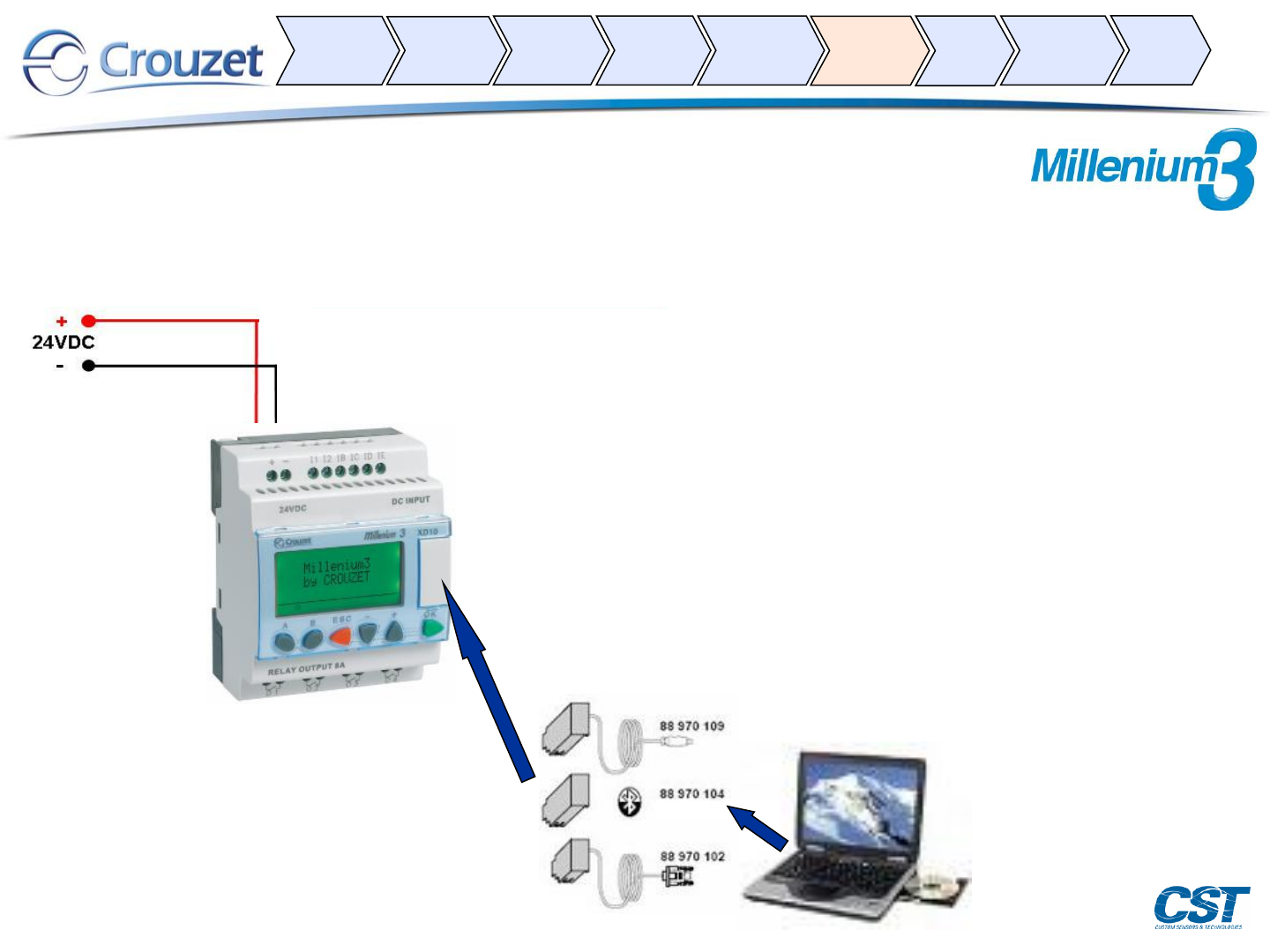

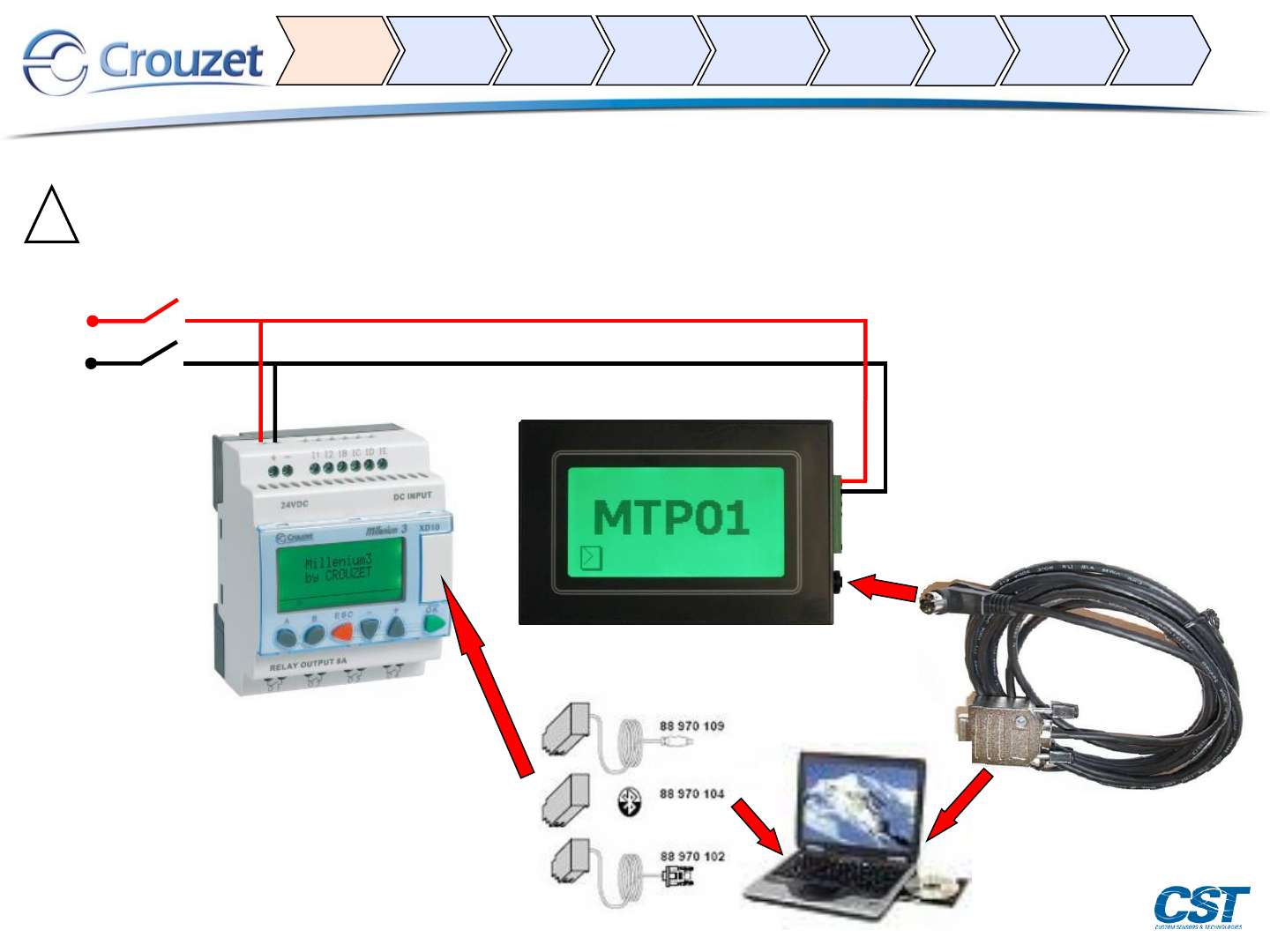

March 2010 5/83
OFF
24VDC
+
-
Wiring for program transfer
Disconnect the power whenever inserting or extracting the programming cable into/from
Millenium3 or MTP01 !
or
or
!
Software
Installation
and Wiring
MTP01
Functiona-
lities
Addressing
Internal
Address
Zone
MTPWIN
Introduction
Links to
M3 + MTP01
Programs
Data
Backup Glossary
Commi-
sioning
M3+MTP01
March 2010 7/83

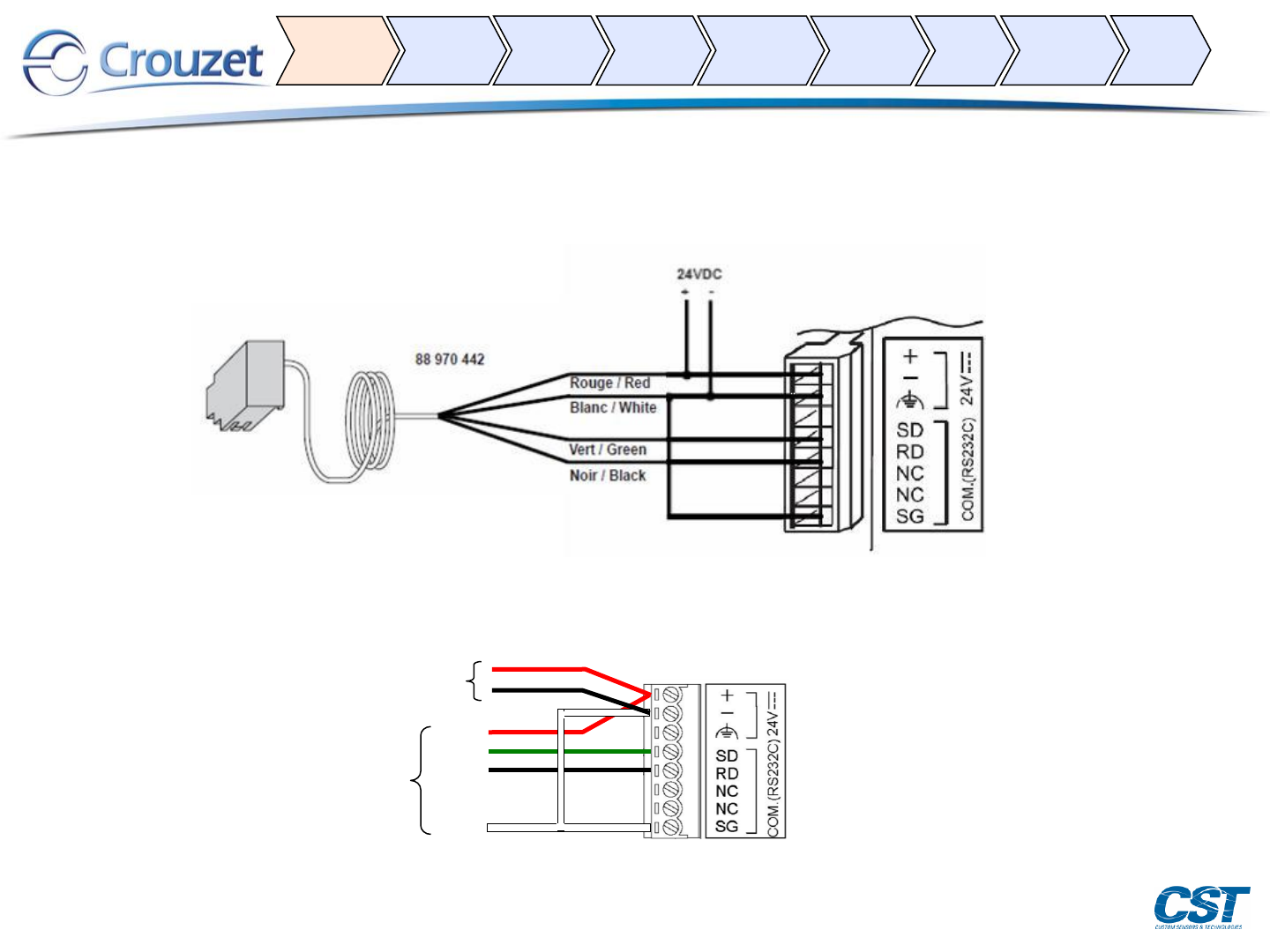

The data exchange cable Millenium3 MTP01
Supply +24Vdc
0Vdc
Millenium 3 cable
White
Black
Green
Red
Wiring cable 88 970 442 to the connector of MTP01
Software
Installation
and Wiring
MTP01
Functiona-
lities
Addressing
Internal
Address
Zone
MTPWIN
Introduction
Links to
M3 + MTP01
Programs
Data
Backup Glossary
Commi-
sioning
M3+MTP01
March 2010 8/83

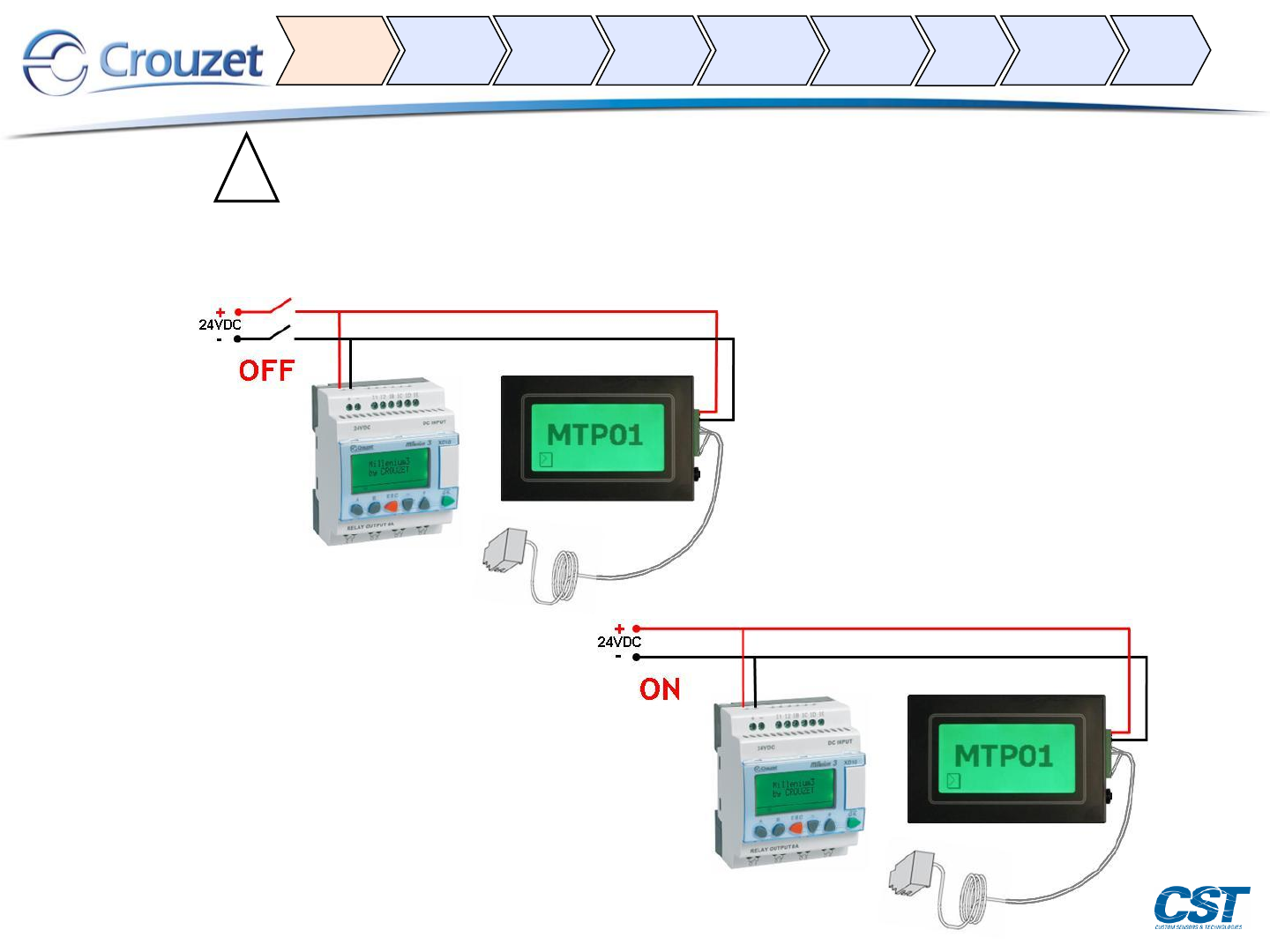

Wiring for use / data exchange
Disconnect the power whenever inserting or extracting the Millenium3 - MTP01 data exchange
cable !
Connecting
Data exchange
!
Software
Installation
and Wiring
MTP01
Functiona-
lities
Addressing
Internal
Address
Zone
MTPWIN
Introduction
Links to
M3 + MTP01
Programs
Data
Backup Glossary
Commi-
sioning
M3+MTP01
March 2010 9/83
The various MTP01 functionalities
Links:

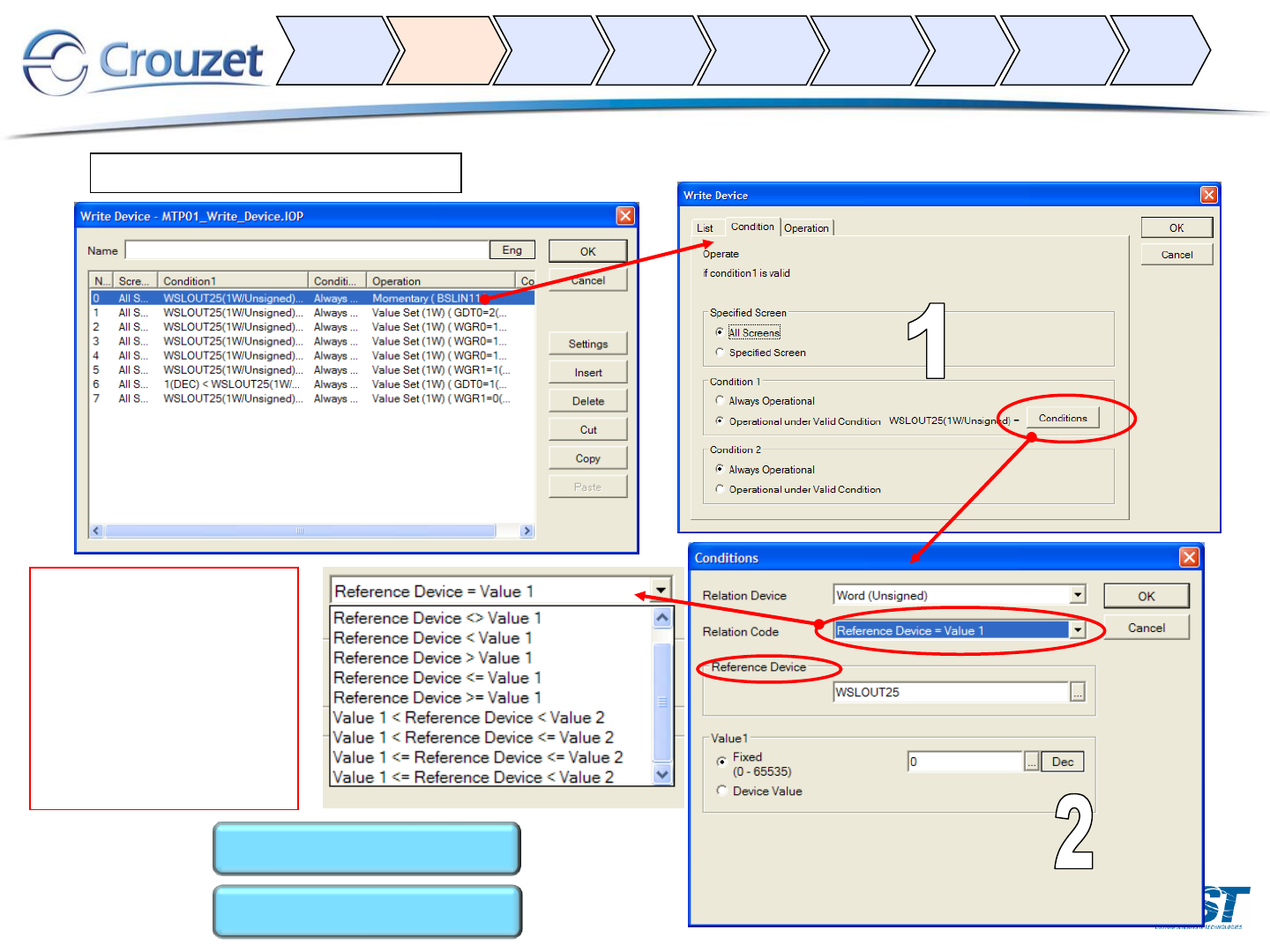

•Conditions / comparator
•Read/write Word –Bit
•Recipe management
•Piloting MTP01 by M3

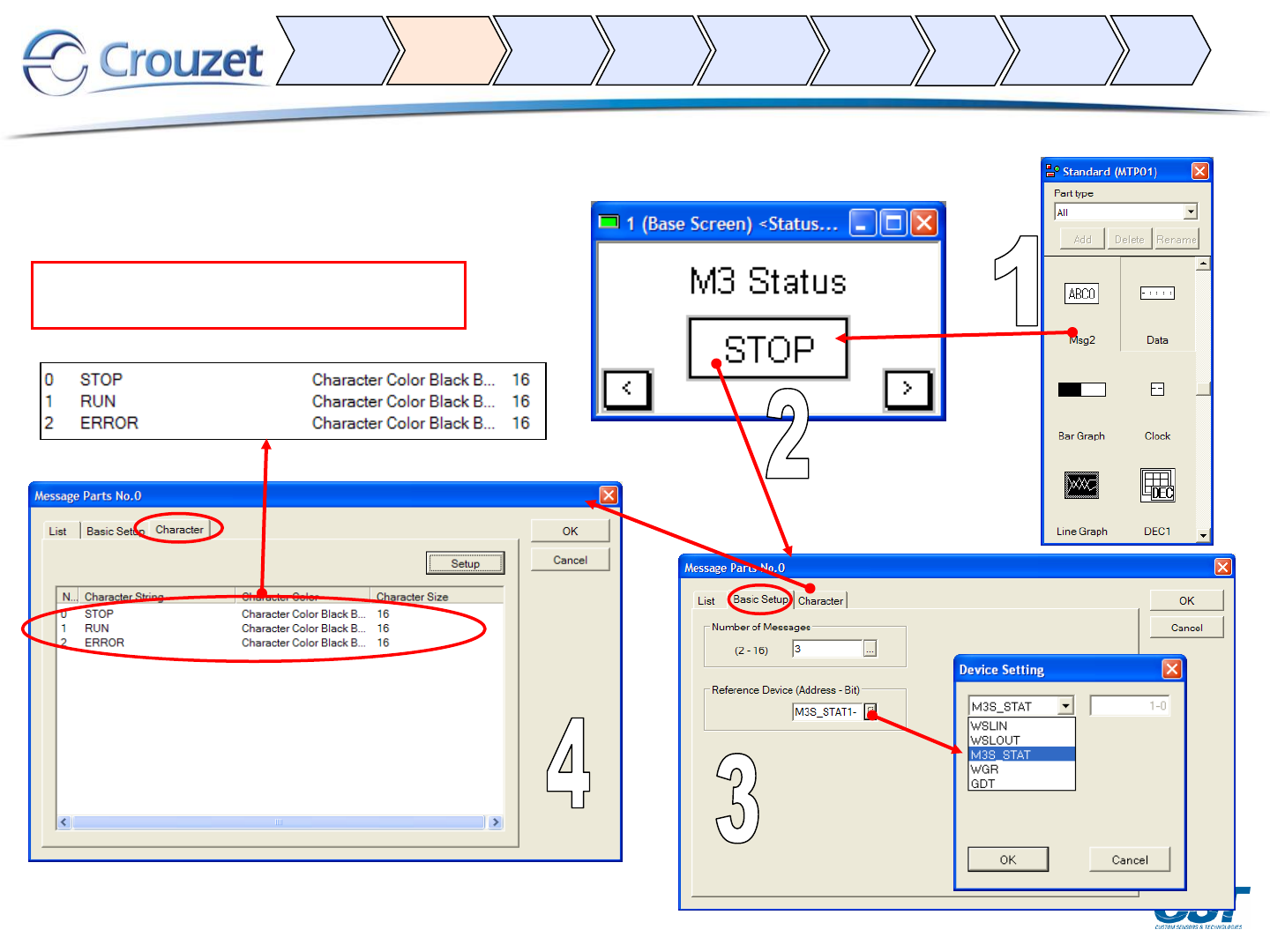

•Reading the M3 status

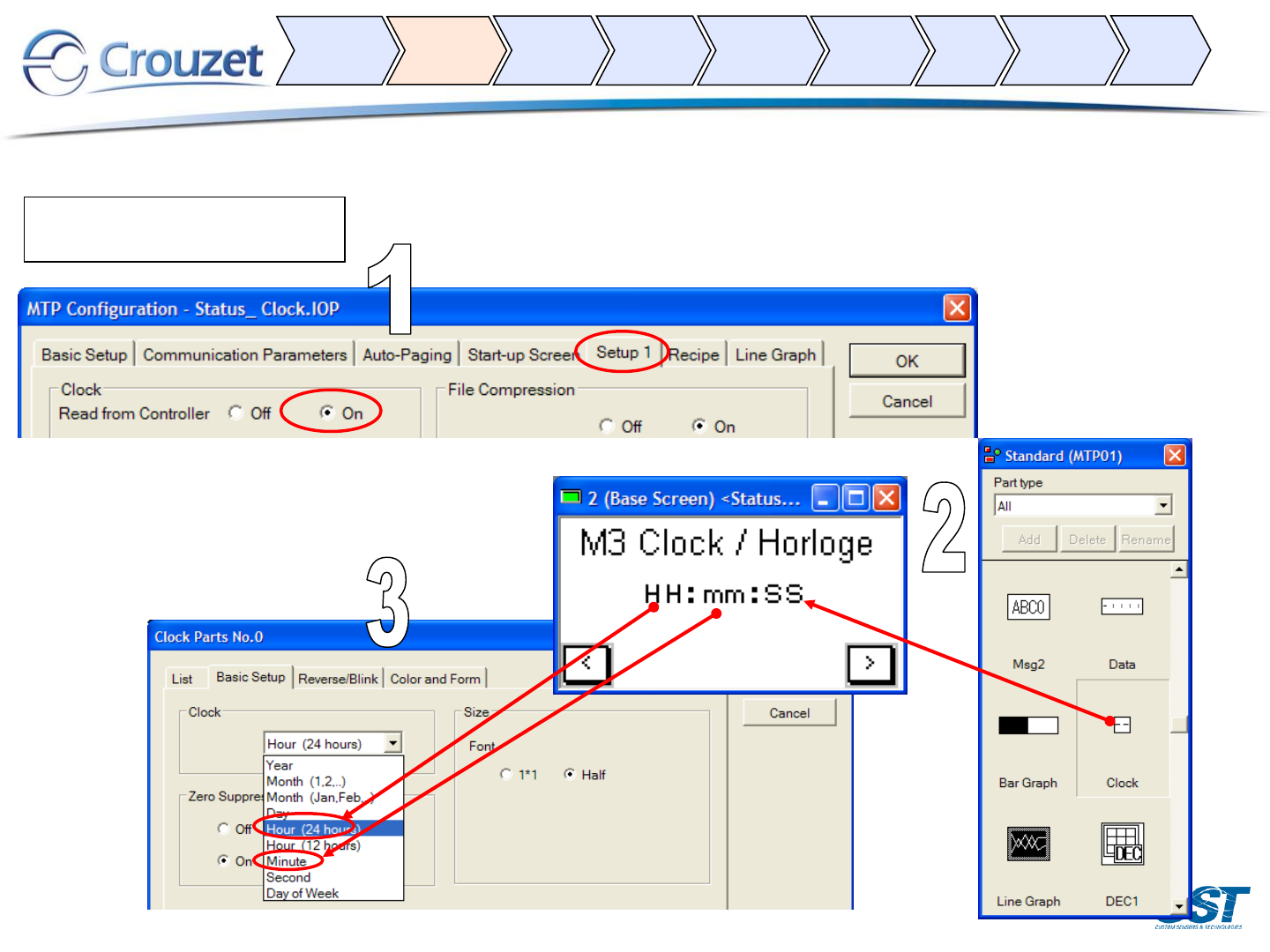

•Reading/writing the M3 clock
•Line Graph

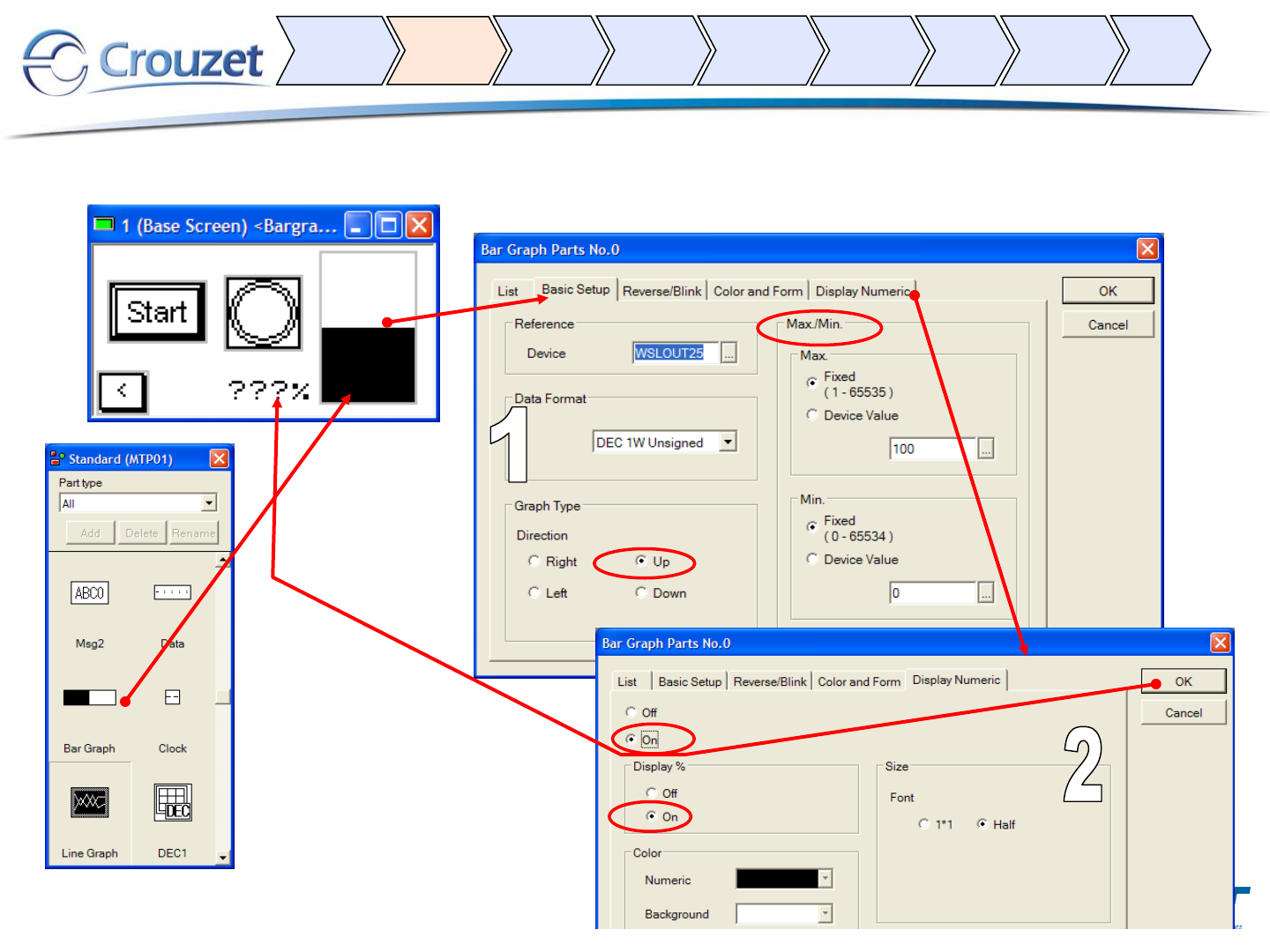

•Bargraph

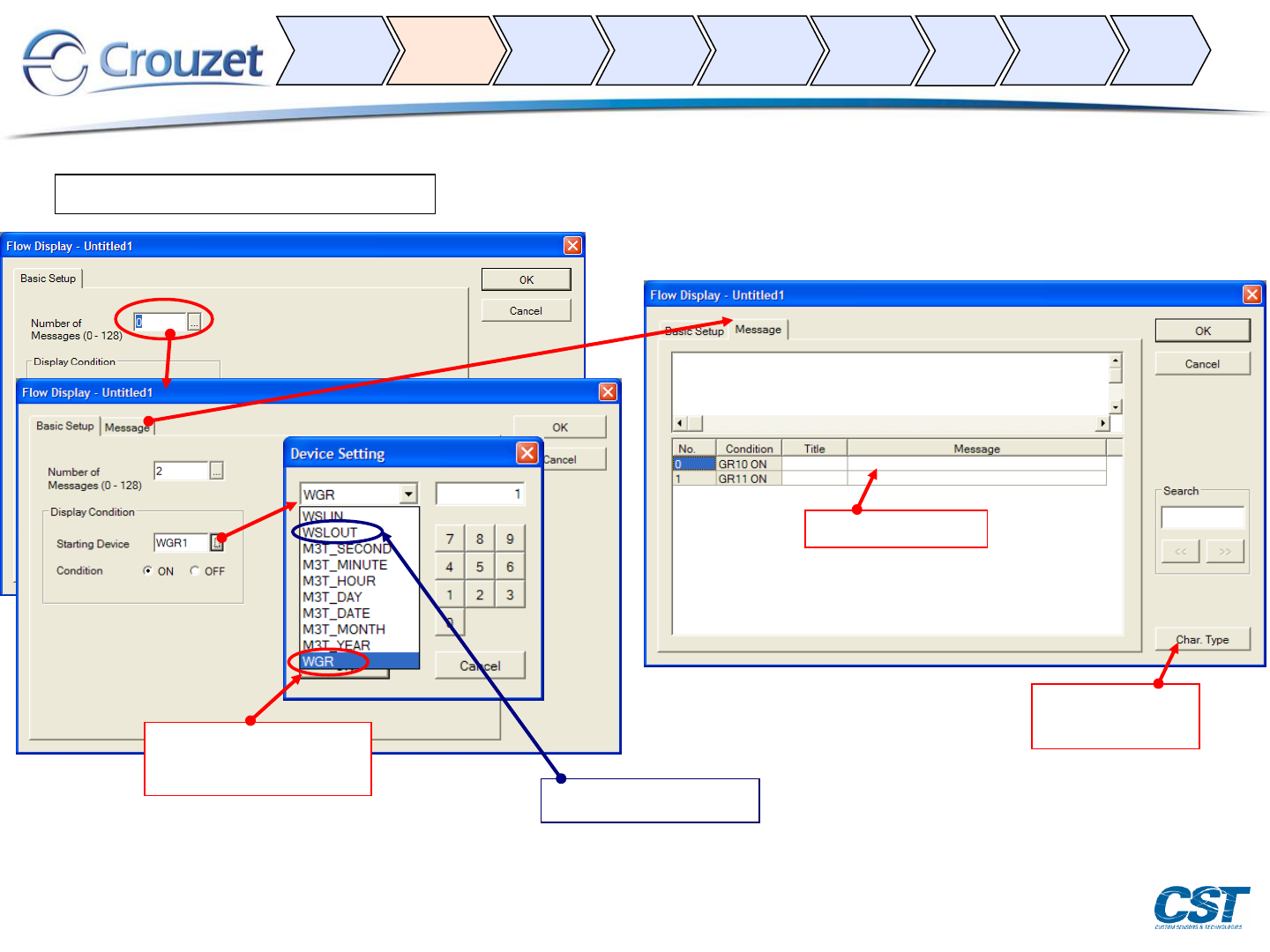

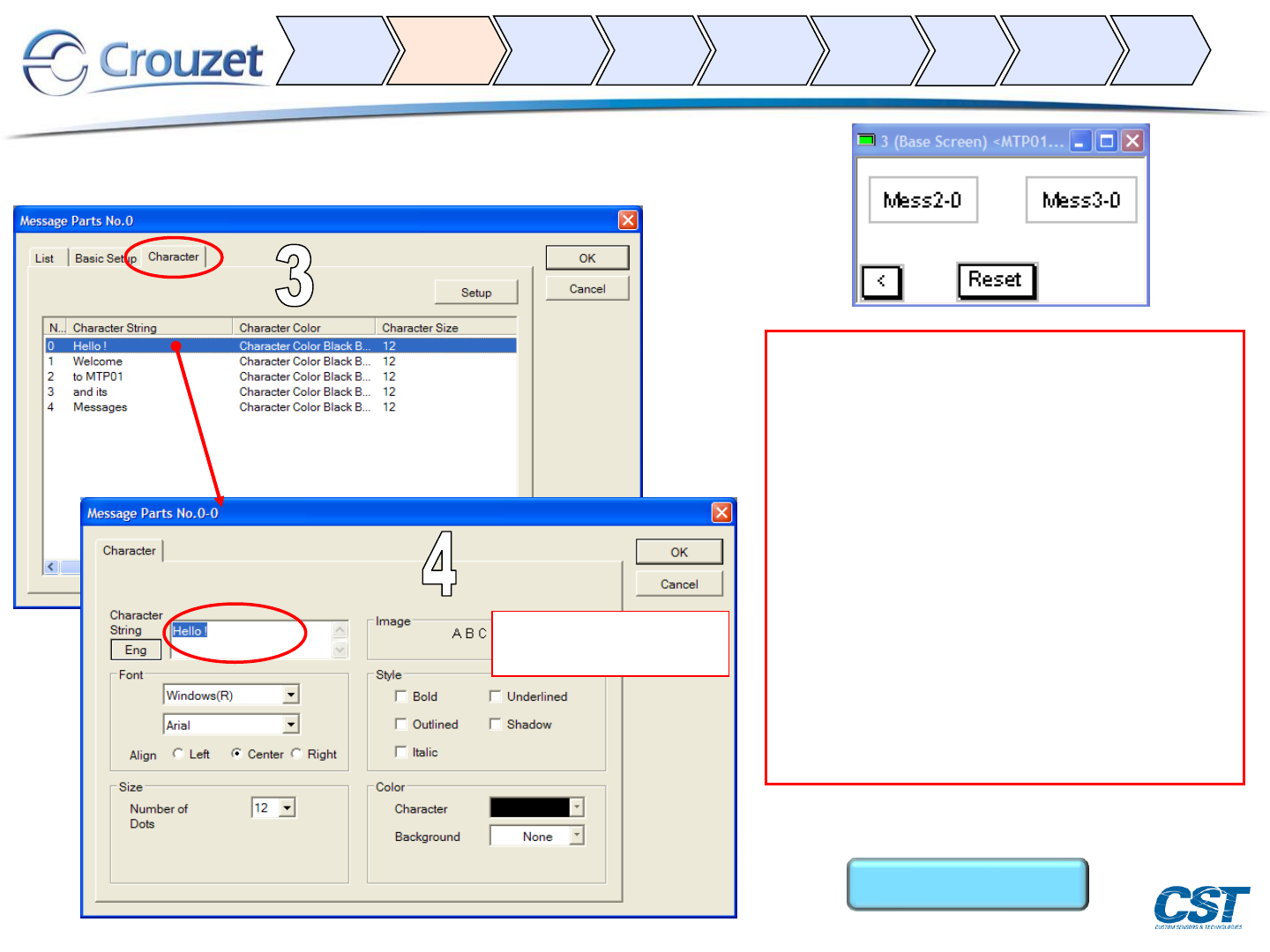

•Messages
•Bitmaps

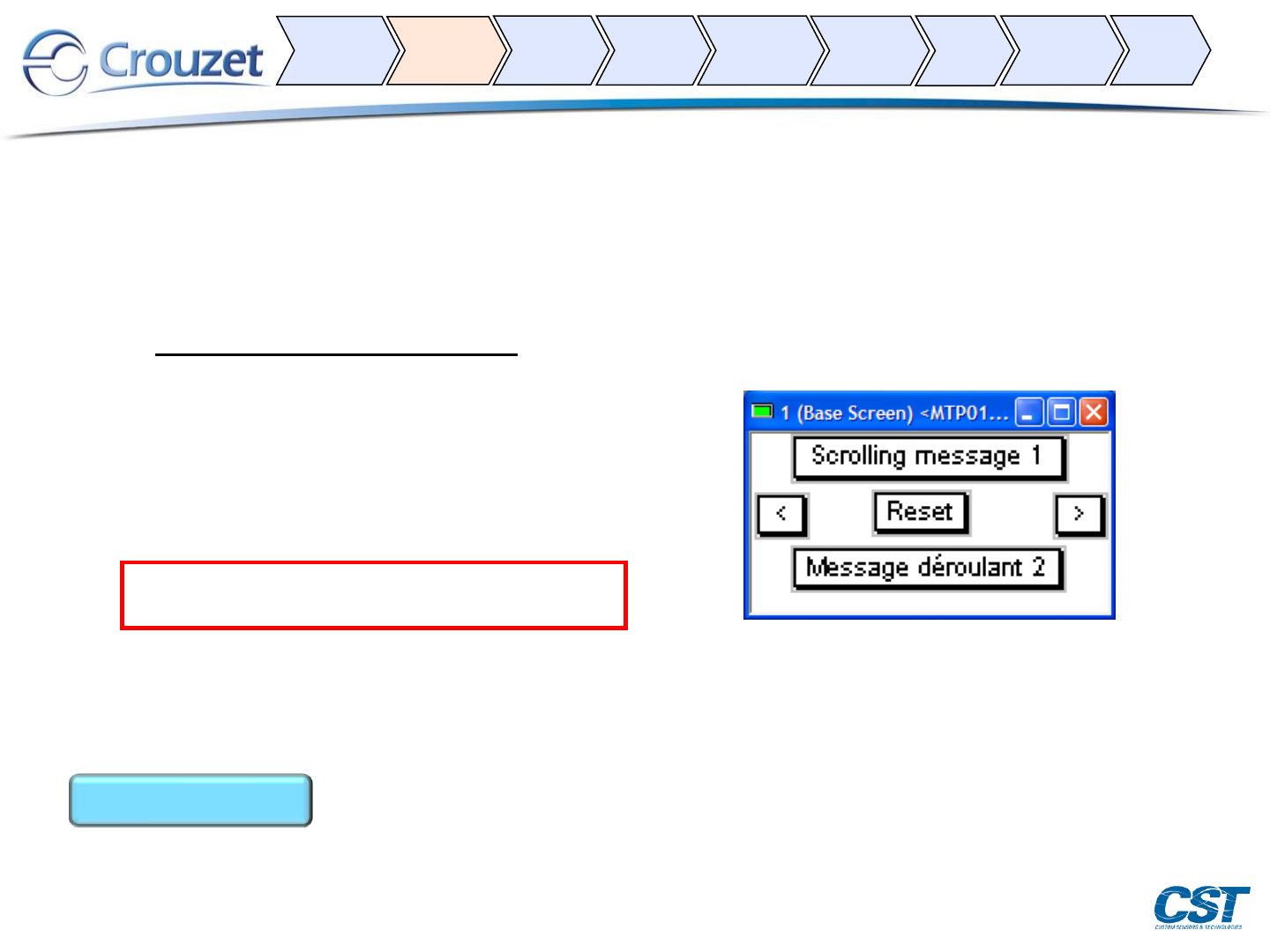

•Scrolling messages
Software
Installation
and Wiring
MTP01
Functiona-
lities
Addressing
Internal
Address
Zone
MTPWIN
Introduction
Links to
M3 + MTP01
Programs
Data
Backup Glossary
Commi-
sioning
M3+MTP01
March 2010 10/83
•Addressing
»Example
»Address area
–BSLIN
–BSLOUT
–Configurating the address zone to pilot MTP
»Internal address area (MTP)
»External address area (M3)
–Details of the area used by M3
BASICS
Software
Installation
and Wiring
MTP01
Functiona-
lities
Addressing
Internal
Address
Zone
MTPWIN
Introduction
Links to
M3 + MTP01
Programs
Data
Backup Glossary
Commi-
sioning
M3+MTP01
March 2010 11/83

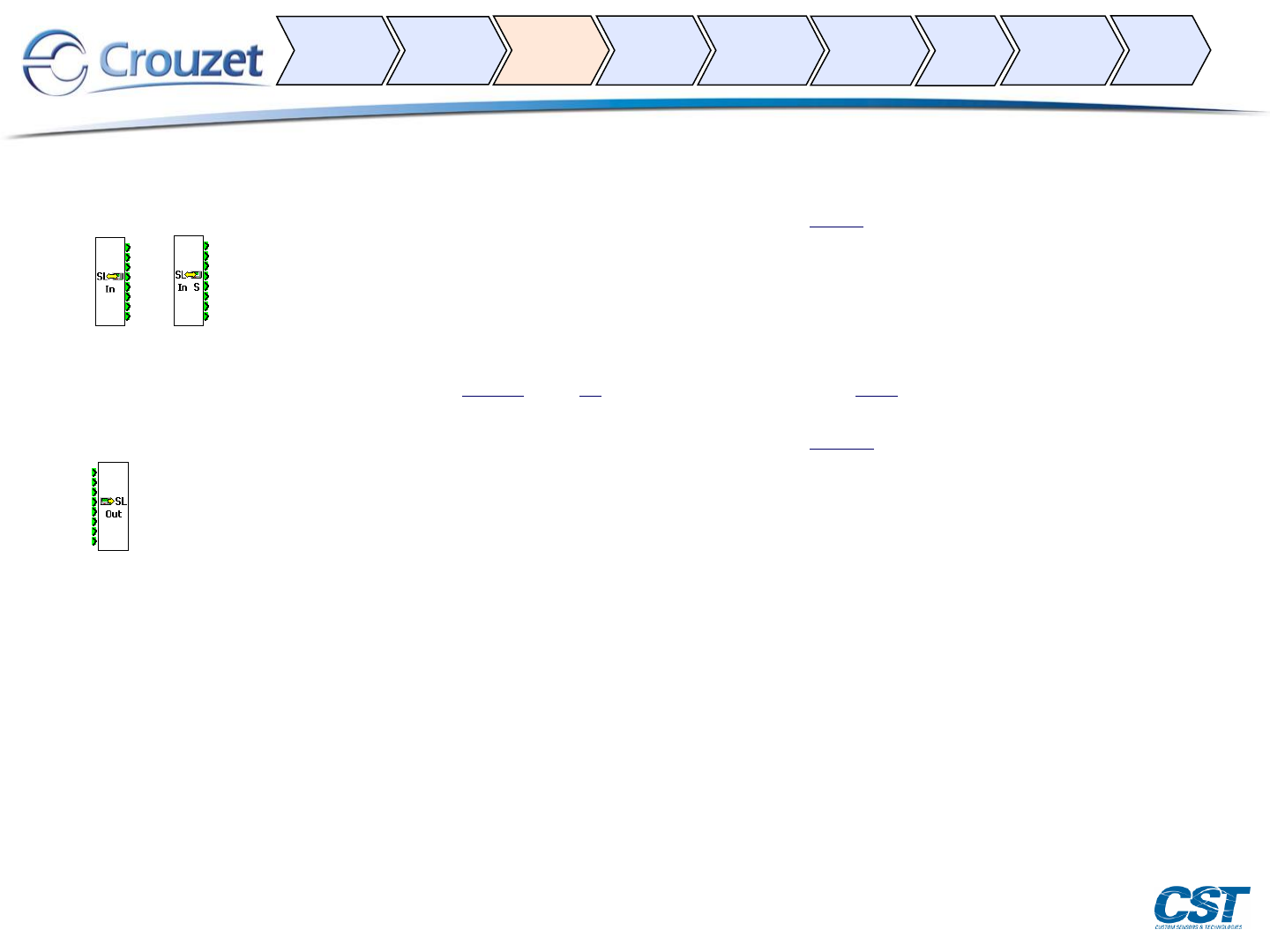

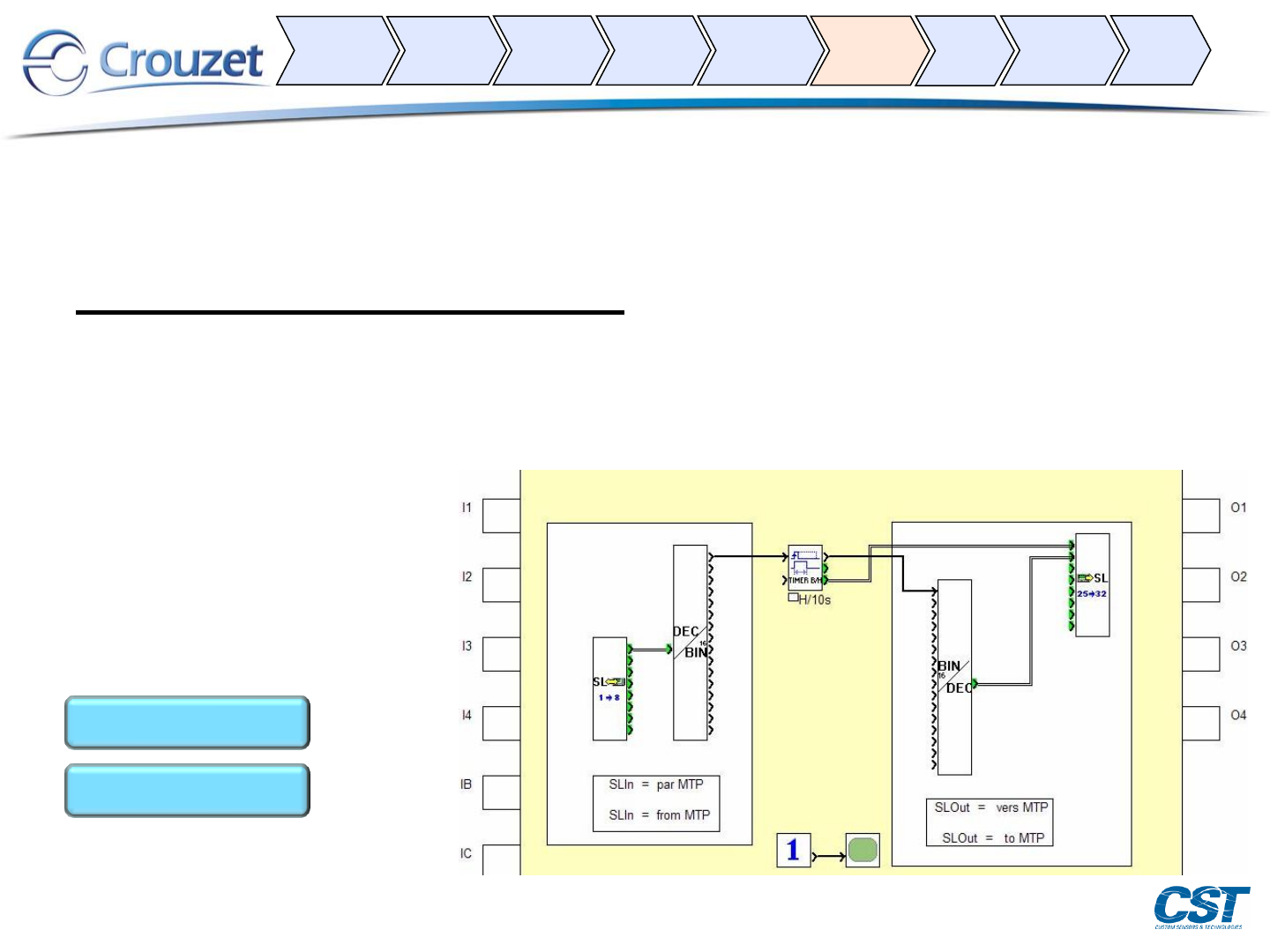

SLIn = Serial Link In Function block that allows M3 to read 8 words by using the M3
programming port.
3 blocks with 8 words each can be used (addresses 1-8, 9-16, 17-24)
SLIn S Same as SLIn but saves values at power failure.
(Use either SLIn or SLIn S in a program, do not mix both types)
SLOut = Serial Link Out Function block that allows M3 to write 8 words by using the M3
programmimg port.
3 blocks with 8 words each can be used (addresses 25-32, 33-40, 41-48)
M3 Millenium3
MTP = Millenium Touch Panel Screen of the M3
MTPWIN Programming software of the MTP01
WSLIN Word address in MTPWIN related to an SLIn function block
WSLOUT Word address in MTPWIN related to an SLOut function block
BSLIN Bit address in MTPWIN related to an SLIn function block
BSLOUT Bit address in MTPWIN related to an SLOut function block
Definitions:
Software
Installation
and Wiring
MTP01
Functiona-
lities
Addressing
Internal
Address
Zone
MTPWIN
Introduction
Links to
M3 + MTP01
Programs
Data
Backup Glossary
Commi-
sioning
M3+MTP01
March 2010 12/83

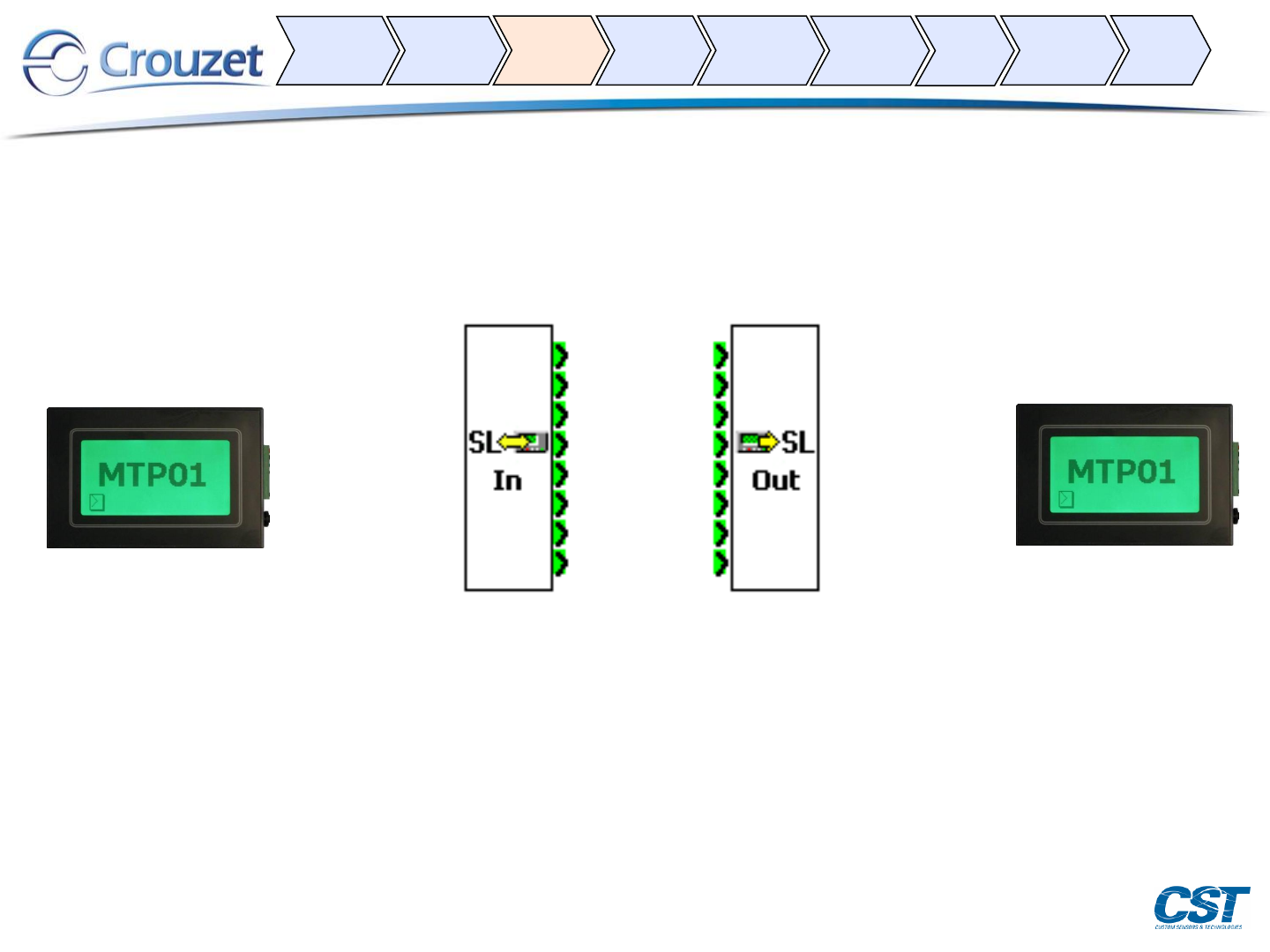

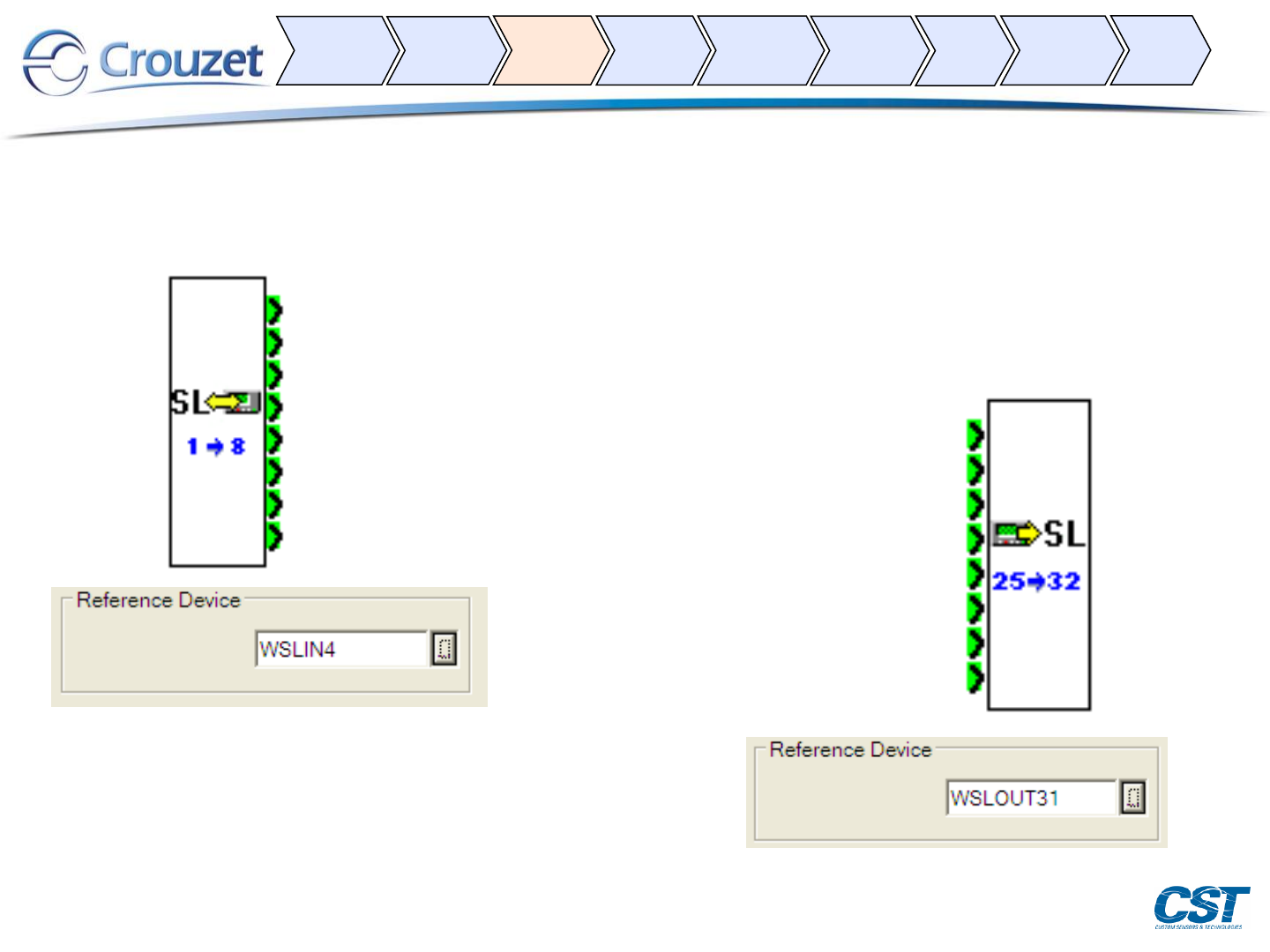

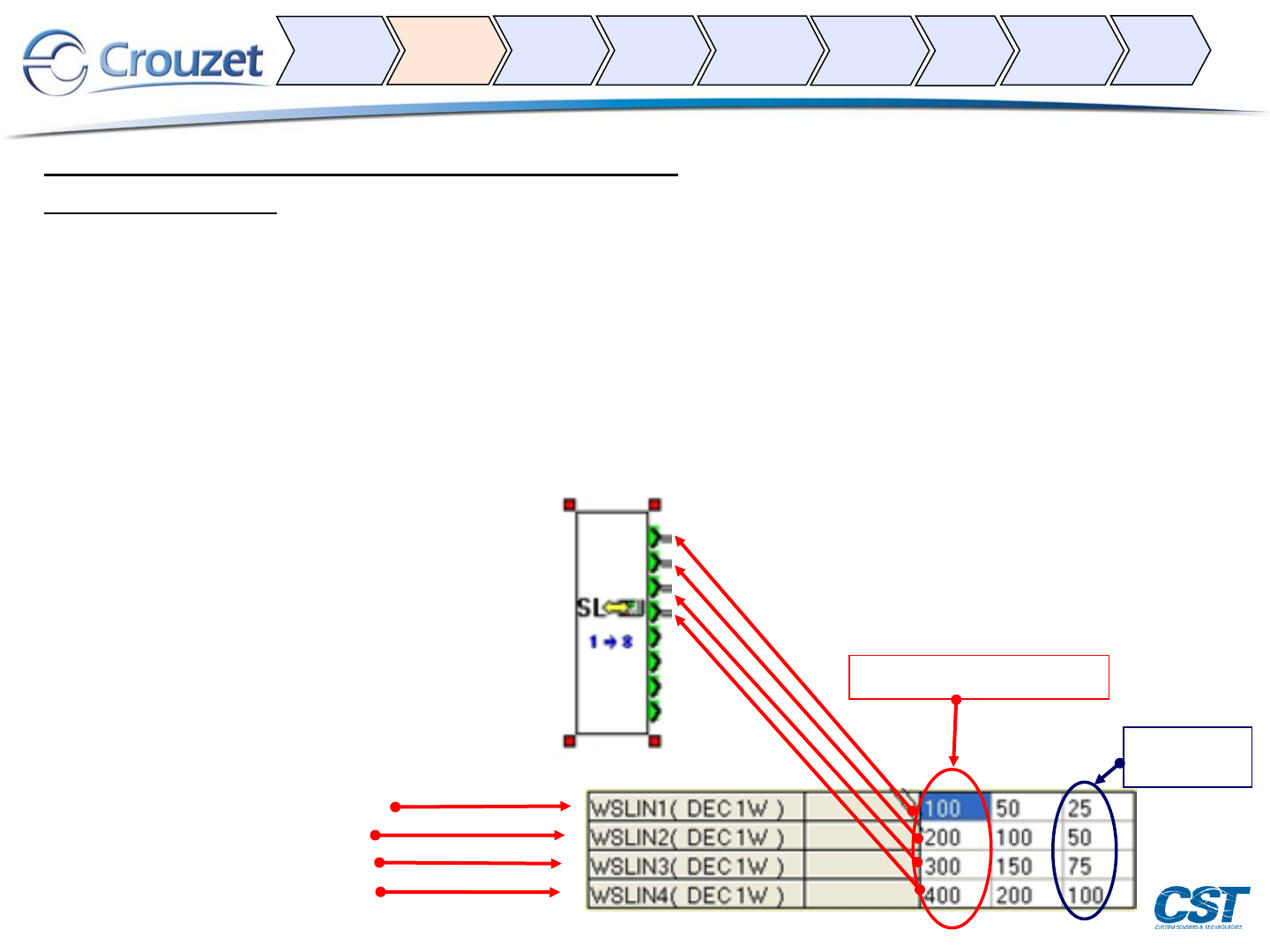

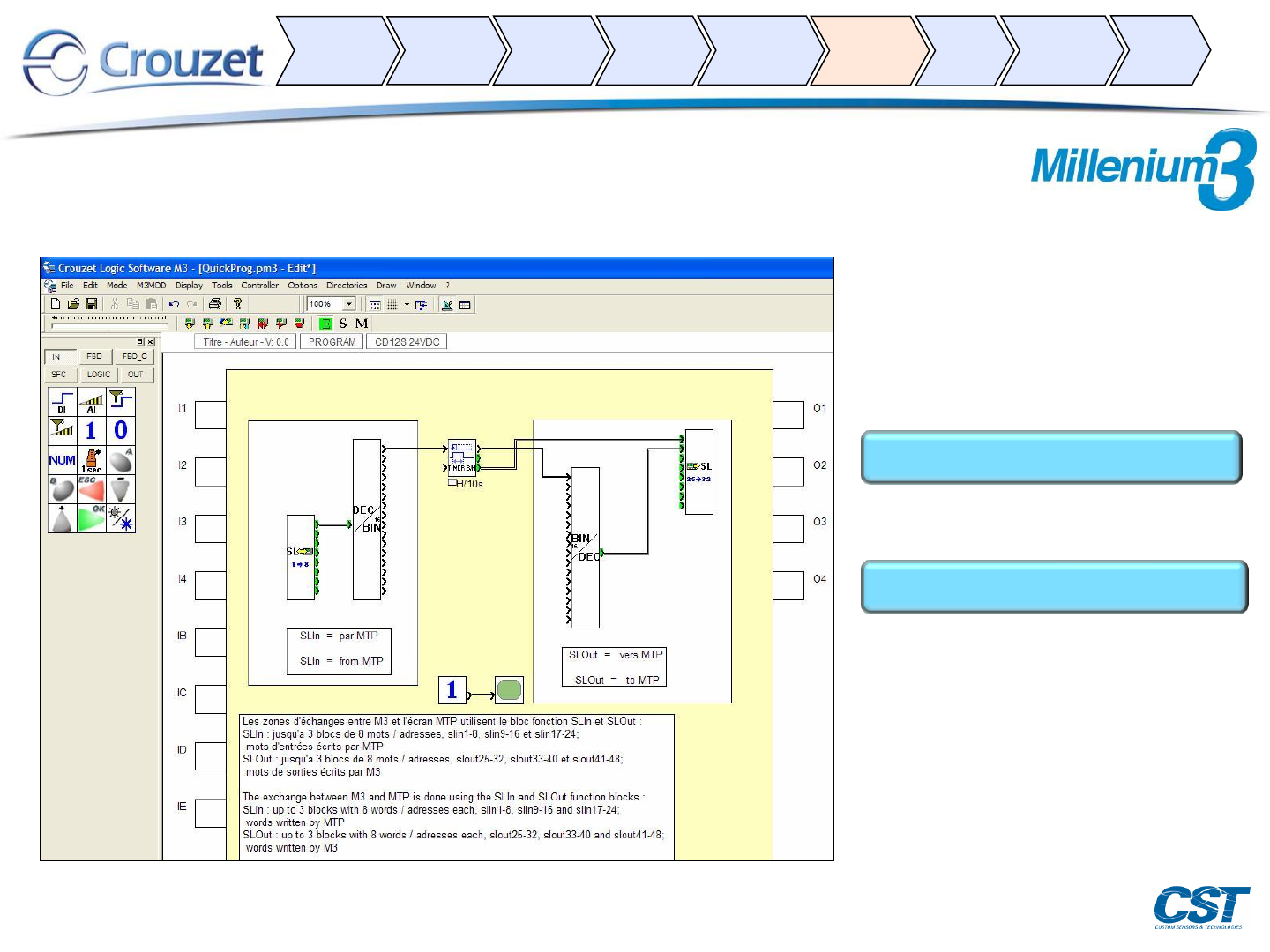

Addressing
MTP M3 M3 MTP
Word address area:
Millenium3: SLIn 1 - 24 MTPWIN: WSLIN 1 - 24
Millenium3: SLOut 25 –48 MTPWIN : WSLOUT 25 - 48
Words and Bits are used for the data exchange between MTP01 and M3.
Software
Installation
and Wiring
MTP01
Functiona-
lities
Addressing
Internal
Address
Zone
MTPWIN
Introduction
Links to
M3 + MTP01
Programs
Data
Backup Glossary
Commi-
sioning
M3+MTP01
March 2010 14/83

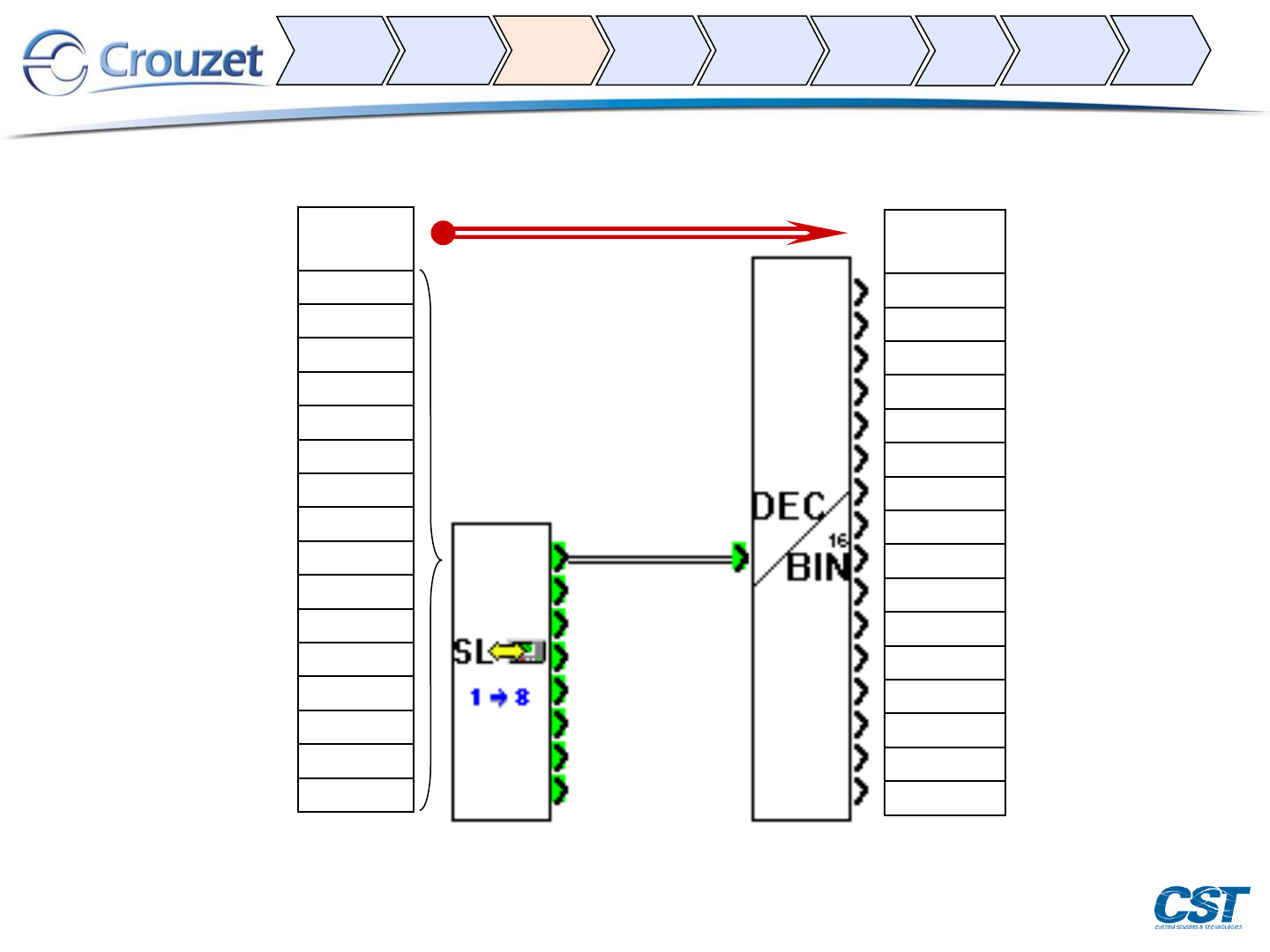

Addressing a bit - BSLIN
M3
bit01 - LSB
bit02
bit03
bit04
bit05
bit06
bit07
bit08
bit09
bit10
bit11
bit12
bit13
bit14
bit15
bit16 - MSB
Input 1
MTP
BSLIN10
BSLIN11
BSLIN12
BSLIN13
BSLIN14
BSLIN15
BSLIN16
BSLIN17
BSLIN18
BSLIN19
BSLIN1A
BSLIN1B
BSLIN1C
BSLIN1D
BSLIN1E
BSLIN1F
Software
Installation
and Wiring
MTP01
Functiona-
lities
Addressing
Internal
Address
Zone
MTPWIN
Introduction
Links to
M3 + MTP01
Programs
Data
Backup Glossary
Commi-
sioning
M3+MTP01
March 2010 15/83
Addressing a bit - BSLOUT
MTP
BSLOUT250
BSLOUT251
BSLOUT252
BSLOUT253
BSLOUT254
BSLOUT255
BSLOUT256
BSLOUT257
BSLOUT258
BSLOUT259
BSLOUT25A
BSLOUT25B
BSLOUT25C
BSLOUT25D
BSLOUT25E
BSLOUT25F
Output 25
M3
bit01 - LSB
bit02
bit03
bit04
bit05
bit06
bit07
bit08
bit09
bit10
bit11
bit12
bit13
bit14
bit15
bit16 - MSB
Software
Installation
and Wiring
MTP01
Functiona-
lities
Addressing
Internal
Address
Zone
MTPWIN
Introduction
Links to
M3 + MTP01
Programs
Data
Backup Glossary
Commi-
sioning
M3+MTP01
March 2010 16/83

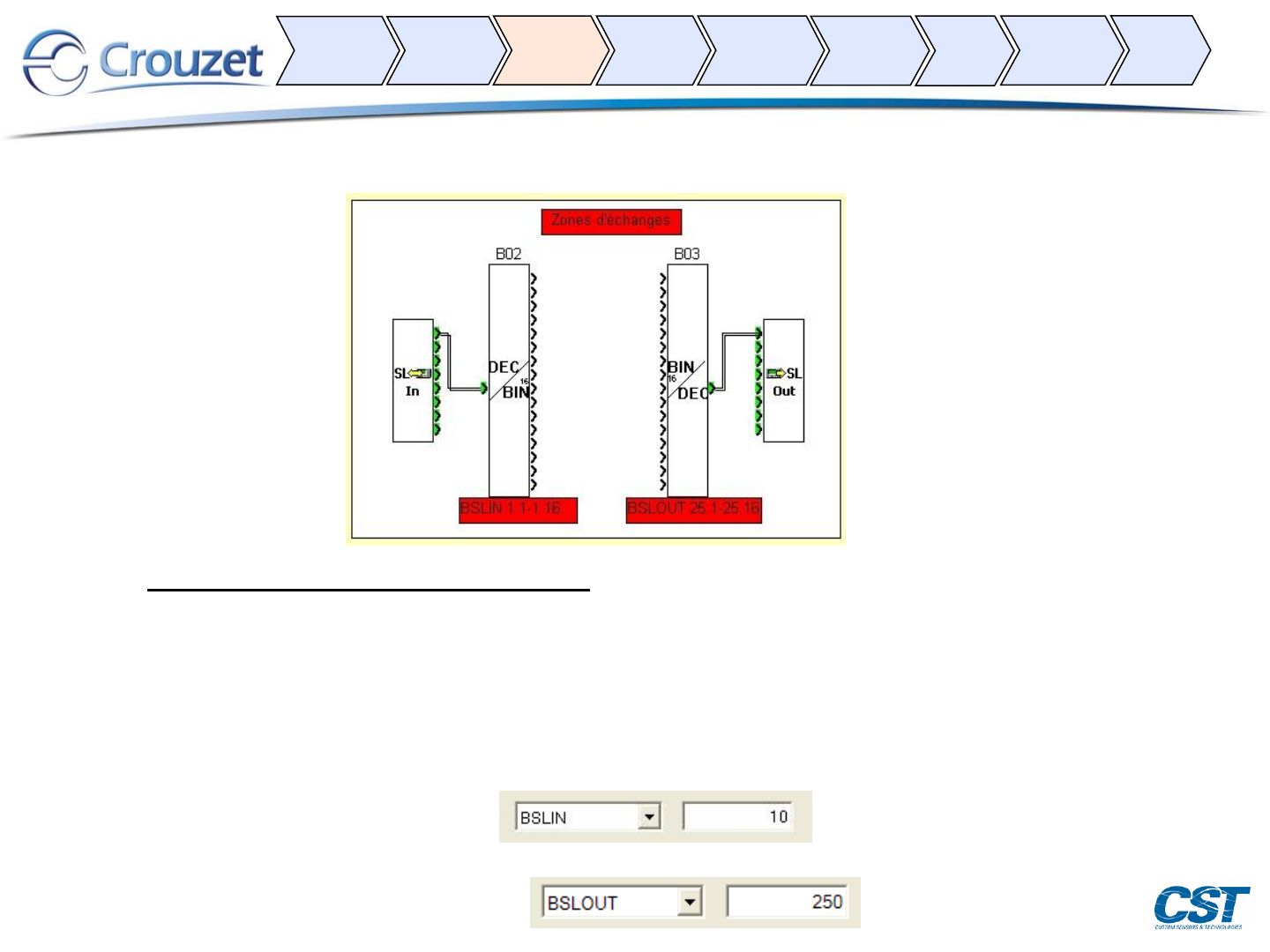

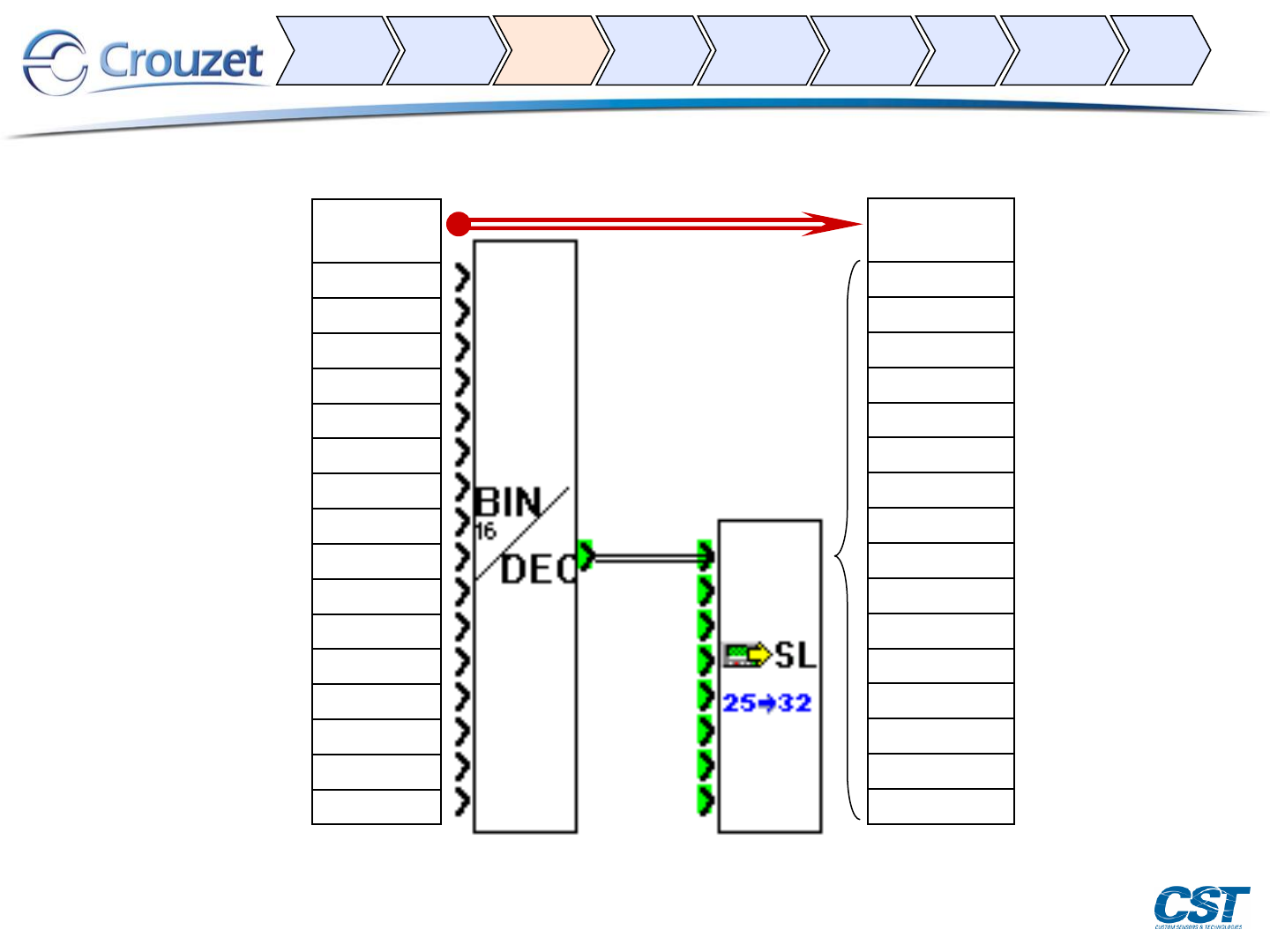

Addressing bits in M3 is done with these function blocks:
How to address a bit in MTPWIN:
The bits (BLSOUT or BSLIN) are described like this: N word + N°bit
Example: To work with bit 15 on SLOut12, it will be noted as BSLOUT12E.
The address area ranges from 1 to 48 and is defined as follows:
Bit SLIn 1.1 - 24.16 of M3 BSLIN 10to 24Fin the MTPWIN
Bit SLOut 25.1 –48.16 of M3 BSLOUT 250to 48F in the MTPWIN
Software
Installation
and Wiring
MTP01
Functiona-
lities
Addressing
Internal
Address
Zone
MTPWIN
Introduction
Links to
M3 + MTP01
Programs
Data
Backup Glossary
Commi-
sioning
M3+MTP01
March 2010 18/83

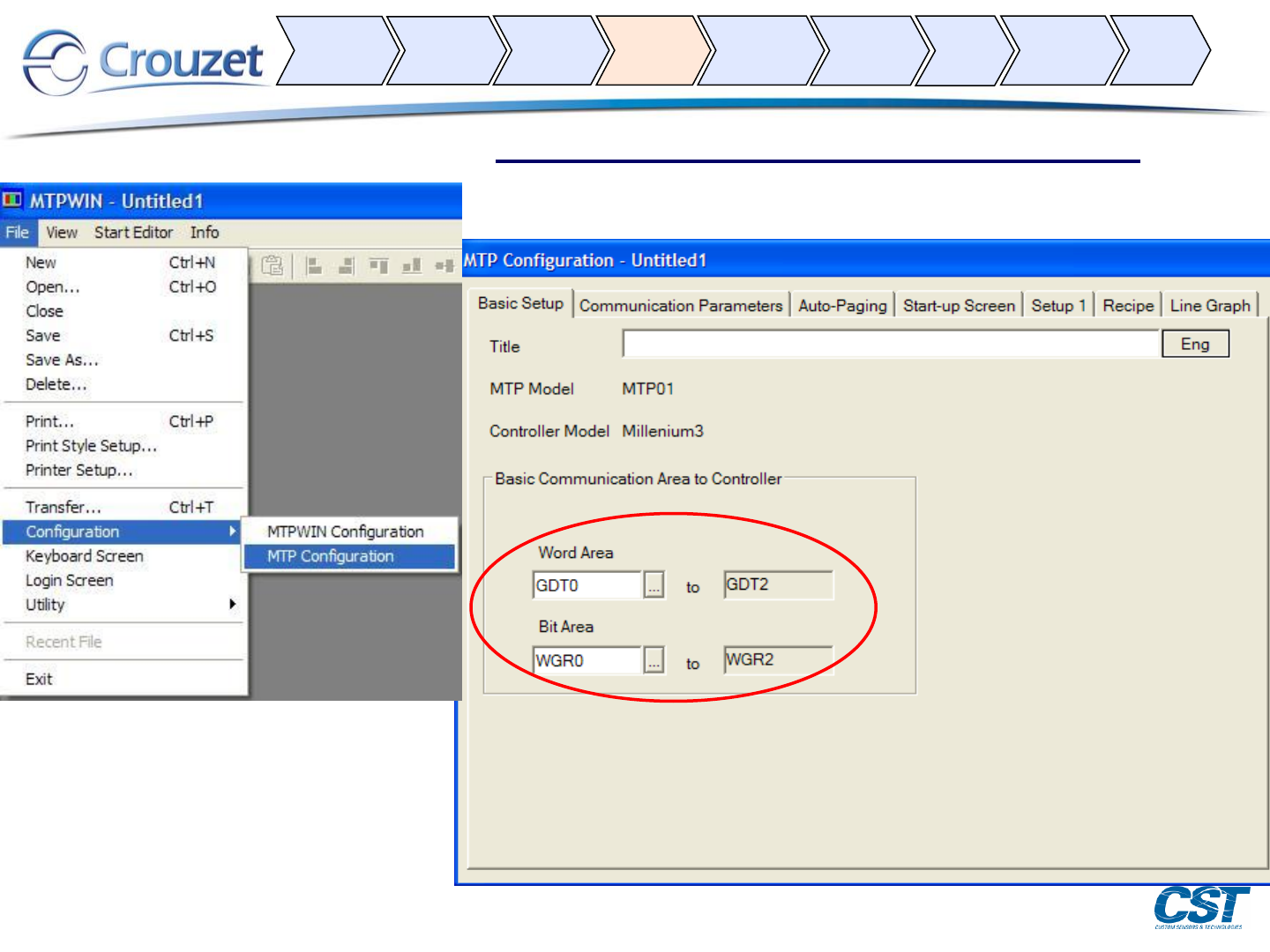

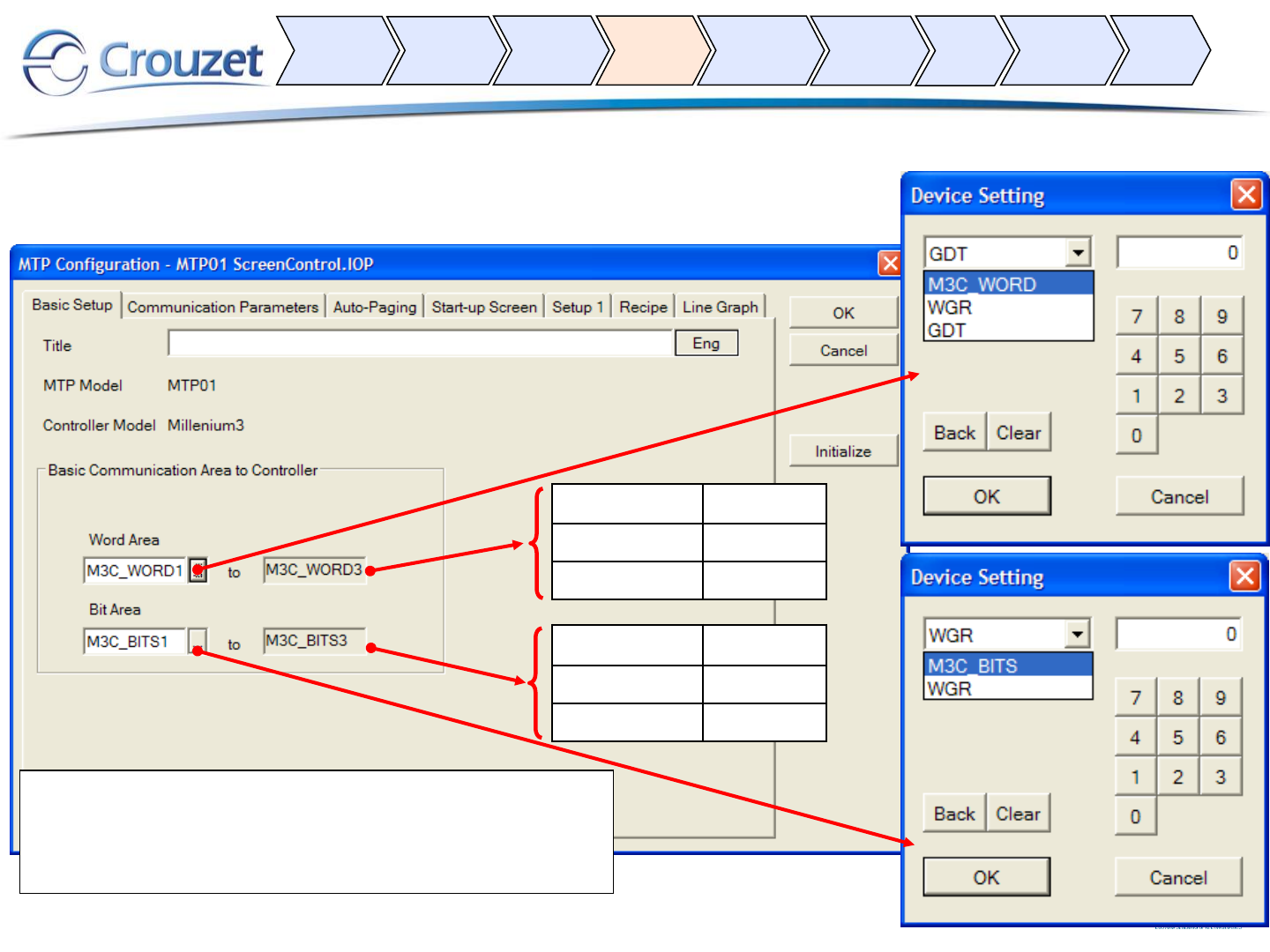

Internal pilot area (MTP01):
Position F E D C B A 9 8 7 6 5 4 3 2 1 0
n +BIT ex:
WGR0F = 1 (buzzer on)
Buzzer
Force view
Backlight on/off
Blinking backlight
Backlight color
N+1 ex: WGR1 Not used
N+2 ex:WGR2 Not used
N ex: GDT0 Change screen (hexadécimal)
N+1 ex: GDT1 Not used
N+2 ex:GDT2 Number of the screen actually in use (hexadécimal)
Backlight colors (default = green)
Bit B A
Off 0 0
Green 0 1
Red 1 0
Orange 1 1

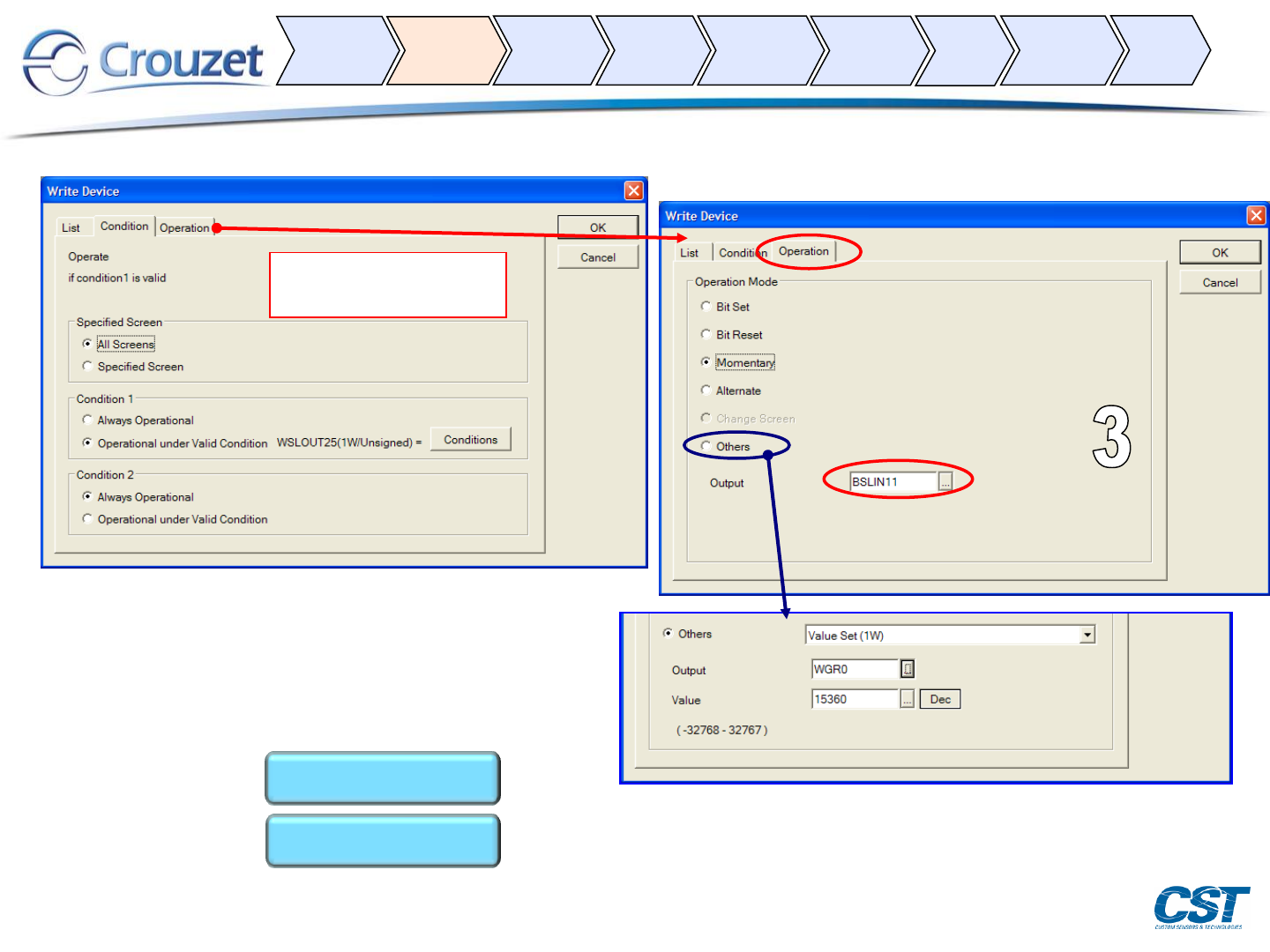

One can use keys in the screen to
pilot the MTP01
MTP01_Internal_ScreenContr.IOP
Link:
Software
Installation
and Wiring
MTP01
Functiona-
lities
Addressing
Internal
Address
Zone
MTPWIN
Introduction
Links to
M3 + MTP01
Programs
Data
Backup Glossary
Commi-
sioning
M3+MTP01
March 2010 19/83

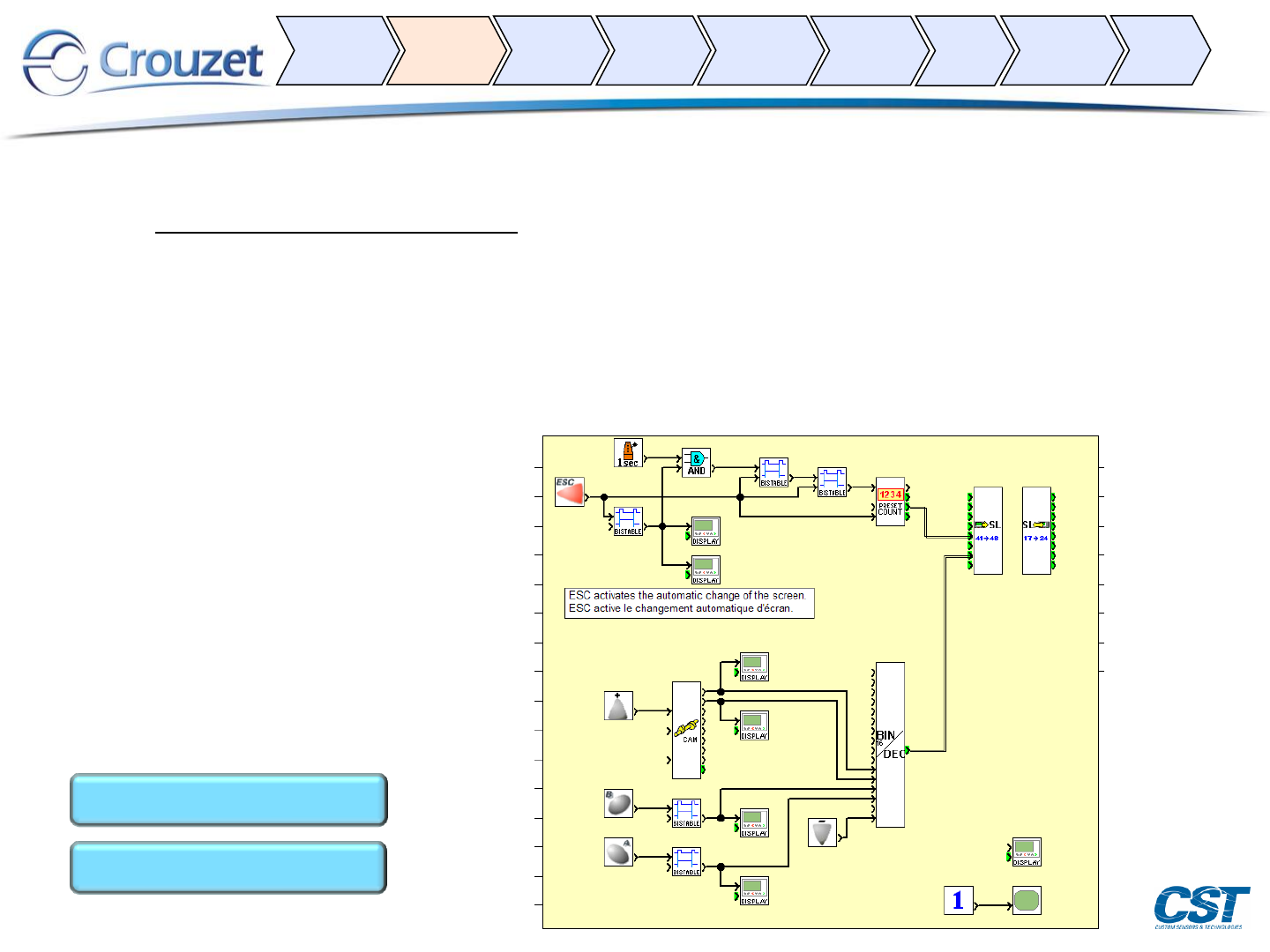

The M3 data zone reserved by default (not adjustable):
To pilot MTP01 by
Millenium3
WSLOUT45 from M3
WSLOUT46 from M3
WSLIN23 to M3
WSLOUT47 from M3
WSLOUT48 from M3
WSLIN24 to M3
Software
Installation
and Wiring
MTP01
Functiona-
lities
Addressing
Internal
Address
Zone
MTPWIN
Introduction
Links to
M3 + MTP01
Programs
Data
Backup Glossary
Commi-
sioning
M3+MTP01
March 2010 20/83
The M3 data zone
reserved by default:
Copy of WSLOUT47
Change the MTP01 page
Use prohibited
Pilot the MTP01 screen
WSLOUT45 from M3
WSLOUT46 from M3
WSLIN23 to M3
WSLOUT47 from M3
WSLOUT48 from M3
WSLIN24 to M3
Use prohibited
Use prohibited
Bit B A
Off 0 0
Green 0 1
Red 1 0
Orange 1 1
Position (WSLOUT47) F E D C B A 9 8 7 6 5 4 3 2 1 0
n +BIT ex: 47+F (buzzer)
Buzzer
Force view
Backlight On/Off
Flashing backlight
Backlight color
MTP01_ScreenControl.IOP

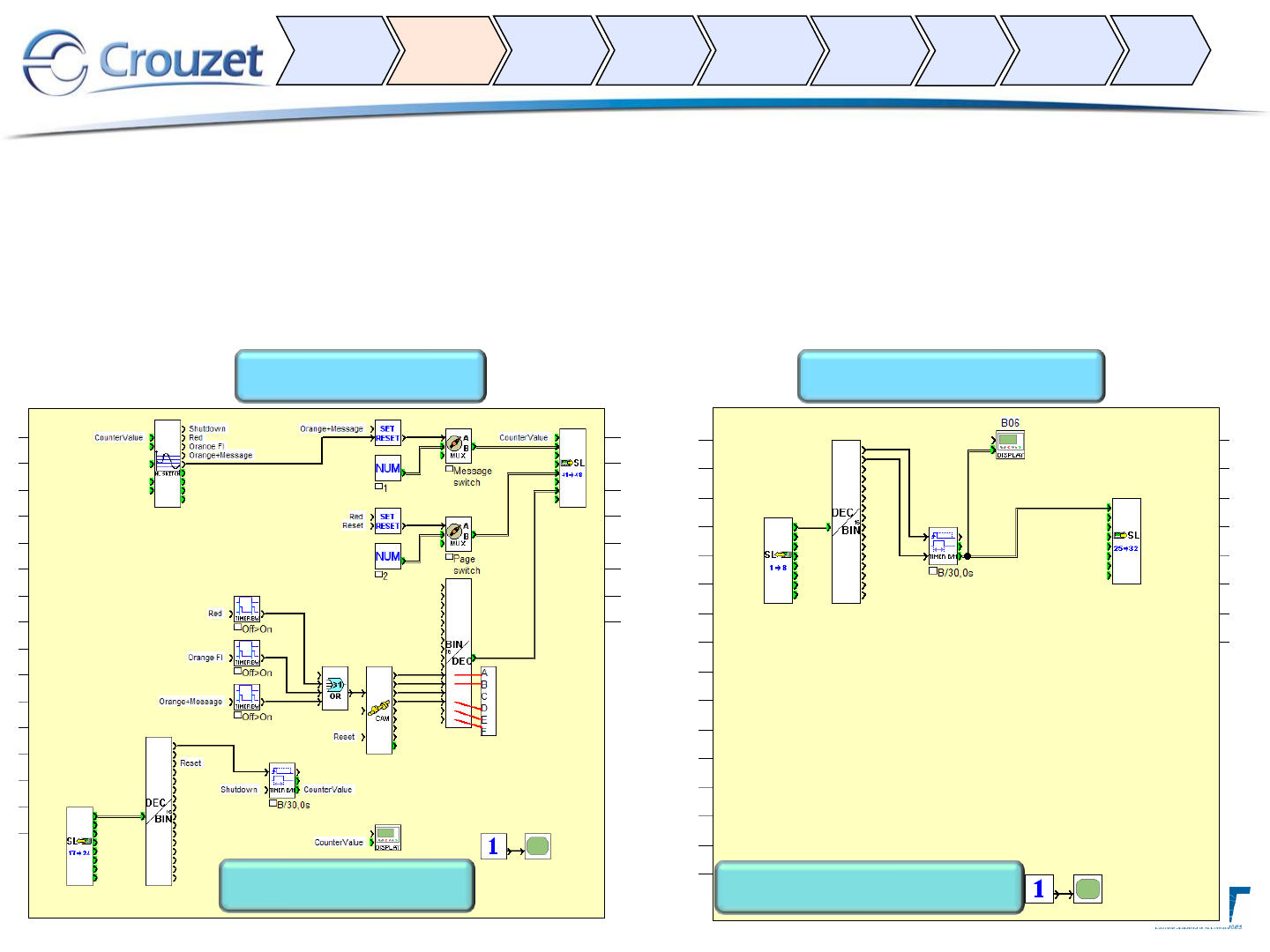

Links: Screen_Control.pm3 Back to page 54
Reminders
Software
Installation
and Wiring
MTP01
Functiona-
lities
Addressing
Internal
Address
Zone
MTPWIN
Introduction
Links to
M3 + MTP01
Programs
Data
Backup Glossary
Commi-
sioning
M3+MTP01
March 2010 26/83

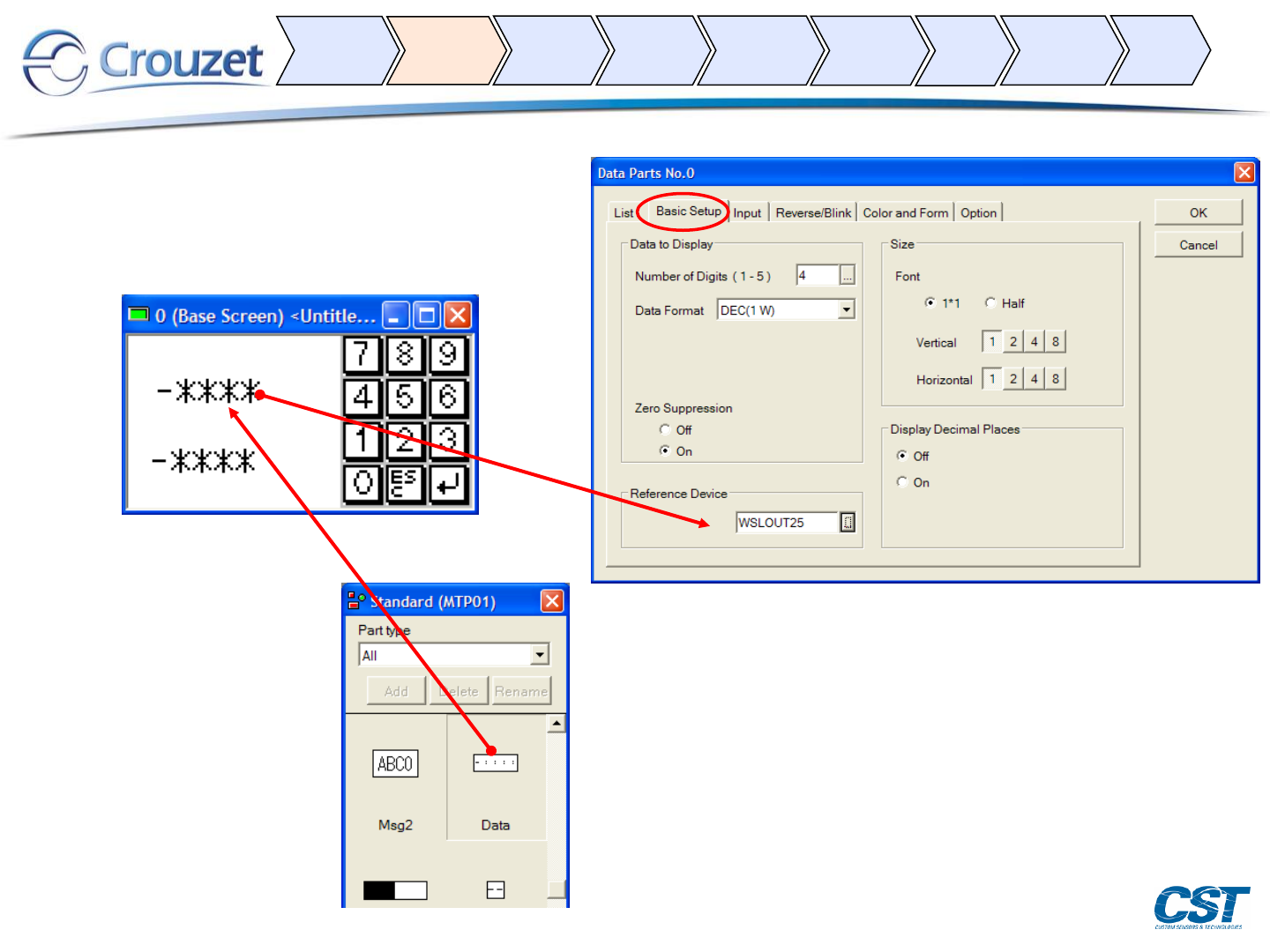

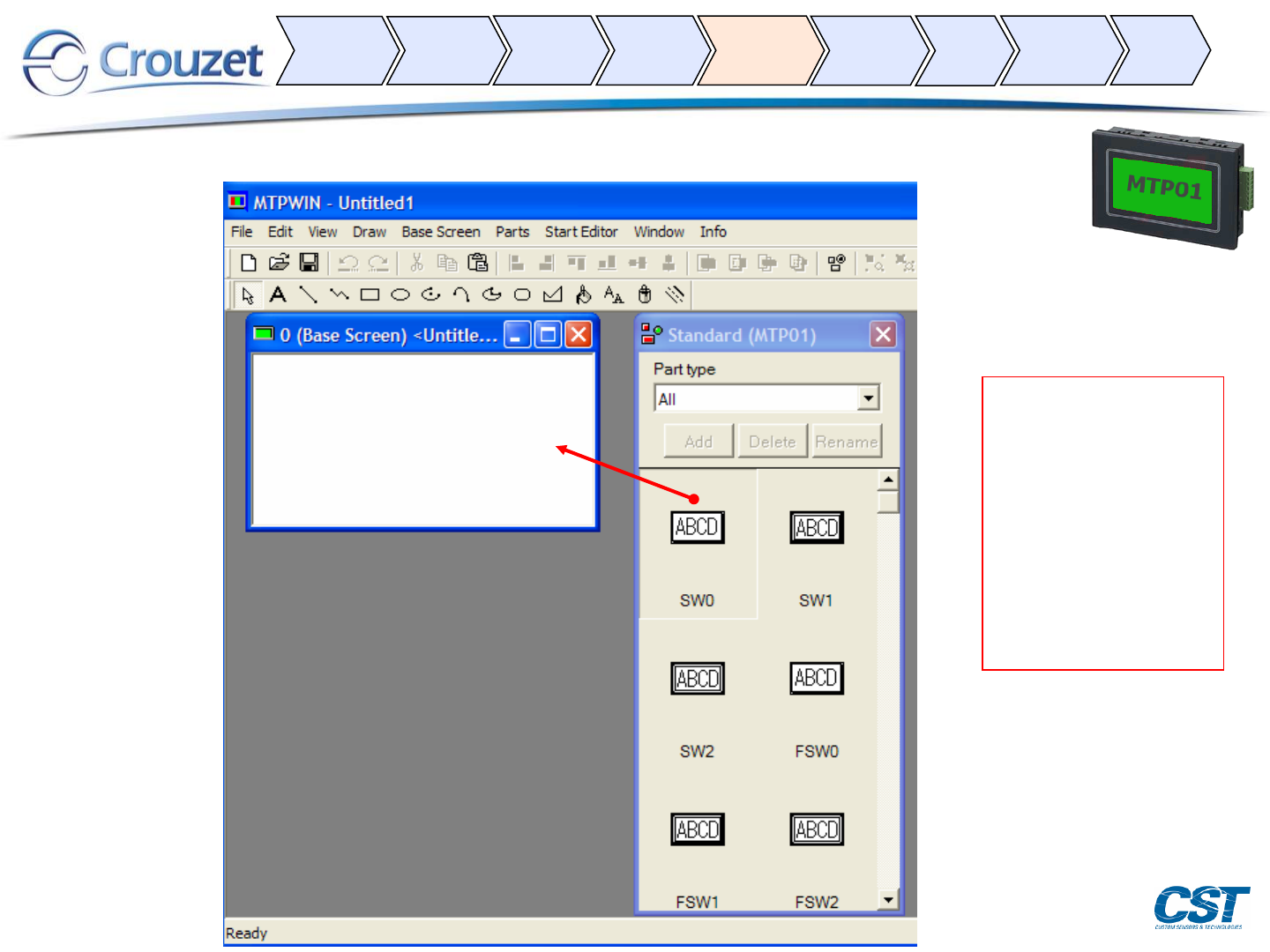

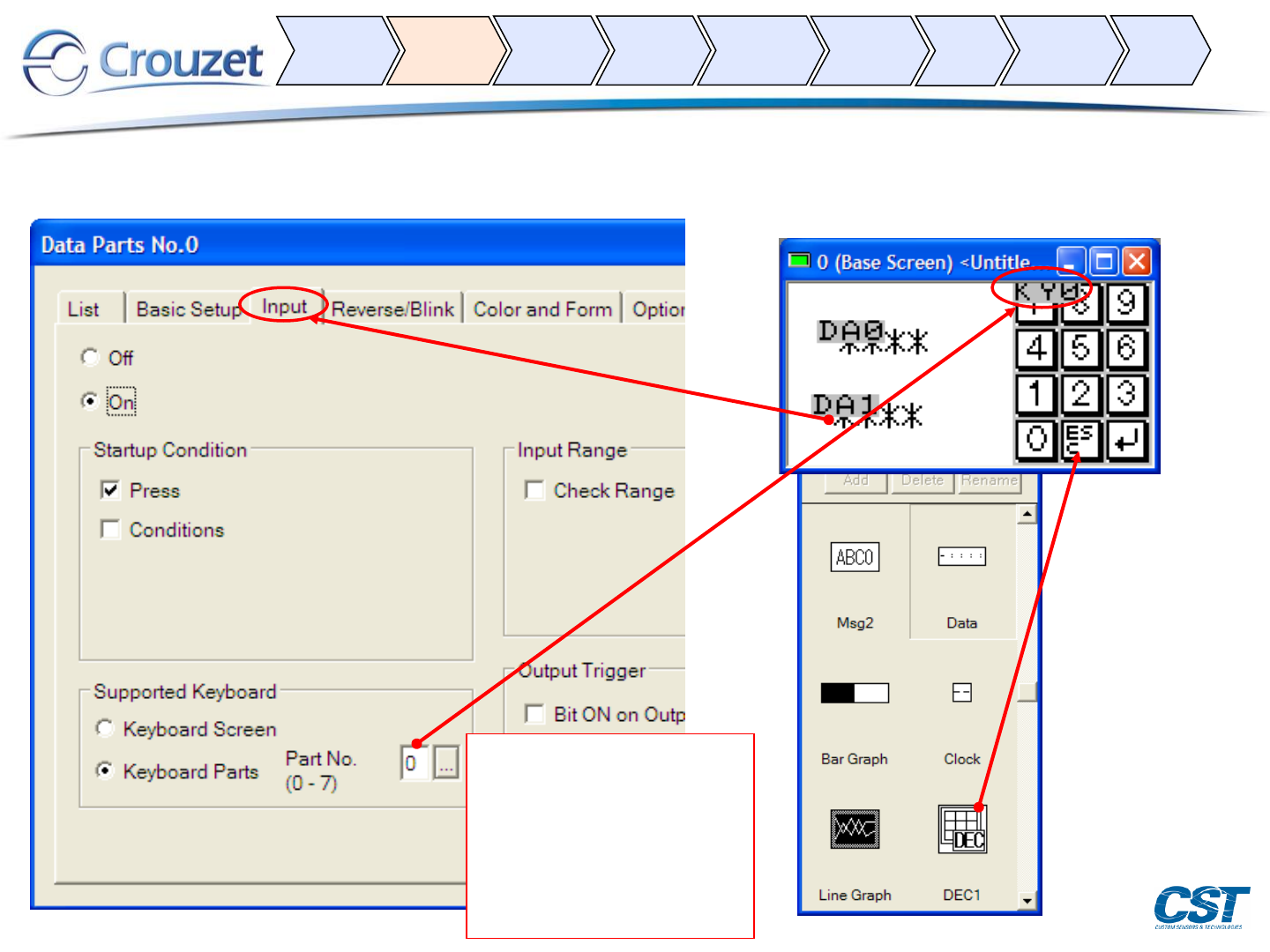

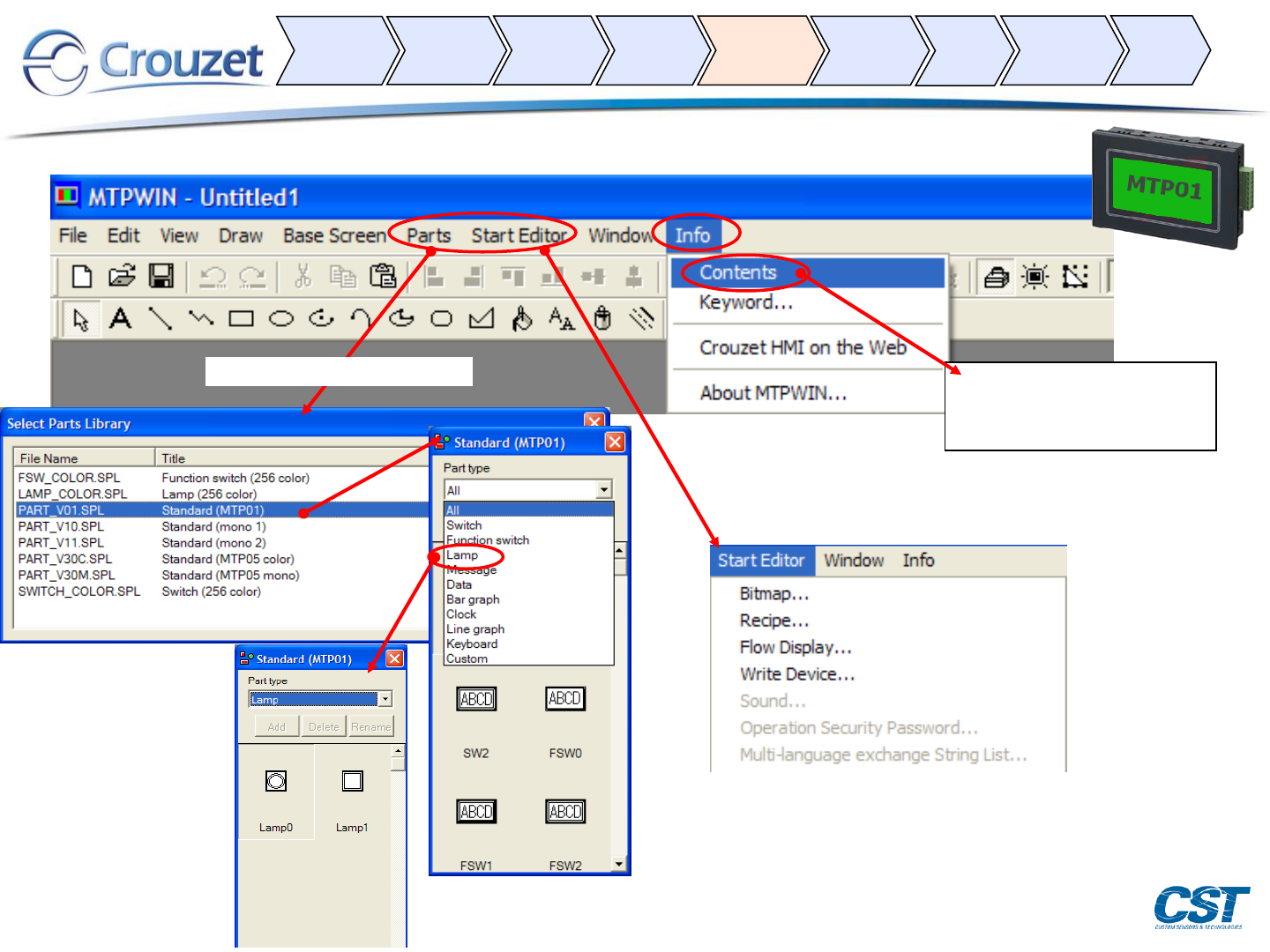

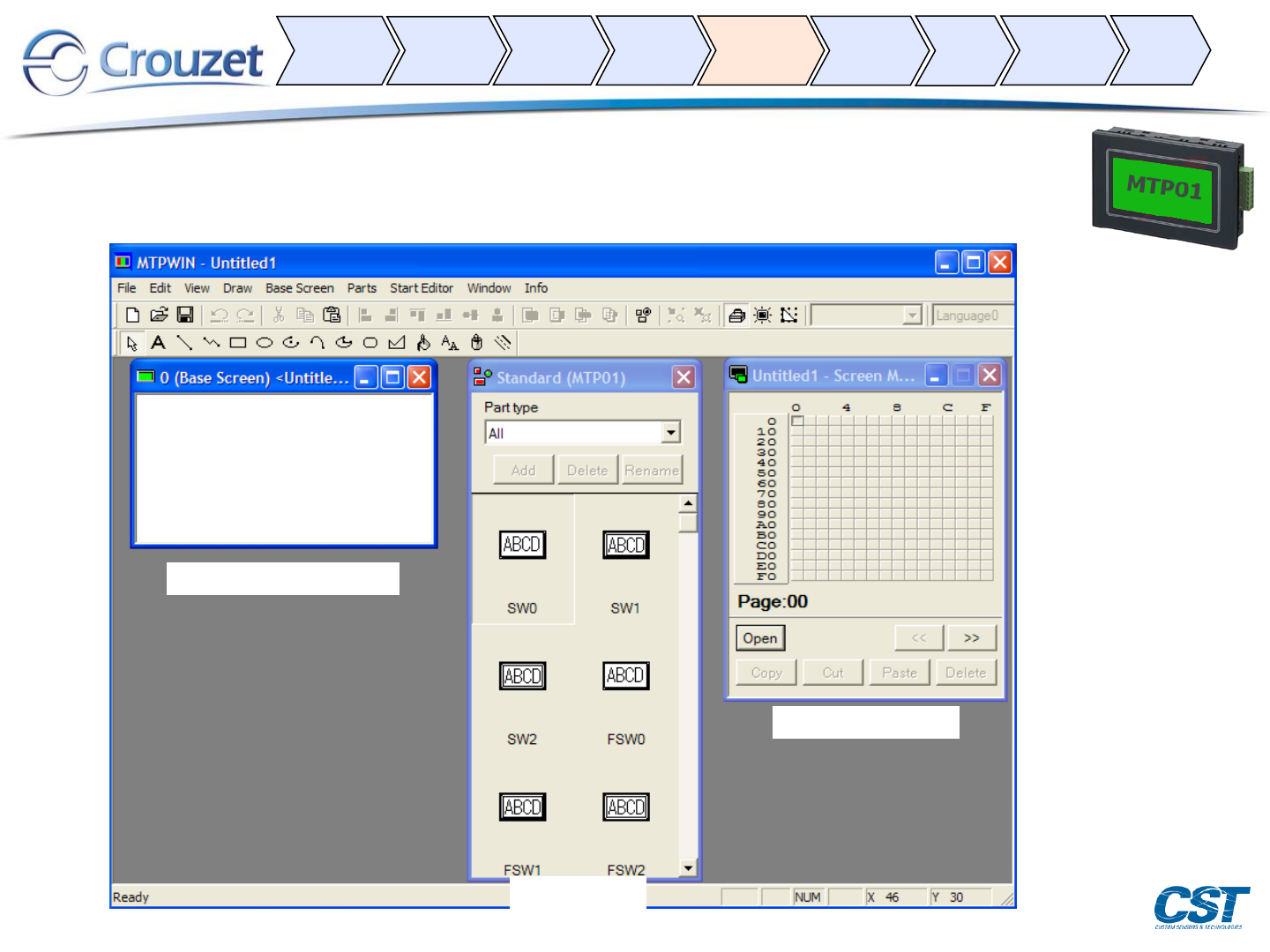

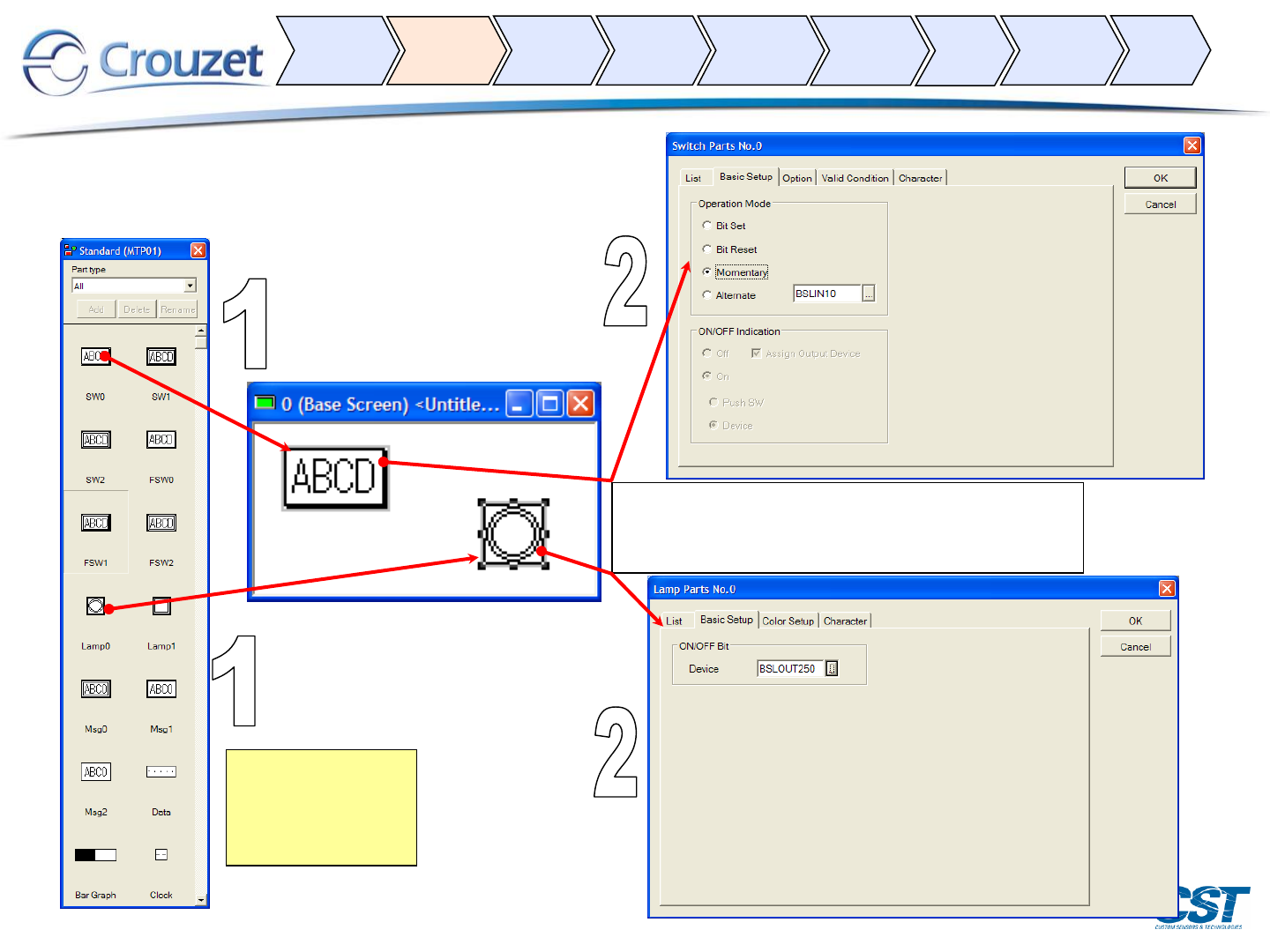

Placing a component (part) on the screen
To place a part on the
screen, click on the
part with the left
mouse key, hold the
key, drag the part to
the screen and release
the key where you
want to place it. (Drag
and drop) Like with
the Millenium3
software.
Software
Installation
and Wiring
MTP01
Functiona-
lities
Addressing
Internal
Address
Zone
MTPWIN
Introduction
Links to
M3 + MTP01
Programs
Data
Backup Glossary
Commi-
sioning
M3+MTP01
March 2010 32/83

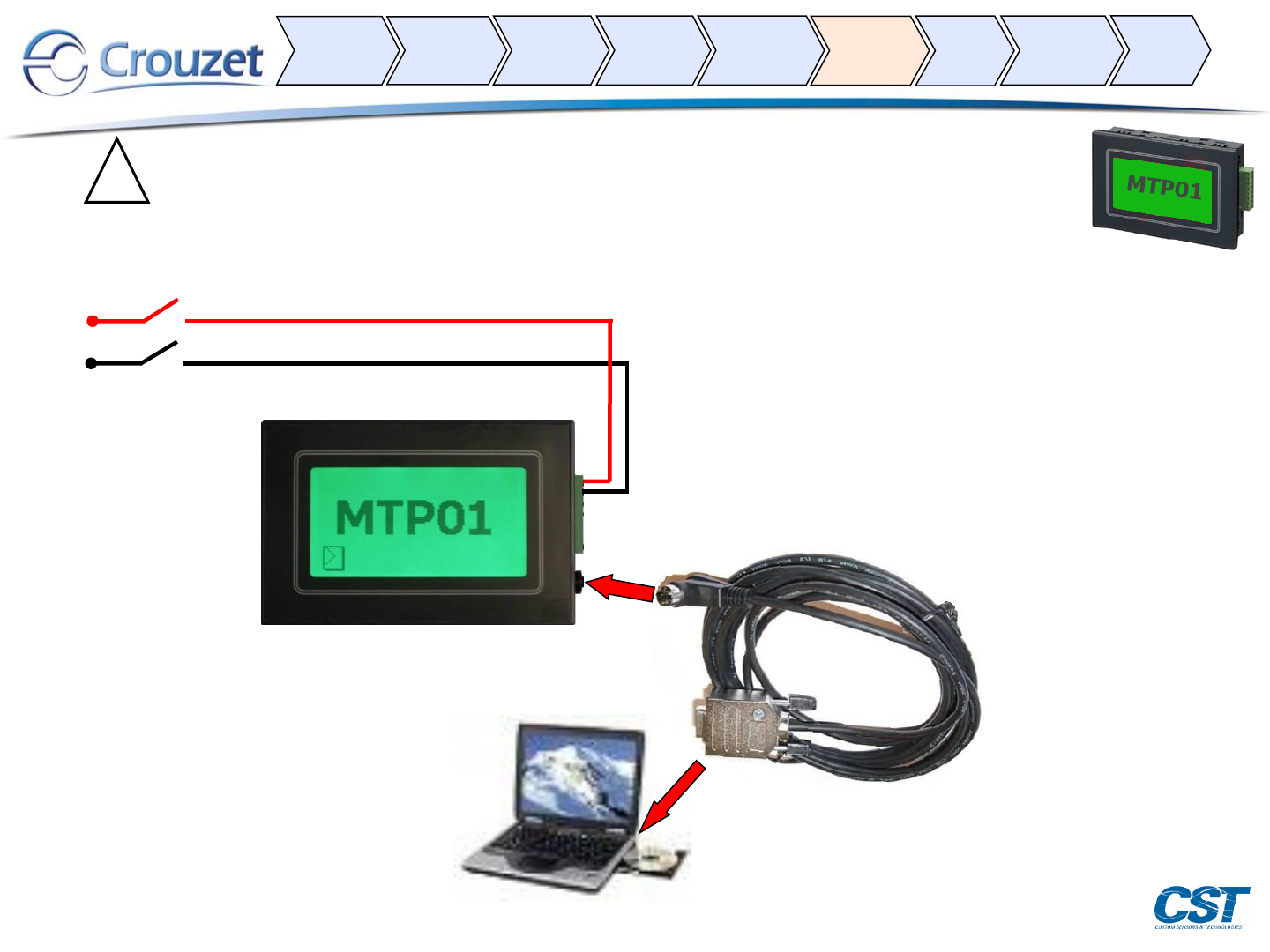

Wiring for program transfer PC MTP01
Disconnect the power whenever inserting or extracting the programming cable
into/from MTP01 !
OFF
!
24VDC
+
-
Software
Installation
and Wiring
MTP01
Functiona-
lities
Addressing
Internal
Address
Zone
MTPWIN
Introduction
Links to
M3 + MTP01
Programs
Data
Backup Glossary
Commi-
sioning
M3+MTP01
March 2010 34/83

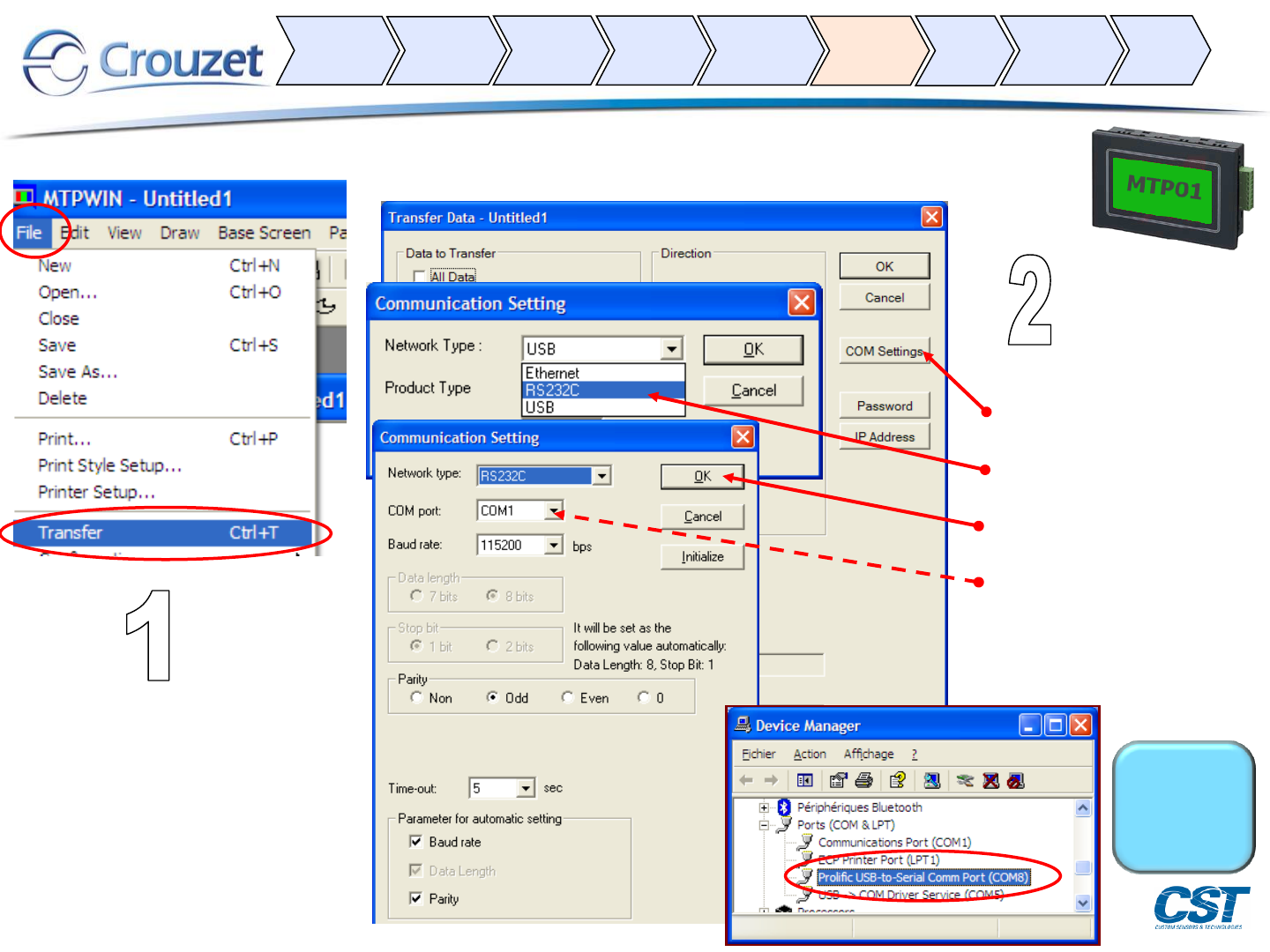

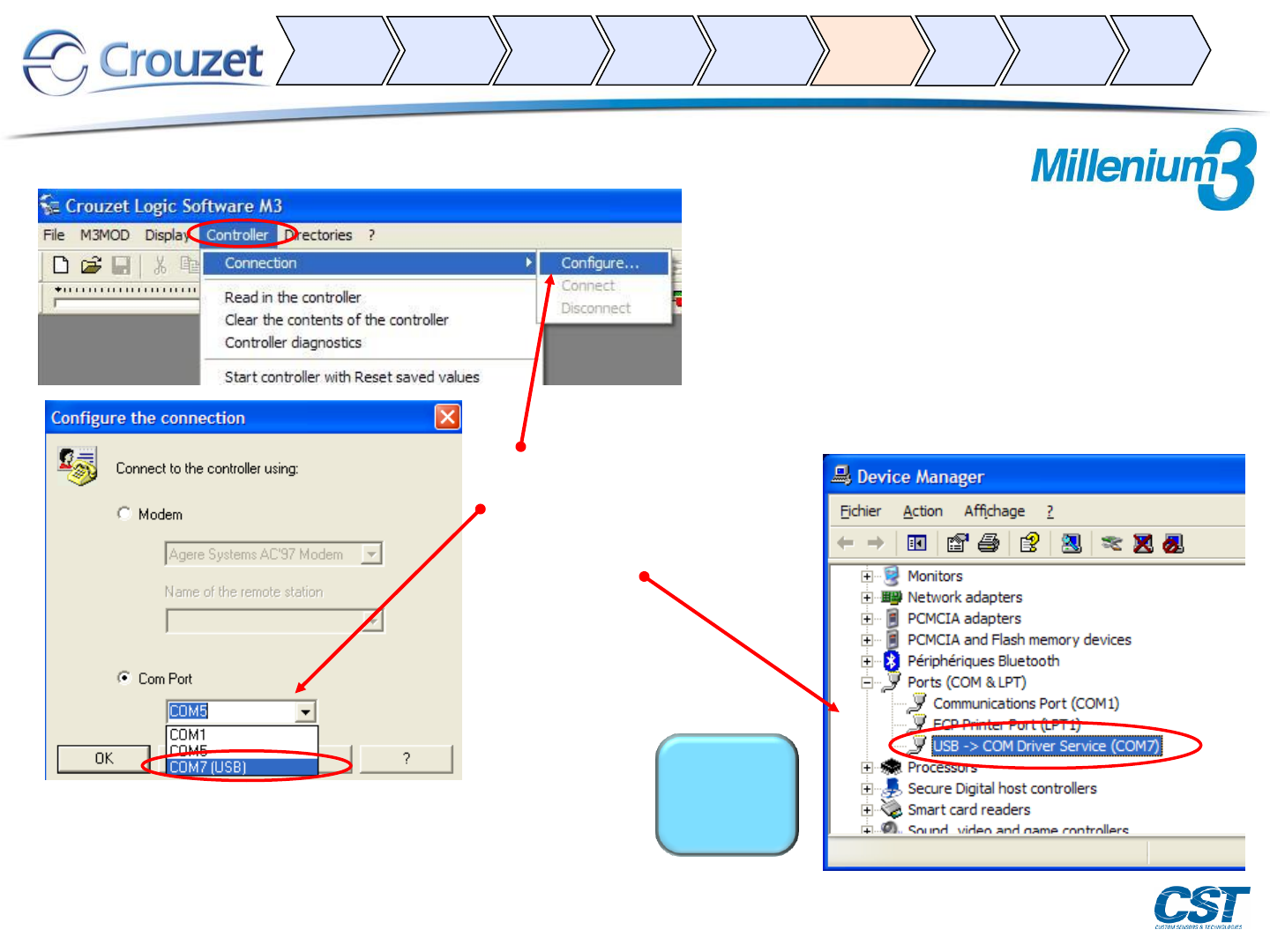

Connection configuration
File Transfer
Where to
find the
COM
ports
COM configuration
Tick here
Select RS232C
Tick OK
If a USB to serial adapter
is used, select the
appropriate port according
to the Device Manager
before ticking OK !
Software
Installation
and Wiring
MTP01
Functiona-
lities
Addressing
Internal
Address
Zone
MTPWIN
Introduction
Links to
M3 + MTP01
Programs
Data
Backup Glossary
Commi-
sioning
M3+MTP01
March 2010 35/83

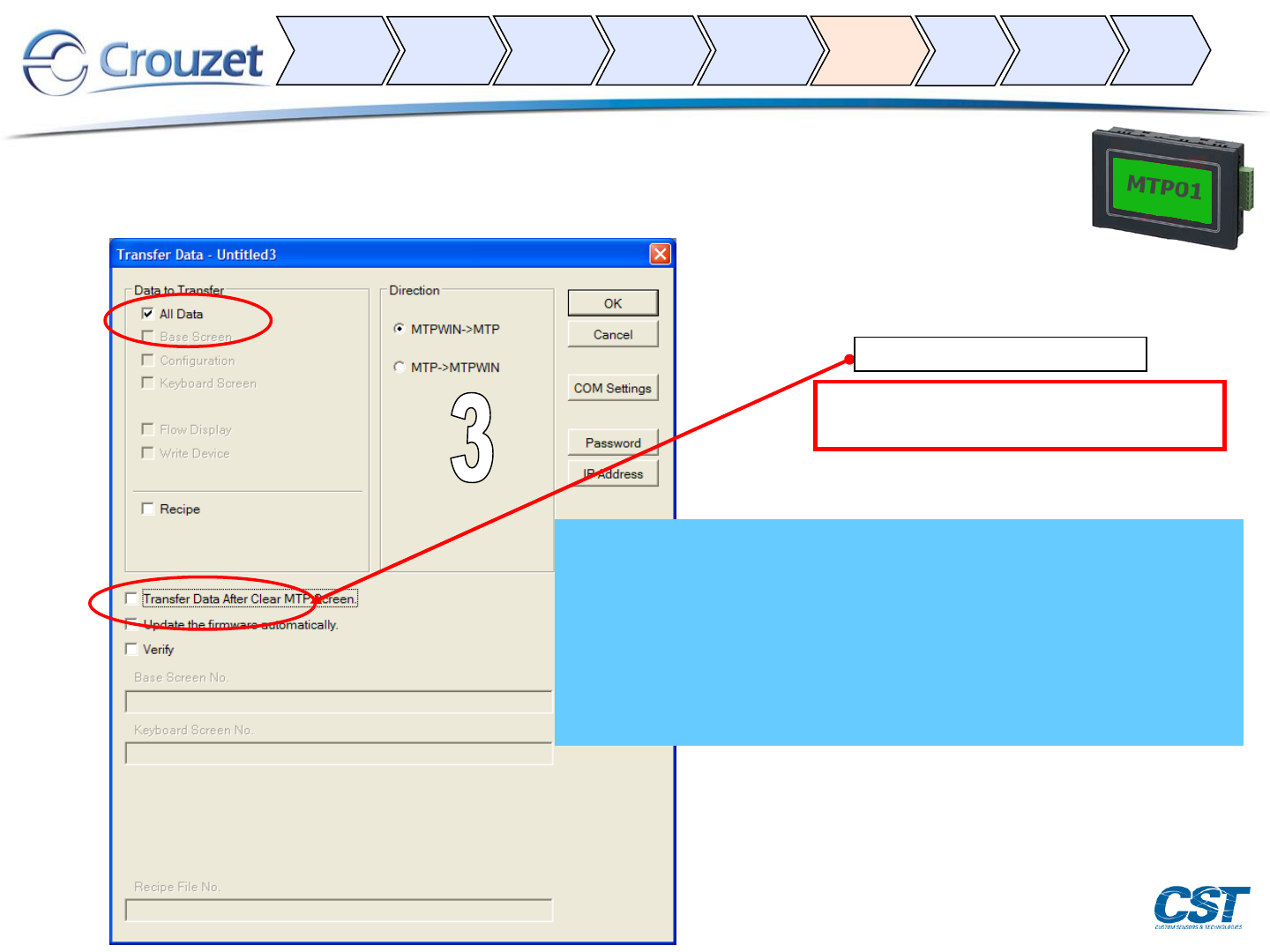

Data transfer PC MTP01
Updates Firmware.
Important to mark on first data
transfer.
•All data
•Transfer data after clear screen (optional)
•Select Recipe if necessary
•Enter Recipe File N°(s) if necessary
Software
Installation
and Wiring
MTP01
Functiona-
lities
Addressing
Internal
Address
Zone
MTPWIN
Introduction
Links to
M3 + MTP01
Programs
Data
Backup Glossary
Commi-
sioning
M3+MTP01
March 2010 36/83
Wiring for program transfer PC M3
Disconnect the power whenever inserting or extracting the M3 programming
cable!
OFF
or
or
!
Software
Installation
and Wiring
MTP01
Functiona-
lities
Addressing
Internal
Address
Zone
MTPWIN
Introduction
Links to
M3 + MTP01
Programs
Data
Backup Glossary
Commi-
sioning
M3+MTP01
March 2010 38/83
Connection
configuration
Tick here
Enter the COM-port
according to the information
in the Device Manager
Tick OK
Where to
find the
COM ports
Software
Installation
and Wiring
MTP01
Functiona-
lities
Addressing
Internal
Address
Zone
MTPWIN
Introduction
Links to
M3 + MTP01
Programs
Data
Backup Glossary
Commi-
sioning
M3+MTP01
March 2010 40/83
Wiring for use / data exchange Reminder
Disconnect the power whenever inserting or extracting the Millenium3 - MTP01 data
exchange cable !
!
Connecting
Data exchange
Software
Installation
and Wiring
MTP01
Functiona-
lities
Addressing
Internal
Address
Zone
MTPWIN
Introduction
Links to
M3 + MTP01
Programs
Data
Backup Glossary
Commi-
sioning
M3+MTP01
March 2010 41/83
•Commissioning an M3 –MTP01 program example
Description of the program:
Read/write word and bit between M3 and MTP01.
- Read a word by MTP01
- Read a bit by MTP01
- Write a bit to M3
Links :
QuickMTP01.IOP
QuickProg.pm3
Software
Installation
and Wiring
MTP01
Functiona-
lities
Addressing
Internal
Address
Zone
MTPWIN
Introduction
Links to
M3 + MTP01
Programs
Data
Backup Glossary
Commi-
sioning
M3+MTP01
March 2010 44/83
•Read / write word
Here one enters the part
number of the keyboard
that has been placed on
the screen.
(Or, if there are several,
the keyboard that is to be
linked to the data entry.)
Software
Installation
and Wiring
MTP01
Functiona-
lities
Addressing
Internal
Address
Zone
MTPWIN
Introduction
Links to
M3 + MTP01
Programs
Data
Backup Glossary
Commi-
sioning
M3+MTP01
March 2010 46/83
A recipe is a group of parameters that belong together.
Description of a recipe: A machine produces parts with different dimensions in different amounts. The parameters and
amounts for each part, called recipies, are sent to Millenium3 by the MTP01 when a new production batch is started.
An example: - Thickness
- Width
- Length
- Number of pieces
All parameters should be sent simultaneously to Millenium3. By using MTP01 one can imagine to have several recipies
(parameter groups). One can create an Excel table which can be imported by the MTPWIN software, allowing to transfer
these recipies (parameter groups) to the MTP01 screen and from there to Millenium3.
- Thickness
-Width
- Length
- Amount
File N°0; Recipe N°0
File N°0
Recipe N°2
Software
Installation
and Wiring
MTP01
Functiona-
lities
Addressing
Internal
Address
Zone
MTPWIN
Introduction
Links to
M3 + MTP01
Programs
Data
Backup Glossary
Commi-
sioning
M3+MTP01
March 2010 47/83

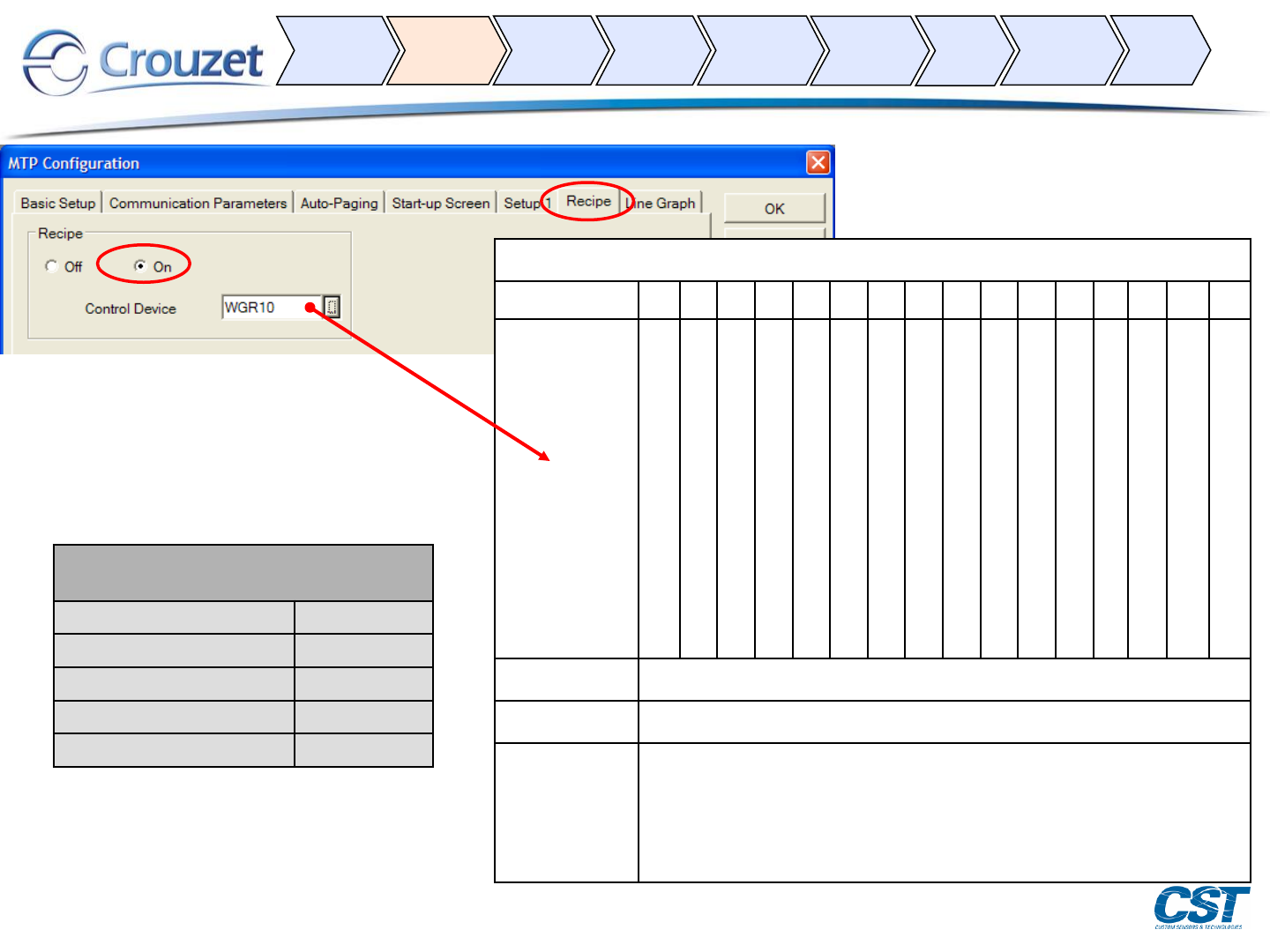

Recipe management
WORD/BIT F E D C B A 9 8 7 6 5 4 3 2 1 0
n
Delete recipes on MTP05
Write from MTP05 to M3
n+1 File n
n+2 Recipe n
n+3
Error code N :
0: No errors
1: The file number was not indicated
2: The recipe number was not indicated
3: Insuffisant memory
The M3 pilot area,
adjustable:
Recipe control register (example)
Example on WGR10
File N WGR11
Recipe N WGR12
Error code WGR13
Write to M3 GR100
Software
Installation
and Wiring
MTP01
Functiona-
lities
Addressing
Internal
Address
Zone
MTPWIN
Introduction
Links to
M3 + MTP01
Programs
Data
Backup Glossary
Commi-
sioning
M3+MTP01
March 2010 50/83

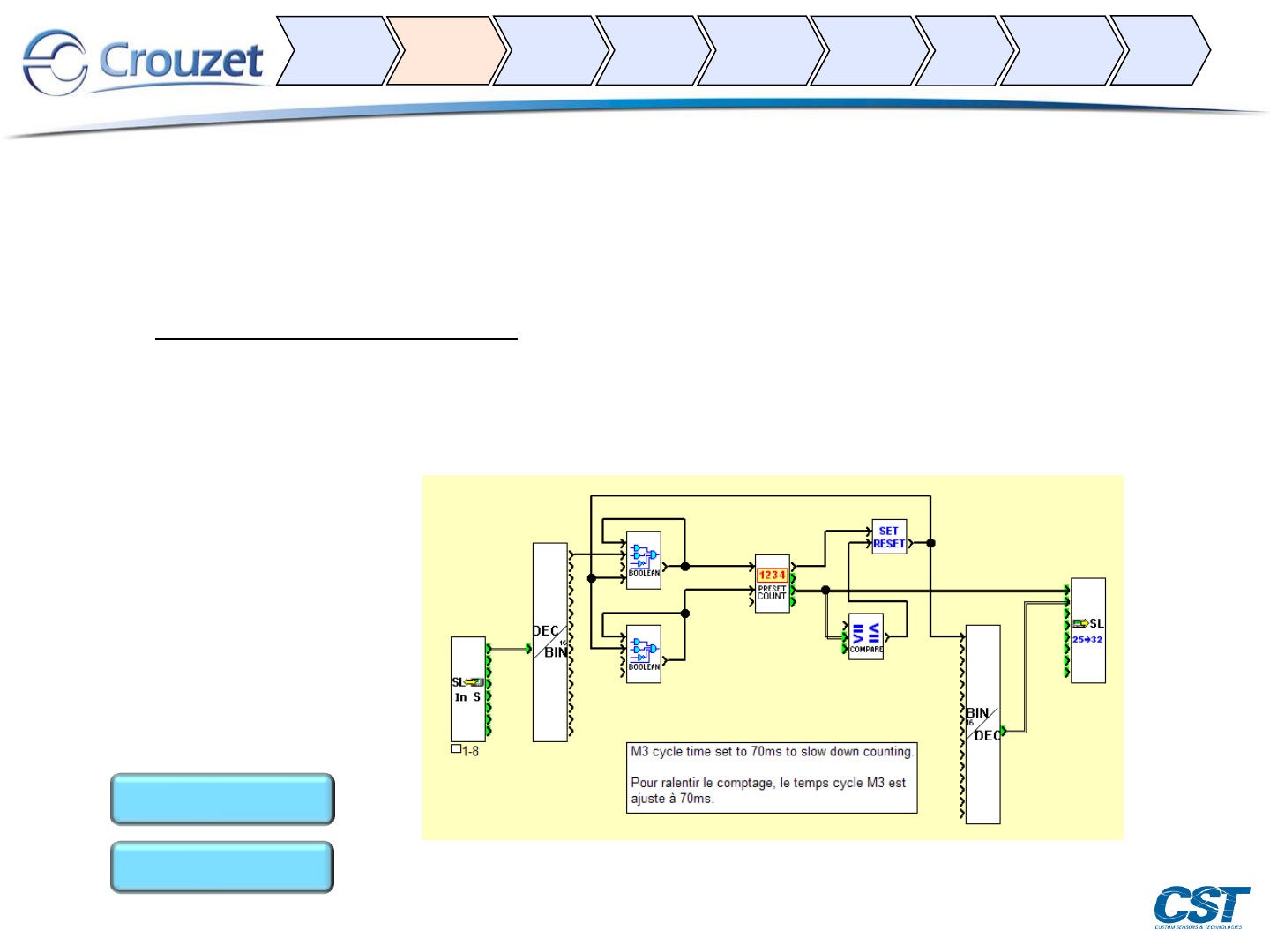

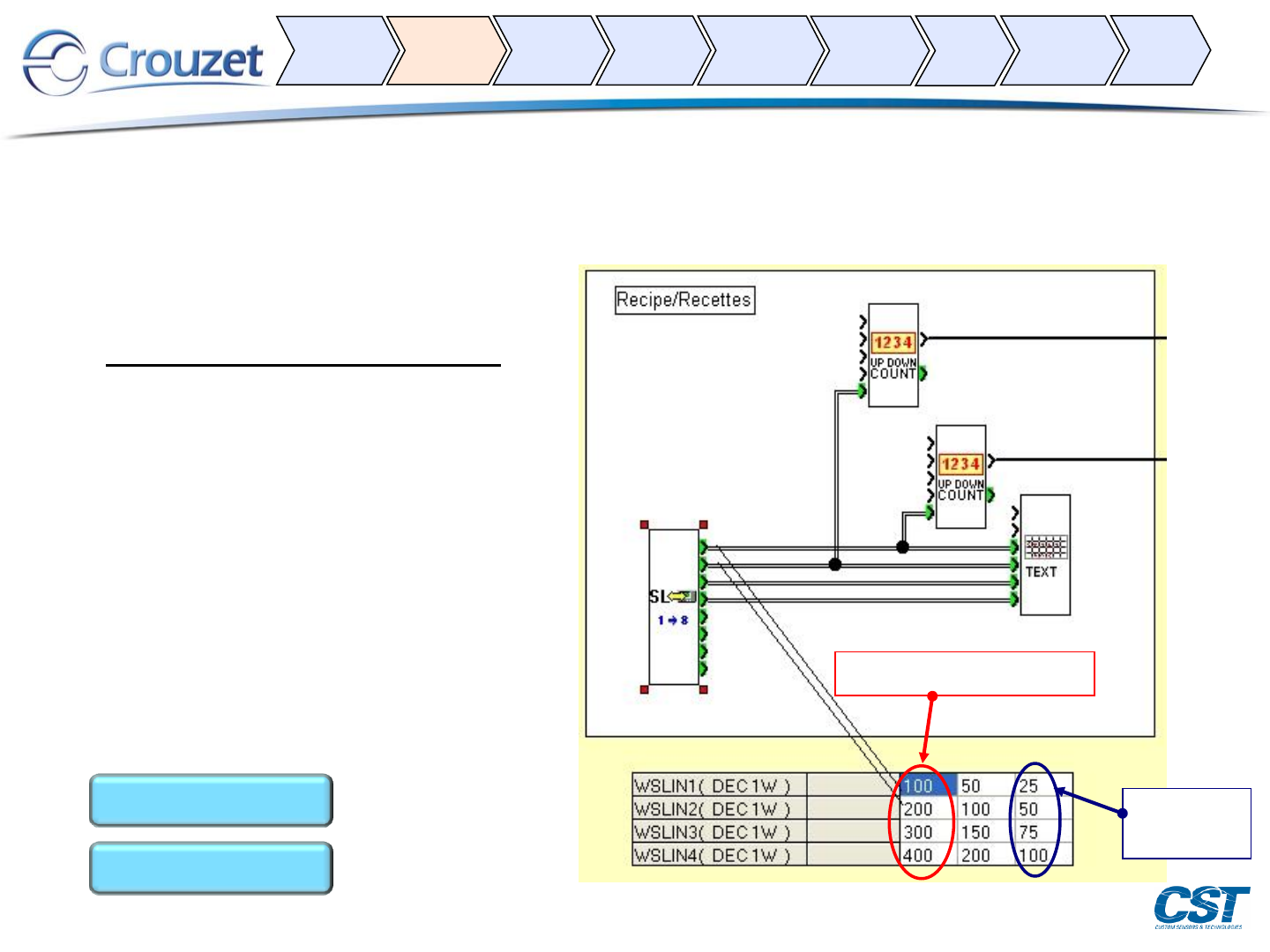

•Commissioning an M3 program example
Program description:
Recipe management
Preselect values for
counters sent by MTP01.
•Recipe management
File N°0; Recipe N°0
File N°0
Recipe N°2
Links :
Recipe_MTP01.IOP
Rec_MTP.pm3
Software
Installation
and Wiring
MTP01
Functiona-
lities
Addressing
Internal
Address
Zone
MTPWIN
Introduction
Links to
M3 + MTP01
Programs
Data
Backup Glossary
Commi-
sioning
M3+MTP01
March 2010 51/83
•Commissioning an M3 program example
•Recipe management
Recipe control register (example)
Example on WGR10
File N WGR11
Recipe N WGR12
Error code WGR13
Write to M3 GR100
Software
Installation
and Wiring
MTP01
Functiona-
lities
Addressing
Internal
Address
Zone
MTPWIN
Introduction
Links to
M3 + MTP01
Programs
Data
Backup Glossary
Commi-
sioning
M3+MTP01
March 2010 53/83
•Piloting MTP01 by M3
•Program description:
•Manage pages by M3.
•Buzzer activation with M3 keys.
•Manage MTP01 backlight colors with M3 keys.
•Activate flashing backlight with M3 keys.
Links :
MTP01_ScreenControl.IOP
Screen_Control.pm3
Software
Installation
and Wiring
MTP01
Functiona-
lities
Addressing
Internal
Address
Zone
MTPWIN
Introduction
Links to
M3 + MTP01
Programs
Data
Backup Glossary
Commi-
sioning
M3+MTP01
March 2010 54/83
Changing a page
Parameters in the M3 program:
Buzzer activation, changing the
backlight color or flashing is done on
word SLOut47, bits 11,12,13,14 and 16.
To realise switching a screen page use
word SLOut45.
The block SLIn17-24 must be present in
the M3 program.
To control the MTP05 with the keys, in- or outputs of M3
one has to use SLOut function blocks.
•REMINDERS
Reminder page 19
Software
Installation
and Wiring
MTP01
Functiona-
lities
Addressing
Internal
Address
Zone
MTPWIN
Introduction
Links to
M3 + MTP01
Programs
Data
Backup Glossary
Commi-
sioning
M3+MTP01
March 2010 55/83
•Page management using M3.
Buzzer activation using the M3 keys.
Managing the backlight color of MTP01 using the M3 keys.
Activate the flashing backlight using the M3 keys.

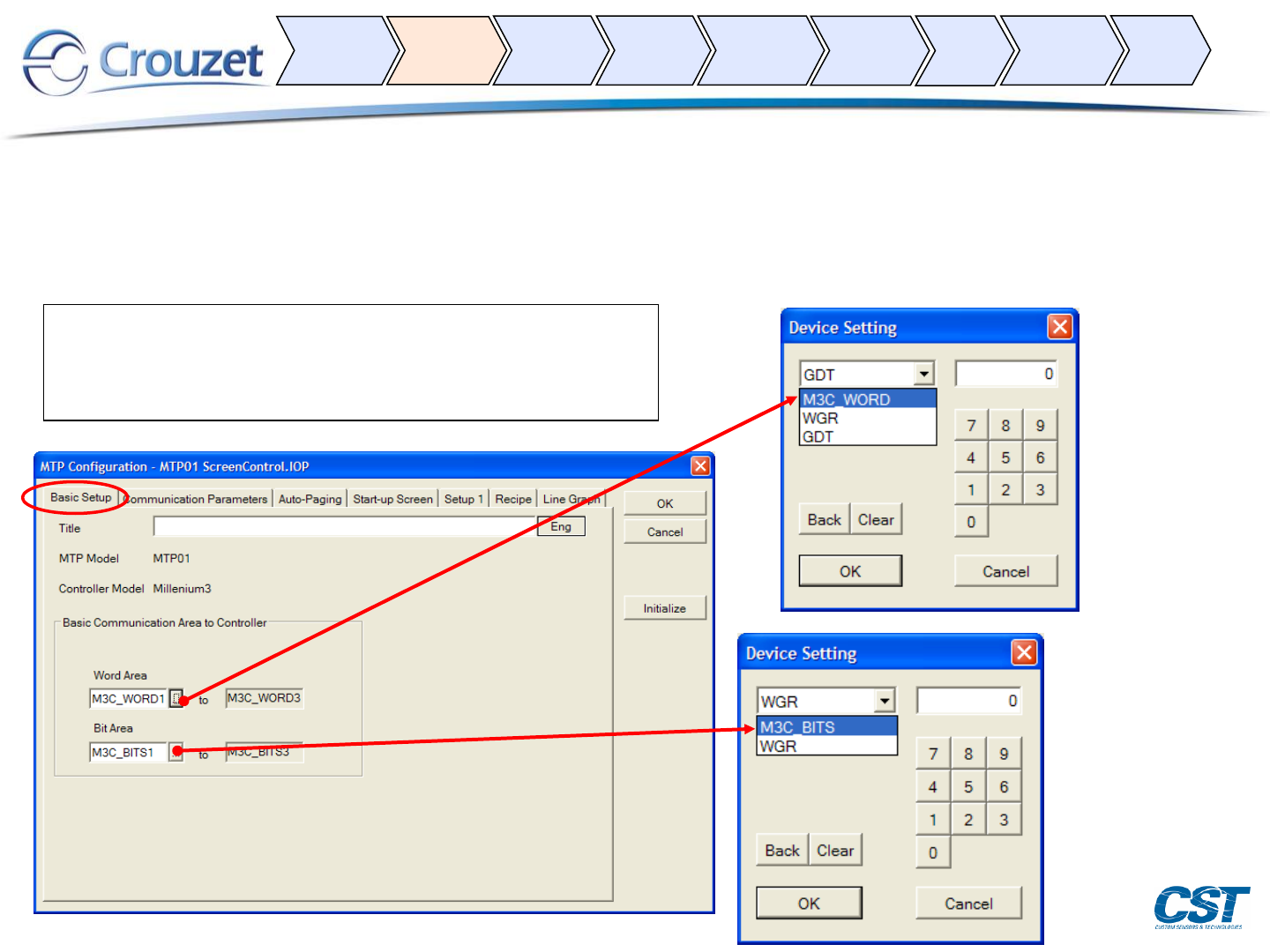

To be able to do this :
1. Go to: File Configuration MTP Configuration
2. Configure the ‘Basic Communication Area’ as shown
Software
Installation
and Wiring
MTP01
Functiona-
lities
Addressing
Internal
Address
Zone
MTPWIN
Introduction
Links to
M3 + MTP01
Programs
Data
Backup Glossary
Commi-
sioning
M3+MTP01
March 2010 57/83

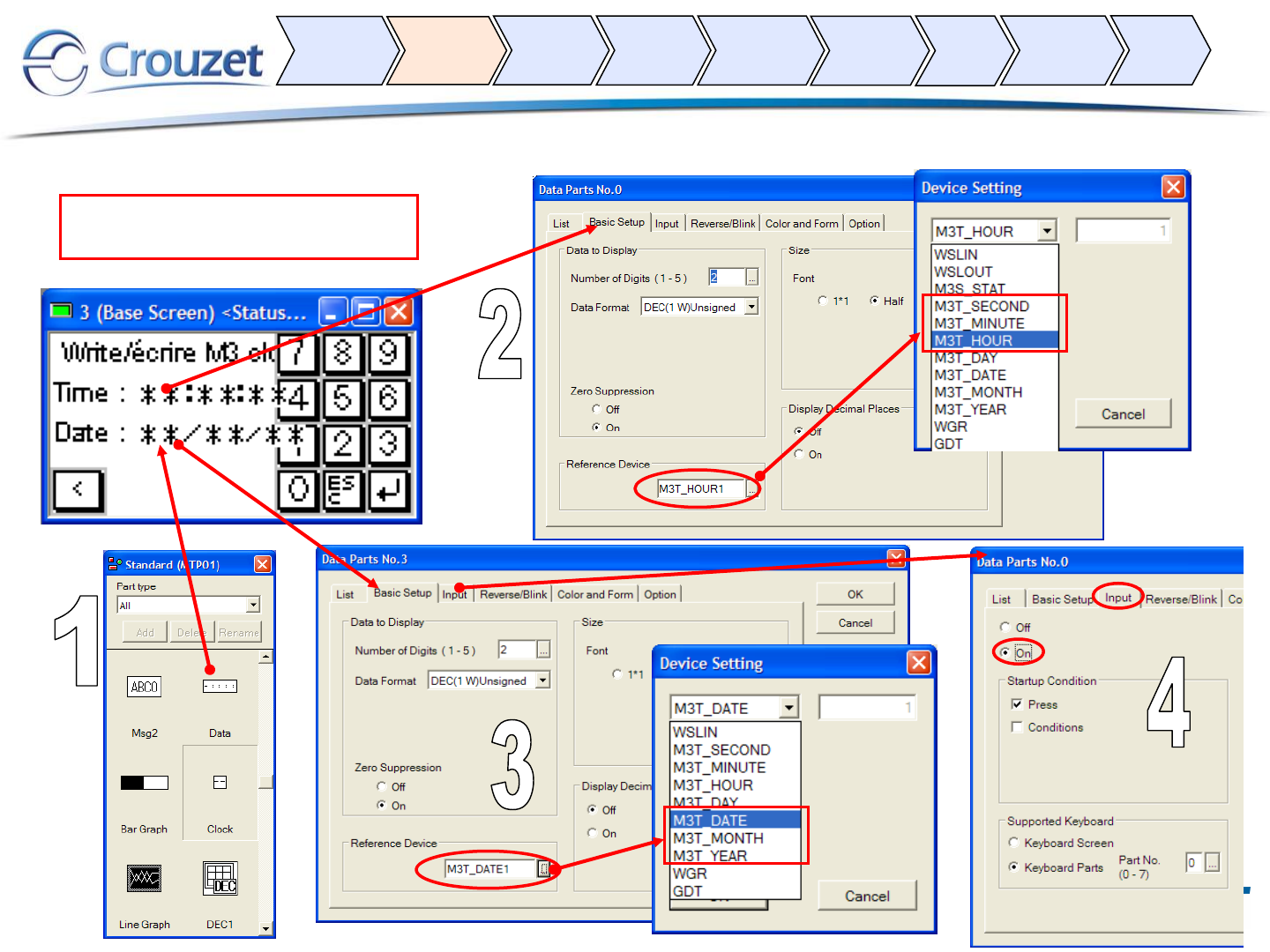

•Status M3, Clock M3
•Program description:
•Read M3 status by MTP01.
•Read/write M3 clock
Links :
Status_Clock.IOP
S_C_Base.pm3
Software
Installation
and Wiring
MTP01
Functiona-
lities
Addressing
Internal
Address
Zone
MTPWIN
Introduction
Links to
M3 + MTP01
Programs
Data
Backup Glossary
Commi-
sioning
M3+MTP01
March 2010 62/83

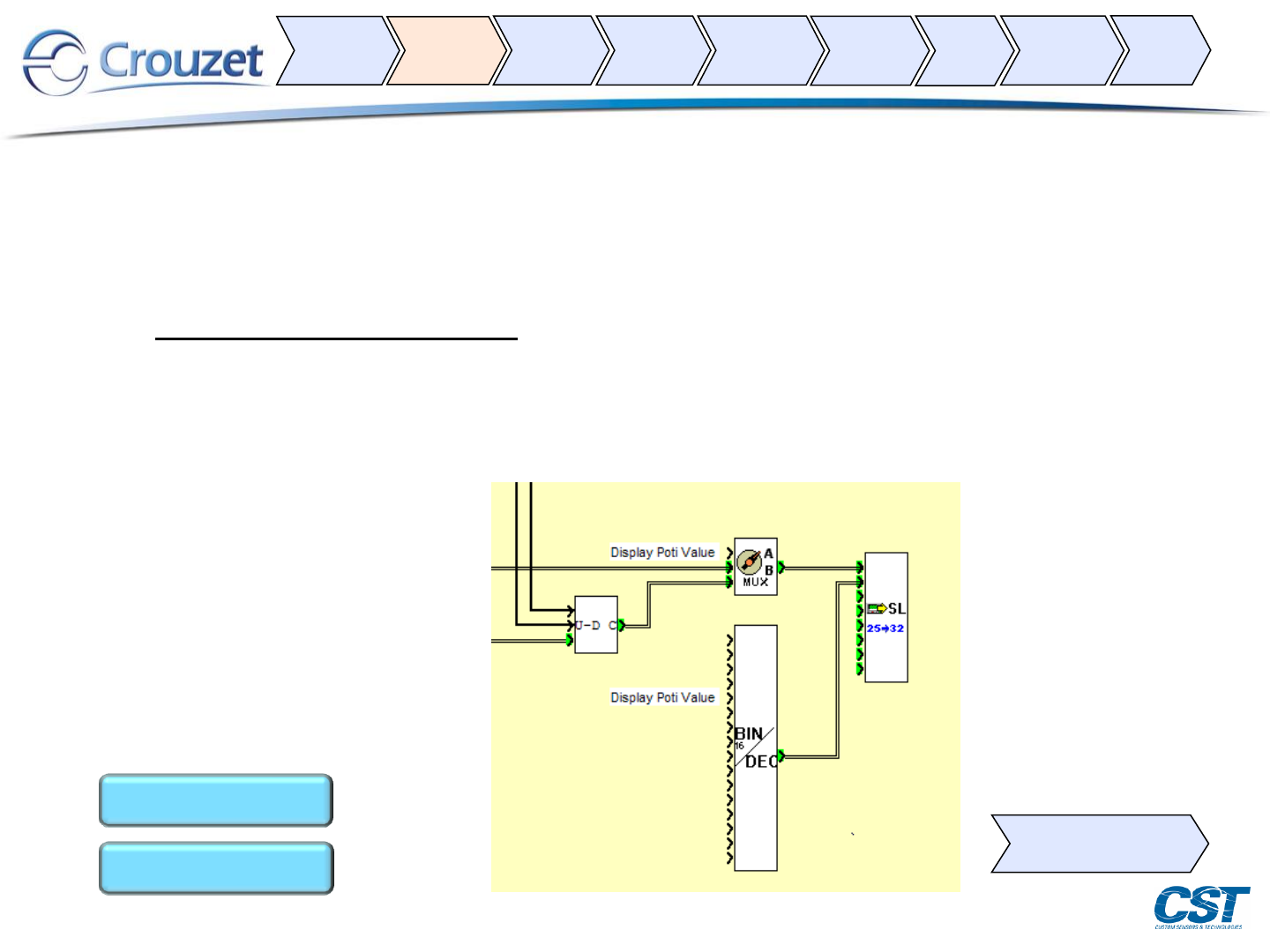

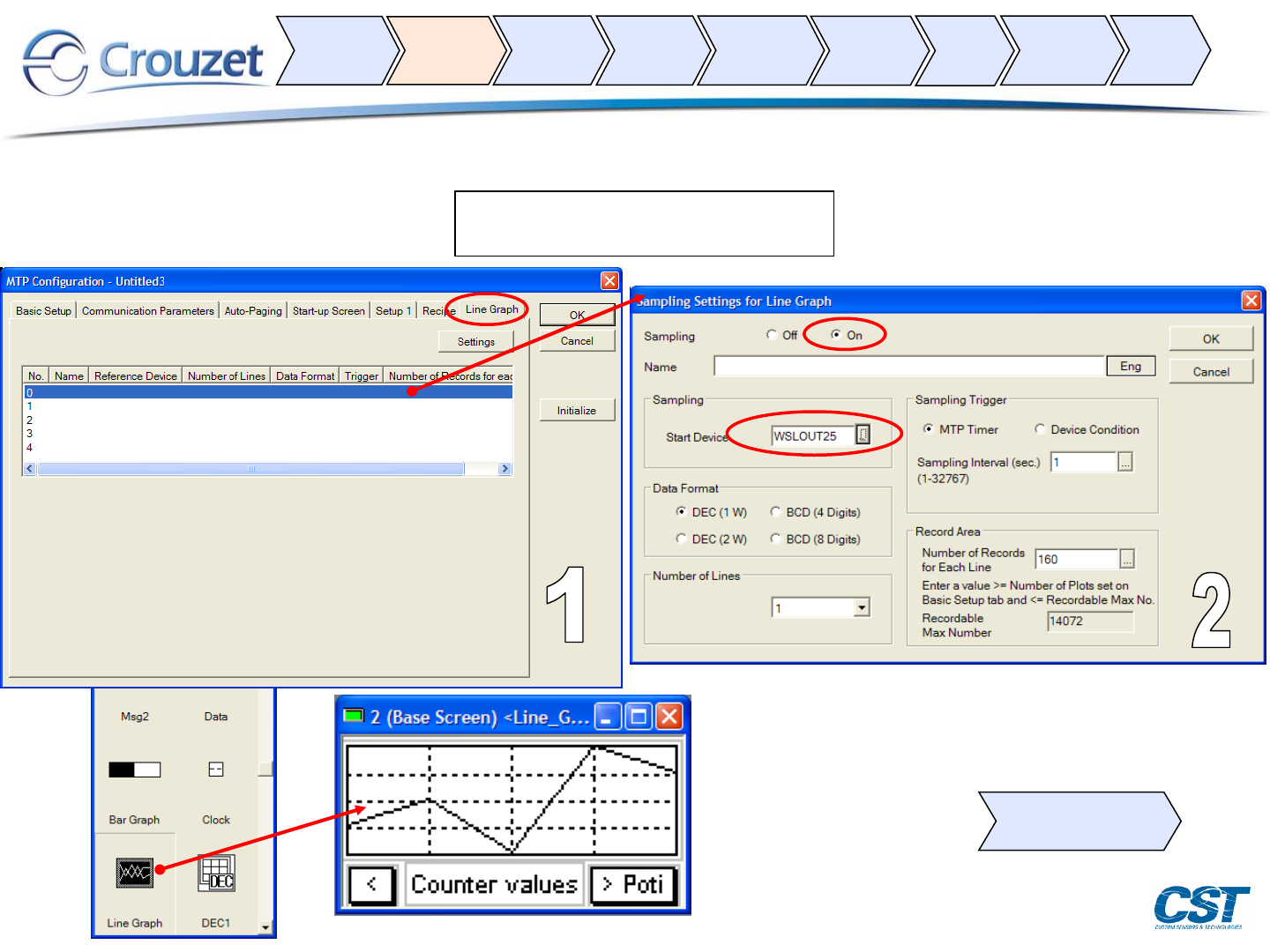

•Line Graph
•Program description:
•Create a line graph using values from M3.
•Switch the line graph input to show potentiometer values.
Links :
Line_Graph.IOP
Line_Graph.pm3
Back to page 30

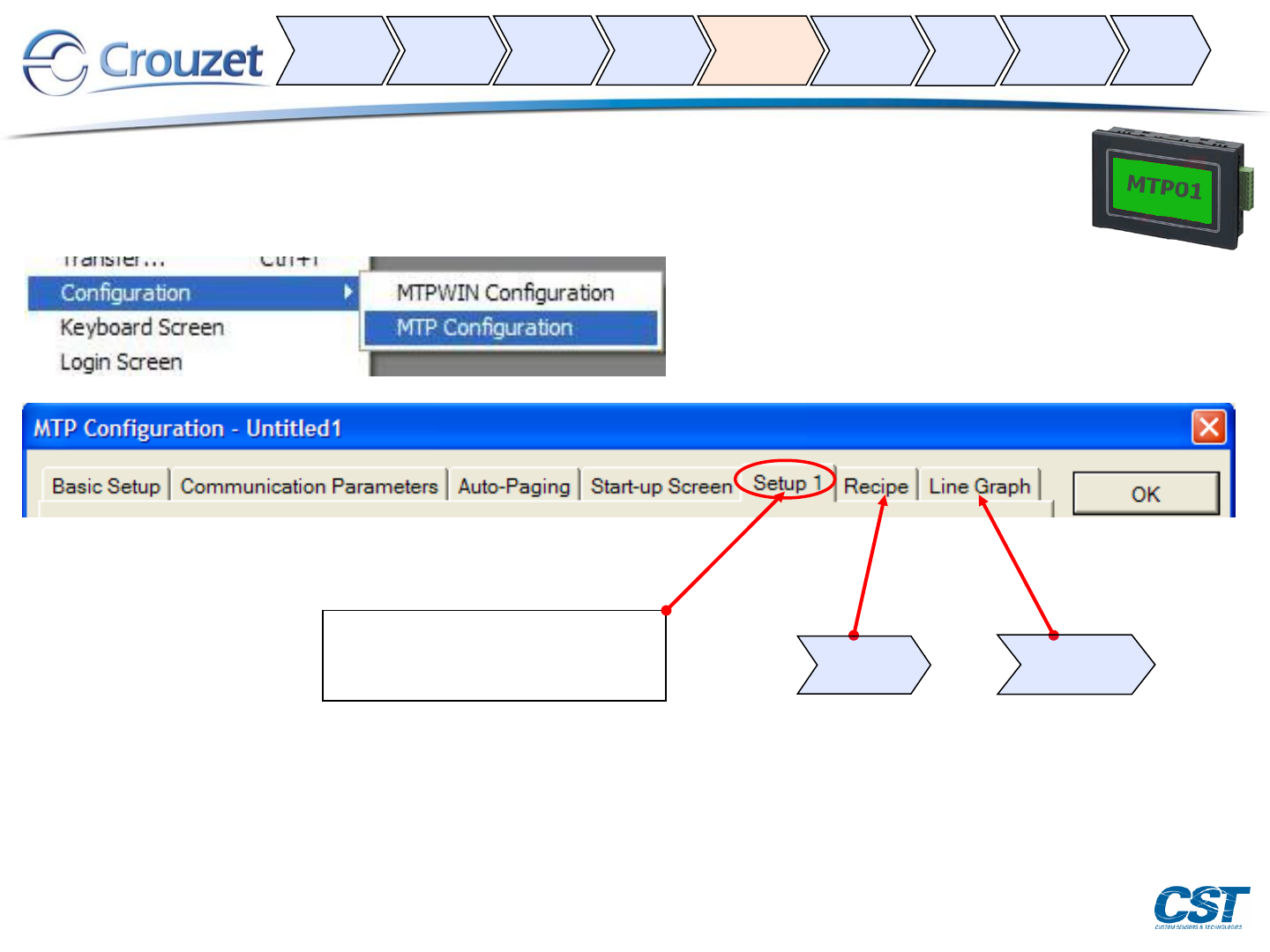

MTP Configuration Menu
Software
Installation
and Wiring
MTP01
Functiona-
lities
Addressing
Internal
Address
Zone
MTPWIN
Introduction
Links to
M3 + MTP01
Programs
Data
Backup Glossary
Commi-
sioning
M3+MTP01
March 2010 68/83
Links :
MTP01_Messages.IOP
Message_Base.pm3
•Messages
•Program description:
•Display different messages using one SLOut address.
Software
Installation
and Wiring
MTP01
Functiona-
lities
Addressing
Internal
Address
Zone
MTPWIN
Introduction
Links to
M3 + MTP01
Programs
Data
Backup Glossary
Commi-
sioning
M3+MTP01
March 2010 69/83
•Messages 1
How the Message parts work:
•The Message part automatically splits up a 16bit word address
into four 4bit sub addresses.
•Each of these ‘sub addresses’ allows to show up to 16 different
text messages.
•So using one SLOut address it is possible to display up to 64
different process informations.
1. Define the number of
messages to be displayed.
2. Define the ‘sub address ‘
which is to be used.
In the example on SLOut26 the
possible settings are:
26-0
26-1
26-2
26-3.
The number of the message
(0,1, 2,…) defines which value
is needed to activate it.
Software
Installation
and Wiring
MTP01
Functiona-
lities
Addressing
Internal
Address
Zone
MTPWIN
Introduction
Links to
M3 + MTP01
Programs
Data
Backup Glossary
Commi-
sioning
M3+MTP01
March 2010 70/83

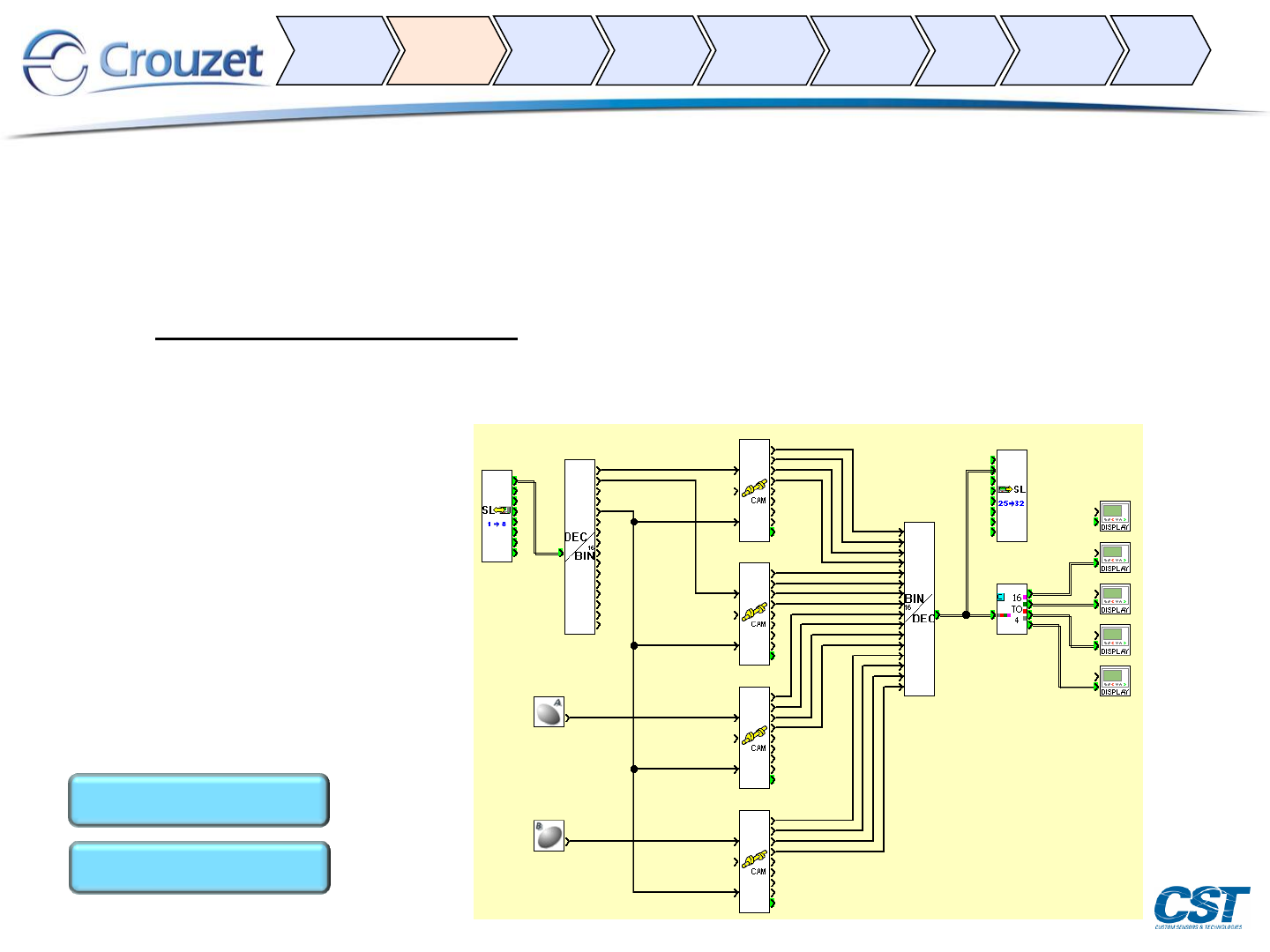

•Messages 2
Enter character string,
font type and size.
Words (values) are used in the communication
between M3 and MTP.
So in order to activate a specific message, M3
has to send the value linked to this message.
There are several possibilities to realise this.
•Create a program similar to the example
below.
•Use the example below to define the value
necessary for a specific message. Write this
value to an SLOut when the message needs
to be displayed.
•Use the example as a base to create a table
for the FBD_C (Application Specific
Function Block) ‘Y=f(x)’.
Input = page number to be displayed,
output = apropriate value.
Link :
Message_Cam.pm3
Software
Installation
and Wiring
MTP01
Functiona-
lities
Addressing
Internal
Address
Zone
MTPWIN
Introduction
Links to
M3 + MTP01
Programs
Data
Backup Glossary
Commi-
sioning
M3+MTP01
March 2010 71/83
•Bitmap and scrolling messages
•Program description:
•Insert a bitmap image
•Show scrolling messages
The scrolling messages are shown on all screens
and are therefore not configurable per screen.
Link :
MTP01_Bitmap.IOP
Software
Installation
and Wiring
MTP01
Functiona-
lities
Addressing
Internal
Address
Zone
MTPWIN
Introduction
Links to
M3 + MTP01
Programs
Data
Backup Glossary
Commi-
sioning
M3+MTP01
March 2010 72/83
•Bitmap 1
max. size 128 x 64 dots

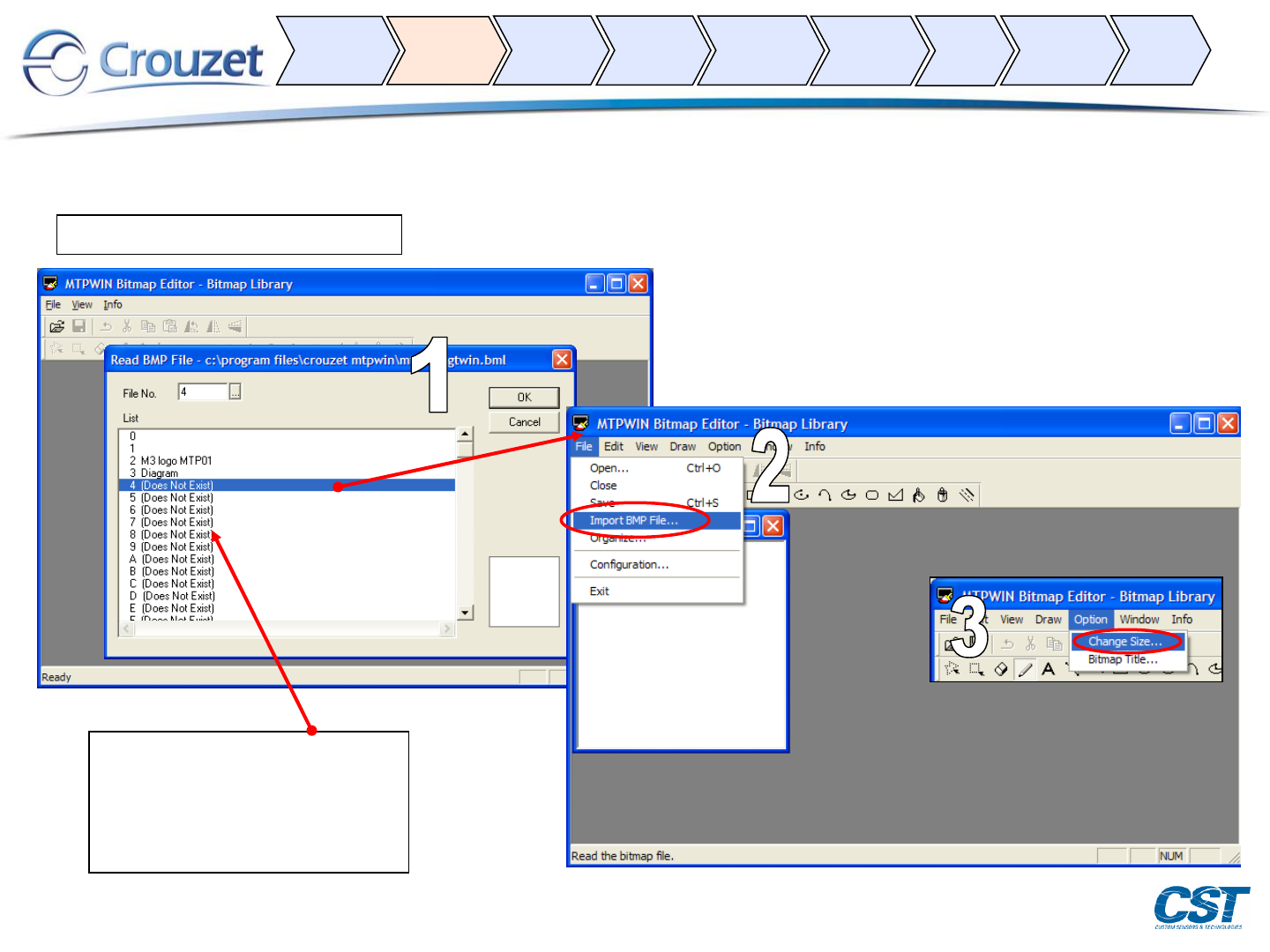

How to create a Bitmap:
1. Draw the schematics of ones application using powerpoint, etc.,
(or directly in the MTPWIN software) or copy any picture /
diagram into PowerPoint, redimension it, tick right, ‘save as
image’, .bmp.
2. To verify the size, copy to Paint, tick ‘Image’, ‘Attributes’, or
move the mouse over the saved image to activate the pop-up.
3. Copy and paste it into an empty MTP01 screen, or enter it into
the MTPWIN Bitmap Library.
Black and white diagrams and pictures produce the best results.
Software
Installation
and Wiring
MTP01
Functiona-
lities
Addressing
Internal
Address
Zone
MTPWIN
Introduction
Links to
M3 + MTP01
Programs
Data
Backup Glossary
Commi-
sioning
M3+MTP01
March 2010 73/83
Creating a bitmap
Create your own library
of images, and you can
use them in any
program you make.
•Bitmap 2
max. size 128 x 64 dots
Go to: Start Editor Bitmap
Software
Installation
and Wiring
MTP01
Functiona-
lities
Addressing
Internal
Address
Zone
MTPWIN
Introduction
Links to
M3 + MTP01
Programs
Data
Backup Glossary
Commi-
sioning
M3+MTP01
March 2010 75/83
•Scrolling messages 1
Go to: Start Editor Flow Display
Enter text here
If activated by key
of the MTP display
If activated by M3
Define font
type and size.
Software
Installation
and Wiring
MTP01
Functiona-
lities
Addressing
Internal
Address
Zone
MTPWIN
Introduction
Links to
M3 + MTP01
Programs
Data
Backup Glossary
Commi-
sioning
M3+MTP01
March 2010 77/83
•Comparator 1
Go to: Start Editor Write Device
The « Write Device » will
compare a value and,
according to the result,
carry out an operation on
a word or bit.
One can apply the
comparator to a specific
screen or to all screens
of a program.
Links : MTP01_Write_Device.IOP
WriteDevice.pm3
Software
Installation
and Wiring
MTP01
Functiona-
lities
Addressing
Internal
Address
Zone
MTPWIN
Introduction
Links to
M3 + MTP01
Programs
Data
Backup Glossary
Commi-
sioning
M3+MTP01
March 2010 79/83
•Comparator 3
The advantage of using ‘Write Device’:
The program ‘Comparator_M3.pm3’ together with ‘Comparator_M3.IOP’ has the same functionality,
as ‘WriteDevice.pm3’ in connection with ‘MTP01_Write_Device.IOP’.
In case of ‘WriteDevice’ the M3 program is smaller, because the functions of switching Messages, pages,
and colour, and the complete value comparision has been transfered to the Write Device of the MTP.
WriteDevice.pm3
Comparator_M3.pm3
MTP01_Write_Device.IOPComparator_M3.IOP
Software
Installation
and Wiring
MTP01
Functiona-
lities
Addressing
Internal
Address
Zone
MTPWIN
Introduction
Links to
M3 + MTP01
Programs
Data
Backup Glossary
Commi-
sioning
M3+MTP01
March 2010 81/83

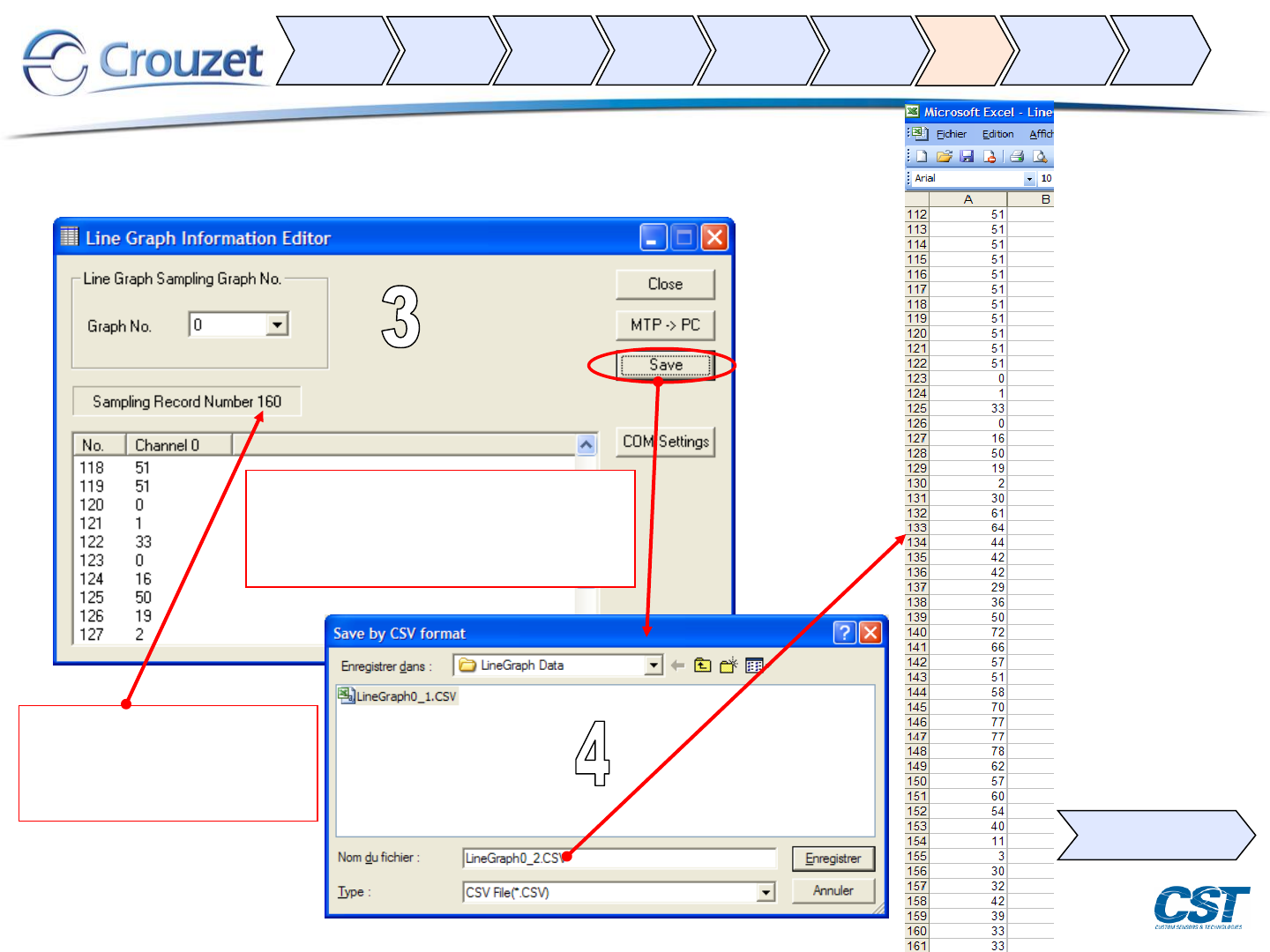

•Accessing Sampled Data 2
In this example, the last 160 samples
that have been registered, up to the
moment the transfer order has been
given, can be read out and saved.
Back to page 63
Line Graph
Number of registered samples
available for transfer.
See 'Line graph' configuration
Software
Installation
and Wiring
MTP01
Functiona-
lities
Addressing
Internal
Address
Zone
MTPWIN
Introduction
Links to
M3 + MTP01
Programs
Data
Backup Glossary
Commi-
sioning
M3+MTP01
March 2010 82/83
•Links to M3 / MTPWIN programs
M3 Programs: MTPWIN Programs:
Conditions Conditions
Comparator M3
Bitmap & Scroll messages
Message explanation
MessagesMessages
BargraphBargraph
Line graph
Line graph
Status / clock
M3 status / clock
MTP01 piloted by M3
Pilot MTP01 by M3
Recipe
Recipe
Read/write bit/word
Read/write bit/word
Internal screen control
Comparator by M3
Software
Installation
and Wiring
MTP01
Functiona-
lities
Addressing
Internal
Address
Zone
MTPWIN
Introduction
Links to
M3 + MTP01
Programs
Data
Backup Glossary
Commi-
sioning
M3+MTP01
March 2010 83/83
•Glossary
•Bit logic status (1 or 0)
•Word a 16 bit value
•WGR internal MTP register (Word)
•GDT internal MTP register (Word)
•GR internal MTP register (Bit)
•WSLOUT word/address on block SLOut M3
•WSLIN word/address on block SLIn M3
•BSLOUT bit of a word on block SLOut M3
•BSLIN bit of a word on block SLIn M3
•M3 Millenium3
•MTPxx Millenium Touch Panel (screen of the M3)
•.pm3 program written with the M3 software
•.IOP program written with the MTPWIN software
Software
Installation
and Wiring
MTP01
Functiona-
lities
Addressing
Internal
Address
Zone
MTPWIN
Introduction
Links to
M3 + MTP01
Programs
Data
Backup Glossary
Commi-
sioning
M3+MTP01
