WATER &
DUST-
PROOF
With IP66 Sealing Capability
HIGHER
POWER
In an ultra-
compact body
63 mm (2.48”)
48 mm X
48 mm
front face
(1/16 DIN)
10 A output power
Single and Double Output
Control More and Bigger Loads
Resist Higher Inrush Currents
WIDER
VISIBILITY
Long-Range
Visibility
Wide Viewing
Angle
Far and Wide
HIGH
CONTRAST IMPROVED
BRIGHTNESS
Easy to read in bright or low light
BIGGEST
SCREEN
EVER
Biggest Digits &
Screen Indicators
+
13.2
mm
(0.52”) 25
mm
(0.98”)
The new Digital Timer family has higher precision, a wide
range of programming features, and the biggest screen of all similarly
sized timer relays. Intuitive programming makes this new family of
timers easy to use and quick to configure
SEE THE
POWER
SAFE &
PRECISE
QUICK & SAFE
CONFIGURATION
When the timing needs to be
changed at any moment by
the user
PRECISE
TIMING
When your application requires
more precision than possible
with an analog timer
Features Configuration Offer Competitors
Market applications Adaptations Contact
EVOLUTION
WITNESS THE
812 | 814 | 815 | 816
TOP 948
813 SERIES
4TH GEN
3RD GEN
2ND GEN
1ST GEN
TMR48 D
New features
More functionalities
Better readability
Bigger display
Smaller Size
More Power
Timer or Logic
Controller
Download Media Kit
Password: Crouzet_TMR48D
WATCH THE VIDEO
TUTORIAL
PROGRAMMING FUNCTIONS
Delayed Interval
Ab
On-Delay
AOn/Off Delay
Ac
Summation Time Relay
At
Delay on Start
Ad On-Delay, Total Memory
AMt
Off-Delay
C
One-Shot
BInterval
H
Recycler (OFF)
L
Interval Summation
Time relay
Ht
Tming After Pulse
of Control Contact
W
On-Delay, Sum of Times
T
Symmetrical
Flashing (ON)
Symmetrical
Flashing (OFF)
Di
Recycler (ON)
Li
Li
DOWNLOAD DATA SHEET
HOW TO DO IT?
EASY CONFIGURATION
ADVANCED MODE
For more flexibility, the extra features you
need to get the most out of your timer
BASIC MODE
All needed basic functions for
immediate plug-and-play
TEST MODE
Test mode available to easily
check your set-up
CHOOSE YOUR CONFIGURATION MODE
PROGRAMMING FEATURES
Lock option
3 different degrees of protection
Wide time range
Program from 0.001seconds up to 9999 hours
NPN or PNP input selection
Accepts a wide range of input devices
Input timing selection
For use with normal or high-speed input devices
Instantaneous or delayed selection
Use with self-holding circuits or as auxiliary relays
Memory option
The last running time is saved before power-off
Time limit
Set maximum time limits
Screen brightness selection
Extend screen life with reduced brightness modes
SOCKETS
PART NUMBERING
SYSTEM
138,00 € 165,00 € 170,00 € 185,00 € 97,00 € 97,00 €
LIST PRICE (€)

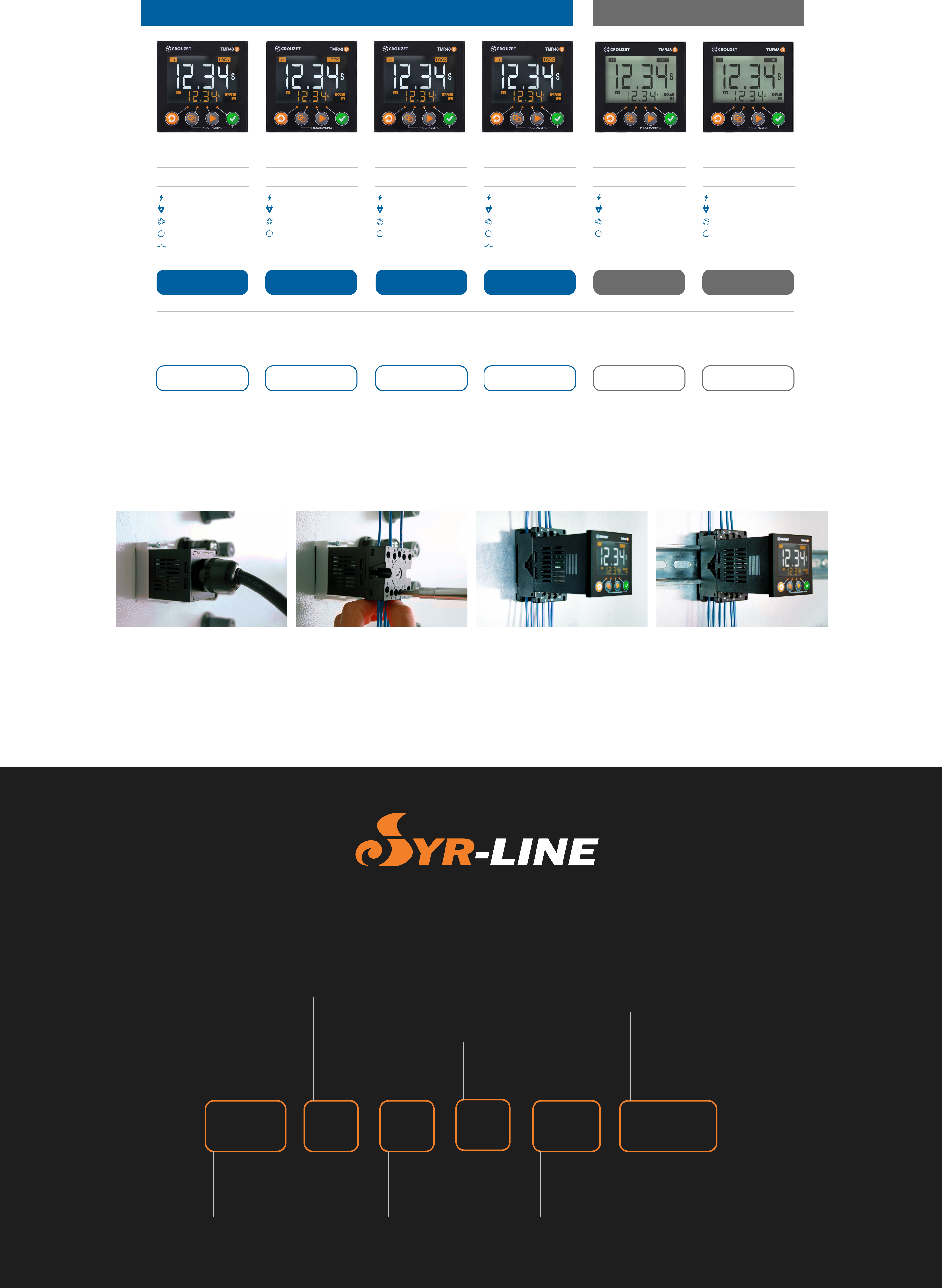

MEET THE
OFFER
Available in two versions, the Standard version has all the basic functions and features you expect to find in a reliable
front-panel timer, while the Performance version offers even more functions and greater visibility
PERFORMANCE VERSION STANDARD VERSION
DATA SHEET DATA SHEET DATA SHEET DATA SHEET DATA SHEET
MDA2 MDF1 GDF1 GDS2 MDE1 MDE1
MDA2R10MV2 MDF1R10MV2 GDF1R10MV2 GDS2R10MV2 MDE1R0524U MDE1R05MVA
2 x 10A
24-240V ACDC
8-Pins
Function A
R2: Timed /
Instantaneous
2 x 10A
24-240V ACDC
11-Pins
Multifunction S
R2: Timed /
Instantaneous
1 x 10A
24-240V ACDC
8-Pins
Multifunction F
DATA SHEET
1 x 10A
24-240V ACDC
11-Pins
Multifunction F
1 x 5A
24V ACDC
8-Pins
Multifunction E
1 x 5A
100-240V ACDC
8-Pins
Multifunction E
AF F S E E
Solder Plug Screw Terminal Panel Mount DIN Rail
11-Pin P/N: 25622076
8-Pin P/N: 25622301
11-Pin P/N: 79694002
8-Pin P/N: 25622203
11-Pin P/N: 25622080
8-Pin P/N: 25622130
11-Pin P/N: 25622080
8-Pin P/N: 25622130
Function
A:
E:
F:
S:
Power Supply
MV2:
MVA:
24U:
Type
MD:
GD:
Output Quantity
1:
2:
Output Power
10:
05:
ON-Delay
Multifunction E
Multifunction F
Multifunction S Relay
24-240 V AC/DC
100-240 V AC/DC
24 V AC/DC
Digital 8-Pins
Digital 11-Pins
1 Output
2 Outputs
10 A
5 A
Output Type
R:
GD S 2 R 10 MV2

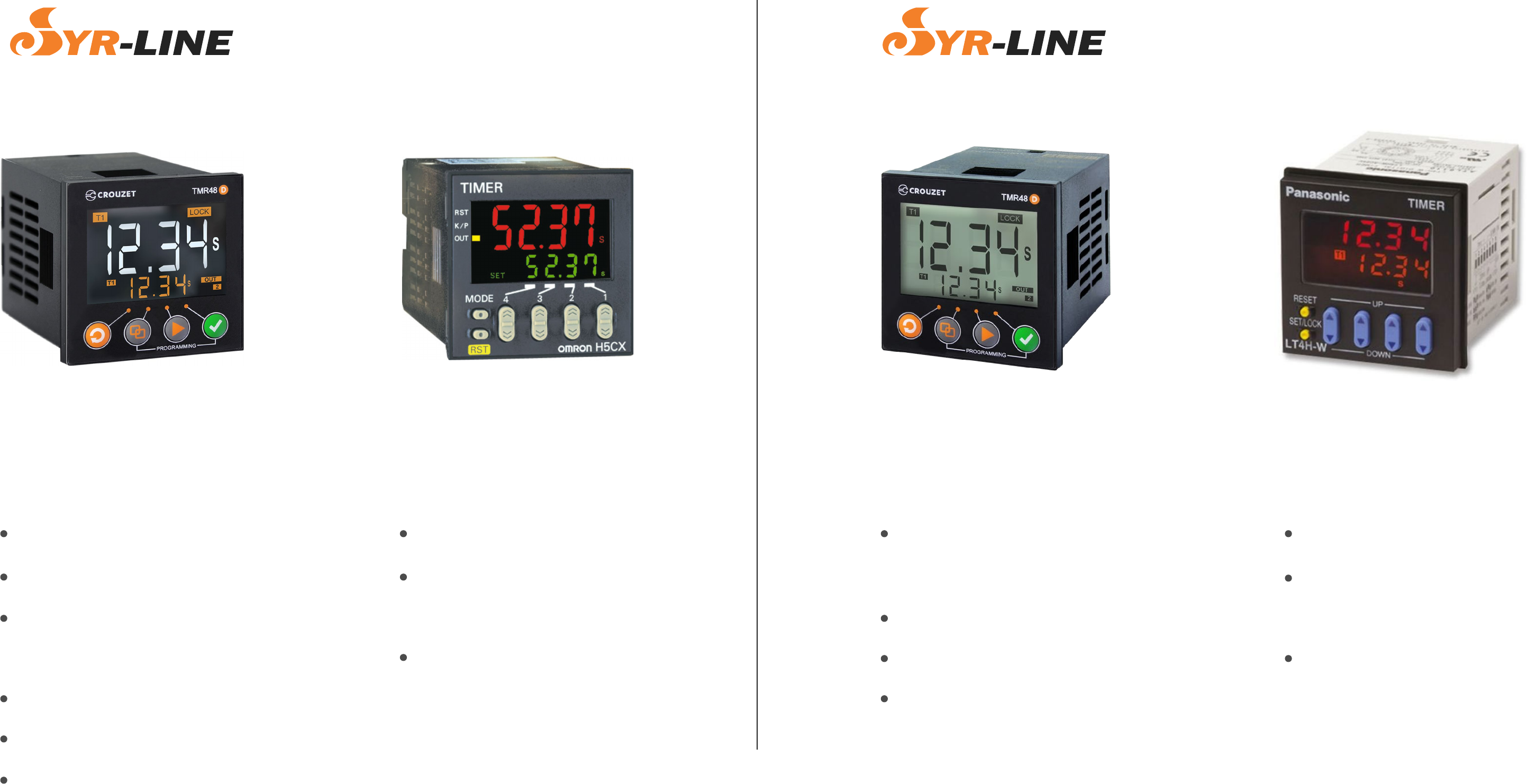

COMPARISON WITH
COMPETITORS
OMRON Panasonic
VSVS
More programming
features
Better readability
More intuitive
Fewer P/Ns
More functions
More power (up to 10A)
More programming
features
Better readability
More intuitive
Fewer P/Ns
Safety features
Screw connection
available
SSR output available
Colored screen
Screw connection
available
SSR output
available
165 € - 185 €
PERFORMANCE
List price: List price: List price: List price:
STANDARDH5CX LT4H
165 € - 235 €97 €105 €
MARKETS &
APPLICATIONS
OEMs
Industrial
Process
Control
Motors Pumps Compressors Ovens
Conveyors &
Handling
And any other process or machine that requires precise
timing, good visualization of it or easy access to change it…
Packaging Alarms Dosing
Food Processing UV Curing
Systems
Ultrasonic
Equipment
Hidrographic
Tanks
Industrial, Commercial,
Test, Food & Beverage
Equipment
Drying Cabinets Optic Polishing Ovens Refrigeration

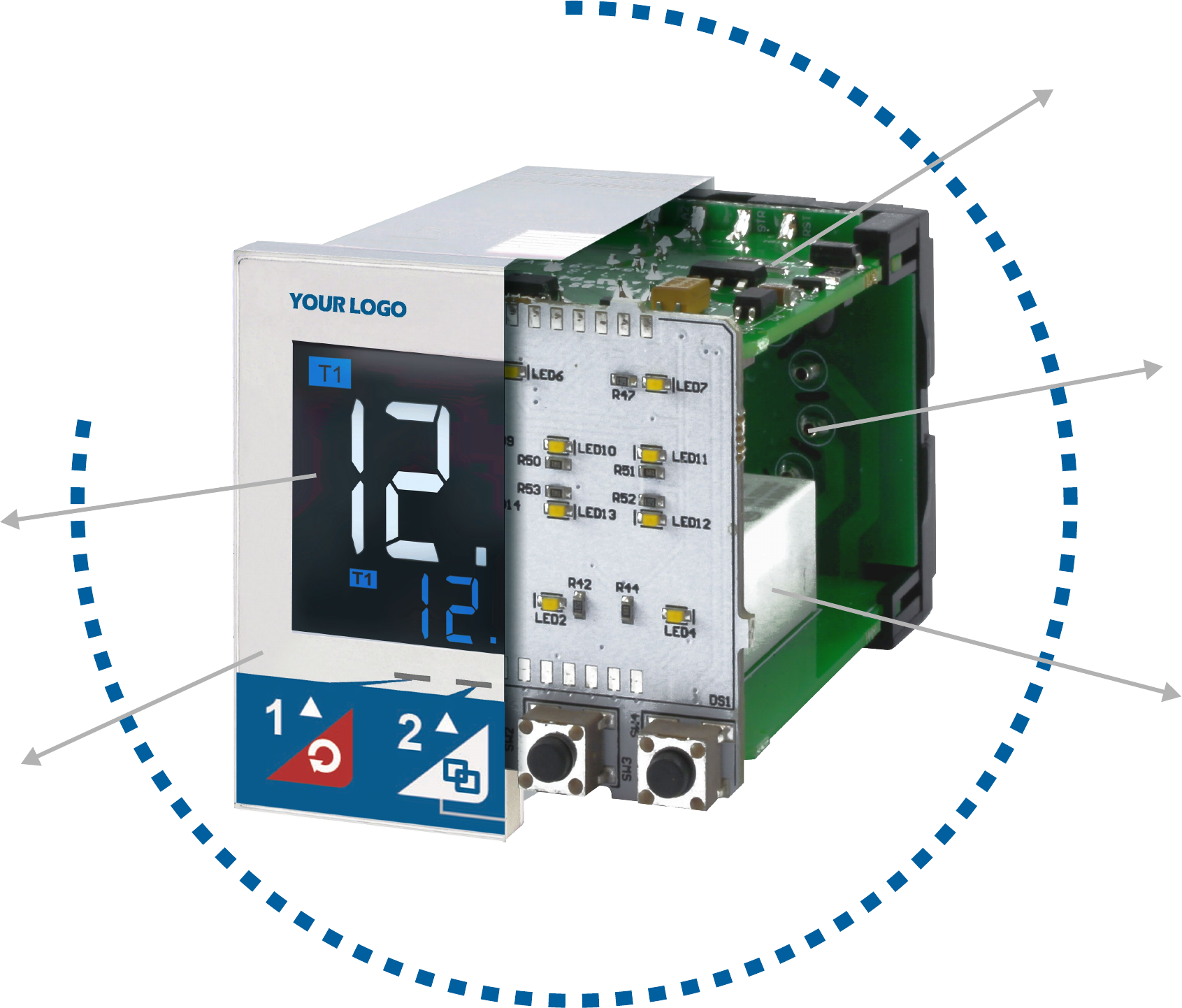

CUSTOMER
ADAPTATION
CENTER
O
E
M
C
U
S
T
O
M
S
O
L
U
T
I
O
N
S
Custom
Screen
Functionality
Special Functions
Fixed Functions
Fixed Time
Others
Specific Certifications
Specific Connections
Electrical
Specific Output Power
Specific Power Supply
Custom
Front Face
Sticker
WHEN TO USE A TIMER
INSTEAD OF A
LOGIC CONTROLLER
138 € - 185 €When you need... 146 € - 170 €
8 Inputs and 4 Outputs
IP40: No water or dust protection
Medium size: 90 x 71.2 mm
All functionality needs to be manually
programmed in a PC
Only DIN rail
1 Input and 1 or 2 Outputs
High Contrasted LED screen
IP66: Water and dust-proof
Compact size: 48 x 48 mm
Easy configuration is done directly
in the product
Possible
Simple timing applications with 1 or 2 variables
High visibility is important
Applications subject to water and dust
Space is important
Quick and simple set up
Must be attached in front planel
