› TMR48X
› Timers
› Panel Mount
› 48 x 48 Analog
›Multi-function or mono-function
›Multi-range from 0.02 s to 300 h
›Multi-voltage 12 to 240 V\⎓ / 24 to 240 V
›Time setting displayed on dial
›2 changeover relays 5 A / 250 V
›Display of power and output states by 2 LEDs
›Housing 48 x 48 mm
Specications
Functions Relay outputs Max. breaking current Supply voltage Connection Code
A1, A2, H1, H2, Q1,
Q2, D-Di
2 changeover or 1
timed and 1 instanta-
neous
5 A / 250 VAC 12 →240 VDC
24 →240 VAC
Plug-in 8 way 88886116
Supply
Supply voltage Un 12 →240 VDC
24 →240 V AC
Operating range ± 10 % DC supply
- 15 % / + 10 % AC supply
Frequency 50 / 60 Hz
Power consumption 4.8 VA / 230 VAC
2.5 VA / 110 VAC
1.1 VA / 24 VAC
0.5 W / 24 VDC
0.8 W / 12 VDC
Timing ranges (14 available options) 0,02 →1,2 s
0,05 →3 s
0,2 →12 s
0,5 →30 s
2 →120 s
5 →300 s
0,2 →12 min.
0,5 →30 min.
2 →120 min.
5 →300 min.
0,2 →12 h
0,5 →30 h
2 →120 h
5 →300 h
Repetition accuracy ± 0.5 % of full scale at 25 °C (typical with constant parameters)
Temperature drift according to CEI/EN 61812 ± 0.05 % of full scale
Display precision ± 5 % of full scale at 25 °C

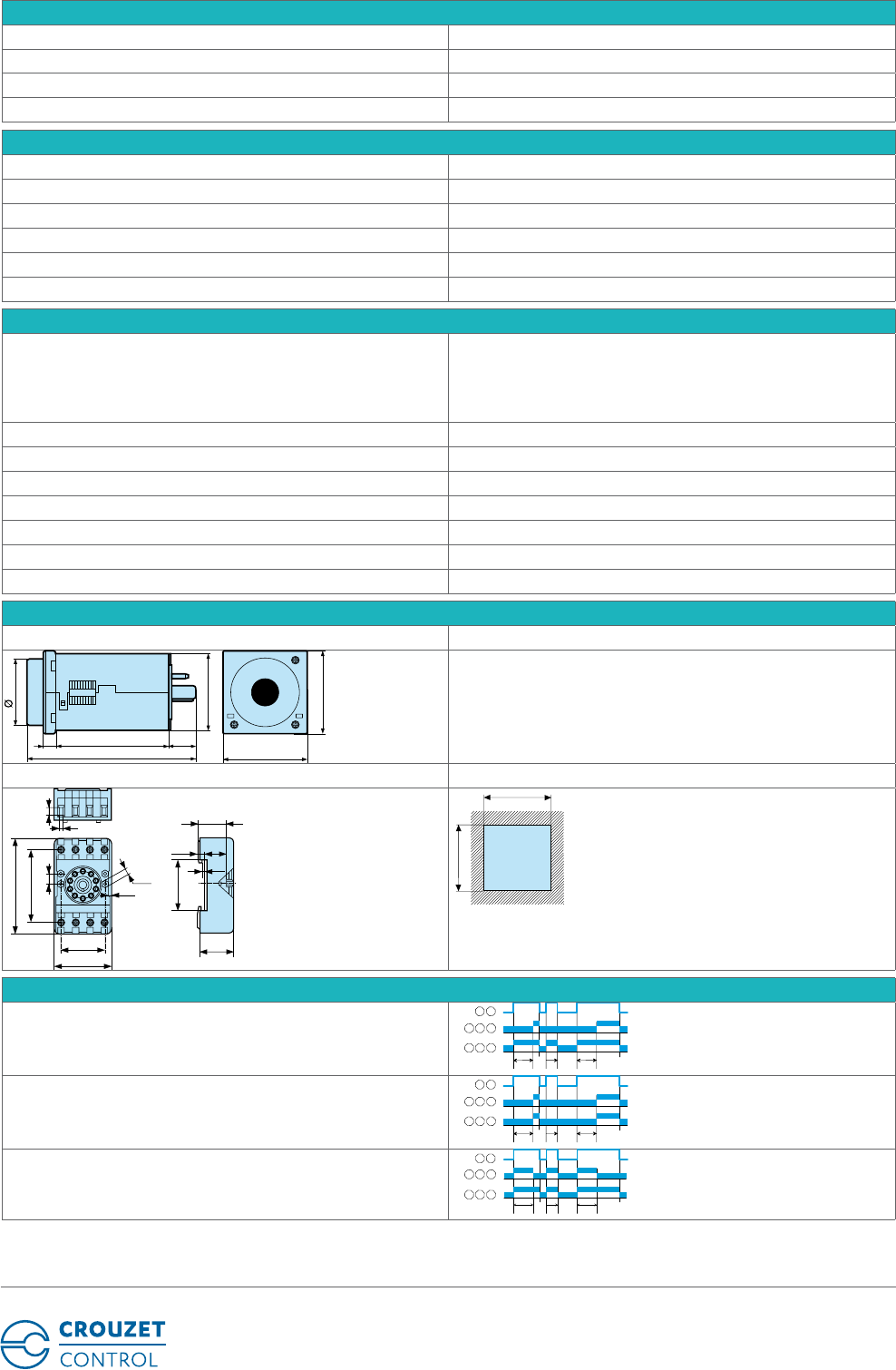

I Timers I 02 I www.crouzet-control.com
Supply
Minimum pulse duration START 25 ms
Minimum pulse duration GATE 60 ms
Minimum pulse duration RESET 60 ms
Retard à la disponibilité par coupure de tension (START strappé) 50 ms
Output specication
Nominal rating 2 x 5 A
Nominal insulation voltage 250 VAC
Rated power (resistive load) 2000 VA
Minimum current 10 mA
Electrical life at I max. 250 V AC resistive (number of operations) 10⁵
Mechanical life (operations) 30 x 10⁶
Function and use
Display of output state by 2 LEDs Green : power ON
ashing during timing
Yellow : ON output ON
OFF output OFF
Operating temperature range (°C) -20 →+55
Storage temperature range (°C) -40 →+70
Breakdown voltage 2 KV
Protection class (IEC 60529) - Panel-mounted IP 50
Protection class (IEC EN/60529) - Casing IP 40
Housing material self-extinguishing
Weight (g) 140
Dimensions
TMR 48 U / A / X / L
44,4
39
15,5
96,8 48
64,56,8
48
35 mm DIN rail base with clips 79 237 739 Panel cut-out
24,2
38
52
35
7,8 5
1,5
3,5
6,4
68,2
7
B314 3
812
34
6543
32 12 14
1,1
15
3,5
18,5
30
45
45
Curves
Function A1
Delay on energisation
T
T
R2 ( )
R1 ( )
5 6 8
1 3 4
2 7
U ( )
Function A2
Delay on energisation
TT
R2 ( )
R1 ( )
5 6 8
1 3 4
2 7
U ( )
Function H1
Timing on energisation
TT
R2 ( )
R1 ( )
5 6 8
1 3 4
U ( )
2 7

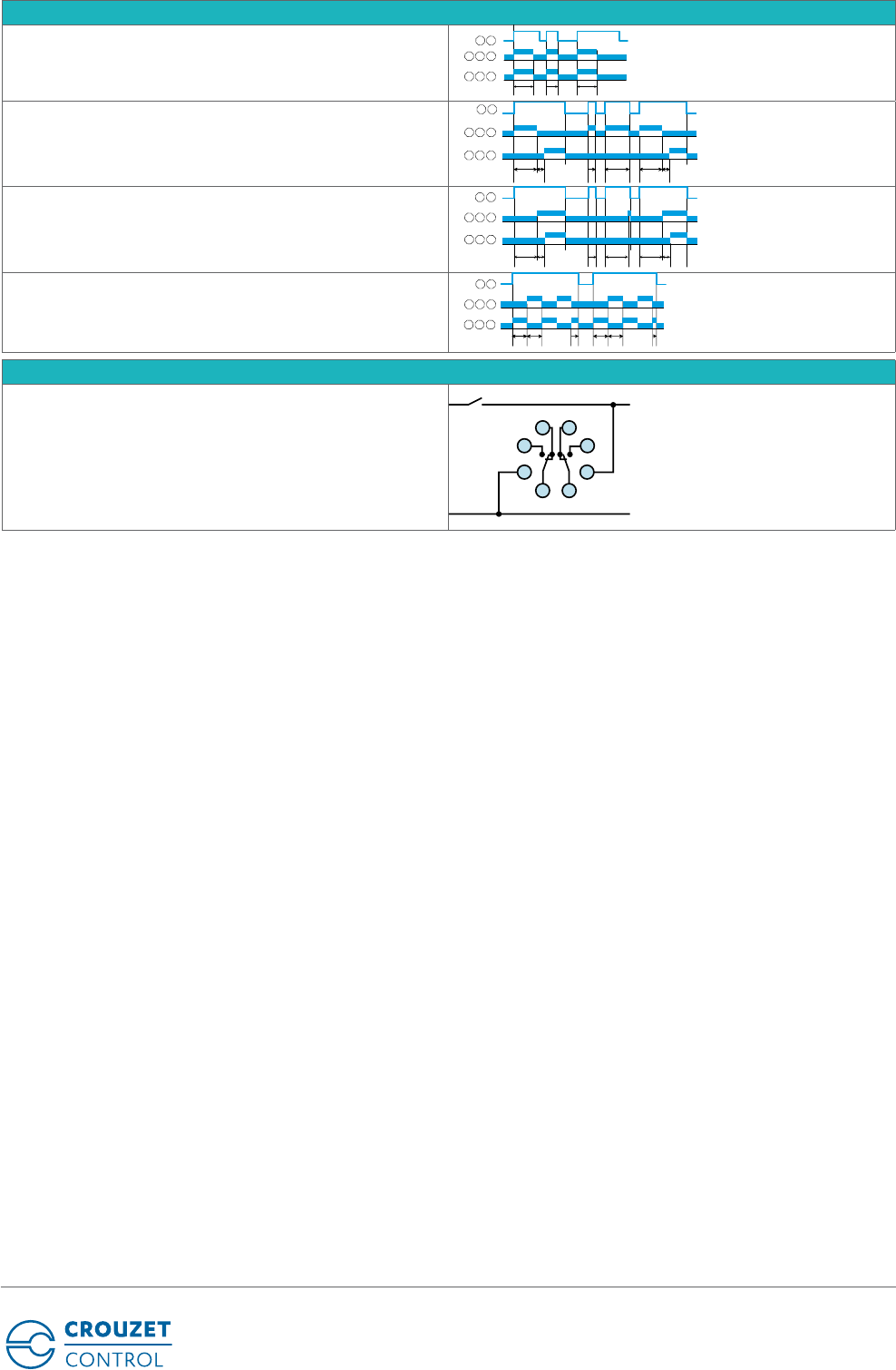

I Timers I 03 I www.crouzet-control.com
Curves
Function H2
Timing on energisation
TT
R2 ( )
R1 ( )
5 6 8
1 3 4
U ( )
2 7
Function Q1
Star-delta
U ( )
R2 ( )
R1 ( )
TTi TTi
5 6 8
1 3
2 7
4
T
Function Q2
Star-delta 2
TTi T
TTi
R2 ( )
R1 ( )
5 6 8
1 3 4
2 7
U ( )
Function D-Di
Cyclic timing : symetric recycler
TTTT
R2 ( )
R1 ( )
5 6 8
1 3 4
U ( )
2 7
Connections
TMR 48 X
4
3
2R1
U
7
6
5
1 8
-
~
+
~
R2
