CrownBoiler.com
BIMINI BUDDY
HYDRAULIC
SEPARATOR
Designed to be installed
with any wall-mounted
Bimini boiler.
Introducing the New Bimini Buddy
The Bimini Buddy, designed to be installed with any wall-mounted
Bimini Boiler, includes all near boiler piping needed for good
hydraulic separation and air elimination in a compact, factory
assembled package. In addition, some models include provisions
for domestic hot water production.
The BB100I and BB100C models utilize the circulator that comes
with the Bimini boiler so a separate DHW circulator isn’t required.
They also include a three way zone valve for domestic hot water
priority that is wired directly to the Bimini without the use of any
additional controls.
All Bimini Buddies have an attractive jacket and convenient
connections for the boiler system, air vent and expansion tank.
The Bimini Buddy has reversible piping so that it can be piped
either right or left of the boiler (factory piping is for installation
on right side of boiler.)
Three Bimini Buddy Models
BB100H - For heat only applications.
BB100I - For connection of a Bimini boiler
to a heating system and an indirect water
heater like the Mega-Stor.
BB100C - Combi unit with a plate heat
exchanger and ow switch for domestic
hot water production in tight places.
Inside
View
CrownBoiler.com
PHILADELPHIA, PA

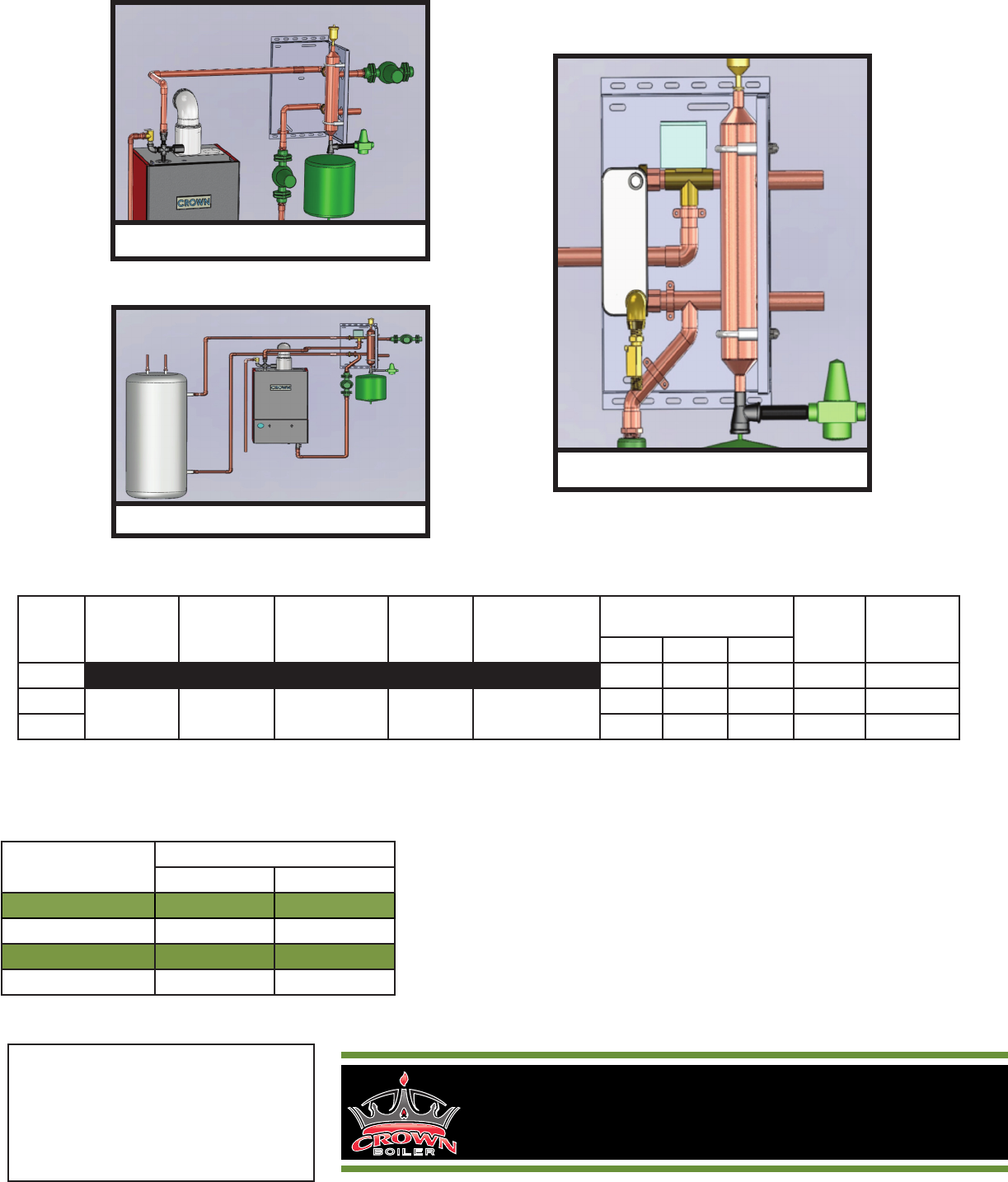

BIMINI BUDDY
TECHNICAL INFORMATION
BB100C*
BB100H*
Standard Equipment on BB100H and All Bimini Buddy Models
• Factory Assembled
• Deluxe Painted Cover with slots for wall mounting
• Hydraulic Separator with:
• Boiler, heating system, expansion tank and air elimination connections.
BB100C includes standard equipment as well as:
• Brazed Plate Heat Exchanger for domestic hot water
• 120 volt Three Way Zone Valve and Flow Switch for domestic hot water
priority
BB100I includes standard equipment as well as:
• 120 volt Three Way Zone Valve for domestic hot water priority
• Indirect Water Heater connections (1” copper)
Bimini Boiler Connuous Draw (GPM)
77oF Rise 90oF Rise
BWC070 1.53 1.32
BWC090 2.09 1.80
BWC120 2.70 1.84
BWC151 2.94 1.94
Domestic Hot Water Output for
Bimini Buddy Models BB100C
MODEL
MAX.
OPERATING
PRESSURE
MAX.
OPERATING
TEMP.
3-WAY VALVE
MOTOR
RATING
FLOW
SWITCH
SET-POINT
FLOW SWITCH
CONTACT
RATINGS
DIMENSIONS WEIGHT
MAX
EXPANSION
TANK DIA.
WIDTH HEIGHT DEPTH
BB100H 12” 19-3/4” 12-1/2” 24 LBS 11”
BB100I 50 PSI 200oF120VAC, 50/60
HZ, 6.5 W 0.50 GPM 20VA PILOT
DUTY AT 120VAC
12” 19-3/4” 12-1/2” 27 LBS 11”
BB100C 12” 19-3/4” 12-1/2” 30 LBS 11”
SPECIFICATIONS
BB100I*
*Expansion tank not included.
BB100 - 12/10 - 5M
PN 980099
