Crystal Video Technology 707220190226 HD wireless video transmitter User Manual

Shenzhen Crystal Video Technology Co.,LTD. HD wireless video transmitter

User manual

This user manual applies to:Transmitter: 7072Receiver: 3072Version: 1.02019.01.11USER MANUAL SWIFT 800Wireless HDMI Video Transmission

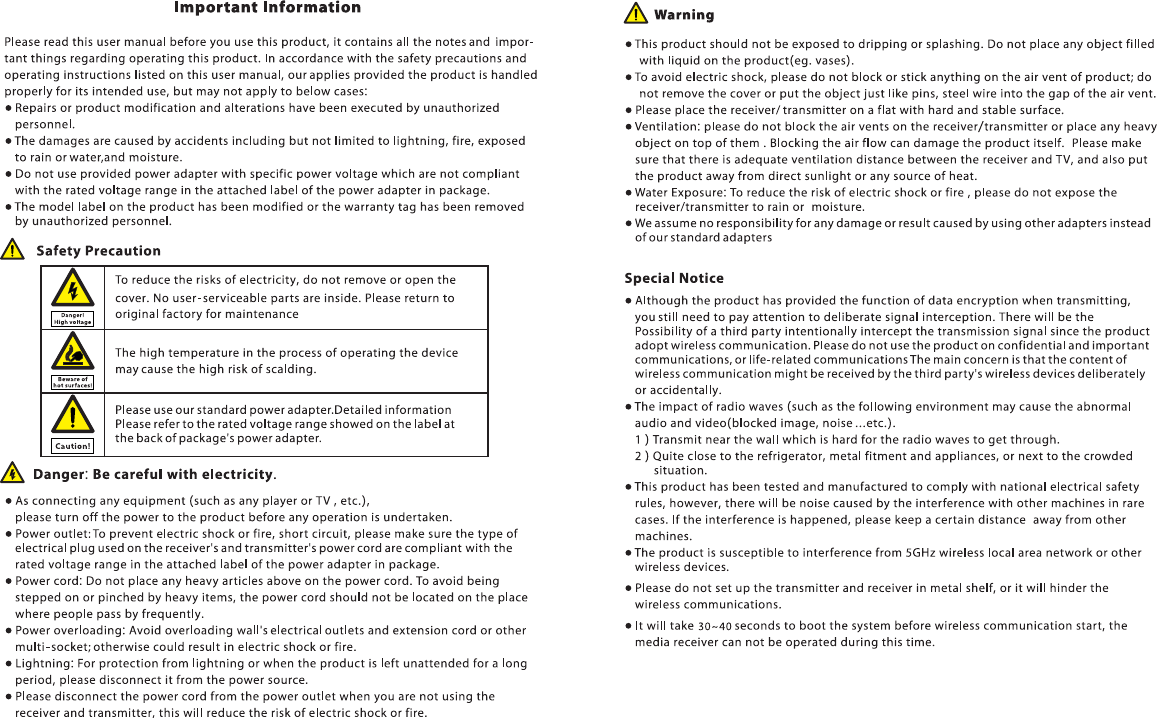

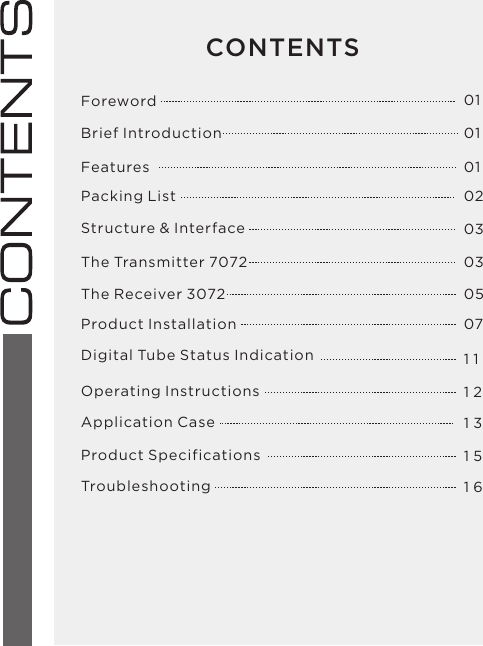

CONTENTSForewordBrief IntroductionFeaturesPacking ListStructure & Interface 0101010203The Transmitter 7072 03The Receiver 3072 0507Product Installation1 11 2Digital Tube Status IndicationOperating Instructions1 3Application Case1 51 6Product SpecificationsTroubleshooting

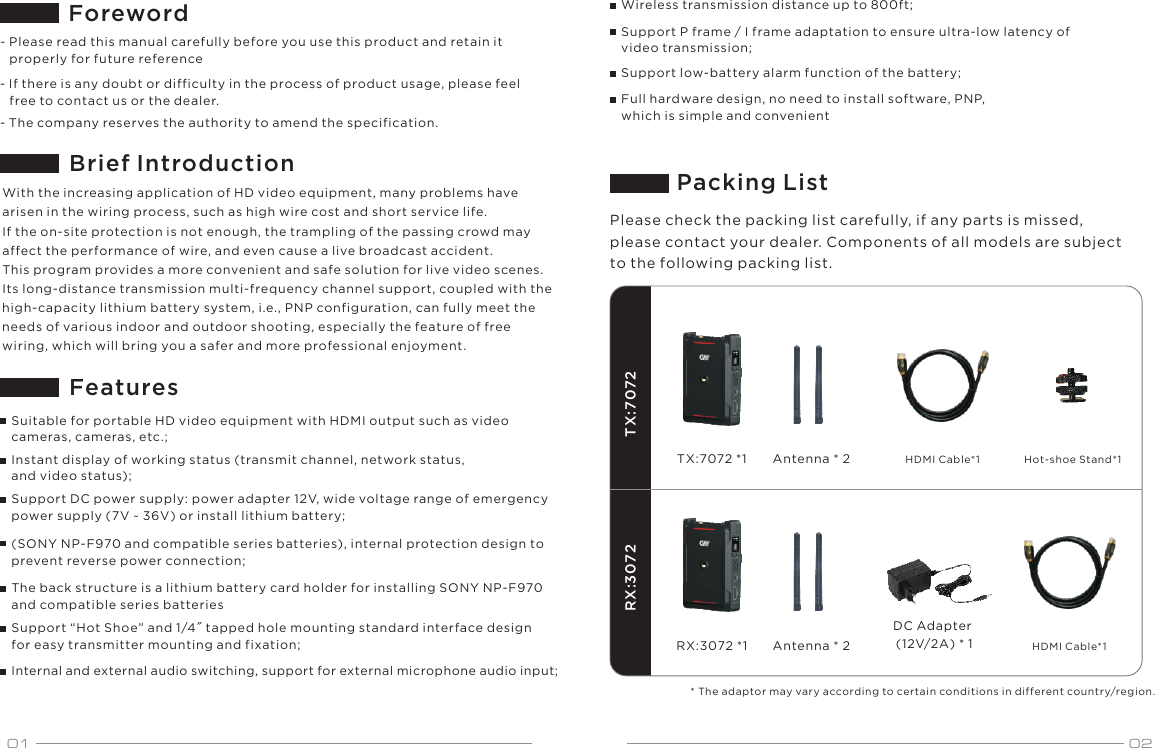

01 02TX:7072TX:7072 *1RX:3072RX:3072 *1ForewordBrief Introduction- The company reserves the authority to amend the specification.Features- Please read this manual carefully before you use this product and retain it properly for future reference- If there is any doubt or difficulty in the process of product usage, please feel free to contact us or the dealer.With the increasing application of HD video equipment, many problems have arisen in the wiring process, such as high wire cost and short service life. If the on-site protection is not enough, the trampling of the passing crowd may affect the performance of wire, and even cause a live broadcast accident.This program provides a more convenient and safe solution for live video scenes. Its long-distance transmission multi-frequency channel support, coupled with the high-capacity lithium battery system, i.e., PNP configuration, can fully meet the needs of various indoor and outdoor shooting, especially the feature of free wiring, which will bring you a safer and more professional enjoyment.Suitable for portable HD video equipment with HDMI output such as video cameras, cameras, etc.;Instant display of working status (transmit channel, network status, and video status);Support DC power supply: power adapter 12V, wide voltage range of emergency power supply (7V ~ 36V) or install lithium battery;(SONY NP-F970 and compatible series batteries), internal protection design to prevent reverse power connection;The back structure is a lithium battery card holder for installing SONY NP-F970 and compatible series batteriesSupport “Hot Shoe” and 1/4" tapped hole mounting standard interface design for easy transmitter mounting and fixation;Internal and external audio switching, support for external microphone audio input;Wireless transmission distance up to 800ft;Support P frame / I frame adaptation to ensure ultra-low latency of video transmission;Support low-battery alarm function of the battery;Full hardware design, no need to install software, PNP, which is simple and convenientPlease check the packing list carefully, if any parts is missed, please contact your dealer. Components of all models are subject to the following packing list.Packing ListAntenna * 2 HDMI Cable*1 Hot-shoe Stand*1Antenna * 2DC Adapter (12V/2A) * 1 HDMI Cable*1* The adaptor may vary according to certain conditions in different country/region.

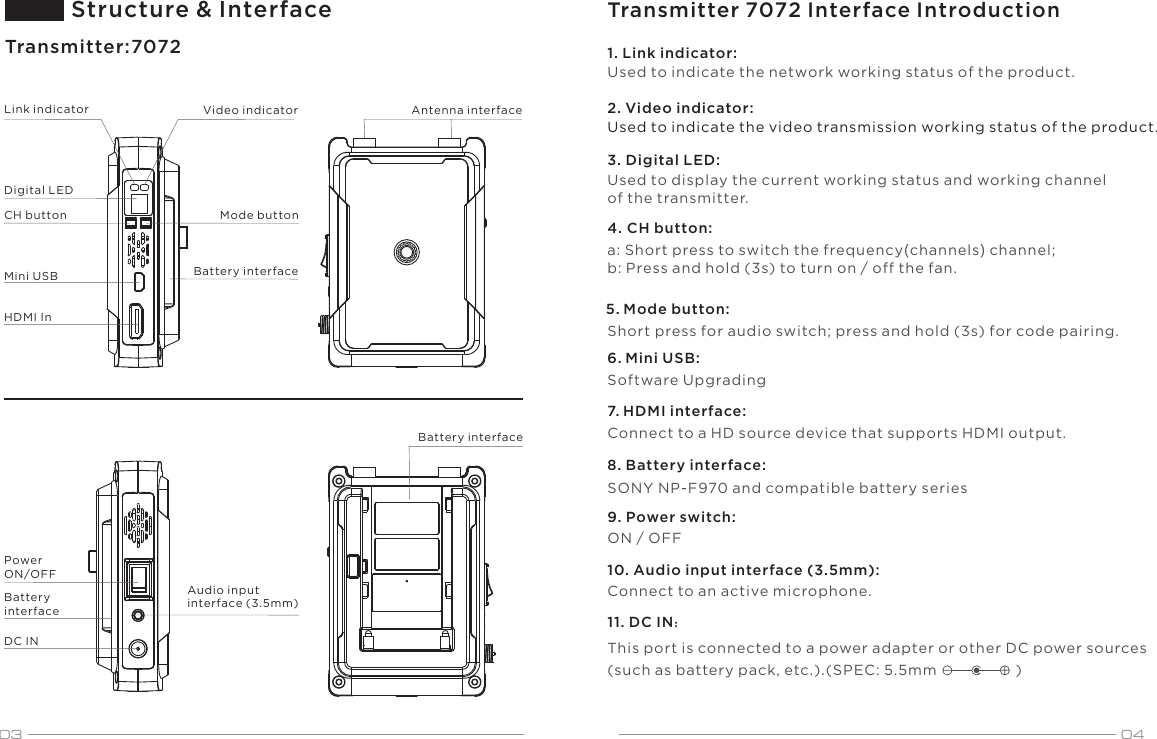

03 04Transmitter 7072 Interface Introduction1. Link indicator:3. Digital LED:5. Mode button:Short press for audio switch; press and hold (3s) for code pairing.Software UpgradingConnect to a HD source device that supports HDMI output.SONY NP-F970 and compatible battery series11. DC IN：Video indicatorDigital LEDCH button Mode buttonMini USBHDMI InBattery interfaceDC INAudio input interface (3.5mm)Antenna interfaceStructure & InterfaceTransmitter:7072Link indicatorBattery interfacePower ON/OFFBattery interfaceUsed to indicate the network working status of the product.Used to indicate the video transmission working status of the product.2. Video indicator: Used to display the current working status and working channel of the transmitter.4. CH button:a: Short press to switch the frequency(channels) channel; b: Press and hold (3s) to turn on / off the fan.6. Mini USB:7. HDMI interface:8. Battery interface:9. Power switch:ON / OFF10. Audio input interface (3.5mm):Connect to an active microphone.This port is connected to a power adapter or other DC power sources (such as battery pack, etc.).(SPEC: 5.5mm )
05 06Used to indicate the network working status of the product.Used to indicate the video transmission working status of the product.3. Digital LED:Used to display the current working channel of the receiver.6. Mini USB:8. Battery interface:SONY NP-F970 and compatible battery series.10.DC IN:4. CH button:5. Mode button:Press and hold (3s) for code pairing.ON / OFFReceiver:3072Video indicatorDigital LEDCH button Mode buttonMini USBHDMI OutBattery interfaceLink indicator Antenna interfaceDC INAudio output interface (3.5mm)Power ON/OFFBattery interfaceBattery interfaceReceiver 3072 Interface Introduction1. Link indicator:2. Video indicator:a: Short press to switch the frequency channel; b: Press and hold (3s) to turn on / off the fan.Software Upgrading7. HDMI Out:Connect to HD source devices that support HDMI input(HDTV, and projector)9.Power switch:This port is connected to a power adapter or other DC power sources(such as battery pack, etc.).(SPEC:5.5mm )

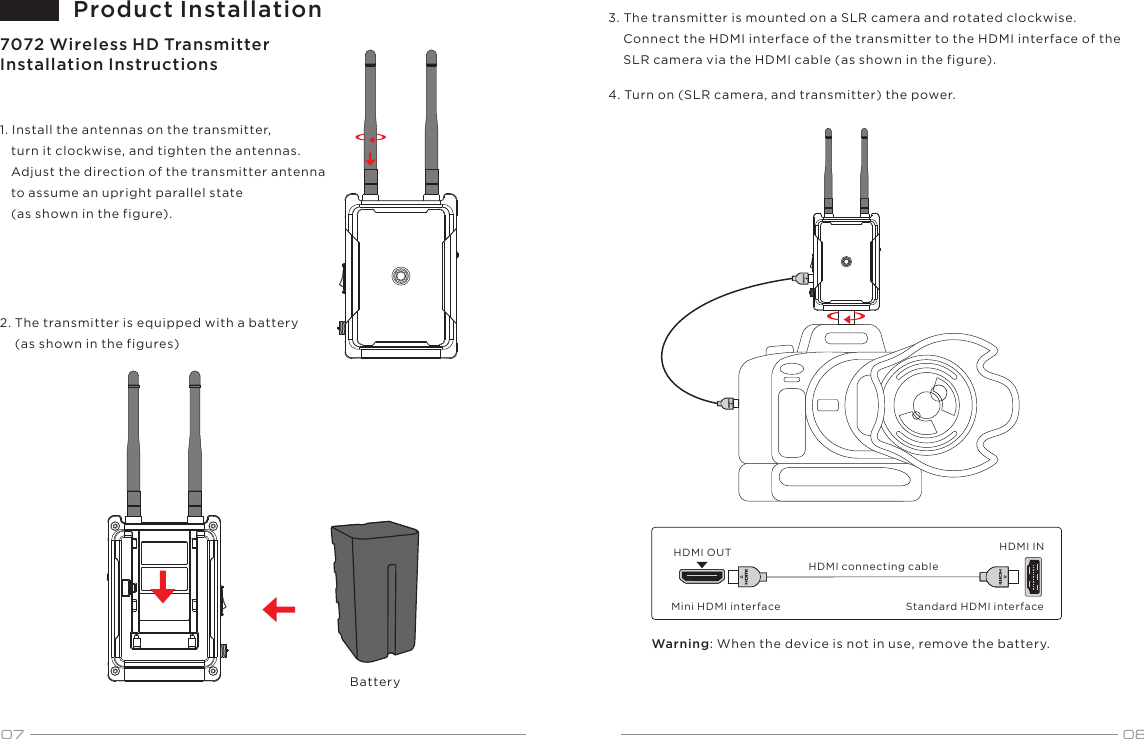

07HDMI connecting cableStandard HDMI interfaceMini HDMI interfaceBattery087072 Wireless HD Transmitter Installation InstructionsProduct Installation1. Install the antennas on the transmitter, turn it clockwise, and tighten the antennas. Adjust the direction of the transmitter antenna to assume an upright parallel state (as shown in the figure).2. The transmitter is equipped with a battery (as shown in the figures)3. The transmitter is mounted on a SLR camera and rotated clockwise. Connect the HDMI interface of the transmitter to the HDMI interface of the SLR camera via the HDMI cable (as shown in the figure).4. Turn on (SLR camera, and transmitter) the power.HDMI OUT HDMI INWarning: When the device is not in use, remove the battery.

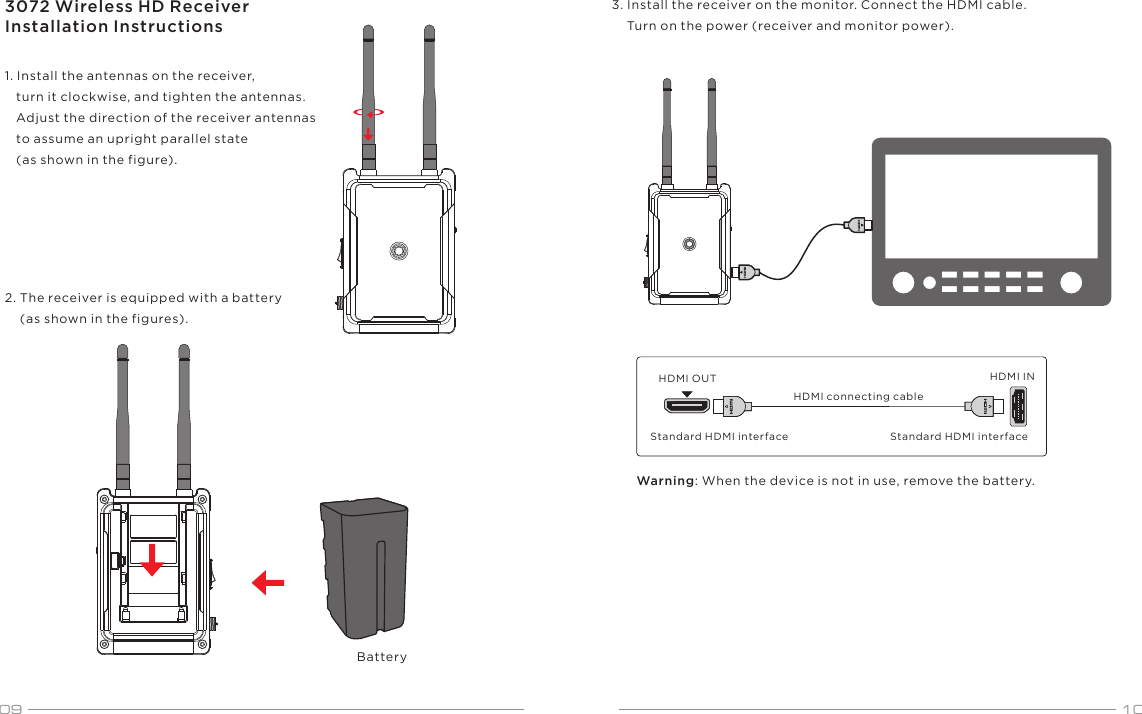

09 103072 Wireless HD Receiver Installation Instructions1. Install the antennas on the receiver, turn it clockwise, and tighten the antennas. Adjust the direction of the receiver antennas to assume an upright parallel state (as shown in the figure).2. The receiver is equipped with a battery (as shown in the figures).Battery3. Install the receiver on the monitor. Connect the HDMI cable. Turn on the power (receiver and monitor power).Warning: When the device is not in use, remove the battery.HDMI OUTStandard HDMI interfaceHDMI connecting cableHDMI INStandard HDMI interface

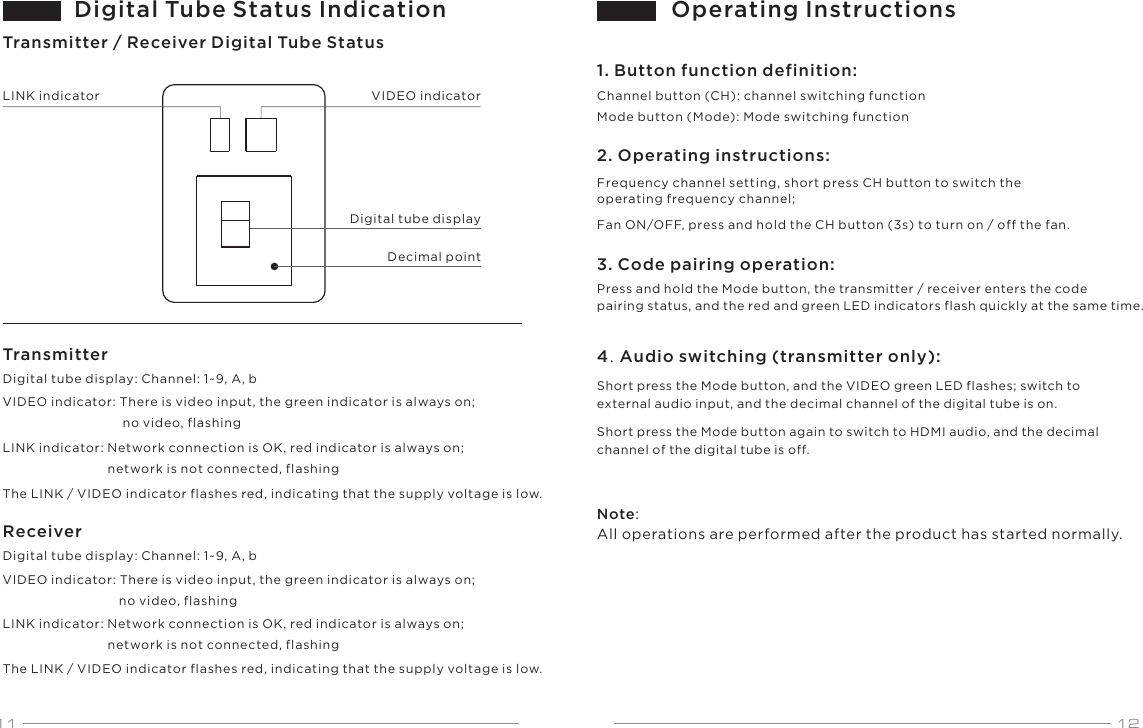

11 12Digital tube display: Channel: 1~9, A, bDigital tube display: Channel: 1~9, A, bVIDEO indicatorLINK indicator: Network connection is OK, red indicator is always on; network is not connected, flashingVIDEO indicator: There is video input, the green indicator is always on; no video, flashingLINK indicator: Network connection is OK, red indicator is always on; network is not connected, flashingLINK indicatorDecimal pointThe LINK / VIDEO indicator flashes red, indicating that the supply voltage is low.The LINK / VIDEO indicator flashes red, indicating that the supply voltage is low.VIDEO indicator: There is video input, the green indicator is always on; no video, flashingDigital Tube Status IndicationTransmitter / Receiver Digital Tube StatusDigital tube displayTransmitterReceiverOperating Instructions1. Button function definition:Channel button (CH): channel switching functionMode button (Mode): Mode switching function2. Operating instructions:Frequency channel setting, short press CH button to switch the operating frequency channel;Fan ON/OFF, press and hold the CH button (3s) to turn on / off the fan.3. Code pairing operation:Press and hold the Mode button, the transmitter / receiver enters the code pairing status, and the red and green LED indicators flash quickly at the same time.4. Audio switching (transmitter only):Short press the Mode button, and the VIDEO green LED flashes; switch to external audio input, and the decimal channel of the digital tube is on.Short press the Mode button again to switch to HDMI audio, and the decimal channel of the digital tube is off.Note: All operations are performed after the product has started normally.
13 14Connecting to transmitter... OSD displayLink up with transmitter, Please check video sourcechannel1. Set the transmitter and receiver to the same frequency .TX: SLR camera + 7072 RX: Monitor + 30723. The receiver and monitor are connected via an HDMI cable.2. The transmitter and HD source device are connected and powered by the HDMI cable.Application Case4. Turn on the receiver and monitor power, and the receiver will automatically connect to the last successfully connected transmitter. The TV OSD displays the following figure:5. Wait 25~35 seconds, the receiver ’s network indicator and video indicator are always on, and the monitor displays the camera’s monitor screen. The OSD display is shown in the figure below.OSD display6. Wait for the successful connection of video, the video light will always be on, and the monitor will normally display the pictures taken by the camera

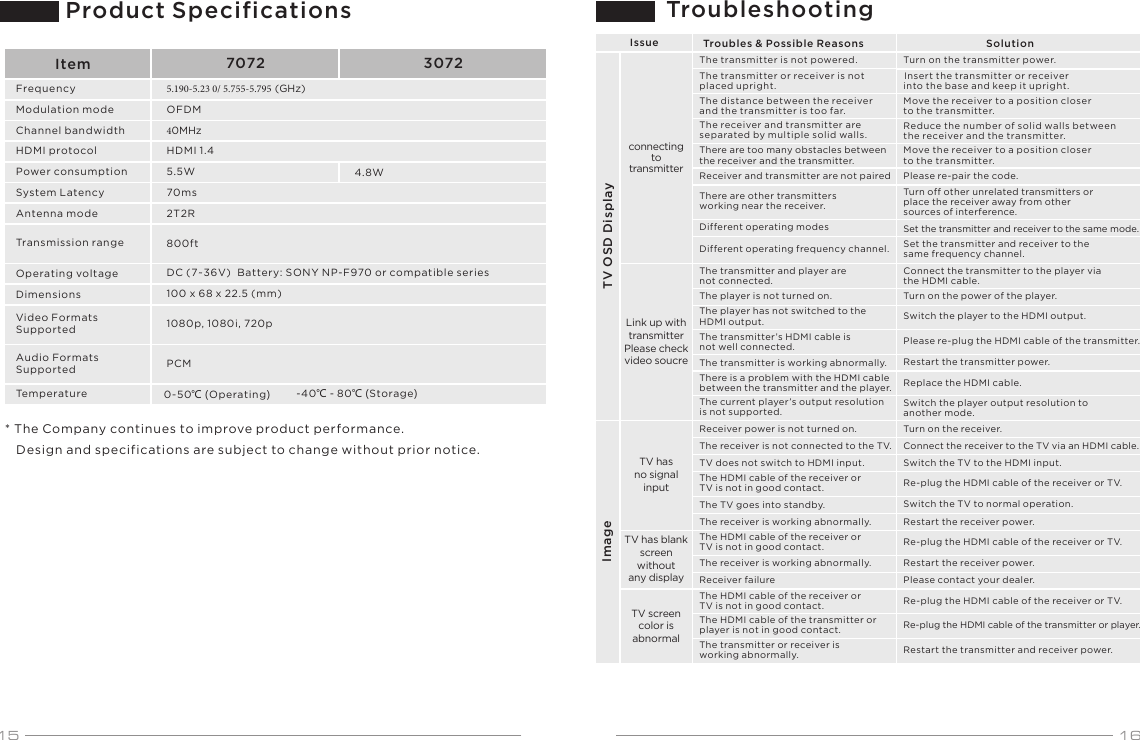

15 16HDMI protocolPower consumptionSystem LatencyAntenna modeTransmission rangeDimensionsTemperature70725.190-5.23 0/ 5.755-5.795 (GHz)40MHz5.5W70ms2T2R800ftHDMI 1.41080p, 1080i, 720pPCMChannel bandwidthModulation mode OFDMTV OSD Displayconnecting to transmitterThe transmitter or receiver is not placed upright.The distance between the receiver and the transmitter is too far.The receiver and transmitter are separated by multiple solid walls.There are too many obstacles between the receiver and the transmitter.Receiver and transmitter are not pairedThere are other transmitters working near the receiver.The transmitter and player are not connected.The player is not turned on.The player has not switched to the HDMI output.The transmitter’s HDMI cable is not well connected.The transmitter is working abnormally.The current player’s output resolution is not supported.The HDMI cable of the receiver or TV is not in good contact.The transmitter is not powered.Receiver power is not turned on.The receiver is not connected to the TV.TV does not switch to HDMI input.The HDMI cable of the receiver or TV is not in good contact.The TV goes into standby.The receiver is working abnormally.The HDMI cable of the receiver or TV is not in good contact.Receiver failureTurn on the transmitter power.Insert the transmitter or receiver into the base and keep it upright.Move the receiver to a position closer to the transmitter.Reduce the number of solid walls between the receiver and the transmitter.Move the receiver to a position closer to the transmitter.Please re-pair the code.Turn off other unrelated transmitters or place the receiver away from other sources of interference.Connect the transmitter to the player via the HDMI cable.Turn on the power of the player.Switch the player to the HDMI output.Please re-plug the HDMI cable of the transmitter.Restart the transmitter power.Switch the player output resolution to another mode.Turn on the receiver.Connect the receiver to the TV via an HDMI cable.Switch the TV to the HDMI input.Re-plug the HDMI cable of the receiver or TV.Switch the TV to normal operation.Restart the receiver power.Restart the receiver power.Please contact your dealer.TV has no signal inputTV has blank screen without any displayTV screen color is abnormalImageTroubleshootingDifferent operating modes Set the transmitter and receiver to the same mode.Different operating frequency channel. Set the transmitter and receiver to the same frequency channel.0-50℃ (Operating)100 x 68 x 22.5 (mm)Operating voltage DC (7~36V) Battery: SONY NP-F970 or compatible seriesLink up withtransmitter Please check video soucre30724.8WItemProduct SpecificationsFrequencyVideo Formats SupportedAudio Formats Supported-40℃ - 80℃ (Storage)* The Company continues to improve product performance. Design and specifications are subject to change without prior notice.Troubles & Possible Reasons SolutionIssueThere is a problem with the HDMI cable between the transmitter and the player. Replace the HDMI cable.Re-plug the HDMI cable of the receiver or TV.The receiver is working abnormally.Re-plug the HDMI cable of the receiver or TV.The HDMI cable of the transmitter or player is not in good contact. Re-plug the HDMI cable of the transmitter or player.The transmitter or receiver is working abnormally. Restart the transmitter and receiver power.

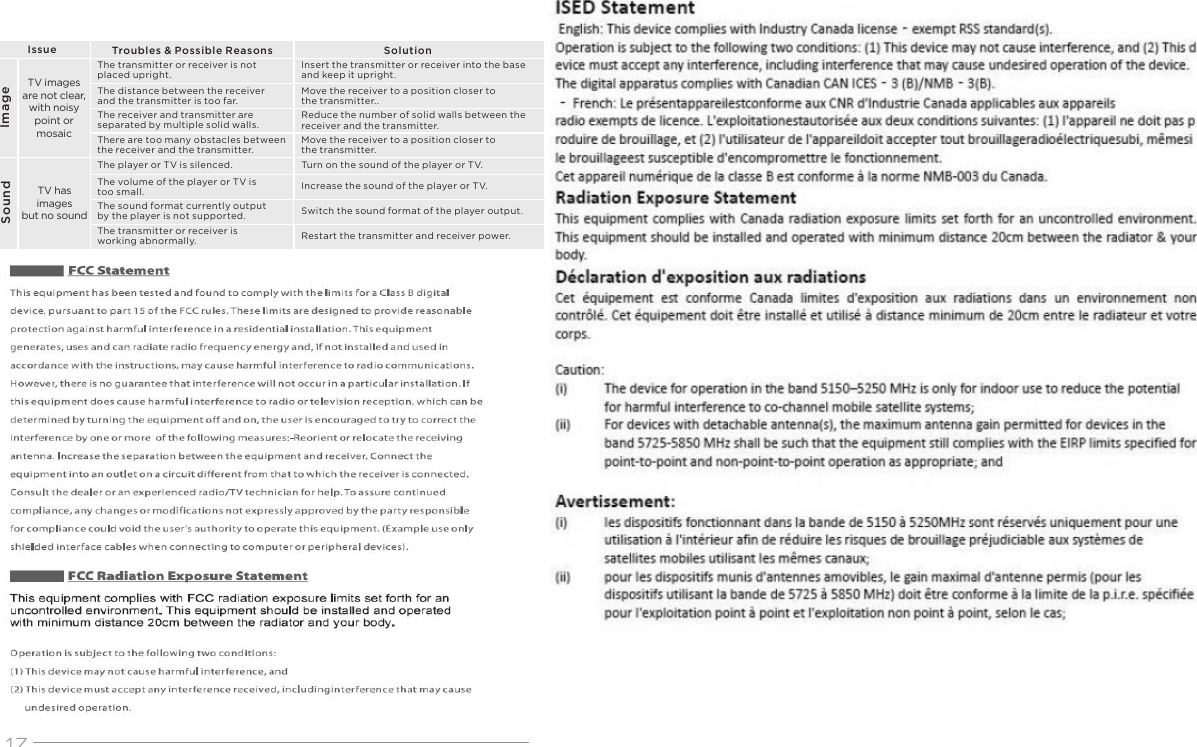

17This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) This device may not cause harmful interference, and (2) This device must accept any interference received, includinginterference that may cause undesired operation.This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:-Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. (Example use only shielded interface cables when connecting to computer or peripheral devices).FCC StatementThe manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modificationscould void the user authority to operate the equipment.FCC Radiation Exposure Statement Cautions! Troubles & Possible Reasons SolutionIssueThe transmitter or receiver is not placed upright.ImageInsert the transmitter or receiver into the base and keep it upright.The distance between the receiver and the transmitter is too far.Move the receiver to a position closer to the transmitter..Reduce the number of solid walls between the receiver and the transmitter.The transmitter or receiver is working abnormally. Restart the transmitter and receiver power.The volume of the player or TV is too small.The sound format currently output by the player is not supported.Increase the sound of the player or TV.Switch the sound format of the player output.The player or TV is silenced. Turn on the sound of the player or TV.TV images are not clear, with noisy point or mosaicThe receiver and transmitter are separated by multiple solid walls.There are too many obstacles between the receiver and the transmitter.Move the receiver to a position closer to the transmitter.TV has images but no soundSound
