Parts Manual

Hydrostatic Lawn Tractor

Models 1515

1517

Series 1500

CUB CADET LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019

-1-

DESCRIPTION PAGE

Axle, Front ....................................................... 5, 6

Battery ............................................................. 15, 16

Brake Pedal ..................................................... 11, 12

Bulkhead .......................................................... 17, 18

Mower Deck, 38-inch ........................................ 21, 22

Mower Deck, 42-inch ........................................ 23, 24

Dash Panel ...................................................... 15, 16

Drive System ................................................... 3, 4

Electrical Sysytem ........................................... 27, 28

Engine

Air Filter ........................................................

Blower Housing ............................................

Breather ........................................................

Carburetor ....................................................

Controls ........................................................

Crankcase ....................................................

Crankshaft ....................................................

Cylinder Head ...............................................

Electrical .......................................................

Exhaust..........................................................

Fuel System ..................................................

Oil Pan ..........................................................

Starter ...........................................................

Valves ...........................................................

33, 34

39, 40

29, 30

33, 34

35, 36

39, 40

31, 32

35, 36

33, 34

Engine Mounting .............................................. 14

Fender ............................................................. 9

Frame .............................................................. 7, 8

Fuel Tank ......................................................... 9

Grille ................................................................ 17, 18

Hood ................................................................ 17, 18

Deck Lift Handle/Linkage ................................. 10

Muffler .............................................................. 14

PTO Clutch ...................................................... 19, 20

Seat ................................................................. 13

Side Panels ..................................................... 17, 18

Steering ........................................................... 5, 6

Transmission, Hydrostatic ............................... 25, 26

Wheels, Front & Rear ...................................... 2

DESCRIPTION PAGE

MODELS 1515 & 1517

TABLE OF CONTENTS

NOTE, For painted parts, please refer

to the list of color codes below. Please

add the applicable color code, wherever

needed, to the part number to order a

replacement part. For instance, if a part,

numbered 700-xxxx, is painted Cub

Yellow, the part number to order would

be 700-xxxx-0498.

Cub Yellow: 0498

Cub Beige: 0499

Powder Black: 0637

-2-

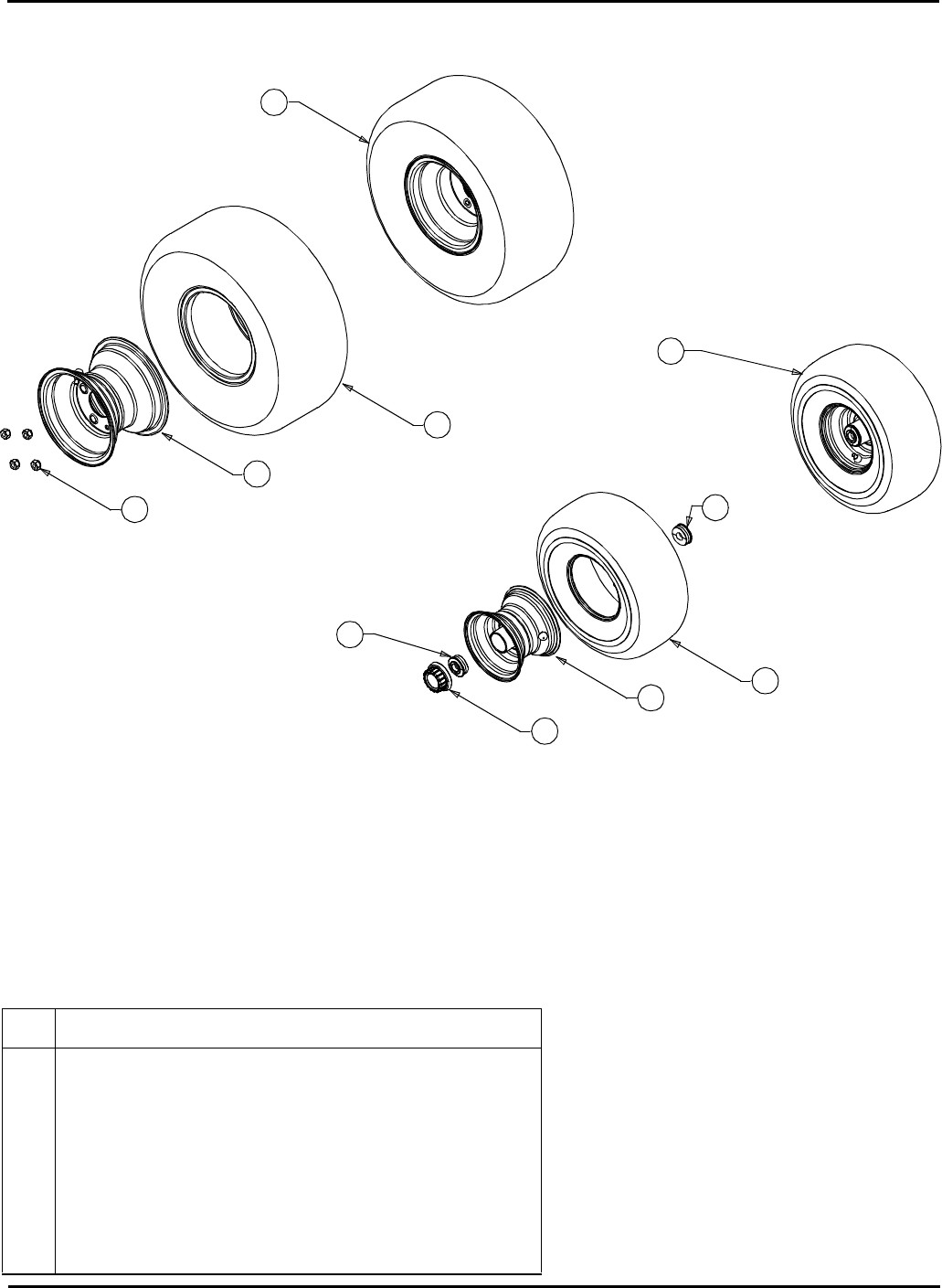

WHEELS

REF.

NO.

PART

NUMBER DESCRIPTION QTY.

1 634-0245 Rim/Wheel Assembly, 20 x 9 x 8 (4-Lug) 2

2 634-3012A Wheel, Complete, 15 x 6 x 6 2

3 734-3189 Tire, Turf, Cub Cadet 20 x 9 x 8 2

4 634-0246 Rim Assembly, 8.0 x 6.19 (4-Lug) 2

5 712-3050 Lug Nut, 7/16-14 8

6 741-3032 Bearing, Ball, .75 ID x 1.75 OD 4

7 634-3015 Rim Assembly, Bead Lock, 6 x 4.5 2

8 731-3020 Hub Cap 2

9 734-3186 Tire, Turf, Cub Cadet 15 x 6 x 6 2

— 737-0224 Gease Fitting 2

— 734-0255 Valve, Tubeless Air 4

-3-

DRIVE SYSTEM

Attach Spring (732-1716) Here

33 49

-4-

DRIVE SYSTEM

REF.

NO.

PART

NUMBER DESCRIPTION QTY.

1 17840 Bracket, Mounting, Transaxle 2

2 618-0365 Hub Assembly, Wheel 2

3 618-0667 Transmission, Hydrostatic 1

4 629-0949A Harness Assembly, Ground & Reverse 1

5 683-0251 Bracket Assembly, Idler, Center Dbl 1

6 710-0176 Hex Cap Screw, 5/16-18, 2.75, Gr5 4

7 710-0227 Screw, #8-18, 0.500 2

8 710-0344 Hex Cap Screw, 3/8-16, 1.50, Gr5 3

9 710-0604A Screw, 5/16-18, 0.625 6

10 710-0653 Screw, 1/4-20, 0.375 1

11 710-3007 Screw, #12-24, 0.375 3

12 710-3011 Hex Cap Screw, 3/8-16, 2.25, Gr5 1

13 710-3103 Hex Cap Screw, 5/16-18, 2.00, Gr5 1

14 711-0677 Ferrule, 5/16-18 x .312 Dia 1

15 711-0832 Ferrule, 3/8-24 x .375 Dia 1

16 712-0291 Nut, Hex Lock, 1/4-20 1

17 712-0333 Nut, Hex, 1/2-20, Gr2 1

18 712-0431 Nut, Flange Lock, 3/8-16 3

19 712-1329 Nut, 3/4-16, Grb, Hx 2

20 712-3004A Nut, Flange Lock, 5/16-18, Gr5 5

21 712-3010 Nut, Hex, 5/16-18, Gr5 1

22 712-3017 Nut, Hex, 3/8-16, Gr8 4

23 714-0104 Pin, Cotter, .072 Dia. x 1.13 Lg 2

24 714-0111 Pin, Cotter, 3/32, 1.0 1

25 725-0157 Cable, Tie, 3/16 x .05 x 7.4 2

26 725-1644 Switch, Spring, Short 1

27 726-0154 Tie, Cable, Push Mount 7.5 Lg 1

28 726-0320 Plate, Insulator Nut 1

29 731-1449A Fan, Blade, 10” 1

30 732-0209 Spring, .48 OD x 2.03 Extension 1

31 732-0429A Spring, Extension, .50 Dia x 3.97 Lg 1

32 732-0716 Spring, Extension, .59 OD x 4.00 Lg 1

33 732-0729 Ring, Wire 1

34 732-0994 Spring, Extension, .500 Dia x 7.0 Lg 1

35 732-3118 Spring, Extension, 3/8 OD x 1.44 Lg 1

36 736-0140 Washer, Flat, .385 x .62 x .063 3

37 736-0169 Washer, Lock, 3/8 , Regular Duty 2

38 736-0275 Washer, Flat, .344 x .688 x .065 1

39 736-0921 Washer, Lock, 1/2 , Regular Duty 1

40 736-3010 Washer, Flat, .407 x .812 x .135 Hdn 1

41 738-0372B Spacer, Shoulder, 1.00 x .38 x .38 1

42 747-1149 Rod, Hydro Bypass 1

43 747-1150 Rod, Brake, Hydro 1

44 747-1151 Rod, Control, Hydro 1

45 750-0535 Spacer, .376 ID x .625 OD x .22 1

46 754-0640 Belt, V Type, Poly 1

47 756-0116 Pulley, Idler, V Type x 3.06 Dia 2

48 756-0981A Pulley, Idler, Flat 2.75 OD 1

49 756-1166 Pulley, Input, 5.0 Dia 1

50 783-0810 Bracket, Transmission, Torque Hydro 1

51 783-1019 Bracket, Actuator, Switch 1

52 756-0639 Pulley, Engine, 3.56 Dia

-5-

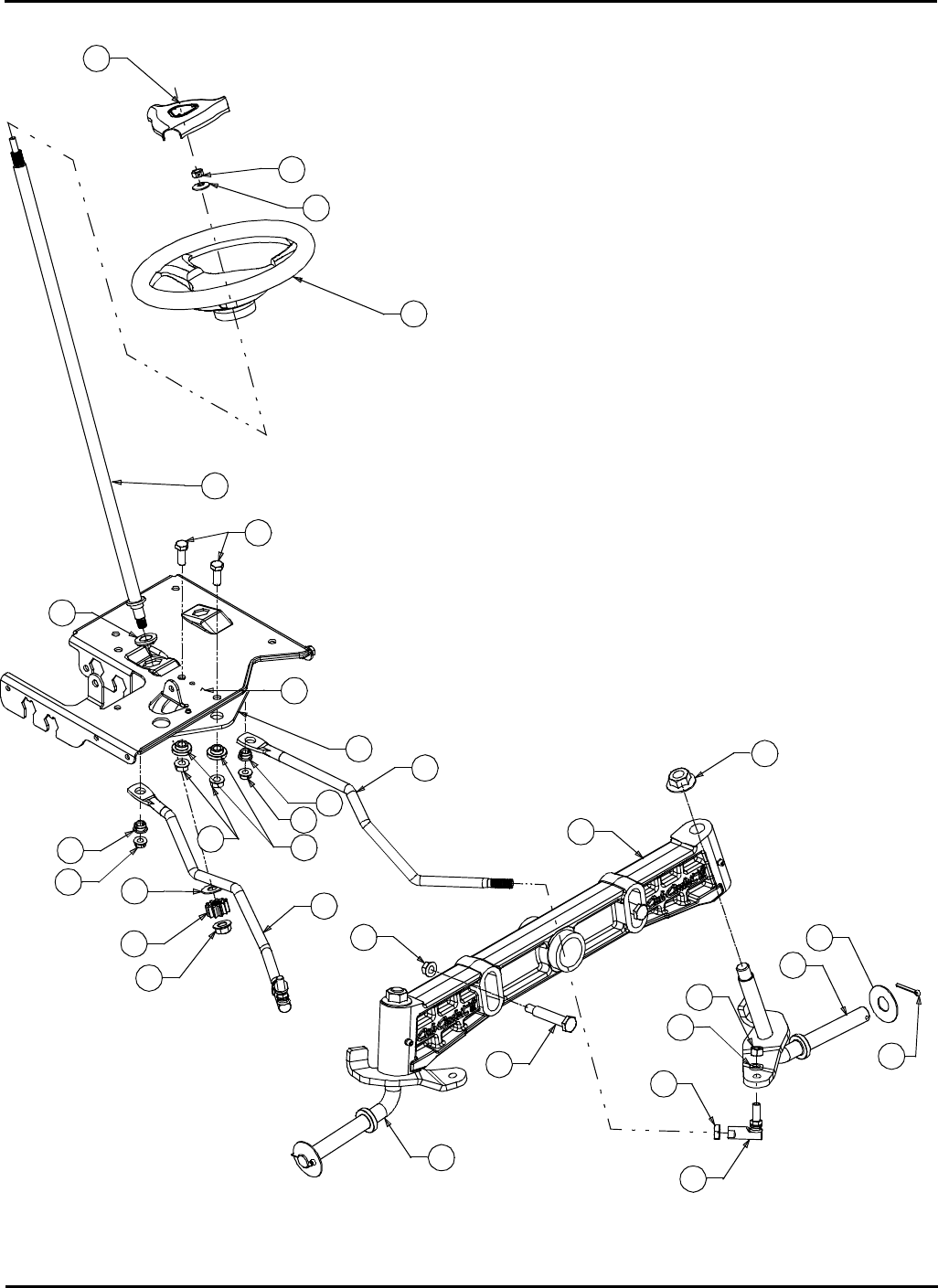

STEERING

-6-

STEERING

REF.

NO.

PART

NUMBER DESCRIPTION QTY.

1 710-0514 Hex Cap Screw, 3/8-16, 1.00, Gr5, Std 2

2 711-1408 Link, Drag, RH 1

3 711-1409A Link, Drag, LH 1

4 712-0237 Nut, Hex Lock, 5/16-24 1

5 712-0240 Nut, Jam, 7/16-20, Gr2 2

6 712-0241 Nut, Hex, 3/8-24, Gr5 2

7 712-0431 Nut, Flange Lock, 3/8-16 4

8 712-0459 Nut, Flange Lock, 7/16-20 1

9 712-3004A Nut, Flange Lock, 5/16-18 2

10 717-1550D Gear, Steering, 11/90 Ratio 1

11 717-1554 Gear, Pinion, Steering 1

12 723-0610 Ball Joint, 7/16-20 2

13 736-0169 Washer, Lock, 3/8 , Regular Duty 2

14 736-0242 Washer, Bell, .340 x .872 x .060 1

15 736-3084 Washer, Flat, .510 x 1.120 x .060 1

16 737-3007 Grease, Alvania Ep 2 1

17 738-0372B Spacer, Shoulder, 1.00 x .38 x .38 2

18 738-1194 Shaft, Steering, .625 OD x 25.00 Lg 1

19 741-0475 Bushing, Plastic, .380 ID 2

20 741-0656 Bearing, Hex Flange, 5/8 1

21 683-0605 Axle Assembly, LH .750 Dia 1

22 683-0606 Axle Assembly, RH .750 Dia 1

23 712-0417A Nut, Hex, Flange, 5/8-18 2

24 714-0162 Pin, Cot, 5/32, 1.25 2

25 719-0583 Axle, Pivot, Cast .750 Dia 1

26 736-0866 Washer, Flat, .755 x 1.92 x.060 2

27 738-1011 Spacer, Shoulder, .500 x 2.230, 3/8-16 2

28 731-3209 Wheel, Steering, Soft Grip, Three Spoke 1

29 731-3210 Cover, Steering Wheel 1

-7-

FRAME

23 21

710-0607 Used

At This Location Only

-8-

FRAME

REF.

NO.

PART

NUMBER DESCRIPTION QTY.

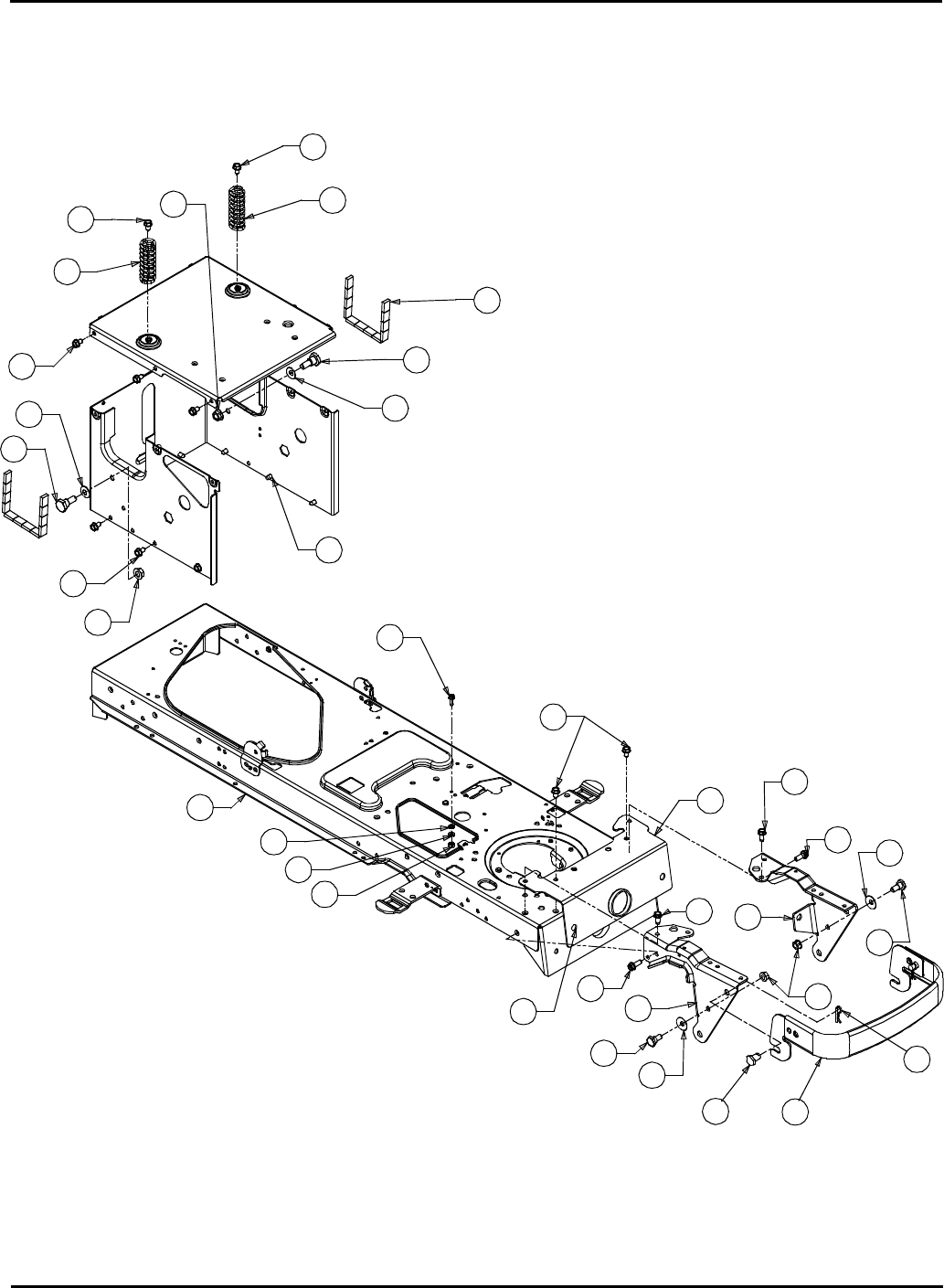

1 683-0304A Frame Assembly, Lower 1

2 683-0612 Bumper Assembly 1

3 710-0604A Screw, Self-tapping, 5/16-18, 0.625 19

4 710-0607 Screw, Self-tapping, 5/16-18, 0.500 1

5 710-0642 Screw, Self-tapping, 1/4-20, 0.750 1

6 710-1238 Screw, 5/16-18, .875, Gr5 2

7 710-1260A Screw, 5/16-18, 0.750 2

8 711-0332 Pin, Clevis, .50 Dia x .78 Lg 2

9 712-0431 Nut, Flange Lock, 3/8-16 2

10 712-0459 Nut, Flange Lock, 7/16-20 2

11 712-3006 Nut, Hex, 1/4-20, Gr5 1

12 714-0145 Pin, Click, .092 x 1.64 Lg 2

13 732-3080A Spring, Compression, 1.28 OD x 3.50 Lg 2

14 736-0222 Washer, Lock, Ext 1/4 2

15 736-0329 Washer, Lock, 1/4, Regular Duty 1

16 736-0331 Washer, Bell, .390 x 1.13 x .062 2

17 736-0407 Washer, Bell .45 x 1.00 x .062 2

18 737-3007 Grease, Alvania Ep 2 1

19 738-0143 Shoulder Screw, 3/8-16 2

20 738-1020 Shoulder Screw .625 x .500, 7/16-20 2

21 783-0726B Bracket, Pivot, Support RH 1

22 783-0727A Bracket, Pivot, Support LH 1

23 783-0728 Bracket, Pivot, Bar 1

24 783-1462 Frame, Upper, Cub 1500 1

25 783-1463 Bracket, Frame, Seat 1

26 722-3022 Foam Tape, .625 x .25 18

-9-

FENDER & FUEL TANK

REF.

NO.

PART

NUMBER DESCRIPTION QTY.

1 710-0260A Bolt, Carriage, 5/16-18 x .62 Lg 2

2 710-0604A Screw, 5/16-18, 0.625 8

3 710-0895 Screw, 1/4-15, 0.750 9

4 712-3004A Nut, Flange Lock, 5/16-18 2

5 731-0511 Strip, Trim 1.5

6 731-2616 Cover, Fender, RH 1

7 731-2617 Cover, Fender, LH 1

8 736-3078 Washer, Flat, .349 x 1.00 x .063 2

9 783-0677 Bracket, Lift, Adjustment 1

10 783-1461 Fender 1

11 783-1489 Bracket, Seat, Mount 2

12 726-3046 Clip, Ratchet, .250 Dia 12

13 735-0697 Pad, Foot, LH 1

14 735-0698A Pad, Foot, RH 1

15 751-0819 Tank, Fuel 1

16 751-3124B Cap, Fuel 1

11 16

-10-

LIFT ASSEMBLY

REF.

NO.

PART

NUMBER DESCRIPTION QTY.

1683-0197B Shaft Assembly, Lift 1

2711-0332 Pin, Clevis, .50 Dia x .78 Lg 2

3712-0206 Nut, Hex, 1/2-13, Gr5 2

4 712-0431 Nut, Flange Lock, 3/8-16 2

5 712-3004A Nut, Flange Lock, 5/16-18, Gr5 2

6712-3083 Nut, Hex Lock, 1/2-13, Gr8, Nylon 2

7 714-0104 Pin, Cotter, .072 Dia. x 1.13 Lg 2

8 714-0111 Pin, Cotter, 3/32, 1.0 2

9714-0145A Pin, Click, .092 x 1.64 Lg 2

10 716-0106 E-ring, .625 Dia. Shaft 2

11 731-2111A Knob 1

12 732-0874 Spring, Torsion 1

13 736-0160 Washer, Flat, .53 x .93 x .050 2

14 736-0275 Washer, Flat, .344 x .688 x .065 4

15 736-0921 Washer, Lock, 1/2 , Regular Duty 2

16 736-3019 Washer, Flat, .531 x 1.062 x .134 2

17 736-3084 Washer, Flat, .510 x 1.120 x .060 3

18 738-0138A Screw, Hex Cap, 5/16-18x.620 Gr2 2

19 738-0143 Shoulder Screw, 3/8-16 2

20 741-0225 Bearing, Hex Flange 2

21 741-0715 Bearing, Flange, Snap .500 ID 2

22 746-0968 Cable, Lift, 16.16 Lg 2

23 747-1111A Handle, Lift 1

24 747-1130B Rod, Deck, Front Adjustment .5" Dia 1

25 756-1154 Pulley, Roller 2

26 783-0678A Lift, Arm 2

27 783-0720A Bracket, Adjustment, Front Deck Rod 1

722

19 13

26 13

-11-

PEDAL ASSEMBLY

18 29

17 30

23 25

Hook to Flange

In Frame (783-0650)

-12-

PEDAL ASSEMBLY

REF.

NO.

PART

NUMBER DESCRIPTION QTY.

1 647-0031 Control Assembly, Brake 1

2 647-0049 Control Assembly, Hydro 1

3 710-0604A Screw, Self-tapping, 5/16-18, 0.625 4

4 710-0650 Screw, Self-tapping, 5/16-18, 0.875 1

5 710-1260A Screw, 5/16-18, 0.750 3

6 711-0736 Adjustment Ferrule 1/4-20 x 1.0 2

7 711-1363 Pin, 3/8-16, 3/8 x 2.43 Lg 1

8 712-0431 Nut, Flange Lock, 3/8-16 2

9 712-3004A Nut, Flange Lock, 5/16-18, Gr5 2

10 714-0104 Pin, Cotter, .072 Dia. x 1.13 Lg 6

11 714-0111 Pin, Cotter, 3/32, 1.0 2

12 719-0584 Pedal, Control 1

13 732-0335 Spring, Compression, .405 x 1.17 1

14 732-0955 Spring, Extension, .50 OD x 1.41 Lg 1

15 732-0963 Spring, Extension, .50 Dia x 6.37 Lg 1

16 735-3049 Pad, Brake, Control 1

17 736-0133 Washer, Flat, .411 x 1.25 x .100 1

18 736-0142 Washer, Flat, .281 x .50 x .063 2

19 736-0187 Washer, Flat .64 ID x 1.24 x .06 2

20 736-0204 Washer, Flat, .344 ID x .62 OD 2

21 736-3004 Washer, Flat, .406 ID x .875 OD x .105 1

22 736-3008 Washer, Flat, .344 x .750 x .120 1

23 738-0155 Shoulder, Screw .437 x 1.62 Lg 1

24 738-0507B Screw, Shoulder, .500 Dia x .434 1

25 741-0225 Bearing, Hex Flange 2

26 741-3065B Bearing, Hex Flange, .628 ID, Split 2

27 747-1137 Rod, Control, Cruise 1

28 747-1138 Rod, Control, Brake Lock 1

29 748-0413 Latch, Cruise 1

30 748-0415B Spacer, .385 ID x .635 OD x 1.54 1

31 783-0653F Bracket, Support, Stearing 1

32 783-0663C Bracket, Lockout, Hydro 1

33 783-1469 Pedal, Brake 1

-13-

REF.

NO.

PART

NUMBER DESCRIPTION QTY.

1 710-1268 Screw, #10-16, 0.375 2

2 712-3004A Nut, Flange Lock, 5/16-18, Gr5 2

3 712-3027 Nut, Flange Lock, 1/4-20 1

4 720-0433 Grip, Seat, Adjustment (Yellow) 1

5 726-0201 Nut, Speed, .3125 ID 2

6 731-1989 Spacer, Seat, Adjustment 4

7 732-0499 Spring, Compression .41 OD x 1.50 1

8 732-1184 Spring, Extension, .84 Dia x 4.6 Lg. 1

9 736-0175 Washer, Spring, .265 x .562 x.025 1

10 736-0204 Washer, Flat, .344 ID x .62 OD 1

11 736-0275 Washer, Flat, .344 x .688 x .065 2

12 736-3019 Washer, Flat, .531 x 1.062 x .134 2

13 738-0137A Screw, Shoulder, .340 x .285, 1/4-20 1

14 738-0296 Shoulder, Screw .437 x .286 Lg 2

15 738-1198 Screw, Shoulder, .50 x.50, 5/16-18 4

16 783-0209A Bracket, Lift, Seat 1

17 783-0611 Stop, Seat, Adjustment 1

18 783-0738 Bracket, Pivot, Seat 1

19 783-0739 Lever, Seat, Adjustment 1

20 783-0753 Selector, Seat, Adjustment 1

21 757-3003 Seat, Mid-back, V-1480 1

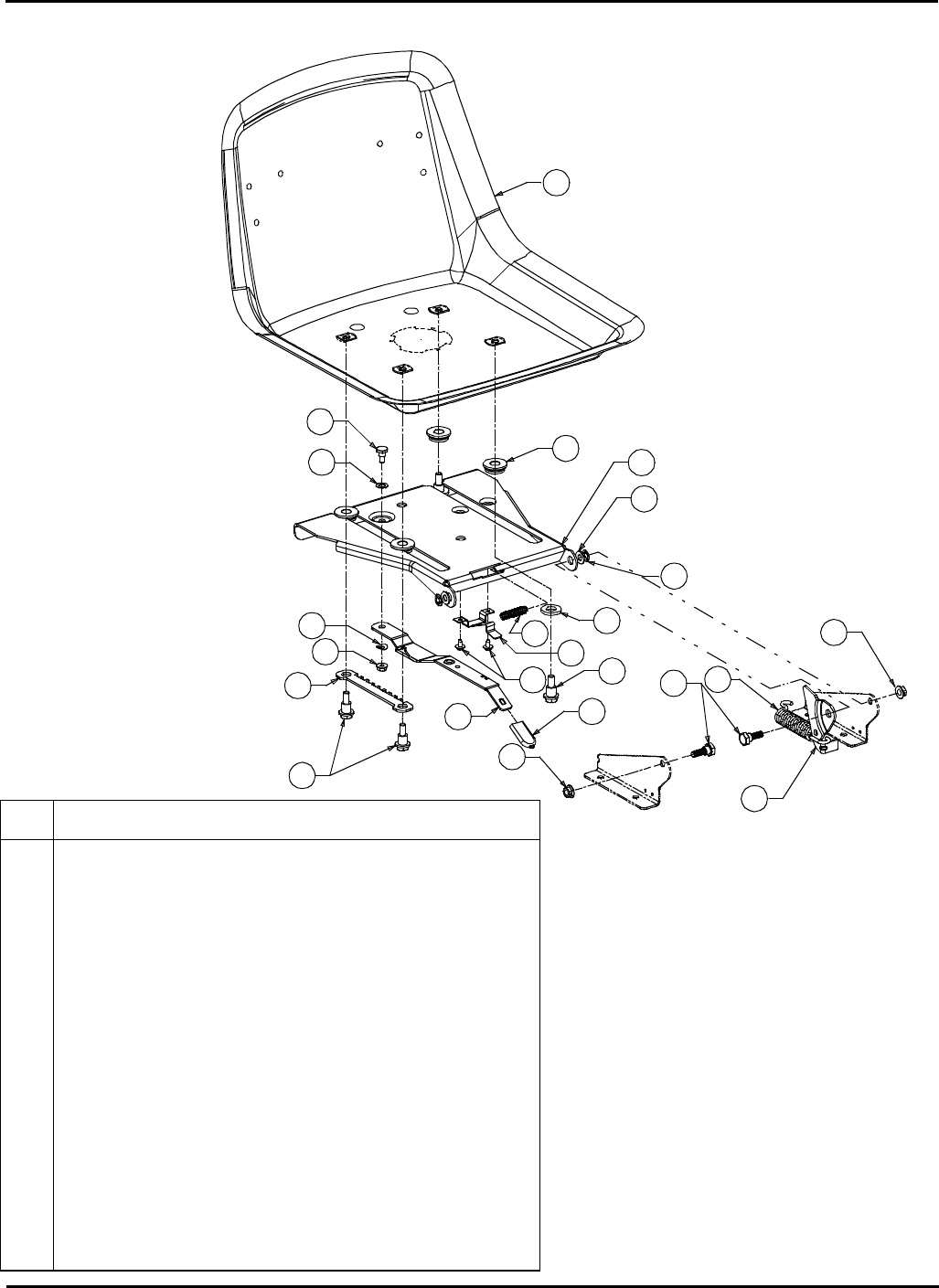

ADJUSTABLE SEAT

15 14

-14-

Fits Over Fuel Line Routed Behind The Engine.

For Choke

Secures The Headlight Harness Slack To The Hood Hinge.

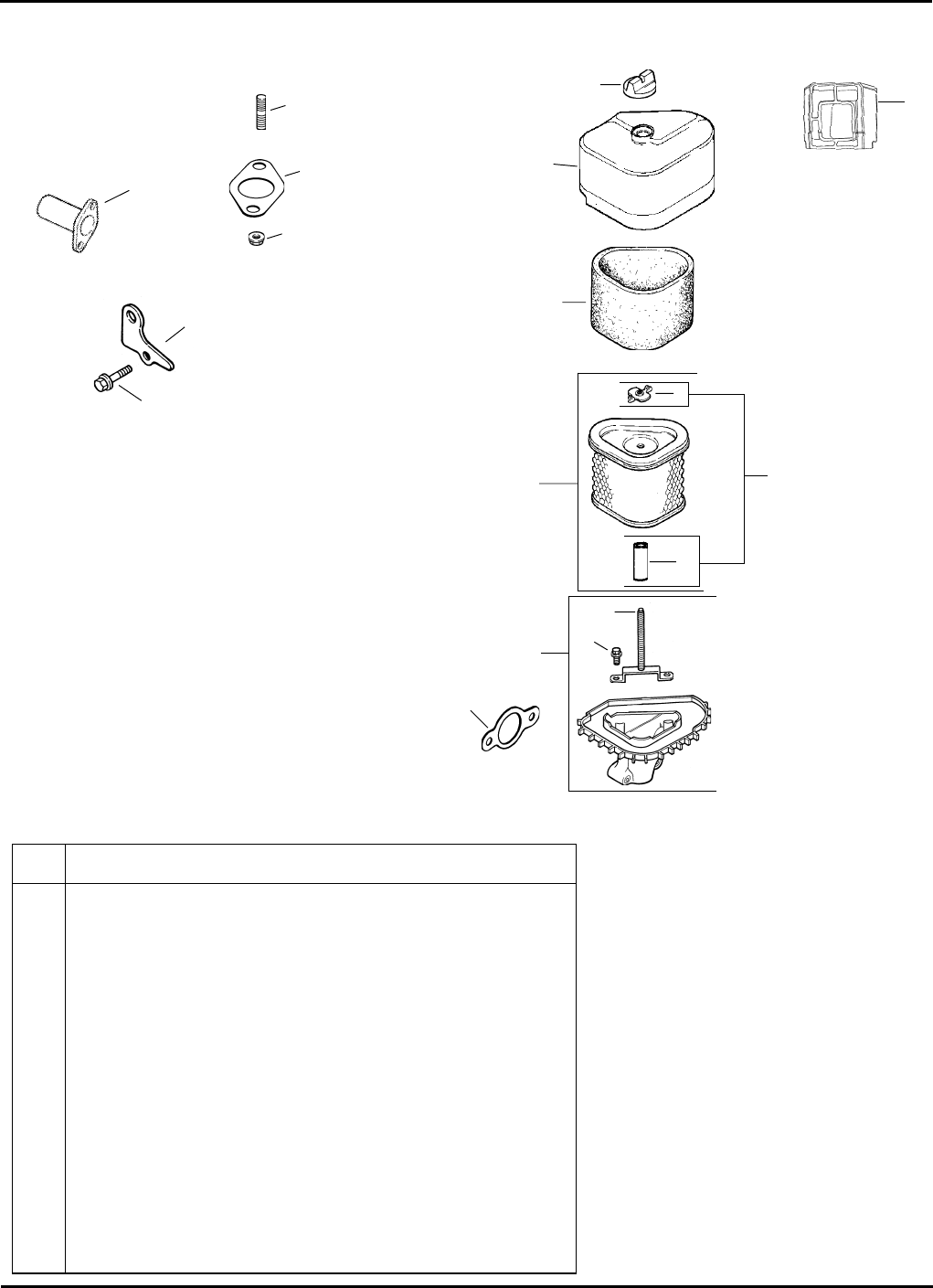

ENGINE ACCESSORIES

REF.

NO.

PART

NUMBER DESCRIPTION QTY.

1 710-0227 Screw, #8-18, 0.500 4

2 710-0599 Screw, Self-tapping, 1/4-20, 0.500 4

3 710-0604A Screw, 5/16-18, 0.625 4

4 710-3206A Screw, M8-1.25, 25.0, Gr8.8 4

5 712-3017 Nut, Hex, 3/8-16, Gr8 1

6 712-3086 Nut, M8, 1.25-6h, Flange 2

7 783-0615B Shield, Heat, Muffler 1

8 721-0375 Gasket, Exhaust, Kohler Single 1

9 722-0263 Foam, .625 x 1.50 x 10.0 Lg 2

10 725-0157 Cable, Tie, 3/16 x .05 x 7.4 1

11 726-0205 Clamp, Hose, .490 Dia. 2

12 751-3142 Cap, Oil, Drain 1

13 736-0300 Washer, Flat, .406 x .875 x .059 1

14 736-0607 Washer, External Lock, 5/16 4

15 746-1087 Cable, Throttle, 27.4 Lg 1

16 751-0535 Hose, Fuel Line 60

17 751-0564 Deflector, Muffler 1

18 751-0617 Muffler, Single Inlet 1

19 751-0824 Pipe, Exhaust, Kohler Single 1

20 751-3140 Drain, Oil 1

21 751-3141 Hose, Extension, Oil Drain 12

-15-

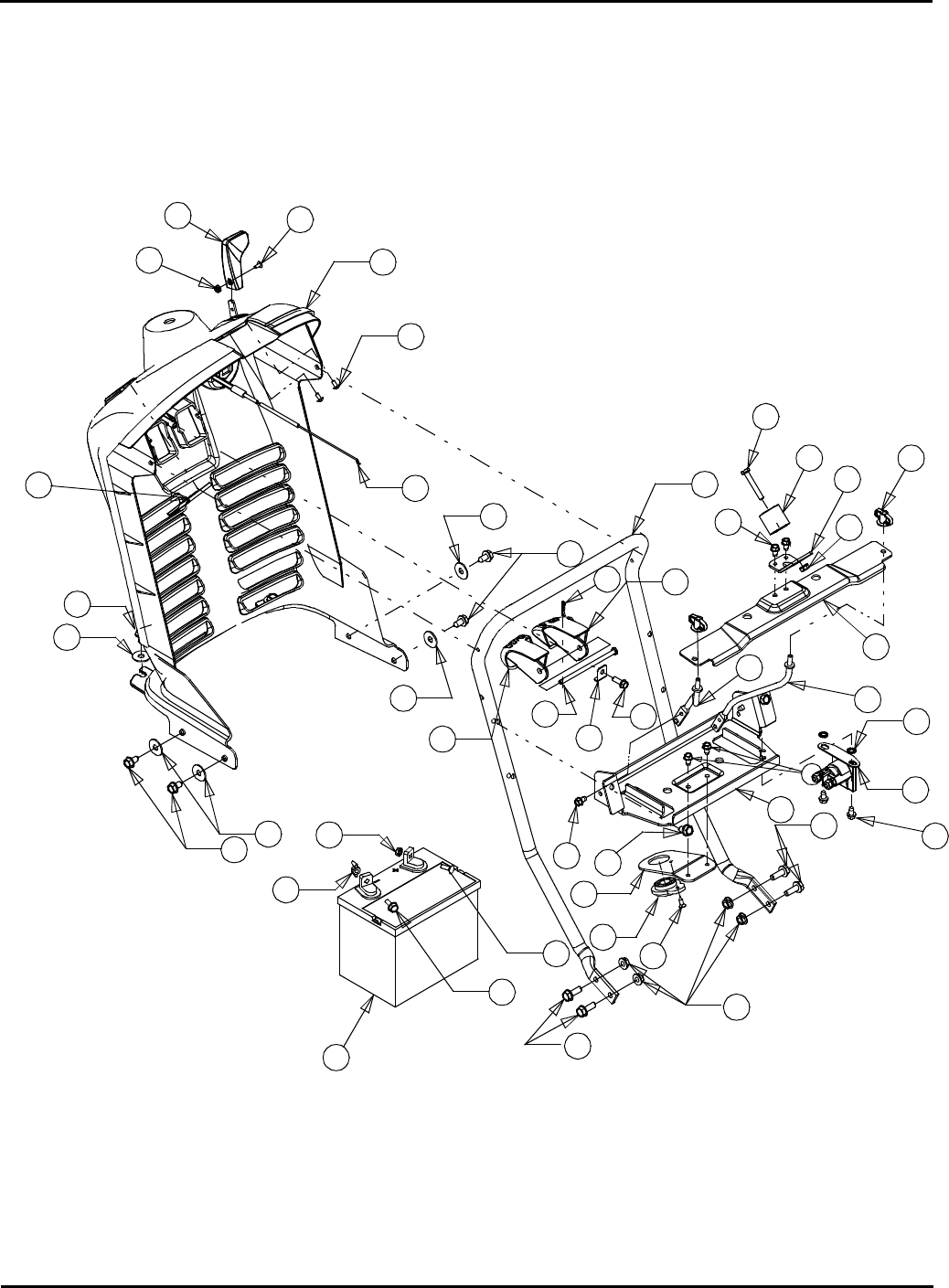

DASH PANEL

-16-

DASH PANEL

REF.

NO.

PART

NUMBER DESCRIPTION QTY.

1 710-0136 Screw, 1/4-20, 1.75, Gr5 1

2 710-0599 Screw, Self-tapping, 1/4-20, 0.500 6

3 710-0604A Screw, 5/16-18, 0.625 8

4 710-0895 Screw, 1/4-15, 0.750 1

5 710-1238 Screw, 5/16-18, .875, Gr5 4

6 710-3217 Screw, Machine, #8-32, 0.375, Trus Phillips 1

7 712-0142 Nut, 8-32 1

8 712-0271 Nut, Hex, 1/4-20, Sems 2

9 712-0397 Nut, Wing, 1/4-20 w/ Bell Washer 2

10 712-3004A Nut, Flange Lock, 5/16-18, Gr5 4

11 731-2615 Dash 1

12 731-2620 Lever, Dash, Cruise 1

13 731-2621 Lever, Dash, Brake 1

14 731-3161 Knob, Throttle Control 1

15 731-3232 Roller, Latch, Hood 1

16 736-3078 Washer, Flat, .349 x 1.00 x .063 6

17 747-1323A Rod, .250 Dia x 4.25 Lg. 1

18 747-2130 Rod, Support, Side Panel RH 1

19 747-2131 Rod, Support, Side Panel LH 1

20 749-04000 Tube, Dash, Support 1

21 783-0462 Bracket, PTO Switch Retainer 1

22 783-1447 Bracket, Support, Battery 1

23 783-1448 Bracket, Support, Hood Latch 1

24 783-1449 Bracket, Battery, Hold Down 1

25 783-1499 Bracket, Rod, Dash 1

26 746-1149 Control, Choke, 23 Lg. 1

27 736-0222 Washer, External Lock, 1/4 2

28 725-1426 Solenoid, 12V, 100 Amp 1

29 725-1706 Battery, 270 CCA, Wet 1

30 712-3087 Nut, Wing, 1/4-20 1

31 738-1132 Screw, Shoulder, 1/4-20, .25 x .15 1

32 710-0751 Screw, 1/4-20, .620, Gr5 1

33 710-0192 Screw, #10-24 X .375 2

34 714-0104 Internal Cotter Pin, .072 x 1.13 1

35 710-0837 Screw, Oval Countersunk, #10-16 X .625 1

36 741-0501 Bearing, Steering Column, .634 ID x 1.36 1

37 783-04003 Steering Bracket 1

-17-

HOOD & GRILLE

-18-

HOOD & GRILLE

REF.

NO.

PART

NUMBER DESCRIPTION QTY.

1 603-0211 Bracket Assembly, Grille LH 1

2 603-0212 Bracket Assembly, Grille RH 1

3 603-0583A Bracket Assembly, Hood 1

4 625-0053 Headlight Assembly, Front 1

725-0963 Miniature Lamp, 12V Socket-type 2

725-1649 Socket, Lamp, Nylon 1/4-Turn 2

731-3138A Lens 1

731-3295 Leflector, Headlight 1

5 703-05000 Hood 1

6 703-2396 Side Panel, RH 1

7 703-2397 Side Panel, LH 1

8 703-2398 Grille 1

9 703-2465 Link, Hood Upper 6.06 2

10 703-2466A Link, Hood, Rear 2

11 703-2495 Screen, LH Side Panel 1

12 703-2496 Screen, RH Side Panel 1

13 703-2563A Bulkhead, Hood, Upper 1

14 710-0351 Screw, #10-16, 0.500, Pan Phillips 6

15 710-0599 Screw, Self-tapping, 1/4-20, 0.500 6

16 712-3027 Nut, Flange Lock, 1/4-20 8

17 712-3087 Nut, Wing, 1/4-20 2

18 722-3021 Tape, Two-sided Adhesive Foam 9

19 723-3061 Seal, Heat Baffle 19

20 726-0139 Nut, Speed, 10z U-type 2

21 728-0117 Rivet, Pop, .125 OD, #42 4

22 732-0334 Spring, Compression, .50 OD x .5 Lg 4

23 732-0855A Spring, Latch, Hood 1

24 736-0175 Washer, Spring, .265 x.562 x.025 8

25 736-0400 Washer, Flat, .194 x .62 OD x .063 2

26 738-3141 Screw, Shoulder, .31x .75, 1/4-20 2

27 748-3055 Bushing, Tapered, .32 ID x .69 OD 4

28 783-1467A Bracket, Mounting, Grille LH 1

29 783-1468A Bracket, Mounting, Grille RH 1

30 731-04009 Plenum, Hood 1

31 710-0436 Hex Screw, #10-16 x 0.625 2

-19-

POWER TAKE-OFF (PTO) SYSTEM

-20-

POWER TAKE-OFF (PTO) SYSTEM

REF.

NO.

PART

NUMBER DESCRIPTION QTY.

1 683-0450 Plate Assembly, Engagement (Model 1517) 1

2 710-0520 Screw, 3/8-16, 1.5 (Model 1517) 1

3 710-0831 Screw, 3/8-16, 5.5 (Model 1517) 1

4 710-1238 Screw, 5/16-18, .875 2

5 710-3144 Screw, 3/8-16, 2.0 (Model 1517) 1

6 712-0229 Push Nut, 3/8 (Model 1517) 1

7 712-0431 Nut, Flange Lock, 3/8-16 4

8 712-3004A Nut, Flange Lock, 5/16-18 3

9 712-3017 Nut, 3/8-16 (Model 1517) 1

10 714-0470 Cotter Pin, 1/8 x 1.25 (Model 1517) 1

11 732-0384 Spring, Extension .62 x 6.12 (Model 1517) 1

12 732-0991A Belt Guard (Model 1517) 1

13 736-0140 Washer, Flat .385 x .62 x .063 (Model 1517) 1

14 736-3010 Washer, Flat .407 x .812 x .135 (Model 1517) 2

15 738-0372 Shoulder Spacer, .380 1

16 748-0415A Spacer, 3/8 x 1.54 2

17 756-0627B Pulley, Idler, 3.5 (Model 1517) 1

18 756-1208 Pulley, Idler, 4.0 (Model 1517) 1

19 783-0891B Deck Stop 1

20 717-1773 Clutch, Electric PTO, 6” (Model 1515) 1

717-1708 Clutch, Electric PTO (Model 1517) 1

21 736-0277 Washer, Flat, 1.031 x 1.620 x .095 1

22 738-0785 Spacer, Shoulder, 1.38 x .445 x .36 1

23 736-0171 Washer, Lock, 7/16, Regular Duty 1

24 710-3157 Screw, 7/16-20, 3.25, Gr5 1

25 710-3025 Screw, 5/16-18, .625, Gr5 2

26 783-1003 Bracket, Clutch 1

27 754-0644 Belt, V-type (Model 1517) 1

-21-

38-INCH CUTTING DECK

18 15

16 38

46 31

30 36

11 12

-22-

38-INCH CUTTING DECK

REF.

NO.

PART

NUMBER DESCRIPTION QTY.

1 16606 Bracket, Hook, Retainer 1

2 618-0676 Spindle Assembly, 38" 2

3 683-0611 Deck Assembly, 38" 1

4 703-1890 Wheel, Deck, 5.0 OD w/ Fitting 2

5 710-0528 Screw, 5/16-18, 1.25, Gr5 1

6 710-0602 Screw, Self-tapping, 5/16-18, 1.000 1

7 710-0604A Screw, 5/16-18, 0.625 6

8 710-0650 Screw, Self-tapping, 5/16-18, 0.875 8

9 710-0751 Screw, 1/4-20, .620, Gr5 3

10 710-0817 Screw, Self-tapping, 5/16-18, 1.250 1

11 710-1315 Screw, Self-tapping, 3/8-16, 1.250 2

12 710-3144 Screw, 3/8-16, 2.00, Gr5 1

13 711-0747 Pin, Guide, .250 Dia x 1.68 Lg 1

14 711-3314 Roller Pin 1/2" x 7.31 Lg 1

15 712-0431 Nut, Flange Lock, 3/8-16 5

16 712-3004A Nut, Flange Lock, 5/16-18, Gr5 1

17 712-3006 Nut, Hex, 1/4-20, Gr5 2

18 712-3010 Nut, Hex, 5/16-18, Gr5 1

19 712-3027 Nut, Flange Lock, 1/4-20 2

20 714-0470 Pin, Cotter, 1/8 x 1.25 2

21 714-3004 Pin, Cotter, 3/32 x 1.25 1

22 717-1553B Adjustment Gear, Deck 1

23 726-0233 Nut, Push, .25 ID x .50 OD 2

24 731-1032B Chute Assembly, Side Discharge 1

25 731-2231B Cover, Belt, Deck 1

26 731-2609A Cover, Belt, Deck, LH 1

27 731-3005 Front Roller 1

28 732-0306 Spring, Compression, .406 x .531 x 1.75 Lg 2

29 732-0556 Spring, Extension .94 x 7.57 1

30 734-0973 Wheel Deck 5.0 x 1.38 2

31 736-0105 Washer, Bell, .375 x .870 x .063 4

32 736-0119 Washer, Lock, 5/16, Regular Duty 1

33 736-0272 Washer, Flat, .510 x 1.00 x .060 2

34 737-3007 Grease, Alvania Ep 2 1

35 738-0372A Spacer, Shoulder, 1.00 x .38 x .38 1

36 738-0373 Shoulder Screw 2

37 738-3056 Shoulder Screw - 1/2 Dia x 2.50 Lg. 2

38 742-3032 Blade, 19.38 Lg, 3-in-1 2

39 747-1116 Rod, Handle, Deck Release .375 Dia 2

40 754-0641 Belt, V-Type 1

41 756-0627B Pulley, Idler, 3.50 Dia. 2

42 756-1229 Pulley, Idler, 4.06 Dia. w/ Flange 1

43 737-3000 Fitting, 3/16 Drive Lube 2

44 710-1889 Bolt, Spindle, 3/4-16, 5.85 2

45 783-1417 Bracket, Idler, Arm 1

46 783-1418 Bracket, Idler 1

47 783-1433 Bracket, Deck, Hanger Adjustment 1

48 756-3106 Pulley 2

49 750-1000 Spacer, .80 x 1.10 x 1.330 2

50 748-3065 Spacer, Spindle, Deck 4

51 618-3129A Spindle Housing Assembly 2

750-3190A Spacer, Bearing, .780 x 1.000 x 1.0425 2

721-3018A Seal, Oil, Single Lip 4

741-3029 Cup, Bearing 4

741-3028 Bearing, Cone 4

719-3118A Housing, Spindle, Deck 2

52 712-3078 Nut, Flange, 3/4-16 2

-23-

42-INCH CUTTING DECK

19 45

38 35

-24-

42-INCH CUTTING DECK

REF.

NO.

PART

NUMBER DESCRIPTION QTY.

1 16606 Bracket, Hook, Retainer 1

2 618-0677 Spindle Assembly, 42" 2

3 683-0254 Bracket Assembly, Deck, Hanger LH 1

4 683-0607 Deck Assembly, 42" 1

5 703-1890 Wheel, Deck, 5.0 OD w/ Fitting 2

6 710-0136 Screw, 1/4-20, 1.75, Gr5 1

7 710-0520 Screw, 3/8-16, 1.50, Gr5 1

8 710-0528 Screw, 5/16-18, 1.25, Gr5 1

9 710-0751 Screw, 1/4-20, .620, Gr5 3

10 710-1238 Screw, 5/16-18, .875, Gr5 1

11 710-1260A Screw, 5/16-18, .750 12

12 710-3151 Screw, 5/8-18, 4.25, Gr5 1

13 711-3314 Roller Pin, 1/2" x 7.31 Lg 1

14 712-0337 Nut, Hex, 5/8-18, Gr5 1

15 712-0431 Nut, Flange Lock, 3/8-16 5

16 712-3004A Nut, Flange Lock, 5/16-18, Gr5 1

17 712-3006 Nut, Hex, 1/4-20, Gr5 3

18 712-3027 Nut, Flange Lock, 1/4-20 2

19 714-0470 Pin, Cotter, 1/8 x 1.25 2

20 714-3004 Pin, Cotter, 3/32 x 1.25 1

21 716-3020 Snap Ring, Internal 2

22 717-1553B Adjustment Gear, Deck 1

23 726-0233 Nut, Push, .25 ID x .50 OD 2

24 731-1032B Chute Assembly, Side Discharge 1

25 731-2486A Cover, Belt, 42" Deck 2

26 731-3005 Front Roller 1

27 732-0306 Spring, Compression, .406 x .531 x 1.75 Lg 2

28 732-0470A Spring, Extension .530 OD x 4.74 Lg 1

29 734-0973 Wheel Deck 5.0 x 1.38 2

30 736-0105 Washer, Bell, .375 x .870 x .063 4

31 736-0119 Washer, Lock, 5/16, Regular Duty 1

32 736-0158 Washer, Lock, 5/8, Regular Duty 1

33 736-0162 Washer, Flat .64 ID x 1.00 OD x .12 3

34 736-0270 Washer, Bell, .265 x .75 x .062 2

35 736-0272 Washer, Flat, .510 x 1.00 x .060 2

36 736-0343 Washer, Flat, .330 x 1.25 x .120 8

37 738-0373 Shoulder Screw 2

38 738-3056 Shoulder Screw - 1/2 Dia x 2.50 Lg. 2

39 741-0524 Bearing, .625 ID x 1.574 OD x .470 2

40 742-3033 Blade, 21.20 Lg, 3-in-1 2

41 747-1116 Rod, Handle, Deck Release .375 Dia 2

42 748-0331 Spacer, Shoulder .625 Dia x .324 Dia 1

43 750-0932A Spacer, .635 ID x .88 x 1.72 1

44 712-3078 Nut, Flange, 3/4-16 2

45 754-0645 Belt, V-Type 1

46 756-0627B Pulley, Idler, 3.50 Dia. 1

47 756-1202 Pulley, Double, 5.0 x 5.0 1

48 737-3000 Fitting, 3/16 Drive Lube 2

49 710-1889 Bolt, Spindle, 3/4-16, 5.85 2

50 783-1291 Bracket, Idler 1

51 748-3065 Spacer, Spindle, Deck 4

52 756-3106 Pulley 2

53 618-3129A Spindle Housing Assembly 2

750-3190A Spacer, Bearing, .780 x 1.000 x 1.0425 2

721-3018A Seal, Oil, Single Lip 4

741-3029 Cup, Bearing 4

741-3028 Bearing, Cone 4

719-3118A Housing, Spindle, Deck 2

-25-

HYDROSTATIC TRANSMISSION

-26-

REF.

NO.

PART

NUMBER DESCRIPTION QTY.

1 HG-70721 Main Housing, Assembly, Black 1

2 HG-70720 Side Housing, Assembly, Black 1

3 HG-70724 Center Section, Assembly 1

4 HG-51048 Swashplate, Trunnion Machined 1

5 HG-70331 Block - Assembly 1

6 HG-50928 Sealant 10.5

7 HG-51190 Hex Flange Screw 1/4-20 x 1.25 14

9 HG-51062 Shaft, Input 1

10 HG-2000022 Ring - Retaining 1

11 HG-50951 Spacer 1

12 HG-50329 Ring - Retaining 3

13 HG-51161 Seal, Lip .67 x 1.58 x .276 1

14 HG-50315 Ball Bearing 17mm x 40mm x 12mm 1

16 HG-51064 Hex Flange Head Screw 5/16-24 x 0.75 1

17 HG-51140 Lip Seal 18 x 32 x 7 1

18 HG-51119 Arm, Control 1

19 HG-50551 Bearing, 30x52x13 Thrust 2

23 HG-51084 Check Plug Assembly, .027, Washer 2

24 HG-50966 Shaft, Motor 1

27 HG-51130 Gear - Pinnion, 13t 1

28 HG-51129 10t / 48t Gear 1

29 HG-51043 Gear, 10t Jackshaft 1

30 HG-51044 60t Bull Gear 1

31 HG-51088 Sleeve Bearing .75 x 1.750 x .625 2

32 HG-51517 Sleeve Bearing 1.00 x 1.575 x .625 2

33 HG-44875 Washer, 3/4 ID x 1-1/2 OD x .13 2

34 HG-51518 Lip Seal Axle Seal 2

35 HG-51520 Shaft, Black, Axle 1.00 x 11.99 Flange 1

36 HG-51521 Shaft, Black, Axle 1.00 x 17.59 Flange 1

37 HG-44096 Miter Gear (Splined) 2

38 HG-44097 Miter Gear 15t (0.5 ID) 2

39 HG-50146 Shaft 1

40 HG-44871 Ring, Spiral Retaining 2

41 HG-51083 Pin, Jackshaft 1

42 HG-51100 Magnet, Ring 1

43 HG-51136 Spring, Bypass 1

44 HG-50016 Hydro Mounting Screw 3/8-24 x 2.5 Lg 2

45 HG-51132 Filter 1

46 HG-51133 Base, Filter 1

47 HG-51091 Actuator, Bypass 1

48 HG-51098 Rod, Bypass Actuator 1

49 HG-51135 Arm, Bypass 1

50 HG-51116 Retaining Ring 0.250 External 1

51 HG-51081 Seal, Lip .741 x .250 x .250 Tc 1

52 HG-44371 Flat Washer, 5/8 ID x 1.0 OD x .05 1

53 HG-44145 Retaining Ring 1

54 HG-51071 Bearing, Center Block 1

55 HG-2003014 Spring - Helical Compression 1

56 HG-2003017 Washer 1

57 737-3121 20W-50 Oil (Gal) 78.8

58 HG-44092 Brake Yoke 1

59 HG-51072 Rotor, Brake 1

60 HG-44132 Brake Puck 2

61 HG-44134 Puck Plate 1

62 HG-44127 Brake Actuating Pin 2

63 HG-51146 Bolt, 1/4-20 x 2 w/patch, Special Flange 2

65 HG-23711 Spacer 1

66 HG-51345 Spring, Brake Arm Bias 1

67 HG-44138 Square Head Bolt 5/16-24- Ribbed 1

68 HG-44094 Arm, Brake 1

69 HG-44142 Slotted Hex Nut 5/16-24 1

70 HG-44101 Cotter Pin 3/32 x 3/4 1

71 HG-50919 Compression Spring Brake Anti-drag 1

72 HG-50132 Washer, Ht .5 ID x 1 OD x .032 3

73 HG-44130 Flat - Washer 11/32 ID x 7/8 OD 2

74 HG-44761 Oil Seal .625 x 1.0 x.25 1

83 HG-9004800-

2506

Pin, Standard Headless 2

84 HG-51143 Fitting, 5/16 Sae 5/32 Tube 1

85 HG-51147 Hose, Expansion Tank 1

87 HG-51251 Cap, Vent 1

88 HG-50653 Bolt, Self Tapping 10-32 x 1/2 1

94 HG-44147 Ball Bearing .62 ID x 1.38 x .44 1

95 HG-50837 Socket Head Screw, 5/16-24 x 1-1/2 1

96 HG-51200 Spacer, Locating 1

97 HG-50870 Screw 1

98 HG-51120 Arm, Return 1

99 HG-51097 Puck, Adjusting 1

100 HG-51122 Washer, .325 OD x 1.60 ID x .150 1

101 HG-51131 Spring, Extension 1

102 HG-51123 Spacer .560 OD x .260 ID x .870 1

103 HG-51223 Bracket, Torque 1

107 HG-51134 Deflector 1

108 HG-51069 Washer, Shaft .71 ID x 1.15 OD x .030 1

109 HG-9005110-

5600

Plug, SAE #6 1

110 HG-50868 Torx Head Screw, 5/16-18 1

111 HG-51144 O-ring .07 x .301 ID 1

113 HG-51179 Bracket,support Expansion Tank 1

114 HG-51184 Spring Guide 1

116 HG-51196 Silicon Sponge 1

120 HG-70725 Center Section - Filter - Bypass Ass’y1

121 HG-70466 Filter Assembly 1

122 HG-70722 Seal - O-ring Kit 1

128 HG-70503 Kit, Expansion Tank 1

129 HG-51252 Cap, Expansion Tank Shipping 1

135 HG-70723 Block, Assembly 7 Piston 1

REF.

NO.

PART

NUMBER DESCRIPTION QTY.

HYDROSTATIC TRANSMISSION

-27-

ELECTRICAL SYSTEM

783-0715A REF ONLY

14 12

-28-

ELECTRICAL SYSTEM

REF.

NO.

PART

NUMBER DESCRIPTION QTY.

1 629-0469A Harness Assembly, Headlight 1

2 629-0889 Harness Assembly, Kohler OHV Alternator 1

3 629-1105 Harness Assembly, Kohler, 1

4 629-1106 Harness Assembly, Safety, Reverse 1

5 710-0227 Screw, Ab, #8-18, 0.500 2

6 710-0599 Screw, Self-tapping, 1/4-20, 0.500 2

7 712-3006 Nut, Hex, 1/4-20, Gr5 2

8 725-1303 Switch, Outer Seat Spring 1

9 725-1426 Solenoid, 12V, 100amp 1

10 725-1439 Switch, Inner Seat Spring 1

11 725-1657A Switch, Snap Mount 1

12 725-1741 Switch, Key, 4-Position 1

13 725-1976 Indicator, Monitor, Hour Meter 1

14 725-2054 Key, Switch, Plastic 2

15 725-3233 Switch, Electric PTO, Yellow Knob 1

16 726-0278 Plate, Insulator Boss 1

17 726-0279 Plate, Insulator 2

18 736-0222 Washer, Lock, Ext 1/4 2

19 736-0329 Washer, Lock, 1/4, Regular Duty 2

-29-

23 22

ENGINE CRANKSHAFT & CRANKCASE

-30-

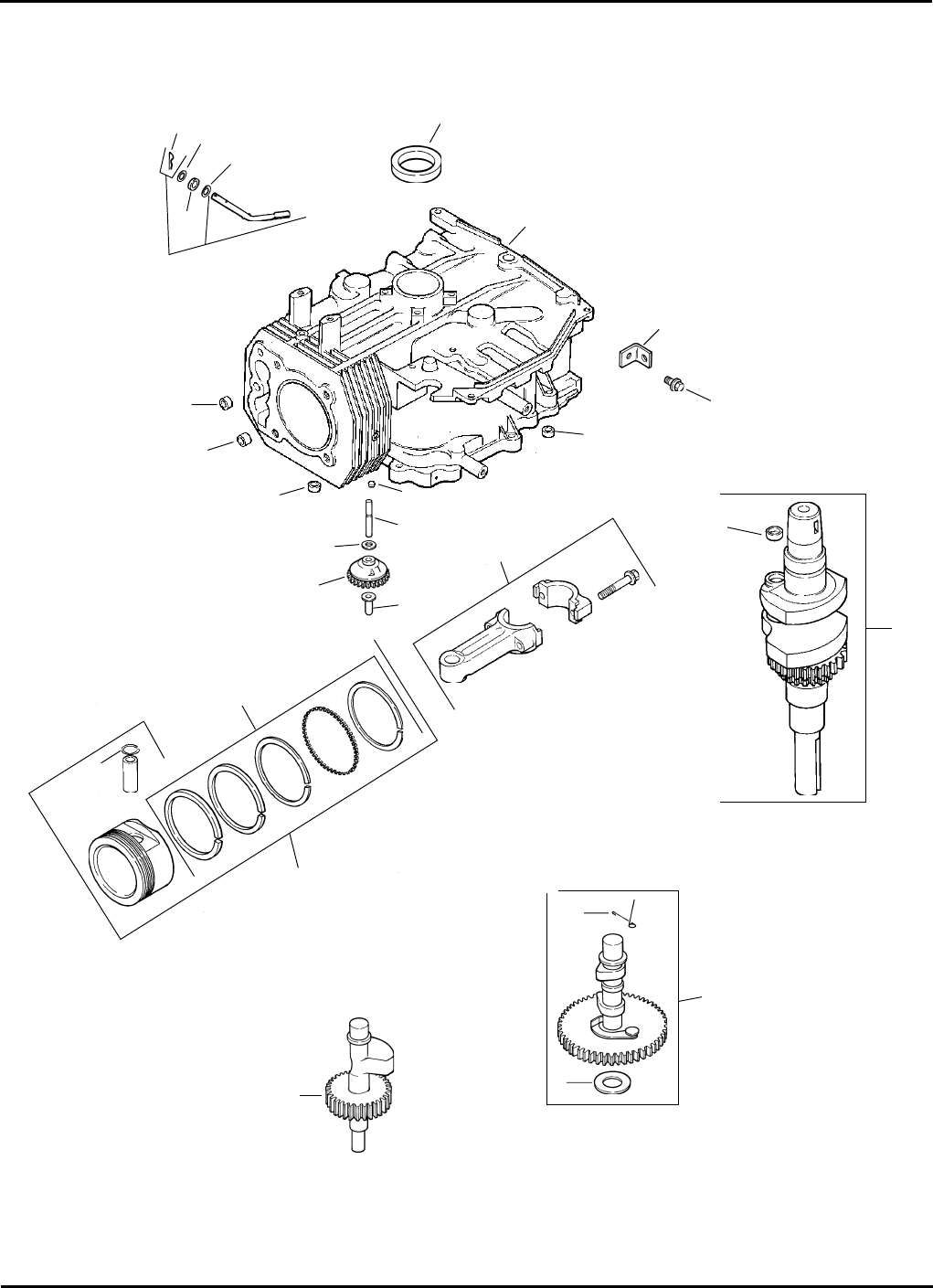

ENGINE CRANKSHAFT & CRANKCASE

REF.

NO.

PART

NUMBER DESCRIPTION QTY.

1 KH-12 032 03-S Seal, Crankshaft 1

2 KH-12 522 51 Crankcase (Short Block) 1

3 KH-12 445 02-S Strap, Lifting 1

4 KH-M-839025-S Screw, Hex. Flange M8 X 1.25 X 25 1

5 KH-24 380 13-S Pin, Locating 1

6 KH-12 755 49-S Kit, Camshaft (Includes 7, 8) 1

7 KH-12 089 31-S Spring, Actuating 1

8 KH-12 422 08-S Shim, Camshaft - Blue AR

KH-12 422 09-S Shim, Camshaft - Red AR

KH-12 422 10-S Shim, Camshaft - Yellow 1

KH-12 422 11-S Shim, Camshaft - Green AR

KH-12 422 12-S Shim, Camshaft - Gray AR

KH-12 422 13-S Shim, Camshaft - Black AR

KH-12 422 07-S Shim, Camshaft - White AR

9 KH-12 144 27-S Shaft, Balance (Model 1515) 1

KH-12 144 28-S Shaft, Balance (Model 1517) 1

10 KH-12 874 07-S Piston w/ Ring Set (Std.) (Includes 11, 12) 1

KH-12 874 08-S Piston w/ Ring Set (.25) 1

KH-12 874 09-S Piston w/ Ring Set (.50) 1

KH-12 874 11-S Piston w/ Ring Set (.08) 1

11 KH-12 018 02-S Retainer, Piston Pin 1

12 KH-12 108 07-S Ring Set (Std. & .08) 1

KH-12 108 08-S Ring Set (.25) 1

KH-12 108 09-S Ring Set (.50) 1

13 KH-12 067 05-S Connecting Rod (Std.) (Model 1515) 1

KH-12 067 11-S Connecting Rod (Std.) (Model 1517) 1

KH-12 067 06-S Connecting Rod (.25)(Model 1515) 1

KH-12 067 12-S Connecting Rod (Std.) (Model 1517) 1

14 KH-12 380 01-S Pin, Governor Regulating 1

15 KH-12 043 05-S Gear, Governor 1

16 KH-M-631005-S Washer, Plain 6 Mm 1

17 KH-12 144 02-S Shaft, Governor Gear 1

18 KH-52 139 09-S Plug, Cup 1

19 KH-12 755 64-S Kit, Governor Cross Shaft w/clip (Incl. 23) 1

20 KH-X-25-102-S Washer, Plain 1/4”1

21 KH-12 032 01-S Seal, Governor Cross Shaft 1

22 KH-M-631015-S Washer, Plain 6 Mm 1

23 KH-12 154 05-S Clip, Hitch Pin 1

24 KH-12 041 37-S Crankshaft (Includes 25) (Model 1515) 1

KH-12 041 57-S Crankshaft (Includes 25) (Model 1517) 1

25 KH-12 139 01-S Plug, Cup (Model 1515) 1

KH-12 139 27-S Plug, Cup (Model 1517) 1

-31-

ENGINE OIL PAN & LUBRICATION

-32-

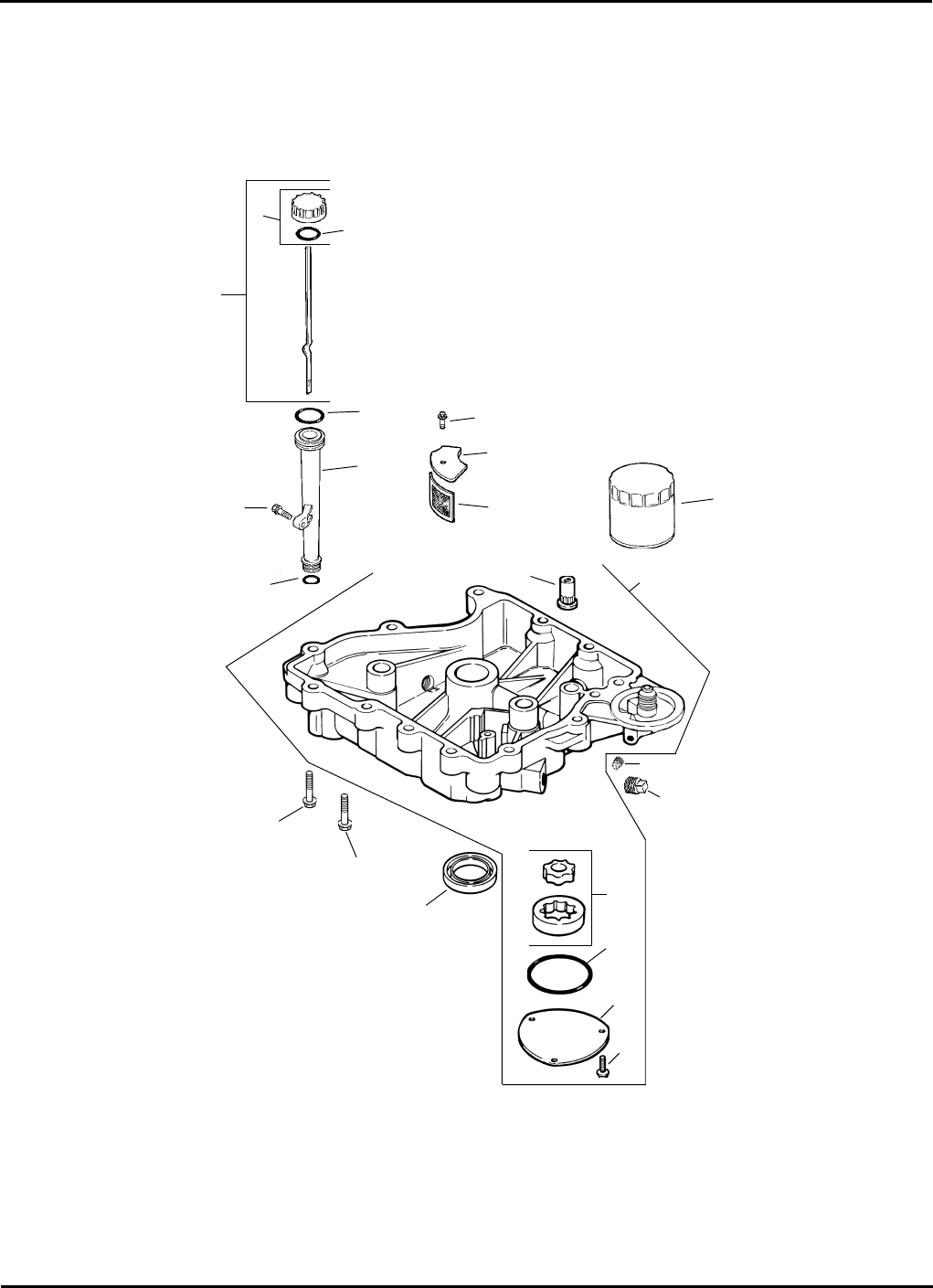

ENGINE OIL PAN & LUBRICATION

REF.

NO.

PART

NUMBER DESCRIPTION QTY.

1 KH-12 038 01-S Dipstick (Includes 2, 3) 1

2 KH-24 755 46-S Kit, Oil Fill Cap (Includes 3) 1

3 KH-12 153 03-S O-ring 1

4 KH-12 153 02-S O-ring, Upper Oil Fill Tube 1

5 KH-12 123 04-S Tube, Oil Fill 1

6 KH-M-645025-S Screw, Hex. Flange M6 x 1.0 x 25 1

7 KH-12 153 01-S O-ring, Lower Oil Fill Tube 1

8 KH-25 162 07-S Screen, Oil Pickup 1

9 KH-12 096 03-S Cover, Oil Pickup Screen 1

10 KH-M-545016-S Screw, Hex. Flange M5 x 0.8 x 16 1

11 KH-12 050 08-S Filter, Oil 1

12 KH-12 199 50-S Pan, Oil (Includes 13, 16-19) 1

13 KH-25 462 09-S Valve, Oil Pressure Relief 1

14 KH-25 139 52-S Plug, Sq. Hd. 1/8”1

15 KH-25 139 57-S Plug, Sq. Hd. Solid 3/8”2

16 KH-12 393 01-S Pump Assembly, Oil 1

17 KH-12 153 06-S O-ring, Oil Pump Cover 1

18 KH-12 096 34-S Cover, Oil Pump 1

19 KH-M-545016-S Screw, Hex. Flange M5 x 0.8 x 16 3

20 KH-12 032 03-S Seal, Oil (P.T.O. End) 1

21 KH-24 086 16-S Screw, Hex. Flange M8 x 1.25 x 45 11

22 KH-24 086 17-S Screw, Hex. Flange M8 x 1.25 x 45 1

-33-

20 19

ENGINE CYLINDER HEAD & VALVES

-34-

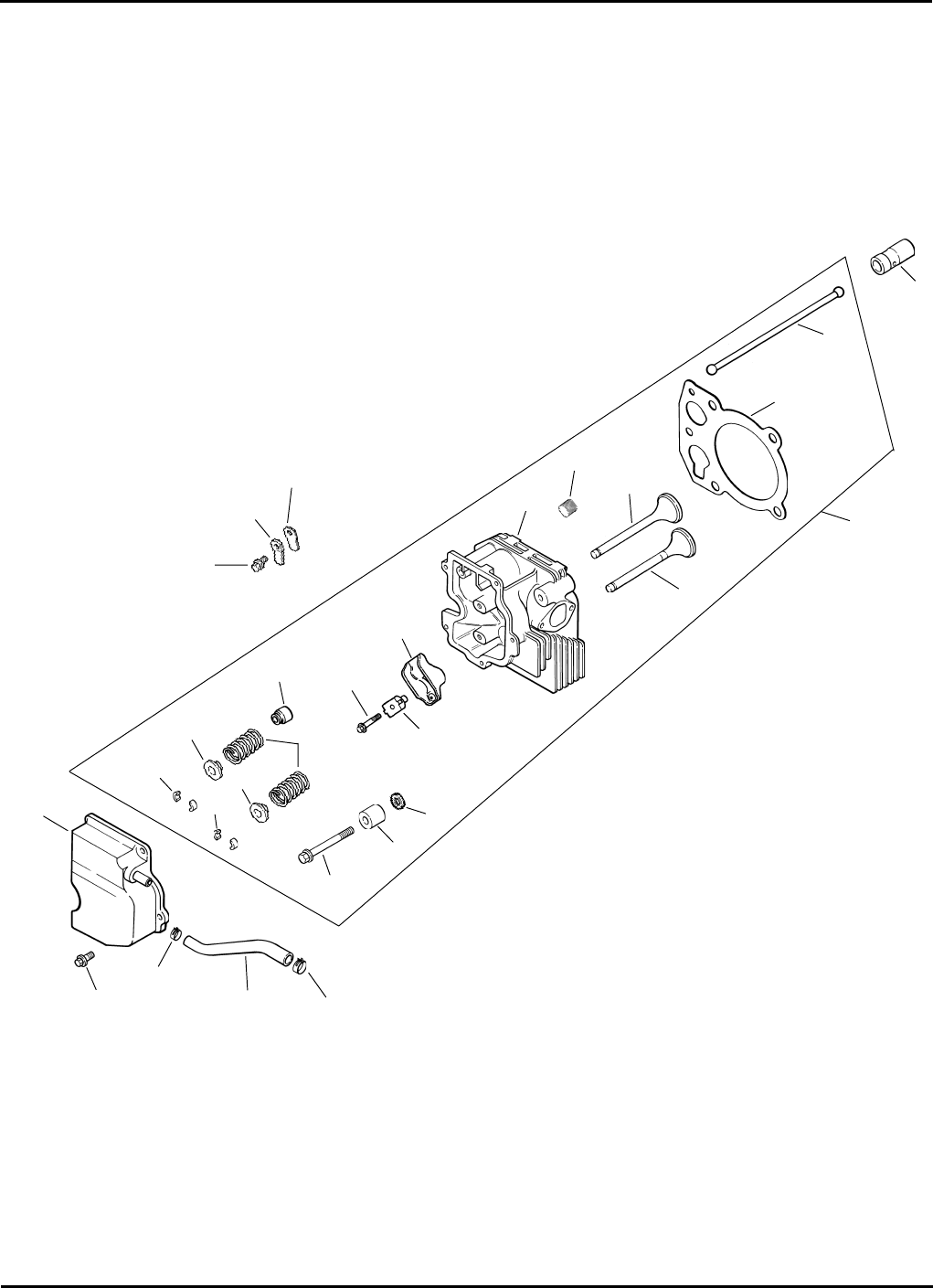

ENGINE CYLINDER HEAD & VALVES

REF.

NO.

PART

NUMBER DESCRIPTION QTY.

1 KH-25 351 01-S Lifter, Valve 2

2 KH-12 755 81-S Kit, Cylinder Head (Model 1515) (Incl. 3-17, 1

Carburetor Gasket (2), Air Cleaner Base

Gasket, Exhaust Manifold Gasket)

KH-12 755 94-S Kit, Cylinder Head (Model 1517) (Incl. 3-17, 1

Carburetor Gasket (2), Air Cleaner Base

Gasket, Exhaust Manifold Gasket)

3 KH-12 411 01-S Rod, Push (Model 1515) 2

KH-12 411 03-S Rod, Push (Model 1517) 2

4 KH-12 041 10-S Gasket, Cylinder Head 1

5 KH-12 017 01-S Valve, Intake (Std.) 1

6 KH-12 016 01-S Valve, Exhaust (Std.) 1

7 KH-25 139 60-S Plug, Allen Hd. 1/8” Pipe 1

8 KH-12 318 19-S Cylinder Head (Model 1515) 2

KH-12 318 36-S Cylinder Head (Model 1517) 2

9 KH-25 186 01-S Arm, Rocker 2

10 KH-12 599 03-S Pivot, Rocker Arm 2

11 KH-M-640034-S Screw, Hex. Flange M6 x 1.0 x 34 2

12 KH-66 032 05-S Seal, Valve Stem 2

13 KH-12 089 34-S Spring, Valve 2

14 KH-12 173 01-S Cap, Valve Spring 2

15 KH-12 755 03-S Kit, Retainer 2

16 KH-12 468 05-S Washer, Plain 13/32”1

17 KH-12 112 13-S Spacer, Head Bolt Exhaust Port 1

18 KH-12 086 15-S Screw, Hex. Flange M10 x 1.5 x 81 5

19 KH-25 237 14-S Clamp, Hose 2

20 KH-12 326 03-S Hose, Breather 1

21 KH-M-645020-S Screw, Hex. Flange M6 x 1.0 x 20 5

22 KH-12 096 07-S Cover, Valve W/nipple 1

23 KH-M-545010-S Screw, Hex. Flange M5 x 0.8 x 10 1

24 KH-12 018 01-S Retainer, Breather Reed 1

25 KH-12 402 02-S Reed, Breather 1

—KH-12 017 02-S Valve, Intake (.25) 1

—KH-12 016 02-S Valve, Exhaust (.25) 1

—KH-12 041 01-S Gasket, Carburetor 2

—KH-12 041 02-S Gasket, Air Cleaner Base 1

—KH-12 041 03-S Gasket, Exhaust Manifold 1

-35-

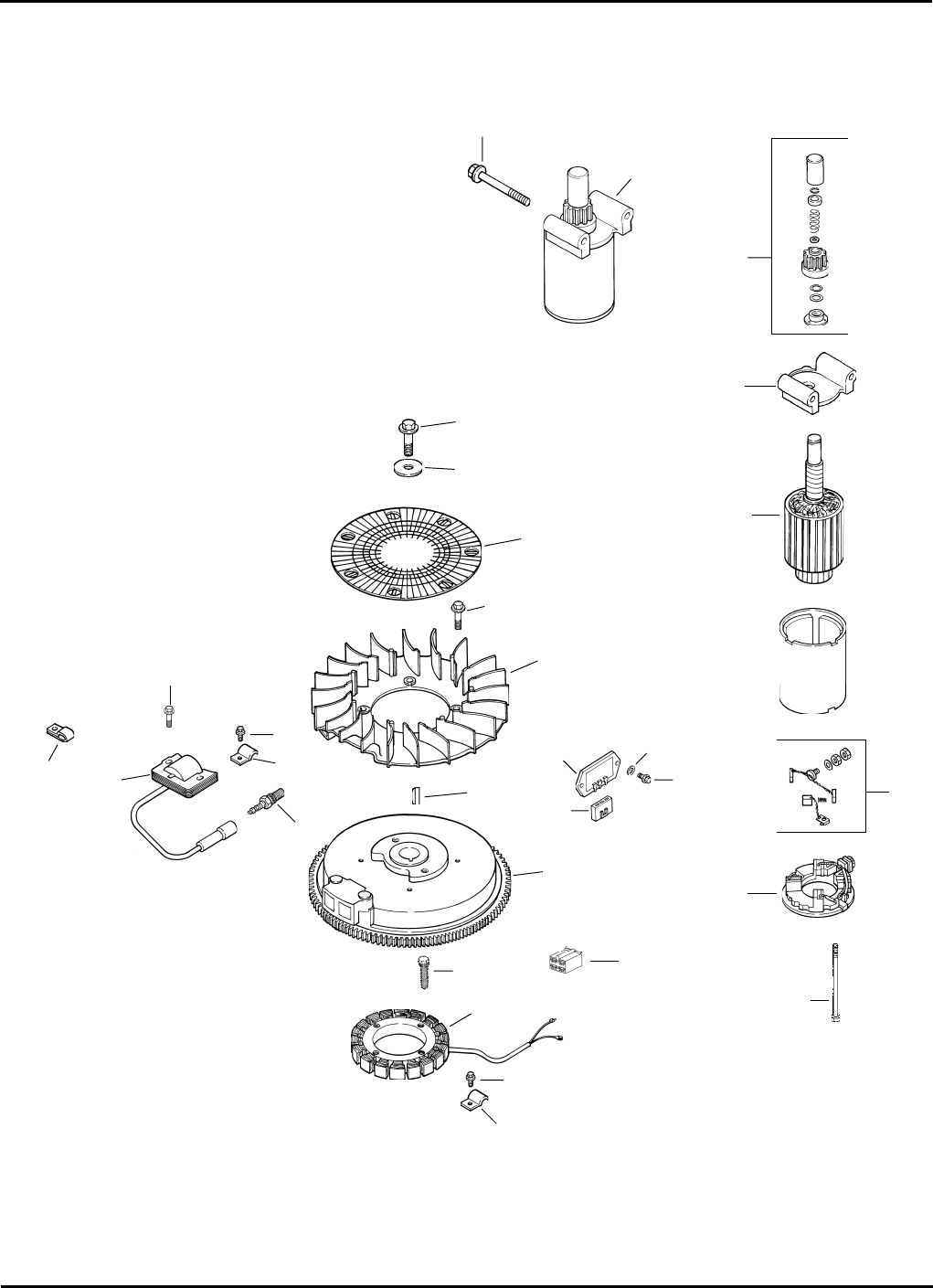

ENGINE IGNITION & ELECTRIC STARTER

-36-

ENGINE IGNITION & ELECTRIC STARTER

REF.

NO.

PART

NUMBER DESCRIPTION QTY.

1 KH-12 086 14-S Screw, Hex. Flange M10 x 1.5 x 46 1

2 KH-12 468 03-S Washer, Plain 3/8”1

3 KH-24 162 03-S Screen, Grass 1

4 KH-25 086 47-S Bolt, Shoulder M6 x 1.0 x 16 4

5 KH-12 157 06-S Fan 1

6 KH-X-42-15-S Key 1

7 KH-12 025 15-S Flywheel 1

8 KH-41 403 09-S Rectifier-regulator 1

9 KH-X-22-11-S Washer, Lock 1/4 2

10 KH-M-639016-S Screw, Hex. Flange M6 x 1.0 x 16 2

11 KH-236602-S Connector, Rectifier-regulator (3 Contact) 1

12 KH-41 155 02-S Connector (4 Contact) 1

13 KH-M-548025-S Screw, Hex. Cap M5 x 0.8 x 25 2

14 KH-237878-S Kit, Stator (Includes Terminal 25 452 01-S) 1

15 KH-M-545010-S Screw, Hex. Flange M5 x 0.8 x 10 2

16 KH-X-728-1-S Clip 2

17 KH-12 132 02-S Spark Plug 1

18 KH-M-545020-S Screw, Hex. Flange M5 x 0.8 x 20 2

19 KH-12 584 04-S Module, Ignition 1

20 KH-12 154 06-S Clip 2

21 KH-M-839070-S Screw, Hex. Flange M8 x 1.25 x 70 2

22 KH-12 098 22-S Starter Assembly (Includes 3-8) 1

23 KH-12 755 53-S Kit, Drive 1

24 KH-12 227 19-S Cap, Drive End 1

25 KH-12 070 05-S Armature 1

26 KH-12 221 01-S Brush Assembly 1

27 KH-12 227 13-S Commutator, End Cap 1

28 KH-12 211 01-S Bolt, Thru 2

—KH-25 452 01-S Terminal 2

—KH-X-25-5-S Washer, Plain 1

—KH-12 176 38-S Harness, Wiring 1

—KH-12 518 01-S Lead, White (19” - 18 Guage Fully Insulated 1

Push On Tab And Uninsulated Push On

Terminals)

—KH-24 518 12-S Lead, Black (6” - 12 Guage - Insulated 1

Grip Barrel Eyelet Terminals)

—KH-25 518 05-S Lead, Black (5” - 14 Guage -uninsulated 1

Push On Tab Terminals)

-37-

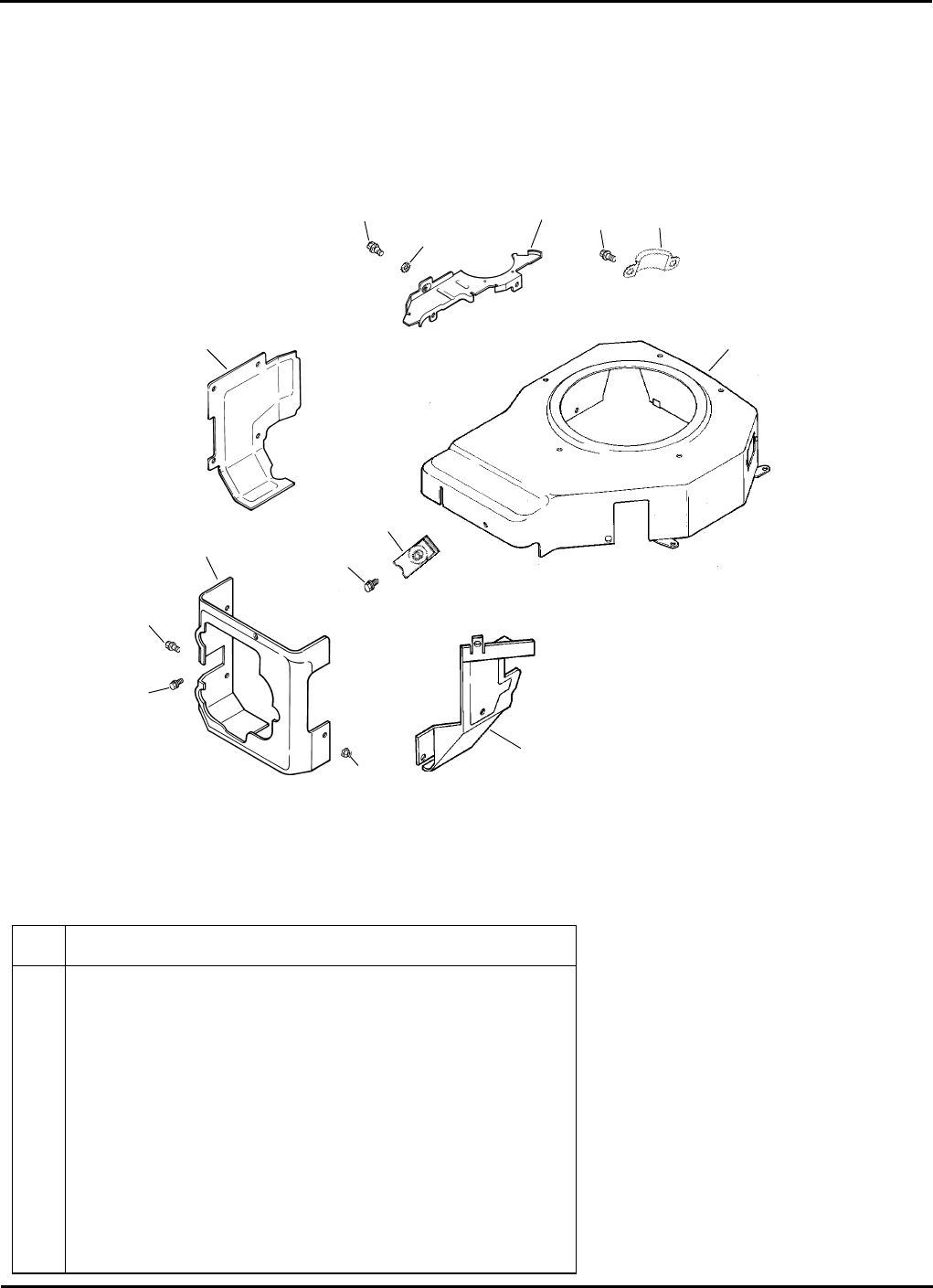

ENGINE BLOWER HOUSING

REF.

NO.

PART

NUMBER DESCRIPTION QTY.

1 KH-M-545010-S Screw, Hex. Flange M5 x 0.8 x 10 5

2 KH-24 468 10-S Washer, Plain 1/4”1

3 KH-12 146 07-S Plate, Blower Housing 1

4 KH-M-550010-S Screw, Hex. Flange M5 x 0.8 x 10 2

5 KH-24 096 05-S Cover, Pinion 1

6 KH-12 027 55-S Housing, Blower 1

7 KH-12 063 18-S Baffle, Intake Side 1

8 KH-M-541050-S Nut, Hex. Flange M5 x 0.8 (Model 1517) 3

9 KH-25 154 02-S Clip, Mounting 2

10 KH-M-645016-S Screw, Hex. Flange M6 x 1.0 x 16 1

11 KH-12 063 20-S Baffle, Cylinder Head 3

12 KH-12 086 37-S Screw, Captive Washer M5 x 0.8 x 20 1

13 KH-12 063 19-S Baffle, Cylinder 2

—KH-24 086 18-S Screw, Phillips Hd. 11-16 x 7/8”2

—KH-X-25-92-S Screw, Phillips Hd. 11-16 x 7/8”2

-38-

ENGINE CONTROLS

REF.

NO.

PART

NUMBER DESCRIPTION QTY.

1 KH-12 079 11-S Linkage, Choke 1

2 KH-12 237 01-S Clamp, Cable 2

3 KH-M-545016-S Screw, Hex. Flange M5 x 0.8 x 16 2

4 KH-M-664020-S Screw, Lobed Socket M6 x 1.0 x 20 2

5 KH-12 536 02-S Control, Speed Assembly (Incl. 6-9) 1

6 KH-230293-S Spacer, Shim .005 1

7 KH-12 126 75-S Bracket, Control (Model 1517) 1

8 KH-M-401030-S Screw, Hex. Flange M4 x 0.7 x 30 1

9 KH-M-446030-S Nut, Hex. M4 x 0.7 1

10 KH-52 089 07-S Spring, Governor 1

11 KH-12 755 83-S Kit, Governor Lever (Includes 12-14) 1

12 KH-12 100 07-S Nut, Hex. Flange M6 x 1.0 1

13 KH-52 211 04-S Screw, Hex. Flange M6 x 1.0 x 25 1

14 KH-12 090 28-S Lever, Governor 1

15 KH-25 158 08-S Bushing, Linkage Retaining 1

16 KH-12 079 10-S Linkage, Throttle 1

17 KH-25 158 11-S Bushing, Linkage Retaining 1

-39-

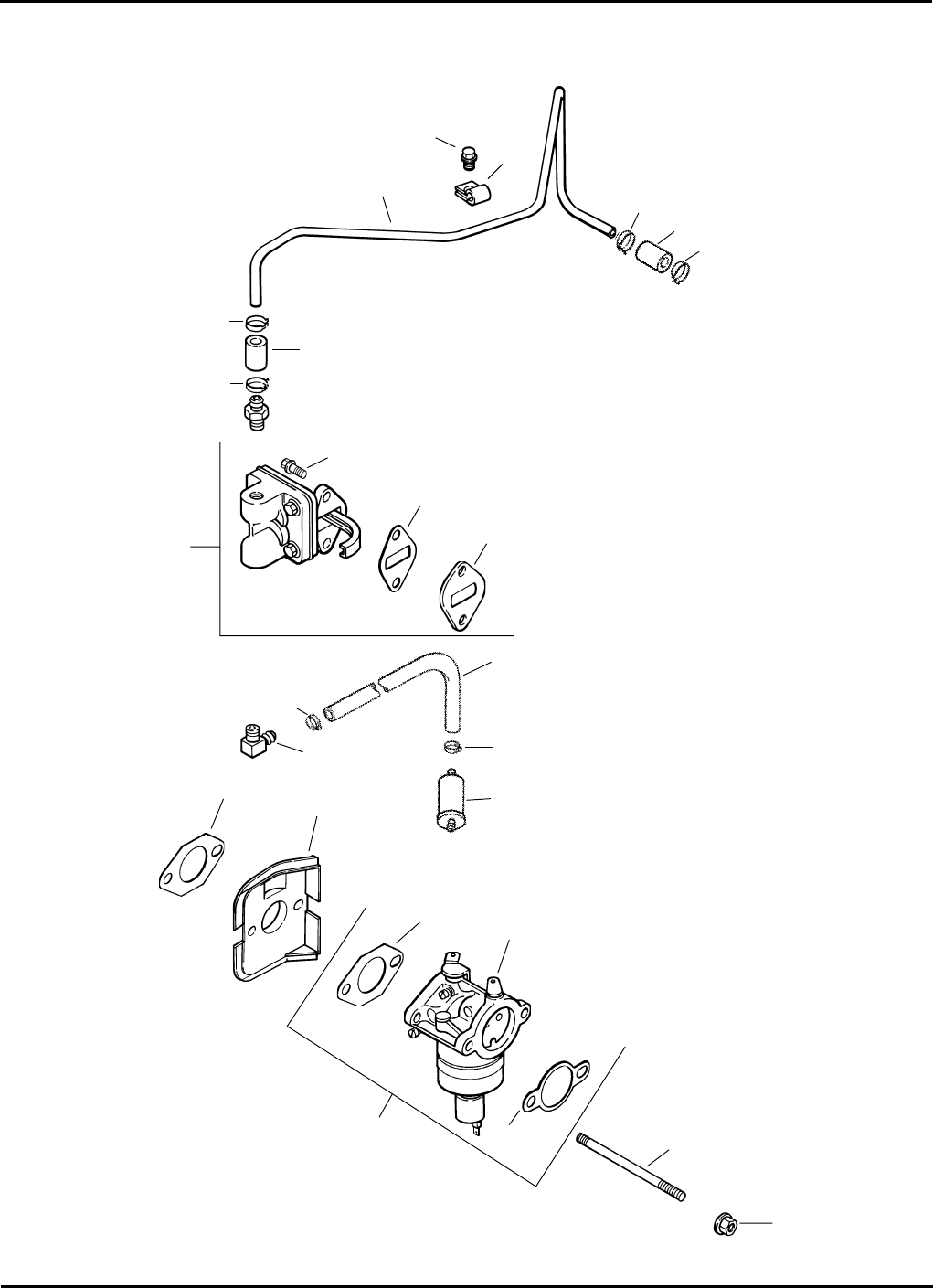

ENGINE CARBURETOR & FUEL PUMP

-40-

ENGINE CARBURETOR & FUEL PUMP

REF.

NO.

PART

NUMBER DESCRIPTION QTY.

1 KH-M-641060-S Nut, Hex. Flange M6 x 1.0 2

2 KH-M-629116-S Stud M6 x 1.0 x 116 (2) 2

3 KH-12 853 117-S Kit, Carburetor W/ Gaskets (Includes 4, 5, 6 1

[Qty. 1], Tie KH-12 454 03-S, & Terminal

KH-25 452 20-S)

4 KH-12 041 02-S Gasket, Air Cleaner 1

5 KH-12 053 117 Carburetor Assembly 1

6 KH-12 041 01-S Gasket, Carburetor 2

7 KH-12 265 06-S Deflector, Heat 1

8 KH-25 155 02-S Connector, 90× Hose 1

9 KH-25 237 14-S Clamp, Fuel Line 6

10 KH-25 050 07-S Filter, Fuel 1

11 KH-25 353 02-S Line, Fuel 3" 1

12 KH-12 559 01-S Kit, Fuel Pump (Includes 13-15) 1

13 KH-M-645020-S Screw, Hex. Flange M6 x 1.0 x 20 2

14 KH-25 041 09-S Gasket, Fuel Pump 2

15 KH-12 112 05-S Spacer, Fuel Pump 1

16 KH-25 326 03-S Connector, Straight Hose 1

17 KH-12 353 01-S Line, Fuel 1-1/4" 1

18 KH-12 123 19-S Line, Fuel - Metal 1

19 KH-M-545010-S Screw, Hex. Flange M5 x 0.8 x 10 1

20 KH-12 154 01-S Clamp, Fuel Line 1

21 KH-41 353 18-S Line Fuel 2-1/2" 1

—KH-12 757 02-S Kit, Float 1

—KH-12 757 03-S Kit, Carburetor Repair 1

—KH-12 757 33-S Kit, Solenoid Repair 1

—KH-12 518 24-S Lead, Red (20” - 18 Guage - Insulated 1

Socket And Uninsulated Push On Tab

Terminals)

—KH-12 454 03-S Tie, Wire 3

—KH-M-561010-S *Screw, Thread Forming M5 x 0.8 x 10 1

—KH-X-22-11-S *Washer, Lock 1/4”1

* Used to attach carburetor ground lead to carburetor baffle

-41-

ENGINE AIR INTAKE AND EXHAUST

REF.

NO.

PART

NUMBER DESCRIPTION QTY.

1 KH-25 341 03-S Knob, Air Cleaner Cover 1

2 KH-12 281 01-S Duct, Air (Model 1517) 1

3 KH-12 096 24-S Cover, Air Cleaner 1

4 KH-12 083 12-S Precleaner 1

5 KH-12 100 08-S Wing Nut 1

6 KH-12 083 10-S Element, Air Cleaner (Includes 5, 7, 8) 1

7 KH-12 743 12-S Kit, Air Cleaner Seal (Includes 5, 8) 1

8 KH-12 032 11-S Seal 1

9 KH-12 094 07-S Base, Air Cleaner (Includes 10, 11) 1

10 KH-12 072 04-S Stud M6 x 1.0 x 79 1

11 KH-12 086 01-S Screw, #10 Hi-Lo Thread Forming 1

12 KH-12 041 02-S Gasket, Air Cleaner 2

13 KH-25 072 05-S Stud M8 x 1.25 x 39 1

14 KH-12 041 03-S Gasket, Exhaust Manifold 1

15 KH-M-841080-S Nut, Hex. Flange M8 x 1.25 1

16 KH-M-645025-S Screw, Hex. Flange M6 x 1.0 x 25 1

17 KH-12 445 06-S Strap, Lifting 1

18 KH-12 382 05-S Pipe, Inlet 1

—KH-12 755 93-S Gasket Set 1

NOTES

CUB CADET LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019

Cub Cadet Hydrostatic Lawn Tractor 1515 Parts Manual 770 10604A

1515 to the manual 9835247a-e22d-4e2a-89a6-1844c8e3a999

Navigation menu

Versions of this User Manual:

Views

Navigation
