OWNERSGUIDE

H-30 MODEL SERIES

NOTICE: This system is intended for use on potable water

supplies or disinfected water containing cysts. Do not use where

water is microbiologically unsafe or with water of unknown

quality. If bacterial contamination is present, a recognized

method of water disinfection is required.

i

Check with your public works department for applicable local plumbing and

sanitation codes. Follow your local codes if they differ from the standards

used in this manual.

Operational, maintenance and replacement requirements are essential for this

product to perform properly. The Good Water Machine™ contains replaceable

particulate and activated carbon filters. It also includes a replaceable reverse

osmosis membrane filter which is critical for the effective reduction of Total

Dissolved Solids. The filtered water should be tested periodically to verify that

the system is performing properly.

CULLIGAN INTERNATIONAL COMPANY

One Culligan Parkway

Northbrook, Illinois USA 60062-6209

847/205-6000

www.culligan.com

Safety/Warnings ...............................................ii

System Specifications ....................................... 1

Introduction

About Your System .............................. 2

Component Description........................ 2

Certified Performance .......................... 3

How to Use Your System ...................... 4

Performance Check.............................. 4

Installation

Application Guidelines ......................... 5

Servicing Your System

Service Schedule ................................. 7

Filter Replacement ............................... 7

Parts List .......................................... 11

Service Log .................................................. 12

Warranty...................................................... 13

Table of Contents

GOOD WATER MACHINE™

DRINKING WATER SYSTEM

®

SYSTEM SPECIFICATIONS

System Flow Sequence...................... Particle/Activated Carbon Filter(s),

Reverse Osmosis Membrane Filter,

Storage Tank, Polishing Filter,

Dispensing Faucet

Particle/Activated Carbon Filter

H-30S-R .................................. Filter cloth wrapped activated carbon

block

Particle Filter, H-30PRV-C ................ 5 Micron Spun Polypropylene

Activated Carbon Filter, H-30PRV-C.. Cullar® G Activated Carbon

Reverse Osmosis Membrane Filter ..... Culligan® Aqua-Cleer® Thin Film

Composite

Production Rate1 - H-30 Models ....... 30 gpd (114 L/day)

Ratio of Product to Flush Flow2......... 1:3 - 1:5

Polishing Filter ................................ Cullar G Activated Carbon

Dispensing Faucet ............................ Culligan Aqua-Cleer Faucet:

Rotary Operation, Stainless Steel

and Resin Flow Passages, with

Built-in Siphon Break

Colors ......................... Polished Chrome, White

Storage Capacity - Standard Tank ...... 2 gallons

- Medium Tank ....... 3 gallons

- Large Tank ........... 9 gallons

Dimensions - Filter Assembly

(H-30S-R) ............... 7"W x 4.3"D x 16.3"H

(H-30PRV-C)........... 15.8"W x 4.3"D x 16.3" H

- Storage Tank .............. 9" Diameter x 14" H

- Medium..................... 11"Diameter x 14" H

- Large......................... 15.5" Diameter x 24" H

1Rating at 50 psi, 77°F, 500 mg/L TDS Influent, Without Storage Tank

2May vary with pressure.

1

INTRODUCTION

Thank you for choosing a Culligan® Good Water Machine™ drinking water

system. Your new system is designed to bring you years of healthful,

deliciously crystal-clear Culligan® water. With its special faucet installed on

your sink, it’s like getting bottled water straight from your kitchen tap.

2

Particle Filter (Model H-30PRV-C)

The particle filter screens out dirt, sand, rust, and other microscopic particles

15 times smaller than a grain of sand.

Activated Carbon Filter (Model H-30PRV-C)

The activated carbon filter gets rid of bad tastes and odors, including chlorine.

If present in your untreated water supply.

Particle/Activated Carbon Filter (Model H-30S-R)

The particle/activated carbon filter combines the filtration capabilities of

separate particle and activated carbon filters into one space efficient package.

Reverse Osmosis Membrane Filter

The reverse osmosis (RO) membrane filter squeezes out dissolved substances,

including lead, asbestos, and many others. These substances may not be in

your water. See Performance Data Sheet for list of substances and removal

percentages.

Storage Tank

The storage tank holds up to 2 gallons of triple-filtered Culligan® water under

pressure for rapid delivery. Optional three and nine-gallon tanks are available.

Polishing Filter

The Good Water Machine™ includes a second activated carbon filter as added

assurance that your water will be crystal clear.

GOOD WATER MACHINE SYSTEM COMPONENTS

Refer to Figure 1, page 6

ABOUT YOUR SYSTEM

The reverse osmosis method of water treatment has long been regarded as one

of the most efficient and effective ways to reduce impurities. It’s the technology

we’ve used to build your new Culligan Good Water Machine. In addition, we’ve

incorporated activated carbon and fine particle filtration to bring you one of the

most effective systems available today.

3

CERTIFIED PERFORMANCE

The Culligan® Good Water Machine Model H-30S-R and

H-30PRV-C Drinking Water Systems have been tested and

certified to ANSI/NSF International Standard 58 for effective

reduction of TDS, Asbestos, Barium, Cadmium, Hexavalent and

Trivalent Chromium, Copper, Cysts, Fluoride, Lead, Mercury,

Radium 226/228, and Selenium.

Average removal percentages are as follows:

Asbestos 99.6% Fluoride 96.4%

Barium 90.1% Lead 98.6%

Cadmium 98.9% Mercury 83.1%

Chromium III 97.9% Radium 226/228* 80.0%

Chromium VI 82.6% Selenium 94.5%

Copper 98.9% TDS/Sodium Chloride 91.3%

Cysts (including 99.99%

Cryptosporidium, Giardia

Lamblia and Entamoeba Histolytica)

*Minimum removal based on approved testing methods with Barium as

surrogate.

The substances removed by this system are not necessarily in your untreated

water. See Performance Data Sheet for exact percentages of contaminant

removal.

Faucet

The special drinking water faucet mounts conveniently on your kitchen sink.

A simple twist of the handle is all it takes to enjoy refreshing Culligan drinking

water.

HOW TO USE YOUR SYSTEM

With the Good Water Machine™, you’ll get a continuous supply of clear,

refreshing water for drinking and cooking. But Culligan improves a lot more

than just water. Crystal clear Culligan® water is ideal for:

• coffee • recipes • pasta

• tea • baby formula • ice cubes

• soup • houseplants • steam irons

• juice • pets • drink mixes

• everything you make with water

PERFORMANCE CHECK

To check the performance of your Good Water Machine, it is necessary to

measure the total dissolved solids (TDS) level of the filtered water. This simple

test can be done quickly by your dealer.

The Good Water SentryTM Water Quality Monitor is another way to keep track

of your system’s performance. This optional accessory checks your drinking

water each time you use the special faucet, and signals when the membrane

filter may need to be replaced.

If the water quality of your system seems to have declined, drain the storage

tank and allow the system to refill. If the problem persists, call your Culligan

Man for service.

4

INSTALLATION

This Owner’s Guide provides visual assembly reference only. Since specialized

skills are required in the assembly of the drinking water system, we recom-

mend that you contact your local independently operated Culligan dealer to

complete this installation.

APPLICATION GUIDELINES

The Good Water Machine™ is designed for use on potable water supplies

meeting the guidelines outlined in Table 1. The system should be installed on

your home’s cold water line. The flushing stream should discharge through

an approved siphon break as illustrated in Figure 1. Installation of this system

must comply with state and local laws and regulations.

5

TABLE 1

Influent Water Characteristic

Pressure 40 - 120 psi (280 - 827 kPa)

Temperature 33 - 100°F (1 - 38°C)

Total Dissolved Solids (TDS)10 - 4000 ppm ( 0 - 4000 mg/L)

pH 5 - 10

Chlorine20 - 3 ppm ( 0 - 3 mg/L)

Chloramine 0 - 3 ppm ( 0 - 3 mg/L)

Turbidity 0 - 10 NTU

Iron 0 - 1 ppm (0 - 1 mg/L)

Bacterial Quality Potable

1See the Technical Manual for all applications where TDS exceeds 1000 ppm (1000 mg/L).

A booster pump is strongly recommended.

2The reverse osmosis membrane filter used in this system may be damaged by chlorine.

This system includes activated carbon which protects this element by reducing chlorine.

Influent chlorine should not exceed 3 mg/L.

6

Fig. 1

1. Particle Filter*

2. Activated Carbon Filter*

3. Reverse Osmosis Membrane Filter

4. Polishing Filter

5. Tubing Tee

6. Storage Tank

7. Faucet

8. Cold Water Line

9. Water Shutoff

*Combined Particulate/Activated Carbon Filter on Model H-30S-R

SERVICING YOUR SYSTEM

FILTER REPLACEMENT

Culligan recommends that you have your Good Water Machine serviced by

your local Culligan Man. You can rely on his or her experience and expertise

to keep your system in top operating condition.

If you wish to service your system, the filters are available from your Culligan

dealer. See the Parts List at the end of this section for replacement numbers.

Cartridge Conditioning

The activated carbon, reverse osmosis, and polishing filter cartridges must be

conditioned as follows prior to installation into the Good Water Machine.

Your Culligan Man can do these important procedures at the time of

purchase.

Activated Carbon Cartridge - 5 gallon flush to remove carbon dust

RO Membrane Filter - 6 hour flush to remove preservative solution

Polishing Filter - 2 gallon flush to remove carbon dust

7

SERVICE SCHEDULE

When properly maintained, your Good Water Machine™ will give you years of

dependable service. Use the following as a guide to get the most out of your

system. Service frequency may vary depending on your local water condi-

tions. High sediment, chlorine, turbidity, or hardness levels may require more

frequent service. Refer to Figures 4 & 5, on page 9.

At Least Once Per Year

Replace:

• Particle/Activated Carbon Filter(s)

• Polishing Filter

Check:

• RO Membrane Filter

- TDS Reduction Performance

- Flow Rates

• Capillary Assembly

Sanitize the System.

Use the convenient chart inside the back cover of this booklet to keep track

of your system’s maintenance.

Fig. 3

Fig. 2

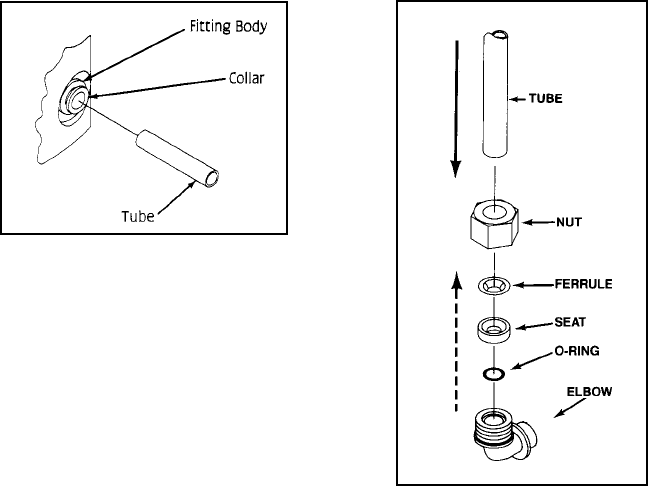

Tubing Connectors

The Good Water Machine™ system features two simple types of tubing

connectors. Tubing can be connected easily as follows:

Push-in type (Fig. 2)

To connect, lubricate the tubing end with water and push the tubing into the

connector until it bottoms out. Be sure the tubing is smooth and free of

scratches, otherwise a leak my result.

To disconnect, hold the collar against the fitting body and pull the tube from

the fitting.

Threaded type (Fig. 3)

To connect, assemble the fitting parts onto the fitting, leave the nut loose, and

push the tubing firmly into the fitting until it bottoms out. Hand-tighten the

nut.

To disconnect, loosen the nut and pull the tubing from the fitting.

8

Filter Replacement and Sanitizing Procedure

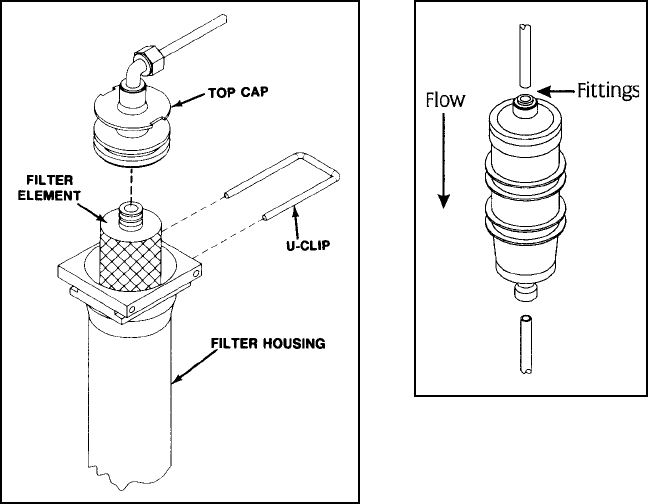

Use the following procedure and reference in Fig. 1, 4 & 5 when servicing

the Good Water Machine™.

NOTICE:

You may want to fill a pitcher with drinking water before beginning

service as it will take several hours for the system to refill after servicing.

The Good Water Machine may be sanitized with either 5-1/4% liquid chlorine

bleach or a fresh bottle of consumer grade hydrogen peroxide.

NOTICE:

The reverse osmosis membrane filter used in this system may be

severely damaged by chlorine. The membrane filter must be removed from

the system if chlorine bleach is to be used for sanitizing.

NOTICE:

Hydrogen peroxide should not be used if iron is present in the

supply water as the RO membrane filter may be damaged.

Cleanliness is essential in the filter replacement procedure. Be sure to wash

your hands thoroughly before handling filters. The use of surgical gloves is

strongly recommended.

9

Fig. 4 Fig. 5

10

1. Locate the system’s supply valve and turn off the system’s water supply.

2. Open the dispenser faucet and drain the storage tank.

3. Place the filter assembly in a dish pan or similar container to catch any

dripping water.

4. Relieve the pressure in the system by loosening the threaded tubing

connector at the bottom of the RO membrane filter housing. Retighten

the fitting.

5. Pull the u-clip from the top of the particle prefilter housing. (Fig. 4)

6. Push the top cap into the housing to free the o-ring seal, then pull the

top cap from the housing.

7. Remove the particle prefilter element from the housing and discard.

8. Clean the inside of the housing and top cap.

9. Lubricate the new particle prefilter cartridge o-ring with water and

insert the new filter cartridge into the top cap. Note: If Model H-30S-R,

do not

install particulate/carbon filter at this time.

10.Pour two tablespoons liquid chlorine bleach or 3 ounces hydrogen

peroxide into the particle prefilter housing.

11.Assemble the housing, the top cap and the u-clip.

12.Repeat steps 5-8 and remove the activated carbon cartridge and, if

using chlorine bleach, the RO membrane filter.

NOTICE:

If the RO membrane filter is to be reused, place it in a new

plastic bag to keep it clean.

13.Assemble the empty housings and replace the u-clips. Make sure all

tubing is connected properly.

14.Turn on the supply valve and allow the system to fill with water. Once

water begins to drip or flow from the faucet, close the faucet and allow

the tank to fill.

15.Turn off the supply valve and allow the system to sit for ten minutes.

16.Open the dispenser faucet and drain the storage tank.

17.Repeat steps 4, 5, 6, 9, and 11 for replacement of the activated carbon,

particulate/activated carbon (Model H-30S-R) and RO membrane filter

cartridges.

18.If using hydrogen peroxide, disconnect the storage tank tube from the

tubing tee. With an eyedropper or similar device, inject one tablespoon

of hydrogen peroxide into the tube and reconnect it to the tee.

19.Note the direction of flow and disconnect the tubing from the

polishing filter. Fig. 5.

20.Note the direction of flow and install the new polishing filter.

21.Replace the filter assembly into its mounting location.

22.Repeat step 14.

23.After the storage tank has filled (3-4 hours), open the faucet and drain

the storage tank to flush the new polishing filter and any remaining

sanitizing solution from the system.

24.Allow the system to refill. Your system is now ready for use.

25.Record your service on the chart at the end of this booklet.

1 Faucet - Chrome 01-0004-42

- White 01-0022-53

2 Polishing Filter 01-0000-79

3 Plastic Ball Valve 01-0027-85

4 Storage Tank - Std. 01-0050-95

- Medium 01-0047-76

- Large 01-0047-65

5 Particle Filter Element (Model H-30 PRV-C) 00-4015-38

Particulate/Activated Carbon Element

(Model H-30S-R) 01-0008-27

6 Capillary Assembly 01-0090-27

7 Reverse Osmosis Membrane Element H-30 01-0074-02

8 Activated Carbon Element (Model H-30 PRV-C) 01-0000-78

* Icemaker Tee - 1/4 x 1/4 x 1/4 01-0024-66

* Tubing, Blue - 1/4" O.D. 00-4021-84

* Good Water Sentry™ Monitor 01-0039-45

* Aqua-Cleer® Booster Pump 01-0093-34

* Not Illustrated

ItemItem

ItemItem

Item DescriptionDescription

DescriptionDescription

Description PP

PP

Part Numberart Number

art Numberart Number

art Number

PARTS LIST

11

CULLIGAN® GOOD WATER MACHINE™

SERVICE LOG

DATE

SERVICED SANITIZED

POLISHING

FILTER

PARTICULATE

FILTER

FILTER(S) CHANGED

MODEL SERIAL NO.

DATE INSTALLED

FOR SERVICE CALL CULLIGAN AT: ( ) -

ACTIVATED

CARBON

FILTER

RO

MEMBRANE

FILTER

12

Cat. No. 01-8820-30 ©1997 Culligan International Company Printed in USA (Rev. 8/97)

CULLIGAN LIMITED WARRANTY

GOOD WATER MACHINE™ H-30 MODEL SERIES

You have just purchased one of the finest drinking water systems made. As an expression of

our confidence in Culligan products, your drinking water system is warranted to the original

end-user, when installed in accordance with Culligan International Company specifications,

against defects in material and workmanship from the date of original installation, as

follows:

CULLIGAN INTERNATIONAL COMPANY

One Culligan Parkway

Northbrook, Illinois 60062

If a part described above is found defective within the specified period, you should notify

your independently operated Culligan dealer and arrange a time during normal business

hours for the dealer to inspect the drinking water system on your premises. Any part found

defective within the terms of this warranty will be repaired or replaced by the dealer. You

pay only freight from our factory and local dealer charges.

Damage caused by accident, fire, flood, freezing, Act of God, misuse, misapplication,

neglect, alteration, installation or operation contrary to our printed instructions, or by the use

of accessories or components which do not meet Culligan specifications, is not covered by

this warranty.

Our product performance specifications are furnished with each drinking water system. TO

THE EXTENT PERMITTED BY LAW, CULLIGAN DISCLAIMS ALL IMPLIED WARRANTIES

INCLUDING, WITHOUT LIMITATION, WARRANTIES OF MERCHANTABILITY AND FIT-

NESS FOR PARTICULAR PURPOSE; TO THE EXTENT REQUIRED BY LAW, ANY SUCH

IMPLIED WARRANTIES ARE LIMITED IN DURATION TO THE ONE-YEAR PERIOD SPECI-

FIED ABOVE FOR THE PARTS DESCRIBED IN THIS LIMITED WARRANTY. As manufac-

turer, we do not know the characteristics of your water supply or the purpose for which you are

purchasing a drinking water system. Please understand that the quality of water supplies may

vary seasonally or over a period of time, and that your water usage rate may vary as well.

Water characteristics can also change considerably if your drinking water system is moved to

a new location. For these reasons, we assume no liability for the determination of the proper

equipment necessary to meet your requirements, and we do not authorize others to assume

such obligations for us. Further, we assume no liability and extend no warranties, express or

implied, for the use of this product on a non-potable water source. OUR OBLIGATIONS

UNDER THIS WARRANTY ARE LIMITED TO THE REPAIR OR REPLACEMENT OF THE

FAILED PARTS OF THE DRINKING WATER SYSTEM, AND WE ASSUME NO LIABILITY

WHATSOEVER FOR DIRECT, INCIDENTAL, CONSEQUENTIAL, SPECIAL, GENERAL, OR

OTHER DAMAGES, WHETHER FROM CORROSION OR OTHER CAUSES.

CONSUMERS:

Some states do not allow limitations on how long an implied warranty lasts, so the above

limitation may not apply to you. Similarly, some states do not allow the exclusion of

incidental or consequential damages, so the above limitation or exclusion may not apply to

you. This warranty gives you specific legal rights, and you may also have other rights which

vary from state to state. Consult your telephone directory for your local independently-

operated Culligan dealer, or write Culligan International Company, for warranty and service

information.

The entire reverse osmosis water conditioning unit,

EXCLUDING THE EXPENDABLE FILTER CARTRIDGES

AND REVERSE OSMOSIS MEMBRANE FILTER USED

IN THIS UNIT.

The Culligan brand reverse osmosis membrane filter.

For a period of

FIVE YEARS

For a period of ONE YEAR
