CyWee Group CW-AP01KT Air Shuttle User Manual PCD Bigstream v19

CyWee Group Ltd. Air Shuttle PCD Bigstream v19

User Manual

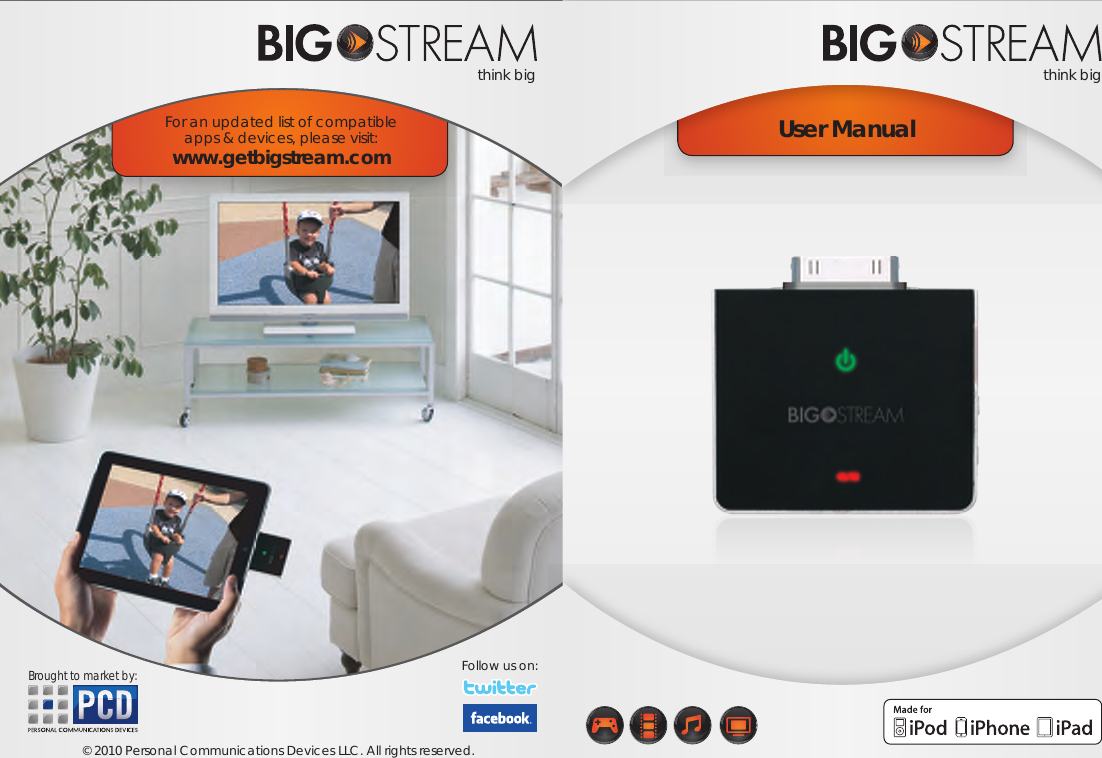

User ManualFor an updated list of compatible apps & devices, please visit:www.getbigstream.comBrought to market by:© 2010 Personal Communications Devices LLC. All rights reserved. think bigthink bigFollow us on:

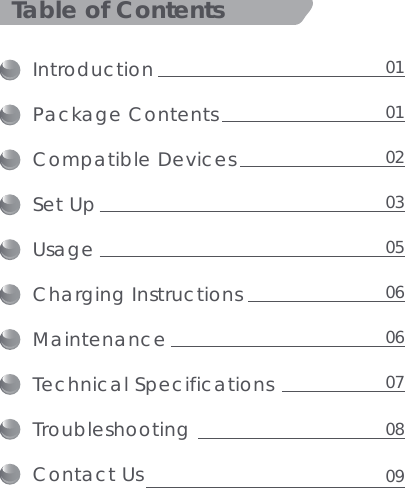

IntroductionPackage ContentsCompatible DevicesSet UpUsage Charging Instructions MaintenanceTechnical SpecificationsTroubleshootingContact UsTable of Contents01010203050606070809
01 02IntroductionBigstreamTM is a plug-and-play device that enables users to stream media content from their Apple devices to a TV without the need for cables and wires. Extremely portable, the Bigstream can be transported from the home to the road for entertainment, business, and many other applications.Package Contents- Transmitter - Mini-USB to USB Charging Cable - Audio/Video Cable - Receiver - Receiver Power Adapter - Quick Start GuideReceiver Connectors/Switches1. Channel Selector 3. DC-IN Power Port2. Power Switch 4. A/V OUT1 2 3 OFF ONCHANNEL1 2DC INA/V OUT3 4Side BackTransmitter Connectors/Switches1. Channel Selector 3. Mini-USB Port2. Power SwitchCHANNEL1 2 3 OFF ON1 2 3Compatible Devices1. iPhone 4 c2. iPhone 3GS3. iPhone 3G4. iPhone5. iPadTM 6. iPod touch c (4th Gen) 7. iPod touch (3rd Gen) 8. iPod touch (2nd Gen) 9. iPod nano (6th Gen)10. iPod nano (4th and 5th Gen) Side FrontQuick Start Guide

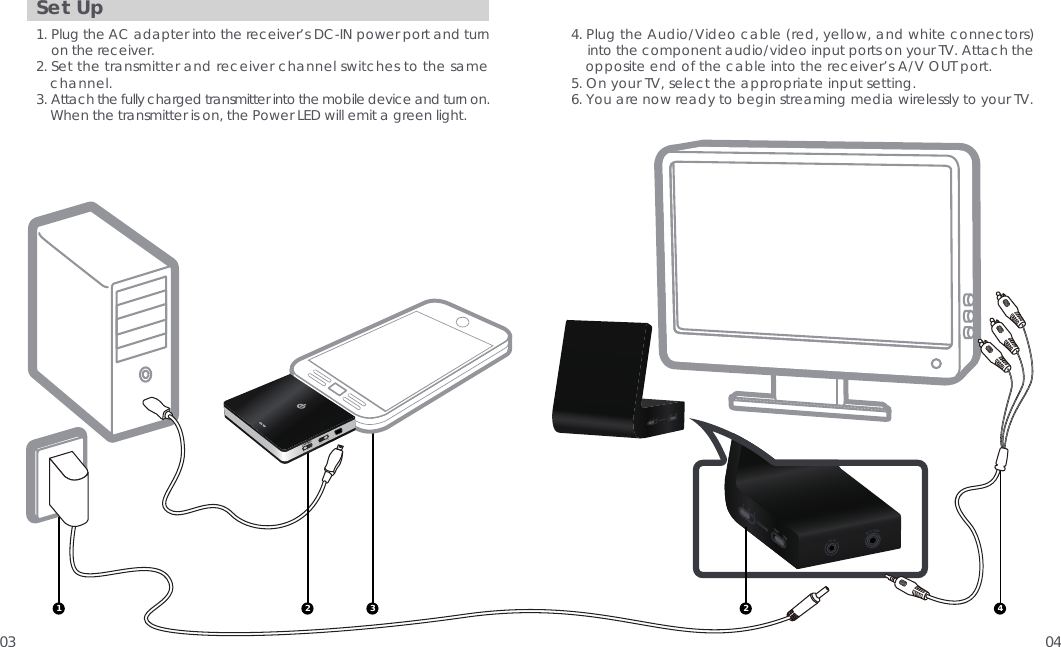

03 04Set Up1. Plug the AC adapter into the receiver’s DC-IN power port and turn on the receiver.2. Set the transmitter and receiver channel switches to the same channel. 3. Attach the fully charged transmitter into the mobile device and turn on. When the transmitter is on, the Power LED will emit a green light. 4. Plug the Audio/Video cable (red, yellow, and white connectors) into the component audio/video input ports on your TV. Attach the opposite end of the cable into the receiver’s A/V OUT port.5. On your TV, select the appropriate input setting.6. You are now ready to begin streaming media wirelessly to your TV.412321 2 3 OFF ONCHANNEL

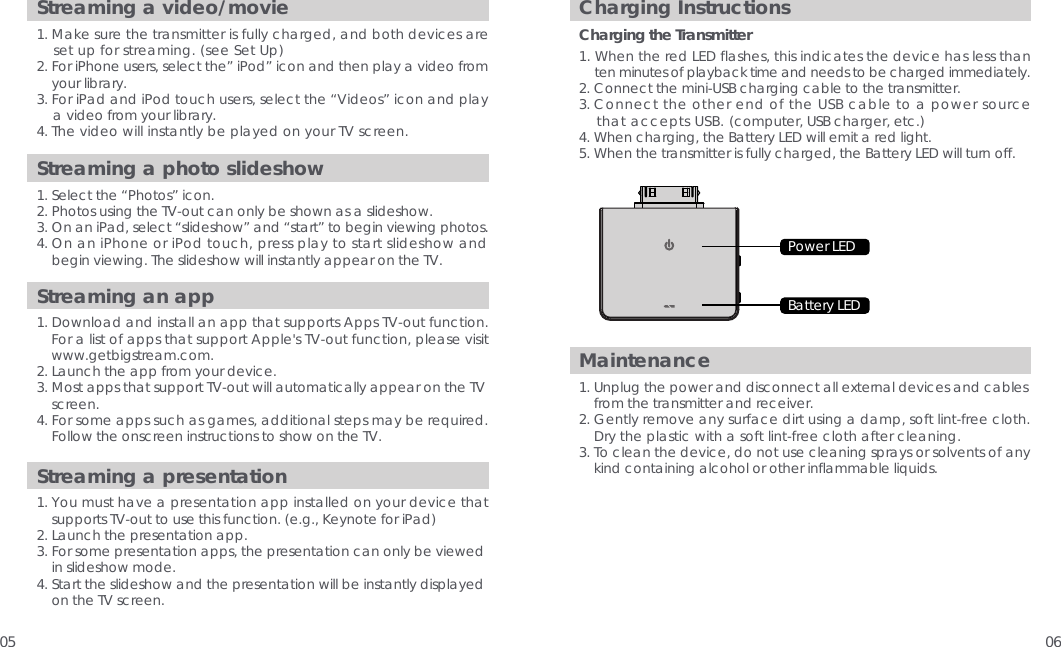

05 06Streaming a video/movie1. Make sure the transmitter is fully charged, and both devices are set up for streaming. (see Set Up)2. For iPhone users, select the” iPod” icon and then play a video from your library.3. For iPad and iPod touch users, select the “Videos” icon and play a video from your library.4. The video will instantly be played on your TV screen. Maintenance1. Unplug the power and disconnect all external devices and cables from the transmitter and receiver. 2. Gently remove any surface dirt using a damp, soft lint-free cloth. Dry the plastic with a soft lint-free cloth after cleaning. 3. To clean the device, do not use cleaning sprays or solvents of any kind containing alcohol or other inflammable liquids.Charging InstructionsCharging the Transmitter1. When the red LED flashes, this indicates the device has less than ten minutes of playback time and needs to be charged immediately.2. Connect the mini-USB charging cable to the transmitter. 3. Connect the other end of the USB cable to a power source that accepts USB. (computer, USB charger, etc.)4. When charging, the Battery LED will emit a red light.5. When the transmitter is fully charged, the Battery LED will turn off.Streaming an app1. Download and install an app that supports Apps TV-out function. For a list of apps that support Apple's TV-out function, please visit www.getbigstream.com. 2. Launch the app from your device. 3. Most apps that support TV-out will automatically appear on the TV screen. 4. For some apps such as games, additional steps may be required. Follow the onscreen instructions to show on the TV. Streaming a presentation1. You must have a presentation app installed on your device that supports TV-out to use this function. (e.g., Keynote for iPad)2. Launch the presentation app. 3. For some presentation apps, the presentation can only be viewed in slideshow mode. 4. Start the slideshow and the presentation will be instantly displayed on the TV screen.Streaming a photo slideshow1. Select the “Photos” icon. 2. Photos using the TV-out can only be shown as a slideshow. 3. On an iPad, select “slideshow” and “start” to begin viewing photos. 4. On an iPhone or iPod touch, press play to start slideshow and begin viewing. The slideshow will instantly appear on the TV. Power LEDBattery LED

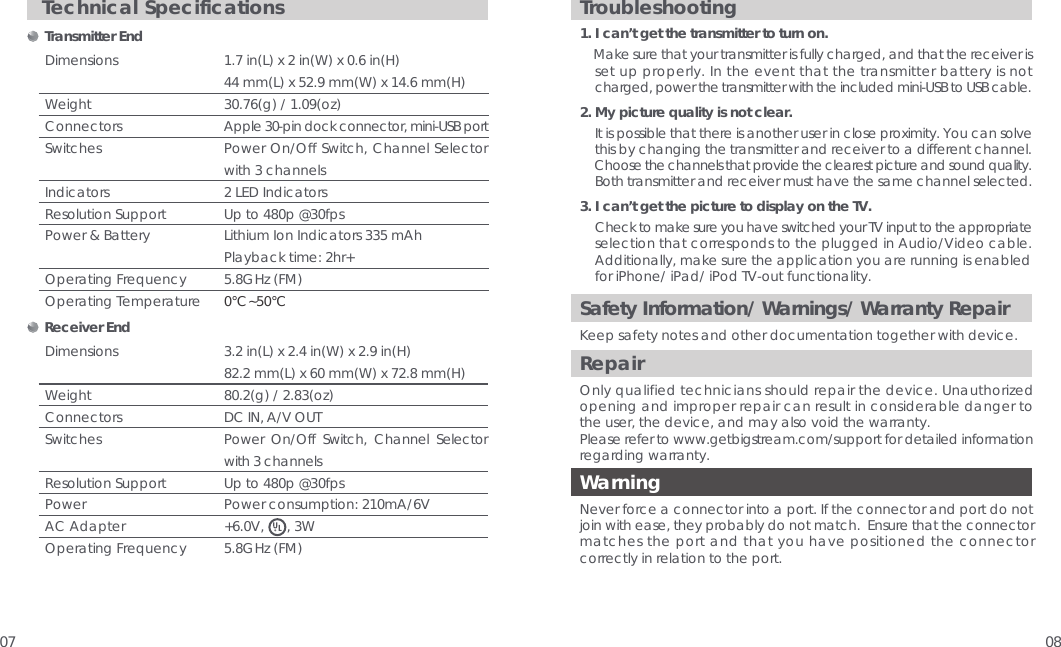

07 08Safety Information/ Warnings/ Warranty RepairKeep safety notes and other documentation together with device. RepairOnly qualified technicians should repair the device. Unauthorized opening and improper repair can result in considerable danger to the user, the device, and may also void the warranty.Please refer to www.getbigstream.com/support for detailed information regarding warranty.WarningNever force a connector into a port. If the connector and port do not join with ease, they probably do not match. Ensure that the connector matches the port and that you have positioned the connector correctly in relation to the port. Troubleshooting1. I can’t get the transmitter to turn on. Make sure that your transmitter is fully charged, and that the receiver is set up properly. In the event that the transmitter battery is not charged, power the transmitter with the included mini-USB to USB cable.2. My picture quality is not clear. It is possible that there is another user in close proximity. You can solve this by changing the transmitter and receiver to a different channel. Choose the channels that provide the clearest picture and sound quality. Both transmitter and receiver must have the same channel selected.3. I can’t get the picture to display on the TV. Check to make sure you have switched your TV input to the appropriate selection that corresponds to the plugged in Audio/Video cable. Additionally, make sure the application you are running is enabled for iPhone/ iPad/ iPod TV-out functionality.Technical Specifications Transmitter End DimensionsWeightConnectorsSwitchesIndicatorsResolution SupportPower & BatteryOperating FrequencyOperating Temperature1.7 in(L) x 2 in(W) x 0.6 in(H)44 mm(L) x 52.9 mm(W) x 14.6 mm(H)30.76(g) / 1.09(oz) Apple 30-pin dock connector, mini-USB portPower On/Off Switch, Channel Selector with 3 channels 2 LED IndicatorsUp to 480p @30fpsLithium Ion Indicators 335 mAhPlayback time: 2hr+5.8GHz (FM)0°C~50°C Receiver End3.2 in(L) x 2.4 in(W) x 2.9 in(H)82.2 mm(L) x 60 mm(W) x 72.8 mm(H)80.2(g) / 2.83(oz)DC IN, A/V OUT Power On/Off Switch, Channel Selector with 3 channelsUp to 480p @30fpsPower consumption: 210mA/6V+6.0V, , 3W5.8GHz (FM)Dimensions Weight ConnectorsSwitchesResolution Support Power AC Adapter Operating Frequency

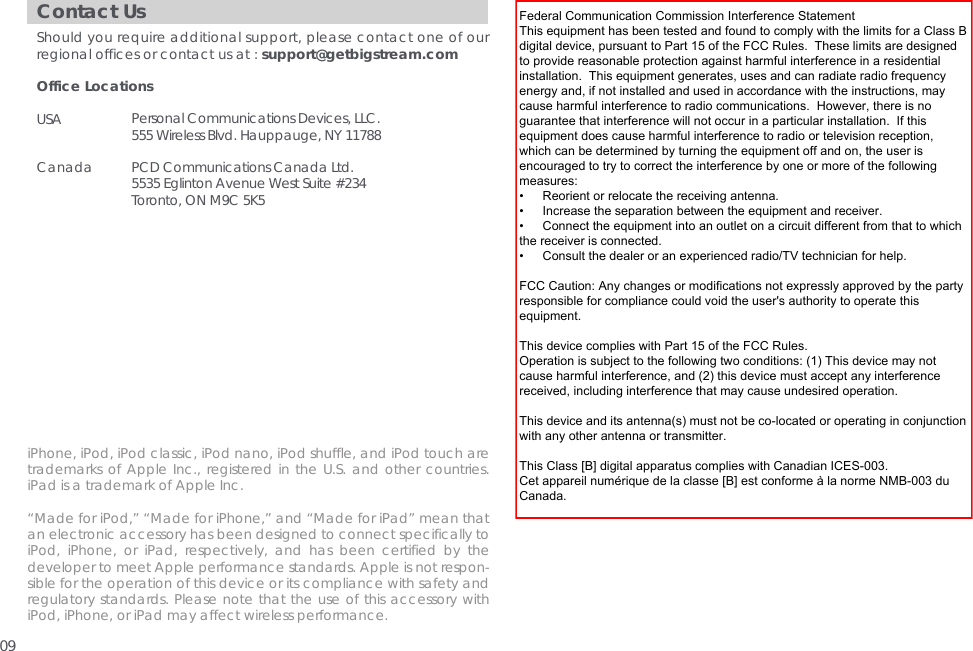

Contact UsShould you require additional support, please contact one of our regional offices or contact us at : support@getbigstream.comOffice Locations USA Canada Personal Communications Devices, LLC.555 Wireless Blvd. Hauppauge, NY 11788PCD Communications Canada Ltd.5535 Eglinton Avenue West Suite #234Toronto, ON M9C 5K5iPhone, iPod, iPod classic, iPod nano, iPod shuffle, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. iPad is a trademark of Apple Inc.“Made for iPod,” “Made for iPhone,” and “Made for iPad” mean that an electronic accessory has been designed to connect specifically to iPod, iPhone, or iPad, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not respon-sible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod, iPhone, or iPad may affect wireless performance.09Federal Communication Commission Interference StatementThis equipment has been tested and found to comply with the limits for a Class Bdigital device, pursuant to Part 15 of the FCC Rules. These limits are designedto provide reasonable protection against harmful interference in a residentialinstallation. This equipment generates, uses and can radiate radio frequencyenergy and, if not installed and used in accordance with the instructions, maycause harmful interference to radio communications. However, there is noguarantee that interference will not occur in a particular installation. If thisequipment does cause harmful interference to radio or television reception,which can be determined by turning the equipment off and on, the user isencouraged to try to correct the interference by one or more of the followingmeasures:• Reorient or relocate the receiving antenna.• Increase the separation between the equipment and receiver.• Connect the equipment into an outlet on a circuit different from that to whichthe receiver is connected.• Consult the dealer or an experienced radio/TV technician for help.FCC Caution: Any changes or modifications not expressly approved by the partyresponsible for compliance could void the user's authority to operate thisequipment.This device complies with Part 15 of the FCC Rules.Operation is subject to the following two conditions: (1) This device may notcause harmful interference, and (2) this device must accept any interferencereceived, including interference that may cause undesired operation.This device and its antenna(s) must not be co-located or operating in conjunctionwith any other antenna or transmitter.This Class [B] digital apparatus complies with Canadian ICES-003.Cet appareil numérique de la classe [B] est conforme à la norme NMB-003 duCanada.
