Cyber Blue BH08 BLUETOOTH HEADSET User Manual
Cyber Blue (HK) Limited BLUETOOTH HEADSET Users Manual
USERS MANUAL
Contents
1. Introduction
Bluetooth wireless technology
2. Get started
Overview
Chargers and batteries
Switch the headset on or off
Pair the headset with A compatible phone
Disconnect the headset From the phone
Reconnect the paired headset to your phone
Troubleshooting
3. Basic use
Call handing
Adjust the earphone volume
Mute or unmute the microphone
Switch the call between phone and headset
4. LED light State definition
5. Battery information
6. Care and maintenance
1. Introduction
The Bluetooth headset BH08 allows you freedom to make and receive
calls while on the move or in the office ,You can connect the headset to a
compatible phone that supports Bluetooth wireless technology.
Read this user guide carefully before using the headset .Read also the user
guide for your phone, which provides important safety and maintenance
information. Keep the headset out of reach of small children .
Bluetooth wireless technology
Bluetooth wireless technology makes it possible to connect compatible
communication devices without using cables. A Bluetooth connection does
not require that the phone and the headset be in line of sight, but both
devices should be within 10 meters(30feet) of each other , Connections
can be subject to interference from obstructions, such as walls or other
electronic devices.
The headset is compliant with Bluetooth Specification 2.0 supporting the
following profiles : Headset profiles 1.1 and Hands-Free Profiles 1.5
check with the manufactures of other devices to determine their
compatibility with this device .
There may be restrictions on using Bluetooth technology in some
locations .Check with your local authorities or service provider.
2. Get started
Overview

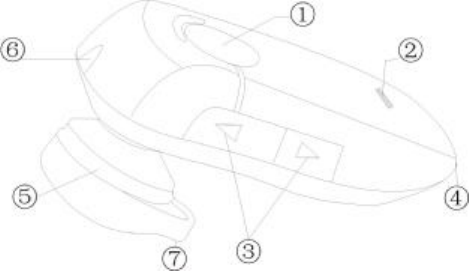

The headset contains the following parts as shown in the fingure:
.Answer/end key (1) .Indicator light (2) .Volume key(3) .Microphone
(4) Earphone (5) .Charger connector (6)
Before you can start using the headset, you must charge the battery and
pair the headset with a compatible phone.
Note: Parts of the headset are magnetic, Metallic materials may be
attracted to the headset .Do not place credit cards or other magnetic
storage media near the headset, because information stored on them may
be erased .
Charger and batteries
Check the model number of any charger before using it with this device.
The Bluetooth headset BH08 is intended for use with the chargers that is
included in the package.
Charge the battery
This device has an internal, rechargeable battery. It Connect the charger
cable to the headset.
1. Connect the charger to a wall outlet. The red indicator light is displayed
during charging. If charging does not start, disconnect the charger, pug
it again, and retry. Charging the battery fully may take up to 2 hours.
2. When the battery is fully charged, the red indicator light turns off.
Disconnect the charger from the wall outlet and the headset.
The fully charged battery has power for up to 4 hours of talk-time or up to
200 hours of standby time. However, the talk and standby times may vary
when used with different mobile phones, products that use a Bluetooth
connection, usage settings, usage styles, and environments.
When the battery is running out of power, the red indicator light starts to
flash.
Switch the headset on or off
To switch on, press and hold the power key for 3 seconds. The blue
indicator light starts to flash.
To switch off, press and hold the power key for 4 seconds until headset
beeps 2 times and the red indicator light is displayed briefly.
Pair the headset with a compatible phone
1. make sure your headset is turn off
2. push the answer key for 8 second until the blue and red light flashes
alternately
3. Activate the Bluetooth feature on the phone, and set the phone to search
for Bluetooth devices. See the user guide of your phone for
instructions.
4. Select the headset (BH08) from the list of found devices.
5. Enter the passcode 0000 to pair and connect the headset to your phone.
In some phones you may need to make the connection separately after
pairing. See the user guide of your phone for details. You only need to
pair the headset with your phone once.
6. If the pairing is successful, the headset’s blue light will flash 3 times
briefly for the first time follow by a single flash every 7 seconds. The
headset’s name appears in the phone menu where you can view the
currently paired Bluetooth devices.
Disconnect the headset from the phone
To disconnect the headset from your phone(for example, to connect the
phone to another Bluetooth device), do one of the following:
·Switch off the headset.
·Disconnect the headset in the Bluetooth menu of your phone.
·Move the headset more than 10 meters(30 feet) away from the phone.
You do not need to delete the pairing with the headset to disconnect it.
Reconnect the paired headset to your phone
To connect the headset to your phone, switch on the headset, make the
connection in the Bluetooth menu of your phone, or press and hold the
answer/end key.
You can set your phone to connect with the headset automatically when
the headset is switched on. See the user guide of your phone for details.
■ Troubleshooting
If you cannot connect the headset to your phone, do as follows:
· Ensure that the headset is charged, switched on, paired with and
connected to your phone.
· Ensure that the Bluetooth feature is activated on your phone.
· Check that the headset is within 10 meter(30 feet ) of your phone and
that there are no obstructions between the headset and the phone, such as
walls or other electronic devices.
3. Basic use
■ Call handling
To make a call, use your phone in the normal way when the headset is
connected to your phone.
If your phone supports redialing with this device, press the volume + key
for 3 seconds while no call is in progress.
If your phone supports voice dialing with this device, press the answer/end
key when no call is in progress, and proceed as described in the user guide
of your phone.
To answer a call, press the answer/end key, or use the phone keys. If the
automatic answer function is set on, the phone automatically answers the
incoming call after one ring.
To end a call, press the answer/end key, or use the phone keys.
■ Adjust the earphone volume
Press the volume key up to increase or down to decrease the volume
during a call.
4. Battery information
Your device is powered by a rechargeable battery. The full performance of
a new battery is achieved only after two or three complete charge and
discharge cycles. The battery can be charged and discharged hundreds of
times, but it will eventually wear out. Recharge your battery only with
compatible chargers designated for this device.
Unplug the charger from the electrical plug and the device when not in use.
Do not leave a fully charged battery connected to a charger, since
overcharging may shorten its lifetime. If left unused, a fully charged
battery will lose its charge over time.
Never use any charger that is damaged.
Leaving the device in hot or cold places, such as in a closed car in summer
or winter conditions, will reduce the capacity and lifetime of the battery.
Always try to keep the battery between 15℃ and 25℃(59℉ and 77℉).
A device with a hot or cold battery may not work temporarily, even when
the battery is fully charged. Battery performance is particularly limited in
temperatures well below freezing.
Do not dispose of batteries in a fire as they may explode. Batteries may
also explode if damaged. Dispose of batteries according to local
regulations. Please recycle when possible. Do not dispose as household
waste.
5. Care and maintenance
Your device is a product of superior design and craftsmanship and should
be treated with care. The suggestions below will help you protect your
warranty coverage.
· Keep all accessories and enhancements out of the reach of small
children.
· Keep the device dry. Precipitation, humidity, and all types of liquids or
moisture can contain minerals that will corrode electronic circuits. If your
device does get wet, allow it to dry completely.
· Do not use or store the device in dusty, dirty areas. Its moving parts and
electronic components can be damaged.
· Do not store the device in hot areas. High temperatures can shorten the
life of electronic devices, damage batteries, and warp or melt certain
plastics.
· Do not store the device in cold areas. When the device returns to its
normal temperature, moisture can form inside the device and damage
electronic circuit boards.
· Do not drop, knock, or shake the device. Rough handling can break
internal circuit boards and fine mechanics.
· Do ot use harsh chemicals, cleaning solvents, or strong detergents to
clean the device.
· Do not paint the device. Paint can clog the moving parts and prevent
proper operation.
All of the above suggestions apply equally to your device, battery, charger,
or any enhancement. If any device is not working properly, take it to the
nearest authorized service facility.
FCC Information
This device complies with Part 15 of the FCC rules.
Operation is subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference received;
including interference that may cause undesired operation.
Federal Communications Commission (FCC) Statement
This Equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular
installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Warning: Changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user authority to operate the equipment.
Tested to comply with FCC standard. FOR HOME OR OFFICE USE.
Warning :
This equipment complies with FCC RF radiation exposure limits set forth for an
uncontrolled environment. & This device and its antenna(s) must not be co-located or
conjunction with any other antenna or transmitter.
