Cyber Blue BH118 Bluetooth Headset User Manual Contents
Cyber Blue (HK) Limited Bluetooth Headset Contents
Users Manual
Bluetooth Headset
BH118C
Manufacturer: LANYA ELECTRONIC Co., Ltd.
OPERATING INSTRUCTION
1. Overview

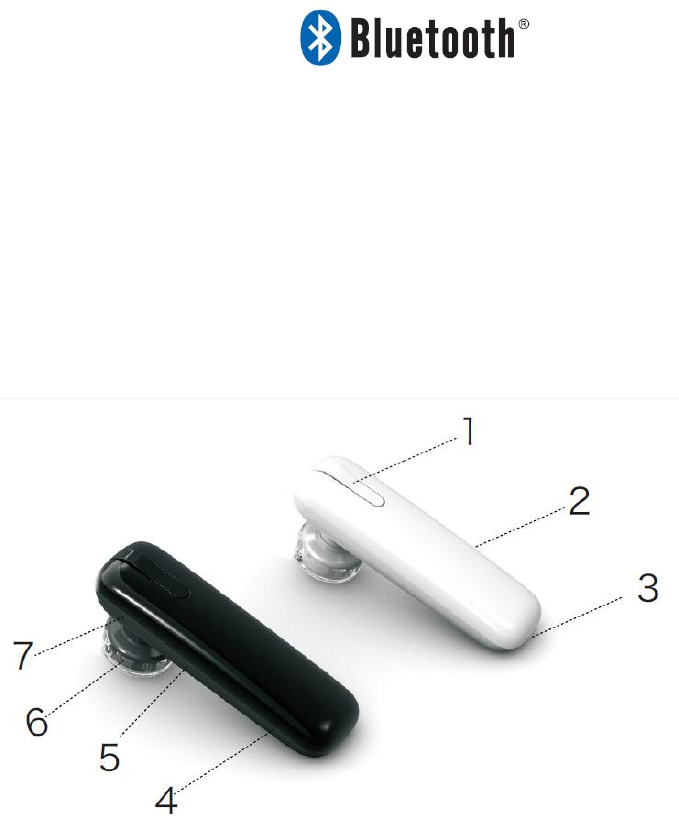

The headset contains the following parts as shown in the figure:
Answer/end key (1)
Charger connector (2)
Microphone (3)
(Indicator light (4)
Volume - (5)
Earphone (6)
Volume + (6)
First of all thanks to purchase our BH118C Bluetooth Headset.
Before you start using the headset, you must charge the battery and pair the headset
with a compatible device.
Before you start using the headset, you must charge the battery and pair the headset
with a compatible phone.
2. Charging the headset
BH118C has an internal, rechargeable battery which must be fully charged before
used for the first time. It takes you about 2 hours to charge the battery full for the
first time. During charging, the indicator shows a steady red. When the battery is fully
charged, the red light will turn blue. For the later on charging, it takes about 90
minutes.
You can charge the headset either by using the AC travel charger, USB charging cable
or the car charger depending on the package accessories available.
The fully charged battery has power for up to 4 hours of talking time or up to 100
hours of standby time.
When the battery is running out of power, the blue indicator light starts to flash 3
times every 30 seconds. This indicates that the headset needs to be charged as soon
as possible.
3. Switch on or off the headset
To switch on, when BH118C is in off state, press and hold the answer/end key for 4
seconds until the blue indicator light starts to flash for 3 times
To switch off, when BH118C is in on state, press and hold the answer/end key for 4
seconds until the red indicator light flashes for 3 times.
4. Pair the headset with a compatible phone
Pairing is the process of establishing encrypted link between BH118C and Bluetooth
devices.
Step-1 The headset must be powered off before you begin to initiate the paring.
Step-2 press and hold the answer/end key for 7 second until the blue and red light
flash alternatively. The headset is now in paring mode.
Step-3 Activate the Bluetooth feature on the phone, and set the phone to search for
Bluetooth devices. Check the user guide of your phone for instructions.
Step-4 Select the headset (BH118C) from the list of found devices.
Step-5 When asked the PIN code, please enter “0000” to pair and connect the
headset to your phone. In some phones you may need to make the connection
separately after pairing. See the user guide of your phone for details.
If the pairing is successful, the headset enters idle state and blue light will flash
flashes 1 time every 5 seconds. The headset’s name appears in the phone menu
where you can view the currently paired Bluetooth devices.
You only need to pair the headset with your phone once.
Troubleshooting
If you cannot connect the headset to your phone, do as follows:
· Ensure that the headset is charged, switched on, paired with and
connected to your phone.
· Ensure that the Bluetooth feature is activated on your phone.
· Check that the headset is within 10 meter(30 feet ) of your phone and that there
are no obstructions between the headset and the phone, such as walls or other
electronic devices.
If no paring is made over a period of time, the headset will retreat paring mode. You
have to turn off the headset and operate again.
5. Basic use
5.1 Make a call
To make a call, use your phone in the normal way when the headset is connected to
your phone. The sound will be transmitted to the headset automatically.
5.2 Answer a call
When there is incoming call, press the answer/end key, or use the phone keys to
answer the call.
5.3 End a call
After finishing the call, press the answer/end key, or use the phone keys to end the
call.
5.4 Refuse a call
When there is incoming call, press and hold answer/end button for 3 seconds until
you can hear beep sound from the headset.
5.5 Voice dialing (dialing a number by saying a name)
It is possible to make a call directly from the headset using voice recognition. To use
this voice dialing function, your mobile phone must provide this option and
corresponding voice samples must have been recorded.
Step-1 Enable voice recognition function of your mobile and set the mobile to
handsfree state.
Step-2 When no call is in progress, long press the Volume – button for 3S, then you
can hear beep sound from the headset.
Step-3 Speak out the name of the person you wish to call loudly.
5.6 Redail
Double press the answer/end key and you can hear beep sound from the headset.
Release the button and the headset will dial the last dialed telephone number.
5.7 Microphone Mute
While talking using the headset, press and hold the Volume - button for 3 seconds to
mute the microphone. Press it again to activate the headset microphone.
5.8 Adjust the earphone volume
Press the volume + key to increase or - to decrease the volume during a call.
5.9 Switch the call between mobile and headset
In call state, press and hold the answer/end key for about 3 seconds until there is
beep sound from headset. The call will be switched from headset to mobile or vice
versa.
6. LED Indication
Headset status
LED Indication
In idle state after paired
Blue light flashes 1 time every 7 seconds
In coming call
Blue light flashes 1 time every 5 seconds
Low battery
Red light flashes 1 time every 15 seconds
and there is beep sound
7. Specification
* Bluetooth Specification V3.0+EDR
* Supports Bluetooth Headset and Hands-free Profile
* RF Frequency Range: 2.402-2.480GHZ, 2.4G ISM band
* Radio Performance: Receive Sensitivity of -90dBm
* Frequency Response: 20 Hz - 20 KHz, Very high Signal to Noise Ratio (SNR):95 Db,
Total Harmonic Distortion (THD):0.1%,
* Rechargeable 80mAh Li-Polymer Battery
* Charger adapter Output: DC 5V&400mA
* Nominal charging time: Max 1.5- 2 hours
* Talk time: Up to 4 hours
* Standby time: Up to 100 hours
FCC Warning:
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modifications to this device not explicitly approved by
manufacturer could void your authority to operate this equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
The device has been evaluated to meet general RF exposure requirement. The device
can be used in portable exposure condition without restriction.
