Cyber Blue BH32 BLUETOOTH MONO HEADSET User Manual BH32
Cyber Blue (HK) Limited BLUETOOTH MONO HEADSET Users Manual BH32
Users Manual
Contents
1. Introduction
Bluetooth wireless technology
2. Get started
Overview Chargers and batteries Switch the headset on or off Pair the headset
with the compatible phone Disconnect the headset from the phone Reconnect
the paired headset to your phone Troubleshooting
3. Basic use
Call handing
4. Battery information
5. Care and maintenance
1. Introduction
The Bluetooth headset BH32 allows you freedom to make and receive calls
while on the move or in the office, You can connect the headset to a compatible
phone that supports Bluetooth wireless technology. Read this user guide
carefully before using the headset .Read also the user guide for your phone,
which provides important safety and maintenance information. Keep the headset
out of reach of small children.
Bluetooth wireless technology
Bluetooth wireless technology makes it possible to connect compatible
communication devices without using cables. A Bluetooth connection does not
require that the phone and the headset be in line of sight, but both devices should
be within 10 meters (30feet) of each other, Connections can be subject to
interference from obstructions, such as walls or other electronic devices.
The headset is compliant with Bluetooth Specification 2.0 supporting the
following profiles: Headset profiles 1.1 and Hands-Free Profiles 1.5 check with
the manufactures of other devices to determine their compatibility with this
device.
There may be restrictions on using Bluetooth technology in some
locations .Check with your local authorities or service provider.
2. Get started
Overview

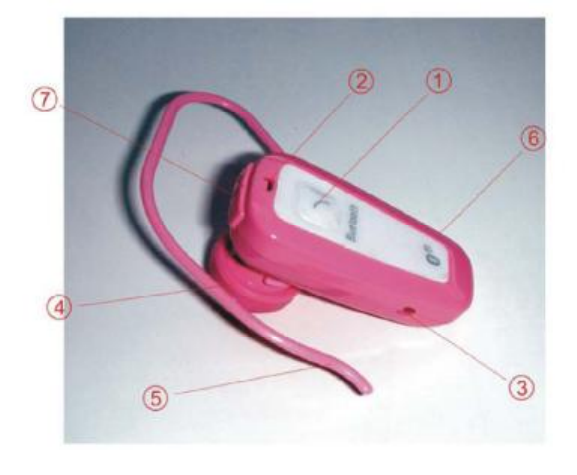

The headset contains the following parts as shown in the figure:
Answer/end key (1)
Indicator light (2).
Charger connector (3)
Earphone (4)
Earhook(5)
Microphone (6)
Volume Control (7)
Before you can start using the headset, you must charge the battery and pair the
headset with a compatible phone.
Note: Parts of the headset are magnetic, Metallic materials may be attracted to
the headset .Do not place credit cards or other magnetic storage media near the
headset, because information stored on them may be erased .
■Charger and batteries
The Bluetooth headset BH32 can be charged either by charger or by the USB
port of computer. Please notice that it is intended to use with the charger that is
included in the package.
Charge the battery
This device has a built-in, rechargeable battery.
1. Connect the charger to a wall outlet or connect the headset to the USB port of
computer. The red indicator light is on during charging. If charging does not
start, disconnect the charger, plug it again, and retry. Charging the battery
fully may take up to 2 hours.
2. When the battery is fully charged, the red indicator light will turn off.
Disconnect the charger from the wall outlet and the headset or disconnect the
headset from USB charging cable.
The fully charged battery has power for up to 4 hours of talking time or up to 60
hours of standby time. However, the talking and standby times may vary when
used with different mobile phones, usage settings, usage styles, and
environments.
When the battery is running out of power, the red indicator light starts to flash
and there will be 5 prompt sound every 20 seconds.
Pair the headset with a compatible phone
1. make sure your headset is turn off
2. push the answer key for 8 second until the blue and red light flashes
alternately
3. Activate the Bluetooth feature on the phone, and set the phone to search for
Bluetooth devices. See the user guide of your phone for instructions.
4. Select the headset (BH32) from the list of found devices.
5. Enter the passcode 0000 to pair and connect the headset to your phone. In
some phones you may need to make the connection separately after pairing.
See the user guide of your phone for details. You only need to pair the
headset with your phone once.
6. If the pairing is successful, the headset’s blue light will flash 3 times briefly
for the first time follow by a single flash every 7 seconds. The headset’s
name appears in the phone menu where you can view the currently paired
Bluetooth devices.
Disconnect the headset from the phone To disconnect the headset from your
phone (for example, to connect the phone to another Bluetooth device), do one
of the following:
·Switch off the headset.
·Disconnect the headset in the Bluetooth menu of your phone.
·Move the headset more than 10 meters(30 feet) away from the phone.
You do not need to delete the pairing with the headset to disconnect it.
Reconnect the paired headset to your phone
To connect the headset to your phone, switch on the headset, make the
connection in the Bluetooth menu of your phone, or press and hold the
answer/end key.
You can set your phone to connect with the headset automatically when the
headset is switched on. See the user guide of your phone for details.
■ Troubleshooting
If you cannot connect the headset to your phone, do as follows:
· Ensure that the headset is charged, switched on, paired with and connected to
your phone.
· Ensure that the Bluetooth feature is activated on your phone. · Check that
the headset is within 10 meter(30 feet ) of your phone and that there are no
obstructions between the headset and the phone, such as walls or other
electronic devices.
3. Basic use
■ Call handling
To make a call, use your phone in the normal way when the headset is connected
to your phone.
If your phone supports voice dialing with this device, press the answer/end key
when no call is in progress, and proceed as described in the user guide of your
phone.
To answer a call, press the answer/end key, or use the phone keys. If the
automatic answer function is set on, the phone automatically answers the
incoming call after one ring.
To end a call, press the answer/end key, or use the phone keys.
4. Battery information
Your device is powered by a rechargeable battery. The full performance of a
new battery is achieved only after two or three complete charge and discharge
cycles. The battery can be charged and discharged hundreds of times, but it will
eventually wear out. Recharge your battery only with compatible chargers
designated for this device.
Unplug the charger from the electrical plug and the device when not in use. Do
not leave a fully charged battery connected to a charger, since overcharging may
shorten its lifetime. If left unused, a fully charged battery will lose its charge
over time.
Never use any charger that is damaged.
Leaving the device in hot or cold places, such as in a closed car in summer or
winter conditions, will reduce the capacity and lifetime of the battery. Always
try to keep the battery between 15℃ and 25℃(59℉ and 77℉). A device with
a hot or cold battery may not work temporarily, even when the battery is fully
charged. Battery performance is particularly limited in temperatures well below
freezing.
Do not dispose of batteries in a fire as they may explode. Batteries may also
explode if damaged. Dispose of batteries according to local regulations. Please
recycle when possible. Do not dispose as household waste.
5. Care and maintenance
Your device is a product of superior design and craftsmanship and should be
treated with care. The suggestions below will help you
protect your warranty coverage.
· Keep all accessories and enhancements out of the reach of small children.
· Keep the device dry. Precipitation, humidity, and all types of liquids or
moisture can contain minerals that will corrode electronic circuits. If your device
does get wet, allow it to dry completely.
· Do not use or store the device in dusty, dirty areas. Its moving parts and
electronic components can be damaged.
· Do not store the device in hot areas. High temperatures can shorten the life of
electronic devices, damage batteries, and warp or melt certain plastics.
· Do not store the device in cold areas. When the device returns to its normal
temperature, moisture can form inside the device and damage electronic circuit
boards.
· Do not drop, knock, or shake the device. Rough handling can break internal
circuit boards and fine mechanics.
· Do ot use harsh chemicals, cleaning solvents, or strong detergents to clean the
device.
· Do not paint the device. Paint can clog the moving parts and prevent proper
operation.
All of the above suggestions apply equally to your device, battery, charger, or
any enhancement. If any device is not working properly, take it to the nearest
authorized service facility.
FCC Information
This device complies with Part 15 of the FCC rules.
Operation is subject to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received; including
interference that may cause undesired operation.
Federal Communications Commission (FCC) Statement
This Equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help.
Warning: Changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user authority to operate the equipment.
Tested to comply with FCC standard. FOR HOME OR OFFICE USE.
Warning :
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled
environment. & This device and its antenna(s) must not be co-located or conjunction with any
other antenna or transmitter.
