1. OVERVIEW
Makers of smart phones and home appliances can easily add full IEEE 802.11ac, Bluetooth 4.1
+EDR (Enhanced Data Rate) and their products with the NU361-HS combo module. The
combo module features tiny sizes and low power consumption. The NU361-HS is the perfect
way to offer high-speed, worldwide wireless connectivity in any handheld or wireless-attached
digital devices.
Features and Benefits
• Single Chip Design
SoC minimizes component count and simplifies hardware and software design.
• Tiny Size in a 9-pin WTB Interface
Module’s 40mm(W) × 46.45mm(L) footprint makes it ideal for high-density designs.
Both Wi-Fi and Bluetooth use a common 9-pin WTB connector.
• Seamless Wireless Connectivity
The module supports the IEEE 802.11a/b/g/n/ac standards for high speed and transparent
inter-operation with most home and business WLANs and all public hot spots around the
world.
• Up-to-date, High-level Security
WEP, WPA, and WPA2 are supported to ensure maximum data privacy.
• Dynamic Rate Shifting
Wireless transmission speed is automatically adjusted on the basis of signal strength to
achieve maximum availability and link reliability.
NU361-HS
User Manual
CyberTAN Confidential 2 2015-04-01
1.1 Basic Specifications
Table 1: Basic Specifications
Model Number NU361-HS
Product Type 802.11a/b/g/n/ac Wi-Fi + Bluetooth Combo Module
Main Chip(s) Broadcom BCM43569
Connector 9 Pin WTB Connector
WLAN Standard(s) IEEE 802.11a/b/g and 802.11n,Draft 802.11ac
WLAN Spreading IEEE 802.11a/b/g/n OFDM/DSSS PHY specification
WLAN Operating Frequency 5150~5250MHz, 5250~5350MHz and 5470-5725MHz,
DFS band, 5725~5850MHz, 2400~2483.5MHz.
WLAN Channels 2.4GHz: 11 (US), 13 (EU), 14 (Japan) channels
5GHz: CH. 36-64, 100-165 North America
WLAN Data Rates 802.11g data rates of 6,9,12,18,24,36,48, 54Mbps
802.11b data rates of 1, 2, 5.5, and 11Mbps
802.11n data rates up to 300Mbps
Draft 802.11ac data rates up to 867Mbps
WLAN Modulation Schemes 802.11ac: 256QAM
802.11g/n: 64QAM (65/54/48Mbps), 16QAM
(36/24Mbps) QPSK (18/12Mbps), BPSK (9/6Mbps)
802.11b: CCK (11/5.5Mbps), DQPSK (2Mbps) and
DBPSK (1Mbps)
WLAN Rx Sensitivity (typical) -87dBm@11Mbps
-75dBm@54Mbps
-68dBm HT40 (MCS7) @2.4GHz
-75dBm@54Mbps
-68dBm HT40 (MCS7)
-60dBm VHT80 (MCS9) @5GHz
Bluetooth Standard(s) BT 3.0+ High Speed (HS). BT 4.0 BLE. Compliant with
BT 2.1+EDR
Bluetooth Operating Frequency 2400-2483.5MHz
Bluetooth Data Rates Up to 3Mbps
Bluetooth Modulation Schemes FHSS/GFSK/DQPSK/8DPSK
Bluetooth Rx Sensitivity GFSK: typical -87dBm
Π/4 DQPSK: typical -88dBm
8DPSK: typical -81dBm
-94 dBm(BLE)
Operating System Support Windows Mobile 5.0/6.0, Linux 2.6.9 and above (TBD)
Power Requirements
Supplying Voltages: 5V±10%
Standby mode current: (TBD)mA
Power Saving Mode (DTIM=1): (TBD)mA
TX mode: (TBD mA (continuous TX)
Rx mode: (TBD mA
NU361-HS
User Manual
CyberTAN Confidential 3 2015-04-01
Model Number NU361-HS
Additional Current for BT:
ACL with file transfer (TBD)mA
SCO HV3 : (TBD)mA ;
Standby host : (TBD)mA
Reset : (TBD)mA ;
Dimensions 40 x 46.45 x5.1 mm (typical)
Regulatory Conformance EMI: FCC Part 15b, Part 15c (pre-scan on EVB only)
* Official test carried out by module customers
Normal Operating Temperature:
Functional* Temperature:
*Operational with reduced performance
-10 ~ +50oC
-30 ~ +70oC
NU361-HS
User Manual
CyberTAN Confidential 4 2015-04-01
2. MECHANICAL CHARACTERISTICS
2.1 Pin Numberings
Pin numbers are defined according to the following Figure 1.

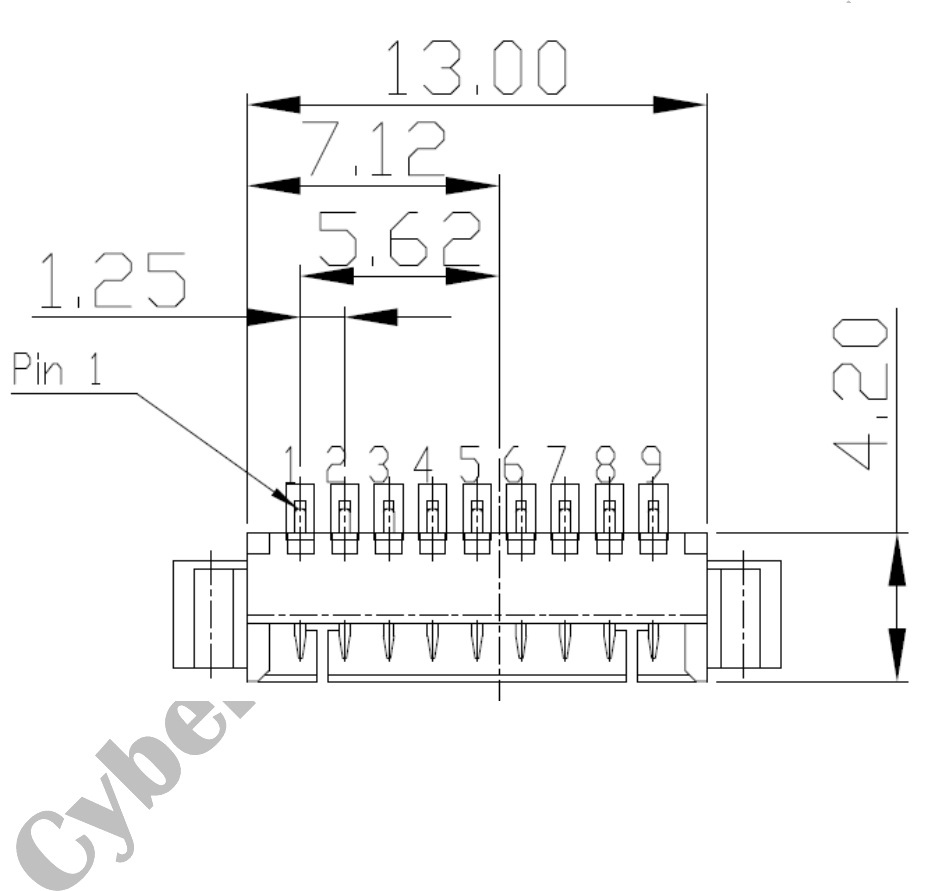

Figure 1: WTB Connector Layout
NU361-HS
User Manual
CyberTAN Confidential 5 2015-04-01
2.2 Pin Out Definitions
The logical definitions of the module’s pins are depicted below.

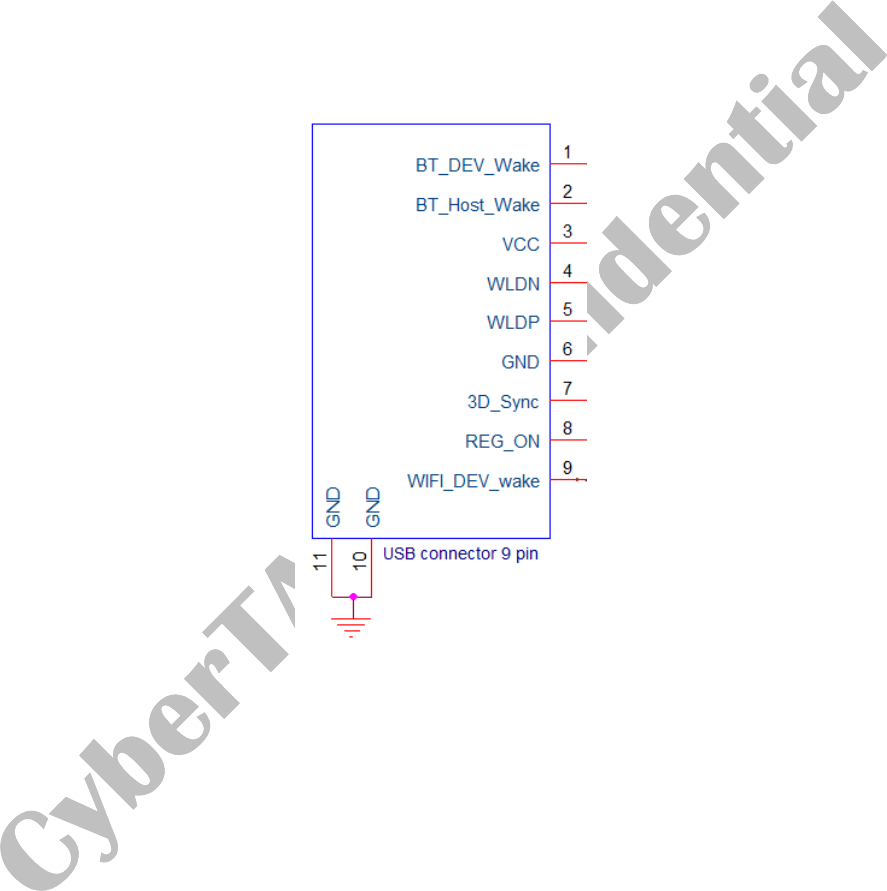

Figure 2: Pins Configuration
NU361-HS
User Manual
CyberTAN Confidential 6 2015-04-01
2.3 Module Dimensions
Note: All dimension tolerances are ±0.10mm, unless otherwise specifics.
Figure 3: Orientation and Date Markings (Top View)
Table 2: Module Dimensions
Dimensions in Millimeters
Symbol
Minimum Optimum Maximum
Length 46.15 46.45 46.75
Width 39.7 40.0 40.3
Height 4.8 5.10 5.4
NU361-HS
User Manual
CyberTAN Confidential 7 2015-04-01
3. PINOUTS AND SIGNAL DESCRIPTIONS
This section describes module signals and the associated pins.
3.1 Pin Definitions
Table 3: Pin Definition
No Definition Description Remark
1 BT_DEV_Wake(I) Host wake up BT device Allows the SOC host to wake up to the BT
device
2 BT_Host_Wake(O) BT device wake up host
3 VCC +5V Voltage power
4 USBDM D-
5 USBDP D+
USB 2.0 Differential Pair
6 GND Ground
7 3D_SYNC Glass sync Connect Vsync
8 REG_ON Internal regulator on/off Connect reset pin
9 WIFI_DEV_wake WiFi device wake up host
NU361-HS
User Manual
CyberTAN Confidential 8 2015-04-01
4. EMI CERTIFICATION NOTES
It is recommended that the module be entirely encased in metal shielding to ensure meeting FCC
and CE requirements.
NU361-HS
User Manual
CyberTAN Confidential 9 2015-04-01
5. REGULATORY INFORMATION
5.1 FCC Statement
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one of the following measures:
● Reorient or relocate the receiving antenna.
● Increase the separation between the equipment and receiver.
● Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
● Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
For product available in the USA/Canada market, only channel 1~11 can be operated.
Selection of other channels is not possible.
This device and its antenna(s) must not be co-located with any other transmitters except in
accordance with FCC multi-transmitter product procedures.
Refering to the multi-transmitter policy, multiple-transmitter(s) and module(s) can be operated
simultaneously without C2P.
This device is restricted for indoor use.
NU361-HS
User Manual
CyberTAN Confidential 10 2015-04-01
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance
20 cm between the radiator & your body.
Devices will not permit operations on channels 120-132 for 11a and 11n/a which overlap the
5600 - 5650 MHz band.
IMPORTANT NOTE:
This module is intended for OEM integrator. The OEM integrator is responsible for the
compliance to all the rules that apply to the product into which this certified RF module is
integrated.
Additional testing and certification may be necessary when multiple modules are used.
20cm minimum distance has to be able to be maintained between the antenna and the
users for the host this module is integrated into. Under such configuration, the FCC
radiation exposure limits set forth for an population/uncontrolled environment can be
satisfied.
Any changes or modifications not expressly approved by the manufacturer could void the
user's authority to operate this equipment.
USERS MANUAL OF THE END PRODUCT:
In the users manual of the end product, the end user has to be informed to keep at least
20cm separation with the antenna while this end product is installed and operated. The
end user has to be informed that the FCC radio-frequency exposure guidelines for an
uncontrolled environment can be satisfied. The end user has to also be informed that any
changes or modifications not expressly approved by the manufacturer could void the
user's authority to operate this equipment. If the size of the end product is smaller than
8x10cm, then additional FCC part 15.19 statement is required to be available in the users
manual: This device complies with Part 15 of FCC rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference and (2) this
device must accept any interference received, including interference that may cause
undesired operation.
LABEL OF THE END PRODUCT:
The final end product must be labeled in a visible area with the following " Contains TX
FCC ID: N89-NU361 ". If the size of the end product is larger than 8x10cm, then the
following FCC part 15.19 statement has to also be available on the label: This device
complies with Part 15 of FCC rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference and (2) this device must accept any
NU361-HS
User Manual
CyberTAN Confidential 11 2015-04-01
interference received, including interference that may cause undesired operation.
Antenna List:
Gain (dBi)
Ant. Brand Part No. Antenna Type Connector
2.4GHz 5GHz Bluetooth
1 INPAQ WAG-M-LB-00-002 PIFA Antenna Murata 1.21 3.97 -
2 INPAQ WAG-M-LB-00-003 PIFA Antenna Murata 1.21 3.97 -
3 MAG.
LAYERS MSA-3507-25GC1-A1 PIFA Antenna I-PEX - - 4.12
