1
Cisco RV 110W Administration Guide 1
Introduction
This chapter provides information to familiarize you with the product features,
guide you through the installation process, and get started using the browser-
based Device Manager. It contains the following sections:
•Product Overview, page 1
•Getting to Know the Cisco RV 110W, page 3
•Mounting the Cisco RV 110W, page 5
•Connecting the Equipment, page 7
•Verifying the Hardware Installation, page 17
•Getting Started in the Cisco RV 110W Device Manager, page 18
Product Overview
Thank you for choosing the Cisco Small Business RV 110W Wireless-N VPN
Firewall. The Cisco RV 110W is an advanced Internet-sharing network solution for
your small business needs. It allows multiple computers in your office to share an
Internet connection through both wired and wireless connections.
The Cisco RV 110W provides a Wireless-N access point, combined with support
for Virtual Private Networks (VPNs) to make your network more secure. Its 10/100
Ethernet WAN interface connects directly to your broadband DSL or Cable
modem. There are four full-duplex 10/100 Ethernet LAN interfaces that can
connect up to four devices. The wireless access point supports the 802.11n
standard with MIMO technology, which multiplies the effective data rate. This
technology results in better throughput and coverage than provided by 802.11g
networks.
Introduction
Product Overview
Cisco RV 110W Administration Guide 2
1
The Cisco RV 110W incorporates a Stateful Packet Inspection (SPI)-based firewall
with Denial of Service (DoS) prevention and a Virtual Private Network (VPN)
engine for secure communication between mobile or remote workers and branch
offices. The Cisco RV 110W supports up to ten gateway-to-gateway IP Security
(IPsec) tunnels to facilitate branch office connectivity through encrypted virtual
links. Users connecting through a VPN tunnel are attached to your company’s
network with secure access to files, e-mail, and your intranet as if they were in the
building. You can also use the VPN capability to allow users on your small office
network to securely connect out to a corporate network
The Cisco RV 110W’s wireless access point supports Wireless Distribution
System (WDS), which allows the wireless coverage to be expanded without wires.
It also supports multiple SSIDs for the use of virtual networks (up to 4 separate
virtual networks), with 802.1Q-based VLAN support for traffic separation. The
Cisco RV 110W implements WPA2-PSK, WPA2-ENT, and WEP encryption, along
with other security features including the disabling of SSID broadcasts, MAC-
based filtering, and allowing or denying “time of day” access per SSID. The Cisco
RV 110W supports Wi-Fi Multimedia (WMM) and Wi-Fi Multimedia Power Save
(WMM-PS) for wireless Quality of Service (QoS). It supports 802.1p, Differentiated
Services Code Point (DSCP), and Type of Service (ToS) for wired QoS, which can
improve the quality of your network when using delay-sensitive Voice over IP
(VoIP) applications and bandwidth-intensive video streaming applications.
With the Cisco RV 110W’s embedded web server, its settings can be configured
using the browser-based Device Manager. The Cisco RV 110W supports Internet
Explorer, Firefox, and Safari web browsers. The Cisco RV 110W also provides a
setup wizard and VPN wizard. The setup wizard allows you to easily configure the
Cisco RV 110W’s basic settings. You can use the VPN wizard to easily configure
VPN tunnels.
Introduction
Getting to Know the Cisco RV 110W
Cisco RV 110W Administration Guide 3
1
Getting to Know the Cisco RV 110W
Front Panel
POWER—The Power LED lights up green to indicate the device is powered on.
Flashes green when the power is coming on or software is being upgraded.
WAN LED—The WAN (Internet) LED lights up green when the device is connected
to your cable or DSL modem. The LED flashes green when the device is sending or
receiving data over the WAN port.
WIRELESS—The Wireless LED lights up green when the wireless module is
enabled. The LED is off when the wireless module is disabled. The LED flashes
green when the device is transmitting or receiving data on the wireless module.
LAN—These four LEDs correspond to the four LAN (Ethernet) ports of the Cisco
RV 110W. If the LED is continuously lit green, the Cisco RV 110W is connected to a
device through the corresponding port (1, 2, 3, or 4). The LED for a port flashes
green when the Cisco RV 110W is actively sending or receiving data over that
port.
Introduction
Getting to Know the Cisco RV 110W
Cisco RV 110W Administration Guide 4
1

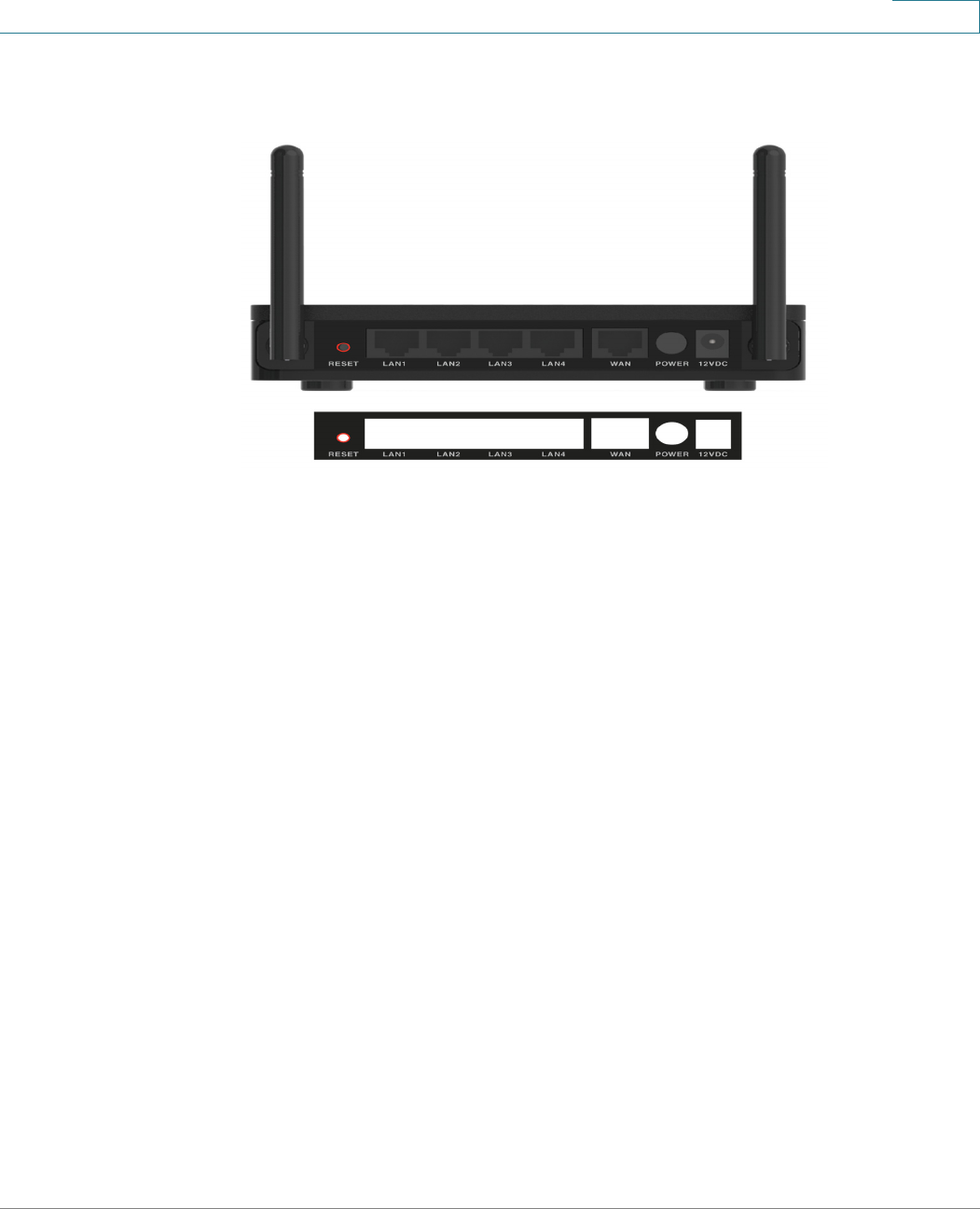

Back Panel
RESET Button—The Reset button has two functions:
•If the Cisco RV 110W is having problems connecting to the Internet, press
the R
RESET
button for less than five seconds with a paper clip or a pencil tip.
This is similar to pressing the reset button on your PC to reboot it.
•If you are experiencing extreme problems with the Cisco RV 110W and
have tried all other troubleshooting measures, press and hold in the R
RESET
button for 10 seconds. This will restore the factory defaults and clear all of
the Cisco RV 110W settings.
LAN Ports (1-4)—These ports provide a LAN connection to network devices,
such as PCs, print servers, or additional switches.
WAN Port
—The WAN port is connected to your Internet device, such as a cable or
DSL modem.
ON/OFF Power Switch—Press this button to turn the Cisco RV 110W on and off.
When the button is pushed in, power is on.
Power Port
—The power port is where you connect the AC power cable.
Introduction
Mounting the Cisco RV 110W
Cisco RV 110W Administration Guide 5
1
Mounting the Cisco RV 110W
You can place your Cisco RV 110W on a desktop or mount it on a wall.
Installation Guidelines
•Ambient Temperature—To prevent the device from overheating, do not
operate it in an area that exceeds an ambient temperature of
104°F (40°C).
•Air Flow—Be sure that there is adequate air flow around the device.
•Mechanical Loading—Be sure that the device is level and stable to avoid
any hazardous conditions.
For desktop placement, place the Cisco RV 110W device horizontally on a flat
surface so that it sits on its four rubber feet.
Wall Mounting
STEP 1 Determine where you want to mount the device and install two screws (not
supplied) that are 2-7/16 in. apart (approximately 61 mm). Mounting screws should
have a head that is approximately 5.5 mm in diameter and 2 mm deep, with a shaft
that is at least15.5 mm long and approximately 3.5 mm wide. (Your wall may
require shorter or longer screws, or drywall anchors.)
Do not mount the screw heads flush with the wall; the screw heads must fit inside
the back of the device.
STEP 2 With the back panel pointing up (if installing vertically), line up the device so that
the wall-mount slots on the bottom of the device line up with the two screws.
195114
Wall
mount
slots
2-7/16
Introduction
Mounting the Cisco RV 110W
Cisco RV 110W Administration Guide 6
1
STEP 3 Place the wall-mount slots over the screws and slide the device down until the
screws fit snugly into the wall-mount slots.
Introduction
Connecting the Equipment
Cisco RV 110W Administration Guide 7
1
Connecting the Equipment
Before you begin the installation, make sure that you have the following equipment
and services:
Required
•Functional Internet Connection (Broadband DSL or cable modem).
•Ethernet cable for WAN (Internet) connection.
•PC with functional network adapter (Ethernet connection) to run the Setup
Wizard or the Device Manager. The Setup Wizard is supported on Microsoft
Windows 2000, Windows XP, Windows Vista, and Windows 7. You must
have Microsoft Core XML Services (MSXML) software installed on the PC to
run the Setup Wizard. MSXML is available from the following location:
http://www.microsoft.com/windows/downloads/
The Device Manager is supported on the following web browsers:
-Microsoft Internet Explorer 6.0 and later
-Mozilla Firefox 3.0 and later
-Apple Safari 3.0 or later.
•Ethernet cable (provided) to connect the PC to the router for configuration.
•Software CD containing Setup Wizard (provided).
Optional
•Uninterruptible Power Supply (UPS) to provide backup power to essential
devices (strongly recommended).
•Ethernet cables for LAN interfaces, if you want to connect additional
devices.
Cisco recommends that you use the Setup Wizard to connect and configure your
Cisco RV 110W. If you do not want to use the setup wizard, skip to the “Manually
Connecting Your System” section on page16.
Introduction
Connecting the Equipment
Cisco RV 110W Administration Guide 8
1
Using the Setup Wizard
Follow these steps to use the Cisco RV 110W Setup Wizard. The Setup Wizard
displays on-screen instructions that guide you through the installation, but you may
find it useful to refer to this document during installation.
NOTE You must connect one PC with an Ethernet cable for the purpose of the initial
configuration. After you complete the initial configuration, administrative tasks can
be performed using a wireless connection.
Starting the Wizard
STEP 1 Make sure that all of the network hardware is powered off, including the
Cisco RV 110W and cable or DSL modem.
STEP 2 Insert the CD that shipped with the Cisco RV 110WRV 110W into the PC you are
using to configure the Cisco RV 110W. The Setup Wizard automatically begins.
STEP 3 Click S
Start
to begin the installation.
STEP 4 Click the check box to accept the software license agreement and click N
Next
.
STEP 5 The Setup Wizard verifies the network adapter on your PC is functional. If you
receive an error, view your PC’s network connections to make sure the network
adapter is working and click B
Back
to test the connection again.
Next:
•If your network adapter is functional and you have not yet connected your
hardware, the
Install Router
window appears. (See Connecting Your
Hardware, page 9.)
•If your network adapter is functional, you have already connected your
hardware, and your Internet connection has been detected, the S
Secure Your
Router Settings
window appears. (See Configuring Security, page 14.)
Introduction
Connecting the Equipment
Cisco RV 110W Administration Guide 9
1
Connecting Your Hardware
STEP 1 You should have an Ethernet cable connecting your PC to the cable or DSL
modem. Unplug one end of the cable from your PC and plug it into the port marked
“WAN” on the device. Click N
Next
.
Introduction
Connecting the Equipment
Cisco RV 110W Administration Guide 10
1

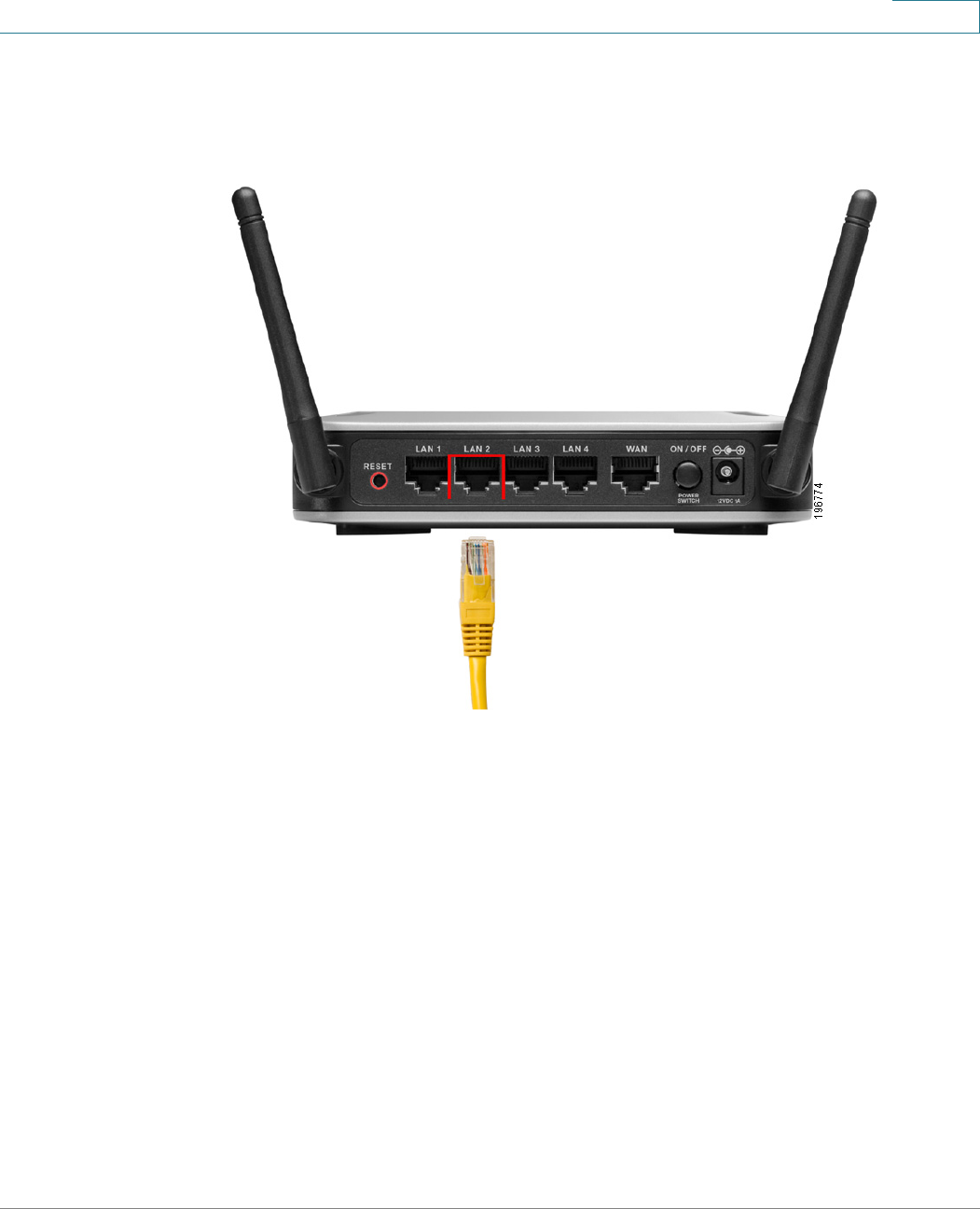

STEP 2 Connect one end of a different Ethernet cable to one of the LAN (Ethernet) ports on
the back of the device. (In this example, the LAN 2 port is used.) Connect the other
end to an Ethernet port on the PC that is running the Setup Wizard. Click N
Next
.
STEP 3 Power on the cable or DSL modem and wait until the connection is active.
Introduction
Connecting the Equipment
Cisco RV 110W Administration Guide 11
1

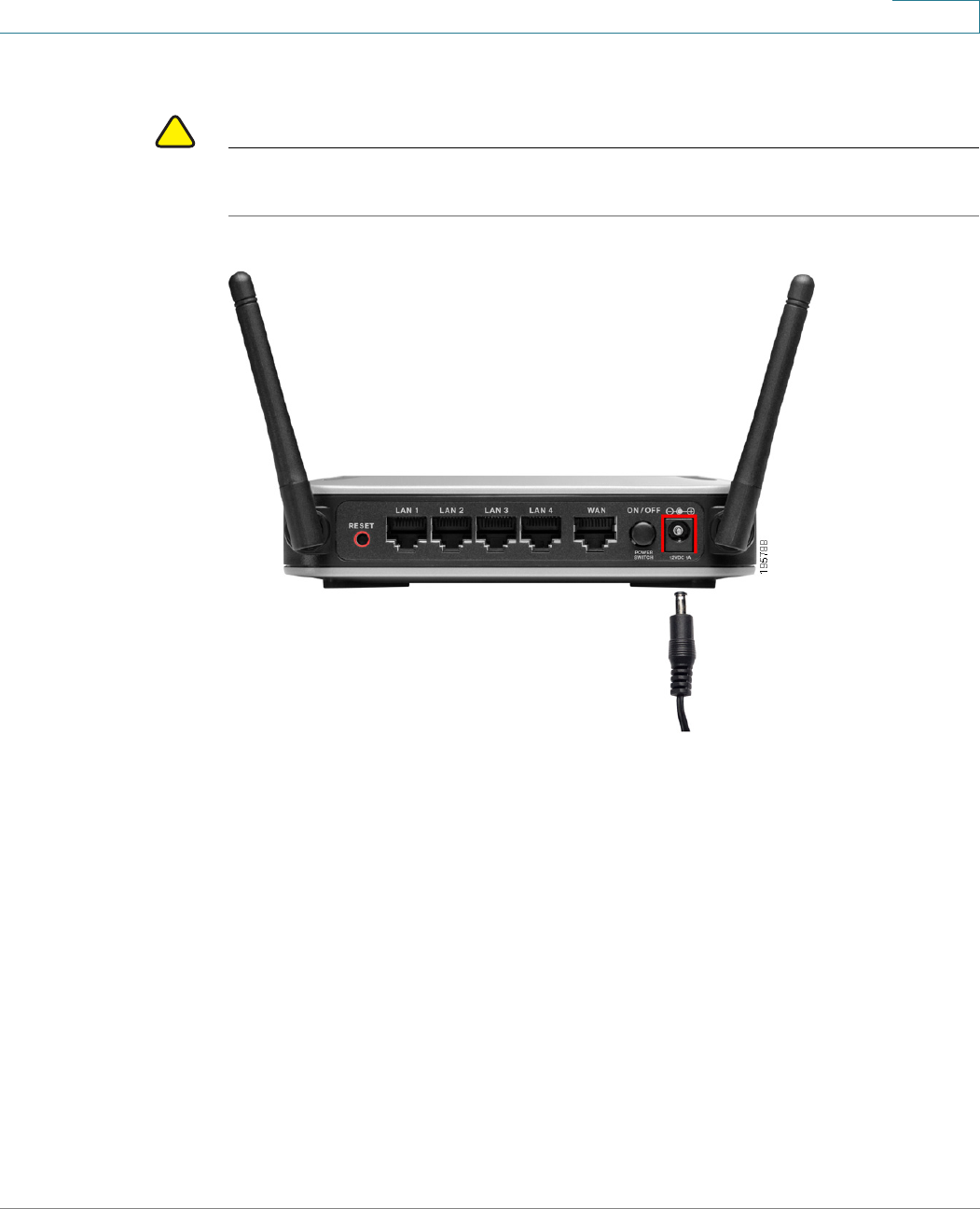

STEP 4 Connect the power adapter to the Cisco RV 110W power port. Click N
Next
.
!
CAUTION Use only the power adapter that is supplied with the device. Using a different
power adapter could damage the device.
STEP 5 Plug the other end of the adapter into an electrical outlet.
Introduction
Connecting the Equipment
Cisco RV 110W Administration Guide 12
1
STEP 6 On the Cisco RV 110W, push in the ON/OFF POWER SWITCH button. The Setup
Wizard searches for the Cisco RV 110W.
The POWER LED on the front panel lights up green when the power adapter is
connected properly and the device is turned on.
Next:
•If your hardware connection is successful, but the Setup Wizard needs
more information about your Internet connection, the E
Enter Username and
Password
window appears. (See Entering Login and Internet Connection
Information, page 13.)
•If your hardware connection is successful and the Setup Wizard
successfully detects your Internet connection, the C
Configure Router
window displays. (See Configuring Security, page 14.)
Introduction
Connecting the Equipment
Cisco RV 110W Administration Guide 13
1
Entering Login and Internet Connection Information
STEP 1 Enter the username and password for your Cisco RV 110W. The default username
and password are both a
admin
. Click N
Next
.
STEP 2 Choose your Internet connection type:
•Telephone (DSL)
•Cable broadband
•I don’t know
Click N
Next
.
STEP 3 The Setup Wizard confirms your Internet connection settings. If it cannot detect or
confirm your settings, you might need to provide information about your Internet
connection type. You can get this information from your ISP.
The types of Internet connections are:
•
Dynamic (DHCP)
—Your PC receives its IP address from your cable or DSL
modem. This address can change.
•
Static IP Connection
—Your Internet Service Provider (ISP) has assigned you
an IP address that does not change. You will need this address and some
additional information (see Step 4) to proceed with installation.
•
PPPoE
—You have a point-to-point connection to the Internet (used mainly
with asymmetric DSL).
•
PPTP
—Your provider uses point-to-point tunneling protocol (used in
Europe).
•
LT2P
—Your provider uses layer 2 tunneling protocol (used in Europe).
After selecting your connection type, click N
Next
.
STEP 4 If you chose:
•
Dynamic (DHCP)
—Proceed to Step 5.
•
Static IP Connection
—Provide your Static IP Address, Subnet Mask,
Gateway IP, DNS, and secondary DNS (optional). This information comes
from your ISP. Click N
Next
after entering the information.
•
PPPoE
—Provide your account name (for example,
john@ISPname.net
), and
password. Click N
Next
after entering the information.
Introduction
Connecting the Equipment
Cisco RV 110W Administration Guide 14
1
•
PPTP (Europe)
—Provide your account name (for example,
john@ISPname.net
), password, and server IP address. Click N
Next
after
entering the information.
•
L2TP (Europe)
—Provide your account name (for example,
john@ISPname.net), password, and server IP address. Click N
Next
after
entering the information.
STEP 5 The Setup Wizard configures your connection, verifies the router settings, and
checks the network connection. Click N
Next
.
STEP 6 To configure your home network, click N
Next
.
Configuring Security
STEP 1 Enter a new Cisco RV 110W administration password and click N
Next
. For security
reasons, you should not use the default password. Follow these password
guidelines:
•Passwords should not contain dictionary words from any language or the
default password.
•Passwords should contain a mix of letters (both upper- and lowercase),
numbers, and symbols.
•Passwords must be at least 8 but no more than 30 characters.
•Password security ratings are shown to the right of the password you enter,
and are rated from weak to secure. Cisco recommends using a password
rated as secure.
STEP 2 Enter a name (SSID) for your wireless network and click N
Next
. You should change
the default SSID to a unique name. The SSID is case-sensitive.
NOTE For added security, disable broadcasting of the SSID. You can disable SSID
broadcast using the Device Manager; see Editing an AP’s Properties, page 67.
Introduction
Connecting the Equipment
Cisco RV 110W Administration Guide 15
1
STEP 3 Select the type of security to use:
Best Security (WPA2)
Strong wireless security that uses a password (security key) to protect your
network. Recommended for most networks. The devices you connect to your
wireless network must support WPA2; see the support information for your device
if you have questions.
a. Enter a security key (must be at least 8 and no more than 63 characters) or use
the randomly-generated one provided by the Cisco RV 110W. Keys should
contain a mix of letters (both upper- and lowercase), numbers, and symbols.
Security key ratings are shown to the right of the password you enter, and are
rated from weak to secure. Cisco recommends using a password rated as
secure.
b. Click N
Next
.
Better Security (WPA)
Wireless security that uses a password (security key) to protect your network. It is
less secure than WPA2, but it is supported by older devices. If the devices you are
connecting to your wireless network do not support WPA2, choose this option.
a. Enter a security key (must be at least 8 and no more than 63 characters) or use
the randomly-generated one provided by the Cisco RV 110W. Keys should
contain a mix of letters (both upper- and lowercase), numbers, and symbols.
Security key ratings are shown to the right of the password you enter, and are
rated from weak to secure. Cisco recommends using a password rated as
secure.
b. Click N
Next
.
No Security
This option is not recommended; it allows devices to connect to your wireless
network if the network name is known.
a. Click N
Next
.
b. Click Y
Yes
when the warning message is displayed.
Introduction
Connecting the Equipment
Cisco RV 110W Administration Guide 16
1
STEP 4 The security settings for your network are shown. To save these settings in a text
file on your PC, check the box provided. To print, click P
Print these settings
. Click
Next
to confirm these settings. (If you chose to save these settings to your
desktop, then click O
OK
.)
NOTE You must enter this security information on each device that connects to your
network. Save this information!
STEP 5 The Cisco RV 110W configures your connection and displays a status message if
the configuration is successful. Click N
Next
.
STEP 6 The Cisco RV 110W displays a message if it has been configured and is
successfully connected to the Internet. Click F
Finish
.
Manually Connecting Your System
Use these procedures if you do not want to use the Setup Wizard.
NOTE You must connect one PC with an Ethernet cable for the purpose of the initial
configuration. After you complete the initial configuration, administrative tasks can
be performed using a wireless connection.
STEP 1 Connect your equipment as described in “Connecting Your Hardware” section
on page 9.
STEP 2 Connect to the Device Manager to view and configure your Cisco RV 110W
settings. When you connect to the Device Manager, the Getting Started page
shows links that you can click to perform basic tasks. At a minimum, we
recommend that you:
•Change the Cisco RV 110W password (see Configuring User Accounts,
page 127.)
•Review wireless profile and set security settings (see Configuring the
Wireless Radio Properties, page 70.)
Introduction
Verifying the Hardware Installation
Cisco RV 110W Administration Guide 17
1
See the “Getting Started in the Cisco RV 110W Device Manager” section on
page 18 for more information.
Verifying the Hardware Installation
To verify the hardware installation, complete the following tasks:
•Check the LED states, as described in Getting to Know the Cisco RV
110W, page 3.
•Connect a PC to an available LAN port and verify that you can connect to a
website on the Internet, such as www.cisco.com.
•Configure a device to connect to your wireless network and verify the
wireless network is functional. See Connecting to Your Wireless Network,
page 17.
Connecting to Your Wireless Network
To connect a device (such as a PC) to your wireless network, you must configure
the wireless connection with the security information you entered when you used
the Setup Wizard or that you configured using the Device Manager.
The following steps are provided as an example; you may need to configure your
device differently. For instructions that are specific to your device, consult the user
documentation for your device.
STEP 1 Open the wireless connection settings window or program for your device. Your
PC may have special software installed to manage wireless connections, or you
may find wireless connections under the Control Panel in the N
Network
Connections
or N
Network and Internet
window. (The location depends on your
operating system.)
STEP 2 Enter the network name (SSID) you chose for your network when you configured
the Cisco RV 110W.
Introduction
Getting Started in the Cisco RV 110W Device Manager
Cisco RV 110W Administration Guide 18
1
STEP 3 Choose the type of encryption and enter the security key that you chose when
setting up the Cisco RV 110W. If you did not enable security (not recommended),
leave these fields blank.
STEP 4 Verify your wireless connection and save your settings.
Getting Started in the Cisco RV 110W Device Manager
The Device Manager allows you to configure and manage your Cisco RV 110W,
including the following tasks:
•View system status information
•Configure local and wide-area network settings
•Configure wireless security, firewall, and VPN settings
•Configure quality of service
•Perform software upgrades
Logging In
To use the Device Manager:
STEP 1 On a PC connected to a LAN port on the back panel of the Cisco RV 110W, start
your web browser. (If you have performed the initial configuration using the Setup
Wizard, you can connect using the Cisco RV 110W’s wireless connection.)
STEP 2 To connect to the Device Manager, enter
http://192.168.1.1
in your browser’s address field, and press E
Enter
. A password
request page appears.
NOTE The default IP address is 192.168.1.1. If there is another device connected to
the network that is acting as a DHCP server, that device may assign a
different address to the Cisco RV 110W. You must use the assigned IP
address to connect to the Cisco RV 110W.
Introduction
Getting Started in the Cisco RV 110W Device Manager
Cisco RV 110W Administration Guide 19
1
STEP 3 In the Username and Password fields, enter the default user name (which is a
admin
)
and password (which is also a
admin
), in lowercase letters. Then click L
Log In
.
Using the Getting Started Page
The Getting Started page displays some of the most common configuration tasks.
Click these underlined tasks to view the configuration windows. You can access
the following tasks from the Getting Started page:
Initial Settings
•Change Default Administrator Password—See Configuring User
Accounts, page 127.
•Configure WAN Settings—See Configuring the WAN for an IPv4
Network, page 30.
•Configure LAN Settings—See Configuring the Local Area Network (LAN),
page 36.
•Review Wireless Profile and Set Security Settings—See Configuring
Access Points, page 66.
•Add VPN Clients—See Configuring IPsec Users, page 114.
Quick Access
•Upgrade Device Software—See Upgrading Firmware, page 138.
•Configure Site to Site VPN—See Using the VPN Wizard, page 102.
•Configure Remote Management Access—See Configuring Remote
Management, page 98.
Device Status
•System Summary—See Viewing Device Statistics, page 22.
•Wireless Status—See Viewing the Wireless Status, page 25.
•VPN Status—See Viewing the IPsec Connection Status, page 26.
To get support for your device, click the S
Support
link at the bottom of the page. To
visit the online support forums, click F
Forums
.
To prevent the Getting Started page from showing when the Device Manager is
started, check the D
Don’t show this on start-up
box.
Introduction
Getting Started in the Cisco RV 110W Device Manager
Cisco RV 110W Administration Guide 20
1
Navigating through the Pages
Use the navigation tree in the left pane to open the configuration pages. Click a
menu item on the left panel to expand it. Click the menu names displayed
underneath to perform an action or view a sub-menu.
Introduction
Getting Started in the Cisco RV 110W Device Manager
Cisco RV 110W Administration Guide 21
1
Saving Your Changes
When you finish making changes on a configuration page, click S
Save
to save the
changes, or click C
Cancel
to undo your changes.
Introduction
Viewing Device Statistics
Cisco RV 110W Administration Guide 22
1
Viewing the Help Files

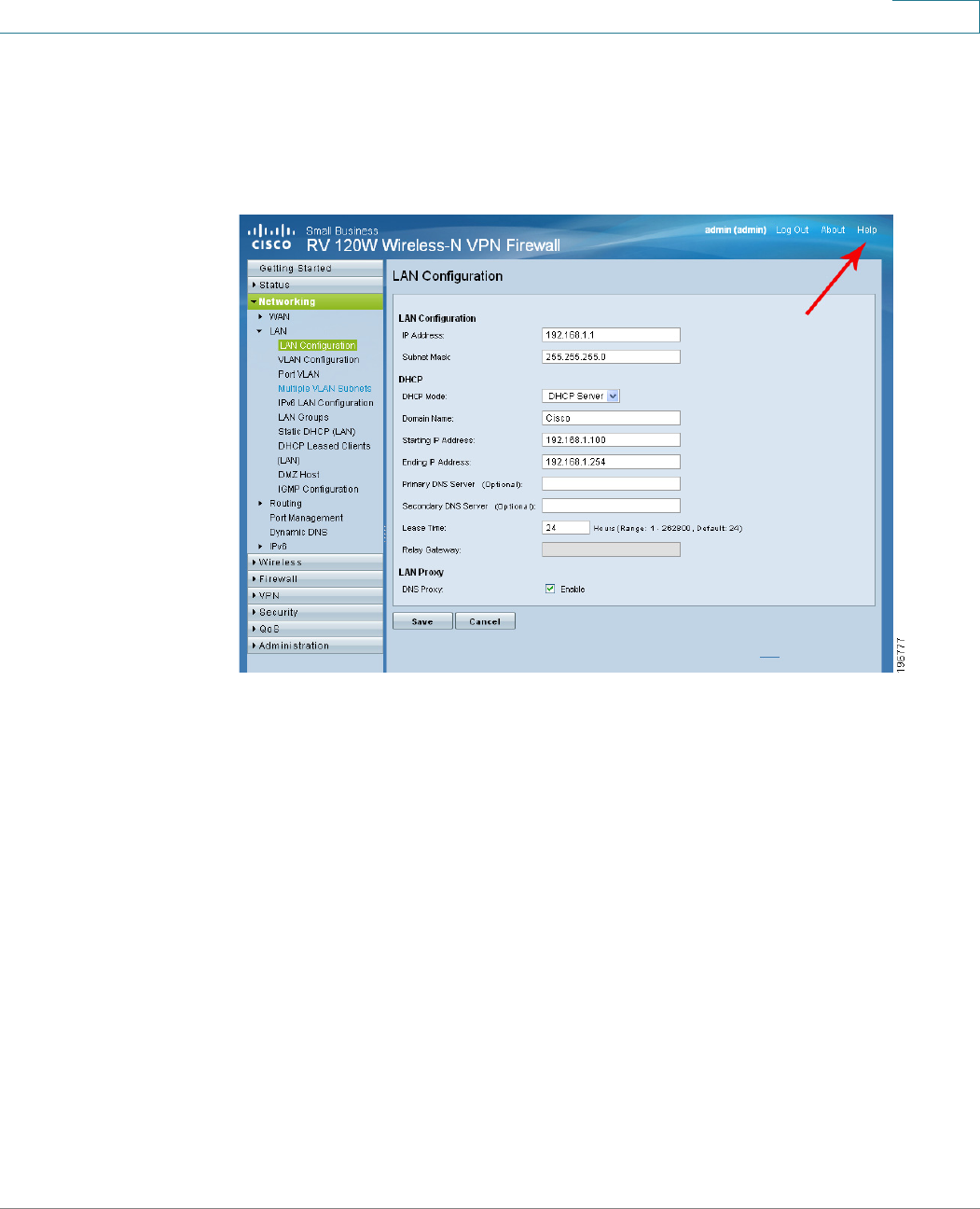

To view more information about a configuration page, click the H
Help
link near the
top right corner of the page.
Viewing Device Statistics
The Cisco RV 110W provides real-time statistics for the device. To access
statistics, in the Device Manager, choose S
Status
.
Viewing the System Summary
To view the system summary, choose S
Status
> S
System Summary
. Click R
Refresh
to
refresh the information and obtain the latest information.
The system summary page displays the following:
•
System Name
—Name of the device.
•
Firmware Version
—Current software version the device is running.
Introduction
Viewing Device Statistics
Cisco RV 110W Administration Guide 23
1
•
Firmware MD5 Checksum
—The message-digest algorithm used to verify
the integrity of files.
•
PID VID
—Product ID and vendor ID of the device.
•
CPU Usage
—Percentage of CPU currently used.
•
Memory Usage
—Percentage of memory currently used.
LAN Information
•
MAC Address
—Hardware address.
•
IPv4 Address
—Address and subnet mask of the device.
•
IPv6 Address
—Address and subnet mask of the device (shown only if IPv6
is enabled).
•
DHCP Server
—Indicates if the device’s DHCP server is enabled or disabled.
If it is enabled, DHCP client machines connected to the LAN port receive
their IP address dynamically.
•
DHCP Relay
—Indicates if the device is acting as a DHCP relay (DHCP relay
must be enabled).
•
DHCPv6 Server
: Indicates if the device’s DHCPv6 server is enabled or
disabled. If it is enabled, DHCPv6 client machines connected to the LAN
port receive their IP address dynamically.
•
DHCPv6 Server
—Indicates if the device’s DHCPv6 server is enabled or
disabled. If it is enabled, DHCP client machines connected to the LAN port
receive their IP address dynamically.
WAN Information
The WAN Information provides the current status of the WAN interfaces. It
provides details about WAN interface and also provides actions that can be taken
on that particular WAN interface. The actions that can be taken differ with the
connection type. If WAN is configured using DHCP, the DHCP release renew
options are available, other connection types offer other options. The Dedicated
WAN Info displays information about the WAN port.
•
MAC Address
—MAC Address of the WAN port.
•
Connection Time
—Displays the time duration for which the connection is
up.
Introduction
Viewing Device Statistics
Cisco RV 110W Administration Guide 24
1
•
Connection Type
—Indicates if the WAN IPv4 address is obtained
dynamically through a DHCP server, assigned statically by the user, or
obtained through a PPPoE/PPTP/L2TP ISP connection.
•
Connection State
—Indicates if the WAN port is connected to the Internet
Service Provider.
•
IP Address
—IP address of the WAN port.
•
Subnet Mask
—Subnet Mask for the WAN port.
•
NAT
—Indicates if the security appliance is in NAT mode (enabled) or routing
mode (disabled).
•
Gateway
—Gateway IP address of the WAN port.
•
Primary DNS
—Primary DNS server IP address of the WAN port.
•
Secondary DNS
—Secondary DNS server IP address of the WAN port.
•
NAT (IPv4 Only Mode)
—Indicates if the security appliance is in NAT mode
(enabled) or routing mode (disabled).
If connection is DHCP Enabled:
•
DHCP Server
—Indicates the IP address of the DHCP server to which WAN
port is connected.
•
Lease Obtained
—Indicates the time at which lease is obtained from the
DHCP server.
•
Lease Duration
—Indicates the duration for which the lease would remain
active.
Click R
Renew
to release the current IP address and obtain a new one, or R
Release
to
release the current IP address only.
Wireless Information
This section displays information about the Wireless Radio settings.
•
Country
—Displays the country for which the radio is configured.
•
Operating Frequency
—Displays the operational frequency band.
•
Wireless Network Mode
—Displays the Wi-Fi™ mode of the radio (for
example, N or N/G,).
•
Channel
—Displays the current channel in use by the radio.
Introduction
Viewing Device Statistics
Cisco RV 110W Administration Guide 25
1
Available Access Points Table
The table displays the list of Access Points currently enabled in the device. The
table also displays information related to the Access Point, such as Security and
Encryption methods used by the Access Point.
•
SSID
—This is the Service Set Identifier (SSID) that clients use to connect to
the AP that has this profile. It is referenced in the AP tables and statistics.
•
BSSID
—The 48 bit unique identifier of the Basic Service Set (BSS) to which
the Access Point belongs.
•
Profile Name
—This is the unique (alphanumeric) identifier of the wireless
profile attached to the Access Point.
•
Security
—This field displays the type of wireless security (if any) assigned
to this profile.
•
Encryption
—This field displays the encryption type that is assigned to the
profile: TKIP, AES, TKIP + AES.
•
Authentication
—This field displays the client authentication method that is
configured in the profile: PSK, RADIUS, PSK + RADIUS.
Viewing the Wireless Status
This page shows a cumulative total of relevant wireless statistics for the radio and
APs configured on the device. The counters are reset when the device is
rebooted.
Radio Statistics
A given radio can have multiple virtual APs (VAPs) configured and active
concurrently. This table indicates cumulative statistics for the available radio(s).
•
Packets
—The number of transmitted/received (tx/rx) wireless packets
reported to the radio, over all configured APs.
•
Bytes
—The number of transmitted/received (tx/rx) bytes of information
reported to the radio, over all configured APs.
•
Errors
—The number of transmitted/received (tx/rx) packet errors reported
to the radio, over all configured APs.
•
Dropped
—The number of transmitted/received (tx/rx) packets dropped by
the radio, over all configured APs.
Introduction
Viewing Device Statistics
Cisco RV 110W Administration Guide 26
1
•
Multicast
—The number of multicast packets sent over this radio.
•
Collisions
—The number of packet collisions reported to the AP.
AP Statistics
This table displays transmit/receive data for a given AP.
•
AP Name
—The name of the AP.
•
Packets
—The number of transmitted/received (tx/rx) wireless packets on
the AP.
•
Bytes
—The number of transmitted/received (tx/rx) bytes of information on
the AP.
•
Errors
—The number of transmitted/received (tx/rx) packet errors reported
to the AP.
•
Dropped
—The number of transmitted/received (tx/rx) packets dropped by
the AP.
•
Multicast
—The number of multicast packets sent over this AP.
•
Collisions
—The number of packet collisions reported to the AP.
•
Poll Interval
—Enter a value in seconds for the poll interval. This causes the
page to re-read the statistics from the router and refresh the page
automatically. To modify the poll interval, click the S
Stop
button and then click
Start
to restart automatic refresh.
Viewing the IPsec Connection Status
This page displays the status of IPSec connections. You can change the status of a
connection to either establish or disconnect the configured SAs (Security
Associations).
•
Policy Name
—The name of the IKE or VPN policy associated with this SA.
•
Endpoint
—Displays the IP address of the remote VPN gateway or client.
•
Tx KB
—The data transmitted (in KB) over this SA.
•
Tx Packets
—The number of IP packets transmitted over this SA.
•
State
—The current status of the SA for IKE policies. The status can be N
Not
Connected
or I
IPsec SA Established.
Introduction
Viewing Device Statistics
Cisco RV 110W Administration Guide 27
1
Click C
Connect
to establish an inactive SA (connection) or D
Drop
to terminate an
active SA (connection).
The page refreshes automatically to display the most current status for an SA. To
change the refresh settings, in the Poll Interval field, enter a value in seconds for
the poll interval. This causes the page to re-read the statistics from the router and
refresh the page automatically. To modify the poll interval, click the S
Stop
button
and click S
Start
to restart automatic refresh.
Viewing the QuickVPN Connection Status
This page displays the status of QuickVPN connections and allows you to DROP
any existing active (ONLINE) connections.
•
Username
—The name of the IPSec User associated with the QuickVPN
tunnel.
•
Remote IP
—Displays the IP address of the remote QuickVPN client. This
could be NAT/Public IP if the client is behind the NAT router.
•
Status
—Displays the current status of QuickVPN client. OFFLINE means that
QuickVPN tunnel is NOT initiated/established by the IPSec user. ONLINE
means that QuickVPN Tunnel, initiated/established by the IPSec user, is
active.
Click D
Drop
to terminate an active/ONLINE connection and change the status of
QuickVPN client to OFFLINE.
The page refreshes automatically to display the most current status for QuickVPN
users. To change the refresh settings, in the Poll Interval field, enter a value in
seconds for the poll interval. This causes the page to re-read the statistics from the
router and refresh the page automatically. To modify the poll interval, click the S
Stop
button and click S
Start
to restart automatic refresh.
Viewing Logs
This window displays the system event log, which can be configured to log login
attempts, DHCP server messages, reboots, firewall messages and other
information.
•
Facility
—From the drop-down list, select the type of logs to display: All,
Kernel, System, IPSec VPN, Local0-Wireless.
-Kernel logs are those that are a part of the kernel code (for example,
firewall).
Introduction
Viewing Device Statistics
Cisco RV 110W Administration Guide 28
1
-System logs are those that are a part of user-space applications (for
example, NTP, Session, DHCP).
-IPSec VPN logs are those related to ipsec negotiations. These are
related user space logs. Local0-Wireless are those related to wireless
connection and negotiation.
Click R
Refresh Logs
to view the entries added after the page was opened. Click
Clear Logs
to delete all entries in the log window.
Click S
Send Logs
to e-mail the log messages currently displayed in the log window.
Before clicking S
Send Log
, ensure that the e-mail address and server information
are configured on the A
Administration
> L
Logging
> R
Remote Logging
page.
Viewing Available LAN Hosts
This page shows available LAN hosts.
Viewing the Port Triggering Status
The Port Triggering Status page provides information on the ports that have been
opened per the port triggering configuration rules. The ports are opened
dynamically whenever traffic that matches the port triggering rules flows through
them. The table displays the following fields:
•
LAN IP Address
—Displays the LAN IP address of the device which caused
the ports to be opened.
•
Open Ports
—Displays the ports that have been opened so that traffic from
WAN destined to the LAN IP address can flow through the router.
•
Time Remaining Seconds
—This field displays the time for which the port
will remain open when there is no activity on that port. The time is reset
when there is activity on the port.
Click R
Refresh
to refresh the current page and obtain the latest statistics.
Viewing Port Statistics
This table displays the data transfer statistics for the Dedicated WAN, LAN, and
WLAN ports, including the duration for which they were enabled. The following
data is displayed:
Introduction
Viewing Device Statistics
Cisco RV 110W Administration Guide 29
1
•
Tx Packets
—The number of IP packets going out of the port.
•
Rx Packets
—The number of packets received by the port.
•
Collisions
—The number of signal collisions that have occurred on this port.
A collision occurs when the port tries to send data at the same time as a
port on another router or computer that is connected to this port.
•
Tx B/s
—The number of bytes going out of the port per second.
•
Rx B/s
—The number of bytes received by the port per second.
•
Uptime
—The duration for which the port has been active. The uptime is
reset to zero when the router or the port is restarted.
Poll Interval
—Enter a value in seconds for the poll interval. This causes the page to
re-read the statistics from the router and refresh the page automatically. To modify
the poll interval, click the S
Stop
button and then S
Start
to restart automatic refresh.
2
Cisco RV 120W Administration Guide 30
Configuring Networking
The networking page allows you to configure networking settings. This chapter
contains the following sections:
•Configuring the Wide Area Network (WAN), page 30
•Configuring the Local Area Network (LAN), page 36
•Configuring Routing, page 48
•Configuring Routing, page 48
•Configuring Dynamic DNS (DDNS), page 53
•Configuring IPv6, page 54
Configuring the Wide Area Network (WAN)
Wide area network configuration properties are configurable for both IPv4 and
IPv6 networks. You can enter information about your Internet connection type and
other parameters in these pages.
Configuring the WAN for an IPv4 Network
Configuring WAN properties for an IPv4 network differs depending on which type
of Internet connection you have. See the sections below for detailed instructions.
Configuring the Internet Connection Type
NOTE If your Internet connection does not require a login, you do not need to configure the
ISP Connection Type fields.
Configuring Networking
Configuring the Wide Area Network (WAN)
Cisco RV 120W Administration Guide 31
2
STEP 1 Choose N
Networking
> W
WAN
> I
IPv4 WAN Configuration
.
STEP 2 If you connect to the Internet using one of the following connection types, check
the I
Internet Connection Requires a Login
box:
•Point-to-Point Protocol over Ethernet (PPPoE)—used mainly with
asymmetric DSL.
•Point-to-Point Tunneling Protocol (used in Europe).
•Layer 2 Tunneling Protocol (used in Europe).
STEP 3 Choose your ISP Connection Type:
PPPoE
a. First, create a PPPoE Profile. See “Creating PPPoE Profiles” on page 35.
b. Under PPPoE Profile Name, select the profile you created on the W
WAN
> P
PPPoE
Profiles
page. The username, password, and other fields are entered
automatically.
c. Go to “Configuring Maximum Transmit Unit (MTU)” on page 33.
PPTP
a. Provide your username and password. These are assigned to you by the ISP to
access your account.
b. If your ISP supports Microsoft Point-to-Point encryption, check the M
MPPE
Encryption
box.
c. Choose the connectivity type:
•
Keep connected
—The Internet connection is always on.
•
Connect on demand
—The Internet connection is on only when traffic is
present. If the connection is idle—that is, no traffic is occurring—the
connection is closed. You might want to choose this if your ISP charges
based on the amount of time that you are connected.
If you choose this connection type, enter the number of minutes after which
the connection shuts off in the I
Idle Time
field.
d. Enter the IP address assigned to you by your ISP in the M
My IP Address
field.
e. Enter the IP address of your ISP’s server in the S
Server IP Address
field.
f. Go to “Configuring Maximum Transmit Unit (MTU)” on page 33.
Configuring Networking
Configuring the Wide Area Network (WAN)
Cisco RV 120W Administration Guide 32
2
L2TP
a. Provide your username and password. These are assigned to you by the ISP to
access your account.
b. Enter your secret phrase. This phrase is known to you and your ISP for use in
authenticating your logon.
c. Choose the connectivity type:
•
Keep connected
—The Internet connection is always on.
•
Connect on demand
—The Internet connection is on only when traffic is
present. If the connection is idle—that is, no traffic is occurring—the
connection is closed. You might want to choose this if your ISP charges
based on the amount of time that you are connected.
If you choose this connection type, enter the number of minutes after which
the connection shuts off in the I
Idle Time
field.
d. Enter the IP address assigned to you by your ISP in the M
My IP Address
field.
e. Enter the IP address of your ISP’s server in the S
Server IP Address
field.
f. Click S
Save
. If applicable, go to “Configuring Maximum Transmit Unit (MTU)”
on page 33.
Configuring Internet Address Information
STEP 1 If your ISP uses Dynamic Host Control Protocol (DHCP) to assign you an IP
address, you receive a dynamic IP address that is newly generated each time you
log in. In the IP Address Source field, choose
Get Dynamically From ISP
.
If your ISP has assigned you a static (non-changing) IP address, in the IP Address
Source Field, choose U
Use Static IP Address
and enter the following:
•IP address assigned to you by your ISP.
•IPv4 subnet mask assigned to you by your ISP.
•ISP gateway's IP address.
STEP 2 Click S
Save
.
Configuring Networking
Configuring the Wide Area Network (WAN)
Cisco RV 120W Administration Guide 33
2
Configuring Domain Name System (DNS) Server Information
DNS servers map Internet domain names (for example, www.cisco.com) to IP
addresses. Under DNS Server Source, you can choose whether to get DNS server
addresses automatically from your ISP or to use ISP-specified DNS server
addresses.
STEP 1 If your ISP provides DNS servers, under DNS Server Source, choose G
Get
Dynamically from ISP
.
If your ISP instructs you to use specific DNS server addresses, under DNS Server
Source, choose U
Use These DNS Servers
. Enter the IP address of the primary and
secondary DNS servers.
STEP 2 Click S
Save
.
Configuring Maximum Transmit Unit (MTU)
The MTU (Maximum Transmit Unit) is the size of the largest packet that can be
sent over the network. The standard MTU value for Ethernet networks is usually
1500 bytes and for PPPoE connections, it is 1492 bytes.
STEP 1 Unless a change is required by your ISP, Cisco recommends that you choose
Default
in the MTU Type field. The default MTU size is 1500 bytes. If your ISP
requires a custom MTU setting, choose C
Custom
and enter the MTU Size.
STEP 2 Click S
Save
.
Configuring the Cisco RV 120W Media Access Control (MAC) Address
The router has a unique 48-bit local Ethernet hardware address. In most cases, the
default MAC address is used to identify your Cisco RV 120W to your ISP.
However, you can change this setting if required by your ISP.
STEP 1 In the MAC Address Source field, choose one of the following:
•
Use Default Address
(recommended).
•
Use this computer's MAC
—Choose this option to assign the MAC address
of the computer that you are using to configure the router.
Configuring Networking
Configuring the Wide Area Network (WAN)
Cisco RV 120W Administration Guide 34
2
•
Use This MAC Address
—Choose this option if you want to manually enter a
MAC Address that is expected by your ISP.
STEP 2 If you chose not to use the default MAC address, in the MAC Address field, enter a
MAC address in the format of XX:XX:XX:XX:XX:XX, where X is a number from 0
through 9 or a letter from A through F.
STEP 3 Click S
Save
.
Configuring the WAN for an IPv6 Network
Configuring WAN properties for an IPv6 network differs depending on which type
of Internet connection you have. See the sections below for detailed instructions.
NOTE Before configuring any WAN properties for an IPv6 network, you must configure the
routing mode. Choose N
Networking
> I
IPv6
> R
Routing Mode
and select IPv4 / IPv6
mode. Click S
Save
.
The Cisco RV 120W can be configured to be a DHCPv6 client of the ISP for this
WAN or a static IPv6 address provided by the ISP can be assigned.
Configuring a Static IP Address
If your ISP assigns you a fixed address to access the Internet, choose this option.
The information needed for configuring a static IP address can be obtained from
your ISP.
STEP 1 In the I
Internet Address
field, choose S
Static IPv6
.
STEP 2 Enter the IPv6 IP address assigned to your router.
STEP 3 Enter the IPv6 prefix length defined by the ISP. The IPv6 network (subnet) is
identified by the initial bits of the address which are called the prefix (for example,
in the IP address 2001:0DB8:AC10:FE01::, 2001 is the prefix). All hosts in the
network have identical initial bits for their IPv6 address; the number of common
initial bits in the network’s addresses is set in this field.
STEP 4 Enter the default IPv6 gateway address, or the IP address of the server at the ISP
that this router will connect to for accessing the internet.
Configuring Networking
Configuring the Wide Area Network (WAN)
Cisco RV 120W Administration Guide 35
2
STEP 5 Enter the primary and secondary DNS server IP addresses on the ISP's IPv6
network. DNS servers map Internet domain names (for example, www.cisco.com)
to IP addresses.
STEP 6 Choose the method by which the router obtains an IP address:
STEP 7 Click S
Save
.
Configuring DHCPv6
When the ISP allows you to obtain the WAN IP settings via DHCP, you need to
provide details for the DHCPv6 client configuration.
STEP 1 In the Internet Address field, choose D
DHCPv6
.
STEP 2 Choose if the DHCPv6 client on the gateway is stateless or stateful. If a stateful
client is selected, the gateway connects to the ISP's DHCPv6 server for a leased
address. For stateless DHCP, it is not necessary to have a DHCPv6 server
available at the ISP. Instead, a ICMPv6 discover messages will originate from the
Cisco RV 120W and is used for auto-configuration.
STEP 3 Click S
Save
.
Creating PPPoE Profiles
You can create profiles for multiple PPPoE accounts, which can be useful if you
connect to the Internet using different service provider accounts.
STEP 1 Choose N
Networking
> W
WAN
> P
PPPoE Profiles
. Click A
Add
to create a new profile.
STEP 2 Enter the profile name. This is a label that you choose to identify the profile (for
example, “ISPOne”).
STEP 3 Enter the username and password. These are assigned to you by the ISP to
access your account.
STEP 4 Choose the authentication type:
•
Auto-negotiate
—The server sends a configuration request specifying the
security algorithm set on it. The router then sends back authentication
credentials with the security type sent earlier by the server.
Configuring Networking
Configuring the Local Area Network (LAN)
Cisco RV 120W Administration Guide 36
2
•
PAP
—The Cisco RV 120W uses Password Authentication Protocol when
connecting with the ISP.
•
CHAP
—The Cisco RV 120W uses Challenge Handshake Authentication
Protocol when connecting with the ISP.
•
MS-CHAP
or M
MS-CHAPv2
—The Cisco RV 120W uses Microsoft Challenge
Handshake Authentication Protocol when connecting with the ISP.
STEP 5 Choose the connectivity type:
•
Keep connected
—The Internet connection is always on.
•
Idle Time
—The Internet connection is on only when traffic is present. If the
connection is idle—that is, no traffic is occurring—the connection is closed.
You might want to choose this if your ISP charges based on the amount of
time that you are connected.
If you choose this connection type, enter the number of minutes after which
the connection shuts off in the I
Idle Time
field.
STEP 6 Click S
Save
. Your new profile is added to the list.
Configuring the Local Area Network (LAN)
For most applications, the default DHCP and TCP/IP settings are satisfactory. If
you want another PC on your network to be the DHCP server, or if you are
manually configuring the network settings of all of your PCs, disable DHCP.
Instead of using a DNS server, you can use a Windows Internet Naming Service
(WINS) server. A WINS server is the equivalent of a DNS server but uses the
NetBIOS protocol to resolve hostnames. The router includes the WINS server IP
address in the DHCP configuration when acknowledging a DHCP request from a
DHCP client.
You can also enable a DNS proxy. When enabled, the router then acts as a proxy
for all DNS requests and communicates with the ISP's DNS servers. When
disabled, all DHCP clients receive the DNS IP addresses of the ISP.
Configuring Networking
Configuring the Local Area Network (LAN)
Cisco RV 120W Administration Guide 37
2
If machines on your LAN use different IP address ranges (for example, 172.16.2.0
or 10.0.0.0), you can add aliases to the LAN port to give PCs on those networks
access to the Internet. This allows the firewall to act as a gateway to additional
logical subnets on your LAN. You can assign the firewall an IP address on each
additional logical subnet.
NOTE If you have IPv6 configured, see “Configuring IPv6 LAN Properties” on page 43.
Changing the Default Cisco RV 120W IP Address
STEP 1 Choose N
Networking
> L
LAN
> L
LAN Configuration
.
STEP 2 In the IP address field, enter the new IP address for your Cisco RV 120W. The
default IP address is 192.168.1.1. You might want to change the default IP address
if that address is assigned to another piece of equipment in your network.
STEP 3 Enter the Subnet Mask for the new IP address.
STEP 4 Click S
Save
. After changing the IP address, you are no longer connected to the
Cisco RV 120W. You must do one of the following:
•Release and renew the IP address on the PC that you are using to access
the Cisco RV 120W (if DHCP is configured on the router).
•Manually assign an IP address to your PC that is in the same subnet as the
Cisco RV 120W. For example, if you change the Cisco RV 120W IP address
to 10.0.0.1, you would assign an IP address in the 10.0.0.0 subnet to your PC.
STEP 5 Open a new browser window and enter the new IP address of the Cisco RV 120W
to re-connect.
Configuring DHCP
By default, the Cisco RV 120W functions as a DHCP server to the hosts on the
Wireless LAN (WLAN) or LAN network and assigns IP and DNS server addresses.
With DHCP enabled, the router's IP address serves as the gateway address to
your LAN. The PCs in the LAN are assigned IP addresses from a pool of addresses.
Each address is tested before it is assigned to avoid duplicate addresses on the
LAN.
Configuring Networking
Configuring the Local Area Network (LAN)
Cisco RV 120W Administration Guide 38
2
STEP 1 Choose N
Networking
> L
LAN
> L
LAN Configuration
.
STEP 2 In the DHCP Section, in the DHCP Mode field, choose one of the following:
•
DHCP Server
—Choose this to allow the Cisco RV 120W to act as the DHCP
server in the network. Enter the following information:
-
Domain Name
—Enter the domain name for your network (optional).
-
Starting and Ending IP Address
—Enter the first and last of the
contiguous addresses in the IP address pool. Any new DHCP client
joining the LAN is assigned an IP address in this range. You can save part
of the range for PCs with fixed addresses. These addresses should be in
the same IP address subnet as the router's LAN IP address.
-
Primary and Secondary DNS Server
—DNS servers map Internet domain
names (for example, www.cisco.com) to IP addresses. Enter the server
IP addresses in these fields if you want to use different DNS servers than
are specified in your WAN settings.
-
Lease time
—Enter the duration (in hours) for which IP addresses are
leased to clients.
•
DHCP Relay
—If you chose DHCP Relay as the DHCP mode, enter the
address of the relay gateway in the Relay Gateway field. The relay gateway
transmits DHCP messages between multiple subnets.
•
None
—Use this to disable DHCP on the Cisco RV 120W. If you want another
PC on your network to be the DHCP server, or if you are manually
configuring the network settings of all of your PCs, disable DHCP.
STEP 3 Click S
Save
.
Configuring the LAN DNS Proxy
STEP 1 Choose N
Networking
> L
LAN
> L
LAN Configuration
.
STEP 2 In the LAN Proxy section, to enable the Cisco RV 120W to act as a proxy for all
DNS requests and communicate with the ISP's DNS servers, check E
Enable DNS
Proxy
. When this feature is enabled, the router acts as a proxy for all DNS requests
and communicates with the ISP's DNS servers (as configured in the WAN settings
page). All DHCP clients receive the Primary/Secondary DNS IP and the IP of the
router where DHCP is running. All DHCP clients receive the DNS IP addresses of
Configuring Networking
Configuring the Local Area Network (LAN)
Cisco RV 120W Administration Guide 39
2
the ISP, excluding the DNS Proxy IP address when it is disabled. The feature is
useful for an “auto rollover” configuration. For example, if the DNS servers for each
connection are different, then a link failure can render the DNS servers
inaccessible. However, when the DNS proxy is enabled, then clients can make
requests to the router and the router, in turn, sends those requests to the DNS
servers of the active connection.
STEP 3 Click S
Save
.
Configuring Virtual LANs (VLANs)
A VLAN is a group of endpoints in a network that are associated by function or
other shared characteristics. Unlike LANs, which are usually geographically based,
VLANs can group endpoints without regard to the physical location of the
equipment or users.
Enabling VLANs
STEP 1 Choose N
Networking
> L
LAN
> V
VLAN Configuration
.
STEP 2 Check the E
Enable
box.
STEP 3 Click S
Save
.
Underneath the Enable VLAN field, a list of available VLANs is shown, including the
name, ID, and whether inter-VLAN routing is enabled or not for each configured
VLAN.
Creating a VLAN
STEP 1 Choose N
Networking
> L
LAN
> V
VLAN Configuration
.
STEP 2 Click A
Add
.
STEP 3 Enter a name to identify the VLAN.
STEP 4 Enter a numerical VLAN ID that will be assigned to endpoints in the VLAN
membership. The VLAN ID can range from 2 to 4094. VLAN ID 1 is reserved for the
default VLAN, which is used for untagged frames received on the interface, and
VLAN ID 4092 is reserved and cannot be used.
Configuring Networking
Configuring the Local Area Network (LAN)
Cisco RV 120W Administration Guide 40
2
STEP 5 To enable routing between this and other VLANS, check the I
Inter VLAN Routing
Enable
box.
STEP 6 Click S
Save
.
Configuring Port VLANs
You can associate VLANS on the Cisco RV 120W to the LAN ports on the device.
By default, all 4 ports belong to VLAN1. You can edit these ports to associate them
with other VLANS.
To associate a LAN port to a VLAN:
STEP 1 Choose N
Networking
> L
LAN
> P
Port VLAN
.
STEP 2 In the Port VLANs table, check the box in the row of the LAN port that you want to
configure and press E
Edit
.
STEP 3 Select the mode for the VLAN port:
•
General
—In general mode, the port is a member of a user-defined set of
VLANs. The port sends and receives both tagged and untagged data.
Untagged data coming into the port is assigned to a PVID by the user. Data
being sent out of the port from the same PVID is untagged. All other data is
tagged.
This mode is typically used with IP phones that have dual Ethernet ports.
Data coming from the phone to the LAN port on the Cisco RV 120W is
tagged. Data passing through the phone from a connected device is
untagged.
•
Access
(default)—In access mode, the port is a member of a single VLAN.
All data going into and out of the port is untagged.
•
Trunk mode
—In trunk mode, the port is a member of a user-defined set of
VLANs. All data going into and out of the port is tagged. Untagged data
coming into the port is not forwarded.
STEP 4 If you selected G
General
or A
Access
mode, enter the default Port VLAN ID (PVID).
This ID is used to tag untagged packets that come into the port.
STEP 5 Click S
Save
.
Configuring Networking
Configuring the Local Area Network (LAN)
Cisco RV 120W Administration Guide 41
2
NOTE If you have changed the port mode, you must save the change and return to the Port
VLAN list before configuring the VLAN membership. Check the box next to the port
and click E
Edit
.
STEP 6 If you selected G
General
or T
Trunk
mode, you can assign the LAN port to one or
more VLANs by checking the box next to the VLAN.
STEP 7 Click S
Save
.
Associating the Wireless Port to VLANs
You can associate wireless VLANS on the Cisco RV 120W to the wireless port on
the device. To associate the wireless port to a VLAN:
STEP 1 Choose N
Networking
> L
LAN
> P
Port VLAN
.
STEP 2 In the Wireless VLANs Table, check the box in the row of the wireless port that you
want to configure and press E
Edit
.
STEP 3 Select the mode for the wireless port:
•
General
—In general mode, the port is a member of a user-defined set of
VLANs. The port sends and receives both tagged and untagged data.
Untagged data coming into the port is assigned to a PVID by the user. Data
being sent out of the port from the same PVID is untagged. All other data is
tagged.
This mode is typically used with IP phones that have dual Ethernet ports.
Data coming from the phone to the LAN port on the Cisco RV 120W is
tagged. Data passing through the phone from a connected device is
untagged.
•
Access
(default)—In access mode, the port is a member of a single VLAN.
All data going into and out of the port is untagged.
•
Trunk mode
—In trunk mode, the port is a member of a user-defined set of
VLANs. All data going into and out of the port is tagged. Untagged data
coming into the port is not forwarded.
STEP 4 If you selected G
General
or A
Access
mode, enter the default Port VLAN ID (PVID).
This ID is used to tag untagged packets that come into the port.
STEP 5 Click S
Save
.
Configuring Networking
Configuring the Local Area Network (LAN)
Cisco RV 120W Administration Guide 42
2
NOTE If you have changed the port mode, you must save the change and return to the Port
VLAN list before configuring the VLAN membership. Check the box next to the port
and click E
Edit
.
STEP 6 If you selected G
General
or T
Trunk
mode, you can assign the LAN port to one or
more VLANs by checking the box next to the VLAN.
STEP 7 Click S
Save
.
Configuring Multiple VLAN Subnets
When you create a VLAN, a subnet is created automatically for the VLAN. You can
then further configure the VLAN properties, such as the IP address and DHCP
behavior.
To e d i t a V L A N :
STEP 1 Choose N
Networking
> L
LAN
> M
Multiple VLAN Subnets
. The list of subnets appears.
STEP 2 Check the box next to the VLAN you want to edit and click E
Edit
.
STEP 3 If you want to edit the IP address of this VLAN:
a. In the IP address field, enter the new IP address.
b. Enter the Subnet Mask for the new IP address.
c. Click S
Save
. If you are connected to the Cisco RV 120W by the LAN port that is a
member of this VLAN, you might have to release and renew the IP address on
the PC connected to the LAN port, or manually assign an IP address to your PC
that is in the same subnet as the VLAN. Open a new browser window and re-
connect to the Cisco RV 120W.
If you want to edit the DHCP behavior of this VLAN:
a. In the DHCP Section, in the DHCP Mode field, choose one of the following:
•
DHCP Server
—Choose this to allow the VLAN to act as the DHCP server in
the network. Enter the following information:
-
Domain Name
—Enter the domain name for your network (optional).
Configuring Networking
Configuring the Local Area Network (LAN)
Cisco RV 120W Administration Guide 43
2
-
Starting and Ending IP Address
—Enter the first and last of the
contiguous addresses in the IP address pool. Any new DHCP client
joining the LAN is assigned an IP address in this range. You can save part
of the range for PCs with fixed addresses. These addresses should be in
the same IP address subnet as the VLAN’s IP address.
-
Primary and Secondary DNS Server
—DNS servers map Internet domain
names (for example, www.cisco.com) to IP addresses. Enter the server
IP addresses in these fields if you want to use different DNS servers than
are specified in your WAN settings.
-
Lease time
—Enter the duration (in hours) for which IP addresses are
leased to clients.
•
DHCP Relay
—Choose this if you are using a DHCP relay gateway. The relay
gateway transmits DHCP messages between multiple subnets. Enter the
address of the relay gateway in the Relay Gateway field.
•
None
—Use this to disable DHCP on the VLAN.
In the LAN Proxy section, to enable the VLAN to act as a proxy for all DNS requests
and communicate with the ISP's DNS servers, check the E
Enable
box.
STEP 4 Click S
Save
.
Configuring IPv6 LAN Properties
In IPv6 mode, the LAN DHCP server is enabled by default (similar to IPv4 mode).
The DHCPv6 server assigns IPv6 addresses from configured address pools with
the IPv6 Prefix Length assigned to the LAN.
To configure IPv6 LAN properties:
STEP 1 Choose N
Networking
> L
LAN
> I
IPv6 LAN Configuration
.
STEP 2 Under LAN TCP/IP Setup, in the IPv6 address field, enter the IP address of the
Cisco RV 120W. The default IPv6 address for the gateway is fec0::1. You can
change this 128 bit IPv6 address based on your network requirements.
STEP 3 Enter the IPv6 prefix length. The IPv6 network (subnet) is identified by the initial
bits of the address called the prefix. By default, the prefix is 64 bits long. All hosts
in the network have the identical initial bits for their IPv6 address; the number of
common initial bits in the network's addresses is set by the prefix length field.
Configuring Networking
Configuring the Local Area Network (LAN)
Cisco RV 120W Administration Guide 44
2
STEP 4 In the DHCPv6 field, choose to disable or enable the DHCPv6 server. If enabled,
the Cisco RV 120W assigns an IP address within the specified range plus
additional specified information to any LAN endpoint that requests DHCP-served
addresses.
STEP 5 Choose the DHCP mode. If stateless is selected, an external IPv6 DHCP server is
not required as the IPv6 LAN hosts are auto-configured by the Cisco RV 120W. In
this case, the router advertisement daemon (RADVD) must be configured on this
device and ICMPv6 router discovery messages are used by the host for auto-
configuration. There are no managed addresses to serve the LAN nodes.
If stateful is selected, the IPv6 LAN host will rely on an external DHCPv6 server to
provide required configuration settings.
STEP 6 (Optional) Enter the domain name of the DHCPv6 server.
STEP 7 Enter the server preference. This field is used to indicate the preference level of
this DHCP server. DHCP advertise messages with the highest server preference
value to a LAN host are preferred over other DHCP server advertise messages.
The default is 255.
STEP 8 Choose the DNS proxy behavior:
•
Use DNS Proxy
—Check this box to enable DNS proxy on this LAN, or
uncheck this box to disable this proxy. When this feature is enabled, the
router acts as a proxy for all DNS requests and communicate with the ISP’s
DNS servers (as configured in the WAN settings page).
•
Use DNS from ISP
—This option allows the ISP to define the DNS servers
(primary/secondary) for the LAN DHCP client.
•
Use below
—If selected, the primary/secondary DNS servers configured
are used. If you chose this option, enter the IP address of the primary and
secondary DNS servers.
STEP 9 Enter the lease/rebind time. Enter the duration (in seconds) for which IP addresses
will be leased to endpoints on the LAN.
STEP 10 Click S
Save
.
Configuring IPv6 Address Pools
This feature allows you to define the IPv6 delegation prefix for a range of IP
addresses to be served by the Cisco RV 120W’s DHCPv6 server. Using a
delegation prefix, you can automate the process of informing other networking
equipment on the LAN of DHCP information specific for the assigned prefix.
Configuring Networking
Configuring the Local Area Network (LAN)
Cisco RV 120W Administration Guide 45
2
STEP 1 Choose N
Networking
> L
LAN
> I
IPv6 LAN Configuration
.
STEP 2 In the List of Address Pools field, click A
Add
.
STEP 3 Enter the starting IP address and ending IP address of the pool.
STEP 4 Enter the prefix length. The number of common initial bits in the network’s
addresses is set by the prefix length field.
STEP 5 Click S
Save
.
Configuring LAN Groups
You can create LAN groups, which are groups of endpoints that are identified by
their IP address. After creating a group, you can then configure actions, such as
blocked keywords in a firewall rule, that apply to the group. (See Adding Blocked
Keywords, page 87.)
To create a LAN Group:
STEP 1 Choose N
Networking
> L
LAN
> L
LAN Groups
.
STEP 2 Click A
Add
.
STEP 3 Enter the group name; spaces and quotes are not supported. Click S
Save
.
STEP 4 In the LAN Groups page, click the box next to the group you just created and click
Host List
.
STEP 5 To add endpoints to the group, click A
Add
.
STEP 6 Enter the IP address of the endpoint and click S
Save
. Repeat steps 4 through 6 for
each endpoint you want to add to the group.
Adding a Static IP Address for a Device on the LAN
You can configure an IP Address and MAC Address for a known computer or
device on the LAN network from the LAN Interface menu.
Configuring Networking
Configuring the Local Area Network (LAN)
Cisco RV 120W Administration Guide 46
2
STEP 1 Choose N
Networking
> L
LAN
> S
Static DHCP (LAN)
.
STEP 2 Click A
Add
.
STEP 3 Enter the IP address of the device.
STEP 4 Enter the MAC address of the device. The format for the MAC Address is
XX:XX:XX:XX:XX:XX where X is a number from 0 to 9 (inclusive) or an alphabetical
letter between A and F (inclusive).
NOTE The IP Address assigned should be outside the pool of the DHCP addresses
configured. The DHCP pool is treated as generic pool and all reserved IP's should
be outside this pool. The DHCP server will then serve the reserved IP address when
the device using the corresponding MAC address requests an IP address.
Viewing DHCP Leased Clients
You can view a list of endpoints on the network (identified by MAC address) and
see the IP address assigned to them by the DHCP server. The VLAN of the
endpoint is also displayed.
STEP 1 Choose N
Networking
> L
LAN
> D
DHCP Leased Clients (LAN)
.
STEP 2 The list of endpoints is displayed; you cannot edit this list.
Configuring a DMZ Host
The Cisco RV 120W supports DMZ options. A DMZ is a sub-network that is open
to the public but behind the firewall. DMZ allows you to redirect packets going to
your WAN port IP address to a particular IP address in your LAN. It is
recommended that hosts that must be exposed to the WAN (such as web or e-mail
servers) be placed in the DMZ network. Firewall rules can be allowed to permit
access to specific services and ports to the DMZ from both the LAN or WAN. In the
event of an attack on any of the DMZ nodes, the LAN is not necessarily vulnerable
as well.
Configuring Networking
Configuring the Local Area Network (LAN)
Cisco RV 120W Administration Guide 47
2
You must configure a fixed (static) IP address for the endpoint that will be
designated as the DMZ host. The DMZ host should be given an IP address in the
same subnet as the router's LAN IP address but it cannot be identical to the IP
address given to the LAN interface of this gateway.
STEP 1 Choose N
Networking
> L
LAN
> D
DMZ Host
.
STEP 2 Check the E
Enable
box to enable DMZ on the network.
STEP 3 Enter the IP address for the endpoint that will receive the redirected packets. This
is the DMZ host.
STEP 4 Click S
Save
. You must then configure firewall rules for the zone. See Configuring
Firewall Rules, page 79.
Configuring Internet Group Management Protocol (IGMP)
Internet Group Management Protocol (IGMP) is an exchange protocol for routers.
Hosts that want to receive multicast messages need to inform their neighboring
routers of their status. In some networks, each node in a network becomes a
member of a multicast group and receives multicast packets. In these situations,
hosts exchange information with their local routers using IGMP. Routers use IGMP
periodically to check if the known group members are active. IGMP provides a
method called dynamic membership by which a host can join or leave a multicast
group at any time.
To configure IGMP:
STEP 1 Choose N
Networking
> L
LAN
> I
IGMP Configuration
.
STEP 2 Check the E
Enable
box to allow IGMP communication between the router and other
nodes in the network.
STEP 3 Click S
Save
.
Configuring Networking
Configuring Routing
Cisco RV 120W Administration Guide 48
2
Configuring Routing
Choosing the Routing Mode
The Cisco RV 120W provides two different routing modes. Network Address
Translation (NAT) is a technique that allows several endpoints on a LAN to share an
Internet connection. The computers on the LAN use a “private” IP address range
while the WAN port on the router is configured with a single “public” IP address.
The Cisco RV 120W translates the internal private addresses into a public
address, hiding internal IP addresses from computers on the Internet. If your ISP
has assigned you a single IP address, you want to use NAT so that the computers
that connect through the Cisco RV 120W are assigned IP addresses from a private
subnet (for example, 192.168.10.0).
The other routing mode, “classical routing,” is used if your ISP has assigned you
multiple IP addresses so that you have an IP address for each endpoint on your
network. You must configure either static or dynamic routes if you use this type of
routing. See Configuring Static Routing, page 49, or Configuring Dynamic
Routing, page 50.
To choose your routing mode:
STEP 1 Select N
Networking
> R
Routing
> R
Routing Mode
.
STEP 2 Click the box next to the type of routing to configure (“NAT” or “Routing”) and click
Save
.
NOTE If you have already configured DMZ or firewall settings on your router in NAT mode,
selecting “router” changes those settings back to the default.
Viewing Routing Information
To view routing information your network, choose N
Networking
> R
Routing
> R
Routing
Table
. Information about your network routing is displayed, including the following:
•Destination—Destination host/network IP address for which this route is
added.
•Gateway—The gateway used for this route.
Configuring Networking
Configuring Routing
Cisco RV 120W Administration Guide 49
2
•Genmask—The netmask for the destination network.
•Flags—For debugging purpose only; possible flags include:
-U—Route is up.
-H—Target is a host.
-G—Use gateway.
-R—Reinstate route for dynamic routing.
-D—Dynamically installed by daemon or redirect.
-M—Modified from routing daemon or redirect.
-A—Installed by
addrconf
.
-C—Cache entry.
-!—Reject route.
•Metric—The distance to the target (usually counted in hops).
•Ref—Number of references to this route.
•Use—Count of lookups for the route. Depending on the use of -F and -C, this
is either route cache misses (-F) or hits (-C).
•Iface—Interface to which packets for this route will be sent.
Configuring Static Routing
You can configure static routes to direct packets to the destination network. A
static route is a pre-determined pathway that a packet must travel to reach a
specific host or network. Some ISPs require static routes to build your routing
table instead of using dynamic routing protocols. Static routes do not require CPU
resources to exchange routing information with a peer router. You can also use
static routes to reach peer routers that do not support dynamic routing protocols.
Static routes can be used together with dynamic routes. Be careful not to
introduce routing loops in your network.
To create a static route:
STEP 1 Select N
Networking
> R
Routing
> S
Static Routing
.
STEP 2 In the list of static routes, click A
Add
.
Configuring Networking
Configuring Routing
Cisco RV 120W Administration Guide 50
2
STEP 3 Enter the route name.
STEP 4 If a route is to be immediately active, check the A
Active
box. When a route is added
in an inactive state, it will be listed in the routing table, but will not be used by the
router. The route can be enabled later. This feature is useful if the network that the
route connects to is not available when you added the route. When the network
becomes available, the route can be enabled.
STEP 5 Check the P
Private
box to mark this route as private, which means that it will not be
shared in a Routing Information Protocol (RIP) broadcast or multicast. Uncheck this
box if the route can be shared with other routers when RIP is enabled.
STEP 6 In the destination IP address field, enter the IP address of the destination host or
network to which the route leads. For a standard Class C IP domain, the network
address is the first three fields of the Destination LAN IP; the last field should be
zero.
STEP 7 In the IP subnet mask field, enter the IPv4 Subnet Mask for the destination host or
network. For Class C IP domains, the Subnet Mask is 255.255.255.0.
STEP 8 Choose the physical network interface through which this route is accessible
(W
WAN
or L
LAN
).
STEP 9 In the gateway IP address field, enter the IP Address of the gateway through
which the destination host or network can be reached. If this router is used to
connect your network to the Internet, then your gateway IP is the router's IP
address. If you have another router handling your network's Internet connection,
enter the IP address of that router instead.
STEP 10 In the metric field, enter a value between 2 and 15 to define the priority of the
route. If multiple routes to the same destination exist, the route with the lowest
metric is chosen.
STEP 11 Click S
Save
.
Configuring Dynamic Routing
RIP (Routing Information Protocol, RFC 2453) is an Interior Gateway Protocol (IGP)
that is commonly used in internal networks. It allows the router to exchange its
routing information automatically with other routers, and allows it to dynamically
adjust its routing tables and adapt to changes in the network.
Configuring Networking
Configuring Routing
Cisco RV 120W Administration Guide 51
2
NOTE RIP is disabled by default on the Cisco RV 120W.
To configure dynamic routing:
STEP 1 Choose N
Networking
> R
Routing
> D
Dynamic Routing
.
STEP 2 To configure how the router sends and receives RIP packets, choose the RIP
direction:
•
Both
—The router both broadcasts its routing table and also processes RIP
information received from other routers.
•
Out Only
—The router broadcasts its routing table periodically but does not
accept RIP information from other routers.
•
In Only
—The router accepts RIP information from other router, but does not
broadcast its routing table.
•
None
—The router neither broadcasts its route table nor does it accept any
RIP packets from other routers. This option disables RIP.
STEP 3 Choose the RIP version:
•
Disabled
.
•
RIP-1
—This is a class-based routing version that does not include subnet
information. RIP-1 is the most commonly supported version.
•
RIP-2B
—This version broadcasts data in the entire subnet.
•
RIP-2M
—This version sends data to multicast addresses.
STEP 4 RIP v2 authentication forces authentication of RIP packets before routes are
exchanged with other routers. It acts as a security feature because routes are
exchanged only with trusted routers in the network. RIP authentication is disabled
by default. You can enter two key parameters so that routes can be exchanged
with multiple routers present in the network. The second key also acts as a failsafe
when authorization with first key fails.
To enable authentication for RIP-2B or RIP-2M, check the E
Enable
box. (You must
also choose the direction as explained in S
Step 1
.)
If you enabled RIP v2 authentication, enter the following first and second key
parameters:
Configuring Networking
Configuring Port Management
Cisco RV 120W Administration Guide 52
2
•
MD5 Key ID
—Input the unique MD-5 key ID used to create the
Authentication Data for this RIP v2 message.
•
MD5 Auth Key
—Input the auth key for this MD5 key, the auth key that is
encrypted and sent along with the RIP-V2 message.
•
Not Valid Before
—Enter the start date when the auth key is valid for
authentication.
•
Not Valid After
—Enter the end date when the auth key is valid for
authentication.
STEP 5 Click S
Save
.
Configuring Port Management
The Cisco RV 120W has four LAN ports. You can enable or disable ports, configure
if the port is half- or full-duplex, and set the port speed.
To configure LAN ports:
STEP 1 Choose N
Networking
> P
Port Management
.
STEP 2 To enable a port, check the
Enable
box. To disable the port, uncheck the E
Enable
box. By default, all ports are enabled.
STEP 3 Check the A
Auto
box to let the router and network determine the optimal port
settings. By default, automatic mode is enabled. This setting is available only when
the E
Enable
box is checked.
STEP 4 (Optional) Choose either half- or full-duplex based on the port support. The default
is full-duplex for all ports. This setting is available only when the A
Auto
check box is
unchecked.
STEP 5 (Optional) Select one of the following port speeds: 1
10 Mbps
or 1
100 Mbps
. The
default setting is 100 Mbps for all ports. This setting is available only when the
Auto
check box is unchecked. You can change the port speed if a network is
designed to run at a particular speed, such as 10 Mbps mode. In this case, the
endpoint also uses 10 Mbps mode either by auto-negotiation or manual setting.
STEP 6 Click S
Save
.
Configuring Networking
Configuring Dynamic DNS (DDNS)
Cisco RV 120W Administration Guide 53
2
Configuring Dynamic DNS (DDNS)
DDNS is an Internet service that allows routers with varying public IP addresses to
be located using Internet domain names. To use DDNS, you must set up an
account with a DDNS provider such as DynDNS.com or TZO.com.
The router will notify dynamic DNS servers of changes in the WAN IP address, so
that any public services on your network can be accessed by using the domain
name.
To configure DDNS:
STEP 1 Choose N
Networking
> D
Dynamic DNS
.
STEP 2 Select the Dynamic DNS Service you are using. Selecting N
None
disables this
service.
STEP 3 If you selected DynDNS.com:
a. Specify the complete Host Name and Domain Name for the DDNS service.
b. Enter the DynDNS account username.
c. Enter the password for the DynDNS account.
d. Check the U
Use Wildcards
box to enable the wildcards feature, which allows all
subdomains of your DynDNS Host Name to share the same public IP as the
Host Name. This option can be enabled here if not done on the DynDNS Web
site.
e. Check the U
Update Every 30 Days
box to configure the router to update the host
information on DynDNS and keep the subscription active after the 30-day trial.
If you selected TZO.com:
a. Specify the complete Host Name and Domain Name for the DDNS service.
b. Enter the user e-mail address for the TZO account.
c. Enter the user key for the TZO account.
d. Check the U
Update Every 30 Days
box to configure the router to update the host
information on TZO.com and keep the subscription active after the 30-day trial.
Configuring Networking
Configuring IPv6
Cisco RV 120W Administration Guide 54
2
STEP 4 Click S
Save
.
Configuring IPv6
The IPv6 configuration information for your router is performed in several sections
on your Cisco RV 120W. Make sure you do the following:
•Configure IPv6 WAN properties—See Configuring the WAN for an IPv6
Network, page 34.
•Set the Routing Mode to IPv4/IPv6 mode. See Configuring the Routing
Mode, page 54.
Configuring the Routing Mode
To configure IPv6 properties on the Cisco RV 120W, set the routing mode to IPv6:
STEP 1 Choose N
Networking
> I
IPv6
> R
Routing Mode
.
STEP 2 Select I
IPv4/IPv6
and click S
Save
.
Configuring IPv6 Static Routing
You can configure static routes to direct packets to the destination network. A
static route is a pre-determined pathway that a packet must travel to reach a
specific host or network. Some ISPs require static routes to build your routing
table instead of using dynamic routing protocols. Static routes do not require CPU
resources to exchange routing information with a peer router. You can also use
static routes to reach peer routers that do not support dynamic routing protocols.
Static routes can be used together with dynamic routes. Be careful not to
introduce routing loops in your network.
Configuring Networking
Configuring IPv6
Cisco RV 120W Administration Guide 55
2
To create a static route:
STEP 1 Select N
Networking
> R
Routing
> S
Static Routing
.
STEP 2 In the list of static routes, click A
Add
.
STEP 3 Enter the route name.
STEP 4 If a route is to be immediately active, check the A
Active
box. When a route is added
in an inactive state, it will be listed in the routing table, but will not be used by the
router. The route can be enabled later. This feature is useful if the network that the
route connects to is not available when you added the route. When the network
becomes available, the route can be enabled.
STEP 5 In the IPv6 destination field, enter the IPv6 address of the destination host or
network for this route.
STEP 6 In the IPv6 prefix length field, enter the number of prefix bits in the IPv6 address
that define the destination subnet.
STEP 7 Choose the physical network interface through which this route is accessible
(W
WAN
, L
LAN
, or s
sit0
tunnel). (The Simple Internet Transition [SIT] is a set of protocol
mechanisms implemented in hosts and routers, along with some operational
guidelines for addressing and deployment, designed to make the transition from
the Internet to IPv6 work with as little disruption as possible. The SIT0 tunnel is a
point-to-point tunnel.)
STEP 8 Enter the IP Address of the gateway through which the destination host or network
can be reached.
STEP 9 In the metric field, specify the priority of the route by choosing a value between 2
and 15. If multiple routes to the same destination exist, the route with the lowest
metric is used.
STEP 10 Click S
Save
.
Configuring RIP next generation (RIPng)
RIPng (RFC 2080) is a routing protocol based on the distance vector (D-V)
algorithm. RIPng uses UDP packets to exchange routing information through port
521. RIPng uses a hop count to measure the distance to a destination. The hop
count is referred to as metric, or cost. The hop count from a router to a directly-
connected network is 0. The hop count between two directly-connected routers is
1. When the hop count is greater than or equal to 16, the destination network or
Configuring Networking
Configuring IPv6
Cisco RV 120W Administration Guide 56
2
host is unreachable. By default, the routing update is sent every 30 seconds. If the
router receives no routing updates from a neighbor after 180 seconds, the routes
learned from the neighbor are considered as unreachable. After another 240
seconds, if no routing update is received, the router will remove these routes from
the routing table.
On the Cisco RV 120W, RIPng is disabled by default.
To configure RIPng:
STEP 1 Select N
Networking
> I
IPv6
> R
Routing (RIPng)
.
STEP 2 Check the E
Enable RIPng
box.
STEP 3 Click S
Save
.
Configuring IPv6 to IPv4 Tunneling
The Cisco RV 120W provides several IPv6 tunneling methods.
Configuring 6to4 Tunneling
6to4 tunneling allows IPv6 packets to be transmitted over an IPv4 network. 6to4
tunneling is typically used when a site or end user wants to connect to the IPv6
Internet using the existing IPv4 network.
To configure 6to4 Tunneling:
STEP 1 Select N
Networking
> I
IPv6
> 6
6to4 Tunneling
.
STEP 2 Check the E
Enable Automatic Tunneling
box.
STEP 3 Click S
Save
.
Configuring Intra-Site Automatic Tunnel Addressing Protocol Tunnels
Intra-site automatic tunnel addressing protocol is a method to transmit IPv6
packets between dual-stack nodes over an IPv4 network. The Cisco RV 120W is
one endpoint (a node) for the tunnel. You must also set a local endpoint, as well as
the ISATAP Subnet Prefix that defines the logical ISATAP subnet to configure a
tunnel.
Configuring Networking
Configuring IPv6
Cisco RV 120W Administration Guide 57
2
To add an ISATAP tunnel:
STEP 1 Choose N
Networking
> I
IPv6
> I
ISATAP Tunnels
.
STEP 2 Click A
Add
.
STEP 3 Enter the ISATAP subnet prefix. This is the 64-bit subnet prefix that is assigned to
the logical ISATAP subnet for this intranet. This can be obtained from your ISP or
internet registry, or derived from RFC 4193.
STEP 4 Choose the local endpoint address, or the endpoint address for the tunnel that
starts with the Cisco RV 120W. The endpoint can be the LAN interface (if the LAN
is configured as an IPv4 network), or a specific LAN IPv4 address.
STEP 5 If you chose an endpoint other than the LAN interface in Step 4, enter the IPv4
address of the endpoint.
STEP 6 Click S
Save
.
Viewing IPv6 Tunnel Information
To view IPv6 tunnel information, choose N
Networking
> I
IPv6
> I
IPv6 Tunnels Status
.
The page displays information about the automatic tunnel set up through the
dedicated WAN interface. The table shows the name of tunnel and the IPv6
address that is created on the device.
Configuring Router Advertisement
The Router Advertisement Daemon (RADVD) on the Cisco RV 120W listens for
router solicitations in the IPv6 LAN and responds with router advertisements as
required. This is stateless IPv6 auto configuration, and the Cisco RV 120W
distributes IPv6 prefixes to all nodes on the network.
To configure the RADVD:
STEP 1 Choose N
Networking
> I
IPv6
> R
Router Advertisement
.
STEP 2 Under RADVD Status, choose E
Enable
.
STEP 3 Under Advertise Mode, choose one of the following:
•
Unsolicited Multicast
—Select this option to send router advertisements
(RAs) to all interfaces belonging to the multicast group.
Configuring Networking
Configuring IPv6
Cisco RV 120W Administration Guide 58
2
•
Unicast only
—Select this option to restrict advertisements to well-known
IPv6 addresses only (router advertisements [RAs] are sent to the interface
belonging to the known address only).
STEP 4 If you chose Unsolicited Multicast in Step 3, enter the advertise interval. The
advertise interval is a random value between the Minimum Router Advertisement
Interval and Maximum Router Advertisement Interval. (MinRtrAdvInterval = 0.33 *
MaxRtrAdvInterval.) The default is 30 seconds.
STEP 5 Under RA Flags, check M
Managed
to use the administered/stateful protocol for
address auto configuration. Check O
Other
to use the administered/stateful protocol
of other, non-address information auto configuration.
STEP 6 Under router preference, choose l
low
, m
medium
, or h
high
. The router preference
provides a preference metric for default routers. The low, medium and high values
are signaled in unused bits in Router Advertisement messages. This extension is
backward compatible, both for routers (setting the router preference value) and
hosts (interpreting the router preference value). These values are ignored by hosts
that do not implement router preference. This feature is useful if there are other
RADVD-enabled devices on the LAN. The default is high.
STEP 7 Enter the MTU size. The MTU is the size of the largest packet that can be sent over
the network. The MTU is used in RAs to ensure all nodes on the network use the
same MTU value when the LAN MTU is not well-known. The default is 1500 bytes.
STEP 8 Enter the router lifetime value, or the time in seconds that the advertisement
messages will exist on the route. The default is 3600 seconds.
STEP 9 Click S
Save
.
To configure the RADVD available prefixes:
STEP 1 Choose N
Networking
> I
IPv6
> A
Advertisement Prefixes
.
STEP 2 Click A
Add
.
STEP 3 Choose the IPv6 Prefix Type:
•
6to4
—6to4 is a system that allows IPv6 packets to be transmitted over an
IPv4 network. It is used when an end user wants to connect to the IPv6
Internet using their existing IPv4 connection
•
Global/ISATAP
—By using ISATAP, you can integrate IPv6 traffic into a IPv4
network environment. ISATAP uses a locally assigned IPv4 address to
create a 64-bit interface identifier for IPv6.
Configuring Networking
Configuring IPv6
Cisco RV 120W Administration Guide 59
2
STEP 4 If you chose 6to4 in Step 3, enter the Site-level aggregation identifier (SLA ID.) The
SLA ID in the 6to4 address prefix is set to the interface ID of the interface on which
the advertisements are sent.
If you chose Global/Local/ISATAP in Step 3, enter the IPv6 prefix and prefix
length. The IPv6 prefix specifies the IPv6 network address. The prefix length
variable is a decimal value that indicates the number of contiguous, higher-order
bits of the address that make up the network portion of the address.
STEP 5 Enter the prefix lifetime, or the length of time over which the requesting router is
allowed to use the prefix.
STEP 6 Click S
Save
.
3
Cisco RV 120W Administration Guide 60
Configuring the Wireless Network
This chapter describes how to configure your wireless network and includes the
following sections:
•A Note About Wireless Security, page 60
•Understanding the Cisco RV 120W’s Wireless Networks, page 63
•Configuring Access Points, page 66
•Configuring the Wireless Radio Properties, page 70
•Configuring the Wireless Radio Properties, page 70
•Configuring Wi-Fi Protected Setup, page 72
•Configuring a Wireless Distribution System (WDS), page 73
A Note About Wireless Security
Wireless networks are convenient and easy to install, so homes with high-speed
Internet access are adopting them at a rapid pace. Because wireless networking
operates by sending information over radio waves, it can be more vulnerable to
intruders than a traditional wired network. Like signals from your cellular or
cordless phones, signals from your wireless network can also be intercepted. The
following information will help you to improve your security:
•Wireless Security Tips, page 60
•General Network Security Guidelines, page 62
Wireless Security Tips
Since you cannot physically prevent someone from connecting to your wireless
network, you need to take some additional steps to keep your network secure:
Configuring the Wireless Network
A Note About Wireless Security
Cisco RV 120W Administration Guide 61
3
•Change the default wireless network name or SSID
Wireless devices have a default wireless network name or Service Set
Identifier (SSID) set by the factory. This is the name of your wireless
network, and can be up to 32 characters in length.
You should change the wireless network name to something unique to
distinguish your wireless network from other wireless networks that may
exist around you, but do not use personal information (such as your Social
Security number) because this information may be available for anyone to
see when browsing for wireless networks.
•Change the default password
For wireless products such as access points, routers, and gateways, you
will be asked for a password when you want to change their settings. These
devices have a default password set by the factory. The default password
is often a
admin
. Hackers know these defaults and may try to use them to
access your wireless device and change your network settings. To thwart
any unauthorized changes, customize the device’s password so it will be
hard to guess.
•Enable MAC address filtering
Cisco routers and gateways give you the ability to enable Media Access
Control (MAC) address filtering. The MAC address is a unique series of
numbers and letters assigned to every networking device. With MAC
address filtering enabled, wireless network access is provided solely for
wireless devices with specific MAC addresses. For example, you can
specify the MAC address of each computer in your network so that only
those computers can access your wireless network.
Configuring the Wireless Network
A Note About Wireless Security
Cisco RV 120W Administration Guide 62
3
•Enable encryption
Encryption protects data transmitted over a wireless network. Wi-Fi
Protected Access (WPA/WPA2) and Wired Equivalency Privacy (WEP) offer
different levels of security for wireless communication. Currently, devices
that are Wi-Fi certified are required to support WPA2, but are not required
to support WEP.
A network encrypted with WPA/WPA2 is more secure than a network
encrypted with WEP, because WPA/WPA2 uses dynamic key encryption.
To protect the information as it passes over the airwaves, you should
enable the highest level of encryption supported by your network
equipment.
WEP is an older encryption standard and may be the only option available
on some older devices that do not support WPA.
•Keep wireless routers, access points, or gateways away from exterior walls
and windows.
•Turn wireless routers, access points, or gateways off when they are not
being used (at night, during vacations).
•Use strong passphrases that are at least eight characters in length.
Combine letters and numbers to avoid using standard words that can be
found in the dictionary.
General Network Security Guidelines
Wireless network security is useless if the underlying network is not secure. Cisco
recommends that you take the following precautions:
•Password protect all computers on the network and individually password
protect sensitive files.
•Change passwords on a regular basis.
•Install anti-virus software and personal firewall software.
•Disable file sharing (peer-to-peer). Some applications may open file sharing
without your consent and/or knowledge.
Configuring the Wireless Network
Understanding the Cisco RV 120W’s Wireless Networks
Cisco RV 120W Administration Guide 63
3
Understanding the Cisco RV 120W’s Wireless Networks
The Cisco Small Business RV 120W Wireless-N VPN Firewall provides four
Wireless Access Points (APs), or virtual wireless networks. These networks can be
configured and enabled with individual settings. You can set up multiple networks
to segment the network traffic, to allow different levels of access, such as guest
access, or to allow access for different functions such as accounting, billing, and so
on.
You can further customize wireless access by creating profiles. A profile is a set of
generic wireless settings that can be shared across multiple APs. Profiles allow
you to easily duplicate SSIDs, security settings, encryption methods, and client
authentication for multiple APs.
Configuring Wireless Profiles
A profile is a set of generic wireless settings that can be shared across multiple
APs. You can create multiple profiles on the Cisco RV 120W, but only one profile is
assigned to each AP at a time.
The Cisco RV 120W provides four default wireless profiles. E
Even if you are not
going to create custom profiles, at a minimum, you should edit the default profiles
to enable wireless security.
See A Note About Wireless Security, page 60.
To configure wireless profiles:
STEP 1 Choose W
Wireless
> A
AP Profiles
.
STEP 2 In the Profiles Table, either click A
Add
to add a new profile, or check the box in the
row of an existing profile and click E
Edit
.
STEP 3 If creating a new profile, enter a unique name to identify the profile.
STEP 4 In the SSID field, enter a unique name for this wireless network. Include up to 32
characters, using any of the characters on the keyboard. For added security, you
should change the default value to a unique name.
STEP 5 Check the B
Broadcast SSID
box if you want to allow all wireless clients within range
to be able to detect this wireless network when they are scanning the local area
for available networks. Disable this feature if you do not want to make the SSID
known. When this feature is disabled, wireless users can connect to your wireless
network only if they know the SSID (and provide the required security credentials).
Configuring the Wireless Network
Configuring Wireless Profiles
Cisco RV 120W Administration Guide 64
3
STEP 6 In the Security field, select the type of security. All devices on your network must
use the same security mode and settings to work correctly. Cisco recommends
using the highest level of security that is supported by the devices in your network.
•
Disabled
—Any device can connect to the network.
Not recommended.
•
Wired Equivalent Privacy (WEP)
— Weak security with a basic encryption
method that is not as secure as WPA. WEP may be required if your network
devices do not support WPA; however, it is not recommended.
•
Wi-Fi Protected Access (WPA) Personal
—WPA is part of the wireless
security standard (802.11i) standardized by the Wi-Fi Alliance and was
intended as an intermediate measure to take the place of WEP while the
802.11i standard was being prepared. It supports TKIP/AES encryption.
The personal authentication is the preshared key (PSK) that is an
alphanumeric passphrase shared with the wireless peer.
•
WPA Enterprise
—Allows you to use WPA with RADIUS server
authentication.
•
WPA2 Personal
—WPA2 is the implementation of security standard
specified in the final 802.11i standard. It supports AES encryption and this
option uses preshared key (PSK) based authentication.
•
WPA2 Personal Mixed
—Allows both WPA and WPA2 clients to connect
simultaneously using PSK authentication.
•
WPA2 Enterprise
—Allows you to use WPA2 with RADIUS server
authentication.
•
WPA2 Enterprise Mixed
—Allows both WPA and WPA2 clients to connect
simultaneously using RADIUS authentication.
STEP 7 Perform the following steps based on the type of encryption you chose in Step 6:
WPA/WPA2
a. Select the encryption method to be used: T
TKIP
, A
AES
, or T
TKIP+AES
.
b. Select the authentication method to be used: R
RADIUS
, P
PSK
, or P
PSK + RADIUS
.
c. WPA Password—Enter the pre-shared key for WPA/WPA2 PSK authentication.
The clients also need to be configured with the same password.
d. (Optional) Check the
Enable Pre-Authentication
box to enable pre-
authentication for this profile. Pre-authentication allows wireless clients to
quickly switch between connected Access Points sharing the same security
configuration. This is mainly used when APs are configured with WPA/WPA2
Configuring the Wireless Network
Configuring Wireless Profiles
Cisco RV 120W Administration Guide 65
3
security. In event of wireless client disconnecting from an AP, a notification is
sent to the AP, which then sends the pre-authentication info to other APs in the
network.
WEP
In the WEP Index and Keys section:
a. In the Authentication field, choose O
Open System
or S
Shared Key
. If you choose
open system, a wireless client doesn't need to provide a shared key in order to
access the wireless network. Any client can associate to the router. If you
choose shared key, a wireless client must provide the correct shared key
(password) in order to access the wireless network.
b. Select the encryption type (6
64-
or 1
128-bit
). The larger size keys provide
stronger encryption, making the key more difficult to crack (for example, 64-bit
WEP has a 40-bit key which is less secure than the 128-bit WEP, which has a
104-bit key).
c. (Optional) In the passphrase field, enter an alphanumeric phrase (longer than
eight characters for optimal security) and click G
Generate Key
to generate four
unique WEP keys in the WEP Key fields below.
d. Select one of the four to use as the shared key that devices must have in order
to use the wireless network. If you did not generate a key in Step C, enter a key
directly into the WEP Key field. The length of the key should be 5 ASCII
characters (or 10 hexadecimal characters) for 64-bit WEP and 13 ASCII
characters (or 26 hexadecimal characters) for 128-bit WEP. Valid hexadecimal
characters are “0” to “9” and “A” to “F”.
STEP 8 Click S
Save
.
Configuring the Group Key Refresh Interval
If you configure WPA or WPA2 security, you can specify the timeout interval after
which group keys are generated:
STEP 1 Choose W
Wireless
> A
AP Profile
.
STEP 2 Check the box in the row of the profile you want to configure and click A
Advanced
Configuration
.
STEP 3 Enter the group key refresh interval, in seconds.
Configuring the Wireless Network
Configuring Access Points
Cisco RV 120W Administration Guide 66
3
STEP 4 Click S
Save
.
Configuring RADIUS Authentication Parameters
In WPA2 security, Pairwise Master Key Security Association (PMKSA) caching is
used to store the master keys derived from successful RADIUS authentication. A
client reconnecting within this interval (after successful RADIUS authentication)
can skip the RADIUS authentication. This feature prevents a long RADIUS
authentication process every time a client connects.
To configure:
STEP 1 Choose W
Wireless
> A
AP Profile
.
STEP 2 Check the box in the row of the profile you want to configure and click A
Advanced
Configuration
.
STEP 3 Specify the number of seconds that the master keys are stored in the AP.
STEP 4 In the 802.1X re-authentication interval field, enter the timeout interval (in seconds)
after which the AP should re-authenticate with the RADIUS server.
STEP 5 Click S
Save
.
Configuring Access Points
To configure the APs, choose W
Wireless
> A
AP Profiles
. The four APs are displayed
in the Access Points Table.
Enabling or Disabling APs
An AP can be disabled if not in use and enabled when needed. Disabling an AP
does not delete the configuration, but removes it from availability. Enabling the AP
creates a wireless network, where computers and other devices can join and
communicate with the devices connected to the AP or other devices on the Local
Area Network (LAN).
Configuring the Wireless Network
Configuring Access Points
Cisco RV 120W Administration Guide 67
3
To enable or disable an AP:
STEP 1 Choose W
Wireless
> A
AP Profiles.
STEP 2 In the Access Points Table, click the check box in the row of the AP and click
Enable
or D
Disable
. You can enable or disable multiple APs at one time by checking
multiple boxes.
Editing an AP’s Properties
You can edit properties for an AP to make it only available at certain times of the
day, restrict the number of endpoints that can use the AP, or separate the AP from
the other wireless networks in the Cisco RV 120W.
To edit the properties of an access point:
STEP 1 Choose W
Wireless
> A
AP Profiles.
STEP 2 Check the box in the row of the AP that you want to edit.
STEP 3 Associate a profile with this AP by choosing the profile from the Profile Name list.
The profile controls the name and security settings for the AP. See Configuring
the Wireless Radio Properties, page 70.
STEP 4 (Optional) To configure the AP to be active only during a certain time of day, check
the A
Active Time
box. Enter the start and stop times (hours, minutes, and AM/PM).
STEP 5 In the M
Max Associated Clients
field, enter the maximum number of endpoints that
can use this AP. The default value is 8. You can change this number if you want to
restrict traffic on the network to prevent it from being overloaded, for example.
STEP 6 (Optional) Check the A
AP Isolation
box to separate this AP into its own network.
When this feature is enabled, the AP can communicate with the Cisco RV 120W,
but not with any other AP on the network.
STEP 7 Click S
Save
.
Configuring the Wireless Network
Configuring Access Points
Cisco RV 120W Administration Guide 68
3
Using MAC Filtering
You can use MAC filtering to permit or deny access to the wireless network based
on the MAC (hardware) address of the requesting device. For example, you can
enter the MAC addresses of a set of PCs and only allow those PCs to access the
network. MAC filtering is configured for each AP.
To configure MAC filtering:
STEP 1 Choose W
Wireless
> A
AP Profiles.
STEP 2 Check the box in the row of the AP for which you want to configure MAC filtering
and click MAC Filter.
STEP 3 In the AP Policy Status field, choose the type of access to the AP:
•
Open
—Access to the network is open to all endpoints and is not allowed or
denied based on the endpoint’s MAC address. This is the default setting.
•
Allow
—Access to the network is only allowed to endpoints with specified
MAC addresses.
•
Deny
—Access to the network is denied to endpoints with specified MAC
addresses, but open to all others.
STEP 4 If you chose A
Allow
or D
Deny
in Step 3, click S
Save
.
STEP 5 In the MAC Address Table, check the box next to MAC Address and click A
Add
.
STEP 6 Enter the MAC Address of the endpoint to allow or deny and click S
Save
. The
address is added to the table. Repeat this step for all the endpoints you want to
allow or deny.
STEP 7 Click S
Save
again.
Viewing AP Status
You can view statistics about each AP, including connected clients (endpoints),
data transmitted and received, errors, and other information.
Configuring the Wireless Network
Configuring Access Points
Cisco RV 120W Administration Guide 69
3
To view the AP status:
STEP 1 Choose W
Wireless
> A
AP Profiles.
STEP 2 In the L
List of Available Access Points
, check the box in the row of the AP for which
you want to view statistics and click S
Status
.
STEP 3 The following statistics are displayed:
•AP Name—Name of the AP whose statistics are being displayed.
•Radio—Wireless radio number on which the AP is configured.
•Packets—Number of wireless packets transmitted and received.
•Bytes—Number of bytes of information transmitted and received.
•Errors—Number of transmitted and received packet errors reported to the
AP.
•Dropped—Number of transmitted and received packets dropped by the
AP.
•Multicast—Number of multicast packets sent over this AP.
•Collisions—Number of packet collisions reported to the AP.
•Connected Clients—Lists clients currently connected to the selected AP.
-MAC Address—The unique identifier of the client connected to the AP.
-Radio—Wireless radio number on which AP is configured and to which
the client is associated.
-Security—Security method employed by the client to connect to this AP.
-Encryption—Encryption method employed by the client to connect to
this AP.
-Authentication—Authentication mechanism employed by this
connection.
-Time Connected—Time (in minutes) since the connection was
established between the AP and client.
STEP 4 The Poll Seconds displays the interval at which statistics are shown if the page is
on “automatic refresh.” The default is 10 seconds, which can be changed from 1 to
Configuring the Wireless Network
Configuring the Wireless Radio Properties
Cisco RV 120W Administration Guide 70
3
60 seconds. To cause the page to automatically refresh, click S
Start
. To stop the
page from refreshing, click S
Stop
.
Configuring the Wireless Radio Properties
You can configure radio card properties, including the wireless standard (for
example, 802.11n or 802.11g) on the Cisco RV 120W.
Configuring Basic Wireless Radio Settings
STEP 1 Choose W
Wireless
> R
Radio Settings
> R
Radio Settings
.
STEP 2 Select the W
Wireless Network Mode
:
•
B/G Mixed
—Select this mode if you have devices in the network that
support 802.11b.
•
G Only
—Select this mode if all devices in the wireless network only support
802.11g.
•
N/G Mixed
—Select this mode if you have devices in the network that
support 802.11g and 802.11n.
•
N Only
—Select this mode if all devices in the wireless network support
802.11n.
STEP 3 Select the channel bandwidth. Available choices depend on the wireless network
mode chosen in Step 2.
STEP 4 The control sideband field defines the sideband which is used for the secondary
or extension channel when the AP is operating in 40 Mhz channel width. Choose
lower
or u
upper
. This field is only available when channel spacing is set to a
auto
. The
signal components above the carrier frequency constitute the upper sideband
(USB) and those below the carrier frequency constitute the lower sideband (LSB).
STEP 5 The channel field specifies the frequency that the radio uses to transmit wireless
frames. Select a channel from the list of channels or choose a
auto
to let the Cisco
RV 120W determine the best channel to use based on the environment noise
levels for the available channels.
STEP 6 Click S
Save
.
.
Configuring the Wireless Network
Configuring the Wireless Radio Properties
Cisco RV 120W Administration Guide 71
3
Configuring Advanced Wireless Radio Settings
STEP 1 Choose W
Wireless
> R
Radio Settings
> R
Radio Settings
.
STEP 2 In the beacon interval field, enter the time in milliseconds between beacon
transmissions. The default interval is 100 milliseconds.
STEP 3 In the DTIM interval field, enter the interval at which the delivery traffic indication
message should be sent. A DTIM field is a countdown field informing clients of the
next window for listening to broadcast and multicast messages. When the Cisco
RV 120W has buffered broadcast or multicast messages for associated clients, it
sends the next DTIM with a DTIM Interval value. Its clients hear the beacons and
awaken to receive the broadcast and multicast messages.The default interval is 2
beacon intervals.
STEP 4 The Request to Send (RTS) threshold is the packet size, in bytes, that requires the
AP to check the transmitting frames to determine if an RTS/Clear to Send (CTS)
handshake is required with the receiving client. Using a small value causes RTS
packets to be sent more often, consuming more of the available bandwidth,
reducing the apparent throughput of the network packets. The default value is
2346, which effectively disables RTS.
STEP 5 The fragmentation threshold is the maximum length of the frame, in bytes, beyond
which packets must be fragmented into two or more frames. Collisions occur more
often for long frames because while sending them, they occupy the channel for a
longer time. The default value is 2346, which effectively disables fragmentation. If
you experience a high packet error rate, you can slightly increase the
fragmentation threshold; setting the fragmentation threshold too low may result in
poor network performance. Only minor reduction of the default value is
recommended.
STEP 6 Choose the preamble mode. The 802.11b standard requires that a preamble be
appended to every frame before it is transmitted through the air. The preamble
may be either the traditional “long” preamble, which requires 192 Ðs for
transmission, or it may be an optional “short” preamble that requires only 96 Ðs. A
long preamble is needed for compatibility with the legacy 802.11 systems
operating at 1 and 2 Mbps. The default selection is long.
STEP 7 Choose the protection mode. Select n
none
(the default) to turn off CTS. The CTS-
to-Self Protection option enables the CTS-to-Self protection mechanism, which is
used to minimize collisions among stations in a mixed 802.11b and 802.11g
environment. This function boosts the Cisco RV 120W’s ability to catch all wireless
transmissions but severely decreases performance.
Configuring the Wireless Network
Configuring Wi-Fi Protected Setup
Cisco RV 120W Administration Guide 72
3
STEP 8 (Optional) Check the U
U-APSD
box to enable the Unscheduled Automatic Power
Save Delivery (also referred to as WMM Power Save) feature that allows the radio
to conserve power.
STEP 9 The short retry limit and long retry limit fields determine the number of times the
AP will reattempt a frame transmission that fails. The limit applies to both long and
short frames of a size less than or equal to the RTS threshold.
STEP 10 Click S
Save
.
Configuring Wi-Fi Protected Setup
You can configure Wi-Fi Protected Setup (WPS) on the Cisco RV 120W to allow
WPS-enabled devices to more easily connect to the wireless network.
STEP 1 Choose W
Wireless
> W
WPS
.
STEP 2 Select the AP on which you want to enable WPS. The AP must use WPA, WPA2, or
WPA+WPA2 security.
STEP 3 Under WPS status, choose E
Enable
. By default, WPS is disabled.
STEP 4 Click S
Save
.
To set up a WPS-enabled device in the network:
STEP 1 Choose W
Wireless
> W
WPS
.
STEP 2 In the WPS Setup Method section, in the S
Station PIN
field, enter the personal
identification number (PIN) of the device to connect to the network. You must log in
to that device to obtain its WPS PIN.
STEP 3 Click C
Configure via PIN
to initiate the WPS session. On the WPS-enabled device,
select the necessary option to begin WPS. The device should begin
communication with the Cisco RV 120W.
STEP 4 Click S
Save
.
Configuring the Wireless Network
Configuring a Wireless Distribution System (WDS)
Cisco RV 120W Administration Guide 73
3
Configuring a Wireless Distribution System (WDS)
A Wireless Distribution System (WDS) is a system that enables the wireless
interconnection of access points in a network. It allows a wireless network to be
expanded using multiple access points without the need for a wired backbone to
link them.
WDS peers are other access points in the network connected in the WDS. All base
stations in a WDS must be configured to use the same radio channel, method of
encryption (none, WEP, or WPA) and encryption keys
To configure a WDS:
STEP 1 Choose W
Wireless
> W
WDS
.
STEP 2 Check the E
Enable WDS
box to enable WDS in the Cisco RV 120W.
STEP 3 Enter a WPA password for authentication.
STEP 4 Click S
Save
.
You can manually add WDS peers that can connect to the Cisco RV 120W:
STEP 1 In the WDS Peers Table, click A
Add
.
STEP 2 Enter the MAC (hardware) address of the WDS peer and click S
Save
.
4
Cisco RV 120W Administration Guide 74
Configuring the Firewall
This chapter contains information about configuring the firewall properties of the
Cisco RV 110W and includes the following sections:
•Cisco RV 110W Firewall Features, page 74
•Configuring Basic Firewall Settings, page 76
•Configuring Firewall Rules, page 79
•Creating Firewall Schedules, page 85
•Blocking and Filtering Content and Applications, page 85
•Firewall Rule Examples, page 90
•Configuring Port Triggering, page 92
•Configuring Port Forwarding, page 94
•Configuring Remote Management, page 98
•Configuring One-to-One Network Address Translation (NAT), page 99
Cisco RV 110W Firewall Features
You can secure your network by creating and applying rules that the Cisco RV
120W uses to selectively block and allow inbound and outbound Internet traffic.
You then specify how and to what devices the rules apply. To do so, you must
define the following:
•Services or traffic types (examples: web browsing, VoIP, other standard
services and also custom services that you define) that the router should
allow or block.
•Direction for the traffic by specifying the source and destination of traffic;
this is done by specifying the “From Zone” (LAN/WAN/DMZ) and “To Zone”
(LAN/WAN/DMZ).
Configuring the Firewall
Cisco RV 110W Firewall Features
Cisco RV 120W Administration Guide 75
4
•Schedules as to when the router should apply rules.
•Keywords (in a domain name or on a URL of a web page) that the router
should allow or block.
•Rules for allowing or blocking inbound and outbound Internet traffic for
specified services on specified schedules.
•MAC addresses of devices whose inbound access to your network the
router should block.
•Port triggers that signal the router to allow or block access to specified
services as defined by port number.
•Reports and alerts that you want the router to send to you.
You can, for example, establish restricted-access policies based on time-of-day,
web addresses, and web address keywords. You can block Internet access by
applications and services on the LAN, such as chat rooms or games. You can block
just certain groups of PCs on your network from being accessed by the WAN or
public DMZ network.
Inbound (WAN to LAN/DMZ) rules restrict access to traffic entering your network,
selectively allowing only specific outside users to access specific local resources.
By default, all access from the insecure WAN side is blocked from accessing the
secure LAN, except in response to requests from the LAN or DMZ. To allow
outside devices to access services on the secure LAN, you must create a firewall
rule for each service.
If you want to allow incoming traffic, you must make the router's WAN port IP
address known to the public. This is called “exposing your host.” How you make
your address known depends on how the WAN ports are configured; for the Cisco
RV 120W, you may use the IP address if a static address is assigned to the WAN
port, or if your WAN address is dynamic, a DDNS (Dynamic DNS) name can be
used.
Outbound (LAN/DMZ to WAN) rules restrict access to traffic leaving your network,
selectively allowing only specific local users to access specific outside resources.
The default outbound rule is to allow access from the secure zone (LAN) to either
the public DMZ or insecure WAN. To block hosts on the secure LAN from
accessing services on the outside (insecure WAN), you must create a firewall rule
for each service.
Configuring the Firewall
Configuring Basic Firewall Settings
Cisco RV 120W Administration Guide 76
4
Configuring Basic Firewall Settings
To configure basic firewall settings, choose F
Firewall
> B
Basic Settings
. You can
configure the following:
Protecting from Attacks
Attacks are malicious security breeches or unintentional network issues that
render the Cisco RV 120W unusable. Attack checks allow you to manage WAN
security threats such as continual ping requests and discovery via ARP scans. TCP
and UDP flood attack checks can be enabled to manage extreme usage of WAN
resources.
As well, certain Denial-of-Service (DoS) attacks can be blocked. These attacks, if
uninhibited, can use up processing power and bandwidth and prevent regular
network services from running normally. ICMP packet flooding, SYN traffic
flooding, and Echo storm thresholds can be configured to temporarily suspect
traffic from the offending source.
STEP 1 Choose F
Firewall
> B
Basic Settings
> A
Attack Checks
.
STEP 2 Check the boxes to enable the following functions:
WAN Security
•
Respond to Ping on the Internet
—To configure the Cisco RV 120W to allow
a response to an Internet Control Message Protocol (ICMP) Echo (ping)
request on the WAN interface, check this box. This setting is used as a
diagnostic tool for connectivity problems. Not enabled by default.
•
Enable Stealth Mode
—If Stealth Mode is enabled, the router will not
respond to port scans from the WAN. This feature makes the network less
susceptible to discovery and attacks. Enabled by default.
•
Block TCP Flood
— If this option is enabled, the router will drop all invalid
TCP packets. This feature protects the network from a SYN flood attack.
Enabled by default.
LAN Security
•
Block UDP Flood
—If this option is enabled, the router will not accept more
than 25 simultaneous, active UDP connections from a single computer on
the LAN. Enabled by default.
Configuring the Firewall
Configuring Basic Firewall Settings
Cisco RV 120W Administration Guide 77
4
International Computer Security Association (ICSA) Settings
•
Block ICMP Notification
—ICSA requires the firewall to silently block without
sending an ICMP notification to the sender. Some protocols, such as MTU
Path Discovery, require ICMP notifications. Enable this setting to operate in
“stealth” mode. Enabled by default.
•
Block Fragmented Packets
—ICSA requires the firewall to block fragmented
packets from ANY to ANY. Enabled by default.
•
Block Multicast Packets
—ICSA requires the firewall to block multicast
packets. Enabled by default.
STEP 3 Click S
Save
.
Configuring Universal Plug and Play (UPnP)
UPnP is a feature that allows for automatic discovery of devices that can
communicate with the Cisco RV 120W.
To e n a b l e U P n P :
STEP 1 Choose F
Firewall
> B
Basic Settings
> U
UPnP
.
STEP 2 Check the E
Enable
box. If disabled, the Cisco RV 120W does not allow automatic
device configuration.
STEP 3 Select the interface on which you want to allow UPnP.
STEP 4 In the A
Advertisement Period
field, enter the period (in seconds) to specify how
often the Cisco RV 120W will broadcast its UPnP information to all devices within
range.
STEP 5 In the A
Advertisement Time to Live
field, enter the number of hops to allow for each
UPnP packet. This setting determines how long a packet is allowed to propagate
before being discarded. Small values will limit the UPnP broadcast range.
STEP 6 Click S
Save
.
Configuring the Firewall
Configuring Basic Firewall Settings
Cisco RV 120W Administration Guide 78
4
Viewing UPnP Information
To view UPnP information:
STEP 1 Choose F
Firewall
> B
Basic Settings
> U
UPnP
.
STEP 2 The UPnP Portmap Table shows IP addresses and other settings of UPnP devices
that have accessed the Cisco RV 120W. It includes the following fields:
•
Active
—Indicates whether or not the port of the UPnP device that
established a connection is currently active: Yes or No.
•
Protocol
—The network protocol (i.e. HTTP, FTP, etc.) that the device is
using to connect to the Cisco RV 120W.
•
Internal Port
—Indicates which, if any, internal ports are opened by the UPnP
device.
•
External Port
—Indicates which, if any, external ports are opened by the
UPnP device.
•
IP Address
—The IP address of the UPnP device that is accessing the Cisco
RV 120W.
STEP 3 Click R
Refresh
to refresh the portmap table and search for any new UPnP devices.
Enabling Session Initiation Protocol Application-Level
Gateway (SIP ALG)
SIP ALG can rewrite information within SIP messages (SIP headers and SDP body)
making signaling and audio traffic possible between a client behind Network
Address Translation (NAT) and the SIP endpoint.
To e n a b l e S I P A LG :
STEP 1 Choose F
Firewall
> B
Basic Settings
> S
SIP ALG
.
STEP 2 Check the E
Enable
box to enable SIP ALG support. If disabled, the router will not
allow incoming calls to the UAC (User Agent Client) behind the Cisco RV 120W.
STEP 3 Click S
Save
.
Configuring the Firewall
Configuring Firewall Rules
Cisco RV 120W Administration Guide 79
4
Configuring the Default Outbound Policy
The Firewall Settings page allows the user to configure the default outbound
policy for the traffic that is directed from the secure network (LAN) to the non-
secure network (dedicated WAN/optional). The default inbound policy for traffic
flowing from the non-secure zone to the secure zone is always blocked and
cannot be changed.
To configure the default outbound policy:
STEP 1 Choose F
Firewall
> A
Access Control
> D
Default Outbound Policy
.
STEP 2 Under the IPv4 or IPv6 fields, select one of the following:
•
Always Allow
—Always allow traffic from the secure to the non-secure
network.
•
Always Block
—Always block traffic from the secure to the non-secure
network.
NOTE Ensure that IPv6 support is enabled on the Cisco RV 120W to configure an IPv6
firewall. See Configuring IPv6, page 54.
STEP 3 Click S
Save
.
Configuring Firewall Rules
All configured firewall rules on the Cisco RV 120W are displayed in the Firewall
Rules list. This list also indicates whether the rule is enabled (active), and gives a
summary of the “from/to” zone as well as the services and users the rule affects.
If you plan to apply a rule to a specific group of devices on your LAN, define the
group by selecting N
Networking
> L
LAN Settings
> L
LAN Groups.
See Configuring
LAN Groups, page 45.
Configuring the Firewall
Configuring Firewall Rules
Cisco RV 120W Administration Guide 80
4
Creating a Firewall Rule
To create firewall rules:
STEP 1 Choose F
Firewall
> A
Access Control
> I
IPv4 Rules
.
STEP 2 Click A
Add
.
STEP 3 In the F
From Zone
field, choose the source of originating traffic:
•
Trusted (LAN)
—Choose if traffic will originate from the secure LAN.
•
Untrusted (WAN)
—Choose this option to create an inbound rule.
STEP 4 Choose the T
To Zone
to configure the destination of traffic covered by this rule. If
the From Zone is the WAN, the To Zone can be the public DMZ or secure LAN. If
the From Zone is the LAN, then the To Zone can be only the insecure WAN.
STEP 5 Choose the service to allow or block for this rule. Choose A
Any
to allow the rule to
apply to all applications and services, or you can choose a single application to
block:
•AIM (AOL Instant Messenger)
•BGP (Border Gateway Control)
•BOOT_P (Bootstrap Protocol) client
•BOOT_P Server
•CU-SeeMe (videoconferencing) UDP or TCP
•Domain Name System (DNS), UDP or TCP
•Finger
•File Transfer Protocol (FTP)
•Hyptertext Transfer Protocol (HTTP)
•Secure Hypertext Transfer Protocol (HTTPS)
•Internet Control Message Protocol (ICMP) type 3 through 11 or 13
•ICQ (chat)
•Internet Message Access Protocol (IMAP) 2 or 3
•Internet Relay Chat (IRC)
Configuring the Firewall
Configuring Firewall Rules
Cisco RV 120W Administration Guide 81
4
•News
•PING
•Post Office Protocol (POP3)
•Point-to-Point Tunneling Protocol (PPTP)
•RCMD (command)
•Real Audio
•Remote execution command (REXEC)
•Remote login commend (RLOGIN)
•Remote Telnet (RTELNET)
•Real-Time Streaming Protocol (RTSP) TCP or UDP
•Secure Shell File Transfer Protocol (SFTP)
•Simple Mail Transfer Protocol (SMTP)
•Simple Network Management Protocol (SNMP) TCP or UDP
•SNMP Traps (TCP or UDP)
•Structured Query Language (SQL)*Net (Oracle)
•SSH (TCP or UDP)
•STRMWORKS
•Terminal Access Controller Access-Control System (TACACS)
•Telnet (command)
•Trivial File Transfer Protocol (TFTP)
•Routing Information Protocol (RIP)
•IKE
•Simple HTTPD web server
•UDP Encapsulation of IPsec packets (IPSEC-UDP-ENCAP)
•IDENT protocol
•VDOLive (web video delivery)
Configuring the Firewall
Configuring Firewall Rules
Cisco RV 120W Administration Guide 82
4
•SSH
•SIP-TCP
STEP 6 Choose the action:
•
Always Block
—Always block the selected type of traffic.
•
Always Allow
—Never block the selected type of traffic.
•
Block by schedule, otherwise allow
—Blocks the selected type of traffic
according to a schedule. See Creating Firewall Schedules, page 85.
•
Allow by schedule, otherwise block
—Allows the selected type of traffic
according to a schedule. See Creating Firewall Schedules, page 85.
STEP 7 In the S
Source Hosts
field, select the users to which the firewall rule applies:
•
Any
—The rule applies to traffic originating on any host in the local network.
•
Single Address
—The rule applies to traffic originating on a single IP
address in the local network. Enter the address in the From field.
•
Address Range
—The rule applies to traffic originating from an IP address
located in a range of addresses. Enter the starting IP address in the F
From
field, and the ending IP address in the T
To
field.
STEP 8 In the L
Log
field, specify whether or not the packets for this rule should be logged.
To log details for all packets that match this rule, select A
Always
. For example, if an
outbound rule for a schedule is selected as B
Block Always
, then for every packet
that tries to make an outbound connection for that service, a message with the
packet’s source address and destination address (and other information) is
recorded in the log. Enabling logging may generate a significant volume of log
messages and is recommended for debugging purposes only. Select N
Never
to
disable logging.
STEP 9 When traffic is going from the LAN or DMZ to the WAN, the system requires
rewriting the source or destination IP address of incoming IP packets as they pass
through the firewall. In the SNAT IP Type field, choose W
WAN Interface Address
or
choose Single Address and enter the Single IP Address in the SNAT IP field.
STEP 10 In the Q
QoS Priority
field, assign a priority to IP packets of this service. The priorities
are defined by “Type of Service (TOS) in the Internet Protocol Suite” standards,
RFC 1349. The gateway marks the Type Of Service (TOS) field as defined below:
•
Normal-Service
—No special priority is given to the traffic. The IP packets
for services with this priority are marked with a TOS value of 0.
Configuring the Firewall
Configuring Firewall Rules
Cisco RV 120W Administration Guide 83
4
•
Minimize-Cost
—Choose this option when data must be transferred over a
link that has a lower “cost.” The IP packets for services with this priority are
marked with a TOS value of 2.
•
Maximize-Reliability
—Choose this option when data needs to travel to the
destination over a reliable link and with little or no retransmission. The IP
packets for services with this priority are marked with a TOS value of 4.
•
Maximize-Throughput
—Choose this option when the volume of data
transferred during an interval is important even if the latency over the link is
high. The IP packets for services with this priority are marked with a TOS
value of 8.
•
Minimize-Delay
—Choose this option when the time required (latency) for
the packet to reach the destination must be low. The IP packets for services
with this priority are marked with a TOS value of 16.
STEP 11 When the traffic is coming from the WAN to the DMZ or the LAN, Destination
Network Address Translation maps a public IP address (your Dedicated WAN
address, Optional WAN address, or another address) to an IP address on your
private network. Enter the following:
•
Send to Local Server (DNAT IP)
—Specify an IP address of a machine on the
Local Network which is hosting the server.
•(Optional) Check the E
Enable Port Forwarding
box to enable port forwarding
to the port that you specify in the Translate Port Number field. This will allow
traffic from the Internet to reach the appropriate LAN port via a port
forwarding rule.
•
Translate Port Number
—Enter the port number to use for port forwarding.
For example, if a machine on the Local Network side is running a telnet
server on port 2000, then check the E
Enable Port Forwarding
box and enter
2000 in the Translate Port Number field. If the server is listening on the
default port 23, then the box can be left unchecked.
•
Internet Destination Address
—Select the public IP address that is used for
this firewall rule: Dedicated WAN, Optional WAN, or Other. If you choose
Other, enter the WAN IP address that will map to the internal server in the
Other IP Address field.
Configuring the Firewall
Configuring Firewall Rules
Cisco RV 120W Administration Guide 84
4
This gateway supports multi-NAT, and the Internet Destination IP address does
not necessarily have to be the WAN address. On a single WAN interface,
multiple public IP addresses are supported. If your ISP assigns you more than
one public IP address, one of these can be used as your primary IP address on
the WAN port, and the others can be assigned to servers on the LAN or DMZ.
In this way, the LAN/DMZ server can be accessed from the internet by its
aliased public IP address.
STEP 12 Click S
Save
.
Managing Firewall Rules
Choose F
Firewall
> A
Access Control
> I
IPv4 Rules
.
To enable or disable a rule, check the box next to the rule in the list of firewall rules
and choose E
Enable
or D
Disable
.
To delete a rule, check the box next to the rule and click D
Delete
.
To reorder rules, check the box next to a rule and click U
Up
or D
Down
. The Cisco RV
120W applies rules in the order listed. As a general rule, you should move the
strictest rules (those with the most specific services or addresses) to the top of the
list.
Creating Custom Services
When you create a firewall rule, you can specify a service that is controlled by the
rule. Common types of services are available for selection, and you can create
your own custom services. This page allows creation of custom services against
which firewall rules can be defined. Once defined, the new service will appear in
the L
List of Available Custom Services
table.
To create a custom service:
STEP 1 Choose F
Firewall
> A
Access Control
> S
Services
.
STEP 2 Enter a service name for identification and management purposes.
STEP 3 Enter the service type, or layer 4 protocol that the service uses (T
TCP
, U
UDP
, I
ICMP
,
or I
ICMPv6
).
STEP 4 If you chose ICMP or ICMPv6 as the service type, enter the ICMP type. This is a
numeric value from 0 through 40 for ICMP and from 0 through 255 for ICMPv6.
Configuring the Firewall
Creating Firewall Schedules
Cisco RV 120W Administration Guide 85
4
STEP 5 In the S
Start Port
field, enter the first TCP or UDP port of the range that the service
uses.
STEP 6 In the F
Finish Port
field, enter the last TCP or UDP port of the range that the service
uses.
STEP 7 Click S
Save
.
Creating Firewall Schedules
You can create firewall schedules to apply firewall rules on specific days or at
specific times of the day.
To create a schedule:
STEP 1 Choose F
Firewall
> A
Access Control
> S
Schedules
.
STEP 2 Enter a unique name to identify the schedule. This name is then available in the
Firewall Rule Configuration page in the “Select Schedule” list. (See Configuring
Firewall Rules, page 79.)
STEP 3 Under S
Scheduled Days
, select whether you want the schedule to apply to all days
or specific days. If you choose S
Specific Days
, check the box next to the days you
want to include in the schedule.
STEP 4 Under S
Scheduled Time of Day
, select the time of day that you want the schedule
to apply. You can either choose A
All Day
, or choose S
Specific Time
. If you choose
Specific Time
, enter the start and end times, selecting a.m. or p.m.
STEP 5 Click S
Save
.
Blocking and Filtering Content and Applications
The Cisco RV 120W supports several content filtering options. You can block
certain web applications or components (such as ActiveX or Java). You can set up
trusted domains from which to always allow content. You can block access to
Internet sites by specifying keywords to block. If these keywords are found in the
site's name (for example, web site URL or newsgroup name), the site is blocked.
Configuring the Firewall
Blocking and Filtering Content and Applications
Cisco RV 120W Administration Guide 86
4
You also need to turn on content filtering to set up trusted domains.
Blocking Web Applications and Components
STEP 1 Choose F
Firewall
> A
Access Control
> C
Content Filtering
.
STEP 2 Check the E
Enable
box.
STEP 3 Certain commonly-used web components can be blocked for increased security.
Some of these components can be used by malicious websites to infect
computers that access them. With content filtering enabled, select the check box
for each component you wish to block:
•
Proxy
—A proxy server (or simply, proxy) allows computers to route
connections to other computers through the proxy, thus circumventing
certain firewall rules. For example, if connections to a specific IP address
are blocked by a firewall rule, the requests can be routed through a proxy
that is not blocked by the rule, rendering the restriction ineffective. Enabling
this feature blocks proxy servers.
•
Java
—Blocks java applets from being downloaded from pages that contain
them. Java applets are small programs embedded in web pages that
enable dynamic functionality of the page. A malicious applet can be used to
compromise or infect computers. Enabling this setting blocks Java applets
from being downloaded.
•
ActiveX
—Similar to Java applets, ActiveX controls are installed on a
Windows computer while running Internet Explorer. A malicious ActiveX
control can be used to compromise or infect computers. Enabling this
setting blocks ActiveX applets from being downloaded.
Configuring the Firewall
Blocking and Filtering Content and Applications
Cisco RV 120W Administration Guide 87
4
•
Cookies
—Cookies are used to store session information by websites that
usually require login. However, several websites use cookies to store
tracking information and browsing habits. Enabling this option filters out
cookies from being created by a website.
NOTE Many websites require that cookies be accepted in order for the site to be
accessed properly. Blocking cookies can cause many websites to not function
properly.
STEP 4 Click S
Save
.
Adding Trusted Domains
You can add a list of trusted domains. These domains are bypassed during
keyword filtering. For example, if “yahoo” is added to the blocked keywords list
and www.yahoo.com is added to the trusted domain list, then www.yahoo.com
will be allowed, but mail.yahoo.com will not be allowed.
NOTE Before adding trusted domains, you must enable content filtering. See Blocking
Web Applications and Components, page 86.
To add trusted domains:
STEP 1 Choose F
Firewall
> A
Access Control
> T
Trusted Domains
.
STEP 2 Enter the trusted domain.
STEP 3 Click S
Save
.
Adding Blocked Keywords
NOTE Before adding blocked keywords, you must enable content filtering. See Blocking
Web Applications and Components, page 86.
Configuring the Firewall
Blocking and Filtering Content and Applications
Cisco RV 120W Administration Guide 88
4
STEP 1 Choose F
Firewall
> A
Access Control
> B
Blocked Keywords
.
STEP 2 Click A
Add
.
STEP 3 Enter the keyword to block. Keywords prevent access to websites that contain the
specified characters in the URL or the page contents.
STEP 4 Select the group to which to apply the keyword blocking. (These groups are
configured in the N
Networking
> L
LAN
> L
LAN Groups
page.)
STEP 5 Click S
Save
.
Configuring MAC Address Filtering
MAC address filtering allows you to block traffic coming from certain known
machines or devices. The router uses the MAC address of a computer or device
on the network to identify it and block or permit the access. Traffic coming in from
a specified MAC address will be filtered depending upon the policy.
To enable MAC address filtering:
STEP 1 Choose F
Firewall
> A
Access Control
> M
MAC Filtering
.
STEP 2 Check the E
Enable
box to enable MAC Address Filtering for this device. Uncheck
the box to disable this feature.
If you enable MAC filtering, in the Policy for MAC Address listed below field,
choose one of the following options:
•
Block and Permit the rest
—Choose this option to block the traffic from the
specified MAC addresses and to allow traffic from all other addresses.
•
Permit and Block the rest
—Choose this option to permit the traffic from the
specified MAC addresses and to block traffic from all other machines on the
LAN side of the router.
For example, two computers are on the LAN with MAC addresses of
00:01:02:03:04:05 (host1), and 00:01:02:03:04:11 (host2). If the host1 MAC address
is added to the MAC filtering list and the “block and permit the rest” policy is
chosen, when this computer tries to connect to a website, the router will not allow
Configuring the Firewall
Blocking and Filtering Content and Applications
Cisco RV 120W Administration Guide 89
4
it to connect. However, host2 is able to connect because its MAC address is not in
the list. If the policy is “permit and block the rest,” then host1 is able to connect to a
website, but host2 is blocked because its URL is not in the list. The MAC filtering
policy does not override a firewall rule that directs incoming traffic to a host.
STEP 3 Click S
Save
.
STEP 4 In the MAC Addresses table, click A
Add
.
STEP 5 Enter the MAC address to add to the table and click S
Save
. Repeat for each
address to permit or block.
Configuring IP/MAC Address Binding
IP/MAC Binding allows you to bind IP addresses to MAC address. Some machines
are configured with static addresses. To prevent users from changing static IP
addresses, IP/MAC Binding should be enabled. If the Cisco RV 110W sees
packets with matching IP address but inconsistent MAC addresses, it drops those
packets.
To configure IP/MAC Address binding:
STEP 1 Choose F
Firewall
> A
Access Control
> I
IP/MAC Binding
. The table lists all the
currently defined IP/MAC binding rules and allows several operations on the rules.
STEP 2 Click A
Add
to add a new rule.
STEP 3 In the name field, enter the name for this rule.
STEP 4 In the MAC Addresses field, enter the MAC Addresses (the physical address of the
piece of hardware) for this rule.
STEP 5 In the IP Addresses field, enter the IP Addresses to assign to the piece of
hardware.
STEP 6 In the Log Dropped Packets field, choose if you want to log the dropped packets.
Choosing e
enable
logs the dropped packets. Logs can be viewed in Status > V
View
All Logs
page.
Configuring the Firewall
Firewall Rule Examples
Cisco RV 120W Administration Guide 90
4
Firewall Rule Examples
Example 1: Allow inbound HTTP traffic to the DMZ
In this example, you host a public web server on your local DMZ network. You
want to allow inbound HTTP requests from any outside IP address to the IP
address of your web server at any time of day.
Create an inbound rule as follows:
Example 2: Allow videoconferencing from range of outside IP addresses.
In this example, you want to allow incoming videoconferencing to be initiated from
a restricted range of outside IP addresses (132.177.88.2 - 132.177.88.254), from a
branch office.
Create an inbound rule as follows. In the example, CUSeeMe connections are
allowed only from a specified range of external IP addresses.
Parameter Value
From Zone Insecure (WAN1/WAN2)
To Z o n e P u b l i c ( D M Z )
Service HTTP
Action Allow always
Send to Local Server (DNAT IP) 192.168.5.2 (web server IP address)
Destination Users Any
Log Never
Parameter Value
From Zone Insecure (WAN1/WAN2)
To Z o n e S e c u r e ( L A N )
Service CU-SEEME:UDP
Configuring the Firewall
Firewall Rule Examples
Cisco RV 120W Administration Guide 91
4
Example 3: Multi-NAT Configuration
In this example, you want to configure multi-NAT to support multiple public IP
addresses on one WAN port interface.
Create an inbound rule that configures the firewall to host an additional public IP
address. Associate this address with a web server on the DMZ. If you arrange with
your ISP to have more than one public IP address for your use, you can use the
additional public IP addresses to map to servers on your LAN. One of these public
IP addresses is used as the primary IP address of the router. This address is used
to provide Internet access to your LAN PCs through NAT. The other addresses are
available to map to your DMZ servers.
The following addressing scheme is used to illustrate this procedure:
•WAN IP address: 10.1.0.118
• LAN IP address: 192.168.1.1; subnet 255.255.255.0
• Web server PC in the DMZ, IP address: 192.168.1.2
• Access to Web server: (simulated) public IP address 10.1.0.52
Action Allow always
Send to Local Server (DNAT IP) 192.168.1.11
Destination Users Address Range
From 132.177.88.2
To 134.177.88.254
Enable Port Forwarding Yes (enabled)
Parameter Value
Parameter Value
From Zone Insecure (WAN1/WAN2)
To Z o n e P u b l i c ( D M Z )
Service HTTP
Action Allow always
Configuring the Firewall
Configuring Port Triggering
Cisco RV 120W Administration Guide 92
4
Example 4: Block traffic by schedule if generated from specific range of
machines
In this example, you want to block all HTTP traffic on the weekends if the request
originates from a specific group of machines in the LAN having a known range of
IP addresses, and anyone coming in through the Network from the WAN (i.e. all
remote users).
STEP 1 Setup a schedule. Choose F
Firewall
> A
Access Control
> S
Schedules
.
STEP 2 Enter W
Weekend
in the Name field.
STEP 3 Under S
Scheduled Days
, choose S
Specific Days
.
STEP 4 Check the box next to Saturday and Sunday.
STEP 5 Under S
Scheduled Time of Day
, select A
All Day
. This applies the schedule from
12:00 a.m. to 11:59 p.m. of the selected days.
STEP 6 Click S
Save
.
Configuring Port Triggering
Port triggering allows devices on the LAN or DMZ to request one or more ports to
be forwarded to them. Port triggering waits for an outbound request from the LAN/
DMZ on one of the defined outgoing ports, and then opens an incoming port for
that specified type of traffic. Port triggering is a form of dynamic port forwarding
while an application is transmitting data over the opened outgoing or incoming
ports.
Send to Local Server (DNAT IP) 192.168.1.2 (local IP address of your web
server)
Destination Users Single Address
From 10.1.0.52
WAN Users Any
Log Never
Parameter Value
Configuring the Firewall
Configuring Port Triggering
Cisco RV 120W Administration Guide 93
4
Port triggering opens an incoming port for a specific type of traffic on a defined
outgoing port.
Port triggering is more flexible than static port forwarding (available when
configuring firewall rules) because a rule does not have to reference a specific
LAN IP or IP range. Ports are also not left open when not in use, thereby providing a
level of security that port forwarding does not offer.
NOTE Port triggering is not appropriate for servers on the LAN, since there is a
dependency on the LAN device making an outgoing connection before incoming
ports are opened.
Some applications require that, when external devices connect to them, they
receive data on a specific port or range of ports in order to function properly. The
router must send all incoming data for that application only on the required port or
range of ports. The gateway has a list of common applications and games with
corresponding outbound and inbound ports to open. You can also specify a port
triggering rule by defining the type of traffic (TCP or UDP) and the range of
incoming and outgoing ports to open when enabled.
To add a port triggering rule:
STEP 1 Choose F
Firewall
> P
Port Triggering
.
STEP 2 Click A
Add
.
STEP 3 Specify an easily-identifiable name for this rule.
STEP 4 Check the E
Enable
box to enable the rule.
STEP 5 Select whether the port uses TCP or UDP protocol.
STEP 6 In the O
Outgoing (Trigger) Port Range
section, specify the port number or range of
port numbers that will trigger this rule when a connection request from outgoing
traffic is made. If the outgoing connection uses only one port, then specify the
same port number in the Start Port and End Port fields.
STEP 7 In the I
Incoming (Response) Port Range
section, specify the port number or range
of port numbers used by the remote system to respond to the request it receives.
If the incoming connection uses only one port, then specify the same port number
in the Start Port and End Port fields.
STEP 8 Click S
Save
.
Configuring the Firewall
Configuring Port Forwarding
Cisco RV 120W Administration Guide 94
4
Configuring Port Forwarding
Port forwarding is used to redirect traffic from the Internet from one port on the
WAN to another port on the LAN. The port forwarding rules menu allows selection
of a service. Common services are available or you can define a custom service
and associated ports to forward.
The Port Forwarding Rules table lists all the available port forwarding rules for this
device and allows you to configure port forwarding rules. The table contains the
following information:
•
Status
—A port forwarding rule can be disabled if not in use and enabled
when needed. The port forwarding rule is disabled if the status is disabled
and it is enabled if the status is enabled. Disabling a port forwarding rule
does not delete the configuration.
•
Service
—Service for which this port forwarding rule is applicable.
•
Action
—Whether to block or allow traffic (always or by schedule) that
meets these filter rules, and when the rule is applicable.
•
Source Users
—The source IP for this port forwarding rule (Any, Single,
Range, or Host name).
•
Local Server
—The DNAT IP address, if traffic that meets this filter rule is
sent to a local server.
•
Internet Destination
—Which of the WAN ports (if more than one is available)
that is the Internet destination for traffic covered by this port forwarding
rule.
•
Log
—Whether this port forwarding rule is logged (always or never).
To configure port forwarding:
STEP 1 Choose F
Firewall
> P
Port Forwarding
.
STEP 2 Click A
Add
.
STEP 3 Under S
Service
, select one of the common or custom services defined for this
device:
•AIM (AOL Instant Messenger)
•BGP (Border Gateway Control)
•BOOT_P (Bootstrap Protocol) client
Configuring the Firewall
Configuring Port Forwarding
Cisco RV 120W Administration Guide 95
4
•BOOT_P Server
•CU-SeeMe (videoconferencing) UDP or TCP
•Domain Name System (DNS), UDP or TCP
•Finger
•File Transfer Protocol (FTP)
•Hyptertext Transfer Protocol (HTTP)
•Secure Hypertext Transfer Protocol (HTTPS)
•Internet Control Message Protocol (ICMP) type 3 through 11 or 13
•ICQ (chat)
•Internet Message Access Protocol (IMAP) 2 or 3
•Internet Relay Chat (IRC)
•News
•PING
•Post Office Protocol (POP3)
•Point-to-Point Tunneling Protocol (PPTP)
•RCMD (command)
•Real Audio
•Remote execution command (REXEC)
•Remote login commend (RLOGIN)
•Remote Telnet (RTELNET)
•Real-Time Streaming Protocol (RTSP) TCP or UDP
•Secure Shell File Transfer Protocol (SFTP)
•Simple Mail Transfer Protocol (SMTP)
•Simple Network Management Protocol (SNMP) TCP or UDP
•SNMP Traps (TCP or UDP)
•Structured Query Language (SQL)*Net (Oracle)
•SSH (TCP or UDP)
Configuring the Firewall
Configuring Port Forwarding
Cisco RV 120W Administration Guide 96
4
•STRMWORKS
•Terminal Access Controller Access-Control System (TACACS)
•Telnet (command)
•Trivial File Transfer Protocol (TFTP)
•Routing Information Protocol (RIP)
•IKE
•Simple HTTPD web server
•UDP Encapsulation of IPsec packets (IPSEC-UDP-ENCAP)
•IDENT protocol
•VDOLive (web video delivery)
•SSH
•SIP-TCP
•SIP-UDP
STEP 4 Choose the action:
•
Always Block
—Always block the selected type of traffic.
•
Always Allow
—Never block the selected type of traffic.
•
Block by schedule, otherwise allow
—Blocks the selected type of traffic
according to a schedule. See Creating Firewall Schedules, page 85.
•
Allow by schedule, otherwise block
—Allows the selected type of traffic
according to a schedule. See Creating Firewall Schedules, page 85.
STEP 5 If you selected b
block or allow by schedule
, choose the schedule.
STEP 6 Select the S
Source Users
:
•
Any
—Specifies that the rule being created is for traffic from the given
endpoint.
•
Single Address
—Limit to one host. Requires the IP address of the host to
which this rule would be applied.
•
Address Range
—This is used to apply this rule to a group of computers/
devices within an IP address range. Requires a f
from IP address
and t
to IP
address
.
Configuring the Firewall
Configuring Port Forwarding
Cisco RV 120W Administration Guide 97
4
STEP 7 If you chose S
Single Address
in Step 6, enter the IP address in the field.
STEP 8 If you chose A
Address
R
Range
in Step 6, enter the starting IP address of the range in
the F
From
field and the ending IP address of the range in the T
To
field.
STEP 9 Enter the Destination IP address, or the address where traffic meeting the rule
should be sent.
STEP 10 In the F
Forward to Port
field, choose S
Same as Incoming Port
if the traffic should be
forwarded to the same port as of the incoming traffic. Choose S
Specify Port
if the
incoming traffic should be sent to one particular port, and enter the port number to
which incoming traffic should be directed.
STEP 11 In the L
Log
field, specify whether or not the packets for this rule should be logged.
To log details for all packets that match this rule, select A
Always
. Enabling logging
may generate a significant volume of log messages and is recommended for
debugging purposes only. Select N
Never
to disable logging.
Restricting Sessions
You can limit the maximum number of unidentified sessions and half-open
sessions on the Cisco RV 120W. You can also introduce timeouts for TCP and UDP
sessions to ensure Internet traffic is not deviating from expectations in your private
network.
To configure session settings:
STEP 1 Choose F
Firewall
> S
Session Settings.
STEP 2 In the M
Maximum Unidentified Sessions
field, enter the maximum number of
unidentified sessions for the ALG identification process. This value can range from
2 through 128. The default is 32 sessions.
STEP 3 In the M
Maximum Half Open Sessions
field, enter the maximum number of half-open
sessions. A half-open session is the session state between receipt of a SYN
packet and the SYN/ACK packet. Under normal circumstances, a session is
allowed to remain in the half-open state for 10 seconds. The maximum value
ranges from 0 through 3,000. The default is 128 sessions.
STEP 4 In the T
TCP Session Timeout Duration
field, enter the time, in seconds, after which
inactive TCP sessions are removed from the session table. Most TCP sessions
terminate normally when the RST or FIN flags are detected. This value ranges from
0 through 4,294,967 seconds. The default is 1,800 seconds (30 minutes).
Configuring the Firewall
Configuring Remote Management
Cisco RV 120W Administration Guide 98
4
STEP 5 In the U
UDP Session Timeout Duration
field, enter the time, in seconds, after which
inactive UDP sessions are removed from the session table. This value ranges from
0 through 4,294,967 seconds. The default is 120 seconds (2 minutes).
STEP 6 In the O
Other Session Timeout Duration
(seconds) field, enter the time, in seconds,
after which inactive non-TCP/UDP sessions are removed from the session table.
This value ranges from 0 through 4,294,967 seconds. The default is 60 seconds.
STEP 7 In the T
TCP Session Cleanup Latency (seconds)
field, enter the maximum time for a
session to remain in the session table after detecting both FIN flags. This value
ranges from 0 through 4,294,967 seconds. The default is 10 seconds.
STEP 8 Click S
Save
.
Configuring Remote Management
The primary means to configure the Cisco RV 120W is using the browser-based
Device Manager. The Device Manager is accessed from a computer on the LAN by
using the Cisco RV 120W’s LAN IP address and HTTP.
You can enable remote management to allow you to access the Cisco RV 120W
from a remote WAN network. To access the Cisco RV 120W remotely, you use
HTTP over SSL (https).
To enable remote management:
STEP 1 Check the E
Enable
box. By default, remote management is disabled.
!
CAUTION When remote management is enabled, the router is accessible to anyone who
knows its IP address. Since a malicious WAN user can reconfigure the Cisco RV
120W and misuse it in many ways, it is highly recommended that you change the
administrator and any guest passwords before continuing. See Configuring User
Accounts, page 127.
STEP 2 Choose the type of access to grant:
•
All IP Addresses
—Choose to allow any IP address to access the Cisco RV
120W. Change the default password before choosing this option. (See
Configuring User Accounts, page 127.)
Configuring the Firewall
Configuring One-to-One Network Address Translation (NAT)
Cisco RV 120W Administration Guide 99
4
•
IP Address Range
—Choose to allow any IP address in the configured range
to access the Cisco RV 120W. In the F
From
field, enter the starting IP address
for the allowed range. In the T
To
field, enter the ending IP address for the
allowed range
•
Only this PC
—Choose to restrict access to only the PC you are currently
using to manage the Cisco RV 120W. In the I
IP Address
field, enter the IP
Address of the PC to be given remote management permissions.
STEP 3 Enter the port number used for the remote connection.
STEP 4 To enable Simple Network Management Protocol (SNMP) to be used remotely to
manage the Cisco RV 120W, check the R
Remote SNMP Enable
box.
STEP 5 Click S
Save
.
Configuring One-to-One Network Address Translation (NAT)
One-to-one NAT is a way to make systems behind a firewall that are configured
with private IP addresses appear to have public IP addresses.
To configure one-to-one NAT, choose F
Firewall
> A
Access Control
> O
One-to-One
NAT
. The One-to-One-NAT Rules Table lists the available One-To-One NAT rules
that have been configured. It displays the following fields:
•Private Range Begin—The starting IP address in the private (LAN) IP
address.
•Public Range Begin—The starting IP address in the public (WAN) IP
address.
•Public IP Subnet Mask—The Subnet Mask of the public IP address.
•Range Length—Range length maps one to one private address to public
address up to the given range.
The Services for One-To-One-NAT Table shows configured services. Services for
one-to-one NAT allows you to configure the service to be accepted by the private
IP (LAN) address when traffic is sent to the corresponding public IP address.
Configured services on private IP addresses in the range are accepted when
traffic is available on the corresponding public IP address.
Configuring the Firewall
Configuring One-to-One Network Address Translation (NAT)
Cisco RV 120W Administration Guide 100
4
This table displays the following fields:
•LAN Server IP—This column shows the configured LAN Host IP Address.
•Service—This column shows the service to be accepted by the LAN Host.
To add a one-to-one NAT rule:
STEP 1 Choose F
Firewall
> A
Access Control
> O
One-to-One NAT
.
STEP 2 In the O
One-to-One NAT Rules
table, click A
Add
.
STEP 3 Enter information in the following fields:
•
Private Range Begin
—The starting IP address in the private (LAN) IP
address.
•
Public Range Begin
—The starting IP address in the public (WAN) IP
address.
•
Public IP Subnet Mask
—The Subnet Mask of the public IP address.
•
Range Length
—Range length maps one to one private address to public
address up to the given range.
STEP 4 Click S
Save
.
To add a one-to-one NAT service:
STEP 1 Choose F
Firewall
> A
Access Control
> O
One-to-One NAT
.
STEP 2 In the S
Services for One-to-One NAT
table, click Add.
STEP 3 Enter the LAN Server IP address. This address should be in the private IP range
configured in the One-to-One NAT rules.
STEP 4 Choose the service for which the rule applies.
STEP 5 Click S
Save
.
5
Cisco RV 120W Administration Guide 101
Configuring Virtual Private Networks (VPNs)
and Security
This chapter describes VPN configuration, beginning with the “Configuring
VPNs” section on page 102.
It also describes how to configure router security, beginning with the “Configuring
Security” section on page 115.
The following sections are covered:
•Creating Cisco QuickVPN Client Users, page 102
•Using the VPN Wizard, page 102
•Viewing the Default Values, page 104
•Configuring IP Security Policies, page 105
•Configuring VPN Policies, page 108
•Configuring VPN Clients, page 113
•Monitoring VPN Tunnel Status, page 113
•Configuring IPsec Users, page 114
•Configuring VPN Passthrough, page 115
•Using Certificates for Authentication, page 115
•Using the Cisco RV 110W With a RADIUS Server, page 118
•Configuring 802.1x Port-Based Authentication, page 119
Configuring Virtual Private Networks (VPNs) and Security
Configuring VPNs
Cisco RV 120W Administration Guide 102
5
Configuring VPNs
A VPN provides a secure communication channel (“tunnel”) between two gateway
routers or a remote PC client and a gateway router. The following types of tunnels
can be created:
•Gateway-to-gateway VPN—Connects two or more routers to secure traffic
between remote sites.
•Remote Client (client-to-gateway VPN tunnel)—A remote client initiates a
VPN tunnel. The IP address of the remote PC client is not known in advance.
The gateway acts as responder.
•Remote client behind a NAT router—The client has a dynamic IP address
and is behind a NAT Router. The remote PC client at the NAT router initiates
a VPN tunnel. The IP address of the remote NAT router is not known in
advance. The gateway WAN port acts as a responder.
Creating Cisco QuickVPN Client Users
To use the Cisco QuickVPN, you must do the following:
STEP 1 Enable remote management. See Configuring Remote Management, page 98.
STEP 2 Create QuickVPN users. See Configuring IPsec Users, page 114. After a user
account is created, the credentials can be used by the QuickVPN client.
For more information on installing and using Cisco QuickVPN, see Appendix A,
“Using Cisco QuickVPN for Windows 2000, XP, or Vista.”
Using the VPN Wizard
You can use the VPN wizard to quickly create both IKE and VPN policies. Once the
IKE or VPN policy is created, you can modify it as required.
Configuring Virtual Private Networks (VPNs) and Security
Configuring VPNs
Cisco RV 120W Administration Guide 103
5
To quickly set up a VPN tunnel using VPN Wizard:
STEP 1 Choose I
IPsec
> V
VPN Wizard
.
STEP 2 Set the C
Connection Name
and P
Pre-Shared
key. The connection name is used for
management, and the pre-shared key will be required on the VPN client or
gateway to establish the tunnel.
STEP 3 Choose the Remote Gateway Type (I
IP Address
or F
Fully-Qualified Domain Name
).
STEP 4 Enter the Remote WAN IP Address/Internet Name.
STEP 5 Choose the Local Gateway Type (I
IP Address
or F
Fully-Qualified Domain Name
).
STEP 6 Enter the Local WAN IP Address/Internet Name. This field can be left blank if you
are not using a different FQDN or IP address than the one specified in the WAN
port configuration.
STEP 7 Configure the LAN accessibility details in the Secure Connection Remote
Accessibility section:
•Remote LAN IP address
•Remote LAN Subnet Mask
NOTE The IP address range used on the remote LAN must be different from the IP
address range used on the local LAN.
STEP 8 Click S
Save
.
STEP 9 The Wizard creates a corresponding IKE policy with the following default values
(these can be accessed from a link on the Wizard page):
Configuring Virtual Private Networks (VPNs) and Security
Configuring VPNs
Cisco RV 120W Administration Guide 104
5
The Wizard creates a corresponding VPN policy with the following default values:
Viewing the Default Values
You can also view the default values by choosing V
VPN
> I
IPsec
> D
Default Settings
.
Parameter Default value from Wizard
Exchange Mode Aggressive
ID Type FQDN
Local WAN ID wan_local.com
Remote WAN ID wan_remote.com
Encryption Algorithm 3DES
Authentication Algorithm SHA-1
Authentication Method Pre-shared Key
Key-Group DH-Group 2(1024 bit)
Life Time 24 hours
Parameter Default value from Wizard
Encryption Algorithm 3DES
Authentication Algorithm SHA-1
Life Time 8 hours
PFS Key Group DH-Group 2(1024 bit)
NETBIOS Enabled
Configuring Virtual Private Networks (VPNs) and Security
Configuring VPNs
Cisco RV 120W Administration Guide 105
5
Configuring IP Security Policies
The VPN Wizard is the recommended method to configure corresponding IKE and
VPN policies for establishing a VPN tunnel. Once the Wizard creates the matching
IKE and VPN policies, you can modify the required fields using the E
Edit
button.
Advanced users can create an IKE policy from the A
Add
button, but must be sure to
use compatible encryption, authentication, and key-group parameters for the VPN
policy.
Configuring IKE Policies
The Internet Key Exchange (IKE) protocol dynamically exchanges keys between
two IPsec hosts. You can create IKE policies to define the security parameters
such as authentication of the peer, encryption algorithms, etc. to be used in this
process.
To configure IKE Policies:.
STEP 1 Choose V
VPN
> I
IPsec
> I
IPsec Policies
.
STEP 2 In the I
IKE Policies Table
, click A
Add
.
STEP 3 Enter the information in the following sections and press S
Save
.
General Information
STEP 1 Under P
Policy Name
, enter a unique name for the policy for identification and
management purposes.
STEP 2 Under D
Direction/Type
, choose one of the following connection methods:
•
Initiator
—The router will initiate the connection to the remote end.
•
Responder
—The router will wait passively and respond to remote IKE
requests.
•
Both
—The router will work in either Initiator or Responder mode.
STEP 3 Under E
Exchange Mode
, choose one of the following options:
•
Main mode
—This mode negotiates the tunnel with higher security, but is
slower.
•
Aggressive mode
—This mode establishes a faster connection, but with
lowered security.
Configuring Virtual Private Networks (VPNs) and Security
Configuring VPNs
Cisco RV 120W Administration Guide 106
5
NOTE If either the Local or Remote identifier type is not an IP address, then
negotiation is only possible in Aggressive Mode. If FQDN, User FQDN or DER
ASN1 DN is selected, the router disables Main mode and sets the default to
Aggressive mode.
STEP 4 In the L
Local
section, under I
Identifier Type
, choose the ISAKMP identifier for this
router:
•
Local WAN IP
•
Internet Address/FQDN
•
User FQDN
•
DER ASN1 DN
STEP 5 If you chose Internet Address/FQDN, User FQDN, or DER ASN1 DN as the identifier
type, enter the IP address or domain name in the I
Identifier
field.
STEP 6 In the Remote section, under Identifier Type, choose the ISAKMP identifier for this
router:
•
Local WAN IP
•
Internet Address/FQDN
•
User FQDN
•
DER ASN1 DN
STEP 7 If you chose Internet Address/FQDN, User FQDN, or DER ASN1 DN as the identifier
type, enter the IP address or domain name in the I
Identifier
field.
IKE SA Parameters
The Security Association (SA) parameters define the strength and the mode for
negotiating the SA.
STEP 1 Choose the encryption algorithm, or the algorithm used to negotiate the SA:
•
DES
•
3DES
•
AES-128
Configuring Virtual Private Networks (VPNs) and Security
Configuring VPNs
Cisco RV 120W Administration Guide 107
5
•
AES-192
•
AES-256
STEP 2 Specify the authentication algorithm for the VPN header:
•
MD5
•
SHA-1
•
SHA2-256
•
SHA2-384
•
SHA2-512
NOTE Ensure that the authentication algorithm is configured identically on both
sides.
STEP 3 Choose the authentication method:
•Select P
Pre-Shared Key
for a simple password based key that is shared with
the IKE peer.
•Selecting
RSA-Signature
disables the pre-shared key text box and uses the
Active Self Certificate uploaded in the Certificates page. In that case, a
certificate must be configured in order for RSA-Signature to work.
NOTE The double quote character (“) is not supported in the pre-shared key.
STEP 4 Choose the Diffie-Hellman (DH) Group algorithm, which is used when exchanging
keys. The DH Group sets the strength of the algorithm in bits.
NOTE Ensure that the DH Group is configured identically on both sides of the IKE
policy.
STEP 5 In the S
SA Lifetime
field, enter the interval, in seconds, after which the Security
Association becomes invalid.
Configuring Virtual Private Networks (VPNs) and Security
Configuring VPNs
Cisco RV 120W Administration Guide 108
5
STEP 6 To enable dead peer detection, check the box. Dead Peer Detection is used to
detect whether the peer is alive or not. If peer is detected as dead, the router
deletes the IPsec and IKE Security Association.
STEP 7 In the Detection Period field, enter the interval, in seconds, between consecutive
DPD R-U-THERE messages. DPD R-U-THERE messages are sent only when the
IPsec traffic is idle.
STEP 8 In the R
Reconnect after Failure Count
field, enter the maximum number of DPD
failures allowed before tearing down the connection.
Extended Authentication (XAUTH) Parameters
Rather than configuring a unique VPN policy for each user, you can enable the VPN
gateway router to authenticate users from a stored list of user accounts or with an
external authentication server such as a RADIUS server. When connecting many
VPN clients to a VPN gateway router, Extended Authentication (XAUTH) allows
authentication of users with methods in addition to the authentication method
mentioned in the IKE SA parameters. XAUTH can be configured in the following
modes:
STEP 1 Select the XAUTH type:
•
None
—Disables XAUTH.
•
IPsec Host
—The router is authenticated by a remote gateway with a
username and password combination. In this mode, the router acts as a VPN
Client of the remote gateway.
•
User Database
—User accounts created in the router are used to
authenticate users. See Configuring IPsec Users, page 114.
STEP 2 If you selected IPsec Host, enter the username and password for the host.
Configuring VPN Policies
To configure a VPN policy:
STEP 1 Choose V
VPN
> I
IPsec
> I
IPsec Policies
.
STEP 2 In the V
VPN Policies Table
, click A
Add
.
Configuring Virtual Private Networks (VPNs) and Security
Configuring VPNs
Cisco RV 120W Administration Guide 109
5
STEP 3 Enter the information in the following sections and press S
Save
.
General Parameters
STEP 1 Enter a unique name to identify the policy.
STEP 2 Choose the Policy Type:
•
Manual
—All settings (including the keys) for the VPN tunnel are manually
input for each end point. No third-party server or organization is involved.
•
Auto
—Some parameters for the VPN tunnel are generated automatically.
This requires using the IKE (Internet Key Exchange) protocol to perform
negotiations between the two VPN Endpoints.
To create an Auto VPN Policy, you need to first create an IKE policy and then add
the corresponding Auto Policy for that IKE Policy.
STEP 3 In the R
Remote Endpoint
field, select the type of identifier that you want to provide
for the gateway at the remote endpoint: IP Address or FQDN (Fully Qualified
Domain Name).
STEP 4 In the E
Enable NetBIOS
field, check this box to allow NetBIOS broadcasts to travel
over the VPN tunnel, or uncheck this box to disable NetBIOS broadcasts over the
VPN tunnel. For client policies, the NetBIOS feature is available by default.
Local Traffic Selection and Remote Traffic Section
STEP 1 For both of these sections, configure the following settings:
•
Local/Remote IP
—Select the type of identifier that you want to provide for
the endpoint:
-
Any
—Specifies that the policy is for traffic from the given end point
(local or remote). Note that selecting Any for both local and remote end
points is not valid.
-
Single
—Limits the policy to one host. Enter the IP address of the host
that will be part of the VPN in Start IP Address field.
-
Range
—Allows computers within an IP address range to connect to the
VPN. Enter the Start IP Address and End IP Address in the provided
fields.
Configuring Virtual Private Networks (VPNs) and Security
Configuring VPNs
Cisco RV 120W Administration Guide 110
5
-
Subnet
—Allows an entire subnet to connect to the VPN. Enter the
network address in the Start IP Address field, and enter the Subnet
Mask in the Subnet Mask field.
STEP 2 In the S
Start Address
field, enter the first IP address in the range. If you selected
Single, enter the single IP address in this field and leave the E
End IP Address
field
blank.
STEP 3 In the E
End Address
field, enter the last IP address in the range.
STEP 4 If you chose Subnet as the type, enter the Subnet Mask of the network.
Manual Policy Parameters
The Manual Policy creates an SA (Security Association) based on the following
static inputs:
•SPI-Incoming, SPI-Outgoing—Enter a hexadecimal value between 3 and 8
characters; for example, 0x1234,
•Encryption Algorithm—Select the algorithm used to encrypt the data.
•Key-In—Enter the encryption key of the inbound policy. The length of the
key depends on the algorithm chosen:
-DES—8 characters
-3DES—24 characters
-AES-128—16 characters
-AES-192—24 characters
-AES-256—32 characters
-AES-CCM—16 characters
-AES-GCM—20 characters
•Key-Out—Enter the encryption key of the outbound policy. The length of the
key depends on the algorithm chosen, as shown above.
•Integrity Algorithm—Select the algorithm used to verify the integrity of the
data.
•Key-In—Enter the integrity key (for ESP with Integrity-mode) for the inbound
policy. The length of the key depends on the algorithm chosen:
-MD5—16 characters
Configuring Virtual Private Networks (VPNs) and Security
Configuring VPNs
Cisco RV 120W Administration Guide 111
5
-SHA-1— 20 characters
-SHA2-256—32 characters
-SHA2-384— 48 characters
-SHA2-512—64 characters
•Key-Out—Enter the integrity key (for ESP with Integrity-mode) for the
outbound policy. The length of the key depends on the algorithm chosen, as
shown above.
Manual Policy Example:
Creating a VPN tunnel between two routers:
Router 1: WAN1=10.0.0.1 LAN=192.168.1.1 Subnet=255.255.255.0
Policy Name: manualVPN
Policy Type: Manual Policy
Local Gateway: WAN1
Remote Endpoint: 10.0.0.2
Local IP: Subnet 192.168.1.0 255.255.255.0
Remote IP: Subnet 192.168.2.0 255.255.255.0
SPI-Incoming: 0x1111
Encryption Algorithm: DES
Key-In: 11112222
Key-Out: 33334444
SPI-Outgoing: 0x2222
Integrity Algorithm: MD5
Key-In: 1122334444332211
Key-Out: 5566778888776655
Router 2: WAN1=10.0.0.2 LAN=192.168.2.1 Subnet=255.255.255.0
Policy Name: manualVPN
Policy Type: Manual Policy
Local Gateway: WAN1
Remote Endpoint: 10.0.0.1
Local IP: Subnet 192.168.2.0 255.255.255.0
Remote IP: Subnet 192.168.2.0 255.255.255.0
SPI-Incoming: 0x2222
Encryption Algorithm: DES
Key-In: 33334444
Key-Out: 11112222
SPI-Outgoing: 0x1111
Integrity Algorithm: MD5
Key-In: 5566778888776655
Key-Out: 1122334444332211
Configuring Virtual Private Networks (VPNs) and Security
Configuring VPNs
Cisco RV 120W Administration Guide 112
5
Auto Policy Parameters
STEP 1 SA Lifetime—Enter the duration of the Security Association and choose the unit
from the drop-down list:
•
Seconds
—Choose this option to measure the SA Lifetime in seconds. After
the specified number of seconds passes, the Security Association is
renegotiated. The default value is 3600 seconds. The minimum value is 300
seconds.
•
Kbytes
—Choose this option to measure the SA Lifetime in kilobytes. After
the specified number of kilobytes of data is transferred, the SA is
renegotiated. The minimum value is 1920000 KB.
NOTE When configuring a Lifetime in kilobytes (also known as lifebytes), be aware
that two SAs are created for each policy. One SA applies to inbound traffic,
and one SA applies to outbound traffic. Due to differences in the upstream
and downstream traffic flows, the SA may expire asymmetrically. For
example, if the downstream traffic is very high, the lifebyte for a download
stream may expire frequently. The lifebyte of the upload stream may not
expire as frequently. It is recommended that the values be reasonably set, to
reduce the difference in expiry frequencies of the SAs; otherwise the
system may eventually run out of resources as a result of this asymmetry.
The lifebyte specifications are generally recommended for advanced users
only.
STEP 2 Select the algorithm used to encrypt the data.
STEP 3 Select the algorithm used to verify the integrity of the data.
STEP 4 Check the P
PFS Key Group
box to enable Perfect Forward Secrecy (PFS) to
improve security. While slower, this protocol helps to prevent eavesdroppers by
ensuring that a Diffie-Hellman exchange is performed for every phase-2
negotiation.
STEP 5 Choose the IKE policy that will define the characteristics of phase 1 of the
negotiation.
Configuring Virtual Private Networks (VPNs) and Security
Configuring VPNs
Cisco RV 120W Administration Guide 113
5
Configuring VPN Clients
VPN clients must be configured with the same VPN policy parameters used in the
VPN tunnel the client wishes to use: encryption, authentication, life time, and PFS
key-group. Upon establishing these authentication parameters, the VPN Client
user database must also be populated with an account to give a user access to
the tunnel.
VPN client software is required to establish a VPN tunnel between the router and
remote endpoint. Open source software (such as OpenVPN or Openswan) as well
as Microsoft IPsec VPN software can be configured with the required IKE policy
parameters to establish an IPsec VPN tunnel. Refer to the client software guide for
detailed instructions on setup as well as the router’s online help.
The user database contains the list of VPN user accounts that are authorized to
use a given VPN tunnel. Alternatively VPN tunnel users can be authenticated using
a configured RADIUS database. Refer to the online help to determine how to
populate the user database and/or configure RADIUS authentication.
Monitoring VPN Tunnel Status
You can view and change the status of (connect or drop) the router’s IPsec security
associations. The VPN tunnel status can be found in the S
Status
> I
IPsec Connection
Status
page. Here the active IPsec SAs (security associations) are listed along
with the traffic details and tunnel state. The traffic is a cumulative measure of
transmitted/received packets since the tunnel was established.
If a VPN policy state is “not connected”, it can be enabled from the List of VPN
Policies in the V
VPN
> I
IPsec
> I
IPsec Policies
page.
Configuring Virtual Private Networks (VPNs) and Security
Configuring VPNs
Cisco RV 120W Administration Guide 114
5
The Active IPsec SAs table displays a list of active IPsec SAs. Table fields are as
follows:
Configuring IPsec Users
The configured IPsec users (both XAUTH and QuickVPN) are listed in the List of
Users viewed by choosing V
VPN
> I
IPsec
> I
IPsec Users
. The VPN gateway
authenticates users in this list when XAUTH is used in an IKE policy. QuickVPN
client can access only default LAN hosts.
To add new users:
STEP 1 Click A
Add
.
STEP 2 Enter the user name, or the unique identifier for the XAUTH user.
STEP 3 In the U
User Type
field, select the type of the Remote Peer: Standard IPsec (XAuth),
or Cisco QuickVPN.
STEP 4 If you chose Q
QuickVPN
, you can check the A
Allow User to Change Password
box to
allow the QuickVPN user to change their password. Uncheck if you would like to
maintain the password for them.
STEP 5 Enter the alphanumeric password for this user
STEP 6 Enter the password again to confirm.
STEP 7 Click S
Save
.
.
Field Description
Endpoint IP address of the remote VPN gateway or client.
Policy Name IKE or VPN policy associated with this SA.
State Status of the SA for IKE policies: Not Connected or
IPsec SA Established.
Tx (KB) Kilobytes of data transmitted over this SA.
Tx (Packets) Number of IP packets transmitted over this SA.
Configuring Virtual Private Networks (VPNs) and Security
Configuring Security
Cisco RV 120W Administration Guide 115
5
Configuring VPN Passthrough
VPN passthrough allows VPN traffic that originates from VPN clients to pass
through the router. For example, if you are not using a VPN that is configured on the
Cisco RV 110W, but are using a laptop to access a VPN at another site, configuring
VPN passthrough allows that connection.
To configure VPN passthrough:
STEP 1 Choose V
VPN
> V
VPN Passthrough
.
STEP 2 Choose the type of traffic to allow to pass through the router:
•
IPsec
—Check E
Enable
to allow IP security tunnels to pass through the router.
•
PPTP
—Check E
Enable
to allow Point-to-Point Tunneling Protocol tunnels to
pass through the router.
•
L2TP
—Check E
Enable
to allow Layer 2 Tunneling Protocol tunnels to pass
through the router.
STEP 3 Click S
Save
.
Configuring Security
The Cisco RV 110W provides several security methods, including certificate
authentication, RADIUS server support, and 802.1x port-based authentication.
Using Certificates for Authentication
The Cisco RV 110W uses digital certificates for IPsec VPN authentication and SSL
validation (for HTTPS and SSL VPN authentication). You can obtain a digital
certificate from a well-known Certificate Authority (CA) such as VeriSign, or
generate and sign your own certificate using functionality available on this
gateway. The gateway comes with a self-signed certificate, and this can be
replaced by one signed by a CA as per your networking requirements. A CA
certificate provides strong assurance of the server's identity and is a requirement
for most corporate network VPN solutions.
Configuring Virtual Private Networks (VPNs) and Security
Configuring Security
Cisco RV 120W Administration Guide 116
5
The certificates menu allows you to view a list of certificates (both from a CA and
self-signed) currently loaded on the gateway. The following certificate data is
displayed in the list of Trusted (CA) certificates:
•CA Identity (Subject Name)—The certificate is issued to this person or
organization.
•Issuer Name—The name of the Certificate Authority that issued this
certificate.
•Expiry Time—The date after which this Trusted certificate becomes invalid.
A self certificate is a certificate issued by a CA identifying your device (or self-
signed if you don't want the identity protection of a CA). The Active Self Certificate
table lists the self certificates currently loaded on the gateway. The following
information is displayed for each uploaded self certificate:
•Name—The name you use to identify this certificate. It is not displayed to
IPsec VPN peers or SSL users.
•Subject Name—This is the name that is displayed as the owner of this
certificate. This should be your official registered or company name, as
IPsec or SSL VPN peers are shown this field.
•Serial Number—The serial number is maintained by the CA and used to
identify this signed certificate.
•Issuer Name—This is the CA name that issued (signed) this certificate
•Expiry Time—The date after which this signed certificate becomes invalid -
you should renew the certificate before it expires.
To request a self certificate to be signed by a CA, you can generate a Certificate
Signing Request from the gateway by entering identification parameters and
sending to the CA for signing. Once signed, the CA's Trusted Certificate and
signed certificate from the CA are uploaded to activate the self-certificate
validating the identity of this gateway. The self certificate is then used in IPsec and
SSL connections with peers to validate the gateway's authenticity.
To configure certificates, choose S
Security
> A
Authentication (Certificates)
.
Configuring Virtual Private Networks (VPNs) and Security
Configuring Security
Cisco RV 120W Administration Guide 117
5
Uploading CA Certificates
To upload CA Certificates:
STEP 1 In the T
Trusted Certificates (CA Certificate) Table
, click U
Upload
.
STEP 2 Browse to select the certificate file and press U
Upload
.
Uploading Self Certificates
To upload Self Certificates:
STEP 1 In the A
Active Self Certificates Table
, click U
Upload
.
STEP 2 Browse to select the certificate file and press U
Upload
.
Generating a Self Certificate Request
One of the steps in creating a certificate is to generate a certificate request from
the computer or the device that will be using the certificate. The Certificate
Signing Request (CSR) file needs to be submitted to the CA who will then generate
a certificate for this device.
To generate a certificate request:
STEP 1 In the S
Self Certificates Request Table
, click G
Generate Certificate
.
STEP 2 Enter the name of the certificate request.
STEP 3 Enter the subject of the certificate request. The Subject field populates the CN
(Common Name) entry of the generated certificate. Subject names are usually
defined in the following format: CN=, OU=, O=, L=, ST=, C=. For example,
CN=router1, OU=my_company, O=mydept, L=SFO, C=US.
STEP 4 Choose the Hash Algorithm: MD5 or SHA-1. The algorithm used to sign the
certificate (RSA) is shown.
STEP 5 Enter the signature key length, or the length of the signature (5
512
or 1
1024
).
STEP 6 (Optional) Enter the IP address of the router.
STEP 7 (Optional) Enter the domain name of the router.
Configuring Virtual Private Networks (VPNs) and Security
Configuring Security
Cisco RV 120W Administration Guide 118
5
STEP 8 (Optional) Enter the e-mail address of the company contact that is used when
generating the self certificate request.
STEP 9 Click G
Generate
. A new certificate request is created and added to the Self
Certificate Requests table. To view a request, click on the View button next to the
appropriate request in this table.
Downloading the Router’s Current Certificate
To download the router’s current certificate, under D
Download Settings
, next to
Download Router Certificate
, click D
Download
. The current certificate is
downloaded to the PC from which you are accessing the Device Manager.
Using the Cisco RV 110W With a RADIUS Server
A RADIUS server can be configured to maintain a database of user accounts and
can be used for authenticating this device's users. To configure a connection with a
RADIUS server, choose S
Security
>
RADIUS Server
. You can configure and view the
following details in the RADIUS configuration pages:
•Authentication Server IP address: The IP address of the authenticating
RADIUS server.
•Authentication Port: The RADIUS authentication server's port number used
to send RADIUS traffic.
•Timeout: The timeout interval (in seconds) after which the Cisco RV 110W
re-authenticates with the RADIUS server.
•Retries: The number of retries for the Cisco RV 110W to re-authenticate
with the RADIUS server. If the number of retries is exceeded, authentication
of this device with the RADIUS server has failed.
To configure a connection with a RADIUS server:
STEP 1 In the C
Configured RADIUS Server Table
, click A
Add
.
STEP 2 Enter the Authentication Server IP address, or the IP address of the authenticating
RADIUS Server.
STEP 3 Enter the Authentication Port, or the port number on which the RADIUS server
sends traffic.
Configuring Virtual Private Networks (VPNs) and Security
Configuring Security
Cisco RV 120W Administration Guide 119
5
STEP 4 In the S
Secret
field, enter the shared key that allows the Cisco RV 110W to
authenticate with the RADIUS server. This key must match the key configured on
the RADIUS server. The single quote, double quote, and space characters are not
allowed in this field.
STEP 5 In the T
Timeout
field, enter the timeout interval after which the Cisco RV 110W re-
authenticates with the RADIUS server.
STEP 6 In the R
Retries
field, enter the number of retries for the Cisco RV 110W to re-
authenticate with the RADIUS server.
STEP 7 Click S
Save
.
Configuring 802.1x Port-Based Authentication
A port-based network access control uses the physical access characteristics of
IEEE 802 LAN infrastructures in order to provide a means of authenticating and
authorizing devices attached to a LAN port that has point-to-point connection
characteristics. It also prevents access to that port in cases where the
authentication fails. It provides an authentication mechanism to devices trying to
connect to a LAN. The Cisco RV 110W acts as a supplicant in the 802.1x
authentication system.
To configure 802.1x Authentication:
STEP 1 Choose S
Security
> 8
802.1x Configuration
.
STEP 2 Check the E
Enable
box to configure a port as an 802.1x supplicant.
STEP 3 Select the LAN port that should be configured as an 802.1x supplicant.
STEP 4 Enter the username and password sent by the Cisco RV 110W to the authenticator
for authentication. The username and password are the credentials sent to the
authenticating server (the device running 802.1X in an authenticator role; for
example, a Cisco Catalyst switch).
STEP 5 Press S
Save
.
6
Cisco RV 120W Administration Guide 120
Configuring Quality of Service (QoS)
The Cisco RV 110W provides configuration for QoS features, such as bandwidth
profiles, traffic selectors, and traffic meters. It contains the following sections:
•Configuring Bandwidth Profiles, page 120
•Configuring Traffic Flows, page 121
•Configuring Traffic Metering, page 122
•Configuring 802.1p, page 124
Configuring Bandwidth Profiles
Using bandwidth profiles, the bandwidth of the traffic flowing from the secure
network (LAN) to the insecure network (WAN) can be shaped. Bandwidth limiting
determines the speed from which the data is sent from your router. You can use a
bandwidth profile to limit the outbound traffic, thus preventing the LAN users from
consuming all of the bandwidth of the Internet link.
Bandwidth profiles configuration consists of enabling the bandwidth control
feature from the Device Manager, and adding a profile which defines the control
parameters. The profile can then be associated with a traffic selector, so that
bandwidth profile can be applied to the traffic matching the selectors.
To configure bandwidth profiles, perform the following steps.
Enable Bandwidth Profiles
STEP 1 Choose Q
QoS
> B
Bandwidth Profiles.
STEP 2 Check the E
Enable
box.
STEP 3 Click S
Save
.
Configuring Quality of Service (QoS)
Configuring Traffic Flows
Cisco RV 120W Administration Guide 121
6
Add Profiles
STEP 1 In the Bandwidth Profiles Table, Click A
Add
.
STEP 2 Enter the Profile Name, or the name used to identify and associate the profile to
traffic selection criteria.
STEP 3 Choose the Profile Type: p
priority
(to limit bandwidth by high, medium, or low
priority) or r
rate
(to limit bandwidth by the transmission rate.
STEP 4 If you chose p
priority
, enter the priority for this profile (low, medium, or high). If you
chose r
rate
, enter the minimum and maximum bandwidth rates in kilobytes per
second.
STEP 5 Click S
Save
.
Configuring Traffic Flows
After a profile has been created, it can then be associated with a traffic flow. To
create a traffic selector:
STEP 1 Choose Q
QoS
> T
Traffic Selectors
.
STEP 2 In the T
Traffic Selectors Table
, click A
Add
.
STEP 3 Choose the bandwidth profile which will applied to this traffic. (See Configuring
Bandwidth Profiles, page 120.)
STEP 4 Choose a service from the list. Traffic flow rules will be applied to this service. (If
you do not see a service that you want, you can configure a custom service in the
Firewall page - see Creating Custom Services, page 84.)
STEP 5 In the T
Traffic Selector Match Type
field, choose the type of matching the
bandwidth profile will use before applying the traffic flow rules:
•
IP Address Range
—Enter the starting and ending IP address ranges.
•
MAC Address
—Enter the MAC address.
•
Port Name
—Select the port on the router to which traffic rules will be
applied.
•
VLAN
—Select the VLAN on the router to which traffic rules will be applied.
Configuring Quality of Service (QoS)
Configuring Traffic Metering
Cisco RV 120W Administration Guide 122
6
•
DSCP
—Enter the DSCP value.
•
BSSIDs
—Choose the Basic Service Set Identifier, or the MAC address of
the wireless access point (WAP).
STEP 6 Click S
Save
.
Configuring Traffic Metering
Traffic metering allows you to measure and limit the traffic routed by this router.
To configure traffic metering:
STEP 1 Choose Q
QoS
> T
Traffic Meter
.
STEP 2 Check the E
Enable
box to enable traffic metering on the optional WAN port. The
router will keep a record of the volume of traffic going from this interface. The
router can also be configured to place a restriction on the volume of data being
transferred.
STEP 3 Choose the T
Traffic Limit
type:
•
No Limit
—The default option, where no limits on data transfer are imposed.
Choosing this option displays the outgoing and incoming traffic volume in
the Internet Traffic Statistics section on the page. If traffic metering is not
enabled, these statistics are not shown.
•
Download Only
—Limits the amount of download traffic. Enter the maximum
allowed data (in Megabytes) that can be downloaded for a given month in
the M
Monthly Limit
field. Once the limit is reached, no traffic will be allowed
from the WAN side.
•
Both Directions
—For this setting, the router will calculate traffic for both
upload and download directions. The traffic limit typed into the M
Monthly
Limit
field is shared by both upload and download traffic. For example, for a
1GB limit, if a 700 MB file is downloaded then the remaining 300 MB must
be shared between both upload and download traffic. The amount of traffic
downloaded will reduce the amount of traffic that can be uploaded and
vice-versa.
STEP 4 Enter the volume limit in the M
Monthly Limit
field that is applicable for this month.
This limit will apply to the type of direction (Download Only or Both) selected
above.
Configuring Quality of Service (QoS)
Configuring Traffic Metering
Cisco RV 120W Administration Guide 123
6
STEP 5 In the I
Increase This Month's Limit By
field, if the monthly traffic limit has been
reached and you need to temporarily increase the limit, check this option and
enter the value by which you want to increase the limit.
NOTE The T
This Month's Limit
field displays the data transfer limit applicable for this
month, which is the sum of the value in the M
Monthly Limit
field and the
Increase this Month's Limit
field.
STEP 6 In the Traffic Counter fields, specify the type of action to be taken on the traffic
counter:
•
Restart Counter Now
—Select this option and click S
Save
to reset the
counter to zero immediately.
•
Restart Traffic Counter at Specific Time
—Set a schedule for the traffic
counter to restart. Typically, this is the last day of the month. Set the
appropriate time and day of the month.
•
Send E-mail Report before restarting counter
—Select this option to receive
an e-mail report before the traffic counter is restarted. The e-mail will be
sent to the address configured in the Logging section.
NOTE This feature works only if you enable e-mail logs on the A
Administration
>
Logging
> R
Remote Logging
page. See Configuring Logging, page 131.
STEP 7 The W
When Limit is Reached
section defines the router actions upon the traffic
counter limits being reached at any given time. In the Traffic Block Status list,
choose one of the following:
•
Send e-mail alert
—Check this option to send an e-mail when traffic limit is
reached.
•
Block All Traffic
—If selected, then when the traffic limit is reached, all traffic
to and from the WAN will be blocked.
Configuring Quality of Service (QoS)
Configuring 802.1p
Cisco RV 120W Administration Guide 124
6
•
Block All Traffic Except E-mail
—If selected, then when the traffic limit is
reached, all traffic to and from the WAN will be blocked, but e-mail traffic
will be allowed. This feature works only if you enable e-mail logs on the
Administration
> L
Logging
> R
Remote Logging
page. See Configuring
Logging, page 131.
STEP 8 Click S
Save
.
You can also view the Internet Traffic Statistics. If Traffic Metering is enabled for
this interface, the following statistics will be displayed:
•Start Date/Time—The date on which the traffic meter was started or the
last time when the traffic counter was reset.
•Outgoing Traffic Volume—The volume of traffic, in Megabytes, that was
uploaded through this interface.
•Incoming Traffic Volume—The volume of traffic, in Megabytes, that was
downloaded through this interface.
•Average per day—The average volume of traffic that passed through this
interface.
•% of Standard Limit—The amount of traffic, in percent that passed through
this interface against the Monthly Limit.
•% of this Month's Limit—The amount of traffic, in percent that passed
through this interface against this Month's Limit (if the month's limit has been
increased).
Configuring 802.1p
802.1p QoS provides a mechanism for implementing QoS at the Media Access
Control level. By enabling 802.1p CoS to DSCP remarking, the router can set the
DSCP field in IP packets, according the eight different classes of services in
802.1p.
To configure 802.1p:
STEP 1 Choose Q
QoS
> 8
802.1p
> 8
802.1p Configuration
.
STEP 2 Check the E
Enable
box to enable 802.1p QoS.
Configuring Quality of Service (QoS)
Configuring 802.1p
Cisco RV 120W Administration Guide 125
6
STEP 3 Check the E
Enable
box to enable 802.1p CoS to DSCP remarking for IP packets.
Class of Service (CoS) or 802.1p specifies a priority value between 0 and 7 that
can be used by Quality of Service (QoS) disciplines to differentiate traffic.
Differentiated Services or DiffServ is a computer networking architecture that
specifies a simple, scalable and coarse-grained mechanism for classifying,
managing network traffic and providing Quality of Service (QoS) guarantees on
modern IP networks. The DSCP value is the classification value the router uses in
determining the egress marking as the frames traverse and exit the switch.
STEP 4 Click S
Save
.
Configuring 802.1p to Queue Mapping
802.1p defines eight different classes of service. To configure 802.1p to queue
mapping:
STEP 1 Choose Q
QoS
> 8
802.1p
> 8
802.1p to Queue Mapping
.
STEP 2 For each priority, select the queue mapping corresponding to the service from the
following queue values: L
Lowest
, L
Low
, M
Medium
or H
High
.
STEP 3 Click S
Save
to submit your changes.
Configuring 802.1p CoS to DSCP Remarking
DSCP is a field in an IP packet that enables different levels of service to be
assigned to network traffic. You can assign priorities for the eight different classes
of services in 802.1p. To configure 802.1p CoS to DSCP Remarking:
STEP 1 Choose Q
QoS
> 8
802.1p
> 8
802.1p COS to DSCP Remarking
.
STEP 2 For each 802.1p priority value, enter a priority value (range is from 0 to 63).
STEP 3 Click S
Save
.
7
Cisco RV 120W Administration Guide 126
Administering Your Cisco RV 120W
This chapter describes the administration features of the Cisco RV 110W,
including creating users, configuring network management, diagnostics and
logging, date and time, and other settings. It contains the following sections:
•Setting Password Complexity, page 126
•Configuring User Accounts, page 127
•Setting the Timeout Value, page 128
•Configuring Simple Network Management (SNMP), page 128
•Using Diagnostic Tools, page 130
•Configuring Logging, page 131
•Configuring Discovery (Bonjour), page 135
•Configuring Date and Time Settings, page 136
•Backing Up and Restoring the System, page 137
•Upgrading Firmware, page 138
•Rebooting the Cisco RV 120W, page 138
•Restoring the Factory Defaults, page 138
Setting Password Complexity
The Cisco RV 110W can enforce minimum password complexity requirement for
password changes. To enable password complexity, choose A
Administration
>
Password Complexity
. Check the E
Enable
box and click S
Save
.
Administering Your Cisco RV 120W
Configuring User Accounts
Cisco RV 120W Administration Guide 127
7
Password complexity forces new passwords to conform to the following
requirements:
•Passwords must be a minimum number of characters in length. Enter the
minimum password length.
•Passwords must contains characters from at least 3 of the following 4
categories:
-Uppercase letters
-Lowercase letters
-Numbers
-Special characters available on a standard keyboard.
•Passwords cannot be the same as the username, which is “admin” by
default.
•New passwords cannot be the same as the current password.
Configuring User Accounts
The Cisco RV 110W supports two user accounts for administering and viewing
settings: an administrative user (default user name: “admin”) and a “guest” user
(default user name: “guest”). The guest account has read-only access. You can set
and change the username and password for both the administrator and guest
accounts.
To configure the user accounts:
STEP 1 Choose A
Administration
> U
Users
.
STEP 2 Click the button to edit either the A
Admin
or U
User
account.
STEP 3 Enter the new username.
STEP 4 Enter the old password.
Administering Your Cisco RV 120W
Setting the Timeout Value
Cisco RV 120W Administration Guide 128
7
STEP 5 Enter the new password. It is recommended that passwords contains no
dictionary words from any language, and are a mix of letters (both uppercase and
lowercase), numbers, and symbols. The password can be up to 30 characters.
STEP 6 Click S
Save
.
Setting the Timeout Value
The timeout value is the number of minutes of inactivity that are allowed before the
Device Manager session is ended. This can be configured for the Admin and Guest
accounts:
STEP 1 Choose A
Administration
> S
Session Timeout
.
STEP 2 Enter the number, in minutes, before a session times out due to inactivity.
STEP 3 Click S
Save
.
Configuring Simple Network Management (SNMP)
Simple Network Management Protocol (SNMP) lets you monitor and manage your
router from an SNMP manager. SNMP provides a remote means to monitor and
control network devices, and to manage configurations, statistics collection,
performance, and security.
To configure SNMP, choose A
Administration
> N
Network Management
.
Editing SNMPv3 Users
SNMPv3 parameters can be configured for the two default Cisco RV 110W user
accounts (Admin and Guest). To configure:
STEP 1 In the S
SNMPv3 Users List Table
, check the box for the user to edit and click E
Edit
.
STEP 2 Under S
Security Level,
choose the amount of SNMPv3 Privileges:
Administering Your Cisco RV 120W
Configuring Simple Network Management (SNMP)
Cisco RV 120W Administration Guide 129
7
•
NoAuthNoPriv
—Doesn't require any Authentication and Privacy.
•
AuthNoPriv
—Submit only Authentication algorithm and password.
•
AuthPriv
—Submit Authentication/privacy algorithm and password.
STEP 3 If you chose A
AuthNoPriv
or A
AuthPriv
, choose the type of authentication algorithm
(M
MD5
or S
SHA
) and enter the authentication password.
If you chose A
AuthPriv
, choose the type of privacy algorithm (D
DES
or A
AES
) and enter
the privacy password.
STEP 4 Click S
Save
.
Adding SNMP Traps
The T
Traps List Table
lists IP addresses of SNMP agents to which the router will
send trap messages (notifications) and allows several operations on the SNMP
agents.
To add a new trap:
STEP 1 In the T
Traps List Table
, click A
Add
.
STEP 2 Enter the IP Address of the SNMP manager or trap agent.
STEP 3 Enter the SNMP trap port of the IP address to which the trap messages will be
sent.
STEP 4 Enter the community string to which the agent belongs. Most agents are
configured to listen for traps in the Public community.
STEP 5 Choose the SNMP Version: v
v1
, v
v2c
, or v
v3
.
STEP 6 Click S
Save
.
Configuring Access Control Rules
The SNMP Access Control List is a table of access rules that enables read-only or
read-write access for select IP addresses in a defined SNMP agent's community.
Administering Your Cisco RV 120W
Using Diagnostic Tools
Cisco RV 120W Administration Guide 130
7
To configure access control rules:
STEP 1 In the A
Access Control List Table,
click A
Add
.
STEP 2 Enter the IP Address of the specific SNMP manager or trap agent on which to
create an access rule.
STEP 3 Enter the subnet mask used to determine the list of allowed SNMP managers.
STEP 4 Enter the community string to which the agent belongs. Most agents are
configured to listen for traps in the Public community.
STEP 5 Choose the access type. The SNMP manager or trap agent can either be allowed
to read and modify all SNMP accessible settings (r
rwcommunity
) or be given read-
only access (r
rocommunity
).
STEP 6 Click S
Save
.
Configuring Additional SNMP Information
To configure additional SNMP information:
STEP 1 Choose A
Administration
> N
Network Management
> S
SNMP System Information
. This
page displays the current SNMP configuration of the router. The following MIB
(Management Information Base) fields are displayed and can be modified:
•
SysContact
—Enter the name of the contact person for this router.
Examples: admin, John Doe.
•
SysLocation
—Enter the physical location of the router. Example: Rack #2,
4th Floor.
•
SysName
—Enter a name for easy identification of the router.
STEP 2 Click S
Save
.
Using Diagnostic Tools
The Cisco RV 110W provides several diagnostic tools. To access these tools,
choose A
Administration
> N
Network Tools
.
Administering Your Cisco RV 120W
Configuring Logging
Cisco RV 120W Administration Guide 131
7
Using PING
This utility can be used to test connectivity between this router and another device
on the network connected to this router. Enter an IP address and click P
Ping
. A
popup window appears, indicating the ICMP echo request status.
Using Trace Route
This utility will display all the routers present between the destination IP address
and this router. Up to 30 “hops” (intermediate routers) between this router and the
destination will be displayed. Enter an IP address and click T
Traceroute
.
Performing a DNS Lookup
To retrieve the IP address of a Web, FTP, Mail or any other Server on the Internet,
type the Internet Name in the text box and click L
Lookup
. If the host or domain entry
exists, you will see a response with the IP address. A message stating “Unknown
Host” indicates that the specified Internet Name does not exist.
Capturing and Tracing Packets
Capture Packets allows you to capture all packets that pass through the selected
interface (LAN, dedicated WAN, or optional WAN). To capture packets, click
Packet Trace
, and a new window appears. Select the interface and click S
Start
. To
stop the packet capture, click S
Stop
. You can click D
Download
to save a copy of the
packet capture.
NOTE The packet trace is limited to 1MB of data per capture session. When the capture
file size exceeds 1MB, it will be deleted automatically and a new capture file will be
created.
Configuring Logging
The Cisco RV 110W provides remote and local logging. To configure logging,
choose A
Administration
> L
Logging
and select the type of logging to configure.
Administering Your Cisco RV 120W
Configuring Logging
Cisco RV 120W Administration Guide 132
7
Configuring Local Logging
The router can be configured to log and e-mail notifications for denial of service
attacks, general attack information, login attempts, dropped packets, etc. to a
specified e-mail address or a Syslog server.
Routing Logs
This section is used to configure the logging options for each network segment
(for example, LAN-WAN).
NOTE Enabling logging options may generate a significant volume of log messages and is
recommended for debugging purposes only.
•A
Accepted Packets
—Check this box to log packets that were successfully
transferred through the segment. This option is useful when the Default
Outbound Policy is “Block Always” (see the F
Firewall
> I
IPv4 Rules
or I
IPv6
Rules
page). For example, if A
Accept Packets from LAN to WAN
is enabled
and there is a firewall rule to allow ssh traffic from the LAN, then whenever a
LAN machine tries to make an ssh connection, those packets will be
accepted and a message will be logged. (Make sure the log option is set to
allow for this firewall rule.)
•
Dropped Packets
—Check this box to log packets that were blocked from
being transferred through the segment. This option is useful when the
Default Outbound Policy is “Allow Always” (see the F
Firewall
> I
IPv4 Rules
or
IPv6 Rules
page). For example, if Drop Packets from LAN to WAN is enabled
and there is a firewall rule to block ssh traffic from LAN, then whenever a
LAN machine tries to make an ssh connection, those packets will be
dropped and a message will be logged. (Make sure the log option is set to
allow for this firewall rule.)
System Logs
Select the type of system events to be logged. The following system events can
be recorded:
•
All Unicast Traffic
—Check this box to log all unicast packets directed to the
router.
•
All Broadcast/Multicast Traffic
—Check this box to log all broadcast or
multicast packets directed to the router.
Administering Your Cisco RV 120W
Configuring Logging
Cisco RV 120W Administration Guide 133
7
Other Event Logs
Select the type of event to be logged. The following events can be recorded:
•
Source MAC Filter
—Check this box to log packets matched due to source
MAC filtering. Uncheck this box to disable source MAC filtering logs.
•
Bandwidth Limit
—Check this box to log packets dropped due to Bandwidth
Limiting.
Configuring Remote Logging
Log Options
In the R
Remote Log Identifier
field, enter a prefix to add to every logged message
for easier identification of the source of the message. The log identifier will be
added to both e-mail and Syslog messages.
Enable E-Mail Logs
This section is used to configure e-mail settings for sending logs. It contains the
following fields:
•
E-Mail Logs
—Disabled by default. Select the check box to enable e-mail
logs.
•
E-mail Server Address
—Enter the IP address or Internet Name of an SMTP
server. The router will connect to this server to send e-mail logs when
required.
•
SMTP Port
—Configure the port to connect smtp server.
•
Return E-mail Address
—Enter the e-mail address where the replies from
the SMTP server are to be sent (required for failure messages).
•
Send To E-mail Address(1)
—Enter the e-mail address where the logs and
alerts are to be sent.
•
Send To E-mail Address(2)
—Enter the e-mail address where the logs and
alerts are to be sent.
•
Send To E-mail Address(3)
—Enter the e-mail address where the logs and
alerts are to be sent.
•
Authentication with SMTP server
—If the SMTP server requires
authentication before accepting connections, select either L
Login Plain
or
CRAM-MD5
and enter the Username and Password to be used for
authentication. To disable authentication, select N
None
.
Administering Your Cisco RV 120W
Configuring Logging
Cisco RV 120W Administration Guide 134
7
•
Respond to Identd from SMTP Server
—Check this radio box to configure
the router to respond to an IDENT request from the SMTP server.
•To confirm that the e-mail logs function is configured correctly, press T
Test
.
Send E-mail logs by Schedule
To receive e-mail logs according to a schedule, configure the appropriate
schedule settings:
•
Unit
—Select the period of time that you need to send the log: H
Hourly
, D
Daily
,
or W
Weekly
. To disable sending of logs, select N
Never
. This option is useful
when you do not want to receive logs by e-mail, but want to keep e-mail
options configured so that you can use the Send Log function from the
Status
> V
View Logs
pages.
•
Day
—If logs are to be sent on a weekly basis, choose the day of the week.
•
Time
—Select the time of day when logs should be sent.
Syslog Server
If you want the router to send logs to a Syslog server, enter the IP address or
Internet Name of the Syslog server in the S
Syslog Server
field. You can configure
up to 8 Syslog servers.
Configuring the Logging Type and Notification
There are a variety of events that can be captured and logged for review. These
logs can be sent to a server or e-mailed as configured. To configure, choose
Administration
> L
Logging
> L
Logs Facility
:
STEP 1 Select the type of functionality from which to generate logs: K
Kernel
, S
System
, or
Local0-wireless
.
STEP 2 Select the events to log: E
Emergency
, A
Alert
, C
Critical
, E
Error
, W
Warning
, N
Notification
,
Information
, D
Debugging
.
STEP 3 For each of these events, select how to receive notification: D
Display in Event Log
,
Send to Syslog
.
STEP 4 Click S
Save
.
Administering Your Cisco RV 120W
Configuring Discovery (Bonjour)
Cisco RV 120W Administration Guide 135
7
Configuring E-Mailing of Log Events
The variety of events that can be captured and logged for review can be e-mailed.
To configure e-mailing of log events, choose A
Administration
> L
Logging
> L
Logs
Facility
:
STEP 1 Select the type of functionality from which to generate logs: K
Kernel
, S
System
, or
Local0-wireless
.
STEP 2 Select the events to log: E
Emergency
, A
Alert
, C
Critical, Error
, W
Warning
, N
Notification
,
Information
, D
Debugging
.
STEP 3 For each of these events, select how to receive notification: D
Display in Event Log
,
Send to Syslog
.
STEP 4 Click S
Save
.
Configuring Discovery (Bonjour)
Bonjour is a service advertisement and discovery protocol. For the Cisco RV
110W, Bonjour only advertises the default services configured on the device when
Bonjour is enabled.
To configure Bonjour:
STEP 1 Choose A
Administration
> D
Discovery Settings
> D
Discovery - Bonjour
.
STEP 2 Check the E
Enable
box to enable Bonjour on the router. Unchecking this will disable
Bonjour.
Currently the services c
csco-sb
and h
http
are available and active by default. When
remote management is enabled, h
https
service is enabled and advertised. (See
Configuring Remote Management, page 98.)
STEP 3 Click S
Save
.
Administering Your Cisco RV 120W
Configuring Date and Time Settings
Cisco RV 120W Administration Guide 136
7
Configuring VLAN Associations
You can select the available VLAN to enable Bonjour service types. Available
VLANs are populated for the Bonjour Association VLAN list after the VLANs are
configured for the device. (See Configuring Virtual LANs (VLANs), page 39, for
more information.) Currently, by default, LAN/Default-VLAN is the broadcasting
domain for service.
Associating a VLAN allows devices present on the VLAN to discover Bonjour
services available on the router (such as http/https). For example, if a VLAN is
configured with an ID of 2, devices and hosts present on VLAN 2 cannot discover
Bonjour services running on the router unless VLAN 2 is associated with Bonjour
services.
To add a VLAN association:
STEP 1 Choose A
Administration
> D
Discovery Settings
> V
VLAN Association
.
STEP 2 Click A
Add
.
STEP 3 Choose an available VLAN to which to add a service. (See Configuring Virtual
LANs (VLANs), page 39 for more information.)
STEP 4 Click S
Save
. The VLAN is added to the VLAN Association Table.
Configuring Date and Time Settings
You can configure your time zone, whether or not to adjust for Daylight Savings
Time, and with which Network Time Protocol (NTP) server to synchronize the date
and time. The router then gets its date and time information from the NTP server.
To configure NTP and time settings:
STEP 1 Choose A
Administration
> T
Time Settings
.
STEP 2 Select your time zone, relative to Greenwich Mean Time (GMT).
STEP 3 If supported for your region, check the
Adjust for Daylight Savings Time
box.
STEP 4 Select whether to use default or custom Network Time Protocol (NTP) servers, or
set the time and date manually.
Administering Your Cisco RV 120W
Backing Up and Restoring the System
Cisco RV 120W Administration Guide 137
7
STEP 5 If you chose a default NTP server, choose the server from the list. If you chose a
custom NTP server, enter the server addresses or fully-qualified domain name.
If you chose to set the date and time manually, enter the date and time.
STEP 6 Click S
Save
.
Backing Up and Restoring the System
You can back up custom configuration settings for later restoration or restore from
a previous backup from the A
Administration
> B
Backup/Restore Settings
page.
When the router is working as configured, you can back up the configuration for
restoring later. During backup, your settings are saved as a file on your PC. You
can restore the router's settings from this file.
!
CAUTION During a restore operation, do not try to go online, turn off the router, shut down the
PC, or do anything else to the router until the operation is complete. This should
take about a minute. When the test light turns off, wait a few more seconds before
doing anything with the router.
To back up a configuration or restore a previously-saved configuration:
STEP 1 Select A
Administration
> B
Backup/Restore
S
Settings
.
STEP 2 To save a copy of your current settings, click B
Backup
. The browser downloads the
configuration file and prompts you to save the file on the PC.
To restore your saved settings from a backup file, click B
Browse
, locate and select
the file, and click R
Restore
. An alert page displays the status of the restore
operation. After the restore, the router restarts automatically with the restored
settings.
Administering Your Cisco RV 120W
Upgrading Firmware
Cisco RV 120W Administration Guide 138
7
Upgrading Firmware
!
CAUTION During a firmware upgrade, do not try to go online, turn off the device, shut down
the PC, or interrupt the process in any way until the operation is complete. This
process takes about a minute, including the reboot process. Interrupting the
upgrade process at specific points when the flash is being written to may corrupt
the flash memory and render the router unusable.
You can upgrade to a newer software version from the A
Administration
> F
Firmware
Upgrade
page. To upgrade:
In the Router Upgrade screen area, click B
Browse
, locate and select the
downloaded firmware, and click U
Upload
.
After the new firmware image is validated, the new image is written to flash, and
the router is automatically rebooted with the new firmware. Choose S
Status
>
System Summary
to make sure the router installed the new firmware version.
Rebooting the Cisco RV 120W
To reboot the router, choose A
Administration
> R
Reboot Router
. Click R
Reboot
.
Restoring the Factory Defaults
!
CAUTION During a restore operation, do not try to go online, turn off the router, shut down the
PC, or do anything else to the router until the operation is complete. This should
take about a minute. When the test light turns off, wait a few more seconds before
doing anything with the router.
To restore factory defaults to the router, choose A
Administration
> R
Restore Factory
Defaults
. Click D
Default
.
A
Cisco RV 120W Administration Guide 139
Using Cisco QuickVPN for Windows 2000, XP,
or Vista
Overview
This appendix explains how to install and use the Cisco QuickVPN software that
can be downloaded from www.cisco.com. QuickVPN works with computers
running Windows 2000, XP, or Vista. (Computers using other operating systems
will have to use third-party VPN software.) For Windows Vista, QuickVPN Client
version 1.2.5 or later is required.
This appendix includes the following sections:
•Before You Begin, page 139
•Installing the Cisco QuickVPN Software, page 140
•Using the Cisco QuickVPN Software, page 142
•, page 145
Before You Begin
The QuickVPN program only works with a router that is properly configured to
accept a QuickVPN connection. You must perform the following steps:
STEP 1 Enable remote management. See Configuring Remote Management, page 98.
STEP 2 Create Quick VPN user accounts. See Configuring IPsec Users, page 114. After
a user account is created, the credentials can be used by the Quick VPN client.
Using Cisco QuickVPN for Windows 2000, XP, or Vista
Installing the Cisco QuickVPN Software
Cisco RV 120W Administration Guide 140
A
Installing the Cisco QuickVPN Software
Installing from the CD-ROM
STEP 1 Insert the Cisco RV 110W CD-ROM into your CD-ROM drive. After the Setup
Wizard begins, click the I
Install QuickVPN
link.
STEP 2 The License Agreement window appears. Click Yes to accept the agreement and
the appropriate files are copied to the computer.
License Agreement
Using Cisco QuickVPN for Windows 2000, XP, or Vista
Installing the Cisco QuickVPN Software
Cisco RV 120W Administration Guide 141
A
Copying Files
Finished Installing Files
STEP 3 Click Finished to complete the installation. Proceed to “Using the Cisco
QuickVPN Software,” on page142.
Using Cisco QuickVPN for Windows 2000, XP, or Vista
Using the Cisco QuickVPN Software
Cisco RV 120W Administration Guide 142
A
Downloading and Installing from the Internet
STEP 1 In Appendix B, “Where to Go From Here,” go to the Software Downloads link.
STEP 2 Enter RV 110W in the search box and find the QuickVPN software.
STEP 3 Save the zip file to your PC, and extract the .exe file.
STEP 4 Double-click the .exe file, and follow the on-screen instructions. Proceed to the
next section, “Using the Cisco QuickVPN Software,” on page 142.
Using the Cisco QuickVPN Software
STEP 1 Double-click the Cisco QuickVPN software icon on your desktop or in the system
tray.
STEP 2 The QuickVPN Login window will appear. In the P
Profile Name
field, enter a name
for your profile. In the U
User Name
and P
Password
fields, enter the User Name and
Password that were created in Configuring IPsec Users, page 114. In the S
Server
Address
field, enter the IP address or domain name of the Cisco RV 110W. In the
Port For QuickVPN
field, enter the port number that the QuickVPN client will use to
communicate with the remote VPN router, or keep the default setting, Auto.
Using Cisco QuickVPN for Windows 2000, XP, or Vista
Using the Cisco QuickVPN Software
Cisco RV 120W Administration Guide 143
A
QuickVPN Login
To save this profile, click Save. (If there are multiple sites to which you will need
to create a tunnel, you can create multiple profiles, but note that only one tunnel
can be active at a time.) To delete this profile, click Delete. For information, click
Help.
STEP 3 To begin your QuickVPN connection, click Connect. The connection’s progress is
displayed: Connecting, Provisioning, Activating Policy, and Verifying Network.
STEP 4 When your QuickVPN connection is established, the QuickVPN tray icon turns
green, and the QuickVPN Status window appears. The window displays the IP
address of the remote end of the VPN tunnel, the time and date the VPN tunnel
began, and the total length of time the VPN tunnel has been active.
Using Cisco QuickVPN for Windows 2000, XP, or Vista
Using the Cisco QuickVPN Software
Cisco RV 120W Administration Guide 144
A
QuickVPN Status
To terminate the VPN tunnel, click Disconnect. To change your password, click
Change Password. For information, click Help.
STEP 5 If you clicked Change Password and have permission to change your own
password, you will see the C
Connect Virtual Private Connection
window. Enter your
password in the O
Old Password
field. Enter your new password in the N
New
Password
field. Then enter the new password again in the C
Confirm New Password
field. Click OK to save your new password. Click Cancel to cancel your change.
For information, click Help.
Connect Virtual Private Connection
Using Cisco QuickVPN for Windows 2000, XP, or Vista
Using the Cisco QuickVPN Software
Cisco RV 120W Administration Guide 145
A
NOTE You can change your password only if the A
Allow User to Change Password
box has been checked for that username. See Configuring IPsec Users,
page 114.
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 o
f
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate this equipment.
IEEE 802.11b or 802.11g operation of this product in the U.S.A. is firmware-limited to channels 1 through 11.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment
should be installed and operated with minimum distance 20cm between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
Industry Canada Statement
This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions:
1) this device may not cause interference and
2) this device must accept any interference, including interference that may cause undesired operation of the device
IMPORTANT NOTE:
IC Radiation Exposure Statement:
This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment
should be installed and operated with minimum distance 20cm between the radiator & your body.
B
Cisco RV 110W Administration Guide 146
Where to Go From Here
Cisco provides a wide range of resources to help you obtain the full benefits of the
Cisco RV 110W.
Product Resources
Support
Cisco Small Business
Support Community
www.cisco.com/go/smallbizsupport
Online Technical
Support and
Documentation (Login
Required)
www.cisco.com/support
Phone Support Contacts www.cisco.com/en/US/support/
tsd_cisco_small_ business_support_
center_contacts.html
Software Downloads
(Login Required)
Go to tools.cisco.com/support/downloads,
and enter the model number in the
Software Search box.
Product Documentation
Cisco RV 110W www.cisco.com/en/US/products/ps9923/
tsd_products_support_series_home.html
Cisco Small Business
Cisco Partner Central for
Small Business (Partner
Login Required)
www.cisco.com/web/partners/sell/smb
Cisco Small Business
Home
www.cisco.com/smb
Marketplace www.cisco.com/go/marketplace
