UW620-Z
802.11g Wireless USB Stick
Quick Installation Guide
Version 0.3
UW620-Z Quick Installation Guide
FCC Warning
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in accordance with instructions,
may cause harmful interference to radio communication. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
You are cautioned that changes or modifications not expressly approved by
the party responsible for compliance could void your authority to operate the
equipment.
FCC Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated
with minimum distance 20cm between the radiator & your body. This
equipment must not be co-located or operating in conjunction with any other
antenna or transmitter.
CE Marking Warning
This is a Class B product. In a domestic environment this product may cause
radio interference in which case the user may be required to take adequate
measures.
2
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. End users must follow the specific operating instructions for satisfying RF
exposure compliance.This transmitter must not be co-located or operating in onjunction
with any other antenna or transmitter.
CyberTAN declared that UW620-Z is limited in CH1~11 by specified firmware controlled
in USA.
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this equipment.
This equipment has been SAR-evaluated for use in laptops (notebooks) with side slot
configuration.
UW620-Z Quick Installation Guide
About your UW620-Z
The UW620-Z is an 802.11g compliant wireless USB stick that is to be plugged
to the USB port of a notebook or desktop computer. It connects to an AP or a
wireless router at data rates up to 54Mbps. This makes it suitable for
applications that need speeds comparable to the widely available 100T-base
Ethernet speed and is ideal for SOHO or home uses.
Features
• USB v2.0 compatible.
• IEEE 802.11g compliant.
• Backward compatible to the IEEE 802.11b standard.
• Delivers data rates up to 54 Mbps.
• Dynamically shifts between 54, 48, 36, 24, 18, 12, 9 and 6 Mbps
network speeds based on signal strength, for maximum availability
and reliability of connection.
• 802.11b: Dynamically shifts between 11M, 5.5M, 2M, and 1 Mbps
network speeds based on signal strength, for maximum availability
and reliability of connection.
• Allows users to move between Access Points without resetting their
connection configuration.
• Support 64/128 bit WEP
• WPA support
Installation Requirement
Before installation, make sure your notebook or PC meet the following
requirements:
• Pentium II 266 CPU or above
• A minimum of 32MB RAM
• A minimum of 4X-Speed CD-ROM drive
• A USB 2.0 Port (a USB 1.1 port is also supported)
• Windows 98/ME/2000/XP
• Windows 98SE users may need Windows 98SE CD
3
UW620-Z Quick Installation Guide
Hardware and Utility Installation

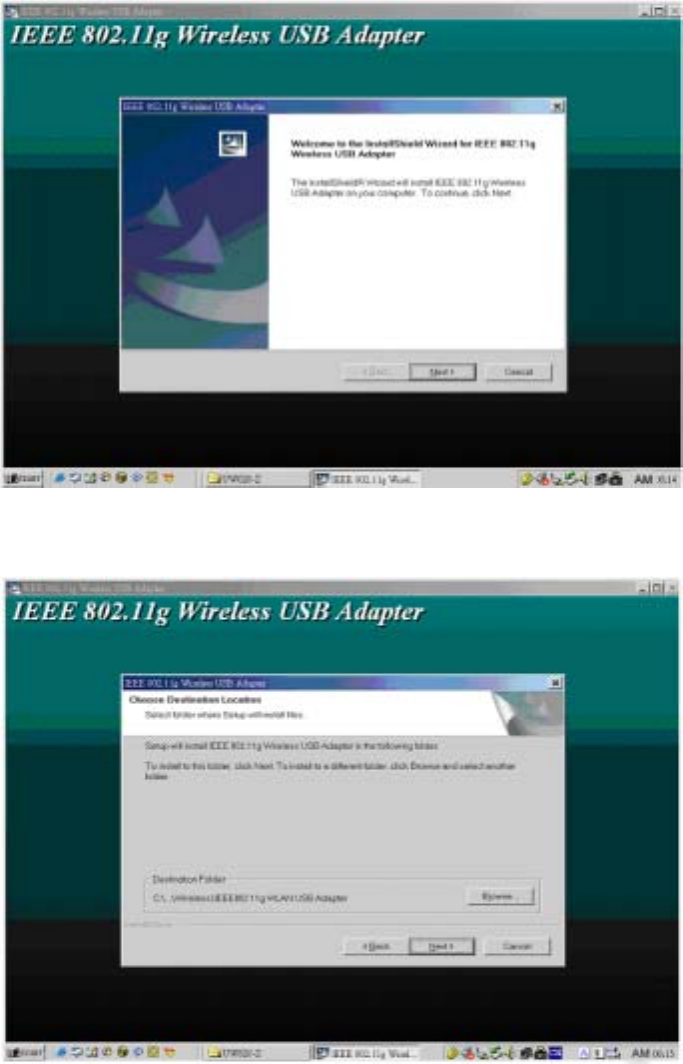

1. Insert Driver CD into the CD-ROM drive of your computer. The will run
automatically. If not, locate and double-click on setup.exe. A Welcome
screen shows up. Click Next.
2. Click Next to accept the default file location or click Browse to select an
alternative folder.

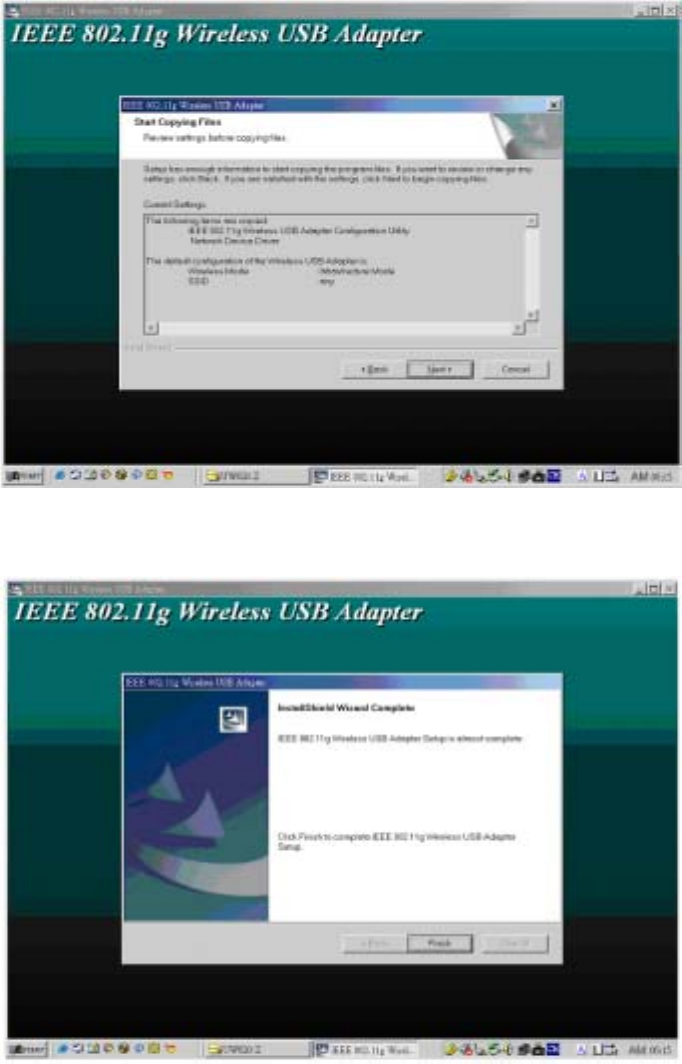

3. After confirming the settings by pressing Next, it will start copying files to
4
UW620-Z Quick Installation Guide
the computer.
4. Press Finish to complete the Installation.
5. Locate an available USB port on your computer.
6. Remove the protective cap to expose the USB connector. Insert the
UW620-Z to USB port on the computer. The LED turns on if the UW620-Z
is properly inserted.
5
UW620-Z Quick Installation Guide
6
7. Windows XP: A Found New Hardware Wizard displays, select Install the
software automatically (Recommend) and click Next.
8. Windows XP: Click Finish to complete the installation process.
After installing UW620-Z utility and inserting UW602-Z to the computer, an icon
appears in the system tray.
The definitions of the LINK LEDs on the front panel of UW620-Z are as follows:
COLOR STATUS DESCRIPTION
On The UW620-Z is connected to a wireless LAN
Blink (Slow) The UW620-Z is ready but not connected to a
wireless LAN
BLUE
Blink (Fast) The UW620-Z is sending or receiving data
Troubleshooting
Q: Windows does not auto-detect the UW620-Z
A: Make sure the UW620-Z USB connector is inserted to USB port properly
and than reboot your computer and check the LED of UW620-Z.
Q: The utility logo does not appear on the system tray when installation
finished
A: Reboot your computer and check it again.
Q: Plug & Play function failed on my computer when I plugged UW620-Z into
the USB port.
A: Perform the hardware scan by clicking Start, Settings, Control Panel and
double-clicking Add/Remove Hardware (Steps may very depending on the
version of Windows). Follow the instruction on the screen, to search the
UW620-Z and install driver.
Q: Windows shows a warning message for device setting or resource conflict.
A: Use the Device Manager window to check for possible hardware conflict.
Click Start, Settings, Control Panel, System, Hardware and than click
Device Manager. Verify the status under the Network Adapter.
Q: The device error still persists and cannot be solved.
A: If the error persists, you may have hardware problem. In this case, you
should contact your local vendor.
