CyberTAN Technology Inc. Wireless-b/g Broadband Router 9074160
Users Manual
Product Specification of the WG414
No.99 PARK AVE. III, Science-based Industrial Park,
Hsin-Chu 308, Taiwan, R.O.C. Phone (886) 3-577-7777 Fax (886) 3-577-7788
CyberTAN Technology inc. Proprietary & Confidential Information
1
WG414-L7-CL
Wireless-b/g Broadband Router
PRELIMINARY HARDWARE PRODUCT SPECIFICATION
Revision 1.0.0
Initialized Document Date: April 30, 2007
Revision Document Date: April 30, 2007
This document contains confidential proprietary information and is the property of CyberTAN
Technology Inc.. The contents of this document may not be disclosed to any unauthorized person
without the written consent of CyberTAN.
Product Specification of the WG414
No.99 PARK AVE. III, Science-based Industrial Park,
Hsin-Chu 308, Taiwan, R.O.C. Phone (886) 3-577-7777 Fax (886) 3-577-7788
CyberTAN Technology inc. Proprietary & Confidential Information
2
Table of Contents
1 DOCUMENT REVISION HISTORY ...........................................................................................................................3
2 PRODUCT DESCRIPTION........................................................................................................................................4
3 APPLICATION DIAGRAM ......................................................................................................................................5
4 HOUSING (TBD) .....................................................................................................................................................6
4.1 3D
VIEW ................................................................................................................................................................. 6
5 PRODUCT FEATURES ..............................................................................................................................................7
5.1 PHYSICAL
SPECIFICATIONS................................................................................................................................. 7
5.2 RADIO
SPECIFICATIONS ...................................................................................................................................... 8
5.3 CERTIFICATION/APPROVAL/WARRANTY ......................................................................................................... 9
6 HARDWARE SPECIFICATIONS .............................................................................................................................10
6.1 SYSTEM
BLOCK
DIAGRAM ................................................................................................................................10
6.2 KEY
COMPONENTS ............................................................................................................................................11
6.3 PRODUCT
CERTIFICATION
REQUIREMENTS ....................................................................................................11
6.3.1 IEEE COMPLIANCE REQUIREMENTS ....................................................................................................11
6.4 TECHNICAL
SPECIFICATIONS ...........................................................................................................................11
Product Specification of the WG414
No.99 PARK AVE. III, Science-based Industrial Park,
Hsin-Chu 308, Taiwan, R.O.C. Phone (886) 3-577-7777 Fax (886) 3-577-7788
CyberTAN Technology inc. Proprietary & Confidential Information
3
1 DOCUMENT REVISION HISTORY
Revision Date Author Remark
1.0.0 April 30, 2007
Bryan Chou Initialize.
Product Specification of the WG414
No.99 PARK AVE. III, Science-based Industrial Park,
Hsin-Chu 308, Taiwan, R.O.C. Phone (886) 3-577-7777 Fax (886) 3-577-7788
CyberTAN Technology inc. Proprietary & Confidential Information
4
2 PRODUCT DESCRIPTION
WG414 is a Wireless-b/g Router that is targeting Home or SOHO market.
High-speed performance.
Internet interface, comes with one 10/100 Mbps Auto-Negotiation port. It provides auto MDI/MDI-X
feature so that there has no more cabling trouble happen. Thus, the service burden can be
eliminated
Local Interface, comes with one 10/100Mbps Auto-Negotiation port. Auto-MDI/MDIX function is
supported as well. Users do not have to learn what straight or crossed cable is; just plug can go.
Wireless connectivity, an on-board wireless module, that is compliant to IEEE 802.11b/g standard, is
provided to work as a wireless Access Point. And for security reason, the 802.1x module is designed
as standard feature.
Product Specification of the WG414
No.99 PARK AVE. III, Science-based Industrial Park,
Hsin-Chu 308, Taiwan, R.O.C. Phone (886) 3-577-7777 Fax (886) 3-577-7788
CyberTAN Technology inc. Proprietary & Confidential Information
5

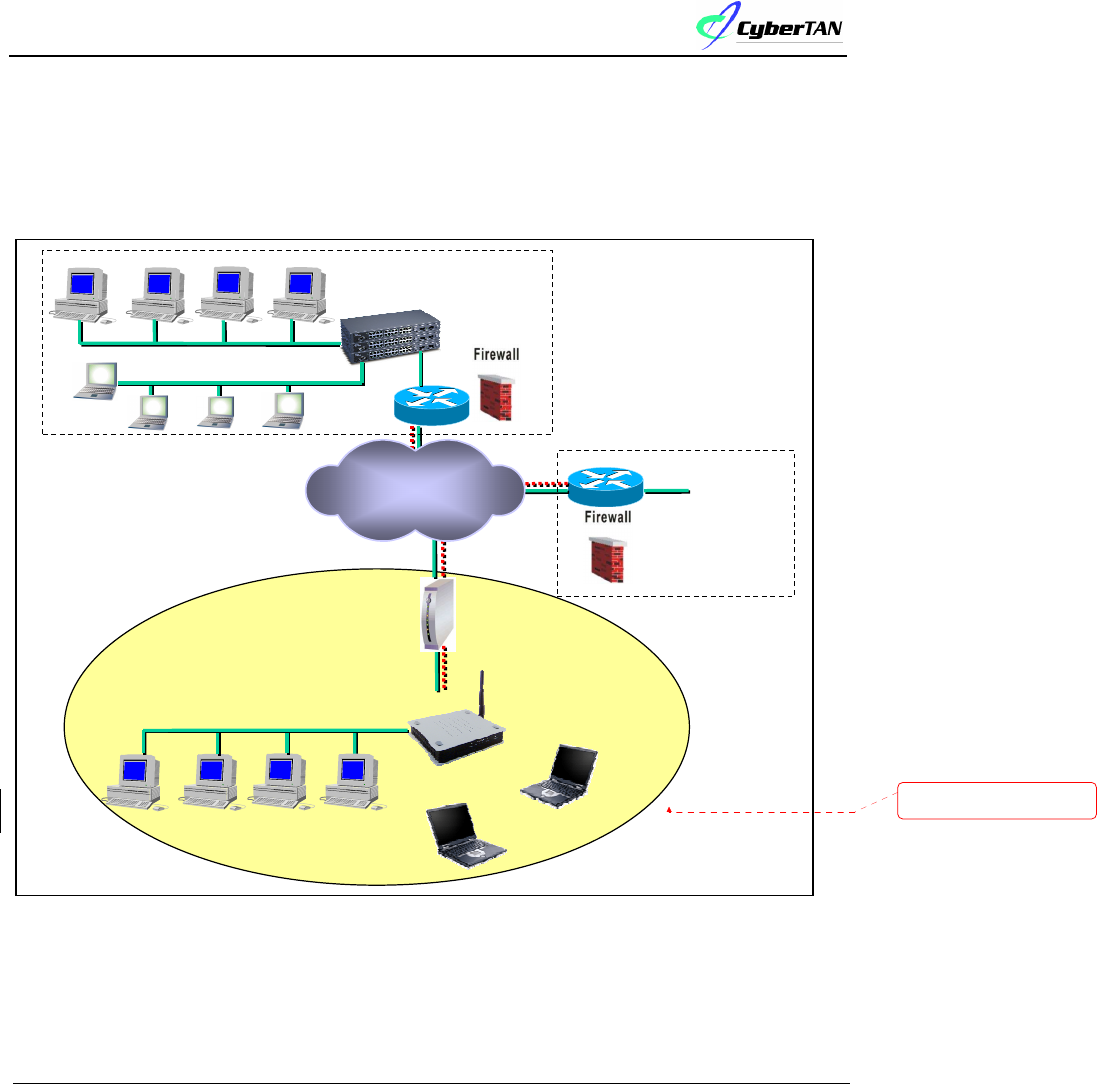

3 Application Diagram
L
LA
AN
N
P
Po
or
rt
ts
s
C
Ca
ab
bl
le
e/
/D
DS
SL
L
C
Co
or
rp
po
or
ra
at
te
e
H
Ho
os
st
ts
s
W
W
A
A
N
N
P
P
o
o
r
r
t
t
S
S
w
w
i
i
t
t
c
c
h
h
T
Te
el
le
ec
co
om
mm
mu
ut
te
er
r’
’s
s
H
Ho
om
me
e
N
Ne
et
tw
wo
or
rk
k
C
Co
or
rp
po
or
ra
at
te
e
N
Ne
et
tw
wo
or
rk
k
I
I
n
n
t
t
e
e
r
r
n
n
e
e
t
t
B
Br
ra
an
nc
ch
h
O
Of
ff
fi
ic
ce
e
N
Ne
et
tw
wo
or
rk
k
1
11
1b
b
W
Wi
ir
re
el
le
es
ss
s
1
11
1g
g
W
Wi
ir
re
el
le
es
ss
s
格
格格
格式化
式化式化
式化:
::
: 字型: Century Gothic,
8 點
Product Specification of the WG414
No.99 PARK AVE. III, Science-based Industrial Park,
Hsin-Chu 308, Taiwan, R.O.C. Phone (886) 3-577-7777 Fax (886) 3-577-7788
CyberTAN Technology inc. Proprietary & Confidential Information
6
4 HOUSING

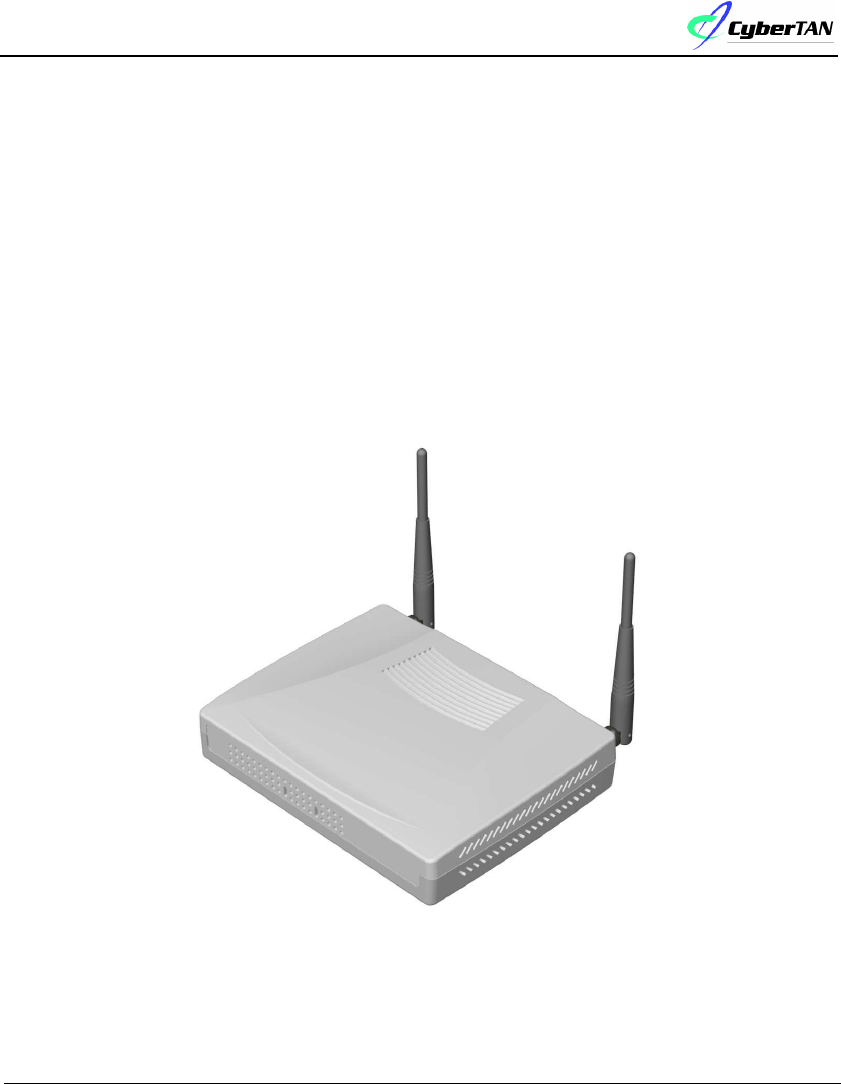

4.1 3D VIEW
Product Specification of the WG414
No.99 PARK AVE. III, Science-based Industrial Park,
Hsin-Chu 308, Taiwan, R.O.C. Phone (886) 3-577-7777 Fax (886) 3-577-7788
CyberTAN Technology inc. Proprietary & Confidential Information
7
5 PRODUCT FEATURES
5.1 PHYSICAL SPECIFICATIONS
LAN Ports Four 10/100M 802.3/u (RJ-45) interfaces with auto-MDIX sensing
Ethernet
Interface WAN Port One 10/100M 802.3/u (RJ-45) interface with auto-MDIX sensing
Off Power Off
On Power On/Device Ready
Power Green
Blinking Booting/System Self-Test/Firmware upgrade
Off No connection on WAN port
On WAN link is up
WAN Green
Blinking Data is transmission through WAN interface
Off Wireless option is disable
On Wireless option is enable
Wireless Green/
11b/g
Blinking Data is transmission through wireless
Off No connection on LAN port
On LAN link is up
LAN (4-port) Green
Blinking Data is transmission through LAN interface
Off DMZ Host option is disable
LEDs Indicating
DMZ Green
On DMZ Host option is enable
Power Supply North American External Linear Power Adapter.
Input: 100VAC/50~60Hz, output: 12VDC/1A
PCB Dimension (W * D * H) 160 * 138 mm
Weight TBD
Product Specification of the WG414
No.99 PARK AVE. III, Science-based Industrial Park,
Hsin-Chu 308, Taiwan, R.O.C. Phone (886) 3-577-7777 Fax (886) 3-577-7788
CyberTAN Technology inc. Proprietary & Confidential Information
8
Reset Button To warm start system or reset all device settings to factory default
values.
PCB 4-layers
CPU BCM5352E/MIPS@200MHz
Switch Controller
Build-in 5-port switch
Antenna 2 * detachable Antenna
Flash Memory
8MB
Others
Main Memory 32MB DDR SRAM
5.2 RADIO SPECIFICATIONS
Solution Vendor
BCM 2050 (802.11b/g)
IEEE 802.11/11b Industry standards
WLAN Standard
IEEE 802.11g standard
Media Access
Protocol IEEE 802.11
11b Mode (2412GHz~2472GHz)
Operating
Frequency 11g Mode (2412GHz~2472GHz)
11b Mode 14 for Japan; USA Ch1-11
Operating
Channels 11g Mode 13 for JTAC, Japan; USA Ch1-11
11b Mode 11, 9, 6, 5.5, 2, 1 Mbps
Data Rate
Shifting 11g Mode 54, 48, 36, 24, 12, 11, 9, 6, 5.5, 2, 1 Mbps
11b Mode CCK (5.5, 11Mbps), Barker Modulation (1, 2Mbps)
Modulation
Technique 11g Mode OFDM (54, 48, 36, 24, 12, 9, 6Mbps)
Product Specification of the WG414
No.99 PARK AVE. III, Science-based Industrial Park,
Hsin-Chu 308, Taiwan, R.O.C. Phone (886) 3-577-7777 Fax (886) 3-577-7788
CyberTAN Technology inc. Proprietary & Confidential Information
9
Wireless
Distribution
System
AP mode
802.11e WMM support
WEP Support 64-bit & 128-bit Encryption, Passphrase, Manual key for Hex.
TKIP Required for Wi-Fi WPA stage 1 certificate
AES Required for Wi-Fi WPA stage 2 certificate
WPA Support both home mode and enterprise mode
802.1x EAP-TTL, EAP-TTLS, PEAP
Support Wireless MAC address filtering
Security
SSID broadcast enable/disable supported
11b 802.11g: Typical, 14+/-1.5dBm @ Normal Temp Range
Transmitted
Power 11g 802.11b: Typical, 16+/-1.5dBm @ Normal Temp Range
Receive
Sensitivity
802.11g:
Preliminary
Performance –
Minimum
Sensitivity:
Data Rate (Mbps) Sensitivity (dBm)
54 -74.4
11 -87.2
5.3 CERTIFICATION/APPROVAL/WARRANTY
FCC Part 15 Class B
EMI North America
FCC Part 15 Class C
Product Specification of the WG414
No.99 PARK AVE. III, Science-based Industrial Park,
Hsin-Chu 308, Taiwan, R.O.C. Phone (886) 3-577-7777 Fax (886) 3-577-7788
CyberTAN Technology inc. Proprietary & Confidential Information
10
6 HARDWARE SPECIFICATIONS

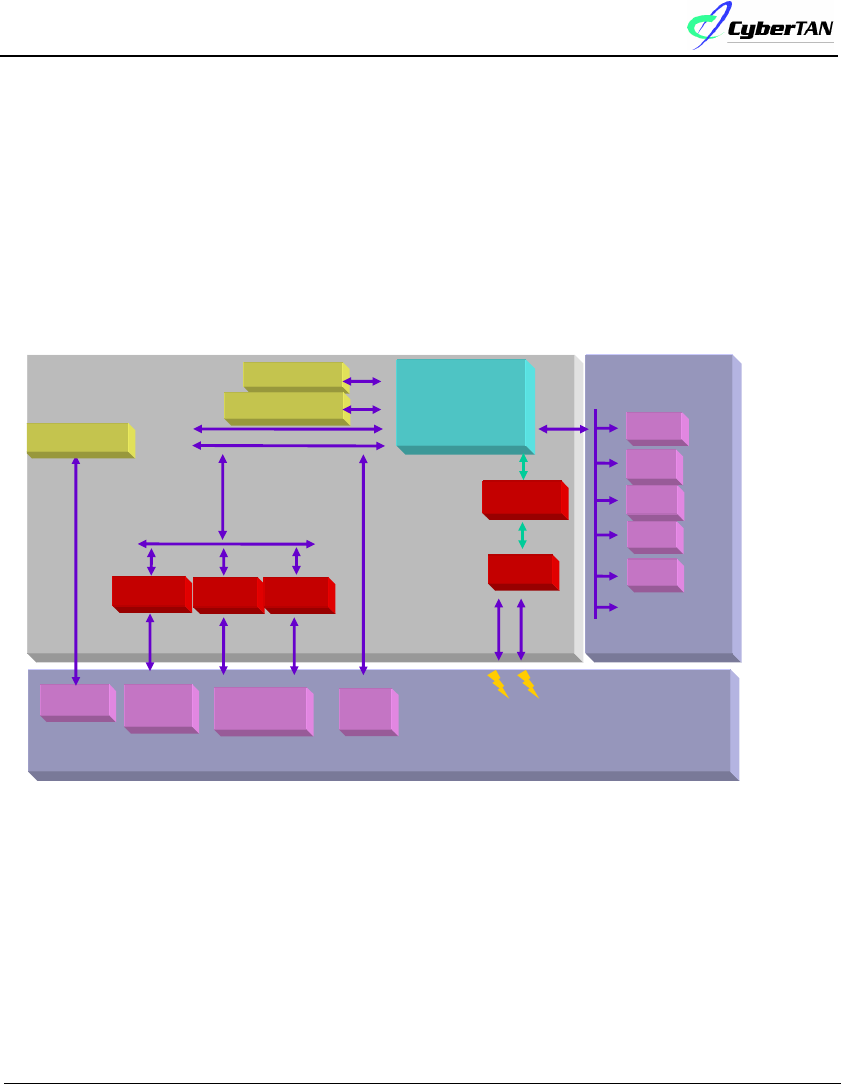

6.1 SYSTEM BLOCK DIAGRAM
8 MB Flash
CPU
BCM 5352E
32 MB DDR SDRAM
DMZ
1 x
10/100
WAN
Single XFR
4 x 10/100
LAN
POWER
BCM 2050
Dual XFR
Dual XFR
LAN
Detachable
External Antenna
Reset
Button
WAN
SE2528
DC Plug-in
PCI
DDR SDRAM
Twist Pair
Front Panel
WLAN
Rear Panel
EBI HOST
Power Regulator
Product Specification of the WG414
No.99 PARK AVE. III, Science-based Industrial Park,
Hsin-Chu 308, Taiwan, R.O.C. Phone (886) 3-577-7777 Fax (886) 3-577-7788
CyberTAN Technology inc. Proprietary & Confidential Information
11
6.2 KEY COMPONENTS
No
Item Description
1 CPU BCM 5352E/200MHz
2 Switch Build-in
3 Flash 8MB
4 DDR SRAM 32MB
5 802.11 b/g, RF BCM 2050
6.3 PRODUCT CERTIFICATION REQUIREMENTS
6.3.1 IEEE COMPLIANCE REQUIREMENTS
Standard Description
IEEE 802.3 10Mbps Ethernet Specification.
IEEE 802.3u 100Mbps Fast Ethernet Specification.
IEEE 802.3x Full-duplex operation/Flow Control Ethernet.
IEEE 802.1D Transparent Bridge
IEEE 802.11g 54, 48, 36, 24, 18, 12, 9, 6 Mbps
IEEE 802.11b 11, 5.5, 2 and 1Mbps
IEEE 802.11 2 and 1 Mbps
6.4 TECHNICAL SPECIFICATIONS
Physical Interface
LAN: 4 * RJ-45 Connector.
Wireless: 1 * 802.11 b/g AP
WAN: 1 * RJ-45 Connector..
Power Supply
Build-in Universal AC/DC Power Module
– Input
110 VAC (US)
Product Specification of the WG414
No.99 PARK AVE. III, Science-based Industrial Park,
Hsin-Chu 308, Taiwan, R.O.C. Phone (886) 3-577-7777 Fax (886) 3-577-7788
CyberTAN Technology inc. Proprietary & Confidential Information
12
– Output
12VDC/1A.
Physical Dimensions
Dimension (W X D x H): 160 * 138 mm
Environmental Specifications (Tolerance 10%)
Operating Temperature: 0 to 40°C.
Storage Temperature: -20 to 70°C.
Operating Humidity 10 to 90% RH..
Thermal Test.
Product Specification of the WG414
No.99 PARK AVE. III, Science-based Industrial Park,
Hsin-Chu 308, Taiwan, R.O.C. Phone (886) 3-577-7777 Fax (886) 3-577-7788
CyberTAN Technology inc. Proprietary & Confidential Information
13
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct the interference
by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate this equipment.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This
equipment should be installed and operated with minimum distance 20cm between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
