The Powered-USB controller board contains specific technology covered by a patent held by IBM Corporation. CyberData has obtained a license from IBM that
permits CyberData Corporation, among other things, to make or sell products that incorporate this technology. The license also permits these products to be
resold by an entity after they have been initially sold by CyberData.
CyberData Corporation - 2555 Garden Road - Monterey, California 93940
(831) 373-2601 - (831) 373-4193 - www.cyberdata.net

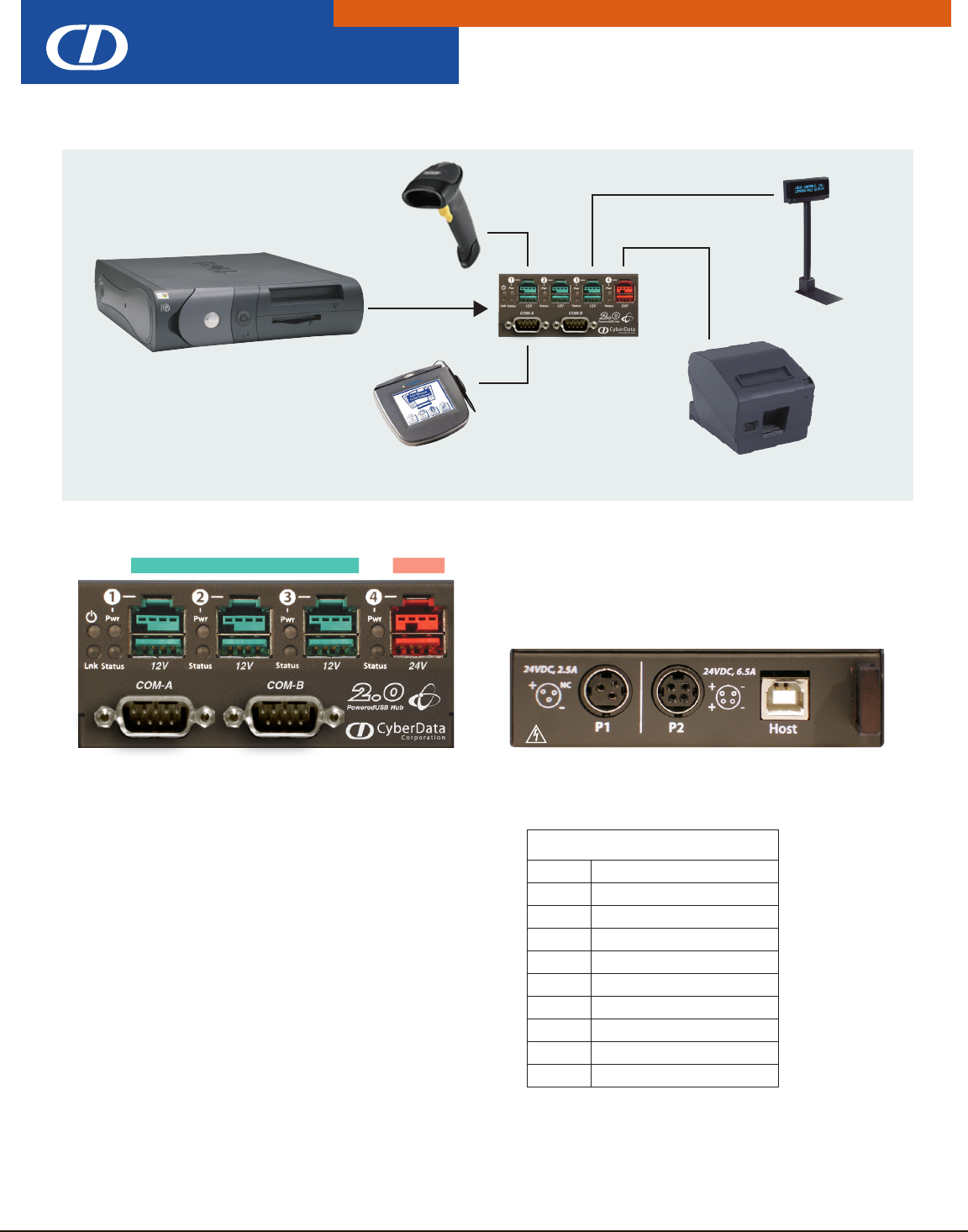

CyberData Corporation

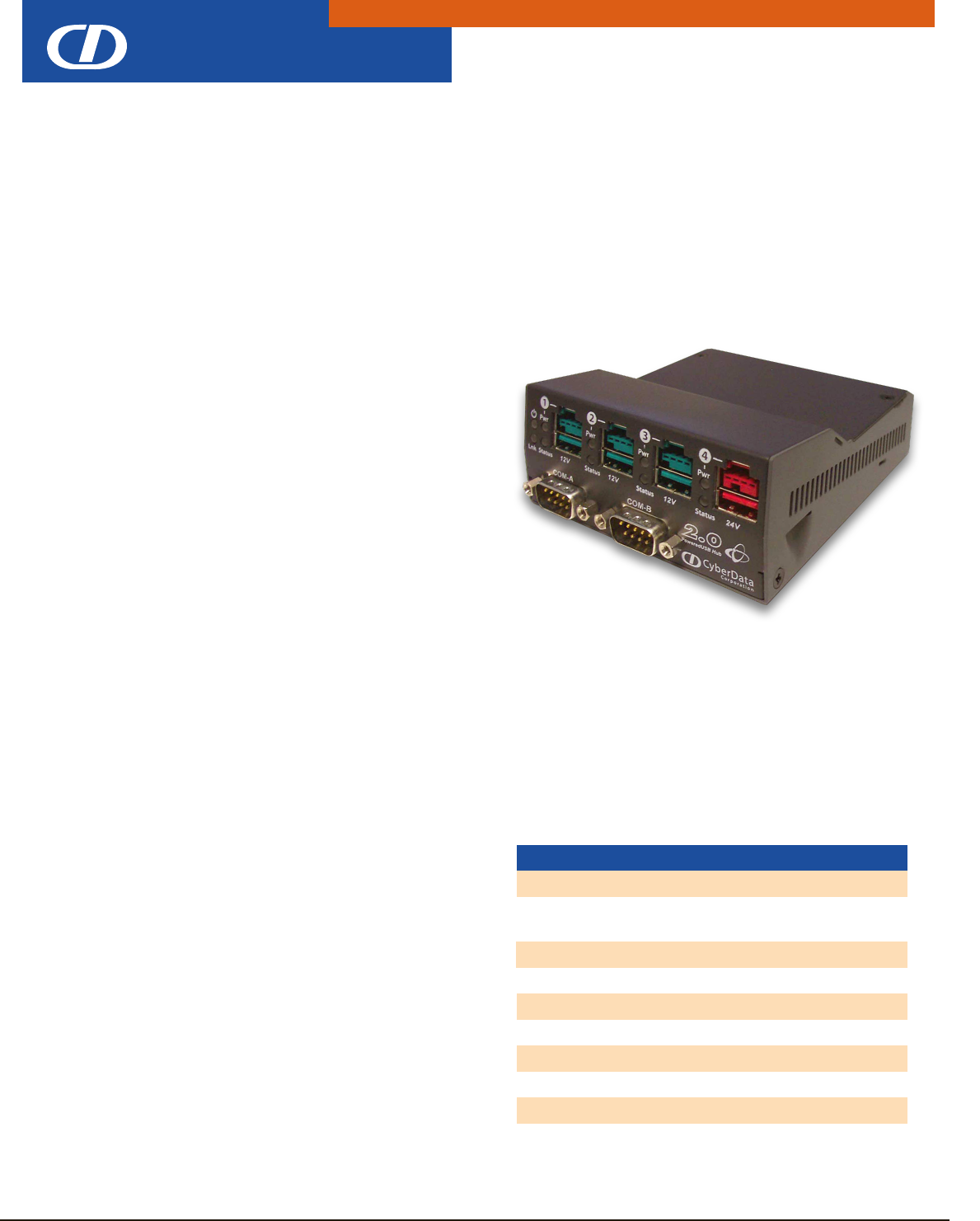

4-Port PoweredUSB 2.0 & RS232
External Hub
Caution: Do not connect both P1 & P2 simultaneously
Display
Scanner
Printer
RS232 Signature Capture Pad
Front
COM-B COM-A
Back
PC Host
Typical Installation
+12V +24V
CyberData high quality 2.0 compliant
PoweredUSB cables
http://www.cyberdata.net/products/poweredus
b/pusbcables.html
Host Connector
The Host connector is a standard USB "A" to
"B" type cable. Maximum length is 5 meters
(16.5 feet) with good quality cable.
Serial Port Specifications (DB-9 Male)
- Full Duplex TxD / RxD
- Full Modem Control (RTS, CTS, DTR, DSR, DCD and RI)
- Data Bits: 5, 6, 7 and 8
- Parity: Odd/Even or None
- Stop Bits: 1, 1.5 and 2 Stop Bits Support
- Break Character Support
- Parity and Frame Error Support
- 512 Byte Bi-Directional Data Buffer
- Supports Remote Wake-up from Modem Signal
- Standby Low Power Mode
- Standard Baud Rates: 75bps up to 230.4Kbps
- Pin# 9 is voltage configurable with overcurrent protection
DB-9M Pinout
Signal Pin#
-DCD
RXD
TXD
-DTR
GND
-DSR
-RTS
-CTS
-RI or +5V, +12V, +24V
1
2
3
4
5
6
7
8
9
4-Port PoweredUSB 2.0 & RS232
External Hub
Features
- Dell Retail Integrator compatible
- Adds 2 Full-Featured RS232 ports
- Adds 4 PoweredUSB ports
- Translation convertor on all USB ports
- One +24 volt at 2.3A
Three +12 volt at 1.5A each
- Short circuit and overcurrent protected
- Designed to support multi-function
printer power requirements
- Peripheral power control by stand-by/wake
commands
- External LED to show USB port status
- Two year warranty
The CyberData PoweredUSB and RS-232
Hub enables PoweredUSB connectivity in a
standard PC configuration. This hub
solution also provides legacy serial device
connectivity via two RS232 ports allowing
you to use existing RS-232 devices until
they are ready for migration.
CyberData's hub solution is the centerpiece
of a simple migration strategy for your entire
POS environment.
Translation Technology
CyberData's USB 2.0 translation technology
allows each PoweredUSB port to
communicate to the host PC at 2.0 speeds,
even if the attached device is only USB 1.1
compliant.
Compatibility
IBM PC Windows 98SE, 2000, & XP compatible.
Apple Computer & Linux also supported.
USB Standard 2.0 is fully supported.
External Power Supply
24V, 120W power supply included.
PoweredUSB Ports 4
PoweredUSB Power Output*
(Standard)
1 @ 24V 2.3A
3 @ 12V 1.5A each
RS232 Ports 2 DB9M with power option
2 year limited
Power, link & status
FCC Class B, UL 60950-1, CE
Warranty
010845 Part Number
External LEDs
Regulatory Compliance
*All ports support standard "A" type +5V USB connection.
PoweredUSB & RS232 External Hub Specifications
Power Input 24VDC
CyberData Corporation Innovative Concepts in Peripheral Connectivity.
CyberData Corporation
930160A
