Stand-Alone

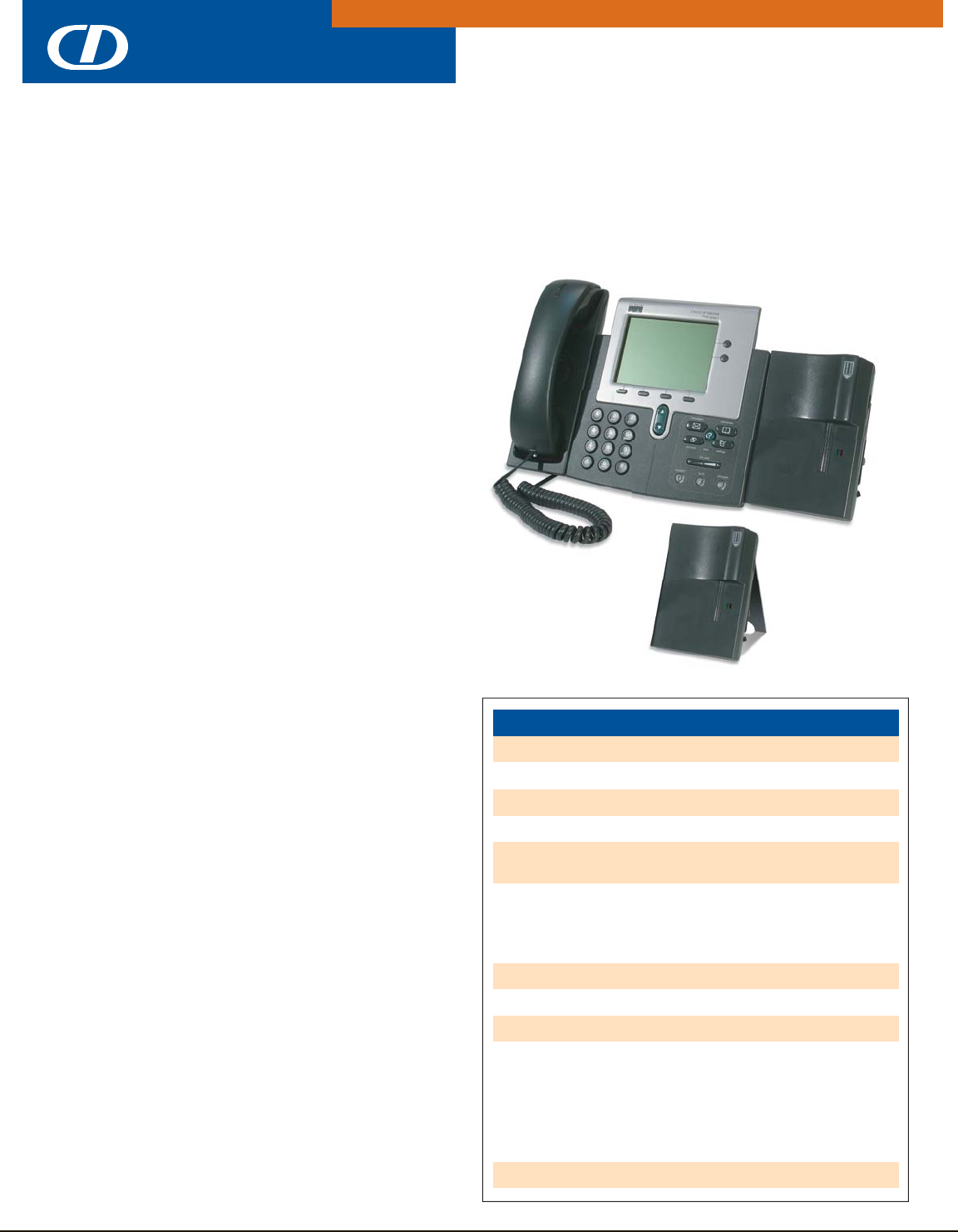

VoIP Card Reader/Network Device Module

Features

 3-track Magnetic Card Reader

 RFID Reader

 Optional hand scanner interface

 Pass-through Ethernet 10/100Mbps hub

 Mounts onto Cisco 7xxx series phone foot

stand

 Stand-alone desktop stand

 Low Profile and Small Footprint

 Field upgradeable firmware

 LED indicator provides status of the

reader operations

The CyberData VOIP card reader is a

network Device Module that augments a

VOIP phone enabling application specific

connectivity over a network. It supports a

wide range of devices, enabling value added

applications such as time and attendance

and access control.

Environmental:

Minimum and maximum operating temperature.

Operating: -30 to 55 C (-22 to 131 F)

Minimum and maximum non-operating

temperature

Storage: -40 to 80 C (-40 to 176 F)

Humidity 0% - 95% (non-condensing)

Software:

Test application and software interface source

specification is available on request.

RFID standards ISO15693, 4443

Status Indicators LEDs

Regulatory FCC, UL

Magnetic Stripe Encoding Standard ISO 3554

Communications Encryption 256 bit AES

POE 802.3af or Injector or

external supply +48volts DC

Power Supply

Interface Connections:

Scanner RJ11

Hub/Network RJ45

DC input 2.5mm Barrel Connector

VoIP Card Reader Specifications

Stripe Card Standards ISO 7810, 7811

RoHS Compliant

Part Numbers:

MCR-3TRK, 1 Port Hub 010901

MCR-3TRK, 1 Port Hub, RFID 010903

MCR-3TRK, 1 Port Hub, Bioreader 010916

MCR-3TRK, 1 Port Hub, RFID, Bioreader 010918

Desktop Stand 010909

Cisco Power Cable Adapter 010886

Yes

CyberData Corporation 2555 Garden Road Monterey, California 93940

(831) 373-2601 (831) 373-4193 www.cyberdata.net

930154C/070810

CyberData Corporation

CyberData Corporation

IGMP

PoE 802.3af enabled

Optional Bioreader

CyberData Corporation 2555 Garden Road Monterey, California 93940

(831) 373-2601 (831) 373-4193 www.cyberdata.net

CyberData Corporation

VoIP Card Reader/Network Device Module

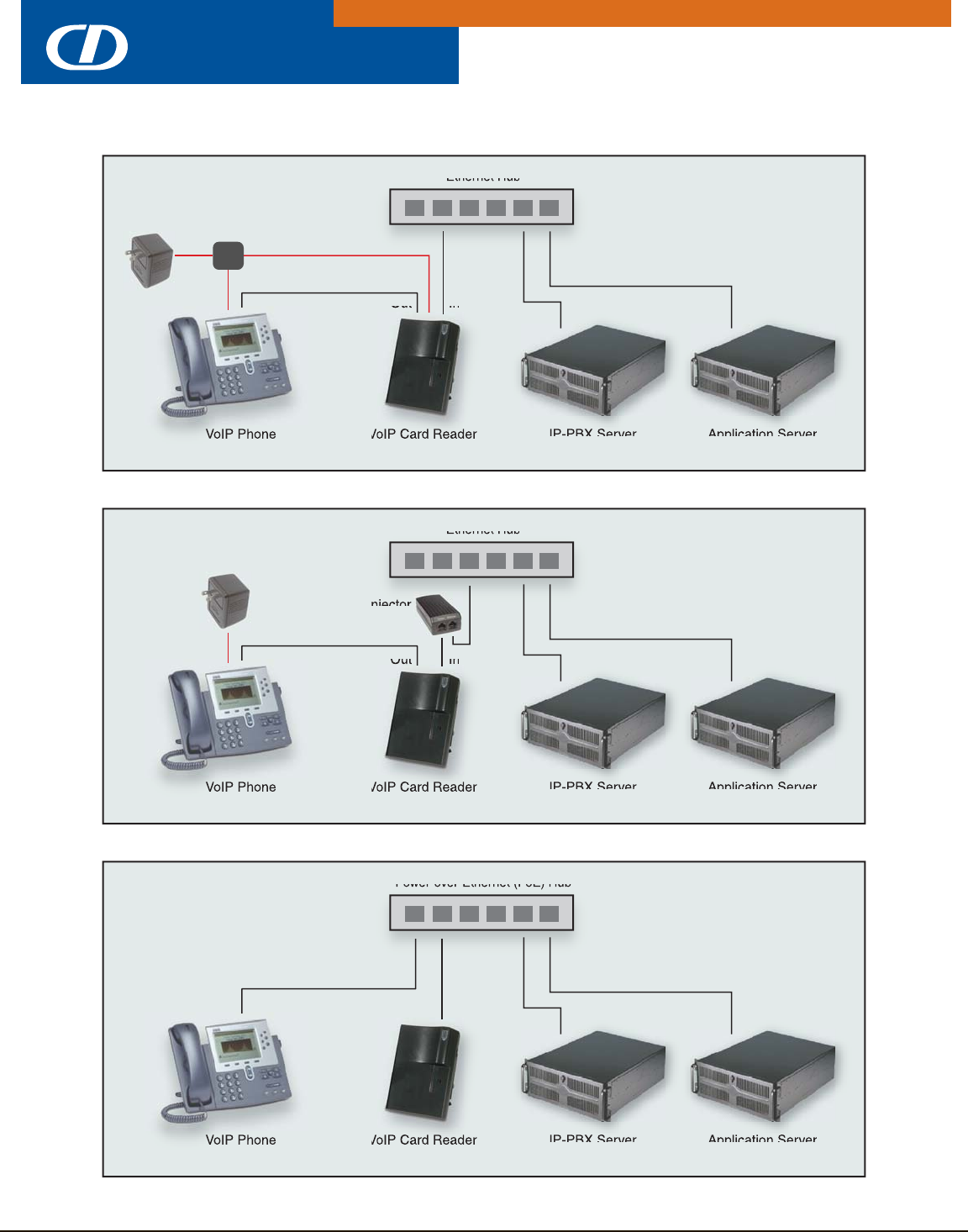

Typical Installation Power-over-Ethernet (PoE) Hub

Application ServerIP-PBX ServerVoIP Card ReaderVoIP Phone

123456

Typical Installation Ethernet Hub

Application ServerIP-PBX ServerVoIP Card Reader

with Hub

VoIP Phone

Phone PSU PoE Injector

InOut

123456

Typical Installation Ethernet Hub

Application ServerIP-PBX ServerVoIP Card Reader

with Hub

VoIP Phone

+48v Splitter

Phone PSU

InOut
