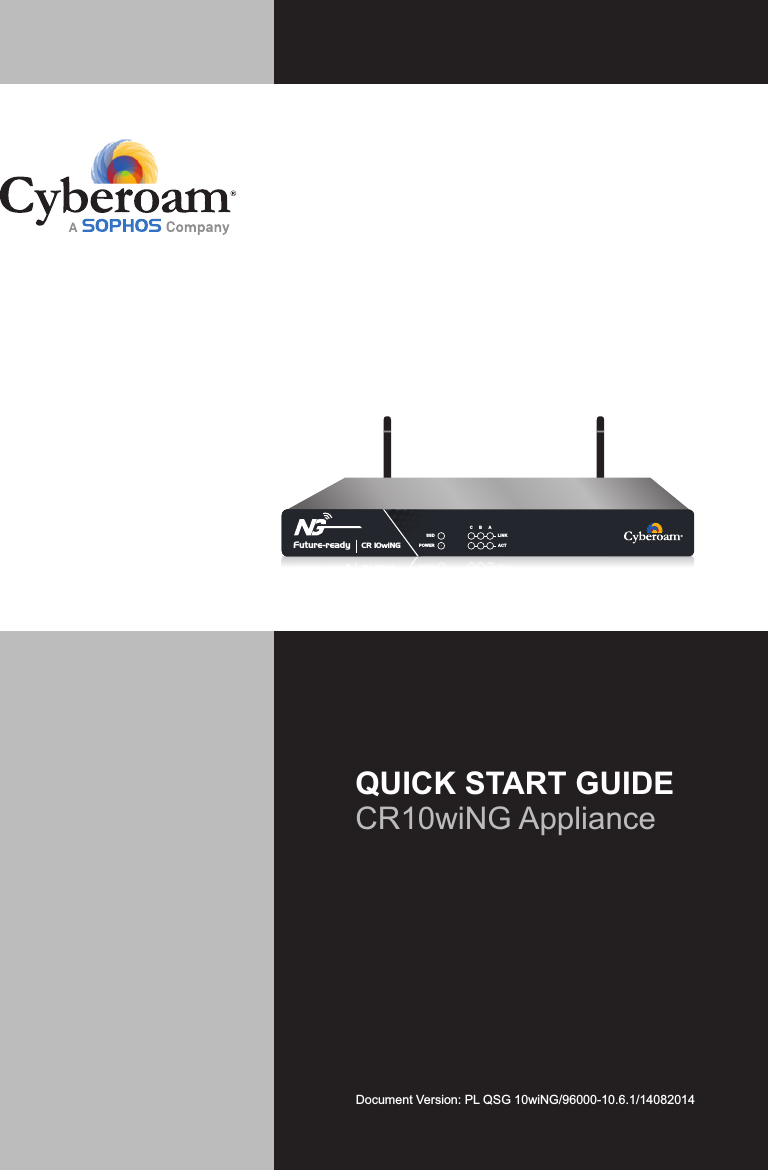

Document Version: PL QSG 10wiNG/96000-10.6.1/14082014QUICK START GUIDECR10wiNG ApplianceCR 10wiNGFuture-ready SSDPOWERCACTLINKB A

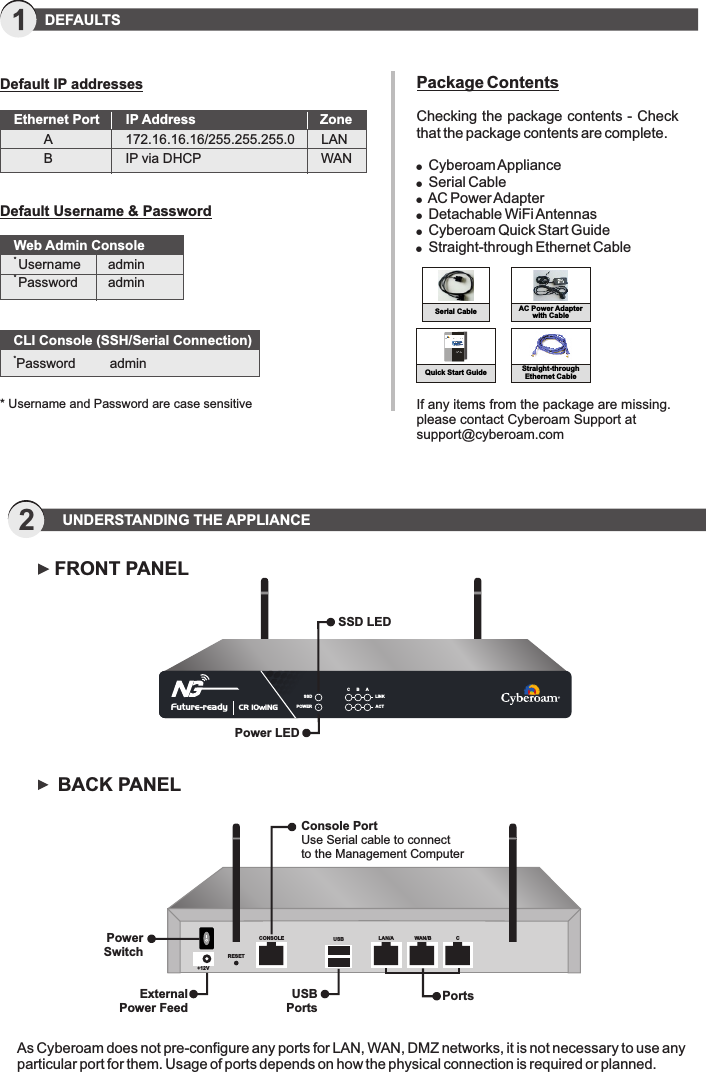

CR 10wiNGFuture-ready SSDPOWERCACTLINKB AUSB+12VLAN/A WAN/B CRESETCONSOLE2 UNDERSTANDING THE APPLIANCEAs Cyberoam does not pre-configure any ports for LAN, WAN, DMZ networks, it is not necessary to use any particular port for them. Usage of ports depends on how the physical connection is required or planned. FRONT PANELSSD LED Console PortUse Serial cable to connectto the Management ComputerExternal Power Feed BACK PANELUSB Ports PortsPower LEDPower Switch DEFAULTS * Username and Password are case sensitive CLI Console (SSH/Serial Connection)*Password adminWeb Admin Console* Username admin* Password adminDefault IP addressesDefault Username & PasswordEthernet Port IP Address one Z A 172.16.16.16/255.255.255.0 LAN B IP via DHCP WANPackage ContentsChecking the package contents - Check that the package contents are complete.! Cyberoam Appliance ! Serial Cable ! AC Power Adapter! Detachable WiFi Antennas! Cyberoam Quick Start Guide! Straight-through Ethernet CableIf any items from the package are missing. please contact Cyberoam Support at support@cyberoam.comStraight-through Ethernet Cable AC Power Adapterwith CableSerial CableQuick Start Guide

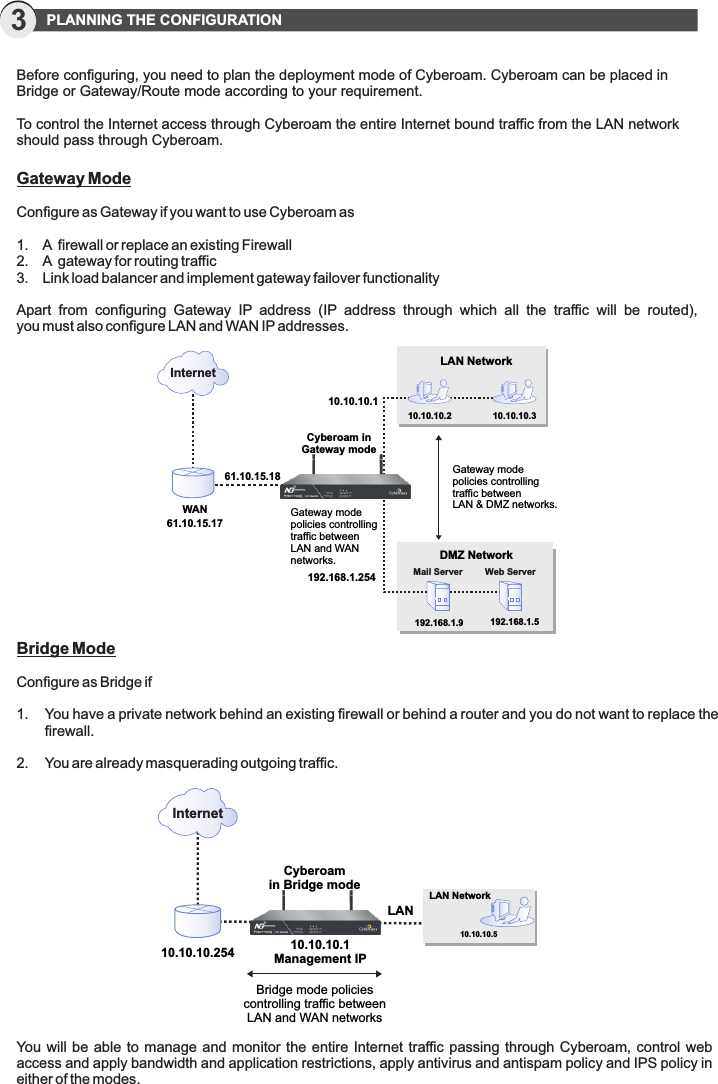

Before configuring, you need to plan the deployment mode of Cyberoam. Cyberoam can be placed in Bridge or Gateway/Route mode according to your requirement. To control the Internet access through Cyberoam the entire Internet bound traffic from the LAN network should pass through Cyberoam.3 PLANNING THE CONFIGURATIONGateway ModeConfigure as Gateway if you want to use Cyberoam as1. A firewall or replace an existing Firewall2. A gateway for routing traffic3. Link load balancer and implement gateway failover functionalityApart from configuring Gateway IP address (IP address through which all the traffic will be routed), you must also configure LAN and WAN IP addresses.WAN Gateway mode policies controllingtraffic between LAN and WAN networks.Gateway mode policies controlling traffic betweenLAN & DMZ networks.Cyberoam in Gateway modeLAN Network10.10.10.2 10.10.10.3Mail Server Web Server192.168.1.25410.10.10.1InternetDMZ Network192.168.1.5192.168.1.961.10.15.1761.10.15.18Bridge ModeConfigure as Bridge if 1. You have a private network behind an existing firewall or behind a router and you do not want to replace the firewall.2. You are already masquerading outgoing traffic.Cyberoamin Bridge mode10.10.10.5LAN Network10.10.10.254LAN10.10.10.1Management IPBridge mode policiescontrolling traffic betweenLAN and WAN networksInternetYou will be able to manage and monitor the entire Internet traffic passing through Cyberoam, control web access and apply bandwidth and application restrictions, apply antivirus and antispam policy and IPS policy in either of the modes.

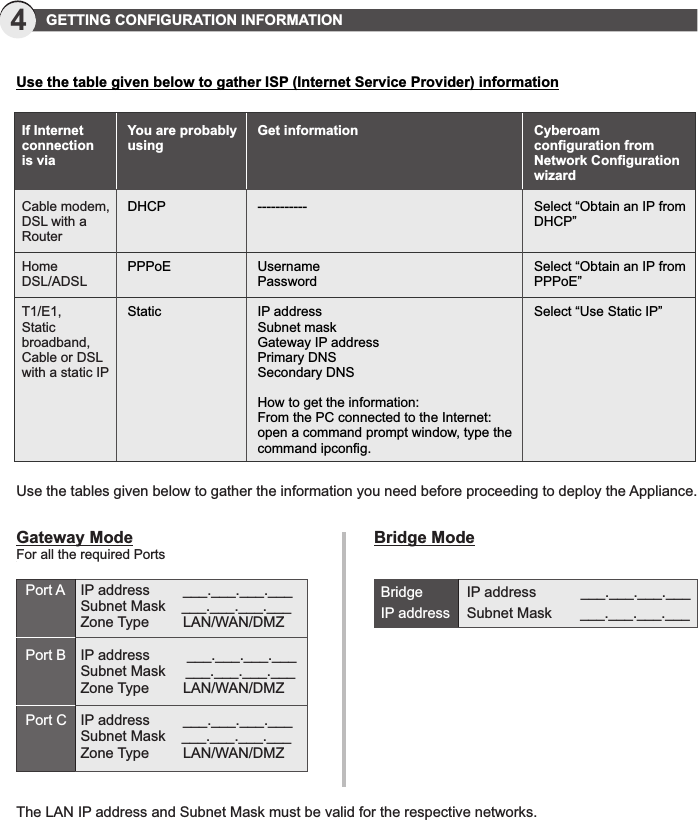

Gateway Mode For all the required Ports Use the tables given below to gather the information you need before proceeding to deploy the Appliance.4 GETTING CONFIGURATION INFORMATIONThe LAN IP address and Subnet Mask must be valid for the respective networks.Port A IP address ___.___.___.___ Subnet Mask ___.___.___.___ Zone Type LAN/WAN/DMZPort B IP address ___.___.___.___ Subnet Mask ___.___.___.___ Zone Type LAN/WAN/DMZPort C IP address ___.___.___.___ Subnet Mask ___.___.___.___ Zone Type LAN/WAN/DMZBridge ModeBridge IP address ___.___.___.___IP address Subnet Mask ___.___.___.___ You are probably usingDHCPPPPoEStaticGet information-----------UsernamePasswordIP addressSubnet maskGateway IP addressPrimary DNSSecondary DNSHow to get the information:From the PC connected to the Internet:open a command prompt window, type the command ipconfig.If Internet connectionis viaCable modem, DSL with a RouterHome DSL/ADSLT1/E1,Staticbroadband,Cable or DSLwith a static IPUse the table given below to gather ISP (Internet Service Provider) informationCyberoam configuration from Network Configuration wizardSelect “Obtain an IP from DHCP”Select “Obtain an IP from PPPoE”Select “Use Static IP”

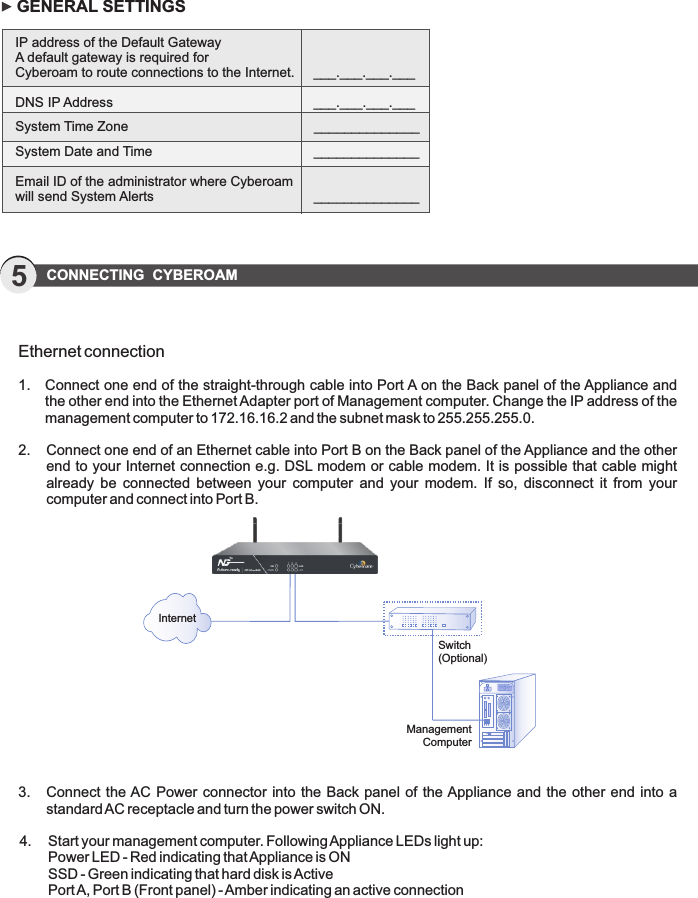

GENERAL SETTINGSIP address of the Default GatewayA default gateway is required for Cyberoam to route connections to the Internet. ___.___.___.___DNS IP Address ___.___.___.___System Time Zone ______________System Date and Time ______________ Email ID of the administrator where Cyberoam will send System Alerts ______________5CONNECTING CYBEROAMEthernet connection1. Connect one end of the straight-through cable into Port A on the Back panel of the Appliance and the other end into the Ethernet Adapter port of Management computer. Change the IP address of the management computer to 172.16.16.2 and the subnet mask to 255.255.255.0.2. Connect one end of an Ethernet cable into Port B on the Back panel of the Appliance and the other end to your Internet connection e.g. DSL modem or cable modem. It is possible that cable might already be connected between your computer and your modem. If so, disconnect it from your computer and connect into Port B. 3. Connect the AC Power connector into the Back panel of the Appliance and the other end into a standard AC receptacle and turn the power switch ON.4. Start your management computer. Following Appliance LEDs light up: Power LED - Red indicating that Appliance is ON SSD - Green indicating that hard disk is Active Port A, Port B (Front panel) - Amber indicating an active connectionInternetSwitch (Optional)Management Computer

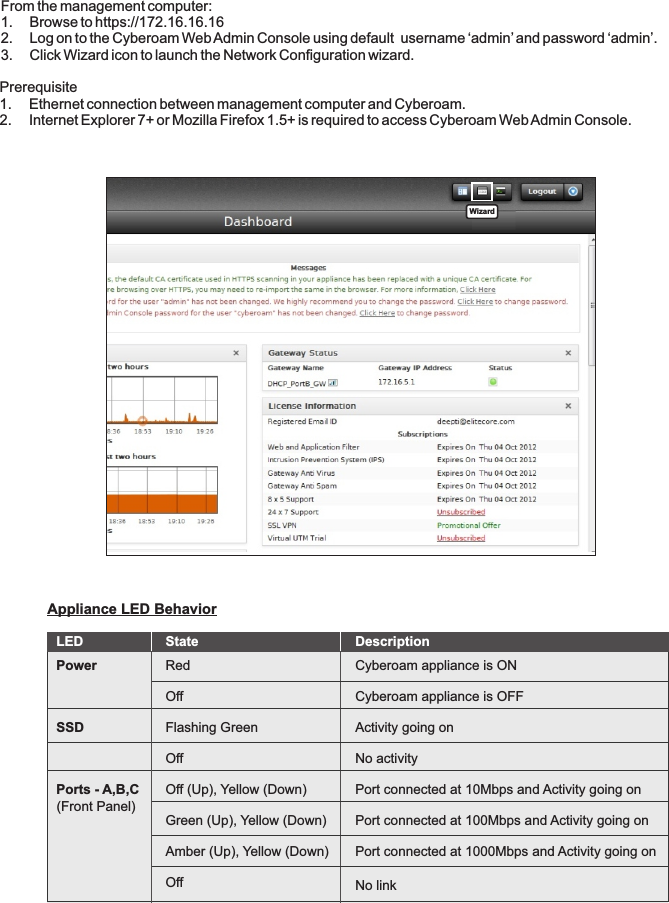

WizardFrom the management computer:1. Browse to https://172.16.16.162. Log on to the Cyberoam Web Admin Console using default username ‘admin’ and password ‘admin’. 3. Click Wizard icon to launch the Network Configuration wizard.Prerequisite1. Ethernet connection between management computer and Cyberoam.2. Internet Explorer 7+ or Mozilla Firefox 1.5+ is required to access Cyberoam Web Admin Console.StateRedOffFlashing GreenOffOff (Up), Yellow (Down)Green (Up), Yellow (Down)Amber (Up), Yellow (Down)OffDescriptionCyberoam appliance is ONCyberoam appliance is OFFActivity going onNo activityPort connected at 10Mbps and Activity going onPort connected at 100Mbps and Activity going onPort connected at 1000Mbps and Activity going onNo linkLEDPowerSSDPorts - A,B,C(Front Panel)Appliance LED Behavior

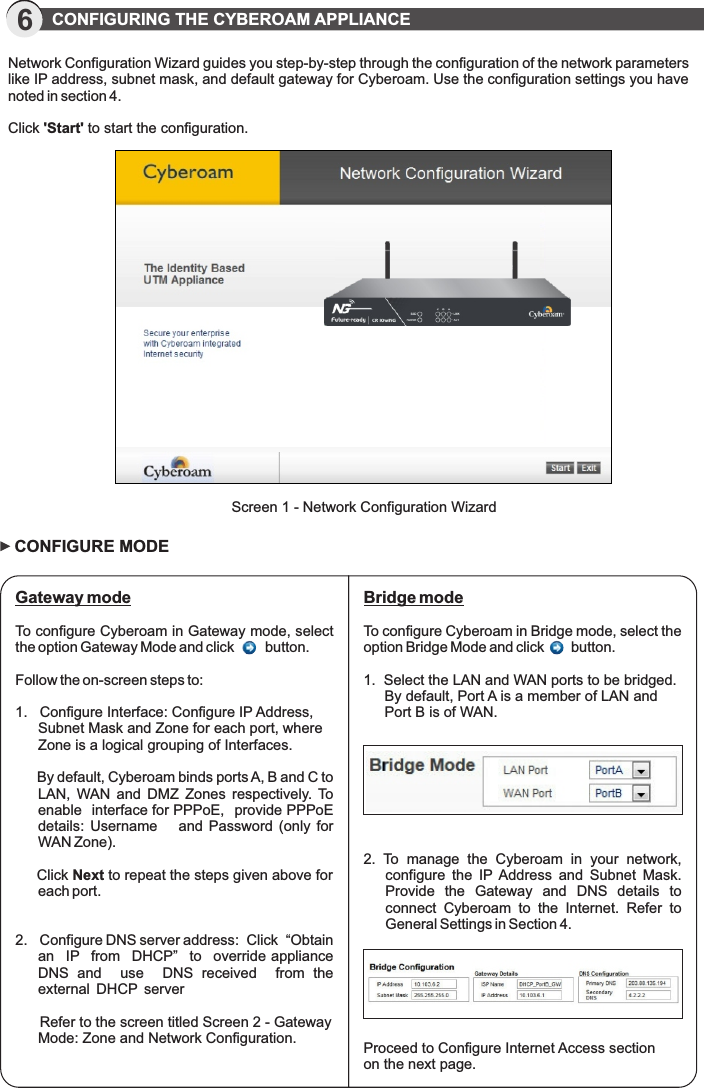

6 CONFIGURING THE CYBEROAM APPLIANCE Network Configuration Wizard guides you step-by-step through the configuration of the network parameters like IP address, subnet mask, and default gateway for Cyberoam. Use the configuration settings you have noted in section 4.Click 'Start' to start the configuration.Screen 1 - Network Configuration Wizard Gateway mode To configure Cyberoam in Gateway mode, select the option Gateway Mode and click button.Follow the on-screen steps to:1. Configure Interface: Configure IP Address, Subnet Mask and Zone for each port, where Zone is a logical grouping of Interfaces. By default, Cyberoam binds ports A, B and C to LAN, WAN and DMZ Zones respectively. To enable interface for PPPoE, provide PPPoE details: Username and Password (only for WAN Zone). Click Next to repeat the steps given above for each port.2. Configure DNS server address: Click “Obtain an IP from DHCP” to override appliance DNS and use DNS received from the external DHCP server Refer to the screen titled Screen 2 - Gateway Mode: Zone and Network Configuration.CONFIGURE MODEProceed to Configure Internet Access section on the next page.Bridge modeTo configure Cyberoam in Bridge mode, select the option Bridge Mode and click button.1. Select the LAN and WAN ports to be bridged. By default, Port A is a member of LAN and Port B is of WAN.2. To manage the Cyberoam in your network, configure the IP Address and Subnet Mask. Provide the Gateway and DNS details to connect Cyberoam to the Internet. Refer to General Settings in Section 4.

1Until Intrusion Prevention System module is subscribed, IPS scanning will not be effective. 2Until Gateway Anti Virus module is subscribed, virus scanning will not be effective.Screen 3 - Access Configuration CONFIGURE INTERNET ACCESSBy default, Cyberoam applies 'General Internet Policy' as Internet access policy for LAN to WAN traffic. Do not change the default setting.Cyberoam provides 3 types of policies:'Monitor Only' policy allows all LAN to WAN traffic 1 2'General Internet' policy enables IPS and Virus scanning and allows LAN to WAN traffic except Unhealthy Web and Internet traffic as defined by Cyberoam. This will include sites related to Adult contents, Drugs, Crime and Suicide, Gambling, Militancy and Extremist, Violence, Weapons, Phishing and Fraud and URL Translation sites.1 2'Strict Internet' policy enables IPS and Virus scanning and allows only authenticated LAN to WAN traffic.Click button to configure the mail settingsDNS ConfigurationInterface ConfigurationScreen 2 - Gateway Mode: Zone and Network Configuration

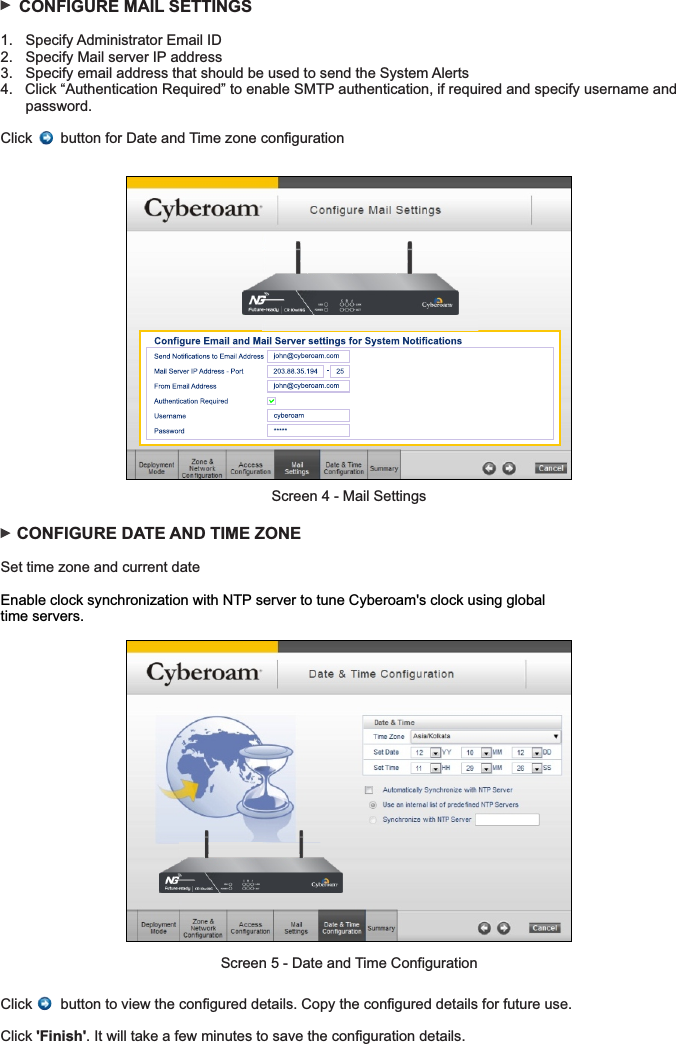

CONFIGURE MAIL SETTINGS1. Specify Administrator Email ID2. Specify Mail server IP address 3. Specify email address that should be used to send the System Alerts4. Click “Authentication Required” to enable SMTP authentication, if required and specify username and password.Click button for Date and Time zone configuration CONFIGURE DATE AND TIME ZONE Set time zone and current dateEnable clock synchronization with NTP server to tune Cyberoam's clock using global time servers.Click button to view the configured details. Copy the configured details for future use.Click 'Finish'. It will take a few minutes to save the configuration details.Screen 4 - Mail SettingsScreen 5 - Date and Time Configuration

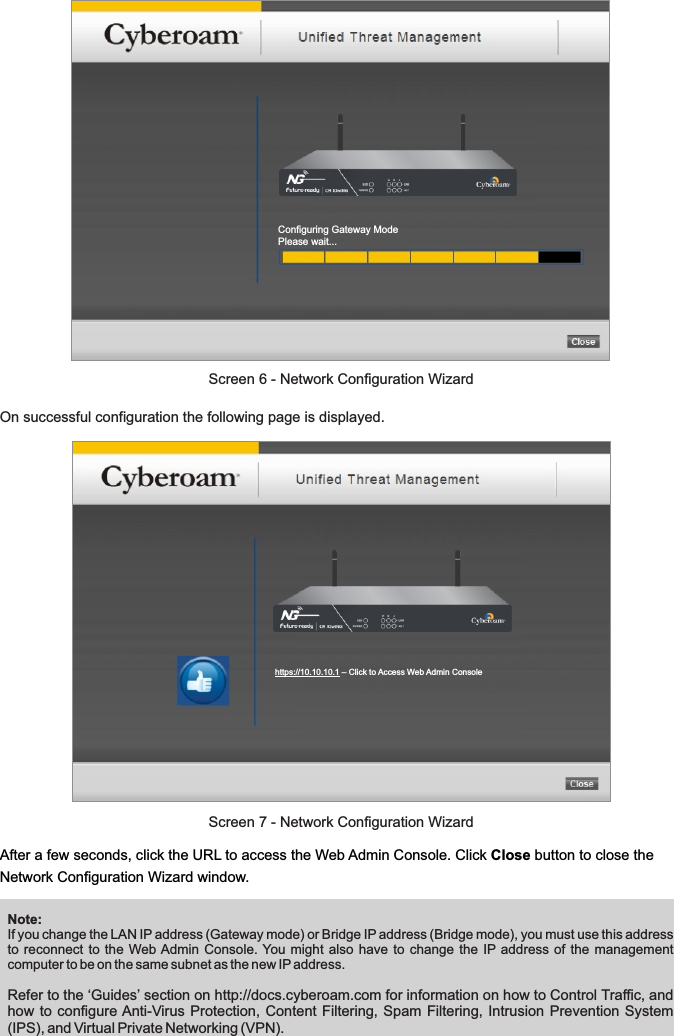

Configuring Gateway ModePlease wait...https://10.10.10.1 – Click to Access Web Admin ConsoleAfter a few seconds, click the URL to access the Web Admin Console. Click Close button to close the Network Configuration Wizard window.On successful configuration the following page is displayed. Note: If you change the LAN IP address (Gateway mode) or Bridge IP address (Bridge mode), you must use this address to reconnect to the Web Admin Console. You might also have to change the IP address of the management computer to be on the same subnet as the new IP address.Refer to the ‘Guides’ section on http://docs.cyberoam.com for information on how to Control Traffic, and how to configure Anti-Virus Protection, Content Filtering, Spam Filtering, Intrusion Prevention System (IPS), and Virtual Private Networking (VPN).Screen 6 - Network Configuration WizardScreen 7 - Network Configuration Wizard

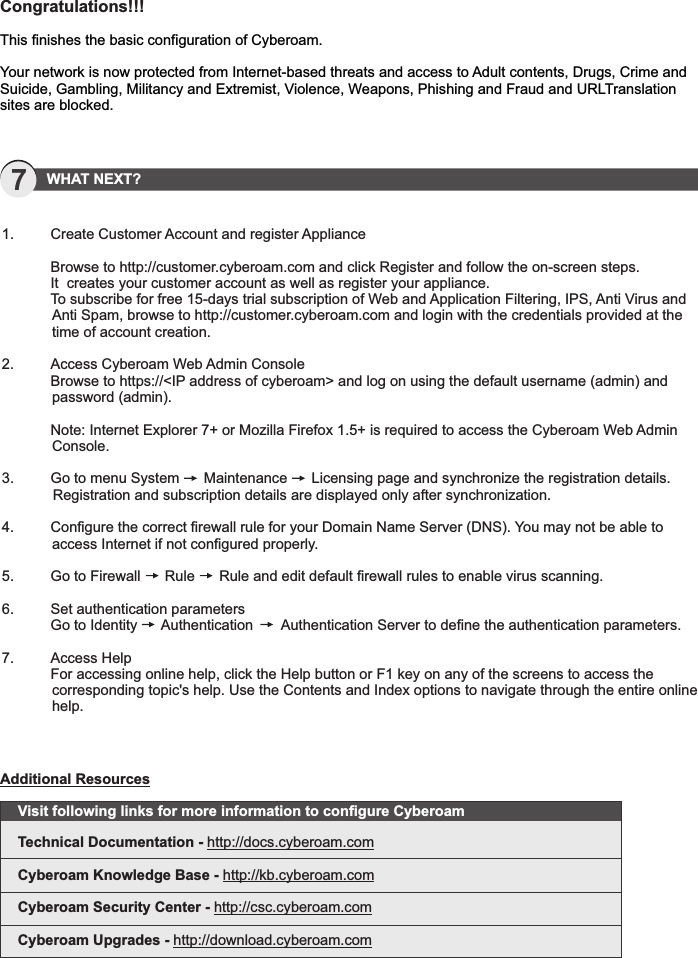

7 WHAT NEXT?1. Create Customer Account and register Appliance Browse to http://customer.cyberoam.com and click Register and follow the on-screen steps. It creates your customer account as well as register your appliance. To subscribe for free 15-days trial subscription of Web and Application Filtering, IPS, Anti Virus and Anti Spam, browse to http://customer.cyberoam.com and login with the credentials provided at the time of account creation. 2. Access Cyberoam Web Admin Console Browse to https://<IP address of cyberoam> and log on using the default username (admin) and password (admin). Note: Internet Explorer 7+ or Mozilla Firefox 1.5+ is required to access the Cyberoam Web Admin Console. 3. Go to menu System Maintenance Licensing page and synchronize the registration details. Registration and subscription details are displayed only after synchronization. 4. Configure the correct firewall rule for your Domain Name Server (DNS). You may not be able to access Internet if not configured properly. 5. Go to Firewall Rule Rule and edit default firewall rules to enable virus scanning. 6. Set authentication parameters Go to Identity Authentication Authentication Server to define the authentication parameters. 7. Access Help For accessing online help, click the Help button or F1 key on any of the screens to access the corresponding topic's help. Use the Contents and Index options to navigate through the entire online help.Congratulations!!!This finishes the basic configuration of Cyberoam.Your network is now protected from Internet-based threats and access to Adult contents, Drugs, Crime and Suicide, Gambling, Militancy and Extremist, Violence, Weapons, Phishing and Fraud and URLTranslation sites are blocked.Visit following links for more information to configure CyberoamTechnical Documentation - http://docs.cyberoam.comCyberoam Knowledge Base - http://kb.cyberoam.comCyberoam Security Center - http://csc.cyberoam.comCyberoam Upgrades - http://download.cyberoam.comAdditional Resources

FCC Statement: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communication. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTICE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This device and it’s antennas(s) must not be co-located or operating in conjunction with any other antenna or transmitter except in accordance with FCC multi-transmitter product procedures. The availability of some specific channels and/or operational frequency bands are country dependent and are firmware programmed at the factory to match the intended destination. The firmware setting is not accessible by the end user.
