Cybiotronics 373001 2.4GHz 92 Channel DSSS Cordless Phone w/ CID User Manual CY373D SBC 200410142

2.4 GHz Digital DSS

Caller ID/Call Waiting Type 2 and Call Waiting ID Options

Owner’s Manual

Installation and

Operating Instructions

CALL ER ID / CAL LER ID CAL L W AITING /

CALL W AITING ID OPTIONS COM PATIBL E

Caller ID, Caller ID Call W aiting, and/or Call Waiting ID Options

Services, where availabl e, are SBC’s services. After

subscribing to Caller ID, Caller ID Call Waiting and/or Call

Waiting ID Options Services, this phone will display caller/Caller

Waiting party’s name and p

hone number, and the accessing soft

keys of the Call W aiting ID Options ser vice.

Please read

this manual

carefully

before use.

Keep for your

reference.

SBC373

2-LINE M ULTI-HANDSET CORDLESS SYSTEM

1

PAG E

IMPORTANT INFORM ATION

IM PO RTANT SAFETY INSTRUCTIO NS ....................................................................................4

SPECIAL FEATURES.........................................................................................................5

CHOOSE THE BEST LOC ATION ....................................................................................6

LOCATION OF CONTROLS..............................................................................................7

Handset ..............................................................................................................................7

Base Unit............................................................................................................................9

LCD DISPLAY....................................................................................................................11

Backlit LCD Display........................................................................................................ 11

Backlit Keypad ................................................................................................................. 11

DATA PORT .......................................................................................................................11

QUICK REFERENCE...................................................................................................... 12

GETTING STARTED

CHARGING THE BATTER Y PACK ............................................................................... 15

Low Battery......................................................................................................................15

Clean the Battery Contacts ..............................................................................................15

CONNECTING THE BASE UNIT .................................................................................. 16

Connecting Telephone line cord(s)...................................................................................16

Connecting Power Supply................................................................................................16

SPARE / BACK UP BATTERY ....................................................................................... 16

Changing drained handset battery in the middle of a call...............................................17

REGISTRATION & DE-REGISTR ATION O F H ANDSET........................................... 17

De-register a handset.......................................................................................................18

CHOOSE THE DIALING MODE .................................................................................... 19

W ALLM OUNTING BASE UNIT ...................................................................................... 20

MENU SETTINGS

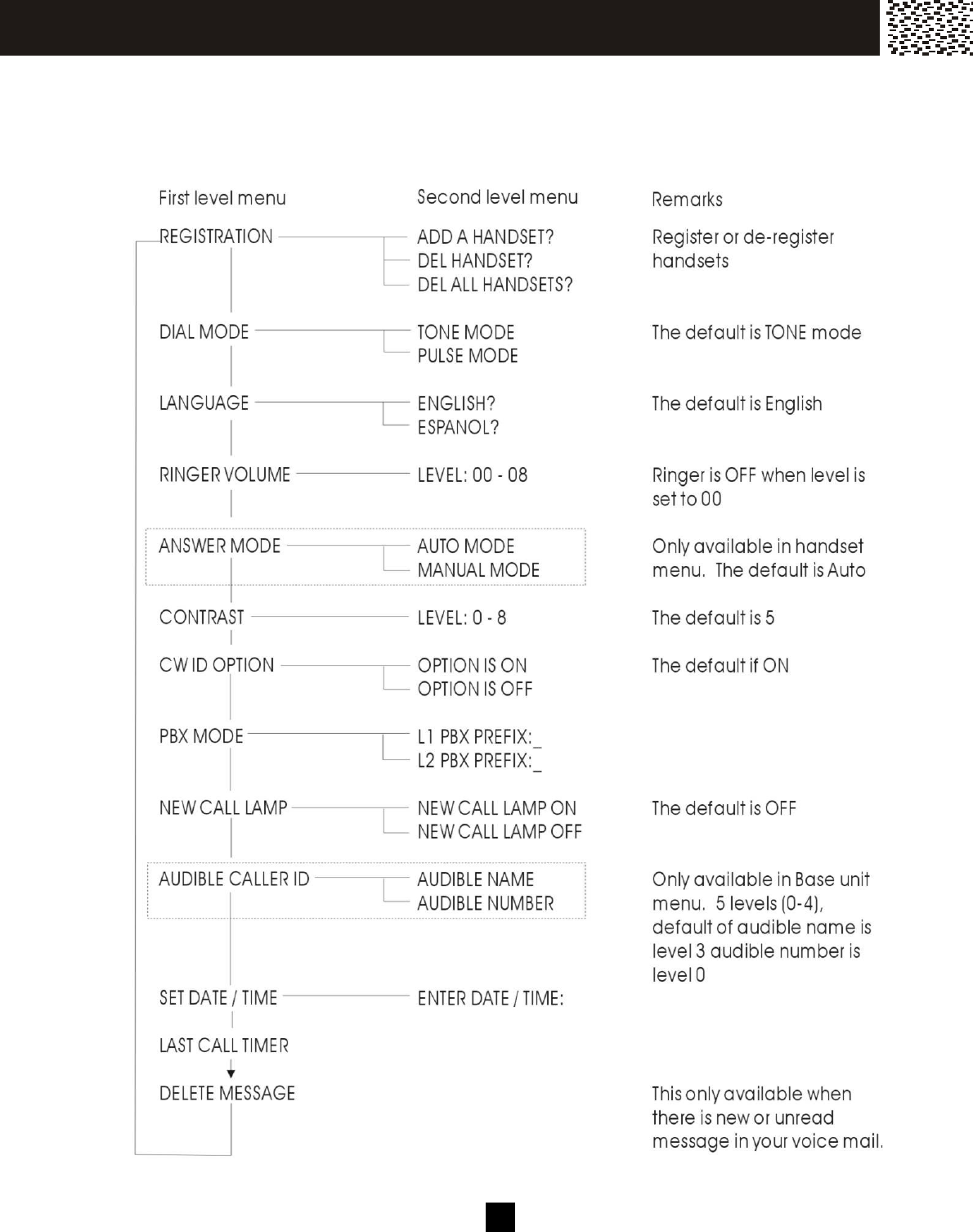

STRUCTURE AND OPTIONS ....................................................................................... 22

MENU FUNCTIONS ........................................................................................................ 22

Registration ......................................................................................................................22

Dial Mode ........................................................................................................................23

Language..........................................................................................................................23

Ringer Volume ..................................................................................................................24

Answer Mode (Only available in handset menu).............................................................24

Contrast............................................................................................................................25

Call Waiting ID Options...................................................................................................25

PBX Mode ........................................................................................................................26

New Call Lamp.................................................................................................................26

Audible Caller ID (Only available in base unit menu)....................................................27

Time and Date Setting......................................................................................................27

Last Call Timer.................................................................................................................28

Message Waiting Lamp....................................................................................................28

BASIC OPERATION

M AKING A CALL.............................................................................................................. 29

Direct Dial from Handset.................................................................................................29

Direct Dial from Base Unit ..............................................................................................29

ANSW ERING A CALL..................................................................................................... 30

C O NT E NT S

2

TO REDIAL A CALL......................................................................................................... 30

Directly Redial Last Dialed Number................................................................................30

Dial from the Redial List..................................................................................................31

ADJUSTING HANDSET RECEIVER VOLUME .......................................................... 31

TO MUTE A C ALL............................................................................................................ 31

USING HANDSET SPEAKERPHONE.......................................................................... 32

INSTALLING AND USING HEADSET .......................................................................... 32

PAG ING FRO M BASE UNIT TO HANDSET ............................................................... 32

ADVANCED OPERATION

FLASH ................................................................................................................................ 33

Call Waiting.....................................................................................................................33

PAUSE ............................................................................................................................... 33

Enter a Pause in Dialing Sequence..................................................................................33

HOLD.................................................................................................................................. 33

SENDING TONE SIGN ALS IN PULSE DIALING M ODE .......................................... 34

DIAL VO ICE M AIL............................................................................................................ 34

Program your own Voicemail access number..................................................................34

Using DIAL V.M. softkey..................................................................................................34

DIAL BACK FRO M CALLER ID LIST............................................................................ 35

DAILING FRO M PHONE BO OK DIRECTORY ........................................................... 35

CONFERENCE CALL...................................................................................................... 36

Handset and base unit conference call............................................................................36

Single line conference call (3 Way calling)......................................................................36

2 Line conference call......................................................................................................37

CALLER ID OPERATION

ABOUT CALLER IDENTIFICATION .............................................................................. 38

CALLER LIST.................................................................................................................... 38

Memory Match.................................................................................................................38

Review Caller List............................................................................................................38

Delete Record(s) from Caller List....................................................................................39

Call Back from Caller List ...............................................................................................39

Special Call Display.........................................................................................................39

Call Display Messages.....................................................................................................40

VO ICE ANNOUNCE CALLER ID .................................................................................. 40

CALL W AITING ID OPTIONS ........................................................................................ 41

Call Waiting ID Options Set to OFF................................................................................41

Call Waiting ID Options Set to ON..................................................................................41

Call Waiting ID Option: JOIN.........................................................................................42

Call Waiting ID Option: HOLD.......................................................................................42

PHONE BOOK DIRECTORY

CREATING A PHONE BOOK DIRECTORY RECORD.............................................. 43

Copy from a Caller ID Number.......................................................................................43

Add a New Number/Name................................................................................................43

RECORDING VOICE ANNOUNCE NAME .................................................................. 44

REVIEW ING PHONE BO OK DIRECTORY ................................................................. 45

EDITING A PHONE BOOK NU MBER .......................................................................... 46

DELETING AN ENTR Y FRO M A PHONE BO OK DIRECTORY .............................. 46

DELETING ALL PHONE BO OK DIRECTORY RECORDS....................................... 47

DIALING FRO M PHONE BO OK DIRECTORY ........................................................... 47

C O NT E NT S

3

MULTI-HANDSET OPERATION

INTERCOM ....................................................................................................................... 48

CALL TRANSFER ............................................................................................................ 49

OPTIONAL FEATURES DIAL LIST

DIALING SER VICES ....................................................................................................... 51

ADDITIONAL INFORMATION

CAPACITY......................................................................................................................... 51

Memory............................................................................................................................51

Call Repeat Number.........................................................................................................51

OUT OF RANGE .............................................................................................................. 51

NO CONNECTION........................................................................................................... 51

TROUBLESHOOTING.................................................................................................... 53

CARE AND MAINTENANCE......................................................................................... 54

FCCREQUIREM ENTS .................................................................................................... 55

WARRANTY...................................................................................................................... 57

NOTE.................................................................................................................................. 58

C O NT E NT S

4

Important Safety Instructions:

To reduce the risk of fire, electric shock and/or injury to persons, always follow

these basic safety precautions when using your telephone equipm ent.

1. Read, understand, and follow all instructions.

2. Unplug this telephone from the wall outlet

before cleaning. Do not use liquid or aerosol

cleaners. If necessary, use a soft cloth lightly

m oistened with a m ild detergent solution.

3. Do not use this telephone near a bathtub,

kitchen sink, wash bowl, laundry tub, swim m ing

pool, a wet basem ent or anywhere else there is

water or liquid.

4. Do not place this telephone on an unstable cart,

stand or table. A fall could cause serious

dam age to the phone.

5. Slots and openings in the cabinet at the back or

bottom are provided for ventilation to protect the

unit from overheating. These openings m ust

not be blocked or covered. Do not place this

telephone on a bed, sofa, rug or other sim ilar

surface. This telephone should never be

placed near or over a radiator or heat register.

This telephone should not be placed in a built-in

installation unless proper ventilation is provided.

6. Never push objects of any kind through slots in

the phone. They could touch dangerous

voltage points or short out parts that could result

in a risk of fire or electric shock. Never spill

liquid of any kind on the telephone.

7. Unplug this telephone from the wall outlet and

refer to a qualified service representative in any

of the following situations:-

a) If liquid has been spilled into the telephone.

b) If the telephone has been exposed to rain or

water.

c) If the telephone does not operate norm ally by

following the operating instructions. Adjust

only those controls that are covered by the

operating instructions. Im proper adjustm ent

of other controls m ay result in dam age and

will often require extensive work by a

qualified technician to restore the telephone

to norm al operation.

d) If the telephone has been dropped or the

case has been dam aged.

e) If the telephone exhibits a distinct change in

perform ance.

8. Do not use the telephone to report a gas leak in

the vicinity of the leak.

9. Avoid using a telephone (other than a cordless

type) during an electrical storm. There m ay be

a rem ote risk of electric shock from lightning.

10. Never install jacks in a wet location unless the

jack is specifically designed for wet locations.

11. Never touch uninsulated telephone wires or

term inals unless the telephone line has been

disconnected at the network interface.

12. Use with caution when installing or m odifying

telephone lines.

13. To reduce the risk of electric shock, do not

disassem ble this product, but take it to a

qualified servicem an when som e service or

repair work is required. Opening or rem oving

covers m ay expose you to dangerous voltages

or other risks. Incorrect reassem bly can cause

electric shock when the appliance is

subsequently used.

14. CAUTION

RISK OF EXPLOSION IF BATTERY IS

REPLACED BY AN INCORRECT TYPE.

Sanyo Energy (Hong Kong) Co., Ltd,

3KR-600AAL, NiCd 3.6V, 600m Ah

DISPOSE OF USED BATTERIES ACCORDING

TO THE INSTRUCTIONS.

15. Use only the power cord and batteries indicated

in this m anual. Do not dispose of batteries in

fire. They m ay explode. Check with local

codes for possible special disposal instructions.

16. Plug the adaptor to the socket-outlet that near

the equipm ent and shall be easily accessible.

IM PO R TAN T IN FO R M AT IO N

Use only with Class 2 Power Source, 9V DC, 1000m A for base unit

SAVE THESE INSTRUCTIONS

5

SPECIAL FEATURES

Your new 2-Line Multi-handset Cordless System is designed and engineered to exacting

standards for reliability, long life, and outstanding perform ance.

Note:

Charge all of the batteries for at least 15 hours prior to initial use. SEE PAGE 15

FOR DETAILS!

• Truly 2-Line cordless system , both lines can be operated sim ultaneously

• 2.4 GHz Digital DSS Cordless Phone

• Multiple handsets capability, supports up to 8 handsets

• 3 W ay Conference call between Line 1 and Line 2

• 3 W ay Conference call between a handset, the base unit and an external line

• Two-way intercom between 2 handsets or between base and handset

• Handset-to-Handset FRS-like two-way intercom independent of the base unit.

• Handsfree speakerphone on handset

• Handsfree speakerphone on base unit, giving the base unit com plete functionality of

another handset

• Dedicated keys on the base unit: Redial / Flash / Line1 Speakerphone / Line2

Speakerphone / Intercom / Conference / Mute / Directory / Voicem ail / Shortcut to

Optional Features Dial

• Caller ID Type I, II and Call W aiting ID Options capability

• Voice Announce Caller ID

• Backlit 7-Line Multi-Function LCD on both the handset and the base unit

• Five Softkeys on both handset and base unit to access different functions depending

on which m ode the phone is currently in.

• Handset and base unit Volum e Control

• New Call/Voice Mail Message W aiting Indicator on both handset and base unit

• Out of Range indication

• Non-volatile mem ory for 50 Nam e and Number Caller ID Records, 50 Nam e and

Num ber Phone Book Directory Records, and 20 Last Dialed num bers.

• English/Spanish Intelligent LCD Display

• Spare Battery Capability

• Data Port

• 2.5 m m Headset Jack

I MP O R T AN T IN FO R MAT IO N

6

Check to be sure the following item s come with the phone. If there is anything missing

or visible dam age, contact the original place of purchase. Do not attem pt to operate the

system if it is dam aged.

• Base Unit

• Two Handsets with Belt Clips

• One Recharge Cradle

• Three Battery Packs

• One Long Telephone Line Cord

• One Short Telephone Line Cord for W all Mounting

• One 4-wire Long Telephone Line Cord

• One AC Adapter

• One W all-Mounting Bracket

• Two Owner’s Manuals

CHOOSE THE BEST LOCATION

Calls are transm itted between the base unit and the handset, or between handset &

handset, by using wireless radio waves. For m axim um distance and noise-free

operation, here are som e im portant guidelines you should consider:

1. The location should be close to both a phone jack and a continuous power outlet

which is not switch controlled.

2. Keep the base and the handset away from sources of electrical noise such as TV,

personal com puter, or another cordless phone.

3. In a HIGH and CENTRAL location with no obstructions such as walls.

4. The base can be placed on a desk, tabletop or m ounted on wall.

Note:

W hile using the handset:

If you are near a m icrowave oven which is being used, noise m ay be heard from the

receiver or the speaker. Move away from the m icrowave oven and closer to the base

unit.

If m ore than one cordless phone is being used and your handset is near another

cordless phone’s base unit, noise m ay be heard. Move away from other cordless

phone’s base unit and closer to your base unit.

I MP O R T AN T IN FO R MAT IO N

7

LOCATION OF CONTROLS

Handset

Message W aiting /New Call Indicator

(a) Flash rapidly when ringing.

(b) Flash regularly if you have m essage in your voicem ail or new Caller ID in Call Log.

(c) Light when the handset is in use.

Speakerphone Indicator

Light when speakerphone is in use.

Headset Jack

The headset jack allows the use of a headset with a standard 2.5mm plug.

Line 1 / Line 2 Key

Allow you to access the telephone line.

Scroll Keys [▼] / [▲]

(a) W hile on a call, press [▼ ] / [▲ ] to adjust the volum e.

(b) During standby, press [▼ ] / [▲ ] to scroll through Menu options; access Caller ID

Records, Phonebook Directory Records and Redial List.

Speakerphone Key [Spk.]

Press to turn on the handsfree speakerphone and dial the num ber on the display. You

are still required to press [Bye] to end your call.

Receiver

Antenna

M essage W aiting /

New Call Indicator

Display

Softkeys

Speakerphone

Headset Jack

Battery Cover

Line 1 Key

Line 2 Key

Scroll Keys

Dial 7 / M ute Key

Speakerphone

Indicator

Speakerphone

Key

Conference Key

Intercom . Key

M icrophone

Dial Pad

Bye Key

Dial 10 / Redial /

Pause Key

Dial 11 / Flash Key

Belt Clip

I MP O R T AN T IN FO R MAT IO N

8

Bye key

To end a call

Dial 7 / Mute Key

(a) W hile reviewing the Call ID Record, press [Dial 7] and then a LINE key to Call Back in

7-digit form at.

(b) W hile on a call, press [Mute] to m ute the m icrophone for privacy.

Dial 10 / Redial / Pause Key

(a) W hile reviewing the Call ID Record, press [Dial 10] and then a LINE key to Call Back

in 10-digit form at.

(b) W hile off-hook, press [Redial] to recall and dial the last phone num ber dialed.

(c) W hile on-hook, press [Redial] to access the Redial List. Using [▼ ] or [▲ ] to select

the desired num ber and press a LINE key or [Spk.] to dial it.

(d) Press the key during Pre-dial or Phone book directory num ber entry will enter a

3-second pause into a dialing sequence, indicated by “P”.

Dial 11 / Flash Key

(a) W hile reviewing the Call ID Record, press [Dial 11] and then a LINE key to Call Back

in 11-digit form at.

(b) The [Flash] key is used to access telephone com pany services such as Call Waiting.

Dial Pad

The num eric keys are used in the conventional m anner for dialling.

Intercom Key [Int.]

During standby, press the key to activate the intercom function between handsets or

between handset and base unit, answer a paging call, or term inate an intercom call.

W hile on a line, press the key to transfer the call to a particular handset or the base.

Conference Key [Conf.]

Press to start conference call between Line 1 and Line 2.

5 Softkeys

These softkeys are used to select functions displayed directly above the keys.

Functions displayed above the keys will change depending on the m ode of operation.

For exam ple, on the display below, [SAVE], [M ENU], [SER VICE], [DIR.] & [DIAL V.M.] are

displayed above the sofkeys. To operate the phone book directory, press the second

softkey from the right-hand-side.

I MP O R T AN T IN FO R MAT IO N

e.g.

Press this softkey will

enter into phone book

Directory

1. Press [DIR.] softkey.

2. Use [▼ ] / [▲ ] scroll keys to find the

desired directory record.

3. If the num ber displayed is not in the

desired dialing pattern, press [Dial7],

[Dial10] or [Dial11] to select the num ber

of digits to dial first.

4. Press a desired LINE key to dial the

num ber

45

11

Switch to a waiting call Press [Flash] to put the talking party on

hold and talk to the waiting party.

If Call W aiting ID OPTION is subscribed,

m ore options are available.

32

39

I MP O R T AN T IN FO R MAT IO N

14

QUICK REFERENCE

Task Steps Page

12

Page from base to

handset(s)

1. Press [Int./Page].

2. Pres

s the desired handset num ber [1] to

[8] or [] / [#] for all handsets.

3. To term inate the paging, press [EXIT]

softkey or [Int./Page] or [Bye] key.

31

13

Intercom call between

two handsets

1. Press [Int.].

2. Press the desired handset num ber.

3. To term inate the paging, press [EXIT]

softkey or [Int./Page] or [Bye] key.

46

14 Intercom call from a

handset to the base unit

1. Press [Int.]

2. Press [0] to access the base unit.

3. To term inate the paging, press [EXIT]

softkey or [Int./Page] or [Bye] key.

46

15

Call Transfer 1. Press [Int.] on handset or [Int./Page] on

base unit while engaging in an external

line.

2. Press the desired handset num ber or

press [0] for the base unit.

3. Press corresponding LINE key on

handset or on the base unit to take back

the call at any point, or the call will be

returned to you if it is not answered

within 20 seconds.

47

16 Truly 2-line conference

call

1. W hile m aking or answering a call on

Line1 or Line2

2. Press [HOLD] softkey either on the

handset or the base unit to put the call

on hold

3. Make or answer a second call on the

other line

4. After the second call is connected,

press [Conf.] / [Conference] to add the

first caller into the conference call

5. To end the conference call, press a

LINE key to retain the party on that line

and drop the other one, or just press

[Bye] to end both lines.

35

I MP O R T AN T IN FO R MAT IO N

15

Your new telephone includes the highest quality NiCd (Nickel Cadm ium ) batteries

available. Following these sim ple instructions can significantly im prove your

operational results.

CHARGING THE BATTERY PACK

Charge all battery packs for at least 15 hours prior to connecting to the telephone line.

** AFTER INITIAL CHARGE: To enhance battery life and telephone perform ance,

com pletely charge and then com pletely discharge the batteries before

returning the handsets to the charging cradle. This will extend your battery

life allowing longer talk-tim e and stand-by.

1. Press the battery release point on the back of the handset and slide downward to

open the battery com partm ent.

2. Insert the battery pack into the battery com partm ent and m ake sure to position

according to polarity m arkings.

3. Slide the battery cover upward until it snaps into place.

4. Connect the AC adapter to the 9 V DC jack of the base unit and to a standard 120V

AC wall outlet.

5. Place the handset on the base unit. Make sure the Charge LED on the base unit

lights, and charging begins.

Low Battery

W hen the battery power is low, the battery icon on the right of the display will be on

and the handset beeps interm ittently while it is in use. If you DO NOT recharge the

handset battery, will be on for certain period, and then “LOW BATTER Y” is

displayed. If the handset is left un-recharged, “BACK TO CHARGER” will be displayed

and the handset does not function when you press the keys.

Clean the Battery Contacts

To m aintain a good charge, it is im portant to clean all battery contacts on the handset

and the base unit with a soft, dry cloth about once a m onth. Use a pencil eraser or

other contact cleaner. Do not use any liquids or solvents.

Caution:

1. Use ONLY with SBC373 AC Adapter (AC 120V, DC9V, 1000m A).

2. The AC adapter m ust rem ain connected at all tim es (It is norm al for the adapter to

feel warm during in use).

3. Do not rem ove the battery from the handset to charge it.

4. Never throw the battery into a fire, disassem ble it, or heat it.

5. Do not rem ove or dam age the battery casing.

6. If you do not expect to use your phone for a m onth or longer, rem ove the batteries.

Batteries can leak chem icals that can destroy electronic parts.

7. For the longest battery life and optim al operation of the phone system ALW AYS

com pletely charge and discharge the batteries. 3 batteries have been included to

allow you to keep 1 battery continually charging for use in a low battery condition.

G ET T IN G STAR T ED

16

CONNECTING THE BASE UNIT

Connecting Telephone line cord(s)

Your SBC373 2-Line phone will operate no m atter

whether you connect 1 or 2 telephone lines. If you

have 2 Lines com ing out of a Single W all Jack,

connect a 4-wire (RJ-14) m odular phone cord

between the wall jack and the phone jack labeled L1 &

L2. If you have 2 lines com ing out of Separate W all

Jacks, connect 2 phone cords with 2 wires from each

wall jack to the phone jack labeled L1 only or L1 Data

& L2 only or L2 Data.

If you would like to connect to 1 line only, connect a cord with 2 wires to either L1 only

or L1 Data or L2 only or L2 Data.

Connecting Power Supply

1. Plug the AC adapter into the 9V DC jack on the base and the other end into a

standard 120V AC wall outlet.

2. Press the cords in the slot on the housing to prevent the cords from pulling loose.

3. Set the base unit on a tabletop and then place the handset on the base unit.

Note:

1. Use only the power cord and batteries indicated in this m anual. Do not dispose of

batteries in a fire. They m ay explode. Check with local codes for possible special

disposal instructions.

2. Connect the AC adapter to a continuous power outlet.

3. Plug the adaptor to the socket-outlet that near the equipm ent and shall be easily

accessible.

Tip:

If your telephone outlet is not m odular, contact your telephone com pany for assistance.

SPARE / BACK UP BATTERY

The extra battery will enable the phone function norm ally during an electrical outage.

You can also use the spare battery pack to replace a drained handset battery to ensure

uninterrupted use.

1. Open the spare battery com partm ent by pressing

the release button on the right side of the base unit.

2. Place a battery pack in the drawer with the charge

contacts facing up and to the left.

3. Close the drawer. Make sure the Spare Battery

LED lights, and charging begins.

4. The LED lights until the battery is rem oved from the

com partm ent.

G ET T IN G STAR T ED G ET T IN G STAR T ED

1

3

2

17

Changing drained handset battery in the m iddle of a call

W hen the handset displays “LOW BATTERY” or “RETURN TO BASE” in the m iddle of a

telephone call, you can swap the call to the base unit speakerphone first and then

change the handset battery following these sim ple steps:

1. Press the LINE key with the In-use indicator lit on the

base unit. The call is then transferred to a 3-way call

conference between the handset, the base unit and the

external party.

2. Press the [Bye] key on the handset; the

call will be totally swapped from the

handset to the base unit speakerphone.

3. Take out the spare battery from the base unit battery compartment

and replace it to the handset.

4. Press the LINE key (the in-use line) on the handset and

press the [Bye] key on the base unit to swap the call back to

the handset.

Note: Make sure the drained battery is put in the base unit

battery com partm ent to be re-charged.

REGISTRATION & DE-REGISTRATION OF HANDSET

The first registered handset will be autom atically assigned as HS-1 to the base unit.

W hen additional handsets are registered to the system , they will be assigned extension

num bers in the following sequence: HS-2, HS-3, and up to HS-8.

On the Base Unit:

Press [MENU] and “REGISTRATION” appears on the

display.

Press [O.K.] and “W AITING REGISTER” is displayed.

You are now ready to register your handset.

Note: The base unit will return to standby m ode if no

handset registration takes place within 25 seconds.

REGISTRATION 

O.K. EXIT

WAITING REGISTER

EXIT

G ET T IN G STAR T E D

1

2

3

4

1 8

On the Handset:

After the handset is charged, rem ove it from the base

unit or charge cradle. “HS_ _” is displayed

Press [MENU] and “REGISTRATION” appears on the

display.

Press [O.K.] and select “ADD A H ANDSET?”.

Press [O.K.] to register and “CONNECTING” is

displayed for 1 to 2 seconds.

If the handset displays “REG OK NEW ID=1”, the

connection with the base unit is established.

If the handset displays “NO CONNECTION”, repeat the

previous steps.

The handset will return to “REGISTRATION” after 2

seconds. Press [EXIT] to end the registration.

De-register a handset

If you want to de-register a registered handset from the base unit, get the base unit into

REGISTRATION m enu and displays “W AITING REGISTER” first. (see page 17).

On the Handset:

Press [MENU] and “REGISTRATION” appears on the

display.

NO NEW CALL

HS_ _

10:00

AM

1/01

SAVE SERVICE MENU DIR. DIAL V.M.

REGISTRATION 

HS_ _

O.K. EXIT

ADD A HANDSET? 

O.K. EXIT

REG OK NEW ID=1

NO NEW CALL

HS-1

10:00

AM

1/01

SAVE SERVICE MENU DIR. DIAL V.M.

REGISTRATION 

HS - 2

O.K. EXIT

G ET T IN G STAR T E D

1 9

Press [OK] to enter Registration menu.

Using [▼ ] / [▲ ] to select “DEL HANDSET?”.

Press [O.K.] to de-register and “CONNECTING … ”

then “UNREGISTERED’ is displayed for 1 to 2

seconds.

If the handset displays “REGISTRATION” and “HS_ _”,

the handset is disconnected from the base unit.

If the handset displays “NO CONNECTION”, repeat the

previous steps.

CHOOSE THE DIALING MODE

If your hom e is equipped with a touchtone dialing system , the phone will be ready to use

as soon as the battery is charged. If you have a pulse (rotary) dialing system , you will

need to set the dialing m ode as follows:

Press [MENU] and “REGISTRATION” appears on the

display.

Using [▼ ] / [▲ ] to access “DIAL M ODE”.

Press [OK] to enter Dial m ode menu.

Using [▼ ] / [▲ ] to select “PULSE MODE”.

Press [SAVE] to confirm .

The display will return to “DIAL MODE”, press [EXIT] to

return to standby.

You are now ready to use your new telephone

DEL HANDSET? 

O.K. EXIT

REGISTRATION 

HS_ _

O.K. EXIT

REGISTRATION 

HS_ _

O.K. EXIT

DIAL MODE 

O.K. EXIT

PULSE MODE 

EXIT

SAVED!

SAVE

G ET T IN G STAR T E D

20

W ALLMOUNTING BASE UNIT

The base unit can be m ounted on a wall phone plate by using

the supplied wall-m ounting bracket.

1. Bring the barrel plug of the AC adapter through the

rectangular opening of the wall-m ounting bracket.

2. Plug the adapter’s barrels plug into the jack m arked

“1000m A DC 9V” at the bottom of the base unit and press

the cord in the slot above the jack.

3. If your prem ise is equipped with 2 Lines com ing out of a

Single W all Jack:

Bring the telephone line cord with RJ-14 plug (you can

see 4 wires in the plug) through the rectangular opening

of the wall-m ounting bracket and plug it into the jack m arked “LINE 1/2”.

If your prem ise has 2 Lines, each com ing out of Separate W all Jacks:

Bring the telephone line cords with RJ-11 plug (you can see 2 wires in the plug)

through the rectangular opening of the wall-m ounting bracket and plug them into the

jack m arked “LINE 1/2” and “LINE 2” separately.

If your prem ise has only 1 Line com ing out of a wall plate:

Take the short telephone line cord and plug it into the jack m arked” LINE 1/2”.

4. Insert 2 hook-tabs and 2 short tabs of the

wall-m ounting bracket into the slots at the back and

bottom of the base unit sim ultaneously.

5. Press the wall-m ounting bracket against the base

unit until they are resting on each other firm ly.

6. Hold the base

unit up next to

the wall jack and

plug in the line

cord, any loose

line cord can be hid inside

the wall-m ounting

bracket.

7. Place the base unit on the posts of the wall plate and

push down until the unit is secured firm ly.

8. Plug the AC adapter into a standard wall outlet.

Note: If you are not using a standard wall plate to m ount the

phone on wall, you m ay also m ount it with ordinary screws.

Insert 2 screws with vertical separation of 3

3

/16

or 3

15

/16

inches and leave the screws 1

/8

inch from the wall. Make sure the screw heads are not bigger than 5

/16

inch.

Please charge all the batteries for at least 15 hours prior to initial use.

G ET T IN G STAR T E D

Hook tab

Short tab

2 1

The phone offers an extensive range of functions which are grouped in m enus. You can

custom ize your phone by pressing the Menu key and using [▼ ] / [▲ ] scroll keys to scroll

through the options.

M E N U S E T T IN G S

2 2

STRUCTURE AND OPTIONS

The m enu settings have two levels. There are twelve item s on the handset and on the

base unit respectively in the first level and the num ber of item s in the second level

depends on the first level menu.

Note: The settings are independent on the base unit and each handset.

MENU FUNCTIONS

Registration

You m ust first set the base unit to registration m ode prior to adding or deleting handsets.

Sim ply press [MENU] on the base unit to select “Registration” then press [O.K.] to

confirm . (refer to page 17) The base unit will return to standby m ode if no handset

registration takes place within 25 seconds.

To add a handset to a desired base

Press [MENU] on the handset during standby.

Using [▼ ] / [▲ ] to select “REGISTRATION”.

Press [O.K.] to enter into the selection.

In the second level, using [▼ ] / [▲ ] to access “ADD A

HANDSET?”

Follow the steps of REGISTRATION OF HANDSET in

GETTING STARTED.

Note: If a new base is selected, the original registration will be replaced by the new

registration.

To delete a handset from the base

In the second level, using [▼ ] / [▲ ] to select “DEL

HANDSET?”.

Press [O.K.] to de-register the handset.

“UNREGISTERED!” appears on the display to confirm

handset de-registration. The handset returns to

“REGISTRATION” after 2 seconds. Press [EXIT] to

return and “HS_ _” is displayed.

REGISTRATION 

HS_ _

O.K. EXIT

ADD A HANDSET? 

O.K. EXIT

DEL HANDSET? 

O.K. EXIT

UNREGISTERED!

M E N U S E T T IN G S

2 3

To delete all handsets from the base

In the second level, using [▼ ] / [▲ ] to select “DEL ALL

HANDSET”.

Press [O.K.] to de-register all handsets from the base.

“DEL ALL HS OK!” appears on the display to confirm

global de-registration. The handset returns to

“REGISTRATION” after 2 seconds. Press [EXIT] to

return and “HS_ _” is displayed.

Note: In case of registration failure or “REG FAIL ID FULL” is displayed when registering,

sim ply delete all handsets from the base and restart the registration of handsets.

Dial M ode

Press [MENU].

Using [▼ ] / [▲ ] to select “DIAL MODE”.

Press [O.K.] to enter into the selection.

Using [▼ ] / [▲ ] to select the desired dial m ode, then

press [SAVE] to confirm . Press [EXIT] to return to

stand-by.

Language

Press [MENU].

Using [▼ ] / [▲ ] to select “LANGUAGE”.

Press [O.K.] to enter into the selection.

DEL ALL HANDSET 

O.K. EXIT

DEL ALL HS OK!

DIAL MODE 

O.K. EXIT

TONE MODE 

EXIT

SAVE

LANGUAGE 

O.K. EXIT

ME N U S E T T IN G S

2 4

Using [▼ ] / [▲ ] to select the desired language, then

press [SAVE] to confirm . Press [EXIT] to return to

stand-by.

Ringer Volume

Press [MENU].

Using [▼ ] / [▲ ] to access “RINGER VOLUME”.

Press [O.K.] to enter and the current ringer volum e will

be displayed.

Using [▼ ] / [▲ ] to adjust ringer volum e. The ringer

will be ringed with the corresponding volum e level as

shown in the LCD display for a few seconds. Press

[SAVE] to confirm , and then press [EXIT] to return to

stand-by.

Note: There are (00 - 08) nine levels of ringer volum e. If the ringer volum e is off, the

handset will display the icon and the LED will blink while receiving a call. The

handset will ring ONLY with intercom call from base unit or other handsets.

Answer Mode (Only available in handset m enu)

Press [MENU].

Using [▼ ] / [▲ ] to select “ANSW ER M ODE”.

Press [O.K.] to enter into the selection.

ENGLISH? 

EXIT

SAVE

RINGER VOLUME 

O.K. EXIT

LEVEL:06 

EXIT

SAVE

LEVEL:00 

EXIT

SAVE

ANSWER MODE 

O.K. EXIT

ME N U S E T T IN G S

2 5

Using [▼ ] / [▲ ] to select “AUTO MODE” or “M ANU AL

MODE”.

Press [SAVE] to confirm , and then press [EXIT] to

return to stand-by.

Contrast

Press [MENU].

Using [▼ ] / [▲ ] to access “CONTRAST”.

Press [O.K.] to enter into the selection.

Using [▼ ] / [▲ ] to adjust the contrast level.

Press [SAVE] to confirm , and then press [EXIT] to

return to stand-by.

Call W aiting ID Options

Press [MENU].

Using [▼ ] / [▲ ] to access “CW ID OPTION”.

Press [O.K.] to enter into the selection.

Using [▼ ] / [▲ ] to switch the Call W aiting ID Options

ON or OFF.

Press [SAVE] to confirm , and then press [EXIT] to

return to stand-by.

AUTO MODE 

EXIT

SAVE

CONTRAST 

O.K. EXIT

LEVEL:05 

EXIT

SAVE

CW ID OPTION 

O.K. EXIT

OPTION IS ON 

EXIT

SAVE

ME N U S E T T IN G S

2 6

PBX Mode

If you are using a PBX (Private Branch Exchange) telephone system , you m ay be

required to dial an external access code, such as [8] or [9], prior to reaching an outside

line. Follow the steps below and enter that code in the PBX PREFIX field. This code

will then be added to all stored numbers upon dialing.

Press [MENU].

Using [▼ ] / [▲ ] to access “PBX MODE”.

Press [O.K.] to enter into the selection.

Using [▼ ] / [▲ ] to select “L1 PBX Prefix” or “L2 PBX

Prefix”.

Enter the code using num eric keys “0 - 9”.

Press [SAVE] to confirm , and then press [EXIT] to

return to stand-by.

Note: The phone will autom atically screen all Pre-dial numbers prior to dialing if PBX

Prefix is set. Enter the access code and the phone num ber you wish to dial, the

phone will autom atically insert a ‘pause’ after the first digit when dialing the num ber.

On the contrary, if the first digit is not the access code, the system will classify it as an

internal call and dial the displayed number only.

New Call Lamp

The Message W aiting Indicator / New Call Lamp will flash when there is new or

unread Caller ID in call log if the lamp is switched on.

Press [MENU].

Using [▼ ] / [▲ ] to access “NEW CALL LAMP”.

Press [O.K.] to enter into the selection.

Using [▼ ] / [▲ ] to switch the New Call Lam p ON or

OFF.

Press [SAVE] to confirm , and then press [EXIT] to

return to stand-by.

PBX MODE 

O.K. EXIT

L1 PBX PREFIX:_ 

EXIT

SAVE

NEW CALL LAMP



O.K. EXIT

NEW CL LAMP IS OFF 

EXIT

SAVE

ME N U S E T T IN G S

2 7

Audible Caller ID (Only available in base unit m enu)

Press [MENU].

Using [▼ ] / [▲ ] to access “AUDIBLE CID”.

Press [O.K.] to enter into the selection.

Voice Announce Caller Name (Audible Name)

Using [▼ ] / [▲ ] to access “AUDIBLE NAME :”. The

default volum e level for Audible Nam e is “3”. Press [0]

- [4] to adjust the voice announcem ent to your desired

volum e level. Press [SAVE] to confirm and then

press [EXIT] to return to stand-by.

Voice Announce Caller Number (Audible Number)

Using [▼ ] / [▲ ] to access “AUDIBLE NUM :” The

default level for Audible Num ber is “0”. Press [0] - [4]

to adjust the announcem ent to your desired volum e

level. Press [SAVE] to confirm and then press [EXIT]

to return to stand-by.

Note: W hen the volum e level is set to “0”, the corresponding announcem ent is

disabled. The phone will cease to m ake audible announcem ent(s ).

Time and Date Setting

Press [MENU].

Using [▼ ] / [▲ ] to select “SET DATE/TIME”.

Press [O.K.] to enter into the selection.

Using [▼ ] / [▲ ] to adjust tim e and date. Press [O.K.]

to m ove thru. Hour (12

AM – 11

PM), Minute, Month and

Date.

Press [SAVE] to confirm , and then press [EXIT] to

return to stand-by.

AUDIBLE CID 

O.K. EXIT

AUDIBLE NAME:2 

EXIT

SAVE

AUDIBLE NUM:0 

OFF

EXIT

SAVE

SET DATE/TIME 

10:05

AM

05/03

O.K. EXIT

ENTER DATE/TIME:

10:05

AM

03/25

O.K. EXIT

SAVE

ME N U S E T T IN G S

2 8

Last Call Timer

Press [MENU].

Using [▼ ] / [▲ ] to display “LAST CALL TIMER”.

You can check the duration of last call.

Press [EXIT] to return to stand-by.

Message W aiting Lamp

This m ode is available only when there is new or

non-read m essage in your voicem ail.

Press [MENU].

Using [▼ ] / [▲ ] to access “DELETE MESSAGE?”

Press [O.K] to enter into the s election.

Using [▼ ] / [▲ ] to access “DELETE L1 MESSAGE?” or

“DELETE L2 MESSAGE” as desired.

Press [O.K.] to delete all m ess ages of the line.

The m essage waiting lam p will ceas e flashing when

m essages from both lines are cleared.

LAST CALL TIMER

00-06-25

EXIT

2 NEW MESSAGES

HS-1

10:05

AM

05/03

SAVE SERVICE MENU DIR. DIAL V.M.

DELETE MESSAGE?

O.K. EXIT

DELETE L1 MESSAGE

O.K. EXIT

ME N U S E T T IN G S

2 9

MAKING A CALL

Direct Dial from Handset

Press a LINE key and listen for the dial tone. The

“In-Use” indicator of the selected line on the base unit

will be turned ON. Line num ber will appear on the

handset display.

Note: If the selected line is engaged by another Handset, “L1 BUSY USE L2?” will

appear on the display and the handset will return to stand-by in a few seconds.

If the selected line is engaged by the base unit, the phone will enter into Conference

Call. (See page 34)

— OR —

Press [Spk.] and listen for the dial tone. The

Speakerphone indicator on the handset and the “Line 1

In-Use” indicator on the base unit will be turned ON.

“L1 ON” will appear on the handset display.

Note:

If both lines are idle, pressing [Spk.] will activate Line 1. If you want to access Line 2,

press [Line 2] first and then press [Spk.]

If Line 1 is engaged by another handset, “L1 BUSY” will appear on the display for a

while and Line 2 will be activated.

If Line 1 is engaged by the base unit, the phone will enter into Conference Call.

W ith a dial tone, dial the phone num ber. The phone

num ber will be shown on the display along with the call

tim er.

Press [Bye] to end your call.

Direct Dial from Base Unit

Press an available LINE key and listen for the dial tone.

The “In-Use” indicator of the selected line on the base

unit will be turned ON. “SPEAKER” and “Line

num ber” will appear on the base unit display.

Dial the phone num ber.

Note: Pressing a line engaged by a handset will enter into Conference Call.

L1 ON

HOLD

SERVICE DIR. DIAL V.M.

L1 ON

HOLD

SERVICE DIR. DIAL V.M.

L1 ON

1234567

00:01

HOLD

3W AY

SERVICE

SPEAKER LINE1

HOLD

SERVICE DIR. DIAL V.M.

BAS IC O PE RAT IO N

30

Pre-dial

Pre-dial allows you to key-in the phone num ber and verifies it before dialing.

Dial the phone num ber.

To edit the num ber on the display, press [DELETE] to

clear the last digit. To clear the entire num ber, press

[EXIT].

Press [Spk.] on the handset or a LINE key on the

handset or base unit to dial the num ber. The call

tim er will start counting.

Press [Bye] on the handset or [Bye] on the base unit to

end your call.

Note: If one line is engaged by the handset, pre-dial with another line on the Base Unit

cannot be used. Only direct dial is possible.

ANSW ERING A CALL

From the Handset

Press the appropriate LINE key as displayed, or [Spk.] to

answer. If the phone is set to Auto Answer m ode and

the handset is on the charging cradle, you can answer a

call by lifting the handset off the base unit, or the

charging cradle, without pressing any key.

To end the call, press [Bye].

From the Base Unit

Press the appropriate LINE key to answer. To end the call, press [Bye].

Note: Two calls can be handled sim ultaneously on separate telephone lines by the

handset and the base unit, or by two handsets.

TO REDIAL A CALL

Directly Redial Last Dialed Num ber

Press a LINE key / [Spk.] on the handset or a LINE key

on the base unit and listen for the dial tone.

1234568

O.K. EXIT DELETE

SAVE

L1 ON

1234568

00:01

HOLD

3W AY

SERVICE

L1 ON

1234568

00:01

HOLD

3W AY

SERVICE

L1 ON

HOLD

SERVICE DIR. DIAL V.M.

BAS IC O PE RAT IO N

31

Press [Redial] to dial the last dialed num ber.

Dial from the Redial List

The Redial List stores up to 20 latest dialed phone num bers, each one can be up to 32

digits. Num bers longer than 32 digits will be truncated with the first 32 digits rem aining.

Each handset or base unit stores its own Redial List.

In Standby Mode, press [Redial] once to access the

redial list. Press [▼ ] to view the latest 20 dialed

num bers.

Scroll to the desired num ber, and press a LINE key to

dial the num ber.

Note: You m ay delete an individual record from the Redial List or enter the record to the

Phone book directory. Scroll to the num ber you want. Press [DELETE] once and

“DELETED!” is displayed to confirm the deletion, or press [SAVE] and “SAVED TO DIR!”

is displayed to confirm the entry.

ADJUSTING HANDSET RECEIVER VOLUME

There are 4 receiver levels in handset. It can be adjusted by pressing [▼ ] / [▲ ]

during talk m ode or intercom m ode. (Also apply to headset)

Note: The volum e will return to level “3” after the call if it is adjusted to level “4”. If the

volum e is set to “1” to “3”, the level will rem ain unchanged after the call.

TO MUTE A CALL

W hile on a call, press [MUTE] to turn OFF the

m icrophone. The display will show “MUTE” and the other

party will not hear you. Press [MUTE] again to resum e

conversation and the “MUTE ” on the display will

disappear.

L1 ON

1234568

00:01

HOLD

3W AY

SERVICE

REDIAL ↓=VIEW

EXIT

REDIAL LIST

1234568

O.K. EXIT DELETE

SAVE

L1 MUTE

1234568

00:11

HOLD

3W AY

SERVICE

BAS IC O PE RAT IO N

32

USING HANDSET SPEAKERPHONE

W hile on a call, press [Spk.] to turn the speakerphone ON and OFF.

The Speakerphone Light com es ON when the speakerphone is in use.

INSTALLING AND USING HEADSET

W henever a com patible 2.5m m headset is plug-in the jack located at the side of the

handset, either before or during a call, the audio signal will be diverted to the headset.

Unplug the headset from the jack will return the signal to handset earpiece and

m icrophone im m ediately.

PAGING FROM BASE UNIT TO HANDSET

To locate the handset(s) while not on the base unit, press [Int./Page] on the base unit

and “EXTENSION #:?” will appear on the screen. Press handset num ber 1-8 ([] / [#]

for all handsets) and the paged handset(s) in the range will display “PAGING FRO M

BASE”, and sim ultaneously em it alert signal that is different from others, e.g. incom ing

call.

To stop a paging call, press [Int./Page] again or press [EXIT] on the handset or on the

base unit. If no handset answers, the paging call will autom atically stop after 30

seconds.

Note: The handset being paged will ring even if the ringer is set to OFF.

BAS IC O PE RAT IO N

33

FLASH

Call W aiting

1. Use [Flash] for accessing Call W aiting service. For exam ple, if you receive a

second call during your initial call, press [Flash] to swap to the waiting call and put

the initial caller on hold.

2. After you finish the conversation with the second caller, press [Flash] to return to the

first caller.

Note: If you also have conference Calling service, press [Flash] to allow the first caller

enter into a conference call.

PAUSE

The [Pause] key allows you to add a 3-second pause in a phone num ber sequence

during pre-dialing or storing num ber in the Phone Book Directory.

Enter a Pause in Dialing Sequence

To add a pause, press [Redial/P] at the desired position when you are creating or

editing a phone number and “ P ” appears on the display. For a longer delay, press

[Pause] additional tim es.

Note: Rem em ber, the phone num ber you wish to store cannot have more than 32 digits,

including any pause. Each “ P ” counts as one digit.

HOLD

A call can be put on hold during conversation to allow you to m ake a separate phone call

using the other line or to be picked up by another handset.

W hen engaging an external line on the handset, press

[HOLD] softkey.

W hen the line is on hold, “L1 HOLD” is appeared on

the handset display. The Line in use indicator in the

base unit will keep flashing

Note : The call can be picked up by the base unit or any handset registered to the sam e

base unit by pressing the corresponding LINE key..

L1 ON

HOLD

SERVICE DIR. DIAL V.M

L1 HOLD

HS- 1

08:30

AM

7/04

SAVE S ERVICE MENU DIR. DIAL V.M

ADVAN CE D O PE RAT IO N

34

SENDING TONE SIGNALS IN PULSE DIALING MODE

If your telephone line uses pulse dialing (such as for a rotary dial phone), you can

tem porarily override the Pulse Mode setting with the Tone Mode until the unit goes

back on-hook. This m ay be necessary to access certain special services such as

bank-by-phone services:

1. Use pulse dialing to call the service.

2. W hen the service answers, press [].

3. Follow the norm al procedure for the special service you are using. Any additional

num bers you dial are sent as tone signals.

4. W hen you hang up, the telephone returns to pulse mode.

Note: The tem porary tone can be saved in m em ory and can be executed in norm al

dialing, redialing or Directory dialing.

DIAL VOICE MAIL

If you have subscribed to the Voice Mail and Message W aiting Indicator services, you

can access your voice m ail system by pressing [DIAL V.M.]. To use this feature, you

m ust first program your voicem ail access num ber (your telephone number) into the

handset and base unit.

Program your own Voicem ail access num ber

Press the softkey [DIAL V.M.].

Press the softkey [EDIT], you will then be prom pted to

“ENTER NUMBER :”.

Enter your telephone num ber. If you m ake a m istake,

press [DELETE] to erase the last digit and re-enter.

Press [SAVE] to confirm program m ing.

You are now ready to use the Dial voicem ail key.

Using DIAL V.M. softkey

Press the softkey [DIAL V.M.]. Your 7-digit access

num ber will be displayed.

DIAL VOICE MAIL

-----------

EDIT EXIT

ENTER NUMBER:

1234567_

EXIT DELETE

SAVE

DIAL VOICE MAIL

1234567

EDIT EXIT

AD VAN C E D O P E R AT IO N

3 5

Press a LINE key to dial. Follow the voice prompt after

the line is connected.

Tip: You can also program your dial voicem ail key to allow 1-touch access by the

following these sim ple steps:

1. Press the softkey [DIAL V.M.].

2. Press the softkey [EDIT] to allow you to enter your num ber.

3. Enter your 7-digit telephone number then press the [Redial/Pause] key twice to insert

a long pause.

4. Press the [] button to enter your m ailbox then press [Redial/Pause] to enter another

pause.

5. Enter your 4-digit PIN then press [Redial/Pause] to program another pause.

6. Press [1] to access your m essages and then press [SAVE] softkey to save your

entries.

Im portant Note:

1. Beware anyone could view your voice m ail PIN by pressing your [DIAL V.M.] softkey.

2. Voice m ail system s operate differently and may require additional pauses to be

entered.

DIAL BACK FROM CALLER ID LIST

See Call Back from Caller ID List in CALLER ID OPERATION for details.

DAILING FROM PHONE BOOK DIRECTORY

In standby m ode, press [DIR.] softkey and then using [▼ ] / [▲ ] scroll through the

m em ory contents in alphabetical order to the nam e and num ber you want. Press [O.K.]

softkey to call the num ber.

Tip: To quickly find a nam e and phone num ber, press [DIR.] softkey in standby m ode.

Key in the first letter of the nam e, and scroll to the name you want.

L1 ON

1234567

00:01

HOLD

3 W A Y

SERVICE

AD VAN C E D O P E R AT IO N

3 6

CONFERENCE CALL

Your new 2-line cordless system supports conference calls up to 4 parties :

• 1 handset, the base unit and 1 external call ;

• 1 handset and/or the base unit and 2 external calls on a single line ;

• 1 handset and/or the base unit and 2 external calls on different lines;

Handset and base unit conference call

W hen engaging an external line on the handset, press

the Line key with the in use indicator lit on the base unit

to enter a conference call.

“CONFERENCE” (or CONF in handset), Line num ber

and engaged handset num bers (0 stands for base unit)

appear on the displays.

Press [Bye] on the base unit or on the handset will only

end that party from the call. To end the call, m ake

sure all parties have disconnected from the line.

Note:

This phone system can allow you to conference or intercom by using the handset and

base sim ultaneously. If the handset is operated too close to the base unit, you m ay

experience feedback noise. Should this occur, m ove the handset away from the

base unit and the feedback will stop.

Single line conference call (3 W ay calling)

W hile on a call, press [3W AY] softkey to access 3 W ay

Calling service. The system will dial out a long Flash to

put the initial call on hold and obtain a new dial tone to

m ake a second call.

Key in the phone num ber of the second party. After the

private conversation with the second caller, press [3W AY]

softkey to add the first caller into the conference call.

Note: W hen the handset is engaged in 3-way conference call, press the LINE key of

the in-use line on the base unit to join the conference call. W hen the 3-way

conference call is initiated from the base unit, pressing the handset LINE key of the

in-use line can also join the 3-way conference call.

L1 ON

HOLD

SERVICE DIR. DIAL V.M

CONFERENCE

LINE1 0 1

.

L1 ON

HOLD

SERVICE DIR. DIAL V.M.

L1 ON

3456812

00:30

HOLD

3W AY

SERVICE

AD VAN C E D O P E R AT IO N

3 7

2 Line conference call

W hile on a call, press [HOLD] softkey to put the call on

hold.

Press [Line 2] to obtain a new dial tone to make a second

call using Line 2.

Key in the phone num ber of the second party.

After your private conversation with the second caller,

press [Conf.] to add the caller on Line 1 into the

conference call.

Press [Line 1] or [Line 2] on the base unit to join the

conference call.

Note: Press any LINE key again to end the conference but m aintain both calls

separately on the handset and the base unit, e.g. Press [Line1] on handset will keep Line

1 with handset and transfer line 2 to base unit.

To end both calls, press [Bye] key on the handset and the base unit.

L1 HOLD

HS- 1

08:30

AM

7/04

SAVE SERVICE MENU DIR. DIAL V.M.

L1 HOLD L2 ON

3456812

00:35

HOLD

3W AY

SERVICE.

CONF: 1

L1-L2

CONF: 1 0

L1-L2

AD VAN C E D O P E R AT IO N

3 8

ABOUT CALLER IDENTIFICATION

This telephone supports Caller ID service and Call W aiting ID Option service provided by

your local telephone com pany. There is a fee for this service, and it m ay not be

available in all areas. This phone can provide inform ation only if both you and the caller

are in areas offering Caller ID service, and if both telephone com panies use com patible

equipm ent. Depending on your service, you will be able to see the num ber, or the

nam e and num ber of your caller.

If you have subscribed the Caller ID service, the

incom ing call inform ation including nam e (if available),

num ber and the calling line, tim e and date will be shown

on the display. The phone will also save the call

inform ation in the Caller ID List.

CALLER LIST

The Caller List is your incom ing call history. W hen a new Caller ID record arrives, it is

assigned a number from #01 to #50. The most recent record will have the lowest

num ber. W hen the Caller List is full, the oldest record is deleted to make room for new

record, and all the record num bers are shifted one num ber higher.

Mem ory Match

Nam es stored in Phone Book Directory will override Caller Nam e signal sent from the

telephone company. For exam ple, if you store your parents’ telephone number with

their nicknam e, “MO M AND D AD”, in m em ory, the Caller ID display will show “MO M

AND DAD” whenever you receive an incom ing call from their phone num ber.

Review Caller List

Press [▼ ] / [▲ ] during standby m ode.

Press [▼ ] to show the latest record.

W hile reviewing the Caller List, press [SAVE] softkey to

copy the displayed record into the Phone Book Directory.

JOHN SMITH L2

123-123-4568

11:00

AM

1/01 #50 X1

O.K. EXIT DELETE

SAVE

50 CALLS ↓=VIEW

EXIT DELETE

JOHN SMITH L2

123-123-4568

10:00

AM

1/01 #01 X1

O.K. EXIT DELETE

SAVE

C AL L E R ID O P E R AT IO N

3 9

Delete Record(s) from Caller List

To delete all Caller ID records:

Press [▼ ] / [▲ ] during standby m ode to enter into Caller

List default page.

Press [DELETE] softkey and “DELETE ALL?” is

displayed, then press [O.K.] softkey to confirm deletion.

To delete an individual Caller ID record:

W hile reviewing the Caller List, press [DELETE] softkey

to erase the displayed record from the list.

Call Back from Caller List

Your phone is equipped with three Caller ID Call Back keys, which allow you to dial a

Caller ID record in the correct form at.

W hile you are reviewing the Call List, you can dial a

displayed num ber in the correct form at by pressing [Dial

7], [Dial 10] or [Dial 11] key, then press a LINE key to dial.

For instance, if a 10-digit phone number is displayed and

you want to call back in a 7-digit form at, you can sim ply

press [Dial 7] then a LINE key to dial only the last seven

digits of the num ber.

Note:

[Dial 7]: Dials only the last seven digits of the num ber you are calling, i.e. without an

area code.

[Dial 10]: Dials all 10 digits on the display, i.e. 3 digits of area code plus 7 digits of

phone num ber.

[Dial 11]: Dials all 10 digits on the display plus a “1” autom atically inserted before the

area code.

Special Call Display

Long Distance Call

W hen a long distance call is received, the [LDC] icon will

appear on the screen with the call inform ation.

50 CALLS ↓=VIEW

EXIT DELETE

JOHN SMITH L2

123-123-4568

10:00

AM

1/01 #01 X1

O.K. EXIT DELETE

SAVE

JOHN SMITH L2

123-123-4568

10:00

AM

1/01 #01 X1

O.K. EXIT DELETE

SAVE

L1 ON

1234568

00:05

3W AY

SERVICE

JOHN SMITH L2

123-123-4568 LDC

10:00

AM

1/01 #01 X1

O.K. EXIT DELETE

SAVE

C AL L E R ID O P E R AT IO N

40

Forwarded Call

If the call was forwarded from another num ber through

the call forwarding service provided by the telephone

com pany, the icon will appear on the screen with the

call inform ation.

Repeated Call

If a call is received from the sam e phone num ber m ore

than once, the num ber of tim es repeated will be shown

on the display. For exam ple, “x6” appears after the date

indicated the sam e num ber has been received six tim es.

Call Display Messages

W hen a new Caller ID record arrives with incom plete call inform ation, the following call

display m essages will be shown. The messages may accom pany, if available, an

actual name or an actual num ber.

1. “PRIVATE NAME” – The other party is blocking nam e inform ation.

2. “PRIVATE NUM” – The other party is blocking telephone num ber inform ation.

3. “UNKNOW N NAME” – Caller’s nam e is not available.

4. “UNKNOW N NUM ” – Caller’s num ber is not available.

The situations for call display m essages m ay include, but not lim ited to, the following

reasons:

1. The Caller ID was blocked for privacy reasons.

2. The call originates from an area office or a long-distance service provider that dose

not support Caller ID service.

3. The call is m ade with a calling card.

4. The call is an operator-assisted call.

VOICE ANNOUNCE CALLER ID

Your phone can announce a caller’s nam e or number through the speaker in the base

unit. You don’t even have to look at the display to know who is calling.

You can record in your own voice a 3-second m essage, such as “John Sm ith” or “It’s

Mom and Dad”, to associate with caller num ber in your phone book directory (see

Recording Voice Announce Nam e section in PHONE BOOK DIRECTORY for details).

W hen you receive a call from a num ber m atching one stored in your directory, the base

unit will say the recorded name instead of the telephone num ber to help identify calls.

The default setting for Voice Announce Caller Nam e is ON at sound level 3 and Voice

Announce Caller Num ber is OFF. The current settings provide you the convenience

that once your m essage is recorded the Voice Announce Caller Nam e will be in effect

im m ediately. To change the settings, please see Audible Caller ID section in MANUAL

SETTINGS section (Page 26) for details.

If you activated the Voice Announce Caller Num ber, “Blocked Call” will be em itted to

alert you the incom ing call from anonym ous/private caller who have blocked his/her

num ber, and “Unknown Call” will be em itted when UNKNOW N NUMBER is received.

JOHN SMITH L2

123-123-4568

10:00

AM

1/01 #01 X1

O.K. EXIT DELETE

SAVE

JOHN SMITH L2

123-123-4568

10:00

AM

1/01 #01 X6

O.K. EXIT DELETE

SAVE

C AL L E R ID O P E R AT IO N

41

CALL W AITING ID OPTIONS

If you have subscribed the Call W aiting and Call W aiting ID Options from your local

telephone company, you will hear a Call W aiting tone when a new call com es in while

you are talking. You can either swap between calls or dispose of the call.

Call W aiting ID Options Set to OFF

If there is an incom ing call during a conversation, the

Caller ID Call W aiting inform ation appears on the display.

Press [ANS] softkey to answer the Call W aiting party and

put the first call on hold.

You can also press [Flash] to switch between calls.

Call W aiting ID Options Set to ON

If there is an incom ing call during a conversation, all the

five labels for Call W aiting ID Option features will be

autom atically shown at the display.

W hen you hear the Call W aiting tone, press the

corresponding softkey to apply a disposition to the call.

Note:

You m ust disposition the call within 26 seconds of the Call W aiting tone. The

following options are available.

[JOIN]: Add the waiting call to your first call.

[DROP ANS]: End the first call and answer the waiting call.

[HOLD]: Place the waiting call on hold and send a hold announcem ent.

[SAY BUSY]: Play a pre-recorded m essage from your phone com pany that the line

is busy and end the waiting call.

[SEND V.M.]: Forward the waiting call to your voice m ail or answering service.

Tip: Call W aiting ID Options may not be available in all areas. Contact your local

telephone company for details.

JOHN SMITH L2

123-123-4568

10:00

AM

1/01 X1

ANS

L2 ON

F

00:05

HOLD

3W AY

SERVICE

JOHN SMITH L2

123-123-4568

10:00

AM

1/01 X1

J OI N D R OP A NS H O LD S A Y B U S Y S E N D V . M.

L2 ON

00:05

HOLD

3W AY

SERVICE

C AL L E R ID O P E R AT IO N

4 2

Call Waiting ID Option: JOIN

If [JOIN] softkey is pressed, “CONFERENCE” will be

displayed for a short while and then the waiting party is

being added to the original call as a 3-parties conference

call.

After the 3-parties conference call, you m ay select to drop a line and retain the other:

• To drop the first caller (the original call), press [DROP]

softkey and “DROPPED #1” will be displayed.

• To drop the second caller (the waiting call), press

[Flash] and “DROPPED #2” will be displayed.

Call Waiting ID Option: HOLD

If [HOLD] softkey is pressed, “HOLD” will be displayed for

a short while and then a hold announcem ent will be sent

and put the waiting call on hold.

After the private conversation with the original caller, you m ay select to drop the original

call and take the waiting call or to add the waiting caller into the call conference.

• To drop the talking line and answer the waiting call,

press [DROP] softkey.

• To add the waiting caller into the call and form a

3-party call conference, press [JOIN] softkey. For

further disposition of the 3-party call conference, refer

to Call Waiting ID Option: JOIN section above.

JOHN SMITH L1

123-123-4568

10:00

AM

1/01 X1

D R OP

DROPPED #1

00:05

3W AY

SERVICE

JOHN SMITH L1

123-123-4568

10:00

AM

1/01 X1

J OI N D R OP

L1 ON

00:05

HOLD

3W AY

SERVICE

C AL L E R ID O P E R AT IO N

4 3

Your phone has a Phone Book Directory for storing up to 50 im portant nam es and

telephone num bers. Each m em ory can store 32 digits and 15 characters. You can

edit the Phone Book Directory records, but not the Caller ID List records. The Directory

records are saved in alphabetical order. The Phone Book Directory can be accessed

by pressing [DIR.] softkey during standby m ode.

CREATING A PHONE BOOK DIRECTORY RECORD

Copy from a Caller ID Num ber

During Caller ID reviewing, select the valid record you

want to save as a Phone Book Directory record.

Press [SAVE] softkey and “SAVED TO DIR!” is shown on

the display to confirm the entry.

Note: If the m emory locations are full, the m essage “LIST

FULL” will appear and your request is rejected.

If this is done on the base unit, the display will then

prom pt you to record a nam e for Voice Announce to

associate with the copied caller ID num ber after 2

seconds. If you want to record a nam e for Voice

Announce, see next section. Or press [EXIT] softkey to

decline name recording.

Add a New Num ber/Nam e

Press [DIR.] during standby m ode. “NO ITEM” appears if

no records in the directory, or “20 ITEMS ↓=VIEW ”

appears if there is 20 records in the directory. If the

m em ory locations are full, the m essage “LIST FULL” will

appear and your request is rejected.

After 3 seconds, “USE SAVE=CREATE” appears on the

display.

Press [SAVE]. Enter the num ber.

Tip: 1. Pressing [Pause] to add a 3-second delay (pause)

in the num ber field and P is displayed.

2. Pressing [Flash] to add a flash in the num ber field

and F is displayed.

JOHN SMITH ↓

123-123-4568

10:00

AM

1/01 #01 X1

O.K. EXIT DELETE

SAVE

SAVED TO DIR!

RECORD ?

1231234568

O.K. EXIT

NO ITEM

EXIT

SAVE

USE SAVE=CREATE

EXIT

SAVE

ENTER NUMBER:

12312_

O.K. EXIT DELETE

P H O N E B O O K D IR E CT O RY

4 4

After finished num ber entry, press [O.K.] softkey and

“_NAME” is displayed.

Use the digit keys to enter the nam e. If you m ake a

m istake, press [DELETE] softkey and re-enter. W hen

finished, press [SAVE] softkey.

You will see “SAVED TO DIR!” on the display to confirm

the entry.

If this is done on the base unit, the display will prom pt

you to record a nam e for Voice Announce to associate

with the displayed phone num ber after 2 seconds. If

you want to record a nam e for Voice Announce, see next

section. Or press [EXIT] to decline nam e recording.

Entering Alphanumeric Characters:

Each num eric key is assigned a set of letters and sym bols as printed on the key. Press

the corresponding number until the desired letter is displayed.

Num eric: 1 2 3 4 5 6 7 8 9 0

Characters: Space A,B,C

D,E,F

G,H,I

J,K,L

M,N,O

P,Q,R,S T,U,V

W ,X,Y,Z

Adding Special Symbols

You can also use [] or [#] to insert the following special sym bols in the nam e field.

 + , - . / @ : ; < = > ? { ¦ } ~ [ \ ] ^ _ ` ! ″ # $ % & ´ ( )

RECORDING VOICE ANNOUNCE NAM E

You can record up to 25 names in your own voice and associate them to the records in

your phone book directory. W hen the phone rings from any of these numbers , the

recorded nam e is announced instead of the number.

After a num ber and nam e is entered, you will see

“SAVED TO DIR!” and the display will prompt you to

record a name for Voice Announce to ass ociate with the

displayed phone num ber after 2 seconds .

Note: If you enter a num ber that is already exis ted in

the directory, “RE-RECORD?” will be displayed.

_NAME

1231234567

EXIT DELETE

SAVE

JOHN SMITH_

1231234567

EXIT DELETE

SAVE

SAVED TO DIR!

RECORD ?

1231234567

O.K. EXIT

RECORD ?

1231234567

O.K. EXIT

P H O N E B O O K D IR E CT O RY

4 5

Press [O.K.] softkey and “SPEAK AFTER TONE” will

appear on the display. W ait for the “Beep” and then say

clearly the word(s ) you want to record.

You will have 3 seconds for recording. You can save

your m ess age by press ing [SAVE] softkey right after you

finis hed, or your m ess age will be saved autom atically

after you hear the “Beep”.

After recording, the phone plays the recorded m essage.

W hen finis hed, press [EXIT] softkey.

If you want to re-record it, press [EDIT] softkey during

m essage playing. “SPEAK AFTER TONE” is dis played,

wait for the “beep” and then repeat the previous steps .

REVIEW ING PHONE BOOK DIRECTORY

Press [DIR.] softkey during s tandby m ode.

Press [▼ ] / [▲ ] to review the Directory in alphabetical

order. If a caller’s nam e has been recorded, it will be

played.

Tip: To quickly find a nam e and phone number, press [DIR.] in standby m ode. Key in

the first letter of the nam e, and the dis play will jump to the first record s tarting with that

letter.

SPEAK AFTER TONE

EXIT

REC TIME:03

EXIT

SAVE

PLAYING

1231234567

EDIT E XIT

SPEAK AFTER TONE

EXIT

50 ITEMS ↓=VIEW

EXIT DELETE

SAVE

JOHN SMITH ↓

123-123-4568

EDIT O.K. EXIT DE LETE

SAVE

P H O N E B O O K D IR E CT O RY

4 6

EDITING A PHONE BOOK NUMBER

Select the record you want to edit.

The recorded name will be played back instead if there

was caller nam e being recorded.

Press [EDIT] softkey during playback to re-record the

m essage (see last section for details ), or press [DELETE]

softkey during playback to remove the recorded nam e.

The display shows “VOICE DELETED !” to confirm the

deletion.

W hen you see the record you want to edit is displayed,

press [EDIT] softkey and then edit the num ber. Press

[DELETE] softkey to rem ove the error and enter the

correction as needed. Press [O.K.] softkey to confirm

the edited num ber.

Then press [DELETE] to rem ove the error and re-enter

the correct nam e as needed. Press [SAVE] and “SAVE

TO DIR!” appears on the dis play. Press [O.K.] if your

want to re-record the Voice Announce Name as well, or

press [EXIT] to return.

W hen finis hed, the screen will dis play the edited entry.

DELETING AN ENTRY FROM A PHONE BOOK DIRECTORY

Scroll to the record to be deleted.

If a Voice Announce Nam e was recorded, wait until the

playback is finished and the record you want to delete is

displayed.

Press [DELETE] and you will see “DELETED!” on the

display to confirm the deletion of the current record.

The phone will then m ove to the next a vailable record in

the directory. Press [EXIT] to return to standby m ode.

JOHN SMITH ↓

1231234568

EDIT O.K. EXIT DE LETE

SAVE

PLAYING

1231234568

EDIT O.K. EXIT DE LETE

ENTER NUMBER:

1231234568_

O.K. EXIT DELETE

JOHN SMITH_

1231234568

EXIT DELETE

SAVE

JOHNNY SMITH ↓

1231234568

EDIT O.K. EXIT DE LETE

SAVE

JOHN SMITH ↓

123-123-4568

EDIT O.K. EXIT DE LETE

SAVE

DELETED!

P H O N E B O O K D IR E CT O RY

4 7

DELETING ALL PHONE BOOK DIRECTORY RECORDS

Press [DIR.] softkey to enter into Phone Book Directory

default page.

Press [DELETE] softkey and “DELETE ALL?” is

displayed. To confirm the deletion of all records, press

[O.K.]. To e xit without deleting, press [EXIT].

DIALING FROM PHONE BOOK DIRECTORY

During stand-by m ode, press [DIR.] and find the entry you want to call. Press a LINE

key to call the num ber.

20 ITEM ↓=VIEW

EXIT DELETE

SAVE

DELETE ALL?

O.K. EXIT

P H O N E B O O K D IR E CT O RY

4 8

Your new phone provides a m ultiple handset capability that supports up to 8 handsets .

Each additional handset com es with a charge cradle you can plug into any electrical

outlet. No extra phone jack is required. Intercom or call transfer between handsets

becom es poss ible when there is m ore than one handset in your system .

It is possible to make an intercom call between two handsets while another handset is

engaging the external line

INTERCOM

The bas e unit of SBC373 can s upport up to 4 groups of intercom conversation and an

external call s im ultaneous ly if you have 8 handsets in your system .

Handset-to-Hands et two-way intercom is operated independent of the base unit.

W hen the Handset 1 is in s tandby m ode, press [Int.],

LCD display shows “EXTENSION #:?”

Key-in the num ber of the handset (1,2… 8) or base unit (0)

you want to call. For ins tance, if Handset #2 is being

paged, LCD display shows “PAGING #2”

The handset being called will ring and the dis play

shows “PAGING FRO M # 1”.

Press [Int.] on the called handset to answer the

intercom .

Press [EXIT] softkey to term inate the intercom .

Note:

This phone system can allow you to conference or intercom by using the hands et and

bas e sim ultaneously. If the handset is operated too close to the base unit, you m ay

experience feedback nois e. Should this occur, move the hands et away from the

bas e unit and the feedback will s top.

EXTENSION #:?

EXIT

PAGING #2

EXIT

PAGING FROM #1

EXIT

M U LT I- H AN D SET O P E R AT IO N

4 9

CALL TRANSFER

Your new cordless s ystem allows you to trans fer calls from Bas e to Handset, Handset to

Handset, or Handset to Bas e.

W hen the handset is engaging an external call in Line1,

press [Int.] and followed by the number of the handset

(1-8 or 0 for bas e unit) you want to trans fer the call to.

If you are entering an unregis tered handset number,

“INVALID NUMBER” is display and you need to repeat

the above steps.

The handset you called rings and “TRANSFER FROM

L1” appear on the display. Press [Line1] on the called

handset to pick up.

If the handset you called does not ans wer in 20 seconds,

the unanswered call will ring back to you again.

Press Line 1 to pick up the call again, or the line will be

released automatically after 20 seconds if not taken

up.

EXTENSION #:?

EXIT

.

INVALID NUMBER

EXIT

TRANSFER FROM

L1

EXIT

L1 ON

00:07

HOLD

3W AY

SERVICE

M U LT I- H AN D SET O P E R AT IO N

5 0

You phone has been pre-programm ed at the factory with an optional s ervices dial lis t.

DISPLAY CLASS SERVICE DIAL CODE

411 Help Hotline 1411

RPT DIAL Repeat Dialing 66

FW D ON Activate Call Forwarding 72#

FW D OFF Cancel Call Forwarding 73#

CALL RTN Activate Call Return 69

3W AY Three W ay Calling Flash

Note:

These optional services, except 1411, are accessible only if you are subscribed to them

through your local telephone com pany.

DIALING SERVICES

During standby m ode, press [SERVICE] softkey to

prom pt the pre-program m ed optional features dial list.

Press the corresponding softkey to the optional service

you wish to activate. Or, press [▼ ] / [▲ ] if you want to

return to standby m ode.

For instance, if you want to activate Repeat Dialing

function, press [RPT DIAL] softkey. The dial code will

be shown on the display. Press a LINE key to send the

signal. W hen you can hear a second dialing tone, the

code is accepted. Press [Bye] on the handset or on the

base unit to hang up.

50 NEW CALLS

HS-1

10:05

AM

05/03

411 RPT DIAL FWD ON FWD OFF CALL RT N

USE L1 OR L2?

├66

EXIT

O PT IO N A L FEAT URES DIAL L IST

5 1

CAPACITY

Mem ory

The Caller ID List: 50 m em ory locations; 24 digits and 15 characters per location.

Phone Book Directory: 50 m em ory locations; 32 digits and 15 characters per location.

Voice Announce Caller Nam e: 25 m em ory locations; 3 seconds per location.

Redial List: 20 m em ory locations; 32 digits per location.

Call Repeat Num ber

The Call Repeat num ber is 7 m axim um .

OUT OF RANGE

If the handset cannot com m unicate with the base unit or the handset is too far away

from the base during a conversation and the RF signal is not present, the m essage

“OUT OF RANGE” will be appeared on the display.

NO CONNECTION

If the handset cannot connect to the base unit when m aking a call, the m essage “NO

CONNECTION” appears on the display for 2 seconds, and then returns to stand-by

m ode.

ADD IT IO N A L IN FO R M AT IO N

5 2

Before calling for service, please check this list of the m ost com m on problems.

Problem Check

The phone does not work

Are the LINE CORD and AC adapter connected properly?

Is the handset too far away from the base unit?

Does the battery pack becom e weak? Charge the battery

on the base unit for about 15 hours.

The phone does not ring

Check the RINGER setting.

Cannot dial

Do you have touch-tone service?

Check the TONE/PULSE setting.

The audio sounds scratchy

Is the base unit located next to m etal objects or

appliances? Try relocation.

CALLER ID doesn’t work

Do you have CALLER ID service?

No caller’s nam e Does the CALLER ID service to which you subscribed

include the CALLERS NAME DELIVER Y feature?

You cannot hear or be heard

clearly

Increase the handset receiver volum e (See page 30).

Caller’s inform ation is not

registered

Did you or your answering m achine answer calls before

the second ring?

Interference from wireless

networking device

Change the location of the wireless networking device

and/or the base of the cordless phone.

Switch the channel on the wireless networking device.

Please refer to the m anual of your wireless networking

device, or consult a qualified technician of how to switch

the channel. If that doesn’t work, try another channel.

For optim um result, switch to a m id transm it range

channel.

SAVE THESE INSTRUCTIONS.

T R O U B LE S H O OT IN G

5 3

The following suggestions will help you care for the system so you can enjoy it for years.

Keep the system dry. If it gets wet, wipe it dry im m ediately. Liq-

uids m ight contain m inerals that can corrode the electronic

circuits.

Use and store the system only in norm al tem perature envi-

ronm ents. Tem perature extrem es can shorten the life of

electronic devices, and distort or m elt plastic parts.

Handle the system gently and carefully. Dropping it can

dam age circuit boards and cases and can cause the system to

work im properly.

Keep the system away from excessive dust and dirt, which can

cause prem ature wear of parts.

W ipe the system with a dam p cloth occasionally to keep it

looking new. Do not use harsh chem icals, cleaning solvents, or

strong detergents to clean the system .

Modifying or tampering with the system’s internal components can cause a

malfunction and might invalidate the system’s warranty and void your FCC

authorization to operate it.

CAR E AN D M AIN T E N AN CE

5 4

This equipm ent com plies with Part 68 of FCC rules and the requirem ents adopted by the

ACTA. On the b ottom of this equipm ent is a label that contains, am ong other

inform ation, a product identifier in the form at US:CACW400B373001. If requested, this

num ber m ust be provided to the telephone com pany.

The REN is used to determ ine the num ber of devices that may be connected to a

telephone line. Excessive RENs on a telephone line m ay result in the devices not

ringing in response to an incom ing call. In m ost but not all areas, the sum of the RENs

should not exceed five (5.0). To be certain of the num ber of devices that m ay be

connected to a line, as determ ined by the total RENs, contact the local telephone

com pany. [For products approved after July 23, 2001, the REN for this product is part

of the product identifier that has the form at US:CACW400B373001. The digits

represented by 00B are the REN without a decim al point (e.g., 03B is a REN of 0.3B).

For earlier products, the REN is separately shown on the label.]

Should you experience trouble with this equipm ent, please contact:

Cybiolink Service Center

4905 77

th

Ave P.O. Box 140 Milan, IL. 61264

1-800-233-5961, Service Departm ent

for repair or warranty inform ation. If the equipm ent is causing harm to the telephone

network, the telephone com pany m ay request that you disconnect the equipm ent until

the problem is resolved.

NOTICE: If your hom e has specially wired alarm equipm ent connected to the telephone

line, ensure the installation of this equipm ent ID does not disable your alarm equipm ent.

If you have questions about what will disable alarm equipm ent, consult your telephone

com pany or a qualified installer.

If this equipm ent SBC373 causes harm to the telephone network, the telephone

com pany will notify you in advance that tem porary discontinuance of service m ay be

required. But if advance notice isn’t practical, the telephone com pany will notify the

custom er as soon as possible. Also, you will be advised of your right to file a com plaint

with the FCC if you believe it is necessary.

The telephone com pany m ay make changes in its facilities, equipm ent, operations or

procedures that could affect the operation of the equipm ent. If this happens the

telephone com pany will provide advance notice in order for you to m ake necessary

m odifications to maintain uninterrupted service.

FCC R E Q U IR E M E N T S

5 5

Do not attempt to repair or modify this equipment. Changes or m odifications not

expressly approved by the party responsible for its com pliance could void the user’s

authority to operate the equipm ent.

Connection to party line services is subject to state tariffs. Contact the state public utility

com m ission, public service com m ission or corporation comm ission for inform ation.

Current FCC regulations specify that any direct connections to a telephone com pany line

be done using only standard phone jacks USOC RJ11C / RJ14C and plugs that is

TIA-968-A com pliant.

Note

This equipm ent has been tested and found to com ply with the lim its for a Class B digital

device, pursuant to Part 15 of the FCC Rules. These lim its are designed to provide

reasonable protection against harm ful interference in a residential installation. This

equipm ent generates, uses, and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, m ay cause harm ful interference to radio

com m unications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipm ent does cause harm ful interference to radio or

television reception, which can be determ ined by turning the equipm ent off and on, the

user is encouraged to try to correct the interference by one or m ore of the following

m easures:

1. Reorient or relocate the receiving antenna.

2. Increase the separation between the equipm ent and receiver.

3. Connect the equipm ent into an outlet on a circuit different from that to which the

receiver is connected.

4. Consult the dealer or an experienced radio / TV technician for help.

NOTICE TO HEARING AID WEARERS: This telephone has been registered with the

FCC as hearing aid com patible.

W arning: Changes or modifications to this unit not expressly approved by the

party responsible for compliance could void the user’s authority to operate the

equipment.

Caution: To maintain compliance with the FCC’s RF exposure guidelines place the

base unit at least 20 cm from nearby persons.

FCC R E Q U IR E M E N T S

5 6

Q & A:

W HAT DOES OUR W ARRANTY COVER?

• Any defect in m aterial or workm anship.

FOR HOW LONG AFTER THE ORIGINAL PURCHASE?

• To the original purchaser only - ONE YEAR.

W HAT W ILL SBC DO?

• At our option, repair or replace your unit.

HOW DO I SEND MY UNIT, IN OR OUT OF W ARRANTY?

• In the U.S., call Custom er Service for Return Authorization at: 1-800-233-5961.

• Properly pack your unit. Include any cables and accessories that were originally

provided with the product. W e recom m end using the original carton and packing

m aterials.

• Include in the package a copy of the sales receipt or other evidence of date of original

purchase (if the unit was purchased within the last twelve m onths).

• Print your nam e and address, along with a description of the defect, and include this

in the package.

• Include paym ent for any service or repair not covered by warranty, as determ ined by

SBC.

W HAT DOES OUR W ARRANTY NOT COVER?

• Batteries

• Dam age from m isuse, neglect, or acts of nature (lightning, floods, power surges, etc.)

• Products, which m ay have been m odified or incorporated into other products.

• Products purchased and/or operated outside the USA, its territories, or Canada.

• Products serviced by the owner or a service facility not expressly authorizes by SBC

Com m unications.

• Products purchased m ore than 12 m onths from current date.

• Units purchased in "AS IS" condition, or units purchased as "Distressed

Merchandise".

HOW DOES STATE LAW OR PROVINCIAL LAW RELATE TO THIS W ARRANTY?

• This warranty gives you specific rights. You m ay also have other rights that vary

from state to state or province to province.

W AR R AN T Y

5 7

N OT E

5 8

SBC373D

20041014

Cybiotronics 373001 2.4GHz 92 Channel DSSS Cordless Phone w/ CID User Manual CY373D SBC 200410142

Cybiotronics Limited 2.4GHz 92 Channel DSSS Cordless Phone w/ CID CY373D SBC 200410142

Contents

User Manual

Navigation menu

Namespaces

Views

Navigation
