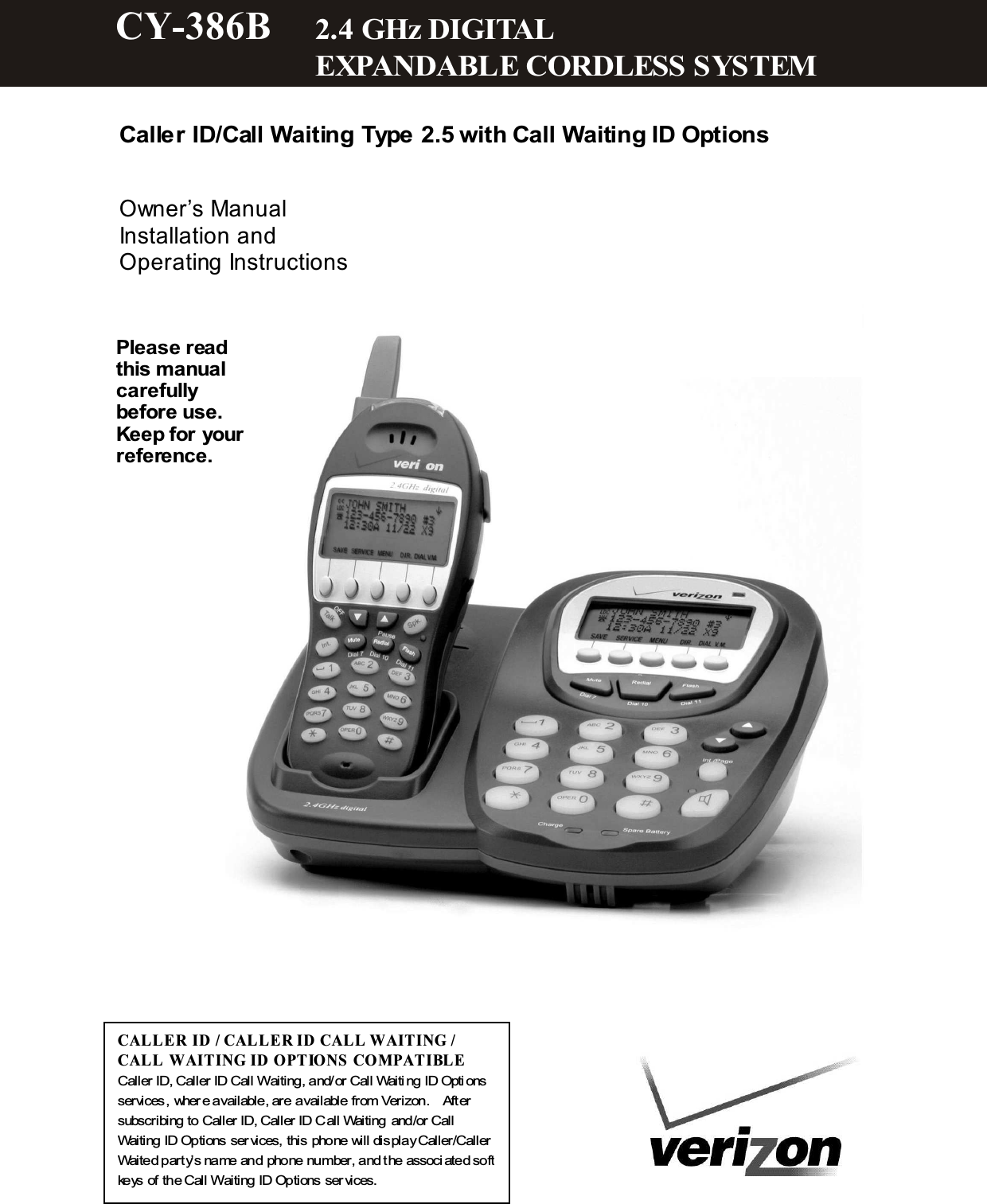

  Caller ID/Call Waiting Type 2.5 with Call Waiting ID Options   Owner’s Manual Installation and Operating Instructions                   CAL LE R ID / CAL LE R ID CALL W AITING / CAL L W AITING ID  OPTIONS COM PATIBL E Caller ID, Caller ID Call Waiting, and/or Call Waiti ng ID Opti ons services, wher e available, are available from Verizon.    After subscribing to Caller ID, Caller ID Call Waiting and/or Call Waiting ID Options ser vices, this phone will display Caller/Caller Waited party’s name and phone number, and the associ ated soft keys of the Call Waiting ID Options ser vices. Please read this m anual carefully before use. Keep for your reference. CY-386B  2.4 GHz DIGITAL           EXPANDABLE CORDLESS SYSTEM

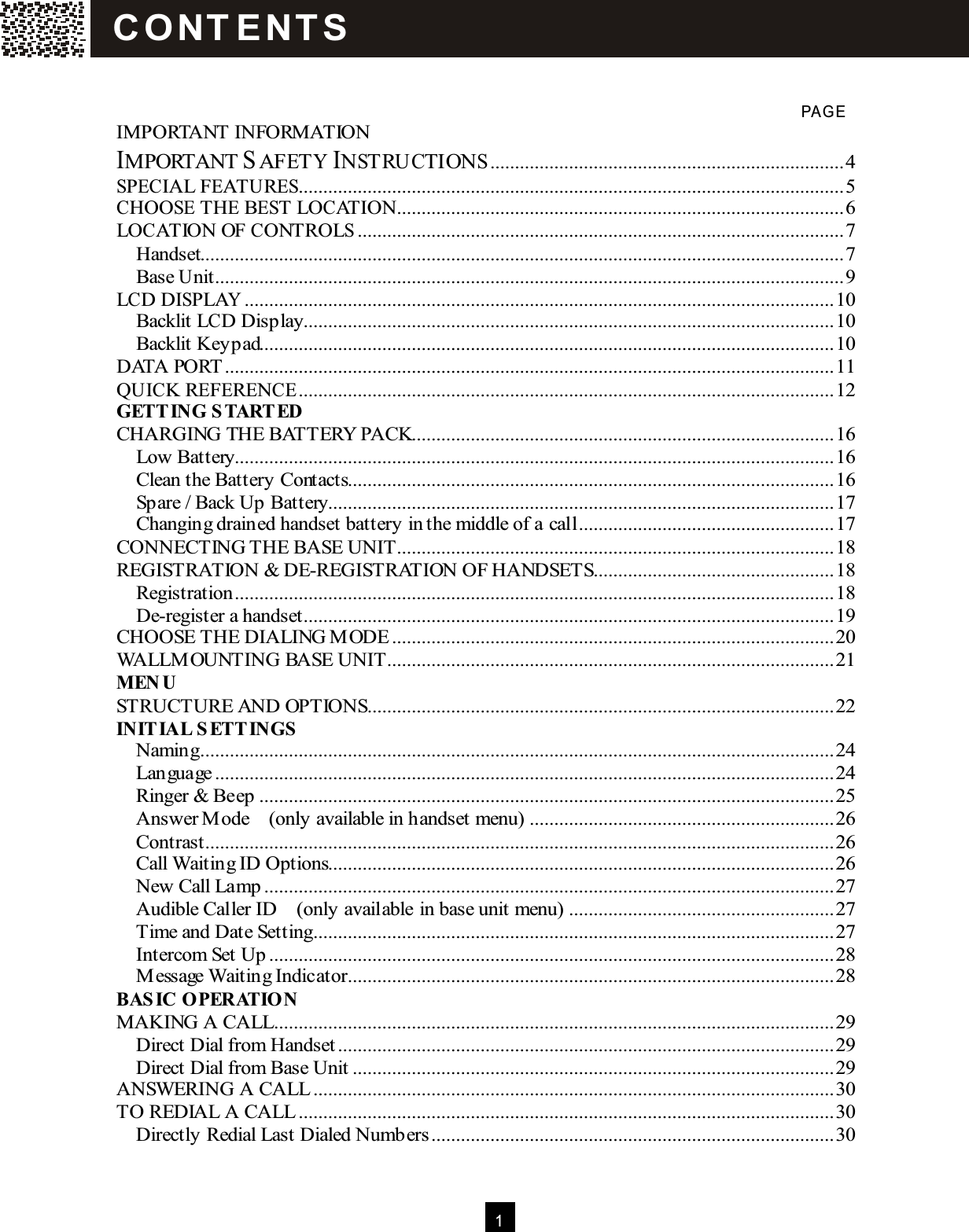

 1    PAG E IMPORTANT INFORMATION IMPORTANT SAFETY INSTRUCTIONS........................................................................4 SPECIAL FEATURES...............................................................................................................5 CHOOSE THE BEST LOCATION...........................................................................................6 LOCATION OF CONTROLS...................................................................................................7 Handset...................................................................................................................................7 Base Unit................................................................................................................................9 LCD DISPLAY........................................................................................................................10 Backlit LCD Display............................................................................................................10 Backlit Keypad.....................................................................................................................10 DATA PORT ............................................................................................................................11 QUICK REFERENCE.............................................................................................................12 GETT ING S TART ED CHARGING THE BATTERY PACK......................................................................................16 Low Battery..........................................................................................................................16 Clean the Battery Contacts...................................................................................................16 Spare / Back Up Battery.......................................................................................................17 Changing drained handset battery in the middle of a call....................................................17 CONNECTING THE BASE UNIT.........................................................................................18 REGISTRATION & DE-REGISTRATION OF HANDSETS.................................................18 Registration..........................................................................................................................18 De-register a handset............................................................................................................19 CHOOSE THE DIALING M ODE..........................................................................................20 WALLM OUNTING BASE UNIT...........................................................................................21 M EN U STRUCTURE AND OPTIONS...............................................................................................22 INIT IAL S ETT INGS  Naming.................................................................................................................................24 Language..............................................................................................................................24 Ringer & Beep.....................................................................................................................25 Answer M ode    (only available in handset menu)..............................................................26 Contrast................................................................................................................................26 Call Waiting ID Options.......................................................................................................26 New Call Lamp....................................................................................................................27 Audible Caller ID    (only available in base unit menu)......................................................27 Time and Date Setting..........................................................................................................27 Intercom Set Up...................................................................................................................28 M essage Waiting Indicator...................................................................................................28 BAS IC OPERATION MAKING A CALL..................................................................................................................29 Direct Dial from Handset.....................................................................................................29 Direct Dial from Base Unit..................................................................................................29 ANSWERING A CALL..........................................................................................................30 TO REDIAL A CALL.............................................................................................................30 Directly Redial Last Dialed Numbers..................................................................................30 C O NT E NT S

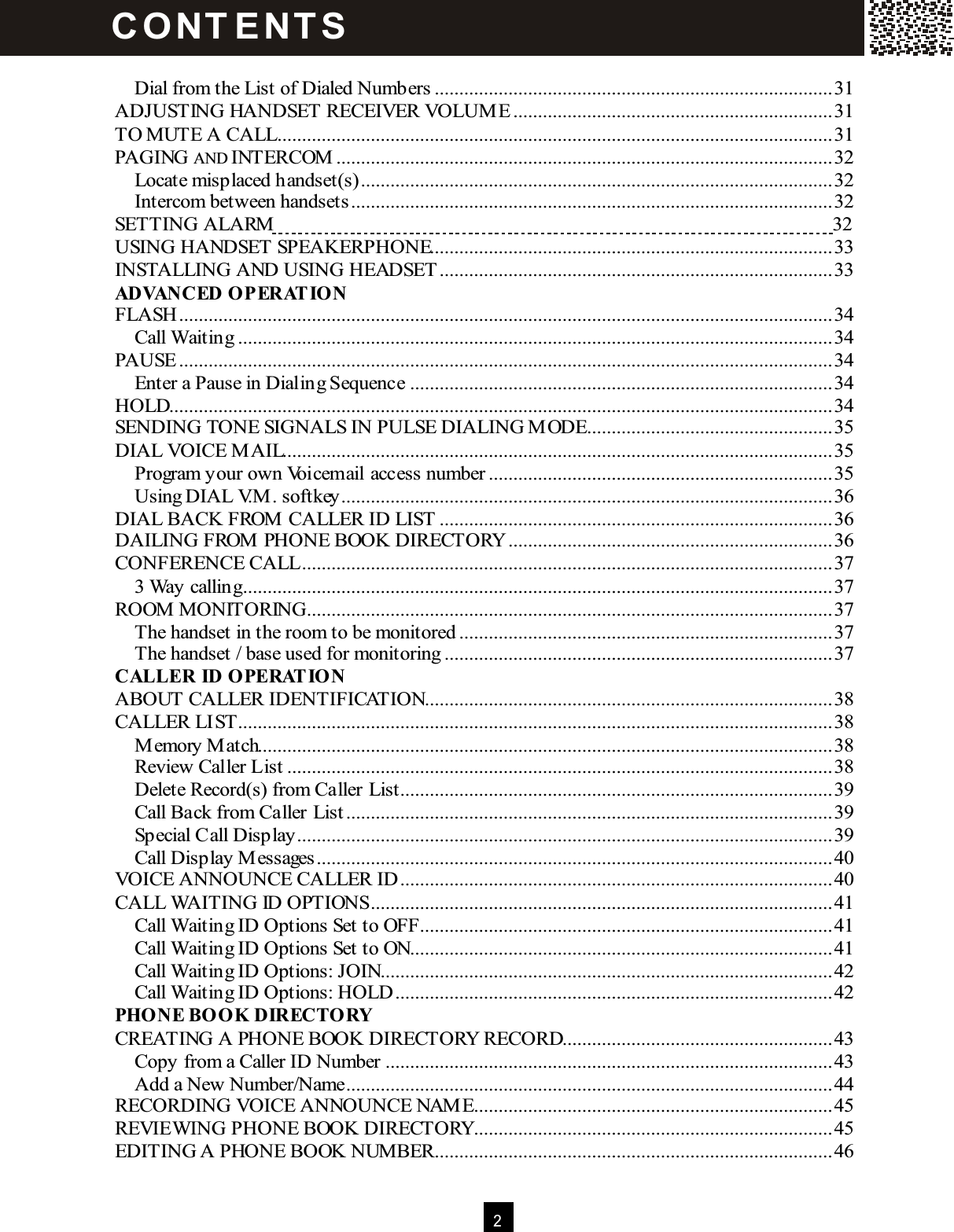

 2   Dial from the List of Dialed Numbers.................................................................................31 ADJUSTING HANDSET RECEIVER VOLUM E .................................................................31 TO MUTE A CALL.................................................................................................................31 PAGING AND INTERCOM .....................................................................................................32 Locate misplaced handset(s)................................................................................................32 Intercom between handsets..................................................................................................32 SETTING ALARM  32 USING HANDSET SPEAKERPHONE..................................................................................33 INSTALLING AND USING HEADSET ................................................................................33 ADVANCED OPERAT IO N FLASH.....................................................................................................................................34 Call Waiting.........................................................................................................................34 PAUSE .....................................................................................................................................34 Enter a Pause in Dialing Sequence......................................................................................34 HOLD.......................................................................................................................................34 SENDING TONE SIGNALS IN PULSE DIALING M ODE..................................................35 DIAL VOICE M AIL................................................................................................................35 Program your own Voicemail access number......................................................................35 Using DIAL V.M . softkey....................................................................................................36 DIAL BACK FROM  CALLER ID LIST ................................................................................36 DAILING FROM  PHONE BOOK DIRECTORY..................................................................36 CONFERENCE CALL............................................................................................................37 3 Way calling........................................................................................................................37 ROOM  MONITORING...........................................................................................................37 The handset in the room to be monitored............................................................................37 The handset / base used for monitoring...............................................................................37 CALLER  ID OPERATION ABOUT CALLER IDENTIFICATION...................................................................................38 CALLER LIST.........................................................................................................................38 M emory M atch.....................................................................................................................38 Review Caller List...............................................................................................................38 Delete Record(s) from Caller List........................................................................................39 Call Back from Caller List...................................................................................................39 Special Call Display.............................................................................................................39 Call Display M essages.........................................................................................................40 VOICE ANNOUNCE CALLER ID........................................................................................40 CALL WAITING ID OPTIONS..............................................................................................41 Call Waiting ID Options Set to OFF....................................................................................41 Call Waiting ID Options Set to ON......................................................................................41 Call Waiting ID Options: JOIN............................................................................................42 Call Waiting ID Options: HOLD.........................................................................................42 PHONE BOOK DIRECTORY CREATING A PHONE BOOK DIRECTORY RECORD.......................................................43 Copy from a Caller ID Number...........................................................................................43 Add a New Number/Name...................................................................................................44 RECORDING VOICE ANNOUNCE NAM E.........................................................................45 REVIEW ING PHONE BOOK DIRECTORY.........................................................................45 EDITING A PHONE BOOK NUM BER.................................................................................46 C O NT E NT S

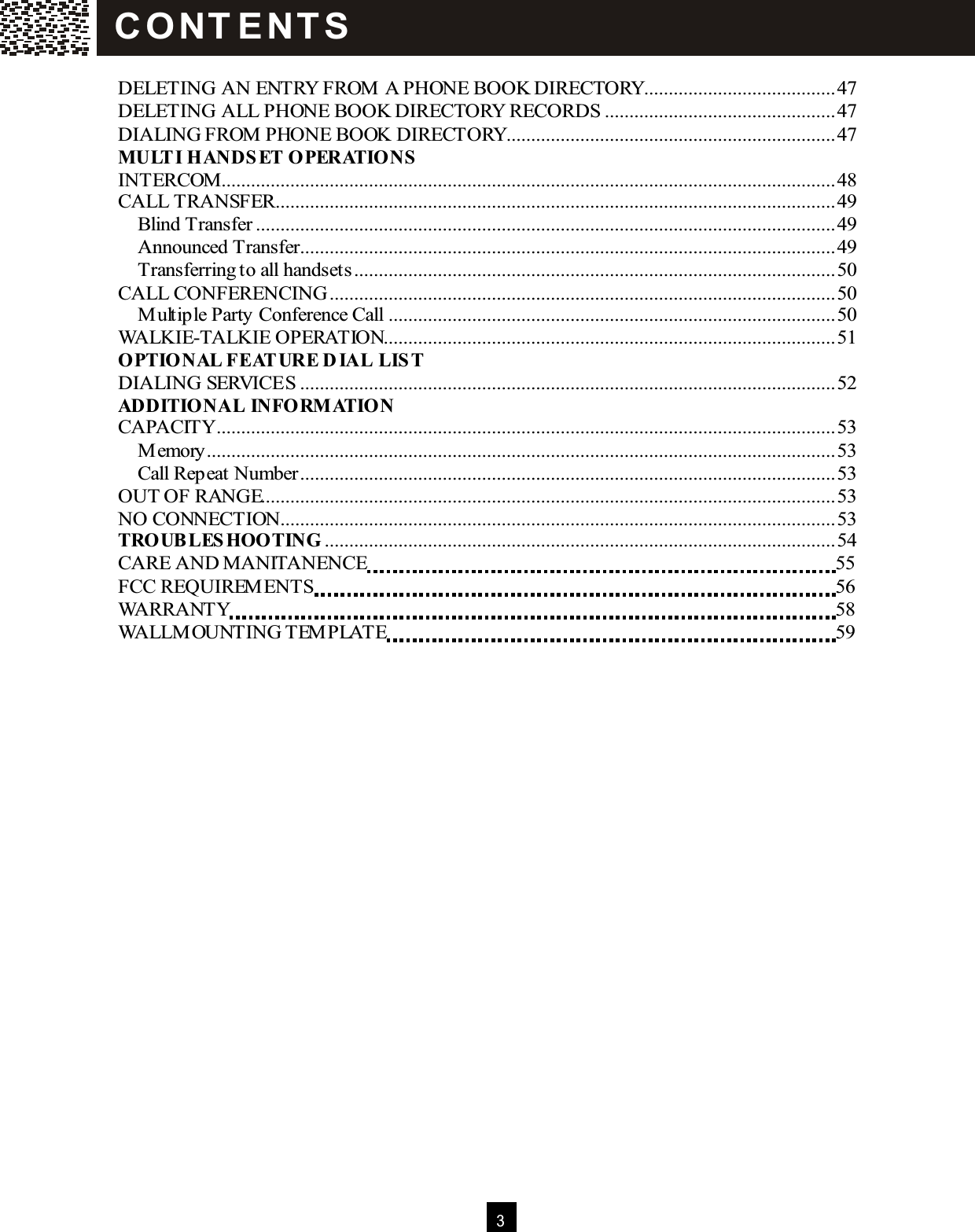

 3   DELETING AN ENTRY FROM  A PHONE BOOK DIRECTORY.......................................47 DELETING ALL PHONE BOOK DIRECTORY RECORDS ...............................................47 DIALING FROM  PHONE BOOK DIRECTORY...................................................................47 M ULT I HANDS ET OPERATIONS  INTERCOM .............................................................................................................................48 CALL TRANSFER..................................................................................................................49 Blind Transfer......................................................................................................................49 Announced Transfer.............................................................................................................49 Transferring to all handsets..................................................................................................50 CALL CONFERENCING.......................................................................................................50 M ultiple Party Conference Call...........................................................................................50 WALKIE-TALKIE OPERATION............................................................................................51 OPTIONAL FEAT URE D IAL  LIS T DIALING SERVICES .............................................................................................................52 ADDITIO NAL  INFORM ATION CAPACITY..............................................................................................................................53 M emory................................................................................................................................53 Call Repeat Number.............................................................................................................53 OUT OF RANGE.....................................................................................................................53 NO CONNECTION.................................................................................................................53 TROUBLES HOOTING ........................................................................................................54 CARE AND M ANITANENCE  55 FCC REQUIREM ENTS  56 WARRANTY  58 WALLM OUNTING TEM PLATE  59  C O NT E NT S
 4  Important Safety Instructions: To reduce the risk of fire, electric shock and/or injury to persons, always follow these basic safety precautions when using your telephone equipm ent.  1.  Read, understand, and follow all instructions.  2.  Unplug  this  telephone  from  the  wall  outlet before  cleaning.    Do  not  use  liquid  or  aerosol cleaners.    If  necessary,  use  a  soft  cloth  lightly m oistened with a m ild detergent solution.  3.  Do  not  use  this  telephone  near  a  bathtub, kitchen sink, wash bowl, laundry tub, swim m ing pool, a wet basem ent or anywhere else there is water or liquid.  4.  Do not place this telephone on an unstable cart, stand  or  table.    A  fall  could  cause  serious dam age to the phone.  5.  Slots and openings in the cabinet at the back or bottom are provided for ventilation to protect the unit  from   overheating.    These  openings  m ust not  be  blocked  or covered.    Do  not  place this telephone  on  a  bed,  sofa,  rug  or  other  sim ilar surface.    This  telephone  should  never  be placed  near  or  over  a  radiator  or  heat  register.   This telephone should not be placed in a built-in installation unless proper ventilation is provided.  6.  Never  push  objects  of  any kind through  slots  in the  phone.    They  could  touch  dangerous voltage points or short out parts that could result in  a  risk  of  fire  or  electric  shock.    Never  spill liquid of any kind on the telephone.  7.  Unplug  this telephone from  the  wall  outlet  and refer to a qualified service representative in any of the following situations:- a)  If liquid has been spilled into the telephone. b)  If the telephone has been exposed to rain or water. c)  If the telephone does not operate norm ally by following the  operating  instructions.    Adjust only  those  controls that  are  covered  by  the operating  instructions.  Im proper  adjustm ent of  other  controls m ay  result  in  dam age  and will  often  require  extensive  work  by  a qualified  technician  to  restore  the  telephone to norm al operation.          d)  If  the  telephone  has  been  dropped  or  the case has been dam aged. e)  If  the telephone  exhibits  a  distinct  change  in perform ance.  8.  Do not use the telephone to report a gas leak in the vicinity of the leak.  9.  Avoid  using  a telephone  (other  than  a  cordless type) during an electrical storm.    There m ay be a rem ote risk of electric shock from lightning.  10.  Never  install  jacks  in  a  wet  location  unless  the jack is specifically designed for wet locations.  11.  Never  touch  uninsulated  telephone  wires  or term inals  unless  the  telephone  line  has  been disconnected at the network interface.  12.  Use  with  caution  when  installing  or  m odifying telephone lines.  13.  To  reduce  the  risk  of  electric  shock,  do  not disassem ble  this  product,  but  take  it  to  a qualified  servicem an  when  som e  service  or repair  work  is  required.    Opening  or  rem oving covers m ay  expose you to  dangerous voltages or other risks.    Incorrect reassem bly can cause electric  shock  when  the  appliance  is subsequently used.  14.  Use only the power cord and batteries indicated in  this  m anual.    Do  not  dispose  of  batteries  in fire.    They  may  explode.    Check  with  local codes for possible special disposal instructions.  15 .  Plug  the  adaptor  to  the socket-outlet  that  near the equipm ent and shall be easily accessible.  16.  CAUTION RISK  OF  EXPLOSION  IF  BATTERY  IS REPLACED BY AN INCORRECT TYPE. Use  only  battery  type  CYB-103,  NiMH  3.6V, 750m Ah DISPOSE OF USED BATTERIES ACCORDING TO YOUR LOCAL CODE.  IM PO RT AN T   IN FO R M AT IO N  Use only with Class 2 Power Source, 9V DC, 500m A for base unit     SAVE THESE INSTRUCTIONS SAVE THESE INSTRUCTIONS

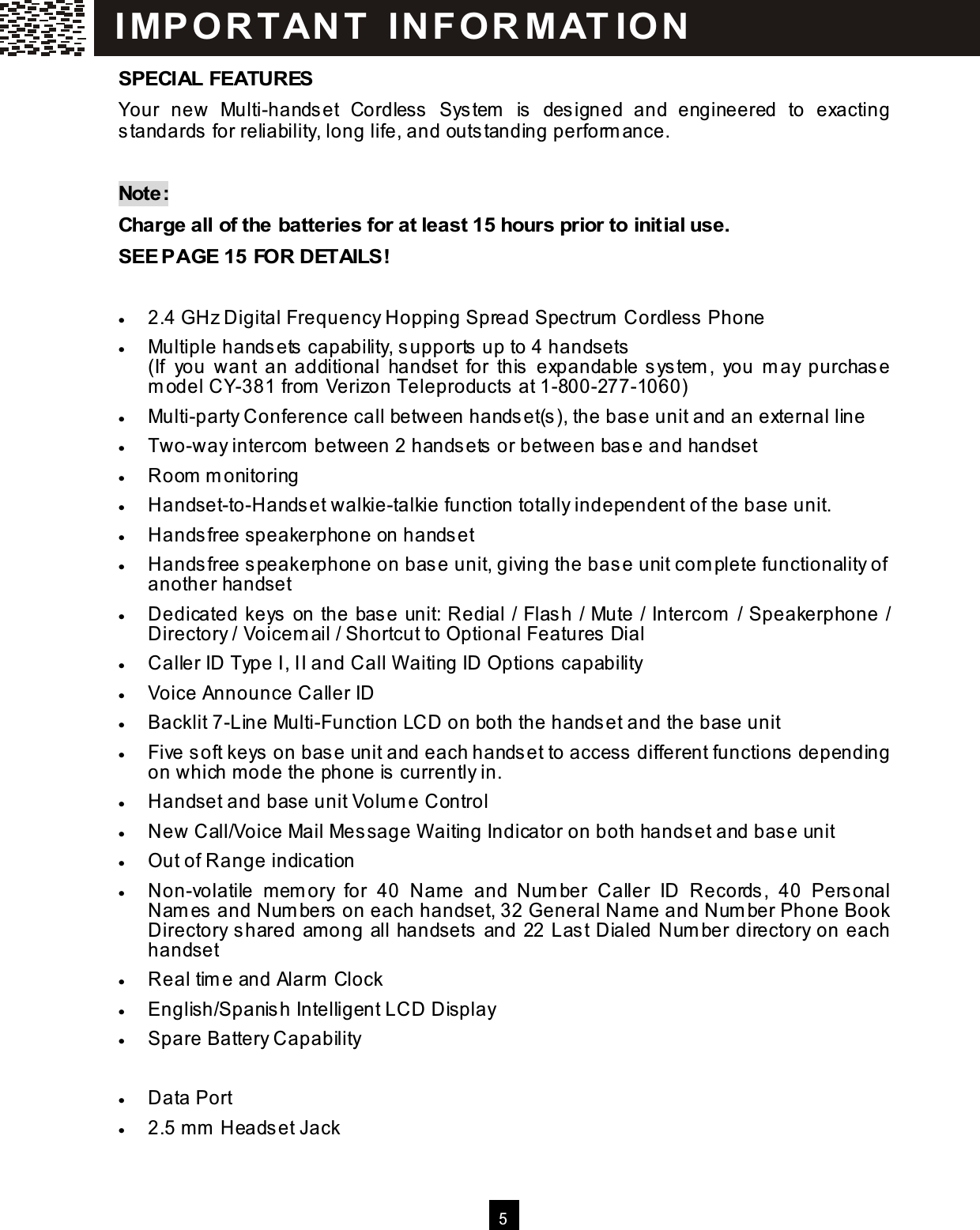

  5  SPECIAL FEATURES Your  new  Multi-handset  Cordless  System   is  designed  and  engineered  to  exacting standards for reliability, long life, and outstanding perform ance.      Note: Charge all of the batteries for at least 15 hours prior to initial use. SEE PAGE 15 FOR DETAILS!  •  2.4 GHz Digital Frequency Hopping Spread Spectrum  Cordless Phone •  Multiple handsets capability, supports up to 4 handsets (If  you  want  an additional  handset  for  this  expandable system ,  you  m ay  purchase m odel CY-381 from  Verizon Teleproducts at 1-800-277-1060) •  Multi-party Conference call between handset(s), the base unit and an external line •  Two-way intercom  between 2 handsets or between base and handset •  Room  m onitoring •  Handset-to-Handset walkie-talkie function totally independent of the base unit. •  Handsfree speakerphone on handset •  Handsfree speakerphone on base unit, giving the base unit com plete functionality of another handset •  Dedicated keys on the base unit: Redial / Flash / Mute / Intercom  / Speakerphone / Directory / Voicem ail / Shortcut to Optional Features Dial •  Caller ID Type I, II and Call W aiting ID Options capability •  Voice Announce Caller ID •  Backlit 7-Line Multi-Function LCD on both the handset and the base unit •  Five soft keys on base unit and each handset to access different functions depending on which m ode the phone is currently in. •  Handset and base unit Volum e Control •  New Call/Voice Mail Message W aiting Indicator on both handset and base unit •  Out of Range indication •  Non-volatile  mem ory  for  40  Nam e  and  Num ber  Caller  ID  Records,  40  Personal Nam es and Num bers on each handset, 32 General Name and Num ber Phone Book Directory shared am ong all handsets and 22 Last Dialed Num ber directory on each handset •  Real tim e and Alarm  Clock •  English/Spanish Intelligent LCD Display •  Spare Battery Capability •  Built-in DSL Filter •  Data Port •  2.5 m m  Headset Jack IM PO RT AN T   IN FO R M AT IO N

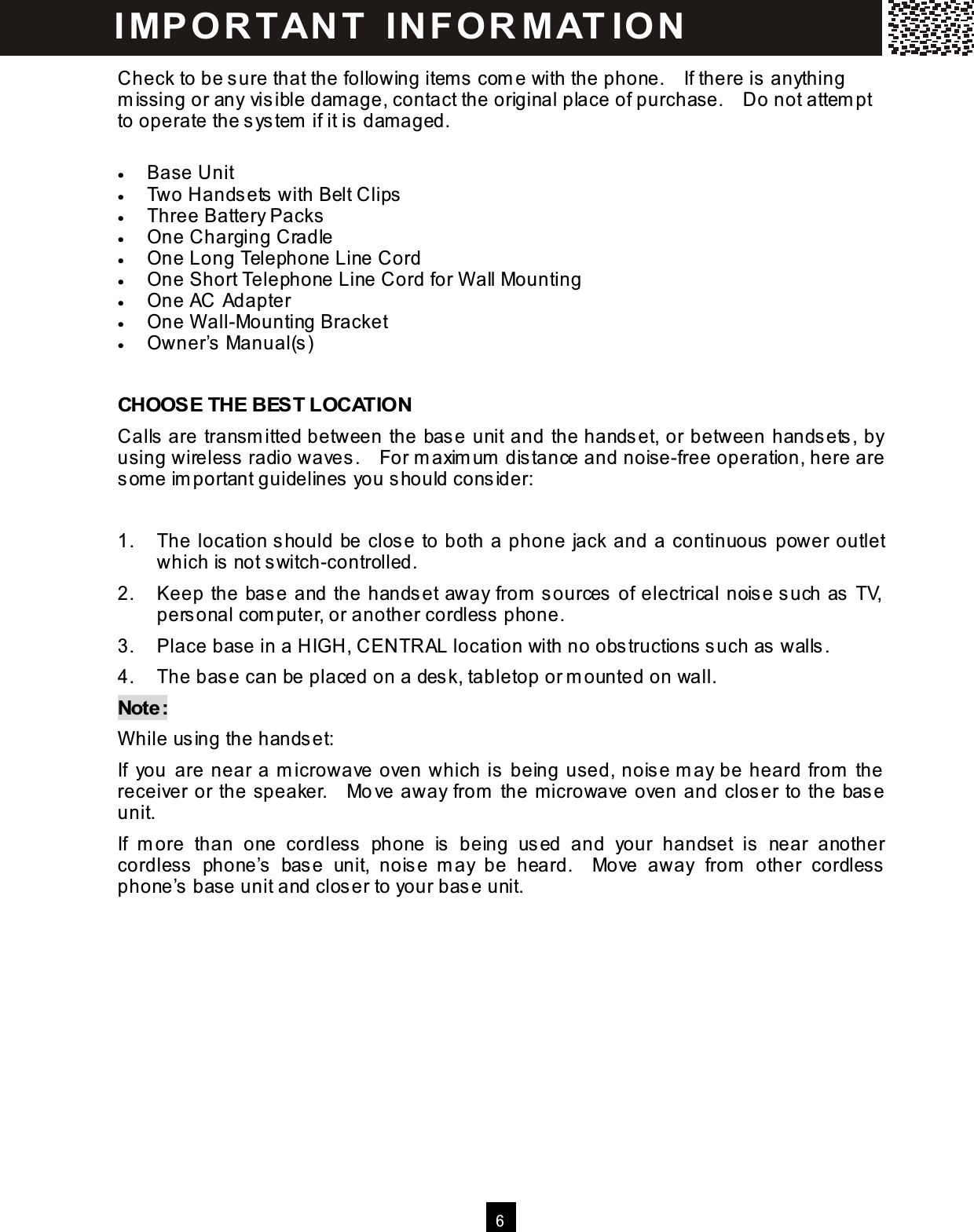

 6  Check to be sure that the following item s com e with the phone.    If there is anything m issing or any visible dam age, contact the original place of purchase.    Do not attem pt to operate the system  if it is dam aged.  •  Base Unit •  Two Handsets with Belt Clips •  Three Battery Packs •  One Charging Cradle •  One Long Telephone Line Cord •  One Short Telephone Line Cord for W all Mounting •  One AC Adapter •  One W all-Mounting Bracket •  Owner’s Manual(s)  CHOOSE THE BEST LOCATION Calls are transm itted between the base unit and the handset, or between handsets, by using wireless radio waves.    For m axim um  distance and noise-free operation, here are som e im portant guidelines you should consider:  1.  The location should be close to both a phone jack and a continuous power outlet which is not switch-controlled. 2.  Keep the base and the handset away from  sources of electrical noise such as TV, personal com puter, or another cordless phone. 3.  Place base in a HIGH, CENTRAL location with no obstructions such as walls. 4.  The base can be placed on a desk, tabletop or m ounted on wall. Note: W hile using the handset: If  you are near a m icrowave oven which is being used, noise m ay be heard from  the receiver or the speaker.    Move away from  the m icrowave oven and closer to the base unit. If  m ore  than  one  cordless  phone  is  being  used  and  your  handset  is  near  another cordless  phone’s  base  unit,  noise  m ay  be  heard.    Move  away  from   other  cordless phone’s base unit and closer to your base unit.   IM PO RT AN T   IN FO R M AT IO N

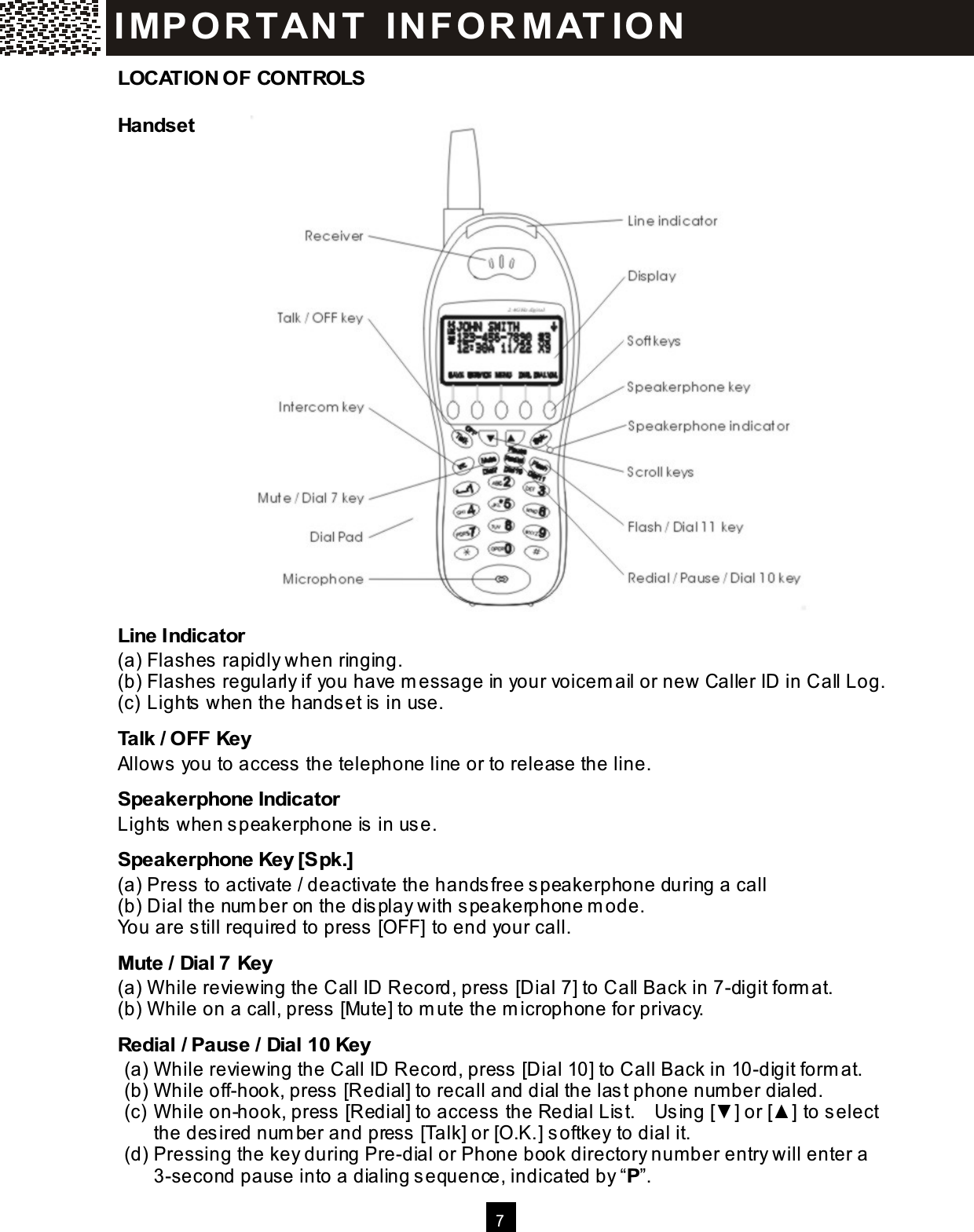

 7    LOCATION OF CONTROLS Handset                        Line Indicator (a) Flashes rapidly when ringing. (b) Flashes regularly if you have m essage in your voicem ail or new Caller ID in Call Log. (c) Lights when the handset is in use. Talk / OFF Key Allows you to access the telephone line or to release the line. Speakerphone Indicator Lights when speakerphone is in use. Speakerphone Key [Spk.] (a) Press to activate / deactivate the handsfree speakerphone during a call (b) Dial the num ber on the display with speakerphone m ode. You are still required to press [OFF] to end your call. Mute / Dial 7 Key (a) W hile reviewing the Call ID Record, press [Dial 7] to Call Back in 7-digit form at. (b) W hile on a call, press [Mute] to m ute the m icrophone for privacy. Redial / Pause / Dial 10 Key (a) W hile reviewing the Call ID Record, press [Dial 10] to Call Back in 10-digit form at. (b) W hile off-hook, press [Redial] to recall and dial the last phone num ber dialed. (c) W hile on-hook, press [Redial] to access the Redial List.    Using [▼ ] or [▲ ] to select the desired num ber and press [Talk] or [O.K.] softkey to dial it. (d) Pressing the key during Pre-dial or Phone book directory num ber entry will enter a 3-second pause into a dialing sequence, indicated by “P”. IM PO RT AN T   IN FO R M AT IO N

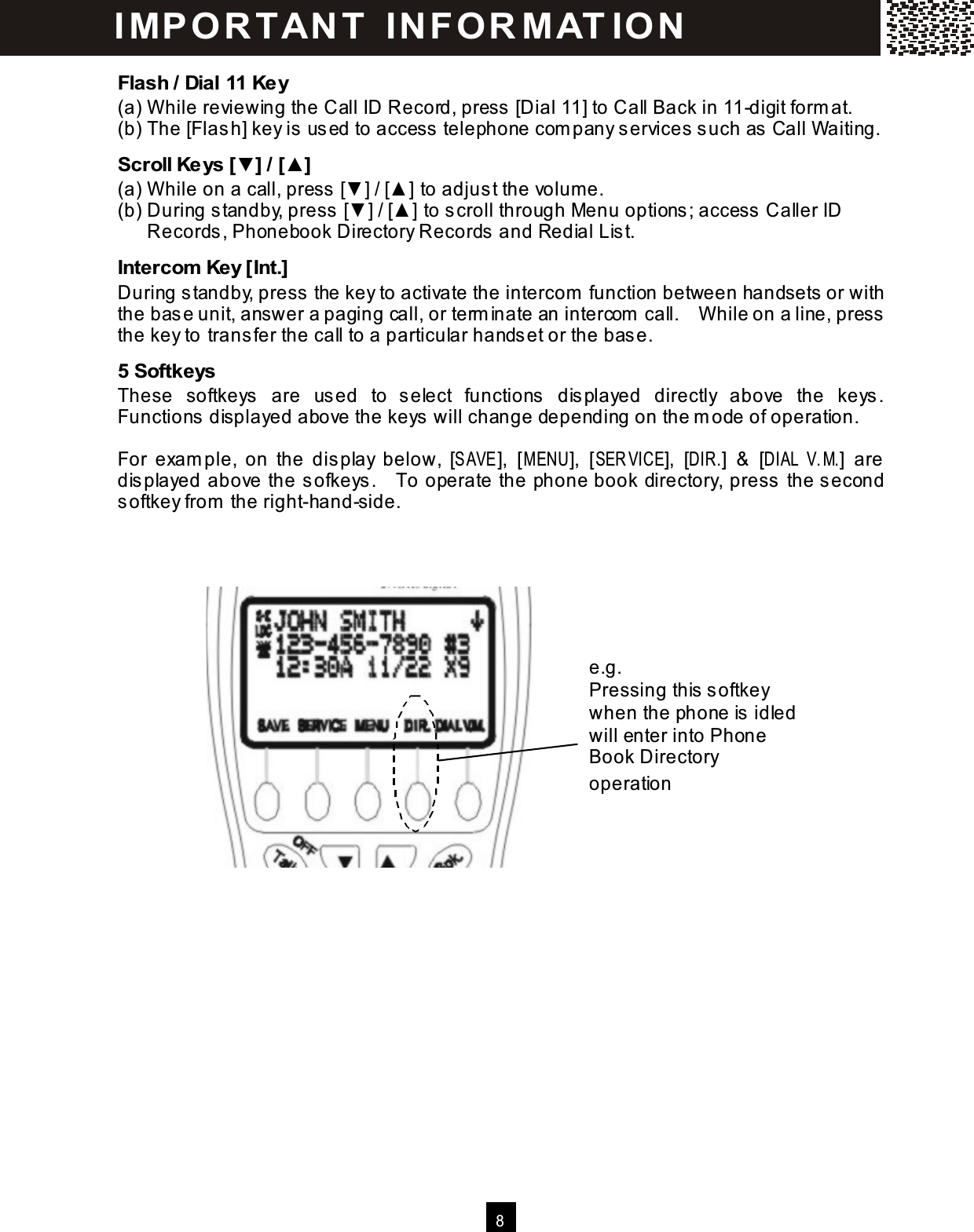

 8  Flash / Dial 11 Key (a) W hile reviewing the Call ID Record, press [Dial 11] to Call Back in 11-digit form at. (b) The [Flash] key is used to access telephone com pany services such as Call Waiting. Scroll Keys [▼] / [▲] (a) W hile on a call, press [▼ ] / [▲ ] to adjust the volume. (b) During standby, press [▼ ] / [▲ ] to scroll through Menu options; access Caller ID Records, Phonebook Directory Records and Redial List. Intercom  Key [Int.] During standby, press the key to activate the intercom  function between handsets or with the base unit, answer a paging call, or term inate an intercom  call.    W hile on a line, press the key to transfer the call to a particular handset or the base. 5 Softkeys These  softkeys  are  used  to  select  functions  displayed  directly  above  the  keys.   Functions displayed above the keys will change depending on the m ode of operation.  For  exam ple,  on  the  display  below,  [SAVE],  [M ENU],  [SER VICE],  [DIR.]  &  [DIAL V.M.]  are displayed above the sofkeys.    To operate the phone book directory, press the second softkey from  the right-hand-side. IM PO RT AN T   IN FO R M AT IO N  e.g. Pressing this softkey when the phone is idled will enter into Phone Book Directory operation

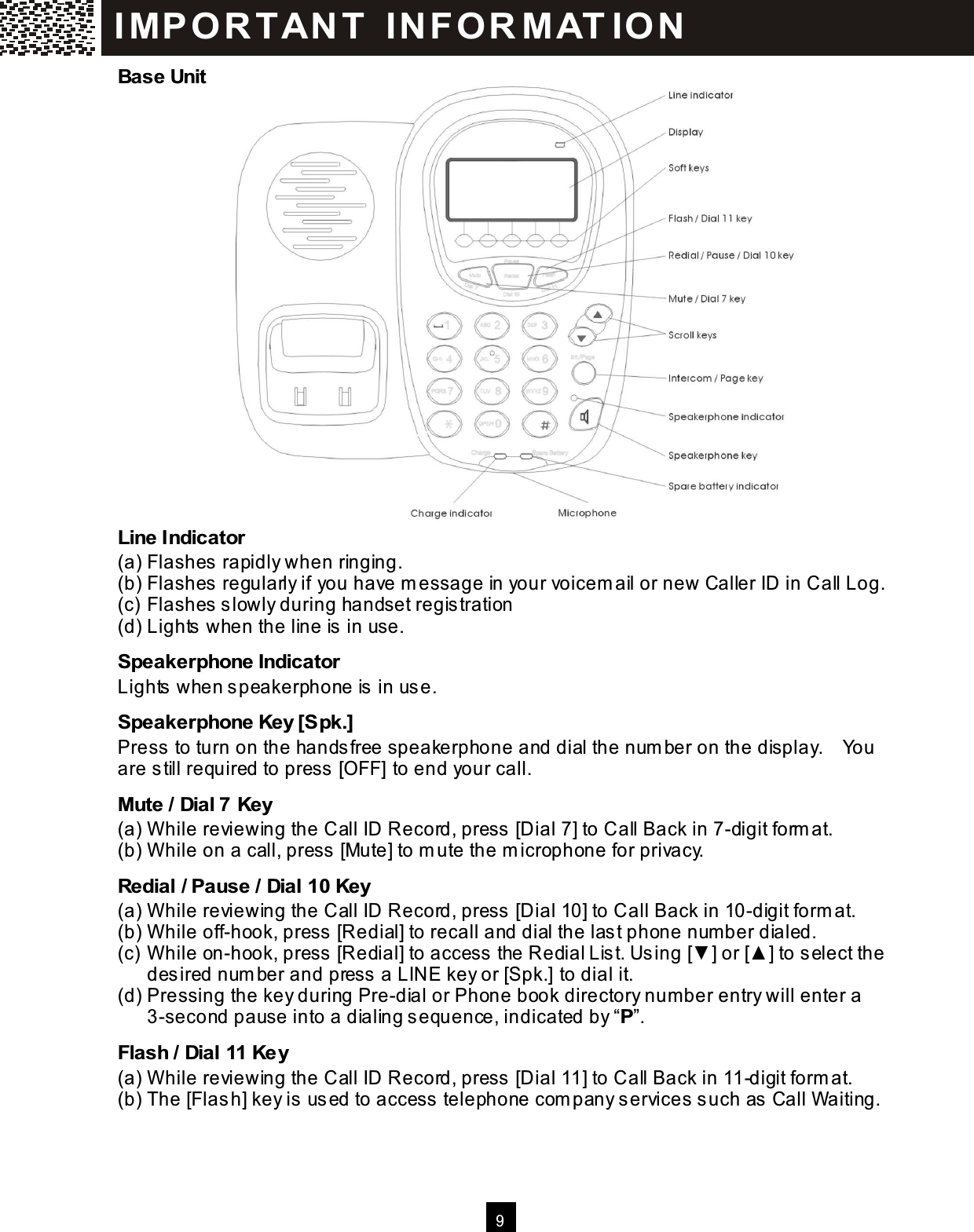

 9  Base Unit                   Line Indicator (a) Flashes rapidly when ringing. (b) Flashes regularly if you have m essage in your voicem ail or new Caller ID in Call Log. (c) Flashes slowly during handset registration (d) Lights when the line is in use. Speakerphone Indicator Lights when speakerphone is in use. Speakerphone Key [Spk.] Press to turn on the handsfree speakerphone and dial the num ber on the display.    You are still required to press [OFF] to end your call. Mute / Dial 7 Key (a) W hile reviewing the Call ID Record, press [Dial 7] to Call Back in 7-digit form at. (b) W hile on a call, press [Mute] to m ute the m icrophone for privacy. Redial / Pause / Dial 10 Key (a) W hile reviewing the Call ID Record, press [Dial 10] to Call Back in 10-digit form at. (b) W hile off-hook, press [Redial] to recall and dial the last phone num ber dialed. (c) W hile on-hook, press [Redial] to access the Redial List. Using [▼ ] or [▲ ] to select the desired num ber and press a LINE key or [Spk.] to dial it. (d) Pressing the key during Pre-dial or Phone book directory num ber entry will enter a 3-second pause into a dialing sequence, indicated by “P”. Flash / Dial 11 Key (a) W hile reviewing the Call ID Record, press [Dial 11] to Call Back in 11-digit form at. (b) The [Flash] key is used to access telephone com pany services such as Call Waiting. IM PO RT AN T   IN FO R M AT IO N

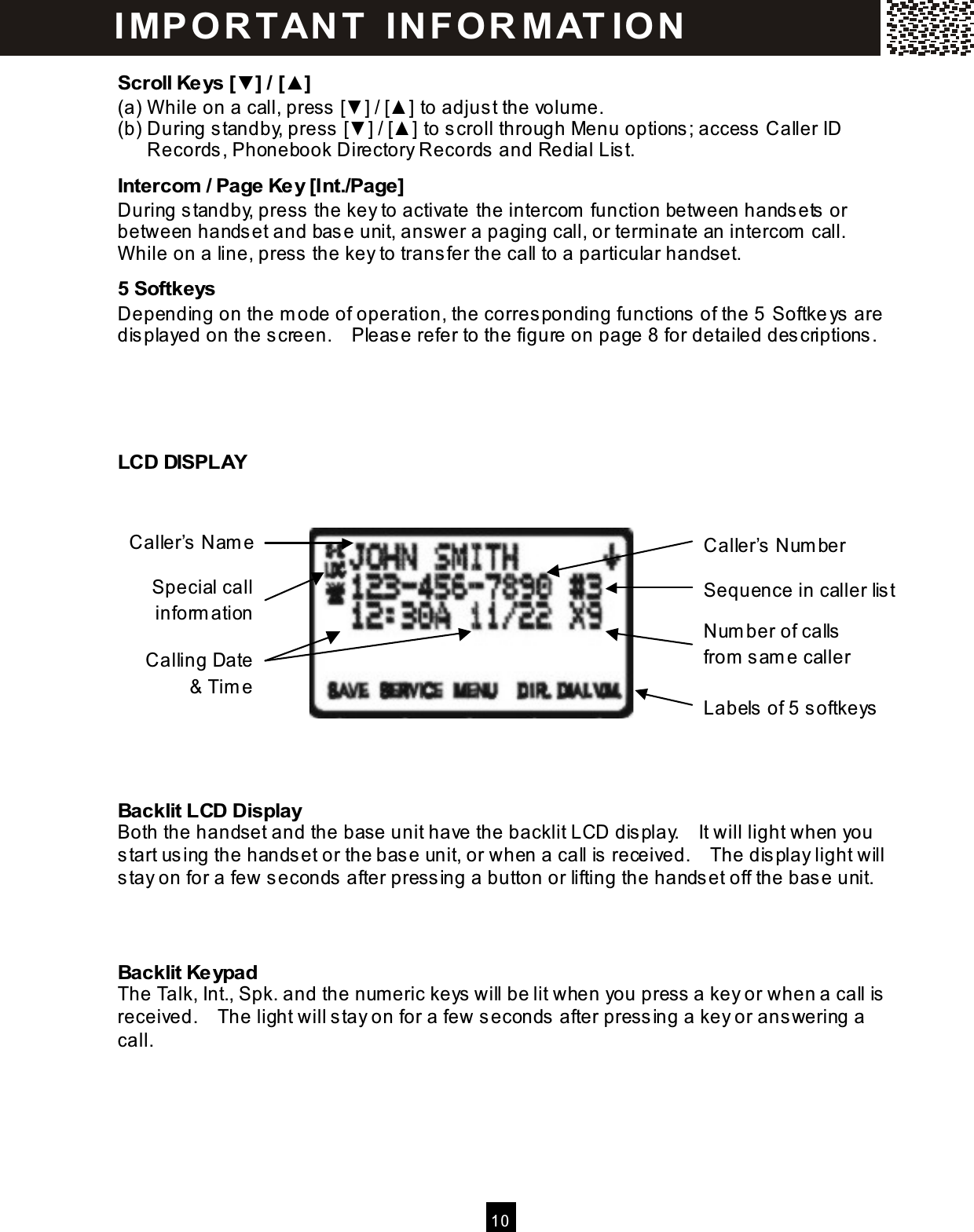

 10  Scroll Keys [▼] / [▲] (a) W hile on a call, press [▼ ] / [▲ ] to adjust the volume. (b) During standby, press [▼ ] / [▲ ] to scroll through Menu options; access Caller ID Records, Phonebook Directory Records and Redial List. Intercom  / Page Key [Int./Page] During standby, press the key to activate the intercom  function between handsets or between handset and base unit, answer a paging call, or term inate an intercom  call.   W hile on a line, press the key to transfer the call to a particular handset. 5 Softkeys Depending on the m ode of operation, the corresponding functions of the 5  Softkeys are displayed on the screen.    Please refer to the figure on page 8 for detailed descriptions.    LCD DISPLAY              Backlit LCD Display Both the handset and the base unit have the backlit LCD display.    It will light when you start using the handset or the base unit, or when a call is received.    The display light will stay on for a few seconds after pressing a button or lifting the handset off the base unit.   Backlit Keypad The Talk, Int., Spk. and the num eric keys will be lit when you press a key or when a call is received.    The light will stay on for a few seconds after pressing a key or answering a call. IM PO RT AN T   IN FO R M AT IO N  Caller’s Nam e Caller’s Num ber Calling Date & Tim e Sequence in caller list Labels of 5 softkeys Num ber of calls from  sam e caller Special call inform ation

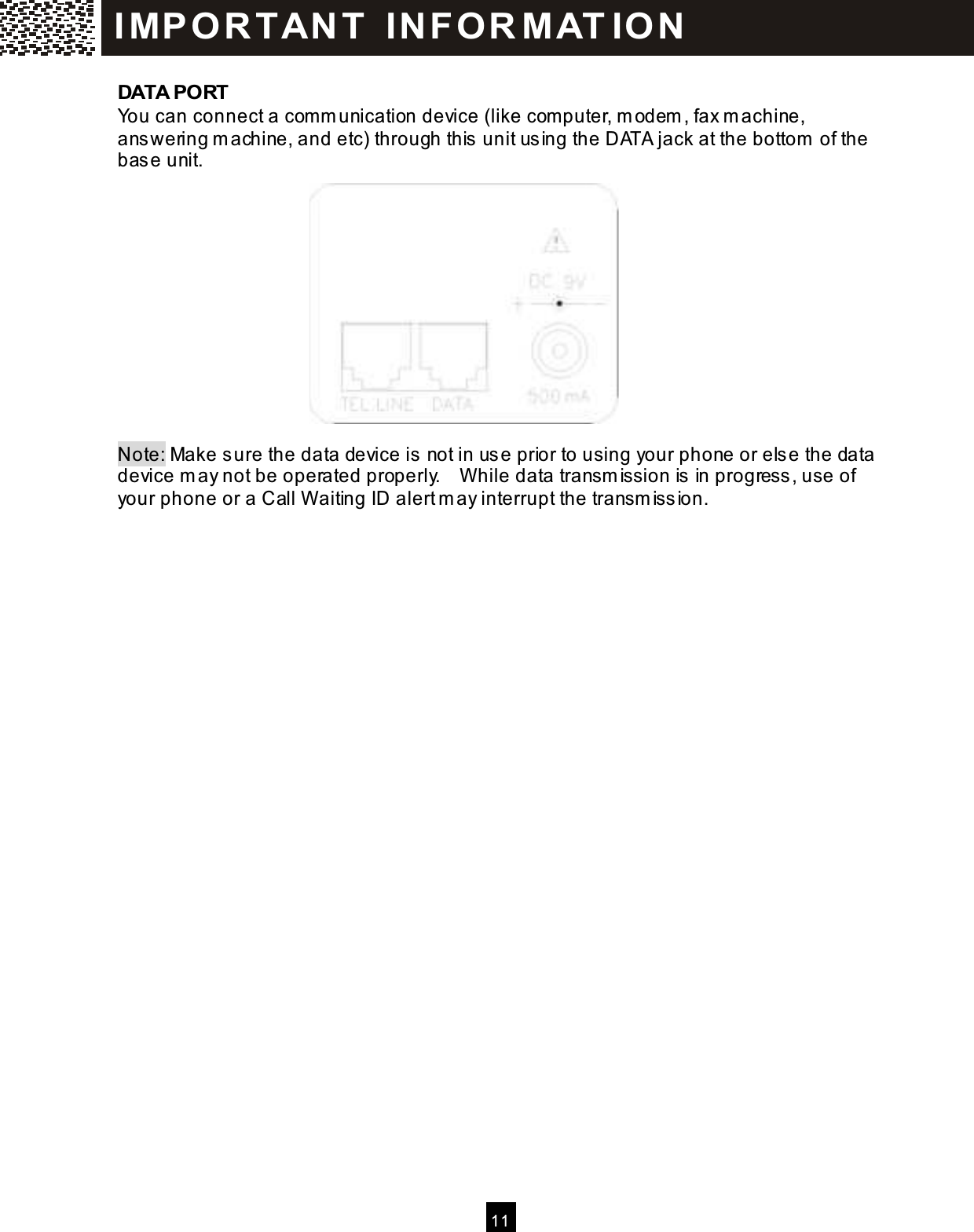

 11  DATA PORT You can connect a com m unication device (like com puter, m odem , fax m achine, answering m achine, and etc) through this unit using the DATA jack at the bottom  of the base unit.             Note: Make sure the data device is not in use prior to using your phone or else the data device m ay not be operated properly.    W hile data transm ission is in progress, use of your phone or a Call W aiting ID alert m ay interrupt the transm ission. IM PO RT AN T   IN FO R M AT IO N

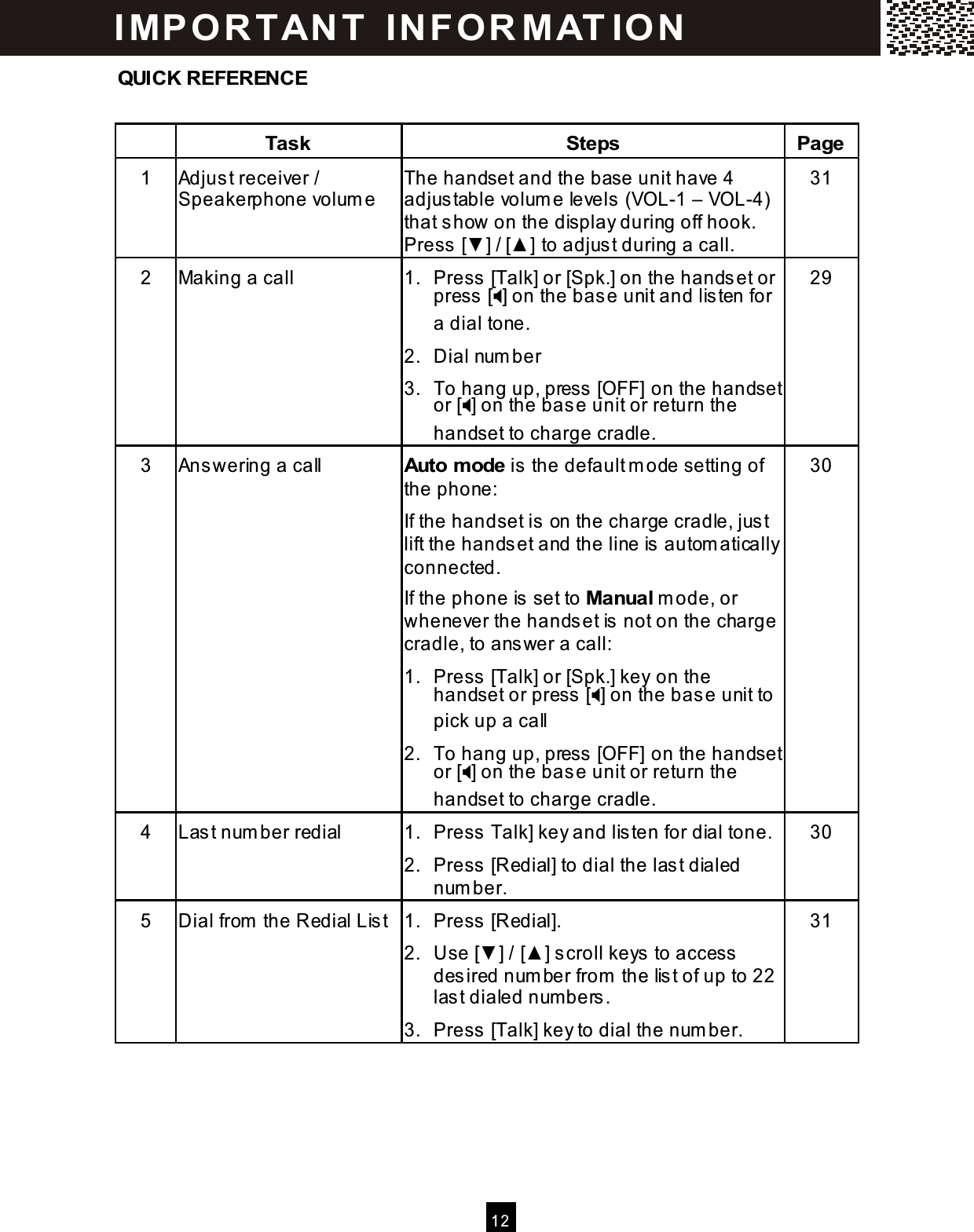

 12  QUICK REFERENCE   Task  Steps  Page 1  Adjust receiver / Speakerphone volum e The handset and the base unit have 4 adjustable volum e levels (VOL-1 – VOL-4) that show on the display during off hook.   Press [▼ ] / [▲ ] to adjust during a call. 31 2  Making a call  1.  Press [Talk] or [Spk.] on the handset or press [] on the base unit and listen for a dial tone. 2.  Dial num ber 3. To hang up, press [OFF] on the handset or [] on the base unit or return the handset to charge cradle. 29 3  Answering a call  Auto m ode is the default m ode setting of the phone: If the handset is on the charge cradle, just lift the handset and the line is autom atically connected. If the phone is set to Manual m ode, or whenever the handset is not on the charge cradle, to answer a call: 1.  Press [Talk] or [Spk.] key on the handset or press [] on the base unit to pick up a call 2. To hang up, press [OFF] on the handset or [] on the base unit or return the handset to charge cradle. 30 4  Last num ber redial  1.  Press Talk] key and listen for dial tone. 2.  Press [Redial] to dial the last dialed num ber. 30 5  Dial from  the Redial List  1.  Press [Redial]. 2.  Use [▼ ] / [▲ ] scroll keys to access desired num ber from  the list of up to 22 last dialed num bers. 3.  Press [Talk] key to dial the num ber. 31  IM PO RT AN T   IN FO R M AT IO N

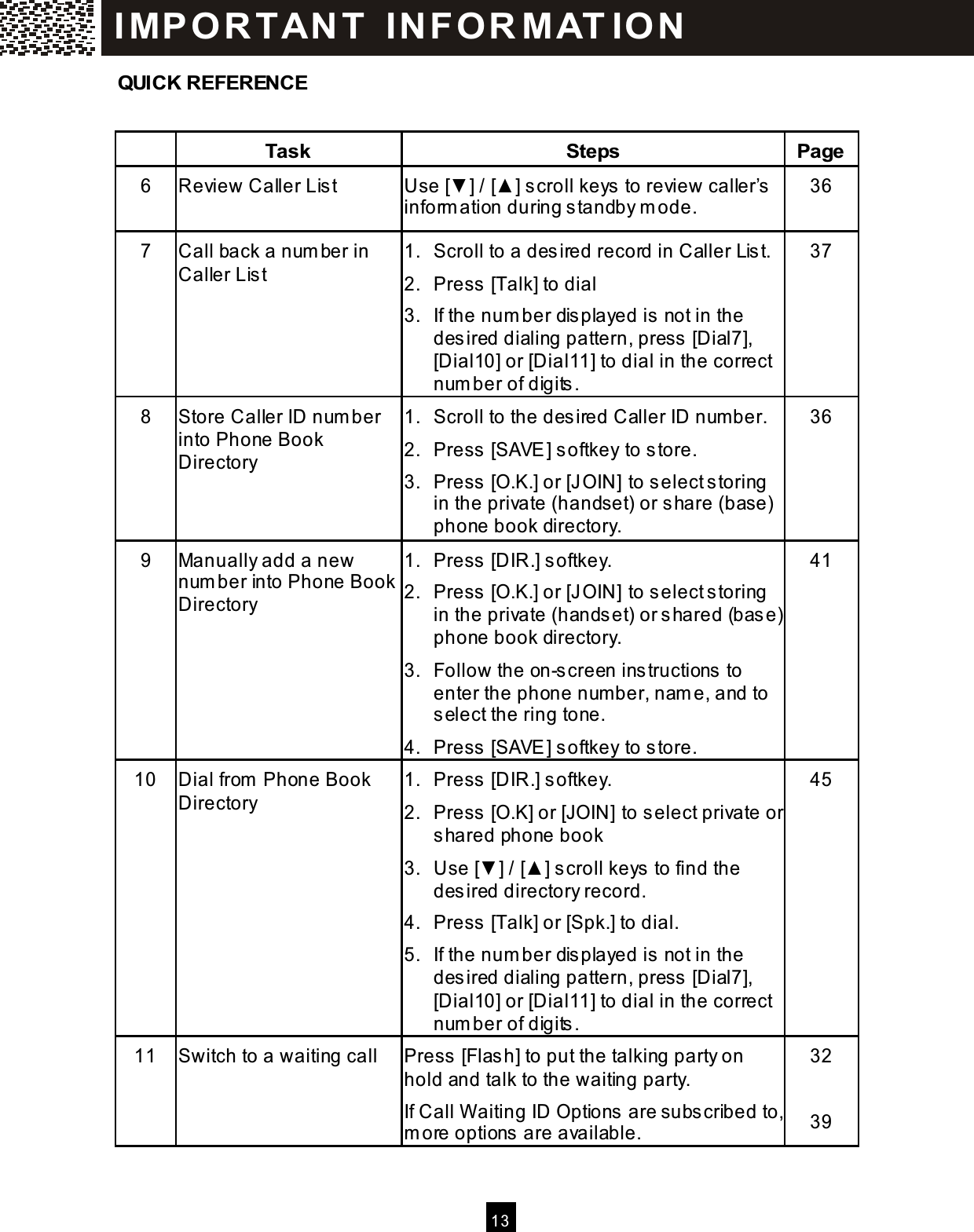

 13  QUICK REFERENCE   Task  Steps  Page 6  Review Caller List  Use [▼ ] / [▲ ] scroll keys to review caller’s inform ation during standby m ode. 36 7  Call back a num ber in Caller List 1.  Scroll to a desired record in Caller List. 2.  Press [Talk] to dial 3.  If the num ber displayed is not in the desired dialing pattern, press [Dial7], [Dial10] or [Dial11] to dial in the correct num ber of digits. 37 8  Store Caller ID num ber into Phone Book Directory 1.  Scroll to the desired Caller ID num ber. 2.  Press [SAVE] softkey to store. 3.  Press [O.K.] or [JOIN] to select storing in the private (handset) or share (base) phone book directory. 36 9  Manually add a new num ber into Phone Book Directory 1.  Press [DIR.] softkey. 2.  Press [O.K.] or [JOIN] to select storing in the private (handset) or shared (base) phone book directory. 3.  Follow the on-screen instructions to enter the phone num ber, nam e, and to select the ring tone. 4.  Press [SAVE] softkey to store. 41 10  Dial from  Phone Book Directory 1.  Press [DIR.] softkey. 2. Press [O.K] or [JOIN] to select private or shared phone book 3.  Use [▼ ] / [▲ ] scroll keys to find the desired directory record. 4.  Press [Talk] or [Spk.] to dial. 5.  If the num ber displayed is not in the desired dialing pattern, press [Dial7], [Dial10] or [Dial11] to dial in the correct num ber of digits. 45 11  Switch to a waiting call  Press [Flash] to put the talking party on hold and talk to the waiting party. If Call W aiting ID Options are subscribed to, m ore options are available. 32  39 IM PO RT AN T   IN FO R M AT IO N

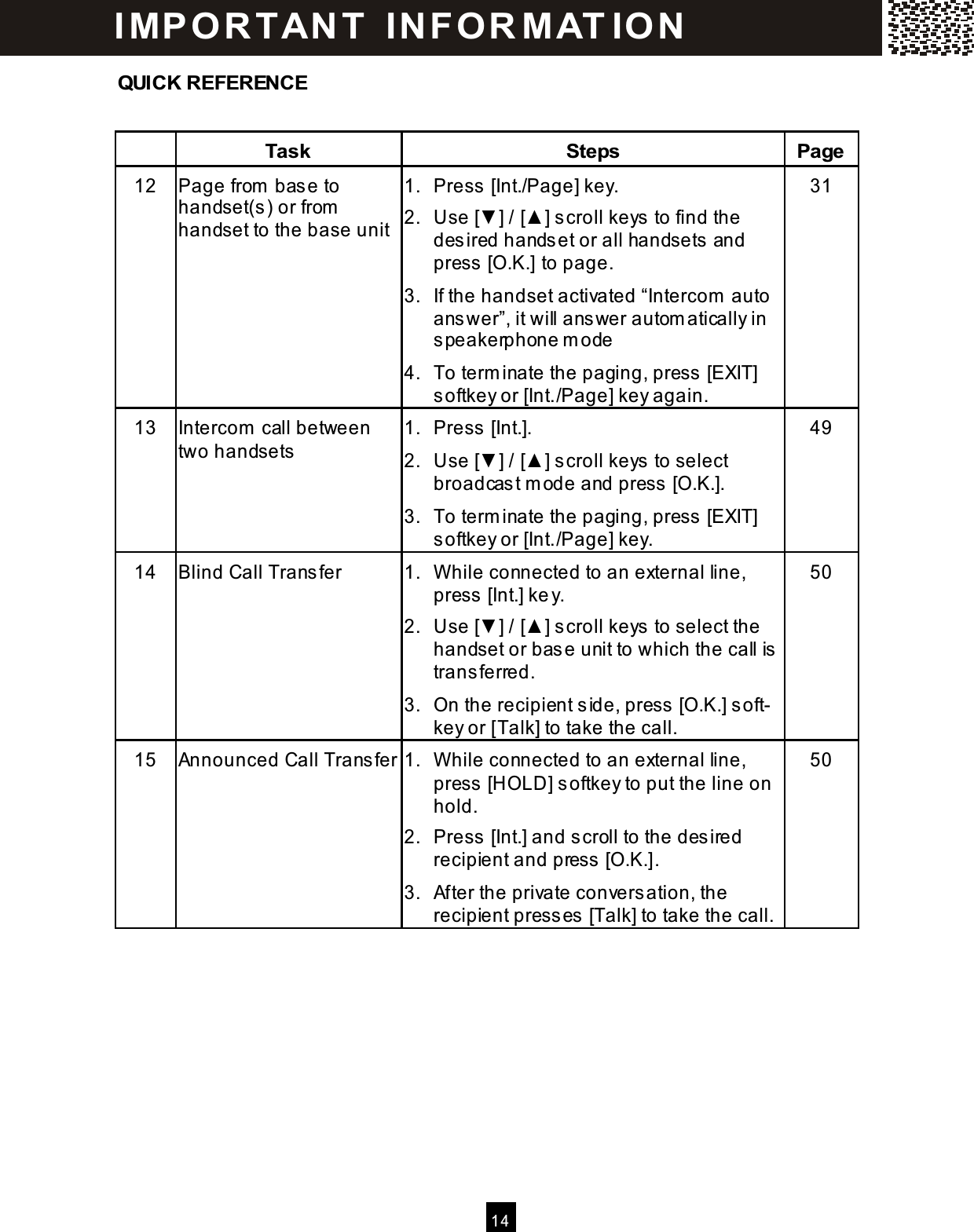

 14  QUICK REFERENCE   Task  Steps  Page 12  Page from  base to handset(s) or from  handset to the base unit 1.  Press [Int./Page] key. 2.  Use [▼ ] / [▲ ] scroll keys to find the desired handset or all handsets and press [O.K.] to page. 3.  If the handset activated “Intercom  auto answer”, it will answer autom atically in speakerphone m ode 4.  To term inate the paging, press [EXIT] softkey or [Int./Page] key again. 31 13  Intercom  call between two handsets 1.  Press [Int.]. 2.  Use [▼ ] / [▲ ] scroll keys to select broadcast m ode and press [O.K.]. 3.  To term inate the paging, press [EXIT] softkey or [Int./Page] key. 49 14  Blind Call Transfer  1.  W hile connected to an external line, press [Int.] key. 2.  Use [▼ ] / [▲ ] scroll keys to select the handset or base unit to which the call is transferred. 3.  On the recipient side, press [O.K.] soft- key or [Talk] to take the call. 50 15  Announced Call Transfer 1.  W hile connected to an external line, press [HOLD] softkey to put the line on hold. 2.  Press [Int.] and scroll to the desired recipient and press [O.K.]. 3.  After the private conversation, the recipient presses [Talk] to take the call. 50  IM PO RT AN T   IN FO R M AT IO N

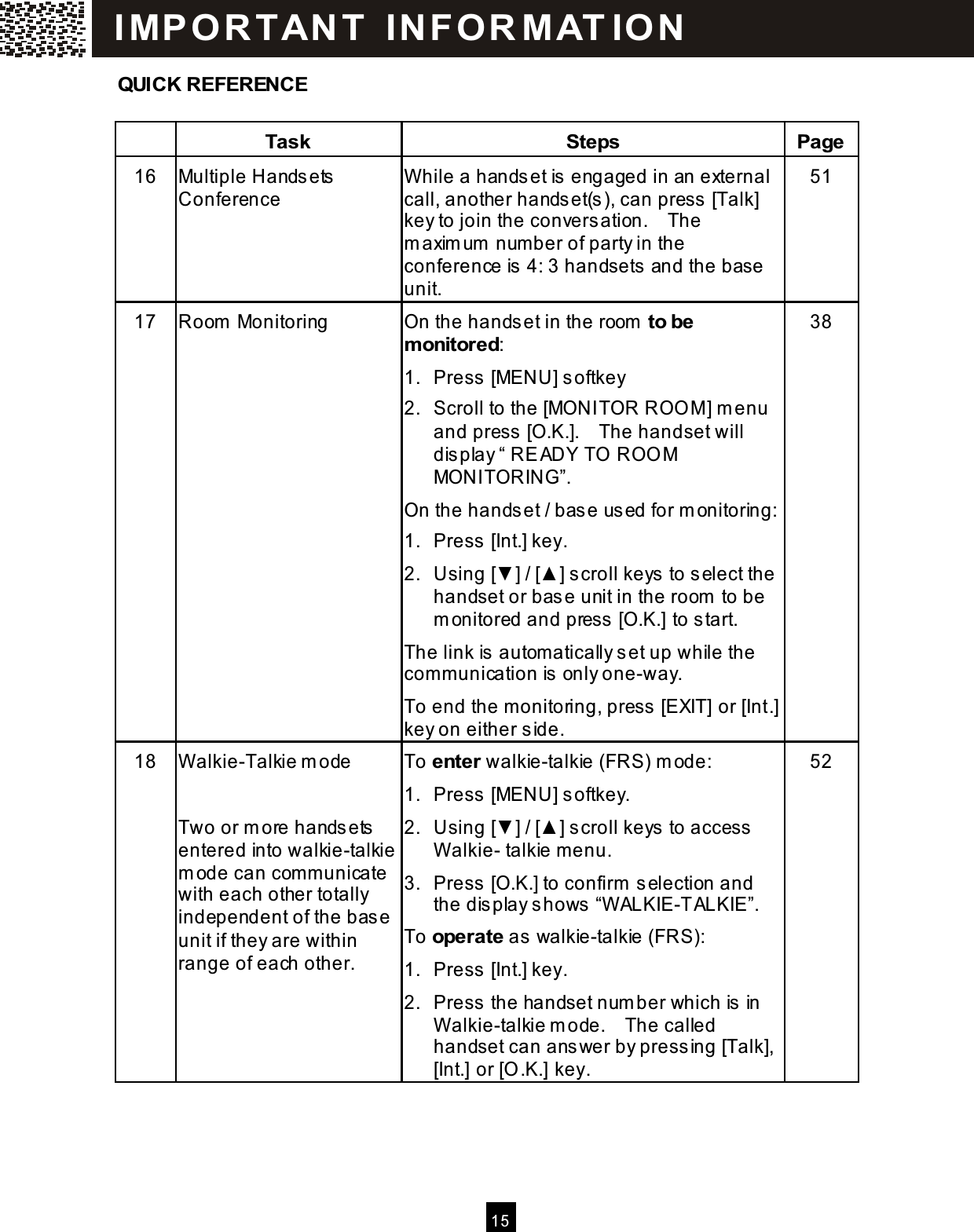

 15  QUICK REFERENCE   Task  Steps  Page 16  Multiple Handsets Conference W hile a handset is engaged in an external call, another handset(s), can press [Talk] key to join the conversation.    The m axim um  num ber of party in the conference is 4: 3 handsets and the base unit. 51 17  Room  Monitoring  On the handset in the room  to be m onitored: 1.  Press [MENU] softkey 2.  Scroll to the [MONITOR ROO M ] m enu and press [O.K.].    The handset will display “ READY TO  ROO M MONITORING”. On the handset / base used for m onitoring: 1.  Press [Int.] key. 2.  Using [▼ ] / [▲ ] scroll keys to select the handset or base unit in the room  to be m onitored and press [O.K.] to start. The link is autom atically set up while the communication is only one-way. To end the m onitoring, press [EXIT] or [Int.] key on either side. 38 18  W alkie-Talkie m ode  Two or m ore handsets entered into walkie-talkie m ode can com municate with each other totally independent of the base unit if they are within range of each other. To enter walkie-talkie (FRS) m ode: 1.  Press [MENU] softkey. 2.  Using [▼ ] / [▲ ] scroll keys to access W alkie- talkie m enu. 3.  Press [O.K.] to confirm  selection and the display shows “W ALKIE-TALKIE”. To operate as walkie-talkie (FRS): 1.  Press [Int.] key. 2.  Press the handset num ber which is in W alkie-talkie m ode.    The called handset can answer by pressing [Talk], [Int.] or [O.K.] key. 52 IM PO RT AN T   IN FO R M AT IO N

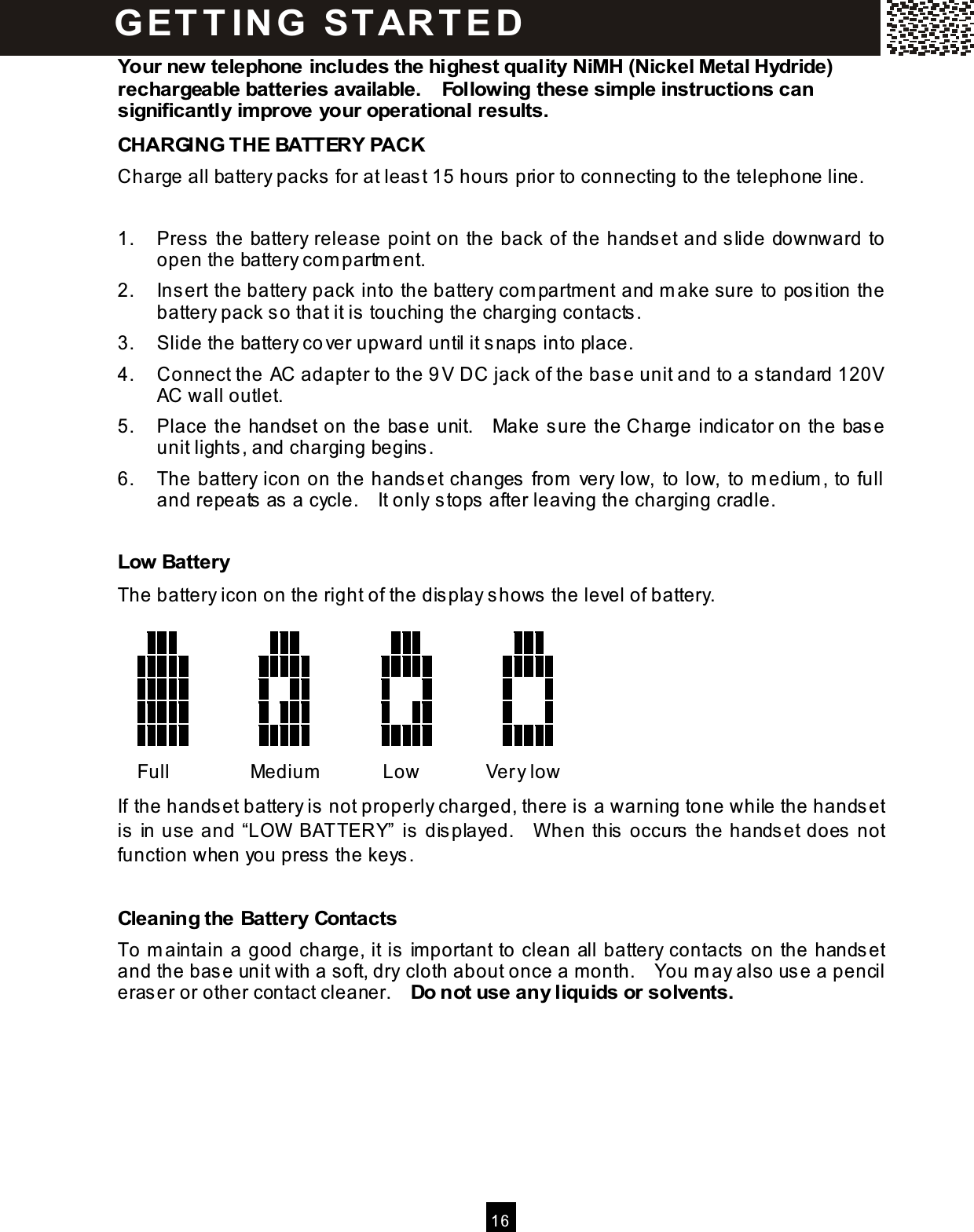

 16  Your new telephone includes the highest quality NiMH (Nickel Metal Hydride) rechargeable batteries available.    Following these sim ple instructions can significantly im prove your operational results. CHARGING THE BATTERY PACK Charge all battery packs for at least 15 hours prior to connecting to the telephone line.  1.  Press the battery release point on the back of the handset and slide downward to open the battery com partm ent. 2.  Insert the battery pack into the battery com partm ent and m ake sure to position the battery pack so that it is touching the charging contacts. 3.  Slide the battery cover upward until it snaps into place. 4.  Connect the AC adapter to the 9 V DC jack of the base unit and to a standard 120V AC wall outlet. 5.  Place the handset on the base unit.    Make sure the Charge indicator on the base unit lights, and charging begins. 6.  The battery icon on the handset changes from  very low, to low,  to m edium , to full and repeats as a cycle.    It only stops after leaving the charging cradle.  Low Battery The battery icon on the right of the display shows the level of battery.                                                                                                                                                                                                                             Full  Medium  Low  Very low If the handset battery is not properly charged, there is a warning tone while the handset is in use and “LOW  BATTERY” is displayed.    W hen this occurs the handset does not function when you press the keys.  Cleaning the Battery Contacts To m aintain a good charge, it is im portant to clean all battery contacts on the handset and the base unit with a soft, dry cloth about once a month.    You m ay also use a pencil eraser or other contact cleaner.    Do not use any liquids or solvents.  G ET T IN G   START E D

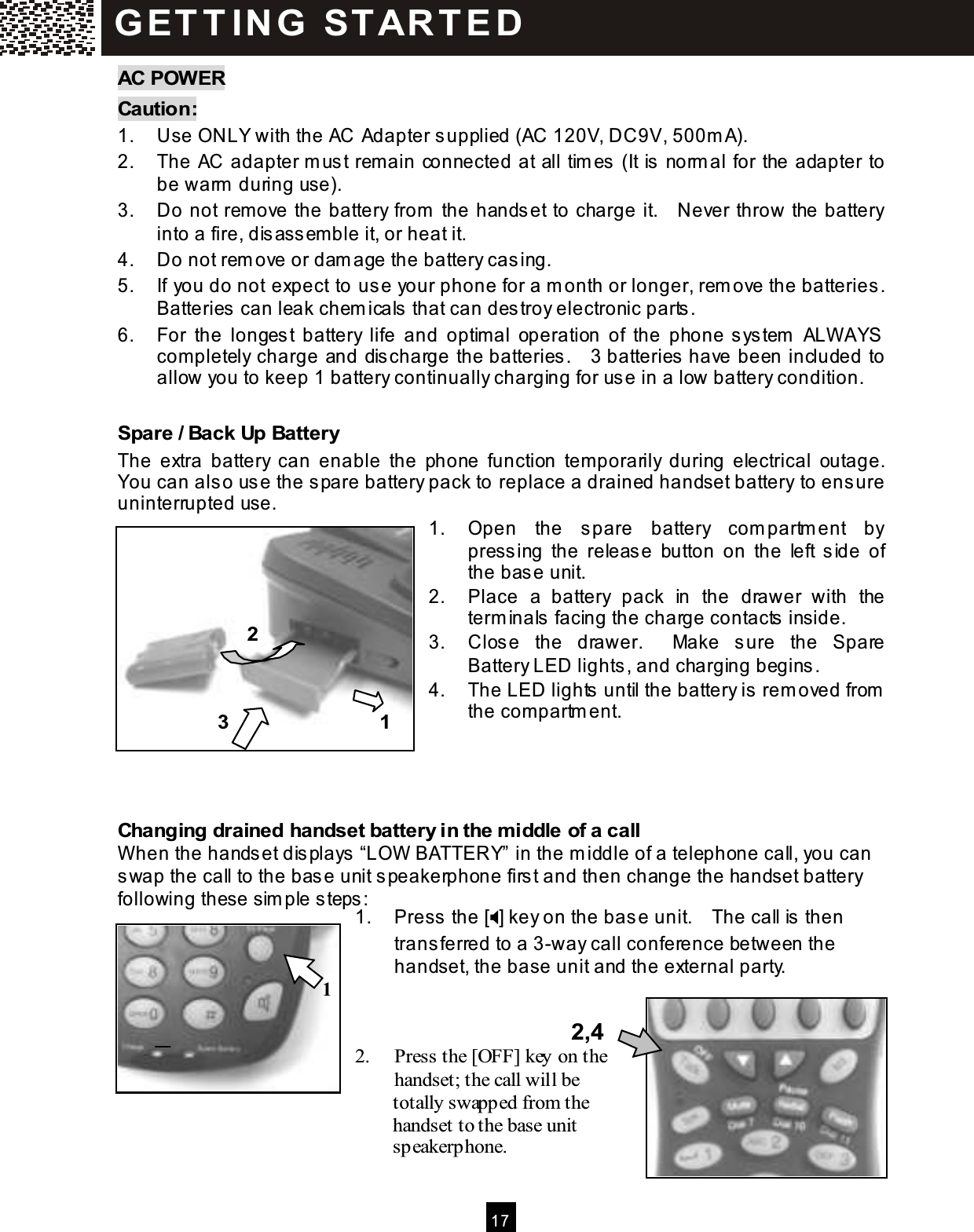

 17  AC POW ER Caution: 1.  Use ONLY with the AC Adapter supplied (AC 120V, DC9V, 500m A). 2.  The AC adapter m ust rem ain connected at all tim es (It is norm al for the adapter to be warm  during use). 3.  Do not rem ove the battery from  the handset to charge it.    Never throw the battery into a fire, disassem ble it, or heat it. 4.  Do not rem ove or dam age the battery casing. 5.  If you do not expect to use your phone for a m onth or longer, rem ove the batteries.   Batteries can leak chem icals that can destroy electronic parts. 6.  For  the  longest  battery  life  and  optim al  operation  of  the  phone system   ALW AYS completely charge and discharge the batteries.    3 batteries have been included to allow you to keep 1 battery continually charging for use in a low battery condition.  Spare / Back Up Battery The  extra  battery  can  enable  the  phone  function  tem porarily  during  electrical  outage.   You can also use the spare battery pack to replace a drained handset battery to ensure uninterrupted use. 1.  Open  the  spare  battery  com partm ent  by pressing  the  release  button  on  the  left  side  of the base unit. 2.  Place  a  battery  pack  in  the  drawer  with  the term inals facing the charge contacts inside. 3.  Close  the  drawer.    Make  sure  the  Spare Battery LED lights, and charging begins. 4.  The LED lights until the battery is rem oved from  the compartm ent.     Changing drained handset battery in the m iddle of a call W hen the handset displays “LOW  BATTERY” in the m iddle of a telephone call, you can swap the call to the base unit speakerphone first and then change the handset battery following these sim ple steps: 1.  Press the [] key on the base unit.    The call is then transferred to a 3-way call conference between the handset, the base unit and the external party.    2.  Press the [OFF] key on the handset; the call will be               totally swapped from the               handset to the base unit               speakerphone. G ET T IN G   START E D 2,4 1 2 3 1

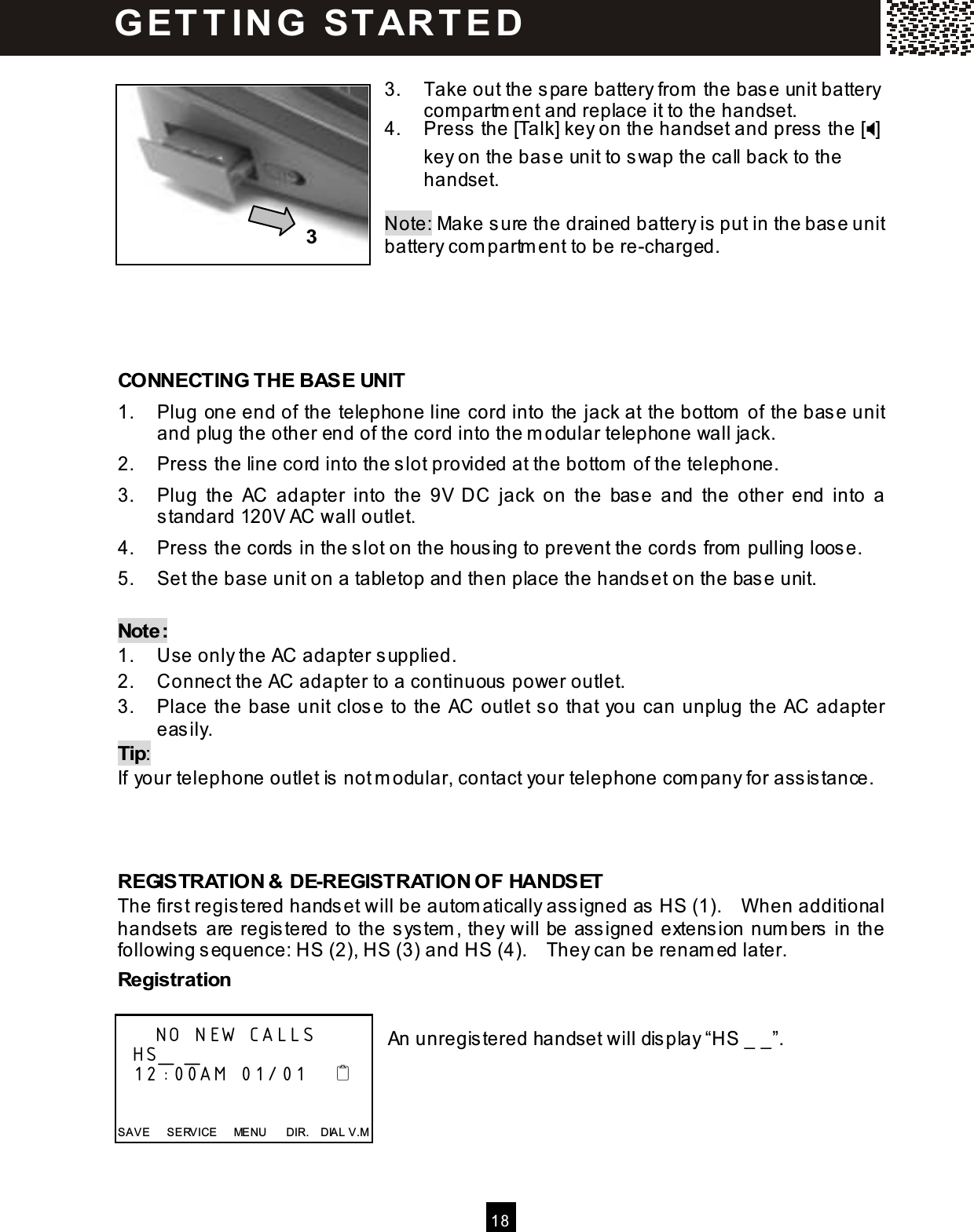

 1 8   3.  Take out the spare battery from  the base unit battery compartm ent and replace it to the handset. 4.  Press the [Talk] key on the handset and press the [] key on the base unit to swap the call back to the handset.  Note: Make sure the drained battery is put in the base unit battery com partm ent to be re-charged.     CONNECTING THE BASE UNIT 1.  Plug one end of the telephone line cord into the jack at the bottom  of the base unit and plug the other end of the cord into the m odular telephone wall jack. 2.  Press the line cord into the slot provided at the bottom  of the telephone. 3.  Plug  the  AC  adapter  into  the  9V  DC  jack  on  the  base  and  the  other  end  into  a standard 120V AC wall outlet. 4.  Press the cords in the slot on the housing to prevent the cords from  pulling loose. 5.  Set the base unit on a tabletop and then place the handset on the base unit.  Note: 1.  Use only the AC adapter supplied. 2.  Connect the AC adapter to a continuous power outlet. 3.  Place the base unit close to the AC outlet so that you can unplug the AC adapter easily. Tip: If your telephone outlet is not m odular, contact your telephone com pany for assistance.    REGISTRATION & DE-REGISTRATION OF HANDSET The first registered handset will be autom atically assigned as HS (1).    W hen additional handsets are registered to the system , they will be assigned extension num bers in the following sequence: HS (2), HS (3) and HS (4).    They can be renam ed later. Registration  An unregistered handset will display “HS _ _”.          NO NEW CALLS   HS_ _   12:00AM 01/01       SAVE      SERVICE      MENU      DIR.    DIAL V.M G ET T IN G   ST AR T E D  3

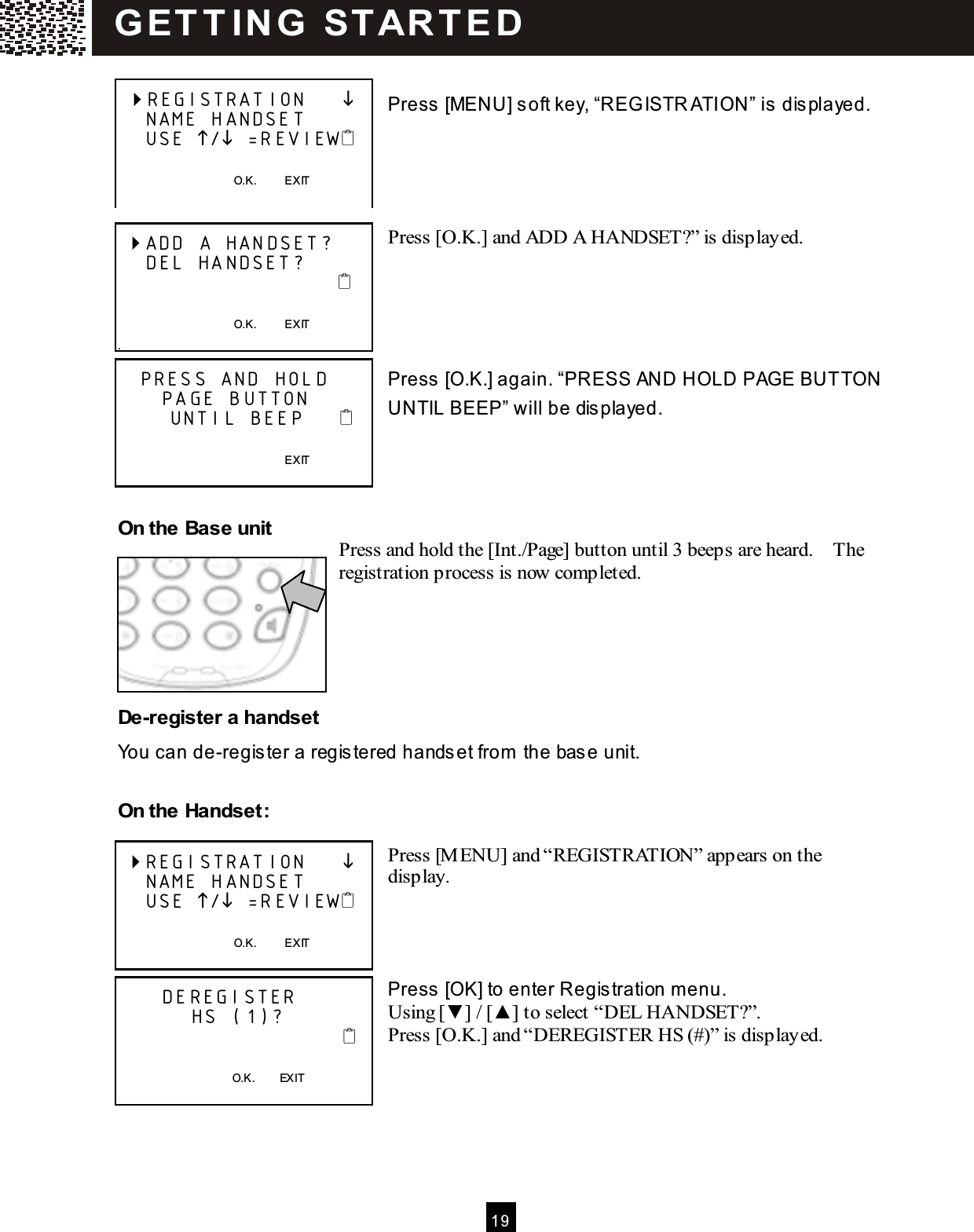

 1 9   Press [MENU] soft key, “REG ISTR ATION” is displayed.     Press [O.K.] and ADD A HANDSET?” is displayed.      Press [O.K.] again. “PRESS AND HOLD PAGE BUTTON  UNTIL BEEP” will be displayed.     On the Base unit Press and hold the [Int./Page] button until 3 beeps are heard.    The registration process is now completed.      De-register a handset You can de-register a registered handset from  the base unit.  On the Handset:  Press [M ENU] and “REGISTRATION” appears on the display.     Press [OK] to enter Registration m enu. Using [▼ ] / [▲ ] to select “DEL HANDSET?”. Press [O.K.] and “DEREGISTER HS (#)” is displayed.        REGISTRATION          NAME HANDSET     USE / =REVIEW      O.K.          EXIT   ADD A HANDSET?      DEL HANDSET?                                                                     O.K.          EXIT .    PRESS AND HOLD       PAGE BUTTON        UNTIL BEEP                                                             EXIT   REGISTRATION          NAME HANDSET     USE / =REVIEW      O.K.          EXIT        DEREGISTER            HS (1)?                                  O.K.        EXIT  G ET T IN G   ST AR T E D

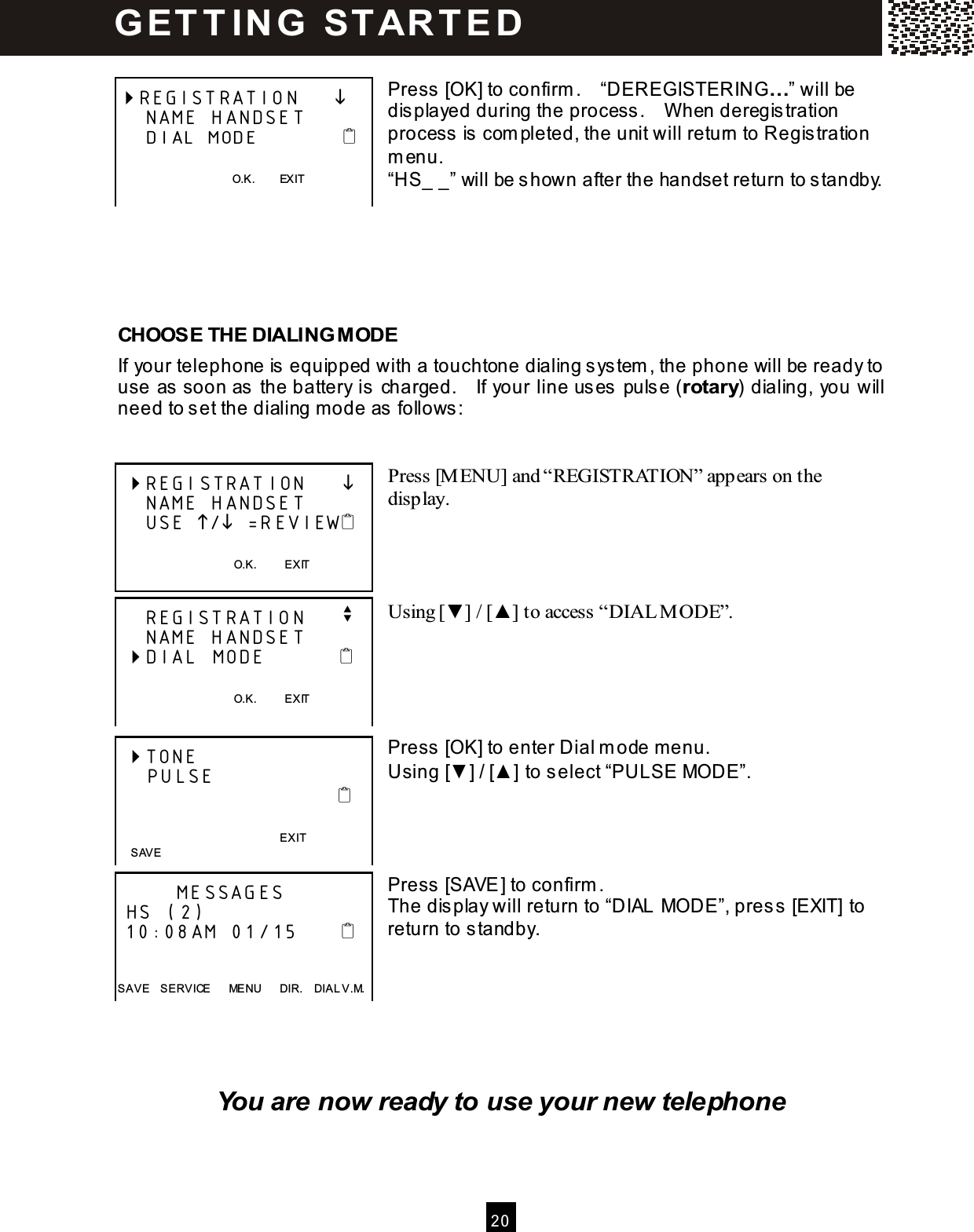

 2 0   Press [OK] to confirm .    “DEREGISTERING…” will be displayed during the process.    W hen deregistration process is com pleted, the unit will return to Registration m enu. “HS_ _” will be shown after the handset return to standby.      CHOOSE THE DIALING M ODE If your telephone is equipped with a touchtone dialing system , the phone will be ready to use as soon as the battery is charged.    If your line uses pulse (rotary) dialing, you will need to set the dialing m ode as follows:   Press [M ENU] and “REGISTRATION” appears on the display.     Using [▼ ] / [▲ ] to access “DIAL M ODE”.      Press [OK] to enter Dial m ode m enu. Using [▼ ] / [▲ ] to select “PULSE MODE”.     Press [SAVE] to confirm . The display will return to “DIAL MODE”, press [EXIT] to return to standby.       You are now ready to use your new telephone REGISTRATION          NAME HANDSET     DIAL MODE               O.K.        EXIT    REGISTRATION          NAME HANDSET     USE / =REVIEW      O.K.          EXIT      REGISTRATION     v     NAME HANDSET  DIAL MODE                O.K.          EXIT   TONE     PULSE                                 EXIT          MESSAGES  HS (2)  10:08AM 01/15         SAVE    SERVICE      MENU      DIR.    DIAL V.M.   SAVE G ET T IN G   ST AR T E D

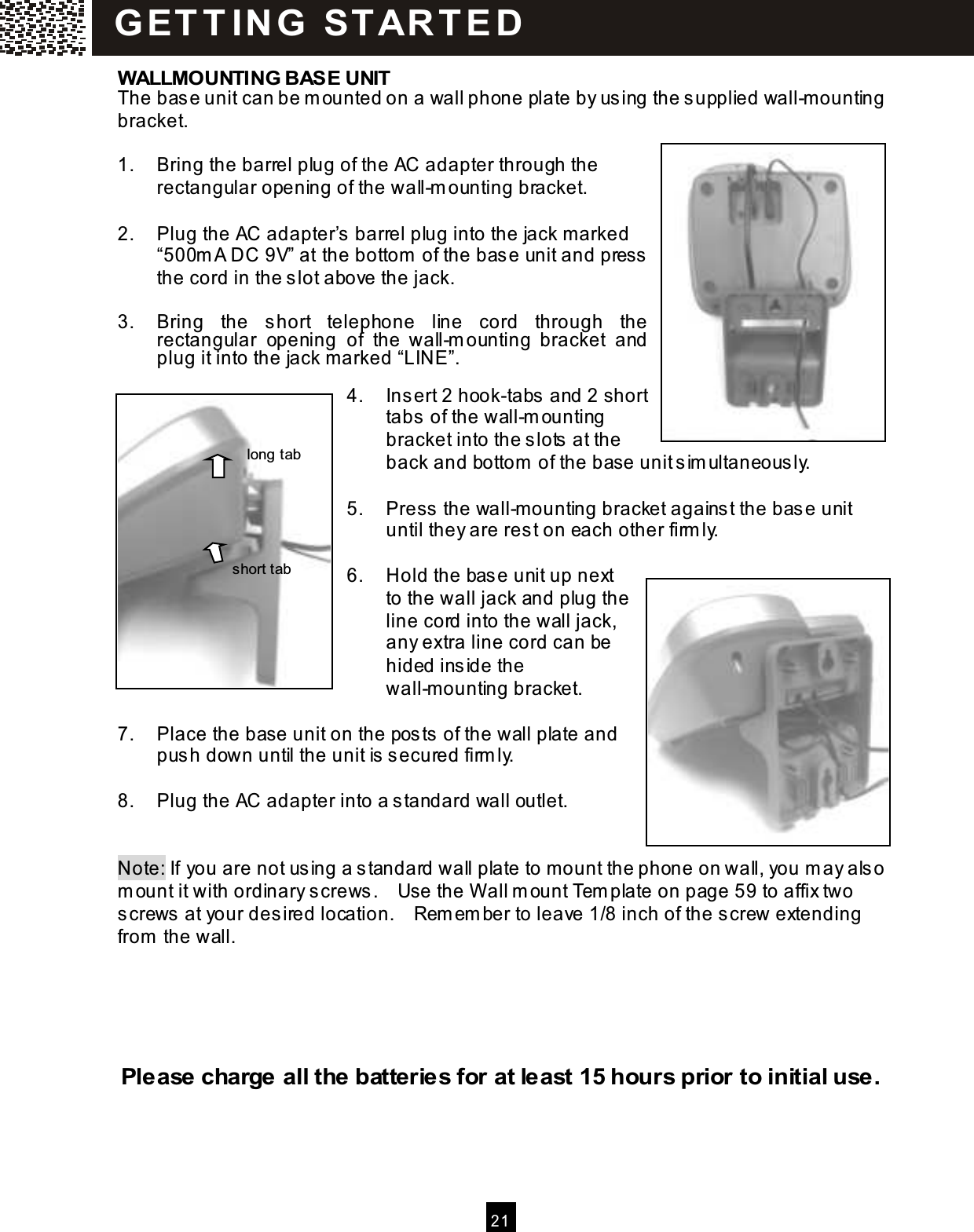

 2 1  WALLMOUNTING BASE UNIT The base unit can be m ounted on a wall phone plate by using the supplied wall-m ounting bracket.  1.  Bring the barrel plug of the AC adapter through the rectangular opening of the wall-m ounting bracket.  2.  Plug the AC adapter’s barrel plug into the jack marked “500m A DC 9V” at the bottom  of the base unit and press the cord in the slot above the jack.  3.  Bring  the  short  telephone  line  cord  through  the rectangular  opening  of  the  wall-m ounting  bracket  and plug it into the jack m arked “LINE”.  4.  Insert 2 hook-tabs and 2 short tabs of the wall-m ounting bracket into the slots at the back and bottom  of the base unit sim ultaneously.  5.  Press the wall-m ounting bracket against the base unit until they are rest on each other firm ly.  6.  Hold the base unit up next to the wall jack and plug the line cord into the wall jack, any extra line cord can be hided inside the wall-m ounting bracket.  7.  Place the base unit on the posts of the wall plate and push down until the unit is secured firm ly.  8.  Plug the AC adapter into a standard wall outlet.   Note: If you are not using a standard wall plate to m ount the phone on wall, you m ay also m ount it with ordinary screws.    Use the W all m ount Tem plate on page 59 to affix two screws at your desired location.    Rem em ber to leave 1/8 inch of the screw extending from  the wall.      Please charge all the batteries for at least 15 hours prior to initial use. G ET T IN G   ST AR T E D  Hook tab Short tab long tab short tab

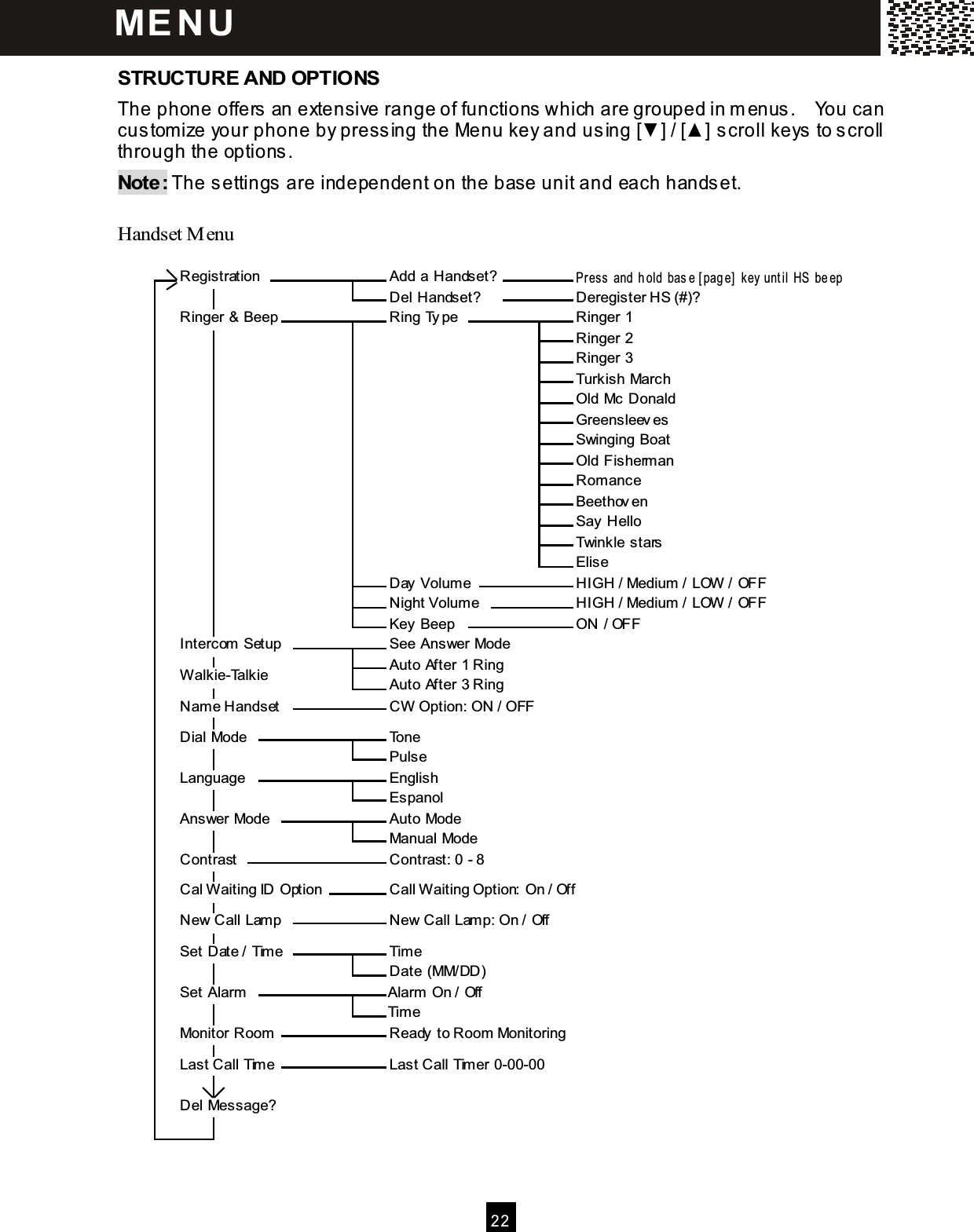

 2 2  STRUCTURE AND OPTIONS The phone offers an extensive range of functions which are grouped in m enus.    You can custom ize your phone by pressing the Menu key and using [▼ ] / [▲ ] scroll keys to scroll through the options. Note: The settings are independent on the base unit and each handset.  Handset M enu                                               Registration            Add a Handset?       Press  and  hold  base [page]  key  until  HS beep                                                                          Del Handset?        Deregister HS (#)?                                                                       Ringer & Beep           Ring Ty pe             Ringer 1                                                                                                                       Ringer 2                                                                                                                       Ringer 3                                                                                                                   Turkish March                                                                                                                Old Mc Donald                                                                                                                Greensleeves                                                                                                                Swinging Boat                                                                                                               Old Fisherm an                                                                                                                  Rom ance                                                                                                                     Beethoven                                                                                                                     Say Hello                                                                                                                   Twinkle stars                                                                                                                    Elise                                                                                          Day  Volum e         HIGH / Medium  / LOW  / OFF                                                                           Night Volum e        HIGH / Medium  / LOW  / OFF                                                                                          Key Beep          ON / OFF                                                                  Intercom  Setup            See Answer Mode                                                                                                 Auto After 1 Ring                                W alkie-Talkie                                                                Auto After 3 Ring                                                                               Nam e Handset         CW  Option: ON / OFF                                                                                                                                                          Dial Mode               Tone                                                                                                                        Pulse                                                                                                    Language               English                                                                                                                     Espanol                                                                                            Answer Mode             Auto Mode                                                                                                                Manual Mode                                                                                             Contrast             Contrast: 0 - 8                                                                                                                                     Cal W aiting ID Option      Call W aiting Option: On / Off                                                                                                                                   New Call Lam p         New Call Lam p: On / Off                                                                                                                                             Set Date / Tim e            Tim e                                                                                                                Date (MM/DD)                                                                             Set Alarm            Alarm  On / Off                                                                                                              Tim e                                                                                 Monitor Room          Ready  to Room Monitoring                                                                                                                                   Last Call Tim e          Last Call Tim er 0-00-00                                                                                                                                                                                                            Del Message?                                                                                                                                                                                                                                              ME N U

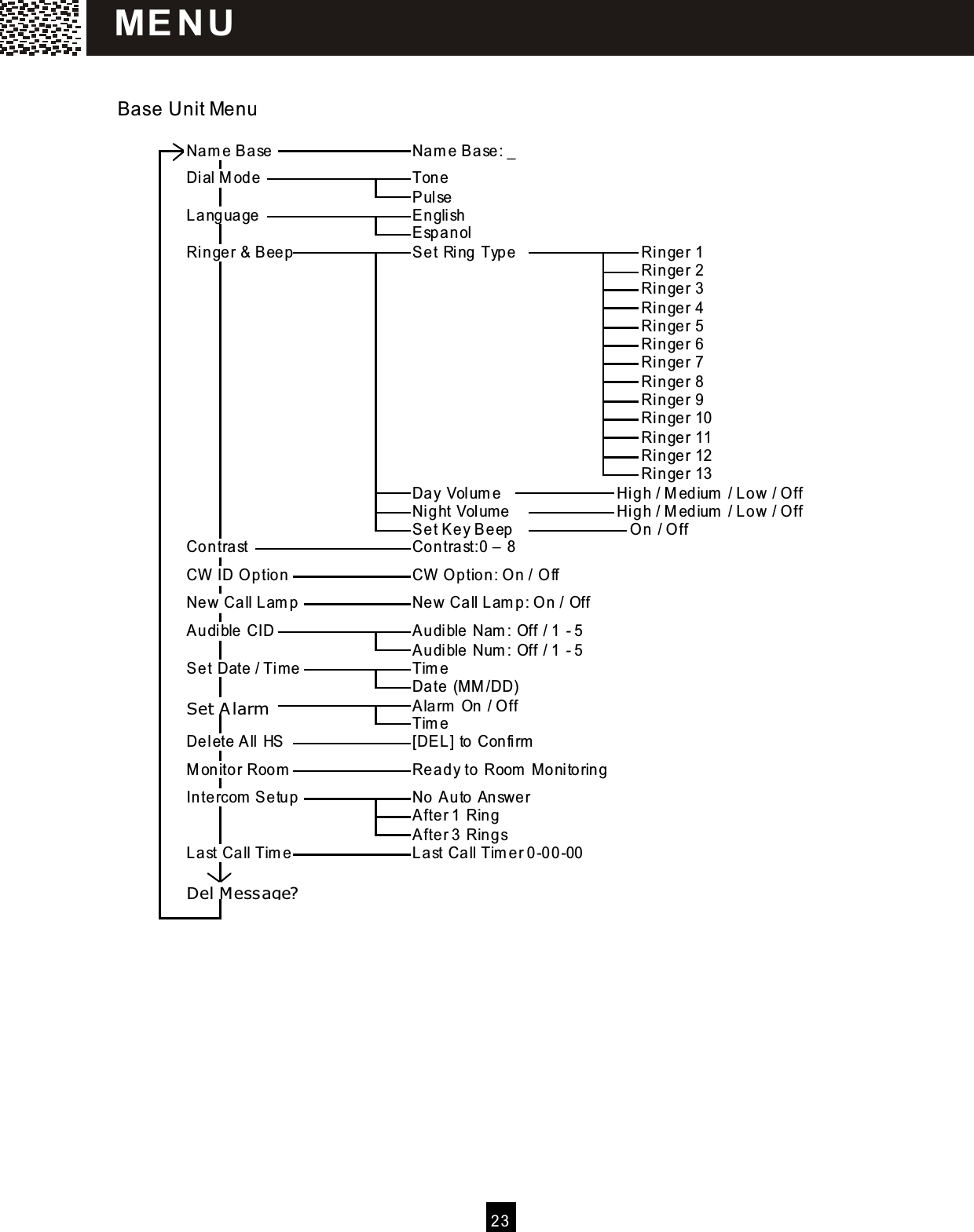

 23   Base Unit Menu                                                                Nam e Base            Nam e Base: _                                                                                                                                                     Dial M ode              Tone                                                                                                                  Pulse                                                                                              Language              English                                                                                                               Espanol                                                                                      Ringer & Beep            Set Ring Type           Ringer 1                                                                                                               Ringer 2                                                                                                               Ringer 3                                                                                                               Ringer 4                                                                                                               Ringer 5                                                                                                               Ringer 6                                                                                                               Ringer 7                                                                                                               Ringer 8                                                                                                               Ringer 9                                                                                                               Ringer 10                                                                                                               Ringer 11                                                                                                               Ringer 12                                                                                                              Ringer 13                                                                                Day Volum e         High / M edium  / Low / O ff                                                                      Night Volum e        High / M edium  / Low / O ff                                                                                 Set Key Beep         O n / O ff                                                                        Contrast              Contrast:0 –  8                                                                                                                                   CW  ID O ption           CW  O ption: O n / O ff                                                                                                                            New Call Lam p          New Call Lam p: O n / Off                                                                                                                           Audible CID               Audible Nam : Off / 1 - 5                                                                                  Audible Num : Off / 1 - 5                                                                      Set Date / Tim e             Tim e                                                                                                             Date (M M /DD)                                                                      Set Alarm               Alarm  On / O ff                                                                                                        Tim e                                                                                     Delete All HS           [DEL] to Confirm                                                                                                                                M onitor Room            Ready to Room  M onitoring                                                                                                                          Intercom  Setup             No Auto Answer                                                                                                            After 1 Ring                                                                                                            After 3 Rings                                                                        Last Call Tim e           Last Call Tim er 0-00-00                                                                                                                                                                                            Del Message?                                                                                                                                                                                                                                    ME N U

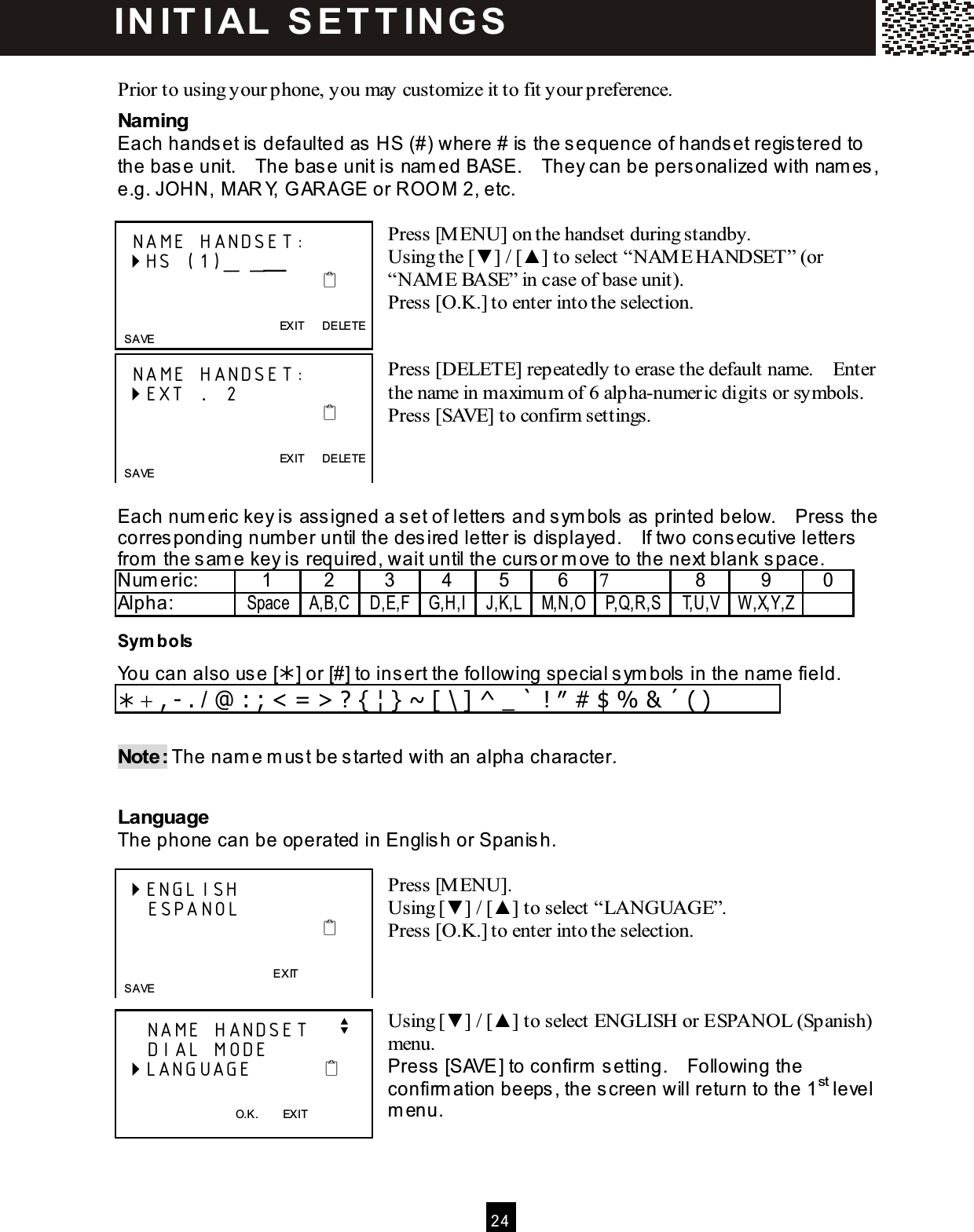

 24   Prior to using your phone, you may customize it to fit your preference. Naming Each hands et is defaulted as  HS (#) where # is the sequence of handset regis tered to the base unit.    The base unit is  nam ed BASE.    They can be personalized with nam es, e.g. JOHN, M AR Y, G ARAGE or ROO M  2, etc.  Press [M ENU] on the handset during standby. Using the [▼ ] / [▲ ] to select “NAM E HANDSET” (or “NAM E BASE” in case of base unit). Press [O.K.] to enter into the selection.   Press [DELETE] repeatedly to erase the default name.    Enter the name in maximum of 6 alpha-numeric digits or symbols. Press [SAVE] to confirm settings.    Each num eric key is  ass igned a s et of letters  and s ym bols as  printed below.    Press  the corresponding num ber until the desired letter is  displayed.    If two cons ecutive letters from  the sam e key is required, wait until the cursor m ove to the next blank s pace. Num eric:  1  2  3  4  5  6  7  8  9  0 Alpha:  Space A,B,C D,E,F G,H,I J,K,L M,N,O P,Q,R,S T,U,V W ,X,Y,Z  Sym bols  You can also use [] or [#] to ins ert the following special s ym bols  in the name field.  + , - . / @ : ; < = > ? { ¦ } ~ [ \ ] ^ _ ` ! ″ # $ % & ´ ( )  Note: The nam e m us t be started with an alpha character.  Language The phone can be operated in Englis h or Spanish.  Press [M ENU]. Using [▼ ] / [▲ ] to select “LANGUAGE”. Press [O.K.] to enter into the selection.    Using [▼ ] / [▲ ] to select ENGLISH or ESPANOL (Spanish) menu. Press [SAVE ] to confirm  setting.    Following the confirm ation beeps, the screen will return to the 1st level m enu.    NAME HANDSET:  HS (1)_ _╴                                                EXIT      DELETE   SAVE   NAME HANDSET:  EXT ....  2                                                EXIT      DELETE   SAVE  ENGLISH     ESPANOL                                              EXIT   SAVE     NAME HANDSET    v     DIAL MODE  LANGUAGE             O.K.        EXIT IN IT I AL  S E T T IN G S

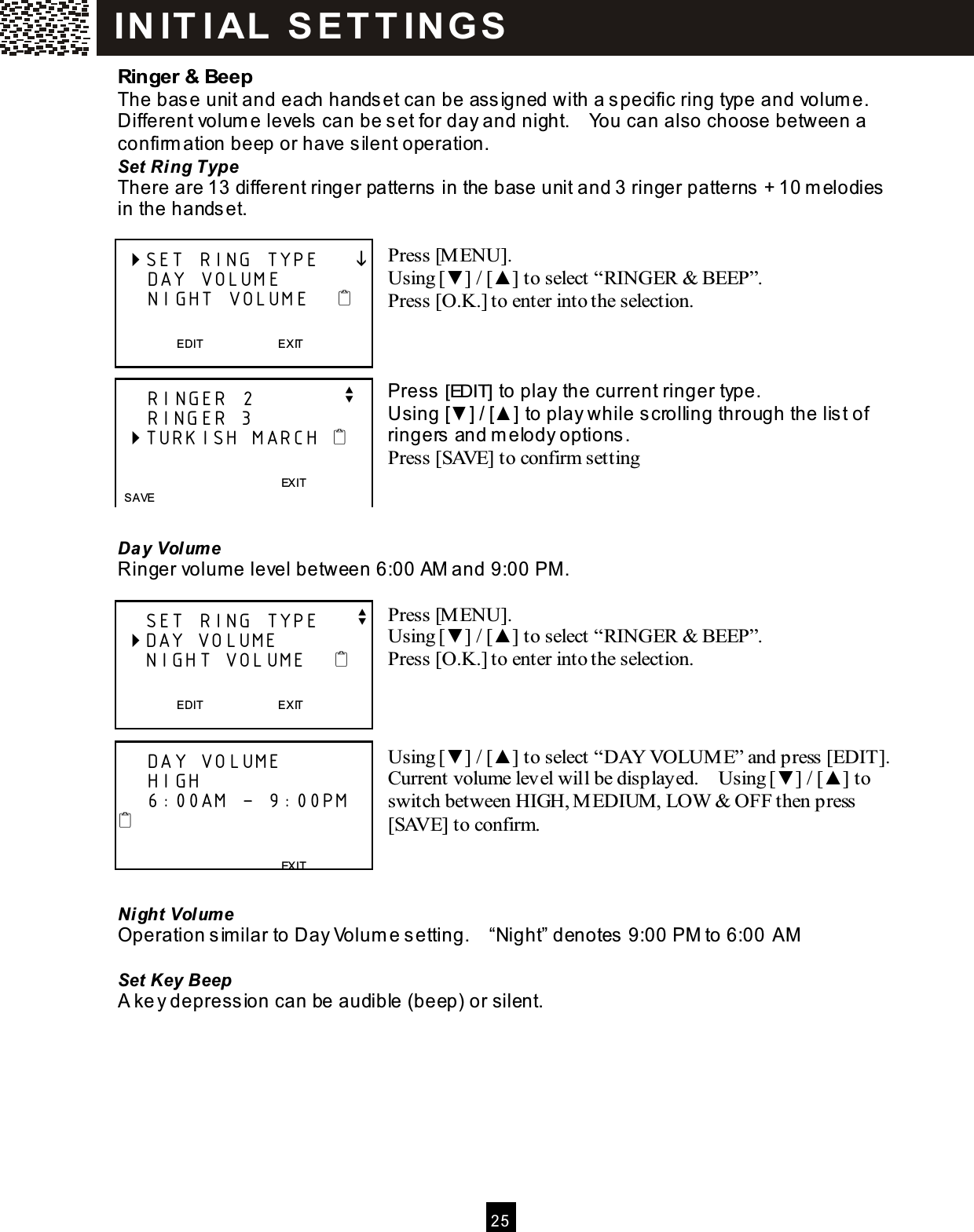

 2 5  Ringer & Beep The base unit and each handset can be assigned with a specific ring type and volum e.   Different volum e levels can be set for day and night.    You can also choose between a confirm ation beep or have silent operation. Set Ring Type There are 13 different ringer patterns in the base unit and 3 ringer patterns + 10 m elodies in the handset.  Press [M ENU]. Using [▼ ] / [▲ ] to select “RINGER & BEEP”. Press [O.K.] to enter into the selection.    Press [EDIT] to play the current ringer type. Using [▼ ] / [▲ ] to play while scrolling through the list of ringers and m elody options. Press [SAVE] to confirm setting    Day Volum e Ringer volume level between 6:00 AM and 9:00 PM.  Press [M ENU]. Using [▼ ] / [▲ ] to select “RINGER & BEEP”. Press [O.K.] to enter into the selection.    Using [▼ ] / [▲ ] to select “DAY VOLUME” and press [EDIT].   Current volume level will be displayed.    Using [▼ ] / [▲ ] to switch between HIGH, MEDIUM, LOW  & OFF then press [SAVE] to confirm.    Night Volume Operation s imilar to Day Volum e s etting.    “Night” denotes  9:00 PM to 6:00 AM  Set Key Beep A ke y depress ion can be audible (beep) or silent.   SET RING TYPE          DAY VOLUME     NIGHT VOLUME       EDIT                          EXIT      RINGER 2            v     RINGER 3  TURKISH MARCH                                         EXIT   SAVE     SET RING TYPE     v  DAY VOLUME     NIGHT VOLUME       EDIT                          EXIT      DAY VOLUME     HIGH     6:00AM – 9:00PM                                           EXIT  SAVE IN IT I AL  S E T T IN G S

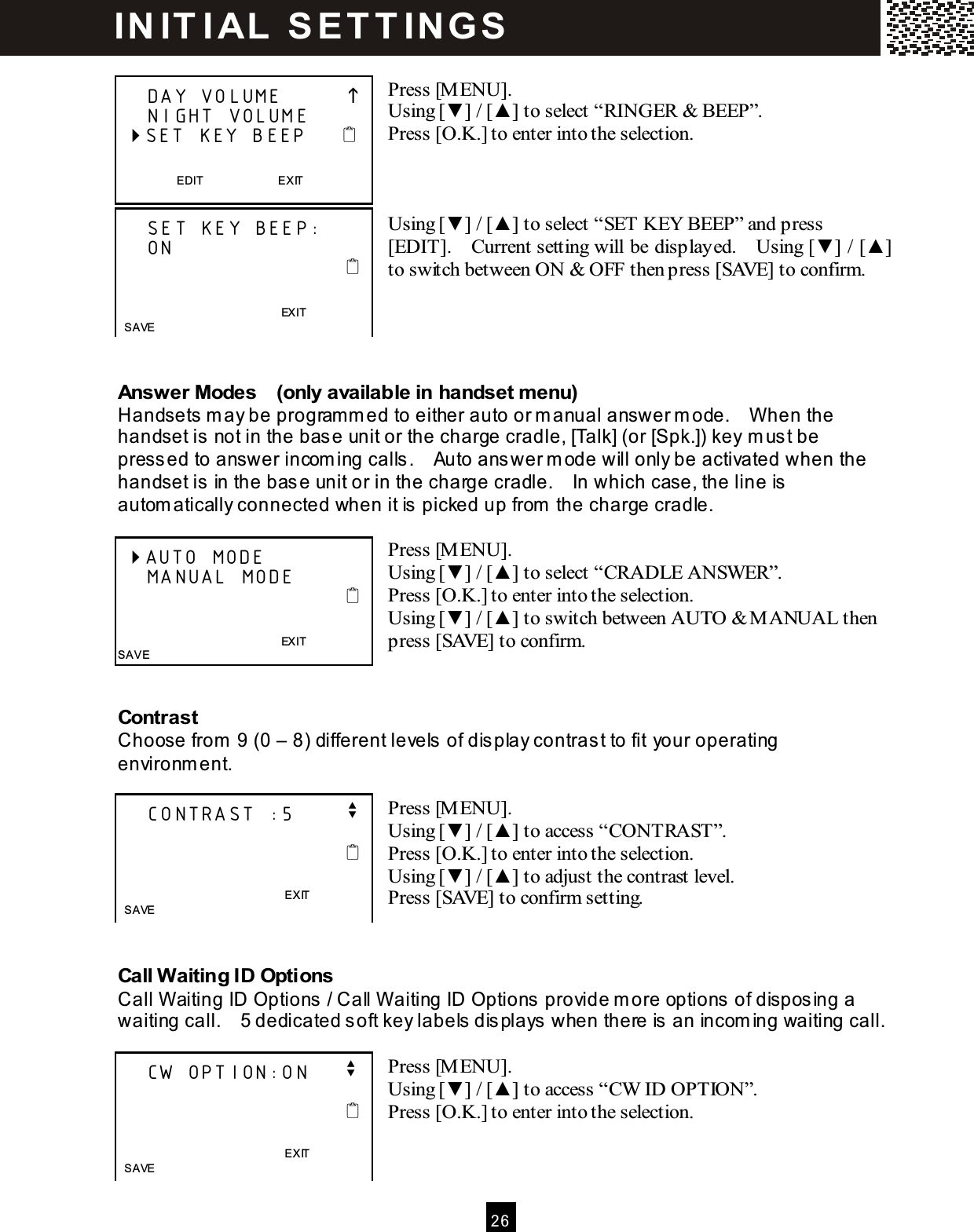

 2 6   Press [MENU]. Using [▼ ] / [▲ ] to select “RINGER & BEEP”. Press [O.K.] to enter into the selection.    Using [▼ ] / [▲ ] to select “SET KEY BEEP” and press [EDIT].    Current setting will be displayed.    Using [▼ ] / [▲ ] to switch between ON & OFF then press [SAVE] to confirm.     Answer Modes    (only available in handset menu) Handsets m ay be programm ed to either auto or m anual answer m ode.    When the handset is  not in the base unit or the charge cradle, [Talk] (or [Spk.]) key m ust be pressed to answer incom ing calls .    Auto answer m ode will only be activated when the handset is  in the base unit or in the charge cradle.    In which case, the line is automatically connected when it is picked up from  the charge cradle.  Press [M ENU]. Using [▼ ] / [▲ ] to select “CRADLE ANSW ER”. Press [O.K.] to enter into the selection. Using [▼ ] / [▲ ] to switch between AUTO & M ANUAL then press [SAVE] to confirm.   Contrast Choose from  9 (0 – 8) different levels  of dis play contrast to fit your operating environment.  Press [M ENU]. Using [▼ ] / [▲ ] to access “CONTRAST”. Press [O.K.] to enter into the selection. Using [▼ ] / [▲ ] to adjust the contrast level. Press [SAVE] to confirm setting.   Call W aiting ID Options Call Waiting ID Options  / Call Waiting ID Options  provide m ore options of disposing a waiting call.    5 dedicated s oft key labels  dis plays when there is an incoming waiting call.  Press [M ENU]. Using [▼ ] / [▲ ] to access “CW ID OPTION”. Press [O.K.] to enter into the selection.       DAY VOLUME              NIGHT VOLUME  SET KEY BEEP        EDIT                          EXIT      SET KEY BEEP:     ON                                                                       EXIT  SAVE  AUTO MODE     MANUAL MODE                                                                       EXIT SAVE     CONTRAST :5       v                                                 EXIT   SAVE      CW OPTION:ON     v                                                 EXIT   SAVE  IN IT I AL  S E T T IN G S

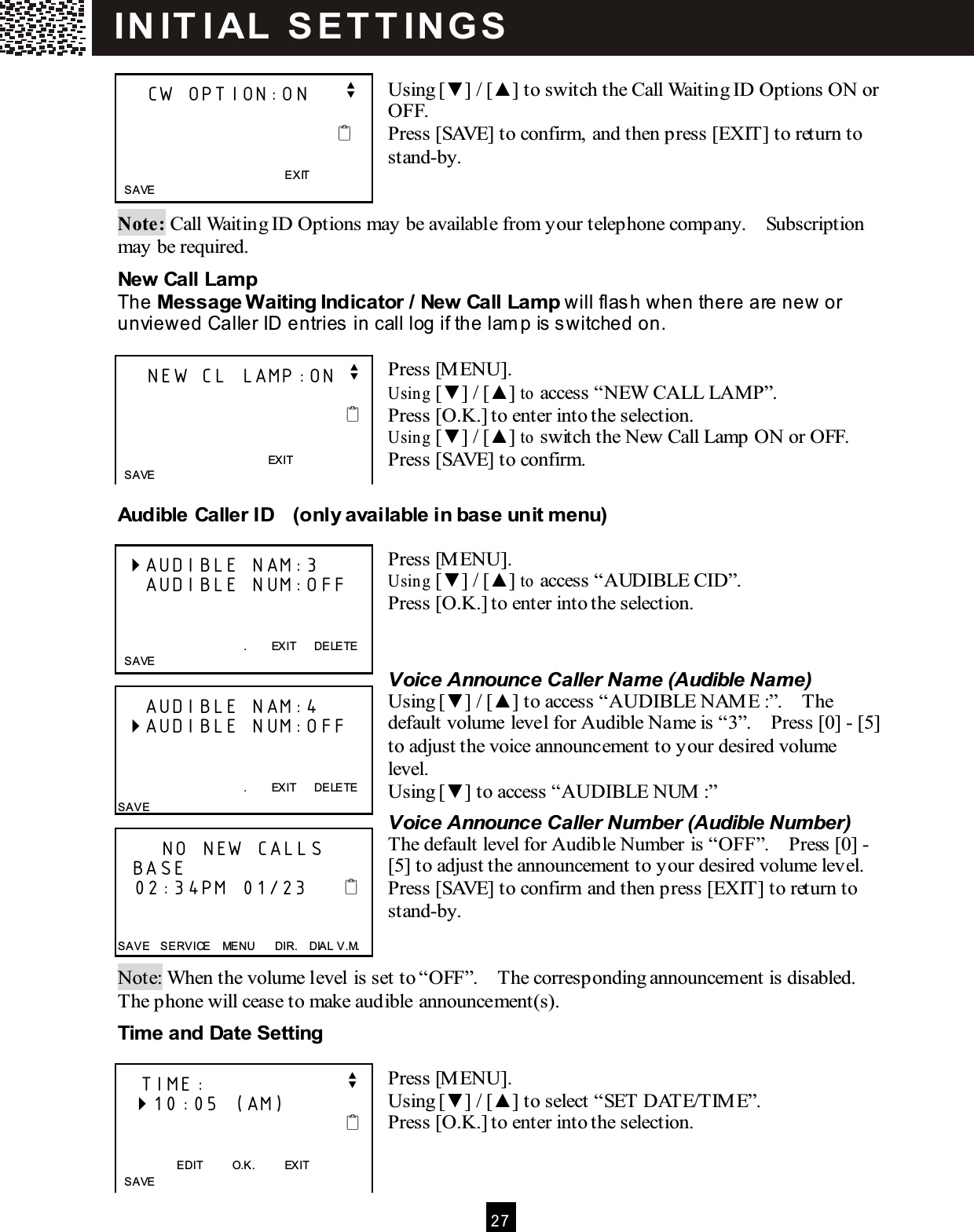

 2 7   Using [▼ ] / [▲ ] to switch the Call Waiting ID Options ON or OFF. Press [SAVE] to confirm, and then press [EXIT] to return to stand-by.   Note: Call Waiting ID Options may be available from your telephone company.    Subscription may be required. New Call Lamp The Message W aiting Indicator / New Call Lamp will flash when there are new or unviewed Caller ID entries in call log if the lam p is s witched on.  Press [M ENU]. Using [▼ ] / [▲ ] to access “NEW  CALL LAMP”. Press [O.K.] to enter into the selection. Using [▼ ] / [▲ ] to switch the New Call Lamp ON or OFF. Press [SAVE] to confirm.  Audible Caller ID    (only available in base unit menu)  Press [M ENU]. Using [▼ ] / [▲ ] to access “AUDIBLE CID”. Press [O.K.] to enter into the selection.   Voice Announce Caller Name (Audible Name) Using [▼ ] / [▲ ] to access “AUDIBLE NAM E :”.    The default volume level for Audible Name is “3”.    Press [0] - [5] to adjust the voice announcement to your desired volume level. Using [▼ ] to access “AUDIBLE NUM :” Voice Announce Caller Number (Audible Number) The default level for Audible Number is “OFF”.    Press [0] - [5] to adjust the announcement to your desired volume level.   Press [SAVE] to confirm and then press [EXIT] to return to stand-by.   Note: When the volume level is set to “OFF”.    The corresponding announcement is disabled.   The phone will cease to make audible announcement(s). Tim e and Date Setting  Press [M ENU]. Using [▼ ] / [▲ ] to select “SET DATE/TIM E”. Press [O.K.] to enter into the selection.       CW OPTION:ON     v                                                EXIT   SAVE      NEW CL LAMP:ON v                                            EXIT       SAVE   AUDIBLE NAM:3     AUDIBLE NUM:OFF   .        EXIT      DELETE   SAVE      AUDIBLE NAM:4  AUDIBLE NUM:OFF   .        EXIT      DELETE SAVE       NO NEW CALLS   BASE    02:34PM 01/23        SAVE    SERVICE    MENU      DIR.    DIAL V.M.    TIME:                   v   10:05 (AM)                                   EDIT          O.K.          EXIT   SAVE IN IT I AL  S E T T IN G S

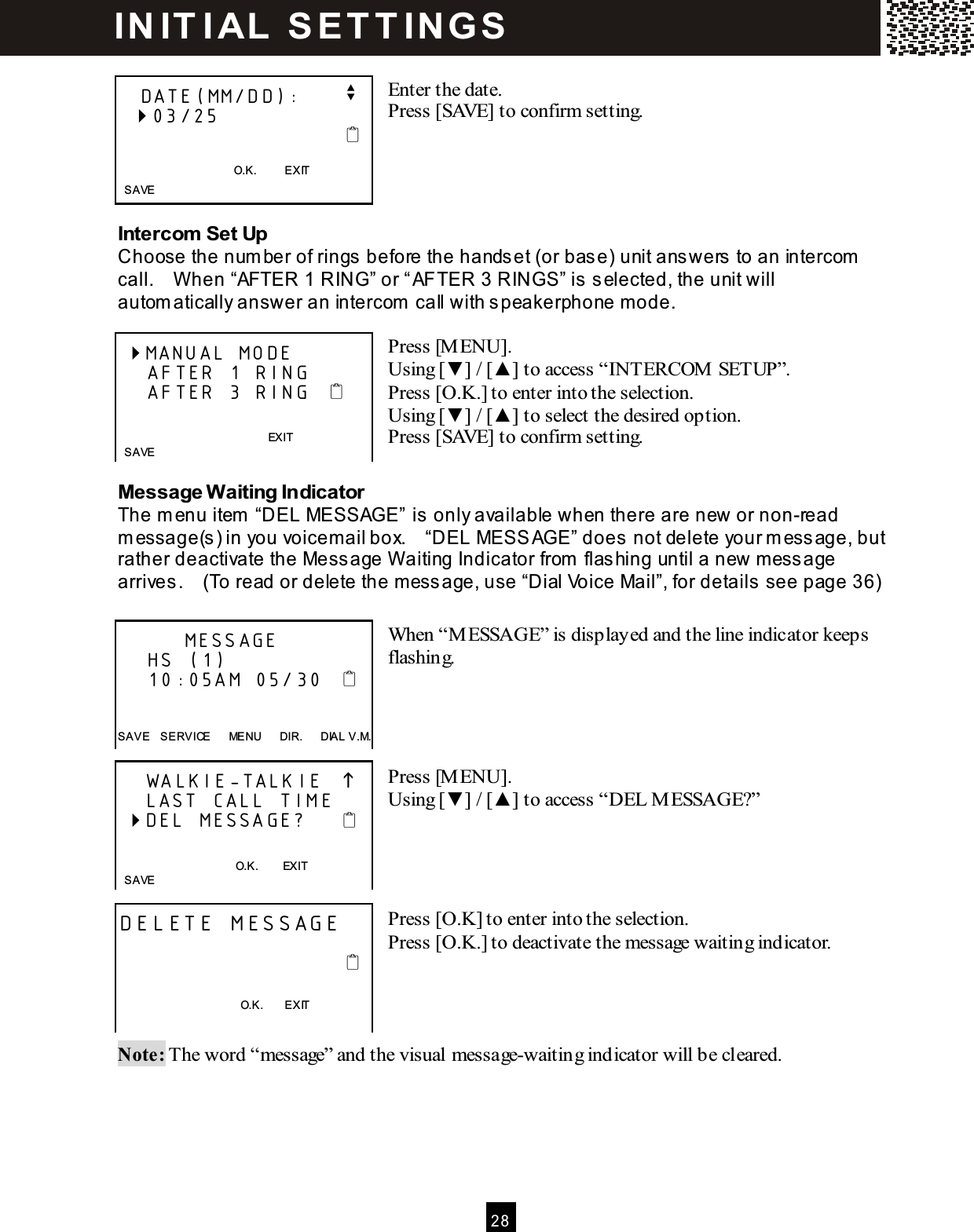

 2 8   Enter the date. Press [SAVE] to confirm setting.     Intercom Set Up Choose the num ber of rings before the handset (or base) unit answers to an intercom  call.    W hen “AFTER 1 RING” or “AFTER 3 RINGS” is selected, the unit will autom atically answer an intercom  call with speakerphone m ode.  Press [M ENU]. Using [▼ ] / [▲ ] to access “INTERCOM  SETUP”. Press [O.K.] to enter into the selection. Using [▼ ] / [▲ ] to select the desired option. Press [SAVE] to confirm setting.  Message W aiting Indicator The m enu item  “DEL MESSAGE” is only available when there are new or non-read m essage(s) in you voicem ail box.    “DEL MESSAGE” does not delete your m essage, but rather deactivate the Message W aiting Indicator from  flashing until a new m essage arrives.    (To read or delete the message, use “Dial Voice Mail”, for details see page 36)  When “M ESSAGE” is displayed and the line indicator keeps flashing.     Press [M ENU]. Using [▼ ] / [▲ ] to access “DEL M ESSAGE?”     Press [O.K] to enter into the selection. Press [O.K.] to deactivate the message waiting indicator.     Note: The word “message” and the visual message-waiting indicator will be cleared.    DATE(MM/DD):      v   03/25                                      O.K.          EXIT   SAVE  MANUAL MODE     AFTER 1 RING     AFTER 3 RING              EXIT   SAVE           MESSAGE     HS (1)     10:05AM 05/30      SAVE    SERVICE      MENU      DIR.      DIAL V.M.     WALKIE-TALKIE        LAST CALL TIME  DEL MESSAGE?        O.K.        EXIT   SAVE  DELETE MESSAGE                                                                             O.K.        EXIT   IN IT I AL  S E T T IN G S

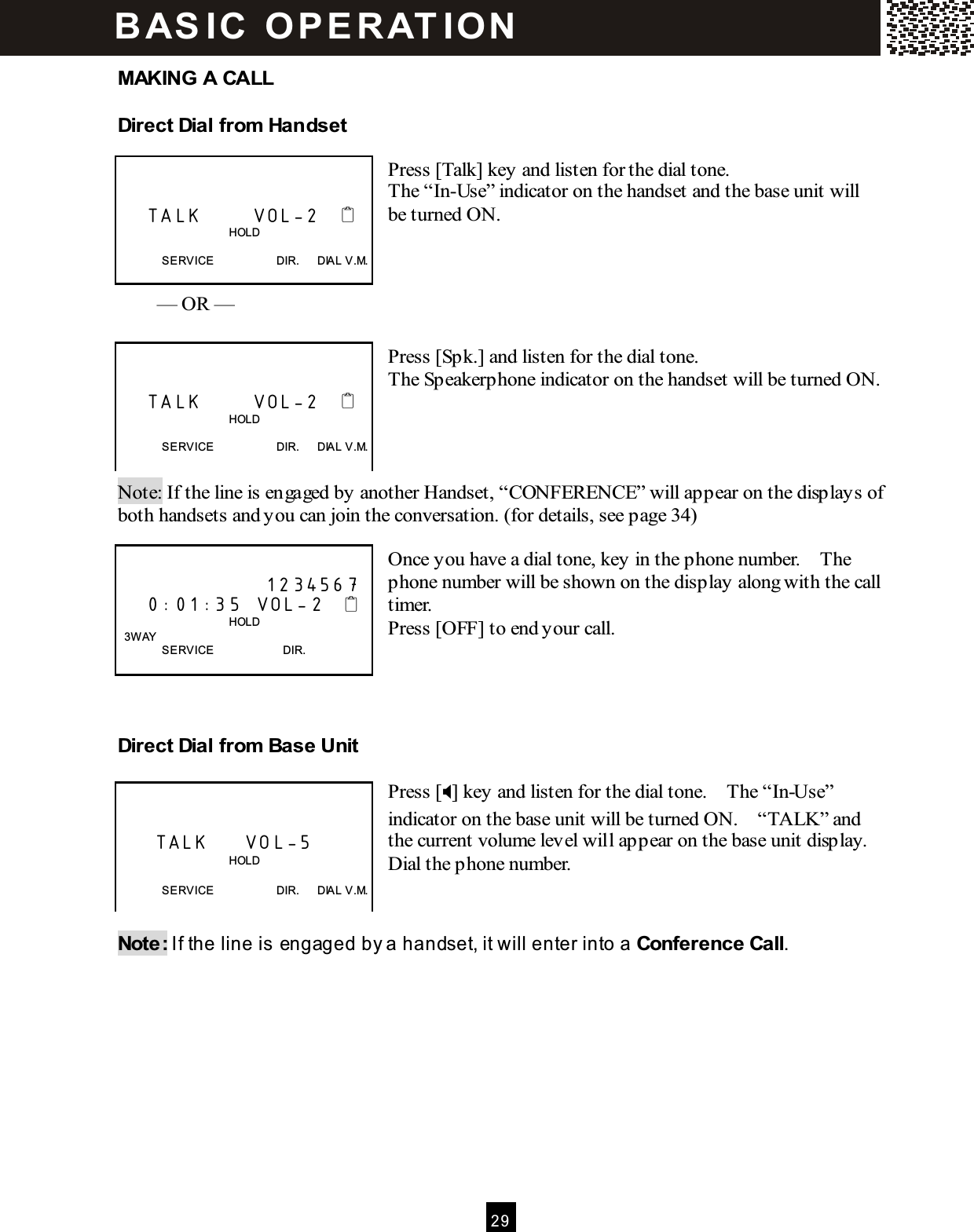

 2 9  MAKING A CALL Direct Dial from  Handset  Press [Talk] key and listen for the dial tone. The “In-Use” indicator on the handset and the base unit will be turned ON.      — OR —  Press [Spk.] and listen for the dial tone. The Speakerphone indicator on the handset will be turned ON.       Note: If the line is engaged by another Handset, “CONFERENCE” will appear on the displays of both handsets and you can join the conversation. (for details, see page 34)  Once you have a dial tone, key in the phone number.    The phone number will be shown on the display along with the call timer. Press [OFF] to end your call.    Direct Dial from  Base Unit  Press [] key and listen for the dial tone.    The “In-Use” indicator on the base unit will be turned ON.    “TALK” and the current volume level will appear on the base unit display. Dial the phone number.   Note: If the line is engaged by a handset, it will enter into a Conference Call.       TALK       VOL-2                                          HOLD  SERVICE                      DIR.      DIAL V.M.       TALK       VOL-2                                          HOLD  SERVICE                      DIR.      DIAL V.M.                      1234567     0:01:35  VOL-2                                          HOLD   3W AY SERVICE                        DIR.        TALK     VOL-5                                       HOLD  SERVICE                      DIR.      DIAL V.M. BAS IC  O PE RAT IO N

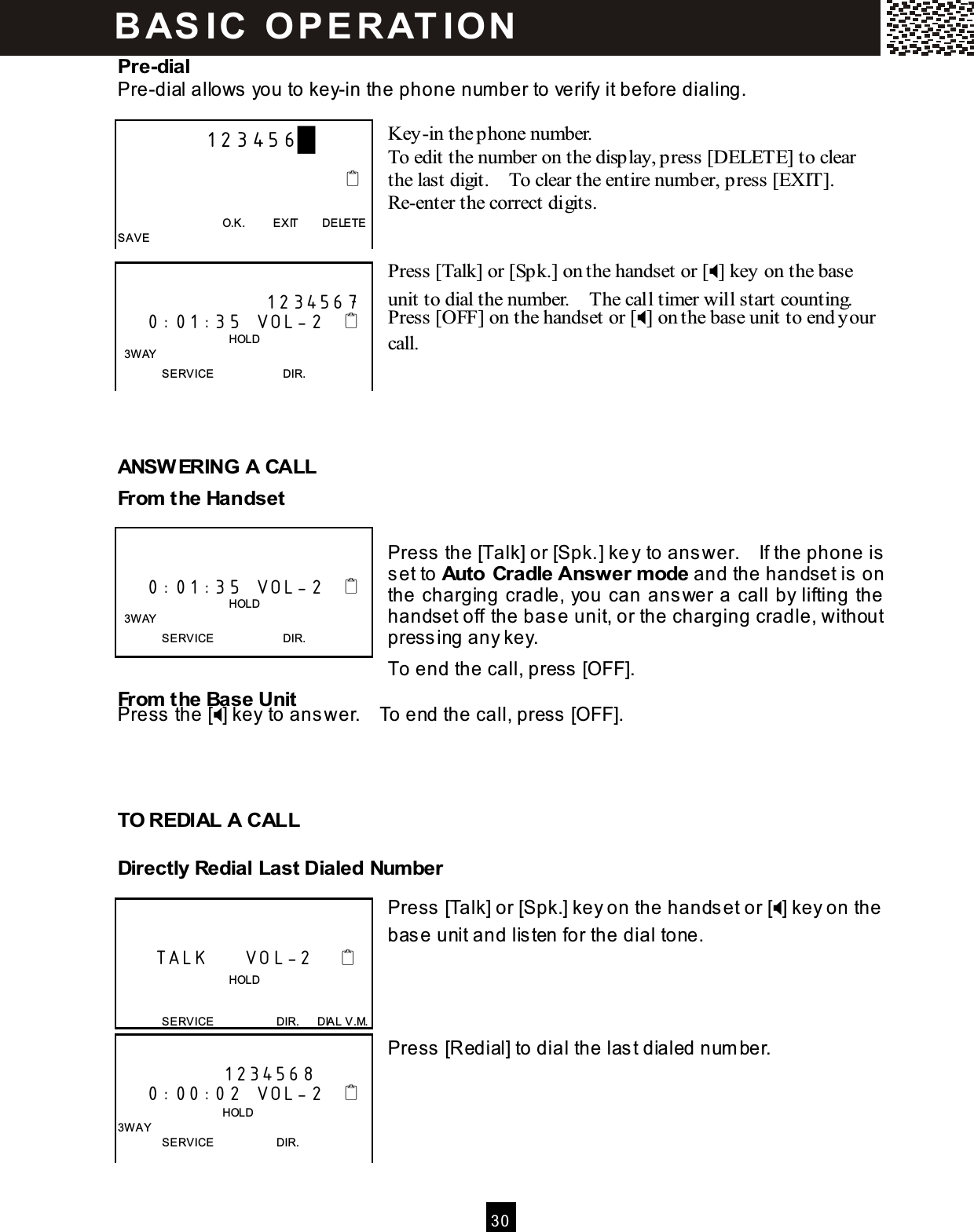

 30  Pre-dial Pre-dial allows you to key-in the phone num ber to verify it before dialing.  Key-in the phone number. To edit the number on the display, press [DELETE] to clear the last digit.    To clear the entire number, press [EXIT].   Re-enter the correct digits.   Press [Talk] or [Spk.] on the handset or [] key on the base unit to dial the number.    The call timer will start counting. Press [OFF] on the handset or [] on the base unit to end your call.     ANSW ERING A CALL From  the Handset  Press the [Talk] or [Spk.] key to answer.    If the phone is set to Auto Cradle Answer m ode and the handset is on the charging cradle, you can answer a call by lifting the handset off the base unit, or the charging cradle, without pressing any key. To end the call, press [OFF]. From  the Base Unit Press the [] key to answer.    To end the call, press [OFF].    TO REDIAL A CALL Directly Redial Last Dialed Num ber  Press [Talk] or [Spk.] key on the handset or [] key on the base unit and listen for the dial tone.     Press [Redial] to dial the last dialed num ber.              123456█                                                                        O.K.          EXIT        DELETE SAVE                      1234567     0:01:35  VOL-2                                          HOLD   3W AY SERVICE                        DIR.       0:01:35  VOL-2                                          HOLD   3W AY SERVICE                        DIR.        TALK     VOL-2                                       HOLD  SERVICE                      DIR.      DIAL V.M.  1234568     0:00:02  VOL-2                                    HOLD 3W AY SERVICE                      DIR. B AS IC   O P E R AT IO N

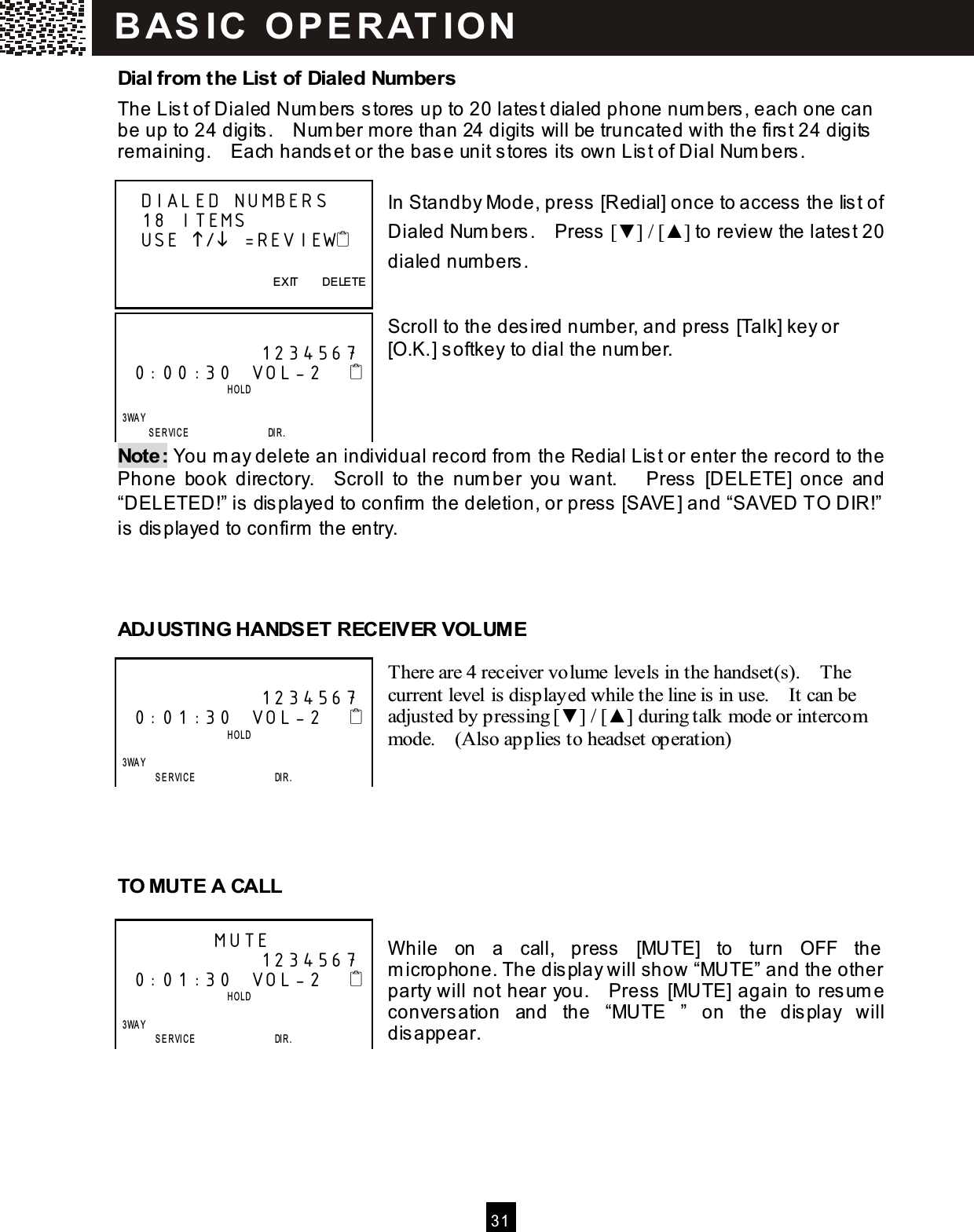

 3 1  Dial from the List of Dialed Numbers The List of Dialed Num bers stores up to 20 latest dialed phone num bers, each one can be up to 24 digits.    Num ber m ore than 24 digits will be truncated with the first 24 digits remaining.    Each handset or the base unit stores its own List of Dial Num bers.  In Standby Mode, press [Redial] once to access the list of Dialed Num bers.    Press [▼ ] / [▲ ] to review the latest 20 dialed num bers.   Scroll to the desired num ber, and press [Talk] key or [O.K.] softkey to dial the num ber.    Note: You m ay delete an individual record from  the Redial List or enter the record to the Phone  book  directory.    Scroll  to  the  num ber  you  want.      Press  [DELETE]  once  and “DELETED!” is displayed to confirm  the deletion, or press [SAVE] and “SAVED TO DIR!” is displayed to confirm  the entry.    ADJUSTING HANDSET RECEIVER VOLUM E  There are 4 receiver volume levels in the handset(s).    The current level is displayed while the line is in use.    It can be adjusted by pressing [▼ ] / [▲ ] during talk mode or intercom mode.    (Also applies to headset operation)      TO MUTE A CALL  W hile  on  a  call,  press  [MUTE]  to  turn  OFF  the m icrophone. The display will show “MUTE” and the other party will not hear you.    Press [MUTE] again to resum e conversation  and  the  “MUTE  ”  on  the  display  will disappear.     DIALED NUMBERS    18 ITEMS     USE / =REVIEW        EXIT        DELETE                 1234567 0:00:30  VOL-2                            HOLD      3WAY        SERVICE                 DIR.                1234567 0:01:30  VOL-2                            HOLD      3WAY        SERVICE                 DIR.          MUTE               1234567 0:01:30  VOL-2                            HOLD      3WAY        SERVICE                 DIR. B AS IC   O P E R AT IO N

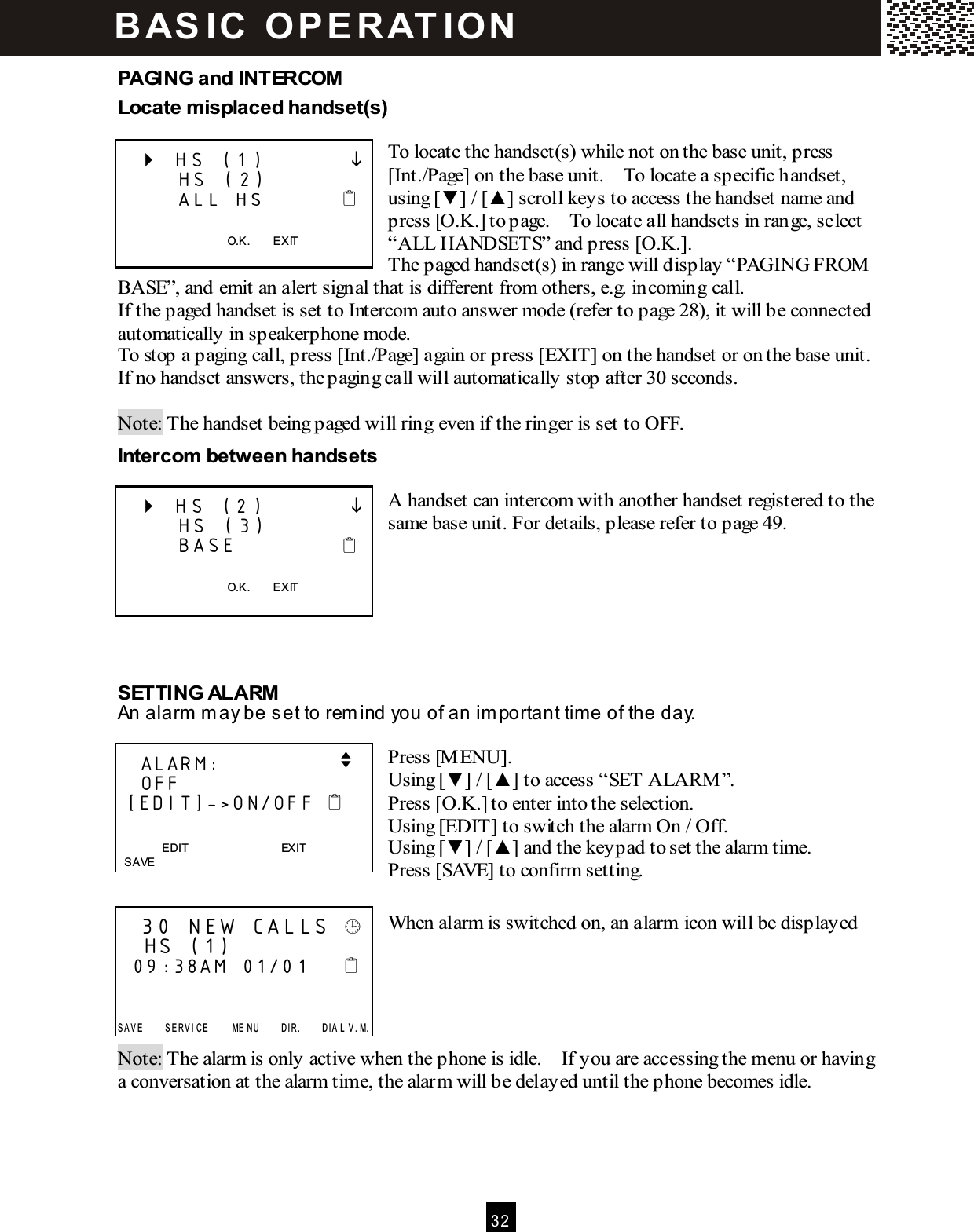

 3 2  PAGING and INTERCOM Locate m isplaced handset(s)  To locate the handset(s) while not on the base unit, press [Int./Page] on the base unit.    To locate a specific handset, using [▼ ] / [▲ ] scroll keys to access the handset name and press [O.K.] to page.    To locate all handsets in range, select “ALL HANDSETS” and press [O.K.].     The paged handset(s) in range will display “PAGING FROM  BASE”, and emit an alert signal that is different from others, e.g. incoming call. If the paged handset is set to Intercom auto answer mode (refer to page 28), it will be connected automatically in speakerphone mode. To stop a paging call, press [Int./Page] again or press [EXIT] on the handset or on the base unit.   If no handset answers, the paging call will automatically stop after 30 seconds.  Note: The handset being paged will ring even if the ringer is set to OFF. Intercom  between handsets  A handset can intercom with another handset registered to the same base unit. For details, please refer to page 49.       SETTING ALARM An alarm  m ay be set to rem ind you of an im portant tim e of the day.  Press [M ENU]. Using [▼ ] / [▲ ] to access “SET ALARM ”. Press [O.K.] to enter into the selection. Using [EDIT] to switch the alarm On / Off. Using [▼ ] / [▲ ] and the keypad to set the alarm time. Press [SAVE] to confirm setting.  When alarm is switched on, an alarm icon will be displayed      Note: The alarm is only active when the phone is idle.    If you are accessing the menu or having a conversation at the alarm time, the alarm will be delayed until the phone becomes idle.      HS (1)               HS (2)       ALL HS            O.K.        EXIT     HS (2)               HS (3)       BASE              O.K.        EXIT     ALARM:                v    OFF  [EDIT]->ON/OFF     EDIT                                EXIT   SAVE    30 NEW CALLS     HS (1)   09:38AM  01/01        S A V E         S E RV I C E         ME N U         D I R .         D I A L  V . M. B AS IC   O P E R AT IO N

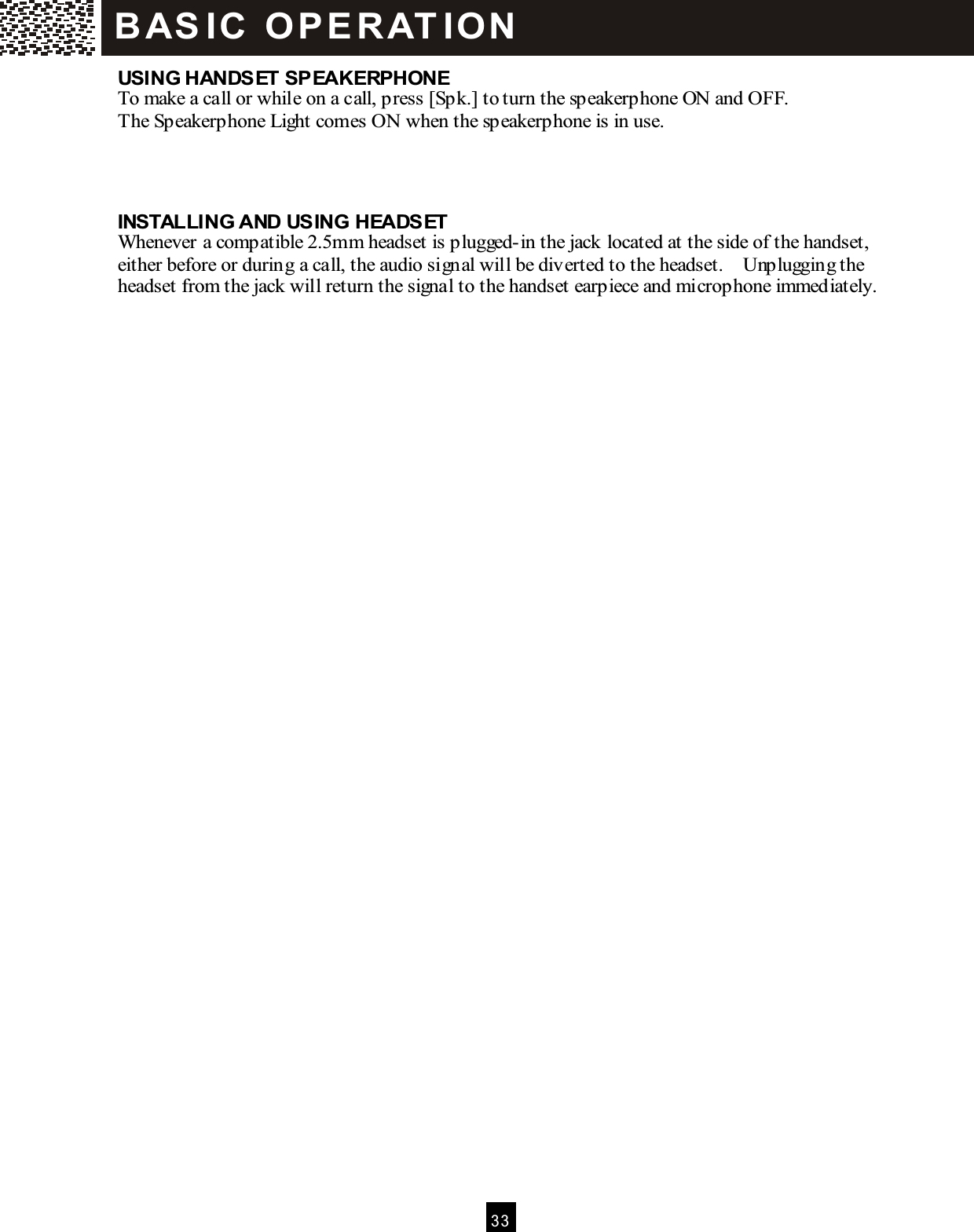

 3 3  USING HANDSET SPEAKERPHONE To make a call or while on a call, press [Spk.] to turn the speakerphone ON and OFF. The Speakerphone Light comes ON when the speakerphone is in use.    INSTALLING AND USING HEADSET Whenever a compatible 2.5mm headset is plugged-in the jack located at the side of the handset, either before or during a call, the audio signal will be diverted to the headset.    Unplugging the headset from the jack will return the signal to the handset earpiece and microphone immediately. B AS IC   O P E R AT IO N

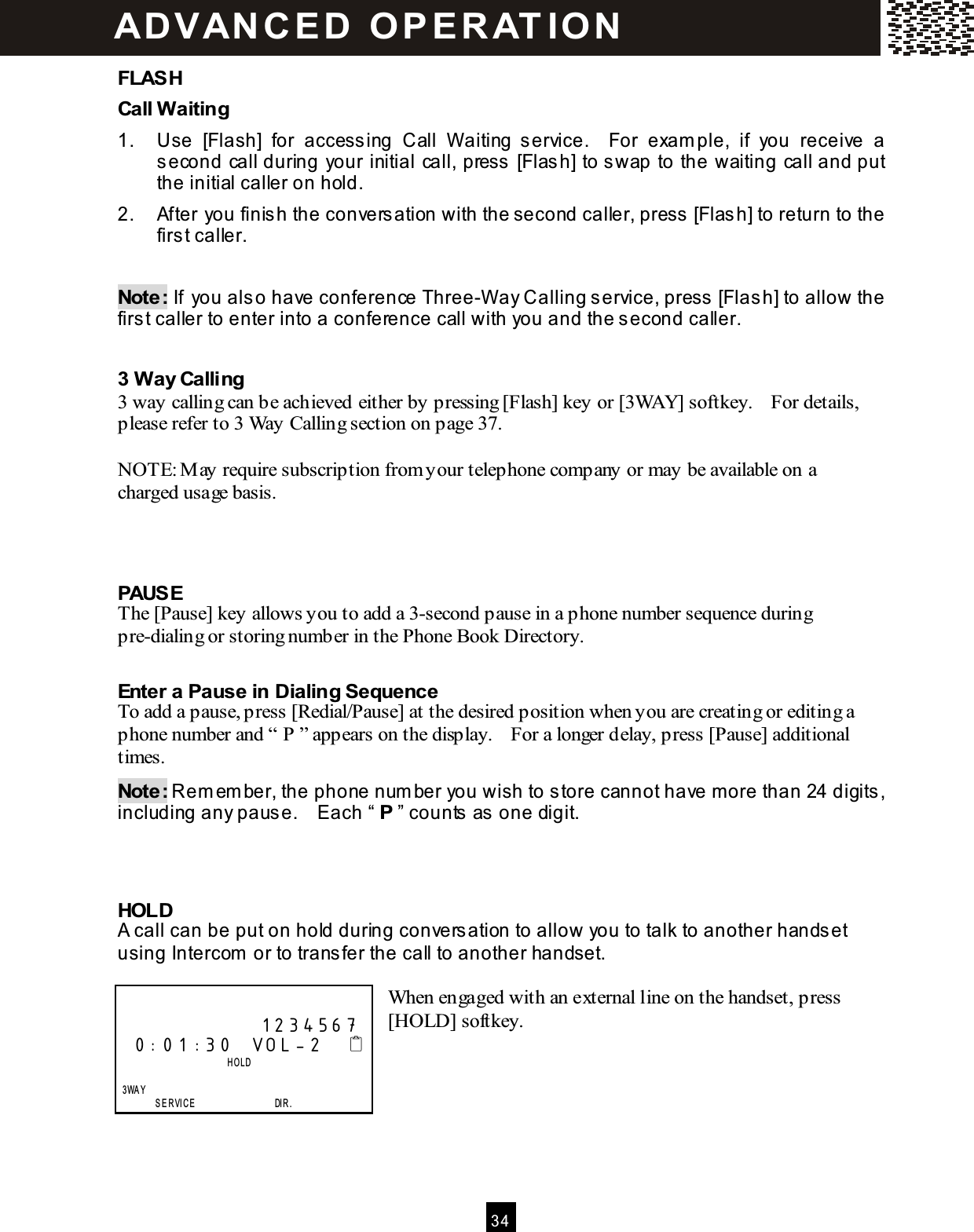

 3 4  FLASH Call W aiting 1.  Use  [Flash]  for  accessing  Call  W aiting  service.    For  exam ple,  if  you  receive  a second call during your initial call, press [Flash] to swap to the waiting call and put the initial caller on hold. 2.  After you finish the conversation with the second caller, press [Flash] to return to the first caller.  Note: If you also have conference Three-W ay Calling service, press [Flash] to allow the first caller to enter into a conference call with you and the second caller.  3 W ay Calling 3 way calling can be achieved either by pressing [Flash] key or [3WAY] softkey.    For details, please refer to 3 Way Calling section on page 37.  NOTE: M ay require subscription from your telephone company or may be available on a charged usage basis.    PAUSE The [Pause] key allows you to add a 3-second pause in a phone number sequence during pre-dialing or storing number in the Phone Book Directory.  Enter a Pause in Dialing Sequence To add a pause, press [Redial/Pause] at the desired position when you are creating or editing a phone number and “ P ” appears on the display.    For a longer delay, press [Pause] additional times. Note: Rem em ber, the phone num ber you wish to store cannot have m ore than 24 digits, including any pause.    Each “ P ” counts as one digit.    HOLD A call can be put on hold during conversation to allow you to talk to another handset using Intercom  or to transfer the call to another handset.  When engaged with an external line on the handset, press [HOLD] softkey.                    1234567 0:01:30  VOL-2                            HOLD      3WA Y         SERVICE                 DIR. ADVAN C E D  O P E R AT IO N

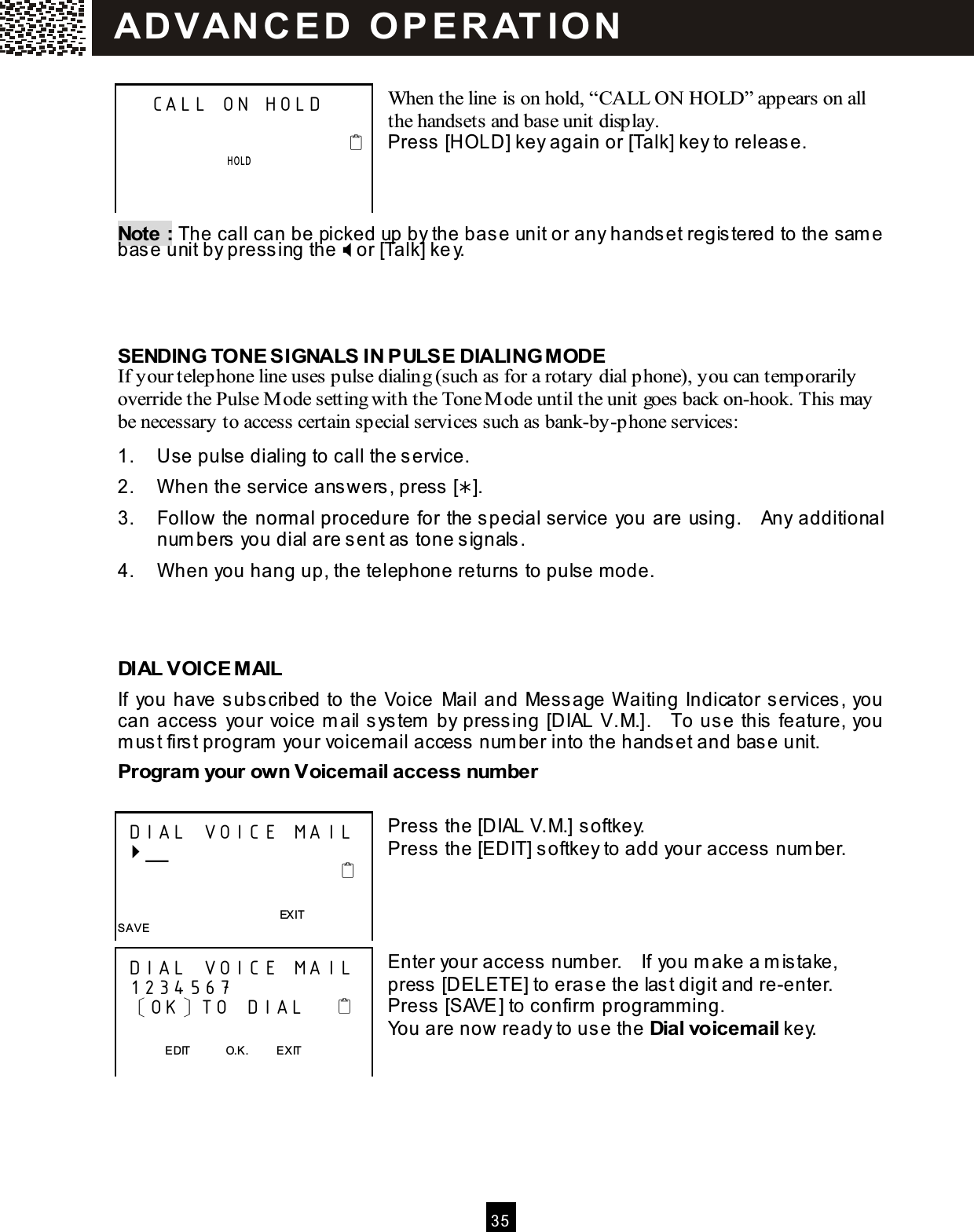

 3 5   When the line is on hold, “CALL ON HOLD” appears on all the handsets and base unit display. Press [HOLD] key again or [Talk] key to release.    Note : The call can be picked up by the base unit or any handset registered to the sam e base unit by pressing the  or [Talk] key.    SENDING TONE SIGNALS IN PULSE DIALING M ODE If your telephone line uses pulse dialing (such as for a rotary dial phone), you can temporarily override the Pulse M ode setting with the Tone M ode until the unit goes back on-hook. This may be necessary to access certain special services such as bank-by-phone services: 1.  Use pulse dialing to call the service. 2.  W hen the service answers, press []. 3.  Follow the norm al procedure for the special service you are using.    Any additional num bers you dial are sent as tone signals. 4.  W hen you hang up, the telephone returns to pulse m ode.    DIAL VOICE M AIL If  you have subscribed to the Voice  Mail and Message W aiting Indicator services, you can access your voice m ail system  by pressing [DIAL V.M.].    To use this feature, you m ust first program  your voicem ail access num ber into the handset and base unit. Program  your own Voicem ail access num ber  Press the [DIAL V.M.] softkey. Press the [EDIT] softkey to add your access num ber.     Enter your access num ber.    If you m ake a m istake, press [DELETE] to erase the last digit and re-enter.   Press [SAVE] to confirm  program m ing. You are now ready to use the Dial voicem ail key.     CALL ON HOLD                                                   HOLD       DIAL  VOIC E MA IL  ╴                                                                                 EXIT SAVE  DIAL  VOIC E MA IL  1234 567  〔OK〕TO  DIAL                       EDIT            O.K.          EXIT  SAVE   AD VAN C E D   O PE RATIO N

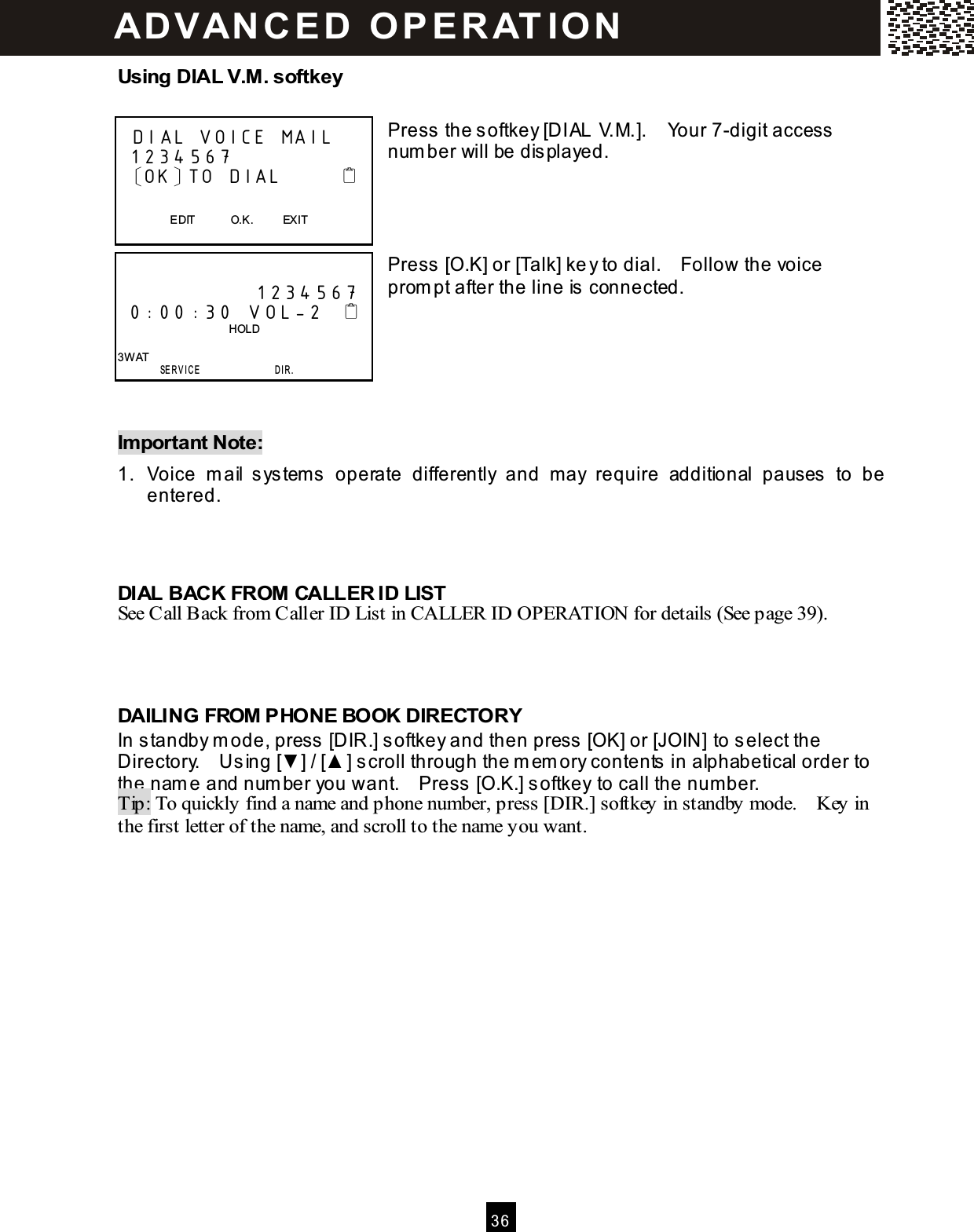

 3 6  Using DIAL V.M. softkey  Press the softkey [DIAL V.M.].    Your 7-digit access num ber will be displayed.     Press [O.K] or [Talk] key to dial.    Follow the voice prom pt after the line is connected.      Im portant Note: 1.  Voice  m ail  system s  operate  differently  and  may  require  additional  pauses  to  be entered.    DIAL BACK FROM CALLER ID LIST See Call Back from Caller ID List in CALLER ID OPERATION for details (See page 39).    DAILING FROM PHONE BOOK DIRECTORY In standby m ode, press [DIR.] softkey and then press [OK] or [JOIN] to select the Directory.    Using [▼ ] / [▲ ] scroll through the m em ory contents in alphabetical order to the nam e and num ber you want.    Press [O.K.] softkey to call the num ber. Tip: To quickly find a name and phone number, press [DIR.] softkey in standby mode.    Key in the first letter of the name, and scroll to the name you want.    DIAL VOICE MAIL  1234 567  〔OK〕TO DIAL                           EDIT            O.K.          EXIT                1234 567  0:00 :30 V OL-2                                          HOLD  3W AT        SE R V IC E                  D I R . AD VAN C E D   O PE RATIO N

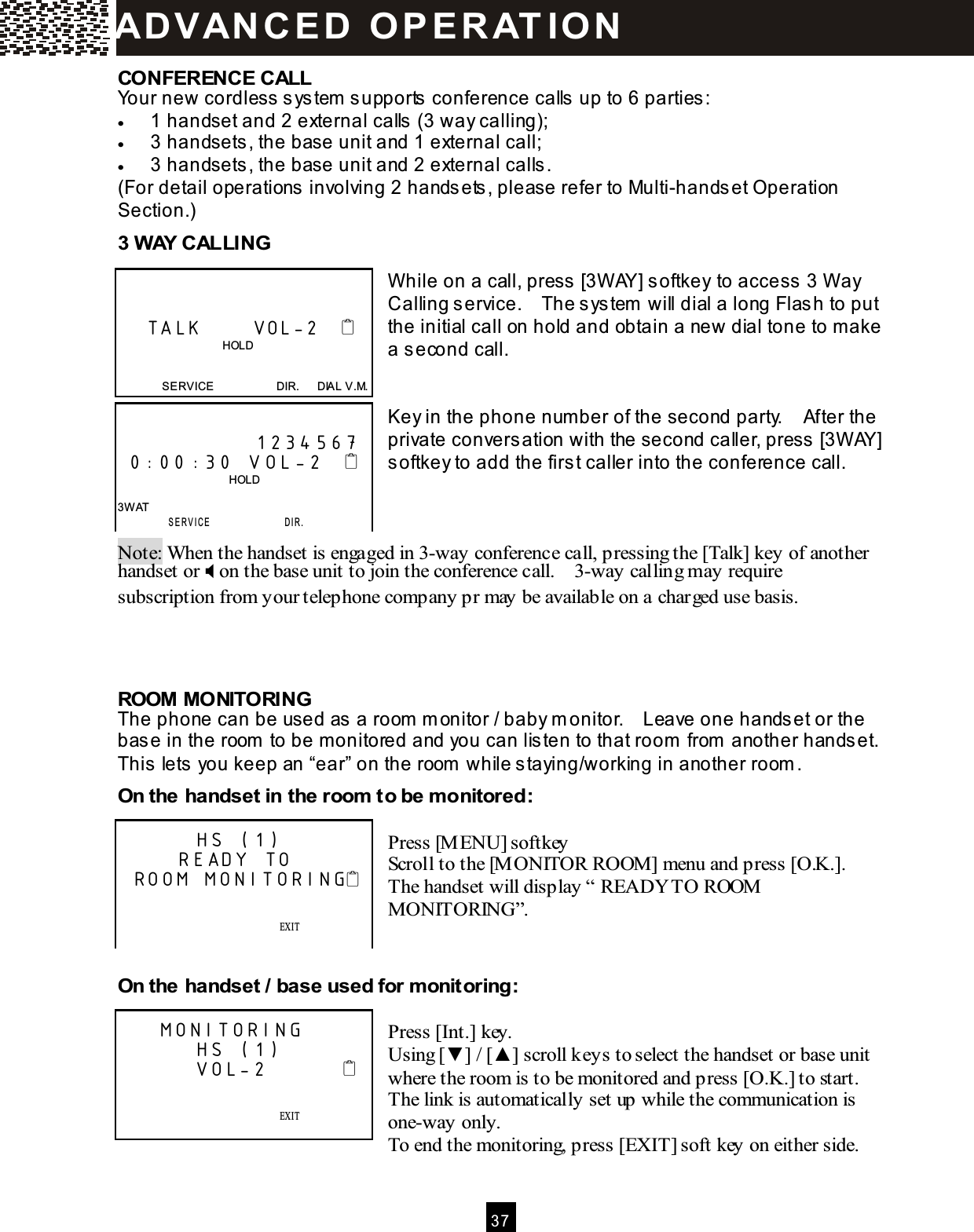

 3 7  CONFERENCE CALL Your new cordless system  supports conference calls up to 6 parties: •  1 handset and 2 external calls (3 way calling); •  3 handsets, the base unit and 1 external call; •  3 handsets, the base unit and 2 external calls. (For detail operations involving 2 handsets, please refer to Multi-handset Operation Section.) 3 W AY CALLING   W hile on a call, press [3W AY] softkey to access 3 W ay Calling service.    The system  will dial a long Flash to put the initial call on hold and obtain a new dial tone to m ake a second call.   Key in the phone num ber of the second party.    After the private conversation with the second caller, press [3W AY] softkey to add the first caller into the conference call.    Note: When the handset is engaged in 3-way conference call, pressing the [Talk] key of another handset or  on the base unit to join the conference call.    3-way calling may require subscription from your telephone company pr may be available on a charged use basis.    ROOM MONITORING The phone can be used as a room  m onitor / baby m onitor.    Leave one handset or the base in the room  to be m onitored and you can listen to that room  from  another handset.   This lets you keep an “ear” on the room  while staying/working in another room . On the handset in the room  to be monitored:  Press [M ENU] softkey Scroll to the [M ONITOR ROOM] menu and press [O.K.].   The handset will display “ READY TO ROOM  MONITORING”.   On the handset / base used for m onitoring:  Press [Int.] key. Using [▼ ] / [▲ ] scroll keys to select the handset or base unit where the room is to be monitored and press [O.K.] to start.   The link is automatically set up while the communication is one-way only. To end the monitoring, press [EXIT] soft key on either side.       TALK       VOL-2                                        HOLD   SERVICE                      DIR.      DIAL V.M.               1234567  0:00:30 VOL-2                                         HOLD  3W AT  SERVICE                 D I R .        HS (1)      READY TO ROOM MONITORING                EXIT    SAVE      SERVICE            M ENU            DIR.            DIAL V.M .    MONITORING        HS (1)        VOL-2                         EXIT    SAVE      SERVICE            M ENU            DIR.            DIAL V.M .  AD VAN C E D   O P E R AT IO N
 3 8  ABOUT CALLER IDENTIFICATION This telephone supports Caller ID service and Call W aiting ID Option service provided by your local telephone com pany.    There m ay be a fee for this service, and it m ay not be available in all areas.    This phone can provide inform ation only if both you and the caller are in areas offering Caller ID service, and if both telephone com panies use com patible equipm ent.    Depending on your service, you will be able to see the num ber, or the nam e and num ber of your caller.  If you have Caller ID service, the incom ing call inform ation including num ber and nam e (if available) tim e and date will be shown on the display.    The phone will also save the call inform ation in the Caller ID List.      CALLER LIST The Caller List is your incom ing call history.    W hen a new Caller ID record arrives, it is assigned a num ber from  #01 to #40.    The most recent record will have the lowest num ber.    W hen the Caller List is full, the oldest record is deleted to m ake room  for new record, and all the record num bers are shifted one num ber higher. Mem ory Match Names stored in the Phone Book Directory will override Caller Name signal sent from the telephone company.    For example, if you store your parents’ telephone number with their nickname, “M OM  AND DAD”, in memory, the Caller ID display will show “M OM  AND DAD” whenever you receive an incoming call from their phone number. Review Caller List  Press [▼ ] / [▲ ] during standby m ode.      Press [▼ ] to show the latest record. W hile reviewing the Caller List, pressing [SAVE] softkey can copy the displayed record into the Phone Book Directory.      JOHN SMITH          v    1234567890      #20  11:08P 01/18 X1                                                    EXIT        DELETE SAVE            CALLS     40 ITEMS     USE / =REVIEW  EXIT      DELETE     JOHN SMITH              123-123-4568  #1    10:00P 01/18  X1                    EXIT        DELETE   SAVE C AL L E R   ID   O P E R AT IO N

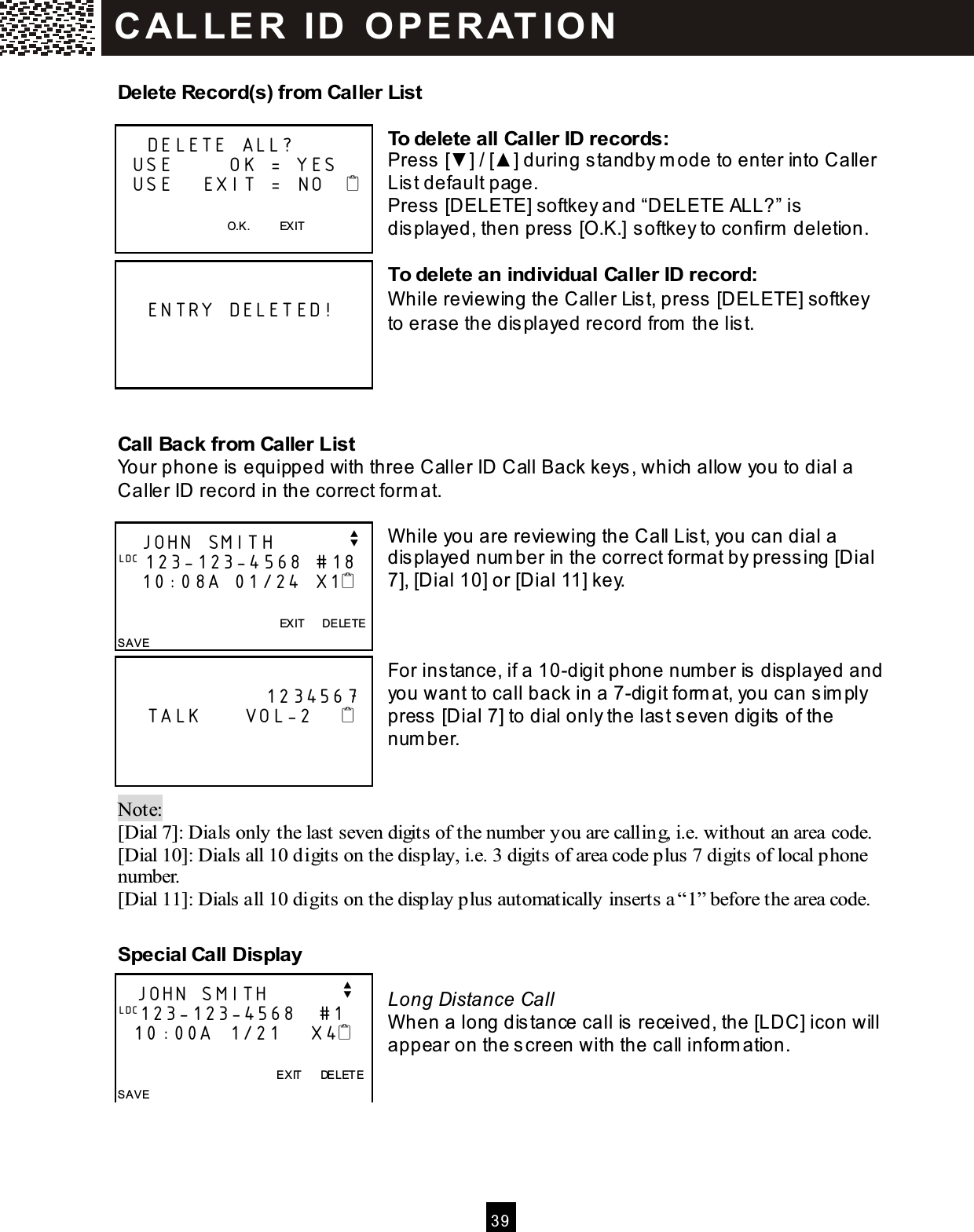

 3 9  Delete Record(s) from Caller List  To delete all Caller ID records: Press [▼ ] / [▲ ] during standby m ode to enter into Caller List default page. Press [DELETE] softkey and “DELETE ALL?” is displayed, then press [O.K.] softkey to confirm  deletion.  To delete an individual Caller ID record: W hile reviewing the Caller List, press [DELETE] softkey to erase the displayed record from  the list.    Call Back from Caller List Your phone is equipped with three Caller ID Call Back keys, which allow you to dial a Caller ID record in the correct form at.  W hile you are reviewing the Call List, you can dial a displayed num ber in the correct form at by pressing [Dial 7], [Dial 10] or [Dial 11] key.    For instance, if a 10-digit phone num ber is displayed and you want to call back in a 7-digit form at, you can sim ply press [Dial 7] to dial only the last seven digits of the num ber.   Note:   [Dial 7]: Dials only the last seven digits of the number you are calling, i.e. without an area code. [Dial 10]: Dials all 10 digits on the display, i.e. 3 digits of area code plus 7 digits of local phone number. [Dial 11]: Dials all 10 digits on the display plus automatically inserts a “1” before the area code.  Special Call Display  Long Distance Call W hen a long distance call is received, the [LDC] icon will appear on the screen with the call inform ation.        DELETE ALL?   USE        OK = YES   USE    EXIT =  NO       O.K.          EXIT        ENTRY DELETED!       JOHN SMITH          v LDC 123-123-4568 #18    10:08A 01/24 X1                      EXIT      DELETE SAVE                       1234567     TALK      VOL-2          JOHN SMITH          v LDC123-123-4568   #1    10:00A  1/21    X4                EXIT      DELETE SAVE  C AL L E R   ID   O P E R AT IO N

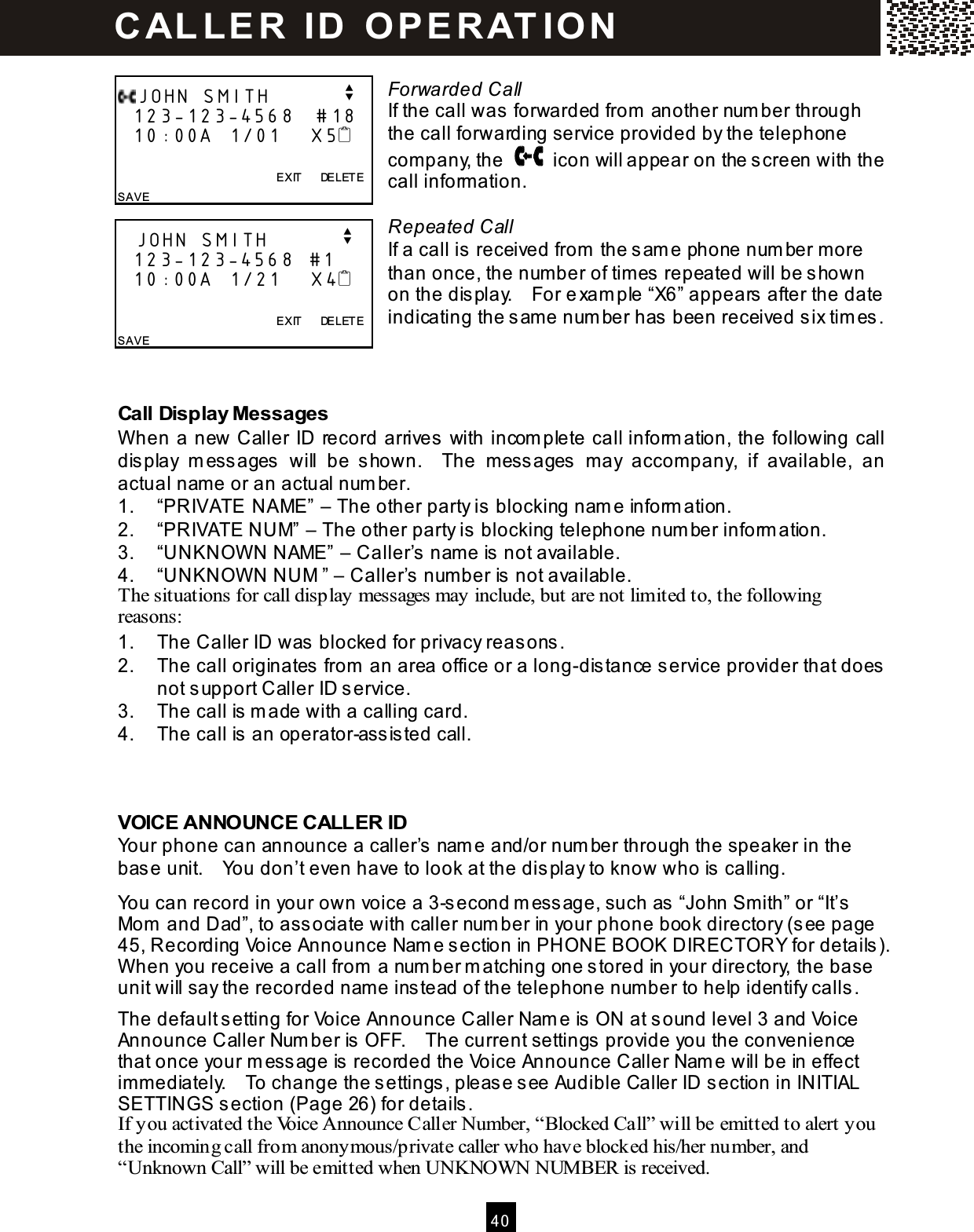

 40   Forwarded Call If the call was forwarded from  another num ber through the call forwarding service provided by the telephone company, the    icon will appear on the screen with the call inform ation.  Repeated Call If a call is received from  the sam e phone num ber m ore than once, the num ber of tim es repeated will be shown on the display.    For exam ple “X6” appears after the date indicating the sam e num ber has been received six tim es.   Call Display Messages W hen a new Caller ID record arrives with incom plete call inform ation, the following call display  m essages  will  be  shown.    The  m essages  m ay  accom pany,  if  available,  an actual nam e or an actual num ber. 1.  “PRIVATE NAME” – The other party is blocking nam e inform ation. 2.  “PRIVATE NUM” – The other party is blocking telephone num ber inform ation. 3.  “UNKNOW N NAME” – Caller’s nam e is not available. 4.  “UNKNOW N NUM ” – Caller’s num ber is not available. The situations for call display messages may include, but are not limited to, the following reasons: 1.  The Caller ID was blocked for privacy reasons. 2.  The call originates from  an area office or a long-distance service provider that does not support Caller ID service. 3.  The call is m ade with a calling card. 4.  The call is an operator-assisted call.   VOICE ANNOUNCE CALLER ID Your phone can announce a caller’s nam e and/or num ber through the speaker in the base unit.    You don’t even have to look at the display to know who is calling. You can record in your own voice a 3-second m essage, such as “John Sm ith” or “It’s Mom  and Dad”, to associate with caller num ber in your phone book directory (see page 45, Recording Voice Announce Nam e section in PHONE BOOK DIRECTORY for details).   W hen you receive a call from  a num ber m atching one stored in your directory, the base unit will say the recorded nam e instead of the telephone num ber to help identify calls. The default setting for Voice Announce Caller Nam e is ON at sound level 3 and Voice Announce Caller Num ber is OFF.    The current settings provide you the convenience that once your m essage is recorded the Voice Announce Caller Nam e will be in effect im m ediately.    To change the settings, please see Audible Caller ID section in INITIAL SETTINGS section (Page 26) for details. If you activated the Voice Announce Caller Number, “Blocked Call” will be emitted to alert you the incoming call from anonymous/private caller who have blocked his/her number, and “Unknown Call” will be emitted when UNKNOW N NUMBER is received. JOHN SMITH          v   123-123-4568   #18   10:00A  1/01    X5                EXIT      DELETE SAVE    JOHN SMITH          v   123-123-4568  #1    10:00A  1/21    X4                EXIT      DELETE SAVE  C AL L E R   ID   O P E R AT IO N

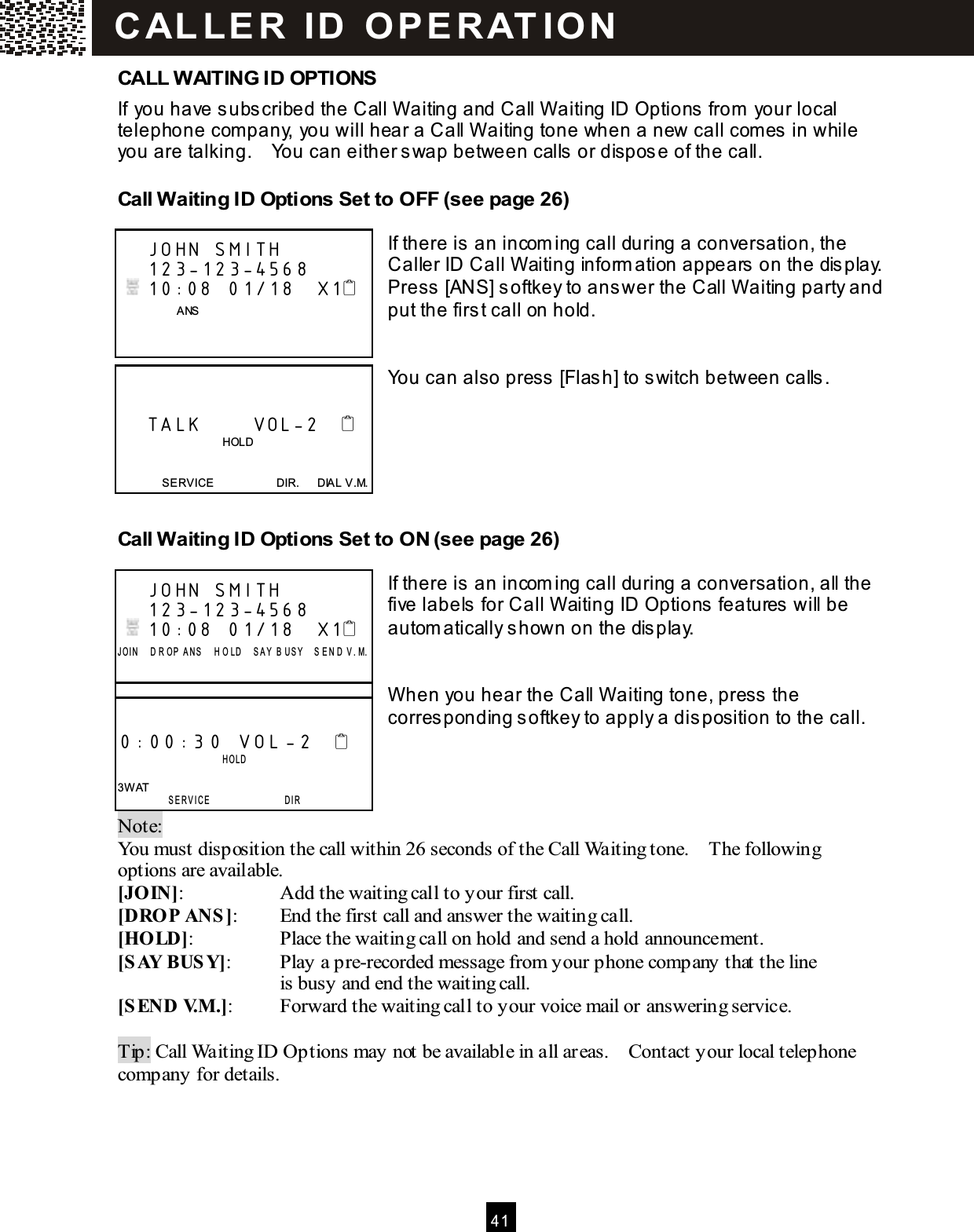

 41  CALL W AITING ID OPTIONS If you have subscribed the Call W aiting and Call W aiting ID Options from  your local telephone com pany, you will hear a Call W aiting tone when a new call com es in while you are talking.    You can either swap between calls or dispose of the call. Call W aiting ID Options Set to OFF (see page 26)  If there is an incom ing call during a conversation, the Caller ID Call W aiting inform ation appears on the display.     Press [ANS] softkey to answer the Call W aiting party and put the first call on hold.   You can also press [Flash] to switch between calls.     Call W aiting ID Options Set to ON (see page 26)  If there is an incom ing call during a conversation, all the five labels for Call W aiting ID Options features will be autom atically shown on the display.   W hen you hear the Call W aiting tone, press the corresponding softkey to apply a disposition to the call.    Note:   You must disposition the call within 26 seconds of the Call Waiting tone.    The following options are available. [JOIN]:  Add the waiting call to your first call. [DROP ANS]:  End the first call and answer the waiting call. [HOLD]:  Place the waiting call on hold and send a hold announcement. [SAY BUSY]:  Play a pre-recorded message from your phone company that the line   is busy and end the waiting call. [SEND V.M .]:  Forward the waiting call to your voice mail or answering service.  Tip: Call Waiting ID Options may not be available in all areas.    Contact your local telephone company for details.     JOHN SMITH     123-123-4568    10:08  01/18   X1                 ANS          TALK       VOL-2                                        HOLD   SERVICE                      DIR.      DIAL V.M.     JOHN SMITH     123-123-4568    10:08  01/18   X1 J OI N     D R OP   A NS     H O L D     S A Y   B U S Y     S E N D  V . M.      0:00:30 VOL -2                     H OL D   3W AT  SERVICE                 DIR C AL L E R   ID   O P E R AT IO N

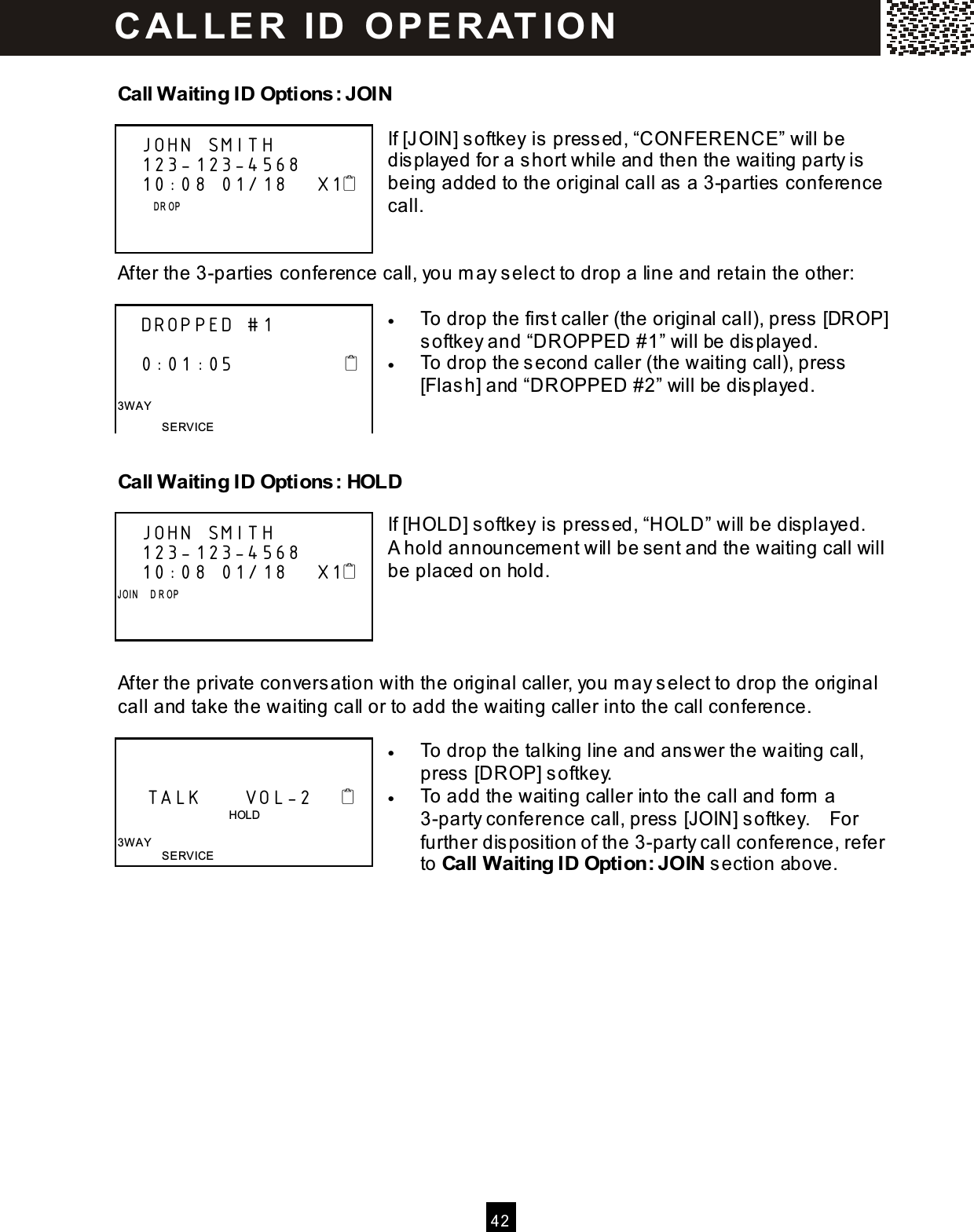

 4 2  Call Waiting ID Options: JOIN  If [JOIN] softkey is pressed, “CONFERENCE” will be displayed for a short while and then the waiting party is being added to the original call as a 3-parties conference call.   After the 3-parties conference call, you m ay select to drop a line and retain the other:  •  To drop the first caller (the original call), press [DROP] softkey and “DROPPED #1” will be displayed. •  To drop the second caller (the waiting call), press [Flash] and “DROPPED #2” will be displayed.   Call Waiting ID Options: HOLD  If [HOLD] softkey is pressed, “HOLD” will be displayed.   A hold announcem ent will be sent and the waiting call will be placed on hold.     After the private conversation with the original caller, you m ay select to drop the original call and take the waiting call or to add the waiting caller into the call conference.  •  To drop the talking line and answer the waiting call, press [DROP] softkey. •  To add the waiting caller into the call and form  a 3-party conference call, press [JOIN] softkey.    For further disposition of the 3-party call conference, refer to Call Waiting ID Option: JOIN section above.    JOHN SMITH         123-123-4568    10:08 01/18    X1               D R OP         DROPPED #1     0:01:05                 3W AY SERVICE    JOHN SMITH         123-123-4568    10:08 01/18    X1 J OI N     D R OP           TALK      VOL-2                                           HOLD  3W AY SERVICE C AL L E R   ID   O P E R AT IO N

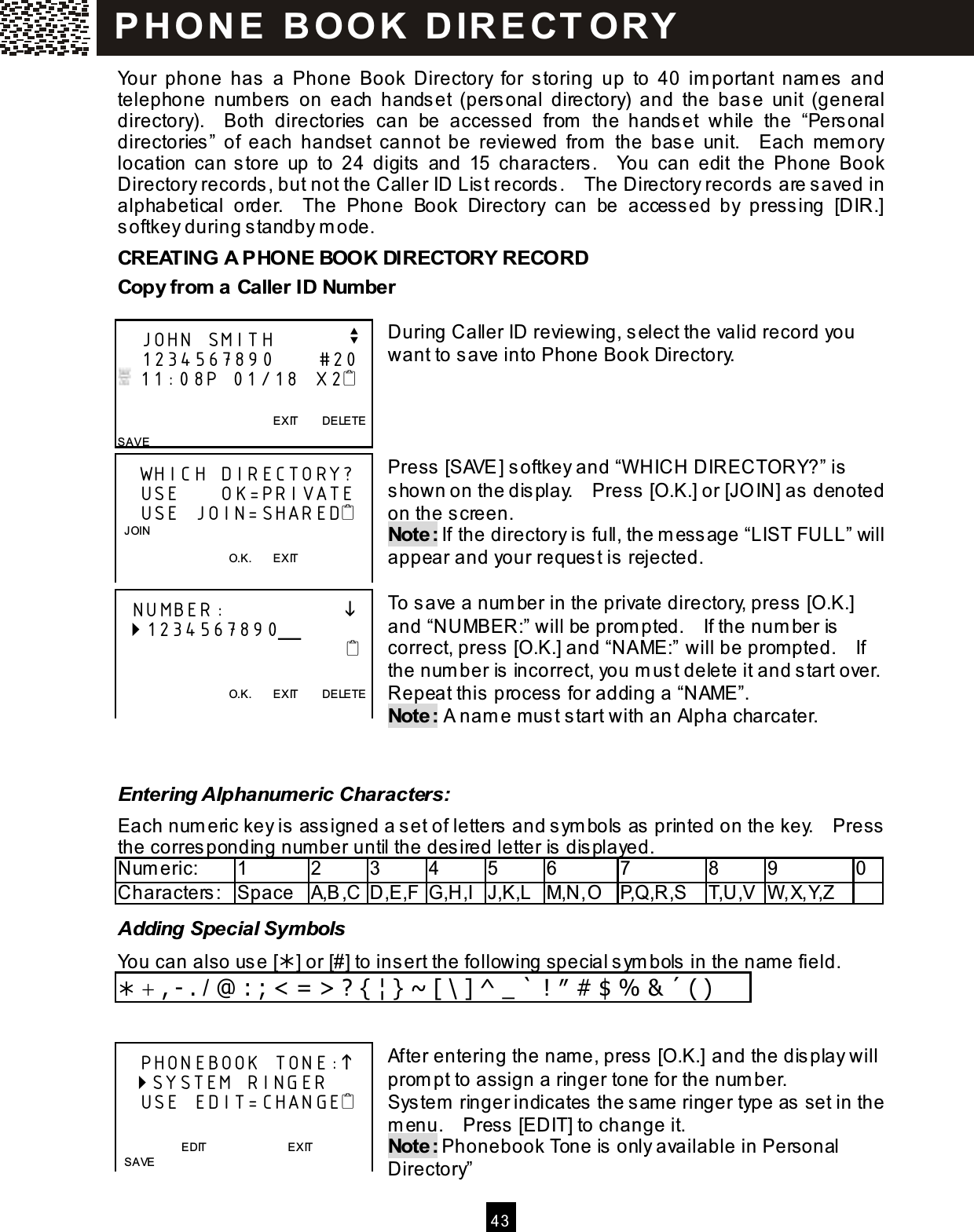

 4 3  Your  phone  has  a  Phone  Book  Directory  for  storing  up  to  40  im portant  nam es  and telephone  num bers  on  each  handset  (personal  directory)  and  the  base  unit  (general directory).    Both  directories  can  be  accessed  from   the  handset  while  the  “Personal directories”  of  each  handset  cannot  be  reviewed  from   the  base  unit.    Each  m em ory location  can store  up  to  24  digits  and  15  characters.    You  can  edit  the  Phone  Book Directory records, but not the Caller ID List records.    The Directory records are saved in alphabetical  order.    The  Phone  Book  Directory  can  be  accessed  by  pressing  [DIR.] softkey during standby m ode. CREATING A PHONE BOOK DIRECTORY RECORD Copy from  a Caller ID Num ber  During Caller ID reviewing, select the valid record you want to save into Phone Book Directory.     Press [SAVE] softkey and “W HICH DIRECTORY?” is shown on the display.    Press [O.K.] or [JO IN] as denoted on the screen. Note: If the directory is full, the m essage “LIST FULL” will appear and your request is rejected.  To save a num ber in the private directory, press [O.K.] and “NUMBER:” will be prom pted.    If the num ber is correct, press [O.K.] and “NAME:” will be prom pted.    If the num ber is incorrect, you m ust delete it and start over.   Repeat this process for adding a “NAME”. Note: A nam e must start with an Alpha charcater.   Entering Alphanumeric Characters: Each num eric key is ass igned a s et of letters and s ym bols  as printed on the key.    Press the corresponding number until the desired letter is dis played. Num eric:    1  2  3  4  5  6  7  8  9  0 Characters:  Space  A,B,C D,E,F G,H,I J,K,L M,N,O P,Q,R,S  T,U,V W ,X,Y,Z   Adding Special Symbols You can also use [] or [#] to insert the following special sym bols in the name field.  + , - . / @ : ; < = > ? { ¦ } ~ [ \ ] ^ _ ` ! ″ # $ % & ´ ( )   After entering the name, press  [O.K.] and the dis play will prom pt to assign a ringer tone for the num ber. System  ringer indicates the s ame ringer type as  set in the m enu.    Press  [EDIT] to change it. Note: Phonebook Tone is only available in Personal Directory”    JOHN SMITH          v    1234567890      #20  11:08P 01/18  X2                                                    EXIT        DELETE SAVE    WHICH DIRECTORY?    USE      OK=PRIVATE    USE JOIN=SHARED   JOIN                                        O.K.        EXIT      NUMBER:                  1234567890╴                                                                           O.K.        EXIT        DELETE       PHONEBOOK TONE:   SYSTEM RINGER    USE EDIT=CHANGE                           EDIT                            EXIT        SAVE P H O N E   B O O K   D IR E CT O RY

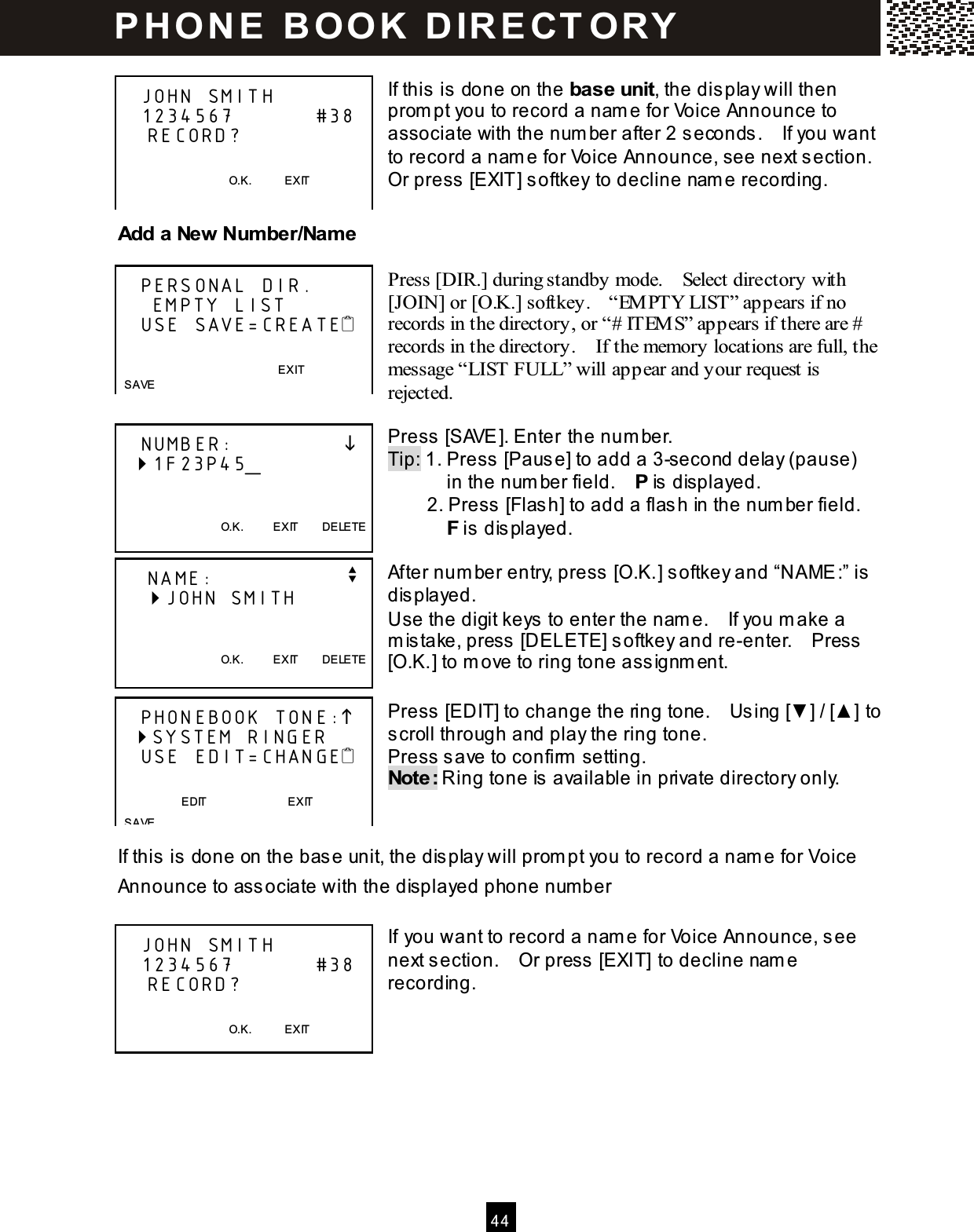

 4 4   If this is done on the base unit, the display will then prom pt you to record a nam e for Voice Announce to associate with the num ber after 2 seconds.    If you want to record a nam e for Voice Announce, see next section.   Or press [EXIT] softkey to decline nam e recording.  Add a New Num ber/Nam e  Press [DIR.] during standby mode.    Select directory with [JOIN] or [O.K.] softkey.    “EM PTY LIST” appears if no records in the directory, or “# ITEM S” appears if there are # records in the directory.    If the memory locations are full, the message “LIST FULL” will appear and your request is rejected.  Press [SAVE]. Enter the num ber. Tip: 1. Press [Pause] to add a 3-second delay (pause)             in the num ber field.    P is displayed.         2. Press [Flash] to add a flash in the num ber field.           F is displayed.  After num ber entry, press [O.K.] softkey and “NAME:” is displayed. Use the digit keys to enter the nam e.    If you m ake a m istake, press [DELETE] softkey and re-enter.    Press [O.K.] to m ove to ring tone assignm ent.  Press [EDIT] to change the ring tone.    Using [▼ ] / [▲ ] to scroll through and play the ring tone. Press save to confirm  setting. Note: Ring tone is available in private directory only.   If this is done on the base unit, the display will prom pt you to record a nam e for Voice Announce to associate with the displayed phone num ber  If you want to record a nam e for Voice Announce, see next section.    Or press [EXIT] to decline nam e recording.        JOHN SMITH    1234567           #38     RECORD?                                          O.K.            EXIT     PERSONAL DIR.      EMPTY LIST    USE SAVE=CREATE   EXIT   SAVE    NUMBER:                  1F23P45_      O.K.          EXIT        DELETE     NAME:                  v     JOHN SMITH     O.K.          EXIT        DELETE     PHONEBOOK TONE:   SYSTEM RINGER    USE EDIT=CHANGE                           EDIT                            EXIT        SAVE    JOHN SMITH    1234567           #38     RECORD?                                          O.K.            EXIT    P H O N E   B O O K   D IR E CT O RY

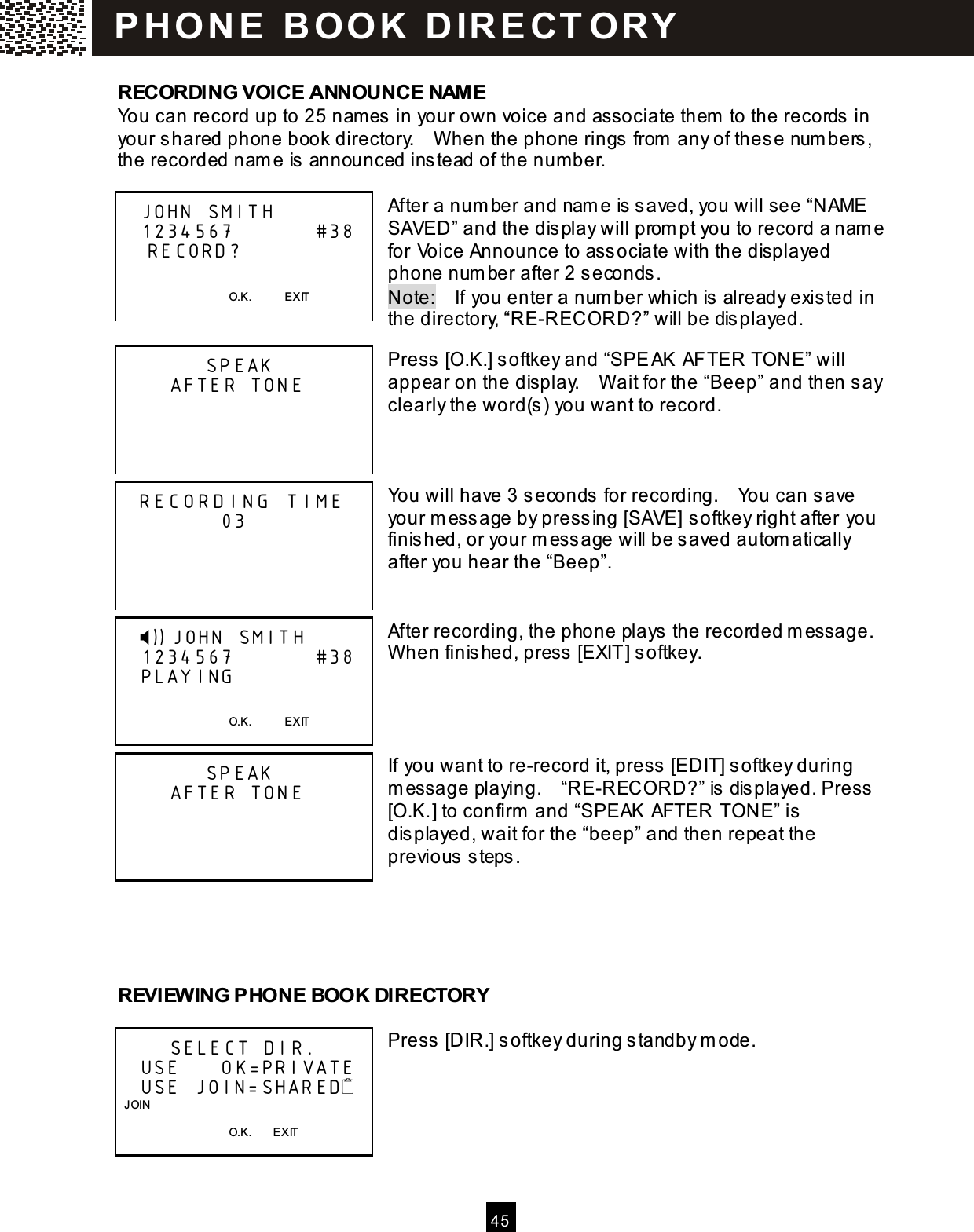

 4 5  RECORDING VOICE ANNOUNCE NAM E You can record up to 25 nam es in your own voice and associate them  to the records in your shared phone book directory.    W hen the phone rings from  any of these num bers, the recorded nam e is announced instead of the number.  After a num ber and nam e is saved, you will see “NAME SAVED” and the display will prom pt you to record a nam e for Voice Announce to associate with the displayed phone num ber after 2 seconds. Note:    If you enter a num ber which is already existed in the directory, “RE-RECORD?” will be displayed.  Press [O.K.] softkey and “SPEAK AFTER TONE” will appear on the display.    W ait for the “Beep” and then say clearly the word(s) you want to record.    You will have 3 seconds for recording.    You can save your m essage by pressing [SAVE] softkey right after you finished, or your m essage will be saved autom atically after you hear the “Beep”.   After recording, the phone plays the recorded m essage.   W hen finished, press [EXIT] softkey.     If you want to re-record it, press [EDIT] softkey during m essage playing.    “RE-RECORD?” is displayed. Press [O.K.] to confirm  and “SPEAK AFTER TONE” is displayed, wait for the “beep” and then repeat the previous steps.     REVIEW ING PHONE BOOK DIRECTORY  Press [DIR.] softkey during standby m ode.        JOHN SMITH    1234567           #38     RECORD?                                          O.K.            EXIT              SPEAK        AFTER TONE                       RECORDING TIME               03                   )) JOHN SMITH    1234567           #38    PLAYING                                          O.K.            EXIT              SPEAK        AFTER TONE                                   SELECT DIR.    USE      OK=PRIVATE    USE JOIN=SHARED   JOIN                                        O.K.        EXIT  P H O N E   B O O K   D IR E CT O RY

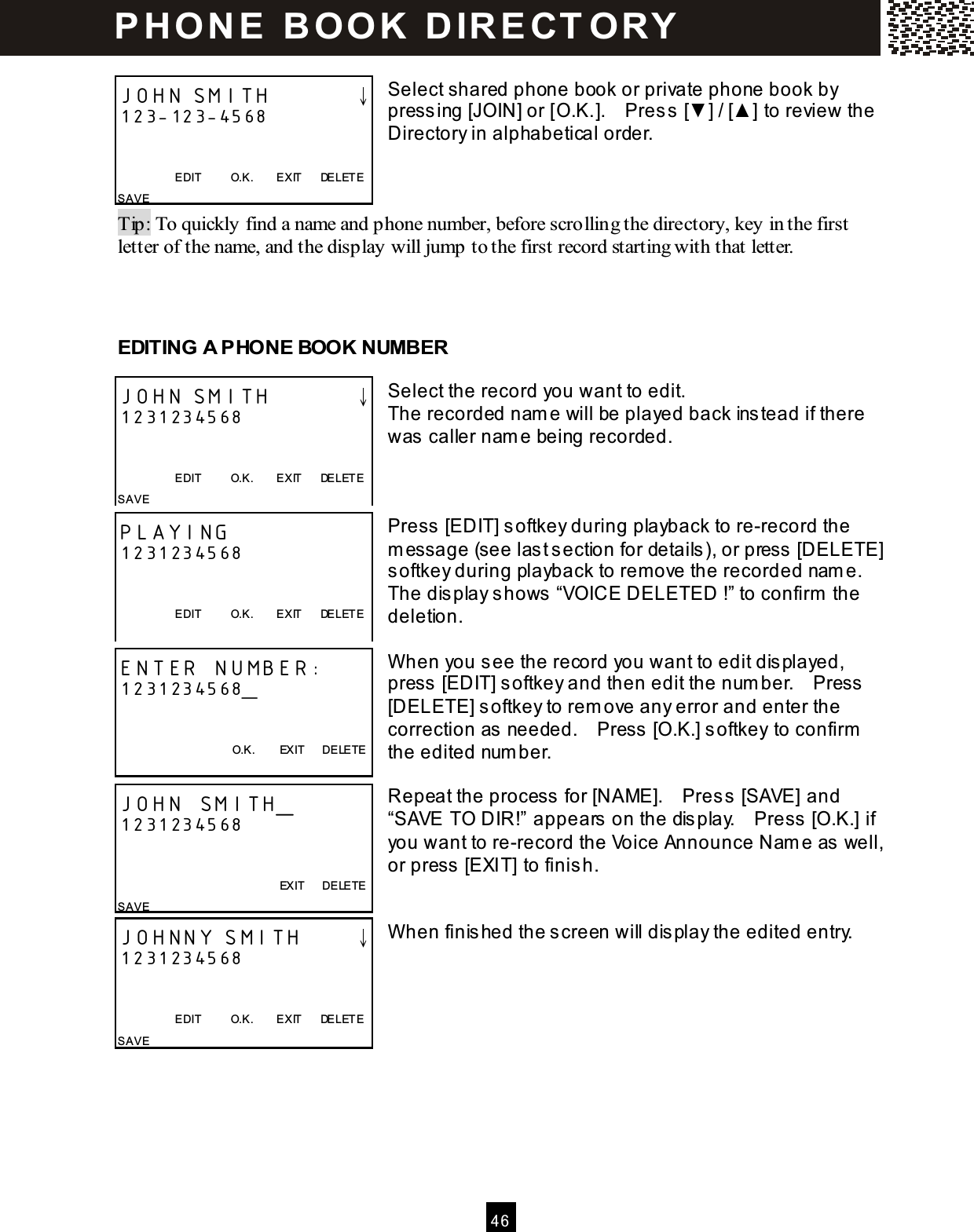

 4 6   Select shared phone book or private phone book by pressing [JOIN] or [O.K.].    Press [▼ ] / [▲ ] to review the Directory in alphabetical order.    Tip: To quickly find a name and phone number, before scrolling the directory, key in the first letter of the name, and the display will jump to the first record starting with that letter.    EDITING A PHONE BOOK NUMBER  Select the record you want to edit. The recorded nam e will be played back instead if there was caller nam e being recorded.    Press [EDIT] softkey during playback to re-record the m essage (see last section for details), or press [DELETE] softkey during playback to remove the recorded nam e.   The display shows “VOICE DELETED !” to confirm  the deletion.  W hen you see the record you want to edit displayed, press [EDIT] softkey and then edit the num ber.    Press [DELETE] softkey to rem ove any error and enter the correction as needed.    Press [O.K.] softkey to confirm  the edited num ber.  Repeat the process for [NAME].    Press [SAVE] and “SAVE TO DIR!” appears on the display.    Press [O.K.] if you want to re-record the Voice Announce Nam e as well, or press [EXIT] to finish.   W hen finished the screen will display the edited entry.       JOHN SMITH        ↓ 123-123-4568   EDIT          O.K.        EXIT      DELETE SAVE JOHN SMITH        ↓ 1231234568   EDIT          O.K.        EXIT      DELETE SAVE PLAYING 1231234568   EDIT          O.K.        EXIT      DELETE  ENTER NUMBER: 1231234568_   O.K.        EXIT      DELETE  JOHN SMITH_ 1231234568           EXIT      DELETE SAVE JOHNNY SMITH     ↓ 1231234568   EDIT          O.K.        EXIT      DELETE SAVE   P H O N E   B O O K   D IR E CT O RY

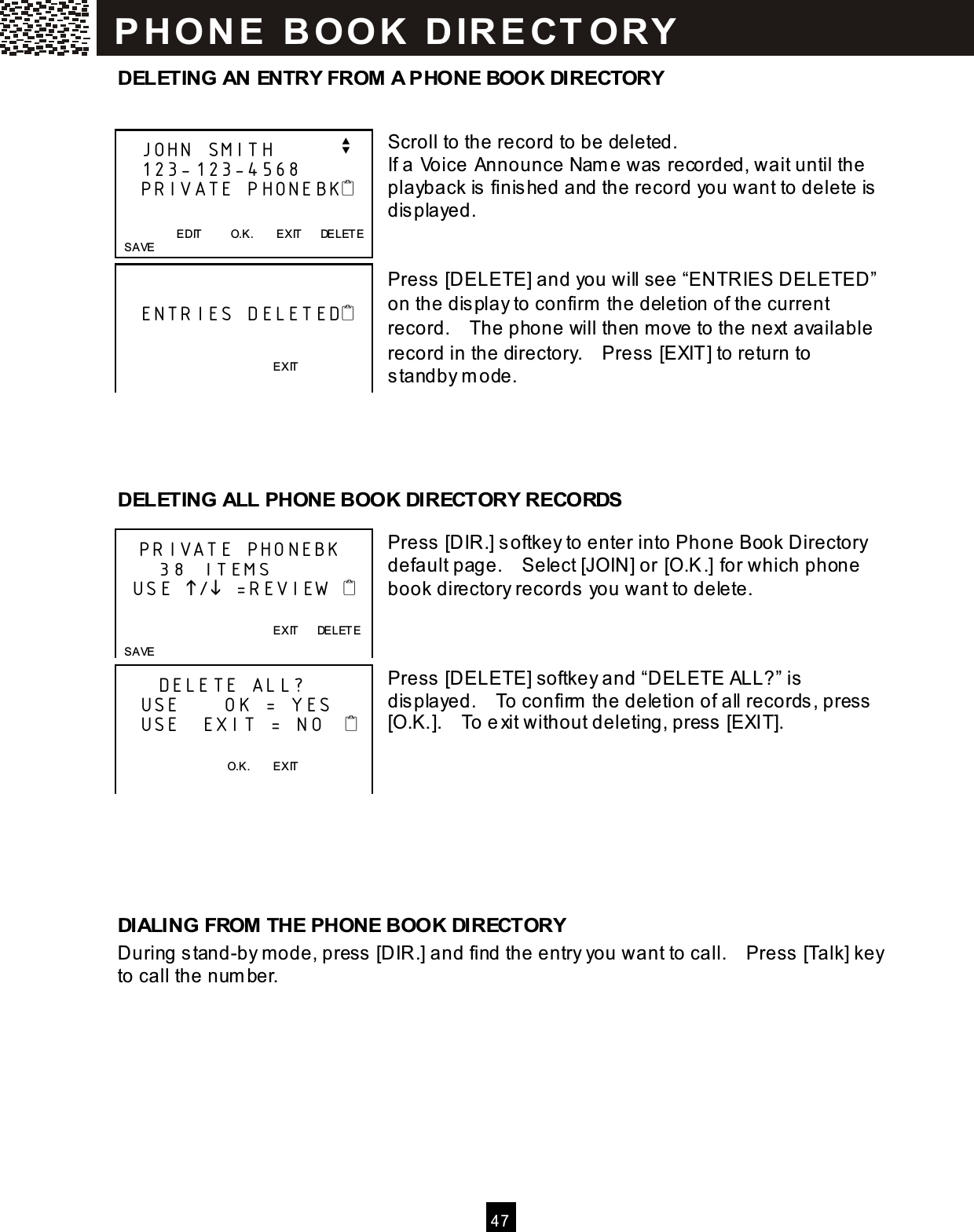

 4 7  DELETING AN ENTRY FROM A PHONE BOOK DIRECTORY   Scroll to the record to be deleted. If a Voice Announce Nam e was recorded, wait until the playback is finished and the record you want to delete is displayed.   Press [DELETE] and you will see “ENTRIES DELETED” on the display to confirm  the deletion of the current record.    The phone will then move to the next available record in the directory.    Press [EXIT] to return to standby m ode.     DELETING ALL PHONE BOOK DIRECTORY RECORDS  Press [DIR.] softkey to enter into Phone Book Directory default page.    Select [JOIN] or [O.K.] for which phone book directory records you want to delete.    Press [DELETE] softkey and “DELETE ALL?” is displayed.    To confirm  the deletion of all records, press [O.K.].    To exit without deleting, press [EXIT].       DIALING FROM THE PHONE BOOK DIRECTORY During stand-by m ode, press [DIR.] and find the entry you want to call.    Press [Talk] key to call the num ber.     JOHN SMITH         v    123-123-4568    PRIVATE PHONEBK                       EDIT          O.K.        EXIT      DELETE   SAVE        ENTRIES DELETED                             EXIT   PRIVATE PHONEBK     38 ITEMS   USE / =REVIEW                     EXIT      DELETE   SAVE      DELETE ALL?    USE      OK = YES    USE   EXIT = NO       O.K.        EXIT  P H O N E   B O O K   D IR E CT O RY

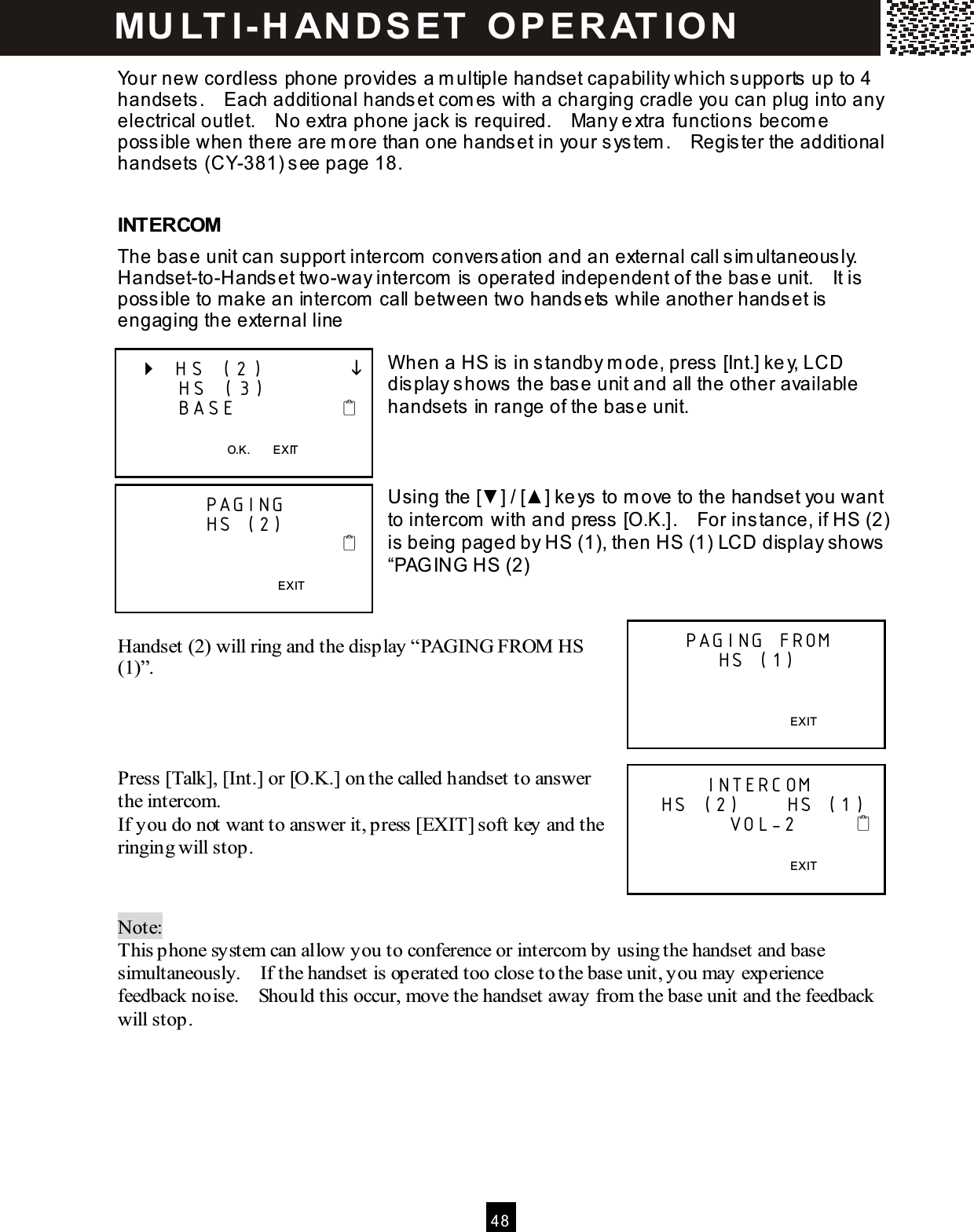

 4 8  Your new cordless phone provides a m ultiple handset capability which supports up to 4 handsets.    Each additional handset com es with a charging cradle you can plug into any electrical outlet.    No extra phone jack is required.    Many extra functions becom e possible when there are m ore than one handset in your system .    Register the additional handsets (CY-381) see page 18.  INTERCOM The base unit can support intercom  conversation and an external call sim ultaneously.   Handset-to-Handset two-way intercom  is operated independent of the base unit.    It is possible to m ake an intercom  call between two handsets while another handset is engaging the external line  W hen a HS is in standby m ode, press [Int.] key, LCD display shows the base unit and all the other available handsets in range of the base unit.    Using the [▼ ] / [▲ ] keys to m ove to the handset you want to intercom  with and press [O.K.].    For instance, if HS (2) is being paged by HS (1), then HS (1) LCD display shows “PAG ING HS (2)   Handset (2) will ring and the display “PAGING FROM  HS (1)”.    Press [Talk], [Int.] or [O.K.] on the called handset to answer the intercom. If you do not want to answer it, press [EXIT] soft key and the ringing will stop.   Note:   This phone system can allow you to conference or intercom by using the handset and base simultaneously.    If the handset is operated too close to the base unit, you may experience feedback noise.    Should this occur, move the handset away from the base unit and the feedback will stop.     HS (2)               HS (3)       BASE              O.K.        EXIT  PAGING HS (2)                                              EXIT  PAGING FROM HS (1)   EXIT  INTERCOM   HS (2)      HS (1)                    VOL-2             EXIT  MU LT I- H ANDSET   O PERAT IO N

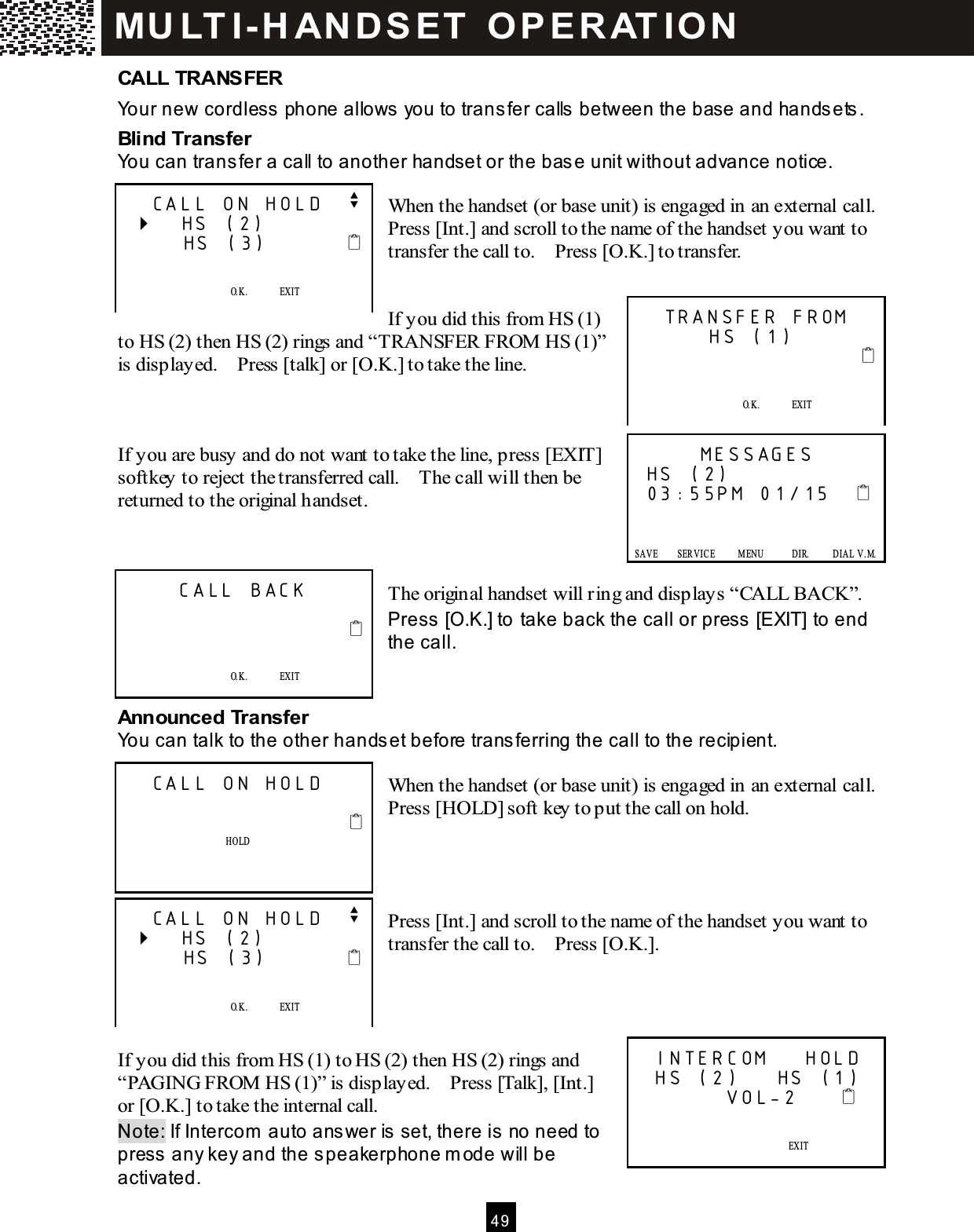

 4 9  CALL TRANSFER Your new cordless phone allows you to transfer calls between the base and handsets. Blind Transfer You can transfer a call to another handset or the base unit without advance notice.  When the handset (or base unit) is engaged in an external call.   Press [Int.] and scroll to the name of the handset you want to transfer the call to.    Press [O.K.] to transfer.   If you did this from HS (1) to HS (2) then HS (2) rings and “TRANSFER FROM  HS (1)” is displayed.    Press [talk] or [O.K.] to take the line.    If you are busy and do not want to take the line, press [EXIT] softkey to reject the transferred call.    The call will then be returned to the original handset.    The original handset will ring and displays “CALL BACK”. Press [O.K.] to take back the call or press [EXIT] to end the call.   Announced Transfer You can talk to the other handset before transferring the call to the recipient.  When the handset (or base unit) is engaged in an external call.   Press [HOLD] soft key to put the call on hold.     Press [Int.] and scroll to the name of the handset you want to transfer the call to.    Press [O.K.].     If you did this from HS (1) to HS (2) then HS (2) rings and “PAGING FROM  HS (1)” is displayed.    Press [Talk], [Int.] or [O.K.] to take the internal call. Note: If Intercom  auto answer is set, there is no need to press any key and the speakerphone m ode will be activated.   CALL ON HOLD   v    HS (2)       HS (3)                O.K.              EXIT   SAVE      SERVICE            M ENU            DIR.            DIAL V.M .   TRANSFER FROM        HS (1)                                O.K.              EXIT   SAVE      SERVICE            M ENU            DIR.            DIAL V.M .       MESSAGES HS (2) 03:55PM 01/15         SAVE        SERVICE          M ENU            DIR.          DIAL  V.M.   SAVE      SERVICE            M ENU            DIR.            DIAL V.M .      CALL BACK                                 O.K.              EXIT    SAVE      SERVICE            M ENU            DIR.            DIAL V.M .   CALL ON HOLD                             HOLD     SAVE      SERVICE            M ENU            DIR.            DIAL V.M .   CALL ON HOLD   v    HS (2)       HS (3)                O.K.              EXIT   SAVE      SERVICE            M ENU            DIR.            DIAL V.M .  INTERCOM    HOLD  HS (2)    HS (1)          VOL-2                    EXIT   SAVE      SERVICE            M ENU            DIR.            DIAL V.M . MU LT I- H ANDSET   O PERAT IO N

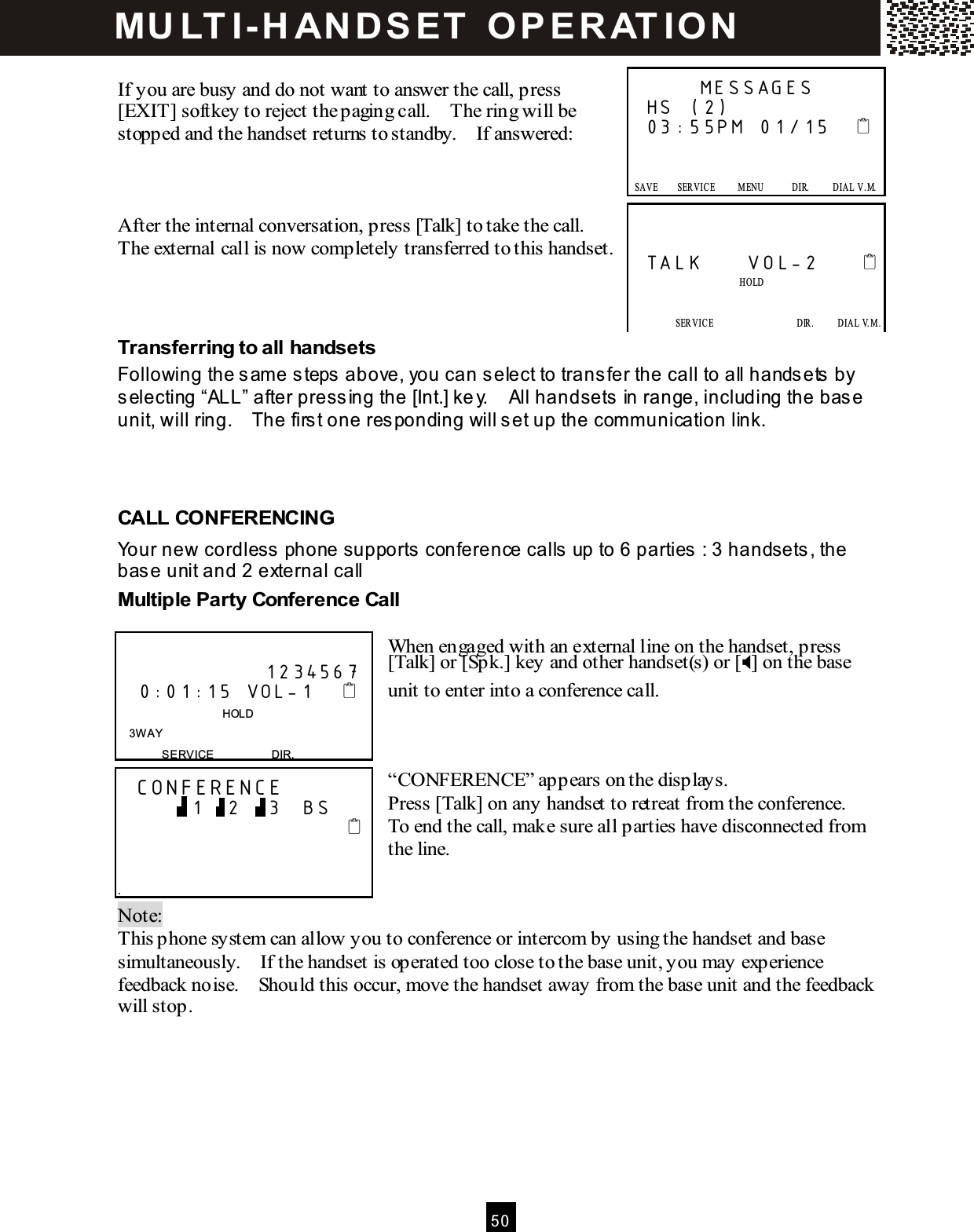

 5 0   If you are busy and do not want to answer the call, press [EXIT] softkey to reject the paging call.    The ring will be stopped and the handset returns to standby.    If answered:    After the internal conversation, press [Talk] to take the call.   The external call is now completely transferred to this handset.    Transferring to all handsets Following the sam e steps above, you can select to transfer the call to all handsets by selecting “ALL” after pressing the [Int.] key.    All handsets in range, including the base unit, will ring.    The first one responding will set up the com m unication link.    CALL CONFERENCING Your new cordless phone supports conference calls up to 6 parties : 3 handsets, the base unit and 2 external call  Multiple Party Conference Call  When engaged with an external line on the handset, press [Talk] or [Spk.] key and other handset(s) or [] on the base unit to enter into a conference call.    “CONFERENCE” appears on the displays. Press [Talk] on any handset to retreat from the conference.   To end the call, make sure all parties have disconnected from the line.   Note:   This phone system can allow you to conference or intercom by using the handset and base simultaneously.    If the handset is operated too close to the base unit, you may experience feedback noise.    Should this occur, move the handset away from the base unit and the feedback will stop.         MESSAGES HS (2) 03:55PM 01/15         SAVE        SERVICE          M ENU            DIR.          DIAL  V.M.   SAVE      SERVICE            M ENU            DIR.            DIAL V.M .   TALK     VOL-2                              HOLD             SERVICE                  DIR.     DIAL V.M.   SAVE      SERVICE            M ENU            DIR.            DIAL V.M .                      1234567     0:01:15 VOL-1                                     HOLD 3W AY SERVICE                    DIR.   CONFERENCE           1   2    3   BS                                       . MU LT I- H ANDSET   O PERAT IO N

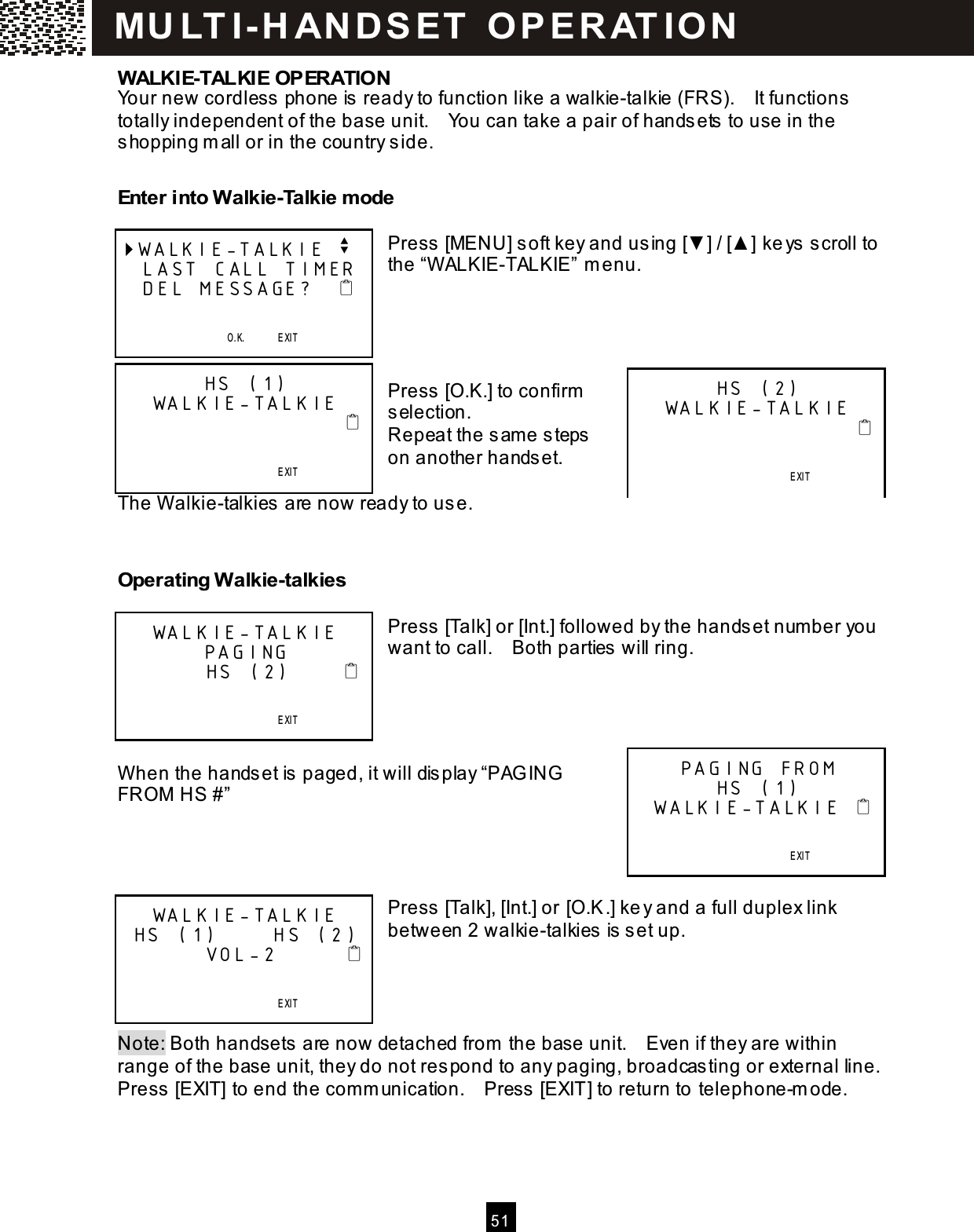

 5 1  WALKIE-TALKIE OPERATION Your new cordless phone is ready to function like a walkie-talkie (FRS).    It functions totally independent of the base unit.    You can take a pair of handsets to use in the shopping m all or in the country side.  Enter into Walkie-Talkie m ode  Press [MENU] soft key and using [▼ ] / [▲ ] keys scroll to the “W ALKIE-TALKIE” m enu.     Press [O.K.] to confirm  selection. Repeat the sam e steps on another handset.  The W alkie-talkies are now ready to use.   Operating Walkie-talkies  Press [Talk] or [Int.] followed by the handset num ber you want to call.    Both parties will ring.     W hen the handset is paged, it will display “PAG ING FROM  HS #”     Press [Talk], [Int.] or [O.K.] key and a full duplex link between 2 walkie-talkies is set up.     Note: Both handsets are now detached from  the base unit.    Even if they are within range of the base unit, they do not respond to any paging, broadcasting or external line.   Press [EXIT] to end the comm unication.    Press [EXIT] to return to telephone-m ode. WALKIE-TALKIE v  LAST CALL TIMER  DEL MESSAGE?                                  O.K.       EXIT   SAVE      S E RVICE             ME NU             D IR.            DIAL V.M. HS (1) WALKIE-TALKIE                                                               EXIT   SAVE      S E RVICE             ME NU             D IR.            DIAL V.M. HS (2) WALKIE-TALKIE                                                               EXIT   SAVE      S E RVICE             ME NU             D IR.            DIAL V.M. WALKIE-TALKIE PAGING         HS (2)                                            EXIT   SAVE      S E RVICE             ME NU             D IR.            DIAL V.M. PAGING FROM  HS (1)  WALKIE-TALKIE                                        EXIT   SAVE      S E RVICE             ME NU             D IR.            DIAL V.M. WALKIE-TALKIE  HS (1)      HS (2)         VOL-2                                              EXIT   SAVE      S E RVICE             ME NU             D IR.            DIAL V.M. MU LT I- H ANDSET   O PERAT IO N

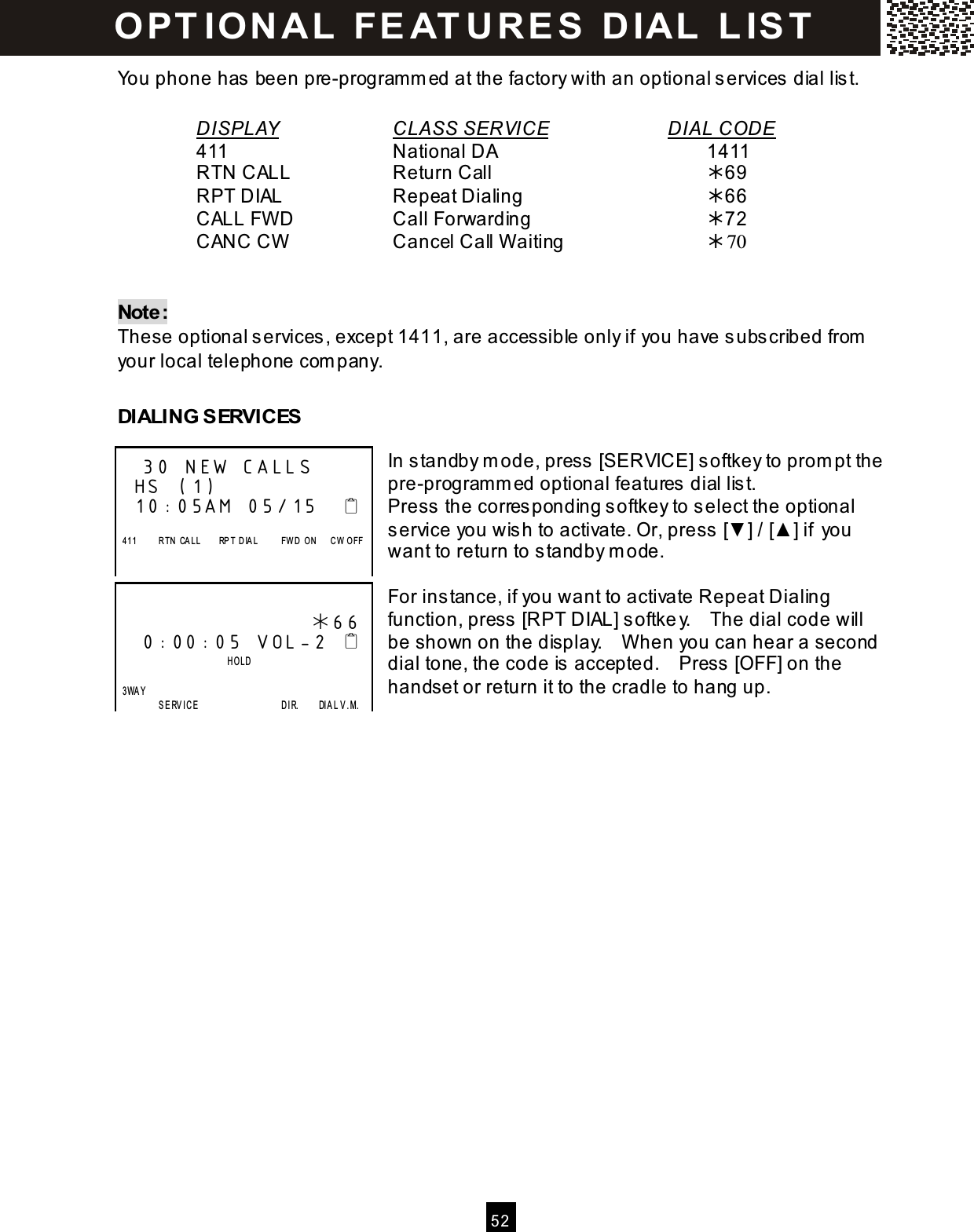

 5 2  You phone has been pre-program m ed at the factory with an optional services dial list.  DISPLAY      CLASS SERVICE       DIAL CODE     411          National DA            1411     RTN CALL      Return Call            69     RPT DIAL      Repeat Dialing          66     CALL FW D       Call Forwarding          72     CANC CW       Cancel Call W aiting        70   Note: These optional services, except 1411, are accessible only if you have subscribed from  your local telephone com pany.  DIALING SERVICES  In standby m ode, press [SERVICE] softkey to prom pt the pre-program m ed optional features dial list. Press the corresponding softkey to select the optional service you wish to activate. Or, press [▼ ] / [▲ ] if you want to return to standby m ode.  For instance, if you want to activate Repeat Dialing function, press [RPT DIAL] softkey.    The dial code will be shown on the display.    W hen you can hear a second dial tone, the code is accepted.    Press [OFF] on the handset or return it to the cradle to hang up.      30 NEW CALLS HS (1) 10:05AM 05/15       411          R TN   CA LL        RP T  D IA L          FW D   O N      C W   O FF                        66  0:00:05 VOL-2                           HOLD    3WAY                   SE RVICE                                     D IR.        DIA L V.M. O PTIO NAL  FEATURES  DIAL  LIST

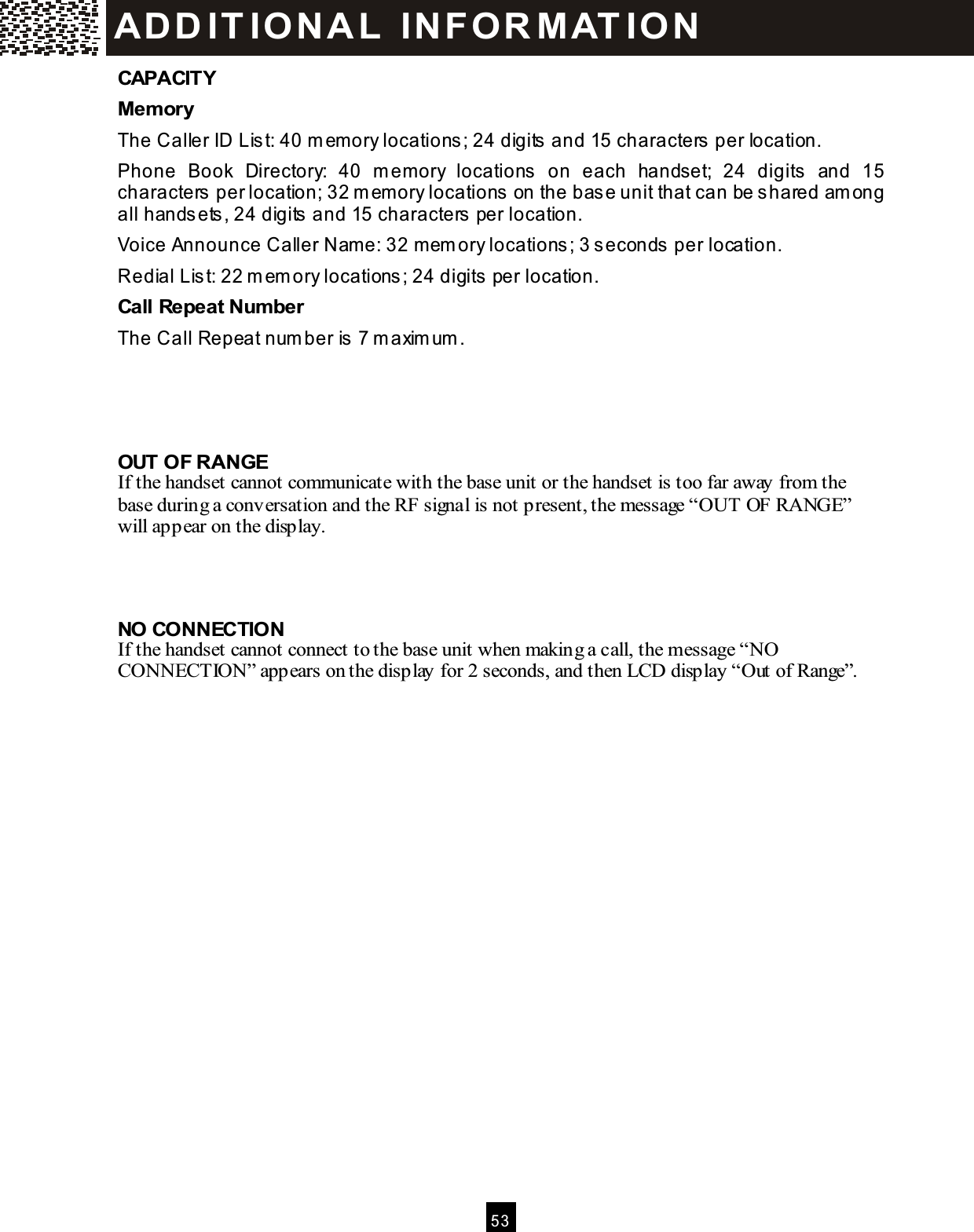

 5 3  CAPACITY Mem ory The Caller ID List: 40 m em ory locations; 24 digits and 15 characters per location. Phone  Book  Directory:  40  m em ory  locations  on  each  handset;  24  digits  and  15 characters per location; 32 m em ory locations on the base unit that can be shared am ong all handsets, 24 digits and 15 characters per location. Voice Announce Caller Nam e: 32 m em ory locations; 3 seconds per location. Redial List: 22 m em ory locations; 24 digits per location. Call Repeat Num ber The Call Repeat num ber is 7 m axim um .    OUT OF RANGE If the handset cannot communicate with the base unit or the handset is too far away from the base during a conversation and the RF signal is not present, the message “OUT OF RANGE” will appear on the display.    NO CONNECTION If the handset cannot connect to the base unit when making a call, the message “NO CONNECTION” appears on the display for 2 seconds, and then LCD display “Out of Range”.  ADD ITIO NAL  INFO R M ATIO N

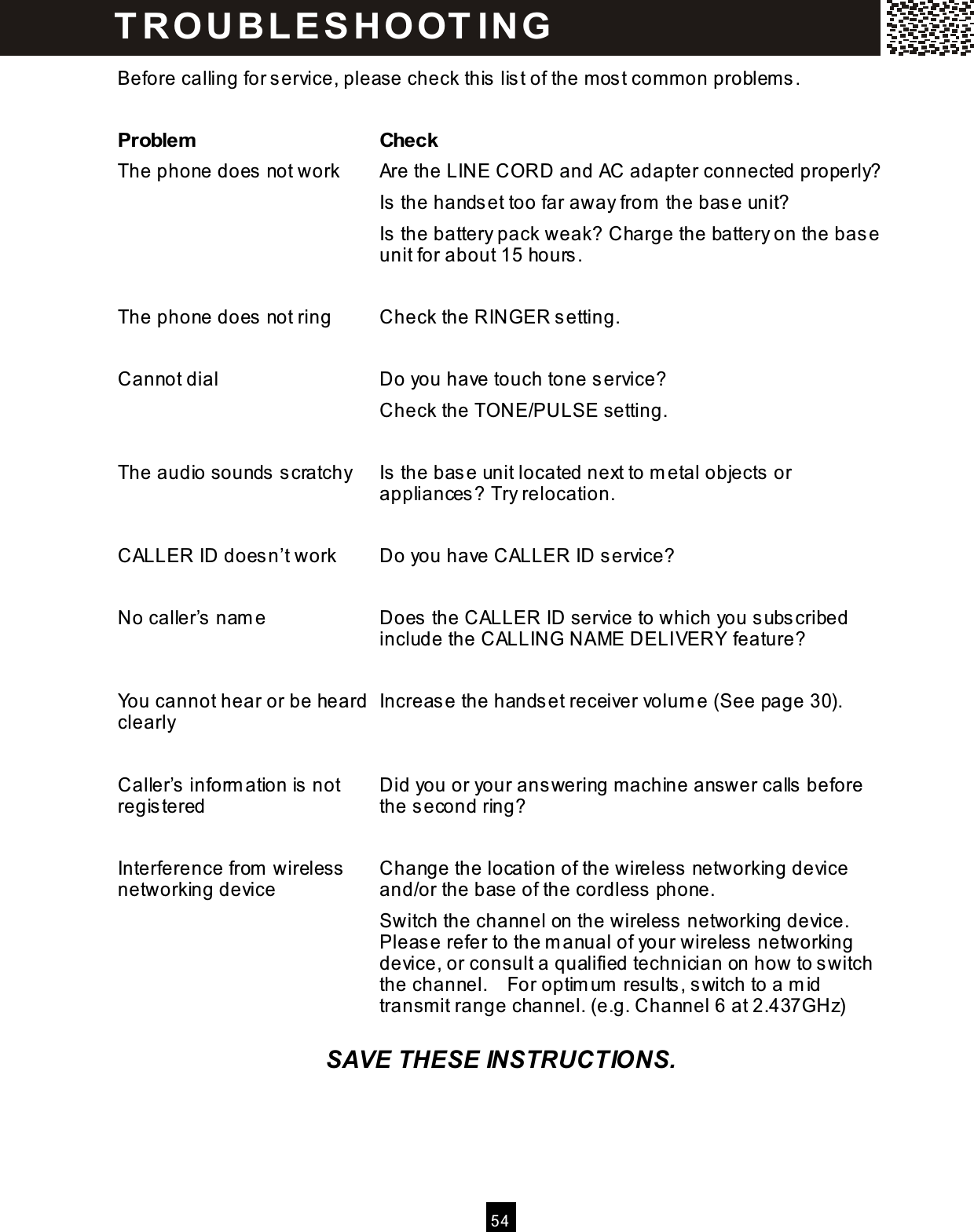

 5 4  Before calling for service, please check this list of the most com m on problem s.  Problem   Check The phone does not work  Are the LINE CORD and AC adapter connected properly? Is the handset too far away from  the base unit? Is the battery pack weak? Charge the battery on the base unit for about 15 hours.  The phone does not ring  Check the RINGER setting.  Cannot dial  Do you have touch tone service? Check the TONE/PULSE setting.  The audio sounds scratchy  Is the base unit located next to m etal objects or appliances? Try relocation.  CALLER ID doesn’t work    Do you have CALLER ID service?  No caller’s nam e  Does the CALLER ID service to which you subscribed include the CALLING NAME DELIVERY feature?  You cannot hear or be heard clearly  Increase the handset receiver volum e (See page 30).  Caller’s inform ation is not registered  Did you or your answering machine answer calls before the second ring?  Interference from  wireless networking device  Change the location of the wireless networking device and/or the base of the cordless phone. Switch the channel on the wireless networking device. Please refer to the m anual of your wireless networking device, or consult a qualified technician on how to switch the channel.    For optim um  results, switch to a m id transm it range channel. (e.g. Channel 6 at 2.437GHz)  SAVE THESE INSTRUCTIONS. TRO UBLESHO OTING

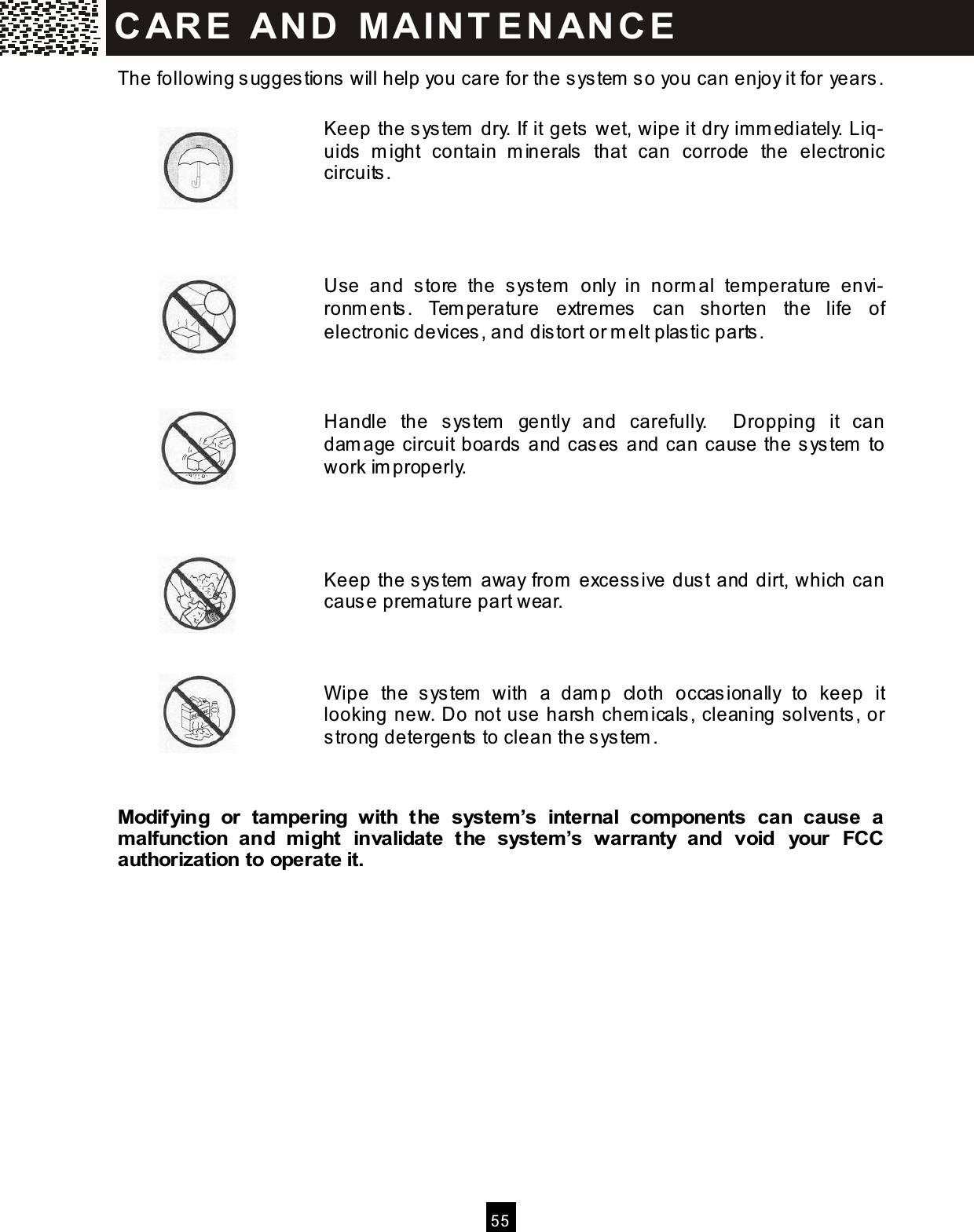

 5 5  The following suggestions will help you care for the system  so you can enjoy it for years.  Keep the system  dry. If it gets wet, wipe it dry im m ediately. Liq-uids  m ight  contain  m inerals  that  can  corrode  the  electronic circuits.     Use  and  store  the  system   only  in  norm al  tem perature  envi-ronm ents.  Tem perature  extremes  can  shorten  the  life  of electronic devices, and distort or m elt plastic parts.    Handle  the  system   gently  and  carefully.    Dropping  it  can dam age circuit boards and cases and can cause the system  to work im properly.     Keep the system  away from  excessive dust and dirt, which can cause prem ature part wear.    W ipe  the  system   with  a  dam p  cloth  occasionally  to  keep  it looking new. Do not use harsh chem icals, cleaning solvents, or strong detergents to clean the system .   Modifying  or  tam pering  with  the  system ’s  internal  com ponents  can  cause  a m alfunction  and  m ight  invalidate  the  system ’s  warranty  and  void  your  FCC authorization to operate it.             CARE  AND  M AINTENANCE

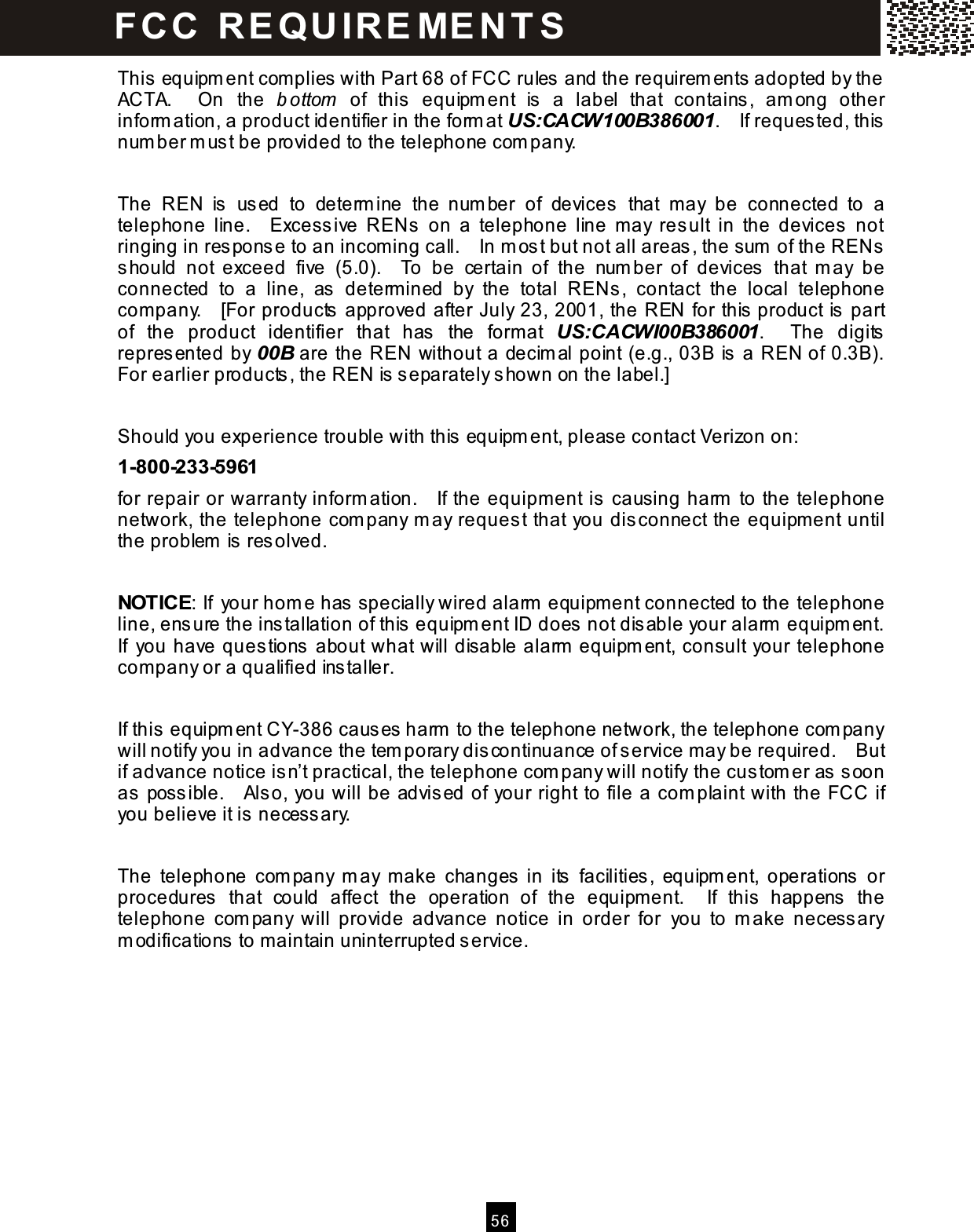

 5 6  This equipm ent com plies with Part 68 of FCC rules and the requirem ents adopted by the ACTA.    On  the  b ottom   of  this  equipm ent  is  a  label  that  contains,  am ong  other inform ation, a product identifier in the form at US:CACW100B386001.    If reques ted, this num ber m ust be provided to the telephone com pany.  The  REN  is   used  to  determ ine  the  num ber  of  devices   that  m ay  be  connected  to  a telephone  line.    Excess ive  RENs   on  a  telephone  line  m ay  result  in  the  devices  not ringing in res ponse to an incom ing call.    In m ost but not all areas , the sum  of the RENs should  not  exceed  five  (5.0).    To  be  certain  of  the  num ber  of  devices  that  m ay  be connected  to  a  line,  as   determ ined  by  the  total  RENs ,  contact  the  local  telephone company.    [For products approved after July 23, 2001, the REN for this  product is part of  the  product  identifier  that  has   the  form at  US:CACWI00B386001.    The  digits represented by 00B are the REN without a decim al point (e.g., 03B is a REN of 0.3B).   For earlier products, the REN is separately shown on the label.]  Should you experience trouble with this  equipm ent, please contact Verizon on: 1-800-233-5961 for repair or warranty inform ation.    If the equipment is  causing harm  to the telephone network, the telephone com pany m ay request that you dis connect the equipm ent until the problem  is resolved.  NOTICE: If your hom e has  specially wired alarm  equipm ent connected to the telephone line, ens ure the ins tallation of this  equipm ent ID does  not disable your alarm  equipm ent.   If  you have ques tions  about what will disable alarm  equipm ent, consult your telephone company or a qualified ins taller.  If this  equipm ent CY-386 caus es  harm  to the telephone network, the telephone com pany will notify you in advance the tem porary dis continuance of s ervice m ay be required.    But if advance notice is n’t practical, the telephone com pany will notify the custom er as  s oon as  possible.    Also, you will be advis ed of your right to file a com plaint with the FCC if you believe it is  necess ary.  The  telephone  com pany  m ay  m ake  changes  in  its   facilities,  equipm ent,  operations   or procedures  that  could  affect  the  operation  of  the  equipm ent.    If  this  happens  the telephone  com pany  will  provide  advance  notice  in  order  for  you  to  m ake  necess ary m odifications  to m aintain uninterrupted s ervice. FC C   R E Q U IR E ME N T S

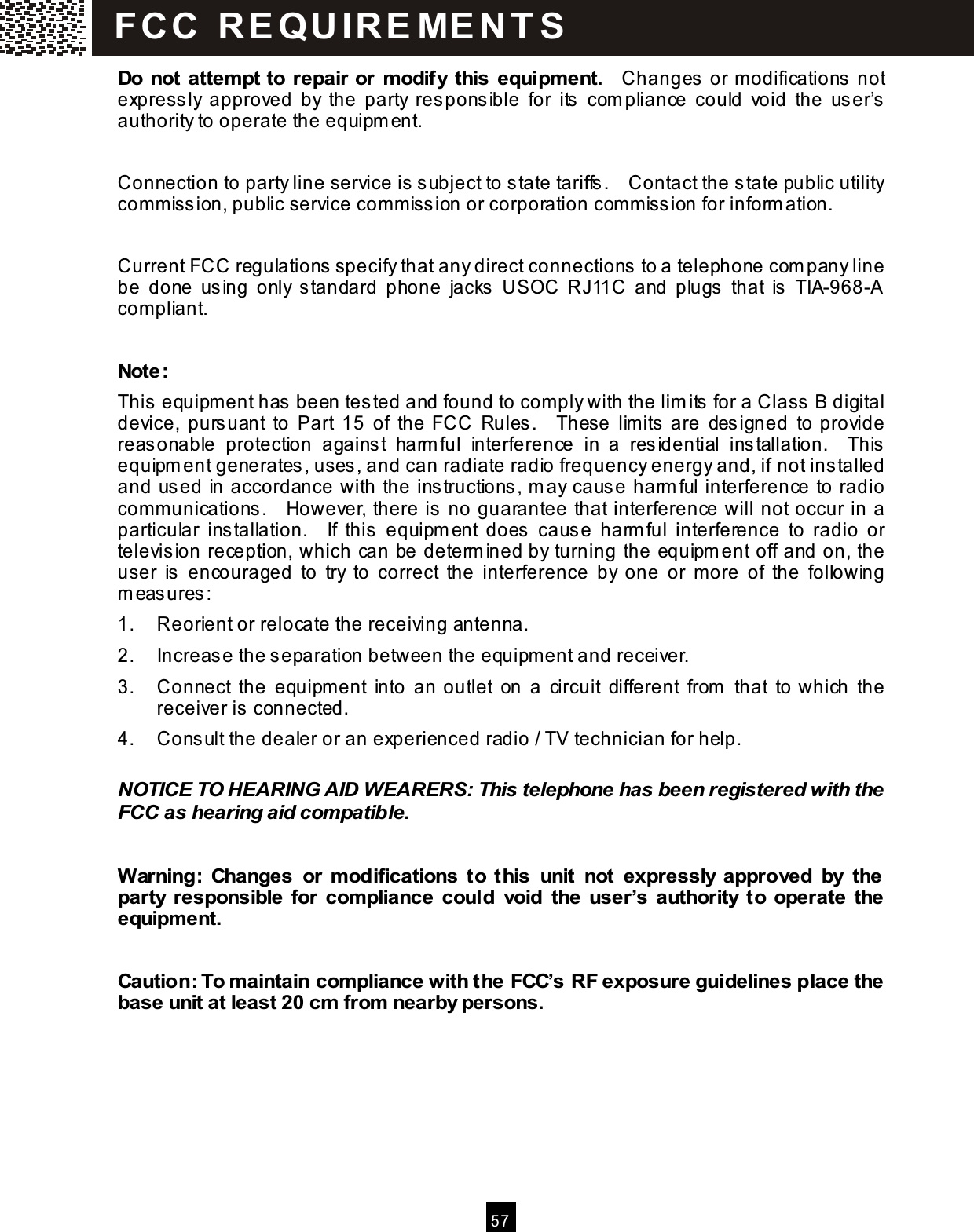

 5 7  Do not attem pt to repair or m odify this equipm ent.    Changes or m odifications not express ly  approved  by  the  party  responsible  for  its  com pliance  could  void  the  user’s authority to operate the equipm ent.  Connection to party line service is  subject to state tariffs.    Contact the state public utility commiss ion, public service commiss ion or corporation com m iss ion for inform ation.  Current FCC regulations specify that any direct connections  to a telephone com pany line be  done  using  only  s tandard  phone  jacks  USOC  RJ11C  and  plugs   that  is  TIA-968-A compliant.  Note: This  equipm ent has  been tes ted and found to com ply with the lim its  for a Class  B digital device,  purs uant  to  Part  15  of  the  FCC  Rules.    These  lim its are  des igned  to provide reas onable  protection  agains t  harm ful  interference  in  a  residential  ins tallation.    This equipm ent generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions , m ay cause harm ful interference to radio communications.    However, there is  no guarantee that interference will not occur in a particular  ins tallation.    If  this   equipm ent  does  caus e  harm ful  interference  to  radio  or televis ion reception, which can be determ ined by turning the equipm ent off and on, the user  is   encouraged  to  try  to  correct  the  interference  by  one  or  m ore  of  the  following m eas ures : 1.  Reorient or relocate the receiving antenna. 2.  Increas e the separation between the equipm ent and receiver. 3.  Connect  the  equipm ent  into  an outlet  on  a  circuit  different  from   that  to which  the receiver is connected. 4.  Cons ult the dealer or an experienced radio / TV technician for help.  NOTICE TO HEARING AID WEARERS: This telephone has been registered with the FCC as hearing aid com patible.  W arning:  Changes  or  m odifications  to  this  unit  not  expressly  approved  by  the party  responsible  for  com pliance  could  void the  user’s  authority  to  operate  the equipm ent.  Caution: To maintain com pliance with the FCC’s RF exposure guidelines place the base unit at least 20 cm  from  nearby persons.  FC C   R E Q U IR E ME N T S

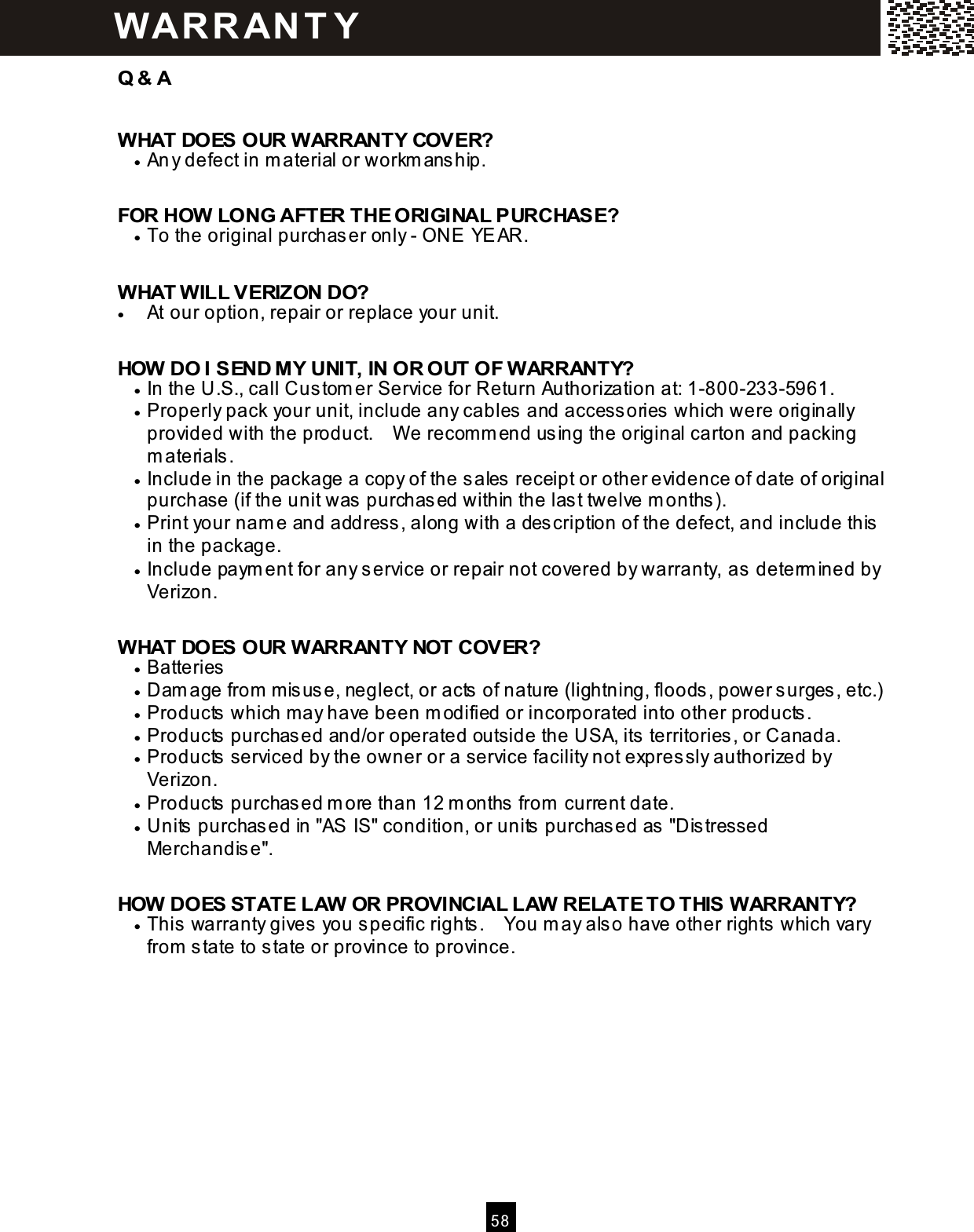

 5 8  Q & A  W HAT DOES OUR W ARRANTY COVER? •  Any defect in m aterial or workm ans hip.  FOR HOW  LONG AFTER THE ORIGINAL PURCHASE? •  To the original purchas er only - ONE YEAR.  W HAT W ILL VERIZON DO? •  At our option, repair or replace your unit.  HOW  DO I SEND M Y UNIT, IN OR OUT OF W ARRANTY? •  In the U.S., call Cus tom er Service for Return Authorization at: 1-800-233-5961. •  Properly pack your unit, include any cables and access ories which were originally provided with the product.    W e recom m end using the original carton and packing m aterials. •  Include in the package a copy of the s ales receipt or other evidence of date of original purchase (if the unit was  purchas ed within the last twelve m onths ). •  Print your nam e and address , along with a des cription of the defect, and include this  in the package. •  Include paym ent for any service or repair not covered by warranty, as  determ ined by Verizon.  W HAT DOES OUR W ARRANTY NOT COVER? •  Batteries •  Dam age from  m isuse, neglect, or acts  of nature (lightning, floods, power surges, etc.) •  Products which m ay have been m odified or incorporated into other products. •  Products purchas ed and/or operated outside the USA, its territories, or Canada. •  Products serviced by the owner or a service facility not expres sly authorized by Verizon. •  Products purchas ed m ore than 12 m onths from  current date. •  Units  purchased in "AS IS" condition, or units  purchased as  "Dis tressed Merchandise".  HOW  DOES STATE LAW  OR PROVINCIAL LAW  RELATE TO THIS W ARRANTY? •  This  warranty gives you specific rights .    You m ay als o have other rights which vary from  s tate to state or province to province.   W AR R AN T Y

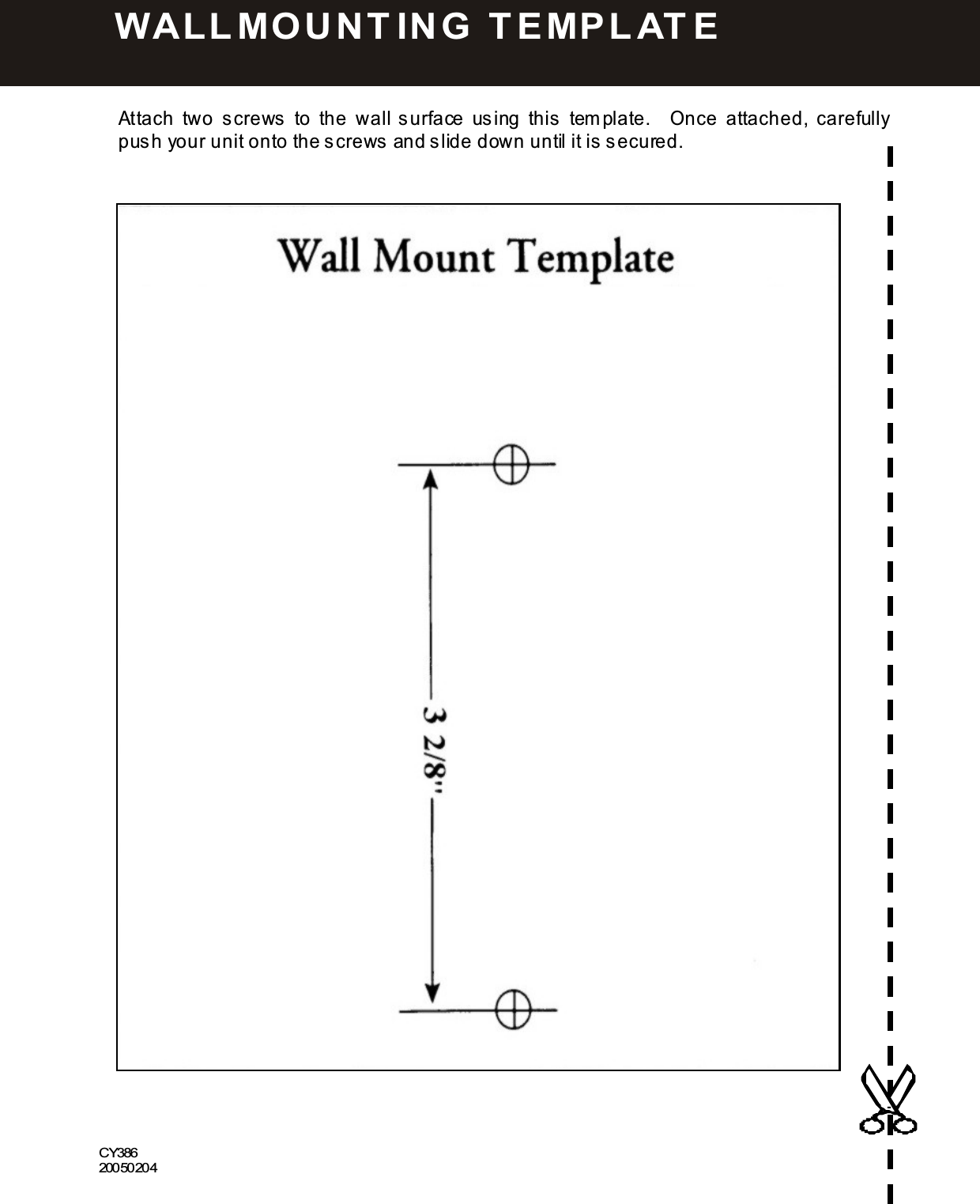

 5 9   Attach  two  s crews   to  the  wall surface  using  this   tem plate.    Once  attached,  carefully push your unit onto the s crews  and s lide down until it is secured.                                              CY386 20050204  W ALLMO U N T IN G   T E MPLAT E
