Users Manual

Manual

D-Link Air

DWL-520

2.4GHz

Building Networks for People

Wireless PCI Adapter

version D2

Contents

Package Contents ................................................................................3

Introduction............................................................................................4

Wireless Basics ....................................................................................6

Getting Started ......................................................................................8

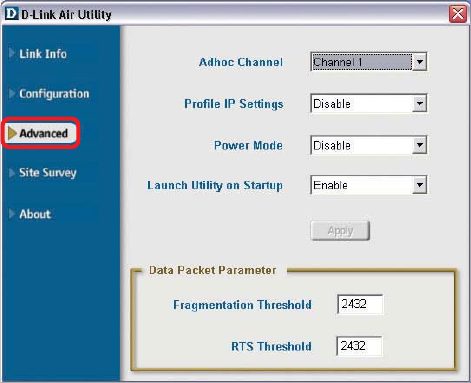

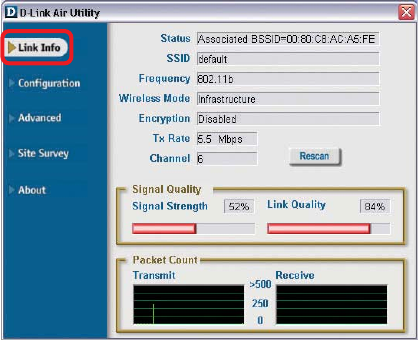

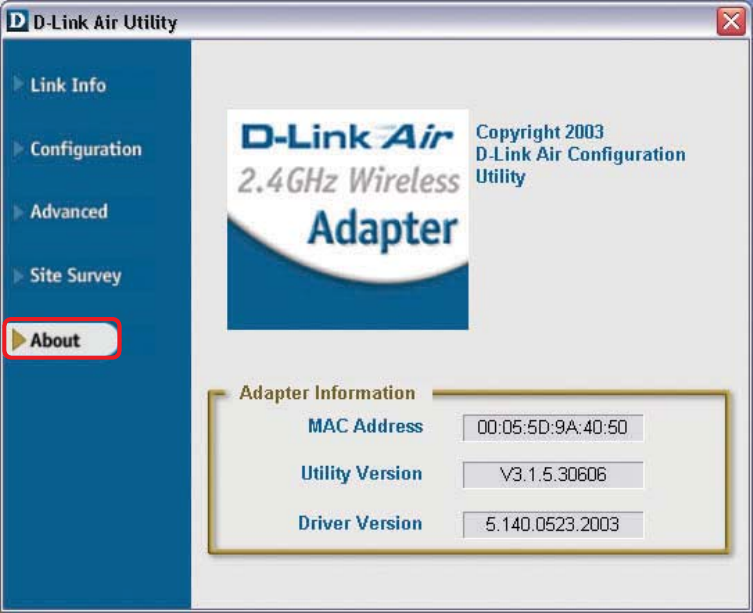

Using the Configuration Utility ..............................................................11

Networking Basics ..............................................................................18

Troubleshooting...................................................................................31

Technical Specifications ......................................................................36

Contacting Technical Support ..............................................................38

Warranty and Registration ...................................................................39

Package Contents

This manual applies specifically to the DWL-520 revision E1. Please

refer to earlier versions of this manual if you have a previous version

of the DWL-520.

Contents of Package:

D-Link Air DWL-520

2.4 GHz Wireless PCI Adapter

Manual and Drivers on CD

Quick Installation Guide

If any of the above items are missing, please contact your reseller.

System Requirements:

Windows XP/2000/Me/98SE

A computer or laptop with an available 32-bit PCI slot

At least 32 MB of memory and a 300 MHz processor

An 802.11b Access Point (e.g., DWL-900AP+) for Infrastructure

mode, or an 802.11b wireless adapter for Ad-Hoc mode

(e.g., DWL-650.)

Introduction

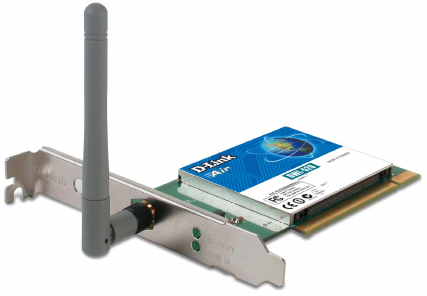

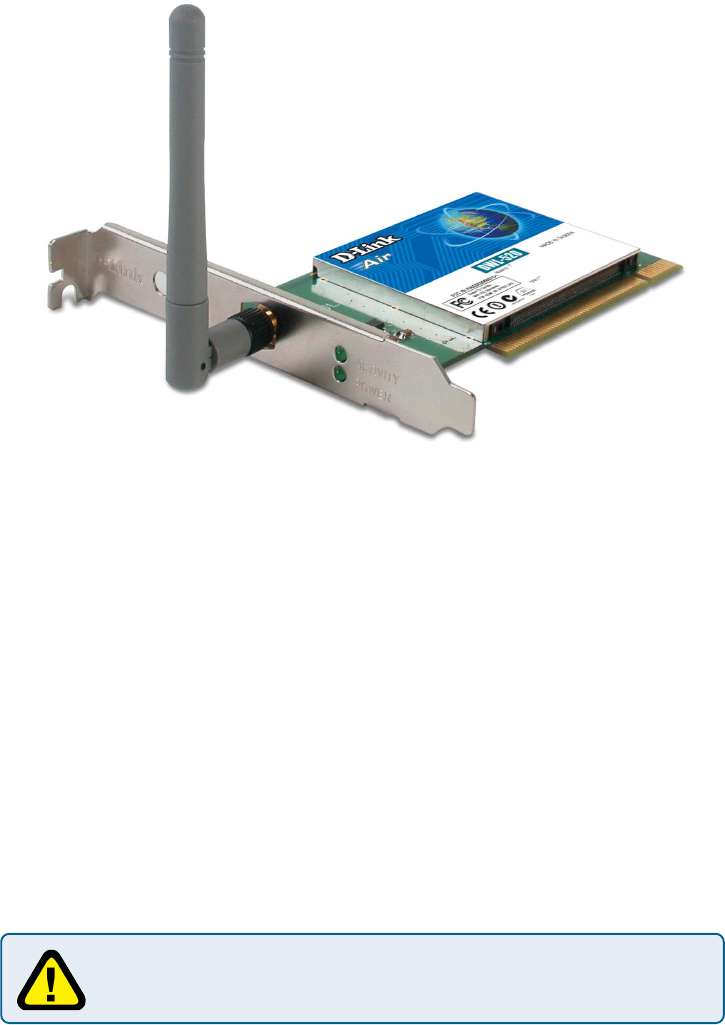

The D-Link Air DWL-520 Wireless PCI Adapter is an 802.11b wireless adapter

that supports high-speed wireless networking when used with a desktop com-

puter.

The DWL-520 is compatible with existing 802.11b devices such as the D-Link

Air and AirPlus family of products including the DWL-650 and DWL-650+ Wire-

less Cardbus Adapters, the DI-614+ Wireless Router, DWL-900AP+ Wireless

Access Point and the DWL-122 Wireless USB Adapter.

The DWL-520 is an ideal way to connect your desktop computer to a Wireless

Local Area Network (WLAN). After completing the steps outlined in the Quick

Installation Guide (included in the package) you will have the ability to share

information and resources, such as files and printers, and enjoy the freedom

that wireless networking delivers.

The DWL-520 comes with software drivers for the most popular Microsoft

Windows operating systems and can be integrated into a larger network, running

Windows XP, Windows 2000, Windows Me, or Windows 98SE in either Ad

Hoc mode (without an Access Point or Router) or Infrastructure mode (with an

Access Point or Router).

The IEEE 802.11b Ethernet standard allows you to connect computers and

802.11b compatible devices at speeds up to 11Mbps, dependent upon the

distance between wireless adapters, the configuration of your working

environment, or the capabilities or limitations of your computer systems.

Power: Solid green light indicates connection to the network

Activity: Blinking green light indicates activity on the network

LEDS

Features & Benefits

!Provides a simple and inexpensive way to connect your desktop computer to

a wireless network at home, at the office, or in public places

!Fully compliant with the 802.11b standard and interoperable with all existing

802.11b-compliant devices

!Operates in the 2.4GHz frequency range

!Maximum reliability, throughput and connectivity with automatic data rate

switching

Provides a measure of security for the information transmitted over a wireless

network with high data encryption at 64 or 128-bit WEP.

Supports infrastructure networks via an access point and peer-to-peer commu-

nication in ad-hoc mode

High Performance 32-bit PCI - The high capacity PCI interface utilized by the

DWL-520 ensures optimal performance in transmitting a wireless signal within

the desktop computer. By utilizing a standard PCI 2.2 interface, the DWL-520

ensures a wide range of compatibility with motherboards used by PC manufac-

turers

Quick and Easy Installation- The DWL-520 installs quickly and easily into a

standard PCI 2.2 slot in a desktop computer. By following the simple steps

outlined in the Quick Installation Guide, you can connect to an available wire-

less network in a matter of seconds

!Provides high-speed wireless connection up to 11Mbps

!User-friendly configuration and diagnostic utilities

LED stands for

Light-Emitting

Diode.

Wireless Basics

D-Link wireless products are based on industry standards to provide easy-to-use and

compatible high-speed wireless connectivity within your home, business or public access

wireless networks. D-Link wireless products will allow you access to the data you want,

when and where you want it. You will be able to enjoy the freedom that wireless networking

brings.

A Wireless Local Area Network (WLAN) is a cellular computer network that transmits

and receives data with radio signals instead of wires. WLANs are used increasingly in

both home and office environments, and public areas such as airports, coffee shops and

universities. Innovative ways to utilize WLAN technology are helping people to work and

communicate more efficiently. Increased mobility and the absence of cabling and other

fixed infrastructure have proven to be beneficial for many users.

Wireless users can use the same applications they use on a wired network. Wireless

adapter cards used on laptop and desktop systems support the same protocols as

Ethernet adapter cards.

People use WLAN technology for many different purposes:

Mobility - Productivity increases when people have access to data in any location

within the operating range of the WLAN. Management decisions based on real-time

information can significantly improve worker efficiency.

Low Implementation Costs – WLANs are easy to set up, manage, change and

relocate. Networks that frequently change can benefit from WLANs ease of implementation.

WLANs can operate in locations where installation of wiring may be impractical.

Installation and Network Expansion - Installing a WLAN system can be fast

and easy and can eliminate the need to pull cable through walls and ceilings. Wireless

technology allows the network to go where wires cannot go - even outside the home or

office.

Scalability – WLANs can be configured in a variety of ways to meet the needs of

specific applications and installations. Configurations are easily changed and range

from peer-to-peer networks suitable for a small number of users to larger infrastructure

networks to accommodate hundreds or thousands of users, depending on the number of

wireless devices deployed.

Inexpensive Solution - Wireless network devices are as competitively priced as

conventional Ethernet network devices.

The DWL-520 is compatible with 802.11b wireless products, which include:

D-Link Air DWL-650,D-Link AirPlus DWL-650+

2.4GHz Wireless Cardbus Adapter used with laptop computers

D-Link AirPlus DWL-520+

2.4GHz Wireless PCI cards used with desktop computers

D-Link AirPlus DWL-900AP+

Enhanced 2.4GHz Wireless Access Point

D-Link AirPlus DI-614+, DI-714P+

Enhanced 2.4GHz Wireless Broadband Routers

Standards-Based Technology

Based on the IEEE 802.11b standard, the DWL-520 is also interoperable with existing

compatible 2.4GHz wireless technology with data transfer speeds of up to 11Mbps.

Installation Considerations

The D-Link Air DWL-520 lets you access your network, using a wireless connection,

from virtually anywhere within its operating range. Keep in mind, however, that the number,

thickness and location of walls, ceilings, or other objects that the wireless signals must

pass through, may limit the range. Typical ranges vary depending on the types of materials

and background RF (radio frequency) noise in your home or business. The key to

maximizing wireless range is to follow these basic guidelines:

Wireless Basics (continued)

Keep your product away (at least 3-6 feet or 1-2 meters) from electrical

devices or appliances that generate RF noise.

Keep the number of walls and ceilings between the DWL-520 and

other network devices to a minimum - each wall or ceiling can reduce

your D-Link Air Wireless product’s range from 3-90 feet (1-30 meters.)

Position your devices so that the number of walls or ceilings is minimized.

Be aware of the direct line between network devices. A wall that is 1.5 feet thick

(.5 meters), at a 45-degree angle appears to be almost 3 feet (1 meter) thick. At

a 2-degree angle it looks over 42 feet (14 meters) thick! Position devices so

that the signal will travel straight through a wall or ceiling (instead of at an

angle) for better reception.

Building Materials can impede the wireless signal - a solid metal door or aluminum

studs may have a negative effect on range. Try to position wireless devices and

computers with wireless adapters so that the signal passes through drywall or

open doorways and not other materials.

There are basically two modes of networking:

Infrastructure – using an Access Point or Router, such as

the DI-614+

Ad-Hoc – directly connecting to another computer, for peer-to-

peer communication, using wireless network adapters on

each computer, such as two or more DWL-520 wireless

network adapters.

On the following pages we will show you an example of an Infrastructure Network

and an Ad-Hoc Network.

An Infrastructure network contains an Access Point or Router. The Infrastructure

Network example shown on the following page contains the following D-Link network

devices (your existing network may be comprised of other devices):

Getting Started

A wireless Router - D-Link AirPlus DI-614+

A laptop computer with a wireless adapter -

D-Link Air DWL-650

A desktop computer with a wireless adapter -

D-Link Air DWL-520

A Cable modem - D-Link DCM-200

With its default settings, the DWL-520, when activated, will connect

with other D-Link Air products, right out of the box.

Please remember that D-Link Air wireless devices are pre-configured to connect

together, right out of the box, with their default settings.

You will need broadband Internet access (a Cable or DSL-subscriber line into

your home or office)

Consult with your Cable or DSL provider for proper installation of the modem

Connect the Cable or DSL modem to your broadband router (see the Quick

Installation Guide included with your router.)

Install the D-Link Air DWL-520 wireless PCI adapter into an available PCI slot

on your desktop computer.

(See the Quick Installation Guide included with the DWL-520.)

Install the D-Link Air DWL-650 wireless Cardbus adapter into a laptop computer.

(See the Quick Installation Guide included with the DWL-650.)

Getting Started (continued)

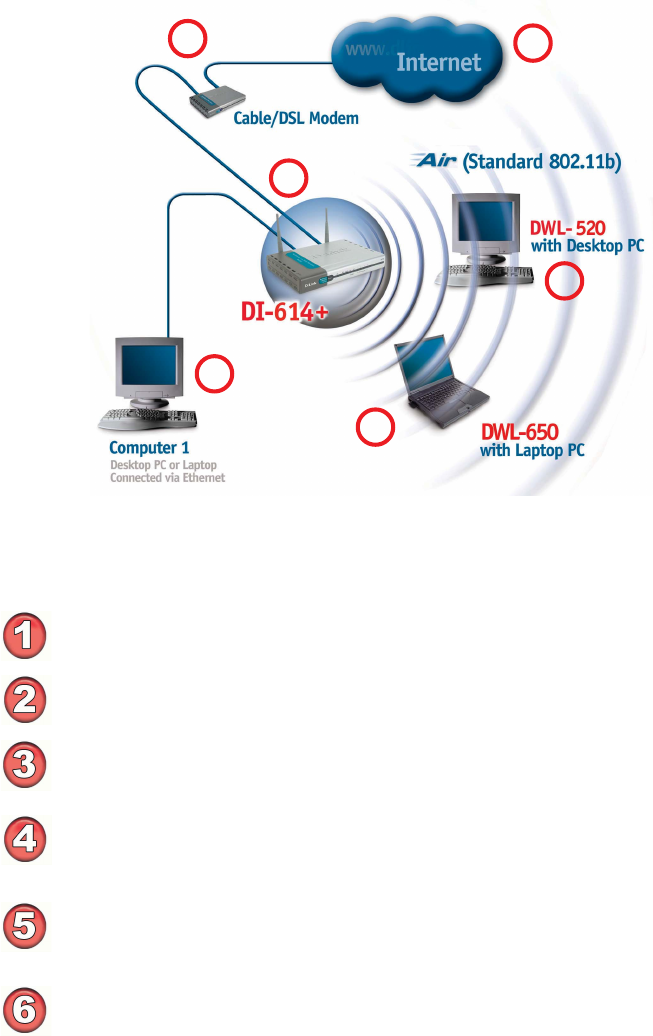

For a typical wireless setup at home (as shown above), please do the

following:

Setting up a Wireless Infrastructure Network

If you wish, you may connect a computer that is equipped with an Ethernet

network adapter (such as a DFE-530TX+) to the router also.

Getting Started (continued)

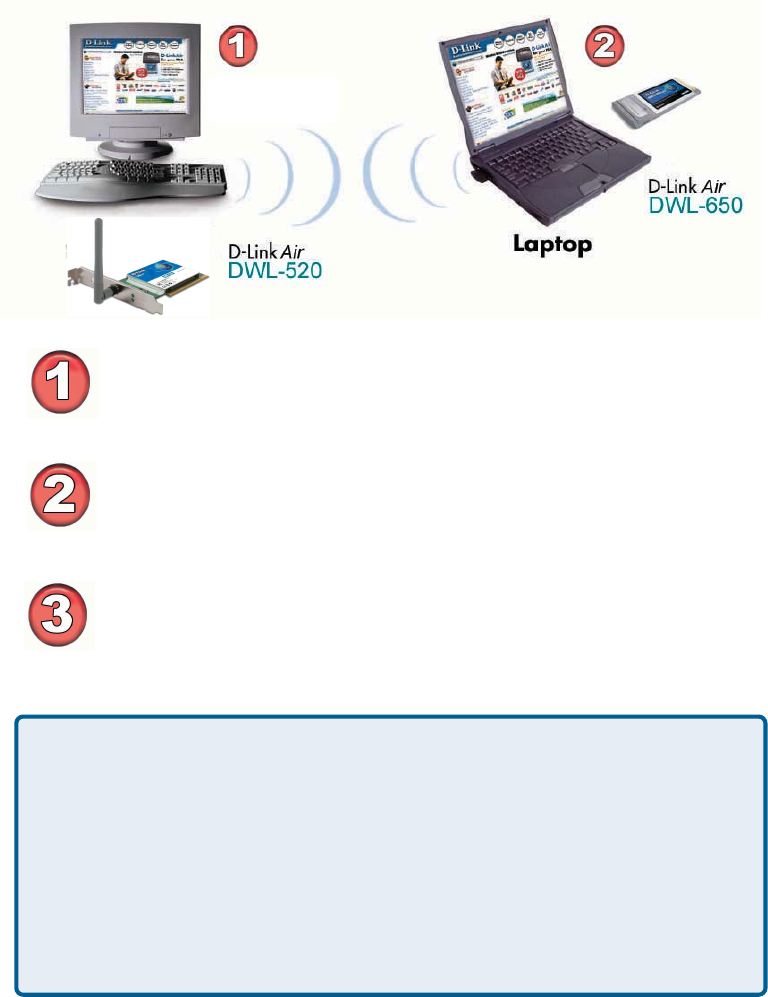

Setting up a Wireless Ad Hoc Network

Install the DWL-520 into the desktop computer.

(See the Quick Installation Guide included with the product for installation

instructions.)

Install the DWL-650 wireless Cardbus adapter into a laptop computer. (See

the Quick Installation Guide included with the product.)

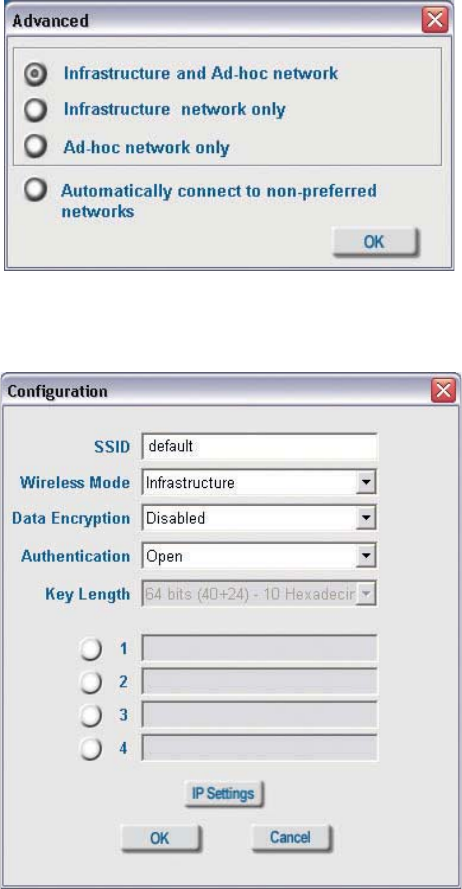

Set the wireless configuration for the adapters to Ad-Hoc mode, set the

adapters to the same channel, and assign an IP Address to each computer

on the Ad-Hoc network. (See Box below)

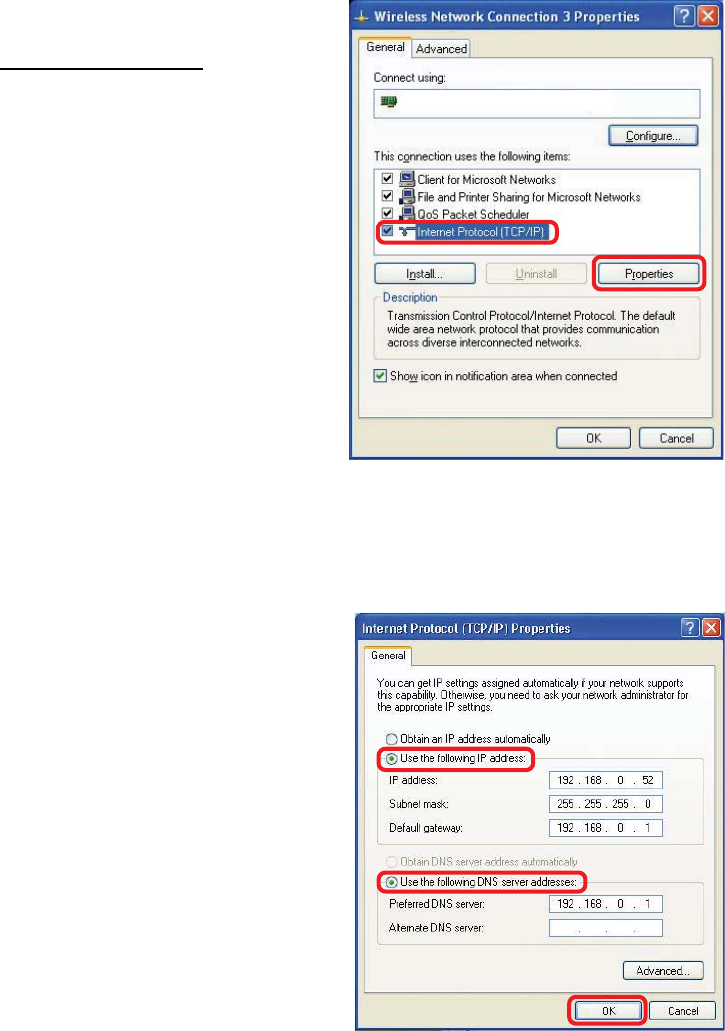

IP Address

Desktop

When assigning IP Addresses to the computers on the network, please remember

that the IP Address for each computer must be in the same IP Address range

as all the computers in the network, and the subnet mask must be exactly the

same for all the computers in the network.

For example: If the first computer is assigned an IP Address of 192.168.0.2 with a

Subnet Mask of 255.255.255.0, then the second computer can be assigned an IP

Address of 192.168.0.3 with a Subnet Mask of 255.255.255.0, etc.

IMPORTANT: If computers or other devices are assigned the same IP Address,

one or more of the devices may not be visible on the network.

Select the Wireless Networks tab.

Uncheck the box in the properties window

that enables windows configuration.

D-Link Air DWL-520 uses the Configuration Utility as the management software.

The utility provides the user an easy interface to change any settings related to the

wireless adapter. After you have completed the installation of the DWL-520 (refer to the

Quick Installation Guide that came with your purchase) whenever you start the computer,

the Configuration Utility starts automatically and the system tray icon is loaded in the

toolbar (see illustration below*.) Clicking on the utility icon will start the Configuration

Utility. Another way to start the Configuration Utility is to click on Start>Programs>D-

Link Air>D-Link Air Utility.

Using the Configuration Utility

If you are using Windows XP, you can use either the Zero Configuration Utility or the

D-Link Configuration Utility.

If the icon does not display in the taskbar, then click on

this icon on your desktop to open.

To use the D-Link Configuration Utility with XP, right-click

on the Wireless network icon in the taskbar in the lower

right-hand corner of your computer screen.

In the window that appears, select View

Available Wireless Networks and click

the Advanced button. The screen at right

will appear.

After you have done this, you can then use the D-Link

Configuration Utility with XP by clicking on the D-Link

Configuration Utility icon. *Config Utility icon in

system tray

test1

test2

Link Info

Using the Configuration Utility (continued)

After clicking on the Configuration Utility icon, the Link Info screen will display the

settings for the DWL-520:

SSID:

The Service Set Identifier is the name

assigned to the wireless network.

The factory SSID setting is default.

Tx Rate:

The default setting is Auto; Tx Rate settings are automatically determined for an

optimal speed up to a maximum of 11Mbps.

Status:

Displays the MAC Address of the

Access Point or Router to which the

DWL-520 is associated

Channel:

The default setting is Auto. The channel selection is automatically determined by the

DWL-520.

Signal Strength/Link Quality:

Packet Count:

Displays the statistics of the data packets that are transmitted and received.

Frequency:

802.11b indicates that the DWL-520

is communicating in the 2.4GHz

band.

Encryption:

You can see if WEP (Wired Equivalent Privacy) is Enabled or Disabled here.

Wireless Mode:

Either Infrastructure or Ad-Hoc will

be displayed here. (Please see the

Getting Started section in this manual for an explanation of these two modes.)

Rescan Button:

Rescans for the strongest signal in your environment and associates with that Access

Point or Router

Displays the Link Quality for the DWL-520 wireless connection to the access point.

The Signal Strength represents the wireless signal between the access point and the

DWL-520. The percentage coincides with the graphical bar

Wireless Mode:

Authentication:

Keys 1-4:

Select the default key

Data Encryption:

IP Settings:

Click on the pull-down menu; select from the

following options:

Infrastructure - connecting to the WLAN

using an Access Point.(This is the default

setting).

Ad-Hoc – wireless mode used when

connecting directly to a computer equipped

with a wireless adapter in a peer-to-peer

environment.

Choose one of the following modes:

Click Apply to save changes.

When you click IP Settings in the Configuration window, the pop-up screen above will

appear. Configure the IP Settings in this window.

Hexadecimal digits consist of the numbers 0-9 and the letters A-F

ASCII (American Standard Code for Information Interchange) is a code for

representing English letters as numbers from 0-127

Using the Configuration Utility (continued)

Configuration

Select Enabled or Disabled.

IP Settings

Open Authentication – the DWL-520 is

visible to all devices on the network

Shared Authentication – allows

communication only with other devices with

identical WEP settings

Auto – will automatically adjust to the Authentication mode of the wireless

Access Point or Router

Key Length:

Select the key length and either ASCII (e.g., a word) or hexadecimal format.

SSID:

Service Set Identifier is a name that identifies a

wireless network. Access Points and wireless

devices attempting to connect to a specific WLAN

(Wireless Local Area Network) must use the same

SSID. The default setting is default.

Ad-Hoc Channel:

All devices in the Ad Hoc

network must be set to the

same channel

Click Apply if you have made any changes

Data Packet Parameter:

Select the parameters here

Profile IP Settings:

You can Enable or Disable

the IP Settings portion of

your profile here. If you

select Disable you will need

to configure the IP Address

information each time you

connect to a network. If you

select Enable you will

maintain the same IP

Address information each

time you connect to a

network.

Select Enable or Disable

Launch Utility on Startup:

Power Mode:

Disable -this default setting consumes the most power

Enable - this setting consumes the least power

Fragmentation Threshold:

This value should remain at its default setting of 2432. If you experience a high packet

error rate, you may slightly increase your Fragmentation Threshold within the value

range of 256 to 2432. Setting the Fragmentation Threshold too low may result in poor

performance.

This value should remain at its default setting of 2432. If inconsistent data flow is a

problem, only a minor modification should be made.

RTS Threshold:

Using the Configuration Utility (continued)

Advanced

Refresh:

Click on Refresh to get the

most updated list of available

networks.

Available Network:

The top section of the window displays the Available Networks. Scroll up and down the

list and highlight the network to which you wish to connect. Click on the Connect but-

ton.

Profile:

In the lower half of the screen, you can manage the profiles that you have created for the

wireless network at home, at the office and in public places. Scroll up and down and

highlight the profile that you wish to configure. You can Add or Remove a profile, or

configure the Properties of the profile in order to connect with an available network.

Connect:

Highlight a network profile; click Connect to connect to that network.

Rescan:

Click Rescan to rescan and connect to the strongest signal.

Configure:

Highlight an existing network

and click Configure; the

configuration window on the

next page will appear.

Advanced:

Highlight a network; click

Advanced and the screen on

the next page will appear.

Add:

Click Add and the screen on the next page will appear.

Remove:

Highlight a network profile; click Remove to remove a network from the profile list.

Properties:

Highlight a network profile; click Properties and the screen on the next page will appear.

Using the Configuration Utility (continued)

Site Survey

Using the Configuration Utility (continued)

Site Survey > Add

If you clicked on Add, you can

configure, in this window, all the

properties of a profile that you

wish to add to the network.

In this window you can select

the type of network connection.

Click OK to save the

changes.

If you clicked on Configuration

or Properties you can config-

ure, in this window, all the prop-

erties of a profile that already

exists in the network.

Click OK to save the

changes.

Advanced

Configuration, Add or Properties

The ABOUT screen gives you the MAC Address, Utility Version and the Driver Version

of the DWL-520.

Using the Configuration Utility (continued)

About

Using the Network Setup Wizard in Windows XP

In this section you will learn how to establish a network at home or work, using

Microsoft Windows XP.

Note: Please refer to websites such as http://www.homenethelp.com

and http://www.microsoft.com/windows2000 for information about networking

computers using Windows 2000, ME or 98SE.

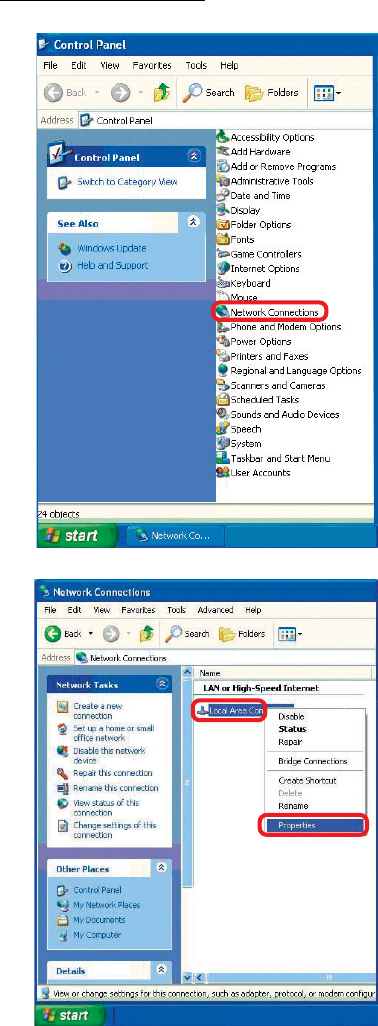

Go to Start>Control Panel>Network Connections

Select Set up a home or small office network

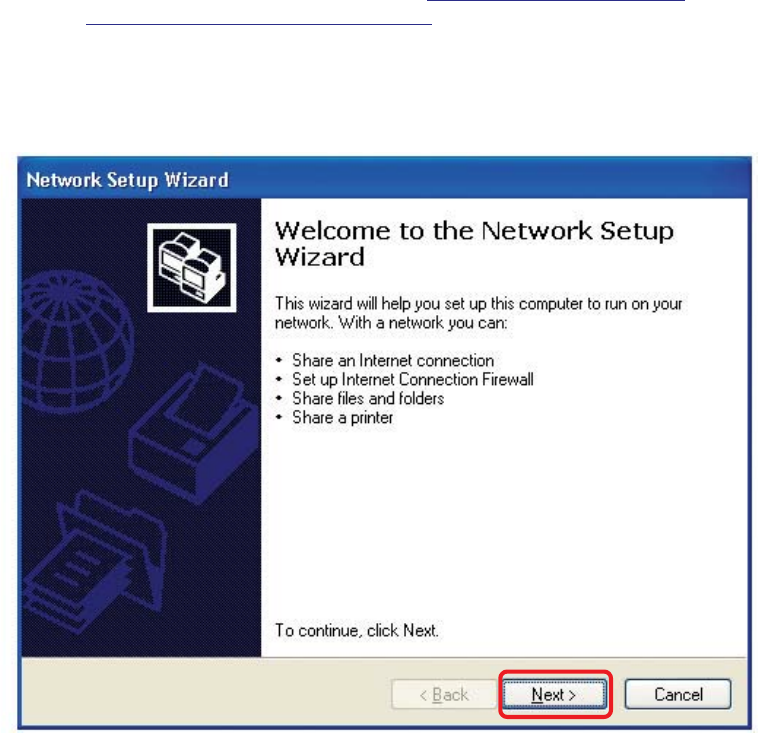

Networking Basics

When this screen appears, click Next.

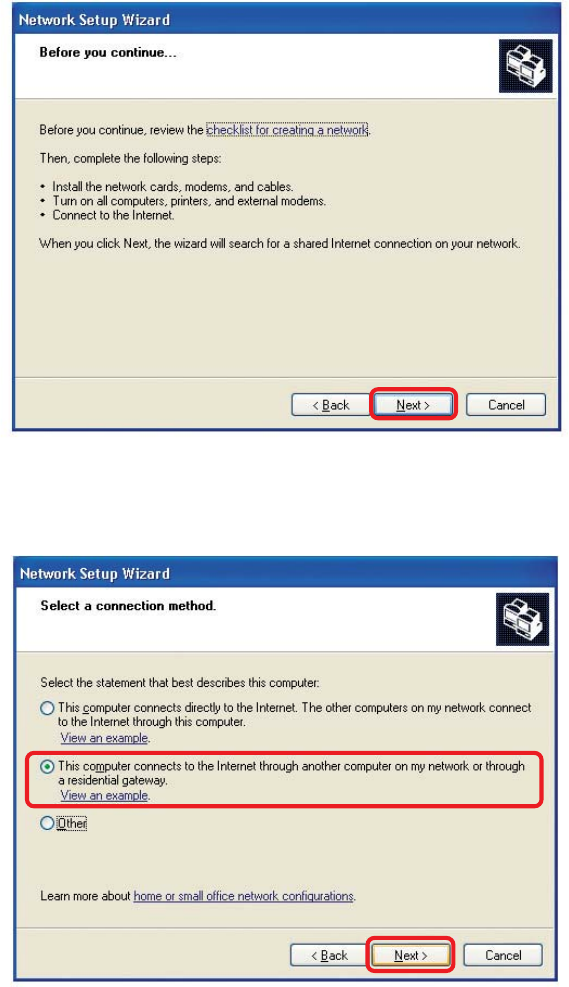

Please follow all the instructions in this window:

Networking Basics (continued)

Click Next

In the following window, select the best description of your computer. If your

computer connects to the internet through a gateway/router, select the second option

as shown.

Click Next

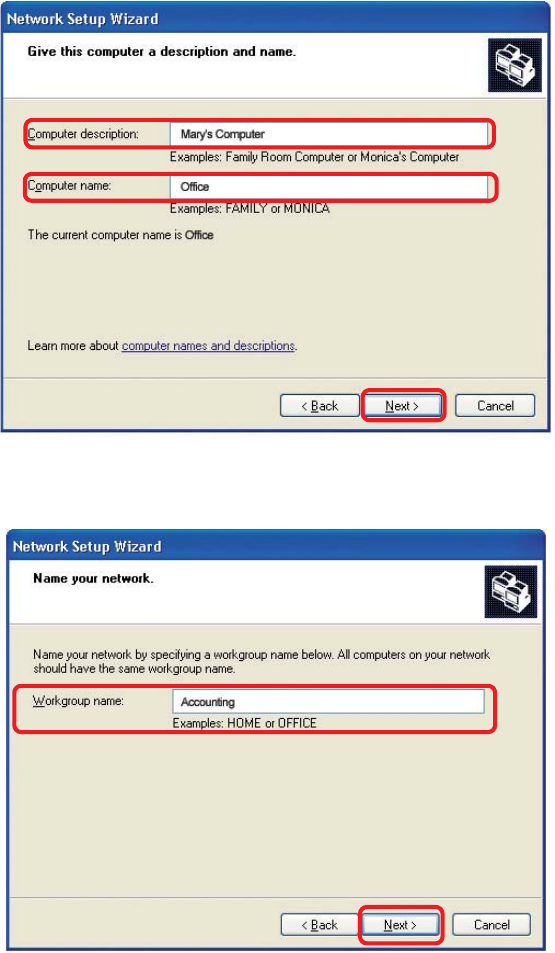

Enter a Computer description and a Computer name (optional.)

Networking Basics (continued)

Click Next

Enter a Workgroup name. All computers on your network should have the same

Workgroup name.

Click Next

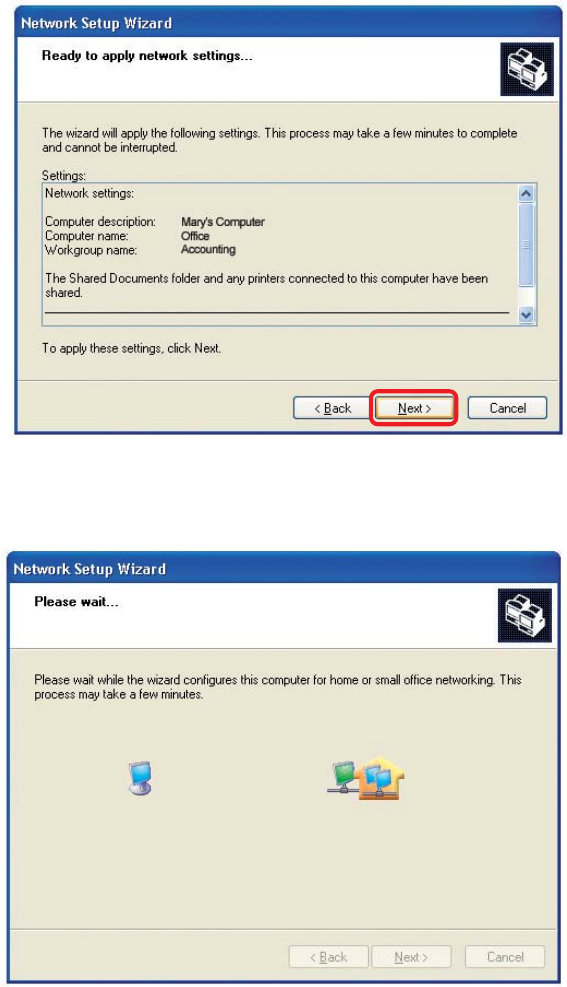

Please wait while the Network Setup Wizard applies the changes.

Networking Basics (continued)

When the changes are complete, click Next.

Please wait while the Network Setup Wizard configures the computer.

This may take a few minutes.

Networking Basics (continued)

In the window below, select the option that fits your needs. In this example, Create a

Network Setup Disk has been selected. You will run this disk on each of the

computers on your network. Click Next.

Insert a disk into the Floppy Disk Drive, in this case drive A.

Networking Basics (continued)

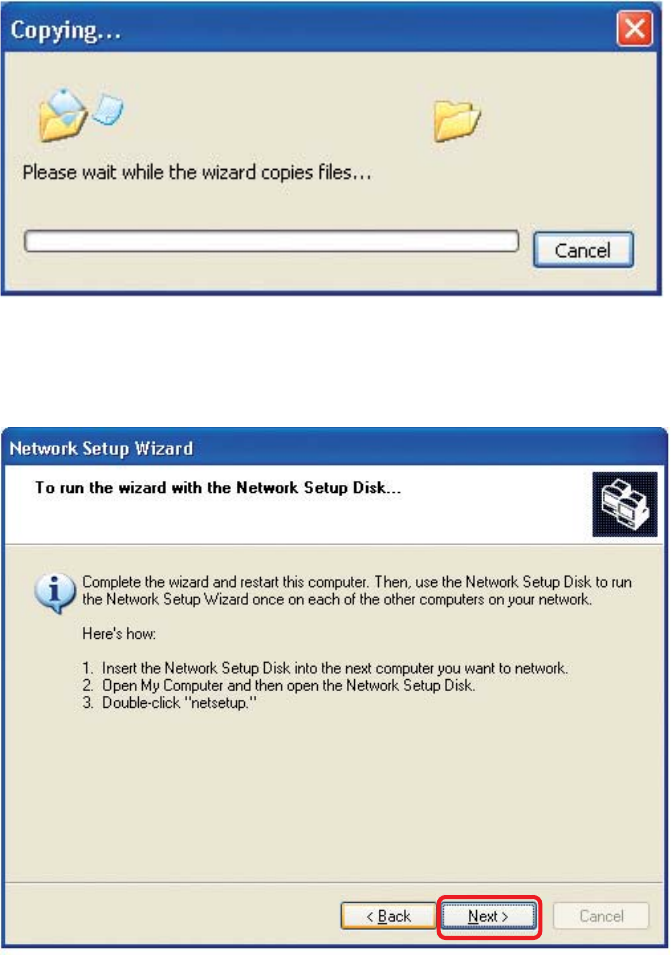

Please read the information under Here’s how in the screen below. After you complete

the Network Setup Wizard you will use the Network Setup Disk to run the Network

Setup Wizard once on each of the computers on your network. To continue click Next.

Networking Basics (continued)

Please read the information on this screen, then click Finish to complete the

Network Setup Wizard.

The new settings will take effect when you restart the computer. Click Yes to restart

the computer.

You have completed configuring this computer. Next, you will need to run the Network

Setup Disk on all the other computers on your network. After running the Network

Setup Disk on all your computers, your new wireless network will be ready to use.

Networking Basics (continued)

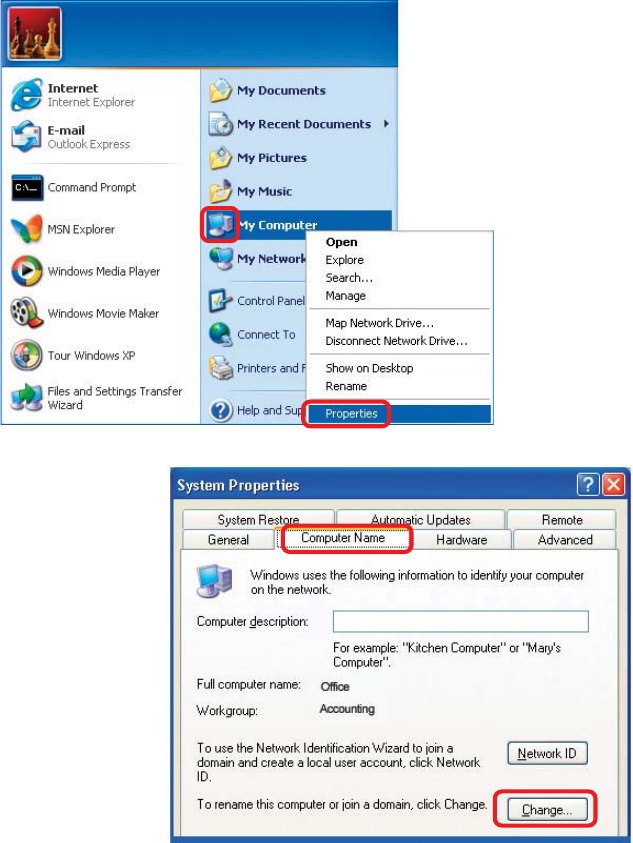

Naming your Computer

To name your computer, please follow these directions:In Windows XP:

Click Start (in the lower left corner of the screen)

Right-click on My Computer

Select Properties and click

Select the Computer

Name Tab in the System

Properties window.

You may enter a Com-

puter Description if you

wish; this field is optional.

To rename the computer

and join a domain, Click

Change.

Networking Basics (continued)

Naming your Computer

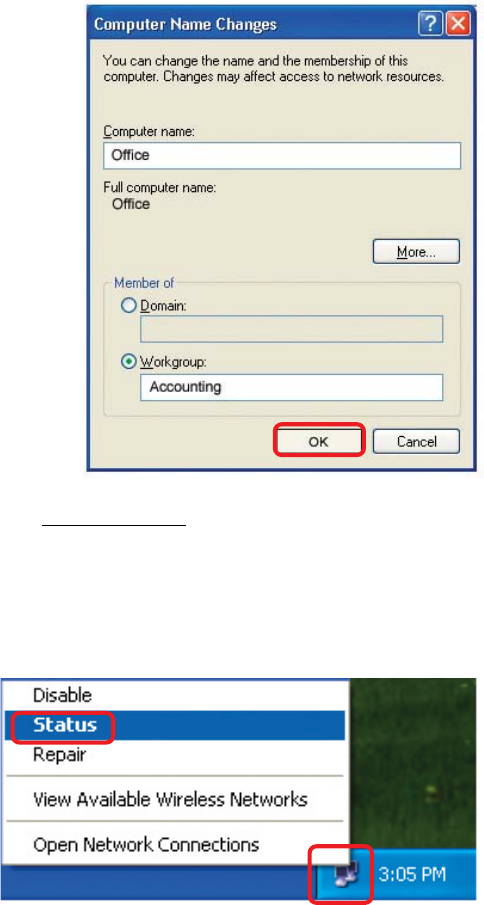

!In this window, enter the

Computer name

Select Workgroup and enter

the name of the Workgroup

All computers on your network

must have the same

Workgroup name.

Click OK

Checking the IP Address in Windows XP

The wireless adapter-equipped computers in your network must be in the same IP

Address range (see Getting Started in this manual for a definition of IP Address Range.)

To check on the IP Address of the adapter, please do the following:

Right-click on the

Local Area

Connection icon

in the task bar

Click on Status

Networking Basics (continued)

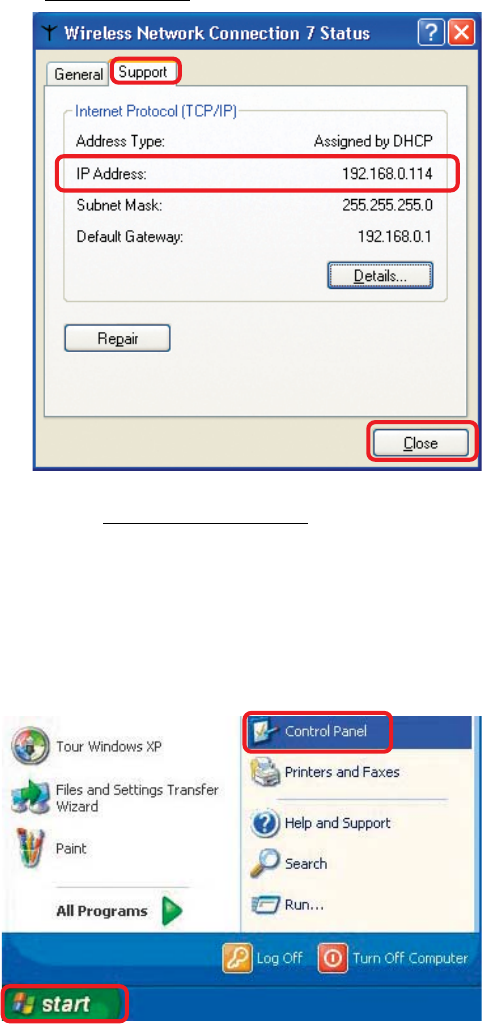

Checking the IP Address in Windows XP

This window will appear.

Click the

Support tab

Click Close

Assigning a Static IP Address in Windows XP/2000

Note: Residential Gateways/Broadband Routers will automatically assign IP Ad-

dresses to the computers on the network, using DHCP (Dynamic Host Configura-

tion Protocol) technology. If you are using a DHCP-capable Gateway/Router you

will not need to assign Static IP Addresses.

If you are not using a DHCP capable Gateway/Router, or you need to assign a Static IP

Address, please follow these instructions:

Go to Start

Double-click on

Control Panel

Networking Basics (continued)

Assigning a Static IP Address in Windows XP/2000

!Double-click on

Network

Connections

!Double-click on

Properties

Right-click on Local Area

Connections

Networking Basics (continued)

Assigning a Static IP Address

in Windows XP/2000

You have completed the assignment of a Static IP Address. (You do not need to assign

a Static IP Address if you have a DHCP-capable Gateway/Router.)

Click on Internet Protocol

(TCP/IP)

Click Properties

IP Address:

e.g., 192.168.0.2

Subnet Mask:

255.255.255.0

Default Gateway:

Enter the LAN IP address of

the wireless router. (D-Link

wireless routers have a LAN IP

address of 192.168.0.1)

In the window below, select Use the following IP address. Input your IP

address and subnet mask. (The IP Addresses on your network must be

within the same range. For example, if one computer has an IP Address of

192.168.0.2, the other computers should have IP Addresses that are

sequential, like 192.168.0.3 and 192.168.0.4. The subnet mask must be

the same for all the computers on the network.)

!Click OK

Select Use the following

DNS server address. Enter

the LAN IP address of the

Wireless Router. (D-Link

wireless routers have a LAN

IP address of 192.168.0.1)

D-Link Air DWL-520 Wireless PCIAdapter

Networking Basics (continued)

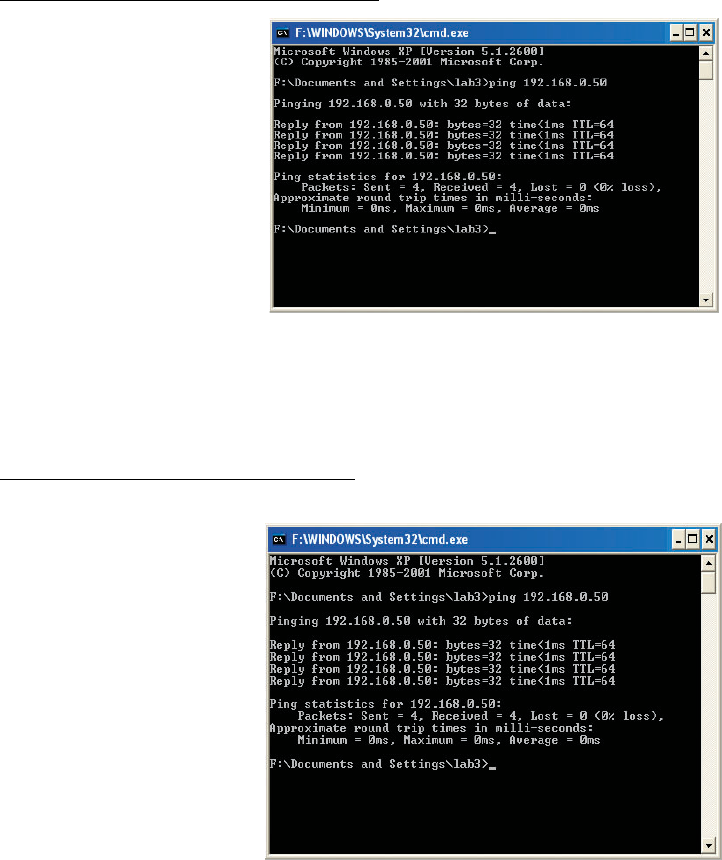

Checking the Wireless Connection

by Pinging in Windows XP and 2000*

Checking the Wireless Connection

by Pinging in Windows Me and 98*

Go to Start > Run >

type cmd. A window

similar to this one

will appear. Type

ping

xxx.xxx.xxx.xxx,

where xxx is the IP

Address of the

Wireless Router or

Access Point. A

good wireless

connection will show

four replies from the

Wireless Router or

Acess Point, as

shown.

Go to Start > Run

> type command.

A window similar to

this will appear.

Type ping

xxx.xxx.xxx.xxx

where xxx is the IP

Address of the

Wireless Router or

Access Point. A

good wireless

connection will

show four replies

from the wireless

router or access

point, as shown.

*You may be pinging different IP Addresses than the ones pictured here, however the

procedure for pinging remains the same.)

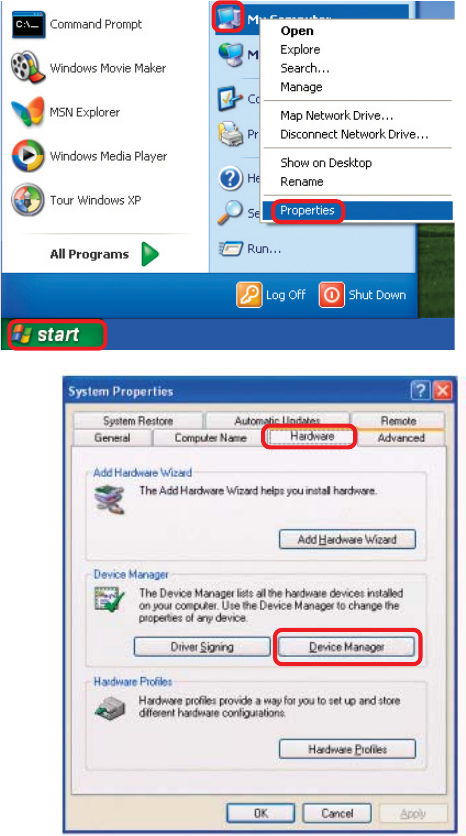

1. Check that the drivers for the DWL-520 are installed properly.

Click Device

Manager

!Select the

Hardware

Tab

Troubleshooting

This chapter provides solutions to problems that can occur during the installation and

operation of the DWL-520. Read the following descriptions if you are having problems.

(The examples below are illustrated in Windows XP. If you have another operating sys-

tem, these solutions will still apply although the appearance on your computer screen

may differ.)

!Go to Start > My

Computer >

Properties

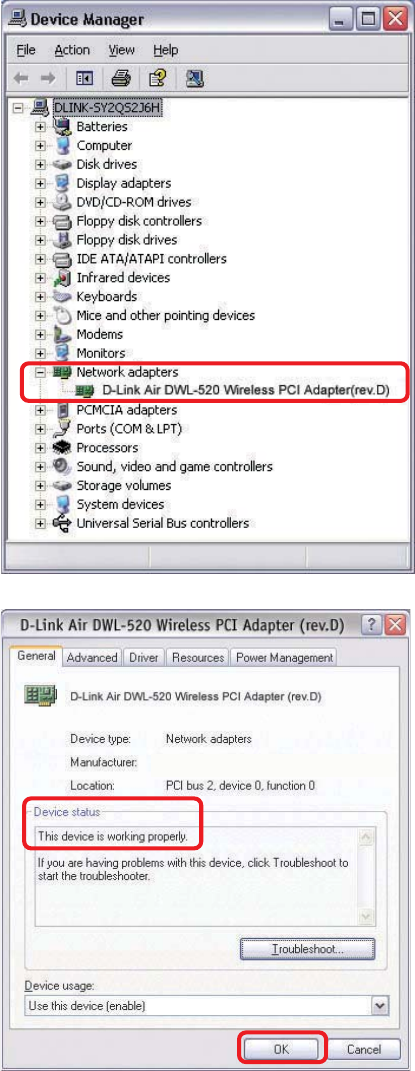

Troubleshooting (continued)

Double-click

on Network

Adapters

Right-click on D-Link Air

DWL-520 Wireless PCI

Adapter

Select Properties

to check that the

drivers are

installed properly

!Look under Device

Status to check that the

device is working

properly

!Click OK

2. I cannot connect to the access point or the wireless router.

Check to see if the DWL-520 PCI adapter is firmly inserted into the PCI

slot of your computer.

Make sure that the SSID on the DWL-520 PCI adapter is exactly the

same as the SSID on the Access Point or wireless router.

Move the DWL-520 and Access Point or Wireless router into the same

room and then test the wireless connection.

Disable all security settings. (WEP, MAC Address Control, AES)

Make sure that the Radio is not locked down to a different frequency

Turn off your Access Point and the computer with the DWL-520. Turn on

the Access Point, and then turn on the computer with the DWL-520.

Refresh the DWL-520 Utility

Troubleshooting (continued)

3. The DWL-520 Power and Link lights are not on.

4. I forgot my Encryption key.

Reset the Access Point to its factory default settings and restore the DWL-

520 Wireless PCI Adapter to the factory default settings. (The default settings

are listed in the Using the Configuration Utility section in this manual.)

Make sure that the DWL-520 Wireless PCI Adapter is properly seated in

the computer’s PCI slot.

If Windows does not detect the hardware upon insertion of the adapter,

make sure to completely remove drivers that were previously loaded. To

remove the drivers, do the following:

5. The computer does not recognize the DWL-520 PCI Adapter.

Troubleshooting (continued)

A. Under Tools> select Folder Options…> select View > under

Hidden files and folders > select Show hidden files and

folders

B. Uncheck Hide extension for known file types > click on

Apply

C. Search for the files DWL520.INF and DWL520.SYS. Remove

these files from the INF and SYSTEM32 (DRIVERS) folders in

the Windows directory. Note: Windows XP and Windows 2000

will rename .inf files that have not received WHQL certification

into oem.inf files (e.g., oem1.inf.)

Check that the LED indicators for the broadband modem are indicating

normal activity. If not, there may be a problem with the broadband connection.

Check that the LED indicators on the wireless router are functioning properly.

If not, check that the AC power and Ethernet cables are firmly connected.

Check that the IP Address, subnet mask, gateway, and DNS settings are

correctly entered for the network

In Infrastructure mode, make sure the same Service Set Identifier (SSID)

is specified on the settings for the wireless clients and access points. The

SSID factory default setting for the D-LinkAir and AirPlus products is default.

(Double-click on the WLAN icon in the taskbar. The Link Info screen will

display the SSID setting.)

In Ad-Hoc mode, both wireless clients will need to have the same SSID.

Please note that it might be necessary to set up one client to establish a

BSS (Basic Service Set) and wait briefly before setting up other clients.

This prevents several clients from trying to establish a BSS at the same

time, which can result in multiple singular BSSs being established, rather

than a single BSS with multiple clients associated to it.

6. The computer with the DWL-520 installed is unable to connect to

the wireless network and/or the Internet.

Move the DWL-520 and Access Point or Wireless router into the same

room and then test the wireless connection.

Change the channel of the Access Point.

Move devices within the line of sight

Check that the Network Connection for the wireless client is configured

properly. Select AP (Infrastructure) when connecting to an access point

and select Ad-Hoc mode when connecting without an access point. Double-

click on the WLAN icon in the taskbar > click on Configuration to change

the settings for the wireless adapter.

If Security is enabled, make sure that the correct encryption keys are

entered on both the DWL-520 and the access point. Double-click on the

WLAN icon in the taskbar > click Encryption. Check to see that the key

selected is set to the same key as other devices on the network.

Troubleshooting (continued)

7. How can I troubleshoot distance issues using the DWL-520.

Technical Specifications

IEEE 802.11b

Standards

System Requirements:

Temperature

Operating: 32ºF to 131ºF (0ºC to 55ºC)

Storing: -4ºF to 167ºF (-20ºC to 75ºC)

Operating: 10% - 90%, non-condensing

Humidity:

Storage: 5% - 95%, non-condensing

Antenna Type:

Dual UFL antenna with reverse SMA connector

Emissions:

FCC part 15b

L = 6.10 inches (155mm)

W = 5.51 inches (140mm)

H = .90 inches (23mm)

Physical Dimensions:

Weight:

.20 lbs. (90g)

Bus Type:

PCI 2.2

Warranty:

1 Year

An 802.11b Access Point (e.g., DWL-900AP+) for Infrastructure

mode; or an 802.11b wireless adapter (e.g., DWL-650) for Ad-Hoc

mode

At least 32MB of memory and a 300 MHz processor

Windows XP/2000/Me/98SE

Computer with an available PCI slot

Technical Specifications (continued)

1, 2, 5.5, 11Mbps (with Automatic Fallback)

1-11 United States (FCC)

Operating Channels:

Data Rates:

Supports 64-bit or 128-bit WEP encryption

Encryption:

2.4 – 2.4835 GHz

Frequency Range:

Media Access Control:

CSMA/CA with ACK

14dBm

Transmit Output Power:

Receiver Sensitivity: Nominal Temp Range

-83dBm for 11Mbps @ 8% PER (Packet Error Rate)

-90dBm for 2Mbps @ 8% PER (Packet Error Rate)

Modulation Techniques

CCK (11Mbps)

CCK (5.5Mbps)

DQPSK (2Mbps)

DBSK (1Mbps)

Modulation:

Direct Sequence Spread Spectrum

Range:

Indoors - up to 328 feet (100 meters)*

Key Management:

Automatic Dynamic Key Allocation (ADKA) through public key

*Environmental factors may adversely affect range

Technical Support

You can find software updates and user documentation on the D-Link website.

D-Link provides free technical support for customers within the United States and

within Canada for the duration of the warranty period on this product.

U.S. and Canadian customers can contact D-Link technical support through our

website, or by phone.

Tech Support for customers within the United States:

D-Link Technical Support over the Telephone:

(877) 453-5465

24 hours a day, seven days a week.

D-Link Technical Support over the Internet:

http://support.dlink.com

email:support@dlink.com

Tech Support for customers within Canada:

D-Link Technical Support over the Telephone:

(800) 361-5265

Monday to Friday 8:30am to 9:00pm EST

D-Link Technical Support over the Internet:

http://support.dlink.ca

email:support@dlink.ca

Subject to the terms and conditions set forth herein, D-Link Systems, Inc. (“D-Link”) provides this Limited

warranty for its product only to the person or entity that originally purchased the product from:

•D-Link or its authorized reseller or distributor and

•Products purchased and delivered within the fifty states of the United States, the District of

Columbia, U.S. Possessions or Protectorates, U.S. Military Installations, addresses with an

APO or FPO.

Limited Warranty: D-Link warrants that the hardware portion of the D-Link products described

below will be free from material defects in workmanship and materials from the date of original retail

purchase of the product, for the period set forth below applicable to the product type (“Warranty

Period”), except as otherwise stated herein.

1-Year Limited Warranty for the Product(s) is defined as follows:

•Hardware (excluding power supplies and fans) One (1) Year

•Power Supplies and Fans One (1) Year

•Spare parts and spare kits Ninety (90) days

D-Link’s sole obligation shall be to repair or replace the defective Hardware during the Warranty Period

at no charge to the original owner or to refund at D-Link’s sole discretion. Such repair or replacement will

be rendered by D-Link at an Authorized D-Link Service Office. The replacement Hardware need not be

new or have an identical make, model or part. D-Link may in its sole discretion replace the defective

Hardware (or any part thereof) with any reconditioned product that D-Link reasonably determines is

substantially equivalent (or superior) in all material respects to the defective Hardware. Repaired or

replacement Hardware will be warranted for the remainder of the original Warranty Period from the date

of original retail purchase. If a material defect is incapable of correction, or if D-Link determines in its sole

discretion that it is not practical to repair or replace the defective Hardware, the price paid by the original

purchaser for the defective Hardware will be refunded by D-Link upon return to D-Link of the defective

Hardware. All Hardware (or part thereof) that is replaced by D-Link, or for which the purchase price is

refunded, shall become the property of D-Link upon replacement or refund.

Limited Software Warranty: D-Link warrants that the software portion of the product (“Software”)

will substantially conform to D-Link’s then current functional specifications for the Software, as set forth

in the applicable documentation, from the date of original retail purchase of the Software for a period of

ninety (90) days (“Warranty Period”), provided that the Software is properly installed on approved

hardware and operated as contemplated in its documentation. D-Link further warrants that, during the

Warranty Period, the magnetic media on which D-Link delivers the Software will be free of physical

defects. D-Link’s sole obligation shall be to replace the non-conforming Software (or defective media)

with software that substantially conforms to D-Link’s functional specifications for the Software or to

refund at D-Link’s sole discretion. Except as otherwise agreed by D-Link in writing, the replacement

Software is provided only to the original licensee, and is subject to the terms and conditions of the

license granted by D-Link for the Software. Software will be warranted for the remainder of the original

Warranty Period from the date or original retail purchase. If a material non-conformance is incapable of

correction, or if D-Link determines in its sole discretion that it is not practical to replace the non-

conforming Software, the price paid by the original licensee for the non-conforming Software will be

refunded by D-Link; provided that the non-conforming Software (and all copies thereof) is first returned

to D-Link. The license granted respecting any Software for which a refund is given automatically

terminates.

Non-Applicability of Warranty: The Limited Warranty provided hereunder for hardware and software

of D-Link’s products will not be applied to and does not cover any refurbished product and any product

purchased through the inventory clearance or liquidation sale or other sales in which D-Link, the sellers,

or the liquidators expressly disclaim their warranty obligation pertaining to the product and in that case,

the product is being sold “As-Is” without any warranty whatsoever including, without limitation, the

Limited Warranty as described herein, notwithstanding anything stated herein to the contrary.

Submitting A Claim: The customer shall return the product to the original purchase point based on its

return policy. In case the return policy period has expired and the product is within warranty, the

customer shall submit a claim to D-Link as outlined below:

Warranty and Registration

(USA only)

•The customer must submit with the product as part of the claim a written description of the

Hardware defect or Software nonconformance in sufficient detail to allow D-Link to confirm

the same.

•The original product owner must obtain a Return Material Authorization (“RMA”) number from

the Authorized D-Link Service Office and, if requested, provide written proof of purchase of

the product (such as a copy of the dated purchase invoice for the product) before the

warranty service is provided.

•After an RMA number is issued, the defective product must be packaged securely in the

original or other suitable shipping package to ensure that it will not be damaged in transit, and

the RMA number must be prominently marked on the outside of the package. Do not include any

manuals or accessories in the shipping package. D-Link will only replace the defective portion

of the Product and will not ship back any accessories.

•The customer is responsible for all in-bound shipping charges to D-Link. No Cash on Delivery

(“COD”) is allowed. Products sent COD will either be rejected by D-Link or become the

property of D-Link. Products shall be fully insured by the customer. D-Link will not be held

responsible for any packages that are lost in transit to D-Link. The repaired or replaced

packages will be shipped to the customer via UPS Ground or any common carrier selected by

D-Link, with shipping charges prepaid. Expedited shipping is available if shipping charges are

prepaid by the customer and upon request.

•Return Merchandise Ship-To Address

USA: 53 Discovery Drive, Irvine, CA 92618

Canada: 2180 Winston Park Drive, Oakville, ON, L6H 5W1 (Visit http://www.dlink.ca for detailed

warranty information within Canada)

D-Link may reject or return any product that is not packaged and shipped in strict compliance with the

foregoing requirements, or for which an RMA number is not visible from the outside of the package. The

product owner agrees to pay D-Link’s reasonable handling and return shipping charges for any product

that is not packaged and shipped in accordance with the foregoing requirements, or that is determined

by D-Link not to be defective or non-conforming.

What Is Not Covered: This limited warranty provided by D-Link does not cover: Products, if in D-Link’s

judgment, have been subjected to abuse, accident, alteration, modification, tampering, negligence, misuse,

faulty installation, lack of reasonable care, repair or service in any way that is not contemplated in the

documentation for the product, or if the model or serial number has been altered, tampered with, defaced

or removed; Initial installation, installation and removal of the product for repair, and shipping costs;

Operational adjustments covered in the operating manual for the product, and normal maintenance;

Damage that occurs in shipment, due to act of God, failures due to power surge, and cosmetic damage;

Any hardware, software, firmware or other products or services provided by anyone other than D-

Link; Products that have been purchased from inventory clearance or liquidation sales or other sales in

which D-Link, the sellers, or the liquidators expressly disclaim their warranty obligation pertaining to the

product. Repair by anyone other than D-Link or an Authorized D-Link Service Office will void this

Warranty.

Disclaimer of Other Warranties: EXCEPT FOR THE LIMITED WARRANTY SPECIFIED HEREIN, THE

PRODUCT IS PROVIDED “AS-IS” WITHOUT ANY WARRANTY OF ANY KIND WHATSOEVER INCLUDING,

WITHOUT LIMITATION, ANY WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE

AND NON-INFRINGEMENT. IF ANY IMPLIED WARRANTY CANNOT BE DISCLAIMED IN ANY TERRITORY

WHERE A PRODUCT IS SOLD, THE DURATION OF SUCH IMPLIED WARRANTY SHALL BE LIMITED TO

NINETY (90) DAYS. EXCEPT AS EXPRESSLY COVERED UNDER THE LIMITED WARRANTY PROVIDED

HEREIN, THE ENTIRE RISK AS TO THE QUALITY, SELECTION AND PERFORMANCE OF THE PRODUCT IS

WITH THE PURCHASER OF THE PRODUCT.

Limitation of Liability: TO THE MAXIMUM EXTENT PERMITTED BY LAW, D-LINK IS NOT LIABLE

UNDER ANY CONTRACT, NEGLIGENCE, STRICT LIABILITY OR OTHER LEGAL OR EQUITABLE THEORY

FOR ANY LOSS OF USE OF THE PRODUCT, INCONVENIENCE OR DAMAGES OF ANY CHARACTER,

WHETHER DIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL (INCLUDING, BUT NOT LIMITED TO,

DAMAGES FOR LOSS OF GOODWILL, LOSS OF REVENUE OR PROFIT, WORK STOPPAGE, COMPUTER

FAILURE OR MALFUNCTION, FAILURE OF OTHER EQUIPMENT OR COMPUTER PROGRAMS TO WHICH D-

LINK’S PRODUCT IS CONNECTED WITH, LOSS OF INFORMATION OR DATA CONTAINED IN, STORED ON,

OR INTEGRATED WITH ANY PRODUCT RETURNED TO D-LINK FOR WARRANTY SERVICE) RESULTING

FROM THE USE OF THE PRODUCT, RELATING TO WARRANTY SERVICE, OR ARISING OUT OF ANY

BREACH OF THIS LIMITED WARRANTY, EVEN IF D-LINK HAS BEEN ADVISED OF THE POSSIBILITY OF

SUCH DAMAGES. THE SOLE REMEDY FOR A BREACH OF THE FOREGOING LIMITED WARRANTY IS

REPAIR, REPLACEMENT OR REFUND OF THE DEFECTIVE OR NON-CONFORMING PRODUCT. THE MAXIMUM

The manufacturer is not responsible for any radio or TV interference caused by unauthorized

modifications to this equipment; such modifications could void the user’s authority to operate the

equipment.

Governing Law: This Limited Warranty shall be governed by the laws of the State of California. Some

states do not allow exclusion or limitation of incidental or consequential damages, or limitations on how

long an implied warranty lasts, so the foregoing limitations and exclusions may not apply. This limited

warranty provides specific legal rights and the product owner may also have other rights which vary

from state to state.

Trademarks: D-Link is a registered trademark of D-Link Systems, Inc. Other trademarks or registered

trademarks are the property of their respective manufacturers or owners.

be reproduced in any form or by any means or used to make any derivative such as translation,

transformation, or adaptation without permission from D-Link Corporation/D-Link Systems, Inc., as

stipulated by the United States Copyright Act of 1976. Contents are subject to change without prior

CE Mark Warning: This is a Class B product. In a domestic environment, this product may cause radio

interference, in which case the user may be required to take adequate measures.

FCC Statement: This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates, uses, and

can radiate radio frequency energy and, if not installed and used in accordance with the instructions,

may cause harmful interference to radio communication. However, there is no guarantee that interference

will not occur in a particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the user is encouraged

to try to correct the interference by one or more of the following measures:

•Reorient or relocate the receiving antenna.

•Increase the separation between the equipment and receiver.

•Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

•Consult the dealer or an experienced radio/TV technician for help.

For detailed warranty outside the United States, please contact corresponding local

D-Link office.

(06/17/2003)

LIABILITY OF D-LINK UNDER THIS WARRANTY IS LIMITED TO THE PURCHASE PRICE OF THE PRODUCT

COVERED BY THE WARRANTY. THE FOREGOING EXPRESS WRITTEN WARRANTIES AND REMEDIES

ARE EXCLUSIVE AND ARE IN LIEU OF ANY OTHER WARRANTIES OR REMEDIES, EXPRESS, IMPLIED OR

STATUTORY.

FCC Caution:

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two

conditions: (1) This device may not cause harmful interference, and (2) this device must accept

any interference received, including interference that may cause undesired operation.

IMPORTANT NOTE:

FCC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled

environment. The antenna(s) used for this equipment must be installed to provide a separation

distance of at least eight inches (20 cm) from all persons.

This equipment must not be operated in conjunction with any other antenna.

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class

B digital device, pursuant to Part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates, uses and can radiate radio

frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and

on, the user is encouraged to try to correct the interference by one of the

following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that

to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions: (1) This device may not cause harmful interference,

and (2) this device must accept any interference received, including

interference that may cause undesired operation.

FCC Caution: Any changes or modifications not expressly approved by the

party responsible for compliance could void the user's authority to operate this

equipment.

"D-Link declare that DWL-520 v.D2 (2.4GHz Wireless PCI Adapter) is limited in

CH1~CH11 by specified firmware controlled in USA."

MPORTANT NOTE:

FCC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an

uncontrolled environment. This equipment should be installed and operated

with minimum distance 20cm between the radiator & your body.

This transmitter must not be co-located or operating in conjunction with any

other antenna or transmitter.

INFORMATION TO USER:

The users manual or instruction manual for an intentional or unintentional

radiator shall caution the user that changes or modifications not expressly

approved by the party responsible for compliance could void the user’s authority

to operate the equipment.

D Link 2002060010-2 2.4GHz Wireless PCI Adapter User Manual dwl520d1 manual 100 061703

D Link Corporation 2.4GHz Wireless PCI Adapter dwl520d1 manual 100 061703

Users Manual

Navigation menu

Namespaces

Views

Navigation
