Internal antenna OEM installation instruction

Before You Begin

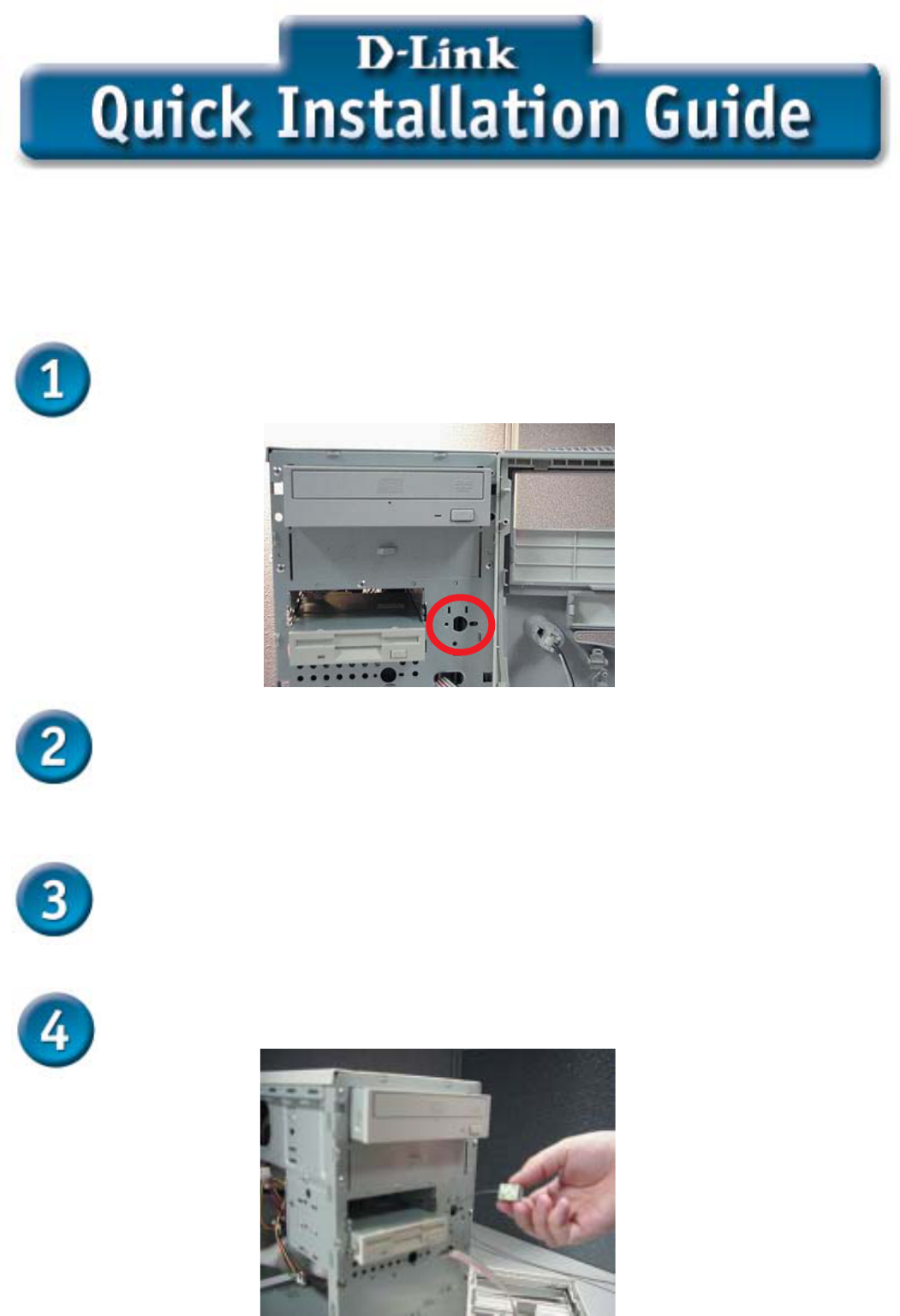

DWL-AG520 Internal Antenna Installation

•Make sure to turn off your computer and unplug the power cord.

A. High on the metal front of the chassis.

B. Use a clearance area of 22x16x10mm which will not interfere with the plastic cover.

C. Less than 2cm from a 3x3mm, or larger, hole in the metal.

Identify an antenna installation location:

Remove the front plastic cover from the computer.

Carefully guide the antenna cable through the desired aperture

towards the PCI slots.

Verify proper clearance exists between the metal and front plastic

cover.

Attach the antenna cable

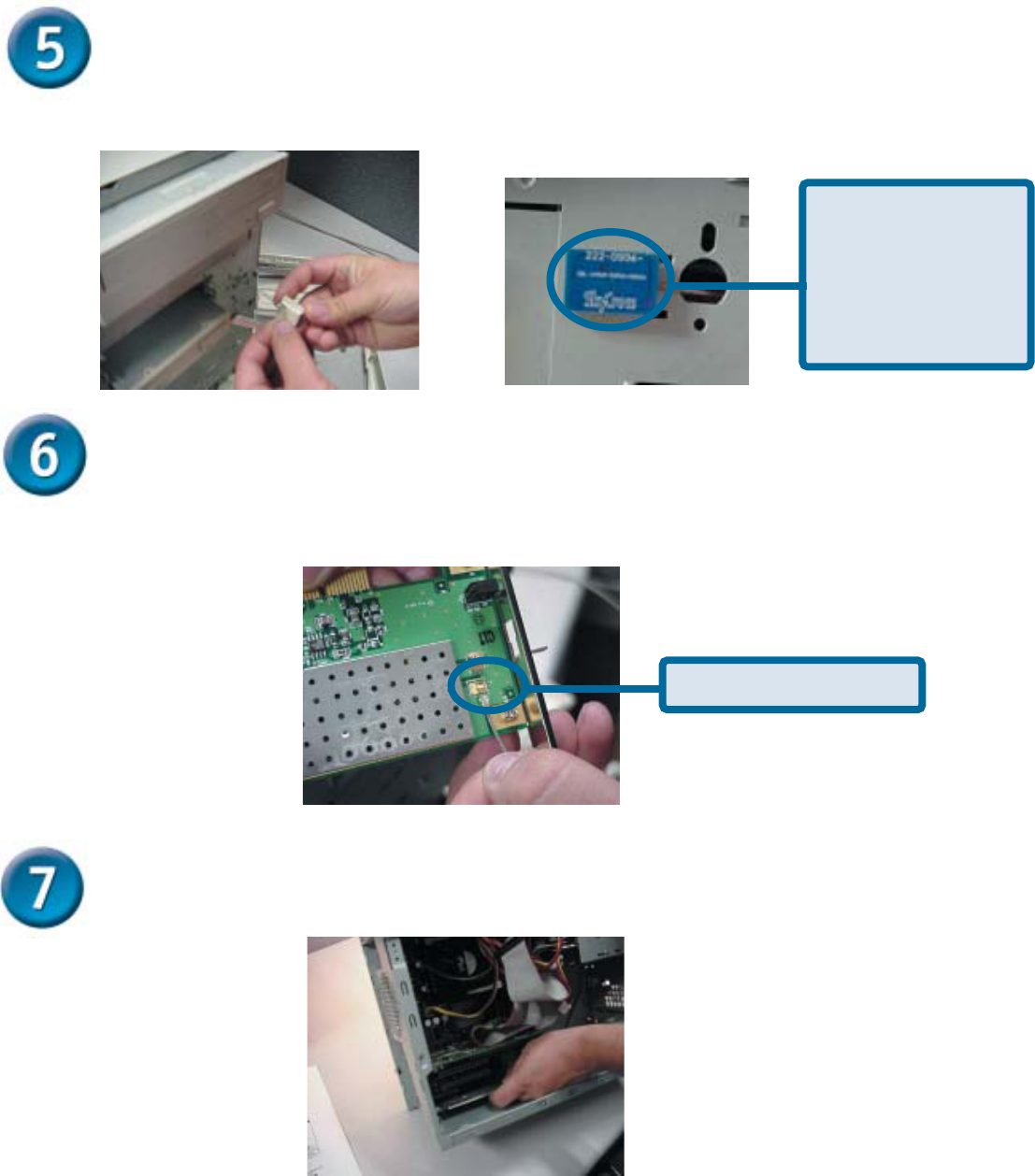

Pull the cable taut, expose the adhesive on the antenna, and affix

the antenna less than 2cm from the cable hole on the clean metal

surface.

Attach the antenna cable to the DWL-AG520 by gently pushing it

into the on-board connector.

Install the DWL-AG520 carefully and firmly seat it into an available

PCI slot (may require removing an existing bracket on the computer

back panel).

Make sure to orient

the antenna so that

the writing on the

antenna is parallel

with the bottom of

the machine

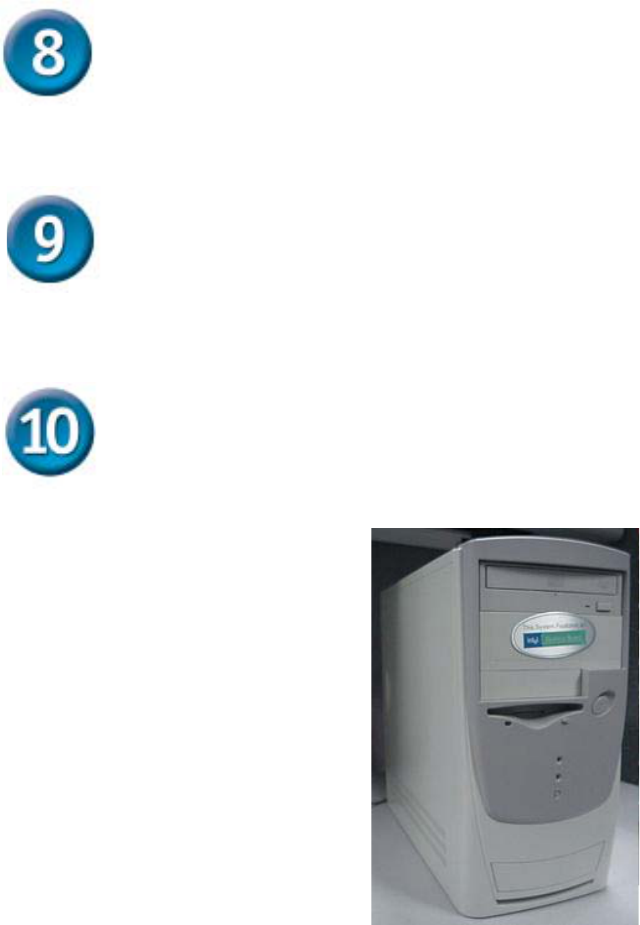

Replace the computer front plastic cover.

Ensure the cable is clear of sharp corners or edges, away from

wide ribbon cables, and secure as needed.

Secure the DWL-AG520 PCI bracket to the computer back panel.
