D Link AP1360C1 Wireless N300 Bridge/Access Point User Manual
D Link Corporation Wireless N300 Bridge/Access Point
D Link >
User Manual
2D-Link DAP-1360 User Manual
Table of Contents
Product Overview .............................................................. 4
Package Contents ......................................................................... 4
System Requirements ................................................................. 5
Introduction ................................................................................... 6
Features ............................................................................................ 8
Hardware Overview .....................................................................9
Connections ...........................................................................9
LEDs .........................................................................................10
WPS LED/Button..................................................................11
Installation .......................................................................12
Operation Modes ........................................................................12
Access Point Mode .............................................................13
Wireless Client Mode .........................................................14
Repeater Mode ....................................................................15
Bridge Mode .........................................................................16
Bridge with AP Mode ........................................................17
WISP Client Router Mode .................................................18
WISP Repeater Mode .........................................................19
Wireless Installation Considerations ....................................20
Conguration ...................................................................21

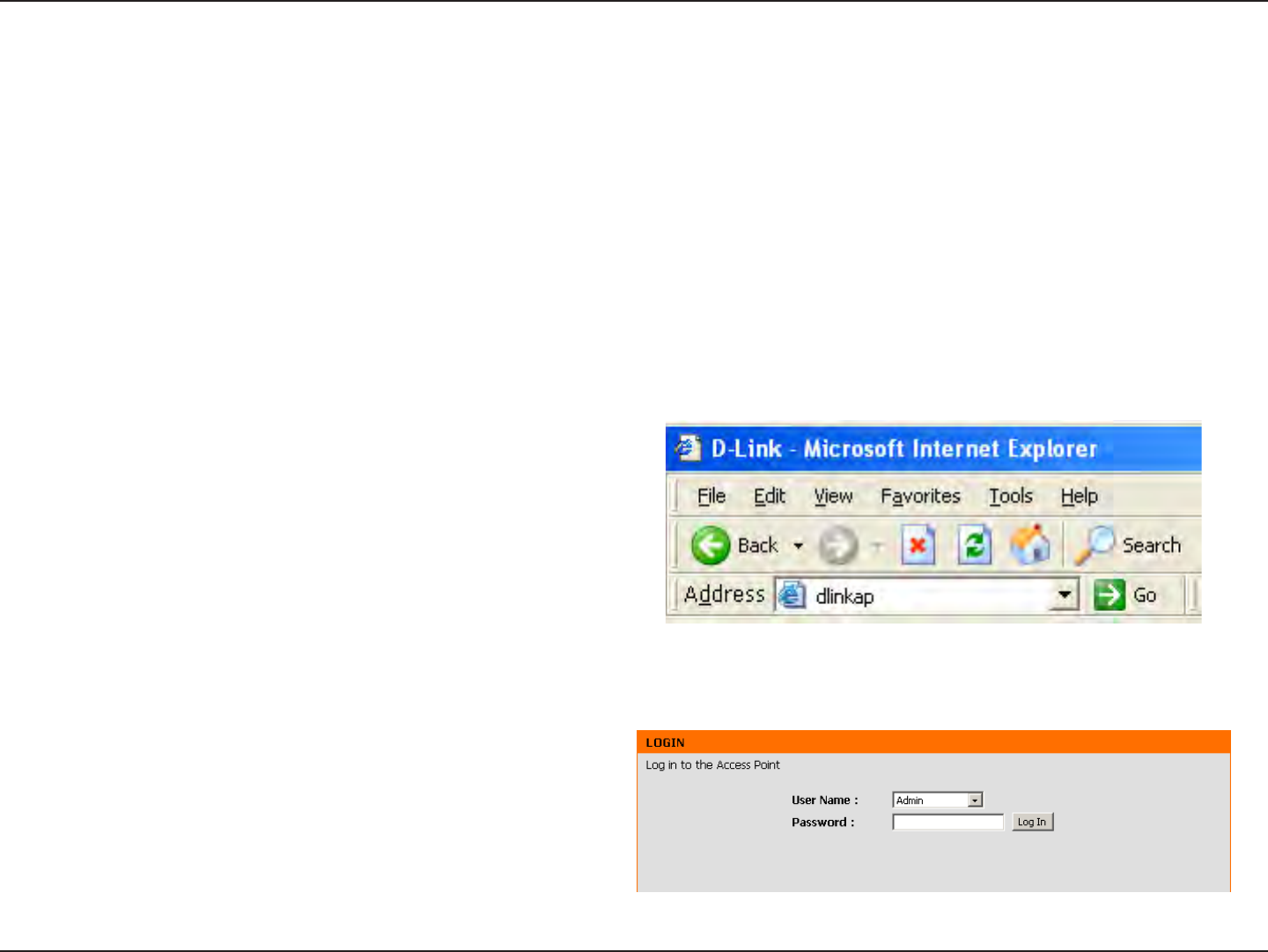

Web-based Conguration Utility ..........................................21

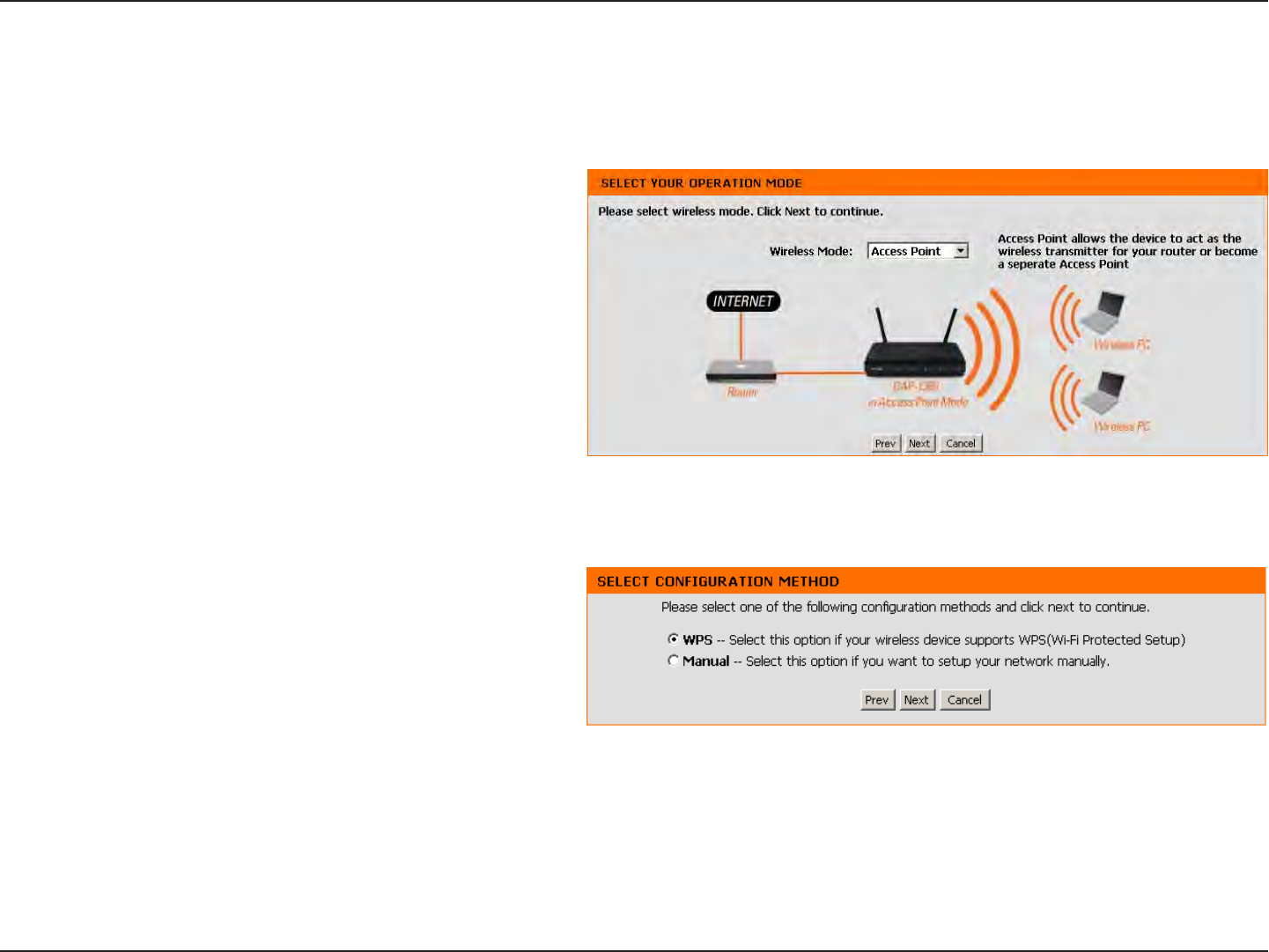

Wireless Setup Wizard ...............................................................22
Access Point Mode .............................................................23
Repeater Mode ....................................................................26
Wireless Client Mode .........................................................30
Manual Conguration ...............................................................34

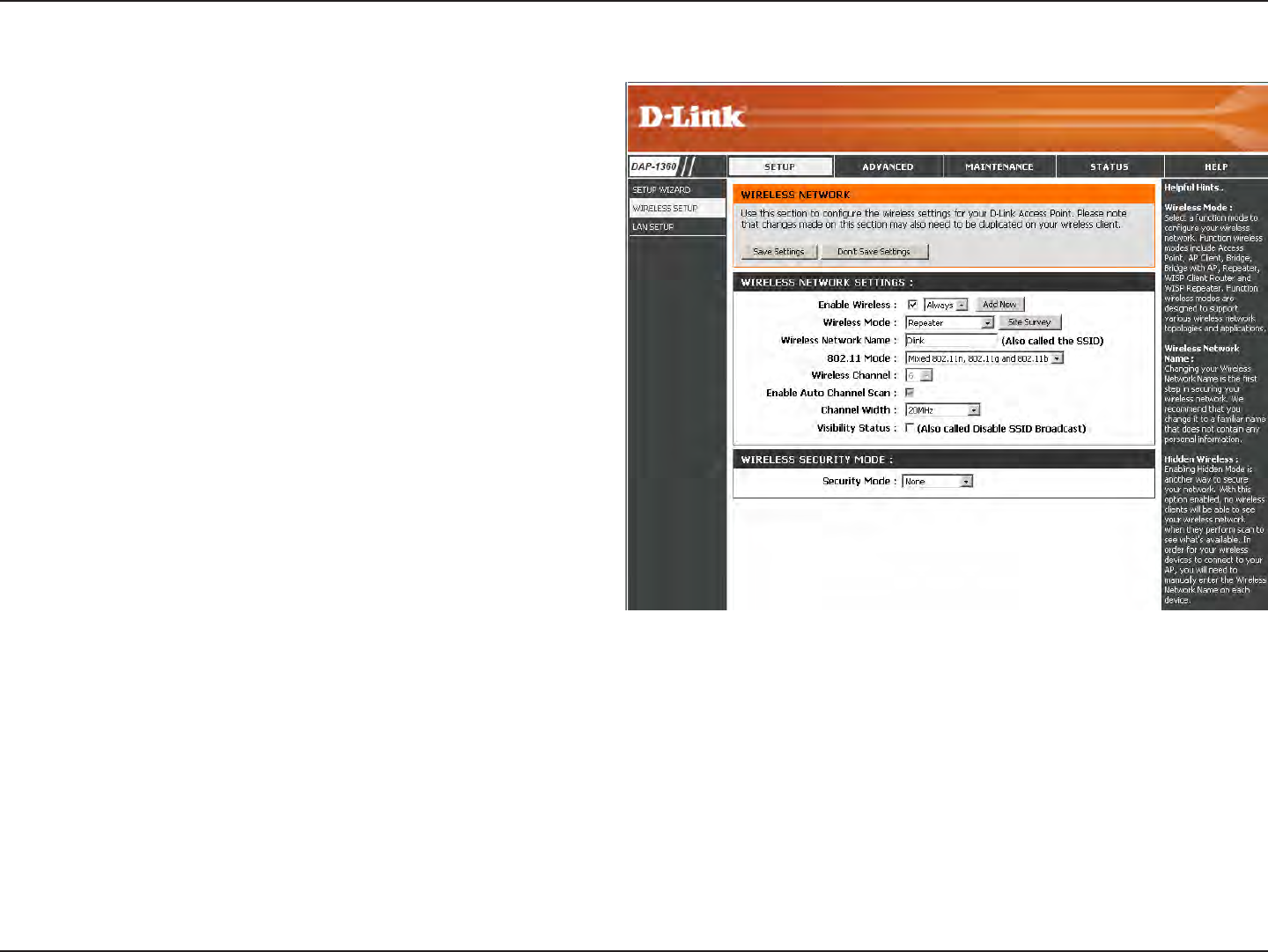

Wireless Settings .................................................................34
Access Point Mode ........................................................35
Repeater Mode ...............................................................37
Wireless Client Mode ....................................................38
Bridge Mode ....................................................................39

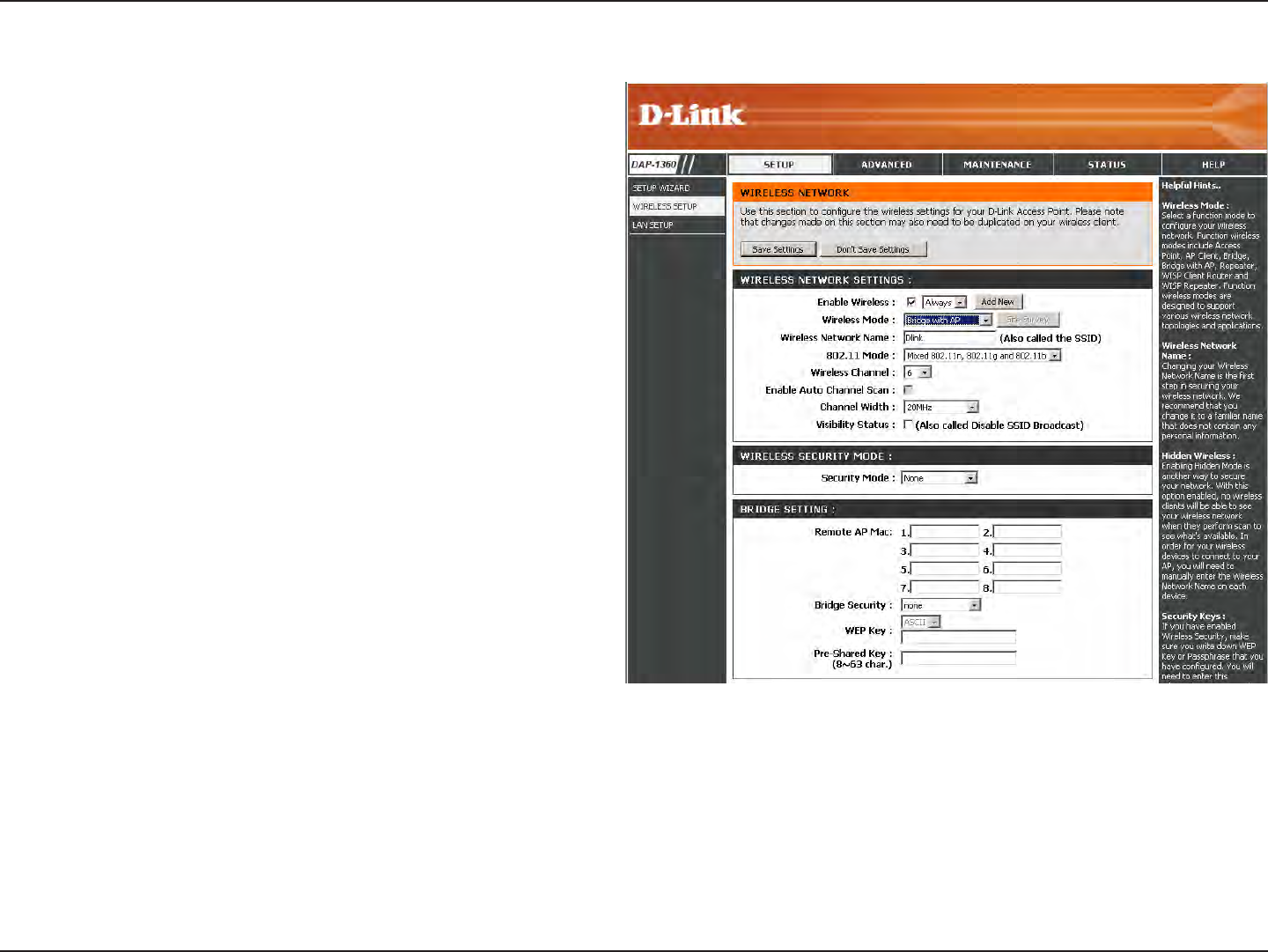

Bridge with AP Mode....................................................40
WISP Client Router/WISP Repeater Modes ...........41
WAN Settings .......................................................................42
Dynamic IP (DHCP) ........................................................42
Static IP ..............................................................................43
PPPoE .................................................................................44
PPTP ....................................................................................45
LAN Settings .........................................................................46
Static IP ..............................................................................47
Advanced ......................................................................................48
Advanced Wireless .............................................................48
MAC Address Filter .....................................................................49
Wi-Fi Protected Setup ...............................................................50
User Limits .....................................................................................51
Maintenance ................................................................................52
Admin .....................................................................................52
System ....................................................................................53
Language Pack .....................................................................54
Firmware ................................................................................54

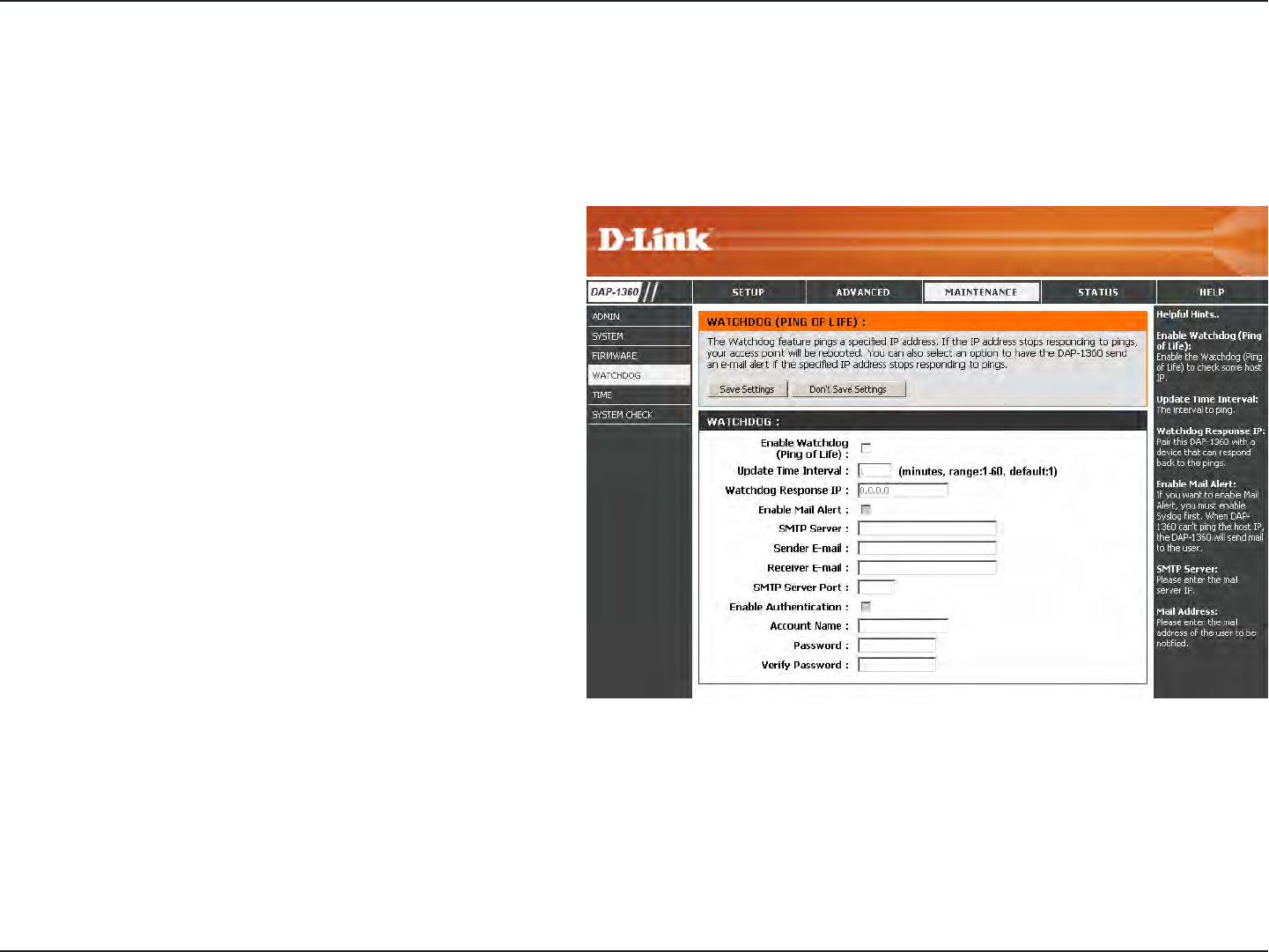

Watchdog ..............................................................................55
Time .........................................................................................56
System Check .......................................................................57
Table of Contents
3D-Link DAP-1360 User Manual
Table of Contents
Schedules ..............................................................................58
Status ..............................................................................................59
Device Info ............................................................................59
Logs .........................................................................................60
Statistics .................................................................................61
Wireless ..................................................................................62
IPv6 ..........................................................................................63
Help .................................................................................................64
Wireless Security .............................................................65
What is WPA? ................................................................................66
Congure WPA/WPA2 Personal .............................................67
Congure WPA/WPA2 Enterprise ..........................................68
Connect to a Wireless Network .......................................69
Using Windows® XP ....................................................................69
Congure WPA-PSK ....................................................................70
Using Windows Vista® ...............................................................72
Congure WPA-PSK ....................................................................74
Using Windows® 7 .......................................................................75
Congure WPS .....................................................................78
Troubleshooting ..............................................................82
Wireless Basics .................................................................86
What is Wireless? .........................................................................87
Tips ...................................................................................................89
Wireless Modes ............................................................................90
Networking Basics ...........................................................91
Check your IP address ...............................................................91
Statically Assign an IP address ...............................................92
Technical Specications ..................................................93
Contacting Technical Support ........................................94
Warranty ...........................................................................95
Registration ...................................................................103
4D-Link DAP-1360 User Manual
Section 1 - Product Overview
Note: Using a power supply with a dierent voltage rating than the one included with the DAP-1360 will cause damage and void
the warranty for this product.
Package Contents
DAP-1360 Wireless N300 Bridge/Access Point
Ethernet Cable
Two Detachable Antennas
CD-ROM with Manual
Power Adapter
5D-Link DAP-1360 User Manual
Section 1 - Product Overview
System Requirements
Network Requirements
• An Ethernet-based Network
• IEEE 802.11n/g wireless clients (AP/Repeater Mode)
• IEEE 802.11n/g wireless network (Client/Bridge/Repeater Mode)
• 10/100 Ethernet
Web-based Conguration
Utility Requirements
Computer with the following:
• Windows®, Macintosh, or Linux-based operating system
• An installed Ethernet adapter
Browser Requirements:
• Internet Explorer® 6.0 and higher
• Mozilla Firefox 3.0 and higher
• Google™ Chrome 2.0 and higher
• Apple Safari 3.0 and higher
Windows® Users: Make sure you have the latest version of Java installed.
Visit www.java.com to download the latest version.
6D-Link DAP-1360 User Manual
Section 1 - Product Overview
Introduction
D-Link, an industry leader in networking, introduces the new D-Link DAP-1360 Wireless N300 Bridge/Access Point. With the
ability to transfer les with a maximum wireless signal rate of up to 300Mbps*, the DAP-1360 gives you high-speed wireless
network access for your home or oce.
The DAP-1360 is Wi-Fi IEEE 802.11n compliant, meaning that it can connect and interoperate with other 802.11n compatible
wireless client devices. The DAP-1360 is also backwards compatible with 802.11b/g. It can be exibly congured to operate in
7 dierent modes Access Point, Wireless Client, Bridge, Bridge with AP, Repeater, WISP Client Router or WISP Repeater.
With its Setup Wizard, the DAP-1360 ensures that you will be up and running on a wireless network in just a matter of minutes.
The DAP-1360 features Wi-Fi Protected Access (WPA-PSK/WPA2-PSK) to provide an enhanced level of security for wireless
data communications. The DAP-1360 also includes additional security features to keep your wireless connection safe from
unauthorized access.
The DAP-1360 supports WPS on the AP, repeater and wireless client operation modes,with each capable of being conveniently
set up by using the PIN method or Push Button.
• Actual data throughput will vary. Network conditions and environmental factors, including volume of network trac, building materials and construction, and network
overhead, lower actual data throughput rate.
7D-Link DAP-1360 User Manual
Section 1 - Product Overview
TOTAL PERFORMANCE
Combines award winning access point features and 802.11n wireless technology to provide the best wireless performance.
TOTAL SECURITY
The most complete set of security features including WPA/WPA2 encryption to protect your network against outside intruders.
TOTAL COVERAGE
Provides greater wireless signal rates even at farther distances for best-in-class Whole Home Coverage.
ULTIMATE PERFORMANCE
The D-Link Wireless N300 Bridge/Access Point (DAP-1360) is an 802.11n compliant device that delivers real world performance of up
to 13X faster than an 802.11g wireless connection (also faster than a 100Mbps wired Ethernet connection). Create a secure wireless
network to share photos, les, music, video, printers, and network storage throughout your home. Connect the DAP-1360 to router and
share your high-speed Internet access with everyone on the network. In addition, this Range Extender includes a Quality of Service
(QoS) engine that keeps digital phone calls (VoIP) and online gaming smooth and responsive, providing a better Internet experience.
EXTENDED WHOLE HOME COVERAGE
This high performance Wireless Bridge provides superior Whole Home Coverage while reducing dead spots. The DAP-1360 is designed
for use in bigger homes and for users who demand higher performance networking.
TOTAL NETWORK SECURITY
The DAP-1360 supports all of the latest wireless security features to prevent unauthorized access, be it from over the wireless network
or from the Internet. Support for WPA and WPA2 standards ensure that you’ll be able to use the best possible encryption method,
regardless of your client devices.
* Maximum wireless signal rate derived from IEEE Standard 802.11g and 802.11n specications. Actual data throughput will vary. Network conditions and environmental factors,
including volume of network trac, building materials and construction, and network overhead, lower actual data throughput rate. Environmental conditions will adversely
aect wireless signal range.
8D-Link DAP-1360 User Manual
Section 1 - Product Overview
• Faster Wireless Networking - The DAP-1360 provides up to 300Mbps* wireless connection with other 802.11n wireless
clients. This capability allows users to participate in real-time activities online, such as video streaming, online gaming,
and real-time audio.
• Compatible with IEEE802.11g Devices - The DAP-1360 is still fully compatible with the 802.11g standards, so it can
connect with existing 802.11g PCI, USB, and Cardbus adapters.
• Advanced Firewall Features - The Web-based user interface displays advanced network management features including
Content Filtering, which allows easily applied content ltering based on MAC Address.
• WPS PBC- (Wi-Fi Protected Setup Push Button Conguration) Push Button Conguration is a button that can be pressed
to add the device to an existing network or to create a new network. A virtual button can be used on the utility while
a physical button is placed on the side of the device.
This easy setup method allows you to form a secured wireless link between the DAP-1360 and another WPS enabled
device. A PC is no longer needed to log into the Web-based interface.
• WPS PIN - (Wi-Fi Protected Setup Personal Identication Number ) A PIN is a unique number that can be used to add
the access point to an existing network or to create a new network. The default PIN may be printed on the bottom of
the access point. For extra security, a new PIN can be generated. You can restore the default PIN at any time. Only the
Administrator (“admin” account) can change or reset the PIN.
• User-friendly Setup Wizard - Through its easy-to-use Web-based user interface, the DAP-1360 lets you control what
information is accessible to those on the wireless network, whether from the Internet or from your company’s server.
Congure your access point to your specic settings within minutes.
Features
9D-Link DAP-1360 User Manual
Section 1 - Product Overview
Hardware Overview
Connections
1 LAN Port Connect 10/100 Ethernet devices such as computers, switches, and hubs.
2 Power Receptor Receptor for the supplied power adapter.
3 Reset Button Hold the reset button for at least 6 seconds to reset the device back to the factory default
settings. All the LEDs will turn on for 2 second and then begin the reboot process.
12 3
10D-Link DAP-1360 User Manual
Section 1 - Product Overview
Hardware Overview

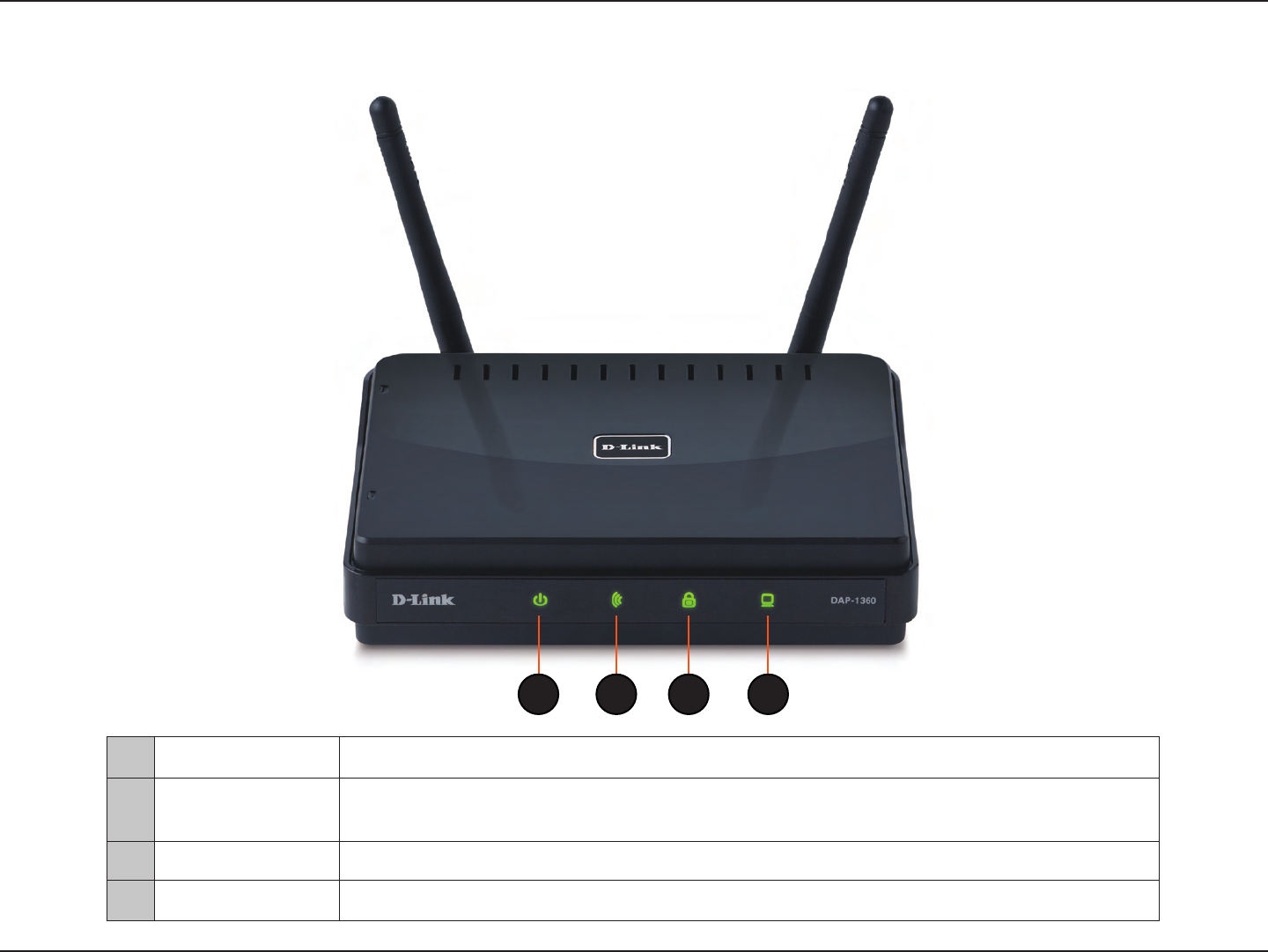

LEDs
1
1 Power LED A solid green light indicates a proper connection to the power supply.
2 Wireless LED A solid green light indicates the wireless function is working. The light will be o during
device reboot or if the wireless radio is disabled.
3 Security LED A solid green light indicates that wireless security (WEP, WPA, WPA2) is enabled.
4 LAN LED A solid green light indicates the LAN port connection is OK.
2 3 4
11D-Link DAP-1360 User Manual
Section 1 - Product Overview
Hardware Overview
WPS LED/Button
1
1WPS LED/Button A solid light indicates a successful WPS connection. A blinking light indicates the
device is trying to establish a connection.
12D-Link DAP-1360 User Manual
Section 2 - Installation
Installation
Please congure the DAP-1360 with a computer connected directly to the AP. The next few pages will explain the dierent
operational modes you can use.
Operation Modes
Depending on how you want to use your DAP-1360 will determine which mode you use. This section will help you gure out
which setting works with your setup.
• Access Point mode - page 13
• Wireless Client mode - page 14
• Repeater mode - page 15
• Bridge mode - page 16
• Bridge with AP mode - page 17
• WISP Client Router mode - page 18
• WISP Repeater mode - page 19
13D-Link DAP-1360 User Manual
Section 2 - Installation
Access Point Mode
In the Access Point mode, the DAP-1360 acts as a central connection point for any computer (client) that has a 802.11n or
backward-compatible 802.11g wireless network interface and is within range of the AP. Clients must use the same SSID (wireless
network name) and channel as the AP in order to connect. If wireless security is enabled on the AP, the client will need to enter
a password to connect to the AP. In Access Point mode, multiple clients can connect to the AP at the same time.
Internet Modem Router DAP-1360
(in Access Point Mode)
Computer
Computer
14D-Link DAP-1360 User Manual
Section 2 - Installation
Wireless Client Mode
In the Wireless Client mode, the DAP-1360 acts as a wireless network adapter for your Ethernet-enabled device (such as a game
console or a TV set-top box). Connect your Ethernet-enabled device to the AP using an Ethernet cable. The AP Client mode
can support multiple wired clients.
If you are going to connect several Ethernet-enabled devices to your DAP-1360, connect the LAN port of the DAP-1360 to an
Ethernet switch, then connect your devices to this switch.
Example: Connect a gaming console using an ethernet cable to the DAP-1360. The unit is set to Wireless Client mode which
will wirelessly connect to a wireless router on your network.
Internet Modem Router DAP-1360
(in Wireless Client Mode)
Gaming Console
15D-Link DAP-1360 User Manual
Section 2 - Installation
Repeater Mode

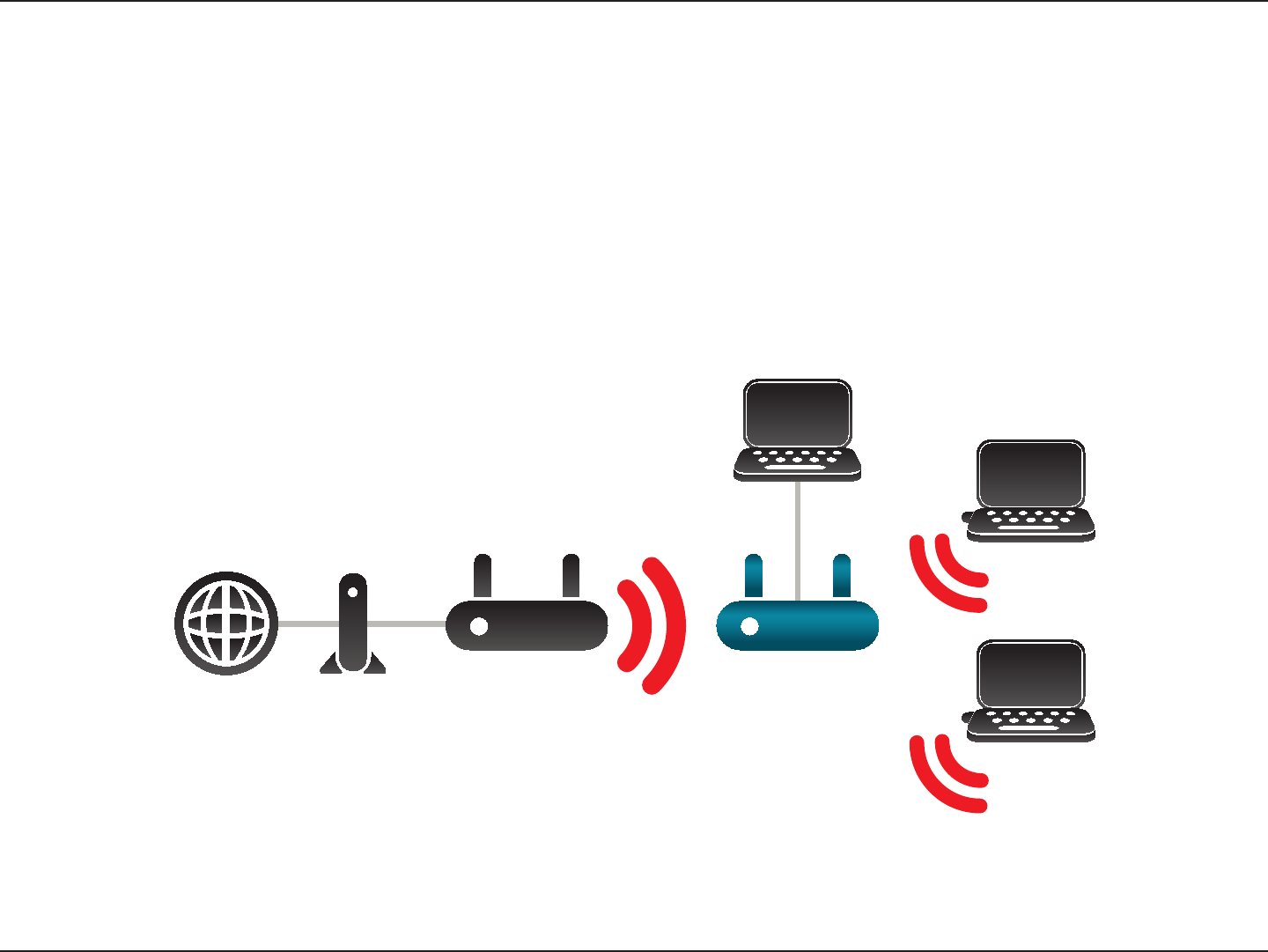

In Repeater mode, the DAP-1360 increases the range of your wireless network by extending the wireless coverage of another
AP or wireless router. The APs and wireless router (if used) must be within range of each other. Make sure that all clients, APs,
and the wireless router all use the same SSID (wireless network name), channel, and security settings.
Computer
Internet Modem Router DAP-1360
(In Repeater Mode)
Computer
Computer
16D-Link DAP-1360 User Manual
Section 2 - Installation
Bridge Mode

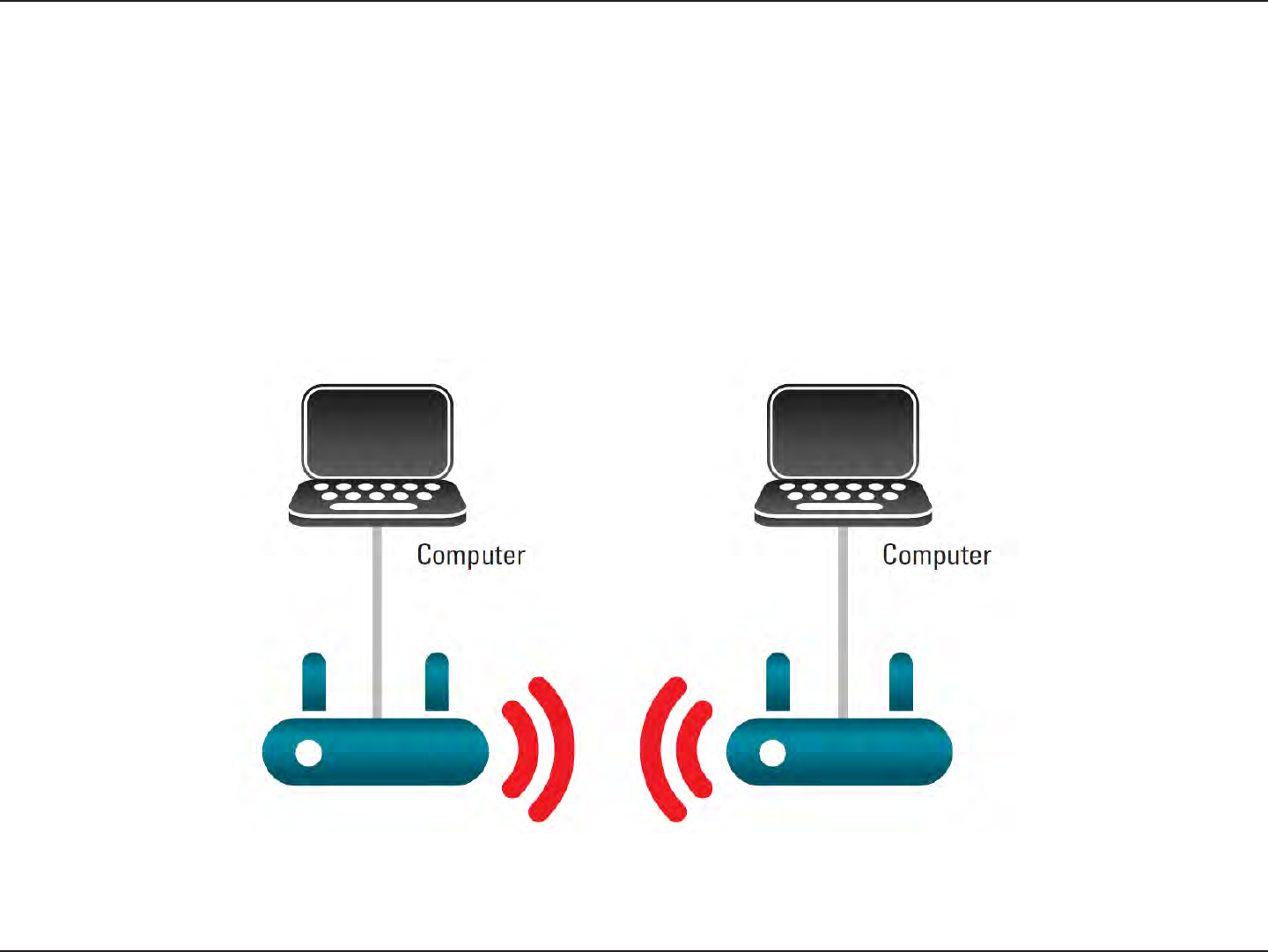

In the Bridge mode, the DAP-1360 wirelessly connects seperate local area networks (LANs) that can’t easily be connected
together with a cable. For example, if there are two wired LANs separated by a small courtyard, it would be expensive to bury
cables to connect between the two sides together. A better solution is to use two DAP-1360 units to wirelessly connect the
two LANs. In the Bridge mode, both DAP-1360 units do not act as APs.
Note: The Bridge mode is not specified in the Wi-Fi or IEEE standards. This mode will only work using two DAP-1360 units.
Communication with other APs (even other D-Link APs) is not guaranteed.

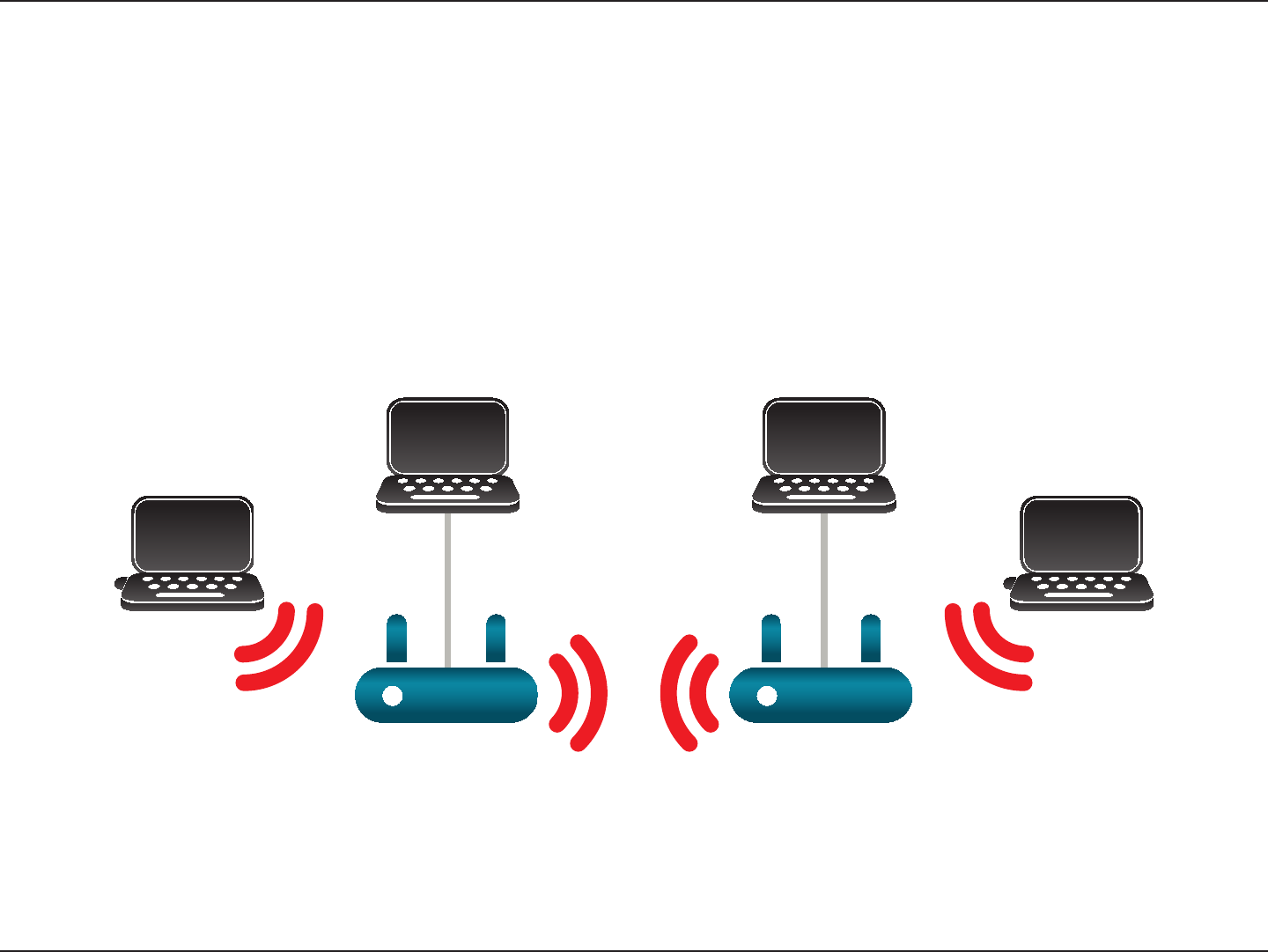

Connecting Two Separate LANs Together Through Two DAP-1360 Units
17D-Link DAP-1360 User Manual
Section 2 - Installation
Bridge with AP Mode
The Bridge with AP mode is the same as the Bridge mode, but in this case, the DAP-1360 also acts as an AP. Clients with wireless
interfaces can wirelessly connect to the DAP-1360 and then connect to the other LAN that the DAP-1360 bridges to.
Note: The Bridge with AP mode is not specied in the Wi-Fi or IEEE standards. This mode will only work using two DAP-1360 units.
Communication with other APs (even other D-Link APs) is not guaranteed.
ComputerComputer
Computer Computer
DAP-1360
(In Bridge Mode with AP Mode)
DAP-1360
(In Bridge Mode with AP Mode)
LAN 1 LAN 2
Connecting Two Separate LANs Together Through Two DAP-1360 Units
(Wireless PCs Can Access the DAP-1360 Units)
18D-Link DAP-1360 User Manual
Section 2 - Installation
WISP Client Router Mode
In the WISP Client Router mode, the DAP-1360 wirelessly connects to a WISP (Wireless Internet Service Provider) AP. In this
mode, the DAP-1360 also acts as a router for wired clients on your LAN and provides NAT (Network Address Translation) and
a DHCP server to generate IP addresses for wired clients only. NAT and the DHCP server allow many computers to share the
same wireless Internet connection.
If you are a WISP subscriber and want to access your WISP account using wired computers, connect your computers to the
DAP-1360 to get NAT, and then connect them to the WISP AP.
Internet
Computer
DAP-1360
(In WISP Client Mode)
WISP Outdoor AP
Connecting Wired PCs to the Internet Using the DAP-1360
19D-Link DAP-1360 User Manual
Section 2 - Installation
WISP Repeater Mode

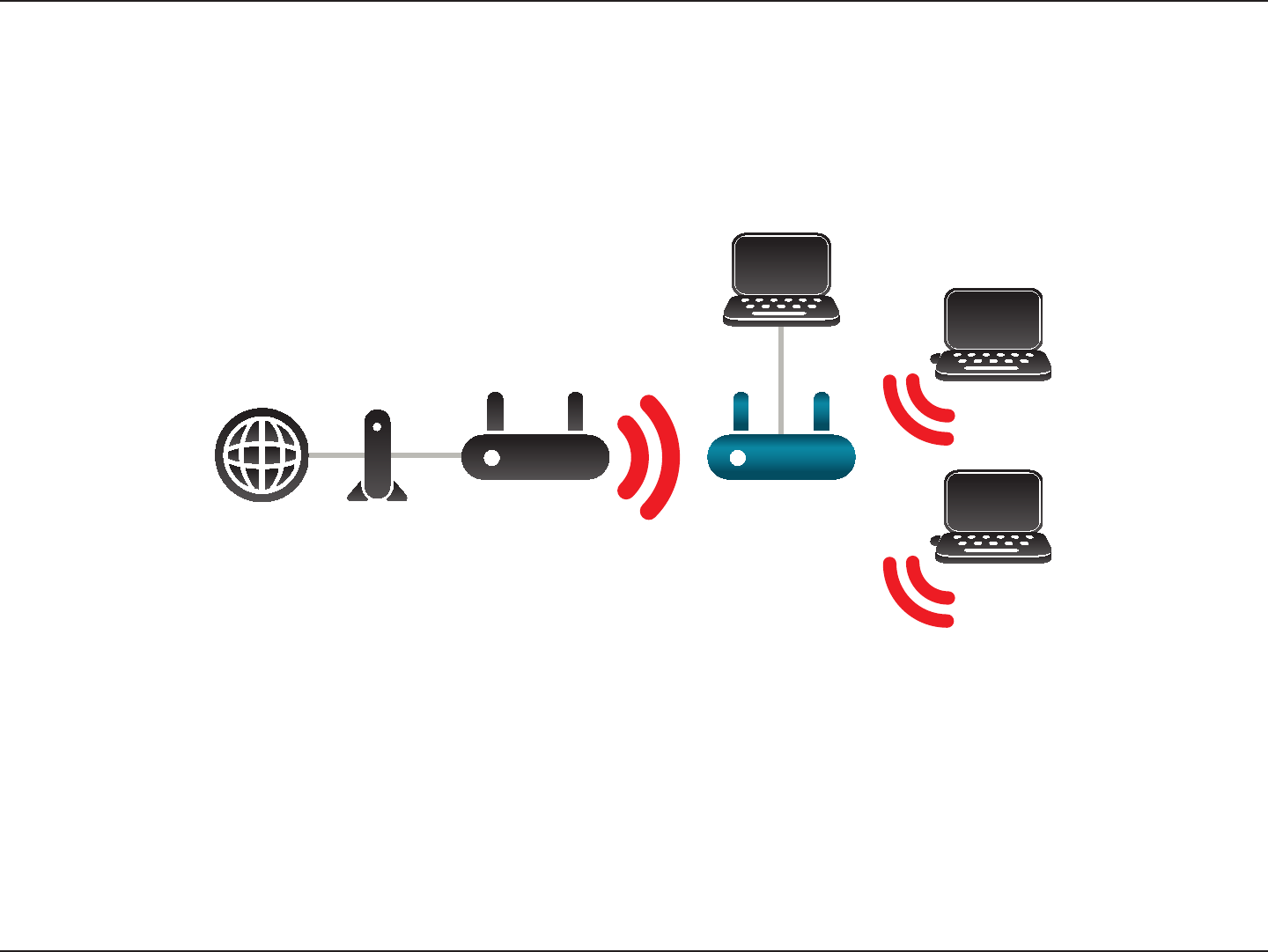

In the WISP Repeater mode, the DAP-1360 wirelessly connects to a WISP (Wireless Internet Service Provider) AP. In this mode,
the DAP-1360 also acts as a router for both wireless and wired clients on your LAN. The WISP Repeater mode provides NAT
(Network Address Translation) and a DHCP server to generate IP addresses for both wireless and wired clients. NAT and the
DHCP server allow many computers to share the same wireless Internet connection.
If you are a WISP subscriber and want to use your WISP account in your house, but the signals from the outdoor WISP AP are
not strong enough to reach all of the areas in the house, use the DAP-1360 to can extend the signals from the outdoor WISP
AP and provide access to wireless clients in your house. Using this mode, wireless as well as wired clients can connect to the
outdoor WISP AP through the DAP-1360.
Computer
Internet Modem Router DAP-1360
(In Repeater Mode)
Computer
Computer
Connecting Wired and Wireless PCs to the Internet Using the DAP-1360
20D-Link DAP-1360 User Manual
Section 2 - Installation
Wireless Installation Considerations
The D-Link wireless access point lets you access your network using a wireless connection from virtually anywhere within the
operating range of your wireless network. Keep in mind, however, that the number, thickness and location of walls, ceilings,
or other objects that the wireless signals must pass through, may limit the range. Typical ranges vary depending on the types
of materials and background RF (radio frequency) noise in your home or business. The key to maximizing wireless range is to
follow these basic guidelines:
1. Keep the number of walls and ceilings between the D-Link access point and other network devices to a minimum.
Each wall or ceiling can reduce your adapter’s range from 3-90 feet (1-30 meters.) Position your devices so that
the number of walls or ceilings is minimized.
2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (.5 meters), at a
45-degree angle appears to be almost 3 feet (1 meter) thick. At a 2-degree angle it looks over 42 feet (14 meters)
thick! Position devices so that the signal will travel straight through a wall or ceiling (instead of at an angle) for
better reception.
3. Building Materials make a dierence. A solid metal door or aluminum studs may have a negative eect on
range. Try to position access points, wireless access points, and computers so that the signal passes through
drywall or open doorways. Materials and objects such as glass, steel, metal, walls with insulation, water (sh
tanks), mirrors, le cabinets, brick, and concrete will degrade your wireless signal.
4. Keep your product away (at least 3-6 feet or 1-2 meters) from electrical devices or appliances that generate RF
noise.
5. If you are using 2.4GHz cordless phones or X-10 (wireless products such as ceiling fans, lights, and home security
systems), your wireless connection may degrade dramatically or drop completely. Make sure your 2.4GHz phone
base is as far away from your wireless devices as possible. The base transmits a signal even if the phone is not
in use.
21D-Link DAP-1360 User Manual
Section 3 - Conguration
Conguration
This section will show you how to congure your new D-Link wireless access point using the web-based conguration utility.
Web-based Conguration Utility
If you wish to change the default settings or optimize the
performance of the DAP-1360, you may use the web-based
conguration utility.
To access the conguration utility, open a web browser
such as Internet Explorer and enter http://dlinkap or
http://192.168.0.50 in the address eld.
Select Admin and then enter your password. Leave the
password blank by default.
If you get a Page Cannot be Displayed error, please refer to
the Troubleshooting section for assistance.
22D-Link DAP-1360 User Manual
Section 3 - Conguration

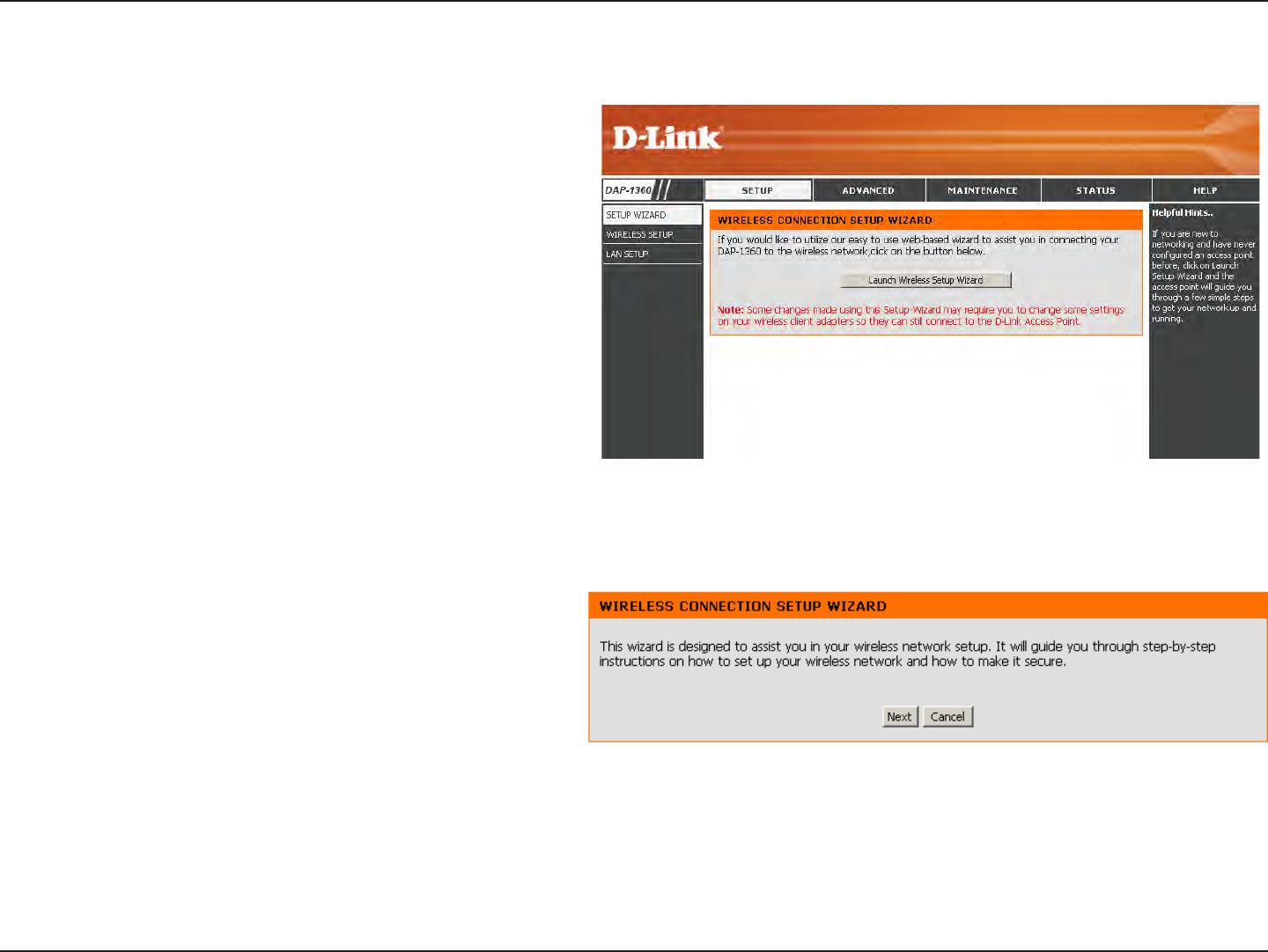

Click Launch Wireless Setup Wizard to congure your
access point.
If you want to enter your settings without running the
wizard, skip to page 34.
Wireless Setup Wizard
Click Next to continue.
23D-Link DAP-1360 User Manual
Section 3 - Conguration
This Wizard is designed to assist you in conguring your DAP-1360 as an access point.
Access Point Mode
Select Access Point from the drop-down menu. Then,
click Next to continue.
Select WPS as the conguration method only if your
wireless device supports Wi-Fi Protected Setup (WPS).
For Manual setup, skip to page 25.
Click Next to continue.
24D-Link DAP-1360 User Manual
Section 3 - Conguration
Click Save to save your network settings.
In order for your network settings to take eect AP will
reboot automatically.
When the device has nished rebooting the main screen
will display.
Press down the Push Button on the Wireless device you
are adding to your wireless network.
25D-Link DAP-1360 User Manual
Section 3 - Conguration
Select Manual as the conguration method to set up
your network manually.
Click Next to continue.
Enter a name for your wireless network (SSID).
Enter your network key. This key must be entered on
your wireless clients.
Click Next to continue.
The following screen will show you your network key to
enter on your wireless clients.
Click Save to nish the Setup Wizard.
26D-Link DAP-1360 User Manual
Section 3 - Conguration
This Wizard is designed to assist you in conguring your DAP-1360 as a repeater.
Repeater Mode

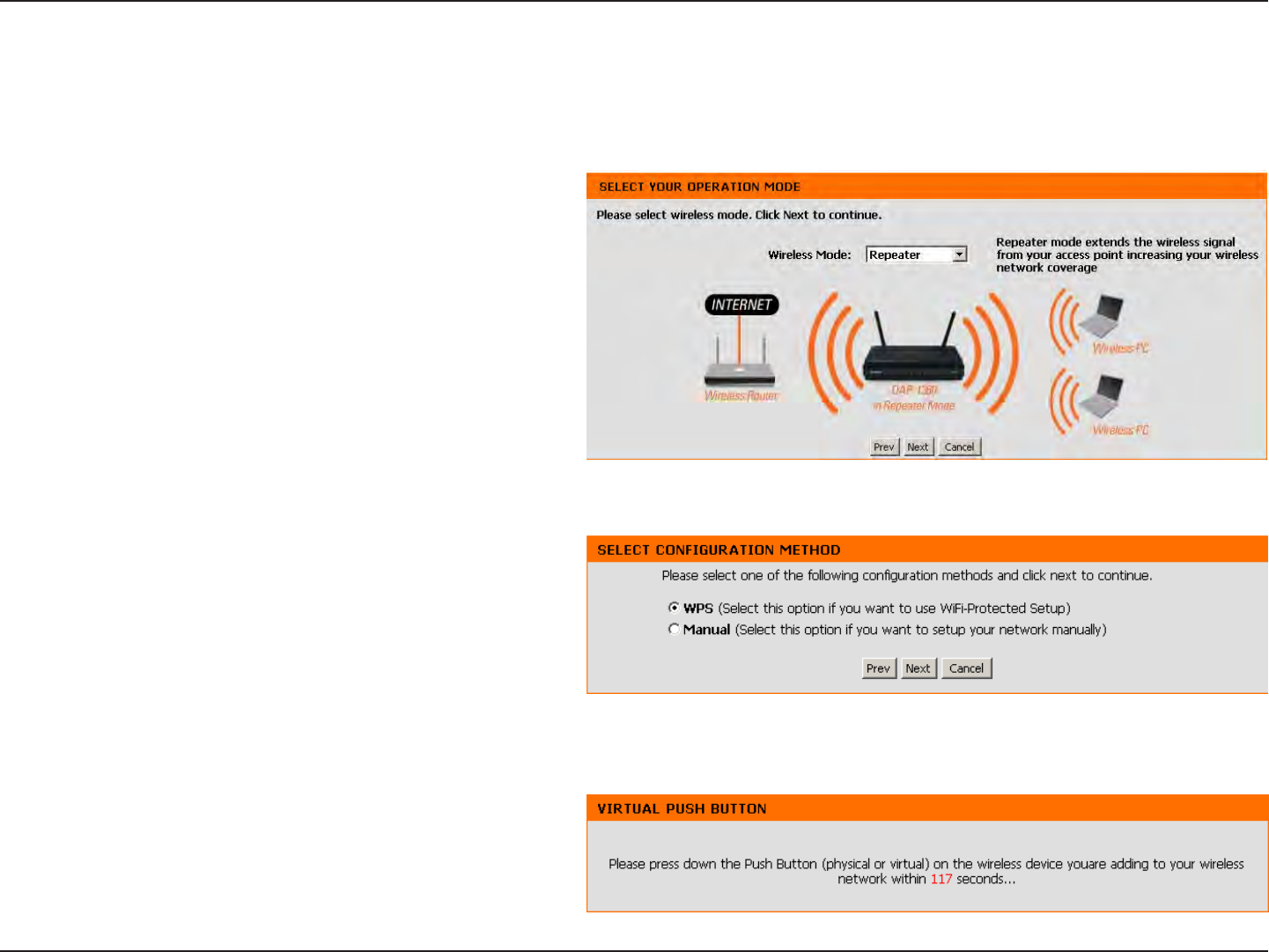

Select Repeater from the drop-down menu.
Select WPS as the conguration method only if your
wireless device supports Wi-Fi Protected Setup (WPS).
For Manual setup, skip to the next page.
Click Next to continue.
On the device you want to connect to, start the PBC
process on the device. You will have 2 minutes to start
the PBC process on both devices.
27D-Link DAP-1360 User Manual
Section 3 - Conguration
Select Manual conguration to setup your network
manually.
Click Next to continue.
If click Key in SSID, enter the network name (SSID) of
the network you want to connect to.
Find your router or access point from the list, click the
radio button in the right column, and click Connect.
28D-Link DAP-1360 User Manual
Section 3 - Conguration

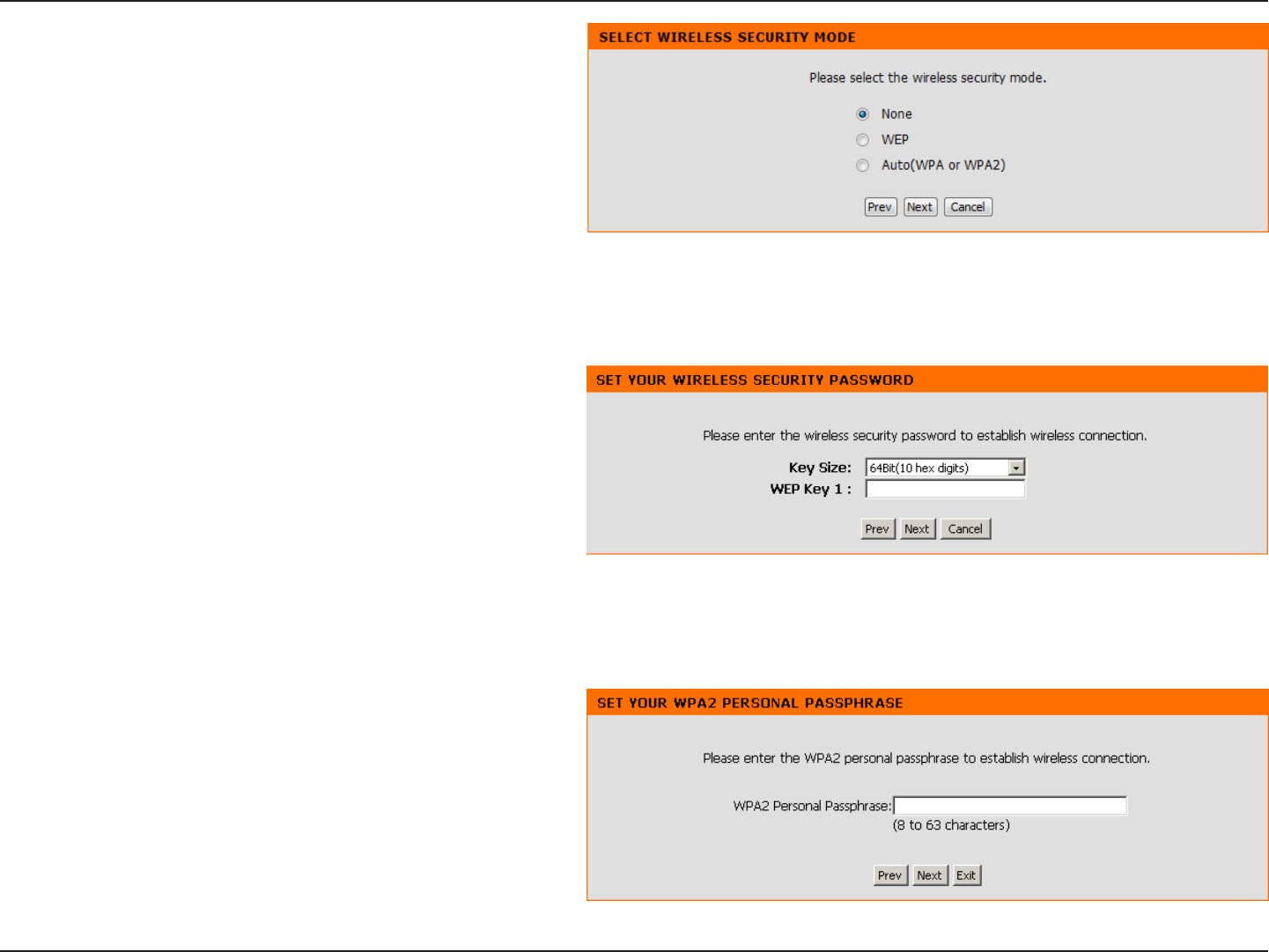

Choose which Security Mode you want to use and click
Next to continue.
If you select WEP, choose the key type (ASCII or HEX), the
key size (64 or 128-bit), and enter the wireless security
password. Click Next to complete the Setup Wizard.
If you select WPA or WPA2, enter the wireless security
password. Click Next to complete the Setup Wizard.
29D-Link DAP-1360 User Manual
Section 3 - Conguration
The Wireless Setup Wizard is complete. Click Finish to
reboot the device.
If you select Auto, enter the wireless security password.
Click Next to complete the Setup Wizard.
30D-Link DAP-1360 User Manual
Section 3 - Conguration
This Wizard is designed to assist you in conguring your DAP-1360 as a wireless client.
Wireless Client Mode
Select Wireless Client from the drop-down menu.
Select WPS as the conguration method only if your
wireless device supports Wi-Fi Protected Setup (WPS).
For Manual setup, skip to the next page.
Click Next to continue.
On the device you want to connect to, start the PBC
process on the device. You will have 2 minutes to start
the PBC process on both devices.
31D-Link DAP-1360 User Manual
Section 3 - Conguration
Select Manual conguration to setup your network
manually.
Click Next to continue.
If click Key in SSID, enter the network name (SSID) of
the network you want to connect to.
Find your access point from the list, click the radio
button in the right column, and click Connect.
32D-Link DAP-1360 User Manual
Section 3 - Conguration
Choose which Security Mode you want to use and click
Next to continue.
If you select WEP, choose the key type (ASCII or HEX), the
key size (64 or 128-bit), and enter the wireless security
password. Click Next to complete the Setup Wizard.
If you select WPA or WPA2, enter the wireless security
password. Click Next to complete the Setup Wizard.
33D-Link DAP-1360 User Manual
Section 3 - Conguration
The Wireless Setup Wizard is complete. Click Finish to
reboot the device.
If you select Auto, enter the wireless security password.
Click Next to complete the Setup Wizard.
34D-Link DAP-1360 User Manual
Section 3 - Conguration
Manual Conguration
Wireless Settings
You may manually congure your DAP-1360 instead of running the setup wizard.
• Access Point mode - page 35
• Repeater mode - page 37
• Wireless Client mode - page 38
• Bridge mode - page 39
• Bridge with AP mode - page 40
• WISP Client Router mode - page 41
• WISP Repeater mode - page 41
35D-Link DAP-1360 User Manual
Section 3 - Conguration
Enable Wireless:
Wireless Mode:
Wireless
Network Name:
802.11 Mode:
Wireless
Channel:
Enable Auto
Channel Scan:
Check the box to enable the wireless function. If you
do not want to use wireless, uncheck the box to disable
all the wireless functions. You may also set up a specic
time range (schedule). Select a schedule from the drop-
down menu or click Add New to create a new schedule.
Select Access Point from the drop-down menu.
When you are browsing for available wireless networks,
this is the name that will appear in the list (unless
Visibility Status is set to Invisible, see below). This name
is also referred to as the SSID. For security purposes, it
is highly recommended to change from the default
network name.
Select one of the following:
802.11b Only - Select if you are only using 802.11b
wireless clients.
802.11g Only - Select if you are only using 802.11g
wireless clients.
802.11n Only - Select if you are only using 802.11n
wireless clients.
Mixed 802.11g and 802.11b - Select if you are using
a mix of 802.11g and 11b wireless clients.
Mixed 802.11n and 802.11g - Select if you are using
a mix of 802.11n and 11g wireless clients.
Mixed 802.11n, 802.11g and 802.11b - Select if you are using a mix of 802.11n, 11g, and 11b wireless clients.
Indicates the channel setting for the DAP-1360. The Channel can be changed to t the channel setting for an existing wireless network
or to customize the wireless network. If you enable Auto Channel Scan, this option will be grayed out.
The Auto Channel Scan setting can be selected to allow the DAP-1360 to choose the channel with the least amount of interference.
Access Point Mode
36D-Link DAP-1360 User Manual
Section 3 - Conguration
Select the Channel Width:
Auto 20/40 - Select if you are using both 802.11n and non-802.11n wireless devices.
20MHz - Select if you are not using any 802.11n wireless clients.
Check the box if you do not want the SSID of your wireless network to be broadcasted by the DAP-1360. If checked, the SSID of the
DAP-1360 will not be seen by Site Survey utilities so your wireless clients will have to know the SSID of your DAP-1360 in order to
connect to it.
Refer to page 65 for more information regarding the wireless security.
Channel Width:
Visibility Status:
Security Mode:
37D-Link DAP-1360 User Manual
Section 3 - Conguration
Enable Wireless:
Wireless Mode:
Site Survey:
Wireless Network
Name:
802.11 Mode:
Enable Auto
Channel Scan:
Wireless Channel:
Channel Width:
Visibility Status:
Wireless Security
Mode:
Check the box to enable the wireless function. If you do
not want to use wireless, uncheck the box to disable all
the wireless functions. You may also set up a specic time
range (schedule). Select a schedule from the drop-down
menu or click Add New to create a new schedule.
Select Repeater from the drop-down menu.
Click Site Survey to display a list of wireless networks
in your area. You may select the wireless access point
to connect to.
Enter the SSID of the access point you want to repeat the
signal of. If you do not know for sure, click Site Survey
and select it from the list, if available.
Select the appropriate 802.11 mode based on the
wireless clients in your network. The drop-down menu
options are 802.11g Only, Mixed 802.11b/g, 802.11b
Only, 802.11n Only, or Mixed 802.11b/g/n.
The Auto Channel Scan setting can be selected to allow
the DAP-1360 to choose the channel with the least
amount of interference.
The channel will automatically change to the channel of the AP you are connected to.
Select the appropriate channel width between 20MHz or Auto 20/40MHz from the drop-down menu.
Check the box if you do not want the SSID to be broadcast by the DAP-1360. This prevents the SSID from being seen by site survey
utilities, so any wireless clients will have to be pre-congured with the SSID of the DAP-1360 in order to connect to it.
Select a wireless security setting. Options are None, WEP, WPA, or WPA2. See the Wireless Security section in this manual for a detailed
explanation of the wireless security options.
Repeater Mode
38D-Link DAP-1360 User Manual
Section 3 - Conguration
Wireless Mode:
Site Survey:
Wireless Type:
Wireless Network
Name:
802.11 Mode:
Wireless Channel:
Enable Auto
Channel Scan:
Channel Width:
Visibility Status:
Wireless MAC
Clone:
Wireless Security
Mode:
WPS:
Select Wireless Client Mode from the drop-down menu.
Click Site Survey to display a list of wireless networks in your
area. You may select the wireless access point to connect to.
Select Infrastructure if connecting to an access point or
wireless router, or select Ad-Hoc if connecting to another
wireless client.
Enter the SSID of the access point you want to repeat the signal
of. If you do not know for sure, click Site Survey and select it
from the list, if available.
Select the appropriate 802.11 mode based on the wireless
clients in your network. The drop-down menu options are
802.11g Only, Mixed 802.11b/g, 802.11b Only, 802.11n
Only, or Mixed 802.11b/g/n.
The channel will automatically change to the channel of the
AP you are connected to.
The Auto Channel Scan setting can be selected to allow the
DAP-1360 to choose the channel with the least amount of
interference.
Select the appropriate channel width between 20MHz or Auto
20/40MHz from the drop-down menu.
Check the box if you do not want the SSID to be broadcast by the DAP-1360. This prevents the SSID from being seen by site survey
utilities, so any wireless clients will have to be pre-congured with the SSID of the DAP-1360 in order to connect to it.
You can clone the wireless MAC address to connect the device.
Select a wireless security setting. Options are None, WEP, WPA, or WPA2. See the Wireless Security section in this manual for a detailed
explanation of the wireless security options.
Select enable if you want to congure the DAP-1360 with Wi-Fi Protection setup.
Wireless Client Mode
39D-Link DAP-1360 User Manual
Section 3 - Conguration
Enable Wireless:
Wireless Mode:
Wireless Network
Name:
802.11 Mode:
Wireless Channel:
Enable Auto
Channel Scan:
Channel Width:
Visibility Status:
Remote AP MAC:
Bridge Security:
Select this to turn the Wi-Fi module on and o. Use the
drop-down box to select if you want to use a schedule.
Click Add New to add or change a schedule.
Select Bridge from the drop-down menu.
The Wireless Network Name is a unique name that
identies a network. All devices on a network must share
the same wireless network name in order to communicate
on the network. If you decide to change the wireless
network name from the default setting, enter your new
wireless network name in this eld.
Select the appropriate 802.11 mode based on the wireless
clients in your network. The drop-down menu options
are 802.11g Only, Mixed 802.11b/g, 802.11b Only,
802.11n Only, or Mixed 802.11b/g/n.
All devices on the network must share the same channel.
The Auto Channel Scan setting can be selected to allow
the DAP-1360 to choose the channel with the least
amount of interference.
Select the appropriate channel width between 20MHz
or Auto 20/40MHz from the drop-down menu.
Select the transmission rate. It is strongly suggested to use the Auto setting for optimal performance.
Enter the MAC addresses of the APs in your network that will serve as bridges to wirelessly connect multiple networks.
Select None to disable encryption to across the network. Select WEP 64-bit or WEP 128-bit to limit communication to only those
devices that share the same WEP settings. Select WPA-PSK or WPA2-PSK to secure your network using a password and dynamic key
changes (No RADIUS server required).
Bridge Mode
Note: The Bridge mode is not completely specied in the Wi-Fi or IEEE standards. This mode can work with other DAP-1360 units. Communication with
other APs (even other D-Link APs) is not guaranteed.
40D-Link DAP-1360 User Manual
Section 3 - Conguration
Enable Wireless:
Wireless Mode:
Wireless Network
Name:
802.11 Mode:
Wireless Channel:
Enable Auto Scan:
Channel Width:
Visibility Status:
Remote AP MAC:
Bridge Security:
Select this to turn the Wi-Fi module on and o. Use the
drop-down box to select if you want to use a schedule.
Click Add New to add or change a schedule.
Select Bridge with AP from the drop-down menu.
The Wireless Network Name is a unique name that
identies a network. All devices on a network must
share the same wireless network name in order to
communicate on the network. If you decide to change
the wireless network name from the default setting,
enter your new wireless network name in this eld.
Select the appropriate 802.11 mode based on the
wireless clients in your network. The drop-down menu
options are 802.11g Only, Mixed 802.11b/g, 802.11b
Only, 802.11n Only, or Mixed 802.11b/g/n.
All devices on the network must share the same channel.
The Auto Channel Scan setting can be selected to allow
the DAP-1360 to choose the channel with the least
amount of interference.
Select the appropriate channel width between 20MHz
or Auto 20/40MHz from the drop-down menu.
Check the box if you do not want the SSID to be broadcast by the DAP-1360. This prevents the SSID from being seen by site survey
utilities, so any wireless clients will have to be pre-congured with the SSID of the DAP-1360 in order to connect to it.
Enter the MAC addresses of the APs in your network that will serve as bridges to wirelessly connect multiple networks.
Select None to disable encryption to across the network. Select WEP 64-bits or WEP 128-bits to limit communication to only those
devices that share the same WEP settings. Select WPA-PSK or WPA2-PSK to secure your network using a password and dynamic key
changes (No RADIUS server required).
Bridge with AP Mode
Note: The Bridge with AP mode is not completely specied in the Wi-Fi or IEEE standards. This mode can work with other DAP-1360 units. Communication with other APs (even other
D-Link APs) is not guaranteed.
41D-Link DAP-1360 User Manual
Section 3 - Conguration
Enable Wireless:
Wireless Mode:
Site Survey:
Wireless Network
Name:
802.11 Mode:
Wireless Channel:
Enable Auto Scan:
Channel Width:
Visibility Status:
Wireless Security
Mode:
Select this to turn the Wi-Fi module on and o.
Use the drop-down box to select if you want to
use a schedule. Click Add New to add or change
a schedule.
Select WISP Client or WISP Repeater from the
drop-down menu.
Click this button to choose the root AP from an
available connection list. If the root AP has wireless
encryption, you have to use the same wireless
security mode to connect the root AP.
You can input the wireless network name of the
root AP or click the Site Survey button to nd the
root AP.
Select the appropriate 802.11 mode based
on the wireless clients in your network. The
drop-down menu options are 802.11g Only, Mixed
802.11b/g, 802.11b Only, 802.11n Only, or Mixed
802.11b/g/n.
The channel used will be displayed. The channel
will follow the root AP.
The Auto Channel Scan setting can be selected to allow the DAP-1360 to choose the channel with the least amount of interference.
Select the appropriate channel width between 20MHz or Auto 20/40MHz from the drop-down menu.
Check the box if you do not want the SSID to be broadcast by the DAP-1360. This prevents the SSID from being seen by site survey
utilities, so any wireless clients will have to be pre-congured with the SSID of the DAP-1360 in order to connect to it.
Select a wireless security setting. Options are None, WEP, WPA, or WPA2. Refer to the Wireless Security section of this manual for
a detailed explanation of the wireless security options.
WISP Client Router/WISP Repeater Modes
42D-Link DAP-1360 User Manual
Section 3 - Conguration
WAN Settings
Dynamic IP (DHCP)
WAN settings are only used in the WISP Client Router wireless mode and the WISP Repeater wireless mode. Choose Dynamic
IP(DHCP) to obtain IP Address information automatically from your ISP. Select this option if your ISP does not give you any IP
number to use. This option is commonly used for Cable modem services.
Host Name:
MTU Size:
Attain DNS
Automatically:
Set DNS manually:
DNS Server:
Clone MAC Address:
The Host Name is optional but may be required
by some ISPs.
You may need to change the MTU (Maximum
Transmission Unit) for optimal performance
with your specic ISP. The default MTU size is
1500.
Select this option if you want the DAP-1360 to
get the DNS (Domain Name System) server IP
address automatically.
Select this option if you want to manually enter
the DNS Server IP address(es). The elds to
enter the Primary and Secondary DNS server
IP addresses will appear after you have selected this option.
Enter the Primary and Secondary DNS server IP address assigned by your ISP.
The default MAC address is set to the Ethernet MAC address your DAP-1360. You can click the Clone Your PC’s MAC Address button
to replace the AP’s MAC address with the MAC address of the PC that you used to register with your ISP. It is not recommended
that you change the default MAC address unless required by your ISP.
43D-Link DAP-1360 User Manual
Section 3 - Conguration
Static IP
Select Static IP if all WAN IP information is provided to you by your ISP. You will need to enter in the IP address, subnet mask,
gateway address, and DNS address(es) provided to you by your ISP.
IP Address:
Subnet Mask:
Default Gateway:
MTU Size:
Primary DNS Server:
Secondary DNS Server:
Clone MAC Address:
192.168.1.1 is the default WAN IP Address of
the DAP-1360.
255.255.255.0 is the default subnet mask.
All devices on the network must have the
same subnet mask to communicate on the
network.
Enter the IP Address of the gateway in your
network.
You may need to change the MTU (Maximum
Transmission Unit) for optimal performance
with your specic ISP. The default MTU size
is 1500.
Enter the Primary DNS (Domain Name
System) server IP address assigned by your
ISP.
Enter the Secondary DNS (optional) server IP address assigned by your ISP.
The default MAC address is set to the MAC address on the AP (Access Point). You can click the Clone Your PC’s MAC Address
button to replace the AP’s MAC address with the MAC address of your Ethernet card. It is not recommended that you change
the default MAC address unless required by your ISP.
44D-Link DAP-1360 User Manual
Section 3 - Conguration

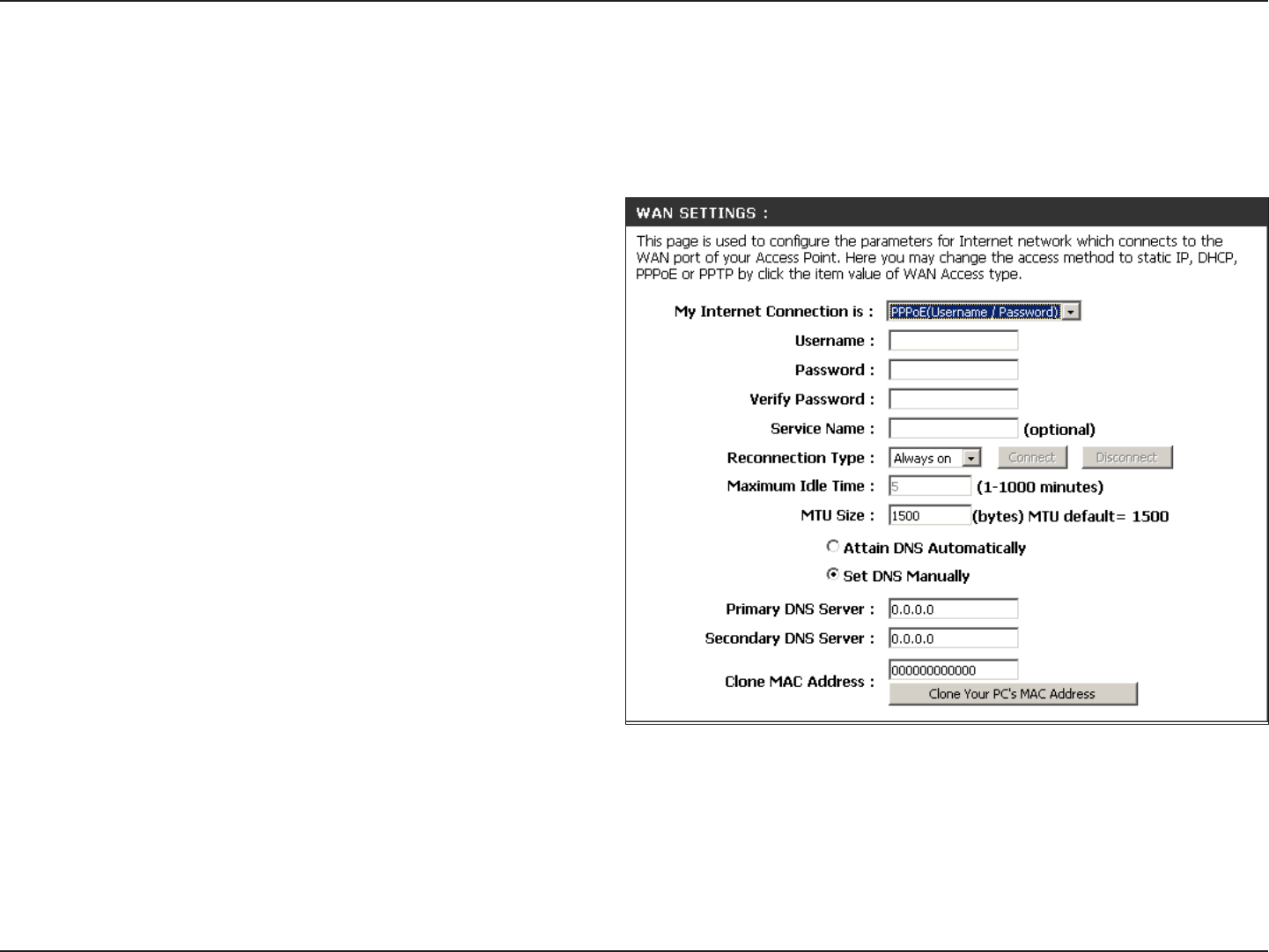

PPPoE
Select PPPoE (Point-to-Point Protocol over Ethernet) if your ISP uses a PPPoE connection. Your ISP will provide you with a
username and password. This option is typically used for DSL services. Make sure to remove your PPPoE software from your
computer. The software is no longer needed and will not work through the DAP-1360.
Username:
Password:
Service Name:
Reconnection Type:
Maximum Idle Time:
MTU Size:
Attain
DNS Automatically:
Set DNS Manually:
DNS Servers:
Clone MAC Address:
Enter your PPPoE user name.
Enter your PPPoE password and then retype the
password in the next box.
Enter the ISP Service Name (optional).
Select Always on, On demand, or Manual.
Enter a maximum idle time during which the
Internet connection is maintained during inactivity.
You may need to change the MTU (Maximum
Transmission Unit) for optimal performance with
your specic ISP. The maximum/default MTU size
is 1492.
Select this option if you want the DAP-1360 to get
the DNS (Domain Name System) server IP address
automatically.
Select this option if you want to manually enter
the DNS Server IP address(es). Fields to enter the
Primary and Secondary DNS server IP addresses will appear after you select this option.
Enter the Primary and Secondary DNS server IP address assigned by your ISP.
The default MAC address is set to the MAC address on the AP (Access Point). You can click the Clone Your PC’s MAC Address
button to replace the AP’s MAC address with the MAC address of your Ethernet card. It is not recommended that you change
the default MAC address unless required by your ISP.
45D-Link DAP-1360 User Manual
Section 3 - Conguration
PPTP
Choose PPTP (Point-to-Point Tunneling Protocol) if your ISP uses a PPTP connection. Your ISP will provide you with a username
and password. This option is typically used for DSL services.
PPTP IP Address:
PPTP Subnet Mask:
PPTP Server IP Address:
Username:
Password:
MTU Size:
Attain
DNS Automarically:
Set DNS Automatically:
DNS Servers:
Clone MAC Address:
Enter the IP address (Static PPTP only).
Enter the subnet mask.
Enter the Server IP Address provided by your
ISP.
Enter your PPTP username.
Enter your PPTP password and then retype
the password in the next box.
You may need to change the MTU (Maximum
Transmission Unit) for optimal performance
with your specic ISP. The default MTU size
is 1400.
Select this option if you want the DAP-1360
get DNS server IP address automatically.
Select this option if you want to manually
enter the DNS Server IP address(es). Fields to
enter the Primary and Secondary DNS server
IP addresses will appear after you select this
option.
Enter the Primary and Secondary DNS (Domain Name System) server IP address assigned by your ISP.
The default MAC address is set to the MAC address on the AP (Access Point). You can click the Clone Your PC’s MAC Address
button to replace the AP’s MAC address with the MAC address of your Ethernet card. It is not recommended that you change
the default MAC address unless required by your ISP.
46D-Link DAP-1360 User Manual
Section 3 - Conguration
LAN Settings
This section will allow you to change the local network settings of the access point and to congure the DHCP settings.
Device Name:
LAN Connection
Type:
My IPv6
Connection Type:
Enter the Device Name of the AP. It is recommended
to change the Device Name if there is more than
one D-Link device within the subnet.
Use the drop-down menu to select Dynamic IP
(DHCP) to automatically obtain an IP address on
the LAN/private network.
Select from the drop-down menu the type of IPv6
connection you would like to use.
47D-Link DAP-1360 User Manual
Section 3 - Conguration
Device Name:
LAN Connection Type:
IP Address:
Subnet Mask:
Default Gateway:
Enter the Device Name of the AP. It is
recommended to change the Device Name if
there is more than one D-Link device within the
subnet. You can enter the device name of the
AP into your web browser to access the instead
of IP address for conguration. If you are using
the device name to connect, ensure that your
PC and your DAP-1360 are on the same network.
Select Static IP from the drop-down menu.
Enter the IP address of the access point. The
default IP address is 192.168.0.50. If you change
the IP address, once you click Apply, you will
need to enter the new IP address in your browser
to get back into the conguration utility.
Enter the Subnet Mask assigned by your ISP.
Enter the Gateway assigned by your ISP.
Static IP
Select Static IP Address if all the Internet port’s IP information is provided to you by your ISP. You will need to enter in the IP
address, subnet mask, gateway address, and DNS address(es) provided to you by your ISP. Each IP address entered in the elds
must be in the appropriate IP form, which are four octets separated by a dot (x.x.x.x). The Access point will not accept the IP
address if it is not in this format.
48D-Link DAP-1360 User Manual
Section 3 - Conguration
Advanced
Advanced Wireless
Transmit Power:
WMM Enable:
Short GI:
IGMP Snooping:
WLAN Partition:
HT 20/40
Coexistance:
Sets the transmit power of the antennas.
WMM is QoS for your wireless network. This will
improve the quality of video and voice applications
for your wireless clients.
Check this box to reduce the guard interval time
therefore increasing the data capacity. However,
it’s less reliable and may create higher data loss.
This enables IGMP snooping for the wireless
connection. We recommend enabling this if
you often use multicast services such as video
conferencing and streaming audio/video.
This feature enables client isolation. If enabling,
all clients will not be able to view or access each
other’s information or within the network.
Check to enable or disable this feature.
49D-Link DAP-1360 User Manual
Section 3 - Conguration

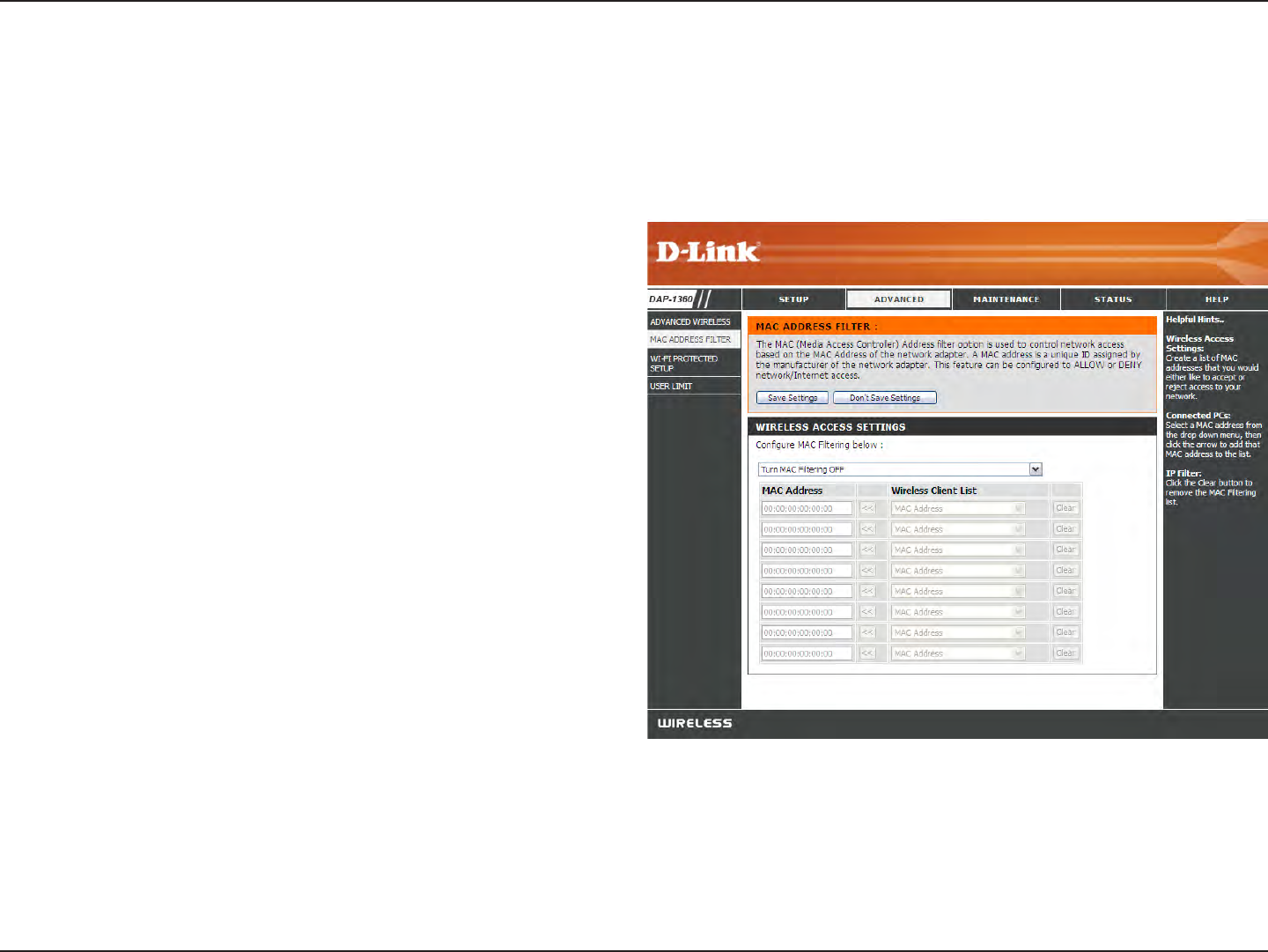

MAC Address Filter
The MAC address lter section can be used to lter network access by machines based on the unique MAC addresses of their
network adapter(s). It is most useful to prevent unauthorized wireless devices from connecting to your network. A MAC address
is a unique ID assigned by the manufacturer of the network adapter.
Congure
MAC Filtering:
Add MAC
Filtering
Rule:
When Turn MAC Filtering OFF is selected, MAC addresses
are not used to control network access. When Turn MAC
Filtering ON and ALLOW computers listed to access the
network is selected, only computers with MAC addresses
listed in the MAC Address List are granted network access.
When Turn MAC Filtering ON and DENY computers listed
to access the network is selected, any computer with a
MAC address listed in the MAC Address List is refused access
to the network.
This parameter allows you to manually add a MAC ltering
rule. Click the Add button to add the new MAC ltering rule
to the MAC Filtering Rules list at the bottom of this screen.
50D-Link DAP-1360 User Manual
Section 3 - Conguration
Wi-Fi Protected Setup
Check this box to enable the function
Locking the wireless security settings prevents the
settings from being changed by the Wi-Fi Protected
Setup feature of the router. Devices can still be added
to the network using Wi-Fi Protected Setup. However,
the settings of the network will not change once this
option is checked.
Press the button to generate a new PIN or Reset to
Default.
Shows the current value of the router’s PIN.
Restore the default PIN of the access point.
Create a random number that is a valid PIN. This
becomes the router’s PIN. You can then copy this PIN
to the user interface of the registrar.
Press the button to start with the wizard to setup
the WPS.
Enable:
Lock Wireless
Security Settings:
Pin Settings:
Current PIN:
Reset PIN to
Default:
Generate New
PIN:
Add Wireless
Station:
Wi-Fi Protected Setup (WPS) System is a simplied method for securing your wireless network during the “Initial setup” as well
as the “Add New Device” processes. The Wi-Fi Alliance (WFA) has certied it across dierent products as well as manufactures.
The process is just as easy, as depressing a button for the Push-Button Method or correctly entering the 8-digit code for the
Pin-Code Method. The time reduction in setup and ease of use are quite benecial, while the highest wireless Security setting
of WPA2 is automatically used.
51D-Link DAP-1360 User Manual
Section 3 - Conguration

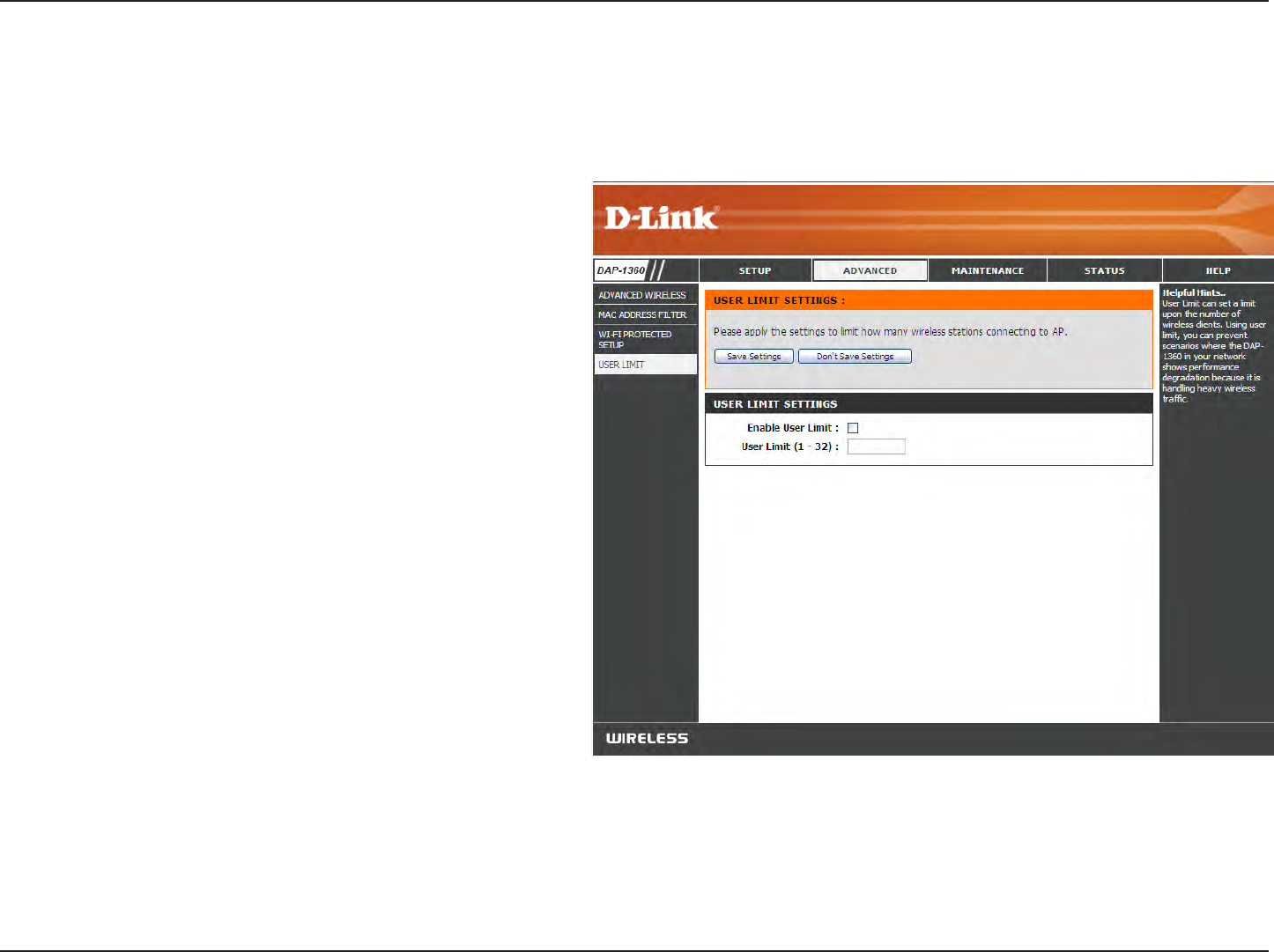

User Limits
Check the Enable User Limit box to enable this
feature.
Enter the maximum number of clients, between 1
and 32.
Click Save Settings to save and activate the new
changes.
Enable User
Limit:
User Limit:
Save
Settings:
Enter the maximum number of wireless clients that can connect at one time to your access point.
52D-Link DAP-1360 User Manual
Section 3 - Conguration
Password:
Conrm
Password:
Enable
Graphical
Authentication:
Enter a new password for the Administrator Login
Name. The administrator can make changes to the
settings.
Enter the same password that you entered in the
previous textbox in order to conrm its accuracy.
Check to enable this feature.
Maintenance
Admin
This page will allow you to change the Administrator password. The administrator password has read/write access.
53D-Link DAP-1360 User Manual
Section 3 - Conguration
Save to Local
Hard Drive:
Upload from
Local Hard Drive:
Restore to
Factory Default:
Reboot the
Device:
Use this option to save the current access point
conguration settings to a le on the hard disk of the
computer you are using. Click the Save button. You will
then see a le dialog where you can select a location
and le name for the settings.
Use this option to load previously saved access
point conguration settings. Click Browse to nd a
previously saved conguration le. Then, click the
Upload Settings button to transfer those settings to
the access point.
This option will restore all conguration settings back
to the settings that were in eect at the time the access
point was shipped from the factory. Any settings that
have not been saved will be lost, including any rules
that you have created. If you want to save the current
access point configuration settings, use the Save
button above.
Note: Restoring the factory default settings will not reset
the Wi-Fi Protected Status to Not Congured.
Click to reboot the access point.
System
54D-Link DAP-1360 User Manual
Section 3 - Conguration
Firmware
Upgrade:
Browse:
Upload:
Click on Check Now to nd out if there is an updated
rmware; if so, download the new rmware to your
hard drive.
After you have downloaded the new rmware, click
Browse to locate the rmware update on your hard
drive. Click Upload to complete the rmware upgrade.
Once you have a rmware update on your computer,
use this option to browse for the le and then upload
the information into the access point.
Firmware
You can upgrade the rmware of the access point here. Make sure the rmware you want to use is on the local hard drive of
the computer. Click on Browse to locate the rmware le to be used for the update. Please check the D-Link support website
for rmware updates at http://support.dlink.com. You can download rmware upgrades to your hard drive from this site.
After you have downloaded the new language pack,
click Browse to locate the language pack le on your
hard drive. Click Upload to complete the language
pack upgrade.
Language Pack
You can change the language of the web UI by uploading
available language packs.
Browse:
55D-Link DAP-1360 User Manual
Section 3 - Conguration
Watchdog
Enable Watchdog
(Ping of Life):
Update Time
Interval:
Watchdog Response
IP:
Enable Mail Alert:
SMTP Server:
Sender E-Mail:
Receiver E-Mail:
Enable
Authentication:
Account Name:
Password:
Check this box to enable the Watchdog (Ping
of Life) to check some host IP.
Enter the time interval of how often you would
like the Watchdog to ping the response IP
address.
Enter the IP address that the Watchdog will
ping.
Check this box to enable e-mail notication for
the Watchdog.
Enter the SMTP server IP address.
Enter the e-mail address from which the
notication will be sent.
Enter the e-mail address which the notication
will be sent to.
Check the box to enable authentication that is used with the SMTP server.
Enter your account name that is used with the SMTP server.
Enter your password that is used with the SMTP server and re-enter it in the next box.
The Watchdog feature pings a specied IP address. If the IP address stops responding to pings, your AP will be rebooted. You
can also select an option to have the DAP-1360 send an e-mail alert if the specied IP address stops responding to pings.
56D-Link DAP-1360 User Manual
Section 3 - Conguration
Time Zone:
Daylight Saving:
Enable NTP Server:
NTP Server Used:
Date and Time:
Select the Time Zone from the drop-down menu.
To select Daylight Saving time manually, click the
Enable Daylight Saving check box. Next use the
drop-down menu to select a Daylight Saving Oset
and then enter a start date and an end date for
daylight saving time.
NTP is short for Network Time Protocol. NTP
synchronizes computer clock times in a network
of computers. Check this box to use a NTP server.
This will only connect to a server on the Internet,
not a local server.
Enter the NTP server or select one from the drop-
down menu.
To manually input the time, enter the values in
these elds for the Year, Month, Day, Hour, Minute,
and Second and then click Save Settings. You
can also click the Copy Your Computer’s Time
Settings button at the bottom of the screen.
Time
The Time Conguration option allows you to congure, update, and maintain the correct time on the internal system clock.
From this section you can set the time zone that you are in. Daylight Saving can also be congured to automatically adjust the
time when needed.
57D-Link DAP-1360 User Manual
Section 3 - Conguration
System Check
Ping Test /
IPv6 Ping Test:
Ping Result:
The Ping Test / IPv6 Ping Test is used to send Ping
packets to test if a computer is on the Internet.
Enter the host name or IP/IPv6 address that you
wish to Ping, and click Ping.
The results of your ping attempts will be displayed
here.
This section Ping Tests by sending ping packets to test if a computer on the internet is running and responding.
58D-Link DAP-1360 User Manual
Section 3 - Conguration
Schedules
Enter a name for your new schedule.
Select a day, a range of days, or All Week to
include every day.
Enter a start and end time for your schedule.
The list of schedules will be listed here. Click the
Edit icon to make changes or click the Delete
icon to remove the schedule.
Name:
Days:
Time:
Schedule Rules
List:
59D-Link DAP-1360 User Manual
Section 3 - Conguration
General:
LAN:
Wireless LAN:
Displays the access point’s time and firmware
version.
Displays the MAC address and the private (local) IP
settings for the access point.
Displays the wireless MAC address and your
wireless settings such as SSID and Channel.

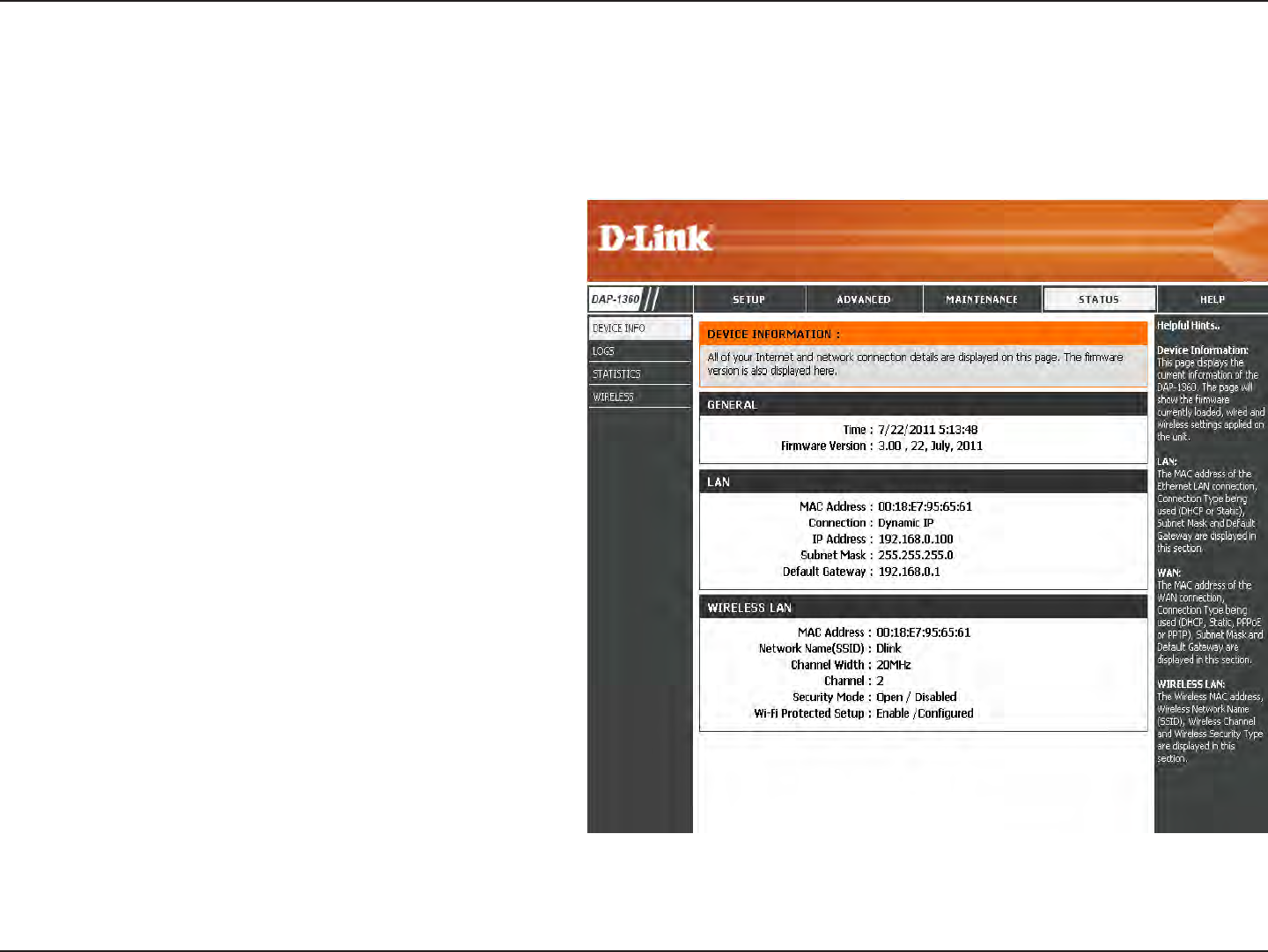

Status
Device Info
This page displays the current information for the DAP-1360. It will display the LAN and wireless LAN information.
60D-Link DAP-1360 User Manual
Section 3 - Conguration
Log Options:
First Page:
Last Page:
Previous Page:
Next Page:
Clear Log:
Log Settings:
Refresh:
There are several types of logs that can be viewed:
System Activity, Debug Information, Attacks,
Dropped Packets and Notice.
This button directs you to the rst page of the log.
This button directs you to the last page of the log.
This button directs you to the previous page of the log.
This button directs you to the next page of the log.
This button clears all current log content.
This button opens a new menu where you can
congure the log settings.
This button refreshes the log.
Logs
The DAP-1360 keeps a running log of events and activities occurring on the AP. If the AP is rebooted, the logs are automatically
cleared. You can save the log les under Log Setting.
61D-Link DAP-1360 User Manual
Section 3 - Conguration
Statistics
The DAP-1360 keeps statistics of the trac that passes through it. You can view the amount of packets that pass through the LAN
and wireless portions of the network. The trac counter will reset if the access point is rebooted.
62D-Link DAP-1360 User Manual
Section 3 - Conguration
Wireless
The wireless section allows you to view the wireless clients that are connected to your wireless access point.
Connection Time:
MAC Address:
Displays the amount of time the wireless client has
been connected to the access point.
The Ethernet ID (MAC address) of the wireless client.
63D-Link DAP-1360 User Manual
Section 3 - Conguration

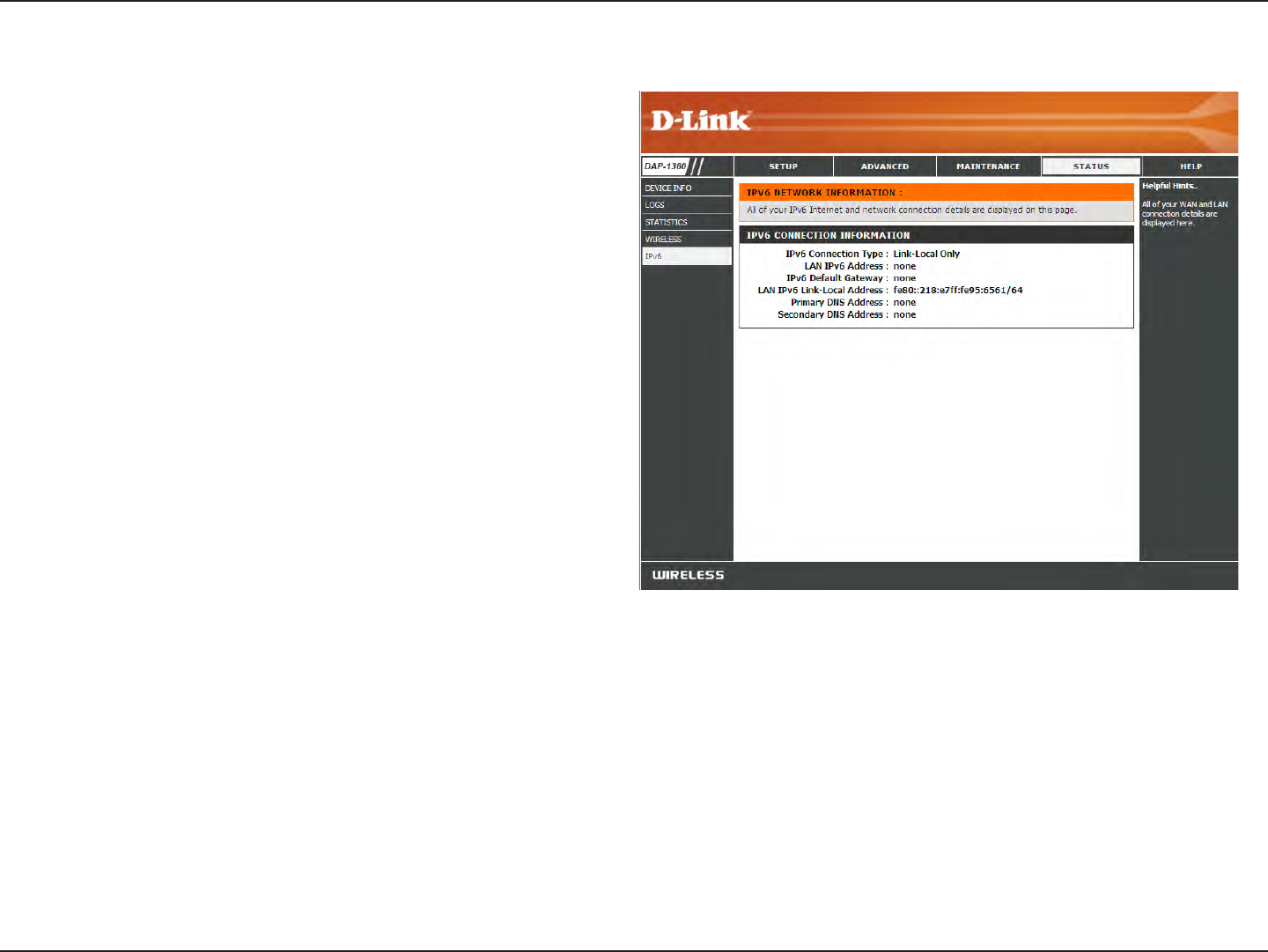

IPv6
This page displays all your IPv6 internet and network
connection information.
64D-Link DAP-1360 User Manual
Section 3 - Conguration

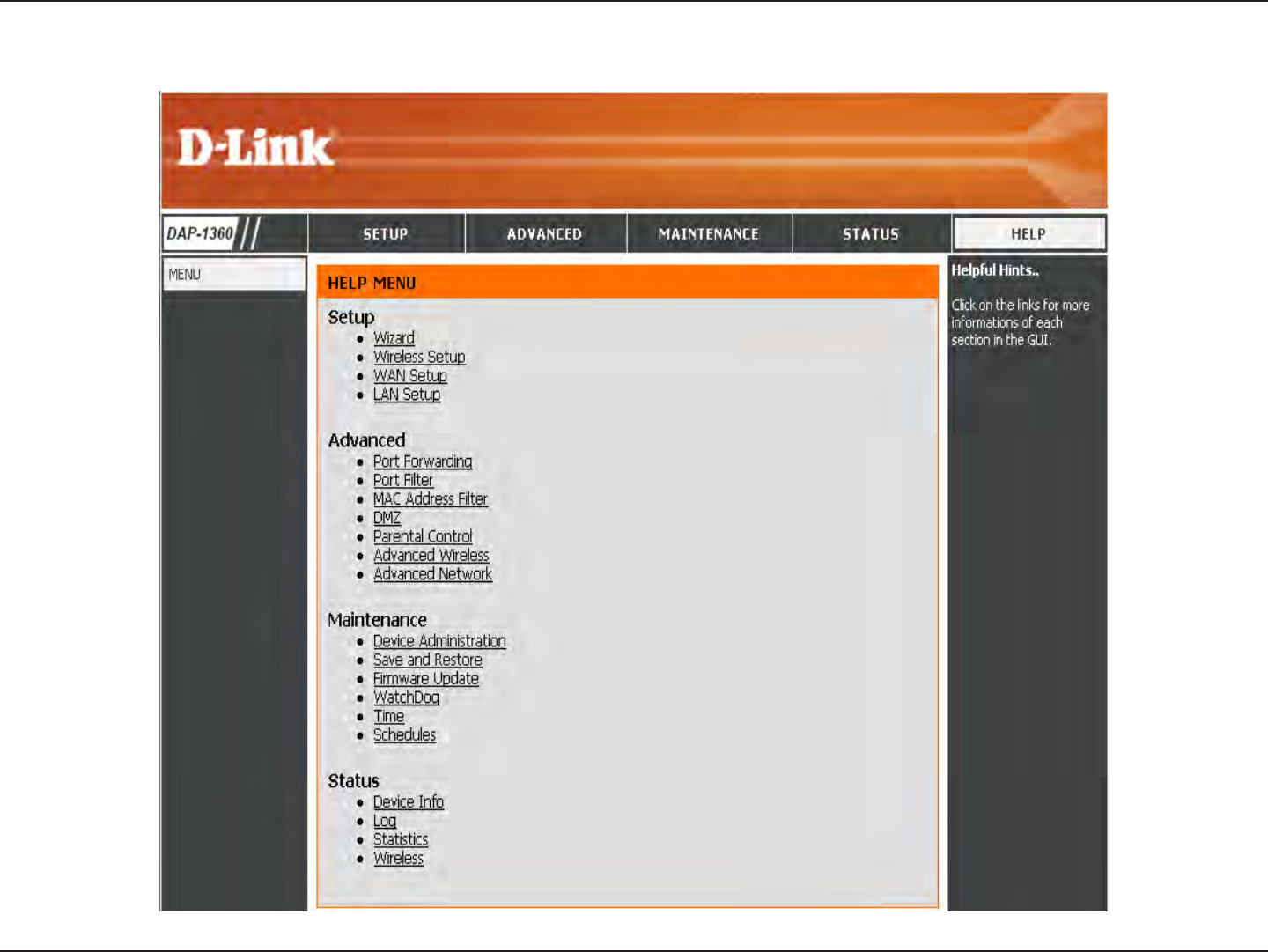

Help
65D-Link DAP-1360 User Manual
Section 4 - Security
Wireless Security
This section will show you the dierent levels of security you can use to protect your data from intruders. The DAP-1360 oers
the following types of security:
• WPA2 (Wi-Fi Protected Access 2) • WPA2-PSK (Pre-Shared Key)
• WPA (Wi-Fi Protected Access) • WPA-PSK (Pre-Shared Key)
66D-Link DAP-1360 User Manual
Section 4 - Security
What is WPA?
WPA, or Wi-Fi Protected Access, is a Wi-Fi standard that was designed to improve the security features of WEP (Wired Equivalent
Privacy).
The 2 major improvements over WEP:
• Improved data encryption through the Temporal Key Integrity Protocol (TKIP). TKIP scrambles the keys using a
hashing algorithm and, by adding an integrity-checking feature, ensures that the keys haven’t been tampered
with. WPA2 is based on 802.11i and uses Advanced Encryption Standard (AES) instead of TKIP.
• User authentication, which is generally missing in WEP, through the extensible authentication protocol (EAP).
WEP regulates access to a wireless network based on a computer’s hardware-specic MAC address, which is
relatively simple to be snied out and stolen. EAP is built on a more secure public-key encryption system to
ensure that only authorized network users can access the network.
WPA-PSK/WPA2-PSK uses a passphrase or key to authenticate your wireless connection. The key is an alpha-numeric password
between 8 and 63 characters long. The password can include symbols (!?*&_) and spaces. This key must be the exact same key
entered on your wireless bridge or access point.
WPA/WPA2 incorporates user authentication through the Extensible Authentication Protocol (EAP). EAP is built on a more
secure public key encryption system to ensure that only authorized network users can access the network.
67D-Link DAP-1360 User Manual
Section 4 - Security

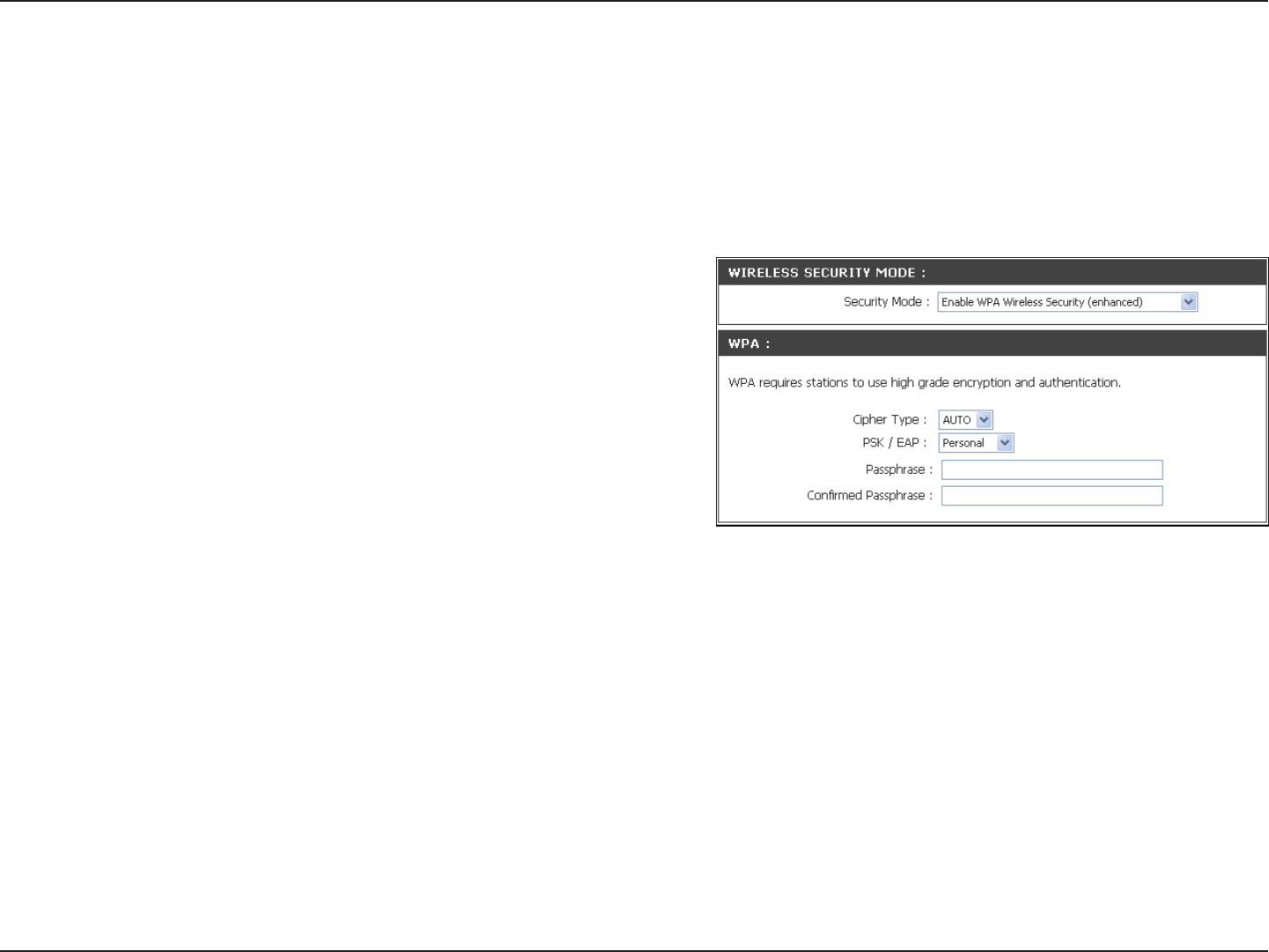

Congure WPA/WPA2 Personal
It is recommended to enable encryption on your wireless access point before your wireless network adapters. Please establish
wireless connectivity before enabling encryption. Your wireless signal may degrade when enabling encryption due to the
added overhead.
1. Log into the web-based conguration by opening a web browser
and entering the IP address of the access point (192.168.0.50). Click
on Setup and then click Wireless Settings on the left side.
2. Next to Security Mode, select Enable WPA Wireless Security,
Enable WPA2 Wireless Security, or Enable WPA2-Auto Wireless
Security.
3. Next to Cipher Type, select TKIP, AES, or Auto.
4. Next to PSK / EAP, select Personal.
5. Next to Passphrase, enter a key. The key is entered as a passphrase in ASCII format at both ends of the wireless connection.
The passphrase must be between 8-63 characters.
6. Click Save Settings at the top of the window to save your settings. If you are conguring the access point with a wireless
adapter, you will lose connectivity until you enable WPA-PSK on your adapter and enter the same passphrase as you did on
the access point.
68D-Link DAP-1360 User Manual
Section 4 - Security
It is recommended to enable encryption on your wireless access point before your wireless network adapters. Please establish
wireless connectivity before enabling encryption. Your wireless signal may degrade when enabling encryption due to the
added overhead.
1. Log into the web-based conguration by opening a web browser
and entering the IP address of the access point (192.168.0.50). Click
on Setup and then click Wireless Settings on the left side.
2. Next to Security Mode, select Enable WPA Wireless Security, Enable
WPA2 Wireless Security, or Enable WPA2-Auto Wireless Security.
3. Next to Cipher Mode, select TKIP, AES, or Auto.
4. Next to Personal / Enterprise, select Enterprise.
5. Next to RADIUS Server, enter the IP Address of your RADIUS server.
6. Next to Port, enter the port you are using with your RADIUS server.
1812 is the default port.
7. Next to Shared Secret, enter the security key.
8. Click Save Settings to save your settings.
Congure WPA/WPA2 Enterprise
69D-Link DAP-1360 User Manual
Section 5 - Connecting to a Wireless Network
Connect to a Wireless Network
Using Windows® XP
Windows® XP users may use the built-in wireless utility (Zero Conguration Utility). The following instructions are for Service
Pack 2 users. If you are using another company’s utility or Windows® 2000, please refer to the user manual of your wireless
adapter for help with connecting to a wireless network. Most utilities will have a “site survey” option similar to the Windows®
XP utility as seen below.
Right-click on the wireless computer icon in your system tray
(lower-right corner next to the time). Select View Available
Wireless Networks.
If you receive the Wireless Networks Detected bubble, click on
the center of the bubble to access the utility.
or
The utility will display any available wireless networks in your area.
Click on a network (displayed using the SSID) and click the Connect
button.
If you get a good signal, but cannot access the Internet, check you
TCP/IP settings for your wireless adapter. Refer to the Networking
Basics section in this manual for more information.
70D-Link DAP-1360 User Manual
Section 5 - Connecting to a Wireless Network
Congure WPA-PSK
It is recommended to enable WEP on your wireless bridge or access point before conguring your wireless adapter. If you are
joining an existing network, you will need to know the WEP key being used.
2. Highlight the wireless network (SSID) you would like to
connect to and click Connect.
1. Open the Windows® XP Wireless Utility by right-clicking
on the wireless computer icon in your system tray
(lower-right corner of screen). Select View Available Wireless
Networks.
71D-Link DAP-1360 User Manual
Section 5 - Connecting to a Wireless Network
3. The Wireless Network Connection box will appear. Enter the WPA-PSK
passphrase and click Connect.
It may take 20-30 seconds to connect to the wireless network. If the
connection fails, please verify that the WPA-PSK settings are correct. The
WPA-PSK passphrase must be exactly the same as on the wireless access
point.
72D-Link DAP-1360 User Manual
Section 5 - Connecting to a Wireless Network

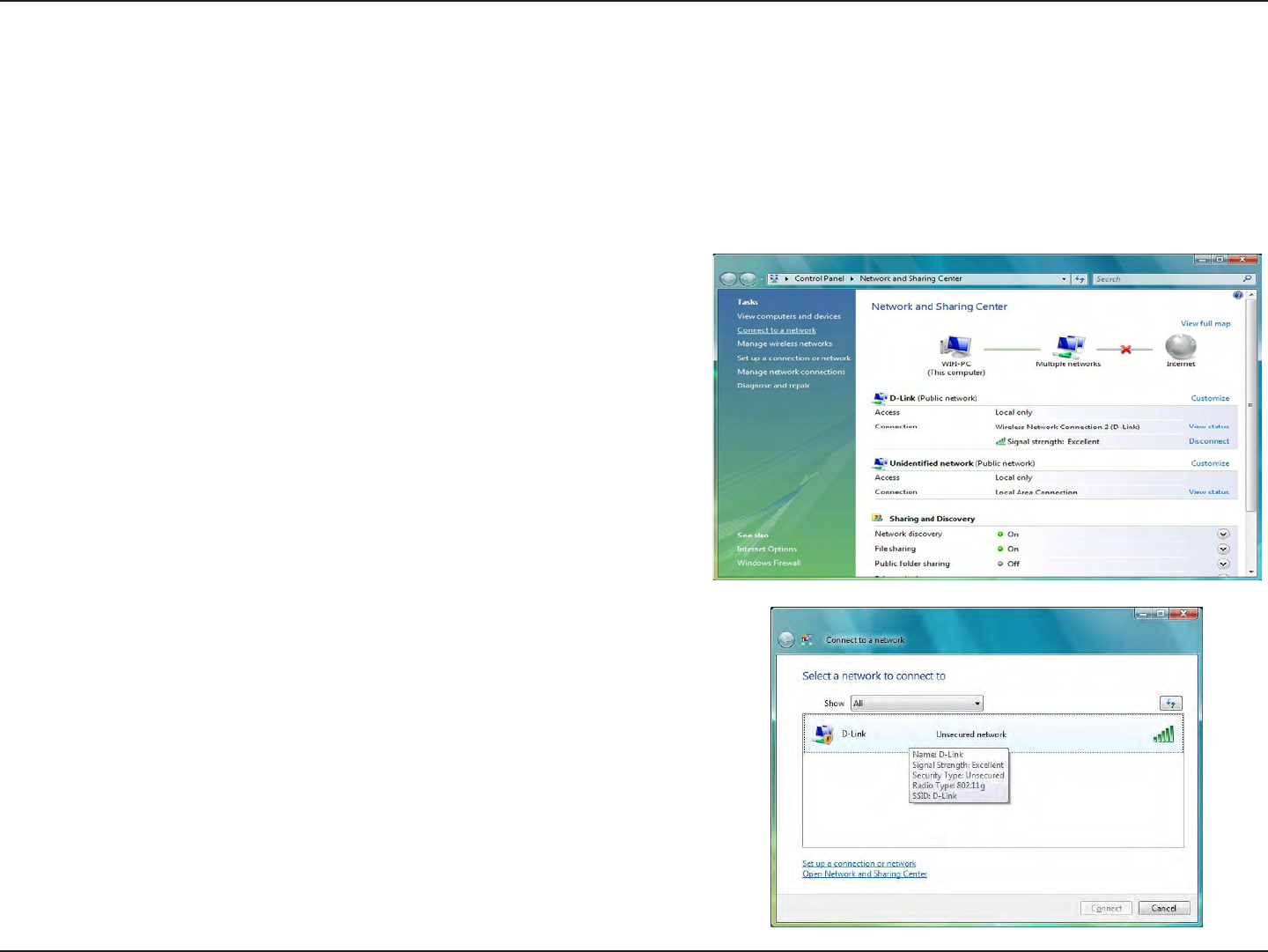

Using Windows Vista®
Windows Vista® users may use the convenient, built-in wireless utility. Follow these instructions:
From the Start menu, go to Control Panel, and then click on
Network and Sharing Center.
The utility will display any available wireless networks in your
area. Click on a network (displayed using the SSID) under Select a
network to connect to and then click the Connect button.
73D-Link DAP-1360 User Manual
Section 5 - Connecting to a Wireless Network
Click Connect Anyway to continue.
The utility will display the following window to indicate a
connection is being made.
The nal window indicates the establishment of a successful
connection.
The next two pages display the windows used to connect to either
a WEP or a WPA-PSK wireless network.
74D-Link DAP-1360 User Manual
Section 5 - Connecting to a Wireless Network
Click on a network (displayed using the SSID) using WPA-PSK under
Select a network to connect to and then click the Connect button.
Enter the appropriate security key or passphrase in the field
provided and then click the Connect button.
Congure WPA-PSK
It is recommended to enable WEP on your wireless bridge or access point before conguring your wireless adapter. If you are
joining an existing network, you will need to know the WEP key being used.
75D-Link DAP-1360 User Manual
Section 5 - Connecting to a Wireless Network
Using Windows® 7
It is recommended to enable wireless security (WPA/WPA2) on your wireless router or access point before conguring your
wireless adapter. If you are joining an existing network, you will need to know the security key or passphrase being used.
1. Click on the wireless icon in your system tray (lower-right corner).
2. The utility will display any available wireless networks in your area.
Wireless Icon
76D-Link DAP-1360 User Manual
Section 5 - Connecting to a Wireless Network

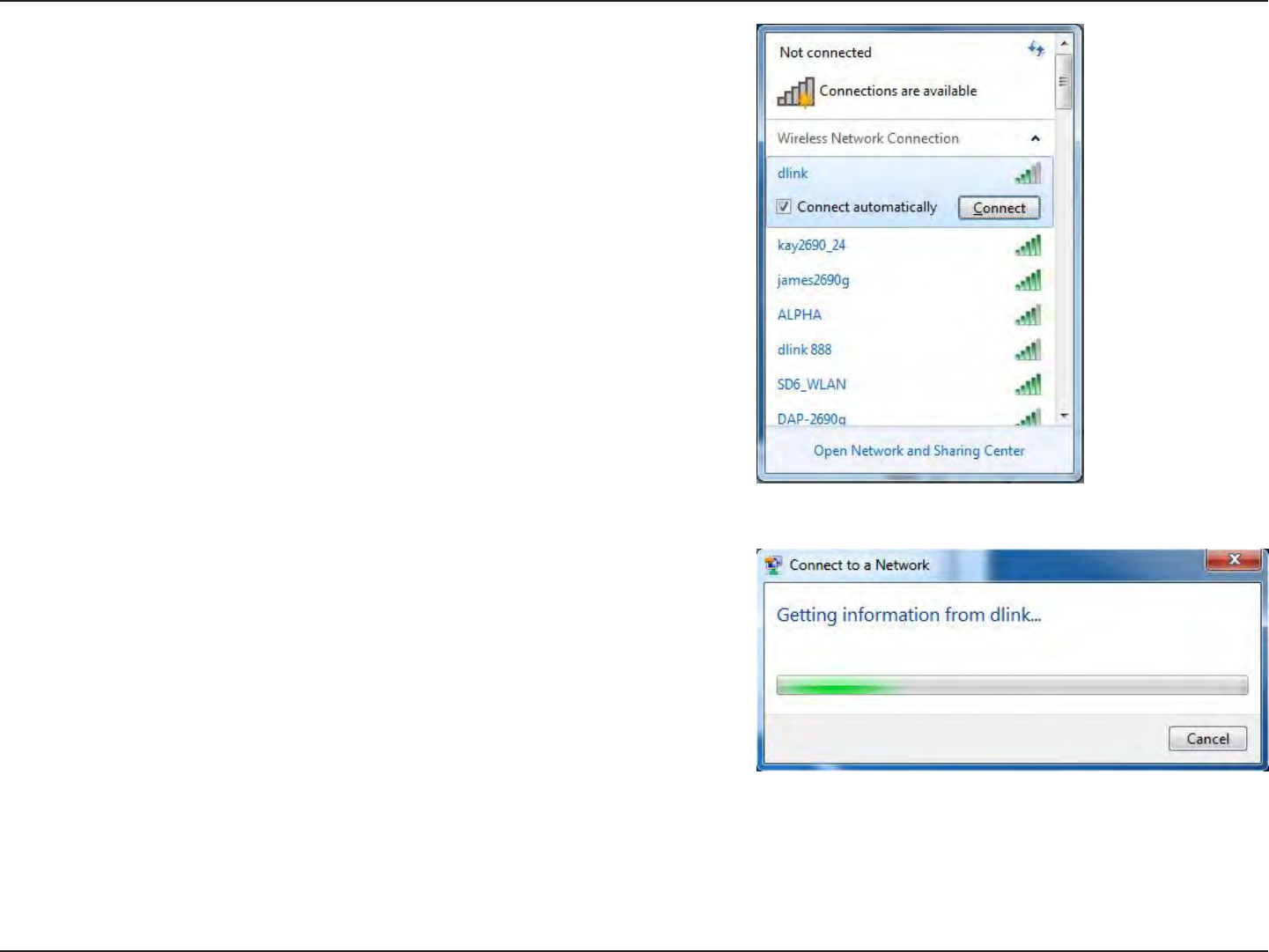

3. Highlight the wireless network (SSID) you would like to connect to
and click the Connect button.
If you get a good signal but cannot access the Internet, check your
TCP/IP settings for your wireless adapter. Refer to the Networking
Basics section in this manual for more information.
4. The following window appears while your computer tries to
connect to the router.
77D-Link DAP-1360 User Manual
Section 5 - Connecting to a Wireless Network
5. Enter the same security key or passphrase that is on your router
and click Connect. You can also connect by pushing the WPS
button on the router.
It may take 20-30 seconds to connect to the wireless network. If the
connection fails, please verify that the security settings are correct.
The key or passphrase must be exactly the same as on the wireless
router.
78D-Link DAP-1360 User Manual
Section 5 - Connecting to a Wireless Network
Congure WPS
The WPS feature of the DAP-1360 can be congured using Windows® 7. Carry out the following steps to use Windows® 7 to
congure the WPS feature of the DAP-1360:
1. Click the Start button and select Computer from the Start
menu.
2. Click the Network option.
79D-Link DAP-1360 User Manual
Section 5 - Connecting to a Wireless Network
3. Double-click the DAP-1360.
4. Input the WPS PIN number (displayed in the WPS window on the
Router’s LCD screen or in the Setup > Wireless Setup menu in
the Router’s Web UI) and click Next.
80D-Link DAP-1360 User Manual
Section 5 - Connecting to a Wireless Network

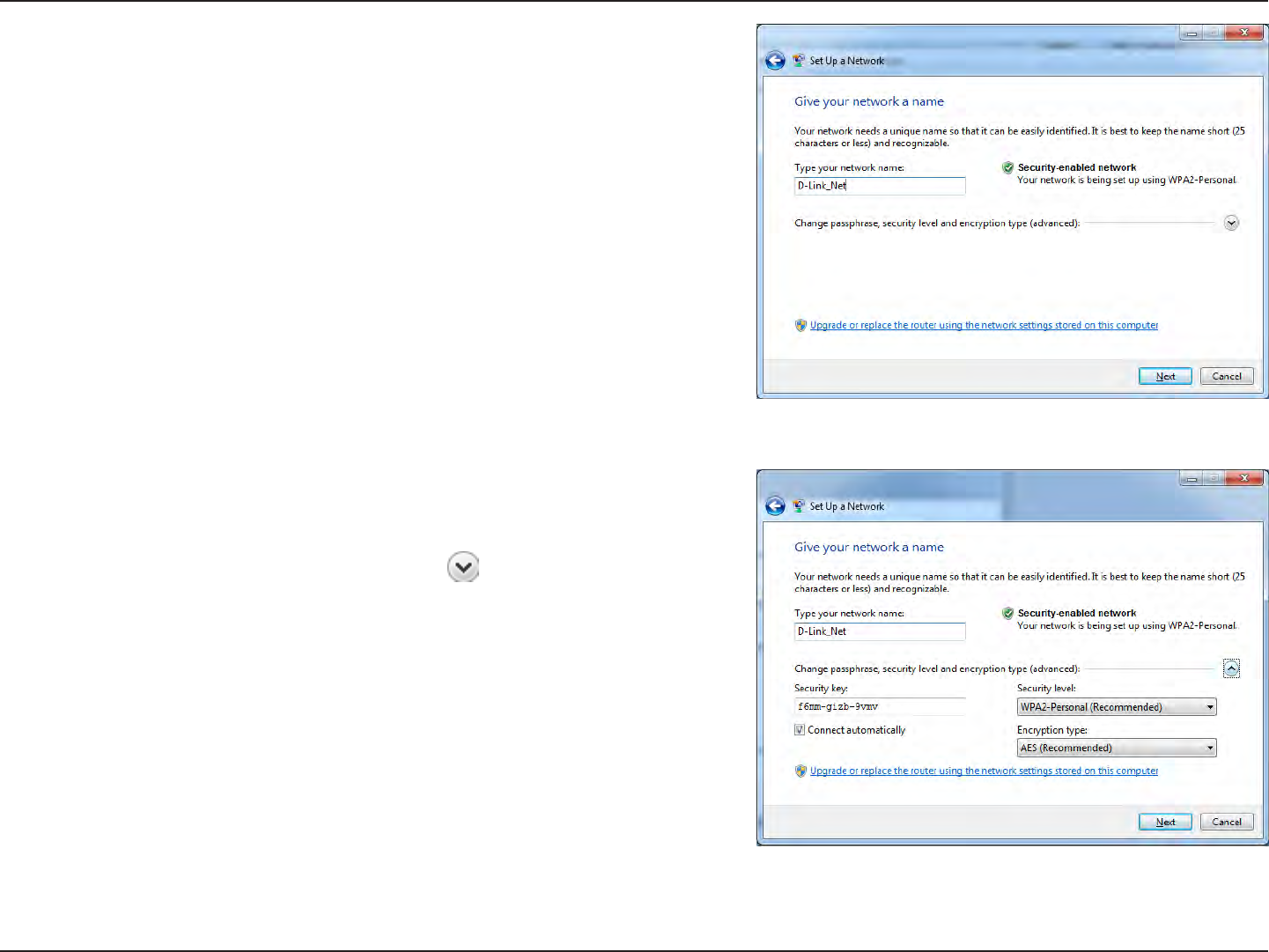

5. Type a name to identify the network.
6. To congure advanced settings, click the icon.
Click Next to continue.
81D-Link DAP-1360 User Manual
Section 5 - Connecting to a Wireless Network

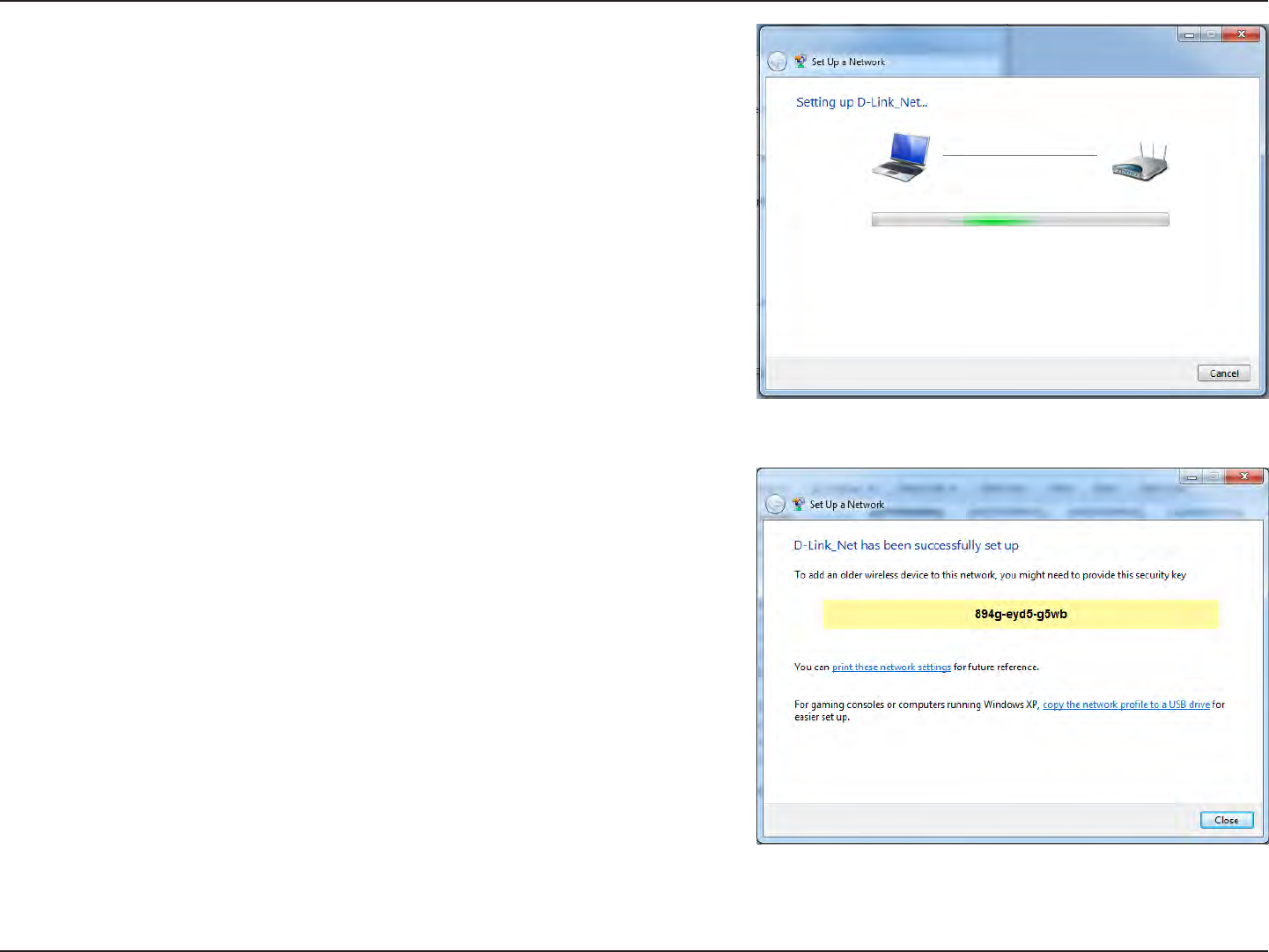

7. The following window appears while the Router is being
congured.
Wait for the conguration to complete.
8. The following window informs you that WPS on the DAP-1360 has
been setup successfully.
Make a note of the security key as you may need to provide this
security key if adding an older wireless device to the network in
the future.
9. Click Close to complete WPS setup.
82D-Link DAP-1360 User Manual
Section 6 - Troubleshooting
Troubleshooting
This chapter provides solutions to problems that can occur during the installation and operation of the DAP-1360. Read the
following descriptions if you are having problems. (The examples below are illustrated in Windows® XP. If you have a dierent
operating system, the screenshots on your computer will look similar to the following examples.)
1. Why can’t I access the web-based conguration utility?
When entering the IP address of the D-Link access point (192.168.0.50 for example), you are not connecting to a website on
the Internet or have to be connected to the Internet. The device has the utility built-in to a ROM chip in the device itself. Your
computer must be on the same IP subnet to connect to the web-based utility.
• Make sure you have an updated Java-enabled web browser. We recommend the following:
- Microsoft Internet Explorer® 6.0 and higher
- Mozilla Firefox 3.0 and higher
- Google™ Chrome 2.0 and higher
- Apple Safari 3.0 and higher
• Verify physical connectivity by checking for solid link lights on the device. If you do not get a solid link light, try using a dierent
cable or connect to a dierent port on the device if possible. If the computer is turned o, the link light may not be on.
• Disable any internet security software running on the computer. Software rewalls such as Zone Alarm, Black Ice, Sygate,
Norton Personal Firewall, and Windows® XP rewall may block access to the conguration pages. Check the help les included
with your rewall software for more information on disabling or conguring it.
83D-Link DAP-1360 User Manual
Section 6 - Troubleshooting
• Congure your Internet settings:
• Go to Start > Settings > Control Panel. Double-click the Internet Options Icon. From the Security tab, click
the button to restore the settings to their defaults.
• Click the Connection tab and set the dial-up option to Never Dial a Connection. Click the LAN Settings button.
Make sure nothing is checked. Click OK.
• Go to the Advanced tab and click the button to restore these settings to their defaults. Click OK three times.
• Close your web browser (if open) and open it.
• Access the web management. Open your web browser and enter the IP address of your D-Link access point in the address
bar. This should open the login page for your the web management.
• If you still cannot access the conguration, unplug the power to the access point for 10 seconds and plug back in. Wait about
30 seconds and try accessing the conguration. If you have multiple computers, try connecting using a dierent computer.
2. What can I do if I forgot my password?
If you forgot your password, you must reset your access point. Unfortunately this process will change all your settings back to
the factory defaults.
To reset the access point, locate the reset button (hole) on the rear panel of the unit. With the access point powered on, use a
paperclip to hold the button down for 10 seconds. Release the button and the access point will go through its reboot process.
Wait about 30 seconds to access the access point. The default IP address is 192.168.0.50. When logging in, the username is
Admin and leave the password box empty.
84D-Link DAP-1360 User Manual
Section 6 - Troubleshooting
3. Why can’t I connect to certain sites or send and receive emails when connecting through my access point?
If you are having a problem sending or receiving email, or connecting to secure sites such as eBay, banking sites, and Hotmail,
we suggest lowering the MTU in increments of ten (Ex. 1492, 1482, 1472, etc).
Note: AOL DSL+ users must use MTU of 1400.
To nd the proper MTU Size, you’ll have to do a special ping of the destination you’re trying to go to. A destination could be
another computer, or a URL.
• Click on Start and then click Run.
• Windows® 95, 98, and Me users type in command (Windows® NT, 2000, and XP users type in cmd) and press Enter
(or click OK).
• Once the window opens, you’ll need to do a special ping. Use the following syntax:
ping [url] [-f] [-l] [MTU value]
Example: ping yahoo.com -f -l 1472
85D-Link DAP-1360 User Manual
Section 6 - Troubleshooting
You should start at 1472 and work your way down by 10 each time. Once you get a reply, go up by 2 until you get a fragmented
packet. Take that value and add 28 to the value to account for the various TCP/IP headers. For example, lets say that 1452 was the
proper value, the actual MTU size would be 1480, which is the optimum for the network we’re working with (1452+28=1480).
Once you nd your MTU, you can now congure your access point with the proper MTU size.
To change the MTU rate on your access point follow the steps below:
• Open your browser, enter the IP address of your access point (192.168.0.50) and click OK.
• Enter your username (Admin) and password (blank by default). Click OK to enter the web conguration page
for the device.
• Click on Setup and then click Manual Congure.
• To change the MTU enter the number in the MTU eld and click Save Settings to save your settings.
• Test your email. If changing the MTU does not resolve the problem, continue changing the MTU in increments
of ten.
86D-Link DAP-1360 User Manual
Appendix A - Wireless Basics
D-Link wireless products are based on industry standards to provide easy-to-use and compatible high-speed wireless
connectivity within your home, business or public access wireless networks. Strictly adhering to the IEEE standard, the D-Link
wireless family of products will allow you to securely access the data you want, when and where you want it. You will be able
to enjoy the freedom that wireless networking delivers.
A wireless local area network (WLAN) is a cellular computer network that transmits and receives data with radio signals instead of
wires. Wireless LANs are used increasingly in both home and oce environments, and public areas such as airports, coee shops
and universities. Innovative ways to utilize WLAN technology are helping people to work and communicate more eciently.
Increased mobility and the absence of cabling and other xed infrastructure have proven to be benecial for many users.
Wireless users can use the same applications they use on a wired network. Wireless adapter cards used on laptop and desktop
systems support the same protocols as Ethernet adapter cards.
Under many circumstances, it may be desirable for mobile network devices to link to a conventional Ethernet LAN in order
to use servers, printers or an Internet connection supplied through the wired LAN. A Wireless Access point is a device used to
provide this link.
Wireless Basics
87D-Link DAP-1360 User Manual
Appendix A - Wireless Basics
What is Wireless?
Wireless or Wi-Fi technology is another way of connecting your computer to the network without using wires. Wi-Fi uses radio
frequency to connect wirelessly, so you have the freedom to connect computers anywhere in your home or oce.
D-Link is the worldwide leader and award winning designer, developer, and manufacturer of networking products. D-Link
delivers the performance you need at a price you can aord. D-Link has all the products you need to build your network.
How does wireless work?
Wireless works similar to how cordless phone work, through radio signals to transmit data from one point A to point B. But
wireless technology has restrictions as to how you can access the network. You must be within the wireless network range area
to be able to connect your computer. There are two dierent types of wireless networks Wireless Local Area Network (WLAN),
and Wireless Personal Area Network (WPAN).
Wireless Local Area Network (WLAN)
In a wireless local area network, a device called an Access Point (AP) connects computers to the network. The access point has
a small antenna attached to it, which allows it to transmit data back and forth over radio signals. With an indoor access point
as seen in the picture, the signal can travel up to 300 feet. With an outdoor access point the signal can reach out up to 30 miles
to serve places like manufacturing plants, industrial locations, college and high school campuses, airports, golf courses, and
many other outdoor venues.
88D-Link DAP-1360 User Manual
Appendix A - Wireless Basics
Wireless Personal Area Network (WPAN)
Bluetooth is the industry standard wireless technology used for WPAN. Bluetooth devices in WPAN operate in a range up to
30 feet away.
Compared to WLAN the speed and wireless operation range are both less than WLAN, but in return it doesn’t use nearly as
much power which makes it ideal for personal devices, such as mobile phones, PDAs, headphones, laptops, speakers, and other
devices that operate on batteries.
Who uses wireless?
Wireless technology has become so popular in recent years that almost everyone is using it, whether it’s for home, oce,
business, D-Link has a wireless solution for it.
Home
• Gives everyone at home broadband access
• Surf the web, check email, instant message, etc.
• Gets rid of the cables around the house
• Simple and easy to use
Small Oce and Home Oce
• Stay on top of everything at home as you would at oce
• Remotely access your oce network from home
• Share Internet connection and printer with multiple computers
• No need to dedicate oce space
89D-Link DAP-1360 User Manual
Appendix A - Wireless Basics
Where is wireless used?
Wireless technology is expanding everywhere not just at home or oce. People like the freedom of mobility and it’s becoming
so popular that more and more public facilities now provide wireless access to attract people. The wireless connection in public
places is usually called “hotspots”.
Using a D-Link Cardbus Adapter with your laptop, you can access the hotspot to connect to Internet from remote locations
like: Airports, Hotels, Coee Shops, Libraries, Restaurants, and Convention Centers.
Wireless network is easy to setup, but if you’re installing it for the rst time it could be quite a task not knowing where to start.
That’s why we’ve put together a few setup steps and tips to help you through the process of setting up a wireless network.
Tips
Here are a few things to keep in mind, when you install a wireless network.
Centralize your access point or Access Point
Make sure you place the bridge/access point in a centralized location within your network for the best performance. Try to
place the bridge/access point as high as possible in the room, so the signal gets dispersed throughout your home. If you have
a two-story home, you may need a repeater to boost the signal to extend the range.
Eliminate Interference
Place home appliances such as cordless telephones, microwaves, wireless speakers, and televisions as far away as possible from
the bridge/access point. This would signicantly reduce any interference that the appliances might cause since they operate
on same frequency.
90D-Link DAP-1360 User Manual
Appendix A - Wireless Basics
Security
Don’t let your next-door neighbors or intruders connect to your wireless network. Secure your wireless network by turning
on the WPA or WEP security feature on the access point. Refer to product manual for detail information on how to set it up.
There are basically two modes of networking:
• Infrastructure – All wireless clients will connect to an access point or wireless bridge.
• Ad-Hoc – Directly connecting to another computer, for peer-to-peer communication, using wireless network
adapters on each computer, such as two or more wireless network Cardbus adapters.
An Infrastructure network contains an Access Point or wireless bridge. All the wireless devices, or clients, will connect to the
wireless bridge or access point.
An Ad-Hoc network contains only clients, such as laptops with wireless cardbus adapters. All the adapters must be in Ad-Hoc
mode to communicate.
Wireless Modes
91D-Link DAP-1360 User Manual
Appendix B - Networking Basics
Networking Basics
Check your IP address
After you install your adapter, by default, the TCP/IP settings should be set to obtain an IP address from a DHCP server (i.e.
wireless router) automatically. To verify your IP address, please follow the steps below.
Click on Start > Run. In the run box type cmd and click OK. (Windows® 7/Vista® users type cmd in the Start Search box.)
At the prompt, type ipcong and press Enter.
This will display the IP address, subnet mask, and the
default gateway of your adapter.
If the address is 0.0.0.0, check your adapter installation,
security settings, and the settings on your router.
Some rewall software programs may block a DHCP
request on newly installed adapters.
92D-Link DAP-1360 User Manual
Appendix B - Networking Basics
Statically Assign an IP address
If you are not using a DHCP capable gateway/router, or you need to assign a static IP address, please follow the steps below:
Step 1
Windows® 7 - Click on Start > Control Panel > Network and Internet > Network and Sharing Center > Change Adapter
Setting.
Windows Vista® - Click on Start > Control Panel > Network and Internet > Network and Sharing Center > Manage Network
Connections.
Windows® XP - Click on Start > Control Panel > Network Connections.
Windows® 2000 - From the desktop, right-click My Network Places > Properties.
Step 2
Right-click on the Local Area Connection which represents your network adapter and select Properties.
Step 3
Highlight Internet Protocol (TCP/IP) and click Properties.
Step 4
Click Use the following IP address and enter an IP address that is on the same subnet
as your network or the LAN IP address on your router.
Example: If the router´s LAN IP address is 192.168.0.1, make your IP address 192.168.0.X
where X is a number between 2 and 99. Make sure that the number you choose is not in
use on the network. Set Default Gateway the same as the LAN IP address of your router
(192.168.0.1).
Set Primary DNS the same as the LAN IP address of your router (192.168.0.1). The
Secondary DNS is not needed or you may enter a DNS server from your ISP.
Step 5
Click OK twice to save your settings.
93D-Link DAP-1360 User Manual
Appendix C - Technical Specications
Technical Specications
Standards
• IEEE 802.11n
• IEEE 802.11g
• IEEE 802.11b
• IEEE 802.3
• IEEE 802.3u
Security
• WPA-Personal
• WPA2-Personal
• WPA-Enterprise
• WPA2-Enterprise
Wireless Signal Rates1
• 300Mbps • 108Mbps
• 54Mbps • 48Mbps
• 36Mbps • 24Mbps
• 18Mbps • 12Mbps
• 11Mbps • 9Mbps
• 6Mbps • 5.5Mbps
• 2Mbps • 1Mbps
Maximum Operating Voltage
• 5V 1A
Maximum Operating Current
• 450 mA
Modulation
• DQPSK
• DBPSK
• CCK
• OFDM
Frequency Range2
• 2.4GHz to 2.483GHz
LEDs
• Power • Wireless
• Security • LAN
Operating Temperature
• 32°F to 131°F ( 0°C to 55°C)
Humidity
• 90% maximum (non-condensing)
Safety & Emissions
• FCC • IC
Dimensions
• 144 (W) x 109 (D) x 30 (H) mm (5.67 x 4.29 x 1.18 inches)
1Maximum wireless signal rate derived from IEEE Standard 802.11g and 802.11n specications. Actual data throughput will vary. Network conditions and environmental factors,
including volume of network trac, building materials and construction, and network overhead, lower actual data throughput rate. Environmental conditions will adversely
aect wireless signal range.
2Range varies depending on country’s regulation.
94D-Link DAP-1360 User Manual
Appendix D - Contacting Technical Support
Contacting Technical Support
U.S. and Canadian customers can contact D-Link technical support through our web site or by phone.
Before you contact technical support, please have the following ready:
• Model number of the product (e.g. DAP-1360)
• Hardware Revision (located on the label on the bottom of the access point (e.g. rev B1))
• Serial Number (s/n number located on the label on the bottom of the access point).
You can nd software updates and user documentation on the D-Link website as well as frequently asked questions and
answers to technical issues.
For customers within the United States:
Phone Support:
(877) 453-5465
Internet Support:
http://support.dlink.com
For customers within Canada:
Phone Support:
(800) 361-5265
Internet Support:
http://support.dlink.ca
95D-Link DAP-1360 User Manual
Appendix E - Warranty
Warranty
Subject to the terms and conditions set forth herein, D-Link Systems, Inc. (“D-Link”) provides this Limited Warranty:
• Only to the person or entity that originally purchased the product from D-Link or its authorized reseller or distributor, and
• Only for products purchased and delivered within the fty states of the United States, the District of Columbia, U.S. Possessions
or Protectorates, U.S. Military Installations, or addresses with an APO or FPO.
Limited Warranty:
D-Link warrants that the hardware portion of the D-Link product described below (“Hardware”) will be free from material defects in workmanship
and materials under normal use from the date of original retail purchase of the product, for the period set forth below (“Warranty Period”), except
as otherwise stated herein.
• Hardware (excluding power supplies and fans): One (1) year
• Power supplies and fans: One (1) year
• Spare parts and spare kits: Ninety (90) days
The customer’s sole and exclusive remedy and the entire liability of D-Link and its suppliers under this Limited Warranty will be, at
D-Link’s option, to repair or replace the defective Hardware during the Warranty Period at no charge to the original owner or to refund the actual
purchase price paid. Any repair or replacement will be rendered by D-Link at an Authorized D-Link Service Oce. The replacement hardware
need not be new or have an identical make, model or part. D-Link may, at its option, replace the defective Hardware or any part thereof with any
reconditioned product that D-Link reasonably determines is substantially equivalent (or superior) in all material respects to the defective Hardware.
Repaired or replacement hardware will be warranted for the remainder of the original Warranty Period or ninety (90) days, whichever is longer,
and is subject to the same limitations and exclusions. If a material defect is incapable of correction, or if D-Link determines that it is not practical
to repair or replace the defective Hardware, the actual price paid by the original purchaser for the defective Hardware will be refunded by D-Link
upon return to D-Link of the defective Hardware. All Hardware or part thereof that is replaced by D-Link, or for which the purchase price is refunded,
shall become the property of D-Link upon replacement or refund.
96D-Link DAP-1360 User Manual
Appendix E - Warranty
Limited Software Warranty:
D-Link warrants that the software portion of the product (“Software”) will substantially conform to D-Link’s then current functional specications
for the Software, as set forth in the applicable documentation, from the date of original retail purchase of the Software for a period of ninety (90)
days (“Software Warranty Period”), provided that the Software is properly installed on approved hardware and operated as contemplated in its
documentation. D-Link further warrants that, during the Software Warranty Period, the magnetic media on which D-Link delivers the Software will
be free of physical defects. The customer’s sole and exclusive remedy and the entire liability of D-Link and its suppliers under this Limited Warranty
will be, at D-Link’s option, to replace the non-conforming Software (or defective media) with software that substantially conforms to D-Link’s
functional specications for the Software or to refund the portion of the actual purchase price paid that is attributable to the Software. Except as
otherwise agreed by DLink in writing, the replacement Software is provided only to the original licensee, and is subject to the terms and conditions
of the license granted by D-Link for the Software. Replacement Software will be warranted for the remainder of the original Warranty Period and is
subject to the same limitations and exclusions. If a material non-conformance is incapable of correction, or if D-Link determines in its sole discretion
that it is not practical to replace the non-conforming Software, the price paid by the original licensee for the non-conforming Software will be
refunded by D-Link; provided that the non-conforming Software (and all copies thereof) is rst returned to D-Link. The license granted respecting
any Software for which a refund is given automatically terminates.
Non-Applicability of Warranty:
The Limited Warranty provided hereunder for Hardware and Software portions of D-Link’s products will not be applied to and does not cover any
refurbished product and any product purchased through the inventory clearance or liquidation sale or other sales in which D-Link, the sellers, or
the liquidators expressly disclaim their warranty obligation pertaining to the product and in that case, the product is being sold “As-Is” without any
warranty whatsoever including, without limitation, the Limited Warranty as described herein, notwithstanding anything stated herein to the contrary.
Submitting A Claim (USA):
The customer shall return the product to the original purchase point based on its return policy. In case the return policy period has expired and
the product is within warranty, the customer shall submit a claim to D-Link as outlined below:
• The customer must submit with the product as part of the claim a written description of the Hardware defect or Software
nonconformance in sucient detail to allow DLink to conrm the same, along with proof of purchase of the product (such as a
copy of the dated purchase invoice for the product) if the product is not registered.
• The customer must obtain a Case ID Number from D-Link Technical Support at 1-877-453-5465, who will attempt to assist the
customer in resolving any suspected defects with the product. If the product is considered defective, the customer must obtain a
Return Material Authorization (“RMA”) number by completing the RMA form and entering the assigned Case ID Number at https://
rma.dlink.com/.
97D-Link DAP-1360 User Manual
Appendix E - Warranty
• After an RMA number is issued, the defective product must be packaged securely in the original or other suitable shipping package
to ensure that it will not be damaged in transit, and the RMA number must be prominently marked on the outside of the package.
Do not include any manuals or accessories in the shipping package. DLink will only replace the defective portion of the product
and will not ship back any accessories.
• The customer is responsible for all in-bound shipping charges to D-Link. No Cash on Delivery (“COD”) is allowed. Products sent COD
will either be rejected by D-Link or become the property of D-Link. Products shall be fully insured by the customer and shipped
to D-Link Systems, Inc., 17595 Mt. Herrmann, Fountain Valley, CA 92708. D-Link will not be held responsible for any packages that
are lost in transit to D-Link. The repaired or replaced packages will be shipped to the customer via UPS Ground or any common
carrier selected by D-Link. Return shipping charges shall be prepaid by D-Link if you use an address in the United States, otherwise
we will ship the product to you freight collect. Expedited shipping is available upon request and provided shipping charges are
prepaid by the customer. D-Link may reject or return any product that is not packaged and shipped in strict compliance with the
foregoing requirements, or for which an RMA number is not visible from the outside of the package. The product owner agrees to
pay D-Link’s reasonable handling and return shipping charges for any product that is not packaged and shipped in accordance
with the foregoing requirements, or that is determined by D-Link not to be defective or non-conforming.
Submitting A Claim (Canada):
The customer shall return the product to the original purchase point based on its return policy. In case the return policy period has expired and the
product is within warranty, the customer shall submit a claim to D-Link as outlined below:
• Customers need to provide their receipt (proof of purchase) even if the product is registered. Without a receipt, no warranty service will
be done. The registration is not considered a proof of purchase.
• The customer must submit with the product as part of the claim a written description of the Hardware defect or Software nonconformance
in sucient detail to allow D-Link to conrm the same, along with proof of purchase of the product (such as a copy of the dated purchase
invoice for the product) if the product is not registered.
• The customer must obtain a Case ID Number from D-Link Technical Support at 1-800-361-5265, who will attempt to assist the customer
in resolving any suspected defects with the product. If the product is considered defective, the customer must obtain a Return Material
Authorization (“RMA”) number by completing the RMA form and entering the assigned Case ID Number at https://rma.dlink.ca/.
• After an RMA number is issued, the defective product must be packaged securely in the original or other suitable shipping package to
ensure that it will not be damaged in transit, and the RMA number must be prominently marked on the outside of the package. Do not
include any manuals or accessories in the shipping package. D-Link will only replace the defective portion of the product and will not ship
back any accessories.
98D-Link DAP-1360 User Manual
Appendix E - Warranty
• The customer is responsible for all in-bound shipping charges to D-Link. No Cash on Delivery (“COD”) is allowed. Products sent COD will
be rejected by D-Link. Products shall be fully insured by the customer and shipped to D-Link Networks, Inc., 2525 Meadowvale Boulevard
Mississauga, Ontario, L5N 5S2 Canada. D-Link will not be held responsible for any packages that are lost in transit to D-Link. The repaired
or replaced packages will be shipped to the customer via Purolator Canada or any common carrier selected by D-Link. Return shipping
charges shall be prepaid by D-Link if you use an address in Canada, otherwise we will ship the product to you freight collect. Expedited
shipping is available upon request and provided shipping charges are prepaid by the customer. D-Link may reject or return any product
that is not packaged and shipped in strict compliance with the foregoing requirements, or for which an RMA number is not visible from
the outside of the package. The product owner agrees to pay D-Link’s reasonable handling and return shipping charges for any product
that is not packaged and shipped in accordance with the foregoing requirements, or that is determined by D-Link not to be defective or
non-conforming.
• RMA phone number: 1-800-361-5265 Hours of Operation: Monday-Friday, 9:00AM – 9:00PM EST
What Is Not Covered:
The Limited Warranty provided herein by D-Link does not cover:
Products that, in D-Link’s judgment, have been subjected to abuse, accident, alteration, modication, tampering, negligence, misuse, faulty installation,
lack of reasonable care, repair or service in any way that is not contemplated in the documentation for the product, or if the model or serial number
has been altered, tampered with, defaced or removed; Initial installation, installation and removal of the product for repair, and shipping costs;
Operational adjustments covered in the operating manual for the product, and normal maintenance; Damage that occurs in shipment, due to act
of God, failures due to power surge, and cosmetic damage; Any hardware, software, rmware or other products or services provided by anyone
other than D-Link; and Products that have been purchased from inventory clearance or liquidation sales or other sales in which D-Link, the sellers,
or the liquidators expressly disclaim their warranty obligation pertaining to the product.
While necessary maintenance or repairs on your Product can be performed by any company, we recommend that you use only an Authorized D-Link
Service Oce. Improper or incorrectly performed maintenance or repair voids this Limited Warranty.
Disclaimer of Other Warranties:
EXCEPT FOR THE LIMITED WARRANTY SPECIFIED HEREIN, THE PRODUCT IS PROVIDED “AS-IS” WITHOUT ANY WARRANTY OF ANY KIND WHATSOEVER
INCLUDING, WITHOUT LIMITATION, ANY WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT.
IF ANY IMPLIED WARRANTY CANNOT BE DISCLAIMED IN ANY TERRITORY WHERE A PRODUCT IS SOLD, THE DURATION OF SUCH IMPLIED WARRANTY
SHALL BE LIMITED TO THE DURATION OF THE APPLICABLE WARRANTY PERIOD SET FORTH ABOVE. EXCEPT AS EXPRESSLY COVERED UNDER THE
LIMITED WARRANTY PROVIDED HEREIN, THE ENTIRE RISK AS TO THE QUALITY, SELECTION AND PERFORMANCE OF THE PRODUCT IS WITH THE
PURCHASER OF THE PRODUCT.
99D-Link DAP-1360 User Manual
Appendix E - Warranty
Limitation of Liability:
TO THE MAXIMUM EXTENT PERMITTED BY LAW, D-LINK IS NOT LIABLE UNDER ANY CONTRACT, NEGLIGENCE, STRICT LIABILITY OR OTHER LEGAL
OR EQUITABLE THEORY FOR ANY LOSS OF USE OF THE PRODUCT, INCONVENIENCE OR DAMAGES OF ANY CHARACTER, WHETHER DIRECT, SPECIAL,
INCIDENTAL OR CONSEQUENTIAL (INCLUDING, BUT NOT LIMITED TO, DAMAGES FOR LOSS OF GOODWILL, LOSS OF REVENUE OR PROFIT, WORK
STOPPAGE, COMPUTER FAILURE OR MALFUNCTION, FAILURE OF OTHER EQUIPMENT OR COMPUTER PROGRAMS TO WHICH D-LINK’S PRODUCT
IS CONNECTED WITH, LOSS OF INFORMATION OR DATA CONTAINED IN, STORED ON, OR INTEGRATED WITH ANY PRODUCT RETURNED TO D-LINK
FOR WARRANTY SERVICE) RESULTING FROM THE USE OF THE PRODUCT, RELATING TO WARRANTY SERVICE, OR ARISING OUT OF ANY BREACH OF
THIS LIMITED WARRANTY, EVEN IF D-LINK HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. THE SOLE REMEDY FOR A BREACH OF
THE FOREGOING LIMITED WARRANTY IS REPAIR, REPLACEMENT OR REFUND OF THE DEFECTIVE OR NONCONFORMING PRODUCT. THE MAXIMUM
LIABILITY OF D-LINK UNDER THIS WARRANTY IS LIMITED TO THE PURCHASE PRICE OF THE PRODUCT COVERED BY THE WARRANTY. THE FOREGOING
EXPRESS WRITTEN WARRANTIES AND REMEDIES ARE EXCLUSIVE AND ARE IN LIEU OF ANY OTHER WARRANTIES OR REMEDIES, EXPRESS, IMPLIED
OR STATUTORY.
Governing Law:
This Limited Warranty shall be governed by the laws of the State of California. Some states do not allow exclusion or limitation of incidental or
consequential damages, or limitations on how long an implied warranty lasts, so the foregoing limitations and exclusions may not apply. This
Limited Warranty provides specic legal rights and you may also have other rights which vary from state to state.
Trademarks:
D-Link is a registered trademark of D-Link Corporation/D-Link Systems, Inc. Other trademarks or registered trademarks are the property of their
respective owners.
Copyright Statement:
No part of this publication or documentation accompanying this product may be reproduced in any form or by any means or used to make any
derivative such as translation, transformation, or adaptation without permission from D-Link Corporation/D-Link Systems, Inc., as stipulated by the
United States Copyright Act of 1976 and any amendments thereto. Contents are subject to change without prior notice.
Copyright ©2010-2011 by D-Link Corporation/D-Link Systems, Inc. All rights reserved.
CE Mark Warning:
This is a Class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take
adequate measures.
100D-Link DAP-1360 User Manual
Appendix E - Warranty
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by
one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modications not expressly approved by the party responsible for compliance could void the user’s authority to
operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and
operated with minimum distance 20cm between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
The availability of some specic channels and/or operational frequency bands are country dependent and are rmware programmed at the factory
to match the intended destination. The rmware setting is not accessible by the end user.
Industry Canada Statement
This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause
undesired operation.
101D-Link DAP-1360 User Manual
Appendix E - Warranty
IMPORTANT NOTE:
Radiation Exposure Statement:
This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and
operated with minimum distance 20cm between the radiator & your body.
This device has been designed to operate with an antenna having a maximum gain of [2] dB. Antenna having a higher gain is strictly prohibited
per regulations of Industry Canada. The required antenna impedance is 50 ohms.
Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for
the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that
the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.
This radio transmitter (IC: 4216A-AP1360C1 / Model: DAP-1360C1) has been approved by Industry Canada to operate with the antenna types listed
below with the maximum permissible gain and required antenna impedance for each antenna type indicated. Antenna types not included in this
list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device.
Ce dispositif est conforme à la norme CNR-210 d’Industrie Canada applicable aux appareils radio exempts de licence. Son fonctionnement est sujet
aux deux conditions suivantes: (1) le dispositif ne doit pas produire de brouillage préjudiciable, et (2) ce dispositif doit accepter tout brouillage reçu,
y compris un brouillage susceptible de provoquer un fonctionnement indésirable.
NOTE IMPORTANTE:
Déclaration d’exposition aux radiations:
Cet équipement est conforme aux limites d’exposition aux rayonnements IC établies pour un environnement non contrôlé. Cet équipement doit
être installé et utilisé avec un minimum de 20 cm de distance entre la source de rayonnement et votre corps.
Ce dispositif a été conçu pour fonctionner avec une antenne ayant un gain maximal de dB [2]. Une antenne à gain plus élevé est strictement interdite
par les règlements d’Industrie Canada. L’impédance d’antenne requise est de 50 ohms.
Conformément à la réglementation d’Industrie Canada, le présent émetteur radio peutfonctionner avec une antenne d’un type et d’un gain maximal
(ou inférieur) approuvé pourl’émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectriqueà l’intention des autres
utilisateurs, il faut choisir le type d’antenne et son gain de sorte que lapuissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l’intensité
nécessaire àl’établissement d’une communication satisfaisante.
102D-Link DAP-1360 User Manual
Appendix E - Warranty
Le présent émetteur radio (IC: 4216A-AP1360C1 / Model: DAP-1360C1) a été approuvé par Industrie Canada pour fonctionner avec les types d’antenne
énumérés ci-dessous et ayant un gain admissible maximal et l’impédance requise pour chaque type d’antenne. Les types d’antenne non inclus dans
cette liste, ou dont le gain est supérieur au gain maximal indiqué, sont strictement interdits pour l’exploitation de l’émetteur.
Antenna information: dipole / 2dBi (Brand:D-Link / Manufacturer :WHA YU)
103D-Link DAP-1360 User Manual
Appendix F - Registration
Version 3.0
October 5, 2011
Product registration is entirely voluntary and failure to complete or return this form will not diminish your warranty rights.
Registration
