D Link AP1525B1 Wi-Fi Booster Access Point /MediaBridge User Manual DAP 1525

D Link Corporation Wi-Fi Booster Access Point /MediaBridge DAP 1525

UserMan_KA2AP1525B1

Wi-Fi Booster Access Point /MediaBridge
2D-Link DAP-1525 User Manual
Table of Contents
Product Overview .............................................................. 4
Package Contents ......................................................................... 4
System Requirements ................................................................. 4
Introduction ................................................................................... 5
Features ............................................................................................6
Hardware Overview ..................................................................... 7
Connections ........................................................................... 7
LEDs ........................................................................................... 8
Front View ................................................................................ 9
Installation .......................................................................10
Before you Begin .........................................................................10
Wireless Installation Considerations ....................................11
AP/Bridge .........................................................................12
AP Mode ........................................................................................12
Bridge Mode ................................................................................13
Create a Full MediaBand (5GHz wireless)
Network ............................................................................. 14
One Touch AP Conguration ..................................................15
Conguration for AP Mode .............................................16
Web-based Conguration Utility ..........................................16
Setup Wizard ................................................................................17
Wireless Setup Wizard .......................................................18
Add Wireless Device With WPS ..............................................20
Manual Conguration ...............................................................22
Wireless Settings .................................................................22
LAN Setup ..............................................................................24
LAN Setup ..............................................................................25
Static IPv6 .........................................................................25
LAN Setup ..............................................................................26
Auto-conguration .......................................................26
Advanced ......................................................................................27
MAC Address Filter .............................................................27
Advanced Network ............................................................28
Guest Zone ............................................................................29
Schedule ................................................................................30
Tools ................................................................................................31
Admin .....................................................................................31
Time .........................................................................................32
System ....................................................................................33
Language Pack Upgrade ..................................................34
Firmware ................................................................................34
System Check .......................................................................36
Status ..............................................................................................37
Device Info ............................................................................37
Wireless ..................................................................................38
Logs .........................................................................................39
Statistics .................................................................................40
IPV6 ..........................................................................................41
Support ..........................................................................................42
Conguration for Bridge Mode ......................................43
Web-based Conguration Utility ..........................................43
Table of Contents
3D-Link DAP-1525 User Manual
Table of Contents
Setup Wizard ........................................................................44
Wireless ..................................................................................49
Wireless MAC Cloning ...............................................................49
Lan Setup ...............................................................................50
Lan Setup ...............................................................................51
Static IPv6 .........................................................................51
Lan Setup ...............................................................................52
Auto-conguration .......................................................52
Advanced ......................................................................................53
Schedule ................................................................................53
Tools ................................................................................................54
Admin .....................................................................................54
Time .........................................................................................55
System ....................................................................................56
Language Pack .....................................................................57
Firmware ................................................................................57
System Check .......................................................................59
Status ..............................................................................................60
Device Info ............................................................................60
Logs .........................................................................................61
IPv6 ..........................................................................................62
Support ..........................................................................................63
Wireless Security .............................................................64
What is WPA? ................................................................................64
Congure WEP (AP Mode) .......................................................65
Congure WPA-Personal (AP Mode) ....................................66
Congure WPA-Enterprise (AP Mode) .................................67
Congure WEP (Bridge Mode) ...............................................68
Congure WPA-Personal (Bridge Mode) ............................69
Connect to a Wireless Network .......................................70
Using Windows® 7 ......................................................................70
Using Windows Vista® ...............................................................73
Congure Security ..............................................................75
Using Windows® XP ...................................................................76
Congure Security ..............................................................77
Troubleshooting ..............................................................79
Wireless Basics .................................................................83
What is Wireless? .........................................................................84
Tips ...................................................................................................86
Wireless Modes ............................................................................87
Networking Basics ...........................................................88
Check your IP address ...............................................................88
Statically Assign an IP address ...............................................89
Technical Specications ..................................................90
Contacting Technical Support ........................................91
Warranty ...........................................................................92
Registration .....................................................................98
4D-Link DAP-1525 User Manual
Section 1 - Product Overview
• D-Link DAP-1525 Wi-Fi Booster
• Power Adapter
• CAT5 Ethernet Cable
• CD-ROM with User Manual
System Requirements
• Computers with Windows®, Macintosh®, or Linux-based operating systems with an installed Ethernet
adapter
Internet Explorer Version 6.0 or higher, Firefox 3.0 or higher, Safari 3.0 or higher, or Chrome 2.0 or higher
(for conguration)
Product Overview
Package Contents
Note: Using a power supply with a dierent voltage than the one included
with the DAP-1525 will cause damage and void the warranty for this
product.
5D-Link DAP-1525 User Manual
Section 1 - Product Overview
Introduction
TOTAL PERFORMANCE
Combines award winning access point features and 802.11n wireless technology to provide the best wireless performance.
TOTAL SECURITY
The most complete set of security features including WPA2 and MAC Address Control to protect your network against outside
intruders.
TOTAL COVERAGE
Provides greater wireless signal rates even at farther distances for best-in-class Whole Home Coverage.
ULTIMATE PERFORMANCE
The D-Link Wi-Fi Booster (DAP-1525) is a 802.11n compliant device that delivers real world performance of up to 650% faster than an
802.11g wireless connection (also faster than a 100Mbps wired Ethernet connection). Create a secure wireless network to share photos,
les, music, video, printers, and network storage throughout your home. Connect the Wi-Fi Booster to router and share your high-speed
Internet access with everyone on the network. In addition, this Wireless Bridge includes a Quality of Service (QoS) engine that keeps
digital phone calls (VoIP) and online gaming smooth and responsive, providing a better Internet experience.
EXTENDED WHOLE HOME COVERAGE
Powered by smart beam technology, this high performance Wireless AP/Bridge provides superior Whole Home Coverage while reducing
dead spots. The Wi-Fi Booster is designed for use in bigger homes and for users who demand higher performance networking. Add an
Xtreme N® Duo notebook or desktop adapter and stay connected to your network from virtually anywhere in your home.
TOTAL NETWORK SECURITY
The Wi-Fi Booster supports all of the latest wireless security features to prevent unauthorized access, be it from over the wireless network
or from the Internet. Support for WPA and WEP standards ensure that you’ll be able to use the best possible encryption method, regardless
of your client devices.
* Maximum wireless signal rate derived from IEEE Standard 802.11g, 802.11a and 802.11n specications. Actual data throughput will vary. Network conditions and environmental
factors, including volume of network trac, building materials and construction, and network overhead, lower actual data throughput rate. Environmental conditions will
adversely aect wireless signal range.
6D-Link DAP-1525 User Manual
Section 1 - Product Overview
Faster Wireless Networking - The DAP-1525 provides up to 300Mbps* wireless connection with other 802.11n wireless
clients. This capability allows users to participate in real-time activities online, such as video streaming, online gaming,
and real-time audio. The performance of this 802.11n wireless access point gives you the freedom of wireless networking
at speeds 650% faster than 802.11g.
Compatible with 802.11a and 802.11g Devices - The DAP-1525 is still fully compatible with the IEEE 802.11a/g
standard, so it can connect with existing 802.11a/g PCI, USB, and Cardbus adapters.
• Advanced Firewall Features - The Web-based user interface displays advanced network management features including
Content Filtering, which allows easily applied content ltering based on MAC Address.
• WPS PBC- (Wi-Fi Protected Setup Push Button Conguration) Push Button Conguration is a button that can be pressed
to add the device to an existing network or to create a new network. A virtual button can be used on the utility while
a physical button is placed on the side of the device.
This easy setup method allows you to form a secured wireless link between the DAP-1525 and another WPS enabled
device. A PC is no longer needed to log into the Web-based interface.
WPS PIN - (Wi-Fi Protected Setup Personal Identication Number ) A PIN is a unique number that can be used to add
the access point to an existing network or to create a new network. The default PIN may be printed on the bottom of
the access point. For extra security, a new PIN can be generated. You can restore the default PIN at any time. Only the
Administrator (“admin account) can change or reset the PIN.
User-friendly Setup Wizard - Through its easy-to-use Web-based user interface, the DAP-1525 lets you control what
information is accessible to those on the wireless network, whether from the Internet or from your company’s server.
Congure your access point to your specic settings within minutes.
Features
7D-Link DAP-1525 User Manual
Section 1 - Product Overview
Hardware Overview
Connections
1USB Use this port to connect a USB 2.0 printer or a Storage Device
2Mode Switch Three-way switch used to select Bridge, AP 2.4GHz or AP 5GHz
3LAN Ports (1-4) Connect 10/100/1000 Ethernet devices such as computers, switches, and hubs
4Power Receptor Receptor for the supplied power adapter
1
2
3
4
8D-Link DAP-1525 User Manual
Section 1 - Product Overview

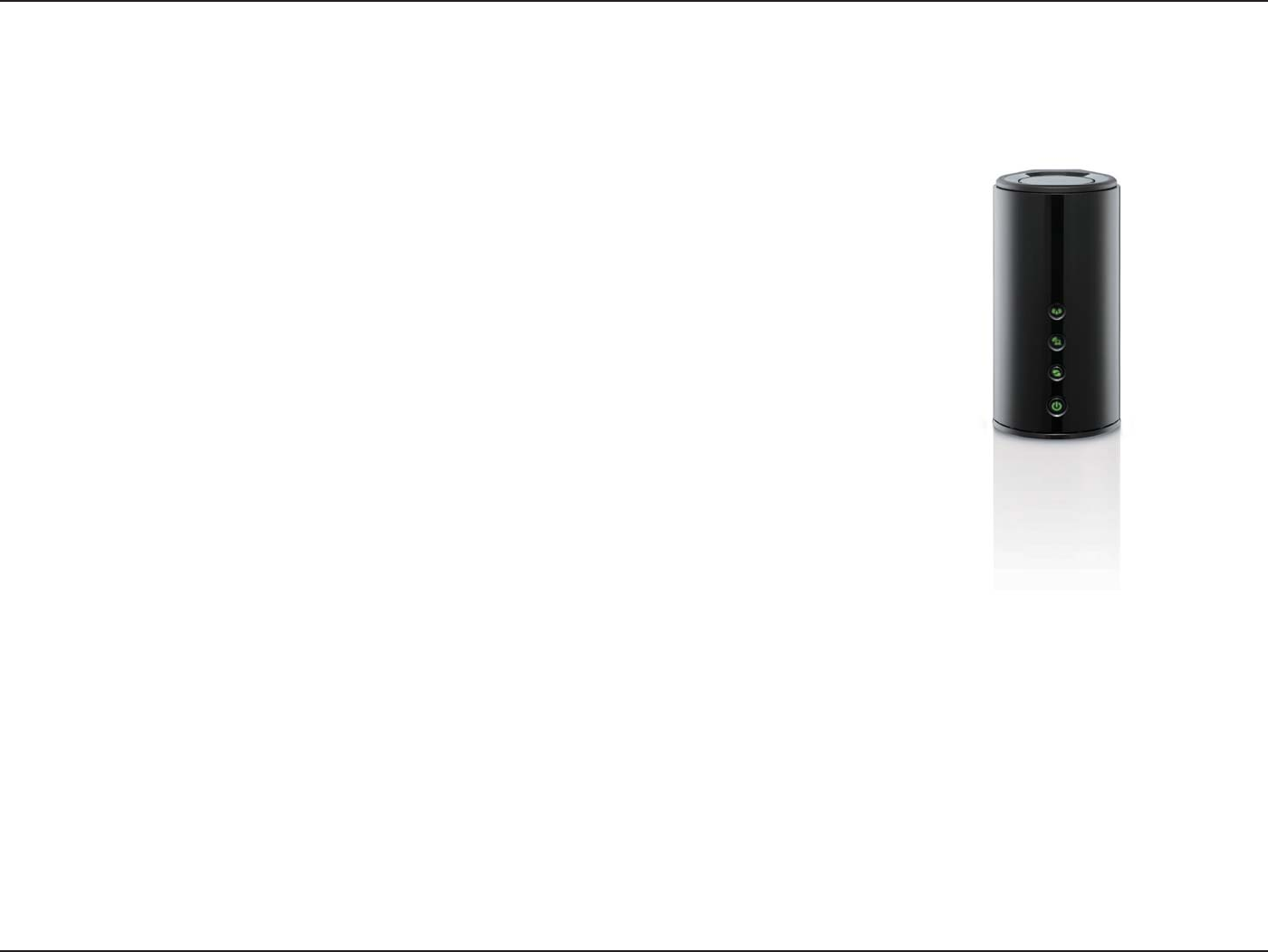

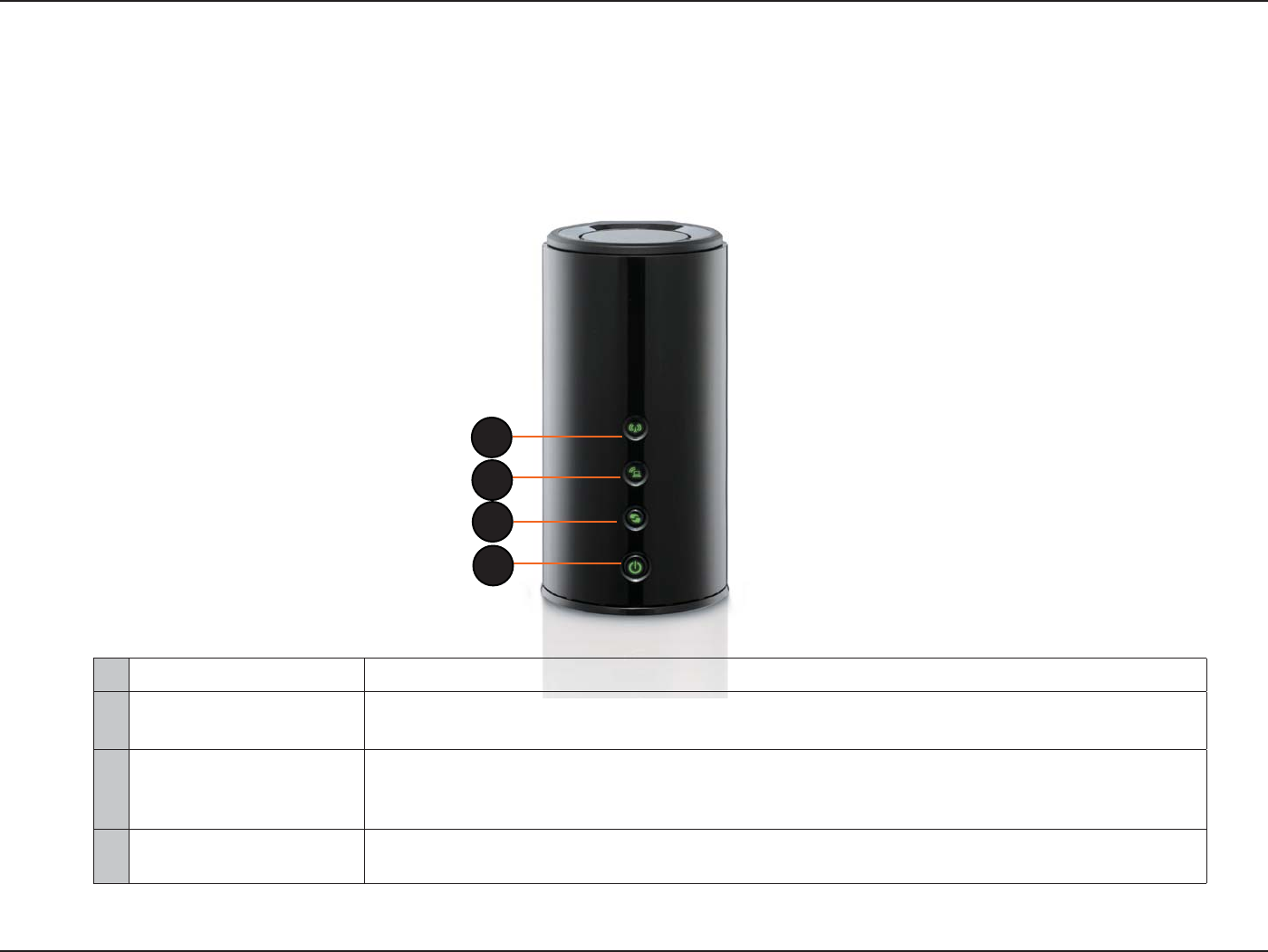

LEDs
1Wireless LED (AP Mode) A solid green light will indicate that AP Mode is ON.
2Wireless LED (Bridge
Mode)
A solid green light indicates a link has been established. A blinking green indicates the device
is fail to connect to the AP.
3WPS Button
Press the WPS button for 1 second to initiate the WPS process. The button will ash green while
a WPS connection is being established. The button will light green for 5 seconds if a successful
WPS connection has been made.
4Power LED/Button A solid light indicates a proper connection to the power supply and also use this button to
power on/power o the device.
1
2
3
4
9D-Link DAP-1525 User Manual
Section 1 - Product Overview
Front View
1Reset Button Press the button to restore the device to its original factory default settings.
1
10D-Link DAP-1525 User Manual
Section 2 - Installation
Before you Begin
Installation
This section will walk you through the installation process. Placement of the DAP-1525 is very important. Do not place the
DAP-1525 in an enclosed area such as a closet, cabinet, or in the attic or garage.
Please congure the Wireless Bridge with the computer that was last connected directly to your modem. Also, you can only
use the Ethernet port on your modem. If you were using the USB connection before using the Wireless Bridge, then you must
turn o your modem, disconnect the USB cable and connect an Ethernet cable to the Internet port on the Wireless Bridge, and
then turn the modem back on. In some cases, you may need to call your ISP to change connection types (USB to Ethernet).
If you have DSL and are connecting via PPPoE, make sure you disable or uninstall any PPPoE software such as WinPoet, Broadjump,
or Enternet 300 from your computer or you will not be able to connect to the Internet.
11D-Link DAP-1525 User Manual
Section 2 - Installation
Wireless Installation Considerations
The D-Link wireless access point lets you access your network using a wireless connection from virtually anywhere within the
operating range of your wireless network. Keep in mind, however, that the number, thickness and location of walls, ceilings,
or other objects that the wireless signals must pass through, may limit the range. Typical ranges vary depending on the types
of materials and background RF (radio frequency) noise in your home or business. The key to maximizing wireless range is to
follow these basic guidelines:
1. Keep the number of walls and ceilings between the D-Link access point and other network devices to a minimum.
Each wall or ceiling can reduce your adapter’s range from 3-90 feet (1-30 meters.) Position your devices so that
the number of walls or ceilings is minimized.
2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (.5 meters), at a
45-degree angle appears to be almost 3 feet (1 meter) thick. At a 2-degree angle it looks over 42 feet (14 meters)
thick! Position devices so that the signal will travel straight through a wall or ceiling (instead of at an angle) for
better reception.
3. Building Materials make a dierence. A solid metal door or aluminum studs may have a negative eect on
range. Try to position access points, wireless access points, and computers so that the signal passes through
drywall or open doorways. Materials and objects such as glass, steel, metal, walls with insulation, water (sh
tanks), mirrors, le cabinets, brick, and concrete will degrade your wireless signal.
4. Keep your product away (at least 3-6 feet or 1-2 meters) from electrical devices or appliances that generate RF
noise.
5. If you are using 2.4GHz cordless phones or X-10 (wireless products such as ceiling fans, lights, and home security
systems), your wireless connection may degrade dramatically or drop completely. Make sure your 2.4GHz phone
base is as far away from your wireless devices as possible. The base transmits a signal even if the phone is not
in use.
12D-Link DAP-1525 User Manual
Section 2 - Installation
Depending on how you want to use your DAP-1525 will determine which mode you use. This section will help you gure out
which setting works with your setup.

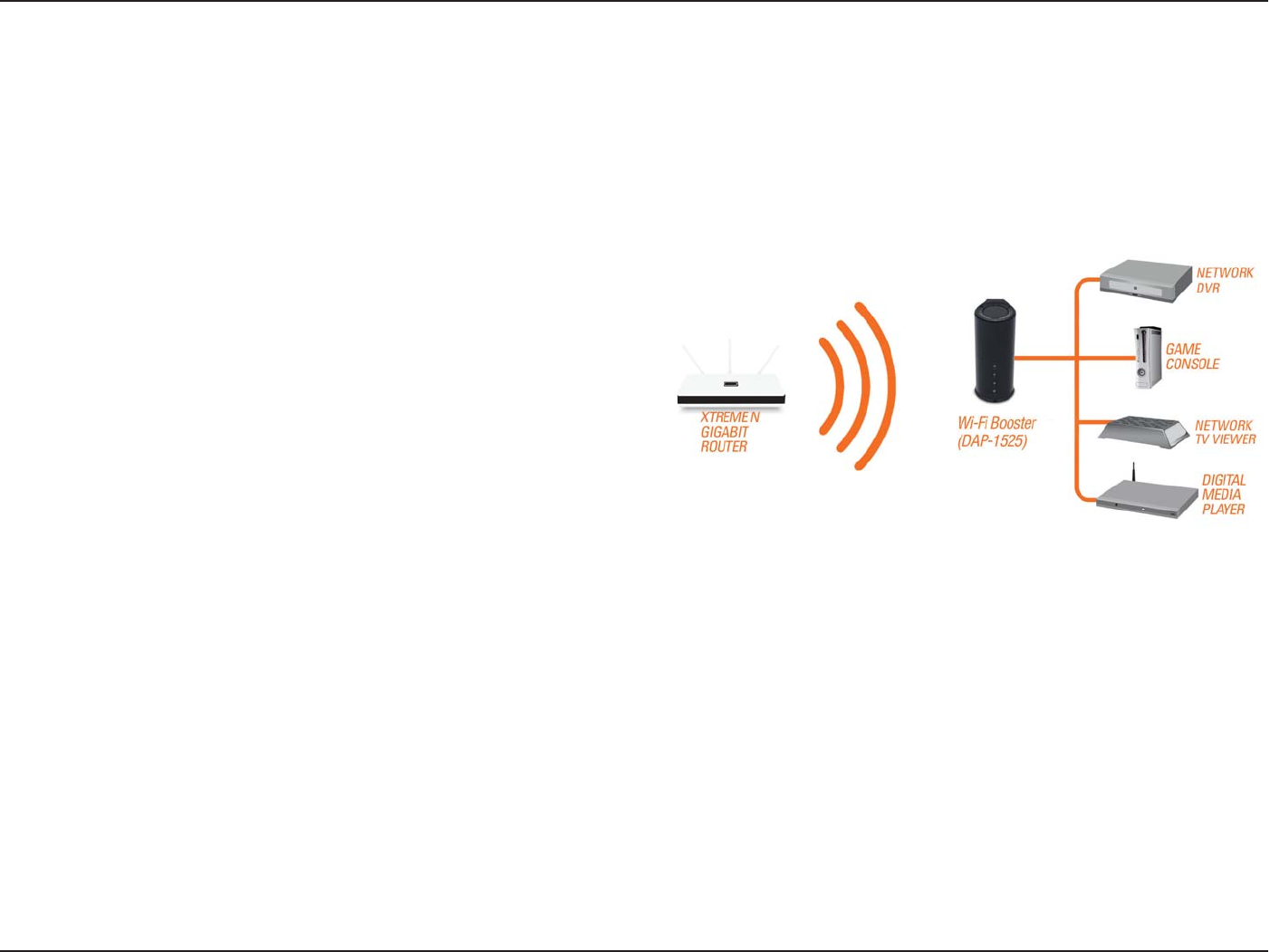

AP Mode
If you already have a wired or wireless router, and want to add a MediaBand (5GHz wireless), to your network, you will need
to move the switch on the back panel of the DAP-1525 to AP 5GHz.
AP/Bridge
1. Ensure you have a broadband Internet connector such as a cable
or DSL client line that connects the
2. Internet to your home or oce.
3. Connect the cable properly or install the modem.
4. Connect the cable or modem with the broadband Access
Point.
5. Connect the DAP-1525’s Ethernet port to your LAN.
6. Move the switch to wireless 2.4GHz AP, or 5GHz AP Mode.
7. Connect your PC or notebook to the DAP-1525 using the PC or
notebook’s wireless adapter.
13D-Link DAP-1525 User Manual
Section 2 - Installation
Bridge Mode
If you want to wirelessly connect multiple Ethernet enabled devices such as game consoles, media players, or network attached
storage devices you will need to move the switch on the back panel of the DAP-1525 to “Bridge.
To use the DAP-1525 in Bridge Mode, follow the steps below:
1. Ensure you have a broadband Internet connector, such as
a cable or DSL client line that connects the Internet to your
home or oce.
2. Connect the cable properly or install the modem.
3. Connect the cable or modem with the broadband Access
Point.
4. Move the switch to Bridge Mode.
5. Connect your PC or notebook to the DAP-1525 using the PC
or notebook’s wireless adapter.
14D-Link DAP-1525 User Manual
Section 2 - Installation

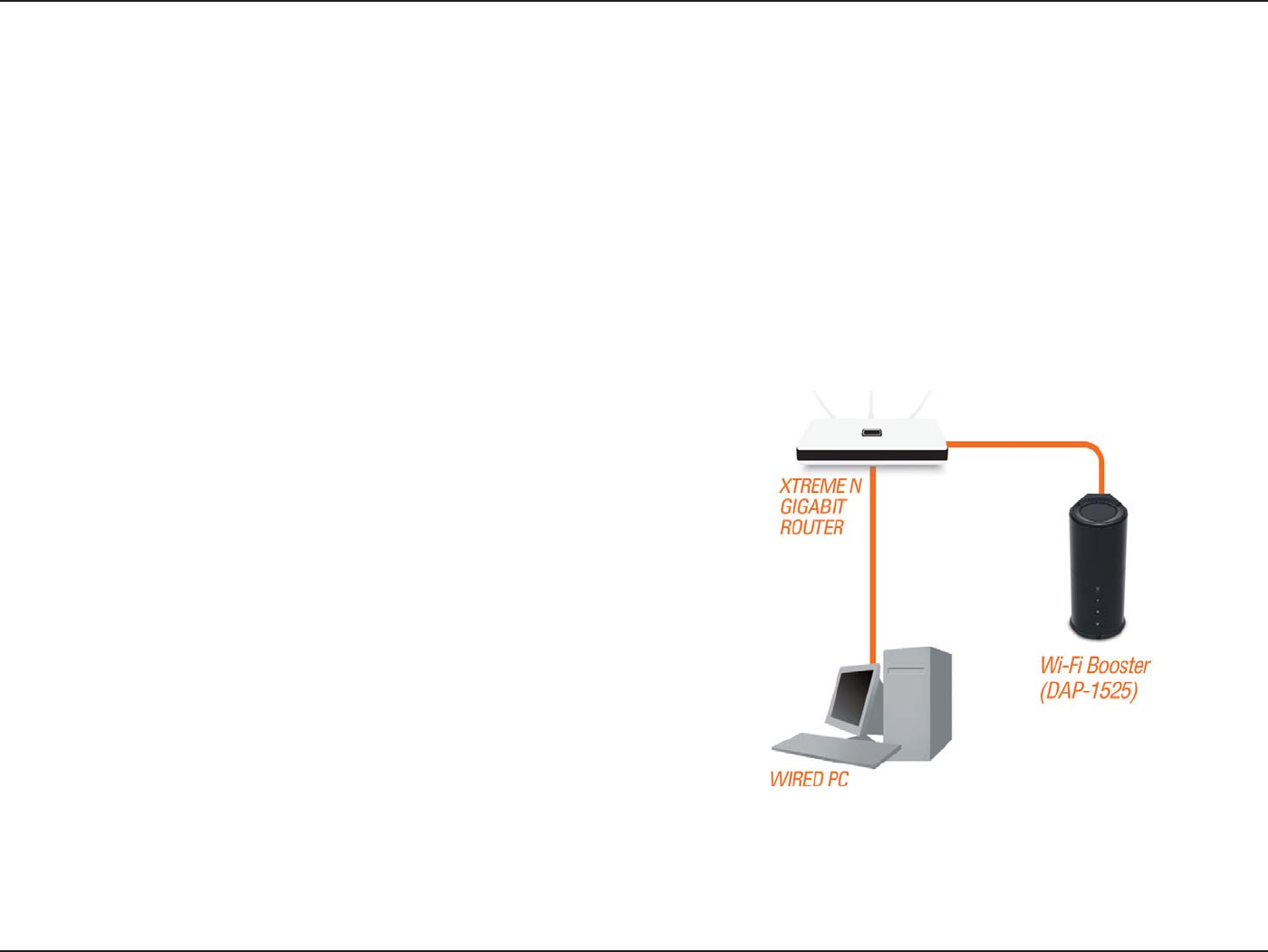

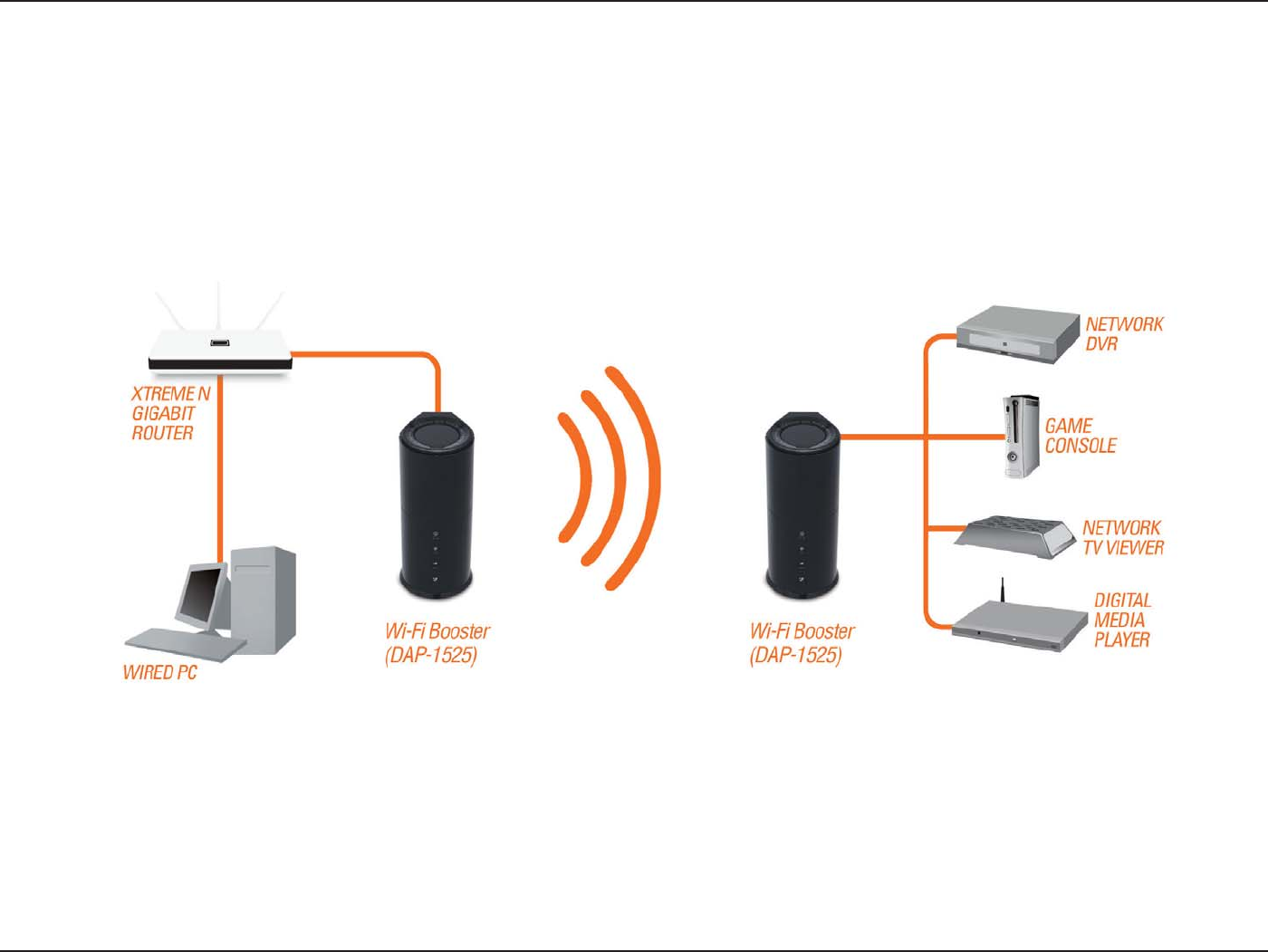

Create a Full MediaBand (5GHz wireless) Network
If you have two DAP-1525 devices and want to create a wireless network with full MediaBand technology you will need to
connect one Wireless Bridge to your router and move the switch on the back panel to AP. The second Wireless Bridge will need
to be placed next to your Ethernet-enabled devices and you will need to move the switch on the back panel to “Bridge”.
15D-Link DAP-1525 User Manual
Section 2 - Installation
One Touch AP Conguration
This feature makes the Wireless Access Point to have the ability to exchange/learn the Wireless Prole from another Wireless
Router/Access Point.
1. Press the WPS button on your existing Router or Access Point. WPS LED will ash on and o.
2. Press WPS Push Button on the DAP-1525 and hold it for 5 seconds.
3. When One click AP setup is complete, your DAP-1525 will have the same Wireless settings as your existing Router or AP.
16D-Link DAP-1525 User Manual
Section 3 - Conguration
Conguration for AP Mode
This section will show you how to congure your new D-Link wireless access point using the web-based conguration
utility.
Web-based Conguration Utility

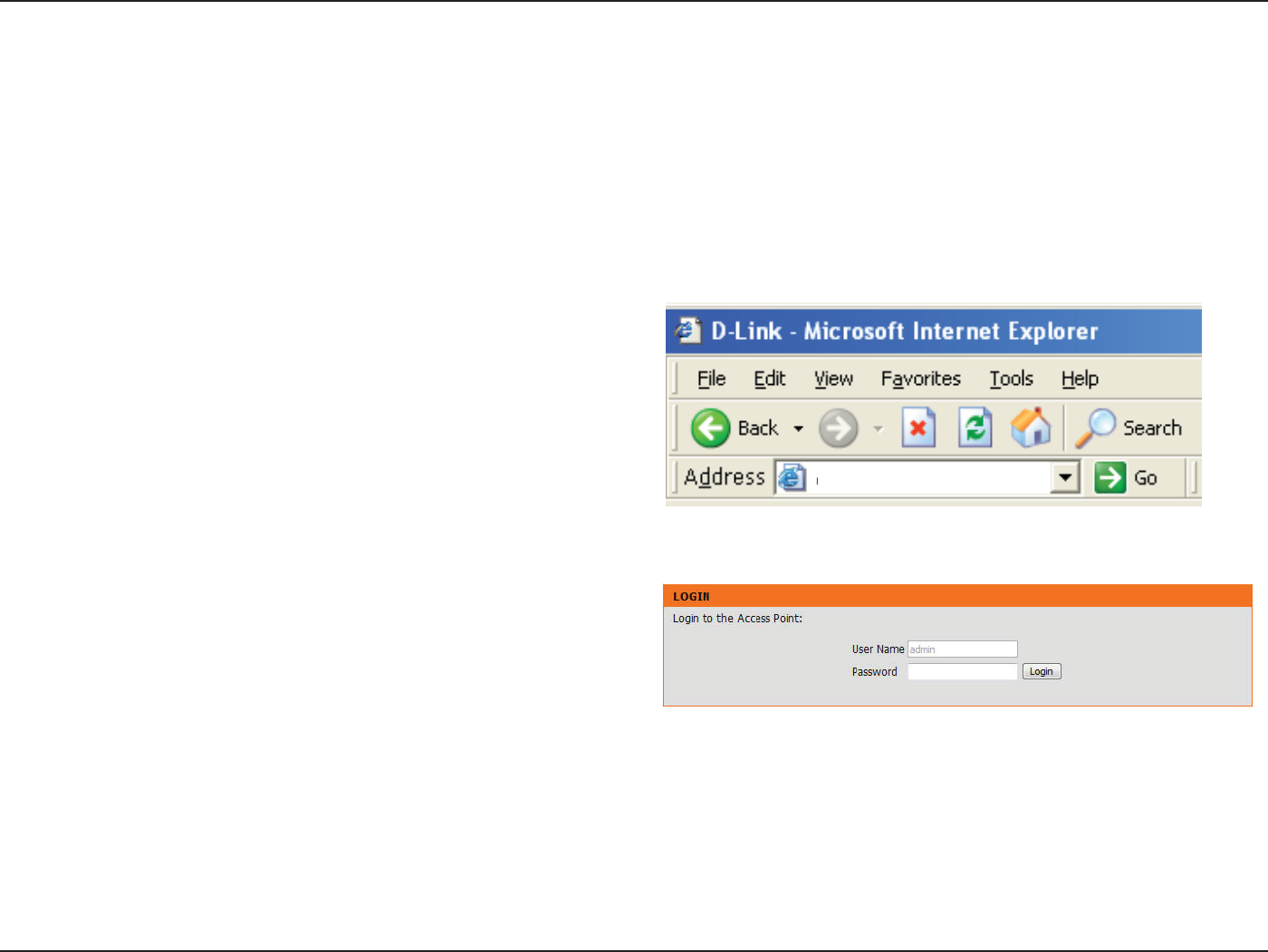

To access the conguration utility, open a web browser
such as Internet Explorer and enter http://dlinkap or
http://192.168.0.50 in the address eld.
Select Admin from the drop-down menu and then enter
your password. Leave the password blank by default.
If you get a Page Cannot be Displayed error, please refer to
the Troubleshooting section for assistance.
http://dlinkap
17D-Link DAP-1525 User Manual
Section 3 - Conguration

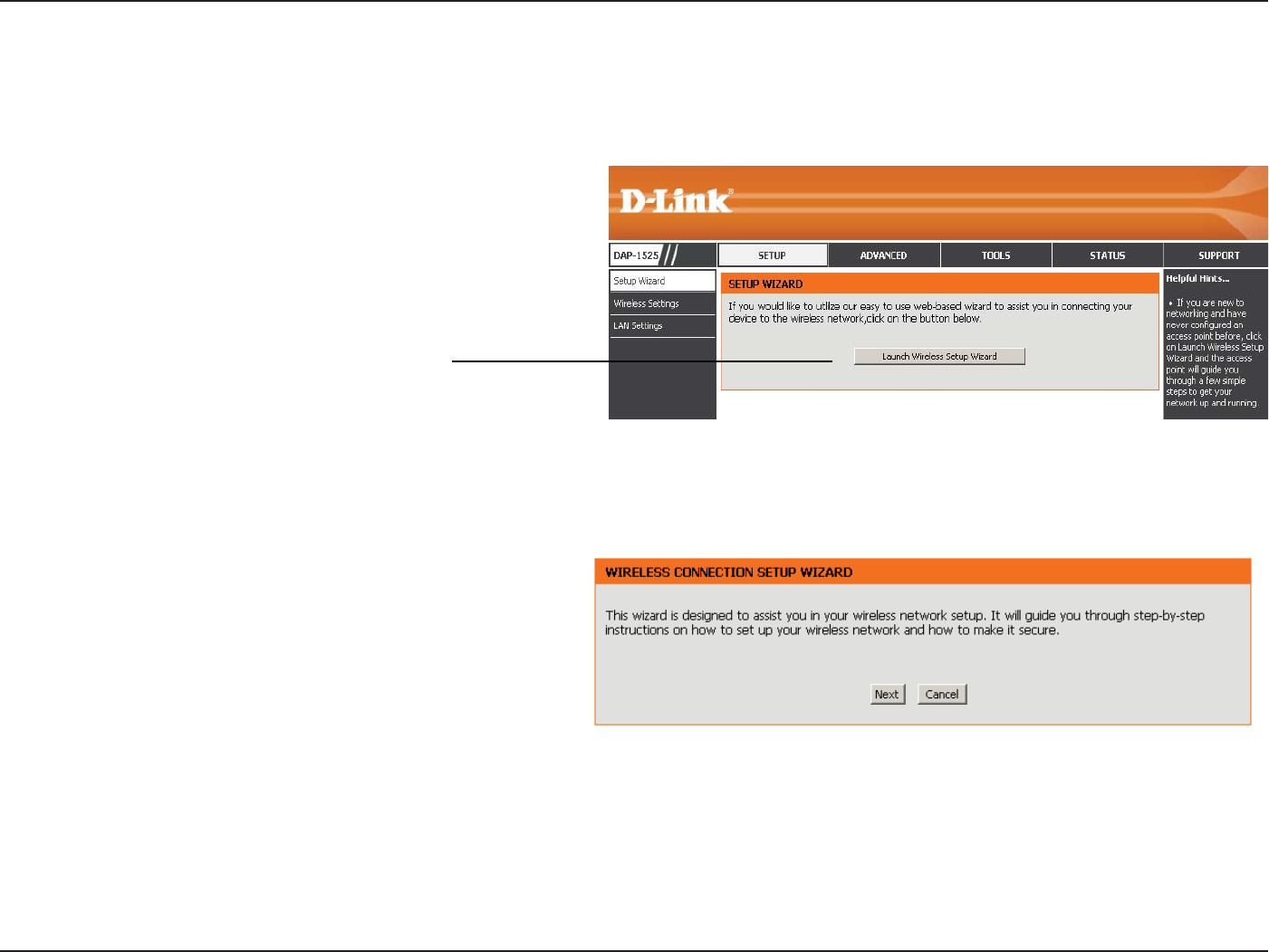

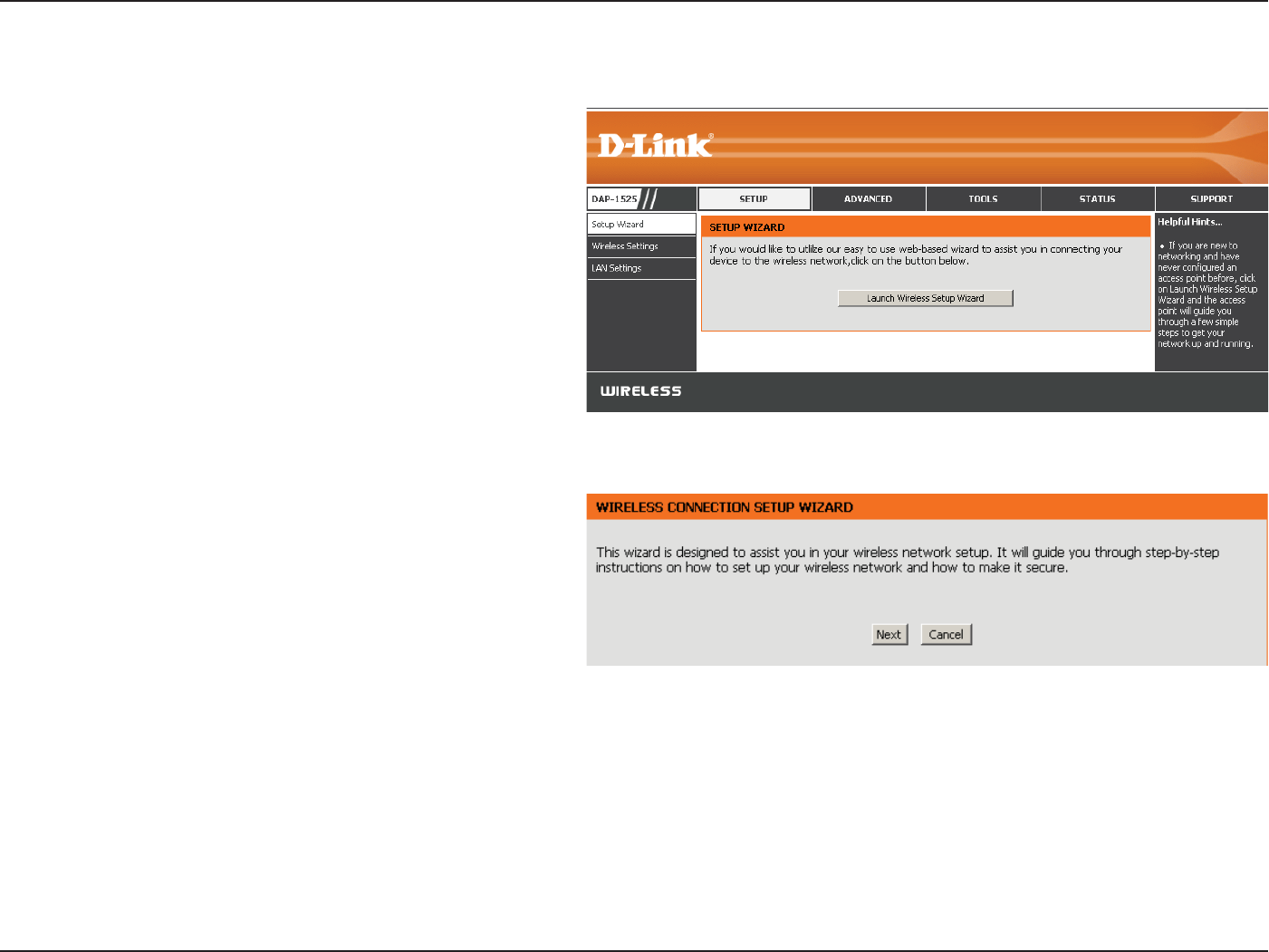

Click Launch Wireless Setup Wizard to quickly congure
your access point.
Setup Wizard
A welcome window appears. Click the Next button
to continue.
18D-Link DAP-1525 User Manual
Section 3 - Conguration
This Wizard is designed to assist you in connecting your wireless device to your access point. It will guide you through step-
by-step instructions on how to get your wireless device connected.
Wireless Setup Wizard

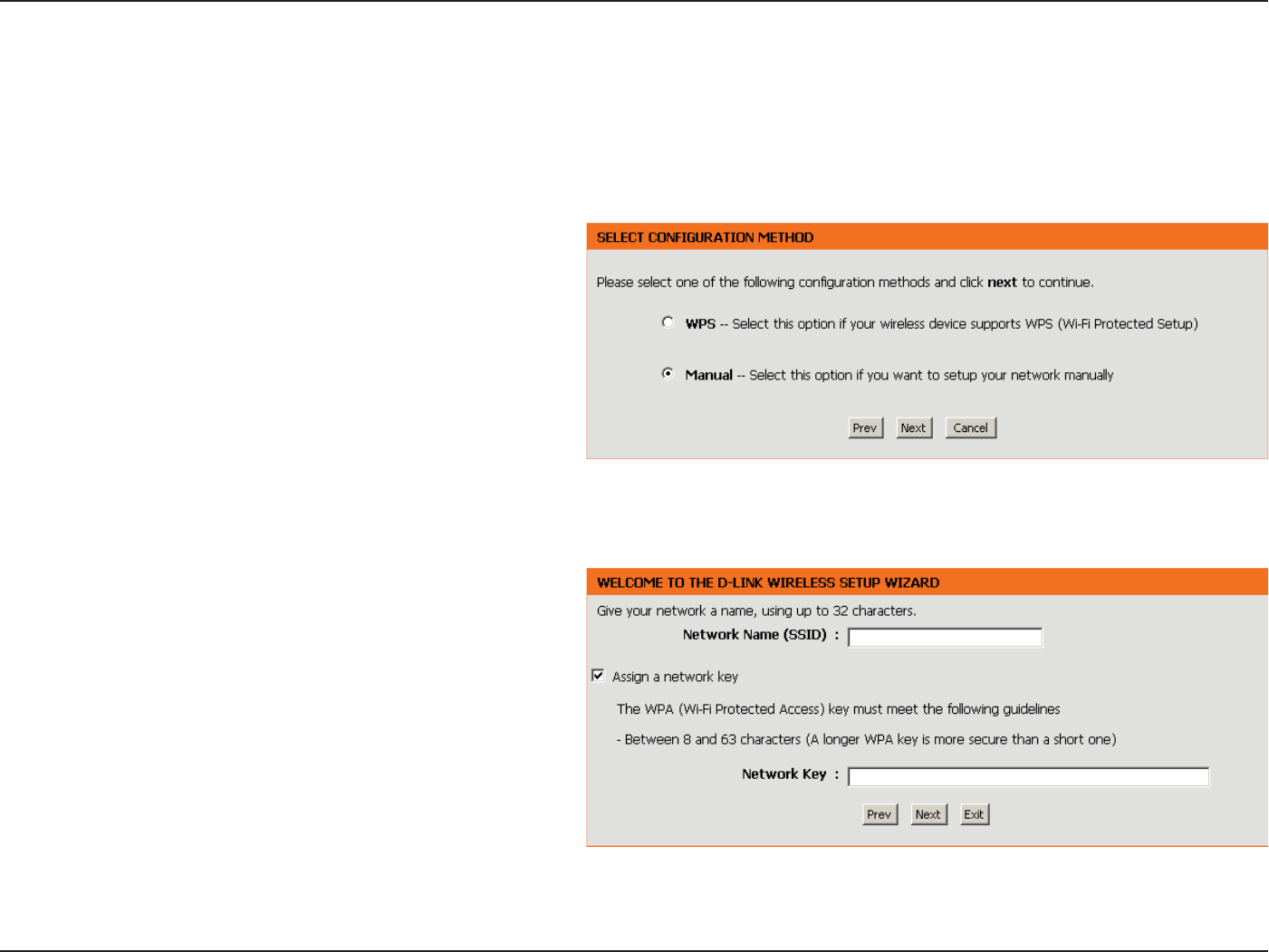

You may select either WPS or Manual for the conguration
method. Select Manual as the conguration method to
set up your network manually.
Refer to page 20 for WPS conguration.
Enter a network name (SSID). Tick the Assign a network
key check box to manually enter a WPA key between 8
and 63 characters. Deselect the Assign a network key
check box to automatically assign a network key.
Click Next to continue.
19D-Link DAP-1525 User Manual
Section 3 - Conguration

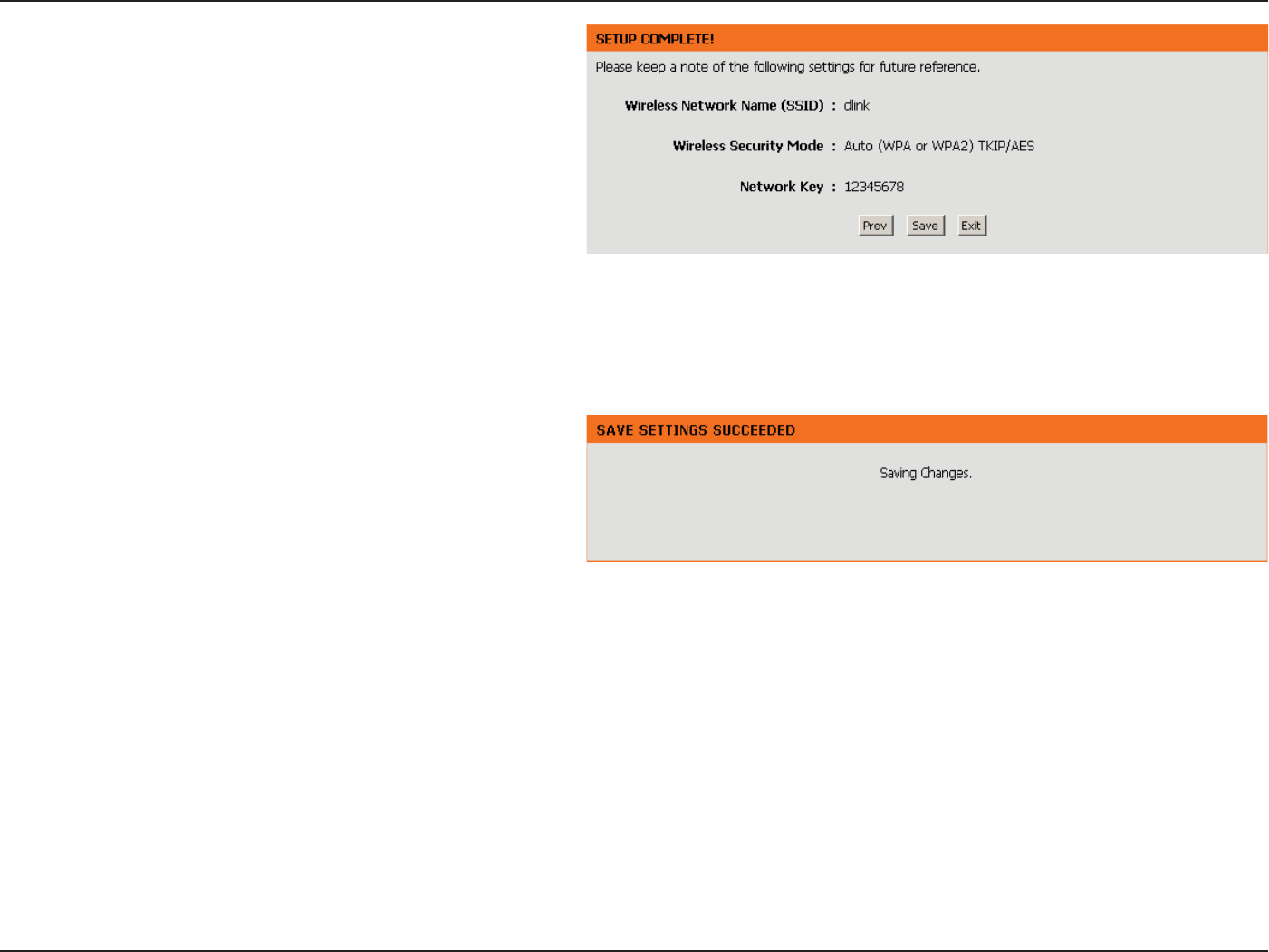

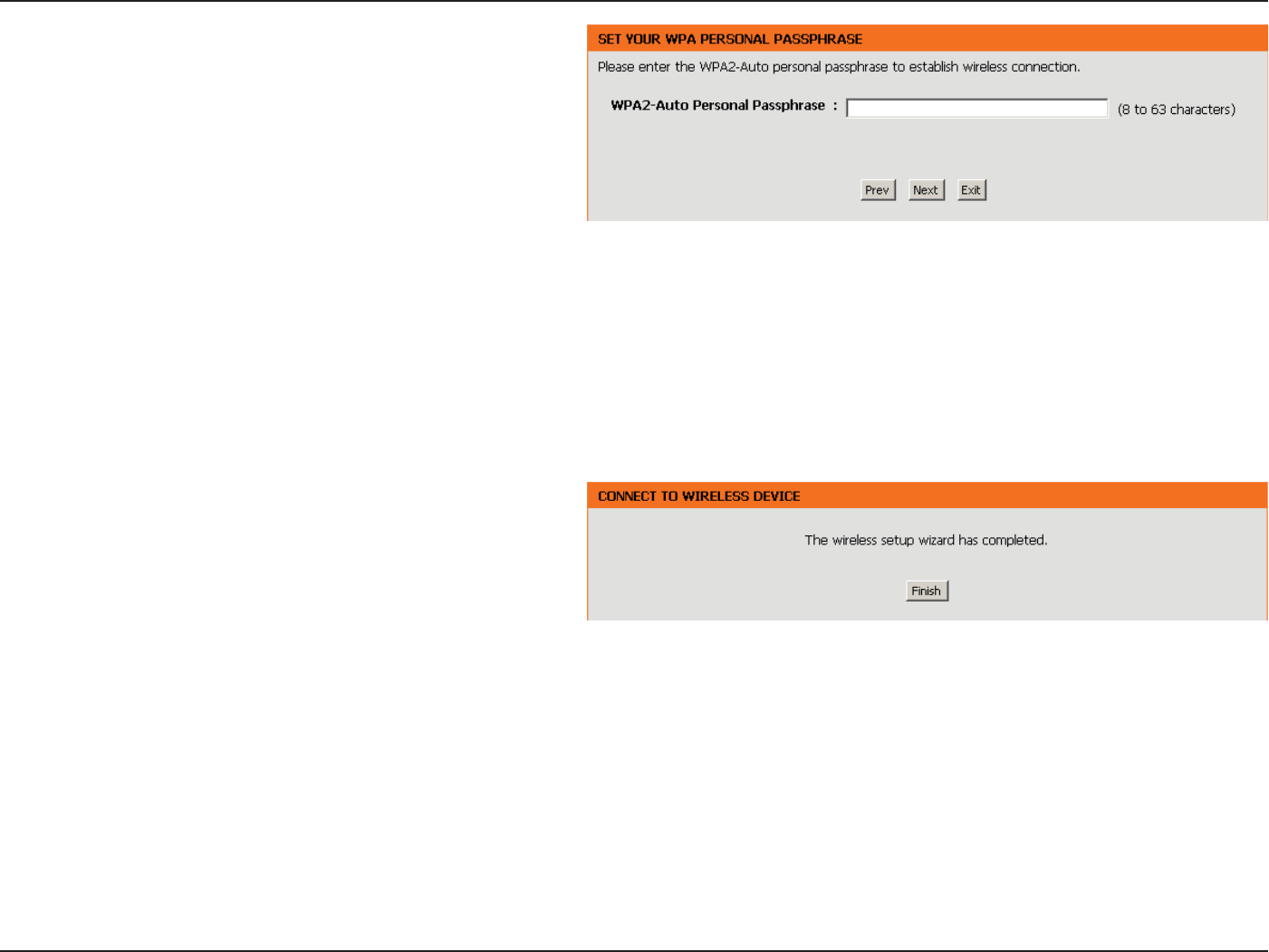

This window displays the settings.
Click Save to save your network settings.
The following screen opens to indicate that you have
successfully saved your new settings.
20D-Link DAP-1525 User Manual
Section 3 - Conguration
This Wizard is designed to assist you in your wireless network setup. It will guide you through step-by-step instructions on how
to set up your wireless network and how to make it secure.
Select WPS and click Next.
Select PIN to use your PIN number from your wireless
device to connect to your network.
For PBC conguration, skip to page 18.
Click Connect to continue.
Add Wireless Device With WPS
21D-Link DAP-1525 User Manual
Section 3 - Conguration
Press down the Push Button on the wireless device
that you are adding to your network to complete the
setup.
Select PBC to use the Push Button Conguration in order
to connect to your network.
Click Connect to continue.
Start WPS on the wireless device you are adding to your
wireless network to complete the setup.
22D-Link DAP-1525 User Manual
Section 3 - Conguration

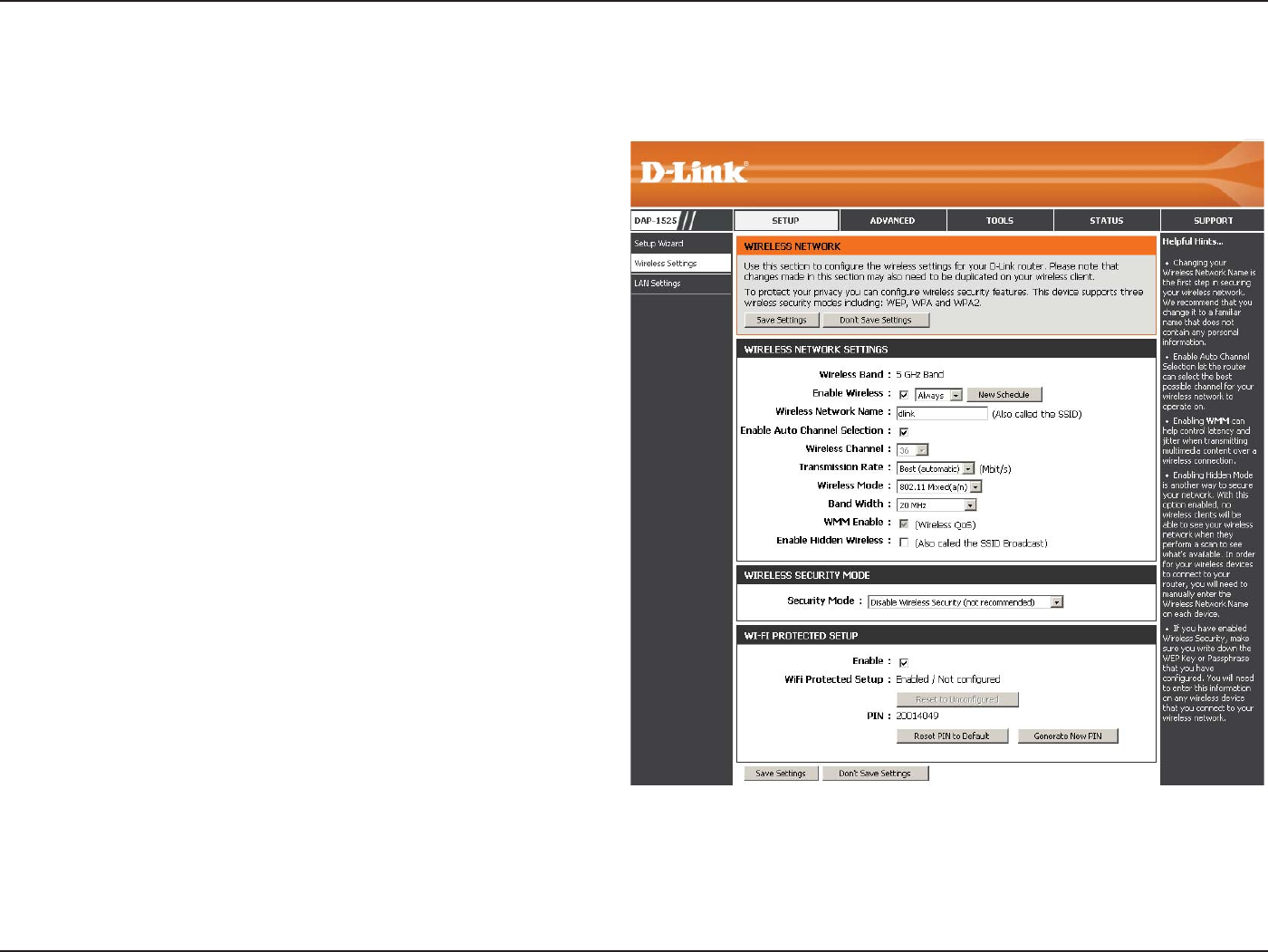

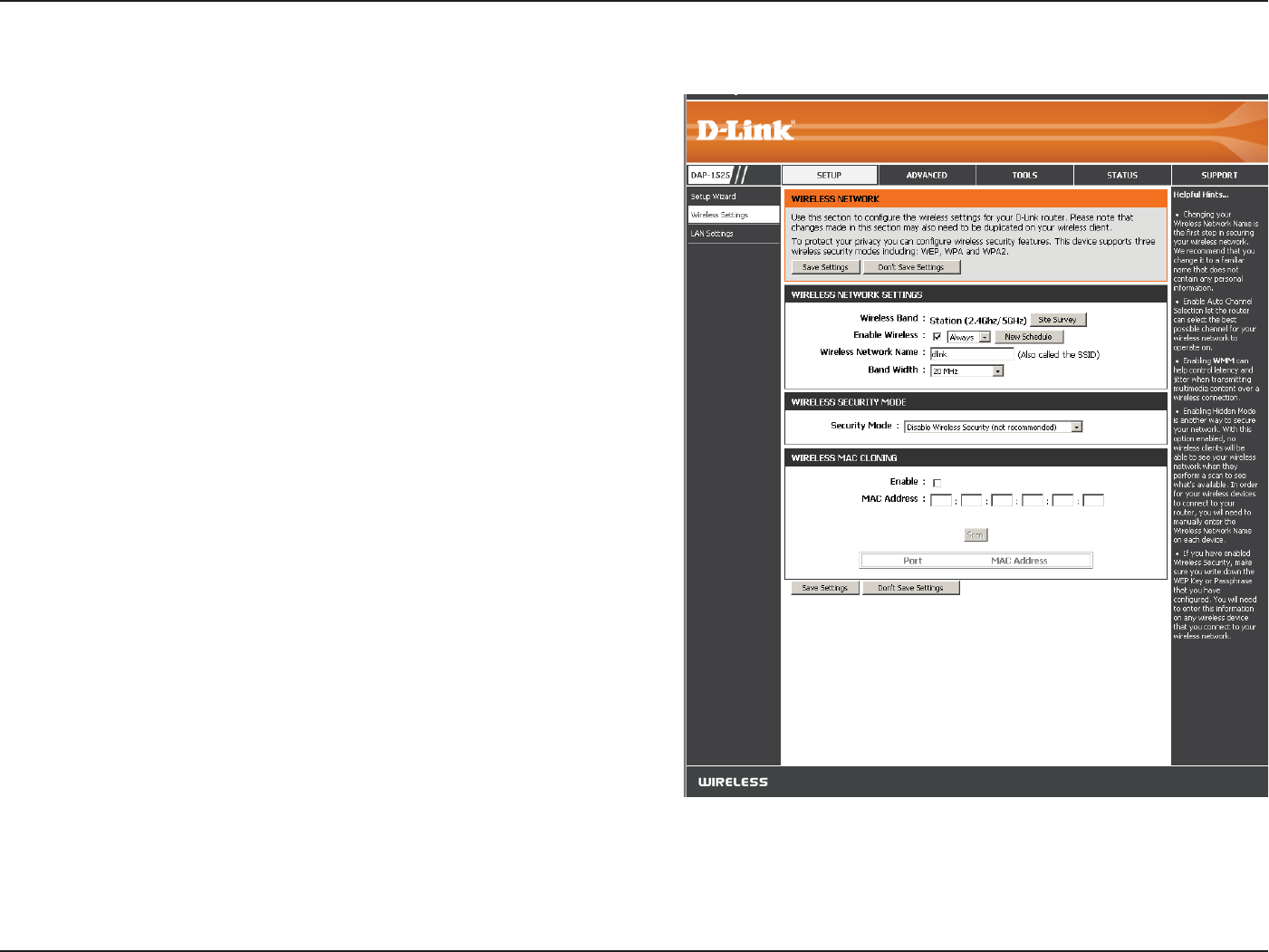

Wireless Band:
Enable Wireless:
Wireless
Network Name:
Enable Auto
Channel Scan:
Wireless
Channel:
Transmission
Rate:
Wireless Mode:
Band Width:
Displays the band you are using.
Check the box to enable the wireless function. If you do
not want to use wireless, uncheck the box to disable all
the wireless functions.
When you are browsing for available wireless networks,
this is the name that will appear in the list (unless
Visibility Status is set to Invisible, see below). This name
is also referred to as the SSID. For security purposes, it is
highly recommended to change from the pre-congured
network name.
The Auto Channel Scan setting can be selected to allow
the DAP-1525 to choose the channel with the least
amount of interference.
Indicates the channel setting for the DAP-1525. The
Channel can be changed to t the channel setting for an
existing wireless network or to customize the wireless
network. If you enable Auto Channel Scan, this option
will be grayed out.
Select the transmit rate. It is strongly suggested to select
Best (automatic) for best performance.
The current wireless mode is set to Access Point, it will create a wireless infrastructure network.
Select the Band Width:
Auto 20/40 - Select if you are using both 802.11n and non-802.11n wireless devices.
20MHz - Select if you are not using any 802.11n wireless clients.
Manual Conguration
Wireless Settings
23D-Link DAP-1525 User Manual
Section 3 - Conguration

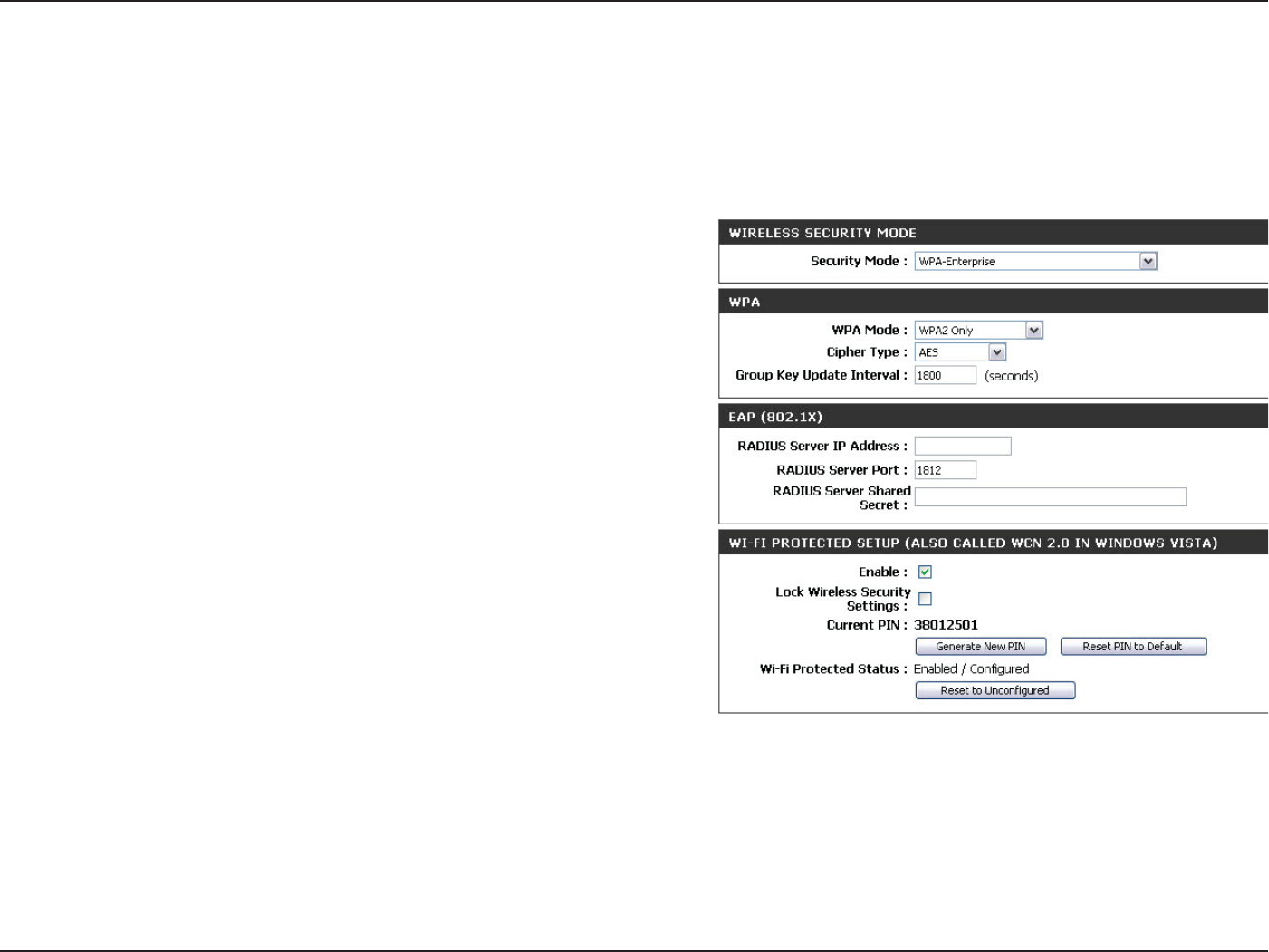

WMM (Wi-Fi Multimedia) is QoS for your wireless network. Tick this box to improve the quality of video and voice applications
for your wireless clients. This feature is not available in 802.11n congurations.

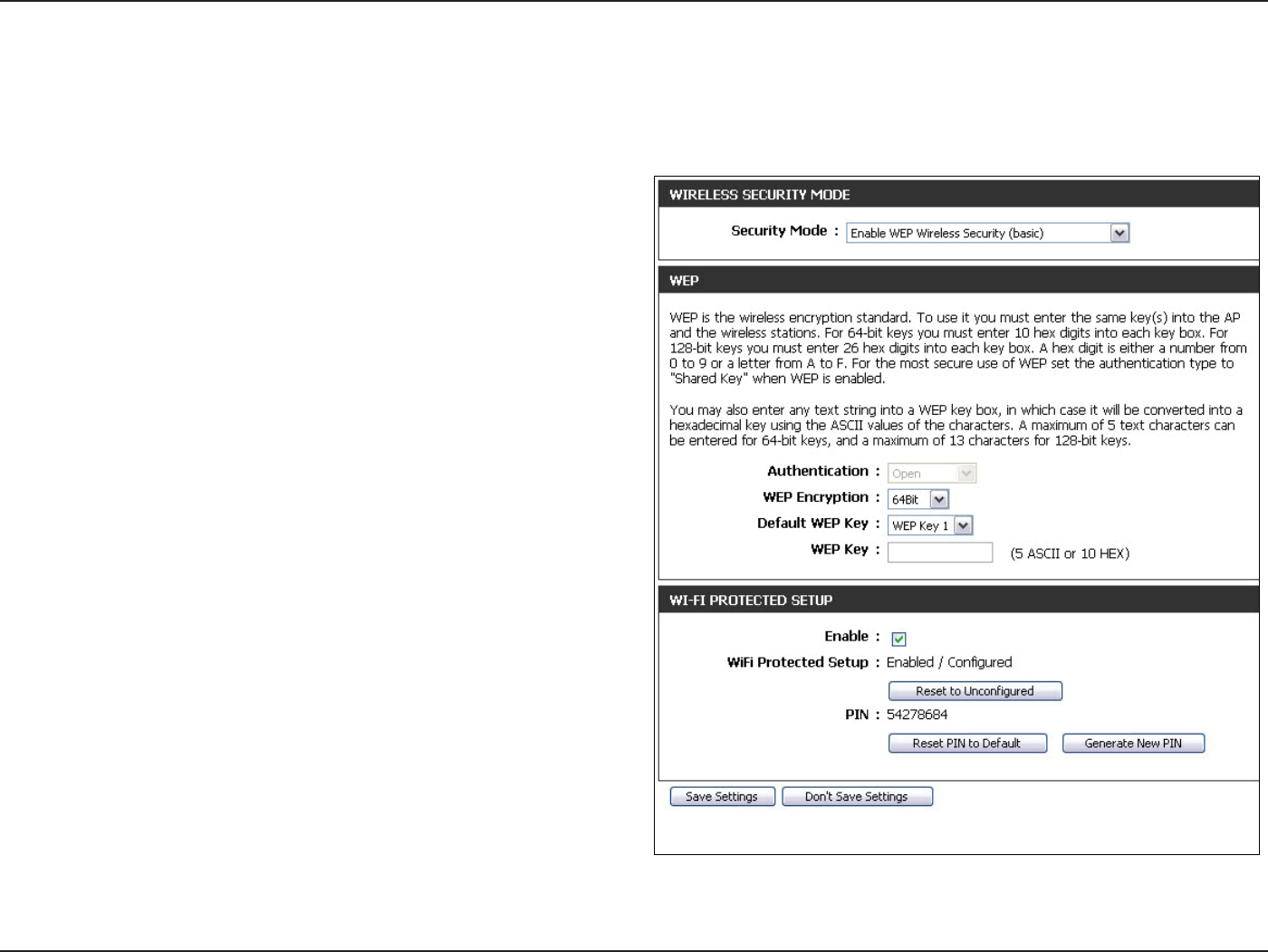

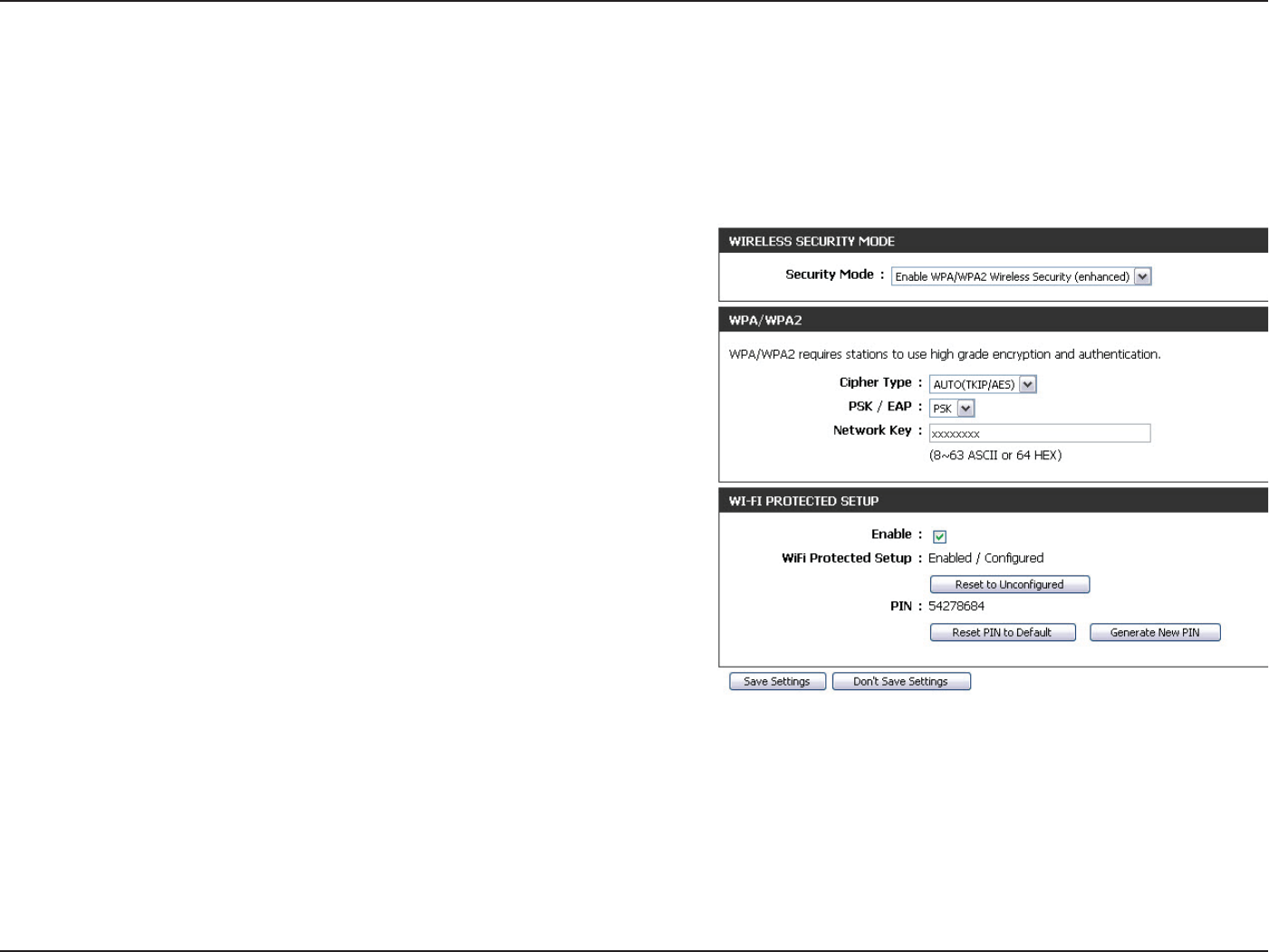

Refer to page 69 for more information regarding the wireless security.
Enable the Wi-Fi Protected Setup feature.
Shows the current value of the access point’s PIN.
Create a random number that is a valid PIN. This becomes the access point’s PIN. You can then copy this PIN to the user interface
of the user.
Restore the default PIN of the access point.
WMM Enable:
Security Mode:
Enable:
PIN:
Generate New
PIN:
Reset PIN to Default:
24D-Link DAP-1525 User Manual
Section 3 - Conguration

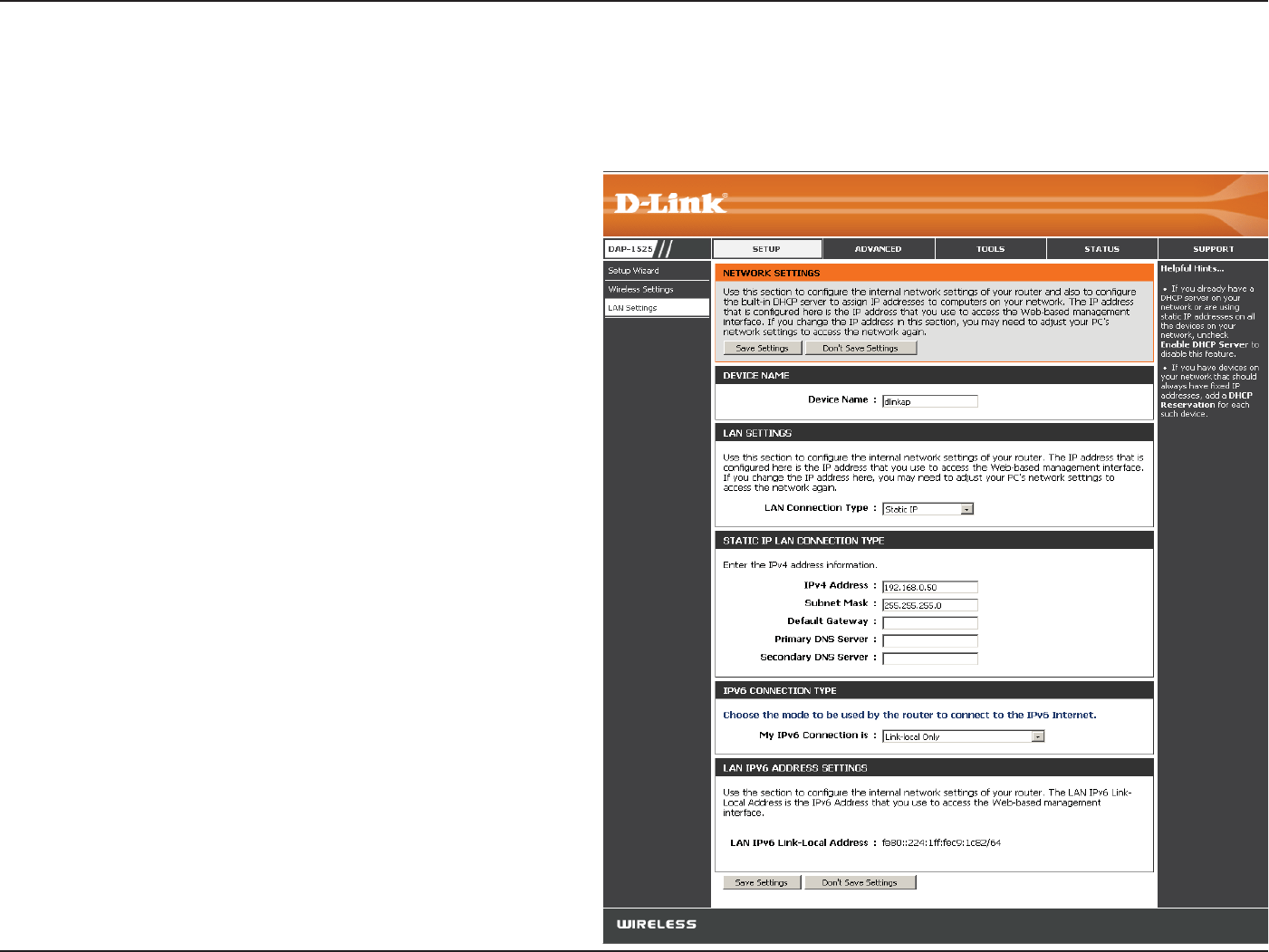

Device Name:
LAN Connection
Type:
IPv4 Address:
Subnet Mask:
Default Gateway:
Primary DNS
Server:
Secondary DNS
Server:
My IPv6
Connection is:
Enter the Device Name of the AP. It is recommended
to change the Device Name if there is more than one
D-Link device within the subnet.
Use the drop-down menu to select Static IP.
If you change the IP address, once you click Save
Settings, you will need to enter the new IP address
in your browser to get back into the conguration
utility.
Enter the subnet mask. The default subnet mask is
255.255.255.0.
Enter the default gateway IP address.
Enter the primary DNS server IP address.
Enter the secondary DNS server IP address.
Use the drop-down menu to select the IPv6 mode
connected to the IPv6 Internet.

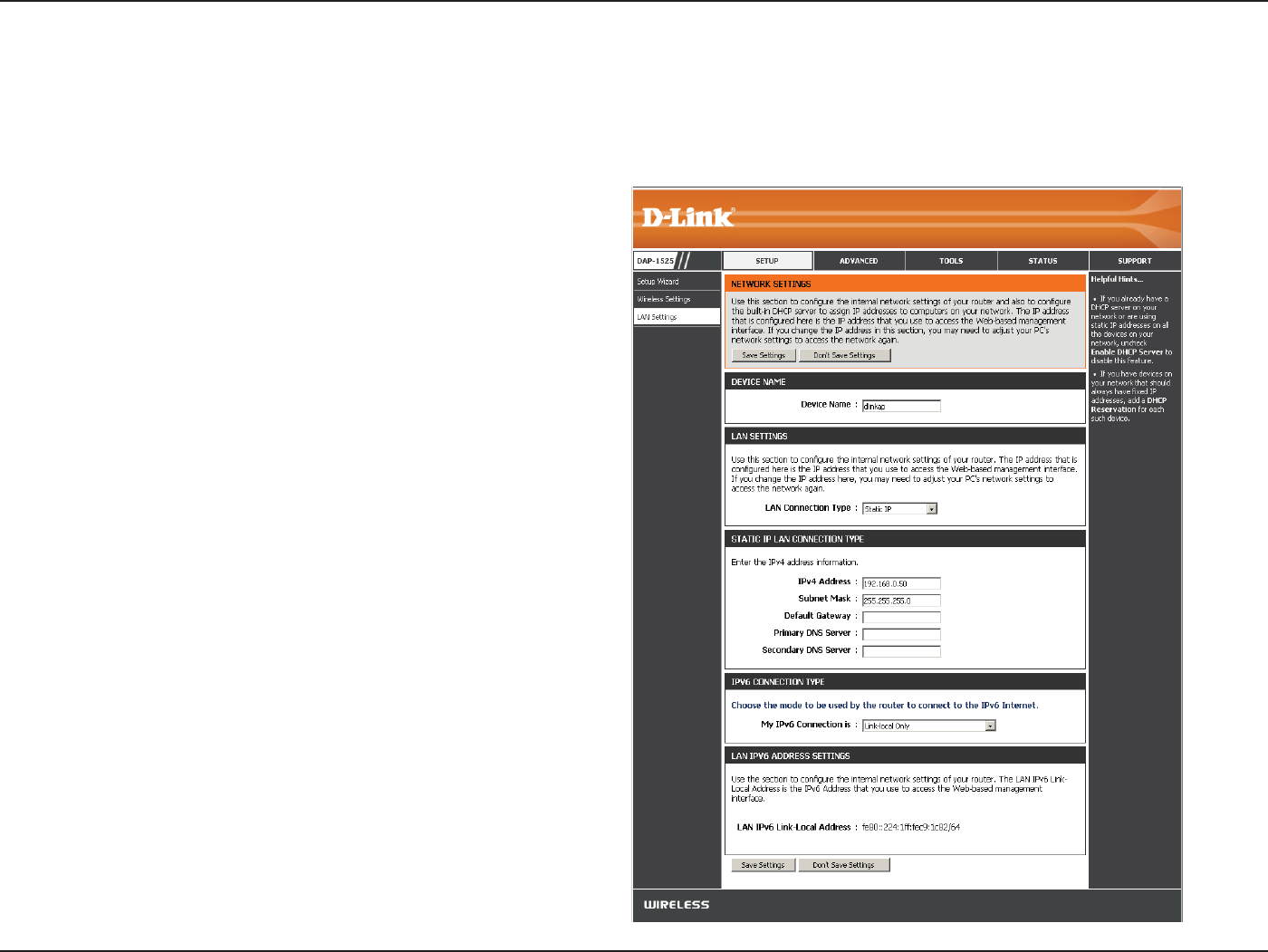

LAN Setup
This section will allow you to change the local network settings of the access point and to congure the DHCP settings.
25D-Link DAP-1525 User Manual
Section 3 - Conguration
LAN Setup

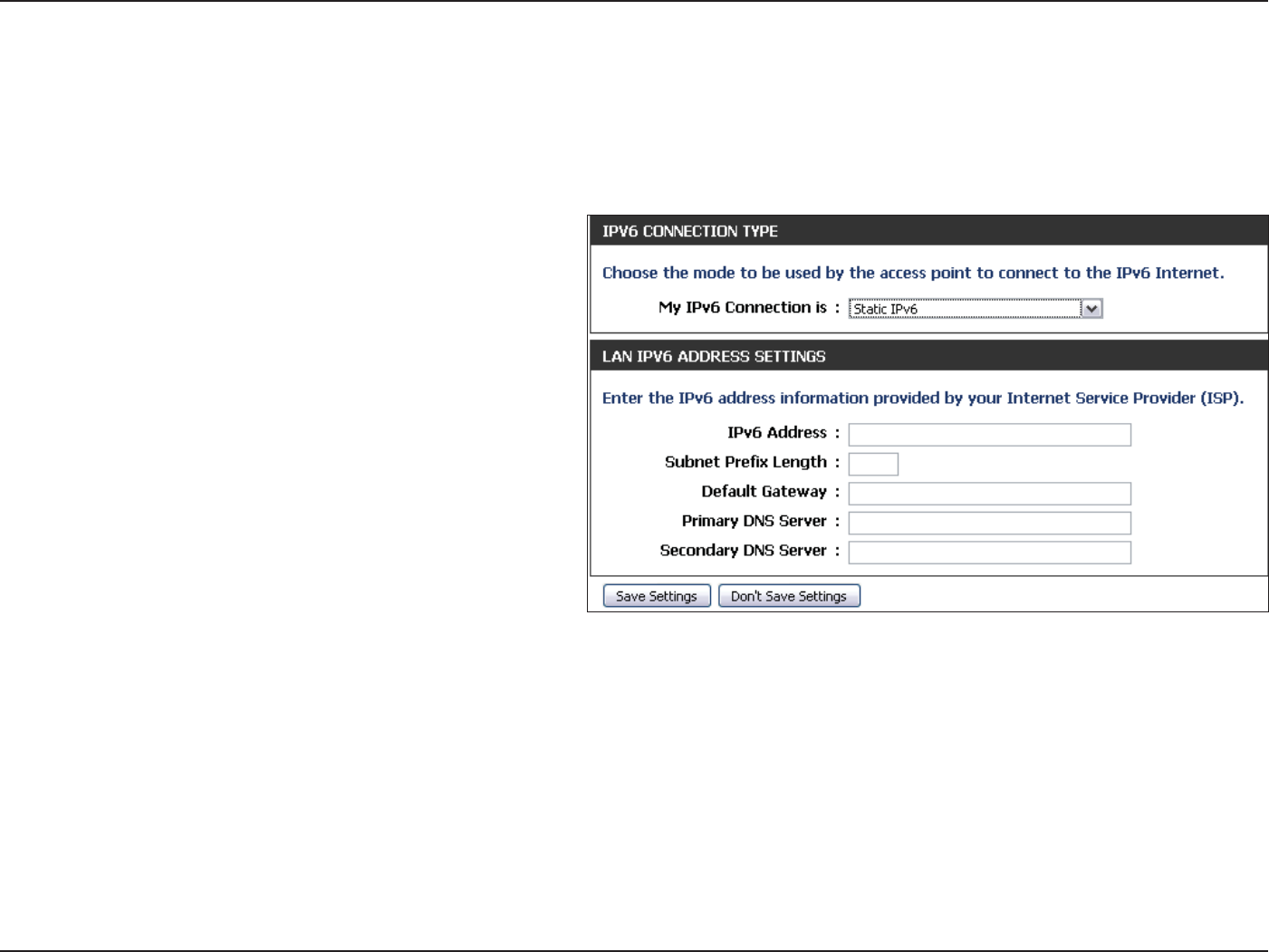

Static IPv6

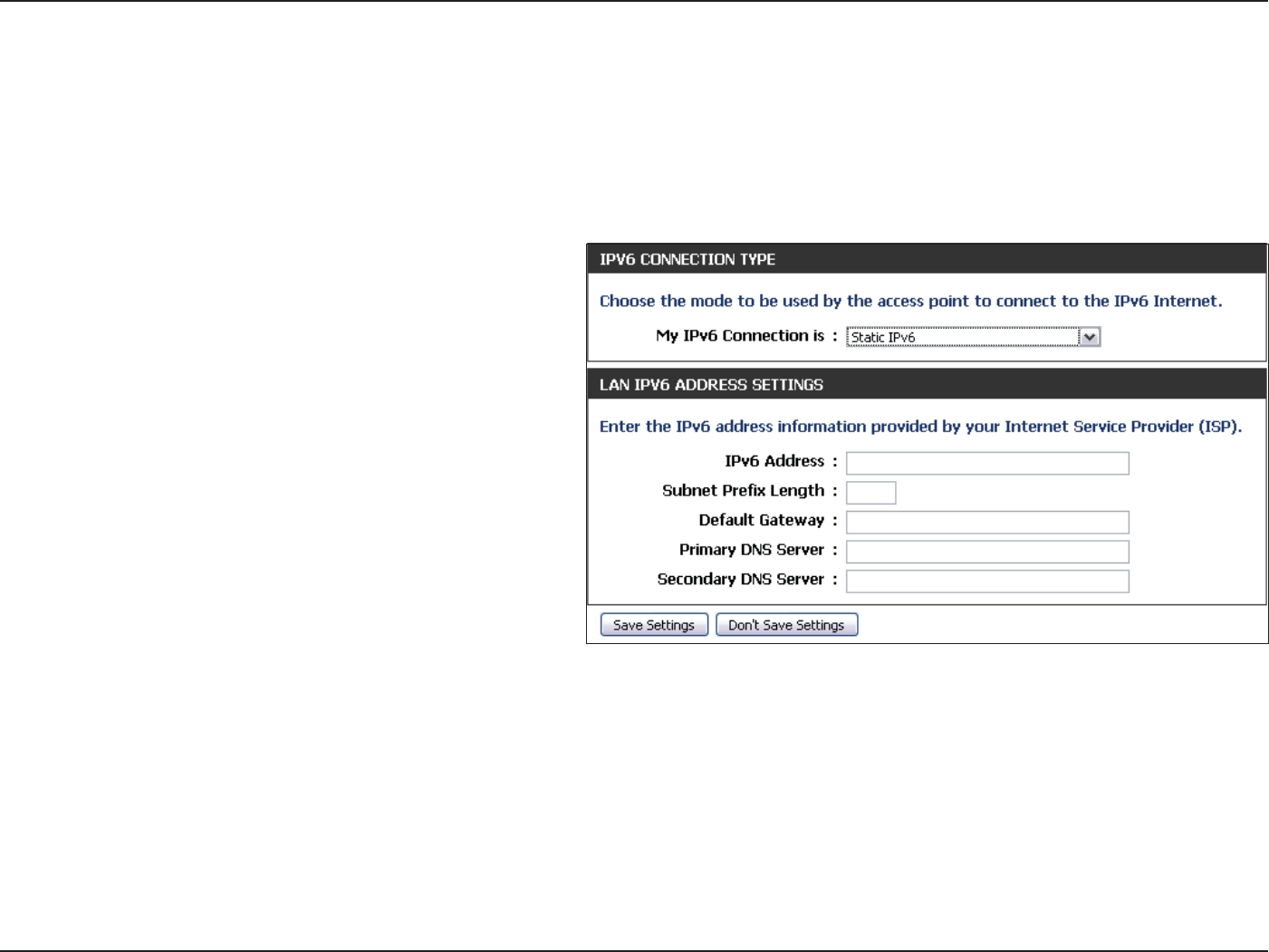

When using the My IPv6 Connection is drop-down menu to select the IPv6 mode, the LAN IPv6 Address Settings section will
vary based on the selected mode. Select Static IPv6 to see the following conguration.
IPv6 Address:
Subnet Prex
Length:
Default
Gateway:
Primary DNS
Server:
Secondary
DNS
Server:
Enter the staic IPv6 address provided by your
Internet Service Provider.
Enter the IPv6 subnet prex length.
Enter the default gateway IP address.
Enter the primary DNS server IP address.
Enter the secondary DNS server IP address.
26D-Link DAP-1525 User Manual
Section 3 - Conguration
LAN Setup

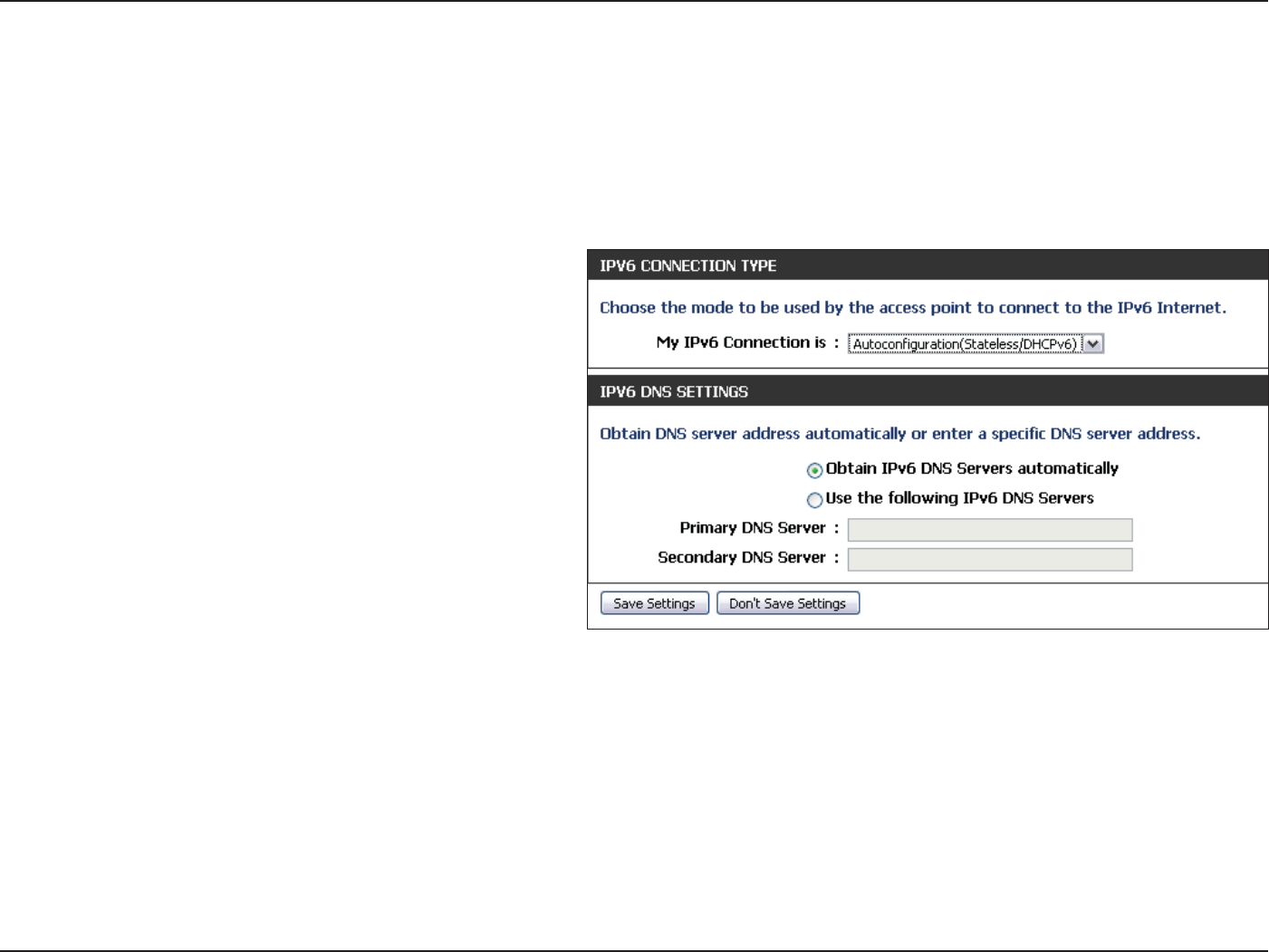

Auto-conguration
When using the My IPv6 Connection is drop-down menu to select the IPv6 mode, the LAN IPv6 Address Settings section will
vary based on the selected mode. Select Autoconguration (Stateless/DHCPv6) to see the following conguration.
Obtain IPv6
DNS Servers
automatically:
Use the following
IPv6 DNS Servers:
Primary DNS
Server:
Secondary DNS
Server:
Enter the staic IPv6 address provided by your
Internet Service Provider.
Enter the IPv6 subnet prex length.
Enter the primary DNS server IP address.
Enter the secondary DNS server IP address.
27D-Link DAP-1525 User Manual
Section 3 - Conguration
Advanced

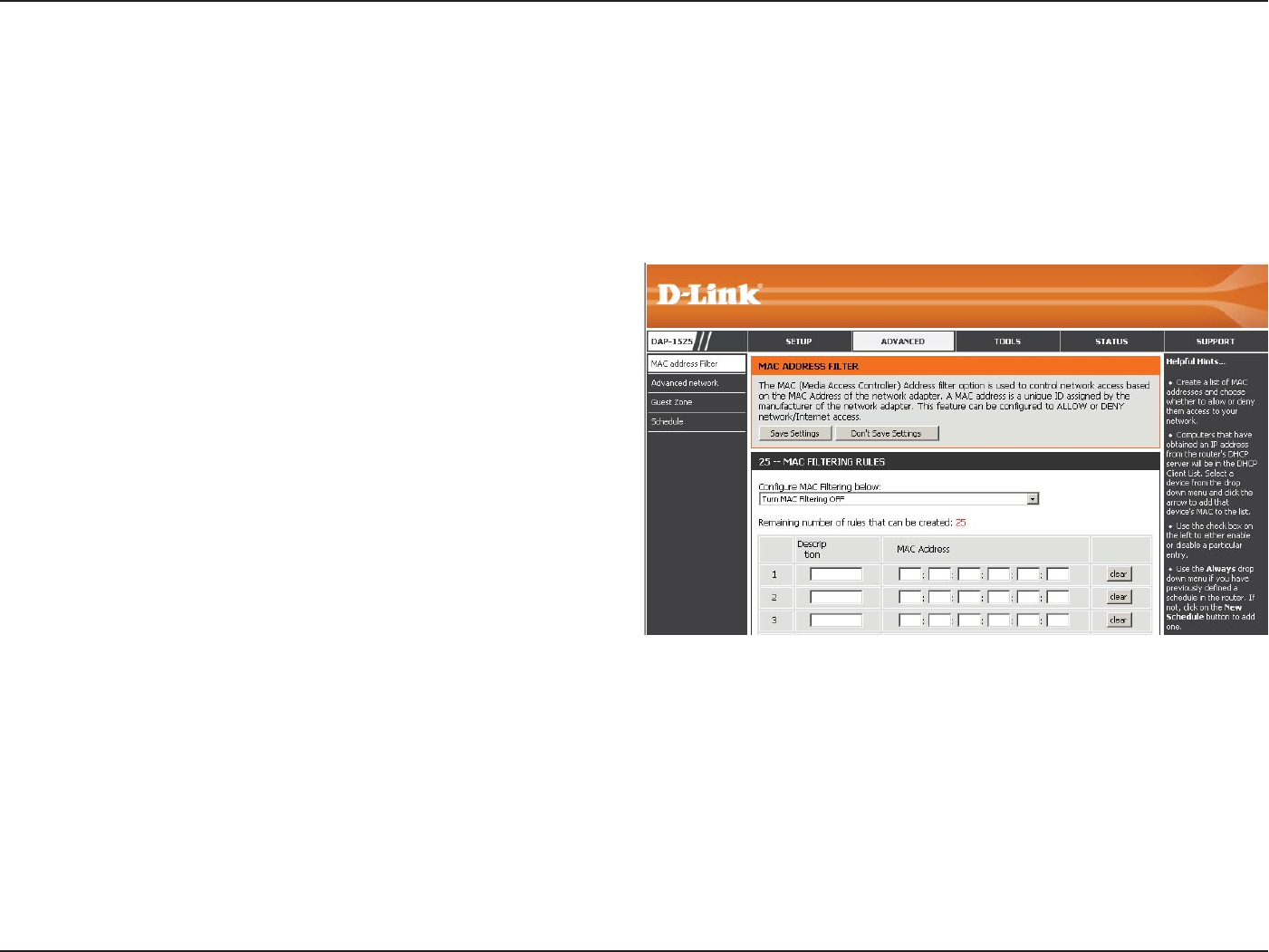

MAC Address Filter
The MAC address lter section can be used to lter network access by machines based on the unique MAC addresses of their
network adapter(s). It is most useful to prevent unauthorized wireless devices from connecting to your network. A MAC address
is a unique ID assigned by the manufacturer of the network adapter.
Congure
MAC Filtering:
Rules:
When Turn MAC Filtering OFF is selected, MAC
addresses are not used to control network access. When
Turn MAC Filtering ON and ALLOW computers listed
to access the network is selected, only computers with
MAC addresses listed in the MAC Address List are granted
network access. When Turn MAC Filtering ON and DENY
computers listed to access the network is selected, any
computer with a MAC address listed in the MAC Address
List is refused access to the network.
Enter a description of the ltering rule in the
Description eld and enter the MAC address to
add the rule. Click the corresponding clear button
to delete the rule.
28D-Link DAP-1525 User Manual
Section 3 - Conguration
Transmit Power:
WMM Enable:
IGMP Snooping:
User the drop-down menu to select the transmit
power of the antennas.
WMM is QoS for your wireless network. This will
improve the quality of video and voice applications
for your wireless clients.
This enables IGMP snooping for the wireless
connection. We recommend enabling this if
you often use multicast services such as video
conference and streaming audio/video.
Advanced Network

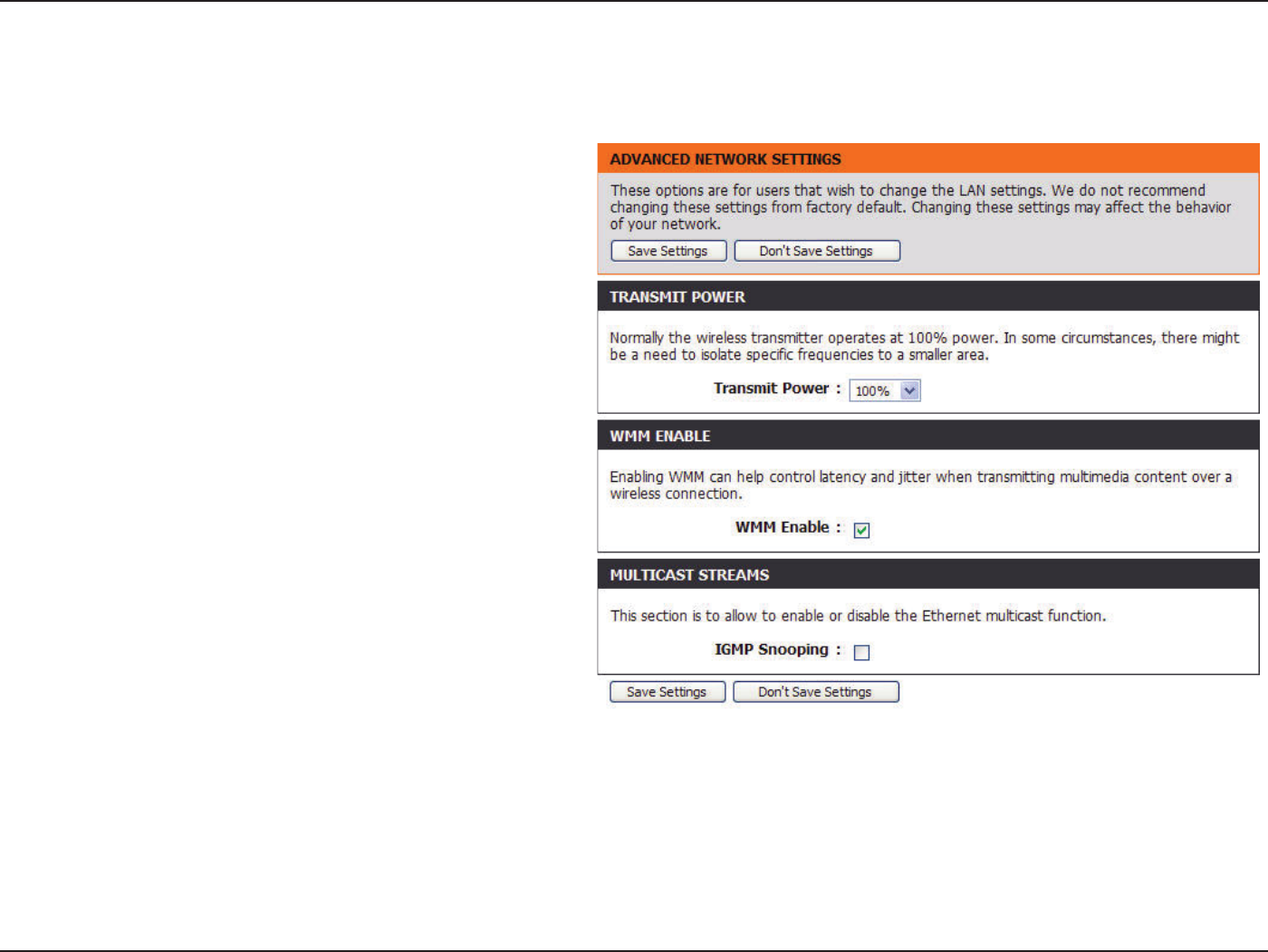

This window is used to change the advanced LAN settings.
29D-Link DAP-1525 User Manual
Section 3 - Conguration

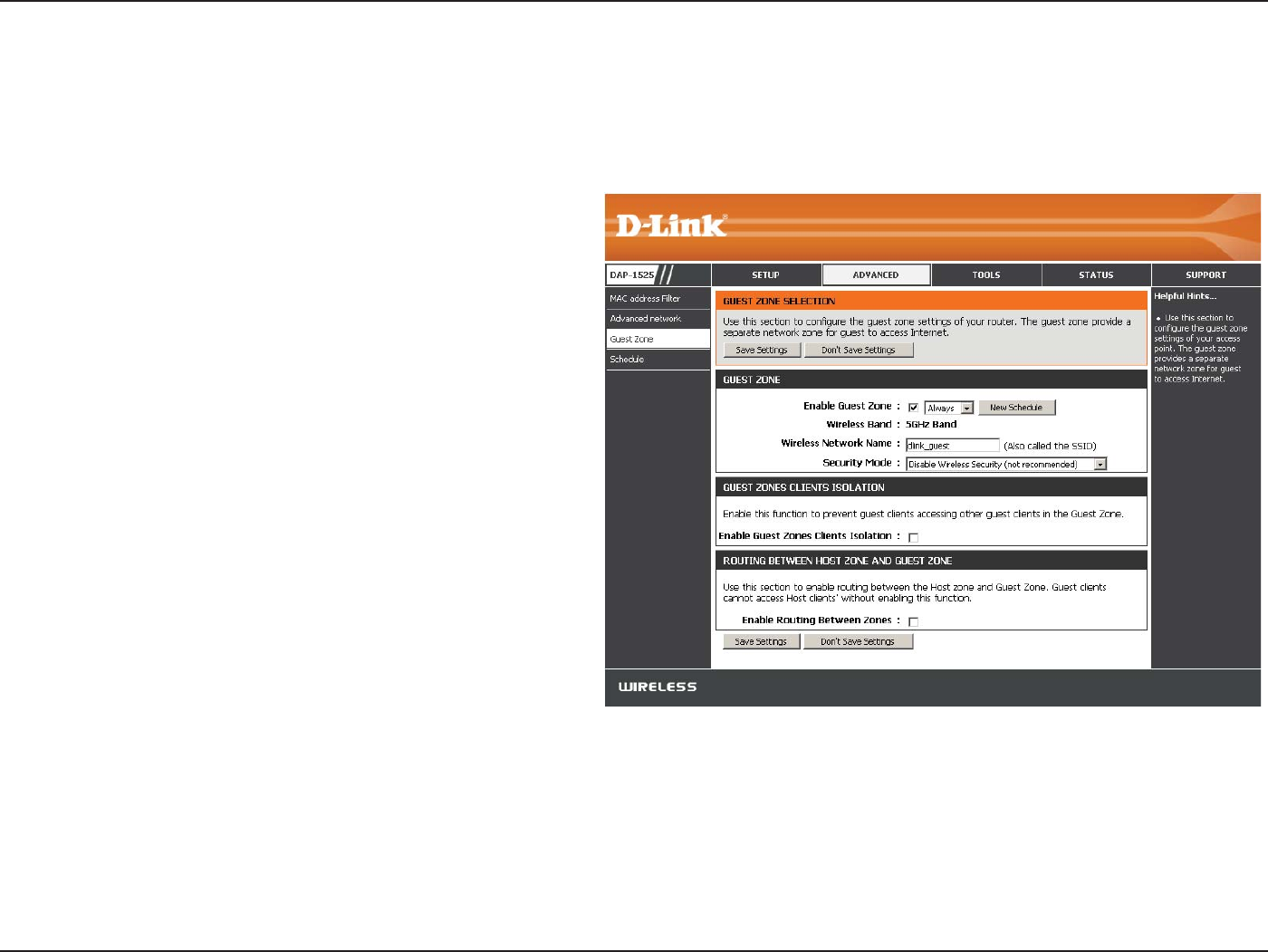

Guest Zone
Enable Guest
Zone:
Wireless Band:
Wireless Network
Name:
Security Mode:
Enable Guest
Zones Clients
Isolation:
Enable Routing
Between Zones:
Check to enable the Guest Zone feature. Select
the schedule of time when the Guest Zone will
be active. The schedule may be set to Always,
which will allow the particular service to always
be enabled. You can create your own times in the
Tools > Schedules section.
Display the wireless band status.
Enter a wireless network name (SSID) that is
dierent from your main wireless network.
Refer to Section 4 - Wireless Security for more
information regarding wireless security.
Tick the check box to prevent the guest clients
from accessing other guests in the guest zone.
Check to allow network connectivity between
the dierent zones created.
The Guest Zone feature will allow you to create temporary zones that can be used by guests to access the Internet. These zones
will be separate from your main wireless network.
30D-Link DAP-1525 User Manual
Section 3 - Conguration

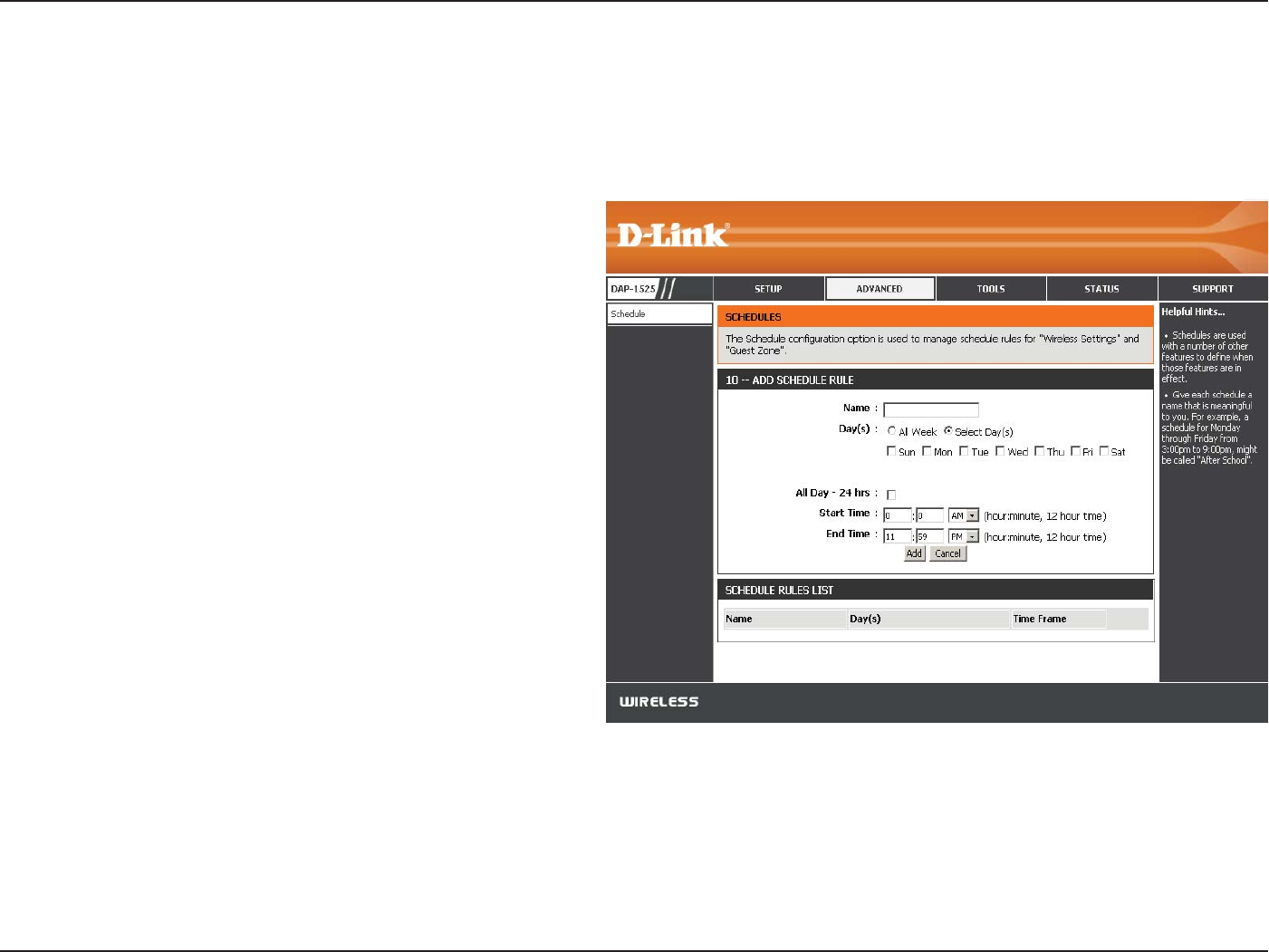

Enter a name for your new schedule.
Select a day, a range of days, or All Week to include
every day.
Check All Days or enter a start and end time for your
schedule.
Click Add to save your schedule. You must click
Save Settings at the top for your schedules to go
into eect.
The list of schedules will be listed here. Click the
Edit icon to make changes or click the Delete icon
to remove the schedule.
Name:
Days:
All Day-24hrs:
Add:
Schedule Rules
List:
Schedule
This section allows you to manage schedule rules for Wireless Settings and Guest Zone.
31D-Link DAP-1525 User Manual
Section 3 - Conguration
Password:
Verify Password:
Enable Graphical
Authentication:

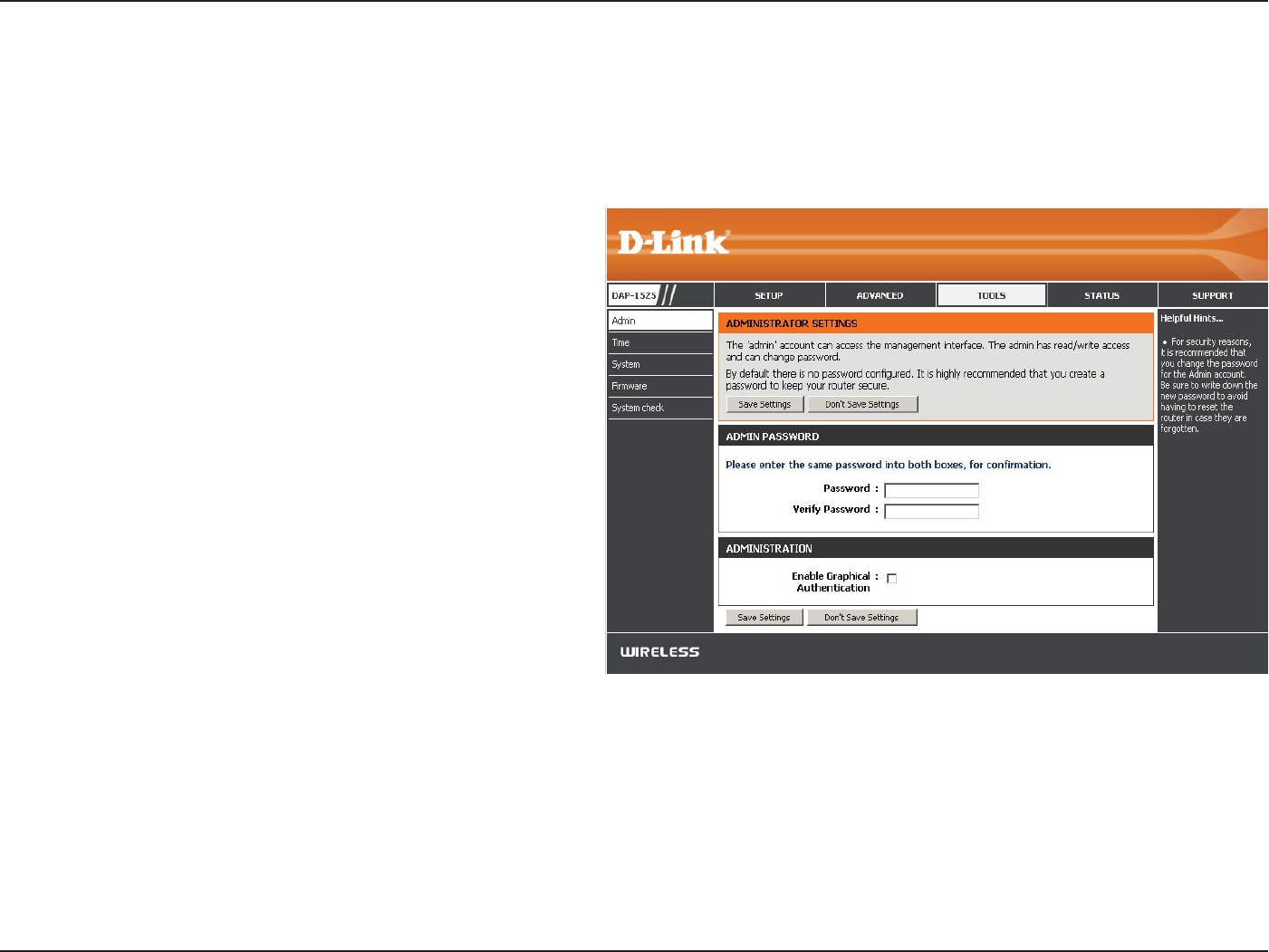

Enter a new password for the Administrator Login
Name. The administrator can make changes to the
settings.
Enter the same password that you entered in the
previous textbox in order to conrm its accuracy.
Check to enable graphical authentication.
Tools
Admin
The admin account has the read and write access right. You can also enable Remote Management.
32D-Link DAP-1525 User Manual
Section 3 - Conguration

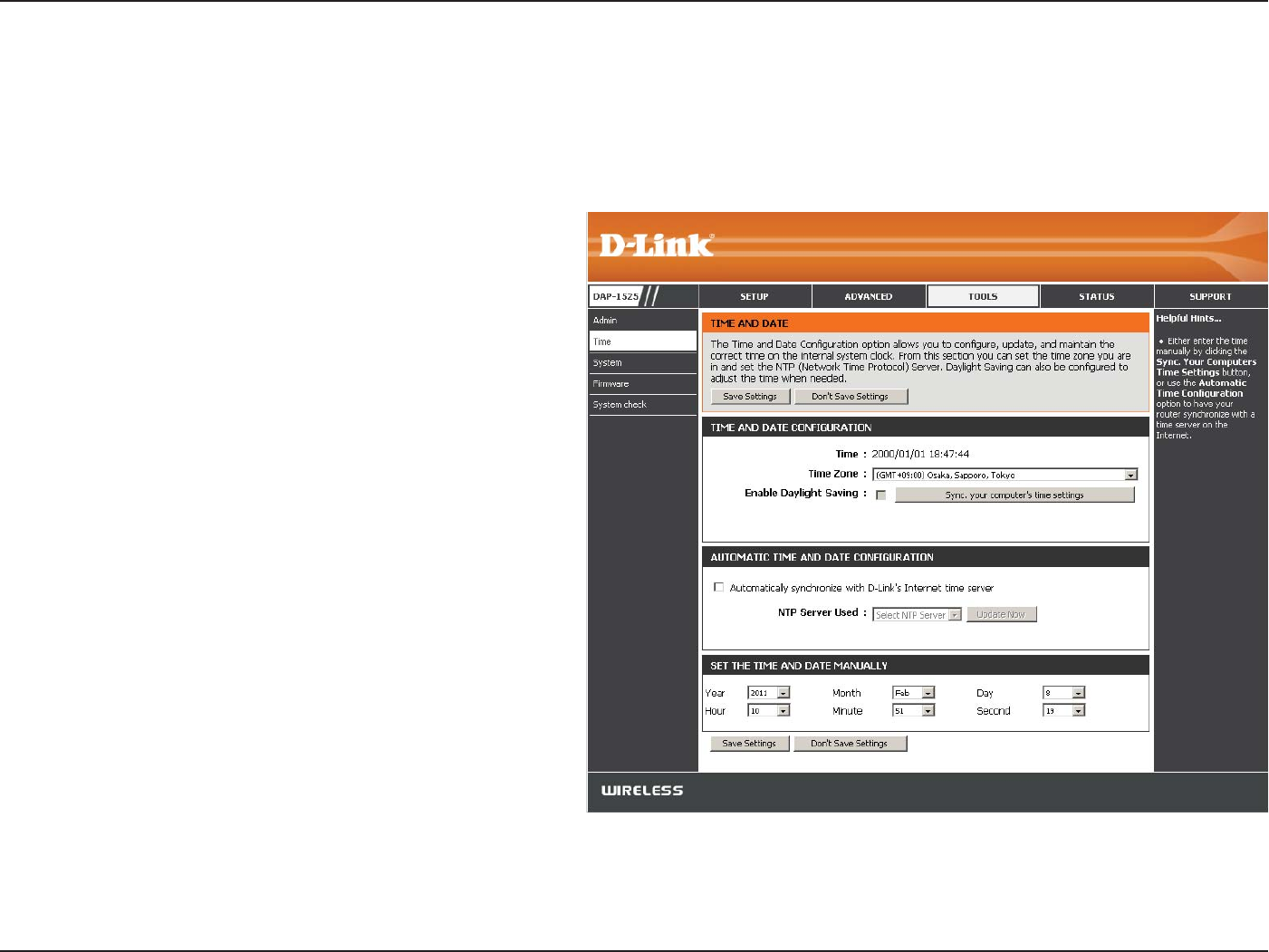

Time

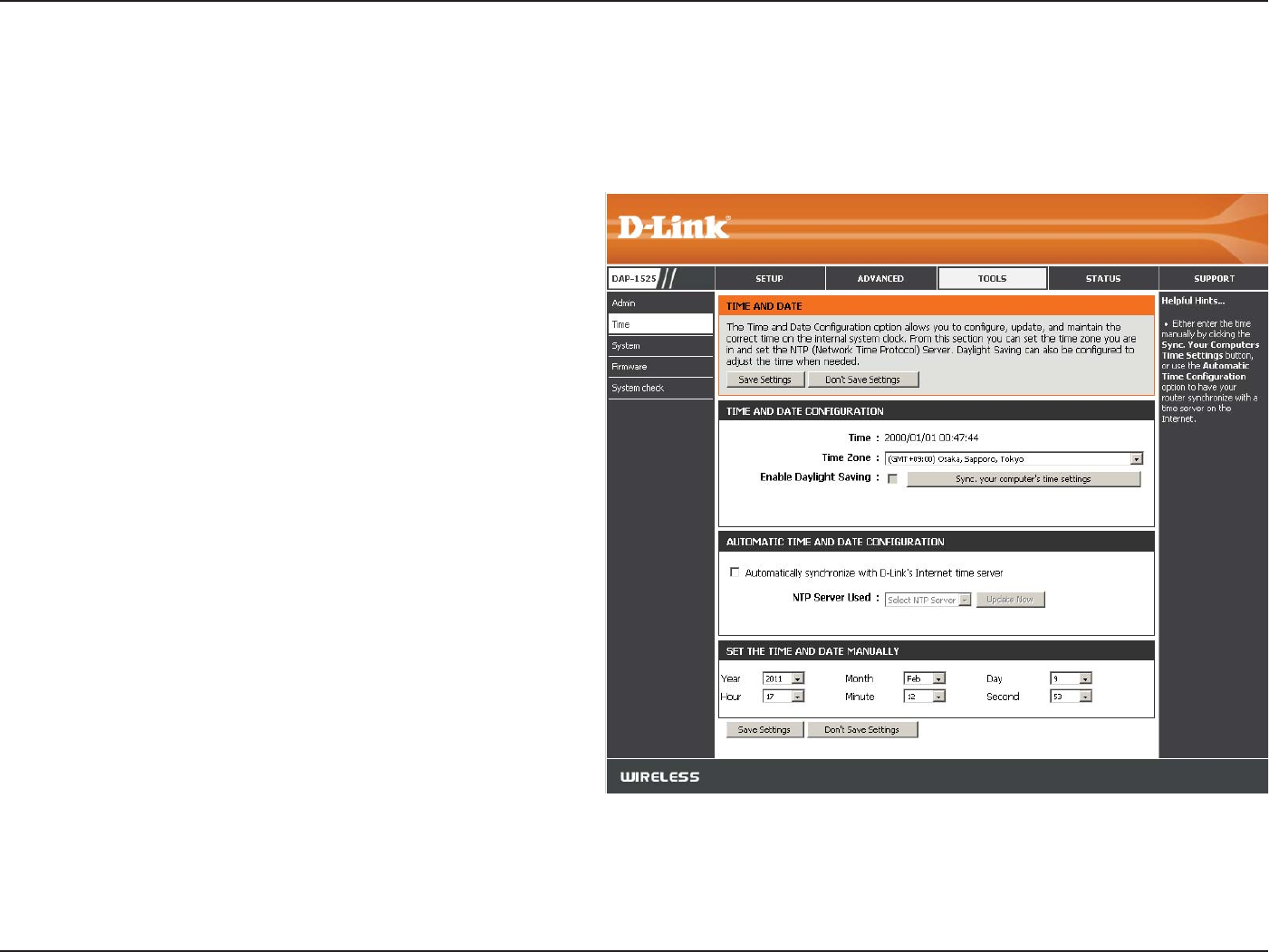

The Time Conguration option allows you to congure, update, and maintain the correct time on the internal system clock.
From this section you can set the time zone that you are in. Daylight Saving can also be congured to automatically adjust the
time when needed.
Time Zone:
Enable
Daylight
Saving:
Sync your
computer’s
time
settings:
Automatically
synchronize
with D-Links
Internet time
server:
NTP Server
Used:
Set the Time
and Date
Manually:
Manual:
Select the Time Zone from the drop-down menu.
To select Daylight Saving time manually, click the
Enable Daylight Saving check box. Next use the drop-
down menu to select a Daylight Saving Oset and
then enter a start date and an end date for daylight
saving time.
Click this button to set the devices time the
same to local PC.
Click the check box to enable the device to
automatically synchronize with a D-Link NTP
Server. NTP stands for Network Time Protocol.
NTP synchronizes computer clock times in a
network of computers. This will only connect to a
server on the Internet, not a local server.
Select one of the D-Link NTP Servers from the
drop-down menu. The DAP-1525 will then
synchronize its clock to be the same time as the
D-Link Internet time server. Click the Update Now
button to synchronize with the D-Link Internet
time server immediately.
To manually input the time, use the drop-down menus to enter the values in these fields for the Year, Month, Day, Hour,
Minute, and Second.
Click the Save Settings button to save any changes made.
33D-Link DAP-1525 User Manual
Section 3 - Conguration
Save Settings
to Local
Hard Drive:
Load Settings
from Local
Hard Drive:

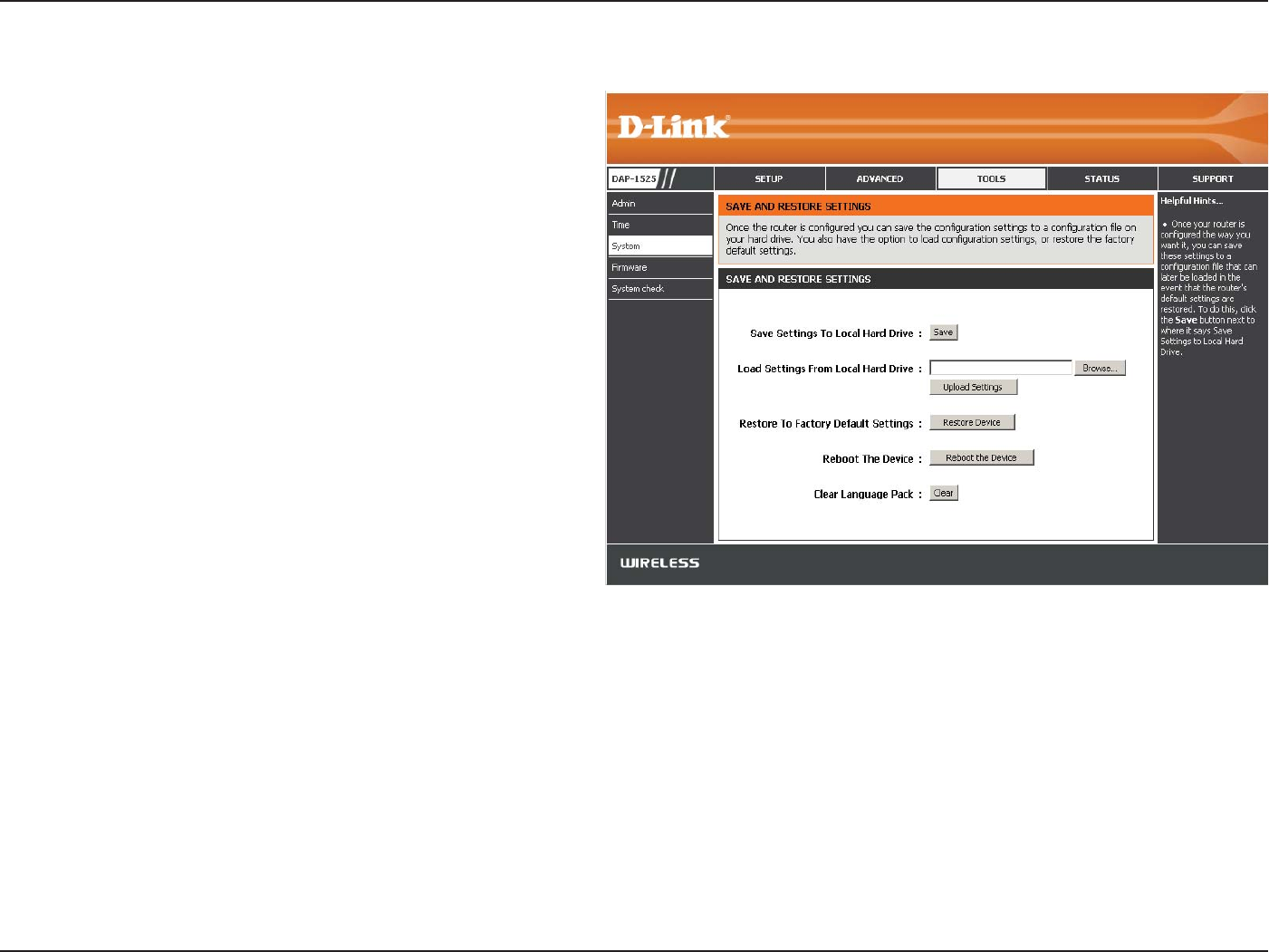

Restore
to Factory
Default
Settings:
Reboot the
Device:

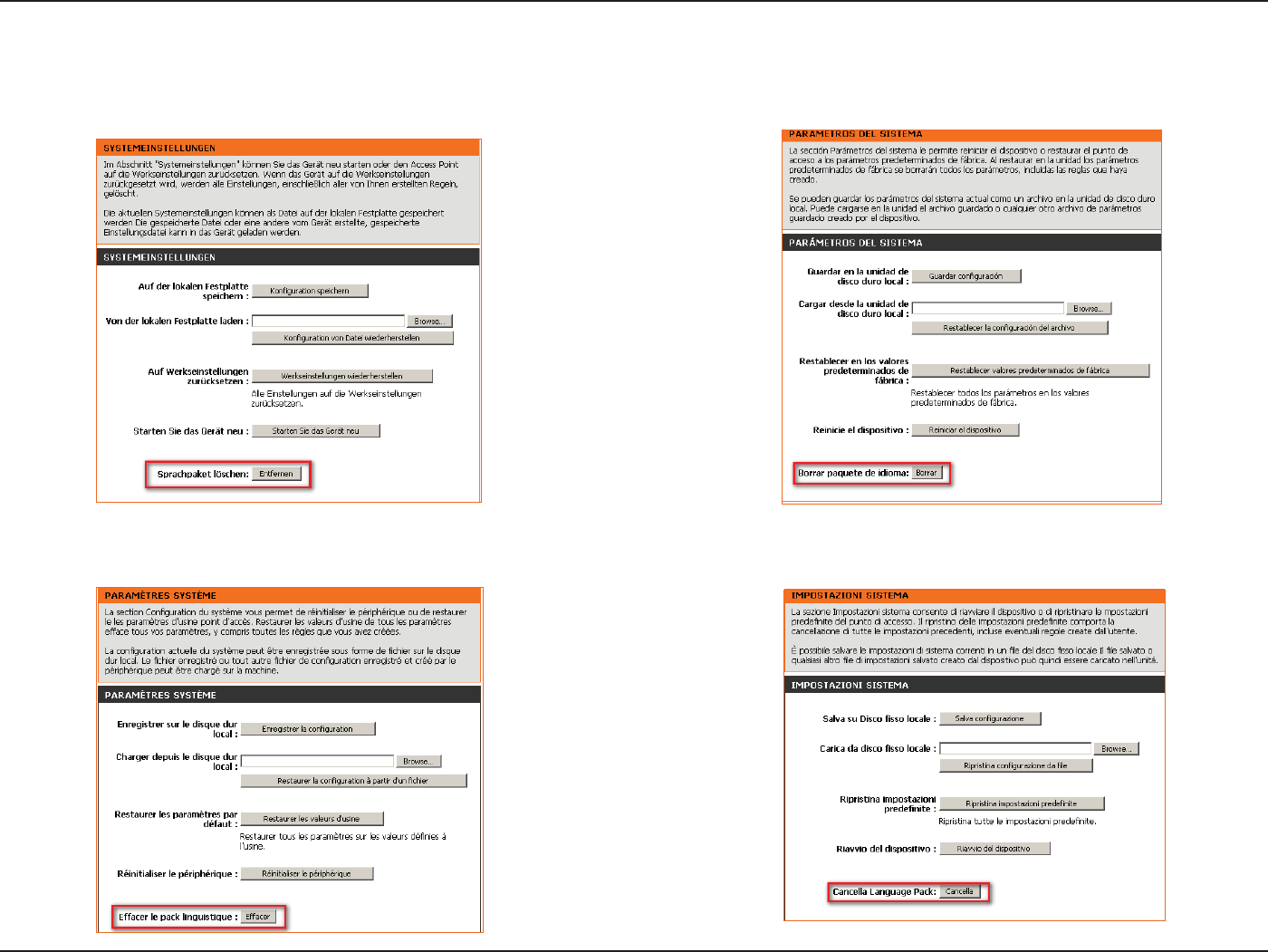

Clear
Language
Pack:
Use this option to save the current access point
conguration settings to a le on the hard disk of the
computer you are using. First, click the Save button.
You will then see a le dialog, where you can select a
location and le name for the settings.
Use this option to load previously saved access point
conguration settings. First, use the Browse control
to nd a previously save le of conguration settings.
Then, click the Load button to transfer those settings
to the access point.
This option will restore all conguration settings back
to the settings that were in eect at the time the access
point was shipped from the factory. Any settings that
have not been saved will be lost, including any rules
that you have created. If you want to save the current
access point configuration settings, use the Save
button above.
Note: Restoring the factory default settings will not reset
the Wi-Fi Protected Status to Not Congured.
Click to reboot the access point.

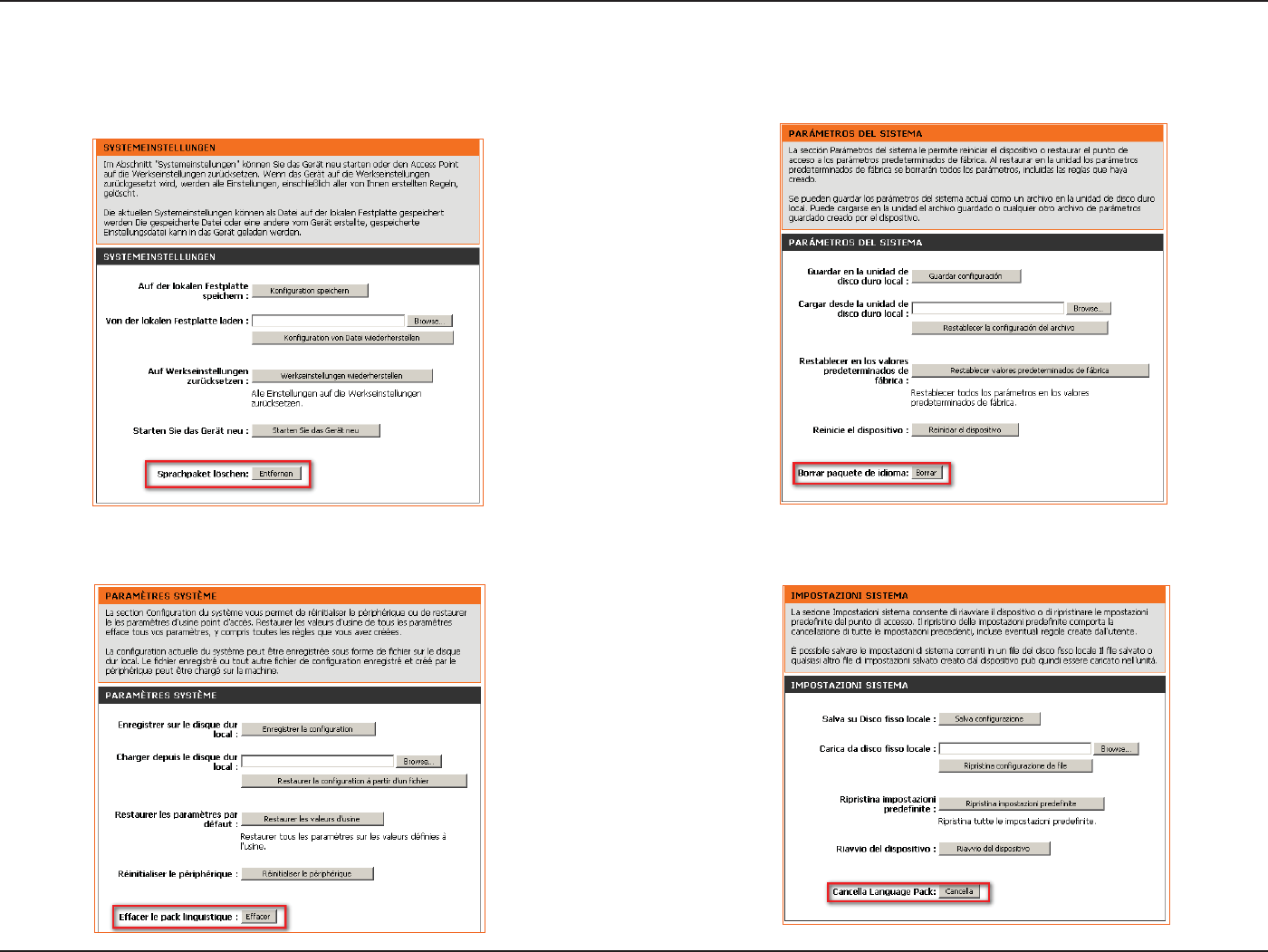

Click to clear the language pack. This will put the web
UI back to English.
System
34D-Link DAP-1525 User Manual
Section 3 - Conguration
Browse:
Upload:
After you have downloaded the new firmware,
click Browse to locate the rmware update on your
hard drive. Click Upload to complete the rmware
upgrade.
Once you have a rmware update on your computer,
use this option to browse for the le and then upload
the information into the access point.

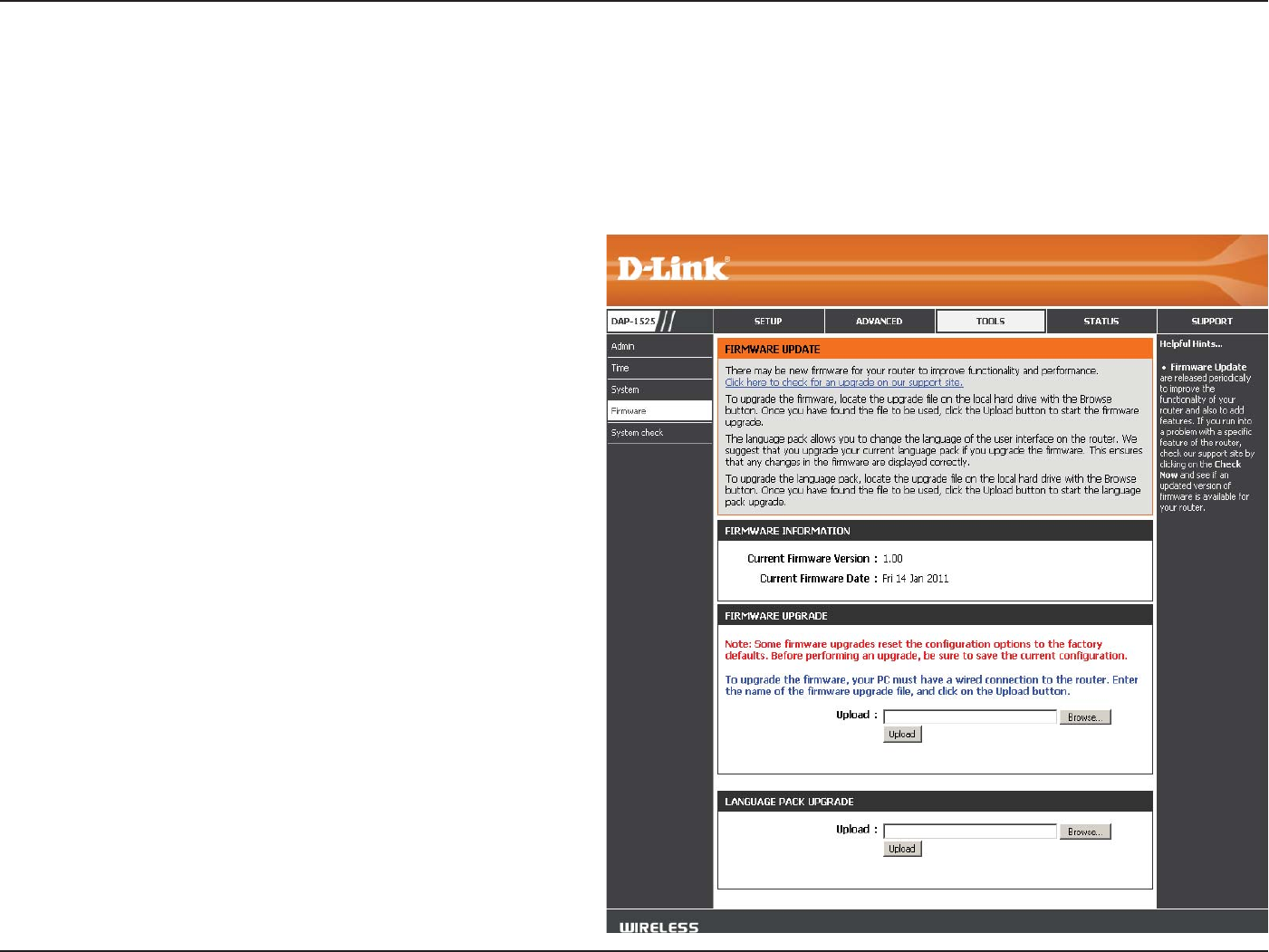

Firmware

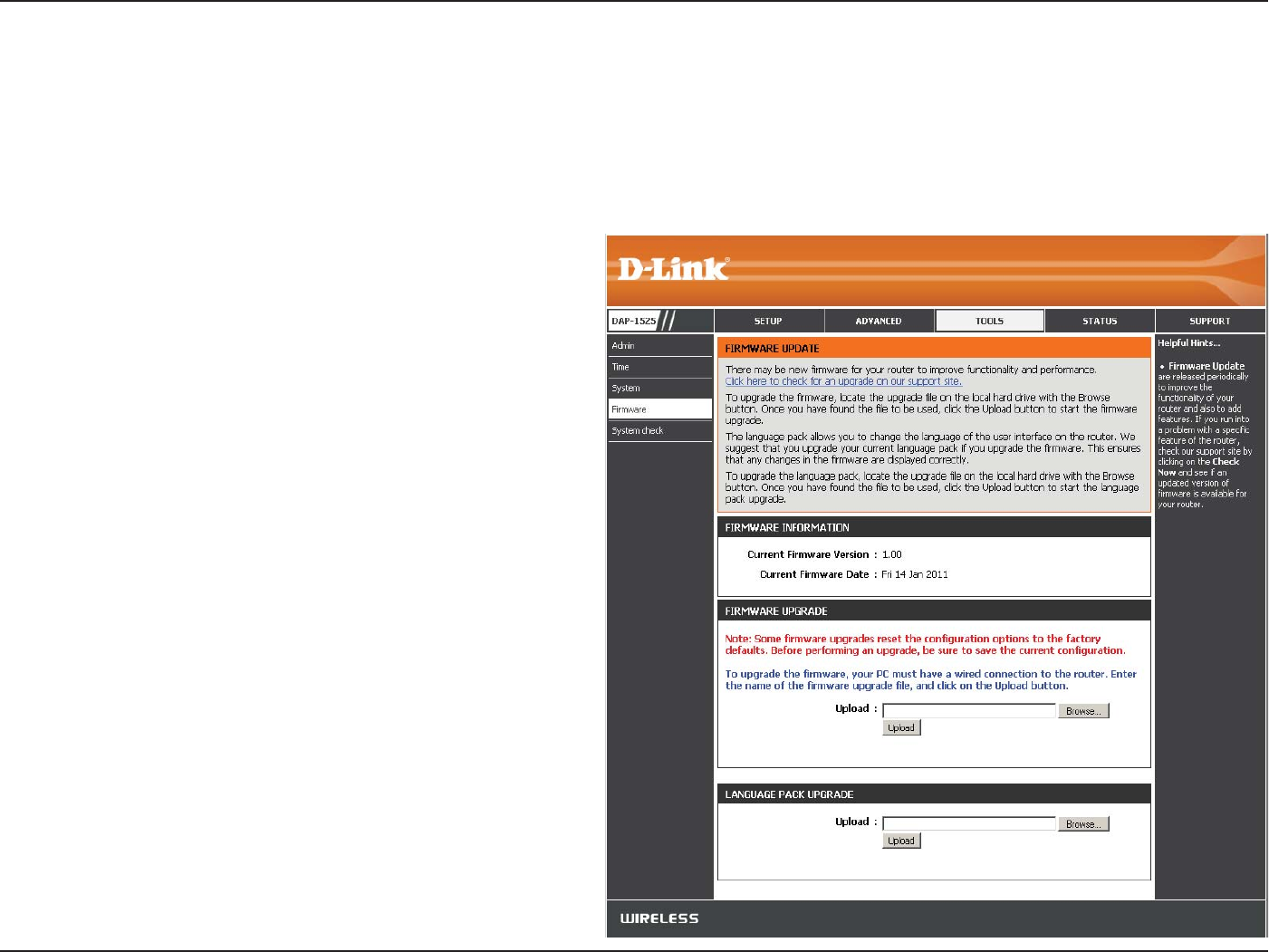

You can upgrade the rmware of the access point here. Make sure the rmware you want to use is on the local hard drive of
the computer. Click on Browse to locate the rmware le to be used for the update. Please check the D-Link support website
for rmware updates at http://support.dlink.com. You can download rmware upgrades to your hard drive from this site.
After you have downloaded the new language pack,
click Browse to locate the language pack le on your
hard drive. Click Upload to complete the language
pack upgrade.
Language Pack Upgrade
You can change the language of the web UI by uploading
available language packs.
Browse:
35D-Link DAP-1525 User Manual
Section 3 - Conguration
If you load a language pack and would like to go back to English, click Tools > System and click on Clear next to Clear
Language Pack.
36D-Link DAP-1525 User Manual
Section 3 - Conguration
System Check

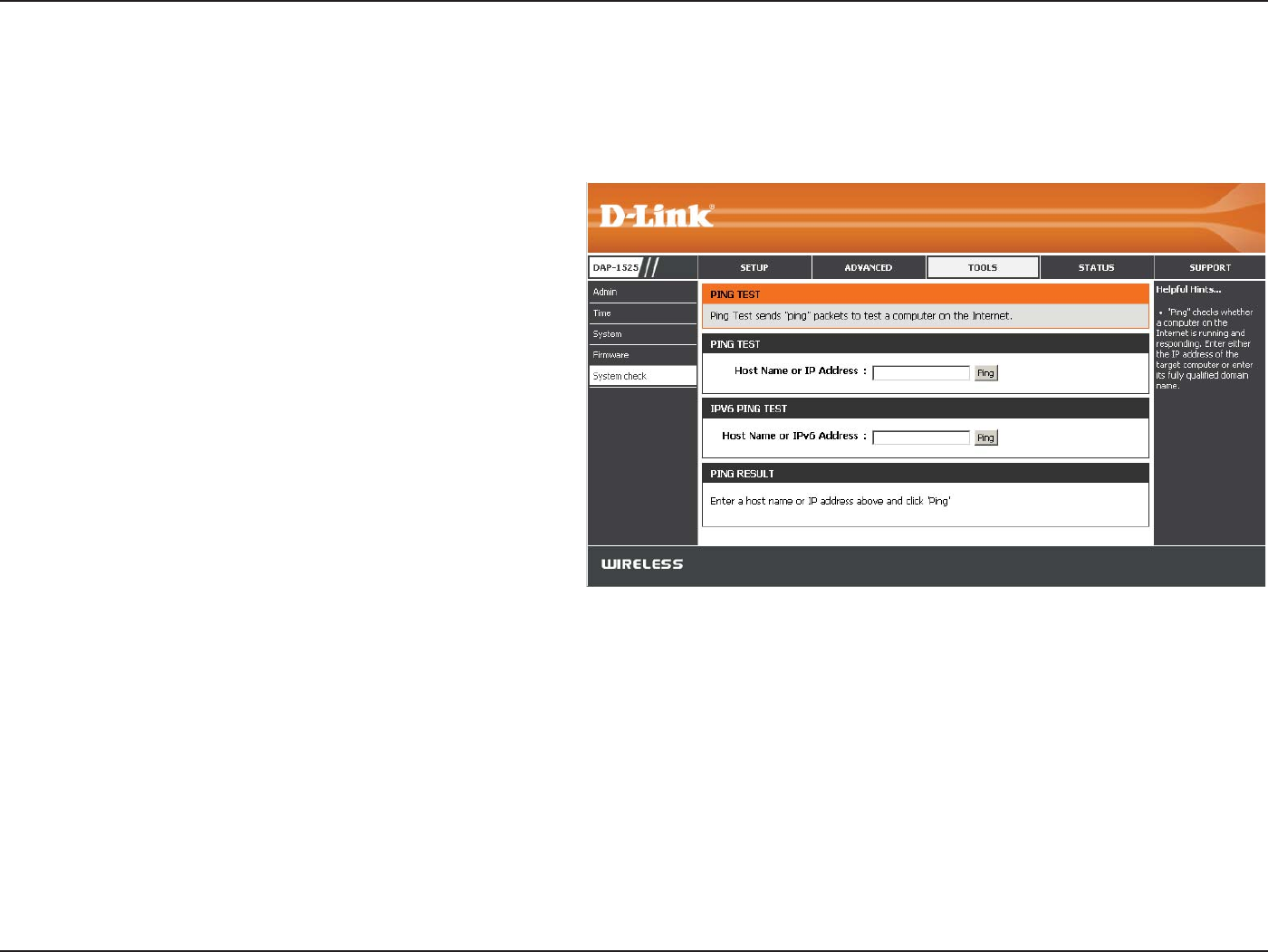

This sections Ping Tests by sending ping packets to test if a computer on the internet is running and responding.
Ping Test /
IPv6 Ping Test:
Ping Result:

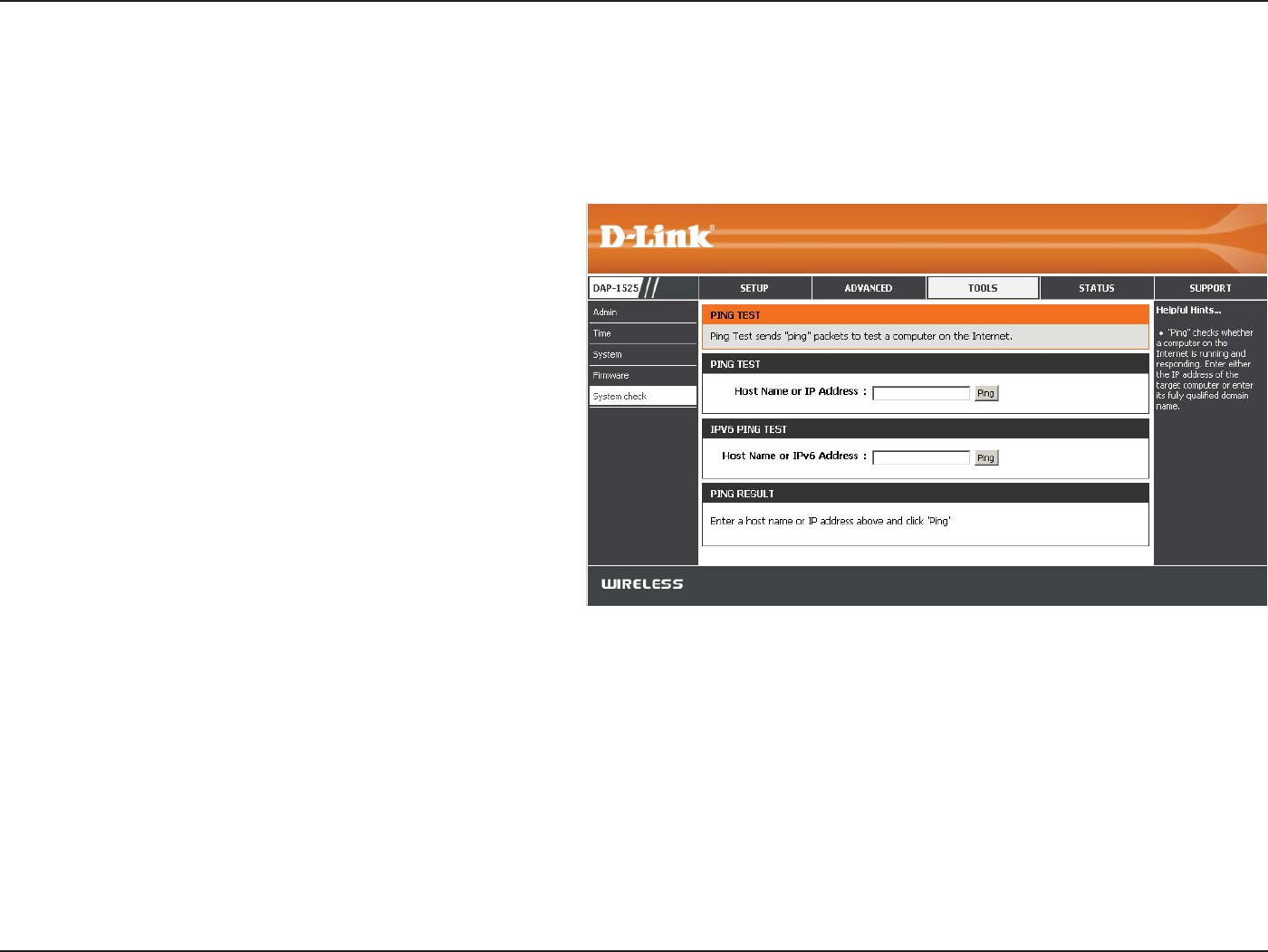

The Ping Test / IPv6 Ping Test is used
to
send Ping packets to test if a computer
is on the Internet. Enter the host name
or IP/IPv6 address that you wish to Ping,
and click Ping.
The results of your ping attempts will
be displayed here.
37D-Link DAP-1525 User Manual
Section 3 - Conguration
General:
LAN:
Wireless LAN:

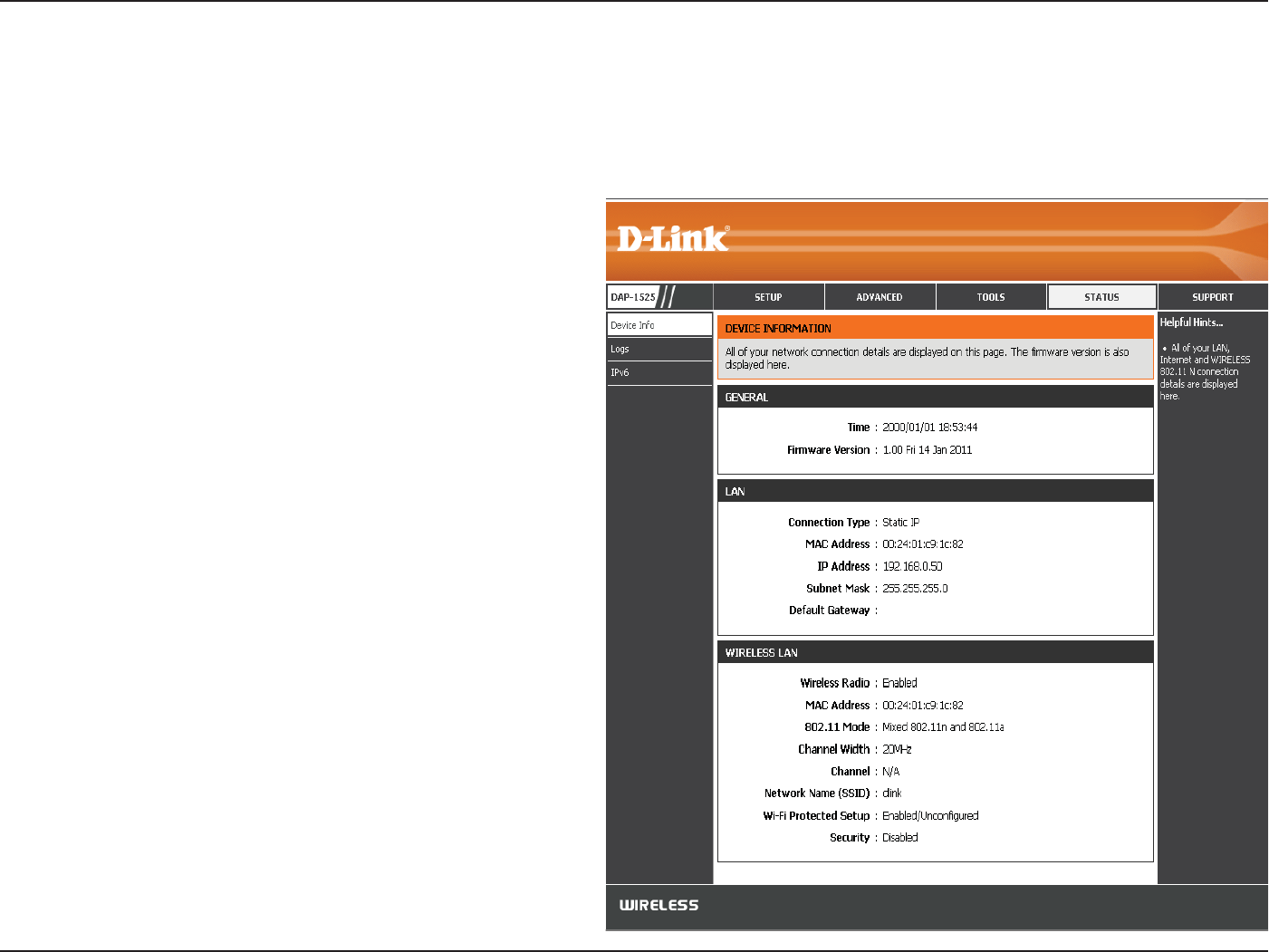

Displays the access points time and firmware
version.
Displays the MAC address and the private (local) IP
settings for the access point.
Displays the wireless MAC address and your
wireless settings such as SSID and Channel.
Status
Device Info
This page displays the current information for the DAP-1525. It will display the LAN and wireless LAN information.
38D-Link DAP-1525 User Manual
Section 3 - Conguration
Wireless

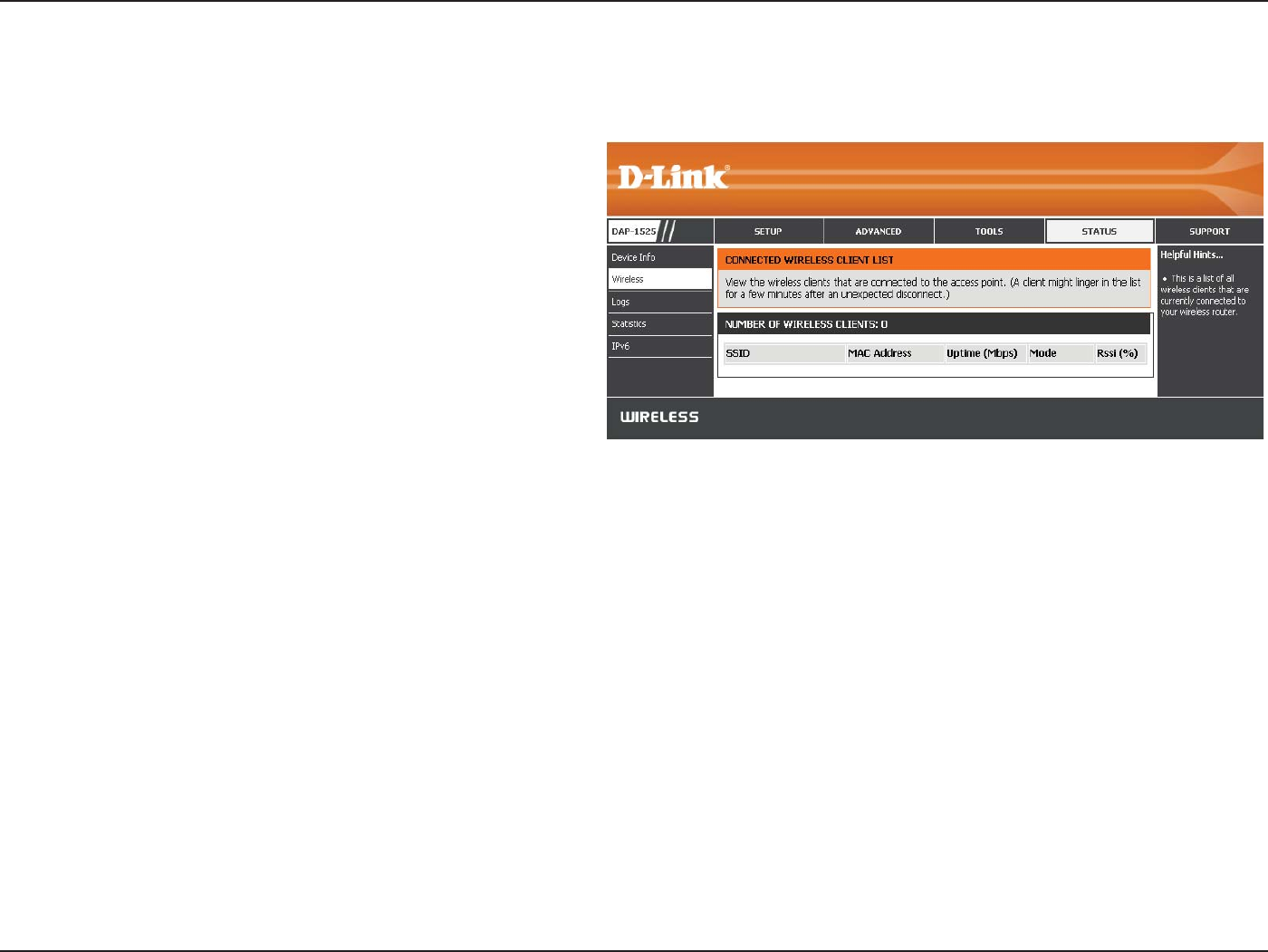

The wireless section allows you to view the wireless clients that are connected to your wireless access point.
SSID:
MAC Address:
UpTime:
Mode:
Rssi:
Displays the name of the device connected to your
network.
Will display the Ethernet ID (MAC address) of the
wireless client.
Displays the amount of time the wireless client has
been connected to the access point.
The transmission standard being used by the client.
Values are 11a, 11g, 11ng or 11na for 802.11a, 802.11g
or 802.11n respectively.
This is a relative measure of signal quality. The value is expressed as a percentage of theoretical best quality. Signal quality can be
reduced by distance, by interference from other radio frequency sources (such as cordless telephones or neighboring wireless
networks), and by obstacles between the access point and the wireless device.
39D-Link DAP-1525 User Manual
Section 3 - Conguration

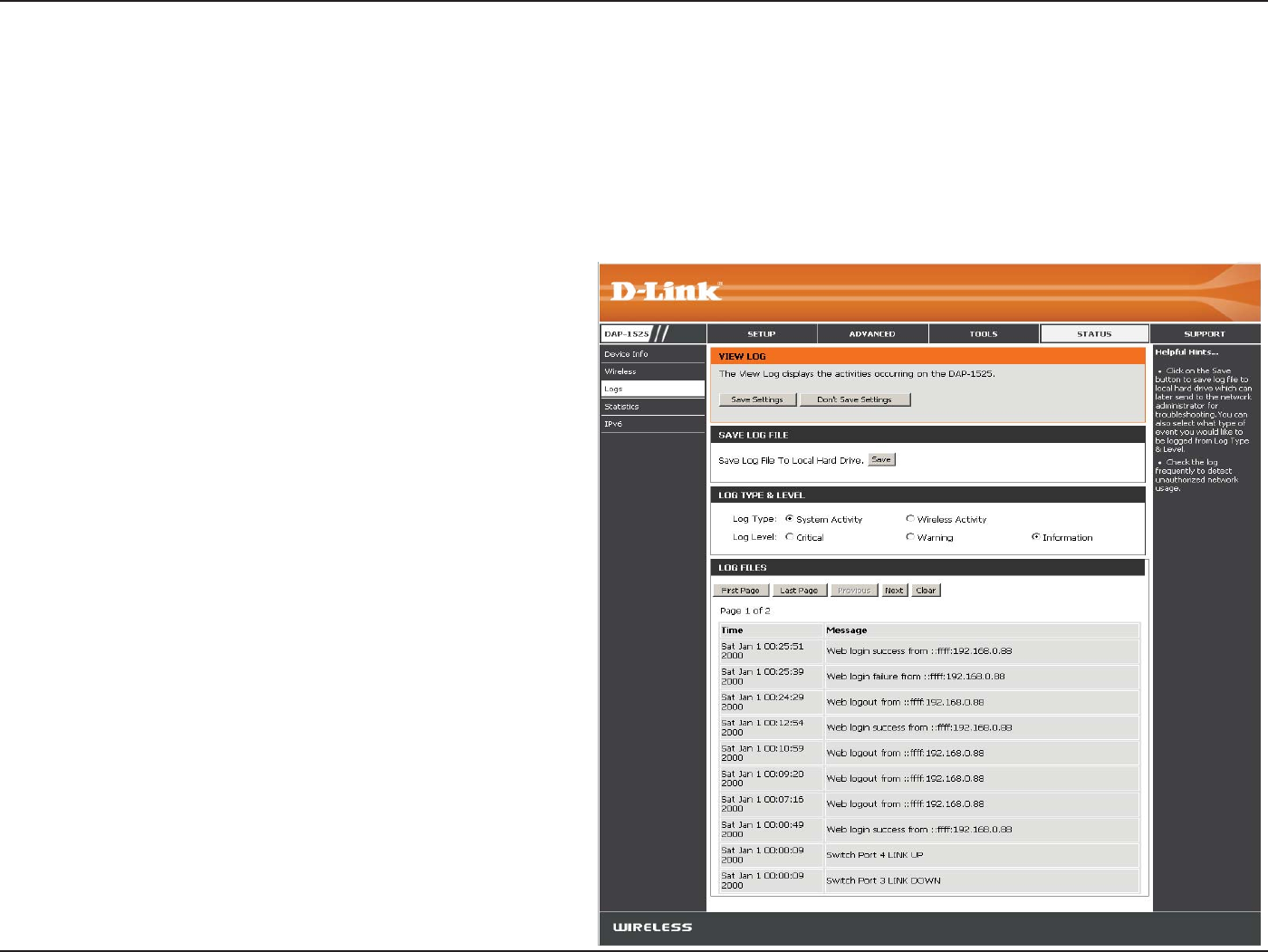

Save log
Log Type &
Level:
Log Files:
This option will save the access point to a log le on
your computer
Click the corresponding check box for the type(s) that
you want displayed in the log.
Use the radio buttons to select Log type and
level.
Displays log events. Click the Clear button to delete
all the records.

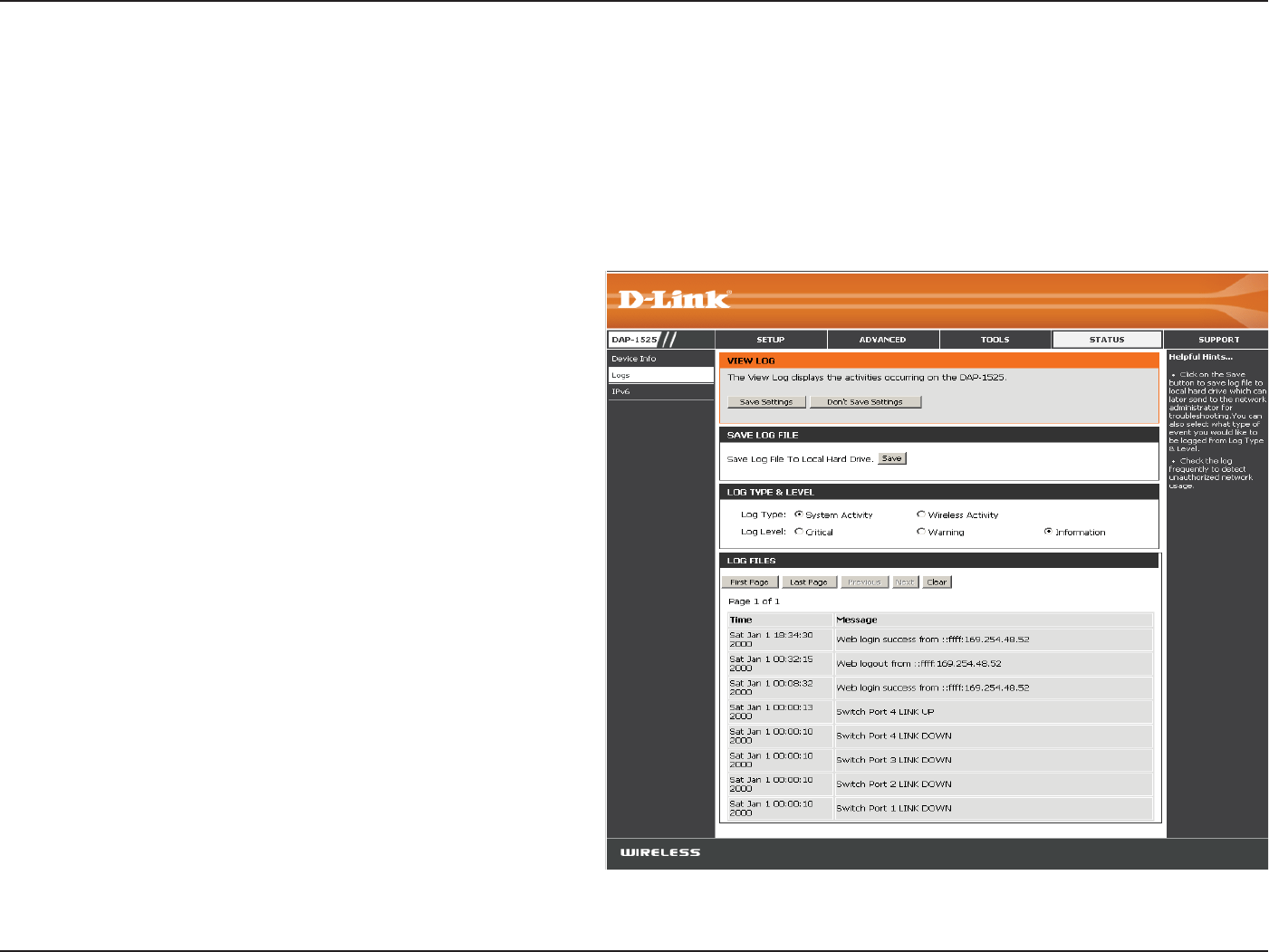

Logs
The access point automatically logs (records) events of possible interest in its internal memory. If there isnt enough internal
memory for all events, logs of older events are deleted, but logs of the latest events are retained. The Logs option allows you
to view the access point logs. You can dene what types of events you want to view and the level of the events to view. This
access point also has external Syslog Server support so you can send the log les to a computer on your network that is running
a Syslog utility
40D-Link DAP-1525 User Manual
Section 3 - Conguration
Statistics

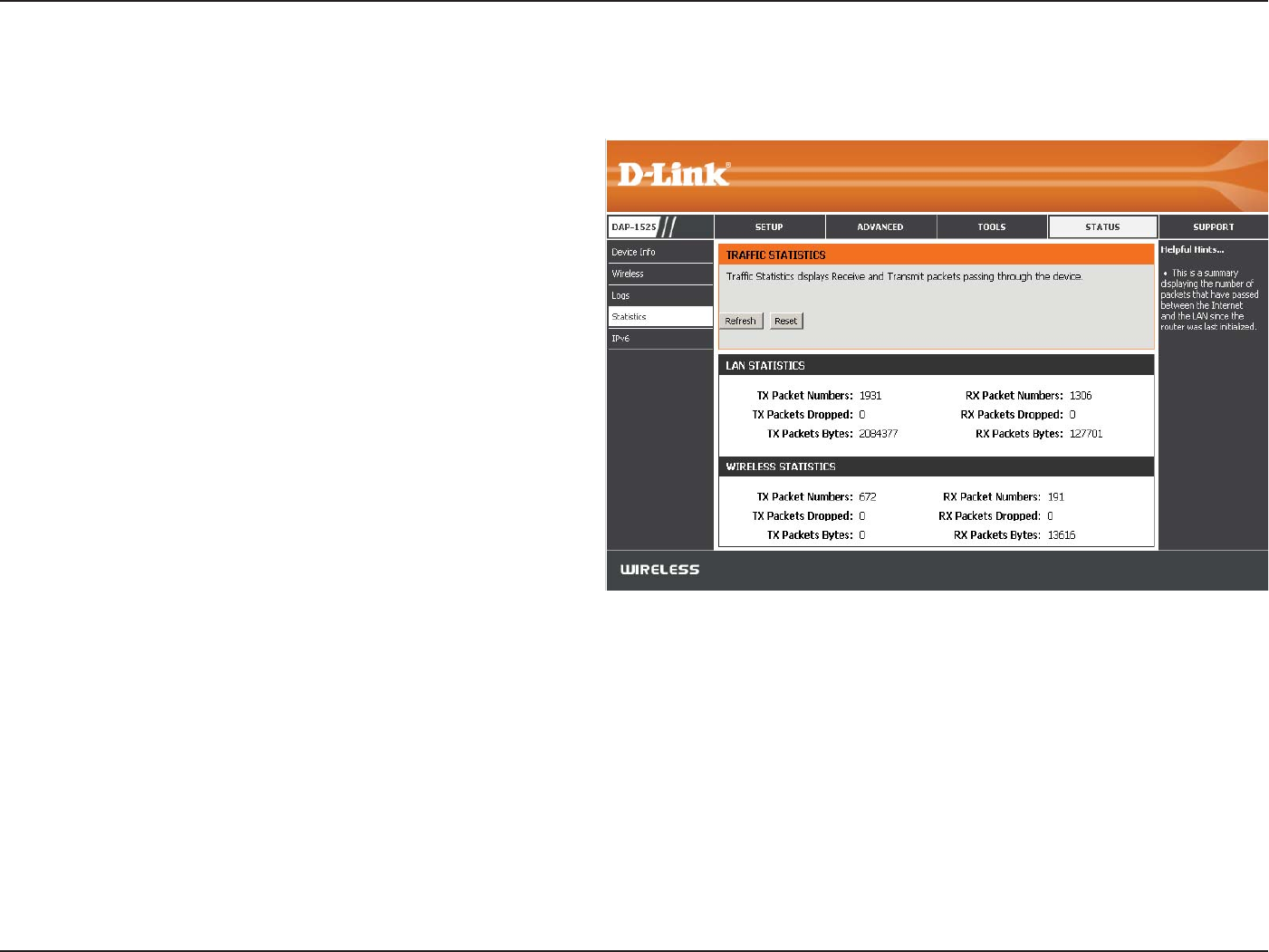

The Statistics page displays all of the LAN and Wireless packets transmit and receive statistics.
TX Packets:
RX Packets:
TX Packets
Dropped:
RX Packets
Dropped:
TX Bytes:
RX Bytes:
The total number of packets sent from the access
point.
The total number of packets received by the access
point.
Displays the number of packets that were dropped
while sending, due to errors, collisions, or access point
resource limitations.
Displays the number of packets that were dropped
while receiving, due to errors, collisions, or access point
resource limitations.
Displays the number of bytes that were sent from the
access point.
Displays the number of bytes that were received by
the access point.
41D-Link DAP-1525 User Manual
Section 3 - Conguration
IPV6

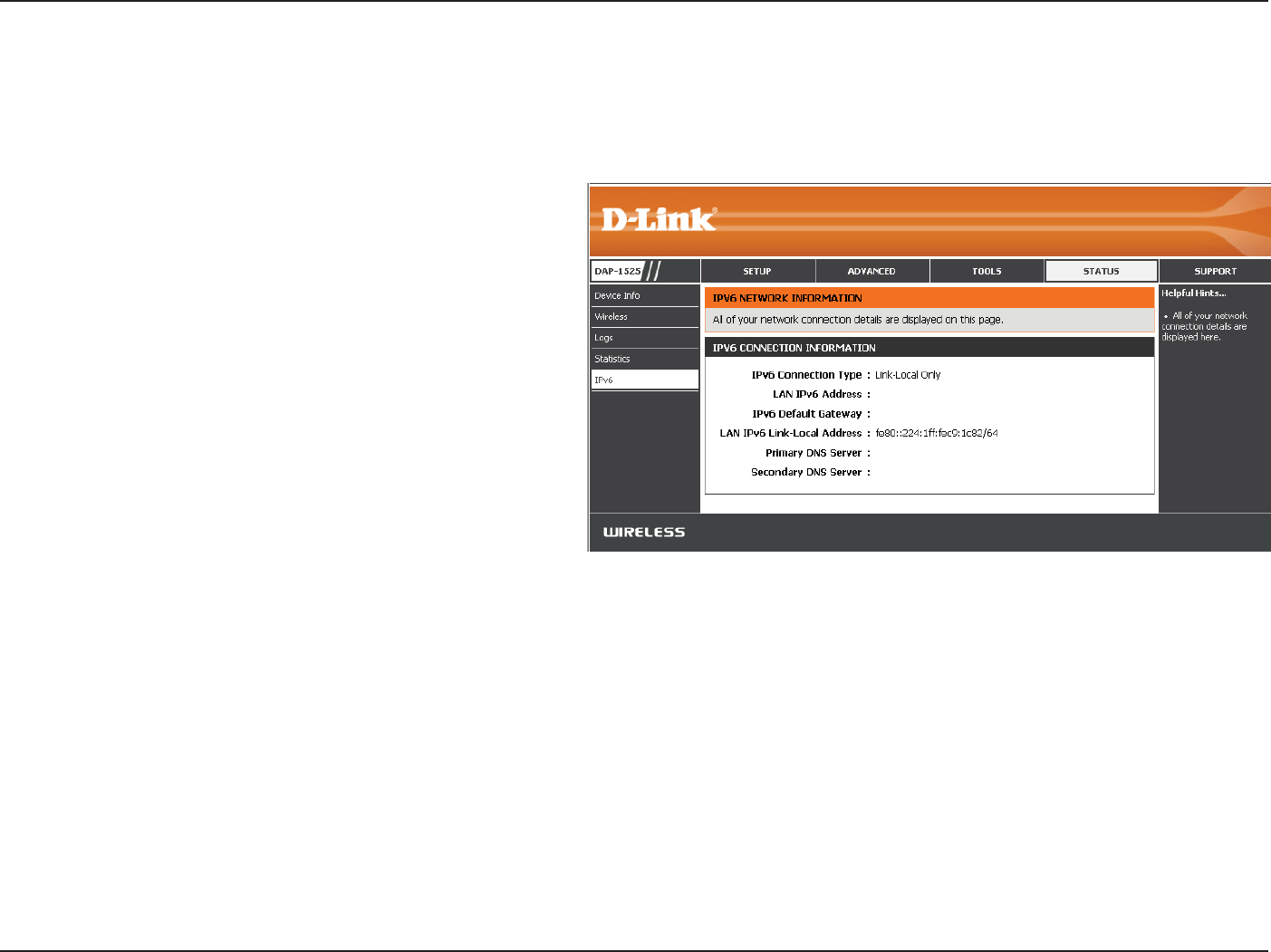

This page will display the IPv6 stats.
IPv6 Connection
Type:
LAN IPv6 Address:
IPv6 Default
Gateway:
LAN IPv6 Link-
Local Address:
Primary DNS
Server:
Secondary DNS
Server:
Displays IPv6 connection mode.
Displays LAN IPv6 address.
Displays the IPv6 address of the default
gateway.
Displays the LAN IPv6 link-local address.
Displays the IPv6 address of the primary
DNS
server.
Displays the IPv6 address of the secondary
DNS server.
42D-Link DAP-1525 User Manual
Section 3 - Conguration

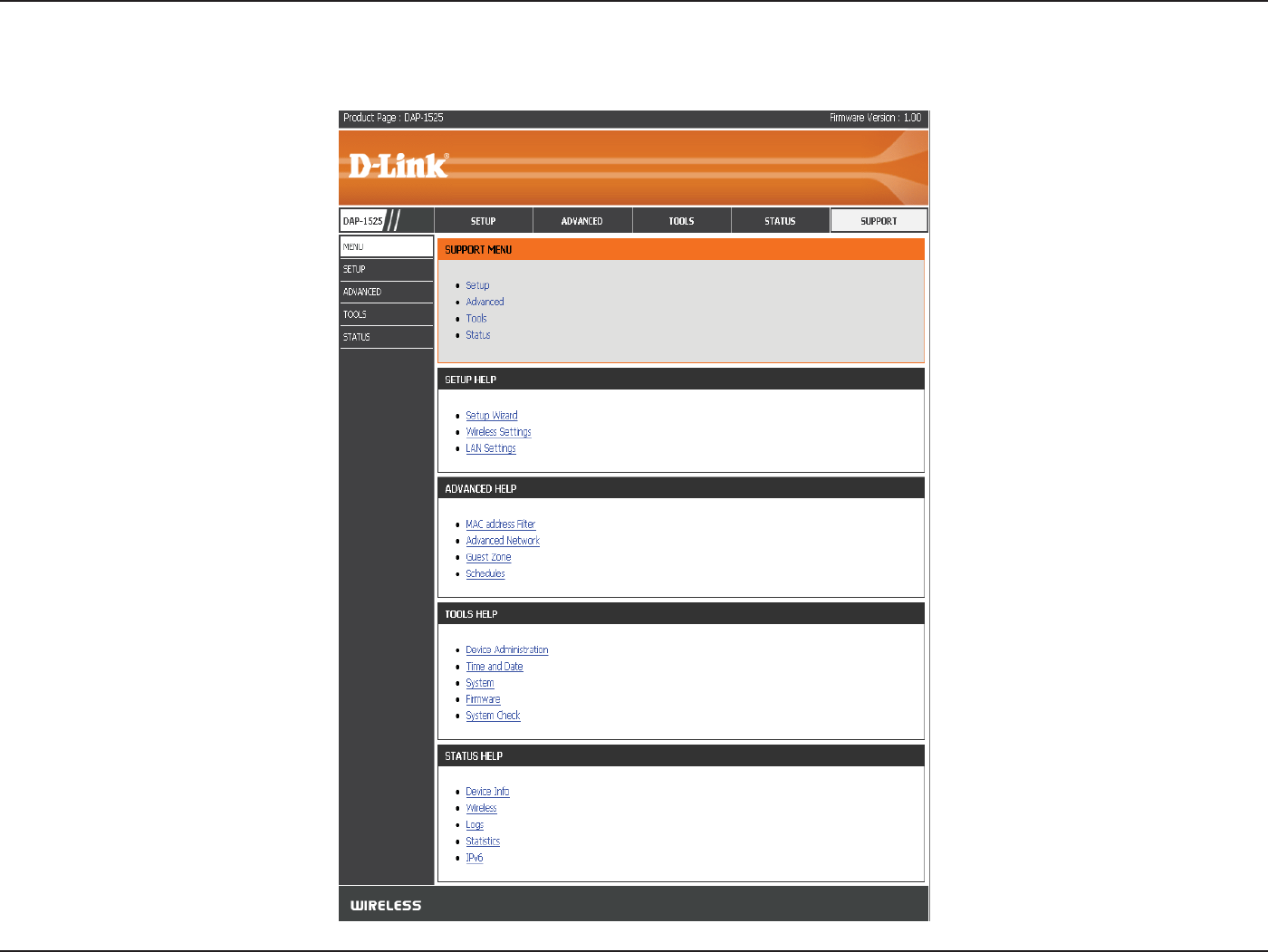

Support
43D-Link DAP-1525 User Manual
Section 3 - Conguration
Conguration for Bridge Mode
This section will show you how to congure your new D-Link wireless MediaBridge using the web-based conguration
utility.
Web-based Conguration Utility
To access the conguration utility, open a web-browser
such as Internet Explorer and enter http://dlinkap or
http://192.168.0.50 in the address eld.
Select Admin from the drop-down menu and then enter
your password. Leave the password blank by default.
If you get a Page Cannot be Displayed error, please refer to
the Troubleshooting section for assistance.
http://dlinkap
44D-Link DAP-1525 User Manual
Section 3 - Conguration
This wizard is designed to assist you in conguring the wireless settings for your bridge. It will guide you through step-by-
step instructions on how to setup your wireless network.
Setup Wizard
Click Launch Wireless Setup Wizard
Click Next to continue.
45D-Link DAP-1525 User Manual
Section 3 - Conguration
Click the WPS radio button if your wireless device
supports Wi-Fi Protected Setup. Click the Manual radio
button if you want to congure the network manually.
For Manual conguration, skip to page 38.
Click the Next button to continue.
Press the Push Button on the wireless device that you
are adding to your network to complete the setup.
46D-Link DAP-1525 User Manual
Section 3 - Conguration
Select Manual as the conguration method to set up
your network manually.
Click Next to continue.
Select the wireless security mode you wold like to use.
Select Auto and click Next.
Choose Manually assign a network key to create your
own key.
Click Next to continue.
47D-Link DAP-1525 User Manual
Section 3 - Conguration
Enter the WP2-Auto personal passphrase to establish
wireless connection.
Click Next to nish the Setup Wizard.
The wireless setup wizard is now completed click
Finish.
48D-Link DAP-1525 User Manual
Section 3 - Conguration

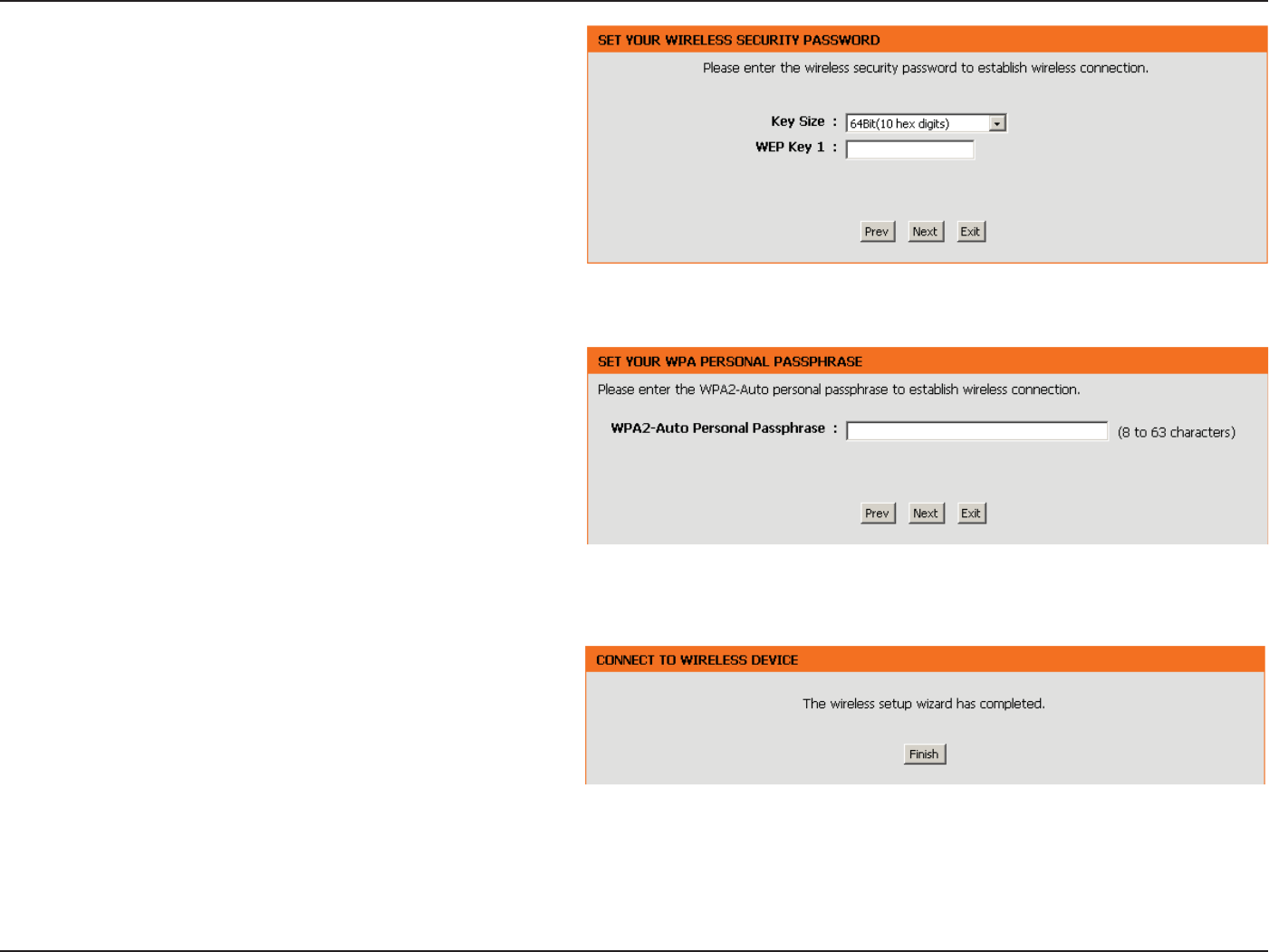

If you choose WEP, enter the wireless security password
and click Next to complete the Setup Wizard.
This screen will appear once the wireless setup wizard
is complete.
Click Finish.
If you choose Auto (WPA or WPA2), enter the WPA2-
Auto Personal Passphrase and click Next to complete
the Setup Wizard.
49D-Link DAP-1525 User Manual
Section 3 - Conguration
Enable
Wireless:
Wireless
Network
Name:
Band Width:
Enable:
Security
Mode:
Click the check box to enable the wireless function. If you do not
want to use wireless, uncheck the box to disable all the wireless
functions.
Service Set Identier (SSID) is the name of your wireless network.
Create a name using up to 32 characters. The SSID is case
sensitive.
Select the Band Width:
Auto 20/40 - Select if you are using both 802.11n and non-
802.11n wireless devices.
20MHz - Select if you are not using any 802.11n wireless
clients.
Enable the Wi-Fi Protected Setup feature.
Refer to page 64 for more information regarding wireless
security.
Wireless
Wireless MAC Cloning
Enabling this option allows the user to manually assign the
source MAC address to packets forwarded by the DAP-1525. If
not manually assigned, the packet’s source MAC address eld
will be automatically selected as the DAP-1525’s MAC address.
MAC Address:
Scan:
Enter the desired MAC address connected to your
DAP-1525 to enable the clone function.
Click the Scan button to search for all available
devices connected to your DAP-1525’s Ethernet
ports
50D-Link DAP-1525 User Manual
Section 3 - Conguration
Device Name:
LAN
Connection
Type:
IPv4 Address:
Subnet Mask:
Default
Gateway:
Primary DNS
Server:
Secondary DNS
Server:
My IPv6
Connection:
Enter the Device Name of the AP and click Next to
continue. It is recommended to change the Device
Name if there is more than one D-Link device within
the subnet.
Use the drop-down menu to select Static IP if your ISP
assigned you the IP address, subnet mask, gateway,
and DNS server addresses. Select Dynamic IP (DHCP)
to automatically assign an IP address to the computers
on the LAN/private network.
Enter the IP address assigned by your ISP.
Enter the Subnet Mask assigned by your ISP.
Enter the Gateway assigned by your ISP.
Enter the primary DNS server IP address.
Enter the secondary DNS server IP address.
Select the mode you would like the router to use to
connect to the IPv6 Internet from the drop-down
menu.
This section will allow you to change the local network settings of the bridge and to congure the Static settings.
Lan Setup
51D-Link DAP-1525 User Manual
Section 3 - Conguration
Lan Setup
Static IPv6
When using the My IPv6 Connection is drop-down menu to select the IPv6 mode, the LAN IPv6 Address Settings section will vary based on the
selected mode. Select Static IPv6 to see the following conguration.
IPv6 Address:
Subnet Prex
Length:
Default
Gateway:
Primary DNS
Server:
Secondary DNS
Server:
Enter the staic IPv6 address provided by your
Internet Service Provider.
Enter the IPv6 subnet prex length.
Enter the default gateway IP address.
Enter the primary DNS server IP address.
Enter the secondary DNS server IP address.
52D-Link DAP-1525 User Manual
Section 3 - Conguration
Lan Setup
Auto-conguration
When using the My IPv6 Connection is drop-down menu to select the IPv6 mode, the LAN IPv6 Address Settings section will vary based on the
selected mode. Select Autoconguration (Stateless/DHCPv6) to see the following conguration.
Obtain IPv6
DNS Servers
automatically:
Use the
following
IPv6 DNS
Servers:
Primary DNS
Server:
Secondary DNS
Server:
Enter the staic IPv6 address provided by your
Internet Service Provider.
Enter the IPv6 subnet prex length.
Enter the primary DNS server IP address.
Enter the secondary DNS server IP address.
53D-Link DAP-1525 User Manual
Section 3 - Conguration
Advanced
Schedule
Enter a name for your new schedule.
Select a day, a range of days, or All Week to include
every day.
Check All Days or enter a start and end time for your
schedule.
Click Add to save your schedule. You must click
Save Settings at the top for your schedules to go
into eect.
The list of schedules will be listed here. Click the
Edit icon to make changes or click the Delete icon
to remove the schedule.
Name:
Days:
All Day- 24 Time:
Add:
Schedule Rules
List:
This section allows you to manage schedule rules for Wireless Settings and Guest Zone.
54D-Link DAP-1525 User Manual
Section 3 - Conguration
Password:
Verify
Password:
Enable
Graphical
Authentication:
Enter a new password for the Administrator Login
Name. The administrator can make changes to the
settings.
Enter the same password that you entered in the
previous textbox in order to conrm its accuracy.
Click the check box to enable Graphical
Authentication.
Tools
Admin
This page will allow you to change the Administrator password. Admin has read/write access.
55D-Link DAP-1525 User Manual
Section 3 - Conguration
Time
The Time Conguration option allows you to congure, update, and maintain the correct time on the internal system clock.
From this section you can set the time zone that you are in. Daylight Saving can also be congured to automatically adjust the
time when needed.
Time Zone:
Enable Daylight
Saving:
Sync your
computer’s time
settings:
Automatically
synchronize
with D-Links
Internet time
server:
NTP Server Used:
Manual:
Select the Time Zone from the drop-down menu.
To select Daylight Saving time manually, click the
Enable Daylight Saving check box. Next use the
drop-down menu to select a Daylight Saving Oset
and then enter a start date and an end date for
daylight saving time.
Click this button to set the devices time the
same to local PC.
Click the check box to enable the device to
automatically synchronize with a D-Link NTP
Server. NTP stands for Network Time Protocol.
NTP synchronizes computer clock times in a
network of computers. This will only connect
to a server on the Internet, not a local server.
Enter the NTP server or select one from the
drop-down menu.
To manually input the time, enter the values in
these elds for the Year, Month, Day, Hour, Minute,
and Second and then click Save Settings. You can
also click the Copy Your Computer’s Time Settings
button at the bottom of the screen.
56D-Link DAP-1525 User Manual
Section 3 - Conguration
Save To Local Hard
Drive:
Load From Local Hard
Drive:
Restore To Factory
Default:
Reboot The Device:
Clear Language Pack:
Use this option to save the current access point
conguration settings to a le on the hard disk
of the computer you are using. First, click the
Save button. You will then see a le dialog, where
you can select a location and le name for the
settings.
Use this option to load previously saved access
point configuration settings. First, use the
Browse control to nd a previously save le of
configuration settings. Then, click the Load
button to transfer those settings to the access
point.
This option will restore all conguration settings
back to the settings that were in eect at the
time the access point was shipped from the
factory. Any settings that have not been saved
will be lost, including any rules that you have
created. If you want to save the current access
point conguration settings, use the Save button
above.
Click to reboot the bridge.
Click to clear the language pack. This will put the web UI back to English.
System
57D-Link DAP-1525 User Manual
Section 3 - Conguration
Browse:
Upload:
After you have downloaded the new firmware,
click Browse to locate the rmware update on your
hard drive. Click Upload to complete the rmware
upgrade.
Once you have a rmware update on your computer,
use this option to browse for the le and then upload
the information into the bridge.
Firmware
You can upgrade the rmware of the access point here. Make sure the rmware you want to use is on the local hard drive
of the computer. Click on Browse to locate the rmware le to be used for the update. Please check the D-Link support site
for rmware updates at http://support.dlink.com. You can download rmware upgrades to your hard drive from the D-Link
support site.
After you have downloaded the new language
pack, click Browse to locate the language pack le
on your hard drive. Click Upload to complete the
language pack upgrade.
Language Pack
You can change the language of the web UI by uploading
available language packs.
Browse:
58D-Link DAP-1525 User Manual
Section 3 - Conguration
If you load a language pack and would like to go back to English, click Tools > System and click on Clear next to Clear
Language Pack.
59D-Link DAP-1525 User Manual
Section 3 - Conguration
System Check
This sections Ping Tests by sending ping packets to test if a computer on the internet is running and responding.
Ping Test /
IPv6 Ping Test:
Ping Result:
The Ping Test / IPv6 Ping Test is used
to
send Ping packets to test if a computer
is on the Internet. Enter the host name
or IP/IPv6 address that you wish to Ping,
and click Ping.
The results of your ping attempts will
be
displayed here.
60D-Link DAP-1525 User Manual
Section 3 - Conguration
Displays the access points time and firmware
version.
Displays the MAC address and the private (local) IP
settings for the access point.
Displays the wireless MAC address and your wireless
settings such as SSID and Channel.
General:
LAN:
Wireless LAN:
Status
Device Info
This page displays the current information for the DAP-1525. It will display the LAN and wireless LAN information.
61D-Link DAP-1525 User Manual
Section 3 - Conguration
This option will save the access point to a log le on
your computer.
Use the radio buttons to select Log type and level.
Displays log events. Click the Clear button to delete
all the records.
Save Log:
Log Type & Level:
Log Files:
Logs
The access point automatically logs (records) events of possible interest in its internal memory. If there isnt enough internal
memory for all events, logs of older events are deleted, but logs of the latest events are retained. The Logs option allows you
to view the access point logs. You can dene what types of events you want to view and the level of the events to view. This
access point also has external Syslog Server support so you can send the log les to a computer on your network that is running
a Syslog utility.
62D-Link DAP-1525 User Manual
Section 3 - Conguration
IPv6
This page will display all your network connection details.
IPv6 Connection
Type:
LAN IPv6 Address:
IPv6 Default
Gateway:
LAN IPv6 Link-
Local Address:
Primary DNS
Server:
Secondary DNS
Server:
Displays IPv6 connection mode.
Displays LAN IPv6 address.
Displays the IPv6 address of the default
gateway.
Displays the LAN IPv6 link-local address.
Displays the IPv6 address of the primary DNS
server.
Displays the IPv6 address of the secondary
DNS server.
63D-Link DAP-1525 User Manual
Section 3 - Conguration
Support
64D-Link DAP-1525 User Manual
Section 4 - Security
Wireless Security
This section will show you the dierent levels of security you can use to protect your data from intruders. The
DAP-1525 oers the following types of security:
WEP (Wireless Security Basic) WPA2(Wireless Security enhanced)
WPA (Wi-Fi Protected Access)
What is WPA?
WPA, or Wi-Fi Protected Access, is a Wi-Fi standard that was designed to improve the security features of WEP (Wired Equivalent
Privacy).
The 2 major improvements over WEP:
Improved data encryption through the Temporal Key Integrity Protocol (TKIP). TKIP scrambles the keys using a
hashing algorithm and, by adding an integrity-checking feature, ensures that the keys haven’t been tampered
with. WPA2 is based on 802.11i and uses Advanced Encryption Standard (AES) instead of TKIP.
User authentication, which is generally missing in WEP, through the extensible authentication protocol (EAP).
WEP regulates access to a wireless network based on a computers hardware-specic MAC address, which is
relatively simple to be snied out and stolen. EAP is built on a more secure public-key encryption system to
ensure that only authorized network users can access the network.
WPA-PSK/WPA2-PSK uses a passphrase or key to authenticate your wireless connection. The key is an alpha-numeric password
between 8 and 63 characters long. The password can include symbols (!?*&_) and spaces. This key must be the exact same key
entered on your wireless bridge or access point.
WPA/WPA2 incorporates user authentication through the Extensible Authentication Protocol (EAP). EAP is built on a more
secure public key encryption system to ensure that only authorized network users can access the network.
65D-Link DAP-1525 User Manual
Section 4 - Security
Congure WEP (AP Mode)
It is recommended to enable encryption on your wireless access point before your wireless network adapters. Please establish
wireless connectivity before enabling encryption. Your wireless signal may degrade when enabling encryption due to the
added overhead.
1. Log into the web-based conguration by opening a web
browser and entering the IP address of the access point
(192.168.0.50). Click Setup and then Wireless Settings
on the left side.
2. Select Enable WEP Wireless Security (basic) in the
Security Mode drop-down menu in the Wireless Security
Mode section.
3. Next to WEP Encryption in the WEP section, select the
level of encryption (64-bit or 128-bit). Hex - (recommended)
Letters A-F and numbers 0-9 are valid.
4. Next to Default WEP Key and the rst selection in the drop-
down menu, WEP Key 1. Enter a WEP key that you create in
the WEP Key value and Verify WEP Key value elds. Make
sure you enter this key exactly on all your wireless devices.
You may enter up to 4 dierent keys using the Default WEP
Key drop-down menu.
5. Select Open or Shared Key from the Authentication drop-
down menu.
6. Click Save Settings to save your settings. If you are
conguring the access point with a wireless adapter, you
will lose connectivity until you enable WEP on your adapter
and enter the same WEP key as you did on the access point.
66D-Link DAP-1525 User Manual
Section 4 - Security
It is recommended to enable encryption on your wireless access point before your wireless network adapters. Please establish
wireless connectivity before enabling encryption. Your wireless signal may degrade when enabling encryption due to the
added overhead.
1. Log into the web-based conguration by opening a web browser
and entering the IP address of the access point (192.168.0.50). Click
on Setup and then click Wireless Settings on the left side.
2. Select Enable WPA/WPA2 Wireless Security (enhanced) from the
Security Mode drop-down menu.
3. Select Auto(TKIP/AES), TKIP, or AES from the Cipher Type drop-
down menu. If you have wireless clients that use both types, use
TKIP/AES.
5. Select either PSK or EAP from the drop-down menu.
6. Enter your Network key in the Network Key section. The key is
entered as a pass-phrase in either ASCII or HEX format. If using ASCII
format the pass-phrase must be between 8-63 characters. If using
HEX format the pass-phrase must be 64 characters. The ASCII or HEX
pass-phrase must be the same at both ends of the wireless connection.
7. Click on Enable to enable the Wi-Fi Protected Setup.
8. Click Save Settings at the top of the window to save your settings.
Congure WPA-Personal (AP Mode)
67D-Link DAP-1525 User Manual
Section 4 - Security
It is recommended to enable encryption on your wireless access point before your wireless network adapters. Please establish
wireless connectivity before enabling encryption. Your wireless signal may degrade when enabling encryption due to the
added overhead.
1. Log into the web-based conguration by opening a web browser
and entering the IP address of the bridge (192.168.0.50). Click on
Setup and then click Wireless Settings on the left side.
2. Next to Security Mode in the Wireless Security Mode section, select
Enable WPA/WPA2 Wireless Security.
3. Select Auto(TKIP/AES), TKIP, or AES from the Cipher Type drop-
down menu. If you have wireless clients that use both types, use
TKIP/AES.
4. Select EAP from the PSK / EAP drop-down menu
5. Enter the IP Address of your RADIUS server in the RADIUS Server IP
Address eld.
6. Enter the port you are using with your RADIUS server in the Port
eld.
7. Enter the security key in the Shared Secret eld.
8. Click Save Settings at the top of the window to save your settings. If you are conguring the access point with a wireless
adapter, you will lose connectivity until you enable WPA on your adapter and enter the same passphrase as you did on the
access point.
Congure WPA-Enterprise (AP Mode)
68D-Link DAP-1525 User Manual
Section 4 - Security
Congure WEP (Bridge Mode)
It is recommended to enable encryption on your wireless access point before your wireless network adapters. Please establish
wireless connectivity before enabling encryption. Your wireless signal may degrade when enabling encryption due to the
added overhead.
1. Log into the web-based conguration by opening a web browser
and entering the IP address of the access point(192.168.0.50).
Click Setup and then Wireless Settings on the left side.
2. Select Enable WEP Wireless Security (basic) in the Security
Mode drop-down menu in the Wireless Security Mode
section.
3. Next to WEP Encryption in the WEP section, select the level
of encryption (64-bit or 128-bit). Hex - (recommended) Letters
A-F and numbers 0-9 are valid.
4. Next to Default WEP Key and the rst selection in the drop-
down menu, WEP Key 1. Enter a WEP key that you create in
the WEP Key value and Verify WEP Key value elds. Make sure you enter this key exactly on all your wireless devices. You
may enter up to 4 dierent keys using the Default WEP Key drop-down menu.
5. Select Open or Shared Key from the Authentication drop-down menu.
6. Click Save Settings to save your settings. If you are conguring the access point with a wireless adapter, you will lose
connectivity until you enable WEP on your adapter and enter the same WEP key as you did on the access point.
69D-Link DAP-1525 User Manual
Section 4 - Security
Congure WPA-Personal (Bridge Mode)
It is recommended to enable encryption on your wireless Access Point before your wireless network adapters. Please establish
wireless connectivity before enabling encryption. Your wireless signal may degrade when enabling encryption due to the
added overhead.
1. Log into the web-based conguration by opening a web
browser and entering the IP address of the access point
(192.168.0.50). Click Setup and then Wireless Settings on
the left side.
2. Select Enable WPA/WPA2 Wireless Security (enhanced)
from the Security Mode drop-down menu.
3. Select TKIP, or AES from the Cipher Type drop-down
menu.
4. Select PSK from the PSK / EAP drop-down menu.
5. Enter a key (passphrase) in the Network Key eld. The key is entered as a pass-phrase in either ASCII or HEX format. If using
ASCII format the pass-phrase must be between 8-63 characters. If using HEX format the pass-phrase must be 64 characters.
The ASCII or HEX pass-phrase must be the same at both ends of the wireless connection.
6. Click Save Settings to save your settings. If you are conguring the Access Point with a wireless adapter, you will lose
connectivity until you enable WPA-PSK on your adapter and enter the same passphrase as you did on the Access Point.
70D-Link DAP-1525 User Manual
Section 5 - Connecting to a Wireless Network
Connect to a Wireless Network
Using Window7
It is recommended to enable wireless security (WPA/WPA2) on your access point before conguring your wireless adapter. If
you are joining an existing network, you will need to know the security key or passphrase being used.

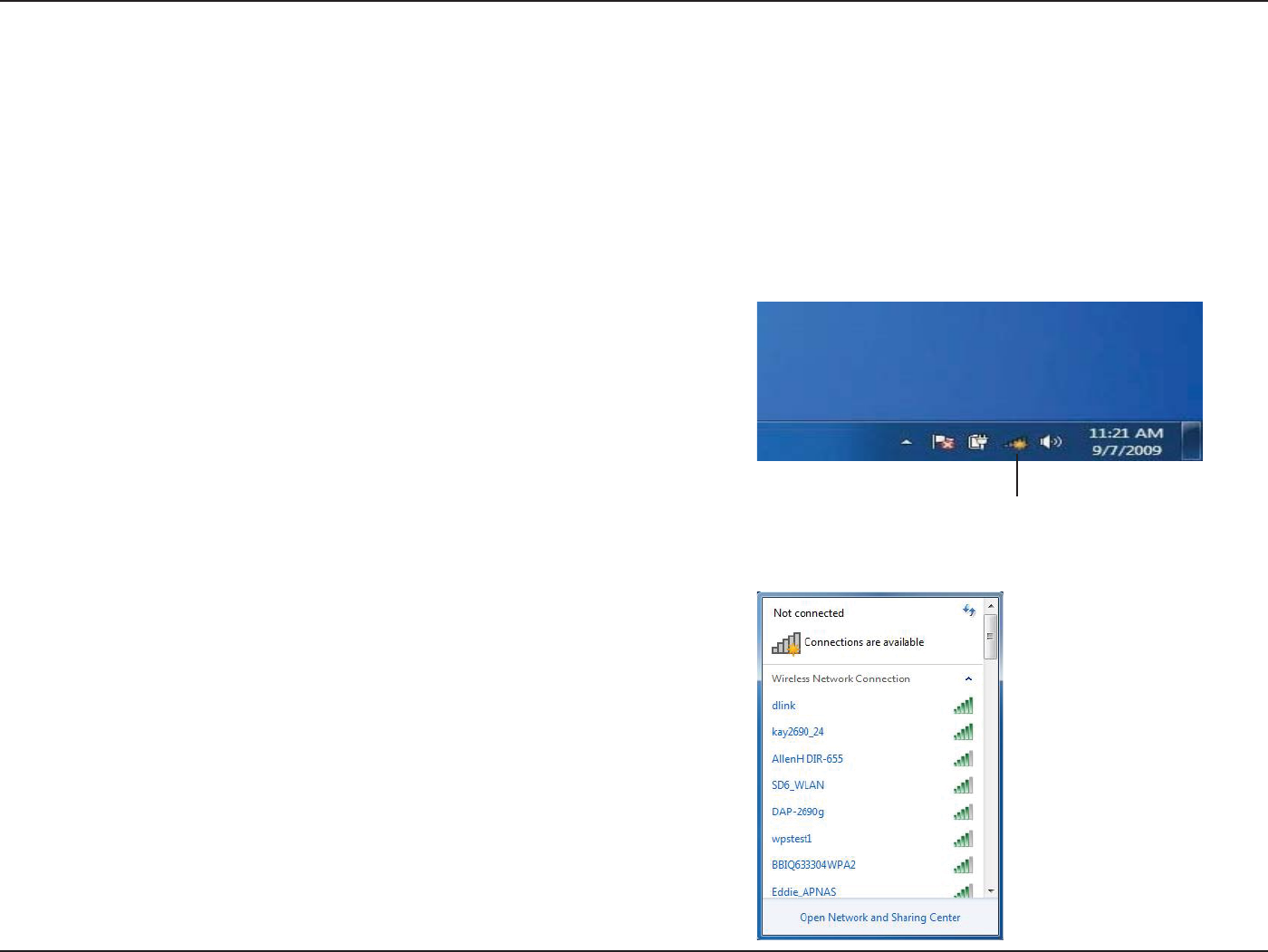

1. Click on the wireless icon in your system tray (lower-right corner).
2. The utility will display any available wireless networks in your area.
Wireless Icon
71D-Link DAP-1525 User Manual
Section 5 - Connecting to a Wireless Network

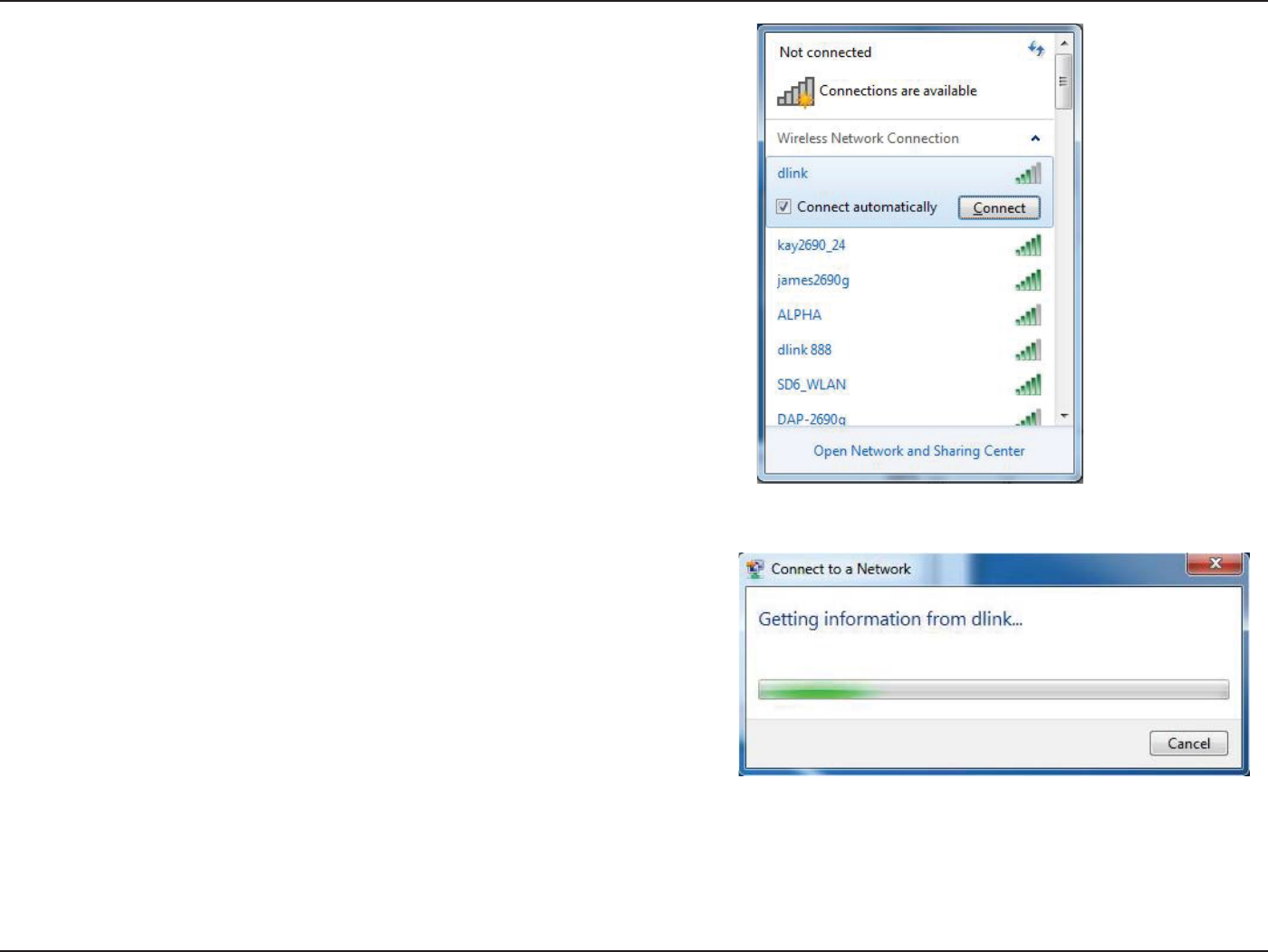

3. Highlight the wireless network (SSID) you would like to connect
to and click the Connect button.
If you get a good signal but cannot access the Internet, check your
TCP/IP settings for your wireless adapter. Refer to the Networking
Basics section in this manual for more information.
4. The following window appears while your computer tries to
connect to the router.
72D-Link DAP-1525 User Manual
Section 5 - Connecting to a Wireless Network
5. Enter the same security key or passphrase that is on your access
point and click Connect. You can also connect by pushing the
WPS button on the router.
It may take 20-30 seconds to connect to the wireless network. If the
connection fails, please verify that the security settings are correct.
The key or passphrase must be exactly the same as on the wireless
router.
73D-Link DAP-1525 User Manual
Section 5 - Connecting to a Wireless Network
Connect to a Wireless Network
Using Windows Vista®
Windows Vista® users may use the convenient, built-in wireless utility. Follow these instructions:

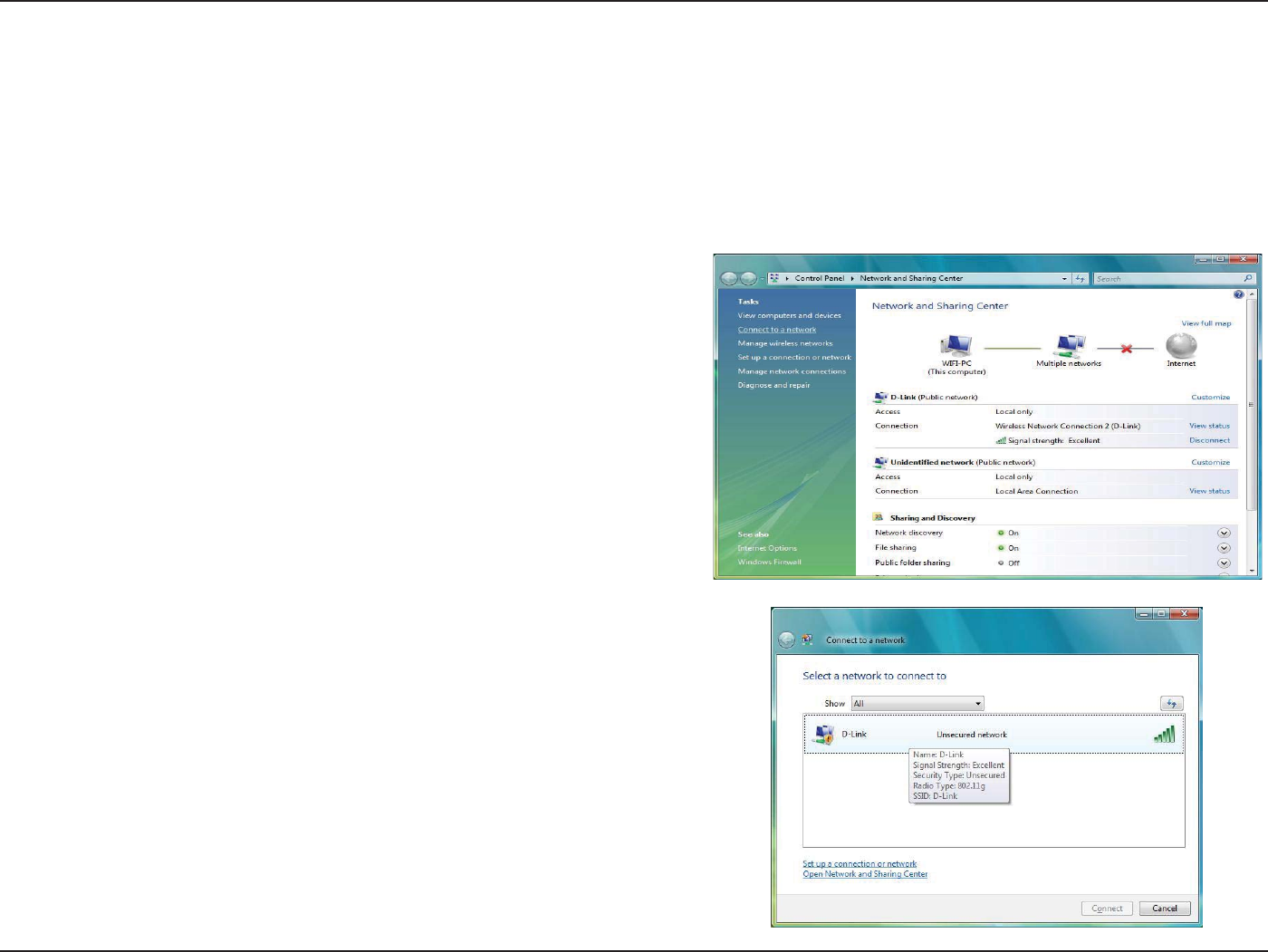

From the Start menu, go to Control Panel, and then click on
Network and Sharing Center.
The utility will display any available wireless networks in your
area. Click on a network (displayed using the SSID) under Select a
network to connect to and then click the Connect button.
74D-Link DAP-1525 User Manual
Section 5 - Connecting to a Wireless Network

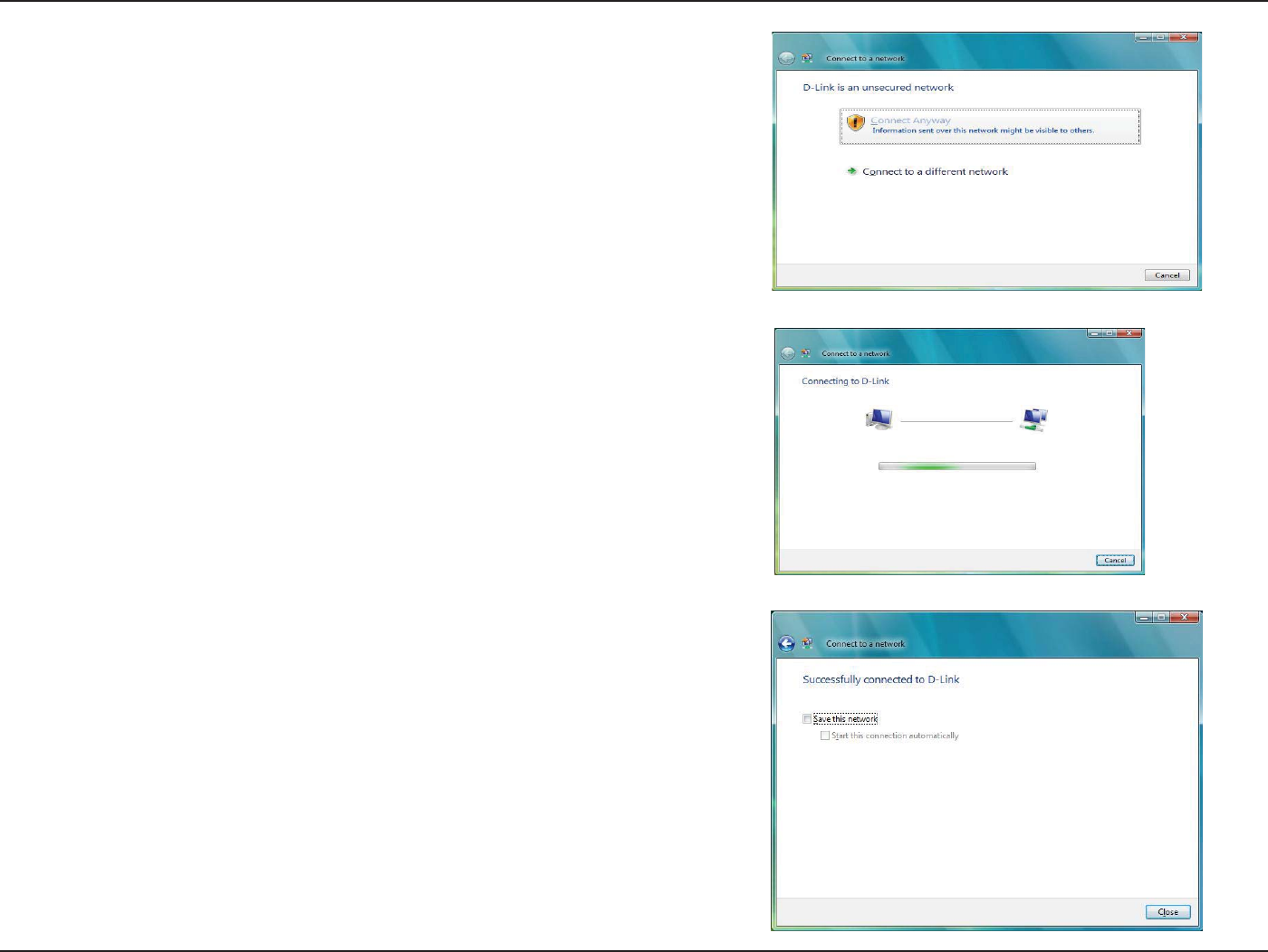

Click Connect Anyway to continue.
The utility will display the following window to indicate a
connection is being made.
The nal window indicates the establishment of a successful
connection.
The next two pages display the windows used to connect to either
a WEP or a WPA-PSK wireless network.
75D-Link DAP-1525 User Manual
Section 5 - Connecting to a Wireless Network

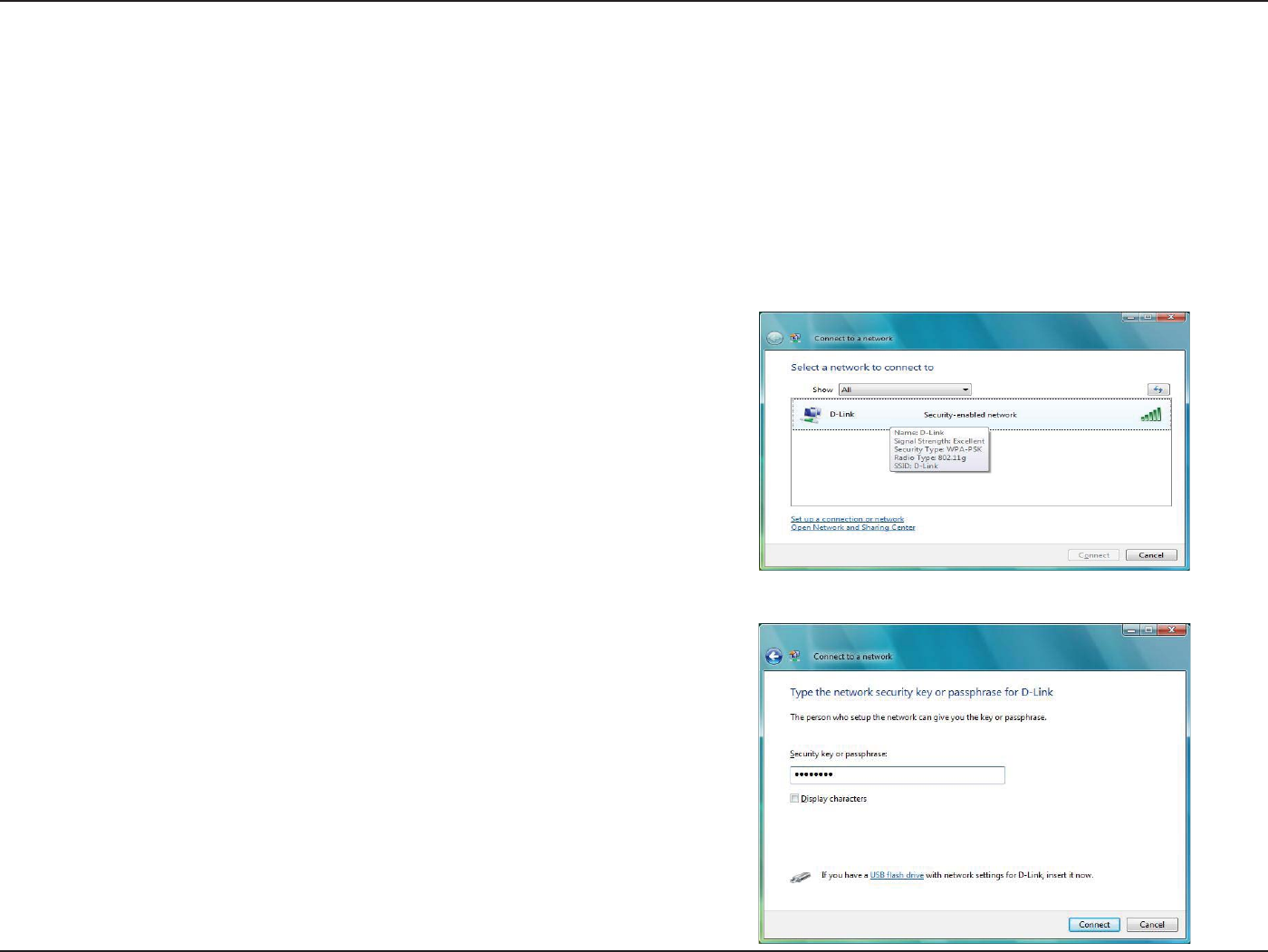

Select a network to connect to and then click the Connect
button.
Enter the appropriate security key or passphrase in the eld provided
and then click the Connect button.
Congure Security
It is recommended to enable wireless encryption on your wireless bridge or access point before conguring your wireless
adapter. If you are joining an existing network, you will need to know the security key being used.
76D-Link DAP-1525 User Manual
Section 5 - Connecting to a Wireless Network
Connect to a Wireless Network
Using WindowXP
Windows XP users may use the built-in wireless utility (Zero Conguration Utility). The following instructions are for Service
Pack 2 users. If you are using another company’s utility or Windows 2000, please refer to the user manual of your wireless
adapter for help with connecting to a wireless network. Most utilities will have a site survey option similar to the Windows
XP utility as seen below.
Right-click on the wireless computer icon in your system tray (lower-right
corner next to the time). Select View Available Wireless Networks.
If you receive the Wireless Networks Detected bubble, click on the
center of the bubble to access the utility.
or
The utility will display any available wireless networks in your area.
Click on a network (displayed using the SSID) and click the Connect
button.
If you get a good signal, but cannot access the Internet, check you
TCP/IP settings for your wireless adapter. Refer to the Networking
Basics section in this manual for more information.
77D-Link DAP-1525 User Manual
Section 5 - Connecting to a Wireless Network
Congure Security
It is recommended to enable wireless security on your wireless bridge or access point before conguring your wireless adapter.
If you are joining an existing network, you will need to know the security key being used.
2. Highlight the wireless network (SSID) you would like to connect
to and click Connect.
1. Open the Windows® XP Wireless Utility by right-clicking
on the wireless computer icon in your system tray
(lower-right corner of screen). Select View Available Wireless
Networks.
78D-Link DAP-1525 User Manual
Section 5 - Connecting to a Wireless Network
3. The Wireless Network Connection box will appear. Enter the security
passphrase and click Connect.
It may take 20-30 seconds to connect to the wireless network. If the
connection fails, please verify that the security settings are correct. The
WPA-PSK passphrase must be exactly the same as on the wireless access
point.
79D-Link DAP-1525 User Manual
Section 6 - Troubleshooting
Troubleshooting
This chapter provides solutions to problems that can occur during the installation and operation of the DAP-1525. Read the
following descriptions if you are having problems. (The examples below are illustrated in Windows® XP. If you have a dierent
operating system, the screenshots on your computer will look similar to the following examples.)
1. Why cant I access the web-based conguration utility?
When entering the IP address of the D-Link access point (192.168.0.50 for example), you are not connecting to a website on
the Internet or have to be connected to the Internet. The device has the utility built-in to a ROM chip in the device itself. Your
computer must be on the same IP subnet to connect to the web-based utility.
Make sure you have an updated Java-enabled web browser. We recommend the following:
- Microsoft Internet Explorer 6.0 and higher
- Mozilla Firefox 3.0 and higher
- Google Chrome 2.0 and higher
- Apple Safari 3.0 and higher
• Verify physical connectivity by checking for solid link lights on the device. If you do not get a solid link light, try using a dierent
cable or connect to a dierent port on the device if possible. If the computer is turned o, the link light may not be on.
Disable any internet security software running on the computer. Software rewalls such as Zone Alarm, Black Ice, Sygate,
Norton Personal Firewall, and Windows® XP rewall may block access to the conguration pages. Check the help les included
with your rewall software for more information on disabling or conguring it.
80D-Link DAP-1525 User Manual
Section 6 - Troubleshooting
Congure your Internet settings:
• Go to Start > Settings > Control Panel. Double-click the Internet Options Icon. From the Security tab, click
the button to restore the settings to their defaults.
Click the Connection tab and set the dial-up option to Never Dial a Connection. Click the LAN Settings button.
Make sure nothing is checked. Click OK.
Go to the Advanced tab and click the button to restore these settings to their defaults. Click OK three times.
Close your web browser (if open) and open it.
Access the web management. Open your web browser and enter the IP address of your D-Link access point in the address
bar. This should open the login page for your the web management.
If you still cannot access the conguration, unplug the power to the access point for 10 seconds and plug back in. Wait about
30 seconds and try accessing the conguration. If you have multiple computers, try connecting using a dierent computer.
2. What can I do if I forgot my password?
If you forgot your password, you must reset your access point. Unfortunately this process will change all your settings back to
the factory defaults.
To reset the access point, locate the reset button (hole) on the rear panel of the unit. With the access point powered on, use a
paperclip to hold the button down for 10 seconds. Release the button and the access point will go through its reboot process.
Wait about 30 seconds to access the access point. The default IP address is 192.168.0.50. When logging in, the username is
admin and leave the password box empty.
81D-Link DAP-1525 User Manual
Section 6 - Troubleshooting
3. Why cant I connect to certain sites or send and receive emails when connecting through my access point?
If you are having a problem sending or receiving email, or connecting to secure sites such as eBay, banking sites, and Hotmail,
we suggest lowering the MTU in increments of ten (Ex. 1492, 1482, 1472, etc).
Note: AOL DSL+ users must use MTU of 1400.
To nd the proper MTU Size, you’ll have to do a special ping of the destination youre trying to go to. A destination could be
another computer, or a URL.
• Click on Start and then click Run.
• Windows® 95, 98, and Me users type in command (Windows® NT, 2000, and XP users type in cmd) and click Enter
(or click OK).

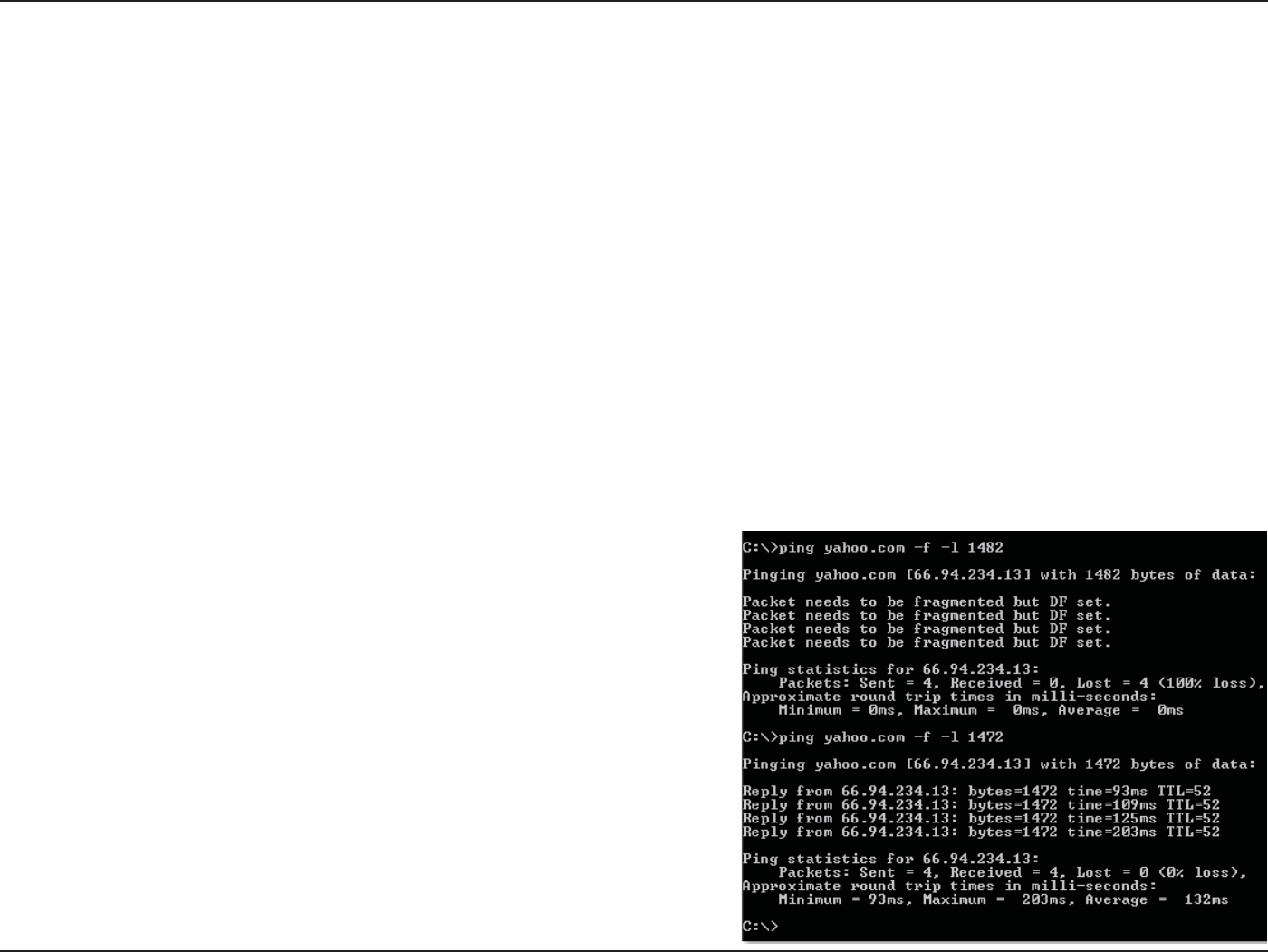

Once the window opens, you’ll need to do a special ping. Use the following syntax:
ping [url] [-f] [-l] [MTU value]
Example: ping yahoo.com -f -l 1472
You should start at 1472 and work your way down by 10 each time.
82D-Link DAP-1525 User Manual
Section 6 - Troubleshooting
Once you get a reply, go up by 2 until you get a fragmented packet. Take that value and add 28 to the value to account for the
various TCP/IP headers. For example, lets say that 1452 was the proper value, the actual MTU size would be 1480, which is the
optimum for the network were working with (1452+28=1480).
Once you nd your MTU, you can now congure your access point with the proper MTU size.
To change the MTU rate on your access point follow the steps below:
Open your browser, enter the IP address of your access point (192.168.0.50) and click OK.
Enter your username (admin) and password (blank by default). Click OK to enter the web conguration page
for the device.
• Click on Setup and then click Manual Congure.
To change the MTU enter the number in the MTU eld and click Save Settings to save your settings.
Test your email. If changing the MTU does not resolve the problem, continue changing the MTU in increments
of ten.
83D-Link DAP-1525 User Manual
Appendix A - Wireless Basics
D-Link wireless products are based on industry standards to provide easy-to-use and compatible high-speed wireless
connectivity within your home, business or public access wireless networks. Strictly adhering to the IEEE standard, the D-Link
wireless family of products will allow you to securely access the data you want, when and where you want it. You will be able
to enjoy the freedom that wireless networking delivers.
A wireless local area network (WLAN) is a cellular computer network that transmits and receives data with radio signals instead of
wires. Wireless LANs are used increasingly in both home and oce environments, and public areas such as airports, coee shops
and universities. Innovative ways to utilize WLAN technology are helping people to work and communicate more eciently.
Increased mobility and the absence of cabling and other xed infrastructure have proven to be benecial for many users.
Wireless users can use the same applications they use on a wired network. Wireless adapter cards used on laptop and desktop
systems support the same protocols as Ethernet adapter cards.
Under many circumstances, it may be desirable for mobile network devices to link to a conventional Ethernet LAN in order
to use servers, printers or an Internet connection supplied through the wired LAN. A Wireless Access point is a device used to
provide this link.
Wireless Basics
84D-Link DAP-1525 User Manual
Appendix A - Wireless Basics
What is Wireless?
Wireless or Wi-Fi technology is another way of connecting your computer to the network without using wires. Wi-Fi uses radio
frequency to connect wirelessly, so you have the freedom to connect computers anywhere in your home or oce.
D-Link is the worldwide leader and award winning designer, developer, and manufacturer of networking products. D-Link
delivers the performance you need at a price you can aord. D-Link has all the products you need to build your network.
How does wireless work?
Wireless works similar to how cordless phone work, through radio signals to transmit data from one point A to point B. But
wireless technology has restrictions as to how you can access the network. You must be within the wireless network range area
to be able to connect your computer. There are two dierent types of wireless networks Wireless Local Area Network (WLAN),
and Wireless Personal Area Network (WPAN).
Wireless Local Area Network (WLAN)
In a wireless local area network, a device called an Access Point (AP) connects computers to the network. The access point has
a small antenna attached to it, which allows it to transmit data back and forth over radio signals. With an indoor access point
as seen in the picture, the signal can travel up to 300 feet. With an outdoor access point the signal can reach out up to 30 miles
to serve places like manufacturing plants, industrial locations, college and high school campuses, airports, golf courses, and
many other outdoor venues.
85D-Link DAP-1525 User Manual
Appendix A - Wireless Basics
Wireless Personal Area Network (WPAN)
Bluetooth is the industry standard wireless technology used for WPAN. Bluetooth devices in WPAN operate in a range up to
30 feet away.
Compared to WLAN the speed and wireless operation range are both less than WLAN, but in return it doesn’t use nearly as
much power which makes it ideal for personal devices, such as mobile phones, PDAs, headphones, laptops, speakers, and other
devices that operate on batteries.
Who uses wireless?
Wireless technology as become so popular in recent years that almost everyone is using it, whether its for home, oce, business,
D-Link has a wireless solution for it.
Home
• Gives everyone at home broadband access
• Surf the web, check email, instant message, etc.
• Gets rid of the cables around the house
• Simple and easy to use
Small Oce and Home Oce
• Stay on top of everything at home as you would at oce
• Remotely access your oce network from home
• Share Internet connection and printer with multiple computers
• No need to dedicate oce space
86D-Link DAP-1525 User Manual
Appendix A - Wireless Basics
Where is wireless used?
Wireless technology is expanding everywhere not just at home or oce. People like the freedom of mobility and its becoming
so popular that more and more public facilities now provide wireless access to attract people. The wireless connection in public
places is usually called “hotspots”.
Using a D-Link Cardbus Adapter with your laptop, you can access the hotspot to connect to Internet from remote locations
like: Airports, Hotels, Coee Shops, Libraries, Restaurants, and Convention Centers.
Wireless network is easy to setup, but if you’re installing it for the rst time it could be quite a task not knowing where to start.
That’s why we’ve put together a few setup steps and tips to help you through the process of setting up a wireless network.
Tips
Here are a few things to keep in mind, when you install a wireless network.
Centralize your access point or Access Point
Make sure you place the bridge/access point in a centralized location within your network for the best performance. Try to
place the bridge/access point as high as possible in the room, so the signal gets dispersed throughout your home. If you have
a two-story home, you may need a repeater to boost the signal to extend the range.
Eliminate Interference
Place home appliances such as cordless telephones, microwaves, wireless speakers, and televisions as far away as possible from
the bridge/access point. This would signicantly reduce any interference that the appliances might cause since they operate
on same frequency.
87D-Link DAP-1525 User Manual
Appendix A - Wireless Basics
Security
Dont let your next-door neighbors or intruders connect to your wireless network. Secure your wireless network by turning on
the WPA or WEP security feature on the access point. Refer to product manual for detail information on how to set it up.
There are basically two modes of networking:
• Infrastructure All wireless clients will connect to an access point or wireless bridge.
• Ad-Hoc Directly connecting to another computer, for peer-to-peer communication, using wireless network
adapters on each computer, such as two or more wireless network Cardbus adapters.
An Infrastructure network contains an Access Point or wireless bridge. All the wireless devices, or clients, will connect to the
wireless bridge or access point.
An Ad-Hoc network contains only clients, such as laptops with wireless cardbus adapters. All the adapters must be in Ad-Hoc
mode to communicate.
Wireless Modes
88D-Link DAP-1525 User Manual
Appendix B - Networking Basics
Networking Basics
Check your IP address
After you install your new D-Link adapter, by default, the TCP/IP settings should be set to obtain an IP address from a DHCP
server (i.e. wireless router) automatically. To verify your IP address, please follow the steps below.
Click on Start > Run. In the run box type cmd and click OK. (Windows® 7/Vista® users type cmd in the Start Search box.)

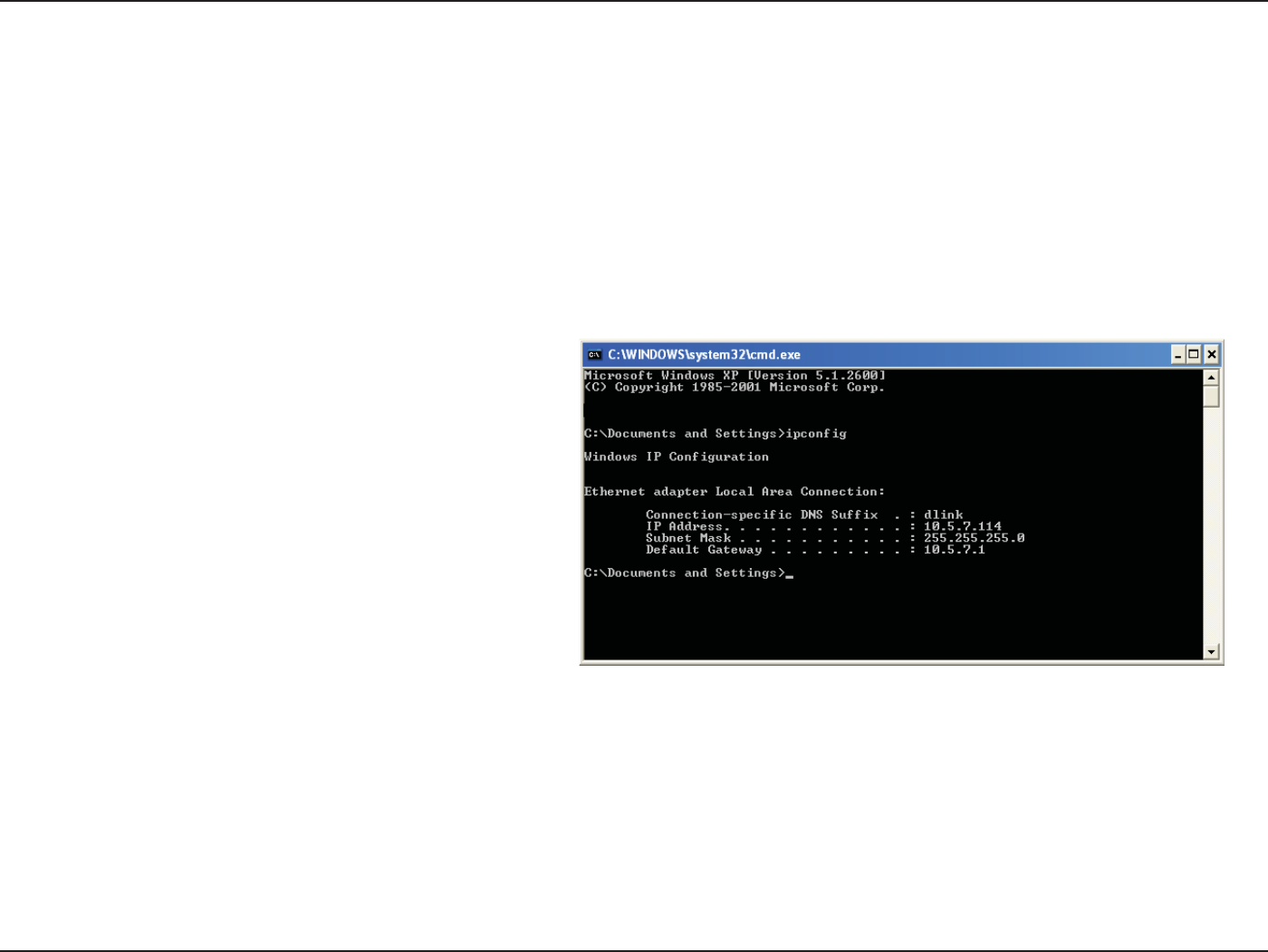

At the prompt, type ipcong and press Enter.
This will display the IP address, subnet mask, and the
default gateway of your adapter.
If the address is 0.0.0.0, check your adapter installation,
security settings, and the settings on your access point.
Some rewall software programs may block a DHCP
request on newly installed adapters.
If you are connecting to a wireless network at a hotspot
(e.g. hotel, coffee shop, airport), please contact an
employee or administrator to verify their wireless
network settings.
89D-Link DAP-1525 User Manual
Appendix B - Networking Basics
Statically Assign an IP address
If you are not using a DHCP capable gateway/router, or you need to assign a static IP address, please follow the steps below:
Step 1
Windows® 7 - Click on Start > Control Panel > Network and Internet > Network and Sharing Center.
Windows Vista® - Click on Start > Control Panel > Network and Internet > Network and Sharing Center > Manage Network
Connections.
Windows® XP - Click on Start > Control Panel > Network Connections.
Windows® 2000 - From the desktop, right-click My Network Places > Properties.
Step 2
Right-click on the Local Area Connection which represents your D-Link network adapter and select Properties.
Step 3
Highlight Internet Protocol (TCP/IP) and click Properties.
Step 4

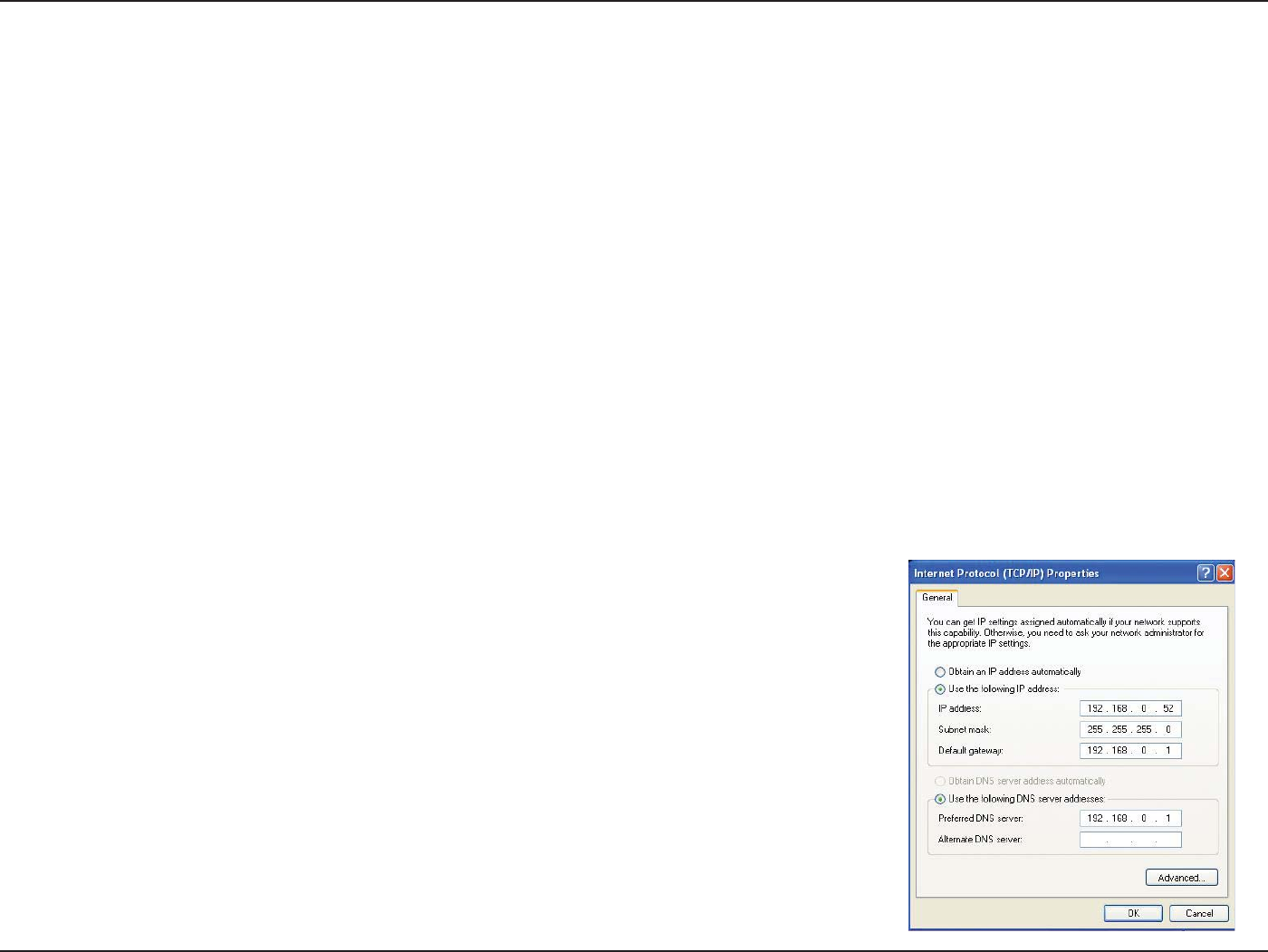

Click Use the following IP address and enter an IP address that is on the same subnet
as your network or the LAN IP address on your router.
Example: If the router´s LAN IP address is 192.168.0.1, make your IP address 192.168.0.X
where X is a number between 2 and 99. Make sure that the number you choose is not in
use on the network. Set Default Gateway the same as the LAN IP address of your router
(192.168.0.1).
Set Primary DNS the same as the LAN IP address of your router (192.168.0.1). The
Secondary DNS is not needed or you may enter a DNS server from your ISP.
Step 5
Click OK twice to save your settings.
91D-Link DAP-1525 User Manual
Appendix D - Contacting Technical Support
Contacting Technical Support
U.S. and Canadian customers can contact D-Link technical support through our web site or by phone.
Before you contact technical support, please have the following ready:
• Model number of the product (e.g. DAP-1525)
• Hardware Revision (located on the label on the bottom of the access point (e.g. rev A1))
• Serial Number (s/n number located on the label on the bottom of the access point).
You can nd software updates and user documentation on the D-Link website as well as frequently asked questions and
answers to technical issues.
For customers within the United States:
Phone Support:
(877) 453-5465
Internet Support:
http://support.dlink.com
For customers within Canada:
Phone Support:
(800) 361-5265
Internet Support:
http://support.dlink.ca
92D-Link DAP-1525 User Manual
Appendix E - Warranty
Warranty
Subject to the terms and conditions set forth herein, D-Link Systems, Inc. (“D-Link”) provides this Limited Warranty:
• Only to the person or entity that originally purchased the product from D-Link or its authorized reseller or distributor, and
Only for products purchased and delivered within the fty states of the United States, the District of Columbia, U.S. Possessions
or Protectorates, U.S. Military Installations, or addresses with an APO or FPO.
Limited Warranty:
D-Link warrants that the hardware portion of the D-Link product described below (“Hardware”) will be free from material defects in workmanship
and materials under normal use from the date of original retail purchase of the product, for the period set forth below (“Warranty Period”), except
as otherwise stated herein.
• Hardware (excluding power supplies and fans): One (1) year
• Power supplies and fans: One (1) year
• Spare parts and spare kits: Ninety (90) days
The customer’s sole and exclusive remedy and the entire liability of D-Link and its suppliers under this Limited Warranty will be, at
D-Links option, to repair or replace the defective Hardware during the Warranty Period at no charge to the original owner or to refund the actual
purchase price paid. Any repair or replacement will be rendered by D-Link at an Authorized D-Link Service Oce. The replacement hardware
need not be new or have an identical make, model or part. D-Link may, at its option, replace the defective Hardware or any part thereof with any
reconditioned product that D-Link reasonably determines is substantially equivalent (or superior) in all material respects to the defective Hardware.
Repaired or replacement hardware will be warranted for the remainder of the original Warranty Period or ninety (90) days, whichever is longer,
and is subject to the same limitations and exclusions. If a material defect is incapable of correction, or if D-Link determines that it is not practical
to repair or replace the defective Hardware, the actual price paid by the original purchaser for the defective Hardware will be refunded by D-Link
upon return to D-Link of the defective Hardware. All Hardware or part thereof that is replaced by D-Link, or for which the purchase price is refunded,
shall become the property of D-Link upon replacement or refund.
93D-Link DAP-1525 User Manual
Appendix E - Warranty
Limited Software Warranty:
D-Link warrants that the software portion of the product (“Software”) will substantially conform to D-Links then current functional specications
for the Software, as set forth in the applicable documentation, from the date of original retail purchase of the Software for a period of ninety (90)
days (“Software Warranty Period”), provided that the Software is properly installed on approved hardware and operated as contemplated in its
documentation. D-Link further warrants that, during the Software Warranty Period, the magnetic media on which D-Link delivers the Software will
be free of physical defects. The customers sole and exclusive remedy and the entire liability of D-Link and its suppliers under this Limited Warranty
will be, at D-Links option, to replace the non-conforming Software (or defective media) with software that substantially conforms to D-Links
functional specications for the Software or to refund the portion of the actual purchase price paid that is attributable to the Software. Except as
otherwise agreed by DLink in writing, the replacement Software is provided only to the original licensee, and is subject to the terms and conditions
of the license granted by D-Link for the Software. Replacement Software will be warranted for the remainder of the original Warranty Period and is
subject to the same limitations and exclusions. If a material non-conformance is incapable of correction, or if D-Link determines in its sole discretion
that it is not practical to replace the non-conforming Software, the price paid by the original licensee for the non-conforming Software will be
refunded by D-Link; provided that the non-conforming Software (and all copies thereof) is rst returned to D-Link. The license granted respecting
any Software for which a refund is given automatically terminates.
Non-Applicability of Warranty:
The Limited Warranty provided hereunder for Hardware and Software portions of D-Links products will not be applied to and does not cover any
refurbished product and any product purchased through the inventory clearance or liquidation sale or other sales in which D-Link, the sellers, or
the liquidators expressly disclaim their warranty obligation pertaining to the product and in that case, the product is being sold “As-Is without
any warranty whatsoever including, without limitation, the Limited Warranty as described herein, notwithstanding anything stated herein to the
contrary.
Submitting A Claim:
The customer shall return the product to the original purchase point based on its return policy. In case the return policy period has expired and the
product is within warranty, the customer shall submit a claim to D-Link as outlined below:
The customer must submit with the product as part of the claim a written description of the Hardware defect or Software
nonconformance in sucient detail to allow DLink to conrm the same, along with proof of purchase of the product (such as a
copy of the dated purchase invoice for the product) if the product is not registered.
The customer must obtain a Case ID Number from D-Link Technical Support at 1-877-453-5465, who will attempt to assist the
customer in resolving any suspected defects with the product. If the product is considered defective, the customer must obtain a
Return Material Authorization (“RMA”) number by completing the RMA form and entering the assigned Case ID Number at https://
rma.dlink.com/.
94D-Link DAP-1525 User Manual
Appendix E - Warranty
After an RMA number is issued, the defective product must be packaged securely in the original or other suitable shipping package
to ensure that it will not be damaged in transit, and the RMA number must be prominently marked on the outside of the package.
Do not include any manuals or accessories in the shipping package. DLink will only replace the defective portion of the product
and will not ship back any accessories.
The customer is responsible for all in-bound shipping charges to D-Link. No Cash on Delivery (“COD”) is allowed. Products sent COD
will either be rejected by D-Link or become the property of D-Link. Products shall be fully insured by the customer and shipped
to D-Link Systems, Inc., 17595 Mt. Herrmann, Fountain Valley, CA 92708. D-Link will not be held responsible for any packages that
are lost in transit to D-Link. The repaired or replaced packages will be shipped to the customer via UPS Ground or any common
carrier selected by D-Link. Return shipping charges shall be prepaid by D-Link if you use an address in the United States, otherwise
we will ship the product to you freight collect. Expedited shipping is available upon request and provided shipping charges are
prepaid by the customer. D-Link may reject or return any product that is not packaged and shipped in strict compliance with the
foregoing requirements, or for which an RMA number is not visible from the outside of the package. The product owner agrees to
pay D-Links reasonable handling and return shipping charges for any product that is not packaged and shipped in accordance
with the foregoing requirements, or that is determined by D-Link not to be defective or non-conforming.
What Is Not Covered:
The Limited Warranty provided herein by D-Link does not cover:
Products that, in D-Link’s judgment, have been subjected to abuse, accident, alteration, modication, tampering, negligence, misuse, faulty installation,
lack of reasonable care, repair or service in any way that is not contemplated in the documentation for the product, or if the model or serial number
has been altered, tampered with, defaced or removed; Initial installation, installation and removal of the product for repair, and shipping costs;
Operational adjustments covered in the operating manual for the product, and normal maintenance; Damage that occurs in shipment, due to act
of God, failures due to power surge, and cosmetic damage; Any hardware, software, rmware or other products or services provided by anyone
other than D-Link; and Products that have been purchased from inventory clearance or liquidation sales or other sales in which D-Link, the sellers,
or the liquidators expressly disclaim their warranty obligation pertaining to the product.
While necessary maintenance or repairs on your Product can be performed by any company, we recommend that you use only an Authorized D-Link
Service Oce. Improper or incorrectly performed maintenance or repair voids this Limited Warranty.
Disclaimer of Other Warranties:
EXCEPT FOR THE LIMITED WARRANTY SPECIFIED HEREIN, THE PRODUCT IS PROVIDED AS-IS” WITHOUT ANY WARRANTY OF ANY KIND WHATSOEVER
INCLUDING, WITHOUT LIMITATION, ANY WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT.
IF ANY IMPLIED WARRANTY CANNOT BE DISCLAIMED IN ANY TERRITORY WHERE A PRODUCT IS SOLD, THE DURATION OF SUCH IMPLIED WARRANTY
SHALL BE LIMITED TO THE DURATION OF THE APPLICABLE WARRANTY PERIOD SET FORTH ABOVE. EXCEPT AS EXPRESSLY COVERED UNDER THE
LIMITED WARRANTY PROVIDED HEREIN, THE ENTIRE RISK AS TO THE QUALITY, SELECTION AND PERFORMANCE OF THE PRODUCT IS WITH THE
95D-Link DAP-1525 User Manual
Appendix E - Warranty
PURCHASER OF THE PRODUCT.
Limitation of Liability:
TO THE MAXIMUM EXTENT PERMITTED BY LAW, D-LINK IS NOT LIABLE UNDER ANY CONTRACT, NEGLIGENCE, STRICT LIABILITY OR OTHER LEGAL
OR EQUITABLE THEORY FOR ANY LOSS OF USE OF THE PRODUCT, INCONVENIENCE OR DAMAGES OF ANY CHARACTER, WHETHER DIRECT, SPECIAL,
INCIDENTAL OR CONSEQUENTIAL (INCLUDING, BUT NOT LIMITED TO, DAMAGES FOR LOSS OF GOODWILL, LOSS OF REVENUE OR PROFIT, WORK
STOPPAGE, COMPUTER FAILURE OR MALFUNCTION, FAILURE OF OTHER EQUIPMENT OR COMPUTER PROGRAMS TO WHICH D-LINK’S PRODUCT
IS CONNECTED WITH, LOSS OF INFORMATION OR DATA CONTAINED IN, STORED ON, OR INTEGRATED WITH ANY PRODUCT RETURNED TO D-LINK
FOR WARRANTY SERVICE) RESULTING FROM THE USE OF THE PRODUCT, RELATING TO WARRANTY SERVICE, OR ARISING OUT OF ANY BREACH OF
THIS LIMITED WARRANTY, EVEN IF D-LINK HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. THE SOLE REMEDY FOR A BREACH OF
THE FOREGOING LIMITED WARRANTY IS REPAIR, REPLACEMENT OR REFUND OF THE DEFECTIVE OR NONCONFORMING PRODUCT. THE MAXIMUM
LIABILITY OF D-LINK UNDER THIS WARRANTY IS LIMITED TO THE PURCHASE PRICE OF THE PRODUCT COVERED BY THE WARRANTY. THE FOREGOING
EXPRESS WRITTEN WARRANTIES AND REMEDIES ARE EXCLUSIVE AND ARE IN LIEU OF ANY OTHER WARRANTIES OR REMEDIES, EXPRESS, IMPLIED
OR STATUTORY.
Governing Law:
This Limited Warranty shall be governed by the laws of the State of California. Some states do not allow exclusion or limitation of incidental or
consequential damages, or limitations on how long an implied warranty lasts, so the foregoing limitations and exclusions may not apply. This
Limited Warranty provides specic legal rights and you may also have other rights which vary from state to state.
Trademarks:
D-Link is a registered trademark of D-Link Corporation/D-Link Systems, Inc. Other trademarks or registered trademarks are the property of their
respective owners.
Copyright Statement:
No part of this publication or documentation accompanying this product may be reproduced in any form or by any means or used to make any
derivative such as translation, transformation, or adaptation without permission from D-Link Corporation/D-Link Systems, Inc., as stipulated by the
United States Copyright Act of 1976 and any amendments thereto. Contents are subject to change without prior notice.
Copyright ©2009-2010 by D-Link Corporation/D-Link Systems, Inc. All rights reserved.
CE Mark Warning:
This is a Class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take
adequate measures.
96D-Link DAP-1525 User Manual
Appendix E - Warranty
Federal Communication Commission Interference Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by
one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution:
Any changes or modications not expressly approved by the party responsible for compliance could void the users authority to operate this
equipment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. For operation within 5.15 ~
5.25GHz frequency range, it is restricted to indoor environment.This device meets all the other requirements specied in Part 15E, Section 15.407
of the FCC Rules.
Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and
operated with minimum distance 20cm between the radiator & your body.
97D-Link DAP-1525 User Manual
Appendix E - Warranty
Industry Canada Statement
This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
Ce dispositif est conforme à la norme CNR-210 d’Industrie Canada applicable aux appareils radio exempts de licence. Son fonctionnement est sujet
aux deux conditions suivantes: (1) le dispositif ne doit pas produire de brouillage préjudiciable, et (2) ce dispositif doit accepter tout brouillage reçu,
y compris un brouillage susceptible de provoquer un fonctionnement indésirable.
Caution:
:the device for operation in the band 5150-5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile
satellite systems;
Avertissement: les dispositifs fonctionnant dans la bande 5 150-5 250 MHz sont réservés uniquement pour une utilisation à
l’intérieur an de réduire les risques de brouillage préjudiciable aux systèmes de satellites mobiles utilisant les mêmes canaux;
Radiation Exposure Statement:
This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and
operated with minimum distance 20cm between the radiator & your body.
Déclaration d’exposition aux radiations:
Cet équipement est conforme aux limites d’exposition aux rayonnements IC établies pour un environnement non contrôlé. Cet équipement doit
être installé et utilisé avec un minimum de 20 cm de distance entre la source de rayonnement et votre corps.
以下警語適用台灣地區
經型式認證合格之低功率射頻電機,非經許可,公司、商號或使用者均不得擅自變更頻率、加大功率或變更原設計之特性及功能。
低功率射頻電機之使用不得影響飛航安全及干擾合法通信;經發現有干擾現象時,應立即停用,並改善至無干擾時方得繼續使用。前項合
法通信,指依電信法規定作業之無線電通信。低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。
5.25 ~ 5.35GHz 限室內使用。
98D-Link DAP-1525 User Manual
Appendix F - Registration
Version 2.01
April 24, 2012
Product registration is entirely voluntary and failure to complete or return this form will not diminish your warranty rights.
Registration

Navigation menu
