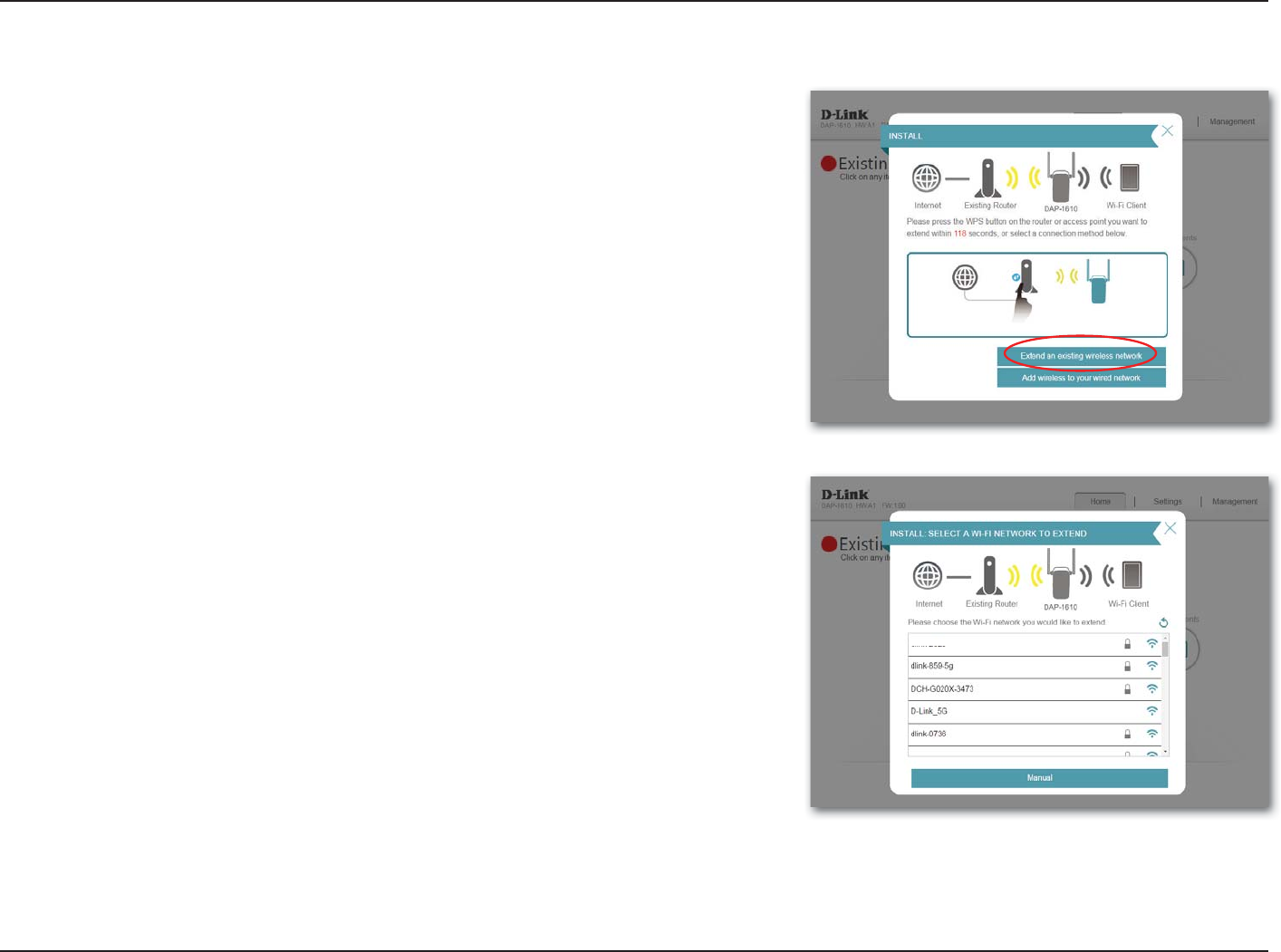

Extend an Existing Network ............................................24
Add Wireless to Your Wired Network ...........................27

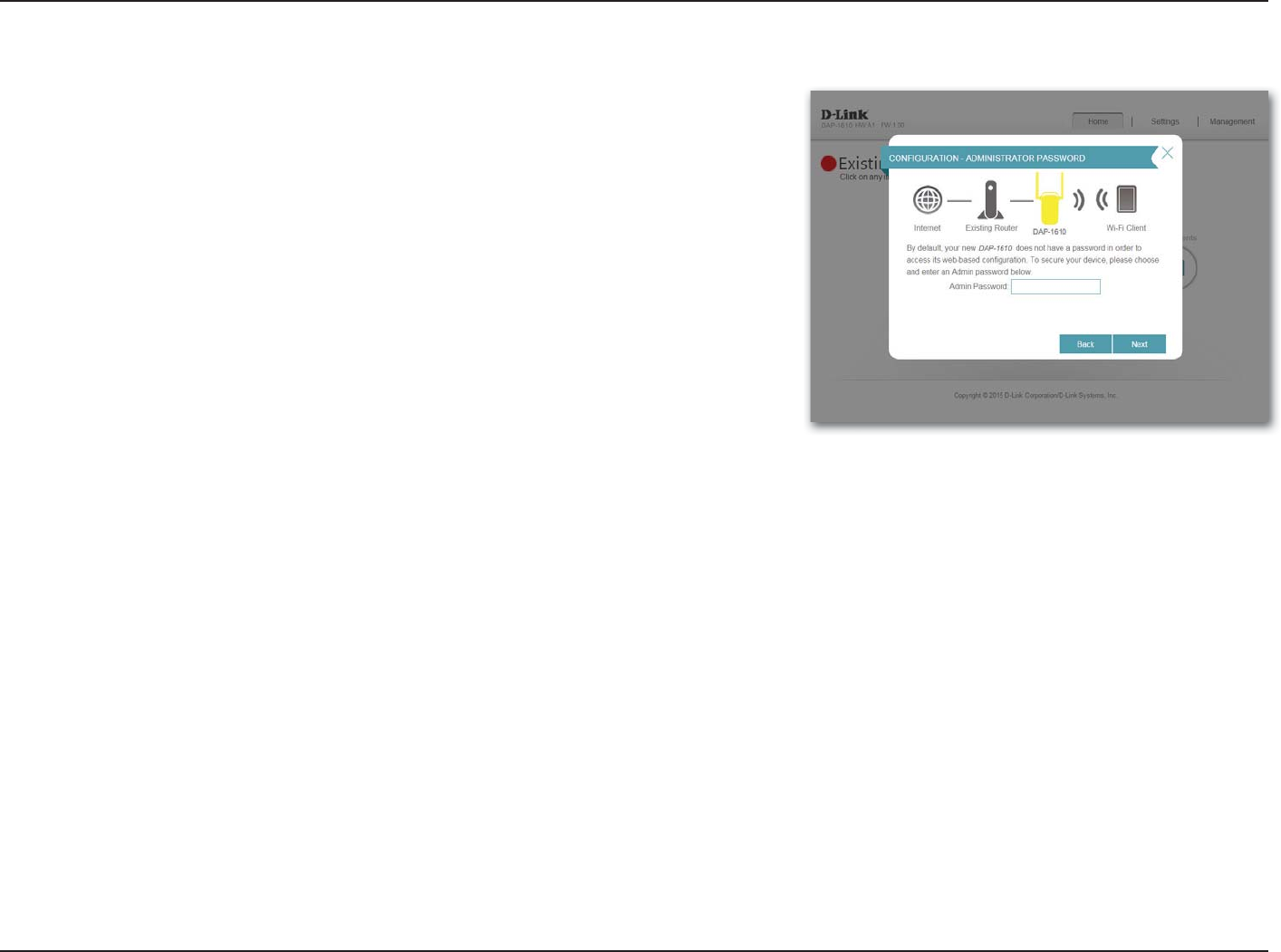

Congure Administrator Password ..............................29
Save Your Conguration ...................................................30
Conguration ...................................................................31
Home ..............................................................................................31
Settings ..........................................................................................33
Extender Settings ...............................................................33
Network Settings ................................................................35
Autoconguration (SLAAC/DHCPv6) ......................36

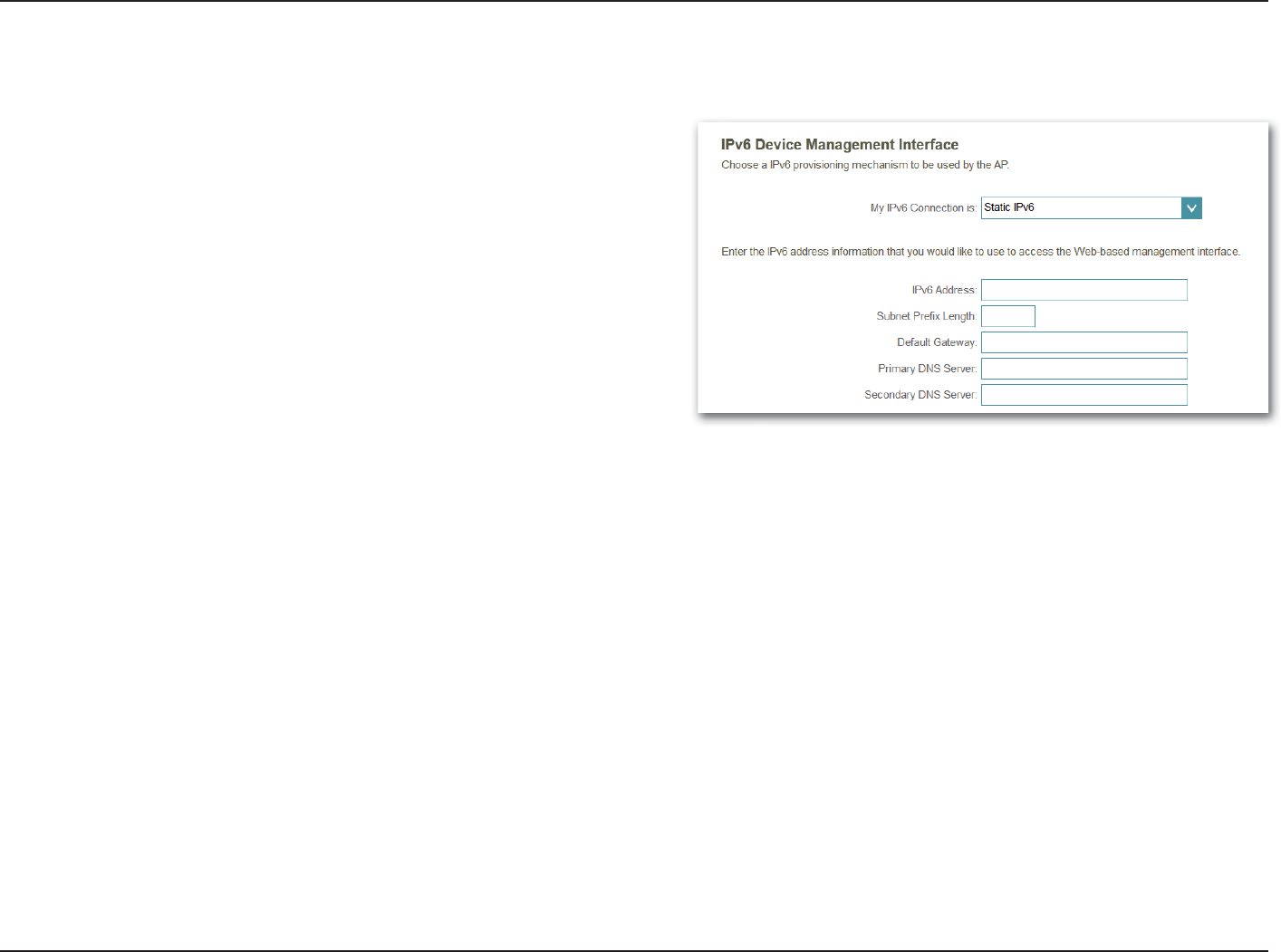

Static IPv6 .........................................................................37

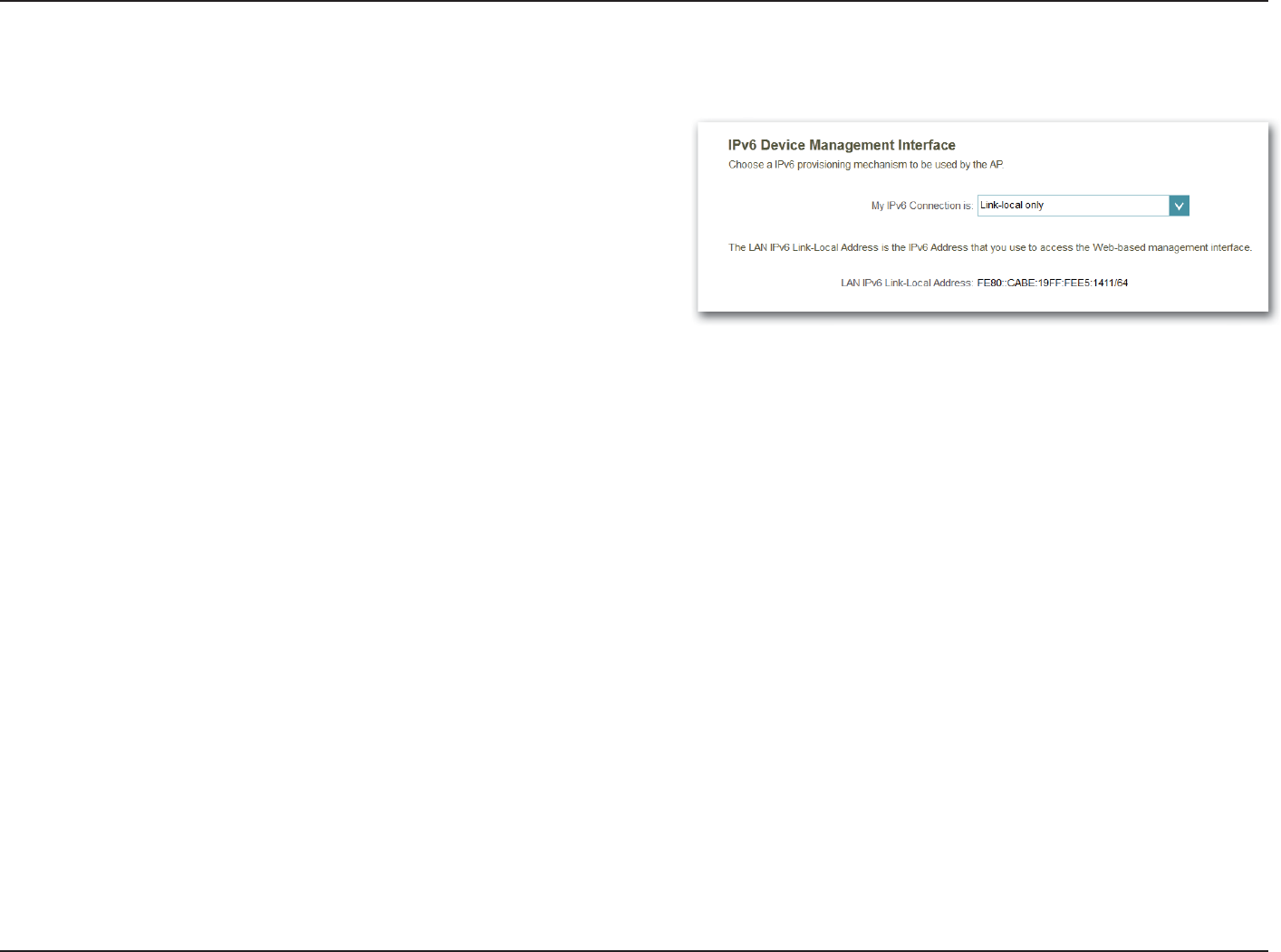

Link-local Only ................................................................38
Management ................................................................................ 39

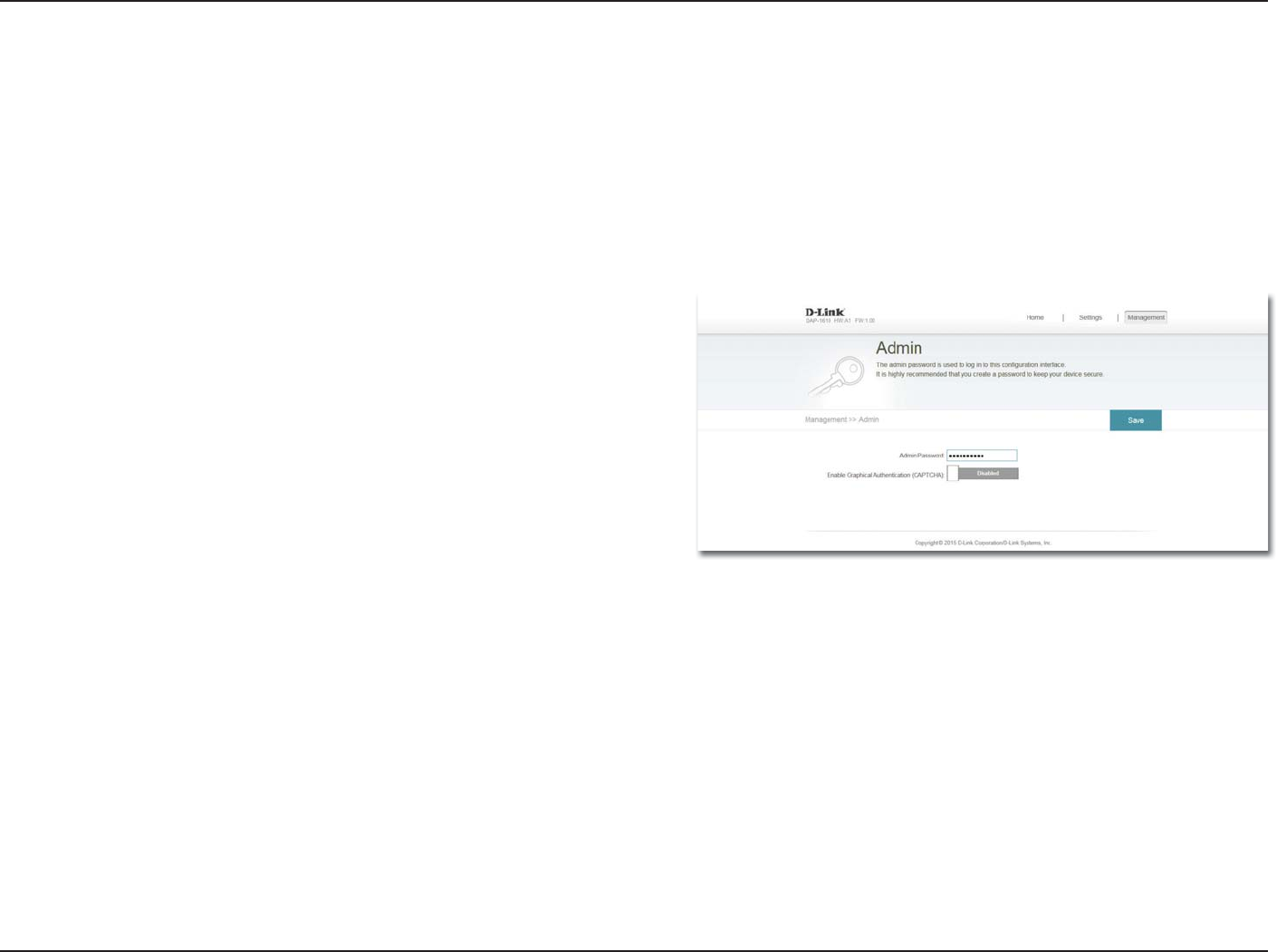

Admin .....................................................................................39
System ....................................................................................40
Upgrade .................................................................................41

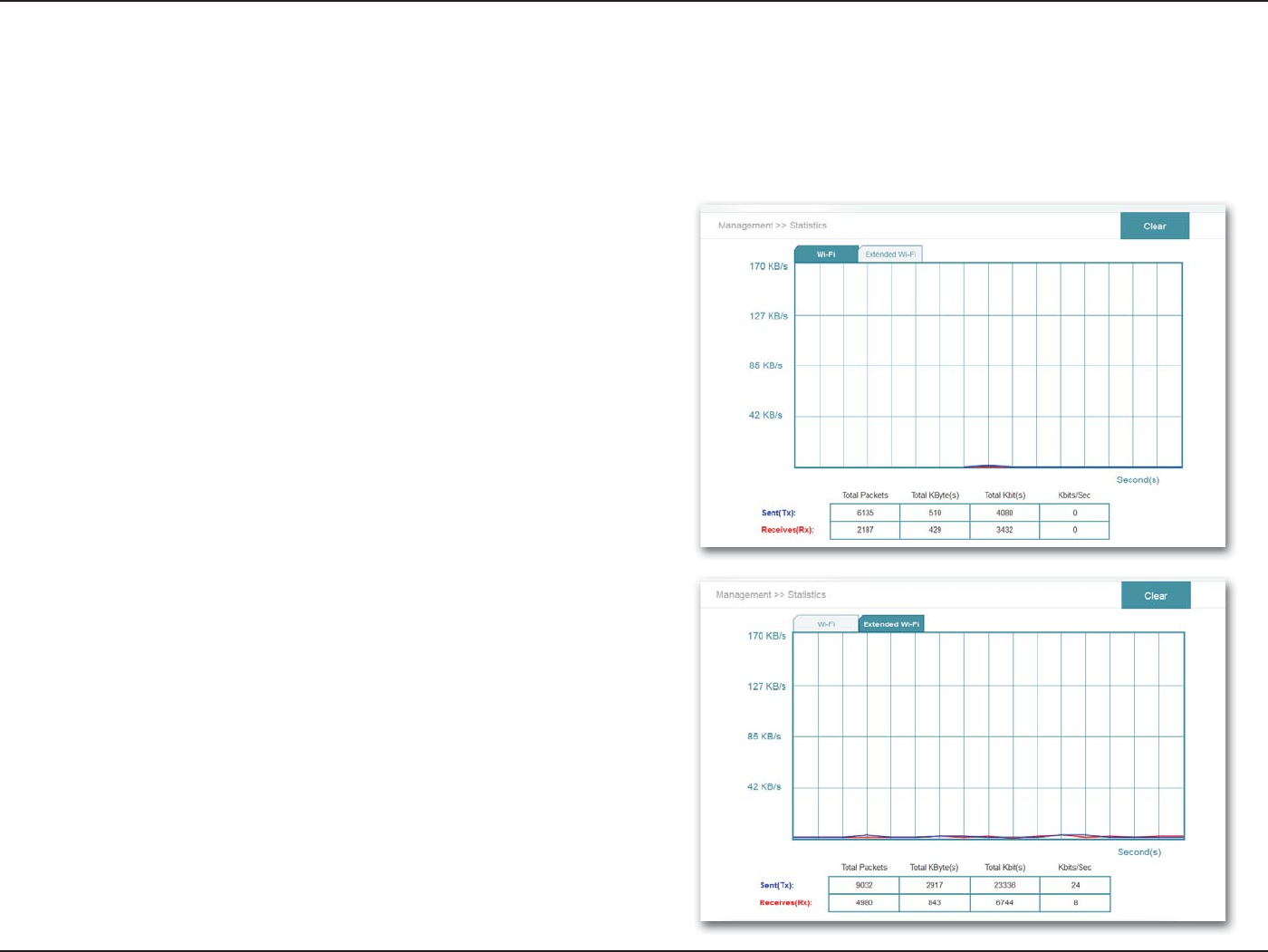

Statistics .................................................................................42
Connecting Wireless Clients to the Extended Network 43
WPS Button ...................................................................................43
Windows® 8 ...................................................................................44
WPA/WPA2 ............................................................................44
Windows® 7 ...................................................................................46
WPA/WPA2 ............................................................................46
Windows Vista® ............................................................................49
WPA/WPA2 ............................................................................50
Troubleshooting ..............................................................52
Table of Contents
iiiD-Link DAP-1610 User Manual
Table of Contents
Wireless Basics .................................................................54
Tips ...................................................................................................55
Technical Specications ..................................................56
GPL Code Statement........................................................57
Safety Statements ...........................................................72
1D-Link DAP-1610 User Manual
Section 1 - Product Overview
Package Contents
:L)L&RQ¿JXUDWLRQ1RWH
If any of the above items are missing, please contact your reseller.
DAP-1610 AC1200 Wi-Fi Range Extender
Wi-Fi Conguration Card
Quick Installation Guide
2D-Link DAP-1610 User Manual
Section 1 - Product Overview
Network Requirements
• A wireless router with an active Internet connection.
• IEEE 802.11ac, 802.11n, 802.11g, 802.11b, or 802.11a
wireless clients/devices
Web-based Conguration
Utility Requirements
A Computer or Mobile Device with the following:
• Windows®, Apple® Mac OS®, or Linux-based operating system
• Wireless adapter or Wi-Fi functionality
• An Apple® iPhone®, iPod touch®, iPad®, or Android™ mobile
device
Browser Requirements:
• Internet Explorer® 9 or later
• Firefox® 20.0 or later
• Safari® 5.1 or later
• Google Chrome™ 25.0 or later
System Requirements
3D-Link DAP-1610 User Manual
Section 1 - Product Overview
Introduction
Features
Easily Extend Your Existing Network
The DAP-1610 AC1200 Wi-Fi Range Extender lets you easily extend a secure wireless network with a press of a button. Connect the
DAP-1610 to a router via Wi-Fi or Ethernet and share your high-speed Internet access in more places throughout your home or small
oce.
High-speed Wireless Performance With Wireless 802.11ac Technology
Thanks to the latest Wireless AC technology, the DAP-1610 provides a wireless connection at up to 1200 Mbps* with other 802.11ac
wireless devices. This feature lets you participate in real-time activities online, such as video streaming, online gaming, and real-time
audio with smooth performance.
Simple Setup
All it takes is a press of a button to connect compatible WPS devices to the DAP-1610. Its easy-to-use web interface lets you quickly
and easily connect the DAP-1610 to an uplink router, congure the extended wireless network, and manage the administrative
settings. The setup wizard will even guide you through the setup process, getting your extended wireless network up and running
in no time. Alternatively, connect an Ethernet cable to your existing network infrastructure to quickly and easily create a wireless
network.
Compatibility
The DAP-1610 is fully compatible with now only the latest 802.11ac standard, but is also backwards compatible with IEEE 802.11n/g/
b/a wireless devices, so you can use your existing devices without sacricing performance.
Latest Wireless Network Security and Encryption
The DAP-1610 supports wireless security features to prevent unauthorized access from the wireless network. Support for WPA/
WPA2 standards ensure that you’ll be able to use the best possible encryption methods with your compatible wireless devices.
* Maximum wireless signal rate derived from standard IEEE specications. Actual data throughput will vary. Network conditions and environmental factors, including volume
of network trac, building materials and construction, and network overhead may lower actual data throughput rate. Environmental conditions will adversely aect wireless
signal range.
4D-Link DAP-1610 User Manual
Section 1 - Product Overview
What is a Wireless Extender?
The DAP-1610 acts as a repeater to extend the range of an existing wireless network to provide a better signal for parts of your
home or oce that may have poor or no reception. Your existing wireless signal will be re-broadcast by the DAP-1610, allowing
you to reach the farthest corners of your home or oce. The extended network can simply use the same network credentials as the
existing network, or you can specify a dierent network name and password, giving you the exibility to control network access.
You may also use the DAP-1610 as a wireless access point by connecting an Ethernet cable.

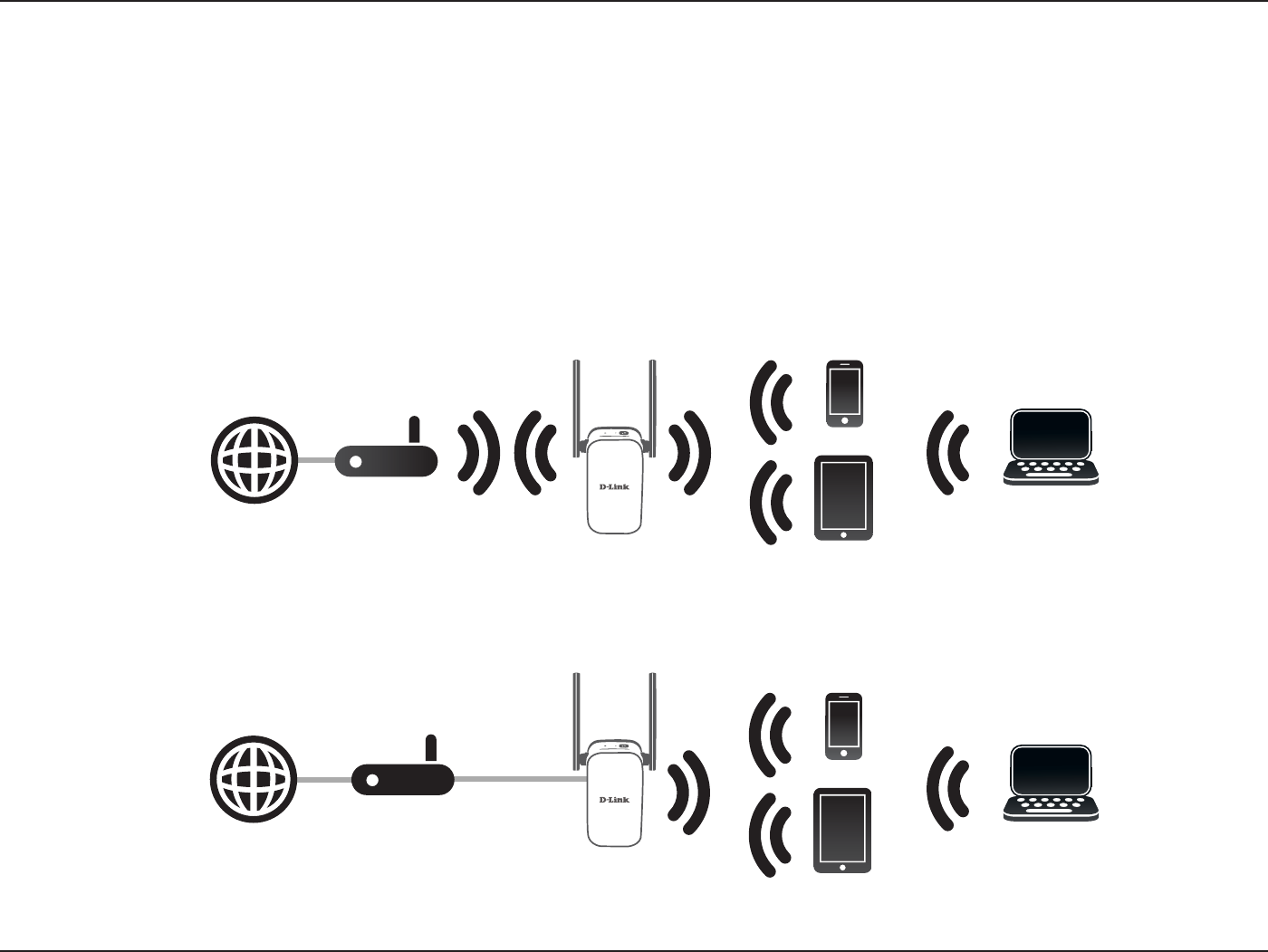

Extend Your Wireless Network using Wi-Fi
Create a Wireless Network using Ethernet
Router
Internet DAP-1610
Extender
Wireless Devices
Router
Internet DAP-1610
Access Point
Wireless Devices
Computer
Computer
5D-Link DAP-1610 User Manual
Section 1 - Product Overview

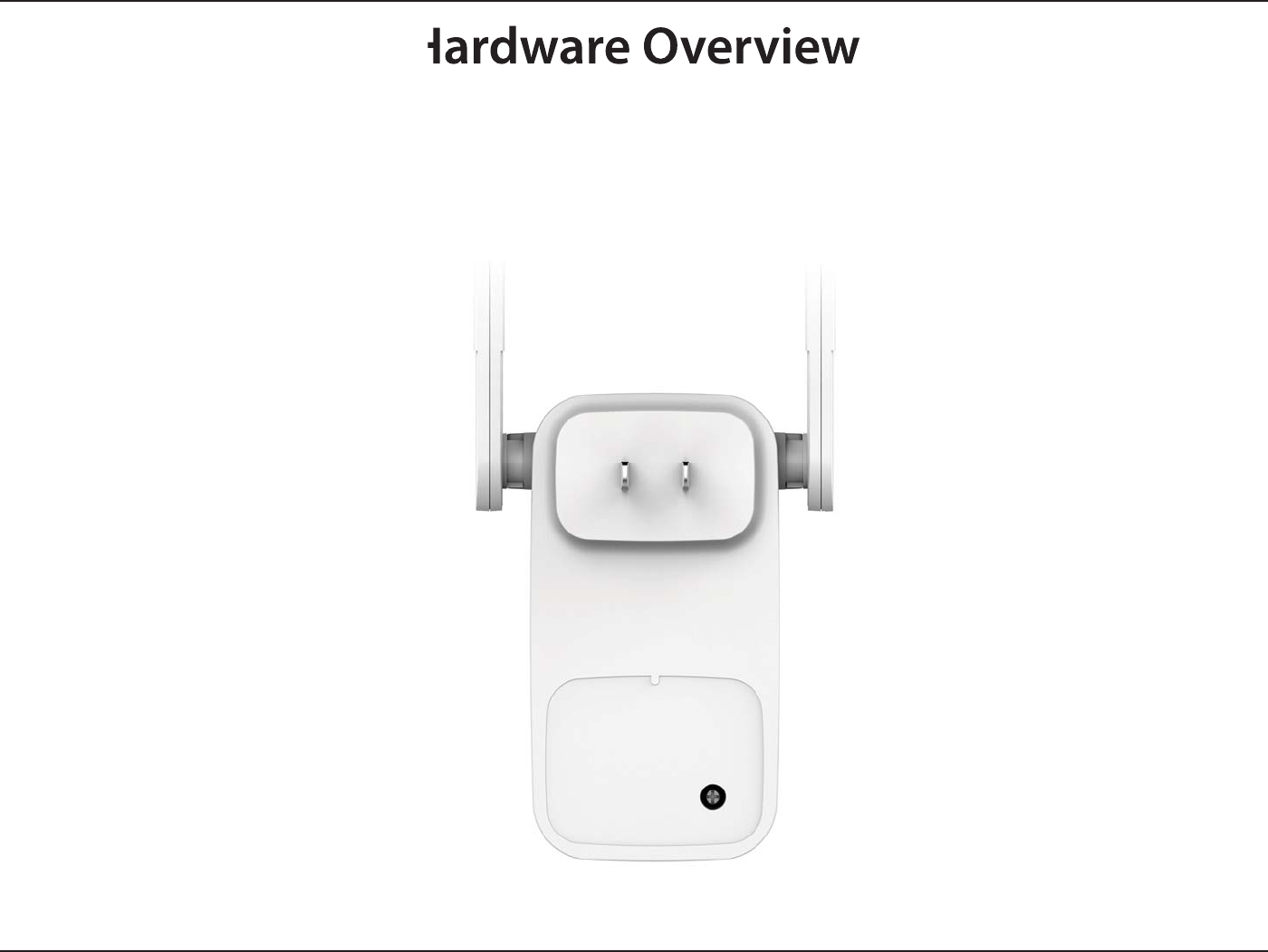

Hardware Overview

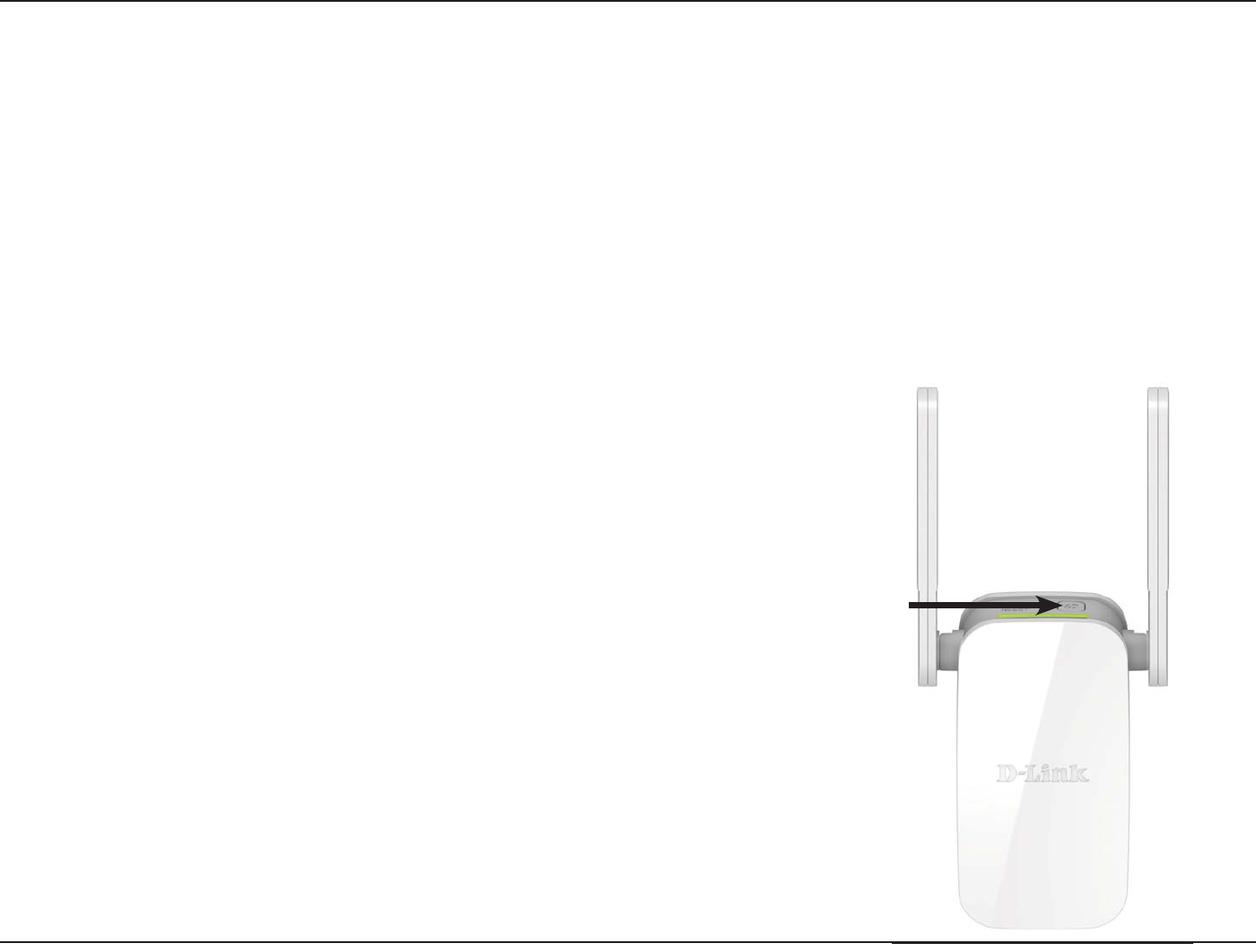

Top

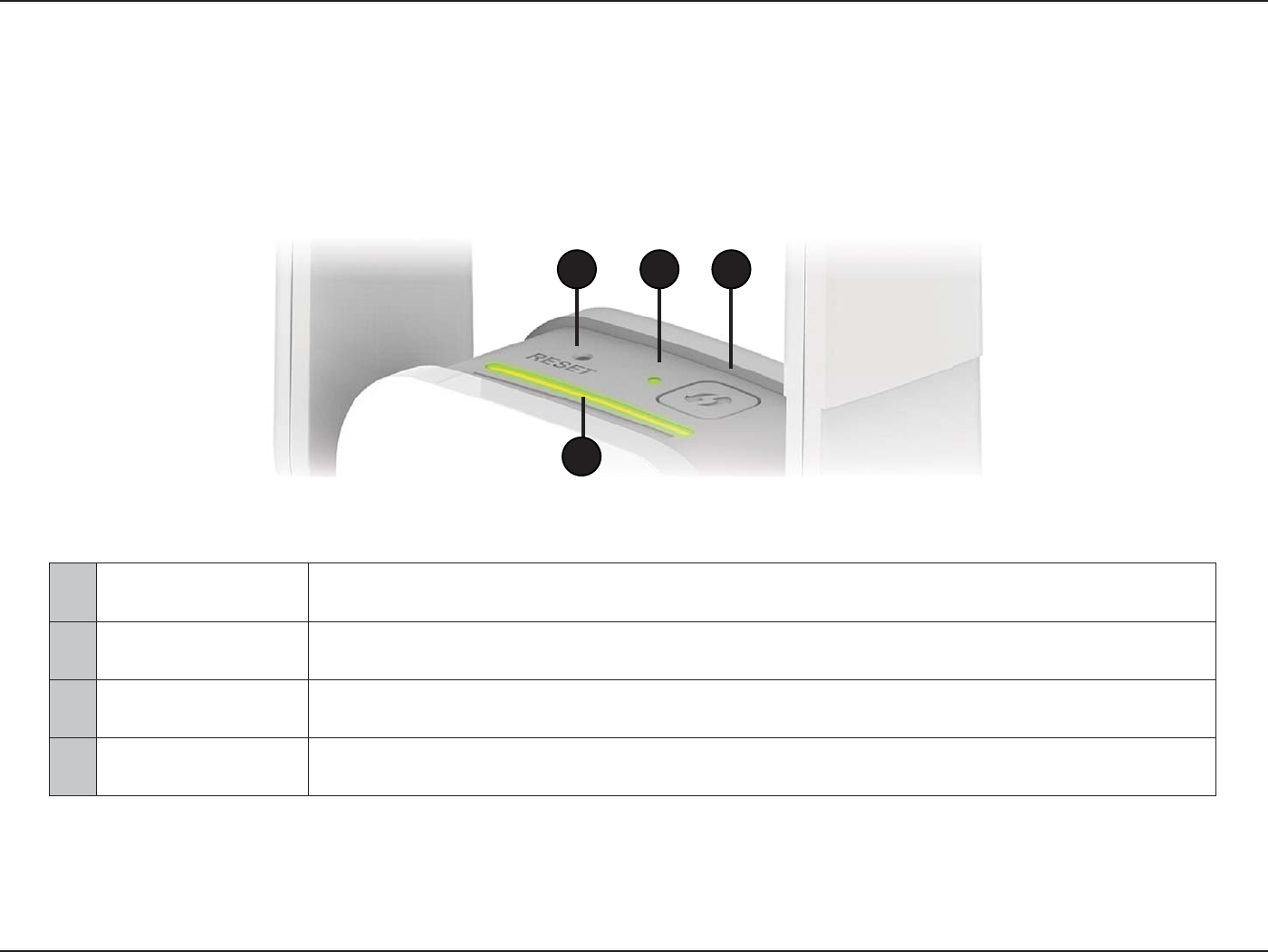

1 2 3
4
1Reset Button Use an unfolded paperclip to press and hold the reset button on the bottom of DAP-1610 until the
status LED turns red, to reset the device back to factory default settings.
2Status/WPS LED This LED indicates the current status of the DAP-1610.
Refer to “Status/WPS LED Indicator” on page 7 for more information.
3WPS Button Press to establish a connection with another WPS compatible device.
Refer to “WPS Button” on page 43 for more information.

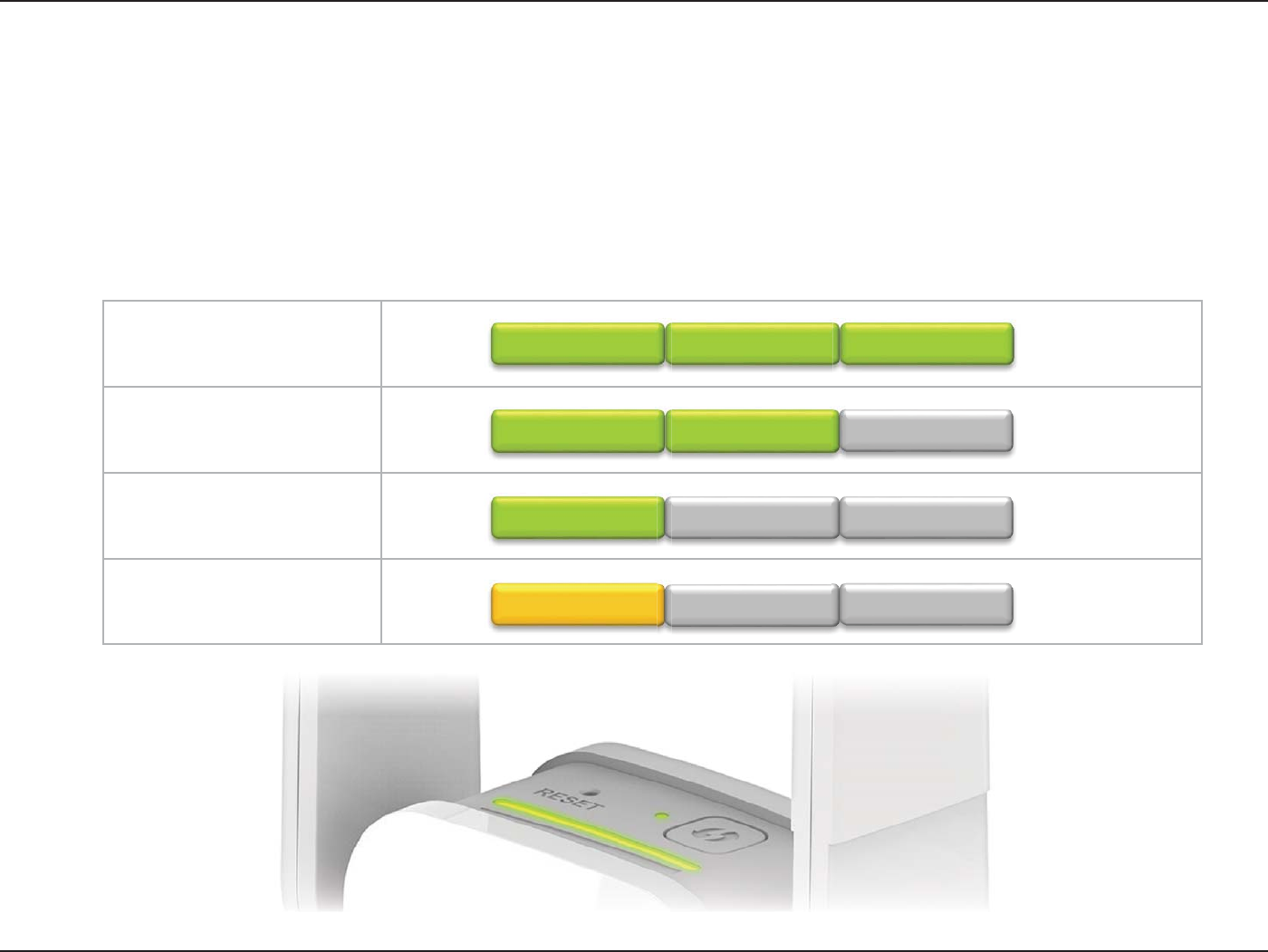

4Signal Indicator LED The more lit green bars on the Signal Indicator LED, the better the wireless signal to the host network.
For more information refer to “Optimize Extender Location” on page 14.
6D-Link DAP-1610 User Manual
Section 1 - Product Overview
Hardware Overview
Bottom
1

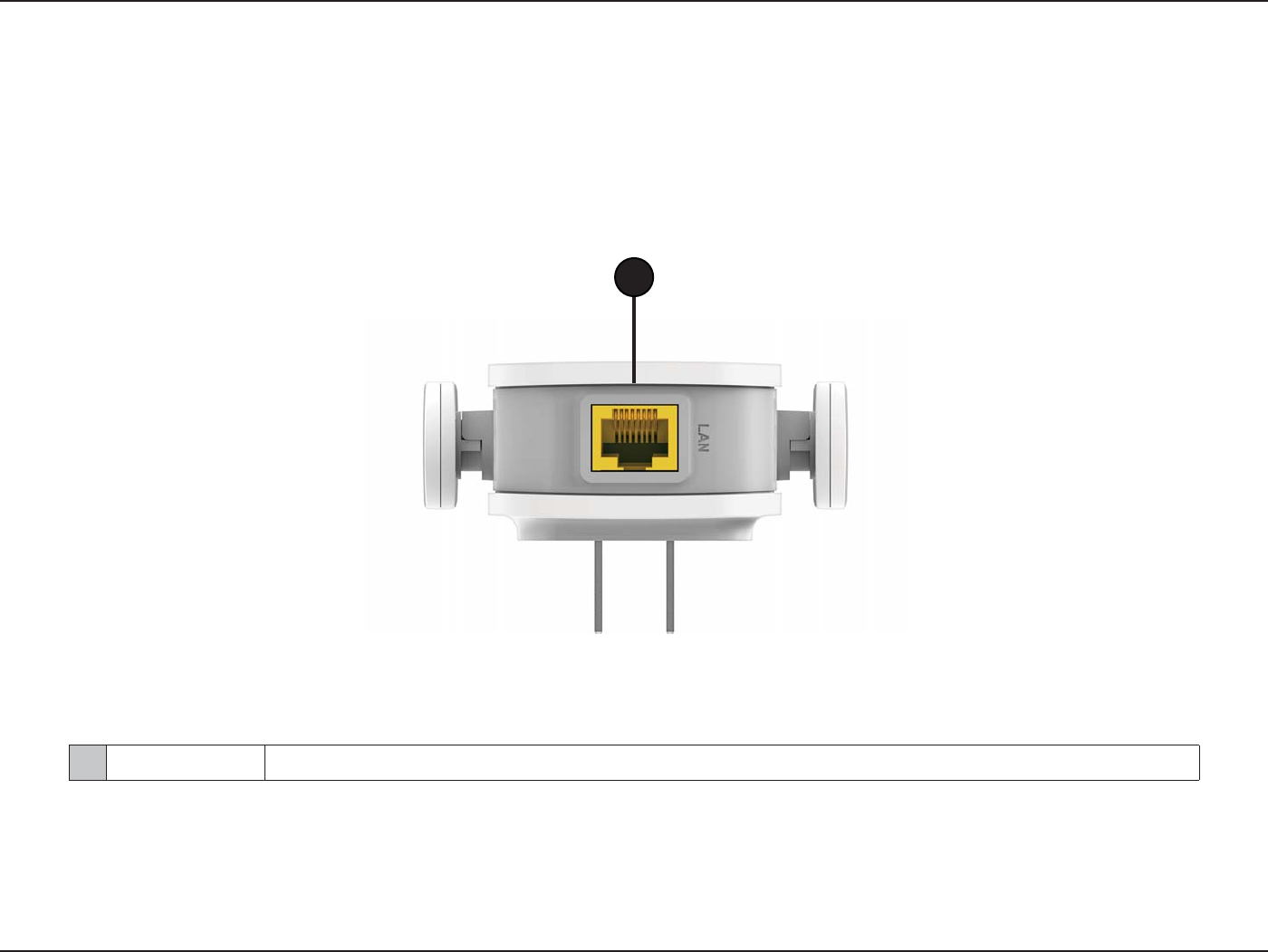

1LAN Connect an Ethernet cable if you are adding wireless to an existing wired network.
7D-Link DAP-1610 User Manual
Section 1 - Product Overview

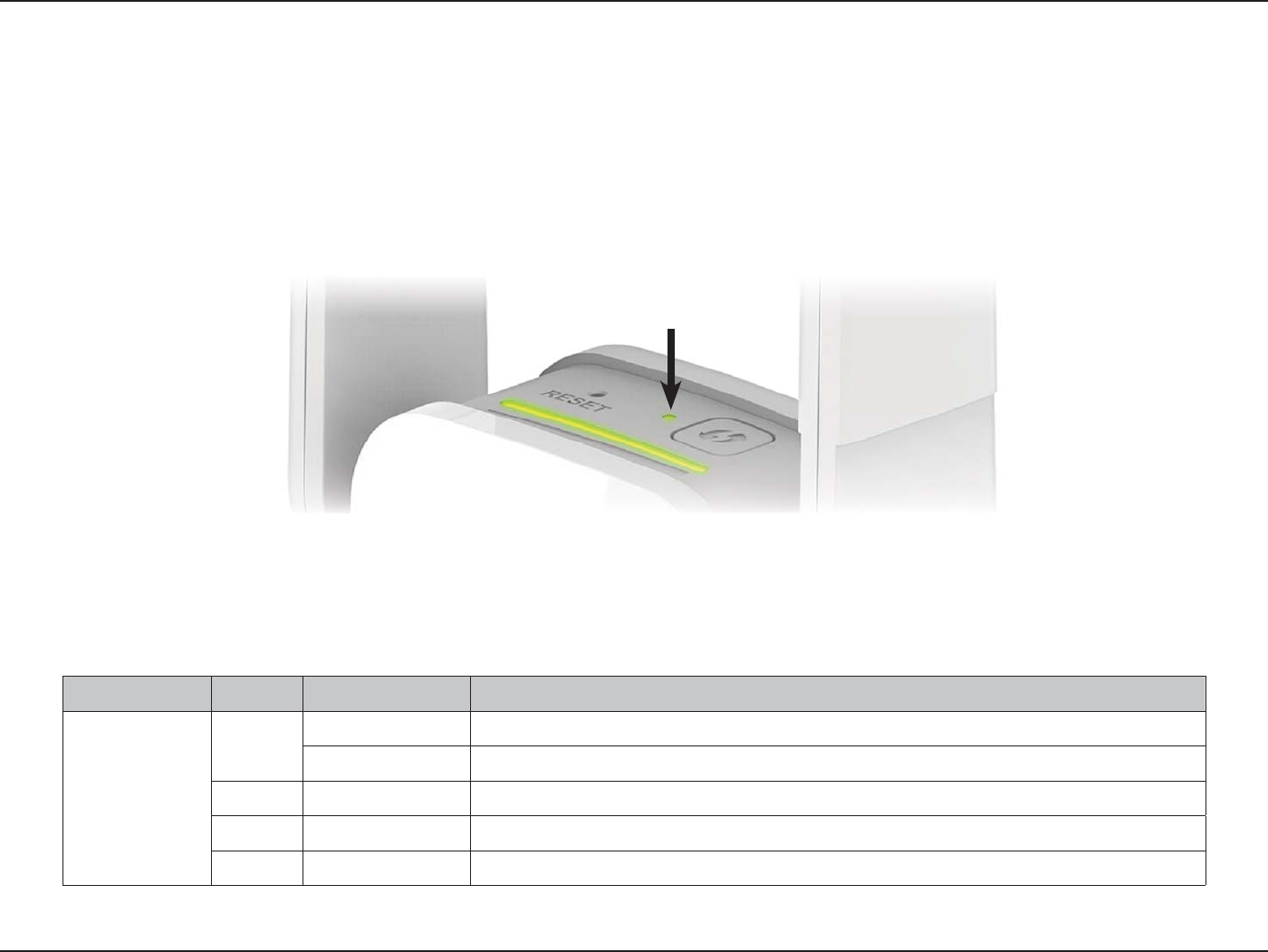

LED Indicator Color Status Description
Power/Status
Green Solid The DAP-1610 is receiving power and connected to a host network.
Blinking WPS mode is active and ready to add a wireless device.
Red Solid The DAP-1610 is booting or an error has occurred.
Amber Blinking The DAP-1610 is not connected to a host network.
None O Device is not receiving power. Check the power outlet.
Status/WPS LED Indicator
Status/WPS LED Indicator
8D-Link DAP-1610 User Manual
Section 2 - Installation
You may locate the Wi-Fi name (SSID) and password for your DAP-1610. This information is printed on the specication sticker on
the back of the device. You will need this information to connect your computer or mobile device to the default network (SSID) of
your DAP-1610. This information is also provided on the Wi-Fi conguration card.
Hardware Overview
Back
a
ssword
f
or your DAP-1610. This in
f
ormation is
p
o
rmation to connect
y
our computer or mobile d
ded on the Wi-Fi con
guration card.
B
a
c
k
9D-Link DAP-1610 User Manual
Section 2 - Installation
Installation
Wireless Installation Considerations
The DAP-1610 lets you extend your existing wireless network’s coverage as long as it is within range of the uplink network. Keep in
mind that the DAP-1610’s extension network’s range may be limited by the number, thickness and location of walls, ceilings, or other
objects that the wireless signals must pass through. Typical ranges vary depending on the types of materials and background RF (radio
frequency) noise in your home or business. The key to maximizing wireless range is to follow these basic guidelines:
1. Keep the number of walls and ceilings between the D-Link extender and other network devices to a
minimum - each wall or ceiling can reduce your adapter’s range from 3-90 feet (1-30 meters.) Position your
devices so that the number of walls or ceilings is minimized.
2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (0.5 meters), at a 45-degree
angle appears to be almost 3 feet (1 meter) thick. At a 2-degree angle it looks over 42 feet (14 meters) thick!
Position devices so that the signal will travel straight through a wall or ceiling (instead of at an angle) for
better reception.
3. Building materials make a dierence. A solid metal door or aluminum studs may have a negative eect on
range. Try to position extenders, access points, wireless routers, and computers so that the signal passes
through drywall or open doorways. Materials and objects such as glass, steel, metal, walls with insulation,
water (sh tanks), mirrors, le cabinets, brick, and concrete will degrade your wireless signal.
4. Keep your product away (at least 3-6 feet or 1-2 meters) from electrical devices or appliances that generate RF
noise.
5. If you are using 2.4 GHz cordless phones or X-10 (wireless products such as ceiling fans, lights, and home
security systems), your wireless connection may degrade dramatically or drop completely. Make sure your 2.4
GHz phone base is as far away from your wireless devices as possible. The base transmits a signal even if the
phone is not in use.
10D-Link DAP-1610 User Manual
Section 2 - Installation
Antenna Setup
The DAP-1610 is designed to give you the fastest, most stable network connection possible. In order to maximize performance, fully
extend the antennas to provide optimal wireless coverage. Keep the extender in an open area for better wireless coverage.
11D-Link DAP-1610 User Manual
Section 2 - Installation

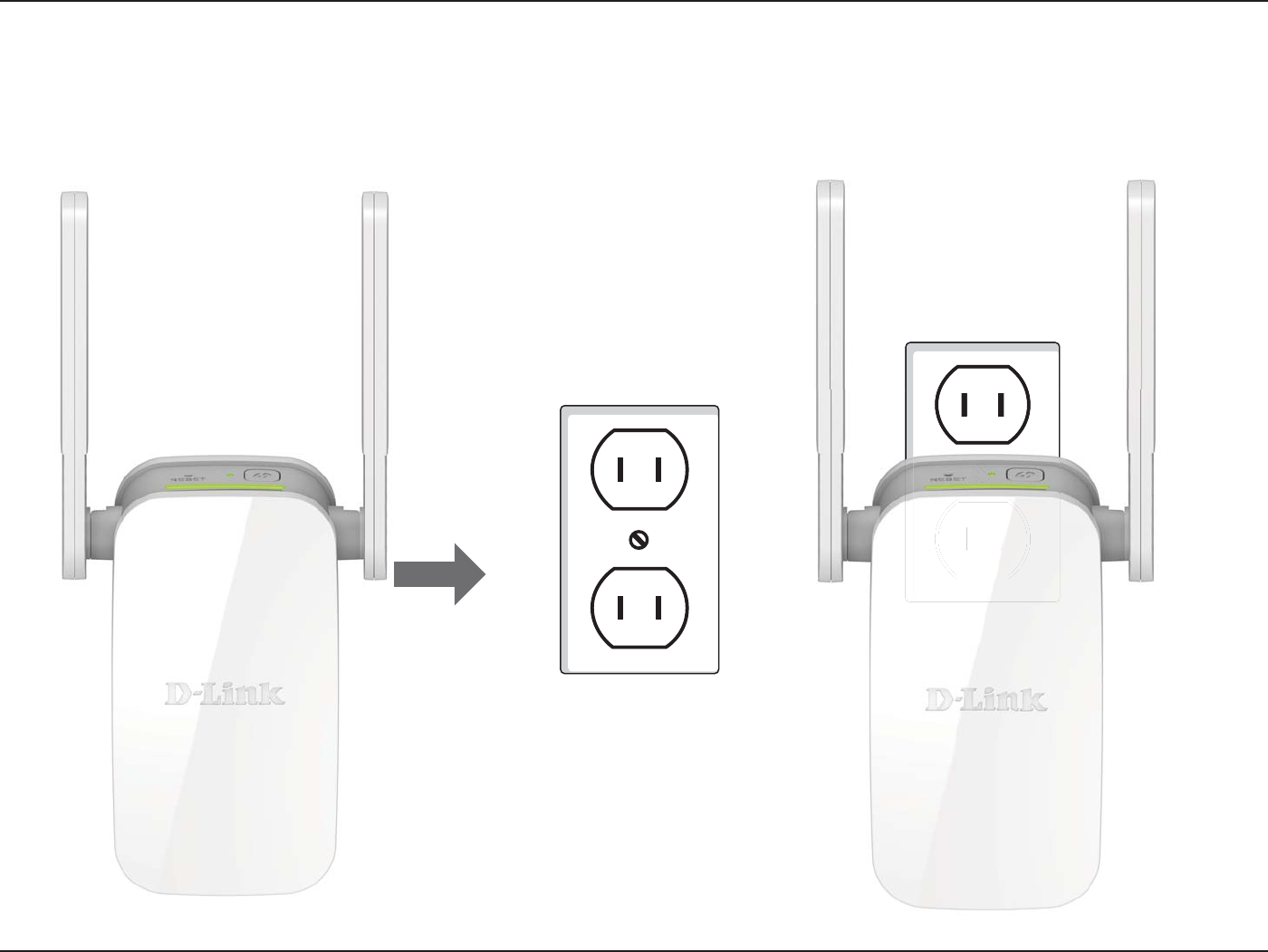

Plug the DAP-1610 into a wall outlet, and wait until the Status/WPS LED is blinking amber.
Outlet
Outlet
Hardware Setup
O
ut
l
e
t
12D-Link DAP-1610 User Manual
Section 3 - Conguration
There are several conguration tools you can use to set up your DAP-1610.
• WPS PBC - To easily extend an existing wireless network refer to “WPS-PBC Conguration” on page 13 for setup instructions.
• QRS Mobile App - Use your Android device or iPhone, iPad, or iPod touch to congure your extender. Refer to “QRS
Mobile App Setup” on page 15 for setup instructions.
• D-Link Setup Wizard - This wizard will launch when you log into the Extender’s web conguration utility for the rst
time. Refer to ”Setup Wizard” on page 21 for setup instructions.
• Manual Conguration - Advanced users who wish to manually setup extender or adjust its settings may refer to
“Conguration” on page 31 for more information.
Getting Started
13D-Link DAP-1610 User Manual
Section 3 - Conguration
WPS-PBC Conguration
Step 1 - Initiate WPS Mode

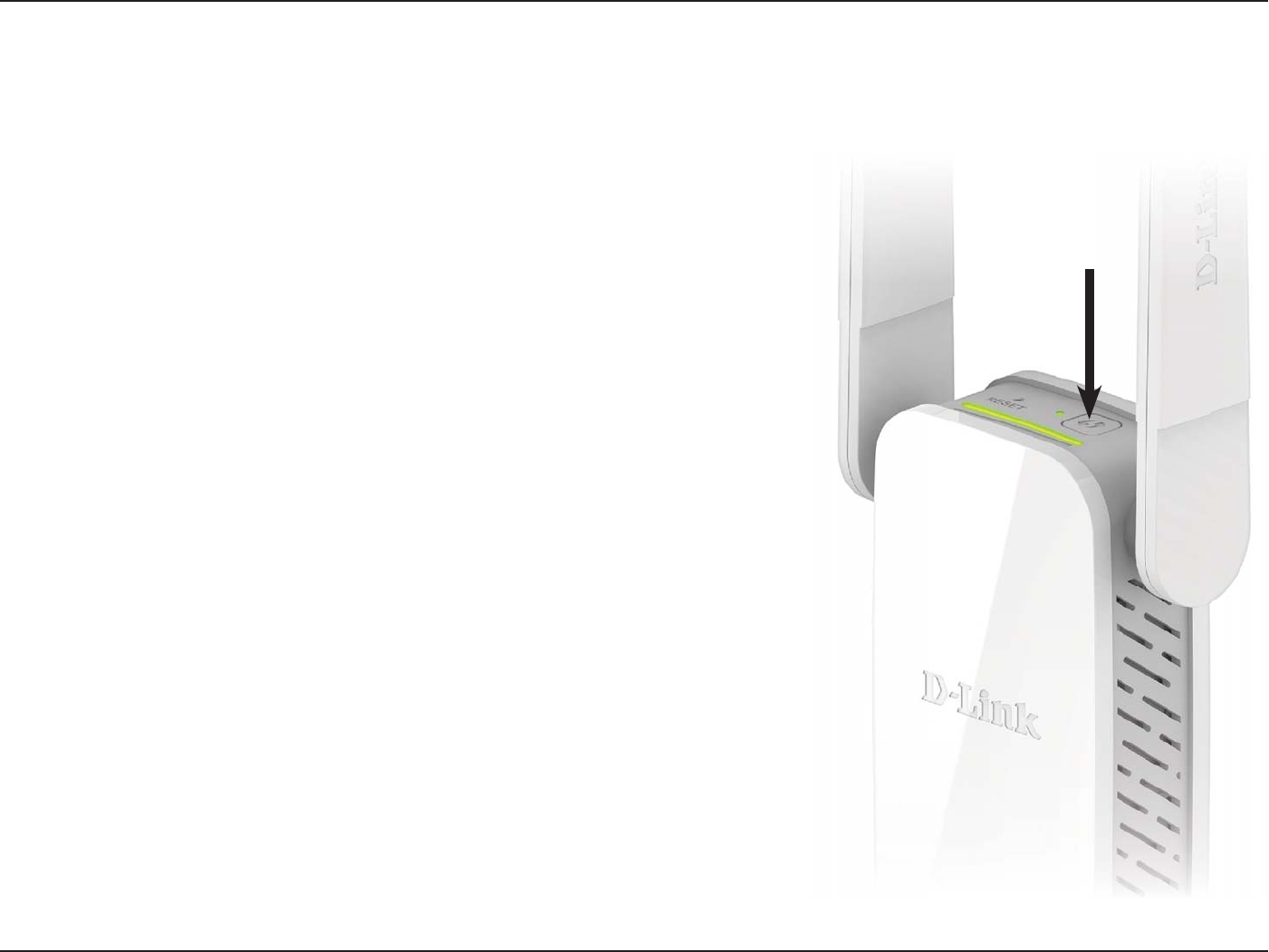

While the Status/WPS LED is blinking amber. Push the WPS button on the source
wireless router or AP, and then push the WPS button on the DAP-1610. The
Status/WPS LED will start to ash green. Please allow up to two minutes for the
process to nish. The Status/WPS LED will turn solid green when the DAP-1610
has connected successfully to the source wireless router or access point.
Step 2 - Connecting Devices to the DAP-1610
The DAP-1610 is now ready to share the extended Wi-Fi network with your
PCs and mobile devices. You may use the WPS method to connect devices to
the extension networks created by the DAP-1610 using the following network
names (SSID). The password(s) will be the same as the wireless network you are
extending.
• (Your router’s SSID)-EXT
To connect to a wireless router or access point and extend the Wi-Fi network in your home, rst make sure the source router or
Access Point features a WPS Button or has a virtual WPS Button.
14D-Link DAP-1610 User Manual
Section 3 - Conguration
The Status/WPS LED will turn solid green when the DAP-1610 has connected successfully to a wireless network and is extending
that network. If the Smart Signal LED has a single amber bar after the connection process has nished, the DAP-1610 has
established a poor quality connection. The more lit bars on the Signal Indicator LED, the better the wireless signal. To improve the
connection quality, the DAP-1610 should be relocated closer to the source wireless router. If the extender has been congured as an
Access Point and is connected via Ethernet cable to an uplink network, the Smart Signal LED will not be lit.
Optimize Extender Location
Best
Good
Ok
Poor
15D-Link DAP-1610 User Manual
Section 2 - Installation
QRS Mobile App Setup
The DAP-1610 can be set up from your iPhone, iPod touch, iPad, or Android smartphone or tablet device using the QRS Mobile app.
Step 2

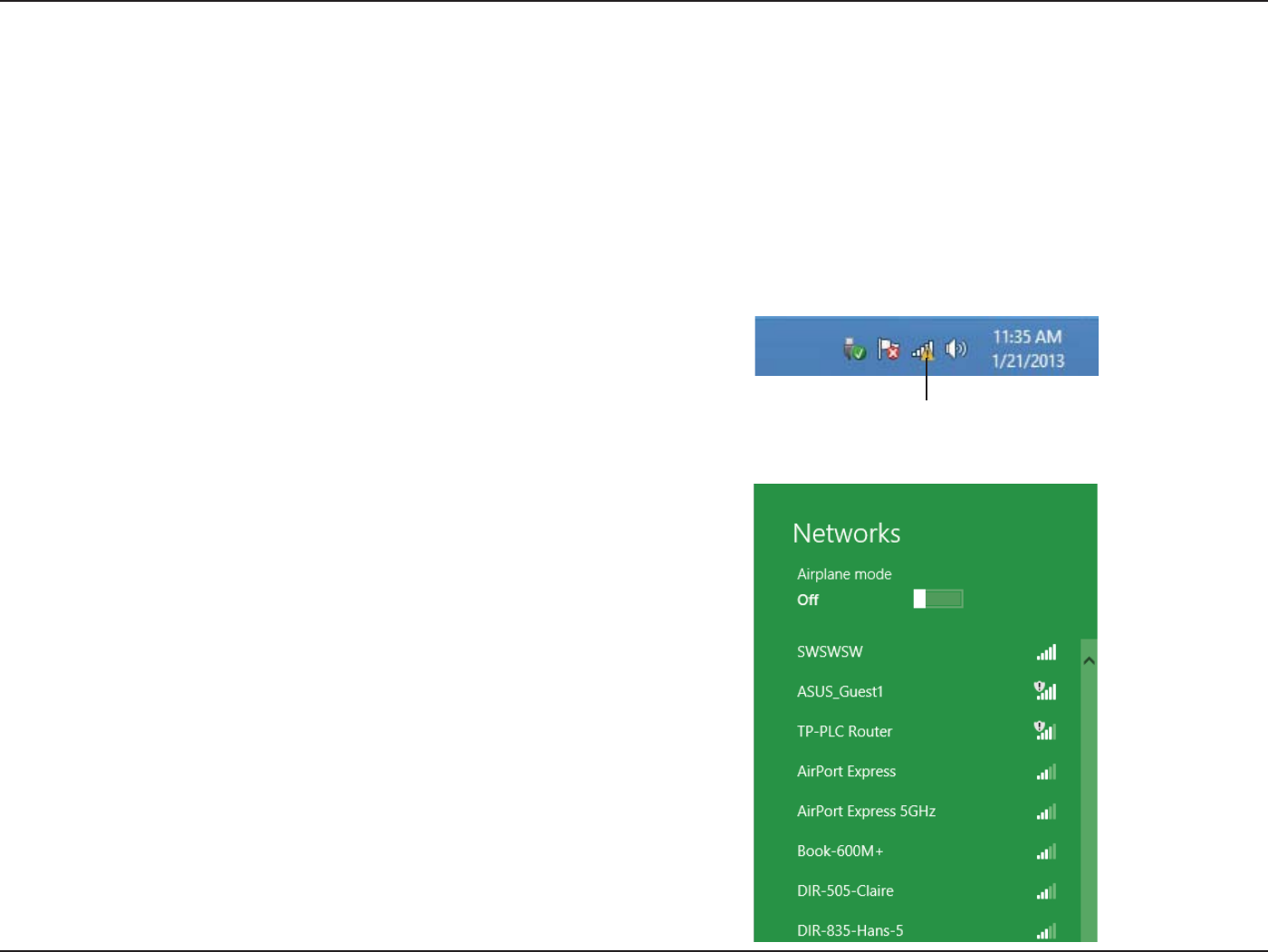

Once your app is installed, you may now congure your extender. Connect to the
router wirelessly by going to your wireless utility on your device. Scan for the Wi-
Fi name (SSID) as listed on the supplied conguration card. Select and then enter
your Wi-Fi password.
Step 3
Once wirelessly connected to the extender, launch the QRS Mobile app from the
Home screen of your device.
Note: The following steps show the iOS interface of the QRS Mobile app. If you are
using an Android device, the appearance may be dierent to that of the screenshots,
but the process is the same.
Step 1
Search for the free QRS Mobile App on the Apple App Store or Google Play.
Note: The screenshots may be dierent depending on your mobile device’s OS version.
16D-Link DAP-1610 User Manual
Section 3 - Conguration
Click Start to continue.
Click Next to continue.
17D-Link DAP-1610 User Manual
Section 3 - Conguration
Enter a password for the existing Wi-Fi network. Click Next to
continue.

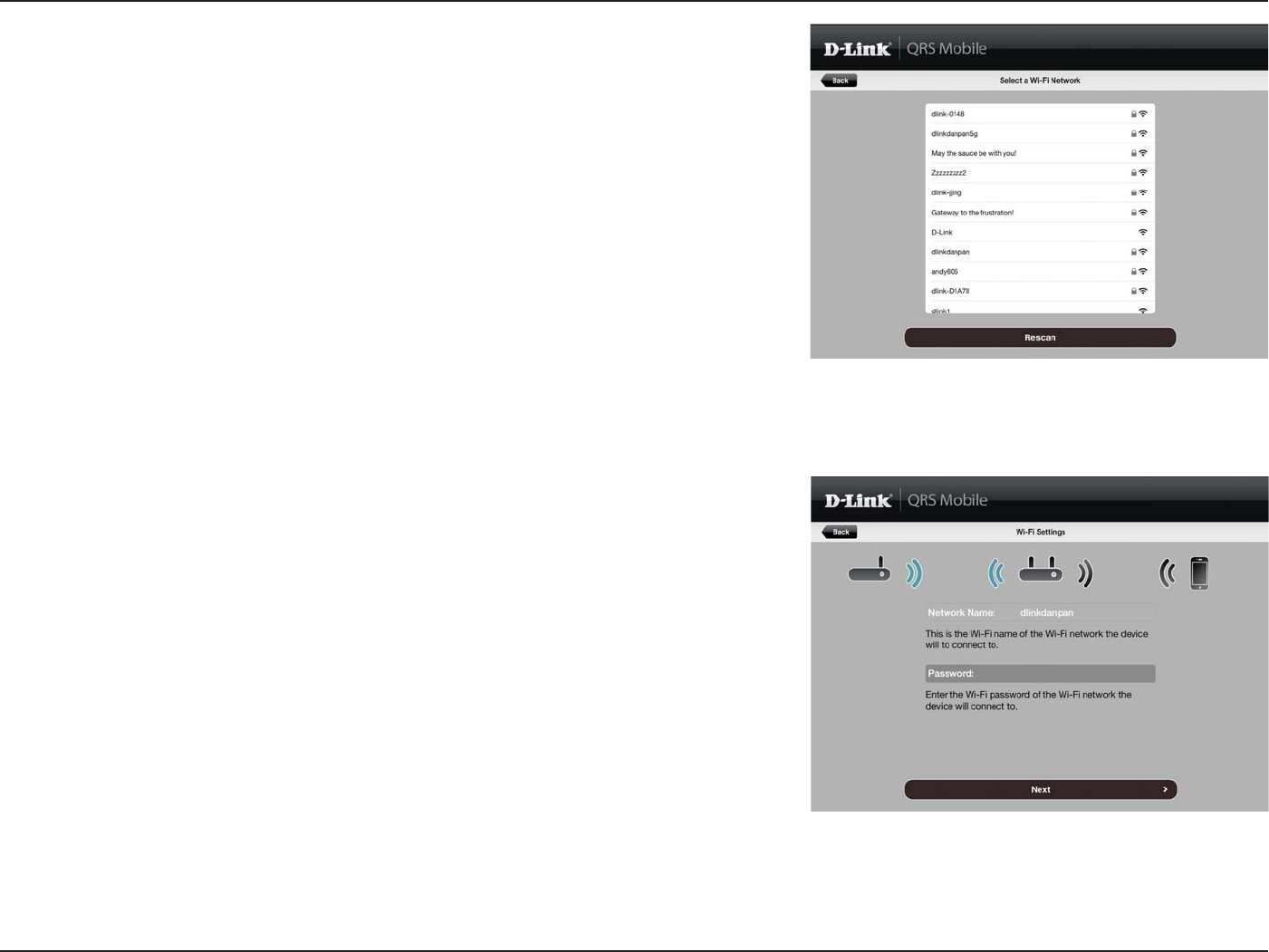

QRS Mobile will rst detect your DAP-1610, then scan for available
Wi-Fi networks. Select the network you wish to extend. Tap Rescan
if your network doesn’t show up the rst time.
18D-Link DAP-1610 User Manual
Section 3 - Conguration

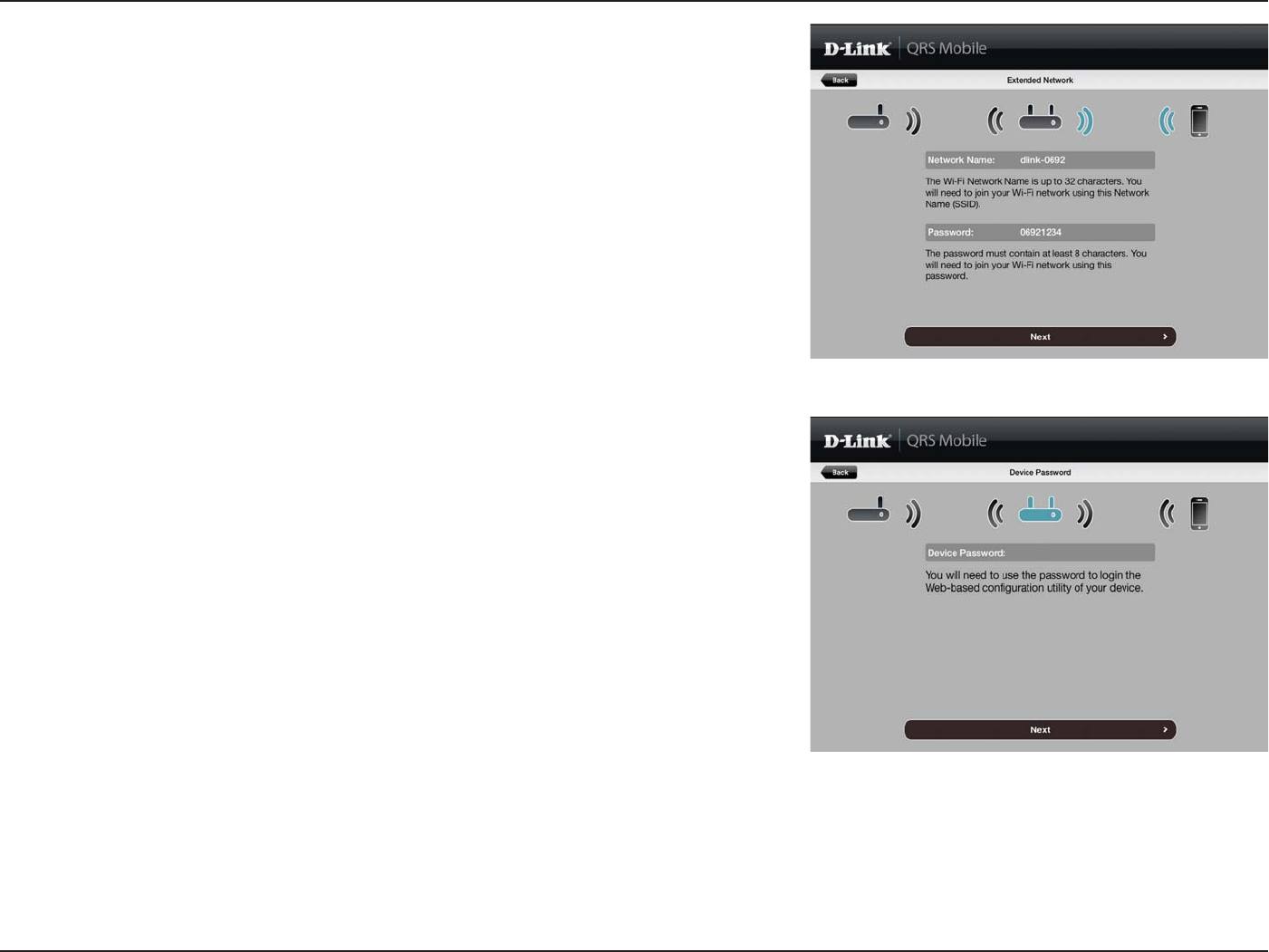

Create an admin password for the DAP-1610’s web-based
conguration utility. Click Next to continue.
Enter a network name (SSID) and password for the extended
Wi-Fi network. Click Next to continue.
19D-Link DAP-1610 User Manual
Section 3 - Conguration
After the setup wizard is complete, the following screen will appear.
To connect to the extended network, you can now change your
mobile device and laptop Wi-Fi settings to the wireless network
name and password you just created. You can also share your Wi-Fi
information by clicking Share by E-mail.

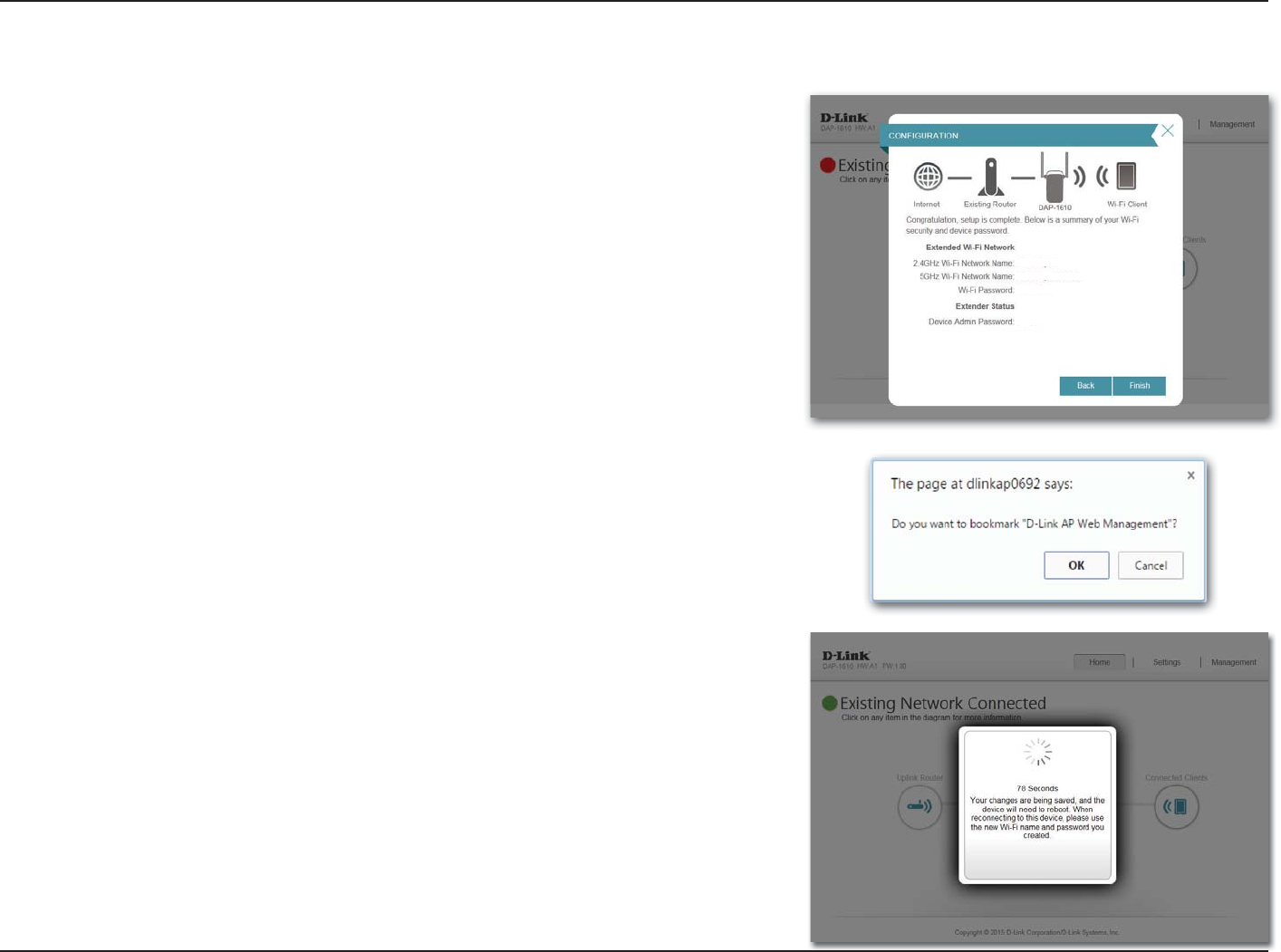

A summary of your settings will be displayed. Click Save to reboot
the device and to complete the setup.
20D-Link DAP-1610 User Manual
Section 3 - Conguration
Web-based Setup
Enter your password. By default, Admin is the username and cannot be changed,
and by default, the password is blank.
To access the setup utility for the DAP-1610 AC1200 Wi-Fi Range Extender on
your PC, rst connect to the DAP-1610 wirelessly using the Wi-Fi name (SSID) and
password located on your Wi-Fi Conguration Card. Then open a web browser

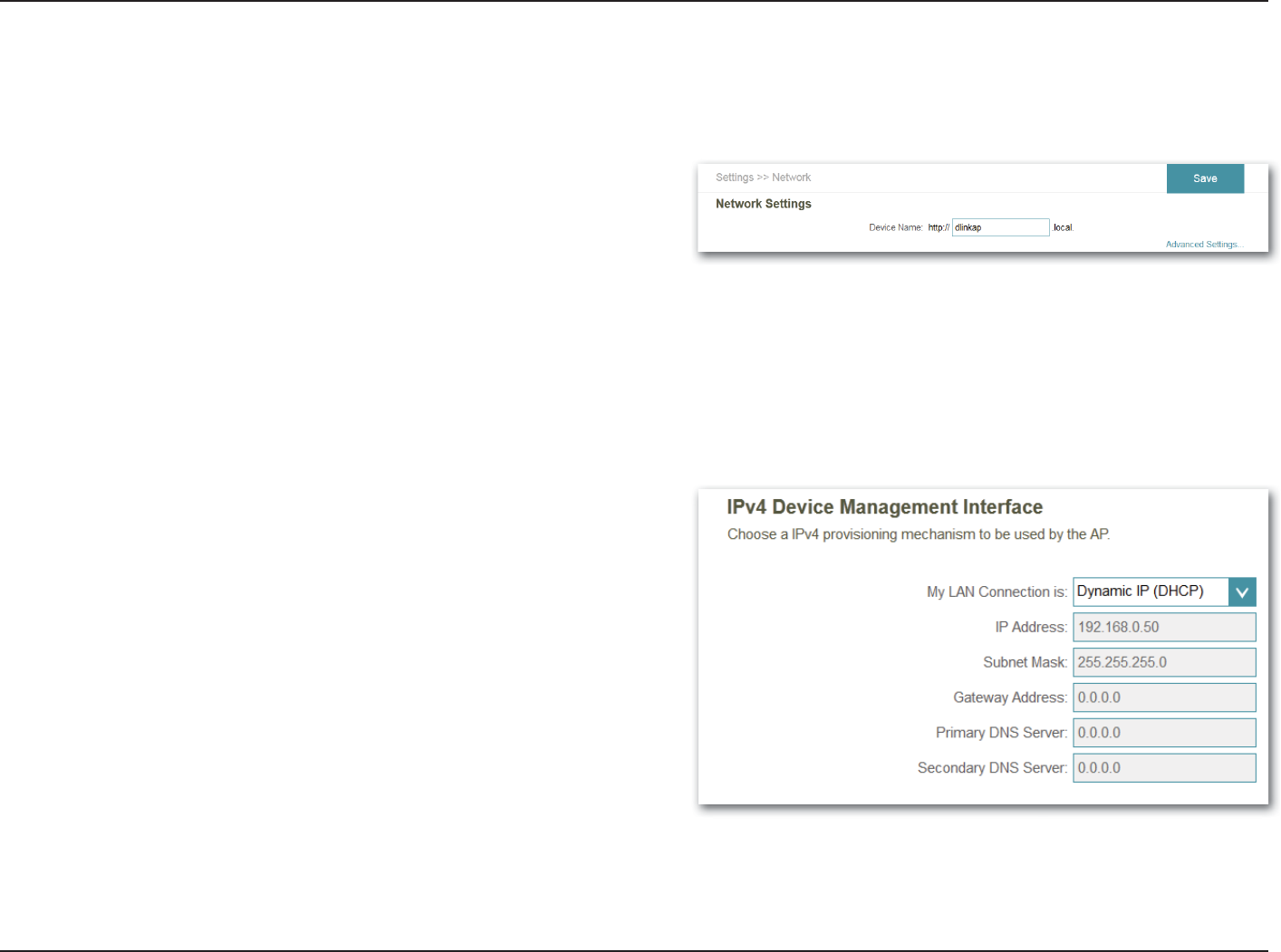

and enter http://dlinkap.local./ in your browser’s URL eld. You may also enter
the IP address* of the DAP-1610.
* The default IP address is 192.168.0.50. Once your DAP-1610 connects to the host network,
it will be assigned a new IP address based on your network’s DHCP settings. You will need
to log in to your router to see what IP address is assigned to your DAP-1610.
For multiple DAP-1610s, go to http://dlinkapxxxx.local. as shown on the included Wi-Fi
Conguration Card, with “xxxx” being the last four digits of the DAP-1610’s MAC address.

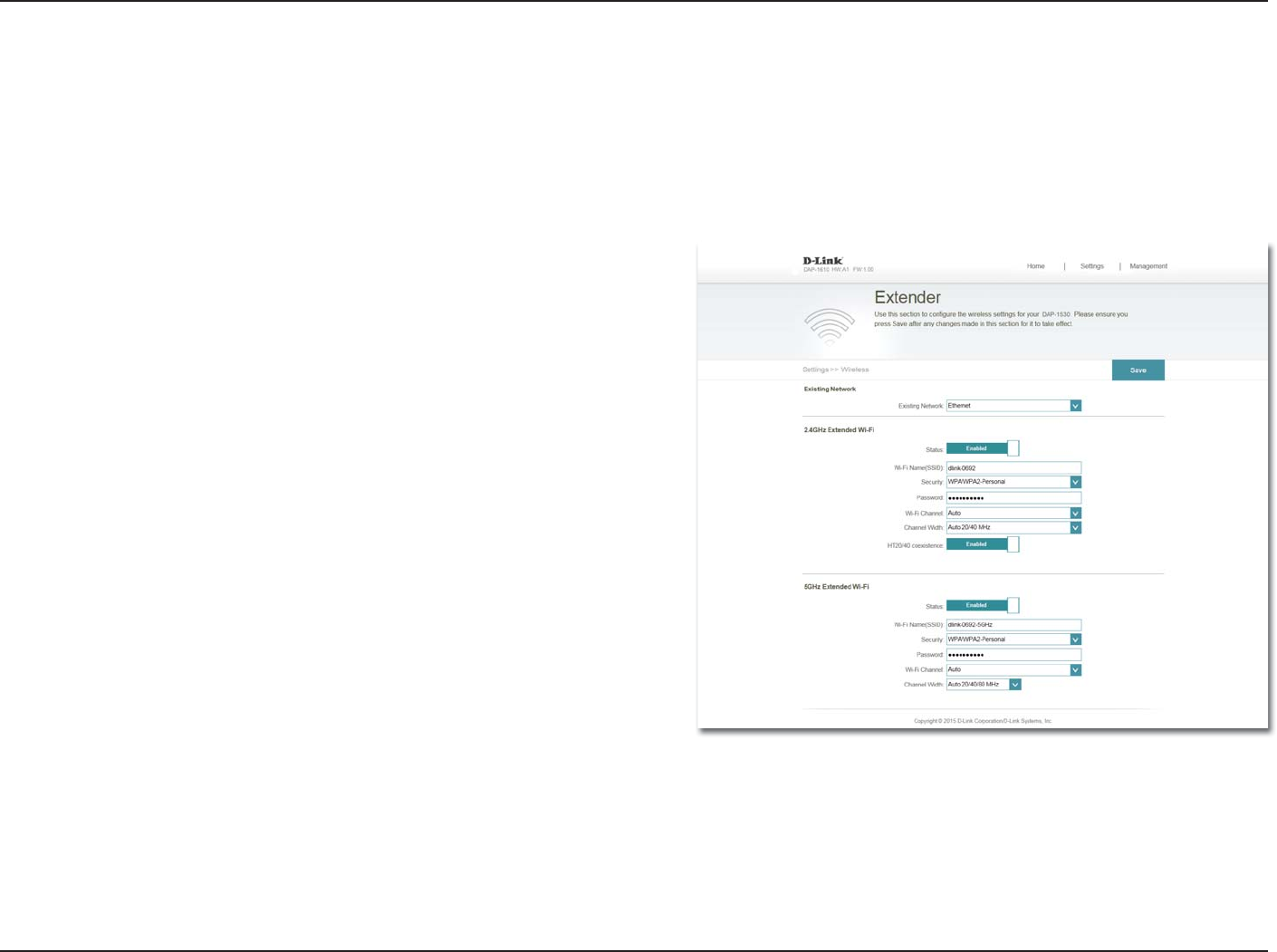

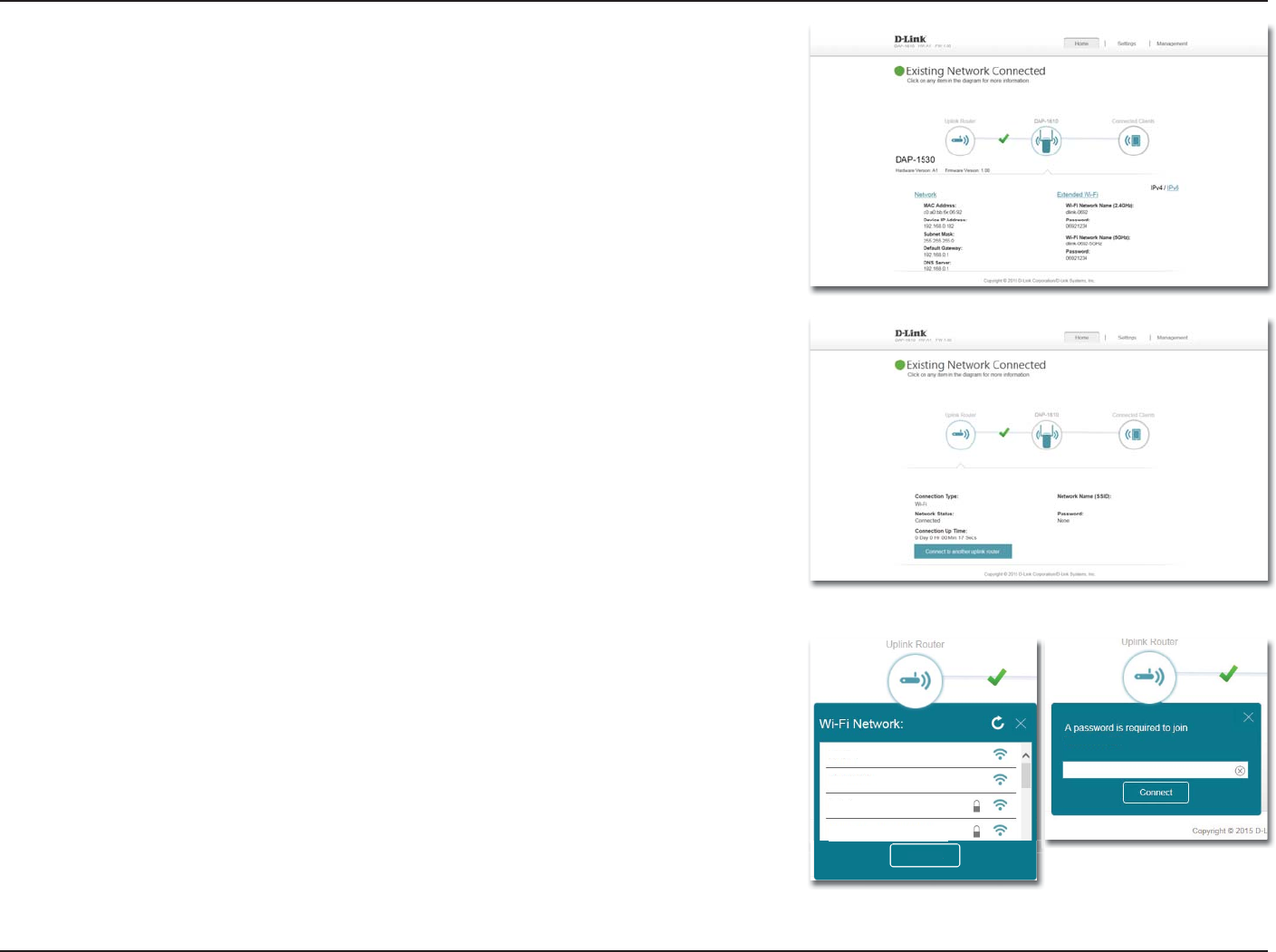

The conguration interface will open, and you can congure the various settings
for the DAP-1610. If you have not yet congured an uplink network, the home
screen will show that there is no connection between the DAP-1610 and the
uplink router.
21D-Link DAP-1610 User Manual
Section 3 - Conguration
Setup Wizard

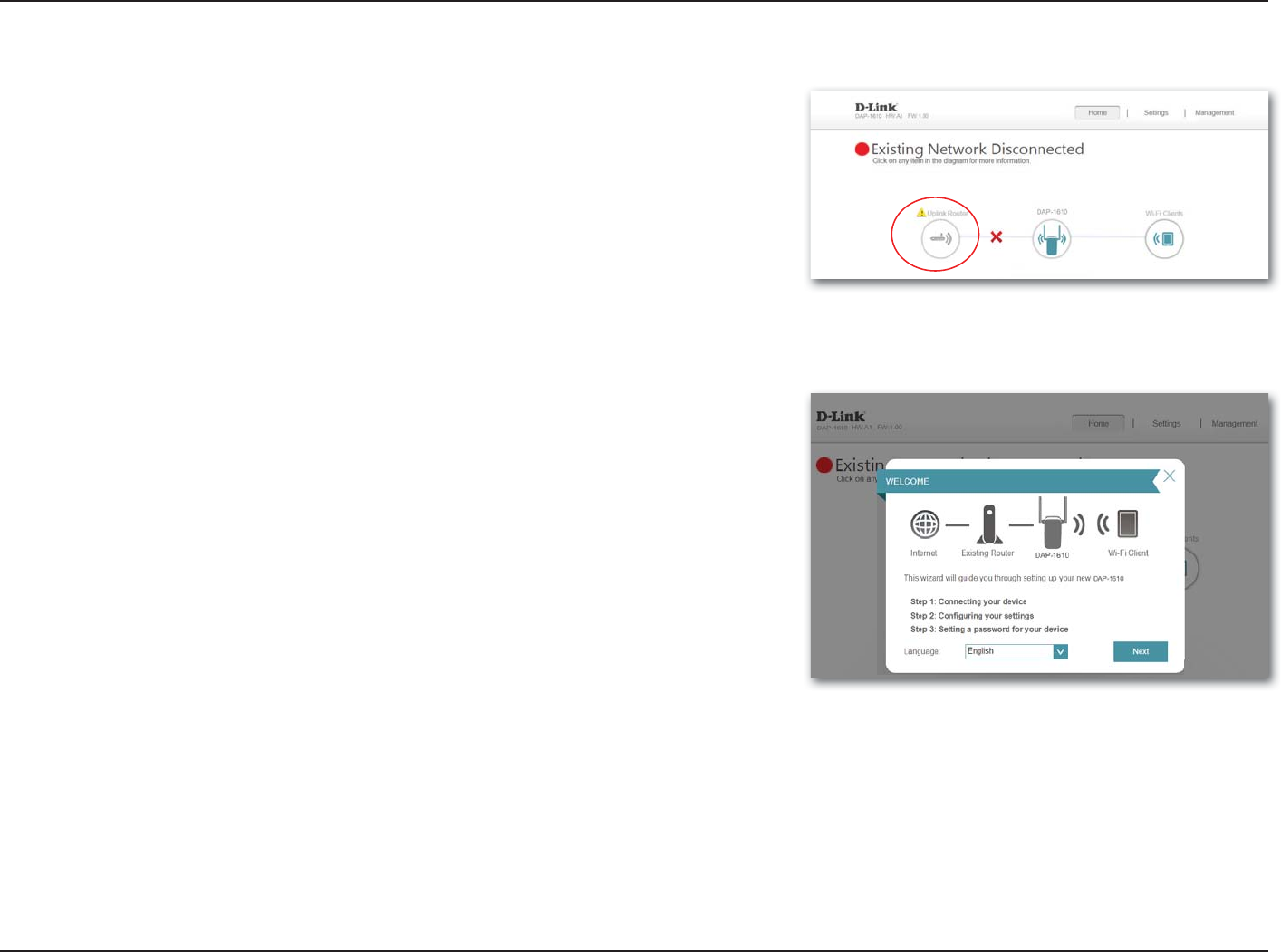

If this is your rst time logging in to the extender and no connection has been
established, the setup wizard will automatically appear.
In the future, if you wish to set up your extender using the setup wizard, click the
Uplink Router icon.
The setup wizard is designed to guide you through a step-by-step process to
congure your new DAP-1610 AC1200 Wi-Fi Range Extender to extend your
wireless network and connect to the Internet.
The steps are:
Step 1: Connecting Your Device
Step 2: Conguring Your Settings
Step 3: Setting a Password for Your Device
Click Next to begin.
22D-Link DAP-1610 User Manual
Section 3 - Conguration

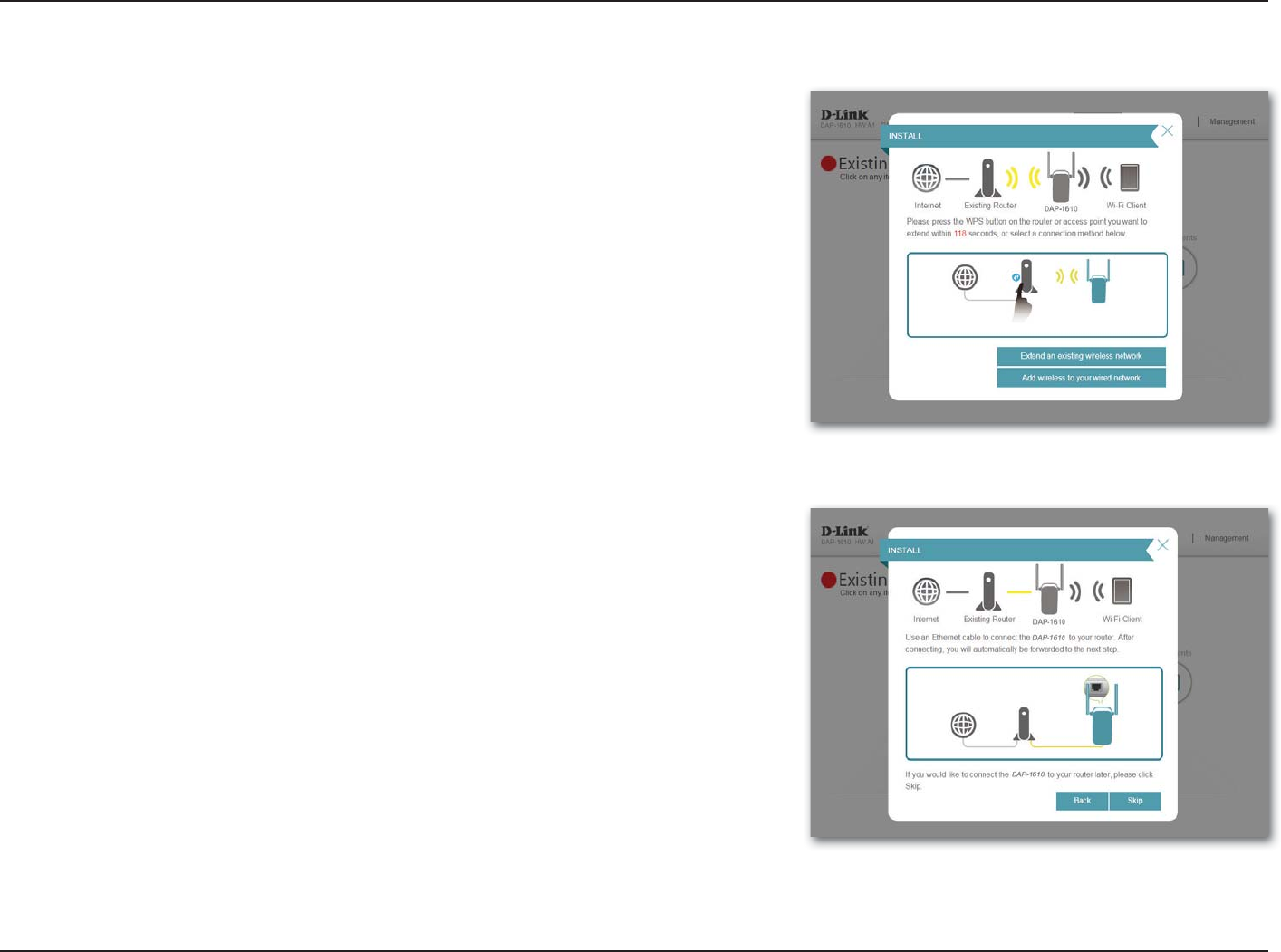

After clicking the Next button from the previous step, the DAP-1610 will
automatically initiate a WPS-PBC (Wireless Protected Setup - Push Button Control)
search to nd an uplink network to extend. If your existing wireless networking
device has a physical or virtual WPS button, press or enable it within the 120
seconds allotted by the countdown timer.
If you do not wish to use WPS or your existing networking device does not have a
WPS feature, select one of the alternative conguration options:
Extend an existing network, see page 24 for more information or
Add wireless to your wired network, see page 27 for further setup information.
Connecting Your Device via WPS
Once the 120 second timer has elapsed, proceed to the next page.
23D-Link DAP-1610 User Manual
Section 3 - Conguration
If a WPS connection is successfully established you will be prompted to congure
your extension network settings. The current network names and passwords will
be displayed.
You may now rename the 2.4 GHz and 5 GHz networks. If you wish to input
dierent passwords for each network, deselect use the same password for both
networks and create new passwords.
Please be sure to note any changes you make as these credentials will be required
for wireless clients wishing to join your network.
Click Next to proceed to Congure Administrator Password, refer to page 29 for
more information, or click Back to return to the previous step. *Wireless network names and passwords are shown for example only.
WPS Successful
WPS Unsuccessful
If the WPS countdown timer expires, and no connection to an uplink wireless
network could be established, you may press the retry button to attempt the
process again or if you do not wish to use WPS ,or are having diculty using the
WPS feature, you can try using one of the alternative conguration options:
Extend an existing network, see page 24 for more information or
Add wireless to your wired network, see page 27 for further setup information.
24D-Link DAP-1610 User Manual
Section 3 - Conguration
To set up your network manually, select Extend an Existing Network from the
setup wizard menu. Click Next to continue.
Extend an Existing Network
The DAP-1610 will scan for available wireless networks and display a list of results.
You may choose one of the following options to proceed:
• If the wireless network you wish to extend was detected by the scan, click on
the network to select it. The extender will automatically forward you to the
next step.
• If the network you would like to extend was not detected by the scan, click the
Manual button.
Note: If the wireless network you would like to extend to was not detected by the
scan, your DAP-1610 might be out of range and you may need to reposition the
extender closer to the host network device.
dlinkrouter
25D-Link DAP-1610 User Manual
Section 3 - Conguration
If the wireless network you wish to extend was detected by the scan, enter the
password now.
Click Next to continue on to congure your extension network settings, or click
Back to return to the previous step.
If you chose Manual , enter the Wireless Network Name, type of Security, and
Password of the existing Wi-Fi network you wish to connect to.
Click Next to continue on to congure your extension network settings, or click
Back to return to the previous step.
dlinkrouter
dlinkrouter
26D-Link DAP-1610 User Manual
Section 3 - Conguration

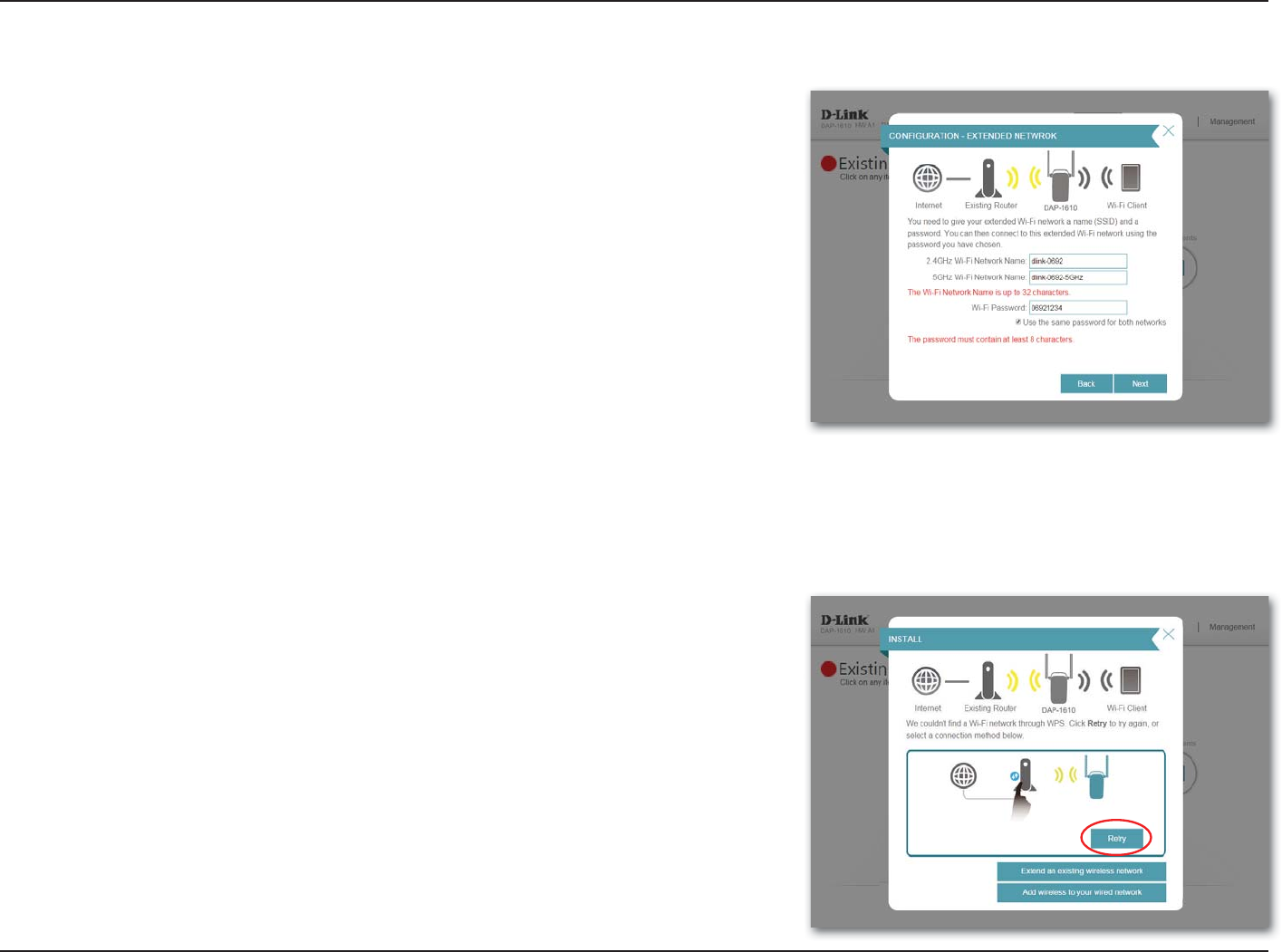

If a connection is successfully established you will be prompted to congure your
extension network settings. The current network names and passwords will be
displayed.

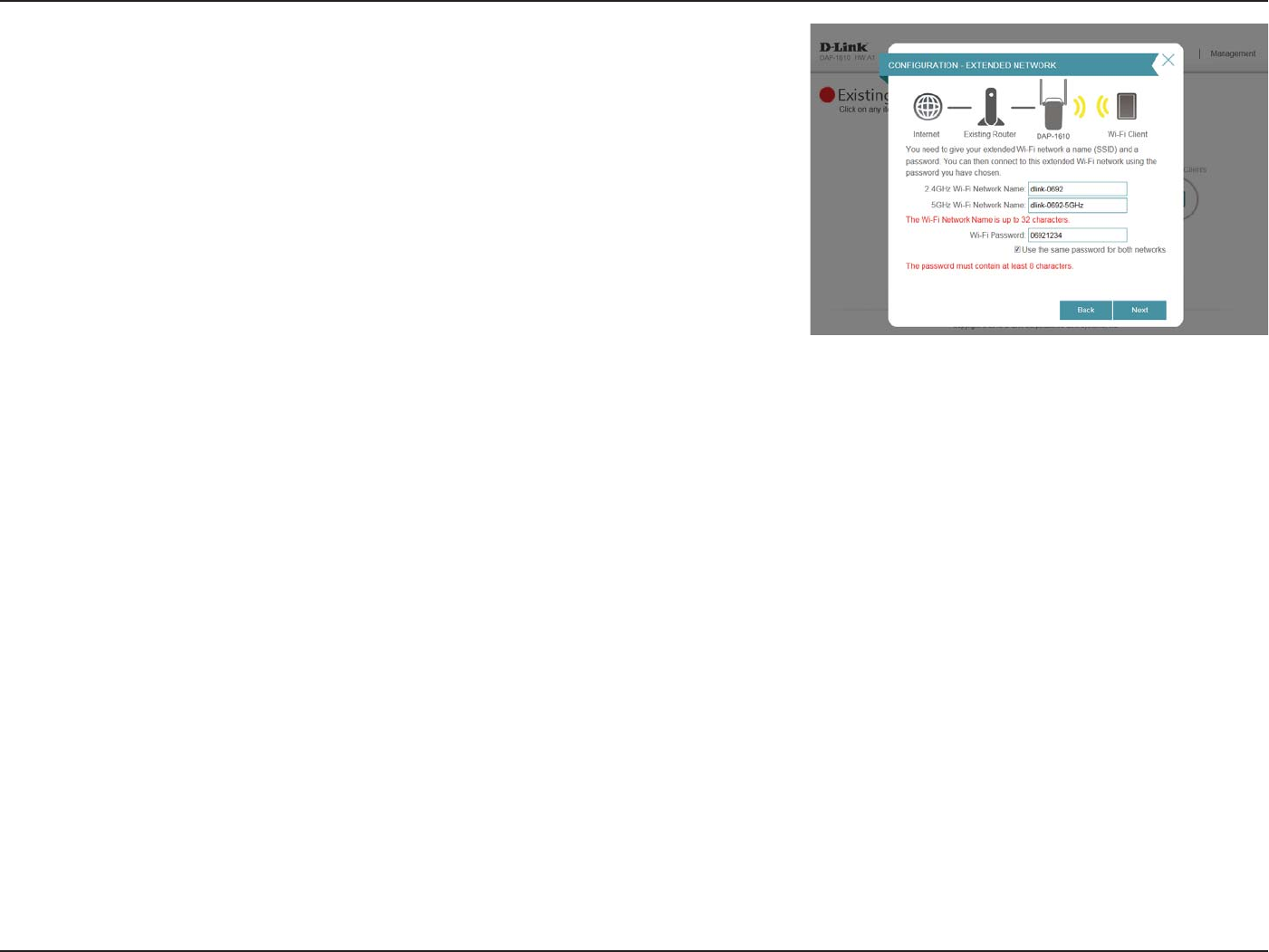

You may now rename the 2.4 GHz and 5 GHz networks. If you wish to input
dierent passwords for each network, deselect use the same password for both
networks and create new passwords.
Please be sure to note any changes you make as these credentials will be required
for wireless clients wishing to join your network.
Click Next to proceed to Congure Administrator Password, refer to page 29 for
more information, or click Back to return to the previous step. *Wireless network names and passwords are shown for example only.
27D-Link DAP-1610 User Manual
Section 3 - Conguration
Add Wireless to Your Wired Network
This portion of the setup wizard will guide you through adding a wireless
network to an existing wired network. Click Add wireless to your wired network
to proceed.
Connect an Ethernet cable to your DAP-1610 if you have not already done so.
After making the connection, you will automatically be forwarded to the next
step. If you haven’t connected an Ethernet cable yet, but will do so later, click skip.
28D-Link DAP-1610 User Manual
Section 3 - Conguration
If a connection is successfully established you will be prompted to congure your
wireless network settings. The current network names and passwords will be
displayed.
You may now rename the 2.4 GHz and 5 GHz networks. If you wish to input
dierent passwords for each network, deselect use the same password for both
networks and create new passwords.
Please be sure to note any changes you make as these credentials will be required
for wireless clients wishing to join your network.
Click Next to proceed to Congure Administrator Password, refer to page 29 for
more information, or click Back to return to the previous step.
*Wireless network names and passwords are shown for example only.
29D-Link DAP-1610 User Manual
Section 3 - Conguration
Congure Administrator Password
In order to secure the extender’s web conguration utility, please enter a new
password. You will be prompted for this password each time you want to use the
extender’s web conguration utility. Click Next to continue onward to Save Your
Conguration.
30D-Link DAP-1610 User Manual
Section 3 - Conguration
Save Your Conguration
At the end of the wizard, you will be presented with a nal summary of
your settings. It is recommended that you record this information for future
reference. Click Finish to close the wizard.
You will be asked if you wish to create a bookmark to the web conguration
utility.
Your changes will be saved and the extender will reboot.
Devices may be connected to the new wireless extension network(s) once the
extender successfully reboots.
dlink0692
dlink0692-5GHz
SecurePassword9
SecurePassword4WiFi
*Wireless network names and passwords are shown for example only.
31D-Link DAP-1610 User Manual
Section 3 - Conguration
Home
Conguration
The home screen gives a summary of the current status of devices connected to the DAP-1610. A green check between the device
and the uplink router indicates that there is an active connection. A red cross indicates that there is no connection present, or there
is a connection error. If there’s no active uplink connection, click on the Uplink Router icon to start the setup wizard.
This icon shows the status of the Internet connection to the uplink router. It is grey if the DAP-1610 is not connected to an uplink
router. Once connected, click on it to see its connection details.
Click on this icon to see details of the uplink network the DAP-1610 is connected to or connect to another uplink router..
Click on the Wi-Fi Clients icon to see client details.
Uplink Router:
DAP-1610:
Connected
Clients:
32D-Link DAP-1610 User Manual
Section 3 - Conguration
Once your Internet connection is set up, you can view the details of both the
uplink network and the extended Wi-Fi network by clicking on the DAP-1610
icon.
Upon clicking the Uplink Router icon, you will see the connection type, network
status, connection up time, network name (SSID), and password.
If you wish to connect to a dierent uplink router, press the Connect to a
dierent uplink router button.
After clicking Connect to a dierent uplink router a survey of available wireless
networks will be performed. After clicking Select you will be prompted for the
uplink router password. Enter it and click Connect.
DIR-860L
“DIR-860L-5GHz”
DIR-860L
DIR-860L-5GHz
Select
DIR-850L-5GHz
DIR-850L
33D-Link DAP-1610 User Manual
Section 3 - Conguration
Settings
Extender Settings
This page lets you congure the settings for the DAP-1610’s extended wireless network. To access this page, click the Settings drop-
down menu at the top of the page, and select Extender. Click Save to apply the settings and return to the home page.
Enable or disable this network by toggling this slider.
This is the name of the DAP-1610’s extended network.
If using Wi-Fi, the DAP-1610 will rebroadcast the uplink
router’s Internet connection under this SSID. You may also
manually set the SSID of the extended network.
Select the type of wireless security you wish to use for the
extended network. Choose None or WPA/WPA2 Personal.
Enter the password or network key that you wish to use for
the extended network.
Select Auto or any channel from 1 to 11 for use with this
network.
Select Auto 20/40 or 20 MHz for the bandwidth you wish
this network to use.
Enable or disable HT20/40 coexistence by toggling the slider.
Status:
Wi-Fi Name
(SSID):
Security:
Password:
Wi-Fi
Channel:
Channel
Width:
HT20/40
Coexistence:
2.4 GHz Extended Wi-Fi
Existing Network
Select the type of existing network, either Ethernet or Wi-Fi
you want the DAP-1610 to connect to.
Existing
Network:
34D-Link DAP-1610 User Manual
Section 3 - Conguration

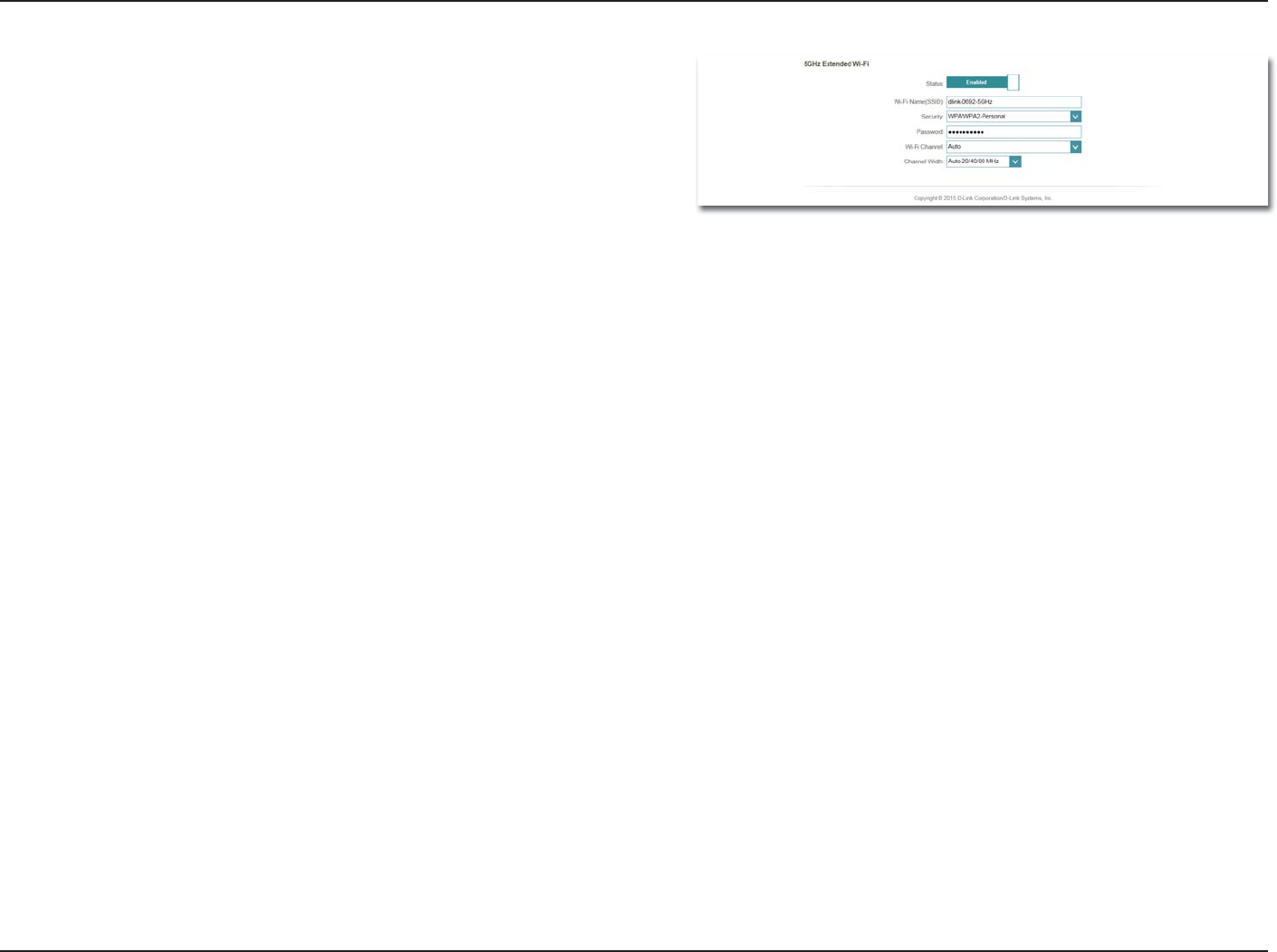

5 GHz Extended Wi-Fi
Enable or disable this 5 GHz network by toggling this slider.
This is the name of the DAP-1610’s extended network.
If using Wi-Fi, the DAP-1610 will rebroadcast the uplink
router’s Internet connection under this SSID. You may also
manually set the SSID of the extended network.
Select the type of wireless security you wish to use for the
extended network. Choose None or WPA/WPA2 Personal.
Enter the password or network key that you wish to use for
the extended 5 GHz network.
Select Auto or any channel for use with this network.
Select Auto 20/40/80, 20 MHz, or 20/40 MHz for the
bandwidth you wish this network to use.
Status:
Wi-Fi Name
(SSID):
Security:
Password:
Wi-Fi
Channel:
Channel
Width:
35D-Link DAP-1610 User Manual
Section 3 - Conguration
Network Settings
This page lets you congure the network settings for the DAP-1610. To access this page, click the Settings drop-down menu at the
top of the page, then select Network. Click Save at any time to save the changes you have made on this page.
Management
Link:
You can change the URL name of the device by editing the
text in the text box. If you change the name of the device,
you will need to enter “http://xxxx.local.” (where “xxxx”
corresponds to the name of the device) in the address bar of
your web browser in order to access the conguration utility.
Advanced Settings
The Advanced Settings section of the Network Settings page allows you to congure both IPv4 and IPv6 settings that will be used
by the DAP-1610’s extended network.
My LAN
Connection is:
IP Address:
Subnet Mask:
Gateway
Address:
Primary DNS
Server:
Secondary
DNS Server:
Here you can select whether you want the IP to have a
Dynamic IP or Static IP address. If you select Dynamic IP,
the options below will not be available.
Enter the Static IP address that you want to assign to the
extended network AP. This address should be outside of the
uplink router’s DHCP address pool.
Enter the subnet mask.
Enter the gateway address. This is usually the IP address of
the uplink router.
Enter the address of the primary DNS server.
Enter the address of the secondary DNS server. This is
optional but will provide backup if the primary server fails.
IPv4 Device Management Interface
36D-Link DAP-1610 User Manual
Section 3 - Conguration
My IPv6
Connection is:
Obtain IPv6
DNS Servers
Automatically:
Primary DNS
Server:
Secondary DNS
Server:
Select Autoconguration (SLAAC/DHCPv6) to have the
DAP-1610 automatically receive an IPv6 address from the
uplink router.
You can select to obtain IPv6 DNS server information
automatically, or you can select to congure DNS servers
manually by clicking on the radio dial next to the option.
For manual settings, enter the primary IPv6 DNS server
address.
For manual settings, enter the secondary IPv6 DNS server
address. This is optional but will provide backup if the
primary server fails.
IPv6 Device Management Interface
Autoconguration (SLAAC/DHCPv6)
37D-Link DAP-1610 User Manual
Section 3 - Conguration
My IPv6
Connection is:
IPv6 Address:
Subnet Prex
Length:
Default Gateway:
Primary DNS
Server:
Secondary DNS
Server:
Select Static IPv6 to manually assign an IP address to the
DAP-1610.
Enter the IPv6 address that you want to assign to the
extended network AP. This address should be outside of the
uplink router’s DHCP address pool.
Enter the length of the IPv6 subnet prex.
Enter the default gateway.
Enter the primary IPv6 DNS server address.
Enter the secondary IPv6 DNS server address. This is optional
but will provide backup if the primary server fails.
Static IPv6
IPv6 Device Management Interface
38D-Link DAP-1610 User Manual
Section 3 - Conguration
My IPv6
Connection is:
LAN IPv6 Link-
Local Address:
Select Link-local only to only set an IPv6 address for the
local network.
The link-local address of the DAP-1610.
Link-local Only
IPv6 Device Management Interface
39D-Link DAP-1610 User Manual
Section 3 - Conguration
This page will allow you to set a new password for the administrator account used to congure the DAP-1610. You can also enable
graphical authentication (CAPTCHA) on this page. To access this page, click the Management drop down menu at the top of the
page, and select Admin. Click Save at any time to save the changes you have made on this page.
Enter the Admin password.
Click on the slider to enable graphical authentication,
or CAPTCHA. This provides an extra layer of security by
requiring you to enter a code that is displayed on-screen. This
can help prevent unauthorized users from gaining access to
your wireless network using automated methods.
Admin
Password:
Enable
Graphical
Authentication:
Management
Admin
Note: The device will reboot after saving the changes in order for the
password to take eect.
40D-Link DAP-1610 User Manual
Section 3 - Conguration
Save the system settings onto a le to the local hard drive.
You will then see a le dialog where you can select a location
and enter a le name for the conguration le.
Load the system settings from a previously saved le on the
local hard drive.
Restore the system settings to factory default settings. This
will erase all currently stored settings.
Click Reboot to reboot the DAP-1610.
Save Settings
To Local Hard
Drive:
Load Settings
From Local
Hard Drive:
Restore
to Factory
Default
Settings:
Reboot the
Device:
System
This page allows you to save or restore your system conguration, reset, or reboot the DAP-1610. To access this page, click the
Management drop down menu at the top of the page, and select System. Click Save at any time to save the changes you have
made on this page.
41D-Link DAP-1610 User Manual
Section 3 - Conguration
Upgrade
Firmware and language upgrades may be provided for the DAP-1610 in the future. You can check and upgrade your rmware
and language pack on this page. To access this page, click the Management drop down menu at the top of the page, and select
Upgrade. Click Save at any time to save the changes you have made on this page.
Firmware Information
Upgrade Manually
Click Select File to locate the rmware le on your computer
and perform a manual rmware upgrade.
Upgrade
Firmware:
This section displays the currently installed rmware version,
as well as the date on which the current rmware version
was released.
Click Check For New Firmware to nd out if there is new or
updated rmware. If there is, you can download it to your
computer.
Firmware
Information:
42D-Link DAP-1610 User Manual
Section 3 - Conguration
This page displays details about your wireless and network connections. To access this page, click the Management drop- down
menu at the top of the page, and select Statistics. Click Clear to reset the statistics.
Statistics
The Blue line indicates the upload speeds and the red line indicates the
download speeds.
The table displays the following in real-time:
• Total Packets
• Total Byte(s)
• Total Kbit(s)
• Kbits/sec
Wi-Fi
Click on the Wi-Fi tab to display the statistics for the connection between
the DAP-1610 and the uplink router.
Extended Wi-Fi
Click on the Extended Wi-Fi tab to display the statistics for the connection
between the DAP-1610 and any connected clients.
43D-Link DAP-1610 User Manual
Section 4 - Connecting a Wireless Client
Connecting Wireless Clients to the Extended
Network
WPS Button
Once an uplink network has been established, you may use the DAP-1610’s WPS function to add additional wireless clients to your
extended network. Many wireless devices such as wireless routers, media players, printers, and cameras will have a WPS button (or a
software utility with WPS) that you can press to connect to the DAP-1610. Please refer to the user manual for the wireless device you
want to connect to make sure you understand how to enable WPS. Once you know, follow the steps below:
Step 1 - Press the WPS button on the DAP-1610 for about 1 second. The LED on the
device will start to blink. You can also use the WPS option in the setup wizard
section of the web interface.
Step 2 - Within 120 seconds, press the WPS button on your wireless device.
Step 3 - Allow up to 1 minute to congure. Once the LED light stops blinking and
turns solid green, you will be connected and your wireless connection will be
secured with WPA2.
e
s
t
eps
b
e
l
ow:
44D-Link DAP-1610 User Manual
Section 4 - Connecting a Wireless Client
Windows® 8
WPA/WPA2
It is recommended to enable wireless security (WPA/WPA2) on your wireless router or extender before conguring your wireless
adapter. If you are joining an existing network, you will need to know the security key (Wi-Fi password) being used.
To join an existing network, locate the wireless network icon in the
taskbar, next to the time display.
Wireless Icon
Clicking on this icon will display a list of wireless networks which are
within connecting proximity of your computer. Select the desired
network by clicking on the network name.
45D-Link DAP-1610 User Manual
Section 4 - Connecting a Wireless Client
You will then be prompted to enter the network security key (Wi-Fi
password) for the wireless network. Enter the password into the box and
click Next.
If you wish to use Wi-Fi Protected Setup (WPS) to connect to the router,
you can also press the WPS button on your router at this point to enable
the WPS function.
When you have established a successful connection with a wireless
network, the word Connected will appear next to the name of the
network to which you are connected.
46D-Link DAP-1610 User Manual
Section 4 - Connecting a Wireless Client
Windows® 7
It is recommended to enable wireless security (WPA/WPA2) on your wireless router or extender before conguring your wireless
adapter. If you are joining an existing network, you will need to know the security key or passphrase being used.
1. Click on the wireless icon in your system tray (lower-right corner).
2. The utility will display any available wireless networks in your area.
Wireless Icon
WPA/WPA2
47D-Link DAP-1610 User Manual
Section 4 - Connecting a Wireless Client
3. Highlight the wireless network (SSID) you would like to connect to
and click the Connect button.
If you get a good signal but cannot access the Internet, check your
TCP/IP settings for your wireless adapter. Refer to the Wireless Basics
section in this manual for more information.
4. The following window appears while your computer tries to connect
to the router.
48D-Link DAP-1610 User Manual
Section 4 - Connecting a Wireless Client
5. Enter the same security key or passphrase that is on your router and
click Connect.
It may take 20-30 seconds to connect to the wireless network. If the
connection fails, please verify that the security settings are correct. The
key or passphrase must be exactly the same as on the wireless router.
49D-Link DAP-1610 User Manual
Section 4 - Connecting a Wireless Client
Windows Vista®
Windows Vista® users may use the built-in wireless utility. If you are using another company’s utility or Windows® 2000, please refer
to the user manual of your wireless adapter for help with connecting to a wireless network. Most utilities will have a “site survey”
option similar to the Windows Vista® utility as seen below.
Right-click on the wireless computer icon in your system tray (lower-
right corner next to the time). Select Connect to a network.

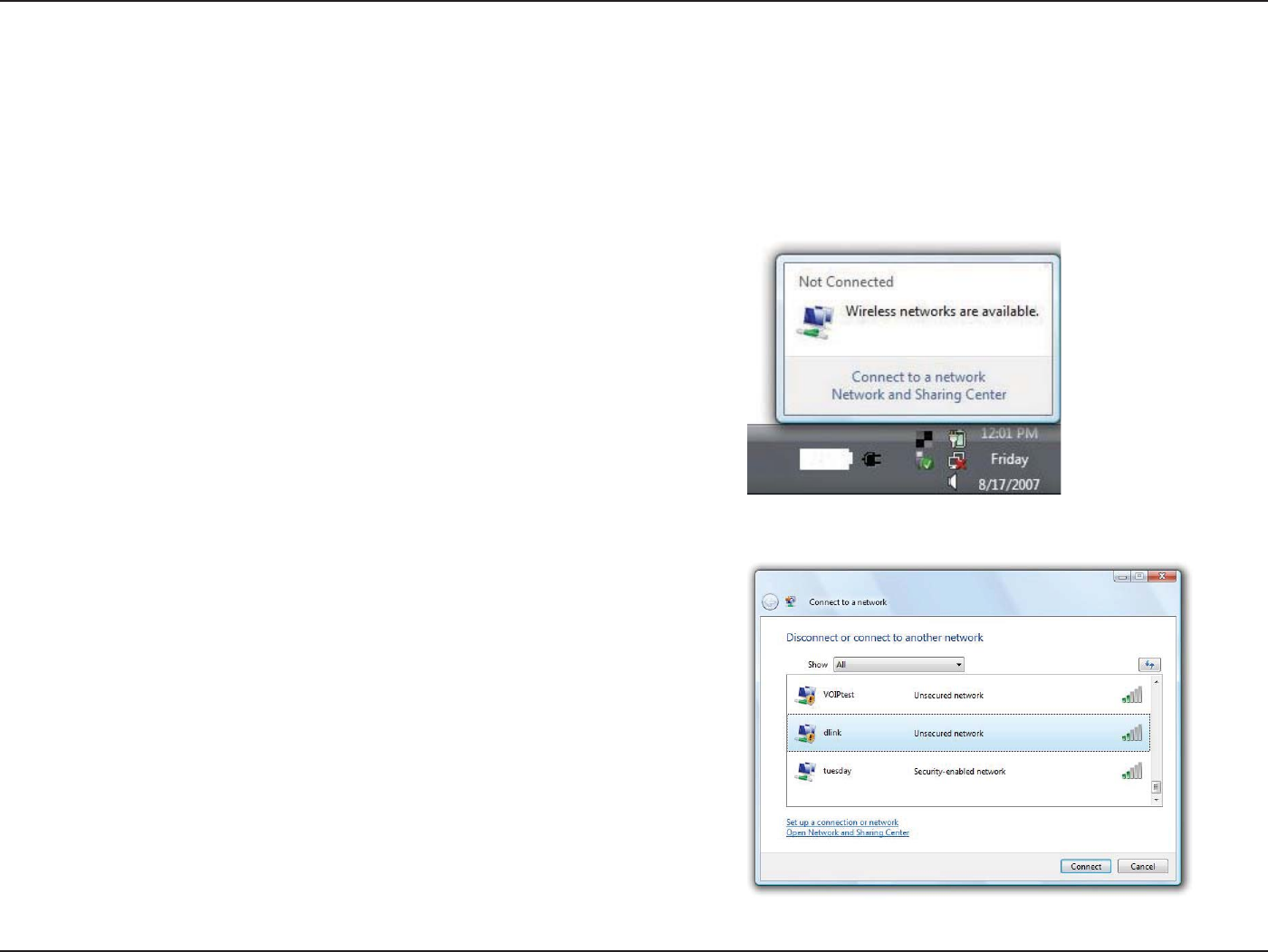

If you receive the “Wireless Networks Are Available” bubble, click on the
center of the bubble to access the utility.
or
The utility will display any available wireless networks in your area. Click
on a network (displayed using the SSID) and click Connect.
If you get a good signal but cannot access the Internet, check the TCP/
IP settings for your wireless adapter. Refer to “Troubleshooting” on page 52
for more information.
50D-Link DAP-1610 User Manual
Section 4 - Connecting a Wireless Client
WPA/WPA2
2. Highlight the wireless network (SSID) you would like to connect to
and click Connect.
1. Open the Windows Vista® Wireless Utility by right-clicking on the
wireless computer icon in your system tray (lower right corner of
screen). Select Connect to a network.
It is recommended to enable wireless security (WPA/WPA2) on your wireless router or extender before conguring your wireless
adapter. If you are joining an existing network, you will need to know the security key or passphrase being used.
51D-Link DAP-1610 User Manual
Section 4 - Connecting a Wireless Client
3. Enter the same security key or passphrase that is on your router and
click Connect.
It may take 20-30 seconds to connect to the wireless network. If the
connection fails, please verify that the security settings are correct. The
key or passphrase must be exactly the same as on the wireless router.
52D-Link DAP-1610 User Manual
Section 5 - Troubleshooting
Troubleshooting
This chapter provides solutions to problems that can occur during the installation and operation of the DAP-1610. Read the
following descriptions if you are having problems. The examples below are illustrated in Windows® XP. If you have a dierent
operating system, the screenshots on your computer will look similar to the following examples.
1. Why can’t I access the web-based conguration utility?
When entering the IP address of the AC1200 Wi-Fi Range Extender (dlinkap.local for example), you are not connecting to a website
nor do you have to be connected to the Internet. The device has the utility built-in to a ROM chip in the device itself. Your computer
must be on the same IP subnet to connect to the web-based utility.
• Make sure you have an updated Java-enabled web browser. We recommend the following:
• Internet Explorer 9 or later
• Firefox 20.0 or later
• Safari 5.1 or later
• Google Chrome 25.0 or later
• Make sure that you are connected to the same wireless network which is listed on the base of the DAP-1610. If you have an active
wired LAN Ethernet connection, try temporarily unplugging the Ethernet cable from the computer you are using, as this may
eliminate possible conicts from having two simultaneous connections on the same computer.
• Disable any Internet security software running on the computer. Software rewalls such as ZoneAlarm, BlackICE, Sygate, Norton
Personal Firewall, and Windows® XP rewall may block access to the conguration pages. Check the help les included with your
rewall software for more information on disabling or conguring it.
53D-Link DAP-1610 User Manual
Section 5 - Troubleshooting
• Congure your Internet settings:
• Go to Start > Settings > Control Panel. Double-click the Internet Options Icon. From the Security tab, click the button to restore
the settings to their defaults.
• Click the Connection tab and set the dial-up option to Never Dial a Connection. Click the LAN Settings button. Make sure nothing
is checked. Click OK.
• Go to the Advanced tab and click the button to restore these settings to their defaults. Click OK three times.
• Close your web browser (if open) and open it.
• Access the web management interface. Open your web browser and enter the address of your extender
(http://dlinkap.local) in the address bar. This should open the login page for your web management. If the DAP-1610 is not
connected to an uplink router, you can try accessing the web interface using the default IP address http://192.168.0.50.
• If you still cannot access the conguration, unplug the extender from the power outlet for at least 10 seconds and plug it back
in. Wait about 30 seconds and try accessing the conguration. If you have multiple computers, try connecting using a dierent
computer.
2. What can I do if I forgot my password?
If you forgot your password, you must reset your extender. Unfortunately this process will change all your settings back to the
factory defaults.
To reset the extender, locate the reset button (hole) on the underside panel of the unit. With the extender powered on, use a
paperclip to hold the button down until the status LED turns red. Release the button and the extender will go through its reboot
process (indicated by the LED turning red). Wait about 30 seconds to access the extender. The default IP address is
http://dlinkap.local. When logging in, the username is admin and leave the password box empty.
54D-Link DAP-1610 User Manual
Appendix A - Wireless Basics
D-Link wireless products are based on industry standards to provide easy-to-use and compatible high-speed wireless connectivity
within your home, business or public access wireless networks. Strictly adhering to the IEEE standard, the D-Link wireless family
of products will allow you to securely and conveniently access your network. You will be able to enjoy the freedom that wireless
networking delivers.
A wireless local area network (WLAN) is a cellular computer network that transmits and receives data with radio signals instead of
wires. Wireless LANs are used increasingly in both home and oce environments, and public areas such as airports, coee shops
and universities. Innovative ways to utilize WLAN technology are helping people to work and communicate more eciently.
Increased mobility and the absence of cabling and other xed infrastructure have proven to be benecial for many users.
Wireless users can use the same applications they use on a wired network. Wireless adapters used on laptop and desktop systems
support the same protocols as Ethernet adapter cards.
Under many circumstances, it may be desirable for mobile network devices to link to a conventional Ethernet LAN in order to use
servers, printers or an Internet connection supplied through the wired LAN. A wireless router is a device used to provide this link.
Wireless Basics
55D-Link DAP-1610 User Manual
Appendix A - Wireless Basics
Tips
Here are a few things to keep in mind when you are installing your AC1200 Wi-Fi Range Extender.
Centralize the extender’s location
For best performance, make sure you place the extender in a centralized location within your desired usage area. Try to place the
extender so that there are minimal obstructions between it and the uplink router. If possible, use an elevated power outlet, so the
signal can be dispersed more easily. If you have a large home or usage area, you may need several extenders in order to achieve
optimal coverage.
Eliminate Interference
Place home appliances such as cordless telephones, microwaves, and televisions as far away as possible from the extender. This can
signicantly reduce any interference that the appliances might cause since they operate on same frequency.
Security
Don’t let your neighbors or intruders connect to your wireless network. Secure your wireless network by utilizing the WPA or WEP
security feature on the extender and uplink router. Refer to the relevant sections of this manual for further details.
56D-Link DAP-1610 User Manual
Appendix B - Technical Specications
Technical Specications
Standards
• IEEE 802.11ac
• IEEE 802.11a
• IEEE 802.11n
• IEEE 802.11g
Wireless Frequency Range 1
• 2.4 GHz to 2.4835 GHz
• 5.18 MHz to 5.85 MHz
Device Interfaces
• 802.11ac/n/g/a Wireless LAN
• 10/100 Fast Ethernet Port
• Reset Button
• WPS Button
Antenna
• External Antenna
Security
• Wi-Fi Protected Access (WPA/WPA2)
• Wi-Fi Protected Setup (WPS)
• Wired Equivalent Privacy (WEP) 64/128-bit
Advanced Features
• QRS Mobile setup app for iOS and Android devices
Device Management
• Web UI
Diagnostic LEDs
• Status/WPS
• 3 Segment Wi-Fi Signal Strength Indicator
Operating Temperature
• 0 to 40 ˚C (32 to 104 ˚F)
Storage Temperature
• Storage: -20 to 65 °C (-4 to 149 °F)
Operating Humidity
• 0% to 90% non-condensing
Storage Humidity
• 5% to 95% non-condensing
Power Input
• AC 100-240V 0.3A Max
Maximum Power Consumption
• 7.5 W
Certications
• FCC
• CE
• IC
• RCM
• UL
• IDA
• PSB
• CB
Dimensions
• 50 x 97 x 48 mm
Weight
• 139 grams (4.9 ounces)
1 Frequency range varies depending on local regulations
57D-Link DAP-1610 User Manual
Appendix C - GPL Code Statement
GPL Code Statement
This D-Link product includes software code developed by third parties, including software code subject to the GNU General
Public License (“GPL”) or GNU Lesser General Public License (“LGPL”). As applicable, the terms of the GPL and LGPL, and
information on obtaining access to the GPL code and LGPL code used in this product, are available to you at:
http://tsd.dlink.com.tw/GPL.asp
The GPL code and LGPL code used in this product is distributed WITHOUT ANY WARRANTY and is subject to the copyrights
of one or more authors. For details, see the GPL code and the LGPL code for this product and the terms of the GPL and LGPL.
WRITTEN OFFER FOR GPL AND LGPL SOURCE CODE
Where such specic license terms entitle you to the source code of such software, D-Link will provide upon written request
via email and/or traditional paper mail the applicable GPL and LGPLsource code les via CD-ROM for a nominal cost to cover
shipping and media charges as allowed under the GPL and LGPL.
Please direct all inquiries to:
Email: GPLCODE@DLink.com
Snail Mail:
Attn: GPLSOURCE REQUEST
D-Link Systems, Inc.
17595 Mt. Herrmann Street
Fountain Valley, CA 92708
GNU GENERAL PUBLIC LICENSE
Version 3, 29 June 2007
Copyright (C) 2007 Free Software Foundation, Inc. http://fsf.org/ Everyone is permitted to copy and distribute verbatim copies
of this license document, but changing it is not allowed.
58D-Link DAP-1610 User Manual
Appendix C - GPL Code Statement
Preamble
The GNU General Public License is a free, copyleft license for software and other kinds of works.
The licenses for most software and other practical works are designed to take away your freedom to share and change the
works. By contrast, the GNU General Public License is intended to guarantee your freedom to share and change all versions
of a program--to make sure it remains free software for all its users. We, the Free Software Foundation, use the GNU General
Public License for most of our software; it applies also to any other work released this way by its authors. You can apply it to
your programs, too.
When we speak of free software, we are referring to freedom, not price. Our General Public Licenses are designed to make
sure that you have the freedom to distribute copies of free software (and charge for them if you wish), that you receive source
code or can get it if you want it, that you can change the software or use pieces of it in new free programs, and that you know
you can do these things.
To protect your rights, we need to prevent others from denying you these rights or asking you to surrender the rights. Therefore,
you have certain responsibilities if you distribute copies of the software, or if you modify it: responsibilities to respect the
freedom of others.
For example, if you distribute copies of such a program, whether gratis or for a fee, you must pass on to the recipients the
same freedoms that you received. You must make sure that they, too, receive or can get the source code. And you must show
them these terms so they know their rights.
Developers that use the GNU GPL protect your rights with two steps:
(1) assert copyright on the software, and (2) oer you this License giving you legal permission to copy, distribute and/or
modify it.
For the developers’ and authors’ protection, the GPL clearly explains that there is no warranty for this free software. For both
users’ and authors’ sake, the GPL requires that modied versions be marked as changed, so that their problems will not be
attributed erroneously to authors of previous versions.
Some devices are designed to deny users access to install or run modied versions of the software inside them, although
the manufacturer can do so. This is fundamentally incompatible with the aim of protecting users’ freedom to change the
software. The systematic pattern of such abuse occurs in the area of products for individuals to use, which is precisely where it
is most unacceptable. Therefore, we have designed this version of the GPL to prohibit the practice for those products. If such
problems arise substantially in other domains, we stand ready to extend this provision to those domains in future versions of
the GPL, as needed to protect the freedom of users.
59D-Link DAP-1610 User Manual
Appendix C - GPL Code Statement
Finally, every program is threatened constantly by software patents. States should not allow patents to restrict development
and use of software on general-purpose computers, but in those that do, we wish to avoid the special danger that patents
applied to a free program could make it eectively proprietary. To prevent this, the GPL assures that patents cannot be used
to render the program non-free.
The precise terms and conditions for copying, distribution and modication follow.
TERMS AND CONDITIONS
0. Denitions.
“This License” refers to version 3 of the GNU General Public License.
“Copyright” also means copyright-like laws that apply to other kinds of works, such as semiconductor masks.
“The Program” refers to any copyrightable work licensed under this License. Each licensee is addressed as “you”. “Licensees”
and “recipients” may be individuals or organizations.
To “modify” a work means to copy from or adapt all or part of the work in a fashion requiring copyright permission, other
than the making of an exact copy. The resulting work is called a “modied version” of the earlier work or a work “based on” the
earlier work.
A “covered work” means either the unmodied Program or a work based on the Program.
To “propagate” a work means to do anything with it that, without permission, would make you directly or secondarily liable
for infringement under applicable copyright law, except executing it on a computer or modifying a private copy. Propagation
includes copying, distribution (with or without modication), making available to the public, and in some countries other
activities as well.
To “convey” a work means any kind of propagation that enables other parties to make or receive copies. Mere interaction with
a user through a computer network, with no transfer of a copy, is not conveying.
An interactive user interface displays “Appropriate Legal Notices” to the extent that it includes a convenient and prominently
visible feature that (1) displays an appropriate copyright notice, and (2) tells the user that there is no warranty for the work
(except to the extent that warranties are provided), that licensees may convey the work under this License, and how to view a
copy of this License. If the interface presents a list of user commands or options, such as a menu, a prominent item in the list
meets this criterion.
60D-Link DAP-1610 User Manual
Appendix C - GPL Code Statement
1. Source Code.
The “source code” for a work means the preferred form of the work for making modications to it. “Object code” means any
non-source form of a work.
A “Standard Interface” means an interface that either is an ocial standard dened by a recognized standards body, or, in the
case of interfaces specied for a particular programming language, one that is widely used among developers working in that
language.
The “System Libraries” of an executable work include anything, other than the work as a whole, that (a) is included in the
normal form of packaging a Major Component, but which is not part of that Major Component, and (b) serves only to enable
use of the work with that Major Component, or to implement a Standard Interface for which an implementation is available
to the public in source code form. A “Major Component”, in this context, means a major essential component (kernel, window
system, and so on) of the specic operating system (if any) on which the executable work runs, or a compiler used to produce
the work, or an object code interpreter used to run it.
The “Corresponding Source” for a work in object code form means all the source code needed to generate, install, and (for
an executable work) run the object code and to modify the work, including scripts to control those activities. However, it
does not include the work’s System Libraries, or general-purpose tools or generally available free programs which are used
unmodied in performing those activities but which are not part of the work. For example, Corresponding Source includes
interface denition les associated with source les for the work, and the source code for shared libraries and dynamically
linked subprograms that the work is specically designed to require, such as by intimate data communication or control ow
between those subprograms and other parts of the work.
The Corresponding Source need not include anything that users can regenerate automatically from other parts of the
Corresponding Source.
The Corresponding Source for a work in source code form is that same work.
61D-Link DAP-1610 User Manual
Appendix C - GPL Code Statement
2. Basic Permissions.
All rights granted under this License are granted for the term of copyright on the Program, and are irrevocable provided
the stated conditions are met. This License explicitly arms your unlimited permission to run the unmodied Program. The
output from running a covered work is covered by this License only if the output, given its content, constitutes a covered
work. This License acknowledges your rights of fair use or other equivalent, as provided by copyright law.
You may make, run and propagate covered works that you do not convey, without conditions so long as your license other-
wise remains in force. You may convey covered works to others for the sole purpose of having them make modications exclu-
sively for you, or provide you with facilities for running those works, provided that you comply with the terms of this License
in conveying all material for which you do not control copyright. Those thus making or running the covered works for you
must do so exclusively on your behalf, under your direction and control, on terms that prohibit them from making any copies
of your copyrighted material outside their relationship with you.
Conveying under any other circumstances is permitted solely under the conditions stated below. Sublicensing is not allowed;
section 10 makes it unnecessary.
3. Protecting Users’ Legal Rights From Anti-Circumvention Law.
No covered work shall be deemed part of an eective technological measure under any applicable law fullling obligations
under article 11 of the WIPO copyright treaty adopted on 20 December 1996, or similar laws prohibiting or restricting
circumvention of such measures.
When you convey a covered work, you waive any legal power to forbid circumvention of technological measures to the extent
such circumvention
is eected by exercising rights under this License with respect to the covered work, and you disclaim any intention to limit
operation or modication of the work as a means of enforcing, against the work’s users, your or third parties’ legal rights to
forbid circumvention of technological measures.
62D-Link DAP-1610 User Manual
Appendix C - GPL Code Statement
4. Conveying Verbatim Copies.
You may convey verbatim copies of the Program’s source code as you receive it, in any medium, provided that you conspicuously
and appropriately publish on each copy an appropriate copyright notice; keep intact all notices stating that this License and
any non-permissive terms added in accord with section 7 apply to the code; keep intact all notices of the absence of any
warranty; and give all recipients a copy of this License along with the Program.
You may charge any price or no price for each copy that you convey, and you may oer support or warranty protection for a
fee.
5. Conveying Modied Source Versions.
You may convey a work based on the Program, or the modications to produce it from the Program, in the form of source
code under the terms of section 4, provided that you also meet all of these conditions:
a) The work must carry prominent notices stating that you modied it, and giving a relevant date.
b) The work must carry prominent notices stating that it is released under this License and any conditions added
under section 7. This requirement modies the requirement in section 4 to “keep intact all notices”.
c) You must license the entire work, as a whole, under this License to anyone who comes into possession of a
copy. This License will therefore apply, along with any applicable section 7 additional terms, to the whole of
the work, and all its parts, regardless of how they are packaged. This License gives no permission to license the
work in any other way, but it does not invalidate such permission if you have separately received it.
d) If the work has interactive user interfaces, each must display Appropriate Legal Notices; however, if the Program
has interactive interfaces that do not display Appropriate Legal Notices, your work need not make them do so.
A compilation of a covered work with other separate and independent works, which are not by their nature extensions of
the covered work, and which are not combined with it such as to form a larger program, in or on a volume of a storage or
distribution medium, is called an “aggregate” if the compilation and its resulting copyright are not used to limit the access or
legal rights of the compilation’s users beyond what the individual works permit. Inclusion of a covered work in an aggregate
does not cause this License to apply to the other parts of the aggregate.
63D-Link DAP-1610 User Manual
Appendix C - GPL Code Statement
6. Conveying Non-Source Forms.
You may convey a covered work in object code form under the terms of sections 4 and 5, provided that you also convey the
machine-readable Corresponding Source under the terms of this License, in one of these ways:
a) Convey the object code in, or embodied in, a physical product (including a physical distribution medium),
accompanied by the Corresponding Source xed on a durable physical medium customarily used for software
interchange.
b) Convey the object code in, or embodied in, a physical product (including a physical distribution medium),
accompanied by a written oer, valid for at least three years and valid for as long as you oer spare parts or
customer support for that product model, to give anyone who possesses the object code either (1) a copy
of the Corresponding Source for all the software in the product that is covered by this License, on a durable
physical medium customarily used for software interchange, for a price no more than your reasonable cost of
physically performing this conveying of source, or (2) access to copy the Corresponding Source from a network
server at no charge.
c) Convey individual copies of the object code with a copy of the written oer to provide the Corresponding
Source. This alternative is allowed only occasionally and noncommercially, and only if you received the object
code with such an oer, in accord with subsection 6 b.
d) Convey the object code by oering access from a designated place (gratis or for a charge), and oer equivalent
access to the Corresponding Source in the same way through the same place at no further charge. You need
not require recipients to copy the Corresponding Source along with the object code. If the place to copy the
object code is a network server, the Corresponding Source may be on a dierent server (operated by you or
a third party) that supports equivalent copying facilities, provided you maintain clear directions next to the
object code saying where to nd the Corresponding Source. Regardless of what server hosts the Corresponding
Source, you remain obligated to ensure that it is available for as long as needed to satisfy these requirements.
e) Convey the object code using peer-to-peer transmission, provided you inform other peers where the object
code and Corresponding Source of the work are being oered to the general public at no charge under
subsection 6d.
A separable portion of the object code, whose source code is excluded from the Corresponding Source as a System
Library, need not be included in conveying the object code work.
64D-Link DAP-1610 User Manual
Appendix C - GPL Code Statement
A “User Product” is either (1) a “consumer product”, which means any tangible personal property which is normally used for
personal, family, or household purposes, or (2) anything designed or sold for incorporation into a dwelling. In determining
whether a product is a consumer product, doubtful cases shall be resolved in favor of coverage. For a particular product
received by a particular user, “normally used” refers to a typical or common use of that class of product, regardless of the status
of the particular user or of the way in which the particular user actually uses, or expects or is expected to use, the product. A
product is a consumer product regardless of whether the product has substantial commercial, industrial or non-consumer
uses, unless such uses represent the only signicant mode of use of the product.
“Installation Information” for a User Product means any methods, procedures, authorization keys, or other information required
to install and execute modied versions of a covered work in that User Product from a modied version of its Corresponding
Source. The information must suce to ensure that the continued functioning of the modied object code is in no case
prevented or interfered with solely because modication has been made.
If you convey an object code work under this section in, or with, or specically for use in, a User Product, and the conveying
occurs as part of a transaction in which the right of possession and use of the User Product is transferred to the recipient in
perpetuity or for a xed term (regardless of how the transaction is characterized), the Corresponding Source conveyed under
this section must be accompanied by the Installation Information. But this requirement does not apply if neither you nor any
third party retains the ability to install modied object code on the User Product (for example, the work has been installed in
ROM).
The requirement to provide Installation Information does not include a requirement to continue to provide support service,
warranty, or updates for a work that has been modied or installed by the recipient, or for the User Product in which it has
been modied or installed. Access to a network may be denied when the modication itself materially and adversely aects
the operation of the network or violates the rules and protocols for communication across the network.
Corresponding Source conveyed, and Installation Information provided, in accord with this section must be in a format that is
publicly documented (and with an implementation available to the public in source code form), and must require no special
password or key for unpacking, reading or copying.
65D-Link DAP-1610 User Manual
Appendix C - GPL Code Statement
7. Additional Terms.
“Additional permissions” are terms that supplement the terms of this License by making exceptions from one or more of its
conditions. Additional permissions that are applicable to the entire Program shall be treated as though they were included in
this License, to the extent that they are valid under applicable law. If additional permissions apply only to part of the Program,
that part may be used separately under those permissions, but the entire Program remains governed by this License without
regard to the additional permissions.
When you convey a copy of a covered work, you may at your option remove any additional permissions from that copy, or
from any part of it. (Additional permissions may be written to require their own removal in certain cases when you modify
the work). You may place additional permissions on material, added by you to a covered work, for which you have or can give
appropriate copyright permission.
Notwithstanding any other provision of this License, for material you add to a covered work, you may (if authorized by the
copyright holders of that material) supplement the terms of this License with terms:
a) Disclaiming warranty or limiting liability dierently from the terms of sections 15 and 16 of this License; or
b) Requiring preservation of specied reasonable legal notices or author attributions in that material or in the
Appropriate Legal Notices displayed by works containing it; or
c) Prohibiting misrepresentation of the origin of that material, or requiring that modied versions of such material
be marked in reasonable ways as dierent from the original version; or
d) Limiting the use for publicity purposes of names of licensors or authors of the material; or
e) Declining to grant rights under trademark law for use of some trade names, trademarks, or service marks; or
f) Requiring indemnication of licensors and authors of that material by anyone who conveys the material (or
modied versions of it) with contractual assumptions of liability to the recipient, for any liability that these
contractual assumptions directly impose on those licensors and authors.
66D-Link DAP-1610 User Manual
Appendix C - GPL Code Statement
All other non-permissive additional terms are considered “further restrictions” within the meaning of section 10. If the Program
as you received it, or any part of it, contains a notice stating that it is governed by this License along with a term that is a
further restriction, you may remove that term. If a license document contains a further restriction but permits relicensing
or conveying under this License, you may add to a covered work material governed by the terms of that license document,
provided that the further restriction does not survive such relicensing or conveying.
If you add terms to a covered work in accord with this section, you must place, in the relevant source les, a statement of the
additional terms that apply to those les, or a notice indicating where to nd the applicable terms.
Additional terms, permissive or non-permissive, may be stated in the form of a separately written license, or stated as
exceptions; the above requirements apply either way.
8. Termination.
You may not propagate or modify a covered work except as expressly provided under this License. Any attempt otherwise to
propagate or modify it is void, and will automatically terminate your rights under this License (including any patent licenses
granted under the third paragraph of section 11).
However, if you cease all violation of this License, then your license from a particular copyright holder is reinstated (a)
provisionally, unless and until the copyright holder explicitly and nally terminates your license, and (b) permanently, if the
copyright holder fails to notify you of the violation by some reasonable means prior to 60 days after the cessation.
Moreover, your license from a particular copyright holder is reinstated permanently if the copyright holder noties you of the
violation by some reasonable means, this is the rst time you have received notice of violation of this License (for any work)
from that copyright holder, and you cure the violation prior to 30 days after your receipt of the notice.
Termination of your rights under this section does not terminate the licenses of parties who have received copies or rights
67D-Link DAP-1610 User Manual
Appendix C - GPL Code Statement
from you under this License. If your rights have been terminated and not permanently reinstated, you do not qualify to receive
new licenses for the same material under section 10.
9. Acceptance Not Required for Having Copies.
You are not required to accept this License in order to receive or run a copy of the Program. Ancillary propagation of a covered
work occurring solely as a consequence of using peer-to-peer transmission to receive a copy likewise does not require
acceptance. However, nothing other than this License grants you permission to propagate or modify any covered work. These
actions infringe copyright if you do not accept this License. Therefore, by modifying or propagating a covered work, you
indicate your acceptance of this License to do so.
10. Automatic Licensing of Downstream Recipients.
Each time you convey a covered work, the recipient automatically receives a license from the original licensors, to run, modify
and propagate that work, subject to this License. You are not responsible for enforcing compliance by third parties with this
License.
An “entity transaction” is a transaction transferring control of an organization, or substantially all assets of one, or subdividing
an organization, or merging organizations. If propagation of a covered work results from an entity transaction, each party
to that transaction who receives a copy of the work also receives whatever licenses to the work the party’s predecessor in
interest had or could give under the previous paragraph, plus a right to possession of the Corresponding Source of the work
from the predecessor in interest, if the predecessor has it or can get it with reasonable eorts.
You may not impose any further restrictions on the exercise of the rights granted or armed under this License. For example,
you may not impose a license fee, royalty, or other charge for exercise of rights granted under this License, and you may not
initiate litigation (including a cross-claim or counterclaim in a lawsuit) alleging that any patent claim is infringed by making,
using, selling, oering for sale, or importing the Program or any portion of it.
68D-Link DAP-1610 User Manual
Appendix C - GPL Code Statement
11. Patents.
A “contributor” is a copyright holder who authorizes use under this License of the Program or a work on which the Program is
based. The work thus licensed is called the contributor’s “contributor version”.
A contributor’s “essential patent claims” are all patent claims owned or controlled by the contributor, whether already acquired
or hereafter acquired, that would be infringed by some manner, permitted by this License, of making, using, or selling its
contributor version, but do not include claims that would be infringed only as a consequence of further modication of
the contributor version. For purposes of this denition, “control” includes the right to grant patent sublicenses in a manner
consistent with the requirements of this License.
Each contributor grants you a non-exclusive, worldwide, royalty-free patent license under the contributor’s essential patent
claims, to make, use, sell, oer for sale, import and otherwise run, modify and propagate the contents of its contributor version.
In the following three paragraphs, a “patent license” is any express agreement or commitment, however denominated, not to
enforce a patent (such as an express permission to practice a patent or covenant not to sue for patent infringement). To “grant”
such a patent license to a party means to make such an agreement or commitment not to enforce a patent against the party.
If you convey a covered work, knowingly relying on a patent license, and the Corresponding Source of the work is not available
for anyone to copy, free of charge and under the terms of this License, through a publicly available network server or other
readily accessible means, then you must either (1) cause the Corresponding Source to be so available, or (2) arrange to deprive
yourself of the benet of the patent license for this particular work, or (3) arrange, in a manner consistent with the requirements
of this License, to extend the patent license to downstream recipients. “Knowingly relying” means you have actual knowledge
that, but for the patent license, your conveying the covered work in a country, or your recipient’s use of the covered work in a
country, would infringe one or more identiable patents in that country that you have reason to believe are valid.
If, pursuant to or in connection with a single transaction or arrangement, you convey, or propagate by procuring conveyance
of, a covered work, and grant a patent license to some of the parties receiving the covered work authorizing them to use,
propagate, modify or convey a specic copy of the covered work, then the patent license you grant is automatically extended
to all recipients of the covered work and works based on it.
69D-Link DAP-1610 User Manual
Appendix C - GPL Code Statement
A patent license is “discriminatory” if it does not include within the scope of its coverage, prohibits the exercise of, or is
conditioned on the non-exercise of one or more of the rights that are specically granted under this License. You may not
convey a covered work if you are a party to an arrangement with a third party that is in the business of distributing software,
under which you make payment to the third party based on the extent of your activity of conveying the work, and under which
the third party grants, to any of the parties who would receive the covered work from you, a discriminatory patent license (a)
in connection with copies of the covered work conveyed by you (or copies made from those copies), or (b) primarily for and in
connection with specic products or compilations that contain the covered work, unless you entered into that arrangement,
or that patent license was granted, prior to 28 March 2007.
Nothing in this License shall be construed as excluding or limiting any implied license or other defenses to infringement that
may otherwise be available to you under applicable patent law.
12. No Surrender of Others’ Freedom.
If conditions are imposed on you (whether by court order, agreement or otherwise) that contradict the conditions of this
License, they do not excuse you from the conditions of this License. If you cannot convey a covered work so as to satisfy
simultaneously your obligations under this License and any other pertinent obligations, then as a consequence you may not
convey it at all. For example, if you agree to terms that obligate you to collect a royalty for further conveying from those to
whom you convey the Program, the only way you could satisfy both those terms and this License would be to refrain entirely
from conveying the Program.
13. Use with the GNU Aero General Public License.
Notwithstanding any other provision of this License, you have permission to link or combine any covered work with a work
licensed under version 3 of the GNU Aero General Public License into a single combined work, and to convey the resulting
work. The terms of this License will continue to apply to the part which is the covered work, but the special requirements of
the GNU Aero General Public License, section 13, concerning interaction through a network will apply to the combination
as such.
70D-Link DAP-1610 User Manual
Appendix C - GPL Code Statement
14. Revised Versions of this License.
The Free Software Foundation may publish revised and/or new versions of the GNU General Public License from time to time.
Such new versions will be similar in spirit to the present version, but may dier in detail to address new problems or concerns.
Each version is given a distinguishing version number. If the Program species that a certain numbered version of the GNU
General Public License “or any later version” applies to it, you have the option of following the terms and conditions either of
that numbered version or of any later version published by the Free Software Foundation. If the Program does not specify
a version number of the GNU General Public License, you may choose any version ever published by the Free Software
Foundation. If the Program species that a proxy can decide which future versions of the GNU General Public License can
be used, that proxy’s public statement of acceptance of a version permanently authorizes you to choose that version for the
Program.
Later license versions may give you additional or dierent permissions. However, no additional obligations are imposed on
any author or copyright holder as a result of your choosing to follow a later version.
15. Disclaimer of Warranty.
THERE IS NO WARRANTY FOR THE PROGRAM, TO THE EXTENT PERMITTED BY APPLICABLE LAW. EXCEPT WHEN OTHERWISE
STATED IN WRITING THE COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROVIDE THE PROGRAM “AS IS” WITHOUT WARRANTY OF
ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE PROGRAM IS
WITH YOU. SHOULD THE PROGRAM PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY SERVICING, REPAIR OR
CORRECTION.
16. Limitation of Liability.
IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY COPYRIGHT HOLDER, OR ANY
OTHER PARTY WHO MODIFIES AND/OR CONVEYS THE PROGRAM AS PERMITTED ABOVE, BE LIABLE TO YOU FOR DAMAGES,
INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO
USE THE PROGRAM (INCLUDING BUT NOT LIMITED TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR LOSSES
SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE PROGRAM TO OPERATE WITH ANY OTHER PROGRAMS), EVEN IF
SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
71D-Link DAP-1610 User Manual
Appendix C - GPL Code Statement
17. Interpretation of Sections 15 and 16.
If the disclaimer of warranty and limitation of liability provided above cannot be given local legal eect according to their
terms, reviewing courts shall apply local law that most closely approximates an absolute waiver of all civil liability in connection
with the Program, unless a warranty or assumption of liability accompanies a copy of the Program in return for a fee.
72D-Link DAP-1610 User Manual
Appendix D - Safety Statements
Safety Statements
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by
one of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modications not expressly approved by the party responsible for compliance could void the user’s authority to
operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Operation of this device is restricted to indoor use only.
IMPORTANT NOTICE:
Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and
operated with minimum distance 20cm between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
Country Code selection feature to be disabled for products marketed to the US/CANADA Industry Canada statement:
73D-Link DAP-1610 User Manual
Appendix D - Safety Statements
Industry Canada statement:
This device complies with ISED licence-exempt RSS standard(s). Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d’ISED applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux
conditions suivantes:
(1) l’appareil ne doit pas produire de brouillage, et
(2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si lebrouillage est susceptible d’en compromettre le
fonctionnement.
The device meets the exemption from the routine evaluation limits in section 2.5 of RSS 102 and compliance with RSS-102 RF exposure, users can
obtain Canadian information on RF exposure and compliance.
Le dispositif rencontre l’exemption des limites courantes d’évaluation dans la section 2.5 de RSS 102 et la conformité à l’exposition de RSS-102 rf,
utilisateurs peut obtenir l’information canadienne sur l’exposition et la conformité de rf.
Users should also be advised that high-power radars are allocated as primary users (i.e. priority users) of the bands 5250-5350 MHz and 5650-5850
MHz and that these radars could cause interference and/or damage to LE-LAN devices.
les utilisateurs de radars de haute puissance sont désignés utilisateurs principaux (c.-à-d., qu’ils ont la priorité) des bandes de 5 250 à 5 350 MHz et
de 5 650 à 5 850 MHz et, d’autre part, que ces radars pourraient causer du brouillage et/ou des dommages aux dispositifs de RL-EL.
Caution:
(i) the device for operation in the band 5150-5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile
satellite systems;
Avertissement:
(i) les dispositifs fonctionnant dans la bande 5150-5250 MHz sont réservés uniquement pour une utilisation à l’intérieur an de réduire les risques
de brouillage préjudiciable aux systèmes de satellites mobiles utilisant les mêmes canaux;
Radiation Exposure Statement:
This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and
operated with minimum distance 20cm between the radiator & your body.
Déclaration d’exposition aux radiations:
Cet équipement est conforme aux limites d’exposition aux rayonnements IC établies pour un environnement non contrôlé. Cet équipement doit
être installé et utilisé avec un minimum de 20 cm de distance entre la source de rayonnement et votre corps.
74D-Link DAP-1610 User Manual
Appendix D - Safety Statements
1&& 警語：
電磁波曝露量 MPE 標準值 (MPE) 1mW/cm2，送測產品實值為 0.085mW/cm2
經型式認證合格之低功率射頻電機，非經許可，公司，商號或使用者均不得擅自變更頻率、加大功率或變更原設計之特性及功能。
低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用，並改善至無干擾時方得繼續使用。
前項合法通信，指依電信法規定作業之無線電通信。 低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。
在 5.25-5.35 秭赫頻帶內操作之無線資訊傳輸設備，限於室內使用。

Navigation menu
