Users Manual

無線基地台
2D-Link DAP-2360 User Manual
Table of Contents
Product Overview .............................................................. 4
Package Contents ......................................................................... 4
System Requirements ................................................................. 4
Introduction ................................................................................... 5
Features ............................................................................................7
Wireless Basics ................................................................... 8
Standards-Based Technology ................................................... 9
Wireless Installation Considerations ....................................10

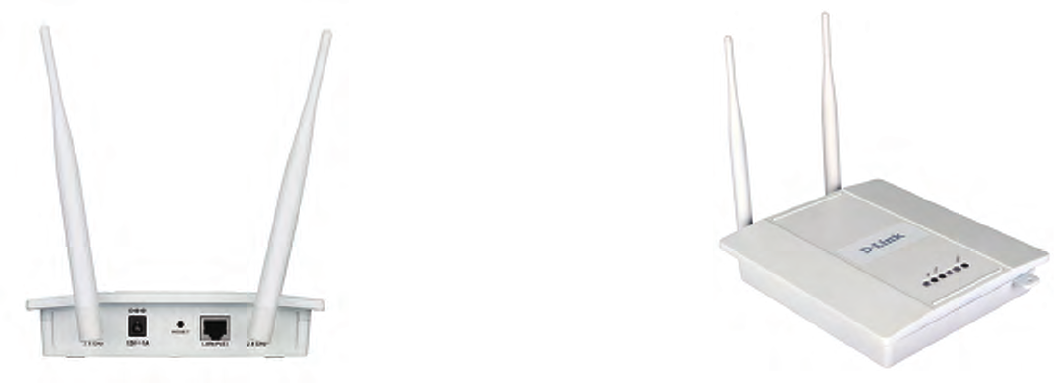

Hardware Overview ...................................................................11

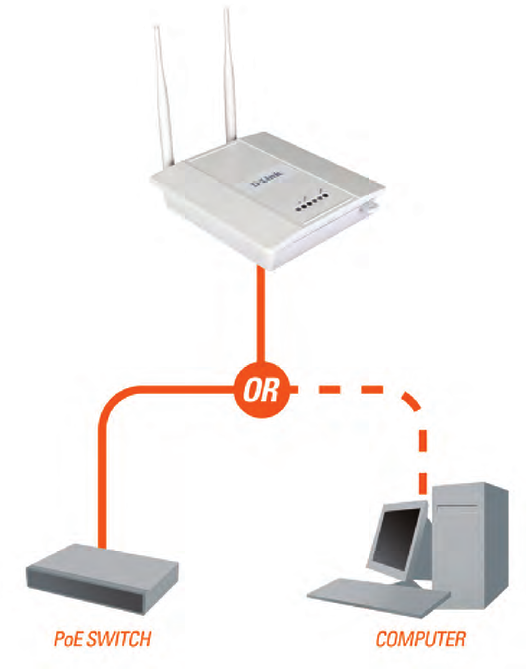

Connect Power over Ethernet (PoE) .............................12
Four Operational Modes .................................................13

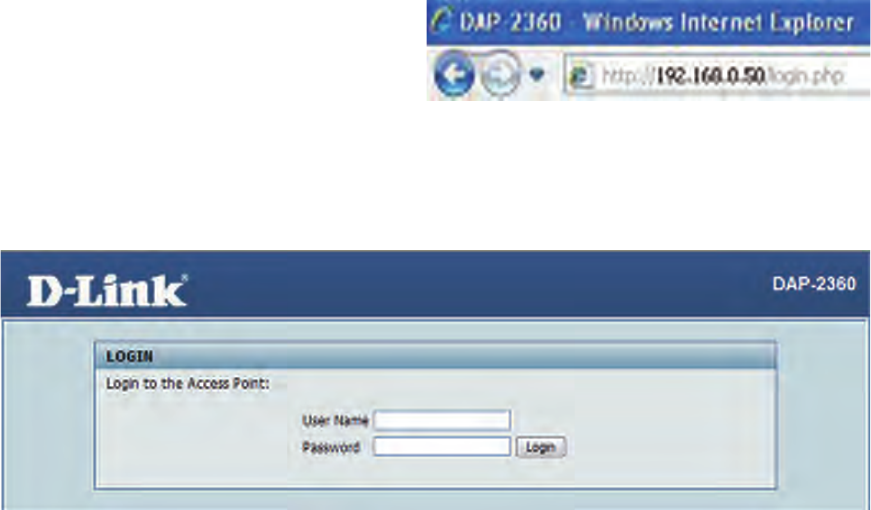

Getting Started ................................................................14
Conguration ...................................................................15

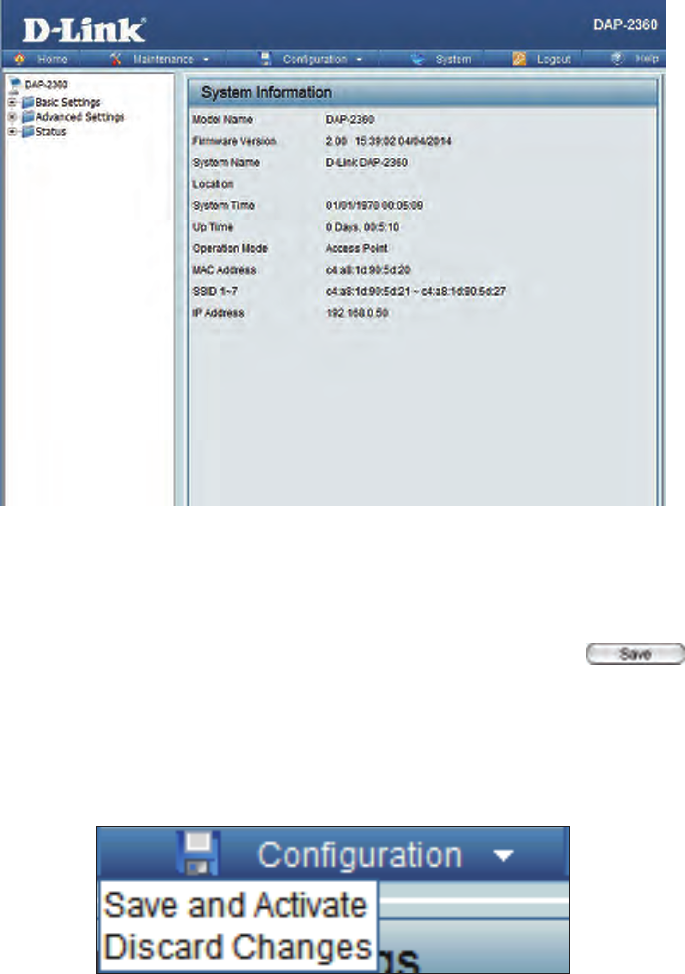

Save and Activate Settings ......................................................16
Basic Settings ...............................................................................17

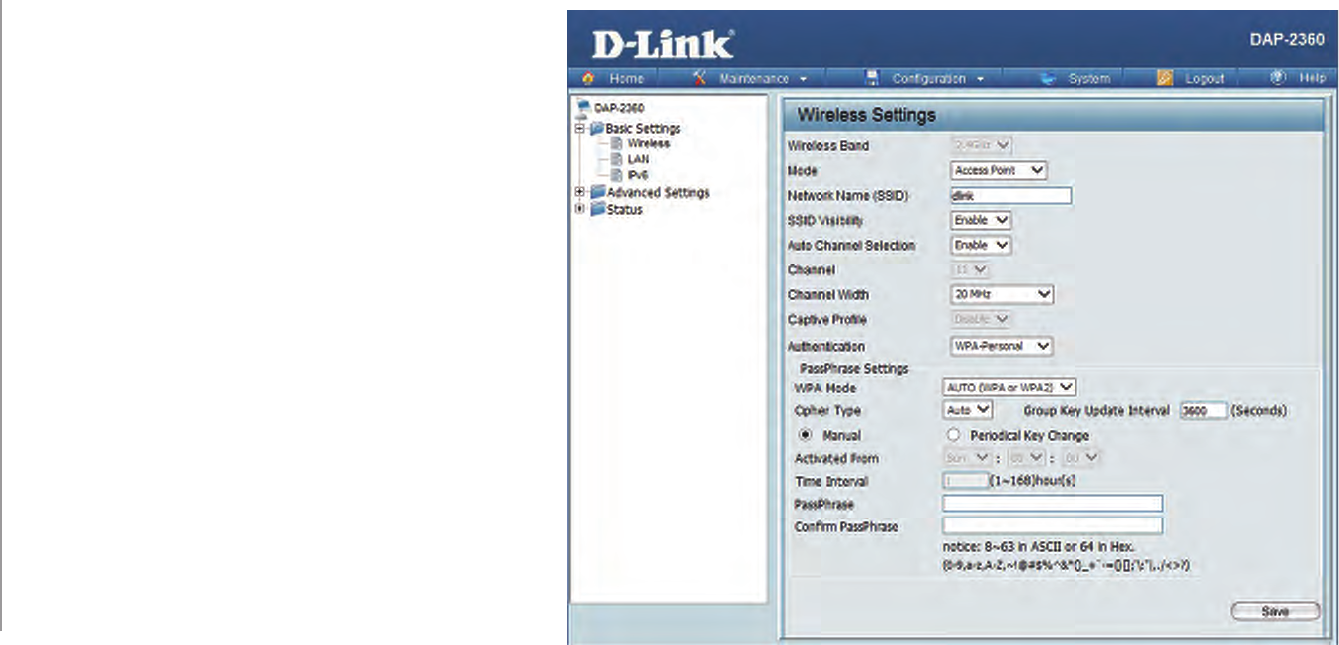

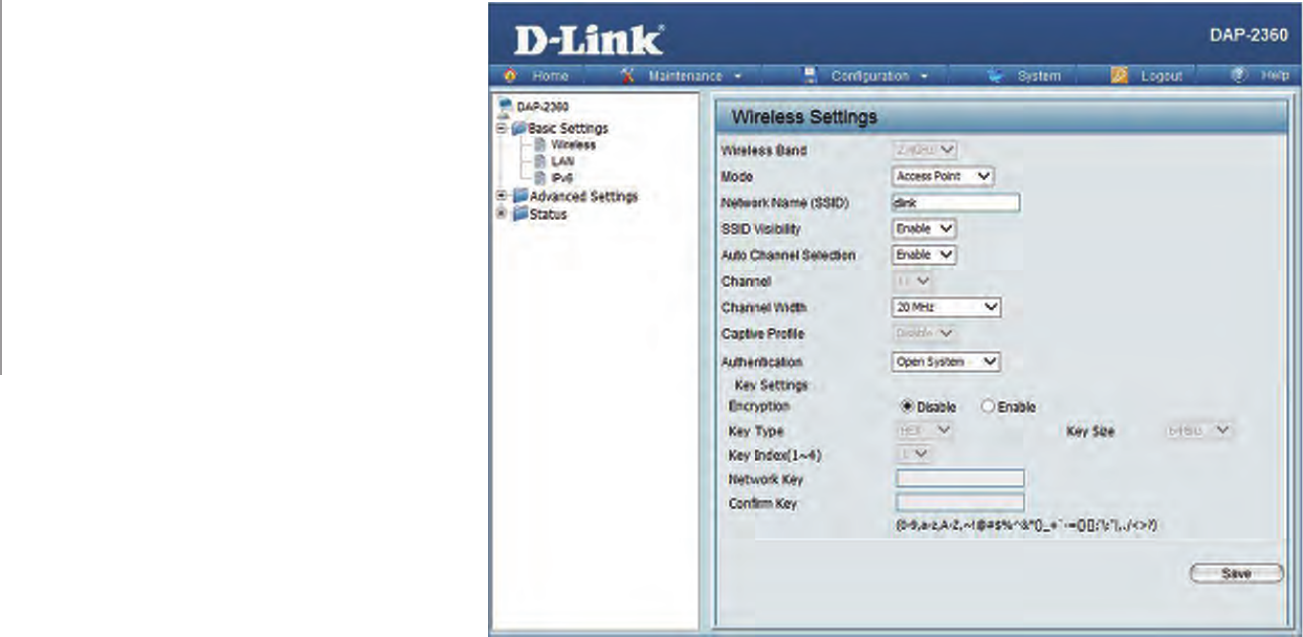

Wireless .................................................................................17
Access Point mode ........................................................17

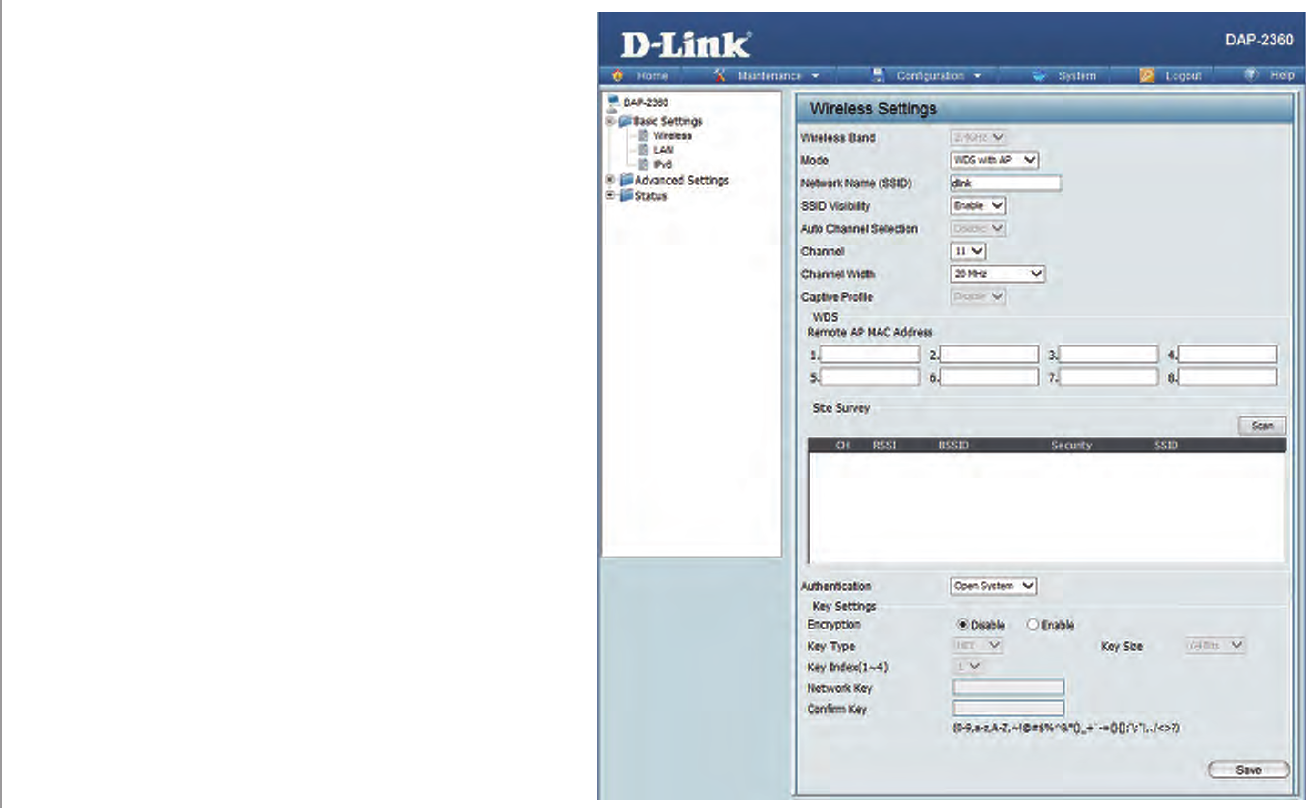

WDS with AP mode ......................................................19

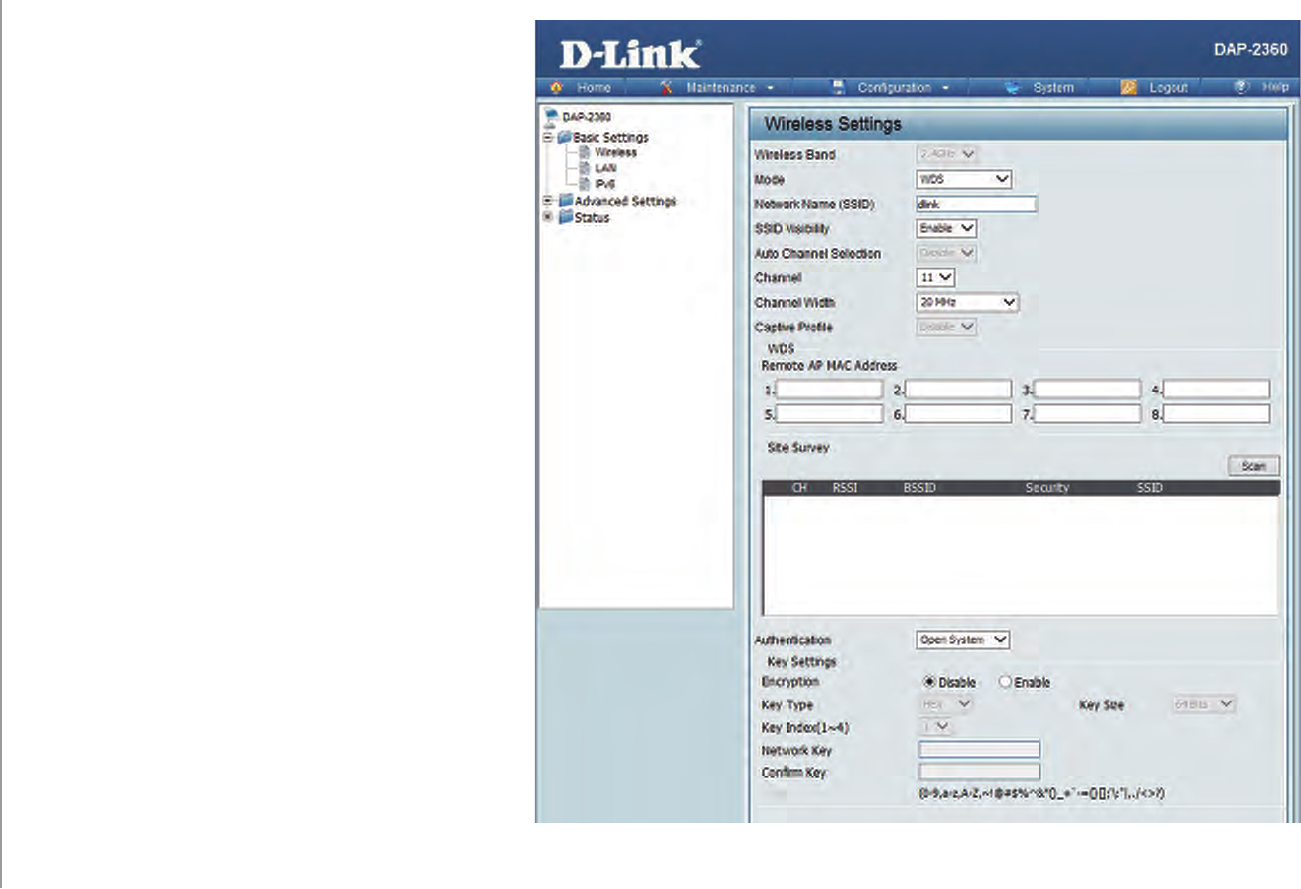

WDS mode .......................................................................21

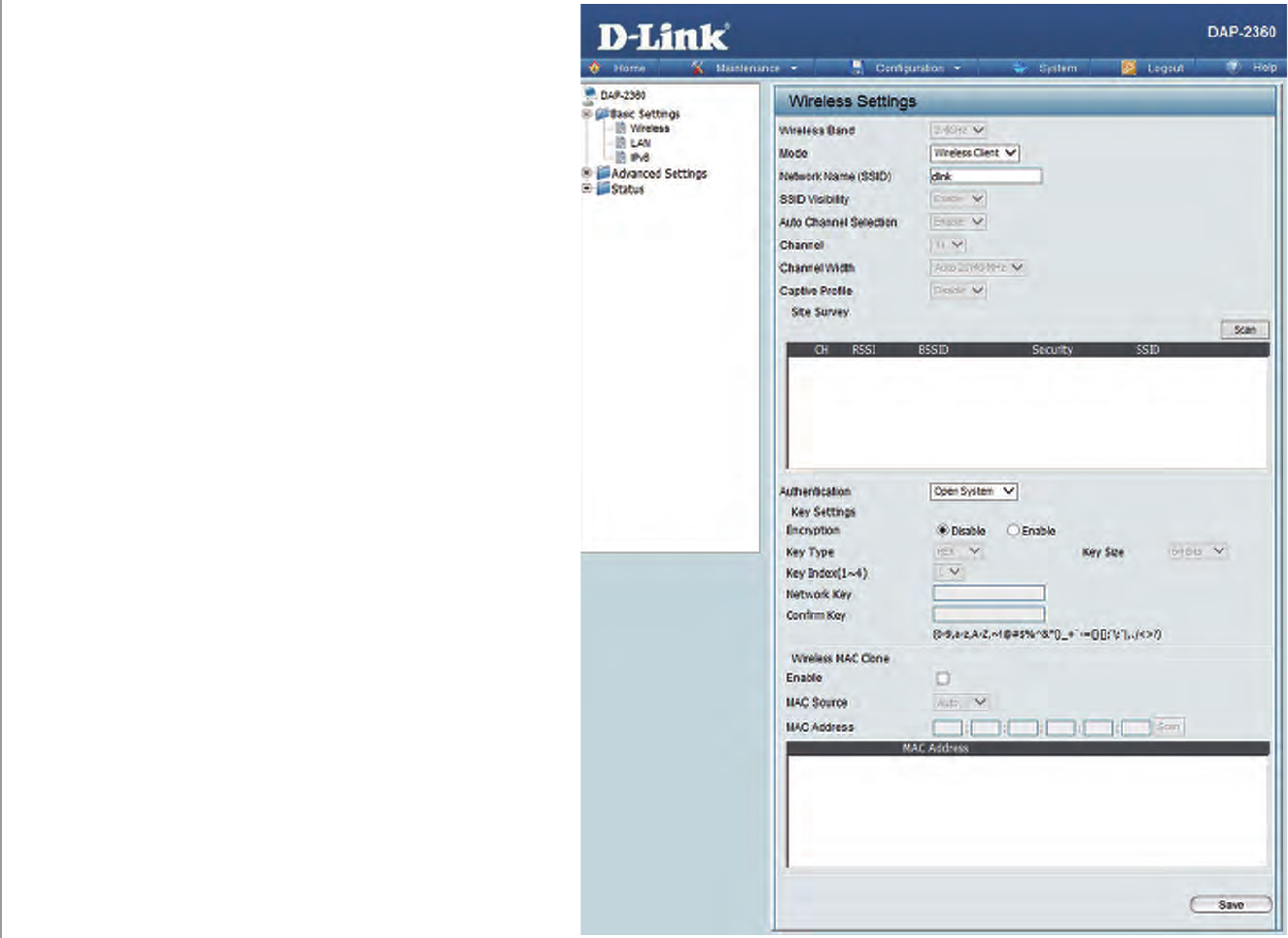

Wireless Client mode ....................................................23
Open System/Shared Key Authentication ...........24
WPA/WPA2-Personal Authentication ......................25

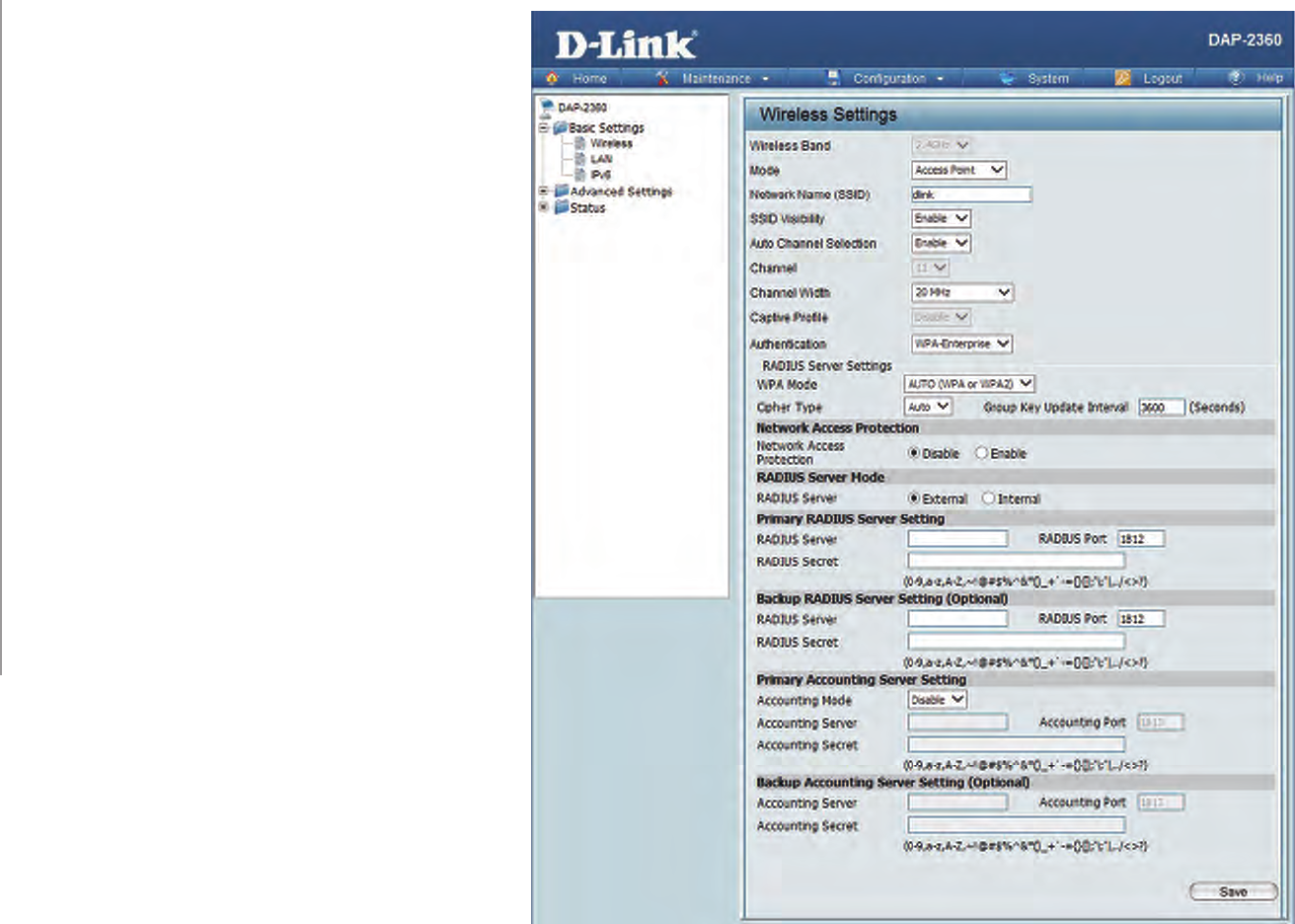

WPA/WPA2-Enterprise Authentication ..................26

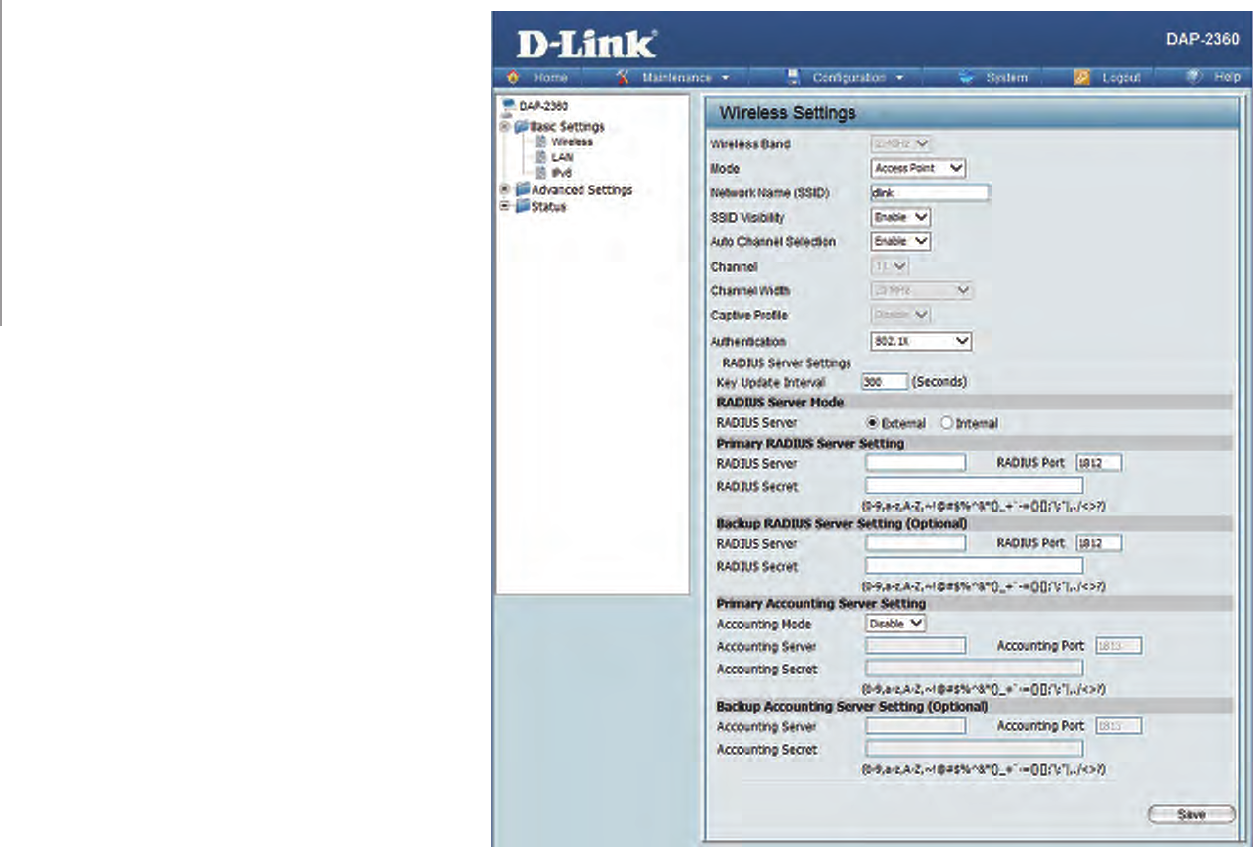

802.1x Authentication ..................................................27

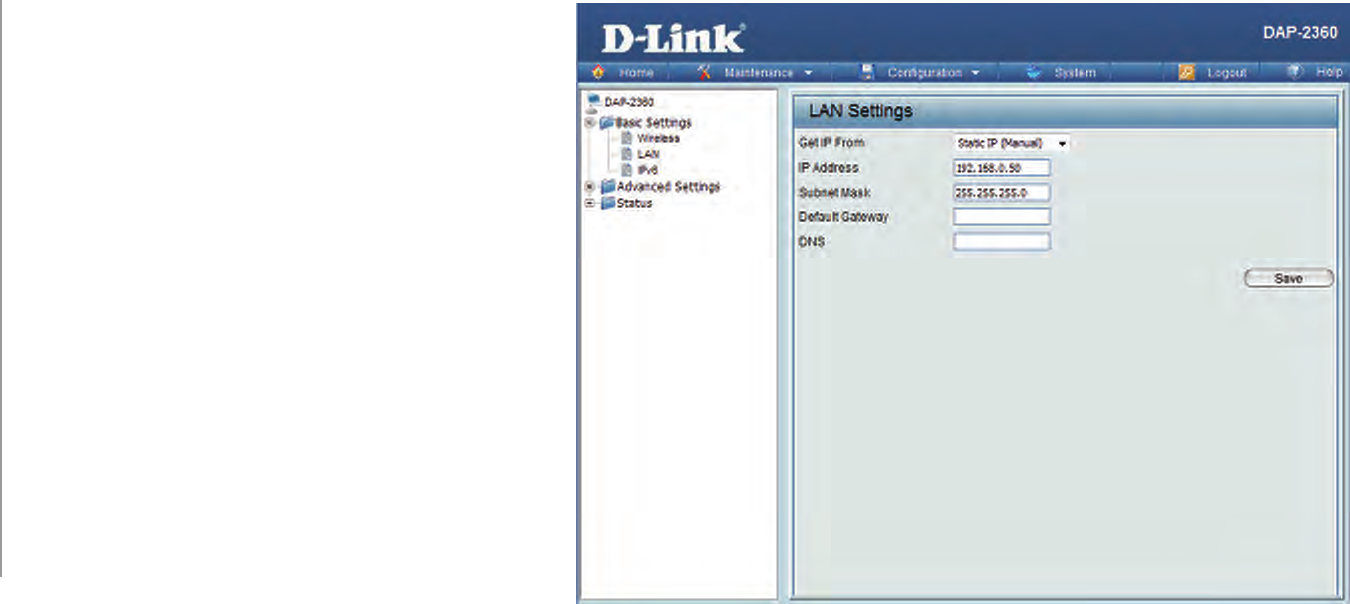

LAN .........................................................................................28
IPv6 .........................................................................................29
Advanced Settings .....................................................................30

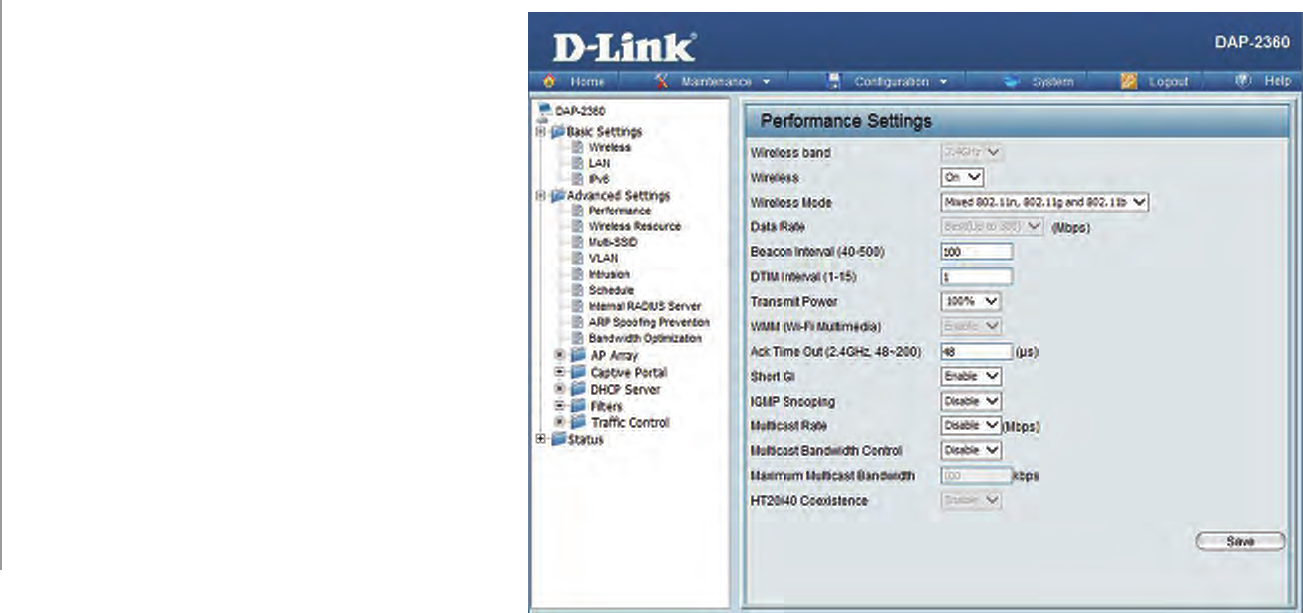

Performance .........................................................................30

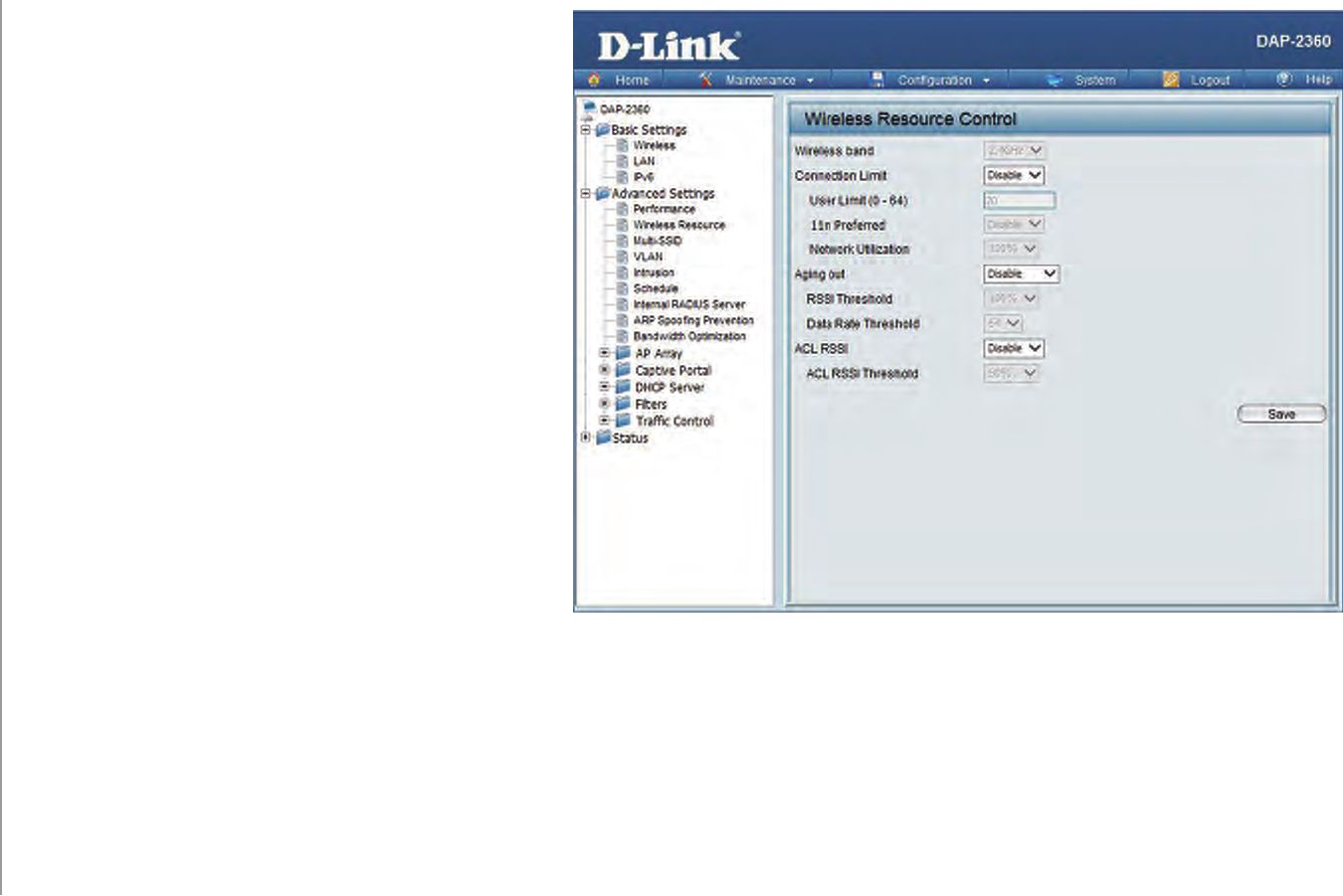

Wireless Resource ...............................................................32

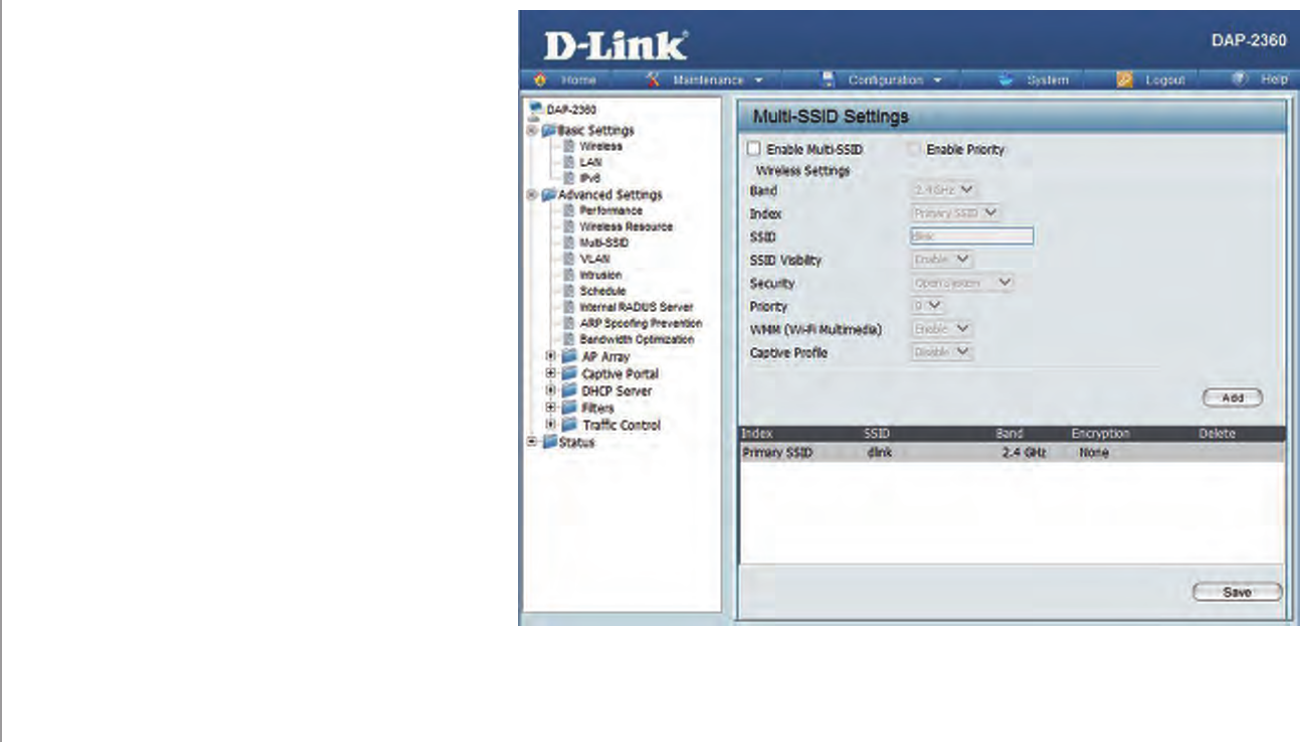

Multi-SSID ..............................................................................34

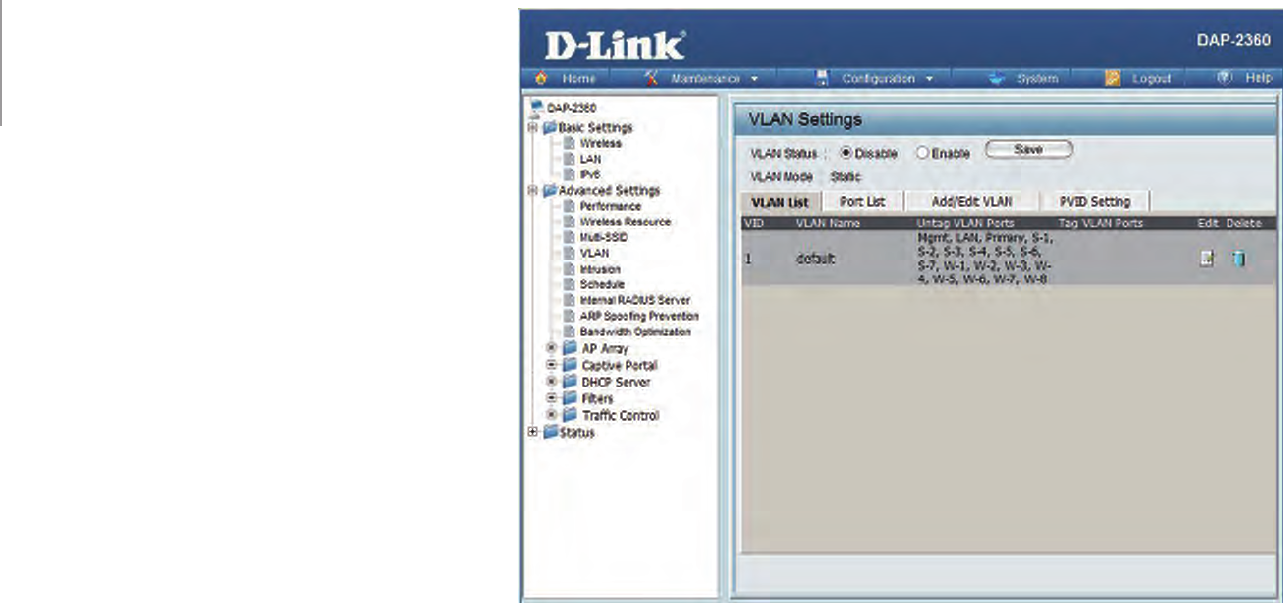

VLAN ........................................................................................36
VLAN List ...........................................................................36

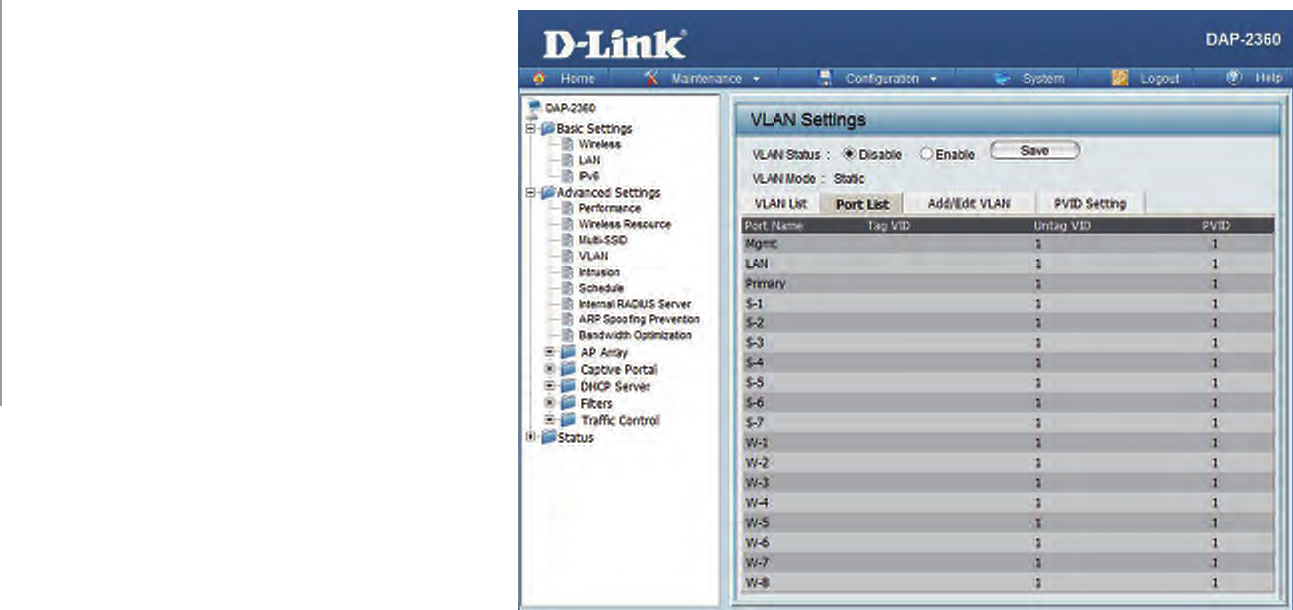

Port List ..............................................................................37

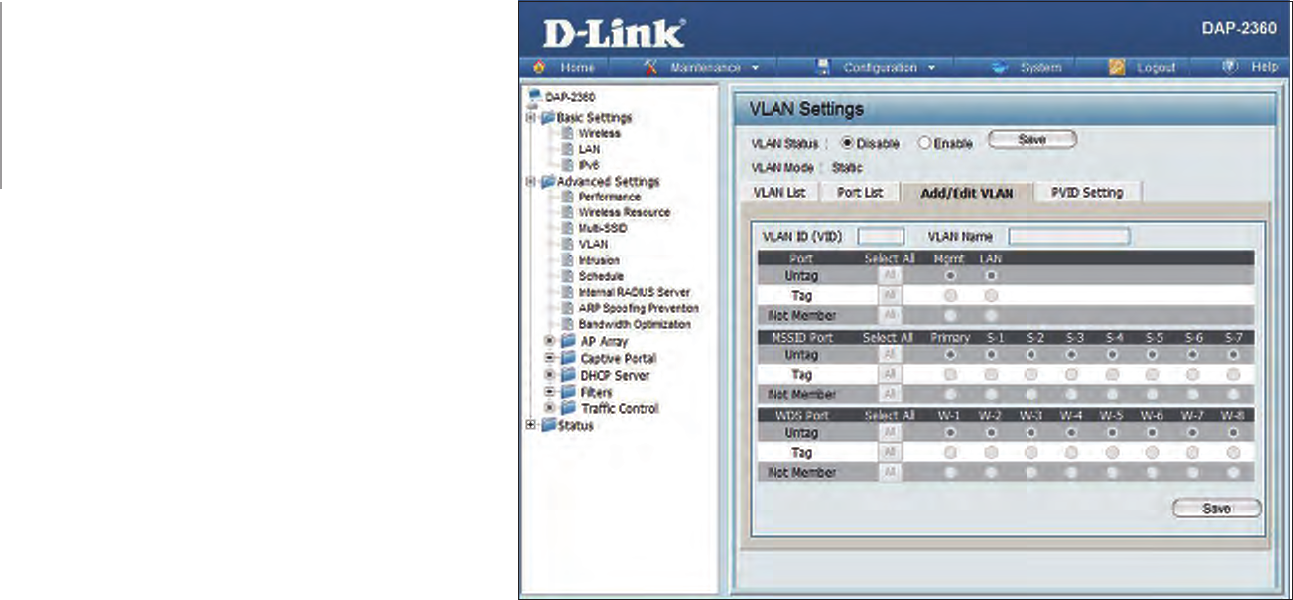

Add/Edit VLAN ................................................................38
PVID Setting .....................................................................39

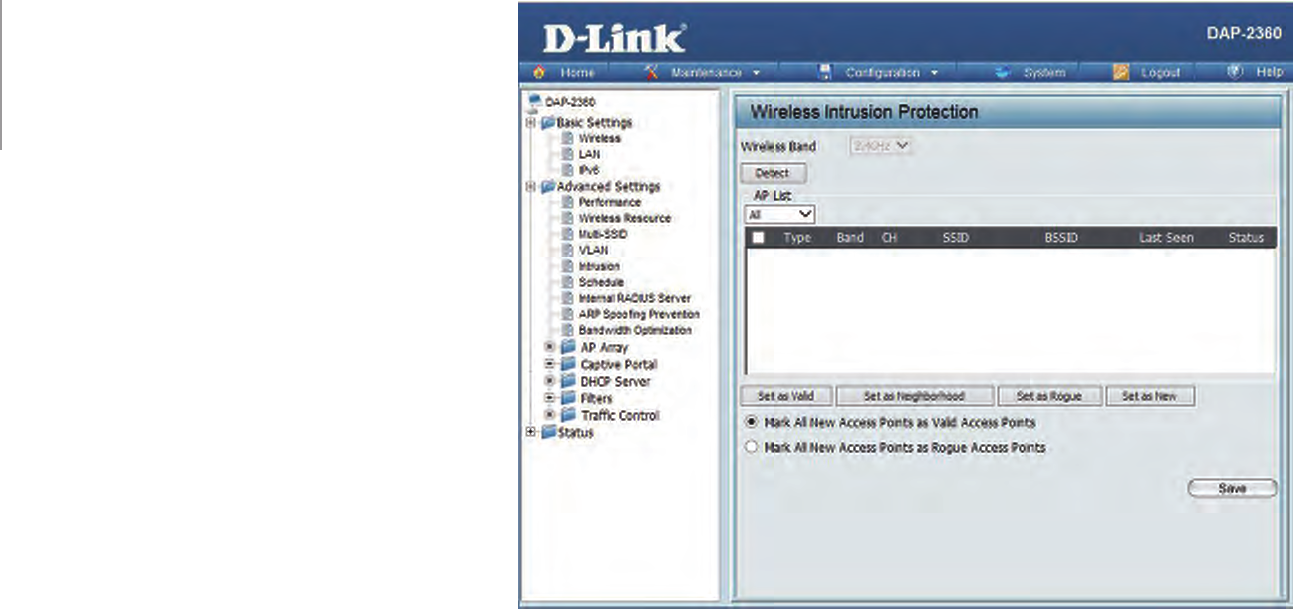

Intrusion .................................................................................40

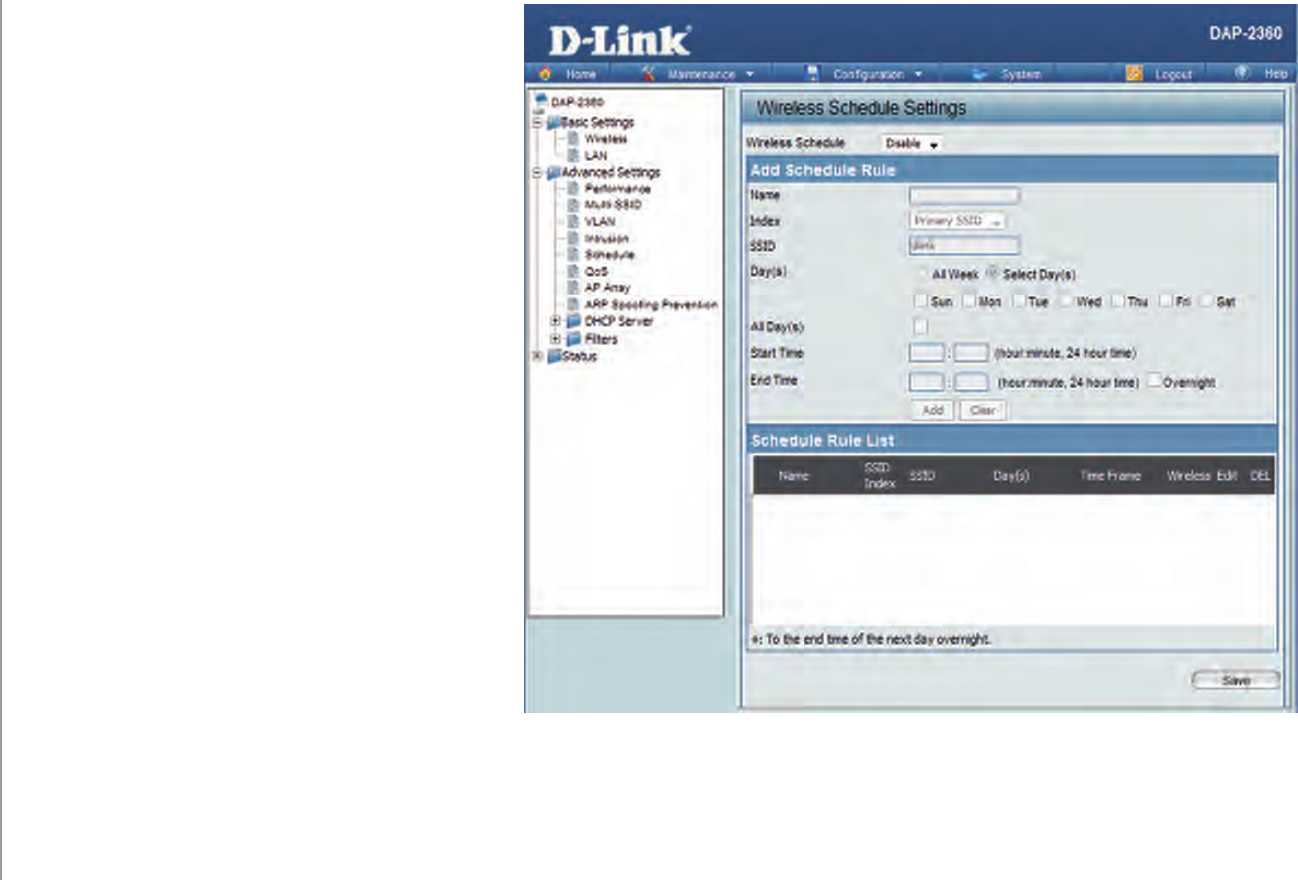

Schedule ................................................................................41

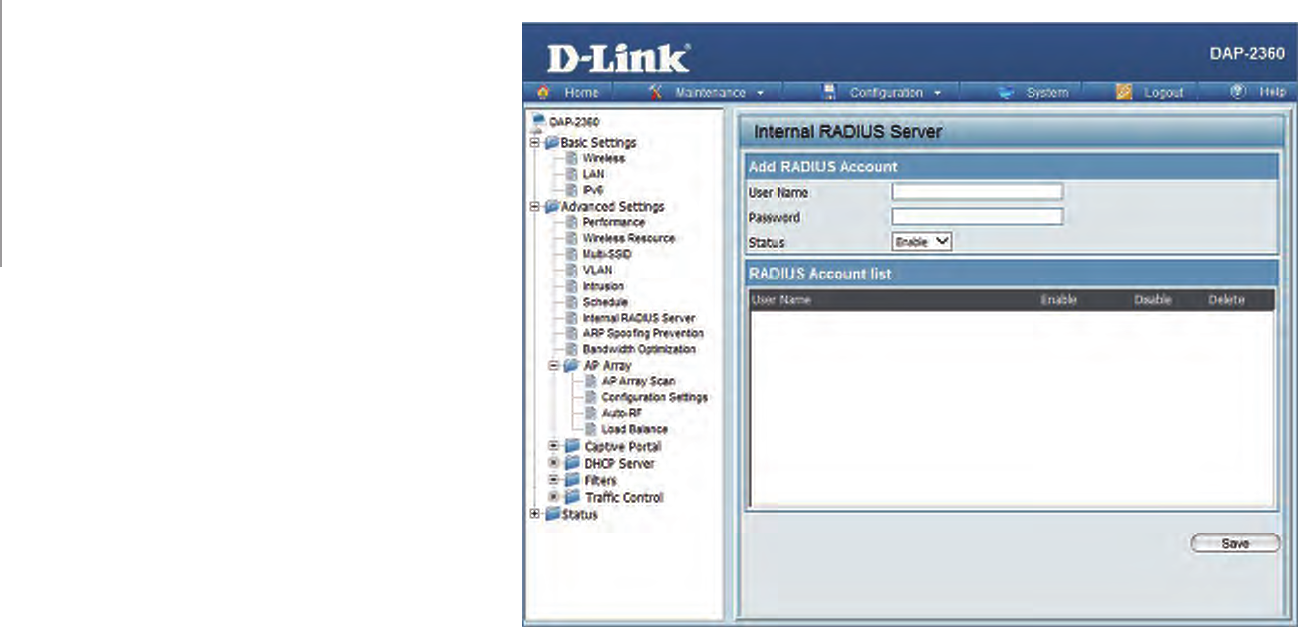

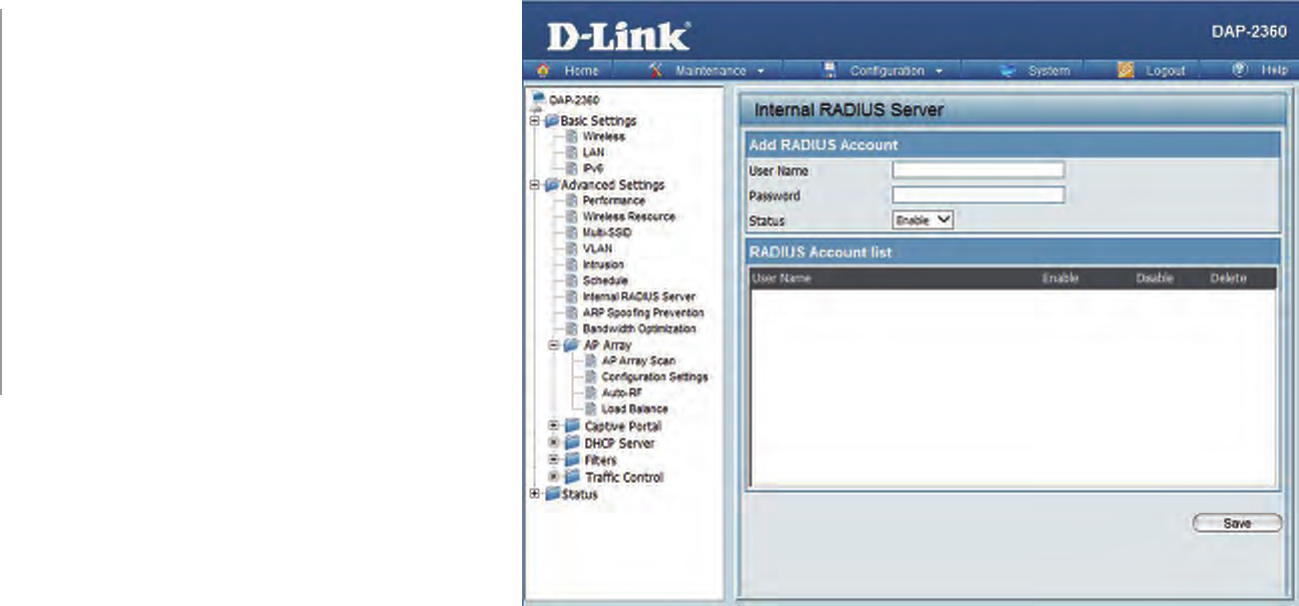

Internal RADIUS Server .....................................................42
ARP Spoong Prevention ................................................43

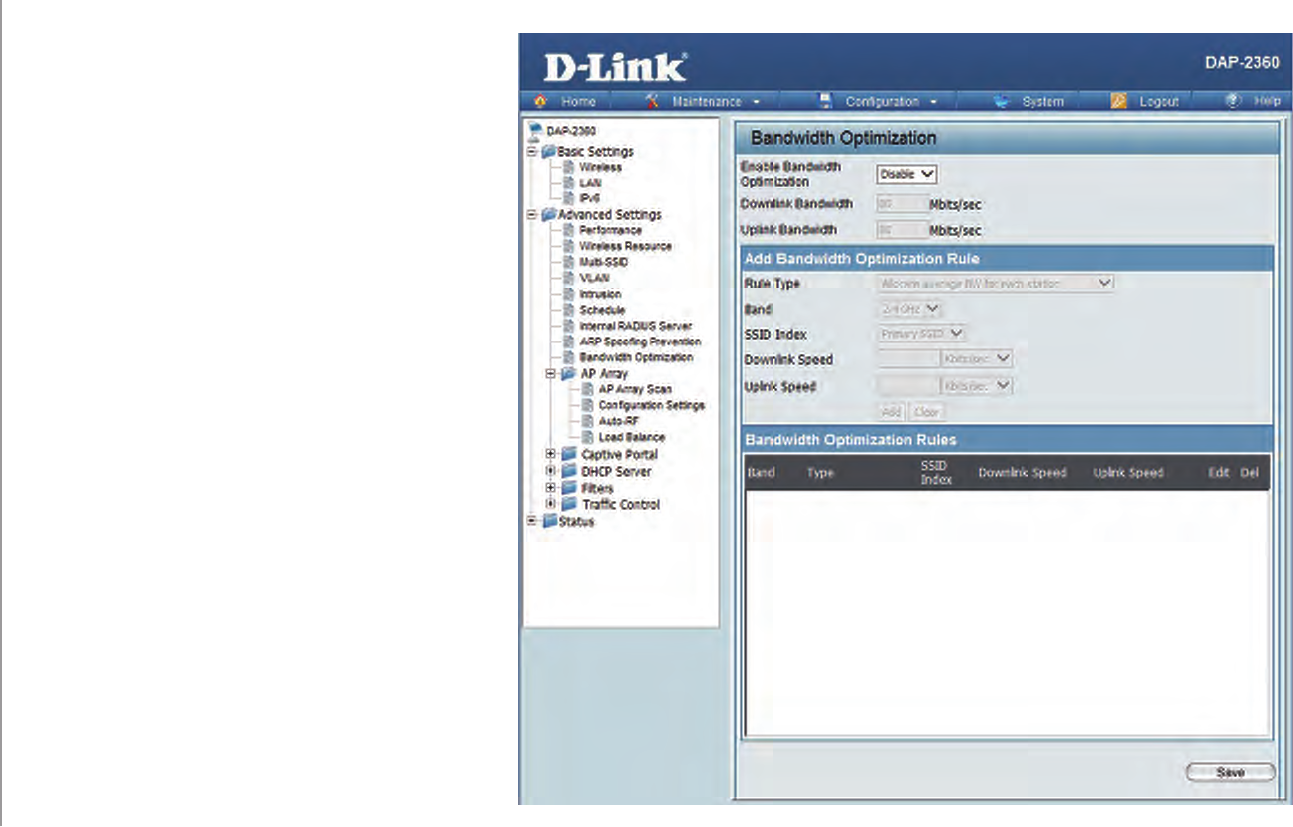

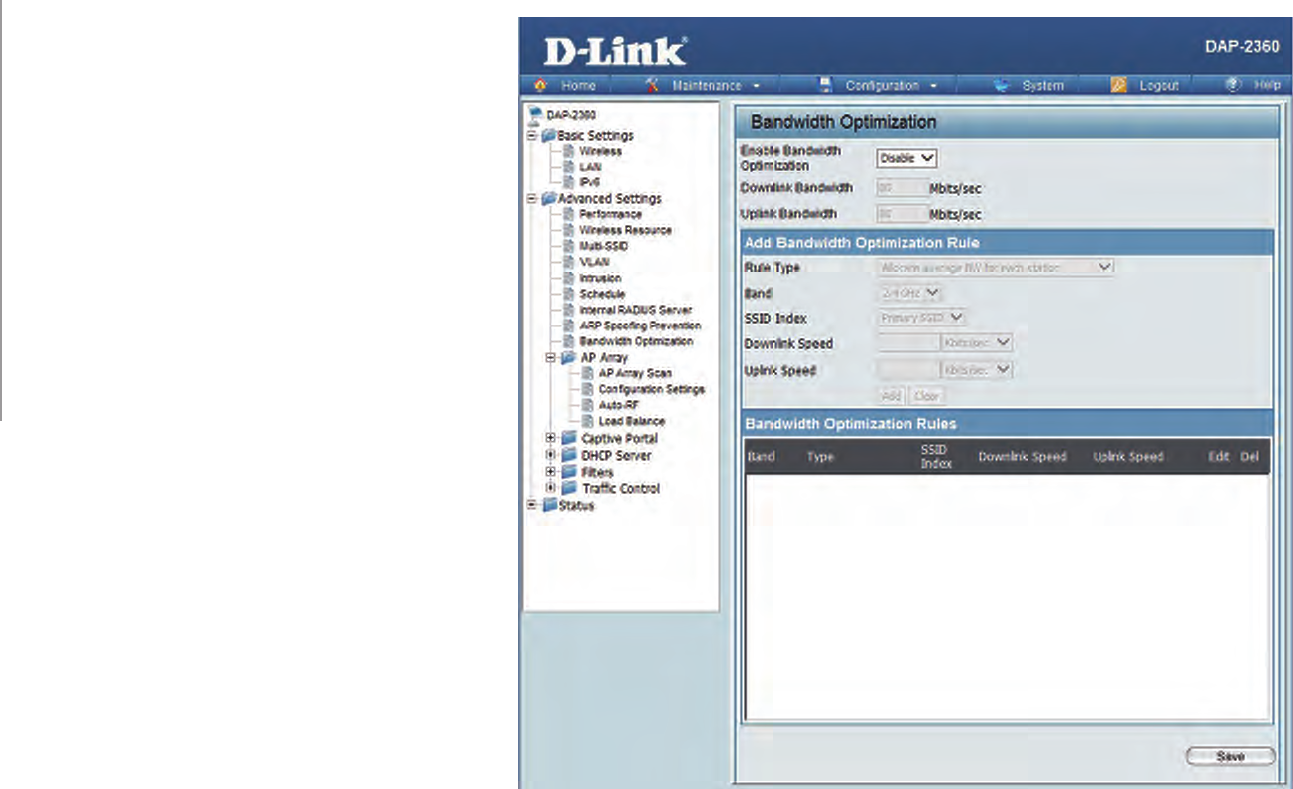

Bandwidth Optimization .................................................44

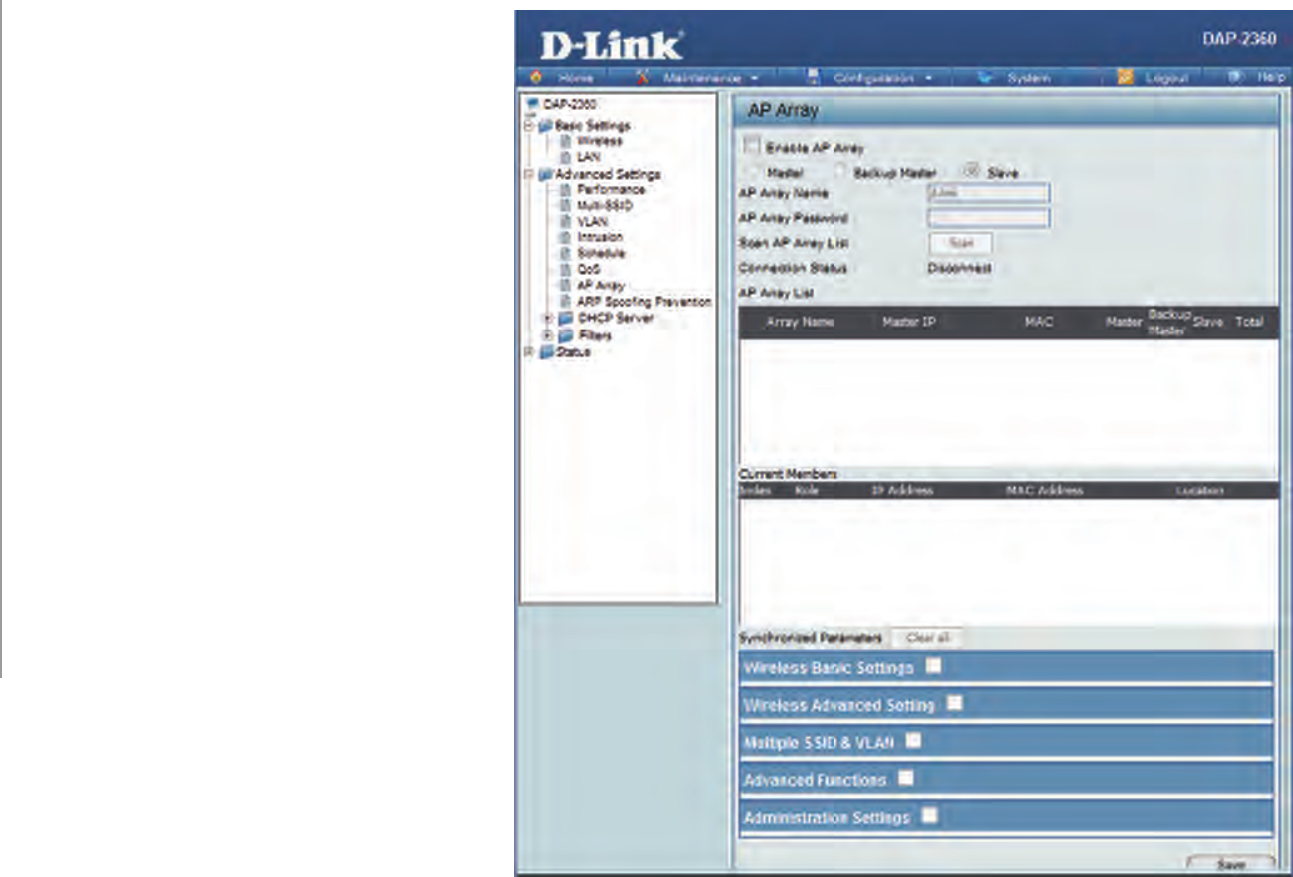

AP Array ..................................................................................46

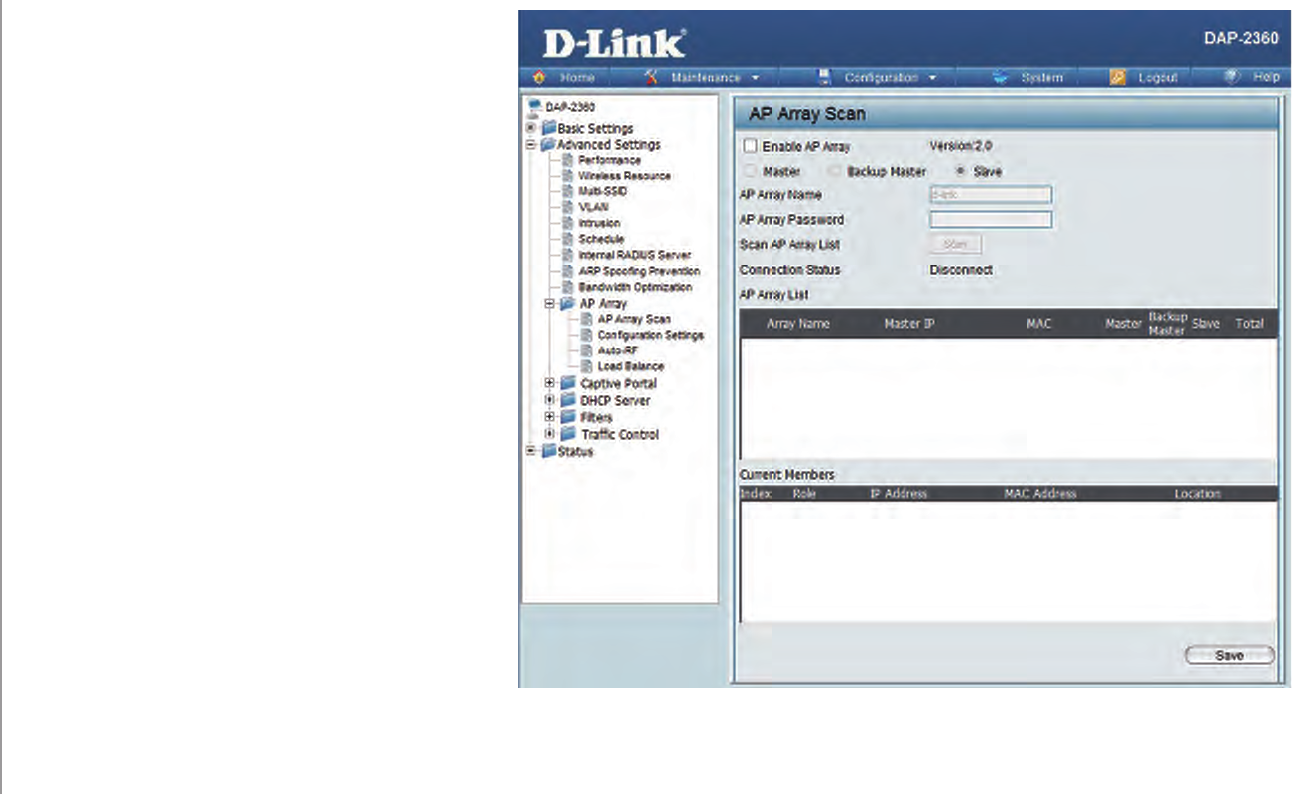

AP Array Scan .......................................................................47

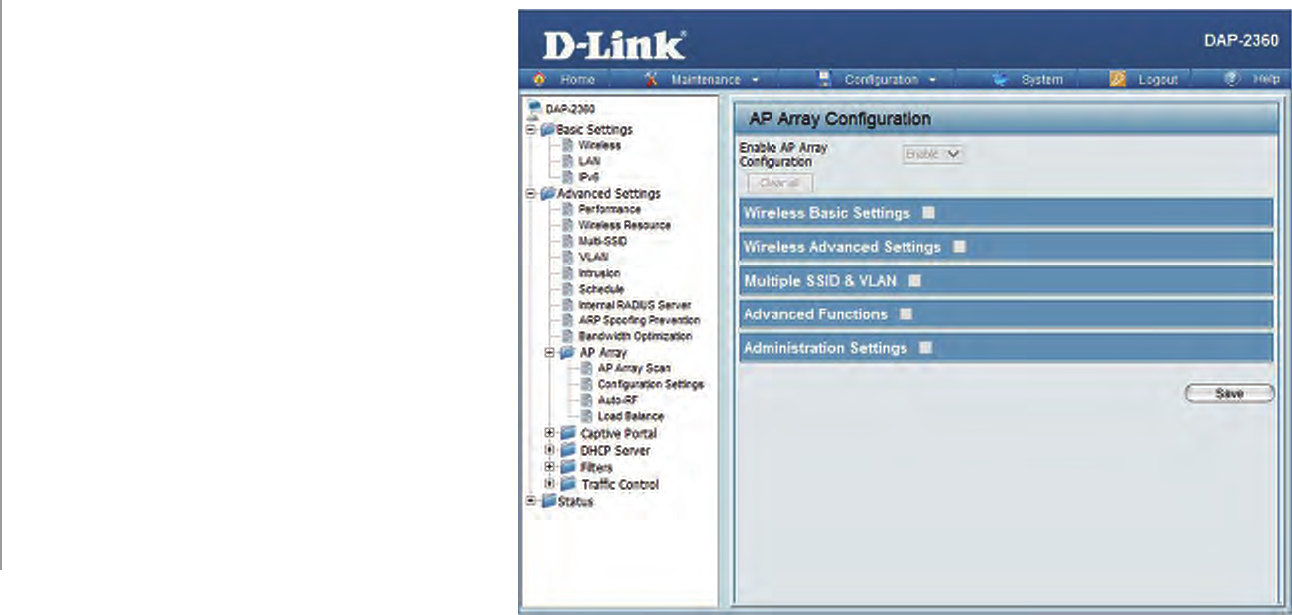

Conguration Settings......................................................48

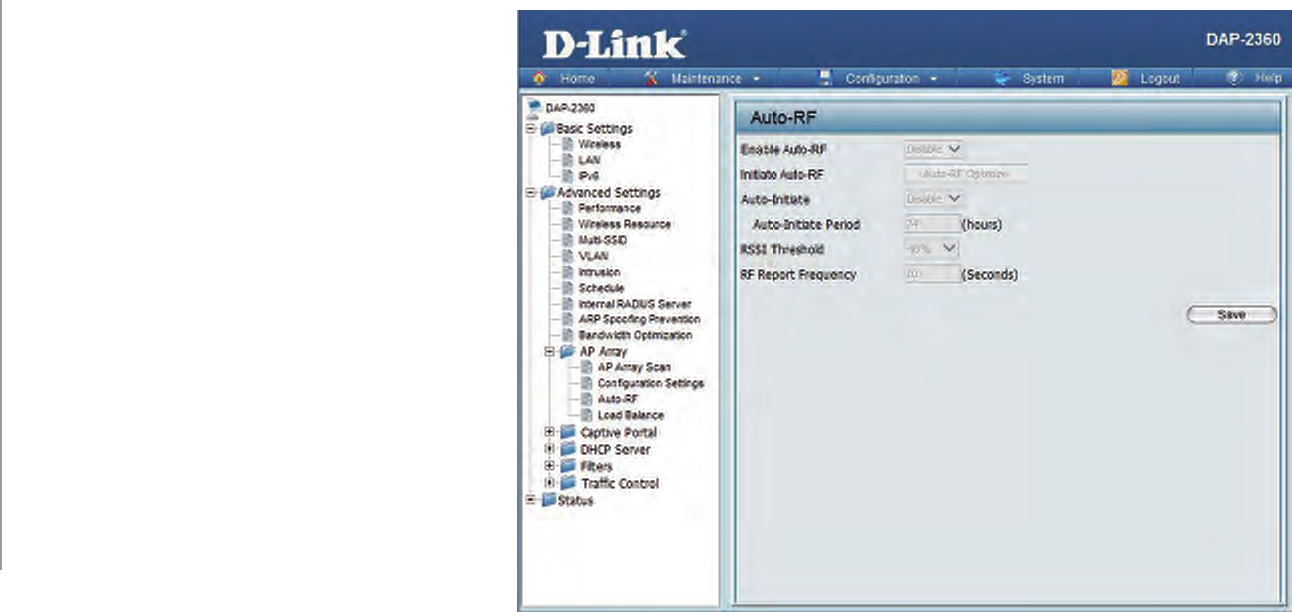

Auto-RF ...................................................................................49

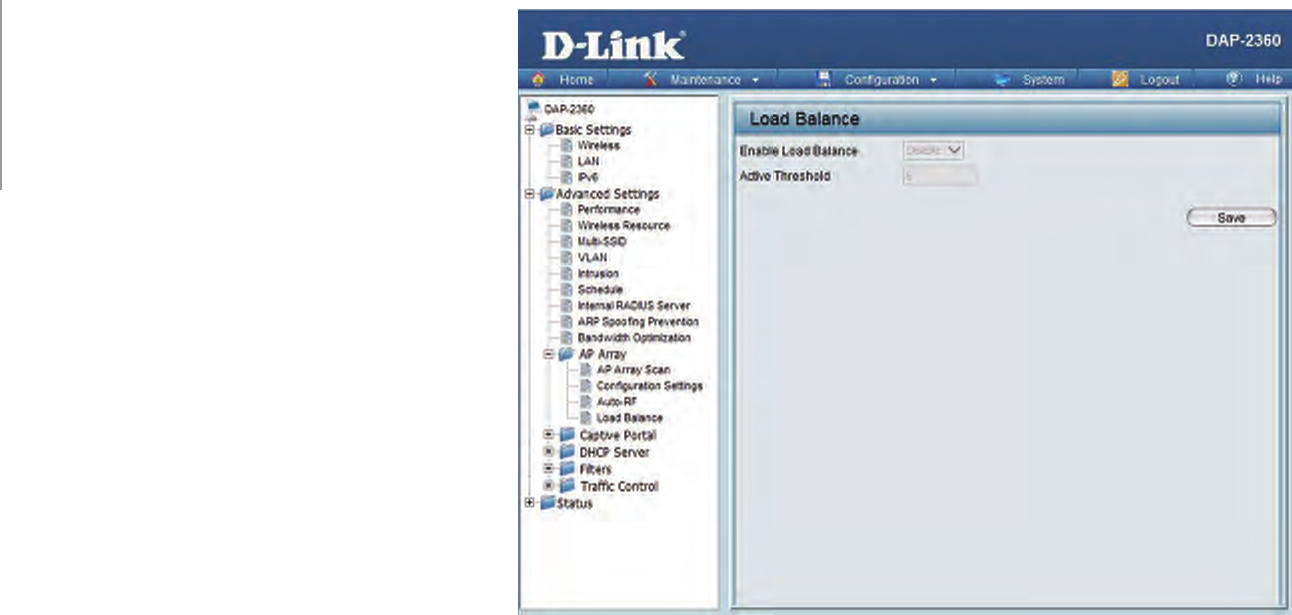

Load Balance ........................................................................50
Captive Portal ......................................................................51
Authentication Settings - Ticket ....................................51
Authentication Settings - User/Password ..................52
Authentication Settings - Remote RADIUS ...............53
Authentication Settings - LDAP .....................................54
Authentication Settings - POP3 .....................................55
Table of Contents
3D-Link DAP-2360 User Manual
Table of Contents
Login Page Upload .............................................................56
Web Redirection ..................................................................57
DHCP Server ........................................................................58
Dynamic Pool Settings .................................................58
Static Pool Setting .........................................................60
Current IP Mapping List ...............................................62
Filters .......................................................................................63
Wireless MAC ACL ..........................................................63
WLAN Partition ...............................................................64
Trac Control .......................................................................65
Uplink/Downlink Settings ..........................................65
QoS ......................................................................................66
Trac Manager ...............................................................67
Status .............................................................................................68

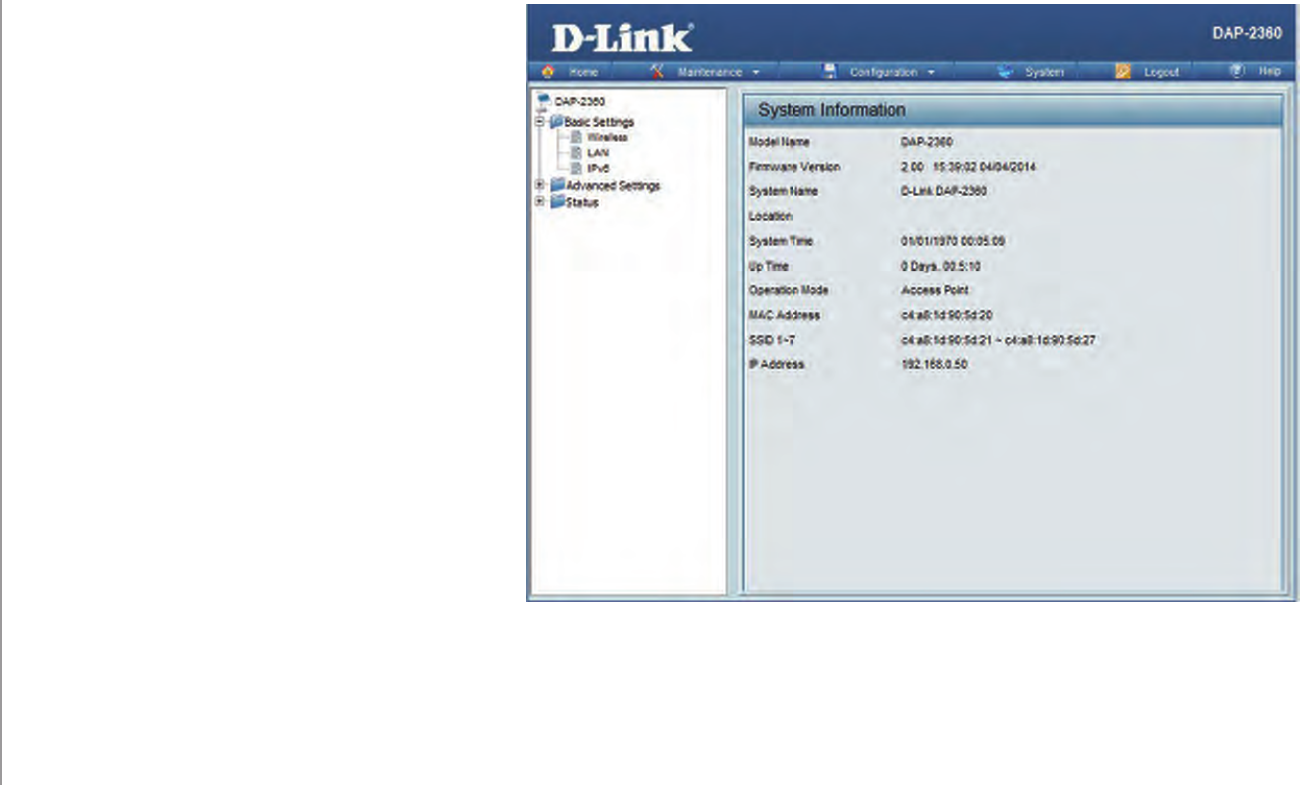

Device Information ............................................................68
Client Information ..............................................................69
WDS Information ................................................................70
Channel Analyze .................................................................71
WDS Information ................................................................72
Stats .........................................................................................73
Ethernet .............................................................................73
WLAN Trac ....................................................................74
Log ...........................................................................................75
View Log ............................................................................75
Log Settings .....................................................................76
Maintenance ...............................................................................77
Administration Settings ...................................................77
Limit Administrator .......................................................78
System Name Settings .................................................79
Login Settings .................................................................80
Console Settings ............................................................81
SNMP Settings ................................................................82
Central WiFiManager Settings ...................................83
Firmware and SSL Certication Upload ..............................84
Conguration File Upload .......................................................85
Time and Date .............................................................................86
System ....................................................................................87
System Settings ..............................................................87
Help .................................................................................................88
Troubleshooting ..............................................................89
Networking Basics ...........................................................91
Check your IP address ...............................................................91
Statically Assign an IP address ...............................................92
Technical Specications ..................................................94
4D-Link DAP-2360 User Manual
Section 1 - Product Overview
• D-Link DAP-2360 AirPremier
Wi
DAP-2360無線基地台
reless N PoE Access Point with Plenum-rated Chassis
® N PoE Access Point with Plenum-rated Chassis/
• Power Adapter
• CAT5 Ethernet Cable
• CD-ROM with User Manual
• Install Guide
Note:
2360 will cause damage and void the warranty for this product.
System Requirements
• Computers with Windows®, Macintosh®, or Linux-based operating systems with an installed Ethernet Adapter
• Microsoft® Internet Explorer® 6.0 and higher
• Mozilla Firefox 3.0 and higher
• Google™ Chrome 2.0 and higher
• Apple Safari 3.0 and higher
Product Overview
Package Contents
5D-Link DAP-2360 User Manual
Section 1 - Product Overview
Introduction
The DAP-2360 802.11n AP increases productivity by allowing you to work faster and more eciently. With the DAP-2360,
bandwidth-intensive applications like graphics or multimedia will benet signicantly because large les are now able to move
across the network quickly.
The DAP-2360 is capable of operating in one of four dierent wireless networking modes: access point, WDS (Wireless Distribution
System) with AP, WDS, or Wireless Client mode.
Use less wiring, enjoy increased exibility, save time and money with PoE (Power over Ethernet). With PoE, the DAP-2360 shares
power and data over the CAT5 cable, making the setup of your network less expensive and more convenient.
An ideal solution for quickly creating and extending a wireless local area network (WLAN) in oces or other workplaces, trade
shows, and special events, the DAP-2360 provides data transfer rates up to 300Mbps. (The 802.11n standard is backwards
compatible with 802.11g and 802.11b devices.)
WPA/WPA2 is oered in two options: Enterprise (used for corporations) and Personal (used for home users).
WPA-Personal and WPA2-Personal are directed towards home users who do not have the server-based equipment required
for user authentication. This method of authentication is similar to WEP because you dene a “Pre-Shared Key” on the wireless
router/AP. Once the pre-shared key is conrmed and satised at both the client and access point, access is then granted. The
encryption method used is referred to as the Temporal Key Integrity Protocol (TKIP), which oers per-packet dynamic hashing. It
also includes an integrity checking feature which ensures that the packets were not tampered with during wireless transmission.
WPA-Enterprise and WPA2-Enterprise are ideal for businesses that already have existing security infrastructures established.
6D-Link DAP-2360 User Manual
Section 1 - Product Overview
Management and security implementation can now be centralized on a server participating on the network. Utilizing 802.1X
with a RADIUS (Remote Authentication Dial-in User Service) server, a network administrator can dene a list of authorized
users who can access the wireless LAN. When attempting to access a wireless LAN with WPA-Enterprise congured, the new
client will be requested to enter a username with a password. If the new client is authorized by the administration, and enters
the correct username and password, then access is granted. In the case where an employee leaves the company, the network
administrator is able to remove the previous employee from the authorized list to avoid compromising the network.
EAP (Extensible Authentication Protocol) is available through the Windows® XP operating system. You will need to use the same
type of EAP protocol on all devices in your network when using the 802.1X feature.
*Maximum wireless signal rate derived from IEEE Standard 802.11n and 802.11g specications. Actual data throughput may vary. Network conditions
and environmental factors, including volume of network trac, building materials and construction, and network overhead can lower actual data
throughout rate.
7D-Link DAP-2360 User Manual
Section 1 - Product Overview
• Four dierent operation modes - Capable of operating in one of four dierent operation modes to meet your wireless
networking needs: Access Point, WDS with AP, WDS, or Wireless Client.
• Faster wireless networking with the 802.11n standard to provide a maximum wireless signal rate of up to 300 Mbps*.
• Compatible with the 802.11b standard to provide a wireless data rate of up to 11Mbps, allowing you to migrate your
system to the 802.11n and 802.11g standards on your own schedule without sacricing connectivity.
• Compatible with the 802.11g standard to provide a wireless data rate of up to 54Mbps in the 2.4GHz frequency range.
• Better security with WPA - The DAP-2360 can securely connect wireless clients on the network using WPA (Wi-Fi Protected
Access) to provide a much higher level of security for your data and communications than its previous versions.
• D-Link Central WiFiManager software - The real-time display of the network's topology and AP’s information makes
network conguration and management quick and simple.
• SNMP for management - The DAP-2360 is not just fast, but also supports SNMP v.3 for better network management.
• Utilizes OFDM technology (Orthogonal Frequency Division Multiplexing).
• Supports 802.3af Power over Ethernet.
• Supports one 10/100/1000M Ethernet port.
• Operates in the 2.4 ~ 2.4835GHz frequency ranges.
• Web-based interface for managing and conguring.
*Maximum wireless signal rate derived from IEEE Standard 802.11n and 802.11g specications. Actual data throughput may vary. Network conditions and environmental factors,
including volume of network trac, building materials and construction, and network overhead can lower actual data throughout rate.
Features
8D-Link DAP-2360 User Manual
Section 2 - Installation
Wireless Basics
D-Link wireless products are based on industry standards to provide high-speed wireless connectivity that is easy to use within
your home, business or public access wireless networks. D-Link wireless products provides you with access to the data you
want, whenever and wherever you want it. Enjoy the freedom that wireless networking can bring to you.
WLAN use is not only increasing in both home and oce environments, but in public areas as well, such as airports, coee
shops and universities. Innovative ways to utilize WLAN technology are allowing people to work and communicate more
eciently. Increased mobility and the absence of cabling and other types of xed infrastructure have proven to be benecial
to many users.
Wireless adapter cards used on laptop and desktop systems support the same protocols as Ethernet adapter cards, allowing
wireless users to use the same applications as those used on a wired network.
People use WLAN technology for many dierent purposes:
Mobility - productivity increases when people can have access to data in any location within the operating range of
their WLAN. Management decisions based on real-time information can signicantly improve the eciency of a worker.
Low implementation costs - WLANs are easy to set up, manage, change and relocate. Networks that frequently change
can benet from WLAN's ease of implementation. WLANs can operate in locations where installation of wiring may be
impractical.
Installation and network expansion - by avoiding the complications of troublesome cables, a WLAN system can be fast
and easy during installation, especially since it can eliminate the need to pull cable through walls and ceilings. Wireless
technology provides more versatility by extending the network beyond the home or oce.
Inexpensive solution - wireless network devices are as competitively priced as conventional Ethernet network devices.
The DAP-2360 saves money by providing users with multi-functionality congurable in four dierent modes.
Scalability - Congurations can be easily changed and range from Peer-to-Peer networks, suitable for a small number
of users to larger Infrastructure networks to accommodate hundreds or thousands of users, depending on the number
of wireless devices deployed.
9D-Link DAP-2360 User Manual
Section 2 - Installation
Standards-Based Technology
The DAP-2360 Wireless Access Point utilizes the 802.11b, 802.11g, and 802.11n standards.
The IEEE 802.11n standard is an extension of the 802.11b and 802.11g standards that came before it. It increases the maximum
wireless signal rate up to 300Mbps* within the 2.4GHz bands, utilizing OFDM technology.
This means that in most environments - within the specied range of this device - you will be able to transfer large les quickly,
or even watch a movie in MPEG format over your network without noticeable delays. This technology works by transmitting
high-speed digital data over a radio wave utilizing OFDM (Orthogonal Frequency Division Multiplexing) technology. OFDM
works by splitting the radio signal into multiple smaller sub-signals that are then simultaneously transmitted at dierent
frequencies to the receiver. OFDM reduces the amount of crosstalk (interference) in signal transmissions.
The D-Link DAP-2360 will automatically sense the best possible connection speed to ensure the greatest possible speed and
range.
IEEE 802.11n oers the most advanced network security features available today, including WPA.
*Maximum wireless signal rate derived from IEEE Standard 802.11n and 802.11g specications. Actual data throughput may vary. Network conditions and environmental factors, including volume of network trac, building
materials and construction, and network overhead can lower actual data throughout rate.
10D-Link DAP-2360 User Manual
Section 2 - Installation
Wireless Installation Considerations
The D-Link AirPremier® N wireless access point lets you access your network using a wireless connection from virtually anywhere
within the operating range of your wireless network. Keep in mind, however, that the number, thickness and location of walls,
ceilings, or other objects that the wireless signals must pass through, may limit the range. Typical ranges vary depending on
the types of materials and background RF (radio frequency) noise in your home or business. The key to maximizing wireless
range is to follow these basic guidelines:
1. Keep the number of walls and ceilings between the access point and other network devices to a minimum.
Each wall or ceiling can reduce your adapter’s range from 3-90 feet (1-30 meters). Position your devices so that
the number of walls or ceilings is minimized.
2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (.5 meters), at a
45-degree angle appears to be almost 3 feet (1 meter) thick. At a 2-degree angle, it looks over 42 feet (14
meters) thick! Position devices so that the signal will travel straight through a wall or ceiling (instead of at an
angle) for better reception.
3. Building Materials make a dierence. A solid metal door or aluminum studs may have a negative eect on the
range. Try to position access points, wireless routers, and computers so that the signal passes through drywall
or open doorways. Materials and objects such as glass, steel, metal, walls with insulation, water (sh tanks),
mirrors, le cabinets, brick, and concrete will degrade your wireless signal.
4. Keep your product away (at least 3-6 feet or 1-2 meters) from electrical devices or appliances that generate RF
noise.
5. If you are using 2.4GHz cordless phones or X-10 (wireless products such as ceiling fans, lights, and home security
systems), your wireless connection may degrade dramatically or drop completely. Make sure your 2.4GHz phone
base is as far away from your wireless devices as possible. The base transmits a signal even if the phone in not
in use.
11D-Link DAP-2360 User Manual
Section 2 - Installation
Hardware Overview
Power LED
This light will be solid green when the unit is powered on.
2.4 GHz LED
This light will be ickering green when the 2.4GHz frequency is in use.
LAN LED
This light will be ickering green when there is active LAN trac.
Power Receptacle
The supplied power adapter connects here.
Reset Button
A pinhole button located beside the Ethernet socket is used to reset the
system or restore the factory default settings.
Note: After resetting the unit, you will still be able to access the data
on your hard drives.
LAN (PoE) Port
An Ethernet port that connects the unit to a network. This port can also
be used to supply power to this unit using Power over Ethernet.
12D-Link DAP-2360 User Manual
Section 2 - Installation
Connect Power over Ethernet (PoE)
Connect one end of an Ethernet cable (included with your access point) to the LAN port on the DAP-2360 and the other end of the Ethernet cable
to either your computer or to your PoE switch. The AP can be powered on by a PoE switch or by the power adapter shipped with the AP.
13D-Link DAP-2360 User Manual
Section 2 - Installation
Wireless Client AP acts as a wireless network adapter for your Ethernet-
enabled device
Access Point (AP) Create a wireless LAN
WDS with AP Wirelessly connect multiple networks while still
functioning as a wireless AP
WDS Wirelessly connect multiple networks
Four Operational Modes
14D-Link DAP-2360 User Manual
Section 2 - Installation
Getting Started
1. You will need broadband Internet access.
2. Consult with your cable or DSL provider for proper installation of the modem.
3. Connect the cable or DSL modem to a router. See the printed Install Guide included with your router.
4. If you are connecting a desktop computer to your network, install a wireless PCI adapter into an available PCI
slot on your desktop computer.
5. Install the drivers for your wireless CardBus adapter into a laptop computer.
15D-Link DAP-2360 User Manual
Section 3 - Conguration
Conguration
To congure the DAP-2360, use a computer that is connected to the DAP-2360 with an Ethernet cable (see the

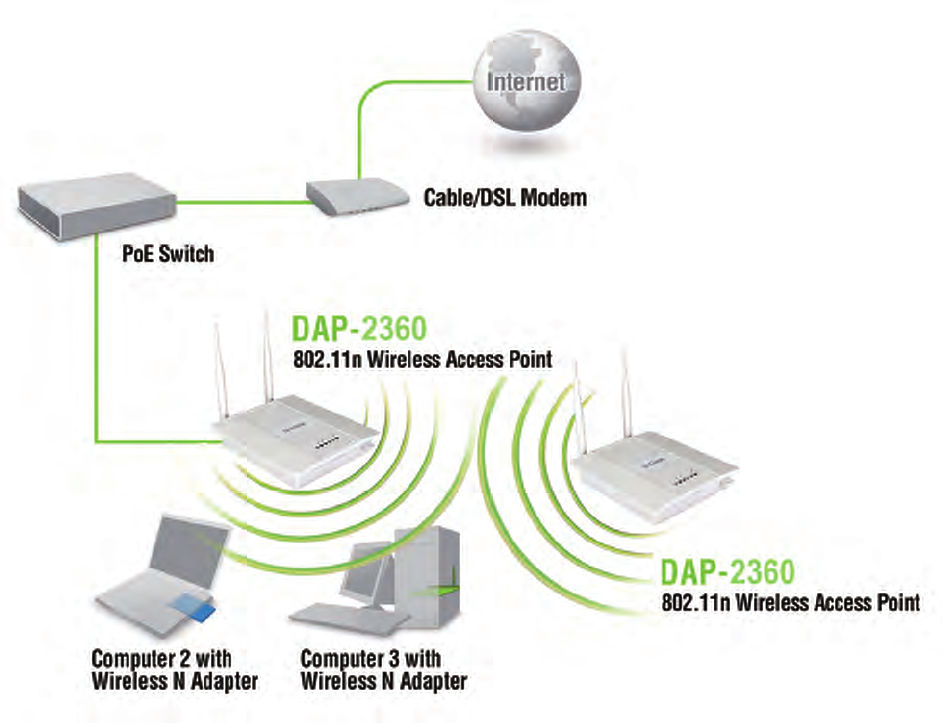

Network Layout
diagram
).
Launch your web browser.
Type the IP address of the DAP-2360 in the address eld (http://192.168.0.50) and
press Enter. Make sure that the IP addresses of the DAP-2360 and your computer are
in the same subnet.
Note: If you have changed the default IP address assigned to the DAP-2360, make sure to enter the correct IP address.
Enter the user name (admin) and your password. Leave the password eld blank by default and click Login.
Note: If you have changed the password, make sure
to enter the correct password.
16D-Link DAP-2360 User Manual
Section 3 - Conguration
After successfully logging into the DAP-2360, the following screen will appear:
When making changes on most of the conguration screens in this section, use the button at the bottom of each
screen to save (not activate) your conguration changes.
You may change settings to multiple pages before activating. Once you are nished, click the Conguration button located
at the top of the page and then click Save and Activate.
Save and Activate Settings
17D-Link DAP-2360 User Manual
Section 3 - Conguration
Basic Settings
Wireless
Access Point mode
Select Access Point from the drop-down menu.
The other three choices are WDS with AP, WDS,
and Wireless Client.
Service Set Identier (SSID) is the name designated
for a specic wireless local area network (WLAN).
The SSID’s factory default setting is dlink. The SSID
can be easily changed to connect to an existing
wireless network or to establish a new wireless
network. The SSID can be up to 32 characters and
is case-sensitive.
Enable or Disable SSID visibility. Enabling this
feature broadcasts the SSID across the network,
thus making it visible to all network users.
Enabling this feature automatically selects
the channel that provides the best wireless
performance. Enable is set by default. The channel
selection process only occurs when the AP is booting up.
All devices on the network must share the same channel. To change the channel, rst toggle the Auto Channel Selection setting to
Disable, and then use the drop-down menu to make the desired selection.
Note: The wireless adapters will automatically scan and match the wireless settings.
Mode:
Network Name
(SSID):
SSID Visibility:
Auto Channel
Selection:
Channel:
Wireless Band: Select 2.4GHz from the drop-down menu.
18D-Link DAP-2360 User Manual
Section 3 - Conguration
Channel Width:
Authentication:
Allows you to select the channel width you would like to operate in. Select 20 MHz if you are not using any 802.11n wireless clients.
Auto 20/40 MHz allows you to connect to both 802.11n and 802.11b/g wireless devices on your network.
Use the drop-down menu to choose Open System, Shared Key, WPA-Personal, WPA-Enterprise, or 802.11x.
Select Open System to communicate the key across the network.
Select Shared Key to limit communication to only those devices that share the same WEP settings. If multi-SSID is enabled, this
option is not available.
Select WPA-Personal to secure your network using a password and dynamic key changes. No RADIUS server is required.
Select WPA-Enterprise to secure your network with the inclusion of a RADIUS server.
Select 802.1x to secure your network using 802.1x authentication.
19D-Link DAP-2360 User Manual
Section 3 - Conguration
WDS with AP mode
WDS with AP mode is selected from the drop-down menu.
Service Set Identier (SSID) is the name designated for
a specic wireless local area network (WLAN). The SSID’s
factory default setting is dlink. The SSID can be easily
changed to connect to an existing wireless network or to
establish a new wireless network.
Enable or Disable SSID visibility. Enabling this feature
broadcasts the SSID across the network, thus making it
visible to all network users.
Enabling this feature automatically selects the channel
that will provide the best wireless performance. This
feature is not supported in WDS with AP mode. The
channel selection process only occurs when the AP is
booting up.
To change the channel, use the drop-down menu to make
the desired selection. (Note: The wireless adapters will
automatically scan and match the wireless settings.)
Indicates whether the device is capable of 20MHz
operation only or both 20MHz and 40MHz operation.
Mode:
Network Name
(SSID):
SSID Visibility:
Auto Channel
Selection:
Channel:
Channel Width:
Wireless Band:
In WDS with AP mode, the DAP-2360 wirelessly connects multiple networks while still functioning as a wireless AP.
Select 2.4GHz from the drop-down menu.
20D-Link DAP-2360 User Manual
Section 3 - Conguration
Enter the MAC addresses of the APs on your network that will serve as bridges to wirelessly connect multiple networks.
Click on the Scan button to search for available wireless networks, then click on the available network that you want to connect with.
Use the drop-down menu to choose Open System, Shared Key, or WPA-Personal.
Select Open System to communicate the key across the network.
Select Shared Key to limit communication to only those devices that share the same WEP settings. If multi-SSID is enabled, this
option is not available.
Select WPA-Personal to secure your network using a password and dynamic key changes. No RADIUS server is required.
Remote AP MAC
Address:
Site Survey:
Authentication:
21D-Link DAP-2360 User Manual
Section 3 - Conguration
WDS mode
In WDS mode, the DAP-2360 wirelessly connects multiple networks, without functioning as a wireless AP.
WDS is selected from the drop-down menu.
Service Set Identier (SSID) is the name designated
for a specic wireless local area network (WLAN).
The SSID’s factory default setting is dlink. The SSID
can be easily changed to connect to an existing
wireless network or to establish a new wireless
network.
Enable or Disable SSID visibility. Enabling this
feature broadcasts the SSID across the network,
thus making it visible to all network users.
Enabling this feature automatically selects the
channel that will provide the best wireless
performance. This feature is not supported in WDS
mode.
All devices on the network must share the
same channel. To change the channel, use the
drop-down menu to make the desired selection.
Use the drop-down menu to choose 20 MHz or
Auto 20/40 MHz.
Enter the MAC addresses of the APs on your net-
work that will serve as bridges to wirelessly connect
multiple networks.
Mode:
Network Name
(SSID):
SSID Visibility:
Auto Channel
Selection:
Channel:
Channel Width:
Remote AP
MAC Address:
Wireless Band: Select 2.4GHz from the drop-down menu.
22D-Link DAP-2360 User Manual
Section 3 - Conguration
Click on the Scan button to search for available wireless networks, then click on the available network that you want to connect with.
Use the drop-down menu to choose Open System, Shared Key, or WPA-Personal.
Select Open System to communicate the key across the network.
Select Shared Key to limit communication to only those devices that share the same WEP settings.
Select WPA-Personal to secure your network using a password and dynamic key changes. No RADIUS server is required.
Site Survey:
Authentication:
23D-Link DAP-2360 User Manual
Section 3 - Conguration
Wireless Client mode
Mode:
Network Name
(SSID):
SSID Visibility:
Auto Channel
Selection:
Channel:
Channel Width:
Site Survey:
Authentication:
Enable:
MAC Source:
MAC Address:
Wireless Band: Select 2.4GHz from the drop-down menu.
Wireless Client is selected from the drop-down menu.
Service Set Identier (SSID) is the name designated for a specic
wireless local area network (WLAN). The SSID’s factory default
setting is dlink. The SSID can be easily changed to connect to an
existing wireless network.
This option is unavailable in Wireless Client mode.
Enabling this feature automatically selects the channel that
will provide the best wireless performance. This feature is not
supported in Wireless Client mode.
The channel used will be displayed, and matches the AP that the
DAP-2360 is connected to when set to Wireless Client mode.
Use the drop-down menu to choose 20 MHz or Auto 20/40
MHz.
Click on the Scan button to search for available wireless
networks, then click on the available network that you want to
connect with.
Use the drop-down menu to choose Open System or
WPA-Personal.
Select Open System to communicate the key across the
network.
Select WPA-Personal to secure your network using a password
and dynamic key changes. No RADIUS server is required.
Check to enable clone MAC. This feature will allow you to change
the MAC address of the access point to the MAC address of a
client.
Select the MAC source from the drop-down menu.
Enter the MAC address that you would like to assign to the
access point.
24D-Link DAP-2360 User Manual
Section 3 - Conguration
Open System/Shared Key Authentication
Encryption:
Key Type*:
Key Size:
Key Index (1-4):
Key:
Use the radio button to disable or enable
encryption.
Select HEX or ASCII.
Select 64 Bits or 128 Bits.
Select the 1st through the 4th key to be the
active key.
Input up to four keys for encryption. You
will select one of these keys in the Key Index
drop-down menu.
**Hexadecimal (HEX) digits consist of the numbers 0-9 and the letters A-F.
*ASCII (American Standard Code for Information Interchange) is a code that represents English letters using numbers ranging from 0-127.
25D-Link DAP-2360 User Manual
Section 3 - Conguration
WPA/WPA2-Personal Authentication
When WPA-Personal is selected for Authentication
type, you must also select a WPA mode from the drop-
down menu: AUTO (WPA or WPA2), WPA2 Only, or
WPA Only. WPA and WPA2 use dierent algorithms.
AUTO (WPA or WPA2) allows you to use both WPA
and WPA2.
When you select WPA-Personal, you must also select
AUTO, AES, or TKIP from the drop-down menu.
Select the interval during which the group key will
be valid. The default value of 1800 is recommended.
Select Manual to enter your key (PassPhrase).
You can select Periodical Key Change to have the
access point automatically change your PassPhrase.
Enter the Activate From time and the time in hours to
change the key.
When you select WPA-Personal, please enter a
PassPhrase in the corresponding eld.
WPA Mode:
Cipher Type:
Group Key
Update:
Periodical Key
Change:
PassPhrase:
26D-Link DAP-2360 User Manual
Section 3 - Conguration
WPA/WPA2-Enterprise Authentication
When WPA-Enterprise is selected, you must also
select a WPA mode from the drop-down menu:
AUTO (WPA or WPA2), WPA2 Only, or WPA Only.
WPA and WPA2 use dierent algorithms. AUTO
(WPA or WPA2) allows you to use both WPA and
WPA2.
When WPA-Enterprise is selected, you must also
select a cipher type from the drop-down menu:
Auto, AES, or TKIP.
Select the interval during which the group key will
be valid. The recommended value is 1800. A lower
interval may reduce data transfer rates.
Enable or disable Microsoft Network Access
Protection.
Enter the IP address of the RADIUS server.
Enter the RADIUS port.
Enter the RADIUS secret.
WPA Mode:
Cipher Type:
Group Key
Update
Interval:
Network Access
Protection:
RADIUS Server:
RADIUS Port:
RADIUS Secret:
27D-Link DAP-2360 User Manual
Section 3 - Conguration
802.1x Authentication
Select the interval during which the group
key will be valid (300 is the recommended
value). A lower interval may reduce data
transfer rates.
Enter the IP address of the RADIUS server.
Enter the RADIUS port.
Enter the RADIUS secret.
Key Update Interval:
RADIUS Server:
RADIUS Port:
RADIUS Secret:
28D-Link DAP-2360 User Manual
Section 3 - Conguration
Static IP (Manual) is chosen here. Choose this option
if you do not have a DHCP server in your network, or
if you wish to assign a static IP address to the DAP-
2360. When Dynamic IP (DHCP) is selected, the other
elds here will be grayed out. Please allow about two
minutes for the DHCP client to be functional once this
selection is made.
The default IP address is 192.168.0.50. Assign a static
IP address that is within the IP address range of your
network.
Enter the subnet mask. All devices in the network must
share the same subnet mask.
Enter the IP address of the gateway in your network. If
there is a gateway in your network, please enter an IP
address within the range of your network.
Enter the DNS IP address used here.
LAN
Get IP
From:
IP Address:
Subnet
Mask:
Default
Gateway:
DNS:
LAN is short for Local Area Network. This is considered your internal network. These are the IP settings of the LAN interface for
the DAP-2360. These settings may be referred to as private settings. You may change the LAN IP address if needed. The LAN IP
address is private to your internal network and cannot be seen on the Internet.
29D-Link DAP-2360 User Manual
Section 3 - Conguration
Check to enable the IPv6
Auto is chosen here. Choose this option the
DAP-2360 can get IPv6 address automatically
or use Static to set IPv6 address manually.
When Auto is selected, the other elds here will be
grayed out.
Enter the LAN IPv6 address used here.
Enter the LAN subnet prefix length value used here.
Enter the LAN default gateway IPv6 address used here.
IPv6
Enable IPv6:
Get IP From:
IP
Address:
Prex:
Default
Gateway:
30D-Link DAP-2360 User Manual
Section 3 - Conguration
Advanced Settings
Performance
*Maximum wireless signal rate derived from IEEE Standard 802.11n and 802.11g specications. Actual data throughput may vary. Network conditions and environmental factors,
including volume of network trac, building materials and construction, and network overhead can lower actual data throughout rate.
Wireless:
Wireless Mode:
Data Rate*:
Use the drop-down menu to turn the wireless
function On or O.
The different combination of clients that can
be supported include Mixed 802.11n, 802.11g
and 802.11b, Mixed 802.11g and 802.11b
and 802.11n Only. Please note that when
backwards compatibility is enabled for legacy
(802.11g/b) clients, degradation of 802.11n
wireless performance is expected.
Indicate the base transfer rate of wireless adapters
on the wireless LAN. The AP will adjust the base
transfer rate depending on the base rate of
the connected device. If there are obstacles or
interference, the AP will step down the rate. This
option is enabled in Mixed 802.11g and 802.11b
mode. The choices available are Best (Up to 54),
54, 48, 36, 24, 18, 12, 9, 6, 11, 5.5, 2 or 1.
31D-Link DAP-2360 User Manual
Section 3 - Conguration
Beacons are packets sent by an access point to synchronize a wireless network. Specify a value in milliseconds. The default (100)
is recommended. Setting a higher beacon interval can help to save the power of wireless clients, while setting a lower one can
help a wireless client connect to an access point faster.
Select a Delivery Trac Indication Message setting between 1 and 15. The default value is 1. DTIM is a countdown informing cli-
ents of the next window for listening to broadcast and multicast messages.
This setting determines the power level of the wireless transmission. Transmitting power can be adjusted to eliminate overlap-
ping of wireless area coverage between two access points where interference is a major concern. For example, if wireless cov-
erage is intended for half of the area, then select 50% as the option. Use the drop-down menu to select 100%, 50%, 25%, or
12.5%.
WMM stands for Wi-Fi Multimedia. Enabling this feature will improve the user experience for audio and video applications over
a Wi-Fi network.
To eectively optimize throughput over long distance links, enter a value for Acknowledgement Time Out from 64 to 200 micro-
seconds in the 2.4 GHz in the eld provided.
Select Enable or Disable. Enabling a short guard interval can increase throughput. However, be aware that it can also increase
the error rate in some installations due to increased sensitivity to radio-frequency installations.
Select Enable or Disable. Internet Group Management Protocol allows the AP to recognize IGMP queries and reports sent
between routers and an IGMP host (wireless STA). When IGMP snooping is enabled, the AP will forward multicast packets to an
IGMP host based on IGMP messages passing through the AP.
Select Enable or Disable. This is an option for load balancing. This determines whether to limit the number of users accessing
this device. The exact number is entered in the User Limit eld below. This feature allows the user to share the wireless network
trac and the client using multiple APs. If this function is enabled, when the number of users exceeds this value, the DAP-2360
will not allow clients to associate with the AP.
Set the maximum amount of users that are allowed access (0-64 users). To use this feature, the Connection Limit above must be
enabled. For most users, a limit of 10 is recommended. The default setting is 20.
Select the multicast rate for 2.4G band. The choices available are 130,117,78,65,58.5,54, 52,48, 39,36, 26,24, 19.5,18, 13,12, 9, 6.5,6,
11, 5.5, 2 or 1.
Beacon Interval (25-
500):
DTM Interval
(1-15):
Transmit Power:
WMM (Wi-Fi
Multimedia):
Ack Time Out
(2.4 GHZ, 64~200) :
Short GI:
IGMP Snooping:
Connection Limit:
User Limit (0-64):
Multicast Rate for
2.4G Band
32D-Link DAP-2360 User Manual
Section 3 - Conguration
Wireless Resource
The Wireless Resource Control window is used to congure the wireless connection settings so that the device can detect the
better wireless connection in your environment.
Select 2.4GHz or 5GHz.
Use the drop-down menu to Enable the 5G Preferred
function. When the wireless clients support both
2.4GHz and 5GHz and the 2.4GHz signal is not strong
enough, the device will use 5G as higher priority.
Enter the time in seconds to specify the interval of
updating information.
The 5G preferred dierence value is equal to the
number of 5GHz wireless client connections minus
the number of 2.4GHz wireless client connections.
If the number of 5GHz wireless client connections
minus the number of 2.4GHz wireless client connec-
tions exceed this value, the extra 5GHz wireless client
connections will be forced to connect to the 2.4GHz
band and not the 5GHz band.
Enter the maximum 5G connection attempts allowed
before the 5G preferred function will be disabled for
the wireless station connection.
Select Enable or Disable. This is an option for load balancing. This determines whether to limit the number of users accessing this de-
vice. The exact number is entered in the User Limit eld below. This feature allows the user to share the wireless network trac and the
client using multiple APs. If this function is enabled and when the number of users exceeds this value, or the network utilization of this
AP exceeds the percentage that has been specied, the DAP-2660 will not allow clients to associate with the AP.
Wireless
band:
Band
Steering:
Band
Steering Age:
Band
Steering
Dierence:
Band
Steering
Refuse
Number:
Connection
Limit:
33D-Link DAP-2360 User Manual
Section 3 - Conguration
Set the maximum amount of users that are allowed access (zero to 64 users) to the device using the specied wireless band. The
default setting is 20.
Use the drop-down menu to Enable the 11n Preferred function. The wireless clients with 802.11n protocol will have higher priority
to connect to the device.
Set the maximum utilization of this access point for service. The DAP-2660 will not allow any new clients to associate with the AP if
the utilization exceeds the value the user species. Select a utilization percentage between 100%, 80%, 60%, 40%, 20%, or 0%. When
this network utilization threshold is reached, the device will pause one minute to allow network congestion to dissipate.
Use the drop-down menu to select the criteria of disconnecting the wireless clients. Available options are RSSI and Data Rate.
When RSSI is selected in the Aging out drop-down menu, select the percentage of RSSI here. When the RSSI of wireless clients is
lower than the specied percentage, the device disconnects the wireless clients.
When Data Rate is selected in the Aging out drop-down menu, select the threshold of data rate here. When the data rate of wireless
clients is lower than the specied number, the device disconnects the wireless clients.
Use the drop-down menu to Enable the function. When enabled, the device denies the connection request from the wireless clients
with the RSSI lower than the specied threshold below.
Set the ACL RSSI Threshold.
User Limit:
11n
Preferred:
Network
Utilization:
Aging out:
RSSI
Threshold:
Data Rate
Threshold:
ACL RSSI:
ACL RSSI
Threshold:
34D-Link DAP-2360 User Manual
Section 3 - Conguration
The device supports up to four multiple Service Set Identiers. In the Basic > Wireless section, you can set the Primary SSID.
The SSID’s factory default setting is dlink. The SSID can be easily changed to connect to an existing wireless network or to
establish a new wireless network.
Check to enable support for multiple SSIDs.
This read-only value is the current band setting.
You can select up to three multi-SSIDs. With
the Primary SSID, you have a total of four
multi-SSIDs.
Service Set Identifier (SSID) is the name
designated for a specific wireless local area
network (WLAN). The SSID’s factory default
setting is dlink. The SSID can be easily changed
to connect to an existing wireless network or to
establish a new wireless network.
Enable or Disable SSID visibility. Enabling this
feature broadcasts the SSID across the network,
thus making it visible to all network users.
The Multi-SSID security can be Open System,
WPA-Personal, WPA-Enterprise, or 802.1x.
For a detailed description of the Open System
parameters, please go to page 25. For a detailed
description of the WPA-Personal parameters, please go to page 26. For a detailed description of the WPA-Enterprise parameters,
please go to page 27. For a detailed description of the O802.1x parameters, please go to page 28.
Enable
Multi-SSID:
Band:
Index:
SSID:
SSID Visibility:
Security:
Multi-SSID
35D-Link DAP-2360 User Manual
Section 3 - Conguration
Check the Enable Priority box at the top of this window to enable. Select the priority from the drop-down menu.
Select Enable or Disable.
When you select Open System, toggle between Enable and Disable. If Enable is selected, the Key Type, Key Size, Key Index (1~4),
Key, and Conrm Keys must also be congured.
Select HEX or ASCII.
Select 64 Bits or 128 Bits.
Select from the 1st to 4th key to be set as the active key.
Input up to four keys for encryption. You will select one of these keys in the Key Index drop-down menu.
When you select either WPA-Personal or WPA-Enterprise, you must also choose a WPA mode from the drop-down menu: AUTO
(WPA or WPA2), WPA2 Only, or WPA Only. WPA and WPA2 use dierent algorithms. AUTO (WPA or WPA2) allows you to use both
WPA and WPA2. In addition, you must congure Cipher Type and Group Key Update Interval.
Select Auto, AES, or TKIP from the drop-down menu.
Select the interval during which the group key will be valid. The default value of 1800 seconds is recommended.
When you select WPA-Personal, please enter a PassPhrase in the corresponding eld.
When you select WPA-Personal, please re-enter the PassPhrase entered in the previous item in the corresponding eld.
When you select WPA-Enterprise, enter the IP address of the RADIUS server. In addition, you must congure RADIUS Port and
RADIUS Secret.
Enter the RADIUS port.
Enter the RADIUS secret.
Priority:
WMM (Wi-Fi
Multimedia):
Encryption:
Key Type:
Key Size:
Key Index (1-4):
Key:
WPA Mode:
Cipher Type:
Group Key
Update Interval:
PassPhrase:
Conrm
PassPhrase:
RADIUS Server:
RADIUS Port:
RADIUS Secret:
36D-Link DAP-2360 User Manual
Section 3 - Conguration
VLAN
VLAN List
The DAP-2360 supports VLANs. VLANs can be created with a Name and VID. Mgmt (TCP stack), LAN, Primary/
Multiple SSID, and WDS connection can be assigned to VLANs as they are physical ports. Any packet which enters the
DAP-2360 without a VLAN tag will have a VLAN tag inserted with a PVID.
The VLAN List tab displays the current VLANs.
Use the radio button to toggle between Enable
or Disable. Next, go to the Add/Edit VLAN tab
to add or modify an item on the VLAN List tab.
VLAN Status:
37D-Link DAP-2360 User Manual
Section 3 - Conguration
Port List
The Port List tab displays the current ports. If you want to congure the guest and internal networks on a Virtual LAN (VLAN),
the switch and DHCP server you are using must also support VLANs. As a prerequisite step, congure a port on the switch for
handling VLAN tagged packets as described in the IEEE 802.1Q standard.
Use the radio button to toggle to Enable. Next,
go to the Add/Edit VLAN tab to add or modify
an item on the VLAN List tab.
The name of the port is displayed in this column.
The Tagged VID is displayed in this column.
The Untagged VID is displayed in this column.
The Port VLAN Identifier is displayed in this
column.
VLAN Status:
Port Name:
Tag VID:
Untag VID:
PVID:
38D-Link DAP-2360 User Manual
Section 3 - Conguration
Add/Edit VLAN
The Add/Edit VLAN tab is used to congure VLANs. Once you have made the desired changes, click the Save button to let
your changes take eect.
Use the radio button to toggle to Enable.
Provide a number between 1 and 4094 for
the Internal VLAN.
Enter the VLAN to add or modify.
VLAN Status:
VLAN ID:
VLAN Name:
39D-Link DAP-2360 User Manual
Section 3 - Conguration
PVID Setting
The PVID Setting tab is used to enable/disable the Port VLAN Identier Auto Assign Status as well as to congure various types
of PVID settings. Click the Save button to let your changes take eect.
Use the radio button to toggle between Enable
and Disable.
Use the radio button to toggle PVID auto assign
status to Enable.
VLAN Status:
PVID Auto As-
sign Status:
40D-Link DAP-2360 User Manual
Section 3 - Conguration
Intrusion
The Wireless Intrusion Protection window is used to set APs as All, Valid, Neighborhood, Rogue, and New. Click the Save
button to let your changes take eect.
The choices include All, Valid, Neighbor, Rogue,
and New.
Click this button to initiate a scan of the network.
AP List:
Detect:
41D-Link DAP-2360 User Manual
Section 3 - Conguration
Schedule
The Wireless Schedule Settings window is used to add and modify scheduling rules on the device. Click the Save button to let
your changes take eect.
Use the drop-down menu to enable the device’s
scheduling feature.
Enter a name for the new scheduling rule in the
eld provided.
Select the index from the drop-down menu.
Enter the name of your wireless network (SSID).
Toggle the radio button between All Week and
Select Day(s). If the second option is selected,
check the specic days you want the rule to be
eective on.
Check this box to have your settings apply 24
hours a day.
Enter the start time for your rule. If you selected
All Day, this option will be greyed out.
Enter the end time for your rule.
Click to add the rule to the list.
This section will display the list of created
schedules.
Click the Save button to save your created rules.
Wireless
Schedule:
Name:
Index:
SSID:
Day(s):
All Day(s):
Start Time:
End Time:
Add:
Schedule Rule
List:
Save:
42D-Link DAP-2360 User Manual
Section 3 - Conguration
Internal RADIUS Server
The DAP-2360 features a built-in RADIUS server. Once you have nished adding a RADIUS account, click the Save button to let
your changes take eect. The newly-created account will appear in this RADIUS Account List. The radio buttons allow the user
to enable or disable the RADIUS account. Click the icon in the delete column to remove the RADIUS account. We suggest you
limit the number of accounts below 30.
Enter a name to authenticate user access to the
internal RADIUS server.
Enter a password to authenticate user access to
the internal RADIUS server. The length of your
password should be 8~64.
Toggle the drop-down menu between Enable
and Disable.
Displays the list of users.
User Name:
Password:
Status:
RADIUS
Account List:
43D-Link DAP-2360 User Manual
Section 3 - Conguration
ARP Spoong Prevention
The ARP Spoong Prevention feature allows users to add IP/MAC address mapping to prevent arp spoong attack.
This check box allows you to enable the arp
spoong prevention function.
Enter a gateway IP address.
Enter a gateway MAC address.
ARP Spoong
Prevention:
Gateway IP
Address:
Gateway MAC
Address:
44D-Link DAP-2360 User Manual
Section 3 - Conguration
Bandwidth Optimization
The Bandwidth Optimization window allows the user to manage the bandwidth of the device and arrange the bandwidth for
various wireless clients. When the Bandwidth Optimization ruile is nished, click the Add button. To discard the Add Bandwidth
Optimization Rule settings, click the Clear button. Click the Save button to let your changes take eect.
Use the drop-down menu to Enable the
Bandwidth Optimization function.
Enter the downlink bandwidth of the device in
Mbits per second.
Enter the uplink bandwidth of the device in
Mbits per second.
Use the drop-down menu to select the type
that is applied to the rule. Available options are:
Allocate average BW for each station, Allocate
maximum BW for each station, Allocate dierent
BW for 1a/b/g/n stations, and Allocte specic
BW for SSID.
AP will distribute average bandwidth for each
client.
Specify the maximum bandwidth for each
connected client. Reserve certain bandwidth
for future clients.
The weight of 11b/g/n and 11a/n client are
10%/20%/70% ; 20%/80%. AP will distribute
dierent bandwidth for 11a/b/g/n clients.
Enable
Bandwidth
Optimization:
Downlink
Bandwidth:
Uplink
Bandwidth:
Rule Type:
Allocate
average BW for
each station:
Allocate
maximum BW
for each station:
Allocate
dierent BW
for a/b/g/n
stations:
45D-Link DAP-2360 User Manual
Section 3 - Conguration
Allocate specic
BW for SSID:
Band:
SSID Index:
Downlink
Speed:
Uplink Speed:
All clients share the total bandwidth.
Use the drop-down menu to toggle the wireless
band between 2.4GHz and 5GHz.
Use the drop-down menu to select the SSID for
the specied wireless band.
Enter the limitation of the downloading speed in
either Kbits/sec or Mbits/sec for the rule.
Enter the limitation of the uploading speed in
either Kbits/sec or Mbits/sec for the rule.
46D-Link DAP-2360 User Manual
Section 3 - Conguration
AP Array
An AP array is a set of devices on a network that are organized into a single group to increase ease of management.
This check box allows the user to enable the AP
array function. The three modes that are available
are Master, Backup Master, and Slave. APs in the
same array will use the same conguration. The
conguration will sync the Master AP to the Slave
AP and the Backup Master AP when a Slave AP
and a Backup Master AP join the AP array.
Enter a name for the AP array you have created.
Enter a password that will be used to access the
AP array you have created.
Click this button to initiate a scan of all the
available APs currently on the network.
This table displays the current AP array status for
the following parameters: Array Name, Master
IP, MAC, Master, Backup Master, Slave, and Total.
This table displays all the current array members.
The DAP-2360 AP array feature supports up to
eight AP array members.
Enable Array:
AP Array Name:
AP Array
Password:
Scan AP Array
List:
AP Array List:
Current Array
Members:
47D-Link DAP-2360 User Manual
Section 3 - Conguration
AP Array Scan
The AP Array window is used to create up to 32 APs on a local network to be organized into a single group in order to increase
ease of management. Click the Save button to let your changes take eect. Central WiFiManager and AP Array are mutually
exclusive functions.
Select the check box to enable the AP array
function. The three modes that are available
are Master, Backup Master, and Slave. APs in the
same array will use the same conguration. The
conguration will sync the Master AP to the Slave
AP and the Backup Master AP when a Slave AP
and a Backup Master AP join the AP array.
Enter an AP array name for the group here.
Enter an AP array password for the group here.
This password must be the same on all the APs
in the group.
Click this button to initiate a scan of all the
available APs currently on the network.
Display the AP array connection status.
This table displays the current AP array status for
the following parameters: Array Name, Master
IP, MAC, Master, Backup Master, Slave, and Total.
This table displays all the current array members.
The DAP-2660 AP array feature supports up to
eight AP array members.
Enable AP
Array:
AP Array Name:
AP Array
Password:
Scan AP Array
List:
Connection
Status:
AP Array List:
Current
Members:
48D-Link DAP-2360 User Manual
Section 3 - Conguration
Conguration Settings
In the AP array conguration settings windows, users can specify which settings all the APs in the group will inherit from the
master AP. Make the required selection in this window and click the Save button to accept the changes made.
Select to Enable or Disable the AP array congure
feature here.
Select this option to specify the basic wireless
settings that the APs in the group will inherit.
Select this option to specify the advanced
wireless settings that the APs in the group will
inherit.
Select this option to specify the multiple SSIDs
and VLAN settings that the APs in the group will
inherit.
Select this option to specify the other advanced
settings that the APs in the group will inherit.
Select this option to specify the administrative
settings that the APs in the group will inherit.
Enable AP Array
Conguration:
Wireless Basic
Settings:
Wireless
Advanced
Settings:
Multiple SSID &
VLAN:
Advanced
Functions:
Administration
Settings:
49D-Link DAP-2360 User Manual
Section 3 - Conguration
Auto-RF
In this windows, users can view and congure the automatic radio frequency settings as well as congure the the auto-initiate
period and threshold values. Click the Save button to accept the changes made.
Select to Enable or Disable the auto-RF feature
here.
Click the Auto-RF Optimize button to initiate
the auto-RF optimization feature.
Select the Enable or Disable the auto-initiate
feature here.
After enabling the auto-initiate option, the
auto-initiate period value can be entered here.
This value must be between 1 and 24 hours.
Select the RSSI threshold value here. This value
is listed in the drop-down menu in increments
of 10% from 10% to 100%.
Enter the RF report frequency value here.
Enable: Auto-
RF:
Initiate Auto-RF:
Auto-Initiate:
Auto-Initiate
Period:
RSSI Threshold:
RF Report
Frequency:
50D-Link DAP-2360 User Manual
Section 3 - Conguration
Load Balance
In this window, users can view and congure the AP array’s load balancing settings. Click the Save button to accept the changes
made.
Select to Enable or Disable the load balance
feature here.
Enter the active threshold value here.
Enable Load
Balance:
Active
Threshold:

Navigation menu
