User manual
2
DAP- 2533 User’s Manual
D-Link AirPremier N Dual Band PoE Access Point
Table of Contents
Table of Contents
Package Contents 4
Introduction 5
Features and Benefits 6
Wireless Basics 7
Four Operational Modes 10
Getting Started 11
Using the Configuration Menu 13
Home > Basic Settings > Wireless > Access Point mode 15
Home > Basic Settings > Wireless > WDS with AP mode 17
Home > Basic Settings > Wireless > WDS mode 19

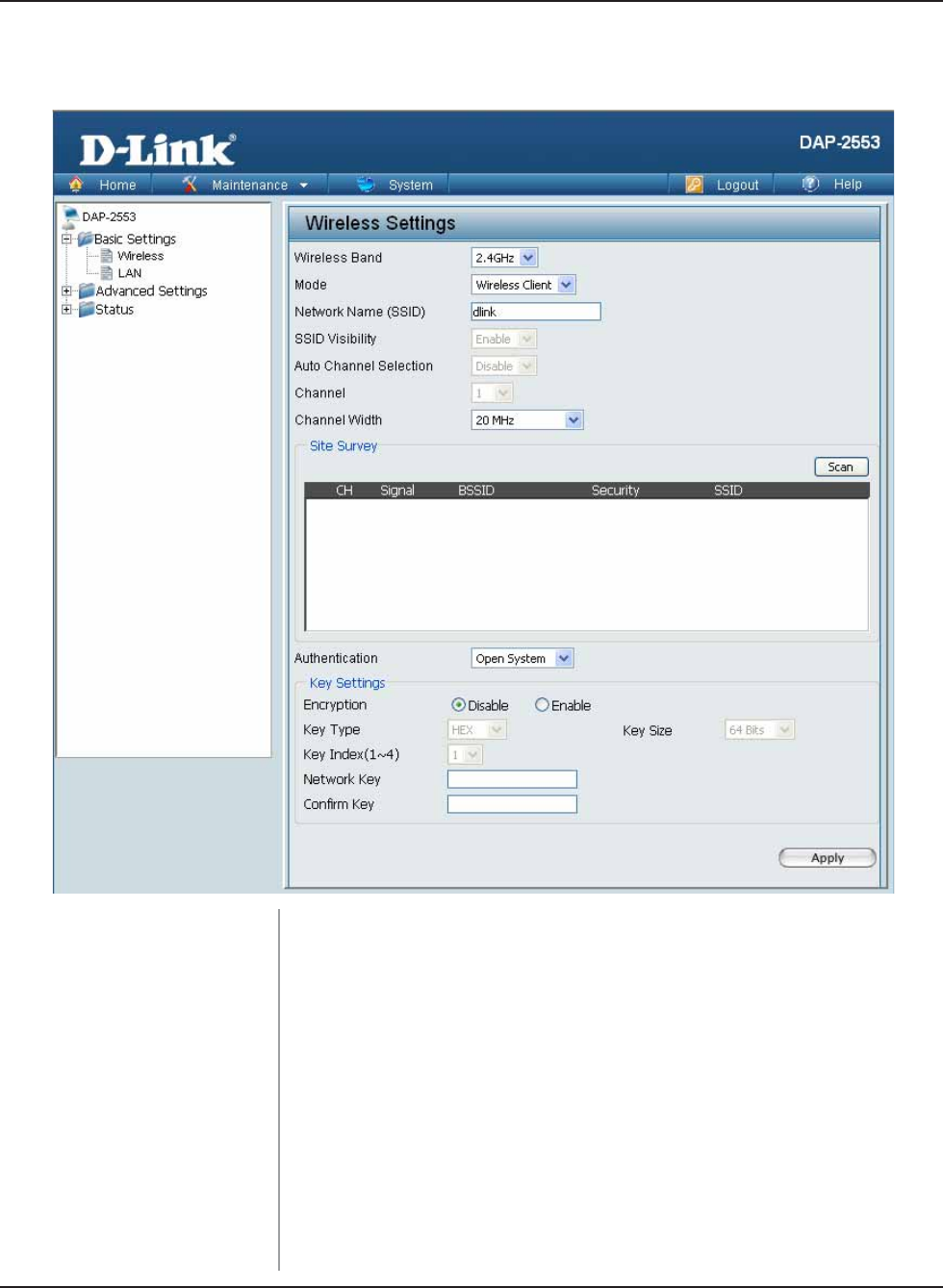

Home > Basic Settings > Wireless > Wireless Client mode 21

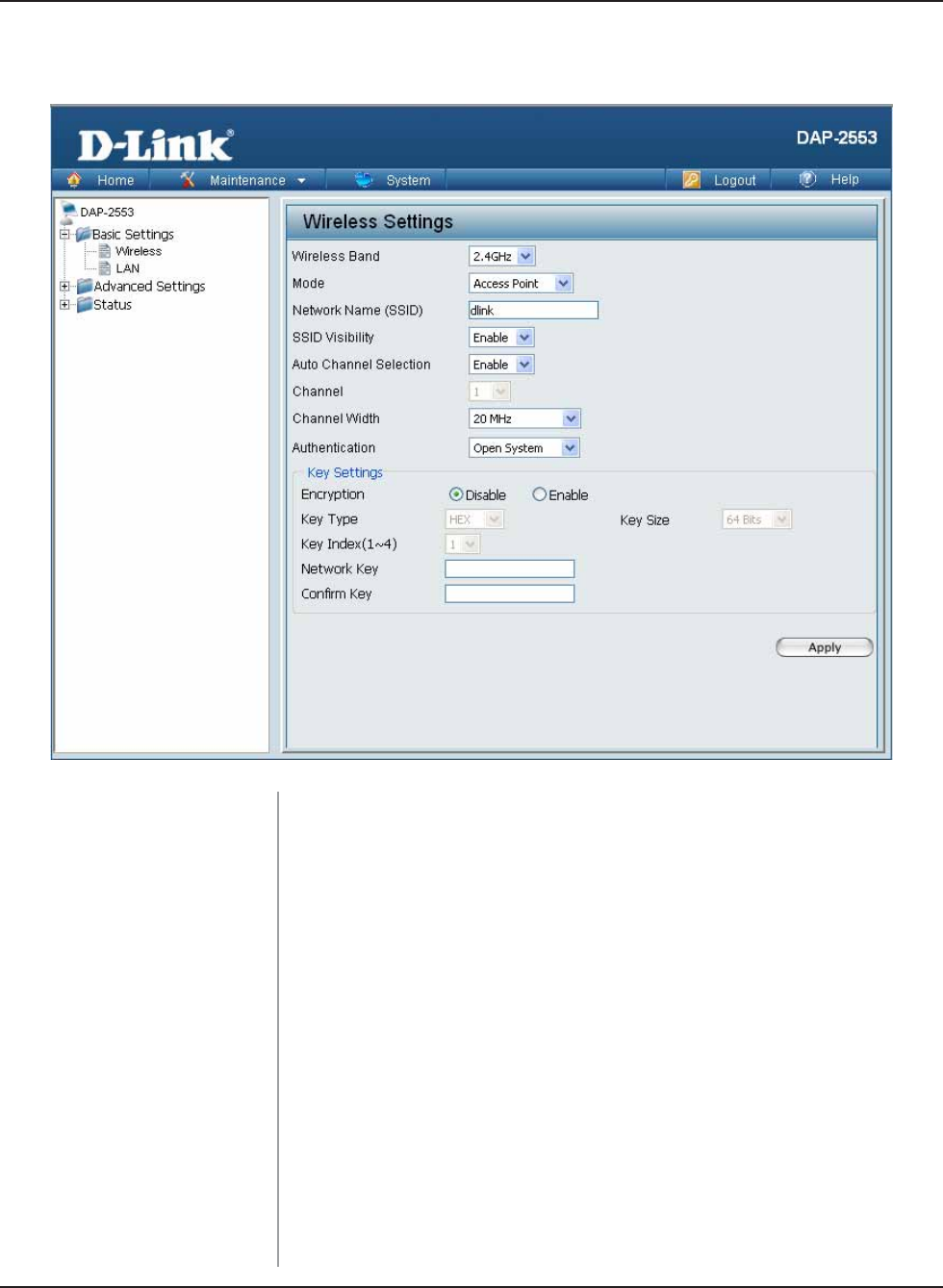

Home > Basic Settings > Wireless > Open System or Shared Key authentication 23
Home > Basic Settings > Wireless > WPA-Personal authentication 24

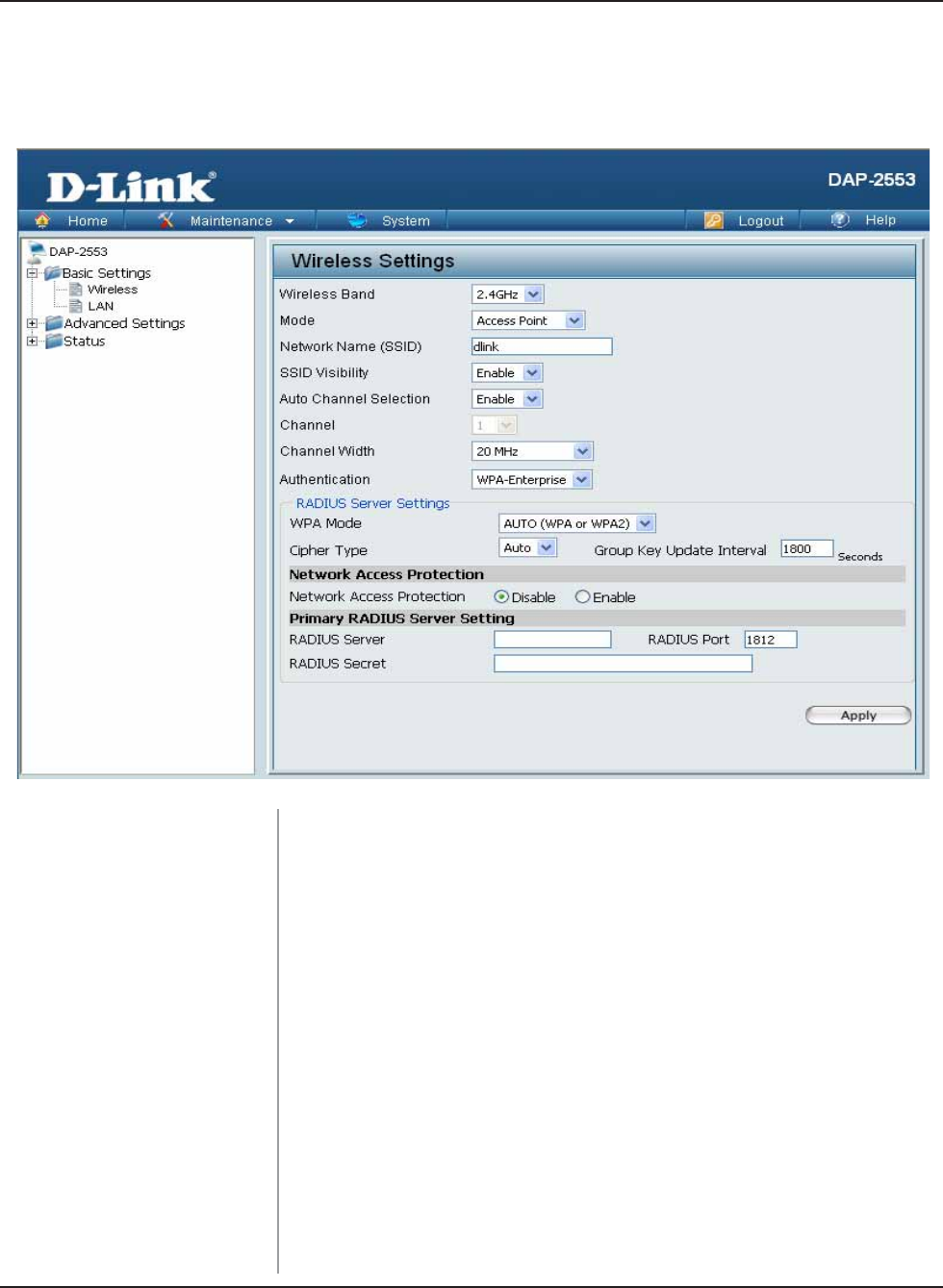

Home > Basic Settings > Wireless > WPA-Enterprise authentication 25
Home > Basic Settings > LAN 26

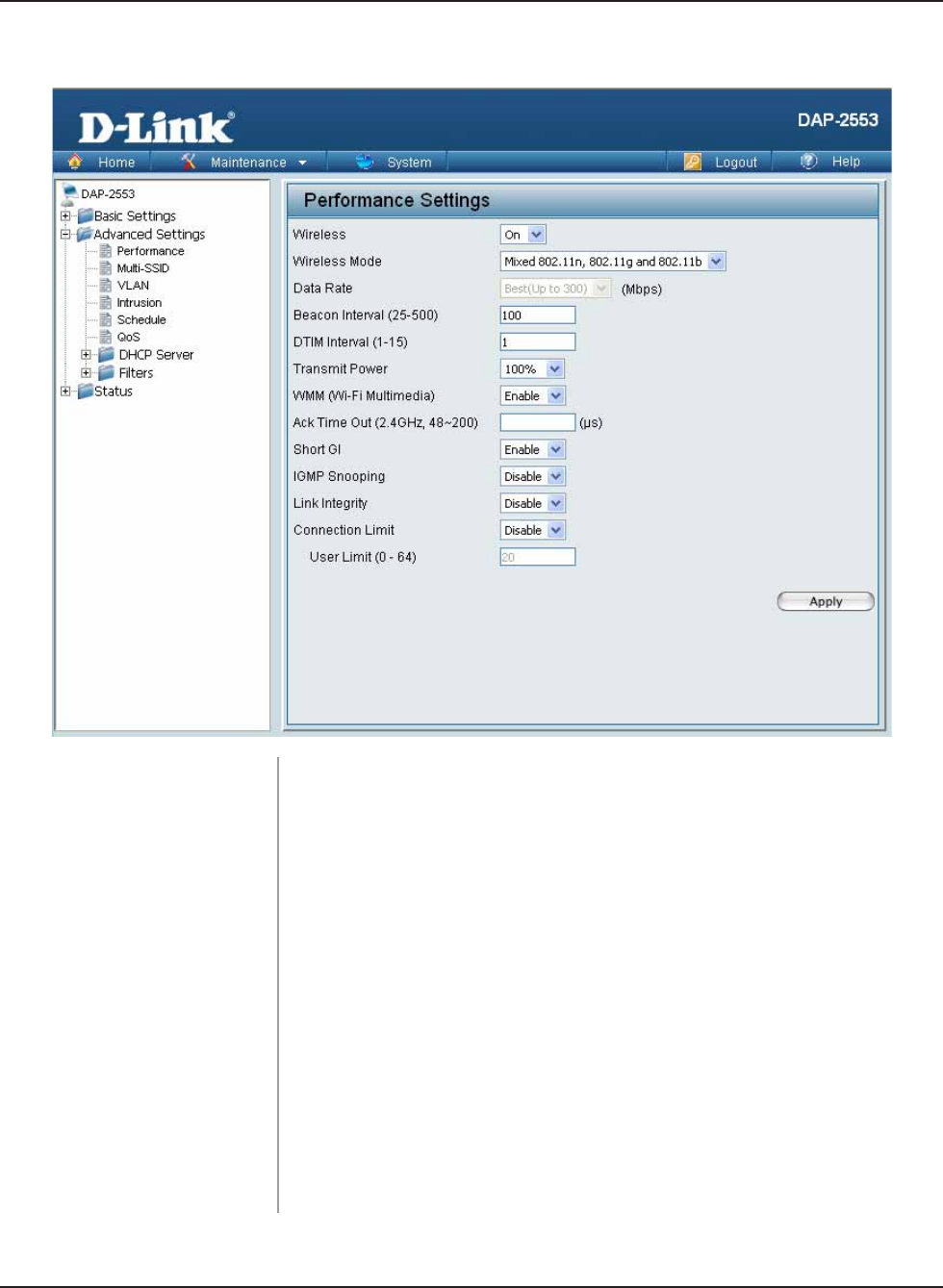

Home > Advanced Settings > Performance 27

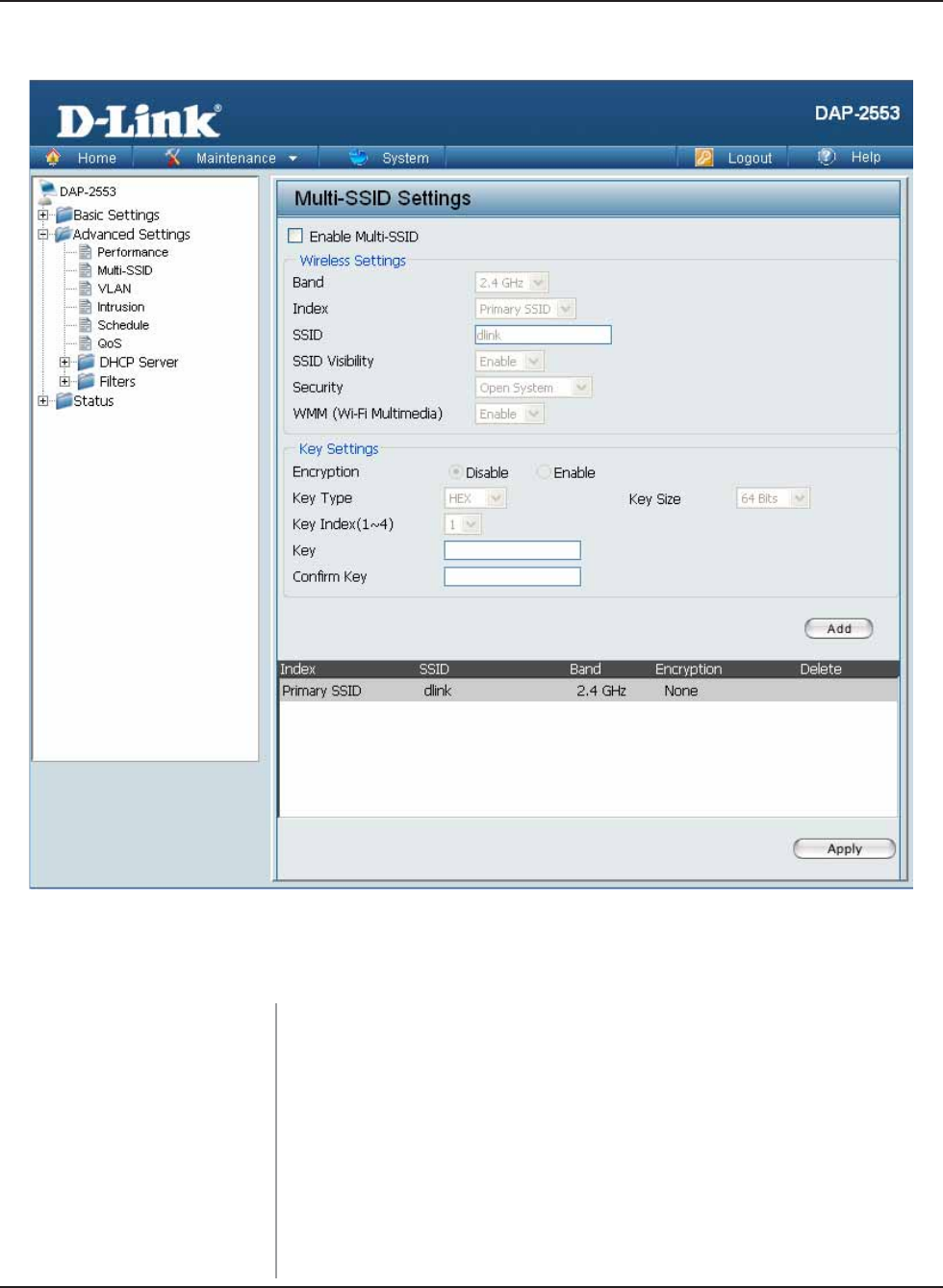

Home > Advanced Settings > Multi-SSID 30
Home > Advanced Settings > VLAN > VLAN List 32

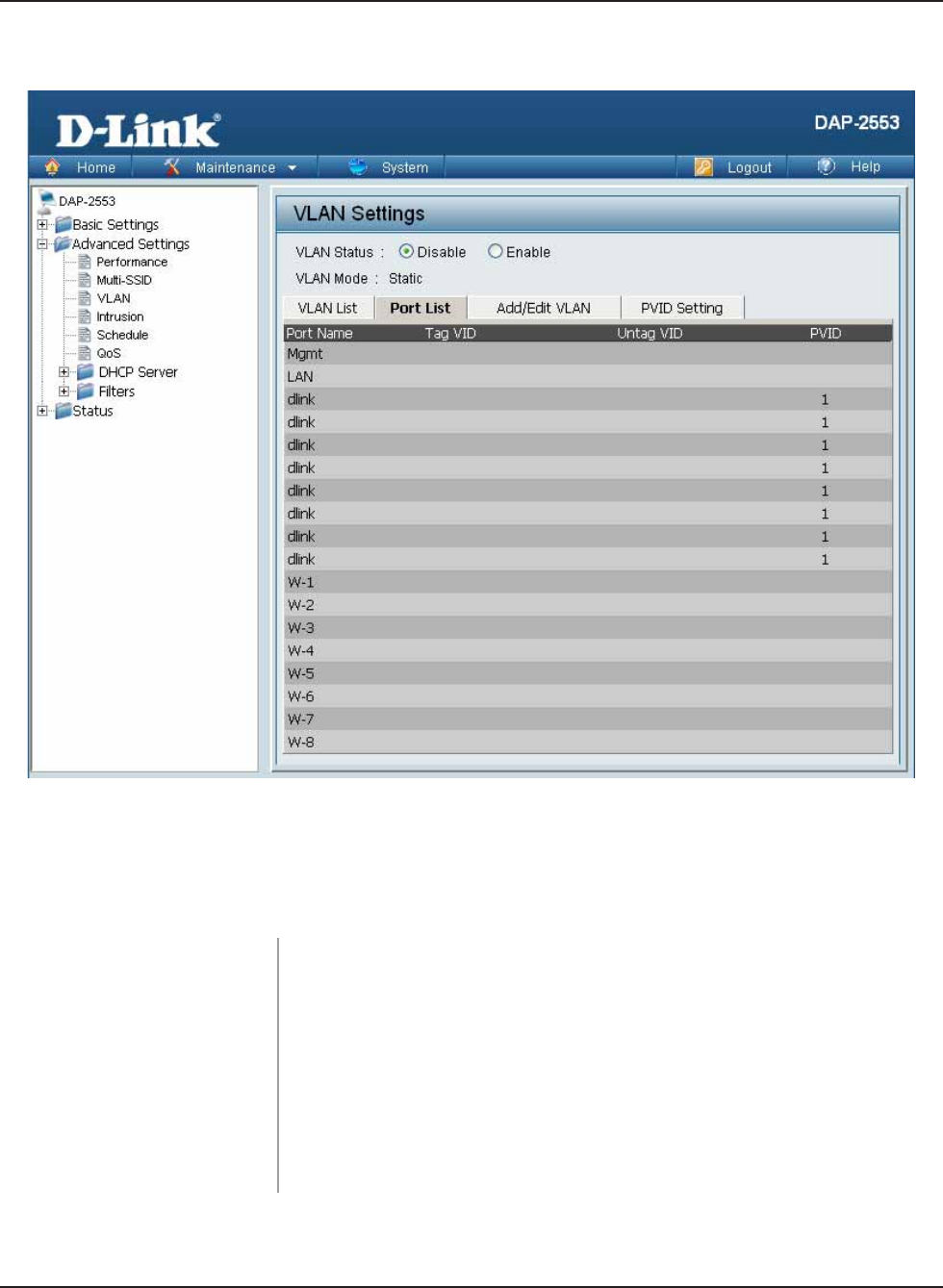

Home > Advanced Settings > VLAN > Port List 33
Home > Advanced Settings > VLAN > Add/Edit VLAN 34
Home > Advanced Settings > VLAN > PVID Setting 35

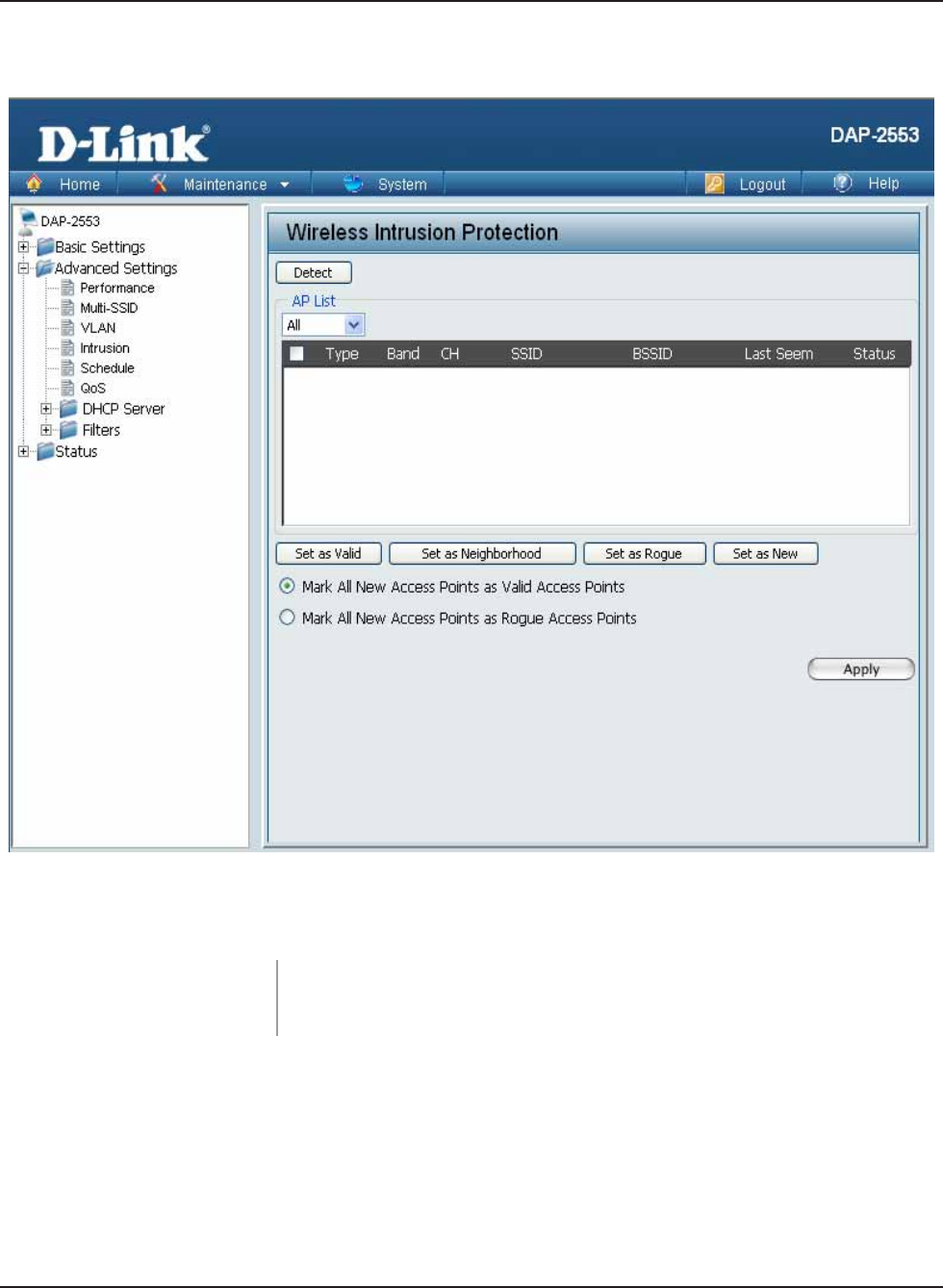

Home > Advanced Settings > Intrusion 36
Home > Advanced Settings > Schedule 37

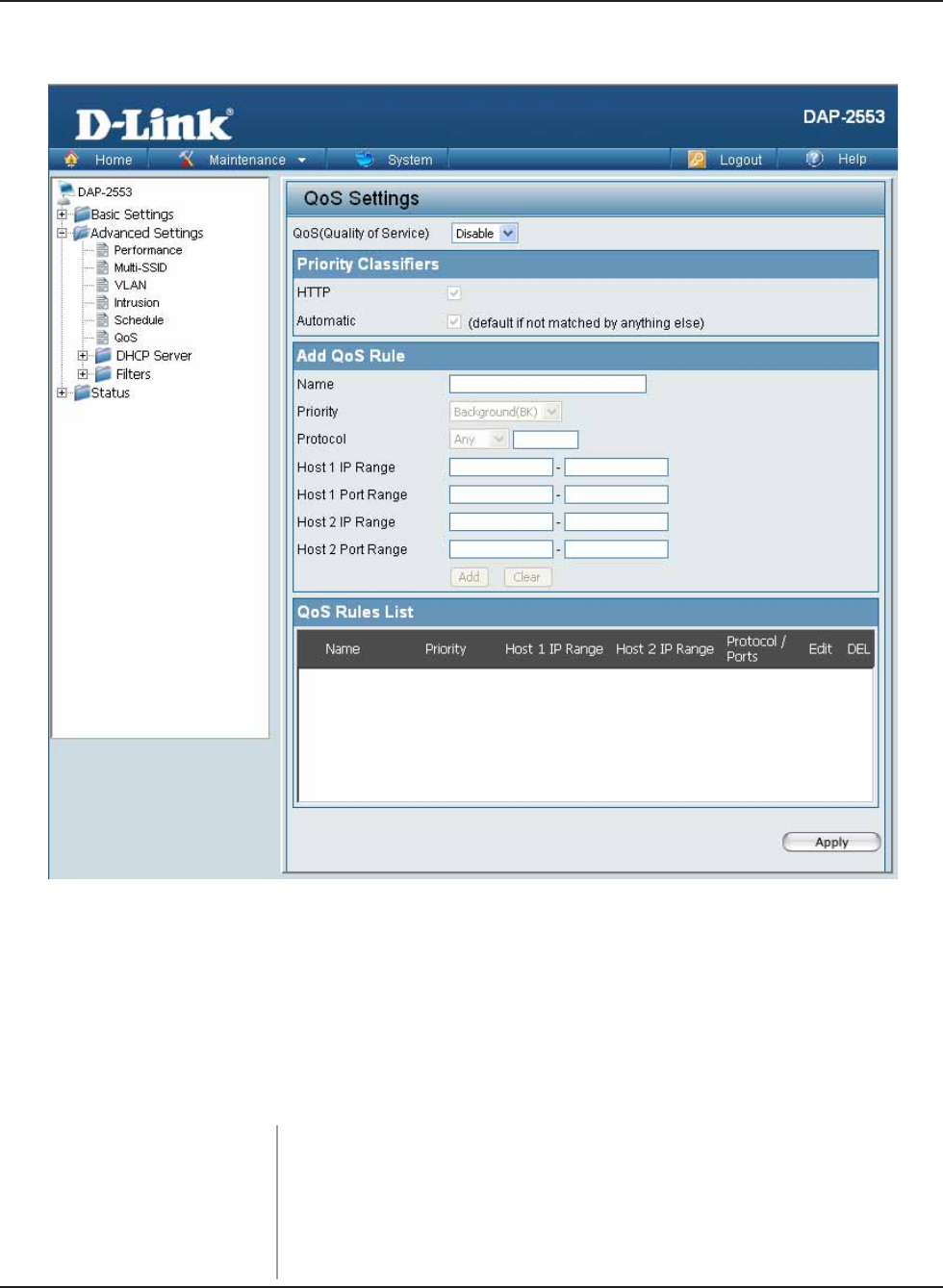

Home > Advanced Settings > QoS 38
Home > Advanced Settings > DHCP Server > Dynamic Pool Settings 40
Home > Advanced Settings > DHCP Server > Static Pool Setting 42
Home > Advanced Settings > DHCP Server > Current IP Mapping List 44
Home > Advanced Settings > Filters > Wireless MAC ACL 46
Home > Advanced Settings > Filters > WLAN Partition 47
Home > Status > Device Information 48
Home > Status > Client Information 49
Home > Status > WDS Information 50

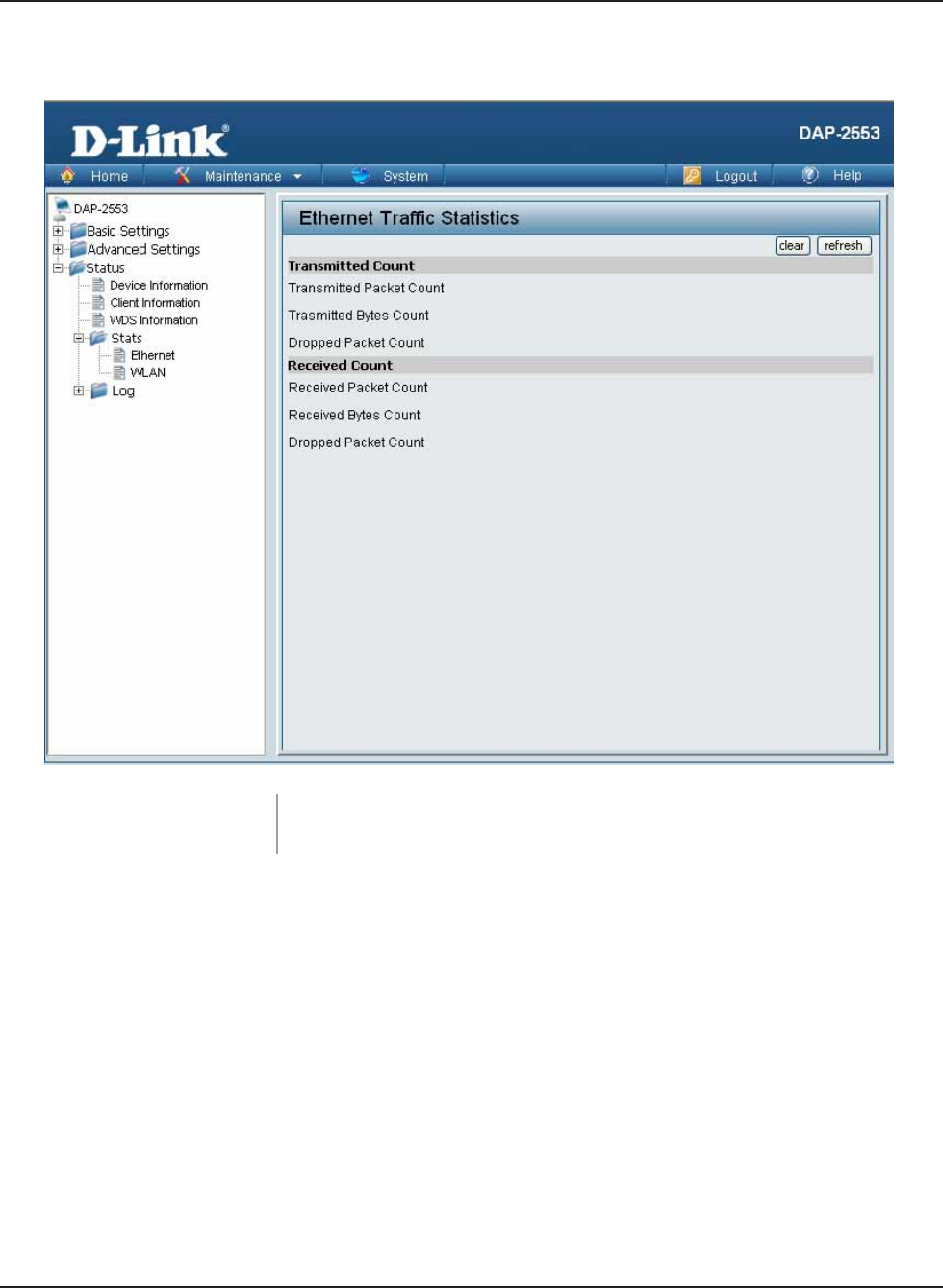

Home > Status > Stats > Ethernet 51
Home > Status > Stats > WLAN 52
Home > Status > Log > View Log 53
Home > Status > Log > Log Settings 54
Maintenance > Administrator Settings 55
Maintenance > Administrator Settings > Limit Administrator 56
3
DAP- 2533 User’s Manual
D-Link AirPremier N Dual Band PoE Access Point

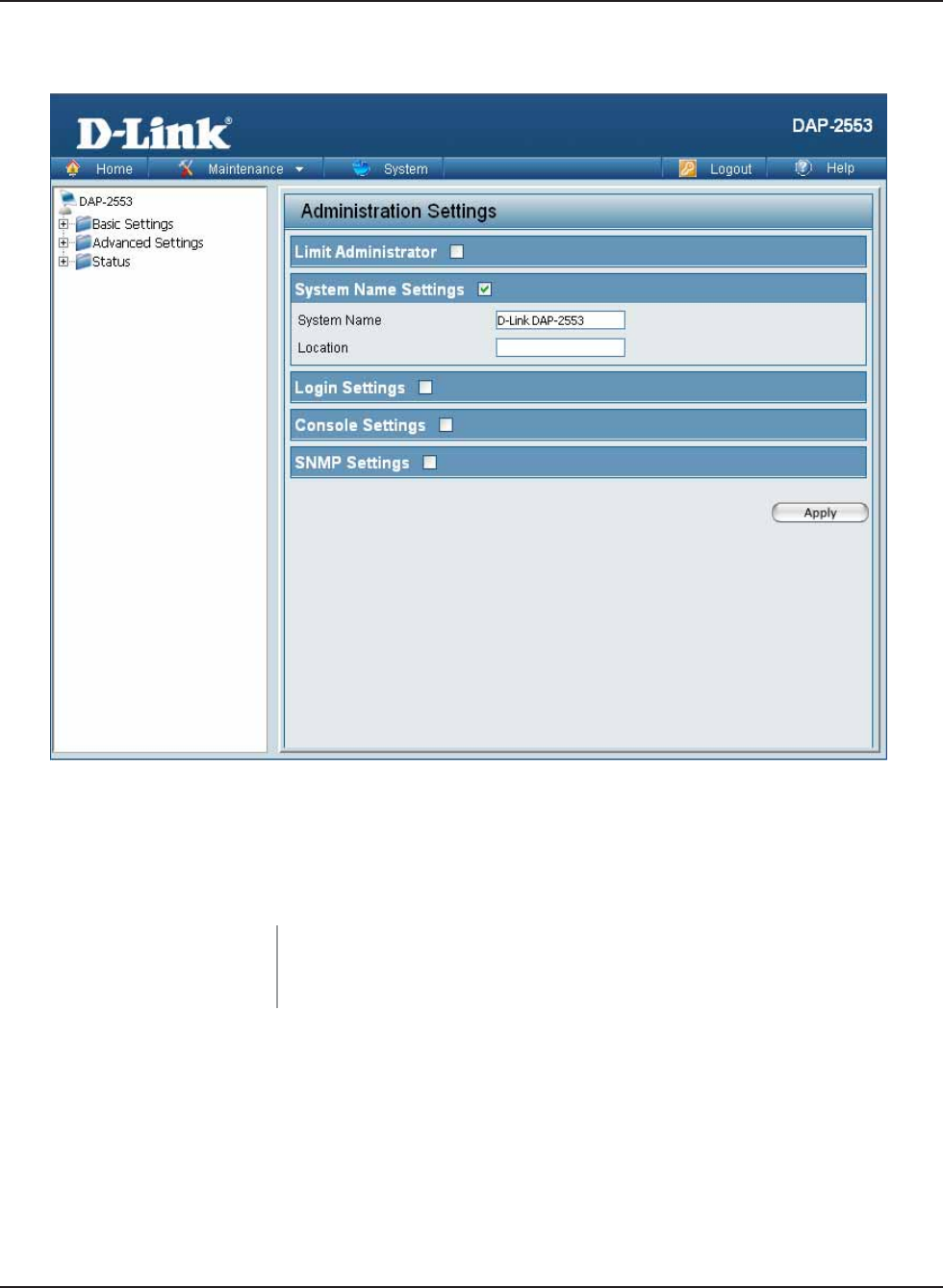

Maintenance > Administrator Settings > System Name Settings 57
Maintenance > Administrator Settings > Login Settings 58

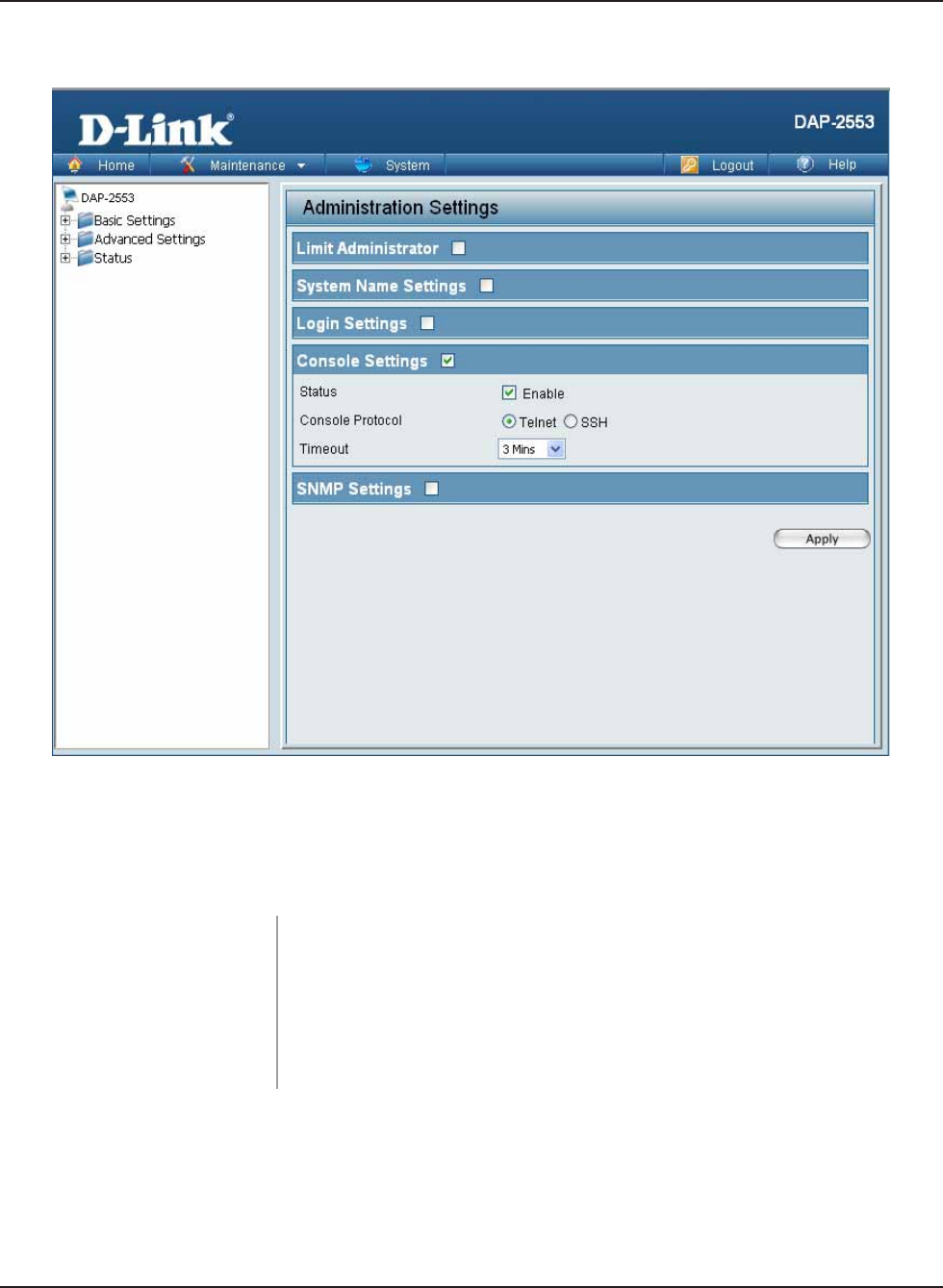

Maintenance > Administrator Settings > Console Settings 59
Maintenance > Administrator Settings > SNMP Settings 60
Maintenance > Firmware and SSL Certification Upload 61
Maintenance > Configuration File 62
Maintenance > Time and Date 63
System > System Settings 64
Help 65
Troubleshooting 66
Technical Specifications 69
Warranty 71
Registration 77
Technical Support 78
Table of Contents
4
DAP- 2533 User’s Manual
D-Link AirPremier N Dual Band PoE Access Point
D-Link DAP-2553 AirPremier N Dual Band PoE Access Point
DC 5V, 2.5A Power Adapter (Use With the power supply provided by the manufacturer)
Manual on CD
Ethernet Cable
Package Contents
Minimum System Requirements
Warning: Using a power adapter with different specifications than the one included with
the DAP-2553 will cause damage and void the warranty for this product.
If any of the above items are missing, please contact your reseller.
Computers with Windows®, Macintosh®, or Linux-based operating systems with
an installed Ethernet adapter
Internet Explorer version 6.0 or Netscape Navigator™version 7.0 and above or
Firefox version 1.5 or above.
Package Contents
Quick Installation Guide
5
DAP- 2533 User’s Manual
D-Link AirPremier N Dual Band PoE Access Point
The DAP-2553 802.11a/n or b/g/n switchable AP increases productivity by allowing you to work
faster and more efficiently. With the DAP-2553, bandwidth-intensive applications like graphics or
multimedia will benefit significantly because large files are now able to move across the network
quickly.
The DAP-2553 is capable of operating in one of four different wireless networking modes; access
point, WDS (Wireless Distribution System) with AP, WDS, or Wireless Client mode.
Use less wiring, enjoy increased flexibility, save time and money with PoE (Power over Ethernet).
With PoE, the DAP-2553 shares power and data over the CAT5 cable, making the setup of your
network less expensive and more convenient.
An ideal solution for quickly creating and extending a wireless local area network (WLAN) in
offices or other workplaces, trade shows, and special events, the DAP-2553 providing data transfers
rates up to 300Mbps. (The 802.11n standard is backwards compatible with 802.11a, 802.11g,
and 802.11b devices.)
Introduction
Introduction
0D[LPXPZLUHOHVV VLJQDOUDWH GHULYHGIURP ,(((6WDQGDUG VSHFL¿FDWLRQV$FWXDOGDWD WKURXJKSXWPD\ YDU\1HWZRUN
FRQGLWLRQV DQG HQYLURQPHQWDO IDFWRUV LQFOXGLQJ YROXPH RI QHWZRUN WUDI¿F EXLOGLQJ PDWHULDOV DQG FRQVWUXFWLRQ DQG QHWZRUN
RYHUKHDGFDQORZHUDFWXDOGDWDWKURXJKRXWUDWH
WPA/WPA2 is offered in two flavors: Enterprise (used for corporations) and Personal (used for
home users).
WPA-Personal and WPA2-Personal are directed towards home users who do not have the server-
based equipment required for user authentication.The method of authentication is similar to WEP
because you define a “Pre-Shared Key” on the wireless router/AP. Once the pre-shared key is
confirmed and satisfied at both the client and access point, access is then granted.The encryption
method used is referred to as the Temporal Key Integrity Protocol (TKIP), which offers per-packet
dynamic hashing. It also includes an integrity checking feature which ensures that the packets
were not tampered with during wireless transmission.
WPA-Enterprise and WPA2-Enterprise are ideal for businesses that already have existing security
infrastructures established. Management and security implementation can now be centralized
on a server participating on the network. Utilizing 802.1x with a RADIUS (Remote Authentication
Dial-in User Service) server, a network administrator can define a list of authorized users who
can access the wireless LAN. When attempting to access a wireless LAN with WPA-Enterprisee
configured, the new client will be requested to enter a username with a password.. If the new client
is authorized by the administration, and enters the correct username and password, then access is
then granted. In the case where an employee leaves the company, the network administrator is able
to remove the previous employee from the authorized list to avoid compromising the network.
EAP (Extensible Authentication Protocol) is available through the Windows®XP operating system.
You will need to use the same type of EAP protocol on all devices in your network when using
the 802.1x feature.
6
DAP- 2533 User’s Manual
D-Link AirPremier N Dual Band PoE Access Point
Four different operation modes - Capable of operating in one of four different op-
eration modes to meet your wireless networking needs: Access Point, WDS with
AP, WDS, or Wireless Client.
Faster wireless networking with the 802.11n (draft) standard to provide a
maximum wireless signal rate of up to 300 Mbps*.
Compatible with the 802.11b standard to provide a wireless data rate of up to 11
Mbps, allowing you to migrate your system to the 802.11n (draft) and 802.11g
standards on your own schedule without sacrificing connectivity.
Compatible with the 802.11g standard to provide a wireless data rate of up to 54
Mbps in the 2.4 GHz frequency range.
Compatible with the 802.11a standard to provide a wireless data rate of up to 54
Mbps in the 5 GHz frequency range.
Better security with WPA - The DAP-2553 can securely connect wireless clients
on the network using WPA (Wi-Fi Protected Access) to provide a much higher
level of security for your data and communications than its previous versions.
AP Manager II management software - The real-time display of the network's
topology and AP’s information makes network configuration and management
quick and simple.
SNMP for management - The DAP-2553 is not just fast, but also supports
SNMP v.3 for better network management. Superior wireless AP manager
software is bundled with the DAP-2553 for network configuration and firmware
upgrade. Systems administrators can also set up the DAP-2553 easily with the
Web-based configuration. A D-Link D-View 6.0 module will be downloadable
for network administration and real-time network traffic monitoring with D-Link
D-View 6.0 software.
Utilizes OFDM technology (Orthogonal Frequency Division Multiplexing).
Supports 802.3af Power over Ethernet.
Supports one 10/100/1000M Ethernet port.
Operates in the 2.4~2.5 GHz and 5.15~5.85 GHz** frequency ranges.
Web-based interface for managing and configuring.
Features and Benefits
Features and Benefits
0D[LPXPZLUHOHVV VLJQDOUDWH GHULYHGIURP ,(((6WDQGDUG VSHFL¿FDWLRQV$FWXDOGDWD WKURXJKSXWPD\ YDU\1HWZRUN
FRQGLWLRQV DQG HQYLURQPHQWDO IDFWRUV LQFOXGLQJ YROXPH RI QHWZRUN WUDI¿F EXLOGLQJ PDWHULDOV DQG FRQVWUXFWLRQ DQG QHWZRUN
RYHUKHDGFDQORZHUDFWXDOGDWDWKURXJKRXWUDWH
3OHDVHQRWHWKDWRSHUDWLQJIUHTXHQF\UDQJHVYDU\GHSHQGLQJRQWKHUHJXODWLRQVRILQGLYLGXDOFRXQWULHVDQGMXULVGLFWLRQV7KH
'$3LVQ¶WVXSSRUWHGLQWKHa*+]DQGa*+]IUHTXHQF\UDQJHVLQVRPHUHJLRQV
7
DAP- 2533 User’s Manual
D-Link AirPremier N Dual Band PoE Access Point
Wireless Basics
D-Link wireless products are based on industry standards to provide high-speed wireless
connectivity that is easy to use within your home, business or public access wireless networks.
D-Link wireless products provides you with access to the data you want, whenever and wherever
you want it. Enjoy the freedom that wireless networking can bring to you.
WLAN use is not only increasing in both home and office environments, but in public areas as well,
such as airports, coffee shops and universities. Innovative ways to utilize WLAN technology are
allowing people to work and communicate more efficiently. Increased mobility and the absence
of cabling and other types of fixed infrastructure have proven to be beneficial to many users.
Wireless adapter cards used on laptop and desktop systems support the same protocols as
Ethernet adapter cards, allowing wireless users to use the same applications as those used on
a wired network.
People use WLAN technology for many different purposes:
Mobility - productivity increases when people can have access to data in any location within
the operating range of their WLAN. Management decisions based on real-time information can
significantly improve the efficiency of a worker.
Low implementation costs - WLANs are easy to set up, manage, change and relocate. Networks
that frequently change can benefit from WLAN's ease of implementation. WLANs can operate in
locations where installation of wiring may be impractical.
Installation and network expansion - by avoiding the complications of troublesome cables,
a WLAN system can be fast and easy during installation, especially since it can eliminate the
need to pull cable through walls and ceilings. Wireless technology provides more versatility by
extending the network beyond the home or office.
Inexpensive solution - wireless network devices are as competitively priced as conventional
Ethernet network devices.The DAP-2553 saves money by providing users with multi-functionality
configurable in four different modes.
Scalability - Configurations can be easily changed and range from Peer-to-Peer networks,
suitable for a small number of users to larger Infrastructure networks to accommodate hundreds
or thousands of users, depending on the number of wireless devices deployed.
Wireless Basics
8
DAP-2553 User’s Manual
D-Link AirPremier N Dual Band PoE Access Point
Standards-Based Technology
The DAP-2553 Wireless Access Point utilizes the 802.11a, 802.11b, 802.11g, and 802.11n (draft)
standards.
The IEEE 802.11n (draft) standard is an extension of the 802.11a, 802.11b, and 802.1g standards
that came before it. It increases the maximum wireless signal rate up to 300 Mbps* within both* within both
the 2.4 GHz and the 5 GHz bands, utilizing OFDM technology.
This means that in most environments - within the specified range of this device - you will be able
to transfer large files quickly, or even watch a movie in MPEG format over your network without
noticeable delays. This technology works by transmitting high-speed digital data over a radio
wave utilizing OFDM (Orthogonal Frequency Division Multiplexing) technology. OFDM works by
splitting the radio signal into multiple smaller sub-signals that are then simultaneously transmitted
at different frequencies to the receiver. OFDM reduces the amount of crosstalk (interference) in
signal transmissions.
The D-Link DAP-2553 will automatically sense the best possible connection speed to ensure the
greatest possible speed and range.
802.11n offers the most advanced network security features available today, including WPA.
Wireless Basics
*Maximum wireless signal rate derived from IEEE Standard 802.11 specifications. Actual data throughput may vary. Network
conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead
can lower actual data throughout rate.
9
DAP-2553 User’s Manual
D-Link AirPremier N Dual Band PoE Access Point
Wireless Basics
The D-Link DAP-2553 lets you access your network, using a wireless connection, from virtually
anywhere within its operating range. Keep in mind, however, that the number, thickness and
location of walls, ceilings, or other objects that the wireless signals must pass through, may limit
the range. Typical ranges vary depending on the types of materials and background RF (radio
frequency) noise in your home or business. The key to maximizing wireless range is to follow
these basic guidelines:
Keep your product away - at least 3-6 feet or 1-2 meters - from electrical devices
or appliances that generate RF noise.
4
Keep the number of walls and ceilings between the DAP-2553 and other network
devices to a minimum - each wall or ceiling can reduce your DAP-2553’s range
by 3-90 feet (1-30 meters). Position your devices so that the number of walls or
ceilings is minimized.
1
Be aware of the direct line between network devices. A wall that is 1.5 feet thick
(0.5 meters), at a 45-degree angle appears to be almost 3 feet (1 meter) thick. At
a 2-degree angle, the wall appears to be over 42 feet (14 meters) thick! Position
your devices so that the signal will travel straight through a wall or ceiling - instead
of at an angle - for better reception.
2
Building materials can impede the wireless signal - a solid metal door or aluminum
studs can have a negative effect on range. Try to position wireless devices and
computers with wireless adapters so that the signal passes through drywall or open
doorways, and not through other materials.
3
Installation Considerations
If you are using 2.4 GHz cordless phones or X-10 (wireless products such as ceiling
fans, lights, and home security systems), your wireless connection may degrade
dramatically or drop completely. Make sure your 2.4 GHz phone base is as far away
from your wireless devices as possible. The base transmits a signal even when the
phone is not in use.
5
10
DAP- 2533 User’s Manual
D-Link AirPremier N Dual Band PoE Access Point
Four Operational Modes
Four Operational Modes
Wireless Client AP acts as a wireless network adapter for your Ethernet-
enabled device
Access Point (AP) Create a wireless LAN
WDS with AP Wirelessly connect multiple networks while still functioning
as a wireless AP
WDS Wirelessly connect multiple networks
11
DAP- 2533 User’s Manual
D-Link AirPremier N Dual Band PoE Access Point
Getting Started
Consult with your cable or DSL provider for proper installation of the modem.
Connect the cable or DSL modem to a router. See the printed Install Guide
included with your router
.
If you are connecting a desktop computer to your network, install a wireless
PCI adapter into an available PCI slot on your desktop computer.
Install the drivers for your wireless CardBus adapter into a laptop computer.
See the printed Install Guide included with the DAP-2553
.
2
3
4
5
6
You will need broadband Internet access.
1
Getting Started
12
DAP-2553 User’s Manual
D-Link AirPremier N Dual Band PoE Access Point
Getting Started
Connecting PoE (Power over Ethernet)
Connect one end of an Ethernet cable (included with your package) to the LAN
port on the DAP-2553 and the other end of the Ethernet cable to either your
computer or to your PoE switch. The AP can be powered on by a PoE switch
or by the power adapter shipped with the AP.
13
DAP- 2533 User’s Manual
D-Link AirPremier N Dual Band PoE Access Point
Using the Configuration Menu
Using the Configuration Menu
To configure the DAP-2553, use a computer that is connected to the DAP-2553 with an Ethernet
cable (see the
Network Layout diagram
).
First, disable the Access the Internet using a proxy server function.To disable this function,
go to Control Panel > Internet Options > Connections > LAN Settings and uncheck the
enable box.
Start your web browser program (Internet Explorer, Mozilla Firefox).
Type the IP address and http port of the DAP-2553 in the address field
(http://192.168.0.50) and press Enter. Make sure that the IP addresses of the
DAP-2553 and your computer are in the same subnet.
After the connection is established, you will see the user identification window as shown.
Note: If you have changed the default IP address assigned to the DAP-2553, make sure to enter
the correct IP address.
Type “admin” in the User Name field.
Leave the Password field blank.
Click the Login button.
Note: If you have changed the password, make sure to enter the correct password.
14
DAP-2553 User’s Manual
D-Link AirPremier N Dual Band PoE Access Point
Using the Configuration Menu
After successfully logging into the DAP-2553 the following screen will appear:
When making changes on most of the configuration screens in this section, use the Apply button
at the bottom of each screen to save your configuration changes.
Click the Apply button to configure changes.
15
DAP-2553 User’s Manual
D-Link AirPremier N Dual Band PoE Access Point
Home > Basic Settings > Wireless > Access Point mode
Select Access Point from the pull-down menu. The other three
choices are WDS with AP,WDS, and Wireless Client.
Service Set Identifier (SSID) is the name designated for a specific
wireless local area network (WLAN). The SSID’s factory default
setting is dlink. The SSID can be easily changed to connect to an
existing wireless network or to establish a new wireless network.The
SSID can be up to 32 characters and is case-sensitive.
Enable or Disable SSID visibility. Enabling this feature broadcasts
the SSID across the network, thus making it visible to all network
users.
Enabling this feature automatically selects the channel that provides
the best wireless performance. Enable is set by default.The channel
selection process only occurs when the AP is booting up.
Mode:
Network Name (SSID):
SSID Visibility:
Auto Channel Selection:
Wireless Band: Select either 2.4 GHz or 5 GHz from the pull-down menu.
Using the Configuration Menu
16
DAP-2553 User’s Manual
D-Link AirPremier N Dual Band PoE Access Point
Channel: All devices on the network must share the same channel.To change
the channel, first toggle the Auto Channel Selection setting to Dis-
able, and then use the pull-down menu to make the desired selec-
tion. (Note:The wireless adapters will automatically scan and match
the wireless settings.)
Allows you to select the channel width you would like to operate in.
Select 20 MHz if you are not using any 802.11 wireless clients. Auto
20/40 MHz allows you to both 802.11n and non-802.11n wireless
devices on your network.
Use the pull-down menu to choose Open System,Shared Key,
WPA-Personal,orWPA-Enterprise.
Select Open System to communicate the key across the
network.
Select Shared Key to limit communication to only those devices
that share the same WEP settings. If multi-SSID is enabled, this
option is not available.
Select WPA-Personal to secure your network using a password and
dynamic key changes. No RADIUS server is required.
Select WPA-Enterprise to secure your network with the inclusion
of a RADIUS server.
Using the Configuration Menu
Channel Width:
Authentication:
17
DAP-2553 User’s Manual
D-Link AirPremier N Dual Band PoE Access Point
Home > Basic Settings > Wireless > WDS with AP mode
WDS with AP mode is selected from the pull-down menu.
Service Set Identifier (SSID) is the name designated for a specific
wireless local area network (WLAN). The SSID’s factory default
setting is dlink. The SSID can be easily changed to connect to an
existing wireless network or to establish a new wireless network.
Enable or Disable SSID visibility. Enabling this feature broadcasts
the SSID across the network, thus making it visible to all network
Mode:
Network Name (SSID):
SSID Visibility:
Wireless Band:
In WDS with AP mode, the DAP-2553 wirelessly connects multiple networks while still functioning
as a wireless AP.
Using the Configuration Menu
Select either 2.4 GHz or 5 GHz from the pull-down menu.
18
DAP-2553 User’s Manual
D-Link AirPremier N Dual Band PoE Access Point
Auto Channel
Selection:
Enter the MAC addresses of the APs on your network that will serve as
bridges to wirelessly connect multiple networks.
Using the Configuration Menu
Site Survey:
Remote AP MAC Address:
All devices on the network must share the same channel.To change
the channel, use the pull-down menu to make the desired selection.
(Note: The wireless adapters will automatically scan and match the
wireless settings.)
Channel:
Enabling this feature automatically selects the channel that will pro-
vide the best wireless performance. This feature is not supported
in WDS with AP mode. The channel selection process only occurs
when the AP is booting up.
Authentication:
Click on the Scan button to search for available wireless networks,
then click on the available network that you want to connect with. .
Use the pull-down menu to choose Open System,Shared Key,or
WPA-Personal.
Select Open System to communicate the key across the
network.
Select Shared Key to limit communication to only those devices
that share the same WEP settings. If multi-SSID is enabled, this
option is not available.
Select WPA-Personal to secure your network using a password and
dynamic key changes. No RADIUS server is required.
Allows you to select the channel width you would like to operate in.
Select 20 MHz if you are not using any 802.11 wireless clients. Auto
20/40 MHz allows you to both 802.11n and non-802.11n wireless
devices on your network.
Channel Width:
19
DAP-2553 User’s Manual
D-Link AirPremier N Dual Band PoE Access Point
Home > Basic Settings > Wireless > WDS mode
In WDS mode, the DAP-2553 wirelessly connects multiple networks, without functioning as a
wireless AP.
Using the Configuration Menu
WDS is selected from the pull-down menu.
Service Set Identifier (SSID) is the name designated for a specific
wireless local area network (WLAN). The SSID’s factory default
setting is dlink. The SSID can be easily changed to connect to an
existing wireless network or to establish a new wireless network.
Enable or Disable SSID visibility. Enabling this feature broadcasts
the SSID across the network, thus making it visible to all network
Mode:
Network Name (SSID):
SSID Visibility:
Wireless Band: Select either 2.4 GHz or 5 GHz from the pull-down menu.
20
DAP-2553 User’s Manual
D-Link AirPremier N Dual Band PoE Access Point
Using the Configuration Menu
Auto Channel
Selection:
Enter the MAC addresses of the APs on your network that will serve as
bridges to wirelessly connect multiple networks.
Site Survey:
Remote AP MAC Address:
All devices on the network must share the same channel.To change
the channel, use the pull-down menu to make the desired selec-
tion.
Channel:
Enabling this feature automatically selects the channel that will provide
the best wireless performance.This feature is not supported in WDS
mode.
Authentication:
Click on the Scan button to search for available wireless networks,
then click on the available network that you want to connect with.
Use the pull-down menu to choose Open System,Shared Key,or
WPA-Personal.
Select Open System to communicate the key across the
network.
Select Shared Key to limit communication to only those devices
that share the same WEP settings.
Select WPA-Personal to secure your network using a password and
dynamic key changes. No RADIUS server is required.
Channel Width: Use the pull-down menu to choose 20 MHz or Auto 20/40 MHz.
21
DAP-2553 User’s Manual
D-Link AirPremier N Dual Band PoE Access Point
Home > Basic Settings > Wireless > Wireless Client mode
This option is unavailable in wireless client mode.
Mode:
Network Name (SSID):
SSID Visibility:
Wireless Band:
Using the Configuration Menu
Select either 2.4 GHz or 5 GHz from the pull-down menu.
Wireless Client is selected from the pull-down menu.
Service Set Identifier (SSID) is the name designated for a specific
wireless local area network (WLAN). The SSID’s factory default
setting is dlink. The SSID can be easily changed to connect to an
existing wireless network.
Enabling this feature automatically selects the channel that will pro-
vide the best wireless performance.This feature is not supported in
Wireless Client mode.
Auto Channel
Selection:
22
DAP-2553 User’s Manual
D-Link AirPremier N Dual Band PoE Access Point
The channel used will be displayed, and follow the root AP.
Authentication:
Channel:
Site Survey: Click on the Scan button to search for available wireless networks,
then click on the available network that you want to connect with.
Use the pull-down menu to choose Open System or WPA-Per-
sonal.
Select Open System to communicate the key across the
network.
Select WPA-Personal to secure your network using a password and
dynamic key changes. No RADIUS server is required.
Use the pull-down menu to choose 20 MHz or Auto 20/40 MHz.
Channel Width:
Using the Configuration Menu
23
DAP-2553 User’s Manual
D-Link AirPremier N Dual Band PoE Access Point
Using the Configuration Menu
Home > Basic Settings > Wireless > Open System or
Shared Key authentication
Key Index (1~4):
Key:
Encryption: Use the radio button to disable or enable encryption.
Key Type*:
Key Size:
Input up to four keys for encryption.You will select one of these keys
in the Key Index pull-down menu.
**Hexadecimal (HEX) digits consist of the numbers 0-9 and the letters A-F.
*ASCII (American Standard Code for Information Interchange) is a code that represents
English letters using numbers ranging from 0-127.
Select HEX or ASCII.
Select 64 Bits or 128 Bits.
Select the 1st through the 4th key to be the active key.
24
DAP-2553 User’s Manual
D-Link AirPremier N Dual Band PoE Access Point
Home > Basic Settings > Wireless > WPA-Personal
authentication
Cipher Type:
Group Key Update
Interval:
Select the interval during which the group key will be valid. The
default value of 1800 is recommended.
When you select WPA-Personal, you must also select AUTO, AES,
or TKIP from the pull down menu.
PassPhrase: When you select WPA-Personal, please enter a PassPhrase in the
corresponding field.
Using the Configuration Menu
When WPA-Personal is selected for Authentication type, you must
also select a WPA mode from the pull-down menu: AUTO (WPA or
WPA2),WPA2 Only,orWPA Only. WPA and WPA2 use different
algorithms. AUTO (WPA or WPA2) allows you to use both WPA and
WPA2.
WPA Mode:
25
DAP-2553 User’s Manual
D-Link AirPremier N Dual Band PoE Access Point
Home > Basic Settings > Wireless > WPA-Enterprise
authentication
Cipher Type:
Group Key Update
Interval:
When WPA-Enterprise is selected, you must also select a cipher
type from the pull-down menu: Auto,AES,orTKIP.
Select the interval during which the group key will be valid.
1800 is the recommended value as a lower interval may reduce
data transfer rates.
Using the Configuration Menu
When WPA-Enterprise is selected, you must also select a WPA
mode from the pull-down menu: AUTO (WPA or WPA2),WPA2 Only,
or WPA Only.WPA and WPA2 use different algorithms. AUTO (WPA
or WPA2) allows you to use both WPA and WPA2.
WPA Mode:
RADIUS Server: Enter the IP address of the RADIUS server.
RADIUS Port: Enter the RADIUS port.
RADIUS Secret: Enter the RADIUS secret.
Enable or disable Microsoft Network Access Protection.
Network Access Protection:
26
DAP-2553 User’s Manual
D-Link AirPremier N Dual Band PoE Access Point
Static IP (Manual) is chosen here. Choose this option if you do not
have a DHCP server in your network, or if you wish to assign a static
IP address to the DAP-2553. When Dynamic IP (DHCP) is selected,
the other fields here will be grayed out. Please allow about 2 minutes
for the DHCP client to be functional once this selection is made.
The default IP address is 192.168.0.50. Assign a static IP address
that is within the IP address range of your network.
Enter the subnet mask. All devices in the network must share the
same subnet mask.
Enter the IP address of the gateway in your network. If there is a
gateway in your network, please enter an IP address within the range
of your network.
Home > Basic Settings > LAN
Using the Configuration Menu
Get IP From:
IP Address:
Subnet Mask:
Default Gateway:
LAN is short for Local Area Network. This is considered your internal network. These are the
IP settings of the LAN interface for the DAP-2553. These settings may be referred to as private
settings. You may change the LAN IP address if needed. The LAN IP address is private to your
internal network and cannot be seen on the Internet.
27
DAP-2553 User’s Manual
D-Link AirPremier N Dual Band PoE Access Point
Using the Configuration Menu
Home > Advanced Settings > Performance
*Maximum wireless signal rate derived from IEEE Standard 802.11 specifications. Actual data throughput may vary. Network
conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead
can lower actual data throughout rate.
Wireless:
Wireless Mode:
Use the pull-down menu to turn the wireless function On or Off.
The different combination of clients that can be supported include
Mixed 802.11n, 802.11g and 802.11b and Mixed 802.11g and
802.11b in the 2.4 GHz band and Mixed 802.11n, 802.11a and
802.11a only in 5 GHz band. Please note that when backwards
compatibility is enabled for legacy (802.11a/g/b) clients, degradation
of 802.11n (draft) wireless performance is expected.
Indicate the base transfer rate of wireless adapters on the wireless
LAN. The AP will adjust the base transfer rate depending on the
base rate of the connected device. If there are obstacles or interfer-
ence, the AP will step down the rate.This option is enabled in Mixed
802.11g and 802.11b mode (for 2.4 GHz) and 802.11a only mode
(for 5 GHz). The choices available are Best (Up to 54),54,48,36,
24,18,12,9,6for 5 GHz and Best (Up to 54),54,48,36,24,18,
12,9,6, 1111,5.5,2or 1for 2.4 GHz.
Data Rate*:
28
DAP-2553 User’s Manual
D-Link AirPremier N Dual Band PoE Access Point
Using the Configuration Menu
WMM (Wi-Fi
Multimedia):
WMM stands for Wi-Fi Multimedia. Enabling this feature will improve
the user experience for audio and video applications over a Wi-Fi
network.
Short GI: Select Enable or Disable. Enabling a short guard interval can in-
crease throughput. However, be aware that it can also increase the
error rate in some installations due to increased sensitivity to radio-
frequency installations.
IGMP Snooping: Select Enable or Disable. Internet Group Management Protocol
allows the AP to recognize IGMP queries and reports sent between
routers and an IGMP host (wireless STA). When IGMP snooping
is enabled, the AP will forward multicast packets to an IGMP host
based on IGMP messages passing through the AP.
This setting determines the power level of the wireless transmission.
Transmitting power can be adjusted to eliminate overlapping of wire-
less area coverage between two access points where interference
is a major concern. For example, if wireless coverage is intended for
half of the area, then select 50% as the option. Use the pull-down
menu to select 100%,50%,25%,or 12.5%.
Transmit Power:
Ack Time Out (2.4 GHZ,
48~200) or Ack Time
Out (5 GHZ, 25~200):
To effectively optimize throughput over long distance links enter a
value for Acknowledgement Time Out between 25 and 200 micro-
seconds for 5 GHz or from 48 to 200 microseconds in the 2.4 GHz
in the field provided.
DTIM Interval
(1-15):
Select a Delivery Traffic Indication Message setting between 1and
15.1is the default setting. DTIM is a countdown informing clients of
the next window for listening to broadcast and multicast messages.
Beacons are packets sent by an access point to synchronize a
wireless network. Specify a value in milliseconds. The default (100)
is recommended. Setting a higher beacon interval can help to save
the power of wireless clients, while setting a lower one can help a
wireless client connect to an access point faster.
Beacon Interval
(25-500):
Select Enable or Disable.If the Ethernet connection between the
LAN and the AP is disconnected, enabling this feature will cause
the wireless segment associated with the AP to be disassociated
from the AP.
Link Integrity:
29
DAP-2553 User’s Manual
D-Link AirPremier N Dual Band PoE Access Point
Using the Configuration Menu
Connection Limit:
User Limit (0 - 64): Set the maximum amount of users that are allowed access (0-64
users).To use this feature, the Connection Limit above must be
enabled. For most users, a limit of 10 is recommended. The default
setting is 20.
Select Enable or Disable. This is an option for load balancing. This
determines whether to limit the number of users accessing this
device. The exact number is entered in the User Limit field below.
This feature allows the user to share the wireless network traffic
and the client using multiple APs. If this function is enabled, when
the number of users exceeds this value or the network utilization
of this AP exceeds the percentage that has been specified, the
DAP-2553 will not allow clients to associate with the AP.
30
DAP-2553 User’s Manual
D-Link AirPremier N Dual Band PoE Access Point
Using the Configuration Menu
Home > Advanced Settings > Multi-SSID
The device supports up to eight multiple Service Set Identifiers.You can set the Primary SSID in
the Basic >Wireless section.The SSID’s factory default setting is dlink.The SSID can be easily
changed to connect to an existing wireless network or to establish a new wireless network.
Check to enable support for multiple SSIDs.
This read-only value is the current band setting.
You can select up to seven multi-SSIDs.With the Primary SSID, you
have a total of eight multi-SSIDs.
Service Set Identifier (SSID) is the name designated for a specific
wireless local area network (WLAN). The SSID’s factory default
setting is dlink.The SSID can be easily changed to connect to an
existing wireless network or to establish a new wireless network.
Enable Multi-SSID:
Band:
Index:
SSID:
31
DAP-2553 User’s Manual
D-Link AirPremier N Dual Band PoE Access Point
Select Enable or Disable.
When you select Open System, toggle between Enable and
Disable.IfEnable is selected, the Key Type, Key Size, Key Index
(1~4), Key, and Confirm Keys must also be configured.
Select HEX or ASCII.
Select 64 Bits or 128 Bits.
Select from the 1st to 4th key to be set as the active key.
Input up to four keys for encryption.You will select one of these keys
in the Key Index pull-down menu.
Key Type:
Key Size:
Key Index (1~4):
Key:
WMM (Wi-Fi Multimedia):
The Multi-SSID security can be Open System,WPA-Personal, or
WPA-Enterprise. For a detailed description of the Open System
parameters please go to pages 23-24. For a detailed description of
the WPA-Personal parameters please go to page 25. For a detailed
description of the WPA-Enterprise parameters please go to pages
26-27.
Security:
Encryption:
Cipher Type:
Group Key Update
Interval:
Select the interval during which the group key will be valid. The
default value of 1800 seconds is recommended.
Select Auto, AES, or TKIP from the pull-down menu.
PassPhrase: When you select WPA-Personal, please enter a PassPhrase in the
corresponding field.
Using the Configuration Menu
SSID Visibility: Enable or Disable SSID visibility. Enabling this feature broadcasts
the SSID across the network, thus making it visible to all network
users.
Confirm PassPhrase: When you select WPA-Personal, please re-enter the PassPhrase
entered in the previous item in the corresponding field.
RADIUS Server: When you select WPA-Enterprise, enter the IP address of the
RADIUS server. In addition, you must configure RADIUS Port and
RADIUS Secret.
RADIUS Port: Enter the RADIUS port.
When you select either WPA-Personal or WPA-Enterprise,you
must also choose a WPA mode from the pull-down menu: AUTO
(WPA or WPA2),WPA2 Only,orWPA Only. WPA and WPA2 use
different algorithms. AUTO (WPA or WPA2) allows you to use both
WPA and WPA2. In addition, you must configure Cipher Type, and
Group Key Update Interval.
WPA Mode:
RADIUS Secret: Enter the RADIUS secret.
32
DAP-2553 User’s Manual
D-Link AirPremier N Dual Band PoE Access Point
Home > Advanced Settings > VLAN > VLAN List
The DAP-2553 supports VLANs.VLANs can be created with a Name and VID. Mgmt (TCP stack),
LAN, Primary/Multiple SSID, and WDS connection can be assigned to VLANs as they are physical
ports. Any packet which enters the DAP-2553 without a VLAN tag will have a VLAN tag inserted
with a PVID.
The VLAN List tab displays the current VLANs.
VLAN Status: Use the radio button to toggle to Enable. Next, go to the Add/Edit
VLAN tab to add or modify an item on the VLAN List tab.
Using the Configuration Menu
33
DAP-2553 User’s Manual
D-Link AirPremier N Dual Band PoE Access Point
Home > Advanced Settings > VLAN > Port List
The Port List tab displays the current ports. If you want to configure the guest and internal networks
on a Virtual LAN (VLAN), the switch and DHCP server you are using must also support VLANs. As
a prerequisite step, configure a port on the switch for handling VLAN tagged packets as described
in the IEEE 802.1Q standard.
VLAN Status: Use the radio button to toggle to Enable. Next, go to the Add/Edit
VLAN tab to add or modify an item on the VLAN List tab.
Using the Configuration Menu
The name of the port is displayed in this column.
The Tagged VID is displayed in this column.
The Untagged VID is displayed in this column.
The Port VLAN Identifier is displayed in this column.
Port Name:
Tag VID:
Untag VID:
PVID:
34
DAP-2553 User’s Manual
D-Link AirPremier N Dual Band PoE Access Point
Home > Advanced Settings > VLAN > Add/Edit VLAN
The Add/Edit VLAN tab is used to configure VLANs. Once you have made the desired changes,
click the Apply button to let your changes take effect.
Use the radio button to toggle to Enable.
Provide a number between 1and 4094 for the Internal VLAN.
Enter the VLAN to add or modify.
VLAN Status:
VLAN ID (VID):
Using the Configuration Menu
VLAN Name:
35
DAP-2553 User’s Manual
D-Link AirPremier N Dual Band PoE Access Point
Home > Advanced Settings > VLAN > PVID Setting
The PVID Setting tab is used to enable/disable the Port VLAN Identifier Auto Assign Status as
well as to configure various types of PVID settings. Click the Apply button to let your changes
take effect.
Using the Configuration Menu
Use the radio button to toggle to Enable.
VLAN Status:
Use the radio button to toggle PVID auto assign status to Enable.
PVID Auto Assign Status:
36
DAP-2553 User’s Manual
D-Link AirPremier N Dual Band PoE Access Point
Using the Configuration Menu
Home > Advanced Settings > Intrusion
The choices include All,Valid,Neighbor,Rogue, and New.
Click this button to initiate a scan of the network.
AP List:
Detect
The Wireless Intrusion Protection window is used to set APs as All,Valid,Neighborhood,Rogue,
and New. Click the Apply button to let your changes take effect.
37
DAP-2553 User’s Manual
D-Link AirPremier N Dual Band PoE Access Point
Using the Configuration Menu
Home > Advanced Settings > Schedule
Use the pull-down menu to enable the device’s scheduling fea-
ture.
Wireless Schedule:
The Wireless Schedule Settings window is used to add and modify scheduling rules on the device.
Click the Apply button to let your changes take effect.
Enter a name for the new scheduling rule in the field provided.
Toggle the radio button between All Week and Select Days(s). If the
second option is selected, check the specific days you want the rule
to be effective on.
Check this box to have your settings apply 24 hours a day.
Toggle the pull-down menu between Off and On.
Name:
Day(s):
All Days(s):
Wireless:
38
DAP-2553 User’s Manual
D-Link AirPremier N Dual Band PoE Access Point
Home > Advanced Settings > QoS
Enable this option if you want to allow QoS to prioritize your traffic
Priority Classifiers.
Allows the access point to recognize HTTP transfers for many com-
mon audio and video streams and prioritize them above other traffic.
Such streams are frequently used by digital media players.
QoS (Quality of Service):
HTTP:
Using the Configuration Menu
Quality of Service (QoS) enhances the experience of using a network by prioritizing the traffic of
different applications.
A QoS Rule identifies a specific message flow and assigns a priority to that flow. For most applica-
tions, the priority classifiers ensure the right priorities and specific QoS Rules are not required.
QoS supports overlaps between rules. If more than one rule matches a specific message flow,
the rule with the highest priority will be used.
39
DAP-2553 User’s Manual
D-Link AirPremier N Dual Band PoE Access Point
Using the Configuration Menu
When enabled, this option causes the access point to automatically
attempt to prioritize traffic streams that it doesn’t otherwise recog-
nize, based on the behavior that the streams exhibit. This acts to
de-prioritize streams that exhibit bulk transfer characteristics, such
as file transfers, while leaving interactive traffic, such as gaming or
VoIP, running at a normal priority
Enter a name for the new QoS rule in the field provided.
Use the pull-down menu to select the desired priority: Background
(BK),Best Effort (BE),Video (VI),orVoice (VO).
Use the pull-down menu to choose the appropriate protocol used by
the messages: Any,TCP,UDP,Both,IMCP,orOther.
The rule applies to a flow of messages for which one computer’s IP
address falls within the range set here.
The rule applies to a flow of messages for which host 1’s port number
is within the range set here when the Protocol is set to TCP,UDP,
or Both.
The rule applies to a flow of messages for which the other computer’s
IP address falls within the range set here.
The rule applies to a flow of messages for which host 2’s port number
is within the range set here when the Protocol is set to TCP,UDP,
or Both.
Automatic:
Name:
Priority:
Protocol:
Host 1 IP Range:
Host 1 Port Range:
Host 2 IP Range:
Host 2 Port Range:
40
DAP-2553 User’s Manual
D-Link AirPremier N Dual Band PoE Access Point
Using the Configuration Menu
Home > Advanced Settings > DHCP Server > Dynamic Pool
Settings
Function Enable/
Disable:
Dynamic Host Configuration Protocol (DHCP) assigns dynamic
IP addresses to devices on the network. This protocol simplifies
network management and allows new wireless devices to receive IP
addresses automatically without the need to manually assign new
IP addresses. Select Enable to allow the DAP-2553 to function as
a DHCP server.
Enter the number of IP addresses available for assignment. IP
addresses are increments of the IP address specified in the “IP
Assigned From” field.
The Range of Pool
(1-254):
Input the first IP address available for assignment on your net-
work.
SubMask: All devices in the network must have the same subnet mask to
communicate. Enter the submask for the network here.
The DHCP address pool defines the range of the IP address that can be assigned to stations in
the network. A Dynamic Pool allows wireless stations to receive an available IP with lease time
control.
IP Assigned From:
41
DAP-2553 User’s Manual
D-Link AirPremier N Dual Band PoE Access Point
Using the Configuration Menu
Specify the Windows Internet Naming Service (WINS) server address
for the wireless network. WINS is a system that determines the IP
address of a network computer that has a dynamically assigned IP
address.
Enter the IP address of the Domain Name System (DNS) server.
The DNS server translates domain names such as www.dlink.com
into IP addresses.
Enter the domain name of the network, if applicable. (An example
of a domain name is: www.dlink.com.)
The lease time is the period of time before the DHCP server will
assign new IP addresses.
Gateway:
WINS:
DNS:
Domain Name:
Lease Time
(60-31536000 sec):
Enter the IP address of the gateway on the network.
42
DAP-2553 User’s Manual
D-Link AirPremier N Dual Band PoE Access Point
Using the Configuration Menu
Home > Advanced Settings > DHCP Server > Static Pool
Setting
Function Enable/
Disable:
Assigned IP:
Assigned MAC
Address:
Dynamic Host Configuration Protocol (DHCP) assigns IP addresses
to wireless devices on the network. This protocol simplifies network
management and allows new wireless devices to receive IP
addresses automatically without the need to manually assign IP
addresses. Select Enable to allow the DAP-2553 to function as a
DHCP server.
Use the Static Pool Settings to assign the same IP address to a
device every time you start up. The IP addresses assigned in the
Static Pool list must NOT be in the same IP range as the Dynamic
Pool. After you have assigned a static IP address to a device via its
MAC address, click Apply; the device will appear in the Assigned
Static Pool at the bottom of the screen. You can edit or delete the
device in this list.
Enter the MAC address of the device requesting association here.
The DHCP address pool defines the range of IP addresses that can be assigned to stations on the
network. A static pool allows specific wireless stations to receive a fixed IP without time control.
43
DAP-2553 User’s Manual
D-Link AirPremier N Dual Band PoE Access Point
Using the Configuration Menu
SubMask:
Gateway:
Define the submask of the IP address specified in the “IP Assigned
From” field.
Specify the Gateway address for the wireless network.
Specify the Windows Internet Naming Service (WINS) server
address for the wireless network. WINS is a system that determines
the IP address of a network computer with a dynamically assigned
IP address, if applicable.
Enter the Domain Name System (DNS) server address for the
wireless network. The DNS server translates domain names such
as www.dlink.com into IP addresses.
WINS:
DNS:
Domain Name: Specify the domain name for the network.
44
DAP-2553 User’s Manual
D-Link AirPremier N Dual Band PoE Access Point
Using the Configuration Menu
Home > Advanced Settings > DHCP Server > Current IP
Mapping List
These are IP address pools the DHCP server has assigned using
the dynamic pool setting.
This window displays information about the current assigned DHCP dynamic and static IP address
pools.This information is available when you enable DHCP server on the AP and assign dynamic
and static IP address pools.
Current DHCP Dynamic Pools:
Binding MAC Address:
Lease Time:
Current DHCP Static Pools:
The MAC address of a device on the network that is assigned an IP
address from the DHCP dynamic pool.
The current corresponding DHCP-assigned IP address of the
device.
The length of time that the dynamic IP address will be valid.
These are the IP address pools of the DHCP server assigned through
the static pool settings.
Assigned IP
Address:
45
DAP-2553 User’s Manual
D-Link AirPremier N Dual Band PoE Access Point
Using the Configuration Menu
Assigned IP Address: The current corresponding DHCP-assigned static IP address of
the device.
The MAC address of a device on the network that is assigned an
IP address from the DHCP dynamic pool.
Binding MAC Address:
46
DAP-2553 User’s Manual
D-Link AirPremier N Dual Band PoE Access Point
Using the Configuration Menu
Home > Advanced Settings > Filters > Wireless MAC ACL
Wireless Band:
Access Control List:
'LVSOD\VWKHFXUUHQWZLUHOHVVEDQGUDWH
Enter each MAC address that you wish to include in your filter list,
and click Apply.
When you enter a MAC address, it appears in this list. Highlight a
MAC address and click Delete to remove it from this list.
Select Disable to disable the filters function.
Select Accept to accept only those devices with MAC addresses
in the Access Control List. All other devices not on the list will be
rejected.
Select Reject to reject the devices with MAC addresses on
the Access Control List. All other devices not on the list will be
accepted.
MAC Address List:
MAC Address:
47
DAP-2553 User’s Manual
D-Link AirPremier N Dual Band PoE Access Point
Using the Configuration Menu
Home > Advanced Settings > Filters > WLAN Partition
Wireless Band:
Internal Station
Connection:
Displays the current wireless band rate.
The default value is Enable, which allows stations to inter-communi-
cate by connecting to a target AP. When disabled, wireless stations
cannot exchange data through the AP.
The default is Enable. When disabled, all data from the Ethernet to
associated wireless devices will be blocked. Wireless devices can
still send data to the Ethernet.
Ethernet to WLAN
Access:
48
DAP-2553 User’s Manual
D-Link AirPremier N Dual Band PoE Access Point
Using the Configuration Menu
Home > Status > Device Information
Device Information: This read-only window displays the configuration settings of the
DAP-2553, including the firmware version and the device's MAC
address.
49
DAP-2553 User’s Manual
D-Link AirPremier N Dual Band PoE Access Point
Using the Configuration Menu
Home > Status > Client Information
Client Information: This window displays the wireless client information for clients
currently connected to the DAP-2553.
The following information is available for each client communicating with the
DAP-2553.
Displays the MAC address of the client.
MAC:
Displays the wireless band that the client is connected to.
Band:
Displays the type of authentication being used.
Authentication:
Displays the client's signal strength.
Signal:
Displays the status of the power saving feature.
Power Saving
Mode:
Displays the SSID of the client.
SSID:
50
DAP-2553 User’s Manual
D-Link AirPremier N Dual Band PoE Access Point
Home > Status > WDS Information
Name:
MAC:
Authentication:
Signal:
Status:
Displays the name of the client.
Displays the MAC address of the client.
Displays the type of authentication being used.
Displays the WDS link signal strength.
Using the Configuration Menu
Displays the status of the power saving feature.
WDS Information: This window displays the Wireless Distribution System information
for clients currently connected to the DAP-2553.
The following information is available for each client communicating with the
DAP-2553.
51
DAP-2553 User’s Manual
D-Link AirPremier N Dual Band PoE Access Point
Home > Status > Stats > Ethernet
Ethernet Traffic
Statistics:
This page displays transmitted and received count statistics for
packets and bytes.
Using the Configuration Menu
52
DAP-2553 User’s Manual
D-Link AirPremier N Dual Band PoE Access Point
Home > Status > Stats > WLAN
WLAN Traffic
Statistics:
This page displays wireless network statistics for data through-
put, transmitted and received frames, and frame errors.
Using the Configuration Menu
53
DAP-2553 User’s Manual
D-Link AirPremier N Dual Band PoE Access Point
Using the Configuration Menu
View Log: The AP’s embedded memory displays system and network
messages including a time stamp and message type. The log
information includes but is not limited to the following items: cold
start AP, upgrading firmware, client associate and disassociate with
AP, and web login. The web page holds up to 500 logs.
Home > Status > Log > View Log
54
DAP-2553 User’s Manual
D-Link AirPremier N Dual Band PoE Access Point
Using the Configuration Menu
Home > Status > Log > Log Settings
Log Server/IP Address: Enter the IP address of the server you would like to send the
DAP-2553 log to.
Log Type: Check the box for the type of activity you want to log. There are
three types: System Activity, Wireless Activity, and Notice.
55
DAP-2553 User’s Manual
D-Link AirPremier N Dual Band PoE Access Point
Using the Configuration Menu
Maintenance > Administrator Settings Administrator Settings
Check one or more of the five main categories to display the various hidden administrator
parameters and settings displayed on the next five pages.
56
DAP-2553 User’s Manual
D-Link AirPremier N Dual Band PoE Access Point
Using the Configuration Menu
Limit Administrator VLAN ID: Check the box provided and the enter the specific VLAN ID that
the administrator will be allowed to log in from.
Limit
Administrator
Limit Administrator IP: Check to enable the Limit Administrator IP address.
Confirm New
Password:
Confirm by re-entering your new password here.
Maintenance > Administrator Settings > Limit Administrator
Each of the five main categories display various hidden administrator parameters and settings.
IP Range: Enter the IP address range that the administrator will be allowed to log
in from and then click the Add button.
57
DAP-2553 User’s Manual
D-Link AirPremier N Dual Band PoE Access Point
Using the Configuration Menu
System Name: The name of the device. The default name is D-Link DAP-2553.
System Name
Settings
Location: The physical location of the device, e.g. 72nd Floor, D-Link HQ.
Confirm New
Password:
Confirm by re-entering your new password here.
Maintenance > Administrator Settings > System Name
Each of the five main categories display various hidden administrator parameters and settings.
58
DAP-2553 User’s Manual
D-Link AirPremier N Dual Band PoE Access Point
Confirm New
Password:
Confirm by re-entering your new password here.
Maintenance > Administrator Settings > Login Settings
Each of the five main categories display various hidden administrator parameters and settings.
Using the Configuration Menu
Login Settings
Old Password: When changing your password, enter the old password here.
User Name: Enter a user name. The default is admin.
New Password: When changing your password, enter the new password here.The
password is case-sensitive.“A” is a different character than “a.”The
length should be between 0 and 12 characters.
Confirm Password: Enter the new password a second time for confirmation purposes.
59
DAP-2553 User’s Manual
D-Link AirPremier N Dual Band PoE Access Point
Status: Status is enabled by default. Uncheck the box to disable the
console.
Console Settings
Console Protocol: Select the type of protocol you would like to use, Telnet or SSH.
Timeout: Set to 1 Min,3 Mins,5 Mins,10 Mins,15 Mins or Never.
Confirm New
Password:
Confirm by re-entering your new password here.
Maintenance > Administrator Settings > Console Settings
Each of the five main categories display various hidden administrator parameters and settings.
Using the Configuration Menu
60
DAP-2553 User’s Manual
D-Link AirPremier N Dual Band PoE Access Point
SNMP Settings
Public Community
String: Enter the public SNMP community string.
Status: Check the box to enable the SNMP functions. This is enabled by
default.
Private Community
String: Enter the private SNMP community string.
Confirm New
Password:
Confirm by re-entering your new password here.
Maintenance > Administrator Settings > SNMP Settings
Each of the five main categories display various hidden administrator parameters and settings.
Using the Configuration Menu
61
DAP-2553 User’s Manual
D-Link AirPremier N Dual Band PoE Access Point
Maintenance > Firmware and SSL Certification Upload Firmware and SSL Certification Upload
Upload SSL
Certification From
Local Hard Drive:
Click Browse to locate the SSL Certification file on your local
computer. After selecting and opening the file, click Upload to
upload the file to the DAP-2553.
Upload Firmware From
Local Hard Drive:
The current firmware version is displayed above the file location
field. After downloading the most recent version of firmware for the
DAP-2553 from http://support.dlink.com to your local computer, use
the Browse button to locate the firmware file on your computer.
Click Upload to update the firmware version. Please don’t turn the
power off while upgrading.
Using the Configuration Menu
62
DAP-2553 User’s Manual
D-Link AirPremier N Dual Band PoE Access Point
Using the Configuration Menu
Maintenance > Configuration File Configuration File
Download
Configuration File:
Click Download to save the current DAP-2553 configuration to
your local computer. Note that if you save one configuration with
the administrator’s password now, after resetting your DAP-2553,
and then updating to this saved configuration file, the password
will be gone.
Upload File: Click the Browse button to locate a previously saved configuration
file on your local computer. After selecting the file, click Upload to
apply the configuration settings to the DAP-2553.
63
DAP-2553 User’s Manual
D-Link AirPremier N Dual Band PoE Access Point
Using the Configuration Menu
Maintenance > Time and Date
Current Time: Displays the current time and date settings.
NTP Server: Enter the NTP server IP address.
Time Zone: Use the pull-down menu to select your correct Time Zone.
Enable Daylight Saving: Check the box to Enable Daylight Saving Time.
Set the Date and
Time Manually::
You can either manually set the time for your AP here, or you can
click the Copy Your Computer’s Time Settings button to copy
the time from the computer you are using (Make sure that the
computer’s time is set correctly).
Use the pull-down menu to select the correct Daylight Saving offset.
Daylight Saving Offset:
Daylight Saving Dates: Use the pull-down menu to select the correct Daylight Saving offset.
Enable NTP Server: Check to enable the AP to get system time from an NTP server.
64
DAP-2553 User’s Manual
D-Link AirPremier N Dual Band PoE Access Point
Using the Configuration Menu
System > System Settings
Restart the
Device:
Click Restart to restart the DAP-2553.
Restore to Factory
Default Settings:
Click Restore to restore the DAP-2553 back to factory default
settings.
65
DAP-2553 User’s Manual
D-Link AirPremier N Dual Band PoE Access Point
Help
Using the Configuration Menu
Scroll down the Help page for topics and explanations.
Help:
66
DAP- 2533 User’s Manual
D-Link AirPremier N Dual Band PoE Access Point
Troubleshooting
Troubleshooting
This chapter provides solutions to problems that can occur during the installation and operation of
the DAP-2553 Wireless Access Point.We will cover various aspects of the network setup, especially
the network adapters. Please read the following if you are having any technical difficulties.
Note: It is recommended that you use an Ethernet connection to configure the DAP-2553.
1. The computer used to configure the DAP-2553 cannot access the Configuration menu.
Check if the LAN LED on the DAP-2553 is ON. If the LED is not ON, check if the cable for
the Ethernet connection is securely inserted.
Check if the Ethernet adapter is working properly. Please see item 3 of this Troubleshooting
section to check that the drivers for the network adapters are loaded properly.
Check if the IP address is in the same range and subnet as the DAP-2553.
Note: The default IP address of the DAP-2553 is 192.168.0.50. All the computers on the network
must have a unique IP address in the same range, e.g. 192.168.0.x. Any computers that have
identical IP addresses will not be visible on the network. They must all have the same subnet
mask, e.g. 255.255.255.0.
Do a Ping test to make sure that the DAP-2553 is responding. Go to Start>Run>Type
Command>Type ping 192.168.0.50. A successful ping will show four replies.
Note: If you have changed the default IP address, make sure to ping the correct IP address
assigned to the DAP-2553.
67
DAP-2553 User’s Manual
D-Link AirPremier N Dual Band PoE Access Point
Troubleshooting
2. The wireless client cannot access the Internet within Infrastructure mode.
Make sure the wireless client is associated and joined with the correct access point. To check
this connection, right-click on the Local Area Connection icon in the taskbar and select View
Available Wireless Networks. The Connect to Wireless Network screen will appear. Please
make sure you have selected the correct available network, as shown in the illustrations below.
Check that the IP address assigned to the wireless adapter is within the same IP address range
as the access point and gateway. Since the DAP-2553 has an IP address of 192.168.0.50,
wireless adapters must have an IP address in the same range, e.g. 192.168.0.x. Each device
must have a unique IP address; there may be no two devices with the same IP address.
The subnet mask must be the same for all the computers on the network. To check the IP
address assigned to the wireless adapter, double-click the Local Area Connection icon in
the taskbar, then select the Support tab and the IP address will be displayed.
If it is necessary to assign a Static IP Address to the wireless adapter. If you are entering a
DNS Server address, you must also enter the Default Gateway Address.
Remember that if
you have a DHCP-capable router, you will not need to assign a static IP address.
68
DAP-2553 User’s Manual
D-Link AirPremier N Dual Band PoE Access Point
Troubleshooting
3. What variables may cause my wireless products to lose reception?
D-Link products let you access your network from virtually anywhere you want, however, the
positioning of the products within your environment will affect its wireless range.
4. Why does my wireless connection keep dropping?
Antenna Orientation - try different antenna orientations for the DAP-2553. Try to keep the
antenna at least 6 inches away from the wall or other objects.
If you are using 2.4 GHz cordless phones, X-10 equipment or other home security systems,
ceiling fans, or lights, your wireless connection will degrade dramatically or even drop. Try
changing the channel of your router, access point and wireless adapter to a different channel
to avoid interference.
Keep your product away - at least 3-6 feet - from electrical devices that generate RF noise
like microwaves, monitors, electric motors, etc.
5. Why can’t I get a wireless connection?
If you have enabled encryption on the DAP-2553, you must also enable encryption on all wireless
clients in order to establish a wireless connection.
Make sure that the SSID on the AP and the wireless client are exactly the same. If they are
not, wireless connection cannot be established.
Move the DAP-2553 and the wireless client into the same room and then test the wireless
connection.
Disable all security settings.
Turn off your DAP-2553 and the client. Turn the DAP-2553 back on again, and then turn on
the client.
Make sure that all devices are set to Infrastructure mode.
Check that the LED indicators are indicating normal activity. If not, check that the AC power
and Ethernet cables are firmly connected.
Check that the IP address, subnet mask, gateway, and DNS settings are correctly entered
for the network.
If you are using 2.4 GHz cordless phones, X-10 equipment, or other home security systems,
ceiling fans, or lights, your wireless connection will degrade dramatically or drop altogether.
Try changing the channel on your DAP-2553, and on all the devices in your network to avoid
interference.
Keep your product away - at least 3-6 feet - from electrical devices that generate RF noise
like microwaves, monitors, electric motors, etc.
69
DAP- 2533 User’s Manual
D-Link AirPremier N Dual Band PoE Access Point
Technical Specifications
Technical Specifications
Standards
• IEEE 802.11a
• IEEE 802.11b
• IEEE 802.11g
• IEEE 802.11n (draft)
• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3ab
• IEEE 802.3af
Network Management
• Web Browser interface
HTTP
Secure HTTP (HTTPS)
• AP Manager II
• SNMP Support
D-View Module
Private MIB
• Command Line Interface
Telnet
Secure SSH Telnet
Data Rates*
For 802.11a:
• 54, 48, 36, 24, 18, 12, 9, and 6 Mbps
For 802.11b:
• 11, 5.5, 2, and 1 Mbps
For 802.11g:
• 54, 48, 36, 24, 18, 12, 9, and 6 Mbps
For 802.11n (draft): HT20/HT40
• 144.4/300, 130/270, 117/243, 104/216, 78/162, 66/135, 58.5/121.5, 52/108, 39/81, 26/54, 19.5/40.5, 12/27,
and 6.5/13.5 Mbps
Security
• WPA™ Personal/Enterprise
• WPA2™ Personal/Enterprise
• WEP™ 64-/128-bit
• SSID Broadcast Disable
• MAC Address Access Control
Wireless Frequency Range
• 2.4 to 2.4835 GHz and 5.15 to 5.85 GHz**
Operating Voltage
• 5V/2.5A or PoE
*Maximum wireless signal rate derived from IEEE Standard 802.11 specifications. Actual data throughput may vary. Network
conditions and environmental factors, including volume of network traffic, building materials and construction, and network
overhead can lower actual data throughout rate.
3OHDVHQRWHWKDWRSHUDWLQJIUHTXHQF\UDQJHVYDU\GHSHQGLQJRQWKHUHJXODWLRQVRILQGLYLGXDOFRXQWULHVDQGMXULVGLFWLRQV7KH
'$3LVQ¶WVXSSRUWHGLQWKHa*+]DQGa*+]IUHTXHQF\UDQJHVLQVRPHUHJLRQV
70
DAP-2553 User’s Manual
D-Link AirPremier N Dual Band PoE Access Point
Technical Specifications
Radio and Modulation Type
For 802.11a/g/n:
BPSK, QPSK, 16QAM, and 64QAM with OFDM
For 802.11b:
DQPSK, DBPSK, DSSS, and CCK
Operating Frequency**
For 802.11a:
5.15 ~ 5.85 GHz
For 802.11b/g:
2400 ~ 2483.5 MHz ISM band
For 802.11n:
2.4 GHz Band: 2.4 ~ 2.4835 GHz
5 GHz Band: 5.15 ~ 5.85 GHz
Dipole Antenna
3dBi Gain @2.4 GHz
5dBi Gain @5 GHz
LEDs
•Power
• LAN
• 2.4 GHz
• 5 GHz
Temperature
• Operating: 0˚C to 40˚C
• Storing: -20˚C to 65˚C
Humidity
• Operating: 10%~90% (non-condensing)
• Storing: 5%~95% (non-condensing)
Certifications
• FCC
•CE
•IC
• C-Tick
•CSA
• WiFi
Dimensions
•L= 193.04 mm
•W=116.84 mm
•H= 35 mm
3OHDVHQRWHWKDWRSHUDWLQJIUHTXHQF\UDQJHVYDU\GHSHQGLQJRQWKHUHJXODWLRQVRILQGLYLGXDOFRXQWULHVDQGMXULVGLFWLRQV7KH'$3
LVQ¶WVXSSRUWHGLQWKHa*+]DQGa*+]IUHTXHQF\UDQJHVLQVRPHUHJLRQV
71
DAP-2553 User’s Manual
D-Link AirPremier N Dual Band PoE Access Point
Warranty
Subject to the terms and conditions set forth herein, D-Link Systems, Inc. (“D-Link”) provides this
Limited Warranty:
• Only to the person or entity that originally purchased the product from D-Link or its authorized
reseller or distributor, and
• Only for products purchased and delivered within the fifty states of the United States, the
District of Columbia, U.S. Possessions or Protectorates, U.S. Military Installations, or
addresses with an APO or FPO.
Limited Warranty:
D-Link warrants that the hardware portion of the D-Link product described below (“Hardware”) will
be free from material defects in workmanship and materials under normal use from the date of
original retail purchase of the product, for the period set forth below (“Warranty Period”), except
as otherwise stated herein.
• Hardware (excluding power supplies and fans): One (1) year
• Power supplies and fans: One (1) year
• Spare parts and spare kits: Ninety (90) days
The customer’s sole and exclusive remedy and the entire liability of D-Link and its suppliers under
this Limited Warranty will be, at D-Link’s option, to repair or replace the defective Hardware during
the Warranty Period at no charge to the original owner or to refund the actual purchase price paid.
Any repair or replacement will be rendered by D-Link at an Authorized D-Link Service Office. The
replacement hardware need not be new or have an identical make, model or part. D-Link may, at
its option, replace the defective Hardware or any part thereof with any reconditioned product that
D-Link reasonably determines is substantially equivalent (or superior) in all material respects to
the defective Hardware. Repaired or replacement hardware will be warranted for the remainder of
the original Warranty Period or ninety (90) days, whichever is longer, and is subject to the same
limitations and exclusions. If a material defect is incapable of correction, or if D-Link determines
that it is not practical to repair or replace the defective Hardware, the actual price paid by the
original purchaser for the defective Hardware will be refunded by D-Link upon return to D-Link of
the defective Hardware. All Hardware or part thereof that is replaced by D-Link, or for which the
purchase price is refunded, shall become the property of D-Link upon replacement or refund.
Limited Software Warranty:
D-Link warrants that the software portion of the product (“Software”) will substantially conform
to D-Link’s then current functional specifications for the Software, as set forth in the applicable
documentation, from the date of original retail purchase of the Software for a period of ninety (90)
days (“Software Warranty Period”), provided that the Software is properly installed on approved
hardware and operated as contemplated in its documentation. D-Link further warrants that, during
the Software Warranty Period, the magnetic media on which D-Link delivers the Software will
be free of physical defects. The customer’s sole and exclusive remedy and the entire liability of
Warranty
72
DAP-2553 User’s Manual
D-Link AirPremier N Dual Band PoE Access Point
D-Link and its suppliers under this Limited Warranty will be, at D-Link’s option, to replace the
non-conforming Software (or defective media) with software that substantially conforms to D-
Link’s functional specifications for the Software or to refund the portion of the actual purchase
price paid that is attributable to the Software. Except as otherwise agreed by DLink in writing,
the replacement Software is provided only to the original licensee, and is subject to the terms
and conditions of the license granted by D-Link for the Software. Replacement Software will be
warranted for the remainder of the original Warranty Period and is subject to the same limitations
and exclusions. If a material non-conformance is incapable of correction, or if D-Link determines
in its sole discretion that it is not practical to replace the non-conforming Software, the price paid
by the original licensee for the non-conforming Software will be refunded by D-Link; provided
that the non-conforming Software (and all copies thereof) is first returned to D-Link. The license
granted respecting any Software for which a refund is given automatically terminates.
Non-Applicability of Warranty:
The Limited Warranty provided hereunder for Hardware and Software portions of D-Link’s products
will not be applied to and does not cover any refurbished product and any product purchased
through the inventory clearance or liquidation sale or other sales in which D-Link, the sellers,
or the liquidators expressly disclaim their warranty obligation pertaining to the product and in
that case, the product is being sold “As-Is” without any warranty whatsoever including, without
limitation, the Limited Warranty as described herein, notwithstanding anything stated herein to
the contrary.
Submitting A Claim:
The customer shall return the product to the original purchase point based on its return policy. In
case the return policy period has expired and the product is within warranty, the customer shall
submit a claim to D-Link as outlined below:
• The customer must submit with the product as part of the claim a written description
of the Hardware defect or Software nonconformance in sufficient detail to allow
DLink to confirm the same, along with proof of purchase of the product (such
as a copy of the dated purchase invoice for the product) if the product is not
registered.
• The customer must obtain a Case ID Number from D-Link Technical Support at 1-
877-354-6555, who will attempt to assist the customer in resolving any suspected
defects with the product. If the product is considered defective, the customer must
obtain a Return Material Authorization (“RMA”) number by completing the RMA
form and entering the assigned Case ID Number at https://rma.dlink.com/.
• After an RMA number is issued, the defective product must be packaged securely
in the original or other suitable shipping package to ensure that it will not be
damaged in transit, and the RMA number must be prominently marked on the
outside of the package. Do not include any manuals or accessories in the shipping
package. DLink will only replace the defective portion of the product and will not
ship back any accessories.
Warranty
73
DAP-2553 User’s Manual
D-Link AirPremier N Dual Band PoE Access Point
• The customer is responsible for all in-bound shipping charges to D-Link. No Cash
on Delivery (“COD”) is allowed.Products sent COD will either be rejected by D-Link
or become the property of D-Link. Products shall be fully insured by the customer
and shipped to D-Link Systems, Inc., 17595 Mt. Herrmann, Fountain Valley, CA
92708. D-Link will not be held responsible for any packages that are lost in transit
to D-Link. The repaired or replaced packages will be shipped to the customer via
UPS Ground or any common carrier selected by D-Link. Return shipping charges
shall be prepaid by D-Link if you use an address in the United States, otherwise
we will ship the product to you freight collect. Expedited shipping is available upon
request and provided shipping charges are prepaid by the customer. D-Link may
reject or return any product that is not packaged and shipped in strict compliance
with the foregoing requirements, or for which an RMA number is not visible from
the outside of the package.The product owner agrees to pay D-Link’s reasonable
handling and return shipping charges for any product that is not packaged and
shipped in accordance with the foregoing requirements, or that is determined by
D-Link not to be defective or non-conforming.
What Is Not Covered:
The Limited Warranty provided herein by D-Link does not cover:
Products that, in D-Link’s judgment, have been subjected to abuse, accident, alteration, modification,
tampering, negligence, misuse, faulty installation, lack of reasonable care, repair or service in any
way that is not contemplated in the documentation for the product, or if the model or serial number
has been altered, tampered with, defaced or removed; Initial installation, installation and removal
of the product for repair, and shipping costs; Operational adjustments covered in the operating
manual for the product, and normal maintenance; Damage that occurs in shipment, due to act of
God, failures due to power surge, and cosmetic damage; Any hardware, software, firmware or
other products or services provided by anyone other than D-Link; and Products that have been
purchased from inventory clearance or liquidation sales or other sales in which D-Link, the sellers,
or the liquidators expressly disclaim their warranty obligation pertaining to the product.
While necessary maintenance or repairs on your Product can be performed by any company,
we recommend that you use only an Authorized D-Link Service Office. Improper or incorrectly
performed maintenance or repair voids this Limited Warranty.
Disclaimer of Other Warranties:
EXCEPT FOR THE LIMITED WARRANTY SPECIFIED HEREIN, THE PRODUCT IS PROVIDED
“AS-IS” WITHOUT ANY WARRANTY OF ANY KIND WHATSOEVER INCLUDING, WITHOUT
LIMITATION, ANY WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR
PURPOSE AND NONINFRINGEMENT.
IF ANY IMPLIED WARRANTY CANNOT BE DISCLAIMED IN ANY TERRITORY WHERE A
PRODUCT IS SOLD, THE DURATION OF SUCH IMPLIED WARRANTY SHALL BE LIMITED TO
THE DURATION OF THE APPLICABLE WARRANTY PERIOD SET FORTH ABOVE. EXCEPT
AS EXPRESSLY COVERED UNDER THE LIMITED WARRANTY PROVIDED HEREIN, THE
ENTIRE RISK AS TO THE QUALITY, SELECTION AND PERFORMANCE OF THE PRODUCT
IS WITH THE PURCHASER OF THE PRODUCT.
Warranty
74
DAP-2553 User’s Manual
D-Link AirPremier N Dual Band PoE Access Point
Limitation of Liability:
TO THE MAXIMUM EXTENT PERMITTED BY LAW, D-LINK IS NOT LIABLE UNDER ANY
CONTRACT, NEGLIGENCE, STRICT LIABILITY OR OTHER LEGAL OR EQUITABLE THEORY
FOR ANY LOSS OF USE OF THE PRODUCT, INCONVENIENCE OR DAMAGES OF ANY
CHARACTER, WHETHER DIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL (INCLUDING,
BUT NOT LIMITED TO, DAMAGES FOR LOSS OF GOODWILL, LOSS OF REVENUE OR
PROFIT, WORK STOPPAGE, COMPUTER FAILURE OR MALFUNCTION, FAILURE OF OTHER
EQUIPMENT OR COMPUTER PROGRAMS TO WHICH D-LINK’S PRODUCT IS CONNECTED
WITH, LOSS OF INFORMATION OR DATA CONTAINED IN, STORED ON, OR INTEGRATED
WITH ANY PRODUCT RETURNED TO D-LINK FOR WARRANTY SERVICE) RESULTING
FROM THE USE OF THE PRODUCT, RELATING TO WARRANTY SERVICE, OR ARISING
OUT OF ANY BREACH OF THIS LIMITED WARRANTY, EVEN IF D-LINK HAS BEEN ADVISED
OF THE POSSIBILITY OF SUCH DAMAGES. THE SOLE REMEDY FOR A BREACH OF THE
FOREGOING LIMITED WARRANTY IS REPAIR, REPLACEMENT OR REFUND OF THE
DEFECTIVE OR NONCONFORMING PRODUCT.THE MAXIMUM LIABILITY OF D-LINK UNDER
THIS WARRANTY IS LIMITED TO THE PURCHASE PRICE OF THE PRODUCT COVERED BY
THE WARRANTY.THE FOREGOING EXPRESS WRITTEN WARRANTIES AND REMEDIES ARE
EXCLUSIVE AND ARE IN LIEU OF ANY OTHER WARRANTIES OR REMEDIES, EXPRESS,
IMPLIED OR STATUTORY.
Governing Law:
This Limited Warranty shall be governed by the laws of the State of California. Some states do
not allow exclusion or limitation of incidental or consequential damages, or limitations on how
long an implied warranty lasts, so the foregoing limitations and exclusions may not apply. This
Limited Warranty provides specific legal rights and you may also have other rights which vary
from state to state.
Trademarks:
D-Link is a registered trademark of D-Link Corporation/D-Link Systems, Inc. Other trademarks
or registered trademarks are the property of their respective owners.
Copyright Statement:
No part of this publication or documentation accompanying this product may be reproduced in
any form or by any means or used to make any derivative such as translation, transformation,
or adaptation without permission from D-Link Corporation/D-Link Systems, Inc., as stipulated by
the United States Copyright Act of 1976 and any amendments thereto. Contents are subject to
change without prior notice.
Copyright ©2008 by D-Link Corporation/D-Link Systems, Inc. All rights reserved.
CE Mark Warning:
This is a Class B product. In a domestic environment, this product may cause radio interference,
in which case the user may be required to take adequate measures.
Warranty
75
DAP-2553 User’s Manual
D-Link AirPremier N Dual Band PoE Access Point
FCC Statement:
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules.These limits are designed to provide reasonable protection
against harmful interference in a residential installation.This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communication. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC Caution:
Any changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
If this device is going to be operated in 5.15 ~ 5.25GHz frequency range, then it is restricted in
indoor environment only.
IMPORTANT NOTICE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body. This transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter.
The availability of some specific channels and/or operational frequency bands are country
dependent and are firmware programmed at the factory to match the intended destination. The
firmware setting is not accessible by the end user.
For detailed warranty information applicable to products purchased outside the United States,
please contact the corresponding local D-Link office.
Warranty
76
DAP-2553 User’s Manual
D-Link AirPremier N Dual Band PoE Access Point
Industry Canada Notice:
This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
IMPORTANT NOTE:
Radiation Exposure Statement:
This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with minimum distance 20cm between the
radiator & your body.
This device has been designed to operate with an antenna having a maximum gain of 6 dB.
Antenna having a higher gain is strictly prohibited per regulations of Industry Canada.The required
antenna impedance is 50 ohms.
Warranty
77
DAP-2553 User’s Manual
D-Link AirPremier N Dual Band PoE Access Point
Version 1.0
June 17, 2008
Product registration is entirely voluntary and failure to complete or return this form
will not diminish your warranty rights.
Registration
Registration
78
DAP-2553 User’s Manual
D-Link AirPremier N Dual Band PoE Access Point
Technical Support
Technical Support
You can find software updates and user documentation on the D-Link website.
U.S. and Canadian customers can contact D-Link technical support through our
website, or by phone.
Tech Support for customers within the United States:
D-Link Technical Support over the Telephone:
(877) 354-6555
D-Link Technical Support over the Internet:
http://support.dlink.com
Tech Support for customers within Canada:
D-Link Technical Support over the Telephone:
1-800-361-5265
D-Link Technical Support over the Internet:
http://support.dlink.com
