User Manual

DAP-2660
Version 1.00
Wireless AC1200
Concurrent Dual Band PoE Access Point
AirPremier
D-Link DAP-2660 User Manual
2
Table of Contents
Product Overview ...................................................................... 5
Introduction ................................................................................... 5
Features ............................................................................................6
Package Contents .........................................................................7
System Requirements ................................................................. 7
Hardware Overview ..................................................................8
LEDs ...................................................................................................8
Connections ...................................................................................8
Basic Installation ........................................................................9
Hardware Setup ............................................................................9

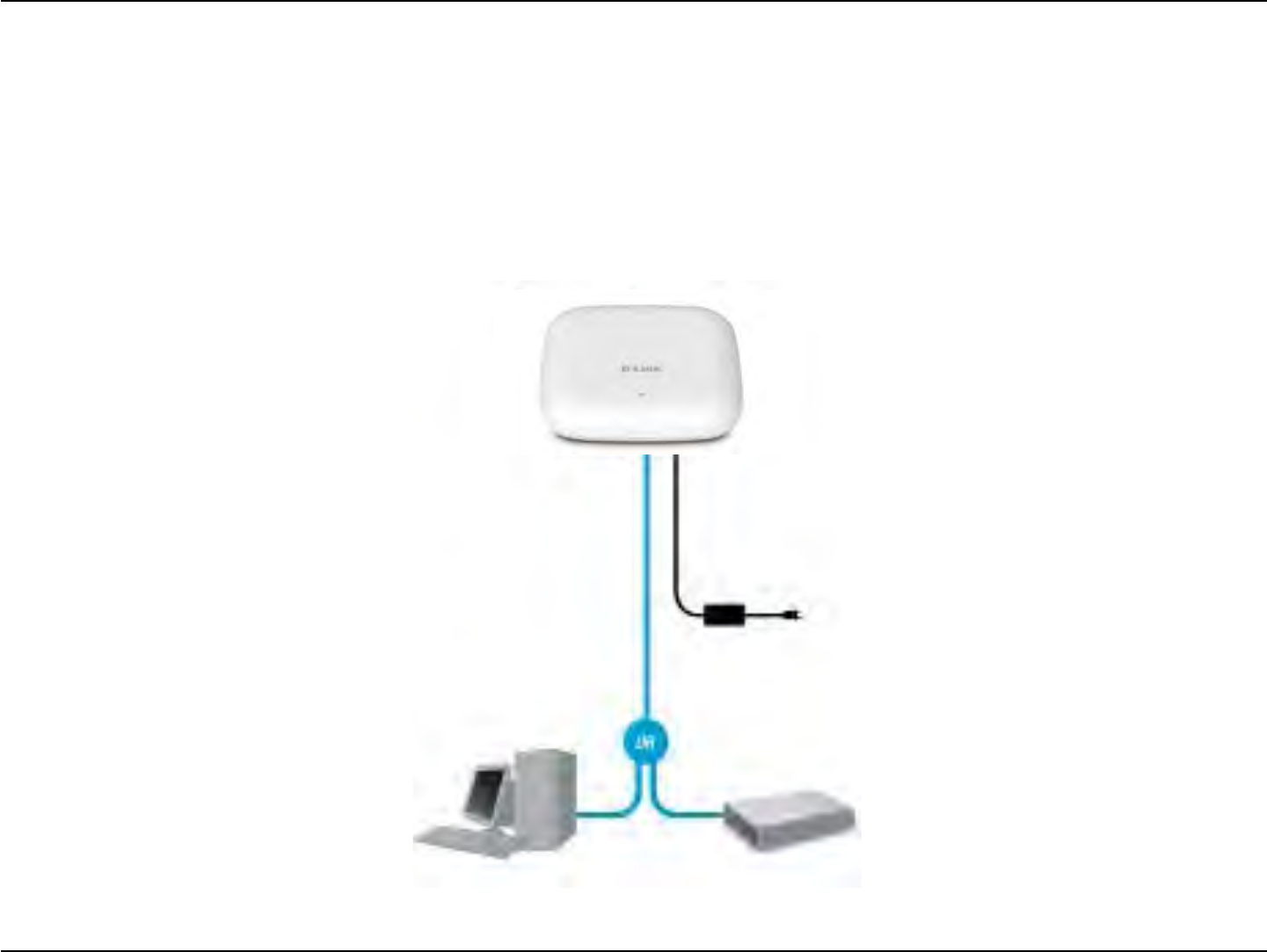

Method 1 - PoE with PoE Switch or Router ..................9
Method 2 - PoE without PoE Switch or Router .............10
Method 3 - No PoE..............................................................11
Web User Interface ................................................................. 12
Basic Settings ...............................................................................13
Wireless ..................................................................................13

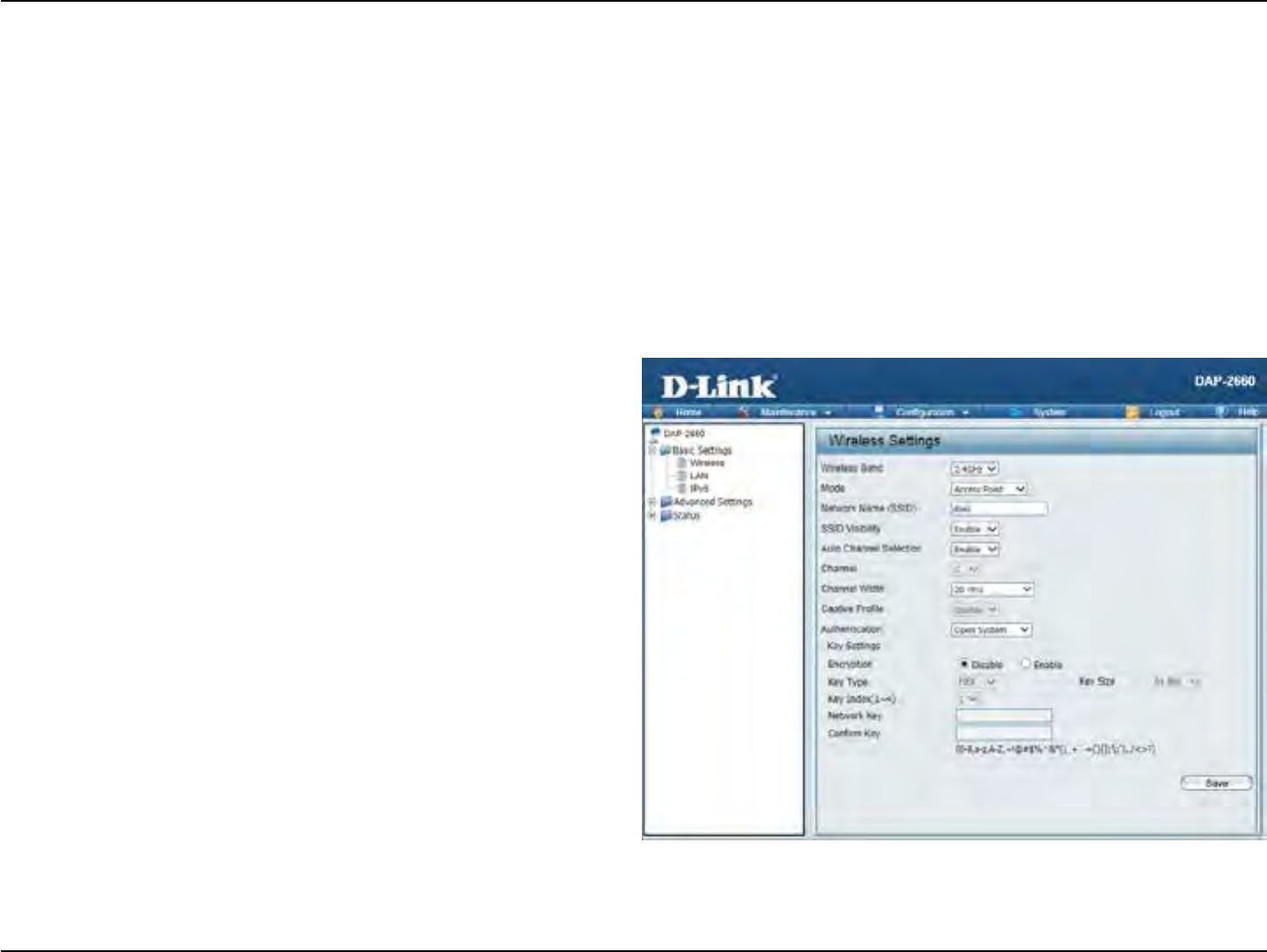

Access Point Mode (2.4GHz) - Open System .......13
Access Point Mode (2.4GHz) - Shared Key ...........16
Access Point Mode (2.4GHz) - WPA Personal ......17

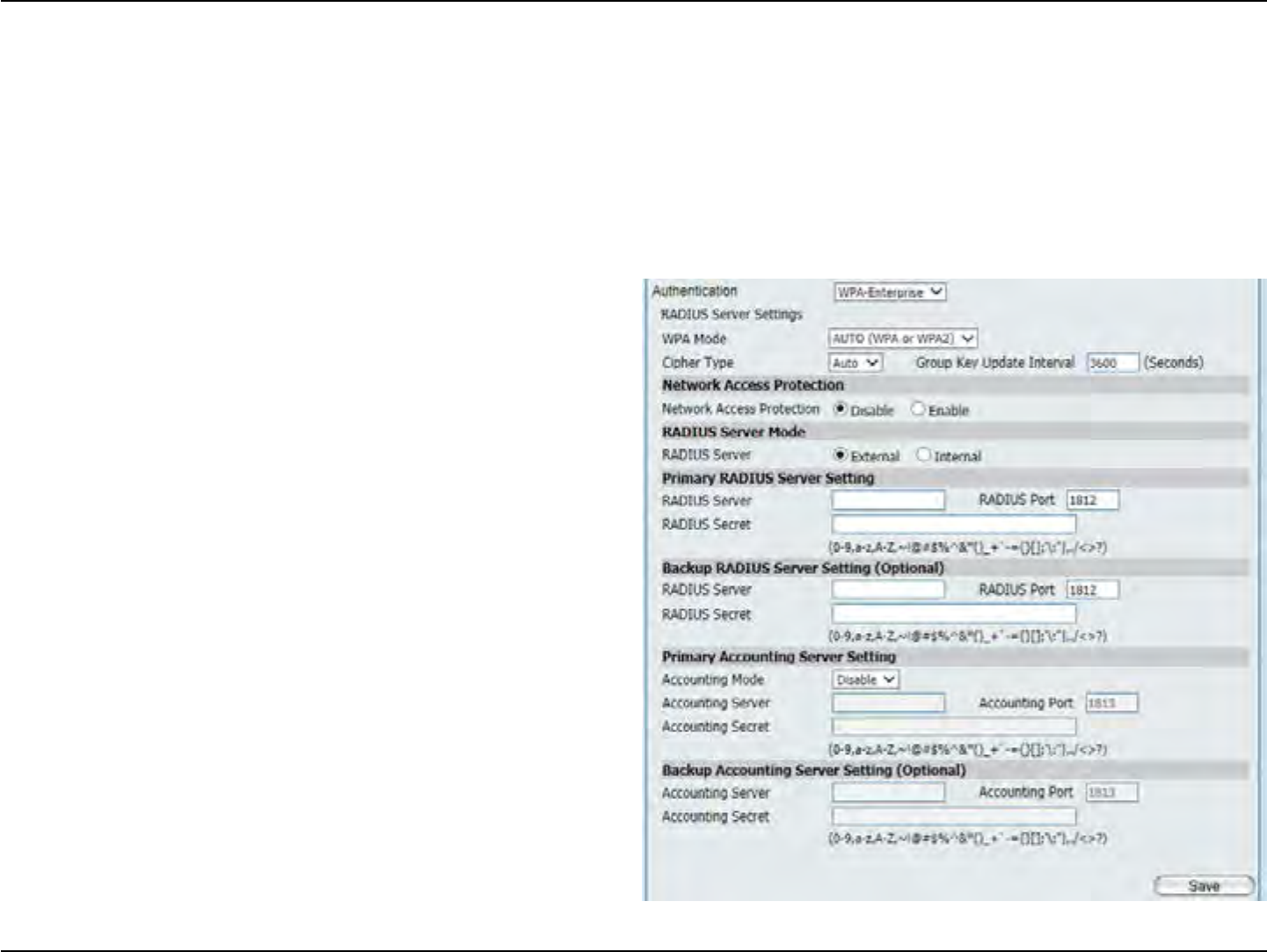

Access Point Mode (2.4GHz) - WPA Enterprise ...18
Access Point Mode (2.4GHz) - 802.1X ....................20
Access Point Mode (5GHz) ......................................... 22
WDS with AP Mode (2.4GHz) ....................................24
WDS with AP Mode (5GHz) .......................................26

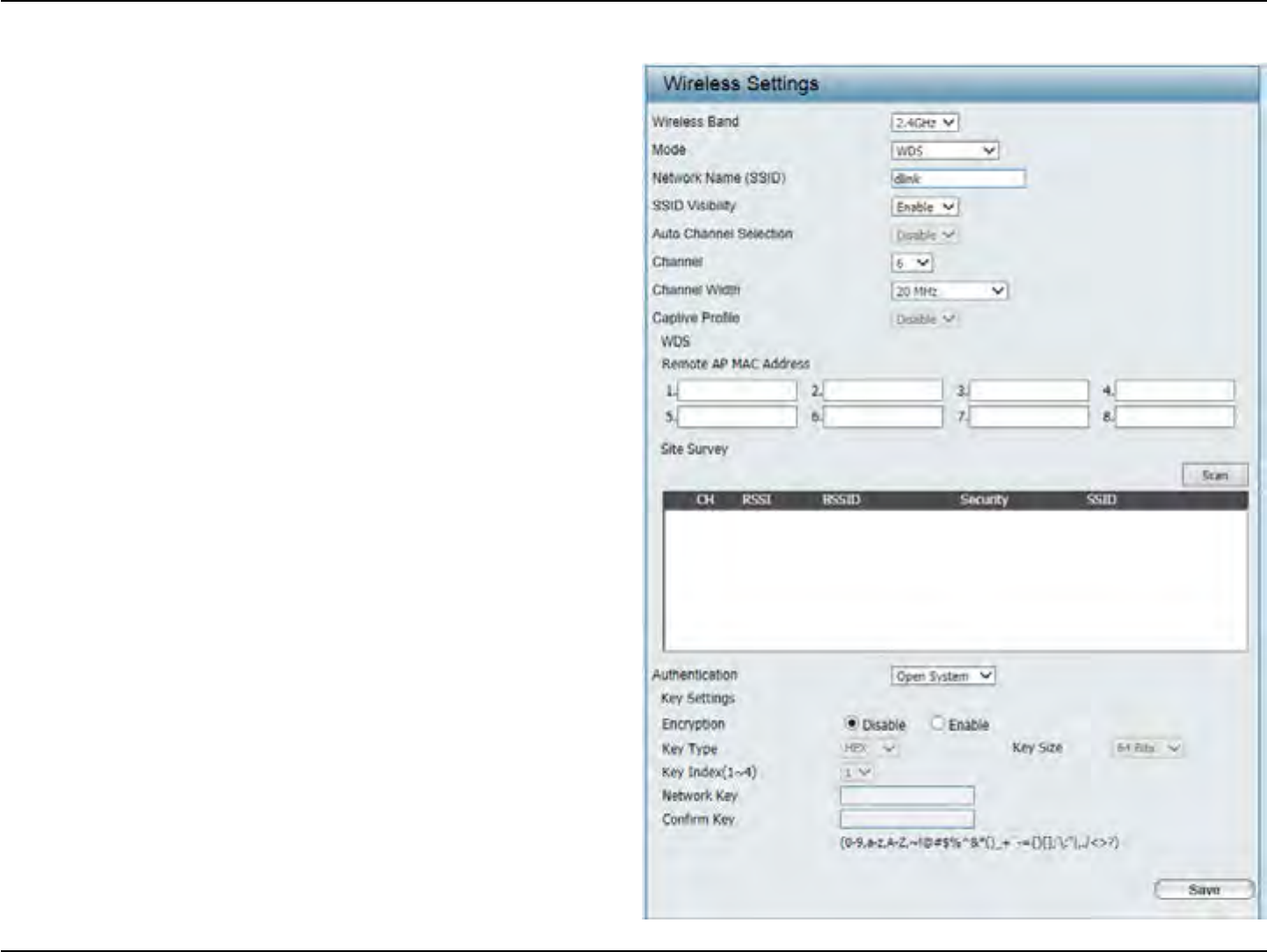

WDS Mode (2.4GHz) ....................................................28
WDS Mode (5GHz) ........................................................30

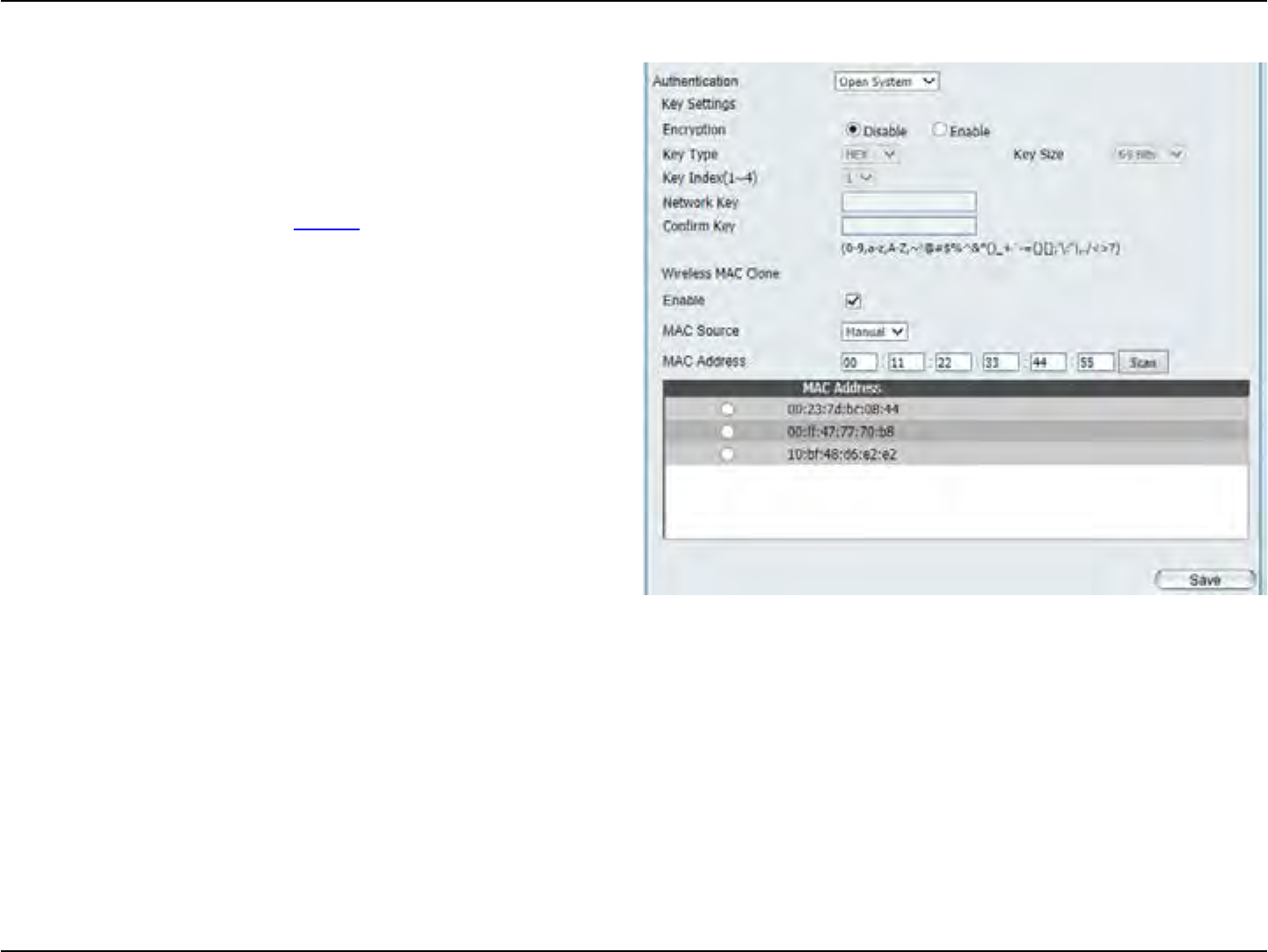

Wireless Client Mode (2.4GHz) .................................32

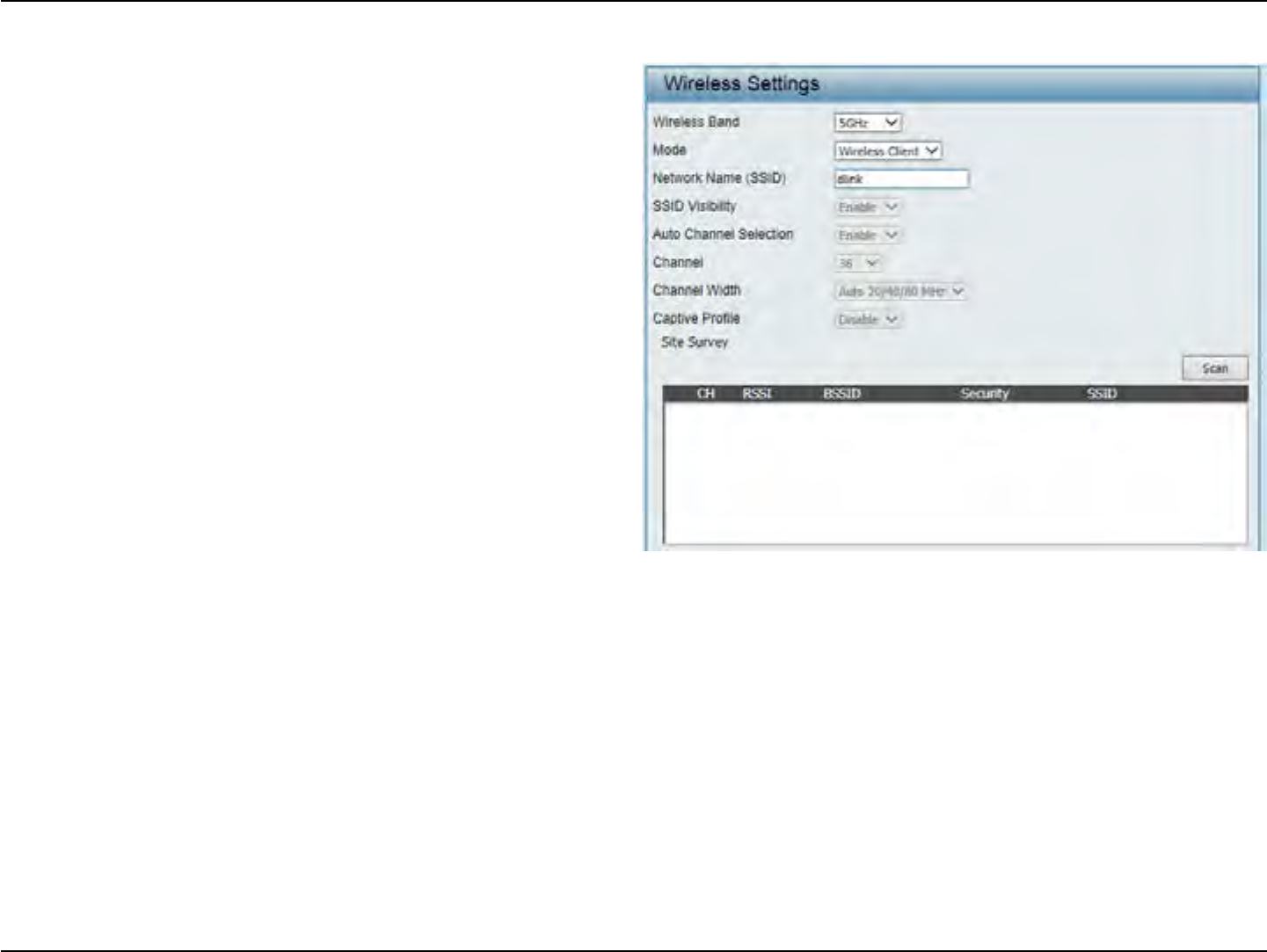

Wireless Client Mode (5GHz) ....................................34
LAN ..........................................................................................36
IPv6 ..........................................................................................37
Advanced Settings .....................................................................38

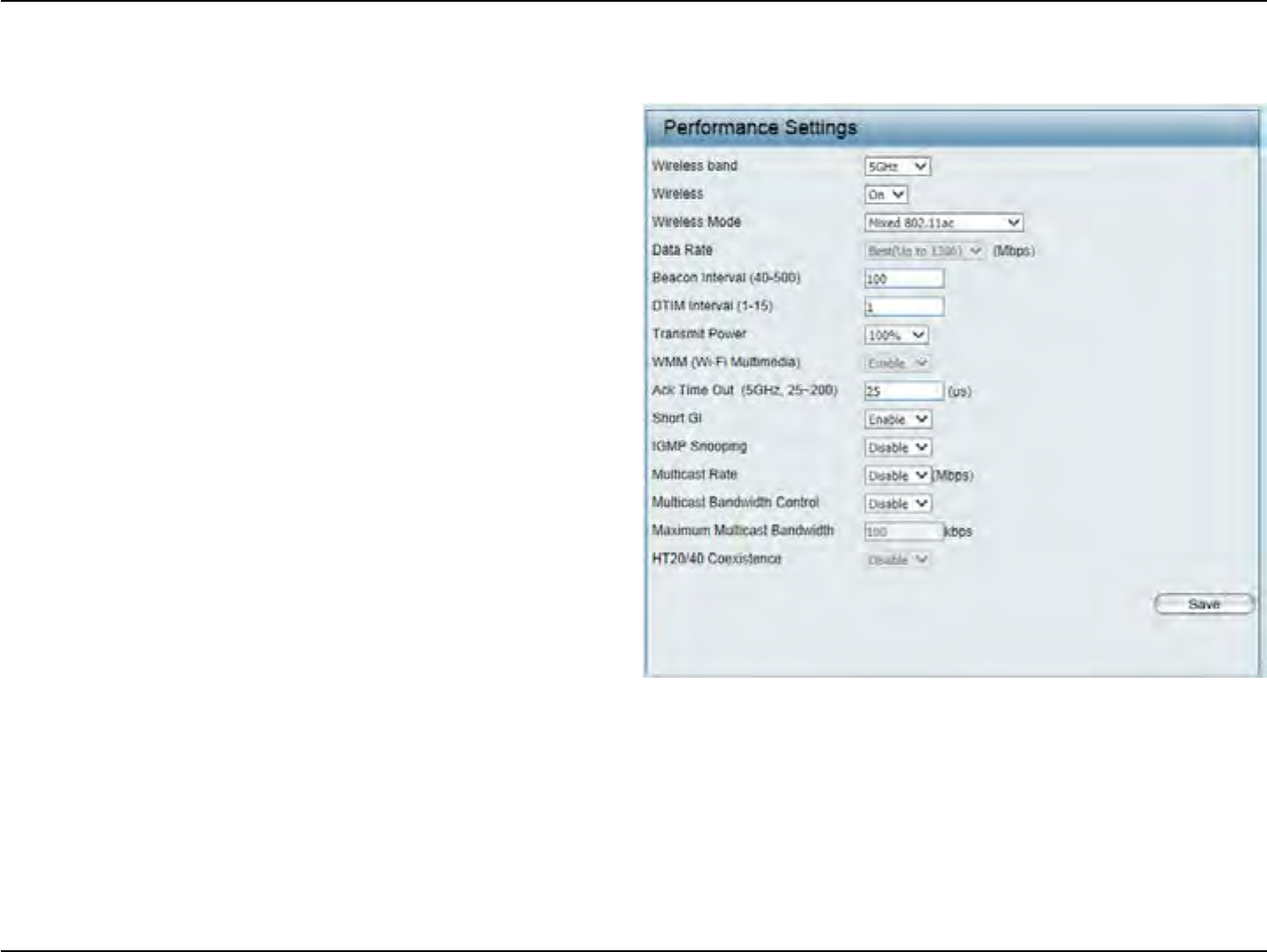

Performance (2.4GHz) .......................................................39
Performance (5GHz) ..........................................................41
Wireless Resource (2.4GHz) .............................................43
Wireless Resource (5GHz) ................................................45

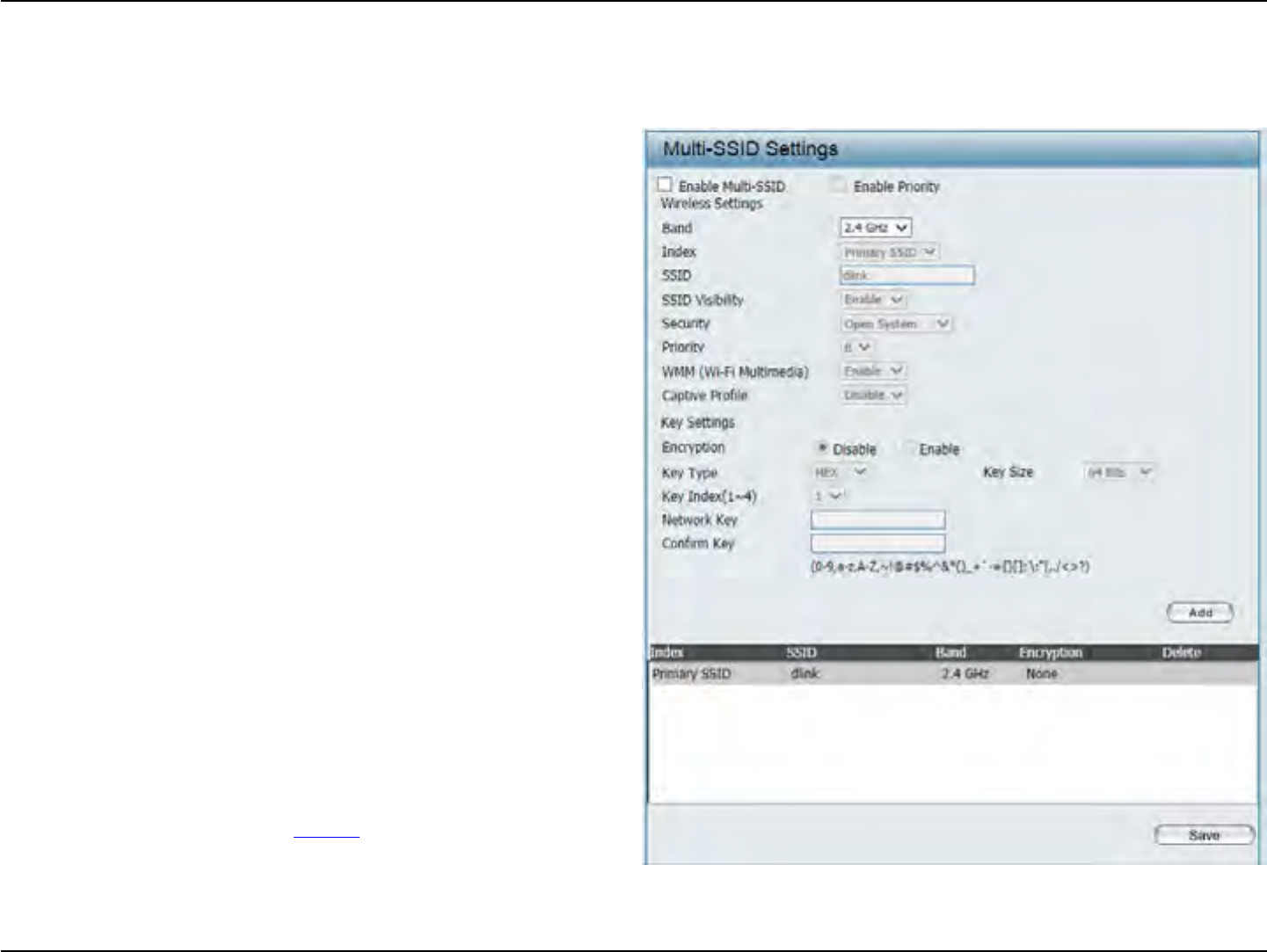

Multi-SSID (2.4GHz) ............................................................ 47
Multi-SSID (5GHz) ...............................................................49
VLAN ........................................................................................51
VLAN List ..........................................................................51
Port List ............................................................................. 52

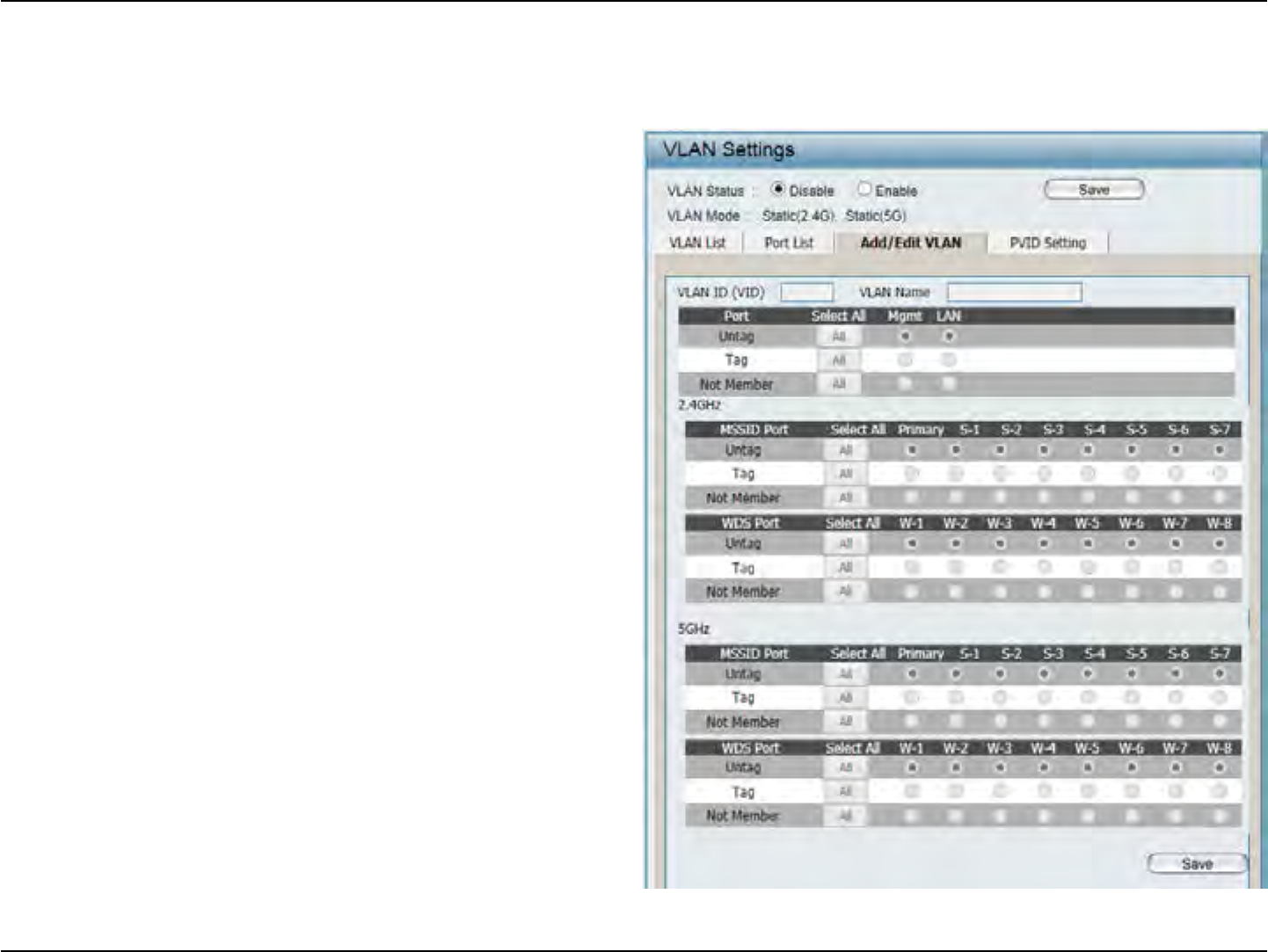

Add/Edit VLAN ...............................................................53
PVID Settings ..................................................................54
Intrusion .................................................................................55
Schedule ................................................................................56

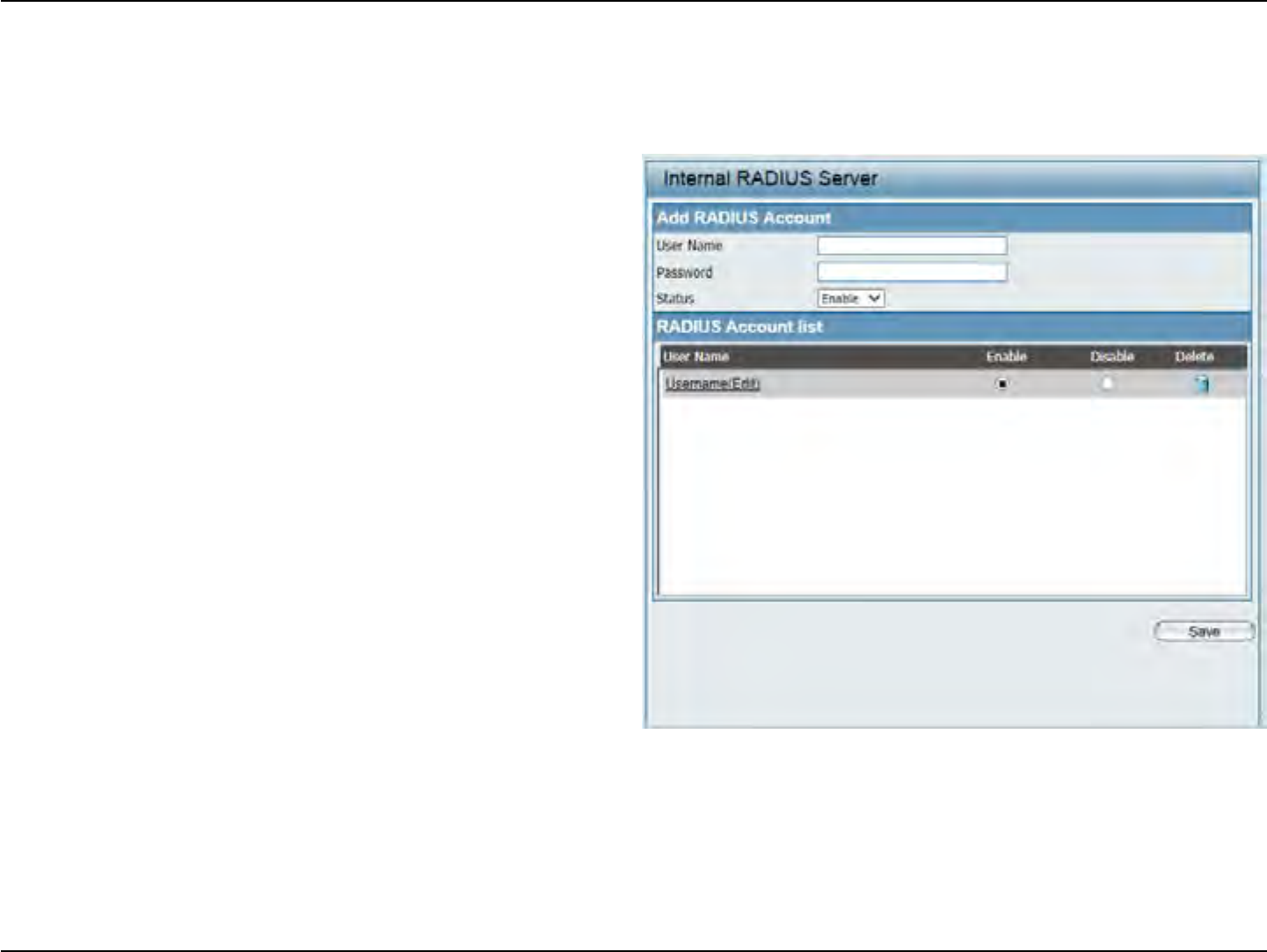

Internal RADIUS Server .....................................................57
ARP Spoong Prevention ................................................58
Airtime Fairness ...................................................................59
AP Array ..................................................................................60
AP Array Scan .................................................................60
Conguration Settings ................................................ 61

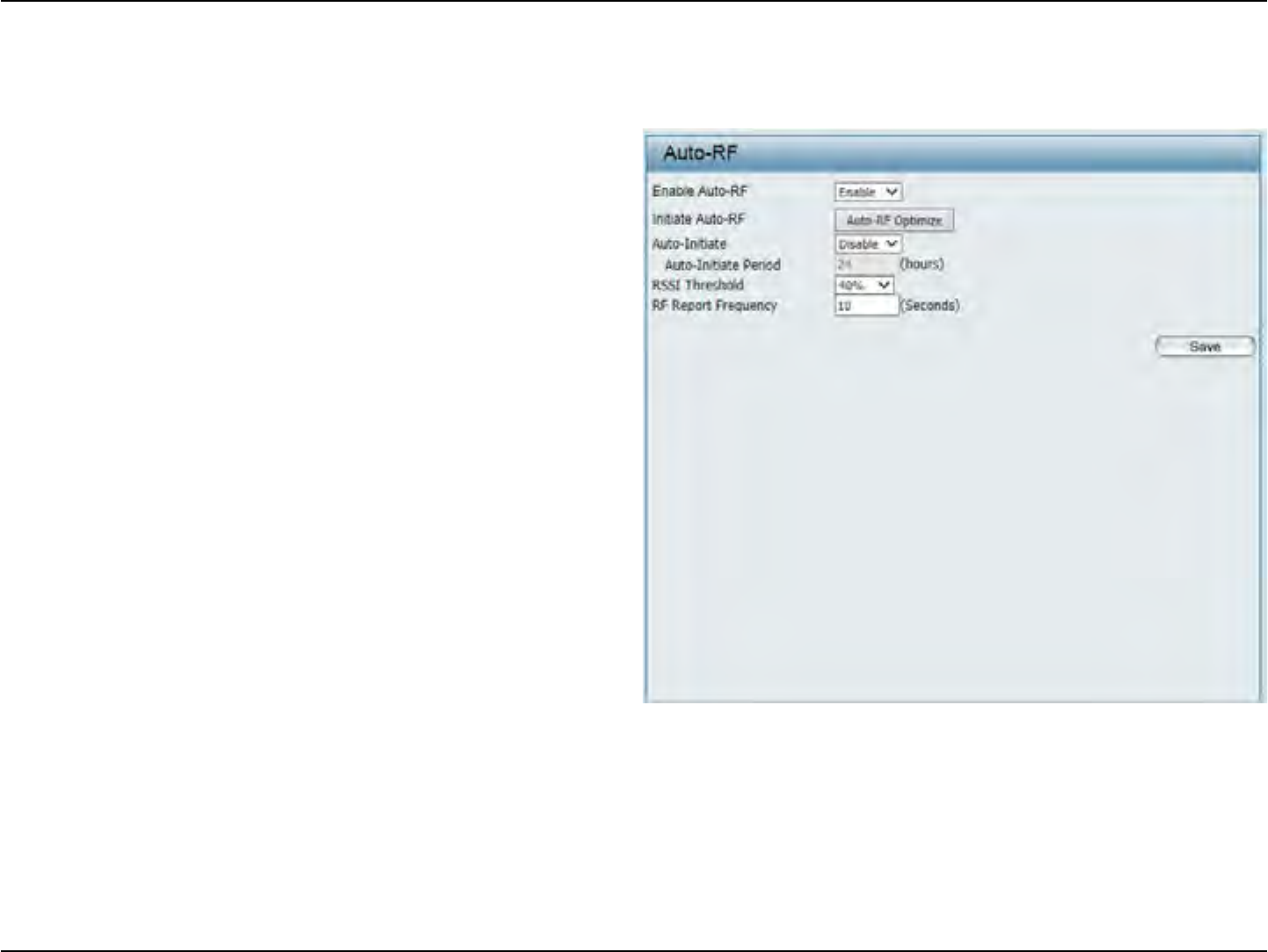

Auto-RF ............................................................................. 65
Load Balance ..................................................................66

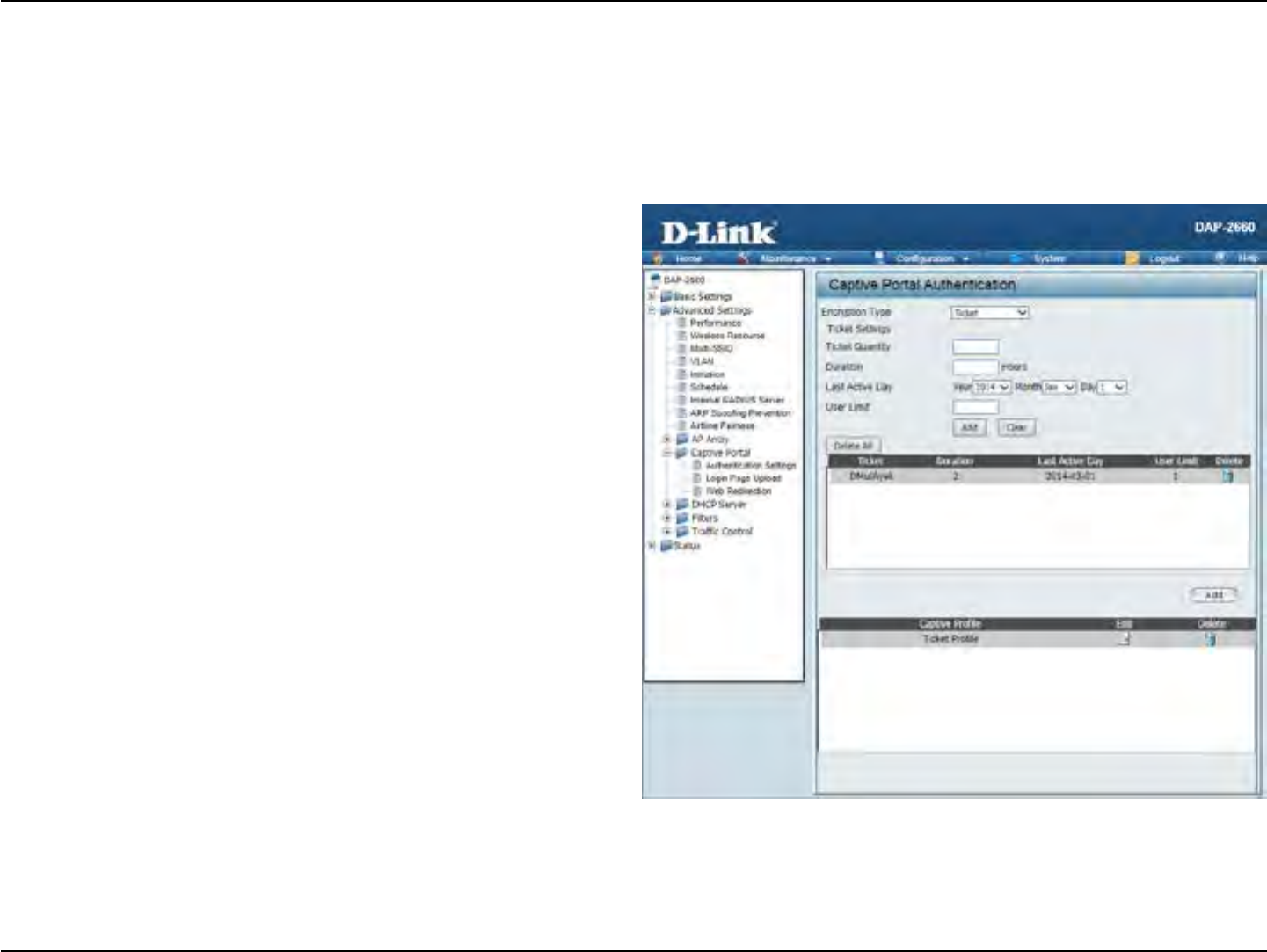

Captive Portal ....................................................................... 67
Authentication Settings - Ticket ..............................67
D-Link DAP-2660 User Manual
3
Authentication Settings - User/Password ............68
Authentication Settings - Remote RADIUS ..........69

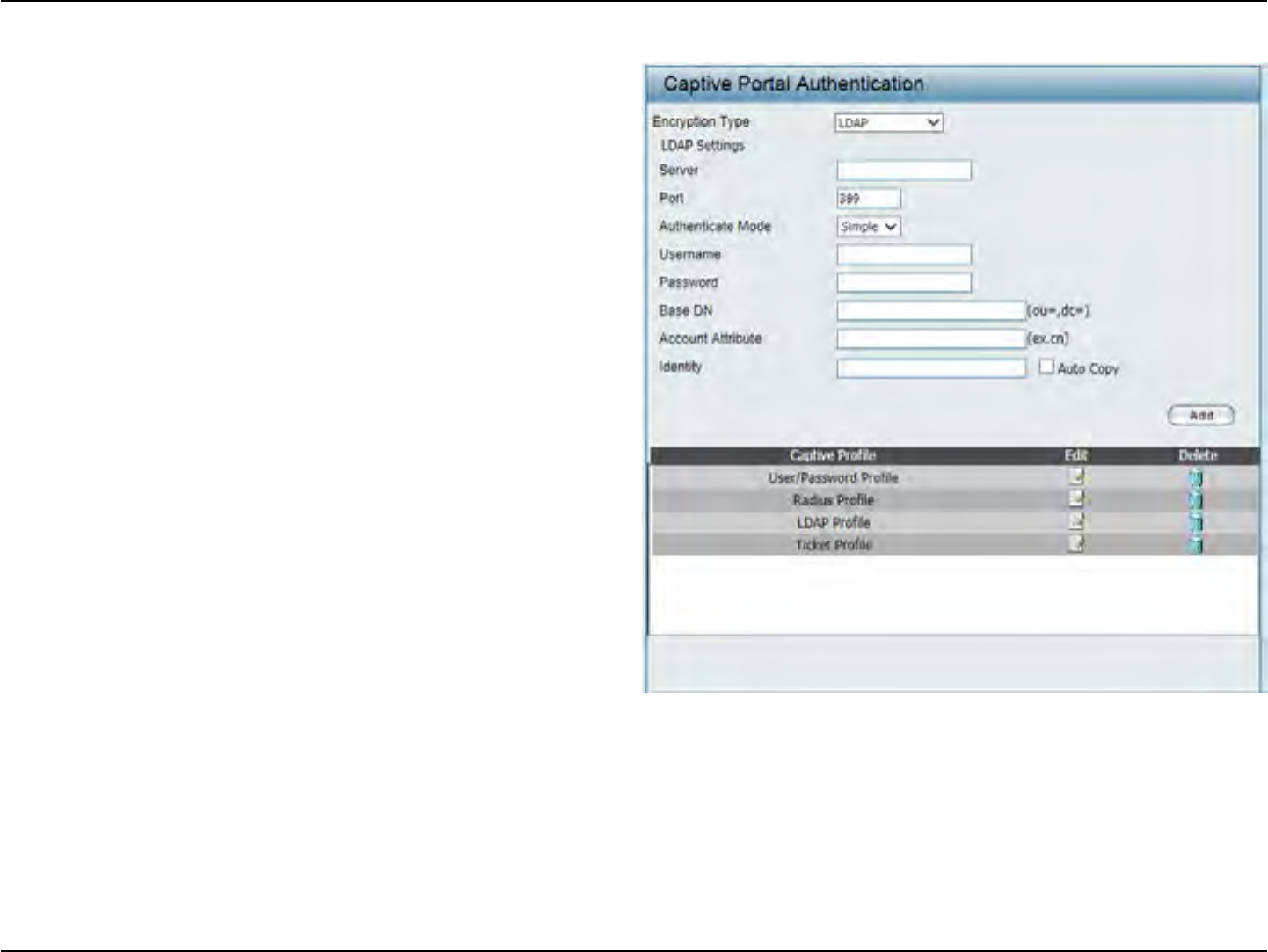

Authentication Settings - LDAP ...............................70

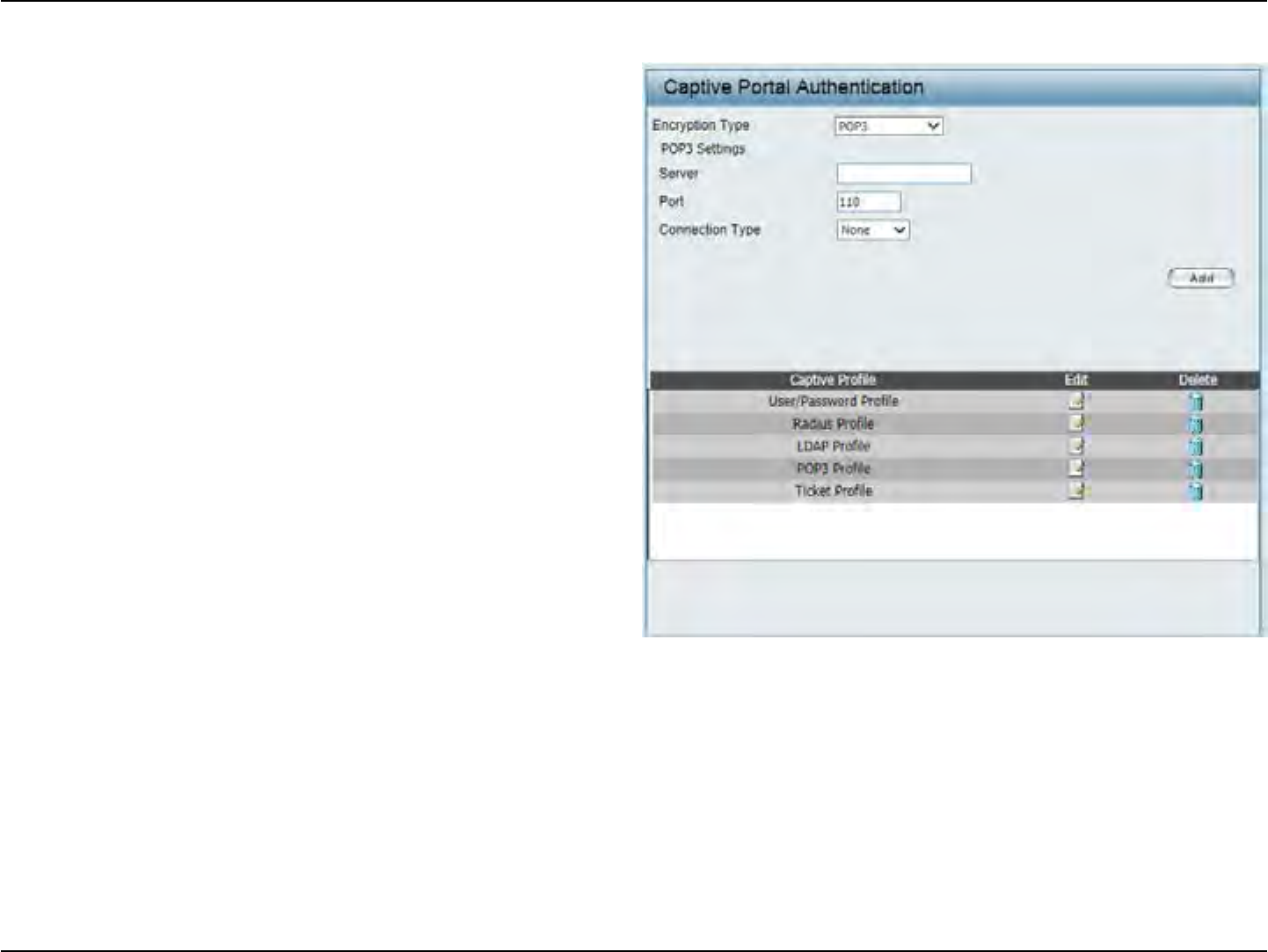

Authentication Settings - POP3 ...............................71
Login Page Upload .......................................................72
Web Redirection ............................................................73
DHCP Server .........................................................................74
Dynamic Pool Settings ................................................ 74
Static Pool Setting ........................................................75
Current IP Mapping List ..............................................76
Filters .......................................................................................77
Wireless MAC ACL .........................................................77
WLAN Partition ..............................................................78
Trac Control ....................................................................... 79
Uplink/Downlink Settings .........................................79

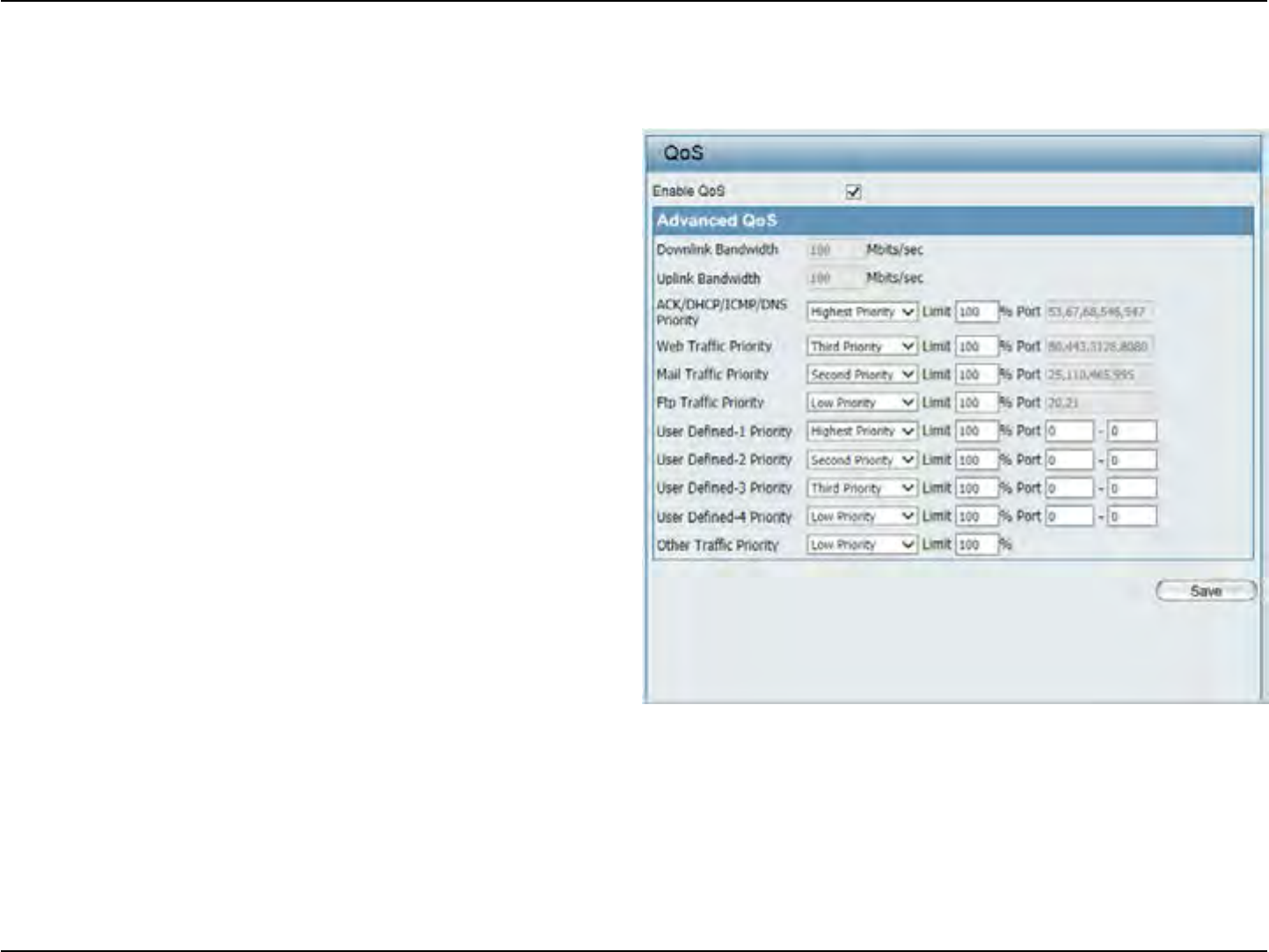

QoS ..................................................................................... 80
Trac Manager ..............................................................82
Status ..............................................................................................83

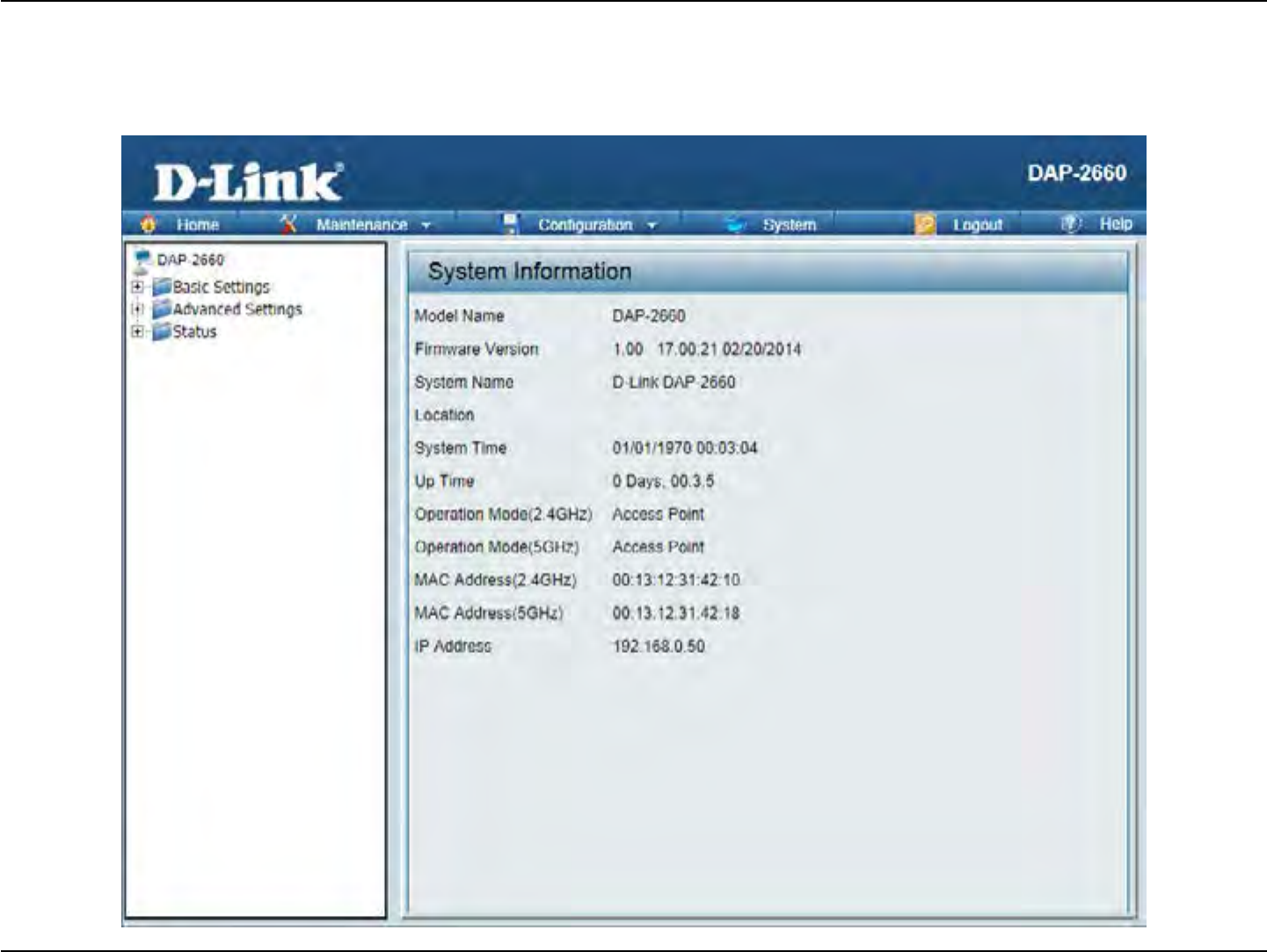

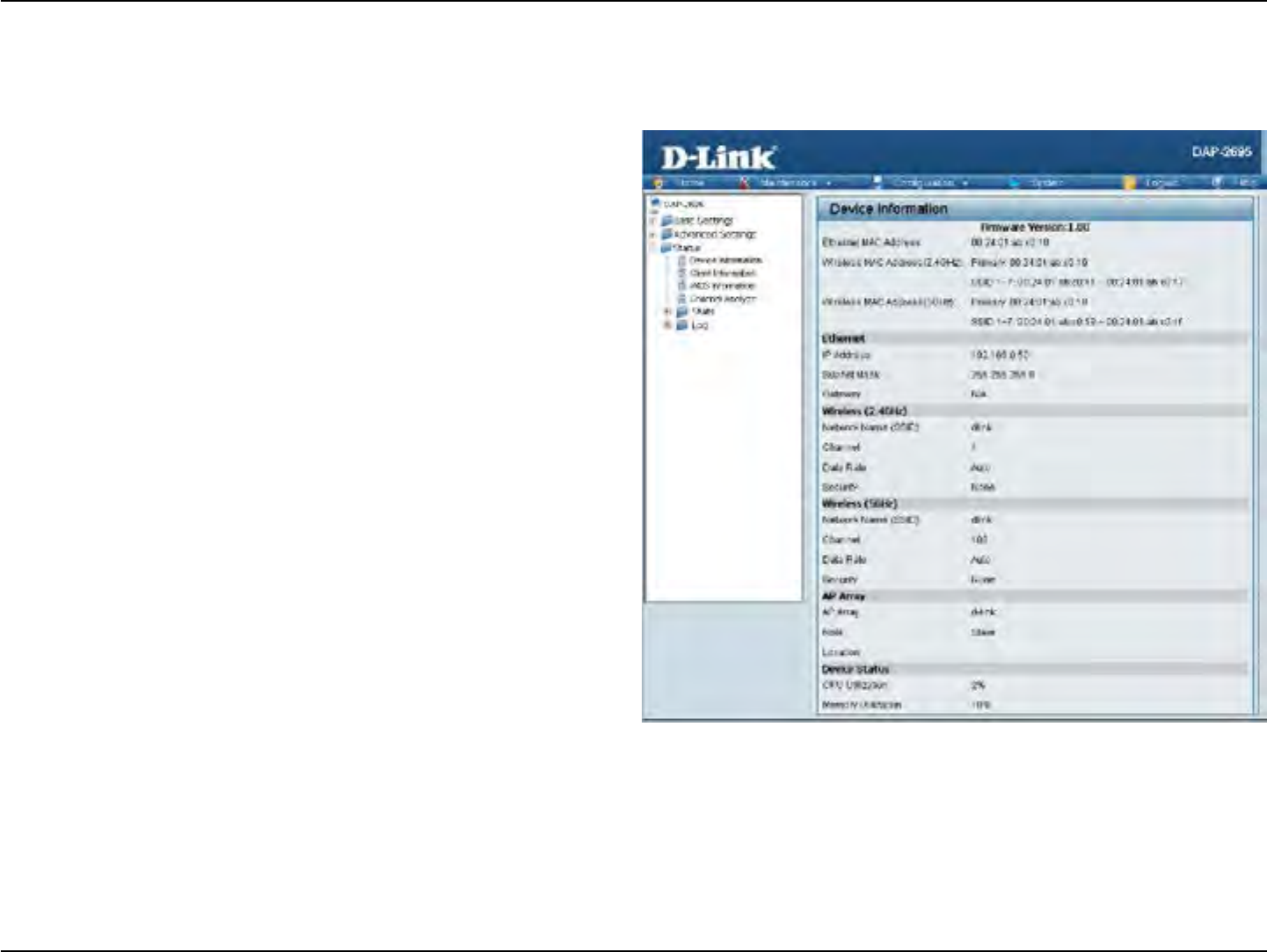

Device Information ............................................................84
Client Information ..............................................................85
WDS Information Page .....................................................86

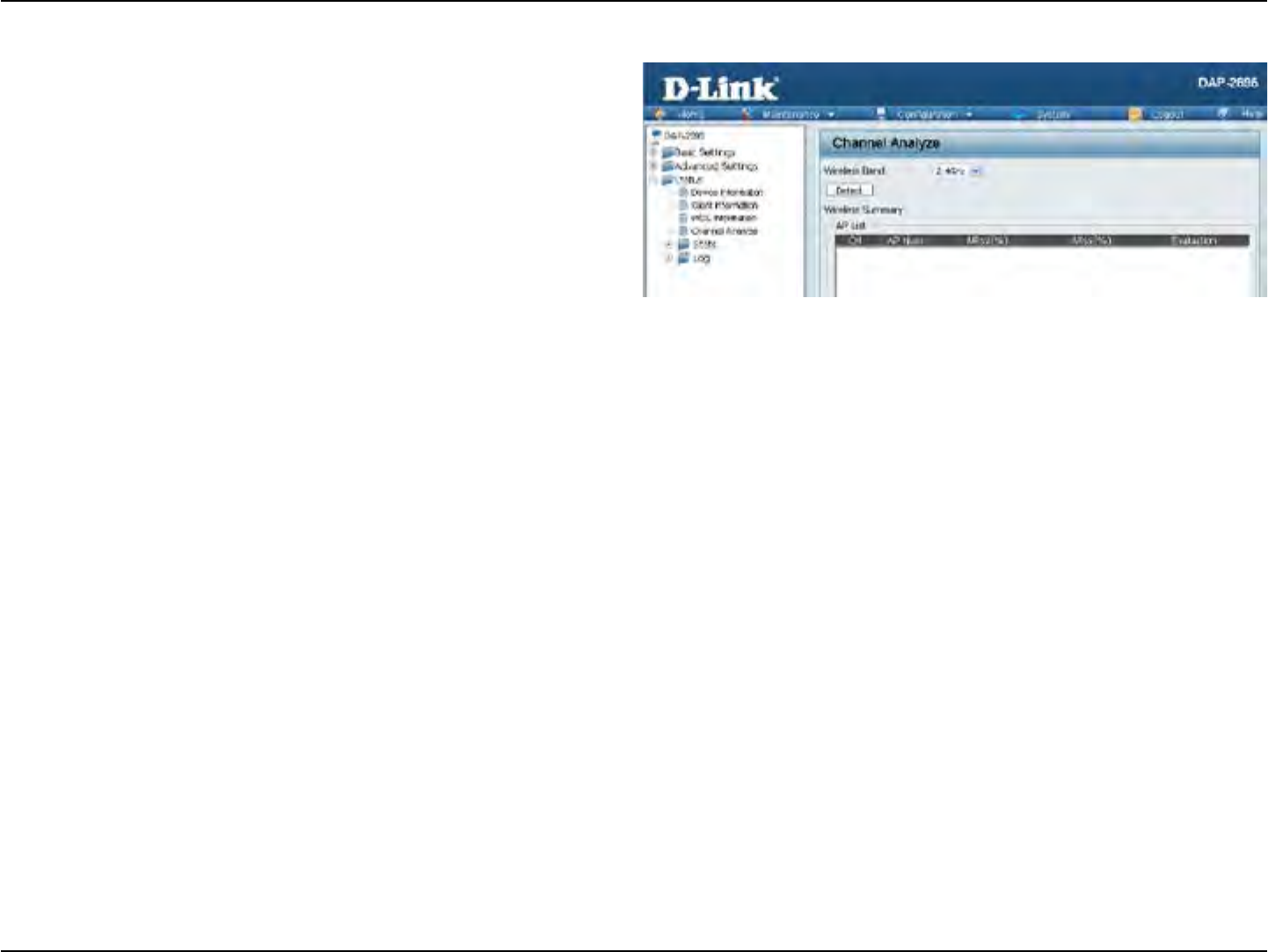

Channel Analyze .................................................................87
Stats Page ......................................................................................88
Ethernet Trac Statistics .................................................. 88
WLAN Trac Statistics ....................................................... 89
Log ...................................................................................................90
View Log .................................................................................90

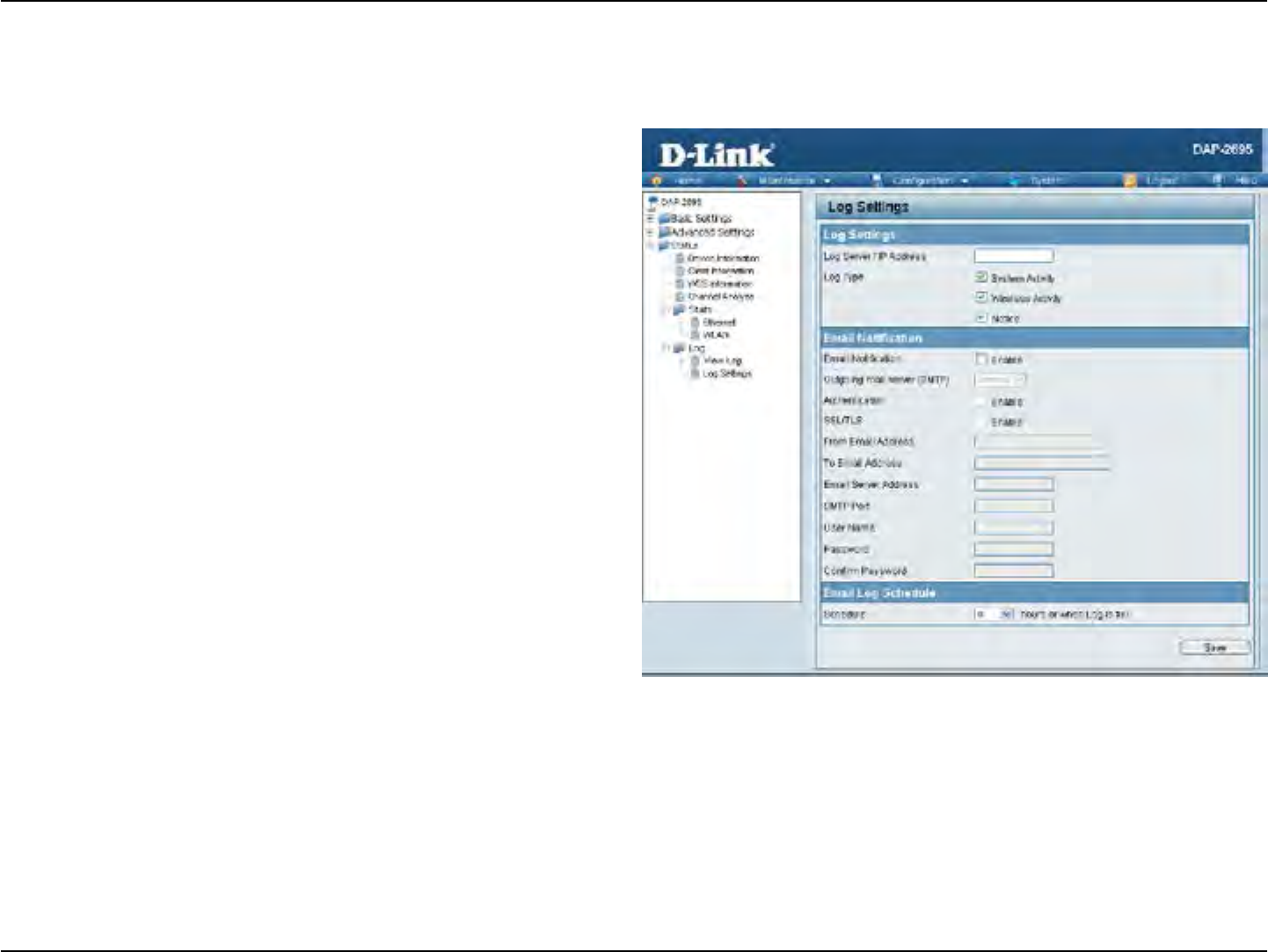

Log Settings ..........................................................................91
Maintenance Section ................................................................92
Administration ............................................................................. 93
Limit Administrator ............................................................93

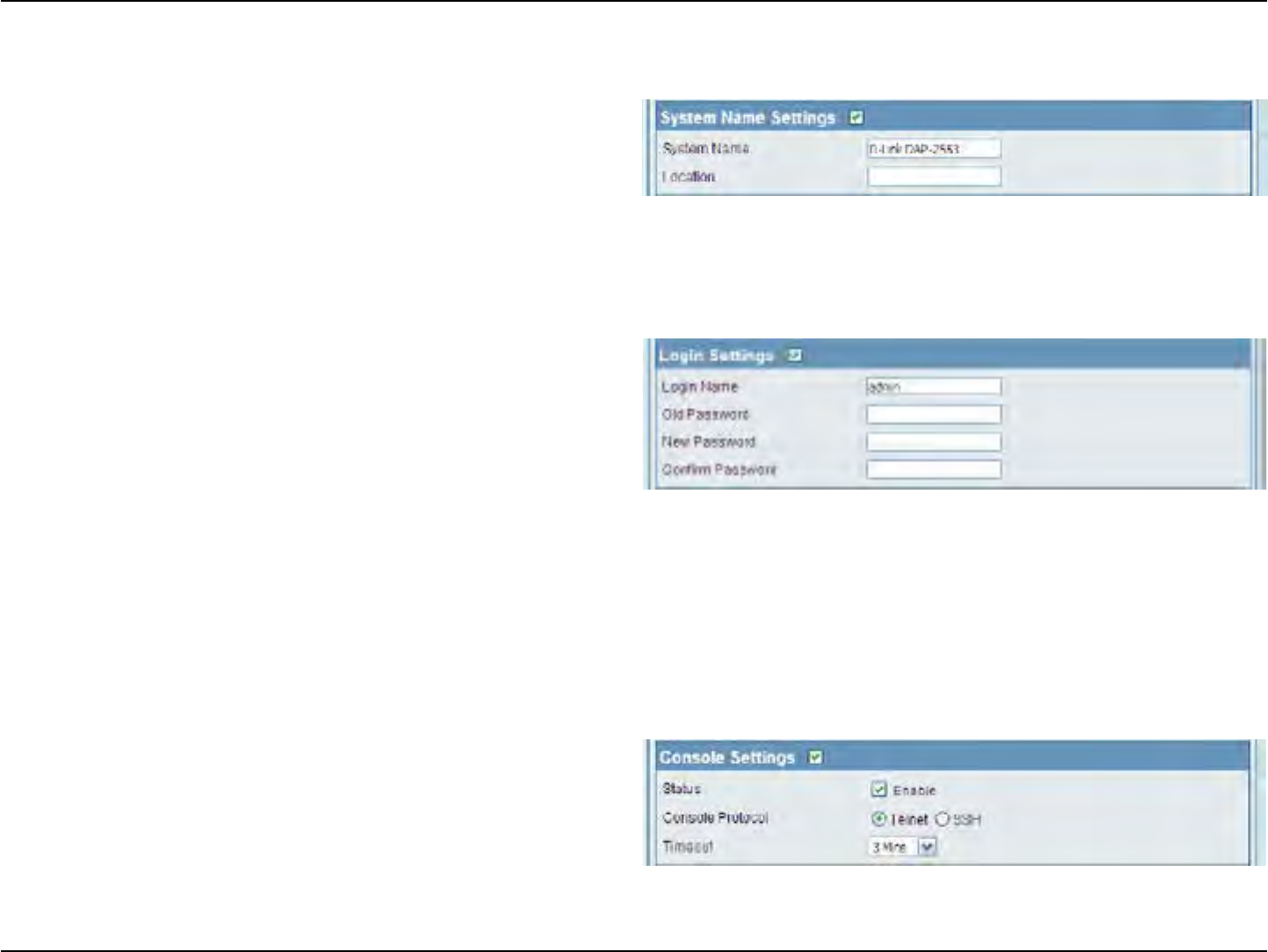

System Name Settings ......................................................94
Login Settings ......................................................................94
Console Settings .................................................................94
SNMP Settings .....................................................................95

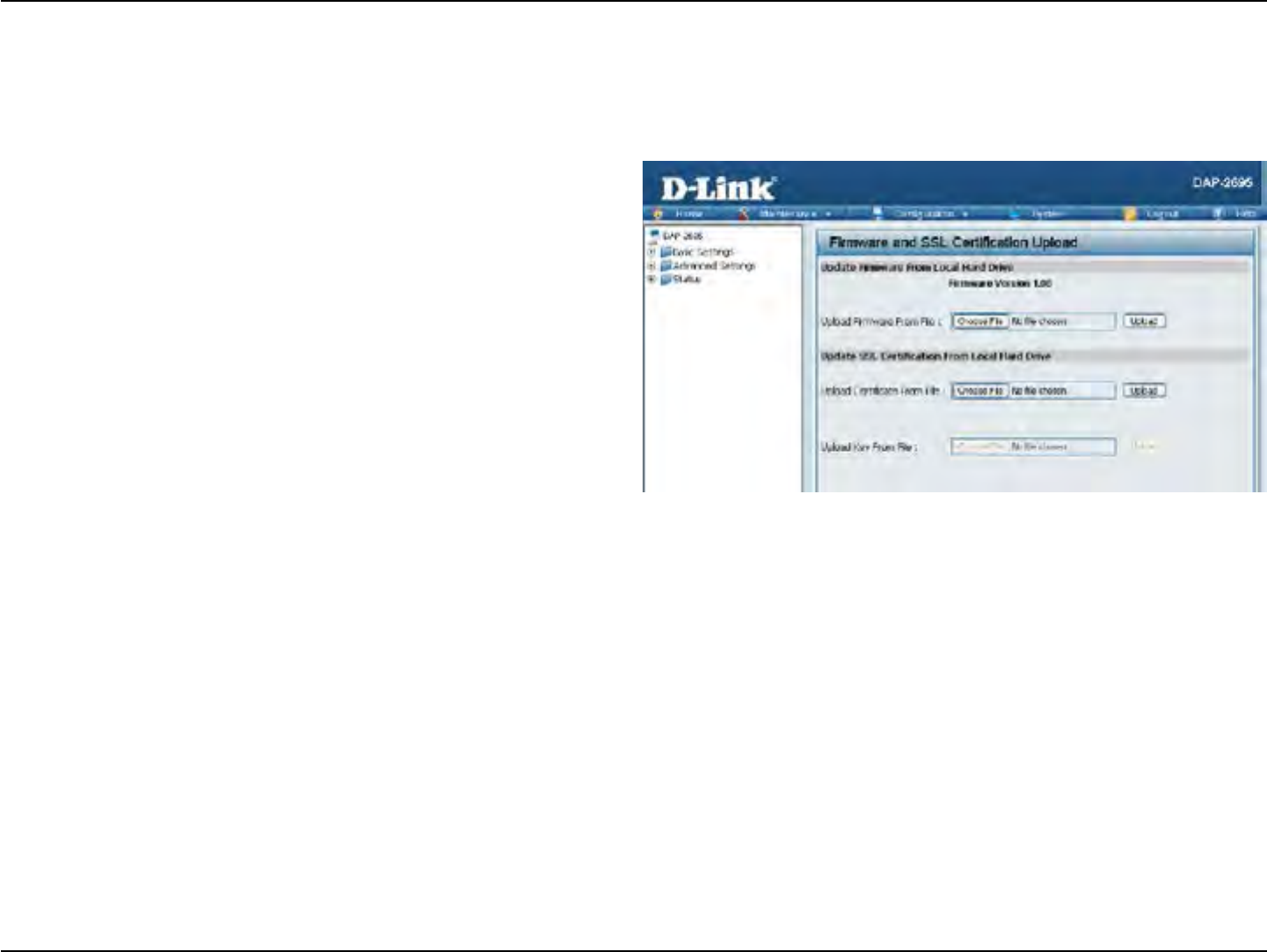

Firmware and SSL Upload ................................................96
Conguration File Upload ...............................................97

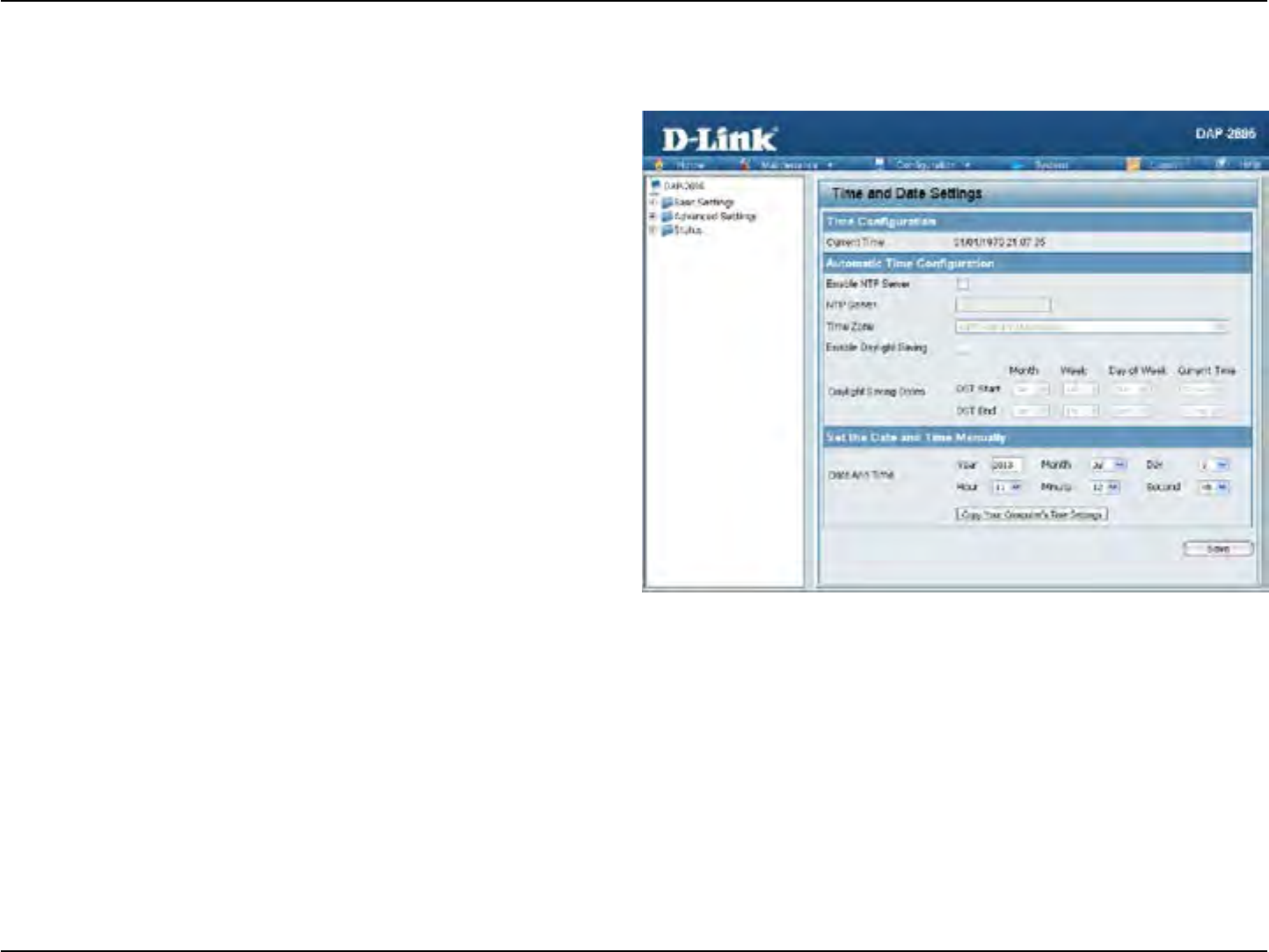

Time and Date Settings ....................................................98
Conguration and System.......................................................99
System Settings ........................................................................ 100
Help .............................................................................................. 101
Knowledge Base ................................................................... 102
Wireless Basics .......................................................................... 102
Wireless Installation Considerations ................................. 103
Troubleshooting ................................................................... 104
Why can’t I access the web-based conguration
utility? .................................................................................. 104
What can I do if I forgot my password? .................... 104
How to check your IP address? ................................... 105
How to statically assign an IP address? ....................106
Technical Specications ......................................................107
D-Link DAP-2660 User Manual
4
Product Overview
Introduction
D-Link, an industry pioneer in wireless networking, introduces a solution for businesses seeking to deploy next generation draft 802.11ac LANs. D-Link
unveils its new DAP-2660, designed specically for business-class environments such as large or enterprise corporations to provide secure and manageable
dual band wireless LAN options for network administrators.
Versatile Access Point
The DAP-2660 Access Point allows network administrators to deploy a highly manageable and extremely robust dual band wireless network. All six
antennas are detachable and can provide optimal wireless coverage in either 2.4GHz (802.11g and 802.11n) or 5GHz (802.11ac, 802.11a, and 802.11n)
bands. Enclosed in a plenum-rated metal chassis, the DAP-2660 Access Point adheres to strict re codes for placement in air passageways. For advanced
installations, this new high-speed Access Point has integrated 802.3af Power over Ethernet (PoE) support, allowing installation of this device in areas where
power outlets are not readily available.
Enhanced Performance
The DAP-2660 delivers reliable wireless performance with maximum wireless signal rates of up to 1750Mbps. This, coupled with support for Wi-Fi Multimedia™
(WMM) Quality of Service features, makes it an ideal access point for audio, video, and voice applications. Additionally, the DAP-2660 supports load balance
features to ensure maximum performance.
Security
To help maintain a secure wireless network, the DAP-2660 provides the latest in wireless security technologies by supporting both Personal and Enterprise
versions of WPA and WPA2 (802.11i) with support for RADIUS server back end. To further protect your wireless network, MAC Address Filtering, Wireless
LAN segmentation, Disable SSID Broadcast, Rogue AP Detection, and Wireless Broadcast Scheduling are also included.
The DAP-2660 includes support for up to 16 VLANs for implementing multiple SSIDs to further help segment users on the network. The DAP-2660 also
includes a wireless client isolation mechanism, which limits direct client-to-client communication.
* Maximum wireless signal rate derived from IEEE Standard 802.11ac (draft), 802.11g, 802.11a, and 802.11n specications. Actual data throughput will vary. Network conditions and environmental factors, including
volume of network trac, building materials and construction, and network overhead, lower actual data throughput rate. Environmental conditions will adversely aect wireless signal range.
D-Link DAP-2660 User Manual
5
Features
yProvide Ethernet to Wireless LAN bridge fully IEEE 802.3/u/ab compatible on the Ethernet side and fully interoperable with IEEE 802.11ac and b/g/n/a
compliant equipment
yCompatible with IEEE 802.11b high rate standard to provide wireless 11Mbps data rate
yCompatible with IEEE 802.11g higher speed standard to provide wireless 54Mbps data rate
yCompatible with IEEE 802.11a higher speed standard to provide wireless 54Mbps data rate
yCompatible with IEEE 802.11n higher speed standard to provide wireless 450Mbps data rate
yCompatible with draft 802.11ac higher speed standard to provide wireless 1300Mbps data rate
yOperation at 2.4~2.5GHz and 5.15~5.85GHz frequency band to meet worldwide regulations
ySupports IEEE 802.11ac and b/g/n/a wireless data encryption with 64/128-bit WEP for security
yAllows auto fallback data rate for reliability, optimized throughput and transmission range
yWeb-based conguration and management
ySupports enhanced security – WPA-PSK and WPA2-PSK, RADIUS client, and Cipher negotiation
ySupports one 802.3af PoE port
ySupports two 10/100/1000M Ethernet ports
yAP Mode, WDS Mode, WDS with AP, and Wireless Client Mode
ySupports SNMP v1,v2,v3
ySupport Trap server (SNMP v1, v2c)
ySupport AP Manager II and D-View 6.0
ySupport AP Array and AP Array Setup Tool
ySupport Port Redundancy
ySupport one RJ-45 console port for debug
* Maximum wireless signal rate derived from IEEE Standard 802.11ac (draft), 802.11g, 802.11a, and 802.11n specications. Actual data throughput will vary. Network conditions and environmental factors, including
volume of network trac, building materials and construction, and network overhead, lower actual data throughput rate. Environmental conditions will adversely aect wireless signal range.
**Please note that operating frequency ranges vary depending on the regulations of individual countries and jurisdictions. The DAP-2660 isn’t supported in the 5.25~5.35GHz and 5.47 ~ 5.725GHz frequency ranges in
some regions.
D-Link DAP-2660 User Manual
6
Package Contents
• DAP-2660 Access Point
• Six Detachable Antennas
• Power Adapter
• PoE Base Unit
• Mounting Plate and Hardware
• Ethernet Cable
• Console Cable
• CD (with software and user manual)
Note: Using a power supply with a dierent voltage rating than the one included with the DAP-2660 will cause damage and void the warranty for this product.
System Requirements
yComputers with Windows®, Macintosh®, or Linux-based operating systems with an installed Ethernet Adapter
yInternet Explorer Version 7.0 or Firefox 3.0 and Above (for conguration)
D-Link DAP-2660 User Manual
7

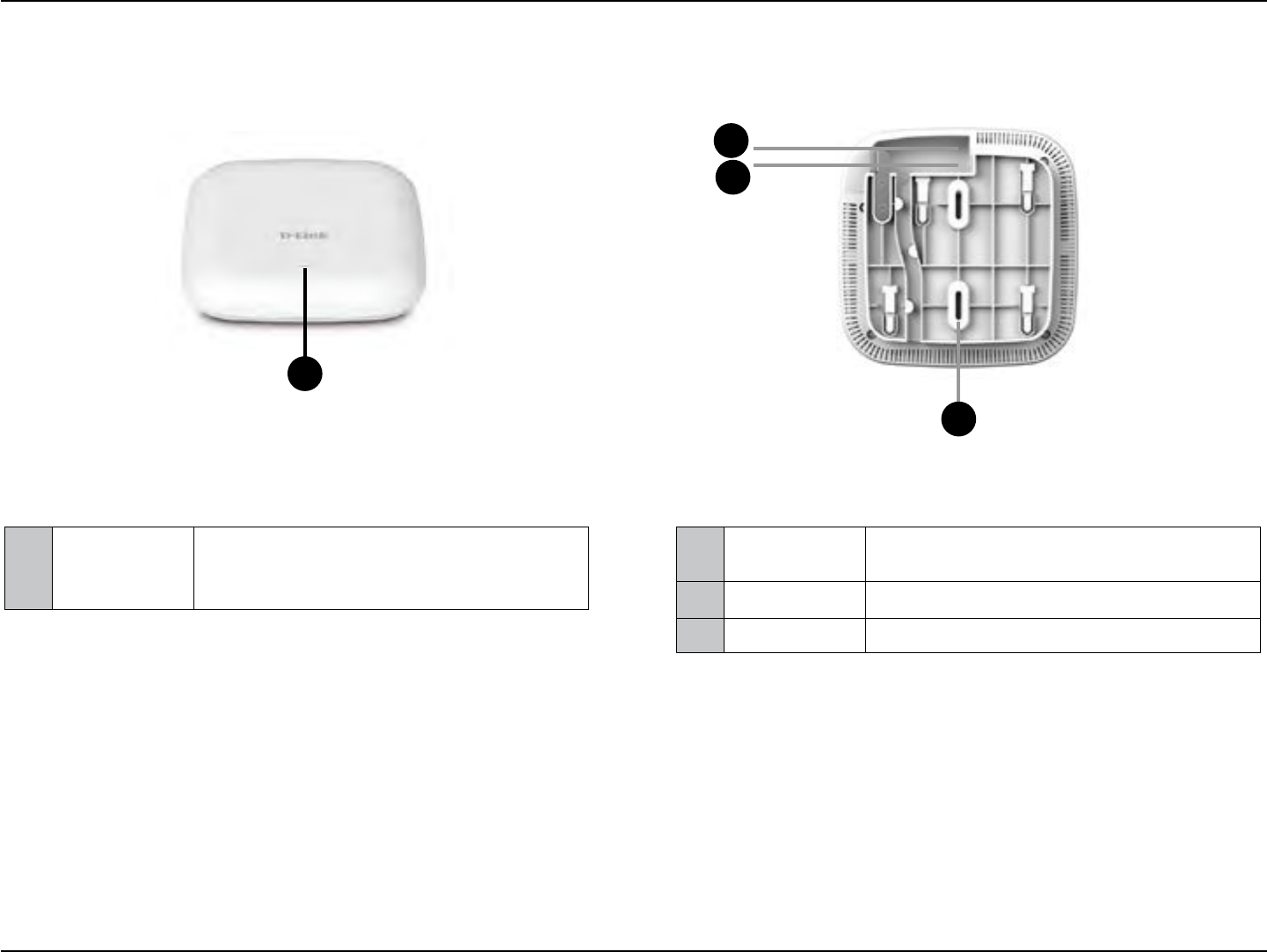

Hardware Overview
LEDs Connections
1
2
3
1Reset Button Press and hold for six seconds to reset the access point
to the factory default settings.
2LAN (PoE) Port Connect to your network with an Ethernet cable.
3Power Receptor Connect the supplied power adapter.
1Power
The light blinks in red during boot up or malfunction,
and lights in solid red when the bootup is failed. The LED
lights in solid green when it is ready, and blinks in green
when the trace is passing through.
1
D-Link DAP-2660 User Manual
8
Basic Installation
Hardware Setup
To power the access point, you can use one of the following 3 methods:
Method 1 - Use if you have a PoE switch or router.
Method 2 - Use if you do not have a PoE switch or router and do not have a power outlet near the location of the access point.
Method 3 - Use if you do not have a PoE switch or router and have a power outlet near the location of the access point.
DAP-2660
PoE Switch or Router
Method 1 - PoE with PoE Switch or Router
1. Connect one end of your Ethernet cable to the LAN1 (PoE) port on the access point.
2. Connect the other end into one port on a PoE switch or router.
D-Link DAP-2660 User Manual
9
Method 2 - PoE without PoE Switch or Router
1. Connect one end of an Ethernet cable into the Data In port on the PoE base unit and the other end into one port on your switch, router, or computer.
2. Connect one end of an Ethernet cable into the P+Data Out port on the PoE base unit and the other end into the LAN1 (PoE) port on the Access Point.
3. Use the supplied power adapter. Connect the power adapter to the Power In receptor on the PoE adapter.
4. Connect the power cable to the power adapter and then connect the other end into a power outlet.
DAP-2660
D-Link DAP-2660 User Manual
10
Method 3 - No PoE
1. Connect one end of your Ethernet cable into the LAN1 (PoE) or LAN2 port and then connect the other end to a switch, router, or computer.
2. Use the supplied power adapter. Connect the power adapter to the Power receptor on the Access Point.
3. Connect the power cable to the power adapter and then connect the other end into a power outlet.
DAP-2660
Switch or Router
PC
Power Adapter
D-Link DAP-2660 User Manual
11
Web User Interface
The DAP-2660 supports an elaborate web user interface where the user can congure and monitor the device. Most of the congurable settings
are located in the left menu of the web GUI which contains section called Basic Settings, Advanced Settings and Status.
D-Link DAP-2660 User Manual
12
Wireless
On the wireless settings page, you can setup the basic wireless conguration for the access point. The user can choose from 4 dierent wireless
modes:
Access Point - Used to create a wireless LAN
WDS with AP - Used to connect multiple wireless networks while still functioning as a wireless access point
WDS - Used to connect multiple wireless networks
Wireless Client - Used when the access point needs to act as a wireless network adapter for an Ethernet enabled device
Basic Settings
Access Point Mode (2.4GHz) - Open System
Wireless Band:
Mode:
Network Name (SSID):
SSID Visibility:
Select the wireless band used here. Options
to choose from are 2.4 GHz and 5 GHz. In this
section we’ll explain the 2.4GHz wireless band.
Select wireless mode used here. Options to
choose from are Access Point, WDS with AP,
WDS, and Wireless Client. In this section we’ll
explain the Access Point wireless mode.
Enter the Service Set IDentier (SSID) used here.
This name is designated for a specic Wireless
Local Area Network (WLAN). By default, the SSID is
dlink. The SSID can be easily changed to connect
to an existing wireless network or to establish a
new wireless network. The SSID can be up to 32
characters and is case-sensitive.
Select Enable to broadcast the SSID across the
network, thus making it visible to all network
users. Select Disable to hide the SSID from the
network.
D-Link DAP-2660 User Manual
13
Select to Enable or Disable the auto-channel selection feature here. When enabled, the access point automatically selects the
channel that provides the best wireless performance. The channel selection process only occurs when the AP is booting up. To
manually select a channel, set this option to Disable and select a channel from the drop-down menu.
To change the channel, rst toggle the Auto Channel Selection setting to Disable, and then use the drop-down menu to make
the desired selection.
Note: The wireless adapters will automatically scan and match the wireless settings.
Select the wireless channel width option here. Select 20 MHz if you are not using any 802.11n wireless clients. Auto 20/40
MHz allows you to connect to both 802.11n and 802.11b/g or 802.11a wireless devices on your network.
Select to Enable or Disable the captive prole feature here.
Auto Channel
Selection:
Channel:
Channel Width:
Captive Prole:
D-Link DAP-2660 User Manual
14
Select to Enable or Disable wireless
encryption here.
When the encryption option is enabled,
select the key type here. Options to choose
from are HEX and ASCII.
When the encryption option is enabled,
select the key size here. Options to choose
from are 64 Bits and 128 Bits.
Select the key index value used here. The keys 1 to 4 can be selected.
Enter the wireless WEP key in the space provided here. When HEX was selected as the key type, the network key must
consist out of the numbers 0 to 9 and the letters A to F. When ASCII was selected as the key type, the network key can
consist out of any ASCII characters.
Re-enter the wireless WEP key in the space provided. This key must be identical to the network key entered previously.
Authentication:
Encryption:
Key Type:
Key Size:
Key Index (1~4):
Network Key:
Conrm Key:
Select the wireless authentication method to use here. Options to choose from are Open System, Shared Key, WPA-Personal,
WPA-Enterprise, and 802.1X. After selecting the Open System option, the following parameters will be available for
conguration. Open System to communicate the key across the network (WEP).
Wireless security is a key concern for any wireless network installed. Unlike any other networking method wireless networks will broadcast it’s presence for
anyone to connect to it. Today, wireless security has advanced to a level where it is virtually impenetrable.
There are mainly two forms of wireless encryption and they are called Wired Equivalent Privacy (WEP) and Wi-Fi Protected Access (WPA). WEP was the rst
security method developed. It is a low level encryption but better than now encryption. WPA is the newest encryption standard and with the advanced WPA2
standard wireless networks have nally reach a point where the security is strong enough to give users the peace of mind when installing wireless networks.
WEP provides two variations called Open System and Shared Key.
Open System will send a request to the access point and if the key used matches the one congured on the access point, the access point will return a success
message back to the wireless client. If the key does not match the one congured on the access point, the access point will deny the connection request from
the wireless client.
D-Link DAP-2660 User Manual
15
Authentication:
Encryption:
Key Type:
Key Size:
Key Index (1~4):
Network Key:
Conrm Key:
Select the wireless authentication method to use here. Options to choose from are Open System, Shared Key, WPA-Personal,
WPA-Enterprise, and 802.1X. After selecting the Shared Key option, the following parameters will be available for conguration.
Shared Key will limit communication to only those devices that share the same WEP settings. If multi-SSID is enabled, this
option is not available.
Select to Enable or Disable wireless
encryption here.
When the encryption option is enabled,
select the key type here. Options to choose
from are HEX and ASCII.
When the encryption option is enabled,
select the key size here. Options to choose
from are 64 Bits and 128 Bits.
Select the key index value used here. The keys 1 to 4 can be selected.
Enter the wireless WEP key in the space provided here. When HEX was selected as the key type, the network key must
consist out of the numbers 0 to 9 and the letters A to F. When ASCII was selected as the key type, the network key can
consist out of any ASCII characters.
Re-enter the wireless WEP key in the space provided. This key must be identical to the network key entered previously.
Shared Key will send a request to the access point and if the key used matches the one congured on the access point, the access point will send a challenge
to the client. The client will then again send a conrmation of the same key back to the access point where the access point will either return a successful or a
denial packet back to the wireless client.
Access Point Mode (2.4GHz) - Shared Key
D-Link DAP-2660 User Manual
16
Authentication:
WPA Mode:
Cipher Type:
Group Key Update
Interval:
Manual:
Periodical Key Change:
Activated From:
Time Interval:
PassPhrase:
Conrm PassPhrase:
Select the wireless authentication method to use here. Options to choose from are Open System, Shared Key, WPA-Personal,
WPA-Enterprise, and 802.1X. After selecting the WPA-Personal option, the following parameters will be available for
conguration. WPA-Personal to secure your network using a password and dynamic key changes. No RADIUS server is required.
Select the WPA mode here. Options to choose
from are AUTO (WPA or WPA2), WPA2 Only,
and WPA Only. WPA and WPA2 use different
algorithms. AUTO (WPA or WPA2) allows you to
use both WPA and WPA2.
Select the WPA cipher type here. Options to
choose from are AUTO, AES, and TKIP..
Enter the interval during which the group key will
be valid. By default, this value is 3600 seconds.
Information Needed.
Information Needed.
Information Needed.
Information Needed.
Enter the WPA passphrase that will be used here. This passphrase can be in the ASCII or HEX form.
Re-enter the WPA passphrase that will be used here. This must be identical to the passphrase enter above.
WPA-Personal (PSK) does not require the user to install a RADIUS server on the network. Wi-Fi Protected Access (WPA) was created by the Wi-
Fi Alliance to address the limitations and weaknesses found in WEP. This protocol is mainly based on the 802.11i standard. There are also two
variations found in WPA called WPA-Personal (PSK) and WPA-Enterprise (EAP).
Access Point Mode (2.4GHz) - WPA Personal
D-Link DAP-2660 User Manual
17
Authentication:
WPA Mode:
Cipher Type:
Group Key Update
Interval:
Network Access
Protection:
RADIUS Server Mode:
Primary RADIUS
Server:
Primary RADIUS Port:
Primary RADIUS
Secret:
Select the wireless authentication method to use here. Options to choose from are Open System, Shared Key, WPA-Personal,
WPA-Enterprise, and 802.1X. After selecting the WPA-Enterprise option, the following parameters will be available for
conguration.
Select the WPA mode here. Options to choose
from are AUTO (WPA or WPA2), WPA2 Only,
and WPA Only. WPA and WPA2 use different
algorithms. AUTO (WPA or WPA2) allows you to
use both WPA and WPA2.
Select the WPA cipher type here. Options to
choose from are AUTO, AES, and TKIP..
Enter the interval during which the group key will
be valid. By default, this value is 3600 seconds.
Select to Enable or Disable the network access
protection feature here.
Select the RADIUS server mode here. Options to
choose from are External and Internal.
Enter the primary RADIUS server’s IP address or
domain name here.
Enter the primary RADIUS server’s port number
here.
Enter the primary RADIUS server’s secrect
passphrase here. This secrect is in the ASCII form.
WPA-Enterprise (EAP) requires the user to install a RADIUS server on the network for authentication. Comparing WPA-PSK with WPA-EAP, WPA-
PSK is seen as a weaker authentication but comparing WPA-PSK to WEP, WPA-PSK is far more secure than WEP. WPA-EAP is the highest level of
wireless security a user can use for wireless today. WPA2 is an upgrade of WPA. WPA2 yet again solves some possible security issues found in WPA.
WPA2 has two variations called WPA2-Personal (PSK) and WPA2-Enterprise (EAP) which is the same as found with WPA.
Access Point Mode (2.4GHz) - WPA Enterprise
D-Link DAP-2660 User Manual
18
Backup RADIUS Server:
Backup RADIUS Port:
Backup RADIUS Secret:
Accounting Mode:
Primary Accounting
Server:
Primary Accounting
Port:
Primary Accounting
Secret:
Backup Accounting
Server:
Backup Accounting
Port:
Backup Accounting
Secret:
Enter the backup RADIUS server’s IP address or domain name here.
Enter the backup RADIUS server’s port number here.
Enter the backup RADIUS server’s secrect passphrase here. This secrect is in the ASCII form.
Select to Enable or Disable the RADIUS accounting mode here.
Enter the primary accounting server’s IP address or domain name here.
Enter the primary accounting server’s port number here.
Enter the primary accounting server’s secrect passphrase here. This secrect is in the ASCII form.
Enter the backup accounting server’s IP address or domain name here.
Enter the backup accounting server’s port number here.
Enter the backup accounting server’s secrect passphrase here. This secrect is in the ASCII form.
D-Link DAP-2660 User Manual
19
Authentication:
Key Update Interval:
RADIUS Server:
Primary RADIUS
Server:
Primary RADIUS Port:
Primary RADIUS
Secret:
Backup RADIUS Server:
Backup RADIUS Port:
Backup RADIUS Secret:
Accounting Mode:
Primary Accounting
Server:
Select the wireless authentication method to use here. Options to choose from are Open System, Shared Key, WPA-Personal,
WPA-Enterprise, and 802.1X. After selecting the 802.1X option, the following parameters will be available for conguration.
Enter the interval during which the key will be
valid. By default, this value is 300 seconds.
Select the RADIUS server mode here. Options to
choose from are External and Internal.
Enter the primary RADIUS server’s IP address or
domain name here.
Enter the primary RADIUS server’s port number
here.
Enter the primary RADIUS server’s secrect
passphrase here. This secrect is in the ASCII form.
Enter the backup RADIUS server’s IP address or
domain name here.
Enter the backup RADIUS server’s port number
here.
Enter the backup RADIUS server’s secrect
passphrase here. This secrect is in the ASCII form.
802.1X Information
???
Select to Enable or Disable the RADIUS accounting mode here.
Enter the primary accounting server’s IP address or domain name here.
Access Point Mode (2.4GHz) - 802.1X
D-Link DAP-2660 User Manual
20
Primary Accounting
Port:
Primary Accounting
Secret:
Backup Accounting
Server:
Backup Accounting
Port:
Backup Accounting
Secret:
Enter the primary accounting server’s port number here.
Enter the primary accounting server’s secrect passphrase here. This secrect is in the ASCII form.
Enter the backup accounting server’s IP address or domain name here.
Enter the backup accounting server’s port number here.
Enter the backup accounting server’s secrect passphrase here. This secrect is in the ASCII form.
D-Link DAP-2660 User Manual
21
Access Point Mode (5GHz)
Wireless Band:
Mode:
Network Name (SSID):
SSID Visibility:
Auto Channel
Selection:
Channel:
Channel Width:
Captive Prole:
Select the wireless band used here. Options
to choose from are 2.4 GHz and 5 GHz. In this
section we’ll explain the 5GHz wireless band.
Select wireless mode used here. Options to
choose from are Access Point, WDS with AP,
WDS, and Wireless Client. In this section we’ll
explain the Access Point wireless mode.
Enter the Service Set IDentier (SSID) used here.
This name is designated for a specic Wireless
Local Area Network (WLAN). By default, the SSID is
dlink. The SSID can be easily changed to connect
to an existing wireless network or to establish a
new wireless network. The SSID can be up to 32
characters and is case-sensitive.
Select Enable to broadcast the SSID across the
network, thus making it visible to all network
users. Select Disable to hide the SSID from the
network.
Select to Enable or Disable the auto-channel selection feature here. When enabled, the access point automatically selects the
channel that provides the best wireless performance. The channel selection process only occurs when the AP is booting up. To
manually select a channel, set this option to Disable and select a channel from the drop-down menu.
To change the channel, rst toggle the Auto Channel Selection setting to Disable, and then use the drop-down menu to make
the desired selection.
Note: The wireless adapters will automatically scan and match the wireless settings.
Select the wireless channel width option here. Select 20 MHz if you are not using any 802.11n wireless clients. Auto 20/40 MHz
and Auto 20/40/80 MHz allows you to connect to both 802.11n and 802.11b/g or 802.11a wireless devices on your network.
Select to Enable or Disable the captive prole feature here.
D-Link DAP-2660 User Manual
22
Select the wireless authentication method to use here. In the Access Point mode, the following authentication methods are
supported: Open System, Shared Key, WPA-Personal, WPA-Enterprise and 802.1X.
For more information about the wireless security, refer to page 14.
Authentication:
D-Link DAP-2660 User Manual
23
Wireless Band:
Mode:
Network Name (SSID):
SSID Visibility:
Auto Channel
Selection:
Channel:
Select the wireless band used here. Options
to choose from are 2.4 GHz and 5 GHz. In this
section we’ll explain the 2.4GHz wireless band.
Select wireless mode used here. Options to
choose from are Access Point, WDS with AP,
WDS, and Wireless Client. In this section we’ll
explain the WDS with AP wireless mode.
Enter the Service Set IDentier (SSID) used here.
This name is designated for a specic Wireless
Local Area Network (WLAN). By default, the SSID is
dlink. The SSID can be easily changed to connect
to an existing wireless network or to establish a
new wireless network. The SSID can be up to 32
characters and is case-sensitive.
Select Enable to broadcast the SSID across the
network, thus making it visible to all network
users. Select Disable to hide the SSID from the
network.
This feature can only be used in the Access Point
mode.
All devices on the network must share the same
channel. To change the channel, use the drop-
down menu to make the desired selection. (Note:
The wireless adapters will automatically scan and
match the wireless settings.)
WDS with AP Mode (2.4GHz)
D-Link DAP-2660 User Manual
24
Channel Width:
Captive Prole:
Remote AP MAC
Address:
Site Survey:
Authentication:
Allows you to select the channel width you would like to operate in. Select 20 MHz if you are not using any 802.11n wireless
clients. Auto 20/40 MHz allows you to connect to both 802.11n and 802.11b/g or 802.11a wireless devices on your network.
Select the enable or disable the captive portal feature here.
Enter the MAC addresses of the APs on your network that will serve as bridges to wirelessly connect multiple networks.
Click on the Scan button to search for available wireless networks, then click on the available network that you want to
connect with.
Select the wireless authentication method to use here. In the WDS with AP mode, the following authentication methods are
supported: Open System and WPA-Personal.
For more information about the wireless security, refer to page 14.
D-Link DAP-2660 User Manual
25
Wireless Band:
Mode:
Network Name (SSID):
SSID Visibility:
Auto Channel
Selection:
Channel:
Select the wireless band used here. Options
to choose from are 2.4 GHz and 5 GHz. In this
section we’ll explain the 5GHz wireless band.
Select wireless mode used here. Options to
choose from are Access Point, WDS with AP,
WDS, and Wireless Client. In this section we’ll
explain the WDS with AP wireless mode.
Enter the Service Set IDentier (SSID) used here.
This name is designated for a specic Wireless
Local Area Network (WLAN). By default, the SSID is
dlink. The SSID can be easily changed to connect
to an existing wireless network or to establish a
new wireless network. The SSID can be up to 32
characters and is case-sensitive.
Select Enable to broadcast the SSID across the
network, thus making it visible to all network
users. Select Disable to hide the SSID from the
network.
This feature can only be used in the Access Point
mode.
All devices on the network must share the same
channel. To change the channel, use the drop-
down menu to make the desired selection. (Note:
The wireless adapters will automatically scan and
match the wireless settings.)
WDS with AP Mode (5GHz)
D-Link DAP-2660 User Manual
26
Channel Width:
Captive Prole:
Remote AP MAC
Address:
Site Survey:
Authentication:
Allows you to select the channel width you would like to operate in. Select 20 MHz if you are not using any 802.11n wireless
clients. Auto 20/40 MHz and Auto 20/40/80 MHz allows you to connect to both 802.11n and 802.11b/g or 802.11a wireless
devices on your network.
Select the enable or disable the captive portal feature here.
Enter the MAC addresses of the APs on your network that will serve as bridges to wirelessly connect multiple networks.
Click on the Scan button to search for available wireless networks, then click on the available network that you want to
connect with.
Select the wireless authentication method to use here. In the WDS with AP mode, the following authentication methods are
supported: Open System and WPA-Personal.
For more information about the wireless security, refer to page 14.
D-Link DAP-2660 User Manual
27
Wireless Band:
Mode:
Network Name (SSID):
SSID Visibility:
Auto Channel
Selection:
Channel:
Select the wireless band used here. Options
to choose from are 2.4 GHz and 5 GHz. In this
section we’ll explain the 2.4GHz wireless band.
Select wireless mode used here. Options to
choose from are Access Point, WDS with AP,
WDS, and Wireless Client. In this section we’ll
explain the WDS wireless mode.
Enter the Service Set IDentier (SSID) used here.
This name is designated for a specic Wireless
Local Area Network (WLAN). By default, the SSID is
dlink. The SSID can be easily changed to connect
to an existing wireless network or to establish a
new wireless network. The SSID can be up to 32
characters and is case-sensitive.
Select Enable to broadcast the SSID across the
network, thus making it visible to all network
users. Select Disable to hide the SSID from the
network.
This feature can only be used in the Access Point
mode.
All devices on the network must share the same
channel. To change the channel, use the drop-
down menu to make the desired selection. (Note:
The wireless adapters will automatically scan and
match the wireless settings.)
WDS Mode (2.4GHz)
D-Link DAP-2660 User Manual
28
Channel Width:
Captive Prole:
Remote AP MAC
Address:
Site Survey:
Authentication:
Allows you to select the channel width you would like to operate in. Select 20 MHz if you are not using any 802.11n wireless
clients. Auto 20/40 MHz allows you to connect to both 802.11n and 802.11b/g or 802.11a wireless devices on your network.
Select the enable or disable the captive portal feature here.
Enter the MAC addresses of the APs on your network that will serve as bridges to wirelessly connect multiple networks.
Click on the Scan button to search for available wireless networks, then click on the available network that you want to
connect with.
Select the wireless authentication method to use here. In the WDS mode, the following authentication methods are supported:
Open System and WPA-Personal.
For more information about the wireless security, refer to page 14.
D-Link DAP-2660 User Manual
29
Wireless Band:
Mode:
Network Name (SSID):
SSID Visibility:
Auto Channel
Selection:
Channel:
Select the wireless band used here. Options
to choose from are 2.4 GHz and 5 GHz. In this
section we’ll explain the 5GHz wireless band.
Select wireless mode used here. Options to
choose from are Access Point, WDS with AP,
WDS, and Wireless Client. In this section we’ll
explain the WDS with AP wireless mode.
Enter the Service Set IDentier (SSID) used here.
This name is designated for a specic Wireless
Local Area Network (WLAN). By default, the SSID is
dlink. The SSID can be easily changed to connect
to an existing wireless network or to establish a
new wireless network. The SSID can be up to 32
characters and is case-sensitive.
Select Enable to broadcast the SSID across the
network, thus making it visible to all network
users. Select Disable to hide the SSID from the
network.
This feature can only be used in the Access Point
mode.
All devices on the network must share the same
channel. To change the channel, use the drop-
down menu to make the desired selection. (Note:
The wireless adapters will automatically scan and
match the wireless settings.)
WDS Mode (5GHz)
D-Link DAP-2660 User Manual
30
Channel Width:
Captive Prole:
Remote AP MAC
Address:
Site Survey:
Authentication:
Allows you to select the channel width you would like to operate in. Select 20 MHz if you are not using any 802.11n wireless
clients. Auto 20/40 MHz and Auto 20/40/80 MHz allows you to connect to both 802.11n and 802.11b/g or 802.11a wireless
devices on your network.
Select the enable or disable the captive portal feature here.
Enter the MAC addresses of the APs on your network that will serve as bridges to wirelessly connect multiple networks.
Click on the Scan button to search for available wireless networks, then click on the available network that you want to
connect with.
Select the wireless authentication method to use here. In the WDS mode, the following authentication methods are supported:
Open System and WPA-Personal.
For more information about the wireless security, refer to page 14.
D-Link DAP-2660 User Manual
31
Wireless Band:
Mode:
Network Name (SSID):
SSID Visibility:
Auto Channel
Selection:
Channel:
Channel Width:
Site Survey:
Select the wireless band used here. Options
to choose from are 2.4 GHz and 5 GHz. In this
section we’ll explain the 2.4GHz wireless band.
Select wireless mode used here. Options to
choose from are Access Point, WDS with AP,
WDS, and Wireless Client. In this section we’ll
explain the Wireless Client mode.
Enter the Service Set IDentier (SSID) used here.
This name is designated for a specic Wireless
Local Area Network (WLAN). By default, the SSID is
dlink. The SSID can be easily changed to connect
to an existing wireless network or to establish a
new wireless network. The SSID can be up to 32
characters and is case-sensitive.
This option is not congurable in the Wireless
Client mode.
This option is not congurable in the Wireless
Client mode.
Wireless Client Mode (2.4GHz)
This option is not congurable in the Wireless Client mode.
This option is not congurable in the Wireless Client mode.
Click on the Scan button to search for available wireless networks, then click on the available network that you want to connect
with.
D-Link DAP-2660 User Manual
32
Authentication:
Wireless MAC Clone:
MAC Source:
MAC Address:
Select the wireless authentication method to use
here. In the Wireless Client mode, the following
authentication methods are supported: Open
System and WPA-Personal.
For more information about the wireless security,
refer to page 14.
Select the Enable checkbox to enable the wireless
MAC clone option.
After enabling the Wireless MAC Clone option,
the MAC source can be selected. Options to
choose from are Auto and Manual.
After the Manual option was selected as the MAC
Source, click the Scan button to scan for MAC
addresses used by the PC connected to the Web
UI. After the MAC addresses were found, they will
be displayed in the table provided. Selecting one
of the entries will automatically clone the MAC
address into the MAC Address eld. Alternatively,
the MAC address can be entered manually in the
spaces provided.
D-Link DAP-2660 User Manual
33
Wireless Band:
Mode:
Network Name (SSID):
SSID Visibility:
Auto Channel
Selection:
Channel:
Channel Width:
Site Survey:
Select the wireless band used here. Options
to choose from are 2.4 GHz and 5 GHz. In this
section we’ll explain the 5GHz wireless band.
Select wireless mode used here. Options to
choose from are Access Point, WDS with AP,
WDS, and Wireless Client. In this section we’ll
explain the Wireless Client mode.
Enter the Service Set IDentier (SSID) used here.
This name is designated for a specic Wireless
Local Area Network (WLAN). By default, the SSID is
dlink. The SSID can be easily changed to connect
to an existing wireless network or to establish a
new wireless network. The SSID can be up to 32
characters and is case-sensitive.
This option is not congurable in the Wireless
Client mode.
This option is not congurable in the Wireless
Client mode.
Wireless Client Mode (5GHz)
This option is not congurable in the Wireless Client mode.
This option is not congurable in the Wireless Client mode.
Click on the Scan button to search for available wireless networks, then click on the available network that you want to connect
with.
D-Link DAP-2660 User Manual
34
Authentication:
Wireless MAC Clone:
MAC Source:
MAC Address:
Select the wireless authentication method to use
here. In the Wireless Client mode, the following
authentication methods are supported: Open
System and WPA-Personal.
For more information about the wireless security,
refer to page 14.
Select the Enable checkbox to enable the wireless
MAC clone option.
After enabling the Wireless MAC Clone option,
the MAC source can be selected. Options to
choose from are Auto and Manual.
After the Manual option was selected as the MAC
Source, click the Scan button to scan for MAC
addresses used by the PC connected to the Web
UI. After the MAC addresses were found, they will
be displayed in the table provided. Selecting one
of the entries will automatically clone the MAC
address into the MAC Address eld. Alternatively,
the MAC address can be entered manually in the
spaces provided.
D-Link DAP-2660 User Manual
35
LAN
LAN is short for Local Area Network. This is considered your internal network. These are the IP settings of the LAN interface for the DAP-2660.
These settings may be referred to as private settings. You may change the LAN IP address if needed. The LAN IP address is private to your internal
network and cannot be seen on the Internet.
Get IP From:
IP Address:
Subnet Mask:
Default Gateway:
DNS:
Static IP (Manual) is chosen here. Choose this
option if you do not have a DHCP server in your
network, or if you wish to assign a static IP address
to the DAP-2660. When Dynamic IP (DHCP) is
selected, the other elds here will be grayed out.
Please allow about 2 minutes for the DHCP client
to be functional once this selection is made.
The default IP address is 192.168.0.50. Assign a
static IP address that is within the IP address range
of your network.
Enter the subnet mask. All devices in the network
must share the same subnet mask.
Enter the IP address of the gateway/router in your
network.
Enter a DNS server IP address. This is usually the
local IP address of your gateway/router.
D-Link DAP-2660 User Manual
36

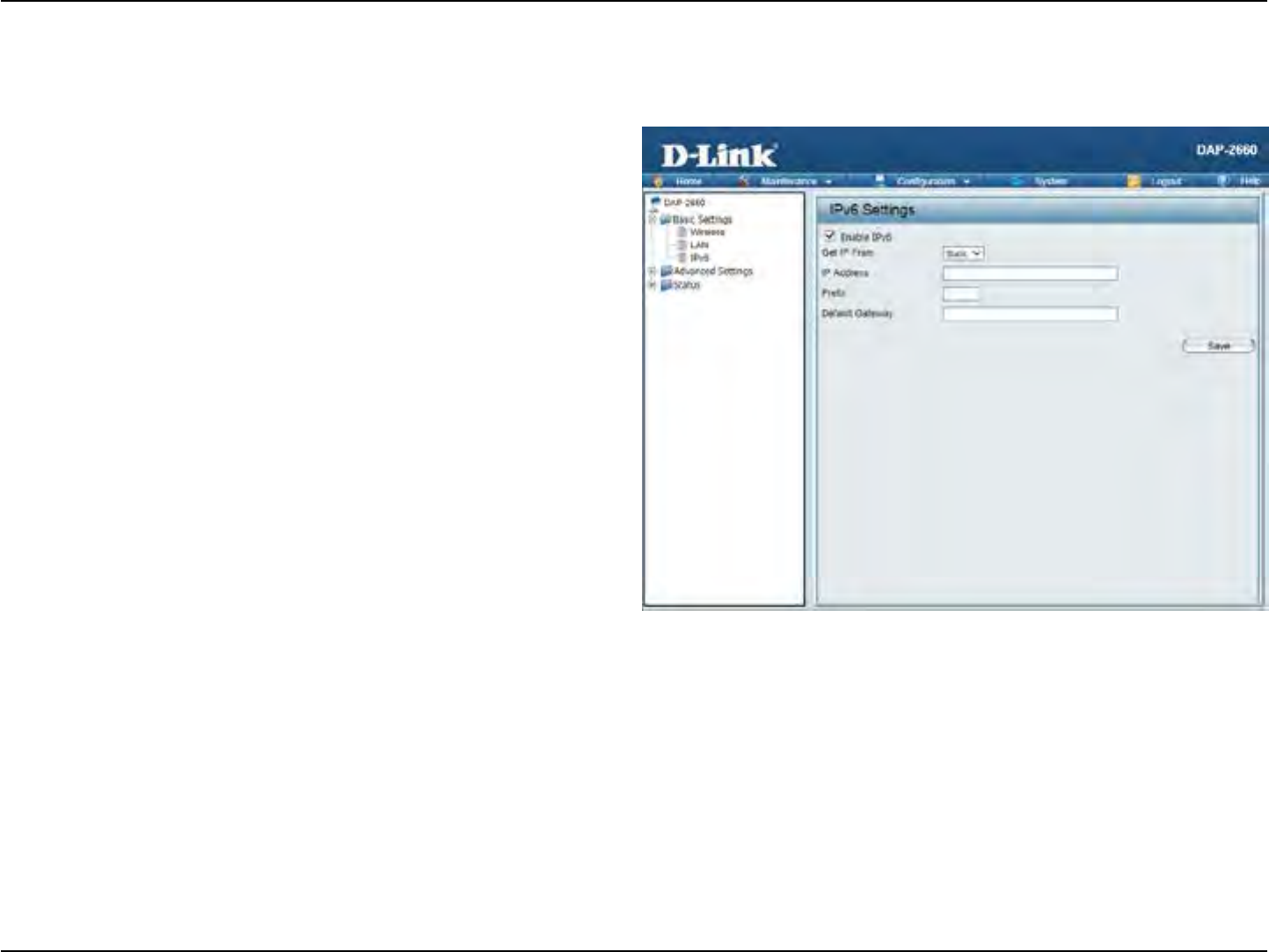

IPv6
This access point is IPv6 ready. An IPv6 address can be manually congured or automatically obtained from a DHCPv6 server. This IPv6 address is
only applicable to the LAN side of the local network and is not visible from the Internet.
Enable IPv6:
Get IP From:
IP Address:
Prex:
Default Gateway:
Select the checkbox to enable the IPv6 option of
this access point.
Select the method that will be used by this access
point to obtain an IPv6 address. Options to choose
from are Static and Auto. Select the Auto option
if this access point can obtain IPv6 settings from
a DHCPv6 server on the local network. Select the
Static option to manually enter the IPv6 settings
in the spaces provided.
Enter the IPv6 address for this access point here.
Enter the IPv6 prex value for this access point
here.
Enter the default gateway’s IPv6 address here.
D-Link DAP-2660 User Manual
37
Advanced Settings
In the Advanced Settings Section the user can congure advanced settings concerning Performance, Wireless Resources, Multiple SSID, VLAN, Intrusion,
Schedule, Internal RADIUS Server, ARP Spoong Prevention, Airtime Fairness, AP Array, Captive Portal, DHCP Server, Filters and Trac Control. The following
pages will explain settings found in the Advanced Settings section in more detail.
D-Link DAP-2660 User Manual
38
Performance (2.4GHz)
On the Performance Settings page the users can congure more advanced settings concerning the wireless signal and hosting.
Wireless Band:
Wireless:
Wireless Mode:
Data Rate*:
Beacon Interval (40-
500):
DTM Interval (1-15):
Transmit Power:
Select the wireless band used here. Options
to choose from are 2.4 GHz and 5 GHz. In this
section we’ll explain the 2.4GHz wireless band.
Use the drop-down menu to turn the wireless
function On or O.
Select the wireless mode here. Options to choose
from are Mixed 802.11n, 802.11g and 802.11b,
Mixed 802.11g and 802.11b and 802.11n Only.
Only after selecting the Mixed 802.11g and
802.11b option as the wireless mode, can the
data rate be selected. Select the data rate here.
Options to choose from are 54, 48, 36, 24, 18, 12,
11, 9, 6, 5.5, 2 and 1 Mbps.
Beacons are packets sent by an access point to
synchronize a wireless network. Specify a value in
milliseconds. The default (100) is recommended.
Setting a higher beacon interval can help to save
the power of wireless clients, while setting a lower
one can help a wireless client connect to an access
point faster.
*Maximum wireless signal rate derived from IEEE Standard 802.11 specications. Actual data throughput may vary. Network conditions and environmental factors, including volume of network trac, building materials
and construction, and network overhead can lower actual data throughout rate.
Select a Delivery Trac Indication Message (DTM) setting between 1 and 15. 1 is the default setting. DTIM is a countdown
informing clients of the next window for listening to broadcast and multicast messages.
This setting determines the power level of the wireless transmission. Transmitting power can be adjusted to eliminate overlapping
of wireless area coverage between two access points where interference is a major concern. For example, if wireless coverage
is intended for half of the area, then select 50% as the option. Use the drop-down menu to select 100%, 50%, 25%, or 12.5%.
D-Link DAP-2660 User Manual
39
WMM (Wi-Fi
Multimedia):
Ack Time Out
(2.4 GHZ, 48~200):
Short GI:
IGMP Snooping:
Multicast Rate:
Multicast Bandwidth
Control :
Maximum Multicast
Bandwidth:
HT20/40 Coexistence :
WMM stands for Wi-Fi Multimedia. Enabling this feature will improve the user experience for audio and video applications over
a Wi-Fi network. This feature is enabled by default and can only be disabled when Mixed 802.11g and 802.1b was selected
as the Wireless Mode.
To eectively optimize throughput over long distance links enter a value for Acknowledgement Time Out between 48 and 200
microseconds for 2.4 GHz in the eld provided.
Select Enable or Disable. Enabling a short Guard Interval (GI) can increase throughput. However, be aware that it can also
increase the error rate in some installations due to increased sensitivity to radio-frequency installations. This option cannot be
enabled when Mixed 802.11g and 802.11b was selected as the Wireless Mode.
Select Enable or Disable. Internet Group Management Protocol (IGMP) allows the AP to recognize IGMP queries and reports
sent between routers and an IGMP host (wireless STA). When IGMP snooping is enabled, the AP will forward multicast packets
to an IGMP host based on IGMP messages passing through the AP.
Select the multicast packet data rate value here. Options to choose from are 54, 48, 36, 24, 18, 12, 11, 9, 6, 5.5, 2 and 1
Mbps. The multicast rate is supported in AP mode, (2.4 GHZ and 5 GHZ) and WDS with AP mode, including Multi-SSIDs. This
option cannot be congured when 802.11n Only was selected as the Wireless Mode.
Select to Enable or Disable the multicast bandwidth control option here.
After enabling the multicast bandwidth control option, enter the maximum multcast bandwidth value here. By default this
value is 100 Kbps.
Enable this option to reduce interference from other wireless networks in your area. If the channel width is operating at 40MHz
and there is another wireless network’s channel over-lapping and causing interference, the Access Point will automatically
change to 20MHz
D-Link DAP-2660 User Manual
40
Performance (5GHz)
On the Performance Settings page the users can congure more advanced settings concerning the wireless signal and hosting.
Wireless Band:
Wireless:
Wireless Mode:
Data Rate*:
Beacon Interval (40-
500):
DTM Interval (1-15):
Transmit Power:
Select the wireless band used here. Options
to choose from are 2.4 GHz and 5 GHz. In this
section we’ll explain the 5GHz wireless band.
Use the drop-down menu to turn the wireless
function On or O.
Select the wireless mode here. Options to choose
from are Mixed 802.11n, 802.11a, 802.11a Only,
802.11n Only and Mixed 802.11ac.
Only after selecting the 802.11a Only option as
the wireless mode, can the data rate be selected.
Select the data rate here. Options to choose from
are 54, 48, 36, 24, 18, 12, 9, and 6 Mbps.
Beacons are packets sent by an access point to
synchronize a wireless network. Specify a value in
milliseconds. The default (100) is recommended.
Setting a higher beacon interval can help to save
the power of wireless clients, while setting a lower
one can help a wireless client connect to an access
point faster.
*Maximum wireless signal rate derived from IEEE Standard 802.11 specications. Actual data throughput may vary. Network conditions and environmental factors, including volume of network trac, building materials
and construction, and network overhead can lower actual data throughout rate.
Select a Delivery Trac Indication Message (DTM) setting between 1 and 15. 1 is the default setting. DTIM is a countdown
informing clients of the next window for listening to broadcast and multicast messages.
This setting determines the power level of the wireless transmission. Transmitting power can be adjusted to eliminate overlapping
of wireless area coverage between two access points where interference is a major concern. For example, if wireless coverage
is intended for half of the area, then select 50% as the option. Use the drop-down menu to select 100%, 50%, 25%, or 12.5%.
D-Link DAP-2660 User Manual
41
WMM (Wi-Fi
Multimedia):
Ack Time Out
(5GHz, 25~200):
Short GI:
IGMP Snooping:
Multicast Rate:
Multicast Bandwidth
Control :
Maximum Multicast
Bandwidth:
HT20/40 Coexistence :
WMM stands for Wi-Fi Multimedia. Enabling this feature will improve the user experience for audio and video applications over
a Wi-Fi network. This feature is enabled by default and can only be disabled when 802.11a Only was selected as the Wireless
Mode.
To eectively optimize throughput over long distance links enter a value for Acknowledgement Time Out between 25 and 200
microseconds for 5GHz in the eld provided.
Select Enable or Disable. Enabling a short Guard Interval (GI) can increase throughput. However, be aware that it can also
increase the error rate in some installations due to increased sensitivity to radio-frequency installations. This option cannot be
enabled when 802.11a Only was selected as the Wireless Mode.
Select Enable or Disable. Internet Group Management Protocol (IGMP) allows the AP to recognize IGMP queries and reports
sent between routers and an IGMP host (wireless STA). When IGMP snooping is enabled, the AP will forward multicast packets
to an IGMP host based on IGMP messages passing through the AP.
Select the multicast packet data rate value here. Options to choose from are 54, 48, 36, 24, 18, 12, 11, 9, 6, 5.5, 2 and 1
Mbps. The multicast rate is supported in AP mode, (2.4 GHZ and 5 GHZ) and WDS with AP mode, including Multi-SSIDs. This
option cannot be congured when 802.11n Only was selected as the Wireless Mode.
Select to Enable or Disable the multicast bandwidth control option here.
After enabling the multicast bandwidth control option, enter the maximum multcast bandwidth value here. By default this
value is 100 Kbps.
Enable this option to reduce interference from other wireless networks in your area. If the channel width is operating at 40MHz
and there is another wireless network’s channel over-lapping and causing interference, the Access Point will automatically
change to 20MHz
D-Link DAP-2660 User Manual
42
Wireless Resource (2.4GHz)
Wireless band:
Band Steering:
Band Steering Age:
Band Steering
Dierence:
Band Steering Refuse
Number:
Connection Limit:
Select the wireless band used here. Options
to choose from are 2.4 GHz and 5 GHz. In this
section we’ll explain the 2.4GHz wireless band.
This parameter can only be congured in the
5GHz band section.
This parameter can only be congured in the
5GHz band section.
This parameter can only be congured in the
5GHz band section.
This parameter can only be congured in the
5GHz band section.
Select to Enable or Disable the connection
limit feature here. This is an option for
load balancing and determines whether to
limit the number of users accessing this
device. The exact number is entered in the
User Limit eld below. This feature allows
the user to share the wireless network
trafc and the client using multiple APs.
If this function is enabled and when the
number of users exceeds this value, or
the network utilization of this AP exceeds
the percentage that has been specied,
the DAP-2660 will not allow clients to
associate with the AP.
The Wireless Resource Control window is used to congure the wireless connection settings so that the device can detect the better wireless
connection in your environment.
D-Link DAP-2660 User Manual
43
Enter the maximum amount of users that are allowed access (0 to 64 users) to the device using the specied wireless
band. The default setting is 20.
Use the drop-down menu to Enable or Disable the 11n Preferred function. The wireless clients with 802.11n protocol
will have higher priority to connect to the device.
Set the maximum utilization of this access point for service. The DAP-2660 will not allow any new clients to associate
with the AP if the utilization exceeds the value the user species. Select a utilization percentage between 100%, 80%,
60%, 40%, 20%, or 0%. When this network utilization threshold is reached, the device will pause one minute to allow
network congestion to dissipate.
Use the drop-down menu to select the criteria of disconnecting the wireless clients. Available options are RSSI and
Data Rate.
When RSSI is selected in the Aging Out drop-down menu, select the percentage of RSSI here. When the RSSI of
wireless clients is lower than the specied percentage, the device disconnects the wireless clients.
When Data Rate is selected in the Aging Out drop-down menu, select the threshold of data rate here. When the data
rate of wireless clients is lower than the specied number, the device disconnects the wireless clients.
Select to Enable or Disable the ACL RSSI feature here. When enabled, the device denies the connection request from
the wireless clients with the RSSI lower than the specied threshold below.
Set the ACL RSSI threshold percentage.
User Limit (0-64):
11n Prefered:
Network Utilization:
Aging Out:
RSSI Threshold:
Data Rate Threshold:
ACL RSSI:
ACL RSSI Threshold:
D-Link DAP-2660 User Manual
44
Wireless Resource (5GHz)
Wireless band:
Band Steering:
Band Steering Age:
Band Steering
Dierence:
Band Steering Refuse
Number:
Select the wireless band used here. Options
to choose from are 2.4 GHz and 5 GHz. In this
section we’ll explain the 5GHz wireless band.
Select to Enable or Disable the band steering
feature here.
Enter the band steering age value, in seconds,
in the space provided, to specify the interval
of updating information.
Enter the band steering dierence value
here. The band steering dierence value is
equal to the number of 5GHz wireless client
connections minus the number of 2.4GHz
wireless client connections. If the number of
5GHz wireless client connections minus the
number of 2.4GHz wireless client connections
exceed this value, the extra 5GHz wireless
client connections will be forced to connect
to the 2.4GHz band and not the 5GHz band.
Enter the maximum 5GHz connection
attempts allowed before the 5GHz preferred
function will be disabled for the wireless
station connection.
The Wireless Resource Control window is used to congure the wireless connection settings so that the device can detect the better wireless
connection in your environment.
D-Link DAP-2660 User Manual
45
Select to Enable or Disable the connection limit feature here. This is an option for load balancing and
determines whether to limit the number of users accessing this device. The exact number is entered in the
User Limit eld below. This feature allows the user to share the wireless network trafc and the client using
multiple APs. If this function is enabled and when the number of users exceeds this value, or the network
utilization of this AP exceeds the percentage that has been specied, the DAP-2660 will not allow clients to
associate with the AP.
Enter the maximum amount of users that are allowed access (0 to 64 users) to the device using the specied wireless
band. The default setting is 20.
Use the drop-down menu to Enable or Disable the 11n Preferred function. The wireless clients with 802.11n protocol
will have higher priority to connect to the device.
Set the maximum utilization of this access point for service. The DAP-2660 will not allow any new clients to associate
with the AP if the utilization exceeds the value the user species. Select a utilization percentage between 100%, 80%,
60%, 40%, 20%, or 0%. When this network utilization threshold is reached, the device will pause one minute to allow
network congestion to dissipate.
Use the drop-down menu to select the criteria of disconnecting the wireless clients. Available options are RSSI and
Data Rate.
When RSSI is selected in the Aging Out drop-down menu, select the percentage of RSSI here. When the RSSI of
wireless clients is lower than the specied percentage, the device disconnects the wireless clients.
When Data Rate is selected in the Aging Out drop-down menu, select the threshold of data rate here. When the data
rate of wireless clients is lower than the specied number, the device disconnects the wireless clients.
Select to Enable or Disable the ACL RSSI feature here. When enabled, the device denies the connection request from
the wireless clients with the RSSI lower than the specied threshold below.
Set the ACL RSSI threshold percentage.
Connection Limit:
User Limit (0-64):
11n Prefered:
Network Utilization:
Aging Out:
RSSI Threshold:
Data Rate Threshold:
ACL RSSI:
ACL RSSI Threshold:
D-Link DAP-2660 User Manual
46
Multi-SSID (2.4GHz)
The device supports up to four multiple Service Set Identiers. You can set the Primary SSID in the Basic > Wireless section. The SSID’s factory
default setting is dlink. The SSID can be easily changed to connect to an existing wireless network or to establish a new wireless network.
Enable Multi-SSID:
Enable Priority:
Band:
Index:
SSID:
SSID Visibility:
Security:
Select the checkbox to enable the multiple SSID
feature.
Select the checkbox to enable the priority option.
Select the wireless band used here. Options
to choose from are 2.4 GHz and 5 GHz. In this
section we’ll explain the 2.4GHz wireless band.
Select the SSID index value here. The Primary SSID
cannot be modied here. After selecting multiple
SSIDs 1 to 7, their respective parameters can be
congured.
Enter a unique SSID name for each multiple SSID
in the space provided.
Enable or Disable SSID visibility. Enabling this
feature broadcasts the SSID across the network,
thus making it visible to all network users.
Select the wireless security method to use for the
specied multiple SSID here. For multiple SSIDs, the
following wireless security methods are supported:
Open System, WPA-Personal, WPA Enterprise
and 802.1X.
For more information about the wireless security,
refer to page 14.
D-Link DAP-2660 User Manual
47
Priority:
WMM (Wi-Fi
Multimedia):
Captive Portal:
Select the priority level of the SSID selected.
WMM stands for Wi-Fi Multimedia. Enabling this feature will improve the user experience for audio and video applications
over a Wi-Fi network.
Select to Enable or Disable the captive portal feature for the specied multi-SSID here.
D-Link DAP-2660 User Manual
48
Multi-SSID (5GHz)
The device supports up to four multiple Service Set Identiers. You can set the Primary SSID in the Basic > Wireless section. The SSID’s factory
default setting is dlink. The SSID can be easily changed to connect to an existing wireless network or to establish a new wireless network.
Enable Multi-SSID:
Enable Priority:
Band:
Index:
SSID:
SSID Visibility:
Security:
Select the checkbox to enable the multiple SSID
feature.
Select the checkbox to enable the priority option.
Select the wireless band used here. Options
to choose from are 2.4 GHz and 5 GHz. In this
section we’ll explain the 5GHz wireless band.
Select the SSID index value here. The Primary SSID
cannot be modied here. After selecting multiple
SSIDs 1 to 7, their respective parameters can be
congured.
Enter a unique SSID name for each multiple SSID
in the space provided.
Enable or Disable SSID visibility. Enabling this
feature broadcasts the SSID across the network,
thus making it visible to all network users.
Select the wireless security method to use for the
specied multiple SSID here. For multiple SSIDs, the
following wireless security methods are supported:
Open System, WPA-Personal, WPA Enterprise
and 802.1X.
For more information about the wireless security,
refer to page 14.
D-Link DAP-2660 User Manual
49
Priority:
WMM (Wi-Fi
Multimedia):
Captive Portal:
Select the priority level of the SSID selected.
WMM stands for Wi-Fi Multimedia. Enabling this feature will improve the user experience for audio and video applications
over a Wi-Fi network.
Select to Enable or Disable the captive portal feature for the specied multi-SSID here.
D-Link DAP-2660 User Manual
50
VLAN
The DAP-2660 supports VLANs. VLANs can be created with a Name and VID. Mgmt (TCP stack), LAN, Primary/Multiple SSID, and WDS connection
can be assigned to VLANs as they are physical ports. Any packet which enters the DAP-2660 without a VLAN tag will have a VLAN tag inserted
with a PVID. The VLAN List tab displays the current VLANs.
VLAN Status:
VLAN Mode:
VLAN List:
Port List:
Add/Edit VLAN:
PVID Settings::
Select to Enable or Disable the VLAN status here.
The current VLAN mode is displayed.
In this tab, a list of congured VLAN, with their
respective parameters will be displayed.
In this tab, a list of ports, with their respective
VLAN congurations, will be displayed.
In this tab, we can add or modify VLANs congured
on this access point.
In the tab, we can congure the PVID settings for
the VLANs congured in this access point.
VLAN List
D-Link DAP-2660 User Manual
51

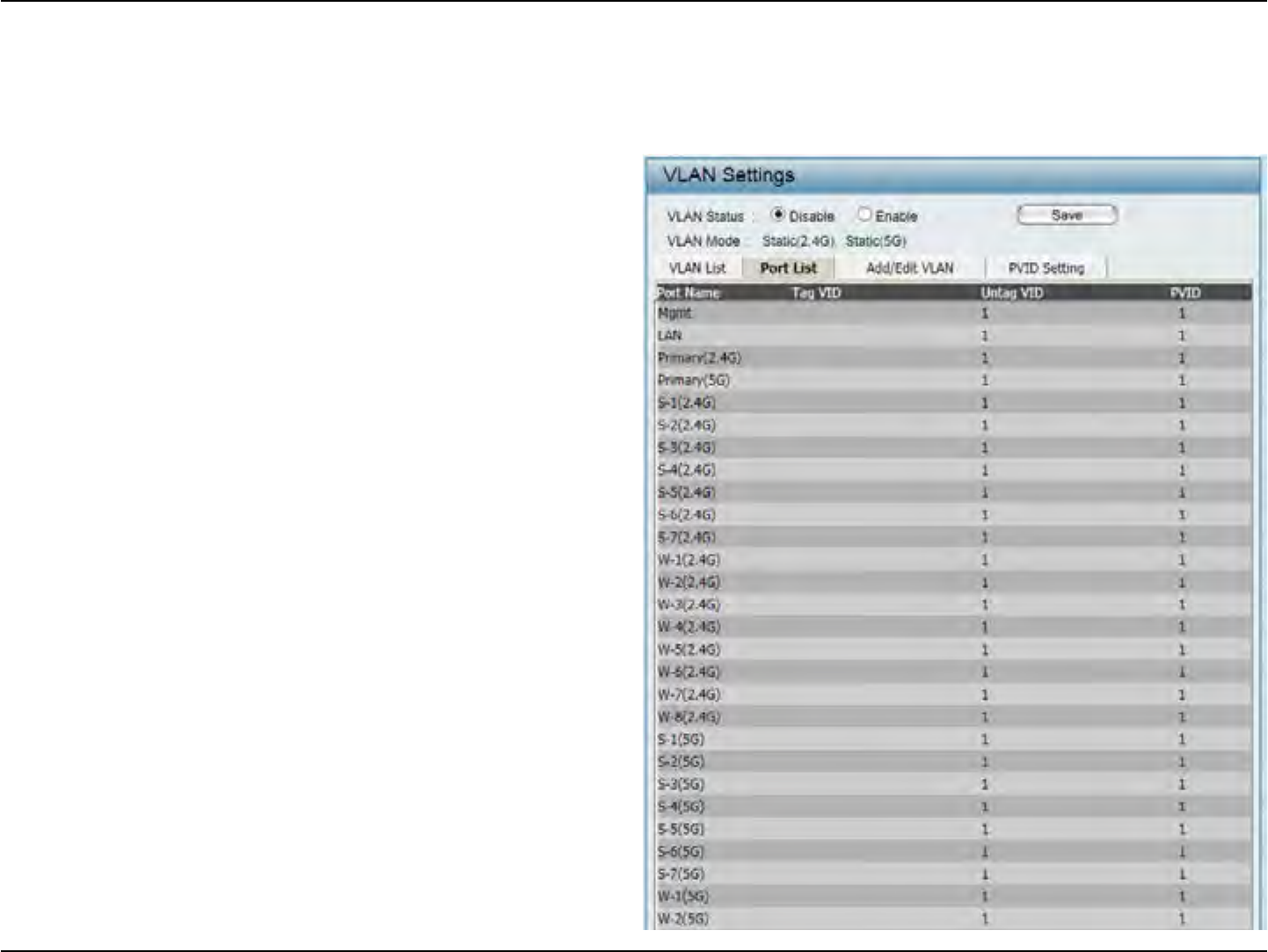

The Port List tab displays the current ports. If you want to congure the guest and internal networks on a Virtual LAN (VLAN), the switch and
DHCP server you are using must also support VLANs. As a prerequisite step, congure a port on the switch for handling VLAN tagged packets as
described in the IEEE 802.1Q standard.
VLAN Status:
VLAN Mode:
Port Name:
Tag VID:
Untag VID:
PVID:
Select to Enable or Disable the VLAN status here.
The current VLAN mode is displayed.
The name of the port is displayed in this column.
The Tagged VID is displayed in this column.
The Untagged VID is displayed in this column.
The Port VLAN Identifier is displayed in this
column.
Port List
D-Link DAP-2660 User Manual
52
The Add/Edit VLAN tab is used to congure VLANs. Once you have made the desired changes, click the Save button to let your changes take
eect.
VLAN Status:
VLAN Mode:
VLAN ID (VID):
VLAN Name:
Untag:
Tag:
Not Member:
Select to Enable or Disable the VLAN status here.
The current VLAN mode is displayed.
Enter the VLAN ID value here. This value must
be between 1 and 4096.
Enter the VLAN name to add or modify here.
Select this option to congure the respective
port to be untagged in the VLAN.
Select this option to include the VLAN tag in
the packets sent and received through the
respective port.
Select this option to specify that the
respective port in not a member of the VLAN
being added/congured.
Add/Edit VLAN
D-Link DAP-2660 User Manual
53
The PVID Setting tab is used to enable/disable the Port VLAN Identier Auto Assign Status as well as to congure various types of PVID settings.
Click the Save button to let your changes take eect.
VLAN Status:
VLAN Mode:
PVID Auto Assign
Status:
PVID:
Select to Enable or Disable the VLAN status here.
The current VLAN mode is displayed.
Select to Enable or Disable the option to
automatically assign PVIDs for all the ports.
Enter the PVID value for the respective port in
the spaces provided.
PVID Settings
D-Link DAP-2660 User Manual
54
Intrusion
The Wireless Intrusion Protection window is used to set APs as All, Valid, Neighborhood, Rogue, and New. Click the Save button to let your changes
take eect.
Wireless Band:
Detect:
AP List:
Set as Valid:
Set as Neighborhood:
Set as Rogue:
Set as New:
Select the wireless band used here. Options to
choose from are 2.4 GHz and 5 GHz.
Click this button to initiate a scan for APs on
the network.
Select the type of APs to display in the
table. Options to choose from are All, Valid,
Neighbor, Rogue, and New.
Select an AP from the list and click this button
congure the selected AP as a valid AP.
Select an AP from the list and click this button
congure the selected AP as part of the
neighborhood.
Select an AP from the list and click this button
congure the selected AP as a rogue AP.
Select an AP from the list and click this button
congure the selected AP as a new AP.
D-Link DAP-2660 User Manual
55
Schedule
The Wireless Schedule Settings window is used to add and modify scheduling rules on the device. Click the Save button to let your changes take
eect.
Wireless Schedule:
Name:
Index:
SSID:
Day(s):
All Day(s):
Start Time:
End Time:
Select to Enable or Disable the wireless schedule
feature here.
Enter a name for the new scheduling rule in the
eld provided.
Use the drop-down menu to select the desired
SSID.
This read-only eld indicates the current SSID in
use.
Toggle the radio button between All Week and
Select Day(s). If the second option is selected,
check the specic days you want the rule to be
eective on.
Check this box to have your settings apply 24
hours a day.
Enter the beginning hour and minute, using a
24-hour clock.
Enter the ending hour and minute, using a 24-
hour clock.
D-Link DAP-2660 User Manual
56
Internal RADIUS Server
The DAP-2660 features a built-in RADIUS server. Once you have nished adding a RADIUS account, click the Save button to let your changes take
eect. The newly-created account will appear in this RADIUS Account List. The radio buttons allow the user to enable or disable the RADIUS account.
Click the icon in the delete column to remove the RADIUS account. We suggest you limit the number of accounts below 30.
User Name:
Password:
Status:
RADIUS Account List:
Enter the user name for the new RADIUS account
here.
Enter the password for the new RADIUS account
here. The password must be between 8 and 64
characters long.
Select to Enable or Disable the status of the newly
created RADIUS account here.
In this table, a list of congured RADIUS accounts
will be displayed. To enable the status of a RADIUS
account, select the Enable radio button. To
disable the status of a RADIUS account, select
the Disable radio button. To remove a RADIUS
account, click on the Delete icon.
D-Link DAP-2660 User Manual
57

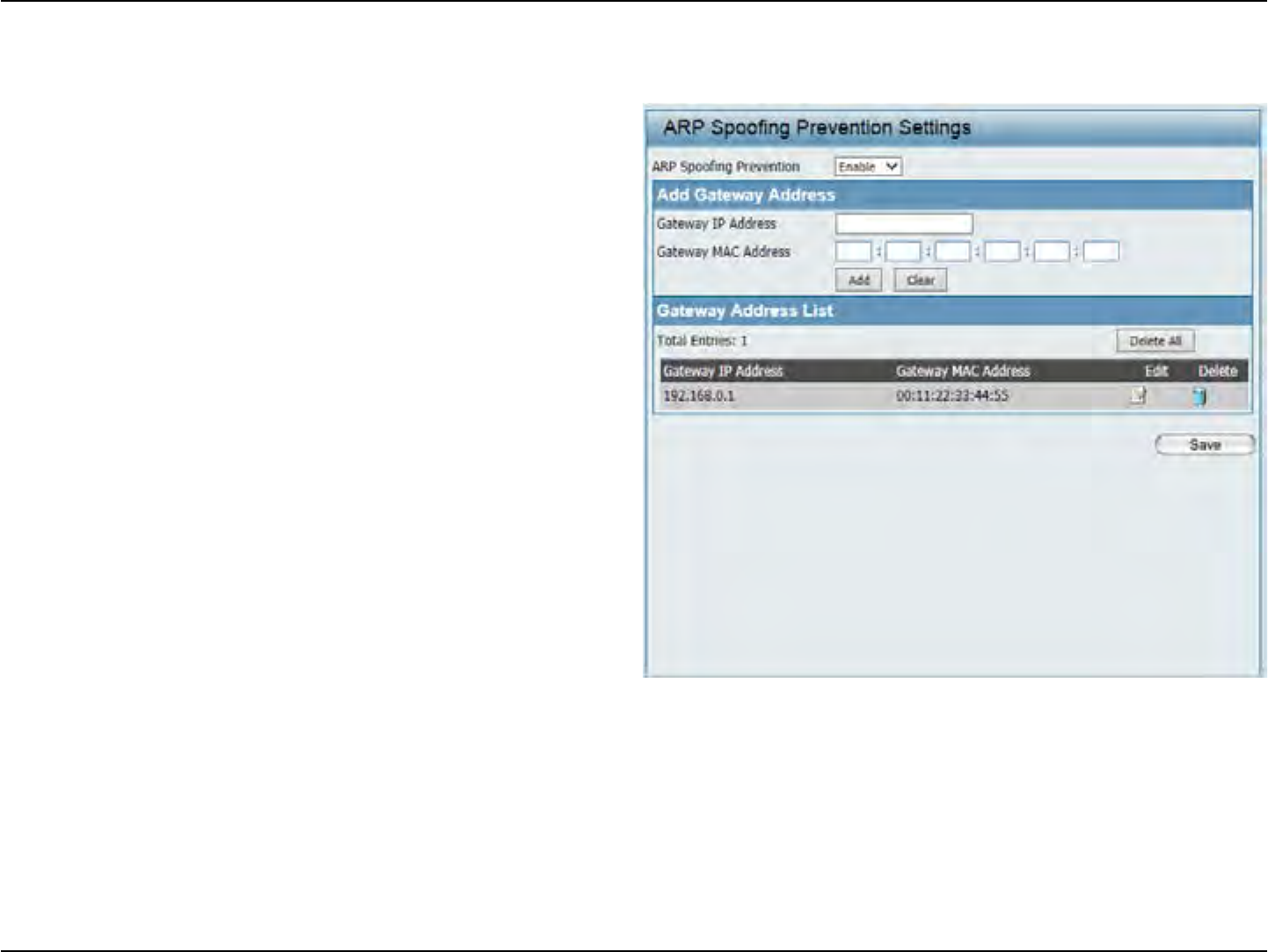

ARP Spoong Prevention
The ARP Spoong Prevention feature allows users to add IP/MAC address mapping to prevent ARP spoong attacks.
ARP Spoong
Prevention:
Gateway IP Address:
Gateway MAC Address:
Select to Enable or Disable the ARP spoong
prevention feature here.
Enter the gateway IP address here.
Enter the gateway MAC address here.
D-Link DAP-2660 User Manual
58
Airtime Fairness
Enable Airtime
Fairness:
Downlink Bandwidth:
Uplink Bandwidth:
Rule Type:
Band:
SSID:
Downlink Speed:
Uplink Speed:
Select to Enable or Disable the Airtime
Fairness feature here.
Enter the downlink bandwidth of the device
in Mbits per second.
Enter the uplink bandwidth of the device in
Mbits per second.
Select the rule type here. Available options
are: Allocate average BW for each station,
Allocate maximum BW for each station,
Allocate dierent BW for 11a/b/g/n
stations, and Allocate specic BW for SSID.
Select the wireless band used here. Options
to choose from are 2.4 GHz and 5 GHz. In this
section we’ll explain the 5GHz wireless band.
Select the SSID that will be used for this
feature here.
Enter the downlink speed limitation value in
either Kbits/sec or Mbits/sec for the rule.
Enter the uplink speed limitation value in
either Kbits/sec or Mbits/sec for the rule.
The Airtime Fairness window allows the user to manage the bandwidth of the device and arrange the bandwidth for various wireless clients.
When the Airtime Fairness rule is nished, click the Add button. To discard the Airtime Fairness Rule settings, click the Clear button. Click the
Save button to let your changes take eect.
D-Link DAP-2660 User Manual
59
AP Array
The AP Array window allows users to create a set of devices on a network that are organized into a single group in order to increase ease of
management. Once a user has made the desired settings, click the Save button to let the changes take eect.
Enable AP Array:
AP Array Name:
AP Array Password:
Scan AP Array List:
AP Array List:
Current Array
Members:
This check box allows the user to enable the AP
array function. The three modes that are available
are Master, Backup Master, and Slave. APs in the
same array will use the same conguration. The
conguration will sync the Master AP to the Slave
AP and the Backup Master AP when a Slave AP and
a Backup Master AP join the AP array.
Enter an AP array name for the group here.
Enter an AP array password for the group here.
This password must be the same on all the APs
in the group.
Click this button to initiate a scan of all the
available APs currently on the network.
This table displays the current AP array status for
the following parameters: Array Name, Master
IP, MAC, Master, Backup Master, Slave, and Total.
This table displays all the current array members.
The DAP-2660 AP array feature supports up to
eight AP array members.
AP Array Scan
D-Link DAP-2660 User Manual
60

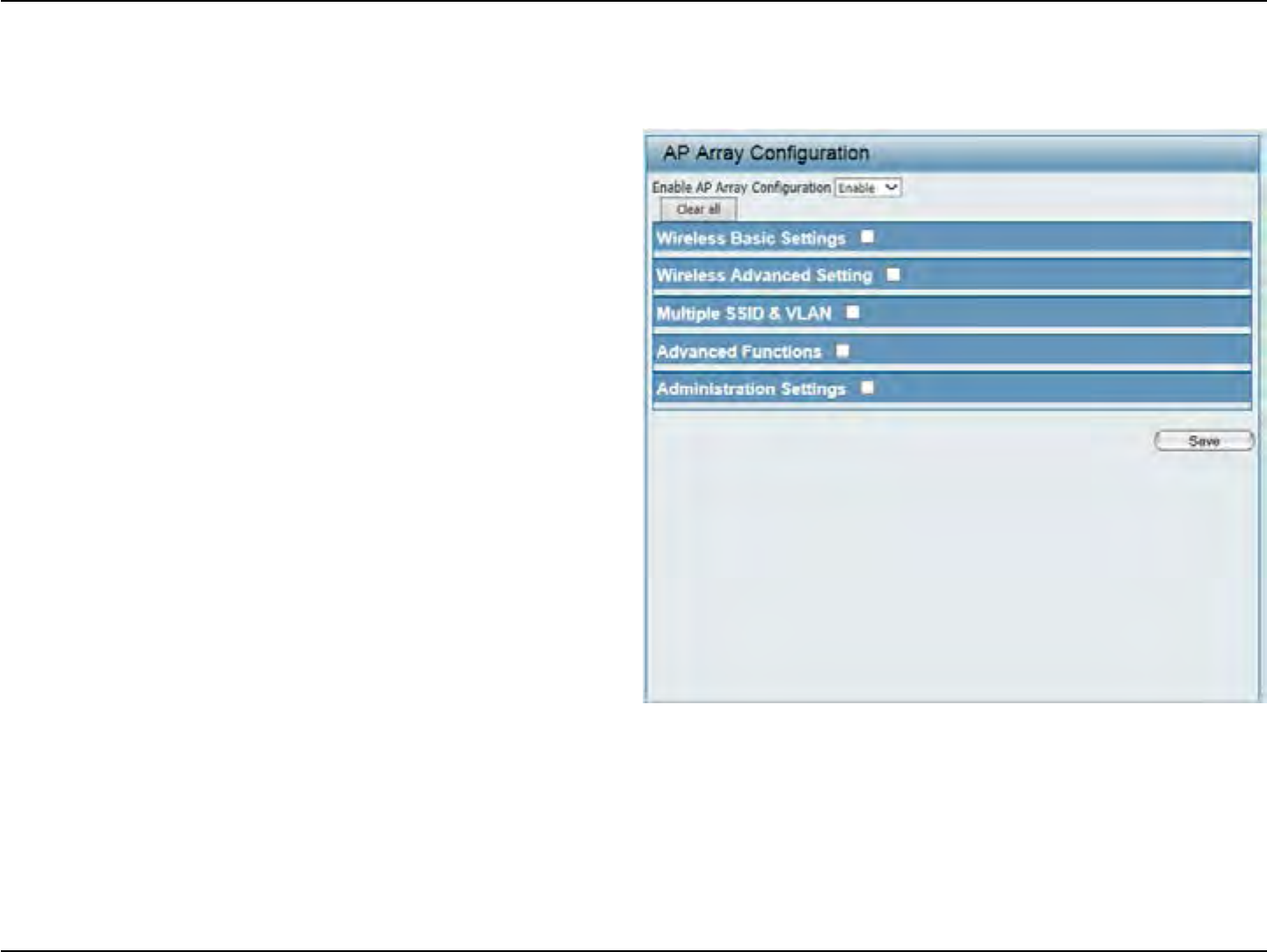

In the AP array conguration settings windows, users can specify which settings all the APs in the group will inherit from the master AP. Make the
required selection in this window and click the Save button to accept the changes made.
Enable AP Array
Conguration:
Wireless Basic
Settings:
Wireless Advanced
Setting:
Multiple SSID & VLAN:
Advanced Functions:
Administration
Settings:
Select to Enable or Disable the AP array congure
feature here.
Select this option to specify the basic wireless
settings that the APs in the group will inherit.
Select this option to specify the advanced wireless
settings that the APs in the group will inherit.
Select this option to specify the multiple SSIDs
and VLAN settings that the APs in the group will
inherit.
Select this option to specify the other advanced
settings that the APs in the group will inherit.
Select this option to specify the administrative
settings that the APs in the group will inherit.
Conguration Settings
D-Link DAP-2660 User Manual
61
Network Name (SSID):
SSID Visibility:
Auto Channel Selection:
Channel Width:
Security:
Captive Prole:
Band:
Select this option to use the same SSID.
Select this option to enable SSID visibility.
Select this option to use auto channel selection.
Select this option to use the same channel width.
Wireless Basic Settings
Wireless:
Wireless Mode:
Data Rate:
Beacon Interval:
DTIM Interval:
Transmit Power:
WMM (Wi-Fi
Multimedia):
Ack Time Out:
Short GI:
Select this option to use the same wireless
settings.
Select this option to use the same wireless mode.
Select this option to use the same data rate.
Select this option to use the same beacon interval.
Select this option to use the same DTIM interval.
Wireless Advanced Settings
Select this option to use the same wireless security.
Select this option to use the same captive prole settings.
Select this option to use the same wireless band.
Select this option to use the same transmit power.
Select this option to use the same WMM settings.
Select this option to use the same ACK timeout value.
Select this option to use the same short GI settings.
D-Link DAP-2660 User Manual
62

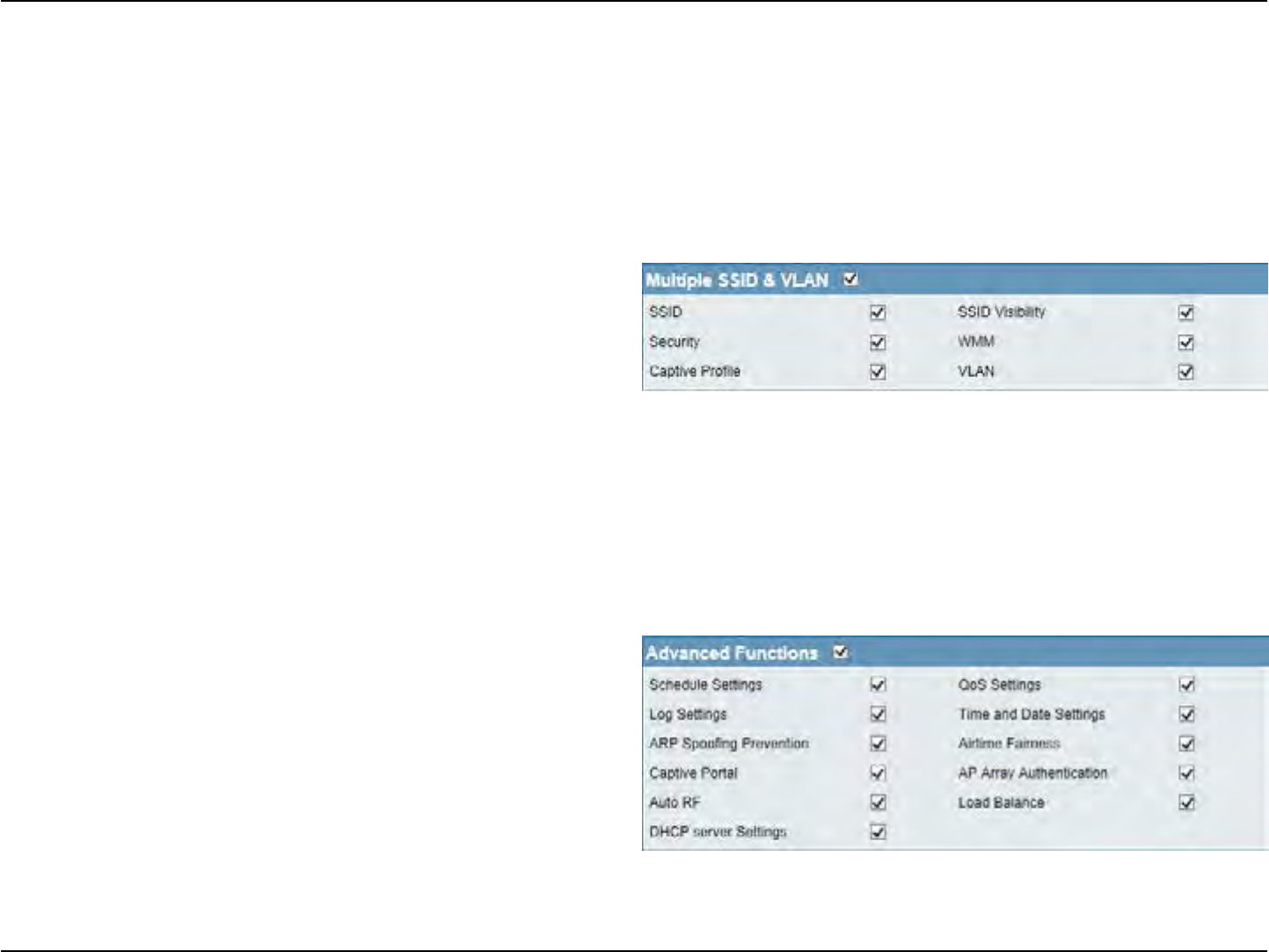

SSID:
SSID Visibility:
Security:
WMM:
Captive Prole:
VLAN:
Select this option to use the same multi-SSIDs.
Select this option to use the same SSID visible.
Select this option to use the same wireless security
settings.
Multiple SSID & VLAN
Link Integrity:
Connection Limit:
IGMP Snooping:
Select this option to use the same link integrity settings.
Select this option to use the same connection limit value.
Select this option to use the same IGMP snooping settings.
Schedule Settings:
QoS Settings:
Log Settings:
Time and Date Settings:
Select this option to use the same schedule
settings.
Select this option to use the same Quality of
Service settings.
Select this option to use the same log settings.
Select this option to use the same time and date
settings.
Advanced Functions
Select this option to use the same WMM settings.
Select this option to use the same captive prole settings.
Select this option to use the same VLAN settings.
D-Link DAP-2660 User Manual
63
System Name Settings:
SNMP Settings:
Login Settings:
Console Settings:
Limit Administrator:
Ping Control Settings:
Select this option to use the same system name.
Select this option to use the same SNMP settings.
Select this option to use the same login settings.
Administration Settings
ARP Spoong
Prevention:
Airtime Fairness:
Captive Portal:
AP Array
Authentication:
Auto RF:
Load Balance:
DHCP Server Settings:
Select this option to use the same ARP spoong prevention settings.
Select this option to use the same airtime fairness settings.
Select this option to use the same captive portal settings.
Select this option to use the same AP array authentication settings.
Select this option to use the same auto-RF settings.
Select this option to use the same load balancing settings.
Select this option to use the same DHCP server settings.
Select this option to use the same console settings.
Select this option to use the same limit administrator settings.
Select this option to use the same ping control settings.
D-Link DAP-2660 User Manual
64
In this windows, users can view and congure the automatic radio frequency settings as well as congure the the auto-initiate period and threshold
values. Click the Save button to accept the changes made.
Enable: Auto-RF:
Initiate Auto-RF:
Auto-Initiate:
Auto-Initiate Period:
RSSI Threshold:
RF Report Frequency:
Select to Enable or Disable the auto-RF feature
here.
Click the Auto-RF Optimize button to initiate the
auto-RF optimization feature.
Select the Enable or Disable the auto-initiate
feature here.
After enabling the auto-initiate option, the auto-
initiate period value can be entered here. This
value must be between 1 and 24 hours.
Select the RSSI threshold value here. This value is
listed in the drop-down menu in increments of
10% from 10% to 100%.
Enter the RF report frequency value here.
Auto-RF
D-Link DAP-2660 User Manual
65
In this window, users can view and congure the AP array’s load balancing settings. Click the Save button to accept the changes made.
Enable Load Balance:
Active Threshold:
Select to Enable or Disable the load balance
feature here.
Enter the active threshold value here.
Load Balance
D-Link DAP-2660 User Manual
66
Captive Portal
The Captive Portal is a built-in web authentication server. When a station connects to an AP, the web brower will be redirected to a web authentication
page. In this windows, user can view and congure the Captive Portal settings. Click the Add button to add a new entry. Click the Delete or Delete
All button to remove a specic entry or all the entries congured.
Encryption Type:
Ticket Quantity:
Duration:
Last Active Day:
User Limit:
Select the captive portal encryption type here.
Options to choose from are Ticket, User/
Password, Remote Radius, LDAP and POP3. In
this section we’ll discuss the Ticket option.
Enter the number of ticket that will be used here.
Enter the duration value, in hours, for this ticket.
Select the last active date for this ticket here. Year,
Month and Day selections can be made.
Enter the maximum amount of users that can use
this ticket at the same time.
Authentication Settings - Ticket
D-Link DAP-2660 User Manual
67
Encryption Type:
Restricted Subnets:
Username:
Password:
Group:
Select the captive portal encryption type here.
Options to choose from are Ticket, User/
Password, Remote Radius, LDAP and POP3.
In this section we’ll discuss the User/Password
option.
Enter the restricted subnets here. Access to these
subnets will denied to guest accounts. Up to four
restricted subnet entries can be dened.
Enter the username for the new account here.
Enter the password for the new account here.
Select the group for the new account here.
Options to choose from are Manager and Guest.
Guest accounts will have limited access.
Authentication Settings - User/Password
D-Link DAP-2660 User Manual
68
Encryption Type:
Remote Radius Type:
Radius Server:
Radius Port:
Radius Secret:
Accounting Mode:
Accounting Server:
Accounting Port:
Accounting Secret:
Select the captive portal encryption type here.
Options to choose from are Ticket, User/
Password, Remote Radius, LDAP and POP3.
In this section we’ll discuss the Remote Radius
option.
Select the remote RADIUS server type here.
Currently, only SPAP will be used.
Enter the RADIUS server’s IP address here.
Enter the RADIUS server’s port number here.
Enter the RADIUS server’s shared secret here.
Select to Enable or Disable the accounting mode
here.
Enter the accounting server’s IP address here.
Enter the accounting server’s port number here.
Enter the accounting server’s shared serect here.
Authentication Settings - Remote RADIUS
D-Link DAP-2660 User Manual
69
Encryption Type:
Server:
Port:
Authenticate Mode:
Username:
Password:
Base DN:
Account Attribute:
Identity:
Select the captive portal encryption type here.
Options to choose from are Ticket, User/
Password, Remote Radius, LDAP and POP3. In
this section we’ll discuss the LDAP option.
Enter the LDAP server’s IP address or domain
name here.
Enter the LDAP server’s port number here.
Select the authentication mode here. Options to
choose from are Simple and TLS.
Enter the LDAP server account’s username here.
Enter the LDAP server account’s password here.
Enter the administrator’s domain name here.
Enter the LDAP account attribute string here. This
string will be used to search for clients.
Enter the identity’s full path string here.
Alternatively, select the Auto Copy checkbox to
automatically add the generic full path of the web
page in the identity eld.
Authentication Settings - LDAP
D-Link DAP-2660 User Manual
70
Encryption Type:
Server:
Port:
Connection Type:
Select the captive portal encryption type here.
Options to choose from are Ticket, User/
Password, Remote Radius, LDAP and POP3. In
this section we’ll discuss the Ticket option.
Enter the POP3 server’s IP address or domain
name here.
Enter the POP server’s port number here.
Select the connection type here. Options to
choose from are None and SSL/TLS.
Authentication Settings - POP3
D-Link DAP-2660 User Manual
71
In this window, users can upload a custom login page picture that will be used by the captive portal feature. Click the Browse button to navigate
to the image le, located on the managing computer and then click the Upload button to initiate the upload.
Upload picture from
le:
In this eld the path to the image le, that will be
uploaded, will be displayed. Alternatively, the path
can be manually entered here.
Login Page Upload
D-Link DAP-2660 User Manual
72
Web Redirection
In this windows, users can view and congure the Web redirection settings for the captive portal hosted by this access point. Wireless clients will
be redirected to this web site prior and after authentication. Click the Save button to accept the changes made.
Web Redirection:
Web Site:
Select this checkbox to enable the Web redirection
feature.
Enter the destination web site’s address here.
D-Link DAP-2660 User Manual
73
DHCP Server
The DHCP address pool denes the range of the IP address that can be assigned to stations in the network. A Dynamic Pool allows wireless
stations to receive an available IP with lease time control. If needed or required in the network, the DAP-2660 is capable of acting as a DHCP
server.
Function Enable/
Disable:
IP Assigned From:
The Range of Pool (1-
254):
Subnet Mask:
Gateway:
WINS:
DNS:
Domain Name:
Lease Time:
Dynamic Host Configuration Protocol (DHCP)
assigns dynamic IP addresses to devices on
the network. This protocol simplies network
management and allows new wireless devices
to receive IP addresses automatically without
the need to manually assign new IP addresses.
Select Enable to allow the DAP-2660 to function
as a DHCP server.
Input the rst IP address available for assignment
on your network.
Enter the number of IP addresses available for
assignment. IP addresses are increments of the IP
address specied in the “IP Assigned From” eld.
All devices in the network must have the same
subnet mask to communicate. Enter the subnet
mask for the network here.
Dynamic Pool Settings
Enter the IP address of the gateway on the network.
Specify the Windows Internet Naming Service (WINS) server address for the wireless network. WINS is a system that
determines the IP address of a network computer that has a dynamically assigned IP address.
Enter the IP address of the Domain Name System (DNS) server. The DNS server translates domain names such as www.
dlink.com into IP addresses.
Enter the domain name of the network, if applicable. (An example of a domain name is: www.dlink.com.)
The lease time is the period of time before the DHCP server will assign new IP addresses.
D-Link DAP-2660 User Manual
74
Static Pool Setting
The DHCP address pool denes the range of IP addresses that can be assigned to stations on the network. A static pool allows specic wireless
stations to receive a xed IP without time control.
Function Enable/
Disable:
Hostname:
Assigned IP:
Assigned MAC
Address:
Subnet Mask:
Gateway:
WINS:
DNS:
Domain Name:
Dynamic Host Configuration Protocol (DHCP)
assigns IP addresses to wireless devices on
the network. This protocol simplies network
management and allows new wireless devices
to receive IP addresses automatically without
the need to manually assign IP addresses. Select
Enable to allow the DAP-2660 to function as a
DHCP server.
Enter the hostname of the client here.
Use the Static Pool Settings to assign the same IP
address to a device every time you start up. The
IP addresses assigned in the Static Pool list must
NOT be in the same IP range as the Dynamic
Pool. After you have assigned a static IP address
to a device via its MAC address, click Apply; the
device will appear in the Assigned Static Pool at
the bottom of the screen. You can edit or delete
the device in this list.
Enter the MAC address of the device requesting
association here.
Dene the subnet mask of the IP address specied in the “IP Assigned From” eld.
Specify the Gateway address for the wireless network.
Specify the Windows Internet Naming Service (WINS) server address for the wireless network. WINS is a system that determines
the IP address of a network computer with a dynamically assigned IP address, if applicable.
Enter the DNS server address for your wireless network.
Specify the domain name for the network.
D-Link DAP-2660 User Manual
75
Current IP Mapping List
This window displays information about the current assigned DHCP dynamic and static IP address pools. This information is available when you
enable DHCP server on the AP and assign dynamic and static IP address pools.
Current DHCP Dynamic
Pools:
Host Name:
Binding MAC Address:
Assigned IP Address:
Lease Time:
Current DHCP Static
Pools:
Host Name:
Binding MAC Address:
Assigned IP Address:
Binding MAC Address:
Assigned IP Address:
These are IP address pools the DHCP server has
assigned using the dynamic pool setting.
The host name of a device on the network.
The MAC address of a device on the network that
is assigned an IP address from the DHCP dynamic
pool.
The current corresponding DHCP-assigned IP
address of the device.
The length of time that the dynamic IP address
will be valid.
These are the IP address pools of the DHCP server
assigned through the static pool settings.
The host name of a device on the network.
The MAC address of a device on the network that
is within the DHCP static IP address pool.
The current corresponding DHCP-assigned static
IP address of the device.
The MAC address of a device on the network that is assigned an IP address from the DHCP dynamic pool.
The current corresponding DHCP-assigned static IP address of the device.
D-Link DAP-2660 User Manual
76
Filters
This page allows the user to congure Wireless MAC ACL settings for access control. Click the Save button to accept the changes made.
Wireless Band:
Access Control List:
MAC Address:
MAC Address List:
Current Client
Information:
Upload ACL File:
Load ACL File to Local
Hard Drive:
Select the wireless band used here. Options to
choose from are 2.4 GHz and 5 GHz.
Select Disable to disable the lters function.
Select Accept to accept only those devices with
MAC addresses in the Access Control List. All other
devices not on the list will be rejected.
Select Reject to reject the devices with MAC
addresses on the Access Control List. All other
devices not on the list will be accepted.
Enter each MAC address that you wish to include
in your lter list, and click Apply.
When you enter a MAC address, it appears in this
list. Highlight a MAC address and click Delete to
remove it from this list.
This table displays information about all the
current connected stations.
Wireless MAC ACL
Here users can upload a pre-congured wireless MAC ACL settings conguration le to the access point which will overwrite
the current wireless MAC ACL settings. Click the Browse button to navigate to the conguation le, located on the local PC,
and then click the Upload button to initiate the upload.
Here users can download the current wireless MAC ACL settings, in a conguration le, to the local PC, that serves as a backup
when needed. Click the Download button and navigate to the destination where the le can be saved on the local PC.
D-Link DAP-2660 User Manual
77
In this window, users can view and congure the WLAN partition settings. After the conguration, click the Save button to accept the changes
made.
Wireless Band:
Link Integrity:
Ethernet to WLAN
Access:
Internal Station
Connection:
Select the wireless band used here. Options to
choose from are 2.4 GHz and 5 GHz.
Select to Enable or Disable the link integrity
feature here. If the Ethernet connection between
the LAN and the AP is disconnected, enabling this
feature will cause the wireless segment associated
with the AP to be disassociated from the AP.
Select to Enable or Disable the Ethernet to WLAN
access feature here. When disabled, all data from
the Ethernet to associated wireless devices will be
blocked. Wireless devices can still send data to the
Ethernet.
The default value is Enable, which allows stations
to intercommunicate by connecting to a target AP.
When disabled, wireless stations cannot exchange
data on the same Multi-SSID. In Guest mode,
wireless stations cannot exchange data with any
station on your network.
WLAN Partition
D-Link DAP-2660 User Manual
78

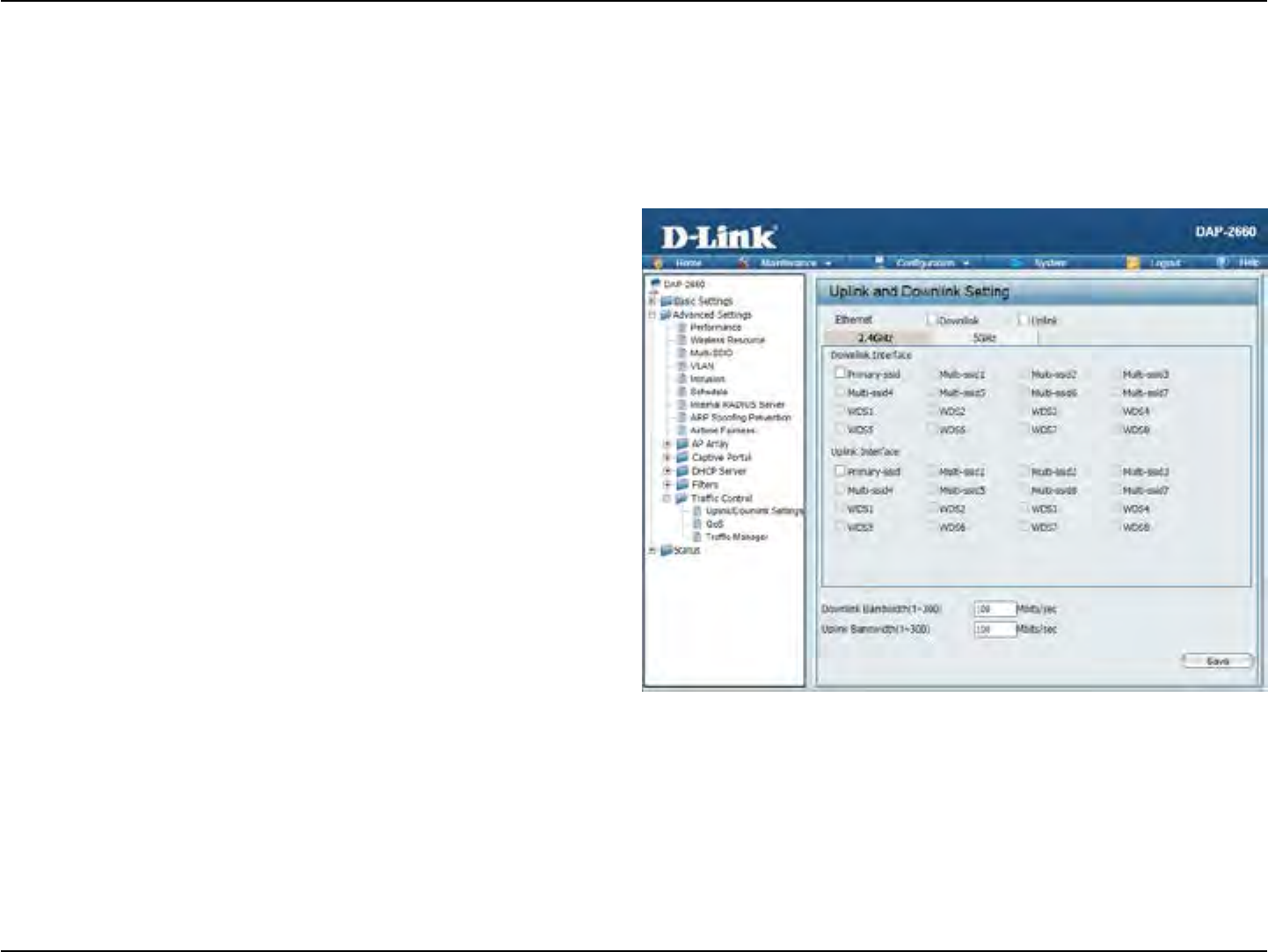

Trac Control
The uplink/downlink settings allows users to customize the uplink and downlink interfaces including specifying uplink/downlink bandwidth
rates in Mbits per second. These values are also used in the QoS and Trac Manager windows. Once the desired uplink and downlink settings are
nished, click the Save button accept the changes made.
Downlink:
Uplink:
2.4GHz:
5GHz:
Downlink Interface:
Uplink Interface:
Downlink Bandwidth
(1~300):
Uplink Bandwidth
(1~300):
Select this checkbox to congur the download
settings.
Select this checkbox to configure the uplink
settings.
Select this tab to congure the downlink/uplink
settings for the 2.4GHz wireless band.
Select this tab to congure the downlink/uplink
settings for the 5GHz wireless band.
Select the downlink interface(s) that will be
congured here.
Select the uplink interface(s) that will be
congured here.
Enter the downlink bandwidth value here. This
value must be between 1 and 300 Mbps. By
default, this value is 100 Mbps.
Enter the uplink bandwidth value here. This value
must be between 1 and 300 Mbps. By default, this
value is 100 Mbps.
Uplink/Downlink Settings
D-Link DAP-2660 User Manual
79
Quality of Service (QoS) enhances the experience of using a network by prioritizing the trac of dierent applications. The DAP-2660 supports
four priority levels. Once the desired QoS settings are nished, click the Save button to accept the changes made.
Enable QoS:
Downlink Bandwidth:
Uplink Bandwidth:
Priority:
Limit
Port:
ACK/DHCP/ICMP/DNS
Priority:
Web Trac Priority:
Mail Trac Priority:
FTP Trac Priority:
Select this checkbox to enable the Quality of
Server feature.
Here the congured downlink bandwidth value,
in Mbps, will be displayed.
Here the congured uplink bandwidth value, in
Mbps, will be displayed.
The priority can be selected for each type of trac
available in this window. Options to choose from
are Highest Priority, Second Priority, Third
Priority, and Low Priority.
The limit percentage value can be value can
be entered for each type of trac in the spaces
provided next to each trac type.
For user-dened priority rules, a range of trac
port numbers can manually be entered in the
spaces provided.
Select the ACK, DHCP, ICMP and DNS traffic
priority here and enter the limit percentage value
in the space provided.
QoS
Select the Web trac priority here and enter the limit percentage value in the space provided.
Select the mail trac priority here and enter the limit percentage value in the space provided.
Select the FTP trac priority here and enter the limit percentage value in the space provided.
D-Link DAP-2660 User Manual
80
User Dened Priority:
Other Trac Priority:
Select the user-dened trac priority here and enter the limit percentage value in the space provided. For user-dened priority
entries, the trac port range must also be specied to clarify which type of trac will be prioritized.
Lastly, select priority for all other trac, not dened, here and enter the limit percentage value in the space provided.
D-Link DAP-2660 User Manual
81
The trac manager feature allows users to create trac management rules that specify how to deal with listed client trac and specify
downlink/ uplink speed for new trac manager rules. Click the Save button to accept the changes made.
Trac Manager:
Unlisted Client Trac:
Downlink Bandwidth:
Uplink Bandwidth:
Select to Enable or Disable the trac manager
feature here.
$$$ Select Deny or Forward to determine how to
deal with unlisted client trac.
The downlink bandwidth in Mbits per second. This
value is entered in the Uplink/Downlink Setting
window.
Uplink Bandwidth:The uplink bandwidth in Mbits
per second. This value is entered in the Uplink/
Downlink Setting window.
Trac Manager
D-Link DAP-2660 User Manual
82
Status
In the Status Section the user can monitor and view conguration settings of the access point. Here the user can also view statistics about client
information, WDS information and more. The following pages will explain settings found in the Status section in more detail.
D-Link DAP-2660 User Manual
83
Device Information
This page displays the current information like rmware version, Ethernet and wireless parameters, as well as the information regarding CPU and
memory utilization.
Device Information: This read-only window displays the conguration
settings of the DAP-2660, including the rmware
version and the device’s MAC address.
D-Link DAP-2660 User Manual
84
Client Information
This page displays the associated clients SSID, MAC, band, authentication method, signal strength, and power saving mode for the DAP-2660
network.
Client Information:
SSID:
MAC:
Band:
Authentication:
RSSI:
Power Saving Mode:
This window displays the wireless client
information for clients currently connected to
the DAP-2660.
Displays the SSID of the client.
Displays the MAC address of the client.
Displays the wireless band that the client is
connected to.
Displays the type of authentication being used.
Displays the client’s signal strength.
Displays the status of the power saving feature.
D-Link DAP-2660 User Manual
85
WDS Information Page
This page displays the access points SSID, MAC, band, authentication method, signal strength, and status for the DAP-2660’s Wireless Distribution
System network.
WDS Information:
Name:
MAC:
Authentication:
Signal:
Status:
This window displays the Wireless Distribution
System information for clients currently connected
to the DAP-2660.
Displays the SSID of the client.
Displays the MAC address of the client.
Displays the type of authentication being used.
Displays the client’s signal strength.
Displays the status of the power saving feature.
D-Link DAP-2660 User Manual
86
Channel Analyze
Wireless Band:
Detect:
AP List:
Select either 2.4Ghz or 5GHz.
Click the Detect button to scan.
This will list the transmitting channels and quality.
D-Link DAP-2660 User Manual
87
Stats Page
Displays wired interface network trac information.
Ethernet Trac
Statistics:
This page displays transmitted and received count
statistics for packets and bytes.
Ethernet Trac Statistics
D-Link DAP-2660 User Manual
88
WLAN Trac Statistics
Displays throughput, transmitted frame, received frame, and WEP frame error information for the AP network.
WLAN Trac Statistics: This page displays wireless network statistics
for data throughput, transmitted and
received frames, and frame errors.
D-Link DAP-2660 User Manual
89

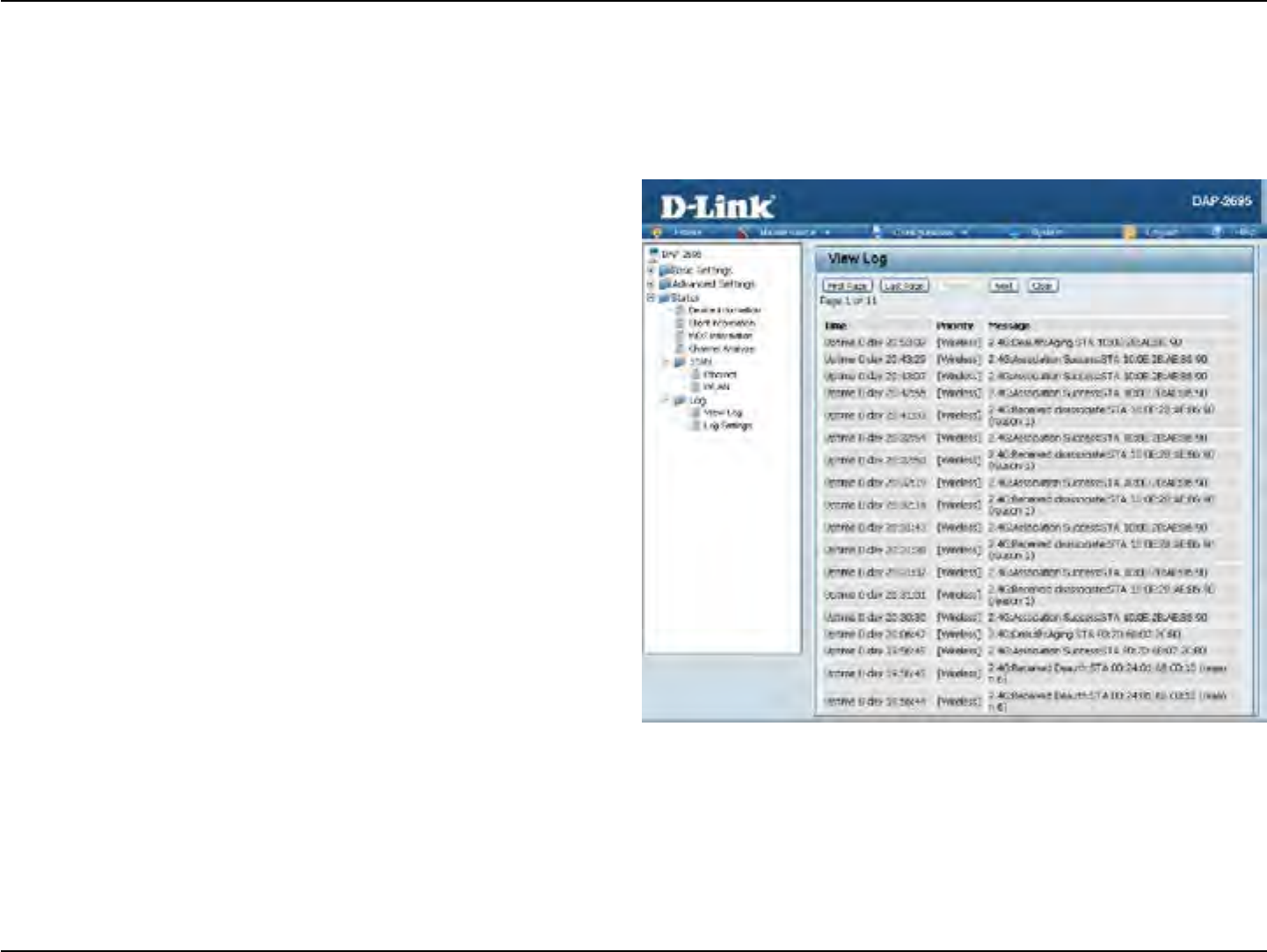

Log
The AP’s embedded memory holds logs here. The log information includes but is not limited to the following items: cold start AP, upgrading
rmware, client associate and disassociate with AP, and web login. The web page holds up to 500 logs.
View Log: The AP’s embedded memory displays system
and network messages including a time
stamp and message type. The log information
includes but is not limited to the following
items: cold start AP, upgrading rmware,
client associate and disassociate with AP, and
web login. The web page holds up to 500
logs.
View Log
D-Link DAP-2660 User Manual
90
Log Settings
Enter the log server’s IP address to send the log to that server. Check or uncheck System Activity, Wireless Activity, or Notice to specify what kind
of log type you want it to log.
Log Server/IP Address:
Log Type:
E-mail Notication:
E-mail Log Schedule:
Enter the IP address of the server you would
like to send the DAP-2660 log to.
Check the box for the type of activity you
want to log. There are three types: System
Activity, Wireless Activity, and Notice.
Support Simple Mail Transfer Protocol for log
schedule and periodical change key. It can
not support Gmail SMTP port 465. Please set
to Gmail SMTP port 25 or 587.
Use the drop-down menu to set the e-mail
log schedule.
D-Link DAP-2660 User Manual
91
Maintenance Section
In the Status Section the user can monitor and view conguration settings of the access point. Here the user can also view statistics about client
information, WDS information and more. The following pages will explain settings found in the maintenance section in more detail.
D-Link DAP-2660 User Manual
92
Administration
Check one or more of the ve main categories to display the various hidden administrator parameters and settings displayed on the next ve
pages. Each of the ve main categories display various hidden administrator parameters and settings.
Limit Administrator
VLAN ID:
Limit Administrator IP:
IP Range:
Check the box provided and the enter the
specic VLAN ID that the administrator will be
allowed to log in from.
Check to enable the Limit Administrator IP
address.
Enter the IP address range that the
administrator will be allowed to log in from
and then click the Add button.
Limit Administrator
D-Link DAP-2660 User Manual
93
System Name Settings
Each of the ve main categories display various hidden administrator parameters and settings.
System Name:
Location:
The name of the device. The default name is
D-Link DAP-2660.
The physical location of the device, e.g. 72nd
Floor, D-Link HQ.
Login Settings
Each of the ve main categories display various hidden administrator parameters and settings.
User Name:
Old Password:
New Password:
Conrm Password:
Enter a user name. The default is admin.
When changing your password, enter the old
password here.
When changing your password, enter the new password here. The password is case-sensitive. “A” is a dierent
character than “a.” The length should be between 0 and 12 characters.
Enter the new password a second time for conrmation purposes.
Console Settings
Each of the ve main categories display various hidden administrator parameters and settings.
Status:
Console Protocol:
Time-out:
Status is enabled by default. Uncheck the box
to disable the console.
Select the type of protocol you would like to
use, Telnet or SSH.
Set to 1 Min, 3 Mins, 5 Mins, 10 Mins, 15 Mins or Never.
D-Link DAP-2660 User Manual
94
SNMP Settings
Each of the ve main categories display various hidden administrator parameters and settings.
Status:
Public Community
String:
Private Community
String:
Check the box to enable the SNMP functions.
This is enabled by default.
Enter the public SNMP community string.
Enter the private SNMP community string.
Central WiFiManager Settings
Each of the ve main categories display various hidden administrator parameters and settings.
Check the box to enable the SNMP functions.
This is enabled by default.
Enter the public SNMP community string.
Enter the private SNMP community string.
D-Link DAP-2660 User Manual
95
Firmware and SSL Upload
This page allows the user to perform a rmware upgrade. A Firmware upgrade is a function that upgrade the running software used by the
access point. This is a useful feature that prevents future bugs and allows for new features to be added to this product. Please go to your local
D-Link website to see if there is a newer version rmware available.
Firmware and SSL
Certication Upload:
Upload Firmware from
Local Hard Drive:
Upload SSL Certication
from Local Hard Drive:
You can upload les to the access point.
The current rmware version is displayed
above the le location eld. After the latest
rmware is downloaded, click on the “Choose
File” button to locate the new rmware.
Once the le is selected, click on the “Open”
and “Upload” button to begin updating the
rmware. Please don’t turn the power o
while upgrading.
After you have downloaded a SSL certication
to your local drive, click “Choose File.” Select
the certication and click “Open” and “Upload”
to complete the upgrade.
D-Link DAP-2660 User Manual
96
Conguration File Upload
This page allows the user to backup and recover the current conguration of the access point in case of a unit failure.
Conguration File
Upload and Download:
Upload Conguration
File:
Download
Conguration File:
You can upload and download conguration
les of the access point.
Browse to the saved conguration le you
have in local drive and click “Open” and
“Upload” to update the conguration.
Click “Download” to save the current
conguration le to your local disk. Note that
if you save one conguration le with the
administrator’s password now, after resetting
your DAP-2660 and then updating to this
saved conguration le, the password will be
gone.
D-Link DAP-2660 User Manual
97
Time and Date Settings
Enter the NTP server IP, choose the time zone, and enable or disable daylight saving time.
Current Time:
Enable NTP Server:
NTP Server:
Time Zone:
Enable Daylight
Saving:
Daylight Saving
Dates:
Set the Date and
Time Manually:
Displays the current time and date settings.
Check to enable the AP to get system time from
an NTP server from the Internet.
Enter the NTP server IP address.
Use the drop-down menu to select your correct
Time Zone.
Check the box to enable Daylight Saving Time.
Use the drop-down menu to select the correct
Daylight Saving oset.
A user can either manually set the time for the
AP here, or click the Copy Your Computer’s
Time Settings button to copy the time from the
computer in use (Make sure that the computer’s
time is set correctly).
D-Link DAP-2660 User Manual
98

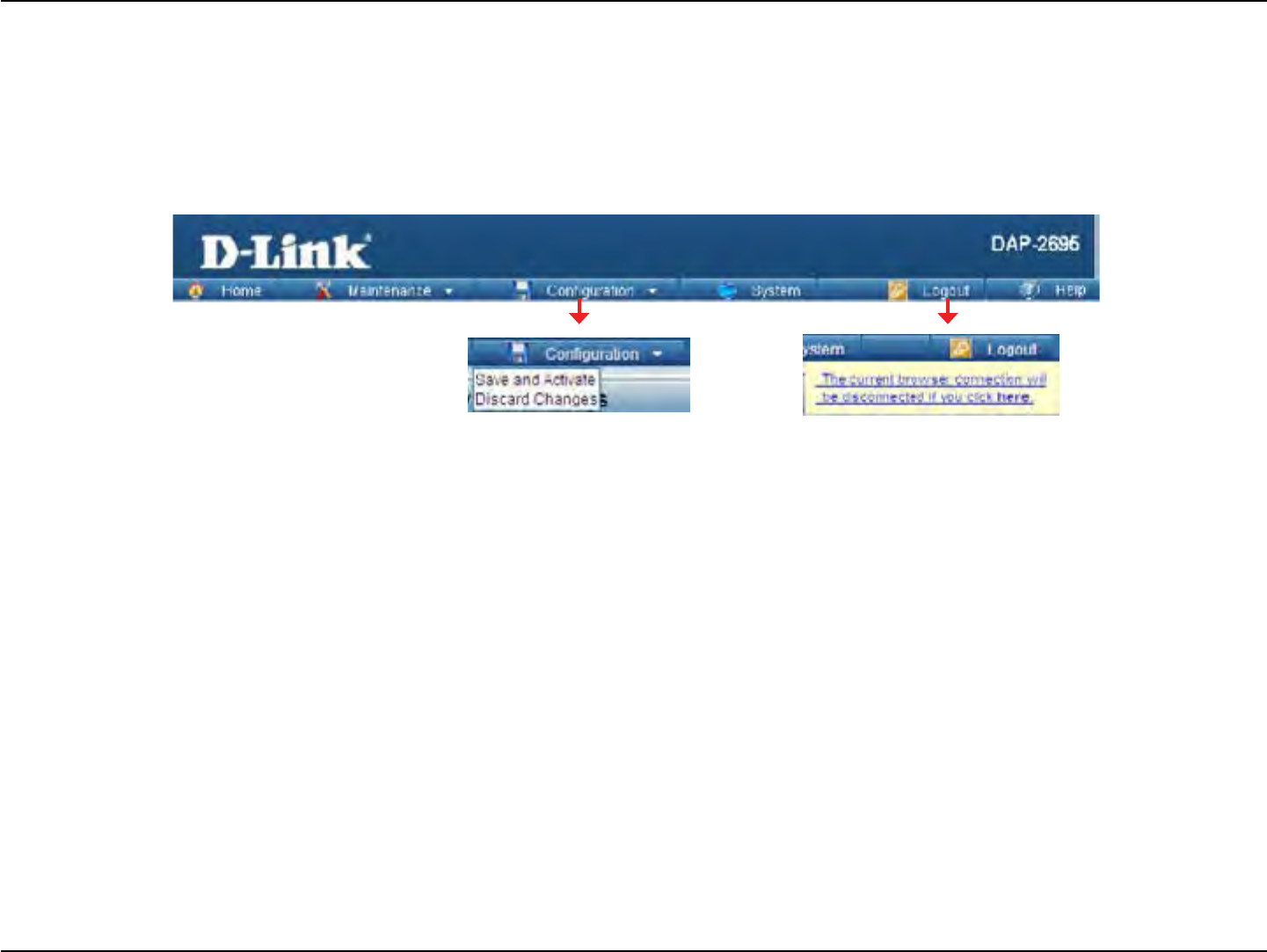

Conguration and System
These options are the remaining option to choose from in the top menu. Conguration allows the user to save and activate or discard the
congurations done. System allows the user to restart the unit, perform a factory reset or clear the language pack settings. Logout allows the
user to safely log out from the access point’s web conguration. Help allows the user to read more about the given options to congure without
the need to consult the manual. The following pages will explain settings found in the conguration and system section in more detail.
D-Link DAP-2660 User Manual
99
System Settings
On this page the user can restart the unit, perform a factory reset of the access point or clear the added language pack.
Restart the Device:
Restore to Factory
Default Settings:
Clear Language Pack:
Click Restart to restart the DAP-2660.
Click Restore to restore the DAP-2660 back to
factory default settings.
Click to clear the current Language pack
running.
D-Link DAP-2660 User Manual
100
Help
The help page is useful to view a brief description of a function available on the access point in case the manual is not present.
Help: Scroll down the Help page for topics and
explanations.
D-Link DAP-2660 User Manual
101
Knowledge Base
D-Link wireless products are based on industry standards to provide high-speed wireless connectivity that is easy to use within your home,
business or public access wireless networks. D-Link wireless products provides you with access to the data you want, whenever and wherever
you want it. Enjoy the freedom that wireless networking can bring to you.
WLAN use is not only increasing in both home and oce environments, but in public areas as well, such as airports, coee shops and universities.
Innovative ways to utilize WLAN technology are allowing people to work and communicate more eciently. Increased mobility and the absence
of cabling and other types of xed infrastructure have proven to be benecial to many users.
Wireless adapter cards used on laptop and desktop systems support the same protocols as Ethernet adapter cards, allowing wireless users to use
the same applications as those used on a wired network.
People use WLAN technology for many dierent purposes:
• Mobility - productivity increases when people can have access to data in any location within the operating range of their WLAN.
Management decisions based on real-time information can signicantly improve the eciency of a worker.
• Low implementation costs - WLANs are easy to set up, manage, change and relocate. Networks that frequently change can benet from
WLAN’s ease of implementation. WLANs can operate in locations where installation of wiring may be impractical.
• Installation and network expansion - by avoiding the complications of troublesome cables, a WLAN system can be fast and easy during
installation, especially since it can eliminate the need to pull cable through walls and ceilings. Wireless technology provides more versatility
by extending the network beyond the home or oce.
• Inexpensive solution - wireless network devices are as competitively priced as conventional Ethernet network devices. The DAP-2660 saves
money by providing users with multi-functionality congurable in four dierent modes.
• Scalability - Congurations can be easily changed and range from Peer-to-Peer networks, suitable for a small number of users to larger
Infrastructure networks to accommodate hundreds or thousands of users, depending on the number of wireless devices deployed.
Wireless Basics
D-Link DAP-2660 User Manual
102
The D-Link Access Point lets you access your network using a wireless connection from virtually anywhere within the operating range of your
wireless network. Keep in mind, however, that the number, thickness and location of walls, ceilings, or other objects that the wireless signals must
pass through, may limit the range. Typical ranges vary depending on the types of materials and background RF (radio frequency) noise in your
home or business. The key to maximizing wireless range is to follow these basic guidelines:
1. Keep the number of walls and ceilings between the access point and other network devices to a minimum. Each wall or ceiling can reduce
your adapter’s range from 3-90 feet (1-30 meters.) Position your devices so that the number of walls or ceilings is minimized.
2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (.5 meters), at a
3. 45-degree angle appears to be almost 3 feet (1 meter) thick. At a 2-degree angle it looks over 42 feet (14 meters) thick! Position devices so
that the signal will travel straight through a wall or ceiling (instead of at an angle) for better reception.
4. Building Materials make a dierence. A solid metal door or aluminum studs may have a negative eect on the range. Try to position access
points, wireless routers, and computers so that the signal passes through drywall or open doorways. Materials and objects such as glass,
steel, metal, walls with insulation, water (sh tanks), mirrors, le cabinets, brick, and concrete will degrade your wireless signal.
5. Keep your product away (at least 3-6 feet or 1-2 meters) from electrical devices or appliances that generate RF noise.
6. If you are using 2.4GHz cordless phones or X-10 (wireless products such as ceiling fans, lights, and home security systems), your wireless
connection may degrade dramatically or drop completely. Make sure your 2.4GHz phone base is as far away from your wireless devices as
possible. The base transmits a signal even if the phone in not in use.
Wireless Installation Considerations
D-Link DAP-2660 User Manual
103
Troubleshooting
When entering the IP address of the D-Link access point (192.168.0.50 for example), you are not connecting to a website on the Internet or have to
be connected to the Internet. The device has the utility built-in to a ROM chip in the device itself. Your computer must be on the same IP subnet to
connect to the web-based utility.
• Make sure you have an updated Java-enabled web browser. We recommend the following:
• Internet Explorer 7.0 or higher, Chrome, Firefox, or Safari 4 or higher
• Verify physical connectivity by checking for solid link lights on the device. If you do not get a solid link light, try using a dierent cable or connect to a
dierent port on the device if possible. If the computer is turned o, the link light may not be on.
• Disable any internet security software running on the computer. Software rewalls such as Zone Alarm, Black Ice, Sygate, Norton Personal Firewall, and
Windows® rewall may block access to the conguration pages. Check the help les included with your rewall software for more information on disabling
or conguring it.
• Congure your Internet settings:
Go to Start > Settings > Control Panel. Double-click the Internet Options Icon. From the Security tab, click the button to restore the settings to their
defaults.
Click the Connection tab and set the dial-up option to Never Dial a Connection. Click the LAN Settings button. Make sure nothing is checked. Click OK.
Go to the Advanced tab and click the button to restore these settings to their defaults. Click OK three times.
Close your web browser (if open) and open it.
• Access the web management. Open your web browser and enter the IP address of your D-Link access point in the address bar. This should open the login
page for your the web management.
• If you still cannot access the conguration, unplug the power to the access point for 10 seconds and plug back in. Wait about 30 seconds and try accessing
the conguration. If you have multiple computers, try connecting using a dierent computer.
Why can’t I access the web-based conguration utility?
This chapter provides solutions to problems that can occur during the installation and operation of the DAP-2660. Read the following
descriptions if you are having problems. (The examples below are illustrated in Windows® XP. If you have a dierent operating system, the
screenshots on your computer will look similar to the following examples.)
If you forgot your password, you must reset your access point. Unfortunately, this process will change all your settings back to the factory defaults.
To reset the access point, locate the reset button (hole) on the rear panel of the unit. With the access point powered on, use a paperclip to hold the
button down for 10 seconds. Release the button and the access point will go through its reboot process. Wait about 30 seconds to access the access
point. The default IP address is 192.168.0.50. When logging in, the username is admin and leave the password box empty.
What can I do if I forgot my password?
D-Link DAP-2660 User Manual
104
After you install your network adapter, by default, the TCP/IP settings
should be set to obtain an IP address from a DHCP server (i.e. wireless
router) automatically. To verify your IP address, please follow the steps
below.
Click on Start > Run. In the run box type cmd and click OK.
At the prompt, type ipcong and press Enter.
This will display the IP address, subnet mask, and the default gateway of
your adapter.
If the address is 0.0.0.0, check your adapter installation, security settings,
and the settings on your router. Some rewall software programs may
block a DHCP request on newly installed adapters.
How to check your IP address?
If you are connecting to a wireless network at a hotspot (e.g. hotel, coee shop, airport), please contact an employee or administrator to verify
their wireless network settings.
D-Link DAP-2660 User Manual
105

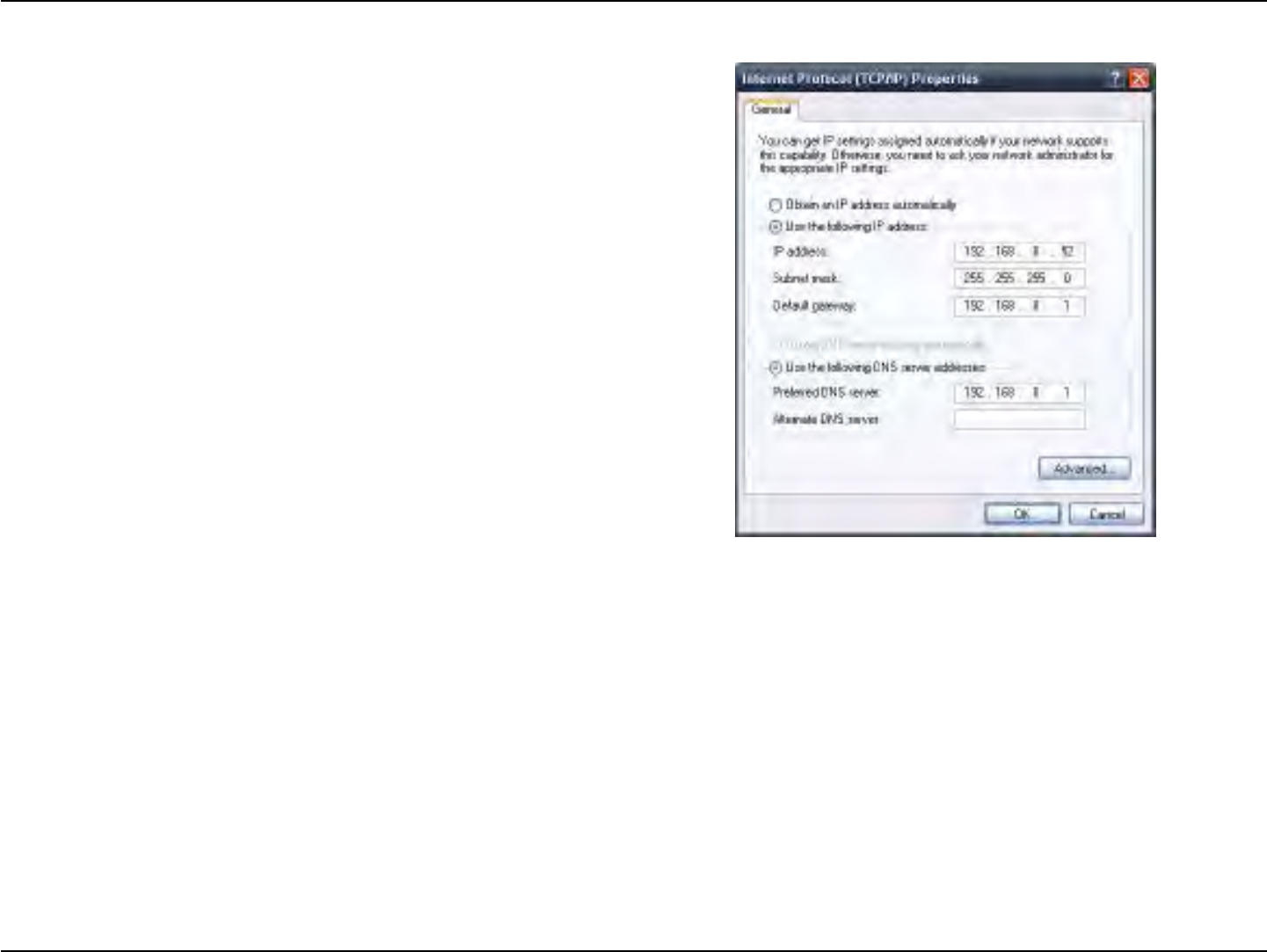

If you are not using a DHCP capable gateway/router, or you need to
assign a static IP address, please follow the steps below:
Step 1:
Windows® 2000: Click on Start > Settings > Control Panel > Network
Connections
Windows XP: Click on Start > Control Panel > Network Connections
Windows Vista®: Click on Start > Control Panel > Network and Internet >
Network and Sharing Center > Manage network connections
Step 2:
Right-click on the Local Area Connection which represents your network
adapter and select Properties.
Step 3:
Highlight Internet Protocol (TCP/IP) and click Properties.
Step 4:
Click Use the following IP address and enter an IP address that is on the
same subnet as your network or the LAN IP address on your router.
Example: If the router’s LAN IP address is 192.168.0.1, make your IP
address 192.168.0.X where X is a number between 2 and 99. Make sure
that the number you choose is not in use on the network. Set Default
Gateway the same as the LAN IP address of your router (192.168.0.1).
Set Primary DNS the same as the LAN IP address of your router
(192.168.0.1). The Secondary DNS is not needed or you may enter a DNS
server from your ISP.
Step 5:
Click OK twice to save your settings.
How to statically assign an IP address?
D-Link DAP-2660 User Manual
106
Technical Specications
Standards
• IEEE 802.11ac (draft)
• IEEE 802.11n
• IEEE 802.11g
• IEEE 802.11a
• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3ab
• IEEE 802.3af
• IEEE 802.3at
• IEEE 802.3x
Network Management
• Web Browser interface (HTTP, Secure HTTP (HTTPS))
• AP Manager II
• SNMP Support (D-View Module, Private MIB)
• Command Line Interface (Telnet, Secure SSH Telnet)
Security
• WPA™ Personal/Enterprise
• WPA2™ Personal/Enterprise
• WEP™ 64-/128-bit
Wireless Frequency Range
• 2.4 to 2.4835 GHz and 5.15 to 5.85 GHz**
Operating Voltage
• 48V DC +/- 10% for PoE or 48V/0.5A
Antenna Type
• 3x Detachable 4 dBi Omni antennas @2.4GHz
• 3x Detachable 6 dBi Omni antennas @5GHz
LEDs
• Power
• LAN1 (PoE)
• LAN2
• 2.4 GHz
• 5 GHz
Temperature
• Operating: 0˚C to 50˚C
• Storing: -20˚C to 65˚C
Humidity
• Operating: 10%~90% (non-condensing)
• Storing: 5%~95% (non-condensing)
Certications
• FCC Class B
• CE
• UL
• IC
• C-Tick
• CSA
• Wi-Fi
Dimensions
• L = 198.8 mm
• W = 190 mm
• H = 36.5 mm
D-Link DAP-2660 User Manual
107
CE Mark Warning:
This is a Class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take
adequate measures.
FCC Statement:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio
communication. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC Caution:
Any changes or modications not expressly approved by the party responsible for compliance could void the user’s authority to operate this
equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
If this device is going to be operated in 5.15 ~ 5.25GHz frequency range, then it is restricted to indoor environments only.
Our products work well for channels 1-11 in the USA and Canada markets. It does not work well with other channels.
IMPORTANT NOTICE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and
operated with minimum distance 20cm between the radiator & your body. This device and it’s antennas(s) must not be co-located or operating
in conjunction with any other antenna or transmitter except in accordance with FCC multi-transmitter product procedures.
The availability of some specic channels and/or operational frequency bands are country dependent and are rmware programmed at the
factory to match the intended destination. The rmware setting is not accessible by the end user.
For detailed warranty information applicable to products purchased outside the United States, please contact the corresponding local D-Link
oce.
IC statement:
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
D-Link DAP-2660 User Manual
108
(2) this device must accept any interference received, including interference that may cause undesired operation.
IMPORTANT NOTE:
Radiation Exposure Statement:
This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and
operated with minimum distance 20cm between the radiator & your body.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée
aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage
radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.
Cet équipement est conforme aux limites d’exposition aux rayonnements IC établies pour un environnement non contrôlé. Cet équipement doit
être installé et utilisé avec un minimum de 20 cm de distance entre la source de rayonnement et votre corps.
For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels is not possible.
Pour les produits disponibles aux États-Unis / Canada du marché, seul le canal 1 à 11 peuvent être exploités. Sélection d’autres canaux n’est pas
possible.
This device and it’s antennas(s) must not be co-located or operating in conjunction with any other antenna or transmitter except in accordance
with IC multi-transmitter product procedures.
Cet appareil et son antenne (s) ne doit pas être co-localisés ou fonctionnement en association avec une autre antenne ou transmetteur.
The device for the band 5150-5250 MHz is only for indoor usage to reduce potential for harmful interference to co-channel mobile satellite
systems.
les dispositifs fonctionnant dans la bande 5150-5250 MHz sont réservés uniquement pour une
utilisation à l’intérieur an de réduire les risques de brouillage préjudiciable aux systèmes de satellites mobiles utilisant les mêmes canaux;
NCC 警語
以下警語適用台灣地區
經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、加大功率或變更原設計之特性及功能。
低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用，並改善至無干擾時方得繼續使用。前項合
法通信，指依電信法規定作業之無線電通信。低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。
5.25-5.35 GHz頻帶內操作之無線資訊傳輸設備，限於室內使用
電磁波曝露量MPE標準值 1mW/cm2，送測產品實測值為：0.406275 mW/cm2

Navigation menu
