1. PRODUCT DESCRIPTION
The DCH-G601W/DCH-G601WA1 Wi-Fi Bluetooth Hub is a high-performance
and secure Connected Home Bluetooth gateway used the latest Bluetooth
technology combined with Afero security chip, the Bluetooth Hub allows your
devices to communicate with one another. The Hub built in with most secured
Afero encryption chipset. You can pair with Afero’s Bluetooth equipped smart
home devices to the hub to manage, operate, and enjoy the convenience of smart
home. The hub has backup battery which keep you smart home devices online
all the time.
2. APPEARANCE
DCH-G601W Hub
DCH-G601W/DCH-G601WA1 D-Link Corporation
Page 4

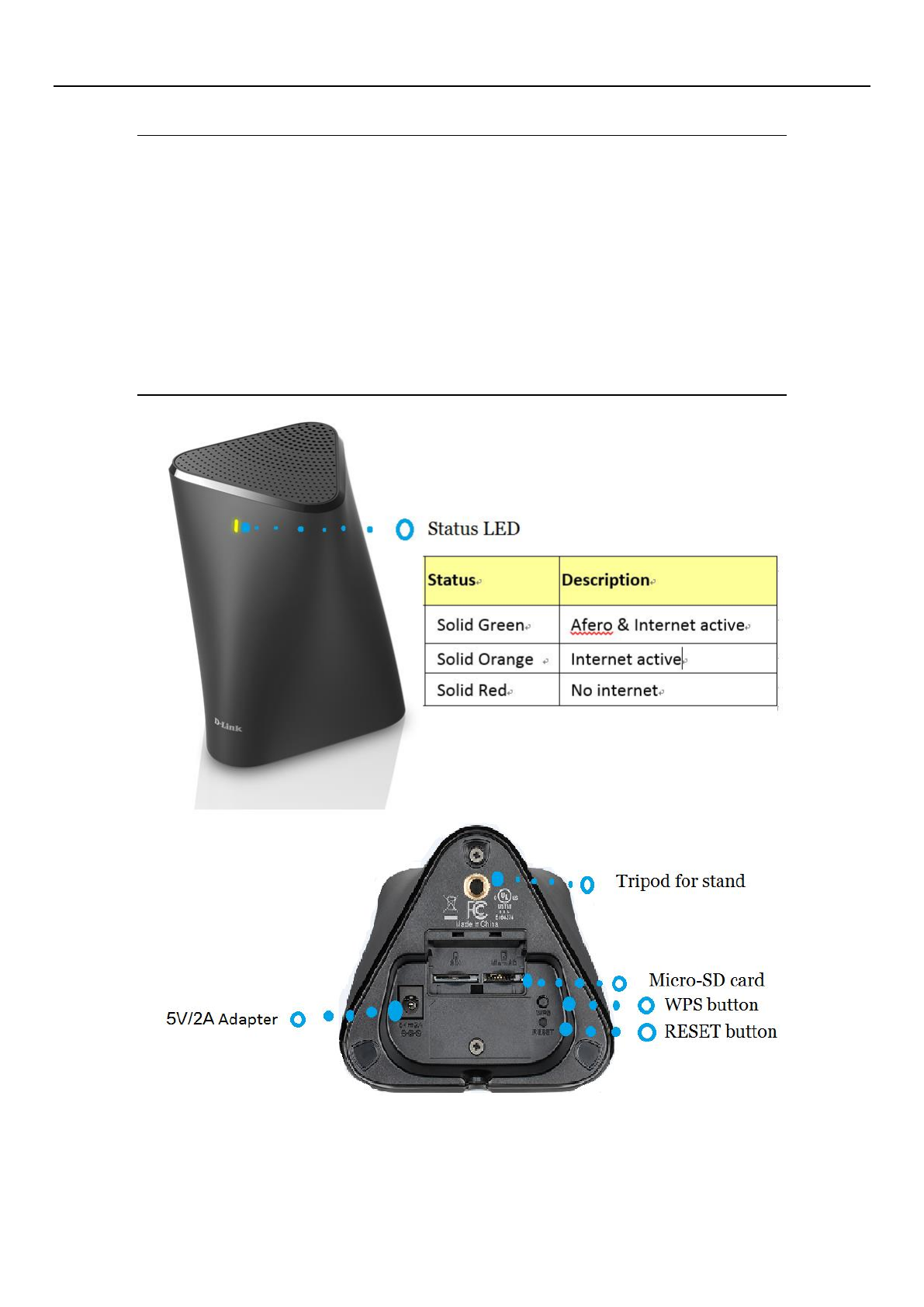

Front
LED: Status indicator
Rear
Micro USB: Power jack, Vdc 5V/2A, Cable length: 1.5 meters
Micro SD card: microSD slot, support SD/SDHC/SDXC, up to 128G
Reset button: [1]Reset[2] Reset to factory default (>=press 10 seconds)
WPS button: TBD
Tripod: for external stand. (TBD)

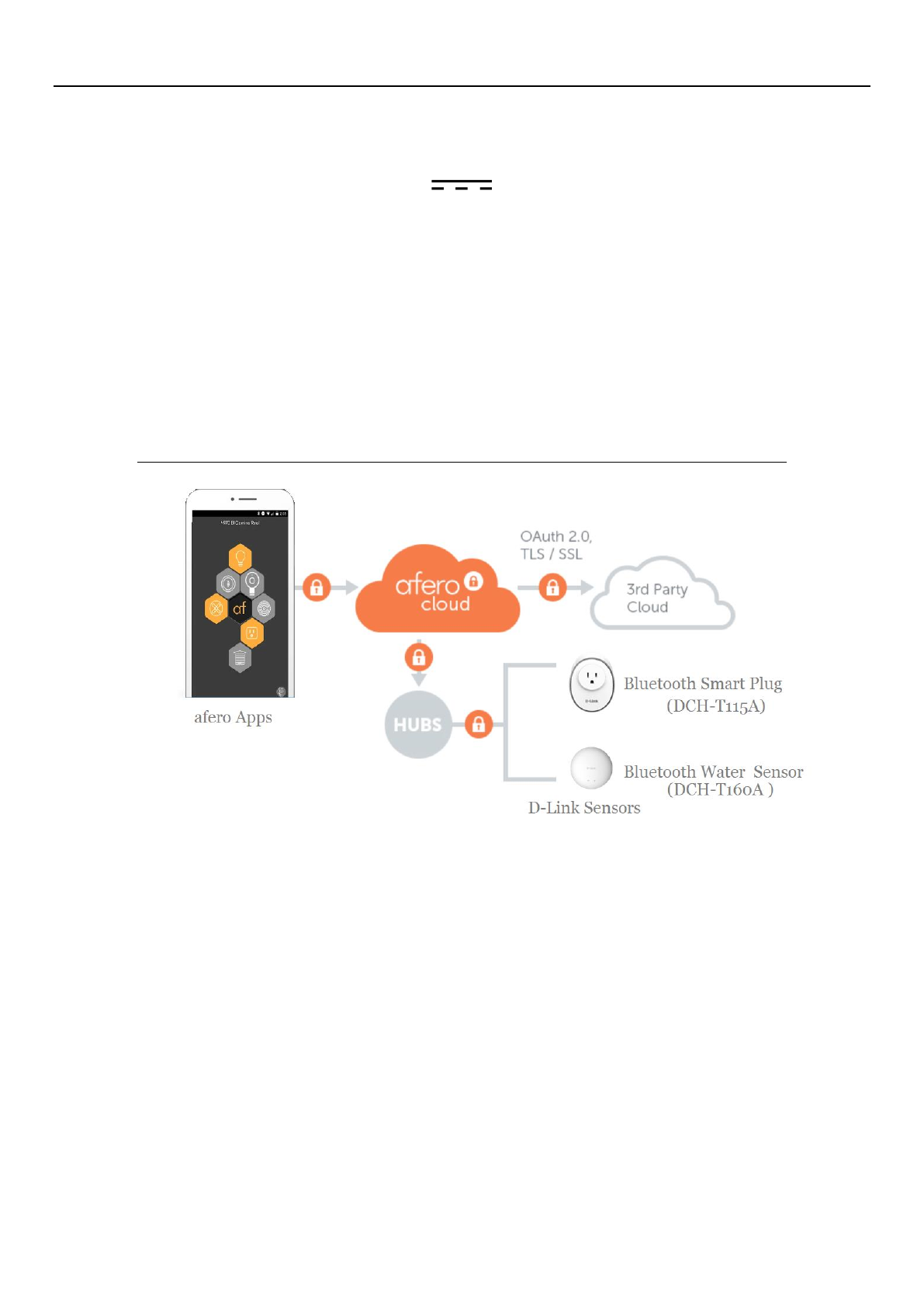

3. APPLICATIONS
DCH-G601W/DCH-G601WA1 D-Link Corporation
Page 5
4. INSTALLATIONS

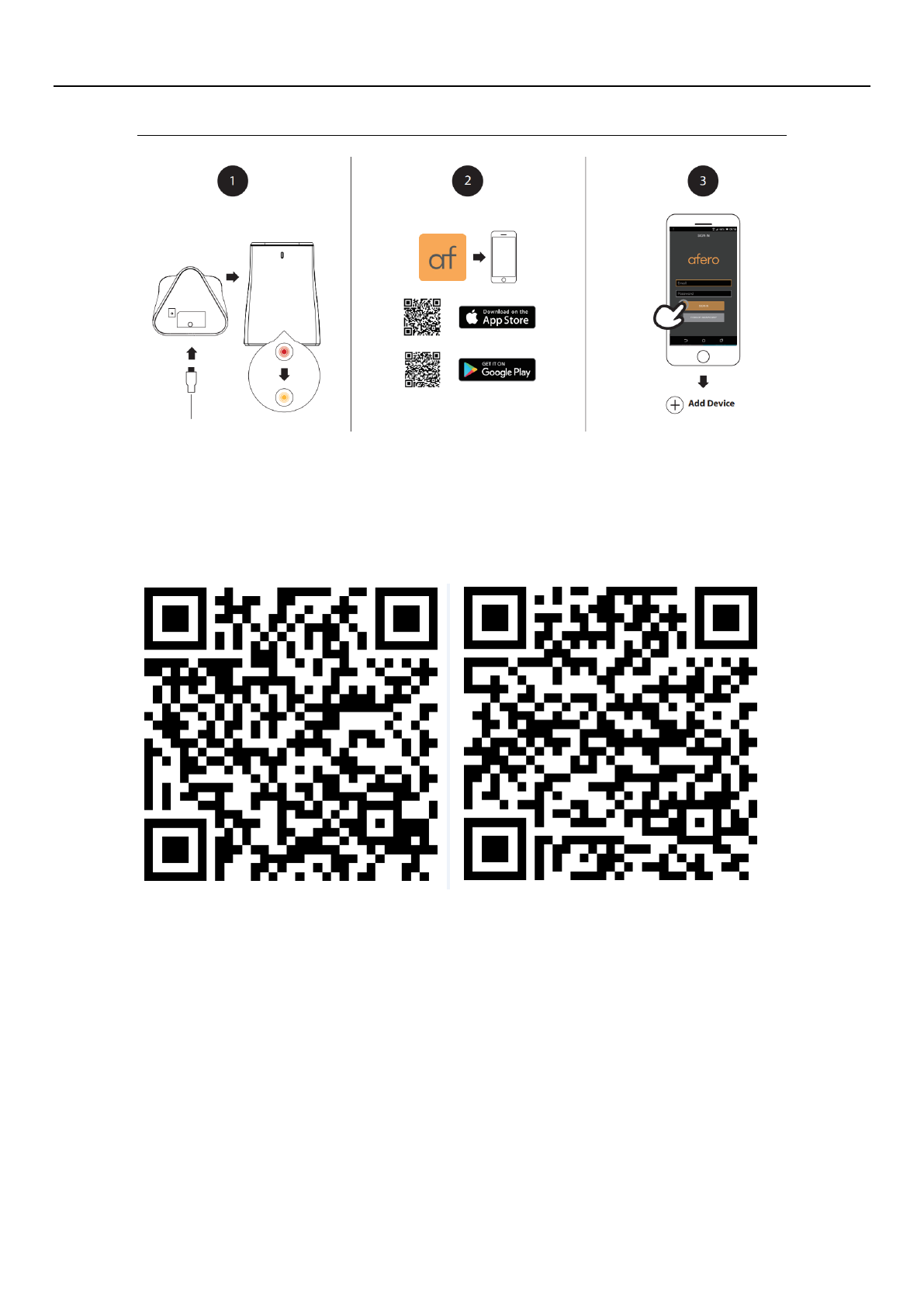

Step 1 Plug the included Power Adapter into the back of the hub.
Red LED: user ca binding, go to step 2.
Step 2. Download afero App to your smart phone and register an account to login.
or scan the QR code for your iOS or Android phone.
iOS Android
Step 3 New users: Tap New users, sign up here to install your Hub.
Existing users: Sign in to your afero account and tap Add a Device on the next
screen.
Step 4 Adding the Hub to your account
Note: The QR code on the bottom of the device is unique to the device itself.
Please be sure to scan each device individually during set up.
DCH-G601W/DCH-G601WA1 D-Link Corporation
Page 6
I. Click on the (af) icon and then click on Add Device.
(Android) (iOS)

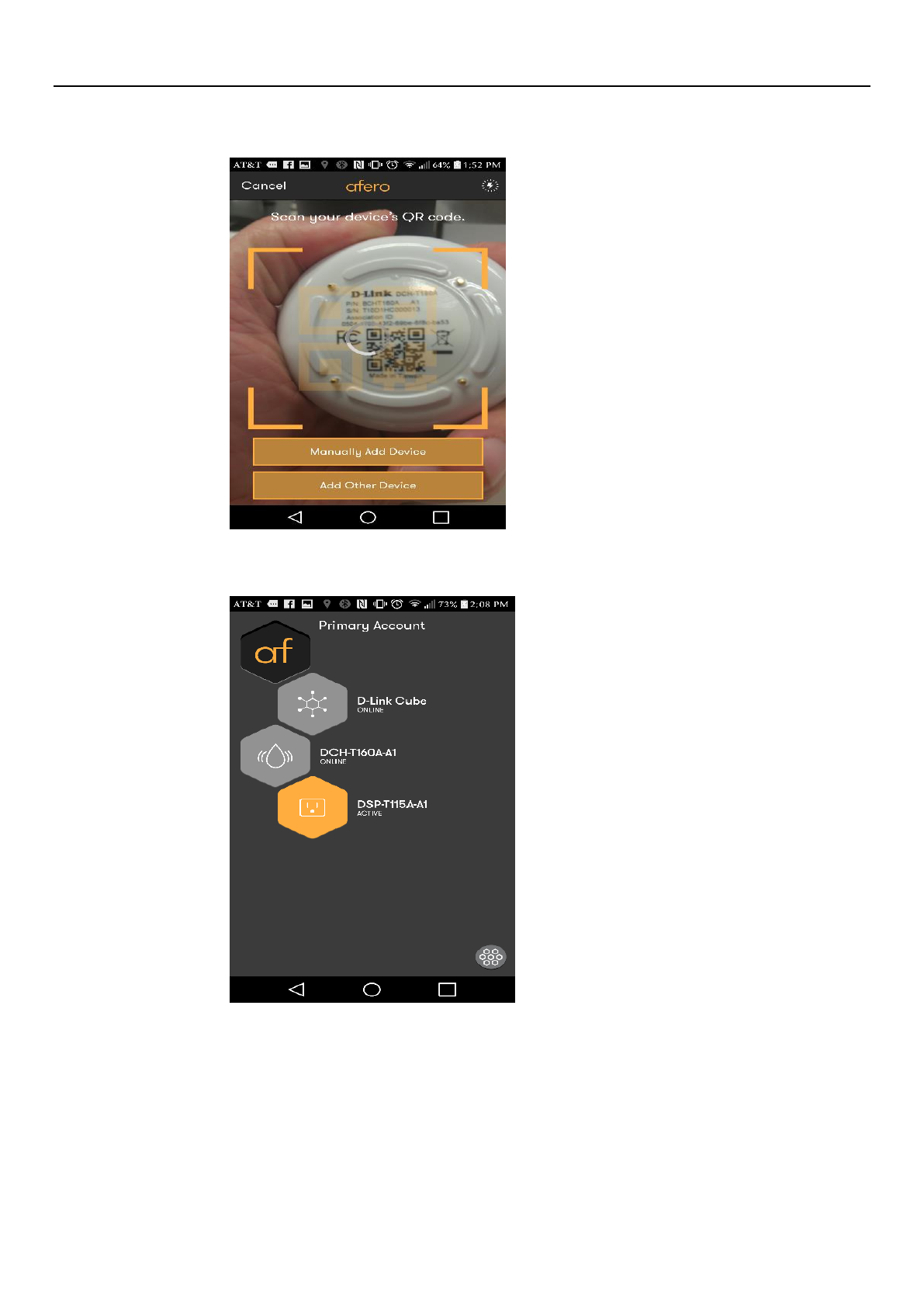

II. Apply power to the Hub and Scan QR code located on the bottom of
the device.
DCH-G601W/DCH-G601WA1 D-Link Corporation
Page 7

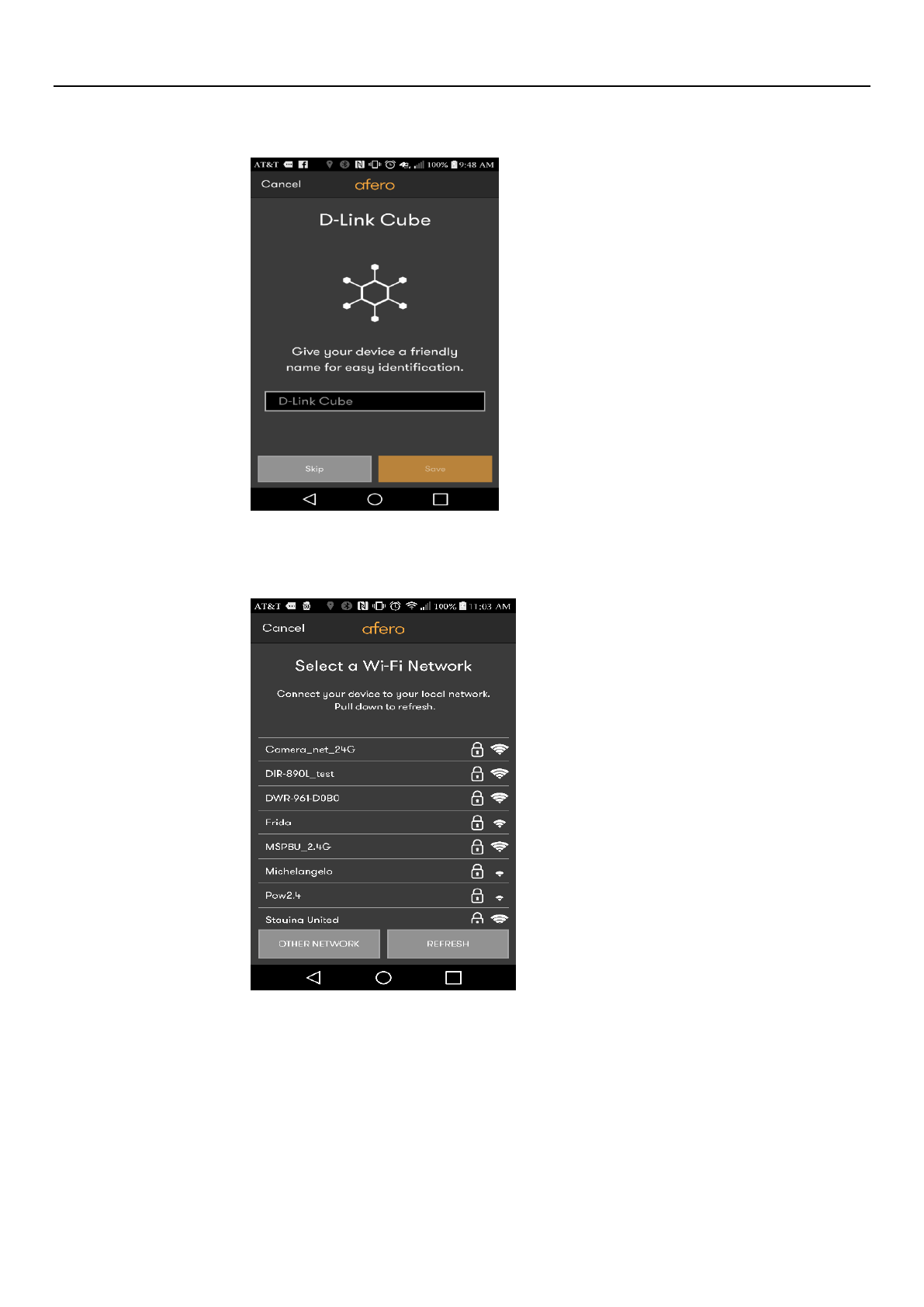

III. Give the device a name and click Save.
IV. Select WiFi network from list.
DCH-G601W/DCH-G601WA1 D-Link Corporation
Page 8

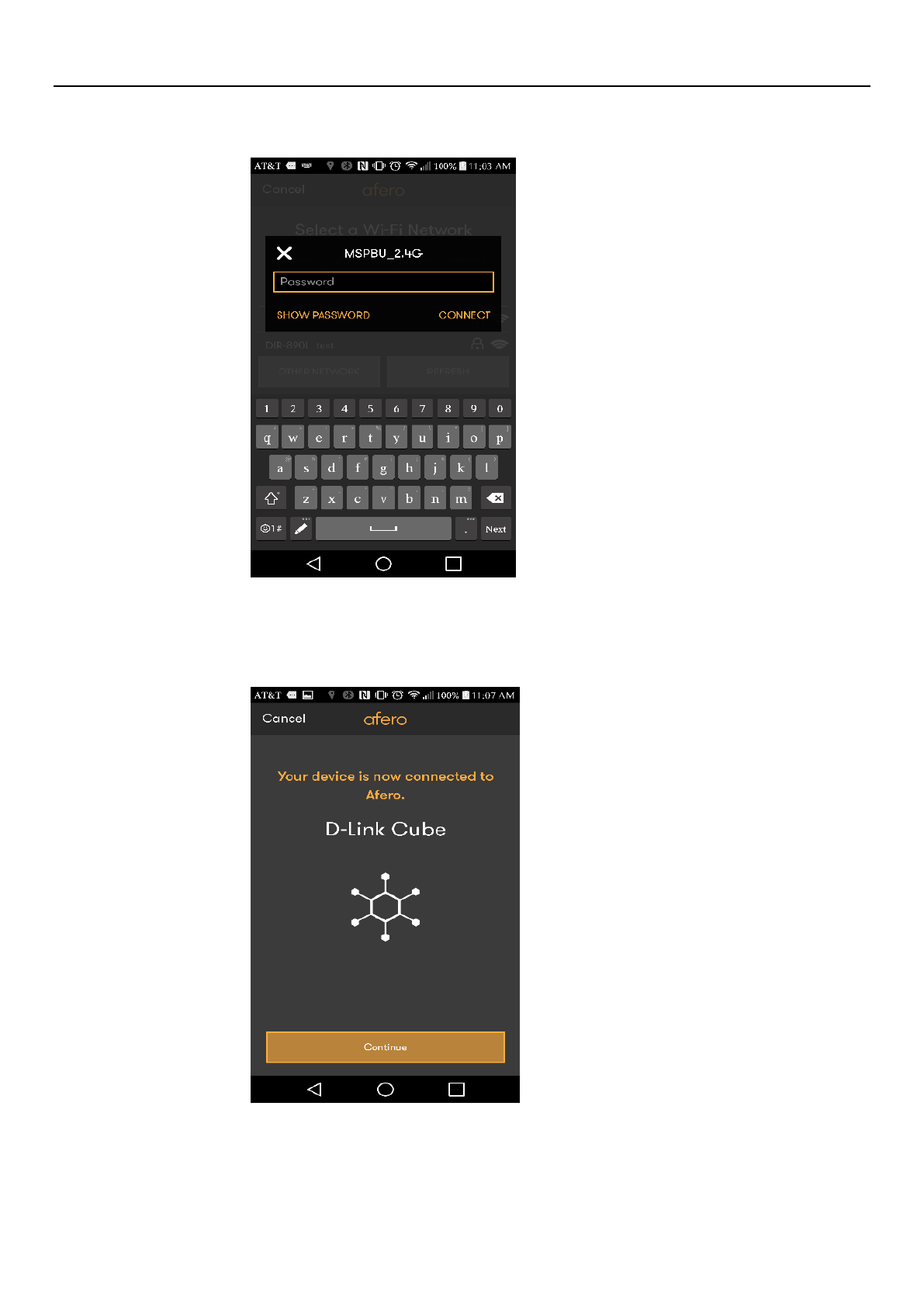

V. Type in password of WiFi network and click connect.
VI. Your device is now connected.
DCH-G601W/DCH-G601WA1 D-Link Corporation
Page 9
VII. Click continue to see Hub is Online.
Step 5 add sensor into your account

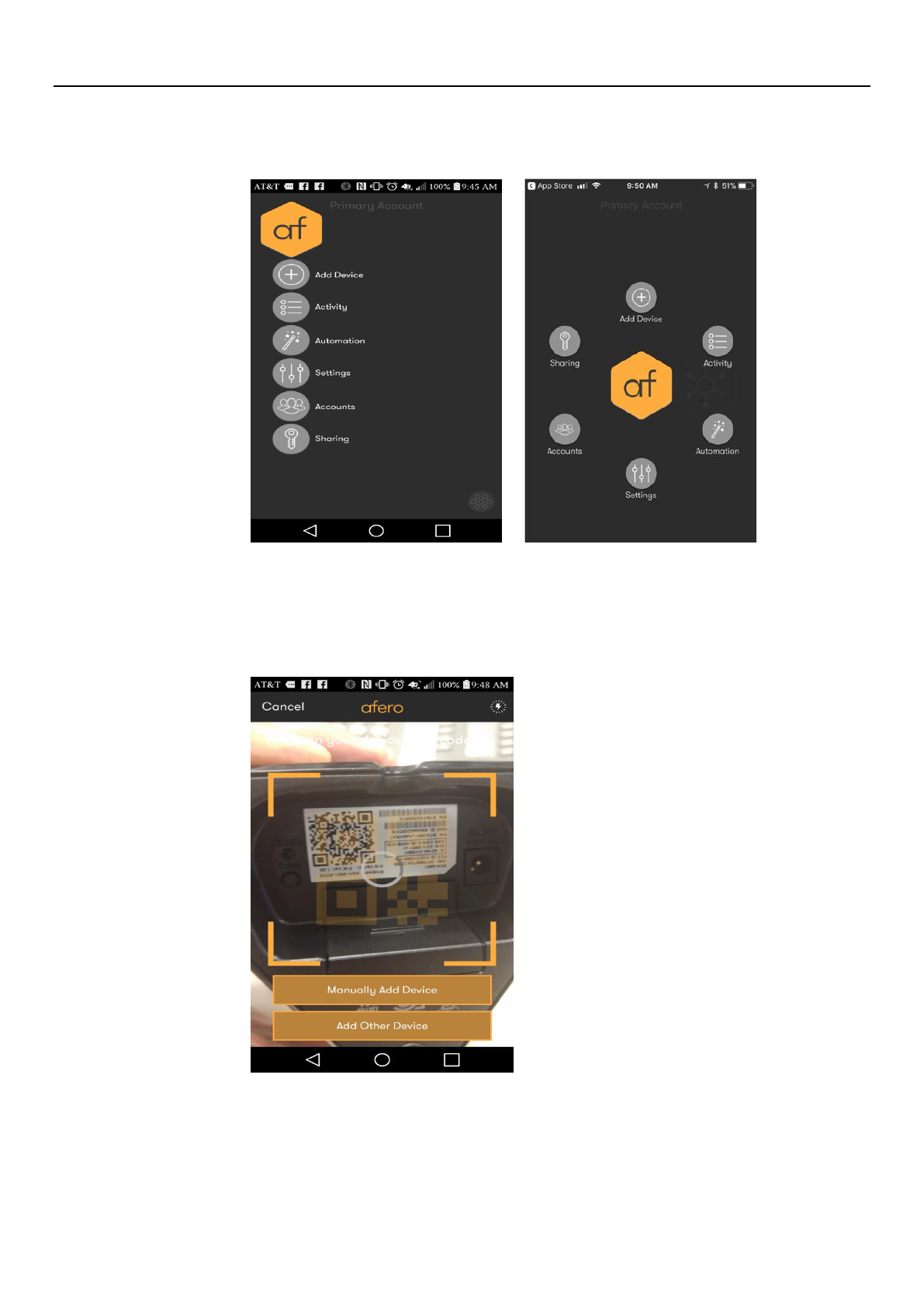

1. Adding Smart plug to account.
I. Click on Add Device.
DCH-G601W/DCH-G601WA1 D-Link Corporation
Page 10

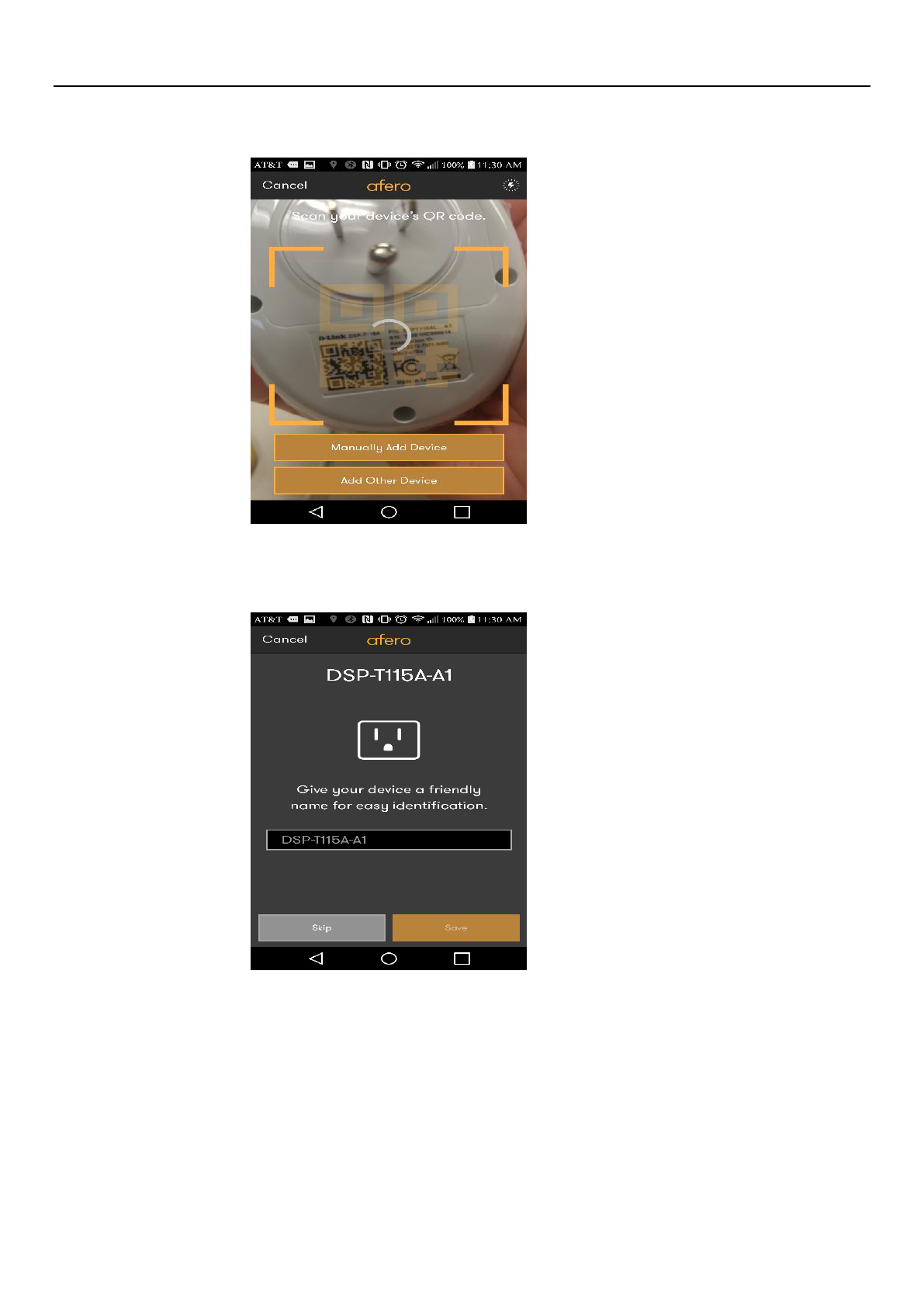

II. Scan QR code on bottom of Smart Plug and plug into outlet.
III. Give your device a name.
DCH-G601W/DCH-G601WA1 D-Link Corporation
Page 11
IV. Click save and see if your Device is Online/Active.
2. Adding Water Sensor to Account.
I. Click on Add Device.
DCH-G601W/DCH-G601WA1 D-Link Corporation
Page 12
II. Scan QR code on bottom of Water Sensor.
III. Check to see if your Water Sensor is Online.

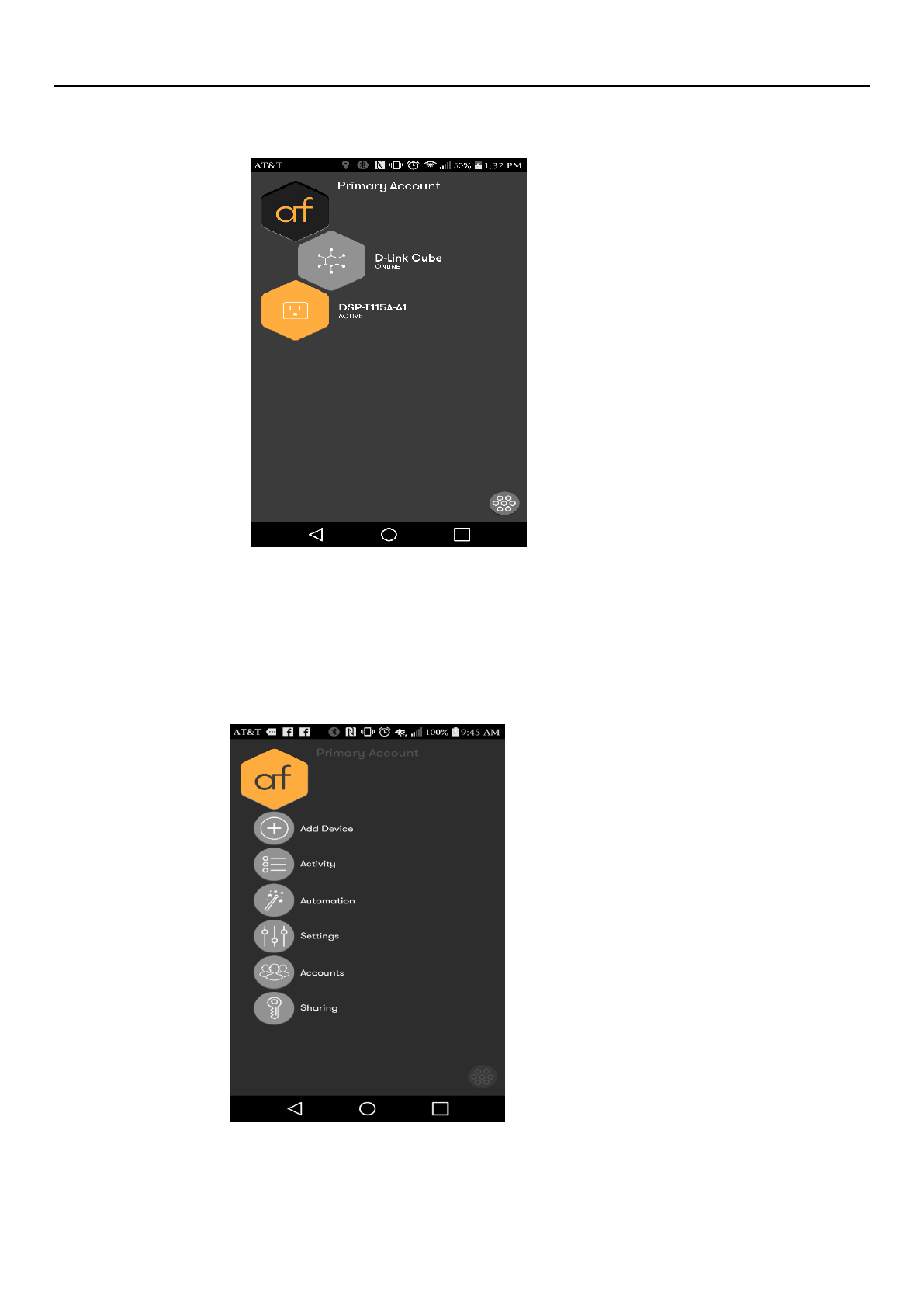

IV. After finishing setup, all 3 of your devices should now be showing
Online/Active in the App. See above picture.
DCH-G601W/DCH-G601WA1 D-Link Corporation
Page 13
5. SYSTEM REQUIREMENTS
Minimum Requirements:
Wireless router: 802.11 n/g
Internet connection
A mobile device with Bluetooth 4.0 is required for setup.
The latest version of the afero app from your operating system’s application
store.
The afero app is available for iPhone, iPad and Android devices.
Please refer to the mobile app’s store page to check whether your device is
compatible.
An e-mail account (required to register for afero service).
DCH-G601W/DCH-G601WA1 D-Link Corporation
