DCS-2800LH and DCS-H100
User’s Manual
Version 1.0
March 09th, 2018
DCS-2800LH and H100 D-Link Corporation
Page 2
Table of Contents
1. PRODUCT DESCRIPTION .................................................................................. 3
2. APPEARANCE ..................................................................................................... 3
3. APPLICATIONS ................................................................................................... 4
4. INSTALLATIONS ................................................................................................ 5
DCS-2800LH and H100 D-Link Corporation
Page 3
1. PRODUCT DESCRIPTION
DCS-2800LH is a battery powered network camera for consumer SOHO
surveillance application. This camera adopts 2 mega-pixel progressive scan
CMOS sensor; the video stream covers a larger scene and better quality than an
analog CCTV camera. It is designed for indoor/outdoor Day/Night applications,
thus, the camera itself built-in IR LED which can support 7.5m distance in dark
environment.
DCS-H100 is a hub working with DCS-2800LH to provide a better performance
in power consumption and video analysis. When motion detection is enabled by
motion sensor (PIR), the camera starts recording to DCS-H100 (SD card,
external HDD, or cloud) automatically as soon as they detect motion. When user
wants to check the live view of camera, the camera starts streaming output to
DCS-H100 (SD card, external HDD, or cloud) as soon as it is waked. Recorded
video is stored in the DCS-H100 (SD card, external HDD, or cloud), so you can
see all the activity of cameras detect at any time.
2. APPEARANCE

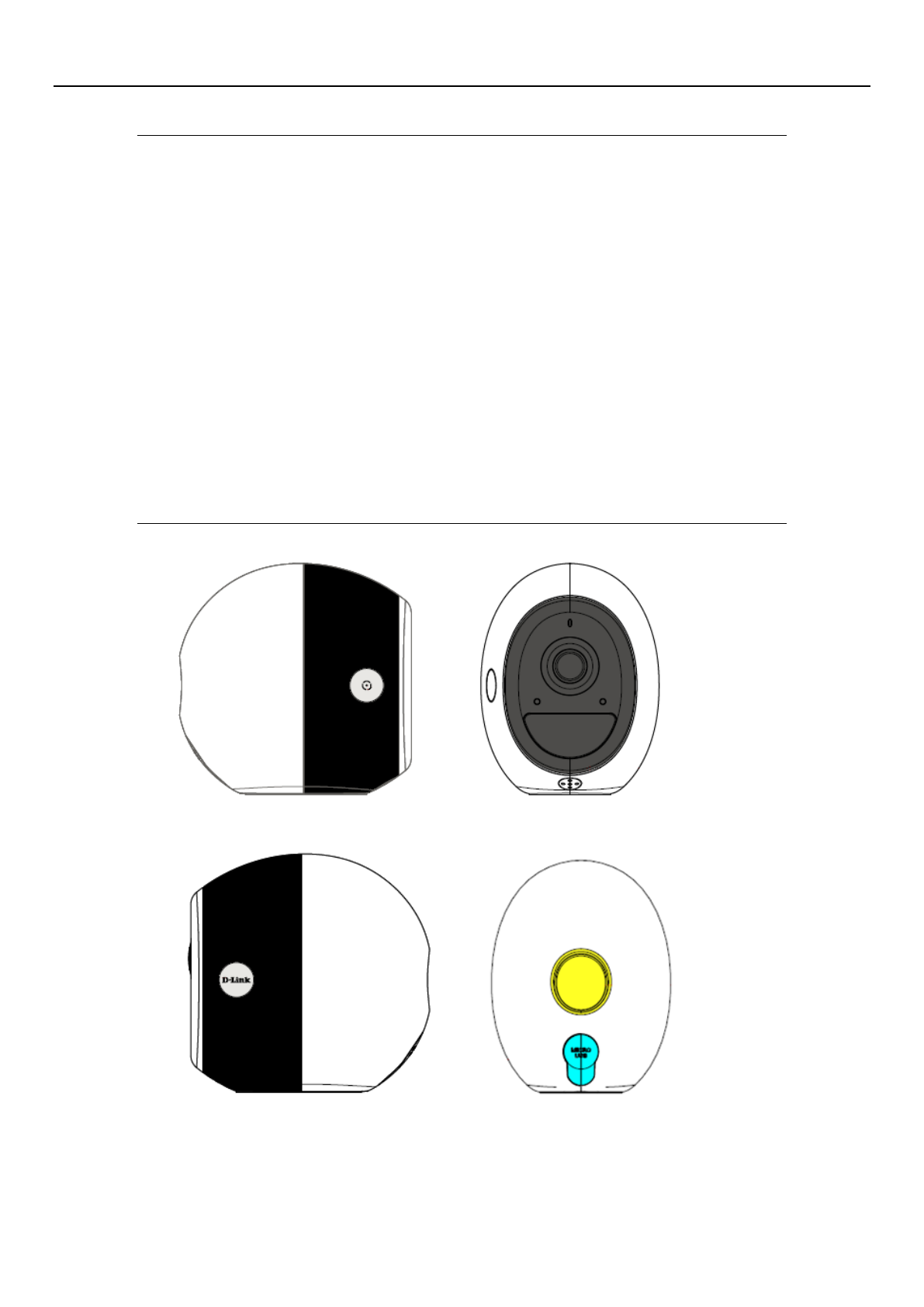

DCS-2800LH Camera
Front
LED: Status indicator
PIR window
DCS-2800LH and H100 D-Link Corporation
Page 4
Side
Sync button
Rear
Micro USB: Power jack, Vdc 5V/2A

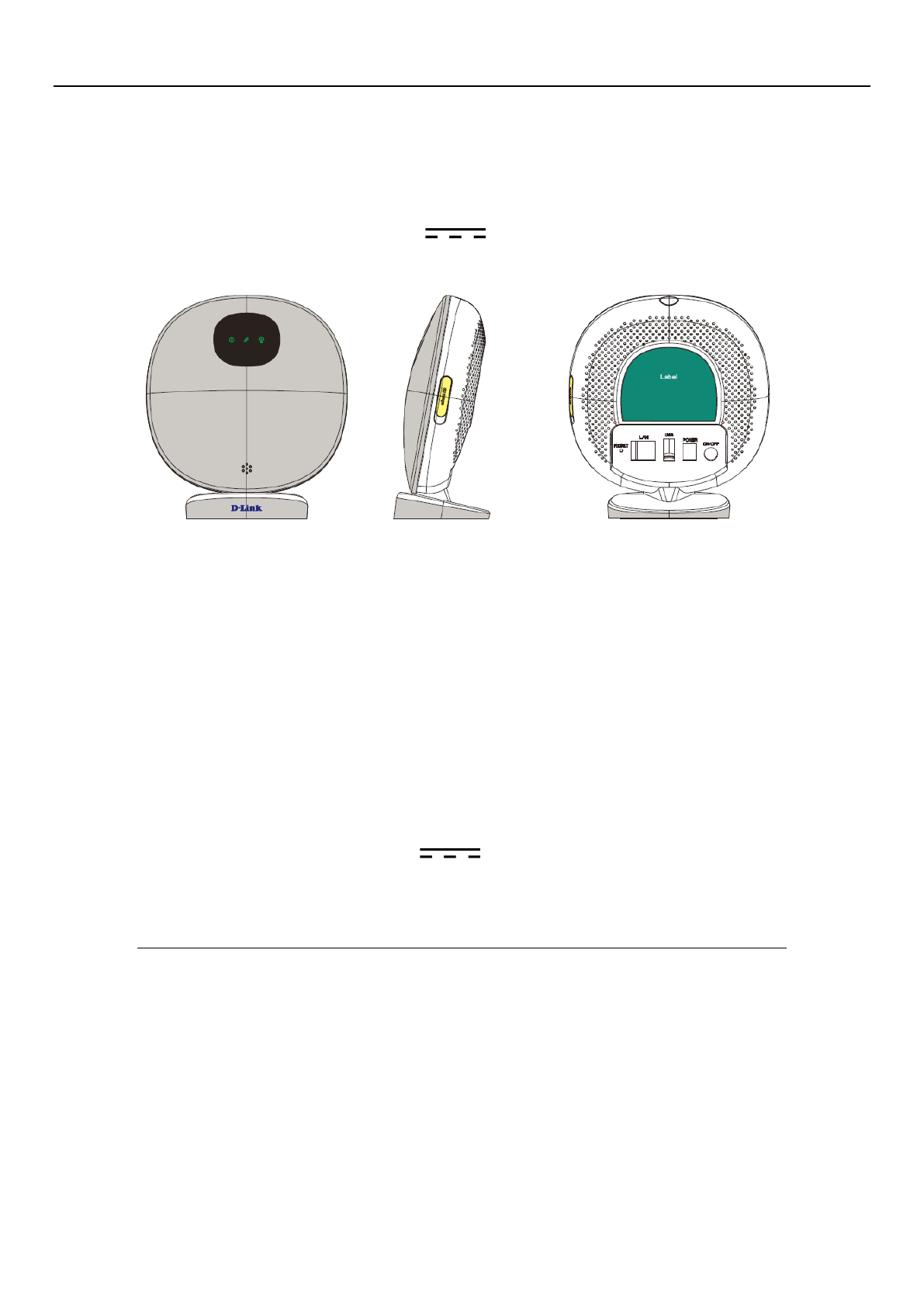

DCS-H100
Front
LED: Status indicator
Siren
Top
Sync button
Side
Micro SD slot
Rear
Reset button
LAN
USB
Power on/off button
Power jack, Vdc 12V/1.5A

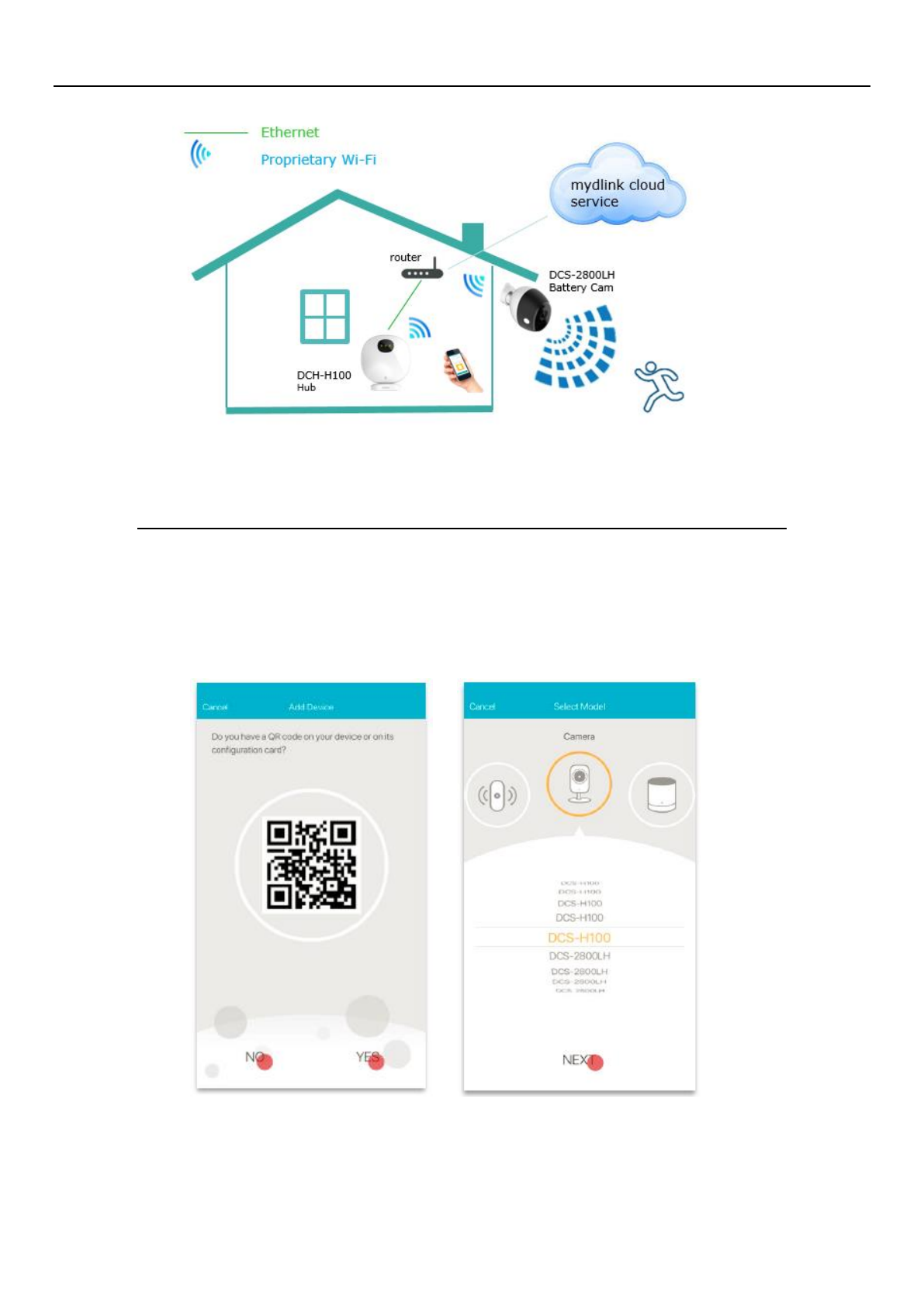

3. APPLICATIONS
DCS-2800LH and H100 D-Link Corporation
Page 5
4. INSTALLATIONS
Step 1 Download mydlink App to your smart phone and register an account to login.
Step 2 Install DCS-H100: scan the QR code on device label of DCS-H100 or directly
select model DCS-H100 on the menu of App.
or
Step 3 Follow the instructions shown on the App to set up DCS-H100.
DCS-2800LH and H100 D-Link Corporation
Page 6

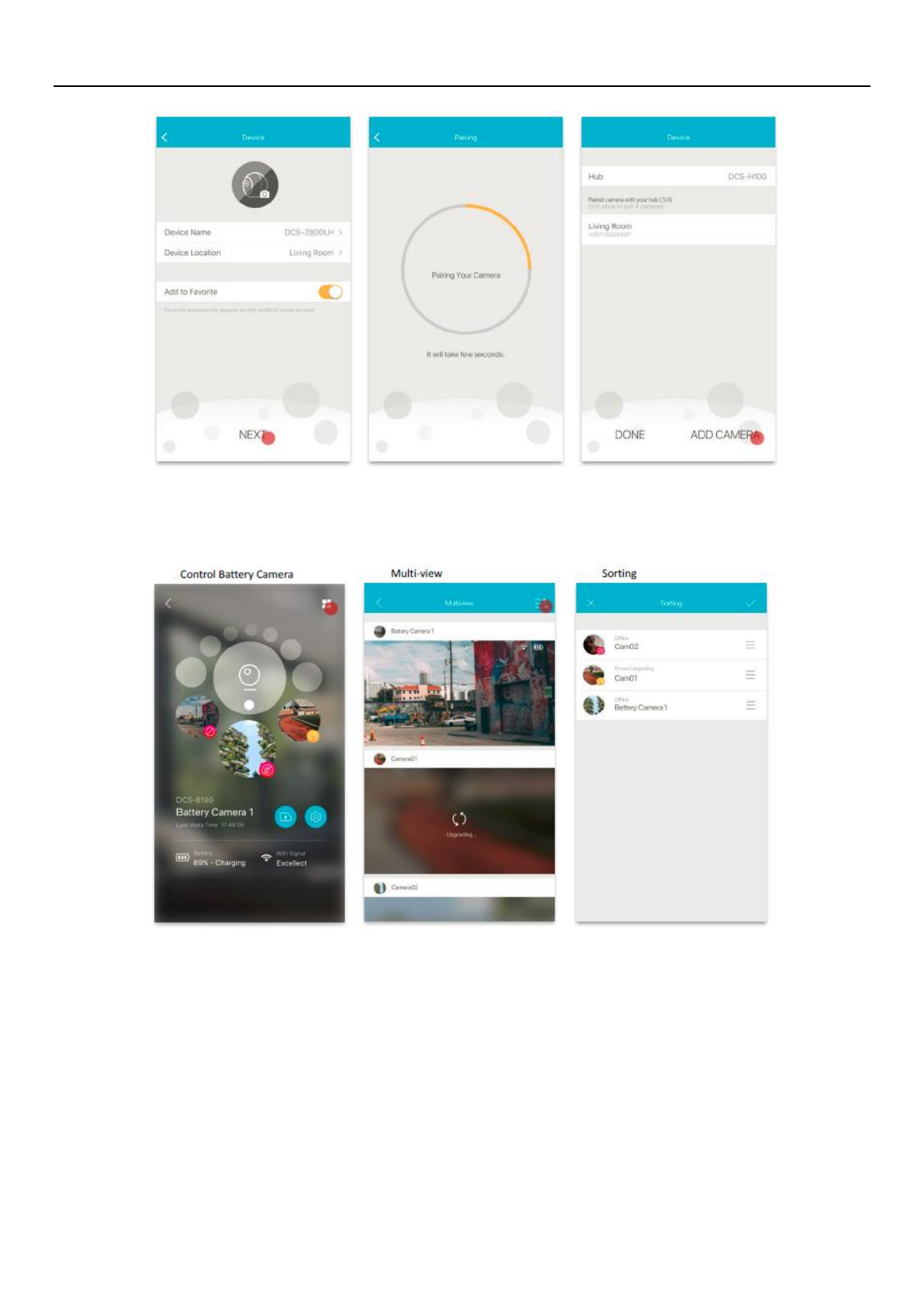

Step 4 Add Camera: Click the Sync button on the Hub first. Then, click the Sync
button on the camera within 2 minutes. Once sync up successfully, the LED of
camera will become solid green. (The solid green will keeps for 10 seconds,
then off.)
Step 5 Follow the instructions shown on the App to set up DCS-2800LH cameras (up
to 4 cams can be added per hub.)
DCS-2800LH and H100 D-Link Corporation
Page 7

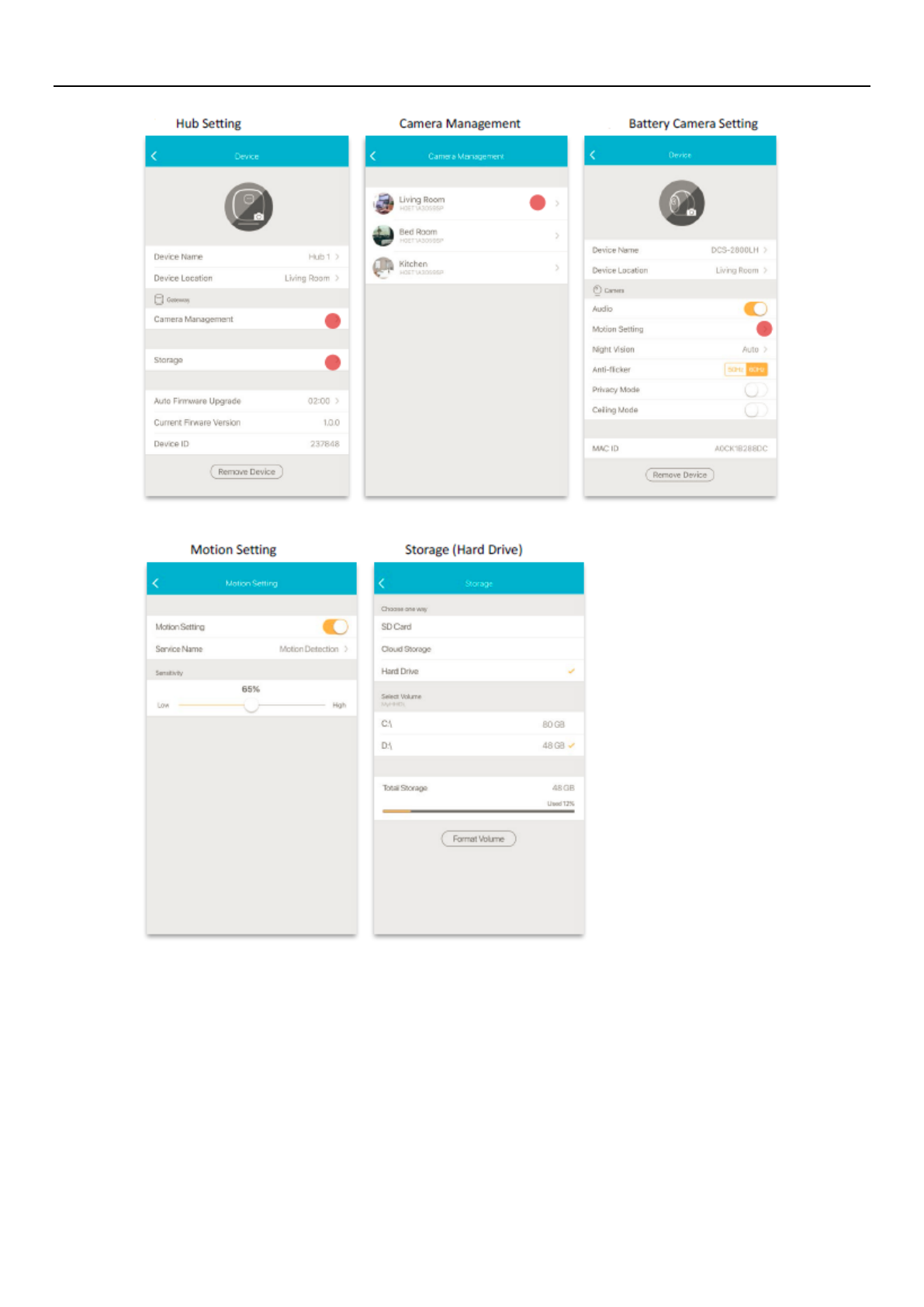

Step 6 Functionalities of Hub and Camera
DCS-2800LH and H100 D-Link Corporation
Page 8
DCS-2800LH and H100 D-Link Corporation
Page 9
Federal Communication Commission Interference Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one of the
following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC Caution:
Any changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate this equipment.
This transmitter must not be co-located or operating in conjunction with any
other antenna or transmitter.
Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance 20cm between the radiator & your body.
Note: The country code selection is for non-US model only and is not available to all
US model. Per FCC regulation, all WiFi product marketed in US must fixed to US
operation channels only.
DCS-2800LH and H100 D-Link Corporation
Page 10
Industry Canada statement
This device complies with Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions:
1) this device may not cause interference, and
2) this device must accept any interference, including interference that may cause
undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux
appareils radio exempts de licence. L'exploitation est autorisée aux deux
conditions suivantes:
1) l'appareil ne doit pas produire de brouillage, et
2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi,
même si le brouillage est susceptible d'en compromettre le fonctionnement.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du
Canada.
This device complies with RSS-310 of Industry Canada. Operation is subject to
the condition that this device does not cause harmful interference.
Cet appareil est conforme à la norme RSS-310 d'Industrie Canada. L'opération
est soumise à la condition que cet appareil ne provoque aucune interférence
nuisible.
This device and its antenna(s) must not be co-located or operating in conjunction
with any other antenna or transmitter, except tested built-in radios.
Cet appareil et son antenne ne doivent pas être situés ou fonctionner en
conjonction avec une autre antenne ou un autre émetteur, exception faites des
radios intégrées qui ont été testées.
The County Code Selection feature is disabled for products marketed in the US/
Canada.
La fonction de sélection de l'indicatif du pays est désactivée pour les produits
commercialisés aux États-Unis et au Canada.
Radiation Exposure Statement:
This equipment complies with IC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance 20cm between the radiator & your body.
Déclaration d'exposition aux radiations:
Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies
pour un environnement non contrôlé. Cet équipement doit être installé et utilisé avec
un minimum de 20 cm de distance entre la source de rayonnement et votre corps.
