(DCS-5020L)UserMan
User Manual

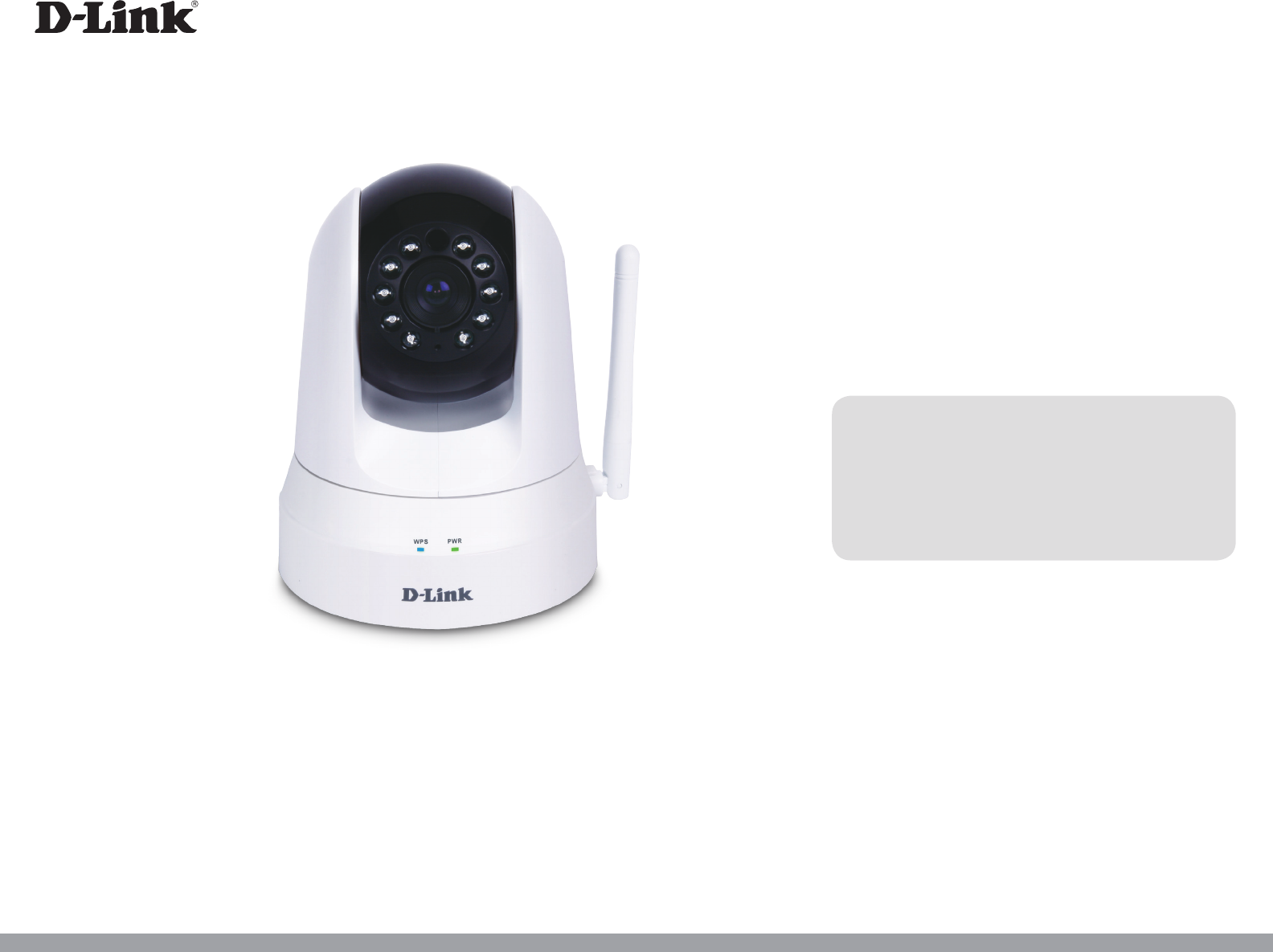

Wireless N Day & Night Pan/Tilt Cloud Camera
DCS-5020L
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any
person or organization of such revisions or changes. Information in this document may become obsolete as our services and
websites develop and change. Please refer to the www.mydlink.com website for the most current information.
Manual Revision
Trademarks
D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United
States or other countries. All other company or product names mentioned herein are trademarks or registered trademarks of
their respective companies.
Copyright © 2012-2013 by D-Link Corporation.
All rights reserved. This publication may not be reproduced, in whole or in part, without prior express written permission from
D-Link Corporation.
Revision Date Description
1.00 14 March, 2013 Initial release
Manual Overview
3D-Link DCS-5020L User Manual
Table of Contents
Manual Overview............................................................... 2
Manual Revision ............................................................................ 2
Trademarks ..................................................................................... 2
Product Overview .............................................................. 4
Package Contents ......................................................................... 4
System Requirements ................................................................. 4
Introduction ................................................................................... 5
Features ............................................................................................ 6
Hardware Overview ..................................................................... 7
Front View ................................................................................ 7
Rear View ................................................................................. 8
Installation ......................................................................... 9
Zero Conguration Setup ........................................................10
Camera Setup Wizard ................................................................13
Windows Users ....................................................................13
Mac Users...............................................................................14
Manual Hardware Installation ................................................15
Wireless Installation Considerations ....................................16
WPS - Push Button Setup .........................................................17
mydlink ...........................................................................................18
Conguration ...................................................................19
Using the Web Conguration Interface ..............................19
Live Video ......................................................................................20
Setup ...............................................................................................21
Wizard .....................................................................................21

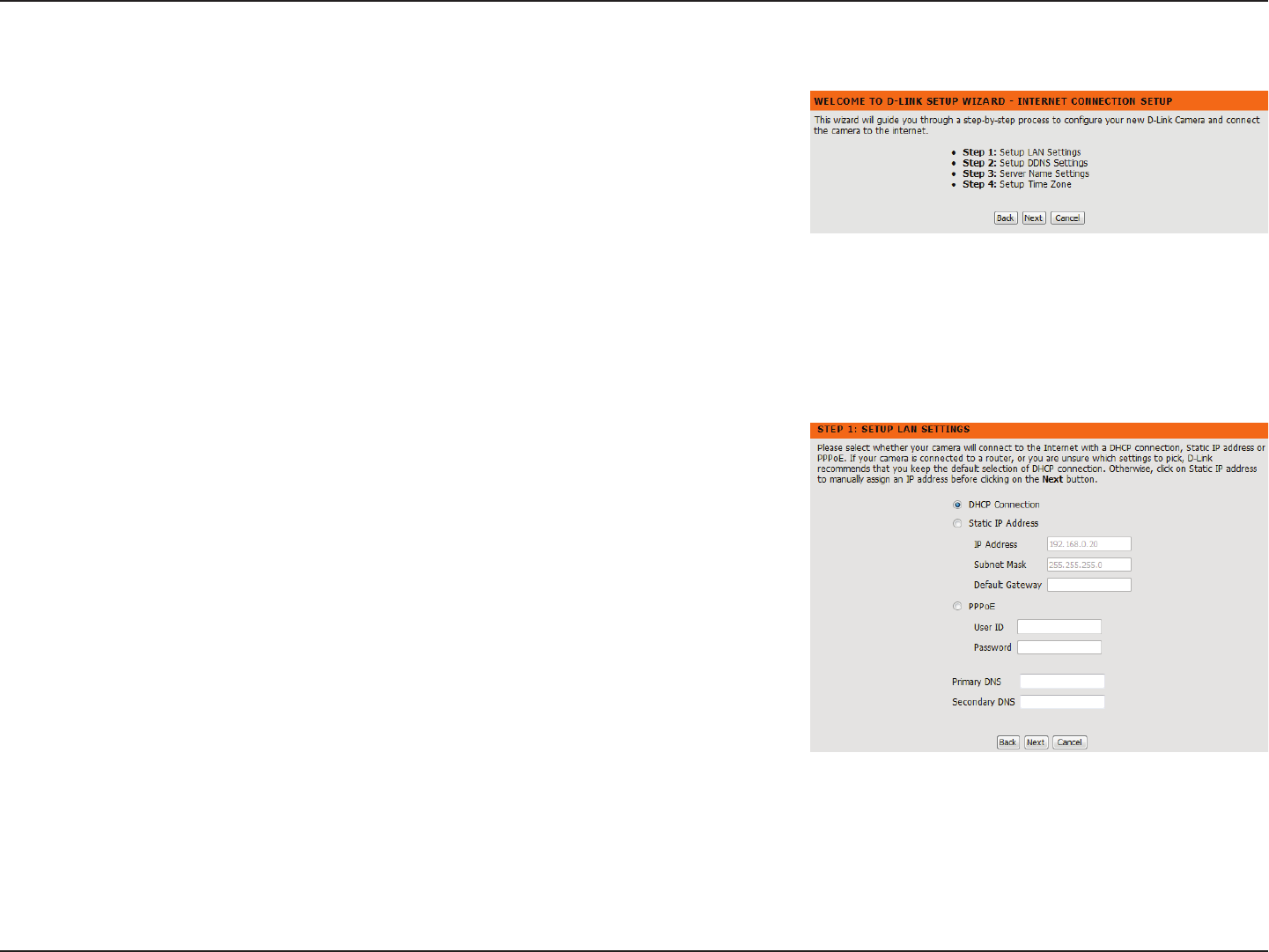

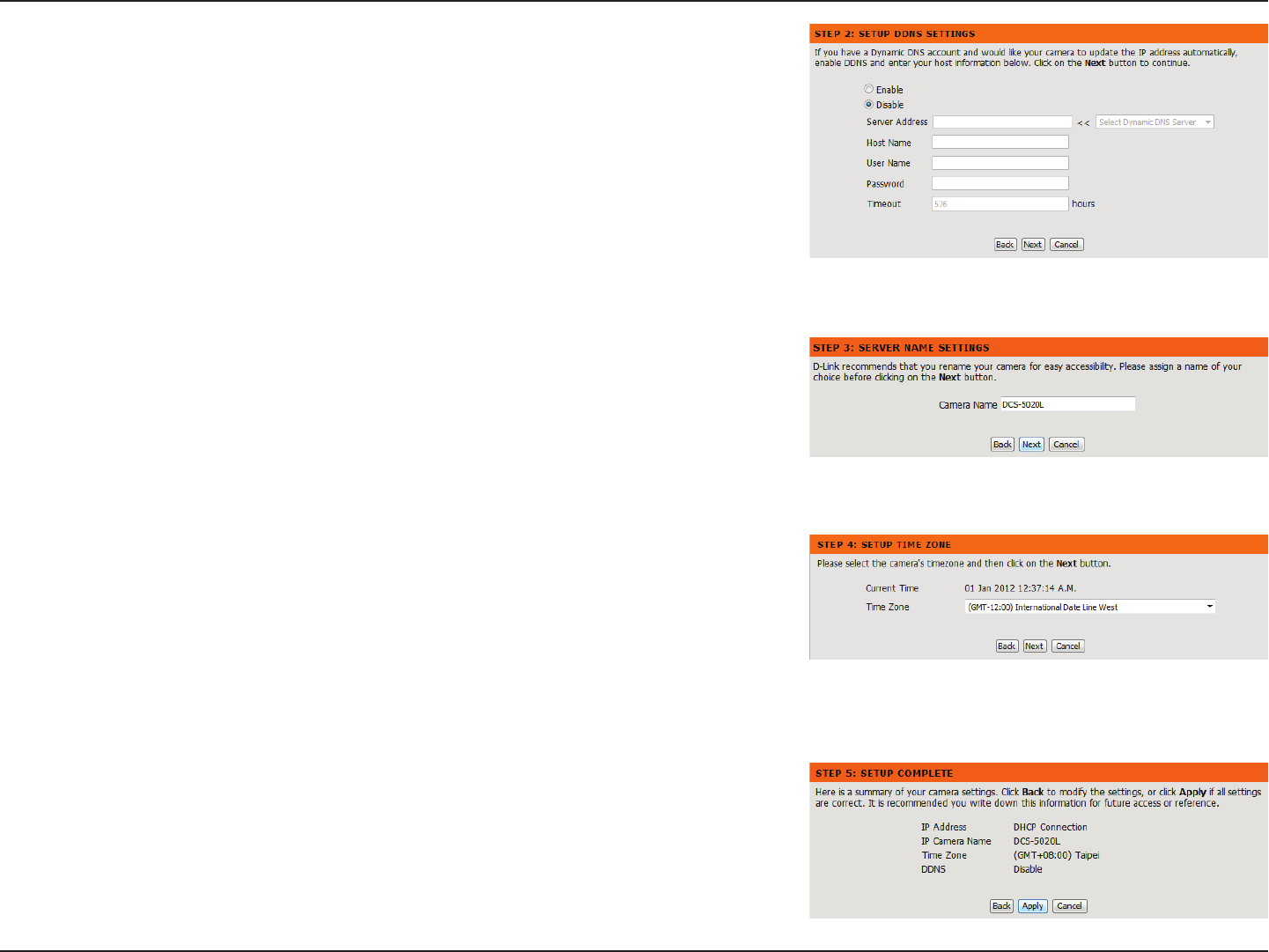

Internet Connection Setup Wizard ........................22
Network Setup ..............................................................24

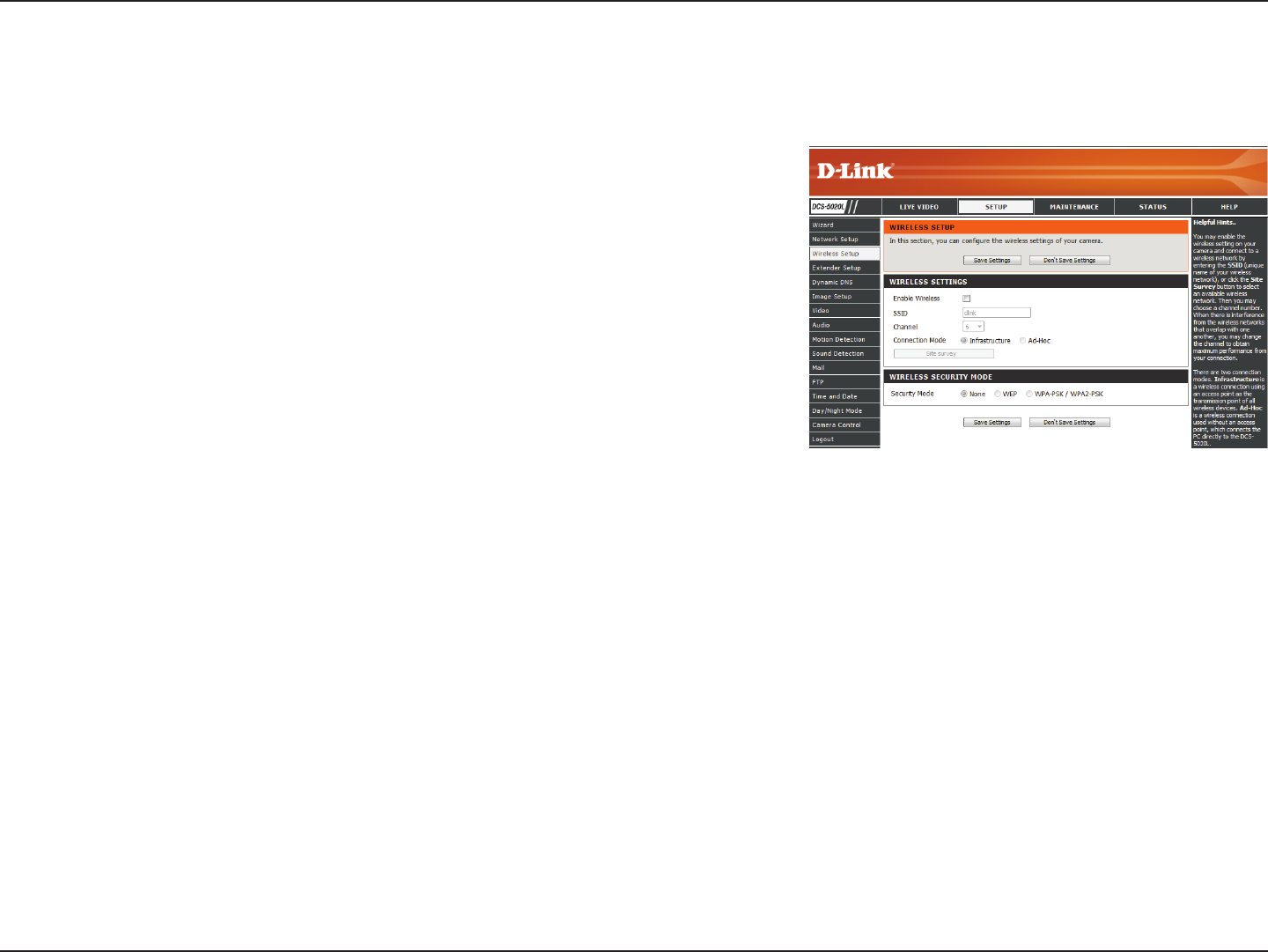

Wireless Setup ......................................................................25
Extender Setup ....................................................................26
Dynamic DNS (DDNS) .......................................................27
Image Setup .........................................................................28
Video .......................................................................................29
Audio .......................................................................................30

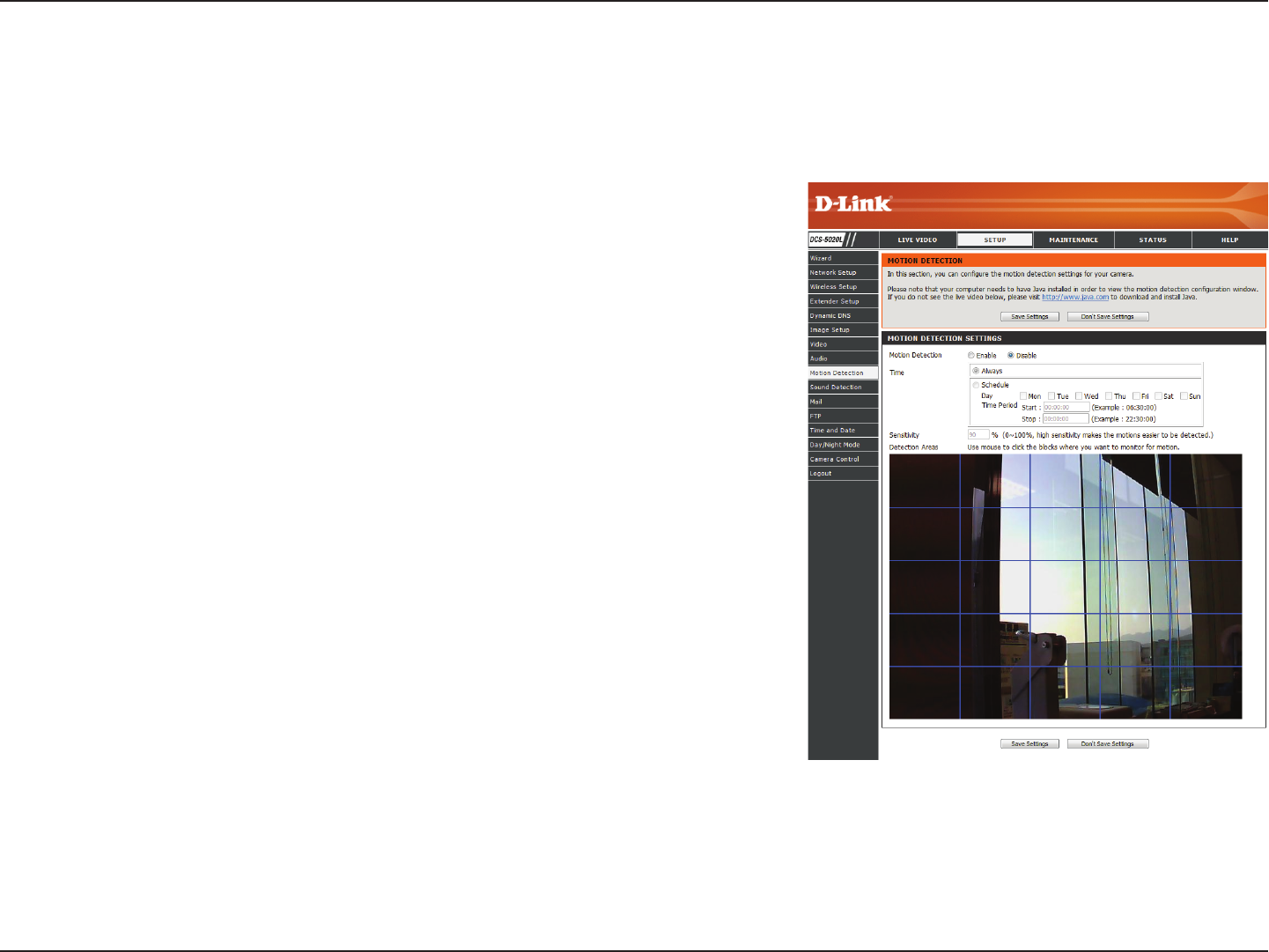

Motion Detection ...............................................................31

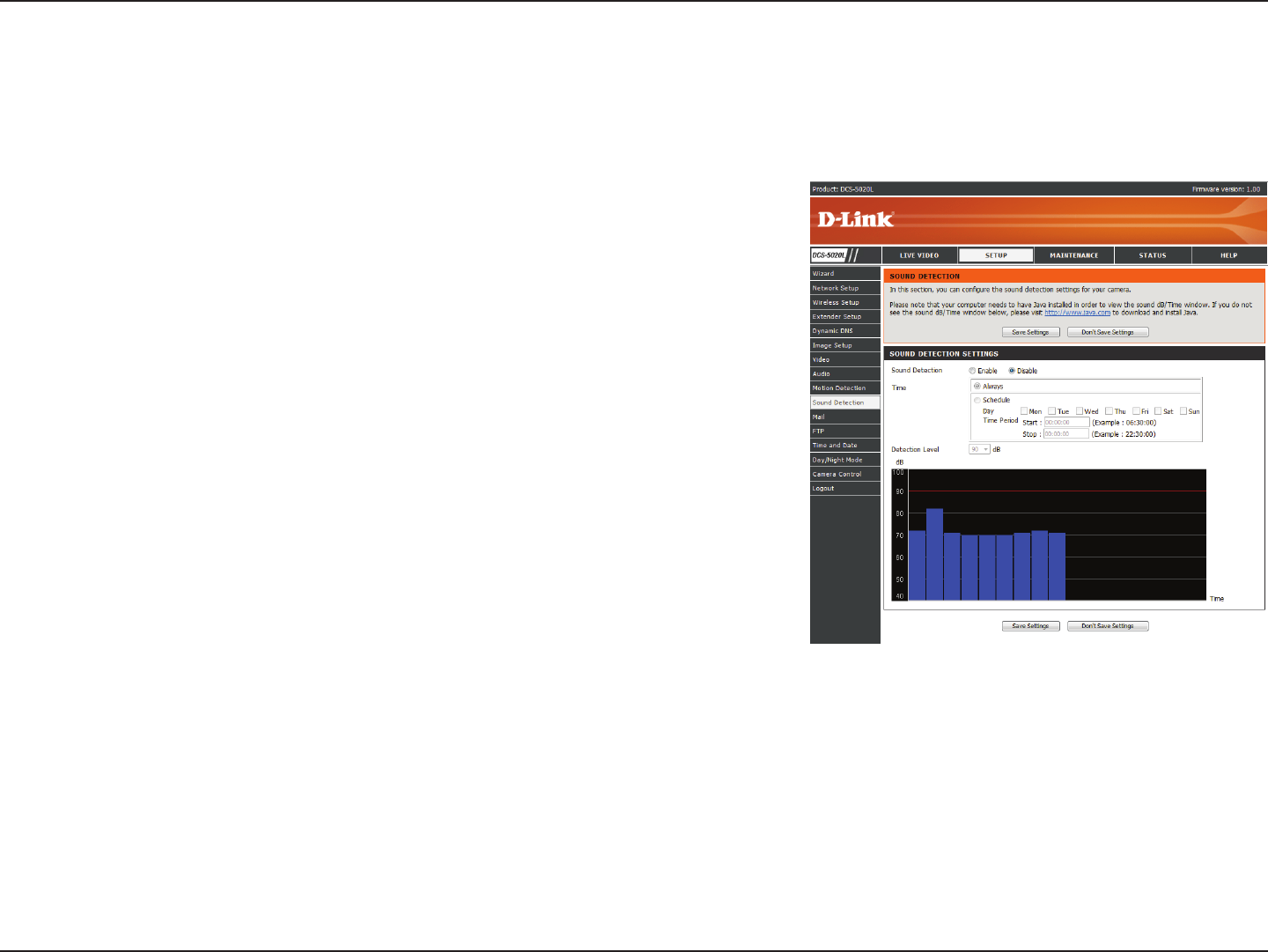

Sound Detection .................................................................32

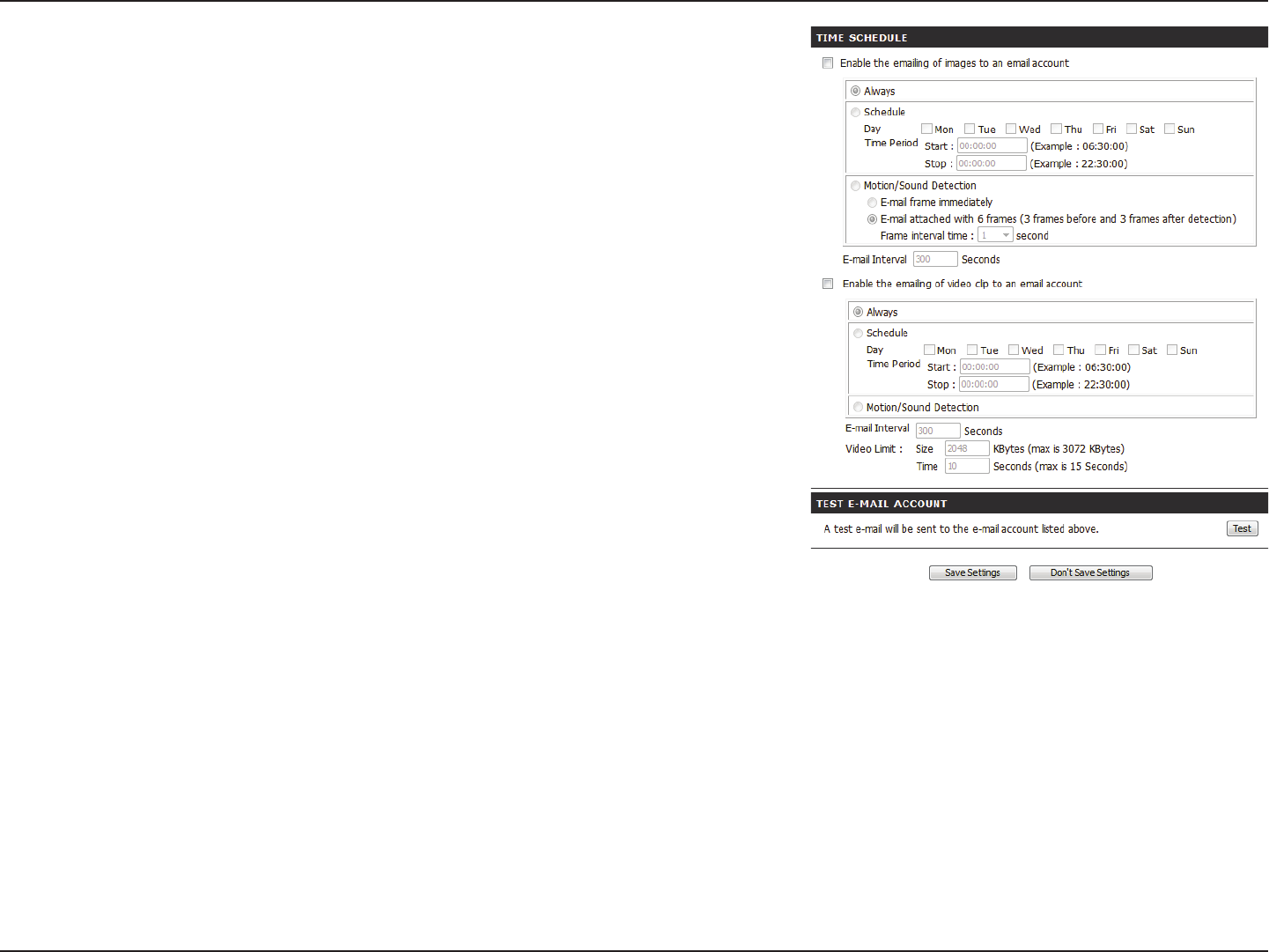

Mail ..........................................................................................33

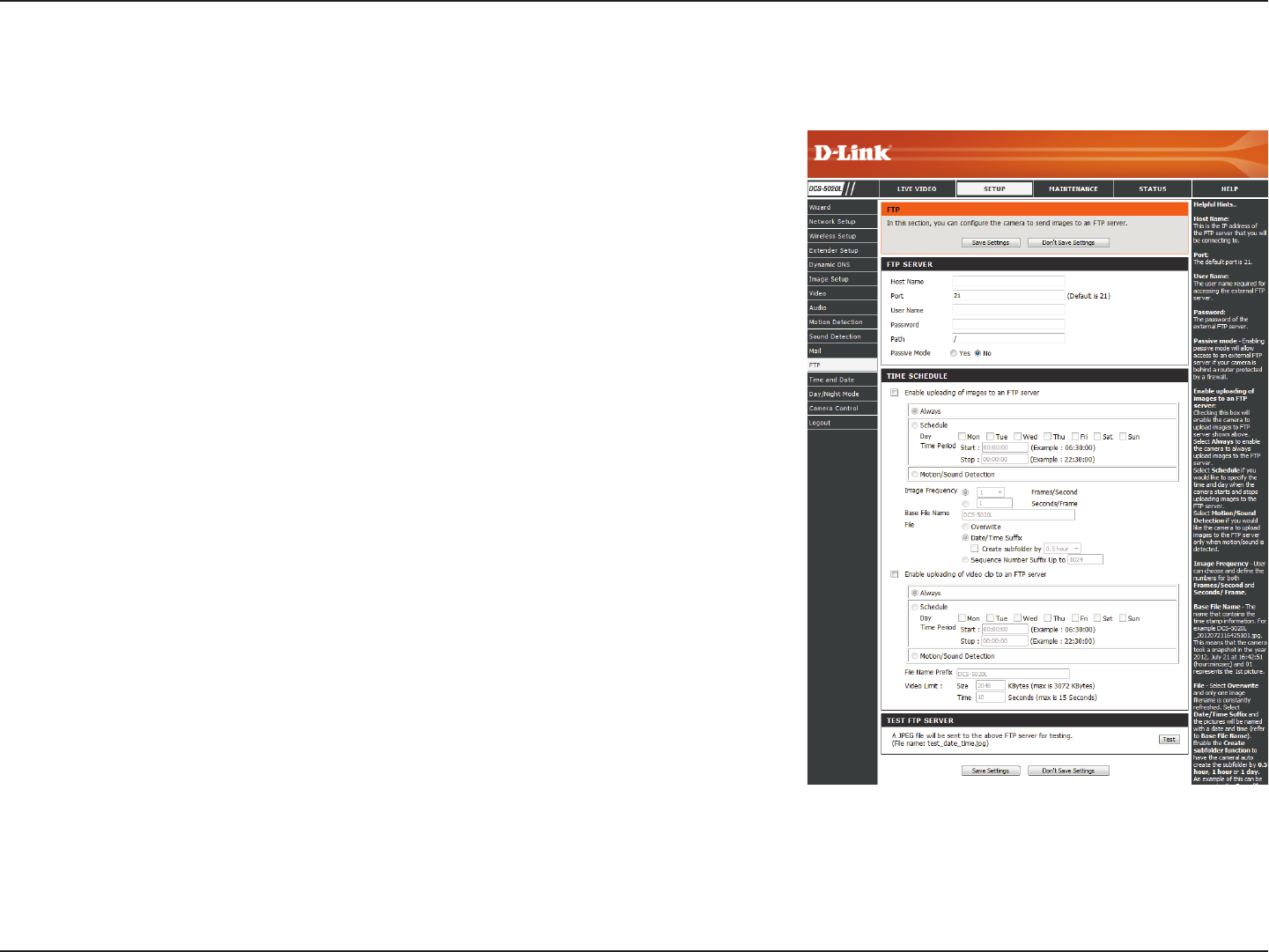

FTP ............................................................................................35

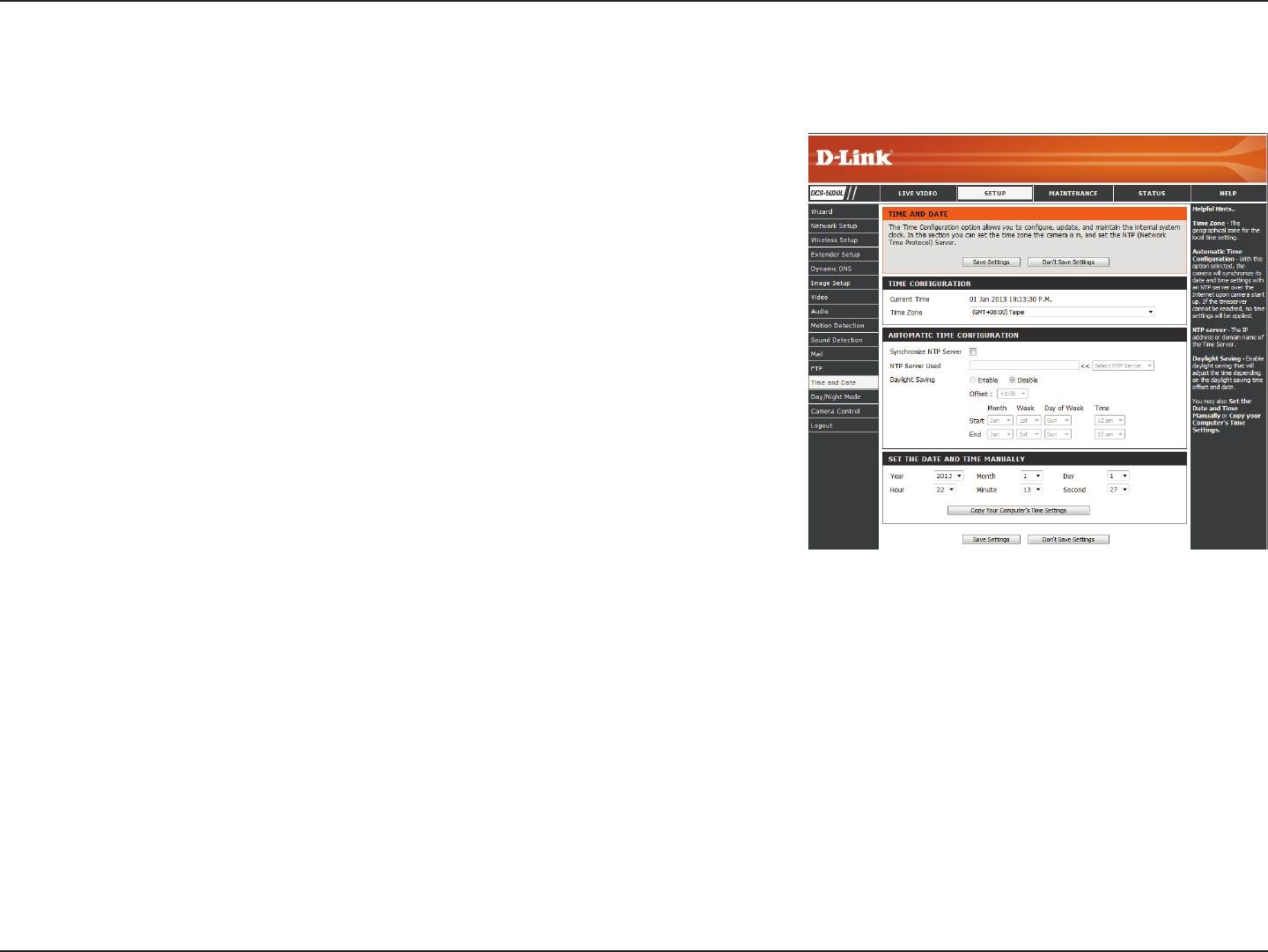

Time and Date ......................................................................37
Day/Night Mode .................................................................38

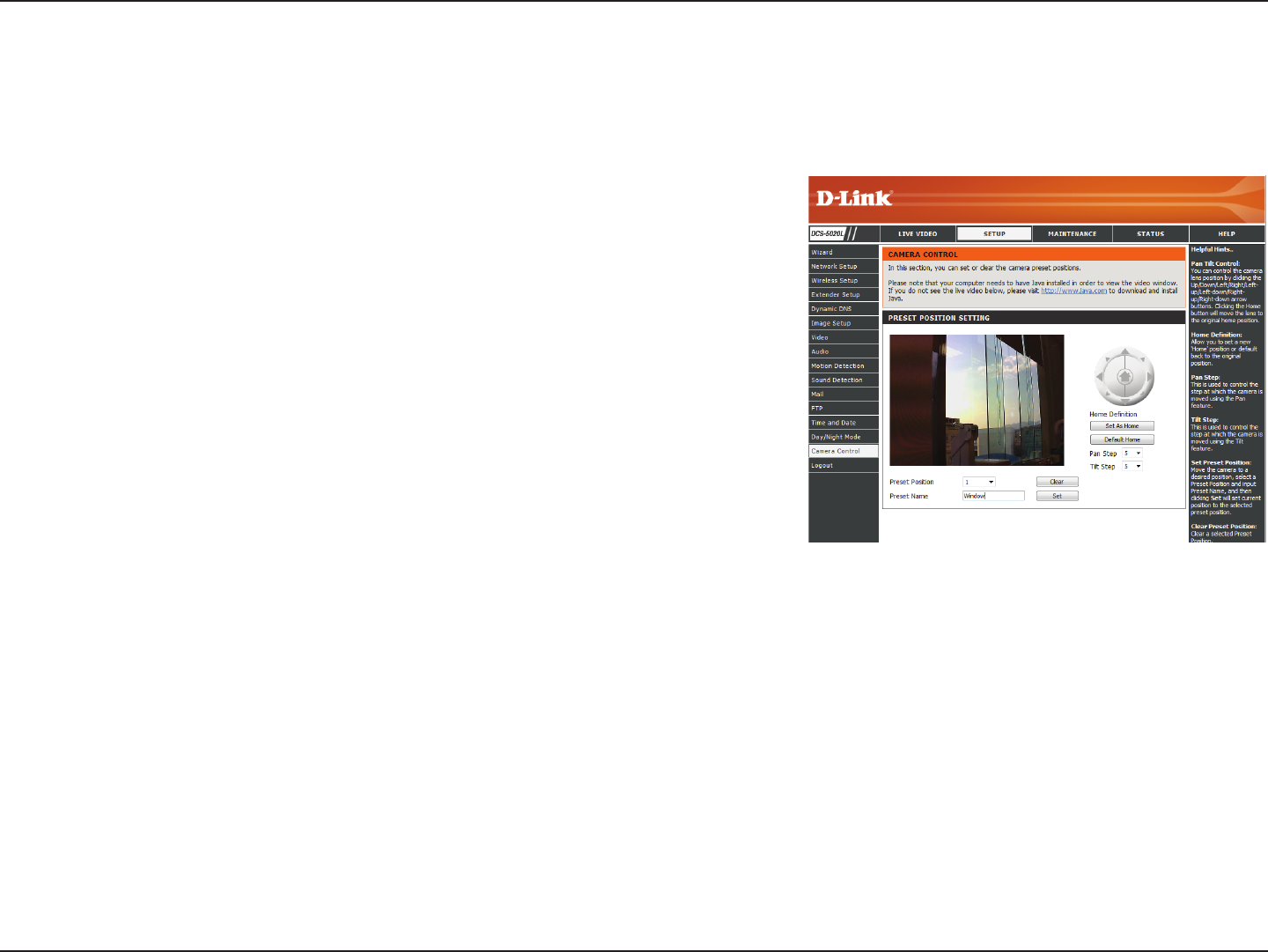

Camera Control ...................................................................39
Maintenance ................................................................................40
Admin .....................................................................................40

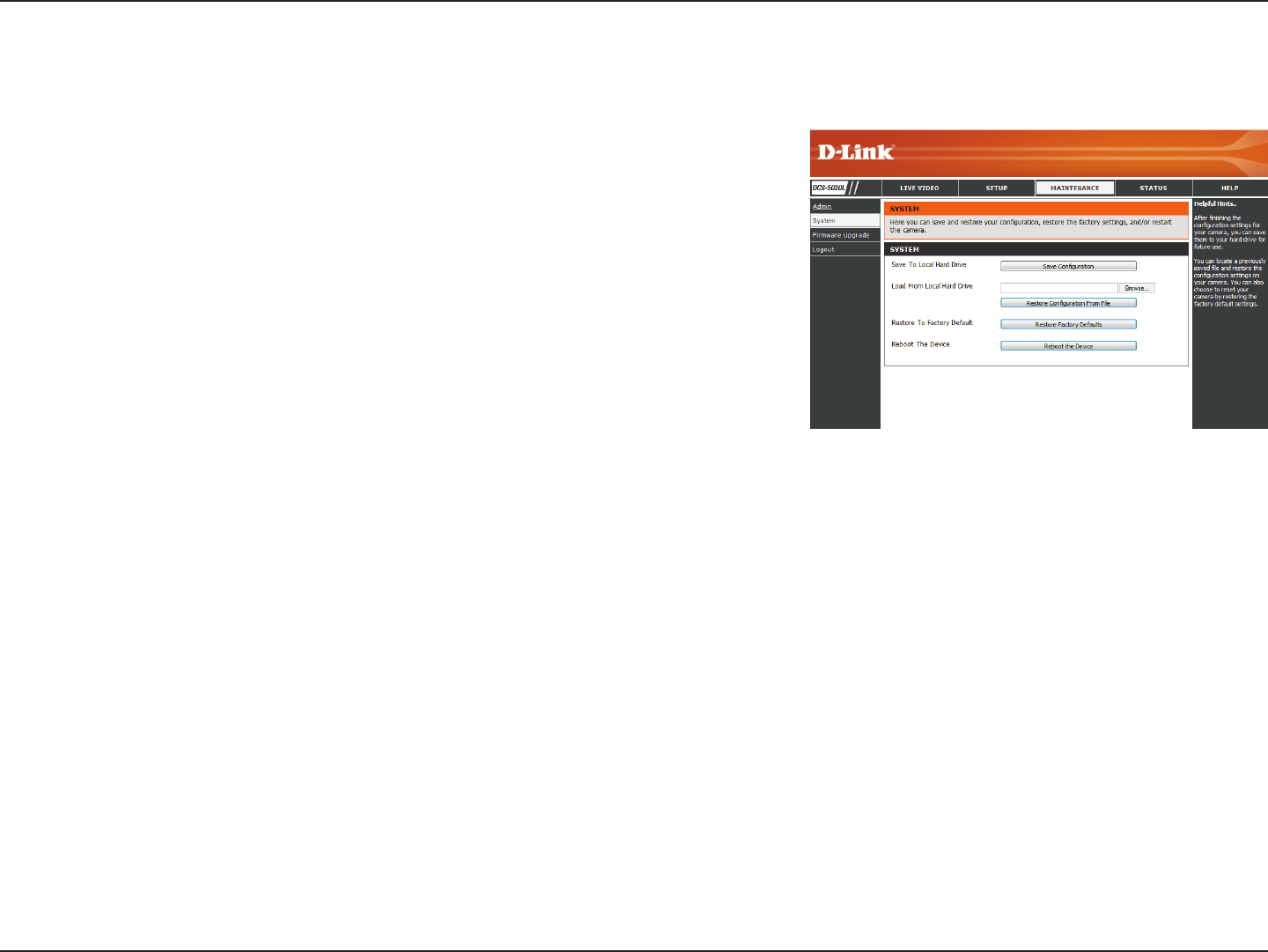

System ....................................................................................41
Firmware Upgrade ..............................................................42
Status ..............................................................................................43

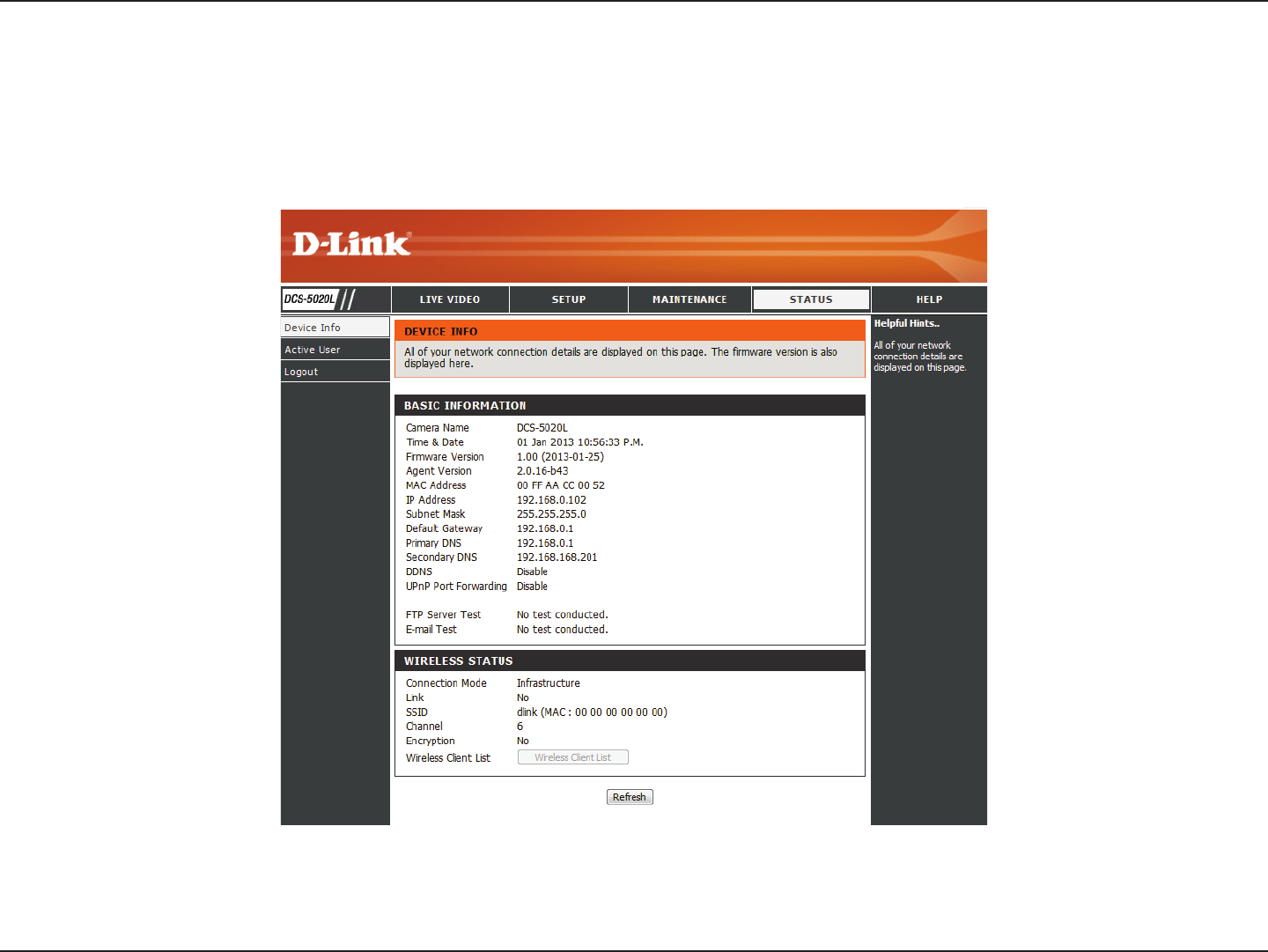

Device Info ............................................................................43

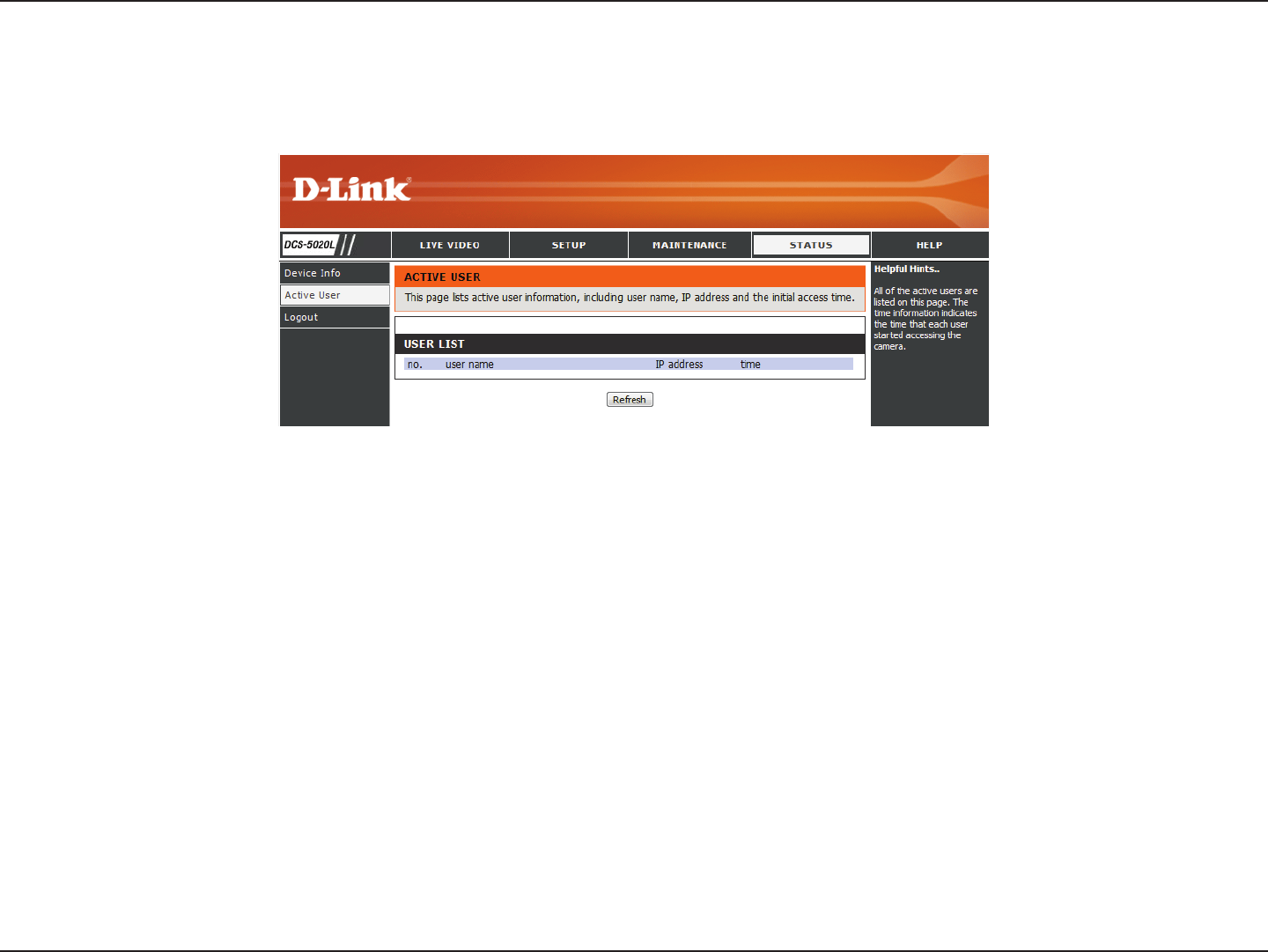

Active User ............................................................................44
Troubleshooting ..............................................................45
Technical Specications ..................................................48
Table of Contents
4D-Link DCS-5020L User Manual
Section 1 - Product Overview
Package Contents
• DCS-5020L Wireless N Day & Night Pan/Tilt Cloud Camera
• CAT5 Ethernet Cable
• Power Adapter
• Manual and Software on CD
• Quick Install Guide
• Mounting Bracket and Screws
If any of the above items are missing, please contact your reseller.
Note: Using a power supply with a dierent voltage than the one included with your
product will cause damage and void the warranty for this product.
System Requirements
• Computer with Microsoft Windows® 8/7/Vista/XP, or Mac with OS X 10.6 or higher
• PC with 1.3 GHz or above and at least 128 MB RAM
• Internet Explorer 7, Firefox 12, Safari 4, or Chrome 20 or higher version with Java installed
and enabled
• Existing 10/100 Ethernet-based network or 802.11g/n wireless network
Product Overview
Product Overview
5D-Link DCS-5020L User Manual
Section 1 - Product Overview
Introduction
Congratulations on your purchase of the DCS-5020L Wireless N Day & Night Pan/Tilt Cloud Camera. The DCS-5020L is a versatile
and unique solution for your home or small oce. Unlike a standard webcam, the DCS-5020L is a complete system with a
built-in CPU and web server that transmits high quality video images for security and surveillance. The pan/tilt function allows
the camera to patrol a wide area, while the built-in IR LEDs provide around the clock surveillance regardless of the lighting
conditions.
The DCS-5020L can be accessed remotely, and controlled from any PC/Notebook over your local network or through the Internet
via a web browser. The simple installation and intuitive web-based interface oer easy integration with your Ethernet/Fast
Ethernet or 802.11 b/g/n wireless network, and its Extender Mode even allows you to increase your existing wireless network’s
coverage. The DCS-5020L also comes with remote monitoring and sound/motion detection features for a complete and cost-
eective security solution.
Your DCS-5020L is mydlink-enabled, which means that you can view and manage your camera from anywhere over the Internet
through the mydlink website, or through the mydlink mobile app for iOS and Android. You can view your live video feed, take
snapshots, and manage the camera’s conguration, all from anywhere you have Internet access.
6D-Link DCS-5020L User Manual
Section 1 - Product Overview
Easy to Use and mydlink-Enabled for Easy Access and Management
The DCS-5020L is a standalone surveillance camera that requires no special hardware or software, and can operate independently, even without a
PC. This camera is also mydlink-enabled, which means you can view and manage your camera through the mydlink website, or through the mydlink
mobile app for iOS and Android mobile devices.
Pan/Tilt for Wide Viewing Area
Patrol a large area with one camera thanks to the DCS-5020L’s pan and tilt functions. You can use the web interface to manually adjust the camera
lens position, or set up to 24 pre-dened preset positions, enabling you to quickly move to frequently used points of interest.
IR LEDs for Day and Night functionality
The built-in infrared LEDs enable night time viewing of up to 8 meters (26 feet), giving you clear images regardless of lighting conditions.
H.264 Codec for Smooth, Space-Ecient Video
This camera supports use of the H.264 video codec, which gives you high-quality video with reduced bandwidth requirements. This means that
you can enjoy smoother, more reliable video streaming over the Internet, and less disk space is required to save recordings.
Motion and Sound Triggered Notications and Recordings
The DCS-5020L can send e-mail notications with snapshots or video clips whenever motion or sound is detected. You can customize areas of the
video to monitor for motion to keep watch over specic areas of interest, and you can set volume thresholds to determine the sound level required
to trigger a sound notication.
802.11b/g/n Wireless or Ethernet/Fast Ethernet Support
The DCS-5020L oers wireless 802.11b/g/n and Ethernet/Fast Ethernet connectivity, making it easy to integrate into your existing network
environment. The DCS-5020L works with either a 10 Mbps Ethernet-based network or 100 Mbps Fast Ethernet-based network for traditional wired
environments, and works with 802.11b/g/n wireless routers or access points for added exibility. The Site Survey feature also allows you to view
and connect to any available wireless networks within range of the camera.
Extender Mode Increases the Range of Your Wireless Network
You can use the DCS-5020L’s Extender Mode to extend the range of your wireless network, giving your home or oce better wireless coverage.
Remote Monitoring Utility
This camera also includes the D-ViewCam software, which adds enhanced features and functionality that helps you create a full surveillance system
for up to 32 cameras. With D-ViewCam, you can view multiple cameras at the same time, record video, and set up scheduled and triggered recordings.
Features
7D-Link DCS-5020L User Manual
Section 1 - Product Overview
Hardware Overview

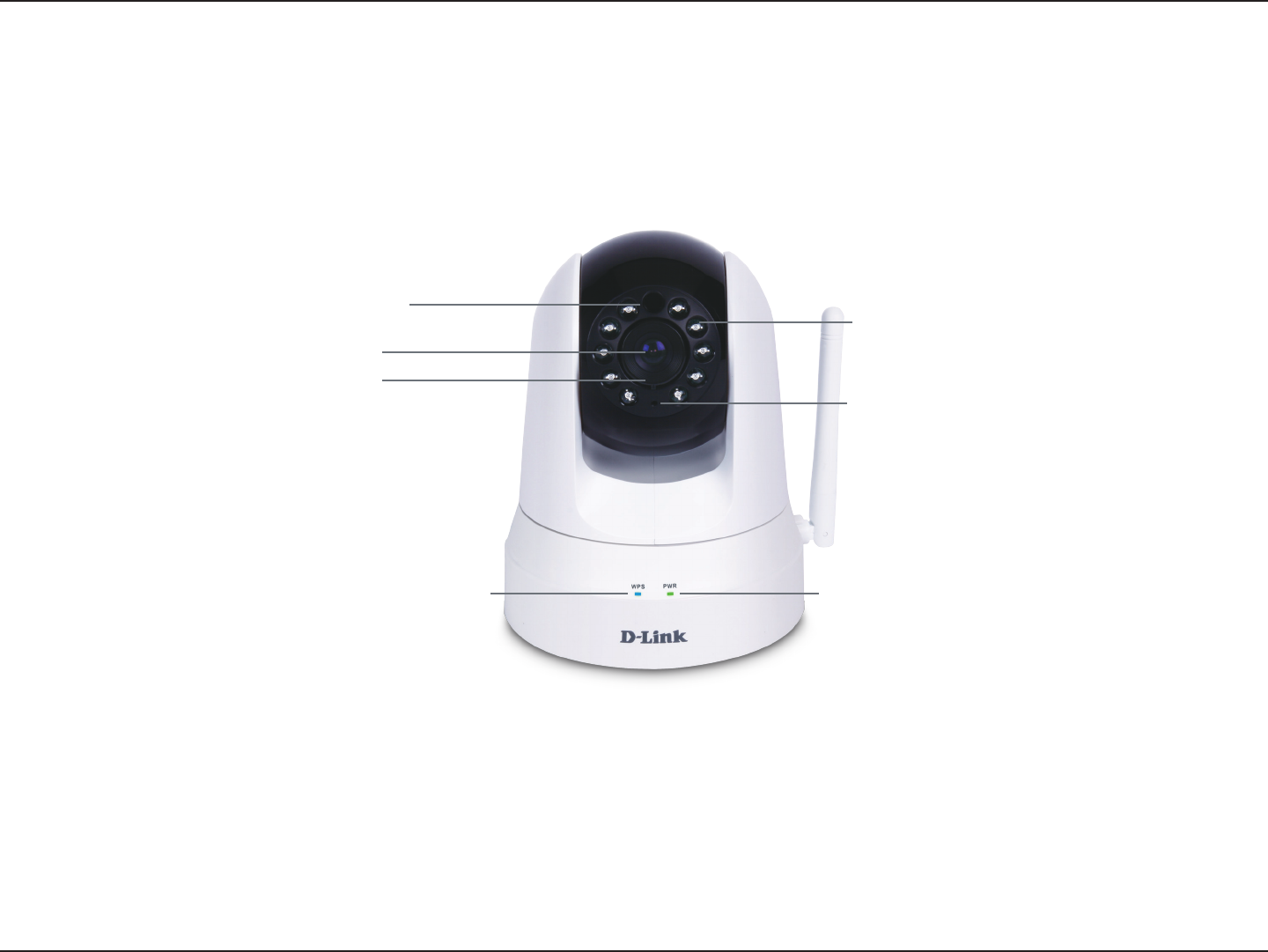

Front View
Camera Lens
Microphone
IR LED
Light Sensor
Power and Link LED
WPS LED
Manual Focus Bezel
8D-Link DCS-5020L User Manual
Section 1 - Product Overview

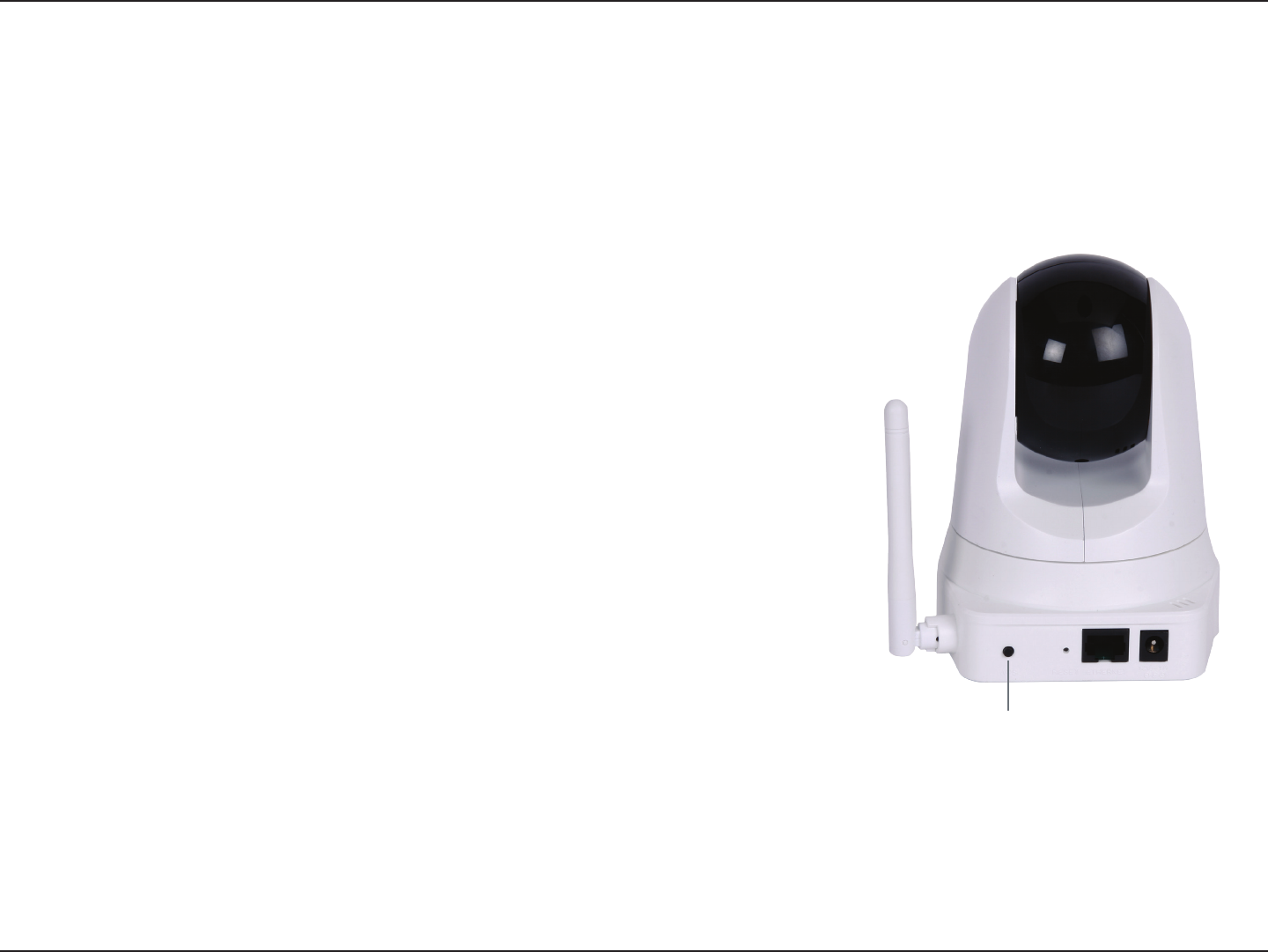

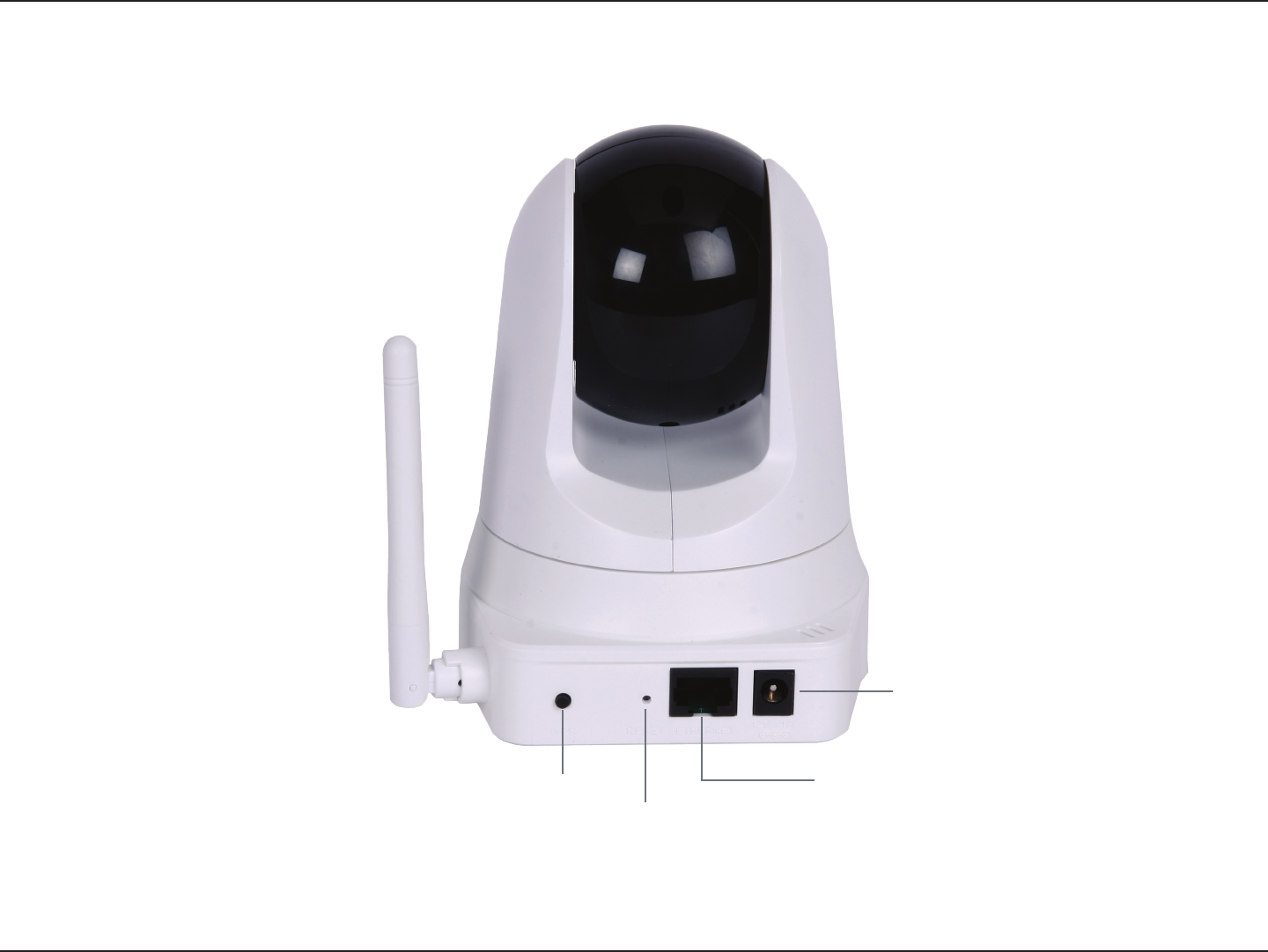

Rear View
Power Connector
Ethernet Port
Reset Button
WPS Button
9D-Link DCS-5020L User Manual
Section 2 - Installation
There are three ways to set up your camera:
Zero Conguration Setup: If you have a mydlink-enabled router (D-Link cloud router), this is the easiest way to set up
your camera. Refer to “Zero Conguration Setup” on page 10.
Camera Installation Wizard: If you do not have a mydlink-enabled router, use the Camera Installation Wizard to guide
you through setup and initial conguration of your camera. Refer to “Camera Setup Wizard” on page 13.
Manual Hardware Installation: This section shows you how to manually set up your camera, however in order to use
the mydlink features of your camera, you will still need to run the Camera Installation Wizard. Refer to “Manual Hardware
Installation” on page 15.
Installation
10D-Link DCS-5020L User Manual
Section 2 - Installation
If you have a mydlink-enabled Cloud Router, you can take advantage of Zero Conguration Setup. Zero Conguration
automatically congures your camera's settings for you, and adds the camera to your mydlink account automatically. This type
of setup allows you to set up your camera by simply plugging it in and connecting it to your router.
Connect your camera to your mydlink-enabled Cloud Router and Zero Conguration will automatically congure your DCS-5020L
and add the camera to your mydlink account. After the short time it takes to do this you can remotely access your camera from
the website (http://www.mydlink.com) to manage and monitor your DCS-5020L.
Zero Conguration Setup

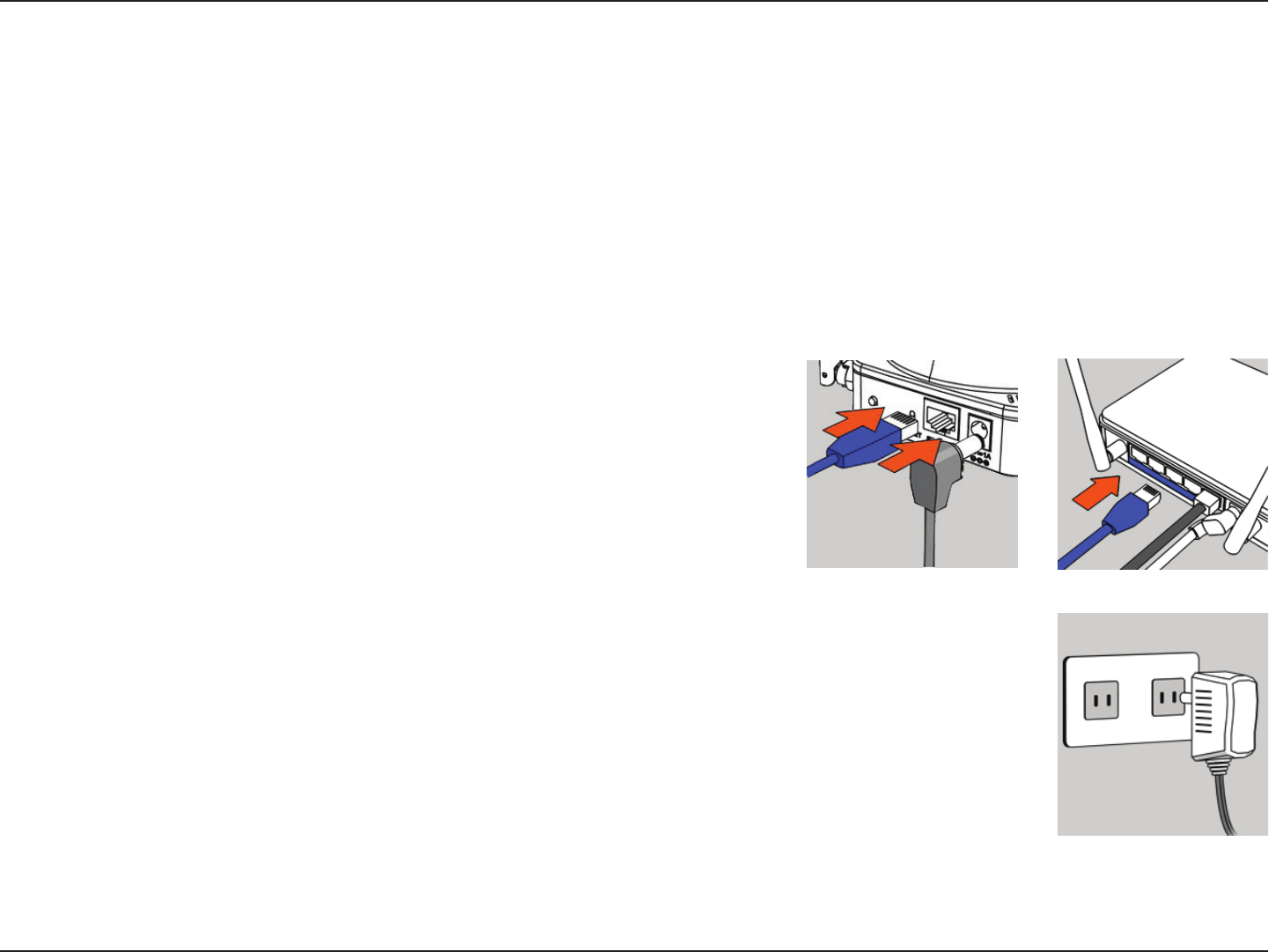

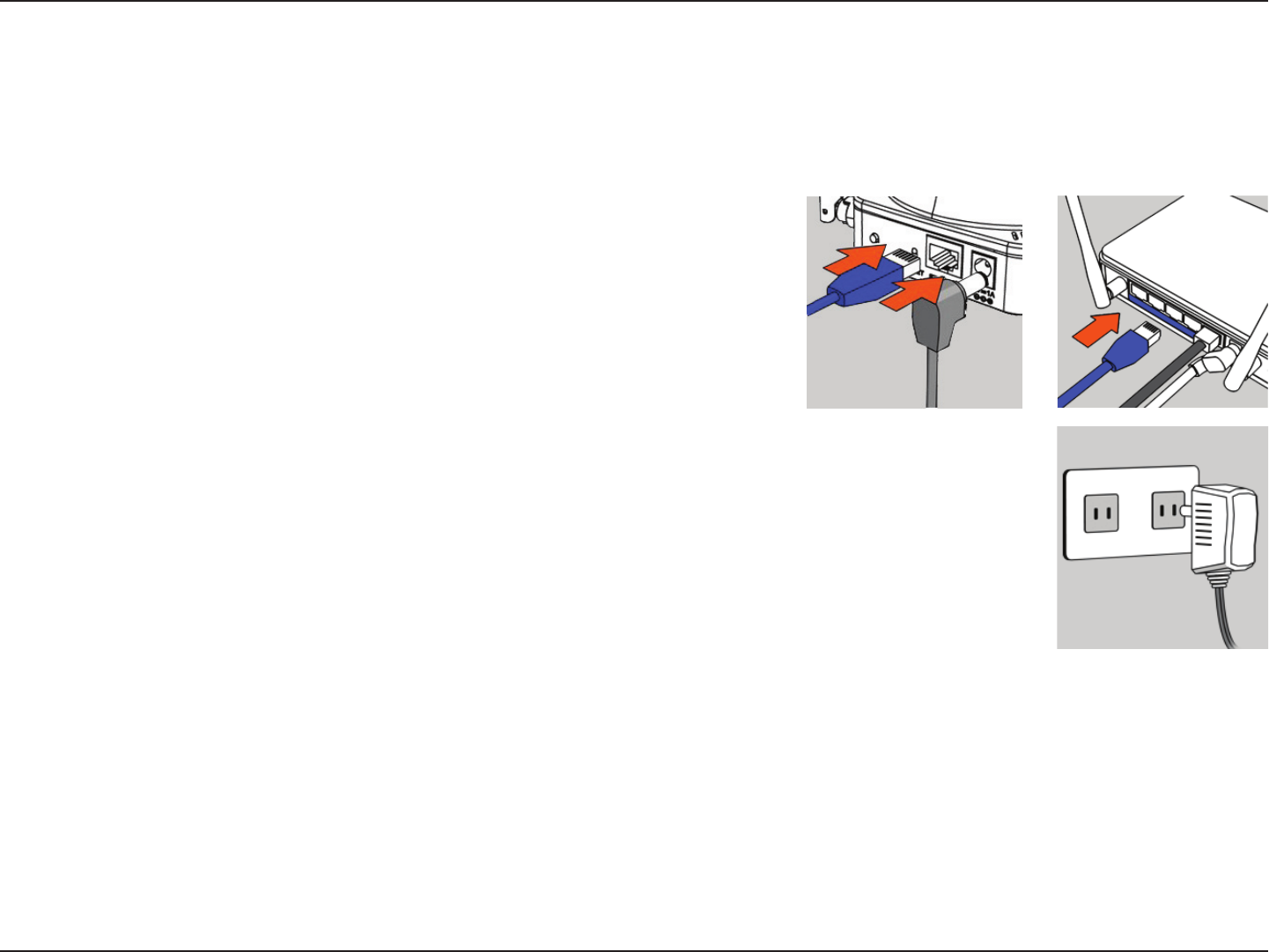

Connect the Ethernet Cable and Power Cable
Use the included Ethernet cable and plug it into the camera. Plug the other
end into an available port on your D-link Cloud Router. If you wish to use
your camera wirelessly, you will be able to remove the cable after Zero
Conguration Setup is complete. You can also plug the external power adapter
cable into the camera at this time.
Attach the External Power Adapter
Plug the power adapter in to a wall outlet.
11D-Link DCS-5020L User Manual
Section 2 - Installation

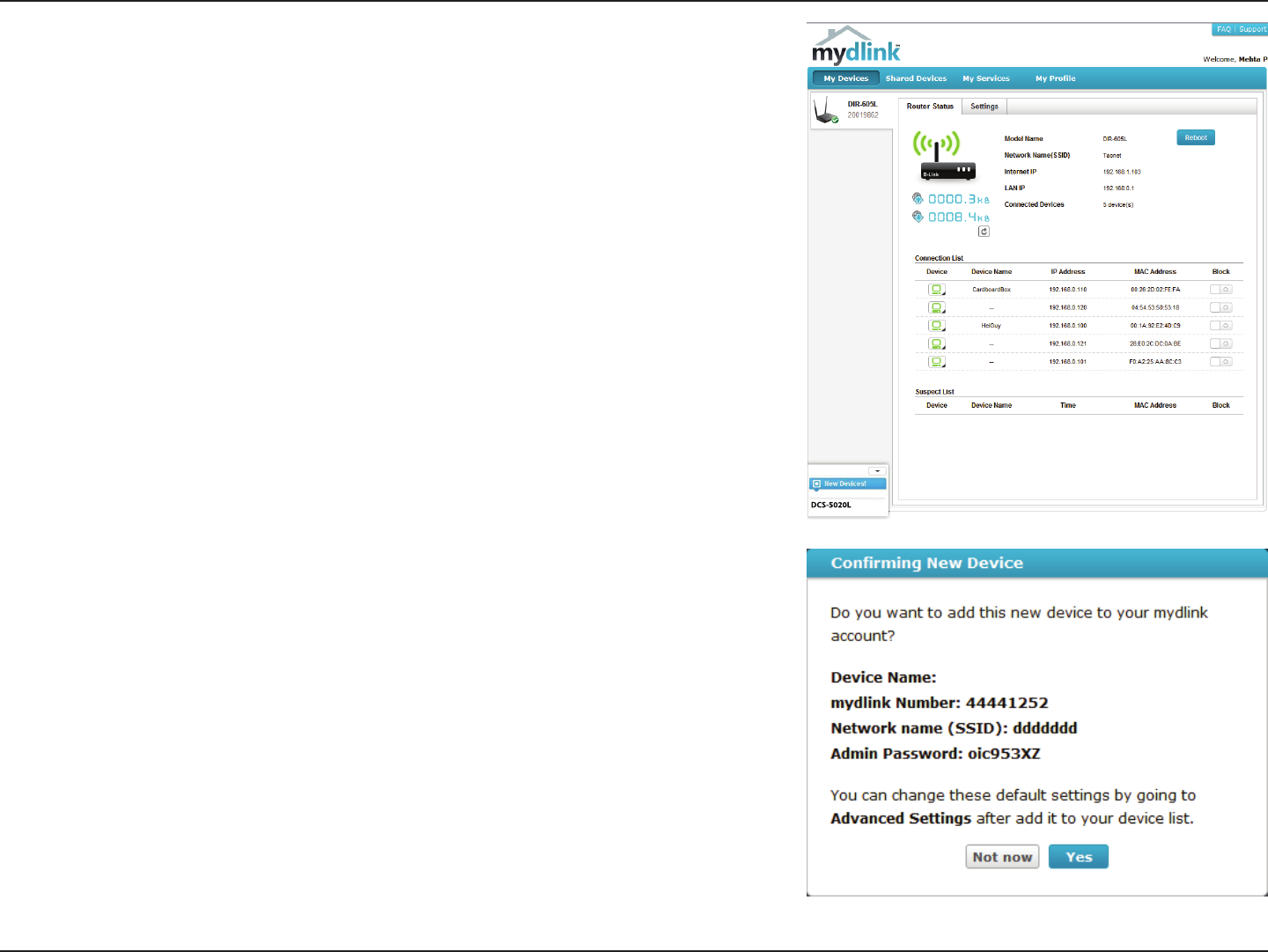

A summary and conrmation notication will appear with the automatically
congured details. Make a note of the details and click Yes to add the camera
to your account.
Check Your mydlink Account
From any computer with an Internet connection, open a web browser and
login to your mydlink account. The mydlink page will check for new devices
and display a New device Found! pop-up notication in the bottom-left
corner. Click the notication to continue.
DCS-5020L
12D-Link DCS-5020L User Manual
Section 2 - Installation

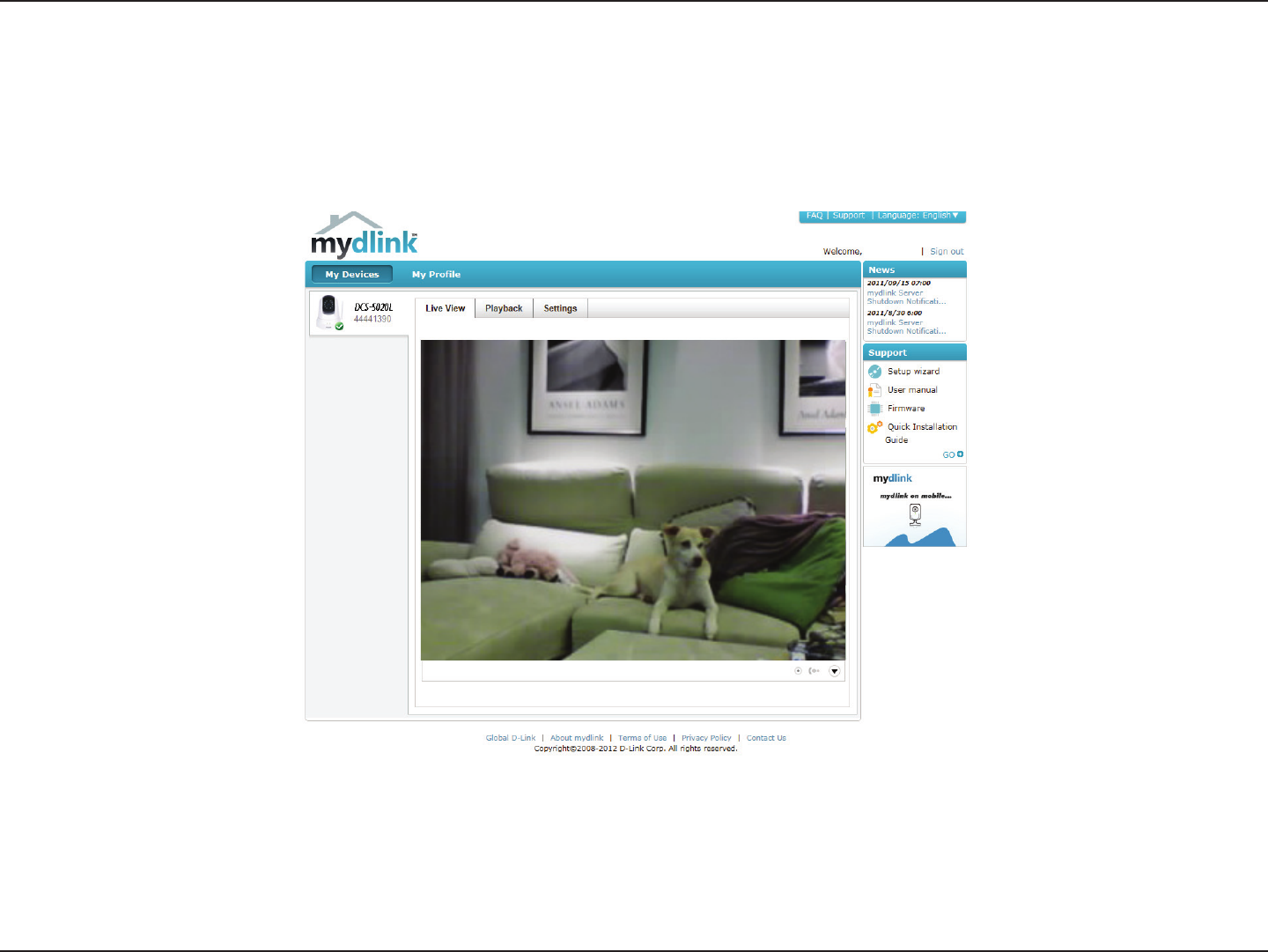

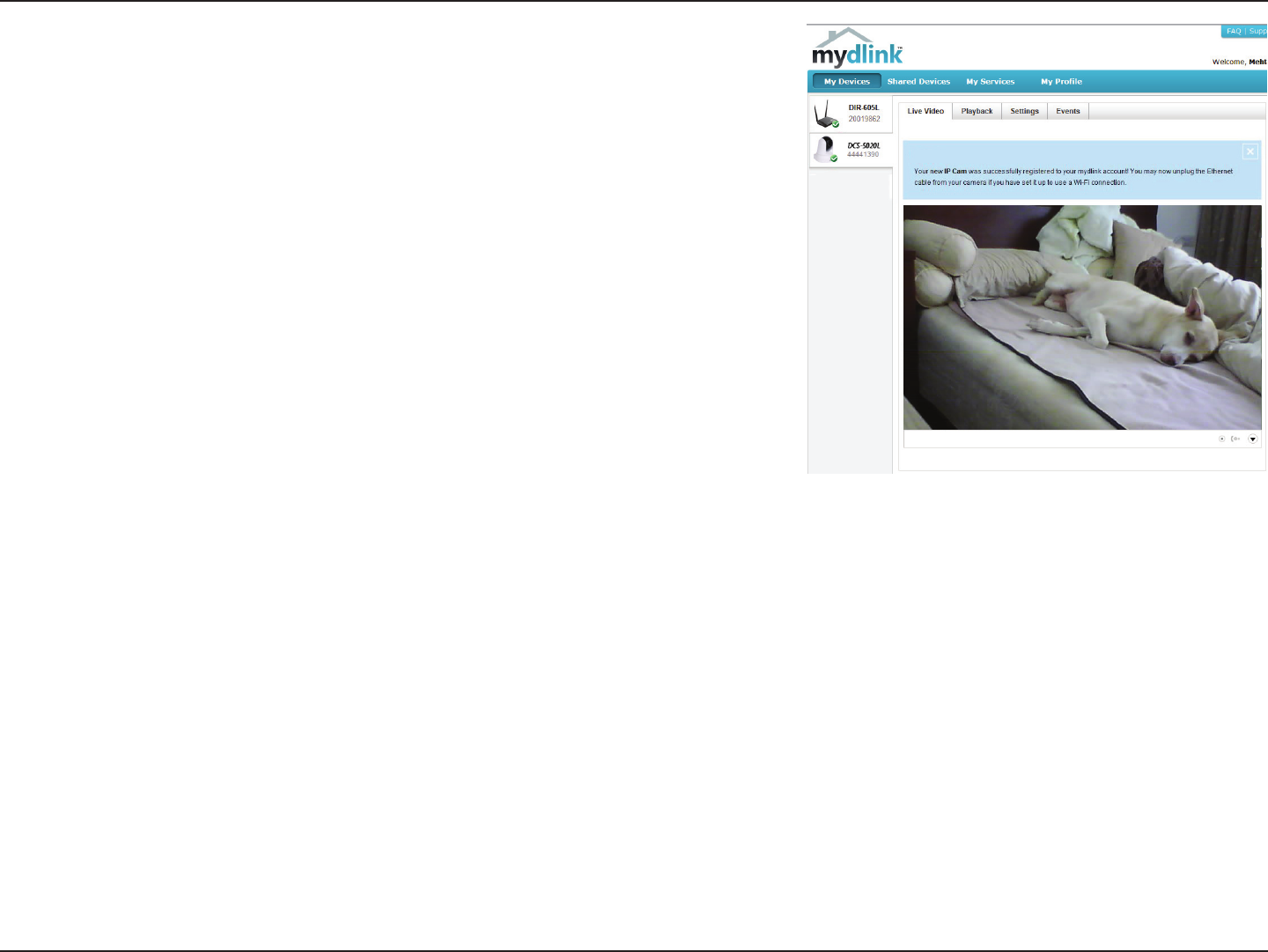

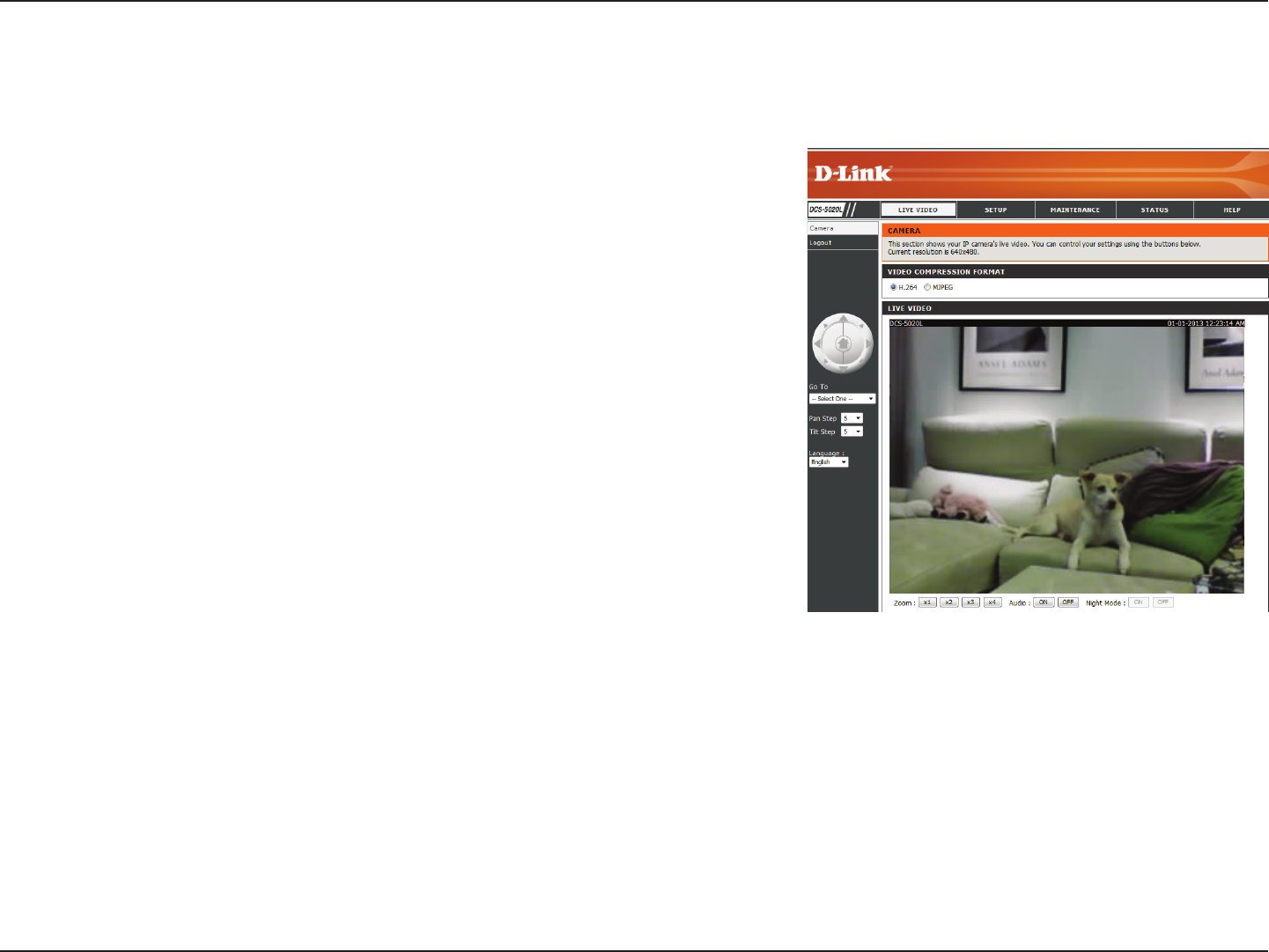

Zero Conguration will navigate to the mydlink Live View tab for your camera
where you will see a screen similar to the following.
If you wish to connect your camera to your router wirelessly, you can simply
disconnect the Ethernet cable and move the camera to its intended location;
your router's wireless settings have been automatically transferred to the
camera, and no further conguration is required.
Your camera is now set up, and you can skip to “mydlink” on page 18 to learn
more about the mydlink features of this camera, or to “Conguration” on page
19 for advanced conguration of your camera.
Note: If the live image is blurry or out of focus, you can manually adjust the
focus by rotating the manual focus bezel surrounding the camera lens.
13D-Link DCS-5020L User Manual
Section 2 - Installation
Camera Setup Wizard
If you do not have a CD-ROM drive, or the CD is missing, please download the Setup Wizard from http://www.mydlink.com/support
Insert the Installation CD-ROM into your computer’s optical drive to start the autorun program. If the Setup program does not
automatically open on your computer, go to Start > Run. In the box, type D:\autorun.exe (where D: represents the drive letter
of your CD-ROM drive) and click OK

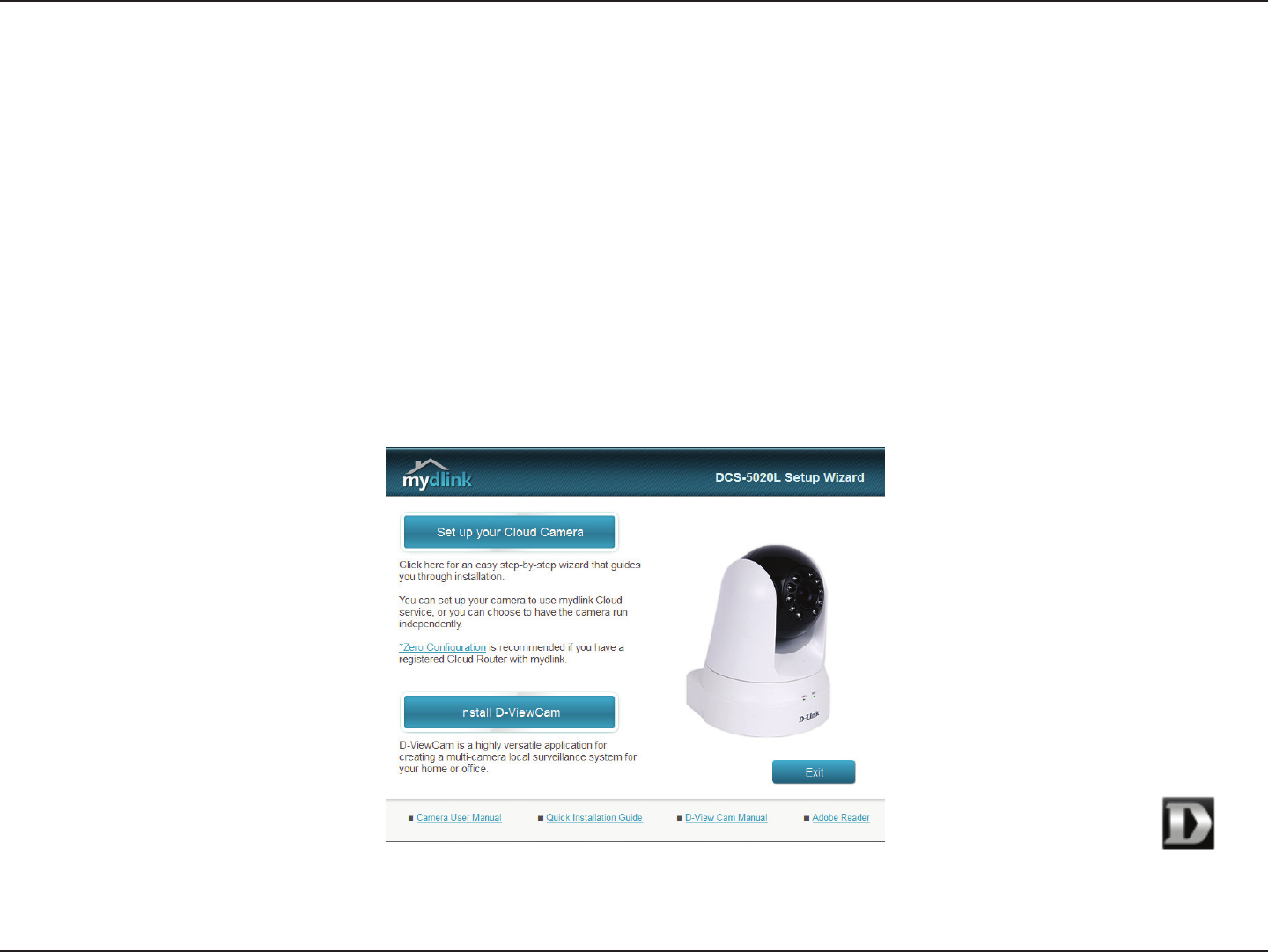

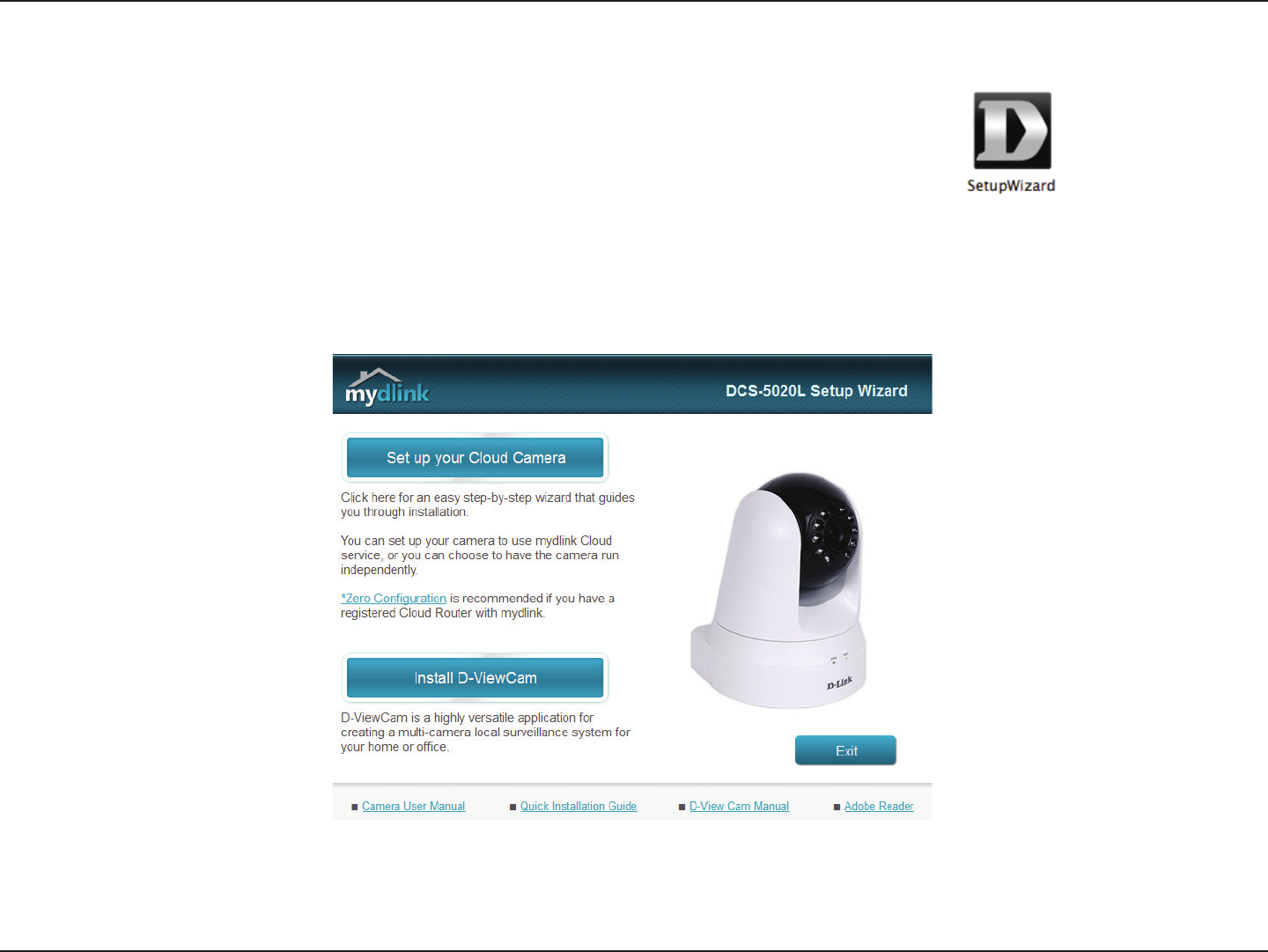

Simply click Set up your Cloud Camera to go through the Setup Wizard, which will guide you step-by-step through the
installation process from connecting your hardware to conguring your camera and registering it with your mydlink account.
If you do not have a mydlink-enabled cloud router, you can use the Camera Setup Wizard to guide you through the process
of adding your camera to the mydlink service
Windows Users
14D-Link DCS-5020L User Manual
Section 2 - Installation
Mac Users
Insert the Installation CD-ROM into your computer’s optical drive. On the desktop, open your
CD drive and double-click on the SetupWizard le.
After about 20-30 seconds, the Setup Wizard will open, which will guide you step-by-step through the installation process
from connecting your hardware to conguring your camera and registering it with your mydlink account.
If you do not have a CD-ROM drive, or the CD is missing, please download the Setup Wizard from http://www.mydlink.com/support
15D-Link DCS-5020L User Manual
Section 2 - Installation
Manual Hardware Installation
If you wish to set up your camera without using the Camera Setup Wizard, please follow these steps.
Note: In order to use the mydlink features of this product, you will need to go through the Camera Setup Wizard or Zero
Conguration Setup.
Optional: Use WPS to Connect Wirelessly
You can use WPS to connect your camera to your network wirelessly. For
more information, refer to “WPS - Push Button Setup” on page 17. If your router
does not support WPS, you will still be able to set up your camera’s wireless
settings in the camera’s web interface.
Connect the Ethernet Cable and Power Cable
Use the included Ethernet cable and plug it into the camera. Plug the other
end into an available LAN port on your router. Plug the supplied power
adapter into the back of the camera
Plug in the External Power Adapter
Plug the power adapter into a wall outlet.
Congure Your Camera
Refer to “Conguration” on page 19 for information on how to congure your
camera.
16D-Link DCS-5020L User Manual
Section 2 - Installation
Wireless Installation Considerations
Your D-Link Wireless Network Camera lets you access your network using a wireless connection from anywhere within the
operating range of your wireless network. However, the number, thickness and location of walls, ceilings, or other objects
that the wireless signals must pass through, may limit the range. Typical ranges vary depending on the types of materials and
background RF (radio frequency) noise in your home or business. The key to maximizing wireless range is to follow these basic
guidelines:
1. Minimize the number of walls and ceilings between your adapter and other network devices (such as your
Network Camera) - each wall or ceiling can reduce your adapter’s range by 1-30 meters (3-90 feet).
2. Be aware of the direct line between network devices. A wall that is half a meter thick (1.5 feet), at a 45-degree
angle appears to be almost 1 meter (3 feet) thick. At a 2-degree angle, it can appear over 14 meters (42 feet)
thick. Position your devices so that the signal will travel straight through a wall or ceiling (instead of at an angle)
for better reception.
3. Building materials make a dierence. A solid metal door or aluminum studs may weaken the wireless signal. Try
to position your access points, wireless routers, and other networking devices where the signal passes through
drywall or open doorways. Materials and objects such as glass, steel, metal, walls with insulation, water (sh
tanks), mirrors, le cabinets, brick, and concrete will degrade your wireless signal.
4. Keep your product at least or 1-2 meters (3-6 feet ) away from electrical devices or appliances that generate RF
noise.
5. If you are using 2.4 GHz cordless phones or other radio frequency sources (such as microwave ovens), your
wireless connection may degrade dramatically or drop completely. Make sure your 2.4 GHz phone base is as
far away from your wireless devices as possible. The base transmits a signal even if the phone in not in use.
17D-Link DCS-5020L User Manual
Section 2 - Installation
To create a WPS connection:
Step 1
Make sure the camera is plugged in, then press and hold the WPS button for
ten seconds. The blue WPS status LED will start blinking.
Step 2
Press the WPS button on your router within 60 seconds. The WPS button is
usually on the front or side of your router. On some routers, you may need
to log in to the web interface and click on an on-screen button to activate
the WPS feature. If you are not sure where the WPS button is on your router,
please refer to your router’s User Manual.
The DCS-5020L will automatically create a secure wireless connection to your
router. While connecting, the blue LED will ash and your camera will reboot.
WPS - Push Button Setup
WPS Button
If your router supports Wi-Fi Protected Setup (WPS), you can create a secure wireless connection using the WPS Button on the
back of the camera. Please note that WPS setup only establishes a secure wireless connection, and you will still need to run
the Setup Wizard to congure your camera.
18D-Link DCS-5020L User Manual
Section 2 - Installation
mydlink
After registering your DCS-5020L camera with a mydlink account in the Camera Installation Wizard, you will be able to remotely
access your camera from the www.mydlink.com website. After signing in to your mydlink account, you will see a screen similar
to the following:
For more details on using your camera with mydlink, go to the Support section of the mydlink website and check the User
Manual section for your product to nd the latest instruction guide for your camera's mydlink features.
Username
19D-Link DCS-5020L User Manual 19
Section 3 - Conguration
Conguration
Using the Web Conguration Interface
After completing the Camera Installation Wizard, your camera is ready to use. The camera’s built-in web conguration interface
is designed to allow you to easily access and congure your DCS-5020L. There are two ways in which you can access your
camera’s web conguration interface:
• Log in to your mydlink account to access your camera’s conguration interface.

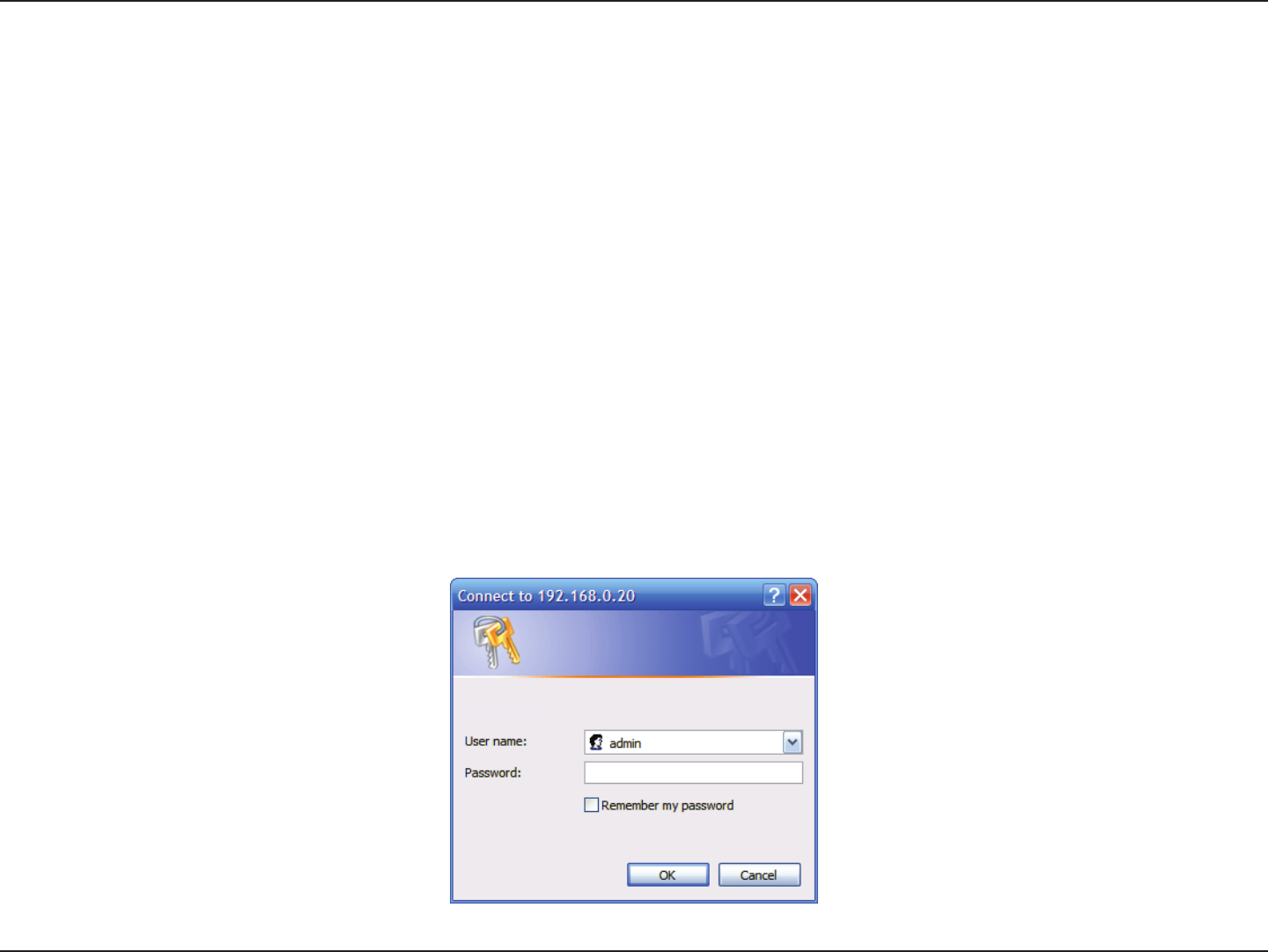

• You can also access the interface locally by entering the IP address of your camera into a web browser, such as Internet
Explorer®. To log in, use the User name admin and the password you created in the Installation Wizard. If you did not create
a password, leave the password eld blank. After entering your password, click OK.
Note: If you are directly connecting your camera to your PC, or if you are using the camera on a closed network, the default IP
is 192.168.0.20. If the camera is connected to a router or network, a dierent IP address may have been assigned.
DCS-5020L
20D-Link DCS-5020L User Manual 20
Section 3 - Conguration
Live Video
Video
Compression
Format:
Pan/Tilt Wheel:
Go To:
Pan Step:
Tilt Step:
Language:
Zoom:
Audio:
Night Mode:
Click the H.264 or MJPEG radio button to choose which stream to view.
Click on the directional arrows on the pan/tilt wheel to manually control
the pan and tilt functions of the camera. At any time, you can click the
home button in the center of the wheel to return the camera to its home
position.
Select one of the preset locations from the drop down menu to move
the camera to that position. Preset positions can be set by going to the
Camera Control section of the Setup menu.
Select the increment of movement for each press of a pan (up/down)arrow
on the pan/tilt wheel.
Select the increment of movement for each press of a tilt (left/right) arrow
on the pan/tilt wheel.
You can select the desired language for the web interface from this drop-
down menu.
Click on these buttons to adjust the level of digital zoom applied to the
Click on these buttons to turn audio playback on and o.
If you have set the night mode to manual, the night mode feature can be
toggled using these buttons
Note: If the live image is blurry or out of focus, you can manually adjust
the focus by rotating the manual focus bezel surrounding the camera lens.
The Live Video screen shows you the live video feed from your camera. For information on how to congure your Live Video streams, refer to “Video”
on page 29.
21D-Link DCS-5020L User Manual 21
Section 3 - Conguration

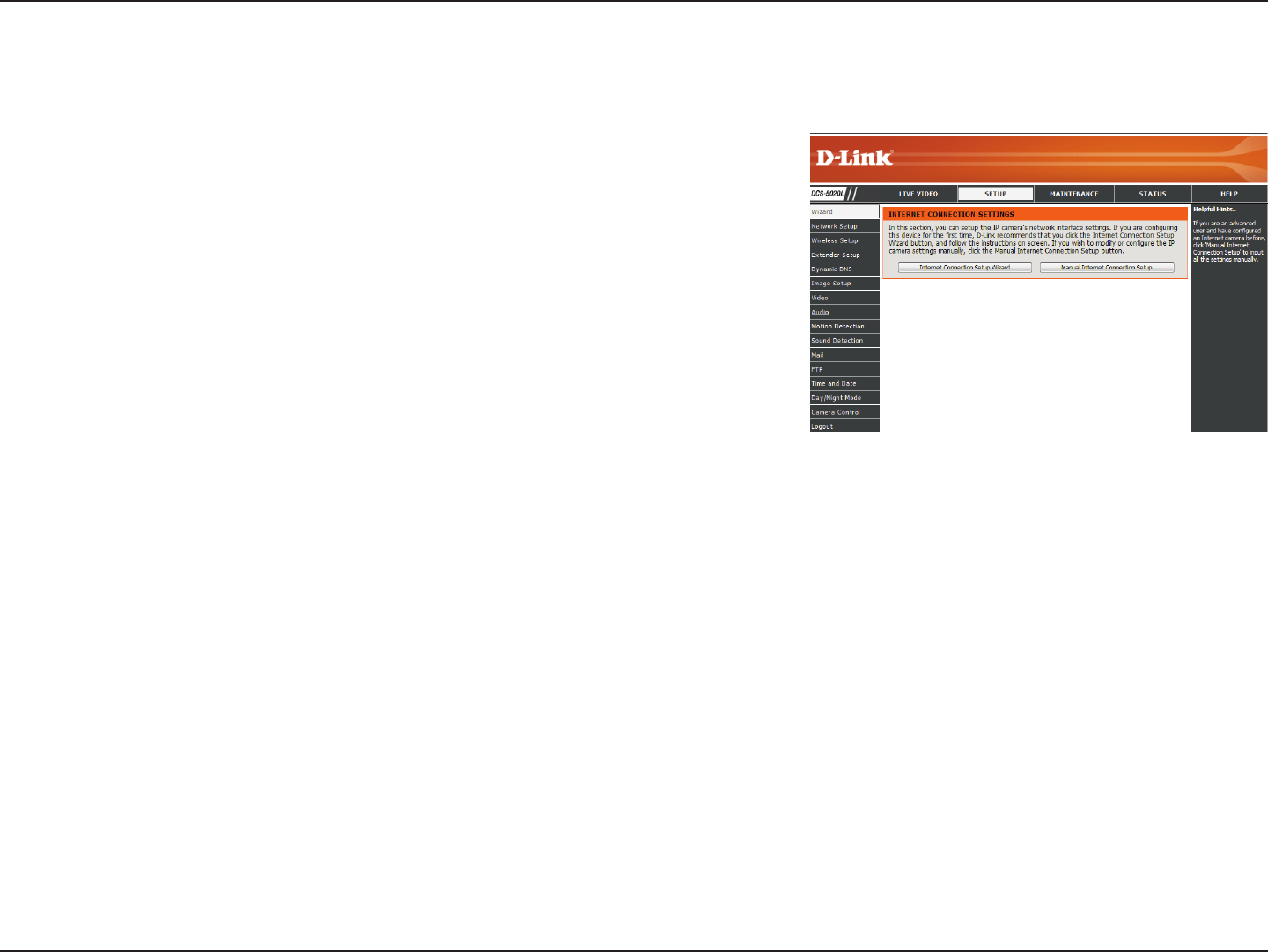

Setup
Wizard
You may choose to congure your Internet connection by using the Internet Connection
Setup Wizard that includes step-by-step instructions. Otherwise, you may manually congure
your connection using the Manual Internet Connection Setup.
Note: To register your camera with mydlink and enable its mydlink-related features, you will
need to use the Camera Installation Wizard. Please refer to “Camera Setup Wizard” on page
13 for more details.
22D-Link DCS-5020L User Manual 22
Section 3 - Conguration
Internet Connection Setup Wizard
This wizard will guide you through a step-by-step process to congure your new D-Link
Camera and connect the camera to the Internet.
Click Next to continue.
Select what kind of Internet connection your camera should use:
DHCP Connection (Default): If you are connected to a router, or are not sure which
connection to use, select DHCP Connection.
Static IP Address: This will allow you to manually enter your network settings for the
camera. Select this option if your Internet Service Provider or network administrator
has provided you with a set of predened IP addresses. If you are not sure what
settings to enter, check with your Internet Service Provider or network administrator.
PPPoE Connection: If your camera is directly connected to a DSL modem, you may
need to use PPPoE. Enter the username and password provided to you by your Internet
Service Provider.
Click Next to continue.
23D-Link DCS-5020L User Manual 23
Section 3 - Conguration
Enter a name for your camera. Click Next to continue.
Congure the correct time to ensure that all events are triggered, captured, and scheduled
at the right time. Click Next to continue.
This page displays your congured settings. Click Apply to save and activate your changes,
or click Back to change your settings.
If you have a Dynamic DNS account and would like the camera to update your IP address
automatically, select Enable and enter your host information. Otherwise, simply select
Disable.
Click Next to continue.
24D-Link DCS-5020L User Manual 24
Section 3 - Conguration

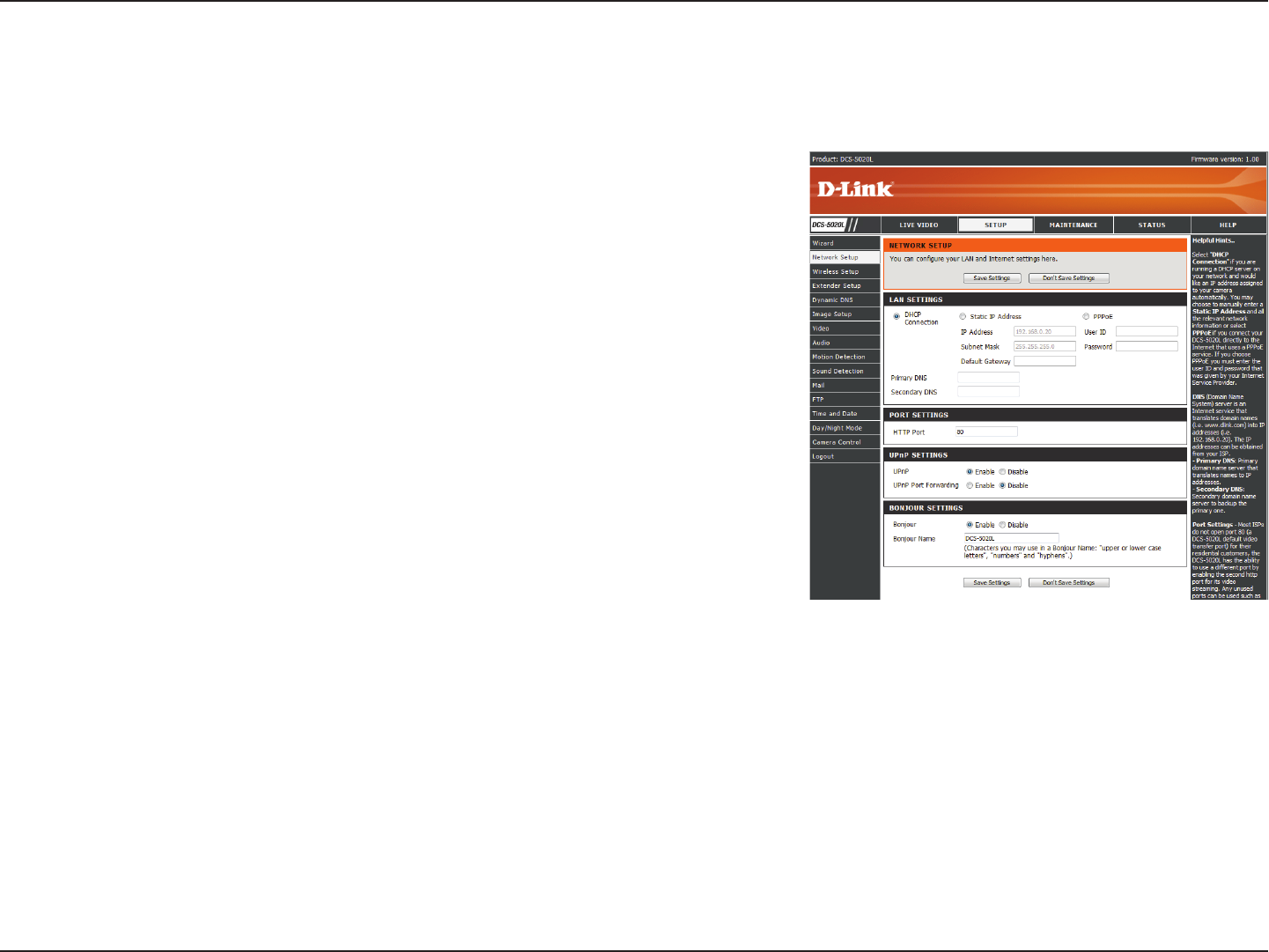

Network Setup
Select this connection if you have a DHCP server running on your network
and would like a dynamic IP address to be assigned to your camera
automatically.
Select this connection type if your Internet Service Provider (ISP) or
network administrator has provided you with a static or xed IP address
and other network information for your camera. Click on the Static IP
Address radio button to activate this method.
IP Address: The xed IP address
Subnet Mask: The default value is “255.255.255.0.” Used to determine if
the destination is the same subnet.
Default Gateway: The gateway used to forward data to destinations
in a dierent subnet. Invalid gateway settings may cause the failure of
transmissions to a dierent subnet.
Primary DNS: Primary domain name server that translates names to IP
addresses.
Secondary DNS: Secondary domain name server to backup the Primary
DNS.
If you need to connect to the Internet using a PPoE connection, click on
the PPoE radio button and enter the username and password provided to
you by your Internet Service Provider or Network Administrator
You may congure a second HTTP port that will allow you to connect to the
camera via a standard web browser. The port can be set to a number other
than the default TCP port of 80. A corresponding port must be opened on
the router. For example, if the port is changed to 1010, users must type
http://192.168.0.100:1010 instead of only “http://192.168.0.100”.
Enable this setting to congure your camera as a UPnP device in the
network. You can also enable UPnP port forwarding.
Enable this setting to allow your camera to be discovered by the Bonjour
service. You can also specify a Bonjour name for the device.
DHCP:
Static IP Client:
PPoE
Port Settings:
UPnP Settings:
Bonjour
Settings:
This section allows you to congure your network settings.
25D-Link DCS-5020L User Manual 25
Section 3 - Conguration
Wireless Setup
Check this box to allow your camera to connect to your network wirelessly.
Enter the network name (SSID) of the wireless network you want to connect
to. You can also click the Site Survey button below to choose an available
network and ll in settings automatically.
If you are using Ad-Hoc as your connection mode, select the same channel
that is being used by your wireless network.
Select the connection mode used by your wireless network. In most cases,
you should select Infrastructure. Ad-Hoc is only used if your camera is
directly connecting to another PC or device without the use of a router
or access point.
Clicking this button will allow you to select an available wireless network
to connect to, and will ll in the necessary settings for you.
Select the wireless security mode used by your wireless network. If you
select WEP or WPA-PSK/WPA2-PSK, enter the password for your wireless
network in the text box that appears.
Enable
Wireless:
SSID:
Channel:
Connection
Mode:
Site Survey:
Wireless
Security Mode:
This section allows you to set up and congure the wireless settings on your camera.
26D-Link DCS-5020L User Manual 26
Section 3 - Conguration
Extender Setup
Check this box to enable Extender Mode.
This shows the name of the Host wireless network that the camera is
connected to and will extend.
Select an option:
• Same as Host Wireless Network Name: Your extended network
will use the same name and settings as your Host network. Your
devices can use the same wireless information to connect to both
the Host and Extended networks.
• Create a New Wireless Network Name: This allows you to
manually set the name and security used for the extended network.
You will need to add this information for each wireless device that
connects to this Extended network.
Set the maximum number of clients that are allowed to connect to the
extended network.
If you choose to Create a New Wireless Network Name, you can set
your wireless security options here.
• None - No wireless encryption will be enabled. All data sent over
the wireless connection could be viewed by third parties.
• WEP - WEP is the simplest form of wireless encryption, and should
only be used if you devices do not support WPA/WPA2 encryption.
• WPA/WPA2 - This is currently the most advanced encryption
method. Enter a Pre-shared Key (PSK/password) in the text box
provided. Wireless clients will require this password in order to
access your extended network.
Enable
Extender
Mode:
Host Wireless
Network Name:
Extended
Wireless
Network Name
(SSID):
Maximum
Clients Allowed
to Connect:
Security Mode:
This section allows you to setup and congure the Extender Mode feature of your camera. Extender Mode allows your camera to extend the range
of your existing wireless network by repeating the signal it receives. You can choose to use the same network name and settings as your existing
wireless network, or you can create a new one.
27D-Link DCS-5020L User Manual 27
Section 3 - Conguration
Click to enable the DDNS function.
Select your Dynamic DNS Server from the pull down menu.
Enter the host name of the DDNS server.
Enter your username or e-mail used to connect to the DDNS.
Enter your password used to connect to the DDNS server.
This allows you to specify the periodic update time for the DDNS address.
Enable:
Server Address:
Host Name:
User Name:
Password:
Timeout:
Dynamic DNS (DDNS)
This section allows you to congure the DDNS setting for your camera. DDNS will allow all users to access your camera using a domain name instead
of an IP address.
28D-Link DCS-5020L User Manual 28
Section 3 - Conguration

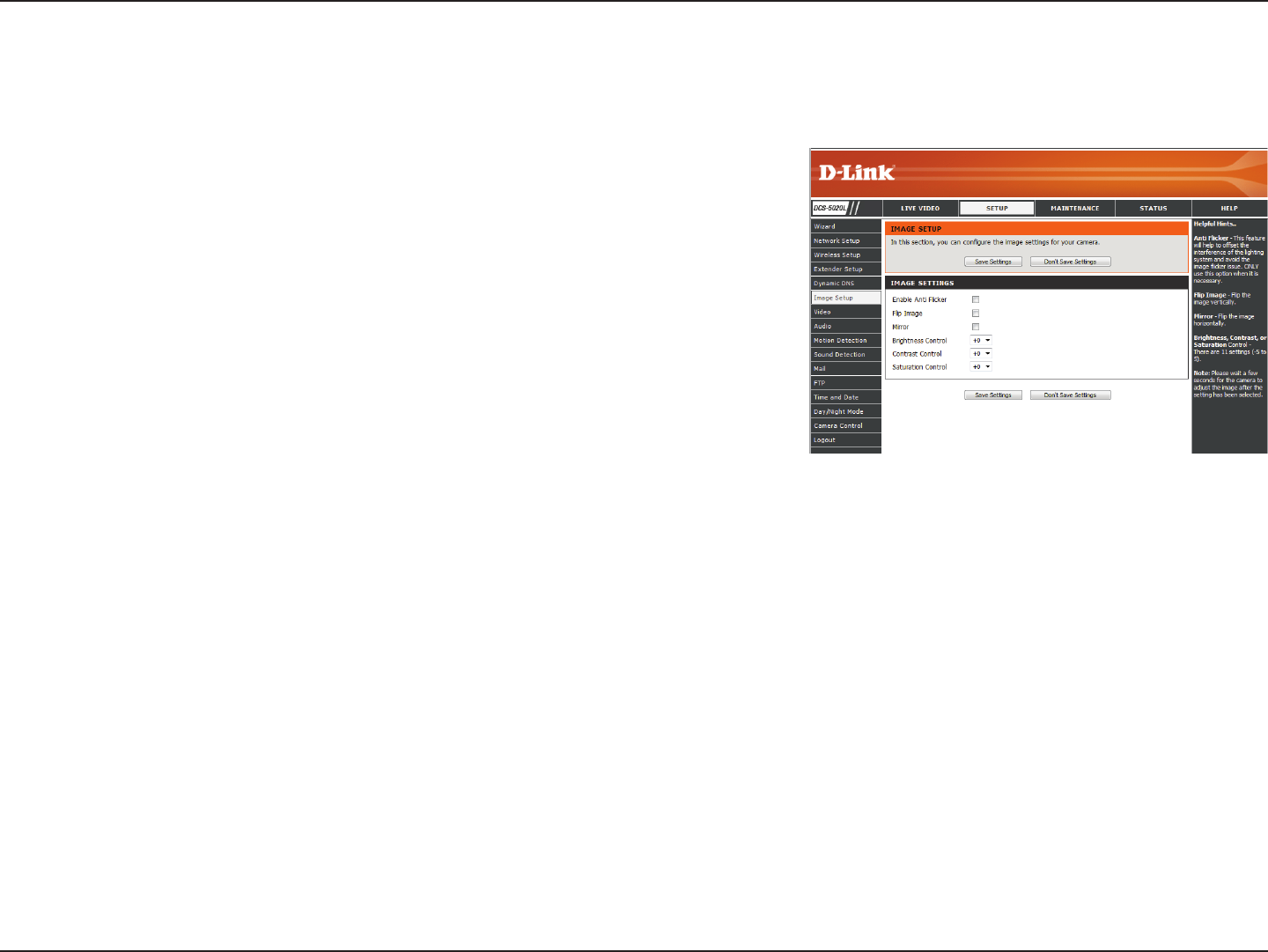

Image Setup
If you have lights ickering in your camera video, try enabling antiicker.
Otherwise, you should leave this disabled.
Select this box to vertically ip the video.
Horizontally ip the video.
Note: If the camera is installed upside down, Flip Image and Mirror should
both be checked
Allows you to adjust the brightness level. Select a setting between -5 and
+5.
Allows you to adjust the contrast level. Select a setting between -5 and +5.
Allows you to adjust the saturation level. Select a setting between -5 and
+5.
Enable
Antiicker:
Flip Image:
Mirror:
Brightness
Control:
Contrast
Control:
Saturation
Control:
This section allows you to congure the image settings for your camera.
29D-Link DCS-5020L User Manual 29
Section 3 - Conguration

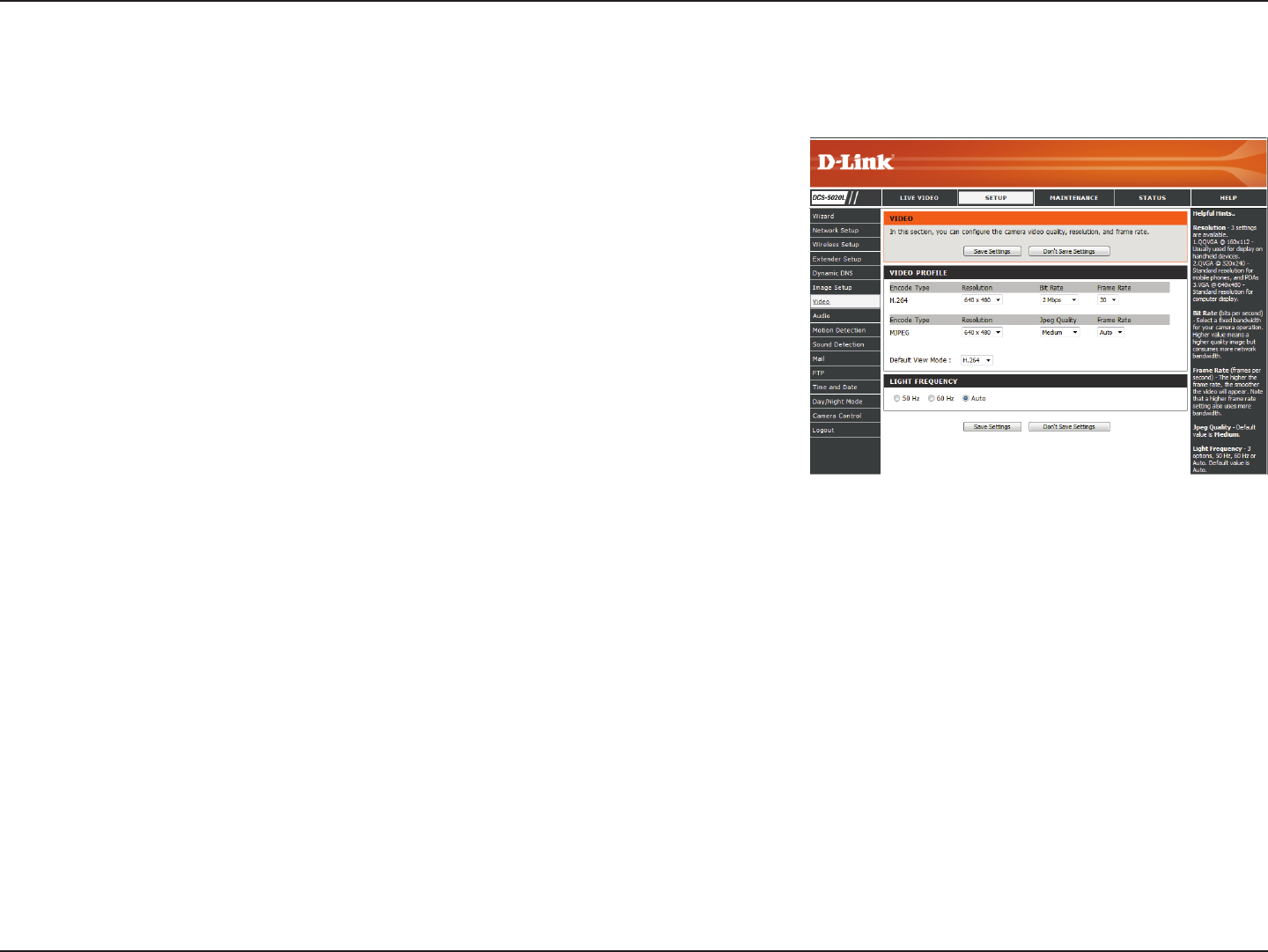

Video
Video Prole:
Encode Type:
Resolution:
Bit Rate
FPS:
JPEG Quality:
Default View
Mode:
Light
Frequency:
This section allows you to congure the video settings for your camera.
This section allows you to change the Resolution, FPS, and Quality.
Your camera has separate settings for the H.264 and MJPEG video streams.
Select the desired video resolution from three formats: 640x480, 320x240,
and 160x112. Higher settings oer better quality, but will require more
bandwidth to stream.
Select the desired bit rate for the video. A higher bit rate will increase
image quality, but will require more bandwidth to stream.
Select the frame rate (FPS) to use for the video stream. Higher settings
oer better quality, but will require more bandwidth to stream.
Select one of ve levels of image quality: Highest, High, Medium, Low,
and Lowest.
Select the default encoding to use when viewing your video on the Live
Video page.
Select the frequency used by your lighting and power to help reduce
image icker.
30D-Link DCS-5020L User Manual 30
Section 3 - Conguration
Audio
This section allows you to adjust the audio settings for your camera.
Note: Please wait a few seconds for the camera to adjust the audio after making changes.
Audio Settings:
Volume
Settings:
You may Enable or Disable the camera audio feed.
Select the desired volume percentage level.
31D-Link DCS-5020L User Manual 31
Section 3 - Conguration
Motion Detection
Motion detection allows you to mark areas of your camera’s video to monitor for motion, which can be used to trigger snapshots or recordings.
Refer to “Mail” on page 33 and “FTP” on page 35 for more details.
Motion
Detection:
Time:
Sensitivity:
Detection
Areas:
Select whether you want to enable or disable the motion detection feature
of your camera.
Specify whether you want to Always have motion detection enabled, or
according to a Schedule that you dene.
Specify the amount of dierence required to determine whether there
was motion.
Use your mouse to click on the areas of the video that you would like to
monitor for motion.
32D-Link DCS-5020L User Manual 32
Section 3 - Conguration
Sound Detection
Sound detection allows you to detect when there is a loud sound in the area, which can be used to trigger snapshots or recordings. Refer to “Mail”
on page 33 and “FTP” on page 35 for more details.
Sound
Detection:
Time:
Detection
Level:
Select whether you want to enable or disable the sound detection feature
of your camera.
Specify whether you want to Always have motion detection enabled, or
according to a Schedule that you dene.
Specify the volume level that a sound must exceed in order to trigger the
sound detection feature. The graph at the bottom of the page will show
the current volume levels being detected by the camera.
33D-Link DCS-5020L User Manual 33
Section 3 - Conguration
Mail
SMTP Server
Address:
SMTP Server
Port:
Sender e-mail
Address:
Receiver e-mail
Address:
User Name:
Password:
This is the domain name or IP address of your external e-mail server.
This allows you to set the port for the SMTP Server. The default value is 25,
and should only be changed if advised by your e-mail provider.
This is the e-mail address listed as the sender for your notication e-mails.
This is the e-mail address that your notication e-mails will be sent to.
If the SMTP server uses authentication, enter your user name.
If the SMTP server uses authentication, enter your password.
This section allows you to congure your camera to send snapshots and video clips to an e-mail address. If you are not sure what settings to use,
check with your e-mail service provider.
For example, if you want to use Gmail with SSL-TLS for e-mail notications,
you can follow the setup procedure as below:
Step 1 - Enter “smtp.gmail.com” in SMTP Server Address.
Step 2 - Change the SMTP server port number from 25 to 465.
Step 3 - Enter your gmail e-mail address in Sender E-mail Address.
Step 4 - Enter the destination e-mail address in Receiver E-mail Address.
Step 5 - Enter the user name required to access the SMTP server.
Step 6 - Enter the password required to access the SMTP server.
Step 7 - Select SSL-TLS and then click Save Settings.
Step 8 - Click the Test button to send a test e-mail to the account listed
above.
Note: You can also use STARTTLS, which will use SMTP server port number
587.
Note: If you want to use a Yahoo SMTP server, the SMTP server address will be
dierent between each registered region, and only SMTP port 465 is supported
for SSL-TLS.
34D-Link DCS-5020L User Manual 34
Section 3 - Conguration
Enable the
e-mailing of
images to an
e-mail account:
E-mail Interval:
Enable the
e-mailing of
video clips
to an e-mail
account:
Test E-mail
Account:
Enabling this will allow snapshots to be e-mailed to you in dierent ways:
• Choosing Always will e-mail snapshots continuously based on the
E-mail Interval specified.
• Choosing Schedule will allow you to schedule when to start and
stop the e-mailing of snapshots.
• Select Motion/Sound Detection if you would like the camera to
e-mail images only when motion or sound is detected. You can
choose whether to e-mail a snapshot immediately, or e-mail 6
snapshots together, with 3 frames before and after motion/sound
was detected. You can also set the Frame interval time to specify
how far apart the snapshots should be.
This sets the limit for how frequently e-mail notications will be sent. This
can be set from 1 to 65535 seconds.
Enabling this will allow video clips to be e-mailed to you in dierent ways.
This is the same as e-mailing images, as specied above, but will take video
clips according to the Video Limit settings you specify.
This will send a test e-mail according to the e-mail settings you have
specied above.
35D-Link DCS-5020L User Manual 35
Section 3 - Conguration
FTP
Host Name:
Port:
User Name:
Password:
Path:
Passive Mode:
Enter the IP address of the FTP server that you will be connecting to.
Enter the port of the FTP server that you will be connecting to.
Enter the user name of your FTP server account.
Enter the password of your FTP server account.
Enter the destination path/folder to save les to on the FTP server.
Enabling passive mode may help you reach your FTP server if your camera
is behind a router protected by a rewall.
This section allows you to congure your camera to send snapshots and video clips to an FTP server.
Enable the
uploading of
images to an
FTP server:
Frequency:
Base File Name:
Enabling this will allow snapshots to be uploaded in dierent ways:
• Choosing Always will upload snapshots continuously based on
the Image Frequency specified.
• Choosing Schedule will allow you to schedule when to start and
stop the uploading of snapshots.
• Select Motion/Sound Detection if you would like the camera to
upload images only when motion or sound is detected.
Set how frequently you want images to be taken and uploaded. You can
choose to upload by frames per second, or by seconds per frame.
Set the desired base le name for your snapshots.
36D-Link DCS-5020L User Manual 36
Section 3 - Conguration
File:
Enable the
uploading of
video clip to an
FTP server:
File Name
Prex:
Video Limit:
Test FTP Server:
Select how you want uploading of snapshots to be handled:
• Overwrite will replace the old snapshot with the new one. This
means you will only have one snapshot that is updated every time
a new one is taken.
• Date/Time Suffix will add the date and time to the end of the
snapshot file name. You can also choose to make subfolders
based on a period of time you specify to help you organize your
snapshots.
• Sequence Number Suffix will add a number to the end of the
snapshot file name up to the number you specify, after which the
oldest files will be overwritten.
Enabling this will allow video clips to be uploaded to your FTP server in
various ways.
• Choosing Always will upload video continuously, based on the
Video Limit specified below.
• Choosing Schedule will allow you to schedule when to start and
stop the uploading of video.
• Select Motion/Sound Detection if you would like the camera to
upload video only when motion or sound is detected.
Set the desired base le name for your videos.
Specify the maximum le size and duration of the videos to be uploaded.
Clicking on the Test button will send a test JPEG snapshot to the FTP server
specied above to make sure that your settings are correct.
37D-Link DCS-5020L User Manual 37
Section 3 - Conguration
Time and Date
Time Zone:
Synchronize
NTP Server:
Set the Date
and Time
Manually:
Select the time zone for your region from the drop down menu.
Enabling this will allow the camera to update its clock automatically from
an NTP server. Select the NTP server closest to you, and select whether
you want to apply daylight saving corrections.
If Synchronize NTP Server is disabled, you can set the date and time
manually. You can also click on the Copy Your Computer’s Time Settings
to automatically set the date and time based on your computer’s settings.
This section allows you to congure the settings of the internal system clocks for your camera.
38D-Link DCS-5020L User Manual 38
Section 3 - Conguration
Day/Night Mode
This section allows you to congure when Day and Night modes are used. Day mode uses the infrared cut lter to provide a corrected color image
for times where there is available lighting. Night mode moves the lter out of the way to use all available light, and turns on the IR LED illuminators
to allow for clear black and white video in dark areas with little or no light.
Auto:
Manual:
Always Day
Mode:
Always Night
Mode:
Day Mode
Schedule:
This mode will automatically switch between Day and Night mode based
on the amount of available lighting.
This mode allows you to manually switch between modes through the
Live Video page.
This sets the camera to always use Day mode.
This sets the camera to always use Night mode.
This sets the camera to use Day mode during the times you specify, and
will switch to Night mode outside the times you specify.
39D-Link DCS-5020L User Manual 39
Section 3 - Conguration
Camera Control
This section allows you to congure the pan and tilt operations of your camera. You can specify the lens location for the Home button, and specify
up to 24 pre-set lens locations, allowing you to quickly view these pre-determined areas of the camera’s range from the Live Video screen.
Pan/Tilt Wheel:
Set as Home:
Default Home:
Pan Step:
Tilt Step:
Preset Position:
Use the directional arrows on the wheel to move the camera lens through
its pan and tilt ranges.
Click this button to set the current lens location as the Home location. Once
set, the camera will return to this location whenever the Home button in
the center of the pan/tilt wheel is clicked.
Clicking on this button returns the Home location to the factory default
setting.
Select the increment of movement for each press of a pan (up/down)arrow
on the pan/tilt wheel.
Select the increment of movement for each press of a tilt (left/right) arrow
on the pan/tilt wheel.
The camera allows you to specify up to 24 pre-determined lens positions,
which can be used to quickly move the camera’s view to areas of interest.
• Select the number of the position that you would like to specify.
• Use the pan/tilt wheel to move the camera’s lens to the desired preset
position.
• Enter a name to help you easily identify the preset.
• Click on the Set button to save the preset.
• Any pre-saved positions can be cleared by selecting the desired preset
and clicking on the Clear button.
40D-Link DCS-5020L User Manual 40
Section 3 - Conguration
Maintenance
Admin
This section allows you to change the administrator’s password and congure the server settings for your camera. You can also manage the user
account(s) that are allowed to access to your camera.
Admin
Password:
Camera Name:
LED Control:
User Access
Control:
Snapshot URL
Authentication:
OSD Time:
Add User
Account:
User List:
To change the admin password used to log into the web interface, enter
the old password, then enter the new password and retype it in the next
text box, then click Apply.
Specify a name for your camera
Select Normal to enable the LEDs on the front of the device, or select O
to disable the LED. Disabling the LED function may be useful if you want
to make the camera less obvious.
Select Enable to enable user access control or Disable to allow only the
administrator account to access the camera.
Select Enable to allow access to the current camera snapshot via the web
address indicated.
Select Enable to allow the current time to be added to the camera video,
and select a color to use for the text.
You can create new users to provide viewing access for your camera’s
video. User accounts will only be able to access the Live Video section
of the web conguration interface, but cannot access any other parts or
change any settings.
To create a new user, enter a user name, password, and retype the
password, then click Add. A maximum of 8 user accounts can be created.
Displays the account names of authorized users. You can modify or delete
an account by clicking on its modify or delete icon.
41D-Link DCS-5020L User Manual 41
Section 3 - Conguration
System
This section allows you to save and restore your conguration, restore the factory settings, and/or restart the camera.
Save To Local
Hard Drive:
Load From
Local Hard
Drive:
Restore
To Factory
Default:
Reboot The
Device:
Click the Save Configuration button to save the current camera
conguration to your local PC.
To load a previously saved conguration, click the Browse... button, select
your saved conguration le, then click the Restore Conguration From
File button.
Click the Restore Factory Defaults button to reset all settings back to
the factory defaults. Please note that this will erase any changes you have
made to the settings of the camera.
Click the Reboot the Device button to reboot the camera.
42D-Link DCS-5020L User Manual 42
Section 3 - Conguration
Firmware Upgrade
Your current rmware version and date will be displayed on your screen. You may go to the D-Link Support Page to check for the latest rmware
versions available.
To upgrade the rmware on your DCS-5020L, download the latest rmware from the D-Link
Support Page to your local hard drive. Click the Browse... button and select the rmware
le, then click the Upload button to start the rmware upgrade.
Warning: The rmware upgrade process must not be interrupted or the camera may be
damaged. When upgrading rmware, do not unplug the camera or your PC, or close your
web browser until the process is complete. It is also highly recommended that you use a wired
connection for your camera and PC when upgrading rmware.
43D-Link DCS-5020L User Manual 43
Section 3 - Conguration
Status
Device Info
This section displays all the detailed information about your device and network settings.
44D-Link DCS-5020L User Manual 44
Section 3 - Conguration
Active User
This page lists all the active users’ information including the User Name, IP address, and the time that camera access began.
45D-Link DCS-5020L User Manual
Section 4 - Troubleshooting
Troubleshooting
1. What is Remote Access? How do I enable it?
Remote Access allows you to access your camera from any PC connected to the Internet through a web browser. This lets you view your camera
feed and manage your camera’s settings when you’re away from home.
To enable Remote Access, simply go through the Camera Installation Wizard included on the Installation CD that came in your package. You can
also download the wizard from: http://www.mydlink.com/support
After going through the wizard, you should see Remote Status: Enabled on the summary page.
If you see Remote Status: Disabled, make sure that:
...the front LED on your camera is lit solid green
...your Internet connection is working
...your router’s LAN & WAN connections are working properly
...your router has UPnP enabled (if your router does not support UPnP, please refer to Appendix A)
...your router can get a public IP address
...your router’s rmware has been upgraded to the latest version
...you have tried rebooting your router by unplugging it, then plugging it back in
After checking the above items, you can click the Retry button to refresh the summary screen to see if Remote Access has been enabled.
2. What can I do if I forget the password for my camera’s web conguration interface?
If you forget your password, you will need to perform a factory reset of your camera. This process will change all your settings back to the factory
defaults. It is therefore recommended that you make a record of the password for future reference.
To reset your camera, please use an unfolded paperclip to press and hold the RESET button for at least 10 seconds while your camera is plugged in.
3. The image on the live view is blurry or out of focus, what can I do?
You can manually adjust the focus of the lens by rotating the bezel on the front of the camera (surrounding the lens). While watching the live view,
rotate the bezel until the desired level of focus is achieved.
46D-Link DCS-5020L User Manual
Section 4 - Troubleshooting
4. Why don’t the LEDs light up?
The power supply might be faulty. Conrm that you are using the provided DC 12V power supply for this network camera. Verify that the power
supply is correctly connected. The WPS LED will only turn on if there is a WPS connection present, the camera may still be functioning correctly
even if this LED is not lit. If the camera is functioning normally, the LEDs may have been disabled. See “Admin” on page 40 for information about how
to enable the LEDs.
5. Why is the camera’s network connection unreliable?
There might be a problem with the network cable. To conrm that the cables are working, PING the address of a known device on the network. If
the cabling is OK and your network is reachable, you should receive a reply similar to the following (…bytes = 32 time = 2 ms).
Another possible problem may be that the network device such as a hub or switch utilized by the Network Camera is not functioning properly.
Please conrm the power for the devices are well connected and functioning properly.
If you are using a wireless connection to connect the camera, be aware of the range limitations of the wireless N standard. Most wireless N devices
have a maximum indoor range of around 70 metres (230 feet). Also be aware that obstacles such as walls, oors, doors and other solid objects can
have an adverse eect on signal range.
6. Why does a series of broad vertical white lines appear through out the image?
It could be that the image sensor has become overloaded when it has been exposed to bright light such as direct exposure to sunlight or halogen
lights. Reposition the camera into a more shaded area immediately, as prolonged exposure to bright lights will damage the sensor.
7. The camera is producing noisy images. How can I solve the problem?
The video images might be noisy if the camera is used in a very low light environment. Try switching to night mode if you are consistently monitoring
a low light area.
47D-Link DCS-5020L User Manual
Section 4 - Troubleshooting
8. The images are poor quality, how can I improve the image quality?
Make sure that your computer’s display properties are set to at least 6-bit color. Using 16 or 256 colors on your computer will produce dithering
artifacts in the image, making the image look as if it is of poor quality.
You may also need to check your image settings to make sure the brightness, contrast, and other settings are set properly. For more, refer to ”Image
Setup” on page 28.
9. Why are no images available through the Web browser?
ActiveX might be disabled. If you are viewing the images from Internet Explorer make sure ActiveX has been enabled in the Internet Options menu.
You may also need to change the security settings on your browser to allow the ActiveX plug-in to be installed. Also, check that you have the latest
version of Java installed. Java can be downloaded from http://www.java.com
If you are using Internet Explorer with a version number 6 or lower, then you will need to upgrade your Web browser software in order to view the
streaming video transmitted by the Network Camera.
48D-Link DCS-5020L User Manual
Appendix A - Technical Specications
Technical Specications
SYSTEM REQUIREMENTS
• Microsoft Windows® 8/7/Vista/XP, or Mac with OS X 10.6 or higher
• PC with 1.3 GHz or above and at least 128 MB RAM
• Internet Explorer 7, Firefox 12, Safari 4, or Chrome 20 or higher
version with Java installed and enabled
NETWORKING PROTOCOL
• IPV4, ARP, TCP, UDP, ICMP
• DHCP Client
• NTP Client (D-Link)
• DNS Client
• DDNS Client (Dyndns and D-Link)
• SMTP Client
• FTP Client
• HTTP Server
• PPPoE
• UPnP Port Forwarding
• LLTD
BUILTIN PROTOCOL
• 10/100 BASE-TX Fast Ethernet
• 802.11b/g/n WLAN
WIRELESS CONNECTIVITY
• 802.11b/g/n Wireless with WEP/WPA/WPA2 security
• WPS
WIRELESS TRANSMIT OUTPUT POWER TYPICAL
• 11b - 16 dbm
• 11g/11n - 12 dbm
SDRAM
• 64 MB
FLASH MEMORY
• 8 MB
RESET BUTTON
• Reset to factory default
VIDEO CODECS
• H.264
• MJPEG
• JPEG for still images
VIDEO FEATURES
• Adjustable image size and quality
• Time stamp and text overlay
• Flip and Mirror
• RESOLUTION
• 640 x 480 at up to 30 fps
• 320 x 240 at up to 30 fps
• 160 x 112 at up to 30 fps
49D-Link DCS-5020L User Manual
Appendix A - Technical Specications
LENS
• Focal length: 2.2 mm, F2.0
SENSOR
• VGA 1/5 inch CMOS sensor
IR LED
• 8 meter illumination distance with 10 LEDs and light sensor
MINIMUM ILLUMINATION
• Color: 1 lux @ F2.0 (Day)
• B/W: 0 lux @ F2.0 (Night)
VIEWING ANGLE
• Horizontal: 66.2°
• Vertical: 49.08°
• Diagonal: 77.04°
PAN/TILT RANGE
• Pan Range: +170° ~ -170° (Total 340°)
• Tilt Range: +95° ~ -25° (Total 120°)
DIGITAL ZOOM
• Up to 4x
3A CONTROL
• AGC (Auto Gain Control)
• AWB (Auto White Balance)
• AES (Auto Electronic Shutter)
POWER
• Input: 100-240 V AC, 50/60 Hz
• Output: 12 V DC, 1 A
DIMENSIONS W X D X H
• Camera Only - 102.35 x 101.27 x 133.6 mm (4.03 x 3.99 x 5.26 inches)
• Camera Including Mounting Bracket - 102.35 x 101.27 x 230.0 mm
(4.03 x 3.99 x 9.06 inches)
WEIGHT
• Device: 292.4 grams (0.64 lbs)
• Stand: 60.8 grams (0.13 lbs)
MAX POWER CONSUMPTION
• 8.64 W
OPERATION TEMPERATURE
• 0 ˚C to 40 ˚C (32 ˚F to 104 ˚F)
STORAGE TEMPERATURE
• -20 ˚C to 70 ˚C (-4 ˚F to 158 ˚F)
HUMIDITY
• 20-80% RH non-condensing
EMISSION EMI, SAFETY & OTHER CERTIFICATIONS
• FCC Class B
• IC
• C-Tick
• CE
Federal Communication Commission Interference Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority
to operate this equipment.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed
and operated with minimum distance 20cm between the radiator & your body.
Industry Canada statement:
This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired
operation.
Ce dispositif est conforme à la norme CNR-210 d'Industrie Canada applicable aux appareils radio exempts de licence. Son fonctionnement est
sujet aux deux conditions suivantes: (1) le dispositif ne doit pas produire de brouillage préjudiciable, et (2) ce dispositif doit accepter tout
brouillage reçu, y compris un brouillage susceptible de provoquer un fonctionnement indésirable.
Radiation Exposure Statement:
This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed
and operated with minimum distance 20cm between the radiator & your body.
Déclaration d'exposition aux radiations:
Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies pour un environnement non contrôlé. Cet équipement
doit être installé et utilisé avec un minimum de 20 cm de distance entre la source de rayonnement et votre corps.
