USER MANUAL
DCS-930
VERSION 1.0
DCS-930_A2
Wireless N Home Networks Camera
2D-Link DCS-930 User Manual
Table of Contents
Product Overview ........................................................ 4
Package Contents ...................................................4
System Requirements .............................................4
Introduction ..............................................................5
Features .................................................................. 6
Hardware Overview .................................................7
Front View ..........................................................7
Rear View ..........................................................8
Installation ....................................................................9
Hardware Installation ...............................................9
Wireless Installation Considerations ...................... 10
Starting the Camera Installation Wizard ................11
WPS - Hardware Push Button Setup ............... 12
Conguration ............................................................. 13
Using the Conguration Menu ...............................13
Live Video ........................................................15
Setup > Wizard ................................................ 15
Internet Connection Setup Wizard .............. 16
Network Setup ............................................18
Setup > Wireless .............................................. 19
Wireless Interface ....................................... 19
Setup > DDNS ................................................ 20
Setup > Image Setup ....................................... 21
Image Settings ............................................ 21
Setup > Video .................................................. 22
Video Conguration .................................... 22
Setup > Audio .................................................. 23
Setup > Motion Detect ..................................... 24
Setup > Mail ..................................................... 25
Email Account ............................................. 25
Time Schedule ............................................ 26
Setup > FTP ..................................................... 27
FTP Server .................................................27
Time Schedule ............................................ 28
Setup > Time and Date .................................... 29
Maintenance > Admin ...................................... 30
Maintenance > System .................................... 31
Maintenance > Firmware Upgrade .................. 32
Status > Device Info ......................................... 33
Status > Active User ........................................ 34
Using & Conguring the DCS-930 ......................... 35
Wireless Security.......................................................38
What is WEP? .......................................................38
What is WPA? .......................................................39
Using & Conguring the DCS-930 with a NAT
Router ..............................................................40
Troubleshooting ........................................................ 47
Table of Contents
DCS-930_A2
DCS-930L_A2
DCS-930L_A2
DCS-930_A2
DCS-930_A2
DCS-930_A2
3D-Link DCS-930 User Manual
Table of Contents
Wireless Basics ......................................................... 49
Networking Basics .................................................... 54
Check your IP address ..........................................54
Statically Assign an IP address .............................55
Technical Specications........................................... 56
4D-Link DCS-930 User Manual
Section 1 - Product Overview
• DCS-930 Network Camera
• CAT5 Ethernet Cable
• Power Adapter
• Manual and Software on CD
• Quick Install Guide
• Camera Stand
Note: Using a power supply with a different voltage than the one included with your
product will cause damage and void the warranty for this product.
If any of the above items are missing, please contact your reseller.
System Requirements
• Computer with Microsoft Windows® 7, XP®, or Vista®
• PC with 1.3GHz or above; at least 128MB RAM
• Internet Explorer 6 or above , Firefox 3.5 or above, Safari 4
• Existing 10/100 Ethernet-based network or 802.11n wireless network
Product Overview
Package Contents

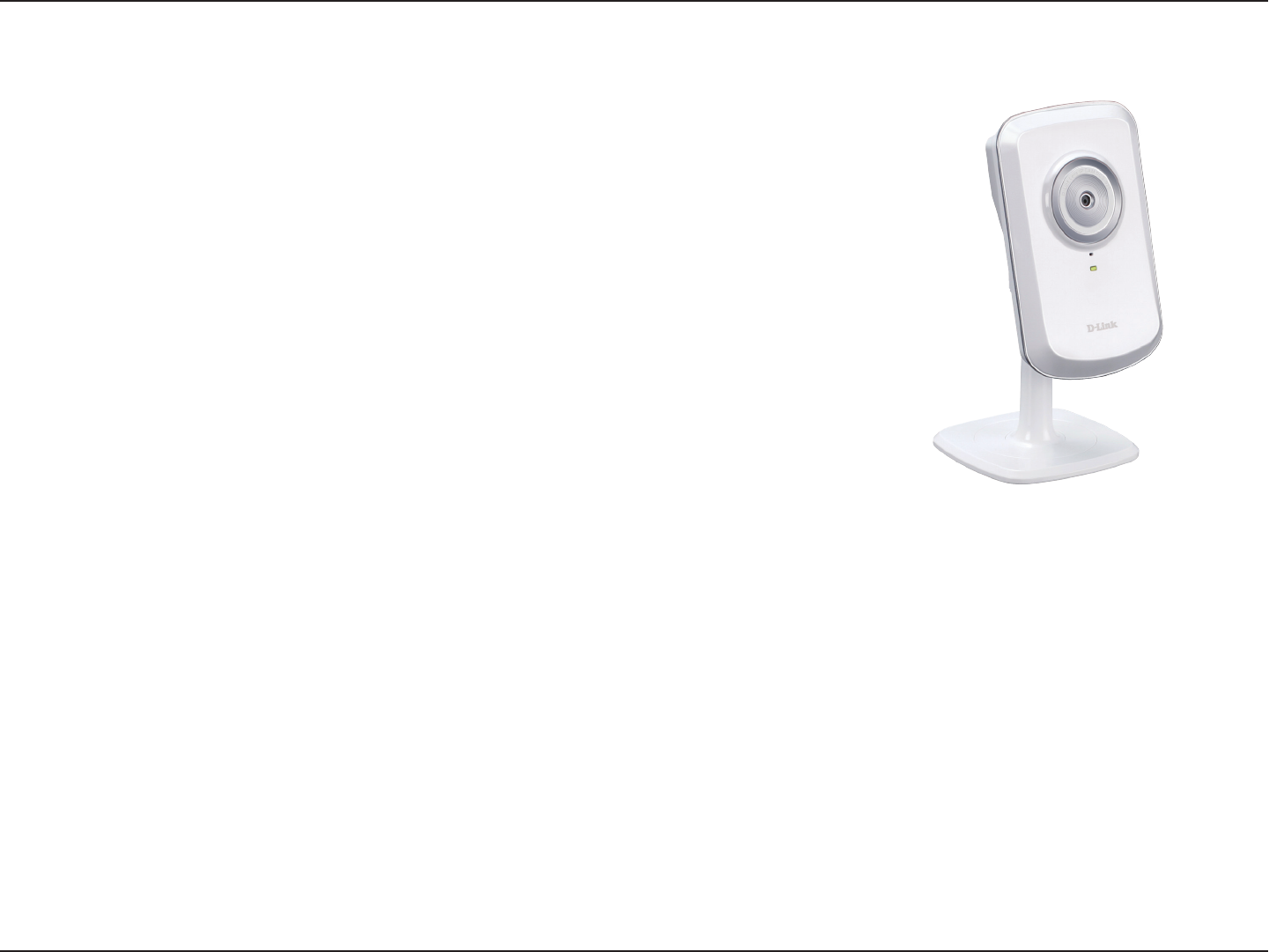

DCS-930L_A2
DCS-930_A2
5D-Link DCS-930 User Manual
Section 1 - Product Overview
Introduction
Congratulations on your purchase of the DCS-930 Network Camera. The DCS-930 is a versatile and unique solution for your small
ofce or home. Unlike a webcam, the DCS-930 is a stand-alone system with a built-in CPU that transmits high quality video images
for monitoring. The DCS-930 can be remotely accessed, and controlled using a Web browser over the Intranet or Internet. The simple
installation procedure and intuitive Web-based interface offer easy integration with your Ethernet/Fast Ethernet or 802.11n wireless
network. The DCS-930 also comes with remote monitoring capability for a complete and cost-effective home security solution.
DCS-930L_A2
DCS-930L_A2
DCS-930L_A2
DCS-930L_A2
DCS-930L_A2
DCS-930_A2
DCS-930_A2
DCS-930_A2
DCS-930_A2
DCS-930_A2
6D-Link DCS-930 User Manual
Section 1 - Product Overview
Simple to Use
The DCS-930 is a stand-alone system with a built-in CPU, requiring no special hardware or software such as PC frame grabber cards.
The DCS-930 supports both ActiveX mode for Internet Explorer and Java mode for other browsers such as Firefox® and Safari®.
Supports a Variety of Platforms
Supporting TCP/IP networking, HTTP, and other Internet related protocols. The DCS-930 can also be integrated easily into other
Internet/Intranet applications because of its standards-based features.
802.11n Wireless or Ethernet/Fast Ethernet Support
The DCS-930 offers wireless 802.11n and Ethernet/Fast Ethernet connectivity, making the DCS-930 easy to integrate into your existing
network environment. The DCS-930 works with a 10 Mbps Ethernet based network or 100 Mbps Fast Ethernet based network for
traditional wired environments, and works with 802.11n routers or access points for added exibility. The Site Survey feature also allows
you to view and connect to any available wireless networks.
Web Conguration
Using a standard Web browser, administrators can congure and manage the Network Camera directly from its own Web page via
Intranet or Internet. This means you can access your DCS-930 anytime, anywhere in the world.
Broad Range of Applications
With today’s high-speed Internet services, the Network Camera can provide the ideal solution for delivering live video images over the
Intranet and Internet for remote monitoring. The Network Camera allows remote access using a Web browser for live image viewing,
and allows the administrator to manage and control the Network Camera anytime, anywhere in the world. Many applications exist,
including industrial and public monitoring of homes, ofces, banks, hospitals, child-care centers, and amusement parks.
Features
DCS-930L_A2
DCS-930L_A2
DCS-930L_A2
DCS-930L_A2
DCS-930L_A2
DCS-930L_A2
DCS-930L_A2
DCS-930_A2
