D Link CS935LA1 HD Wi-Fi Camera User Manual

D Link Corporation HD Wi-Fi Camera

User Manual.pdf

Version 1.01 | 09/12/2014
User Manual
HD Wi-Fi Camera
DCS-935L
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person
or organization of such revisions or changes. Information in this document may become obsolete as our services and websites
develop and change. Please refer to the www.mydlink.com website for the most current information.
Manual Revision
Revision Date Description
1.00 Sept. 11, 2014 DCS-935L Revision A1 with rmware version 1.00
1.01 Sept. 12, 2014 Add mydlink Home app
Trademarks
D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United States or
other countries. All other company or product names mentioned herein are trademarks or registered trademarks of their respective
companies.
Copyright © 2014 by D-Link Corporation.
All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission from
D-Link Corporation.
Manual Overview
3D-Link DCS-935L User Manual
Table of Contents
Product Overview .............................................................. 5
Package Contents .........................................................................5
System Requirements ................................................................. 5
Introduction ................................................................................... 6
Features ............................................................................................ 7
Hardware Overview ..................................................................... 8
Front View ................................................................................ 8
Rear View .................................................................................9
Installation .......................................................................10
Wireless Installation Considerations ....................................11
Zero Conguration Setup ........................................................12
Mobile App Setup ......................................................................15
Mounting the Camera...............................................................16
mydlink ...........................................................................................17
Conguration ...................................................................18
Accessing the Web Conguration Utility ...........................18
Live Video ......................................................................................19
Setup ...............................................................................................21
Wizard .....................................................................................21
Internet Connection Setup Wizard ........................22
Network .................................................................................. 25
Wireless Setup ......................................................................27
Dynamic DNS ......................................................................28
Image Setup .........................................................................29
Audio and Video .................................................................. 30
Motion Detection ...............................................................31
Sound Detection ................................................................. 32
Mail ..........................................................................................33
FTP ............................................................................................34
Snapshot ................................................................................35
Video Clip ..............................................................................36
Time and Date ...................................................................... 37
Day/Night Mode .................................................................38
Maintenance ................................................................................39
Admin .....................................................................................39
System ....................................................................................40
Firmware Upgrade ..............................................................41
Status ..............................................................................................42
Device Info ............................................................................42
System Log ............................................................................43
Event Log ...............................................................................44
Wireless Security .............................................................45
What is WEP? ................................................................................45
What is WPA? ................................................................................46
Conguring the DCS-935L with a Router ..........................47
Troubleshooting ..............................................................53
Wireless Basics .................................................................55
Table of Contents
4D-Link DCS-935L User Manual
Table of Contents
Wireless Modes ............................................................................59
Networking Basics ...........................................................60
Check your IP address ...............................................................60
Statically Assign an IP Address ..............................................61
Technical Specications ..................................................62
5D-Link DCS-935L User Manual
Section 1 - Product Overview
DCS-935L HD Wi-Fi Camera
Power Adapter
Quick Install Guide
Mounting Kit
If any of the above items are missing, please contact your reseller.
Note: Using a power supply with a dierent voltage than the one included with your product
will cause damage and void the warranty for this product.
Note: You can power this camera with a USB battery that supplies 5 V and at least 1.5 A of
power.
System Requirements
Computer with Microsoft Windows® 8/7/Vista, or Mac with OS X 10.6 or higher
PC with 1.3GHz or above and at least 128MB RAM
Internet Explorer 7, Firefox 12, Safari 6, or Chrome 20 or higher version with Java installed and enabled
Existing 802.11b/g/n/ac wireless network
iPhone, iPad, or Android smartphone or tablet*
* Please refer to the mobile apps store page to check whether your device is compatible.
Product Overview
Package Contents
6D-Link DCS-935L User Manual
Section 1 - Product Overview
Introduction
Congratulations on your purchase of the DCS-935L HD Wi-Fi Camera. The DCS-935L is a versatile and unique solution for your
small oce or home. Unlike a standard webcam, the DCS-935L is a complete system with a built-in CPU and web server that
transmits high quality video images for security and surveillance. The IR LED provides around the clock surveillance regardless of
the lighting conditions. The DCS-935L can be accessed remotely, and controlled from any PC/Notebook over your local network
or through the Internet via a web browser. The simple installation and intuitive web-based interface oer easy integration
with your Ethernet/Fast Ethernet or 802.11b/g/n/ac wireless network. The DCS-935L also comes with remote monitoring and
motion/sound detection features for a complete and cost-eective home security solution.
7D-Link DCS-935L User Manual
Section 1 - Product Overview
Simple to Use
The DCS-935L is a stand-alone system with a built-in CPU, requiring no special hardware or software such as PC frame grabber cards. The DCS-935L
supports both ActiveX mode for Internet Explorer and Java mode for other browsers such as Firefox® and Safari®.
Supports a Variety of Platforms
Supporting TCP/IP networking, HTTP, and other Internet related protocols. The DCS-935L can also be integrated easily into other Internet/Intranet
applications because of its standards-based features.
Wireless AC Support
The DCS-935L oers 802.11ac wireless, making the DCS-935L easy to integrate into your existing network environment. The DCS-935L also works
802.11n/g/b routers or access points for added exibility. The Site Survey feature also allows you to view and connect to any available wireless
networks.
Web Conguration
Using a standard Web browser, administrators can congure and manage the Network Camera directly from its own Web page via Intranet or
Internet. This means you can access your DCS-935L anytime, anywhere in the world.
Broad Range of Applications
With todays high-speed Internet services, the Network Camera can provide the ideal solution for delivering live video images over the Intranet and
Internet for remote monitoring. The Network Camera allows remote access using a Web browser for live image viewing, and allows the administrator
to manage and control the Network Camera anytime, anywhere in the world. Many applications exist, including industrial and public monitoring
of homes, oces, banks, hospitals, child-care centers, and amusement parks.
Comprehensive Day/Night Surveillance
The built-in infrared LEDs enable night time viewing of up to 16 feet (5 meters), allowing you to keep watch over an area, even in complete darkness.
Features
8D-Link DCS-935L User Manual
Section 1 - Product Overview
Hardware Overview

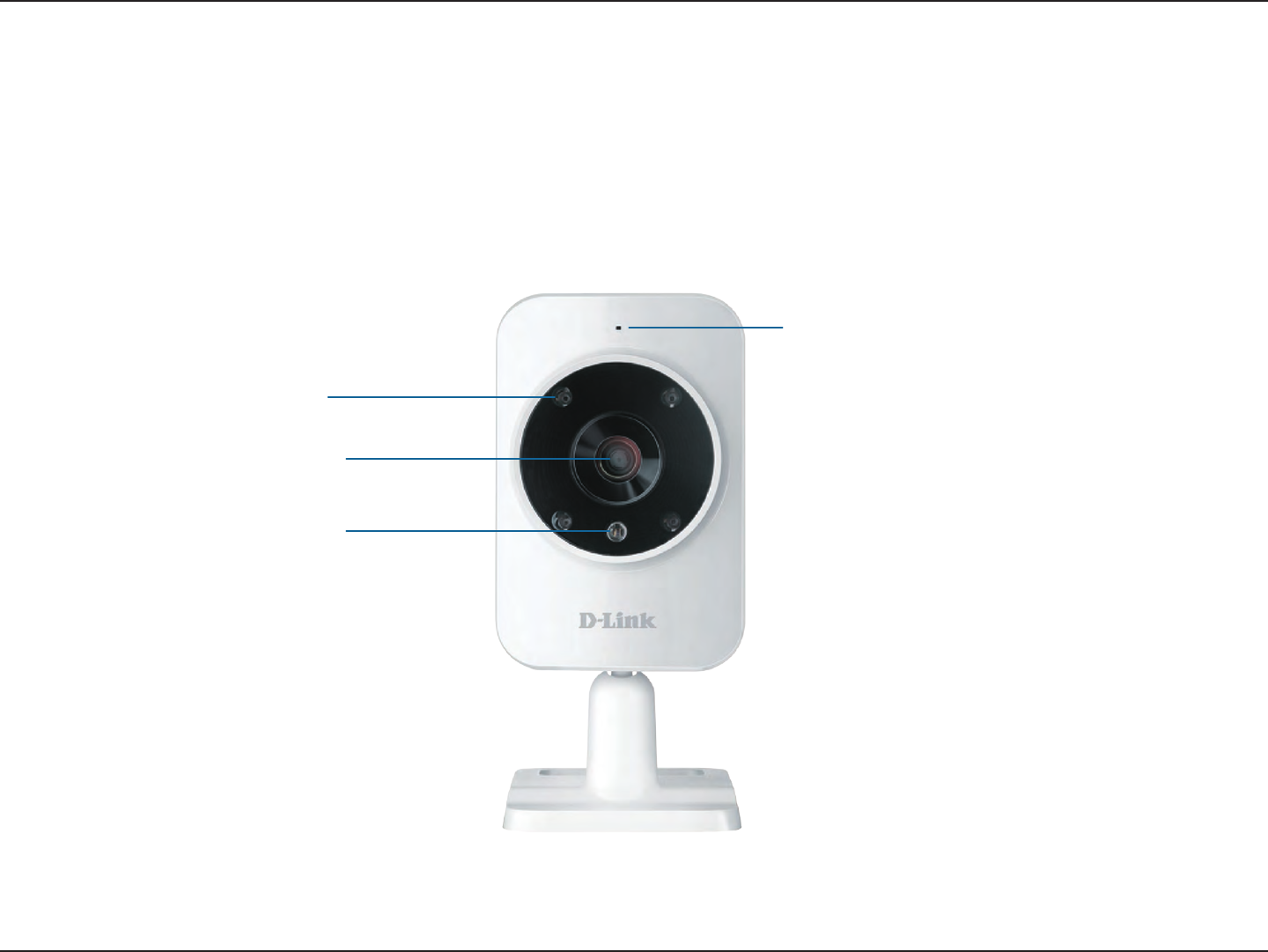

Front View
Camera Lens
Microphone
IR LEDs
Light Sensor
9D-Link DCS-935L User Manual
Section 1 - Product Overview

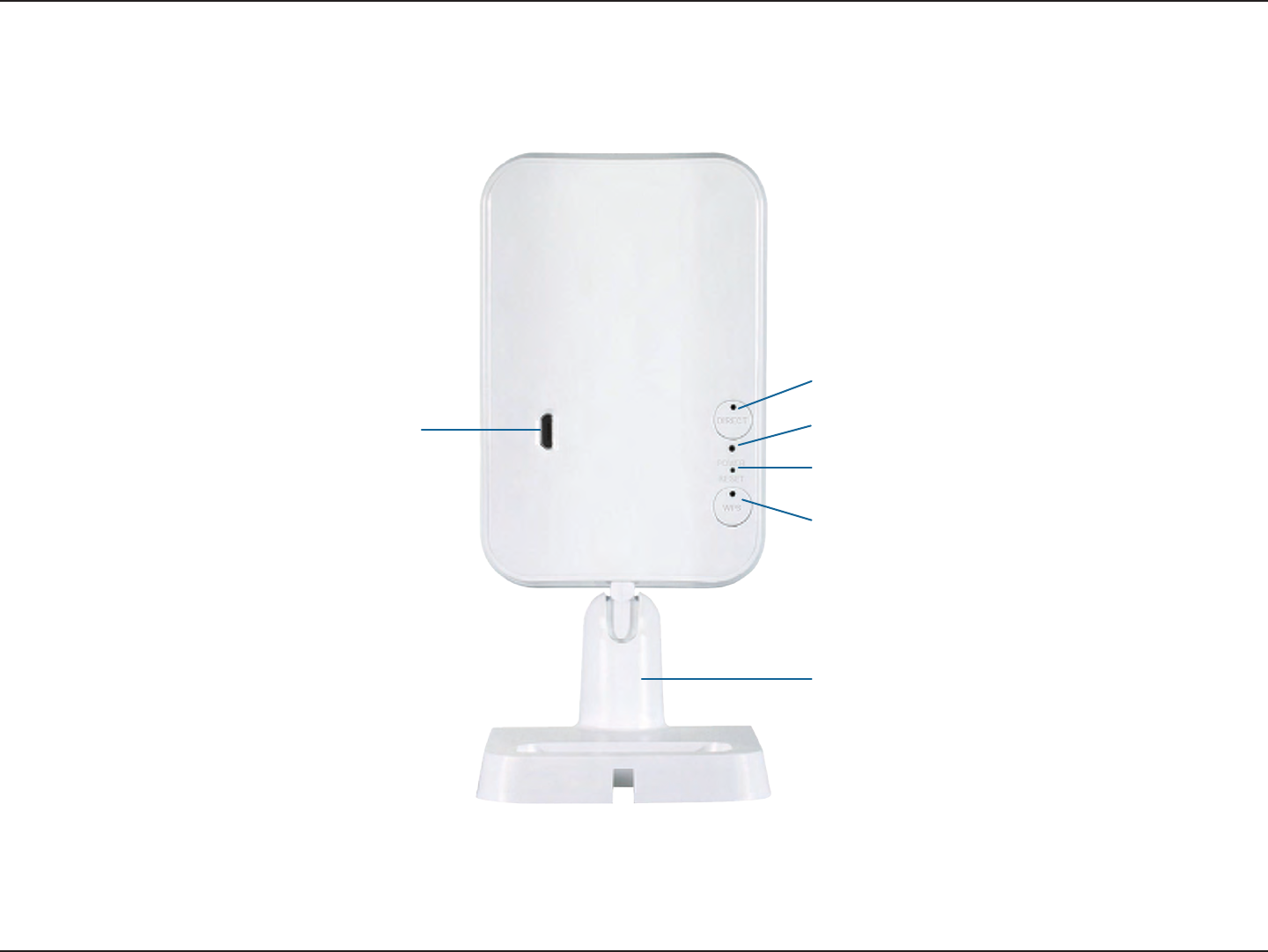

Rear View
microUSB Port
(for power) Reset Button
Direct Button
WPS Button
Camera Stand
Power and Link LED
10D-Link DCS-935L User Manual
Section 2 - Installation
Installation
There are two ways to set up your camera:
Zero Conguration Setup: If you have a mydlink-enabled router (D-Link cloud router), this is the easiest way to set up
your camera. Refer to Zero Conguration Setup on page 12.
mydlink Home Mobile App: If you do not have a mydlink-enabled router, you can use the mydlink Home mobile app
to guide you through setup and initial conguration of your camera. Refer to Mobile App Setup on page 15.
11D-Link DCS-935L User Manual
Section 2 - Installation
Wireless Installation Considerations
The D-Link Wireless Network Camera lets you access your network using a wireless connection from anywhere within the operating range of your
wireless network. However, the number, thickness and location of walls, ceilings, or other objects that the wireless signals must pass through, may
limit the range. Typical ranges vary depending on the types of materials and background RF (radio frequency) noise in your home or business. The
key to maximizing wireless range is to follow these basic guidelines:
1. Minimize the number of walls and ceilings between your adapter and other network devices (such as your Network Camera) - each
wall or ceiling can reduce your adapter’s range from 3-90 feet (1-30 meters).
2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (.5 meters), at a 45-degree angle appears to be
almost 3 feet (1 meter) thick. At a 2-degree angle, it looks over 42 feet (14 meters) thick. Position your devices so that the signal
will travel straight through a wall or ceiling (instead of at an angle) for better reception.
3. Building Materials make a dierence. A solid metal door or aluminum studs may weaken the wireless signal. Try to position your
access points, wireless routers, and other networking devices where the signal passes through drywall or open doorways. Materials
and objects such as glass, steel, metal, walls with insulation, water (sh tanks), mirrors, le cabinets, brick, and concrete will degrade
your wireless signal.
4. Keep your product at least 3-6 feet or 1-2 meters away from electrical devices or appliances that generate RF noise.
5. If you are using 2.4GHz cordless phones or other radio frequency sources (such as microwave ovens), your wireless connection
may degrade dramatically or drop completely. Make sure your 2.4GHz phone base is as far away from your wireless devices as
possible. The base transmits a signal even if the phone in not in use.
12D-Link DCS-935L User Manual
Section 2 - Installation
Zero Conguration Setup
If you have a mydlink-enabled Cloud Router, you can take advantage of Zero Conguration Setup. Zero Conguration
automatically congures your cameras settings for you, and adds the camera to your mydlink account automatically. This
type of setup allows you to set up your camera by simply plugging it in and connecting it to your router.
Connect your camera to your mydlink-enabled Cloud Router and Zero Conguration will automatically congure your
DCS-935L and add the camera to your mydlink account. After the short time it takes to do this you can remotely access your
camera from the website (http://www.mydlink.com) to manage and monitor your DCS-935L.

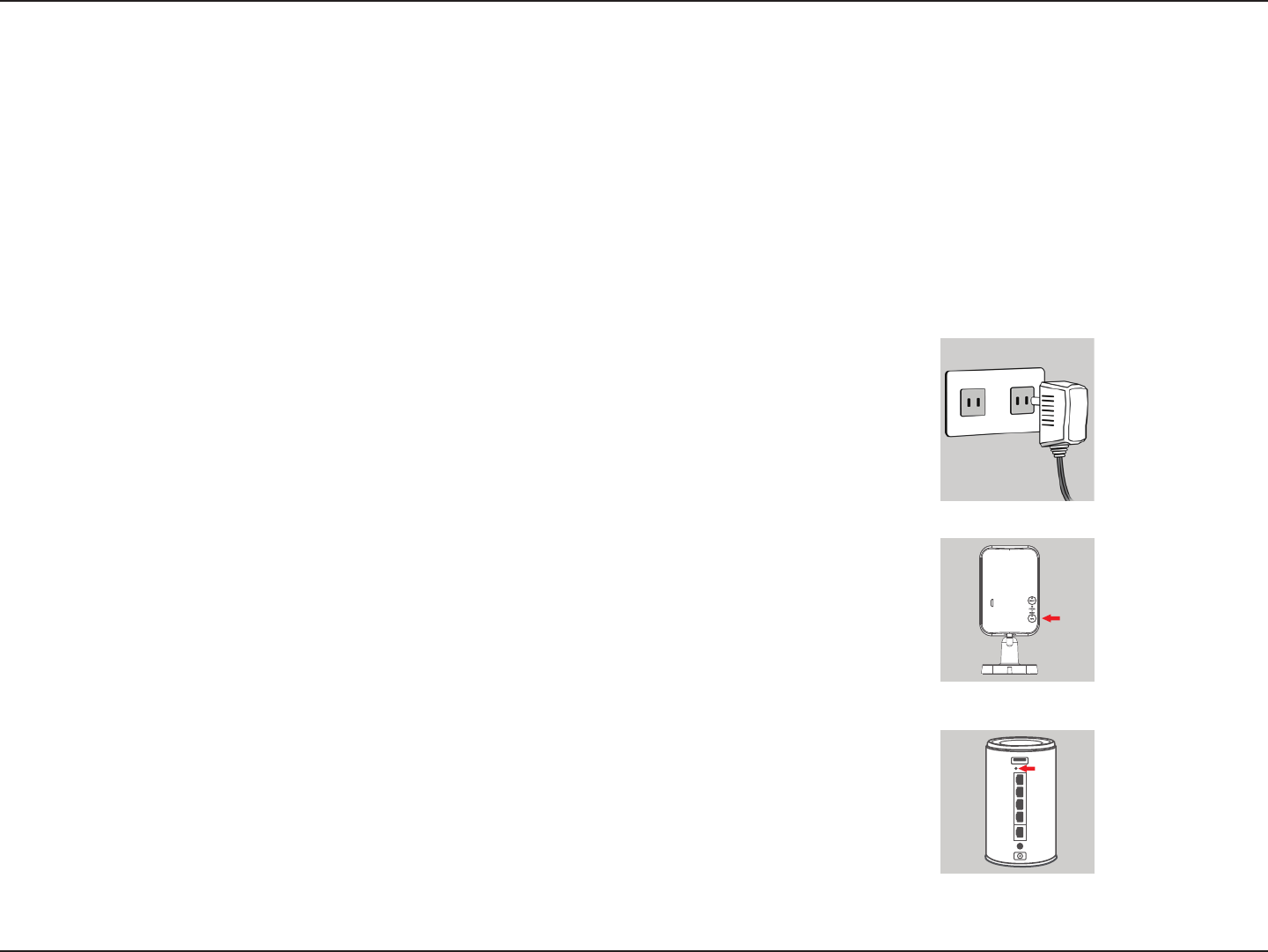

Plug in the External Power Adapter
Connect the power adapter to the microUSB port on the back of the camera.
Plug the power adapter in to a wall outlet.
Press the WPS button on your camera
Press and hold the WPS button for three seconds. The blue WPS status LED
will start blinking.
Press the WPS button on your Cloud Router
Press the WPS button on your router within 60 seconds. The WPS button
is usually on the side or back of your Cloud Router. The DCS-935L will
automatically create a secure wireless connection to your router and reboot.
When it has successfully connected, the Power LED will be lit green and the
Direct LED will be turned o.
13D-Link DCS-935L User Manual
Section 2 - Installation
DCS-935L

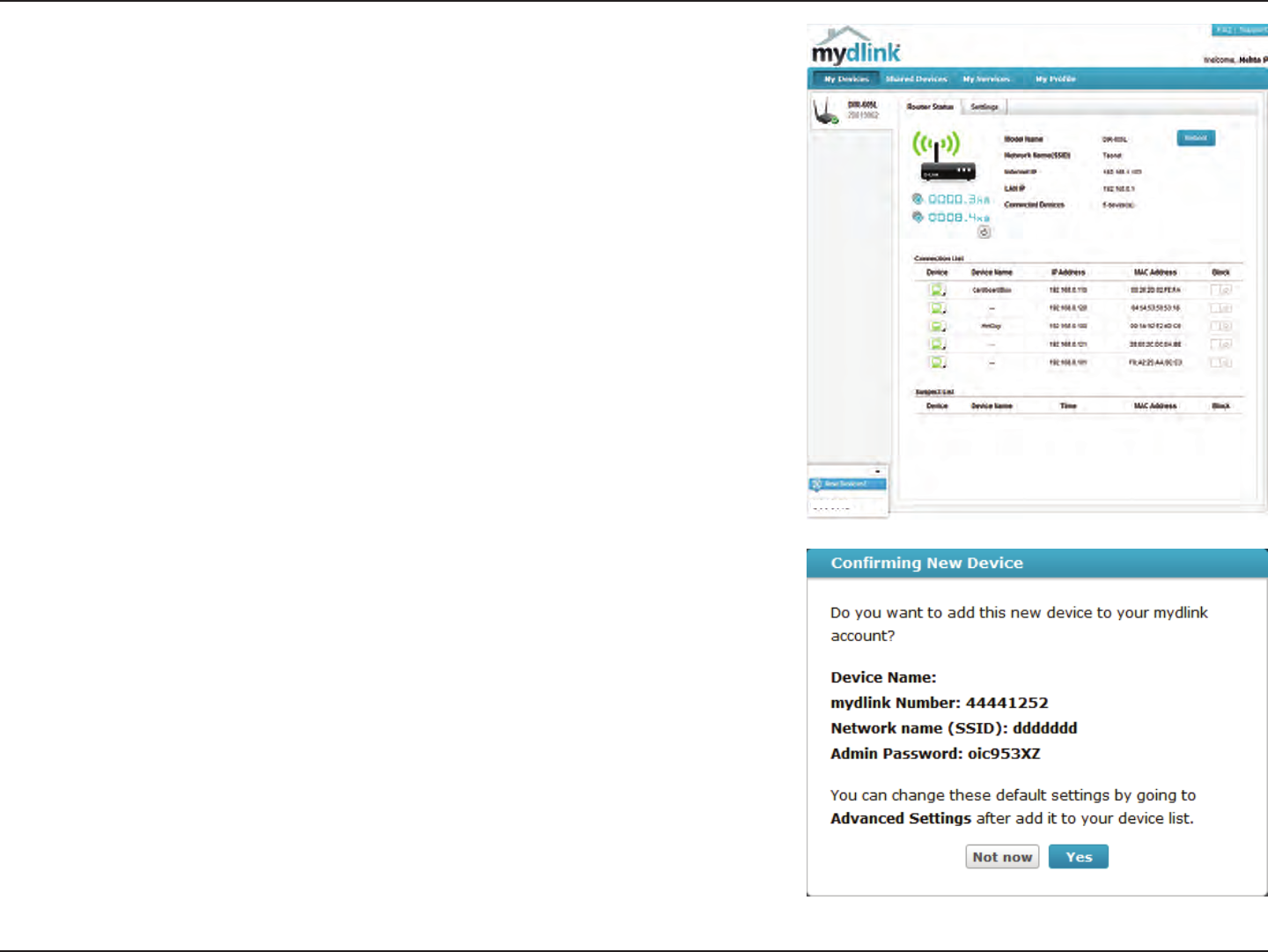

Check Your mydlink Account
From any computer with an Internet connection, open a web browser and
login to your mydlink account. The mydlink page will check for new devices
and display a New device Found! pop-up notication in the bottom-left
corner. Click the notication to continue.
A summary and conrmation notication will appear with the automatically
congured details. Make a note of the details and click Yes to add the camera
to your account.
DCS-935L
14D-Link DCS-935L User Manual
Section 2 - Installation

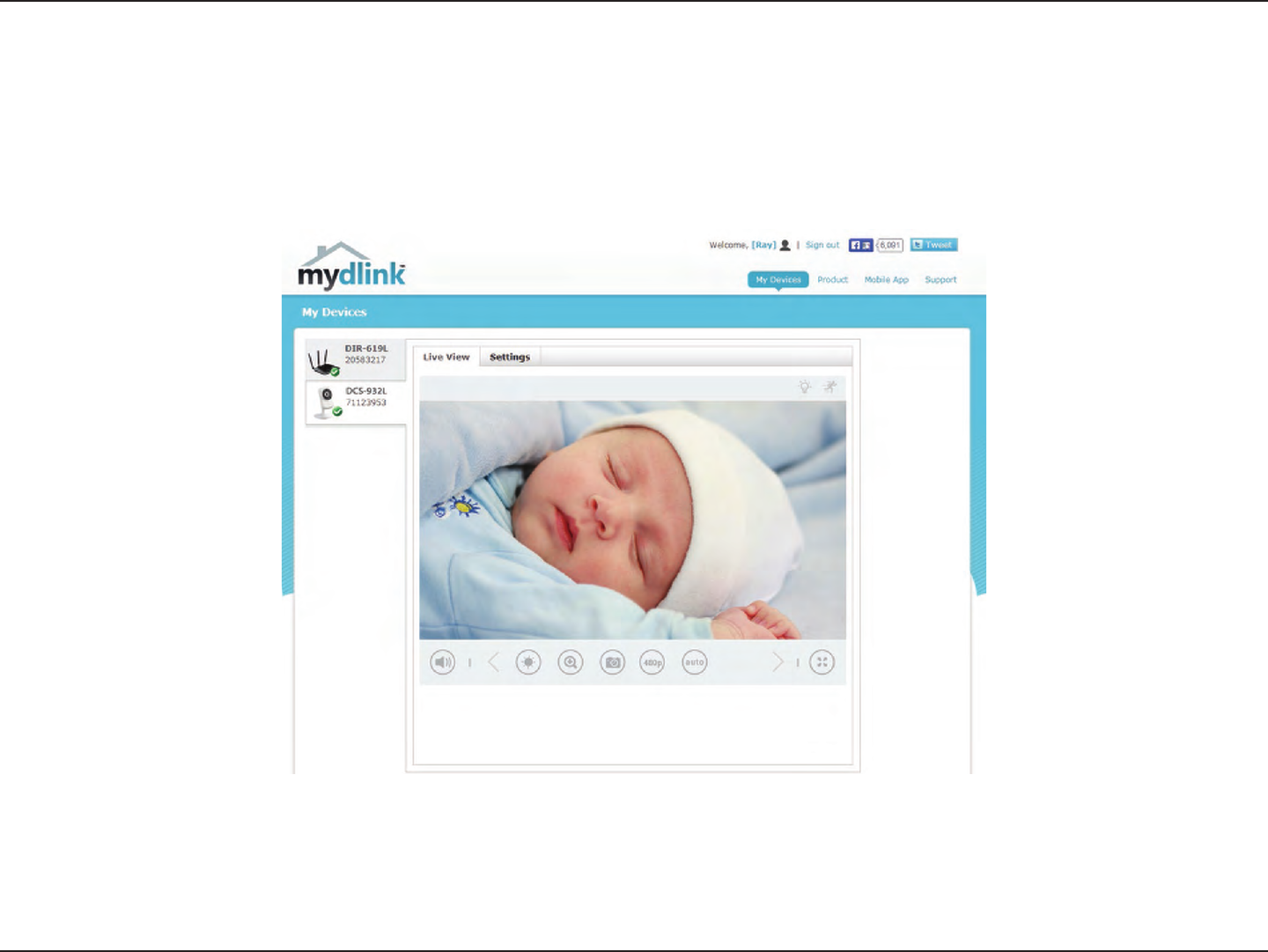

Zero Conguration will navigate to the mydlink Live View tab for your camera
where you will see a screen similar to the following.
Your camera is now set up, and you can skip to mydlink on page 17 to learn
more about the mydlink features of this camera, or to Conguration on
page 18 for advanced conguration of your camera.
Note: If you see a white haze when viewing in night vision mode, the
night vision light on the camera may be reecting o a nearby surface. Try
repositioning and aiming the camera.
15D-Link DCS-935L User Manual
Section 2 - Installation
Mobile App Setup
If you do not have a mydlink-enabled Cloud Router, you can congure your camera through the mydlink Home mobile
app. Search for the free mydlink Home app on the App Store or Google Play and download it to your smartphone or tablet.
You can also use a QR code reading app to scan the corresponding code for your device below.
Launch the mydlink Home app and tap on the gear icon at the top left, then tap the Add new device button. Follow the
onscreen prompts to set up and install your camera.
16D-Link DCS-935L User Manual
Section 2 - Installation
Mounting the Camera

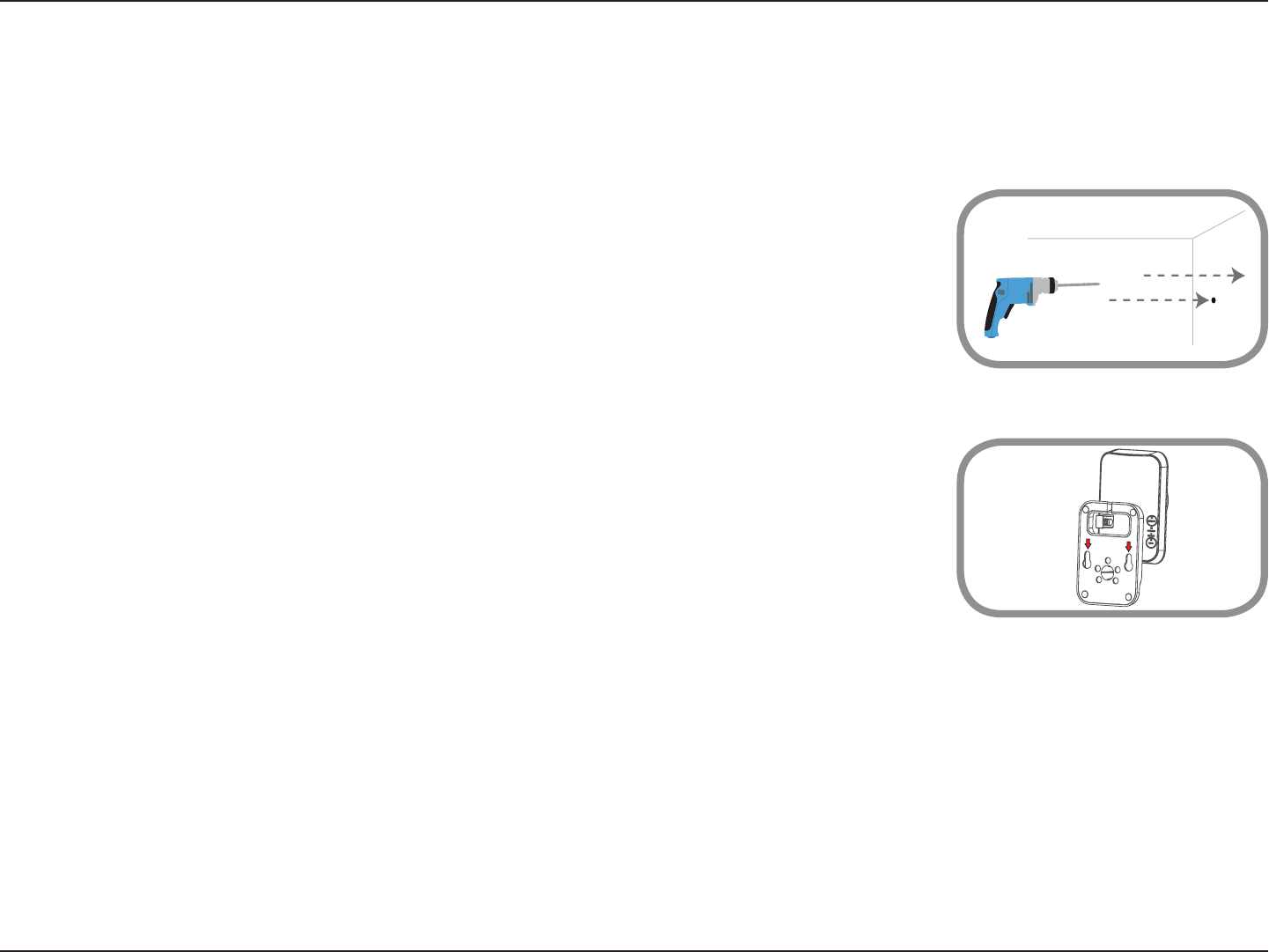

To mount your camera on a wall or ceiling, please follow the steps below. It is recommended that you congure the camera
before mounting.
Depending on the material of the wall or ceiling, use proper tools to drill two holes 25mm
deep, 40mm apart with a 6mm drill bit where you marked. Insert the screws into the holes. If
the wall is made out of concrete, drill the holes rst, then insert the plastic anchors to support
the screws.
Place the mounting base over the screws that are mounted on the wall. Make sure to t the
screw-heads over the big holes and slide it downward to lock rmly. Lightly pull the base
forward to make sure that it is locked. Adjust the angle of the camera as desired.
17D-Link DCS-935L User Manual
Section 2 - Installation
mydlink
After registering your camera with a mydlink account in the Camera Installation Wizard, you will be able to remotely access
your camera from the www.mydlink.com website. After signing in to your mydlink account, you will see a screen similar to
the following:
For more details on using your camera with mydlink, go to the Support section of the mydlink website and check the User
Manual section for your product to nd the latest instruction guide for your cameras mydlink features.
18D-Link DCS-935L User Manual
Section 3 - Conguration
Conguration
Accessing the Web Conguration Utility
After installing and setting up your camera with the mydlink Home app, you are ready to use
your camera. The cameras built-in Web conguration utility is designed to allow you to easily
access and congure your DCS-935L.

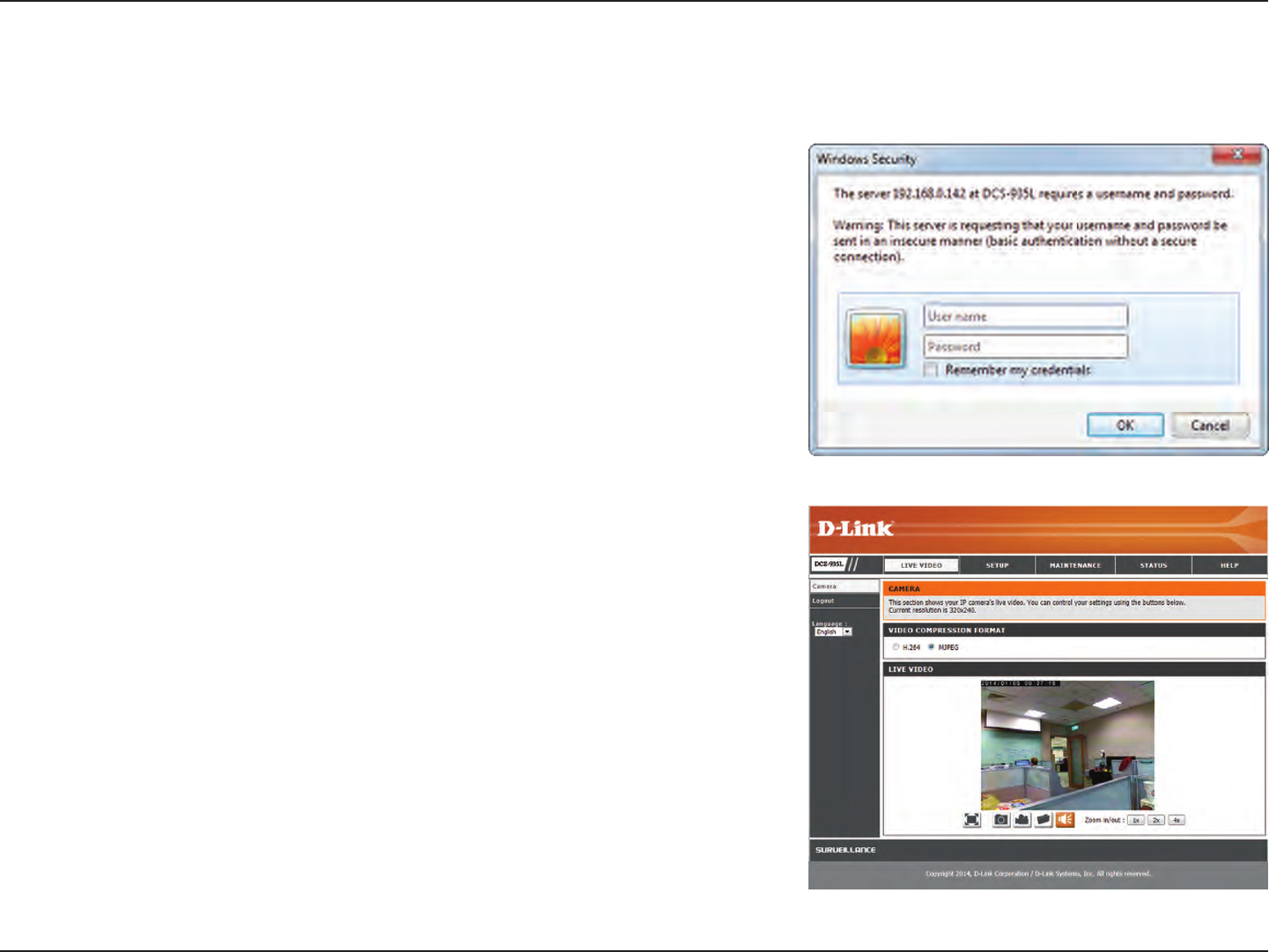

To log in, use a web browser on your PC to go to the www.mydlink.com website and log in
to your account. Select your camera, click on the Settings tab, then click on the Advanced
Settings button. Use the User name admin and the password you created while setting up
the camera. If you did not create a password, the default password is blank. After entering
your password, click OK.
Note: If you are directly connecting your PC to the camera, the default IP is 10.255.255.1
Please make sure that you have the latest version of Java application installed on your computer
to ensure proper operation when viewing the video in Java mode. The Java application can
be downloaded at no cost from Suns web site (http://www.java.com).
When you connect to the home page of your camera, you may be prompted to download
ActiveX. If you want to use ActiveX to view your video images instead of Java, then you must
download ActiveX.
19D-Link DCS-935L User Manual
Section 3 - Conguration

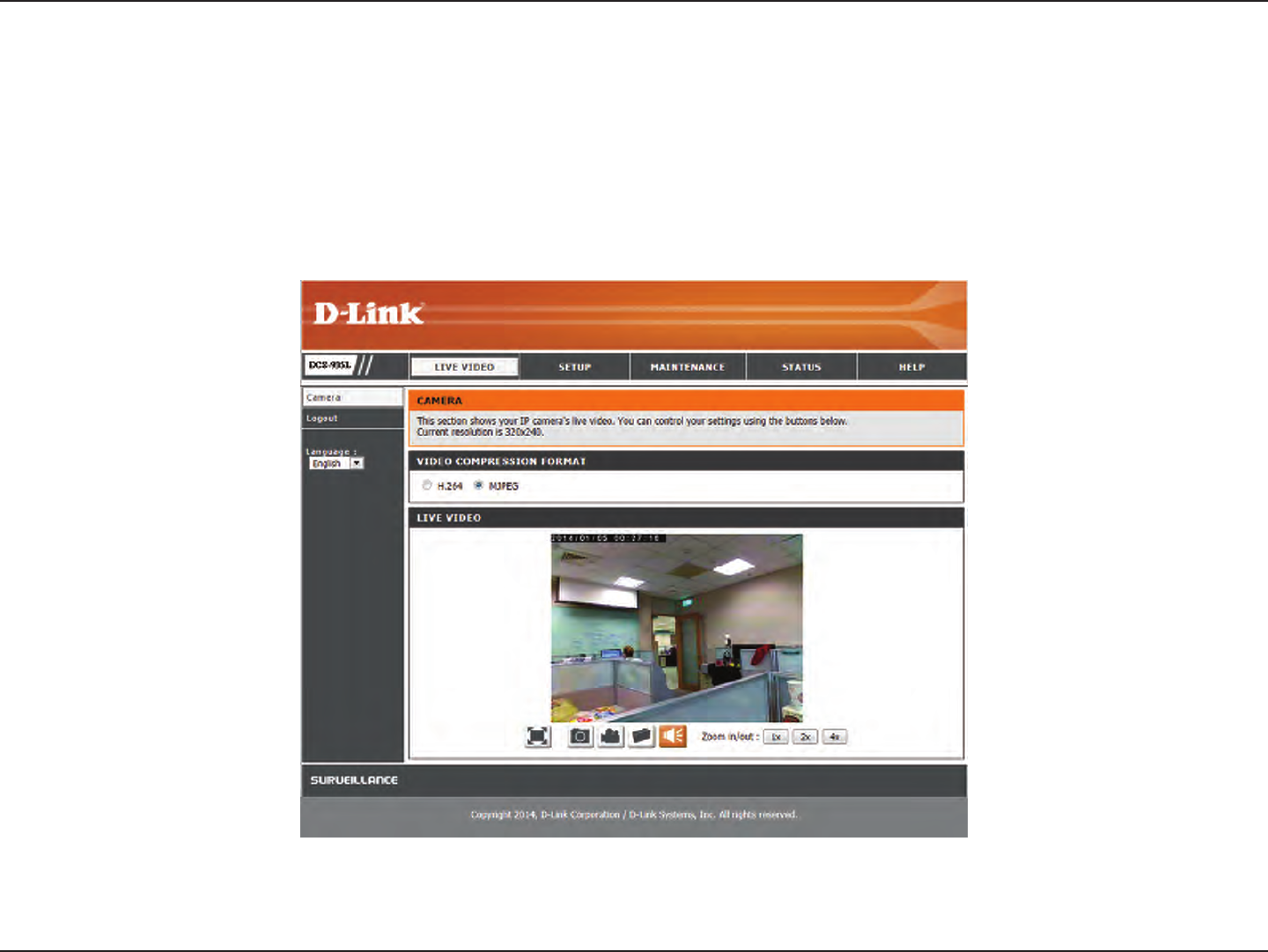

Live Video
The Live Video page lets you view the live video stream from your camera. You can choose which video prole to view by selecting H.264 or MJPEG.
For information on adjusting the video proles, refer to Audio and Video on page 30.
Please make sure that you have the latest version of Java installed on your computer to ensure proper operation when viewing the video in Java
mode. The Java application can be downloaded free from Suns web site (http://www.java.com).
20D-Link DCS-935L User Manual
Section 3 - Conguration
Icon Button Name Function
Full Screen button Switches to a full screen view of the camera video.
Snapshot button Takes a snapshot of the image currently displayed
on the screen and saves it to the hard drive in the
folder specied using the Storage folder button.
Video recording button Triggers the cameras recording function. This will
record the video displayed on the screen and saves
it to the hard drive in the folder specied using the
Storage folder button.
Storage folder button Sets the storage folder for snapshots and video
recordings.
Listen button Sends the audio received from the cameras
microphone through to the PCs speakers.
IR LED On/O button Turns the Infrared lights on or o.
(The icon only appears when you activate the
manual IR option which can be found under the
Day/Night Mode section of the Audio and Video
Setup tab.)
Zoom buttons Zooms in or out of the picture.
21D-Link DCS-935L User Manual
Section 3 - Conguration
Setup
Wizard
You may choose to congure your network by
using the Internet Connection Setup Wizard that
includes step-by-step instructions. Please refer to
Internet Connection Setup Wizard on page 22 for
more details.
If you would rather manually set up the camera
internet connection, you can refer to Network
on page 25 which provides more details on the
information required.
Internet
Connection
Setup Wizard:
Manual Internet
Connection
Setup:
This section allows you to begin setup wizards which will guide you through the process of getting your cameras various functions congured. If
you comfortable with adjusting the settings manually, you may skip the wizards and adjust settings manually as needed.
22D-Link DCS-935L User Manual
Section 3 - Conguration
Internet Connection Setup Wizard

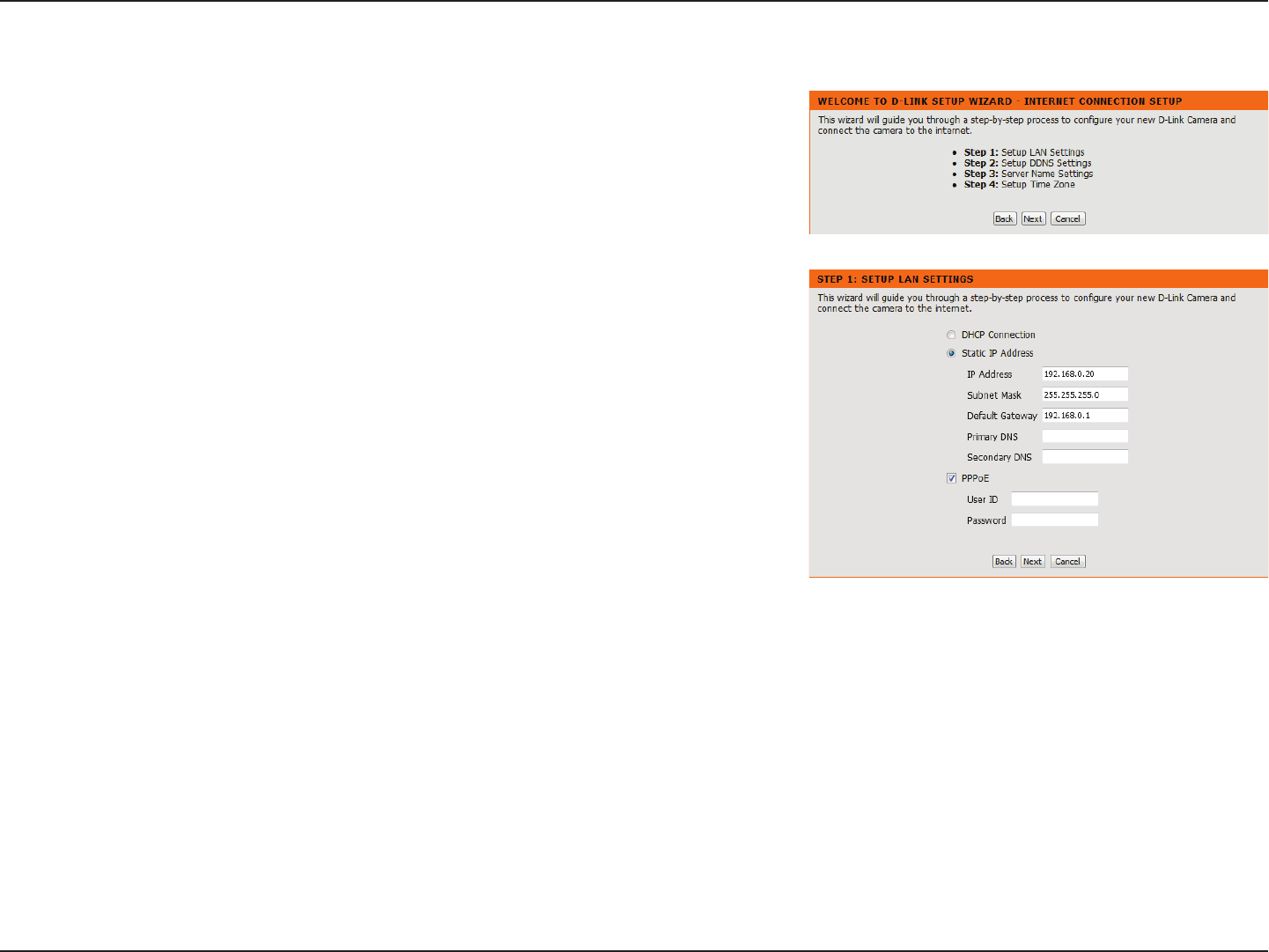

This wizard will guide you through a step-by-step process to congure your new D-Link
Camera and connect the camera to the Internet.
Click Next to continue.
Enter the IP address that the camera will use on your network. You may need to
get this information from your ISP or network administrator.
The default value is “255.255.255.0. Used to determine if the destination is part
of the same network segment.
The gateway used to forward data to destinations in a dierent subnet. Invalid
gateway settings may cause the failure of transmissions to a dierent subnet.
Primary domain name server that translates names to IP addresses.
Secondary domain name server to backup the Primary DNS.
IP Address:
Subnet Mask:
Default Gateway:
Primary DNS:
Secondary DNS:
If you are required to connect using PPPoE, select PPPoE and enter the User ID and Password
for your PPPoE connection.
Click Next to continue.
Select how the camera will connect to the Internet.
If your router is connected to a router, or you are unsure how your camera will
connect to the Internet, select DHCP Connection.
If your ISP has assigned you a static IP, select Static IP Address and enter the following
details:
23D-Link DCS-935L User Manual
Section 3 - Conguration

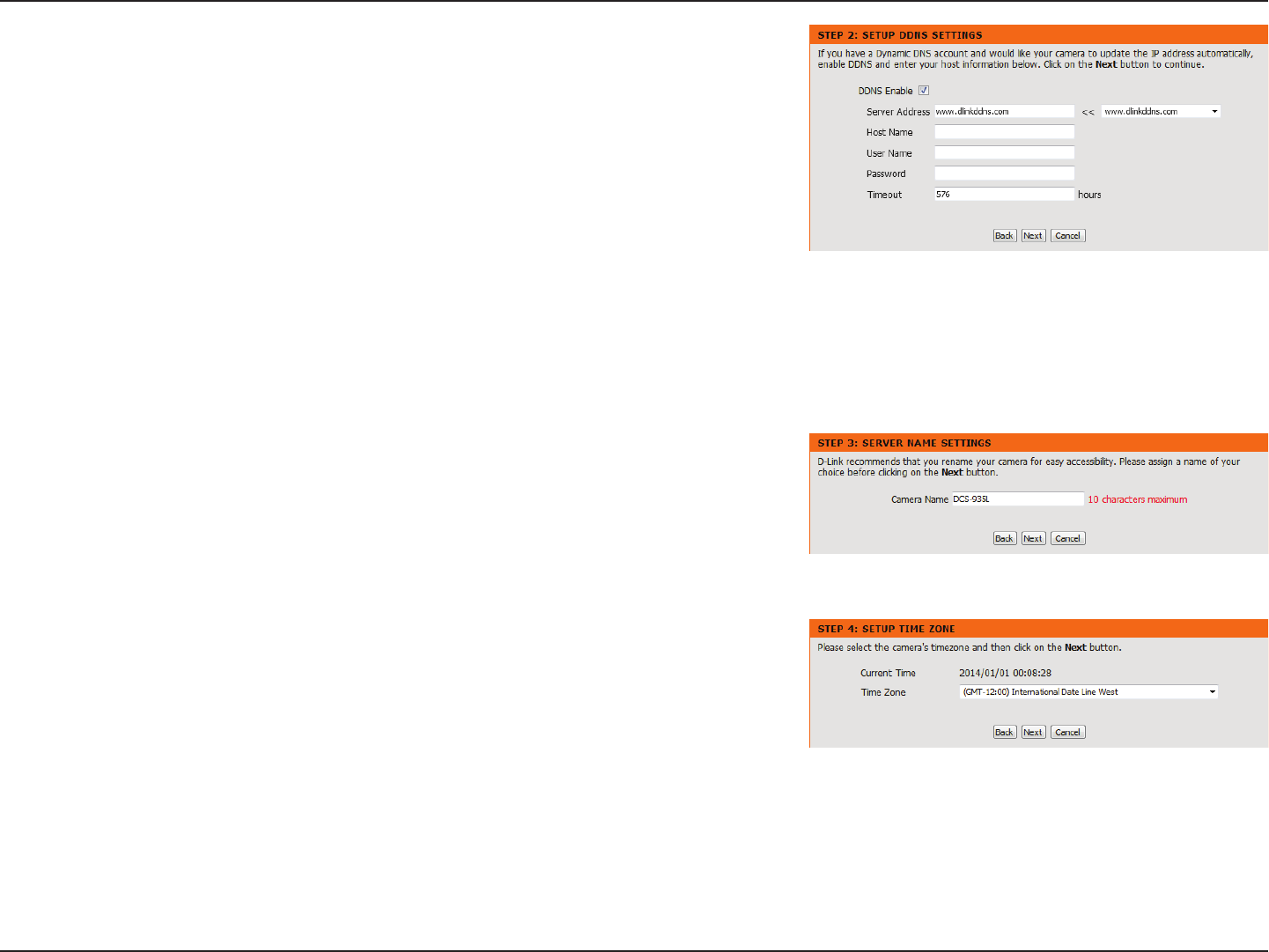

A Dynamic DNS account allows you to access your camera over the Internet when you
have an IP address that changes each time you connect to the Internet. If you have a
Dynamic DNS account, click DDNS Enable and enter the following details:
Select your Dynamic DNS Server from the pull down menu.
Enter the host name of the DDNS server.
Enter your username or e-mail address used to connect to the DDNS.
Enter your password used to connect to the DDNS server.
You can setup how often the camera noties the DDNS server of its current
global IP address by entering a whole number in hours.
Click Next to continue.
Server Address:
Host Name:
User Name:
Password:
Timeout:
Enter a name for your camera. Click Next to continue.
Select the time zone that the camera is in so that scheduled events occur at the correct time.
Click Next to continue.
24D-Link DCS-935L User Manual
Section 3 - Conguration
A summary of the options you selected is displayed for conrmation. If you are happy with
the selected conguration, click Next. Otherwise, click Back to make the required changes.
25D-Link DCS-935L User Manual
Section 3 - Conguration

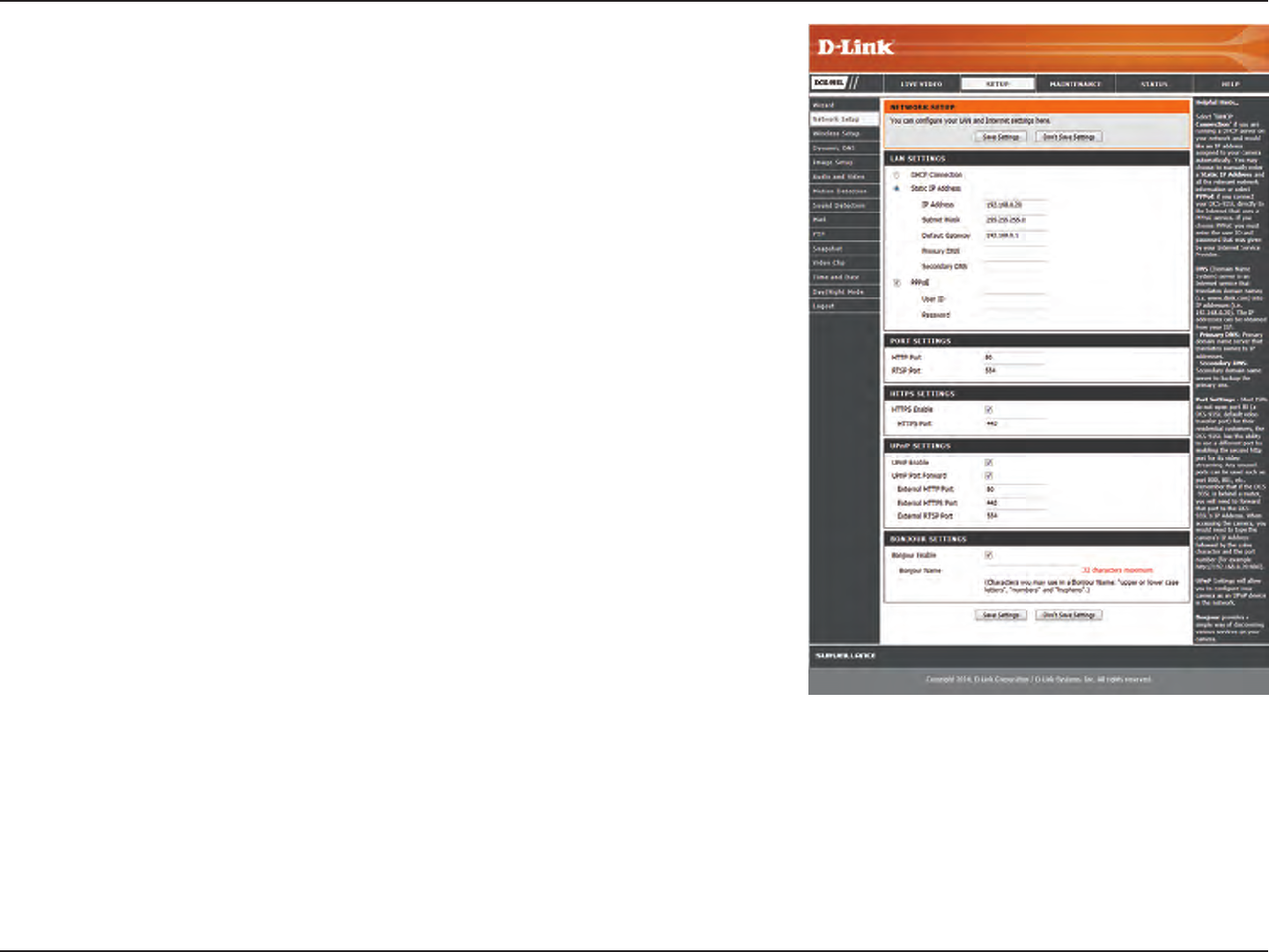

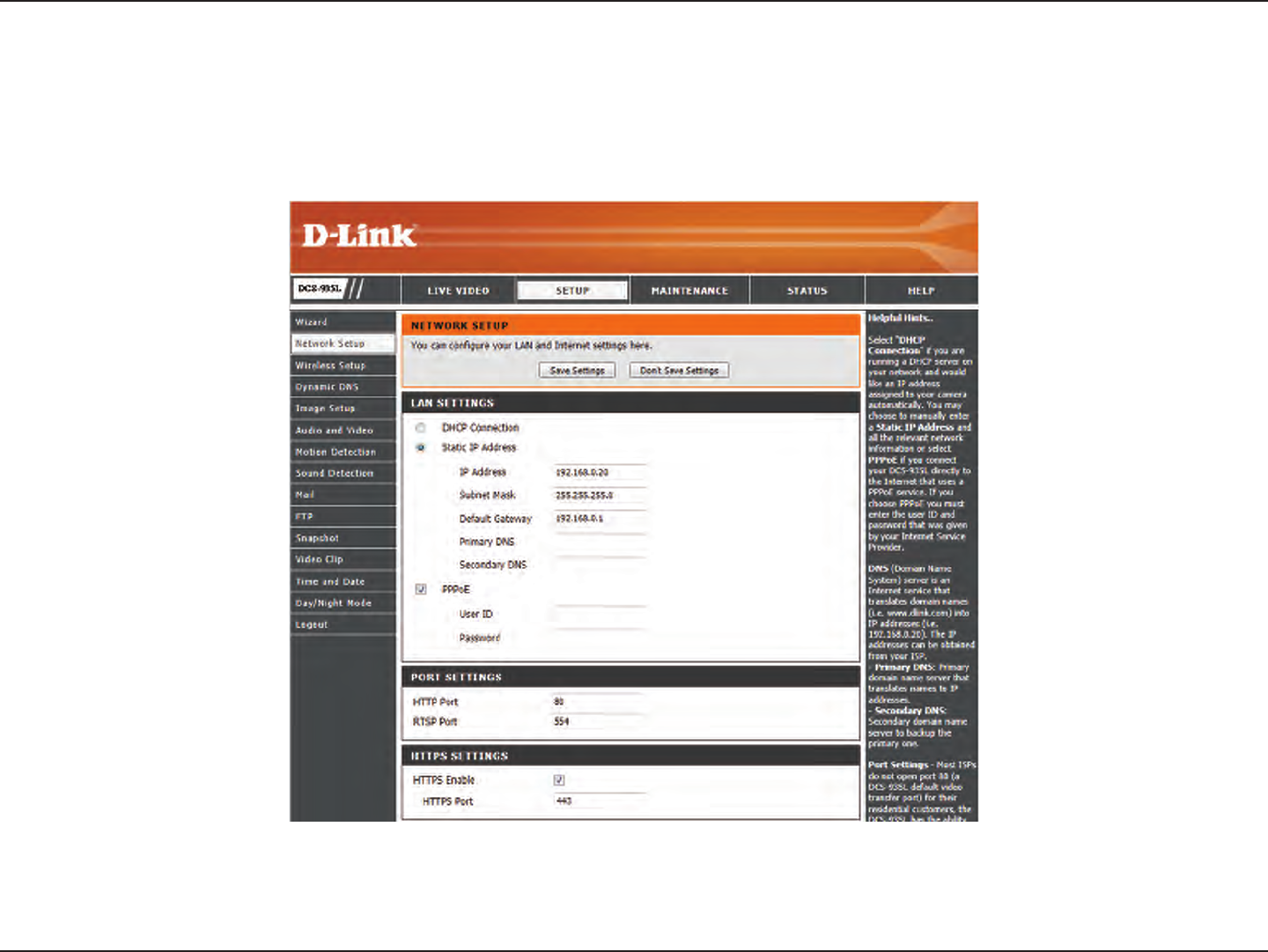

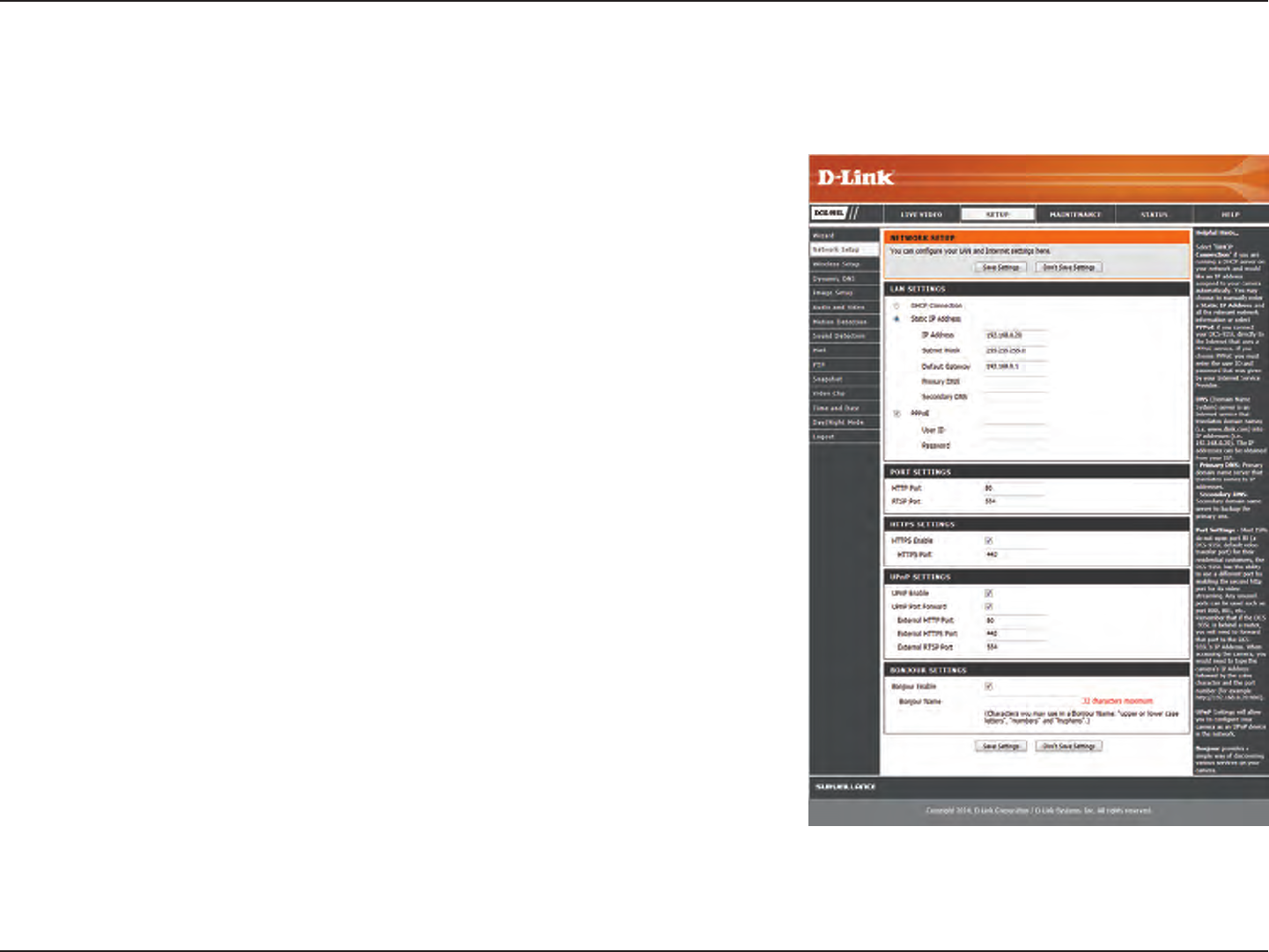

Network
This section allows you to congure your network settings.
Select this connection if you have a DHCP server running on your network and
would like a dynamic IP address to be updated to your camera automatically.
You may obtain a static or xed IP address and other network information from
your network administrator for your camera.
IP Address: Enter the IP address that the camera will use on your network. You
may need to get this information from your ISP or network administrator.
Subnet Mask: The default value is “255.255.255.0. Used to determine if the
destination is part of the same subnet.
Default Gateway: The gateway used to forward frames to destinations in a
dierent subnet. Invalid gateway settings may cause the failure of transmissions
to a dierent subnet.
Primary DNS: Primary domain name server that translates names to IP addresses.
Secondary DNS: Secondary domain name server to backup the Primary DNS.
If you are using a PPPoE connection, enable it and enter the User ID(username)
and Password for your PPPoE account. You can get this information from your
Internet service provider (ISP).
DHCP
Connection:
Static IP Address:
PPPoE Settings:
26D-Link DCS-935L User Manual
Section 3 - Conguration
You may congure which ports to use for HTTP and RTSP access to the camera.
You may enable and congure which ports to use for HTTPS access to the camera.
Enable this setting to congure your camera as an UPnP device in the network.
Enable this to allow your camera to use UPnP to congure port forwarding on
your router. Set the HTTP, HTTPS, and RTSP ports you wish to use for UPnP port
forwarding.
Checking the Bonjour box will allow the camera to be discoverable on the
network and visible to Apple devices.
Click Save Settings to save your changes.
Port Settings:
HTTPS Settings:
UPnP Enable:
UPnP Port
Forward:
Bonjour:
27D-Link DCS-935L User Manual
Section 3 - Conguration
Wireless Setup

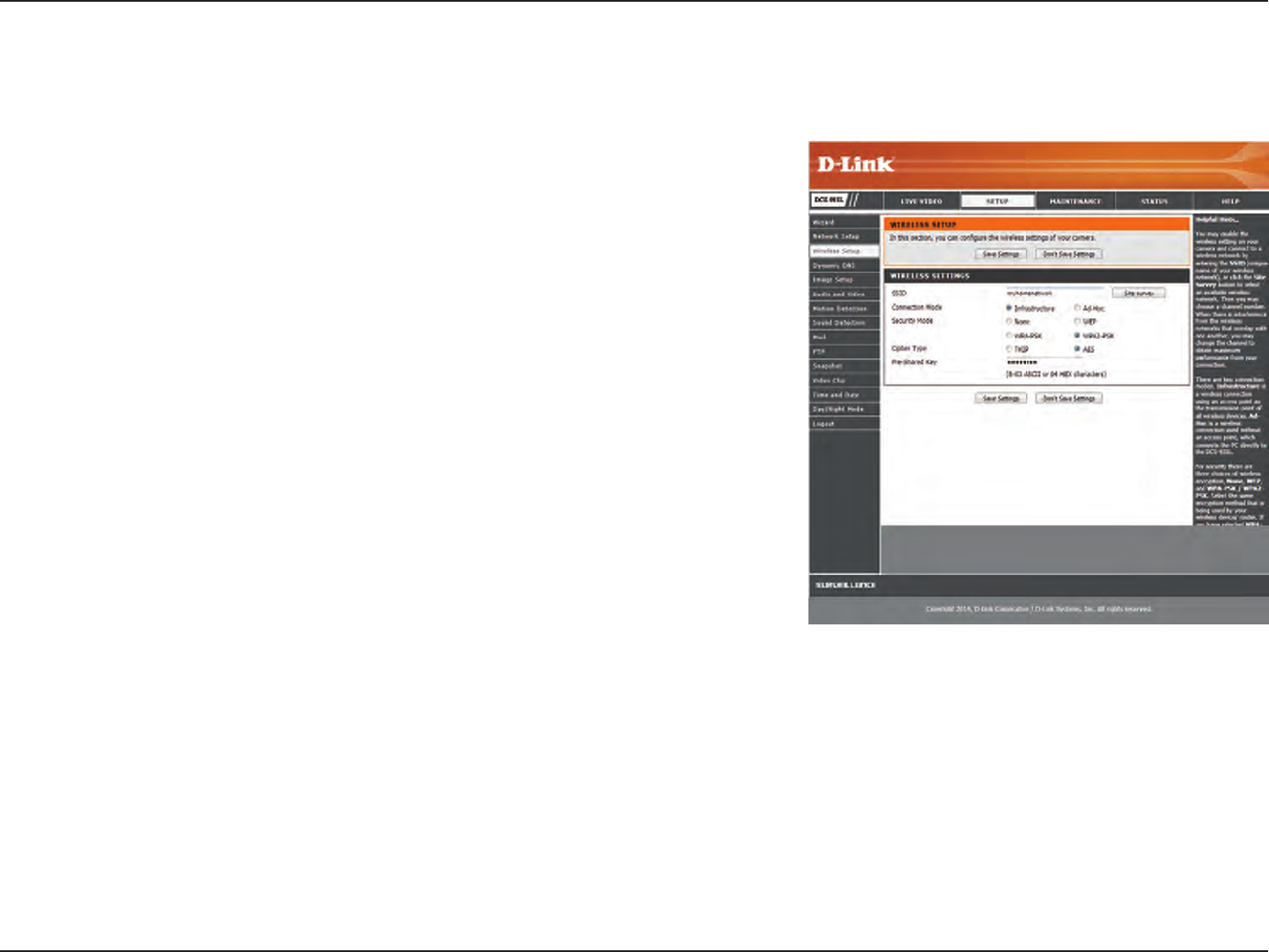

This section allows you to set up and congure the wireless settings on your camera.
Enter the network name(SSID) of the wireless network you want to connect to.
You can also click the Site Survey button below to choose an available network
and ll in settings automatically.
Use Infrastructure if you are connecting your camera to a wireless router or
access point. Use Ad-Hoc if you are wirelessly connecting to your PC without a
wireless router or access point.
For security, you can choose None, WEP, WPA-PSK, or WPA2-PSK. Select the
same encryption method that is being used by your wireless device/ router.
If you chose WPA-PSK or WPA2-PSK, choose whether to use TKIP or AES.
Enter the key(password) for your wireless network. Check the Show Hidden
Key box to reveal the password you have entered.
Click the Save Settings button to save your changes.
SSID:
Connection
Mode:
Security Mode:
Cipher Type:
Pre-Shared Key:
28D-Link DCS-935L User Manual
Section 3 - Conguration

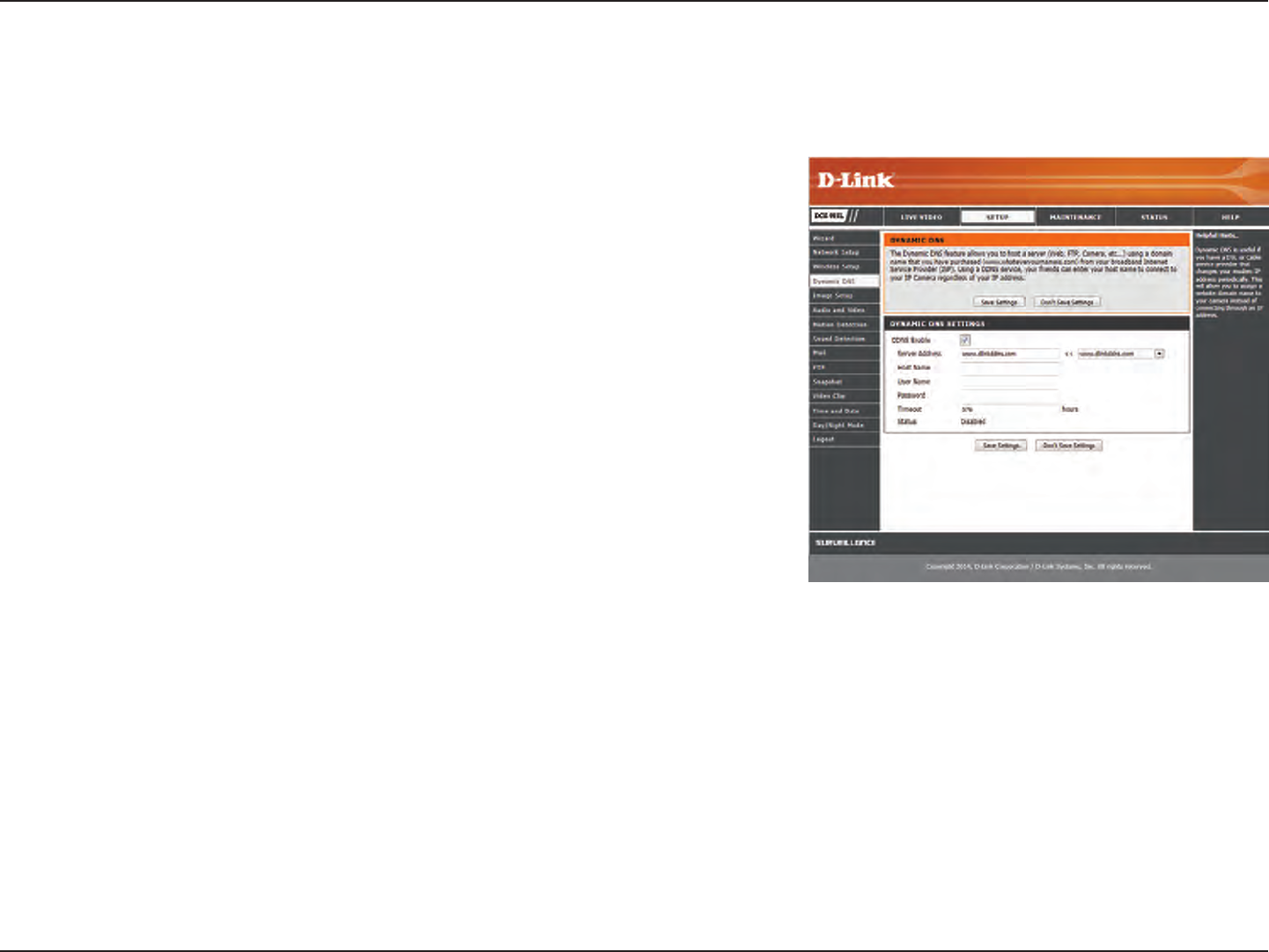

Dynamic DNS
DDNS allows you to access your camera using a domain name instead of an IP address. To do this, you will need to have an account with one of the
DDNS services listed in the drop-down box on this page.
Check this box to enable the DDNS function.
Select your Dynamic DNS Server from the pull down menu.
Enter the host name of the DDNS server.
Enter your username or e-mail address used to connect to the DDNS server.
Enter your password used to connect to the DDNS server.
You can set up how often the camera noties the DDNS server of its current
global IP address by entering a whole number in hours.
Click the Save Settings button to save your changes.
DDNS:
Server Address:
Host Name:
User Name:
Password:
Timeout:
29D-Link DCS-935L User Manual
Section 3 - Conguration

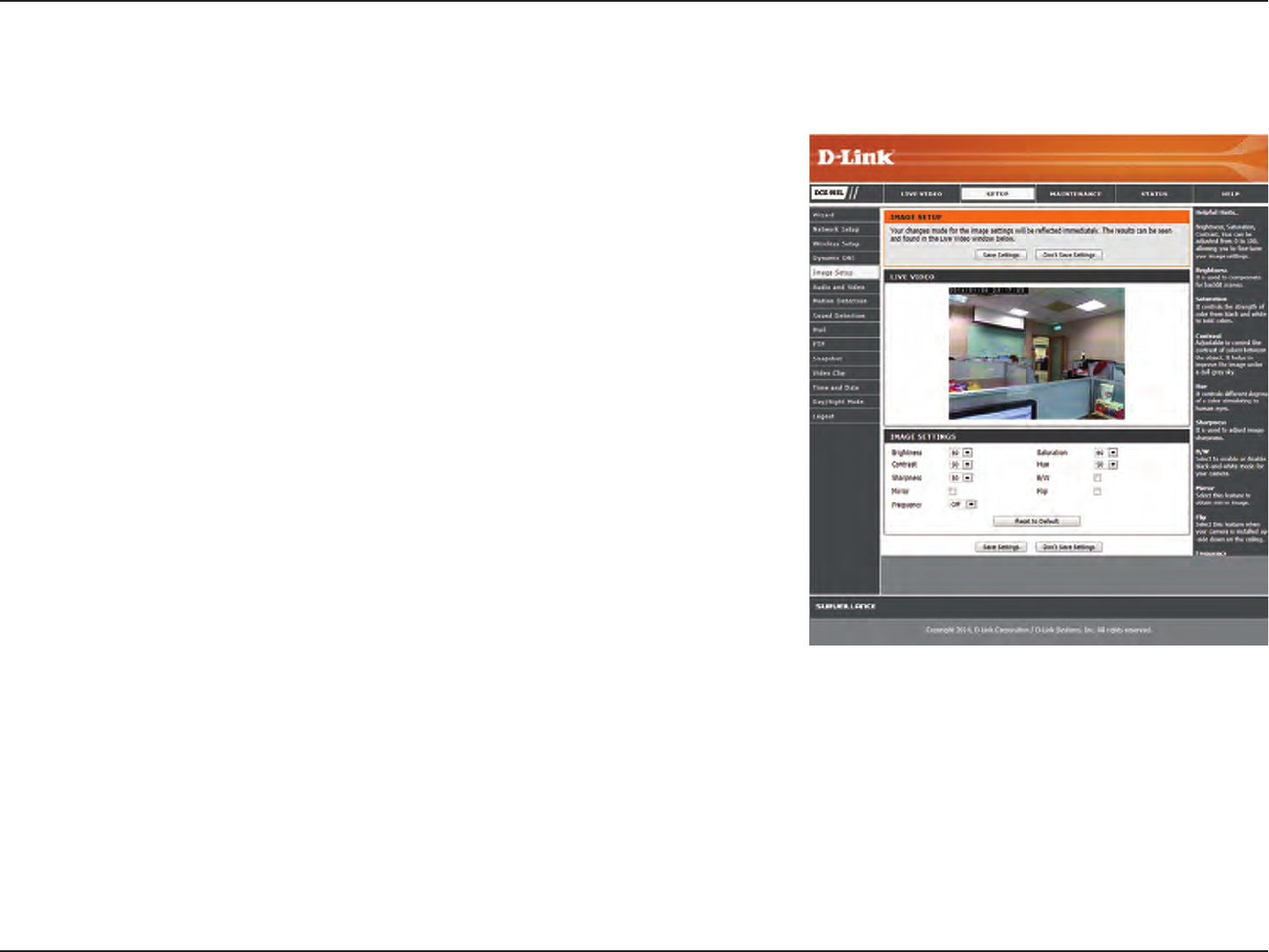

Image Setup
This section allows you to congure the image settings for your camera.
Allows you to adjust the brightness level.
Allows you to adjust the contrast level.
Allows you to adjust image sharpness.
Horizontally ip the video.
Adjusts the video output. By default this is set to O, but you may override the
setting by manually selecting either 50Hz or 60Hz
Allows you to adjust the saturation level.
Allows you to adjust the hue of the video.
Changes the images recorded on the camera to be in black and white.
Check this box to vertically ip the video. If the camera is installed upside down,
Flip Image and Mirror should both be checked.
Click the Save Settings button to save your changes.
Brightness:
Contrast:
Sharpness:
Mirror:
Frequency:
Saturation:
Hue:
B/W:
Flip:
30D-Link DCS-935L User Manual
Section 3 - Conguration

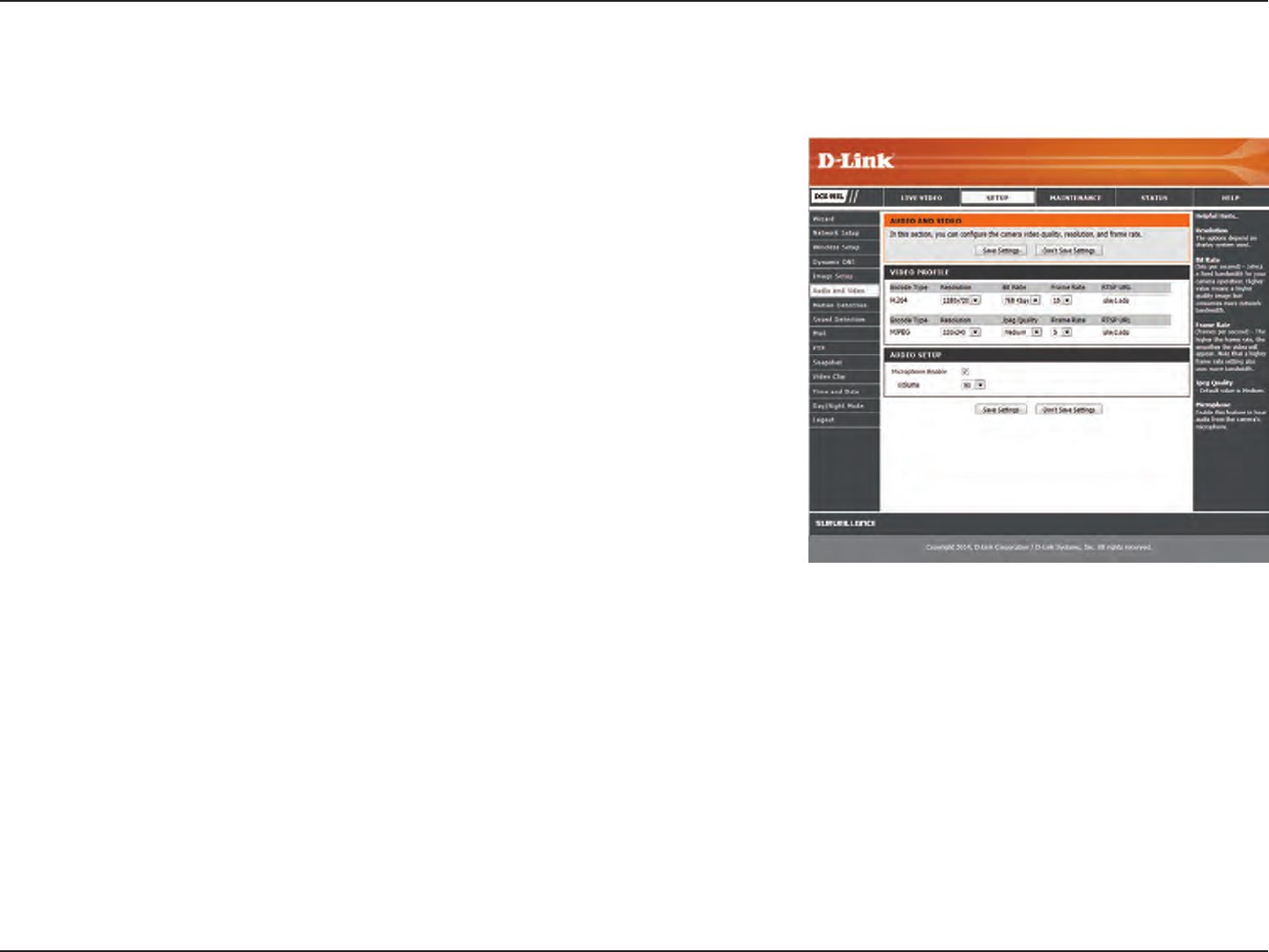

Audio and Video
This section allows you to congure the audio and video settings for your camera.
Encode Type:
Resolution:
Bit Rate/JPEG
Quality:
Frame Rate:
RTSP URL:
Microphone
Enable:
Volume:
Your camera has separate settings for the H.264 and MJPEG video streams.
Select the desired video resolution from 1280x720, 800x600, 720x480, 640x480,
and 320x240. Higher settings oer better quality, but will require more
bandwidth to stream.
Select the bitrate(H.264) or quality(MJPEG) for the video stream. Higher bitrates
and quality will require more bandwidth.
Select the frame rate(FPS) to use for the video stream. Higher settings oer
better quality, but will require more bandwidth to stream.
The URL used to connect to the camera when viewing from QuickTime or a
mobile device.
Check this box to enable the cameras microphone.
Use this dropdown box to adjust the volume of the camera’s audio.
Click Save Settings to save your changes.
31D-Link DCS-935L User Manual
Section 3 - Conguration

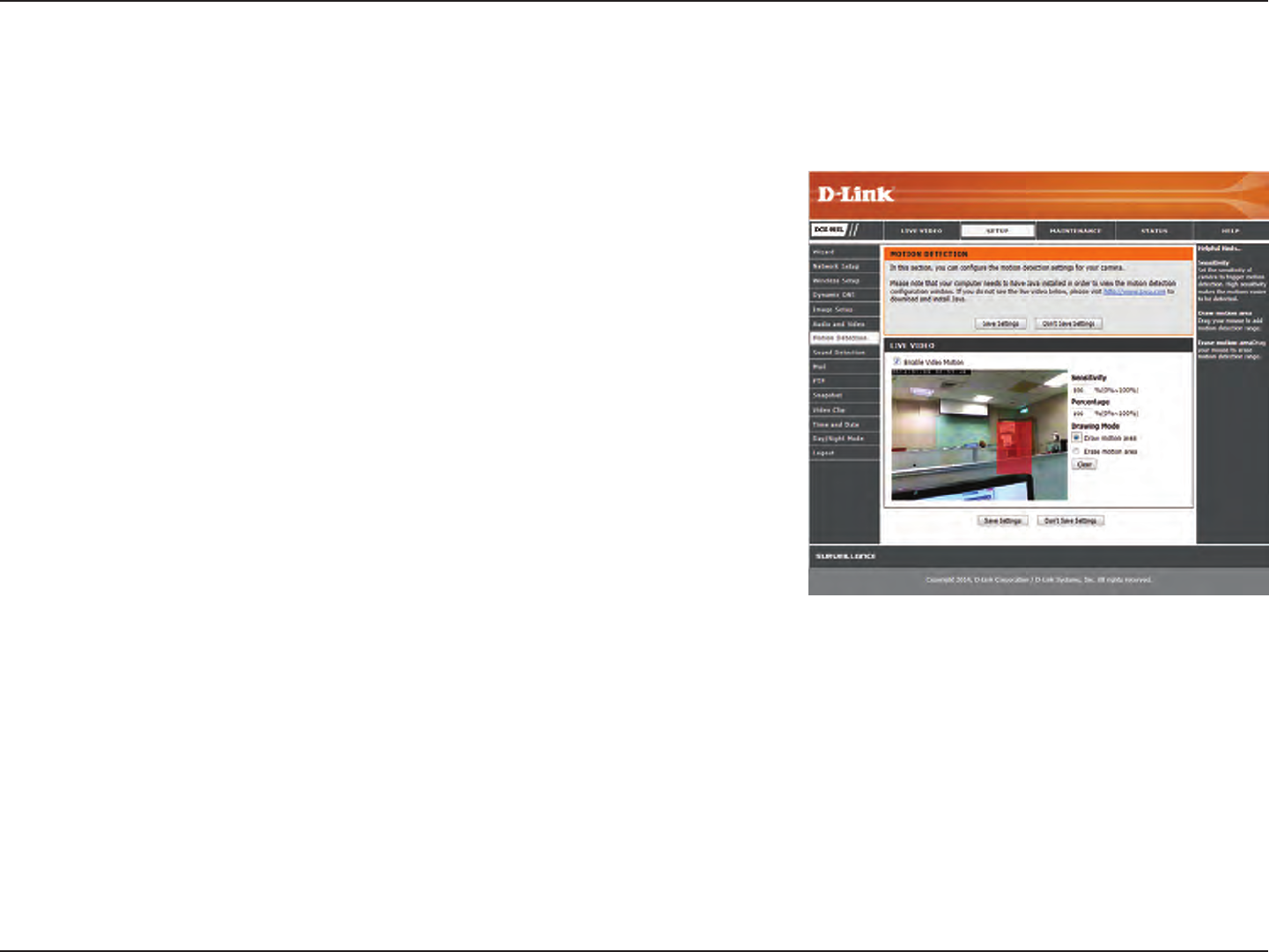

Motion Detection
Motion detection enables the camera to monitor the video feed for movement. Here, you can adjust the sensitivity and percentage settings, which
work together to determine whether motion is detected by the camera or not.
Enable Video
Motion:
Sensitivity:
Percentage:
Drawing Mode:
Clear:
Select this box to enable the motion detection feature of your camera.
Species how sensitive motion detection will be from 0% to 100%. A low
sensitivity setting means that there must be large changes between two images
in order to detect motion, and a high sensitivity setting means that even small
changes will cause motion to be detected.
Low sensitivities may be useful when monitoring an area that has ickering
lights or a window to the outside in view. High sensitivities may be useful when
monitoring an area that rarely changes, such as a storeroom or warehouse.
Species how much of the area being monitored for motion must change for
motion to be detected. A low percentage means that only part of the area being
monitored needs to change to detect motion, and a high percentage means
that most of the area needs to change to detect motion.
Low percentages can be useful when monitoring a large area such as an entire
room, and high percentages can be useful when you are only monitoring a
specic part of the cameras view, such as a doorway.
Select Draw Motion Area to select the area of the picture to monitor for
movement to trigger recording or a snapshot. Use your mouse to click and drag
on the area that you would like to monitor for motion. Select Erase Motion Area
to clear a selected region and stop the camera from monitoring that area of the
picture.
Clears all motion detection areas from the picture.
Click Save Settings to save your changes.
32D-Link DCS-935L User Manual
Section 3 - Conguration

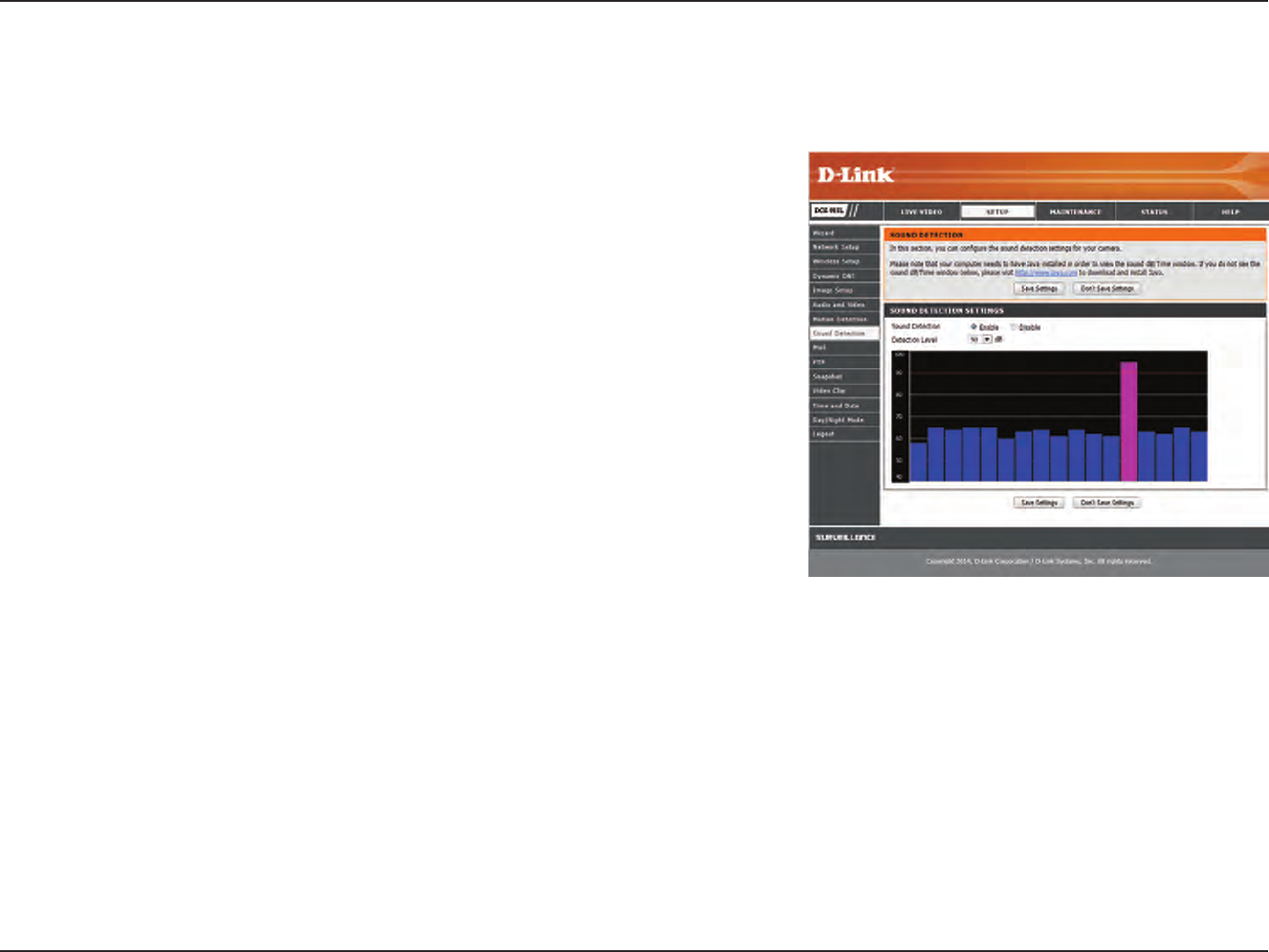

Sound Detection
Motion detection enables the camera to monitor the environment for loud sounds. You may set the volume threshold used to determine whether
sound was detected or not. If this option is selected, the trigger by option under Video Clip, or Snapshot should also be selected.
Enable Sound
Detection:
Detection Level:
Select this box to enable the sound detection feature of your camera.
Specify the volume level that a sound must exceed in order to trigger the sound
detection feature.
Click Save Settings to save your changes.
33D-Link DCS-935L User Manual
Section 3 - Conguration

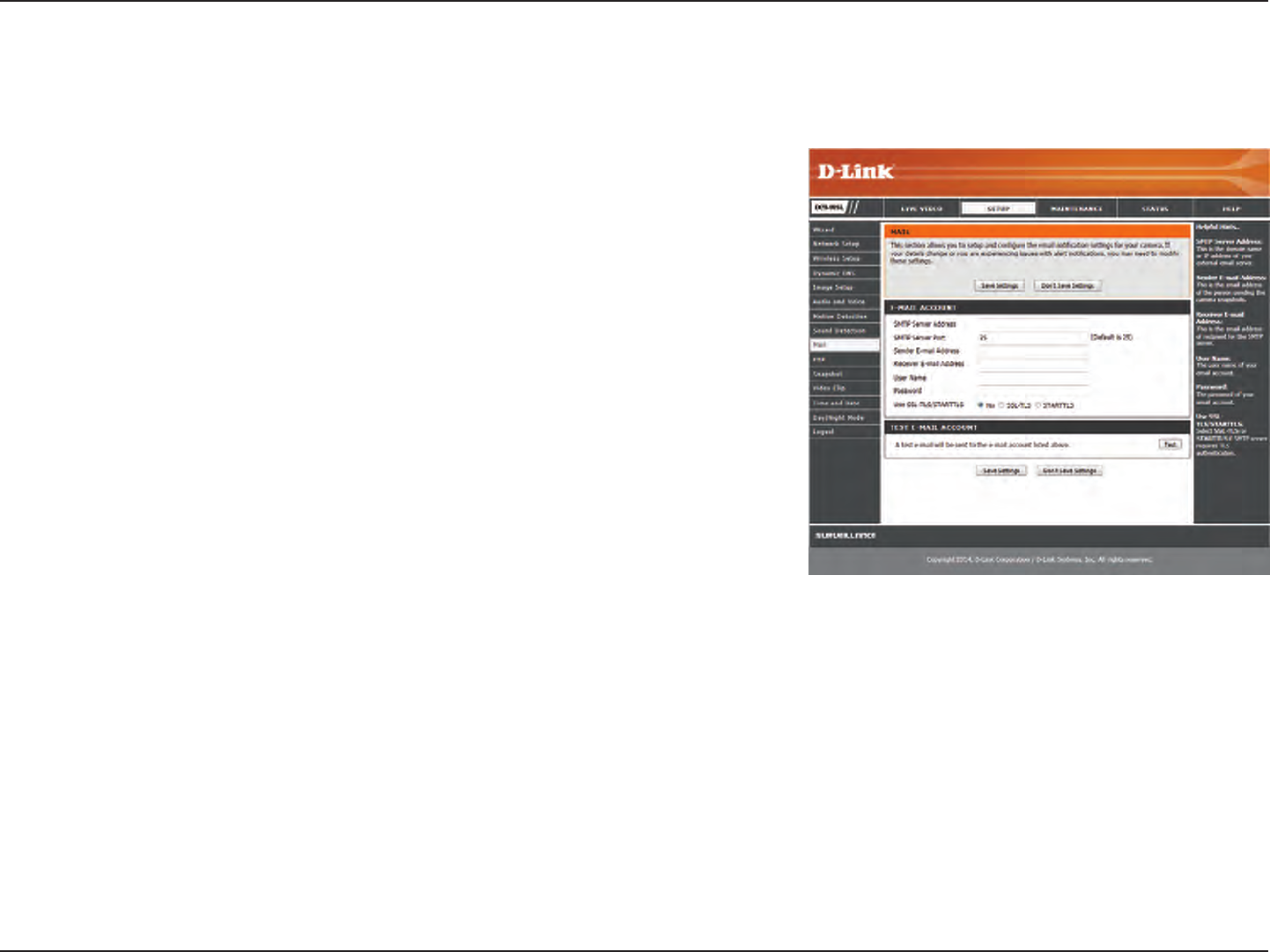

Mail
This section allows you to congure your camera to send snapshots and video clips to an e-mail address. If you are not sure what settings to use,
check with your e-mail service provider.
SMTP Server
Address:
SMTP Server
Port:
Sender e-mail
Address:
Receiver e-mail
Address:
User Name:
Password:
Use SSL-TLS/
STARTTLS
This is the domain name or IP address of your external e-mail server.
This is the port used by your external e-mail server.
This is the e-mail address listed as the sender for your notication e-mails.
This is the e-mail address that your notication e-mails will be sent to.
If the SMTP server uses authentication, enter your user name.
If the SMTP server uses authentication, enter your password.
If your SMTP server requires SSL-TLS or STARTTLS, select it here.
For example, if you want to use Gmail with SSL-TLS for e-mail notications, you
can follow the setup procedure as below:
Step 1 - Enter smtp.gmail.com in SMTP Server Address.
Step 2 - Change the SMTP server port number from 25 to 465.
Step 3 - Enter your gmail e-mail address in Sender E-mail Address.
Step 4 - Enter the destination e-mail address in Receiver E-mail Address.
Step 5 - Enter the user name required to access the SMTP server.
Step 6 - Enter the password required to access the SMTP server.
Step 7 - Select SSL-TLS and then click Save Settings.
Step 8 - Click the Test button to send a test e-mail will be sent.
Note: You can also use STARTTLS, which will use SMTP server port number 587.
If you want to use a Yahoo SMTP server, the SMTP server address will be dierent
between each registered region, and only SMTP port 465 is supported for SSL-
TLS.
34D-Link DCS-935L User Manual
Section 3 - Conguration

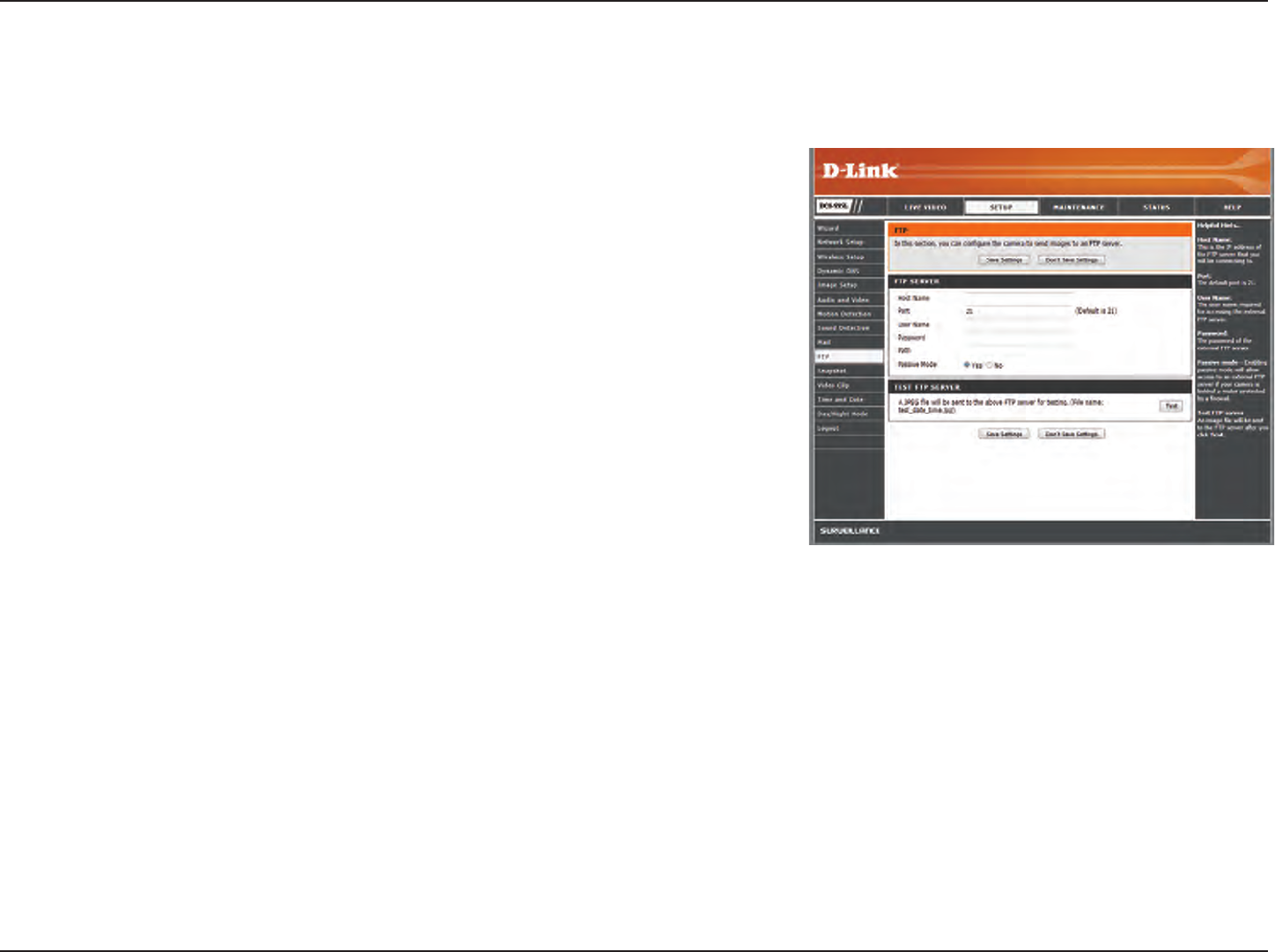

FTP
This section allows you to congure your camera to send snapshots and video clips to an FTP server.
Host Name:
Port:
User Name:
Password:
Path:
Passive Mode:
Test FTP Server:
Enter the IP address of the FTP server that you will be connecting to.
Enter the port of the FTP server that you will be connecting to.
Enter the user name of your FTP server account.
Enter the password of your FTP server account.
Enter the destination path/folder to save les to on the FTP server.
Enabling passive mode may help you reach your FTP server if your camera is
behind a router protected by a rewall.
Clicking on the Test button will send a test JPEG snapshot to the FTP server
specied above to make sure that your settings are correct.
35D-Link DCS-935L User Manual
Section 3 - Conguration

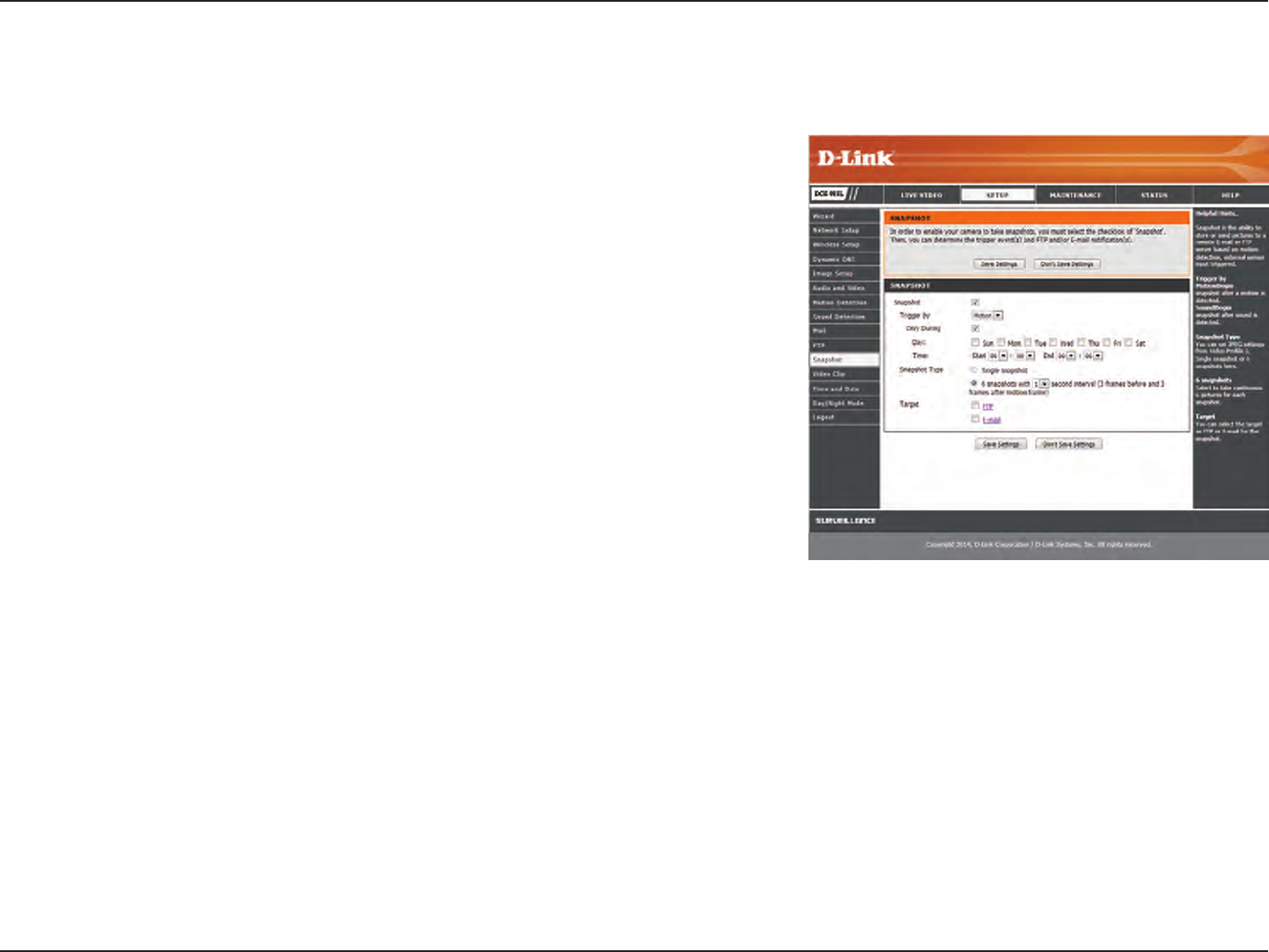

Snapshot
The snapshot feature lets you send image snapshots via FTP or e-mail when a trigger is activated.
Snapshot:
Trigger By:
Snapshot Type:
Target:
Check this box to enable the Snapshot function.
Select whether to record when triggered by Motion or Sound, according to a
Schedule or Always record.
Select whether to take a single snapshot or to take 6 snapshots with a selectable
interval between them.
Select where you want the snapshot to be sent. It may be uploaded to an FTP or
sent to an e-mail address.
Click Save Settings to save your changes.
36D-Link DCS-935L User Manual
Section 3 - Conguration

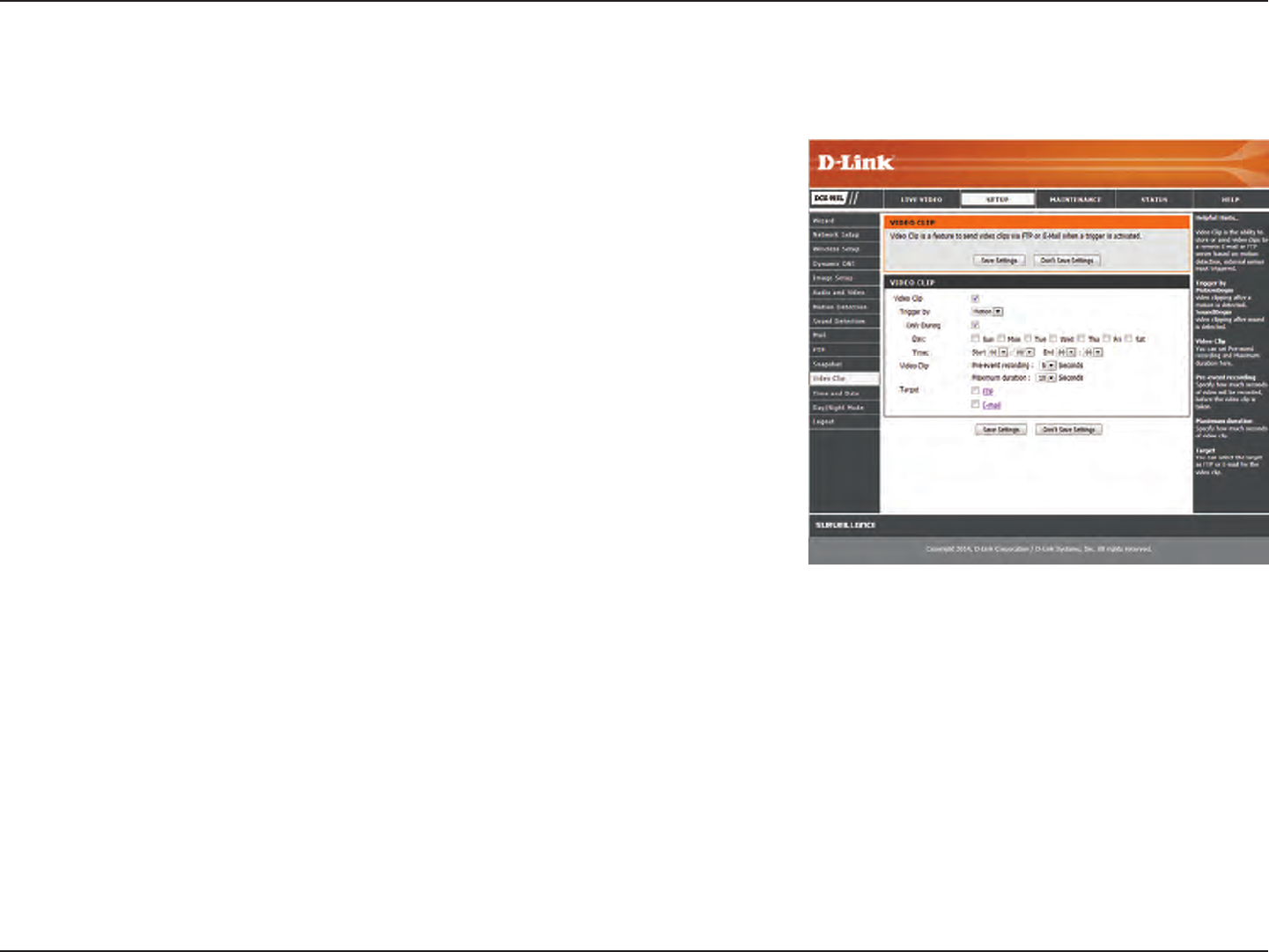

Video Clip
Video Clip allows you to send video clips via FTP or e-mail when a trigger is activated.
Video Clip:
Trigger By:
Video Clip:
Target:
Check this box to enable the Video Clip function.
Select whether to record when triggered by Motion or Sound, according to a
Schedule or Always record.
Here you can specify how much video to record before and after the event.
Select where you want the video clip to be sent. It may be uploaded to an FTP or
sent to an e-mail address.
Click Save Settings to save your changes.
37D-Link DCS-935L User Manual
Section 3 - Conguration
Time and Date
This section allows you to congure the settings of the internal system clock for your camera.
Time Zone:
Daylight Saving:
Synchronize NTP
Server:
Set the Date and
Time Manually:
Select the time zone for your region from the drop down menu.
If your region uses Daylight Saving time, you can enable it here. Select Set DST
Manually if you want to manually set the oset and the period of time that the
Daylight Saving correction should be used.
Network Time Protocol will synchronize your camera with an Internet time
server. Choose the one that is closest to your camera.
If Synchronize NTP Server is disabled, you can set the date and time manually.
You can also click the Copy Your Computer’s Time Settings button to
automatically copy the date and time of the PC you are using.
Click Save Settings to save your changes.
38D-Link DCS-935L User Manual
Section 3 - Conguration

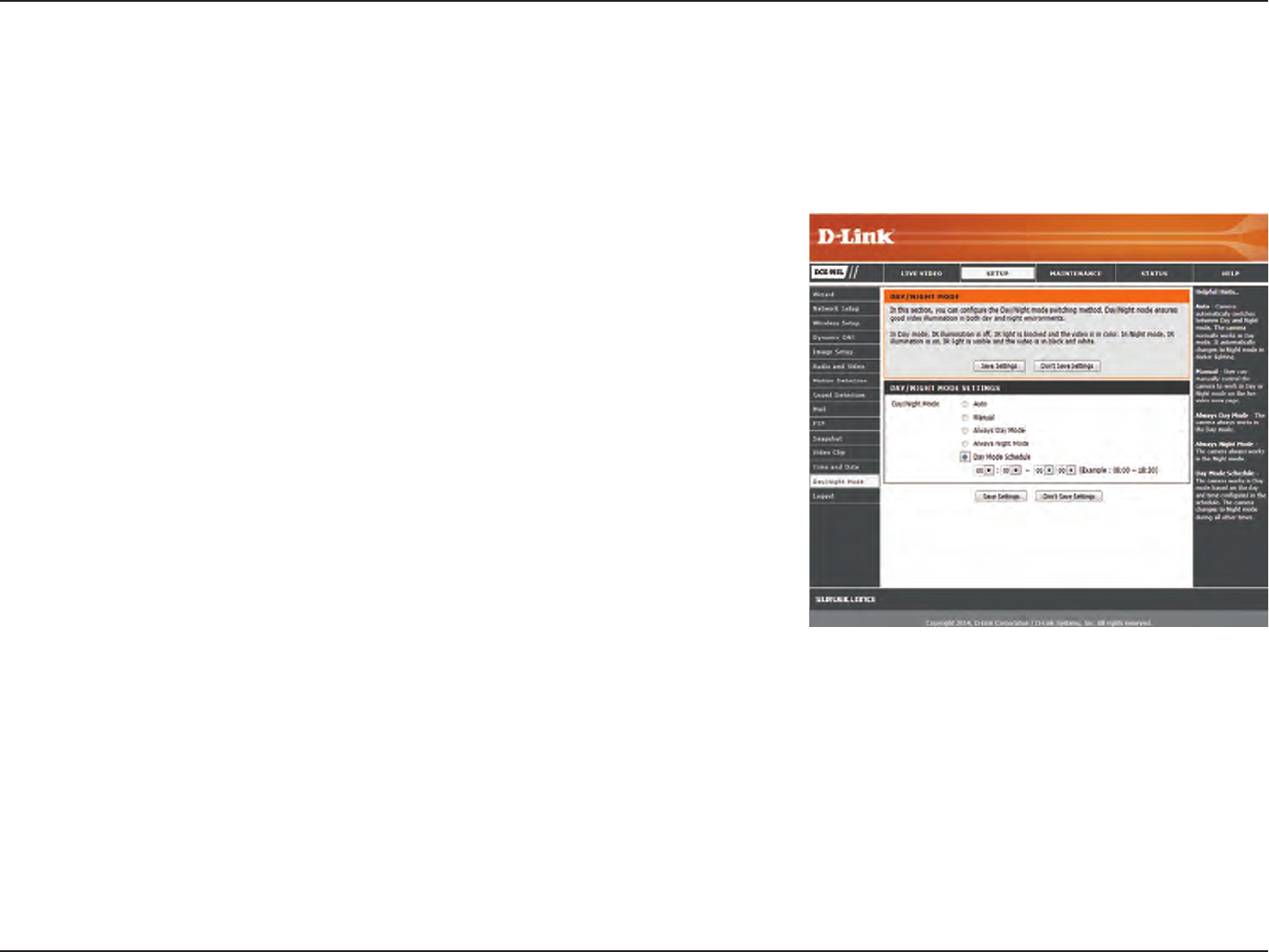

Day/Night Mode
This section allows you to congure when Day and Night modes are used. Day mode uses the infrared cut lter to provide a corrected color image
for times where there is available lighting. Night mode moves the lter out of the way to use all available light, and turns on the IR LED illuminators
to allow for clear black and white video in dark areas with little to no light.
Auto:
Manual:
Always Day
Mode:
Always Night
Mode:
Day Mode
Schedule:
This mode will automatically switch between Day and Night mode based on the
amount of available lighting.
This mode allows you to manually switch between modes through the Live
Video page.
This sets the camera to always use Day mode.
This sets the camera to always use Night mode.
This sets the camera to use Day mode during the times you specify, and will
switch to Night mode outside the times you specify.
39D-Link DCS-935L User Manual
Section 3 - Conguration
Maintenance

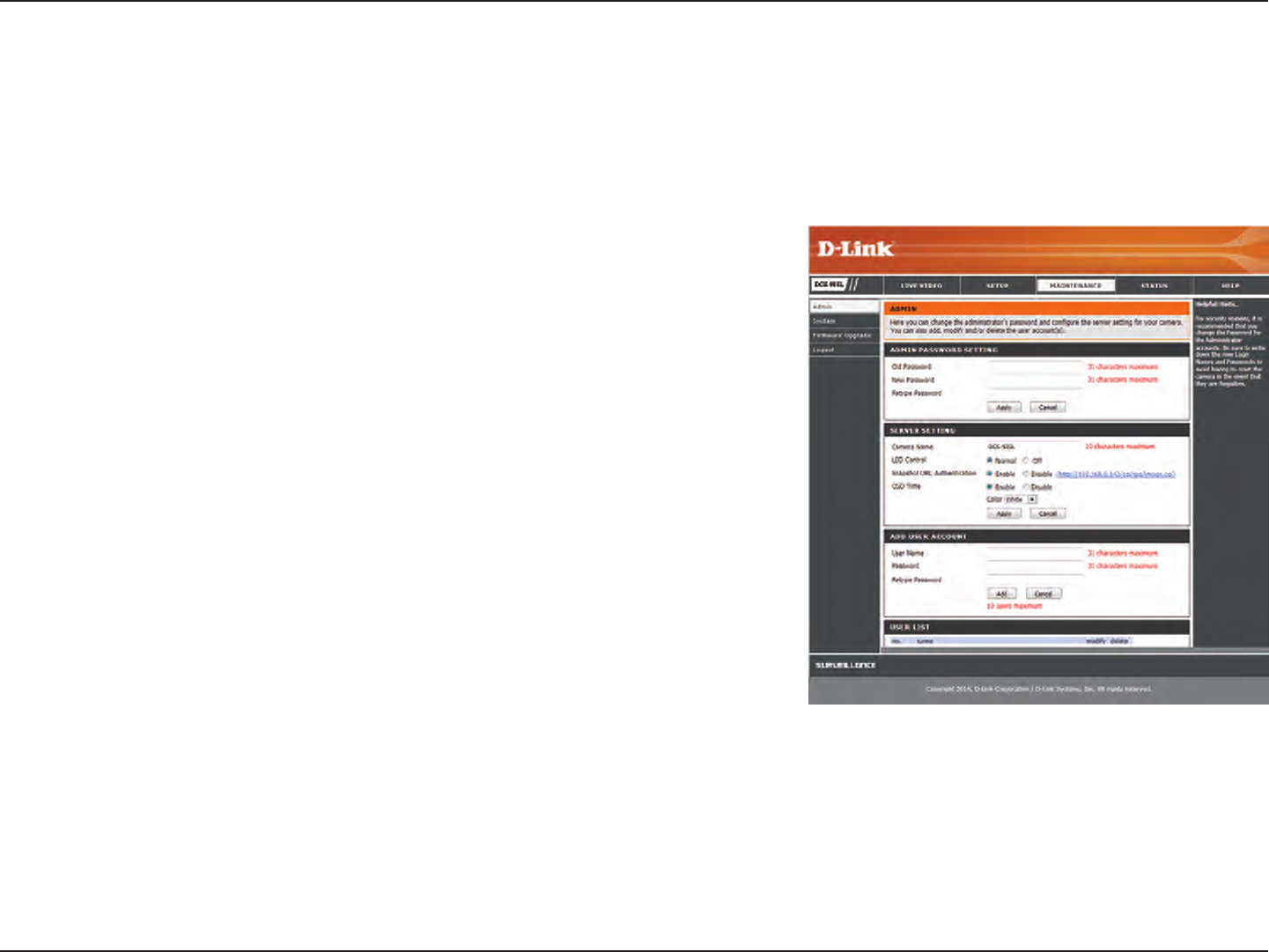

Admin
This section allows you to change the administrators password and congure the server settings for your camera. You can also manage the user
account(s) that are allowed to access to your camera.
To change the admin password used to log into the web interface, enter the old
password, then enter the new password and retype it in the next text box, then
click Apply.
Specify a name for your camera.
Select Normal to enable the LED on the back of the device, or select O to
disable the LED. Turning this o may be useful if you do not want the camera to
be noticeable.
Select Enable to allow access to the current camera snapshot via the web
address indicated.
Select Enable to allow the current time to be added to the camera video, and
select a color to use for the text.
You can create new users to provide viewing access for your cameras video.
User accounts will only be able to access the Live Video section of the web
conguration interface, but cannot access any other parts or change any
settings.
To create a new user, enter a user name, password, and retype the password,
then click Add. A maximum of 8 user accounts can be created.
Displays the account names of authorized users. You can modify or delete an
account by clicking on its modify or delete icon.
Admin Password:
Camera Name:
LED Control:
Snapshot URL
Authentication:
OSD Time:
Add User
Account:
User List:
40D-Link DCS-935L User Manual
Section 3 - Conguration

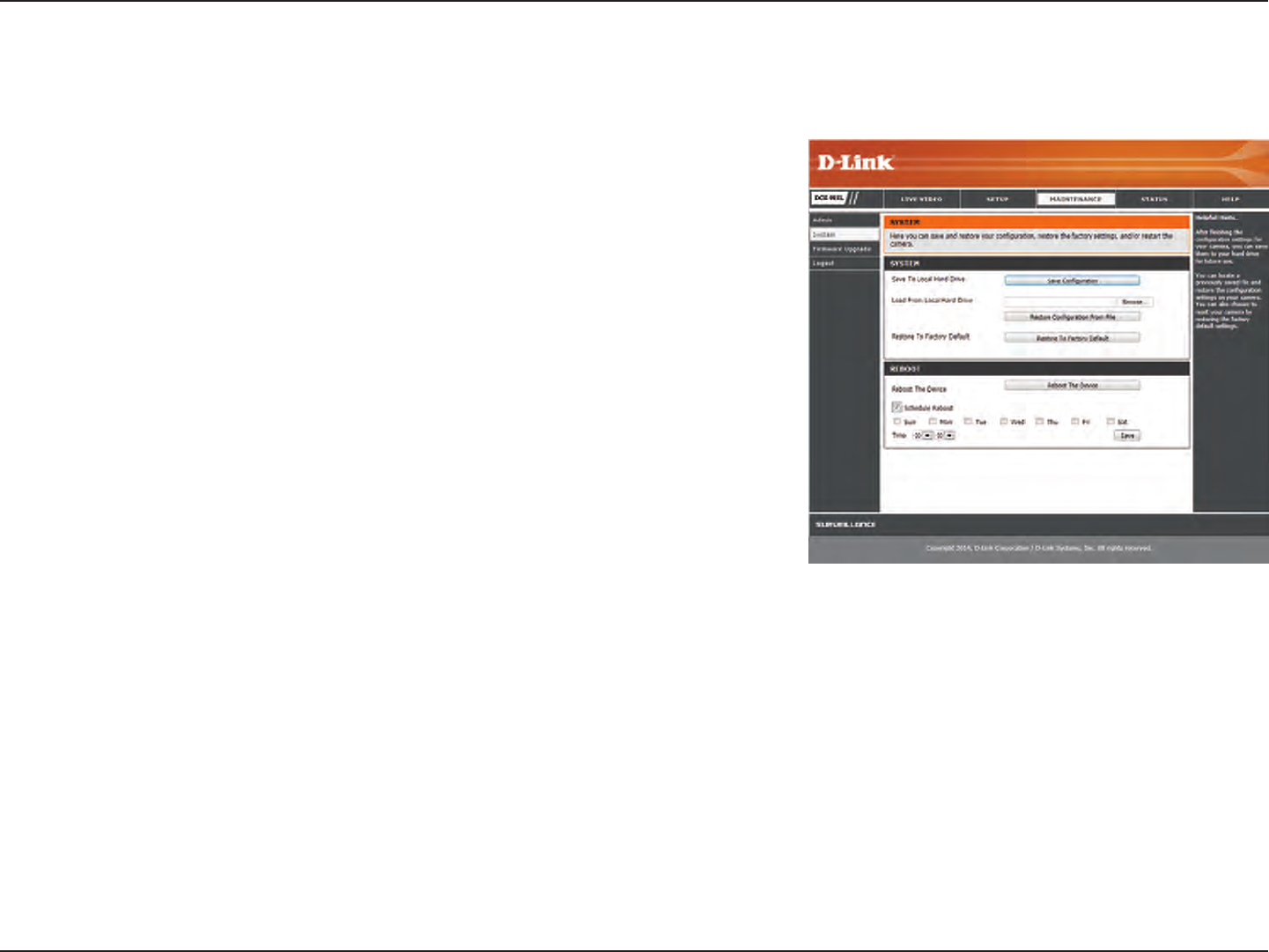

System
This section allows you to save and restore your conguration, restore the factory settings, and/or restart the camera.
Save To Local
Hard Drive:
Load From Local
Hard Drive:
Restore To
Factory Default:
Reboot The
Device:
Schedule Reboot
Click the Save Conguration button to save the current camera conguration
to your local PC.
To load a previously saved conguration, click the Browse... button, select your
saved conguration le, then click the Restore Conguration From File button.
Click the Restore Factory Defaults button to reset all settings back to the
factory defaults. Please note that this will erase any changes you have made to
the settings of the camera.
Click the Reboot the Device button to reboot the camera.
You can schedule the camera to reboot according to a schedule. Select the days
and time you want the camera to automatically reboot.
41D-Link DCS-935L User Manual
Section 3 - Conguration

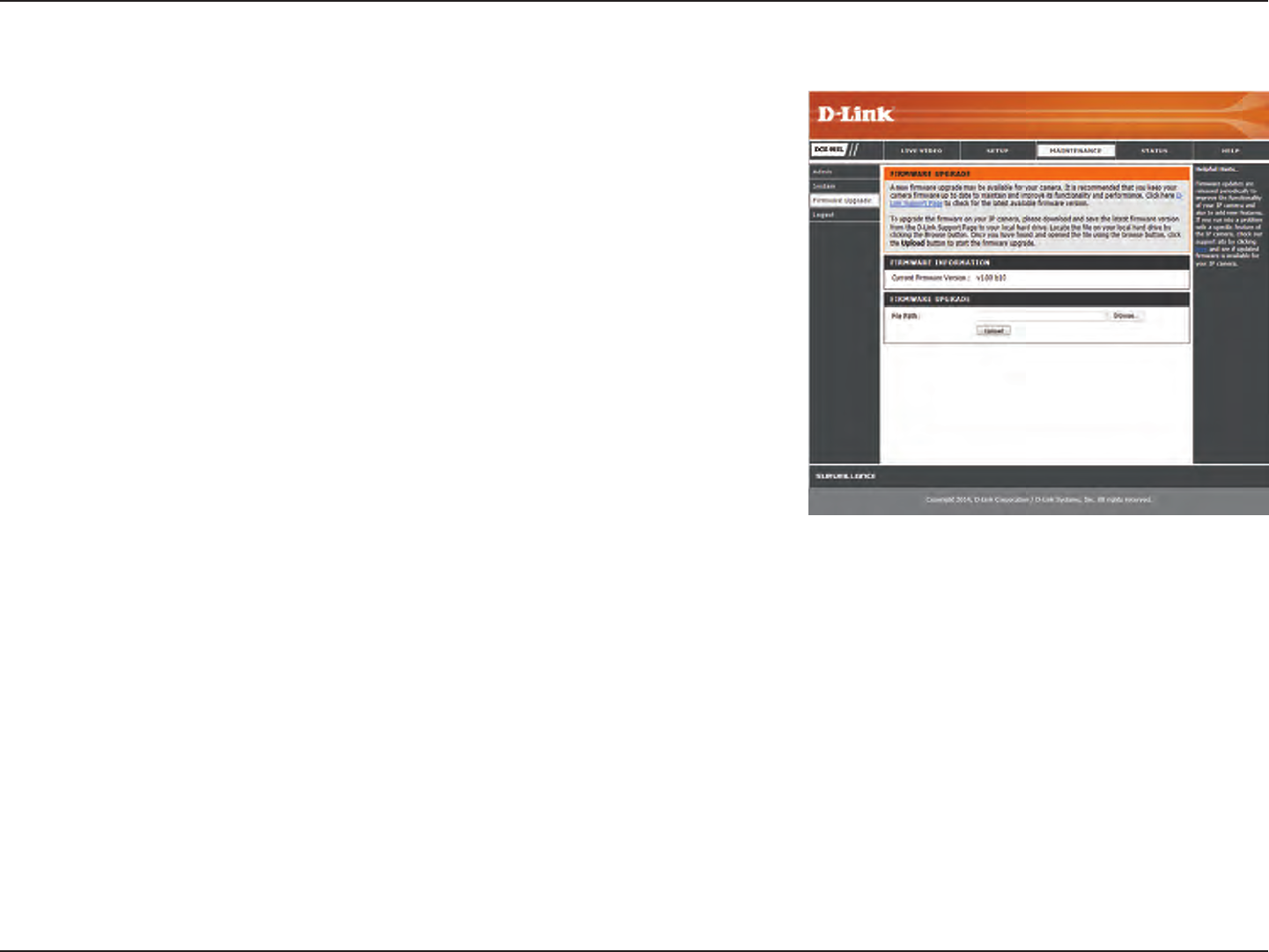

Firmware Upgrade
Your current rmware version and date will be displayed on your screen. You may go to the
D-Link Support Page to check for the latest rmware versions available.
To upgrade your rmware, please download and save the latest rmware version from the
D-Link Support Page to your local hard drive. Locate the le on your local hard drive by using
the Browse... button, then click the Upload button to start the rmware upgrade.
42D-Link DCS-935L User Manual
Section 3 - Conguration
Status

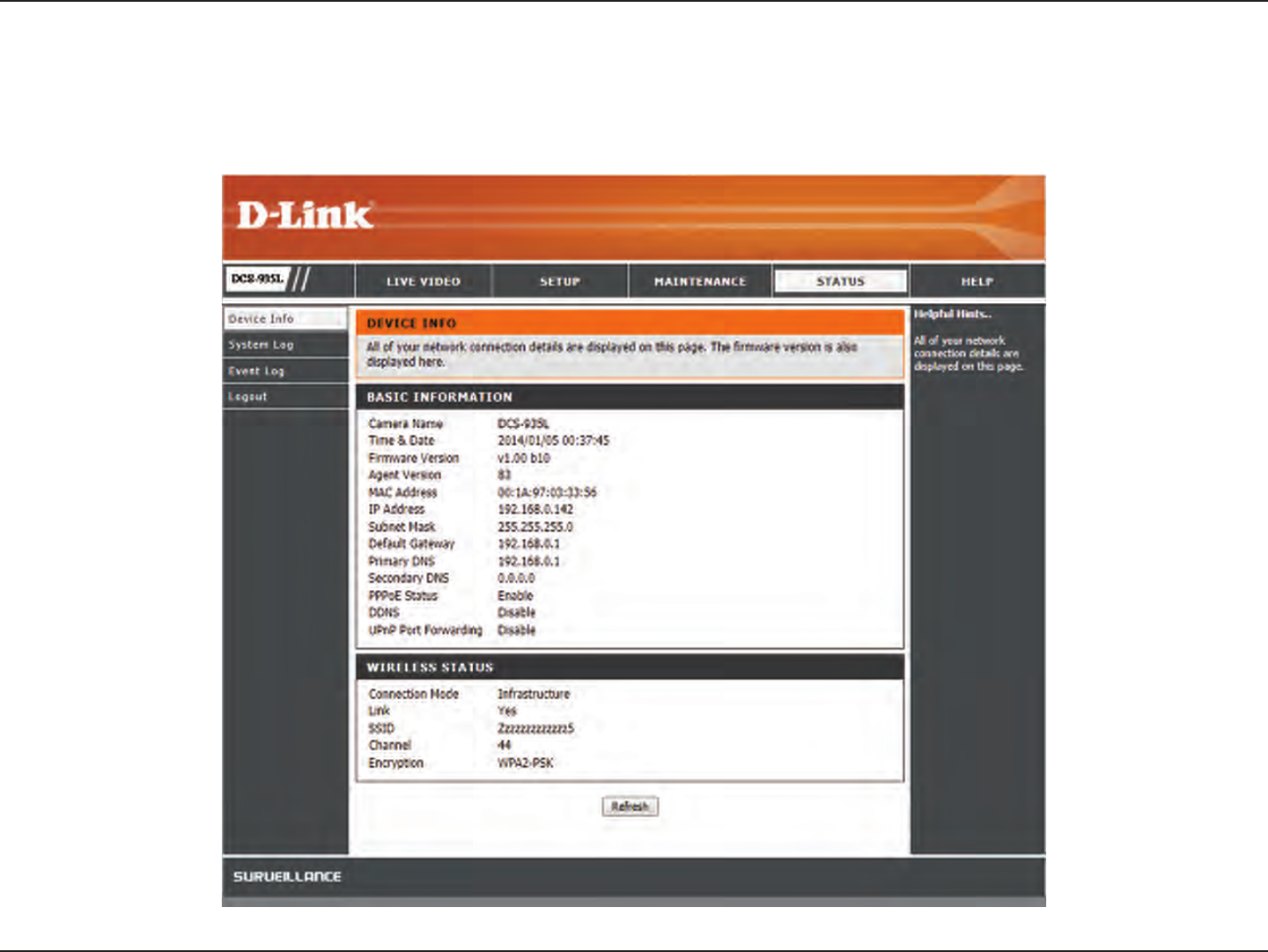

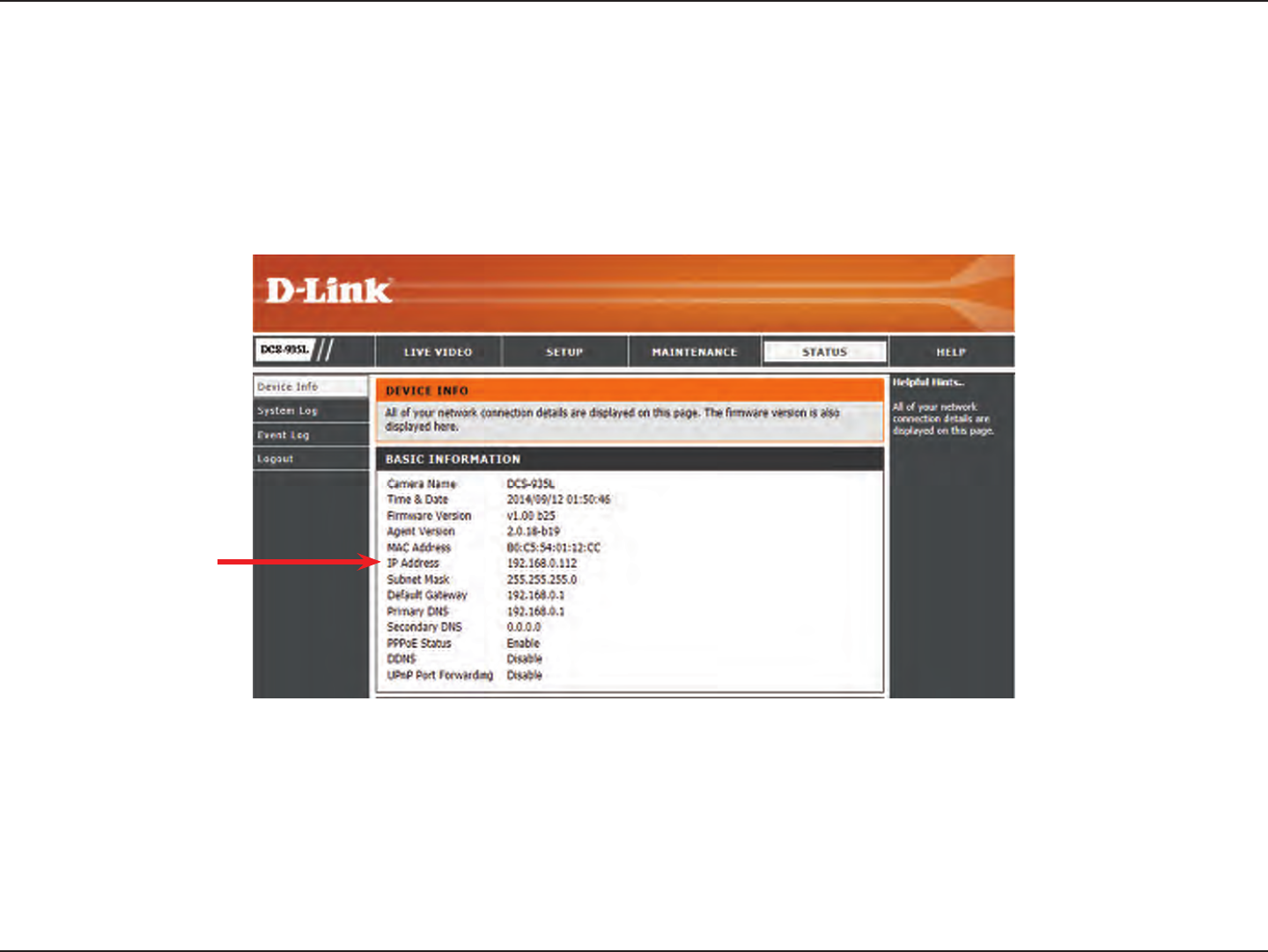

Device Info
This section displays information about your camera and its current network and wireless status.
43D-Link DCS-935L User Manual
Section 3 - Conguration

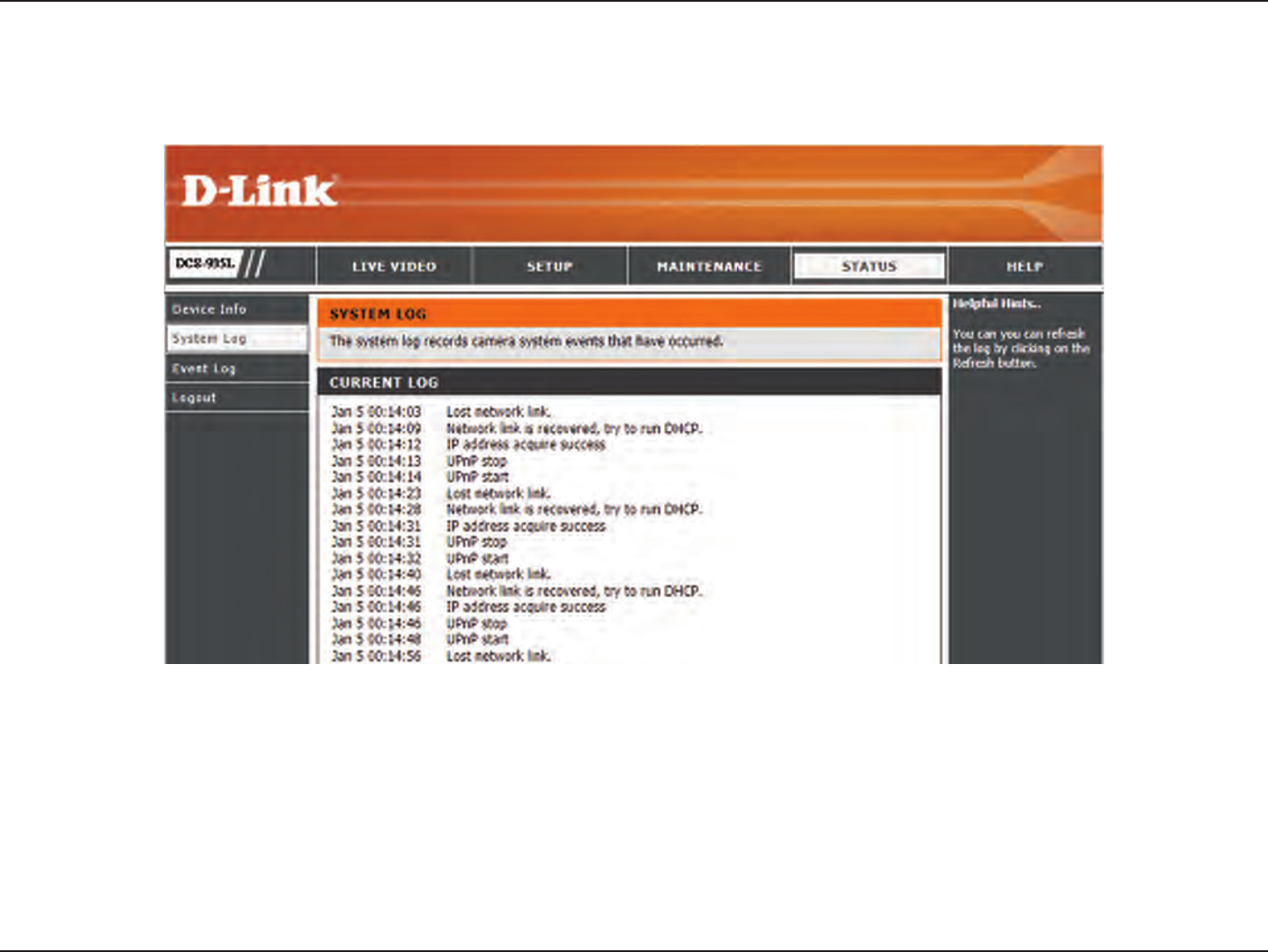

System Log
The system log records network events that have occurred.
44D-Link DCS-935L User Manual
Section 3 - Conguration

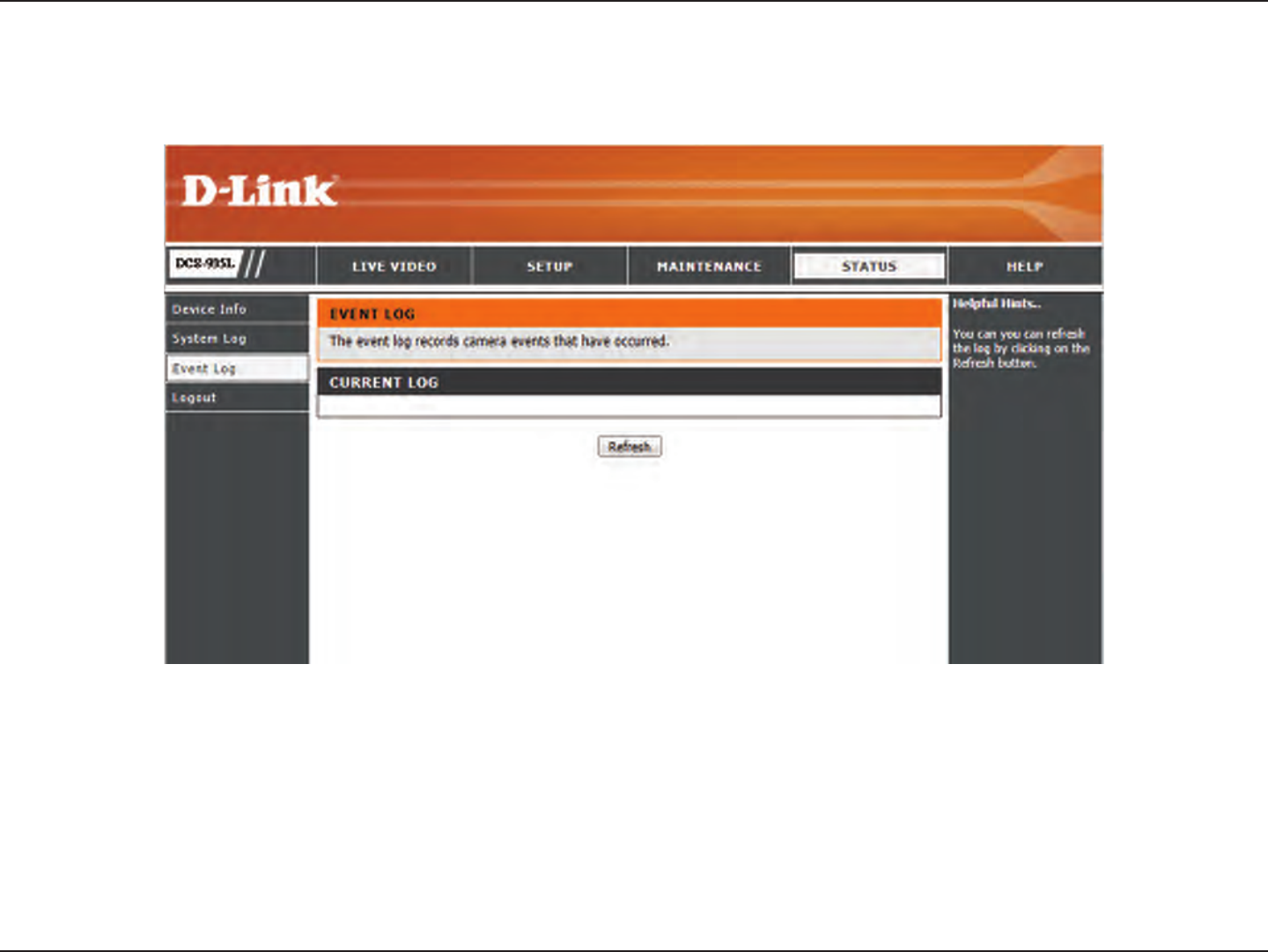

Event Log
The event log records camera events that have occurred.
45D-Link DCS-935L User Manual
Section 4 - Security
Wireless Security
This section will show you the dierent levels of security you can use to protect your data from intruders.
The DCS-935L oers the following types of security:
WPA2-PSK (Pre-Shared Key)
WPA-PSK (Pre-Shared Key)
WEP (Wired Equivalent Privacy)
What is WEP?
WEP stands for Wired Equivalent Privacy. It is based on the IEEE 802.11 standard and uses the RC4 encryption algorithm. WEP provides security by
encrypting data over your wireless network so that it is protected as it is transmitted from one wireless device to another.
To gain access to a WEP network, you must know the key. The key is a string of characters that you create. When using WEP, you must determine
the level of encryption. The type of encryption determines the key length. 128-bit encryption requires a longer key than 64-bit encryption. Keys
are dened by entering in a string in HEX (hexadecimal - using characters 0-9, A-F) or ASCII (American Standard Code for Information Interchange
– alphanumeric characters) format. ASCII format is provided so you can enter a string that is easier to remember. The ASCII string is converted to
HEX for use over the network. Four keys can be dened so that you can change keys easily.
46D-Link DCS-935L User Manual
Section 4 - Security
What is WPA?
WPA, or Wi-Fi Protected Access, is a Wi-Fi standard that was designed to improve the security features of WEP (Wired Equivalent Privacy).
The 2 major improvements over WEP:
Improved data encryption through the Temporal Key Integrity Protocol (TKIP). TKIP scrambles the keys using a hashing algorithm and, by
adding an integrity-checking feature, ensures that the keys haven’t been tampered with. WPA2 is based on 802.11i and uses Advanced
Encryption Standard instead of TKIP.
User authentication, which is generally missing in WEP, through the extensible authentication protocol (EAP). WEP regulates access to
a wireless network based on a computer’s hardware-specic MAC address, which is relatively simple to be snied out and stolen. EAP is
built on a more secure public-key encryption system to ensure that only authorized network users can access the network.
WPA-PSK/WPA2-PSK uses a passphrase or key to authenticate your wireless connection. The key is an alpha-numeric password between 8 and 63
characters long. The password can include symbols (!?*&_) and spaces. This key must be the exact same key entered on your wireless router or
access point.
47D-Link DCS-935L User Manual
Section 4 - Security
D-Links DCS-935L is a versatile and cost eective Network Camera oering both video and audio monitoring. It can also serve as a powerful
surveillance system in security applications. The DCS-935L can be used with any wired or 802.11n/g wireless router. This section explains how to
view the camera from either the Internet or from inside your internal network.
Components Needed:
• 1 DCS-935L Network Camera
• 1 Ethernet Cable
• A Wired or Wireless router such as the D-Link DIR-655 Wireless Router
• Ethernet based PC for system conguration
Setting up the DCS-935L for Use Behind a Router
Installing a DCS-935L Network Camera on your network is an easy 4–step procedure:
1. Assign a local IP address to your network camera.
2. View the network camera using your Internet Explorer web browser.
3. Access the router with your web browser.
4. Open virtual server ports to enable remote image viewing.
Note: These are manual steps; however, if you decide to use the wizard, it will perform every step automatically.
This section is designed to walk you through the setup process for installing your camera behind a router and enable remote video viewing. For
the basic setup of the DCS-935L, follow the steps outlined in the Quick Installation Guide.
After you have completed the setup of the DCS-935L outlined in the Quick Installation Guide you will have an operating camera that has an assigned
IP Address. Because you are using a router to share the Internet with one or more PCs, the IP Address assigned to the Network Camera will be a
local IP Address. This allows viewing within your Local Area Network (LAN) until the router is congured to allow remote viewing of the camera
over the Internet.
Conguring the DCS-935L with a Router
48D-Link DCS-935L User Manual
Section 4 - Security
1. Find Your Cameras Local IP Address
Use the mydlink Home app to set up your DCS-935L. Use a web browser on your PC to go to the www.mydlink.com website and log in to your
account. Select your camera, click on the Settings tab, then click on the Advanced Settings button. Use the User name admin and the password
you created while setting up the camera. If you did not create a password, the default password is blank. After entering your password, click OK.
After logging into the conguration interface, click Status at the top, then nd your IP Address and write it down.
49D-Link DCS-935L User Manual
Section 4 - Security
2. View the Network Camera
Click on the Setup button at the top of the screen. Scroll to the bottom of the Network Setup page to display the ports used by HTTP and Streaming
audio and video. If necessary, these ports can be changed if they are already in use by other devices (e.g. in a multiple camera environment).
Note: The HTTP port is required to be opened for the DCS-935L.
50D-Link DCS-935L User Manual
Section 4 - Security
The following steps generally apply to any router that you have on your network. The D-Link DIR-655 is used as an example to clarify the conguration
process. Congure the initial settings of the DIR-655 by following the steps outlined in the DIR-655 Quick Installation Guide.
3. Access the Router with Your Web Browser
If you have cable or DSL Internet service, you will most likely have a dynamically assigned
WAN IP Address. ‘Dynamic means that your router’s WAN IP address can change from
time to time depending on your ISP. A dynamic WAN IP Address identies your router
on the public network and allows it to access the Internet. To nd out what your
router’s WAN IP Address is, go to the Status menu on your router and locate the WAN
information for your router (as shown on the next page). The WAN IP Address will be
listed. This will be the address that you will need to type in your Web browser to view
your camera over the Internet.
Router Set-Up and Installation
Your WAN IP Address will be listed on the routers
Status > Device Info page.
51D-Link DCS-935L User Manual
Section 4 - Security
Note: Because a dynamic WAN IP can change from time to time depending on your ISP, you may want to obtain a Static IP address from your ISP. A
Static IP address is a xed IP address that will not change over time and will be more convenient for you to use to access your camera from a remote
location. The Static IP Address will also allow you to access your camera attached to your router over the Internet.
4. Open Virtual Server Ports to Enable Remote Image Viewing
The rewall security features built into the DIR-655 router prevent users from accessing the video from the DCS-935L over the Internet. The router
connects to the Internet over a series of numbered ports. The ports normally used by the DCS-935L are blocked from access over the Internet.
Therefore, these ports need to be made accessible over the Internet. This is accomplished using the Virtual Server function on the DIR-655 router.

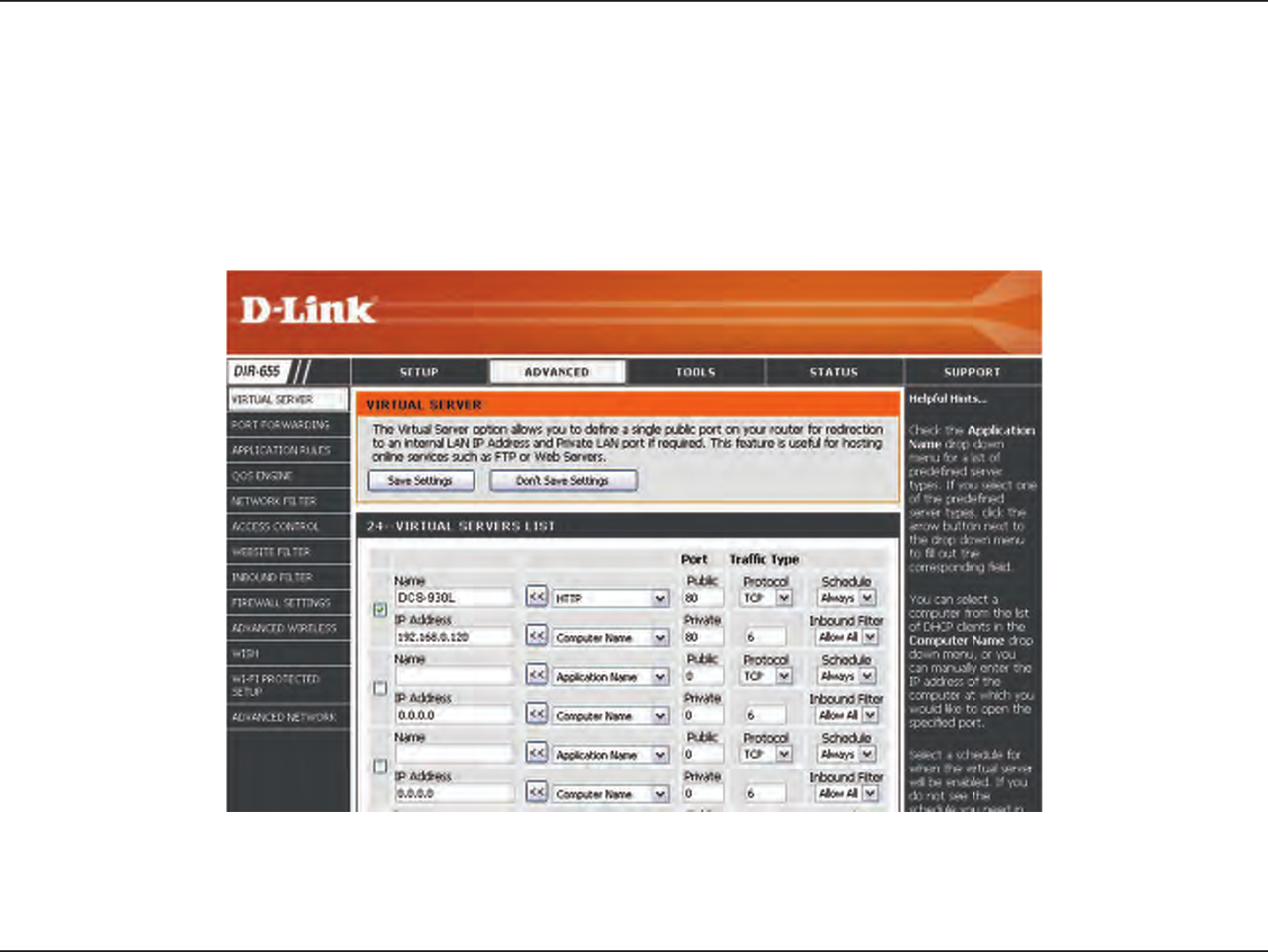

The Virtual Server ports used by the camera must be opened through the router for remote access to your camera. Virtual Server is accessed by
clicking on the Advanced tab of the router screen.
1. Click Enabled.
2. Enter a dierent name for each entry.
3. Enter your cameras local IP Address (e.g., 192.168.0.120) in the Private IP eld.
4. Select TCP for HTTP port and TCP for 5556 - 5559 ports.
5. If you are using the default camera port settings, enter 80 into the Public and Private Port section, click Apply.
6. Scheduling should be set to Always so that the camera images can be accessed at any time.
Follow these steps to congure your routers Virtual Server settings:
52D-Link DCS-935L User Manual
Section 4 - Security
Important: Some ISPs block access to port 80 and other commonly used Internet ports to conserve bandwidth. Check with your ISP so that you can
open the appropriate ports accordingly. If your ISP does not pass trac on port 80, you will need to change the port the camera uses from 80 to
something else, such as 800. Not all routers are the same, so refer to your user manual for specic instructions on how to open ports.
Enter valid ports in the Virtual Server section of your router. Please make sure to check the box next to the camera name on the Virtual Server List
to enable your settings.
53D-Link DCS-935L User Manual
Section 5 - Troubleshooting
Troubleshooting
This chapter provides solutions to problems that can occur during the installation and operation of the DCS-935L.
Read the following descriptions if you are having problems. (The examples below are illustrated in Windows Vista® and XP. If you have a dierent
operating system, the screenshots on your computer will look similar to the following examples.)
1. What is Remote Access? How do I enable it?
Remote Access allows you to access your camera from any PC connected to the Internet through a web browser. This lets you view your camera
feed and manage your cameras settings when youre away from home.
To enable Remote Access, simply use the mydlink Home mobile app to set up your camera and register it with mydlink.
2. What can I do if I forget my password?
If you forget your password, you will need to perform a hard reset of your camera. This process will change all your settings back to the factory
defaults.
To reset your camera, please use an unfolded paperclip to press and hold the RESET button for at least 10 seconds while your camera is plugged in.
3. Why does the LED not light up?
The power supply might be faulty. Conrm that you are using the provided DC 5V power supply for this network camera. Verify that the power supply
is correctly connected. If the camera is functioning normally, the LED may have been disabled. See LED Control in Admin on page 39 for information
about how to enable the LED.
4. Why is the cameras network connection unreliable?
There might be a problem with the network cable. To conrm that the cables are working, PING the address of a known device on the network. If
the cabling is OK and your network is reachable, you should receive a reply similar to the following (…bytes = 32 time = 2 ms).
Another possible problem may be that the network device such as a hub or switch utilized by the Network Camera is not functioning properly.
Please conrm the power for the devices are well connected and functioning properly.
5. Why does the Network Camera work locally but not remotely?
54D-Link DCS-935L User Manual
Section 5 - Troubleshooting
This might be caused by the rewall protection. Check the Internet rewall with your system administrator. The rewall may need to have some
settings changed in order for the Network Camera to be accessible outside your local LAN. For more information, please refer to the section about
installing your camera behind a router.
Make sure that the Network Camera isnt conicting with any Web server you may have running on your network.
The default router setting might be a possible reason. Check that the conguration of the router settings allow the Network Camera to be accessed
outside your local LAN.
6. Why does a series of broad vertical white lines appear through out the image?
It could be that the CMOS sensor (a square panel situated behind the lens that measures the light signals and changes it into a digital format so
your computer can present it into an image that you are familiar with) has become overloaded when it has been exposed to bright lights such
as direct exposure to sunlight or halogen lights. Reposition the Network Camera into a more shaded area immediately as prolonged exposure to
bright lights will damage the CMOS sensor.
7. The camera is producing noisy images. How can I solve the problem?
The video images might be noisy if the Network Camera is used in a very low light environment.
8. The images are poor quality, how can I improve the image quality?
Make sure that your computers display properties are set to at least 6-bit color. Using 16 or 256 colors on your computer will produce dithering
artifacts in the image, making the image look as if it is of poor quality.
The conguration on the Network Camera image display is incorrect. The Web Conguration Video section of the Web management allows you to
adjust the related-parameters for improved images such as: brightness, contrast, hue and light frequency. Please refer to the Web Conguration
section for detailed information.
9. Why are no images available through the Web browser?
ActiveX might be disabled. If you are viewing the images from Internet Explorer make sure ActiveX has been enabled in the Internet Options menu.
You may also need to change the security settings on your browser to allow the ActiveX plug-in to be installed.
If you are using Internet Explorer with a version number lower than 7, then you will need to upgrade your Web browser software in order to view
the streaming video transmitted by the Network Camera.
55D-Link DCS-935L User Manual
Appendix A - Wireless Basics
D-Link wireless products are based on industry standards to provide easy-to-use and compatible high-speed wireless* connectivity within your
home, business or public access wireless networks. Strictly adhering to the IEEE standard, the D-Link wireless family of products will allow you to
securely access the data you want, when and where you want it. You will be able to enjoy the freedom that wireless networking delivers.
A wireless local area network (WLAN) is a cellular computer network that transmits and receives data with radio signals instead of wires. Wireless
LANs are used increasingly in both home and oce environments, and public areas such as airports, coee shops and universities. Innovative ways
to utilize WLAN technology are helping people to work and communicate more eciently. Increased mobility and the absence of cabling and other
xed infrastructure have proven to be benecial for many users.
Under many circumstances, it may be desirable for mobile network devices to link to a conventional Ethernet LAN in order to use servers, printers
or an Internet connection supplied through the wired LAN. A Wireless Router is a device used to provide this link.
Wireless Basics
56D-Link DCS-935L User Manual
Appendix A - Wireless Basics
What is Wireless?
Wireless or WiFi technology is another way of connecting your computer to the network without using wires. WiFi uses radio frequency
to connect wirelessly, so you have the freedom to connect computers anywhere in your home or oce network.
Why D-Link Wireless?
D-Link is the worldwide leader and award winning designer, developer, and manufacturer of networking products. D-Link delivers the
performance you need at a price you can aord. D-Link has all the products you need to build your network.
How does wireless work?
Wireless works similar to how cordless phone work, through radio signals to transmit data from one point A to point B. But wireless
technology has restrictions as to how you can access the network. You must be within the wireless network range area to be able to
connect your computer. There are two dierent types of wireless networks Wireless Local Area Network (WLAN), and Wireless Personal
Area Network (WPAN).
Wireless Local Area Network (WLAN)
In a wireless local area network, a device called an Access Point (AP) connects computers to the network. The access point has a small
antenna attached to it, which allows it to transmit data back and forth over radio signals. With an indoor access point as seen in the
picture, the signal can travel up to 300 feet. With an outdoor access point the signal can reach out up to 30 miles to serve places like
manufacturing plants, industrial locations, college and high school campuses, airports, golf courses, and many other outdoor venues.
57D-Link DCS-935L User Manual
Appendix A - Wireless Basics
Who uses wireless?
Wireless technology as become so popular in recent years that almost everyone is using it, whether it’s for home, oce, business, D-Link has a
wireless solution for it.
Home
• Gives everyone at home broadband access
• Surf the Web, check email, instant message, and etc
• Gets rid of the cables around the house
• Simple and easy to use
Small Oce and Home Oce
• Stay on top of everything at home as you would at oce
• Remotely access your oce network from home
• Share Internet connection and printer with multiple computers
• No need to dedicate oce space
58D-Link DCS-935L User Manual
Appendix A - Wireless Basics
Where is wireless used?
Wireless technology is expanding everywhere not just at home or oce. People like the freedom of mobility and it’s becoming so popular that
more and more public facilities now provide wireless access to attract people. The wireless connection in public places is usually called “hotspots”.
Using a D-Link Cardbus Adapter with your laptop, you can access the hotspot to connect to Internet from remote locations like: Airports, Hotels,
Coee Shops, Libraries, Restaurants, and Convention Centers.
Wireless network is easy to setup, but if youre installing it for the rst time it could be quite a task not knowing where to start. That’s why we’ve put
together a few setup steps and tips to help you through the process of setting up a wireless network.
Tips
Here are a few things to keep in mind, when you install a wireless network.
Centralize your router or Access Point
Make sure you place the router/access point in a centralized location within your network for the best performance. Try to place the router/access
point as high as possible in the room, so the signal gets dispersed throughout your home. If you have a two-story home, you may need a repeater
to boost the signal to extend the range.
Eliminate Interference
Place home appliances such as cordless telephones, microwaves, and televisions as away as possible from the router/access point. This would
signicantly reduce any interfere that the appliances might cause since they operate on same frequency.
Security
Don’t let you next-door neighbors or intruders connect to your wireless network. Secure your wireless network by turning on the WPA or WEP
security feature on the router. Refer to product manual for detail information on how to set it up.
59D-Link DCS-935L User Manual
Appendix A - Wireless Basics
There are basically two modes of networking:
Infrastructure – All wireless clients will connect to an access point or wireless router.
Ad-Hoc – Directly connecting to another computer, for peer-to-peer communication, using wireless network adapters on each computer, such as two
or more DCS-935L wireless network Cardbus adapters.
An Infrastructure network contains an Access Point or wireless router. All the wireless devices, or clients, will connect to the wireless router or access point.
An Ad-Hoc network contains only clients, such as laptops with wireless cardbus adapters. All the adapters must be in Ad-Hoc mode to communicate.
Wireless Modes
60D-Link DCS-935L User Manual
Appendix B - Networking Basics
Networking Basics
Check your IP address
After you install your new D-Link adapter, by default, the TCP/IP settings should be set to obtain an IP address from a DHCP server (i.e. wireless
router) automatically. To verify your IP address, please follow the steps below.

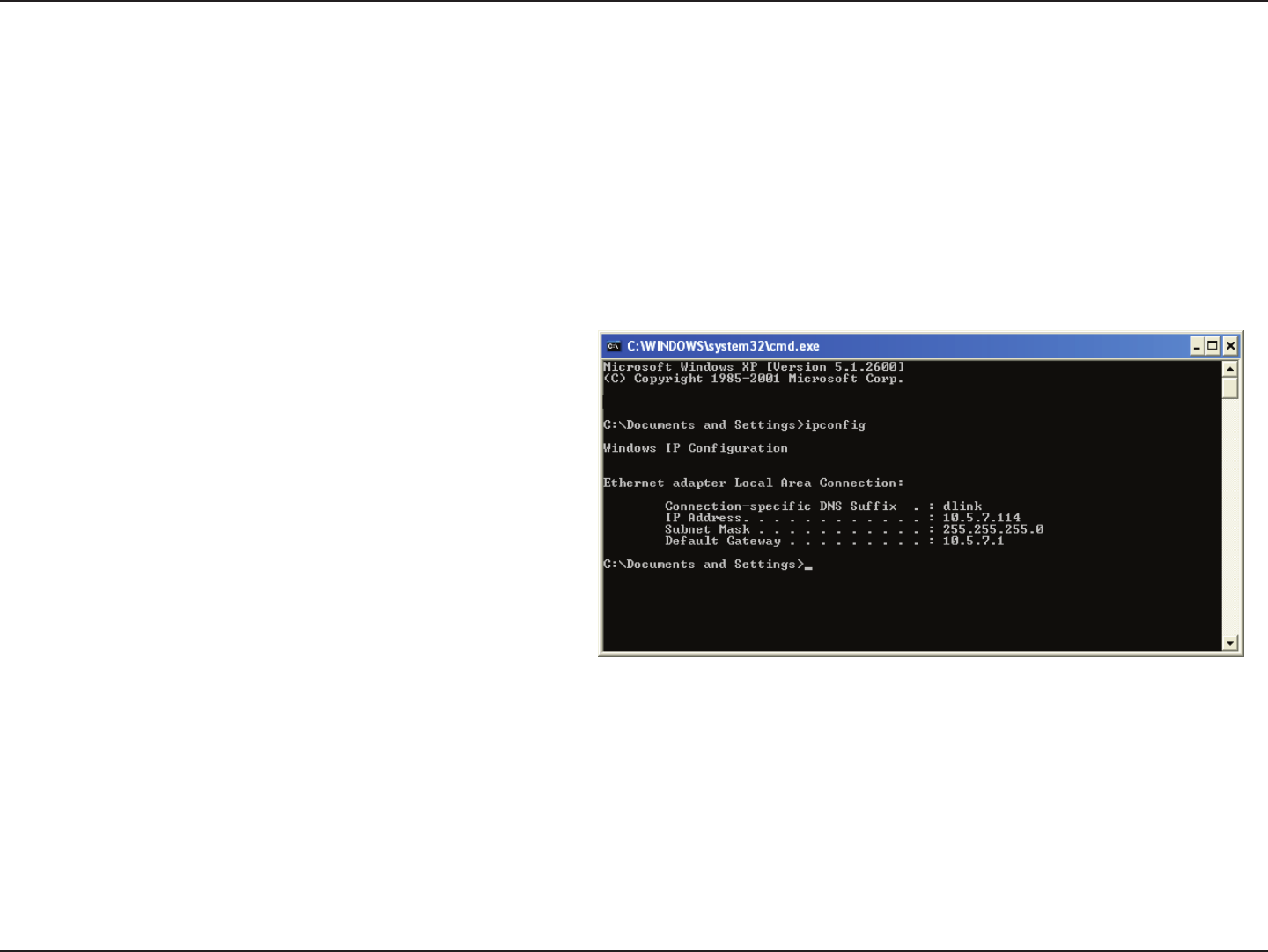

Click on Start > Run. In the run box type cmd and click OK.
At the prompt, type ipcong and press Enter.
This will display the IP address, subnet mask, and the default
gateway of your adapter.
If the address is 0.0.0.0, check your adapter installation, security
settings, and the settings on your router. Some rewall software
programs may block a DHCP request on newly installed adapters.
If you are connecting to a wireless network at a hotspot (e.g.
hotel, coee shop, airport), please contact an employee or
administrator to verify their wireless network settings.
61D-Link DCS-935L User Manual
Appendix B - Networking Basics
Statically Assign an IP Address
If you are not using a DHCP capable gateway/router, or you need to assign a static IP address, please follow the steps below:
Step 1
Windows® Vista - Click on Start > Control Panel > Network and Internet > Network and Sharing Center > Manage Network Connections.
Windows XP - Click on Start > Control Panel > Network Connections.
Step 2
Right-click on the Local Area Connection which represents your D-Link network adapter and select Properties.
Step 3
Highlight Internet Protocol (TCP/IP) and click Properties.

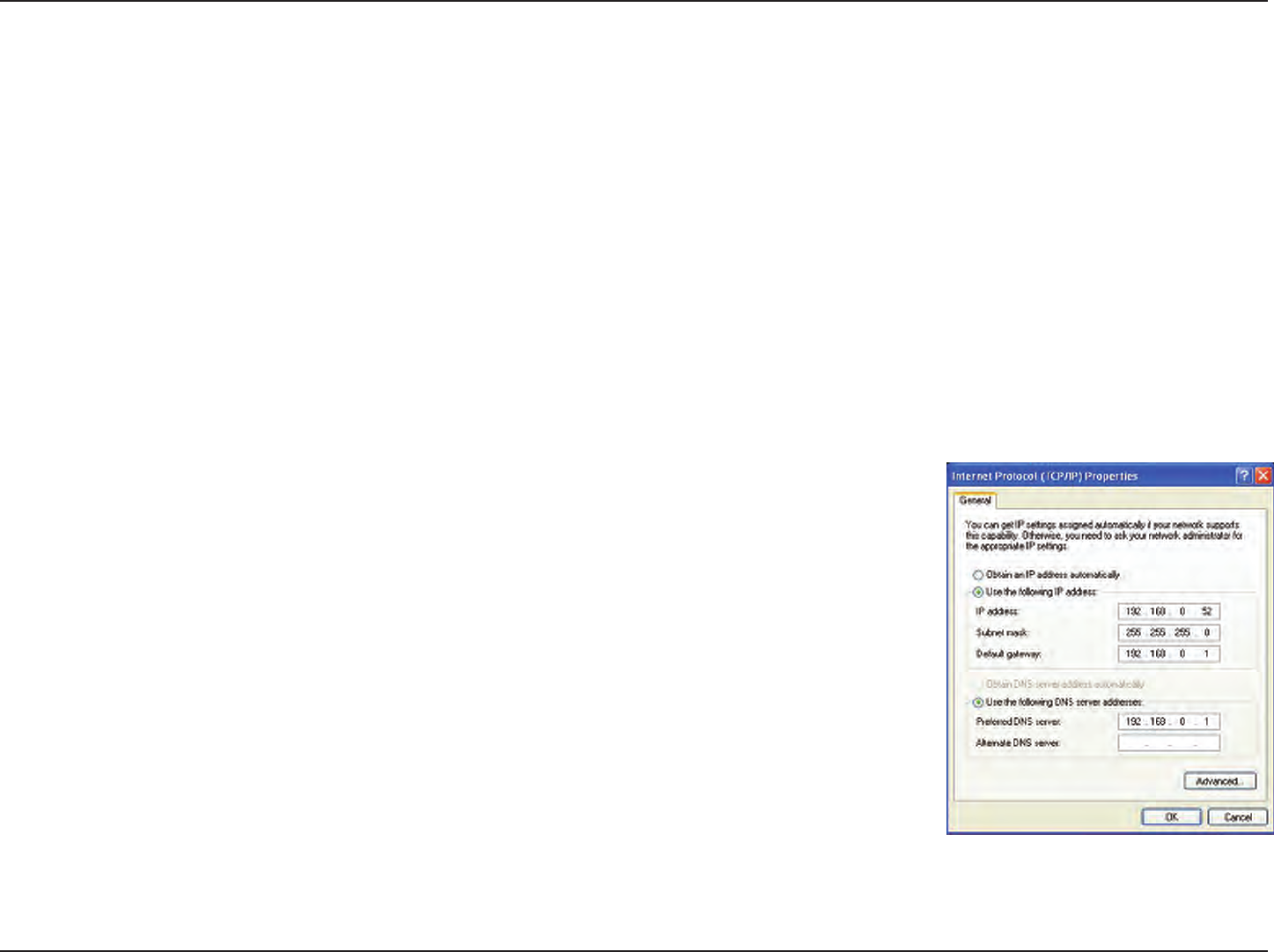

Step 4
Click Use the following IP address and enter an IP address that is on the same subnet as your network or
the LAN IP address on your router.
Example: If the router´s LAN IP address is 192.168.0.1, make your IP address 192.168.0.X where X is a number
between 2 and 99. Make sure that the number you choose is not in use on the network. Set Default Gateway
the same as the LAN IP address of your router (192.168.0.1).
Set Primary DNS the same as the LAN IP address of your router (192.168.0.1). The Secondary DNS is not
needed or you may enter a DNS server from your ISP.
Step 5
Click OK twice to save your settings.
62D-Link DCS-935L User Manual
Appendix C - Technical Specications
Technical Specications
SYSTEM REQUIREMENTS
Microsoft Windows® 8/7/Vista, or Mac with OS X 10.6 or higher
PC with 1.3 GHz or above and at least 128 MB RAM
Internet Explorer 7, Firefox 12, Safari 6, or Chrome 20 or higher
version with Java installed and enabled
NETWORKING PROTOCOL
IPV4, ARP, TCP, UDP, ICMP
DHCP Client
NTP Client (D-Link)
DNS Client
DDNS Client (DynDNS and D-Link)
SMTP Client
FTP Client
HTTP Server
PPPoE
UPnP Port Forwarding
Bonjour
UPnP
RTP
RTSP
RTCP
HTTP for conguration
WIRELESS CONNECTIVITY
802.11b/g/n/ac Wireless with WEP/WPA/WPA2 security
WIRELESS TRANSMIT POWER
802.11b: 16 dBm
802.11g: 12 dBm
802.11n: 12 dBm
802.11ac: 12 dBm
SDRAM
64 MB
FLASH MEMORY
16 MB
RESET BUTTON
Reset to factory default
VIDEO CODECS
H.264
MJPEG
JPEG for still images
VIDEO FEATURES
Adjustable image size and quality
Time stamp and text overlay
Flip and Mirror
RESOLUTION
1280 x 720, 800 x 600, 720 x 480, 640 x 480, 320 x 240 at up to 30
fps
LENS
Focal length: 2.38 mm, F2.4
SENSOR
Megapixel 1/4 inch CMOS sensor
IR LED
5 meter illumination distance with 4 LEDs and light sensor
63D-Link DCS-935L User Manual
Appendix C - Technical Specications
MINIMUM ILLUMINATION
0 lux with IR LEDs on
VIEWING ANGLE
Horizontal: 78.44°
Vertical: 47.9°
Diagonal: 85.98°
DIGITAL ZOOM
Up to 4x
3A CONTROL
AGC (Auto Gain Control)
AWB (Auto White Balance)
AES (Auto Electronic Shutter)
POWER
Input: 100-240 V AC, 50/60 Hz
Output: 5 V DC, 1.2 A
External AC-to-DC switching power adapter
DIMENSIONS
66.8 x 84.5 x 124.85 mm (2.63 x 3.33 x 4.92 in.)
WEIGHT
160 grams (5.6 ounces) ± 5%
POWER CONSUMPTION
3.5 watts maximum ± 5%
OPERATING TEMPERATURE
0 ˚C to 40 ˚C (32 ˚F to 104 ˚F)
STORAGE TEMPERATURE
-20 ˚C to 70 ˚C (-4 ˚F to 158 ˚F)
HUMIDITY
20-80% RH non-condensing
EMISSION EMI, SAFETY & OTHER CERTIFICATIONS
FCC Class B
IC
C-Tick
CE
Model: DCS-935L & DCS-935LX
FCC Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including
interference that may cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority to operate
this equipment.
This transmitter must not be co-located or operating in conjunction with any
other antenna or transmitter.
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one of the
following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated
with minimum distance 20cm between the radiator & your body.
Operations in the 5.15-5.25GHz band are restricted to indoor usage only.
IC Statement
This device complies with RSS-210 of the Industry Canada Rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including interference that
may cause undesired operation.
Ce dispositif est conforme à la norme CNR-210 d'Industrie Canada applicable aux
appareils radio exempts de licence. Son fonctionnement est sujet aux deux
conditions suivantes: (1) le dispositif ne doit pas produire de brouillage préjudiciable,
et (2) ce dispositif doit accepter tout brouillage reçu, y compris un brouillage
susceptible de provoquer un fonctionnement indésirable.
Radiation Exposure Statement:
This equipment complies with IC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance 20cm between the radiator & your body.
Déclaration d'exposition aux radiations:
Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies
pour un environnement non contrôlé. Cet équipement doit être installé et utilisé
avec un minimum de 20cm de distance entre la source de rayonnement et votre
corps.
Caution :
(i) the device for operation in the band 5150-5250 MHz is only for indoor use to
reduce the potential for harmful interference to co-channel mobile satellite systems;
(ii) the maximum antenna gain permitted for devices in the bands 5250-5350 MHz
and 5470-5725 MHz shall comply with the e.i.r.p. limit; and
(iii) the maximum antenna gain permitted for devices in the band 5725-5825 MHz
shall comply with the e.i.r.p. limits specified for point-to-point and non point-to-point
operation as appropriate.
(iv) Users should also be advised that high-power radars are allocated as primary
users (i.e. priority users) of the bands 5250-5350 MHz and 5650-5850 MHz and that
these radars could cause interference and/or damage to LE-LAN devices.
Avertissement:
Le guide d’utilisation des dispositifs pour réseaux locaux doit inclure des instructions
précises sur les restrictions susmentionnées, notamment :
(i) les dispositifs fonctionnant dans la bande 5 150-5 250 MHz sont réservés
uniquement pour une utilisation à l’intérieur afin de réduire les risques de brouillage
préjudiciable aux systèmes de satellites mobiles utilisant les mêmes canaux;
(ii) le gain maximal dantenne permis pour les dispositifs utilisant les bandes 5 250-5
350 MHz et 5 470-5 725 MHz doit se conformer à la limite de p.i.r.e.;
(iii) le gain maximal d’antenne permis (pour les dispositifs utilisant la bande 5 725-5
825 MHz) doit se conformer à la limite de p.i.r.e. spécifiée pour l’exploitation point à
point et non point à point, selon le cas.
(iv) De plus, les utilisateurs devraient aussi être avisés que les utilisateurs de radars
de haute puissance sont désignés utilisateurs principaux (c.-à-d., qu’ils ont la priorité)
pour les bandes 5 250-5 350 MHz et 5 650-5 850 MHz et que ces radars pourraient
causer du brouillage et/ou des dommages aux dispositifs LAN-EL.

Navigation menu
