User Manual
Personal
Air
™ Bluetooth USB
Printer Adapter
DBT-320
This product works with Bluetooth
enabled PC with the following
operating systems: Windows 98SE,
Me, 2000, and XP.
Before You Begin
You must have at least the following:
•Bluetooth Enabled PC Supporting HCRP and SPP Bluetooth Profiles
for Printing, Bluetooth Enabled Mobile Phone, or Bluetooth enabled PDA.
•USB Printer* with One Available Type B USB Port.
(*PCL3 Printer is required for Printing from Cell Phone or PDA)
DBT-320 Bluetooth USB Printer Adapter
Wall Mount Cradle
©2004 D-Link Systems, Inc. All rights reserved. Trademarks or registered trademarks are the property of their
respective holders. Software and specifications subject to change without notice. DBT-320. 03052004
Check Your Package Contents
These are the items included with your purchase:
If any of the below items are missing, please contact your reseller.
Using a power supply
with a different voltage
rating will damage this
product and void the warranty.
AC Power Adapter
2
Installing the DBT-320

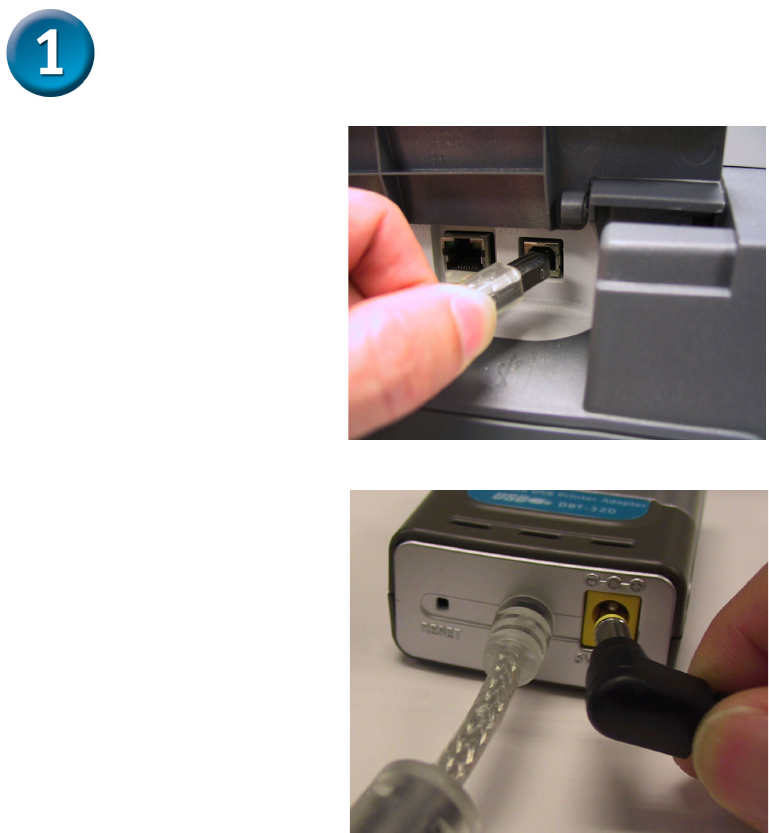

Plug the DBT-320 Type B
USB connector into the Type
B USB port located on the
back of your printer.
Using the included power
adapter, connect the yellow
coded plug to the yellow
power connector port on the
DBT-320 and the other end
of the power connector to an
available power strip or
outlet.
The DBT-320 Bluetooth USB Printer Adapter set up is now complete!
You will now be able to enjoy wireless printing from your cell phone, PDA,
laptop, or computer with the DBT-320 Bluetooth USB Printer Adapter.
3

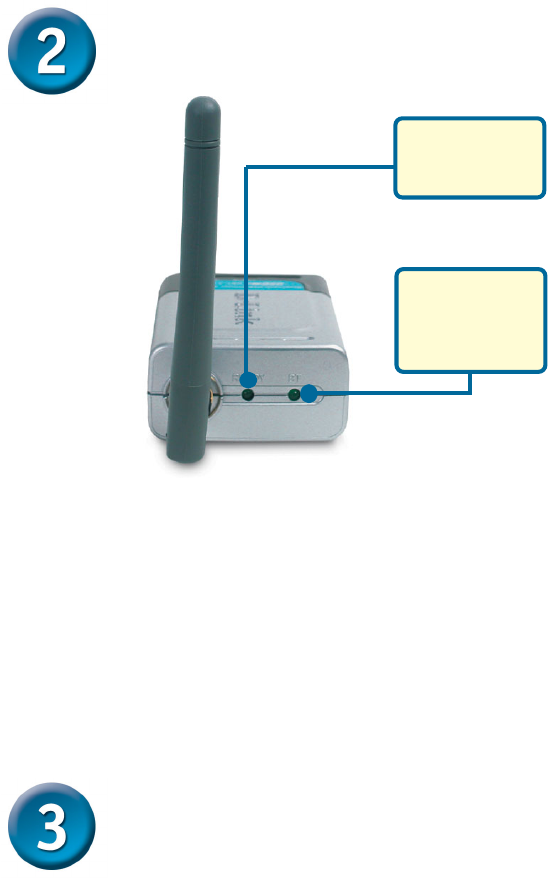

DBT-320 LED Indicators
Power
Indicator
Bluetooth
Link
Indicator
The DBT-320 features two LED indicators, the Ready LED and the BT LED.
• The Ready LED indicator will light solid green when the DBT-320 is
powered on with the external power adapter. When the printer is powered
on, a blinking green Ready LED indicates a successful printer connection.
• The BT Indicator will blink green when a file is being sent to the printer from a
laptop, computer, PDA, or cell phone.
Printing from your Laptop/PC using
the DBT-320
Your Bluetooth enabled laptop or computer will have Bluetooth software
that will enable you to connect to the DBT-320 printer adapter. The instructions
on the following page are based on a D-Link DBT-120 USB Bluetooth adapter
used with a PC running Windows XP with Widcomm Bluetooth Software
v1.4.2.10. Depending on the Bluetooth setup on your system, the installation
procedure may vary slightly.
4
Click Search for
devices in range
If detected, the D-Link DBT-
320 printer icon will be
displayed. If the DBT-320 is
not detected, press F5 on
your keyboard or right click
on the mouse and select
refresh to search again.
Double Click to
install printer drivers

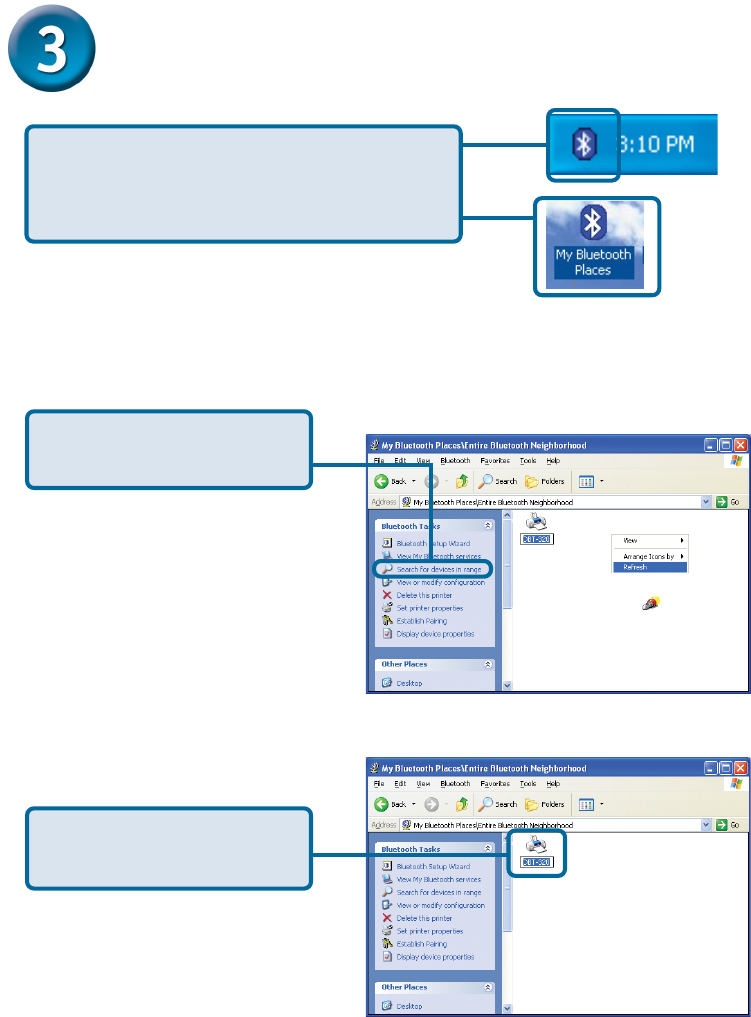

Double-click the Bluetooth icon
on your desktop or in the systray
to access My Bluetooth Places
My Bluetooth Places is also accessible from the Start Menu:
Go to Start > Programs > My Bluetooth Places
Printing from your Laptop/PC using
the DBT-320
(continued)
*Note: If the printer is being used by another Bluetooth user, you will not
be able to detect the DBT-320.
5

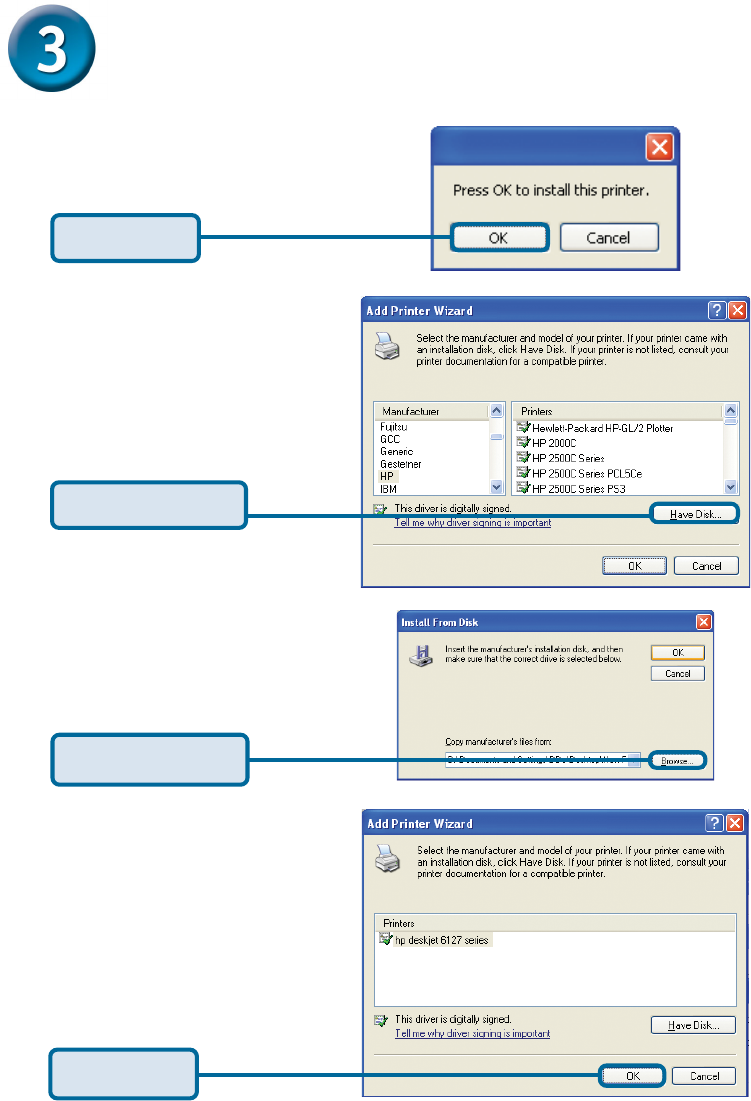

Click Have Disk
Select the Manufacturer
of your printer and your
printer model.
Click Browse
Click Browse to search
for your printer drivers.
Printing from your Laptop/PC using
the DBT-320
(continued)
Highlight the printer you
are using in the Printers
list.
Click OK
Click OK
6
Printing from your Mobile Phone
To print from your mobile phone, be sure that you have at least the following:
•Bluetooth enabled mobile phone supporting the Bluetooth Object Push
Profile. This enables the printing of business cards from your mobile
phone.
•PCL3 printer
The Bluetooth printing procedure will vary depending on the manufacturer
of your mobile phone. Please check your mobile phone manual or with
your manufacturer for specific directions on how to print.

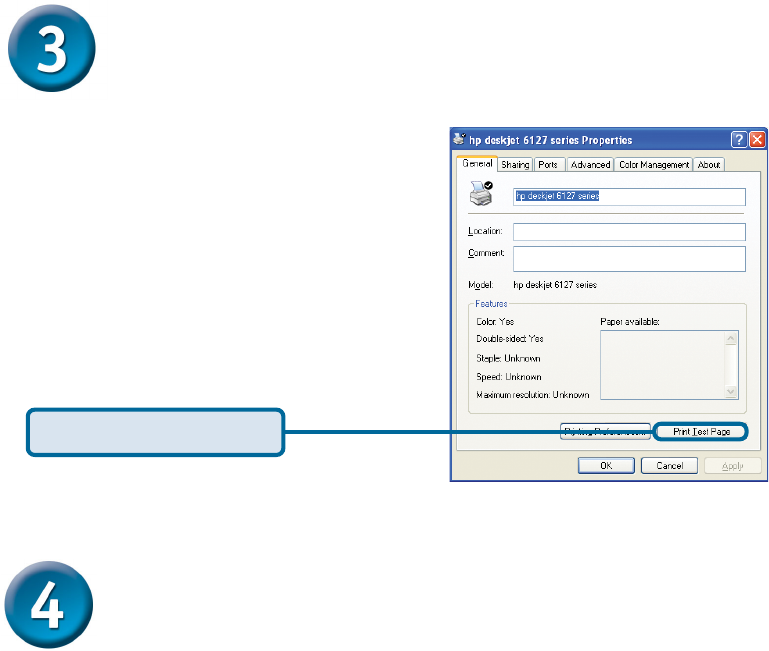

Click Print Test Page
The printer properties window will be
displayed once your printer is installed.
You can click on Print Test Page to test
your connection to the DBT-320.
Printing from your Laptop/PC using
the DBT-320
(continued)
7
To print from your PDA, be sure that you have at least the following:
•Bluetooth enabled PDA
•Bluetooth Software supporting the Object Push Profile
•Printing software (i.e. PrintPocket CE for PDAs running Pocket PC
2002 or 2000, BTPrint for Palms running Palm OS 4.x or OS 5.x, iPAQs
running Pocket PC 2003)
•PCL3 printer
The Bluetooth printing procedure will vary depending on the manufacturer
of your PDA and software that you are using. Please check your PDA
manual or with your manufacturer for specific directions on how to print.
Printing from your PDA
Troubleshooting Tips
If you are having trouble printing with the DBT-320 check the following:
•Make sure your printer is turned on and the Ready LED on the DBT-
320 is green. If the Ready LED is not green, check your USB connection
to the printer.
•Make sure the Bluetooth icon on the screen of your laptop, computer,
mobile phone, or PDA is white. This means that the Bluetooth
application is ready. If the Bluetooth icon is not white, try rebooting
your Bluetooth mobile device and/or reinstalling your Bluetooth software.
Check that your Bluetooth software supports the HCRP, and SPP
Bluetooth profiles for printing.
•If the Bluetooth icon is red, the DBT-320 is not properly connected.
Check the DBT-320 connection to your printer and your printer
connection.
•When printing, the Bluetooth icon will blink Green. If the Bluetooth LED
is not flashing on, check your DBT-320 connection to the printer. Your
printer may also not be configured correctly. Check your printer
configuration.
8
Technical SupportTechnical Support
Technical SupportTechnical Support
Technical Support
You can find software updates and user documentation on the D-Link website.
D-Link provides free technical support for customers within the United States and
within Canada for the duration of the warranty period on this product.
U.S. and Canadian customers can contact D-Link Technical Support through our
website, or by phone.
Tech Support for customers within the United States:
D-Link Technical Support over the Telephone:
(877) 453-5465
24 hours a day, seven days a week.
D-Link Technical Support over the Internet:
http://support.dlink.com
email:support@dlink.com
Tech Support for customers within Canada:
D-Link Technical Support over the Telephone:
(800) 361-5265
Monday to Friday 8:30am to 9:00pm EST
D-Link Technical Support over the Internet:
http://support.dlink.ca
email:support@dlink.ca
Technical SupportTechnical Support
Technical SupportTechnical Support
Technical Support
You can find software updates and user documentation on the D-Link website.
D-Link provides free technical support for customers within the United States and
within Canada for the duration of the warranty period on this product.
U.S. and Canadian customers can contact D-Link Technical Support through our
website, or by phone.
Tech Support for customers within the United States:
D-Link Technical Support over the Telephone:
(877) 453-5465
24 hours a day, seven days a week.
D-Link Technical Support over the Internet:
http://support.dlink.com
email:support@dlink.com
Tech Support for customers within Canada:
D-Link Technical Support over the Telephone:
(800) 361-5265
Monday to Friday 8:30am to 9:00pm EST
D-Link Technical Support over the Internet:
http://support.dlink.ca
email:support@dlink.ca
