Users Manual Revised

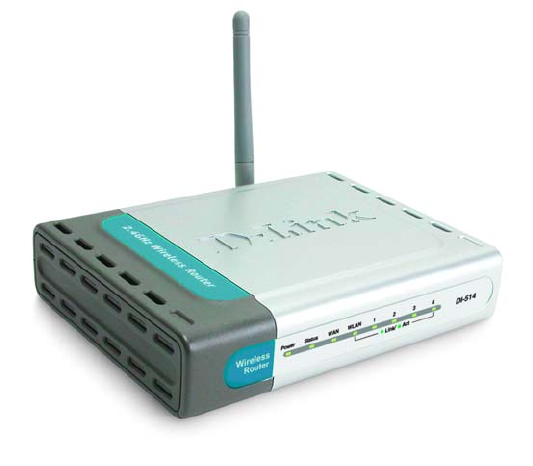

D-Link Air DI-514

2.4GHz Wireless Router

Manual

Building Networks for People

Contents

1. Package Contents.......................................................... 3

2. Introduction .................................................................... 4

3. Wireless Basics.............................................................. 8

4. Getting Started ..............................................................11

5. Using the Configuration Menu ..................................... 13

6. Troubleshooting ........................................................... 35

7. Networking Basics ....................................................... 40

8. Technical Specifications ............................................... 55

9. Technical Support......................................................... 57

10. Warranty and Registration ........................................... 58

1. Package Contents

Contents of Package:

• D-Link Air DI-514 2.4GHz Wireless Router

• Power Adapter – 5V DC, 2.5A

• Manual on CD

• Printed Quick Installation Guide

Note: Using a power supply with a different voltage rating than the one included with

the DI-514 will cause damage and void the warranty for this product.

If any of the above items are missing, please contact your reseller.

System Requirements for Configuration:

• Computer with a Windows, Macintosh, or Linux-based operating

system with an installed Ethernet adapter

• Internet Explorer Version 6.0 or Netscape Navigator version 6.0

and above, with JavaScript enabled

2. Introduction

The D-Link Air DI-514 Wireless Router is an 802.11b wireless router with the

added benefits of myriad robust firewall features. It is ideal for those creating

their first wireless network, as well as for more advanced users looking for

additional management settings and policy-based content filtering. Filters

can be set based on MAC address, IP address, URL and/or Domain Name.

A simple, yet intelligent, web-based setup wizard makes the DI-514 easy for

any user to quickly and securely connect computers to share a high-speed

Internet connection, files, resources, games or just to communicate. An

integrated 4-port switch allows direct connection of up to four computers.

Several wireless clients can also securely connect to the network using 64 or

128-bit WEP encryption.

Additional advanced features include pass-through of multiple concurrent

IPSec and PPTP VPN sessions for telecommuters or for anyone who needs

to transmit sensitive information more securely.

The D-Link Air DI-514 is the ideal networking solution for small offices, home

offices, schools, coffee shops and other small businesses that cater to the

public.

This manual provides a quick introduction to wireless technology and its

application as it relates to networking. Please take a moment to read through

this manual if you need to get acquainted with wireless technology.

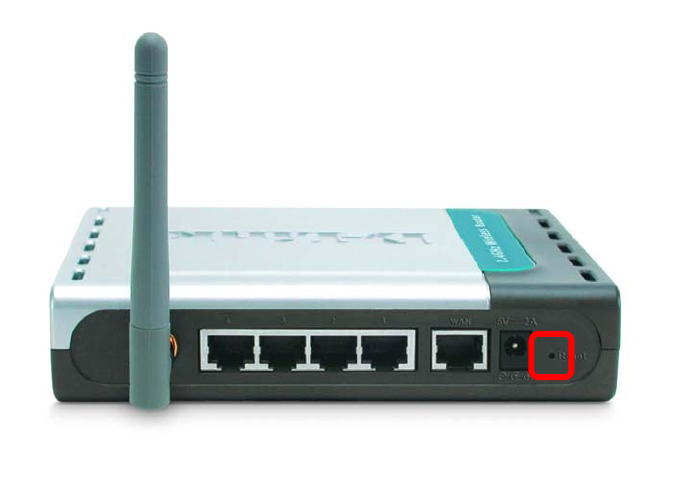

Connections

Pressing the Reset

Button restores the

router to its original

factory default settings.

Auto MDI/MDIX

LAN ports

automatically sense

the cable type when

connecting to

Ethernet-enabled

com

uters.

The Auto

MDI/MDIX WAN

port is the

connection for the

Ethernet cable to Receptor for the

Power Adapter.

Features and Benefits

• Built in 4-Port Switch - Connects multiple Ethernet-enabled

(Ethernet network adapters installed) computers and devices to a

Broadband (Cable or DSL) modem to share the Internet connection

• Wireless Connection – Computers and devices with 802.11b

compliant wireless network adapters installed can connect with the

DI-514

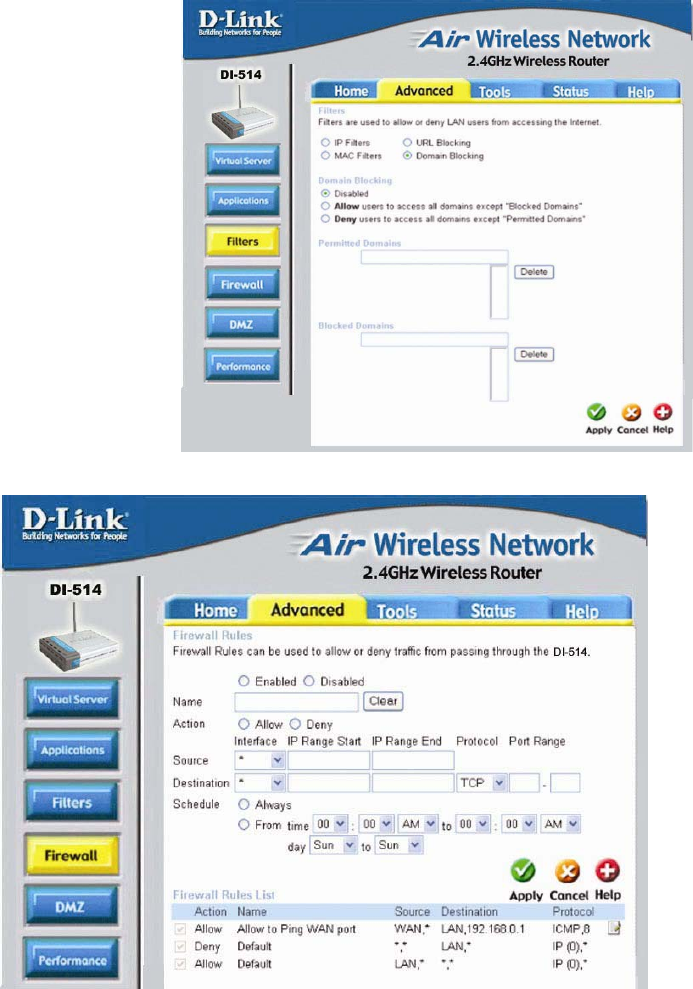

• Advanced Firewall and Parental Control features, accessed

through the simple and comprehensive Web-based user interface,

include:

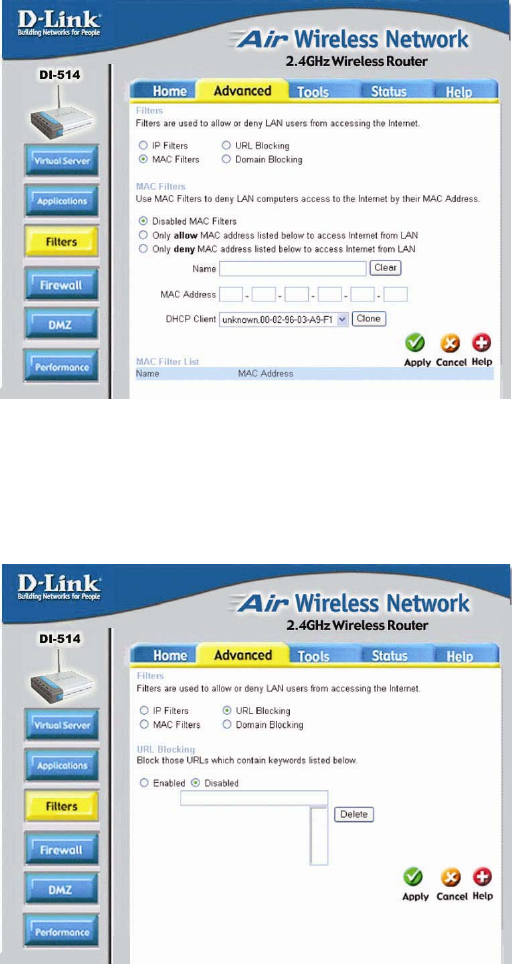

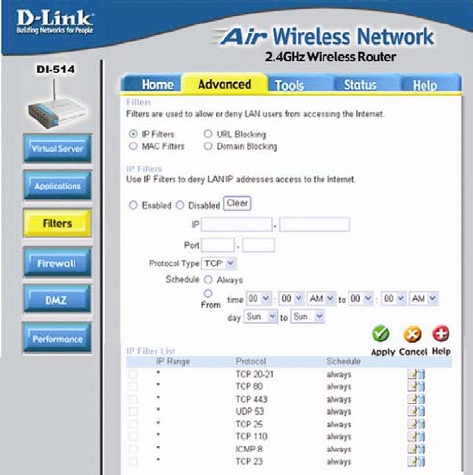

• Content Filtering – Easily applied content filtering based on

MAC Address, IP Address, URL and/or Domain Name

• Filter Scheduling - Content filters can also be scheduled to

be active on certain days or for a duration of hours or minutes

• Network Address Translation – NAT allows you to share a

single IP address and protects you from outside intruders

gaining access to your private network

• Multiple Concurrent VPN Sessions – Supports multiple and

concurrent IPSEC and PPTP sessions, so multiple users

behind the DI-514 can access corporate networks through

various VPN clients more securely

• Simple Setup Wizard for Easy Installation – The D-Link setup

wizard simplifies the installation process, getting you up and running

in just a few clicks

LEDS

WAN LED -

solid light indicates

connection on the

WAN port. This LED

blinks during data

transmission.

POWER LED -

A solid light indicates

a proper connection

to the power supply.

LAN LED -

A solid light

indicates a

connection to an

Ethernet-enabled

computer on ports

1-4. This LED blinks

during data

transmission.

STATUS LED -

Blinks constantly

to indicate device

is functioning

properly.

WLAN LED -

A solid light

indicates

connection to

wireless clients.

3. Wireless Basics

D-Link Air wireless products are based on industry standards to provide

easy-to-use and compatible high-speed wireless connectivity within your

home, business or public access wireless networks. D-Link wireless

products will allow you access to the data you want, when and where you

want it. You will be able to enjoy the freedom that wireless networking brings.

A WLAN (wireless local area network) is a cellular computer network that

transmits and receives data with radio signals instead of wires. WLANs are

used increasingly in both home and office environments, and public areas

such as airports, coffee shops and universities. Innovative ways to utilize

WLAN technology are helping people to work and communicate more

efficiently. Increased mobility and the absence of cabling and other fixed

infrastructure have proven to be beneficial for many users.

Wireless users can use the same applications they use on a wired network.

Wireless adapter cards used on laptop and desktop systems support the

same protocols as Ethernet adapter cards.

People use WLAN technology for many different purposes:

Mobility - Productivity increases when people have access to data in any

location within the operating range of the WLAN. Management decisions

based on real-time information can significantly improve worker efficiency.

Low Implementation Costs – WLANs are easy to set up, manage, change

and relocate. Networks that frequently change, both physically and logically,

can benefit from WLANs ease of implementation. WLANs can operate in

locations where installation of wiring may be impractical.

Installation and Network Expansion - Installing a WLAN system can be

fast and easy and can eliminate the need to pull cable through walls and

ceilings. Wireless technology allows the network to go where wires cannot –

even outside the home or office.

Wireless Basics

Inexpensive Solution - Wireless network devices are as competitively

priced as conventional Ethernet network devices.

Scalability –WLANs can be configured in a variety of ways to meet the

needs of specific applications and installations. Configurations are easily

changed and range from peer-to-peer networks suitable for a small number

of users to larger infrastructure networks to accommodate hundreds or

thousands of users, depending on the number of wireless devices deployed.

The DI-514 is compatible with the following wireless products (the maximum

data transfer speed for the DI-514 is 11mbps):

 D-Link Air DWL-650, D-Link AirPlus™ DWL-650+,

D-Link AirPlus Xtreme™ G DWL-G650

Wireless Cardbus Adapters used with laptop computers

 D-Link Air DWL-520, D-Link AirPlus DWL-520+, D-Link

AirPlus Xtreme G DWL-G520

Wireless PCI cards used with desktop computers

 D-Link Air DWL 700AP, DWL-AirPlus DWL-900AP+,

DWL-2000AP+

Enhanced 2.4GHz Wireless Access Points

 D-Link AirPlus DWL-800AP+

Enhanced 2.4GHz Wireless Range Extender

 D-Link AirPlus DWL-810+

Enhanced 2.4GHz Ethernet-to-Wireless Bridge

Standards - Based Technology

The IEEE standard-based technology assures that the D-Link Air Products

are interoperable with existing compatible 2.4GHz wireless technology. This

means you will be able to transfer large files quickly or even watch a movie

in MPEG format over your network without noticeable delays.

The technology works by using multiple frequencies in the 2.4GHz range at

speeds up to 11 Mbps. D-Link Air products will automatically sense the best

possible connection speed to ensure the greatest speed and range possible

with the technology.

Installation Considerations

D-Link Air DI-514 lets you access your network, using a wireless connection,

from virtually anywhere within its operating range. Keep in mind, however,

that the number, thickness and location of walls, ceilings or other objects that

the wireless signals must pass thru may limit the range. Typical ranges vary

depending on the types of materials and background RF (radio frequency)

noise in your home or business. The key to maximizing wireless range is to

follow these basic guidelines:

1. Keep the number of walls and ceilings between the DI-514 and your

receiving device (e.g., the DWL-650) to a minimum - each wall or ceiling

can reduce your D-Link Air Wireless product’s range from 3 to 90 feet (1

to 30 meters.) Position your receiving devices so that the number of

walls or ceilings is minimized.

2. Be aware of the direct line between routers and computers. A wall that is

1.5 feet thick (.5 meters), at a 45-degree angle appears to be almost 3

feet (1 meter) thick. At a 2-degree angle it looks over 42 feet (14 meters)

thick! Position devices so that the signal will travel straight through a wall

or ceiling (instead of at an angle) for better reception.

3. Building Materials can impede the wireless signal - a solid metal door or

aluminum studs may have a negative effect on range. Try to position

wireless devices and computers with wireless adapters so that the signal

passes through drywall or open doorways whenever possible.

4. Keep your product away (at least 3 to 6 feet or 1 to 2 meters) from

electrical devices or appliances that generate RF noise.

4. Getting Started

There are basically two modes of networking.

• Infrastructure – using a Wireless Router such as the DI-514, or an

Access Point

• Ad-Hoc – directly connecting to another computer, for peer-to-peer

communication, using wireless network adapters on each computer,

such as two or more DWL-650 wireless Cardbus adapters.

On the following page we will show you an example of an Infrastructure

Network using the DI-514.

The Infrastructure Network example shown on the following page contains

the following D-Link network devices (your existing network may be

comprised of other devices):

• A wireless Router - D-Link Air DI-514

• A laptop computer with a wireless adapter -

D-Link Air DWL-650

• A desktop computer with a wireless adapter -

D-Link Air DWL-520

• A desktop computer with an Ethernet adapter – D-Link DFE-530TX+

• A Cable modem - D-Link DCM-201

Getting Started

Setting Up an Infrastructure Network

Please remember that D-Link Air wireless devices are pre-configured to connect

together, right out of the box, with the default settings.

You will need a broadband Internet access (Cable/DSL)

subscription.

Consult with your Cable/DSL provider for proper installation of the

modem.

Connect the modem to the DI-514 Wireless Broadband Router. See

the Quick Installation Guide included with the router.

If you are including a desktop computer (Computer 1) in your

network, you can install the D-Link DFE-530TX+ Ethernet NIC

adapter into the desktop computer. See the Quick Installation Guide

included with the DFE-530TX+.

Install the drivers for the wireless network adapter (such as the

D-Link Air DWL-650) into the laptop computer. See the Quick

Installation Guide included with the DWL-650.

If you are including a desktop computer wirelessly (Computer 2),

install the D-Link Air DWL-520 wireless adapter into the desktop

computer. See the Quick Installation Guide included with the DWL-

520

5. Using the Configuration Menu

Whenever you want to configure your network or the DI-514, you can access

the Configuration Utility by opening the web-browser and typing in the IP

Address of the DI-514. The DI-514 default IP Address is shown below:

(The IP Address shown in the example above is the default setting. If you have changed the

IP Address of the DI-514 to conform to a network, then input that IP Address in the web

browser, instead of the default IP Address shown.)

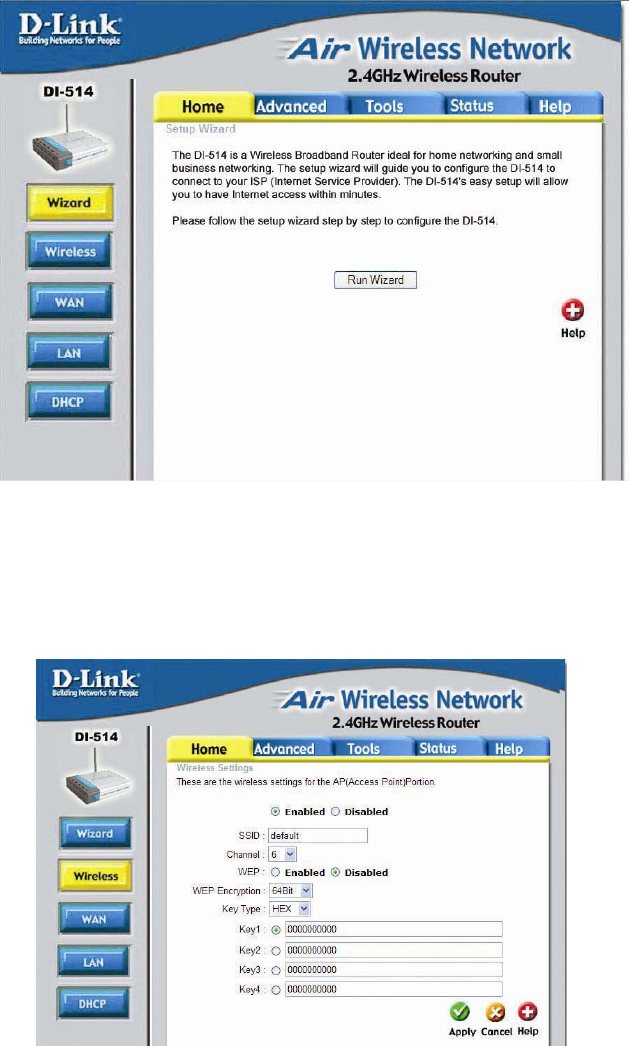

Setup Wizard

The Setup Wizard page is the first page that appears when logging into the

web-based management interface. The Setup Wizard is a utility used to

quickly configure the DI-514. It will guide you through four quick and basic

steps to help you connect to your ISP. You will be connected to your ISP

(Internet Service Provider) and have Internet access within minutes.

• Open the web browser

• Type in the IP Address of

the Access Point

• Type admin in the User Name

field (lower case)

• Leave the Password blank

• Click OK

http://192.168.0.1

admin

Connect to 192.168.0.1

Home > Wizard

Wireless

Wireless Settings are settings for the (Access Point) Portion of the Wireless

Router. Here you can change the wireless settings to fit an existing wireless

network or to customize your wireless network.

Home > Wireless

SSID

Service Set Identifier (SSID) is the name designated for a specific wireless

local area network (WLAN). The SSID’s factory default setting is “default”.

The SSID can be easily changed to connect to an existing wireless network

or to establish a new wireless network.

Channel

Indicates the channel setting for the DI-514. By default the channel is set to

6. The Channel can be changed to fit the channel setting for an existing

wireless network or to customize the wireless network.

WEP

Wired Equivalent Privacy (WEP) is a wireless security protocol for Wireless

Local Area Networks (WLAN). WEP provides security by encrypting the

data that is sent over the WLAN. The DI-514 supports 2 levels of WEP

Encryption: 64-bit encryption and 128-bit encryption. WEP is disabled by

default. The WEP setting can be changed to fit an existing wireless network

or to customize your wireless network.

Key Type

The Key Types that are supported by the DI-514 are HEX (Hexadecimal)

and ASCII (American Standard Code for Information Interchange.) The Key

Type can be changed to fit an existing wireless network or to customize your

wireless network.

KEYS

Keys 1-4 allow you to easily change wireless encryption settings to maintain

a secure network. Simply select the specific key to be used for encrypting

wireless data on the network.

WAN

WAN is short for Wide Area Network. The WAN settings can be referred to

as the Public settings. All IP information in the WAN settings are public IP

addresses which are accessible on the Internet.

The WAN settings consist of three main options: Dynamic IP Address,

Static IP Address, and PPPoE. Select the appropriate option and fill in the

information needed to connect to your ISP.

Home > WAN

Dynamic IP Address

Choose Dynamic IP Address to obtain IP address information automatically

from your ISP. Select this option if your ISP does not give you any IP

numbers to use. This option is commonly used for Cable modem services.

Host Name: The Host Name field is optional but may be required by some

ISPs. The host name is the device name of the Router.

MAC Address: The default MAC address is set to the WAN's physical

interface MAC address on the Broadband Router. You can use the "Clone

MAC Address" button to copy the MAC address of the Ethernet Card

installed by your ISP and replace the WAN MAC address with this MAC

address. It is not recommended that you change the default MAC address

unless required by your ISP.

Please be sure

to remove any existing

PPPoE client software

installed on your

computers

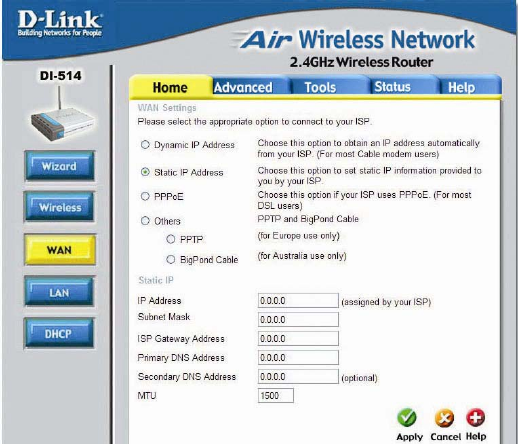

Static IP Address

Choose Static IP Address if all WAN IP information is provided to you by

your ISP. You will need to enter in the IP address, subnet mask, gateway

address, and DNS address(es) provided to you by your ISP. Each IP

address entered in the fields must be in the appropriate IP form, which are

four IP octets separated by a dot (x.x.x.x). The Router will not accept the IP

address if it is not in this format.

IP Address: Public IP address provided by your ISP.

Subnet Mask: Subnet mask provided by your ISP.

ISP Gateway Address: Public IP address of your ISP that you are

connecting to.

Primary DNS Address: Primary DNS (Domain Name Server) IP provided

by your ISP

Secondary DNS Address: optional

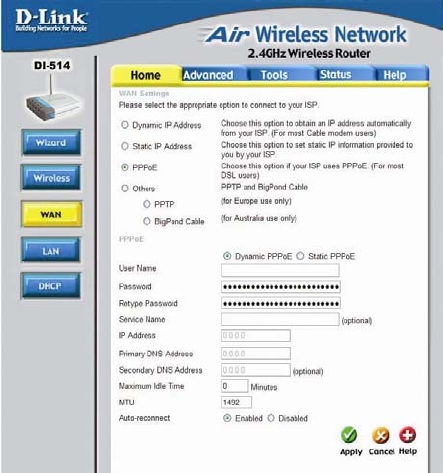

PPPoE

Please be sure to remove

any Client Software program

on your computer before you

start your configuration of the

DI-514 Router.

Choose PPPoE (Point to

Point Protocol over Ethernet)

if your ISP uses PPPoE

connection. Your ISP will

provide you with a username

and password. This option is

typically used for DSL

services. Select Dynamic

PPPoE to obtain an IP

address automatically for

your PPPoE connection.

Select Static PPPoE to use a static IP address for your PPPoE connection.

Dynamic PPPoE: PPPoE connection where you will receive an IP address

automatically from your ISP

Static PPPoE: PPPoE connection where you have an assigned (static) IP

address

User Name: Your PPPoE username provided by your ISP

Password: Your PPPoE password provided by your ISP

Retype Password: Re-enter PPPoE password

Service Name: Enter the service name provided by your ISP. (optional)

IP Address: This option is only available for Static PPPoE. Enter in the

static IP address for the PPPoE connection.

Primary DNS Address: Primary DNS IP provided by your ISP

Secondary DNS Address: optional

Maximum Idle time: The amount of time of inactivity before disconnecting

your PPPoE session. Enter a Maximum Idle Time (in minutes) to define a

maximum period of time for which the Internet connection is maintained

during inactivity. If the connection is inactive for longer than the defined

Maximum Idle Time, then the connection will be dropped. Either set this to

zero or enable Auto-reconnect to disable this feature.

MTU: MTU stands for Maximum Transmission Unit. For PPPoE connections,

you may need to change the MTU settings in order to work correctly with

1492

your ISP.

Auto-reconnect: If enabled, the Broadband Router will automatically

connect to your ISP after your system is restarted or if the connection is

dropped.

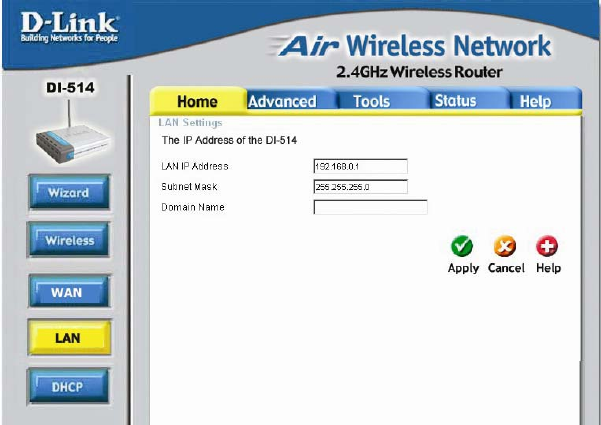

Home > LAN

LAN is short for Local Area Network. This is considered your internal

network. These are the IP settings of the LAN interface for the DI-514. These

settings may be referred to as Private settings. You may change the LAN IP

address if needed. The LAN IP address is private to your internal network

and cannot be seen on the Internet.

IP Address: The IP address of the LAN interface. The default IP address is

192.168.0.1.

Subnet Mask: The subnet mask of the LAN interface. The default subnet

mask is 255.255.255.0.

Local Domain Name: This field is optional. Enter in the your local domain

name.

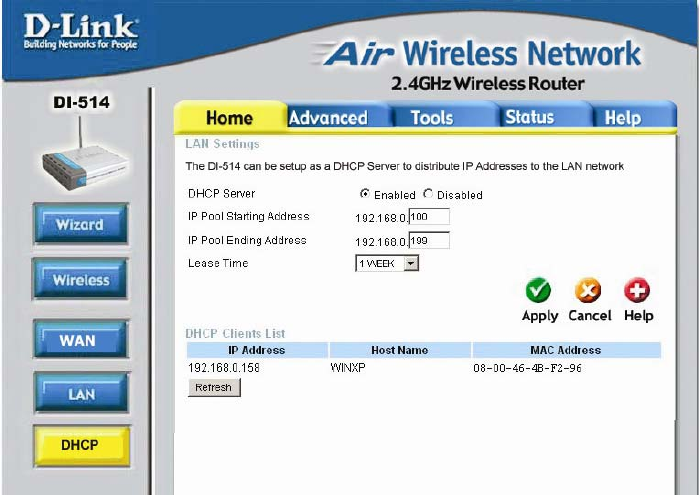

Home > DHCP

DHCP

DHCP stands for Dynamic Host Control Protocol. The DI-514 has a built-in

DHCP server. The DHCP Server will automatically assign an IP address to

the computers on the LAN/private network. Be sure to set your computers to

be DHCP clients by setting their TCP/IP settings to “Obtain an IP Address

Automatically.” When you turn your computers on, they will automatically

load the proper TCP/IP settings provided by the DI-514. The DHCP Server

will automatically allocate an unused IP address from the IP address pool to

the requesting computer. You must specify the starting and ending address

of the IP address pool.

Starting IP address: The starting IP address for the DHCP server’s IP

assignment.

Ending IP address: The ending IP address for the DHCP server’s IP

assignment.

Lease Time: The length of time for the IP lease.

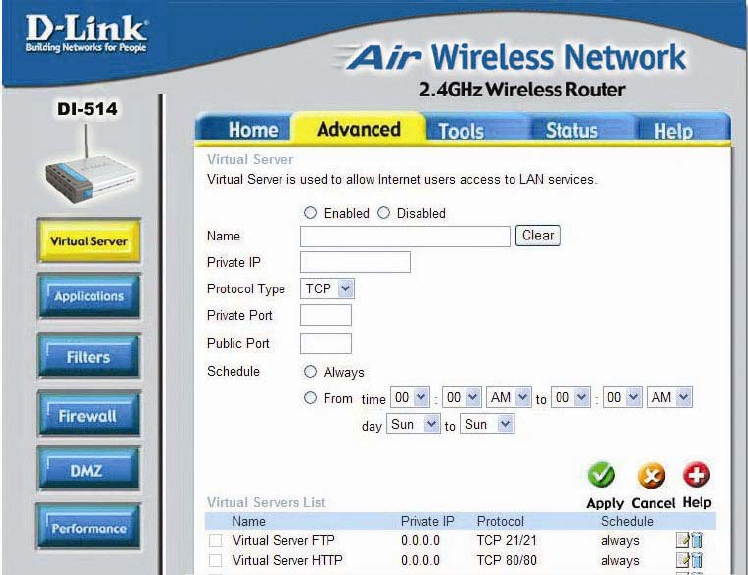

Advanced > Virtual Server

Virtual Server

The DI-514 can be configured as a virtual server so that remote users

accessing Web or FTP services via the public IP address can be

automatically redirected to local servers in the LAN (Local Area Network).

The DI-514 firewall feature filters out unrecognized packets to protect your

LAN network so all computers networked with the DI-514 are invisible to the

outside world. If you wish, you can make some of the LAN computers

accessible from the Internet by enabling Virtual Server. Depending on the

requested service, the DI-514 redirects the external service request to the

appropriate server within the LAN network.

The DI-514 is also capable of port-redirection meaning incoming traffic to a

particular port may be redirected to a different port on the server computer.

Each virtual services that are created will be listed at the bottom of the

screen in the Virtual Servers List. There are already pre-defined virtual

services already in the table. You may use them by enabling them and

assigning the server IP to use that particular virtual service.

Name: The name referencing the virtual service.

Private IP: The server computer in the LAN (Local Area Network) that will be

providing the virtual services.

Protocol Type: The protocol used for the virtual service.

Private Port: The port number of the service used by the Private IP

computer.

Public Port: The port number on the WAN side that will be used to access

the virtual service.

Schedule: The schedule of time when the virtual service will be enabled.

The schedule may be set to Always, which will allow the particular service to

always be enabled. If it is set to Time, select the time frame for the service to

be enabled. If the system time is outside of the scheduled time, the service

will be disabled.

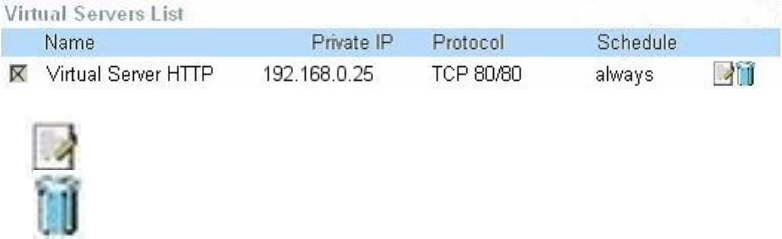

Example #1:

If you have a Web server that you wanted Internet users to access at all times, you

would need to enable it. Web (HTTP) server is on LAN (Local Area Network)

computer 192.168.0.25. HTTP uses port 80, TCP.

Name: Web Server

Private IP: 192.168.0.25

Protocol Type: TCP

Private Port: 80

Public Port: 80

Schedule: always

Click on this icon to edit the virtual service.

Click on this icon to delete the virtual service.

Example #2:

If you have an FTP server that you wanted Internet users to access by WAN port

2100 and only during the weekends, you would need to enable it as such. FTP

server is on LAN computer 192.168.0.30. FTP uses port 21, TCP.

Name: FTP Server

Private IP: 192.168.0.30

Protocol Type: TCP

Private Port: 21

Public Port: 2100

Schedule: From: 01:00AM to 01:00AM, Sat to Sun

• All Internet users who want to access this FTP Server must

connect to it from port 2100. This is an example of port redirection

and can be useful in cases where there are many of the same

servers on the LAN network.

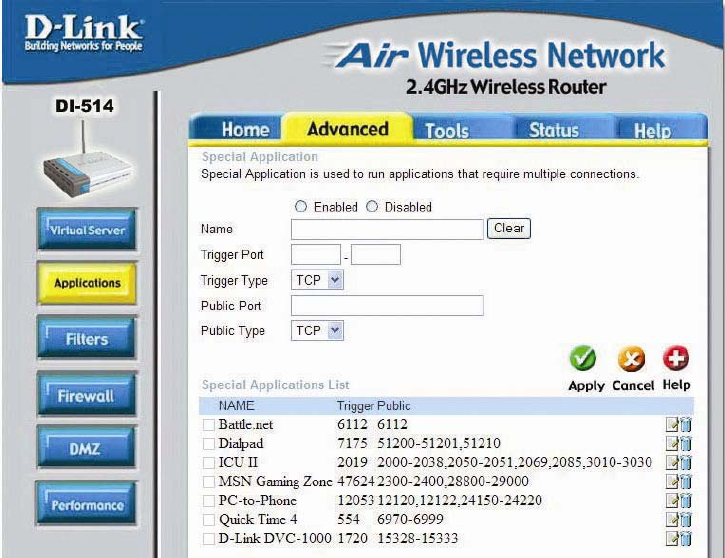

Advanced > Applications

Some applications require multiple connections, such as Internet gaming,

video conferencing, Internet telephony and others. These applications have

difficulties working through NAT (Network Address Translation). Special

Applications makes some of these applications work with the DI-514. If you

need to run applications that require multiple connections, specify the port

normally associated with an application in the "Trigger Port" field, select the

protocol type as TCP or UDP, then enter the public ports associated with the

trigger port to open them for inbound traffic.

The DI-514 provides some predefined applications in the table on the bottom

of the web page. Select the application you want to use and enable it.

Note! Only one PC can use each Special Application tunnel.

Trigger Name: This is the name referencing the special application.

Trigger Port: This is the port used to trigger the application. It can be either

a single port or a range of ports.

Trigger Type: This is the protocol used to trigger the special application.

Public Port: This is the port number on the WAN side that will be used to

access the application. You may define a single port or a range of ports. You

can use a comma to add multiple ports or port ranges.

Public Type: This is the protocol used for the special application.

Schedule: This is the schedule of time when the special application will be

enabled.

Filters

Filters are used to deny or

allow LAN (Local Area

Network) computers from

accessing the Internet.

The DI-514 can be setup

to deny internal

computers by their IP or

MAC addresses. The DI-

514 can also block users

from accessing restricted

web sites.

IP Filters

Use IP Filters to deny

LAN IP addresses from

accessing the Internet.

You can deny specific port

numbers or all ports for the specific IP address.

IP: The IP address of the LAN computer that will be denied access to the

Internet.

Port: The single port or port range that will be denied access to the Internet.

Schedule: This is the schedule of time when the IP Filter will be enabled.

Advanced > Filters

MAC Filters

Use MAC (Media

Access Control) Filters

to allow or deny LAN

(Local Area Network)

computers by their

MAC addresses from

accessing the Internet.

You can either

manually add a MAC

address or select the

MAC address from the

list of clients that are

currently connected to

the Broadband Router.

URL Blocking

URL Blocking is used to deny LAN computers from accessing specific web

sites by its URL. A URL is a specially formatted text string that defines a

location on the

Internet. If any part of

the URL contains the

blocked word, the site

will not be accessible

and the web page will

not display.

Domain Blocking

Domain Blocking is

used to allow or deny

LAN (Local Area

Network) computers

from accessing

specific domains on

the Internet. Domain

blocking will deny all

requests to a specific

domain such as http

and ftp. It can also

allow computers to

access specific sites

and deny all other

sites.

Advanced > Firewall

Firewall Rules is an advance feature used to deny or allow traffic from

passing through the Broadband Router. It works in the same way as IP

Filters with additional settings. You can create more detailed access rules for

the DI-514. When virtual services are created and enabled, it will also

display in Firewall Rules. Firewall Rules contains all network firewall rules

pertaining to IP (Internet Protocol).

In the Firewall Rules List at the bottom of the screen, the priorities of the

rules are from top (highest priority) to bottom (lowest priority.)

Note: The DI-514 MAC Address filtering rules have precedence over the

Firewall Rules.

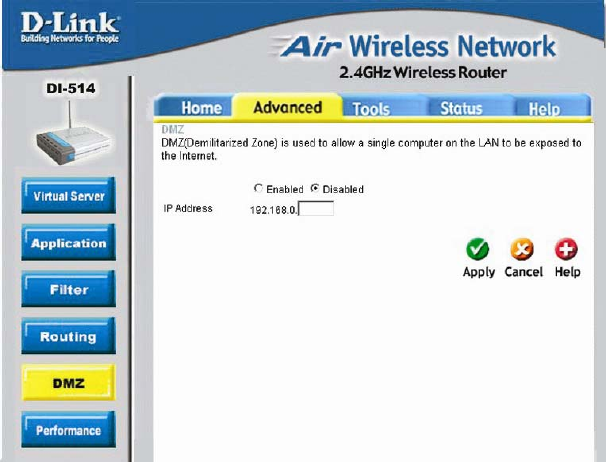

Advanced > DMZ

If you have a client PC that cannot run Internet applications properly from

behind the DI-514, then you can set the client up to unrestricted Internet

access. It allows a computer to be exposed to the Internet. This feature is

useful for gaming purposes. Enter the IP address of the internal computer

that will be the DMZ host. Adding a client to the DMZ (Demilitarized Zone)

may expose your local network to a variety of security risks, so only use this

option as a last resort.

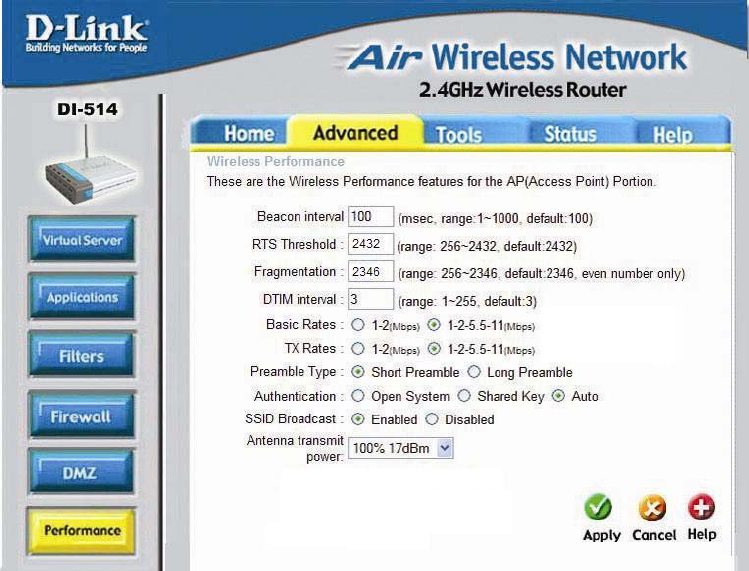

Advanced > Performance

Beacon Interval - Beacons are packets sent by an Access Point to

synchronize a wireless network. Specify a value. 100 is the default setting

and is recommended.

RTS Threshold - This value should remain at its default setting of 2432. If

inconsistent data flow is a problem, only a minor modification should be

made.

Fragmentation - This value should also remain at its default setting of 2346.

If you experience a high packet error rate, you may slightly increase your

Fragmentation Threshold within the value range of 256 to 2,346. Setting the

Fragmentation Threshold too low may result in poor performance.

DTIM - (Delivery Traffic Indication Message) 3 is the default setting. A DTIM

is a countdown informing clients of the next window for listening to broadcast

and multicast messages.

Basic Rates – Select the data rate. Default is 1-2-5.5-11Mbps.

TX Rates – Select the data rate. Default is 1-2-5.5-11Mbps.

Preamble Type - Short preamble is the default setting. (High traffic

networks should use the shorter preamble type.) The preamble defines the

length of the CRC block used in communication between the Access Point

and the roaming wireless Network adapters. (Cyclic Redundancy Check is a

common technique for detecting data transmission errors)

Authentication - Select Open system, Shared Key or Auto

Open System - The DI-514 will be visible to all devices on the network. This

is the default setting.

Shared Key - In this mode, in order to access the DI-514 on the network, the

device must be listed in the MAC Address Control List.

Auto - In this mode, all devices on the network can access the

DI-514.

SSID Broadcast - Enable is the default setting. Choose Enable to

broadcast the SSID across the network. All devices on a network must share

the same SSID (Service Set Identifier) to establish communication. Choose

Disable if you do not wish to broadcast the SSID over the network.

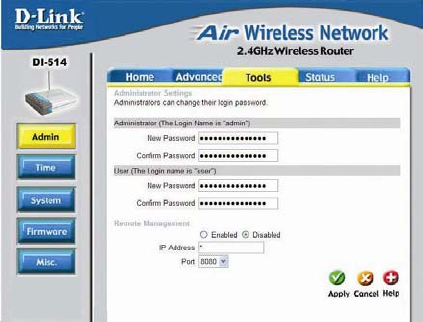

Admin

At this page, the DI-514

administrator can change the

system password. There are

two accounts that can access

the Broadband Router’s Web-

Management interface. They

are admin and user. Admin

has read/write access while

user has read-only access.

User can only view the

settings but cannot make any

changes.

Remote Management

Remote Management allows the DI-514 to be configured from the Internet by

a web browser. A username and password is still required to access the

Web-Management interface. In general, only a member of your network can

Tools > Admin

browse the built-in web pages to perform “Administrator” tasks. This feature

enables you to perform “Administrator” tasks from the remote (Internet) host.

IP Address: Internet IP address of the computer that has access to the

Broadband Router. It is not recommended that you set the IP address to

* (star), because this allows any Internet IP address to access the

Broadband Router, which could result in a loss of security for your

network. If you elect to enable Remote Management, enter the IP Address

of your remote location.

Port: Select the port number used to access the Broadband Router.

Example: http://x.x.x.x:8080 whereas x.x.x.x is the WAN IP address of the

Broadband Router and 8080 is the port used for the Web-Management

interface.

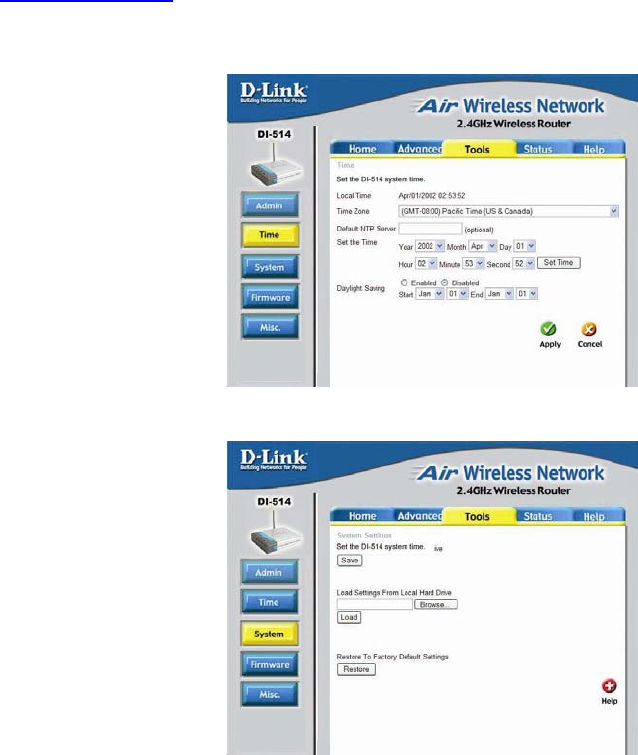

Time

The system time is the time

used by the DI-514 for

scheduling services. You can

manually set the time or connect

to a NTP (Network Time

Protocol) server. If an NTP

server is set, you will only need

to set the time zone. If you

manually set the time, you may

also set Daylight Saving dates

and the system time will

automatically adjust on those dates.

System Settings

The current system settings can

be saved as a file onto the local

hard drive. The saved file or any

other saved setting file can be

loaded back on the Broadband

Router. To reload a system

settings file, click on Browse to

browse the local hard drive and

locate the system file to be used.

You may also reset the

Broadband Router back to

factory settings by clicking on

Restore.

Tools > Time

Tools> System

Month

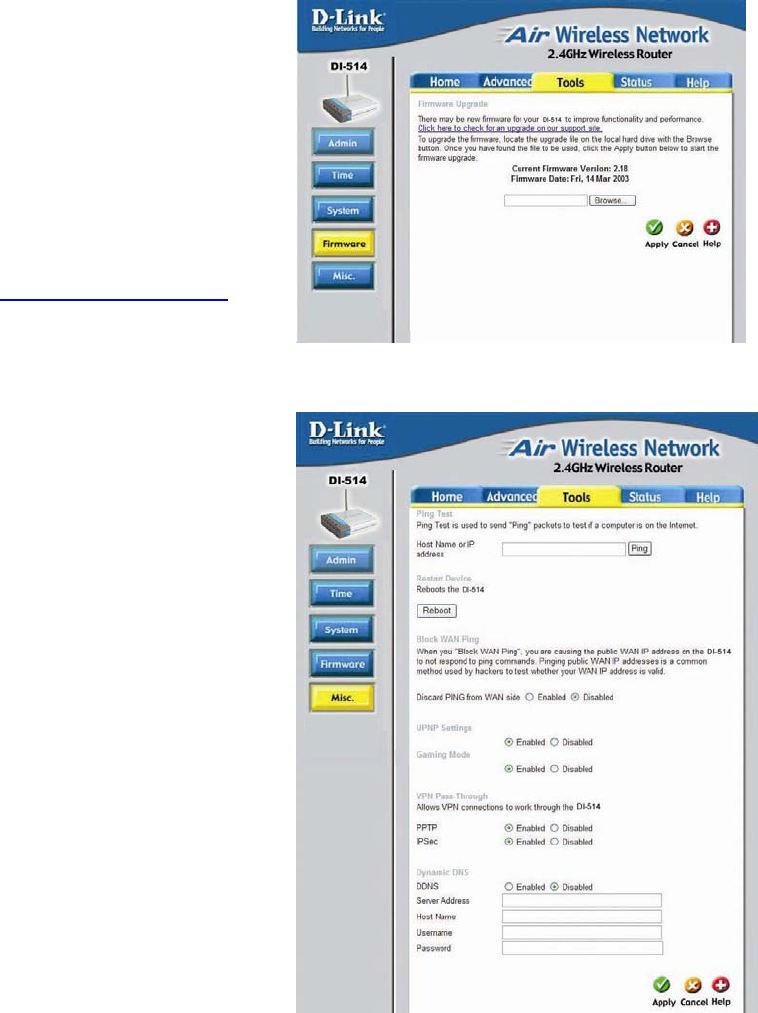

Firmware Upgrade

You can upgrade the

firmware of the Broadband

Router at this page. Make

sure the firmware you want

to use is on the local hard

drive of the computer. Click

on Browse to browse the

local hard drive and locate

the firmware to be used for

the update. Please check

the D-Link support site for

firmware updates at

http://support.dlink.com.

Miscellaneous Items

These are additional tools

and features of the

Broadband Router.

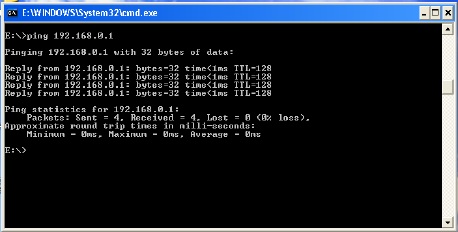

Ping Test

This useful diagnostic utility

can be used to check if a

computer is on the Internet.

It sends ping packets and

listens for replies from the

specific host.

Reboot Device

If for any reason the

Broadband Router is not

responding correctly, you

may want to reboot the

Broadband Router.

Tools > Firmware

Tools > Misc

Block WAN Ping - When you “Block WAN Ping”, the DI-514 will not respond

to ping commands from the Internet. Pinging public WAN IP addresses is a

common method used by hackers to test whether your WAN IP address is

valid.

Discard PING from WAN side: By enabling this option, the DI-514 will not

reply to ping (ICMP) request packets from the Internet.

VPN Pass-Through - The Broadband Router supports VPN (Virtual Private

Network) pass-through for both PPTP (Point-to-Point Tunneling Protocol)

and IPSec (IP Security). Once VPN pass-through is enabled, there is no

need to open up virtual services. Multiple VPN connections can be made

through the Broadband Router. This is useful when you have many VPN

clients on the LAN network.

Dynamic DNS - Fill in the required fields to use the Dynamic Domain Server

feature.

Status > Device Info

Device Information

This page in the

Configuration Utility

displays the current

information for the

Broadband Router. It will

display the LAN and WAN,

Wireless information.

If your WAN connection is

set up for Dynamic IP

address a Release button

and Renew button will be

displayed. Use Release to

disconnect from your ISP

and use Renew to connect

to your ISP.

If your WAN connection is set up for PPPoE, a Connect button and

Disconnect button will be displayed. Use Disconnect to drop the PPPoE

connection and use Connect to establish the PPPoE connection.

This page allows you to observe the DI-514’s working status:

LAN

• IP Address: LAN/Private IP Address of the DI-514

• Subnet Mask: LAN/Private Subnet Mask of the DI-514

WAN

• IP Address: WAN/Public IP Address

• Subnet Mask: WAN/Public Subnet Mask

• Gateway: WAN/Public Gateway IP Address

• Domain Name Server: WAN/Public DNS IP Address

• Wan Status: WAN Connection Status

Firmware version: Displays the current firmware version

WAN MAC Address: Displays the WAN port MAC/hardware address

LAN MAC Address: Displays the LAN port MAC/hardware address

Status > Log

The Broadband

Router keeps a

running log of events

and activities

occurring on the

Router. If the device

is rebooted, the logs

are automatically

cleared. You may

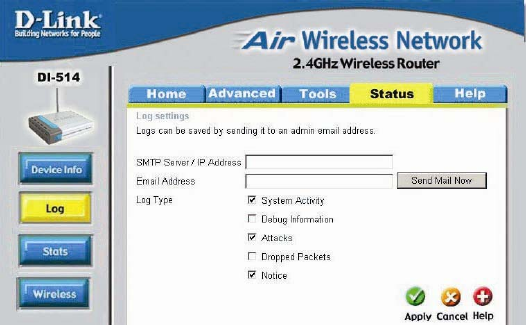

save the log files

under Log Settings.

First Page - The first

page of the log.

Last Page - The last page of the log.

Previous - Moves back one log page.

Next - Moves forward one log page.

Clear - Clears the logs completely.

Log Settings - Brings up the page to configure the logs.

Log Settings

Not only does the Broadband Router display the logs of activities and events,

it can be setup to send these logs to another location.

SMTP Server/IP Address - The address of the SMTP server that will be

used to send the logs.

Email Address - The email address the logs will be sent to. Click on Email

Log Now to send the email.

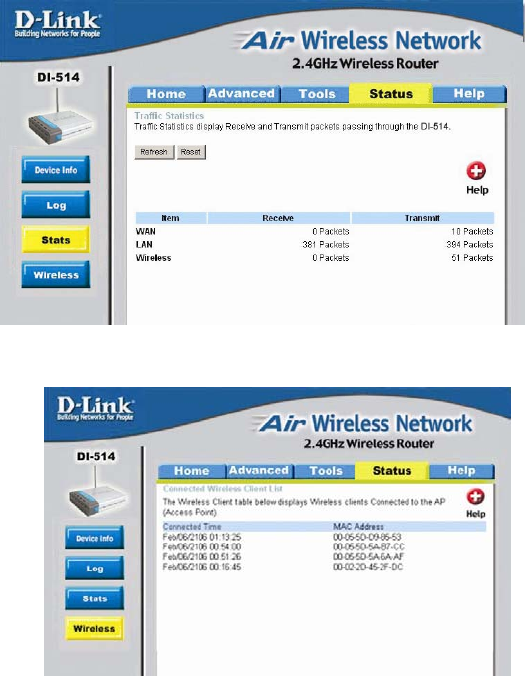

Status > Stats

Traffic Statistics

The Broadband

Router keeps

statistics of traffic that

passes through it.

You are able to view

the amount of packets

that passes through

the Router on both

the WAN port and the

LAN port. The traffic

counter will reset if

the device is rebooted.

Status > Wireless

Connected Wireless

Clients List

The wireless client table

displays a list of current

connected wireless clients.

This table also displays

the time and MAC address

of the wireless client

connected.

6. Troubleshooting

This chapter provides solutions to problems that can occur during the

installation and operation of the DI-514 Wireless Access Point. We cover

various aspects of the network setup, including the network adapters.

Please read the following if you are having problems.

(Note: It is recommended that you use an Ethernet connection to

configure the DI-514 Access Point.)

1. The computer used to configure the DI-514 cannot access the

Configuration menu.

• Check that the Ethernet LED on the DI-514 is ON. If the

LED is not ON, check that the cable for the Ethernet

connection is securely inserted.

• Check that the Ethernet Adapter is working properly. Please

see item 6 (Check that the drivers for the network

adapters are installed properly) in this Troubleshooting

section to check that the drivers are loaded properly.

• Check that the IP Address is in the same range and subnet

as the DI-514. Please see Checking the IP Address in

Windows XP in the Networking Basics section of this

manual.

Note: The IP Address of the DI-514 is 192.168.0.1. All the computers on the

network must have a unique IP Address in the same range, e.g., 192.168.0.x.

and a Subnet Mask of 255.255.255.0. Any computers that have identical IP

Addresses will not be visible on the network.

• Do a Ping test to make sure that the DI-514 is responding.

Go to Start>Run>Type Command>Type ping 192.168.0.1.

A successful ping will show four replies.

Troubleshooting

2. The wireless client cannot access the Internet in the Infrastructure

mode.

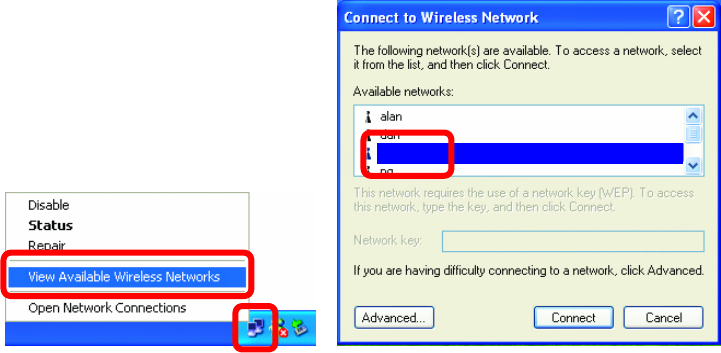

• Make sure the wireless client is associated and joined with the correct

router. To check this connection: Right-click on the Local Area

Connection icon in the taskbar> select View Available Wireless

Networks. The Connect to Wireless Network screen will appear.

Please make sure you have selected the correct available network, as

shown in the illustrations below.

• Check that the IP Address assigned to the wireless adapter is within

the same IP Address range as the gateway. Since the DI-514 has

an IP Address of 192.168.0.1, wireless adapters must have an IP

Address in the same range, e.g., 192.168.0.x. Each device must

have a unique IP Address; no two devices may have the same IP

Address. The subnet mask must be the same for all the computers

on the network.) To check the IP Address assigned to the wireless

adapter, double-click on the Local Area Connection icon in the

taskbar > select the Support tab and the IP Address will be

displayed. (Please refer to Checking the IP Address in the

Networking Basics section of this manual.)

• If it is necessary to assign a Static IP Address to the wireless

adapter, please refer to the appropriate section in Networking

Basics. If you are entering a DNS Server address you must also

enter the Default Gateway Address. (Remember that if you have a

DHCP-capable router, you will not need to assign a Static IP Address.

See Networking Basics: Assigning a Static IP Address.)

Default

Troubleshooting

3. Check that the drivers for the network adapters are installed

properly.

You may be using different network adapters than those illustrated here, but this

procedure will remain the same, regardless of the type of network adapters you are

using.

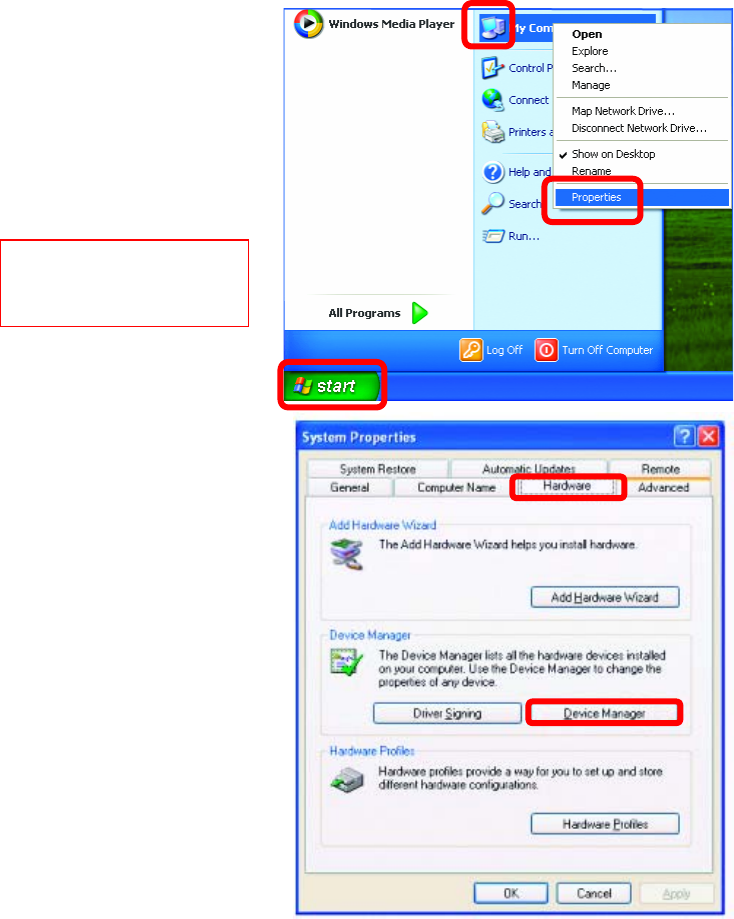

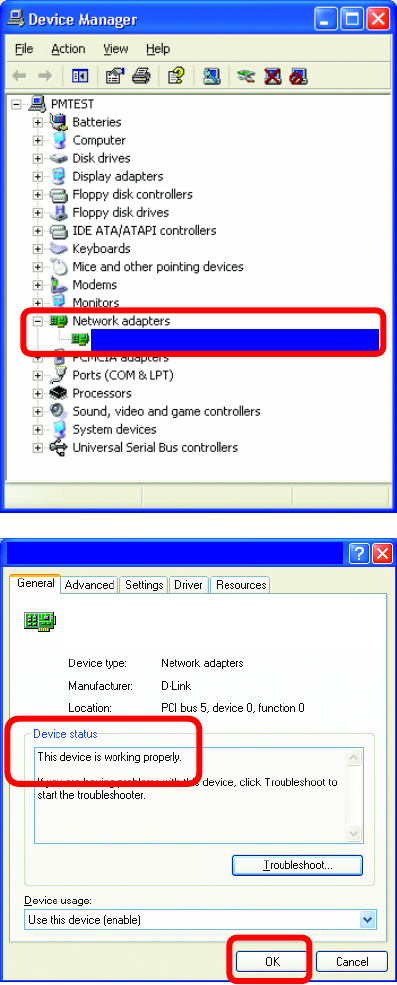

• Go to Start

• Right-click on

My Computer

• Click Properties

• Select the

Hardware Tab

• Click Device

Manager

NOTE: Screen shots taken using

Windows XP. If you are using a

different Operating System your

screen may look different.

Troubleshooting

• Double-click on Network

Adapters

• Right-click on D-Link

AirPlus DWL-650

Wireless Cardbus

Adapter

• Select Properties to check

that the drivers are

installed properly

• Look under Device

Status to check that the

device is working properly.

• Click OK

D-Link Air DWL-650 Wireless Cardbus Adapter

D-Link AirPlus DWL-650+ Wireless Cardbus Adapter

D-Link AirPlus DWL-650 Wireless Cardbus Adapter

Troubleshooting

4. Resetting the DI-514 to Factory Default Settings

After you have tried other methods for troubleshooting your network, you

may choose to Reset the DI-514 to the factory default settings.

Remember that D-Link Plus products network together, out of the box, at

the factory default settings.

To hard-reset the D-Link Plus DI-514 to Factory Default Settings, please do

the following:

• Leave the device powered on, do not disconnect the power

• Press the reset button and hold (use a paper clip)

• Keep the button pressed about 10 seconds

• Release the button

The DI-514 will then automatically reboot itself.

7. Networking Basics

Using the Network Setup Wizard in Windows XP

In this section you will learn how to establish a network at home or work,

using Microsoft Windows XP.

Note: Please refer to websites such as http://www.homenethelp.com

and http://www.microsoft.com/windows2000 for information about

networking computers using Windows 2000, ME or 98.

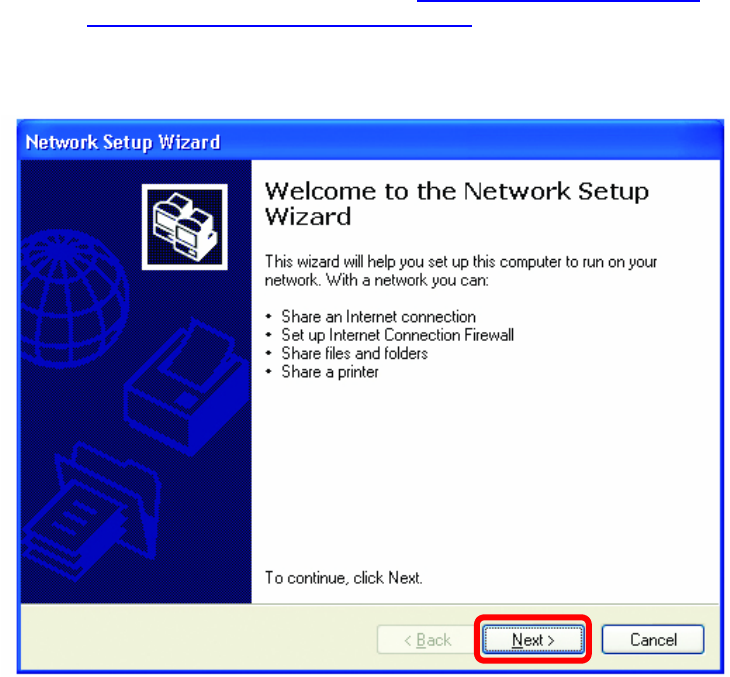

Go to Start>Control Panel>Network Connections

Select Set up a home or small office network

When this screen appears, Click Next.

Networking Basics

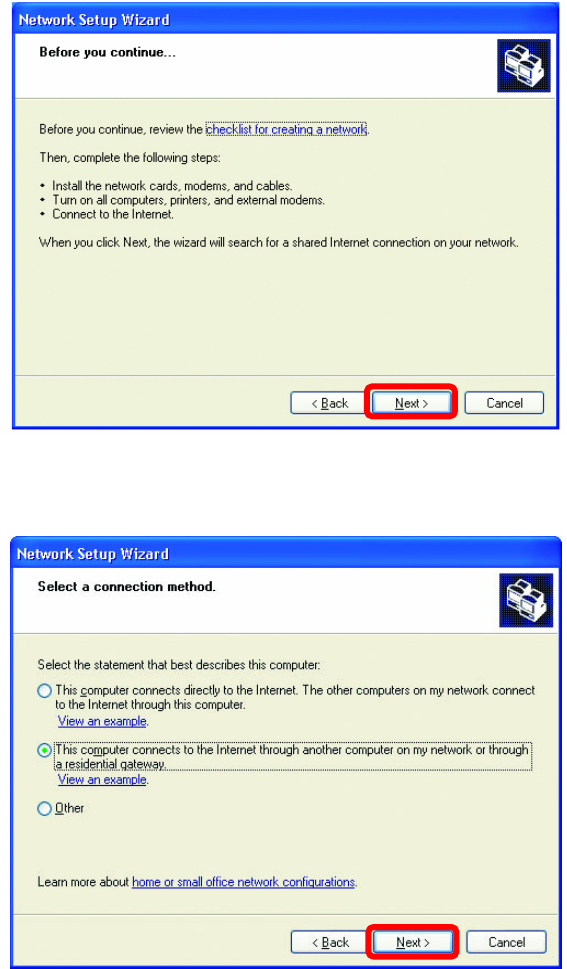

Please follow all the instructions in this window:

Click Next

In the following window, select the best description of your computer. If your

computer connects to the internet through a gateway/router, select the

second option as shown.

Click Next

Networking Basics

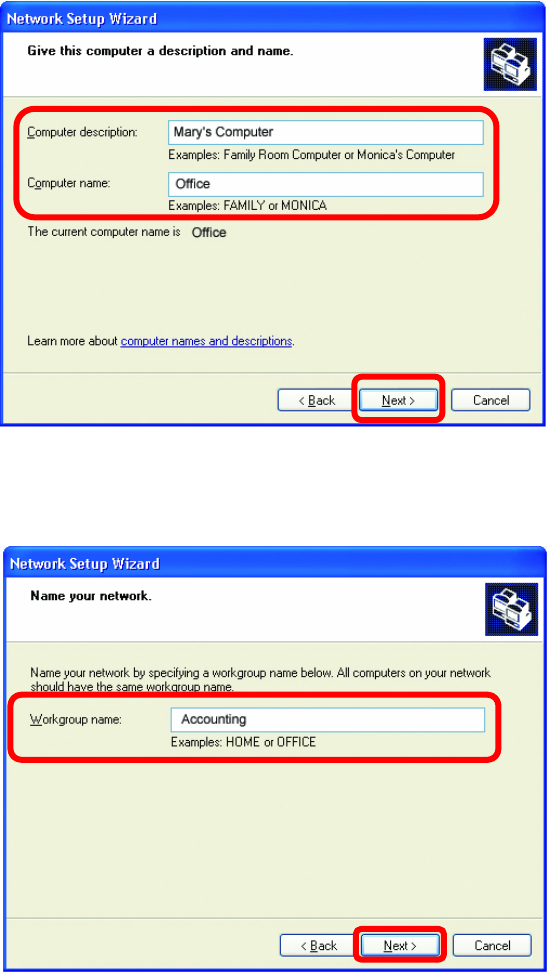

Enter a Computer description and a Computer name (optional.)

Click Next

Enter a Workgroup name. All computers on your network should have the

same Workgroup name.

Click Next

Networking Basics

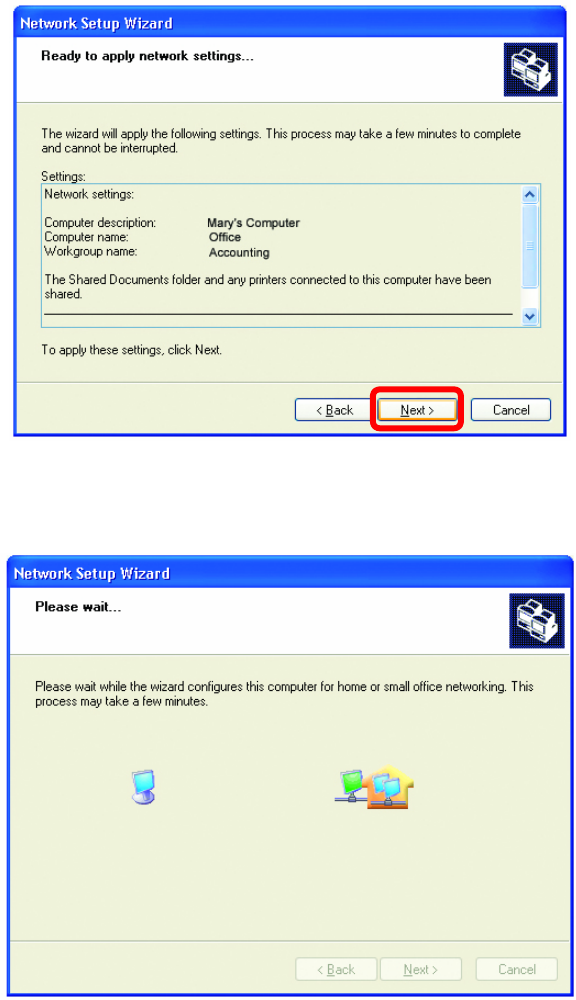

Please wait while the Network Setup Wizard applies the changes.

When the changes are complete, click Next.

Please wait while the Network Setup Wizard configures the computer.

This may take a few minutes.

Networking Basics

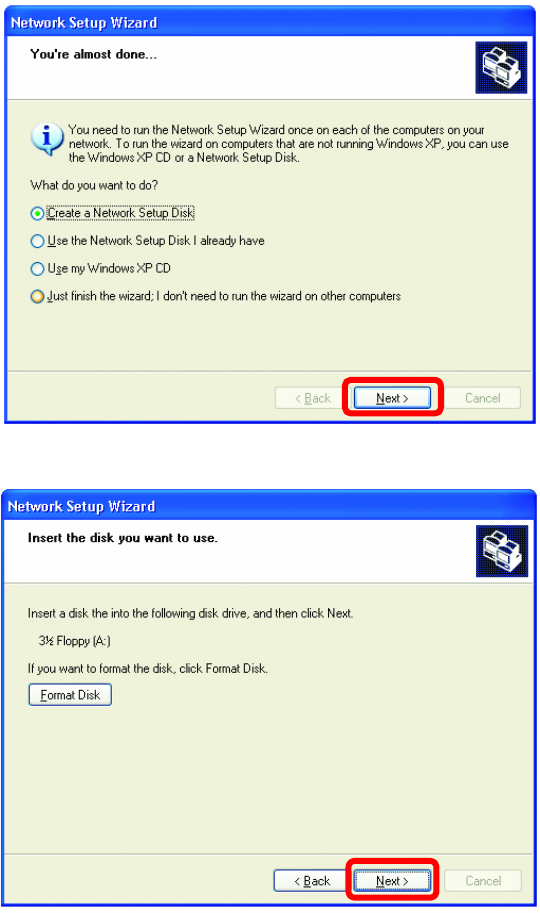

In the window below, select the best option. In this example, Create a

Network Setup Disk has been selected. You will run this disk on each of

the computers on your network. Click Next.

Insert a disk into the Floppy Disk Drive, in this case drive A.

Format the disk if you wish, and click Next.

Networking Basics

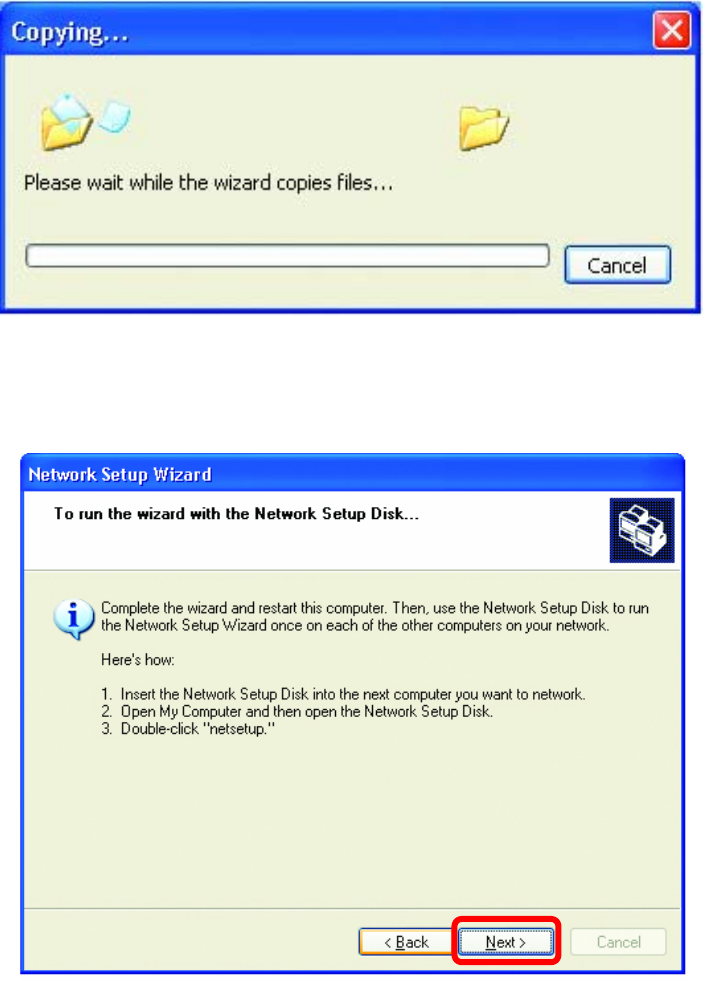

Please wait while the Network Setup Wizard copies the files.

Please read the information under Here’s how in the screen below. After

you complete the Network Setup Wizard you will use the Network Setup

Disk to run the Network Setup Wizard once on each of the computers on

your network. To continue click Next.

Networking Basics

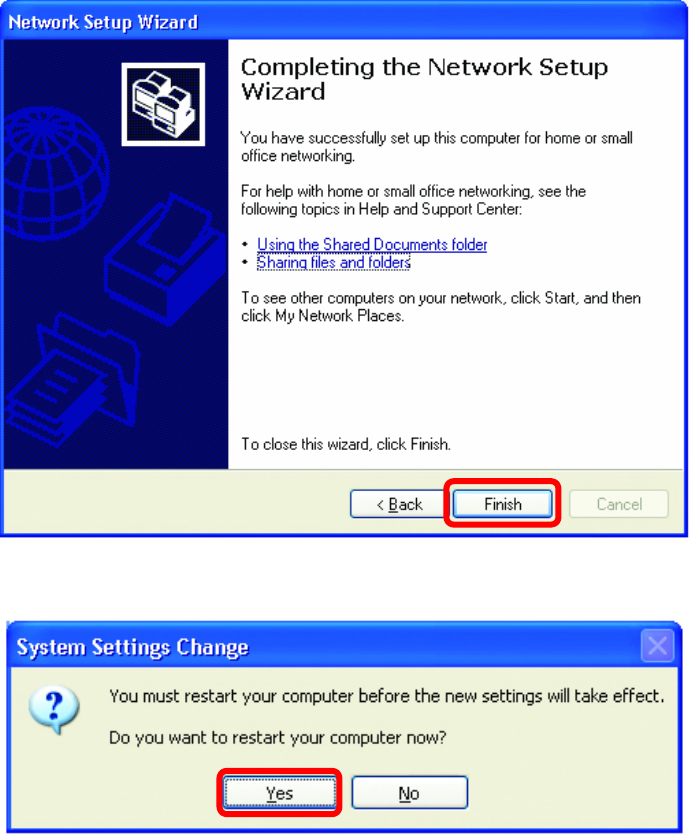

Please read the information on this screen, then click Finish to complete the

Network Setup Wizard.

The new settings will take effect when you restart the computer. Click Yes

to restart the computer.

You have completed configuring this computer. Next, you will need to run

the Network Setup Disk on all the other computers on your network. After

running the Network Setup Disk on all your computers, your new wireless

network will be ready to use.

Networking Basics

Naming your Computer

To name your computer, please follow these directions:

In Windows XP:

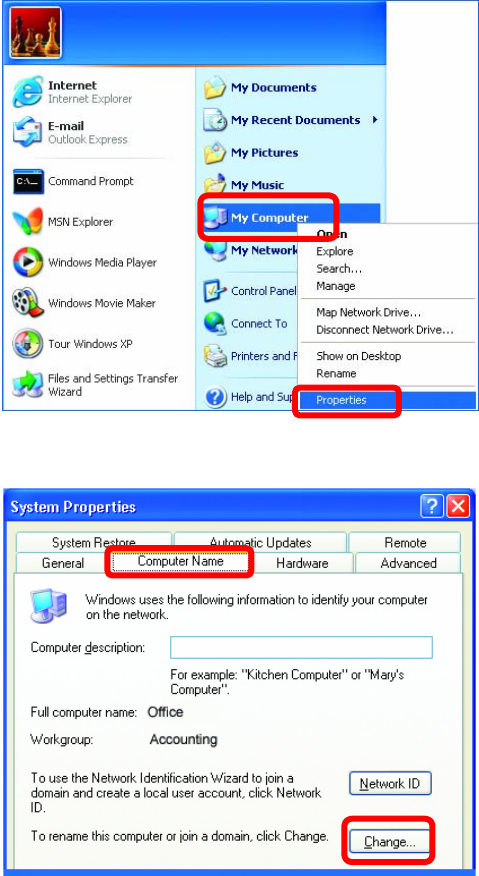

• Click Start (in the

lower left corner of

the screen)

• Right-click on My

Computer

• Select Properties

and click

• Select the

Computer Name

Tab in the System

Properties window.

You may enter a

Computer description if

you wish, this field is

optional.

To rename the computer

and join a domain,

• Click Change…

Networking Basics

Naming your Computer

Checking the IP Address in Windows XP

The wireless adapter-equipped computers in your network must be in the

same IP Address range (see Getting Started in this manual for a definition

of IP Address Range.) To check on the IP Address of the adapter, please do

the following:

• Right-click on the Local

Area Connection icon

in the task bar

• Click on Status

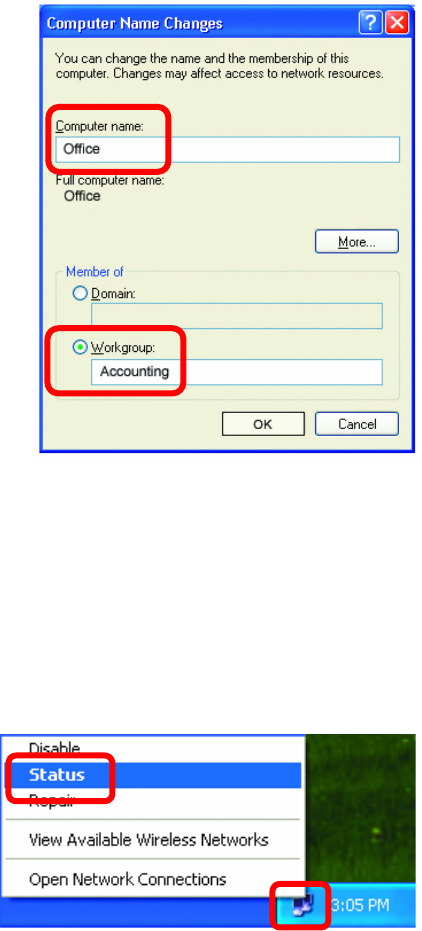

• In this window, enter

the Computer

name.

• Select Workgroup

and enter the name

of the Workgroup.

• All computers on

your network must

have the same

Workgroup name.

• Click OK

Networking Basics

Checking the IP Address in Windows XP

Assigning a Static IP Address in Windows XP/2000

Note: Residential Gateways/Broadband Routers will automatically assign IP

Addresses to the computers on the network, using DHCP (Dynamic Host

Configuration Protocol) technology. If you are using a DHCP-capable

Gateway/Router you will not need to assign Static IP Addresses.

If you are not using a DHCP capable Gateway/Router, or you need to assign

a Static IP Address, please follow these instructions:

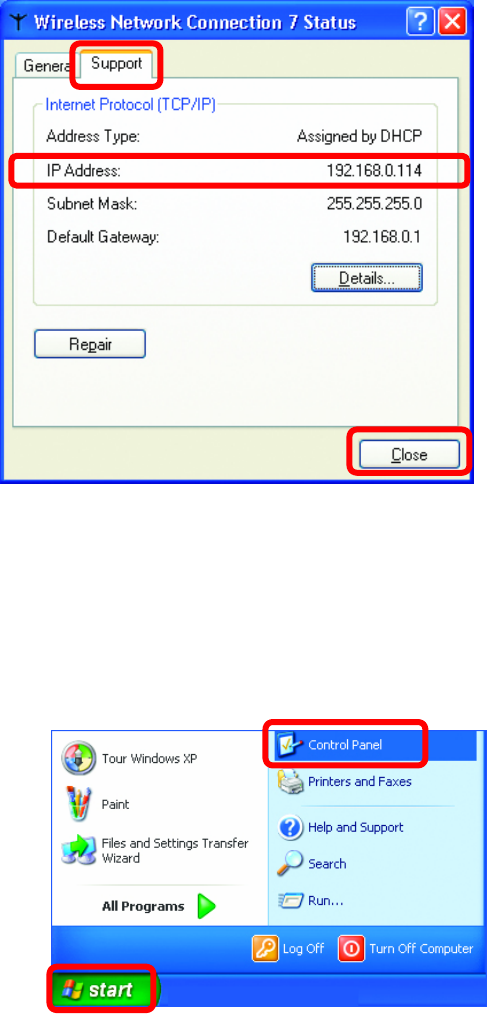

• Go to Start

• Double-click on

Control Panel

This window will

appear.

• Click the

Support Tab

• Click Close

Networking Basics

Assigning a Static IP Address in Windows XP/2000

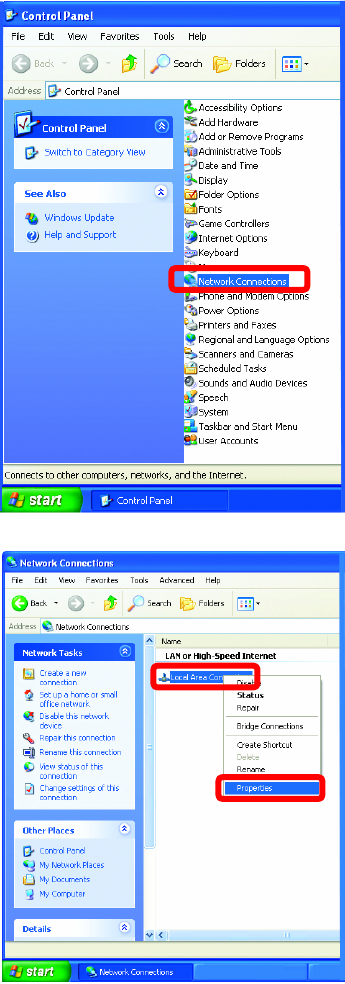

• Double-click on

Network Connections

• Right-click on Local

Area Connections.

• Double-click

Properties

Networking Basics

Assigning a Static IP Address in Windows XP/2000

• Click OK

You have completed the assignment of a Static IP Address. (You do not need to

assign a Static IP Address if you have a DHCP-capable Gateway/Router.)

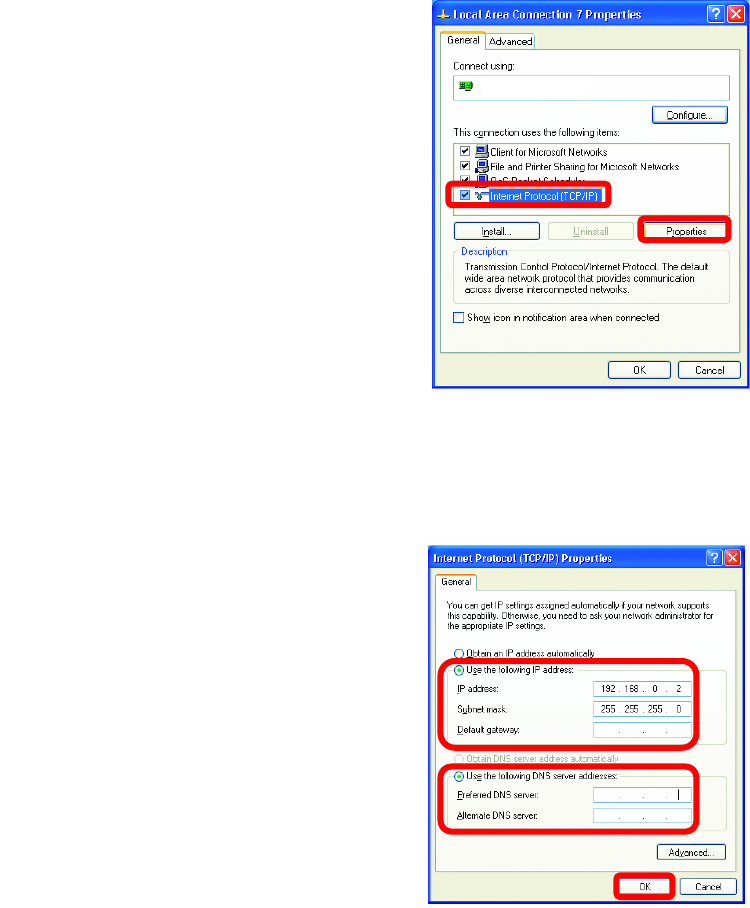

• Highlight Internet Protocol (TCP/IP)

• Click Properties

• Select Use the following

IP address

in the Internet Protocol

(TCP/IP) Properties

window, below.

DWL-650+ Wireless Cardbus Adapter

• Input your IP address and subnet mask. (The IP Addresses on your

network must be within the same range. For example, if one computer has an

ddress of 192.168.0.2, the other computers should have IP Addresses

that are sequential, like 192.168.0.3 and 192.168.0.4. The subnet mask must

be the same for all the computers on the network.)

IP Address:

e.g., 192.168.0.2

Subnet Mask:

255.255.255.0

Default Gateway:

Enter the LAN IP Address of the

wireless router. (D-Link wireless

routers have a LAN IP address

of 192.168.0.1)

• Select Use the following

DNS server addresses.

Enter the LAN IP address of

the wireless router. (D-Link

wireless routers have a LAN

IP address of 192.168.0.1

)

Networking Basics

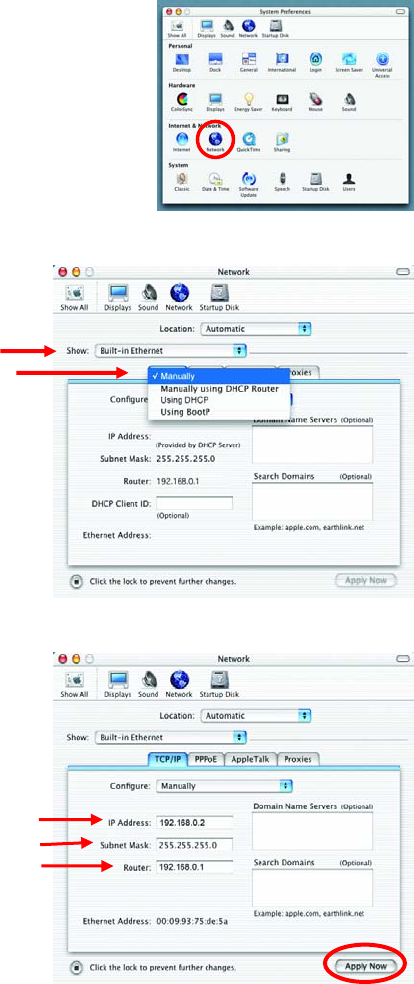

Assigning a Static IP Address with Macintosh OS X

Go to the Apple Menu and select System

Preferences.

Click on Network

Select Built-in Ethernet in the

Show pull-down menu.

Select Manually in the

Configure pull-down menu.

Input the Static IP Address, the

Subnet Mask and the Router IP

Address in the appropriate fields.

Click Apply Now

Networking Basics

Selecting a Dynamic IP Address with Macintosh OS X

Go to the Apple Menu and select

System Preferences.

Click on Network

Select Built-in Ethernet in

the Show pull-down menu.

Select Using DHCP in the

Configure pull-down menu.

Click Apply Now

The IP Address, Subnet

mask, and the Router’s IP

Address will appear in a few

seconds.

Checking the Wireless Connection by Pinging

For Windows XP and 2000:

Go to Start > Run > type

cmd. A window similar to

Fig. 9.25 will appear. Type

ping xxx.xxx.xxx.xxx,

where xxx is the IP address

of the Wireless Router or

Access Point.

A good wireless connection

will show four replies from

the wireless router or access

point, as shown.

For Windows ME and 98SE:

Go to Start > Run > type

command. A window

similar to Fig. 9.26 will

appear. Type ping

xxx.xxx.xxx.xxx, where

xxx is the IP address of the

Wireless Router or Access

Point. A good wireless

connection will show four

replies from the wireless

router or access point, as

shown.

8. Technical Specifications

Standards

• IEEE 802.11b • IEEE 802.3

• IEEE 802.3u

VPN Pass Through / Multi-Sessions

• PPTP

• L2TP

• IPSec

Device Management

Web-Based – Internet Explorer v6

or later; Netscape Navigator v6 or

later; or other Java- enabled browsers.

Wireless Data Rates

With Automatic Fallback

• 11Mbps • 5.5Mbps • 2Mbps • 1Mbps

Encryption

64/128 - bit RC4

Media Access Control

CSMA/CA with ACK

Wireless Frequency Range

2.4GHz to 2.462GHz

Wireless Operating Range

Indoors: Up to 328 feet

(100 meters)

Outdoors: Up to 1,312 feet

(400 meters)

Wireless Modulation Technology

Direct Sequence Spread

Spectrum (DSSS)

11-chip Barker sequence

Modulation Techniques

• 11Mbps (CCK)

• 5.5Mbps (CCK)

• 2Mbps(DQPSK)

• 1Mbps(DBPSK)

Wireless Transmit Power

16dBm

External Antenna Type

Single detachable reverse SMA

LEDs

• Power

• Status

• WAN

• Local Network—10/100

• WLAN (Wireless Connection)

Operating Temperature

32°F to 131°F ( 0°C to 55°C)

Humidity

95% maximum (non-condensing)

Power Input

Power Supply DC 5V, 2.5A

Safety & Emissions

• FCC

• UL

Dimensions

• L = 5.6 inches (142mm)

• W = 4.3 inches (109mm)

• H = 1.2 inches (31mm)

Weight

~2.0 lbs (907g)

Warranty

1 year

9. Technical Support

Technical Support

You can find software updates and user documentation on the D-Link website.

D-Link provides free technical support for customers within the United States and within Canada for the

duration of the warranty period on this product.

U.S. and Canadian customers can contact D-Link Technical Support through our website, or by phone.

Tech Support for customers within the United States:

D-Link Technical Support over the Telephone:

(877) 453-5465

24 hours a day, seven days a week.

D-Link Technical Support over the Internet:

http://support.dlink.com

email:support@dlink.com

Tech Support for customers within Canada:

D-Link Technical Support over the Telephone:

(800) 361-5265

Monday to Friday 8:30am to 9:00pm EST

D-Link Technical Support over the Internet:

http://support.dlink.ca

email:support@dlink.ca

10. Warranty and Registration

(USA only)

Subject to the terms and conditions set forth herein, D-Link Systems, Inc. (“D-Link”) provides this Limited

warranty for its product only to the person or entity that originally purchased the product from:

• D-Link or its authorized reseller or distributor and

• Products purchased and delivered within the fifty states of the United States, the District of Columbia,

U.S. Possessions or Protectorates, U.S. Military Installations, addresses with an APO or FPO.

Limited Warranty: D-Link warrants that the hardware portion of the D-Link products described below will

be free from material defects in workmanship and materials from the date of original retail purchase of the

product, for the period set forth below applicable to the product type (“Warranty Period”), except as

otherwise stated herein.

1-Year Limited Warranty for the Product(s) is defined as follows:

• Hardware (excluding power supplies and fans) One (1) Year

• Power Supplies and Fans One (1) Year

• Spare parts and spare kits Ninety (90) days

D-Link’s sole obligation shall be to repair or replace the defective Hardware during the Warranty Period at

no charge to the original owner or to refund at D-Link’s sole discretion. Such repair or replacement will be

rendered by D-Link at an Authorized D-Link Service Office. The replacement Hardware need not be new

or have an identical make, model or part. D-Link may in its sole discretion replace the defective

Hardware (or any part thereof) with any reconditioned product that D-Link reasonably determines is

substantially equivalent (or superior) in all material respects to the defective Hardware. Repaired or

replacement Hardware will be warranted for the remainder of the original Warranty Period from the date

of original retail purchase. If a material defect is incapable of correction, or if D-Link determines in its sole

discretion that it is not practical to repair or replace the defective Hardware, the price paid by the original

purchaser for the defective Hardware will be refunded by D-Link upon return to D-Link of the defective

Hardware. All Hardware (or part thereof) that is replaced by D-Link, or for which the purchase price is

refunded, shall become the property of D-Link upon replacement or refund.

Limited Software Warranty: D-Link warrants that the software portion of the product (“Software”) will

substantially conform to D-Link’s then current functional specifications for the Software, as set forth in the

applicable documentation, from the date of original retail purchase of the Software for a period of ninety

(90) days (“Warranty Period”), provided that the Software is properly installed on approved hardware and

operated as contemplated in its documentation. D-Link further warrants that, during the Warranty Period,

the magnetic media on which D-Link delivers the Software will be free of physical defects. D-Link’s sole

obligation shall be to replace the non-conforming Software (or defective media) with software that

substantially conforms to D-Link’s functional specifications for the Software or to refund at D-Link’s sole

discretion. Except as otherwise agreed by D-Link in writing, the replacement Software is provided only to

the original licensee, and is subject to the terms and conditions of the license granted by D-Link for the

Software. Software will be warranted for the remainder of the original Warranty Period from the date or

original retail purchase. If a material non-conformance is incapable of correction, or if D-Link determines

in its sole discretion that it is not practical to replace the non-conforming Software, the price paid by the

original licensee for the non-conforming Software will be refunded by D-Link; provided that the non-

conforming Software (and all copies thereof) is first returned to D-Link. The license granted respecting

any Software for which a refund is given automatically terminates.

Non-Applicability of Warranty: The Limited Warranty provided hereunder for hardware and software of

D-Link's products will not be applied to and does not cover any refurbished product and any product

purchased through the inventory clearance or liquidation sale or other sales in which D-Link, the sellers,

or the liquidators expressly disclaim their warranty obligation pertaining to the product and in that case,

the product is being sold "As-Is" without any warranty whatsoever including, without limitation, the Limited

Warranty as described herein, notwithstanding anything stated herein to the contrary.

Submitting A Claim: The customer shall return the product to the original purchase point based on its

return policy. In case the return policy period has expired and the product is within warranty, the

customer shall submit a claim to D-Link as outlined below:

• The customer must submit with the product as part of the claim a written description of the Hardware

defect or Software nonconformance in sufficient detail to allow D-Link to confirm the same.

• The original product owner must obtain a Return Material Authorization (“RMA”) number from the

Authorized D-Link Service Office and, if requested, provide written proof of purchase of the product

(such as a copy of the dated purchase invoice for the product) before the warranty service is

provided.

• After an RMA number is issued, the defective product must be packaged securely in the original or

other suitable shipping package to ensure that it will not be damaged in transit, and the RMA number

must be prominently marked on the outside of the package. Do not include any manuals or

accessories in the shipping package. D-Link will only replace the defective portion of the Product

and will not ship back any accessories.

• The customer is responsible for all in-bound shipping charges to D-Link. No Cash on Delivery

(“COD”) is allowed. Products sent COD will either be rejected by D-Link or become the property of

D-Link. Products shall be fully insured by the customer. D-Link will not be held responsible for any

packages that are lost in transit to D-Link. The repaired or replaced packages will be shipped to the

customer via UPS Ground or any common carrier selected by D-Link, with shipping charges prepaid.

Expedited shipping is available if shipping charges are prepaid by the customer and upon request.

• Return Merchandise Ship-To Address

USA: 53 Discovery Drive, Irvine, CA 92618

Canada: 2180 Winston Park Drive, Oakville, ON, L6H 5W1 (Visit http://www.dlink.ca for detailed

warranty information within Canada)

D-Link may reject or return any product that is not packaged and shipped in strict compliance with the

foregoing requirements, or for which an RMA number is not visible from the outside of the package. The

product owner agrees to pay D-Link’s reasonable handling and return shipping charges for any product

that is not packaged and shipped in accordance with the foregoing requirements, or that is determined by

D-Link not to be defective or non-conforming.

What Is Not Covered: This limited warranty provided by D-Link does not cover: Products, if in D-Link’s

judgment, have been subjected to abuse, accident, alteration, modification, tampering, negligence,

misuse, faulty installation, lack of reasonable care, repair or service in any way that is not contemplated in

the documentation for the product, or if the model or serial number has been altered, tampered with,

defaced or removed; Initial installation, installation and removal of the product for repair, and shipping

costs; Operational adjustments covered in the operating manual for the product, and normal maintenance;

Damage that occurs in shipment, due to act of God, failures due to power surge, and cosmetic damage;

Any hardware, software, firmware or other products or services provided by anyone other than D-Link;

Products that have been purchased from inventory clearance or liquidation sales or other sales in which

D-Link, the sellers, or the liquidators expressly disclaim their warranty obligation pertaining to the product.

Repair by anyone other than D-Link or an Authorized D-Link Service Office will void this Warranty.

Disclaimer of Other Warranties: EXCEPT FOR THE LIMITED WARRANTY SPECIFIED HEREIN, THE

PRODUCT IS PROVIDED “AS-IS” WITHOUT ANY WARRANTY OF ANY KIND WHATSOEVER

INCLUDING, WITHOUT LIMITATION, ANY WARRANTY OF MERCHANTABILITY, FITNESS FOR A

PARTICULAR PURPOSE AND NON-INFRINGEMENT. IF ANY IMPLIED WARRANTY CANNOT BE

DISCLAIMED IN ANY TERRITORY WHERE A PRODUCT IS SOLD, THE DURATION OF SUCH

IMPLIED WARRANTY SHALL BE LIMITED TO NINETY (90) DAYS. EXCEPT AS EXPRESSLY

COVERED UNDER THE LIMITED WARRANTY PROVIDED HEREIN, THE ENTIRE RISK AS TO THE

QUALITY, SELECTION AND PERFORMANCE OF THE PRODUCT IS WITH THE PURCHASER OF

THE PRODUCT.

Limitation of Liability: TO THE MAXIMUM EXTENT PERMITTED BY LAW, D-LINK IS NOT LIABLE

UNDER ANY CONTRACT, NEGLIGENCE, STRICT LIABILITY OR OTHER LEGAL OR EQUITABLE

THEORY FOR ANY LOSS OF USE OF THE PRODUCT, INCONVENIENCE OR DAMAGES OF ANY

CHARACTER, WHETHER DIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL (INCLUDING, BUT

NOT LIMITED TO, DAMAGES FOR LOSS OF GOODWILL, LOSS OF REVENUE OR PROFIT, WORK

STOPPAGE, COMPUTER FAILURE OR MALFUNCTION, FAILURE OF OTHER EQUIPMENT OR

COMPUTER PROGRAMS TO WHICH D-LINK’S PRODUCT IS CONNECTED WITH, LOSS OF

INFORMATION OR DATA CONTAINED IN, STORED ON, OR INTEGRATED WITH ANY PRODUCT

RETURNED TO D-LINK FOR WARRANTY SERVICE) RESULTING FROM THE USE OF THE

PRODUCT, RELATING TO WARRANTY SERVICE, OR ARISING OUT OF ANY BREACH OF THIS

LIMITED WARRANTY, EVEN IF D-LINK HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH

DAMAGES. THE SOLE REMEDY FOR A BREACH OF THE FOREGOING LIMITED WARRANTY IS

REPAIR, REPLACEMENT OR REFUND OF THE DEFECTIVE OR NON-CONFORMING PRODUCT.

THE MAXIMUM LIABILITY OF D-LINK UNDER THIS WARRANTY IS LIMITED TO THE PURCHASE

PRICE OF THE PRODUCT COVERED BY THE WARRANTY. THE FOREGOING EXPRESS WRITTEN

WARRANTIES AND REMEDIES ARE EXCLUSIVE AND ARE IN LIEU OF ANY OTHER WARRANTIES

OR REMEDIES, EXPRESS, IMPLIED OR STATUTORY

Governing Law: This Limited Warranty shall be governed by the laws of the State of California. Some

states do not allow exclusion or limitation of incidental or consequential damages, or limitations on how

long an implied warranty lasts, so the foregoing limitations and exclusions may not apply. This limited

warranty provides specific legal rights and the product owner may also have other rights which vary from

state to state.

Trademarks: D-Link is a registered trademark of D-Link Systems, Inc. Other trademarks or registered

trademarks are the property of their respective manufacturers or owners.

reproduced in any form or by any means or used to make any derivative such as translation,

transformation, or adaptation without permission from D-Link Corporation/D-Link Systems, Inc., as

stipulated by the United States Copyright Act of 1976. Contents are subject to change without prior

CE Mark Warning: This is a Class B product. In a domestic environment, this product may cause radio

interference, in which case the user may be required to take adequate measures.

FCC Statement: This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates, uses, and can radiate

radio frequency energy and, if not installed and used in accordance with the instructions, may cause

harmful interference to radio communication. However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment off and on, the user is encouraged to try to

correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

• Consult the dealer or an experienced radio/TV technician for help.

FCC Caution:

The manufacturer is not responsible for any radio or TV interference caused by unauthorized

modifications to this equipment; such modifications could void the user’s authority to operate the

equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two

conditions: (1) This device may not cause harmful interference, and (2) this device must accept any

interference received, including interference that may cause undesired operation.

IMPORTANT NOTE:

FCC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled

environment. The antenna(s) used for this equipment must be installed to provide a separation

distance of at least eight inches (20 cm) from all persons.

This equipment must not be operated in conjunction with any other antenna.

For detailed warranty outside the United States, please contact corresponding local D-Link office.

7/02/03

D Link DI514G2 D-LINK Air DI-514 2.4 GHz Wireless Router User Manual di514 manual 101

D Link Corporation D-LINK Air DI-514 2.4 GHz Wireless Router di514 manual 101

Contents

Users Manual Revised

Navigation menu

Namespaces

Views

Navigation
