revised manual 3 of 3 HTML Version

revised manual 3 of 3

Networking Basics

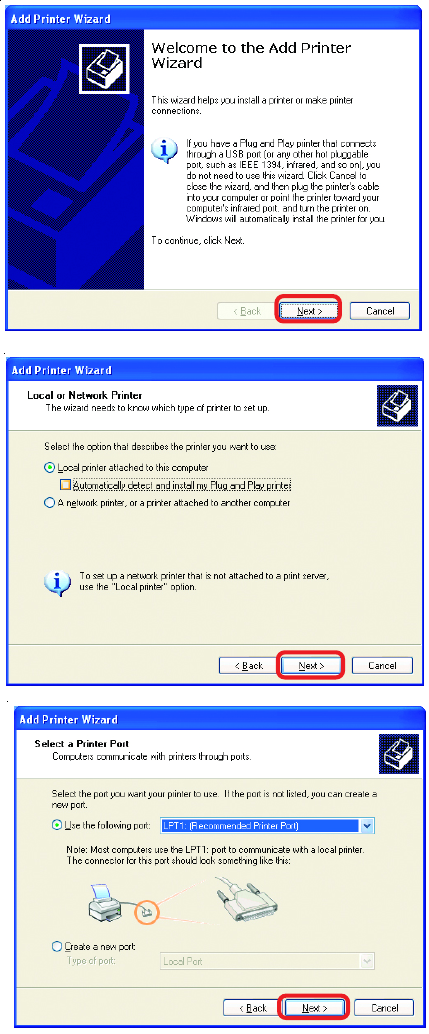

Adding a local printer

Click Next

Select Local printer

attached to this

computer

(Deselect Automati-

cally detect and install

my Plug and Play

printer if it has been

selected.)

Click Next

Select Use the follow-

ing port:

From the pull-down menu

select the correct port

for your printer

(Most computers use the LPT1: port,

as shown in the illustration.)

Click Next

Networking Basics

Adding a local printer

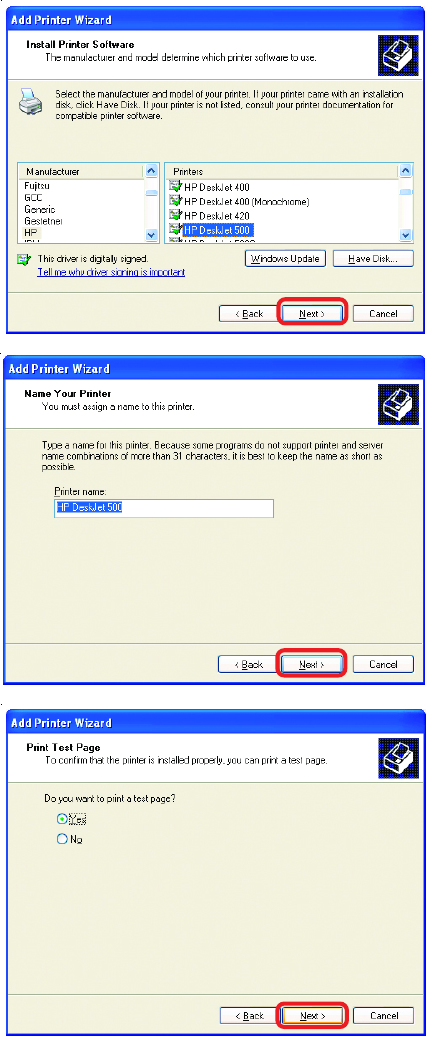

Select and highlight

the correct driver for

your printer.

Click Next

(If the correct driver is

not displayed, insert the

CD or floppy disk that

came with your printer

and click Have Disk.)

At this screen, you

can change the name

of the printer (optional.)

Click Next

Select Yes, to print a

test page. A successful

printing will confirm that

you have chosen the

correct driver.

Click Next

Networking Basics

Adding a local printer

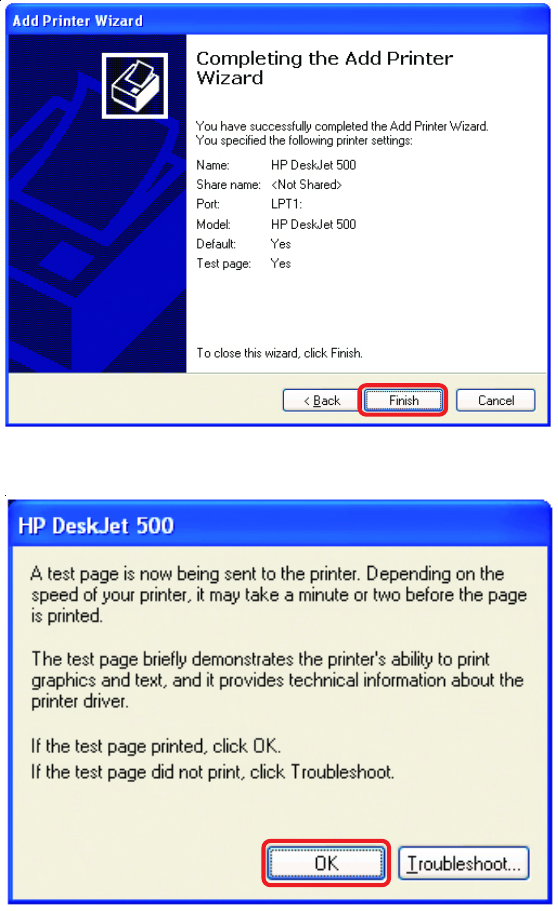

This screen gives you information about your printer.

Click Finish

When the test page has printed,

Click OK

Networking Basics

Adding a local printer

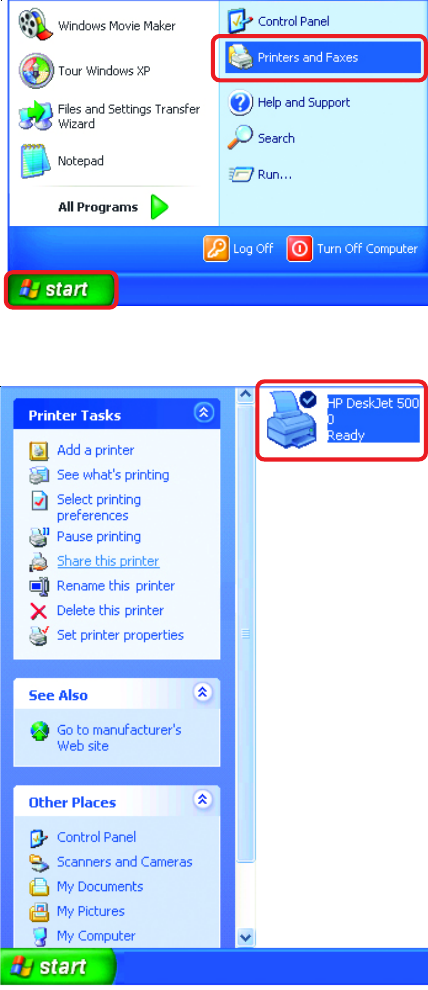

Go to Start> Printers

and Faxes

A successful installation will display

the printer icon as shown at right.

You have successfully added a local

printer.

Sharing a network printer

After you have run the Network Setup Wizard on all the computers on your network,

you can run the Add Printer Wizard on all the computers on your network. Please

follow these directions to use the Add Printer Wizard to share a printer on your

network:

Go to Start>

Printers and Faxes

Networking Basics

Sharing a network printer

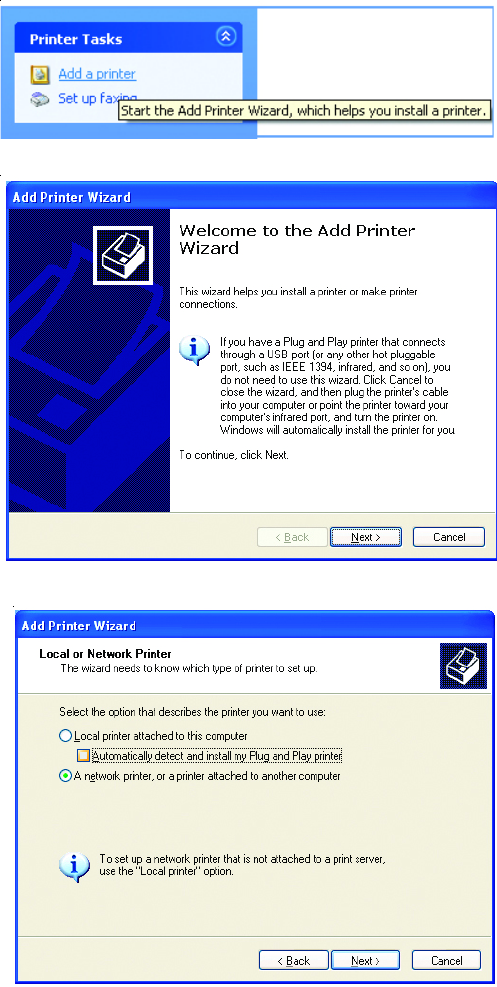

Click on

Add a printer

Click Next

Select

Network Printer

Click Next

Networking Basics

Sharing a network printer

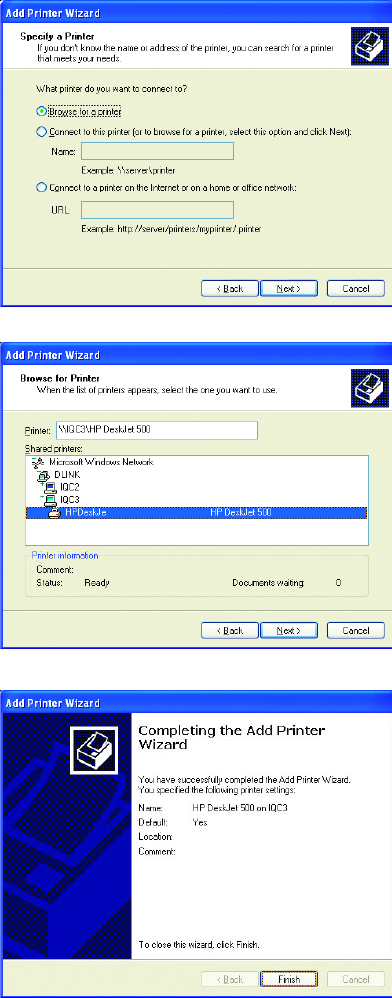

Select Browse for

a printer

Click Next

Select the printer you

would like to share

Click Next

Click Finish

Networking Basics

Sharing a network printer

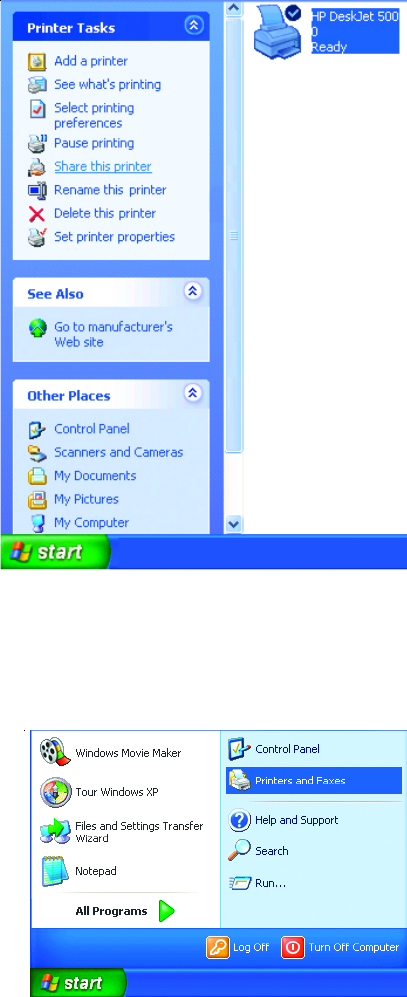

To check for proper

installation:

Go to Start > Printers

and Faxes

The printer icon will appear at right,

indicating proper installation.

You have completed adding the

printer.

To share this printer

on your network:

Remember the printer

name

Run the Add Printer

Wizard on all the

computers on your

network

Make sure you have

already run the

Network Setup

Wizard on all the

network computers

After you run the Add Printer

Wizard on all the computers in the

network, you can share the printer.

Networking Basics

Sharing an LPR printer

To share an LPR printer (using a print server,) you will need a Print Server such as

the DP-101P+. Please make sure that you have run the Network Setup Wizard on

all the computers on your network. To share an LPR printer, please follow these

directions:

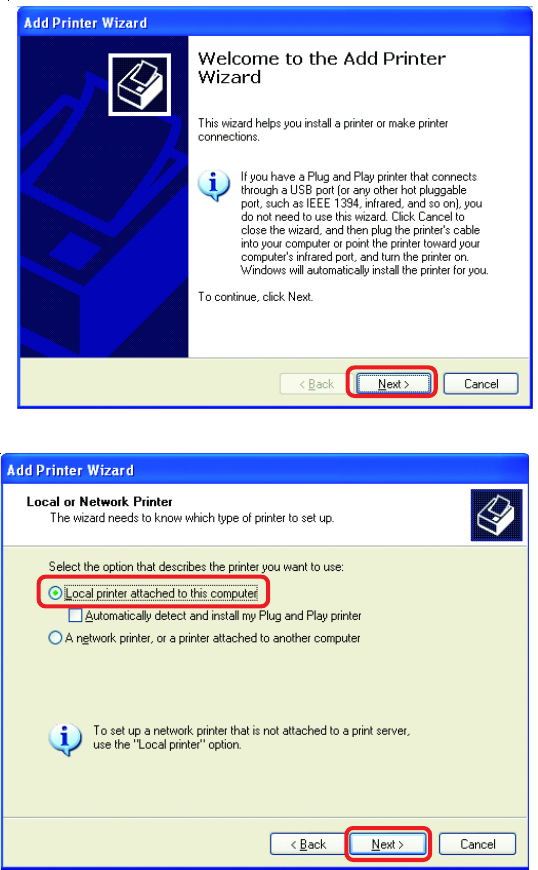

Go to Start >

Printers and

Faxes

Click on Add

a Printer

The screen to the

right will appear

Click Next

Select

Local

Printer...

Click Next

Networking Basics

Sharing an LPR printer

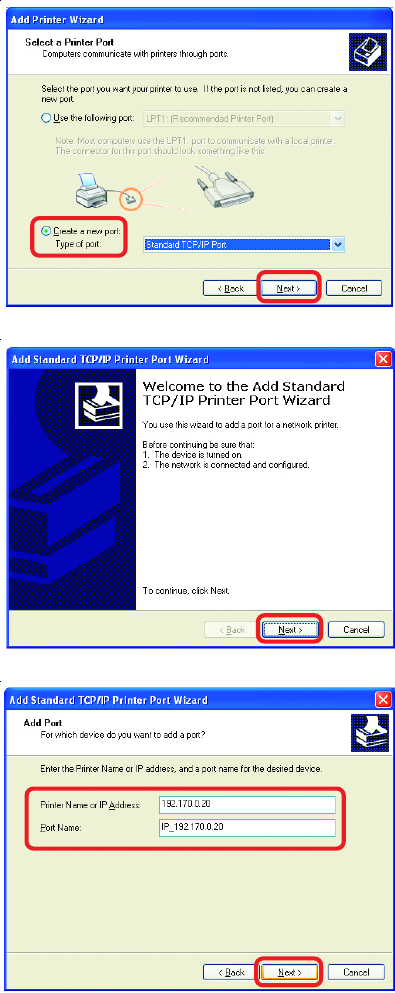

Select Create a new port

From the pull-down menu,

select Standard TCP/IP

Port, as shown.

Click Next

Please read the

instructions on this

screen

Click Next

Enter the Printer IP

Address and the Port

Name, as shown.

Click Next

Networking Basics

Sharing an LPR printer

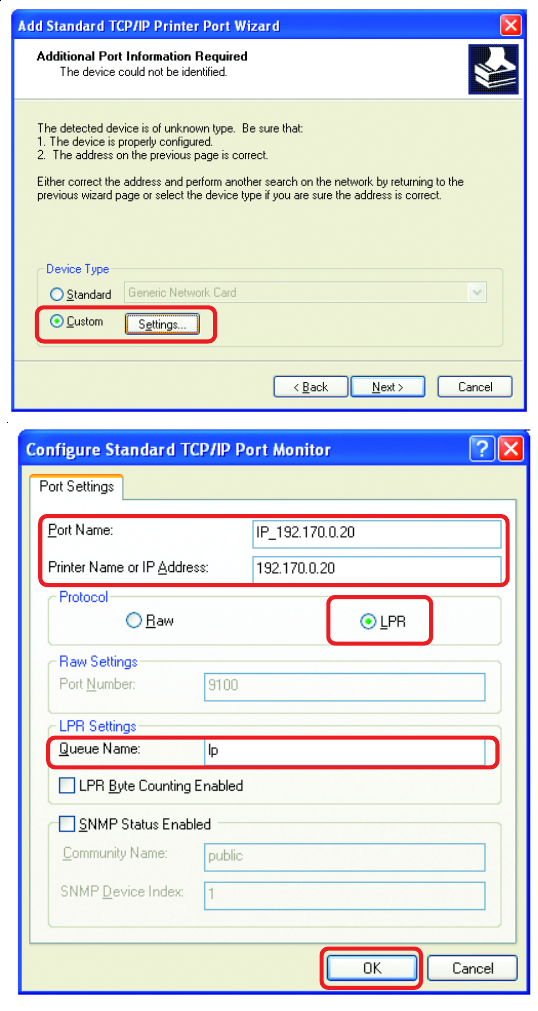

In this

screen,

select

Custom

Click

Settings

Enter the Port

Name and the

Printer Name

IP Address.

Select LPR

Enter a

Queue

Name (if your

Print-Server/

Gateway has

more than

one port, you

will need a

Queue

name.)

Click OK

Networking Basics

Sharing an LPR printer

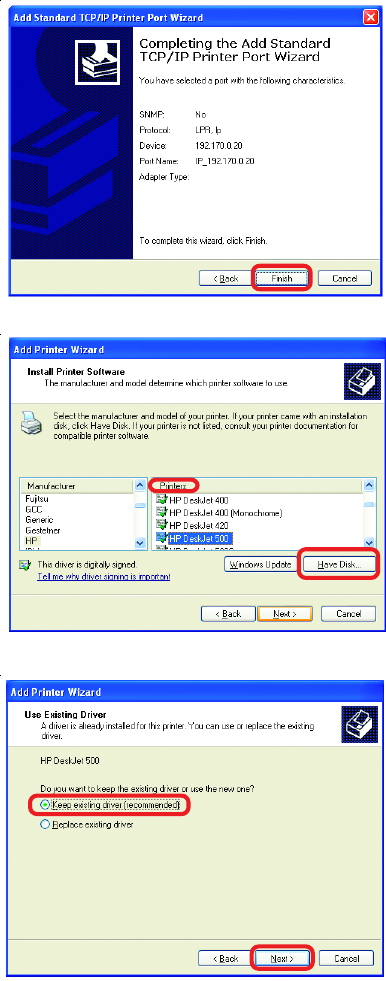

Click Next

Select Keep existing

driver

If the printer driver is already installed, do

the following:

Click Have Disk

Insert the printer driver disk that

came with your printer.

Select the printer you

are adding from the list

of Printers.

Click Finish

This screen will show you

information about your

printer.

Networking Basics

Sharing an LPR printer

Note: You must run the Network Setup Wizard on all the computers on your network before

you run the Add Printer Wizard.

Please run the Add Printer

Wizard on all the computers

on your network in order to

share the printer.

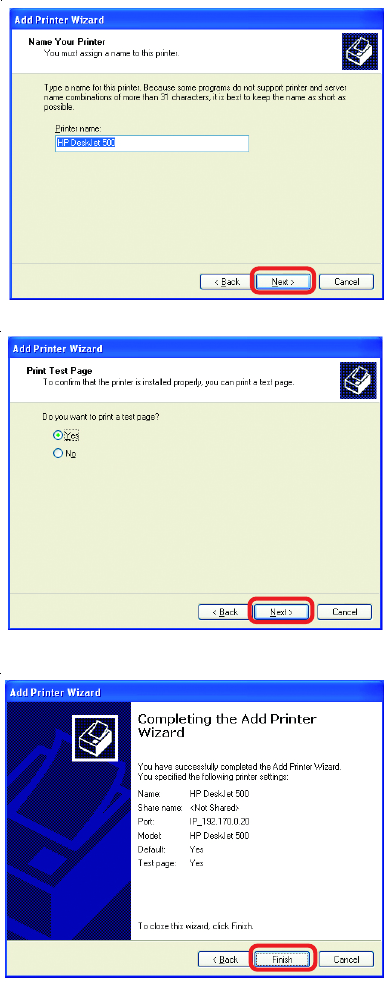

Click Finish to complete the

addition of the printer.

This screen will display information

about your printer.

Click Next

Select Yes, to print a test page.

Click Next

Please remember the name of

your printer. You will need this

information when you use the

Add Printer Wizard on the

other computers on your

network.

You can rename your printer if

you choose. It is optional.

1.The computer used to configure the DI-714P+ cannot access

the Configuration menu.

Check that the Ethernet LED on the DI-714P+ is ON. If the

LED is not ON, check that the cable for the Ethernet

connection is securely inserted.

Check that the Ethernet Adapter is working properly. Please

see item 3 (Check that the drivers for the network

adapters are installed properly) in this Troubleshooting

section to check that the drivers are loaded properly.

Check that the IP Address is in the same range and subnet

as the DI-714P+. Please see Checking the IP Address in

Windows XP in the Networking Basics section of this

manual.

Note: The IP Address of the DI-714P+ is 192.168.0.1. All the computers on the

network must have a unique IP Address in the same range, e.g., 192.168.0.x.

Any computers that have identical IP Addresses will not be visible on the

network. They must all have the same subnet mask, e.g., 255.255.255.0

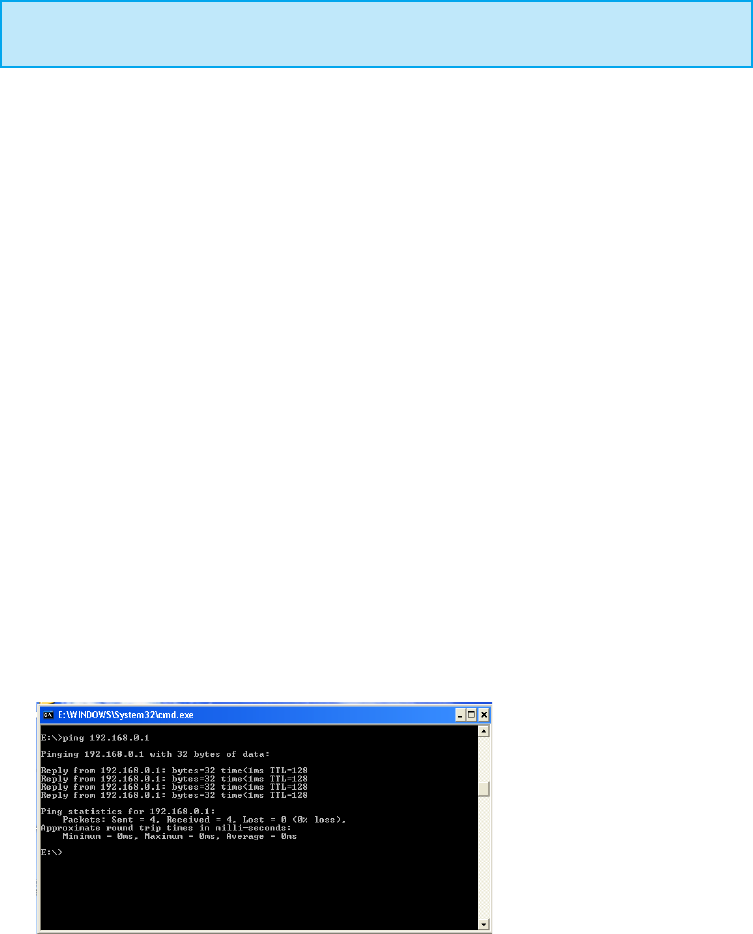

Do a Ping test to make sure that the DI-714P+ is responding.

Go to Start>Run>Type Command>Type ping 192.168.0.1. A

successful ping will show four replies.

Troubleshooting

This Chapter provides solutions to problems that can occur during the installation and

operation of the DI-714P+ Wireless Broadband Router. We cover various aspects of the

network setup, including the network adapters. Please read the following if you are

having problems.

Note: If you have

changed the default IP

Address, make sure to

ping the correct IP Ad-

dress assigned to the

DI-714P+.

Note: It is recommended that you use an Ethernet connection to

configure the DI-714P+ Wireless Broadband Router.

2. The wireless client cannot access the Internet in the

Infrastructure mode.

Troubleshooting

Check that the IP Address assigned to the wireless adapter is within the

same IP Address range as the access point and gateway. (Since the

DI-714P+ has an IP Address of 192.168.0.1, wireless adapters must have

an IP Address in the same range, e.g., 192.168.0.x. Each device must

have a unique IP Address; no two devices may have the same IP

Address. The subnet mask must be the same for all the computers on

the network.) To check the IP Address assigned to the wireless adapter,

double-click on the Local Area Connection icon in the taskbar >

select the Support tab and the IP Address will be displayed. (Please

refer to Checking the IP Address in the Networking Basics section of

this manual.)

default

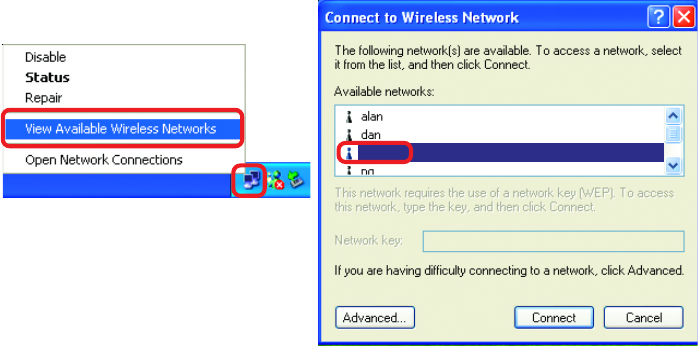

Make sure the wireless client is associated and joined with the correct

Access Point. To check this connection: Right-click on the Local

Area Connection icon in the taskbar> select View Available

Wireless Networks. The Connect to Wireless Network screen will

appear. Please make sure you have selected the correct available

network, as shown in the illustrations below.

If it is necessary to assign a Static IP Address to the wireless adapter,

please refer to the appropriate section in Networking Basics. If you are

entering a DNS Server address you must also enter the Default

Gateway Address. (Remember that if you have a DHCP-capable router,

you will not need to assign a Static IP Address. See Networking

Basics: Assigning a Static IP Address.)

Troubleshooting

3. Check that the drivers for the network adapters are

installed properly.

You may be using different network adapters than those illustrated here, but this

procedure will remain the same, regardless of the type of network adapters you are

using.

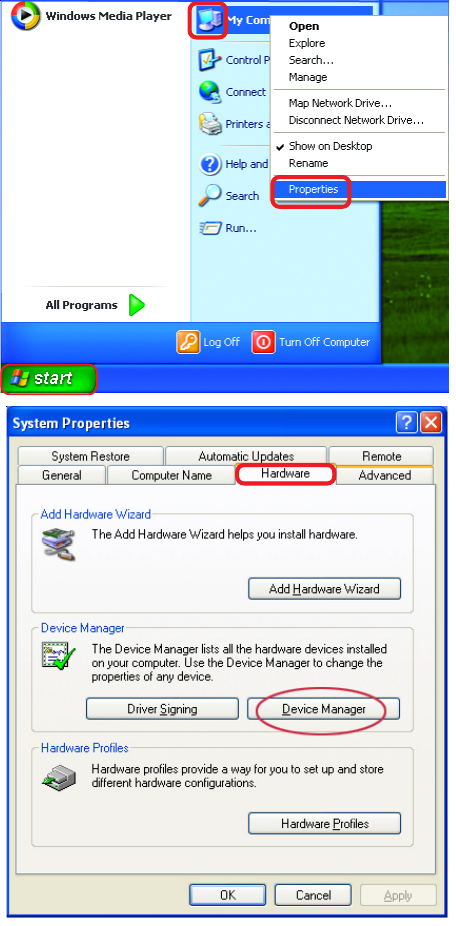

Click Device

Manager

!Select the

Hardware

Tab

Troubleshooting

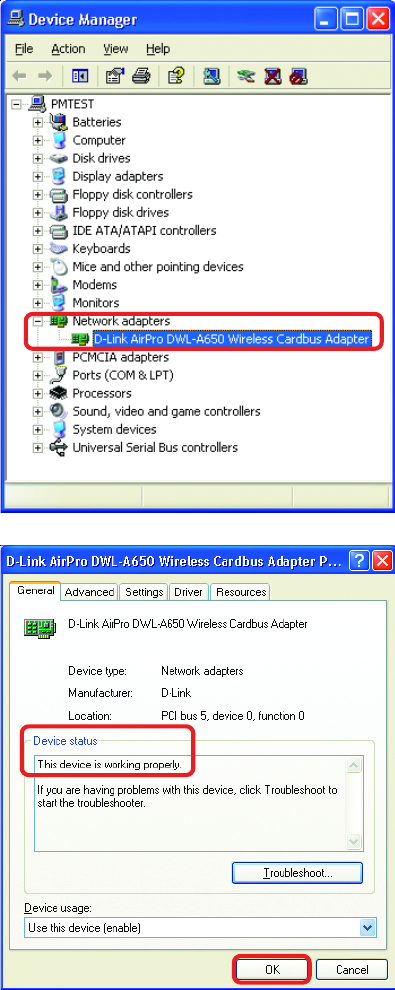

Double-click

on Network

Adapters

Right-click on D-Link

AirPro DWL-A650

Wireless Cardbus

Adapter

Select Properties

to check that the

drivers are in-

stalled properly

Look under Device

Status to check that the

device is working

properly

Click OK

Troubleshooting

4. What variables may cause my wireless products to lose reception?

D-Link products let you access your network from virtually anywhere you want.

However, the positioning of the products within your environment will affect the

wireless range. Please refer to Installation Considerations in the Wireless

Basics section of this manual for further information about the most advanta-

geous placement of your D-Link wireless products.

5. Why does my wireless connection keep dropping?

Antenna Orientation- Try different antenna orientations for the DI-714P+.

Try to keep the antenna at least 6 inches away from the wall or other

objects.

If you are using 2.4GHz cordless phones, X-10 equipment or other home

security systems, ceiling fans, and lights, your wireless connection will

degrade dramatically or drop altogether. Try changing the Channel on

your Router, Access Point and Wireless adapter to a different Channel

to avoid interference.

Keep your product away (at least 3-6 feet) from electrical devices that

generate RF noise, like microwaves, Monitors, electric motors, etc.

6. Why can’t I get a wireless connection?

To establish a wireless connection, while enabling Encryption on the DI-714P+,

you must also enable encryption on the wireless client.

Make sure that the SSID on the Router and the Wireless Client are exactly the

same. If they are not, wireless connection will not be established. Please note

that there are two separate SSIDs for 802.11a and 802.11b. The default SSID

for both 802.11a and 802.11b is default.

For 802.11b, the Encryption settings are: 64, 128, or 256 bit. Make sure

that the encryption bit level is the same on the Router and the Wireless

Client.

7. Resetting the DI-714P+ to Factory Default Settings

After you have tried other methods for troubleshooting your network, you

may choose to Reset the DI-714P+ to the factory default settings.

Remember that D-Link AirPlus products network together, out of the box,

at the factory default settings.

To hard-reset the D-Link AirPlus DI-714P+ to Factory Default Settings,

please do the following:

Troubleshooting

!Use a paper clip to press the Reset button and

power on.

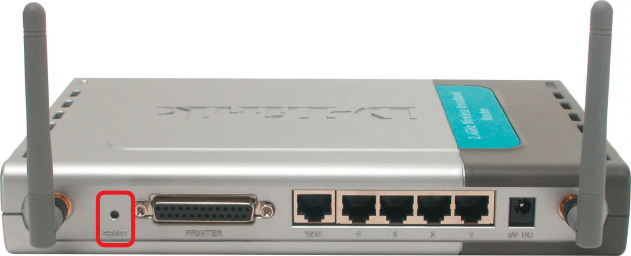

Locate the Reset button on the back of the DI-714P+

!Turn off the DI-714P+

!After you have completed the above steps, the DI-714P+

will be reset to the factory default settings

!Hold for about 5 seconds (don’t hold too long) and

then release. (Or, release when M1 and M2 flash

at the same time.)

Technical Specifications

VPN Pass Through / Multi-Sessions

PPTP

L2TP

IPSec

Wireless Data Rates

22Mbps

11Mbps

5.5Mbps

2Mbps

1Mbps

Wireless Frequency Range

2.4GHz to 2.462GHz

Wireless Operating Range

Indoors: Up to 328 feet (100 meters)

Advanced Firewall Features

Device Management

Web-Based – Internet Explorer v5

or later; Netscape Navigator v4 or

later; or other Java- enabled browsers.

With Automatic Fallback

Encryption

64/128/256-bit RC4

Media Access Control

CMSA/CA with ACK

IEEE 802.11b

IEEE 802.3

IEEE 802.3u

Standards

Spectrum (DSSS)

11-chip Barker sequence

Wireless Modulation Technology

PBCC - Packet Binary

Convolutional Coding

Direct Sequence Spread

Technical Specifications

Modulation Techniques

Barker (1Mbps/0db)

Barker (2Mbps/3db)

CCK (5.5Mbps/5.5db)

PBCC (5.5 Mbps/1.5db)

CCK (11Mbps/8.5db)

PBCC (11Mbps/4.5db)

PBCC (22Mbps/8.5db)

Wireless Transmit Power

15dBm ± 2dB

External Antenna Type

Dual detachable reverse SMA

LEDs

Power

WAN

Local Network—10/100

WLAN (Wireless Connection)

Operating Temperature

32°F to 131°F ( 0°C to 55°C)

Humidity

95% maximum (non-condensing)

Power Input

Ext. Power Supply DC 5V

FCC

Safety & Emissions

L = 9.25 inches (233mm)

W = 6.5 inches (165mm)

H = 1.375 inches (35mm)

Dimensions

Technical Specifications

~2.0 lbs (907g)

Weight

You can find the most recent software and user documentation on the D-Link website.

D-Link provides free technical support for customers within the United States for the

duration of the warranty period on this product.

U.S. customers can contact D-Link technical support through our web site,

or by phone.

D-Link Technical Support over the Telephone:

(877) 453-5465

24 hours a day, seven days a week.

D-Link Technical Support over the Internet:

http://support.dlink.com

When contacting technical support, you will need the information below. (Please look

on the back side of the unit.)

Contacting Technical Support

Serial number of the unit

Model number or product name

Software type and version number

Subject to the terms and conditions set forth herein, D-Link Systems, Inc. (“D-Link”) provides this Limited

warranty for its product only to the person or entity that originally purchased the product from:

D-Link or its authorized reseller or distributor and

Products purchased and delivered within the fifty states of the United States, the District of

Columbia, U.S. Possessions or Protectorates, U.S. Military Installations, addresses with an

APO or FPO.

Limited Warranty: D-Link warrants that the hardware portion of the D-Link products described

below will be free from material defects in workmanship and materials from the date of original retail

purchase of the product, for the period set forth below applicable to the product type (“Warranty

Period”), except as otherwise stated herein.

3-Year Limited Warranty for the Product(s) is defined as follows:

Hardware (excluding power supplies and fans) Three (3) Years

Power Supplies and Fans One (1) Year

Spare parts and spare kits Ninety (90) days

D-Link’s sole obligation shall be to repair or replace the defective Hardware during the Warranty Period

at no charge to the original owner or to refund at D-Link’s sole discretion. Such repair or replacement will

be rendered by D-Link at an Authorized D-Link Service Office. The replacement Hardware need not be

new or have an identical make, model or part. D-Link may in its sole discretion replace the defective

Hardware (or any part thereof) with any reconditioned product that D-Link reasonably determines is

substantially equivalent (or superior) in all material respects to the defective Hardware. Repaired or

replacement Hardware will be warranted for the remainder of the original Warranty Period from the date

of original retail purchase. If a material defect is incapable of correction, or if D-Link determines in its sole

discretion that it is not practical to repair or replace the defective Hardware, the price paid by the original

purchaser for the defective Hardware will be refunded by D-Link upon return to D-Link of the defective

Hardware. All Hardware (or part thereof) that is replaced by D-Link, or for which the purchase price is

refunded, shall become the property of D-Link upon replacement or refund.

Limited Software Warranty: D-Link warrants that the software portion of the product (“Software”)

will substantially conform to D-Link’s then current functional specifications for the Software, as set forth

in the applicable documentation, from the date of original retail purchase of the Software for a period of

ninety (90) days (“Warranty Period”), provided that the Software is properly installed on approved

hardware and operated as contemplated in its documentation. D-Link further warrants that, during the

Warranty Period, the magnetic media on which D-Link delivers the Software will be free of physical

defects. D-Link’s sole obligation shall be to replace the non-conforming Software (or defective media)

with software that substantially conforms to D-Link’s functional specifications for the Software or to

refund at D-Link’s sole discretion. Except as otherwise agreed by D-Link in writing, the replacement

Software is provided only to the original licensee, and is subject to the terms and conditions of the

license granted by D-Link for the Software. Software will be warranted for the remainder of the original

Warranty Period from the date or original retail purchase. If a material non-conformance is incapable of

correction, or if D-Link determines in its sole discretion that it is not practical to replace the non-

conforming Software, the price paid by the original licensee for the non-conforming Software will be

refunded by D-Link; provided that the non-conforming Software (and all copies thereof) is first returned

to D-Link. The license granted respecting any Software for which a refund is given automatically

terminates.

Non-Applicability of Warranty: The Limited Warranty provided hereunder for hardware and software

of D-Link’s products will not be applied to and does not cover any refurbished product and any product

purchased through the inventory clearance or liquidation sale or other sales in which D-Link, the sellers,

or the liquidators expressly disclaim their warranty obligation pertaining to the product and in that case,

the product is being sold “As-Is” without any warranty whatsoever including, without limitation, the

Limited Warranty as described herein, notwithstanding anything stated herein to the contrary.

Submitting A Claim: The customer shall return the product to the original purchase point based on its

return policy. In case the return policy period has expired and the product is within warranty, the

customer shall submit a claim to D-Link as outlined below:

The customer must submit with the product as part of the claim a written description of the

Hardware defect or Software nonconformance in sufficient detail to allow D-Link to confirm

the same.

Warranty and Registration

The original product owner must obtain a Return Material Authorization (“RMA”) number from

the Authorized D-Link Service Office and, if requested, provide written proof of purchase of

the product (such as a copy of the dated purchase invoice for the product) before the

warranty service is provided.

After an RMA number is issued, the defective product must be packaged securely in the

original or other suitable shipping package to ensure that it will not be damaged in transit, and

the RMA number must be prominently marked on the outside of the package. Do not include any

manuals or accessories in the shipping package. D-Link will only replace the defective portion

of the Product and will not ship back any accessories.

The customer is responsible for all in-bound shipping charges to D-Link. No Cash on Delivery

(“COD”) is allowed. Products sent COD will either be rejected by D-Link or become the

property of D-Link. Products shall be fully insured by the customer and shipped to D-Link

Systems, Inc., 53 Discovery Drive, Irvine, CA 92618. D-Link will not be held responsible

for any packages that are lost in transit to D-Link. The repaired or replaced packages will be

shipped to the customer via UPS Ground or any common carrier selected by D-Link, with

shipping charges prepaid. Expedited shipping is available if shipping charges are prepaid by

the customer and upon request.

D-Link may reject or return any product that is not packaged and shipped in strict compliance with the

foregoing requirements, or for which an RMA number is not visible from the outside of the package. The

product owner agrees to pay D-Link’s reasonable handling and return shipping charges for any product

that is not packaged and shipped in accordance with the foregoing requirements, or that is determined

by D-Link not to be defective or non-conforming.

What Is Not Covered: This limited warranty provided by D-Link does not cover: Products, if in D-Link’s

judgment, have been subjected to abuse, accident, alteration, modification, tampering, negligence, misuse,

faulty installation, lack of reasonable care, repair or service in any way that is not contemplated in the

documentation for the product, or if the model or serial number has been altered, tampered with, defaced

or removed; Initial installation, installation and removal of the product for repair, and shipping costs;

Operational adjustments covered in the operating manual for the product, and normal maintenance;

Damage that occurs in shipment, due to act of God, failures due to power surge, and cosmetic damage;

Any hardware, software, firmware or other products or services provided by anyone other than D-

Link; Products that have been purchased from inventory clearance or liquidation sales or other sales in

which D-Link, the sellers, or the liquidators expressly disclaim their warranty obligation pertaining to the

product. Repair by anyone other than D-Link or an Authorized D-Link Service Office will void this

Warranty.

Disclaimer of Other Warranties: EXCEPT FOR THE LIMITED WARRANTY SPECIFIED HEREIN, THE

PRODUCT IS PROVIDED “AS-IS” WITHOUT ANY WARRANTY OF ANY KIND WHATSOEVER INCLUDING,

WITHOUT LIMITATION, ANY WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE

AND NON-INFRINGEMENT. IF ANY IMPLIED WARRANTY CANNOT BE DISCLAIMED IN ANY TERRITORY

WHERE A PRODUCT IS SOLD, THE DURATION OF SUCH IMPLIED WARRANTY SHALL BE LIMITED TO

NINETY (90) DAYS. EXCEPT AS EXPRESSLY COVERED UNDER THE LIMITED WARRANTY PROVIDED

HEREIN, THE ENTIRE RISK AS TO THE QUALITY, SELECTION AND PERFORMANCE OF THE PRODUCT IS

WITH THE PURCHASER OF THE PRODUCT.

Limitation of Liability: TO THE MAXIMUM EXTENT PERMITTED BY LAW, D-LINK IS NOT LIABLE

UNDER ANY CONTRACT, NEGLIGENCE, STRICT LIABILITY OR OTHER LEGAL OR EQUITABLE THEORY

FOR ANY LOSS OF USE OF THE PRODUCT, INCONVENIENCE OR DAMAGES OF ANY CHARACTER,

WHETHER DIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL (INCLUDING, BUT NOT LIMITED TO,

DAMAGES FOR LOSS OF GOODWILL, LOSS OF REVENUE OR PROFIT, WORK STOPPAGE, COMPUTER

FAILURE OR MALFUNCTION, FAILURE OF OTHER EQUIPMENT OR COMPUTER PROGRAMS TO WHICH D-

LINK’S PRODUCT IS CONNECTED WITH, LOSS OF INFORMATION OR DATA CONTAINED IN, STORED ON,

OR INTEGRATED WITH ANY PRODUCT RETURNED TO D-LINK FOR WARRANTY SERVICE) RESULTING

FROM THE USE OF THE PRODUCT, RELATING TO WARRANTY SERVICE, OR ARISING OUT OF ANY

BREACH OF THIS LIMITED WARRANTY, EVEN IF D-LINK HAS BEEN ADVISED OF THE POSSIBILITY OF

SUCH DAMAGES. THE SOLE REMEDY FOR A BREACH OF THE FOREGOING LIMITED WARRANTY IS

REPAIR, REPLACEMENT OR REFUND OF THE DEFECTIVE OR NON-CONFORMING PRODUCT. THE MAXIMUM

LIABILITY OF D-LINK UNDER THIS WARRANTY IS LIMITED TO THE PURCHASE PRICE OF THE PRODUCT

COVERED BY THE WARRANTY. THE FOREGOING EXPRESS WRITTEN WARRANTIES AND REMEDIES

ARE EXCLUSIVE AND ARE IN LIEU OF ANY OTHER WARRANTIES OR REMEDIES, EXPRESS, IMPLIED OR

STATUTORY

Governing Law: This Limited Warranty shall be governed by the laws of the State of California. Some

states do not allow exclusion or limitation of incidental or consequential damages, or limitations on how

long an implied warranty lasts, so the foregoing limitations and exclusions may not apply. This limited

warranty provides specific legal rights and the product owner may also have other rights which vary

from state to state.

Trademarks: D-Link is a registered trademark of D-Link Systems, Inc. Other trademarks or registered

trademarks are the property of their respective manufacturers or owners.

be reproduced in any form or by any means or used to make any derivative such as translation,

transformation, or adaptation without permission from D-Link Corporation/D-Link Systems, Inc., as

stipulated by the United States Copyright Act of 1976. Contents are subject to change without prior

CE Mark Warning: This is a Class B product. In a domestic environment, this product may cause radio

interference, in which case the user may be required to take adequate measures.

FCC Statement: This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates, uses, and

can radiate radio frequency energy and, if not installed and used in accordance with the instructions,

may cause harmful interference to radio communication. However, there is no guarantee that interference

will not occur in a particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the user is encouraged

to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: Any changes or modifications not expressly approved by the party responsible

for compliance could void the user’s authority to operate this equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two

conditions: (1) This device may not cause harmful interference, and (2) this device must accept

any interference received, including interference that may cause undesired operation.

IMPORTANT NOTE:

FCC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled

environment. This equipment should be installed and operated with a minimum distance of about

eight inches (20cm) between the radiator and your body.

This transmitter must not be co-located or operate in conjunction with any other antenna or

transmitter.

02/07/03

FCC NOTE:

THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY

UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE

USER’S AUTHORITY TO OPERATE THE EQUIPMENT.

FCC RF exposure requirements:

The antenna(s) used for this transmitter must be installed to provide a separation distance of at least

eight inches (20 cm) from all persons and must not be co-located or operated in conjunction with any

other antenna or transmitter.

D Link DI714PPLUS Wireless Router User Manual di714P manual 020503

D Link Corporation Wireless Router di714P manual 020503

Contents

revised manual 3 of 3

Navigation menu

Namespaces

Views

Navigation
