DAP-1650
User Manual
Version 1.00 | 12/30/2013
DAP-1650 Wireless AC1200 Dual Band Gigabit Range Extender
iiD-Link DAP-1650 User Manual
Table of Contents
Product Overview .............................................................. 4
Package Contents .........................................................................4
System Requirements ................................................................. 5
Introduction ................................................................................... 6
Features ............................................................................................ 7
Hardware Overview ..................................................................... 8
Connections ........................................................................... 8
LEDs ........................................................................................... 9
Installation .......................................................................10
Operation Modes ........................................................................ 10
Repeater Mode ....................................................................11
Access Point Mode .............................................................12
Media Bridge Mode ...........................................................13
Wireless Installation Considerations .................................... 14
Conguration ...................................................................15
SharePort Mobile App (iOS, Android) .................................15
QRS Mobile App Setup .............................................................16
Web-based Conguration Utility ..........................................17
Wireless Setup Wizard ............................................................... 18
Repeater Mode ....................................................................19
Access Point Mode .............................................................22
Media Bridge Mode ...........................................................24
Manual Conguration ...............................................................26
Wireless Settings .................................................................26
Access Point Mode ........................................................27
Repeater Mode ...............................................................31
Media Bridge Mode.......................................................35
Conguring Wireless Security ........................................36
Network Settings ................................................................39
Storage ...................................................................................42
Media Server.........................................................................45
Advanced ......................................................................................46
Access Point Mode .............................................................46
Access Control .................................................................46
Advanced Wireless ........................................................47
Guest Zone .......................................................................48
QoS ...................................................................................... 49
Wi-Fi Protected Setup...................................................50
User Limit ..........................................................................51
Repeater Mode ....................................................................52
Advanced Wireless ........................................................52
Wi-Fi Protected Setup...................................................53
Media Bridge Mode ...........................................................54
Advanced Wireless ........................................................54
Wi-Fi Protected Setup...................................................55
Table of Contents
iiiD-Link DAP-1650 User Manual
Table of Contents
Maintenance ................................................................................56
Access Point Mode .............................................................56
Admin.................................................................................56
System ...............................................................................57
Firmware ...........................................................................58
Time ....................................................................................59
System Check ..................................................................60
Schedules .........................................................................61
Repeater Mode ....................................................................62
Admin.................................................................................62
System ...............................................................................63
Firmware ...........................................................................64
Time ....................................................................................65
Media Bridge Mode ...........................................................66
Admin.................................................................................66
System ...............................................................................67
Firmware ...........................................................................68
Time ....................................................................................69
Status ..............................................................................................70
Device Info ............................................................................70
Logs .........................................................................................71
Statistics .................................................................................72
Wireless ..................................................................................73
IPv6 ..........................................................................................74
Help .................................................................................................75
Wireless Security .............................................................76
What is WEP? ................................................................................76
What is WPS? ................................................................................76
What is WPA? ................................................................................77
Connect to a Wireless Network .......................................78
Windows® 8 ...................................................................................78
Windows® 7 ...................................................................................80
Windows Vista® ............................................................................83
WPA/WPA2 ............................................................................84
Using Windows® XP ....................................................................86
Congure WEP .....................................................................87
Troubleshooting ..............................................................89
Networking Basics ...........................................................91
Check your IP address ...............................................................91
Statically Assign an IP address ...............................................92
Technical Specications ..................................................93
Compliance Statements ..................................................95
4D-Link DAP-1650 User Manual
Section 1 - Product Overview
Product Overview
Package Contents
Note: Using a power supply with a dierent voltage rating than the one included with the DAP-1650 will cause damage and void the warranty
for this product.
If any of the above items are missing, please contact your reseller.
DAP-1650 Wireless AC1200 Dual Band Gigabit Range Extender
Ethernet Cable
Power Adapter
WI-FI Conguration Note
Wi-Fi Conguration Note
5D-Link DAP-1650 User Manual
Section 1 - Product Overview
System Requirements
Network Requirements
• An Ethernet-based Network
• IEEE 802.11ac/n/g/b/a wireless network (AP/Bridge/Repeater Mode)
• 10/100/1000 Ethernet
Web-based Conguration
Utility Requirements
Computer with the following:
• Windows®, Macintosh, or Linux-based operating system
• An installed Ethernet adapter
Browser Requirements:
• Internet Explorer® 7.0 or higher
• Mozilla Firefox 12.0 or higher
• Google™ Chrome 20.0 or higher
• Apple Safari 4.0 or higher
Windows® Users: Make sure you have the latest version of Java installed.
Visit www.java.com to download the latest version.
6D-Link DAP-1650 User Manual
Section 1 - Product Overview
Introduction
D-Link, an industry leader in networking, introduces the new D-Link DAP-1650 Wireless AC1200 Dual-band Gigabit Range Extender.
With the ability to transfer les with a maximum combined wireless signal rate of up to 1200 Mbps1, the DAP-1650 gives you
high-speed wireless network access for your home or oce.
The DAP-1650 is compliant with the latest draft IEEE 802.11ac standard, meaning that it can connect and inter-operate with
other 802.11ac compatible wireless client devices. The DAP-1650 is also backwards compatible with 802.11b/g/n devices. It
can be exibly congured to operate in 3 dierent modes: Access Point, Media Bridge, and Repeater. With its setup wizard,
the DAP-1650 ensures that you will be up and running on a wireless network in just a matter of minutes.
The DAP-1650 features Wi-Fi Protected Access (WPA-PSK/WPA2-PSK) to provide an enhanced level of security for wireless
data communications. The DAP-1650 also includes additional security features to keep your wireless connection safe from
unauthorized access.
The DAP-1650 also supports Wi-Fi Protected Setup (WPS), repeater and wireless client operation modes each capable of being
conveniently set up by using the PIN or Push Button methods.
1 Maximum wireless signal rate derived from draft 802.11ac specications. Actual data throughput will vary. Network conditions and environmental factors, including volume of
network trac, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors will adversely aect wireless signal range.
Wireless range and speed rates are D-Link RELATIVE performance measurements based on the wireless range and speed rates of a standard Wireless N product from D-Link.
7D-Link DAP-1650 User Manual
Section 1 - Product Overview
• Faster Wireless Networking - The DAP-1650 provides combined wireless speeds of up to 1200 Mbps1 . This capability
allows users to participate in real-time activities online, such as video streaming, online gaming, and real-time audio.
• Flexible Operation Modes - The DAP-1650 can operate as an Access Point, Repeater, and Media Bridge, meaning that
you can customize its operation to suit your specic networking requirements.
• Gigabit Ethernet Ports - The built-in Gigabit Ethernet ports facilitate a wired connection of up to 1 Gbps, meaning
that wired devices can also take advantage of the DAP-1650’s high-speed wireless capabilities.
• Compatible with IEEE 802.11n/g/b/a Devices - The DAP-1650 is still fully compatible with the 802.11n/g/b/a standards,
so it can connect with existing wireless adapters found on older devices.
• Robust Security - Use WPS (Wi-Fi Protected Setup) to create a secure connection to new devices in a matter of seconds
by simply pushing a button or entering a PIN. There’s also WPA/WPA2 security encryption, allowing you to customize
your network’s security.
• User-friendly Setup Wizard - Through its easy-to-use web-based user interface, the DAP-1650 lets you control what
information is accessible to those on the wireless network, whether from the Internet or from your company’s server.
Congure your device to your specic settings within minutes.
Features
1 Maximum wireless signal rate derived from draft 802.11ac specications. Actual data throughput will vary. Network conditions and environmental factors, including volume of
network trac, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors will adversely aect wireless signal range.
Wireless range and speed rates are D-Link RELATIVE performance measurements based on the wireless range and speed rates of a standard Wireless N product from D-Link.
8D-Link DAP-1650 User Manual
Section 1 - Product Overview
Hardware Overview
Connections
1 USB Port Connect a USB storage device to enable network wide access.
2 WPS Button Use WPS (Wi-Fi Protected Setup) to easily create a secure connection to new devices.
3 LAN Ports Connect 10/100/1000 Ethernet devices such as computers, switches, and hubs.
4 Power Switch Press to turn power to the unit on or o.
5 Power Receptor Receptor for the supplied power adapter.
6 Reset Button (base) Press the reset button to return the device back to it’s factory conditions.
1
3
4
5
2
6
9D-Link DAP-1650 User Manual
Section 1 - Product Overview
Hardware Overview
LEDs
2
1 Power LED A solid green light indicates a proper connection to the power supply. The light will blink
green during the WPS process. The light will blink orange during boot up.
2 Internet LED A solid light indicates connection on the Internet port. If the LED is orange, the connection
is good but the device cannot connect to the Internet.
1
10D-Link DAP-1650 User Manual
Section 2 - Installation
Installation
Please congure the DAP-1650 with a computer connected directly to the device. The following pages will explain the dierent
operational modes you can use.
Operation Modes
The DAP-1650 features three operation modes, enabling you to customize it to your networking requirements. Please refer to
the following sections to determine which mode is most suitable for your network.
• Access Point mode - page 11
• Repeater mode - page 12
• Media Bridge mode - page 13
11D-Link DAP-1650 User Manual
Section 2 - Installation
Access Point Mode
Access Point (AP) mode adds wireless capability to your existing wired network. The DAP-1650 acts as a central connection
point for any computer (client) that has an 802.11ac or backwards compatible 802.11n/g/b/a wireless network interface and
is within range of the access point. Clients must connect to the network name (SSID) broadcast by the access point in order
to wirelessly access the network. If wireless security is enabled on the access point, the client will need to enter a password to
connect. In Access Point mode, multiple clients can connect wirelessly to the network at the same time.
AP Mode
Internet DAP-1650
Router
Wireless Devices
12D-Link DAP-1650 User Manual
Section 2 - Installation
Repeater Mode
In Repeater mode, the DAP-1650 extends the range of your existing wireless network by repeating the wireless signal of
another access point or wireless router. The DAP-1650 and wireless router (if used) must be within range of each other. The
extended wireless network can use the same SSID and security settings as the existing network, or you can choose to specify
a new network name and security method.
Repeater Mode
Internet
DAP-1650
Wireless
Router
Wireless Devices
13D-Link DAP-1650 User Manual
Section 2 - Installation
Media Bridge Mode
In Media Bridge mode, the DAP-1650 creates a wireless link between two existing networks, and enables you to attach a wired
device to a wireless network.The two networks must be within wireless reach of one another in order for bridge mode to be
eective.
Media Bridge Mode
Internet DAP-1650Router/
Switch
Gaming console
14D-Link DAP-1650 User Manual
Section 2 - Installation
Wireless Installation Considerations
The DAP-1650 Wireless Dual Band Gigabit Range Extender lets you access your network using a wireless connection from virtually
anywhere within the operating range of the device. Keep in mind, however, that the number, thickness and location of walls,
ceilings, or other objects that the wireless signals must pass through, may limit the range. Typical ranges vary depending on
the types of materials and background RF (radio frequency) noise in your home or business. The key to maximizing wireless
range is to follow these basic guidelines:
• Keep the number of walls and ceilings between the device and other network devices to a minimum. Each
wall or ceiling can reduce your adapter’s range from 3-90 feet (1-30 meters.) Position your devices so that the
number of walls or ceilings is minimized.
• Be aware of the direct line between network devices. A wall that is 1.5 feet thick (.5 meters), at a
45-degree angle appears to be almost 3 feet (1 meter) thick. At a 2-degree angle it appears over 42 feet (14
meters) thick! Position devices so that the signal will travel straight through a wall or ceiling (instead of at an
angle) for better reception.
• Building materials make a dierence. A solid metal door or aluminum studs may have a negative eect on
range. Try to position access points, wireless routers, and computers so that the signal passes through drywall
or open doorways. Materials and objects such as glass, steel, metal, walls with insulation, water (sh tanks),
mirrors, le cabinets, brick, and concrete will degrade your wireless signal.
• Keep your product away (at least 3-6 feet or 1-2 meters) from electrical devices or appliances that generate RF
noise.
• If you are using 2.4 GHz cordless phones or X-10 (wireless products such as ceiling fans, lights, and home
security systems), your wireless connection may also be aected. Make sure your 2.4 GHz phone base is as far
away from your wireless devices as possible. The base transmits a signal even if the phone is not in use.
15D-Link DAP-1650 User Manual
Section 3 - Conguration
2. Use your iOS or Android mobile device to scan the QR code
to the right to download the SharePort Mobile app.
You can also search for the SharePort Mobile app directly in
the iOS App Store or Google Play.
SharePort Mobile App (iOS, Android)
3. From your iOS or Android mobile device, choose Settings.
Note: These steps are for the iOS version of the
app. The Android version may dier slightly. Settings
iOS Android
USB port
1. Plug your USB storage drive into the USB port.
Note: The DAP-1650 supports hard drives with up to
one terabyte of storage capacity.
When used in Access Point Mode, the SharePort Mobile app will allow you to access les from a USB storage drive that is plugged into your device.
You must enable le sharing from the Setup > Storage page (refer to page 22) for this app to work properly.
Conguration
16D-Link DAP-1650 User Manual
Section 2 - Installation
QRS Mobile App Setup
Search for “QRS Mobile” in the App Store or Google Play, or use
your mobile device to scan the QR codes on the right to download
the QRS Mobile app from the App Store (left) for your iOS device,
or from Google Play (right) for your Android device.
For iOS For Android
Connect to the Wi-Fi network that is displayed on the Wi-Fi
Conguration Card included in your package (ex: dlink-a8fa).
Then, enter the Wi-Fi password also printed on the Wi-Fi
Conguration Card (akbdj1936).
The DAP-1650 can be set up from your iOS or Android smartphone or tablet device using the QRS Mobile app.
17D-Link DAP-1650 User Manual
Section 3 - Conguration

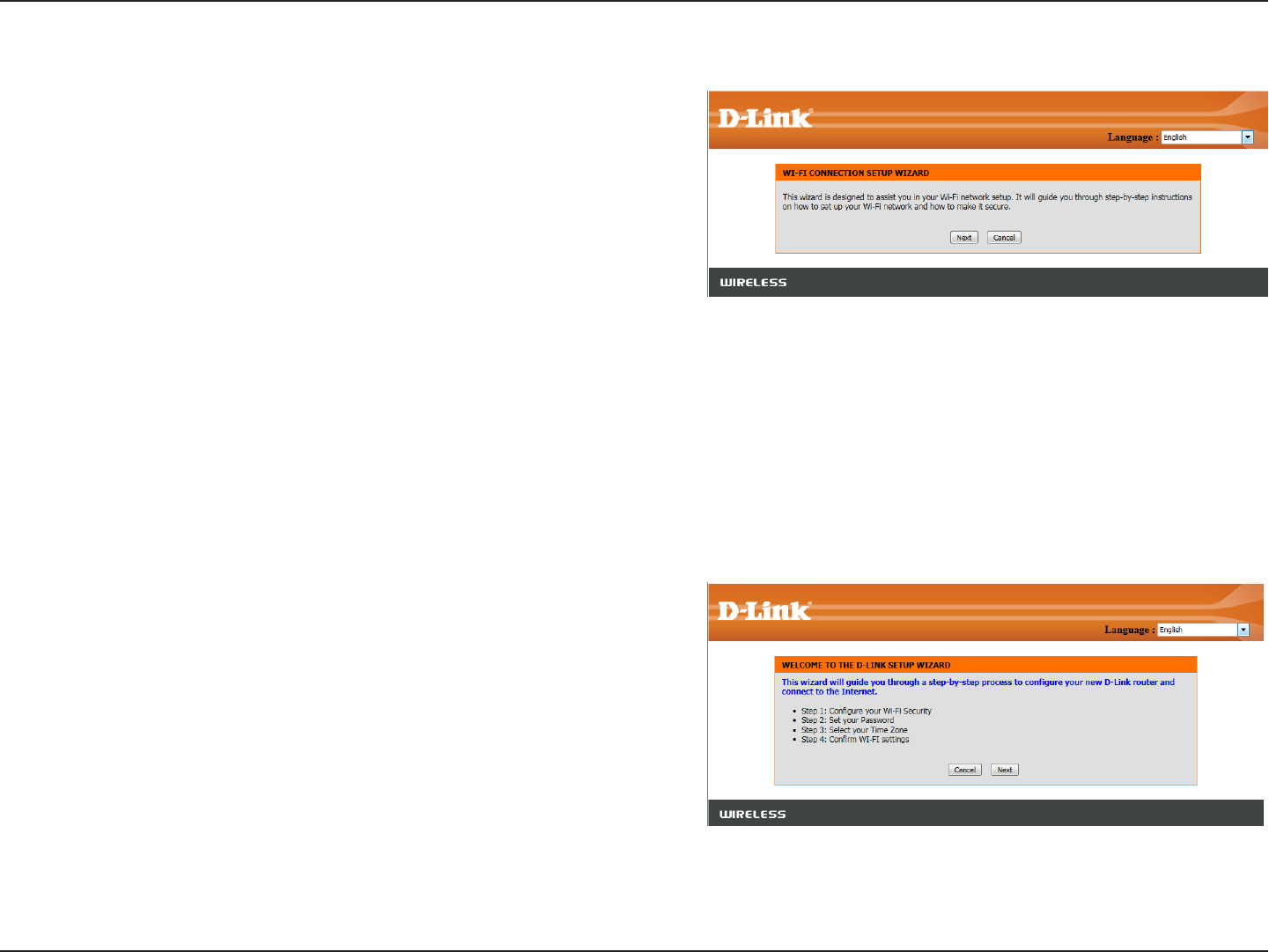

This section will show you how to congure your device using the web-based conguration utility.
Web-based Conguration Utility
If you wish to change the default settings or adjust the
conguration of the DAP-1650, you may use the web-based
conguration utility.
To access the conguration utility, open a web browser
such as Internet Explorer and enter http://dlinkap.local
in the address eld.
Select Admin from the drop-down menu and then enter
your password. Leave the password blank by default.
If you get a Page Cannot be Displayed error, please refer to
“Troubleshooting” on page 89 for assistance.
19D-Link DAP-1650 User Manual
Section 3 - Conguration
This wizard is designed to assist you in conguring your DAP-1650 as a repeater to extend the range of your existing wireless
network.
Repeater Mode
Select Repeater from the drop-down menu.
This screen will help you to set a network name (SSID) and security
password for your wireless network. Specify an SSID for both the
2.4 GHz and 5 GHz bands (these names must not be the same).
It is possible to use the same wireless security password for both
networks. If you wish to use a dierent password for each network
(recommended) enter the desired passwords in the 2.4 GHz Wi-Fi
Password and 5 GHz Wi-Fi Password elds.
Click Next to continue.
20D-Link DAP-1650 User Manual
Section 3 - Conguration
The wizard will scan for available wireless networks.
Select the network you wish to extend and click Next.
Enter your password for that wireless network and click Next.
A summary page will be displayed, showing the current settings for
your 2.4 GHz and 5 GHz wireless networks. It is recommended that
you make a note of this information for future reference.
Click Finish to save your network settings.
In order for your network settings to take eect the AP will reboot
automatically.
When the device has nished rebooting the main screen will display.
21D-Link DAP-1650 User Manual
Section 3 - Conguration
This wizard is designed to assist you in conguring your DAP-1650 as an access point.
Access Point Mode
Select Access Point from the drop-down menu. Then, click Next to
continue.
This screen will help you to set a network name (SSID) and security
password for your wireless network. Specify an SSID for both the
2.4 GHz and 5 GHz bands (these names must not be the same).
It is possible to use the same wireless security password for both
networks. If you wish to use a dierent password for each network
(recommended) enter the desired passwords in the 2.4 GHz Wi-Fi
Password and 5 GHz Wi-Fi Password elds.
Click Next to continue.
22D-Link DAP-1650 User Manual
Section 3 - Conguration
Enter your password. By default, Admin is selected as the username
and cannot be changed, and by default, the password is blank.
Check the Enable Graphical Authentication box to enable CAPTCHA
authentication for added security. Click Next to continue.
Select your time zone from the drop-down menu and click Next to
continue.
23D-Link DAP-1650 User Manual
Section 3 - Conguration
A summary page will be displayed, showing the current settings for
your 2.4 GHz and 5 GHz wireless networks. It is recommended that
you make a note of this information for future reference.
Click Finish to save your network settings.
In order for your network settings to take eect AP will reboot
automatically.
When the device has nished rebooting the main screen will display.
A dialog box will appear asking if you wish to save the address for
the web-based conguration utility in your browser’s bookmarks.
Click OK to save and you will be taken to your browser’s bookmark
settings to save the address. Click Cancel to continue without saving
a bookmark.
In order for your network settings to take eect the AP will reboot
automatically.
When the device has nished rebooting the main screen will display.
24D-Link DAP-1650 User Manual
Section 3 - Conguration

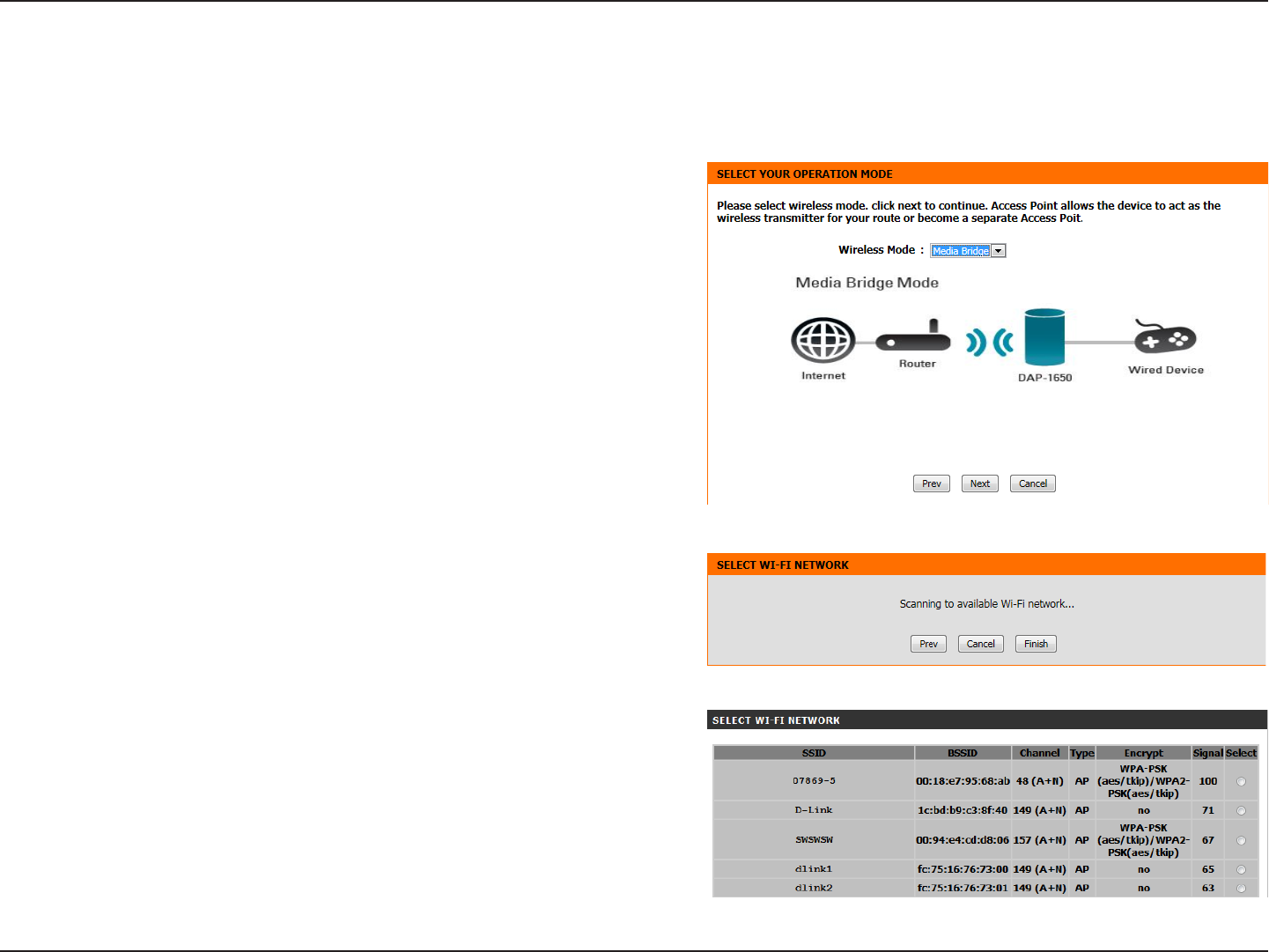

This wizard is designed to assist you in conguring your DAP-1650 as a media bridge to extend the range of your existing
wireless network. This mode is particularly useful for attaching a wired device to a wireless network.
Media Bridge Mode
Select Media Bridge from the drop-down menu.
The wizard will scan for available wireless networks.
Select the network you wish to extend and click Next.
25D-Link DAP-1650 User Manual
Section 3 - Conguration
Enter your password for that wireless network and click Next.
A summary page will be displayed, showing the current settings for
your wireless network. It is recommended that you make a note of
this information for future reference.
Click Finish to save your network settings.
In order for your network settings to take eect the AP will reboot
automatically.
When the device has nished rebooting the main screen will display.
26D-Link DAP-1650 User Manual
Section 3 - Conguration
Manual Conguration
Wireless Settings
You may also manually congure your DAP-1650 instead of running the setup wizard. Please refer to the following pages for
detailed instructions on how to manually congure the DAP-1650 for your desired operation mode.
Repeater mode - page 27
Access Point mode - page 31
Media Bridge mode - page 35
27D-Link DAP-1650 User Manual
Section 3 - Conguration
Wireless Mode:
Enable Wireless:
Wireless Network
Name:
802.11 Mode:
Enable Auto
Channel Scan:
Select Repeater from the drop-down menu.
Check the box to enable the wireless function for the 2.4 GHz
band. If you do not want to use wireless, uncheck the box to
disable all wireless functions. You may also set up a specic
time range (schedule). Select a schedule from the drop-down
menu or click Add New to create a new schedule. By default,
the schedule is set to Always.
Specify a network name (SSID) to identify the 5 GHz network.
This is the network name that wireless clients will search for
when connecting to your wireless network. This name should
be dierent to that of the 2.4 GHz network congured above.
Select one of the following:
802.11a Only - Select if you are only using 802.11a wireless
clients.
802.11n Only - Select if you are only using 802.11n wireless
clients.
Mixed 802.11n and 802.11a - Select if you are using a mix of
802.11n and 802.11a wireless clients.
802.11ac Only - Select if you are only using 802.11ac wireless
clients.
Mixed 802.11ac and 802.11n - Select if you are using a mix of
802.11ac and 802.11n wireless clients.
Mixed 802.11ac, 802.11n and 802.11a - Select if you are using
a mix of 802.11ac, 802.11n, and 802.11a wireless clients.
The Auto Channel Scan setting can be selected to allow the
DAP-1650 to automatically choose the channel with the least
amount of interference.
Repeater Mode
Repeater mode re-broadcasts the wireless signal of an existing network to increase coverage. The existing wireless signal can
be repeated by the DAP-1650 using both the 2.4 GHz and 5 GHz bands.
2.4 GHz Band
28D-Link DAP-1650 User Manual
Section 3 - Conguration
Wireless
Channel:
Transmission
Rate:
Channel
Width:
Visibility
Status:
Site Survey:
Security
Mode:
Indicates the channel setting for the DAP-1650. The channel can
be changed to t the channel setting for an existing wireless
network or to reduce interference in congested areas. If you
enable Auto Channel Scan, this option will not be available.
Use the drop-down menu to select the appropriate transmission
rate in Mbits per second. Many users will want to use the default
setting, Best (automatic).
Select the channel width:
Auto 20/40/80 - Select this option if you are using a combination
of 802.11ac, 802.11n, and other wireless devices.
Auto 20/40 - Select if you are using both 802.11n and non-
802.11n wireless devices.
20 MHz - Select if you are not using any 802.11n wireless clients.
Select whether you would like the network name (SSID) of your
wireless network to be Visible or Invisible to wireless clients.
If Invisible, the SSID of the DAP-1650 will not be seen by site
survey utilities, so wireless clients will have to manually enter
the SSID of your wireless network in order to connect to it.
Click Site Survey to display a list of wireless networks
in your area. You may select the wireless access point
to connect to.
For information on how to set up wireless security, please refer
to “Conguring Wireless Security” on page 36.
Click Save Settings at the bottom of the page to save the
current conguration.
29D-Link DAP-1650 User Manual
Section 3 - Conguration
Wireless Mode:
Enable Wireless:
Wireless
Network Name:
802.11 Mode:
Enable Auto
Channel Scan:
Wireless
Channel:
Select Repeater from the drop-down menu.
Check the box to enable the wireless function for the 5 GHz
band. If you do not want to use wireless, uncheck the box to
disable all wireless functions. You may also set up a specic
time range (schedule). Select a schedule from the drop-down
menu or click Add New to create a new schedule. By default,
the schedule is set to Always.
Specify a network name (SSID) to identify the 5 GHz network.
This is the network name that wireless clients will search for
when connecting to your wireless network. This name should
be dierent to that of the 2.4 GHz network congured above.
Select one of the following:
802.11a Only - Select if you are only using 802.11a wireless
clients.
802.11n Only - Select if you are only using 802.11n wireless
clients.
Mixed 802.11n and 802.11a - Select if you are using a mix of
802.11n and 802.11a wireless clients.
802.11ac Only - Select if you are only using 802.11ac wireless
clients.
Mixed 802.11ac and 802.11n - Select if you are using a mix of
802.11ac and 802.11n wireless clients.
Mixed 802.11ac, 802.11n and 802.11a - Select if you are using
a mix of 802.11ac, 802.11n, and 802.11a wireless clients.
The Auto Channel Scan setting can be selected to allow the
DAP-1650 to automatically choose the channel with the least
amount of interference.
Indicates the channel setting for the DAP-1650. The channel
can be changed to t the channel setting for an existing wireless
network or to reduce interference in congested areas. If you
enable Auto Channel Scan, this option will not be available.
5 GHz Band
30D-Link DAP-1650 User Manual
Section 3 - Conguration
Transmission
Rate:
Channel
Width:
Visibility
Status:
Security
Mode:
Use the drop-down menu to select the appropriate transmission
rate in Mbits per second. Many users will want to use the default
setting, Best (automatic).
Select the channel width:
Auto 20/40/80 - Select this option if you are using a combination
of 802.11ac, 802.11n, and other wireless devices.
Auto 20/40 - Select if you are using both 802.11n and non-
802.11n wireless devices.
20 MHz - Select if you are not using any 802.11n wireless clients.
Select whether you would like the network name (SSID) of your
wireless network to be Visible or Invisible to wireless clients.
If Invisible, the SSID of the DAP-1650 will not be seen by site
survey utilities, so wireless clients will have to manually enter
the SSID of your wireless network in order to connect to it.
For information on how to set up wireless security, please refer
to “Conguring Wireless Security” on page 36.
Click Save Settings at the bottom of the page to save the
current conguration.
31D-Link DAP-1650 User Manual
Section 3 - Conguration
Access Point Mode
Wireless Mode:
Enable Wireless:
Wireless
Network Name:
802.11 Mode:
Enable Auto
Channel Scan:
Wireless
Channel:
Transmission
Rate:
Select Access Point from the drop-down menu.
Check the box to enable the wireless function for the 2.4 GHz
band. If you do not want to use wireless, uncheck the box to
disable all wireless functions. You may also set up a specic
time range (schedule). Select a schedule from the drop-down
menu or click Add New to create a new schedule. By default,
the schedule is set to Always.
Specify a network name (SSID) to identify the 2.4 GHz network.
This is the network name that wireless clients will search for
when connecting to your wireless network.
Select one of the following:
802.11n Only - Select if you are only using 802.11n wireless
clients.
Mixed 802.11n and 802.11g - Select if you are using a mix of
802.11n and 802.11g wireless clients.
Mixed 802.11n, 802.11g and 802.11b - Select if you are using
a mix of 802.11n, 802.11g, and 802.11b wireless clients.
The Auto Channel Scan setting can be selected to allow the
DAP-1650 to automatically choose the channel with the least
amount of interference.
Indicates the channel setting for the DAP-1650. The channel
can be changed to t the channel setting for an existing wireless
network or to reduce interference in congested areas. If you
enable Auto Channel Scan, this option will not be available.
Use the drop-down menu to select the appropriate transmission
rate in Mbits per second. Many users will want to use the default
setting, Best (automatic).
2.4 GHz Band
32D-Link DAP-1650 User Manual
Section 3 - Conguration
Channel
Width:
Visibility
Status:
Security
Mode:
Select the channel width:
Auto 20/40 - Select if you are using both 802.11n and non-
802.11n wireless devices.
20 MHz - Select if you are not using any 802.11n wireless clients.
Select whether you would like the network name (SSID) of your
wireless network to be Visible or Invisible to wireless clients.
If Invisible, the SSID of the DAP-1650 will not be seen by site
survey utilities, so wireless clients will have to manually enter
the SSID of your wireless network in order to connect to it.
For information on how to set up wireless security, please refer
to “Conguring Wireless Security” on page 36.
33D-Link DAP-1650 User Manual
Section 3 - Conguration
5 GHz Band
Check the box to enable the wireless function for the 5 GHz
band. If you do not want to use wireless, uncheck the box to
disable all wireless functions. You may also set up a specic
time range (schedule). Select a schedule from the drop-down
menu or click Add New to create a new schedule. By default,
the schedule is set to Always.
Specify a network name (SSID) to identify the 5 GHz network.
This is the network name that wireless clients will search for
when connecting to your wireless network. This name should
be dierent to that of the 2.4 GHz network congured above.
Select one of the following:
802.11a Only - Select if you are only using 802.11a wireless
clients.
802.11n Only - Select if you are only using 802.11n wireless
clients.
Mixed 802.11n and 802.11a - Select if you are using a mix of
802.11n and 802.11a wireless clients.
802.11ac Only - Select if you are only using 802.11ac wireless
clients.
Mixed 802.11ac and 802.11n - Select if you are using a mix of
802.11ac and 802.11n wireless clients.
Mixed 802.11ac, 802.11n and 802.11a - Select if you are using
a mix of 802.11ac, 802.11n, and 802.11a wireless clients.
The Auto Channel Scan setting can be selected to allow the
DAP-1650 to automatically choose the channel with the least
amount of interference.
Indicates the channel setting for the DAP-1650. The channel
can be changed to t the channel setting for an existing wireless
network or to reduce interference in congested areas. If you
enable Auto Channel Scan, this option will not be available.
Enable Wireless:
Wireless
Network Name:
802.11 Mode:
Enable Auto
Channel Scan:
Wireless
Channel:
34D-Link DAP-1650 User Manual
Section 3 - Conguration
Use the drop-down menu to select the appropriate transmission
rate in Mbits per second. Many users will want to use the default
setting, Best (automatic).
Select the channel width:
Auto 20/40/80 - Select this option if you are using a combination
of 802.11ac, 802.11n, and other wireless devices.
Auto 20/40 - Select if you are using both 802.11n and non-
802.11n wireless devices.
20 MHz - Select if you are not using any 802.11n wireless clients.
Select whether you would like the network name (SSID) of your
wireless network to be Visible or Invisible to wireless clients.
If Invisible, the SSID of the DAP-1650 will not be seen by site
survey utilities, so wireless clients will have to manually enter
the SSID of your wireless network in order to connect to it.
For information on how to set up wireless security, please refer
to “Conguring Wireless Security” on page 36.
Click Save Settings at the bottom of the page to save the
current conguration.
Transmission
Rate:
Channel Width:
Visibility
Status:
Security Mode:
35D-Link DAP-1650 User Manual
Section 3 - Conguration
Wireless Mode:
Site Survey:
Enable Wireless:
Wireless MAC
clone:
MAC Source:
Security Mode:
Select Media Bridge from the drop-down menu.
Click this button to scan for wireless networks. Select the
wireless network you want the bridge to use and it’s name will
automatically be added to the Wireless Network Settings. All
APs on the bridge must be using the same wireless channel.
Check the box to enable the wireless function for the 5 GHz
band. If you do not want to use wireless, uncheck the box to
disable all wireless functions. You may also set up a specic
time range (schedule). Select a schedule from the drop-down
menu or click Add New to create a new schedule. By default,
the schedule is set to Always.
Check the box to enable the MAC clone function.
Select Auto or Manual from the drop down menu to scan for
the MAC address you wish to bridge. Select the MAC address
from the scanned results and the MAC address will automatically
be added.
For information on how to set up wireless security, please refer
to “Conguring Wireless Security” on page 36.
Click Save Settings at the bottom of the page to save the
current conguration.
Media Bridge Mode
Note: The Bridge mode is not completely specied in the Wi-Fi or IEEE standards. This mode will work with other DAP-1650 units. Communication with
other APs (even other D-Link APs) is not guaranteed.
36D-Link DAP-1650 User Manual
Section 3 - Conguration
Conguring Wireless Security
Wireless security encryption prevents unauthorized users from accessing your wireless network. The DAP-1650 features two
methods of wireless security encryption: Wired Equivalent Privacy (WEP), and Wi-Fi Protected Access (WPA). It is recommended
that you use WPA security if your wireless devices support this standard, as it is more secure than the older WEP standard. For
more details of wireless security standards, please refer to “Wireless Security” on page 76.
Note: Unless otherwise specied, the security conguration process is the same for both the 2.4 GHz and 5 GHz bands.
WEP
Security Mode:
WEP Encryption:
WEP Key 1:
Authentication:
Select WEP from the drop-down menu.
The WEP standard oers two levels of encryption: 64-bit and
128-bit. Each level has the option of a key (password) consisting
of either HEX digits or ASCII characters:
64Bit (10 hex digits) - Uses a key consisting of 10 hex digits
(0-9, A-F).
64Bit (5 ascii characters) - Uses a key consisting of 5 ASCII
characters (0-9, A-Z, plus symbols).
128Bit (26 hex digits) - Uses a key consisting of 26 hex digits
(0-9, A-F).
128bit (13 ascii characters) - Uses a key consisting of 13 ASCII
characters (0-9, A-Z, plus symbols).
Enter the desired WEP key (password) for your wireless network.
The key should adhere to the requirements of WEP encryption
method specied above.
Select an authentication method from the drop-down menu
Click Save Settings at the bottom of the page to save the
current conguration.
37D-Link DAP-1650 User Manual
Section 3 - Conguration
WPA-Personal
Security Mode:
WPA Mode:
Cipher Type:
Pre-Shared Key:
Select WPA-Personal from the drop-down menu.
There are two versions of WPA supported by the DAP-1650:
WPA and WPA2. It is recommended that you use Auto(WPA
or WPA2) so that the WPA2 version will be used if connecting
wireless clients support it.
Choose a cipher type from the drop-down menu.
Enter the desired pre-shared key (password) for the wireless
network. Wireless clients will need this key in order to connect
to your wireless network.
Click Save Settings at the bottom of the page to save the
current conguration.
WPA-Enterprise
Security Mode:
WPA Mode:
Cipher Type:
RADIUS Server IP
Address:
Pre-Shared Key:
Radius Server
Shared Secret:
Select WPA-Enterprise from the drop-down menu.
There are two versions of WPA supported by the DAP-1650;
WPA and WPA2. It is recommended that you use Auto(WPA
or WPA2) so that the WPA2 version will be used if connecting
wireless clients support it.
Choose a cipher type from the drop-down menu.
Enter the IP address for your network’s RADIUS authentication
server.
Enter the port for the RADIUS authentication server.
Enter the shared secret required by the RADIUS authentication
server.
WPA-Enterprise uses a RADIUS authentication server to provide centralized authentication for wireless access. If you are missing any of the information
required for this setup, please contact your network administrator.
38D-Link DAP-1650 User Manual
Section 3 - Conguration
Advanced:
Second RADIUS
Server IP
Address:
Second Pre-
Shared Key:
Second Radius
Server Shared
Secret:
Click on the Advanced button to display the setup options for
an optional backup RADIUS server conguration.
Enter the IP address for your network’s backup RADIUS
authentication server.
Enter the port for the backup RADIUS authentication server.
Enter the shared secret required by the backup RADIUS
authentication server.
Click Save Settings at the bottom of the page to save the
current conguration.
39D-Link DAP-1650 User Manual
Section 3 - Conguration
Network Settings
The Network Settings page enables you to congure the Local Area Network (LAN) settings for the device. From this page you
can adjust your local network’s IP address settings, and congure IPv6.
Device Name:
LAN IPv4
Connection Type:
IP Address:
Subnet Mask:
Gateway Address:
Primary DNS
Server:
Secondary DNS
Server:
You can change the name of your device to make it easier to
identify. Enter a name for the device in the eld provided. If
you change the device name, you should use this name in your
web browser address bar when trying to access the web-based
conguration utility.
Example: http://devicename
Select how you would like to congure the device’s IP address
settings from the drop-down menu:
Dynamic IP(DHCP) - The device will request an IP address from
the DHCP server that it is connected to.
Static IP - You can manually specify the IP address settings for
the device.
Enter the IP address that you want to specify for the device
(Static IP only).
Enter the subnet mask to be used by the device (Static IP only).
Enter the default gateway address to be used by the device
(Static IP only).
Enter the primary DNS server address to be used by the device
(Static IP only).
Enter the secondary DNS server address to be used by the device
(Static IP only).
Click Save Settings at the bottom of the page to save the
current conguration.
40D-Link DAP-1650 User Manual
Section 3 - Conguration
My IPv6
Connection is:
LAN IPv6 Link-
Local Address:
Select Link-Local Only from the drop-down menu. This will set
the device’s local IPv6 address.
The device’s local IPv6 address will be displayed here. This
address should be used to access the web-based conguration
utility through the IPv6 protocol.
Click Save Settings at the bottom of the page to save the current
conguration.
My IPv6
Connection is:
LAN IPv6
Address:
Subnet Prex
Length:
Default Gateway:
Primary DNS
Server:
Secondary DNS
Server:
Select Static IPv6 from the drop-down menu. This will allow
you to assign a static IPv6 address to the device.
The device’s local IPv6 address will be displayed here. This
address should be used to access the web-based conguration
utility through the IPv6 protocol.
Enter the prex length for IPv6 IP addresses on your network.
Enter the default IPv6 gateway address for your network.
Enter the primary IPv6 DNS server address for your network.
Enter the secondary IPv6 DNS server address for your network.
Click Save Settings at the bottom of the page to save the current
conguration.
41D-Link DAP-1650 User Manual
Section 3 - Conguration
My IPv6
Connection is:
IPv6 DNS
Settings:
Primary DNS
Server:
Secondary DNS
Server:
Select Autoconguration (SLAAC/DHCPv6) from the drop-
down menu. The device will request IPv6 settings from a DHCPv6
server on your network.
You can select to have the device automatically obtain DNS
server settings from the DHCP server, or you can specify IPv6
DNS server settings to be used. If you select Obtain IPv6 DNS
automatically, no further conguration is required.
Enter the primary IPv6 DNS server address to be used.
Enter the secondary IPv6 DNS server address to be used.
Click Save Settings at the bottom of the page to save the current
conguration.
42D-Link DAP-1650 User Manual
Section 3 - Conguration
Storage
This page allows the user to use a web browser to remotely access les
stored on a USB storage drive plugged into the device.
You can access storage device by http://shareport.local when you
enable SharePort Web Access
The following parameters will be available for conguration:
Enable SharePort Web
Access:
Tick this option to enable the share port
web access feature.
HTTP Access Port: Enter the HTTP Access Port number used
here. By default, this value is 8181.
HTTPS Access Port: Enter the HTTPS Access Port number
used here. By default, this value is 4433.
Allow Remote Access: Tick this option the allow remote access to this device.
In the User Creation section, the user can create and modify usernames and passwords.
The following parameters will be available for conguration:
User Name: In the User Name eld we can enter the
new username that will be created. Alter-
natively, if we want to modify an existing
user account, select a username from
the drop-down menu. It will automati-
cally be added to the User Name eld for
modication.
Password: In the Password eld, the user can enter the password that will be associated with the user account.
Verify Password: In the Verify Password eld, the user can re-enter the password that will be associated with the user account.
Click the Add/Edit button the add a new user account or modify an existing account.
43D-Link DAP-1650 User Manual
Section 3 - Conguration
In the User List section, the user can modify or delete dierent user settings for each account.
The following parameters will be available in the display.
No. Displays the number of the entry in the
user list.
User Name: Displays the user name of the entry in the
list.
Access Path: Displays the access path of the entry in
the list.
Permission: Displays the permission settings of the
entry in the list.
Click the Edit icon to edit the access path and permission, for each user.
Click the Delete icon to delete an account from the list.
After click on the Edit button, this window will appear.
The following parameters will be available for conguration:
User Name: This eld will display the current user
name that will be modied.
Folder: This led will display the access path that
this user will have access to, after logging
in. Click the Browse button to navigate
to a folder, located on the USB storage
device.
Permission: Here the user can select the appropriate
permission setting for this user account.
Permissions available for selection, from
the drop-down menu are Read Only and
Read/Write.
Read Only permission will only allow this account to read data stored on the USB storage device within the con-
strains of the access path specied. Read/Write permission will allow this account to read and write data to and
from the USB storage device within the constrains of the access path specied.
Click the Append button to add a blank account with the access path and permission specied.
Click the OK button to accept the changes made for the existing account.
Click the Cancel button to discard the changes made.
44D-Link DAP-1650 User Manual
Section 3 - Conguration
In the Number Devices section, the user can view information about the external USB storage devices inserted into the USB port of this device.
The following parameters will be available in the display
Number of Devices: This eld will display the number of USB
storage devices that are attached to the
USB port of the device.
Device: This eld will display the USB storage
device’s name.
Total Space: This eld will display the total space that is available on the USB storage device attached.
Free Space: This eld will display the free space that is available on the USB storage device attached.
In the HTTP Storage Link section, the user can use this link to connect to the drive remotely after logging in with a user account.
Notice the path of the link(s) provided will point the external interface
of this device. If no DDNS account is specied on the Dynamic DNS
page, the WAN IP address will be used. If, however, a DDNS account is
specied, then the domain name will be used.
Click on the Save Settings button to accept the changes made.
Click on the Don’t Save Settings button to discard the changes made.
45D-Link DAP-1650 User Manual
Section 3 - Conguration
Media Server
This page will allow you to enable a DLNA Media Server or enable the iTunes Server. DLNA (Digital Living Network Alliance) is the standard for
the interoperability of Network Media Devices (NMDs). The user can enjoy multimedia applications (music, pictures and videos) on your network
connected PC or media devices. If you agree to share media with devices, any computer or device that connects to your network can play your
shared music, pictures and videos.
Note: The shared media may not be secure. Allowing any devices to stream is recommended only on secure networks.
Select whether to enable or disable the DLNA Media Server
functions.
Choose a name for your DLNA media server so that it can be
found.
Choose the location of the folder you wish to share or check
the box to use the root folder of the entire drive.
Select whether to enable or disable the iTunes Server functions.
Choose the location of the iTunes Library folder you wish to
share or check the box to use the root folder if it is located on
the root folder of the connected drive.
DLNA Server:
DLNA Server
Name:
Folder:
iTunes Server:
Folder:
46D-Link DAP-1650 User Manual
Section 3 - Conguration
Advanced
This section allows you to congure the advanced parameters of your DAP-1650. There will be dierent advanced features
available for conguration based on the mode in which your device is operating. The instructions below are listed according
to operation mode.
Access Point Mode
Access Control
MAC ltering allows you to control wireless access to your network according to clients’ MAC addresses.
Congure MAC
Filtering:
Checkbox:
MAC Address:
Use the drop-down menu to select your desired MAC ltering
method:
Turn MAC Filtering OFF - No MAC ltering will be implemented.
Turn MAC Filtering ON and ALLOW - MAC ltering will be
turned on, and only MAC addresses listed in the table below
will be allowed access.
Turn MAC Filtering ON and DENY - MAC ltering will be turned
on, and only MAC addresses listed in the table below will be
denied access.
Check the box to include this MAC address in the MAC ltering
rules.
Enter the MAC address of the client that you wish to lter. If
the client is currently connected to the access point, you can
select it from the Client List drop-down menu, and click << to
automatically populate the eld.
Click Clear to clear all elds. Click Save Settings at the bottom
of the page to save the current conguration.
47D-Link DAP-1650 User Manual
Section 3 - Conguration
Transmit Power:
WMM Enable:
Short GI:
WLAN Partition:
Ethernet to WLAN
Access:
HT 20/40
Coexistance:
IGMP Snooping:
Select the desired transmission power of the wireless radio from
the drop-down menu.
Check the box to enable wireless multimedia (WMM), a
QoS engine which can help to reduce lag and latency when
transmitting multimedia over your wireless connection.
Enabling a short guard interval (GI) can increase throughput.
However, it can also increase error rate in some installations, due
to increased sensitivity to radio-frequency reections. Select
the option that works best for your installation.
Enabling this option means that connection wireless clients will
not be able to communicate with one another, but will still have
access to network resources such as the Internet.
When this is enabled there is no barrier to data ow from the
Ethernet to wireless devices using the access point. If this is
disabled, all data from the Ethernet to associated wireless
devices is blocked. Wireless devices can still send data to the
Ethernet
Enable this option to reduce interference from other wireless
networks in your area. If the channel width is operating at
40 MHz and there is another wireless network’s channel over-
lapping and causing interference, the device will automatically
change to 20 MHz.
Enabling this option allows the access point to listen for internet
group management protocol (IGMP) trac, which can help to
detect clients which require multicast streams.
Click Save Settings at the bottom of the page to save the
current conguration.
Advanced Wireless
On this page, you can adjust the advanced wireless settings for each wireless band.
48D-Link DAP-1650 User Manual
Section 3 - Conguration
Guest Zone
Enable Guest
Zone:
Wireless Band:
Wireless Network
Name:
Security Mode:
WLAN Partition:
Check to enable the guest zone feature. Select the schedule
of time when the guest zone will be active. The schedule may
be set to Always, which will allow the particular service to
always be enabled. You can create your own times in the Tools
> Schedules section.
Displays the wireless band you are creating a zone for.
Enter a wireless network name (SSID) that is dierent from your
main wireless network.
Refer to “Wireless Security” on page 76 for more information
regarding wireless security.
Tick the check box to prevent the guest clients from accessing
other guests in the guest zone.
The guest zone feature will allow you to create temporary zones that can be used by guests to access the Internet. These zones
will be separate from your main wireless network.
49D-Link DAP-1650 User Manual
Section 3 - Conguration
QoS
The QoS Engine option helps improve your network gaming performance by prioritizing applications. By default the QoS engine settings are
disabled and application priority is not classied automatically.
This option is disabled by default. Enable this option for better
performance and experience with online games and other
interactive applications, such as VoIP.
Select from the menu to priortize by port or by protocol. If you
select by protocol the adavnced QoS panel will appear below.
Select the port and the type of trac you wish to prioitize on
that port.
Use this panel to ne-tune your network trac prioritzation
by protocol.
Enable QoS
Engine:
QoS Type:
Lan Port 1-4:
Advanced QOS:
50D-Link DAP-1650 User Manual
Section 3 - Conguration
Wi-Fi Protected Setup
This section allows you to congure how the DAP-1650 uses Wi-Fi Protected Setup (WPS) to create a secure wireless connection.
Enable:
Lock WPS-PIN
Setup:
Current PIN:
Check the box to enable WPS.
Check the box to disable WPS using the PIN method. If this
option is selected, wireless clients will only be able to use the
WPS-PBC (push-button connection) method.
Displays the current PIN which can be used by wireless clients to
connect to the device. Click Reset PIN to Default to return the
PIN to its factory default. Click Generate New PIN to randomly
generate a new PIN.
Click Add Wireless Device With WPS to activate the WPS-PBC
(push-button) method. You will then have 120 seconds to press
the WPS button on the new device that you wish to connect.
Click Save Settings at the bottom of the page to save the
current conguration.
51D-Link DAP-1650 User Manual
Section 3 - Conguration
User Limit
Here, you can set a maximum number of users that can be connected to the device at any one time for each wireless band.
Enable User
Limit:
User Limit:
Check the box to enable the user limit function.
Enter a number of users (between 1-32).
Click Save Settings at the bottom of the page to save the
current conguration.
52D-Link DAP-1650 User Manual
Section 3 - Conguration
Repeater Mode
Advanced Wireless
2.4 GHz Band
Transmit Power: Select the desired transmission power of the wireless radio from
the drop-down menu.
Click Save Settings at the bottom of the page to save the
current conguration.
5 GHz Band
Transmit Power: Select the desired transmission power of the wireless radio from
the drop-down menu.
Click Save Settings at the bottom of the page to save the
current conguration.
53D-Link DAP-1650 User Manual
Section 3 - Conguration
Wi-Fi Protected Setup
This section allows you to congure how the DAP-1650 uses Wi-Fi Protected Setup (WPS) to create a secure wireless connection.
Enable:
Lock WPS-PIN
Setup:
Current PIN:
Check the box to enable WPS.
Check the box to disable WPS using the PIN method. If this
option is selected, wireless clients will only be able to use the
WPS-PBC (push-button connection) method.
Displays the current PIN which can be used by wireless clients to
connect to the device. Click Reset PIN to Default to return the
PIN to its factory default. Click Generate New PIN to randomly
generate a new PIN.
Click Add Wireless Device With WPS to activate the WPS-PBC
(push-button) method. You will then have 120 seconds to press
the WPS button on the new device that you wish to connect.
Click Save Settings at the bottom of the page to save the
current conguration.
54D-Link DAP-1650 User Manual
Section 3 - Conguration
Media Bridge Mode
Advanced Wireless
2.4 GHz Band
Transmit Power: Select the desired transmission power of the wireless radio from
the drop-down menu.
Click Save Settings at the bottom of the page to save the
current conguration.
5 GHz Band
Transmit Power: Select the desired transmission power of the wireless radio from
the drop-down menu.
Click Save Settings at the bottom of the page to save the
current conguration.
55D-Link DAP-1650 User Manual
Section 3 - Conguration
Wi-Fi Protected Setup
This section allows you to congure how the DAP-1650 uses Wi-Fi Protected Setup (WPS) to create a secure wireless connection.
Enable:
Lock WPS-PIN
Setup:
Current PIN:
Check the box to enable WPS.
Check the box to disable WPS using the PIN method. If this
option is selected, wireless clients will only be able to use the
WPS-PBC (push-button connection) method.
Displays the current PIN which can be used by wireless clients to
connect to the device. Click Reset PIN to Default to return the
PIN to its factory default. Click Generate New PIN to randomly
generate a new PIN.
Click Add Wireless Device With WPS to activate the WPS-PBC
(push-button) method. You will then have 120 seconds to press
the WPS button on the new device that you wish to connect.
Click Save Settings at the bottom of the page to save the
current conguration.
56D-Link DAP-1650 User Manual
Section 3 - Conguration
New Password:
Conrm
Password:
Gateway Name:
Enable
Graphical
Authentication:
To change the password for the web-based configuration
utility’s admin account, enter a new password in the field
provided.
Re-enter the new password in this eld.
This allows you create a user friendly name for your device.
Click Save Settings at the bottom of the page to save the
current conguration.
Maintenance
The maintenance section allows you to adjust the administrative settings of the device such as time and date, administrator
password, and update the device’s rmware. .
Access Point Mode
Admin
57D-Link DAP-1650 User Manual
Section 3 - Conguration
System
The system page can be used to save and restore the device’s conguration, as well as restore the factory default settings.
Click Save to save the current conguration to a le on your
local computer. After clicking, a Save File dialog will appear,
prompting you to save the conguration le on your computer.
Click Browse to locate a previously saved conguration le
on your local computer. Once the le has been located, click
Upload Settings to apply the conguration in the le to the
device.
Note: This will overwrite any current conguration.
Click Restore Device to reset the DAP-1650’s settings to the
factory defaults.
Warning: This will erase all current settings and cannot be
undone.
Click Reboot to reboot the device. You will need to log in to the
device again once the reboot has been completed.
Click to remove a language pack from the device.
Save Settings to
Local Hard Drive:
Load Settings
From Local Hard
Drive:
Restore to
Factory Default
Settings:
Reboot the
Device:
Remove
Language Pack:
58D-Link DAP-1650 User Manual
Section 3 - Conguration
Firmware
This section displays information about the device’s current
rmware and language pack.
Note: The device must have an active Internet connected to
check for rmware and language pack updates.
If the above check for rmware detected updates, the details
will displayed here. Click Download to download the update
les to your computer.
Click Browse to locate a rmware le on your computer. Once
located, click Upload to commence the rmware upgrade
process. It is recommended that you save your current device
configuration using the system page before you begin a
rmware upgrade.
Warning: You must use a wired connection to the device to
update the rmware.
Click Browse to locate a language pack le on your computer.
Once located, click Upload to commence the language pack
upgrade process.
Use the rmware page to update the device’s rmware, and add or remove language packs.
Firmware
Information:
Check the Latest
Firmware and
Language Pack
Versions:
Firmware
Upgrade:
Language Pack
Upgrade:
59D-Link DAP-1650 User Manual
Section 3 - Conguration
Time
Displays the device’s current time and date.
Select your time zone from the drop-down menu.
Check the box to have the device automatically adjust the clock
for daylight saving.
Select the oset for beginning daylight saving from the drop-
down menu.
Use the drop-down menus to set the Start and End dates for
daylight saving time.
Check the box to have the device automatically synchronize its
clock and calendar with D-Link’s Internet time server.
Type the address of the NTP server you would like to use in the
eld provided, or choose a pre-determined server from the
drop-down menu and click << to populate the eld.
Use the drop-down menus to manually congure the time and
date. This option will not be available if Enable NTP Server is
selected above.
Click Save Settings at the bottom of the page to save the
current conguration.
Use the time page to congure the time and date settings of the device. You can also congure daylight saving adjustments
and synchronize the device’s clock and calendar with an internet-based network time protocol (NTP) server.
Time:
Time Zone:
Enable Daylight
Saving:
Daylight Saving
Oset:
Daylight Saving
Dates:
Enable NTP
Server:
NTP Server Used:
Set the Time and
Date Manually:
60D-Link DAP-1650 User Manual
Section 3 - Conguration
System Check
Enter the host name or IP address for which you wish to conduct
a ping test.
Enter the host name or IPv6 address for which you wish to
conduct a ping test.
Displays results of the ping test above.
Host Name or IP
Address:
Host Name
or IPv6
Address:
Ping
Result:
61D-Link DAP-1650 User Manual
Section 3 - Conguration
Schedules
Enter a name to identity the new schedule rule.
Select All Week to make the rule active for all days of the week.
Select Select Day(s) to determine specic days on which to
activate the rule. Days can be selected by checking the boxes
below.
Check the box to make the rule active all day for the days
selected above.
Select whether you would like to use 24-hour or 12-hour time
format.
Enter the time for the rule to become active on each of the
days selected above.
Enter the time for the rule to become inactive on each of the
days selected above.
Click Add to add the rule to the Schedule Rules List. Click Cancel
to clear all elds.
This table displays a summary of all current schedule rules. Click
on the Edit icon to edit the rule, or click on the Delete icon to
delete the rule from the list.
Use the schedules page to create new schedule rules for various device functions. Schedules created here will be available for
selection from schedule selection drop-down menus throughout the conguration utility.
Name:
Day(s):
All Day-24 hrs:
Time format:
Start Time:
End Time:
Schedule Rules
List.
62D-Link DAP-1650 User Manual
Section 3 - Conguration
Repeater Mode
Admin
New Password:
Conrm
Password:
Gateway Name:
Enable
Graphical
Authentication:
To change the password for the web-based configuration
utility’s admin account, enter a new password in the field
provided.
Re-enter the new password in this eld.
This allows you create a user friendly name for your device.
Click Save Settings at the bottom of the page to save the
current conguration.
63D-Link DAP-1650 User Manual
Section 3 - Conguration
System
The system page can be used to save and restore the device’s conguration, as well as restore the factory default settings.
Click Save to save the current conguration to a le on your
local computer. After clicking, a Save File dialog will appear,
prompting you to save the conguration le on your computer.
Click Browse to locate a previously saved conguration le
on your local computer. Once the le has been located, click
Upload Settings to apply the conguration in the le to the
device.
Note: This will overwrite any current conguration.
Click Restore Device to reset the DAP-1650’s settings to the
factory defaults.
Warning: This will erase all current settings and cannot be
undone.
Click Reboot to reboot the device. You will need to log in to the
device again once the reboot has been completed.
Click to remove a language pack from the device.
Save Settings to
Local Hard Drive:
Load Settings
From Local Hard
Drive:
Restore to
Factory Default
Settings:
Reboot the
Device:
Remove
Language Pack:
64D-Link DAP-1650 User Manual
Section 3 - Conguration
Firmware
This section displays information about the device’s current
rmware and language pack.
Note: The device must have an active Internet connected to
check for rmware and language pack updates.
If the above check for rmware detected updates, the details
will displayed here. Click Download to download the update
les to your computer.
Click Browse to locate a rmware le on your computer. Once
located, click Upload to commence the rmware upgrade
process. It is recommended that you save your current device
configuration using the system page before you begin a
rmware upgrade.
Warning: You must use a wired connection to the device to
update the rmware.
Click Browse to locate a language pack le on your computer.
Once located, click Upload to commence the language pack
upgrade process.
Use the rmware page to update the device’s rmware, and add or remove language packs.
Firmware
Information:
Check the Latest
Firmware and
Language Pack
Versions:
Firmware
Upgrade:
Language Pack
Upgrade:
65D-Link DAP-1650 User Manual
Section 3 - Conguration
Time
Displays the device’s current time and date.
Select your time zone from the drop-down menu.
Check the box to have the device automatically adjust the clock
for daylight saving.
Select the oset for beginning daylight saving from the drop-
down menu.
Use the drop-down menus to set the Start and End dates for
daylight saving time.
Check the box to have the device automatically synchronize its
clock and calendar with D-Link’s Internet time server.
Type the address of the NTP server you would like to use in the
eld provided, or choose a pre-determined server from the
drop-down menu and click << to populate the eld.
Use the drop-down menus to manually congure the time and
date. This option will not be available if Enable NTP Server is
selected above.
Click Save Settings at the bottom of the page to save the
current conguration.
Use the time page to congure the time and date settings of the device. You can also congure daylight saving adjustments
and synchronize the device’s clock and calendar with an internet-based network time protocol (NTP) server.
Time:
Time Zone:
Enable Daylight
Saving:
Daylight Saving
Oset:
Daylight Saving
Dates:
Enable NTP
Server:
NTP Server Used:
Set the Time and
Date Manually:
66D-Link DAP-1650 User Manual
Section 3 - Conguration
Media Bridge Mode
Admin
New Password:
Conrm
Password:
Gateway Name:
Enable
Graphical
Authentication:
To change the password for the web-based configuration
utility’s admin account, enter a new password in the field
provided.
Re-enter the new password in this eld.
This allows you create a user friendly name for your device.
Click Save Settings at the bottom of the page to save the
current conguration.
67D-Link DAP-1650 User Manual
Section 3 - Conguration
System
The system page can be used to save and restore the device’s conguration, as well as restore the factory default settings.
Click Save to save the current conguration to a le on your
local computer. After clicking, a Save File dialog will appear,
prompting you to save the conguration le on your computer.
Click Browse to locate a previously saved conguration le
on your local computer. Once the le has been located, click
Upload Settings to apply the conguration in the le to the
device.
Note: This will overwrite any current conguration.
Click Restore Device to reset the DAP-1650’s settings to the
factory defaults.
Warning: This will erase all current settings and cannot be
undone.
Click Reboot to reboot the device. You will need to log in to the
device again once the reboot has been completed.
Click to remove a language pack from the device.
Save Settings to
Local Hard Drive:
Load Settings
From Local Hard
Drive:
Restore to
Factory Default
Settings:
Reboot the
Device:
Remove
Language Pack:
68D-Link DAP-1650 User Manual
Section 3 - Conguration
Firmware
This section displays information about the device’s current
rmware and language pack.
Note: The device must have an active Internet connected to
check for rmware and language pack updates.
If the above check for rmware detected updates, the details
will displayed here. Click Download to download the update
les to your computer.
Click Browse to locate a rmware le on your computer. Once
located, click Upload to commence the rmware upgrade
process. It is recommended that you save your current device
configuration using the system page before you begin a
rmware upgrade.
Warning: You must use a wired connection to the device to
update the rmware.
Click Browse to locate a language pack le on your computer.
Once located, click Upload to commence the language pack
upgrade process.
Use the rmware page to update the device’s rmware, and add or remove language packs.
Firmware
Information:
Check the Latest
Firmware and
Language Pack
Versions:
Firmware
Upgrade:
Language Pack
Upgrade:
69D-Link DAP-1650 User Manual
Section 3 - Conguration
Time
Displays the device’s current time and date.
Select your time zone from the drop-down menu.
Check the box to have the device automatically adjust the clock
for daylight saving.
Select the oset for beginning daylight saving from the drop-
down menu.
Use the drop-down menus to set the Start and End dates for
daylight saving time.
Check the box to have the device automatically synchronize its
clock and calendar with D-Link’s Internet time server.
Type the address of the NTP server you would like to use in the
eld provided, or choose a pre-determined server from the
drop-down menu and click << to populate the eld.
Use the drop-down menus to manually congure the time and
date. This option will not be available if Enable NTP Server is
selected above.
Click Save Settings at the bottom of the page to save the
current conguration.
Use the time page to congure the time and date settings of the device. You can also congure daylight saving adjustments
and synchronize the device’s clock and calendar with an internet-based network time protocol (NTP) server.
Time:
Time Zone:
Enable Daylight
Saving:
Daylight Saving
Oset:
Daylight Saving
Dates:
Enable NTP
Server:
NTP Server Used:
Set the Time and
Date Manually:
70D-Link DAP-1650 User Manual
Section 3 - Conguration
Displays the device’s time and rmware version.
Displays the MAC address and the private (local) IP settings for
the device.
Displays the wireless MAC address and wireless settings such
as SSID and channel for the 2.4 GHz wireless band.
Displays the wireless MAC address and wireless settings such
as SSID and channel for the 5 GHz wireless band.
Status
Device Info
This page displays the current information for the DAP-1650, such as LAN and wireless LAN information and statistics.
General:
LAN:
Wireless LAN:
Wireless LAN 2:
71D-Link DAP-1650 User Manual
Section 3 - Conguration
Log Options:
First Page:
Last Page:
Previous Page:
Next Page:
Clear Log:
Save Log:
Refresh:
There are several types of logs that can be viewed: System
Activity, Debug Information, Attacks, Dropped Packets, and
Notice. Check the boxes to display log items of each type. Click
Apply Log Settings Now to update the log options.
This button directs you to the rst page of the log.
This button directs you to the last page of the log.
This button directs you to the previous page of the log.
This button directs you to the next page of the log.
This button clears all current log content.
This button allows you to save the current log to a le on your
local computer.
This button refreshes the log.
Logs
The DAP-1650 keeps a running log of events and activities occurring on the device. If the device is rebooted, the logs will
automatically be cleared.
72D-Link DAP-1650 User Manual
Section 3 - Conguration
Statistics
The DAP-1650 keeps statistics of the trac that passes through it. You can view the amount of packets that pass through the LAN
and wireless portions of the network. The trac counter will reset if the device is rebooted. Use the buttons at the top of the page
to Refresh or Clear the statistics.
73D-Link DAP-1650 User Manual
Section 3 - Conguration
Wireless
The wireless section allows you to view the wireless clients that are connected to your wireless device.
Connected Time:
MAC Address:
Displays the amount of time the wireless client has been connected to the device.
The Ethernet ID (MAC address) of the wireless client.
74D-Link DAP-1650 User Manual
Section 3 - Conguration
IPv6
The IPv6 section displays a summary of the current IPv6 conguration.
IPv6 Connection
Type:
LAN IPv6 Address:
IPv6 Default
Gateway:
LAN IPv6 Link-
Local Address:
Primary DNS
Server:
Secondary DNS
Server:
Displays the currently congured IPv6 connection type.
This eld displays the current IPv6 address of the device.
If congured this eld will display the details of the default IPv6 gateway.
The device’s local IPv6 address will be displayed here. This address should be used to access the web-based conguration utility
through the IPv6 protocol.
If congured this eld will display the details of the primary IPv6 DNS server address to be used.
If congured this eld will display the details of the secondary IPv6 DNS server address to be used.
75D-Link DAP-1650 User Manual
Section 3 - Conguration
Help
76D-Link DAP-1650 User Manual
Section 4 - Security
Wireless Security
This section will explain the dierent types of security you can use to protect your wireless network from intruders. Please note
that some security methods may not be available for all operation modes. The DAP-1650 oers the following types of security:
• Wired Equivalent Privacy (WEP)
• Wi-Fi Protected Setup (WPS)
• Wi-Fi Protected Access (WPA/WPA2)
- WPA - Personal
- WPA - Enterprise
What is WEP?
Wired Equivalent Privacy (WEP) is an older form of wireless encryption which operates only in 802.11g legacy mode. WEP uses
hex digits to create an authentication key, and is considered to be less secure than the newer WPA/WPA2 security standards.
It is recommended that you only use this security mode if your wireless clients do not support WPA/WPA2.
What is WPS?
Wi-Fi Protected Setup (WPS) allows you to quickly and easily create a secure wireless connection between devices using a
push-button or a PIN code. This method alleviates the need for users to change settings on their wireless devices, or remember
security passwords. Many wireless devices have a physical push-button located somewhere on the exterior casing, while
others may have a software button located within the device’s conguration software. Please refer to your wireless device’s
documentation for further information on how to connect to the DAP-1650 using WPS.
77D-Link DAP-1650 User Manual
Section 4 - Security
What is WPA?
WPA, or Wi-Fi Protected Access, is a Wi-Fi standard that was designed to improve the security features of WEP (Wired Equivalent
Privacy).
The 2 major improvements over WEP:
• Improved data encryption through the Temporal Key Integrity Protocol (TKIP). TKIP scrambles the keys using a
hashing algorithm and, by adding an integrity-checking feature, ensures that the keys haven’t been tampered
with. WPA2 is based on 802.11i and uses Advanced Encryption Standard (AES) instead of TKIP.
• User authentication, which is generally missing in WEP, through the extensible authentication protocol (EAP).
WEP regulates access to a wireless network based on a computer’s hardware-specic MAC address, which is
relatively simple to be snied out and stolen. EAP is built on a more secure public-key encryption system to
ensure that only authorized network users can access the network.
WPA-PSK/WPA2-PSK uses a passphrase or key to authenticate your wireless connection. The key is an alpha-numeric password
between 8 and 63 characters long. The password can include symbols (!?*&_) and spaces. This key must be the exact same
key entered on your wireless bridge or access point. WPA/WPA2 incorporates user authentication through the Extensible
Authentication Protocol (EAP). EAP is built on a more secure public key encryption system to ensure that only authorized
network users can access the network.
WPA/WPA2 has two main security levels; Personal, and Enterprise:
• WPA/WPA2 - Personal is sucient for most home networks and uses a pre-shared key as described above to
authenticate users and encrypt data.
• WPA/WPA2 - Enterprise is designed for medium-to-large scale networking environments and uses a centralized
RADIUS server for authentication. Users must be registered and authorized by the RADIUS server in order to
access the wireless network.
78D-Link DAP-1650 User Manual
Section 5 - Connecting to a Wireless Network
It is recommended to enable wireless security (WPA/WPA2) on your device before conguring your wireless adapter. If you are
joining an existing network, you will need to know the security key (Wi-Fi password) being used.
To join an existing network, locate the wireless network icon in the taskbar, next to the
time display.
Wireless Icon
Clicking on this icon will display a list of wireless networks which are within connecting
proximity of your computer. Select the desired network by clicking on the network name.
Connect to a Wireless Network
Windows® 8
79D-Link DAP-1650 User Manual
Section 5 - Connecting to a Wireless Network
You will then be prompted to enter the network security key (Wi-Fi password) for
the wireless network. Enter the password into the box and click Next.
If you wish to use Wi-Fi Protected Setup (WPS) to connect to the device, you can
also press the WPS button on your device at this point to enable the WPS function.
When you have established a successful connection to a wireless network, the word
Connected will appear next to the name of the network to which you are connected.
80D-Link DAP-1650 User Manual
Section 5 - Connecting to a Wireless Network
Windows® 7
It is recommended to enable wireless security (WPA/WPA2) on your device before conguring your wireless adapter. If you are
joining an existing network, you will need to know the security key or passphrase being used.
1. Click on the wireless icon in your system tray (lower-right corner).
2. The utility will display any available wireless networks in your area.
Wireless Icon
81D-Link DAP-1650 User Manual
Section 5 - Connecting to a Wireless Network
3. Highlight the wireless network (SSID) you would like to connect to
and click the Connect button.
If you get a good signal but cannot access the Internet, check your
TCP/IP settings for your wireless adapter. Refer to the Networking
Basics section in this manual for more information.
4. The following window appears while your computer tries to connect
to the device.
82D-Link DAP-1650 User Manual
Section 5 - Connecting to a Wireless Network
5. Enter the same security key or passphrase that is on your device and
click Connect. You can also connect by pushing the WPS button on
the device.
It may take 20-30 seconds to connect to the wireless network. If the
connection fails, please verify that the security settings are correct. The
key or passphrase must be exactly the same as on the wireless device.
83D-Link DAP-1650 User Manual
Section 5 - Connecting to a Wireless Network
Windows Vista®
Windows Vista users may use the built-in wireless utility. If you are using another company’s utility, please refer to the user
manual of your wireless adapter for help with connecting to a wireless network. Most utilities will have a “site survey” option
similar to the Windows Vista® utility as seen below.
Right-click on the wireless computer icon in your system tray (lower-right
corner next to the time). Select Connect to a network.
If you receive the Wireless Networks Detected bubble, click on the
center of the bubble to access the utility.
or
The utility will display any available wireless networks in your area. Click
on a network (displayed using the SSID) and click the Connect button.
If you get a good signal but cannot access the Internet, check your TCP/
IP settings of your wireless adapter. Refer to the Networking Basics
section in this manual for more information.
84D-Link DAP-1650 User Manual
Section 5 - Connecting to a Wireless Network
WPA/WPA2
It is recommended to enable wireless security (WPA/WPA2) on your device before conguring your wireless adapter. If you are
joining an existing network, you will need to know the security key or passphrase being used.
2. Highlight the Wi-Fi name (SSID) you would like to connect to and
click Connect.
1. Open the Windows Vista Wireless Utility by right-clicking on the
wireless computer icon in your system tray (lower right corner of
screen). Select Connect to a network.
85D-Link DAP-1650 User Manual
Section 5 - Connecting to a Wireless Network
3. Enter the same security key or passphrase (Wi-Fi password) that is on
your device and click Connect.
It may take 20-30 seconds to connect to the wireless network. If the
connection fails, please verify that the security settings are correct. The
key or passphrase must be exactly the same as on the wireless device.
86D-Link DAP-1650 User Manual
Section 5 - Connecting to a Wireless Network
Using Windows® XP
Windows® XP users may use the built-in wireless utility (Zero Conguration Utility). The following instructions are for Service
Pack 2 users. If you are using another company’s utility or Windows® 2000, please refer to the user manual of your wireless
adapter for help with connecting to a wireless network. Most utilities will have a “site survey” option similar to the Windows®
XP utility as seen below.
If you receive the Wireless Networks Detected bubble, click on the
center of the bubble to access the utility.
or
Right-click on the wireless computer icon in your system tray (lower-
right corner next to the time). Select View Available Wireless
Networks.
The utility will display any available wireless networks in your area. Click
on a network (displayed using the SSID) and click the Connect button.
If you get a good signal but cannot access the Internet, check the TCP/
IP settings of your wireless adapter. Refer to the Networking Basics
section in this manual for more information.
87D-Link DAP-1650 User Manual
Section 5 - Connecting to a Wireless Network
Congure WEP
It is recommended to enable WEP on your device before conguring your wireless adapter. If you are joining an existing
network, you will need to know the WEP key being used.
2. Highlight the wireless network (SSID) you would like to connect to
and click Connect.
1. Open the Windows® XP Wireless Utility by right-clicking on the
wireless computer icon in your system tray (lower-right corner of
screen). Select View Available Wireless Networks.
88D-Link DAP-1650 User Manual
Section 5 - Connecting to a Wireless Network
3. The Wireless Network Connection box will appear. Enter the WPA-
PSK passphrase and click Connect.
It may take 20-30 seconds to connect to the wireless network. If the
connection fails, please verify that the WPA-PSK settings are correct.
The WPA-PSK passphrase must be exactly the same as on the wireless
device.
89D-Link DAP-1650 User Manual
Section 6 - Troubleshooting
Troubleshooting
This chapter provides solutions to problems that can occur during the installation and operation of the DAP-1650. Read the
following descriptions if you are having problems.
1. Why can’t I access the web-based conguration utility?
When entering the name or IP address of the device (http://dlinkap.local for example), you are not connecting to a website
on the Internet or have to be connected to the Internet. The device has the utility built-in to a ROM chip in the device itself.
Your computer must be on the same IP subnet to connect to the web-based utility.
• Make sure you have an updated Java-enabled web browser. We recommend the following:
• Microsoft Internet Explorer® 7.0 or higher
• Mozilla Firefox® 12.0 or higher
• Google Chrome™ 20.0 or higher
• Apple Safari® 4.0 or higher
• Verify physical connectivity by checking for solid link lights on the device. If you do not get a solid link light, try using a
dierent cable. If the computer is turned o, the link light may not be on.
• Disable any Internet security software running on the computer. Software rewalls such as ZoneAlarm, BlackICE, Sygate,
Norton Personal Firewall, and Windows® XP rewall may block access to the conguration pages. Check the help les included
with your rewall software for more information on disabling or conguring it.
90D-Link DAP-1650 User Manual
Section 6 - Troubleshooting
• Congure your Internet settings:
• Go to Start > Settings > Control Panel. Double-click the Internet Options Icon. From the Security tab, click
the button to restore the settings to their defaults.
• Click the Connection tab and set the dial-up option to Never Dial a Connection. Click the LAN Settings button.
Make sure nothing is checked. Click OK.
• Go to the Advanced tab and click the button to restore these settings to their defaults. Click OK three times.
• Close your web browser (if open) and open it.
• Access the web management. Open your web browser and enter the IP address of your device in the address bar. This should
open the login page for your the web management.
• If you still cannot access the conguration, unplug the power to the device for 10 seconds and plug back in. Wait about 30
seconds and try accessing the conguration. If you have multiple computers, try connecting using a dierent computer.
2. What can I do if I forgot my password?
If you forgot your password, you must reset your device. Unfortunately this process will change all your settings back to the
factory defaults.
To reset the device, locate the reset button (hole) on the rear panel of the unit. With the device powered on, use a paperclip
to hold the button down for 10 seconds. Release the button and the device will go through its reboot process. Wait about 30
seconds to access the device. The default address is http://dlinkap.local. When logging in, the username is Admin and leave
the password box empty.
91D-Link DAP-1650 User Manual
Appendix A - Networking Basics
Networking Basics
Check your IP address
After you install your adapter, by default, the TCP/IP settings should be set to obtain an IP address from a DHCP server (i.e.
wireless router) automatically. To verify your IP address, please follow the steps below.
Click on Start > Run. In the run box type cmd and click OK. (Windows® 7/Vista® users type cmd in the Start Search box.)
At the prompt, type ipcong and press Enter.
This will display the IP address, subnet mask, and the
default gateway of your adapter.
If the address is 0.0.0.0, check your adapter installation,
security settings, and the settings on your router.
Some rewall software programs may block a DHCP
request on newly installed adapters.
92D-Link DAP-1650 User Manual
Appendix A - Networking Basics
Statically Assign an IP address
If you are not using a DHCP capable gateway/router, or you need to assign a static IP address, please follow the steps below:
Step 1
Windows® 7 - Click on Start > Control Panel > Network and Internet > Network and Sharing Center > Change Adapter
Setting.
Windows Vista® - Click on Start > Control Panel > Network and Internet > Network and Sharing Center > Manage Network
Connections.
Windows® XP - Click on Start > Control Panel > Network Connections.
Windows® 2000 - From the desktop, right-click My Network Places > Properties.
Step 2
Right-click on the Local Area Connection which represents your network adapter and select Properties.
Step 3
Highlight Internet Protocol (TCP/IP) and click Properties.
Step 4
Click Use the following IP address and enter an IP address that is on the same subnet
as your network or the LAN IP address on your router.
Example: If the router´s LAN IP address is 192.168.0.1, make your IP address 192.168.0.X
where X is a number between 2 and 99. Make sure that the number you choose is not in
use on the network. Set Default Gateway the same as the LAN IP address of your router
(192.168.0.1).
Set Primary DNS the same as the LAN IP address of your router (192.168.0.1). The
Secondary DNS is not needed or you may enter a DNS server from your ISP.
Step 5
Click OK twice to save your settings.
93D-Link DAP-1650 User Manual
Appendix B - Technical Specications
Technical Specications
General
Device Interfaces • 802.11 a/b/g/n/ac wireless LAN
• Four 10/100/1000 Gigabit LAN ports
• USB 2.0 port
Antenna Type • 2x2 (2.4 GHz) and 2x2 (5 GHz) internal antennas
Standards • IEEE 802.11ac (draft)
• IEEE 802.11n
• IEEE 802.11g
• IEEE 802.11b
• IEEE 802.11a
• IEEE 802.3
• IEEE 802.3u
Minimum System Requirements • Windows 7/Vista/XP SP3 or Mac OS X 10.4 or higher
• Microsoft Internet Explorer 6 or higher, Firefox 1.5 or
higher, or other Java-enabled browser
• CD-ROM
• Ethernet network interface
Functionality
Advanced Features • Guest zone
• Web file access
• Multi-language web setup wizard
• Green Ethernet
• DLNA media server support
• QoS
• MAC address filter
Mobile App Support • SharePort Mobile • QRS Mobile
Wireless Security • WPA & WPA2 (Wi-Fi Protected Access) • Wi-Fi Protected Setup (WPS) PIN/PBC
Physical
94D-Link DAP-1650 User Manual
Appendix B - Technical Specications
1 Maximum wireless signal rate derived from IEEE Standard draft 802.11ac, 802.11n and 802.11g specications. Actual data throughput will vary. Network conditions and
environmental factors, including volume of network trac, building materials and construction, and network overhead, lower actual data throughput rate. Environmental
conditions will adversely aect wireless signal range.
2 All Maximum transmission power values expressed are for dual-chain mode. Maximum transmission power and included antennas may vary depending on regional regulations.
3 Range may vary depending on regional regulations.
Dimensions • 93 x 116 x 145 mm (3.7 x 4.6 x 5.76 inches)
Weight • 330 grams (0.73 lbs)
Power • Input: 100 to 240 V AC, 50/60 Hz • Output: 12 V DC, 2 A
Temperature • Operating: 0 to 40 °C (32 to 104 °F) • Storage: -20 to 65 °C (-4 to 149 °F)
Humidity • Operating: 0% to 90% non-condensing • Storage: 5% to 95% non-condensing
Certifications • FCC Class B
• CE Class B
• C-Tick
• DLNA
• IPv6 Ready
• Wi-Fi Certified
• Wi-Fi Protected Setup (WPS)
• Wi-Fi Multimedia (WMM)
• Compatible with Windows 8
95D-Link DAP-1650 User Manual
Appendix C - Compliance Statements
Trademarks:
D-Link is a registered trademark of D-Link Corporation/D-Link Systems, Inc. Other trademarks or registered trademarks are the property of their
respective owners.
Copyright Statement:
No part of this publication or documentation accompanying this product may be reproduced in any form or by any means or used to make any
derivative such as translation, transformation, or adaptation without permission from D-Link Corporation/D-Link Systems, Inc., as stipulated by the
United States Copyright Act of 1976 and any amendments thereto. Contents are subject to change without prior notice.
Copyright ©2010-2011 by D-Link Corporation/D-Link Systems, Inc. All rights reserved.
CE Mark Warning:
This is a Class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take
adequate measures.
Federal Communication Commission Interference Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by
one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Compliance Statements
96D-Link DAP-1650 User Manual
Appendix C - Compliance Statements
FCC Caution: Any changes or modications not expressly approved by the party responsible for compliance could void the user’s authority to
operate this equipment.
Operations in the 5.15-5.25GHz band are restricted to indoor usage only.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and
operated with minimum distance 20cm between the radiator & your body.
Note: The country code selection is for non-US model only and is not available to all US model. Per FCC regulation, all WiFi product marketed in US
must xed to US operation channels only.
Industry Canada Statement
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may
not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux
conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique
subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.
Caution :
(i) the device for operation in the band 5150-5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile
satellite systems;
(ii) high-power radars are allocated as primary users (i.e. priority users) of the bands 5250-5350 MHz and 5650-5850 MHz and that these radars could
cause interference and/or damage to LE-LAN devices.
Avertissement:
(i) les dispositifs fonctionnant dans la bande 5 150-5 250 MHz sont réservés uniquement pour une utilisation à l’intérieur an de réduire les risques
de brouillage préjudiciable aux systèmes de satellites mobiles utilisant les mêmes canaux;
(ii) De plus, les utilisateurs devraient aussi être avisés que les utilisateurs de radars de haute puissance sont désignés utilisateurs principaux (c.-à-d.,
qu’ils ont la priorité) pour les bandes 5 250-5 350 MHz et 5 650-5 850 MHz et que ces radars pourraient causer du brouillage et/ou des dommages
aux dispositifs LAN-EL.
97D-Link DAP-1650 User Manual
Appendix C - Compliance Statements
IMPORTANT NOTE:
Radiation Exposure Statement:
This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and
operated with minimum distance 20cm between the radiator & your body.
NOTE IMPORTANTE:
Déclaration d’exposition aux radiations:
Cet équipement est conforme aux limites d’exposition aux rayonnements IC établies pour un environnement non contrôlé. Cet équipement doit
être installé et utilisé avec un minimum de 20 cm de distance entre la source de rayonnement et votre corps.
This radio transmitter (identify the device by certication number, or model number if Category II) has been approved by Industry Canada to operate
with the antenna types listed below with the maximum permissible gain and required antenna impedance for each antenna type indicated. Antenna
types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device.
Le présent émetteur radio (IC: 4216A-AP1650A1) a été approuvé par Industrie Canada pour fonctionner avec les types d’antenne énumérés
ci-dessous et ayant un gain admissible maximal et l’impédance requise pour chaque type d’antenne. Les types d’antenne non inclus dans cette
liste, ou dont le gain est supérieur au gain maximal indiqué, sont strictement interdits pour l’exploitation de l’émetteur.
