Business Solutions
Guide
Contents
1 Business Solution
2 Key Solution
5 Switches

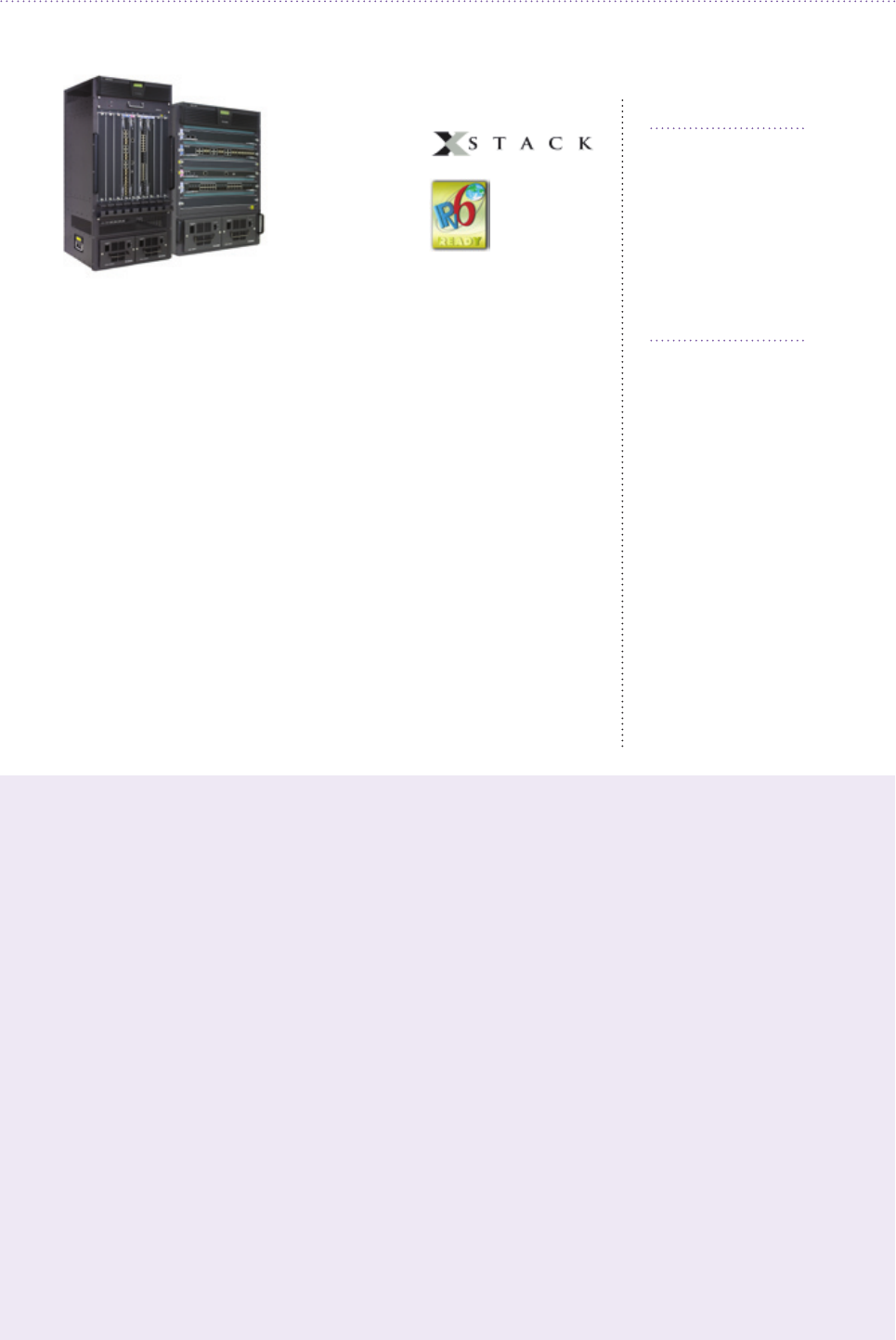

6 Gigabit Ethernet Layer 3
Chassis Switches
DES-7200 Series

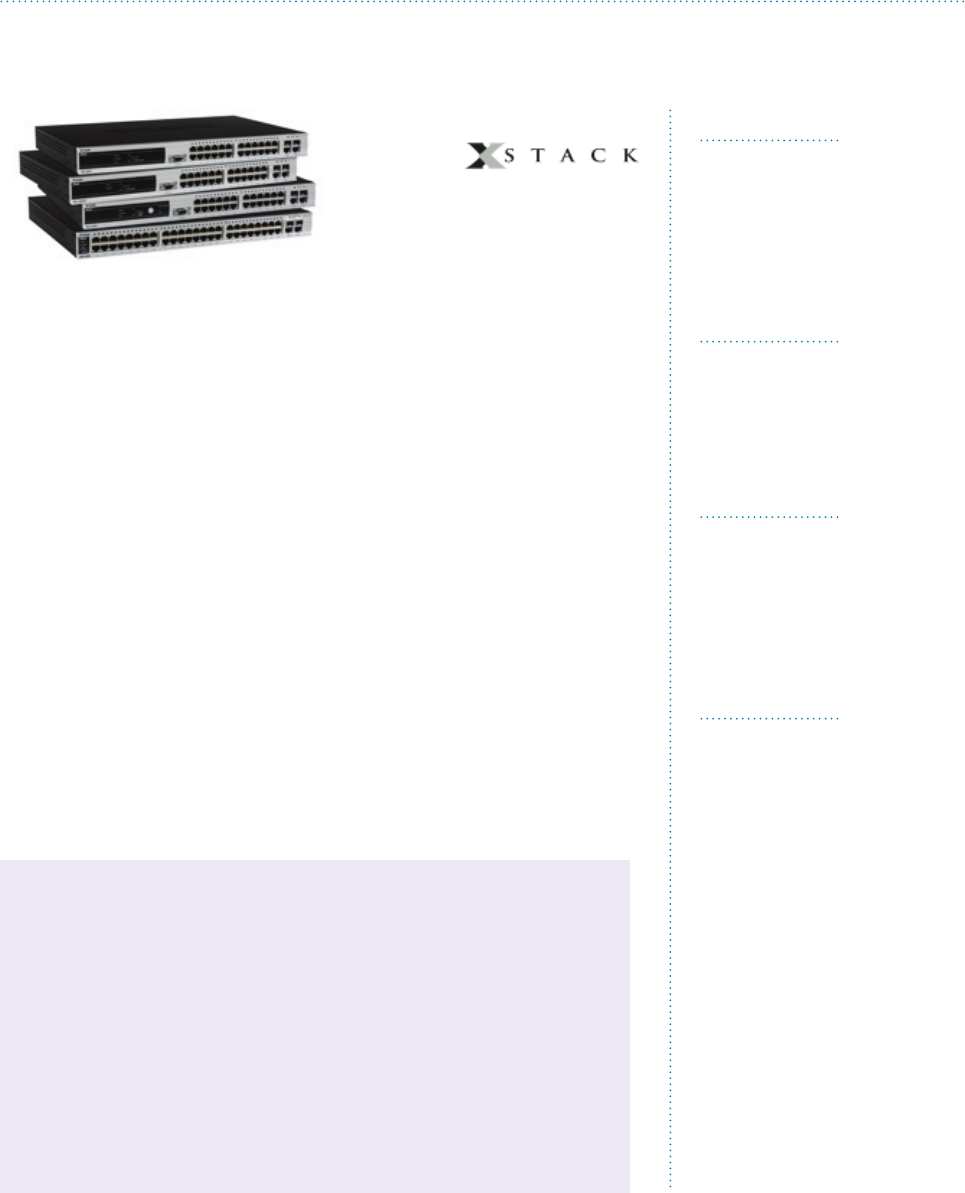

xStack Switches
8 Gigabit Ethernet xStack Layer 3 Core
Switches DGS-3600 Series
10 Fast Ethernet xStack Layer 3 Core
Switches DES-3800 Series
12 Gigabit Ethernet xStack Layer 2 Edge
Switches DGS-3400 Series
14 Gigabit Ethernet xStack Layer 2 Secure
Switches DGS-3200 Series
16 Fast Ethernet xStack Layer 2 Edge
Switches DES-3528/52 Series
Managed Switches
18 Fast Ethernet Metro Ethernet Edge
Switches DES-3200 Series
20 Gigabit Ethernet Entry-Level Managed
Switches DGS-3100 Series
22 Fast Ethernet Entry-Level Managed
Switches DES-3028/52 Series
24 Fast Ethernet Entry-Level Managed
Switches DES-3000 Series
Smart Switches
26 Gigabit Ethernet Web Smart Switches
DGS-1210 Series
28 Gigabit Ethernet Web Smart Switches
DGS-1200 Series
30 Fast Ethernet Web Smart Switches
DES-1210 Series
32 Fast Ethernet Web Smart Switches
DES-1200 Series
Unmanaged Switches

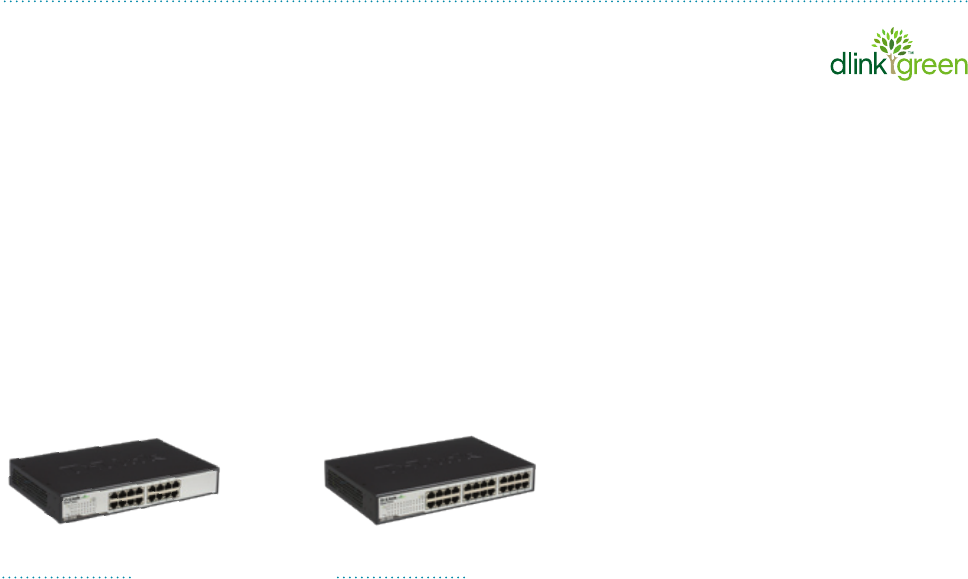

34 Gigabit Ethernet Unmanaged Switches
DGS-1000 Series
36 Fast Ethernet Unmanaged Switches
DES-1000 Series
Software & Accessories

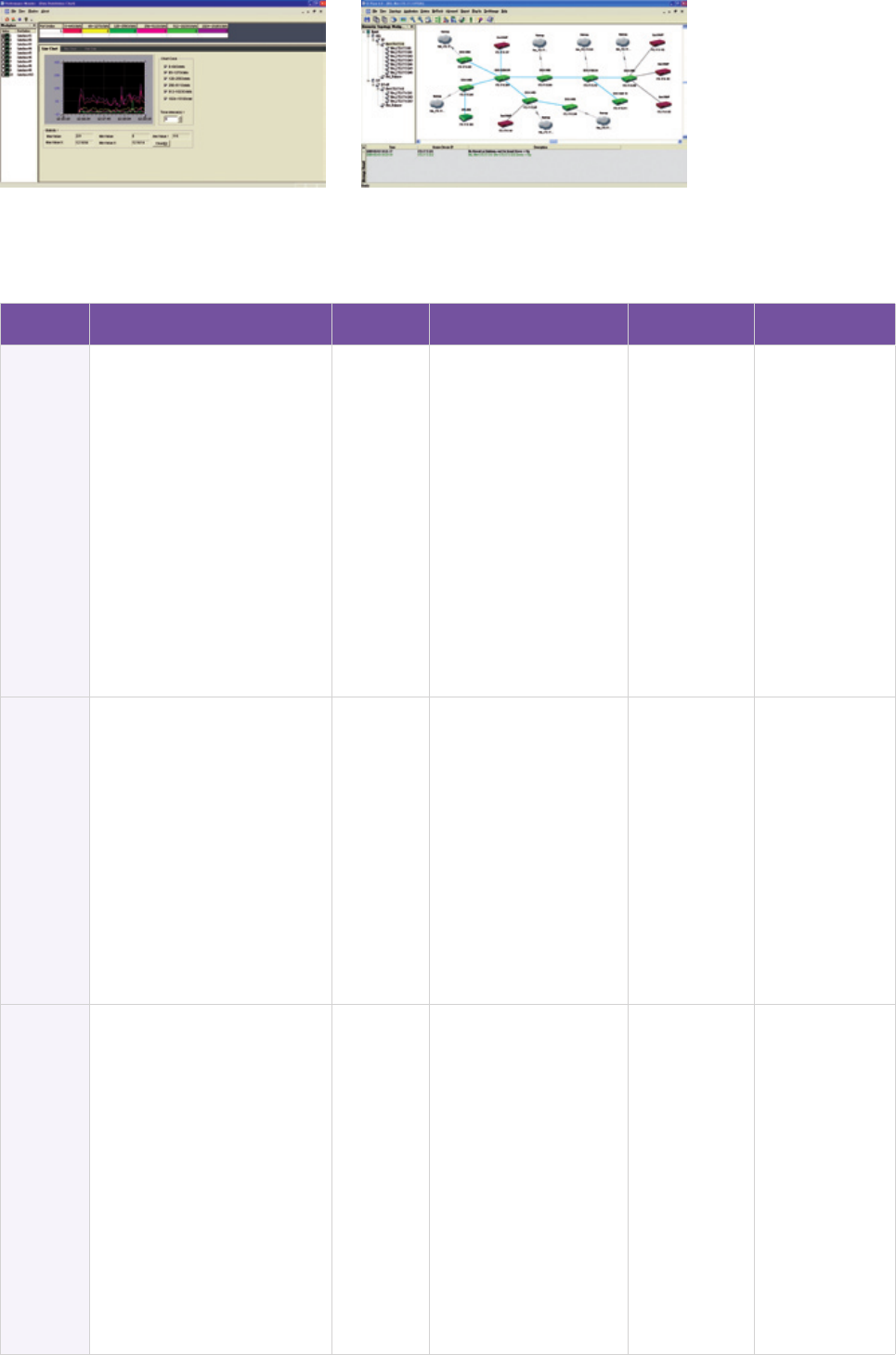

38 Network Management D-View 6.0
40 Expansion Modules
42 SFP/XFP Transceivers
44 Redundant Power Supplies
46 Media Converters
Comparison Tables
47 Web Smart Switch Selection Matrix
48 Chassis Switch Selection Matrix
49 Managed Switch Selection Matrix
50 Business Wireless

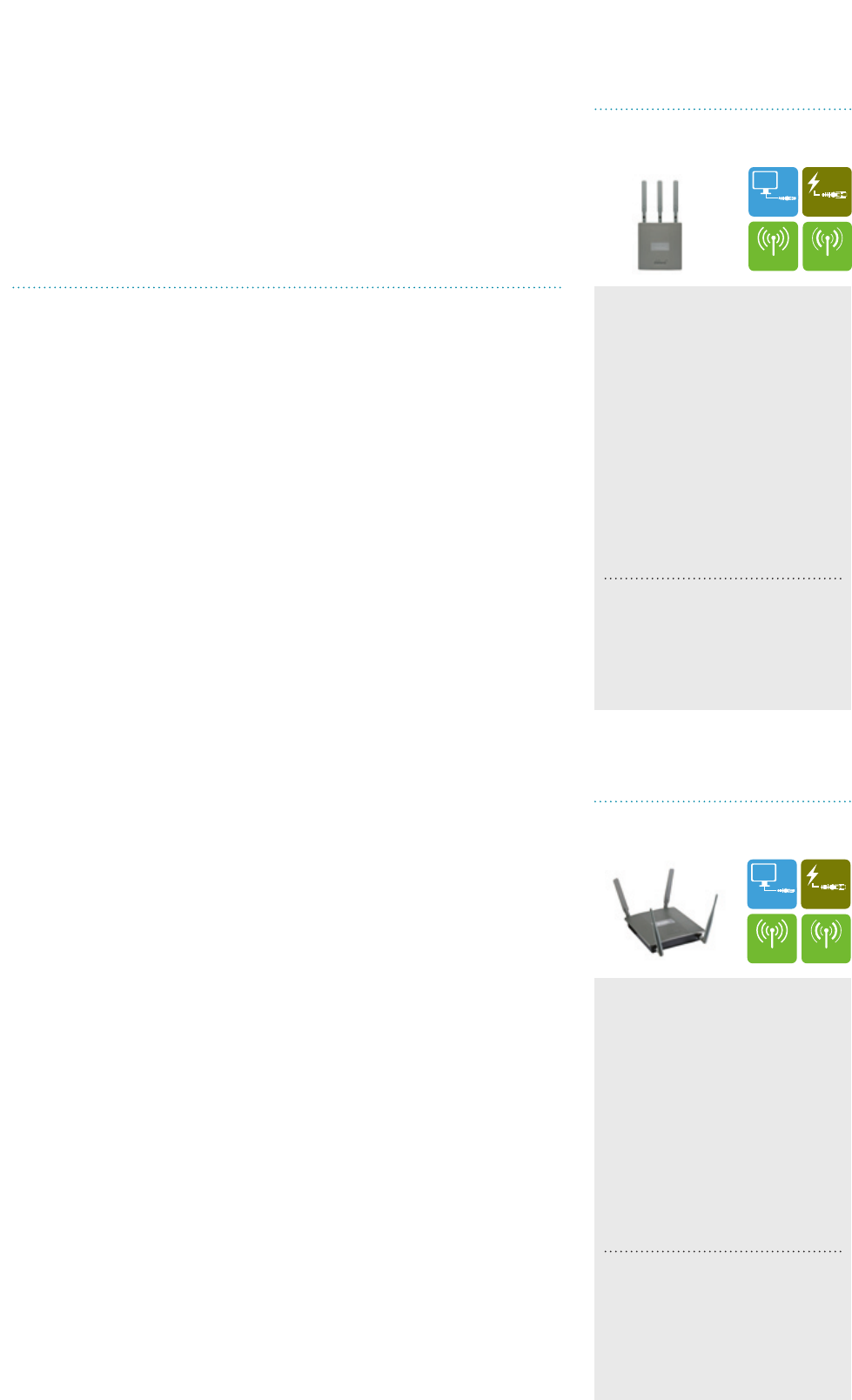

51 Indoor Access Points

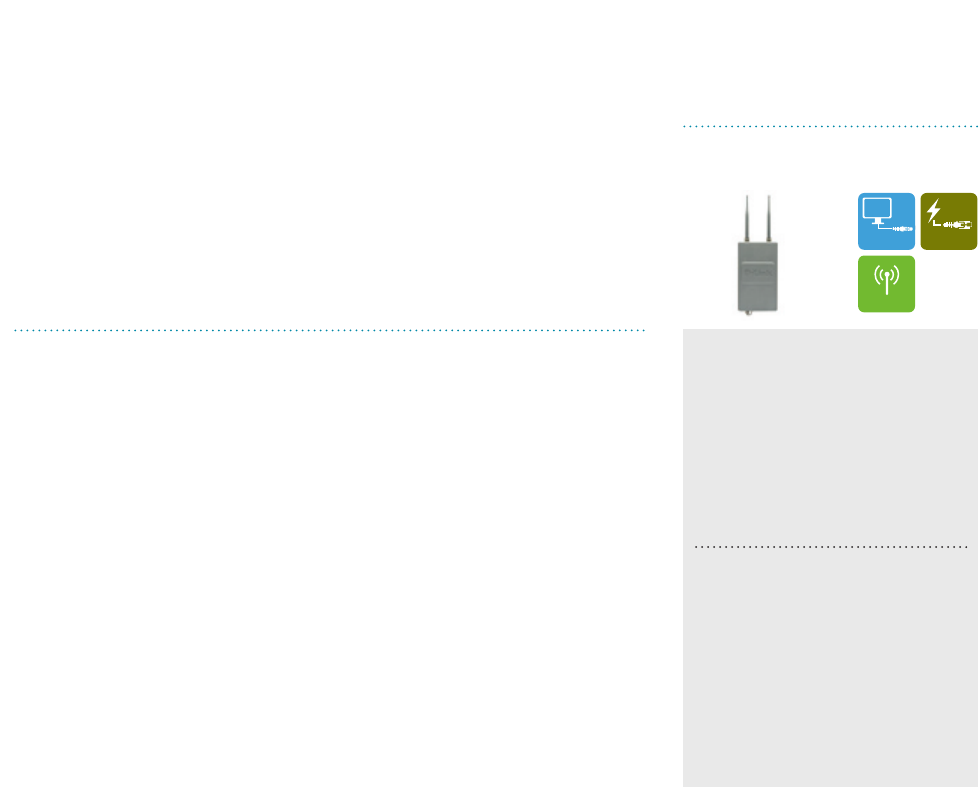

55 Outdoor Access Points
57 Unified Wired/Wireless Access System
DWS-3000 Series
59 Unified Wired/Wireless Access System
DWS-4000 Series
Comparison Tables
61 Access Point Selection Matrix
62 Unified Switch Selection Matrix
63 Security
64 IPS Firewalls
66 UTM Firewalls
68 Unified Services Routers
Comparison Table
70 NetDefend Firewall Selection Matrix
71 IP Surveillance - SecuriCam
72 Fixed Network Cameras
76 PTZ Network Cameras
78 Fixed Dome Network Cameras
80 PTZ Dome Network Cameras

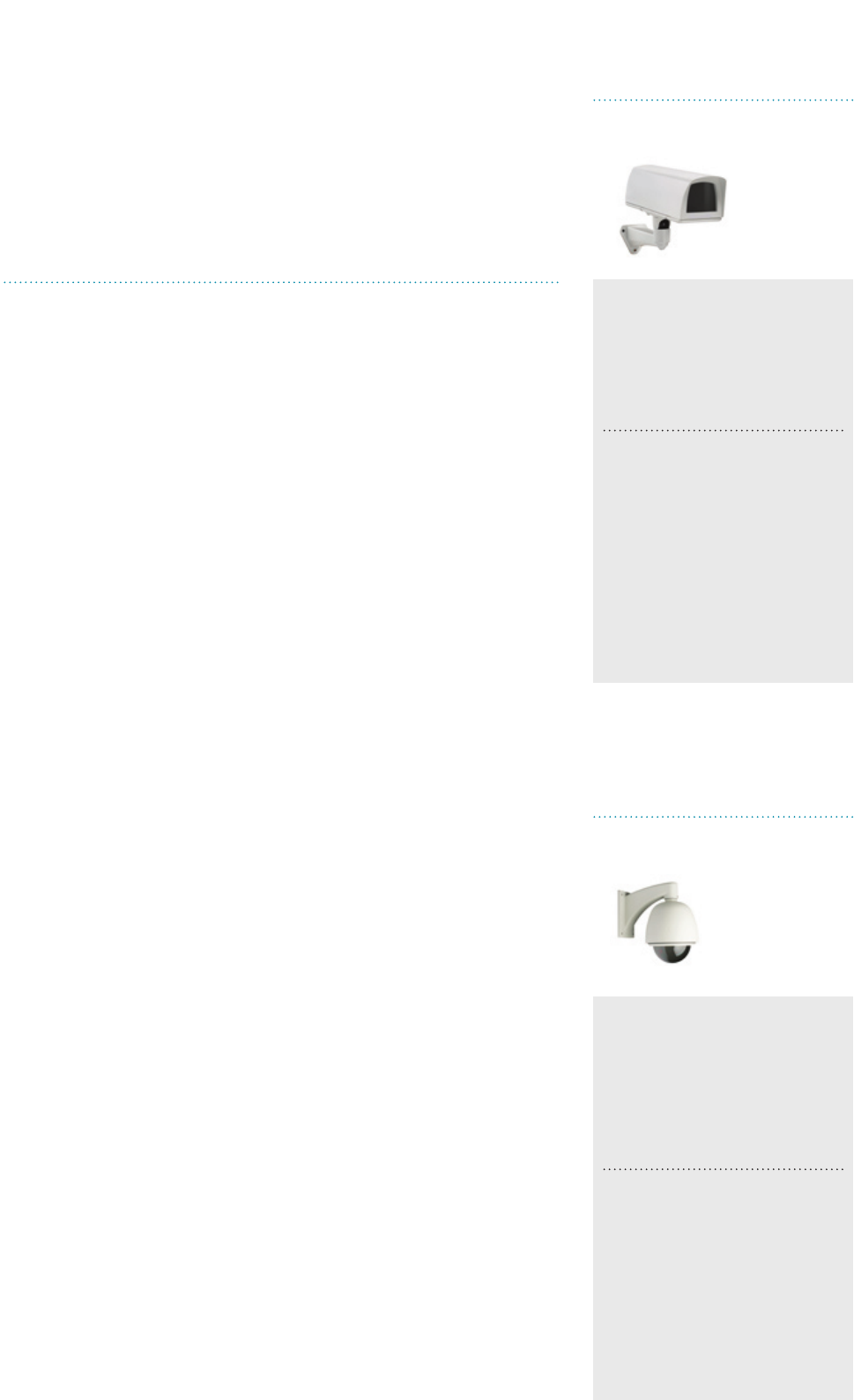

82 Network Camera Outdoor Enclosures
83 Network Camera Accessories
84 Network Video Recorders
86 Video Encoders
88 D-ViewCam Video Management
Software (VMS)
Comparison Table
90 Network Camera Selection Matrix
91 Network Storage
92 Storage Area Network (SAN) Arrays
Comparison Table
94 Network Storage Selection Matrix
95 Network Peripherals
96 Power over Ethernet (PoE)
For over 20 years D-Link has been creating complete, end-to-end
networking solutions that deliver just that, more. This fact
is reflected in a track record of industry-beating growth.
Today D-Link is a billion dollar company with the scale, the resources,
the experience and the expertise that the world’s most demanding
businesses look for.
How has this been achieved? We make sure we stay really close to
our customers’ businesses and then, because our R&D resources are
geared to fast track product development, we provide them with early
access to the most advanced solutions possible.
It all adds up to state-of-the-art answers that will really work for
your business – D-Link’s switching, wireless, security, surveillance,
storage and management solutionsdeliver best-in-class performance.
Standardised technology with industry leading functionality integrated
into highly flexible, highly reliable and highly secure solutions
that are easy to implement, at a price you can afford.
Who could ask for more?
1BUSINESS SOLUTION
Think more performance,
more reliability,
more functionality
2

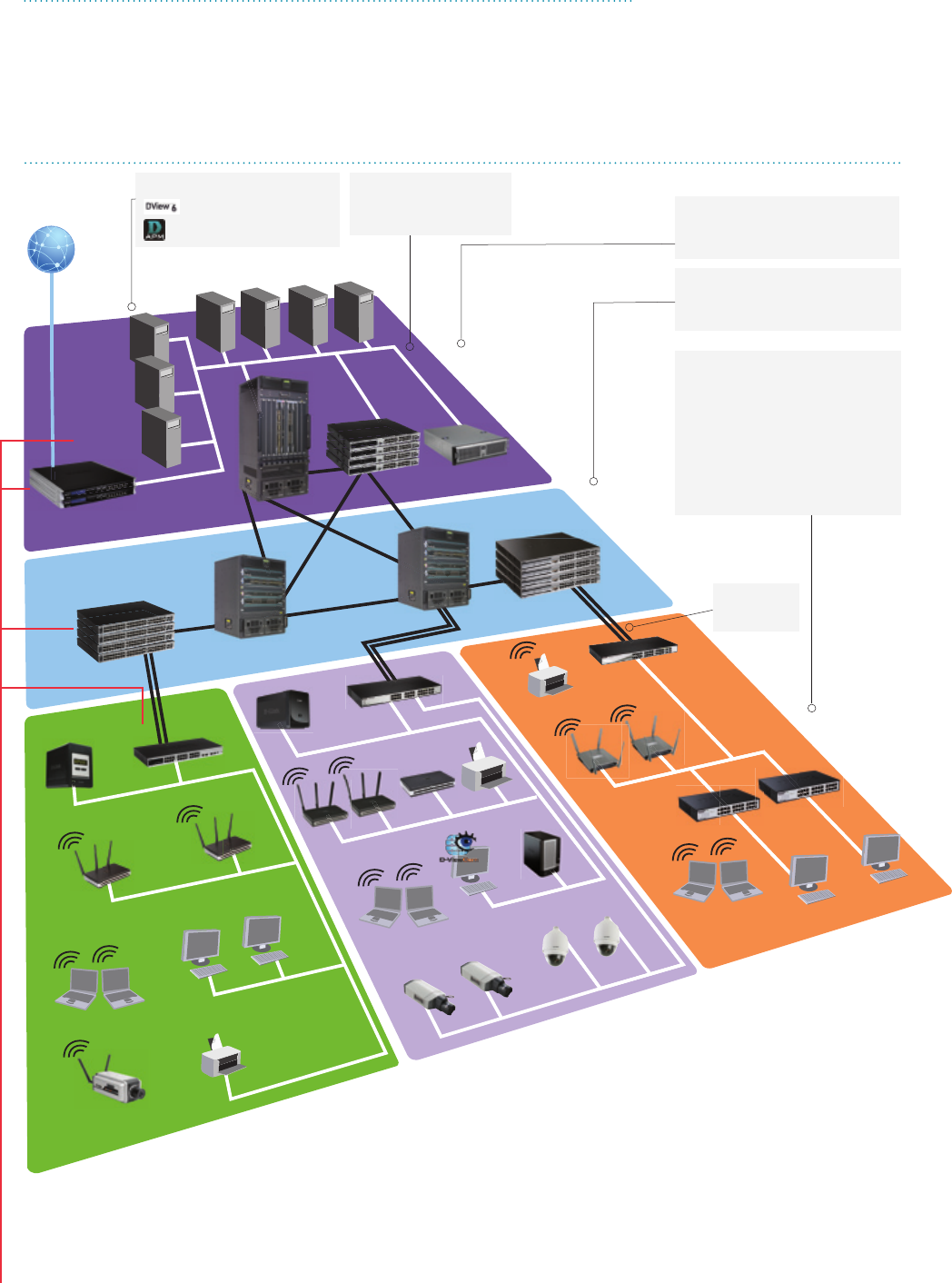

Key Solution
KEY SOLUTION
Internet

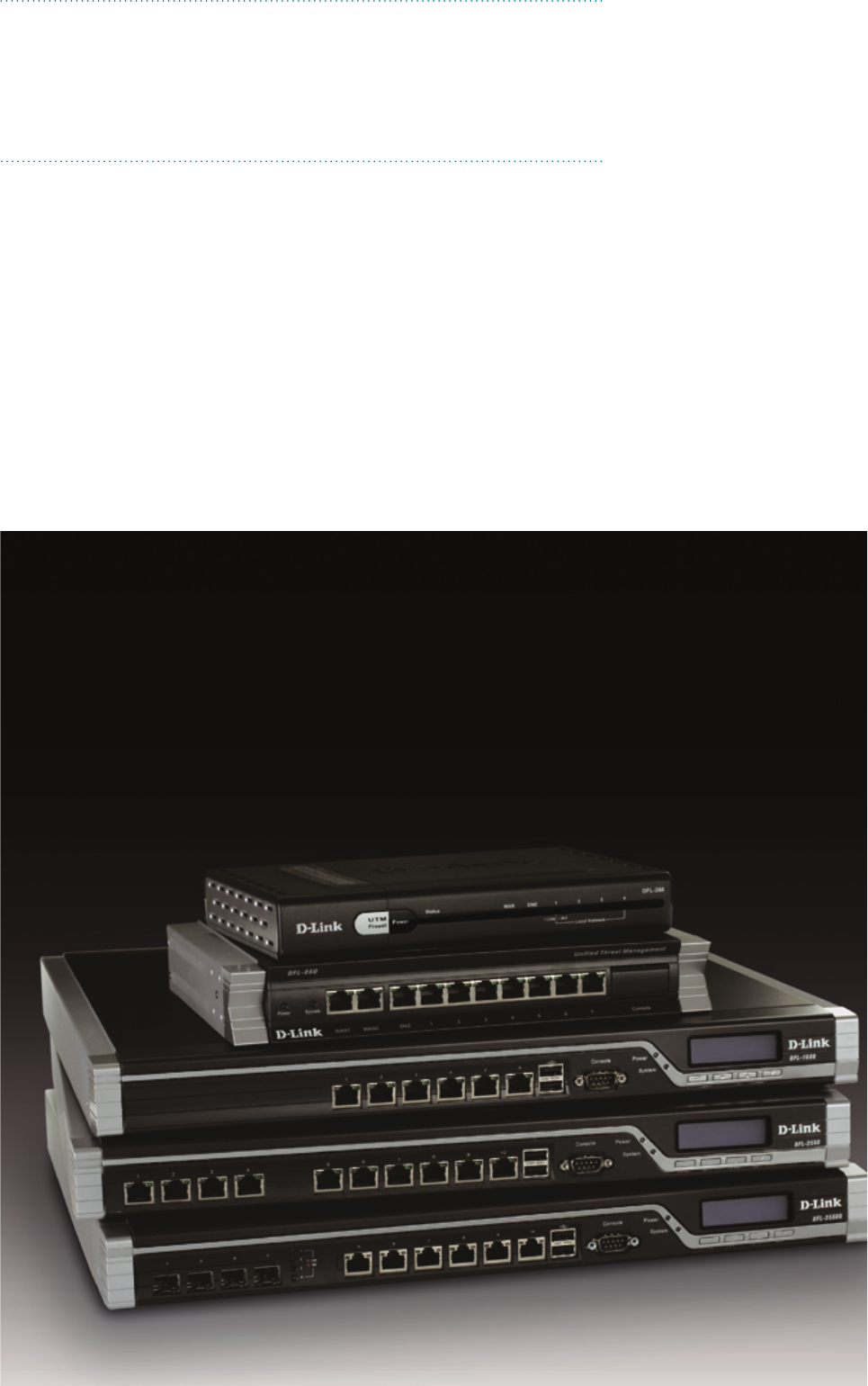

UTM / IPS Firewall
DFL-2560
Microsoft NAP
Server
D-View 6.0
Network
Management
D-Link
AP Manager
Server Farm
L3 Core Switch
DES-7210
L3 Core
Switch
DGS-3600
Series
Storage Area Network
(IP SAN) DSN-3400-10
L3 Aggregated Switch
DES-7206
Network Access
Storage (NAS)
DNS-346
Managed
Switch
DES-3528
Network Video
Recorder
DNS-726-4
Web Smart
PoE Switch
DGS-1224TP/
DES-1228P
Indoor AP
DAP-2553
Printer Server
DPR-1061
Outdoor Network Camera
DCS-6815
Unified AP
DWL-8600AP Unmanaged
Switch
DGS/DES-1024D
Web Smart
Switch
DGS/DES-1210
Wireless Network Camera
DCS-3430
L2 Access Ethernet Switches
Managed Switches
DGS-3400, DGS-3200, DGS-3100 Series
DES-3528/52, DES-3200 Series
Web Smart Switches
DGS-1210, DGS-1200 Series
DES-1210, DES-1200 Series
Unmanaged Switches
DGS-1000, DES-1000 Series
End to End Security (E2ES)
- Gateway Security
- Endpoint Security
- Joint Security
Indoor AP
DAP-1353
Indoor Network Camera
DCS-3710
Data/Video/Audio Triple
Play Application Solution
- Policy-based Trac Prioritization
- Optimize the quality of multi-services
Unified IP Surveillance Solution
(Network Camera, VMS, Switch, Storage)
- Megapixel Solution
- Standalone NVR/VMS
- PoE Switch
- IP- SAN
Wired/Wireless
Connectivity Solution
- Ease of Use
- Ease of Deployment
- Flexible Expandability Virtual LAN
- Endpoint Security
- Single IP Management
Fault-Free
Connection
L3 Core Ethernet Switches
DES-7210
DGS-3600 Series
L3 Aggregated Ethernet Switches
DES-7206
DES-3800 Series
Network Management System
D-View 6.0
AP Manager II
- High Performance
- Routing Redundancy
- Reliability and Resilient
L3 Aggregated Switch
DES-3800 Series
L3 Aggregated Switch
DES-7206
Unied Wired/
Wireless Switch
DWS-4026
Storage Area
Network (IP SAN)
DSN-1100-10
D-ViewCam
(VMS)
Access Network
Aggregation Network
Core Network
3
Key Solution
KEY SOLUTION
D-Link Business Solution provides end-to-end network solution
to achieve secure, reliable, easy to manage and high performance
network for small, medium to large enterprises.
Access Network
Over the past few years, enterprise access network has seen
one of the fastest areas of growth. As technology evolves
and user demand increases, enterprise access network is fast
turning from a 'traditional’ data network to a more complex
network with integrated data, voice and multimedia services.
D-Link, in meeting the needs of enterprises to have more
productive business processes, is therefore providing the
following solutions for their access network:
• Wired/Wireless Connectivity Solution
D-Link provides wired and wireless solutions for
access network infrastructure as the foundation for
data communication and other IP-based services in the
enterprise network. Core functionalities of these
solutions include consistent wireless connectivity,
comprehensive network control and secure user
authentication. With these solutions, businesses and
organizations will be able to have greater flexibility and
investment protection through scalable network
expansion for future technologies through Gigabit
connectivity, such as the 10-Gigabit fibre link connection.

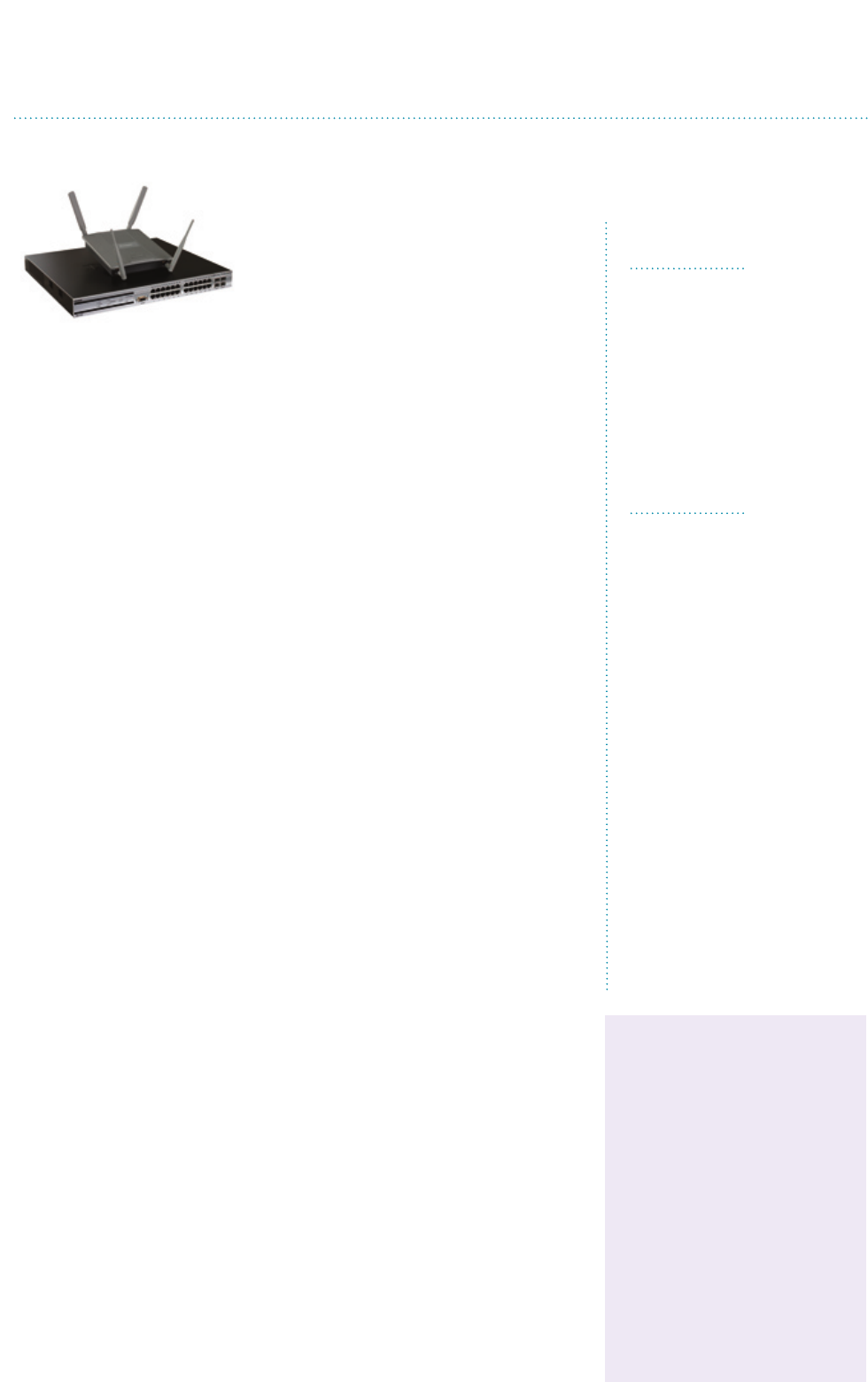

D-Link offers a Unified Wired/Wireless Switching solution
which consists of D-Link access point and unified switch.
This solution offers premium wireless connectivity options
with flexible and easy-to-deploy central management
system.
D-Link's unified switch is the managing device for
thin access point. It provides centralized AP
management and features L2/L3 roaming, automatic
wireless channel assignment, and automatic power output
adjustment. It offers Wireless Intrusion Detection System
(WIDS) which empowers network administrators to detect
rogue access points and rogue client. On the wired side,
D-Link's unified switch utilized Dynamic ARP Inspection
(DAI) and DHCP Snooping to ensure maximum security.
D-Link's unified access points provide features such as
Power-over-Ethernet (PoE), choices of operating modes,
user authentication, and wireless security. Its high speed
dual band wireless IEEE802.11n standard offers Multiple
In Multiple Out (MIMO) and wider bandwidth channels
that increases the physical transfer rates.
• Unified IP Surveillance Solution
D-Link provides a complete IP Surveillance solution
which consists of network cameras, video management
software (VMS), storage and Power-over-Ethernet (PoE)
switches for network connectivity.

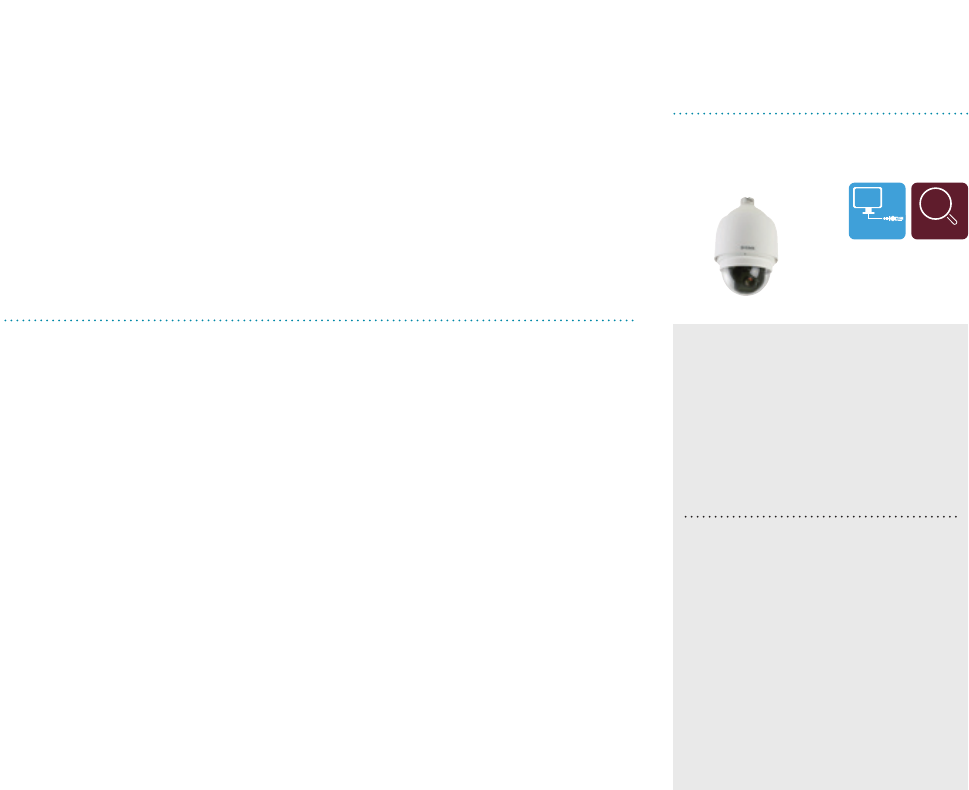

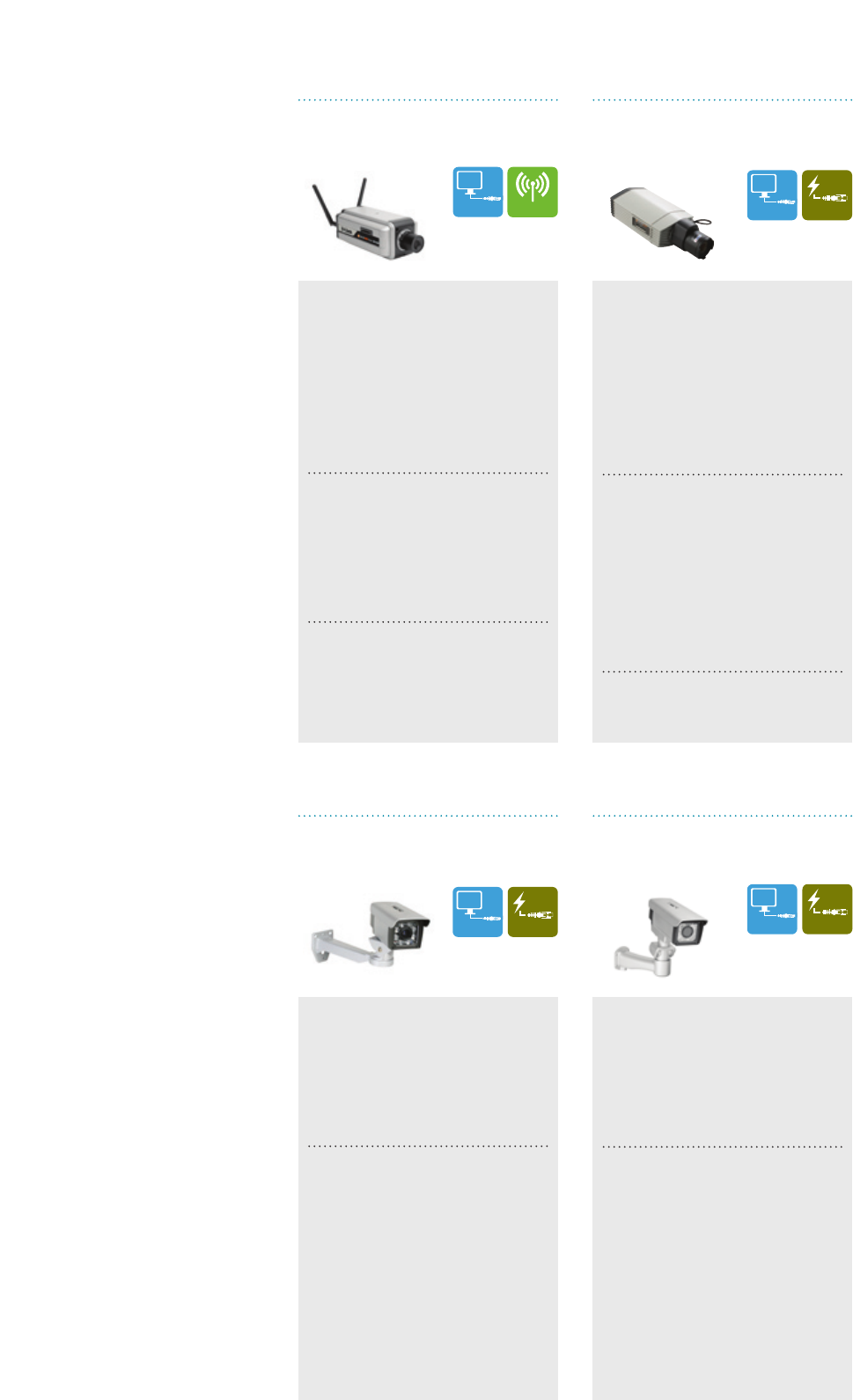

D-Link has a wide range of network cameras and
network video recorders (NVR) for this solution. D-Link
network cameras consist of fixed, pan-tilt-zoom (PTZ),
fixed dome, and PTZ dome cameras with capability for
indoor/outdoor, day/night usage. D-Link network
cameras support megapixel resolution, 2-way audio,
wired or wireless connection, PoE, choices of video
format, digital and optical zoom. D-Link network
cameras and NVR, together with D-ViewCam software,
offers functionalities such as video recording, live
viewing, playback, and event management.

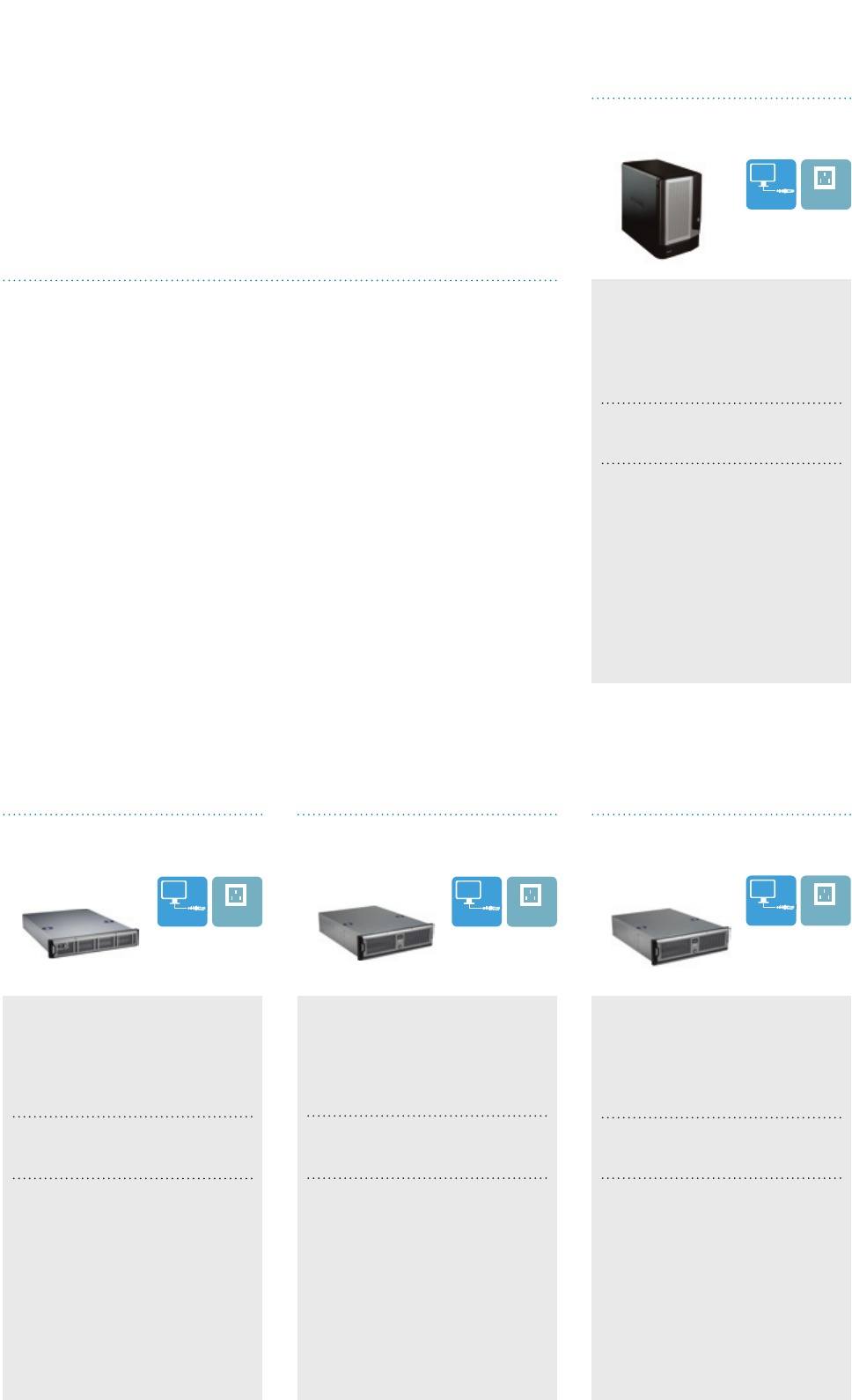

D-Link IP Storage Area Network (SAN) arrays provide
a reliable network data storage solution using powerful
System-on-a-Chip (SoC) design to handle over 80,000 I/
Os per second and support terabytes of raw capacity
using multiple 1TB hard drives. It can also be used as a
backup and recovery device in the network. Large
amount of videos and images captured from the network
cameras can be stored in such storage devices securely.
D-Link Power-over-Ethernet (PoE) switches are equipped
to inject up to 15.4 watts of power per port to network
cameras. This eliminates the need to place the cameras
within close proximity to a power outlet and minimizes
cable clutter.
• Data/Video/Audio Triple Play Application Solution
D-Link Web Smart III switches are ideal for deployment in
a Voice over IP (VoIP) environment. They support Auto
Voice VLAN and Differentiated Services Code Point (DSCP)
Quality of Service (QoS) for VoIP application. Auto Voice
VLAN will automatically place voice traffic from an IP
phone to an assigned VLAN and enhance the VoIP service.
This feature can guarantee the quality and security of VoIP
traffic.
Aggregation Network
Aggregation network is where each connection from the
access network is gathered and terminated. Enterprise
network needs reliable redundant, and high performance
devices to perform the necessary traffic policing and
intermediate routing. D-Link therefore offers a robust solution
for the aggregation network with its Layer-3 managed
switch and Layer-3 chassis switch. With these devices, D-Link
provides fundamental functions for enterprise aggregation
network, which include:
4KEY SOLUTION
• Intermediate Routing
This feature is needed for interconnection between
segments in the access network, and between the access
network and core network. In order to perform this
function, D-Link solution provides support for static route,
RIP I/II, OSPF and RIPng for IPv6 implementation.
• Bandwidth Management
This feature allows the network administrator to allocate
different amounts of bandwidth for each service and
user, which will lead to more efficient bandwidth usage.
• Traffic Policing - ACL
Network traffic passing through the aggregation network
will be filtered against defined access control list to
eliminate unnecessary and malicious traffic.
• High Availability
D-Link provides high availability of aggregation network
with redundancy power supply, stacking configuration
and Virtual Router Redundancy Protocol (VRRP).
Core Network
As its name implies, core network is where enterprises place
their critical information technology resources. Core
network makes up the enterprise network backbone.
Network connection from the enterprise network
(access and aggregation network), server farm, Internet
and network management system culminate in core
network. Because of its critical role, enterprises need
high performance and reliable infrastructure for the
core network. In meeting this challenge, D-Link offers its
xStack Layer-3 switches and Layer-3 chassis switches.
D-Link's core network solution provides high switching
capacity with 10-Gigabit connections to ensure high speed
and excellent core network performance. In addition, to
provide an ideal core network infrastructure, D-Link also
enrich this high performance infrastructure with features such
as high availability (stacking configuration, VRRP), and routing
for IPv4, IPv6 and multicast traffic. Besides providing excellent
core network infrastructure, D-Link also provides network
management and storage solution for comprehensive core
network solution.
D-Link offers two solutions for Centralized Network
Management, namely, the AP Manager II and D-View 6.0.
• Centralized Network Management
For large scale centralized network management, D-Link
provides D-View 6.0 Simple Network Management
Protocol (SNMP) software. D-View 6.0 is a centralized
management system that covers a wide range of network
devices such as access points, managed switches and
SNMP capable routers. It allows the network administrator
to manage and monitor critical network characteristic
such as device configuration, network performance,
security and fault tolerance.
• Centralized Access Point Management
AP Manager II provides centralized management for
up to 20 fat wireless access points. Features
supported by AP Manager II include mass configuration,
mass firmware upgrade, fault management, real-time
monitoring and real-time reporting. This software
provides network administrators with the means of
verifying and conducting regular maintenance checks
without the need of physical travel.
End-to-End Security (E2ES)
E2ES is a unique security solution from D-Link that covers the
entire enterprise network from the access network to core
network. This solution consists of three elements:
• Gateway Security
This carries out the security function for enterprise
network at the gateway, the boundary between
enterprise network and the Internet. It protects
enterprise network from external security threats to
ensure the secure operation of internal network. For

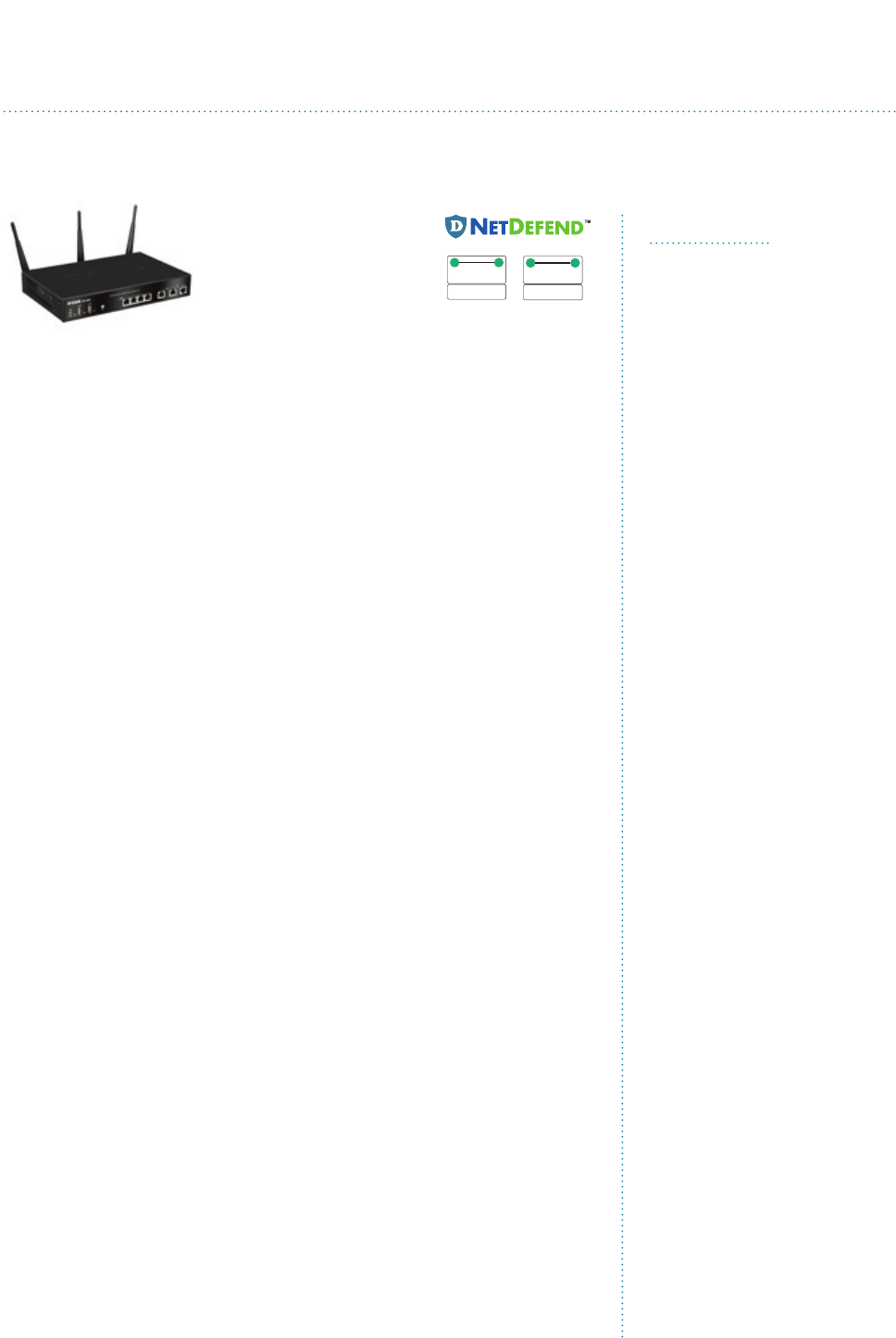

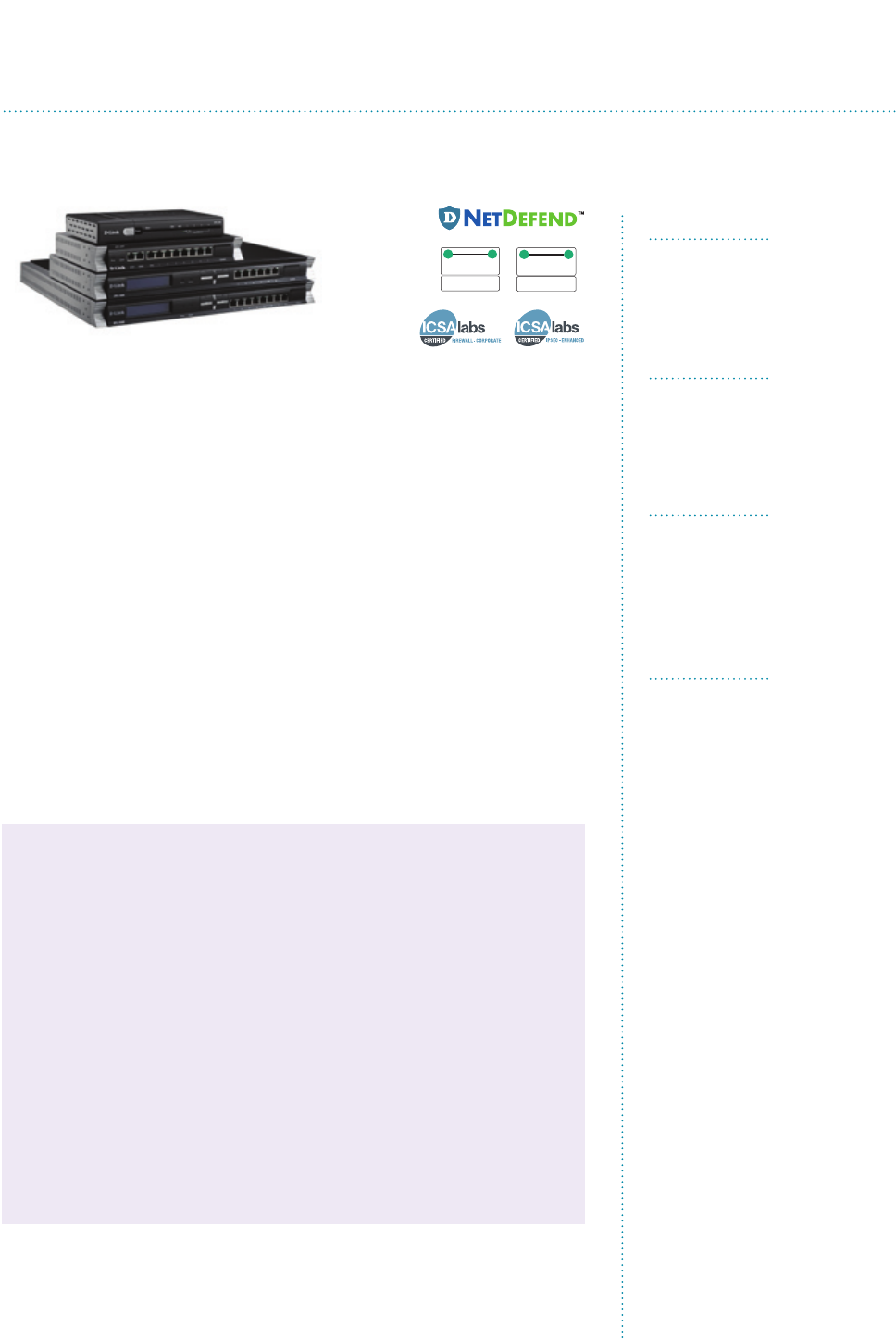

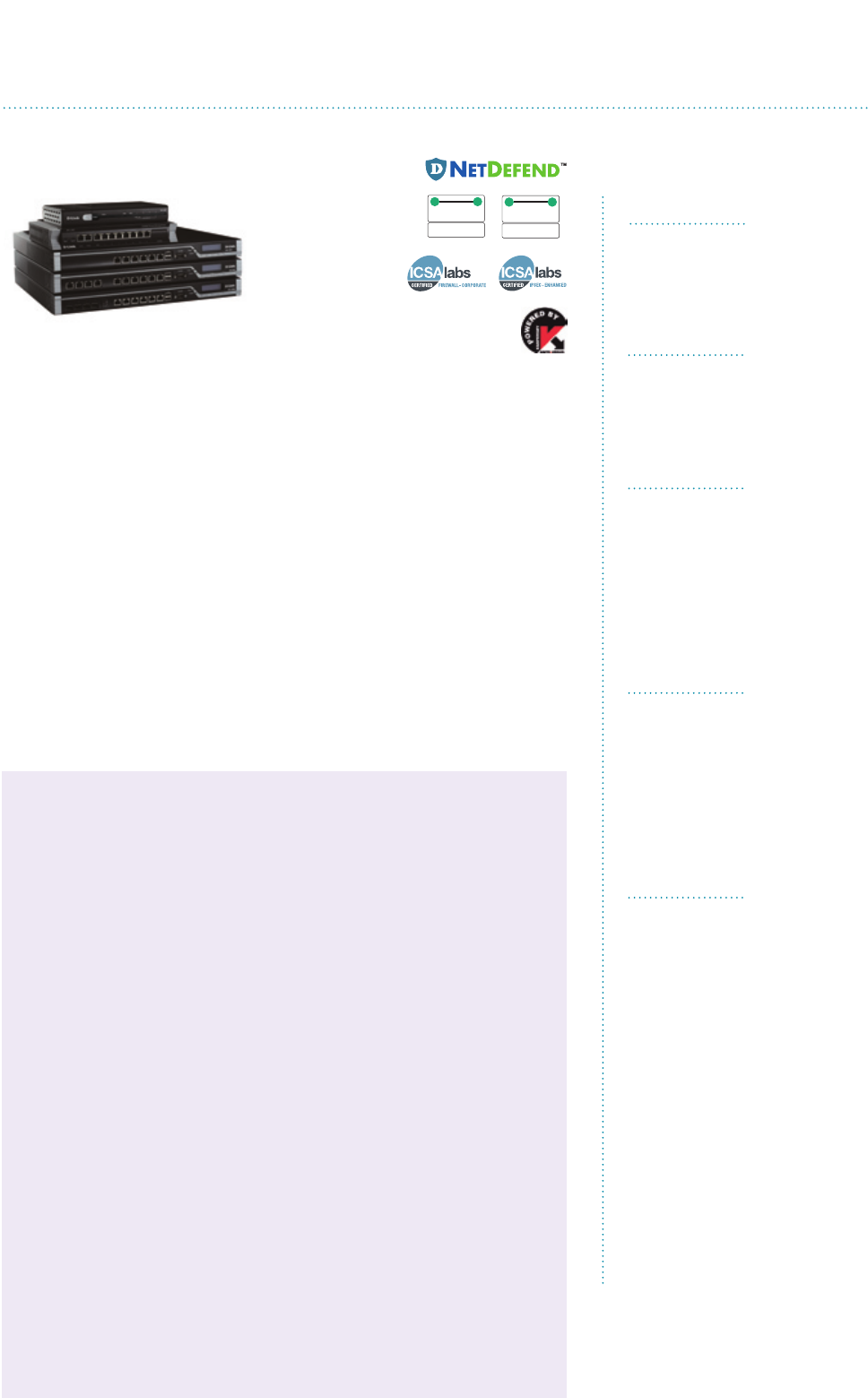

this element of E2ES, D-Link present the NetDefend
UTM/IPS firewall. This firewall is equipped with various
advanced security features such as illegal traffic detection,
intrusion detection prevention, anti-spam, anti-virus, web
content filtering, high availability, VPN and more.
• Endpoint Security
This is the first line of defense within enterprise internal
network. It protects enterprise network from security
threats coming from inside the network. D-Link provides
this solution by pushing intelligence to its xStack
switch as an evolutionary endpoint security that performs
authentication, authorization, traffic control, node address
control and attack mitigation. Some of the endpoint
security functions supported by the D-Link xStack switch
are access control (802.1X, MAC-based, web-based),
dynamic VLAN assignment, loopback detection, IP-MAC-
Port binding, rogue DHCP server detection, Safeguard
Engine, and broadcast storm control.
• Joint Security
Joint Security is a security solution formed with D-Link
ZoneDefense and Microsoft Network Access Protection
(NAP) to provide user access control and comprehensive
security mechanism for enterprise network. D-Link
ZoneDefense is a unique security technology that enables
D-Link NetDefend firewall to work together with
D-Link xStack switch to carry out an advanced defense
mechanism. With this defense mechanism, the firewall
will block any malicious traffic or security threat and
inform the xStack switch within the enterprise network
to block the suspected host. ZoneDefense, in this way,
effectively stops security threats and virus/worm infections
and outbreaks. D-Link Joint Security offers two important
functions for user access control in enterprise network:
• User Authentication
Only users with valid access credentials are allowed
to access the network.
• Policy Enforcement and Remediation
NAP will check and ensure system compliance of
each user that has passed authentication process
against enterprise security requirements such as
updated anti-virus definition of network host, updated
operating system patch of network host or personal
firewall in active status. Only network hosts that meet
the security requirements specified will be allowed to
access the network.
5
SWITCHES
SWITCHES
Wired networks offer quick communication channels between
users, computers and network devices through switch connection
withinlocal area network. Products under this category include
chassis,core, edge, secure switches, managed, Web Smart and
unmanaged switches, transceivers, converters and adapters.

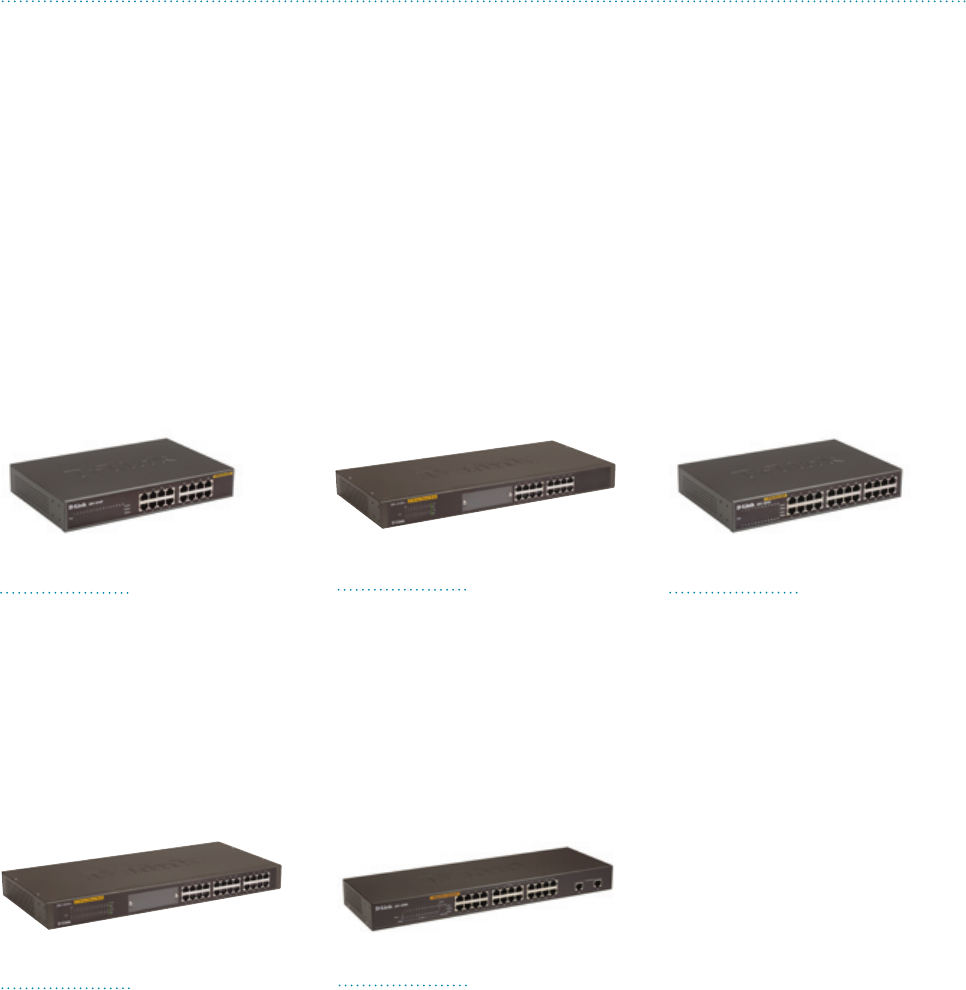

Unmanaged
- Si mp lest way to build a network and let it run itself
- Plug-and-play connectivity for small businesses
- Ideal for small networks that are sharing resources
- Green Ethernet
Smart
- Many of the benefits of managed, as outlined below,
but without the complexity or cost
- Ease of configuration through web-management
- Ideal for users wishing to build small to medium
size networks but who don’t need the advanced
features necessary for corporate deployments
Managed
- Allows administrators to monitor traffic across the
network, introduce redundancy and control access
- Found in networks with numerous users and
applications, where performance and reliability must
be maximized and security enforced
- Ideal for large sites where server farms are deployed,
with hundreds of users sharing multiple printers and
applications and routinely using wireless access and
video-conferencing, such as in corporate headquarters
- Includes D-Link’s industry leading selection of
xStack switches

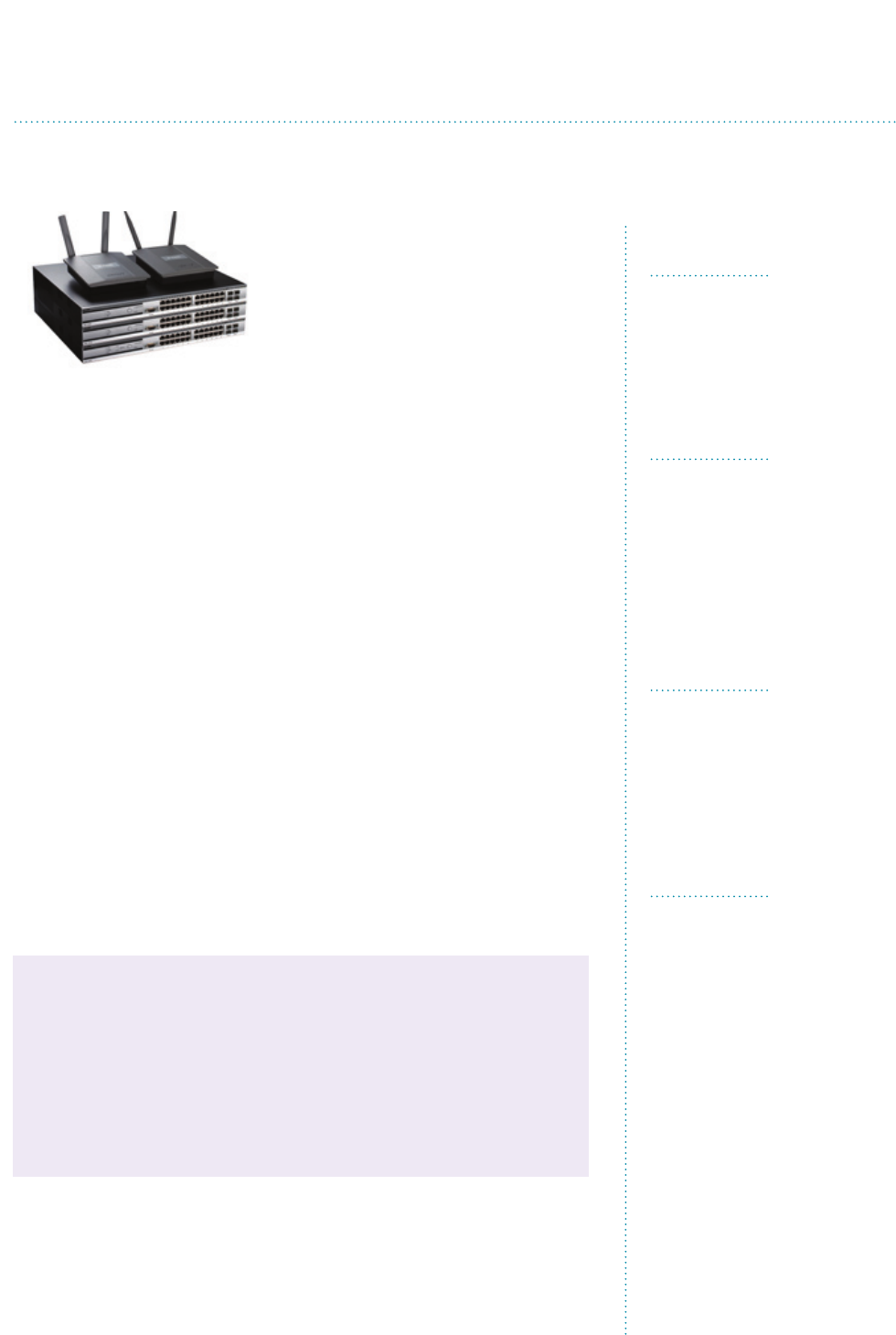

Unified Wireless
- Managed switches which offer flexible deployment,
one single device can manage both wired and wireless
access traffic – unified switch = wireless controller +
LAN switch
- Feature-rich centralized management for wireless
Access Points (AP) and clients, including security policy
and RF parameters
- Enables seamless wireless roaming without the need
for cursor re-authentication: necessary in particular for
Voice-over-WLAN (VoWLAN) applications
- Compared to previous generation wireless solutions
(mobile controller), unified switching platforms offer
a strong depth of features including incomplete wired
switching functions and enough physical connections
to be located at the ‘edge’ of the network

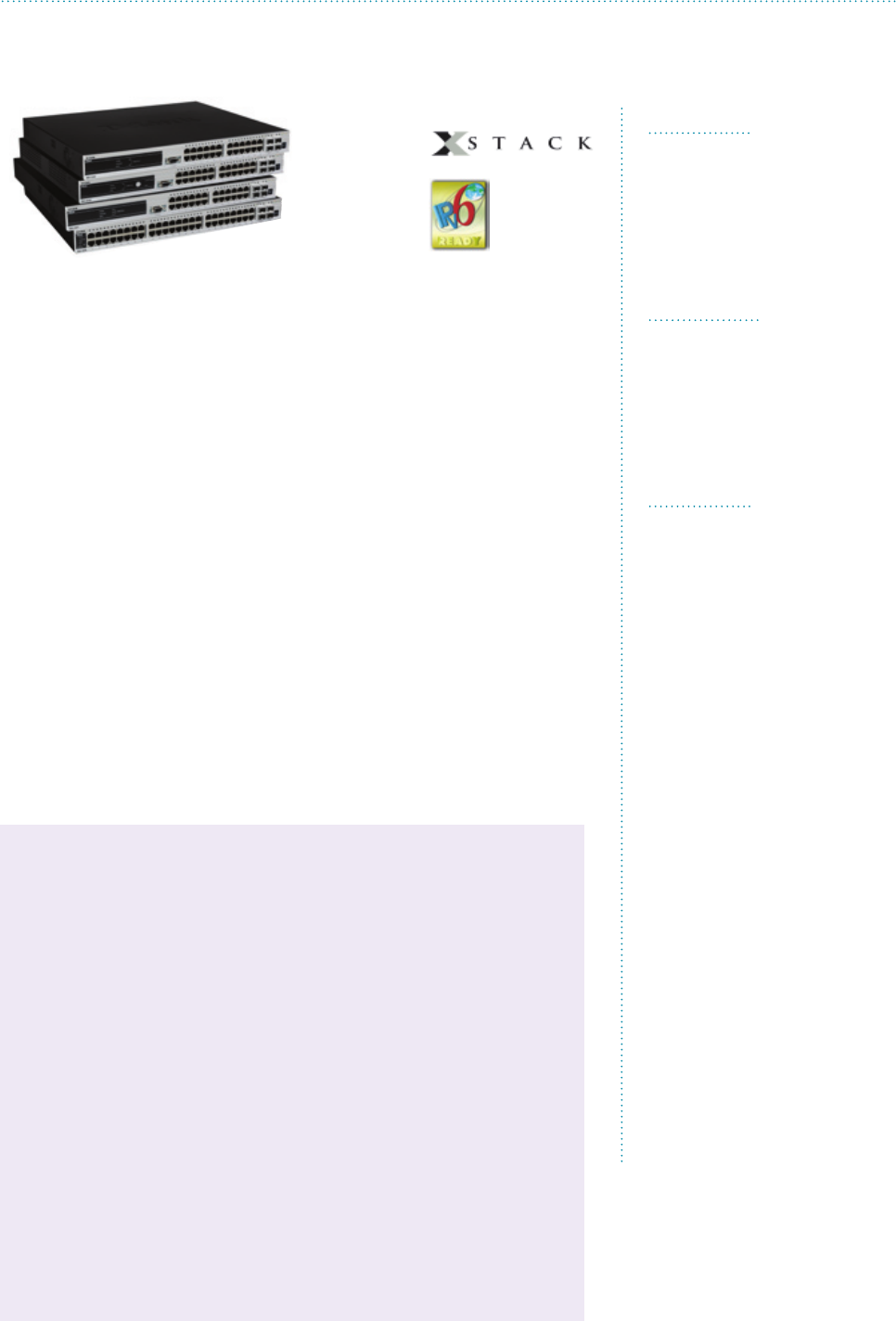

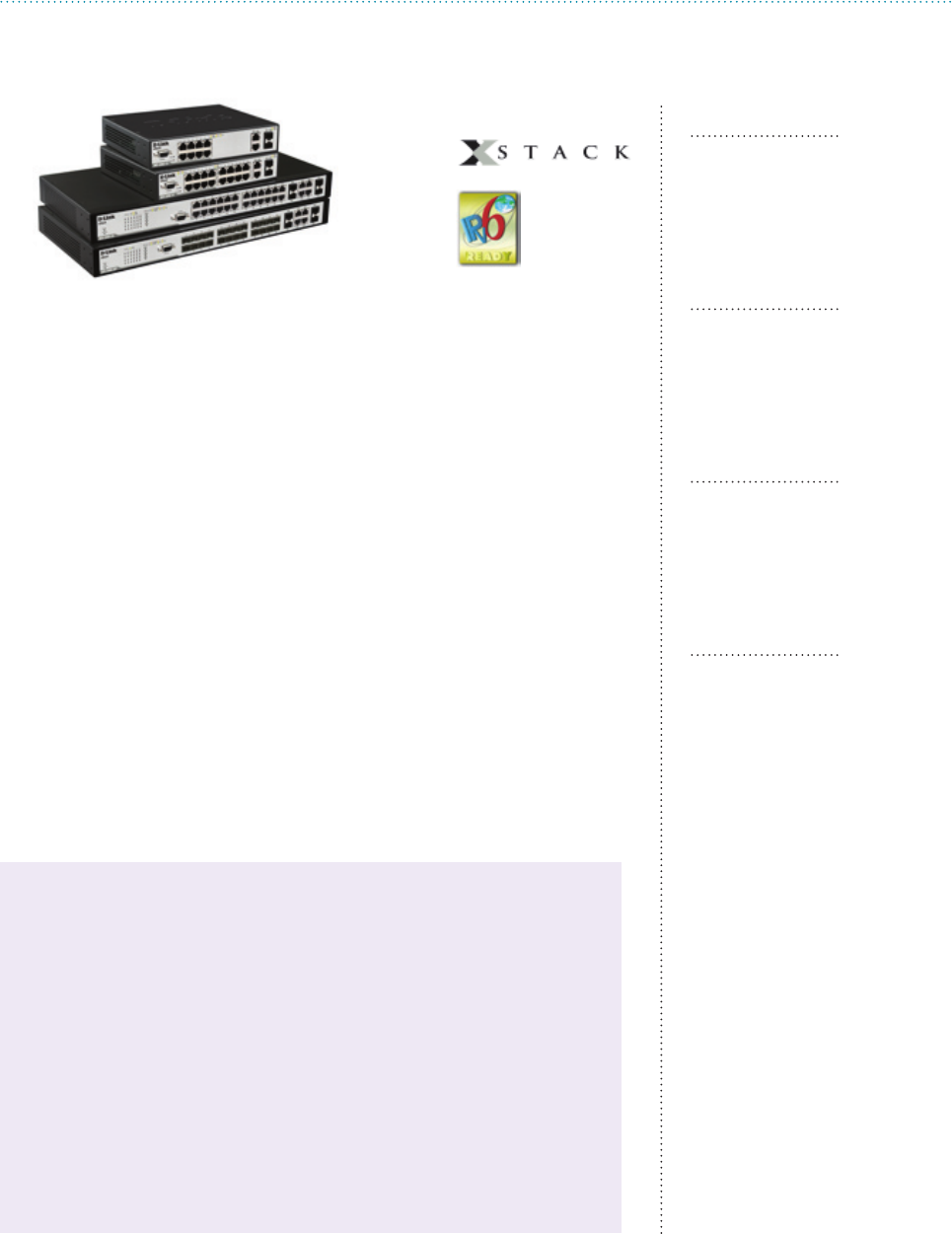

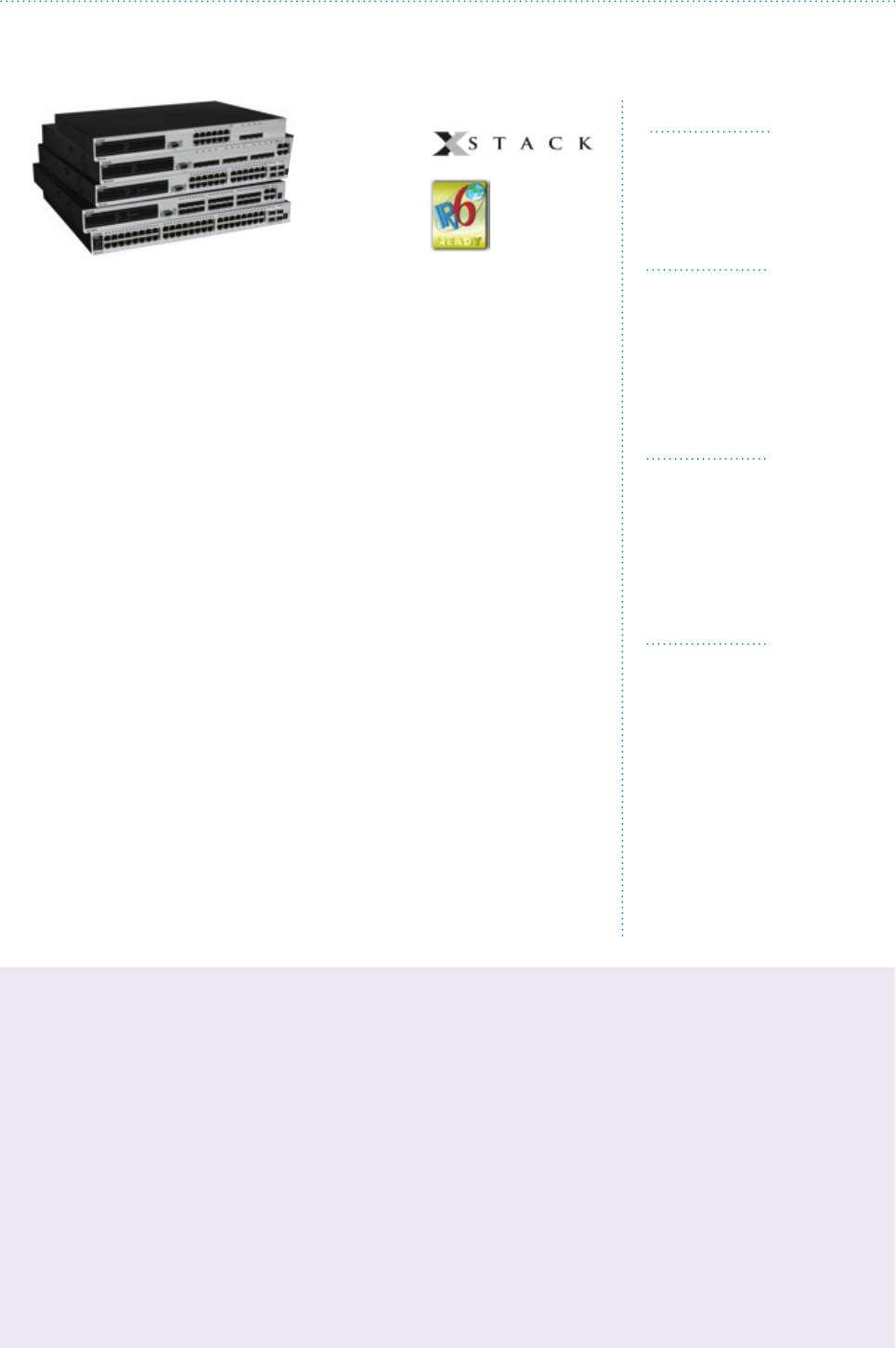

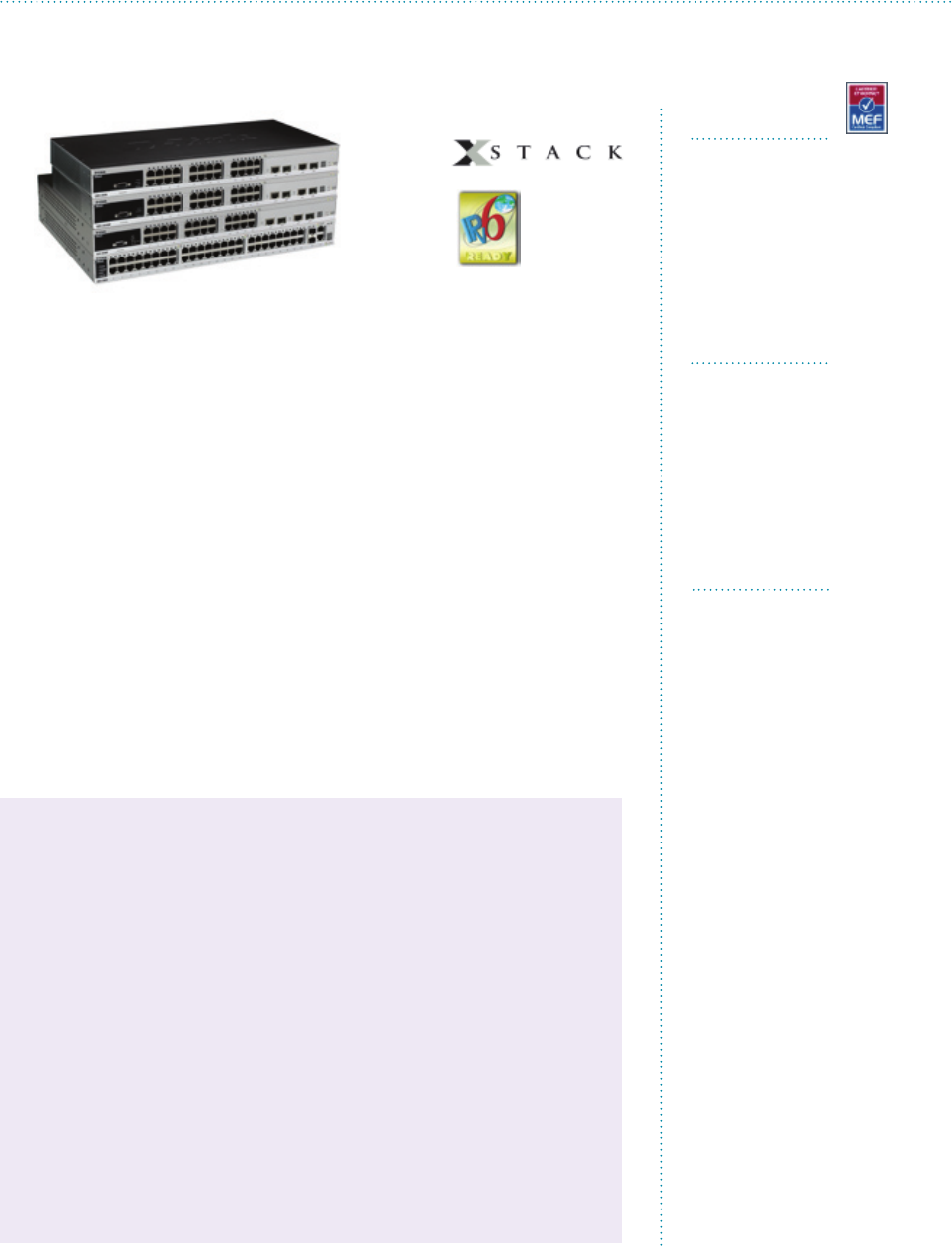

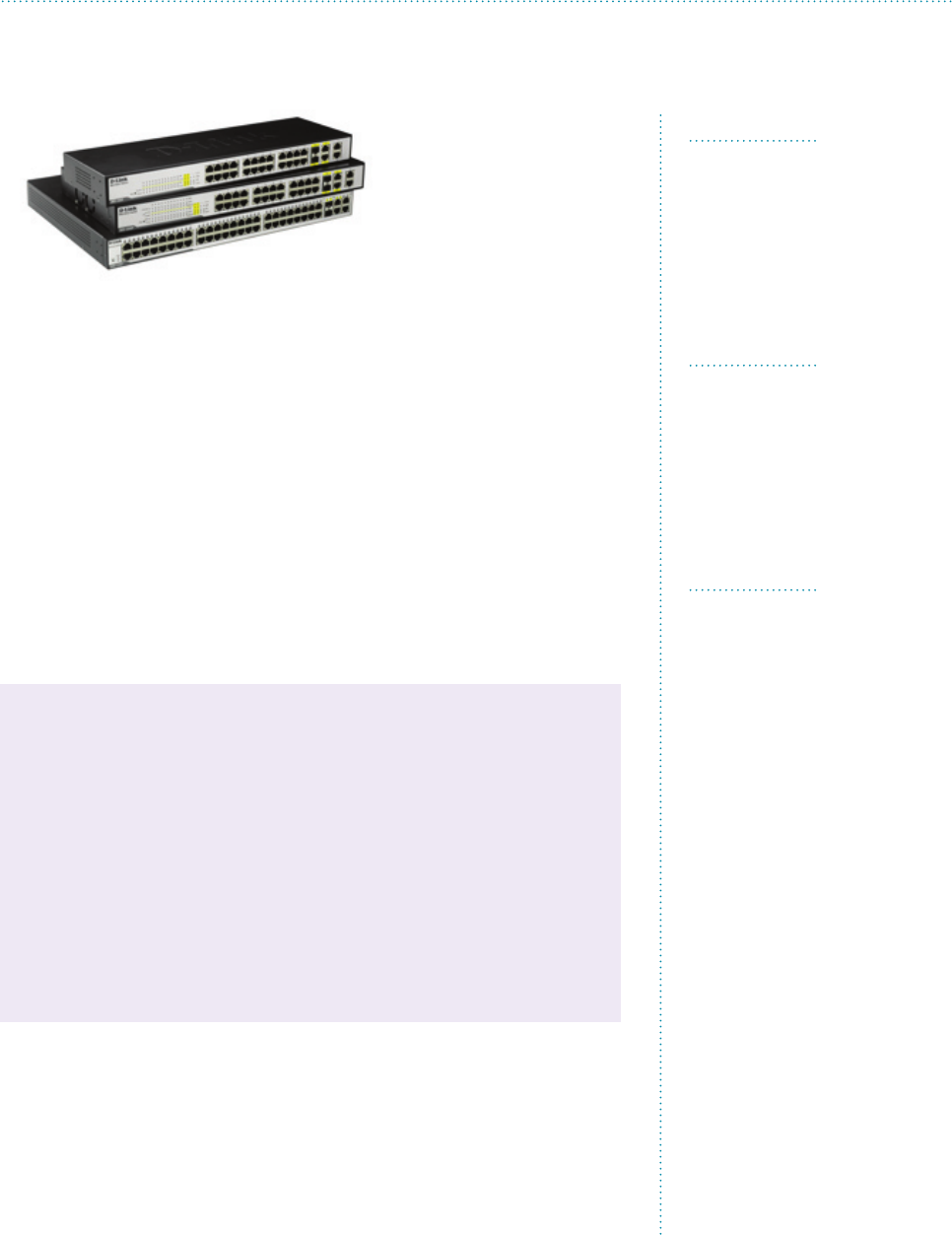

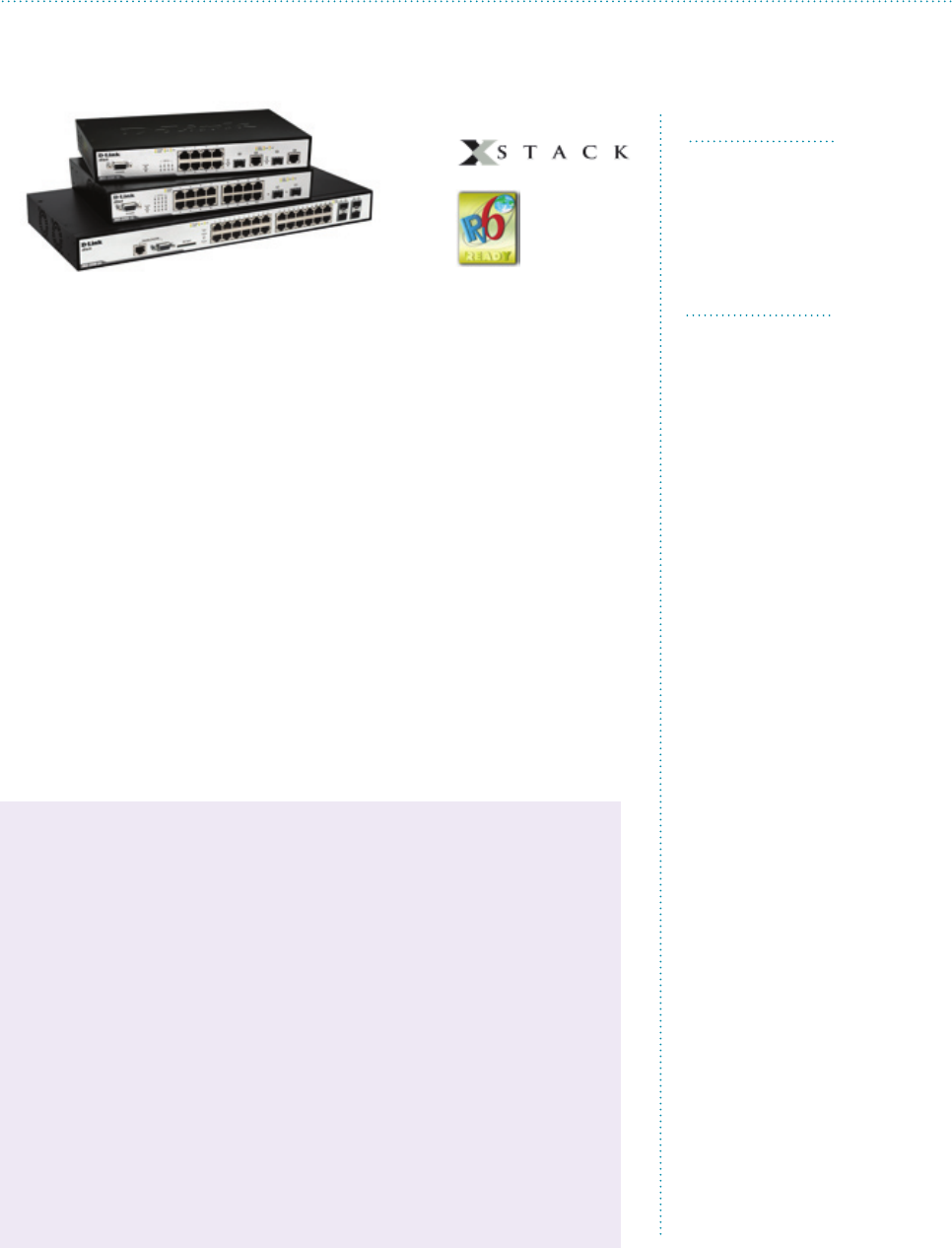

xStack
- High port-density Layer 3 stackable switches
- Combine the ultimate performance with fault tolerance,
security, management functions with flexibility and
ease-of-use
- Equipped with 2 stacking ports providing 20Gbps full
duplex bandwidth
- Provides the 10G uplinks for transmission at 10 times
the speed of a Gigabit port
- Flexible and Scalable - Whether you need to bring
Gigabit or just conventional 10/100Mbps speed to your
organization's desktops, D-Link xStack has the right
solution with right port types, port densities and uplinks
to match your requirements
6SWITCHES Gigabit Ethernet Layer 3 Chassis Switches
DES-7200 Series
Gigabit Ethernet Layer 3 Chassis Switches
DES-7200 series chassis-based switch is an intelligent and high performance
multi-layer LAN device designed for enterprise, campus, and metropolitan area
networks (MAN). The switch is ideal for deployment in environments where
uninterrupted running of network applications and high level of performance,
security and control are required. It provides the flexibility of deploying Gigabit
and/or 10-Gigabit packet switching and routing.
Optional Accessories
I/O Modules
7200-24 12-Port 10/100/1000BASE-T + 12-Port Combo 1000BASE-T or SFP
7200-24G 12-Port SFP + 12-Port Combo 10/100/1000BASE-T or SFP
7200-24P 12-Port 10/100/1000BASE-T PoE + 12-Port Combo 1000BASE-T PoE
or SFP
7200-48 44-Port 10/100/1000BASE-T + 4-Port Combo 1000BASE-T or SFP
7200-48P 44-Port 10/100/1000BASE-T PoE + 4-Port Combo 1000BASE-T PoE
or SFP
7200-2XG 2-Port 10-Gigabit XFP
7200-4XG 4-Port 10-Gigabit XFP
Enhanced I/O Modules
7200-24G2XGE 12-Port SFP + 12-Port Combo 1000BASE-T or SFP + 2-Port
10-Gigabit XFP
7200-24GE 24-Port SFP
7200-48E 44-Port 10/100/1000BASE-T + 4-Port Combo 1000BASE-T or SFP
Extension Memory
7200-512RAM 512MB Additional RAM Module (for 7200-CM3/7200-CM4)
CPU Modules
7200-CM1 CPU Module with 96G Switching Capacity (for DES-7206-BASE)
7200-CM3 CPU Module with 96G Switch Capacity & Supports Advanced
Service Engine (for DES-7206-BASE)
7200-CM2 CPU Module with 192G Switching Capacity (for DES-7210-BASE)
7200-CM4 CPU Module with 192G Switching Capacity & Supports
Advanced Service Engine (for DES-7210-BASE)
Advanced Service Engines
7200-ASE2 ASE II for IPFIX Support
7200-ASE3 ASE III for MPLS Support
Redundant Power Supplies
7200-1200AC 1200W AC Redundant Power Supply
7200-1200DC 1200W DC Redundant Power Supply
7200-2000AC 2000W AC Redundant Power Supply
Fans
7206-FAN Fan Tray (for DES-7206-BASE)
7210-FAN Fan Tray (for DES-7210-BASE)
10-Gigabit Ethernet XFP Transceivers
DEM-421XT 10GBASE-SR, MMF, 300m
DEM-422XT 10GBASE-LR, SMF, 10km
DEM-423XT 10GBASE-ER, SMF, 40km
Gigabit Ethernet SFP Transceivers
DEM-310GT 1000BASE-LX, SMF/MMF, 10km/2km
DEM-311GT 1000BASE-SX, MMF, 550m
DEM-312GT2 1000BASE-SX, MMF, 2km
DEM-314GT 1000BASE-LH, SMF, 50km
DEM-315GT 1000BASE-ZX, SMF, 80km
DGS-712 1000BASE-T, Copper, 100m
Gigabit Ethernet WDM SFP Transceivers
DEM-330T/R 1000BASE-BX, SMF, 10km
DEM-331T/R 1000BASE-BX, SMF, 40km
Fast Ethernet SFP Transceivers
DEM-210 100BASE-FX, SMF, 15km
DEM-211 100BASE-FX, MMF, 2km
Fast Ethernet WDM SFP Transceivers
DEM-220T/R 100BASE-BX, SMF, 20km
Management Software
DV-600S D-View 6.0 Network Management System (Standard Edition)
DV-600P D-View 6.0 Network Management System (Professional Edition)
• InternetGroupManagementProtocol
(IGMP) Snooping
• RapidEtherRingProtection(RERP)
• DoubleVLAN(Q-in-Q)
• SelectiveQ-in-Q
• PrivateVLAN
• VirtualRouterRedundancyProtocol
(VRRP)
• IPv6ReadyPhase2
• OpenShortestPathFirst(OSPF)
• BorderGatewayProtocol(BGP)
• ProtocolIndependentProtocol-Dense
Mode (PIM-DM)
• ProtocolIndependentProtocol-Sparse
Mode (PIM-SM)
• QualityofService(QoS)
• MultiProtocolLabelSwitching(MPLS)
• VirtualRouting&Forwarding(VRF)
• IPFlowInformationExport(IPFIX)
• GlobalMAC-IPBinding
• CPUProtectionPolicy(CPP)
• 802.1XPort-basedAccessControl
• 802.1XMAC-basedAccessControl
• SimpleNetworkManagementProtocol
(SNMP)
DES-7206-BASE
•I/OModuleSlotx4
•CPUModuleSlotx2
•BuiltinFanTray
•BuiltinDustFilter
•AC/DCPowerSupplyOption
•RedundantPowerSupply
DES-7210-BASE
•I/OModuleSlotx8
•CPUModuleSlotx2
•BuiltinFanTray
•BuiltinDustFilter
•AC/DCPowerSupplyOption
•RedundantPowerSupply
7
* Available in Future Firmware Upgrade
SWITCHES Gigabit Ethernet Layer 3 Chassis Switches
* Available in Future Firmware Upgrade
DES-7200 Series
Model DES-7206-BASE DES-7210-BASE
LAN Standard IEEE 802.3; IEEE 802.3u; IEEE 802.3ab; IEEE 802.3z; IEEE 802.3ae; IEEE 802.3af
General
Features
Max. Switching Capacity 192Gbps (with 2 Control Modules) 384Gbps (With 2 Control Modules)
Passive Backplane Capacity 0.8TBytes 1.6TBytes
Maximum Forwarding Rate 142Mpps (with 2 Control Modules) 286Mpps (with 2 Control Modules)
Packet Buffer Memory 2MBytes
SDRAM for CPU 256MBytes (With 7200-CM1/7200-CM2) / 512MBytes (With 7200-CM3/7200-CM4) - Expandable to 1GBytes
Flash Memory 32MBytes (With 7200-CM1/7200-CM2) / 512MBytes (With 7200-CM3/7200-CM4)
Console Port RJ-45 Ethernet-based; Out-of-Band Configuration
Extension Flash Storage
Media Type-A Female USB Port
Base Unit
Expansion Module Slot Total 6 Slots: 2 for Control Modules + 4 for Port Modules Total 10 Slots: 2 for Control Modules + 8 for Port Modules
Max. 10BASE-T/100BASE-TX/
1000BASE-T Port (RJ-45) 192 384
Max. 10BASE-T/100BASE-TX/
1000BASE-T PoE Port (RJ-45) 192 384
Max. SFP Port 96 192
Max. 10GE XFP Slot 16 32
Fan Tray Yes (Built-in); 7206-FAN for DES-7206-BASE Yes (Built-in); 7210-FAN for DES-7210-BASE
Dust Filter Yes (Built-in)
Power Supply No (Need to Select the Suitable Power Supply Module)
Control
Module
Console Module Slot 2
CPU & Management Module
7200-CM1
7200-CM3
CPU Module with 96G Switching Capacity CPU
Module with 96G Switching Capacity &
Support Advanced Service Engine (ASE)
7200-CM2
7200-CM4
CPU Module with 192G Switching Capacity
CPU Module with 192G Switching Capacity &
Support Advanced Service Engine (ASE)
Port Module
Standard Module
7200-24
7200-24G
7200-24P
7200-48
7200-48P
7200-2XG
7200-4XG
12-Port 10/100/1000BASE-T; 12-Port Combo 110/100/1000BASE-T or SFP
12-Port SFP; 12-Port Combo 10/100/1000BASE-T or SFP
12-Port 10/100/1000BASE-T PoE; 12-Port Combo 10/100/1000BASE-T PoE or SFP
44-Port 10/100/1000BASE-T; 4-Port Combo 10/100/1000BASE-T or SFP
44-Port 10/100/1000BASE-T PoE; 4-Port Combo 10/100/1000BASE-T PoE or SFP
2-Port 10-Gigabit XFP
4-Port 10-Gigabit XFP
Enhanced I/O Module
7200-24G2XGE
7200-24GE
7200-48E
12-Port SFP; 12-Port Combo 10/100/1000BASE-T or SFP; 2-Port XFP
24-Port SFP
44-Port 10/100/1000BASE-T; 4-Port Combo 10/100/1000BASE-T or SFP
Advanced Service Engine (ASE) Module
(Require 7200-CM3 or 7200-CM4)
7200-ASE2
7200-ASE3
ASE for IPFIX; Support 128K IPFIX Entries; 6Gbps Throughput
ASE for MPLS; Support 192K Shared Table for Routing and L3 Forwarding Entries; 10Gbps Throughput
Power Supply Module
7200-1200AC
7200-1200DC
7200-2000AC
Power Output: 1,200W; AC Input: 90~264VAC, 40~60Hz
Power Output: 1,200W; DC Input: -36~-72VDC
Power Output: 1,200W@90~176VAC, 2,000W@176~264VAC; AC Input: 90Vac~264VAC, 40~60Hz
RAM Module 7200-512RAM 512MB Extension RAM Module for 7200-CM3/7200-CM4; Support Better Performance when the Network
Requires More Than 128K Routes or MPLS Applications
Fan Module 7206-FAN Fan Tray for DES-7206-BASE, 6 DC Fans 7210-FAN Fan Tray for DES-7210-BASE, 6 DC Fans
L2 Features
MAC Address: 16K Per Standard I/O Card, 32K Per Enhanced I/O Card; Jumbo Frame: Max. 9,216Bytes;
Address Resolution Protocol (ARP): Static ARP, Configurable ARP Aging Time;
IGMP Snooping: 1K Groups, IGMP Proxy; Port Mirroring: One-to-One, Multi-to-One, Tx/Rx/Both Port Mirroring;
Spanning Tree (STP): 802.1D STP, 802.1w Rapid STP, 802.1s Multiple STP;
Rapid Ether Ring Protection (RERP): Max. 16 Domains, Recovering L2 Traffic in 500ms;
802.3ad Link Aggregation: 128 Trunk Groups, 8 Ports Per Group; Head of Line Blocking Prevention
Virtual LAN (VLAN) 802.1Q Tagged VLAN, 802.1v Protocol VLAN, VLAN Group: 4K; Port-based VLAN; Super VLAN; Private VLAN;
Double VLAN: Port-based Q-in-Q, Selective Q-in-Q
L3 Features Max. 2K IP Interface; Secondary IP; Virtual Router Redundancy Protocol (VRRP);
IPv6 Tunneling: Manual Tunnel, ISATAP, 6to4; IPv6 Ready Phase 2
L3 Routing
Routing Entries: 12K, 192K (With 7200-ASE3); Static Routes: Max. 1K; Policy Based Route;
Routing Information Protocol (RIP) v1/v2; RIPng (IPv6)*; Multi Path Route: ECMP/WCMP; BGP+ v4 (IPv6);
Open Shortest Path First (OSPF) v2/v3 (IPv6): Stub/NSSA Area; Border Gateway Protocol (BGP) v4
L3 Multicasting
Protocol Independent Protocol-Dense Mode (PIM-DM); PIM-DMv6*;
Protocol Independent Protocol-Sparse Mode (PIM-SM); PIM-SMv6*;
Protocol Independent Protocol-Source Specific Mode (PIM-SSM); PIM-SSMv6*; PIM Snooping
Internet Group Management Protocol (IGMP) v1/v2/v3
Quality of Service
802.1p Class of Service (CoS); 8 Queues;
Queue Handling: Strict, Weighted Round Robin (WRR), Strict + WRR;
CoS based on: VLAN ID, 802.1p Priority, MAC Address
Multi Protocol Label Switching (MPLS) &
Virtual Private LAN Service (VPLS)
Virtual Routing & Forwarding (VRF) (Require Enhanced I/O module or 7200-ASE3); VPLS* (Require 7200-ASE4);
MPLS Label Management (Require 7200-ASE3); Label Distribution Protocol (LDP) (Require 7200-ASE3);
MPLS L3 VPN (Require 7200-ASE3); Virtual Private Wire Service (VPWS)* (Require 7200-ASE3)
IP Flow Information Export (IPFIX) Require 7200-ASE2
Security CPU Protection Policy (CPP); Secure Shell (SSH) v1.5/v2; Port Security: Max. 16 Max Addresses Per Port;
Global MAC-IP Binding; Defeat IP Scan; IP-MAC-Port Binding
Authentication, Authorization & Accounting
(AAA)
802.1X: Port-based Access Control, MAC-based Access Control, Dynamic VLAN Assignment;
Accounting: Period Accounting, Multiple Accounting; Remote Authentication Dial In User Service (RADIUS)
Management
Command Line Interface (CLI); Telnet Server; TFTP; DHCP Server; DHCP Relay; DHCP Relay Option 82; XModem;
Simple Network Management Protocol (SNMP) v1/v2c/v3; SNMP Trap; System Log;
Remote Monitoring (RMON) v1: 1, 2, 3, 9 Groups; System Status LED; System Alert;
DNS Client; Debug; Network Time Protocol (NTP) / Simple Network Time Protocol (SNTP);
File System: Flash Storage Media, Multiple Firmware, Multiple Configuration
Management Information Base (MIB) MIB-II (RFC1213); Bridge (RFC1493); SNMPv2 (RFC1901, 1907); SNMP (RFC1157, 2571-2576); RIPv2 (RFC1724)
RMON (RFC1271, 2819); PIM-SSM (RFC3569); IP FDB (RFC2096); IGMPv3 (RFC2933); D-Link Private MIB
Standard Compliance
PIM-SM (RFC2362); VRRP (RFC2338, 2787); DVMRP (RFC1075); DiffServ (RFC2474-2475);
802.1p (RFC2674); IGMPv3 (RFC2933); RADIUS (RFC2138-2139, 2865-2866); Super VLAN (RFC3069);
OSPF (RFC1370, 1587, 1765, 1850, 2328, 2370); DHCP (RFC1542, 2131, 3046); (RFC791);
BGP (RFC1771, 1997, 2439, 2796, 2842, 2918); SNMP (RFC3411-3417); UDP (RFC768); IP (RFC791);
TCP (RFC793); Telnet (RFC854); NTP (RFC1305); TFTP (RFC1350); SNTP (RFC1769)
Physical &
Environment
Dimension (W x D x H) 436.8 x 508 x 647.4 mm 436.8 x 448 x 956 mm
Operation Temperature 0 to 40 °C
Storage Temperature -40 to 70 °C
Humidity 90% Non-Condensing
Certification EMI-EMC Compliance FCC Class A; CE Class A; VCCI Class A
Safety Compliance cUL; CB
8

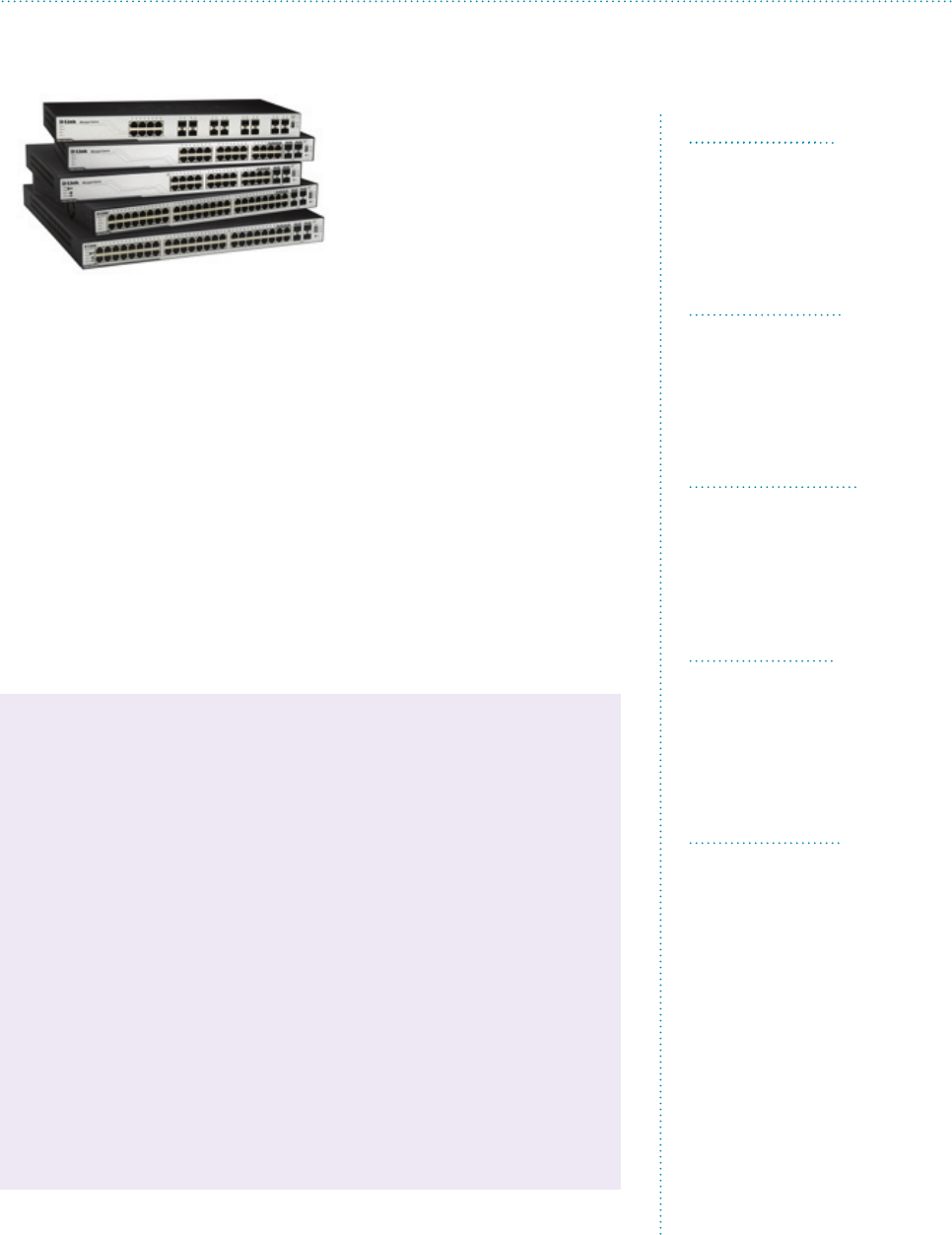

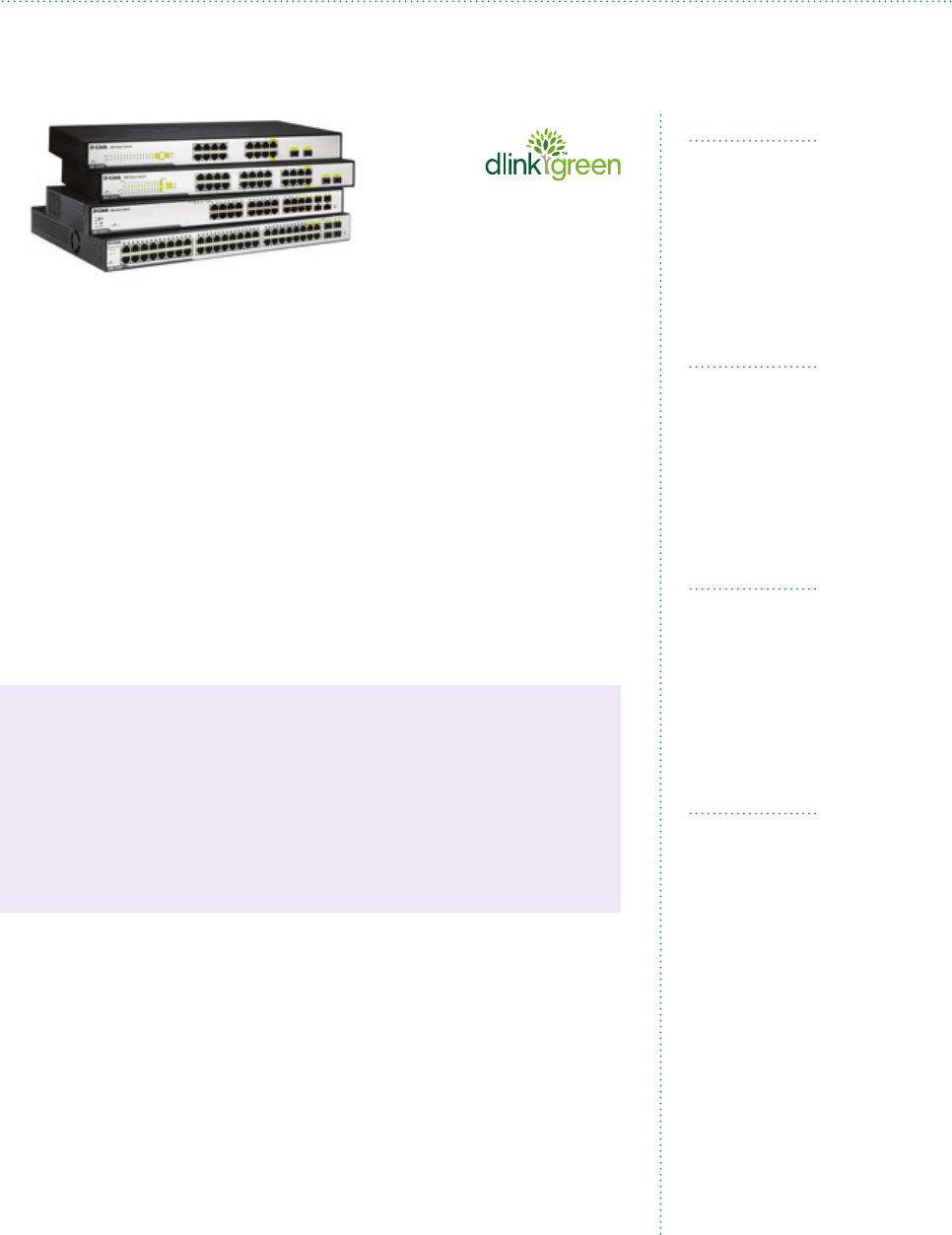

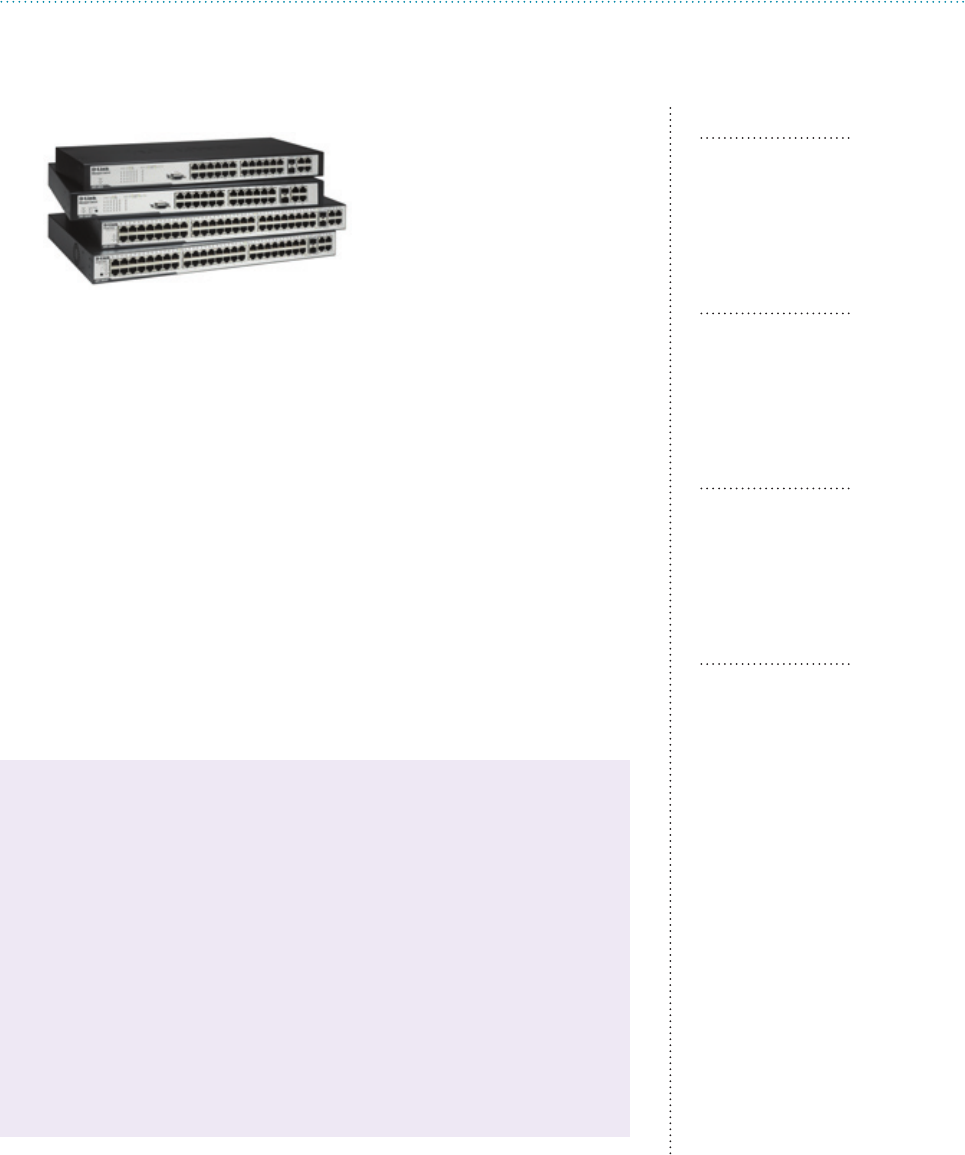

DGS-3600 Series
Gigabit Ethernet xStack Layer 3 Core Switches
DGS-3600 series consists of Layer 3 Gigabit switches that deliver performance,
flexibility, security, multi-layer QoS and access, with redundant power option for
SMB and enterprises. It is easy to deploy, simple to manage, and it can be virtually
stacked with any switches supporting D-Link Single IP Management (SIM). It also
supports 10-Gigabit physical stacking.
* Available in Future Firmware Upgrade
Optional Accessories
Modules
DEM-410X 1-Port 10G XFP Module
(for DGS-3627, DGS-3627G & DGS-3650)
DEM-410CX 1-Port 10G CX4 Module
(for DGS-3627, DGS-3627G & DGS-3650)
10-Gigabit Ethernet XFP Transceivers
DEM-421XT 10GBASE-SR, MMF, 300m
(for DGS-3627, DGS-3627G & DGS-3650)
DEM-422XT 10GBASE-LR, SMF, 10km
(for DGS-3627, DGS-3627G & DGS-3650)
DEM-423XT 10GBASE-ER, SMF, 40km
(for DGS-3627, DGS-3627G & DGS-3650)
Gigabit Ethernet SFP Transceivers
DEM-310GT 1000BASE-LX, SMF/MMF, 10km/2km
DEM-311GT 1000BASE-SX, MMF, 550m
DEM-312GT2 1000BASE-SX, MMF, 2km
DEM-314GT 1000BASE-LH, SMF, 50km
DEM-315GT 1000BASE-ZX, SMF, 80km
DGS-712 1000BASE-T, Copper, 100m
Gigabit Ethernet WDM SFP Transceivers
DEM-330T/R 1000BASE-BX, SMF, 10km
DEM-331T/R 1000BASE-BX, SMF, 40km
Fast Ethernet SFP Transceivers
DEM-210 100BASE-FX, SMF, 15km (for DGS-3612G)
DEM-211 100BASE-FX, MMF, 2km (for DGS-3612G)
Fast Ethernet WDM SFP Transceivers
DEM-220T/R 100BASE-BX, SMF, 20km (for DGS-3612G)
Redundant Power Supplies
DPS-500 140-Watt AC Redundant Power Supply
(for DGS-3612G, DGS-3627, DGS-3627G & DGS-3650)
DPS-500DC 140-Watt AC Redundant Power Supply
(for DGS-3627, DGS-3627G & DGS-3650)
Management Software
DV-600S D-View 6.0 Network Management System
(Standard Edition)
DV-600P D-View 6.0 Network Management System
(Professional Edition)
• D-LinkSingleIPManagement(Virtual
Stack)
• InternetGroupMulticastProtocol
(IGMP) Snooping
• MulticastListenerDiscovery(MLD)
Snooping
• L2ProtocolTunneling
• 802.1vProtocolVLAN
• DoubleVLAN(Q-in-Q)
• SelectiveQ-in-Q
• VirtualRouterRedundancyProtocol
(VRRP)
• Ethernet-RingProtectionSwitching
(E-RPS)*
• IPv6Tunnel*
• GratuitousARP
• RoutingInformationProtocol(RIP)
• RoutingInformationProtocolNext
Generation (RIPng)*
• OpenShortestPathFirst(OSPF)
• BorderGatewayProtocol(BGP)*
• ProtocolIndependentProtocol-Dense
Mode (PIM-DM)
• ProtocolIndependentProtocol-Sparse
Mode (PIM-SM)
• DistanceVectorMulticastRouting
Protocol (DVMRP)
• QualityofService(QoS)
• D-LinkUnidirectionalLinkDetection
(DULD)*
• AccessControlList(ACL)
• Broadcast/Multicast/UnicastStorm
Control
• TrafficSegmentation
• D-LinkSafeguardEngine
• IP-MAC-PortBinding
• 802.1XAccessControl
• Web-basedAccessControl(WAC)
• MAC-basedAccessControl(MAC)
• Microsoft®NetworkAccessProtection
(NAP)
• Three-LevelUserAccount
• sFlow
• LinkLayerDiscoverProtocol(LLDP)
• LLDP-MediaEndpointDiscovery
(LLDP-MED)
DGS-3612G
•SFPSlotx8
•Combo1000BASE-T/SFPx4
•RedundantPowerSupply
DGS-3627
•10/100/1000BASE-Tx20
•Combo1000BASE-T/SFPx4
•10GExpansionSlotx3
•RedundantPowerSupply
•PhysicalStack
DGS-3627G
•SFPSlotx20
•Combo1000BASE-T/SFPx4
•10GExpansionSlotx3
•RedundantPowerSupply
•PhysicalStack
DGS-3650
•10/100/1000BASE-Tx44
•Combo1000BASE-T/SFPx4
•10GExpansionSlotx2
•RedundantPowerSupply
•PhysicalStack
SWITCHES Gigabit Ethernet xStack Layer 3 Core Switches
9SWITCHES Gigabit Ethernet xStack Layer 3 Core Switches
* Available in Future Firmware Upgrade
DGS-3600 Series
Model DGS-3612G DGS-3627 DGS-3627G DGS-3650
LAN Standard IEEE 802.3; IEEE 802.3u; IEEE 802.3z; IEEE 802.3ab; IEEE 802.3ae
Port
Interface
10BASE-T/100BASE-TX/
1000BASE-T Port (RJ-45) - 20 - 44
SFP Port 8 - 20 -
Combo 1000BASE-T/
SFP 4
10 GE Expansion Slot - 3 3 2
XFP Expansion Module - DEM-410X
CX4 Expansion Module - DEM-410CX
Stackability
Virtual Stack D-Link Single IP Management (SIM); Virtual Stack up to 32 Devices
Physical Stack -
Via Optional CX4/XFP Module; Bi-Directional Redundant Stacking Topology;
Duplex Chain / Ring Topology; Bandwidth up to 40Gbps (Full Duplex);
Up to 12 Units Per Stack; Backup Master;
Trunking or Mirroring across Stack
General
Features
Switching Capacity 24Gbps 108Gbps 136Gbps
Max. Forwarding Rate 17.86Mpps 80.36Mpps 101.19Mpps
Forwarding Mode Store and Forward
Packet Buffer Memory 2MBytes
SDRAM for CPU 256MBytes
Flash Memory PROM 512KBytes x 1; Runtime 16MBytes x 1
Mean Time Before
Failure 342,645 hours 287,631 hours 289,946 hours 246,838 hours
Console Port Female RS-232 DB-9 Console Port for Out-of-Band Configuration
L2 Features
MAC Address Table: 16K; Flow Control: IEEE 802.3x Flow Control, Head-of-Line (HoL) Blocking Prevention;
IGMP Snooping v1/v2/v3: 1K Groups, IGMP Snooping Fast Leave, Host-based IGMP Fast Leave*;
MLD Snooping v1: 1K Groups, MLD Snooping Fast Leave; Jumbo Frame: Max. 9,216Bytes;
Spanning Tree (STP): 802.1D STP, 802.1w Rapid STP, 802.1s Multiple STP, Per Port/Device BPDU Filtering, Root Restriction*;
Loopback Detection; 802.3ad Link Aggregation: Max. 32 Groups Per Device, 8 Gigabit Ports or 2 10GE Ports Per Group;
Port Mirroring: One-to-One, Many-to-One, Flow-based Mirroring, RSPAN; L2 Protocol Tunneling
Virtual LAN (VLAN)
VLAN Group: Max. 4K Static VLAN Groups, Max. 255 Dynamic VLAN Groups; 802.1Q Tagged VLAN; 802.1v Protocol VLAN;
GARP VLAN Registration Protocol (GVRP); Double VLAN (Q-in-Q): Port-based Q-in-Q, Selective Q-in-Q;
MAC-based VLAN*; Super VLAN*
L3 Features 256 Interfaces; Virtual Router Redundancy Protocol (VRRP); Ethernet-Ring Protection Switching (E-RPS)*;
IPv6 Tunneling*: Static, ISATAP, GRE, 6to4; IPv6 Ready Phase 1/2; Proxy ARP; Gratuitous ARP
L3 Routing
12K Hardware Routing Entries Shared by IPv4/IPv6: Max. 12K IPv4 Routes, Max. 6K IPv6 Routes;
8K Hardware L3 Forwarding Entries Shared by IPv4/IPv6: Max. 8K IPv4 Entries, Max. 4K IPv6 Entries;
Static Route Entries: 256 for IPv4, 128 for IPv6, ECMP/WCMP; Policy-based Route;
Routing Information Protocol (RIP) v1/v2; RIPng (IPv6)*; Border Gateway Protocol (BGP) v4*
Open Shortest Path First (OSPF) v2/v3 (IPv6): OSPF Passive Interface, Stub/NSSA Area, OSPF Equal Cost Route
Multicasting
1K Hardware Multicast Groups; Internet Group Management Protocol (IGMP) v1/v2/v3
Protocol Independent Protocol-Dense Mode (PIM-DM); Protocol Independent Protocol-Sparse Mode (PIM-SM);
PIM Sparse-Dense Mode; Distance Vector Multicast Routing Protocol (DVMRP) v3
Quality of Service (QoS)
802.1p Class of Service (CoS); 8 Queues; Queue Handling: Strict, Weighted Round Robin (WRR), Strict + WRR;
CoS based on: Switch Port, VLAN ID, 802.1p Priority Queues, MAC Address, IPv4/IPv6 Address, DSCP,
Protocol Type, IPv6 Traffic Class, IPv6 Flow Label, TCP/UDP Port, User-Defined Packet Content
Actions for Flows: Remark 802.1p Priority Tag, Remark TOS/DSCP Tag, Bandwidth Control, Flow Statistics,
Committed Information Rate (CIR): Min. Granularity 1kbps; Time-based QoS
Bandwidth Control: Port-based (Ingress/Egress, Min. Granularity 64kbps), Flow-based (Ingress, Min. Granularity)
Access Control List (ACL)
Max. 1,792 Access Rules; ACL Statistics; Time-based ACL;
ACL based on: 802.1p Priority, VLAN ID, MAC Address, Ether Type, IPv4/IPv6 Address, DSCP, Protocol Type,
TCP/UDP Port Number, IPv6 Traffic Class, IPv6 Flow Label, User-Defined Packet Content
Security
Secure Shell (SSH) v1/v2; Secure Sockets Layer (SSL) v1/v2/v3; Port Security: Max. 16 MAC Addresses Per Port;
Broadcast/Multicast/Unicast Storm Control; Traffic Segmentation; D-Link Safeguard Engine; CPU Interface Filtering;
IP-MAC-Port Binding: ARP Packet Inspection, IP Packet Inspection, DHCP Snooping, DHCPv6 & NDP Snooping*,
Max. 500 Address Binding Entries Per Device;
DHCP Server Screening; ARP Spoofing Prevention*; BPDU Attack Protection*
Authentication, Authorization &
Accounting (AAA)
802.1X: Port-based Access Control, Host-based Access Control, Dynamic VLAN Assignment;
Web-based Access Control (WAC): Port-based Access Control, Host-based Access Control, Dynamic VLAN Assignment;
MAC-based Access Control (MAC): Port-based Access Control, Host-based Access Control, Dynamic VLAN Assignment;
Microsoft Network Access Protection (NAP): 802.1X NAP, DHCP NAP; Guest VLAN;
RADIUS & TACACS+ Authentication for Switch Access; Three-Level User Account
Management
Web-based GUI; Command Line Interface (CLI); Telnet Server; Telnet Client*; TFTP Client; ZModem; System Log;
Simple Network Management Protocol (SNMP) v1/v2c/v3; SNMP Trap; Link Layer Discovery Protocol (LLDP);
Remote Monitoring (RMON) v1: 1, 2, 3, 9 Groups; RMON v2: ProbeConfig Group; DHCP Auto-Configuration; DHCP Relay;
DHCP Relay Option 60/61*/82; DHCP Server; Flash File System; Multiple Images; Multiple Configurations; CPU Monitoring;
Simple Network Time Protocol (SNTP); Internet Control Message Protocol (ICMP) v6; IPv6 Neighbor Discovery (ND);
DHCPv6 Client*; DHCPv6 Relay*; DHCPv6 Server*; Cable Diagnostics*; sFlow; BootP/DHCP Client; Debug Command;
D-Link Unidirectional Link Detection (DULD)*
Management Information Base (MIB)
MIB-II (RFC1213); Bridge (RFC1493); SNMPv2 (RFC1907); SNMP (RFC2571-2576); RMON (RFC1271, 2819);
RMONv2 (RFC2021); Ether-Like (RFC2665); MAU (RFC2668); 802.1p (RFC2674); IF (RFC2233, 2863);
RADIUS Authentication Client (RFC2618); RIPv2 (RFC1724); OSPFv2 (RFC1850); VRRP (RFC2787);
IP Forwarding Table CIDR (RFC2096); IPv4 Multicast Routing (RFC2932); PIM for IPv4 (RFC2934);
RADIUS Accounting Client (RFC2620); IGMP (RFC2933); Ping*; Traceroute*; D-Link Private MIB
Standard Compliance
UDP (RFC768); TFTP (RFC783); IP (RFC791); ICMP (RFC792); TCP (RFC793); ARP (RFC826); Telnet (RFC854);
BootP (RFC951, 1542);; HTTP (RFC2068); VRRP (RFC2338); IPv6 Tunnel (RFC2529, 3053, 3056); RADIUS (RFC2138);
RADIUS Accounting (RFC2139); TACACS (RFC1492); sFlow (RFC3176); DiffServ Expedited Forwarding (RFC2598)
Physical &
Environment
Dimension (W x D x H) 19”, 1U Rack-Mount;
441 x 389 x 44mm
Weight (W/O Modules) 5.0kg 5.5kg 5.5kg 5.7kg
Power Input AC Input: 100-240 VAC, 50/60Hz; Internal Universal Power Supply
Max. Power
Consumption 43.7W 94.3W 75.6W 137.5W
Redundant Power
Supply DPS-500 DPS-500 / DPS-500DC
Operation Temperature 0 to 40 °C
Storage Temperature -40 to 70 °C
Operation Humidity 10% to 90% RH
Storage Humidity 5% to 90% RH
Acoustic < 51.1 dB < 51.6 dB < 51.3 dB < 48.1 dB
Certification
EMI-EMC Compliance FCC Class A; CE Class A; C-Tick Class A; VCCI Class A
Safety Compliance cUL; CB
Metro Ethernet Forum MEF 9, 14
10 SWITCHES Fast Ethernet xStack Layer 3 Core Switches

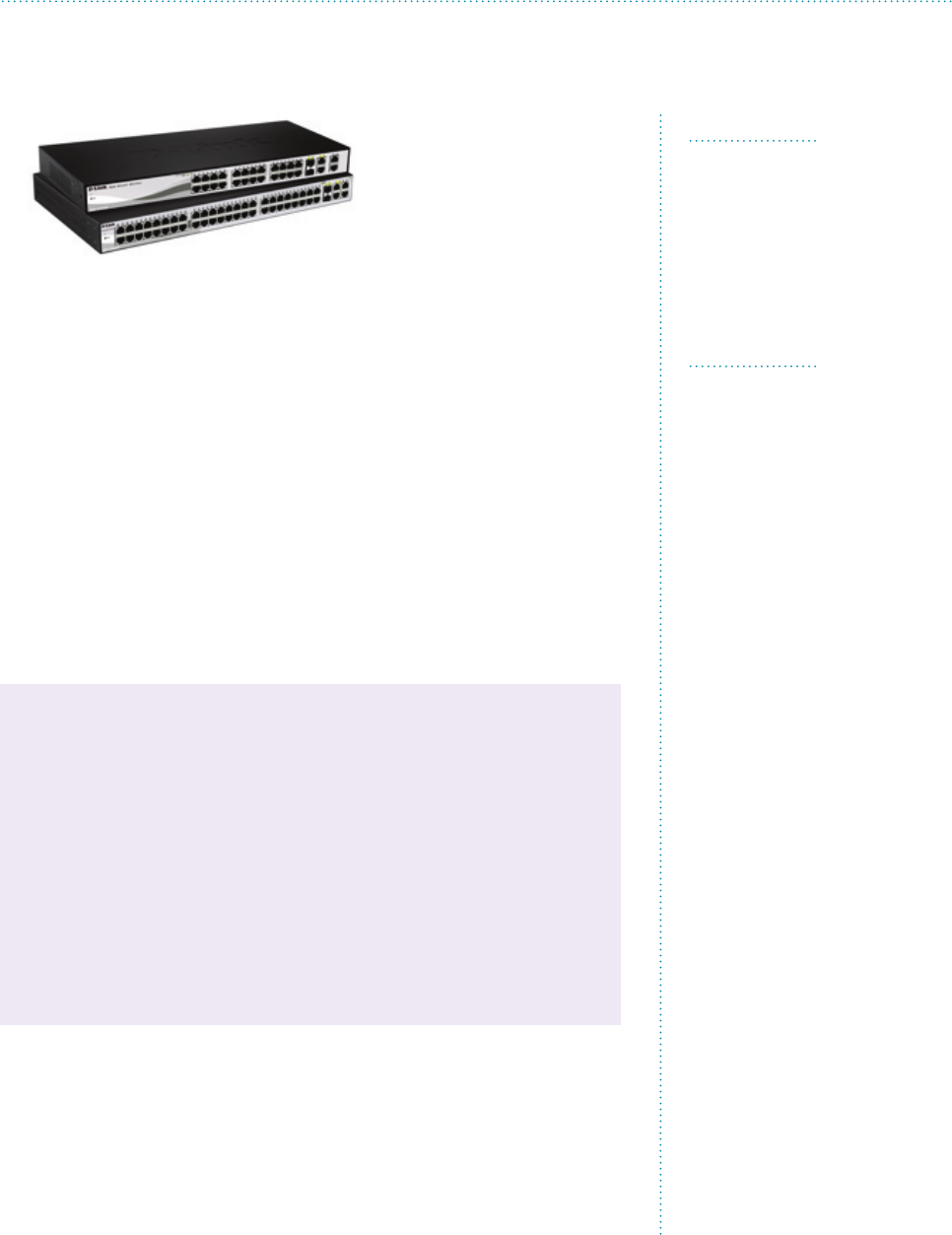

DES-3800 Series
Fast Ethernet xStack Layer 3 Core Switches
The xStack DES-3800 series consists of Layer 3 10/100Mbps switches that deliver
performance, flexible expansion, robust security, multi-layer QoS, Power over
Ethernet and redundant power option.
Optional Accessories
Gigabit Ethernet SFP Transceivers
DEM-310GT 1000BASE-LX, SMF/MMF, 10km/2km
DEM-311GT 1000BASE-SX, MMF, 550m
DEM-312GT2 1000BASE-SX, MMF, 2km
DEM-314GT 1000BASE-LH, SMF, 50km
DEM-315GT 1000BASE-ZX, SMF, 80km
Gigabit Ethernet WDM SFP Transceivers
DEM-330T/R 1000BASE-BX, SMF, 10km
DEM-331T/R 1000BASE-BX, SMF, 40km
Redundant Power Supplies
DPS-200 60-Watt AC Redundant Power Supply (for DES-3828 & DES-3852)
DPS-600 500-Watt AC Redundant Power Supply (for DES-3828P)
Management Software
DV-600S D-View 6.0 Network Management System (Standard Edition)
DV-600P D-View 6.0 Network Management System (Professional Edition)
• D-LinkSingleIPManagement(Virtual
Stack)
• InternetGroupMulticastProtocol
(IGMP) Snooping
• MulticastListenerDiscovery(MLD)
Snooping
• LoopbackDetection(LBD)
• 802.1vProtocolVLAN
• DoubleVLAN(Q-in-Q)
• OpenShortestPathFirst(OSPF)
• VirtualRouterRedundancyProtocol
(VRRP)
• ProtocolIndependentMulticast-Dense
Mode (PIM-DM)
• ProtocolIndependentMulticast-Sparse
Mode (PIM-SM)
• DistanceVectorMulticastRouting
Protocol (DVMRP)
• QualityofService(QoS)
• AccessControlList(ACL)
• Broadcast/Multicast/UnicastStorm
Control
• TrafficSegmentation
• D-LinkSafeguardEngineTM
• D-LinkZoneDefenseTM
• IP-MAC-PortBinding
• 802.1XPort/Host-basedAccessControl
• Web-basedAccessControl
• MAC-basedAccessControl
• Microsoft®NetworkAccessProtection
(NAP)
• GuestVLAN
DES-3828
•10/100BASE-TXx24
•10/100/1000BASE-Tx2
•Combo1000BASE-T/SFPx2
•ACPowerSupply
•RedundantPowerSupply
DES-3828DC
•10/100BASE-TXx24
•10/100/1000BASE-Tx2
•Combo1000BASE-T/SFPx2
•DCPowerSupply
DES-3828P
•10/100BASE-TXx24(PoE)
•10/100/1000BASE-Tx2
•1000BASE-T/SFPComboSlotx2
•ACPowerSupply
•RedundantPowerSupply
DES-3852
•10/100BASE-TXx48
•10/100/1000BASE-Tx2
•1000BASE-T/SFPComboSlotx2
•ACPowerSupply
•RedundantPowerSupply
11
DES-3800 Series
Model DES-3828 DES-3828DC DES-3828P DES-3852
LAN Standard IEEE 802.3; IEEE 802.3u; IEEE 802.3z; IEEE 802.3ab; IEEE 802.3af (DES-3828P)
Port
Interface
10BASE-T/100BASE-TX
Port (RJ-45) 24 24 (PoE) 48
10BASE-T/100BASE-TX/
1000BASE-T Port (RJ-45) 2
Combo 1000BASE-T/
SFP Port 2
Stackability Virtual Stack D-Link Single IP Management (SIM); Virtual Stack up to 32 Devices
General
Features
Switching Capacity 12.8Gbps 15.7Gbps
Max. Forwarding Rate 9.5Mpps 11.7Mpps
Forwarding Mode Store and Forward
Packet Buffer Memory 32MBytes
SDRAM for CPU 128MBytes
Flash Memory PROM 512KBytes x 1; Runtime 16MBytes x 1
Mean Time Before Failure
(MTBF) 123,027 hours 133,105 hours 168,110 hours 102,737 hours
Console Port Female RS-232 DB-9 Console Port for Out-of-Band Configuration
L2 Features
MAC Address Table: 16K; Flow Control: IEEE 802.3x Flow Control, Head-of-Line (HoL) Blocking Prevention;
IGMP Snooping v1/v2/v3: 256 Groups, Static Multicast Addresses: 64, Host-based IGMP Snooping Fast Leave;
Spanning Tree (STP): 802.1D STP, 802.1w Rapid STP, 802.1s Multiple STP; Per Port / Device BPDU Filtering;
802.3ad Link Aggregation: Max. 32 Groups Per Device, Max. 8 Ports Per Group; MLD Snooping v1/v2;
Port Mirroring: One-to-One, Many-to-One, Flow-based; Jumbo Frame: Up to 9KBytes; Loopback Detection
Virtual LAN VLAN Group: Max. 4K Static VLAN Group, Max. 4K Dynamic VLAN Group; 802.1Q Tagged VLAN;
GARP VLAN Registration Protocol (GVRP); Double VLAN (Q-in-Q); 802.1v Protocol VLAN
L3 Features
128 Static Routing Entries; 2K Hardware Routing Entries; 4K Hardware L3 Forwarding Entries; 64 IP Interfaces;
Open Shortest Path First (OSPF) v2: OSPF Passive Interface, OSPF Equal Cost Route;
Routing Information Protocol (RIP) v1/v2; Virtual Router Redundancy Protocol (VRRP); ARP Proxy
Multicast Internet Group Management Protocol (IGMP) v1/v2/v3; Distance Vector Multicast Routing Protocol (DVMRP) v3;
Protocol Independent Multicast-Dense Mode (PIM-DM); Protocol Independent Multicast-Sparse Mode (PIM-SM)
Quality of Service (QoS)
Bandwidth Control: Port-based (Ingress/Egress, Min. Granularity 64kbps),
Flow-based (Ingress, Min. Granularity 64kbps);
802.1p Class of Service; 8 Queues; Queue Handling: Strict, Weighted Round Robin (WRR), Strict + WRR;
CoS based on: Switch Port, MAC Address, TOS, DSCP, IP Address, TCP/UDP Port
Access Control List (ACL)
Max. 800 Access Rules; CPU Interface Filtering;
ACL based on: Port, MAC Address, 802.1p Priority, VLAN ID, DSCP, IPv4/IPv6 Address, Protocol Type,
TCP/UDP Port Number, User Defined Packet Content, IPv6 Traffic Class, IPv6 Flow Label
Security
Secure Shell (SSH) v1.5/v2; Secure Sockets Layer (SSL) v2/v3;
Port Security: Max. 16 MAC Addresses Per Port; Broadcast/Multicast/Unicast Storm Control;
Traffic Segmentation; D-Link Safeguard Engine; D-Link ZoneDefense; DHCP Snooping;
IP-MAC-Port Binding: 500 Address Binding Entries Per Device, ARP Packet Inspection; IP Packet Inspection
Authentication, Authorization &
Accounting (AAA)
802.1X: Port-based Access Control, Host-based Access Control, Dynamic VLAN Assignment;
Web-based Access Control (WAC): Port-based Access Control, Dynamic VLAN Assignment;
MAC-based Access Control (MAC): Port-based Access Control, Dynamic VLAN Assignment;
Microsoft Network Access Protection (NAP); Guest VLAN; RADIUS Accounting;
RADIUS and TACACS+ Authentication for Switch Access; Three-Level User Account
Management
Web-based GUI; Command Line Interface (CLI); Telnet Server/Client; TFTP Client; BootP/DHCP Client;
DHCP Auto-Configuration; DHCP Server; System Log; Simple Network Time Protocol (SNTP); CPU Monitoring;
Simple Network Management Protocol (SNMP) v1/v2c/v3; SNMP Trap; DHCP Relay Option 82; Dual Image;
Remote Monitoring (RMON) v1: 1, 2, 3, 9 Groups; RMON v2: ProbeConfig Group; Dual Configuration
Management Information Base (MIB)
MIB-II (RFC1213); Bridge (RFC1493); SNMPv2 (RFC1907); RMON (RFC1757, 2819);
Ether-Like (RFC1643, 2358, 2665); 802.1p (RFC2674); Bridge (RFC4363); IF (RFC2233, 2863);
RADIUS Authentication Client (RFC2618); RADIUS Accounting Client (RFC2620);
RIPv2 (RFC1724); OSPFv2 (RFC1850); IP Forwarding Table (RFC2096); VRRP (RFC2787);
IPv4 Multicast Routing (RFC2932); PIM for IPv4 (RFC2934); D-Link Private MIB
Physical &
Environment
Dimension (W x D x H) 19-inch, 1U Rack-Mount
441 x 310 x 44mm
19-inch, 1U Rack-Mount
441 x 369 x 44mm
19-inch, 1U Rack-Mount
441 x 310 x 44mm
Weight 4.24kg 6.02kg 4.23kg
Power Input
AC Input: 100-240VAC,
50/60Hz; Internal
Universal Power Supply
DC 60W, 48VDC
Internal Universal
Power Supply
AC Input: 90-264VAC,
50/60Hz; Internal
Universal Power Supply
AC Input: 100-240VAC,
50/60Hz; Internal
Universal Power Supply
Max. Power Consumption 36.2W 32.7W 507.2W 47W
Power over Ethernet -
Power Budget: 370W;
Per Port: 1-16.8W
(Default:15.4W)
Time-based PoE
-
Redundant Power Supply DPS-200 - DPS-600 DPS-200
Operation Temperature 0 to 40 °C
Storage Temperature -40 to 70 °C
Humidity 5% to 95% Non-Condensing
Acoustic < 51 dB < 52 dB < 51 dB < 53 dB
Certification EMI-EMC Compliance FCC Class A; CE; C-Tick
Safety Compliance CSA International; CB
SWITCHES Fast Ethernet xStack Layer 3 Core Switches
12
The xStack DGS-3400 Series consists of Layer 2 Gigabit switches that deliver
performance, flexibility, security, multi-layer QoS and redundant power supply option
for SMB and enterprises.
• D-LinkSingleIPManagement(Virtual
Stack)
• InternetGroupMulticastProtocol
(IGMP) Snooping
• MulticastListenerDiscovery(MLD)
Snooping
• LoopbackDetection(LBD)
• 802.1vProtocolVLAN
• DoubleVLAN(Q-in-Q)
• SelectiveQ-in-Q
• RoutingInformationProtocol(RIP)
• RIPNextGeneration(RIPng)
• IGMPSnoopingMulticast(ISM)VLAN
• QualityofService(QoS)
• AccessControlList(ACL)
• Broadcast/Multicast/UnicastStorm
Control
• TrafficSegmentation
• D-LinkSafeguardEngineTM
• CPUInterfaceFiltering
• IP-MAC-PortBinding
• IPv6Tunnel
• D-LinkUnidirectionalLinkDetection
(DULD)
• 802.1XPort-basedAccessControl
• 802.1XHost-basedAccessControl
• Web-basedAccessControl(WAC)
• MAC-basedAccessControl(MAC)
• CompoundAuthentication
• Microsoft®NetworkAccessProtection
(NAP)
• Three-LevelUserAccount
• sFlow
• LinkLayerDiscoveryProtocol(LLDP)
• LLDP-MediaEndpointDiscovery(LLDP-
MED)
DGS-3426P
•10/100/1000BASE-Tx20(PoE)
•Combo1000BASE-T/SFPx4
•10GExpansionSlotsx2
•RedundantPowerSupply
•PhysicalStack
DGS-3427
•10/100/1000BASE-Tx20
•Combo1000BASE-T/SFPx4
•10GExpansionSlotsx3
•RedundantPowerSupply
•PhysicalStack
DGS-3450
•10/100/1000BASE-Tx44
•Combo1000BASE-T/SFPx4
•10GExpansionSlotsx2
•RedundantPowerSupply
•PhysicalStack
Gigabit Ethernet xStack Layer 2 Edge Switches
SWITCHES Gigabit Ethernet xStack Layer 2 Edge Switches
DGS-3400 Series
Optional Accessories
Modules
DEM-410X 1-Port 10G XFP Module
DEM-410CX 1-Port 10G CX4 Module
10-Gigabit Ethernet XFP Transceivers
DEM-421XT 10GBASE-SR, MMF, 300m
DEM-422XT 10GBASE-LR, SMF, 10km
DEM-423XT 10GBASE-ER, SMF, 40km
Gigabit Ethernet SFP Transceivers
DEM-310GT 1000BASE-LX, SMF/MMF, 10km/2km
DEM-311GT 1000BASE-SX, MMF, 550m
DEM-312GT2 1000BASE-SX, MMF, 2km
DEM-314GT 1000BASE-LH, SMF, 50km
DEM-315GT 1000BASE-ZX, SMF, 80km
DGS-712 1000BASE-T, Copper, 100m
Gigabit Ethernet WDM SFP Transceivers
DEM-330T/R 1000BASE-BX, SMF, 10km
DEM-331T/R 1000BASE-BX, SMF, 40km
Redundant Power Supplies
DPS-500 140-Watt AC Redundant Power Supply (for DGS-3427 & DGS-3450)
DPS-500DC 140-Watt DC Redundant Power Supply (for DGS-3427 & DGS-3450)
DPS-600 500-Watt AC Redundant Power Supply (for DGS-3426P)
Management Software
DV-600S D-View 6.0 Network Management System (Standard Edition)
DV-600P D-View 6.0 Network Management System (Professional Edition)
13 SWITCHES
DGS-3400 Series
Model DGS-3426P DGS-3427 DGS-3450
LAN Standard IEEE 802.3; IEEE 802.3u; IEEE 802.3z; IEEE 802.3ab; IEEE 802.3ae; IEEE 802.3af (DGS-3426P)
Port Interface
10BASE-T/100BASE-TX/
1000BASE-T Port
(RJ-45)
24 (PoE) 24 48
Combo 1000BASE-T/
SFP 4
10 Gigabit Uplink 2 3 2
XFP Expansion Module DEM-410X
CX4 Expansion Module DEM-410CX
Stackability
Virtual Stack D-Link Single IP Management (SIM); Virtual Stack up to 32 Devices
Physical Stack Via Optional CX4 or XFP Module; Bi-Directional Redundant Stacking Topology; Linear/Ring Topology;
Up to 40Gbps (Full Duplex); Up to 12 Units Per Stack; Backup Master; Trunking or Mirroring across Stack
General
Features
Switching Capacity 88Gbps 108Gbps 136Gbps
Max. Forwarding Rate 65.47Mpps 80.36Mpps 101.19Mpps
Forwarding Mode Store and Forward
Packet Buffer Memory 750KBytes
SDRAM for CPU 256MBytes
Flash Memory PROM 512KBytes x 1; Runtime 16MBytes x 1
Mean Time Before
Failure (MTBF) 170,148 hours 341,075 hours 301,868 hours
Console Port Female RS-232 DB-9 Console Port for Out-of-Band Configuration
L2 Features
MAC Address Table: 8K; Flow Control: IEEE 802.3x Flow Control, Head-of-Line (HoL) Blocking Prevention;
IGMP Snooping v1/v2/v3: 1K Groups, Host-based IGMP Snooping Fast Leave; Limited IP Multicast (IGMP Filtering);
MLD Snooping v1/v2: 511 Groups, Host-based MLD Snooping Fast Leave; Multiple VLAN Replication;
Spanning Tree Protocol (STP): 802.1D-2004 Edition STP, 802.1w Rapid STP, 802.1s Multiple STP, BPDU Filtering,
STP Root Restriction; Jumbo Frame: Max. 9,216Bytes; Loopback Detection;
802.3ad Link Aggregation: Max. 32 Groups Per Device, 8 Ports Per Group, Cross Stack/Module Trunk;
Port Mirroring: One-to-One, Many-to-One, Flow-based Mirroring, RSPAN; L2 Protocol Tunneling
Virtual LAN (VLAN)
802.1Q Tagged VLAN; VLAN Group: Max. 4094 VLAN; GARP VLAN Registration Protocol (GVRP);
Double VLAN (Q-in-Q): Port-based Q-in-Q, Selective Q-in-Q; VLAN Translation; ISM VLAN;
802.1v Protocol VLAN; MAC-based VLAN; Voice VLAN*; Private VLAN*
L3 Routing
64 IP Interfaces; 126 Static Routes Shared by IPv4/IPv6; Gratuitous ARP;
2K Hardware Routing Entries Shared by IPv4/IPv6: Max. 2K IPv4 Routes, Max. 1K IPv6 Routes;
Routing Information Protocol (RIP) v1/v2*; RIPng; IPv6 Tunneling*: Static, ISATAP, GRE, 6to4
Quality of Service (QoS)
802.1p QoS; 8 Queues; Queue Handling: Strict, Weighted Round Robin (WRR), Strict + WRR; Time-based QoS
CoS based on: Switch Port, VLAN ID, 802.1p Priority Queues, MAC Address, IPv4/IPv6 Address, DSCP,
TCP/UDP Port Number, Protocol Type, IPv6 Traffic Class, IPv6 Flow Label, User-Defined Packet Content
QoS Flow Actions: Remarks 802.1p Priority Tag, Remark TOS/DSCP Tag, Bandwidth Control, Flow Statistics,
Committed Information Rate (CIR); Three Color Marker: trTCM, srTCM;
Bandwidth Control: Port-based (Ingress/Egress, Min. Granularity 1kbps), Flow-based (Ingress, Min. Granularity 64kbps)
Access Control List (ACL)
Max. 768 Access Rules; Time-based ACL; ACL Statistics;
ACL based on: 802.1p Priority, VLAN ID, MAC Address, Ether Type, IPv4/IPv6 Address, DSCP, Protocol Type,
TCP/UDP Port Number, IPv6 Traffic Class, IPv6 Flow Label, User-Defined Packet Content
Security
Secure Shell (SSH) v1/v2; Secure Sockets Layer (SSL) v1/v2/v3; Port Security: Max. 16 MAC Addresses Per Port;
Broadcast/Multicast/Unicast Storm Control; Traffic Segmentation; D-Link Safeguard Engine; CPU Interface Filtering;
IP-MAC-Port Binding: ARP Packet Inspection, IP Packet Inspection, DHCP Snooping, DHCPv6 & NDP Snooping*,
Max. 500 Address Binding Entries Per Device;
DHCP Server Screening; ARP Spoofing Prevention*; BPDU Attack Protection*
Authentication, Authorization &
Accounting (AAA)
802.1X: Port-based Access Control, Host-based Access Control, Dynamic VLAN Assignment;
Web-based Access Control (WAC): Port-based Access Control, Host-based Access Control, Dynamic VLAN Assignment;
MAC-based Access Control (MAC): Port-based Access Control, Host-based Access Control, Dynamic VLAN Assignment;
Compound Authentication; Guest VLAN; Microsoft Network Access Protection (NAP): 802.1X NAP, DHCP NAP;
RADIUS Accounting; RADIUS and TACACS+ Authentication for Switch Access; Three-Level User Account
Management
Web-based GUI (IPv4/IPv6); Command Line Interface (CLI); Telnet (IPv4/IPv6); TFTP Client (IPv4/IPv6);
Simple Network Management Protocol (SNMP) v1/v2c/v3; SNMP Trap; System Log; Link Layer Discovery Protocol (LLDP);
Remote Monitoring (RMON) v1: 1, 2, 3, 9 Groups; RMON v2: ProbeConfig Group; sFlow; BootP/DHCP Client;
DHCP Auto-Configuration; DHCP Relay; DHCP Relay Option 60/61/82; DHCP Server; Flash File System; CPU Monitoring;
Multiple Images/Configurations; Simple Network Time Protocol (SNTP); Password Encryption; LLDP-MED*;
Internet Control Message Protocol (ICMP) v6; IPv6 Neighbor Discovery (ND); DHCPv6 Client*; DHCPv6 Relay*
Operations, Administration &
Management (OAM) Cable Diagnostics
Management Information Base (MIB)
Concise MIB (RFC1212); MIB-II (RFC1213); MIB Traps (RFC1516); Bridge (RFC1493, 4188); SNMPv2 (RFC1907);
RMON (RFC1757, 2819); RMONv2 (RFC2021); IP Forwarding Table (RFC2096); Ether-Like (RFC1398, 1643, 2358, 2665);
802.1p (RFC2674, 4363); Interfaces Group (RFC2233, 2863); RADIUS Authentication Client (RFC2618);
RADIUS Accounting Client (RFC2620); Entity (RFC2737); Ping & Traceroute (RFC2925); D-Link Private MIB
Standard Compliance
UDP (RFC768); IP (RFC791); ICMPv4 (RFC792); TCP (RFC793); ARP (RFC826); Telnet (RFC854); ICMPv6 (RFC2463, 4443);
CIDR (RFC1338, 1519); HTTP (RFC2068, 2616); IPv6 (RFC2460); SNMPv1/v2c/v3 (RFC1157, 1901, 1908, 2273, 2570-2575);
DiffServ Expedited Forwarding (RFC2598); IPv6 Neighbor Discovery (ND) (RFC4861);
IPv6 Stateless Address Auto-configuration (RFC4862); Path MTU Discover (RFC1981)*
Physical &
Environment
Dimension (W x D x H) 19-inch; 1U Rack-Mount; 440 x 389 x 44mm
Weight 5.82kg 5.51kg 5.74kg
Power Input AC Input: 100-240 VAC, 50/60Hz; Internal Universal Power Supply
Max. Power
Consumption 525.0W 71.6W 131.3W
Power over Ethernet
Power Budget: 370W;
Per Port: 15.4W
Time-based PoE
-
Redundant Power
Supply DPS-600 DPS-500 / DPS-500DC
Operation Temperature 0 to 40 °C
Storage Temperature -40 to 70 °C
Operation Humidity 10% to 90% RH
Storage Humidity 5% to 90% RH
Acoustic < 52.4 dB < 52.3 dB < 48.7 dB
Fan 2 DC Fans (40 x 40mm)
Certification EMI-EMC Compliance FCC Class A; CE Class A; C-Tick Class A
Safety Compliance CSA International; CB
* Available in Future Firmware Upgrade
Gigabit Ethernet xStack Layer 2 Edge Switches
14
DGS-3200 series consists of Security Gigabit switches that deliver high performance,
flexible expansion and robust security. It executes firm network security and provides
ACL functionalities to secure the internal IT network against external viruses.
• D-LinkSingleIPManagement(Virtual
Stack)
• InternetGroupMulticastProtocol
(IGMP) Snooping
• MulticastListenerDiscovery(MLD)
Snooping
• 802.1vProtocolVLAN
• IGMPSnoopingMulticast(ISM)VLAN
• VLANTrunking
• PrivateVLAN
• QualityofService(QoS)
• AccessControlList(ACL)
• Broadcast/Multicast/UnicastStorm
Control
• TrafficSegmentation
• D-LinkSafeguardEngineTM
• IP-MAC-PortBinding
• Microsoft®NetworkAccessProtection
(NAP)
• ARPSpoofingPrevention
• 802.1XPort-basedAccessControl
• 802.1XHost-basedAccessControl
• Web-basedAccessControl(WAC)
• MAC-basedAccessControl(MAC)
• CompoundAuthentication
• GuestVLAN
• SimpleNetworkManagementProtocol
(SNMP)
DGS-3200-10
•10/100/1000BASE-Tx8
•Combo1000BASE-T/SFPx2
•Fanless
•11-inch,1UDesktop
DGS-3200-24
•10/100/1000BASE-Tx20
•Combo1000BASE-T/SFPx4
•SmartFanx2
•RedundantPowerSupply
•19-inch,1URack-Mount
Gigabit Ethernet xStack Layer 2 Secure Switches
SWITCHES Gigabit Ethernet xStack Layer 2 Secure Switches
DGS-3200 Series
Optional Accessories
Gigabit Ethernet SFP Transceivers
DEM-310GT 1000BASE-LX, SMF/MMF, 10km/2km
DEM-311GT 1000BASE-SX, MMF, 550m
DEM-312GT2 1000BASE-SX, MMF, 2km
DEM-314GT 1000BASE-LH, SMF, 50km
DEM-315GT 1000BASE-ZX, SMF, 80km
Gigabit Ethernet WDM SFP Transceivers
DEM-330T/R 1000BASE-BX, SMF, 10km
DEM-331T/R 1000BASE-BX, SMF, 40km
Fast Ethernet SFP Transceivers
DEM-210 100BASE-FX, SMF, 15km
DEM-211 100BASE-FX, MMF, 2km
Fast Ethernet WDM SFP Transceivers
DEM-220T/R 100BASE-BX, SMF, 20km
Redundant Power Supplies
DPS-200 60-Watt AC Redundant Power Supply (for DGS-3200-24)
Management Software
DV-600S D-View 6.0 Network Management System (Standard Edition)
DV-600P D-View 6.0 Network Management System (Professional Edition)
15 SWITCHES
DGS-3200 Series
Model DGS-3200-10 DGS-3200-24
LAN Standard IEEE 802.3; IEEE 802.3u; IEEE 802.3z; IEEE 802.3ab
Port Interface
10BASE-T/100BASE-TX/
1000BASE-T Port (RJ-45) 8 20
Combo 1000BASE-T/SFP 2 4
Stackability Virtual Stack D-Link Single IP Management (SIM); Virtual Stack up to 32 Devices
General
Features
Switching Capacity 20Gbps 48Gbps
Max. Forwarding Rate 14.88Mpps 35.7Mpps
Forwarding Mode Store and Forward
Packet Buffer Memory 128KBytes 768KBytes
SDRAM for CPU 128MBytes
Flash Memory 16MBytes
Mean Time Before Failure 726,077 hours 502,576 hours
Console Port Female RS-232 DB-9 Console Port for Out-of-Band Configuration (for DGS-3200-10)
Combo Female RS-232 DB-9 / RJ-45 Console Port for Out-of-Band Configuration (for DGS-3200-24)
L2 Features
MAC Address Table: 8K (DGS-3200-10) 16K (DGS-3200-24); Jumbo Frame: Max. 10,240Bytes;
Flow Control: IEEE 802.3x Flow Control, Head-of-Line (HoL) Blocking Prevention; IGMP Authentication;
IGMP Snooping v1/v2/v3: 256 Groups, Host-based IGMP Snooping Fast Leave, Data Driven Multicast;
MLD Snooping v1/v2: 256 Groups; Port Mirroring: One-to-One, Many-to-One, Flow-based Mirroring
Spanning Tree Protocol (STP): 802.1D-2004 Edition STP, 802.1w Rapid STP, 802.1s Multiple STP,
BPDU Filtering, Root Restriction; Loopback Detection;
802.3ad Link Aggregation: Max. 8 Ports Per Group, Max. 5 Groups Per Device (DGS-3200-10),
Max. 12 Groups Per Device (DGS-3200-24)
Virtual LAN (VLAN) 802.1Q Tagged VLAN; VLAN Group: Max. 4094 VLAN; 802.1v Protocol VLAN; ISM VLAN;
GARP VLAN Registration Protocol (GVRP): Max. 255 Dynamic VLANs; VLAN Trunking; Private VLAN
Quality of Service (QoS)
802.1p Quality of Service; 8 Queues Per Port; Queue Handling: Strict, Weighted Round Robin (WRR);
CoS based on: Switch Port, VLAN ID, 802.1p Priority Queues, MAC Address, IPv4/IPv6 Address, DSCP,
TCP/UDP Port No., Protocol Type, IPv6 Traffic Class, IPv6 Flow Label, User-Defined Packet Content
Bandwidth Control: Port-based (Ingress/Egress, Min. Granularity 64kbps,
Flow-based (Ingress, Min. Granularity 64kbps); MAC-based VLAN; Private VLAN
Access Control List (ACL)
Max. 200 Access Rules; Time-based ACL; CPU Interface Filtering; ACL Statistics;
ACL based on: 802.1p Priority, VLAN ID, MAC Address, IPv4/IPv6 Address, DSCP, Protocol Type,
TCP/UDP Port Number, IPv6 Traffic Class, IPv6 Flow Label, User-Defined Packet Content
Security
Secure Shell (SSH) v2; Secure Sockets Layer (SSL) v1/v2/v3;
Broadcast/Multicast/Unicast Storm Control; Traffic Segmentation; D-Link Safeguard Engine;
IP-MAC-Port Binding: ARP Packet Inspection, IP Packet Inspection, DHCP Snooping,
512 Address Binding Entries Per Device; Port Security: Max. 64 MAC Address Per Port;
Microsoft Network Access Protection (NAP): 802.1X NAP (IPv4/IPv6), DHCP NAP (IPv4);
DHCP Server Screening; DHCP Client Filtering; ARP Spoofing Prevention
Authentication, Authorization & Accounting
(AAA)
802.1X: Port-based Access Control, Host-based Access Control, Dynamic VLAN Assignment;
Web-based Access Control (WAC): Port-based Access Control, Host-based Access Control,
Dynamic VLAN Assignment;
MAC-based Access Control (MAC): Port-based Access Control, Host-based Access Control,
Dynamic VLAN Assignment; Compound Authentication; Guest VLAN;
RADIUS and TACACS+ Authentication for Management Access; RADIUS Accounting
Management
Web-based GUI (IPv4/IPv6); Command Line Interface (CLI); Telnet (IPv4/IPv6);
XModem; ZModem; Simple Network Management Protocol (SNMP) v1/v2c/v3; SNMP Trap;
Remote Monitoring (RMON) v1: 1, 2, 3, 9 Groups; RMON v2: ProbeConfig Group; BootP/DHCP Client;
TFTP Client (IPv4/IPv6); DHCP Auto-Configuration; DHCP Relay; DHCP Relay Option 82;
Simple Network Time Protocol (SNTP); Internet Control Message Protocol (ICMP) v6;
IPv6 Neighbor Discovery; System Log; CPU Monitoring; Dual Image; Dual Configuration
Operations, Administration & Management
(OAM) Cable Diagnostics
D-Link Green Power Savings Mode: Link Down Status, Cable Length Detection; Compliant with RoHS 6
Management Information Base (MIB)
MIB-II (RFC1213); Bridge (RFC4188); SNMPv2 (RFC1907); RMONv2 (RFC2021); 802.1p (RFC2674);
Ether-Like (RFC1643, 2358, 2665); IF (RFC2233, 2863); Ping & Traceroute (RFC2925);
RADIUS Authentication Client (RFC2618); RADIUS Accounting Client (RFC2620); D-Link Private MIB
Standard Compliance
UDP (RFC768); TFTP (RFC783); IP (RFC791); ICMP (RFC792); TCP (RFC793); ARP (RFC826);
Telnet (RFC854); BootP (RFC951, 1542); HTTP (RFC2068); RADIUS (RFC2138); ICMPv6 (RFC4443);
RADIUS Accounting (RFC2139, 2866); TACACS (RFC1492); SNMPv1 (RFC1157);
SNMPv2c (RFC1901, 1908); SNMPv3 (RFC2570, 2575); 31-Bit Prefixed (RFC3021); IPv6 (RFC2460);
IPv6 Neighbor Discovery (RFC4861); Stateless Address Auto-configuration (RFC4862);
IPv6 Path MTU Discovery (RFC1981); Deprecation of Type 0 Routing Headers in IPv6 (RFC5095)
Physical &
Environment
Dimension (W x D x H) 11-inch, 1U Height;
280 x 180 x 43mm
19-inch, 1U Rack-Mount;
440 x 210 x 44mm
Power Input AC Input: 100-240 VAC, 50/60Hz; Internal Universal Power Supply
Max. Power Consumption 20.9W 41.9W
Redundant Power Supply - DPS-200
Operation Temperature 0 to 40 °C 0 to 50 °C
Storage Temperature -40 to 70 °C
Humidity 5% to 95% Non-Condensing
Fan Fanless 2 Smart Fan (Default Low Speed)
SD Card Reader - Yes
Certification EMI-EMC Compliance FCC; CE; C-Tick; VCCI Class A
Safety Compliance UL; CB Report
Gigabit Ethernet xStack Layer 2 Secure Switches
16 SWITCHES Fast Ethernet xStack Layer 2 Edge Switches
DES-3528/52 Series
Fast Ethernet xStack Layer 2 Edge Switches
The xStack DES-3528/52 series consists of L2 10/100Mbps switches that deliver
performance, flexible expansion, robust security, multi-layer QoS and redundant
power supply option.
Optional Accessories
Gigabit Ethernet SFP Transceivers
DEM-310GT 1000BASE-LX, SMF/MMF, 10km/2km
DEM-311GT 1000BASE-SX, MMF, 550m
DEM-312GT2 1000BASE-SX, MMF, 2km
DEM-314GT 1000BASE-LH, SMF, 50km
DEM-315GT 1000BASE-ZX, SMF, 80km
DGS-712 1000BASE-T, Copper, 100m
Gigabit Ethernet WDM SFP Transceivers
DEM-330T/R 1000BASE-BX, SMF, 10km
DEM-331T/R 1000BASE-BX, SMF, 40km
Fast Ethernet SFP Transceivers
DEM-210 100BASE-FX, SMF, 15km
DEM-211 100BASE-FX, MMF, 2km
Fast Ethernet WDM SFP Transceivers
DEM-220T/R 100BASE-BX, SMF, 20km
Redundant Power Supplies
DPS-200 60-Watt AC Redundant Power Supply (for DES-3528 & DES-3552)
DPS-600 500-Watt AC Redundant Power Supply (for DES-3528P)
Management Software
DV-600S D-View 6.0 Network Management System (Standard Edition)
DV-600P D-View 6.0 Network Management System (Professional Edition)
• D-LinkSingleIPManagement(Virtual
Stack)
• LoopbackDetection(LBD)
• InternetGroupManagementProtocol
(IGMP) Snooping
• MulticastListenerDiscovery(MLD)
Snooping
• Policy-basedRouting
• 802.1vProtocolVLAN
• DoubleVLAN(Q-in-Q)
• SelectiveQ-in-Q
• IGMPSnoopingMulticast(ISM)VLAN
• AsymmetricVLAN
• VoiceVLAN
• QualityofService(QoS)
• AccessControlList(ACL)
• TrafficSegmentation
• Broadcast/Multicast/UnicastStorm
Control
• ARPSpoofingPrevention
• BPDUAttackProtection
• 802.1XPort/Host-basedAccessControl
• Web-basedAccessControl(WAC)
• MAC-basedAccessControl(MAC)
• MultipleAuthentication
• GuestVLAN
• Microsoft®NetworkAccessProtection
(NAP)
• Three-LevelUserAccounts
DES-3528
•10/100BASE-TXx24
•Combo1000BASE-T/SFPx2
•1000BASE-T/StackingPortx2
•ACPowerSupply
•RedundantPowerSupply
•PhysicalStack
DES-3528P
•10/100BASE-TXx24(PoE)
•Combo1000BASE-T/SFPx2
•1000BASE-T/StackingPortx2
•ACPowerSupply
•RedundantPowerSupply
•PhysicalStack
DES-3552
•10/100BASE-TXx48
•Combo1000BASE-T/SFPx2
•1000BASE-T/StackingPortx2
•ACPowerSupply
•RedundantPowerSupply
•PhysicalStack
17 SWITCHES Fast Ethernet xStack Layer 2 Edge Switches
DES-3528/52 Series
Model DES-3528 DES-3528P DES-3552
LAN Standard IEEE 802.3; IEEE 802.3u; IEEE 802.3z; IEEE 802.3ab; IEEE 802.3af (DES-3528P)
Port
Interface
10BASE-T/100BASE-TX
Port (RJ-45) 24 24 (PoE) 48
10BASE-T/100BASE-TX/
1000BASE-T Port (RJ-45) 2
Combo 1000BASE-T/
SFP 2
Stackability
Virtual Stack D-Link Single IP Management (SIM); Virtual Stack up to 32 Devices
Physical Stack
Via GE Port 27 & 28 (for DES-3528/28P); Via GE Port 51 & 52 (for DES-3552);
Bi-Directional Redundant Stacking Topology; Linear/Ring Topology; Bandwidth up to 2Gbps Bi-Directional Per Port,
Up to 4Gbps Per Device; Up to 8 Units Per Stack; Backup Master; Inter Trunking or Mirroring
General
Features
Switching Capacity 12.8Gbps 17.6Gbps
Max. Forwarding Rate 9.5Mpps 13.1Mpps
Forwarding Mode Store and Forward
Packet Buffer Memory 1MBytes
SDRAM for CPU 128MBytes
Flash Memory 16MBytes
Mean Time Before
Failure 203,785 hours 345,226 hours 380,412 hours
Console Port Female RS-232 DB-9 Console Port for Out-of-Band Configuration
L2 Features
MAC Address Table: 16K; Flow Control: IEEE 802.3x Flow Control, HOL Blocking Prevention; Jumbo Frame: Max. 9,216Bytes;
Spanning Tree Protocol (STP): 802.1D STP, 802.1w Rapid STP, 802.1s Multiple STP, BPDU Filtering; Loopback Detection;
802.3ad Link Aggregation: Max. 8 Groups Per Device, Max. 8 Ports Per Group;
Port Mirroring: One-to-One, Many-to-One, Flow-based Mirroring, RSPAN
L2 Multicasting
IGMP Snooping v1/v2/v3: 256 Groups, Host-based IGMP Snooping Fast Leave, Report Suppression;
Limited IP Multicasting (IGMP Filtering): Max. 24 IGMP Filtering Profiles, 128 Ranges Per Profile;
MLD Snooping v1/v2: 256 Groups; MLD Snooping Fast Leave
L3 Features ARP Proxy; Policy-based Routing
Virtual LAN
VLAN Groups: Max. 4K VLAN; GARP VLAN Registration Protocol (GVRP): Max. 256 Dynamic VLAN; 802.1Q Tagged VLAN;
802.1v Protocol VLAN; Double VLAN (Q-in-Q): Port-based Q-in-Q, Selective Q-in-Q; VLAN Translation; Port-based VLAN;
MAC-based VLAN; ISM VLAN; Asymmetric VLAN; VLAN Trunking; Voice VLAN; Subnet-based VLAN
Quality of Service (QoS)
802.1p Quality of Service; 8 Queues Per Port; Queue Handling: Strict Priority, Weighted Round Robin (WRR), Strict + WRR;
CoS based on: Switch Port, VLAN ID, 802.1p Priority Queues, MAC Address, DSCP, Protocol Type,
IPv6 Traffic Class, IPv6 Flow Label; TCP/UDP Port, User-Defined Packet Content; Time-based QoS;
Actions for Flow: Remark 802.1p Priority Tag, Remark TOS/DSCP Tag, Bandwidth Control, Flow Statistics,
Committed Information Rate (CIR): Min. Granularity 64kbps; Stabilized Random Early Detection (SRED) Congestion Control;
Bandwidth Control: Port-based (Ingress, Min. Granularity 64kbps), Flow-based (Ingress, Min. Granularity 64kbps),
Per Egress Queue Bandwidth Control, Per Egress Queue Bandwidth Guarantee
Access Control List (ACL)
Max. 1,792 Access Rules; ACL Statistics; Time-based ACL; VLAN-based ACL; CPU Interface Filtering;
ACL based on: 802.1p Priority, VLAN ID, MAC Address, Ether Type, IPv4/IPv6 Address, DSCP, Protocol Type,
TCP/UDP Port Number, IPv6 Traffic Class, IPv6 Flow Label, User-Defined Packet Content
Security
Secure Shell (SSH) v2; Secure Sockets Layer (SSL) v1/v2/v3; Port Security: Max. 64 MAC Addresses Per Port;
Broadcast/Multicast/Unicast Storm Control; D-Link Safeguard Engine; NetBIOS/NetBEUI Filtering;
IP-MAC-Port Binding (IMPB): ARP Packet Inspection, IP Packet Inspection, DHCP Snooping,
500 Address Binding Entries Per Device; Traffic Segmentation; DHCP Server Screening;
DHCP Client Filtering; ARP Spoofing Prevention; BPDU Attack Protection
Authentication, Authorization &
Accounting (AAA)
802.1X: Port-based Access Control, Host-based Access Control, Dynamic VLAN Assignment,
Authentication Database Failover; Web-based Access Control (WAC): Port-based Access Control, Host-based Access Control,
Dynamic VLAN Assignment, Authentication Database Failover; MAC-based Access Control (MAC): Port-based Access Control,
Host-based Access Control, Dynamic VLAN Assignment, Authentication Database Failover; Multiple Authentication;
Japanese Web-based Access Control (JWAC); Microsoft Network Access Protection (NAP): 802.1X NAP, DHCP NAP;
Guest VLAN; RADIUS & TACACS+ Authentication for Switch Access; RADIUS Accounting; Three-Level User Accounts
Management
Web-based GUI; Command Line Interface (CLI); Telnet Server; Telnet Client; TFTP Client; ZModem;
Simple Network Management Protocol (SNMP) v1/v2c/v3; SNMP Traps; Link Layer Discovery Protocol (LLDP);
Remote Monitoring (RMON) v1: 1, 2, 3, 9 Groups; RMON v2: ProbeConfig Group; CPU Monitoring;
PPPoE Circuit-ID Tag Insertion; Dual Image; Dual Configuration; DHCP Auto-Configuration;
sFlow; BootP/DHCP Client; DHCP Server; DHCP Relay; DHCP Relay Option 60/61/82; System Log;
Network Time Protocol (NTP) / Simple NTP (SNTP); Password Recovery; Password Encryption; DHS Relay
Operations, Admin & Management
(OAM) Cable Diagnostics; 802.3ah Ethernet Link OAM; 802.1ag Connectivity Fault Management (CFM); Loopback Diagnostics
D-Link Green Compliant with RoHS 6; Time-based PoE
Management Information Base (MIB)
MIB-II (RFC1213); Bridge (RFC1409); SNMPv2 (RFC1907); RMON (RFC1757, 2819); RMONv2 (RFC2021);
Ether-Like (RFC1643, 2358, 2665); 802.1p (RFC2674); IF (RFC2233, 2863); Ping & Traceroute (RFC2925);
RADIUS Authentication Client (RFC2618); RADIUS Accounting Client (RFC2620); D-Link Private MIB
Standard Compliance
UDP (RFC768); TFTP (RFC783); IP (RFC791); ICMP (RFC792); TCP (RFC793); ARP (RFC826); Telnet (RFC854);
BootP (RFC951, 1542); HTTP (RFC2068); RADIUS (RFC2138); RADIUS Accounting (RFC2139, 2866);
DiffServ (RFC2474); DSCP AF (RFC2597); DSCP EF (RFC2598); TACACS (RFC1492); SNMPv1 (RFC1157);
SNMPv2c (RFC1901, 1908); SNMPv3 (RFC2570, 2575); Syslog (RFC3164, 3295); DHCP Relay Option (RFC3046)
Physical &
Environment
Dimension (W x D x H) 19-inch, 1U Rack-Mount
441 x 210 x 44mm
19-inch, 1U Rack-Mount
441 x 310 x 44mm
Weight 2.51kg 5.42kg 4.09kg
Power Input AC Input: 100-240VAC,
50/60Hz; Universal Power Supply
AC Input: 100-240VAC,
50/60Hz; Internal Universal
Power Supply
Max. Power
Consumption 20.5W 505.1W 33.1W
Power over Ethernet -
Power Budget: 370W;
Port 1-8: 30W
Port 9-24: 15.4W
Time-based PoE
-
Redundant Power
Supply DPS-200 DPS-600 DPS-200
Operation
Temperature 0 to 50 °C
Storage Temperature -40 to 70 °C
Operation Humidity 5% to 95% Non-Condensing
Acoustic 0 dB 48.2 dB at Max Speed 35.1 dB at Max Speed
Fan Fanless 4 DC Fans 2 DC Fans
Real Time Clock (RTC) Maintain the Timing Setting when the Device Power is Off
Certification
EMI-EMC Compliance FCC Class A; CE Class A; C-Tick; VCCI
Safety Compliance CB; UL/cUL
Metro Ethernet Forum MEF 9, 14 -
18 Fast Ethernet Metro Ethernet Edge Switches
DES-3200 Series
Fast Ethernet Metro Ethernet Edge Switches
The DES-3200 series Layer 2 xStack Managed Switch is designed for the Metro ETTX
and FTTX market. This series provides 8/16/24 100Mbps Fast Ethernet connections
plus 2/4 combo Gigabit/SFP ports. DES-3200-28F provides Fast Ethernet fiber
connections which is an advantage in Metro Ethernet applications.
Optional Accessories
Gigabit Ethernet SFP Transceivers
DEM-310GT 1000BASE-LX, SMF/MMF, 10km/2km
DEM-311GT 1000BASE-SX, MMF, 550m
DEM-312GT2 1000BASE-SX, MMF, 2km
DEM-314GT 1000BASE-LH, SMF, 50km
DEM-315GT 1000BASE-ZX, SMF, 80km
Gigabit Ethernet WDM SFP Transceivers
DEM-330T/R 1000BASE-BX, SMF, 10km
DEM-331T/R 1000BASE-BX, SMF, 40km
Fast Ethernet SFP Transceivers
DEM-210 100BASE-FX, SMF, 15km
DEM-211 100BASE-FX, MMF, 2km
Fast Ethernet WDM SFP Transceivers
DEM-220T/R 100BASE-BX, SMF, 20km
Management Software
DV-600S D-View 6.0 Network Management System (Standard Edition)
DV-600P D-View 6.0 Network Management System (Professional Edition)
• D-LinkSingleIPManagement
(Virtual Stack)
• InternetGroupMulticastProtocol
(IGMP) Snooping
• MulticastListenerDiscovery(MLD)
Snooping
• EthernetRingProtectionSwitching
(ERPS)*
• GratuitousAddressResolutionProtocol
(ARP)
• 802.3ahEthernetLinkOAM*
• 802.1vProtocolVLAN
• VLANTrunking
• AsymmetricVLAN
• DoubleVLAN(Q-in-Q)
• SelectiveQ-in-Q
• IGMPSnoopingMulticast(ISM)VLAN
• QualityofService(QoS)
• AccessControlList(ACL)
• CPUInterfaceFiltering
• 802.1agConnectivityFaultManagement
(CFM)*
• Broadcast/Multicast/UnicastStorm
Control
• TrafficSegmentation
• D-LinkSafeguardEngineTM
• IP-MAC-PortBinding(IMPB)
• ARPSpoofingPrevention*
• BPDUAttackProtection*
• DHCPServerScreening*
• 802.1XPort-basedAccessControl
• 802.1XHost-basedAccessControl
• PerQueueBandwidthControl*
DES-3200-10
•10/100BASE-TXx8
•Combo1000BASE-T/SFPx2
•Fanless
•9-inch,1UDesktop
DES-3200-18
•10/100BASE-TXx16
•Combo1000BASE-T/SFPx2
•Fanless
•9-inch,1UDesktop
DES-3200-28
•10/100BASE-TXx24
•Combo1000BASE-T/SFPx4
•Fanless
•19-inch,1URack-Mount
DES-3200-28F
•100BASE-XSFPx24
•Combo1000BASE-T/SFPx4
•DCFanx1
•19-Inch,1URack-Mount
* Available in Future Firmware Upgrade
SWITCHES
19
DES-3200 Series
Model DES-3200-10 DES-3200-18 DES-3200-28 DES-3200-28F
LAN Interface IEEE 802.3; IEEE 802.3u; IEEE 802.3z; IEEE 802.3ab
Port Interface
10BASE-T/100BASE-TX
Port (RJ-45) 8 16 24 -
100BASE-X SFP Port - - - 24
Combo 1000BASE-T/SFP Port 2 4
Stackability Virtual Stack D-Link Single IP Management (SIM); Virtual Stack up to 32 Devices
General
Features
Switching Capacity 5.6Gbps 7.2Gbps 12.8Gbps
Maximum Forwarding Rate 4.2Mpps 5.4Mpps 9.5Mpps
Forwarding Mode Store and Forward
Packet Buffer Memory 384KBytes
DDRI SDRAM for CPU 128MBytes
Flash Memory 16MBytes
Mean Time Before Failure
(MTBF) 873,750 hours 743,115 hours 639,525 hours 447,268 hours
Console Port Female RS-232 DB-9 Console Port for Out-of-Band Configuration
L2 Features
MAC Address Table: 8K; Jumbo Frame: Max. 2048Bytes;
Spanning Tree Protocol: 802.1D-2004 Edition STP, 802.1w Rapid STP, 802.1s Multiple STP,
BPDU Filtering, Root Restriction; L2 Protocol Tunneling; Loopback Detection (LBD);
802.3ad Link Aggregation: Max. 5 Groups (DES-3200-10), Max. 9 Groups (DES-3200-18),
Max. 14 Groups (DES-3200-28/28F), Max. 8 Ports Per Group;
Port Mirroring: 1 Mirroring Group, One-to-One, Many-to-One, Flow-based (ACL) Mirroring;
Flow Control: IEEE 802.3x Flow Control, Head-of-Line (HoL) Blocking Prevention;
Ethernet-Ring Protection Switching (E-RPS)*
L2 Multicast
IGMP Snooping v1/v2, v3 Awareness: 1K Groups, Port-based IGMP Snooping Fast Leave;
Limited IP Multicasting: Max. 24 IGMP Filtering Profiles, 128 Groups Per Profile
MLD Snooping v1/v2, v2 Awareness: 1K Groups; IGMP Authentication
L3 Features Gratuitous ARP
Virtual VLAN (VLAN)
802.1Q Tagged VLAN; 802.1v Protocol VLAN; VLAN Group: Max. 4K VLAN; Port-based VLAN;
MAC-based VLAN; GARP VLAN Registration Protocol (GVRP): Max. 255 Dynamic VLAN;
VLAN Trunking; Asymmetric VLAN; ISM VLAN; VLAN Translation
Double VLAN (Q-in-Q): Port-based Q-in-Q, Selective Q-in-Q
Quality of Service (QoS)
802.1p, 4 Queues Per Port; Queue Handling: Strict Priority, Weighted Round Robin (WRR);
CoS based on: Switch Port, VLAN ID, 802.1p Priority Queues, MAC Address, Ether Type,
IP Address, TOS, DSCP, Protocol Type, TCP/UDP Port, User-Defined Packet Content
Actions for Flows: Remark 802.1p Priority Tag; Time-based QoS;
Bandwidth Control: Port-based (Ingress/Egress, Min. Granularity 62.5kbps),
Flow-based (Ingress, Min. Granularity 62.5kbps)
Access Control List (ACL)
Max. 512 Access Rules; Time-based ACL; ACL Statistics; CPU Interface Filtering;
ACL based on: 802.1p Priority, VLAN ID, MAC Address, Ether Type, IP Address, DSCP,
Protocol Type, TCP/UDP Port Number, User-Defined Packet Content, Switch Port
Security
Secure Shell (SSH) v2; Secure Sockets Layer (SSL) v1/v2/v3;
Broadcast/Multicast/Unicast Storm Control; Traffic Segmentation; D-Link Safeguard Engine;
IP-MAC-Port Binding (IMPB): IP Packet Inspection, ARP Packet Inspection, DHCP Snooping,
500 Address Binding Entries Per Device; Port Security: Max. 64 MAC Addresses Per Port;
DoS Attack Prevention; ARP Spoofing Prevention*; BPDU Attack Protection*
Authentication, Authorization & Accounting
(AAA)
802.1X: Port-based Access Control, Host-based Access Control; Two-Level User Account;
Guest VLAN; RADIUS & TACACS+ Authentication for Switch Access; RADIUS Accounting
Management
Web-based GUI (IPv4/IPv6); Command Line Interface (CLI); Telnet Server/Client (IPv4/IPv6);
TFTP Client (IPv4/IPv6); XModem; ZModem; System Log; Dual Image; CPU Monitoring;
Simple Network Management Protocol (SNMP) v1/v2c/v3: SNMP over IPv6; SNMP Traps;
Remote Monitoring (RMON) v1: 1, 2, 3, 9 Groups; RMON v2: ProbeConfig Group; BootP/DHCP Client;
DHCP Auto-Configuration; DHCP Relay; DHCP Relay Option 82; Simple Network Time Protocol (SNTP);
Link Layer Discovery Protocol (LLDP); Password Encryption; Simple Mail Transfer Protocol (SMTP);
Debug Command; Network Load Balancing (NLB)*; IPv6 Management
Operations, Administration & Management
(OAM)
Loopback Diagnostics*; Cable Diagnostics*; 802.3ah Link OAM;
802.1ag Connectivity Fault Management (CFM)*
Management Information Base (MIB)
MIB-II (RFC1213); Bridge (RFC1409); SNMPv2 (RFC1907); RMON (RFC1757, 2819);
RMONv2 (RFC2021); Ether-Like (RFC1643, 2358, 2665); 802.1p (RFC2674); IF (RFC2233, 2866);
RADIUS Authentication Client (RFC2618); RADIUS Accounting Client (RFC2620);
Ping & Traceroute (RFC2925); D-Link Private MIB
Physical &
Environment
Dimension (W x D x H) 9-inch, 1U Desktop; 228.5 x 180 x 44mm 19-inch, 1U Rack-Mount; 441 x 207 x 44mm
Power Input AC Input: 100-240 VAC, 50/60Hz; Internal Universal Power Supply
Power Consumption 12.7W 13.2W 18.4W 46.7W
Operation Temperature 0 to 40 °C
Storage Temperature -40 to 70 °C
Operation Humidity 5% to 95% Non-Condensing
Fan Fanless 1 DC Fan
Certification EMI-EMC Compliance FCC Class A; CE Class A; VCCI Class A; IC
Safety Compliance UL/cUL; CB
Fast Ethernet Metro Ethernet Edge SwitchesSWITCHES
20
DGS-3100 series consists of managed Layer 2 Gigabit stackable switches designed
to provide feature-rich, low-cost switching in the entry-level network management
category.
• InternetGroupMulticastProtocol
(IGMP) Snooping
• MulticastListenerDiscovery(MLD)
Snooping
• LoopbackDetection(LBD)
• GARPVLANRegistrationProtocol(GVRP)
• QualityofService(QoS)
• AccessControlList(ACL)
• ARPSpoofingPrevention
• Broadcast/Multicast/UnicastStorm
Control
• D-LinkSafeguardEngineTM
• Microsoft®NetworkAccessProtection
(NAP)
• GuestVLAN
• 802.1XPort-basedAccessControl
• 802.1XHost-basedAccessControl
• MAC-basedAccessControl(MAC)
• LinkLayerDiscoveryProtocol(LLDP)
DGS-3100-24
•10/100/1000BASE-Tx20
•Combo1000BASE-T/SFPx4
•RedundantPowerSupply
•PhysicalStack
DGS-3100-24P
•10/100/1000BASE-Tx20(PoE)
•Combo1000BASE-T/SFPx4
•RedundantPowerSupply
•PhysicalStack
DGS-3100-24TG
•10/100/1000BASE-Tx8
•SFPSlotsx16
•RedundantPowerSupply
•PhysicalStack
DGS-3100-48
•10/100/1000BASE-Tx44
•Combo1000BASE-T/SFPx4
•RedundantPowerSupply
•PhysicalStack
DGS-3100-48P
•10/100/1000BASE-Tx44(PoE)
•Combo1000BASE-T/SFPx4
•RedundantPowerSupply
•PhysicalStack
Gigabit Ethernet Entry-Level Managed Switches
SWITCHES Gigabit Ethernet Entry-Level Managed Switches
DGS-3100 Series
Optional Accessories
Gigabit Ethernet SFP Transceivers
DEM-310GT 1000BASE-LX, SMF/MMF, 10km/2km
DEM-311GT 1000BASE-SX, MMF, 550m
DEM-312GT2 1000BASE-SX, MMF, 2km
DEM-314GT 1000BASE-LH, SMF, 50km
DEM-315GT 1000BASE-ZX, SMF, 80km
DGS-712 1000BASE-T, Copper, 100m
Gigabit Ethernet WDM SFP Transceivers
DEM-330T/R 1000BASE-BX, SMF, 10km
DEM-331T/R 1000BASE-BX, SMF, 40km
Fast Ethernet SFP Transceivers
DEM-210 100BASE-FX, SMF, 15km
DEM-211 100BASE-FX, MMF, 2km
Fast Ethernet WDM SFP Transceivers
DEM-220T/R 100BASE-BX, SMF, 20km
Redundant Power Supplies
DPS-200 60-Watt AC Redundant Power Supply (for DGS-3100-24 & DGS-3100-24TG)
DPS-500 140-Watt AC Redundant Power Supply (for DGS-3100-48)
DPS-600 500-Watt AC Redundant Power Supply (for DGS-3100-24P & DGS-3100-48P)
Management Software
DV-600S D-View 6.0 Network Management System (Standard Edition)
DV-600P D-View 6.0 Network Management System (Professional Edition)
21 SWITCHES
DGS-3100 Series
Model DGS-3100-24 DGS-3100-24P DGS-3100-24TG DGS-3100-48 DGS-3100-48P
LAN Standard IEEE 802.3; IEEE 802.3u; IEEE 802.3z; IEEE 802.3ab;IEEE 802.3af (DGS-3100-24P & DGS-3100-48P)
Port Interface
10BASE-T/100BASE-TX/
1000BASE-T Port (RJ-45) 20 20 (PoE) 8 44 44 (PoE)
SFP Port - 16 -
Combo 1000BASE-T/SFP Port 4 - 4
Stackability Physical Stack
Via HDMI Stacking Ports; Up to 20Gbps with Bi-Directional Redundant Stacking Topology;
Up to 10Gbps with Linear Topology; Up to 6 Units Per Stack; Backup Master;
Inter Trunking or Mirroring; HDMI Cable Length: 1 meter
General
Features
Switching Capacity 68Gbps 116Gbps
Maximum Forwarding Rate 50.60Mpps 86.31Mpps
Forwarding Mode Store and Forward
Packet Buffer Memory 768KBytes 1.5MBytes
SDRAM for CPU 64MBytes
Flash Memory 16MBytes
Mean Time Before Failure
(MTBF) 212,377 hours 117,136 hours 195,655 hours 103,924 hours 96,648 hours
Console Port Female RS-232 DB-9 Console Port for Out-of-Band Configuration
L2 Features
MAC Address Table: 8K; Flow Control: IEEE 802.3x Flow Control, Head-of-Line (HoL) Blocking Prevention;
Jumbo Frame: Max. 10,240Bytes; IGMP Snooping v1/v2: 256 Group, IGMP Snooping Fast Leave;
MLD Snooping v1/v2: 128 Groups; Port Mirroring: One-to-One, Many-to-One;
Spanning Tree Protocol (STP): 802.1D STP, 802.1w Rapid STP, 802.1s Multiple STP,
Per Port / Per Device BPDU Filtering; Loopback Detection;
802.3ad Link Aggregation: Max. 32 Groups Per Device, 8 Ports Per Group
Virtual VLAN (VLAN) VLAN Group: Max. 256 Static VLAN Groups; 802.1Q Tagged VLAN;
GARP VLAN Registration Protocol (GVRP)
Quality of Service
802.1p Class of Service: 4 Queues; Queue Handling: Strict, Weighted Round Robin (WRR), Strict + WRR;
CoS based on: Switch Port, VLAN ID, 802.1p Priority Queues, MAC Address, Ether Type,
IPv4 Address, DSCP, TCP/UDP Port
Bandwidth Control: Port-based (Ingress, Min. Granularity 3500kbps; Egress, Min. Granularity 64kbps),
Flow-based (Ingress, Min. Granularity 64kbps)
Access Control List (ACL)
Max. 15 Profiles; Max. 240 Rules Shared by All Profiles; Time-based ACL;
ACL based on: 802.1p Priority, VLAN ID, Ether Type, MAC Address, IPv4 Address, DSCP,
Protocol Type, TCP/UDP Port Number
Security
Secure Shell (SSH) v2; Secure Sockets Layer (SSL) v3; ARP Spoofing Prevention;
Port Security: Max. 16 MAC Addresses Per Port; Broadcast/Multicast/Unicast Storm Control;
D-Link Safeguard Engine
Authentication, Authorization & Accounting
(AAA)
Microsoft Network Access Protection (NAP): DHCP NAP; Guest VLAN;
802.1X: Port-based Access Control, Host-based Access Control; MAC-based Access Control (MAC);
RADIUS and TACACS+ Authentication for Management Access
Management
Web-based GUI; Command Line Interface (CLI); Telnet Server/Client; TFTP Client;
Link Layer Discovery Protocol (LLDP); DHCP Relay Option 82; System Log; BootP/DHCP Client;
Simple Network Management Protocol (SNMP) v1/v2c/v3; SNMP Trap; DHCP Auto-Configuration;
Remote Monitoring (RMON) v1: 1, 2, 3, 9 Groups; Dual Image; Dual Configuration;
CPU Monitoring; Simple Network Time Protocol (SNTP)
Management Information Base (MIB)
MIB-II (RFC1213); Bridge (RFC1493); SNMPv2 (RFC1901, 1908, 3418); RMON (RFC1757, 2819);
802.1p (RFC2674); Ether-Like (RFC1643); IF (RFC2863); RADIUS Authentication Client (RFC2618);
Ping & Traceroute (RFC2925); D-Link Private MIB
Standard Compliance
UDP (RFC768); TFTP (RFC783); IP (RFC791); ICMP (RFC792); TCP (RFC793); ARP (RFC826);
Telnet (RFC854); BootP (RFC951, 1542,2131); HTTP (RFC2068); RADIUS (RFC2138, 2139);
TACACS (RFC1492); RADIUS Accounting (RFC2620); SNMPv1 (RFC1157); SNMPv2c (RFC1901, 1908);
SNMPv3 (RFC2570, 2575), DiffServ Expedited Forwarding (RFC2598)
Physical &
Environment
Dimension (W x D x H)
19-inch,
1U Rack-Mount
440x210x44mm
19-inch,
1U Rack-Mount
440x310x44mm
19-inch,
1U Rack-Mount
440x210x44mm
19-inch,
1U Rack-Mount
440x310x44mm
19-inch,
1U Rack-Mount
440x430x44mm
Weight 3.04kg 5.58kg 2.95kg 5.50kg 7.43kg
Power Input AC Input: 100-240 VAC, 50/60Hz; Internal Universal Power Supply
Maximum Power
Consumption 41.8W 482.0W 37.1W 90.5W 539.0W
Standby Power Consumption 19.58W 49.3W 22.4W 48.2W 70.3W
Power over Ethernet -
Power Budget:
370W;
Per Port: 15.4W
-
Power Budget:
370W;
Per Port: 15.4W
Redundant Power Supply DPS-200 DPS-600 DPS-200 DPS-500 DPS-600
Operation Temperature 0 to 45 °C 0 to 40 °C 0 to 45 °C 0 to 45 °C 0 to 40 °C
Storage Temperature -10 to 70 °C
Operation Humidity 10% to 90% RH
Storage Humidity 5% to 90% RH
Acoustic 45.9 dB 48 dB 44.1 dB 47.4 dB 50.4dB
Certification EMI-EMC Compliance FCC Class A; ICES-003 Class A; CE; C-Tick; VCCI Class A
Safety Compliance cUL; CB
Gigabit Ethernet Entry-Level Managed Switches
22 Fast Ethernet Entry-Level Managed Switches
DES-3028/52 Series
Fast Ethernet Entry-Level Managed Switches
DES-3028 / DES-3052 series provides flexible choices of 24 or 48 Fast Ethernet
ports, with or without Power over Ethernet. Each switch is equipped with four
Gigabit Ethernet ports including two combo SFP which are capable of both Gigabit
and Fast Ethernet (100BASE-FX) fiber connections for user-specific applications.
Optional Accessories
Gigabit Ethernet SFP Transceivers
DEM-310GT 1000BASE-LX, SMF/MMF, 10km/2km
DEM-311GT 1000BASE-SX, MMF, 550m
DEM-312GT2 1000BASE-SX, MMF, 2km
DEM-314GT 1000BASE-LH, SMF, 50km
DEM-315GT 1000BASE-ZX, SMF, 80km
Gigabit Ethernet WDM SFP Transceivers
DEM-330T/R 1000BASE-BX, SMF, 10km
DEM-331T/R 1000BASE-BX, SMF, 40km
Fast Ethernet SFP Transceivers
DEM-210 100BASE-FX, SMF, 15km
DEM-211 100BASE-FX, MMF, 2km
Fast Ethernet WDM SFP Transceivers
DEM-220T/R 100BASE-BX, SMF, 20km
Management Software
DV-600S D-View 6.0 Network Management System (Standard Edition)
DV-600P D-View 6.0 Network Management System (Professional Edition)
• D-LinkSingleIPManagement(Virtual
Stack)
• InternetGroupMulticastProtocol
(IGMP) Snooping
• MulticastListenerDiscovery(MLD)
Snooping
• AsymmetricVLAN
• IGMPSnoopingMulticast(ISM)VLAN
• DoubleVLAN(Q-in-Q)
• QualityofService(QoS)
• AccessControlList(ACL)
• CPUInterfaceFiltering
• Broadcast/Multicast/UnicastStorm
Control
• TrafficSegmentation
• D-LinkSafeguardEngineTM
• IP-MAC-PortBinding(IMPB)
• Microsoft®NetworkAccessProtection
• 802.1XPort-basedAccessControl
• 802.1XHost-basedAccessControl
• GuestVLAN
• SimpleNetworkManagementProtocol
(SNMP)
• CableDiagnostics
DES-3028
•10/100BASE-TXx24
•10/100/1000BASE-Tx2
•Combo1000BASE-T/SFPx2
•Fanless
DES-3028P
•10/100BASE-TXx24(PoE)
•10/100/1000BASE-Tx2
•Combo1000BASE-T/SFPx2
•DCFanx2
DES-3052
•10/100BASE-TXx48
•10/100/1000BASE-Tx2
•Combo1000BASE-T/SFPx2
•Fanless
DES-3052P
•10/100BASE-TXx48(PoE)
•10/100/1000BASE-Tx2
•Combo1000BASE-T/SFPx2
•DCFanx3
SWITCHES
23 Fast Ethernet Entry-Level Managed SwitchesSWITCHES
DES-3028/52 Series
Model DES-3028 DES-3028P DES-3052 DES-3052P
LAN Standard IEEE 802.3; IEEE 802.3u; IEEE 802.3z; IEEE 802.3ab; IEEE 802.3af (DES-3028P & DES-3052P)
Port Interface
10BASE-T/100BASE-TX
Port (RJ-45) 24 24 (PoE) 48 48 (PoE)
10BASE-T/100BASE-TX/
1000BASE-T Port (RJ-45) 2
Combo 1000BASE-T/SFP 2
Stackability Virtual Stack D-Link Single IP Management (SIM); Virtual Stack up to 32 Devices
General
Features
Switching Capacity 12.8Gbps 17.6Gbps
Maximum Forwarding Rate 9.5Mpps 13.1Mpps
Forwarding Mode Store and Forward
Packet Buffer Memory 512KBytes
SDRAM for CPU 64MBytes
Flash Memory 8MBytes
Mean Time Before Failure
(MTBF) 248,271 hours 196,033 hours 292,133 hours 169,182 hours
Console Port Female RS-232 DB-9 Console Port for Out-of-Band Configuration
L2 Features
MAC Address Table: 8K; Jumbo Frames: Max. 2,048Bytes;
IGMP Snooping v1/v2: 256 Groups, Port-based IGMP Snooping Fast Leave; IGMP Authentication;
Limited IP Multicast: Max. 24 IGMP Filtering Profiles, 128 Ranges Per Profile;
MLD Snooping v1/v2: 256 Group, MLD Snooping Fast Leave
Spanning Tree Protocol (STP): 802.1D-2004 Edition STP, 802.1w Rapid STP, 802.1s Multiple STP,
BPDU Filtering, Root Restriction; Loopback Detection (LBD);
802.3ad Link Aggregation: Max. 6 Groups Per Device, Max. 8 Ports Per Group;
Port Mirroring: One-to-One, Many-to-One, Flow-based Mirroring;
Flow Control: IEEE 802.3x Flow Control, Head-of-Line (HoL) Blocking Prevention
Virtual LAN (VLAN)
802.1Q Tagged VLAN, VLAN Group: Max. 4K VLAN; Port-based VLAN; Asymmetric VLAN; ISM VLAN;
GARP VLAN Registration Protocol (GVRP): Max. 255 Dynamic VLAN;
Double VLAN (Q-in-Q): Port-based Q-in-Q
Quality of Service (QoS)
802.1p Quality of Service; 4 Queues Per Port; Queue Handling: Strict, Weighted Round Robin;
CoS based on: Switch Port, VLAN ID, 802.1p Priority Queues, MAC Address, IP Address, DSCP,
Protocol Type, TCP/UDP Port, User-Defined Packet Content
Bandwidth Control: Port-based (Ingress/Egress, Min. Granularity 64kbps),
Flow-based (Ingress, Min. Granularity 64kbps); Time-based QoS
Access Control List (ACL)
Max. 256 Access Rules; Time-based ACL; CPU Interface Filtering; Traffic Segmentation;
ACL based on: 802.1p Priority, VLAN ID, MAC Address, Ether Type, IP Address, DSCP,
Protocol Type, TCP/UDP Port Number, User-Defined Packet Content
Security
Secure Shell (SSH) v2; Secure Sockets Layer (SSL) v1/v2/v3;
Port Security: Max. 16 MAC Addresses Per Port; Broadcast/Multicast/Unicast Storm Control;
IP-MAC-Port Binding (IMPB): ARP Packet Inspection, IP Packet Inspection, DHCP Snooping,
500 Address Binding Entries Per Device;
Microsoft Network Access Protection (NAP): 802.1X NAP, DHCP NAP; D-Link Safeguard Engine
Authentication, Authorization & Accounting
(AAA)
802.1X: Port-based Access Control, Host-based Access Control, Dynamic VLAN Assignment;
Guest VLAN, RADIUS Accounting; RADIUS & TACACS+ Authentication for Switch Access
Management
Web-based GUI; Command Line Interface (CLI); Telnet Server/Client; TFTP Client;
Simple Network Management Protocol (SNMP) v1/v2c/v3; SNMP Traps; XModem; ZModem;
Remote Monitoring (RMON) v1: 1, 2, 3, 9 Groups; RMON v2: ProbeConfig Group;
BootP/DHCP Client; DHCP Auto-Configuration; DHCP Relay; DHCP Relay Option 82;
Dual Image; CPU Monitoring; Simple Network Time Protocol (SNTP); System Log;
Link Layer Discovery Protocol (LLDP); Debug Command; Cable Diagnostics
Management Information Base (MIB)
MIB-II (RFC1213); Bridge (RFC1493); SNMPv2 (RFC1907); RMON (RFC1757, 2819);
RMONv2 (RFC2021); Ether-Like (RFC1643, 2358, 2665); 802.1p (RFC2674);
IF (RFC2233, 2863); Ping & Traceroute (RFC2925); RADIUS Authentication Client (RFC2618);
RADIUS Accounting Client (RFC2620); D-Link Private MIB
Standard Compliance
RADIUS Accounting (RFC2866); RADIUS Authentication For Management Access (RFC2138, 2139);
TACACS+ Authentication for Management Access (RFC1492); HTTP (RFC2068); UDP (RFC768);
TFTP (RFC783); IP (RFC791); ICMP (RFC792); TCP (RFC793); ARP (RFC826); Telnet (RFC854);
SNMP (RFC1157, 1901, 1908, 2570, 2575); RMONv1 (RFC2819); BootP/DHCP (RFC951, 1542);
DHCP Relay (RFC3046); System Log (RFC3164, 3195)
Physical &
Environment
Dimension (W x D x H) 19-inch, 1U Rack-Mount; 441 x 207 x 44mm 19-inch, 1U Rack-Mount; 441 x 309 x 44mm
Power Input AC Input: 100-240 VAC, 50/60Hz; Internal Universal Power Supply
Power Consumption 18.8W 217W 25.5W 395W
Power over Ethernet - Power Budget: 185W;
Per Port up to 15.4W -Power Budget: 370W;
Per Port up to 15.4W
Operation Temperature 0 to 40 °C
Storage Temperature -10 to 70 °C
Humidity 5% to 95% Non-Condensing
Fan Fanless 2 DC Fans Fanless 3 DC Fans
Certification EMI-EMC Compliance FCC Class A; CE; C-Tick; VCCI Class A
Safety Compliance cUL; LVD
24

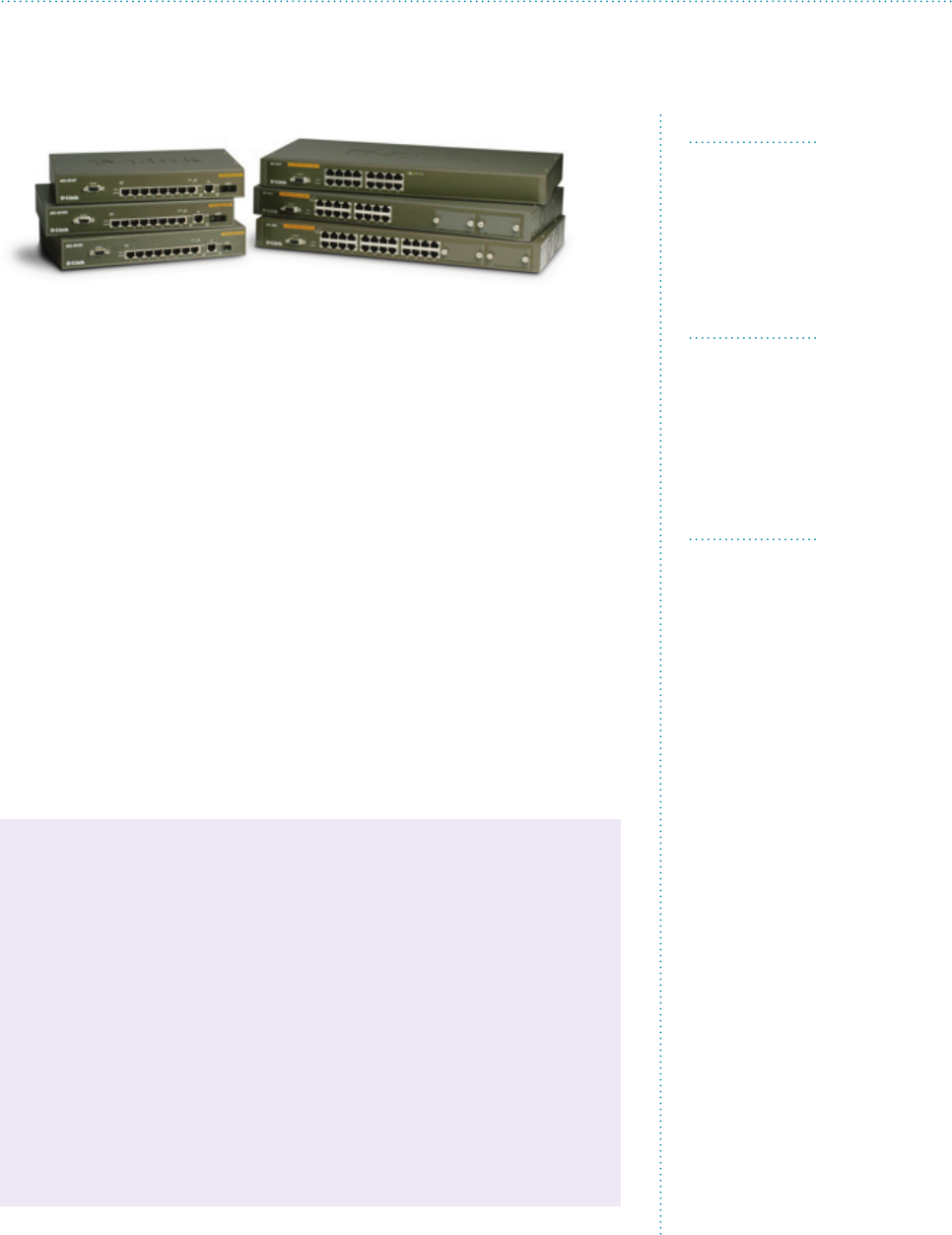

DES-3000 Series consists of high-performance managed Layer 2 switches. Ideal as a
solution for small and medium-size business (SMB) and enterprise markets. Designed
as an entry-level management solution for SMB, these switches come included with
various enriched advanced features. The DES-3000 Series is a cost-effective solution
suitable for business applications that require superior performance with options for
expansion. The switches in addition offer fiber uplinks for long distance connections
to different group users, such as classrooms, departments spread across campus, or
buildings.
• D-LinkSingleIPManagement
(Virtual Stack)
• LoopbackDetection(LBD)
• InternetGroupManagement
Protocol (IGMP) Snooping
• 802.1QVirtualLAN(VLAN)
• QualityofService(QoS)
• TrafficSegmentation
• CPUinterfaceFiltering
• IP-MAC-PortBinding(IMPB)
• Broadcast/Multicast/UnicastStorm
Control
• 802.1XPort-basedAccessControl
• 802.1XHost-basedAccessControl
• Microsoft®NetworkAccess
Protection
• SimpleNetworkManagement
Protocol (SNMP)
• CableDiagnostics
DES-3010F
•10/100BASE-TXx8
•10/100/1000BASE-Tx1
•100BASE-FXx1(Multi-ModeFiber)
•Fanless
•11-inch,1UDesktop
DES-3010G
•10/100BASE-TXx8
•10/100/1000BASE-Tx1
•SFPx1
•Fanless
•11-inch,1UDesktop
DES-3026
•10/100BASE-TXx24
•ExpansionSlotsx2
•Fanless
•19-inch,1URack-Mount
Fast Ethernet Entry-Level Managed Switches
SWITCHES Fast Ethernet Entry-Level Managed Switches
DES-3000 Series
Optional Accessories
Modules (for DES-3026)
DEM-201F 1-Port 100BASE-FX Multi-Mode Fiber Module
DEM-201FL 1-Port 100BASE-FX Single-Mode Fiber Module
DEM-301G 1-Port SFP Module
DEM-301T 1-Port 1000BASE-T Module
Gigabit Ethernet SFP Transceivers
DEM-310GT 1000BASE-LX, SMF/MMF, 10km/2km
DEM-311GT 1000BASE-SX, MMF, 550m
DEM-312GT2 1000BASE-SX, MMF, 2km
DEM-314GT 1000BASE-LH, SMF, 50km
DEM-315GT 1000BASE-ZX, SMF, 80km
Gigabit Ethernet WDM SFP Transceivers
DEM-330T/R 1000BASE-BX, SMF, 10km
DEM-331T/R 1000BASE-BX, SMF, 40km
Management Software
DV-600S D-View 6.0 Network Management System (Standard Edition)
DV-600P D-View 6.0 Network Management System (Professional Edition)
25 SWITCHES
DES-3000 Series
Model DES-3010F DES-3010G DES-3026
LAN Standard IEEE 802.3; IEEE 802.3u; IEEE 802.3z; IEEE 802.3ab
Port Interface
10BASE-T/100BASE-TX
Port (RJ-45) 8 8 24
100BASE-FX (MMF) 1 - Via DEM-201F Module
100BASE-FX (SMF) - Via DEM-201FL Module
10BASE-T/100BASE-TX/
1000BASE-T Port (RJ-45) 1 1 Via DEM-301T Module
SFP Port - 1 Via DEM-301G Module
Expansion Slot - 2
Stackability Virtual Stack D-Link Single IP Management (SIM); Virtual Stack up to 32 Devices
General Features
Switching Capacity 3.8Gbps 5.6Gbps 8.8Gbps
Maximum Forwarding Rate 2.8Mpps 4.2Mpps 6.6Mpps
Forwarding Mode Store and Forward
Packet Buffer Memory 256KBytes
SDRAM for CPU 32MBytes
Flash Memory 4MBytes
Mean Time Before Failure
(MTBF) 239,160 hours 247,500 hours 123,925 hours
Console Port Female RS-232 DB-9 Console Port for Out-of-Band Configuration
L2 Features
MAC Address Table: 8K; Loopback Detection;
IGMP Snooping v1/v2: 256 Groups, Port-based IGMP Snooping Fast Leave;
Spanning Tree Protocol (STP): 802.1D STP, 802.1w Rapid STP, BPDU Filtering;
802.3ad Link Aggregation: Max. 3 Groups Per Device, Max. 4 Ports Per Group,
(2 Groups for Fast Ethernet Ports, 1 Group for Gigabit Ethernet Ports)
Port Mirroring: One-to-One, Many-to-One
Virtual LAN (VLAN) 802.1Q Tagged VLAN; VLAN Group: Max. 255 VLAN; Static VLAN
Quality of Service (QoS)
802.1p Quality of Service; 4 Queues;
CoS based on: MAC Destination Address, Switch Port, TOS, DSCP
Bandwidth Control: Port-based (Ingress/Egress, Min. Granularity 64kbps)
Security
Port Security: Max. 10 MAC Addresses Per Port; Traffic Segmentation; CPU Interface Filtering;
IP-MAC-Port Binding (IMPB): ARP Inspection, 500 Address Binding Entries Per Device;
Broadcast/Multicast/Unicast Storm Control; Secure Shell (SSH) v2
Authentication, Authorization & Accounting
(AAA)
802.1X: Port-based Access Control, Host-based Access Control, Dynamic VLAN Assignment;
Guest VLAN; Microsoft Network Access Protection (NAP): DHCP NAP
Management
D-Link Single IP Management (SIM); Web-based GUI; Command Line Interface (CLI);
Telnet Server; TFTP Client; Simple Network Management Protocol (SNMP) v1/v2c/v3; SNMP Traps;
DHCP Relay; DHCP Relay Option 60/61; DHCP Auto-Configuration; BootP/DHCP Client
Operations, Administration & Management
(OAM) Cable Diagnostics
Management Information Base (MIB) MIB-II (RFC1213); Bridge (RFC1493); RMON (1757); Ether-Like (RFC1643, 2358); 802.1p (RFC2674);
IF (RFC1213, 2233); RADIUS Extension Standard (RFC2869); D-Link Private MIB
Physical &
Environment
Dimension (W x D x H) 11-inch, 1U Desktop;
280 x 180 x 44mm
19-inch, 1U Rack-Mount;
441 x 207 x 44mm
Power Input AC Input: 100-240 VAC, 50/60Hz; Internal Universal Power Supply
Power Consumption 15W 14.8W 17W
Operation Temperature 0 to 40 °C
Storage Temperature -40 to 70 °C
Humidity 5% to 95% Non-Condensing
Certification EMI-EMC Compliance FCC Class A; CE; C-Tick VCCI
Safety Compliance CSA International
Fast Ethernet Entry-Level Managed Switches
26

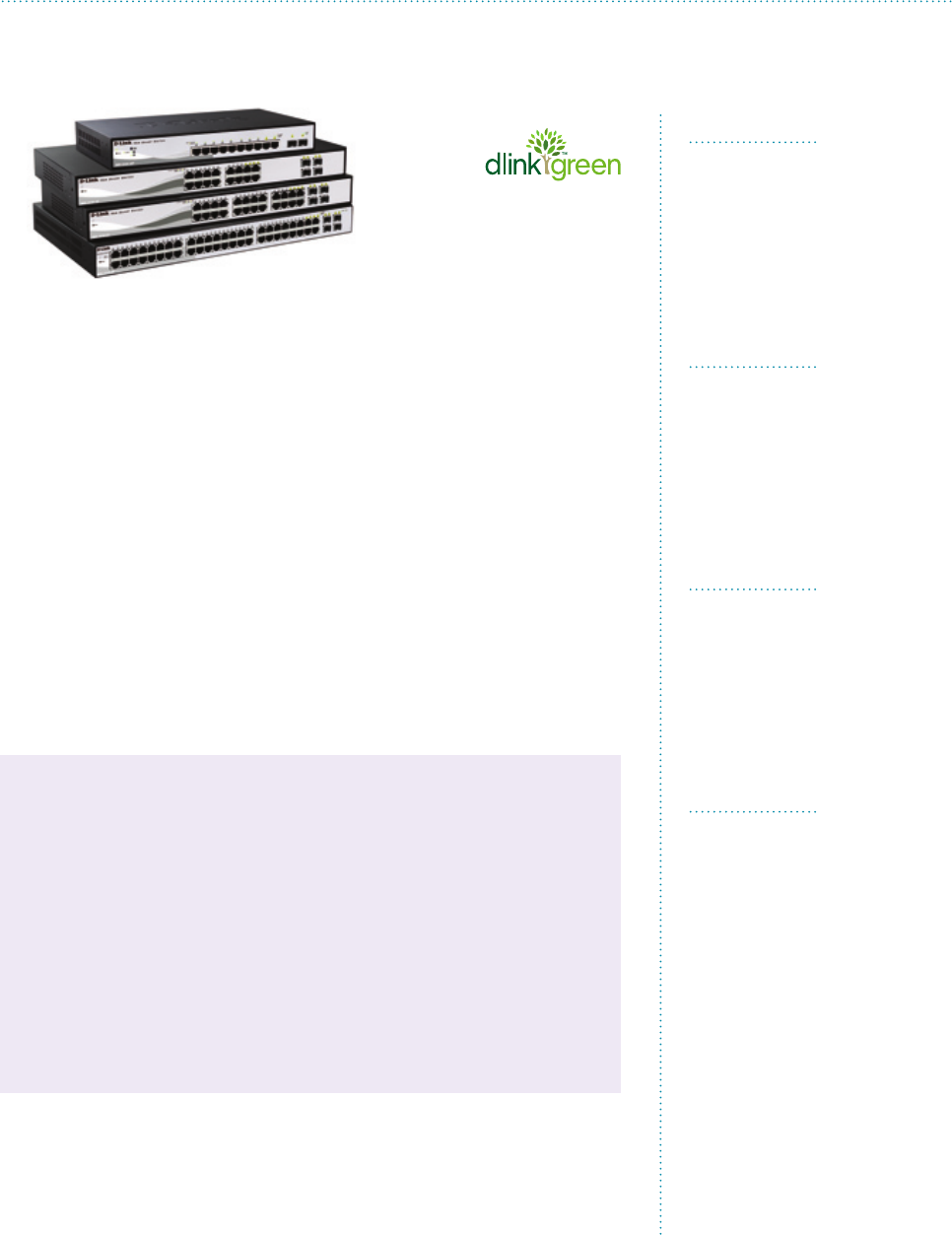

D-Link DGS-1210 Series is the latest generation of Web Smart Switches that feature
D-Link Green technology. This series integrates advanced management and security
functions that provide performance and scalability. DGS-1210 Series is designed
for SMBs/enterprises seeking to upgrade from unmanaged switches to Web Smart
switches, which gives customers easy access and simplifies operation at an affordable
price.
• InternetGroupManagementProtocol
(IGMP) Snooping
• LoopbackDetection(LBD)
• CableDiagnostics
• 802.1QVirtualLAN(VLAN)
•ManagementVLAN
•AsymmetricVLAN
•AutoVoiceVLAN
•QualityofService(QoS)
•AccessControlList(ACL)
•802.1XAccessControl
•PortSecurity
•Broadcast/Multicast/UnicastStorm
Control
•D-LinkSafeguardEngineTM
•DHCPServerScreening*
•ARPSpoofingPrevention*
•Web-basedGUI
•SimpleNetworkManagementProtocol
(SNMP)
DGS-1210-10P
•10/100/1000BASE-Tx8(PoE)
•Combo1000BASE-T/SFPx2
•Fanless
•ResetButtonx1
•13-inch,1UDesktop
•PowerSavings
DGS-1210-16
•10/100/1000BASE-Tx12
•Combo1000BASE-T/SFPx4
•Fanless
•ResetButtonx1
•19-inch,1URack-Mount
•PowerSavings
DGS-1210-24
•10/100/1000BASE-Tx20
•Combo1000BASE-T/SFPx4
•Fanless
•ResetButtonx1
•19-inch,1URack-Mount
•PowerSavings
DGS-1210-48
•10/100/1000BASE-Tx44
•Combo1000BASE-T/SFPx4
•DCFanx2
•ResetButtonx1
•19-inch,1URack-Mount
•PowerSavings
Gigabit Ethernet Web Smart Switches
SWITCHES Gigabit Ethernet Web Smart Switches
DGS-1210 Series
Optional Accessories
Gigabit Ethernet WDM SFP Transceivers
DEM-310GT 1000BASE-LX, SMF/MMF, 10km/2km
DEM-311GT 1000BASE-SX, MMF, 550m
DEM-312GT2 1000BASE-SX, MMF, 2km
DEM-314GT 1000BASE-LH, SMF, 50km
DEM-315GT 1000BASE-ZX, SMF, 80km
DGS-712 1000BASE-T, Copper, 100m
Gigabit Ethernet WDM SFP Transceivers
DEM-330T/R 1000BASE-BX, SMF, 10km
DEM-331T/R 1000BASE-BX, SMF, 40km
Fast Ethernet SFP Transceivers
DEM-210 100BASE-FX, SMF, 15km
DEM-211 100BASE-FX, MMF, 2km
Fast Ethernet WDM SFP Transceivers
DEM-220T/R 100BASE-BX, SMF, 20km
* Available in Future Firmware Upgrade
27 SWITCHES
DGS-1210 Series
Model DGS-1210-10P DGS-1210-16 DGS-1210-24 DGS-1210-48
LAN Interface IEEE 802.3; IEEE 802.3u; IEEE 802.3z; IEEE 802.3ab;
IEEE 802.3af (DGS-1210-10P); Pre-Standard IEEE 802.3at (DGS-1210-10P)
Port Interface
10BASE-T/100BASE-TX/
1000BASE-T Port (RJ-45) 8 (PoE) 12 20 44
Combo 1000BASE-T/SFP Port 2 4 4 4
General Features
Switching Capacity 20Gbps 32Gbps 48Gbps 96Gbps
Maximum Forwarding Rate 14.88Mpps 23.8Mpps 35.7Mpps 71.4Mpps
Forwarding Mode Store and Forward
Packet Buffer Memory 512KBytes 1MBytes
DDR2 for CPU 64MBytes
Flash Memory 16MBytes
Mean Time Before Failure
(MTBF) 202,249 hours 799,491 hours 410,948 hours 322,402 hours
L2 Features
MAC Address: 8K Entries Per Device, Static MAC Address: 256 Entries;
Flow Control: IEEE 802.3x Flow Control, Head-of-Line (HoL) Blocking Prevention;
IGMP Snooping v1/v2: 256 Groups, Static Multicast Address: 64, IGMP Per VLAN;
Spanning Tree Protocol (STP): 802.1D STP, 802.1w Rapid STP; Loopback Detection;
802.3ad Link Aggregation: Max. 5 Groups Per Device, 8 Ports Per Group (DGS-1210-10P);
Max. 8 Groups Per Device, 8 Ports Per Group (DGS-1210-16/24/48);
Port Mirroring: One-to-One, Many-to-One, Mirroring for Tx/Rx/Both;
Cable Diagnostics; Configurable Auto MDI/MDIX; Multicast Filtering*
Virtual LAN (VLAN) 802.1Q Tagged VLAN; VLAN Group: Max. 256 Static VLAN Groups, Max. 4094 VIDs;
Management VLAN; Asymmetric VLAN; Auto Voice VLAN: Max. 10 User Defined OUI, Max. 8 Default OUI
Quality of Service (QoS)
802.1p Quality of Service; 4 Queues Per Port; Queue Handling: Strict, Weighted Round Robin (WRR);
CoS based on: 802.1p Priority Queues, DSCP;
Bandwidth Control: Port-based (Ingress/Egress, Min. Granularity 64kbps)
Access Control List (ACL) Max. 50 Profiles; Max. 240 Rules Shared by Profiles; ACL Actions: Permit, Deny;
ACL based on: MAC Address, IPv4 Address (ICMP/IGMP/TCP/UDP), VLAN ID, 802.1p Priority, DSCP
Security
802.1X; Port Security: Max. 64 MAC Addresses Per Port; Broadcast/Multicast/Unicast Storm Control;
Static MAC; D-Link Safeguard Engine; DHCP Server Screening*;
ARP Spoofing Prevention*: Max. 64 Entries; Secure Sockets Layer* (SSL) v1/v2/v3 (IPv4)
Management
Web-based GUI; Compact CLI through Telnet; Telnet Server; TFTP Client;
Simple Network Management Protocol (SNMP) v1/v2c/v3*; SNMP Trap;
Trap for SmartConsole Utility; System Log: Max. 500 Log Entries, IPv4 Log Server;
BootP/DHCP Client; Simple Network Time Protocol (SNTP)
Power Savings By Link Status and Cable Length Detection
Management Information Base (MIB) MIB-II (RFC1213); Bridge (RFC1493); SNMPv2 (RFC1907); Trap Convention (RFC1215);
Interface Group (RFC2233); D-Link Private MIB
Standard Compliance
UDP (RFC768); IP (RFC791); ICMP (RFC792); TCP (RFC793); ARP (RFC826);
Telnet Server (RFC854, 855, 858); Telnet Binary Transmission (RFC856);
Congestion Control in TCP/IP Network (RFC896); Reverse Address Resolution Protocol (RFC903);
BootP Client (RFC951); MIB (RFC1155); SNMPv1 (RFC1157); Path MTU Discovery (RFC1191);
Concise MIB Definition (RFC1212); MIB-II, IF (RGC1213); Traps for Use with SNMP (RFC1215);
Standard MIB (RFC1239); TFTP (RFC1350); Bridge MIB (RFC1493); CIDR (RFC1519);
HTTP/1.0 (RFC1945); DHCP (RFC2131); DHCP Options and BootP Vendor Extensions (RFC2132);
RADIUS Authentication (RFC2138); Interface MIB (RFC2233); 802.1p (RFC2647);
Structure of Management Information Version 2 (SMIv2) (RFC2578); SNMP (RFC3416, 3417)
Physical &
Environment
Dimension (W x D x H) 13-inch, 1U Desktop
330 x 180 x 44mm
19-inch, 1U Rack-Mount;
440 x 210 x 44mm
19-inch, 1U Rack-Mount;
440 x 250 x 44mm
Weight 1.84kg 2.87kg 2.97kg 4.04kg
Power Input AC Input: 100-240 VAC, 50/60Hz; Internal Universal Power Supply
Max. Power Consumption PoE On: 109.3W
PoE Off: 14.45W 17.4W 24.1W 59.1W
Standby Power Consumption 7W/110V
7.8W/240V
4.9W/110V;
5W/240V
6W/110V;
6.2W/240W
19.2W/110V;
20.1W/240V
Power over Ethernet
All Ports are Selective at
15.4W / 30W
Power Budget: 78W
Time-based PoE
-
Operation Temperature 0 to 40 °C
Storage Temperature -10 to 70 °C
Operation Humidity 10% to 95% RH
Storage Humidity 5% to 95% RH
Acoustic 0dB 46.2 dB
Fan Fanless Smart Fan x 2
Reset Button One Reset Button
Certification EMI-EMC Compliance FCC Class A; CE Class A; IC Report Class A; C-Tick Class A; VCCI Class A
Safety Compliance cUL; LVD
* Available in Future Firmware Upgrade
Gigabit Ethernet Web Smart Switches
28
D-Link Web Smart switches come with plug-and-play simplicity, designed to provide
performance and reliability for small and medium-size business (SMB) network.
Switch management and configuration is through SmartConsole utility or
web-based GUI. SmartConsole is an easy way to access the switch from a local
computer.
• InternetGroupManagementProtocol
(IGMP) Snooping
• StaticPortTrunk
• 802.1QTaggedVirtualLAN(VLAN)
• ManagementVLAN
•AsymmetricVLAN
•QualityofService(QoS)
•802.1XPort-basedAccessControl
•BroadcastStormControl
•CableDiagnostics
•D-LinkSafeguardEngineTM
•Web-basedGUI
•SimpleNetworkManagementProtocol
(SNMP)
DGS-1216T
•10/100/1000BASE-Tx14
•Combo1000BASE-T/SFPx2
•Fanless
•ResetButtonx1
•19-inch,1URack-Mount
•PowerSavings
DGS-1224T
•10/100/1000BASE-Tx22
•Combo1000BASE-T/SFPx2
•Fanless
•ResetButtonx1
•19-inch,1URack-Mount
•PowerSavings
DGS-1224TP
•10/100/1000BASE-Tx20(PoE)
•Combo1000BASE-T/SFPx4
•DCFanx2
•ResetButtonx1
•19-inch,1URack-Mount
•PowerSavings
DGS-1248T
•10/100/1000BASE-Tx44
•Combo1000BASE-T/SFPx4
•DCFanx3
•ResetButtonx1
•19-inch,1URack-Mount
•PowerSavings
Gigabit Ethernet Web Smart Switches
SWITCHES Gigabit Ethernet Web Smart Switches
DGS-1200 Series
Optional Accessories
Gigabit Ethernet WDM SFP Transceivers
DEM-310GT 1000BASE-LX, SMF/MMF, 10km/2km
DEM-311GT 1000BASE-SX, MMF, 550m
DEM-312GT2 1000BASE-SX, MMF, 2km
DEM-314GT 1000BASE-LH, SMF, 50km
DEM-315GT 1000BASE-ZX, SMF, 80km
DGS-712 1000BASE-T, Copper, 100m
Gigabit Ethernet WDM SFP Transceivers
DEM-330T/R 1000BASE-BX, SMF, 10km
DEM-331T/R 1000BASE-BX, SMF, 40km
29 SWITCHES
DGS-1200 Series
Model DGS-1216T DGS-1224T DGS-1224TP DGS-1248T
LAN Interface IEEE 802.3; IEEE 802.3u; IEEE 802.3z; IEEE 802.3ab; IEEE 802.3af (DGS-1224TP)
Port Interface
10BASE-T/100BASE-TX/
1000BASE-T Port (RJ-45) 14 22 20 (PoE) 44
Combo 1000BASE-T/SFP Port 2 4
General Features
Switching Capacity 32Gbps 48Gbps 96Gbps
Maximum Forwarding Rate 23.8Mpps 35.7Mpps 35.7Mpps 71.4Mpps
Forwarding Mode Store and Forward
Packet Buffer Memory 384KBytes 512KBytes 384KBytes 1,024KBytes
SDRAM for CPU 8MBytes 16MBytes 8MBytes
Flash Memory 2MBytes PROM 4MBytes PROM 2MBytes PROM
Mean Time Before Failure
(MTBF) 228,450 hours 215,976 hours 173,467 hours 186,656 hours
L2 Features
MAC Address: 8K Entries Per Device, Static MAC Address: 256 Entries;
IGMP Snooping v1/v2: 64 Multicast Groups; Spanning Tree Protocol: 802.1D STP;
Jumbo Frame: Max. 10,240Bytes (for DGS-1216T/24T/24TP), Max. 9,220Bytes (for DGS-1248T);
Static Port Trunk: Max. 6 Groups Per Device, 8 Ports Per Group
Green Ethernet Power Savings Mode
Virtual LAN (VLAN) 802.1Q Tagged VLAN; Max. 256 Static VLAN Groups; Management VLAN; Asymmetric VLAN
Quality of Service (QoS) 802.1p Priority Queues; Max. 4 Queues Per Port; DSCP-based QoS;
Queue Handling: Strict, Weighted Round Robin (WRR)
Security
802.1X Port-based Access Control; Broadcast Storm Control; Trusted Host;
D-Link Safeguard Engine: Protect CPU from Broadcast/Multicast/Unicast Flooding;
Cable Diagnostics
Power Savings By Link Status
Management
Web-based GUI; Simple Network Management Protocol (SNMP) v1; DHCP Client;
Trap Setting for Destination IP, System Events, Fiver Port Events, Twisted-Pair Port Events;
Port Access Control; SmartConsole Utility; Firmware Upgrade using SmartConsole Utility;
Web-based: Configuration Backup/Restoration; Web-based: Firmware Backup/Upload;
System Reboot using Web-based Interface
Management Information Base (MIB) MIB-II (RFC1213); D-Link Private MIB
Physical &
Environment
Dimension (W x D x H) 19-inch, 1U Rack-Mount;
440 x 210 x 44mm
19-inch, 1U Rack-Mount;
440 x 309 x 44mm
Weight 2.72kg 2.80kg 3.6kg 4.46kg
Power Input AC Input: 100-240 VAC, 50/60Hz; Internal Universal Power Supply
Power Consumption 23W 31.2W 250.3W 76.2W
Power over Ethernet - Power Budget: 180W -
Operation Temperature 0 to 40 °C
Storage Temperature -10 to 70 °C
Operation Humidity 10% to 90% RH
Storage Humidity 5% to 90% RH
Acoustic 0 dB 0 dB 47 dB 51.6 dB
Fan Fanless Fanless 2 DC Fans 3 DC Fans
Reset Button One Reset Button
Certification EMI-EMC Compliance FCC Class A; CE Class A; VCCI Class A
Safety Compliance cUL; LVD
* Available in Future Firmware Upgrade
Gigabit Ethernet Web Smart Switches
30 SWITCHES Fast Ethernet Web Smart Switches
Fast Ethernet Web Smart Switches
DES-1210 Series
D-Link DES-1210 Series is the latest generation of Web Smart switches, which
integrates advanced management and security functions that provide performance
and scalability. While easy to use, the DES-1210 Series provides a complete and
affordable solution for small and medium businesses.
• InternetGroupManagementProtocol
(IGMP) Snooping
• MulticastFiltering*
• 802.1QTaggedVirtualLAN(VLAN)
• ManagementVLAN
•AsymmetricVLAN
•AutoVoiceVLAN
•QualityofService(QoS)
•AccessControlList(ACL)
•802.1XAccessControl
•Broadcast/Multicast/UnicastStorm
Control
•D-LinkSafeguardEngineTM
•DHCPServerScreening*
•ARPSpoofingPrevention*
•Web-basedGUI
•SimpleNetworkManagementProtocol
(SNMP)
DES-1210-28
•10/100BASE-TXx24
•10/100/1000BASE-Tx2
•Combo1000BASE-T/SFPx2
•Fanless
•ResetButtonx1
•19-inch,1URack-Mount
DES-1210-52
•10/100BASE-TXx48
•10/100/1000BASE-Tx2
•Combo1000BASE-T/SFPx2
•Fanless
•ResetButtonx1
•19-inch,1URack-Mount
Optional Accessories
Gigabit Ethernet SFP Transceivers
DEM-310GT 1000BASE-LX, SMF/MMF, 10km/2km
DEM-311GT 1000BASE-SX, MMF, 550m
DEM-312GT2 1000BASE-SX, MMF, 2km
DEM-314GT 1000BASE-LH, SMF, 50km
DEM-315GT 1000BASE-ZX, SMF, 80km
DGS-712 1000BASE-T, Copper, 100m
Gigabit Ethernet WDM SFP Transceivers
DEM-330T/R 1000BASE-BX, SMF, 10km
DEM-331T/R 1000BASE-BX, SMF, 40km
Fast Ethernet SFP Transceivers
DEM-210 100BASE-FX, SMF, 15km
DEM-211 100BASE-FX, MMF, 2km
Fast Ethernet WDM SFP Transceivers
DEM-220T/R 100BASE-BX, SMF, 20km
* Available in Future Firmware Upgrade
31 SWITCHES
DES-1210 Series
Model DES-1210-28 DES-1210-52
LAN Interface IEEE 802.3; IEEE 802.3u; IEEE 802.3z; IEEE 802.3ab
Port Interface
10BASE-T/100BASE-TX
Port (RJ-45) 24 48
10BASE-T/100BASE-TX/
1000BASE-T Port (RJ-45) 2
Combo 1000BASE-T/SFP 2
General Features
Switching Capacity 12.8Gbps 17.6Gbps
Maximum Forwarding Rate 9.5Mpps 13.1Mpps
Forwarding Mode Store and Forward
Packet Buffer Memory 512KBytes 1MBytes
DDR2 for CPU 64MBytes
Flash Memory 16MBytes
Mean Time Before Failure (MTBF) 419,467 hours 289,012 hours
L2 Features
MAC Address Table: 8K, Static MAC: 256; Enable/Disable Auto-Learning of MAC Addresses;
Flow Control: 802.3 Flow Control, Head-of-Line (HoL) Blocking Prevention;
IGMP Snooping v1/v2: 256 Groups, At least 64 Multicast addresses; IGMP Per VLAN,
Cable Diagnostics; Configurable Auto MDI/MDIX; Multicast Filtering*;
Spanning Tree Protocol (STP): 802.1D STP, 802.1w Rapid STP; Loopback Detection;
802.3ad Link Aggregation: Max. 8 Groups Per Device, 8 Ports Per Group;
Port Mirroring: One-to-One, Many-to-One, Mirroring for Tx/Rx/Both
Virtual VLAN (VLAN) 802.1Q Tagged VLAN; VLAN Group: Max. 256 Static VLAN, Max. 4,094 VID; Management VLAN;
Asymmetric VLAN; Auto Voice VLAN: Max. 10 User Defined OUI, Max. 8 Default OUI
Quality of Service (QoS)
802.1p Quality of Service; 4 Queues Per Port; Queue Handling: Strict, Weighted Round Robin (WRR);
CoS based on: 802.1p Priority Queues, DSCP;
Bandwidth Control: Port-based (Ingress/Egress, Min. Granularity 64kbps)
Access Control List (ACL) Max. 50 Profiles; Max. 240 Rules Shared by Profiles; ACL Actions: Permit, Deny;
ACL based on: MAC Address, IPv4 Address (ICMP/IGMP/TCP/UDP), VLAN ID, 802.1p Priority, DSCP
Security
802.1X; Port Security: Max. 64 MAC Addresses Per Port; Static MAC
Broadcast/Multicast/Unicast Storm Control; IP-MAC-Port Binding: DHCP Snooping*;
D-Link Safeguard Engine; DHCP Server Screening*; ARP Spoofing Prevention*: Max. 64 Entries;
Secure Sockets Layer (SSL) v1/v2/v3 (IPv4)
Management
Web-based GUI; Compact CLI through Telnet; Telnet Server; TFTP Client;
Simple Network Management Protocol (SNMP) v1/v2c/v3*; SNMP Trap;
Trap for SmartConsole Utility; System Log: Max. 500 Log Entries, IPv4 Log Server;
BootP/DHCP Client; Simple Network Time Protocol (SNTP)
Management Information Base (MIB) MIB-II (RFC1213); Bridge (RFC1493); SNMPv2 (RFC1907); MIB Traps Convention;
Interface Group MIB; D-Link Private MIB
Physical &
Environment
Dimension (W x D x H) 19-inch, 1U Rack-Mount; 440 x 210 x 44 mm 19-inch, 1U Rack-Mount; 440 x 250 x 44 mm
Weight 2.6kg 3.3kg
Power Input AC Input: 100-240 VAC, 50/60Hz; Internal Universal Power Supply
Max. Power Consumption 17.6W 28.9W
Standby Power Consumption 7.6W/110V; 7.9W/240W 13.2W/110V; 13.3W/240V
Operation Temperature 0 to 40 °C
Storage Temperature -10 to 70 °C
Operation Humidity 10% to 95% RH
Storage Humidity 5% to 95% RH
Acoustic 0 dB
Fan Fanless
Reset Button One Reset Button
Certification EMI-EMC Compliance FCC Class A; CE Class A; VCCI Class A; C-Tick
Safety Compliance cUL; LVD
* Available in Future Firmware Upgrade
Fast Ethernet Web Smart Switches
32 SWITCHES Fast Ethernet Web Smart Switches
Fast Ethernet Web Smart Switches
DES-1200 Series
D-Link Web Smart switches come with plug-and-play simplicity, designed to provide
performance and reliability for small and medium-size business (SMB) network.
Switch management and configuration is through SmartConsole utility or
web-based GUI. SmartConsole is an easy way to access the switch from a local
computer.
• InternetGroupManagementProtocol
(IGMP) Snooping
• StaticPortTrunk
• 802.1QTaggedVirtualLAN(VLAN)
• ManagementVLAN
•AsymmetricVLAN
•QualityofService(QoS)
•802.1XPort-basedAccessControl
•BroadcastStormControl
•CableDiagnostics
•D-LinkSafeguardEngineTM
•Web-basedGUI
•SimpleNetworkManagementProtocol
(SNMP)
DES-1228
•10/100BASE-TXx24
•10/100/1000BASE-Tx2
•Combo1000BASE-T/SFPx2
•Fanless
•ResetButtonx1
•19-inch,1URack-Mount
DES-1228P
•10/100BASE-TXx24(PoE)
•10/100/1000BASE-Tx2
•Combo1000BASE-T/SFPx2
•Fanx4
•ResetButtonx1
•19-inch,1URack-Mount
DES-1252
•10/100BASE-TXx48
•10/100/1000BASE-Tx2
•Combo1000BASE-T/SFPx2
•Fanless
•ResetButtonx1
•19-inch,1URack-Mount
Optional Accessories
Gigabit Ethernet WDM SFP Transceivers
DEM-310GT 1000BASE-LX, SMF/MMF, 10km/2km
DEM-311GT 1000BASE-SX, MMF, 550m
DEM-312GT2 1000BASE-SX, MMF, 2km
DEM-314GT 1000BASE-LH, SMF, 50km
DEM-315GT 1000BASE-ZX, SMF, 80km
DGS-712 1000BASE-T, Copper, 100m
Gigabit Ethernet WDM SFP Transceivers
DEM-330T/R 1000BASE-BX, SMF, 10km
DEM-331T/R 1000BASE-BX, SMF, 40km
Fast Ethernet SFP Transceivers
DEM-210 100BASE-FX, SMF, 15km
DEM-211 100BASE-FX, MMF, 2km
Fast Ethernet WDM SFP Transceivers
DEM-220T/R 100BASE-BX, SMF, 20km
33
DES-1200 Series
Model DES-1228 DES-1228P DES-1252
LAN Interface IEEE 802.3; IEEE 802.3u; IEEE 802.3z; IEEE 802.3ab; IEEE 802.3af (DES-1228P)
Port Interface
10BASE-T/100BASE-TX
Port (RJ-45) 24 24 (PoE) 48
10BASE-T/100BASE-TX/
1000BASE-T Port (RJ-45) 222
Combo 1000BASE-T/SFP 2 2 2
General Features
Switching Capacity 12.8Gbps 17.6Gbps
Maximum Forwarding Rate 9.52Mpps 13.1Mpps
Forwarding Mode Store and Forward
Packet Buffer Memory 128KBytes
SDRAM for CPU 8MBytes
Flash Memory 2MBytes PROM
Mean Time Before Failure
(MTBF) 326,647 hours 149,676 hours 298,917 hours
L2 Features
MAC Address Table: 8K; Static MAC: 256; Enable/Disable Auto-Learning of MAC Addresses;
IGMP Snooping v1/v2: 64 Multicast Groups; Spanning Tree Protocol: 802.1D STP; Power Savings;
Static Port Trunk: Max. 6 Groups Per Device, 8 Ports Per Group
Virtual VLAN (VLAN) 802.1Q Tagged VLAN; Max. 256 Static VLAN Groups; Management VLAN; Asymmetric VLAN
Quality of Service (QoS) 802.1p Priority Queue; Max. 4 Queues Per Port; DSCP-based QoS;
Queue Handling: Strict, Weighted Round Robin (WRR)
Security 802.1X Port-based Access Control; Broadcast Storm Control; Trusted Host; Cable Diagnostics;
D-Link Safeguard Engine: Protect CPU from Broadcast/Multicast/Unicast Flooding
Management
Web-based GUI; Simple Network Management Protocol (SNMP) v1; DHCP Client;
Trap Settings for Destination IP, System Events, Fiber Port Events, Twisted-Pair Port Events;
Port Access Control; Web-based Configuration Backup/Restoration;
Web-based Firmware Backup/Upload; Firmware Upgrade using SmartConsole Utility;
System Reboot using Web-based Interface; SmartConsole Utility
Management Information Base (MIB) MIB-II (RFC1213); D-Link Private MIB
Physical &
Environment
Dimension (W x D x H) 19-inch, 1U Rack-Mount;
440 x 140 x 44mm
19-inch, 1U Rack-Mount;
440 x 209 x 44mm
19-inch, 1U Rack-Mount;
440 x 310 x 44mm
Weight 2.08kg 3.20kg 3.72kg
Power Input AC Input: 100-240 VAC, 50/60Hz; Internal Universal Power Supply
Power Consumption 18.35W 222W 26.2W
Power over Ethernet - Power Budget: 170W
Per Port: 15.4W -
Operation Temperature 0 to 40 °C
Storage Temperature -10 to 70 °C
Operation Humidity 10% to 90% RH
Storage Humidity 5% to 90% RH
Fan Fanless Four Fans Fanless
Reset Button One Reset Button
Certification EMI-EMC Compliance FCC Class A; CE Class A; VCCI Class A; C-Tick
Safety Compliance cUL
SWITCHES
* Available in Future Firmware Upgrade
Fast Ethernet Web Smart Switches
34 SWITCHES Gigabit Ethernet Unmanaged Switches
DGS-1000 Series consists of unmanaged Gigabit switches designed for cost effective small office home office (SOHO) and
workgroup connection. They support full duplex operation, provide IEEE 802.3x flow control for reliable data transfer, and auto
MDI/MDIX to eliminate the need for cross-over cables to simplify installation. They make use of D-Link Green technology to reduce
power consumption and provide a longer product life without sacrificing operational performance or functionality. Recyclable
packaging and minimized use of harmful substances (RoHS compliant) make this switch series truly environmentally friendly.
Gigabit Ethernet Unmanaged Switches
DGS-1000 Series
DGS-1016D
•10/100/1000BASE-Tx16
•InternalPowerSupply
•11-inch,1UDesktop&Rack-Mount
•Fanless
•PowerSavings
• PowerSavingsbyLinkStatus
• PowerSavingsbyCableLength
Detection
• JumboFrame
• IEEE802.3xFlowControl
•AutoMDI/MDIX
•QualityofService(QoS)
•CableDiagnostics
DGS-1024D
•10/100/1000BASE-Tx24
•InternalPowerSupply
•11-inch,1UDesktop&Rack-Mount
•Fanless
•PowerSavings
35
DGS-1000 Series
Model DGS-1016D DGS-1024D
LAN Interface IEEE 802.3; IEEE 802.3u; IEEE 802.3ab
Port Interface 10BASE-T/100BASE-TX/
1000BASE-T Port (RJ-45) 16 24
General Features
Switching Capacity 32Gbps 48Gbps
Forwarding Mode Store-and-Forward
Packet Buffer Memory 512KBytes
MAC Address 8K
Jumbo Frame 9,600Bytes
Mean Time Before Failure
(MTBF) 859,898 hours 784,286 hours
L2 Features IEEE 802.3x Flow Control; Auto MDI/MDIX
Quality of Service (QoS) 802.1p, Number of Queues: 4, Strict Mode
Cable Diagnostics Yes
Power Savings
By Link Status Yes
By Cable Length
Detection Yes
Physical &
Environment
Dimension (W x D x H) 11-inch 1U Desktop & Rack-Mount
280 x 180 x 44mm
Power Input 100-240VAC, 50/60Hz, Internal Universal Power Supply
Operation Temperature 0 to 40 °C
Storage Temperature -10 to 70 °C
Operation Humidity 10% to 90% RH
Storage Humidity 5% to 90% RH
Fan Fanless
Certification
EMI-EMC Compliance FCC Class A; CE Class A; VCCI Class A; C-Tick Class A; ICES-003 Class A
Safety Compliance UL/cUL; CB
RoHS Compliance Yes
SWITCHES Gigabit Ethernet Unmanaged Switches
36 SWITCHES Fast Ethernet Unmanaged Switches
DES-1000 series consists of unmanaged Ethernet switches designed for cost effective small office home office (SOHO) and
workgroup connection. They use the copper twisted-pair wires as the network cable, and support full/half duplex operation for
10/100Mbps speeds. These switches provide IEEE 802.3x flow control for reliable data transfer, and auto MDI/MDI-X to eliminate
the need for cross over cables to simplify installation.
Fast Ethernet Unmanaged Switches
DES-1000 Series
• Fanless
• IEEE802.3xFlowControl
• AutoMDI/MDIX
• Plug-and-PlayInstallationFiltering
•QualityofService(QoS) 
( DES-1016D & DES-1024D)
DES-1016D
•10/100BASE-TXx16
•InternalPowerSupply
•11-inch,1UDesktop&Rack-Mount
•Fanless
DES-1016R+
•10/100BASE-TXx16
•ExpansionSlotx1
•InternalPowerSupply
•19-inch,1URack-Mount
•Fanless
Optional Module
DES-102F 2-Port 100BASE-FX, MMF, SC, 2km
DES-1024D
•10/100BASE-TXx24
•InternalPowerSupply
•11-inch,1UDesktop&Rack-Mount
•Fanless
DES-1024R+
•10/100BASE-TXx24
•ExpansionSlotx1
•InternalPowerSupply
•19-inch,1URack-Mount
•Fanless
Optional Module
DES-102F 2-Port 100BASE-FX, MMF, SC, 2km
DES-1026G
•10/100BASE-TXx24
•10/100/1000BASE-Tx2
•InternalPowerSupply
•19-inch,1URack-Mount
•Fanless
37 SWITCHES
DES-1000 Series
Model DES-1016D DES-1024D DES-1016R+
LAN Interface IEEE 802.3; IEEE 802.3u
Port Interface
10BASE-T/100BASE-TX
Port (RJ-45) 16 24 16
100BASE-FX Port (SC)
Multi-Mode Fiber - 2 (Via DES-102F Module)
Module Slot 1
General Features
Switching Capacity 3.2Gbps 4.8Gbps 3.2Gbps
Forwarding Mode Store-and-Forward
Packet Buffer Memory 160KBytes 256KBytes
MAC Address 8K 4K
Mean Time Before
Failure
(MTBF)
47,220 hours 32,274 hours 137,634 hours
L2 Features IEEE 802.3x Flow Control; Auto MDI/MDIX
Quality of Service (QoS) 802.1p; Number of Queues: 2; Strict Mode -
Physical &
Environment
Dimension (W x D x H) 11-inch Desktop & Rack-Mount;
280 x 180 x 44mm
19-inch-Rack-Mount
441 x 207 x 44mm
Power Input 100-240VAC, 50/60Hz, Internal Universal Power Supply
Power over Ethernet -
Operation
Temperature 0 to 40 °C
Storage Temperature -10 to 70 °C
Operation Humidity 10% to 90% RH
Storage Humidity 5% to 90% RH
Fan Fanless
Certification
EMI-EMC Compliance FCC Class A; CE Class A; VCCI Class A; ICES-003 Class A
Safety Compliance cUL CSA International
RoHS Compliance Yes
Model DES-1024R+ DES-1026G
LAN Interface IEEE 802.3u; IEEE 802.3 IEEE 802.3; IEEE 802.3u; IEEE 802.3ab
Port Interface
10BASE-T/100BASE-TX
Port (RJ-45) 24
100BASE-FX Port (SC) 2 (Via DES-102F Module) -
10BASE-T/100BASE-
TX/
1000BASE-T Port
(RJ-45)
- 2
Module Slot 1 -
General Features
Switching Capacity 4.8Gbps 8.8Gbps
Forwarding Mode Store-and-Forward
Packet Buffer Memory 256KBytes 320KBytes
MAC Address 4K 8K
Mean Time Before
Failure(MTBF) 133,605 hours 409,781 hours
L2 Features IEEE 802.3x Flow Control; Auto MDI/MDIX
Physical &
Environment
Dimension (W x D x H 19-inch-Rack-Mount
441 x 207 x 44mm
19-inch Rack-Mount;
440x140x44mm
Power Input 100-240VAC, 50/60Hz, Internal Universal Power Supply
Operation
Temperature 0 to 40 °C
Storage Temperature -10 to 70 °C
Operation Humidity 10% to 90% RH
Storage Humidity 5% to 90% RH
Fan Fanless
Certification
EMI-EMC Compliance FCC Class A; CE Class A; VCCI Class A; ICES-003 Class A
Safety Compliance CSA International cUL
RoHS Compliance Yes
Fast Ethernet Unmanaged Switches
38 Network Management D-View 6.0
Network Management D-View 6.0
D-View 6.0 provides user-friendly interface with easy access to
all the features and tools from a single location. D-View is easy
to learn and can help ease the administrator’s task of manually
creating network topology because it provides robust features
for quick generation of such topology within the software. The
administrator can also import or export the topology as and
when required.
Model D-View 6.0 Standard (DV-600S) D-View 6.0 Professional (DV-600P)
Hardware Requirement CPU: 1.4GHz & above; DRAM: 1G & above; Hard Disk: 200MB; Ethernet Interface:
10/100/1000Mbps
Software Requirement Internet Explorer 6 SP1 & above; Microsoft XML Parser; SDK
Operating System
Requirement
Microsoft Windows 2000 Server SP4
Microsoft Windows 2000 Advanced Server SP4
Microsoft Windows 2003 SP2
Microsoft XP Home / Professional SP2
Microsoft Windows 2000 Server SP4
Microsoft Windows 2000 Advanced Server SP4
Microsoft Windows 2003 SP2
Database Management
System Requirement -Microsoft SQL Server 2000 SP3
Microsoft SQL Server 2005
Architecture Standalone Architecture Client-Server Architecture
Login Single User Login Multiple User Login
No. of Supported
Nodes <=1,000 >=1,000
Features
Network Management •Automaticallydiscovernewdevicesinthenetwork
•Periodicallypollnetworkdevicestomonitortheirstatus
•Provideanintuitiveviewofmanageddevicesinatopology
•Supportmultiple,concurrentadminstrators
•IntegratewithallSNMP-enableddevices
•Managewirelessswitches,accesspointsandNetDefendproductssuchasIPSandUTM
firewalls
Fault / Event
Management
•Notifyadministratorwhennewtrapeventsoccurthroughemail,audioorvisualalerts
•Supportcustomizednoticationsbasedonseverityofevent
Device Management •CentralmanagementcenterforD-Link’send-to-endsecuritysolutions
•Providebackupandrestorationofcongurationles
•Managethird-partydevicesusingtheMIBcomplierandMIBbrowser
Performance
Management
•Retriveandmonitorpacketinformationforspecicportssuchaserrorrate,packetsizeand
port flow statistics based on RMON protocol or RFC 1213 standard
MIB Utilities •Powerful,easy-to-useMIBcomplierandbroswer
•Supportfreeandlostviewsforviewingdevicesinadomain
D-View Plug-ins •E2ESConsolePlug-in
•NetDefendPlug-in
•WirelessPlug-in
SWITCHES
DV-600S & DV-600P
39 SWITCHES
D-View Plug-ins
Model Description Products Configuration &
Management Monitoring Reporting
D-Link innovates comprehensive
security solutions aimed to provide
end-to-end threat containment
and security protection solutions.
D-View 6.0 E2ES Console Plug-in
inherits the powerful management
ability of D-View 6.0 platform and
provides a central management
center to manage D-Link’s end-to-
end security solution. Customers
can take the advantages to ease
the effort of daily maintenance by
D-View 6.0 platform and easily to
apply the security rules, policies
and specific security functions,
such as IP-MAC-Port Binding
(IMPB), ZoneDefense, etc.
xStack
Switches
DGS-3600,
DGS-3400,
DGS-3200,
DES-3800,
DES-3528/52
Series
Managed
Switches
DGS-3100,
DES-3028/52
Series
Integrated console for
switches including
•IP-MAC-PortBinding
(IMPB)
•AccessControlList
(ACL)
•802.1XAuthentication
•MAC-basedAccess
Control (MAC)
•Web-basedAcccess
Control (WAC)
•LoopbackDetection
(LBD)
•ZoneDefense
•PortSecurity
•MicrosoftNetwork
Access Protection (NAP)
•Built-in
RADIUS
Service
•Microsoft
Network
Access
Protection
(NAP)
•Systemresource
statistics
•Reportingfor
passed
authentication.
•Reportingfor
failed
authentication.
•Reportingfor
logged-in
users
•Reportingfor
database
backup and
restore
D-View 6.0 NetDefend Plug-in
inherits the powerful management
ability of D-Link 6.0 and provides a
central management platform to
mange D-Link’s gateway security
products. Customers can take the
advantages to ease the effort of
daily maintenance by D-View 6.0
platform and easily to monitor,
apply the security rules, policies
and specific security functions,
such as VPN, UTM services, etc
NetDefend
IPS Firewalls
DFL-210,
DFL-800,
DFL-1600,
DFL-2500
NetDefend
UTM
Firewalls
DFL-260,
DFL-860,
DFL-1660,
DFL-2560,
DFL-2560G
•Batchcongurationfor
multiple NetDefend
appliances
•Built-inHTTP/HTTPS/
SSH Client for Advanced
Configuration
Realtime system
resource status
including
•CPUmemory
and Rule
Number
Utilization
•Connectionand
Traffic
Management
Status
•DHCPLeasing
Status
•IPS/AV/WCF
License Status
System resource
statistics including
•CPULoad
•Connection
Status
•Physical/Virtual
/ Tunnel
Interface Status
•IRRuleUsage
•DHCPServerand
Leasing Status
•User
Authentication
•Trafc
Management
D-Link’s D-View Wireless
Plug-in is a platform for managing
enterprise wireless and wired LAN
network. In addition to D-View’s
LAN management functionality,
Wireless Plug-in provides a unified
console for managing the broad
portfolio of D-Link’s enterprise
wireless LAN products, including
Unified Switches, Unified Access
Points and Standalone Access
Points. With D-View Wireless
Plug-in, IT managers can control,
configure and monitor all D-Link
Switches and Wireless Access Points
from a single location, significantly
reducing operation overhead and
total cost of ownership (TCO).
Unified
Switches
DWS-3000,
DWS-4000
Series
Unified
Access
Points
DWL-3500AP,
DWL-8500AP,
DWL-8600AP
Standalone
Access
Points
DAP-2590,
DWL-3200AP,
DWL-8200AP
•MultipleUniedSwitch
Management.
•UniedAccessPoint
Management
•Batchcongurationfor
access points of same
model
•Differentwireless
profiles are available to
set AP configuration
•RogueAP
Detection
•ClientStatistics
•APStatistics
•GlobalStatistics
Display a variety of
AP reports for easier
management and
troubleshooting
including
•Client
Association
•Security
•APUtilization
•APChannel
Usage
E2ES Plug-inNetDefend Plug-in
Wireless Plug-in
Performance Report Topology Map
Network Management D-View 6.0
40 SWITCHES Expansion Modules
Expansion Modules
D-Link expansion modules are designed for flexible deployment of additional connections on D-Link switches.
Model Standard No. of Ports Connector Optional Accessories
DES-102F
IEEE 802.3u
100BASE-FX
Multi-Mode Fiber
2 SC -
DEM-201F
IEEE 802.3u
100BASE-FX
Multi-Mode Fiber
1 SC -
DEM-201FL
IEEE 802.3u
100BASE-FX
Single-Mode Fiber
1 SC -
DEM-301G IEEE 802.3u
SFP 1 SFP
SFP Transceivers
DEM-310GT, DEM-311GT, DEM-312GT2, DEM-314GT,
DEM-315GT, DEM-330T/R, DEM-331T/R
DEM-301T IEEE 802.3ab
1000BASE-T 1 RJ-45 -
DEM-410CX IEEE 802.3ak
10-Gigabit Ethernet 1 CX4 3-Meter CX4 Stacking Cable
DEM-CB300CX
DEM-410X IEEE 802.3ae
10-Gigabit Ethernet 1 XFP XFP Transceivers
DEM-421XT, DEM-422XT, DEM-423XT
Please refer to Chassis Switches section for Chassis Switch Modules.
41
Switch vs Expansion Module Compatible Matrix
Switch Model DES-102F DEM-201F DEM-201FL DEM-301G DEM-301T DEM-410CX DEM-410X
DES-1000 Series
DES-1016R+ Yes ------
DES-1024R+ Yes ------
DES-3000 Series
DES-3026 - Yes Yes Yes Yes - -
DGS-3400 Series
DGS-3426P - - - - - Yes Yes
DGS-3427 - - - - - Yes Yes
DGS-3450 - - - - - Yes Yes
DGS-3600 Series
DGS-3627 - - - - - Yes Yes
DGS-3627G - - - - - Yes Yes
DGS-3650 - - - - - Yes Yes
DWS-4000 Series
DWS-4026 - - - - - Yes Yes
Please refer to Chassis Switches section for Chassis Switch Modules.
SWITCHES Expansion Modules
42 SFP/XFP Transceivers
SFP/XFP Transceivers
D-Link Small Form-Factor Pluggable (SFP) and 10-Gigabit Small Form-Factor Pluggable (XFP) Transceivers can achieve long
distance data transmission and high speed communication with single-mode fiber, multi-mode fiber and copper cables. These
modules can be installed into switches and media converters.
SWITCHES
10-Gigabit Ethernet XFP Transceivers
Model Type Standard Connector Wavelength Cable Type Transmission
Distance
DEM-421XT XFP (10GE) IEEE 802.3ae
10GBASE-SR Duplex LC 850nm Multi-Mode Fiber
50/125µm, 62.5/125µm 300m
DEM-422XT XFP (10GE) IEEE 802.3ae
10GBASE-LR Duplex LC 1310nm Single-Mode Fiber
9/125µm 10km
DEM-423XT XFP (10GE) IEEE 802.3ae
10GBASE-ER Duplex LC 1550nm Single-Mode Fiber
9/125µm 40km
Gigabit Ethernet WDM Bi-Directional SFP Transceivers
Model Type Standard Connector Wavelength Cable Type Transmission
Distance
DEM-330T1WDM Bi-Directional
SFP (1Gbps)
IEEE 802.3z
1000BASE-BX Simplex LC TX: 1550nm
RX: 1310nm Single-Mode 9/125µm 10km
DEM-330R1WDM Bi-Directional
SFP (1Gbps)
IEEE 802.3z
1000BASE-BX Simplex LC TX: 1310nm
RX: 1550nm Single-Mode 9/125µm 10km
DEM-331T2WDM Bi-Directional
SFP (1Gbps)
IEEE 802.3z
1000BASE-BX Simplex LC TX: 1550nm
RX: 1310nm Single-Mode 9/125µm 40km
DEM-331R2WDM Bi-Directional
SFP (1Gbps)
IEEE 802.3z
1000BASE-BX Simplex LC TX: 1310nm
RX: 1550nm Single-Mode 9/125µm 40km
1 DEM-330T & DEM-330R are used as a pair
2 DEM-331T & DEM-331R are used as a pair
Gigabit Ethernet SFP Transceivers
Model Type Standard Connector Wavelength Cable Type Transmission Distance
DEM-310GT SFP (1Gbps) IEEE 802.3z
1000BASE-LX Duplex LC 1310nm
Single-Mode 9/125 µm
Multi-Mode Fiber
50/125µm, 62.5/125µm
SMF: 10km (9/125µm)
MMF: 2km (50/125µm)/
500m (62.5/125µm)
DEM-311GT SFP (1Gbps) IEEE 802.3z
1000BASE-SX Duplex LC 850nm Multi-Mode Fiber
50/125µm, 62.5/125µm 550m
DEM-312GT2 SFP (1Gbps) IEEE 802.3z
1000BASE-SX Duplex LC 1310nm Multi-Mode Fiber
50/125µm, 62.5/125µm
1km (50/125µm)/
2km (62.5/125µm)
DEM-314GT SFP (1Gbps) IEEE 802.3z
1000BASE-LH Duplex LC 1550nm Single-Mode 9/125µm 50km
DEM-315GT SFP (1Gbps) IEEE 802.3z
1000BASE-ZX Duplex LC 1550nm Single-Mode 9/125µm 80km
Fast Ethernet SFP Transceivers
Model Type Standard Connector Wavelength Cable Type Transmission
Distance
DEM-210 SFP (100Mbps) IEEE 802.3u
100BASE-FX Duplex LC 1310nm Single-Mode 9/125 µm 15km
DEM-211 SFP (100Mbps) IEEE 802.3u
100BASE-FX Duplex LC 1310nm Multi-Mode Fiber
50/125µm, 62.5/125µm 2km
43 SWITCHES
10GE XFP GE WDM Bi-Di SFP GE SFP FE SFP
DEM-421XT DEM-422XT DEM-423XT DEM-330R DEM-330T DEM-331R DEM-331T DEM-310GT DEM-311GT DEM-312GT2 DEM-314GT DEM-315GT DEM-210 DEM-211
Switches
DES-1200 Series - - - Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
DES-1210 Series - - - Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
DES-3000 Series
(DES-3010G) - - - Yes Yes Yes Yes Yes Yes Yes Yes Yes - -
DES-3028/52 Series - - - Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
DES-3200 Series - - - Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
DES-3528/52 Series - - - Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
DES-3800 Series - - - Yes Yes Yes Yes Yes Yes Yes Yes Yes - -
DES-7200 Series
via Modules Yes4Yes4Yes4Yes5Yes5Yes5Yes5Yes5Yes5Yes5Yes5Yes5Yes5Yes5
DGS-1200 Series - - - Yes Yes Yes Yes Yes Yes Yes Yes Yes - -
DGS-1210 Series - - - Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
DGS-3100 Series - - - Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
DGS-3200 Series - - - Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
DGS-3400 Series Yes6Yes6Yes6Yes Yes Yes Yes Yes Yes Yes Yes Yes - -
DGS-3600 Series
(DGS-3612G) - - - Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
DGS-3600 Series
(DGS-3627/27G/50) Yes6Yes6Yes6Yes Yes Yes Yes Yes Yes Yes Yes Yes - -
Business Wireless
DWS-3000 Series
(DWS-3024/24L) - - - Yes Yes Yes Yes Yes Yes Yes Yes Yes - -
DWS-4000 Series Yes6Yes6Yes6Yes Yes Yes Yes Yes Yes Yes Yes Yes - -
Security
UTM Firewall
(DFL-2560G) - - - Yes Yes Yes Yes Yes Yes Yes Yes Yes - -
Storage
SAN Array
(DSN-3400-10) Yes Yes Yes - - - - - - - - - - -
4 Requires 7200-2XG, 7200-4XG or 7200-24G2XGE Modules
5 Requires 7200-24, 7200-24G, 7200-24P, 7200-48, 7200-48P, 7200-24G2XGE, 7200-24GE, 7200-48E Modules
6 Requires DEM-410X Module
Switch vs SFP/XFP Transceiver Compatible Matrix
SFP/XFP Transceivers
44 Redundant Power Supplies
Redundant Power Supplies
D-Link redundant power supplies (RPS) are designed to conform to wattage requirements of D-Link switches. These external
RPS are enclosed in solid metal cases with sockets to AC or DC power sources on one end and the connectors to the switch’s
internal power supply on the other end.
SWITCHES
Redundant Power Supplies
Model Output Power Input Power Input
Frequency Form Factor Over Current
Protection
DPS-200 60-Watt 90 to 264VAC
AC Power Source 47 to 63Hz Solid Metal Case Yes
DPS-500 140-Watt 90 to 264VAC
AC Power Source 47 to 63Hz Solid Metal Case Yes
DPS-500DC 140-Watt -36 to -72VDC
DC Power Source 47 to 63Hz Solid Metal Case Yes
DPS-600 500-Watt 90 to 264VAC
AC Power Source 47 to 63Hz
Solid Metal Case
19-inch Rack-Mount, 1U
Height
Yes
Redundant Power Supply Chassis
Model No. of RPS Slots Form Factor Supported RPS
DPS-800 2 19-inch Rack-Mount, 1U Height DPS-200; DPS-500; DPS-500DC
DPS-900 8 19-inch Rack-Mount, 5U Height DPS-200; DPS-500
Redundant Power Supply Accessories
Model Description Supported RPS
DPS-CB400 4-Meter Extension Power Cable DPS-200; DPS-500; DPS-500DC
45
Switch vs Redundant Power Supply Compatible Matrix
Switch Model DPS-200 (60W) DPS-500 (140W) DPS-500DC (140W) DPS-600 (500W)
DES-3528/52 Series
DES-3528 Yes - - -
DES-3528P - - - Yes
DES-3552 Yes - - -
DES-3800 Series
DES-3828 Yes - - -
DES-3828P - - - Yes
DES-3852 Yes - - -
DGS-3100 Series
DGS-3100-24 Yes - - -
DGS-3100-24P - - - Yes
DGS-3100-24TG Yes - - -
DGS-3100-48 - Yes - -
DGS-3100-48P - - - Yes
DGS-3200 Series
DGS-3200-24 Yes - - -
DGS-3400 Series
DGS-3426P - - - Yes
DGS-3427 - Yes Yes -
DGS-3450 - Yes Yes -
DGS-3600 Series
DGS-3612G - Yes - -
DGS-3627 - Yes Yes -
DGS-3627G - Yes Yes -
DGS-3650 - Yes Yes -
DWS Series
DWS-3024 - - - Yes
DWS-3024L - - - Yes
DWS-4026 - - - Yes
SWITCHES
Power Supply Chassis vs RPS Compatible Matrix
Chassis Model DPS-200 (60W) DPS-500 (140W) DPS-500DC (140W) DPS-600 (500W)
DPS-800 (2-Slot) Yes Yes Yes -
DPS-900 (8-Slot) Yes Yes - -
DPS-CB400 (4-Meter
Extension Power Cable) Yes Yes Yes -
Redundant Power Supplies
46
Media Converters
D-Link media converter convert UTP cable to fiber optic cable in designated FTTH or optional fiber network. It is able to easily
receive transmission over long distance with minimal noise influence.
Fast Ethernet Media Converters
Model Standard Fiber
Connector Fiber Cable* Coverage
Distance Data Rate Other Features
DMC-300SC 10/100BASE-TX
<=> 100BASE-FX SC 2-Core MMF 2km 100Mbps Auto MDI/MDI-X
DMC-515SC 10/100BASE-TX
<=>100BASE-FX SC 2-Core SMF 15km 100Mbps Auto MDI/MDI-X
DMC-530SC 10/100BASE-TX
<=>100BASE-FX SC 2-Core SMF 30km 100Mbps Auto MDI/MDI-X
DMC-615SC 100BASE-FX <=>
100BASE-FX SC 2-Core MMF
2-Core SMF 15km 100Mbps -
Fast Ethernet Media Converters
Model Standard Fiber
Connector Fiber Cable* Coverage
Distance Data Rate Other Features
DMC-700SC 1000BASE-T <=>
1000BASE-SX SC 2-Core MMF 550m 1Gbps Auto MDI/MDI-X
Link Pass Through
DMC-810SC 1000BASE-T <=>
1000BASE-LX SC 2-Core SMF 10km 1Gbps Auto MDI/MDI-X
Link Pass Through
* MMF: Multi-Mode Fiber; SMF: Single-Mode Fiber
** Supported SFP Transceivers: DEM-310GT, DEM-311GT, DEM-312GT2, DEM-314GT, DEM-315GT
Supported WDM Bi-Directional SFP Transceivers: DEM-330T, DEM-330R, DEM-331T, DEM-331R
Media Converter Chassis & Accessories
Model Description
DMC-1000 16-Slot Media Converter Chassis with Internal Power Supply
DMC-1001 Redundant Power Supply for DMC-1000
DMC-1002 SNMP Management Module for DMC-1000
SWITCHES Media Converters
47
Models DGS-1210 Series DGS-1200 Series DES-1210 Series DES-1200 Series
General
Maximum Switching Capacity
10-Port: 20Gbps
16-Port: 32Gbps
24-Port: 48Gbps
48-Port: 96Gbps
16-Port: 32Gbps
24-Port: 48Gbps
48-Port: 96Gbps
28-Port: 12.8Gbps
52-Port: 17.6Gbps
28-Port: 12.8Gbps
52-Port: 17.6Gbps
Form Factor
10-Port:
13-inch 1U Rack-Mount
16/24/48-Port:
19-inch 1U Rack-Mount
19-inch 1U Rack-Mount 19-inch 1U Rack-Mount 19-inch 1U Rack-Mount
Fixed 10/100BASE-TX Port No No 28-Port: 24
52-Port: 48
28-Port: 24
52-Port: 48
Fixed 10/100/1000BASE-T Port
10-Port: 8
16-Port: 14
24-Port: 22
48-Port: 44
16-Port: 14
24-Port: 22
24-Port TP: 20
48-Port: 44
All Models: 2 All Models: 2
Fixed Combo 1000BASE-T or SFP Port 10-Port: 2
16/24/48-Port: 4
16/24-Port: 2
24-Port TP: 4
48-Port: 4
All Models: 2 All Models: 2
Layer 2 Features
Flow Control IEEE 802.3x Yes Yes Yes No
Jumbo Frame (Size) Yes (10,000Bytes) Yes (10,240Bytes) No No
Internet Group Management Protocol (IGMP)
Snooping Yes (v1,v2) Yes (v1,v2) Yes (v1,v2) Yes (v1,v2)
803.1D Spanning Tree Protocol (STP) Yes Yes Yes Yes
802.1w Rapid Spanning Tree Protocol (RSTP) Yes No Yes No
Loopback Detection (LBD) No No Yes No
802.3ad Link Aggregation Yes Yes (Port Trunking) Yes Yes (Port Trunking)
Port Mirroring Yes Yes Yes Yes
Cable Diagnostics Yes Yes Yes Yes
Power Savings (Link Status / Cable Length
Detection) Yes Yes (Link Status only) Yes Yes (Link Status only)
Virtual LAN (VLAN)
VLAN Groups 256 256 256 256
Port-based VLAN Yes Yes Yes Yes
802.1Q VLAN Tagging Yes Yes Yes Yes
Asymmetric VLAN Yes Yes Yes Yes
Voice VLAN Yes No Yes No
Quality of Service (QoS)
802.1p Support Yes Yes Yes Yes
Port-based QoS Yes Yes Yes Yes
DSCP QoS Yes Yes Yes Yes
Strict Priority Yes Yes Yes Yes
Weighted Round Robin (WRR) Yes Yes Yes Yes
Bandwidth Control (min. granularity) Yes (64kbps) No Yes (64kbps) No
Access Control List (ACL)
Access Control List Yes No Yes No
ACL Max Profiles / Rules 50 / 240 No 50 / 240 No
Security
Secure Sockets Layer (SSL) Yes* (v1/v2/v3) No Yes* (v1/v2/v3) No
Port Security (Entries) Yes (64) No Yes (64) No
802.1X Port-based Access Control Yes Yes Yes Yes
Storm Control (min. granularity) Yes (64kbps)
Yes (Broadcast Storm
Control only)
(8kbps*2n, n=0~9)
Yes (64kbps)
Yes (Broadcast Storm
Control only)
(8kbps*2n, n=0~9)
D-Link Safeguard Engine Yes Yes Yes Yes
ARP Spoofing Prevention Yes* No Yes* No
DHCP Server Screening Yes* No Yes* No
Management VLAN Yes Yes Yes Yes
Management
Web Based Management Yes Yes Yes Yes
Command Line Interface Yes (via Telnet) No Yes (via Telnet) No
Telnet Server Yes No Yes No
TFTP client Yes No Yes No
Simple Network Management Protocol (SNMP) Yes (v1/v2c)
Yes* (v3) Yes (v1) Yes (v1/v2c)
Yes* (v3) Yes (v1)
Configurable Auto MDI/MDIX Yes No Yes No
System Log Yes Yes Yes Yes
BootP/DHCP Client Yes No Yes No
Simple Network Time Protocol (SNTP) Yes No Yes No
Trusted Host Yes Yes Yes Yes
DHCP Auto-configuration Yes* No Yes* No
Power over Ethernet (PoE)
802.3af PoE Yes Yes (DGS-1224TP) Yes Yes (DES-1228P)
Pre-Standard of 802.3af PoE Yes (DGS-1210-10P) No Yes (DES-1210-28P) No
SWITCHES Web Smart Switch Selection Matrix
* Function will be ready in future firmware
Web Smart Switch Selection Matrix
48
Chassis Switch Selection Matrix
Models DES-7200 Series
General
Maximum Switching Capacity 6-Slot: 192Gbps; 10-Slot: 384Gbps
Passive Backplane Capacity 6-Slot: 800Gbps; 10-Slot: 1600Gbps
Form Factor 6-Slot: 19-inch 15U Rack-Mount
10-Slot: 19-inch 22U Rack-Mount
CPU Engine Slots 6/10-Slot: 2
I/O Module Slots 6-Slot: 4, 10-Slot: 8 (Vertical)
Power Module Slots 2
Max. 10/100BASE-TX Port 0
Max. 10/100BASE-FX Fiber Port 0
Max. 10/100/1000BASE-T Port 6-Slot: 192; 10-Slot: 384
(With 7200-48 or 7200-48P)
Max. SFP Port 6-Slot: 96; 10-Slot: 192
(With 7200-24G or 7200-24G2XGE)
Max. 10-Gigabit XFP Port 6-Slot: 16; 10-Slot 32 (With 7200-4XG)
Power over Ethernet (PoE) 24-Port: 7200-24P; 48-Port: 7200-48P
Layer 2 Features
Jumbo Frame (Size) Yes (9,216Bytes)
802.1D/802.1w/802.1s Spanning Tree Protocol (STP) Yes
Ethernet Ring Protection Switching (E-RPS) Yes (RERP)
Loopback Detection (LBD) No
802.3ad Link Aggregation Yes
Port Mirroring Yes
Layer 2 Multicast
Internet Group Management Protocol (IGMP) Snooping Yes (v1/v2/v3)
Multicast Listener Discover (MLD) Snooping No
Virtual LAN (VLAN)
802.1Q VLAN Tagging Yes
802.1v Protocol VLAN Classification Yes
Double VLAN (Q-in-Q) Yes
IGMP Snooping Multicast (ISM) VLAN Yes (IVGL/SVGL)
Voice VLAN No
GARP VLAN Registration Protocol (GVRP) Yes
Layer 3 Features
Virtual Router Redundancy Protocol (VRRP) Yes
IPv6 Tunneling Yes
Layer 3 Routing
Static Route Yes
Policy-based Route Yes
Routing Information Protocol (RIP) Yes (v1/v2)
Routing Information Protocol Next Generation (RIPng) Yes
Open Shortest Path First (OSPF) Yes (v1/v2/v3)
Border Gateway Protocol (BGP) Yes
Layer 3 Multicasting
Protocol Information Multicast - Dense Mode (PIM-DM) Yes
Protocol Information Multicast - Sparse Mode (PIM-SM) Yes
PIM Sparse-Dense Mode No
Distance-Vector Multicast Routing Protocol (DVMRP) v3 No
Internet Group Management Protocol (IGMP) Yes (v1/v2/v3)
Multi-Protocol Label Switching (MPLS)
VPN Routing and Forwarding (VRF) Yes* (Enhanced I/O module or 7200-ASE3)
MPLS L3 VPN (MPLS / BGP VPN) Yes* (With 7200-ASE3)
MPLS L2 VPN (VPWS / VPLS) Yes* (With 7200-ASE3)
Quality of Service (QoS)
Strict Priority Yes
Weighted Round Robin (WRR) Yes
Strict + WRR Yes
Bandwidth Control (min. granularity) Yes (64kbps)
Time-Based QoS Yes
Access Control List (ACL)
Access Control List Yes (Ingress / VLAN-Based)
(Egress ACL with Enhanced I/O Module)
Time-based ACL Yes
Security
Secure Shell (SSH) Yes (v1.5/v2)
Secure Sockets Layer (SSL) No
Port Security (Entries Per Port) Yes (16)
Traffic Segmentation Yes (Private VLAN)
IP-MAC-Port Binding (IMPB) Yes (ARP Inspection, IP Source Guard,
DHCP Snooping)
D-Link Safeguard Engine Yes (CPP)
Authentication, Authorization & Accounting (AAA)
802.1X Access Control Yes
Web-based Access Control (WAC) No
MAC-based Access Control (MAC) No
Microsoft Network Access Protection (NAP) Yes*
Guest VLAN Yes
Dynamic VLAN Assignment Yes
RADIUS & TACACS+ Authentication for Management Access Yes
Management
Web GUI, CLI & SNMP Yes*
Remote Monitoring (RMON) Yes (v1)
sFlow Yes*
Link Layer Discovery Protocol (LLDP) Yes
Operations, Administration & Management (OAM)
802.3ah Ethernet Link OAM No
802.1ag Connectivity Fault Management (CFM) No
Certification
IPv6 Ready Logo Yes (Phase II)
* Available in Future Firmware Upgrade
SWITCHES Chassis Switch Selection Matrix
Managed Switch Selection Matrix
49 SWITCHES Managed Switch Selection Matrix
Layer 3 xStack Switches Layer 2 xStack Switches Layer 2 Managed Switches
M odels DGS-3600 Series DES-3800 Series DGS-3400 Series DGS-3200 Series DES-3528/52 Series DGS-3100 Series DES-3200 Series DES-3028/52 Series DES-3000 Series
General
Maximum Switching Capacity
12-Port: 24Gbps
27-Port: 108Gbps
50-Port: 136Gbps
28-Port: 12.8Gbps
52-Port: 15.7Gbps
26-Port: 88Gbps
27-Port: 108Gbps
50-Port: 136Gbps
10-Port: 20Gbps
24-Port: 48Gbps
28-Port: 12.8Gbps
52-Port: 17.6Gbps
24-Port: 68Gbps
48-Port: 116Gbps
10-Port: 5.6Gbps
18-Port: 7.2Gbps
28-Port: 12.8Gbps
28-Port: 12.8Gbps
52-Port: 17.6Gbps
10-Port F: 3.8Gbps
10-Port G: 5.6Gbps
26-Port: 8.8Gbps
Form Factor 19-inch 1U Rack-Mount 19-inch 1U Rack-Mount 19-inch 1U Rack-Mount
10-Port:
11-inch 1U Desktop
24-Port: 19-inch
1U Rack-Mount
19-inch 1U Rack-Mount 19-inch 1U Rack-Mount
10/18-Port:
9-inch 1U Desktop
28-Port:
19-inch 1U Rack-Mount
19-inch 1U Rack-Mount
10-Port: 11-inch 1U Desktop
24-Port:
19-inch 1U Rack-Mount
Fixed 10/100BASE-TX Port No 28-Port: 24; 52-Port: 48 No No 28-Port: 24; 52-Port: 48 No 10-Port: 8; 18-Port: 16;
28-Port: 24 28-Port: 24; 52-Port: 48 10-Port: 8
26-Port: 24
Fixed 10/100/1000BASE-T Port 27-Port:20;
50-Port: 44 All Models: 2 26/27-Port: 24; 50-Port: 48 10-Port: 8;
24-Port: 20 All Models: 2 24-Port: 20; 24-Port TG: 8;
48-Port: 44 No All Models: 2 10-Port: 1
26-Port: 2 (DEM-301T)
Fixed Small Form-Factor Pluggable (SFP) Port 12-Port G: 8; 27-Port G: 20 No No No No 24-Port TG: 16 28-Port F: 24 No 10-Port G: 1
26-Port: 2 (DEM-301G)
Fixed Combo 1000BASE-T or SFP Port All Models: 4 All Models: 2 All Models: 4 10-Port: 2
24-Port: 4 All Models: 2 24/48-Port: 4
24-Port TG: 0
10/18-Port: 2
28-Port: 4 All Models: 2 No
Optional 10G XFP Uplink Capability 12-Port: No
27/50-Port: Yes (2) No 26/50-Port: Yes (2)
27-Port: Yes (3) No No No No No No
Optional Module Slot Yes (2) No Yes (2) No No No No No 26-Port: Yes (2)
Redundant Power Supply 12-Port: Yes (DPS-200)
27/50-Port: Yes (DPS-500)
28/52-Port: Yes (DPS-200)
28-Port DC: No
28-Port P: Yes (DPS-600)
27/50-Port:
Yes (DPS-500)
26-Port P: Yes (DPS-600)
10-Port: No
24-Port: Yes (DPS-200)
28/52-Port: Yes (DPS-200)
28-Port DC: No
28-Port P: Yes (DPS-600)
24-Port: Yes (DPS-200)
24/48-Port P: Yes (DPS-600)
48-Port: Yes (DPS-500)
No No No
Power over Ethernet (PoE) No Yes (DES-3828P) Yes (DGS-3426P) No Yes (DES-3528P; DES-3552P) Yes (DGS-3100-24P;
DGS-3100-48P) No Yes (DES-3028P; DES-3052P) No
Stackability
Physical Stacking (device) / Max. Bandwidth 12-Port: No
27/50-Port: Yes (12) / 40Gbps No Yes (12) / 40Gbps No Yes (8) / 4Gbps Yes (6) / 20Gbps No No No
Virtual Stacking Single IP Management (device) Yes (32) Yes (32) Yes (32) Yes (32) Yes (32) No Yes (32) Yes (32) Yes (32)
Layer 2 Features
Jumbo Frame (Size) Yes (9,216Bytes) Yes (9KBytes) Yes (9,216Bytes) Yes (10,240Bytes) Yes (9,216Bytes) Yes (10,240Bytes) Yes (2,048Bytes) Yes (2,048Bytes) No
802.1D/802.1w/802.1s Spanning Tree Protocol (STP) Yes Yes Yes Yes Yes Yes Yes Yes Yes (802.1D/802.1w only)
Ethernet Ring Protection Switching (E-RPS) Yes No Yes* No Yes* No Yes Yes* No
Loopback Detection (LBD) Yes Yes Yes Yes Yes Yes Yes Yes Yes
802.3ad Link Aggregation Yes Yes Yes Yes Yes Yes Yes Yes Yes
Port Mirroring Yes Yes Yes Yes Yes Yes Yes Yes Yes
Layer 2 Multicast
Internet Group Management Protocol (IGMP) Snooping Yes (v1/v2/v3) Yes (v1/v2/v3 awareness) Yes (v1/v2/v3) Yes (v1/v2/v3) Yes (v1/v2/v3) Yes (v1/v2) Yes(v1/v2/v3 awareness) Yes (v1/v2) Yes(v1/v2/v3 awareness)
Multicast Listener Discover (MLD) Snooping Yes (v1/v2) Yes (v1/v2 awareness) Yes (v1/v2) Yes (v1/v2) Yes (v1/v2) Yes (v1/v2) Yes (v1/v2 awareness) Yes (v1/v2 awareness) No
Virtual LAN (VLAN)
802.1Q VLAN Tagging Yes Yes Yes Yes Yes Yes Yes Yes Yes
802.1v Protocol VLAN Classification Yes Yes Yes Yes Yes No Yes No No
Double VLAN (Q-in-Q) Yes Yes Yes No Yes No Yes Yes No
Selective Q-in-Q Yes No Yes No Yes No Yes No No
Voice VLAN No No No No Yes* No No No No
IGMP Snooping Multicast (ISM) VLAN Yes Yes Yes Yes Yes No Yes Yes No
Asymmetric VLAN No No No No Yes Yes Yes Yes No
Layer 3 Features
Virtual Router Redundancy Protocol (VRRP) Yes Yes No No No No No No No
IPv6 Tunneling Yes No Yes* No No No No No No
Layer 3 Routing
Static Route Yes Yes Yes No Yes* No No No No
Routing Information Protocol (RIP) Yes (v1/v2) Yes (v1/v2) Yes* (v1/v2) No No No No No No
Routing Information Protocol Next Generation (RIPng) Yes* No Yes* No No No No No No
Open Shortest Path First (OSPF) Yes (v2/v3*) Yes (v2) No No No No No No No
Border Gateway Protocol (BGP) Yes No No No No No No No No
Layer 3 Multicasting
Protocol Information Multicast - Dense Mode (PIM-DM) Yes Yes No No No No No No No
Protocol Information Multicast - Sparse Mode (PIM-SM) Yes Yes No No No No No No No
Distance-Vector Multicast Routing Protocol (DVMRP) v3 Yes Yes No No No No No No No
Internet Group Management Protocol (IGMP) Yes (v1/v2/v3) Yes No No No No No No No
Quality of Service (QoS)
Number of Queues Per Port 8 8 8 8 8 4 4 4 4
Strict Priority Yes Yes Yes Yes Yes Yes Yes Yes (Highest queue) Yes
Weighted Round Robin (WRR) Yes Yes Yes Yes Yes Yes Yes Yes Yes
Strict + WRR Yes Yes Yes No Yes Yes No No No
Random Early Detection (RED) Yes (Weighted RED) Yes (Weighted RED) No No Yes (Stabilized RED) No No No No
Bandwidth Control (min. granularity) Yes (64kbps) Yes (64kbps) Yes (64kbps) Yes (64kbps) Yes (64kbps) Ingress: 3500Kbps
Egress: 64Kbps Yes(62.5kbps) Yes (64kbps) Yes (64kbps)
Three Color Marker Yes No Yes No Yes No No No No
Access Control List (ACL)
Access Control List Yes Yes Yes Yes Yes Yes Yes Yes No
Time-based ACL Yes No Yes Yes Yes Yes Yes Yes No
Security
Secure Shell (SSH) Yes Yes (v1.5/v2) Yes Yes (v2) Yes (v2) Yes (v2) Yes (v2) Yes (v2) Yes (v2)
Secure Sockets Layer (SSL) Yes Yes (v2/v3) Yes Yes (v1/v2/v3) Yes (v1/v2/v3) Yes Yes (v1/v2/v3) Yes (v1/v2/v3) No
Port Security (Entries Per Port) Yes (64) Yes (16) Yes (16) Yes (64) Yes (64) Yes (16) Yes (64) Yes (16) Yes (10)
Broadcast/Multicast/Unicast Storm Control (min. granularity) Yes (1pps) Yes (128kbps) Yes (128kbps) Yes (512kbps) Yes (1pps) Yes (3500kbps) Yes (62.5kbps) Yes (64kbps) Yes (64kbps)
Traffic Segmentation Yes Yes Yes Yes Yes Yes Yes Yes Yes
IP-MAC-Port Binding (IMPB) Yes Yes (v3.3) Yes Yes Yes No Yes Yes Yes
D-Link Safeguard Engine Yes Yes Yes Yes Yes Yes Yes Yes No
DHCP Server Screening Yes No Yes Yes Yes No Yes Yes* No
ARP Spoofing Prevention No No No Yes Yes Yes* Yes Yes* No
BPDU Attack Protection No No No No Yes No Yes No No
Authentication, Authorization & Accounting (AAA)
802.1X Access Control Yes Yes Yes Yes Yes Yes Yes Yes Yes
Web-based Access Control (WAC) Yes Yes Yes Yes Yes No No No No
MAC-based Access Control (MAC) Yes Yes Yes Yes Yes Yes Yes No Yes
Compound Authentication Yes No Yes Yes Yes* No No No No
Microsoft Network Access Protection (NAP) Yes Yes Yes Yes Yes Yes Yes Yes No
Guest VLAN Yes Yes Yes Yes Yes Yes Yes Yes Yes
Dynamic VLAN Assignment Yes Yes Yes Yes Yes Yes* Yes Yes Yes
RADIUS & TACACS+ Authentication for Management Access Yes Yes Yes Yes Yes Yes Yes Yes Yes*
Management
Web GUI, CLI & SNMP Yes Yes Yes Yes Yes Yes Yes Yes Yes
Remote Monitoring (RMON) Yes (v1/v2) Yes (v1/v2) Yes (v1/v2) Yes (v1/v2) Yes (v1/v2) Yes (v1) Yes (v1/v2) Yes (v1/v2) Yes (v1)
sFlow Yes No Yes No Yes No No No No
Link Layer Discovery Protocol (LLDP) Yes No Yes No Yes Yes Yes Yes Yes*
D-Link Unidirectional Link Detection (DULD) Yes* No Yes* No Yes* No No No No
Operations, Administration & Management (OAM)
802.3ah Ethernet Link OAM No No No Yes* Yes No Yes Yes* No
802.1ag Connectivity Fault Management (CFM) No No No No Yes No Yes No No
Certification
IPv6 Ready Logo Yes (Phase II) No Yes (Phase II) Yes (Phase II) No No Yes (Phase II) No No
Metro Ethernet Forum (MEF) Certification Yes (MEF 9, 14) No No No Yes (MEF 9, 14) No Yes (MEF 21) No No
* Available in Future Firmware Upgrade
50
BUSINESS WIRELESS
BUSINESS WIRELESS
Networking without cables through radio waves to communicate
oers businesses the advantages of mobility and easy connectivity.
Products under this category include Indoor and Outdoor Access
Points, Unied Wired/Wireless Access System, Smart Wireless
Switching, Wireless Single and Dual Band Antennas and Wireless
Accessories.
50
1Gbps LAN x1 Power over
Ethernet
Wireless NWireless A & G
Indoor
Access Points
D-Link's Indoor Wireless Access Points are reliable, powerful, and suitable for
business-class enterprise environment.
These access points provide various security options for network administrators
to deploy a highly manageable and robust wireless network ideal for indoor
hotspot deployment. D-Link Indoor access points oer a wide range of product
options for dierent indoor environments and are compliant with various IEEE
standards, including 802.11a, 802.11g and 802.11n.
BUSINESS WIRELESS Indoor Access Points
Main Features
•Operateat2.4GHzor5GHz
frequency band
•2x3MIMO
• HighSpeed300Mbps
•Wi-FiProtectedAccess(WPA2)
•WirelessDistributionSystem
(WDS)
•MACFiltering
•IEEE802.1QVLAN
•RogueAPDetection
•MultipleSSID
•Plenum-RatedChassis
Physical Features
•4dBiDipoleAntennafor2.4GHz
•6dBiDipoleAntennafor5GHz
•DetachableAntennawith
RP-SMAInterface
DAP-2590
Wireless N Dual Band
PoE Access Point
5151
1Gbps LAN x1 Power over
Ethernet
Wireless NWireless A & G
Main Features
•Operateat2.4GHzand5GHz
frequency band
•2x2MIMO
•HighSpeed300Mbps
•WirelessDistributionSystem
•InternalRADIUS
•IEEE802.1QVLAN
•RogueAPDetection
•MultipleSSID
•Plenum-RatedChassis
•AdvanceTrafficControl
Physical Features
• 4dBiDipoleAntennafor2.4GHzx2
•6dBiDipoleAntennafor5GHzx2
•DetachableAntennawith
RP-SMAInterface
•RJ-45ConsolePort
DAP-2690
Wireless N Quad Band
PoE Access Point
50 BUSINESS WIRELESS Indoor Access Points52
Indoor Access Points
Model DAP-2590 DAP-2690
IEEE Wired Standard 802.3;802.3u;802.3ab;802.3af
Ethernet Interface 10/100/1000BASE-T(PoE)
IEEE Wireless Standard 802.11a;802.11b;802.11g;802.11n
Data Transfer
Rate
802.11a 54,48,36,24,18,12,9,6Mbps
802.11b 11,5.5,2,1Mbps
802.11g 54,48,36,24,18,12,9,6Mbps
802.11n 300,270,240,180,120,90,60,30Mbps
Frequency
Range
5GHz US&Canada:5.15GHzto5.35GHz&5.4725GHzto5.85GHz
Europe&Japan:5.15GHzto5.35GHz&5.47GHzto5.725GHz
2.4GHz 2.4GHzto2.4835GHz
RFChannel 5GHz US&Canada:12;Europe:19;Japan:8(Non-Overlapping)
2.4GHz UnitedStates:11;Europe:13;Japan:13
Radio and
Modulation
Type
802.11a OFDM,BPSK,QPSK,16QAM,64QAM
802.11b DSSS,DQPSK,DBPSK,CCK
802.11g OFDM,BPSK,QPSK,16QAM,64QAM
802.11n OFDM,BPSK,QPSK,16QAM,64QAM
Transmitter
Output Power
(Typical)
802.11a 16dBm@6~24Mbps;15dBm@36Mbps
15dBm@48Mbps;12dBm@54Mbps
802.11b 18dBm@1/2/5.5/11Mbps 17dBm
802.11g 17dBm@6~24Mbps;17dBm@36Mbps;16dBm@48Mbps;13dBm@54Mbps
802.11n
(2.4GHz)
HT20:12to15dBm
HT40:12to13dBm
HT20:12to17dBm
HT40:12to17dBm
802.11n
(5GHz)
HT20:11to16dBm
HT40:11to16dBm
Receiver
Sensitivity
802.11a
-85dBm@6Mbps
-85dBm@9Mbps
-85dBm@12Mbps
-85dBm@18Mbps
-80dBm@24Mbps
-78dBm@36Mbps
-74dBm@48Mbps
-73dBm@54Mbps
802.11b
-92dBm@1Mbps
-91dBm@2Mbps
-90dBm@5.5Mbps
-88dBm@11Mbps
-89dBm@2Mbps
-84dBm@11Mbps
802.11g
-87dBm@6Mbps
-87dBm@9Mbps
-87dBm@12Mbps
-87dBm@18Mbps
-81dBm@24Mbps
-79dBm@36Mbps
-75dBm@48Mbps
-74dBm@54Mbps
-87dBm@6Mbps
-87dBm@9Mbps
-84dBm@12Mbps
-82dBm@18Mbps
-79dBm@24Mbps
-75dBm@36Mbps
-71dBm@48Mbps
-70dBm@54Mbps
802.11n
(2.4GHz)
HT20:-85to-70dBm
HT40:-82to-67dBm
HT20:-88to-68dBm
HT40:-85to-65dBm
802.11n
(5GHz)
HT20:-84to-69dBm
HT40:-81to-66dBm
OperationModes AccessPoint;WDS;WDSwithAP;WirelessClient
Antenna
AntennaGain 5dBi@5GHz;3dBi@2.4GHz 6dBi@5GHz;4dBi@2.4GHz
No. of
Antennas 3 4(2perfrequencyband)
Antenna Type DetachableDipoleAntennawithReverseSMAConnector
Physical &
Environment
Dimension
(mm)
165.1x35.1x187.5
(WxHxD)
190.5x36.5x198.8
(WxHxD)
Weight 762grams 990grams
Power Input ViaExternalPowerAdapter
Operating/
Storage
Temperature
0to40°C/-20to65°C
Operating/
Storage
Humidity
10%to90%Non-Condensing/5%to95%Non-Condensing
Certication
EMI-EMC
Compliance FCC;CE;C-Tick;IC FCC;CE;IC
Safety
Compliance UL CSA
Wi-Fi®Yes
50
100Mbps LAN x2
Wireless A & G
Power over
Ethernet
Power over
Ethernet
100Mbps LAN x1
Wireless G
Power over
Ethernet
100Mbps LAN x1
Wireless G

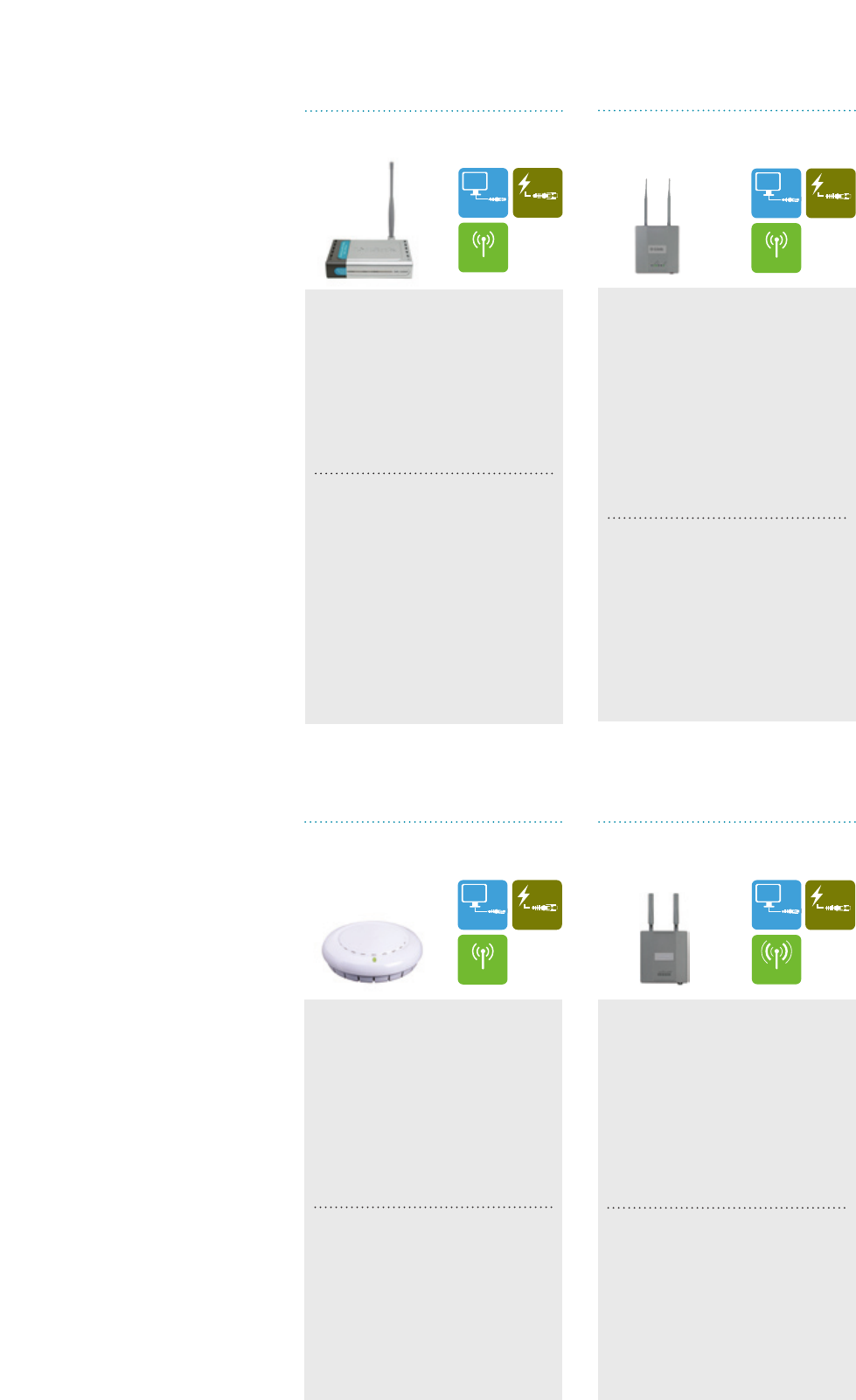

Indoor
Access Points
BUSINESS WIRELESS Indoor Access Points
Main Features
•Wi-FiProtectedAccess(WPA2)
•WirelessDistributionSystem
(WDS)
•MACFiltering
•IEEE802.1QVLAN
•APGrouping
•IEEE802.11e(Wi-FiMultimedia)
Physical Features
•5dBiDipoleAntennax1
•DetachableAntennawith
RP-SMAInterface
DWL-2200AP
Main Features
•Wi-FiProtectedAccess(WPA2)
•WirelessDistributionSystem
(WDS)
•IEEE802.11e(Wi-FiMultimedia)
•MACFiltering
•IEEE802.1QVLAN
•RogueAPDetection
•MultipleSSID
Physical Features
•1dBiInternalAntenna
•SmokeDetectorDesignfor
Ceiling-Mount
DWL-3260AP
Wireless G
PoE Access Point
Wireless G
PoE Access Point
Main Features
•Wi-FiProtectedAccess(WPA2)
•WirelessDistributionSystem
(WDS)
•IEEE802.11e(Wi-FiMultimedia)
•MACFiltering
•IEEE802.1QVLAN
•RogueAPDetection
•MultipleSSID
•Plenum-RatedChassis
Physical Features
•5dBiDipoleAntennax2
•DetachableAntennawith
RP-SMAInterface
DWL-3200AP
Wireless G
PoE Access Point
Main Features
•Wi-FiProtectedAccess(WPA2)
•WirelessDistributionSystem
(WDS)
•MACFiltering
•IEEE802.1QVLAN
•RogueAPDetection
•MultipleSSID
•Plenum-RatedChassis
Physical Features
•2.5dBiDipoleAntennafor
2.4GHz
•5.5dBiDipoleAntennafor5GHz
•DetachableAntennawith
RP-SMAInterface
DWL-8200AP
802.11a/g Dual Band
Wireless Access Point
Power over
Ethernet
100Mbps LAN x1
Wireless G
53
50
Indoor Access Points
Model DWL-2200AP DWL-3200AP DWL-3260AP DWL-8200AP
IEEE Wired Standard 802.3;802.3u;802.3af 802.3;802.3u;802.3af
Ethernet Interface 10/100BASE-TX(PoE) 10/100BASE-TX(PoE)
IEEE Wireless Standard 802.11b;802.11g 802.11a;802.11b;802.11g
802.11a - 108,54,48,36,24,
18,12,9,6Mbps
802.11b 11,5.5,2,1Mbps
802.11g 108,54,48,36,24,18,12,9,6Mbps
Frequency
Range
5GHz -
US&Canada:5.15GHzto
5.35GHz
&5.4725GHzto5.85GHz
Europe&Japan:5.15GHzto
5.35GHz
&5.47GHzto5.725GHz
2.4GHz 2.4GHzto2.4835GHz
RFChannel 5GHz -
US&Canada:12;Europe:19;
Japan:8
(Non-Overlapping)
2.4GHz UnitedStates:11;Europe:13;Japan:13
Radio and
Modulation
Type
802.11a - OFDM,BPSK,QPSK,16QAM,
64QAM
802.11b DSSS,DQPSK,DBPSK,CCK
802.11g OFDM,BPSK,QPSK,16QAM,64QAM
Transmitter
Output Power
(Typical)
802.11a - - -
16dBm@6~18Mbps
14dBm@24/36Mbps
12dBm@48/54Mbps
802.11b 18dBm@1/2/5.5/11Mbps 22dBm@1/2/5.5/11Mbps 18dBm@1/2/5.5/11Mbps
802.11g
16to18dBm@
6~36Mbps
14to16dBm@
48Mbps
14to15dBm@
54Mbps
21to22dBm@
6~36Mbps
19to20dBm@
48Mbps
19to20dBm@
54/108Mbps
16to18dBm@
6~36Mbps
14to16dBm@
48Mbps
14to15dBm@
54/108Mbps
18dBm@6~18Mbps
16dBm@24/36Mbps
14dBm@48/54Mbps
Receiver
Sensitivity
802.11a - - -
-87dBm@6Mbps
-86dBm@9Mbps
-85dBm@12Mbps
-83dBm@18Mbps
-80dBm@24Mbps
-76dBm@36Mbps
-71dBm@48Mbps
-71dBm@54Mbps
-68dBmat108Mbps
802.11b -89dBm@2Mbps
-83dBm@11Mbps
-89dBm@2Mbps
-83dBm@11Mbps
-89dBm@2Mbps
-83dBm@11Mbps
-92dBm@1Mbps
-89dBm@2Mbps
-88dBm@5.5Mbps
-83dBm@11Mbps
802.11g
-87dBm@6Mbps
-86dBm@9Mbps
-85dBm@12Mbps
-83dBm@18Mbps
-80dBm@24Mbps
-76dBm@36Mbps
-71dBm@48Mbps
-66dBm@54Mbps
-87dBm@6Mbps
-86dBm@9Mbps
-85dBm@12Mbps
-83dBm@18Mbps
-80dBm@24Mbps
-76dBm@36Mbps
-71dBm@48Mbps
-66dBm@54Mbps
-87dBm@6Mbps
-86dBm@9Mbps
-85dBm@12Mbps
-83dBm@18Mbps
-80dBm@24Mbps
-76dBm@36Mbps
-71dBm@48Mbps
-66dBm@54Mbps
-87dBm@6Mbps
-86dBm@9Mbps
-85dBm@12Mbps
-83dBm@18Mbps
-80dBm@24Mbps
-76dBm@36Mbps
-71dBm@48Mbps
-71dBm@54Mbps
-68dBm@108Mbps
OperationModes AccessPoint;WDS;WDSwithAP
AccessPoint;WDS;
WDSwithAP;
WirelessClient
AccessPoint;WDS;
WDS with AP
Antenna
AntennaGain 5dBi 5dBi -5.5dBi@5GHz;2.5dBi@2.4GHz
No. of
Antennas 1212
Antenna Type Detachable Dipole Antenna
withReverseSMAConnector
Detachable Dipole Antenna
withReverseSMAConnector
Internal Dipole Antenna with
ReverseSMAConnectorfor
OptionalExternalAntenna
Detachable Dipole Antenna
withReverseSMAConnector
Physical &
Environment
Dimension
(mm)
142x109x31
(LxWxH)
187.5x165.81x37.06
(LxWxH)
171.97x48.16
(DiameterxH)
187.57x165.81x37.06
(LxWxH)
Weight 200 grams 603.28grams 284grams 603.28grams
Power Input ViaExternalPowerAdapter
Operating/
Storage
Temperature
0to40°C/-20to65°C
Operating/
Storage
Humidity
10%to90%Non-Condensing/5%to95%Non-Condensing
Certication
EMI-EMC
Compliance FCC;CE FCC;CE;C-Tick FCC;CE;C-Tick;IC FCC;CE;C-Tick
Safety
Compliance UL CSA UL
Wi-Fi®Yes
BUSINESS WIRELESS Indoor Access Points
54
50
Power over
Ethernet
100Mbps LAN x1
Wireless G
Outdoor Access
Points
D-Link Outdoor Wireless Access Points are reliable, powerful, and suitable for
business-class enterprise environment.
These access points provide various security options for network administrators
to deploy a highly manageable and robust wireless network ideal for
deployment of building to building network infrastructure.
BUSINESS WIRELESS Outdoor Access Points
Main Features
•Wi-FiProtectedAccess(WPA2)
•IEEE802.1X
•MACFiltering
•IEEE802.1QVLAN
•RogueAPDetection
•MultipleSSID
•Water/Dust-ProofIP68standard
Physical Features
•5dBiDipoleAntennax2
•DetachableAntennawith
RP-SMAInterface
DWL-2700AP
802.11g Wireless
Access Point
55
50
Outdoor Access Points
Model DWL-2700AP
IEEE Wired Standard 802.3;802.3u;802.3af
Ethernet Interface 10/100BASE-TX(PoE)
IEEE Wireless Standard 802.11b;802.11g
Data Transfer Rate
802.11a -
802.11b 11,5.5,2,1Mbps
802.11g 54,48,36,24,18,12,9,6Mbps
802.11n -
FrequencyRange 5GHz -
2.4GHz 2.4GHzto2.4835GHz
RFChannel 5GHz -
2.4GHz UnitedStates:11;Europe:13;Japan:13
Radio and
ModulationType
802.11a -
802.11b DSSS,DQPSK,DBPSK,CCK
802.11g OFDM,BPSK,QPSK,16QAM,64QAM
802.11n -
Transmitter Output
Power(Typical)
802.11a -
802.11b 23dBm@1~11Mbps
802.11g 23dBm@6~54Mbps
Receiver Sensitivity
802.11a -
802.11b
-91dBm@1Mbps
-90dBm@2Mbps
-89dBm@5.5Mbps
-84dBm@11Mbps
802.11g
-85dBm@6Mbps
-84dBm@9Mbps
-82dBm@12Mbps
-80dBm@18Mbps
-77dBm@24Mbps
-73dBm@36Mbps
-69dBm@48Mbps
-68dBm@54Mbps
802.11n(2.4GHz) -
802.11n(5GHz) -
OperationModes AccessPoint;WDS;WDSwithAP
Antenna
AntennaGain 5dbi
No. of Antennas 2
Antenna Type Detachable Dipole Antennas with
RN-PNTypeConnectors
Physical &
Environment
Dimension(mm) 277.7x155x45
(LxWxH)
Weight 1.82 kg
Outdoor
Installation
IP68Standard;DiecastWatertightHousing
Built-inHeaterwithSensor
Power Input ViaExternalPowerAdapter
Operating/
Storage
Temperature
-40to60°C/-40to65°C
Operating/
Storage
Humidity
10%to90%Non-Condensing/5%to95%Non-Condensing
Certication
EMI-EMC
Compliance FCC;CE;C-Tick
Safety
Compliance CSA
Wi-Fi®Yes
BUSINESS WIRELESS Outdoor Access Points
56
50 BUSINESS WIRELESS Unied Wired/Wireless Access System
D-LinkUniedWired/WirelessSwitchingSolutionoerscentralizedmanagement
that greatly simplifies wireless deployment and significantly enhances access
security, wireless throughput and network convergence.
Unied Switches
DWS3024
•10/100/1000BASE-Tx20(PoE)
•Combo1000BASE-T/SFPx4
•RedundantPowerSupply
•Upto48APsperSwitch
•Upto192APsperPeerGroup
DWS3024L
•10/100/1000BASE-Tx20(PoE)
•Combo1000BASE-T/SFPx4
•RedundantPowerSupply
•Upto24APsperSwitch
•Upto96APsperPeerGroup
Unied Access Points
DWL3500AP
•10/100BASE-TXx1(PoE)
•IEEE802.11gWirelessLAN
•5dBiDipoleAntennax2
•DetachableAntennawith
RP-SMAInterface
•ExternalPowerAdapter
DWL8500AP
•10/100BASE-TXx1(PoE)
•IEEE802.11aWirelessLAN
•IEEE802.11gWirelessLAN
•5dBi@5GHz&2.5dBi@2.4GHz
DualBandDipoleAntennax2
•DetachableAntennawith
RP-SMAInterface
•ExternalPowerAdapter
DWS-3000 Series
Unied Wired/Wireless Access System
Unied Switches
Wireless Management
• L2/L3FastRoaming
• Intra-Switch/Inter-SwitchRoaming
• CentralizedSecurityPolicy/AP/Client
 Management&Monitoring
• AdaptableWireless
• AutomaticRFChannelAdjustment
• AutomaticAPTransmitOutputPower
 Adjustment
• APAuto-Discovery&FirmwareDispatch
• APLoadBalancing
• APAuthentication
• RemoteAPReboot
• APSelfHealing
• ClientMonitoring
• Wi-FiMultimedia(WMM)
• SpectraLinkVoicePriority(SVP)
• MACAuthentication
• WPA/WPA2Personal/Enterprise
• CaptivePortal
• RogueAPDetection
• StationIsolation
• VisualizationAPManagementTool
Wired Management
• InternetGroupManagementProtocol
 (IGMP)Snooping
• LinkLayerDiscoveryProtocol(LLDP)
• DoubleVLAN(Q-in-Q)
• Subnet-basedVLAN
• IPv4StaticRoute
• VirtualRouterRedundancyProtocol
 (VRRP)
• QualityofService(QoS)
• TracShaping
• AccessControlList
• 802.1XPort-basedAccessControl
• GuestVLAN
• BroadcastStormControl
Unied Access Points
Managed Mode
• CentralizedManagement
• CentralizedFirmwareDispatch
• Auto-PowerAdjustment
• DynamicAuto-ChannelSelection
• L2FastRoaming
• L3FastRoaming
• CaptivePortal
Managed & Standalone Mode
• WEP/WPA/WPA2Security
• RogueAPDetection
• StationIsolation
• MACAddressFiltering
• APLoadBalancingSetup
• Wi-FiMultimedia(WMM)
• SpectraLinkVoicePriority
Standalone Mode
• LocalStorageofConguration
Optional Accessories
Gigabit Ethernet SFP Transceivers
DEM-310GT 1000BASE-LX,SMF/MMF,10km/2km
DEM-311GT 1000BASE-SX,MMF,550m
DEM-312GT2 1000BASE-SX,MMF,2km
DEM-314GT 1000BASE-LH,SMF,50km
DEM-315GT 1000BASE-ZX,SMF,80km
DGS-712 1000BASE-T,Copper,100m
Gigabit Ethernet WDM SFP Transceivers
DEM-330T/R 1000BASE-BX,SMF,10km
DEM-331T/R 1000BASE-BX,SMF,40km
57
50
UniedSwitches-DWS-3000Series
Model DWL-3024 DWL-3024L
IEEE LAN Standard 802.3;802.3u;802.3z;802.3ab;802.3ae;802.3af
Port Interface
10/100/1000
BASE-T(RJ-45) 20(PoE)
Combo
1000BASE-T/SFP 4
General
Features
Switching
Capacity 48Gbps
Maximum
ForwardingRate 35.71Mpps
ForwardingMode StoreandForward
Packet Buer
Memory 750Kbytes
MTBF 174,272hours
ConsolePort FemaleRS-232DB-9ConsolePortforOut-of-Band
Conguration
WLANManagementCapability
DWL-3024L:Max.24APs,DWL-3024
(Directly/IndirectlyConnectedthroughLANSwitch)
Max.2048WirelessUsers(1024Tunneled,2048Non-
Tunneled)
Roaming
FastRoaming(WirelessAdapterneedstosupporttoo);
Intra-Switch/Inter-SwitchRoaming;
Intra-Subnet / Inter-Subnet Roaming
AccessControl&Bandwidth
Management
Max.16SSIDPerAP(8SSIDPerRFFrequencyBand);
APLoadBalancingbasedontheNo.ofUsers/Utilization
Per AP
ManagedAccessPoint DWL-3500AP;DWL-8500AP
APManagement
APAuto-Discovery;RemoteAPReboot;
APMonitoring:ListManagedAP,AuthenticationFailedAP,
RogueAP;AutoAPRFChannelAdjustment;
ClientMonitoring:ListClientsAssociatedwitheachManaged
AP;
Ad-HocClientsMonitoring;
APAuthenticationwithLocalDatabaseandExternal
RADIUSServer;CentralizedRF/SecurityPolicyManagement;
AutomaticAPTransmittedOutputPowerAdjustment
WLAN Security
WPAPersonal/Enterprise;WPA2Personal/Enterprise;
64/128-bitWEPDataEncryption;MACAuthentication;
WirelessStation&APMonitoringonRFChannel,MAC
Address,
SSID,Time;CaptivePortal;StationIsolation
RogueandValidAPClassicationbasedonMACAddress;
EncryptionType:WEP,WPA,DynamicWEP,TKIP,AES-CCMP,
EAP-FAST,EAP-TLS,EAP-TTLS,EAP-MD5,PEAP-GTC,
PEAP-MS-CHAPv2,PEAP-TLS
L2Features
MACAddressTableSize:8KEntries;
IGMPSnooping:1KMulticastGroups;
802.1abLinkLayerDiscoveryProtocol(LLDP);
802.1DSTP,802.1wRSTP,802.1sMSTP;
802.3adLinkAggregation:Max.32Groups,
Max.8PortsPerGroup;JumboFrame:Max.9Kbytes;
PortMirroring:One-to-One,Many-to-One
VirtualLAN(VLAN)
802.1QTaggedVLAN;VLANGroups:Max.3965;
802.1vProtocolVLAN;Subnet-basedVLAN;MAC-basedVLAN;
DoubleVLAN;GARPVLANRegistrationProtocol(GVRP)
L3Features
IPv4StaticRoute;RoutingTableSize:Max.128StaticRoutes;
FloatingStaticRoute;ProxyAddressResolutionProtocol
(ARP);
VirtualRouterRedundancyProtocol(VRRP);
QualityofService(QoS)
802.1pPriorityQueues:Max.8QueuesPerPort;
Min.BandwidthGuaranteePerQueue;TracShaping;
CoSbasedon:SwitchPort,VLAN,DSCP,TCP/UDPPort,TOS,
Dest/SourceMACAddress,Dest/SourceIPAddress
AccessControlList(ACL)
ACLbasedon:SwitchPort,MACAddress,802.1pQueues,
VLAN,
EtherType,DSCP,IPAddress,ProtocolType,TCP/UDPPort
LAN Security
RADIUS&TACACS+AuthenticationforManagementAccess;
SecureShell(SSH)v1/v2;SecureSocketsLayer(SSL)v3;
TransportLayerSecurity(TLS)v1;MACFiltering;
DenialofServiceProtection;DHCPFiltering;ProtectedPort;
802.1XPort-basedAccessControl&GuestVLAN;
PortSecurity:20MACPerPort,TrapViolationNotication;
BroadcastStormControlinGranularityof1%ofLinkSpeed
ManagementMethods
Web-basedGUI;CommandLineInterface(CLI);SystemLog;
TelnetServer:Max.5Sessions;TelnetClient;TFTPClient;
DualImages;MultipleCongurationFiles;BootP/DHCP
Client;
SimpleNetworkManagementProtocol(SNMP)v1/v2c/v3;
RemoteMonitoring(RMON):4Groups;
DHCPServer;SimpleNetworkTimeProtocol(SNTP)
Physical &
Environment
Dimension 19-inch;1URack-Mount;440x389x44mm(WxDxH)
Weight 6kg
Power Input Input:100-240VAC,50/60Hz;InternalUniversalPowerSupply
Max.Power
Consumption
450W
(AllPoEPortsinOperation)
PoE PowerBudget:370A;PerPort:15.4W
RPS DPS-600
Temperature 0to40°C(Operation);-10to70°C(Storage)
Humidity 10%~90%(Operation);5%~90%(Storage);Non-Condensing
Fan 440x40mmDCFans
Certication EMI-EMC FCCClassA;CE;VCCI;C-Tick;ICES-003;EN606011-2
Safety UL/cUL;CB
UniedAccessPoints-DWL-3500AP&DWL-8500AP
Model DWL-3500AP DWL-8500AP
IEEE Wired Standard 802.3;802.3u;802.3af
IEEE Wireless Standard 802.11b;802.11g 802.11a;802.11b;
802.11g
Data Transfer
Rate
802.11a - 54,48,36,24,18
12,9,6Mbps
802.11b 11,5.5,2,1Mbps
802.11g 54,48,36,24,18,12,9,6Mbps
Wireless
Frequency
Range
802.11a - 5.15GHzto5.35GHz&
5.47GHzto5.825GHz
802.11b/g 2.4GHzto2.4835GHz
RFChannels
802.11a
Non-
Overlapping
-
US&Canada:12;
Europe:19;
Japan:8;China:5
802.11b/g UnitedStates:11;Europe:13;Japan:13
Radio and
Modulation
Type
802.11a/b/g
(DSSS)
DBPSK@1Mbps;DQPSK@2Mbps;
CCK@5.5/11Mbps
802.11a/g
(OFDM)
BPSK@6/9Mbps;QPSK@12/18Mbps;
16QAM@24/36Mbps;64QAM@48/54/108Mbps
Transmit
Output
Power
(Typical)
802.11a -
16dBm@6/9/12/18Mbps
14dBm@24/36Mbps
12dBm@48/54Mbps
802.11b 18dBm@1/2/5.5/11Mbps
802.11g 18dBm@6/9/12/18Mbps;16dBm@24/36Mbps;
14dBm@48/54Mbps
EIRP
802.11a - 16dBmUsing
Default Antennas
802.11g 23dBmUsing
Default Antennas
20.5dBmUsing
Default Antennas
Receiver
Sensitivity
802.11a -
-87dBm@6Mbps
-86dBm@9Mbps
-85dBm@12Mbps
-83dBm@18Mbps
-80dBm@24Mbps
-76dBm@36Mbps
-71dBm@48Mbps
-71dBm@54Mbps
-68dBm@108Mbps
802.11b -92dBm@1Mbps;-89dBm@2Mbps;
-88dBm@5.5Mbps;-83dBm@11Mbps
802.11g
-87dBm@6Mbps;-86dBm@9Mbps;
-85dBm@12Mbps;-83dBm@18Mbps;
-80dBm@24Mbps;-76dBm@36Mbps;
-71dBm@48Mbps;-71dBm@54Mbps;
-68dBm@108Mbps
Antennas
Description
2 Detachable Dipole
Antennas with
ReverseSMA
Connectors
2 Dual Band
Detachable Dipole
Antennas with Reverse
SMAConnectors
AntennaGain 5dBifor
2.4GHzBand
5.5dBifor5GHzBand
2.5dBifor2.4GHzBand
Ethernet Interface 10/100BASE-TX Port with
802.3afPoweroverEthernet(PoE)
Security
64/128/152-bitWiredEquivalentPrivacy(WEP);
Wi-FiProtectedAccess(WPA)/WPA2
ExtensibleAuthenticationProtocol(EAP);
WPA/WPA2Pre-SharedKey(PSK);
AdvancedEncryptionStandard(AES);
MACAddressFiltering;802.11i-Ready;
802.1QServiceSetIdentier(SSID)
BroadcastEnable/Disable;
EightSSIDPerFrequencyBand;
IsolatedSecurityforEachSSID;
StationIsolation;IEEE802.1XSupplicant
ManagementMethods&
Protocols
ProtocolsSupportedinDWS-3000Series;
HTTP/HTTPS;SSH;Syslog;Telnet
Physical &
Environ-ment
Dimension
(LxWxH) 277.7x155x45mm
Weight 603.28grams 800 grams
Power Input Via48VDC,0.4AExternalPowerAdapter;
OperatingVoltage:48VDC+/-10%forPoE
Power
Consumption
7WwithoutPoE;
8.5WwithPoE
8.5WwithoutPoE;
9WwithPoE
Operation
Temperature 0to40°C
Storage
Temperature -20to65°C
Operation
Humidity 10%to90%(Non-Condensing)
Storage
Humidity 5%to95%(Non-Condensing)
Certication FCCClassB;CE;C-Tick;VCCI;TELEC;
uL;Wi-Fi;ICES-003;EN60601-1-2
Unied Wired/Wireless Access SystemBUSINESS WIRELESS58
50 BUSINESS WIRELESS Unied Wired/Wireless Access System
D-LinknextgenerationL2+UniedWired/WirelessSwitchingSolutionconsists
ofGigabitswitchwithanarrayofadvancedfeaturesand802.11usupport.Itis
a full-featured and cost-eective mobility solution for mid to large enterprises
and service providers. It enables network administrators to have control, security,
redundancy and reliability needed to scale and manage the wireless networks easily
andeciently.
Unied Switch
DWS4026
•10/100/1000BASE-Tx20(PoE)
•Combo1000BASE-T/SFPx4
•10GExpansionSlotx2
•RedundantPowerSupply
•Upto256APsperCluster/
 PeerGroup
Unied Access Point
DWL8600AP
•10/100/1000BASE-Tx1(PoE)
•IEEE802.11aWirelessLAN
•IEEE802.11gWirelessLAN
•IEEE803.11nWirelessLAN
•6dBi@5GHz&4dBi@2.4GHz
DualBandDipoleAntennax4
•DetachableAntennawith
 RP-SMAInterface
•ExternalPowerAdapter
DWS-4000 Series
Unied Wired/Wireless Access System
Unied Switch
Wireless Management
• L2/L3FastRoaming
• Intra-Switch/Inter-SwitchRoaming
• CentralizedSecurityPolicy/AP/Client
 Management&Monitoring
• AdaptiveWireless
• AutomaticRFChannelAdjustment
• AutomaticAPTransmitOutputPower
 Adjustment
• AP-APTunnel
• APLoadBalancing
• APAuto-Discovery&FirmwareDispatch
• APAuthentication
• RFSelf-Healing
• Auto-VoIP
• Wi-FiMultimedia(WMM)
• SpectraLinkVoicePriority(SVP)
• RemoteAPReboot
• VisualizedAPManagementTool
• WirelessIntrusionDetection&
 PreventionSystem(WIDS/WIPS)
• RogueAP/ClientDetection&Mitigation
• WPA/WPA2Personal/Enterprise
• CaptivePortal
• StationIsolation
Wired Management
• InternetGroupManagementProtocol
 (IGMP)Snooping
• LinkLayerDiscoveryProtocol(LLDP)
• LLDP-MediaEndpointDiscovery
 (LLDP-MED)
• DoubleVLAN(Q-in-Q)
• SelectiveQ-in-Q
• Subnet-basedVLAN
• IPv4StaticRoute
• RoutingInformationProtocol(RIP)
• VirtualRouterRedundancyProtocol 
 (VRRP)
• RoutingInformationProtocol(RIP)
• QualityofService(QoS)
• TrafficShaping
• BandwidthControl
• AccessControlList
• 802.1XPort-basedAccessControl
• GuestVLAN
• BroadcastStormControl
Unied Access Point
Managed Mode
• CentralizedManagement
• CentralizedFirmwareDispatch
• VisualizedAPManagementTool
• Auto-PowerAdjustment
• DynamicAuto-ChannelSelection
• L2FastRoaming
• L3FastRoaming
• CaptivePortal
• RogueAPMitigation
• WirelessIntrusionDetection&
 PreventionSystem(WIDS)
Standalone Mode
• WirelessDistributionSystem(WDS)
• APClustering
• LocalStorageofConfiguration
Managed & Standalone Mode
• WEP/WPA/WPA2Security
• RogueAPDetection
• StationIsolation
• MACAddressFilterin
• APLoadBalancingSetup
• Wi-FiMultimedia
• SpectraLinkVoicePriority(SVP)
• UnscheduledAutomaticPowerSave 
 Delivery(U-APSD)
Optional Accessories
Modules
DEM-410X 1-Port10GXFPModule
DEM-410CX 1-Port10GCX4Module
10-Gigabit Ethernet XFP Transceivers
DEM-421XT 10GBASE-SR,MMF,300m
DEM-422XT 10GBASE-LR,SMF,10km
DEM-423XT 10GBASE-ER,SMF,40km
Gigabit Ethernet SFP Transceivers
DEM-310GT 1000BASE-LX,SMF/MMF,
10km/2km
DEM-311GT 1000BASE-SX,MMF,550m
DEM-312GT2 1000BASE-SX,MMF,2km
DEM-314GT 1000BASE-LH,SMF,50km
DEM-315GT 1000BASE-ZX,SMF,80km
DGS-712 1000BASE-T,Copper,100m
Gigabit Ethernet WDM SFP Transceivers
DEM-330T/R 1000BASE-BX,SMF,10km
DEM-331T/R 1000BASE-BX,SMF,40km
59
50 BUSINESS WIRELESS
UniedSwitch-DWS-4000Series
Model DWS-4026
IEEE LAN Standard 802.3;802.3u;802.3z;802.3ab;802.3ae;802.3af
Port
Interface
10/100/1000
BASE-T(RJ-45) 20(PoE)
Combo
1000BASE-T/SFP 4
10GESlot 2
XFPModule DEM-410X
CX4Module DEM-410CX
Physical Stack
ViaCX4/XFPModule;DuplexChain/RingTopology;
Bi-DirectionalRedundantStackingTopology;
Upto40Gbps(FullDuplex);Upto12UnitsPerStack
General
Features
SwitchCapacity 88Gbps
ForwardingRate 65.47Mpps(Maximum)
Forwarding
Mode StoreandForward
BuerMemory 750KBytes
MTBF 185,540hours
ConsolePort FemaleRS-232DB-9ConsoleforOut-of-BandConguration
WLANManagement
Capability
Max.64APsPerSwitch;Max.256APsPerCluster;
Max.2048WirelessUsers(1024Tunneled,2048Non-Tunneled)
Roaming
FastRoaming(WirelessAdapterneedstosupporttoo)
Intra-Switch/Inter-SwitchRoaming;
Intra-Subnet/Inter-SubnetRoaming;AP-AP-Tunnel
AccessControl&Bandwidth
Management
Max.32SSIDPerAP(16SSIDPerRFFrequencyBand);
APLoadBalancingbasedontheNo.ofUsersorUtilizationPerAP
ManagedAccessPoint DWL-8600AP
APManagement
APAuto-Discovery;RemoteAPReboot;
APMonitoring:ListManagedAP,AuthenticationFailedAP,
RogueAP;Ad-HocClientsMonitoring;
ClientMonitoring:ListClientsAssociatedwithEachManagedAP;
APAuthenticationSupportingLocalDatabaseandExternal
RADIUSServer;CentralizedRF/SecurityPolicyManagement;
VisualizedAPManagementTool(Supportupto16JPGFiles);
UniedAPSupport(DWL-8600AP):Managed/StandaloneMode
WLAN Security
WirelessIntrusionDetection&PreventionSystem(WIDS);
RogueAPMitigation;64/128-bitWEPDataEncryption;
RogueandValidAPClassicationbasedonMACAddress;
WPAPersonal/Enterprise;WPA2Personal/Enterprise;
WirelessStationandAPMonitoringonRFChannel,
MACAddress,SSID,Time;CaptivePortal;StationIsolation;
EncryptionTypeSupport:WEP,WPA,DynamicWEP,TKIP,
AES-CCMP,EAP-FAST,EAP-TLS,EAP-TTLS,EAP-MD5,
PEAP-GTC,PEAP-MS-CHAPv2,PEAP-TLS;MACAuthentication
L2Features
MACAddressTableSize:8KEntries;
IGMPSnooping:1KMulticastGroups;MLDSnooping;
802.1DSTP,802.1sRapidSTP,802.1wMultipleSTP;
802.3adLinkAggregation:Max.32Groups,
Max.8PortsPerGroup;JumboFrame:Max.9KBytes;
802.1abLinkLayerDiscoveryProtocol(LLDP);LLDP-MED;
PortMirroring:One-to-One,Many-to-One;
FlowControl:802.3xinFullDuplex,BackPressurein
HalfDuplex,Head-of-LineBlockingPrevention
VirtualLAN(VLAN)
802.1QTaggedVLAN;802.1vProtocolVLAN;
VLANGroups:Max.3,965Entries;Subnet-basedVLAN;
GARPVLANRegistrationProtocol(GVRP);
MAC-basedVLAN;DoubleVLAN;VoiceVLAN
L3Features
IPv4StaticRoute;RoutingTableSize:Max.128StaticRoutes;
FloatingStaticRoute;ProxyAddressResolutionProtocol(ARP);
VirtualRouterRedundancyProtocol(VRRP);
RoutingInformationProtocol(RIP)v1/v2
QualityofService(QoS)
802.1pPriorityQueues(Max.8QueuesPerPort);Auto-VoIP;
MinimumBandwidthGuaranteePerQueue;
TracShapingPerPort;Per-FlowBandwidthControl;
CoSbasedon:SwitchPort,VLAN,DSCP,TCP/UDPPort,TOS,
Dest/SourceMACAddress,Dest/SourceIPAddress
AccessControlList(ACL) ACLbasedon:SwitchPort,MACAddress,802.1pQueues,VLAN,
EtherType,DSCP,IPAddress,ProtocolType,TCP/UDPPort
LAN Security
RADIUS&TACACS+AuthenticationforManagementAccess;
SecureShell(SSH)v1/v2;SecureSocketsLayer(SSL)v3;
TransportLayerSecurity(TLS)v1;MACFiltering;
DenialofServiceProtection;DynamicARPInspection(DAI);
PortSecurity:20MACPerPort,PortViolationNotication;
802.1XPort-basedAccessControlandGuestVLAN;
BroadcastStormControlinGranularityof1%ofLinkSpeed;
DHCPSnooping;ProtectedPort;DHCPFiltering
ManagementMethods
Web-basedGUI;SwitchClustering;RADIUSAccounting;
CommandLineInterface(CLI);TelnetClient;TFTPClient;
TelnetServer:Max.5Sessions;sFlow;BootP/DHCPClient;
DHCPServer;DHCPRelay;DualImages;PortDescription;
MultipleCongurationFiles;DualImageServices;
SimpleNetworkManagementProtocol(SNMP)v1/v2c/v3;
RemoteMonitoring(RMON)v1;
SimpleNetworkTimeProtocol(SNTP);SystemLog
Physical &
Dimension 19-inch;1URack-Mount;440x389x44mm(WxDxH)
Weight 6kg
Power Input Input:100-240VAC,50/60Hz;InternalUniversalPowerSupply
Max.Power
Consumption 525W(WithAllPoEPortsinOperation)
PoE PowerBudget:370A;PerPort:15.4W
RPS DPS-600
Temperature 0to40°C(Operation);-10to70°C(Storage)
Humidity 10%~90%(Operation);5%~90%(Storage)Non-Condensing
EMI-EMC FCCClassA;CE;VCCI;C-Tick;ICES-003;EN606011-2
Safety UL/cUL;CB
UniedAccessPoint-DWL-8600AP
Model DWL-8600AP
IEEE Wired Standard 802.3;802.3u;802.3ab;802.3af
IEEE Wireless Standard 802.11a;802.11b;802.11g;802.11n
Data
Transfer
Rate
802.11a 54,48,36,24,18,12,9,6Mbps
802.11b 11,5.5,2,1Mbps
802.11g 54,48,36,24,18,12,9,6Mbps
802.11n Upto300Mbps
Wireless
Frequency
Range
802.11a 5.15GHzto5.35GHz
5.47GHzto5.825GHz
802.11b/g 2.4GHzto2.4835GHz
802.11n 2.4GHzto2.497GHz
4.9GHzto5.85GHz
RFChannel 5GHz US&Canada:12;Europe:19;
Japan:8;China:5(Non-Overlapping)
2.4GHz US:11;Europe:13;Japan:13
Radio and
Modulation
Type
DBPSK@1Mbps;DQPSK@2Mbps;
CCK@5.5/11Mbps
802.11a/g
(OFDM)
BPSK@6/9Mbps;QPSK@12/18Mbps;
16QAM@24/36Mbps;
64QAM@48/54Mbps
802.11n PSK/CCK,DQPSK,DBPSK,OFDM
Transmit
Output
Power
(Typical)
802.11a
17dBm@6/9/12/18Mbps;
15dBm@24/36Mbps;
14dBm@48Mbps;13dBm@54Mbps
802.11b 17dBm@1/2/5.5/11Mbps
802.11g
17dBm@6/9/12/18Mbps;
16dBm@24/36Mbps;
15dBm@48Mbps;14dBm@54Mbps
802.11n
5GHzBand/HT-20:12to17dBm;
5GHzBand/HT-40:11to16dBm;
2.4GHzBand/HT-20:13to17dBm;
2.4GHzBand/HT-40:12to16dBm
Receiver
Sensitivity
802.11a
-87dBm@6Mbps;-86dBm@9Mbps;
-84dBm@12Mbps;-81dBm@18Mbps;
-77dBm@24Mbps;-75dBm@36Mbps;
-68dBm@48Mbps;-67dBm@54Mbps
802.11b -92dBm@1Mbps;-90dBm@2Mbps;
-88dBm@5.5Mbps;-84dBm@11Mbps
802.11g
-87dBm@6Mbps;-87dBm@9Mbps;
-85dBm@12Mbps;-82dBm@18Mbps;
-79dBm@24Mbps;-76dBm@36Mbps;
-71dBm@48Mbps;-70dBm@54Mbps
802.11n
5GHzBand/HT-20:-82to-64dBm;
5GHzBand/HT-40:-79to-61dBm;
2.4GHzBand/HT-20:-85to-67dBm;
2.4GHzBand/HT-40:-82to-63dBm
Antennas
4DualBandDetachableDipole
Antennas
withReverseSMAConnectors
Antenna
Gain
6dBifor5GHzBand;4dBifor2.4GHz
Band
Ethernet Interface 10/100/1000BASE-T Port with
802.3afPoweroverEthernet(PoE)
CongurationOperation
Modes
AccessPointOnly;
WirelessDistributionSystem(WDS);
Access Point with WDS
Security
64/128/152-bitWiredEquivalent
Privacy;
MACAddressFiltering:Local/RADIUS;
Wi-FiProtectedAccess(WPA)/WPA2
ExtensibleAuthenticationProtocol
(EAP);
WPA/WPA2Pre-SharedKey(PSK);
TemporalKeyIntegrityProtocol(TKIP);
AdvancedEncryptionStandard(AES);
802.1QSSIDBroadcastEnable/Disable;
16SSIDPerFrequencyBand;
32SSIDPerAP;802.11i/WPA2;
RADIUS:Max.4ExternalRADIUS
Servers;
IsolatedSecurityforEachSSID;
StationIsolation;IEEE802.1X
Supplicant
ManagementMethods&
Protocols
ProtocolsSupportedinDWS-4026;
HTTP/HTTPS;SSH;SNMP;Syslog;Telnet
Physical &
Dimension 190.5x198.8x36.8mm(LxWxH)
Weight 1.02kg
Power
Input
Via48VDC,0.4AExternalPower
Adapter
OperatingVoltage:48VDC+/-10%
for PoE
Power 11WwithPoE;12WwithPoE
(Maximum)
Operation 0to40°C
Storage -20to65°C
Operation
Humidity 10%to90%(Non-Condensing)
Storage
Humidity 5%to95%(Non-Condensing)
Certication
FCCClassB;CE;C-Tick;VCCI;TELEC;
Wi-Fi;ICES-003;EN60601-1-2;
NCC;CSAInternational
Unied Wired/Wireless Access System
60
50
Indoor Standalone Access Points Outdoor Standalone
Access Points Unied Access Points
Model DAP-2590 DWL-2200AP DWL-3200AP DWL-3260AP DWL-8200AP DWL-2700AP DWL-3500AP DWL-8500AP DWL-8600AP
Wired Interface
IEEE802.3u100BASE-TX Yes Yes Yes Yes Yes Yes Yes Yes Yes
IEEE802.3ab1000BASE-T Yes No No No No No No No Yes
Wireless Interface
IEEE 802.11a Yes No No No Yes No No Yes Yes
IEEE 802.11g Yes Yes Yes Yes Yes Yes Yes Yes Yes
IEEE 802.11n Yes No No No No No No No Yes
OperationMode
AccessPointMode Yes Yes Yes Yes Yes Yes Yes Yes Yes
APClientMode Yes No No Yes No No No No No
Bridge(WDS)Mode Yes Yes Yes Yes Yes Yes No No Yes
BridgeWithAPMode Yes Yes Yes Yes Yes Yes No No Yes
APRepeaterMode No No No No No No No No Yes
Antennas
No. of Antennas 31212 2 224
Gain(2.4GHz) 3dBi 5dBi 5dBi Built-in 2.5dBi 5dBi 5dBi 2.5dBi 4dBi
Gain(5GHz) 5dBi ---5.5dBi - - 5.5dBi 6dBi
Detectable Yes Yes Yes No Yes Yes Yes Yes Yes
Authentication
WPA/WPA2-PSK Yes Yes Yes Yes Yes Yes Yes Yes Yes
WPA/WPA2-EAP Yes Yes Yes Yes Yes Yes Yes Yes Yes
802.1X User Authentication No No No No No Yes Yes Yes Yes
WPS(Wi-FiProtectedSetup) No No No No No No No No No
Security
Rogue AP Detection Yes No Yes Yes Yes Yes Yes Yes Yes
WLAN Partition Yes Yes Yes Yes Yes Yes Yes Yes Yes
802.1QVLAN Yes Yes Yes Yes Yes Yes Yes Yes Yes
MultipleSSIDsforNetwork
Segmentation Yes Yes Yes Yes Yes Yes Yes Yes Yes
Grouping
Load Balancing Yes Yes Yes Yes Yes Yes Yes Yes Yes
Link Integrate Yes Yes Yes Yes Yes Yes No No No
User Limit Yes Yes Yes Yes Yes Yes Yes Yes Yes
QualityofService(QoS)
WMM(Wi-FiMultimedia) Yes Yes Yes Yes Yes Yes Yes Yes Yes
NetworkingFeatures
DHCPServer Yes Yes Yes Yes Yes Yes No No No
Auto-ChannelScan Yes Yes Yes Yes Yes Yes Yes Yes Yes
Auto-PowerAdjustment No No No No No No Yes Yes Yes
Management
SNMP Yes Yes Yes Yes Yes Yes Yes Yes Yes
D-View Yes Yes Yes Yes Yes Yes No No No
APManagerUtility APMII Yes APMII APMII APMII APMII Yes Yes Yes
Telnet Yes Yes Yes Yes Yes Yes Yes Yes Yes
Fat/ThinAP Fat Fat Fat Fat Fat Fat Fan/Thin Fan/Thin Fan/Thin
Installation
ForOutdoorUsage No No No No No Yes No No No
802.3afPoweroverEthernet Yes Yes Yes Yes Yes Yes Yes Yes Yes
Access Point Selection Matrix
BUSINESS WIRELESS AccessPointSelectionMatrix61
50 BUSINESS WIRELESS
Models DWS-4000Series DWS-3000Series
General
MaximumSwitchingCapacity 88Gbps 48Gbps
Fixed10/100/1000BASE-TPort 24 24
FixedSmallForm-FactorPluggable(SFP)Port 4 4
Optional10GXFPUplinkCapability Yes(2) No
Redundant Power Supply Yes(DPS-600) Yes(DPS-600)
Layer2Features
JumboFrame(Size) Yes(9kbytes) Yes(9kbytes)
802.1D/802.1w/802.1sSpanningTreeProtocol(STP) Yes Yes
802.3adLinkAggregation Yes Yes
PortMirroring Yes Yes
Layer2Multicast
InternetGroupManagementProtocol(IGMP)Snooping Yes(v1/v2/v3) Yes(v1/v2/v3)
MulticastListenerDiscover(MLD)Snooping Yes(v1/v2) Yes(v1/v2)
VirtualLAN(VLAN)
802.1QVLANTagging Yes Yes
802.1vProtocolVLANClassication Yes Yes
Q-in-Q(DoubleVLAN) Yes Yes
VoiceVLAN Yes No
Layer3Features
RoutingTableSize 128 Static routes 128 Static routes
Routing Information Protocol v1/v2 Yes No
VirtualRouterRedundancyProtocol(VRRP) Yes Yes
Wireless LAN
Max.APsPerswitch 64 DWS-3024L:24;DWS-3024:48
Max.UsersPerSwitch Upto1024TunneledUsers
Upto2048Non-TunneledUsers
Upto1024TunneledUsers
Upto2048Non-TunneledUsers
Switch/AP Discovery Yes Yes
FastRoaming Yes Yes
Intra-Switch Roaming Yes Yes
Inter-SwitchRoaming(No.ofPeerSwitches) Yes(8) Yes(4)
L2Roaming(Intra-SubnetRoaming) Yes Yes
L3Roaming(Inter-SubnetRoaming) Yes Yes
IP-IP Tunnel Yes Yes
AP-AP Tunnel Yes No
PathMTU Yes Yes
MSSReduction Yes Yes
Adaptable Wireless Yes Yes
RFManagementandControl
MultipleESSIDsPerAP(VAPPerRadio/VAPPerAP) Yes(16/32) Yes(8/16)
AutomaticAFRFChannelAdjustment Yes Yes
AutomaticAPTransmitOutputPowerAdjustment Yes Yes
RFSelf-HealingAroundFailedAP Yes Yes
AP Load Balancing Yes Yes
AccessPoint(AP)Management
APSoftwareVersionAuto-Detection&CentralFirmwareDispatch Yes Yes
AP Auto-Discovery Yes Yes
AP Authentication Yes Yes
Remote AP Boot Yes Yes
APMonitoring/ClientMonitoring Yes Yes
CentralizedRF/SecurityPolicyManagement Yes Yes
VisualizedAPManagementTool Yes Yes
UniedAPSupport(APsupportsManaged/Standalonemode) DWL-8600AP DWL-3500AP/DWL-8500AP
QualityofService(QoS)
NumberofQueuesPerPort 8 8
Strict Priority Yes Yes
WeightedRoundRobin(WRR) Yes Yes
BandwidthControl(min.granularity) Yes(64kbps) Yes(64kbps)
Auto-VoIP Yes No
802.11eWirelessMultimedia(WMM) Yes Yes
AccessControlList(ACL)
AccessControlList Yes Yes
ACLMaxProles/Rules Max100ACLs;Max10RulesPerACL Max100ACLs;Max10RulesPerACL
Security
RogueAPIdentication&Classication Yes Yes
WirelessIntrusionDetectionSystem(WIDS) Yes No
DynamicARPInspection(DAI) Yes No
DHCPSnooping Yes No
SecureShell(SSH) Yes(v1/v2) Yes(v1/v2)
SecureSocketsLayer(SSL) Yes(v3) Yes(v3)
PortSecurity(EntriesPerPort) Yes(20) Yes(20)
Broadcast/Multicast/UnicastStormControl(min.granularity) Yes(1%linkspeed) Yes(1%linkspeed)
Authentication,Authorization&Accounting(AAA)
802.1XAccessControl Yes Yes
CaptivePortal Yes Yes
MACAuthentication Yes Yes
GuestVLAN Yes Yes
DynamicVLANAssignment Yes Yes
RADIUS&TACACS+AuthenticationforManagementAccess Yes Yes
Management
WebGUI&CLI Yes Yes
SwitchClustering Yes No
LinkLayerDiscoveryProtocol(LLDP) Yes Yes
SimpleNetworkManagementProtocol(SNMP) Yes(v1/v2c/v3) Yes(v1/v2c/v3)
RemoteMonitoring(RMON) Yes(v1) Yes(v1)
DHCPServer,DHCPRelay Yes Yes
MultipleImage,MultipleConguration Yes Yes
UniedSwitchSelectionMatrix
Unied Switch Selection Matrix
62
63
SECURITY
SECURITY
Protecting a network against attacks and unauthorized access is key
to the survival of any business. D-Link security solutions offer end to
end defense to ensure all areas of the network are secured. Products
under this category include Intrusion Prevention System (IPS) and
Unified Threat Management (UTM) Firewalls, Service Routers, VPN
Routers and Load Balancing Router.
63 SECURITY IPS Firewalls
Being part of D-Link Gateway Security, NetDefend IPS Firewalls provide critical
protection for networking infrastructure with powerful firewall/VPN features and
innovative NetDefend IPS service.
Optional Accessories
Licenses
DFL-210-AV-12 DFL-210 Anti-Virus Signature Upgrade License (12 Months)
DFL-210-IPS-12 DFL-210 IPS Signature Upgrade License (12 Months)
DFL-210-WCF-12 DFL-210 Web Content Filtering Signature License (12 Months)
DFL-800-AV-12 DFL-800 Anti-Virus Signature Upgrade License (12 Months)
DFL-800-IPS-12 DFL-800 IPS Signature Upgrade License (12 Months)
DFL-800-WCF-12 DFL-800 Web Content Filtering Signature License (12 Months)
DFL-1600-IPS-12 DFL-1600 IPS Signature Upgrade License (12 Months)
DFL-2500-IPS-12 DFL-2500 IPS Signature Upgrade License (12 Months)
NetDefend Security Service
IPS Signature License of 90 days is shipped with the equipment.
Anti-Virus Signature and Web Content Filtering License of 90 days are shipped with
DFL-210/DFL-800** firewalls.
Please register your product at http://security.dlink.com.tw.
• TransparentMode
• ApplicationLayerGateway(ALG)
• IPSec/PPTP/L2TPVPN
• VPNHubandSpoke
• OutboundLoadBalancing
• TrafficRedirectatFail-Over
• Policy-basedTrafficShaping
• GuaranteedBandwidth
• WANFailover
• IntrusionDetection&Prevention
System (IDP/IPS)
• HTTP/Script/EmailTypeContent
Filtering
• ExternalDatabaseContentFiltering**
(DFl-210&DFL-800)
•RealTimeAnti-VirusScanning**
 (DFL-210&DFL-800)
•D-LinkZoneDefense
(DFL-800,DFL-1600&DFL-2500)
•ServerLoadBalancing
 (DFL-800,DFL-1600&DFL-2500)
• Device&LinkFailureDetection
(DFL-1600&DFL-2500)
•LCDPanel(DFL-1600&DFL-2500)
• Anti-VirusoverVPN**
(DFL-210&DFL-800)
DFL-210
•10/100BASE-TXx6
 (WANx1/DMZx1/LANx4)
•ExternalPowerSupply
DFL-800
•10/100BASE-TXx10
 (WANx2/DMZx1/LANx7)
•ExternalPowerSupply
DFL-1600
•10/100/1000BASE-Tx6
 (WAN/DMZ/LANUser
Configurable)
•19”Rackmount
DFL-2500
•10/100/1000BASE-Tx8
 (WAN/DMZ/LANUser
Configurable)
•19”Rackmount
** Available in Firmware 2.26.00 and above
VPNC
CER T IFIED
AES
Interop
VPNC
CER T IFIED
Basic
Interop
IPS Firewalls
64
63 SECURITY IPS Firewalls
IPS Firewalls
Model DFL-210 DFL-800 DFL-1600 DFL-2500
Port Interface
Ethernet WAN Port 1 2 -
EthernetDMZPort
(User-Configurable) 1 1 -
Ethernet LAN Port 4 7 -
User-Configurable
Gigabit Port - 6 8
DB-9 RS-232 Console 1
System
Performance
Firewall Throughput 80Mbps 150Mpbs 320Mbps 600Mbps
VPN Throughput 25Mbps 45Mbps 120Mbps 300Mbps
IPS Throughput 20Mbps 40Mbps 150Mbps 400Mbps
Anti-Virus Throughput 10Mbps** 20Mbps** -
Concurrent Sessions 10,000** 20,000** 400,000 1,000,000
New Sessions
(per second) 2,000 4,000 10,000 15,000
Policies 500 1,000 2,500 4,000
Firewall System
Transparent Mode; Network Address Translation (NAT), Port Address Translation (PAT);
DynamicRoutingProtocol:OpenShortestPathFirst(OSPF)(NotapplicableforDFL-210);
H.323NATTraversal;Time-ScheduledPolicies;ApplicationLayerGateway(ALG);
ProactiveNetworkSecurity:ZoneDefense(NotapplicableonDFL-210)
Networking DHCPServer/Client;DHCPRelay;Policy-basedRouting;IPMulticast:IGMPv3
Virtual LAN (VLAN) 8 16 128 1,024
Virtual Private Network (VPN)
Encryption Methods: DES/3DES/AES/Twofish/Browfish/CAST-128; IPSec NAT Traversal;
Dedicated VPN Tunnels: 100 (DFL-210), 200** (DFL-800), 1,200 (DFL-1600), 2,500 (DFL-2500);
Point-to-PointTunnelingProtocol(PPTP)/Layer2TunnelingProtocol(L2TP)Server;HubandSpoke
System Management RS-232ConsoleInterface;Web-basedUserInterface:HTTP,HTTPS;
CommandLine/SecureShell(SSH);FirmwareUpgrade;CongurationBackup/Restoration
User Authentication
Built-in Database; Remote Authentication Dial In User Service (RADIUS);
LightweightDirectoryAccessProtocol(LDAP):MicrosoftAD2003/2008OpenLDAP2.2.26;
MicrosoftInternetAuthenticationService(IAS);XAUTHforIPSecAuthentication
Logging and Monitoring InternalLog;ExternalLog:SyslogServer;E-MailNotication;EventLogandAlarm;
Simple Network Management Protocol (SNMP) v1/v2c, SNMP Traps
Traffic Load Balancing
OutboundLoadBalancing;
ServerLoadBalancing(NotapplicableforDFL-210);TrafcRedirectatFail-Over;
OutboundLoadBalanceAlgorithms:Round-Robin,Weight-basedRound-Robin,
Destination-based, Spill-over
Bandwidth Management Policy-basedTrafcShaping;GuaranteedBandwidth;MaximumBandwidth;
Priority Bandwidth; Dynamic Bandwidth Balancing
HighAvailability(HA)
WANFail-Over(DFL-210:WhenDMZPortisConguredasWANPort);
Active/Passive Modes (Not applicable on DFL-210/800);
Device Failure Detection (Not applicable on DFL-210/800);
Link Failure Detection (Not applicable on DFL-210/800);
Firmware / Virtual Private Network (VPN) Session Synchronization (Not applicable on DFL-210/800)
IntrusionDetection&PreventionSystem
(IDP/IPS)
Automatic Pattern Update; Denial of Service (DoS), Distributed DoS (DDoS) Update;
Attack Alarm via Email; Advanced IDP/IPS Subscription;
IP Blacklist by Threshold or IPS/IDP (Not applicable on DFL-210)
Content Filtering HTTPType:URLBlacklist/Whitelist;ScriptType:Java,Cookie,ActiveX,VB;
EmailType:EmailBlacklist/Whitelist;ExternalDatabaseContentFiltering**(AvailableonDFL-210/800only)
Anti-Virus**
(Applicable on DFL-210 / DFL-800 only)
Real Time AV Scanning; Unlimited File Size; Scans VLAN Tunnels; Support Compressed Files;
Signature Licensor: Kaspersky; Automatic Pattern Update
Physical&
Environmental
Dimension(WxDxH) Desktop;
235x162x36mm
11-inch Desktop;
1UHeight;
280x214x44mm
19-inch Rack-Mount;
1UHeight;
440x254x44mm
19-inch Rack-Mount;
1UHeight;
440x454x44mm
Power Input ExternalPowerAdapter Internal Universal Power Supply
OperatingTemperature 0to40°C
Storage Temperature -20to70°C
OperatingHumidity 5% to 95% Non-Condensing
Mean Time Before Failure
(MTBF) 186,614hours 140,532hours 71,965hours 101,819 hours
Certification EMI-EMC Compliance FCC Class A; CE Class A; C-Tick; VCCI
Safety Compliance UL; LVD (EN60950-1) LVD (EN60950-1)
** Available in Firmware 2.26.00 and above; Performance based on Firmware 2.26.00 and above
65
63 SECURITY UTM Firewalls
Apart from IPS Firewall capabilities, NetDefend UTM Firewalls provide
comprehensive security services, such as NetDefend IPS, Anti-Virus and Web
Content Filtering.
Optional Accessories
Licenses
DFL-260-AV-12 DFL-260 Anti-Virus Signature Upgrade License (12 Months)
DFL-260-IPS-12 DFL-260 IPS Signature Upgrade License (12 Months)
DFL-260-WCF-12 DFL-260 Web Content Filtering Signature License (12 Months)
DFL-860-AV-12 DFL-860 Anti-Virus Signature Upgrade License (12 Months)
DFL-860-IPS-12 DFL-860 IPS Signature Upgrade License (12 Months)
DFL-860-WCF-12 DFL-860 Web Content Filtering Signature License (12 Months)
DFL-1660-AV-12 DFL-1660 Anti-Virus Signature Upgrade License (12 Months)
DFL-1660-IPS-12 DFL-1660 IPS Signature Upgrade License (12 Months)
DFL-1660-WCF-12 DFL-1660 Web Content Filtering Signature License (12 Months)
DFL-2560-AV-12 DFL-2560/DFL-2560G Anti-Virus Signature Upgrade License (12 Months)
DFL-2560-IPS-12 DFL-2560/DFL-2560G IPS Signature Upgrade License (12 Months)
DFL-2560-WCF-12 DFL-2560/DFL-2560G Web Content Filtering Signature License (12
Months)
Gigabit Ethernet SFP Transceivers (for DFL-2560G)
DEM-310GT 1000BASE-LX,SMF/MMF,10km/2km
DEM-311GT 1000BASE-SX,MMF,550m
DEM-312GT2 1000BASE-SX,MMF,2km
DEM-314GT 1000BASE-LH,SMF,50km
DEM-315GT 1000BASE-ZX,SMF,80km
DGS-712 1000BASE-T,Copper,100m
Gigabit Ethernet WDM SFP Transceivers (for DFL-2560G)
DEM-330T/R 1000BASE-BX,SMF,15km
DEM-331T/R 1000BASE-BX,SMF,40km
NetDefend Security Service
IPS&Anti-VirusSignatureLicenseofoneyearandWebContentFilteringLicenseof90days
are shipped with the equipment.
Please register your product at http://security.dlink.com.tw.
• TransparentMode
• ApplicationLayerGateway(ALG)
• IPSec/PPTP/L2TPVPN
• VPNHubandSpoke
• OutboundLoadBalancing
• TrafficRedirectatFail-Over
• GuaranteedBandwidth
• IntrusionDetection&Prevention
System (IDP/IPS)
• HTTPTypeContentFiltering
•RealTimeAnti-VirusScanning
• Anti-VirusoverVPN
• Policy-basedTrafficShaping
•WANFailover
• HTTP/Script/EmailTypeContent
Filtering
• ExternalDatabaseContentFiltering
• D-LinkZoneDefense
(DFL-860,DFL-1660,DFL-2560&DFL-2560G)
• ServerLoadBalancing
(DFL-860,DFL-1660,DFL-2560&DFL-2560G)
• Device&LinkFailureDetection
(DFL-1660,DFL-2560&DFL-2560G)
DFL-260
•10/100BASE-TXx6
 (WANx1/DMZx1/LANx4)
•ExternalPowerSupply
DFL-860
•10/100BASE-TXx10
 (WANx2/DMZx1/LANx7)
•ExternalPowerSupply
DFL-1660
•10/100/1000BASE-Tx6
 (WAN/DMZ/LANUser
Configurable)
•USB2.0x2
•InternalPowerSupply
•19”Rackmount
DFL-2560
•10/100/1000BASE-Tx10
 (WAN/DMZ/LANUser
Configurable)
•USB2.0x2
•InternalPowerSupply
•19”Rackmount
DFL-2560G
•10/100/1000BASE-Tx6
 (WAN/DMZ/LANUser
Configurable)
•SFPx4
 (WAN/DMZ/LANUser
Configurable)
•USB2.0x2
•InternalPowerSupply
•19”Rackmount
UTM Firewalls
66
VPNC
CER T IFIED
AES
Interop
VPNC
CER T IFIED
Basic
Interop
63 SECURITY UTM Firewalls
UTM Firewalls
Model DFL-260 DFL-860 DFL-1660 DFL-2560 DFL-2560G
Port Interface
Ethernet WAN Port 1 2 -
EthernetDMZPort
(User-configurable) 1 1 -
Ethernet LAN Port 4 7 -
User-Configurable
GigabitRJ-45Port - 6 10 6
User-Configurable
Gigabit SFP Port -4
USB 2.0 - 2 (Reserved)
DB-9 RS-232 Console 1
System
Performance
Firewall Throughput 80Mbps 150Mbps 1.2Gbps 2Gbps
VPN Throughput 25Mbps 45Mbps 350Mbps 1Gbps
IPS Throughput 20Mbps 40Mbps 400Mbps 600Mbps
Anti-Virus Throughput 10Mbps 20Mbps 225Mbps 450Mbps
Concurrent Sessions 10,000** 20,000** 600,000 1,500,000
New Sessions
(per second) 2,000 4,000 15,000 20,000
Policies 500 1,000 4,000 6,000
Firewall System
Transparent Mode; Network Address Translation (NAT), Port Address Translation (PAT);
DynamicRoutingProtocol:OpenShortestPathFirst(OSPF)(NotapplicableonDFL-160/260);
H.323NATTraversal(NotapplicableonDFL-160);Time-ScheduledPolicies;ApplicationLayerGateway(ALG);
ProactiveNetworkSecurity:ZoneDefense(NotapplicableonDFL-160/210)
Networking DHCPServer/Client;DHCPRelay;Policy-basedRouting;IPMulticast:IGMPv3
Virtual LAN (VLAN) 8 16 1,024 2,048
Virtual Private Network (VPN)
Encryption Methods: DES/3DES/AES/Twofish/Browfish/CAST-128; IPSec NAT Traversal;
Dedicated VPN Tunnels: 30 (DFL-160), 100 (DFL-260), 200** (DFL-860),
2,500 (DFL-1660), 5,000 (DFL-2560/2560G);
Point-to-Point Tunneling Protocol (PPTP) / Layer 2 Tunneling Protocol (L2TP) Server;
HubandSpoke(NotapplicableonDFL-160)
Traffic Load Balancing
(Not applicable on DFL-160)
OutboundLoadBalancing;ServerLoadBalancing(NotapplicableforDFL-260);TrafcRedirectatFail-Over;
OutboundLoadBalanceAlgorithms:Round-Robin,Weight-basedRound-Robin,Destination-based,Spill-over
Bandwidth Management
(Not applicable on DFL-160)
Policy-basedTrafcShaping;GuaranteedBandwidth;MaximumBandwidth;
Priority Bandwidth; Dynamic Bandwidth Balancing
HighAvailability(HA)
(Not applicable on DFL-160)
WANFail-Over(DFL-210:WhenDMZPortisConguredasWANPort);
Active/Passive Modes (Not applicable on DFL-260/860);
Device Failure Detection (Not applicable on DFL-260/860);
Link Failure Detection (Not applicable on DFL-260/860);
Firmware / Virtual Private Network (VPN) Session Synchronization (Not applicable on DFL-260/860)
IntrusionDetection&Prevention
System (IDP/IPS)
Automatic Pattern Update; Denial of Service (DoS), Distributed DoS (DDoS) Update;
Attack Alarm via Email; Advanced IDP/IPS Subscription;
IP Blacklist by Threshold or IPS/IDP (Not applicable on DFL-160/210)
Content Filtering HTTPType:URLBlacklist/Whitelist;ScriptType:Java,Cookie,ActiveX,VB(NotapplicableonDFL-160);
EmailType:EmailBlacklist/Whitelist(NotapplicableonDFL-160);ExternalDatabaseContentFiltering
Anti-Virus Real Time AV Scanning; Unlimited File Size; Scans VPN Tunnels; Support Compressed Files;
Signature Licensor: Kaspersky; Automatic Pattern Update
Physical&
Environmental
Dimension(WxDxH) Desktop;
235x162x36mm
11-inch Desktop;
1UHeight;
280x214x44mm
19-inch Rack-Mount;
1UHeight;
440x400x44mm
Power Input ExternalPowerAdapter 80 PLUS Internal Universal Power Supply
OperatingTemperature 0to40°C
Storage Temperature -20to70°C
OperatingHumidity 5% to 95% Non-Condensing
Mean Time Before
Failure (MTBF) 186,614hours 140,532hours 400,000hours 310,000 hours
Certification EMI-EMC Compliance FCC Class A; CE Class A; VCCI; C-Tick
Safety Compliance UL; LVD(EN60950-1) LVD (EN60950-1) cUL; CB
** Available in Firmware 2.26.00 and above; Performance based on Firmware 2.26.00 and above
67
63 SECURITY Unified Services Routers
Customized for small businesses, D-Link Unified Services Router is an all-in-one
gateway device providing outstanding performance and rich functionalities, including
IEEE 802.11n (ratified version), 3G WAN redundancy, IPv6 and comprehensive VPN
features (SSL/IPSec/PPTP/L2TP).
• Static/DynamicIPWANType
•Point-to-PointoverEthernet(PPPoE)
•SSL/IPSec/PPTP/L2TPVPN
•VPNHub&Spoke
•IPSec/PPTP/L2TPVPNPass-through
•3GWANRedundancy(DSR-1000N)
•NetworkAddressTranslation(NAT)
•TransparentMode
•DynamicRoutingg(RIP,OSPF*)
•WANTrafficFailover
•OutboundLoadBalancing*
•RemoteManagement 
(Web,SNMP,SSH,Telnet)
•XML-AgentSupport(YahooWidget,etc)
•InternetGroupManagementProtocol
(IGMP)Proxy/Snooping
•StatefulPacketInspection(SPI)
•L2toL7AccessControl
•IP/MACBinding
•VirtualLAN(VLAN)
•IntrusionPreventionSystem(IPS)
•3x3MIMO
•WirelessSecurity(WEP,WPA,WPA2,WPS)
•WirelessConnectNow(WCN)2.0
•RadioProfile
•MultipleSSIDs
•SSID-to-VLANMapping
•IPv6Phase2Certified*
DSR-1000N
•10/100/1000BASE-Tx2(WAN)
•10/100/1000BASE-Tx4(LAN)
•IEEE802.11nWirelessLAN
(2.4GHz/5GHz)
•USB2.0Portx2
•2dBiDipoleAntennax3
•3x3MIMO
•DetectableAntennawith
RP-SMA Interface
•InternalPowerSupply
•D-LinkGreenTechnology
* Available in future firmware upgrade
Unified Services Routers
68
VPNC
CER T IFIED
AES
Interop
VPNC
CER T IFIED
Basic
Interop
63 SECURITY Unified Services Routers
* Available in future firmware upgrade
69
Unified Services Routers
Model DSR-1000N
Port Interface
Ethernet WAN Two10/100/1000BASE-TGigabitEthernetPortforxDSL/CableConnection
Ethernet Wired LAN Four 10/100/1000BASE-T Gigabit Ethernet LAN Connection
Wireless LAN
IEEE802.11a/b/g/n(2.4GHz&5GHz)WirelessLAN
ThreeDetectable2dBi(3*3MIMO)
Omni-DirectionalAntennas
Universal Serial Bus (USB) Two USB 2.0 Interfaces (3G Dongle Compatible)
Share Port; WCN Configuration
System
Performance
Firewall Throughput 130Mbps
Concurrent Sessions 60,000
New Sessions (Per Second) 600
AES Throughput Over80Mbps
Policies 100 (each feature); 600 (firewall rule)
Internet Connection
Static IP Address; Dynamic IP Address; Point-to-Point over Ethernet (PPPoE);
Point-to-Point Tunneling Protocol (PPTP); Layer 2 Tunneling Protocol (L2TP);
JapanMultiple/UnnumberedPPPoE;RussiaDualAccessL2TP;3GUSBAdapter(ApplicableforDSR-1000N)
Firewall System
Transparent Mode; Network Address Translation (NAT) Mode; Router Mode;
DynamicRouting:RoutingInformationProtocol(RIP),OpenShortestPathFirst(OSPF)
NetworkAddressTranslation(NAT)EndpointFiltering;H.323NATTraversal;
Application Layer Gateway (ALG); VPN Pass-Through; Pre-Defined Service Definitions
Networking DHCPServer;DHCPRelay;DHCPReservation;DHCPClientList;
Universal Plug and Play (UPnP); Multicast Stream
Wireless
Wireless Security Mode: Wired Equivalent Privacy (WEP), Wi-Fi Protected Access-Personal Mode
(WPA-Personal), Wi-Fi Protected Access-Enterprise Mode (WPA-Enterprise);
Transmission Speed: Auto Adjustment, Manual Adjustment;
WLAN Partition; Power Save; Request-to-Send (RTS) Threshold; Fragment Threshold
Internet Protocol Version 6 (IPv6) NativeIPv6Connectivity;StaticIPv6AddressandRoute;DHCPv6;IPv6overPPPoE;
IPv6inIPv4Tunneling;6to4Tunneling;TeredoTunneling;Link-LocalConnectivity
Virtual Private Network (VPN)
Encryption Methods: DES/3DES/AES/Twofish/Browfish/CAST-128/NULL; IPSec NAT Traversal;
DedicatedVPNTunnels:35(DSR-500N),70(DSR-1000N);
SSL VPN Tunnel: 10 (DSR-500N), 20 (DSR-1000N);
HubandSpoke;DHCPoverIPSec;DynamicAuthentication;PerfectForwardSecrecy
Advanced Functions Port-Forwarding; Application Rules; Website Filter; Intrusion Prevention System (IPS);
Anti-Spoof Checking; Anti-Denial of Service (Anti-DoS); Traffic Management
Physical&
Environment
Dimension(WxDxH) Desktop;1UHeight;280x180x44mm
Power Input Internal Power Supply
OperatingTemperature 0to40°C
Storage Temperature -20to70°C
OperatingHumidity 5% to 95% Non-Condensing
Certification EMI-EMC Compliance FCC Class B; CE Class B; VCCI*; C-Tick*; IC*
Safety Compliance cUL; LVD (EN60950-1)
63 SECURITY NetDefendFirewallSelectionMatrix
IPS Firewalls UTM Firewalls
DFL-210 DFL-800 DFL-1600 DFL-2500 DFL-260 DFL-860 DFL-1660 DFL-2560 DFL-2560G
Interface
Ethernet WAN Port 1 2 - - 1 2 - - -
EthernetDMZPort 1 1 - - 1 1 - - -
Ethernet LAN Port 4 7 - - 4 7 ---
User-CongurableGigabitRJ-45Port - - 6 8 - - 6 10 6
User-Configurable Gigabit SFP Port - - - - - - - - 4
System Performance
Firewall Throughput (Mbps) 80 150 320 600 80 150 1,200 2,000 2,000
VPN Throughput (Mbps) 25 45 120 300 25 45 350 1,000 1,000
Concurrent Sessions 10K 20K 400K 1,000K 10K 20K 600K 1,500K 1,500K
Policies 500 1,000 2,500 4,000 500 1,000 4,000 6,000 6,000
Firewall System
Transparent Mode Yes Yes Yes Yes Yes Yes Yes Yes Yes
Network&PortAddressTranslation(NAT,
PAT ) Yes Yes Yes Yes Yes Yes Yes Yes Yes
OSFPDynamicRoutingProtocol No Yes Yes Yes No Yes Yes Yes Yes
Time-Scheduled Policies Yes Yes Yes Yes Yes Yes Yes Yes Yes
ProactiveNetworkSecurity(ZoneDefense) No Yes Yes Yes No Yes Yes Yes Yes
ICSA Firewall Corporate Level Certified Yes Yes Yes Yes Yes Yes Yes Yes Yes
Networking
DHCPServer/Client Yes Yes Yes Yes Yes Yes Yes Yes Yes
DHCPRelay/Policy-basedRouting Yes Yes Yes Yes Yes Yes Yes Yes Yes
IEEE 802.1Q Virtual LAN (VLAN) 8 16 128 1,024 8 16 1,024 2,048 2,048
IP Multicast (IGMPv3) Yes Yes Yes Yes Yes Yes Yes Yes Yes
Virtual Private Network (VPN)
DES/3DES/AES/Twofish/Blowfish/CAST-128 Yes Yes Yes Yes Yes Yes Yes Yes Yes
Dedicated VPN Tunnels 100 200 1,200 2,500 100 200 2,500 5,000 5,000
PPTP/L2TP Server / IPSec NAT Traversal Yes Yes Yes Yes Yes Yes Yes Yes Yes
HubandSpoke Yes Yes Yes Yes Yes Yes Yes Yes Yes
ICSA IPSec 1.3 Enhanced Certified Yes Yes Yes Yes Yes Yes Yes Yes Yes
System Management
Web-BasedUserInterface(HTTP/HTTPS) Yes Yes Yes Yes Yes Yes Yes Yes Yes
CommandLine/SSH Yes Yes Yes Yes Yes Yes Yes Yes Yes
Configuration Backup/Restore Yes Yes Yes Yes Yes Yes Yes Yes Yes
User Authentication
Built-in Database Yes Yes Yes Yes Yes Yes Yes Yes Yes
ExternalRADIUS/LDAP(IPSeconly)Server Yes Yes Yes Yes Yes Yes Yes Yes Yes
ExternalMicrosoftIASServer Yes Yes Yes Yes Yes Yes Yes Yes Yes
XAUTHforIPSecAuthentication Yes Yes Yes Yes Yes Yes Yes Yes Yes
Logging and Monitoring
Internal/ExternalLog(SyslogServer) Yes Yes Yes Yes Yes Yes Yes Yes Yes
EmailNotication,EventLog&Alarm Yes Yes Yes Yes Yes Yes Yes Yes Yes
SNMP v1, v2c Yes Yes Yes Yes Yes Yes Yes Yes Yes
Traffic Load Balancing
OutboundTrafcLoadBalancing Yes Yes Yes Yes Yes Yes Yes Yes Yes
Server Load Balancing No Yes Yes Yes No Yes Yes Yes Yes
AlgorithmsforOutboundTrafcLoadBalancing
Round-Robin, Destination-Based, Spillover Yes1Yes1Yes1Yes1Yes1Yes1Yes Yes Yes
Bandwidth Management
Policy-Based Traffic Shaping Yes Yes Yes Yes Yes Yes Yes Yes Yes
Guaranteed/Maximum/PriorityBandwidth Yes Yes Yes Yes Yes Yes Yes Yes Yes
Dynamic Bandwidth Balancing Yes Yes Yes Yes Yes Yes Yes Yes Yes
Bandwidth Management in VPN Tunnel Yes Yes Yes Yes Yes Yes Yes Yes Yes
HighAvailability(HA)
WANFail-Over/TrafcRedirectatFail-Over Yes Yes Yes Yes Yes Yes Yes Yes Yes
Device / Link Failure Detection No No Yes Yes No No Yes Yes Yes
IntrusionDetection&PreventionSystem(IDP/IPS)
Automatic Pattern Update Yes Yes Yes Yes Yes Yes Yes Yes Yes
DoS, DDoS Protection Yes Yes Yes Yes Yes Yes Yes Yes Yes
IP Blacklist by Threshold or IPS/IDP No Yes Yes Yes No Yes Yes Yes Yes
Content Filtering
HTTP/Script/EmailType Yes Yes Yes Yes Yes Yes Yes Yes Yes
ExternalDatabaseContentFiltering Yes2Yes2No No Yes Yes Yes Yes Yes
Anti-Virus
Real Time AV Scanning / Unlimited File Size Yes2Yes2No No Yes Yes Yes Yes Yes
Scans VPN Tunnels / Compression File Yes2Yes2No No Yes Yes Yes Yes Yes
Signature Licensor (Kaspersky) Yes2Yes2No No Yes Yes Yes Yes Yes
Automatic Pattern Update Yes2Yes2No No Yes Yes Yes Yes Yes
Email Security
SMTP&POP3ProtocolSupport Yes Yes Yes Yes Yes Yes Yes Yes Yes
MIMEHeaderCheckforFileExtension
Filtering Yes Yes Yes Yes Yes Yes Yes Yes Yes
EmailRate&SizeProtection(SMTPProtocol
only) Yes Yes Yes Yes Yes Yes Yes Yes Yes
Anti-Spam (for SMTP Protocol only) Yes Yes Yes Yes Yes Yes Yes Yes Yes
IM/P2P Blocking Yes Yes Yes Yes Yes Yes Yes Yes Yes
NetDefend Firewall Selection Matrix
1Available in Firmware 2.25.01
2Available in Firmware 2.26.00
70
71
IP SURVEILLANCE
IP SURVEILLANCE
Keeping an eye on the business anywhere in the world is what all
businesses need. Choosing to implement IP surveillance offers the
advantage of leveraging existing network infrastructure to maximize
investment. Products under this category include Network Cameras,
Network Video Recorders, Video Server and Surveillance Starter
Kits.
71
100Mbps LAN x1
Fixed Network Cameras
D-Link offers SecuriCam, which is a wide range of fixed network cameras to
meet different surveillance requirements from indoor to outdoor and from
day to night. Our fixed network cameras are reliable, economical and of high-
quality. The cameras can be connected to a network to provide a fixed viewing
direction once they are mounted.
IP SURVEILLANCE Fixed Network Cameras
Main Features
•MPEG4/MJPEGDual-Stream
•DayandNightMonitoring
•3GPPMobileSurveillance
•2-WayAudio
•SambaClientforNAS
Physical Features
•1.3MegapixelProgressiveColor
CMOSSensor
•Vari-FocalDC-IrisCSMountLens
•IRCutRemovable(ICR)Filter
•CFCardSlot
•DigitalInput/DigitalOutput
•AudioLineIn/Out
Optional Accessories
•DCS-45/50/60(OutdoorEnclosure)
DCS-3110
Main Features
•H.264/MPEG-4/MJPEG 
Multi-ProfileCompression
•DayandNightMonitoring
•3GPPMobileSurveillance
•2-WayAudio
•SambaClientforNAS
Physical Features
•CMOSSensor,CSMountLens
•IRCutRemovable(ICR)Filter
•SDCardSlot
•DigitalInput/DigitalOutput
•BNCOutput,AudioLineIn/Out
Optional Accessories
•DCS-25(Vari-FocalAuto-IrisLens)
• DCS-45/50/60(OutdoorEnclosure)
DCS-3411
Main Features
•MPEG4/MJPEGDual-Stream
•DayandNightMonitoring
•3GPPMobileSurveillance
•2-WayAudio
•SambaClientforNAS
Physical Features
•SonyProgressiveScanCCD
Sensor
•IRCutRemovable(ICR)Filter
•CFCardSlot
•DigitalInput/DigitalOutput
•AudioLineIn/Out
Optional Accessories
•DCS-60(OutdoorEnclosure)
DCS-3415
Megapixel PoE Camera
PoE Day & Night Camera
18x PoE Camera
100Mbps LAN x1
Optical Zoom
1 8
X
Power over
Ethernet
100Mbps LAN x1
Power over
Ethernet
Power over
Ethernet
72
71
Fixed Network Cameras
Model DCS-3110 DCS-3411 DCS-3415
IEEE Standard Wired 802.3,802.3u,802.3af
WiredNetwork Port Interface 10/100BASE-TX
Power over Ethernet Yes
Camera
Specification
Image Sensor 1/4”1.3MegapixelProgressiveColor
CMOS 1/4”CMOS 1/4”SonyProgressiveScanCCD
Lens Vari-Focal, DC-Iris
CSMount CSMount Fixed
Focal Length 4.5~10mm 6mm 4.1~73.8mm
F-Number F1.6 F1.8 F1.4(Wide);F3.0(Tele)
MinimumIllumination 1.5Lux 0.5Lux(typical)
0Lux(10mwithIRLens)
1.61Lux(typical)
0.38Lux(withICROn)
AngleofView(Horizontal) 80.5°~37° 41° 48°~2.8°
AngleofView(Vertical) 60°~28° 31° -
Digital Zoom 4x 16x 4x
Optical Zoom - - 18x
Day & Night IR Cut Removable Filter
Video
Management
Video Format MPEG-4/MJPEG H.264/MPEG-4/MJPEG MPEG-4/MJPEG
Dual Stream Yes - Yes
Multi-Prole - Yes -
VideoBitRate 20kbps~4Mbps 64kbps~2Mbps 20kbps~4Mbps
Max.VideoResolution 1280x1024(MJPEG)
640x480(MPEG-4)
704x480(NTSC)
704x576(PAL) 640x480
FrameRate(fps) 8(MJPEG);30(MPEG-4) 30(NTSC);25(PAL) 30
Automatic Electronic
Shutter Yes
AutomaticGainControl Yes
AutomaticWhiteBalance Yes
Electronic Shutter
(Seconds) 1/5~1/15,000 1/60~1/100,000(NTSC)
1/50~1/110,000(PAL) 1/2~1/10,000
Flip&Mirror Yes
MobileVideo 3GPP
MonitorOutput -BNC -
Audio
Management
2-WayAudio Yes
Built-inMicrophone Yes
ExternalMicrophone
(LineIn) Yes
External Speaker
(LineOut) Yes
Audio Recording Yes
Audio Codec AAC/GSM-AMR GSM-AMR/ADPCM AAC/GSM-AMR
Sampling Rate ACC:16~128kbps
GSM-AMR:4.75~12.2kbps
GSM-AMR:12.2kbps
ADPCM:8kbps
ACC:16~128kbps
GSM-AMR:4.75~12.2kbps
Audio Frequency 20~20,000Hz
AudioMute Hardware&Software Software Hardware&Software
Event
Management
MotionDetection Yes
Event Triggered Recording Yes
Email Alarm Notification Yes
Pre/PostAlarmBuffer Yes - Yes
Storage
Management
Direct to NAS Yes
Direct to Card Slot Yes
External Card Slot CF Card SD Card CF Card
I/OConnector
DigitalInput/Digital
Output(DI/DO) 1/1 2/1 1/1
RS-485Interface Yes
Outdoor Usage WithOutdoorEnclosure
DCS-45/DCS-50/DCS-60
WithOutdoorEnclosure
DCS-60
Physical and
Environment
Dimension(WxDxH) 80x143.8x62mm 78x177x60mm 80x143.5x92.4mm
Weight 521grams 577.8grams 1012grams
Power Input ViaExternalPowerAdapterorPoweroverEthernet(PoE)
Max.PowerConsumption 4W 5.484W 5.4W
Power over Ethernet
(IEEE802.3af) Class2/31
Operating Temperature 0to40°C
Storage Temperature -20to70°C
Humidity 20%to80%Non-Condensing
Certification FCC;CE;C-Tick FCC, CE, C-Tick, IC, LVD FCC;CE;C-Tick
1Include Power Output for External Devices
IP SURVEILLANCE Fixed Network Cameras
73
71
Power over
Ethernet
Power over
Ethernet
Power over
Ethernet
Wireless N & G
Fixed Network
Cameras
IP SURVEILLANCE Fixed Network Cameras
Main Features
•MJPEG/MPEG4/H.264 
Multi-ProfileCompression
•4ConcurrentVideoProfiles
•DayandNightMonitoring
•3GPPMobileSurveillance
•2-WayAudio
•SambaClientforNetworkNAS
Physical Features
•CMOSSensor,CSMountLens
•IRCutRemovable(ICR)Filter
•SDCardSlot
•DigitalInput/DigitalOutput
•BNCOutput,AudioLineIn/Out
Optional Accessories
•DCS-25(CSMountVari-Focal
Auto-IrisLens)
•DWL-P50(PoESplitter)
DCS-3430
Main Features
•MPEG4/MJPEGMulti-Profile
•DayandNightMonitoring
•3GPPMobileSurveillance
•2-WayAudio
•SambaClientforNAS
Physical Features
•ColorCCDSensor
•Dual-BandFilter
•Built-in30mIRLED
•DigitalInput/DigitalOutput
•BNCVideoOutput
•AudioLineIn/Out
•IP66CertifiedCasingforOutdoor
Use
DCS-7410
Wireless N D&N Camera
D&N Outdoor PoE Camera
Main Features
•MPEG4/MJPEGMulti-Profile
•3GPPMobileSurveillance
•Low-LightRecording
•SambaClientforNAS
•HTTPS,PrivacyMask
•HDTVResolution
•WideDynamicRange(WDR)
Physical Features
•1.3MegapixelWDRProgressiveScan
•CMOSSensor
• Vari-FocalDC-IrisLens
•IRCutRemovable(ICR)Filter
•SDCardSlot
•DigitalInput/DigitalOutput
•BNCOutput,AudioLineIn/Out
Optional Accessories
• DCS-45/50/60(OutdoorEnclosure)
DCS-3710
HDTV WDR Camera
Main Features
•MPEG4/MJPEGMulti-Profile
•DayandNightMonitoring
•3GPPMobileSurveillance
•2-WayAudio
•SambaClientforNAS
Physical Features
•ColorCCDSensor
•Vari-FocalAuto-IrisLens
•IRCutRemovable(ICR)Filter
•Built-in50mIRLED
•DigitalInput/DigitalOutput
•BNCVideoOutput
•AudioLineIn/Out
•IP66CertifiedCasingfor 
Outdoor Use
DCS-7510
D&N Outdoor PoE Camera
100Mbps LAN x1 100Mbps LAN x1
100Mbps LAN x1
100Mbps LAN x1
74
71 IP SURVEILLANCE Fixed Network Cameras
Fixed Network Cameras
Model DCS-3430 DCS-3710 DCS-7410 DCS-7510
IEEE Standard Wired 802.3,802.3u 802.3,802.3u,802.3af
Wireless 802.11n,802.11g -
WiredNetwork Port Interface 10/100BASE-TX
Power over Ethernet - Yes
Wireless
Network
Frequency Range 2.412~2.4835GHz -
Data Rate 802.11n:MCS0~MCS15
802.11g:6~54Mbps -
Antenna 2dBiDipole -
Camera
Specification
Image Sensor 1/4”CMOS 1/3”1.3MegapixelWDR
ProgressiveScanCMOS 1/3”ColorCCD 1/3”ColorCCD
Lens CSMount Vari-Focal, DC Iris Fixed Vari-Focal Auto Iris
Focal Length 6mm 2.8~12mm 12mm 9~22mm
F-Number F1.8 F1.3 F1.4 F1.5~360
MinimumIllumination 0.5Lux(typical)
0Lux(10mwithIRLens)
0.1Lux(Color)
0.02Lux(B/W) 0.7Lux 1Lux
AngleofView(Horizontal) 41° 102.2°~23.7° 22° 31°~13°
AngleofView(Vertical) 31° -17° 23°~10°
Digital Zoom 16x 10x 16x 16x
Optical Zoom - - - -
Day & Night IR Cut Removable Filter IR Cut Removable Filter Dual-BandFilter
IRLEDs(30m)
IR Cut Removable Filter
IRLEDs(50m)
Video
Management
Video Format H.264/MPEG-4/MJPEG MPEG-4/MJPEG MPEG-4/MJPEG MPEG-4/MJPEG
Dual Stream - - - -
Multi-Prole Yes Yes Yes Yes
VideoBitRate 64kbps~2Mbps 64kbps~8Mbps 64kbps~2Mbps 64kbps~2Mbps
Max.VideoResolution 704x480(NTSC)
704x576(PAL) 1280x960 720x480(NTSC)
720x576(PAL)
720x480(NTSC)
720x576(PAL)
FrameRate(fps) 30(NTSC);25(PAL) 30 30(NTSC);25(PAL) 30(NTSC);25(PAL)
WideDynamicRange
(WDR) - Yes - -
Automatic Electronic
Shutter Yes Yes Yes Yes
AutomaticGainControl Yes Yes Yes Yes
AutomaticWhiteBalance Yes Yes Yes Yes
Electronic Shutter
(Seconds)
1/60~1/100,000(NTSC)
1/50~1/110,000(PAL) 1/2~100,000 1/60~1/100,000(NTSC)
1/50~1/110,000(PAL)
1/60~1/100,000(NTSC)
1/50~1/110,000(PAL)
CongurablePrivacyMask -3Zones - -
Flip&Mirror Yes Yes Yes Yes
MobileVideo 3GPP 3GPP 3GPP 3GPP
MonitorOutput BNC BNC BNC BNC
Audio
Management
2-WayAudio Yes Yes Yes Yes
Built-inMicrophone Yes - - -
ExternalMicrophone
(LineIn) Yes Yes Yes Yes
External Speaker
(LineOut) Yes Yes Yes Yes
Audio Recording Yes Yes Yes Yes
Audio Codec GSM-AMR/ADPCM ADPCM GSM-AMR/ADPCM GSM-AMR/ADPCM
Sampling Rate GSM-AMR:12.2kbps
ADPCM:8kbps ADPCM:8kbps GSM-AMR:12.2kbps
ADPCM:8kbps
GSM-AMR:12.2kbps
ADPCM:8kbps
Audio Frequency 20~20,000Hz 20~20,000Hz 20~20,000Hz 20~20,000Hz
AudioMute Software Software Software Software
Event
Management
MotionDetection Yes Yes Yes Yes
Event Triggered Recording Yes Yes Yes Yes
Email Alarm Notification Yes Yes Yes Yes
Pre/PostAlarmBuffer - Yes - -
Storage
Management
Direct to NAS Yes Yes Yes Yes
Direct to Card Slot Yes Yes - -
External Card Slot SD Card SD Card - -
I/OConnector
DigitalInput/Digital
Output(DI/DO) 2/1 2/1 2/1 2/1
RS-485Interface Yes Yes Yes Yes
Outdoor Usage - WithOutdoorEnclosure
DCS-45/DCS-50/DCS-60 IP66CertiedWeatherProofCasing
Physical and
Environment
Dimension(WxDxH) 78x177x60mm 80x140x53mm 8.79x240x84.1mm 8.79x240x109.1mm
Weight 577.8grams 576grams 1.63kg 1.72kg
Power Input Via External Power Adapter Via External Power Adapter or
PoweroverEthernet(PoE)
Max.PowerConsumption 6.9W 2W 7.88W 7.95W
Power over Ethernet
(IEEE802.3af) PoE Splitter Required2Class2/31Class2/31Class2/31
Operating Temperature 0to40°C
Storage Temperature -20to70°C
Humidity 20%to80%Non-Condensing
Certification FCC, CE, C-Tick, IC, LVD FCC, CE, C-Tick FCC, CE, C-Tick, IC FCC, CE, C-Tick, IC
1 Include Power Output for External Devices
2PoESplitter-DWL-P50(RefertoNetworkPeripheral-PowerOverEthernetSection)
75
71
Optical Zoom
1 0 X
Wireless N & G
PTZ Network
Cameras
D-Link PTZ network cameras feature motorized pan, tilt and digital zoom for
greater remote viewing options.
IP SURVEILLANCE PTZ Network Cameras
Main Features
•MJPEG/MPEG4/H.264 
Multi-ProfileCompression
•4ConcurrentVideoProfiles
•DayandNightMonitoring
•3GPP/RTSPMobileSurveillance
•2-WayAudio,PrivacyMask
•SambaClientforNAS
Physical Features
•SamsungDe-InterlaceCCD
Sensor
•IRCutRemovable(ICR)Filter
•MicroSDCardSlot
•DigitalInput/DigitalOutput
•RS-485Interface
•AVVideoOutOutput
•AudioLineIn/Out
DCS-5605
H.264 PTZ Camera
Main Features
•MJPEG/MPEG4/H.264 
Multi-ProfileCompression
•4ConcurrentVideoProfiles
•DayandNightMonitoring
•3GPP/RTSPMobileSurveillance
•2-WayAudio,PrivacyMask
•SambaClientforNAS
Physical Features
•SamsungDe-InterlaceCCD
Sensor
•IRCutRemovable(ICR)Filter
•MicroSDCardSlot
•DigitalInput/DigitalOutput
•RS-485Interface
•AVVideoOutOutput
•AudioLineIn/Out
DCS-5635
Wireless N PTZ Camera
100Mbps LAN x1
100Mbps LAN x1
Optical Zoom
1 0 X
76
71
PTZ Network Cameras
Model DCS-5605 DCS-5635
Wired 802.3,802.3u
Wireless -802.11n,802.11g
WiredNetwork Port Interface 10/100BASE-TX
Wireless
Network
Frequency Range - 2.412~2.4835GHz
Data Rate - 802.11n:MCS0~15
802.11g:6~54Mbps
Antenna - Embedded Antenna PIFA
Camera
Specification
Image Sensor 1/3”SamsungDe-InterlaceCCD
Lens Fixed
Focal Length 3.8~38mm
F-Number F1.8
MinimumIllumination 0.7(Color)
0.02(B/W)
AngleofView(Horizontal) 51°~6°
AngleofView(Vertical) 40°~4°
Pan Range +165°to-165°
Tilt Range +87°to-34°
Digital Zoom 16x
Optical Zoom 10x
Day & Night IR Cut
Removable Filter
Video
Management
Video Format H.264/MPEG-4/MJPEG
Multi-Prole Yes
VideoBitRate 64kbps~2Mbps
Max.VideoResolution 704x480(NTSC)
704x576(PAL)
FrameRate(fps) 30(NTSC);25(PAL)
Automatic Electronic
Shutter Yes
AutomaticGainControl Yes
AutomaticWhiteBalance Yes
Electronic Shutter
(Seconds)
1/60~1/100,000(NTSC)
1/50~1/110,000(PAL)
PrivacyMask 3Zones
Flip&Mirror Yes
MobileVideo 3GPP,RTSP
MonitorOutput AV
Audio
Management
2-WayAudio Yes
Built-inMicrophone Yes
ExternalMicrophone
(LineIn) Yes
External Speaker
(LineOut) Yes
Audio Recording Yes
Audio Codec GSM-AMR/ADPCM
Sampling Rate GSM-AMR:12.2kbps
ADPCM:8kbps
Audio Frequency 50~16,000Hz
AudioMute Software
Event
Management
MotionDetection Yes
Event Triggered Recording Yes
Email Alarm Notification Yes
Direct to Card Slot Yes
External Card Slot MicroSDCard
I/OConnector DigitalInput/Digital
Output(DI/DO) 1/1
Physical and
Environment
Dimension(WxDxH) 136.1x140.3x140.1mm
Weight 810grams 855grams
Power Input Via External Power Adapter
Max.PowerConsumption 11.92W 13.37W
Operating Temperature 0to40°C
Storage Temperature -20to70°C
Humidity 20%to80%Non-Condensing
Certification FCC, CE, C-Tick, IC
IP SURVEILLANCE PTZ Network Cameras
77
71
Power over
Ethernet
Power over
Ethernet
100Mbps LAN x1
100Mbps LAN x1
Fixed Dome Network Cameras
D-Link high-performance fixed dome network cameras provide the necessary
professional look and surveillance for business environments, and are especially
popularwithCCTV.TheyareequippedwithprogressiveCMOStechnologywhich
delivers exceptional picture quality.
D-Link D-ViewCam software, which comes included with the cameras, provides
theabilitytoviewupto32camerasitesconcurrentlywithasinglecomputer
screen at a central location.
IP SURVEILLANCE Fixed Dome Network Cameras
Main Features
•MPEG4/MJPEGDual-Streaming
•3GPPMobileSurveillance
•SambaClientforNAS
Physical Features
•VGAProgressiveCMOSSensor
•Vari-Focal,BoardMountLens
•Dual-BandFilter
•DigitalInput/DigitalOutput
DCS-6110
Main Features
•MPEG4/MJPEGDual-Stream
•DayandNightMonitoring
•3GPPMobileSurveillance
•2-WayAudio
•SambaClientforNAS
•HTTPS,IPv6,PrivacyMask
•LinkLayerTopologyDiscovery
•WideDynamicRange(WDR)
Physical Features
•WDRVGACMOSSensor
• Vari-Focal,BoardMountlens
•Built-in20mIRLED
•IR-CutRemovable(ICR)Filter
•DigitalInput/DigitalOutput
•AudioLineIn/Out
•3-AxisMechanicalDesign
DCS-6111
Fixed Dome Camera
Fixed Dome Camera
78
71
Fix Dome Network Cameras
Model DCS-6110 DCS-6111
IEEE Standard Wired 802.3,802.3u,803.3af
WiredNetwork Port Interface 10/100BASE-TX
Power over Ethernet Yes
Camera Specification
Image Sensor 1/4”VGAProgressiveCMOS 1/4”WDRVGACMOS
Lens Vari-Focal,BoardMount
Focal Length 3.7~12mm 3.3~12mm
F-Number F1.4~F2.8 F1.4~F2.9
MinimumIllumination 1.5Lux
AngleofView(Horizontal) 77°~23°~ 63°~18°
AngleofView(Vertical) 57°~17° 47°~13°
Digital Zoom 4x
Day & Night Dual-BandFilter IR Cut Removable Filter
IRLED(20m)
VideoManagement
Video Format MPEG-4/MJPEG
Dual Stream Yes
VideoBitRate 20kbps~4Mbps
Max.VideoResolution 640x480
FrameRate(fps) 30
WideDynamicRange
(WDR) - Yes
Automatic Electronic
Shutter Yes
AutomaticGainControl Yes
AutomaticWhiteBalance Yes
Electronic Shutter
(Seconds) 1/5~1/15,000
CongurablePrivacyMask -5Zones
Flip&Mirror Yes
MobileVideo 3GPP
AudioManagement
2-WayAudio - Yes
ExternalMicrophone
(LineIn) - Yes
External Speaker
(LineOut) - Yes
Audio Recording - Yes
Audio Codec - AAC/GSM-AMR
Sampling Rate - ACC:16~128kbps
GSM-AMR:4.75~12.2kbps
Audio Frequency - 20~20,000Hz
AudioMute -Hardware&Software
EventManagement
MotionDetection Yes
Event Triggered Recording Yes
Email Alarm Notification Yes
Pre/PostAlarmBuffer Yes
StorageManagement Direct to NAS Yes
I/OConnector DigitalInput/Digital
Output(DI/DO) 1/1
Physical and
Environment
Dimension(WxDxH) 194x180x107mm
Weight 630grams 650grams
Power Input ViaExternalPowerAdapterorPoweroverEthernet(PoE)
Max.PowerConsumption 3.6W 11W
Power over Ethernet
(IEEE802.3af) Class1 Class3
Operating Temperature 0to40°C
Storage Temperature -20to70°C
Humidity 20%to80%Non-Condensing
Certification FCC, CE, C-Tick
1 Include Power Output for External Devices
IP SURVEILLANCE Fixed Dome Network Cameras
79
71
Optical Zoom
1 8 X
100Mbps LAN x1
PTZ Dome Network Cameras
Thesehighspeeddomecamerasfeatureendless(360o)panforwiderange
surveillance. Equipped with outdoor enclosure and ultra low lux CCD sensor and
ICR support, this series is very useful for many applications. It has many preset
points and an auto patrol cruise that can work as multiple camera inside or
outside of the building.
IP SURVEILLANCE PTZ Dome Network Cameras
DCS-6815
18x Speed Dome Camera
Main Features
•MPEG4/MJPEG
•DayandNightMonitoring
•WideDynamicRange(WDR)
•256PresetPoints
•AutoCruisePTZ
•PrivacyMask
Physical Features
•SonyExviewCCDSensor
•AutoIrisLens
•IR-CutRemovable(ICR)Filter
•Dual-BandFilter
•DigitalInputx8
•DigitalOutputx1
•BNCVideoOutput
•Built-inFanandHeater
•IP66CertifiedCasingforOutdoor
80
71
PTZ Dome Network Cameras
Model DCS-6815
IEEE Standard Wired 802.3,802.3u
WiredNetwork Port Interface 10/100BASE-TX
Camera
Specification
Image Sensor 1/4”ExviewCCD
Lens Auto Iris
Focal Length 3.4~61.2mm
F-Number F1.4~F3.0
MinimumIllumination 0.1Lux(Color);0.01Lux(B/W)
AngleofView(Horizontal) 60.8°~3.6°
Pan Range 360°
Tilt Range -10°to190°
Preset Point 256
Auto Cruise Yes
ManualSpeed 0°to90°persecond
Pan/TiltPresetAccuracy 0.225°
Pan/TiltPresetSpeed 5°to400°
Digital Zoom 12x
Optical Zoom 18x
Day & Night IR Cut Removable Filter
Video
Management
Video Format MPEG-4/MJPEG
VideoBitRate Upto3Mbps
Max.VideoResolution 720x480(NTSC)
720x576(PAL)
FrameRate(fps) 30(NTSC);25(PAL)
Automatic Focus Yes
AutomaticGainControl Yes
AutomaticWhiteBalance Yes
ElectronicShutter(Seconds) 1/1~1/10,000
CongurablePrivacyMask 16Zones
Auto Flip Yes
MonitorOutput BNC
Event
Management
MotionDetection Yes
Event Triggered Recording Yes
Email Alarm Notification Yes
Pre/PostAlarmBuffer Yes
I/OConnector DigitalInput/DigitalOutput
(DI/DO) 8/1
Outdoor Usage IP66Standard,Built-inHeaterandFan
Physical and
Environment
Dimension(Diameterx
Height) 172x302.5mm;190x302.5mm(withsunshield)
Weight 6kg
Power Input Via External Power Adapter
Max.PowerConsumption 65W(withheater)
Operating Temperature -40to50°C
Storage Temperature -20to70°C
Humidity 20%to80%Non-Condensing
Certification FCC,CE,C-Tick,RoHS
IP SURVEILLANCE PTZ Dome Network Cameras
81
71
Network Camera Outdoor Enclosures
D-Link SecuriCam network camera enclosures provide a cost-effective solution
for protecting D-Link network cameras from the rigors of outdoor use. The
fixed enclosures include heavy-duty, angle-adjustable mounting brackets that
can be used for securing the cameras on a vertical or horizontal surface. These
enclosures maximize the full potential of D-Link network cameras for outdoor
installations.
IP SURVEILLANCE Network Cameras Outdoor Enclosures
DCS-60
DCS-70
Outdoor Enclosure
Outdoor Enclosure
Physical Features
•IP66Certified
•Water-Resistant
•Dust-Proof
•Built-inPowerSupply
•HeaterandBlower
•DomeType
Supported Cameras
•DCS-5300
•DCS-5610
Physical Features
•IP44Certified
•Water-Resistant
•Dust-Proof
•Built-inPowerSupply
•HeaterandBlower
Supported Cameras
•DCS-3110
•DCS-3410
•DCS-3411
•DCS-3415
•DCS-3710
82
71
Outdoor Enclosures Power over Ethernet Splitter
DCS-60 DCS-70 DWL-P50
Fixed Cameras
DCS-3110 Yes - -
DCS-3411 Yes - -
DCS-3415 Yes - -
DCS-3430 - - Yes
DCS-3710 Yes - -
Network Camera vs Optional Accessory
Compatible Matrix
IP SURVEILLANCE NetworkCameraOptionalAccessoryCompatibleMatrix83
71
1Gbps LAN x1 Power over
Ethernet
2-Bay
USB 2.0 x 1
Network Video Recorders
D-LinkstandalonewiredNetworkVideoRecorders(NVR)support8-channel
networkcameraswithM-JPEG,MPEG4orH.264recordingwith2high-speed
3.5-inchSATAharddisksforlongtermrecording.TheNVRcanrecordvideofrom
networkcameraslocatedinlocalorremotesitesintoadedicatedHDDstorage
without turning on a computer. D-Link NVR supports real-time monitoring and
playback anytime anywhere via IE web browser.
IP SURVEILLANCE Network Video Recorders
Main Features
•8-channelNetworkCamera
Recording
•Real-timeMonitoringand
Playback
•Scheduled,MotionDetection,
ManualRecording
•E-map
•ScheduleAutoBackup
• SupportD-LinkNetworkCameras
Physical Features
•USBPortforUPSStatusUpdate
•2BaysforSATAHDD
•KeyLockforDeviceandFront
Panel
DNS-722-4
Main Features
•8-channelNetworkCamera
Recording
• Real-timeMonitoringandPlayback
•Scheduled,MotionDetection,
ManualandEventRecording
•E-map
•ScheduleAutoBackup
• SmartSearchforAdvancePlayback
•SupportD-Link,ACTi,Arecont,
Axis,Cisco,IQinVision,Mobotix,
Panasonic, Sony Network
Cameras
Physical Features
• USBPortforUPSStatusUpdate
• 2BaysforSATAHDD
•KeyLockforDeviceandFront
Panel
DNS-726-4
2-Bay Basic NVR
2-Bay Pro NVR
1Gbps LAN x1 Power over
Ethernet
2-Bay
USB 2.0 x 1
84
71
Network Video Recorders
Model DNS-722-4 DNS-726-4
Hardware
Specification
IEEE Standard 802.3;802.3u;802.3ab
Network Port One10/100/1000BASE-TGigabitEthernetPort
UniversalSerialBus(USB) OneUSB2.0PortforUPSStatusUpdate(PowerFailureUpdate)
Memory FlashROM:32MByte;RAM:128MByteDDR
HardDiskDrive(HDD) 2-Bay;SATAI,II;Control&ManageviaPC;ReformatDisk;
RedundantArrayofInexpensiveDisks(RAID)0,1,JustaBunchofDrives(JBOD)
Reset to Factory Default HardwareResetButton;ResetButtoninFirmwareGUI
Device Security FrontPanelLock;DeviceLockHole
Firmware
Specification
Operating System Linux
Supported Network Cameras D-Link Network Cameras D-Link, ACTi, Arecont, Axis, Cisco, IQinVision,
Mobotix,Panasonic,SonyNetworkCameras
Recording Performance NTSC:Upto120fps;PAL:Upto200fpsatCIF
Camera Search UniversalPlug-and-Play(UPnP)
Audio & Video Recording Synchronized Audio & Video Recording
Compression Format H.264;MPEG-4;MJPEG(forsupportedcameras)
Video Setting Resolution;Quality;FrameRate;EnableAudio;GotoCameraInterface
Recording Type RecordbySchedule;ManualRecord;
EventRecord(MotionDetection)
RecordbySchedule;ManualRecord;
EventRecord(DITrigger,MotionDetection)
Remote Live View ViaInternetExplorerRemoteLiveViewer;MaximumfourSimultaneousChannels
Remote Live View Control
LiveView;Preset/Go;Patrol;Focus;
PTZFunction;Snapshot;FullScreen;
Digital Zoom
LiveView;Preset/Go;Patrol;Focus;
PTZFunction;Snapshot;FullScreen;
DigitalZoom;RemoteI/O
Remote Playback
InternetExplorerandNVRClient;
PlaybackSystemwithTimelineGUI,Searchby
Event, Area, Camera, Date and Time
Support One-Channel Playback
Digital Zoom to Specific Area
InternetExplorerandNVRClient;
PlaybackSystemwithTimelineGUI,Searchby
Event, Area, Camera, Date and Time
Support Four-Channel Playback
Simultaneous Playback and Smart Search
byGeneralMotion,MissingObject
Remote Playback Control PlaybackwithNormal,FastForward/Rewind
andStepForward/Rewind
PlaybackwithNormal,FastForward/Rewind
andStepForward/Rewind;
Smart Search Intelligent Function:
GeneralMotion,MissingObject,ForeignObject,
Camera Occlusion, Lose Focus
Overwrite Recording Automatic Recycling when Disk Storage is Full
File Export ExportVideosto“AVI”or“ASF”File(ASFwithTimestamp)
ExportImagesto“BMP”or“JPG”File
User Account Additional Accounts can be created to allow User Access to the System and
specify Authorization for Camera Channels, PTZ, etc
Dynamic Domain Name System
(DDNS) D-Link DDNS Server
System Time SetSystemTime(D-LinkNTP,InputTime,SyncwithComputer,DaylightSavingTime)
RemoteBackup RemoteSoftwarecanBackupRawDatatoRedundantStorage
System Status CameraStatus;SystemStatus
Network Service Protocol
InternetProtocolVersion4(IPv4);AddressResolutionProtocol(ARP);
UserDatagramProtocol(UDP);InternetControlMessageProtocol(ICMP);
DynamicHostCongurationProtocol(DHCP)Client;D-LinkNetworkTimeProtocol(NTP);
DomainNameSystem(DNS)Client;DynamicDNS(DDNS)Client;
SimpleMailTransferProtocol(SMTP);HyperTextTransferProtocolHTTP);
Point-to-PointoverEthernet(PPPoE);UniversalPlug-and-Play(UPnP);IPFiltering
User Interface InternetExplorerandNVRClient;
Physical and
Environment
Dimension(WxDxH) 198x104x132mm
Weight 1.23kg
Power Input External Power Adapter
Max.PowerConsumption 23.59W;StandbyState:7.26W
Operating Temperature 0°Cto55°C
Storage Temperature -20°Cto70°C
OperatingHumidity 5%to90%(Non-Condensing)
IP SURVEILLANCE Network Video Recorders
85
71
Video Encoders
D-Link high-performance, single channel video encoder integrates an existing
analog CCTV (closed circuit television) into an IP-based video surveillance
system.
IP SURVEILLANCE Video Encoders
Main Features
•MPEG4/MJPEGDual-Codec
•2-WayAudio
•MotionDetection
Physical Features
•1-ChannelBNCInput
•SDCardSlot
•DigitalInput/DigitalOutput
•AlarmInputx2
•AlarmOutputx1
•RS-485Interface
•AudioLineIn/Out
DVS-210-1
Video Encoder
86
71 IP SURVEILLANCE Video Encoders
Video Encoders
Model DVS-210-1
Network Specifications
LocalAreaNetwork(LAN) One10/100BASE-TXRJ-45
Network Protocols
TransmissionControlProtocol/InternetProtocol(TCP/IP);
DynamicHostCongurationProtocol(DHCP);HyperTextTransferProtocol(HTTP);
DynamicdomainNameSystem(DDNS);NetworkTimeProtocol(NTP);FileTransferProtocol(FTP);
SimpleMailTransferProtocol(SMTP);UserDatagramProtocol(UDP);RealTimeProtocol(RTP);
RealTimeStreamingProtocol(RTSP);UniversalPlug-and-Play(UPnP)
Video Specifications
Video Format MJPEGandMPEG-4SimultaneousDualCodec
Frame Rate NTSC:30fps;PAL:25fps
BitRate 64kbpsto4Mbps
Resolution NTSC:720x480(D1),352x240(CIF),176x120(QCIF)
PAL:720x576(D1),352x288(CIF),176x144(QCIF)
Video Input 1CH;NTSC/PAL;BNCConnector;1.0Vp-pwith75Ω loading
Video Recording Instant Local Video Recording
VideoBuffer Pre/PostBufferforImage/VideoCapture
Audio Specification
Audio Input 8kHzSampleRate;AdaptiveDifferentialPulse-CodeModulation(ADPCM)
Audio Output 8kHzSampleRate;AdaptiveDifferentialPulse-CodeModulation(ADPCM)
Audio Connector 3.5mmStereoInput/Output
Audio Direction Bi-DirectionalAudio
Pan/Tilt/ZoomSpecication
PTZ Protocols PelcoP;PelcoD;MeritLilin;Visca;DynaColor;Transparent
BaudRate 1200,1800,2400,4800,9600,19200
PTZ Connector RS-485forPTZControl
AlarmHandling
Loss Detection Video and Network Loss Detection
MotionAlarm Built-inMotionAlarmwithCongurableDetectionAreas
EventHandler FTPandE-mailEventHandler
Storage Local Storage StorevideotoremovableSDCard(LocalSDCardSlot)
MinimumSystem
Requirement
CentralProcessingUnit(CPU) Pentium4,2.4GHzandabove
HardDisk 40GBorhigher
Memory 512MBorhigher
Operating System Windows7/WindowsVista/WindowsXPSP2orhigher/Windows2000SP4orhigher
Video Resolution 1024x768(SVGA/XGA)
Software DirectX9.0corhigher
Browser MicrosoftInternetExplorer6.0orhigher
Physical and Environment
Dimension(LxWxH) 90x78x36mm
Weight 232gram
Power Input Via External Power Adapter
Operating Temperature 0°Cto40°C
OperatingHumidity 20%to80%Non-Condensing
87
71
D-ViewCam Professional and D-ViewCam Enterprise video management software
solutions provide users the ability to perform surveillance management and are ideal for
smallandmediumenterprise(SME)andcampusenvironment.
These VMS offer powerful digital surveillance management platform similar to
D-ViewCam 3.0. D-ViewCam Professional (DCS-220) can manage up to 32 network
camerasononescreen,whileD-ViewCamEnterprise(DCS-230)canmanagedupto64
cameras.BothsoftwaresupportdualmonitorandarecompatiblewithallcurrentD-Link
networkcameras,videoserversandnetworkvideorecorders(NVR).Userscanincludeup
to7layerse-mapstoarrangecameralocationsandorientationatdifferentareas.Upto
128liveclientscanmonitorvideosviabrowsers.
TheseVMSoffersimliareventactionsasD-ViewCam3.0.Whenaneventoccurs,besides
triggeringI/OdevicesandsendingemailnoticationsandSMSalerts.Userscanplayback
4channelssimultaneously.Thesmartsearchtoolallowsuserstolocatethedesiredvideo
clipseasily.BackupvideosandlogscanbeburnedintobothCDsand DVDs.Itisalso
compatiblewiththirdpartyCMS.
View Display
Video Management Software (VMS)
IP SURVEILLANCE VideoManagementSoftware(VMS)
D-ViewCamStandard(DCS-100)videomanagementsoftware(VMS),bundledwithD-Linknetworkcameras,providesvideo
recording, live view and playback management for network cameras and video servers.
D-ViewCamProfessional(DCS-220)andD-ViewCamEnterprise(DCS-230)VMSprovideadvancemanagementfeaturesand
supports more live view and playback channels.
D-ViewCamNVRsoftwareisbundledwithD-Linknetworkvideorecorders(DNS-722-4andDNS-726-4)forvideomanagement.
D-ViewCam Standard 3.0 network camera surveillance software (DCS-100) is bundled
with D-Link network cameras and is a comprehensive surveillace system designed to
centrally manage multiple network cameras for Home, Small Ofce and Home Ofce
(SOHO), or Small and Medium Business (SMB) users. Supporting up to 32 network
cameras, D-ViewCam 3.0 is compatible with all current D-Link network cameras and
video servers. It offers digital monitoring and recording capabilities of video, audio and
events for various security applications. This software provides users with a wide array of
features including video recording, playback and video live view.
The easy-to-use D-ViewCam 3.0 software allows users to manage up to 32 network
cameras on one screen and display real-time operating information from the camera on
the main screen. The e-map mode allows users to arrange a map with camera locations
and orientation. Additonal features such as auto-patrol, rotate, zoom, and focus provide
userswithoptimalcontrolovertheirvideosurveillance.Upto64liveclientscanmonitor
videos via browsers.
D-ViewCam3.0offersusersscheduled,motionandmanualrecordingoptionstomeet
individual needs. Recorded files can be searched by video type and selected within the
user interface where the files can be played, edited and converted into AVI or ASF files.
Event action configuration provides users with optimal surveillance and security by
detecting motion occurring on the cameras or through added devices such as smoke
detectors, magnetic door sensors, emergency buttons, card readers and other I/O
devices.ByattachingthesedevicestoacompatibleD-Linknetworkcamera,awarning
willbesenttoD-ViewCam3.0tonotifyusersduringtheoccurrenceofanevent.Users
cancombineeventactions,suchastriggeringI/Odevicesandsendemailnotications
when an event occurs.
The backup function of D-ViewCam 3.0 saves everything from the playback panel
includingloginformation.UserscanloadbackuplestoanyPCwithWindowsoperating
system.D-ViewCam3.0alsoprovidesDB-Toolutilitytohelpuserreconstruct,repairor
relocatethedatabaseinlocaldrive,externaldriveornetworkdrive.Backupvideosand
logs can also be burned into CDs.
Video Display
Video Playback
D-ViewCam Standard
D-ViewCam Professional & Enterprise
88
71
1SupportedonHardware(StandaloneNVR)
2OtherbrandsincludeACTi,Arecont,Axis,Cisco,IQinVision,Mobotix,Panasonic,Sony
IP SURVEILLANCE VideoManagementSoftware(VMS)
D-ViewCAM NVR softwareis bundled with D-Link networkvideo recorders(NVR)and
itconsistsofthreemaincomponents:PaybackManager,BackupandFileManagerand
Multi-NVRViewer.D-LinkNVRmodelsareDNS-722-4andDNS-726-4.DNS-722-4supports
all D-Link network cameras, while DNS-726-4 also supports other branded network
cameras,suchasACTi,Arecont,Axis,Cisco,IQinVision,Mobotix,PanasonicandSony.
Multi-NVR Viewer supports up to 8 concurrent live view channels.The views can be
organized easily by dragging and dropping video directly onto the display window.
Cameras managed by NVR can be viewed as individual sites or categorized into groups.
DNS-726-4supportsdigitalinputtriggerandmotiondetectionfromcameras.
The Playback Manager has a clean and simple web GUI interface which allows users
to play, search or export video. DNS-722-4 supports only 1 playback channel while,
DNS-726-4supports4playbackchannels.DNS-726-4supportssmartsearchtoolwhich
allows users to locate desired video clips easily.
TheBackupandFileManagerisaexiblebackuputilitywhichsimpliestheprocessof
backing up video data from the NVR to external storage.
Live View Display
D-ViewCam NVR
D-ViewCam
VideoManagementSoftware Standalone Network Video Recorder
Product Name D-ViewCam Standard D-ViewCam NVR
Model DCS-100 WithDNS-722-4 WithDNS-726-4
Tools
Remote Live Viewer
Playback System
BackupSystem
PlaybackManager
BackupManager
Multi-NVRViewer
PlaybackManager
BackupManager
General
Operating System MicrosoftWindowsXPPro(SP2orhigher)/2003
/Vista Embedded Linux
Recording Performance 1200fps@CIFwithIntelCore2QuadQ6600CPU 240fps@CIF
Video Input 32Channels 8 Channels
Compression Format H.264/MPEG-4/MJPEG
Camera Support All D-Link Cameras All D-Link Cameras
andOtherBrands2
Video Setting Megapixal(DependonNetworkCameras) Upto1.3Megapixal
DisplayMode
MonitorSupport SingleMonitor SingleMonitor
Auto Scan Yes Yes1
Camera OSD Option Yes Yes1
Event Popup Yes -
I/OControlPanel Yes -Yes1
PTZ Control Yes Yes1
Digital PTZ Control Yes -
Preset Control Yes Yes1
Auto Patrol Yes Yes1
Full Screen Yes Yes1
SMSAlert - -
LiveViewer/
Remote Live
Viewer
Live View Channel 64Channels Yes116Channels
Privilege(Camera,PTZ,Audio) Yes Yes1Yes
Concurrent Login Users 64LiveClients
16PlaybackClients Yes132LiveClients
8 Playback Clients
DisplayMode 1,4,6,9,10,13,16,25,36Channels Yes11,4,9,16Channels
Recording
Recording Type BySchedule,ManualandEvent BySchedule,ManualandEvent1
Schedule Recording No Limitation No Limitation1
Digital Input Trigger - - Yes1
MotionDetectionfrom
Camera Yes Yes1
Audio Recording Yes Yes1
Store Video for Fixed Days Yes Yes1
Pre-Record/Post-Record Yes Yes1
Automatic Overwrite Yes Yes1
Playback
/Remote
Playback
Playback Client Browser/RemoteClient NVR Client
Playback Channel 1Channel 1Channel 4Channels
PlaybackMode VideoControl-Play,Stop,Pause,Forward,Backward,Next,Previous
Video Search ByTime,Event,Camera
Smart Search - - Yes
Image Export BMP/JPG
Video Export AVI/ASF(SupportOSDExport) AVI/ASF(WithTimeStamp)
E-Map
E-MapSupport 2Layers 1Layer1
Indicator CameraandI/O -
E-MapType BMP/JPG/GIF/PNG/TIF BMP/JPG1
UnlimitedE-MapPictures Yes -
Camera Preview Yes -
Storage/
Backup
MultipleStorage Yes -
Network Storage Device Yes
CDBurning Yes
DVDBurning - -
Security
CMSSupport - - Yes
PowerRecoveryAutoBoot -Yes1
Device Lock - Front Panel Lock, Rear Panel Key Slot1
89
Network Camera Selection Matrix
Fixed Network Camera PTZ Network Camera Fixed Dome Camera PTZ Dome Camera
Model DCS-3110 DCS-3411 DCS-3415 DCS-3430 DCS-3710 DCS-7410 DCS-7510 DCS-5605 DCS-5635 DCS-6110 DCS-6111 DCS-6815
Image Sensor 1/4” 1.3 Megapixel
Progressive Color CMOS 1/4” CMOS 1/4” Sony Progressive Scan
CCD 1/4” CMOS 1/3” 1.3 Megapixel WDR
Progressive Scan CMOS 1/3” Color CCD 1/3” Color CCD 1/3” Samsung De-Interlace
CCD
1/3” Samsung De-Interlace
CCD 1/4” VGA Progressive CMOS 1/4” WDR VGA CMOS 1/4” Sony Exview CCD
Lens
Vari-Focal
DC-Iris
CS Mount
4.5~10mm
F1.6
CS Mount
6mm/F1.8
Fixed
4.1~73.8mm
F1.4~F3.0
CS Mount
6mm/F1.8
Vari-Focal
DC Iris
2.8~12mm
F1.3
Fixed
12mm/F1.4
Vari-Focal
Auto-Iris
9~22mm
F1.5-360
Fixed
3.8~38mm
F1.8
Fixed
3.8~38mm
F1.8
Vari-Focal
Board Mount
3.7~12mm
F1.4~F2.8
Vari-Focal
Board Mount
3.3~12mm
F1.4~F2.9
Auto Iris
3.4~61.2mm
F1.4~F3.0
Minimum Illumination /
Light Sensitivity (Lux) 1.5 Lux 0.5 Lux (typical), 0 Lux (10m
with IR Lens)
1.61 Lux (typical), 0.38 Lux
(with ICR On)
0.5 Lux (typical), 0 Lux (10m
with IR Lens)
0.1 Lux (Color)
0.02 Lux (B/W) 0.7 Lux 1 Lux 0.7 (Color)
0.02 (B/W)
0.7 (Color)
0.02 (B/W) 1.5 Lux 1.5 Lux 0.1 Lux (Color)
0.01 Lux (B/W)
Angle of View
(Horizontal/Vertical) 80.5°~37° / 60°~28° 41° / 31° 48°~2.8° / - 41° / 31° 102.2°~23.7° / - 22° / 17° 31°~13° /
23°~10°
51°~6° /
40°~4°
51°~6° /
40°~4°
77°~23° /
57°~17°
63°~18° /
47°~13° 60.8°~3.6° / -
Pan/Tilt - - - - - - - +165~-165° / +87~-34° +165~-165° / +87~-34° - -
256 Presets
Auto Cruise
5~400° Preset Speed
Zoom Ratio 4x Digital 16x Digital 4x Digital
18X Optical 16x Digital 10x Digital 16x Digital 16x Digital 16x Digital
10x Optical
16x Digital
10x Optical 4x Digital 4x Digital 12x Digital
18x Optical
Max. Video Resolution
(Pixels)
1280 x 1024 (MJPEG)
640 x 480 (MPEG-4)
704 x 480 (NTSC)
704 x 576 (PAL) 640 x 480 704 x 480 (NTSC)
704 x 576 (PAL) 1280 x 960 720 x 480 (NTSC)
720 x 576 (PAL)
720 x 480 (NTSC)
720 x 576 (PAL)
720 x 480 (NTSC)
720 x 576 (PAL)
720 x 480 (NTSC)
720 x 576 (PAL) 640 x 480 640 x 480 720 x 480 (NTSC)
720 x 576 (PAL)
Video Compression MPEG-4 / MJPEG H.264 / MPEG-4 / MJPEG MPEG-4 / MJPEG H.264 / MPEG-4 / MJPEG MPEG-4 / MJPEG MPEG-4 / MJPEG MPEG-4 / MJPEG H.264 / MPEG-4 / MJPEG H.264 / MPEG-4 / MJPEG MPEG-4 / MJPEG MPEG-4 / MJPEG MPEG-4 / MJPEG
Dual Stream Yes - Yes - - - - - - Yes Yes -
Multi-Profile - Yes - Yes Yes Yes Yes Yes Yes - - -
Frame Rate (fps) 30 30 (NTSC)
25 (PAL) 30 30 (NTSC)
25 (PAL) 30 30 (NTSC)
25 (PAL)
30 (NTSC)
25 (PAL)
30 (NTSC)
25 (PAL)
30 (NTSC)
25 (PAL) 30 30 30 (NTSC)
25 (PAL)
Video Bit Rate Range 20kbps~
4Mbps
64kbps~
2Mbps
20kbps~
4Mbps
64kbps~
2Mbps
64kbps~
8Mbps
64kbps~
2Mbps
64kbps~
2Mbps
64kbps~
2Mbps
64kbps~
2Mbps
20kbps~
4Mbps
20kbps~
4Mbps Up to 3Mbps
3A Control1AES / AGC / AWB AES / AGC / AWB AES / AGC / AWB AES / AGC / AWB AES / AGC / AWB AES / AGC / AWB AES / AGC / AWB AES / AGC / AWB AES / AGC / AWB AES / AGC / AWB AES / AGC / AWB AGC / AF / AWB
Wide Dynamic Range (WDR) - - - - Yes - - - - - Yes Yes
Day & Night ICR Filter ICR Filter ICR Filter ICR Filter ICR Filter Dual-Band Filter
IR LEDs (30m)
ICR Filter
IR LEDs (50m) ICR Filter ICR Filter Dual-Band Filter ICR Filter
IR LED (20m)
ICR Filter
Dual-Band Filter
Audio Support
• 2-Way Audio
• Built-in
Microphone
• Line In/Out
• 2-Way Audio
• Built-in
Microphone
• Line In/Out
• 2-Way Audio
• Built-in
Microphone
• Line In/Out
• 2-Way Audio
• Built-in
Microphone
• Line In/Out
• 2-Way Audio
• Line In/Out
• 2-Way Audio
• Line In/Out
• 2-Way Audio
• Line In/Out
• 2-Way Audio
• Built-in
Microphone
• Line In/Out
• 2-Way Audio
• Built-in
Microphone
• Line In/Out
-• 2-Way Audio
• Line In/Out -
Audio Codec2AAC / AMR AMR / ADPCM AAC / AMR AMR / ADPCM ADPCM AMR / ADPCM AMR / ADPCM AMR / ADPCM AMR / ADPCM - AAC / AMR -
Audio Recording Yes Yes Yes Yes Yes Yes Yes Yes Yes - Yes -
Intelligent Video
• Motion Detection
• Event Triggered
Recording
• Motion Detection
• Event Triggered
Recording
• Motion Detection
• Event Triggered
Recording
• Motion Detection
• Event Triggered
Recording
• Motion Detection
• Event Triggered Recording
• Motion Detection
• Event Triggered
Recording
• Motion Detection
• Event Triggered
Recording
• Motion Detection
• Event Triggered
Recording
• Motion Detection
• Event Triggered
Recording
• Motion Detection
• Event Triggered
Recording
• Motion Detection
• Event Triggered
Recording
• Motion Detection
• Event Triggered
Recording
Network Security
• Multi-Level
Password
• HTTP & RTSP
Digest Encryption
• IP Filtering
• Administrator
& User Group
Protected
• Password
Authentication
• Multi-Level
Password
• HTTP & RTSP
Digest Encryption
• IP Filtering
• Administrator
& User Group
Protected
• Password
Authentication
• Administrator
& User Group
Protected
• Password
Authentication
• Administrator
& User Group
Protected
• Password
Authentication
• Administrator
& User Group
Protected
• Password
Authentication
• Administrator
& User Group
Protected
• Password
Authentication
• Administrator
& User Group
Protected
• Password
Authentication
• Multi-Level
Password
• HTTP & RTSP
Digest Encryption
• IP Filtering
• Multi-Level
Password
• HTTP & RTSP
Digest Encryption
• HTTPS Streaming
• IP Filtering
• Administrator
& User Group
Protected
Privacy Masking - - - - 3 Zones - - 3 Zones 3 Zones - 5 Zones 16 Zones
Storage Support Direct to NAS
or CF Card
Direct to NAS
or SD Card
Direct to NAS
or CF Card
Direct to NAS
or SD Card
Direct to NAS
or SD Card Direct to NAS Direct to NAS Direct to NAS or MicroSD
Card
Direct to NAS or MicroSD
Card Direct to NAS Direct to NAS -
Mobile Video Surveillance 3GPP 3GPP 3GPP 3GPP 3GPP 3GPP 3GPP 3GPP, RTSP 3GPP, RTSP 3GPP 3GPP -
Digital Input/Digital Output
(DI/DO) 1 / 1 2 / 1 1 / 1 2 / 1 2 / 1 2 / 1 2 / 1 1 / 1 1 / 1 1 / 1 1 / 1 8 / 1
External Device Interface RS-485,
12VDC Output
RS-485,
12VDC Output
RS-485,
12VDC Output
RS-485,
12VDC Output
RS-485,
12VDC Output
RS-485,
12VDC Output
RS-485,
12VDC Output
RS-485,
12VDC Output
RS-485,
12VDC Output ---
Monitor Output - BNC - BNC BNC BNC BNC AV AV - - BNC
External Card Slot CF Card SD Card CF Card SD Card SD Card - - MicroSD Card MicroSD Card - - -
Power over Ethernet
(IEEE 802.3af) Class 2/34Class 2/34Class 2/34PoE Splitter Required3Class 2/34Class 2/34Class 2/34- - Class 1 Class 3 -
Wireless LAN - - - 802.11n
802.11g ----802.11n
802.11g ---
Max. Power Consumption 4W 5.484W 5.4W 6.9W 2W 7.88W 7.95W 11.92W 13.37W 3.6W 11W 65W
(with heater)
Outdoor Usage Yes5Yes5Yes5- Yes5Yes (IP66 Certified) Yes (IP66 Certified) - - - - Yes (IP66 Certified)
1 AES (Automatic Electronic Shutter); AGC (Automatic Gain Control); AWB (Automatic White Balance); AF (Auto-Focus)
2 AAC (Advanced Audio Coding); AMR (Adaptive Mulit-Rate); ADPCM (Adaptive Differential Pulse-Code Modulation)
3 PoE Splitter - DWL-P50 (Refer to Network Pheripheral-Power Over Ethernet Section)
4 Class 3: Include Power Output for External Devices
5 Outdoor Enclosure Required
90 IP SURVEILLANCE Network Camera Selection Matrix
91
NETWORK STORAGE
NETWORK STORAGE
With the ever increasing volume of information required for the
smooth running of business operations, ensuring information
availability when needed is of great importance. Reliable information
storage is an essential part of every business. Products under this
category include Storage Area Network (SAN) Arrays.
91
Internal
Power Supply
Internal
Power Supply
Internal
Power Supply
1Gbps LAN x4
Internal
Power Supply
10GE XFP x 1
1Gbps LAN x4
Storage Area Network (SAN) Arrays
D-Link Storage Area Network (SAN) arrays are designed to provide reliable
network data storage solution for entry-level and SMB segments using
the 10Gbit iSCSI System-on-a-Chip (SoC). These SAN arrays can be easily
implemented as nearline storage or as a supplement to the primary backup and
recovery devices.
Storage Area Network (SAN) Arrays
Main Features
•SupportRAID
•SATA-II
•OnlineCapacityExpansionand
RAID Level Migration
Physical Features
•5RealTrays
Optional Accessories
•DSN-010(SingleRealTray)
•DSN-020(SingleDummyTray)
DSN-1100-10
Main Features
•SupportRAID
• SATA-II
•OnlineCapacityExpansionand
RAID Level Migration
Physical Features
•15RealTrays
Optional Accessories
•DSN-010(SingleRealTray)
•DSN-020(SingleDummyTray)
•DSN-030(Power)
•DSN-040(Fan)
•DSN-050(Battery)
•10-GigabitXFPTransceivers
 DEM-421XT/DEM-422XT/ DEM-423XT
DSN-3400-10
Main Features
•SupportRAID
•SATA-II
•OnlineCapacityExpansionand
RAID Level Migration
Physical Features
•15RealTrays
Optional Accessories
•DSN-010(SingleRealTray)
•DSN-020(SingleDummyTray)
•DSN-030(PowerSupply)
•DSN-040(Fan)
•DSN-050(Battery)
DSN-3200-10
5-Bay iSCSI SAN Array
15-Bay iSCSI SAN Array
15-Bay iSCSI SAN Array
with XFP
Main Features
•SupportRAID
•SATA-II
•OnlineCapacityExpansionand
RAID Level Migration
Physical Features
•8RealTrays
Optional Accessories
•DSN-030(PowerSupply)
•DSN-040(Fan)
•DSN-050(Battery)
DSN-2100-10
8-Bay iSCSI SAN Array
1Gbps LAN x8
NETWORK STORAGE 92
91
Storage Area Network (SAN) Arrays
Model DSN-1100-10 DSN-2100-10 DSN-3200-10 DSN-3400-10
Storage
Feature
Drive Bay 5 8 15
Drive Interface Support SATA-II
System Memory 256MBto512MB
(256MBStandard)
256MBto512MB
(512MBStandard)
Cache Memory 256MBto1GB
(256MBStandard)
256MBto4GB
(512MBStandard)
Battery Backup for Cache Standard(Approximately72hoursonFullCharge)
Bandwidth Upto425MB/s Upto850MB/s Upto1160MB/s
Storage Capacity15TBwith1TBHDDs 8TBwith1TBHDDs 15TBwith1TBHDDs
Supported NICs, ISCI
AcceleratorsandiSCSIHBAs2
Intel® Pro 1000MT & XT (1GbE)
Alacritech®SES2104ET(SNP9.1.0.1092&7.3.1.0)
Alacritech®SES2102ET(SNP9.1.0.1092&7.3.1.0)
Qlogic®4010C,4052C&4062C
Intel® Pro 1000MT & XT (1GbE)
Intel®Pro1000CX4(1GbE)
Myricom10G-PCIE-8A-C+E(10GbE)
Chelsio®S310X-SR-XFP(10GbE)
Neterion® Xframe® II & Xframe® E (10GbE)
Alacritech®SES2104ET(SNP9.1.0.1092&7.3.1.0)
Alacritech®SES2102ET(SNP9.1.0.1092&7.3.1.0)
Qlogic®4010C,4052C&4062C
Supported Operating Systems2
Windows Vista®32-bit&x64(Ultimate&Enterprise)withBuilt-iniSCSIInitiator
WindowsServer2003®32-bit&x64SP1(Standard&Enterprise)withv2.07iSCSIInitiator
WindowsServer2003®R232-bit&x64SP1(Standard&Enterprise)withv2.07iSCSIInitiator
Windows XP Pro®32-bit&x64withv2.07iSCSIInitiator
Windows2000AdvancedServer®withv1.6&v2.01iSCSIInitiator
RedHat®7.3;RedHat®EnterpriseASUpdate5
SuSE®EnterpriseServer10.232-bit(x86);SuSE®Professional9.332-bit&x64
MacOSX(10.4&10.5)
iSCSI Network
Interface
iSCSI Network Interface Four1GbECopperPorts Eight 1GbE Copper Ports One10GbEXFP
(XFPsoldseparately)
HostInterface iSCSIDraft20CompliantInitiator
Connections 1,024Hosts
CHAPAuthentication Yes
Access Control of Management Yes
iSCSI/TCP/IPFullHardware
Offload Yes
JumboFrame Yes
IEEE802.3adLinkAggregation UptoFourLAGs Up to Eight LAGs Not Applicable
IEEE802.1QVirtualLAN(VLAN)
UptoFour1-to-1
Mapping between IP
Subnet and VLAN
Up to Eight 1-to-1 Mapping between IP Subnet and VLAN
Volume & RAID
RAID Controller Single-Integrated in ASIC
RAID Support RAIDLevels0,1,1+0and5
Volumes 1,024VirtualVolumes(256AccessibleperInitiator)
Target Nodes 1,024
OnlineCapacityExpansion Yes
Hot-SwappableDrives Yes
Instant Volume Access Yes
FreeSpaceDefragmentation Yes
Auto-DetectionFailedDrive Yes
Auto-Rebuild Spare Drive Yes
RAID Level Migration Yes
Drive Roaming in Power Off Yes (Configured Drives are Not Bay-Specific)
Micro Rebuilds Yes
Storage
Management
Embedded IP-based
Management GUI Create,Mange,ExpandandMonitorStoragePool,VolumesandRAID
FirmwareFieldUpgradable Yes
Power
Supply Type 1U200-Watt Redundant2U400-Watt Redundant3U2+1760-Watt
Input Voltage 100~240VAC 90~264VAC(Auto-Switching)
InputFrequency 50~60Hz 47~63Hz
InputCurrent(Maximum) 4A 8A@100VAC;4A@240VAC 20A@90VAC;10A@264VAC
PowerFactorCorrection 95%@110V,FullLoad
PowerConsumption(Full
Configuration) 112-Watt 360-Watt 570-Watt
Thermal(FullConguration) 815BTU/hour 1,260BTU/hour 2,000BTU/hour
Environmental
Operating Temperature 0°Ct040°C
Storage Temperature -20°Ct070°C
OperatingHumidity 20%to90%(Non-Condensing)
StorageHumidity 10%to95%(Non-Condensing)
Physical
FormFactor Tower 2U,19-inchRack-Mount 3U,19-inchRack-Mount
Dimension(WxDxH) 167x273x259mm 438x635x89mm 438x571x133mm
Weight(FullConguration) 4.0kg 20.4kg 33kg
Certification Emission FCCClassA;CEClassA;C-TickClassA;VCCIClassA
Safety CSA60950-1;UL60950-1;IEC60950-1;EN60950-1
1 Support for higher capacity drives as they are introduced
2 Please refer to D-Link website for latest support information
Storage Area Network (SAN) ArraysNETWORK STORAGE
93
91
SAN Arrays
Model DSN-1100-10 DSN-2100-10 DSN-3400-10 DSN-3400-10
Network Interface
Gigabit10/100/1000BASE-T 4 4 8 -
10-GigabitXFPSlot - - - 1
HardDiskDrive
NumberofBays/Trays 5 8 15 15
Drive Type 3.5-inchSATA-II 3.5-inchSATA-II 3.5-inchSATA-II 3.5-inchSATA-II
Storage Capacity15TBwith1TBHDDs 8TBwith1TBHDDs 15TBwith1TBHDDs 15TBwith1TBHDD
RAID Support Standard;RAID0,1,1+0,5;
JBOD
Standard;RAID0,1,1+0,5;
JBOD
Standard;RAID0,1,1+0,5;
JBOD
Standard;RAID0,1,1+0,5;
JBOD
RAID Level Migration Yes Yes Yes Yes
Hot-SwappableDrive Yes Yes Yes Yes
Instant Volume Access Yes Yes Yes Yes
FreeSpaceDefragmentation Yes Yes Yes Yes
Micro Rebuild Yes Yes Yes Yes
Drive Roaming in Power Off Yes Yes Yes Yes
S.M.A.R.TforHDDSelf-Diagnostic Yes Yes Yes Yes
FileSharing
Target Nodes 1,024 1,024 1,024 1,024
iSCSI Network
iSCSI Technology Yes Yes Yes Yes
CHAPAuthentication Yes Yes Yes Yes
Access Control of Management Yes Yes Yes Yes
IEEE802.3adLinkAggregation Yes Yes Yes -
IEEE802.1QVirtualVLAN(VLAN) Yes Yes Yes Yes
VolumeVisualization Yes Yes Yes Yes
JumboFrame Yes Yes Yes Yes
Network Storage Selection Matrix
1 Support for higher capacity drives as they are introduced
NetworkStorageSelectionMatrixNETWORK STORAGE
94
95
NETWORK PERIPHERALS
NETWORK PERIPHERALS
Accessories that help support network solutions. Products under
this category include Power over Ethernet (PoE) Adapters.
95
100Mbps LAN x1
100Mbps LAN x1
Power over Ethernet (PoE)
D-Link Power over Ethernet (PoE) adapters are designed to help simplify
network maintenance and deployments at oces, factories and Wi-Fi hot spots.
These adapters allow surveillance cameras and wireless access points to be
installed on building rooftops, ceilings or high walls where wall AC outlets may
be inaccessible.
NETWORK PERIPHERALS Power over Ethernet (PoE)
Main Features
•UsewithaPoESwitchor 
Midspan
•SupplyPowertoDevices
Physical Features
•IEEE802.3afPoweroverEthernet
•TerminalUnitx1
•5VDCand12VDCOutput
•OutputSelectionviaDIPSwitch
DWL-P50
Main Features
•UsewithoutaPoESwitch
• SupplyPowertoDevices
Physical Features
•BaseUnitx1
•TerminalUnitx1
•5VDCand12VDCOutput
• OutputSelectionviaDIPSwitch
DWL-P200
5/12VDC PoE Splitter
5/12VDC PoE Kit
96
B-103
DFL-860-IPS-12
DFL-860-WCF-12
DGS-1016D
DGS-1024D
DGS-1210-10P
DGS-1210-16
DGS-1210-24
DGS-1210-48
DGS-1216T
DGS-1224T
DGS-1224TP
DGS-1248T
DGS-3100-24
DGS-3100-24P
DGS-3100-24TG
DGS-3100-48
DGS-3100-48P
DGS-3200-10
DGS-3200-24
DGS-3426P
DGS-3427
DGS-3450
DGS-3612G
DGS-3627
DGS-3627G
DGS-3650
DMC-1000
DMC-1001
DMC-1002
DMC-300SC
DMC-515SC
DMC-530SC
DMC-560SC
DMC-615SC
DMC-700SC
DMC-810SC
DPS-200
DPS-500
DPS-500DC
DPS-600
DPS-800
DPS-900
DPS-CB400
DSN-1100-10
DSN-2100-10
DSN-3200-10
DSN-3400-10
DSR-1000N
DV-600P
DV-600S
DVS-210-1
DWL-2200AP
DWL-2700AP
DWL-3200AP
DWL-3260AP
DWL-3500AP
DWL-8200AP
DWL-8500AP
DWL-8600AP
DWL-P200
DWL-P50
DWS-3024
DWS-3024L
DWS-4026
7200-1200AC
7200-1200DC
7200-2000AC
7200-24
7200-24G
7200-24G2XGE
7200-24GE
7200-24P
7200-2XG
7200-48
7200-48E
7200-48P
7200-4XG
7200-512RAM
7200-ASE2
7200-ASE3
7200-CM1
7200-CM2
7200-CM3
7200-CM4
7206-FAN
7210-FAN
DAP-2590
DAP-2690
DCS-3110
DCS-3411
DCS-3415
DCS-3430
DCS-3710
DCS-5605
DCS-5635
DCS-60
DCS-6110
DCS-6111
DCS-6815
DCS-70
DCS-7410
DCS-7510
DEM-201F
DEM-201FL
DEM-210
DEM-211
DEM-301G
DEM-301T
DEM-310GT
DEM-311GT
DEM-312GT2
DEM-314GT
DEM-315GT
DEM-330R
DEM-330T
DEM-331R
DEM-331T
DEM-410CX
DEM-410X
Index
DEM-421XT
DEM-422XT
DEM-423XT
DEM-CB300CX
DES-1016D
DES-1016R+
DES-1024D
DES-1024R+
DES-1026G
DES-102F
DES-1210-28
DES-1210-52
DES-1228
DES-1228P
DES-1252
DES-3010F
DES-3010G
DES-3026
DES-3028
DES-3028P
DES-3052
DES-3052P
DES-3200-10
DES-3200-18
DES-3200-28
DES-3200-28F
DES-3528
DES-3528P
DES-3552
DES-3828
DES-3828DC
DES-3828P
DES-3852
DES-7206-BASE
DES-7210-BASE
DFL-1600
DFL-1600-IPS-12
DFL-1660
DFL-1660-AV-12
DFL-1660-IPS-12
DFL-1660-WCF-12
DFL-210
DFL-210-AV-12
DFL-210-IPS-12
DFL-210-WCF-12
DFL-2500
DFL-2500-IPS-12
DFL-2560
DFL-2560-AV-12
DFL-2560G
DFL-2560-IPS-12
DFL-2560-WCF-12
DFL-260
DFL-260-AV-12
DFL-260-IPS-12
DFL-260-WCF-12
DFL-800
DFL-800-AV-12
DFL-800-IPS-12
DFL-800-WCF-12
DFL-860
DFL-860-AV-12
Business Solution
INDEX
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
51
51
72
72
72
74
74
76
76
82
78
78
80
82
74
74
24
40
24
40
42
42
24
40
24
40
42
42
42
42
42
42
42
42
42
8
12
40
57
59
8
12
40
57
57
42
42
42
40
36
36
36
36
36
36
40
30
30
32
32
32
24
24
24
22
22
22
22
18
18
18
18
16
16
16
10
10
10
10
6
6
64
64
66
66
66
66
64
64
64
64
64
64
66
66
66
66
66
66
66
66
66
64
64
64
64
66
66
66
66
34
34
26
26
26
26
28
28
28
28
20
20
20
20
20
14
14
12
12
12
8
8
8
8
46
46
46
46
46
46
46
46
46
46
42
42
42
42
42
42
42
92
92
92
92
68
38
38
86
53
55
53
53
57
53
57
59
96
96
57
57
59
D-Link Europe
D-Link European HQ
www.dlink.eu
Albania
www.dlink.eu
Adria
www.dlink.eu
Austria
www.dlink.at
Belgium
www.dlink.be
Bosnia & Herzegovina
www.dlink.eu
Bulgaria
www.dlink.eu
Croatia
www.dlink.eu
Czech Republic
www.dlink.cz
Denmark
www.dlink.dk
Finland
www.dlink.
France
www.dlink.fr
Germany
www.dlink.de
Greece
www.dlink.gr
Hungary
www.dlink.hu
Italy
www.dlink.it
Kosovo
www.dlink.eu
Luxembourg
www.dlink.lu
Montenegro
www.dlink.eu
Netherlands
www.dlink.nl
Norway
www.dlink.no
Poland
www.dlink.pl
Portugal
www.dlink.pt
Romania
www.dlink.ro
Serbia
www.dlink.eu
Slovenia
www.dlink.eu
Spain
www.dlink.es
Sweden
www.dlink.se
Switzerland
www.dlink.ch
UK & Ireland
www.dlink.co.uk
Disclaimers
The disclaimer: ©2009 D-Link Europe Limited (Ltd). xStack, AirPremier, NetDefend, Safeguard Engine and D-Link are trademarks or registered trademarks of D-Link Europe Ltd.
in Europe and/or other countries. Other brand and product names may be the trademarks of their respective holders. All information is subject to change without notice.
All rights reserved.
Trademarks
D-Link is a registered trademark of D-Link Corporation and its subsidiaries. D-View, D-ViewCam, AirPremier, NetDefend, ZoneDefense, xStack, SecuriCam and others registered by
D-Link which may have not been included in this list, are trademarks of D-Link Corporation and its subsidiaries. All other trade names and trademarks are properties of their
respective proprietors. Copyright © 2009 D-Link Corporation. All rights reserved.
Exclusions of liability
We have used all reasonable endeavours to ensure that the data within this Business Solutions guide is accurate at the time of going to press and to correct any errors or omissions as
soon as practicable after being notied of them. Guide specics are subject to change without notice.

Navigation menu
