D Link DSL-2600U WIRELESS G ADSL2+ ROUTER User Manual
D Link Corporation WIRELESS G ADSL2+ ROUTER Users Manual
D Link >
Users Manual
DSL-2600U User Manual
FCC Information
This equipment complies with CFR 47, Part 15.19 of the FCC rules. Operation of the equipment is subject to the following conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received; including interference that may cause undesired operation.
This device must not be co-located or operating in conjunction with any other antenna or transmitter
NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS
COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.
Federal Communications Commission (FCC) Requirements, Part 15
This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
---Reorient or relocate the receiving antenna.
---Increase the separation between the equipment and receiver.
---Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
---Consult the dealer or an experienced radio/TV technician for help.
Regulatory information / Disclaimers
Installation and use of this Wireless LAN device must be in strict accordance with the instructions included in the user documentation provided with the product. Any changes or
modifications (including the antennas) made to this device that are not expressly approved by the manufacturer may void the user’s authority to operate the equipment. The
manufacturer is not responsible for any radio or television interference caused by unauthorized modification of this device, or the substitution of the connecting cables and equipment
other than manufacturer specified. It is the responsibility of the user to correct any interference caused by such unauthorized modification, substitution or attachment. Manufacturer and
its authorized resellers or distributors will assume no liability for any damage or violation of government
CAUTION: To maintain compliance with FCC’s RF exposure guidelines, this equipment should be installed and operated with minimum distance 20cm between the radiator and your body. Use on the
supplied antenna. Unauthorized antenna, modification, or attachments could damage the transmitter and may violate FCC regulations.
MPE Statement (Safety Information)
Your device contains a low power transmitter. When device is transmitted it sends out Radio Frequency (RF) signal.
Safety Information
In order to maintain compliance with the FCC RF exposure guidelines, this equipment should be installed and operated with minimum distance 20cm between the radiator and your
body. Use only with supplied antenna. Unauthorized antenna, modification, or attachments could damage the transmitter and may violate FCC regulations.
Table of Contents
Before You Begin..........................................................................................1
Package Contents.................................................................................................1
System Requirements...........................................................................................1
Features...............................................................................................................2
HARDWARE OVERVIEW.............................................................................................3
Connections..................................................................................................3
LED Indicators..............................................................................................4
INSTALLATION............................................................................................................5
Installation Notes...................................................................................................5
Information you will need from your ADSL service provider.............................7
Information you will need about DSL-2600U...................................................8
Information you will need about your LAN or computer:..................................8
Device Installation.................................................................................................9
Power on Router...........................................................................................9
Factory Reset Button.....................................................................................9
Network Connections..................................................................................10
INTRODUCTION TO WEB CONFIGURATION.............................................................11
Preparation Before Login......................................................................................11

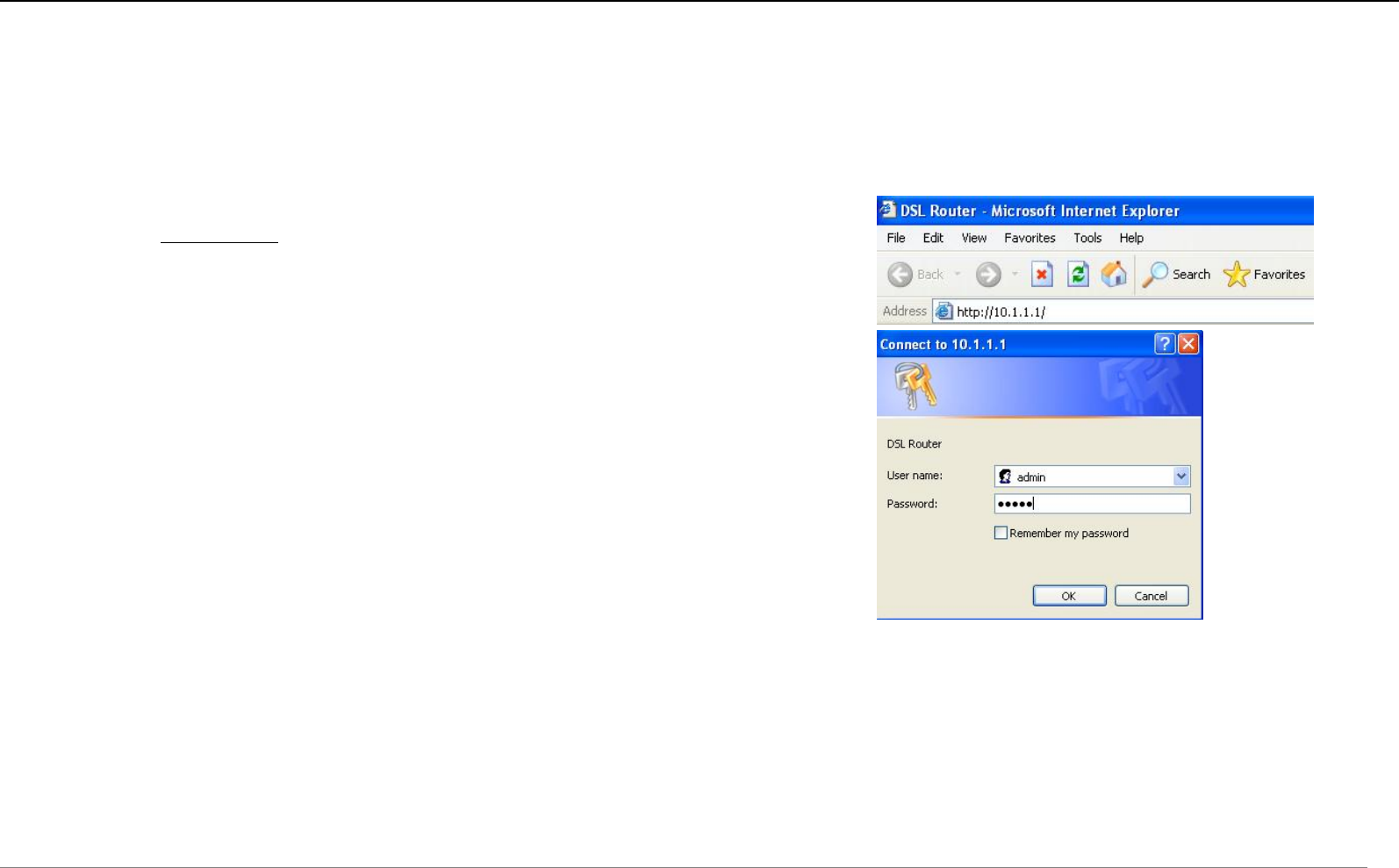

Logging In to the Modem.....................................................................................13
First-Time Login..........................................................................................13

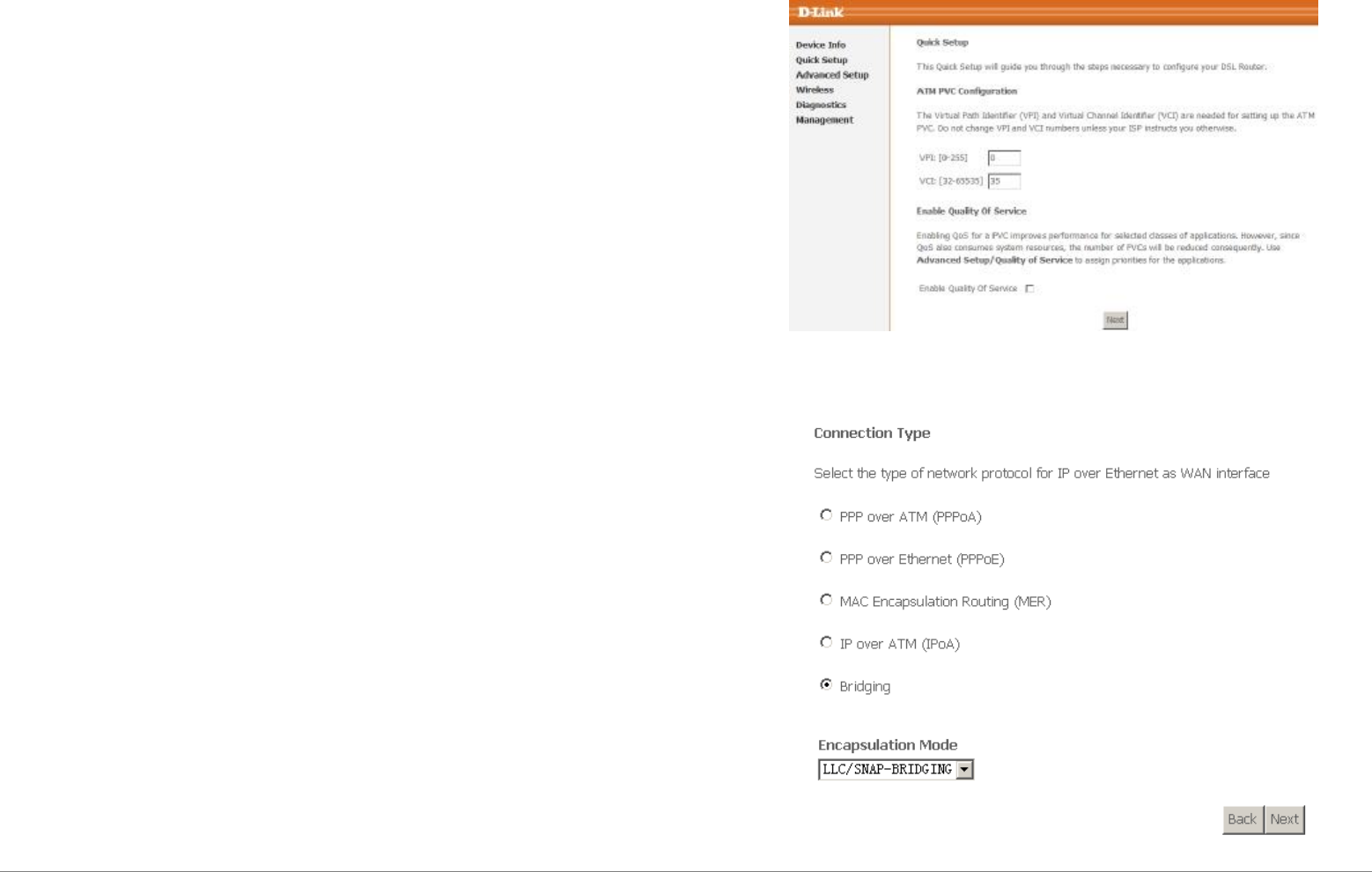

Quick Setup........................................................................................................14

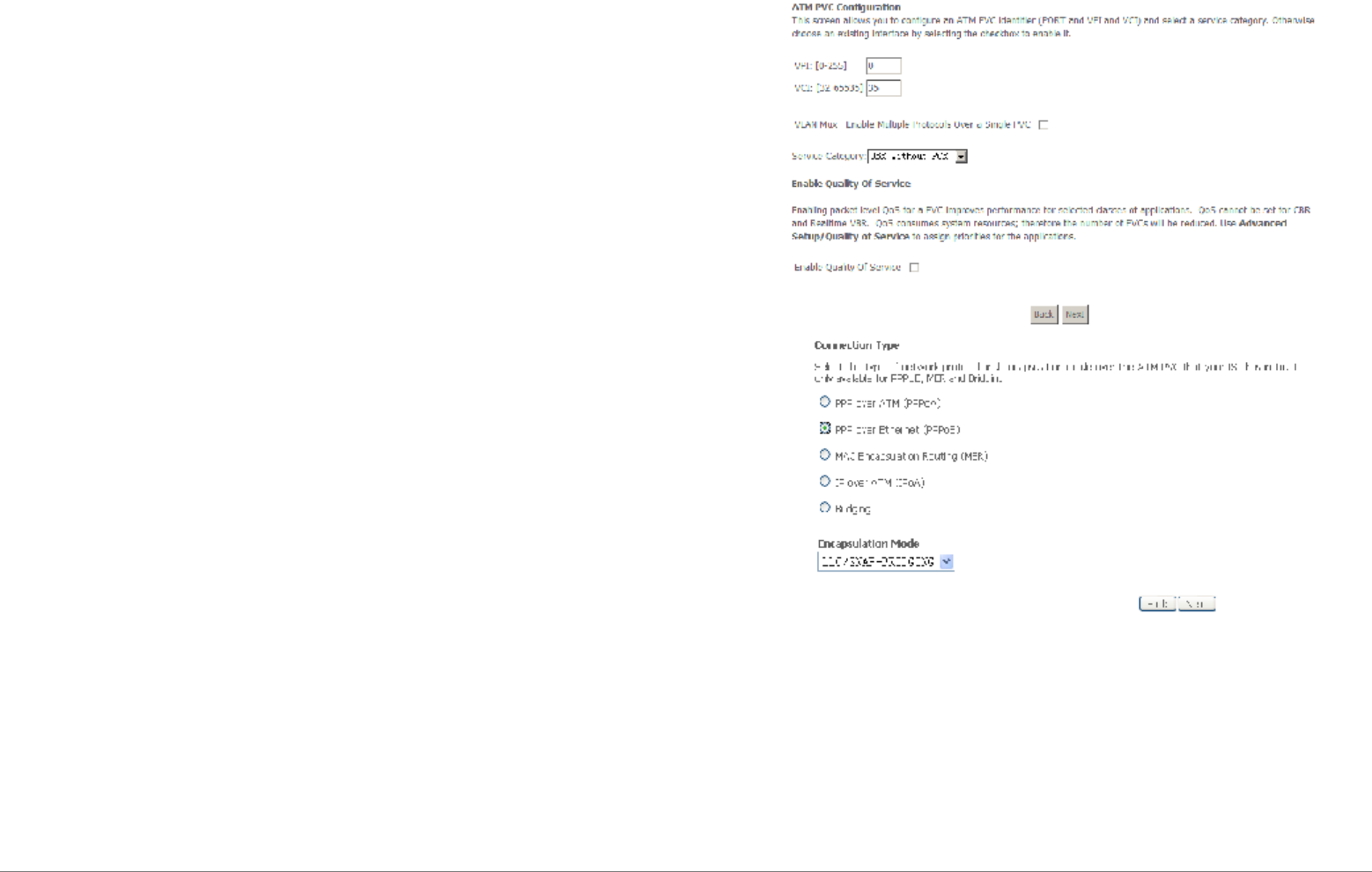

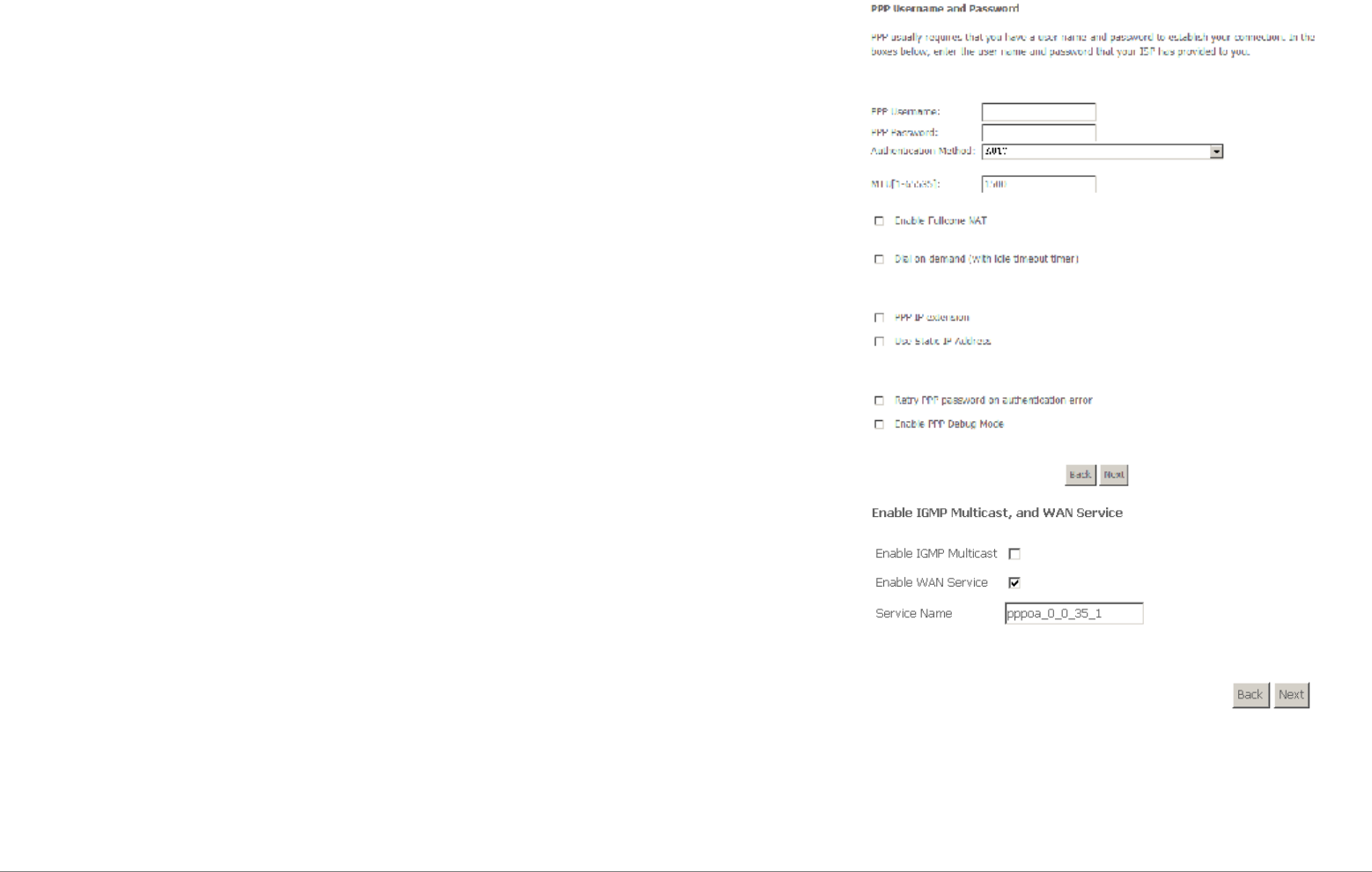

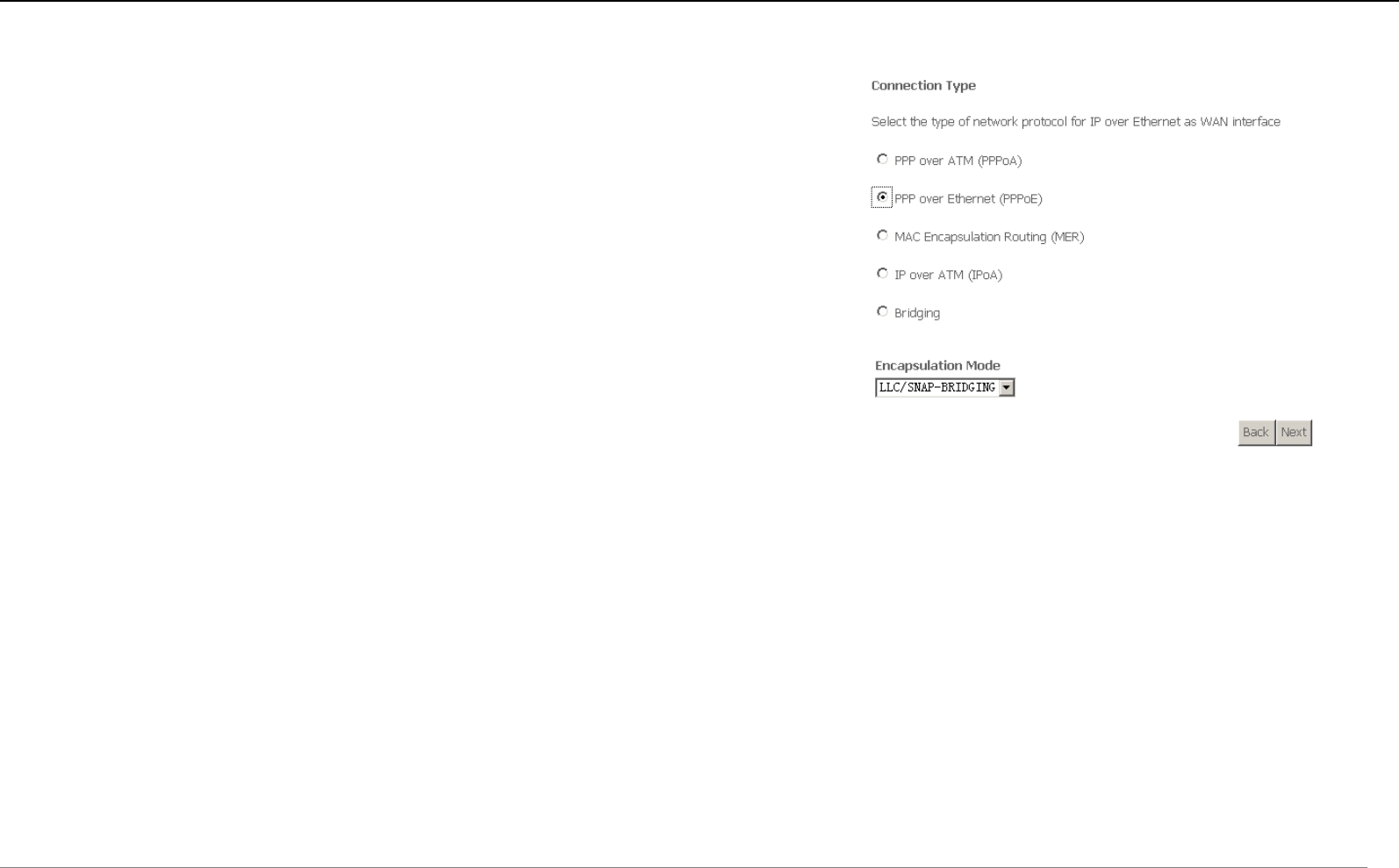

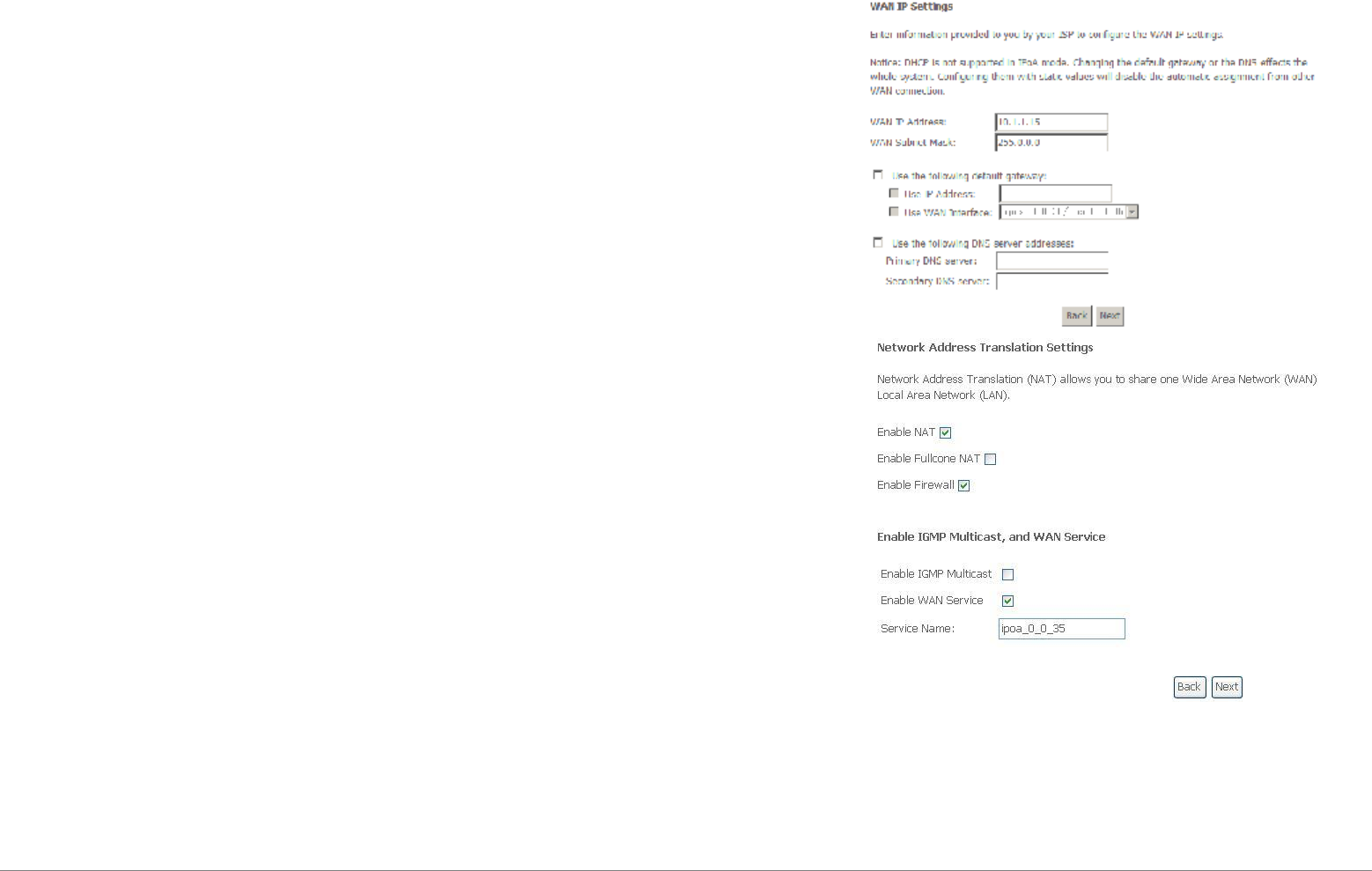

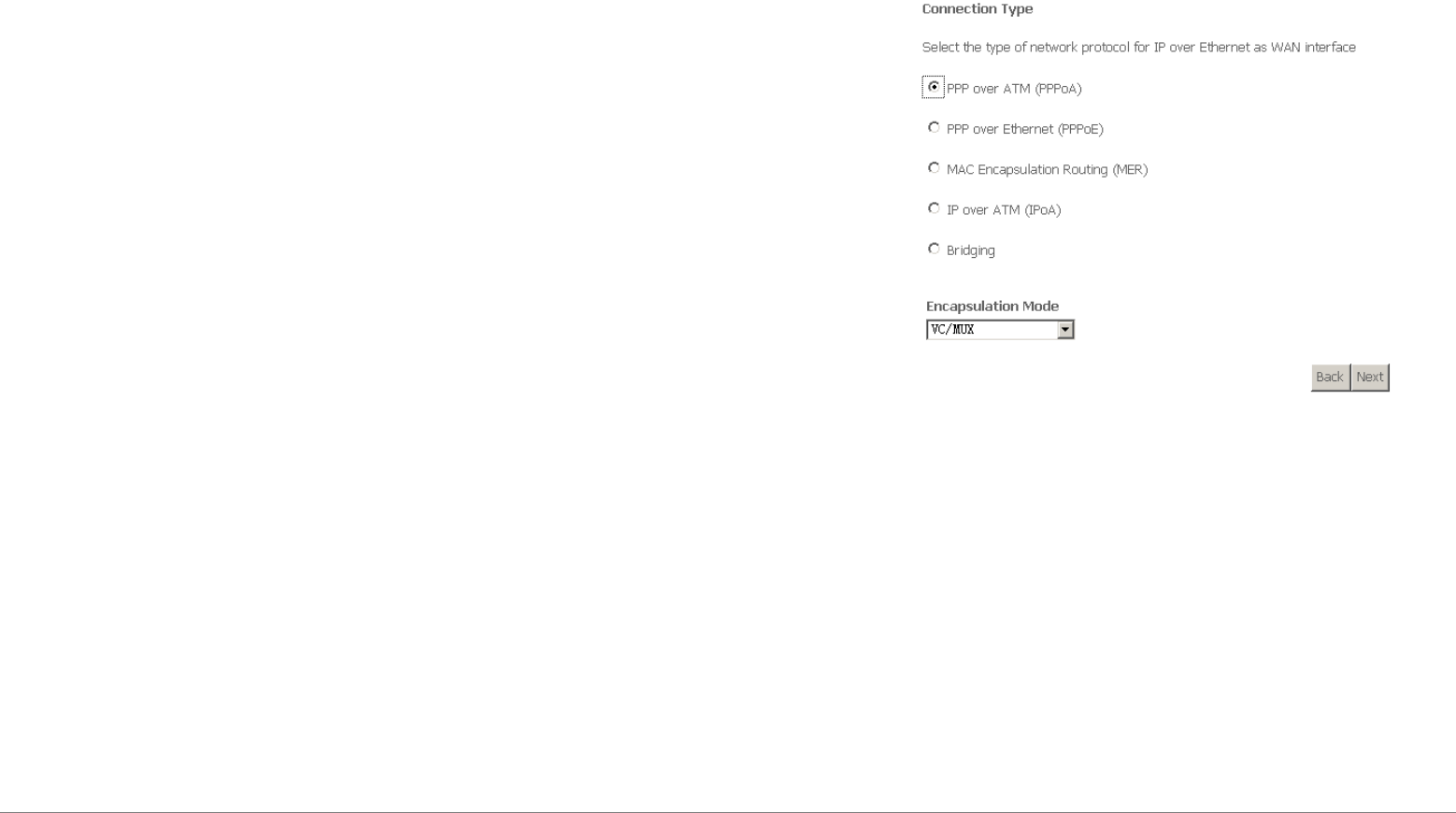

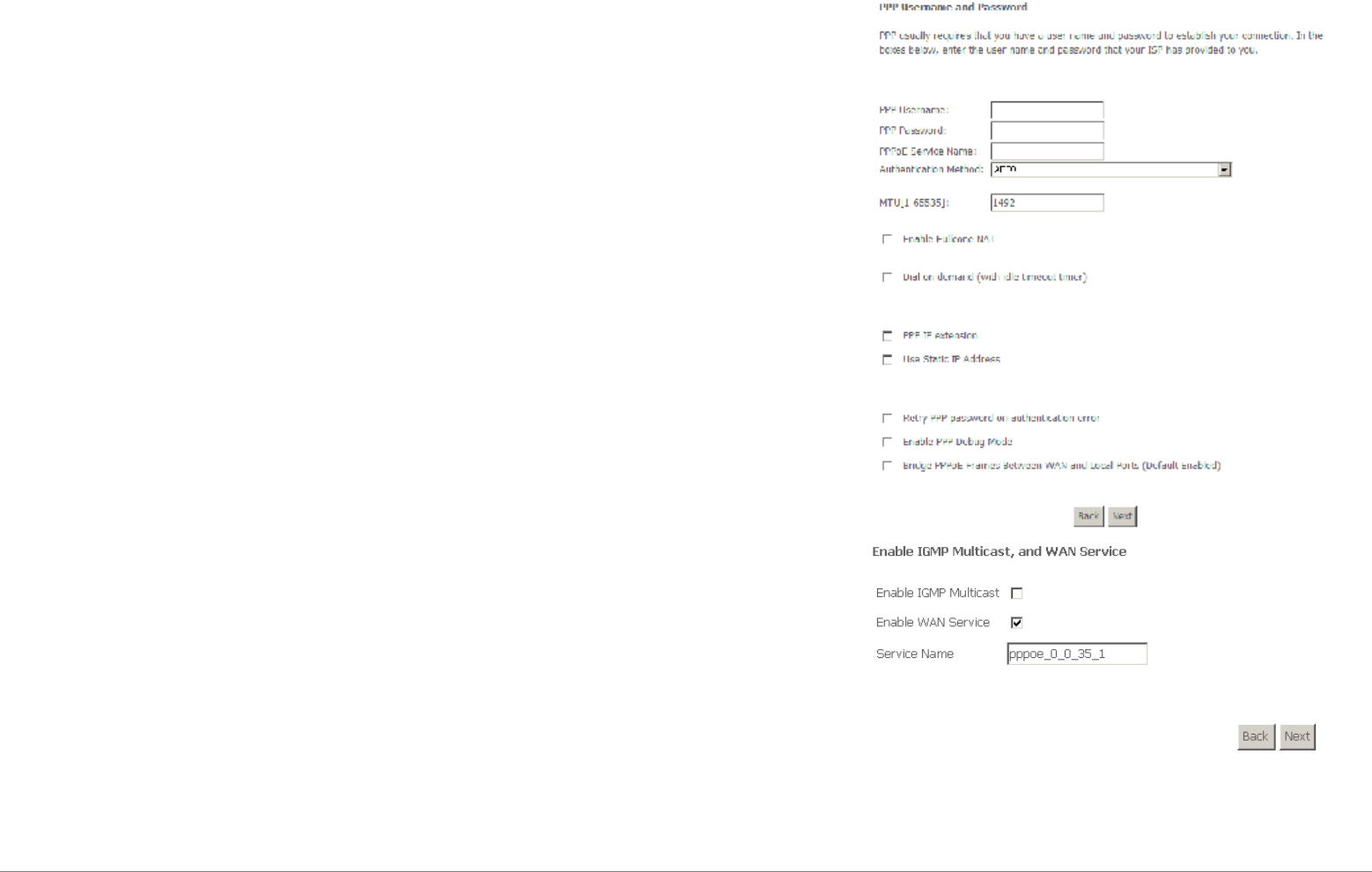

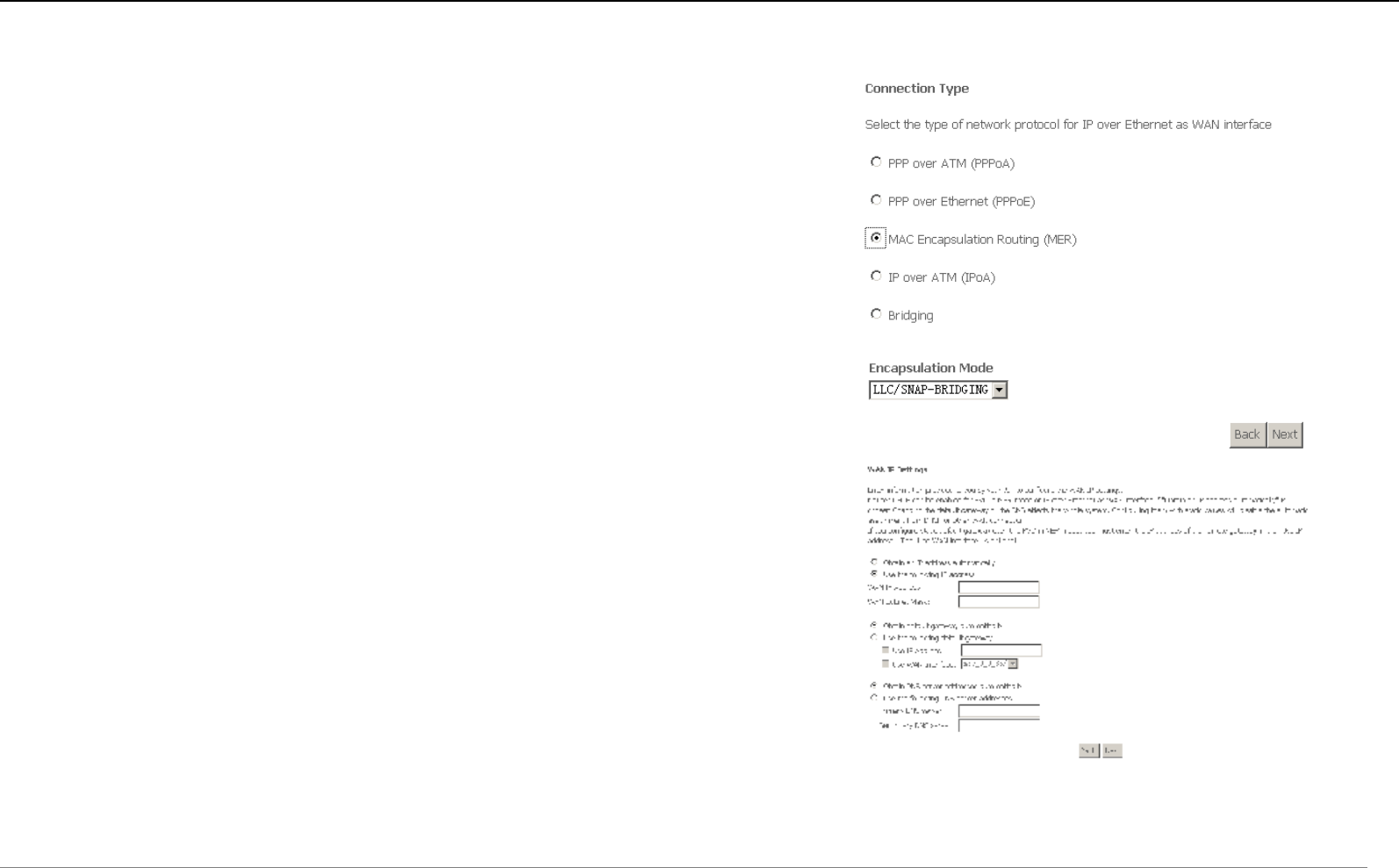

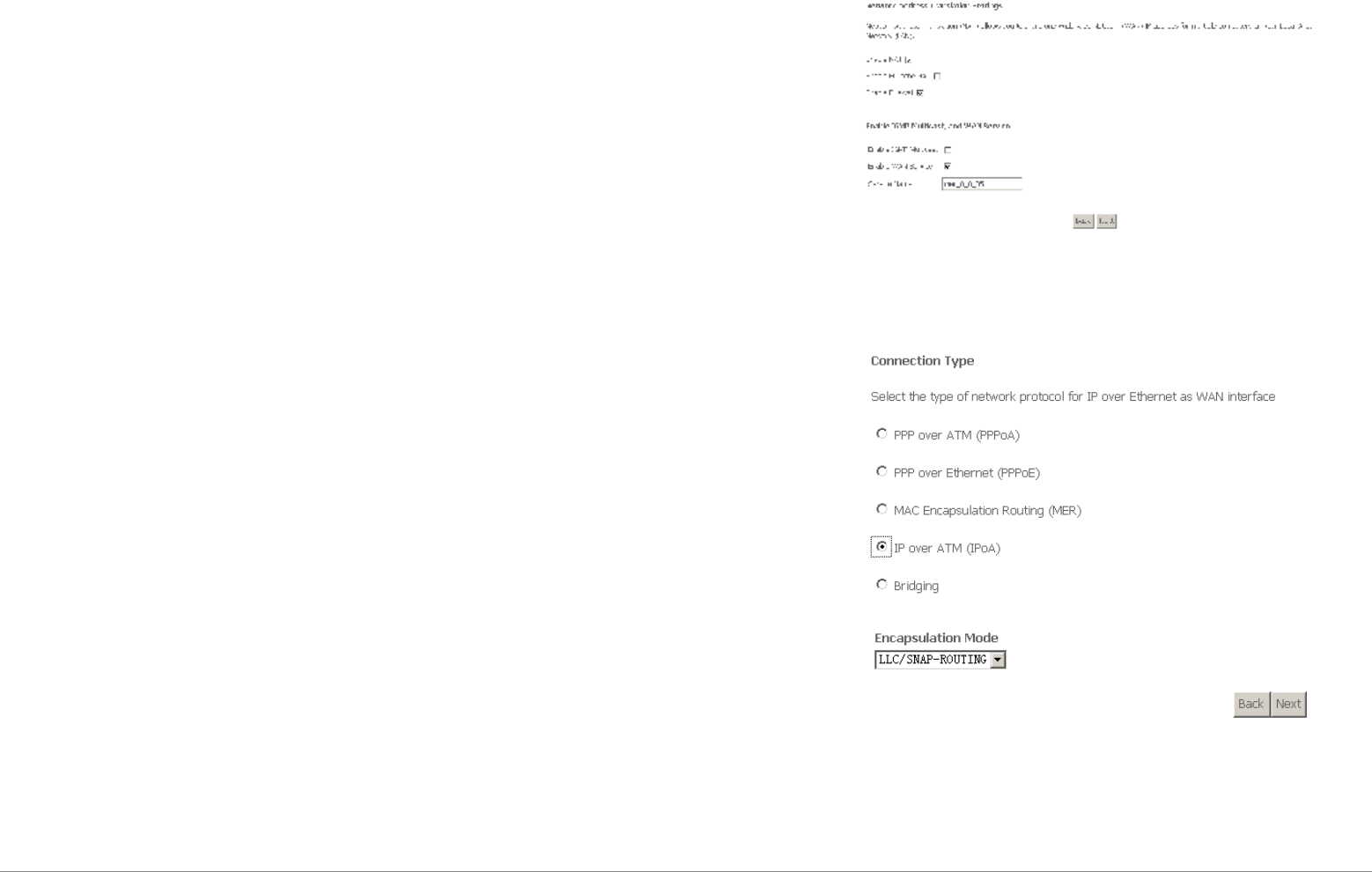

WAN Interface Setup...................................................................................14
LAN Interface Setup....................................................................................23

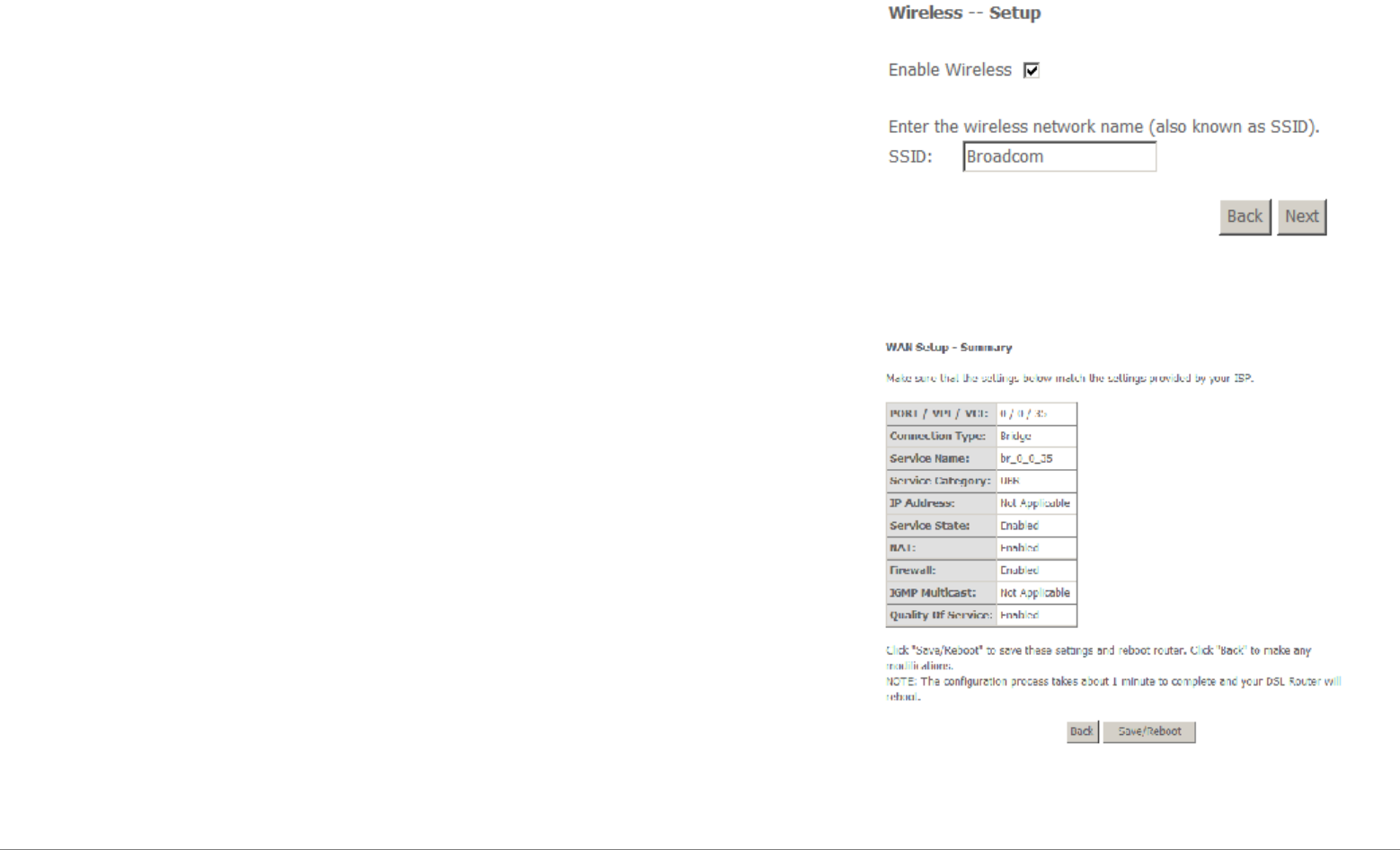

Wireless Interface Setup..............................................................................24
WAN Setup Summary.................................................................................24
Quick Setup Completion..............................................................................25

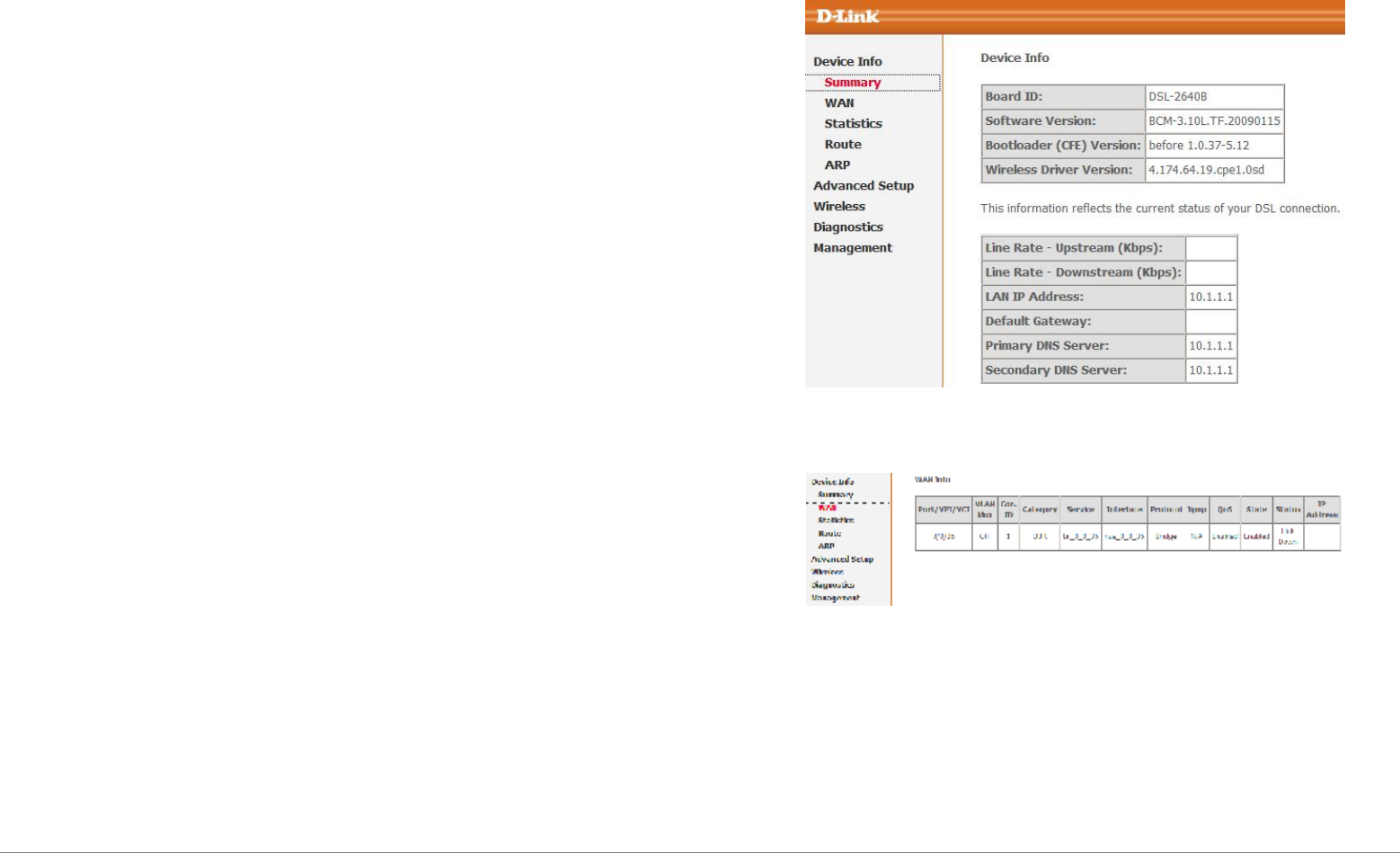

DSL Router Device Information............................................................................25
Summary of Device Information...................................................................26
WAN Interface Information...........................................................................26

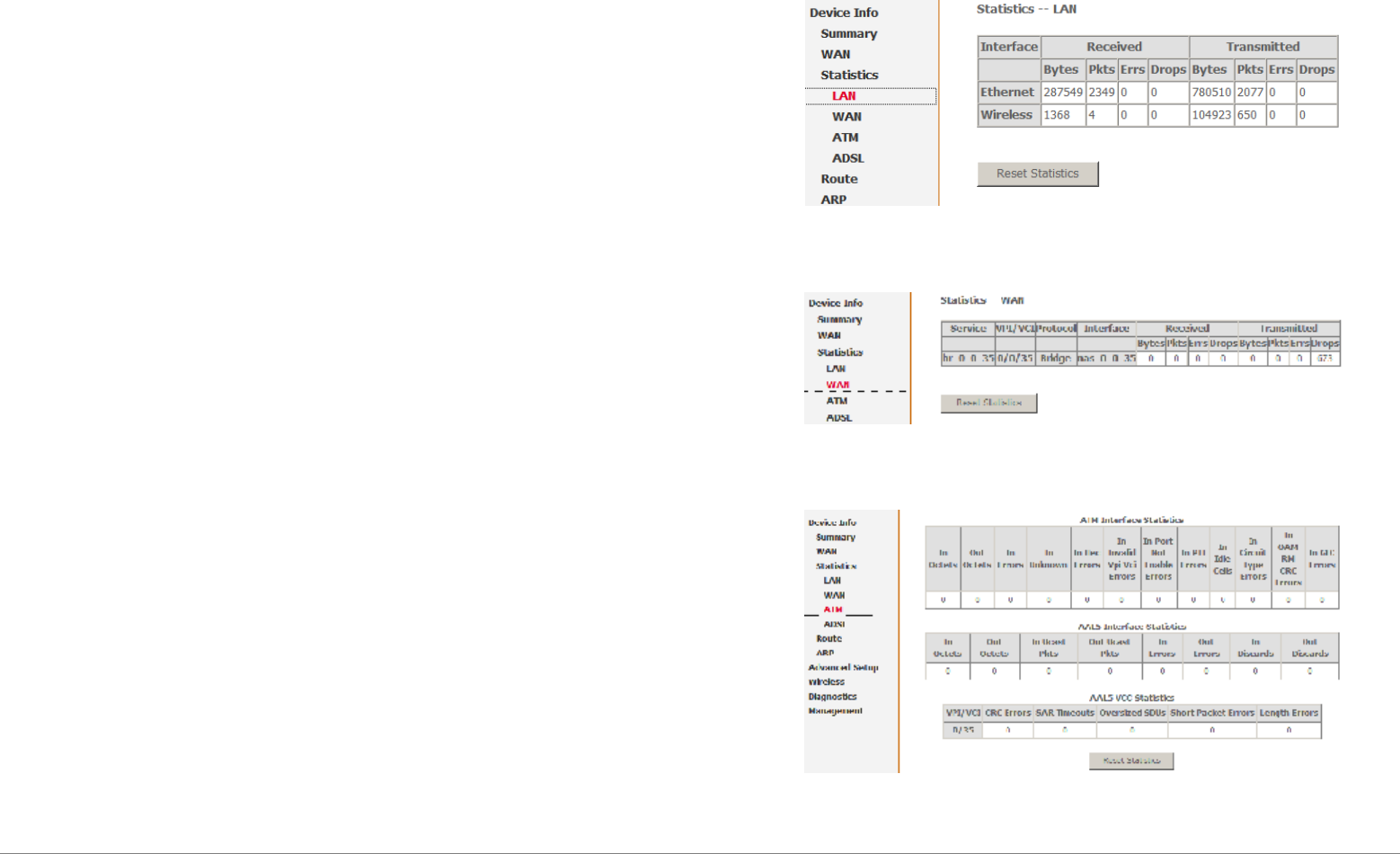

Statistics of LAN..........................................................................................27
Statistics of WAN.........................................................................................27
Statistics of ATM..........................................................................................27

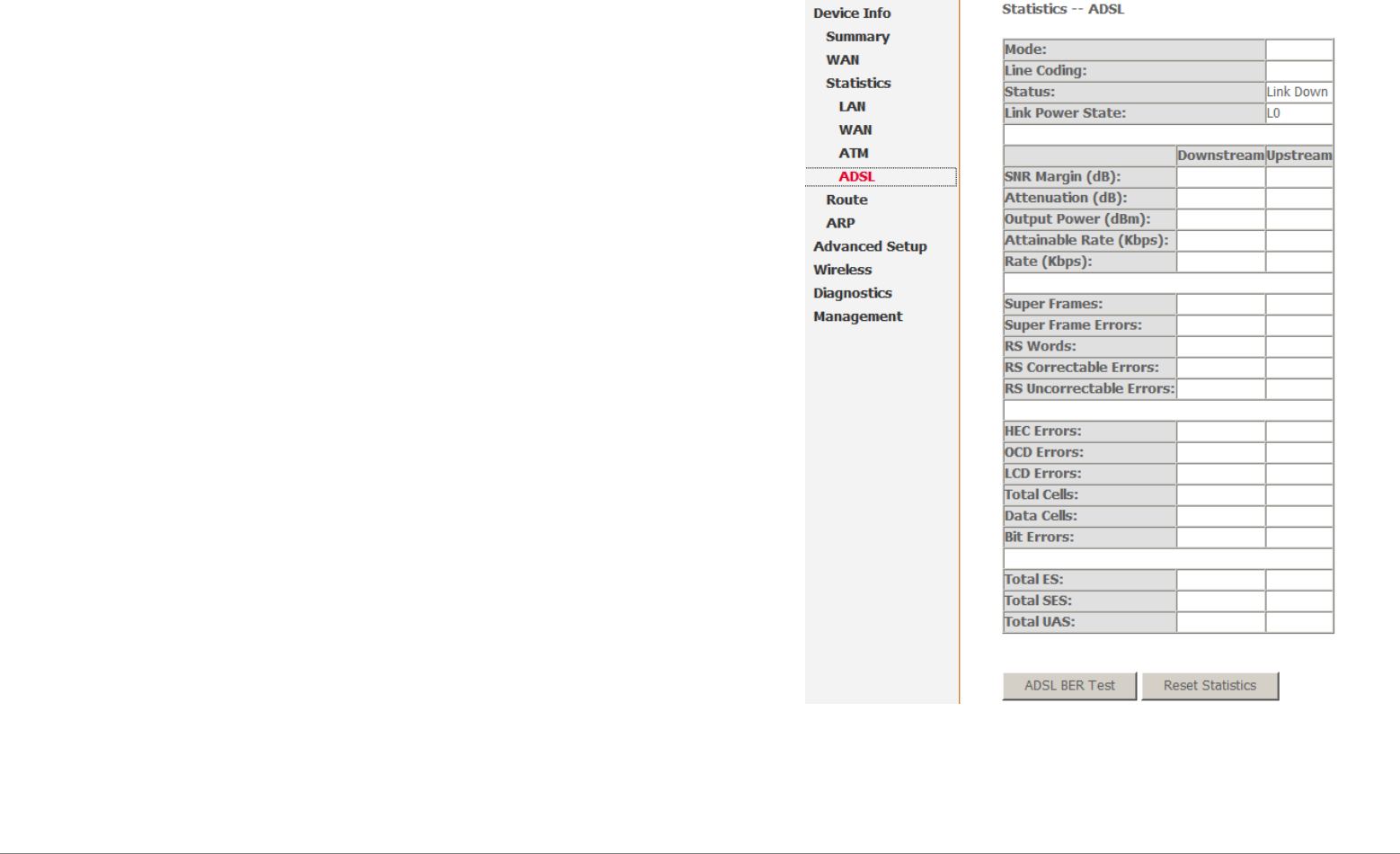

Statistics of ADSL........................................................................................28
Route Table Information...............................................................................29

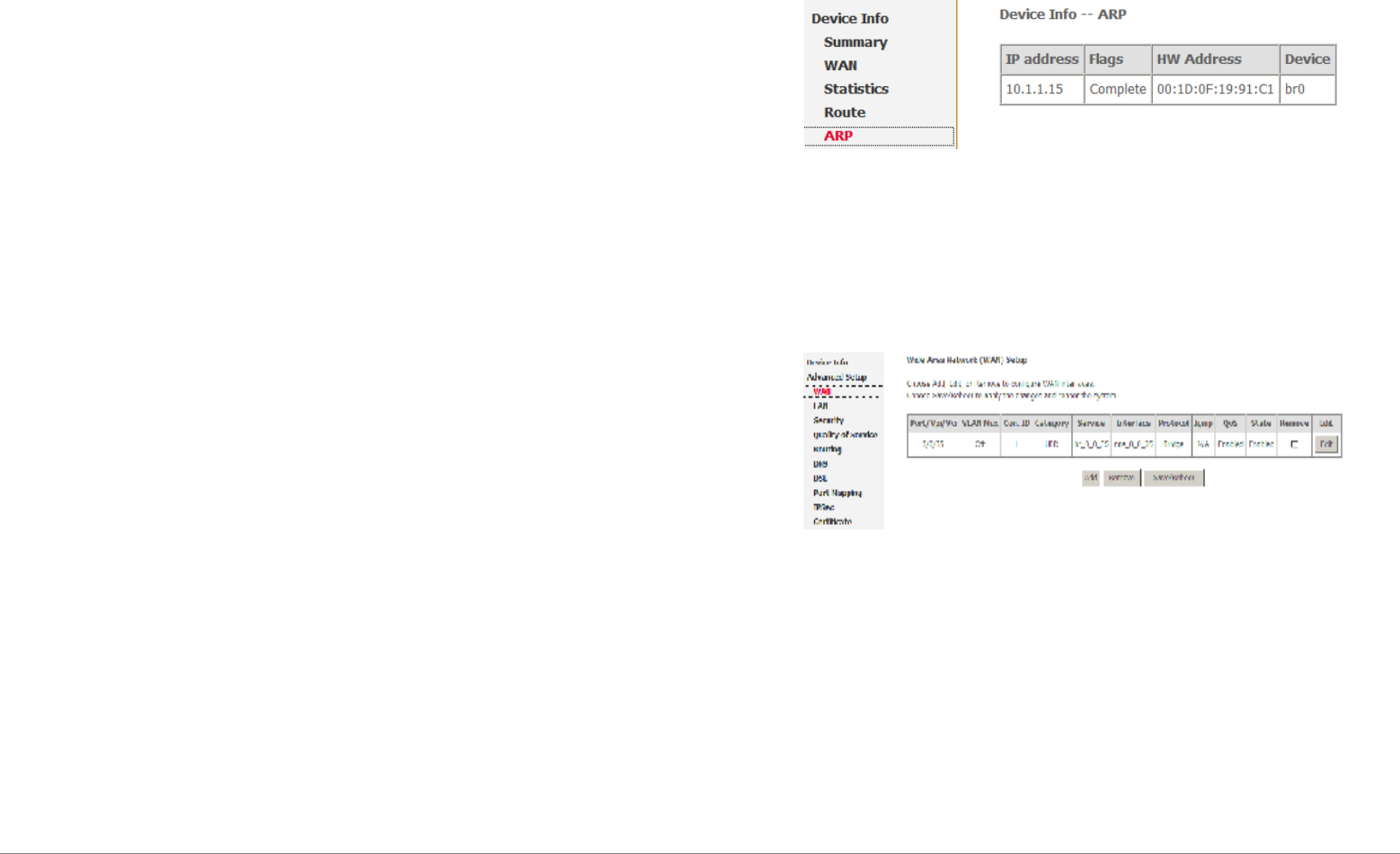

ARP Table Information.................................................................................30
Advanced Setup..................................................................................................30
WAN Configuration......................................................................................30

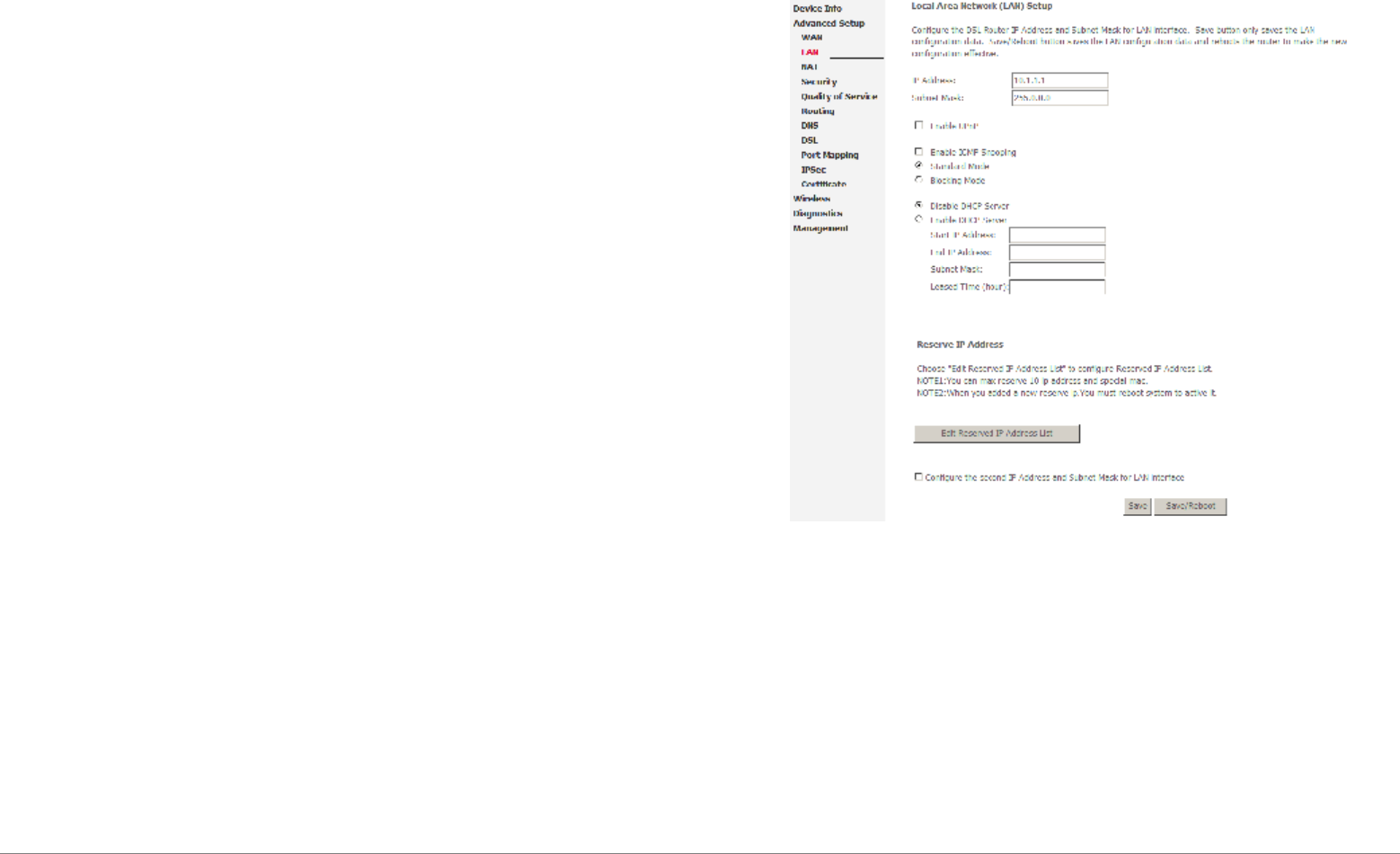

LAN Configuration.......................................................................................32

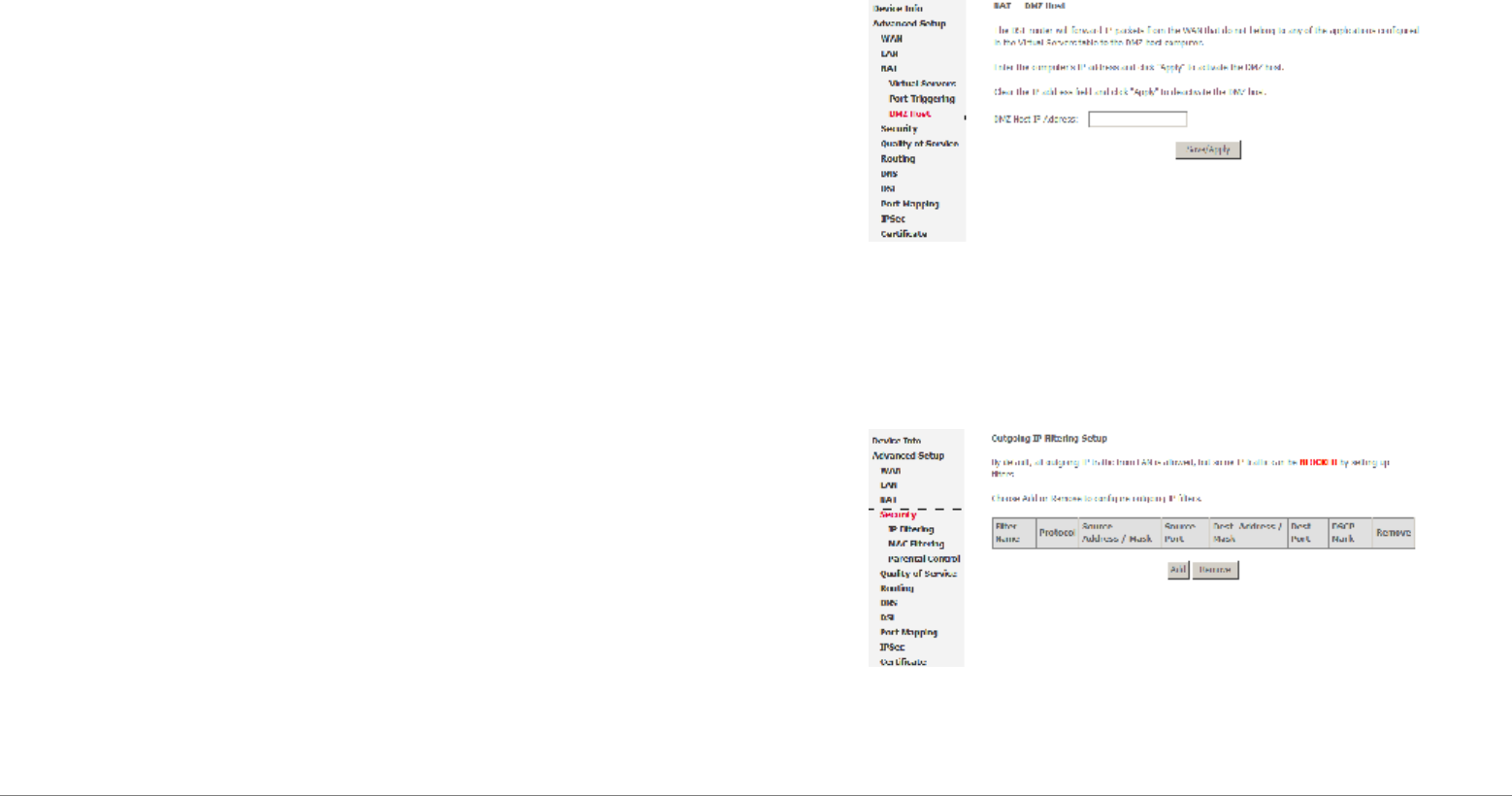

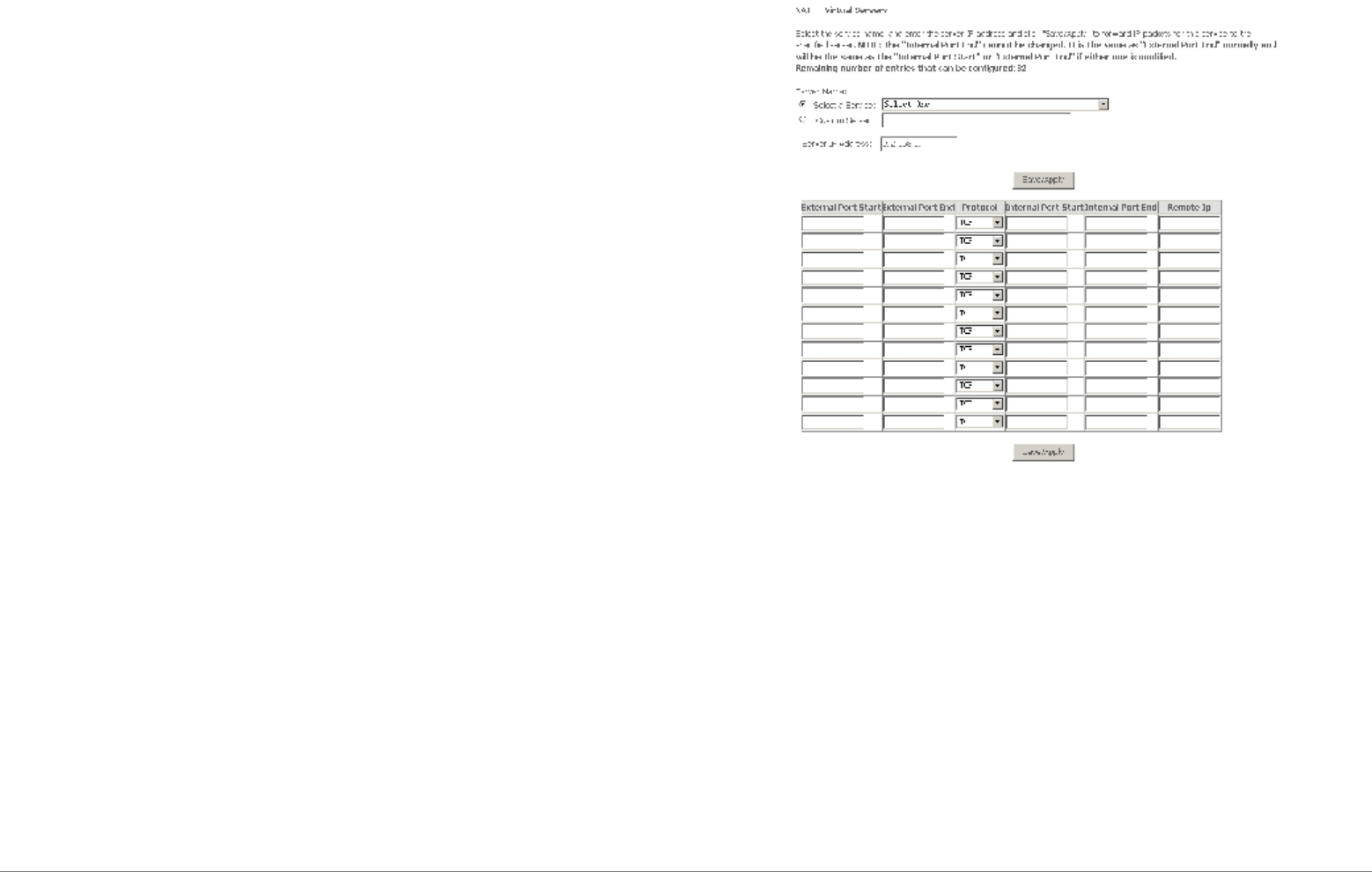

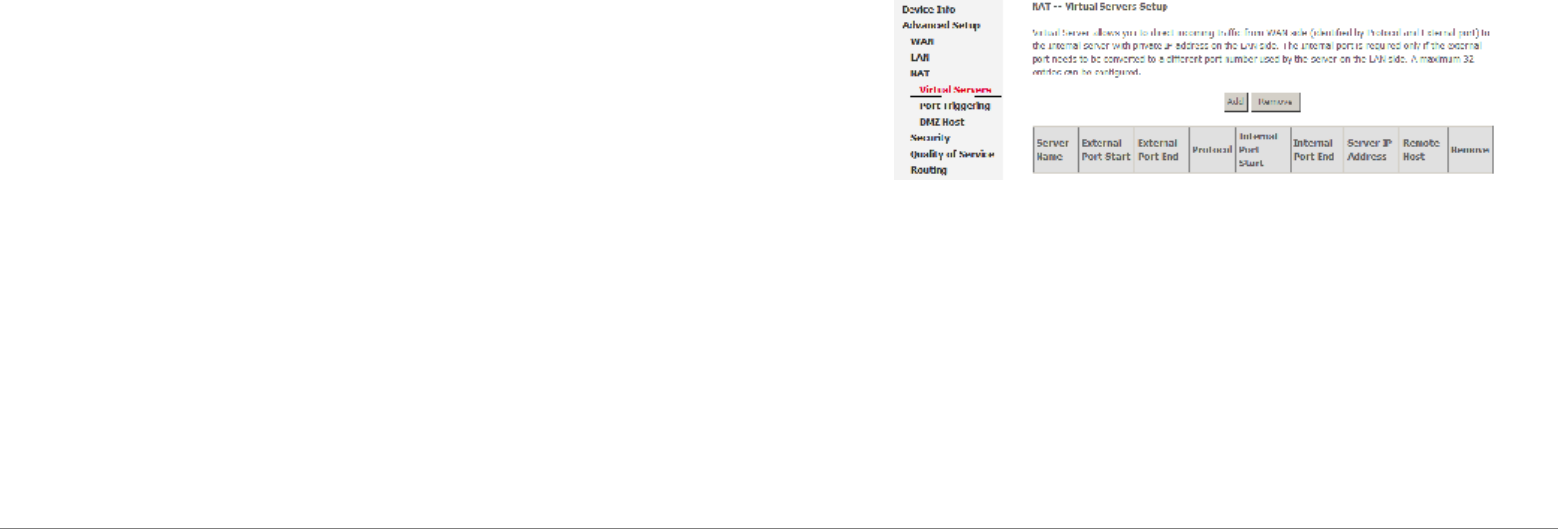

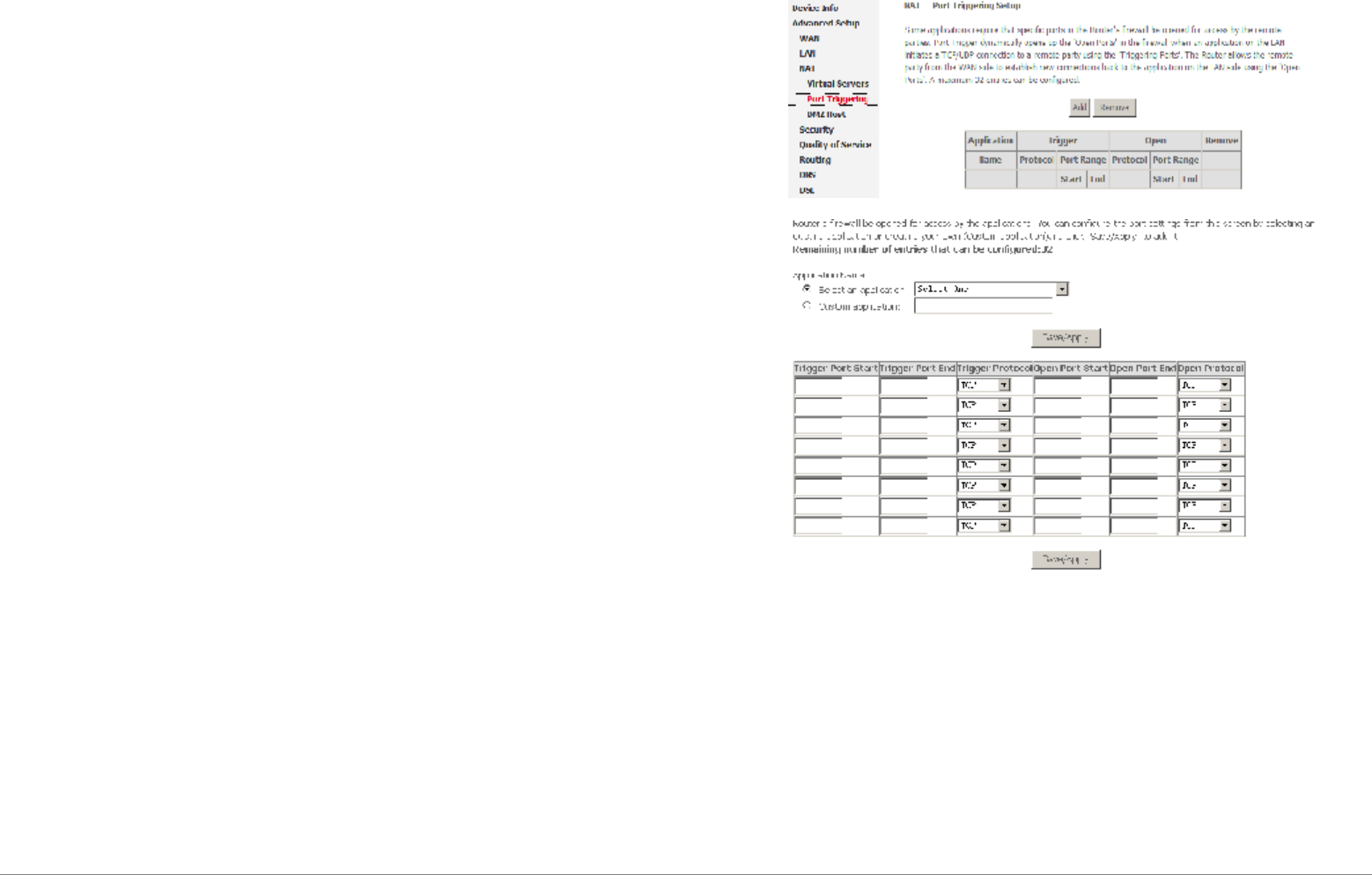

NAT............................................................................................................32

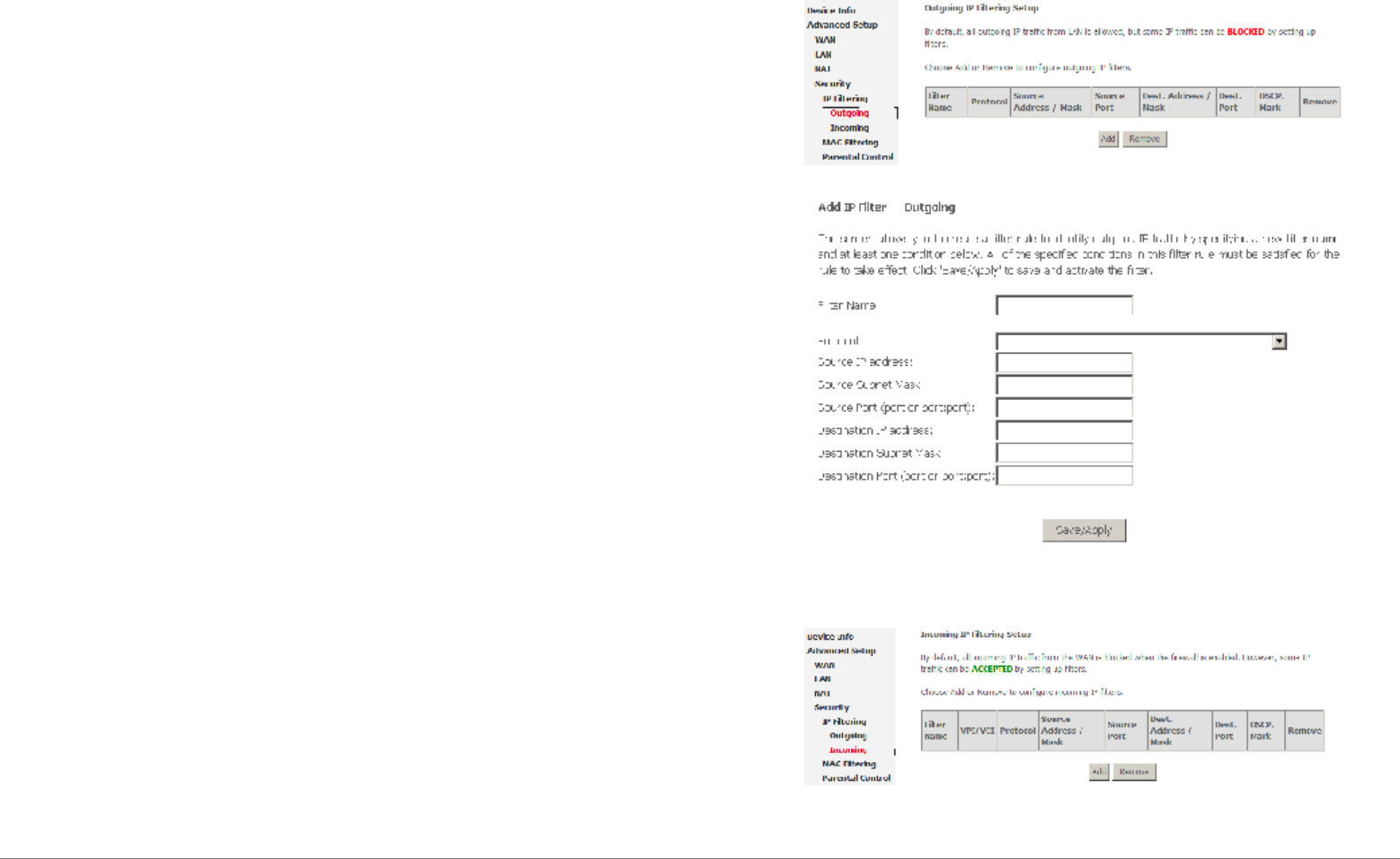

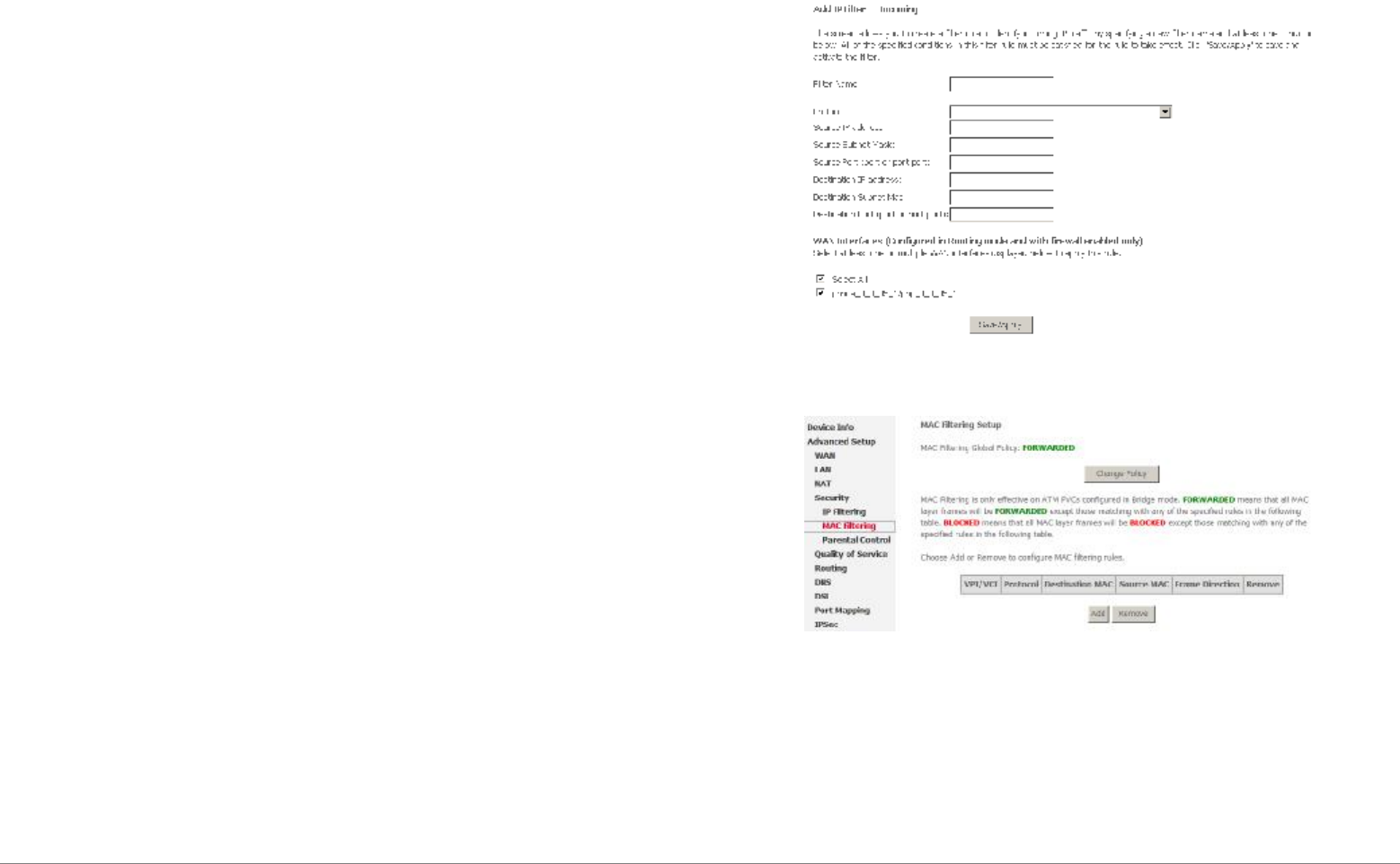

Security......................................................................................................37

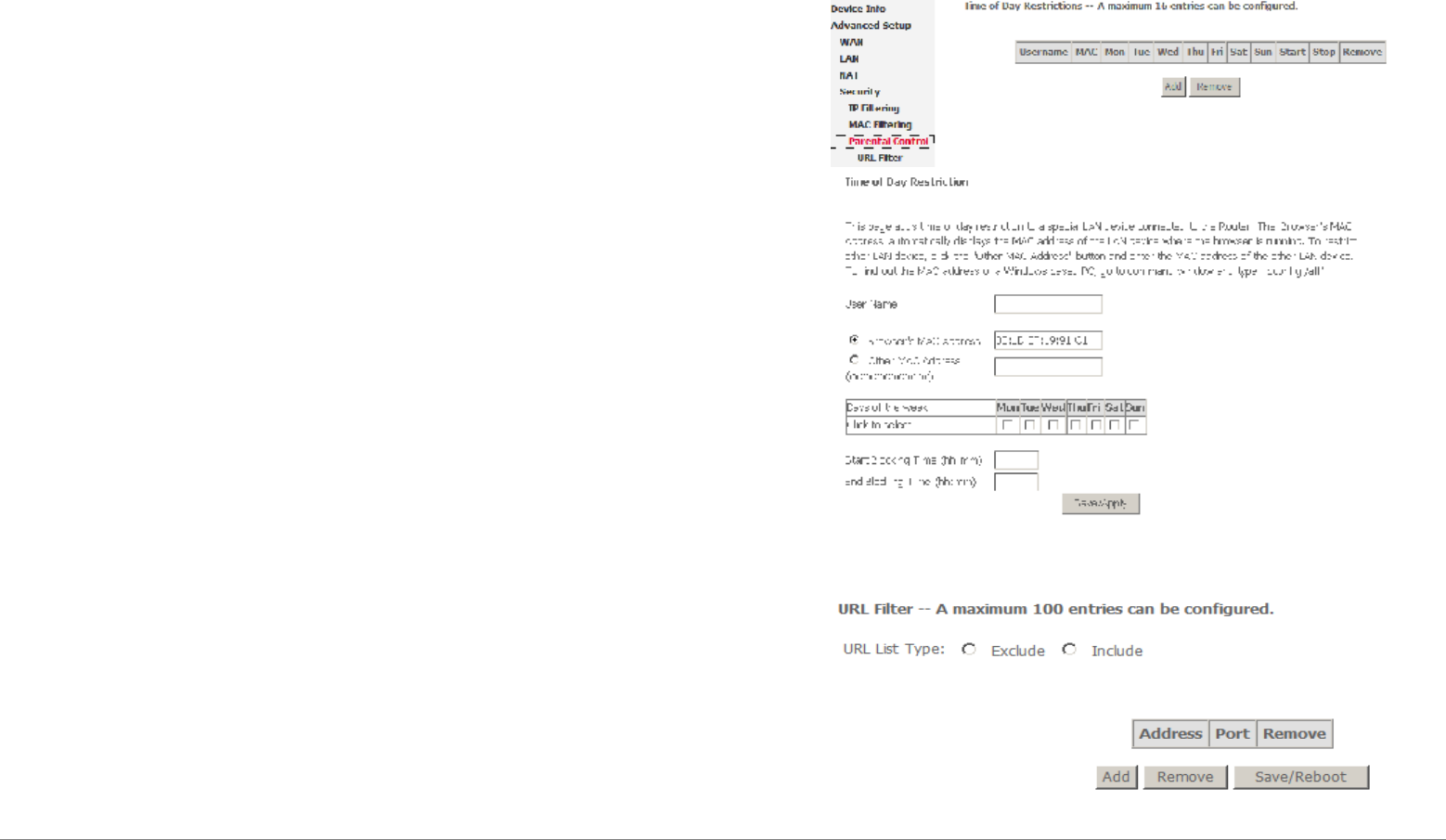

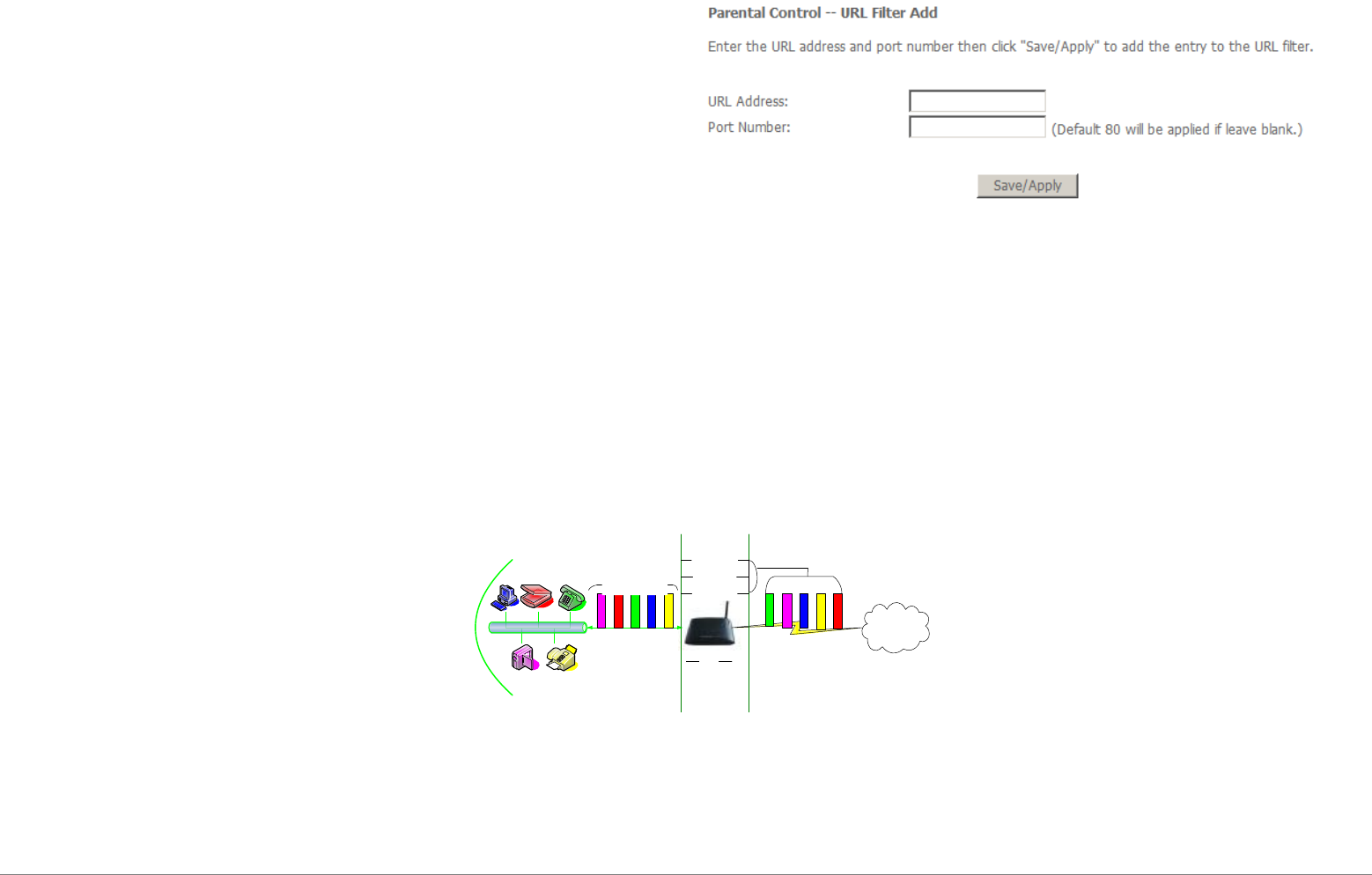

Parental Control..........................................................................................41

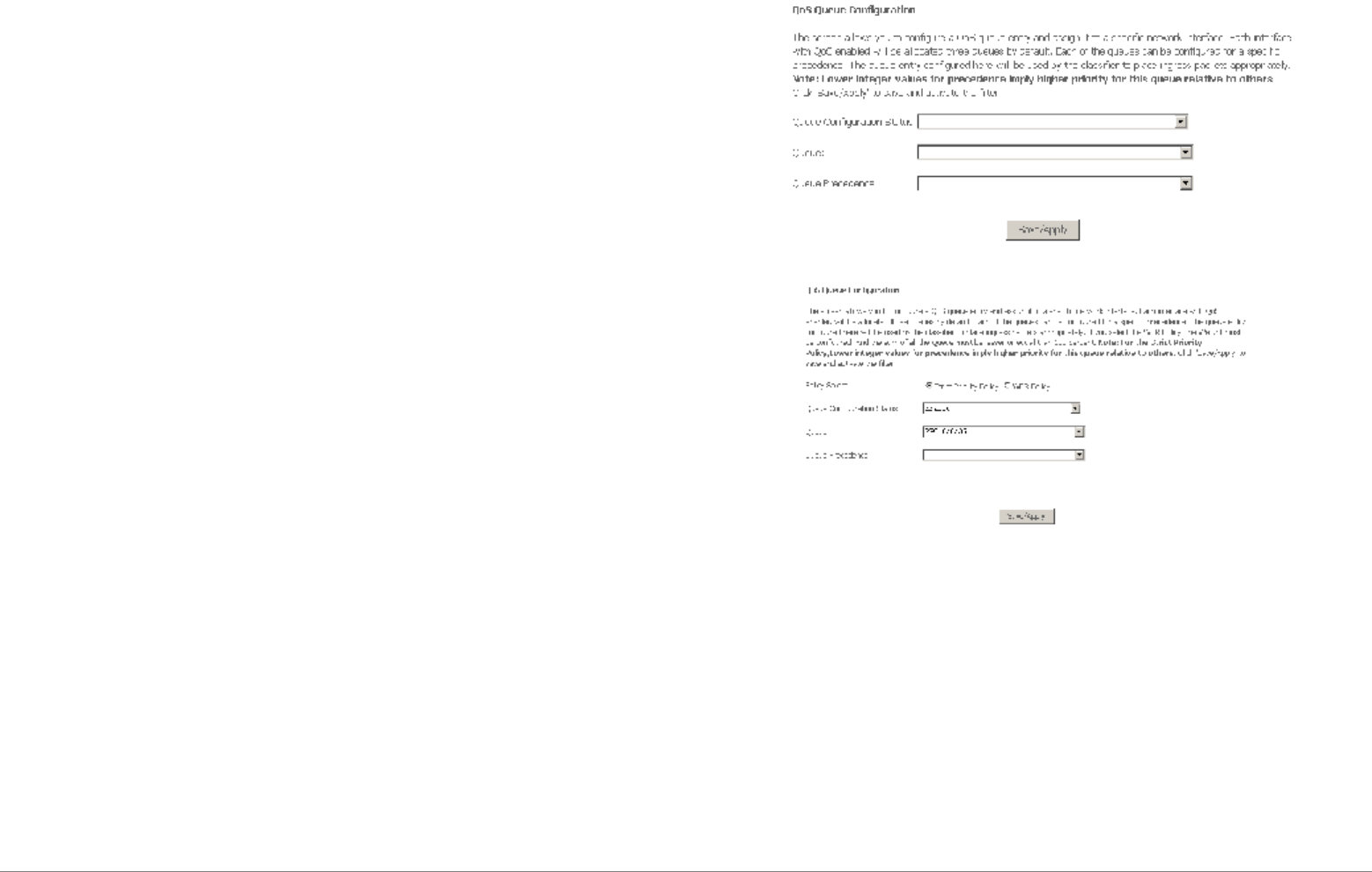

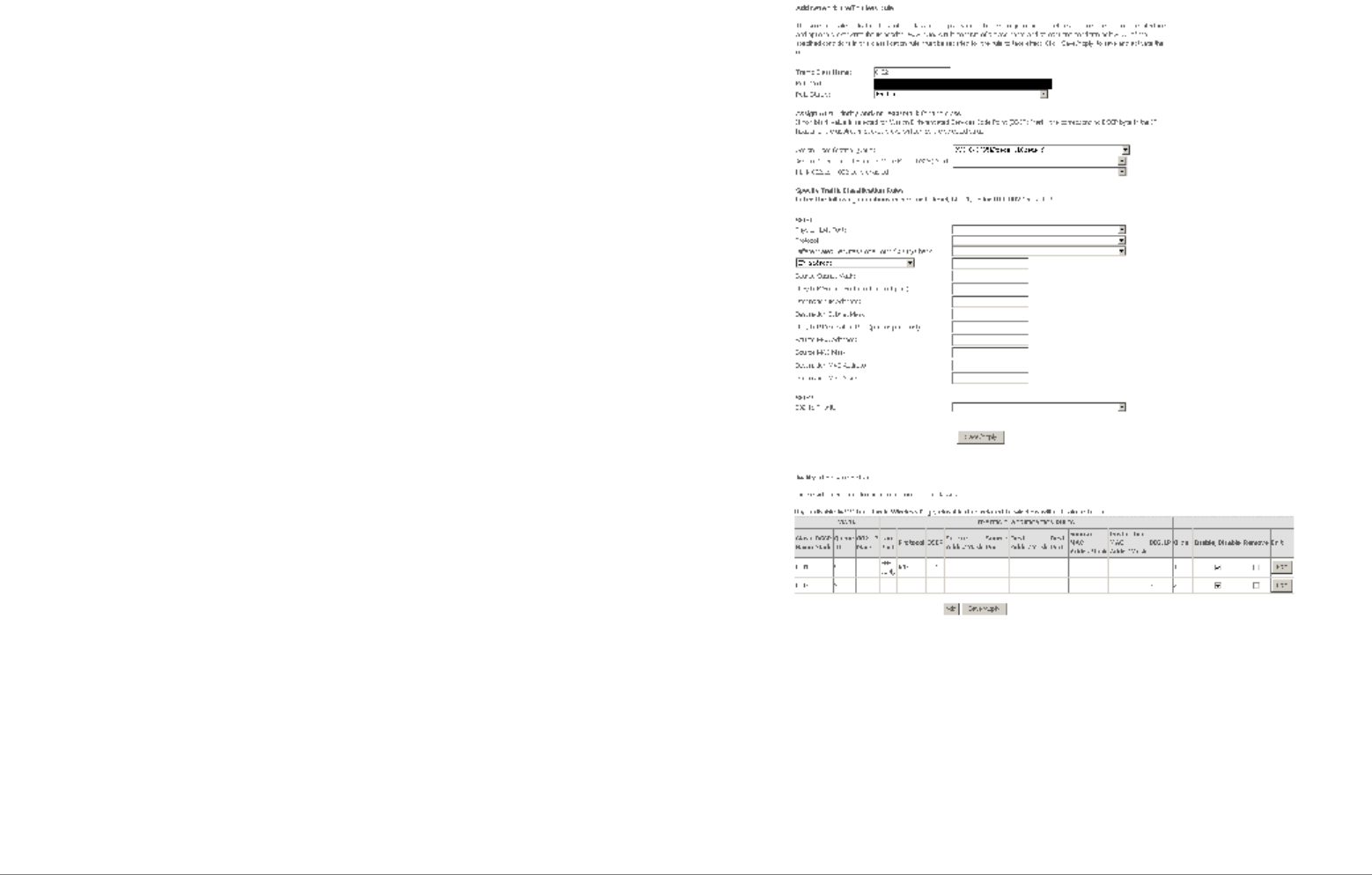

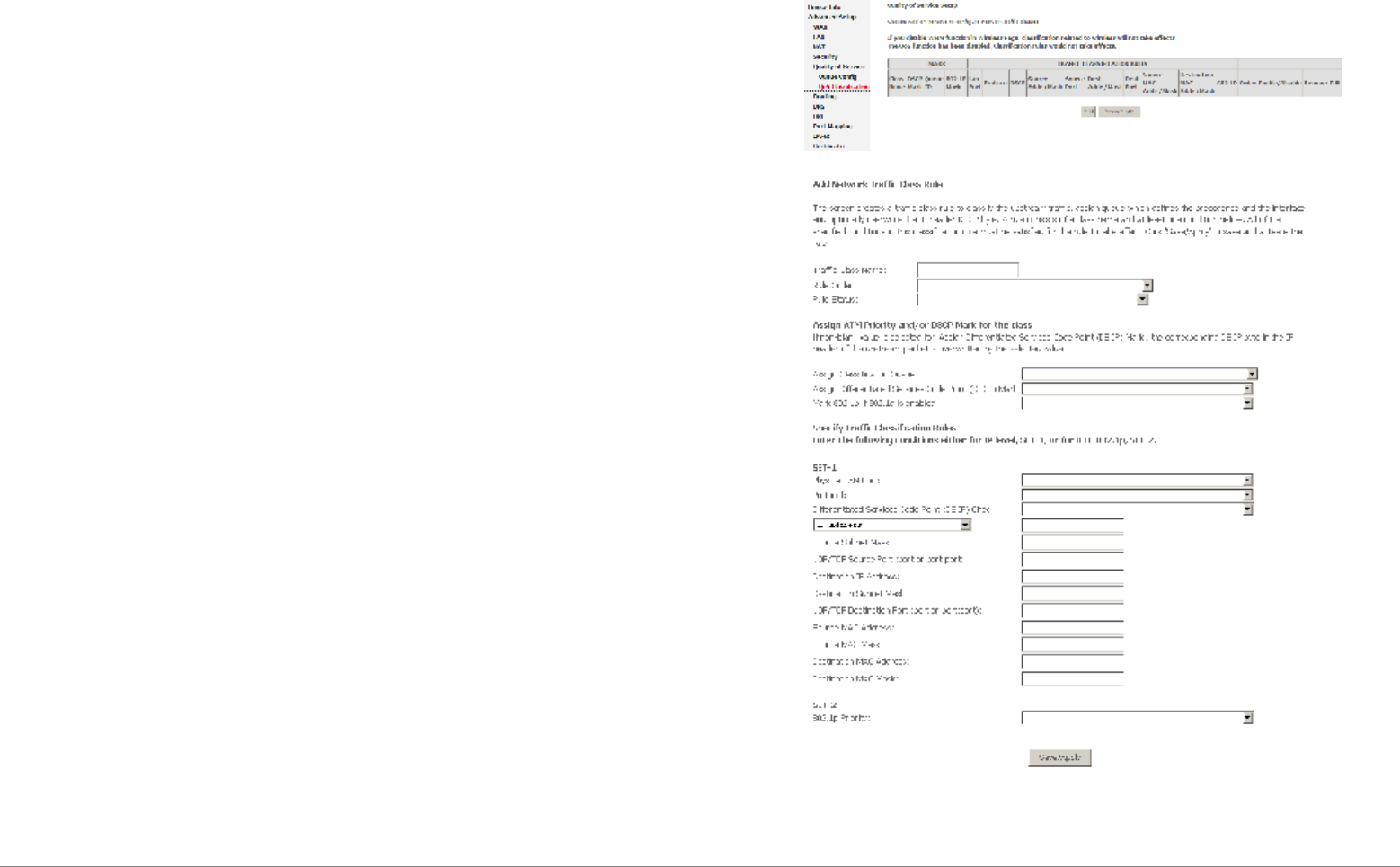

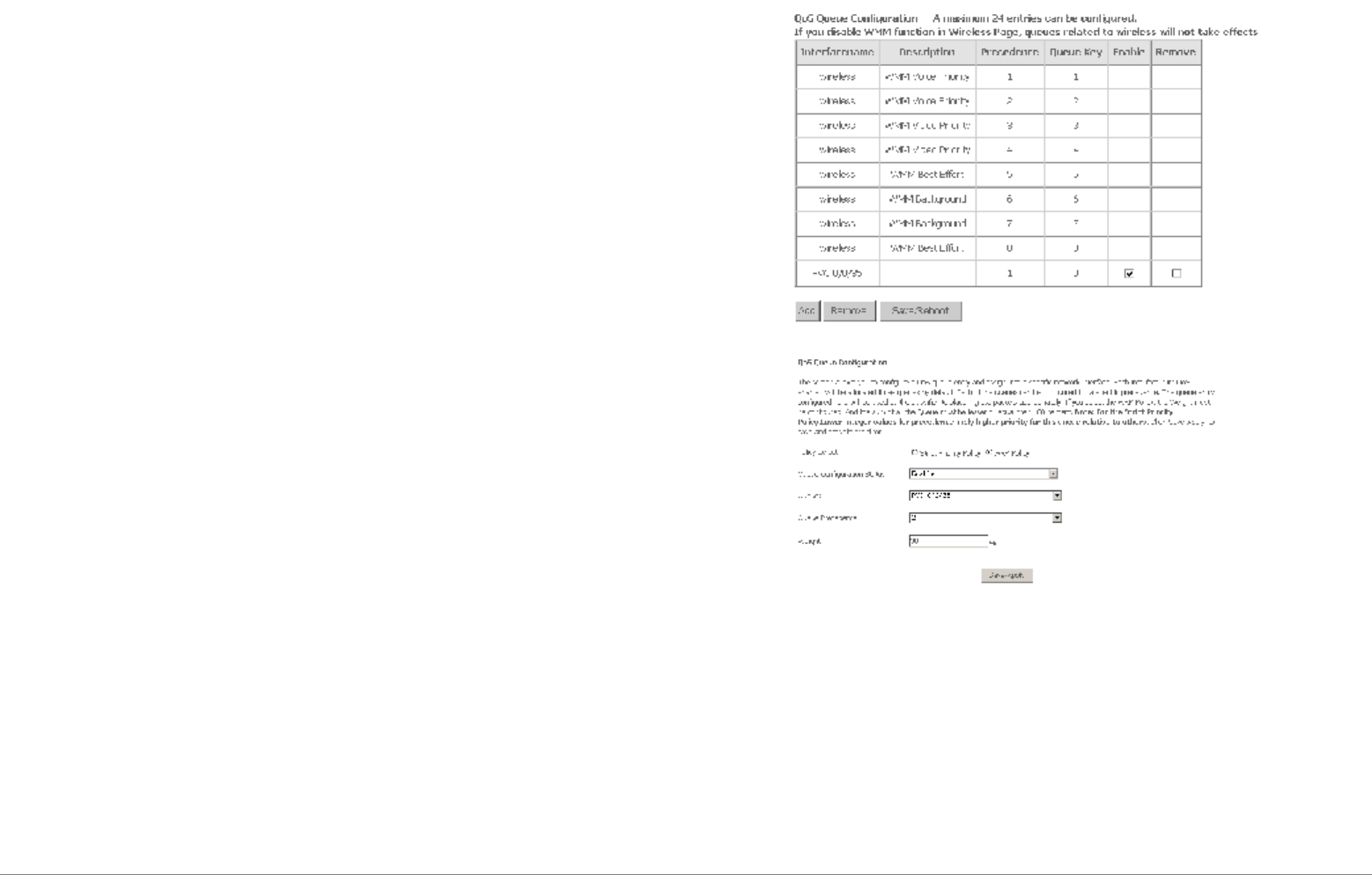

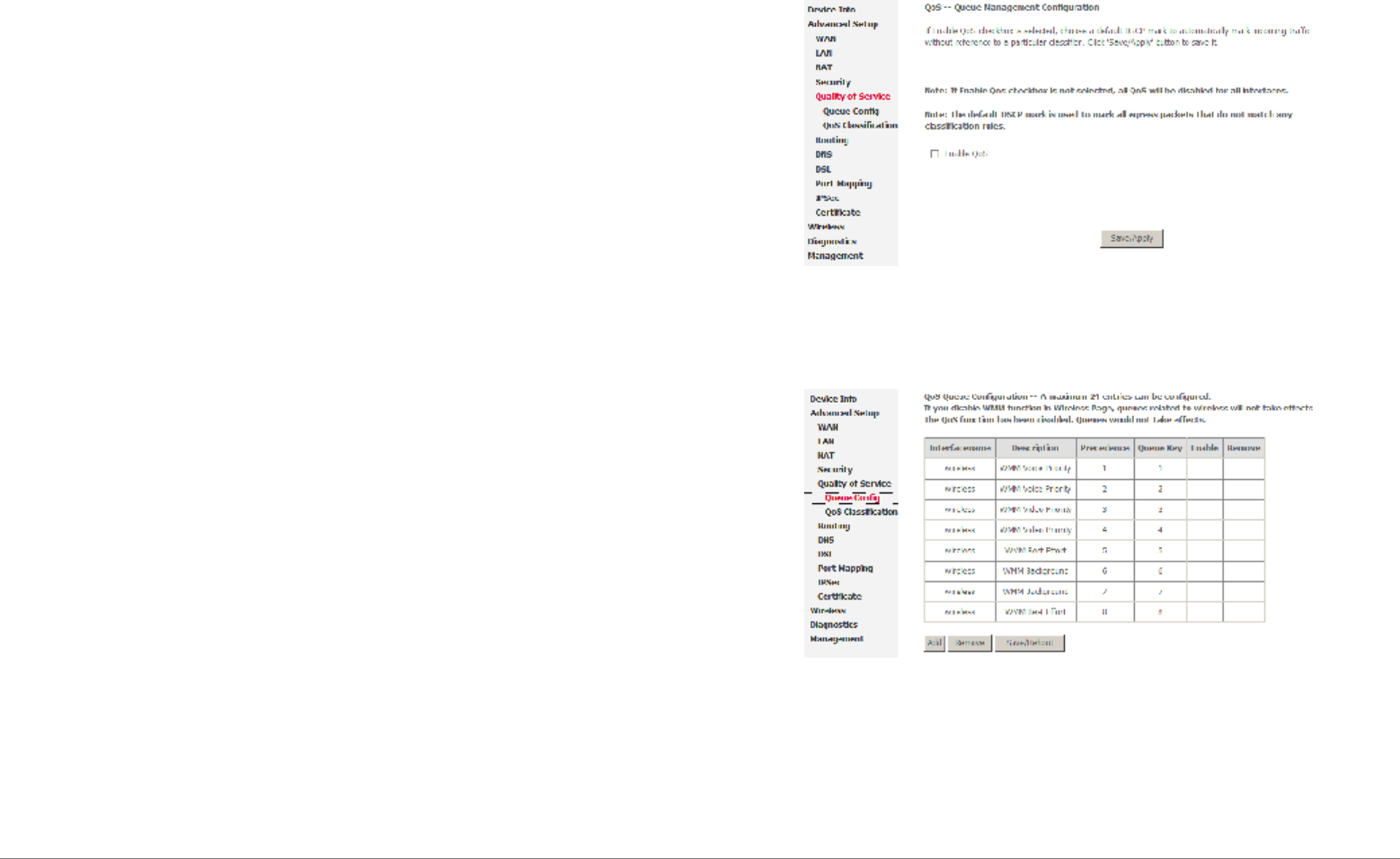

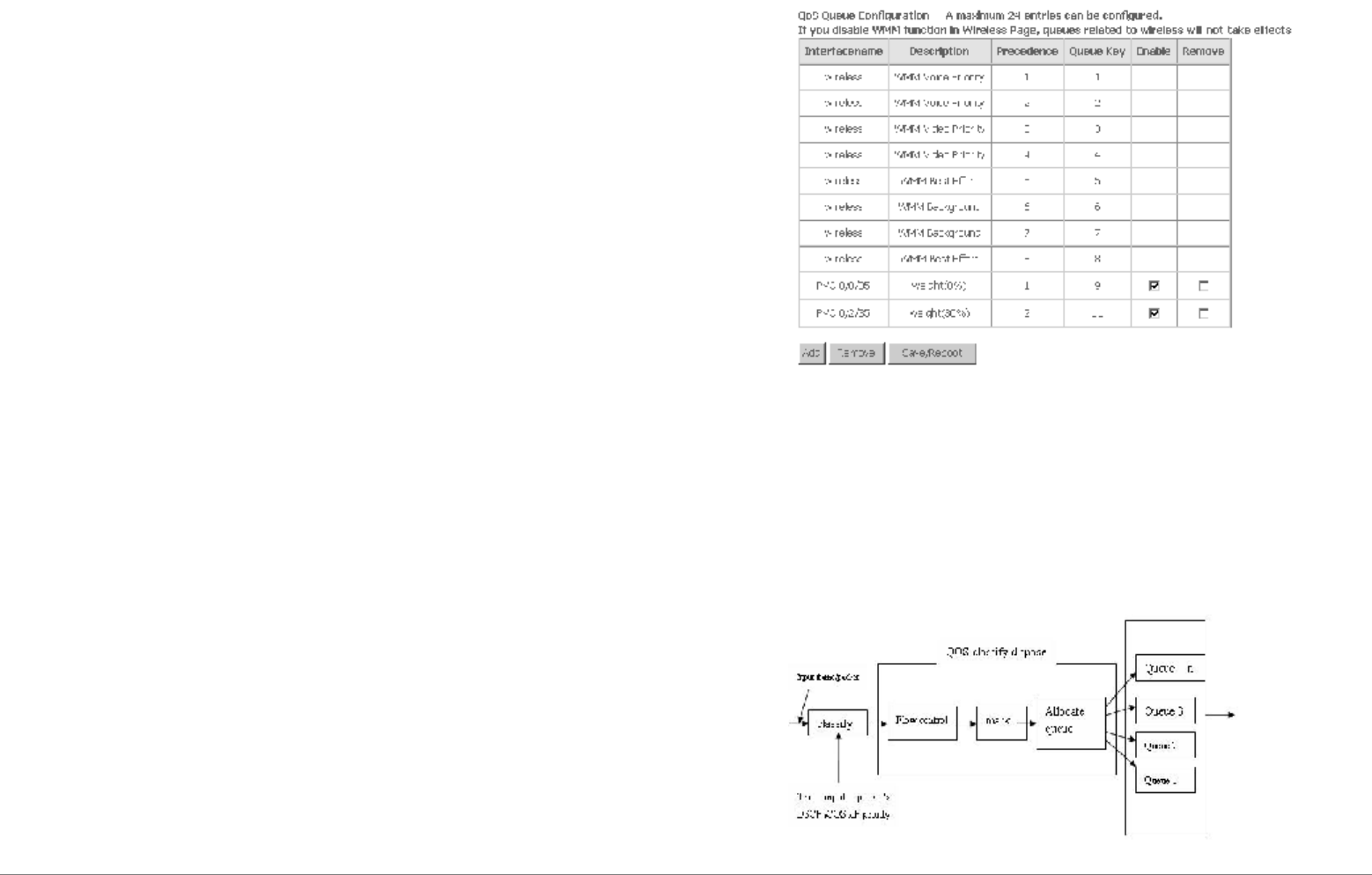

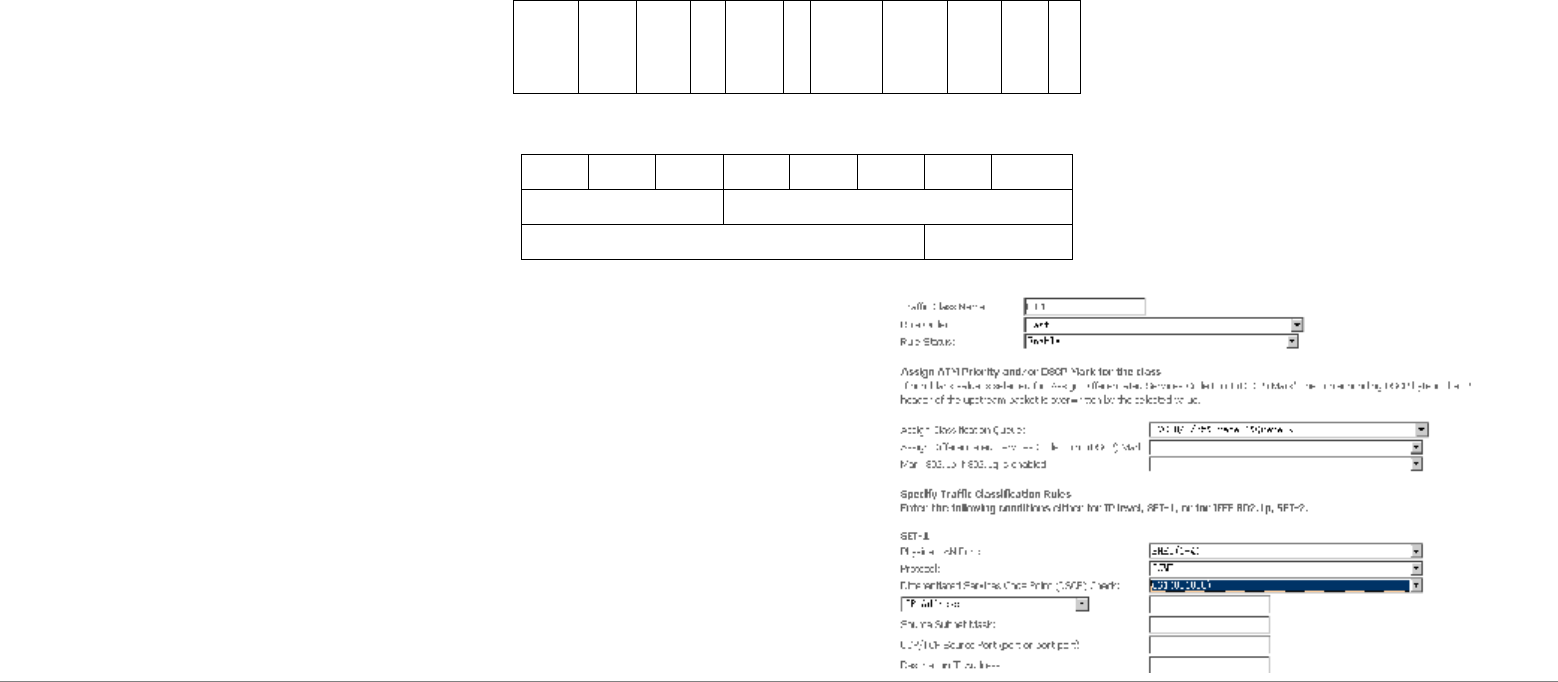

Quality of Service........................................................................................42

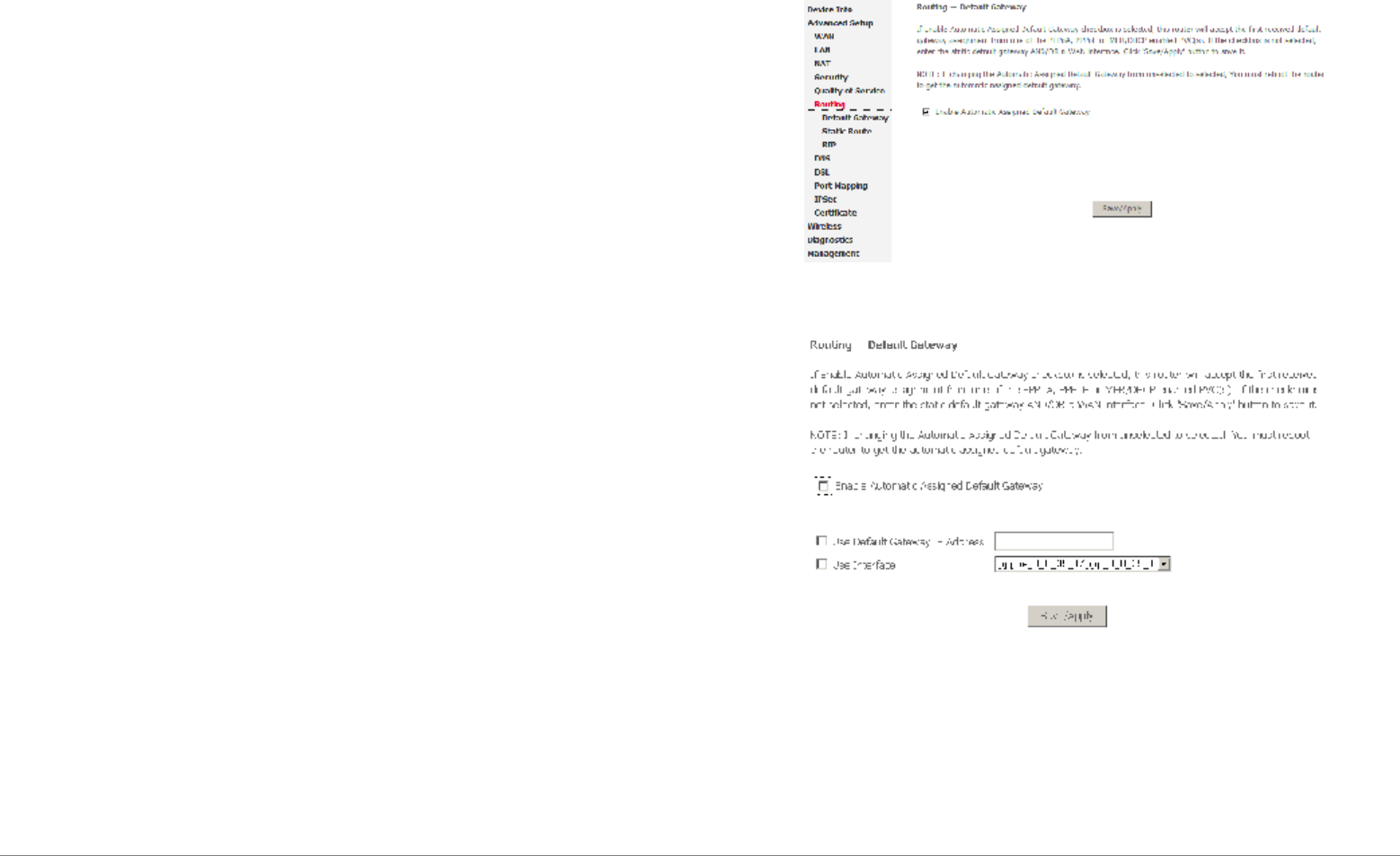

Routing.......................................................................................................51

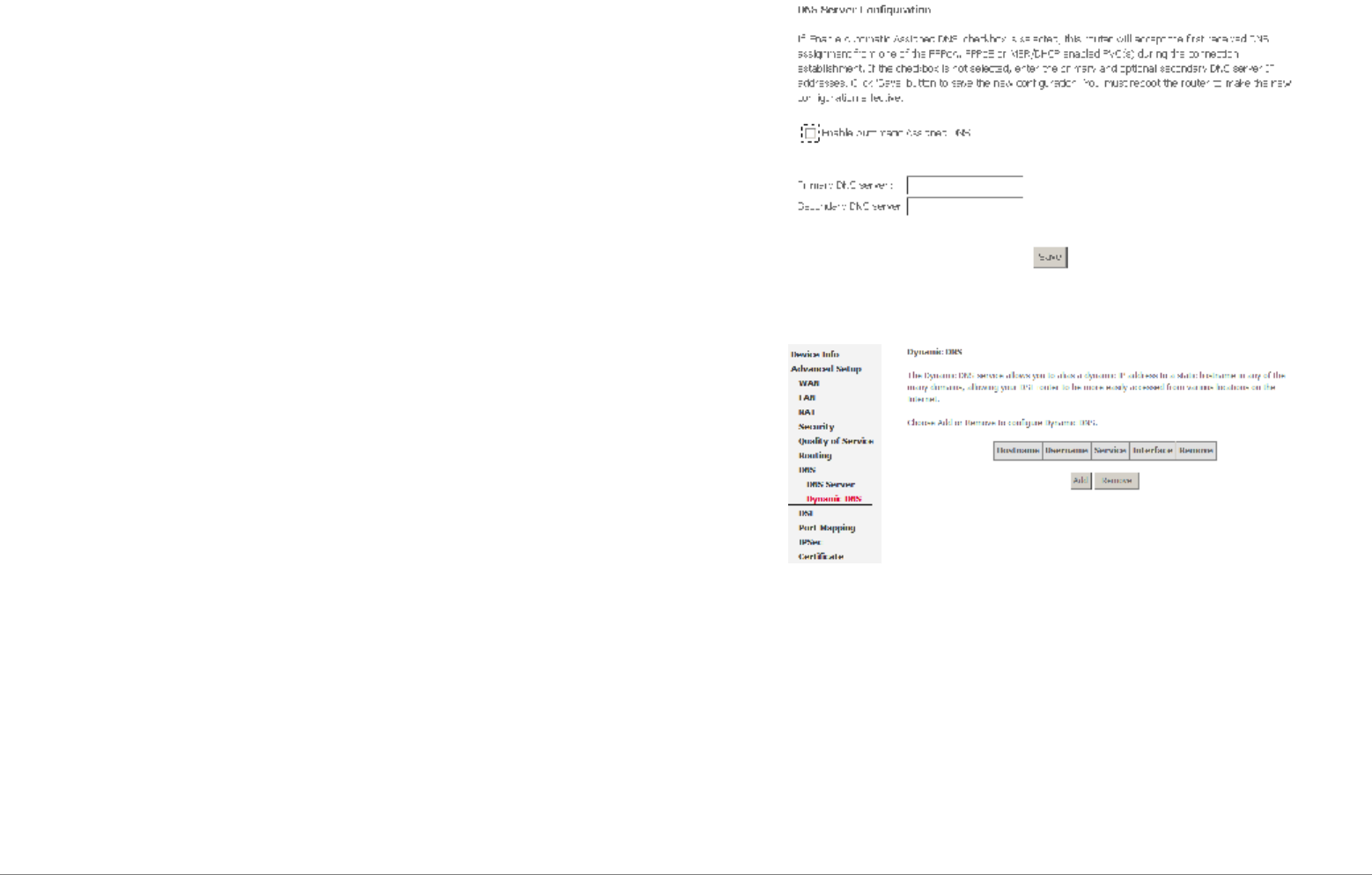

DNS............................................................................................................52

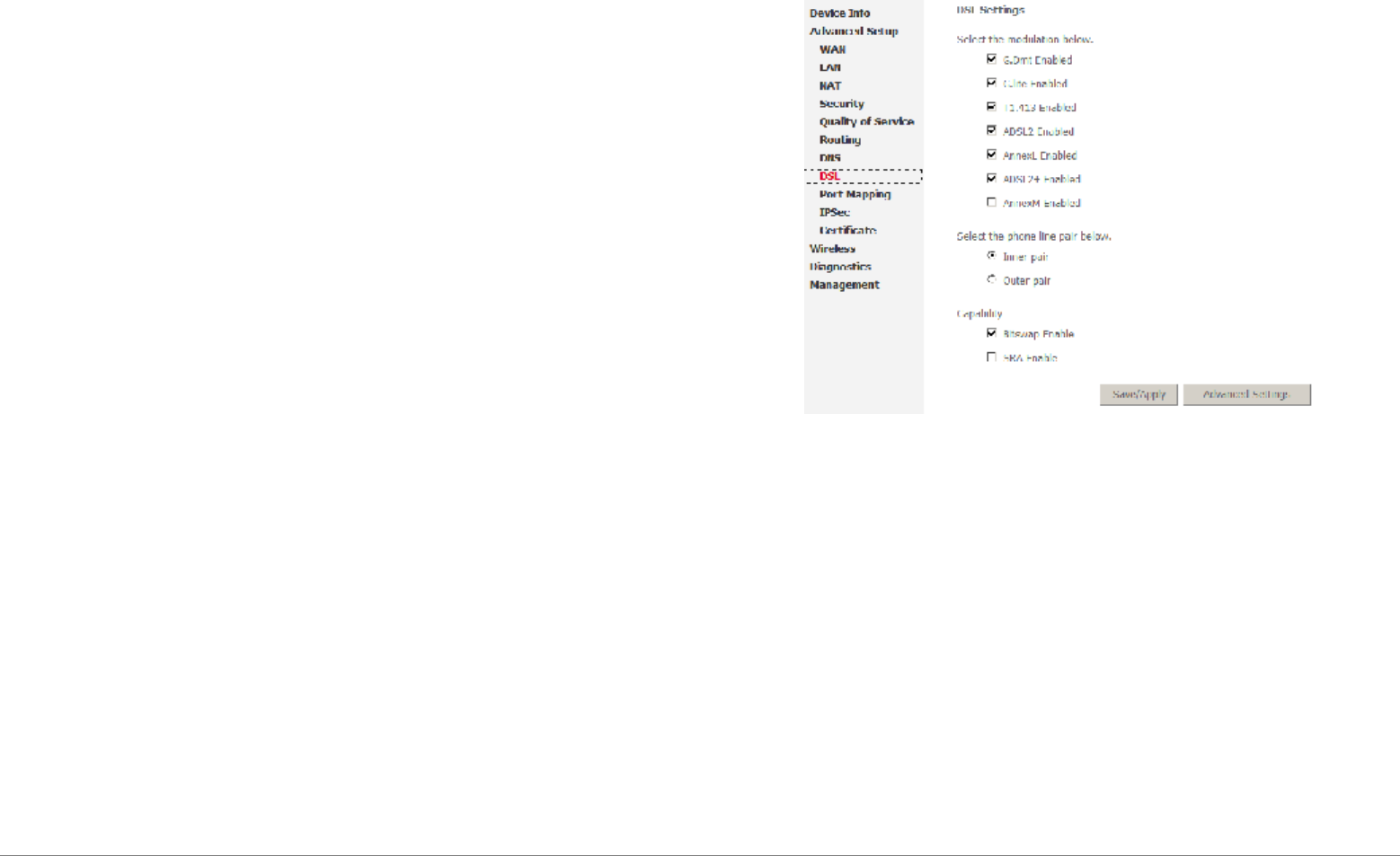

DSL.............................................................................................................55
Port Mapping...................................................................
错误！未定义书签。

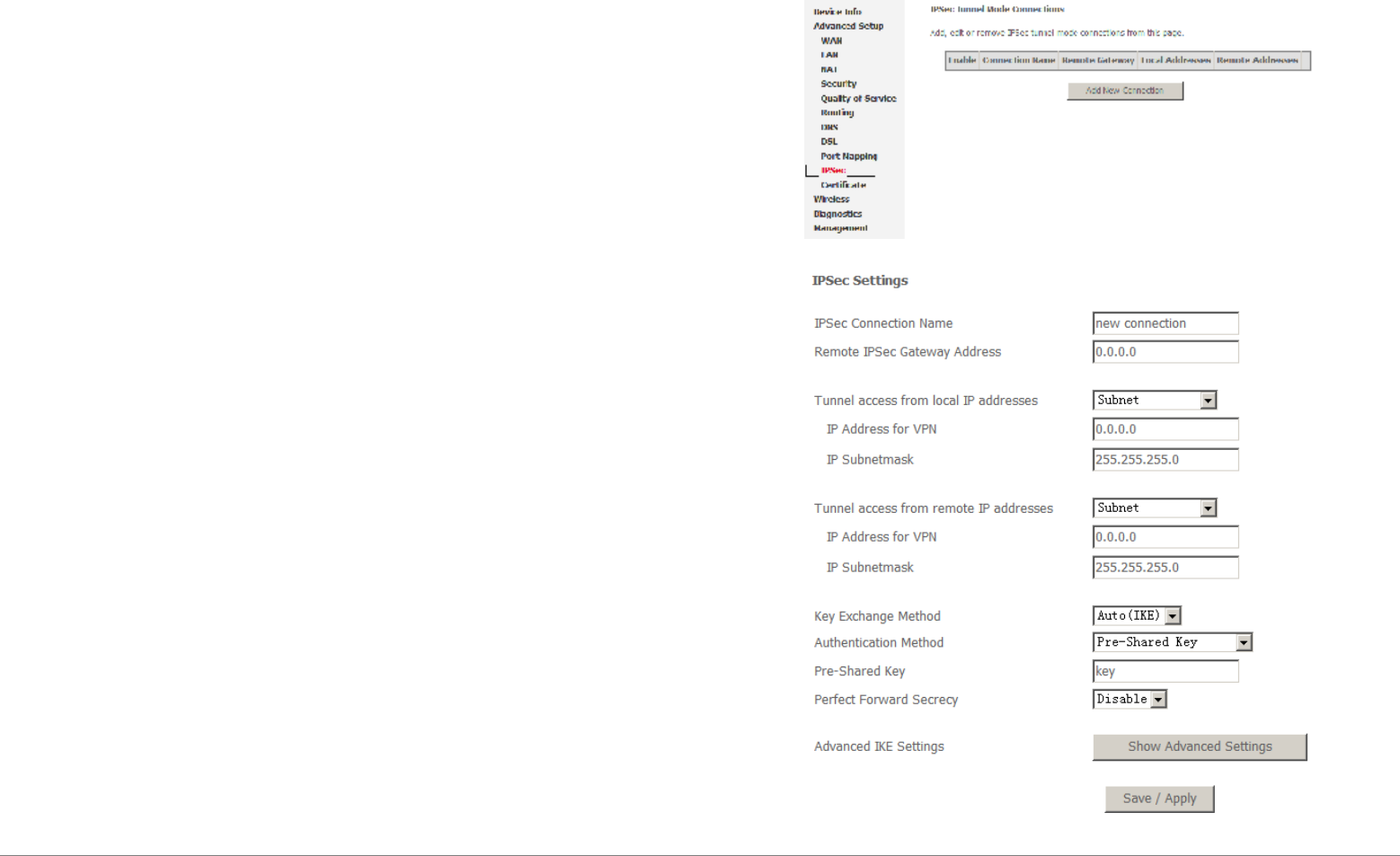

IPSec..........................................................................................................57

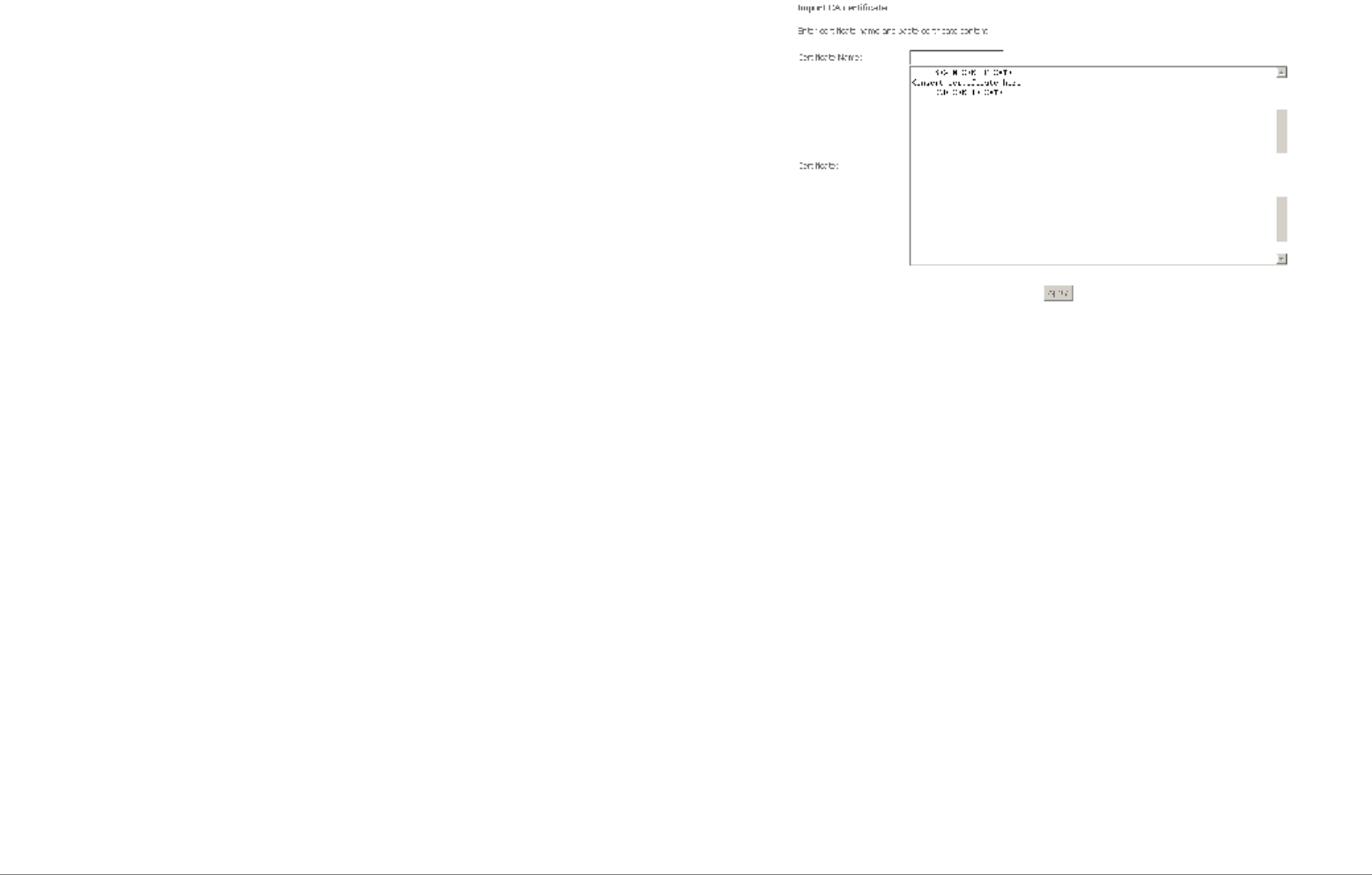

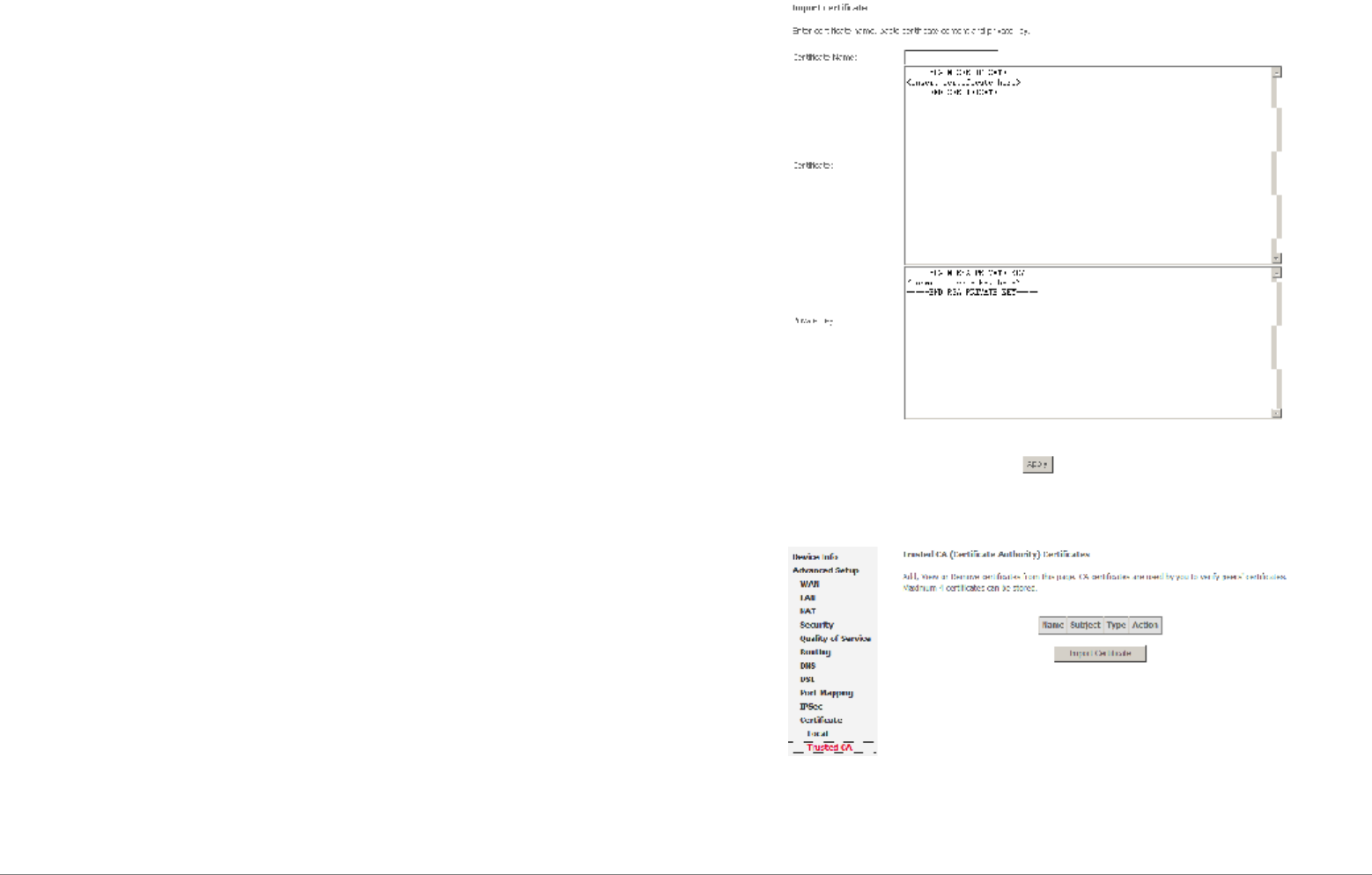

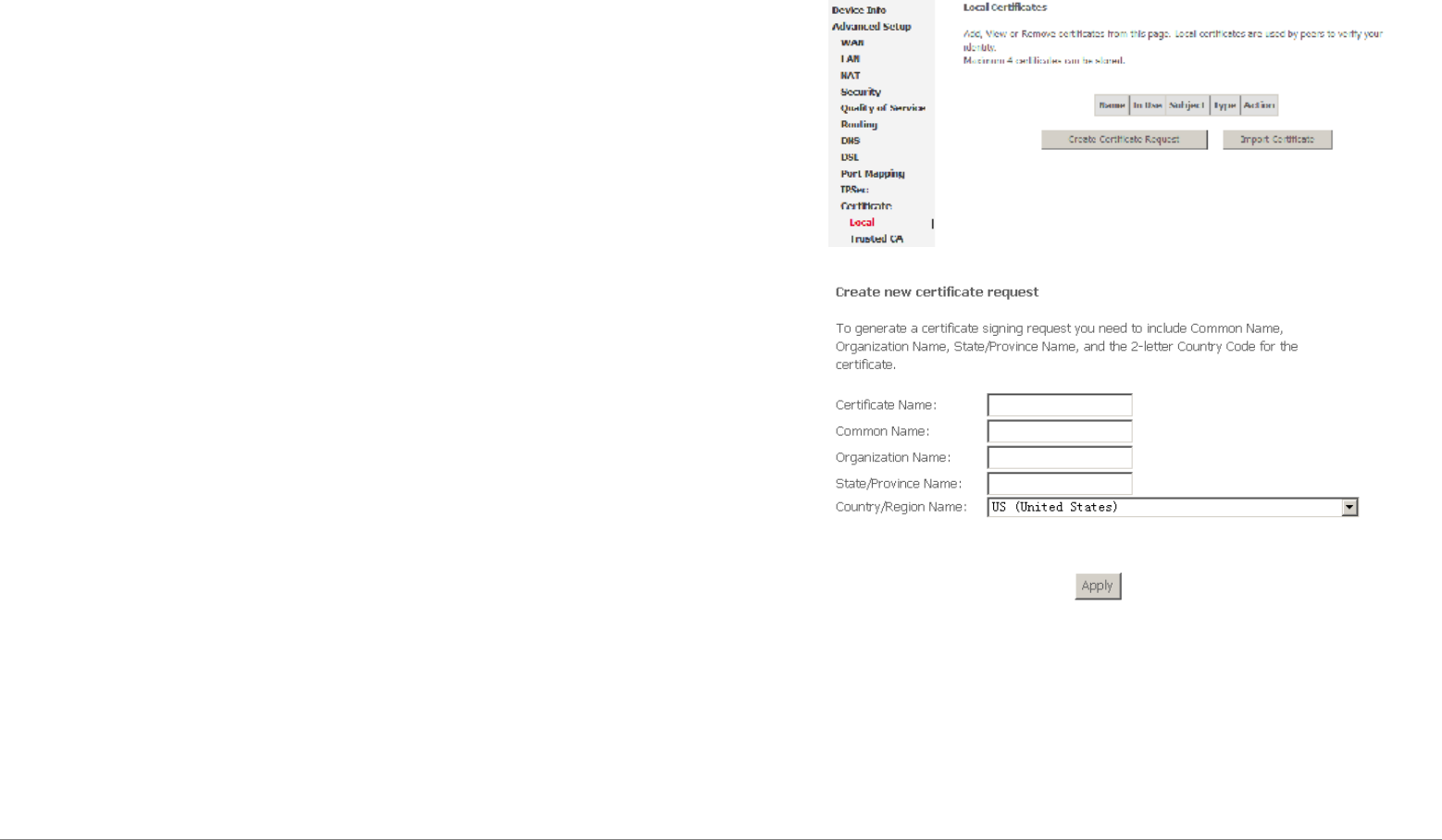

Certificate....................................................................................................58
Wireless..............................................................................................................60
Wireless LAN Basics....................................................................................60

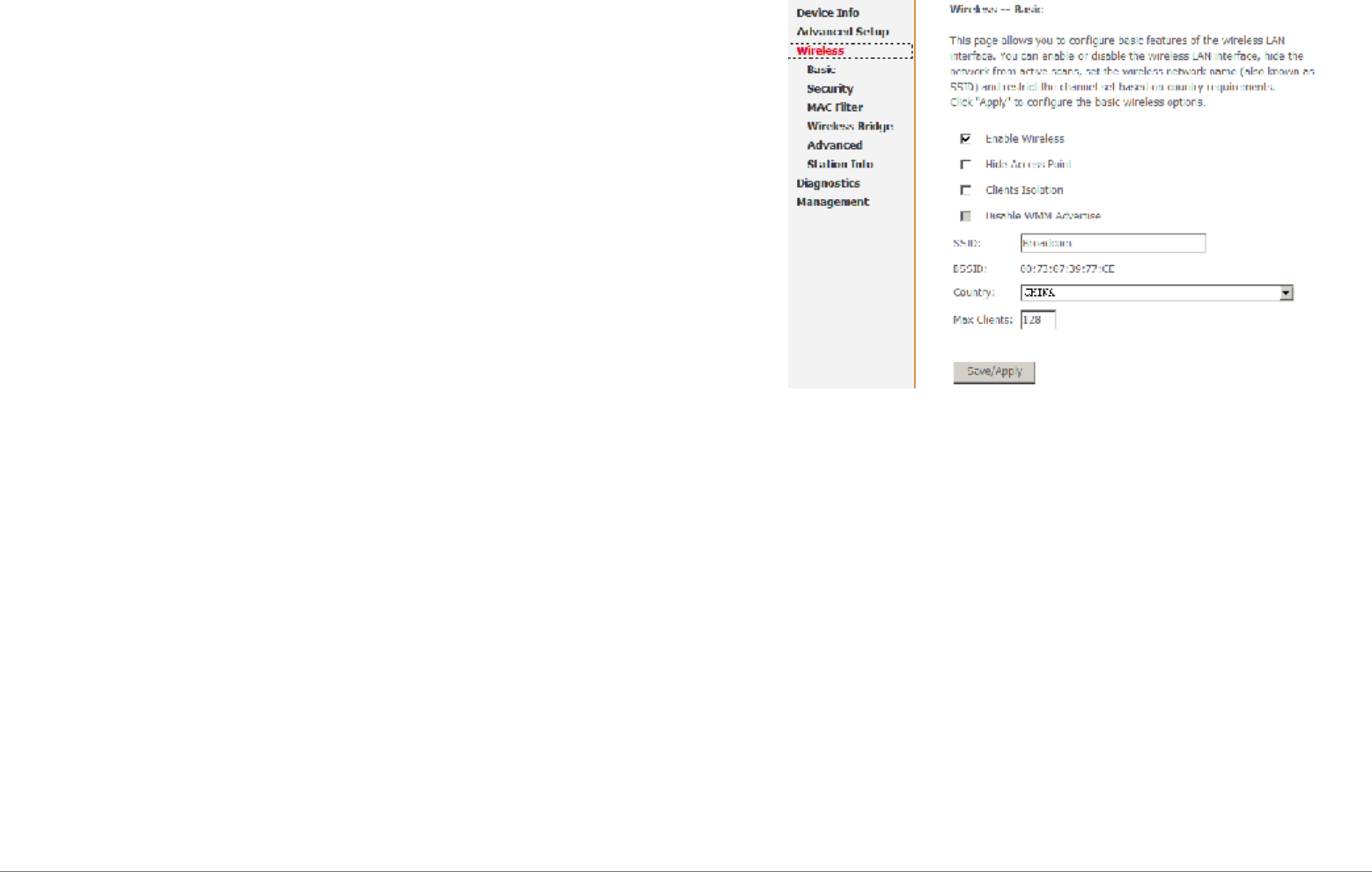

Wireless – Basic..........................................................................................62

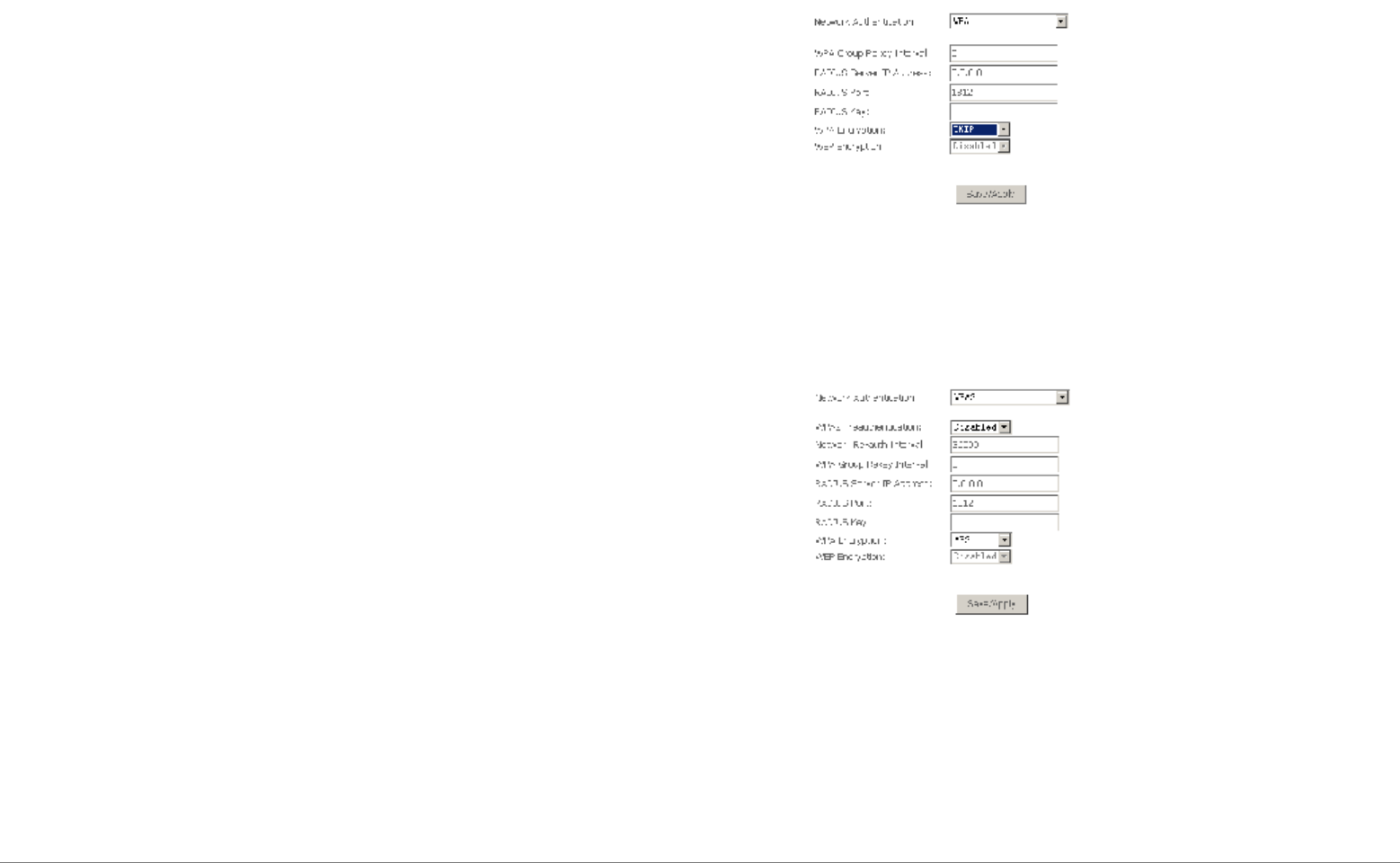

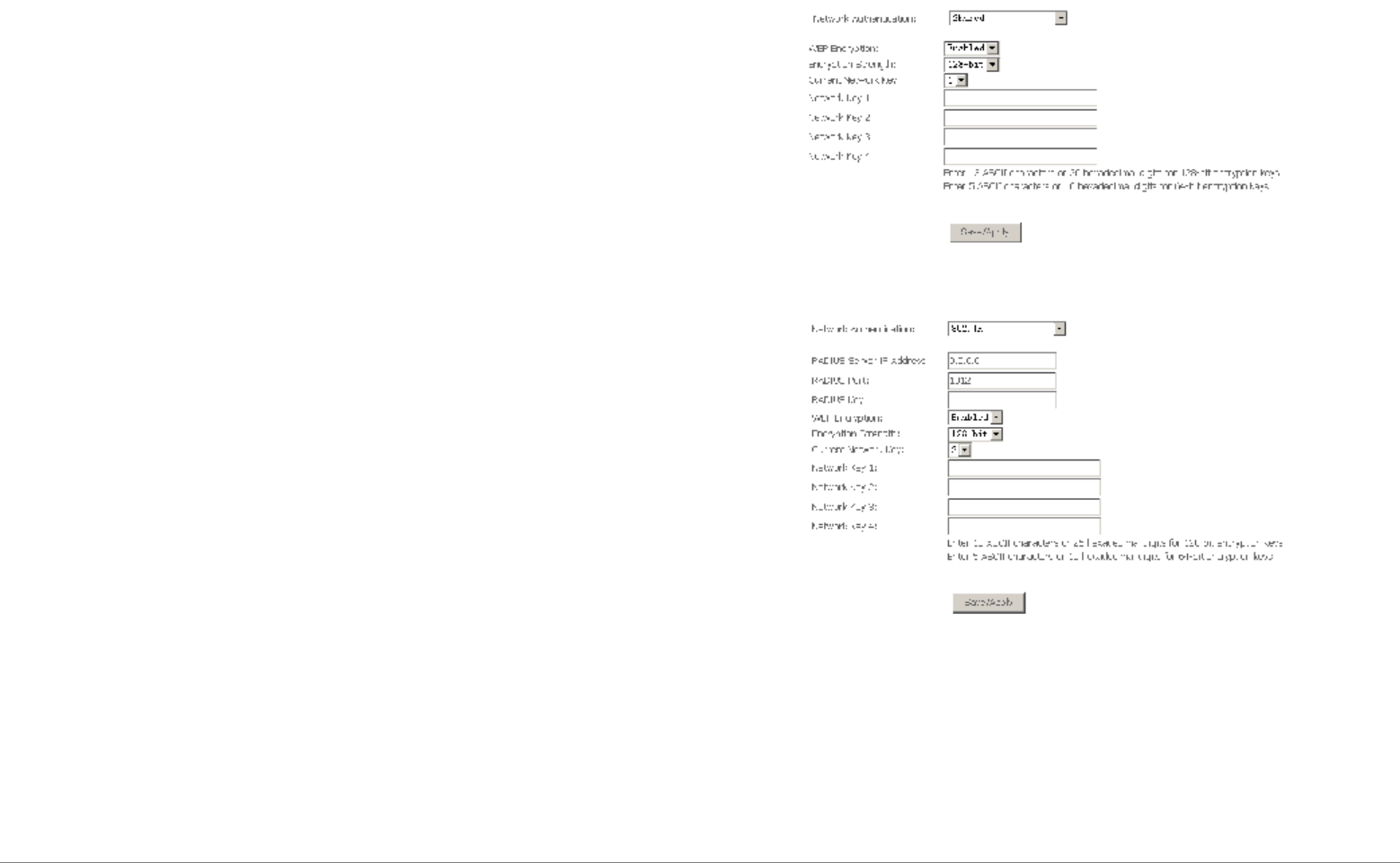

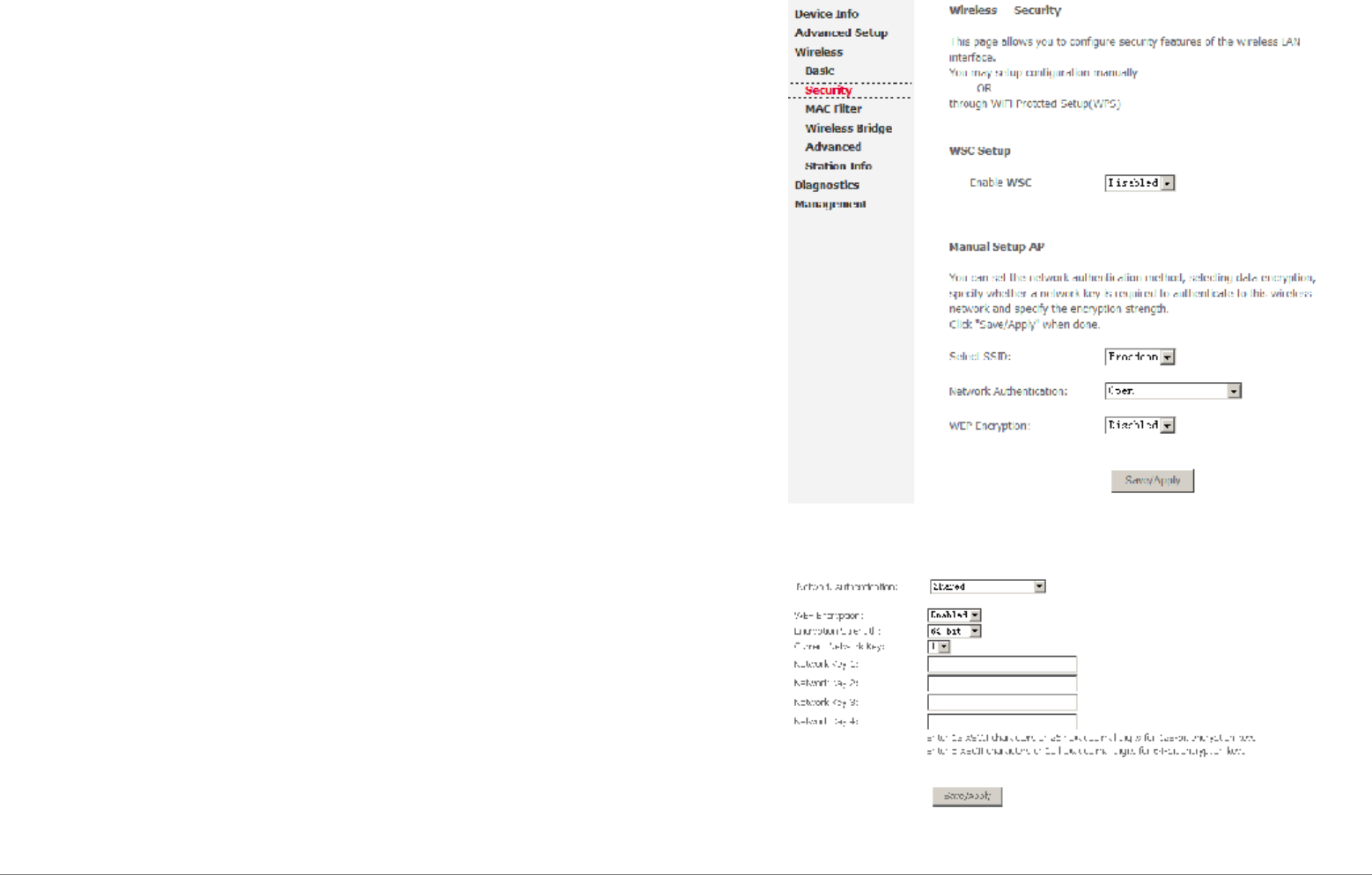

Wireless – Security......................................................................................63

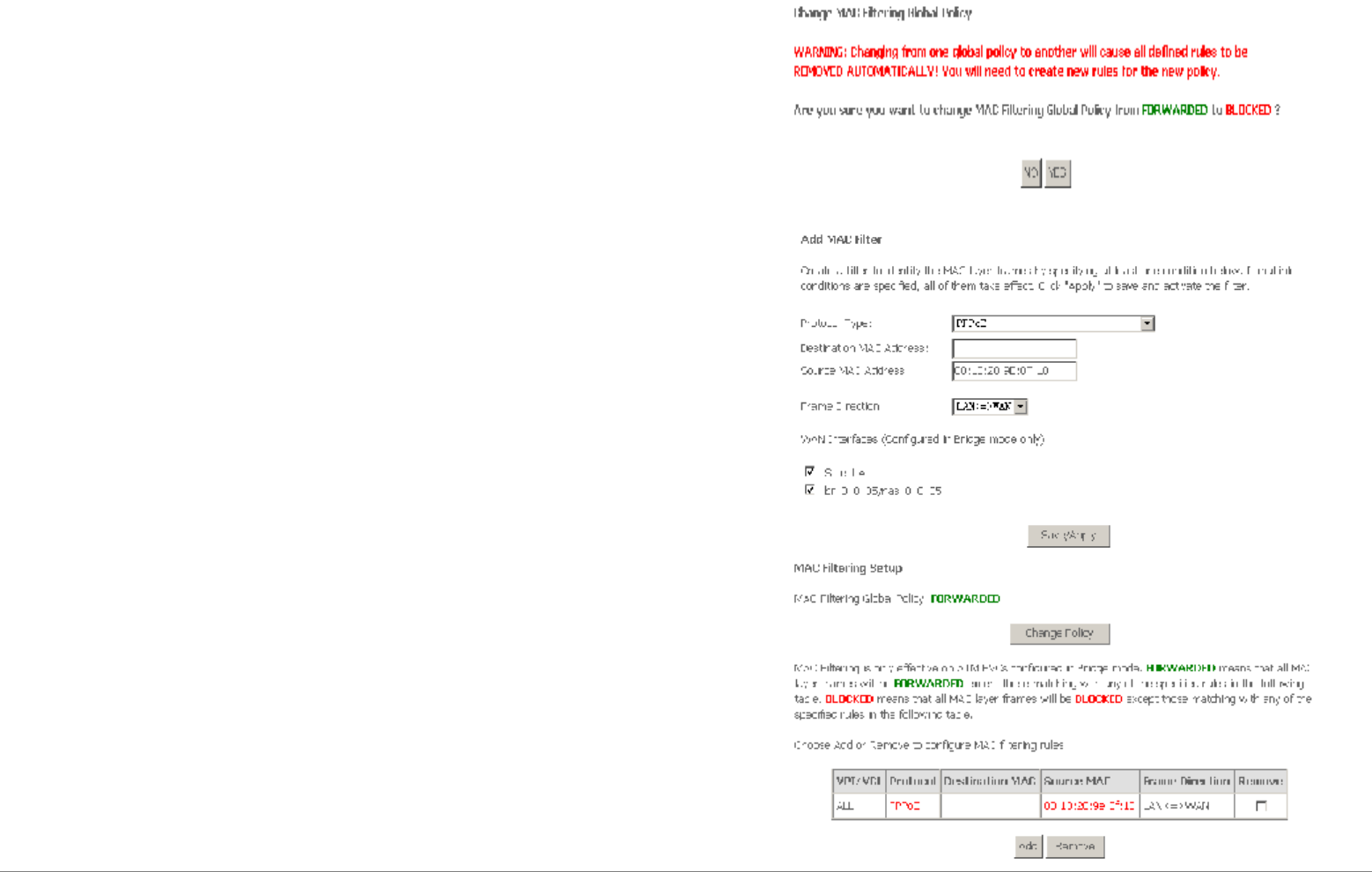

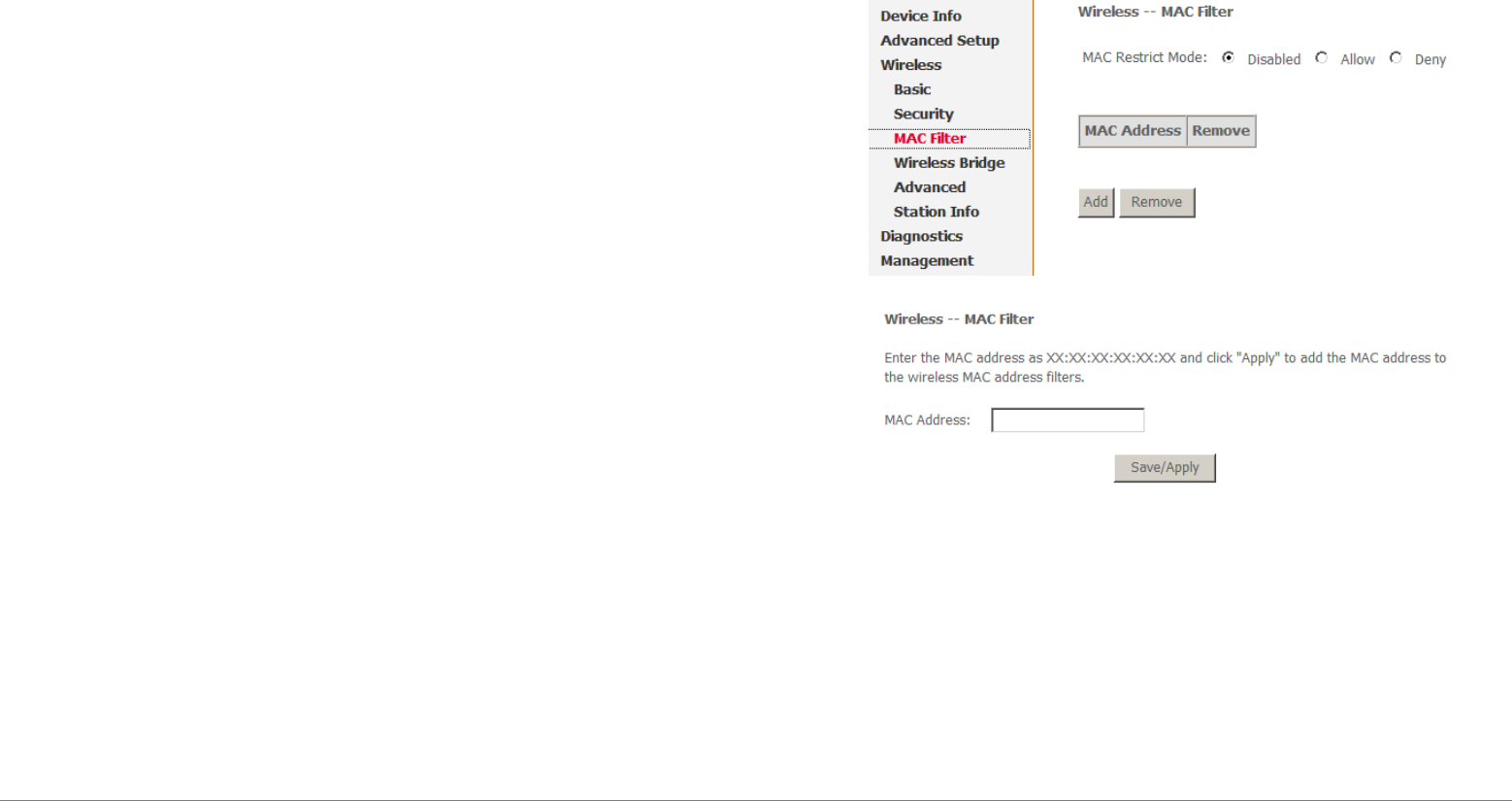

Wireless - MAC Filter...................................................................................69
Wireless – Bridge.........................................................................................69
Wireless – Advanced...................................................................................71

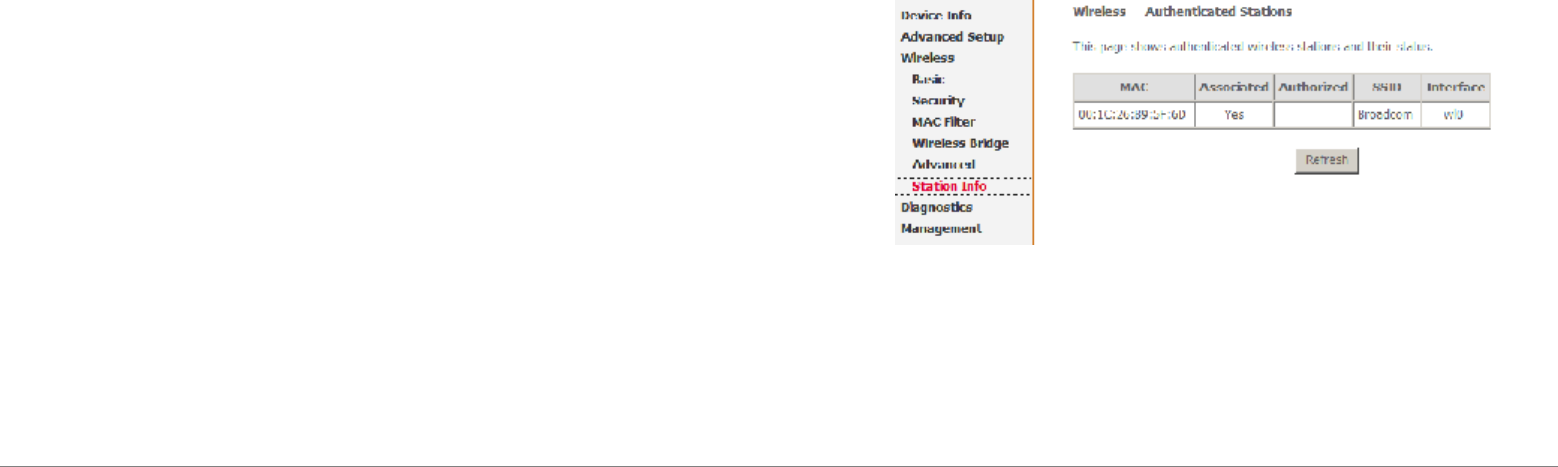

Wireless -- Authenticated Stations................................................................72

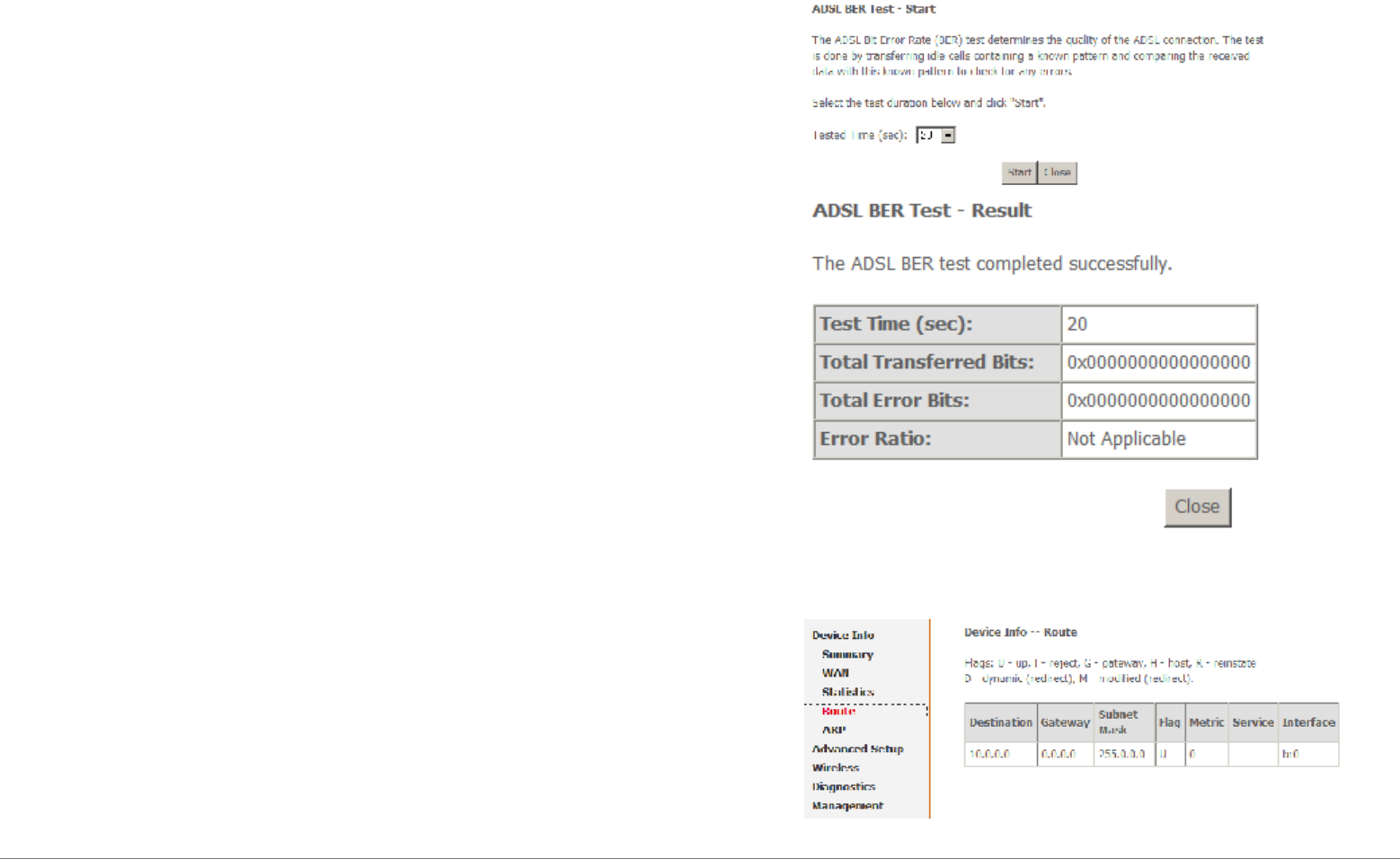

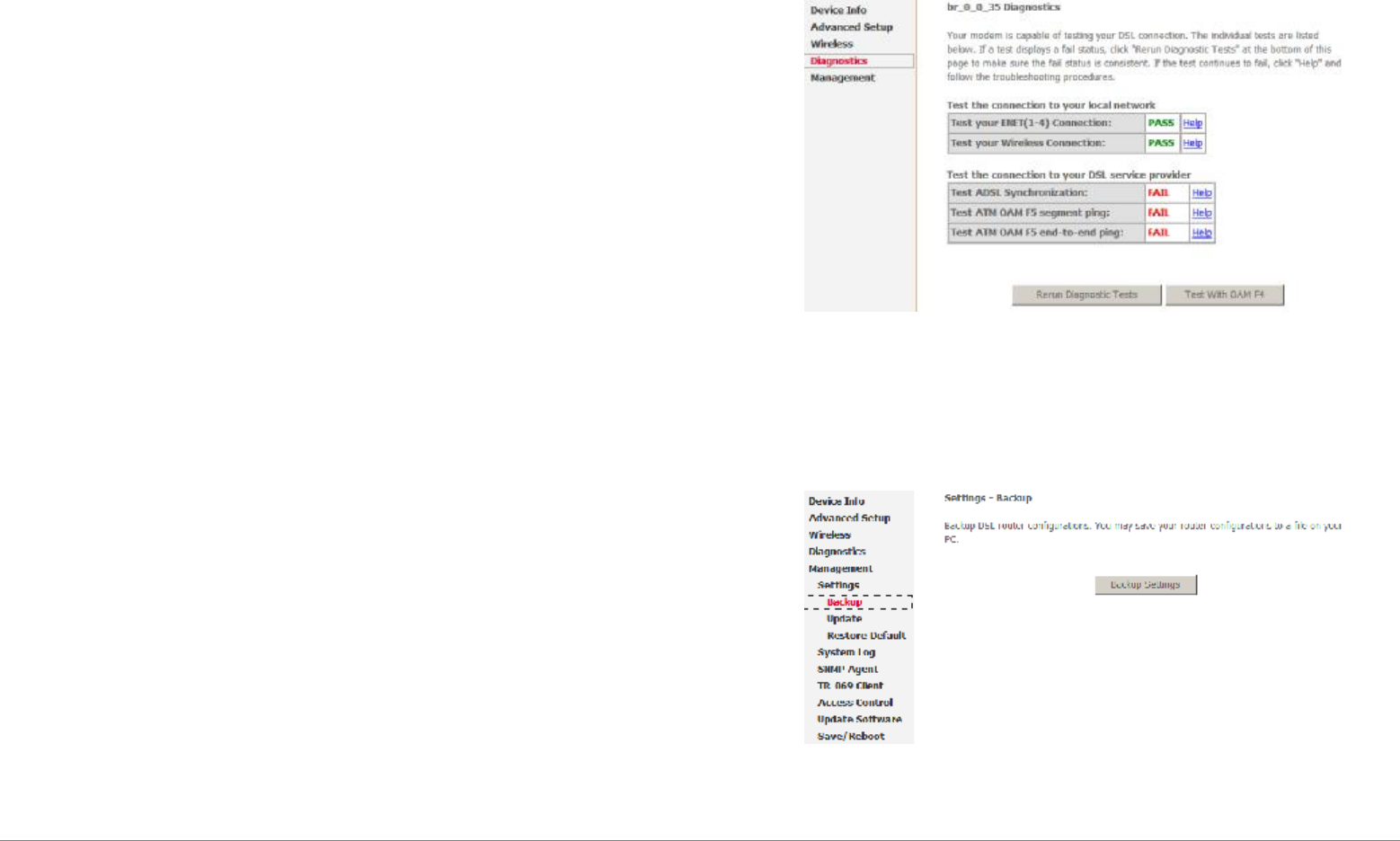

Diagnostics.........................................................................................................73
Management.......................................................................................................73

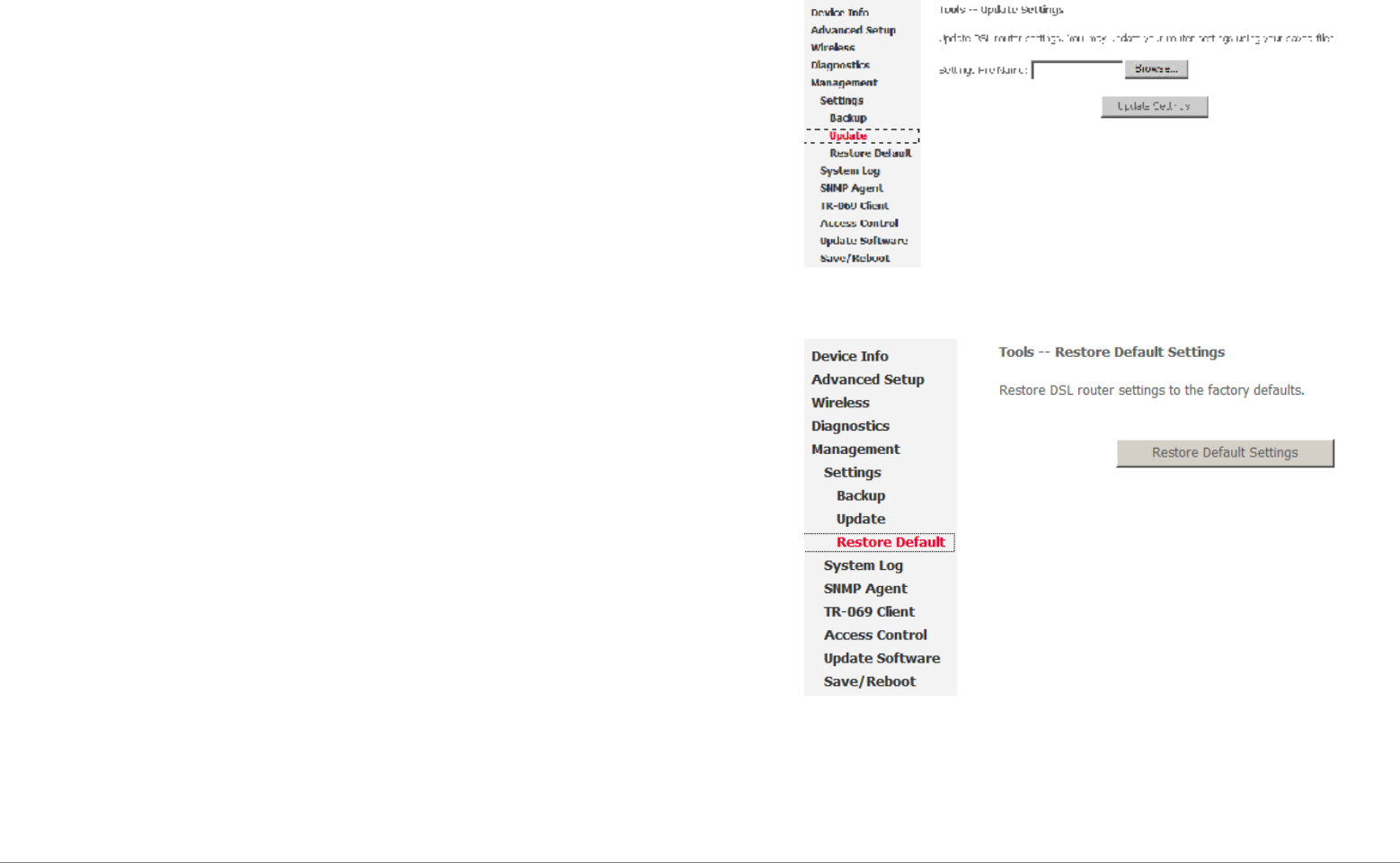

Settings.......................................................................................................73

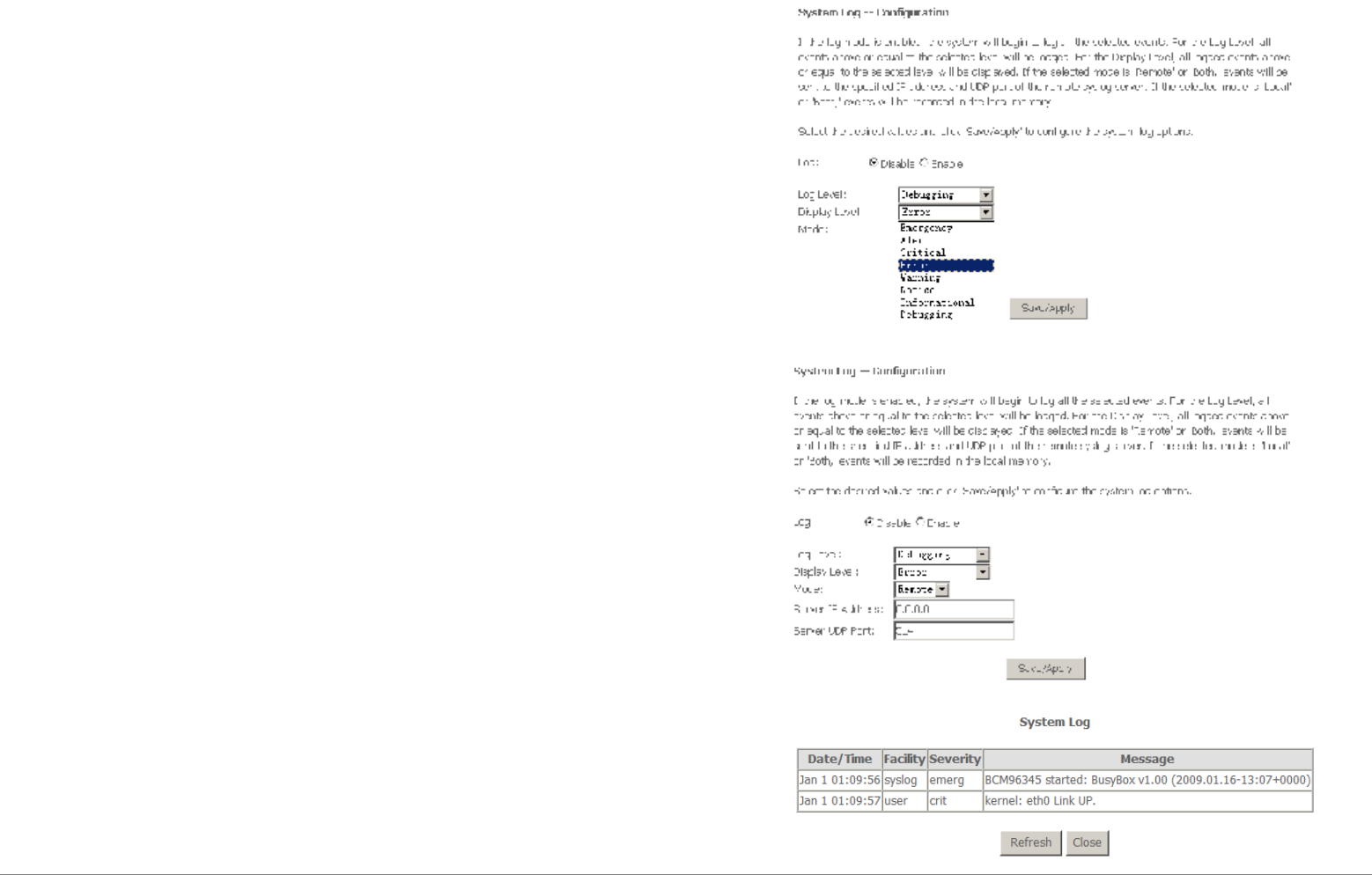

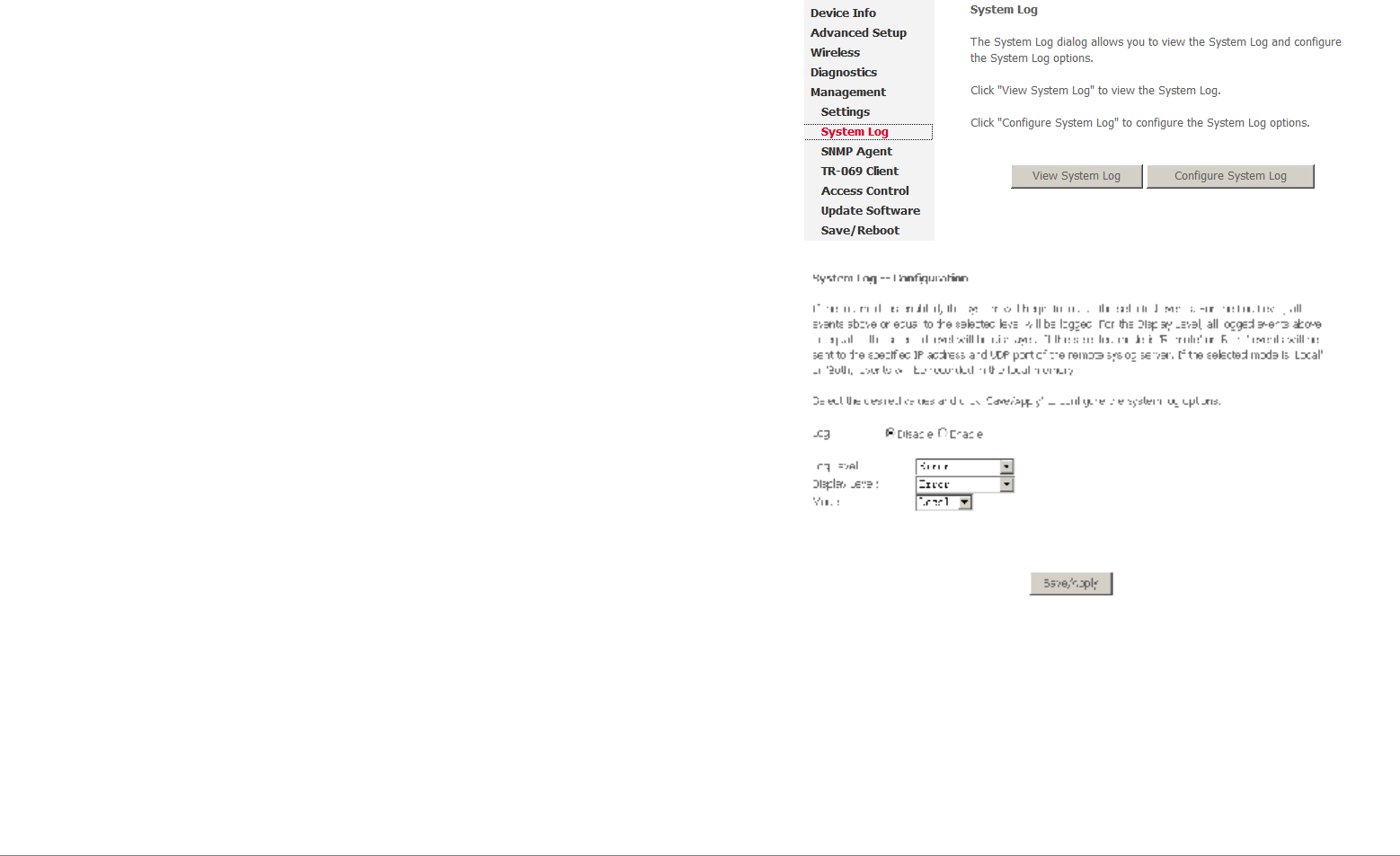

System Log.................................................................................................75
TR-069 Client..............................................................................................77

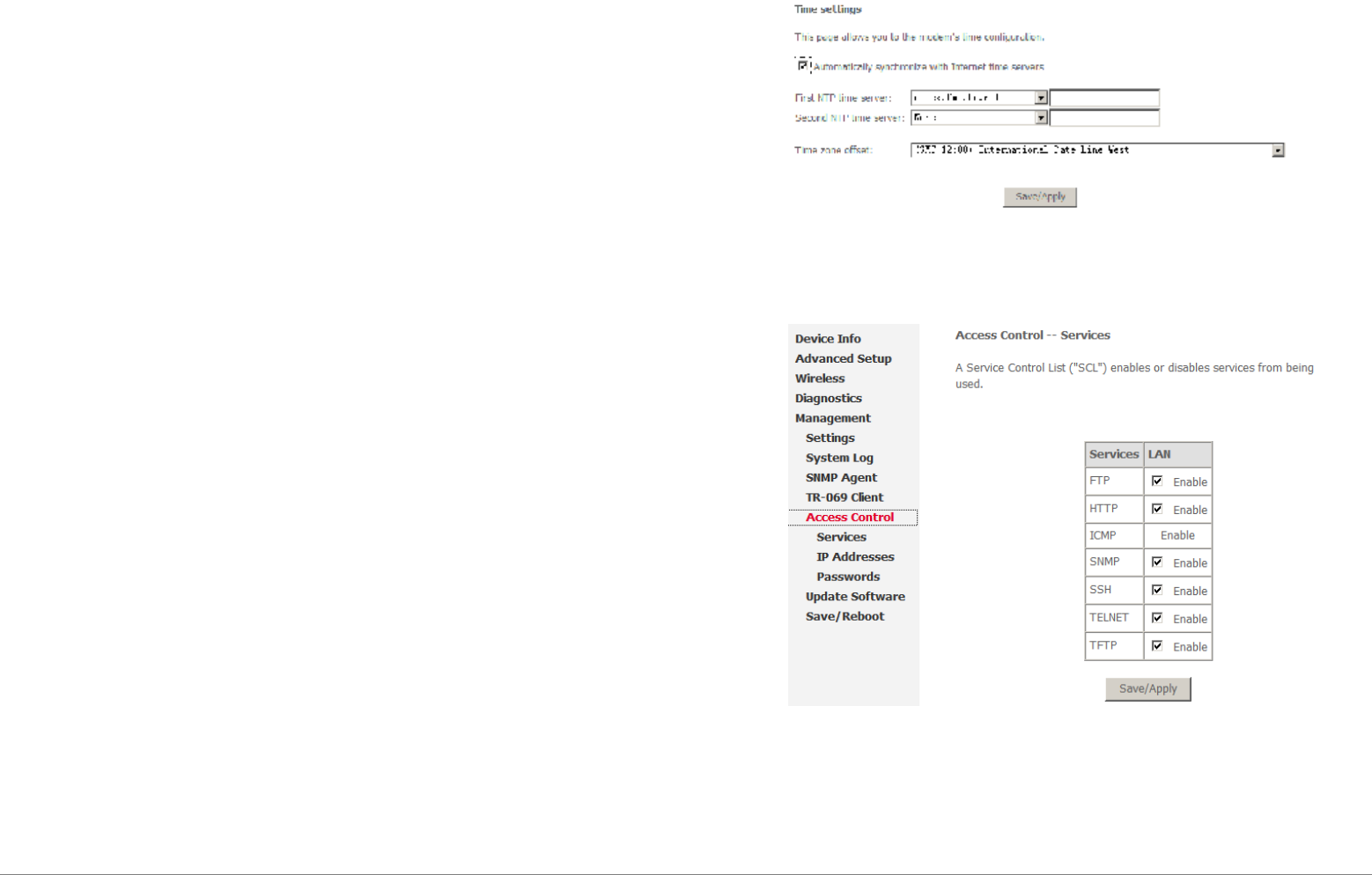

Internet Time...............................................................................................77

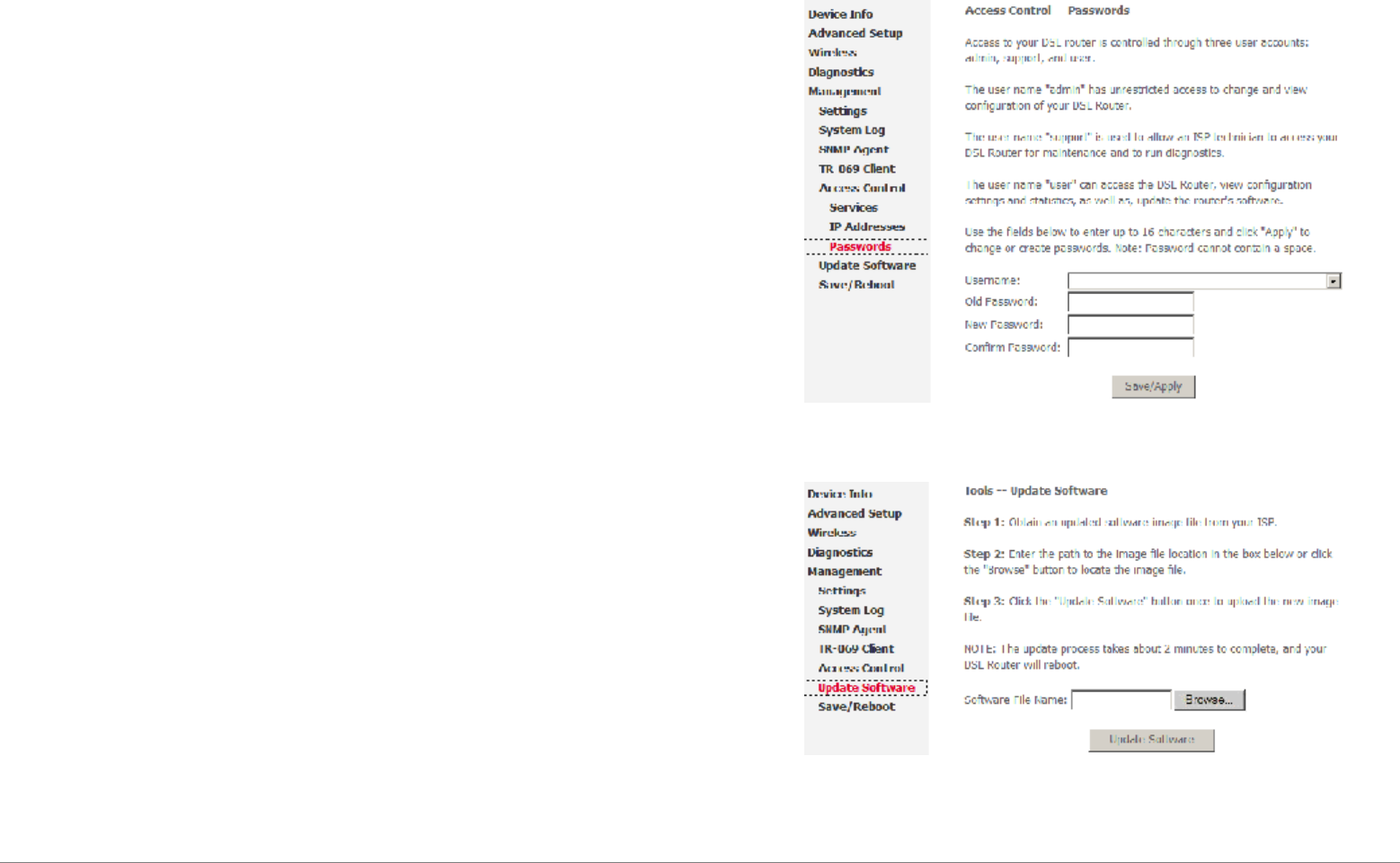

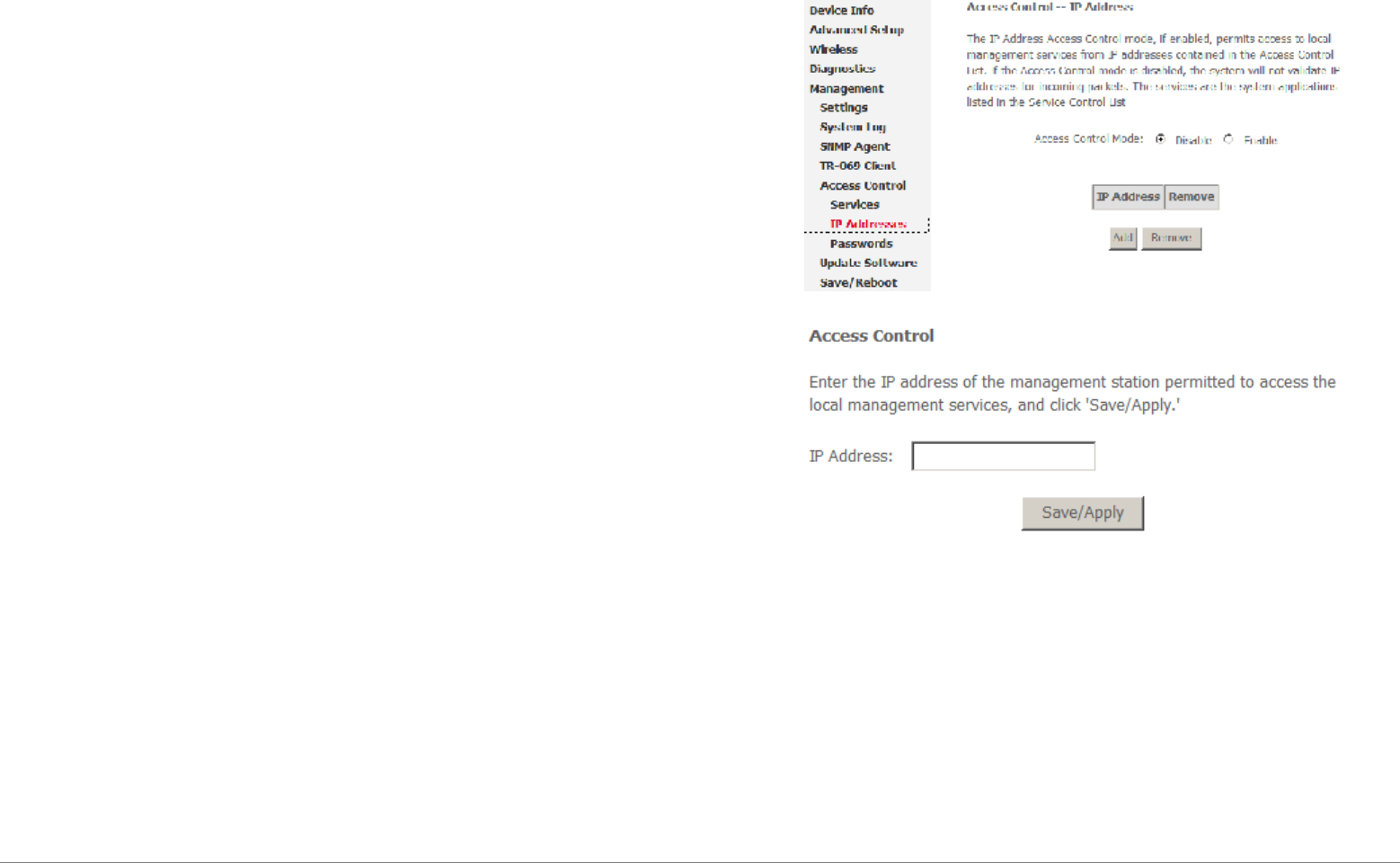

Access Control............................................................................................78
Update Software..........................................................................................80

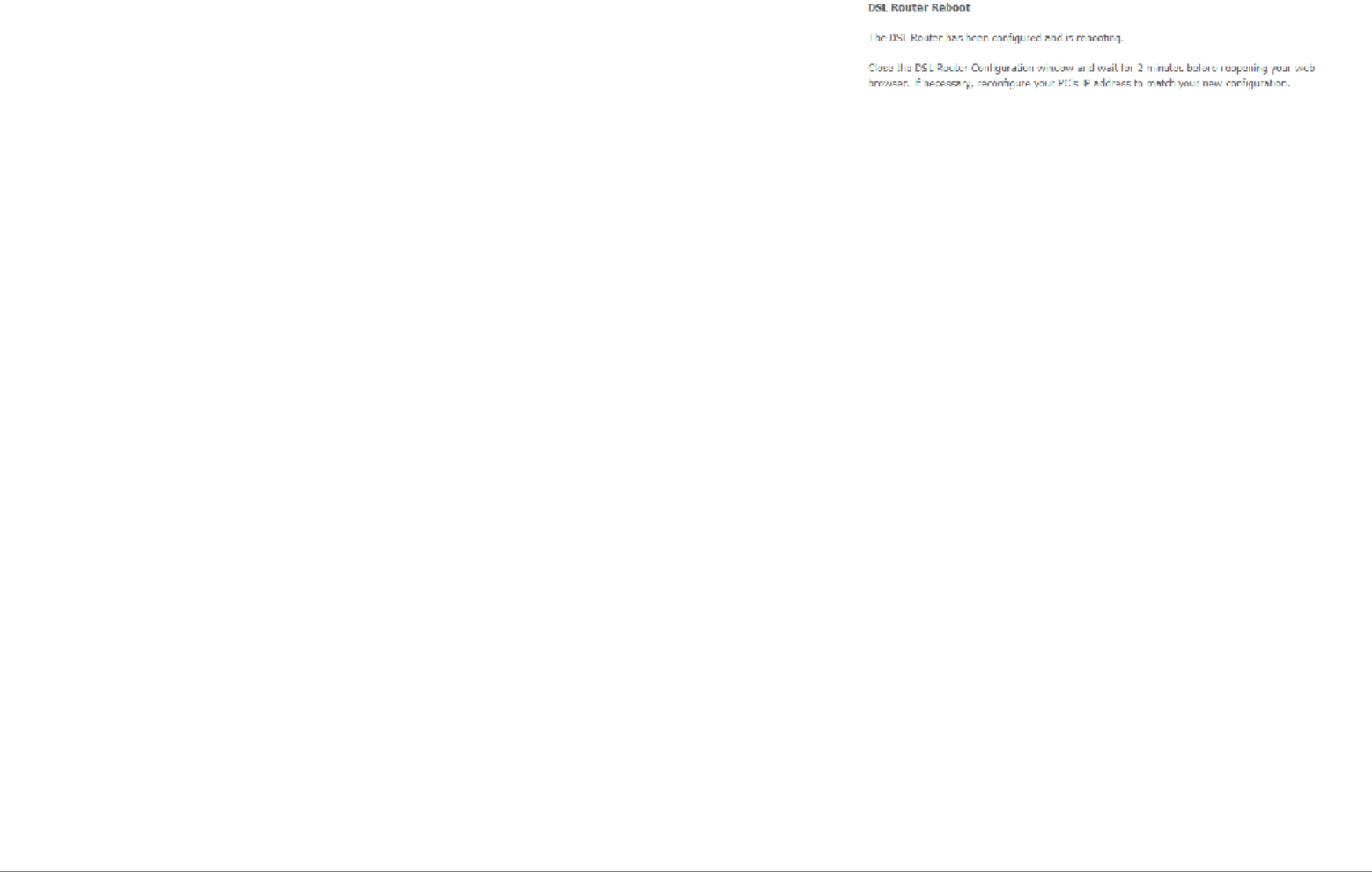

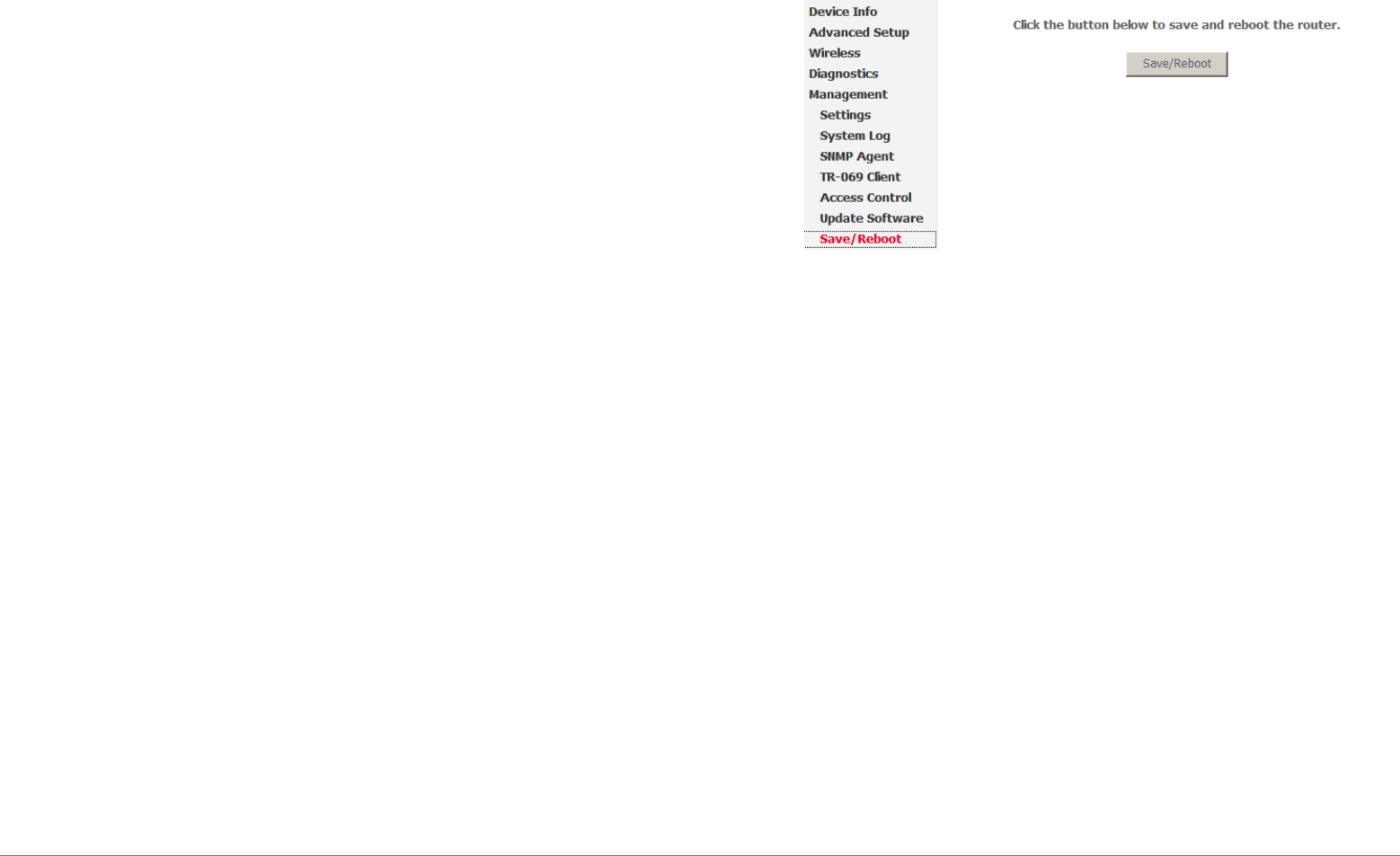

Save/Reboot...............................................................................................81
TROUBLESHOOTING................................................................................................82
NETWORKING BASICS..............................................................................................83

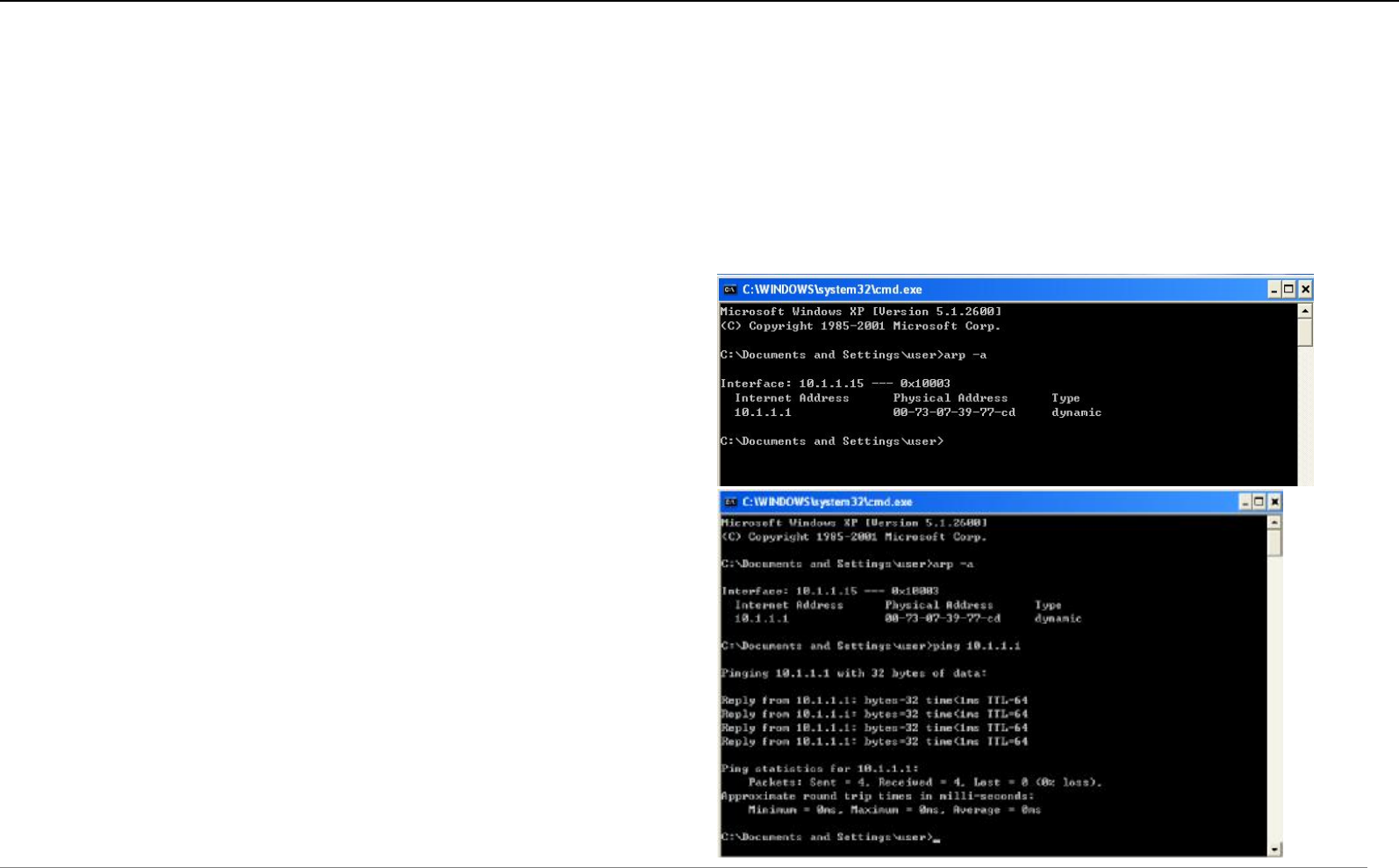

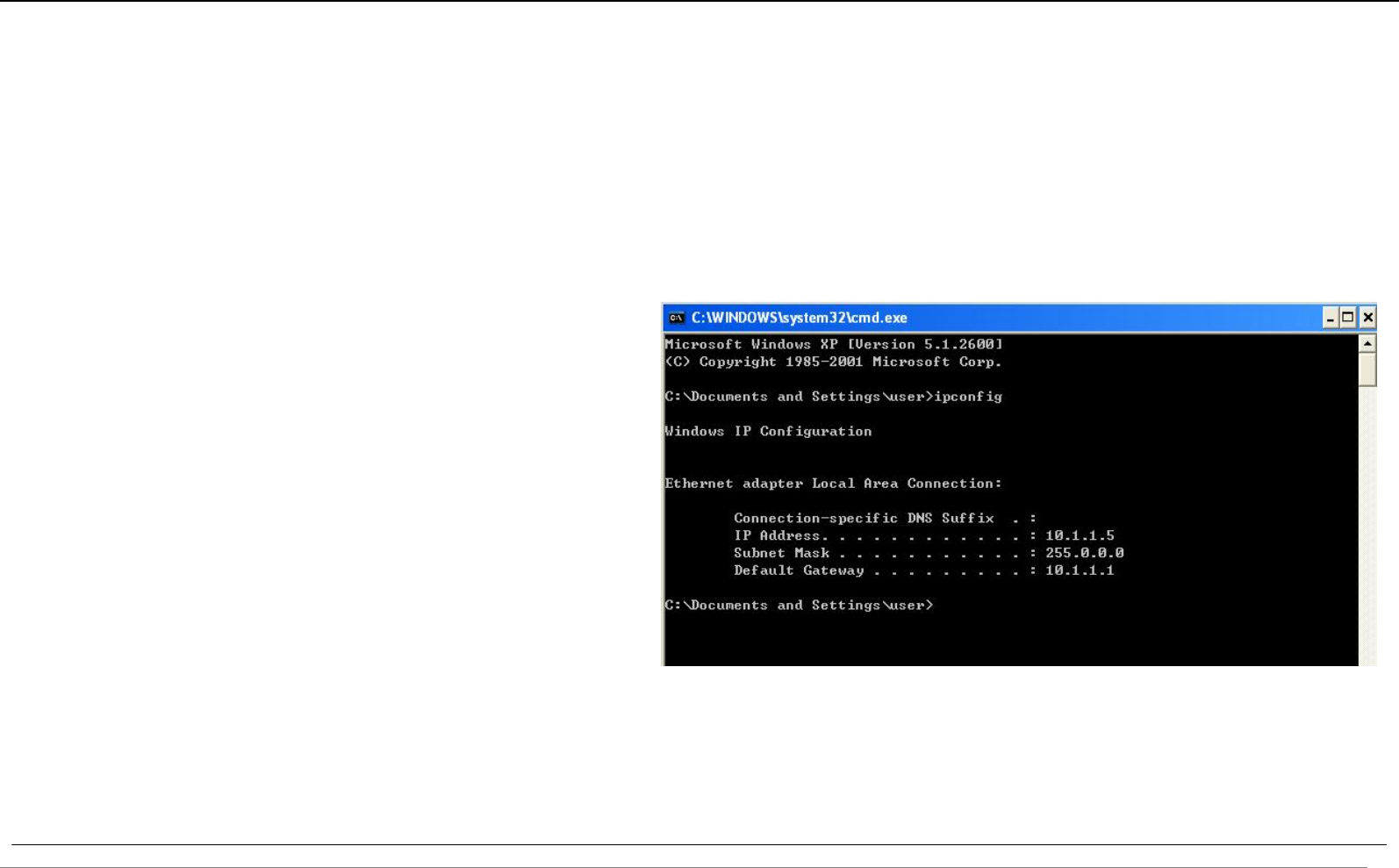

Check Your IP Address........................................................................................83

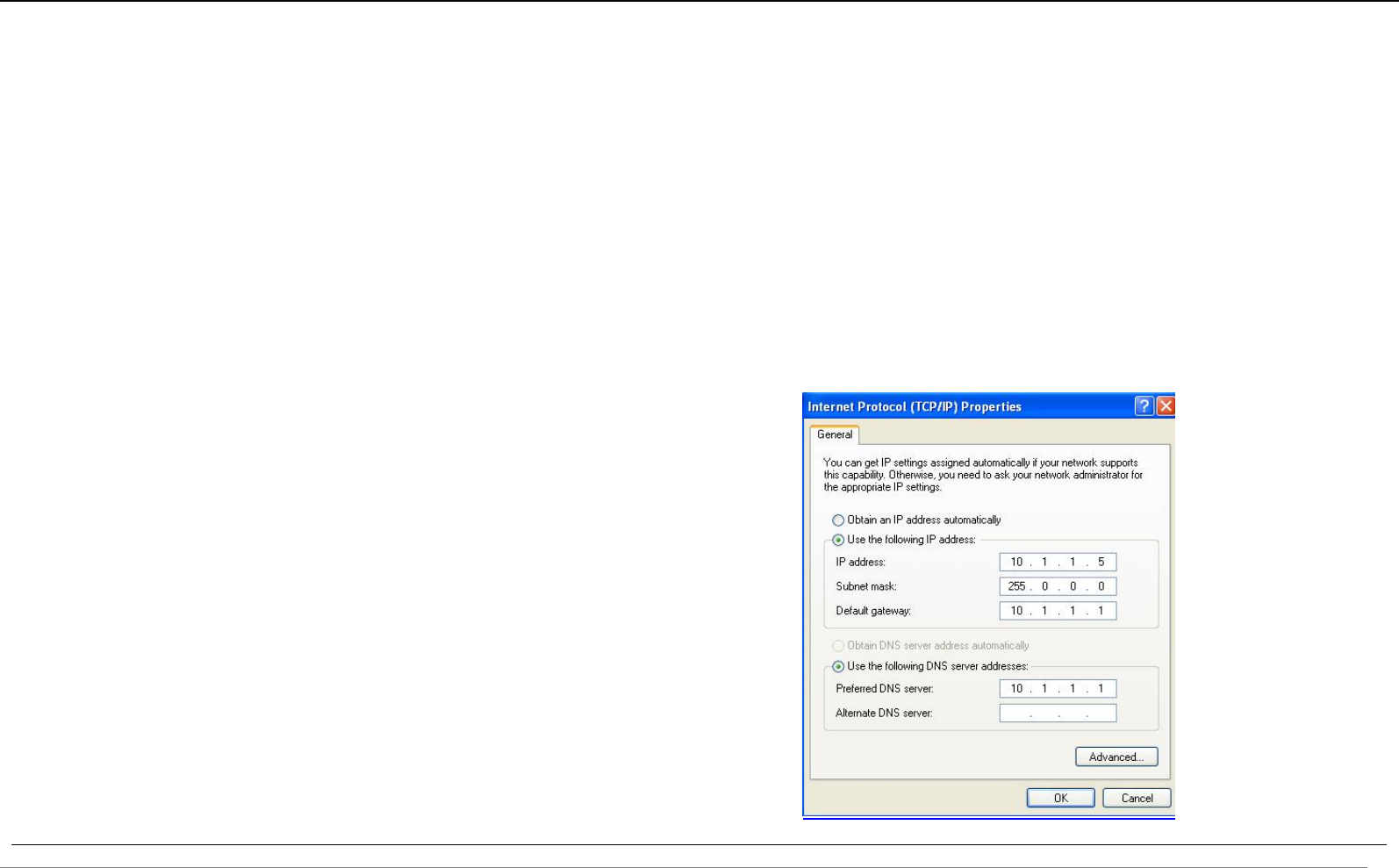

Statically Assign An IP Address............................................................................84
TECHNICAL SPECIFICATIONS..................................................................................85
Product Overview
D-Link DSL-2600U User Manual 1
Before You Begin
Please read and make sure you understand all the prerequisites for proper installation of your new Router. Have all the necessary information and equipment on hand
before beginning the installation.
Package Contents
= DSL-2600U ADSL Router
= Power Adapter
= CD-ROM with User Manual
= One twisted-pair telephone cable used for ADSL connection
= One straight-through Ethernet cable
= One Quick Installation Guide
Warning: The Router must be used with the power adapter
included with the device.
System Requirements
• ADSL Internet service
• Computer with:
• 200 MHz Processor
• 64MB Memory
• CD-ROM Drive
• Ethernet Adapter with TCP/IP Protocol Installed
• Internet Explorer v6 or later, FireFox v1.5
• Computer with Windows 2000, Windows XP, or Windows Vista
Product Overview
D-Link DSL-2600U User Manual 2
1
Features
• PPP (Point-to-Point Protocol) Security – The DSL-2600U ADSL Router supports PAP (Password Authentication Protocol) and CHAP (Challenge Handshake
Authentication Protocol) for PPP connections. The Router also supports MSCHAP.
• DHCP Support – Dynamic Host Configuration Protocol automatically and dynamically assigns all LAN IP settings to each host on your network. This eliminates
the need to reconfigure every host whenever changes in network topology occur.
• Network Address Translation (NAT) – For small office environments, the DSL-2600U allows multiple users on the LAN to access the Internet concurrently
through a single Internet account. This provides Internet access to everyone in the office for the price of a single user. NAT improves network security in effect by
hiding the private network behind one global and visible IP address. NAT address mapping can also be used to link two IP domains via a LAN-to-LAN connection.
• TCP/IP (Transfer Control Protocol/Internet Protocol) – The DSL-2600U supports TCP/IP protocol, the language used for the Internet. It is compatible with
access servers manufactured by major vendors.
• RIP-1/RIP-2 – The DSL-2600U supports both RIP-1 and RIP-2 exchanges with other routers. Using both versions lets the Router to communicate with all RIP
enabled devices.
• Static Routing – This allows you to select a data path to a particular network destination that will remain in the routing table and never “age out”. If you wish to
define a specific route that will always be used for data traffic from your LAN to a specific destination within your LAN (for example to another router or a server)
or outside your network (to an ISP defined default gateway for instance).
• Default Routing – This allows you to choose a default path for incoming data packets for which the destination address is unknown. This is particularly useful
when/if the Router functions as the sole connection to the Internet.
• Precise ATM Traffic Shaping – Traffic shaping is a method of controlling the flow rate of ATM data cells. This function helps to establish the Quality of Service
for ATM data transfer.
• Full Network Management – The DSL-2600U incorporates SNMP (Simple Network Management Protocol) support for web-based management and text-based
network management.
• Easy Installation – The DSL-2600U uses a web-based graphical user interface program for convenient management access and easy set up. Any common web
browser software can be used to manage the Router.
Product Overview
D-Link DSL-2600U User Manual 3

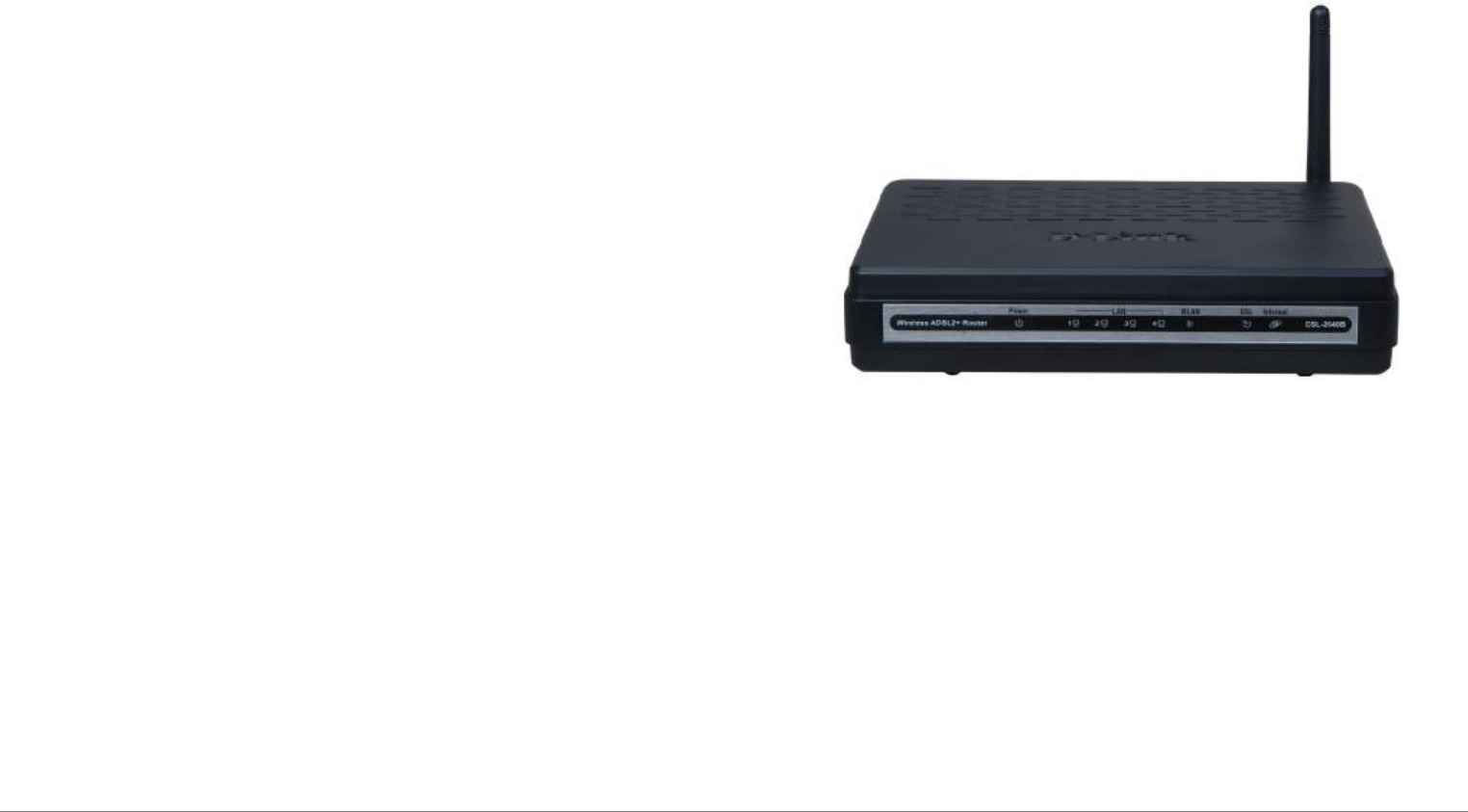

Hardware Overview

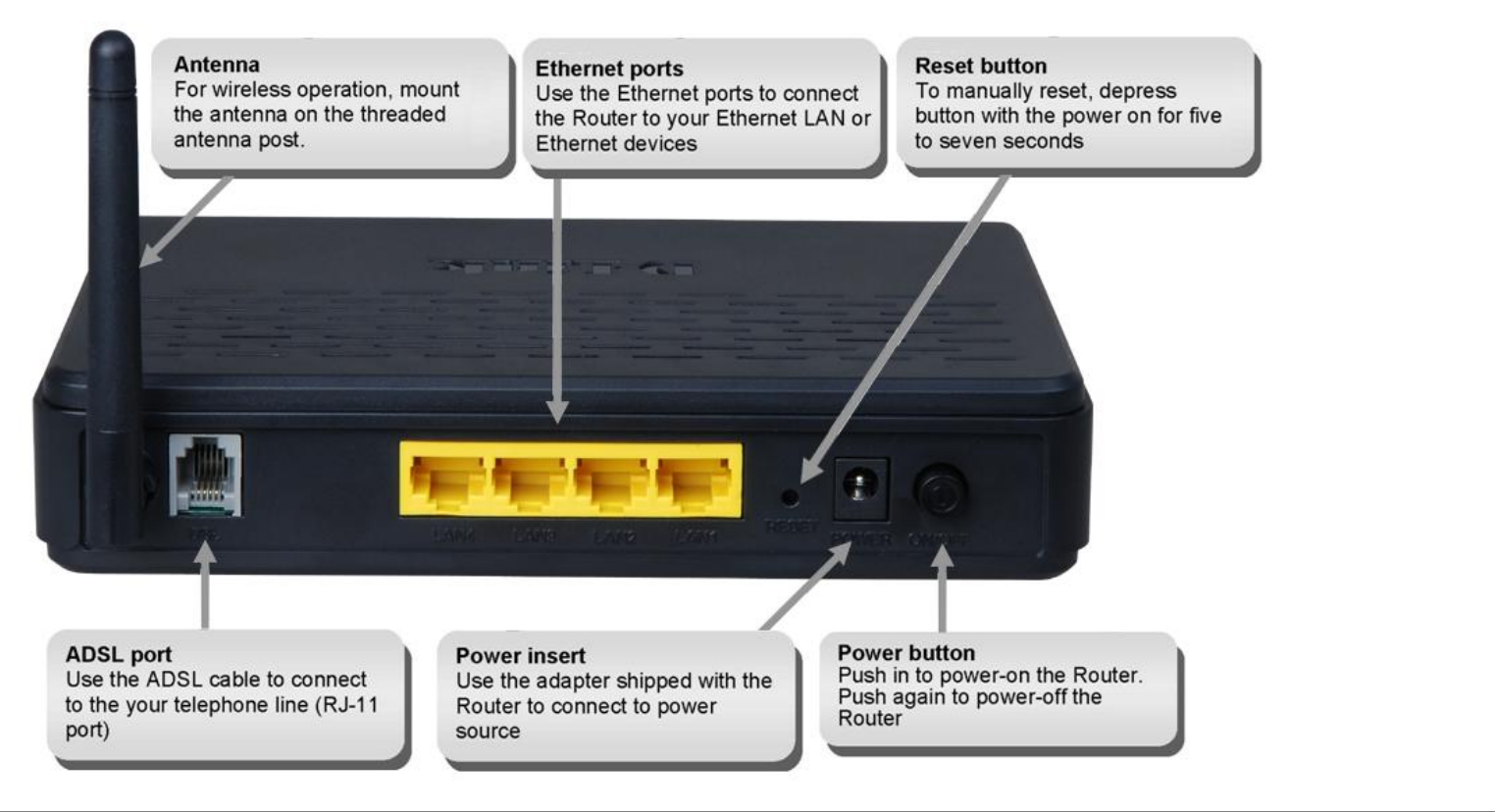

Connections
Product Overview
D-Link DSL-2600U User Manual 4

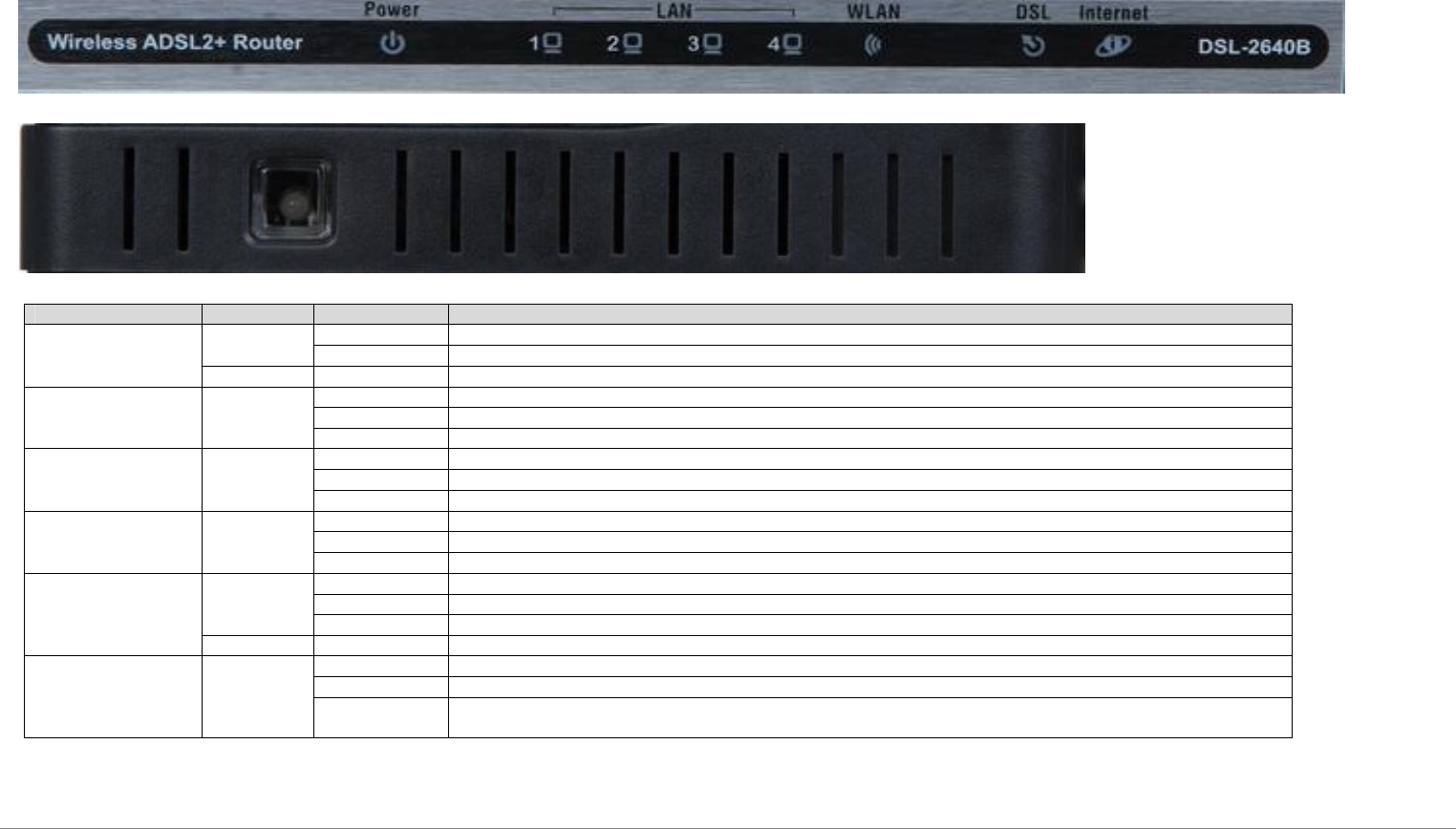

LED Indicators
Front Panel
Side Panel
LED Color
Status Description
Off Power not supplied.
Green On Power supplied.
Power Red On Not bootable or device is malfunction.
Off No LAN link.
Blink Data is being transmitted through the LAN interface.
LAN 1 Green On LAN link is established and active.
Off WLAN is disabled.
Blink WLAN traffic is flowing.
WLAN Green On WLAN link is established.
Off DSL line is disconnected.
Blink DSL line is training.
DSL Green On DSL line is connected.
Off The device is under the Bridge mode, DSL connection is not present, or the power is off.
Blink DSL traffic is flowing.
Green On IP is connected.
Internet
Red On The device is attempted to become IP connected, but failed.
Off Device is ready for new WPS to setup.
Blink WPS is successfully triggered
WPS (on the side
panel) Blue On Connection is successfully established between the router and the client, the LED would remain in solid light
for 5s.
Installation
D-Link DSL-2640B User Manual 5
Installation
This section will walk you through the installation process. Placement of the Wireless ADSL Router is very important. Do not place the Router in an enclosed area such
as a closet, cabinet, or in the attic or garage. Place the Wireless ADSL Router in a location where it can be easily connected to Ethernet devices, the telephone line as
well as to a power source.
Installation Notes
In order to establish a connection to the Internet it will be necessary to provide information to the Router that will be stored in its memory. For some users, only their
account information (Username and Password) is required. For others, various parameters that control and define the Internet connection will be required. You can print
out the two pages below and use the tables to list this information. This way you have a hard copy of all the information needed to setup the Router. If it is necessary to
reconfigure the device, all the necessary information can be easily accessed. Be sure to keep this information safe and private.
Low Pass Filters
Since ADSL and telephone services share the same copper wiring to carry their respective signals, a filtering mechanism may be necessary to avoid mutual interference.
A low pass filter device can be installed for each telephone that shares the line with the ADSL line. These filters are easy to install passive devices that connect to the
ADSL device and/or telephone using standard telephone cable. Ask your service provider for more information about the use of low pass filters with your installation.
Operating Systems
The DSL-2600U uses an HTML-based web interface for setup and management. The web configuration manager may be accessed using any operating system capable
of running web browser software, including Windows 98 SE, Windows ME, Windows 2000, Windows XP, and Windows Vista.
Web Browser
Any common web browser can be used to configure the Router using the web configuration management software. The program is designed to work best with more
recently released browsers such as Opera, Microsoft Internet Explorer® version 6.0, Netscape Navigator® version 6.2.3, or later versions. The web browser must have
JavaScript enabled. JavaScript is enabled by default on many browsers. Make sure JavaScript has not been disabled by other software (such as virus protection or web
user security packages) that may be running on your computer.
Ethernet Port (NIC Adapter)
Any computer that uses the Router must be able to connect to it through the Ethernet port on the Router. This connection is an Ethernet connection and therefore
requires that your computer be equipped with an Ethernet port as well. Most notebook computers are now sold with an Ethernet port already installed. Likewise, most
fully assembled desktop computers come with an Ethernet NIC adapter as standard equipment. If your computer does not have an Ethernet port, you must install an
Ethernet NIC adapter before you can use the Router. If you must install an adapter, follow the installation instructions that come with the Ethernet NIC adapter.
Additional Software
It may be necessary to install software on your computer that enables the computer to access the Internet. Additional software must be installed if you are using the
Installation
D-Link DSL-2640B User Manual 6
device as a simple bridge. For a bridged connection, the information needed to make and maintain the Internet connection is stored on another computer or gateway
device, not in the Router itself.
If your ADSL service is delivered through a PPPoE or PPPoA connection, the information needed to establish and maintain the Internet connection can be stored in the
Router. In this case, it is not necessary to install software on your computer. It may however be necessary to change some settings in the device, including account
information used to identify and verify the connection.
All connections to the Internet require a unique global IP address. For bridged connections, the global IP settings must reside in a TCP/IP enabled device on the LAN
side of the bridge, such as a PC, a server, a gateway device such as a router or similar firewall hardware. The IP address can be assigned in a number of ways. Your
network service provider will give you instructions about any additional connection software or NIC configuration that may be required.
Wireless LAN
Computers using the Wireless network can access the Internet or use the embedded 802.1g wireless access point. Wireless workstations must have an 802.1g or
802.1b wireless network card installed to use the Wireless ADSL Router. In addition the workstations must be configured to operate on the same channel and SSID as
the Wireless ADSL Router. If wireless security is used, the wireless workstations must be properly configured for the security settings used.
Installation
D-Link DSL-2640B User Manual 7
Information you will need from your ADSL service provider
Username
This is the Username used to log on to your ADSL service provider’s network. Your ADSL service provider uses this to identify your account.
Password
This is the Password used, in conjunction with the Username above, to log on to your ADSL service provider’s network. This is used to verify the identity of your account.
WAN Setting / Connection Type
These settings describe the method your ADSL service provider uses to transport data between the Internet and your computer. Most users will use the default settings.
You may need to specify one of the following WAN Setting and Connection Type configurations (Connection Type settings listed in parenthesis):
• PPPoE/PPPoA (PPPoE LLC, PPPoE VC-Mux, PPPoA LLC or PPPoA VC-Mux)
• Dynamic IP Address (1483 Bridged IP LLC, 1483 Bridged IP VC-Mux)
• Static IP Address (1483 Bridged IP LLC, 1483 Bridged IP VC-Mux, 1483 Routed IP LLC (IPoA) or 1483 Routed IP VC-Mux)
• Bridge Mode (1483 Bridged IP LLC or 1483 Bridged IP VC Mux)
Modulation Type
ADSL uses various standardized modulation techniques to transmit data over the allotted signal frequencies. Some users may need to change the type of modulation
used for their service. The default DSL modulation (Auto Synch-Up) used for the Router automatically detects all types of ADSL, ADSL2, and ADSL2+ modulation.
Security Protocol
This is the method your ADSL service provider will use to verify your Username and Password when you log on to their network. Your Router supports the PAP and
CHAP protocols.
VPI
Most users will not be required to change this setting. The Virtual Path Identifier (VPI) is used in conjunction with the Virtual Channel Identifier (VCI) to identify the data
path between your ADSL service provider’s network and your computer. If you are setting up the Router for multiple virtual connections, you will need to configure the
VPI and VCI as instructed by your ADSL service provider for the additional connections. This setting can be changed in the WAN Settings window of the web
management interface.
VCI
Most users will not be required to change this setting. The Virtual Channel Identifier (VCI) used in conjunction with the VPI to identify the data path between your ADSL
service provider’s network and your computer. If you are setting up the Router for multiple virtual connections, you will need to configure the VPI and VCI as instructed by
your ADSL service provider for the additional connections. This setting can be changed in the WAN Settings window of the web management interface.
Installation
D-Link DSL-2640B User Manual 8
Information you will need about DSL-2600U
Username
This is the Username needed to access the Router’s management interface. When you attempt to connect to the device through a web browser you will be prompted to
enter this Username. The default Username for the Router is “admin.” The user cannot change this.
Password
This is the Password you will be prompted to enter when you access the Router’s management interface. The default Password is “admin.” The user may change this.
LAN IP addresses for the DSL-2600U
This is the IP address you will enter into the Address field of your web browser to access the Router’s configuration graphical user interface (GUI) using a web browser.
The default IP address is 10.1.1.1. This may be changed to suit any IP address scheme the user desires. This address will be the base IP address used for DHCP
service on the LAN when DHCP is enabled.
LAN Subnet Mask for the DSL-2600U
This is the subnet mask used by the DSL-2600U, and will be used throughout your LAN. The default subnet mask is 255.0.0.0. This can be changed later.
Information you will need about your LAN or computer:
Ethernet NIC
If your computer has an Ethernet NIC, you can connect the DSL-2600U to this Ethernet port using an Ethernet cable. You can also use the Ethernet ports on the
DSL-2600U to connect to other computer or Ethernet devices.
DHCP Client status
Your DSL-2600U ADSL Router is configured, by default, to be a DHCP server. This means that it can assign an IP address, subnet mask, and a default gateway address
to computers on your LAN. The default range of IP addresses the DSL-2600U will assign are from 10.1.1.5 to 10.1.1.254. Your computer (or computers) needs to be
configured to obtain an IP address automatically (that is, they need to be configured as DHCP clients.)
It is recommended that you collect and record this information here, or in some other secure place, in case you have to re-configure your ADSL connection in the future.
Once you have the above information, you are ready to setup and configure your DSL-2600U ADSL Router.
Installation
D-Link DSL-2640B User Manual 9
Device Installation
The Wireless ADSL Router maintains three separate interfaces, an ADSL, an Ethernet, and a Wireless LAN interface. Place the Wireless ADSL Router in a location
where it can be easily connected to Ethernet devices, the telephone line as well as to a power source.
The Router can be placed on a shelf or desktop, ideally you should be able to see the LED indicators on the front if you need to view them for troubleshooting.
Power on Router
The Router must be used with the power adapter included with the device.
1. Connect the power adapter to the Power Input (12V DC, 1A) on the back panel of the Wireless ADSL Router and plug the other end of the power adapter to a
wall outlet or power strip.
2. Push the Power Button to turn the power on.
3. The Power LED on the front panel will shine bright green to indicate the device is powered on.
4. If the Ethernet port is connected to a working device, check the LAN LED indicator to make sure the connection is valid. The Wireless ADSL Router will attempt
to establish the ADSL connection, if the ADSL line is connected and the Wireless ADSL Router is properly configured the ADSL LED will light up after several
seconds. If this is the first time installing the device, some settings may need to be changed before the Wireless ADSL Router can establish a connection.
Factory Reset Button
The Router may be reset to the original factory default settings by using a ballpoint or paperclip to gently push down the reset button in the following sequence:
1. With the router powered on (check the Power LED to make sure it lights steady green), press and hold down the reset button using a paper clip or similar object
for about 6 to 8 seconds.
2. The router will restart. Watch the Power LED to verify that it is restarting.
3. When it is powered on again it is ready to be configured. The whole process takes about 30 seconds.
4. The device settings will be restored to the factory default IP address 10.1.1.1 and the subnet mask is 255.0.0.0, the default management Username is “admin”
and the default Password is “admin.”
Note: A factory reset will erase the current configuration settings and reset them to the default settings. After it has restarted, log in to the router’s web-based
management interface and use the Setup Wizard to configure the basic settings.
Installation
D-Link DSL-2640B User Manual
10
Network Connections
Connect ADSL Line
Use the ADSL cable included with the Router to connect it to a telephone wall socket or receptacle. Plug one end of the cable into the ADSL port (RJ-11 receptacle) on
the rear panel of the Router and insert the other end into the RJ-11 wall socket. If you are using a low pass filter device, follow the instructions included with the device or
given to you by your service provider. The ADSL connection represents the WAN interface, the connection to the Internet. It is the physical link to the service provider’s
network backbone and ultimately to the Internet.
Connect Router to Ethernet
The Router may be connected to a single computer or Ethernet device through the 10/100BASE-TX Ethernet port on the rear panel. Any connection to an Ethernet
concentrating device such as a switch or hub must operate at a speed of 10/100 Mbps only. When connecting the Router to any Ethernet device that is capable of
operating at speeds higher than 10Mbps, be sure that the device has auto-negotiation (NWay) enabled for the connecting port. Use standard twisted-pair cable with
RJ-45 connectors. The RJ-45 port on the Router is a crossed port (MDI-X). Follow standard Ethernet guidelines when deciding what type of cable to use to make this
connection. When connecting the Router directly to a PC or server use a normal straight-through cable. You should use a crossed cable when connecting the Router to a
normal (MDI-X) port on a switch or hub. Use a normal straight-through cable when connecting it to an uplink (MDI-II) port on a hub or switch. The rules governing
Ethernet cable lengths apply to the LAN to Router connection. Be sure that the cable connecting the LAN to the Router does not exceed 100 meters.
Hub or Switch to Router Connection
Connect the Router to an uplink port (MDI-II) on an Ethernet hub or switch with a straight-through cable. If you wish to reserve the uplink port on the switch or hub for
another device, connect to any on the other MDI-X ports (1x, 2x, etc.) with a crossed cable.
Computer to Router Connection
You can connect the Router directly to a 10/100BASE-TX Ethernet adapter card (NIC) installed on a PC using the Ethernet cable provided.
Wireless Connection to Router
The Router’s embedded 802.11g wireless access point should be configured to suit the local wireless network. All 802.11g or 802.11b devices that associate with the
Router’s wireless access point must have the same SSID and channel. If wireless security is used, the wireless clients must be configured with the correct security
information to use the Router. More information on configuring the wireless settings is found later in this manual.
Web Configuration
D-Link DSL-2600U User Manual 11
Introduction to Web Configuration
The first time you setup the Router. It is recommended that you configure the WAN connection using a single computer, to ensure that both the computer and the Router are
not connected to the LAN. Once the WAN connection operates properly, you may continue to make changes to Router configuration, including IP settings and DHCP setup.
This chapter is concerned with using your computer to configure the WAN connection. The following chapter describes the various menus used to configure and monitor the
Router, including how to change IP settings and DHCP server setup.
Preparation Before Login
Before accessing the Modem, ensure the communication between PC and Modem is normal. Check the communication as follows.
= Configure the IP address of the PC as 10.1.1.X (2~254), net mask as
255.0.0.0, gateway address as 10.1.1.1 (for customized version, configure
them according to the actual version).
= Enter arp -a in the DOS window to check whether the PC can read the MAC
address of the Modem.
= Ping the management IP address (10.1.1.1 by default) of the Modem.
If the PC can read the MAC address of the Modem and can ping through the
management IP address of the Modem, that means the communication of
the PC and the Modem is normal.
Web Configuration
D-Link DSL-2600U User Manual 12
Note: When you manage the Modem through Web, you must keep the Modem power on. Otherwise, the Modem may be damaged.
Web Configuration
D-Link DSL-2600U User Manual 13
Logging In to the Modem
The following description is a detail “How-To” user guide and is prepared for first time users.
First-Time Login
When you log in to the DSL Router for the first time, the login wizard appears.
Step 1 Open a Web browser on your computer.
Step 2 Enter http://10.1.1.1 (DSL router default IP address) in the address bar. The login page
appears.
Step 3 Enter a user name and the password. The default username and password of the super
user are admin and admin. The username and password of the common user are user and
user. You need not enter the username and password again if you select the option
Remember my password. It is recommended to change these default values after logging
in to the DSL router for the first time.
Step 4 Click OK to log in or click Cancel to exit the login page.
After logging in to the DSL router as a super user, you can query, configure, and modify all configurations, and diagnose the system.
You need to reboot the DSL router to enable your modification or configuration effective in some cases, for example, after you modify the PVC configuration. Some
modification, such as adding a static route, takes effect at once, and does not require modem reboot.
Web Configuration
D-Link DSL-2600U User Manual 14
Quick Setup
The Quick Setup page mainly includes the following three functions:
= WAN interface setup
= LAN interface setup
= Wireless interface setup
Quick setup enables fast and accurate configuration of your Internet connection and other important parameters. The following sections describe these various
configuration parameters. Whether you configure these parameters or use the default ones, click Next to enable your Internet connection.
When subscribing to a broadband service, you should be aware of the method by which you are connected to the Internet. Your physical WAN device can be Ethernet,
DSL, or both. Technical information regarding the properties of your Internet connection should be provided by your Internet service provider (ISP). For example, your ISP
should inform you whether you are connected to the Internet by using a static or dynamic IP address, or the protocols, such as PPPOA or PPPoE, which you use to
communicate over the Internet.
WAN Interface Setup
During WAN interface setup, you can set up a PVC and its properties:
= VPI
= VCI
= QoS
= Internet connection type
= Encapsulation type
= IGMP service
= NAT
Setting Up VPI/VCI and QoS
After logging in to the DSL router, if no PVC is configured previously and no default settings
exist, the Quick Setup webpage appears, which contains some basic configuration that is
needed by ATM PVC. The following introduction guides you through the necessary steps to
configure your DSL Router.
Web Configuration
D-Link DSL-2600U User Manual 15
According to your ISP instructions, specify the following parameters:
= VPI (Virtual Path Identifier)
Virtual path between two points in an ATM network. The valid value range is from 0
to 255.
= VCI (Virtual Channel Identifier)
Virtual channel between two points in an ATM network. The valid value range is from
32 to 65535 (1 to 31 are reserved for known protocols).
= Enable Quality Of Service
Enabling QoS for a PVC improves performance for selected classes of applications.
However, since QoS also consumes system resources, the number of PVCs is
reduced consequently. Use Advanced Setup/Quality of Service to assign priorities
for the applications.
For example, PVC 0/35 is to be modified and the default values of QoS remain. In actual
applications, you can modify them depending on your ISP instructions.
Selecting Internet Connection Type and Encapsulation Type
You can select your connection type from the following list. Each connect type corresponds
to several encapsulation types:
= PPP over ATM (PPPoA)
PPPoA Encapsulation Mode: VC/MUX, LLC/ENCAPSULATION
= PPP over Ethernet (PPPoE)
PPPoE Encapsulation Mode: LLC/SNAP-BRIDGING, VC/MUX
= MAC Encapsulation Routing (MER)
MER Encapsulation Mode: LLC/SNAP-BRIDGING, VC/MUX
= IP over ATM (IPoA)
IPoA Encapsulation Mode: LLC/SNAP-ROUTING, VC/MUX
= Bridging
Bridging Encapsulation Mode: LLC/SNAP-BRIDGING, VC/MUX

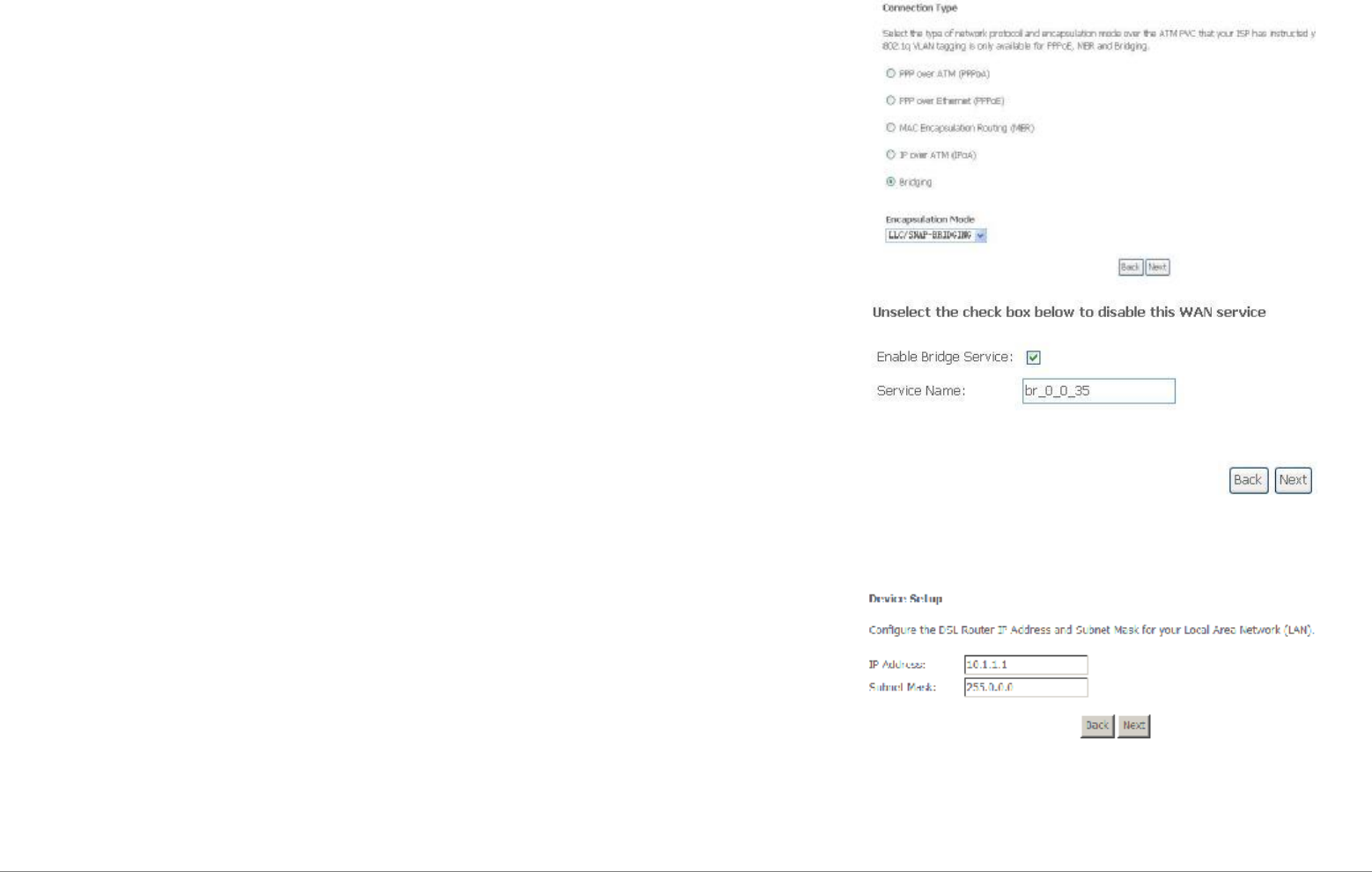

For example, change the connection type of PVC 0/35 to Bridging. Select Bridging, and set
Encapsulation Mode to LLC/SNAP-BRIDGING (depending on the uplink equipment).
Web Configuration
D-Link DSL-2600U User Manual 16
Internet Connection Type - PPP over ATM (PPPoA)
Step 5 In the PVC and its QoS configuration page, configure a PVC and its QoS.
Step 6 In the Internet connection type and encapsulation type page, set the Connection
Type to PPP over ATM (PPPoA) and select the encapsulation mode.
Web Configuration
D-Link DSL-2600U User Manual 17
Step 7 Click Next and the PPP information configuration page appears.
Your ISP should provide you with the following information:
= PPP Username
= PPP Password
= Authentication Method
You can also select another service function as follows:
= Dial on demand (with idle timeout timer)
= PPP IP extension
= Use static IP address
= Retry PPP password on authentication error
= Enable PPP debug mode
Step 8 Click Next and the PPPoA IGMP and WAN function configuration page appears.
To use IGMP service on pppoa pvc, select the Enable IGMP Multicast check box.
Web Configuration
D-Link DSL-2600U User Manual 18
Internet Connection Type - PPP over Ethernet (PPPoE)
Step 1 In the PVC and its QoS configuration page, configure a PVC and its QoS.
Step 2 In the Internet connection type and encapsulation type page, set the Connection Type to
PPP over Ethernet (PPPoE) and select the encapsulation mode.
Web Configuration
D-Link DSL-2600U User Manual 19
Step 3 Click Next and the PPP information configuration page appears.
Your ISP should provide you with the following information:
= PPP Username
= PPP Password
= Authentication Method
You can also select another service function as follows:
= Dial on demand (with idle timeout timer)
= PPP IP extension
= Use Static IP Address
= Retry PPP password on authentication error
= Enable PPP Debug Mode
Step 4 Click Next and the PPPoE IGMP and WAN function configuration page appears.
To use IGMP service on pppoe pvc, select the Enable IGMP Multicast check box.
Web Configuration
D-Link DSL-2600U User Manual 20
Internet Connection Type - MAC Encapsulation Routing (MER)
Step 1 In the PVC and its QoS configuration page, configure a PVC and its QoS.
Step 2 In the Internet connection type and encapsulation type page, set the Connection
Type to MAC Encapsulation Routing (MER) and select the encapsulation mode.
Step 3 Click Next and the WAN IP configuration page appears.
You can select the service function as follows:
= Obtain an IP address automatically (use dhcp to obtain wan ip)
= Use the following IP address (use static wan ip)
= Obtain default gateway automatically (use dhcp to obtain gateway IP)
= Use the following default gateway (use static gateway ip)
= Obtain DNS server addresses automatically (use dhcp to obtain DNS server IP)
= Use the following DNS server addresses (use static DNS server IP)
Web Configuration
D-Link DSL-2600U User Manual 21
Step 4 Click Next and the MER IGMP and WAN function configuration page appears.
To use IGMP service on MER pvc, select the Enable IGMP Multicast check box.
In the MER mode, you can configure the following functions:
= Enable NAT.
= Enable Fullcone NAT.
= Enable Firewall.
Internet Connection Type - IP over ATM (IPoA)
Step 1 In the PVC and its QoS configuration page, configure a PVC and its QoS.
Step 2 In the Internet connection type and encapsulation type page, set the Connection
Type to IP over ATM (IPoA) and select the encapsulation mode.
Web Configuration
D-Link DSL-2600U User Manual 22
Step 3 Click Next and the WAN IP configuration page appears.
You can select the service function as follows:
= Use the following IP address (static wan ip)
= Use the following default gateway (static gateway ip)
= Use the following DNS server addresses (static DNS server ip)
Step 4 Click Next and the IPoA IGMP and WAN function configuration page appears.
To use IGMP service on ipoa pvc, select the Enable IGMP Multicast check box.
In the MER mode, you can configure the following functions:
= Enable NAT.
= Enable Fullcone NAT.
= Enable Firewall.
Internet Connection Type – Bridging
Step 1 In the PVC and its QoS configuration page, configure a PVC and its QoS.
Web Configuration
D-Link DSL-2600U User Manual 23
Step 2 In the Internet connection type and encapsulation type page, set the Connection
Type to Bridging and select the encapsulation mode.
Step 3 Click Next and the Bridging service configuration page appears.
LAN Interface Setup
The LAN interface setup page is shown on the right.
Web Configuration
D-Link DSL-2600U User Manual 24
Wireless Interface Setup
Enable Wireless: Select or deselect the check box to enable or disable wireless connection.
SSID: It is the network name shared among all points in a wireless network. The SSID must be
identical for all points in the wireless network. It is case-sensitive and must not exceed 32
characters (use any character on the keyboard).
WAN Setup Summary
In WAN setup summary, you can view the following properties of the added PVC:
= VPI/VCI
= Connection Type:
= Service Name:
= Service Category:
= IP Address:
= Service State:
= NAT
= Firewall
= IGMP
= QoS
Web Configuration
D-Link DSL-2600U User Manual 25
To make any modifications, click Back. Click Save/Reboot, and the following page appears.
Note: You need to reboot to activate this WAN page and further configure services in this
interface, and it takes about two minutes to reboot.
Quick Setup Completion
After the previous setup, you can immediately start using your gateway to:
= Share a broadband connection among multiple users (HTTP, FTP, Telnet, NetMeeting) and between all of the computers connected to your home network.
= Build a home network by connecting additional PCs and network devices to the gateway.
= Control network parameters, including DHCP, DNS, and WAN settings.
= View network status, traffic statistics, system log, and more.
= Allow access from the Internet to games and other services provided by computers in the home network.
= Prohibit computers in the home network from accessing selected services on the Internet.
= Block access to specific Internet websites from your home network.
If your gateway is equipped with multiple LAN ports, you can connect additional devices directly to the gateway. Otherwise, connect a hub or switch to the LAN port, to
which you can connect additional devices. In both cases, configure newly connected devices to automatically obtain IP address as previously described.
DSL Router Device Information
Click Device Info and you can view the following information.
= Summary
= WAN
= Statistics
= Route
= ARP
= DHCP
Web Configuration
D-Link DSL-2600U User Manual 26
Summary of Device Information
Click Summary and the Device Info page appears.
= LAN IP Address: the management IP address.
= Default Gateway: In the bridging mode there is no gateway. In other modes, it is the
address of the uplink equipment, for example, PPPoE/PPPoA.
= DNS Server: In the PPPoE / PPPoA mode, it is obtained from the uplink equipment.
In the bridging mode, there is no DNS Server address and you can manually enter
the information.
WAN Interface Information
Click WAN and the following page appears. The WAN Info page displays the status and
the connect or disconnect button, depending on the selected connection mode.
Web Configuration
D-Link DSL-2600U User Manual 27
Statistics of LAN
Choose Statistics > LAN and the following page appears. You can query information of
packets recevied at the Ethernet and wireless interfaces. Click Reset Statistics to restore
the values to zero and recount them.
Statistics of WAN
Click Statistics > WAN and the following page appears. You can query information of
packets recevied at the WAN interfaces. Click Reset Statistics to restore the values to
zero and recount them.
Statistics of ATM
Click Statistics > ATM and the following page appears. You can query information of
packets recevied at the ATM interfaces. Click Reset to restore the values to zero and
recount them.
Web Configuration
D-Link DSL-2600U User Manual 28
Statistics of ADSL
Click Statistics > ADSL. If the DSL line is activated, the window shows on the left appears.
Click Reset Statistics at the bottom to restore the values to zero and recount them.
Web Configuration
D-Link DSL-2600U User Manual 29
ADSL BER Test
Click ADSL BER Test to perform a bit error rate (BER) test on the DSL line. The test page
is as follows.
The Tested Time (sec) can be 1, 5, 10, 20, 60, 120, 180, 240, 300, or 360. Select a time
and click Start. The following pages appear.
Note: If the BER reaches e-5, you cannot access the Internet.
Route Table Information
Click Route, and if the system is in the default configuration, the following page appears.
If the configuration of modem is as PPPoE/PPPoA dial-up, the page shows different.
Web Configuration
D-Link DSL-2600U User Manual 30
ARP Table Information
Click ARP and the following page appears. You can query the MAC and IP address
information of the equipment attached to the modem.
Advanced Setup
This chapter include the more advanced features used for network management and security as well as administrative tools to manage the Router, view status and other
information used to examine performance and for troubleshooting.
WAN Configuration
Choose Advanced Setup > WAN, and the following page appears, so you can modify and
configure the WAN interface.
Note: After a PVC is deleted or modified, the system must be rebooted. Otherwise, the
modification does not take effect.
Click Add, Edit, or Remove to configure WAN interface.
Click Save/Reboot to save the modification, and reboot the modem to make the
modification effective.
Web Configuration
D-Link DSL-2600U User Manual 31
Click Add, and the following page appears. In this page, you can modify VPI/VCI, service
categories, and QoS.
= VPI: Virtual path between two points in an ATM network. Its valid value range is from
0 to 255.
= VCI: Virtual channel between two points in an ATM network. Its valid value range is
from 32 to 65535 (1 to 31 are reserved for known protocols).
= Service Category: UBR Without PCR/UBR With PCR/CBR/Non Realtime
VBR/Realtime VBR.
= Enable Quality Of Service: Enable or disable QoS.
After proper modifications, click Next and the following page appears. This window allows
you to select the appropriate connection type. The choices include PPP over ATM
(PPPoA), PPP over Ethernet (PPPoE), MAC Encapsulation Routing (MER), IP over ATM
(IPoA), and Bridging (default).
This window also allows you to use the drop-down menu to select the desired
Encapsulation Mode. Click the Next button to continue. For further information about each
of the five connection types available on the Router, please go to the Quick Setup section
earlier in this manual as all of the windows are identical.
Web Configuration
D-Link DSL-2600U User Manual 32
LAN Configuration
In this interface, you can modify and configure IP Address and DHCP Server.
If the mode is router, the interface shows as follows. In the Bridging mode, the interface
shows different.
NAT
Note: You need to enable the NAT service when you configure the WAN connection at first, the NAT item appears in the Advanced Setup directory. In the pure bridging
mode, there is not the NAT service.
Overview
Setting up the NAT Function
= The DSL router is equipped with the network address translation (NAT) function. With address mapping, several users in the local network can access the Internet via
one or more public IP addresses. All the local IP addresses are assigned to the public IP address of the router by default.
= One of the characteristics of NAT is that data from the Internet is not allowed into the local network unless it is explicitly requested by one of the PCs in the network.
Most Internet applications can run behind the NAT firewall without any problems. For example, if you request Internet pages or send and receive e-mails, the request
for data from the Internet comes from a PC in the local network, and so the router allows the data to pass through. The router opens one specific port for the
Web Configuration
D-Link DSL-2600U User Manual 33
application. A port in this context is an internal PC address, via which the data is exchanged between the Internet and a client on a PC in the local network.
Communicating via a port is subject to the rules of a particular protocol (TCP or UDP).
= If an external application tries to send a call to a PC in the local network, the router blocks it. There is no open port via which the data could enter the local network.
Some applications, such as games on the Internet, require several links (that is. several ports), so that players can communicate with each other. In addition, these
applications must also be permitted to send requests from other users on the Internet to users in the local network. These applications cannot run if NAT is activated.
= Using port forwarding (the forwarding of requests to particular ports), the router is forced to send requests from the Internet for a certain service, for example, a game,
to the appropriate port(s) on the PC on which the game is running. Port triggering is a special variant of port forwarding. Unlike port forwarding, the DSL router
forwards the data from the port block to the PC which has previously sent data to the Internet via a certain port (trigger port). This means that approval for the data
transfer is not tied to one specific PC in the network, but rather to the port numbers of the required Internet service. Where configuration is concerned, you must
define a so-called trigger port for the application and also the protocol (TCP or UDP) that this port uses. You then assign the public ports that are to be opened for the
application to this trigger port. The router checks all outgoing data for the port number and protocol. If it identifies a match of port and protocol for a defined trigger port,
then it opens the assigned public ports and notes the IP address of the PC that sent the data. If data comes back from the Internet via one of these public ports, the
router allows it to pass through and directs it to the appropriate PC. A trigger event always comes from a PC within the local network. If a trigger port is addressed
from outside, the router simply ignores it.
Note:
= An application that is configured for port triggering can only be run by one user in the local network at a time.
= After public ports are opened, they can be used by unauthorized persons to gain access to a PC in the local network.
= When the DSL router is supplied, the NAT function is activated. For example, all IP addresses of PCs in the local network are converted to the public IP address of the
router when accessing the Internet. You can use NAT settings to configure the DSL router to carry out the following tasks.
= For functions described as follows, IP addresses of the PCs must remain unchanged. If the IP addresses of the PCs are assigned via the DHCP server of the DSL
router, you must disable DHCP server as the settings in the local network menu entry for the lease time or assign static IP addresses for the PCs.
You can enable or disenable the NAT function. By default, the NAT function is enabled.
NAT-Virtual Server Setup
By default, DSL router blocks all external users from connecting to or communicating with your network. Therefore, the system is safe from hackers who may try to intrude
into the network and damage it.
However, you may want to expose your network to the Internet in limited and controlled ways in order to enable some applications to work from the LAN (for example,
game, voice, and chat applications) and to enable Internet access to servers in the home network. The port forwarding feature supports both functionalities. This topic is
also referred as Local Servers.
The port forwarding page is used to define applications that require special handling by DSL router. All you need to do is to select the application protocol and the local IP
address of the computer that is using or providing the service. If required, you may add new protocols in addition to the most common ones provided by DSL router.
For example, if you wanted to use a file transfer protocol (FTP) application on one of your PCs, you would simply select FTP from the list and enter the local IP address or
host name of the designated computer. All FTP-related data arriving at DSL router from the Internet henceforth is forwarded to the specific computer.
Similarly, you can grant Internet users access to servers inside your home network, by identifying each service and the PC that provide it. This is useful, for example, if you
want to host a Web server inside your home network.
When an Internet user points his/her browser to DSL router external IP address, the gateway forwards the incoming HTTP request to your Web server. With one external
IP address (DSL router main IP address), different applications can be assigned to your LAN computers, however each type of application is limited to use one computer.
Web Configuration
D-Link DSL-2600U User Manual 34
For example, you can define that FTP uses address X to reach computer A and Telnet also uses address X to reach computer A. But attempting to define FTP to use
address X to reach both computer A and B fails. DSL router, therefore, provides the ability to add additional public IP addresses to port forwarding rules, which you must
obtain from your ISP, and enter into the IP addresses pool. Then, you can define FTP to use address X to reach computer A and address Y to reach computer B.
Additionally, port forwarding enables you to redirect traffic to a different port instead of the one to which it was designated. For example, if you have a Web server running
on your PC on port 8080 and you want to grant access to this server to any one who accesses DSL router via HTTP.
To accomplish this, do as follows:
Step 1 Define a port forwarding rule for the HTTP service, with the PC IP or host name.
Step 2 Specify 8080 in the Forward to Port field.
All incoming HTTP traffic is forwarded to the PC running the Web server on port 8080. When setting a port forwarding service, ensure that the port is not used by another
application, which may stop functioning. A common example is when using SIP signaling in Voice over IP, the port used by the gateway VoIP application (5060) is the same
port, on which port forwarding is set for LAN SIP agents.
Note: Some applications, such as FTP, TFTP, PPTP and H323, require the support of special specific application level gateway (ALG) modules in order to work inside the
home network. Data packets associated with these applications contain information that allows them to be routed correctly. An ALG is needed to handle these
packets and ensure that they reach their intended destinations. DSL router is equipped with a robust list of ALG modules in order to enable maximum functionality in
the home network. The ALG is automatically assigned based on the destination port.
Virtual servers are configured for this purpose.
Adding Port Forwarding
Step 1 To set up virtual servers for a service, select Advanced Setup > NAT > Virtual
Servers, and click Add.
Web Configuration
D-Link DSL-2600U User Manual 35
Step 2 Select a service or enter a custom server.
Step 3 Set Server IP Address.
Step 4 Enter the server IP address of the computer that provides the service (the server
in the local host field). Note that unless an additional external IP address is
added, only one LAN computer can be assigned to provide a specific service or
application.
Step 5 Set External Port Start and External Port End.
Step 6 Select Protocol.
Step 7 Set Internal Port Start and Internal Port End.
Step 8 Enter Remote IP.
Step 9 Click Save/apply to apply the settings.
If the application you require is not in the list, manually enter the information.
Select the protocol for the service you are providing from the Protocol drop-down list.
Under External Port, enter the port number of the service you are providing. In the
Internal Port field, enter the internal port number, to which service requests are to be
forwarded. In the Local IP Address field, enter the IP address of the PC that provides the
service.
Example
The Web server is configured to react to requests on port 8080. However, the requests from websites enter the Web server via port 80 (standard value). If you add the PC
to the forwarding table and define port 80 as the public port and port 8080 as an internal port, all requests from the Internet are diverted to the service with port 80 on the
Web server of the PC you have defined with port 8080.
Deleting Port Forwarding
Step 1 Select the Remove check box.
Step 2 Click Remove to apply the settings.
Port Triggering
If you configure port triggering for a certain application, you need to determine a so-called trigger port and the protocol (TCP or UDP) that this port uses. You then assign
the public ports that are to be opened for the application to this trigger port. You can select known Internet services or manually assign ports or port blocks.
Adding Port Triggering
Web Configuration
D-Link DSL-2600U User Manual 36
Step 1 To set up port triggering for a service, select Advanced Settings > NAT > Port
Triggering, and click Add.
Step 2 Select the required application from the Select an application drop-down list, or
manually enter the information in the Custom application field.
= Trigger Port Start and Trigger Port End: enter the port that is to be monitored for
outgoing data traffic.
= Trigger Protocol: select the protocol that is to be monitored for outgoing data
traffic.
= Open Protocol: select the protocol that is to be allowed for incoming data traffic
= Open Port Start and Open Port End: enter the port that is to be opened for
incoming traffic.
Step 3 Click Save/Apply to apply the settings.
Removing Port Triggering
Step 1 Select the Remove check box.
Step 2 Click Save/Apply to apply the settings.
DMZ Host
The demilitarized military zone (DMZ) host feature allows one local computer to be exposed to the Internet. This function is applicable for:
= Users who want to use a special-purpose Internet service, such as an on-line game or video conferencing program, that is not presented in the port forwarding list
and for which no port range information is available.
= Users who are not concerned with security and wish to expose one computer to all services without restriction.
Note: A DMZ host is not protected by the firewall and may be vulnerable to attack. This may also put other computers in the home network at risk. Hence, when
designating a DMZ host, you must consider the security implications and protect it if necessary.
Web Configuration
D-Link DSL-2600U User Manual 37
You can set up a client in your local network as a so-called DMZ host. Your device then forwards all incoming data traffic from the Internet to this client. You can, for
example, operate your own Web server on one of the clients in your local network and make it accessible to Internet users. As the exposed host, the local client is directly
visible to the Internet and therefore particularly vulnerable to attacks (for example, hacker attacks). Enable this function only when necessary (for example, to operate a
Web server) and when other functions (for example, port forwarding) are inadequate. In this case, you should take appropriate measures for the clients concerned.
Note: Only one PC per public IP address can be set up as an exposed host.
Adding a DMZ Host
Step 1 To set up a PC as a DMZ host, select Advanced Setup > NAT > DMZ host.
Step 2 Enter the local IP address of the PC that is to be enabled as an exposed host.
Step 3 Click Save/Apply to apply the settings.
Remove DMZ host
Step 1 Clear the DMZ Host Address.
Step 2 Click Save/Apply to apply the settings.
Security
Click Security > IP Filtering and the following interface appears. By default, the firewall is
enabled. The firewall is used to block document transmissions between the Internet and
your PC. It serves as a safety guard and permits only authorized documents to be sent to
the LAN.
Note: If the modem is configured to bridge mode only, IP filtering is disabled and the IP
filtering interface does not appear.
If the modem does not configure a PVC of Bridge mode, MAC filtering is disabled and the
MAC Filtering interface does not appear.
Web Configuration
D-Link DSL-2600U User Manual 38
Outgoing IP Filtering Setup
Click Security > IP Filtering > Outgoing and the following page appears.
By default, all outgoing IP traffic from LAN is allowed, but some IP traffic can be blocked by
setting up filters.
Click Add and the page for defining the IP filtering rule appears.
In this page, you can create a filter rule to identify outgoing IP traffic by specifying a new
filter name and at least one condition. All specified conditions in the filtering rule must be
complied with the rule to take effect.
Click Save/Apply to save and activate the filter.
Incoming IP Filtering Setup
Click Security > IP Filtering > Incoming and the following page appears.
By default, all incoming IP traffic from the WAN is blocked when the firewall is enabled.
However, some IP traffic can be accepted by setting up filters.
Web Configuration
D-Link DSL-2600U User Manual 39
Click Add, the following page appears. In this page, you can create a filter rule to identify
incoming IP traffic by specifying a new filter name and at least one condition. All specified
conditions in this filter rule must comply with the rule. Click Save/Apply to save and
activate the filter.
You should select at least one WAN interface to apply this rule.
MAC Filtering Setup
Click Security > MAC Filtering, and the following page apperas.
MAC Filtering is only effective on ATM PVCs configured in Bridge mode. Forwarded
means that all MAC layer frames are forwarded except those matching with any of the
specified rules in the following table. Blocked means that all MAC layer frames are blocked
except those matching with any of the specified rules in the following table.
Web Configuration
D-Link DSL-2600U User Manual 40
Click Change Policy and the following page apperas.Then you can change the MAC
Filtering Global Policy from FORWARDED to BLOCKED.
Read the warning information. Click Yes to change the MAC filtering global policy from
Forwarded to Blocked. Click No to cancel.
For example, to forbid the PC whose MAC address is 00:13:20:9E:0F:10 through PPPoE
dial-up, begin with the following page.
Click Add to configure the interface as follows.
Click Save/Apply and the following page appears.
Web Configuration
D-Link DSL-2600U User Manual 41
Parental Control
Click Security>Parental Control and the following page appears.
Click Add and the following page appears.
In this page, you can add time of day restriction to a special LAN device connected to the
Router. The Browser's MAC Address automatically displays the MAC address of the LAN
device where the browser is running. To restrict other LAN device, click Other MAC
Address and enter the MAC address of the another LAN device. To obtain the MAC
address of a Windows based PC, enter ipconfig /all in the DoS window.
URL Filter
Choose Advanced Setup > Parental Control > Url Filter, and the Url Filter page
appears. In this page, there are two URL list types – Exclude and Include. If select
Exclude, LAN devices could not access Url addresses in the list. And so if select Include,
LAN devices just could access Url addresses in the list. Otherwides, one of list types
should be selected.
Web Configuration
D-Link DSL-2600U User Manual 42
After proper selection, click Add, In this page, enter the URL address and port
number then click Save/Apply to add the entry to the URL filter. If don’t enter
port number, default 80 will be appled.
Quality of Service
Many communication and multimedia applications require large, high-speed bandwidths to transfer data between the local network and the internet. However, for many
applications there is often only one internet connection available with limited capacity. QoS divides this capacity between the different applications and provides undelayed,
continuous data transfer in situation where data packets with higher priority are given preference.
Click Quality of Service and the following page appears. Under Quality of Service, there are two network share modes: Queue Config and QoS Classification.
Network QoS is an industry-wide set of standards and mechanisms for ensuring high-quality performance for critical applications. By using QoS mechanisms, network
administrators can use existing resources efficiently and ensure the required level of service without reactively expanding or over-provisioning their networks.
Traditionally, the concept of quality in networks meant that all network traffic was treated equally. The result was that all network traffic received the network’s best effort,
with no guarantees for reliability, delay, variation in delay, or other performance characteristics. With best-effort delivery service, however, a single bandwidth-intensive
application can result in poor or unacceptable performance for all applications. The QoS concept of quality is one in which the requirements of some applications and
users are more critical than others, which means that some traffic needs preferential treatment.
Internet
The order of source
packet
CPE
1. classify
2. CAR/GTS
3. queuing
QOS diapose
The order of
outgoing packet
Web Configuration
D-Link DSL-2600U User Manual 43
Enabling QoS
In this page, you can perform QoS queue management configuration. By default, the
system enables QoS and sets a default DSCP mark to automatically mark incoming traffic
without reference to particular classifier.
Select Advanced Setup > Quality of Service and the following page appears.
Select Enable QoS to enable QoS and set the default DSCP mark.
Click Save/Apply to activate QoS.
QoS-Queue Configuration
The queuing in packet QoS becomes effective only when packet is forwarded to QoS-enabled PVC. Packet forwarding is determined by IP routing or bridging, not under
control of the packet QoS.
Click Queue Config, and the following page appears. In this page, you can configure QoS
queue. A maximum of 24 entries can be configured.
QoS Queue Configuration can allocate four queues. Each of the queues can be
configured for a precedence value (Lower integer values for precedence imply higher
priority for this queue relative to others). The queue entry configured is used by the
classifier to place ingress packets appropriately.
Note: Lower integer values for precedence imply higher priority for this queue relative to
others.
For example, add a QoS queue entry and allocate it to a specific network interface (PVC
0/0/35). Set integer values for queue precedence to 1.
Web Configuration
D-Link DSL-2600U User Manual 44
Step 1 Click Add, and the following page appears.
= Policy Select: you can select Strict Priority Policy or WRR Policy.
= Queue Configuration Status: set to enable or disable a QoS queue.
= Queue: select a specific network interface. When you have already selected a
network interface, the specific network interface selected automatically allocates to
the queue.
= Queue Precedence: select an integer value for queue precedence. After you select
an integer value, the queue entry appropriately places to ingress packets. Lower
integer values for precedence imply higher priority for this queue relative to others.
Step 2 Add a QoS queue entry and assign it to a specific network interface (PVC
0/0/35), and set integer values for queue precedence to 1. See the following
figure:
Web Configuration
D-Link DSL-2600U User Manual 45
Step 3 After proper modifications, click Save/Apply and the following page appears.
This configuration takes effective at once.
To delete a certain queue, disable it, select it, and then click Remove.
After the queue is configured, you can create several traffic class rules to classify the
upstream traffic.
WRR (Weighted Round Robin): this is another QoS method. If you want to set WRR, you
must disable the Strict-Priority Queue (PQ). The WRR is mutex to PQ. Only one QoS
method can exist at the same time. Select WRR in QoS Queue Configuration page. The
following interface appears.
For example, add a QoS queue entry and allocate it to a specific network interface (PVC
0/2/35). Set queue precedence to 2 and weight value to 30%.
Web Configuration
D-Link DSL-2600U User Manual 46
After proper modifications, click Save/Apply and the following page appears.
The weighted round robin (WRR) queue schedule divides each port into several output queues. Queues are scheduled in turn to ensure that each queue obtains a certain
service time. WRR configures a weighted value (w3, w2, w1 and w0) for each queue. The weighted value represents the proportion of the obtained resources. For
example, the weighted value of WRR queue schedule algorithm of a 100M port is configured as 50, 30, 10 and 10 (corresponding to w3, w2, w1 and w0), so that the queue
with minimum priority obtains a bandwidth of at least 10Mbps, which avoids the disadvantage that a message in queue with low priority during PQ schedule may not obtain
service for a long time. WRR queue still has another advantage. Although the schedule of these queues are conducted in turn, each queue is not assigned with a fixed
service time slice-if a certain queue is null, it is immediately changed to the next queue. In this way, the bandwidth resources can be fully utilized.
QoS-QoS Classification
Some applications require specific bandwidth to ensure its data be forwarded in time. QoS
classification can creates traffic class rule to classify the upstream traffic. Assign queue
which defines the precedence and the interface and optionally overwrite the IP header
DSCP byte. After QoS classification, QoS divides capacity between different applications
and provides undelayed, continuous data transfer where data packet with higher priority is
given preference. The follow figure shows QoS classification.
Web Configuration
D-Link DSL-2600U User Manual 47
Click QoS Classification and the following page appears. In this page, you can configure
network traffic classes.
Click Add and the following page appears.
= Traffic Class Name: Enter a name of the class.
= Rule Order: Select order for queue.
= Rule Status: Enable or disable this traffic class rule.
= Assign Classification Queue: Select a classification queue.
= Assign Differentiated Service Code Point (DSCP) Mark: Select a mark service that
modifies the original packet IP header if all rules defined within the classification
class are matched. (CS-Mark IP Precedence, AF-Assured Forwarding,
EF-Expedited Forwarding)
= Mark 802.1p if 802.1q is enabled: Select an 802.1p priority number that serves as
the 802.1p value.
There are two sets of classification rules. Set-1 is based on different fields within
TCP/UDP/IP layer plus physical LAN port; Set-2 is based on MAC layer IEEE 802.1p
priority field.
Set-1 Rules contain the following:
= Physical LAN Port: Select one among USB port, Ethernet ports and wireless port.
= Protocol: Select one among TCP/UDP TCP UDP or ICMP protocols.
= Source IP Address
= Source subnet mask
= UPD/TCP Source Port
= Destination IP Address
= Destination Subnet Mask
= UPD/TCP destination port or a range of ports
= Source Mac Address
= Source Mac Mask
= Destination Mac Address
= Destination Mac Mask
Set-2 Rules contain the following:
802.1p Priority: the 802.1p header includes a 3-bit prioritization field, which allows
packets to be grouped into eight levels of priority (0-7), where level 7 is the highest one.
Web Configuration
D-Link DSL-2600U User Manual 48
QoS-DSCP Setting
In order to understand what is differentiated services code point (DSCP), you should be familiar with the differentiated services model (Diffserv).
Diffserv is a class of service (CoS) model that enhances best-effort Internet services via differentiating traffic by users, service requirements and other criteria. Packets are
specifically marked, allowing network nodes to provide different levels of service,
via priority queuing or bandwidth allocation, or by choosing dedicated routes for specific traffic flows.
As displayed in following diagram, the IPV4 packet has a TOS filed. Diffserv defines TOS field in IP packet headers referred to as DSCP. Hosts or routes that pass traffic to
a Diffserv-enabled network typically mark each transmitted packet with an appropriate DSCP. The DSCP markings are used by Diffserv network routers to appropriately
classify packets and to apply particular queue handing or scheduling behavior.
Layer 3 IPV4 packet
Vers
ion/l
engt
h
TO
S (1
wor
d)
len
gth
I
D
Off
set
/ma
rk
T
T
L
proto
col Che
ck
sum
IP-
SA
IP
-D
A
d
a
t
a
TOS filed-IP priority (TOS front 3 bit) or DSCP (front 6 bit)
7 6 5 4 3 2 1 0
IP priority Undefined
DSCP Flow control
For example, mark each transmitted ICMP packet which passes traffic to 0-35class with an
appropriate DSCP (CS1).
After proper modifications, click Save/Apply and the following page appears.
Web Configuration
D-Link DSL-2600U User Manual 49
Click Save/Apply. This configuration takes effective at once.
QoS-802.1p Setting
The IEEE 802.1p priority marking method is a standard for prioritizing network traffic at the data link/Mac sub-layer 802.1p traffic is simply classified and sent to the
destination, with no bandwidth reservations established.
The follow diagram shows the structure of 802.1Q Frame. The 802.1Q header includes a 3-bit prioritization field, which allows packets to be grouped to be grouped into
eight levels of priority (0-7), where level 7 is the highest one. In addition, DSL maps these eight levels to priority queues, where queue 1 has the highest priority.
Layer 2 802.Q frame
Preamble
SFD
DA
SA
mark
(4
word)
Len/Etype
(2 word) DATA FCS
Mark
TPID(0x8100)
Priority(3bit) CFI (1bit) VLAN ID
(12bit)
Web Configuration
D-Link DSL-2600U User Manual 50
For example: mark the frame of 802.1p that queued to Queue 9 on value 2.
After proper modifications, click Save/Apply to show the following interface.
Web Configuration
D-Link DSL-2600U User Manual 51
Routing
Click Routing and the following page appears.
Routing - Default Gateway
In this page, you can modify the default gateway settings.
If you select Enable Automatic Assigned Default Gateway, this router can accept the first
received default gateway assignment from one of the PPPoA, PPPoE or MER/DHCP
enabled PVC(s). If the check box is not selected, you need to enter the static default
gateway and/or a WAN interface. Then, click Save/Apply.
Note: If the Automatic Assigned Default Gateway check box is changed from deselected to
selected, you need to reboot the router to obtain the automatic assigned default
gateway.
Web Configuration
D-Link DSL-2600U User Manual 52
Routing - Static Route
In this interface, you can modify the static route settings.
In this interface, you can query the preset static routes, delete an existing static route, or
add a new static route. By default, the system has no static route information.
= Destination: The IP address to which packets are transmitted.
= Subnetmask: The subnet mask of the destination IP address.
= Gateway: The gateway that the packets pass by during transmission.
= Interface: The interface that the packets pass through on the modem.

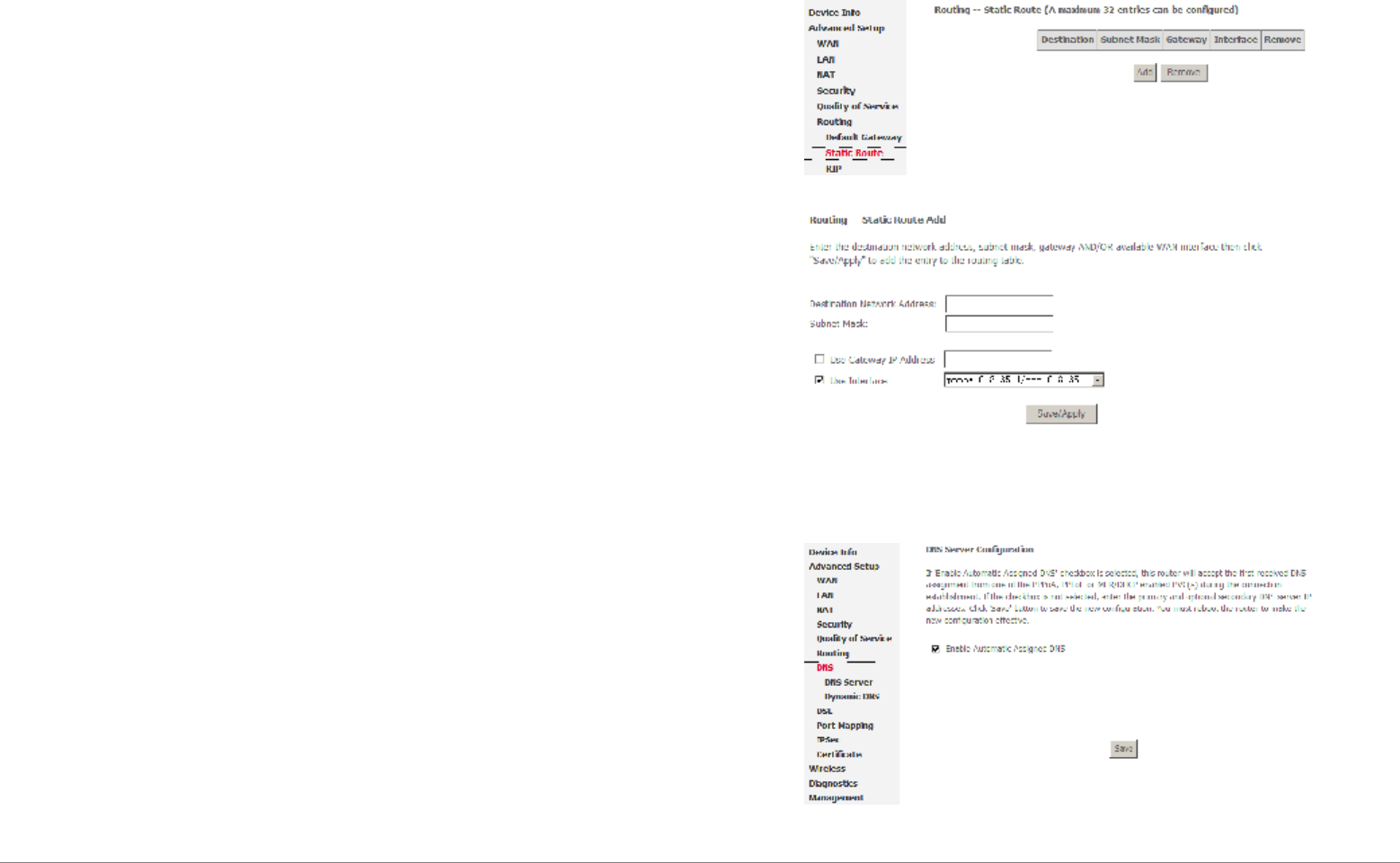

Click Add and the following page appears. Enter the destination network address, subnet
mask, gateway AND/OR available WAN interface, then click Save/Apply to add the entry
to the routing table.
DNS
DNS Server
In this interface, you can modify the DNS server settings.
Web Configuration
D-Link DSL-2600U User Manual 53
If select Enable Automatic Assigned DNS, this router accepts the first received DNS
assignment from one of the PPPoA, PPPoE or MER/DHCP enabled PVC(s) during the
connection establishment.
If the checkbox is not selected, enter the primary and optional secondary DNS server IP
addresses. The interface is as follows.
Click Save to save the new configuration.
Note: You must reboot the router to make the new configuration effective.
Dynamic DNS
In this interface, you can modify the Dynamic DNS settings.
The Dynamic DNS service allows you to alias a dynamic IP address to a static hostname in
any of the many domains, allowing your DSL router to be more easily accessed from
various locations on the Internet.
Web Configuration
D-Link DSL-2600U User Manual 54

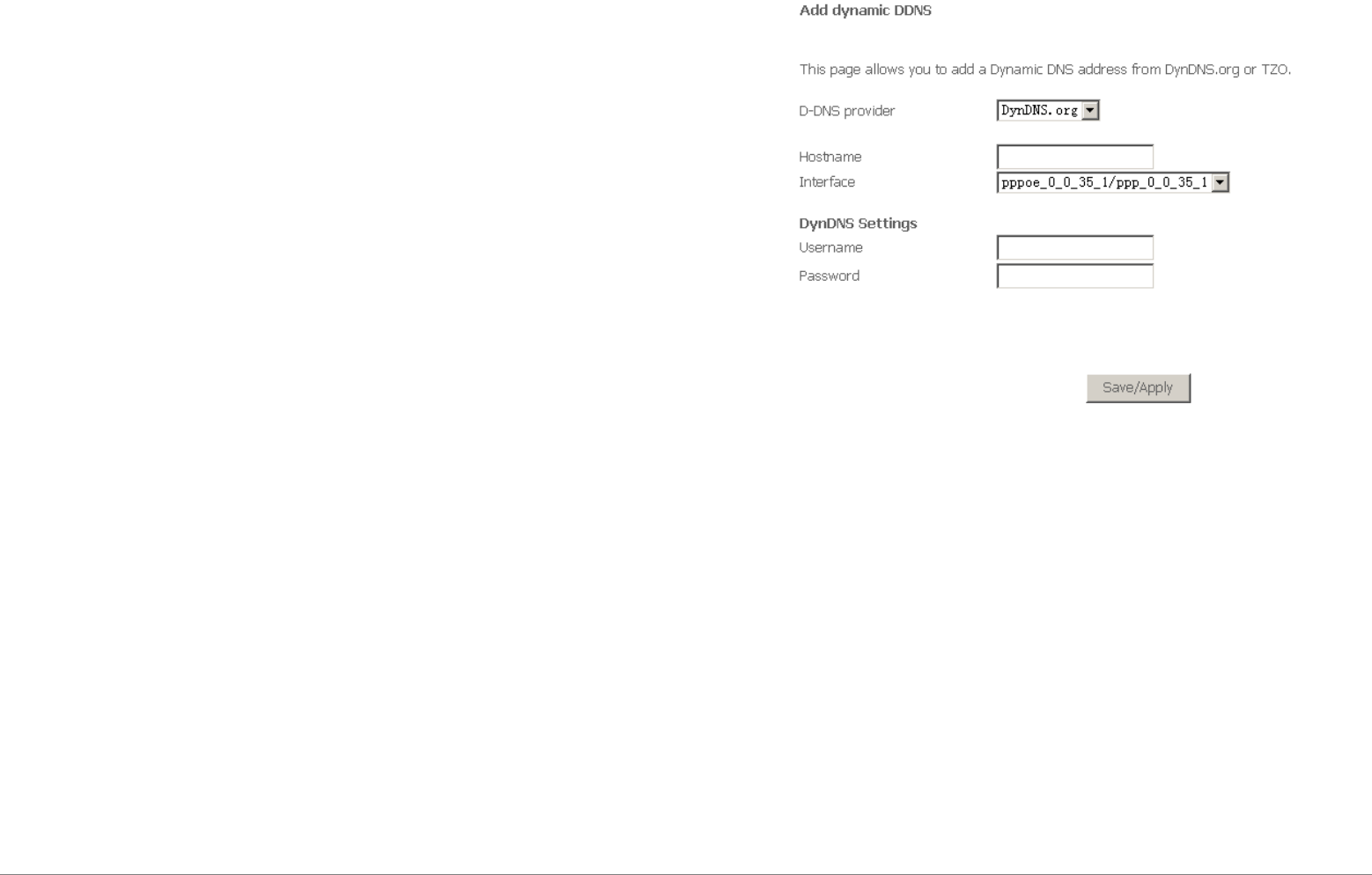

Click Add to add dynamic DDNS.
Web Configuration
D-Link DSL-2600U User Manual 55
DSL
In this interface, you can modify the DSL settings.
Select one you need. But the default setting can check G.dmt/ G.lite/ T1.413/
ADSL2/Annexl/ ADSL2+/ Inner pair/ Bitswap. The modem can negotiate the modulation
mode with the DSLAM.
Web Configuration
D-Link DSL-2600U User Manual 56

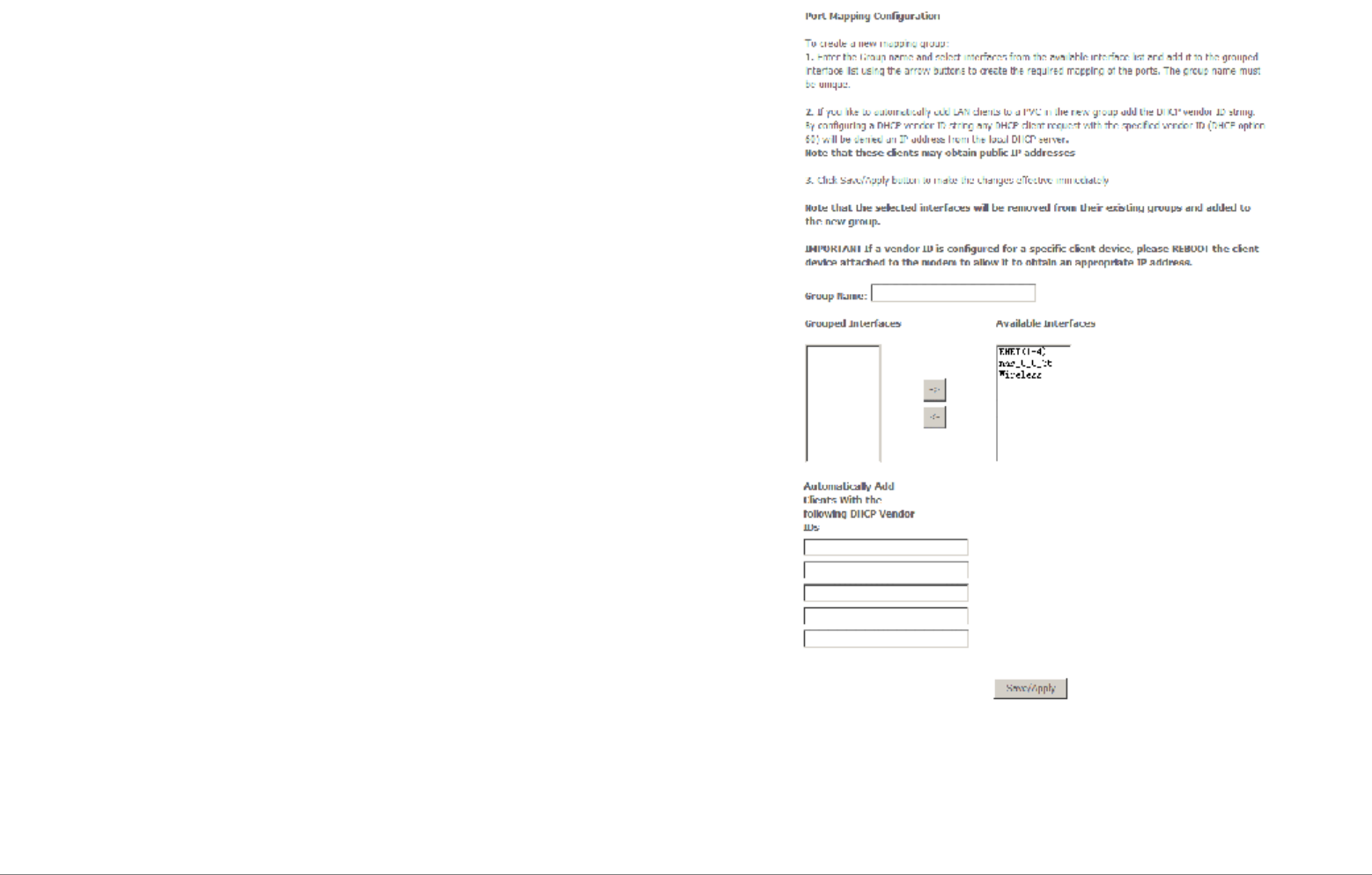

Click Add, and the following page appears.
= Group Name: Enter a unique group name.
= Grouped Interfaces: The port belongs to this group.
= Available Interfaces: It shows the available Ethernet port which you can select.
= Automatically Add Clients With the following DHCP Vendor IDs: If a vendor ID is
configured for a specific client device, reboot the client device attached to the
modem to allow it to obtain an appropriate IP address (For example, the vender ID
of default DHCP client of Windows 2000/XP is MSFT 5.0).
Enter the Group name and select interfaces from the available interface list and add it to
the grouped interface list using the arrow buttons to create the required mapping of the
ports. The group name must be unique.
If you like to automatically add LAN clients to a PVC in the new group, add the DHCP
vendor ID string. By configuring a DHCP vendor ID string, DHCP clients with the specified
vendor ID (DHCP option 60) refuse IP addresses from the local DHCP server.
Note: These clients may obtain public IP addresses.
Click Save/Apply to apply the changes immediately.
Note: The selected interfaces are removed from their existing groups and added to the
new group.
Web Configuration
D-Link DSL-2600U User Manual 57
IPSec
Click IPSec, and the following page appears.
Click Add New Connection to add a new IPSec connection.
You can click Show Advance Settings to view some advance parameters and modify
them to match the other side of this connection.
Click Save/Apply to save this connection, then you can check the checkbox of enable
column to enable this IPSec connection. And the communication is established.
Web Configuration
D-Link DSL-2600U User Manual 58
Certificate
Local Certificates
Click Certificate > Local and the following page appears.
Local certificates are used by peers to verify your identity. It can store maximum 4
certificates.
Click Create Certificate Request and the following page appears.
To generate a certificate signing request, you need to include Common Name,
Organization Name, State/Province Name, and the 2-letter Country Code for the
certificate.
Web Configuration
D-Link DSL-2600U User Manual 59
If click Import Certificate, the following page appears. Then you can enter certificate
name, paste certificate content and private key.
Trusted CA Certificates
Click Certificate > Trusted CA and the following page appears. CA certificates are used
by you to verify certificates of peers. It can store maximum 4 certificates.
Web Configuration
D-Link DSL-2600U User Manual 60
Click Import Certificate and the following page appears. Then you can enter certificate
name, paste certificate content.
Wireless
This section introduces the wireless LAN and some basic configurations. Wireless LAN can be as simple as two computers with wireless LAN cards communicating in a
peer-to-peer network or as complex as a number of computers with wireless LAN cards communicating through access points (AP) that bridge network traffic to the wired
LAN.
The Modem Wi-Fi® certified IEEE 802.11g compliant wireless access point allows multiple computers to connect wirelessly to your local network over the Modem Wireless
LAN environment. The Modem is backward compatible with IEEE 802.11b, which means 802.11b and 802.11g devices can coexist in the same wireless network. The
Wireless Distribution System (WDS) on your Modem allows you to extend the range of your wireless network. To be able to use WDS, you will need to introduce an
additional WDS-enabled access point into your wireless network. To be able to connect the computers, make sure that a wireless client adapter (WLAN client) is installed
on each computer you want to connect via the WLAN.
Wireless LAN Basics
Some basic understanding of 802.11b/g wireless technology and terminology is useful when you are setting up the Router or any wireless access point. If you are not
familiar with wireless networks please take a few minutes to learn the basics.
Wireless client requirements
All wireless client adapters compliant to 802.11g and/or 802.11b can communicate with the Modem (W) LAN environment. However, be aware that only 802.11g compliant
wireless clients are able to gain full profit of the 54 Mb/s (Max) bandwidth delivered by the Modem. It is highly recommended to use only wireless client adapters that are
Wi-Fi™ certified to ensure smooth interoperability with the Modem’s WLAN.
Radio Transmission
Wireless LAN or WLAN devices use electromagnetic waves within a broad, unlicensed range of the radio spectrum to transmit and receive radio signals. When a wireless
access point is present, it becomes a base station for the WLAN nodes in its broadcast range. WLAN nodes transmit digital data using FM (frequency modulation) radio
Web Configuration
D-Link DSL-2600U User Manual 61
signals. WLAN devices generate a carrier wave and modulate this signal using various techniques. Digital data is superimposed onto the carrier signal. This radio signal
carries data to WLAN devices within range of the transmitting device. The antennae of WLAN devices listen for and receive the signal. The signal is demodulated and the
transmitted data extracted. The transmission method used by the access point is called Direct Sequence Spread Spectrum (DSSS) and operates in a range of the radio
spectrum between 2.4GHz and 2.5GHz for transmission. See the expert technical specifications for more details on wireless operation.
Antennas
Direct the external antenna to allow optimization of the wireless link. If for example the antenna is erect, wireless links in the horizontal plane are favored. Please note that
the antenna characteristics are influenced by the environment, that is, by reflections of the radio signal against walls or ceilings. It is advisable to use the received signal
strength as indicated by the wireless client manager to optimize the antenna position for the link to a given client. Concrete walls weaken the radio signal and thus affect
the connection.
Range
Range should not be a problem in most homes or small offices. If you experience low or no signal strength in some areas, consider positioning the Router in a location
between the WLAN devices that maintains a roughly equal straight-line distance to all devices that need to access the Router through the wireless interface. Adding more
802.11g access points to rooms where the signal is weak can improve signal strength. Read the section about placement of the Router titled Location in the next chapter,
Hardware Installation, for more information.
SSID
Wireless networks use an SSID (Service Set Identifier) to allow wireless devices to roam within the range of the network. Wireless devices that wish to communicate with
each other must use the same SSID. Several access points can be set up using the same SSID so that wireless stations can move from one location to another without
losing connection to the wireless network. The Modem operates in Infrastructure mode. It controls network access on the wireless interface in its broadcast area. It will
allow access to the wireless network to devices using the correct SSID after a negotiation process takes place. By default the Modem broadcasts its SSID so that any
wireless station in range can learn the SSID and ask permission to associate with it. Many wireless adapters are able to survey or scan the wireless environment for
access points. An access point in Infrastructure mode allows wireless devices to survey that network and select an access point with which to associate. You may disable
SSID broadcasting the wireless menu of web management.
Radio channels
The 802.11g standard allows several WLAN networks using different radio channels to be co-located. The Modem supports multiple radio channels and is able to select
the best radio channel at each startup. You can choose to set the channels automatically or manually.
The different channels overlap. To avoid interference with another access point, make sure that the separation (in terms of frequency) is as high as possible. It is
recommended to keep at least 3 channels between 2 different access points.
The Modem supports all channels allowed for wireless networking. However, depending on local regulations, the number of channels actually allowed to be used may be
additionally restricted, as shown in the table below.
Regulatory Domain Allowed Radio Channels
China 1 to 13
Europe 1 to 13
Israel 5 to 8
Japan 1 to 14
Jordan 10 to 13
Thailand 1 to 14
USA / Canada 1 to 11
Web Configuration
D-Link DSL-2600U User Manual 62
Wireless Security
Various security options are available on the Modem including open or WEP, 802.1x, WPA, WPA-PSK, WPA2 and WPA2-PSK. Authentication may use an open system or
a shared key. For details on these methods and how to use them, please read the wireless LAN configuration information in Section 3.5.3 (Wireless Security
Configuration).
About 802.11g Wireless
802.11b is an IEEE standard, operating at 2,4 GHz at a speed of up to 11 Mb/s. 802.11g, a newer IEEE standard also operating at 2,4 GHz, gives you up to 54 Mb/s speed,
more security and better performance.
Today's 11-megabits-per-second 802.11b wireless networks are fine for broadband Internet access (which typically tops out at about 1 mbps) but rather slow for large
internal file transfers or streaming video. However, 54-mbps, corporate-oriented 802.11a is expensive and because its radio uses the 5-GHz band and 802.11b uses the
2.4 GHz band, upgrading to an 802.11a network means either scrapping 802.11b gear or buying even-pricier hardware that can support both standards.
But 802.11g promises the same speed as 802.11a and the ability to coexist with 802.11b equipment on one network, since it too uses the 2.4-GHz band. 802.11g is an
extension to 802.11b, the basis of many wireless LANs in existence today. 802.11g will broaden 802.11b's data rates to 54 Mbps within the 2.4 GHz band using OFDM
(orthogonal frequency division multiplexing) technology. Because of backward compatibility, an 802.11b radio card will interface directly with an 802.11g access point (and
vice versa) at 11 Mbps or lower depending on range. You should be able to upgrade the newer 802.11b access points to be 802.11g compliant via relatively easy firmware
upgrades.
Similar to 802.11b, 802.11g operates in the 2.4GHz band, and the transmitted signal uses approximately 30MHz, which is one third of the band. This limits the number of
non-overlapping 802.11g access points to three, which is the same as 802.11b.
Note: Maximum wireless signal rate based on IEEE Standard 802.11g specifications is 54 Mbps. But actual data throughput varies depending on network conditions and
environmental factors, including volume of network traffic, building materials and construction, and network overhead will cause lower actual data throughput rate.
Access Point and Wireless Fidel
The Wi-Fi certification ensures that your Modem will interoperate with any Wi-Fi certified 802.11g and 802.11b compliant wireless device.
The Modem Wireless LAN Access Point (AP) behaves as a networking hub allowing to wirelessly interconnect several devices to the local (W) LAN and to provide access
to the Internet.
Wireless – Basic
This page allows you to configure basic features of the wireless LAN interface. You can enable or disable the wireless LAN interface, hide the network from active scans,
set the wireless network name (also known as SSID) and restrict the channel set based on country requirements.
Web Configuration
D-Link DSL-2600U User Manual 63
Following is a description of the different options:
= Enable Wireless: If you want to make wireless be available, you have to check this
box first. Otherwise, the Hide Access Point SSID, Country, Enable Wireless Guest
Network, and Guest SSID box will not be displayed.
= Hide Access Point: Check this box if you want to hide any access point for your
router, so a station cannot obtain the SSID through passive scanning.
= SSID: The SSID (Service Set Identification) is the unique name shared among all
devices in a wireless network. The SSID must be identical for all devices in the
wireless network.
= Country: The channel will adjust according to nations to adapt to each nation's
frequency provision.
= Guest SSID: The SSID (Service Set Identification) is the unique name shared among
all devices in a guest wireless network. The SSID must be identical for all devices in
the guest wireless network.
Click Save/Apply to save the basic wireless options and make the modification effect.
Wireless – Security
This page allows you can configure security features of the wireless LAN interface. You can sets the network authentication method, selecting data encryption, specify
whether a network key is required to authenticate to this wireless network and specify the encryption strength.
This device is equipped with 802.1X and WPA/WPA2 (Wi-Fi Protected Access), the latest security standard. It also supports the legacy security standard, WEP (Wired
Equivalent Privacy). By default, wireless security is disabled and authentication is open. Before enabling the security, consider your network size, complexity, and existing
authentication infrastructure and then determine which solution applies to it.
Web Configuration
D-Link DSL-2600U User Manual 64
Following is a description of the different options.
= Select SSID: Select the wireless LAN of SSID to configure security features.
= No Encryption: Please refer to below for details of configuration
= Network Authentication: Select the authentication mode for the selected wireless
LAN of SSID to be open.
= WEP Encryption: Disable WEP Encryption.
The data is not encrypted when it is transferred from the device to the client station. This is
the default option.
Click Save/Apply to save the wireless security options and make the modification effect.
64-bit WEP
= Network Authentication: Select the authentication mode for the selected wireless
LAN of SSID to be open or shared.
= WEP Encryption: Enable WEP Encryption.
= Encryption Strength: click the desired Data Security level to be 64-bit.
= Current Network Key: Select one of network key that you set on the Key boxes as
default one.
= Network Key 1 to 4: Enter 5 ASCII characters or 10 hexadecimal digits for 64-bit
encryption keys to fill out WEP keys box. The system allows you to type in 4 kinds of
the WEP key.
Click Save/Apply to save the wireless security options and make the modification effect.
Web Configuration
D-Link DSL-2600U User Manual 65
128-bit WEP
= Network Authentication: Select the authentication mode for the selected wireless
LAN of SSID to be open or shared.
= WEP Encryption: Enable WEP Encryption.
= Encryption Strength: Click the desired Data Security level to be 128-bit.
= Current Network Key: Select one of network key that you set on the Key boxes as
default one.
= Network Key 1 to 4: Enter 13 ASCII characters or 26 hexadecimal digits for 128-bit
encryption keys to fill out WEP keys box. The system allows you to type in 4 kinds of
the WEP key.
Click Save/Apply to save the wireless security options and make the modification effect.
802.1x Authentication
= Network Authentication: Select the authentication mode for the selected wireless
LAN of SSID to be 802.1x.
= Radius Server IP Address: Enter the IP Address of the authentication server.
= Radius Port: Enter the port number of the authentication server. The default port
number is 1812.
= Radius Key: Enter the same key as the Radius server’s.
= WEP Encryption: Enable WEP Encryption. This is default
= Encryption Strength: click the desired Data Security level to be 64-bit or 128-bit.
= Current Network Key: Select one of network key that you set on the Key boxes as
default one.
= Network Key 1 to 4: Enter 5 ASCII characters or 10 hexadecimal digits for 64-bit
encryption keys or enter 13 ASCII characters or 26 hexadecimal digits for 128-bit
encryption keys to fill out WEP keys box. The system allows you to type in 4 kinds of
the WEP key.
Click Save/Apply to save the wireless security options and make the modification effect.
Web Configuration
D-Link DSL-2600U User Manual 66

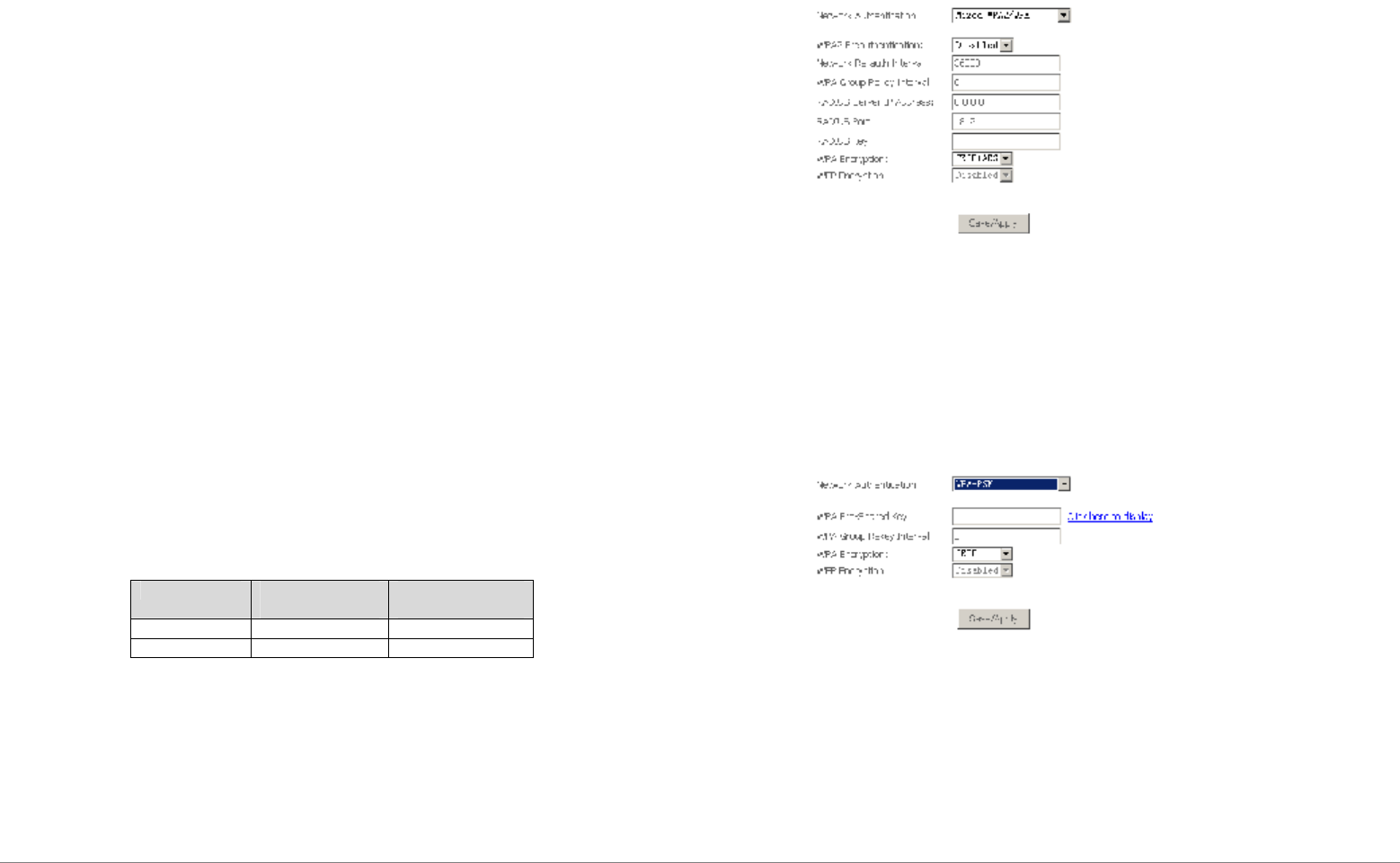

WPA Authentication
= Network Authentication: Select the authentication mode for the selected wireless
LAN of SSID to be WPA.
= WPA Group Rekey Interval: Specifies the timer the WPA key must change. If the
value set 0, no need to change. The change is done automatically between the
server and the client.
= Radius Server IP Adress: Enter the IP Address of the authentication server.
= Radius Port: Enter the port number of the authentication server. The default port
number is 1812.
= Radius Key: Enter the same key as the Radius server’s.
= WPA Encryption: Select TKIP, AES or TKIP + AES. The TKIP is default. The TKIP +
AES encryption mode means AP auto adjust to use TKIP or AES according to
wireless clients.
Click Save/Apply to save the wireless security options and make the modification effect.

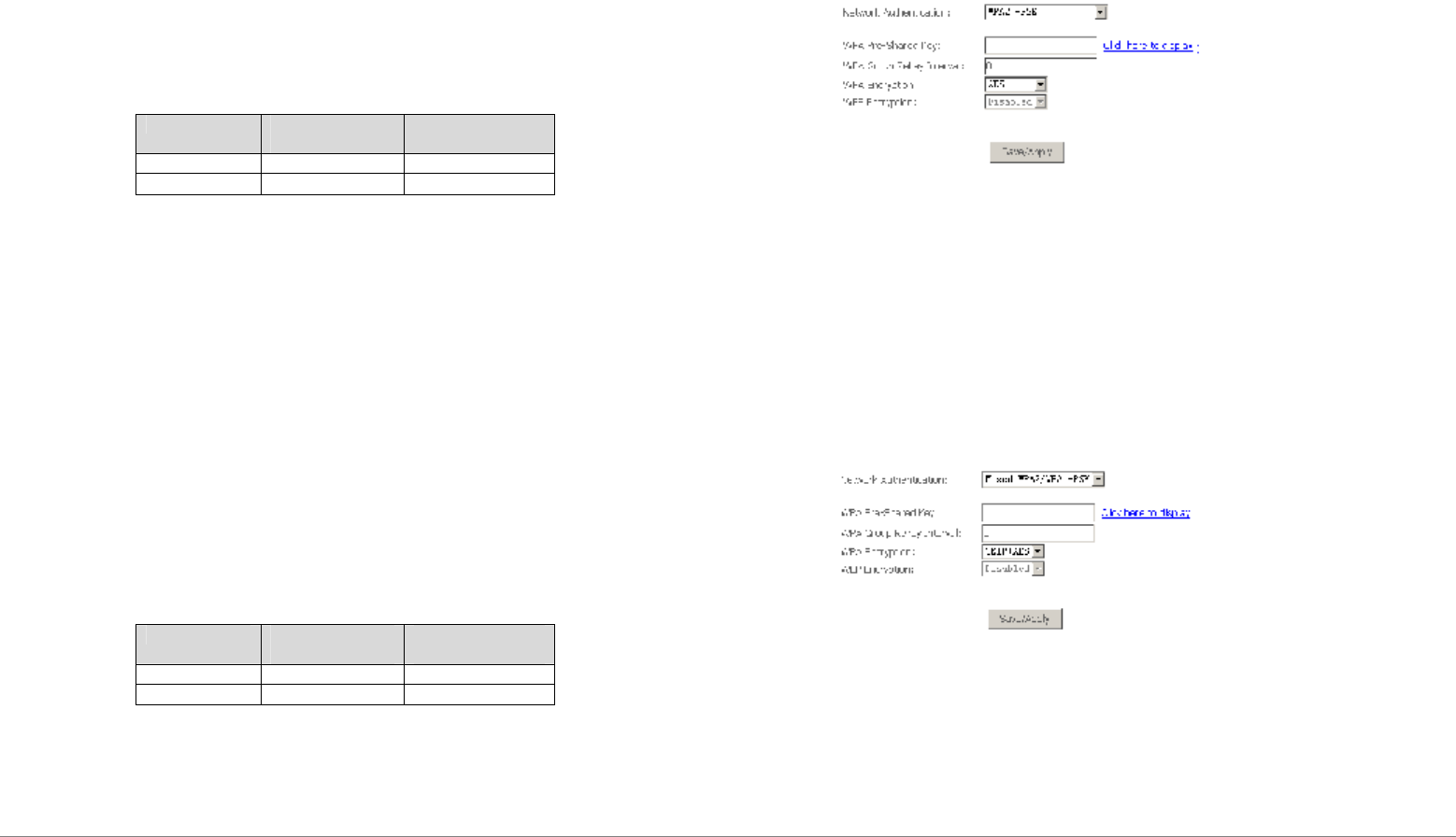

WPA2 Authentication
= Network Authentication: Select the authentication mode for the selected wireless
LAN of SSID to be WPA2.
= WPA2 Preauthentication: Selec Enable or Disenable.
= Network Re-auth Interval: Specifies the timer of re-authentication between the
server and the client.
= WPA Group Rekey Interval: Specifies the timer the WPA key must change. If the
value set 0, no need to change. The change is done automatically between the
server and the client.
= RADIUS Server IP Adress: Enter the IP Address of the authentication server.
= RADIUS Port: Enter the port number of the authentication server. The default port
number is 1812.
= RADIUS Key: Enter the same key as the Radius server’s.
= WPA Encryption: Select TKIP, AES or TKIP + AES. The AES is default. The TKIP +
AES encryption mode means AP auto adjust to use TKIP or AES according to
wireless clients.
Click Save/Apply to save the wireless security options and make the modification effect.
Web Configuration
D-Link DSL-2600U User Manual 67
Mixed WPA2/WPA Authentication
This authentication mode means AP auto adjust to use WPA2 or WPA according to
wireless clients.
= Network Authentication: Select the authentication mode for the selected wireless
LAN of SSID to be Mixed WPA2/WPA.
= WPA2 Preauthentication: Selec Enable or Disenable.
= Network Re-auth Interval: Specifies the timer of re-authentication between the
server and the client.
= WPA Group Rekey Interval: Specifies the timer the WPA key must change. If the
value set 0, no need to change. The change is done automatically between the
server and the client.
= Radius Server IP Adress: Enter the IP Address of the authentication server.
= Radius Port: Enter the port number of the authentication server. The default port
number is 1812.
= Radius Key: Enter the same key as the Radius server’s.
= WPA Encryption: Select TKIP, AES or TKIP + AES. The AES is default. The TKIP +
AES encryption mode means AP auto adjust to use TKIP or AES according to
wireless clients.
Click Save/Apply to save the wireless security options and make the modification effect.
WPA-PSK Authentication
= Network Authentication: Select the authentication mode for the selected wireless
LAN of SSID to be Mixed WPA-PSK.
= WPA Pre-Shared Key: Enter the pre-shared key for WPA. Client stations must use
the same key in order to connect with this device. Check the table below for
instructions when entering the key.
Format Minimum
characters Maximum
Characters
ASCII 8 63
Hexadecimal
8 64
= WPA Group Rekey Interval: Specifies the timer the WPA key must change. If the
value set 0, no need to change. The change is done automatically between the
server and the client.
= WPA Encryption: Select TKIP, AES or TKIP + AES. The TKIP is default. The TKIP +
AES encryption mode means AP auto adjust to use TKIP or AES according to
wireless clients.
Click Save/Apply to save the wireless security options and make the modification effect.
Web Configuration
D-Link DSL-2600U User Manual 68
WPA2-PSK Authentication
= Network Authentication: Select the authentication mode for the selected wireless
LAN of SSID to be Mixed WPA2-PSK.
= WPA Pre-Shared Key: Enter the pre-shared key for WPA. Client stations must use
the same key in order to connect with this device. Check the table below for
instructions when entering the key.
Format Minimum
characters Maximum
Characters
ASCII 8 63
Hexadecimal
8 64
= WPA Group Rekey Interval: Specifies the timer the WPA key must change. If the
value set 0, no need to change. The change is done automatically between the
server and the client.
= WPA Encryption: Select TKIP, AES or TKIP + AES. The AES is default. The TKIP +
AES encryption mode means AP auto adjust to use TKIP or AES according to
wireless clients.
Click Save/Apply to save the wireless security options and make the modification effect.
Mixed WPA2/WPA-PSK Authentication
This authentication mode means AP auto adjust to use WPA2-PSK or WPA-PSK according
to wireless clients.
= Network Authentication: Select the authentication mode for the selected wireless
LAN of SSID to be Mixed WPA2/WPA-PSK.
= WPA Pre-Shared Key: Enter the pre-shared key for WPA. Client stations must use
the same key in order to connect with this device. Check the table below for
instructions when entering the key.
Format Minimum
characters Maximum
Characters
ASCII 8 63
Hexadecimal
8 64
= WPA Group Rekey Interval: Specifies the timer the WPA key must change. If the
value set 0, no need to change. The change is done automatically between the
server and the client.
= WPA Encryption: Select TKIP, AES or TKIP + AES. The AES is default. The TKIP +
Web Configuration
D-Link DSL-2600U User Manual 69
AES encryption mode means AP auto adjust to use TKIP or AES according to
wireless clients.
Click Save/Apply to save the wireless security options and make the modification effect.
Wireless - MAC Filter
The web page allows you to create a list of MAC addresses that are banned or allowed
association with the wireless access point.
= MAC Restrict Mode: The function can be turn on/off, Check Disabled to disable
this function. Vice versa, to enable the function. After enabling the function, you can
filter wireless users according to their MAC address, either allowing or denying access.
Check Allow to make any wireless MAC address in the Wireless Access Control List
can be linked to. And Check Deny to banned any wireless MAC address in the
Wireless Access Control List to be linked to.
= Add a MAC Access Control: To add a new MAC address to your wireless MAC
address filters, click Add to show next page. Type in the MAC Address in the entry
field provided. Click Save/Apply to add the MAC address to the list. The MAC
address appears listed in the table below.
= Remove a MAC Access Control: Select the Remove checkbox in the right column
of the list for the MAC address to be removed and click Remove.
Wireless – Bridge
This page allows you to configure wireless bridge features of the wireless LAN interface.
The Wireless Distribution System (WDS) allows you to extend the range of your wireless network by introducing one or more WDS-enabled devices into your wireless
network. You can only establish WDS links with WDS-enabled devices.
Web Configuration
D-Link DSL-2600U User Manual 70

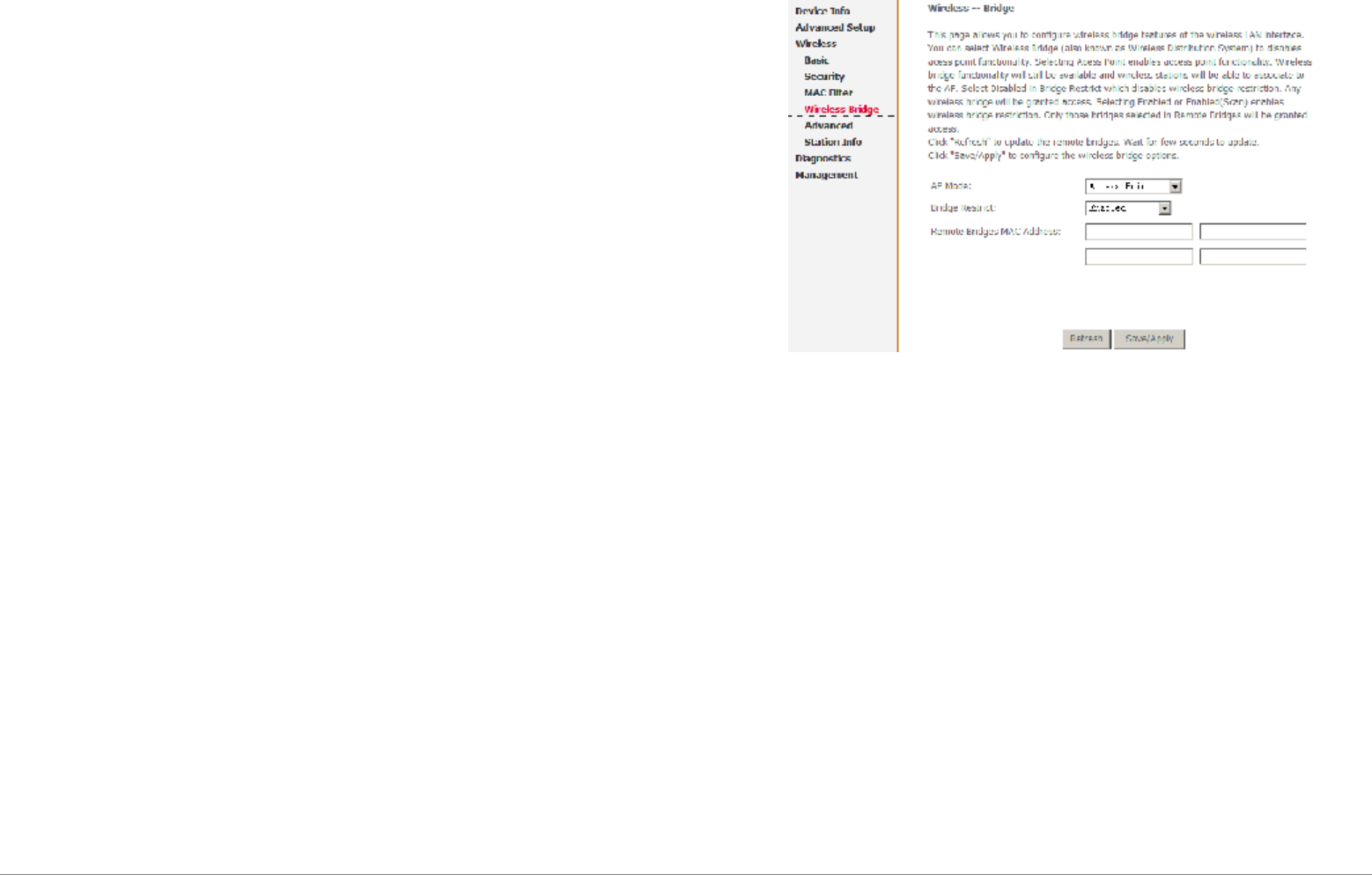

= AP Mode: Select Access Point’s functionality to be Access Point or pure Wireless
Bridge. You can select Wireless Bridge (also known as Wireless Distribution
System) to disables access point functionality. Selecting Access Point enables
access point functionality and Wireless bridge functionality will still be available and
wireless stations will be able to associate to the AP.
= Bridge Restrict: Select Disabled in Bridge Restrict which disables wireless bridge
restriction. Any wireless bridge will be granted access. Selecting Enabled or
Enabled (Scan) enables wireless bridge restriction. Only those bridges selected in
Remote Bridges are granted access.
You can manually enter Remote Bridges MAC Address to the list. You can also do it
automatically in the following steps:
Step 1 In the Bridge Restrict list, click Enabled (Scan).
Step 2 Click Refresh to update the remote bridges.
The router waits for a few seconds to update. And then lists the results in the Accessible
Access Points table.
Step 3 Check on the box in the left column of the list for selecting the Access Point to
which you want to establish a WDS connection.
Step 4 Click Save/Apply.
You must configure all Bridges Access Point with:
= The same encryption and authentication mode as Open, Shared, WEP, WPA-PSK
or WPA2-PSK.
= The same fixed channel.
Click Save/Apply to configure the wireless bridge options and make the modification
effect.
Web Configuration
D-Link DSL-2600U User Manual 71
Wireless – Advanced
This page allows you to configure advanced features of the wireless LAN interface. You
can select a particular channel on which to operate, force the transmission rate to a
particular speed, set the fragmentation threshold, set the RTS threshold, set the wakeup
interval for clients in power-save mode, set the beacon interval for the access point, set
XPress mode and set whether short or long preambles are used.

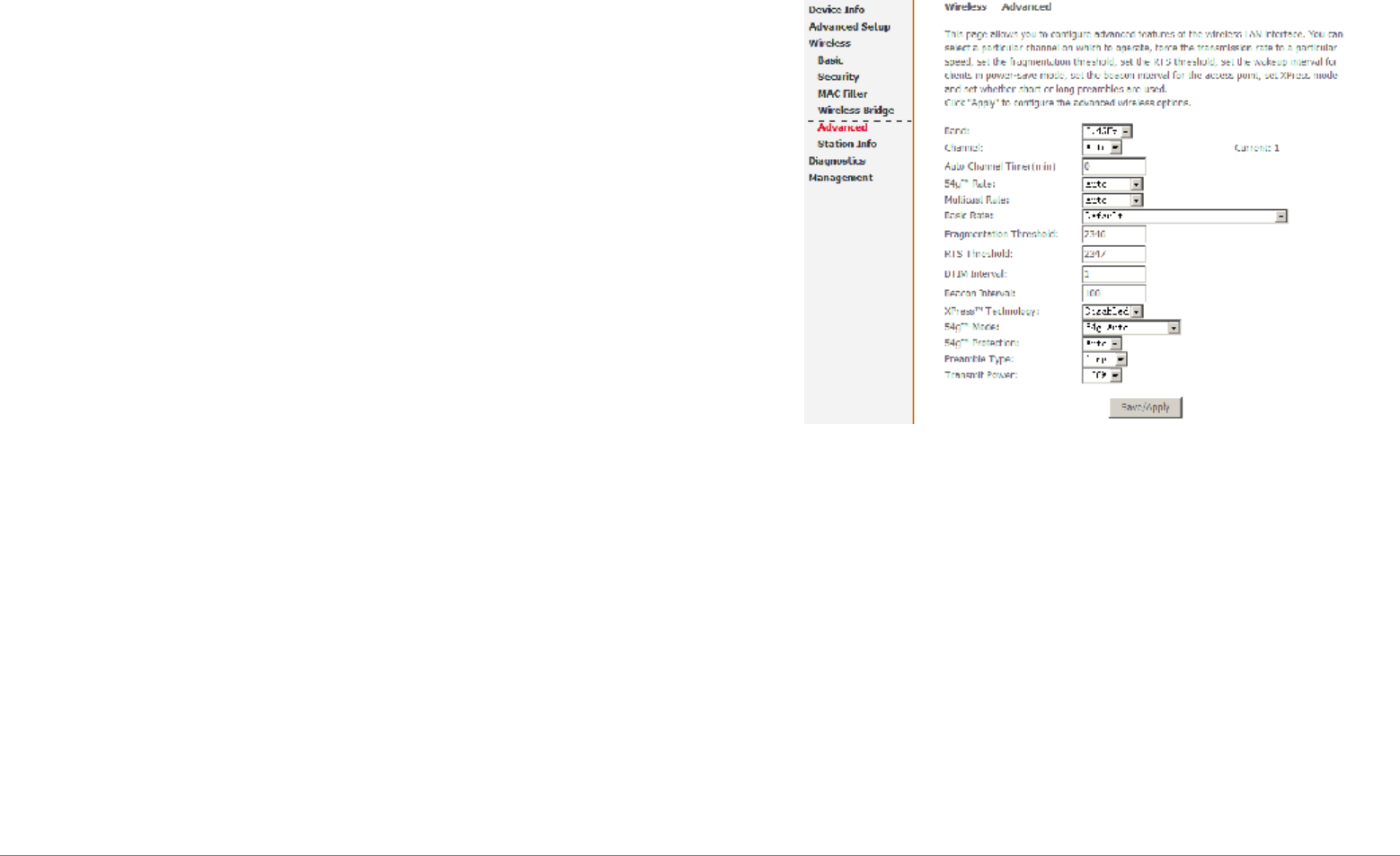

= Band: Select 802.11b/g using wireless frequency band range. The radio frequency remains at 2.437 GHz.
= Channel: Fill in the appropriate channel to correspond with your network settings. 11 is the default channel. All devices in your wireless network must use the same
channel in order to work correctly. This router supports auto channeling functionality.
= Auto Channel Timer(min): Specifies the timer of auto channelling.
= 54g™ Rate: Select the transmission rate for the network. The rate of data transmission should be set depending on the speed of your wireless network. You can
select from a range of transmission speeds, or you can select Auto to have the Router automatically use the fastest possible data rate and enable the Auto-Fallback
feature. Auto-Fallback will negotiate the best possible connection speed between the Router and a wireless client. The default value is Auto.
= Multicast Rate: Select the multicast transmission rate for the network. The rate of data transmission should be set depending on the speed of your wireless network.
You can select from a range of transmission speeds, or you can select Auto to have the Router automatically use the fastest possible data rate and enable the
Auto-Fallback feature. Auto-Fallback will negotiate the best possible connection speed between the Router and a wireless client. The default value is Auto.
= Basic Rate: Select the basic transmission rate ability for the AP.
= Fragmentation Threshold: Packets that are larger than this threshold are fragmented into multiple packets. Try to increase the fragmentation threshold if you
encounter high packet error rates. Do not set the threshold too low, since this can result in reduced networking performance.
= RTS Threshold: This value should remain at its default setting of 2347.Should you encounter inconsistent data flow, only minor reductions are recommended. Should
you encounter inconsistent data flow, only minor reduction of the default value, 2347, is recommended. If a network packet is smaller than the preset RTS threshold
size, the RTS/CTS mechanism will not be enabled. The Router sends Request to Send (RTS) frames to a particular receiving station and negotiates the sending of a
Web Configuration
D-Link DSL-2600U User Manual 72
data frame. After receiving an RTS, the wireless station responds with a Clear to Send (CTS) frame to acknowledge the right to begin transmission. The RTS
Threshold value should remain at its default value of 2347.
= DTIM Interval: (Delivery Traffic Indication Message) Enter a value between 1 and 255 for the Delivery Traffic Indication Message (DTIM.) A DTIM is a countdown
informing clients of the next window for listening to broadcast and multicast messages.
= Beacon Interval: Beacon is a packet of information that is sent from a connected device to all other devices where it announces its availability and readiness. A
beacon interval is a period of time (sent with the beacon) before sending the beacon again. The beacon interval may be adjusted in milliseconds (ms). Default (100)
is recommended.
= XPress™ Technology: Select Enable or Disable. This is a special accelerating technology for IEEE802.11g. The defaule is Disabled.
= 54g™ Mode: Compatible with IEEE 802.11b, IEEE 802.11g. Select a Standards from the drop-down list box. Its default setting is 54g Auto. The drop-down list box
includes below mode.
= 54g™ Protection: The 802.11g standards provide a protection method so 802.11g and 802.11b devices can co-exist in the same network without “speaking” at the
same time. Do not disable 54g Protection if there is a possibility that a 802.11b device may need to use your wireless network. In Auto Mode, the wireless device will
use RTS/CTS to improve 802.11g performance in mixed 802.11g/802.11b networks. Turn protection off to maximize 802.11g throughput under most conditions.
= Preamble Type: Preambles are a sequence of binary bits that help the receivers synchronize and ready for receipt of a data transmission. Some older wireless
systems like 802.11b implementation use shorter preambles. If you are having difficulty connecting to an older 802.11b device, try using a short preamble. You can
select short preamble only if the 54g mode is set to 802.11b.
= Transmit Power: Adjust the transmission range here. This tool can be helpful for security purposes if you wish to limit the transmission range.
Click Save/Apply to configure the advanced wireless options and make the changes take effect.
Wireless -- Authenticated Stations
This page shows authenticated wireless stations and their status about Association and
authentication.
Web Configuration
D-Link DSL-2600U User Manual 73
Diagnostics
Click Diagnostics to show the interface.
Your modem is capable of testing your DSL connection. The individual tests are listed
below. If a test displays a fail status, click Rerun Diagnostic Tests at the bottom of this
page to make sure the fail status is consistent. If the test continues to fail, click Help and
follow the troubleshooting procedures.
Management
Settings
Settings Backup
Click Settings > Backup to back up the DSL router configuration.
Web Configuration
D-Link DSL-2600U User Manual 74
Settings Update
Click Browse and select the correct update configure settings file. Then, click Update
Settings to update the modem settings.
Settings Restore Default
Click Restore Default Settings to restore DSL router settings to the factory defaults.
Web Configuration
D-Link DSL-2600U User Manual 75
System Log
Click System Log to show the following interface. The system log dialog allows you to
view the system log and configure the system log options.
Click Configure System Log to show the following interface. You can enable or disable
the system log and then select the log level, display level and mode, and click Apply to
end your configurations.
Web Configuration
D-Link DSL-2600U User Manual 76
Both the log level and display level have eight choices. The default log level is Debugging
and the default display level is Error.
The mode options are Local, Remote, and Both. The default is Local.
If you select Remote or Both, all events are transmitted to the specified UDP port of the
specified log server.
After operations under Configure System Log, click View System Log to query the
system logs. In this example, the View System Log is the default.
Note: The log and display of the system events are above the set level. If you intend to
record all information, you need to set the levels as Debugging.
Click Refresh to refresh the system event logs or click Close to exit from this interface.
Web Configuration
D-Link DSL-2600U User Manual 77
TR-069 Client

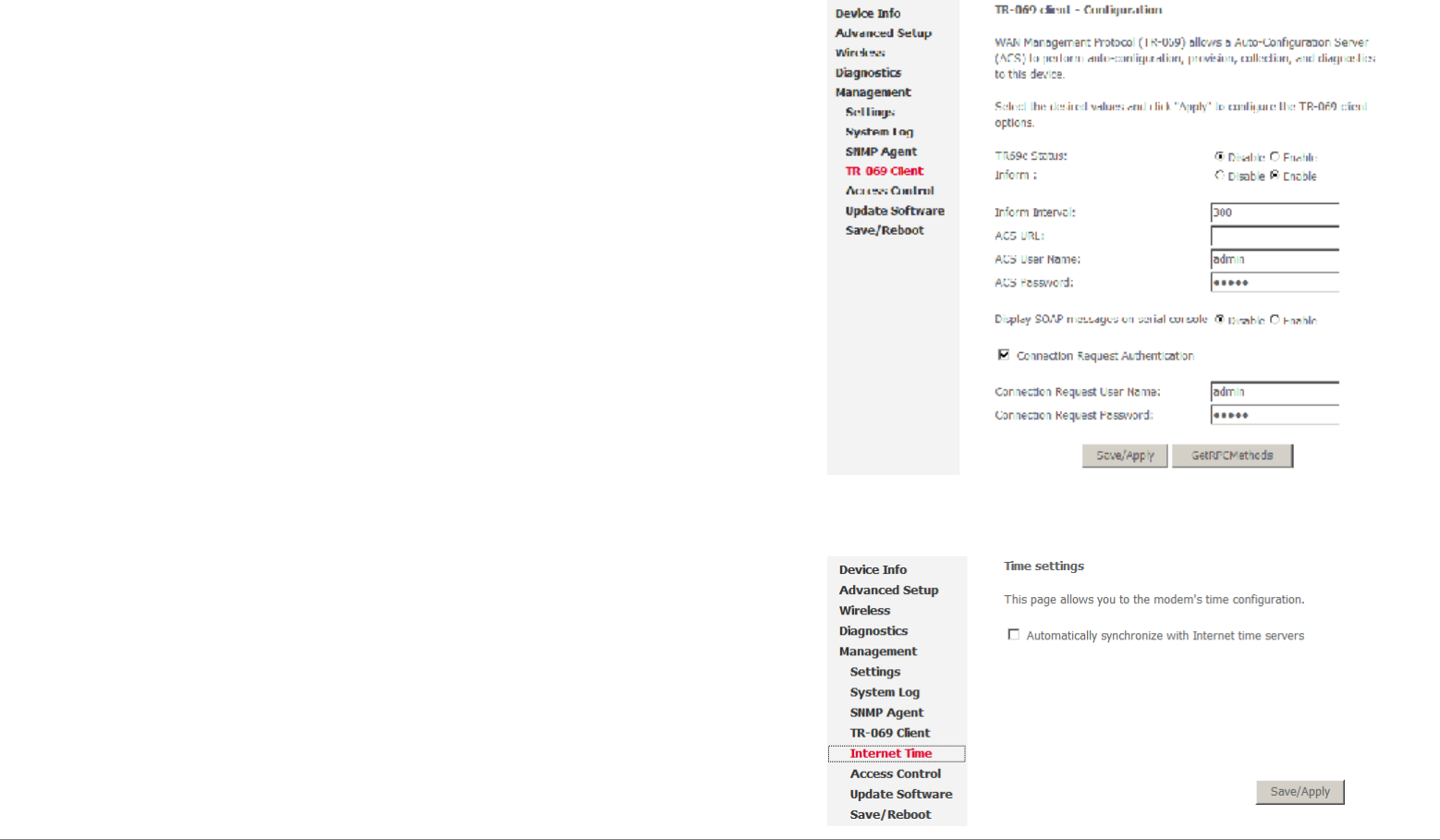

Select the desired values and click Save/Apply to configure the TR-069 client options.
Internet Time
Note: When the PVC is PPPoE connection, the Internet Time appears in the
Management directory.
Click Internet Time to show the following page. In this page, the modem can synchronize
with Internet time servers.
Web Configuration
D-Link DSL-2600U User Manual 78
After enable Automatically synchronize with Internet time servers, the interface show
below. Enter proper configurations and click Save/Apply.
Access Control
Access Control – Services
Click Access Control > Services to show the following interface. In the interface, you can
enable or disable HTTP, ICMP, SSH, TELNET and TFTP services. And the LAN side and
WAN side can have different configurations.
Note: If the connection is PPPoE PVC, you can view the information of WAN side.
Web Configuration
D-Link DSL-2600U User Manual 79
Access Control -- IP Addresses
Click Access Control > IP Addresses to show the following interface.
If enabled, permits access to local management services from IP addresses contained in
the Access Control List.
If the Access Control mode is disabled, the system does not validate IP addresses for
incoming packets. The services are the system applications listed in the Service Control
List.
Click Add to show the following interface. In the interface input the IP address of the
management station permitted to access the local management services, and click
Save/Apply.
Web Configuration
D-Link DSL-2600U User Manual 80
Access Control – Passwords
Click Access Control > Passwords to show the following interface. In the interface, you
can modify the accounts passwords.
Update Software
Click Update Firmware to show the following interface. In this interface, you can update
the modem firmware. Click Browse to find the right version file and click Update Firmware
to update.
Note: Do not turn off your modem during firmware updates. When the update is finished,
the modem reboots automatically. Do not turn off your modem either before the
reboot is over. You must guarantee the update software is right and accurate. It is
strictly forbidden to use other software for updates.
After update software, it is suggested to restore the modem to the factory defaults and
configure it again.
Web Configuration
D-Link DSL-2600U User Manual 81
Save/Reboot
Click Save/Reboot to show the following interface. Click Save/Reboot to save and reboot
the router.
Troubleshooting
D-Link DSL-2600U User Manual 82
Troubleshooting
This chapter provides solutions to problems that might occur during the installation and operation of the DSL-2600U. Read the following
descriptions if you are having problems. (The examples below are illustrated in Windows® XP. If you have a different operating system, the
screenshots on your computer will look similar to the following examples.)
1. How do I configure my DSL-2600U Router without the CD-ROM?
= Connect your PC to the Router using an Ethernet cable.
= Open a web browser and enter the address http://10.1.1.1 .
= The default username is ‘admin’ and the default password is ‘admin’.
= If you have changed the password and cannot remember it, you will need to reset the Router to the factory default setting (see question 2),
which will set the password back to ‘admin’.
Note:
Please
refer
to
next
section
Network
Basics
to
check
your
PC’s
IP
configuration
if
you
can’t
see
the
login
window.
2. How do I reset my Router to the factory default settings?
= Ensure the Router is powered on.
= Press and hold the reset button on the back of the device for about one second.
= This process would take about 1~2 minutes to complete.
Note:
Resetting
the
Router
to
the
factory
default
settings
will
erase
the
current
configuration
settings.
To
reconfigure
your
settings,
log
in to
the
Router
as
outlined
in
question
1.
3. What can I do if my Router is not working correctly?
There are a few quick steps you can take to try and resolve any issues:
= Follow the directions in question 2 to reset the Router.
= Check that all the cables are firmly connected at both ends.
= Check the LEDs on the front of the Router. The Power indicator should be on, and the DSL and LAN indicators should be on as well.
= Please ensure that the settings in the Web-based configuration manager, e.g. ISP username and password etc., are the same as the settings
provided by your ISP.
4. Why can’t I get an Internet connection?
For ADSL subscribers, please contact your ISP to make sure the ADSL service has been enabled, and your ISP username and password are correct.
Networking Basics
D-Link DSL-2600U User Manual 83
Networking Basics
Check Your IP Address
After you install your new D-Link adapter, by default, the TCP/IP settings should be set to obtain an IP address from a DHCP server (i.e. wireless
router) automatically. To verify your IP address, please follow the steps below.
Click Start > Run. In the run box type “cmd” and click OK.
At the prompt, type “ipconfig” and press Enter.
This will display the IP address, subnet mask, and the default
gateway of your adapter.
If the address is 0.0.0.0, check your adapter installation, security
settings, and the settings on your router. Some firewall software
programs may block a DHCP request on newly installed adapters.
If you are connecting to a wireless network at a hotspot (e.g. hotel,
coffee shop, airport), please contact an employee or administrator
to verify their wireless network settings.
Statically Assign An IP Address
D-Link DSL-2600U User Manual 84
Statically Assign An IP Address
If you are not using a DHCP capable gateway/router, or you need to assign a static IP address, please follow the steps below:
Step 1
Windows® XP - Click Start > Control Panel > Network Connections.
Windows® 2000 - From the desktop, right-click My Network Places > Properties.
Step 2
Right-click the Local Area Connection that represents your D-Link network adapter and select Properties.
Step 3
Highlight Internet Protocol (TCP/IP) and click Properties.
Step 4
Click on the Use the following IP address and enter an IP
address that is on the same subnet as your network or the
LAN IP address on your router.
Example: If the router’s LAN IP address is 10.1.1.1, make your
IP address 10.1.1.X where X is a number between 2 and 254.
Make sure that the number you choose is not in use on the
network. Set Default Gateway the same as the LAN IP
address of your router (10.1.1.1).
Set Primary DNS the same as the LAN IP address of your
router (10.1.1.1). The Secondary DNS is not needed or you
may enter a DNS server from your ISP.
Step 5
Click on the OK twice to save your settings.
Technical Specifications
D-Link DSL-2600U User Manual
85
Technical Specifications
ADSL Standards
§ Full-rate ANSI T1.413 Issue 2
§ ITU G.992.1 (G.dmt)
§ ITU G.992.2 (G.lite)
§ ITU G.994.1 (G.hs)
ADSL2 Standards
• ITU G.992.3 (G.dmt.bis)
ADSL2+ Standards
• ITU G.992.5 (G.dmt.bisplus)
Protocols
• IEEE 802.1d Spanning Tree
• TCP/UDP
• ARP
• RARP
• ICMP
• RFC1058 RIP v1
• RFC1213 SNMP v1 & v2c
• RFC1334 PAP
• RFC1389 RIP v2
• RFC1577 Classical IP over
ATM
• RFC1483/2684 Multiprotocol
Encapsulation over ATM
Adaptation Layer 5 (AAL5)
• RFC1661 Point to Point
Protocol
• RFC1994 CHAP
• RFC2131 DHCP Client /
DHCP Server
• RFC2364 PPP over ATM
• RFC2516 PPP over Ethernet
DC Power
• Input: 100V-240V, 0.6A, 50 Hz -60 Hz
• Output: 12V, 1A
Data Transfer Rate
§ G.dmt full rate downstream: up to 8 Mbps / upstream: up to 1 Mbps
§ G.lite: ADSL downstream up to 1.5 Mbps / upstream up to 512 Kbps
§ G.dmt.bis full rate downstream: up to 12 Mbps / upstream: up to 1 Mbps
§ ADSL2+ full rate downstream: up to 24 Mbps / upstream: up to 1 Mbps
Wireless Transfer Rates
§ IEEE 802.11b: 11, 5.5, 2, and 1Mbps
§ IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Media Interface
§ ADSL interface: RJ-11 connector for connection to 24/26 AWG twisted pair
telephone line
§ LAN interface: one RJ-45 port for 10/100BASE-T Ethernet connection
Default Settings
IP Settings: IP Address: 10.1.1.1, Netmask: 255.0.0.0, User Name: admin,
Password: admin
DHCP Server: Enabled
