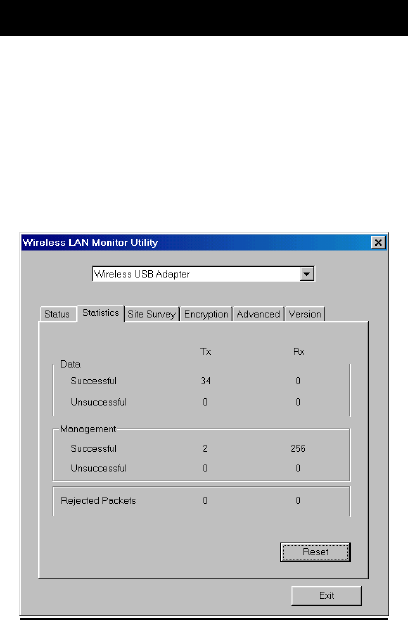

STATISTICS .....................................................33
SITE SURVEY ..................................................34
ENCRYPTION ..................................................36

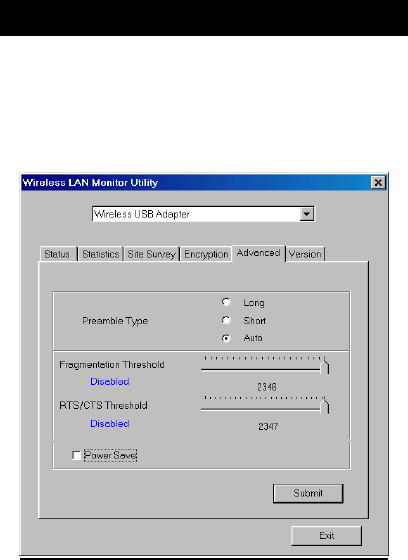

ADVANCED.....................................................39
VERSION.........................................................42
CONFIGURATION FOR WINDOWS XP ...43
SPECIFICATIONS .........................................49
- 1 -
Introduction
The 802.11b Wireless 32bit CardBus PC Card
is a device that lets you connect your notebook to
a wireless local area network (LAN). A wireless
LAN is like a regular LAN, except that you can
share information without looking for a place to
plug in, and augment networks without installing
or moving wires. Based on radio frequency (RF)
technology, a wireless LAN transmits and
receives data over the air, along with the
guarantee to provide privacy and noninterference
by the use of separate radio frequency.
The 802.11b Wireless 32bit CardBus PC Card
allows you to take full advantage of your PC’s
mobility with access to real-time information and
online services anytime and anywhere. Plus,
with the network installation simplicity and
flexibility, you can eliminate the need to pull
cable through walls and ceilings and allow the
network to go where wires cannot go. Exploring
WWW and augmenting networks can never be
done more easily
- 2 -
Features
Complies with IEEE 802.11b standard for
2.4GHz Wireless LAN.
Complies with CardBus standard.
Supports PC Card hot swap and true Plug &
Play.
Works with all existing network
infrastructure.
Complies with specific wireless products
and services
Capable of up to 128-Bit WEP Encryption.
Freedom to roam while staying connected.
11 Mbps High-Speed Transfer Rate.
Rich diagnostic LED indicators with
Integrated Antenna.
Complies with Window 98/2000/ME/XP
Lower power consumption.
Easy to install and configure.
LED Indicators
LINK
A CT
- 3 -
Installation the Utility under
Windows 98/ME/2000
Precaution for Windows 98, 2000, and ME
users: You must install the Adapter's software
before installation of the hardware.

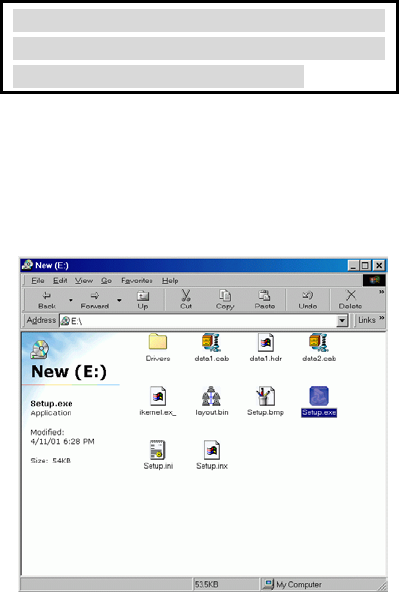

1. Insert the Setup Utility CD-ROM into the
CD-ROM drive and double click on
Setup.exe to install the Configuration &
Monitor Utility.
2. When the Welcome screen appears, click
Next to continue.
- 4 -

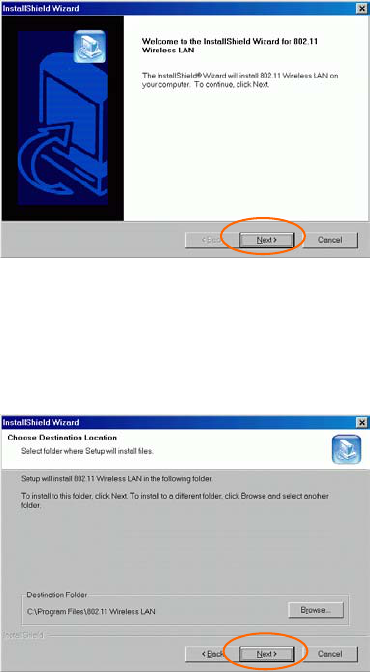

3. The Choose Destination Location screen
will show you the default destination chosen
by the utility. Click Next to continue.

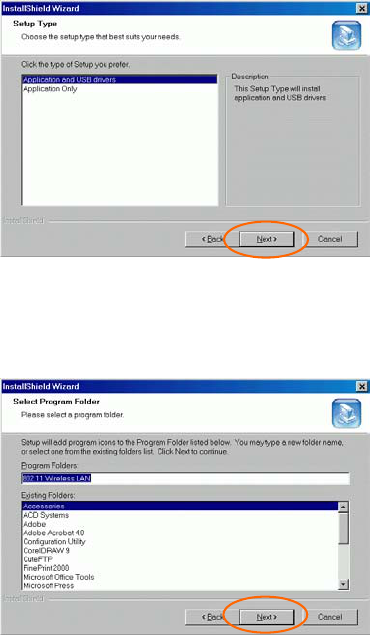

4. In Setup Type, choose Application and
USB drivers and then click Next.
- 5 -
5. Follow the instruction to select the program
folder. Click Next to continue.
6. In Start Copying Files, click Next to
continue.
- 6 -
7. In Setup Status, the InstallShield Wizard
will begin copying the files.

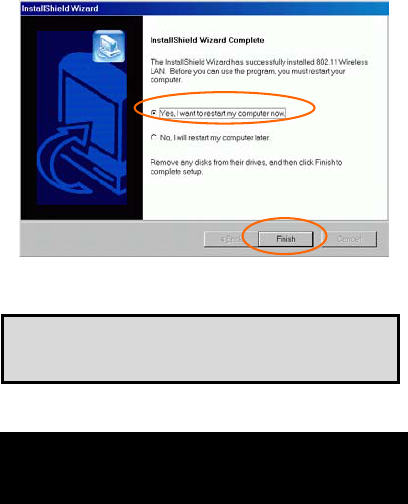

8. After the Configuration Utility has been
successfully installed, select Yes, I want to
restart my computer now, and then click
Finish to restart.
- 7 -
Note: In case you need to uninstall the Utility
or device, please refer to below section.
Uninstall Procedure Under
Windows 98/ME/2000
Uninstall the Configuration Utility

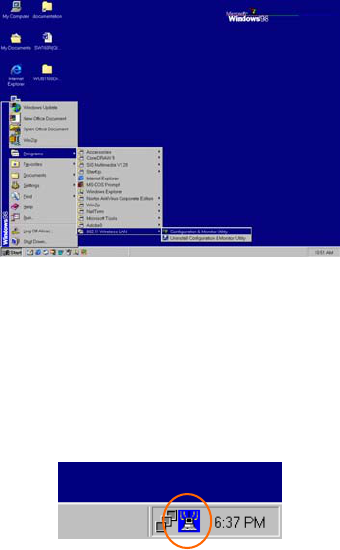

1. Go to Start Programs 802.11 Wireless
LAN Uninstall Configuration and
Monitor Utility.
- 8 -
2. Click OK to continue.
3. Click Finish to complete the uninstalled
procedure.
- 9 -
Uninstall the Device
Under Windows 98/ME
1. Go to Start → Settings → Control Panel →
Network.

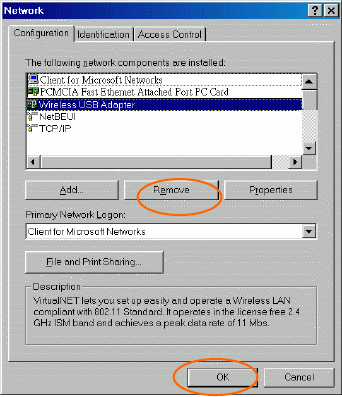

2. Select Wireless USB Adapter then click
Remove. Click OK.
- 10 -

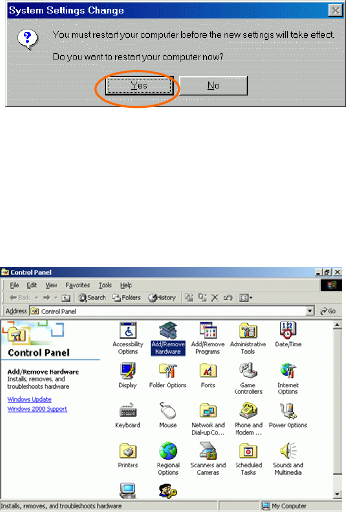

3. The system will prompt you to restart your
computer. Click Yes.
Under Windows 2000
1. Go to Start → Control Panel →
Add/Remove Hardware.
2. When the Welcome screen appears, click
Next to continue.
- 11 -

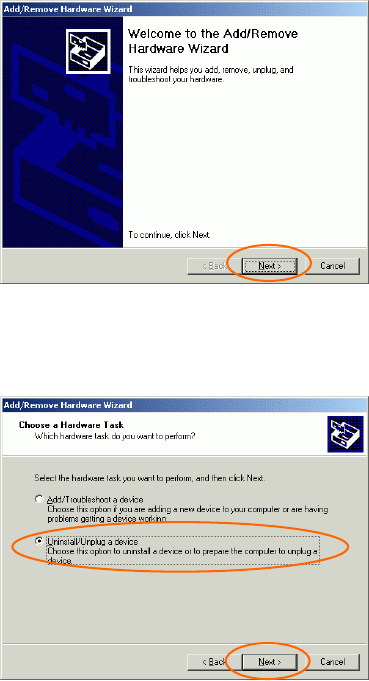

3. In Choose a Hardware Task, select
Uninstall/Unplug a device and click Next to
continue.

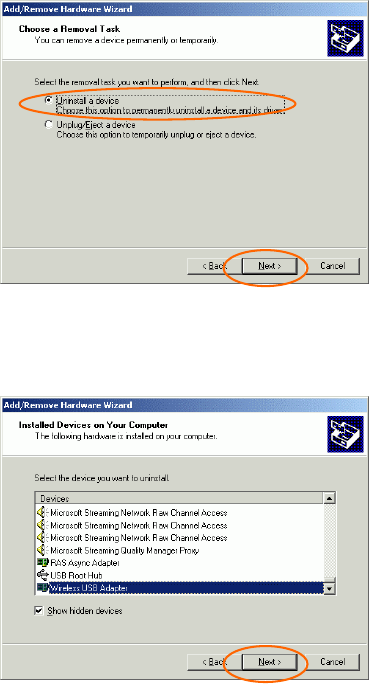

4. In Choose a Removal Task, select Uninstall
a device and click Next.
- 12 -
5. Check the Show hidden devices check box
and locate the device in the device list. Select
the device and click Next.

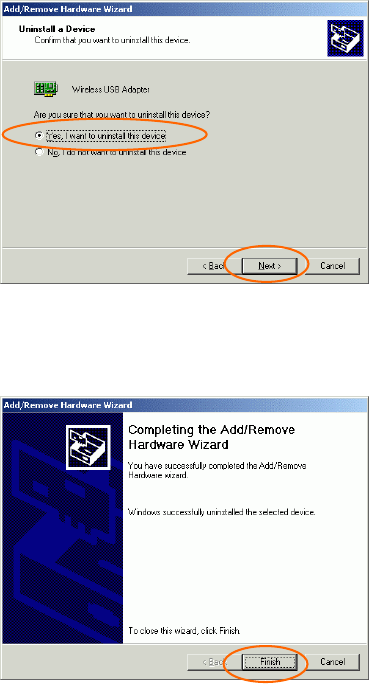

6. Select Yes, I want to uninstall this device
and click Next.
- 13 -
7. Click Finish to complete the uninstalled
procedure.
- 14 -
Hardware Installation
Precaution for Windows 98, 2000, and ME
users: Please do NOT install the hardware
until the Application setup in Installation the
Utility under Windows98/ME/2000 has been
completed.
1. Plug the square end (Type B) of USB cable
into the adapter's USB port.
2. Plug the rectangle end (Type A) of USB
cable into the PC's USB port.
After the device has been connected to your
computer, Windows will detect the new hardware
and then automatically copy all of the files
needed for networking.
Precaution for Windows XP users: You
must install the Adapter's hardware, and then
go to Installation of the USB Adapter for
Windows XP.
- 15 -
Installation of the USB Adapter
for Windows XP

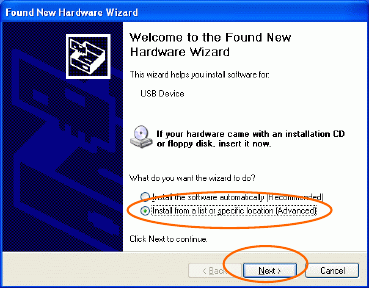

1. Once the device is well connected to your
computer, Windows XP will automatically
detect the new device. Click Install from a
list… and click Next.
2. Insert the Setup Utility CD-ROM into the
CD-ROM drive. Select Include this
location in the search: and click Browse
to provide the appropriate path (e.g.
E:\Drivers\WinXP). Click Next.
- 16 -
3. Click Continue Anyway to proceed.
4. Click Finish to complete the Utility
installation.
- 17 -
Uninstall Procedure Under
Windows XP

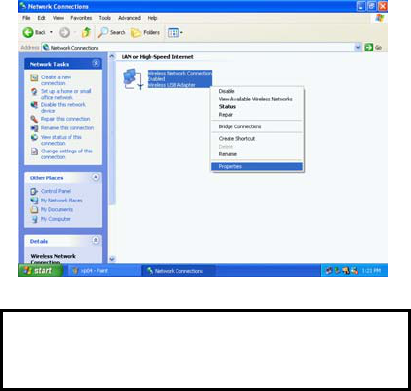

1. Go to Start Control Panel Network
Connections Wireless Network
Connection Enabled Wireless USB Adapter
Properties.
- 18 -
2. Click Configure to continue.
3. Click Uninstall to uninstall this device.
- 19 -
4. Click OK to complete the uninstalled
procedure.
- 20 -
Network Connection
Configuring the Network Protocols for
Windows 98/ME/2000
1. Once the driver has been installed, you must
make some changes to your network settings.
Click Start Settings Control Panel
Network.
2. Make sure that you have all the following
components installed.
Wireless USB Adapter
IPX/SPX-compatible Protocol
- 21 -
NetBEUI
TCP/IP
If any components are missing, click on the Add
button to add them in. All the protocols and
clients required and listed above are provided by
Microsoft.

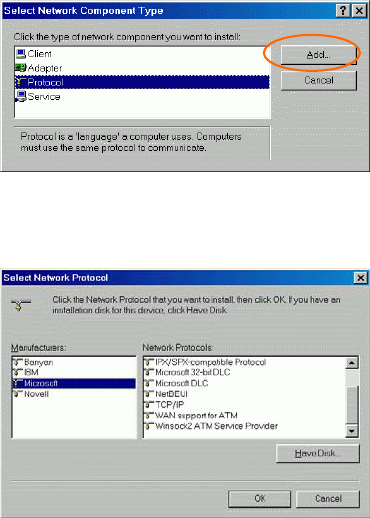

3. After clicking Add, highlight the component
you need, click Add.
4. Highlight Microsoft, and then double click
on the item you want to add.
- 22 -
5. For making your computer visible on the
network, enable the File and Printer
Sharing.

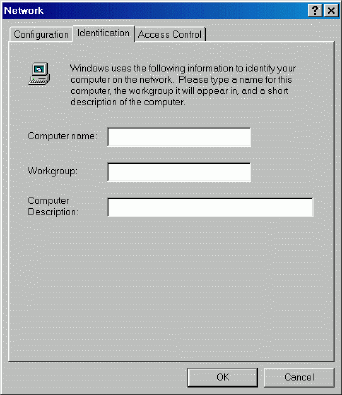

6. Click the Identification tab. Make up a
name that is unique from the other computers'
names on the network. Type the name of
your workgroup, which should be the same
used by all of the other PCs on the network.

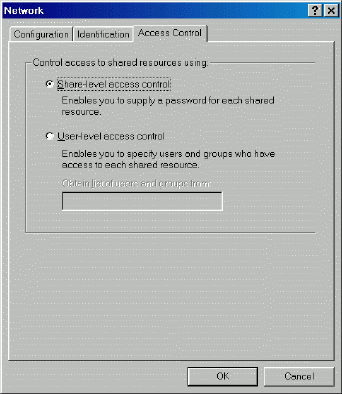

7. Click the Access Control tab. Make sure
that “Shared-level access control” is
selected. If connecting to a Netware server,
share level can be set to “User-level access
control.”
- 23 -
8. When finished, reboot your computer to
activate the new device.
9. Once the computer has restarted and
Windows has booted up, a Logon window
will appear and require you to enter a
username and password. Make up a username
and password and click OK. Do not click
the Cancel button, or you won’t be able to
log onto the network.
10. Double-click the Network Neighbourhood
icon on the windows desktop, and you should
see the names of the other PCs on the
network.
- 24 -
Configuring the Network Protocols for
Windows XP

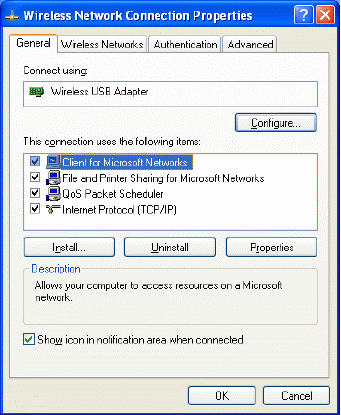

Once the driver has been installed, you must
check if some necessary network components are
well setup in your computer. Click Start
Control Panel Network Connections
Wireless Network Connection Enabled
Wireless USB Adapter Properties.
Make sure that you have all the following
components installed.
Client for Microsoft Networks
IPX/SPX-compatible Protocol
TCP/IP
- 25 -

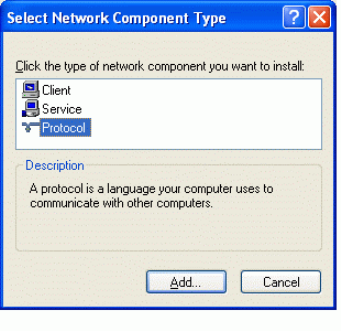

If any components are missing, click on the
Install…button to select the clients/service/
protocols required. After selecting the component
you need, click Add…to add it in.
For making your computer visible on the network,
enable the File and Printer Sharing.
- 26 -
When finished, you must restart your computer to
complete installation.
- 27 -
Configuration and Monitor
Utility for Windows 98/ME/2000
After installing the device successfully, go to
Start Programs 802.11 Wireless LAN
Configuration and Monitor Utility.
The Wireless LAN Monitor Utility icon will
appear in the taskbar every time the device is
running. You can open it by double-clicking on
this icon.
- 28 -

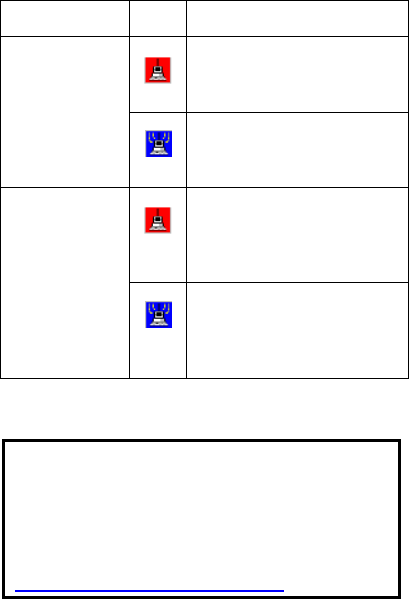

Icon Status
Mode Icon Link Status
Red. The station is not
associated to an Access
Point.
Access Point
mode
Blue. The station
associates itself to an
Access Point.
Red. The color is red only
when the card is during
resetting and initialization
procedure.
Peer-to-Peer
mode
Blue. The color is always
blue, except when the card
is during resetting and
initialization procedure.
Note: Except for the following configuration
utility, using Windows to configure the
wireless network settings in the Windows XP
is recommended. (Please skip to the
Configuration for Windows XP section)
- 29 -
All settings are categorized into 6 tabs:
Status
Statistics
Site Survey
Encryption
Advanced
Version

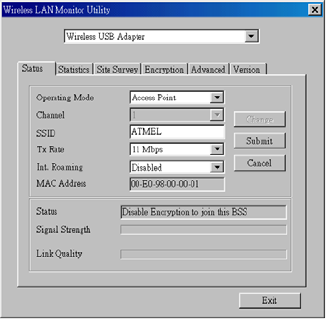

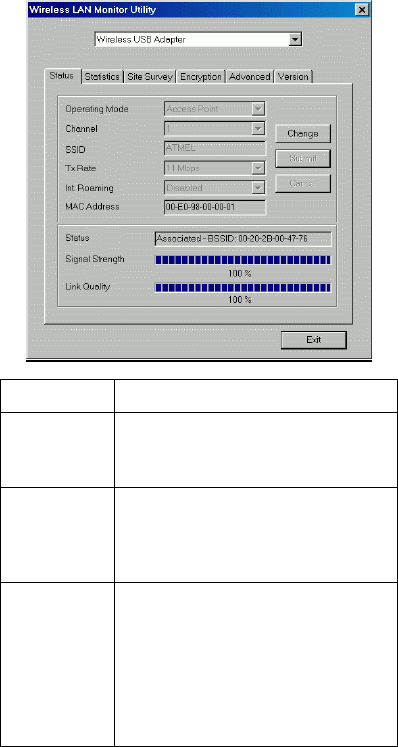

Status
The Status tab will display the current status of
the Wireless USB Adapter.
- 30 -
Item Description
Operating
Mode
It displays the current operating
mode. (Access Point or Peer-to
-Peer).
Channel It shows the selected channel that is
currently used. (There are 14
channels available, depends on the
country.)
SSID The SSID is the unique name shared
among all points in your wireless
network. The name must be identical
for all devices and points attempting
to connect to the same network.
It shows the current SSID setting of
the Wireless USB Adapter.
- 31 -
Item Description
Tx Rate It shows the current transfer rate. (1,
2, 5.5, or 11Mbps or Auto)
Int Roaming It displays the current roaming
status. (Disabled or Enabled)
MAC
Address
It displays the MAC address of the
Wireless USB Adapter.
Status It displays the information about the
status of the communication (the
BSSID of the Access Point to which
the card is associated).
Signal
Strength
It displays the signal strength of the
connection between the Wireless
USB Adapter and the Access Point it
connects.
Link Quality It displays the link quality of the
connection between the Wireless
USB Adapter and the Access Point it
connects.
Change Click Change to change the
configuration parameters such as
Operating Mode, SSID, Tx Rate,
and Int Roaming. (Refer to below
page)
Submit Click Submit to save the changes.
Cancel Click Cancel to ignore the previous
setting.
- 32 -
- 33 -
Statistics
This option shows you to view the available
statistic information (Data packets,
Management Packets and Rejected packets).
Press the Reset button to renew or update this list
of statistics.
- 34 -
Site Survey

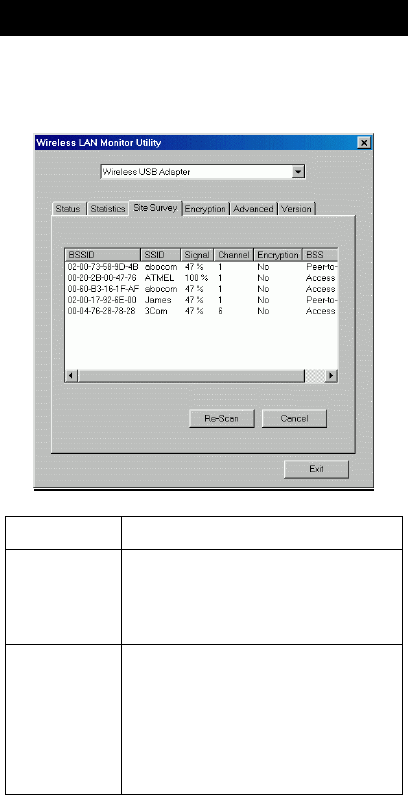

The Site Survey tab shows all the available
Access Points and their features.
Item Description
BSSID A set of wireless stations is referred
to as a Basic Service Set (BSS).
Computers in a BSS must be
configured with the same BSS ID.
SSID The SSID is the unique name shared
among all points in your wireless
network.
The name must be identical for all
devices and points attempting to
connect to the same network.
- 35 -
Item Description
Signal It displays the signal strength of the
connection between the Wireless
USB Adapter and the Access Point it
connects.
Channel It shows the selected channel that is
currently used.
Encryption It displays the status of WEP
Encryption.
BSS It displays the type of Basic Service
Set.
Access Point: allows the Adapter to
communicate with a wired network
which employing an Access Point.
Peer-to-Peer: allows PC-to-PC,
station-to-station communication
without employing an Access Point.
Re-Scan Search for all available networks.
Clicking on the button, the device
will start to rescan and list all
available sites.
Cancel Click Cancel to ignore the previous
setting. (Do not press Cancel while
Re-Scan is working.)
Exit Click Exit to exit the application.
- 36 -
Encryption
WEP (Wired Equivalent Privacy) encryption
can be used to ensure the security of your
wireless network.
Item Description
Encryption WEP is a data privacy mechanism
based on a 64-bit/128-bit shared key
algorithm.
Under the drop-down box, you can
choose to have WEP encryption
Disabled, 64 Bit, or 128 Bit.
- 37 -
Key1/Key2/
Key3/Key4
This setting is the configuration key
used in accessing the wireless
network via WEP encryption. To
generate an encryption key:
1. Select 64 Bit or 128 Bit.
2. Click "Key1" or "Key2" or
"Key3" or "key4" item, then fill in
the appropriate value/phrase.
Default Key You can specify up to 4 different
keys to decrypt wireless data.
Select the Default key setting from
the pull-down menu.
Mode Two WEP modes are available as
below: Mandatory and Optional.
Mandatory:WEP Encryption is
required to establish
connection with other
stations within the
wireless network.
Optional:Your station can
communicate with other
stations within the
wireless network
regardless if they use
WEP or not.
Authentication
Type
The authentication type defines
configuration options for the sharing
of wireless networks to verify
identity and access privileges of
roaming wireless network cards.
You may choose between Open
System, Shared Key, and Auto.
O
p
en S
y
stem: If the Access Point
- 38 -
is using "Open
System"
authentication,
then the wireless
adapter will need
to be set to the
same
authentication
type.
Shared Key: Shared Key is when
both the sender and
the recipient share a
secret key.
Auto: Select Auto for the USB
adapter to select the
Authentication type
automatically depending on
the Access Point
Authentication type.
Submit Click Submit to save the changes.
Exit Click Exit to exit the application.
Note: You must use the same value/phrase or
WEP key settings for all wireless
computers in order for the wireless
network to function well.
- 39 -
Advanced
You can change advanced configuration settings,
such as the Preamble Type, Fragmentation
Threshold and RTS/CTS Threshold.
- 40 -
Item Description
Preamble
Type
A preamble is a signal used in
wireless environment to
synchronize the transmitting timing
including Synchronization and Start
frame delimiter.
Long IF in a "noisy" network
environment, the Preamble Type
should be set to Long.
Short The Short preamble is intended for
applications where minimum
overhead and maximum
performance is desired. If in a
"noisy" network environment, the
performance would be decreased.
Auto Select Auto for the USB adapter to
select the Preamble type
automatically depending on the
Access Point Preamble type.
Fragmentation
Threshold
To fragment MSDU or MMPDU
into small sizes of frames for
increasing the reliability of frame
(The maximum value of 2346
means no fragmentation is needed)
transmission. The performance will
be decreased as well, thus a noisy
environment is recommended.
RTS/CTS
Threshold
This value should remain at its
default setting of 2347. Should
you encounter inconsistent data
flow, only minor modifications of
this value are recommended.
- 41 -
Power Save Check the box to allow the Adapter
to go to sleep mode, during which
data communication could be
interrupted.
Submit Click Submit to save the changes.
Exit Click Exit to exit the application.
- 42 -
Version

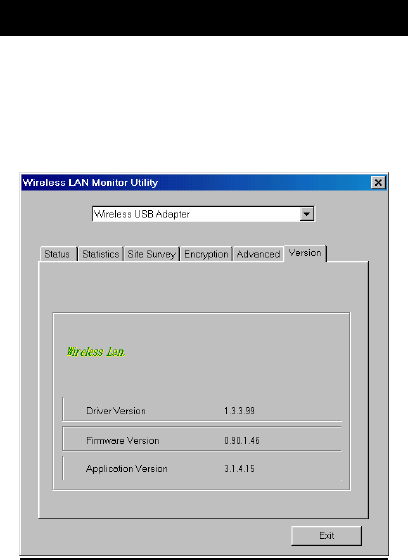

You can view basic information about the Utility like
the Driver, Firmware and Application Version. Use
the Exit button to exit the application.
- 43 -
Configuration for Windows XP
1. Go to Start Control Panel Network
Connections.
2. In Network Connections window,
right-click the Wireless Network
Connections icon, and select Properties.

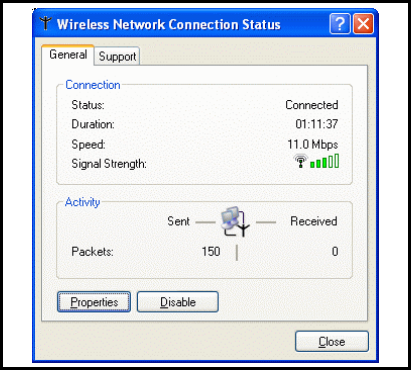

Note: Double-click the Wireless Network
Connection icon and you can see the status of
the wireless PC Card as described below.
- 44 -
3. In Wireless Network Connection
Properties window, select the Wireless
Networks tab.
- 45 -

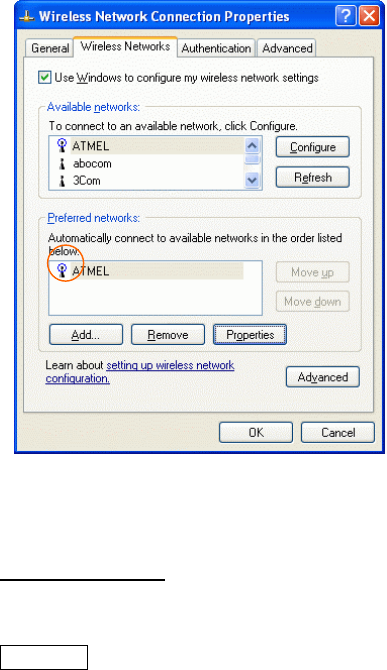

Use Windows to configure…
Check the box to enable windows configuration.
Available networks
Displays all available networks.
Configure

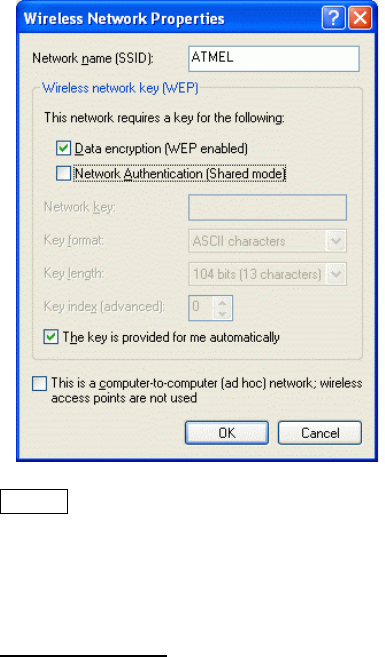

Click the button to set up a new network or WEP
configuration as illustrated as below.
- 46 -
Refresh
Click the button to refresh and search for all
available networks.
Preferred networks
From available network(s) listed above, you can
select preferred one(s) in an order that you can
arrange.
- 47 -
The marked one is the currently used network.
Move up
Move the selected network forward one position.
Move down
Move the selected network back one position
Add…
Click the button and the Wireless Network
Properties window will appear. In the
Network name field, enter your desired network
name listed in the above Available networks box,
and click OK.
Note: The new settings will be active only
after you click on OK in the Wireless
Network Connection Properties window.
Remove
Highlight the unwanted network listed in the
Preferred networks box, and click the button to
remove it.
Properties
- 48 -
Highlight the network listed in the above
Preferred networks box, and click the button to
display its properties.
Once network configuration is done, make sure to
click OK. The new parameters will be saved and
active only after doing so.
- 49 -
Specifications
Standards IEEE 802.11b,Wi-Fi compliant
Host
Interface
32-bit CardBus
Antenna Built-in Diversity Antenna
LED
Indicators
LINK:Green,ON
ACT:Orange,ON
Frequency
Range
2.412GHz-2.4835GHz
N
umber of
Selectable
Channels
USA, Canada: 11 channels
Europe: 13 channels
Japan :14 channels
Modulation
Technique
Direct Sequence Spread Spectrum
(CCK, DQPSK, DBPSK)
Security 0/64/128 bit WEP
Spreading 11 chip Barker sequence
Bit Error rate Better than 10-5
Media Access
Protocol
CSMA/CA (Collision Avoidance)
with ACK
Power
Requirement
Operating Voltage: 3.3V
TX consumption : 450mA
(Max)
RX consumption: 300mA
(Max)
Physical
Specifications
Weight: 40 g
Dimension:
119(L)x53.94(W)x 6.88(H) mm
- 50 -
Environment
Specifications
OperatingTemperature:
0~65℃ambient temperature
Storage Temperature:
-20~75 ℃ambient
temperature
Operating humidity: 95%
maximum (non-condensing)
Storage humidity: 95%
maximum (non-condensing)
Supported OS Windows 98/ME/2000/XP
EMC
Certification
FCC Part 15 in US
EN300328 and
EN300826(EN301489-17) in
Europe
Japan-Telec in Japan
