27

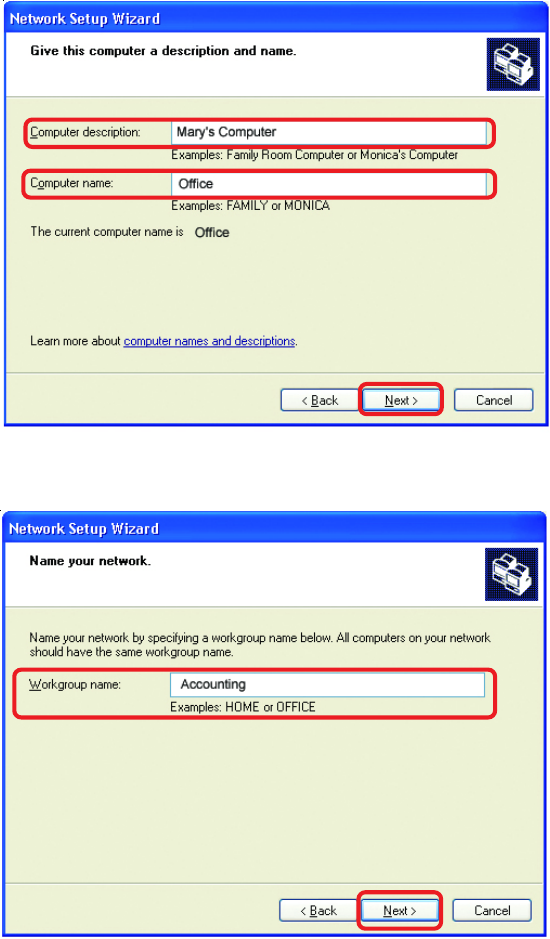

Enter a Computer description and a Computer name (optional.)
Networking Basics (continued)
Click Next
Enter a Workgroup name. All computers on your network should have the
same Workgroup name.
Click Next
28

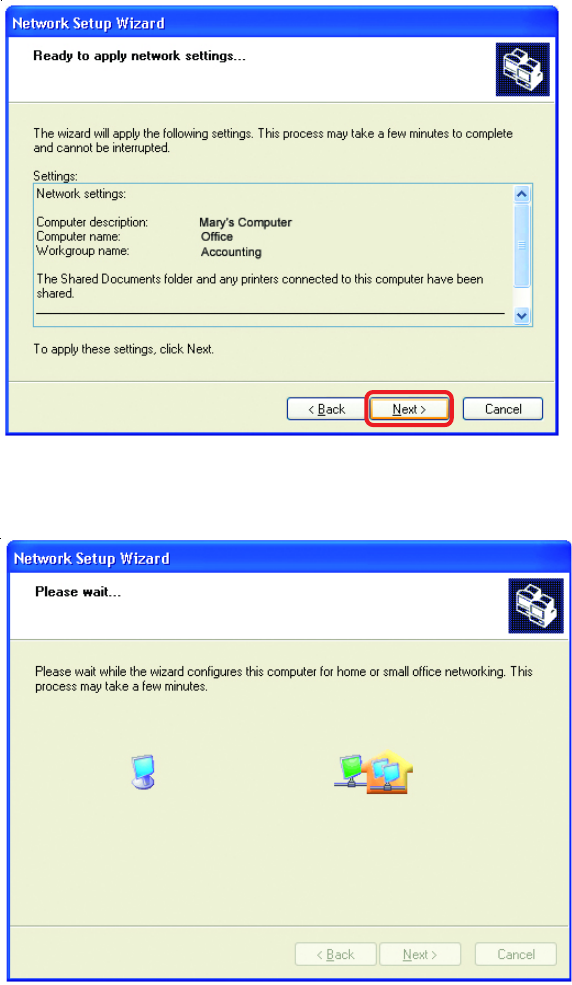

Please wait while the Network Setup Wizard applies the changes.
Networking Basics (continued)
When the changes are complete, Click Next.
Please wait while the Network Setup Wizard configures the computer.
This may take a few minutes.
29
Networking Basics (continued)

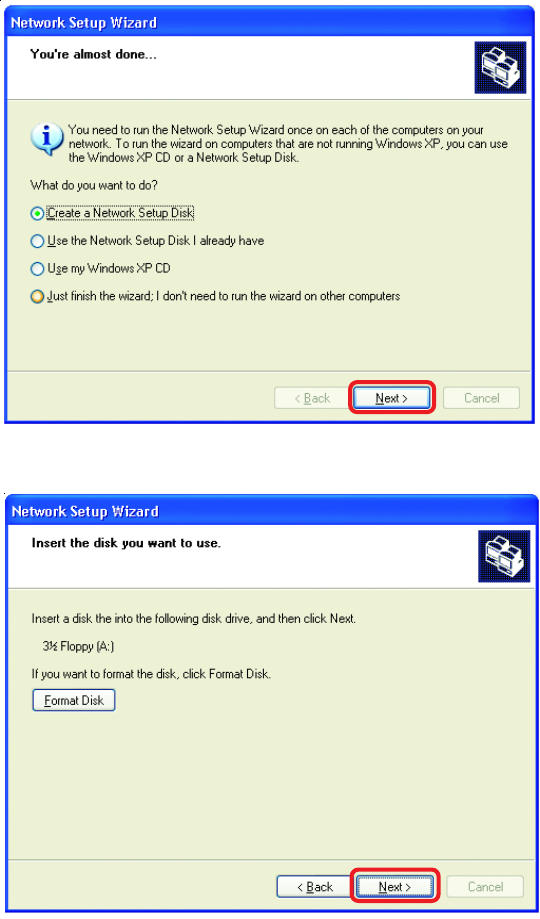

In the window below, select the option that fits your needs. In this example,
Create a Network Setup Disk has been selected. You will run this disk on
each of the computers on your network. Click Next.
Insert a disk into the Floppy Disk Drive, in this case drive A.
Click Next
30
Networking Basics (continued)

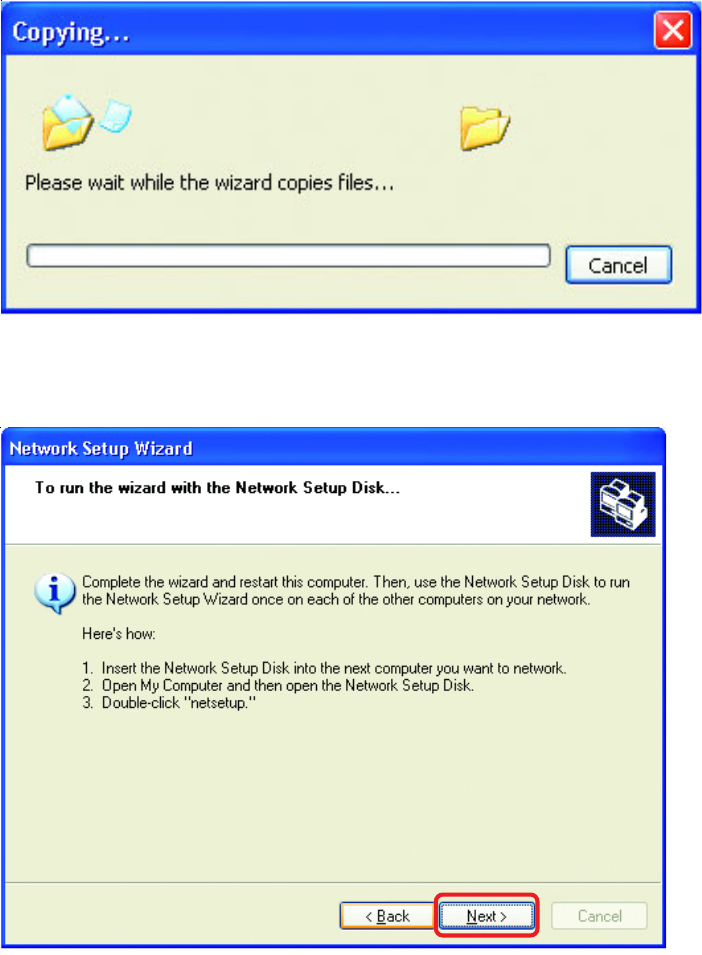

Please read the information under Here’s how in the screen below. After you
complete the Network Setup Wizard you will use the Network Setup Disk to
run the Network Setup Wizard once on each of the computers on your net-
work. Click Next.
31
Networking Basics (continued)

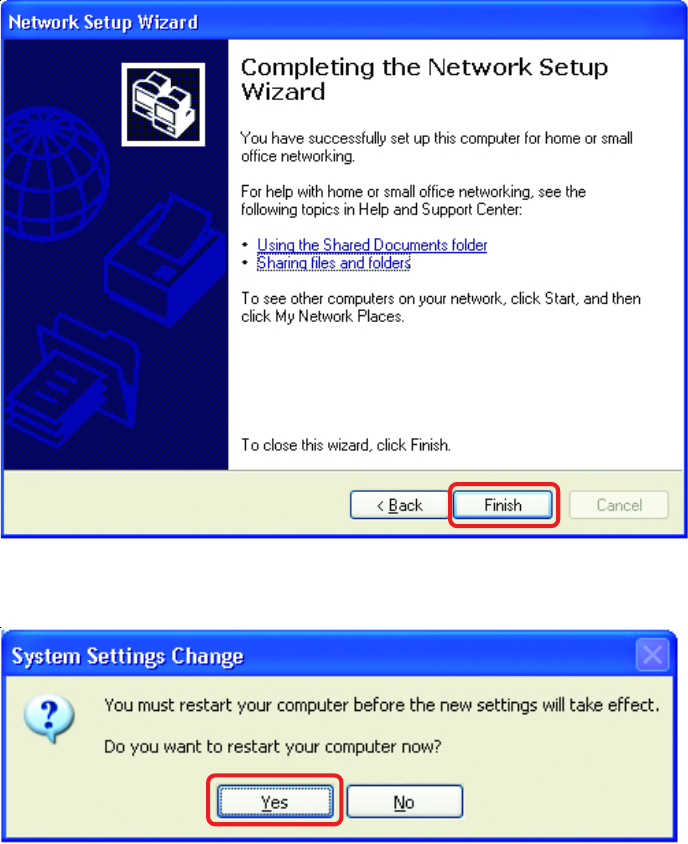

Please read the information on this screen, then click Finish to complete the
Network Setup Wizard.
The new settings will take effect when you restart the computer. Click Yes to
restart the computer.
You have completed configuring this computer. Next, you will need to run the
Network Setup Disk on all the other computers on your network. After run-
ning the Network Setup Disk on all your computers, your new wireless net-
work will be ready to use.
32
Networking Basics (continued)
Naming your Computer

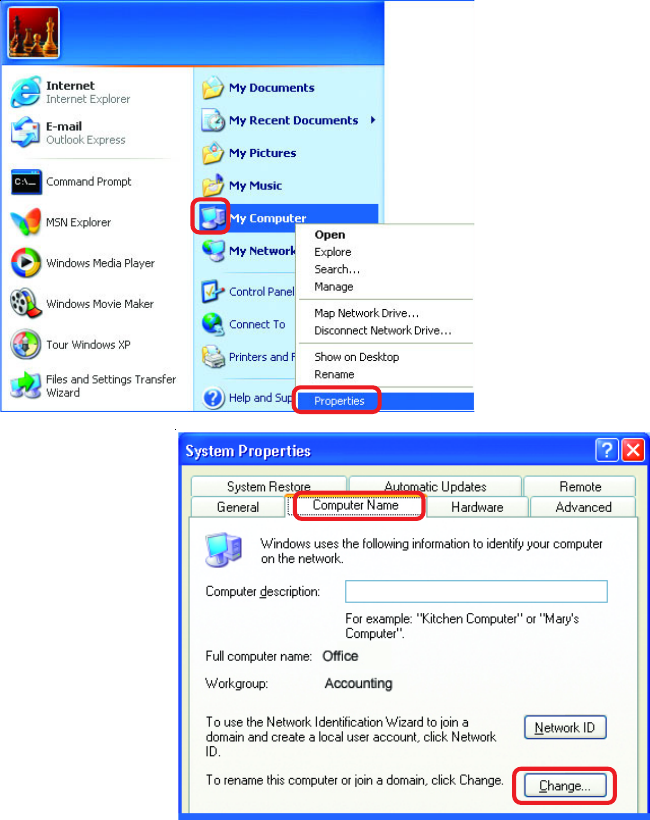

To name your computer, please follow these directions:(In Windows XP)
Click Start (in the lower left corner of the screen)
Right-click on My Computer
Select Properties and Click
!
!
!
!
!
!
Select the Computer
Name Tab in the Sys-
tem Properties window.
You may enter a
Computer Description
if you wish; this field is
optional.
To rename the computer
and join a domain, Click
Change.
33
Networking Basics (continued)
Naming your Computer

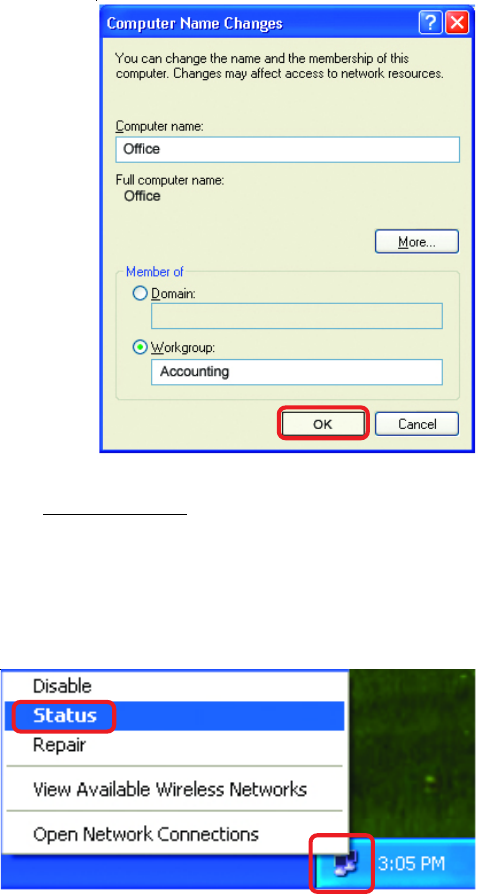

!In this window, enter the
Computer name
Select Workgroup and enter
the name of the Workgroup
All computers on your
network must have the same
Workgroup name.
Click OK
!
!
!
Checking the IP Address in Windows XP
The adapter-equipped computers in your network must be in the same IP Ad-
dress range (see Getting Started in this manual for a definition of IP Address
Range.) To check on the IP Address of the adapter, please do the following:
Right-click on the
Local Area
Connection
icon in the task
bar
Click on Status
!
!
34
Networking Basics (continued)

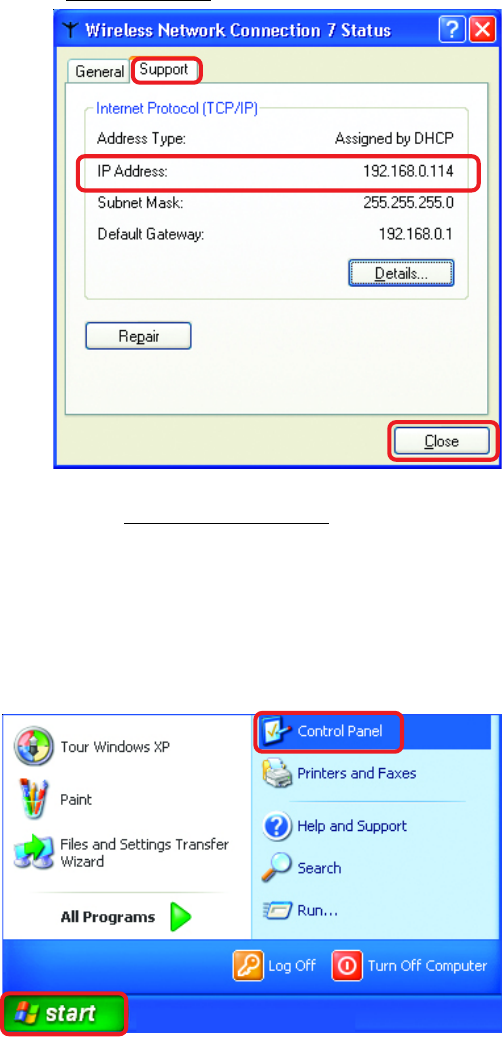

Checking the IP Address in Windows XP
This window will appear.
Click the
Support tab
Click Close
!
!
Assigning a Static IP Address in Windows XP/2000
Note: Residential Gateways/Broadband Routers will automatically assign IP Ad-
dresses to the computers on the network, using DHCP (Dynamic Host Con-
figuration Protocol) technology. If you are using a DHCP-capable Gateway/
Router you will not need to assign Static IP Addresses.
If you are not using a DHCP capable Gateway/Router, or you need to assign a
Static IP Address, please follow these instructions:
!
!
Go to Start
Double-click
on Control
Panel
35
Networking Basics (continued)
Assigning a Static IP Address in Windows XP/2000
!Double-click
on Network
Connections
!
!Double-click on
Properties
Right-click on Local Area
Connections
36
Input your IP Address
and subnet mask. (The
IP Addresses on your
network must be within
the same range. For
example, if one computer
has an IP Address of
192.168.0.2, the other
computers should have IP
Addresses that are
sequential, like
192.168.0.3 and
192.168.0.4. The subnet
mask must be the same
for all the computers on
the network.)
Networking Basics (continued)
Assigning a Static IP Address
in Windows XP/2000
Input your DNS server
addresses. (Note: If
you are entering a DNS
server, you must enter
the IP Address of the
Default Gateway.)
!
The DNS server information will be supplied
by your ISP (Internet Service Provider.)
!Click OK
Click on Internet
Protocol (TCP/IP)
Click Properties
!
!
!
37
Networking Basics (continued)

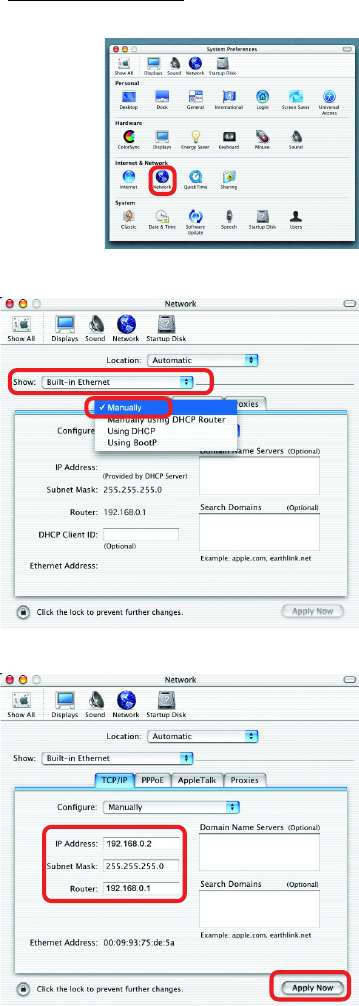

Assigning a Static IP Address with Macintosh OSX
!
!
!
!
!
!
Go to the Apple Menu and se-
lect System Preferences
cClick on Network
Select Built-in Ethernet in
the Show pull-down menu
Select Manually in the
Configure pull-down
menu
Input the Static IP Ad-
dress, the Subnet Mask
and the Router IP Ad-
dress in the appropriate
fields
Click Apply Now
38
Networking Basics (continued)

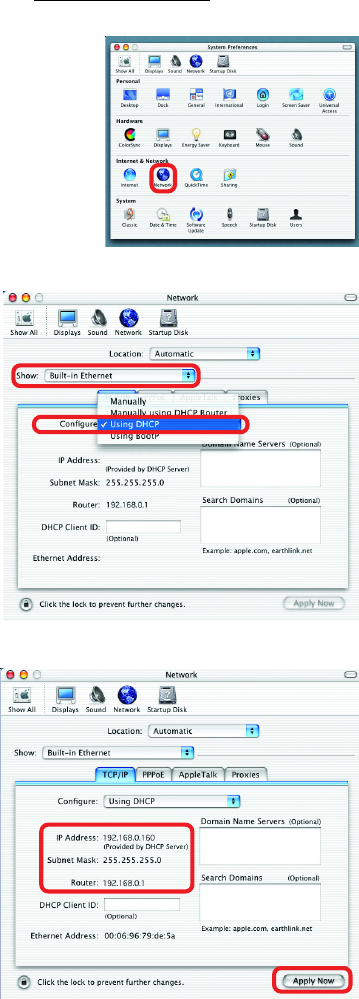

Selecting a Dynamic IP Address with Macintosh OSX
Go to the Apple Menu and se-
lect System Preferences
Click on Network
Select Built-in Ethernet in
the Show pull-down menu
Select Using DHCP in the
Configure pull-down menu
Click Apply Now
The IP Address, Subnet
mask, and the Router’s IP
Address will appear in a
few seconds
!
!
!
!
!
!
39
Networking Basics (continued)

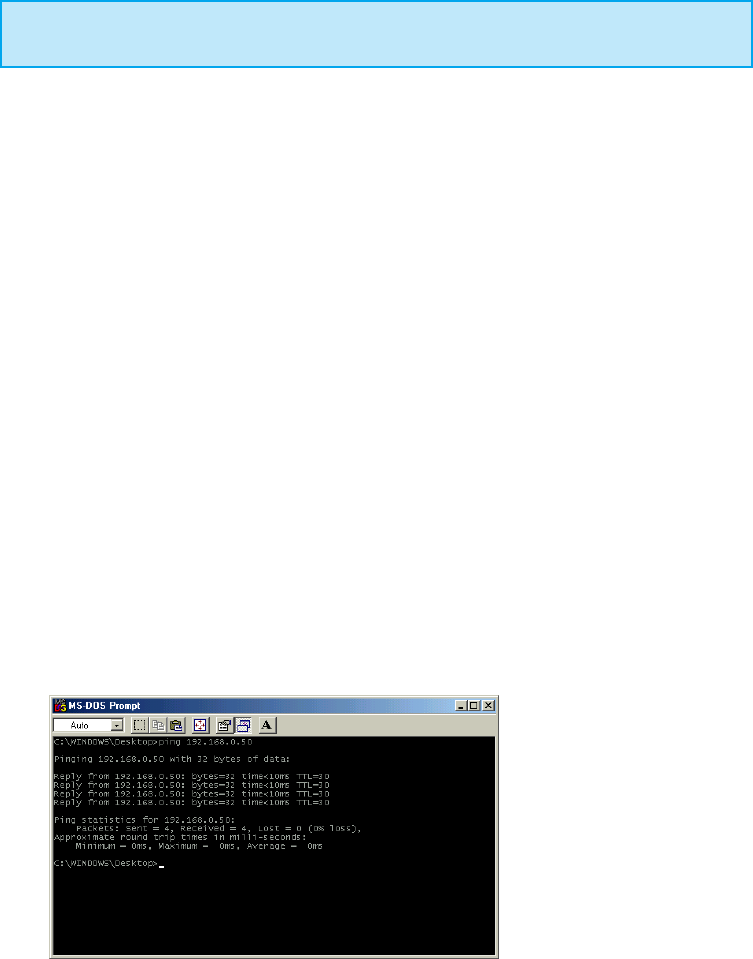

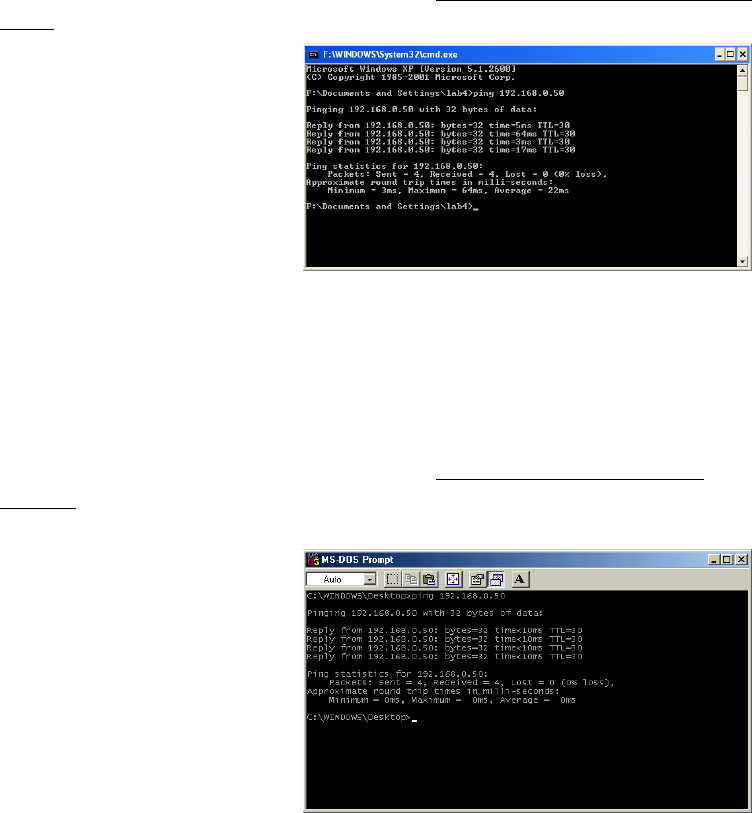

Checking the Wireless Connection by Pinging in Windows XP and
2000
Checking the Wireless Connection by Pinging in Windows Me
and 98
Go to Start > Run
> type cmd. A
window similar to
this one will ap-
pear. Type ping
xxx.xxx.xxx.xxx,
where xxx is the
IP Address of the
Wireless Router or
Access Point. A
good wireless
connection will
show four replies
from the Wireless
Router or Acess
Point, as shown.
Go to Start >
Run > type
command. A
window similar to
this will appear.
Type ping
xxx.xxx.xxx.xxx
where xxx is the
IP Address of the
Wireless Router
or Access Point.
A good wireless
connection will
show four replies
from the wireless
router or access
point, as shown.
!
!
40
1.The computer used to configure the DWL-2000AP cannot ac-
cess the Configuration menu.
Check that the Ethernet LED on the DWL-2000AP is ON. If
the LED is not ON, check that the cable for the Ethernet
connection is securely inserted.
Check that the Ethernet Adapter is working properly. Please
see item 3 (Check that the drivers for the network
adapters are installed properly) in this Troubleshooting
section to check that the drivers are loaded properly.
Check that the IP Address is in the same range and subnet
as the DWL-2000AP. Please see Checking the IP Address
in Windows XP in the Networking Basics section of this
manual.
Note: The IP Address of the DWL-2000AP is 192.168.0.50. All the computers on
the network must have a unique IP Address in the same range, e.g., 192.168.0.x.
Any computers that have identical IP Addresses will not be visible on the
network. They must all have the same subnet mask, e.g., 255.255.255.0
Do a Ping test to make sure that the DWL-2000AP is
responding. Go to Start>Run>Type Command>Type ping
192.168.0.50. A successful ping will show four replies.
Troubleshooting
This Chapter provides solutions to problems that can occur during the installation and
operation of the DWL-2000AP Wireless Access Point. We cover various aspects of the
network setup, including the network adapters. Please read the following if you are having
problems.
Note: If you have
changed the default IP
Address, make sure to
ping the correct IP
Address assigned to
the DWL-2000AP.
Note: It is recommended that you use an Ethernet connection to
configure the DWL-2000AP Wireless Access Point.
!
!
!
!
41
2. The wireless client cannot access the Internet in the
Infrastructure mode.

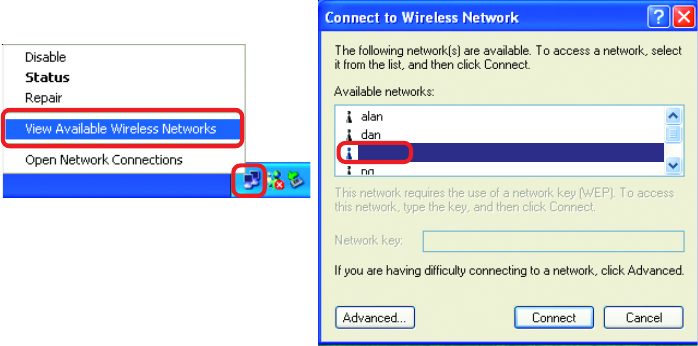

Make sure the wireless client is associated and joined with the correct Access
Point. To check this connection: Right-click on the Local Area Connection icon
in the taskbar> select View Available Wireless Networks. The Connect to
Wireless Network screen will appear. Please make sure you have selected the
correct available network, as shown in the illustration below.
Troubleshooting (continued)
Check that the IP Address assigned to the wireless adapter is within the
same IP Address range as the access point and gateway. (Since the
DWL-2000AP has an IP Address of 192.168.0.50, wireless adapters must
have an IP Address in the same range, e.g., 192.168.0.x. Each device
must have a unique IP Address; no two devices may have the same IP
Address. The subnet mask must be the same for all the computers on
the network.) To check the IP Address assigned to the wireless adapter,
double-click on the Local Area Connection icon in the taskbar >
select the Support tab and the IP Address will be displayed. (Please
refer to Checking the IP Address in the Networking Basics section of
this manual.)
If it is necessary to assign a Static IP Address to the wireless adapter,
please refer to the appropriate section in Networking Basics. If you are
entering a DNS Server address you must also enter the Default
Gateway Address. (Remember that if you have a DHCP-capable router,
you will not need to assign a Static IP Address. See Networking
Basics: Assigning a Static IP Address.)
default
!
!
42
Troubleshooting (continued)
Click Device
Manager
!Select the
Hardware
Tab
!
!Go to Start >
My Computer >
Properties
Check to make sure that the Router in your network is functioning properly
by pinging it. If the router is not functioning properly, it will not connect to the
Internet. If you need to find out how to ping network devices, please refer to
“Checking the Wireless Connection by pinging” in the Networking Basics
section of this manual.
Check to make sure that the DNS server in your network is functioning properly
by pinging it. If the DNS server is not functioning properly, you may be unable
to access the Internet. Typically, your ISP (Internet Service Provider) will be
able to give you the DNS server information. If you need to find out how to
ping network devices, please refer to “Checking the Wireless Connection by
pinging” in the Networking Basics section of this manual.
3. Check that the drivers for the network adapters are
installed properly.
You may be using different network adapters than those illustrated here, but this
procedure will remain the same, regardless of the type of network adapters you are
using.
2. The wireless client cannot access the Internet in the
Infrastructure mode. (continued)
!
!
43
Troubleshooting (continued)
!
!
!
!
!

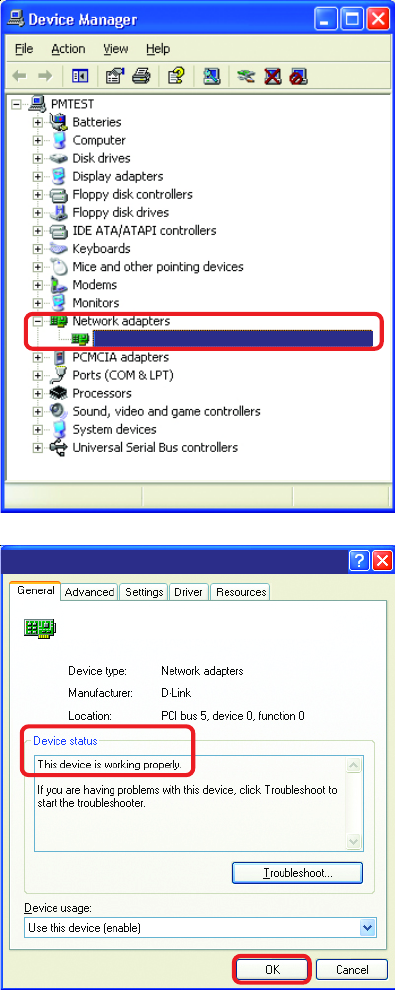

Double-click
on Network
Adapters
Right-click on D-Link
AirPlus DWL-G650
Wireless Cardbus
Adapter (In this
example we use the
DWL-G650; you may
be using other network
adapters, but the
procedure will remain
the same.)
Select Proper-
ties to check
that the drivers
are installed
properly
Look under Device
Status to check that
the device is working
properly
Click OK
D-Link AirPlus DWL-G650
D-Link AirPlus DWL-G650 Wireless Cardbus Adapter
D-Link AirPlus DWL-G650 Wireless Cardbus Adapter
44
Troubleshooting (continued)
4. What variables may cause my wireless products to lose reception?
5. Why does my wireless connection keep dropping?
Antenna Orientation- Try different antenna orientations for the DWL-
2000AP. Try to keep the antenna at least 6 inches away from the wall
or other objects.
!
If you are using 2.4GHz cordless phones, X-10 equipment or other home
security systems, ceiling fans, and lights, your wireless connection will
degrade dramatically or drop altogether. Try changing the Channel on
your Router, Access Point and Wireless adapter to a different Channel
to avoid interference.
!
Keep your product away (at least 3-6 feet) from electrical devices that
generate RF noise, like microwaves, Monitors, electric motors, etc.
!
6. Why can’t I get a wireless connection?
If you have enabled Encryption on the DWL-2000AP, you must also enable en-
cryption on all wireless clients in order to establish a wireless connection.
Make sure that the SSID on the Access Point and the Wireless Client are
exactly the same. If they are not, wireless connection will not be estab-
lished.
The Encryption settings are: 64 or 128bit. Make sure that the encryption
bit level is the same on the Access Point and the Wireless Client.
!
!
Move the DWL-2000AP and the wireless client into the same room and
then test the wireless connection.
!
Disable all security settings. (WEP, MAC Address Control)
!
When deploying several access points and wireless devices, please
make sure that access points in close proximity do not have overlapping
channels. Nearby access points should be assigned channels that are
at least 4 channels apart to prevent interference. For example, with a
group of 3 access points you could assign the first to channel 1, the
second to channel 6, and the third to channel 11.
!
D-Link products let you access your network from virtually anywhere you want.
However, the positioning of the products within your environment will affect the
wireless range. Please refer to Installation Considerations in the Wireless
Basics section of this manual for further information about the most advanta-
geous placement of your D-Link wireless products.
45
Troubleshooting (continued)
6. Why can’t I get a wireless connection? (continued)
Turn off your DWL-2000AP and the client. Turn the DWL-2000AP back
on again, and then turn on the client.
!
Check that the LED indicators are indicating normal activity. If not, check
that the AC power and Ethernet cables are firmly connected.
!
Make sure that all devices are set to Infrastructure mode.
!
Check that the IP Address, subnet mask, and gateway settings are cor-
rectly entered for the network.
!
If you are using 2.4GHz cordless phones, X-10 equipment or other home
security systems, ceiling fans, and lights, your wireless connection will
degrade dramatically or drop altogether. Try changing the Channel on
your DWL-2000AP, and on all the devices in your network to avoid inter-
ference.
!
Keep your product away (at least 3-6 feet) from electrical devices that
generate RF noise, like microwaves, Monitors, electric motors, etc.
!
7. I forgot my encryption key.
Reset the DWL-2000AP to its factory default settings and restore the
other devices on your network to their default settings. You may do this
by pressing the Reset button on the back of the unit. You will lose the
current configuration settings.
!
46
8. Resetting the DWL-2000AP to Factory Default Settings
After you have tried other methods for troubleshooting your network, you
may choose to Reset the DWL-2000AP to the factory default settings.
To hard-reset the D-Link DWL-2000AP to the Factory Default Settings,
please do the following:
Troubleshooting (continued)
!
!
!
!After the DWL-2000AP reboots (this may take a
few minutes) it will be reset to the factory Default
settings

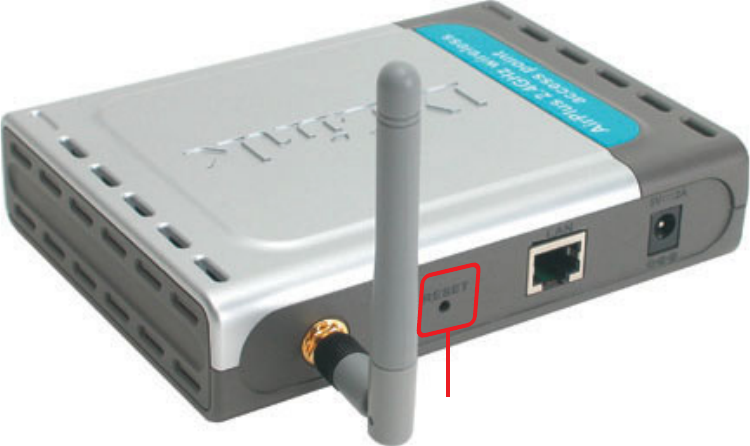

Use a paper clip to press the Reset button
Hold for about 5 seconds and then release
Locate the Reset button on the back of the
DWL-2000AP
Reset
47
IEEE 802.11g-Draft
IEEE 802.11
IEEE 802.11b
IEEE 802.3
IEEE 802.3u
Technical Specifications
!
!
!
Standards
Device Management
Web-Based- Internet Explorer v6 or later; Netscape Navigator v6
or later; or other Java-enabled browsers
!
Wireless Operating Range
Temperature
Humidity:
! Indoors – up to 328 feet (100 meters)
!DHCP Server and Client
Safety and Emissions:
!
2.4GHz to 2.4835GHz
!
Wireless Frequency Range:
FCC
!
UL
!
Outdoors – up to 1312 feet (400 meters)
!
Operating: 32ºF to 149ºF (0ºC to 55ºC)
!
95% maximum (non-condensing)
!
!
Storing: 4ºF to 167ºF (-20ºC to 75ºC)
!
54 Mbps
48 Mbps
36 Mbps
24 Mbps
18 Mbps
12 Mbps
!
!
!
!
!
!
11 Mbps
9 Mbps
6 Mbps
5.5 Mbps
2 Mbps
1 Mbps
!
!
!
!
!
!
Wireless Data Rates with Automatic Fallback:
48
Wireless Transmit Power:
15dBm (32mW) ± 2dB
!
Technical Specifications (continued)
*WPA will be available Spring 2003
Physical Dimensions:
L = 5.6 inches (142mm)
W = 4.3 inches (109mm)
H = 1.2 inches (31mm)
!
!
!
Security:
802.1x
WPA*-WiFi Protected Access
(64-,128-WEP with TKIP, MIC, IV Expansion, Shared Key
Authentication)
!
!
External Antenna Type:
2.0dBm gain with reverse SMA connector
!
54Mbps OFDM, 10% PER, -68dBm
48Mbps OFDM, 10% PER, -68dBm
36Mbps OFDM, 10% PER, -75dBm
24Mbps OFDM, 10% PER, -79dBm
18Mbps OFDM, 10% PER, -82dBm
12Mbps OFDM, 10% PER, -84dBm
11Mbps CCK, 8% PER, -82dBm
9Mbps OFDM, 10% PER, -87dBm
6Mbps OFDM, 10% PER, -88dBm
5.5Mbps CCK, 8% PER, -85dBm
2Mbps QPSK, 8% PER, -86dBm
1Mbps BPSK, 8% PER, -89dBm
!
!
!
!
!
!
!
!
!
!
!
!
Orthogonal Frequency Division Multiplexing (OFDM)
Modulation Technology:
!
Complementary Code Keying (CCK)
!
Receiver Sensitivity:
49
Technical Specifications (continued)
Warranty:
3 year
!
Weight:
.44 lbs. (200 g)
!
Power Input:
Ext. Power Supply DC 5V, 2.0A
!
CSMA/CA with ACK
Media Access Control:
!
50
You can find software updates and user documentation on the D-Link website.
D-Link provides free technical support for customers within the United States and
within Canada for the duration of the warranty period on this product.
U.S. and Canadian customers can contact D-Link technical support through our web
site, or by phone.
Tech Support for customers within the United States:
D-Link Technical Support over the Telephone:
(877) 453-5465
24 hours a day, seven days a week.
D-Link Technical Support over the Internet:
http://support.dlink.com
email:support@dlink.com
Tech Support for customers within Canada:
D-Link Technical Support over the Telephone:
(800) 361-5265
Monday to Friday 8:30am to 9:00pm EST
D-Link Technical Support over the Internet:
http://support.dlink.ca
email:support@dlink.ca
Technical Support
51
Subject to the terms and conditions set forth herein, D-Link Systems, Inc. (“D-Link”) provides this Limited
warranty for its product only to the person or entity that originally purchased the product from:
D-Link or its authorized reseller or distributor and
Products purchased and delivered within the fifty states of the United States, the District of
Columbia, U.S. Possessions or Protectorates, U.S. Military Installations, addresses with an
APO or FPO.
Limited Warranty: D-Link warrants that the hardware portion of the D-Link products described
below will be free from material defects in workmanship and materials from the date of original retail
purchase of the product, for the period set forth below applicable to the product type (“Warranty
Period”), except as otherwise stated herein.
3-Year Limited Warranty for the Product(s) is defined as follows:
Hardware (excluding power supplies and fans) Three (3) Years
Power Supplies and Fans One (1) Year
Spare parts and spare kits Ninety (90) days
D-Link’s sole obligation shall be to repair or replace the defective Hardware during the Warranty Period
at no charge to the original owner or to refund at D-Link’s sole discretion. Such repair or replacement will
be rendered by D-Link at an Authorized D-Link Service Office. The replacement Hardware need not be
new or have an identical make, model or part. D-Link may in its sole discretion replace the defective
Hardware (or any part thereof) with any reconditioned product that D-Link reasonably determines is
substantially equivalent (or superior) in all material respects to the defective Hardware. Repaired or
replacement Hardware will be warranted for the remainder of the original Warranty Period from the date
of original retail purchase. If a material defect is incapable of correction, or if D-Link determines in its sole
discretion that it is not practical to repair or replace the defective Hardware, the price paid by the original
purchaser for the defective Hardware will be refunded by D-Link upon return to D-Link of the defective
Hardware. All Hardware (or part thereof) that is replaced by D-Link, or for which the purchase price is
refunded, shall become the property of D-Link upon replacement or refund.
Limited Software Warranty: D-Link warrants that the software portion of the product (“Software”)
will substantially conform to D-Link’s then current functional specifications for the Software, as set forth
in the applicable documentation, from the date of original retail purchase of the Software for a period of
ninety (90) days (“Warranty Period”), provided that the Software is properly installed on approved
hardware and operated as contemplated in its documentation. D-Link further warrants that, during the
Warranty Period, the magnetic media on which D-Link delivers the Software will be free of physical
defects. D-Link’s sole obligation shall be to replace the non-conforming Software (or defective media)
with software that substantially conforms to D-Link’s functional specifications for the Software or to
refund at D-Link’s sole discretion. Except as otherwise agreed by D-Link in writing, the replacement
Software is provided only to the original licensee, and is subject to the terms and conditions of the
license granted by D-Link for the Software. Software will be warranted for the remainder of the original
Warranty Period from the date or original retail purchase. If a material non-conformance is incapable of
correction, or if D-Link determines in its sole discretion that it is not practical to replace the non-
conforming Software, the price paid by the original licensee for the non-conforming Software will be
refunded by D-Link; provided that the non-conforming Software (and all copies thereof) is first returned
to D-Link. The license granted respecting any Software for which a refund is given automatically
terminates.
Non-Applicability of Warranty: The Limited Warranty provided hereunder for hardware and software
of D-Link’s products will not be applied to and does not cover any refurbished product and any product
purchased through the inventory clearance or liquidation sale or other sales in which D-Link, the sellers,
or the liquidators expressly disclaim their warranty obligation pertaining to the product and in that case,
the product is being sold “As-Is” without any warranty whatsoever including, without limitation, the
Limited Warranty as described herein, notwithstanding anything stated herein to the contrary.
Submitting A Claim: The customer shall return the product to the original purchase point based on its
return policy. In case the return policy period has expired and the product is within warranty, the
customer shall submit a claim to D-Link as outlined below:
The customer must submit with the product as part of the claim a written description of the
Hardware defect or Software nonconformance in sufficient detail to allow D-Link to confirm
the same.
Warranty and Registration
52
After an RMA number is issued, the defective product must be packaged securely in the
original or other suitable shipping package to ensure that it will not be damaged in transit, and
the RMA number must be prominently marked on the outside of the package. Do not include any
manuals or accessories in the shipping package. D-Link will only replace the defective portion
of the Product and will not ship back any accessories.
The original product owner must obtain a Return Material Authorization (“RMA”) number from
the Authorized D-Link Service Office and, if requested, provide written proof of purchase of
the product (such as a copy of the dated purchase invoice for the product) before the
warranty service is provided.
The customer is responsible for all in-bound shipping charges to D-Link. No Cash on Delivery
(“COD”) is allowed. Products sent COD will either be rejected by D-Link or become the
property of D-Link. Products shall be fully insured by the customer and shipped to D-Link
Systems, Inc., 53 Discovery Drive, Irvine, CA 92618. D-Link will not be held responsible
for any packages that are lost in transit to D-Link. The repaired or replaced packages will be
shipped to the customer via UPS Ground or any common carrier selected by D-Link, with
shipping charges prepaid. Expedited shipping is available if shipping charges are prepaid by
the customer and upon request.
D-Link may reject or return any product that is not packaged and shipped in strict compliance with the
foregoing requirements, or for which an RMA number is not visible from the outside of the package. The
product owner agrees to pay D-Link’s reasonable handling and return shipping charges for any product
that is not packaged and shipped in accordance with the foregoing requirements, or that is determined
by D-Link not to be defective or non-conforming.
What Is Not Covered: This limited warranty provided by D-Link does not cover: Products, if in D-Link’s
judgment, have been subjected to abuse, accident, alteration, modification, tampering, negligence, misuse,
faulty installation, lack of reasonable care, repair or service in any way that is not contemplated in the
documentation for the product, or if the model or serial number has been altered, tampered with, defaced
or removed; Initial installation, installation and removal of the product for repair, and shipping costs;
Operational adjustments covered in the operating manual for the product, and normal maintenance;
Damage that occurs in shipment, due to act of God, failures due to power surge, and cosmetic damage;
Any hardware, software, firmware or other products or services provided by anyone other than D-
Link; Products that have been purchased from inventory clearance or liquidation sales or other sales in
which D-Link, the sellers, or the liquidators expressly disclaim their warranty obligation pertaining to the
product. Repair by anyone other than D-Link or an Authorized D-Link Service Office will void this
Warranty.
Disclaimer of Other Warranties: EXCEPT FOR THE LIMITED WARRANTY SPECIFIED HEREIN, THE
PRODUCT IS PROVIDED “AS-IS” WITHOUT ANY WARRANTY OF ANY KIND WHATSOEVER INCLUDING,
WITHOUT LIMITATION, ANY WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE
AND NON-INFRINGEMENT. IF ANY IMPLIED WARRANTY CANNOT BE DISCLAIMED IN ANY TERRITORY
WHERE A PRODUCT IS SOLD, THE DURATION OF SUCH IMPLIED WARRANTY SHALL BE LIMITED TO
NINETY (90) DAYS. EXCEPT AS EXPRESSLY COVERED UNDER THE LIMITED WARRANTY PROVIDED
HEREIN, THE ENTIRE RISK AS TO THE QUALITY, SELECTION AND PERFORMANCE OF THE PRODUCT IS
WITH THE PURCHASER OF THE PRODUCT.
Limitation of Liability: TO THE MAXIMUM EXTENT PERMITTED BY LAW, D-LINK IS NOT LIABLE
UNDER ANY CONTRACT, NEGLIGENCE, STRICT LIABILITY OR OTHER LEGAL OR EQUITABLE THEORY
FOR ANY LOSS OF USE OF THE PRODUCT, INCONVENIENCE OR DAMAGES OF ANY CHARACTER,
WHETHER DIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL (INCLUDING, BUT NOT LIMITED TO,
DAMAGES FOR LOSS OF GOODWILL, LOSS OF REVENUE OR PROFIT, WORK STOPPAGE, COMPUTER
FAILURE OR MALFUNCTION, FAILURE OF OTHER EQUIPMENT OR COMPUTER PROGRAMS TO WHICH D-
LINK’S PRODUCT IS CONNECTED WITH, LOSS OF INFORMATION OR DATA CONTAINED IN, STORED ON,
OR INTEGRATED WITH ANY PRODUCT RETURNED TO D-LINK FOR WARRANTY SERVICE) RESULTING
FROM THE USE OF THE PRODUCT, RELATING TO WARRANTY SERVICE, OR ARISING OUT OF ANY
BREACH OF THIS LIMITED WARRANTY, EVEN IF D-LINK HAS BEEN ADVISED OF THE POSSIBILITY OF
SUCH DAMAGES. THE SOLE REMEDY FOR A BREACH OF THE FOREGOING LIMITED WARRANTY IS
REPAIR, REPLACEMENT OR REFUND OF THE DEFECTIVE OR NON-CONFORMING PRODUCT. THE MAXIMUM
LIABILITY OF D-LINK UNDER THIS WARRANTY IS LIMITED TO THE PURCHASE PRICE OF THE PRODUCT
COVERED BY THE WARRANTY. THE FOREGOING EXPRESS WRITTEN WARRANTIES AND REMEDIES
ARE EXCLUSIVE AND ARE IN LIEU OF ANY OTHER WARRANTIES OR REMEDIES, EXPRESS, IMPLIED OR
STATUTORY.
53
Governing Law: This Limited Warranty shall be governed by the laws of the State of California. Some
states do not allow exclusion or limitation of incidental or consequential damages, or limitations on how
long an implied warranty lasts, so the foregoing limitations and exclusions may not apply. This limited
warranty provides specific legal rights and the product owner may also have other rights which vary
from state to state.
Trademarks: D-Link is a registered trademark of D-Link Systems, Inc. Other trademarks or registered
trademarks are the property of their respective manufacturers or owners.
Copyright Statement: No part of this publication or documentation accompanying this Product may
be reproduced in any form or by any means or used to make any derivative such as translation,
transformation, or adaptation without permission from D-Link Corporation/D-Link Systems, Inc., as
stipulated by the United States Copyright Act of 1976. Contents are subject to change without prior
notice. Copyright© 2002 by D-Link Corporation/D-Link Systems, Inc. All rights reserved.
CE Mark Warning: This is a Class B product. In a domestic environment, this product may cause radio
interference, in which case the user may be required to take adequate measures.
FCC Statement: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communication. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following measures:
Register your D-Link product online at http://support.dlink.com/register/
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which
Consult the dealer or an experienced radio/TV technician for help.
the receiver is connected.
(04/02/03)
FCC Caution:
(1) The devices are restricted to indoor operations within the 5.15 to 5.25GHz range. (2) For this
device to operate in the 5.15 to 5.25GHz range, the devices must use integral antennas.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. The antenna(s) used for this equipment must be installed to provide a separation
distance of at least eight inches (20 cm) from all persons.
This equipment must not be operated in conjunction with any other antenna.
The manufacturer is not responsible for any radio or TV interference caused by unauthorized
modifications to this equipment; such modifications could void the user’s authority to operate the
equipment.

Navigation menu
