Manual
Manual
802.11g (2.4GHz)
DWL-G510
D-Link
AirPlus G
TM
Wireless PCI Adapter
Building Networks for People
2
Contents
Package Contents ................................................................................3
Introduction............................................................................................4
Wireless Basics ....................................................................................5
Installation Considerations ....................................................................7
Getting Started ......................................................................................8
Using the Configuration Utility ..............................................................11
Networking Basics ..............................................................................18
Troubleshooting...................................................................................31
Technical Specifications ......................................................................36
Contacting Technical Support ..............................................................38
Warranty and Registration ...................................................................39
3
Contents of Package:
D-Link AirPlus G DWL-G510
802.11g (2.4GHz) Wireless PCI Adapter
Manual, Warranty and Drivers on CD
Printed Quick Installation Guide
Package Contents
If any of the above items are missing, please contact your reseller.
System Requirements for Configuration:
An 802.11g or 802.11b access point (for Infrastructure mode),
or another 802.11g or 802.11b wireless adapter (for Ad-Hoc,
Peer-to-Peer networking mode.)
At least 32 MB of memory and a 300 MHz processor
A desktop computer with an available 32-bit PCI slot
TM
Windows XP/2000/Me/98SE
4
Features
Compatible with 802.11b and 802.11g Devices - Fully compatible with the IEEE
802.11b and 802.11g standards, the DWL-G510 can connect with existing 802.11b-
or 802.11g- compliant routers, access points and cards. That means you can still
communicate with colleagues and friends while you have the ability to link to even
more wireless networks.
Faster Wireless Networking - Faster data transfers mean increased productivity.
With the DWL-G510 in your desktop PC, you will have the flexibility of wireless
networking speeds that save you time and money.
User-friendly configuration and diagnostic utilities.
Introduction

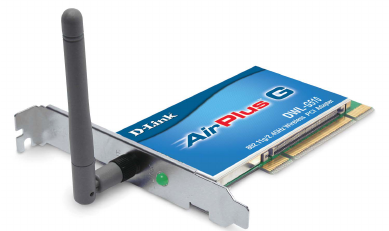

The D-Link AirPlus G DWL-G510 Wireless PCI Adapter is an 802.11b/802.11g (2.4GHz)
wireless adapter that supports high-speed wireless networking.
Unlike most network cards, the DWL-G510 provides data transfers at up to 54 Mbps
(compared to the standard 11 Mbps) when used with other D-Link AirPlus G products.
The 802.11g standard is backwards compatible with 802.11b products.
32-bit PCI Performance/Plug & Play Connectivity - The DWL-G510 is a powerful
32-bit PCI adapter that installs quickly and easily into desktop PCs, and when used
with other D-Link Air Plus G products will automatically connect to the network out
of the box.
TM
TM
TM
LED
LED stands for Light-Emitting Diode. The DWL-G510 has one LED:
A steady light indicates a
connection to an access
point.
A blinking light indicates
activity on the network.
Link
5
Wireless Basics
Wireless users can use the same applications they use on a wired network. Wireless
adapter cards used on laptop and desktop systems support the same protocols as
Ethernet adapter cards.
D-Link wireless products are based on industry standards to provide easy-to-use and
compatible high-speed wireless connectivity within your home, business or public access
wireless networks. D-Link wireless products will allow you access to the data you want,
when and where you want it. You will be able to enjoy the freedom that wireless networking
brings.
A wireless local area network (WLAN) is a computer network that transmits and receives
data with radio signals instead of wires. WLANs are used increasingly in both home and
office environments, and public areas such as airports, coffee shops and universities.
Innovative ways to utilize WLAN technology are helping people to work and communicate
more efficiently. Increased mobility and the absence of cabling and other fixed
infrastructure have proven to be beneficial to many users.
People use WLAN technology for many different purposes:
Mobility - Productivity increases when people have access to data in any location
within the operating range of the WLAN. Management decisions based on real-time
information can significantly improve worker efficiency.
Low Implementation Costs - WLANs are easy to set up, manage, change and
relocate. Networks that frequently change can benefit from WLANs ease of
implementation. WLANs can operate in locations where installation of wiring may be
impractical.
Installation and Network Expansion - Installing a WLAN system can be fast and
easy and can eliminate the need to pull cable through walls and ceilings. Wireless
technology allows the network to go where wires cannot go - even outside the home or
office.
Inexpensive Solution - Wireless network devices are as competitively priced as
conventional Ethernet network devices.
Scalability - WLANs can be configured in a variety of ways to meet the needs of
specific applications and installations. Configurations are easily changed and range
from Peer-to-Peer networks suitable for a small number of users to larger Infrastructure
networks to accommodate hundreds or thousands of users, depending on the number
of wireless devices deployed.
6
D-Link AirPlusTM G DI-624
Wireless Router
Wireless Basics (continued)
Standards-Based Technology
The DWL-G510 Wireless PCI Adapter utilizes the 802.11b and the 802.11g standards.
The IEEE 802.11g standard is an extension of the 802.11b standard. It increases the
data rate up to 54 Mbps within the 2.4GHz band, utilizing OFDM technology.
This means that in most environments, within the specified range of this device, you will
be able to transfer large files quickly or even watch a movie in MPEG format over your
network without noticeable delays. This technology works by transmitting high-speed
digital data over a radio wave utilizing OFDM (Orthogonal Frequency Division Multiplexing)
technology. OFDM works by splitting the radio signal into multiple smaller sub-signals
that are then transmitted simultaneously at different frequencies to the receiver. OFDM
reduces the amount of crosstalk (interference) in signal transmissions. The D-Link DWL-
G510 will automatically sense the best possible connection speed to ensure the greatest
speed and range possible.
The DWL-G510 is backwards compatible with 802.11b devices. This means that if you
have an existing 802.11b network, the devices in that network will be compatible with
802.11g devices at speeds up to 11Mbps in the 2.4GHz range.
D-Link AirPlusTM G DWL-G520
Wireless PCI Adapters used with desktop computers
D-Link AirPlusTM G DWL-2000AP
Enhanced 2.4GHz Wireless Access Point
The DWL-G630 is also interoperable with other 802.11g and 802.11b standards-
compliant devices.
The DWL-G510 is compatible with the following wireless products:
D-Link AirPlusTM G DWL-G650
Wireless Cardbus Adapters used with laptop computers
7
Wireless Basics (continued)
Installation Considerations
The D-Link AirPlus G DWL-G510 lets you access your network, using a wireless
connection, from virtually anywhere within its operating range. Keep in mind, however,
that the number, thickness and location of walls, ceilings, or other objects that the
wireless signals must pass through, may limit the range. Typical ranges vary depending
on the types of materials and background RF (radio frequency) noise in your home or
business. The key to maximizing wireless range is to follow these basic guidelines:
TM
Keep your product away (at least 3-6 feet or 1-2 meters) from electrical devices
or appliances that generate RF noise.
4
Keep the number of walls and ceilings between the DWL-G510 and other network
devices to a minimum - each wall or ceiling can reduce your DWL-G510’s range
from 3-90 feet (1-30 meters.) Position your devices so that the number of walls
or ceilings is minimized.
1
Be aware of the direct line between network devices. A wall that is 1.5 feet thick
(.5 meters), at a 45-degree angle appears to be almost 3 feet (1 meter) thick. At
a 2-degree angle it looks over 42 feet (14 meters) thick! Position devices so that
the signal will travel straight through a wall or ceiling (instead of at an angle) for
better reception.
2
Building materials can impede the wireless signal - a solid metal door or aluminum
studs may have a negative effect on range. Try to position wireless devices and
computers with wireless adapters so that the signal passes through drywall or
open doorways and not other materials.
3
8
Getting Started
On the following pages we will show you an example of an Infrastructure Network and
an Ad-Hoc Network.
An Infrastructure network contains an access point or a wireless router. The
Infrastructure Network example shown on the following page contains the following
D-Link network devices (your existing network may be comprised of other devices):
A wireless router - D-Link AirPlus Xtreme G DI-624
A laptop computer with a wireless adapter -
D-Link AirPlus G DWL-G630
A desktop computer with a wireless adapter -
D-Link AirPlus G DWL-G510
A cable modem - D-Link DCM-201
There are basically two modes of networking:
Ad-Hoc – directly connecting to another computer, for Peer-to-Peer
communication, using wireless network adapters on each computer,
such as two or more DWL-G510 Wireless PCI Adapters.
Infrastructure – using an access point, or wireless router, such as
the DI-624.
TM
TM
TM
9
Getting Started (continued)

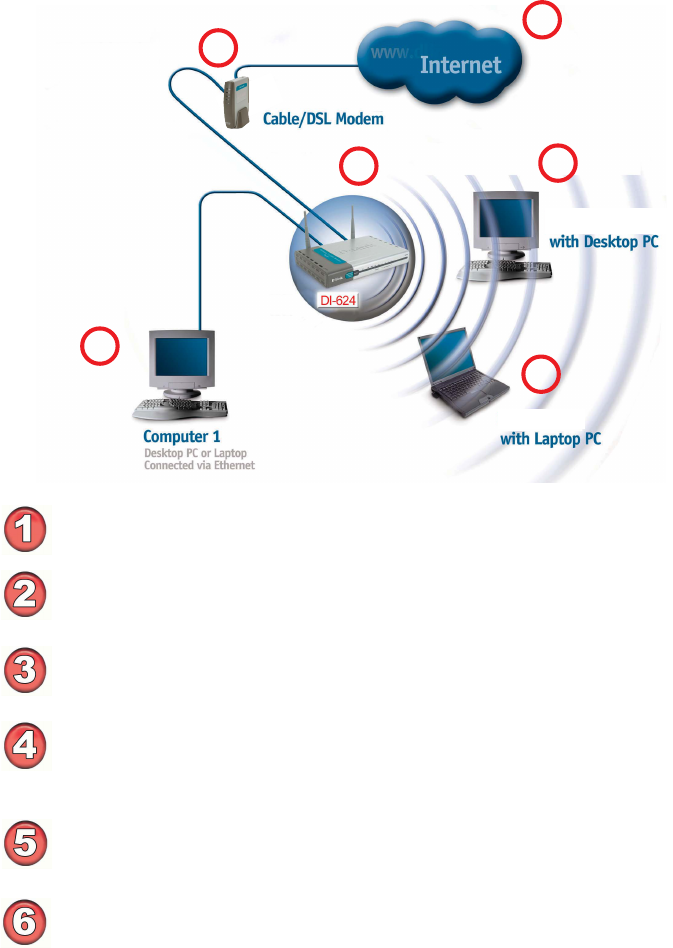

Setting up a Wireless Infrastructure Network
For a typical wireless
setup at home (as shown
above), please do the
following:
You will need broadband Internet access (a Cable or DSL-subscriber line into
your home or office).
Consult with your Cable or DSL provider for proper installation of the modem.
Connect the Cable or DSL modem to your broadband router.
(See the Quick Installation Guide included with your router).
Install the D-Link AirPlusTM G DWL-G510 Wireless PCI Adapter into an avail-
able PCI slot on your desktop computer.
(See the Quick Installation Guide included with the network adapter).
Install the D-Link DWL-G630 Wireless Cardbus Adapter into a laptop computer.
(See the Quick Installation Guide included with the DWL-G630).
If you wish, you may connect a computer that is equipped with an Ethernet net-
work adapter (such as a DFE-530TX+) to the router also.
11
11
1
22
22
2
33
33
344
44
4
55
55
5
66
66
6
DWL-G630
DWL-G510
10
Getting Started (continued)

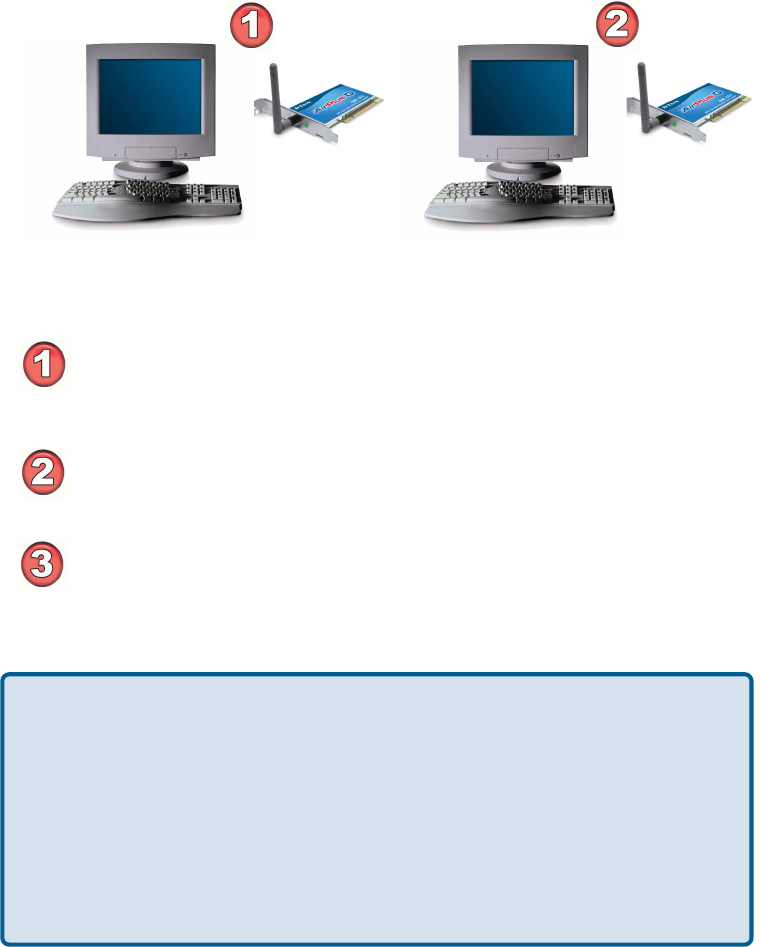

Setting up a Wireless Ad-Hoc Network
Install the D-Link DWL-G510 Wireless PCI Adapter into one desktop
computer. (See the Quick Installation Guide included with the product for
installation instructions.)
Install another DWL-G510 into a desktop computer.
(See the Quick Installation Guide included with the product.)
Set the wireless configuration for the adapters to Ad-Hoc mode, set the
adapters to the same channel, and assign an IP address to each computer
on the Ad-Hoc network. (See the box below).
When assigning IP addresses to the computers on the network, please remember
that the IP address for each computer must be in the same IP address range
as all the computers in the network, and the subnet mask must be exactly the
same for all the computers in the network.
For example: If the first computer is assigned an IP address of 192.168.0.2 with a
subnet mask of 255.255.255.0, then the second computer can be assigned an IP
address of 192.168.0.3 with a subnet mask of 255.255.255.0, etc.
IMPORTANT: If computers or other devices are assigned the same IP address,
one or more of the devices may not be visible on the network.
IP Address
DWL-G510
Wireless PCI Adapter with a
desktop computer
DWL-G510
Wireless PCI Adapter with a
desktop computer
11

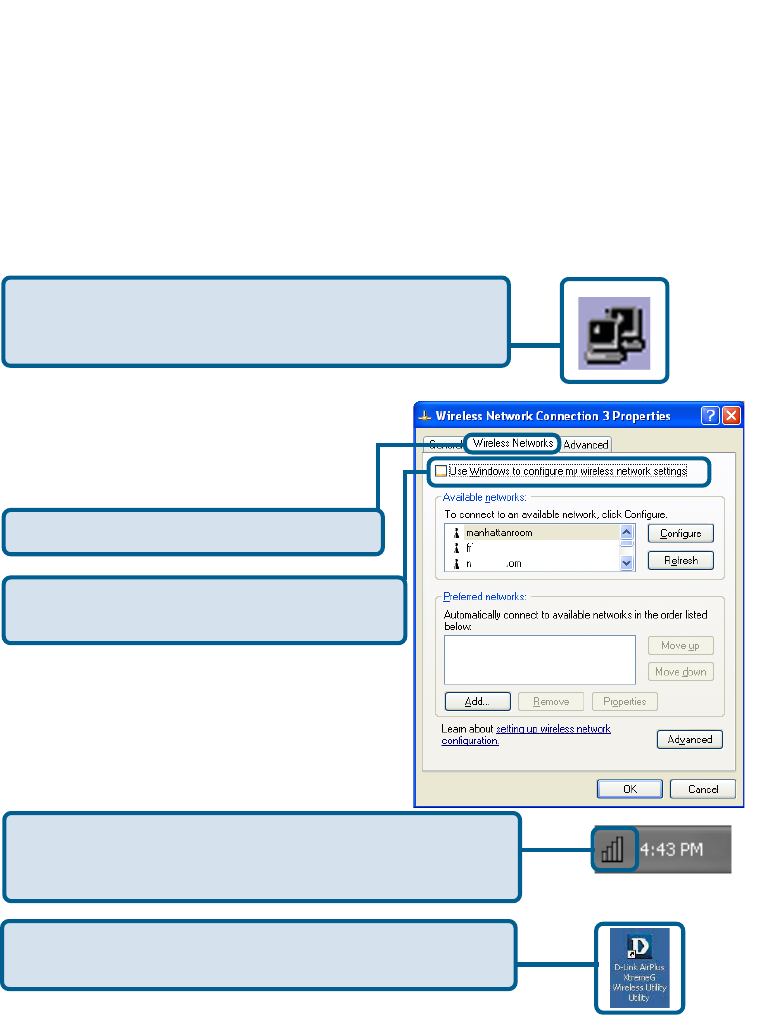

Select the Wireless Networks tab.
Uncheck the box in the properties window
that enables windows configuration.

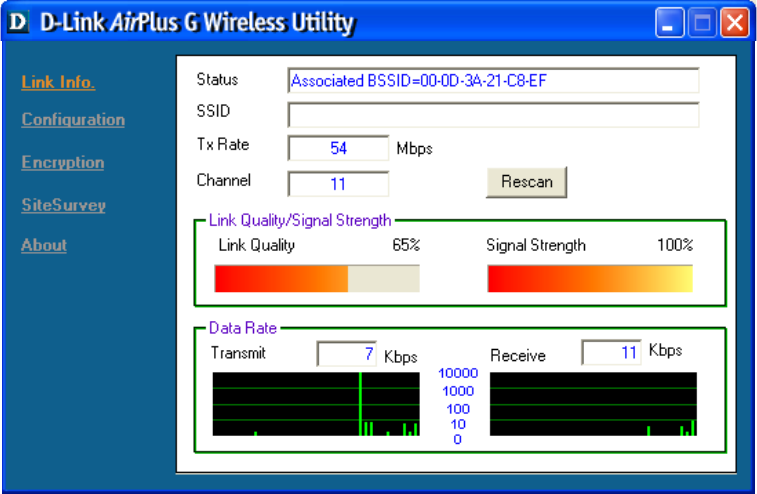

D-Link AirPlusTM G DWL-G510 uses the Configuration Utility as the management
software. The utility provides the user an easy interface to change any settings related
to the wireless adapter. After you have completed the installation of the DWL-G510
(refer to the Quick Installation Guide that came with your purchase) whenever you
start the computer, the Configuration Utility starts automatically and the system tray
icon is loaded in the toolbar (see illustration below*.) Clicking on the utility icon will start
the Configuration Utility. Another way to start the Configuration Utility is to click on
Start>Programs>D-Link AirPlus G >D-Link AirPlus G Utility.
If you are using Windows XP, you can use either the Zero Configuration Utility or the
D-Link Configuration Utility.
If the icon does not display in the taskbar, then click on
this icon on your desktop to open.
To use the D-Link Configuration Utility with XP, right-click
on the wireless network icon in the taskbar in the lower
right-hand corner of your computer screen.
In the window that appears, select View
Available Wireless Networks and click
the Advanced button. The screen at right
will appear.
After you have done this, you can then use the D-Link
Configuration Utility with XP by clicking on the D-Link
Configuration Utility icon. *Configuration Utility icon
in the system tray
TM
Using the Configuration Utility
TM
12
Status: Displays the MAC address of the access point that is associated with the DWL-
G510.
SSID: The Service Set Identifier is the name assigned to the wireless network. The
factory SSID setting is set to default.
Tx Rate: Tx Rate settings are automatically determined for an optimal speed up to a
maximum of 54Mbps.
Channel: The channel selection is automatically determined by the DWL-G510.
Link Quality / Signal Strength: Displays the link quality for the DWL-G510 wireless
connection to the access point. The signal strength represents the wireless signal
between the access point and the DWL-G510. The percentage coincides with the
graphical bar.
Data Rate: Displays the statistics of data transmitted and received.
Configuration Utility (continued)
Link Info
Rescan: Rescans for the strongest signal in your environment and associates with that
access point or router.
default
13
SSID: Service Set Identifier is a name that identifies a wireless network. Access points
and wireless devices attempting to connect to a specific WLAN (Wireless Local Area
Network) must use the same SSID.The default setting is default.
Wireless Mode: Click on the pull-down menu; select from the following options:
Infrastructure - Connecting to the WLAN using an access point. (This is the
default setting.)
Ad-Hoc - Wireless mode used when connecting directly to a computer equipped
with a wireless adapter in a Peer-to-Peer environment.
Channel: The channel selection is automatically determined by the DWL-G510. In Ad-
Hoc mode, the channel must be manually set to the same channel for each wireless
adapter.
Tx Rate: Tx rates are automatically determined for an optimal speed up to 54Mbps.
Continuous Access Mode - This default setting consumes the most power.
Maximum Power Save - This setting consumes the least power.
Power Save - This setting consumes a moderate amount of power.
Configuration Utility (continued)
D-Link AirPlus DWL-650+ 2.4GHz Wireless Cardbus Adapter
Configuration
Click Apply to save the changes.
Power Mode: Select from three modes:
Preamble: Select Long or Short preamble. The Preamble defines the length of the CRC
block (Cyclic Redundancy Check is a common technique for detecting data transmission
errors) for communication between the access point and the wireless network adapters.
High network traffic areas should use the shorter preamble type.
14
Configuration Utility (continued)
D-Link AirPlus DWL-650+ 2.4GHz Wireless Cardbus Adapter

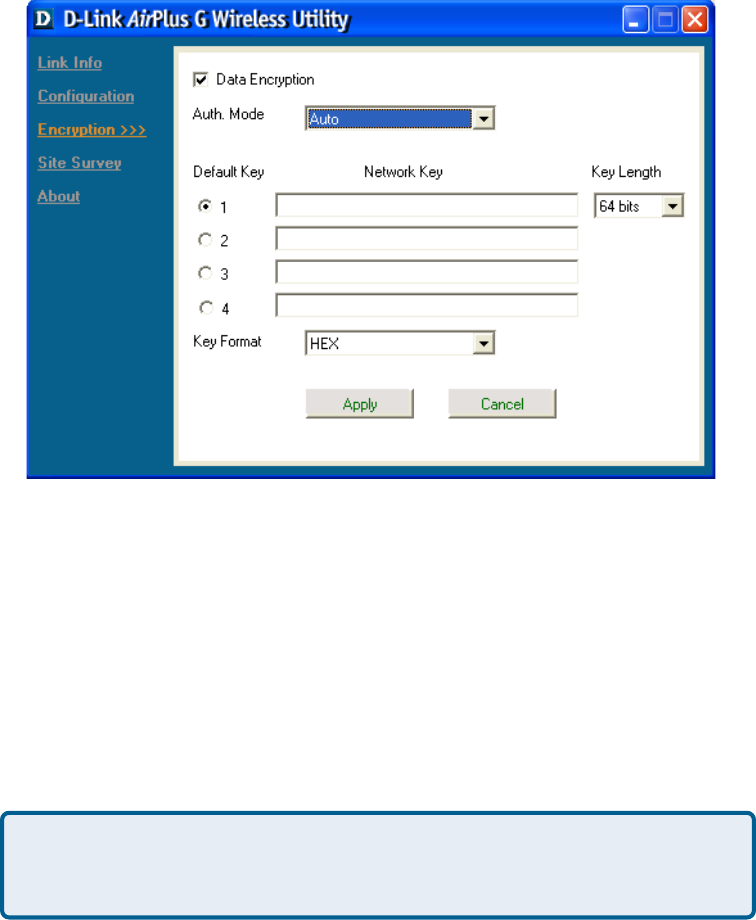

Encryption
Data Encryption – Enable WEP encryption by clicking on the box.
Auth. mode – Choose one of the following Authorization modes:
Open Authentication –Communicates the key across the network.
Shared Authentication –Allows communication only with other devices with
identical WEP settings.
Auto – Will automatically adjust to the Authentication mode of the wireless
client.
Default Key –Select one of 4 keys to be the default key.
Network Key – Enter a key in either ASCII or hexadecimal format.
Key Format –ASCII or hexadecimal.
Key length –Select the key length, either 64- or 128-bits.
Click Apply to save the changes.
Hexadecimal digits consist of the numbers 0-9 and the letters A-F
ASCII (American Standard Code for Information Interchange) is a code for
representing English letters as numbers from 0-127
15

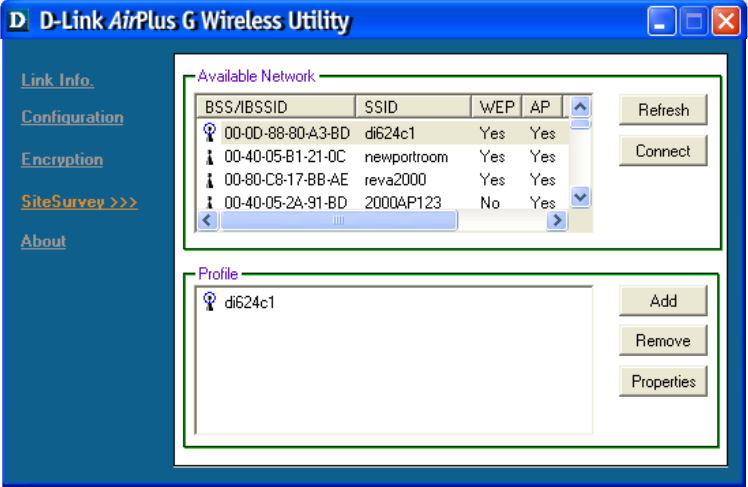

Available Networks
The top section of the window displays the Available Networks. Scroll up and down
the list and highlight the network to which you wish to connect. Click on the Connect
button.
Profile
In the lower half of the screen, you can manage the profiles that you have created for the
wireless network at home, at the office and in public places. Scroll up and down and
highlight the profile that you wish to configure. You can Add or Remove a profile, or
configure the Properties of the profile in order to connect with an available network.
Add, Connect and Properties
Click on Add, Connect or Properties and the screen on the next page will appear.
Configuration Utility (continued)
Site Survey
16
Configuration Utility (continued)

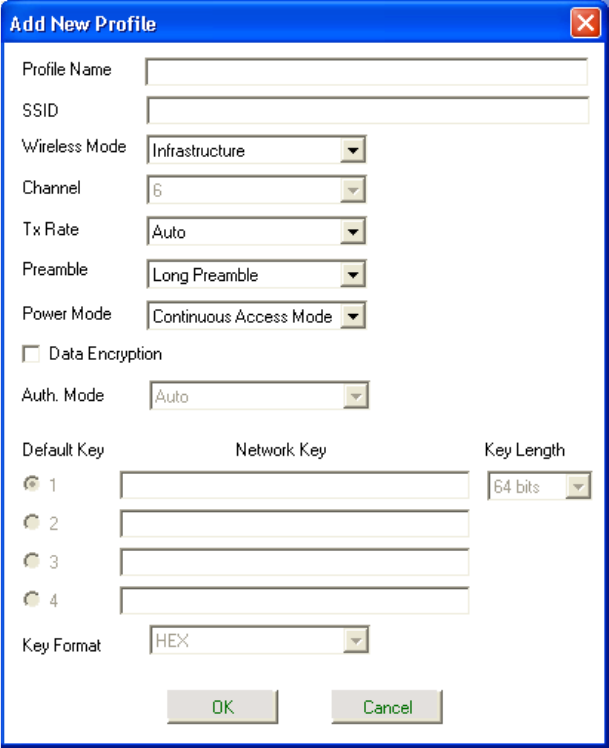

Site Survey > Add, Connect or Properties
In this window you can configure all the properties of a profile in order to connect with a
network of your choice.
After you have entered your changes in this window, click OK to save the changes.
17
The About screen gives you information about the Firmware and Utility Versions of
the DWL-G510.
Configuration Utility (continued)
About
18
In this section you will learn how to establish a network at home or work, using Microsoft
Windows XP.
Note: Please refer to websites such as http://www.homenethelp.com
and http://www.microsoft.com/windows2000 for information about networking
computers using Windows 2000/Me /98SE.
Go to Start>Control Panel>Network Connections.
Select Set up a home or small office network.
Networking Basics

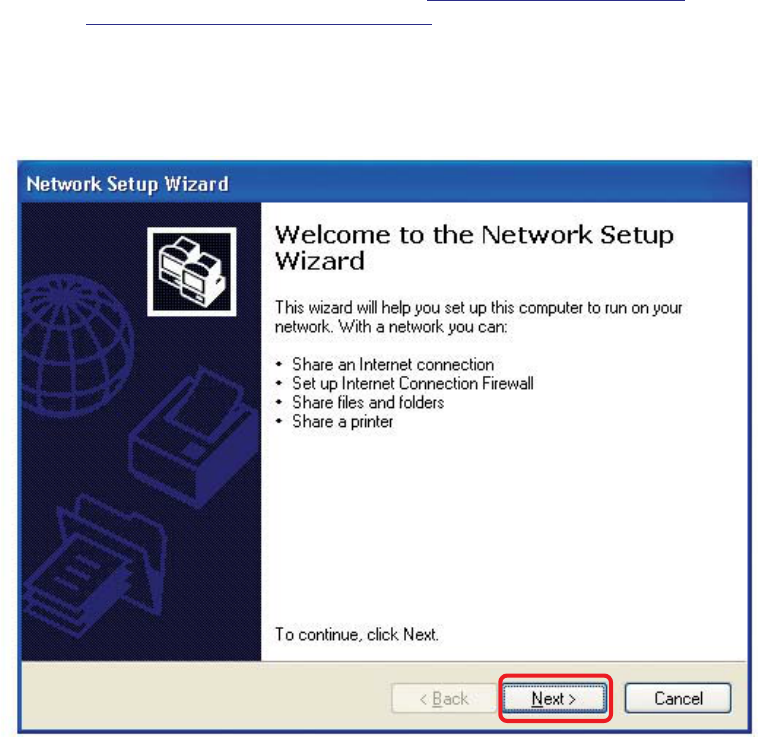

When this screen appears, click Next.
Using the Network Setup Wizard in Windows XP
19

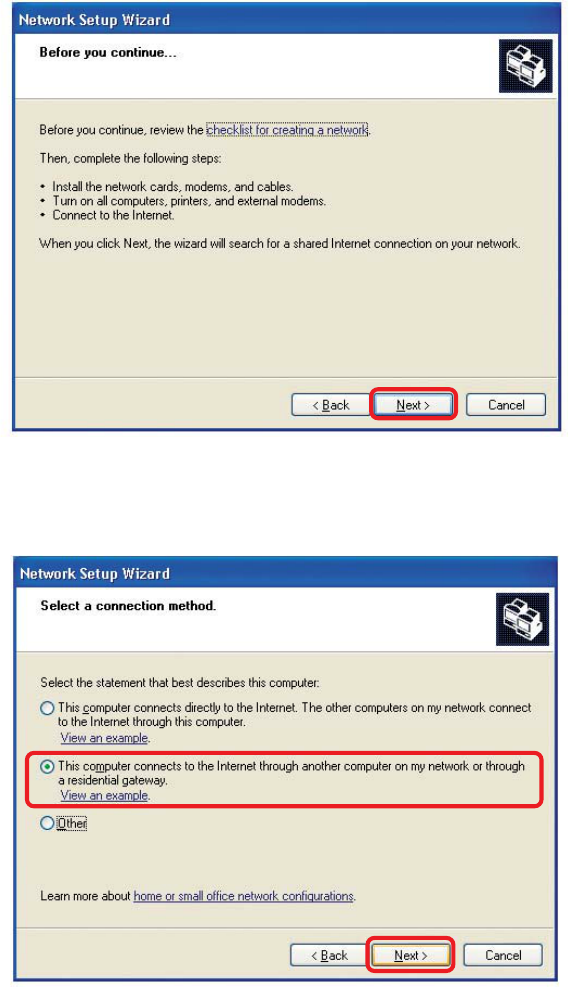

Please follow all the instructions in this window:
Networking Basics (continued)
Click Next.
In the following window, select the best description of your computer. If your computer
connects to the Internet through a router, select the second option as shown.
Click Next.
20

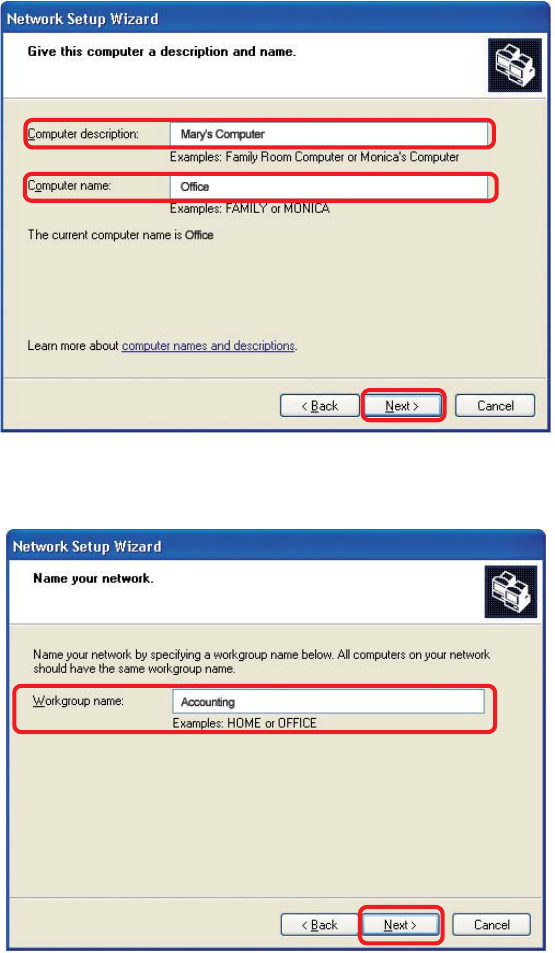

Enter a Computer description and a Computer name (optional.)
Networking Basics (continued)
Click Next.
Enter a Workgroup name. All computers on your network should have the same
Workgroup name.
Click Next.
21

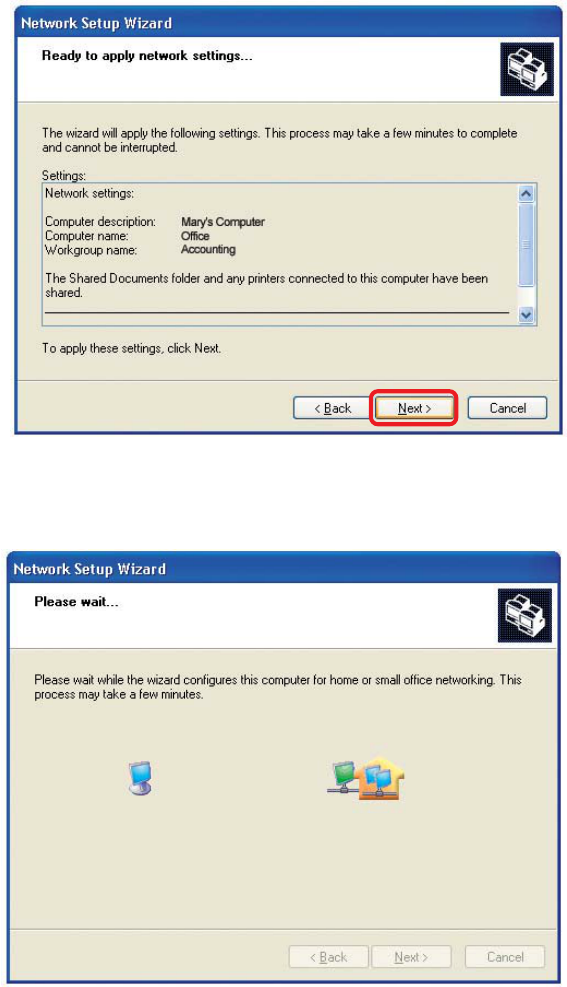

Please wait while the Network Setup Wizard applies the changes.
Networking Basics (continued)
When the changes are complete, click Next.
Please wait while the Network Setup Wizard configures the computer.
This may take a few minutes.
22
Networking Basics (continued)

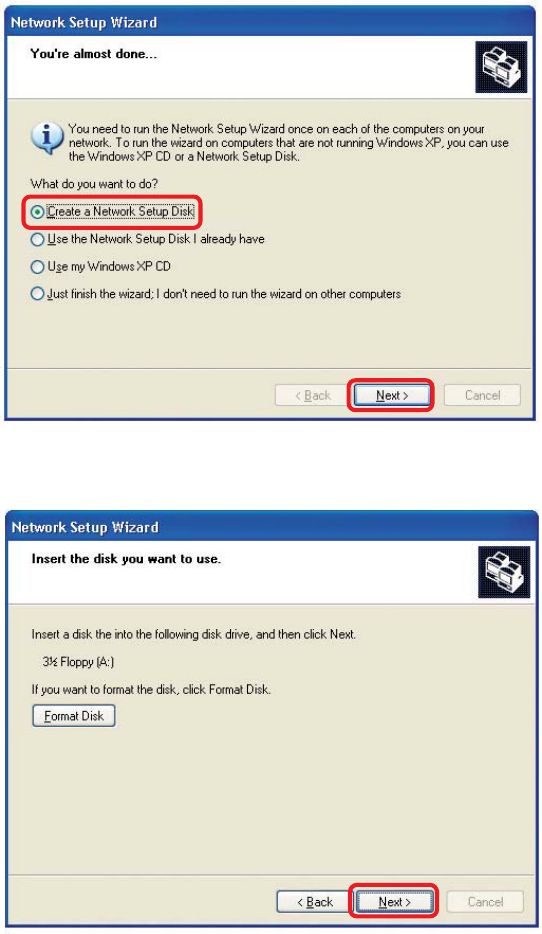

In the window below, select the option that fits your needs. In this example, Create a
Network Setup Disk has been selected. You will run this disk on each of the
computers on your network. Click Next.
Insert a disk into the Floppy Disk Drive, in this case drive A.
Click Next.
23
Networking Basics (continued)

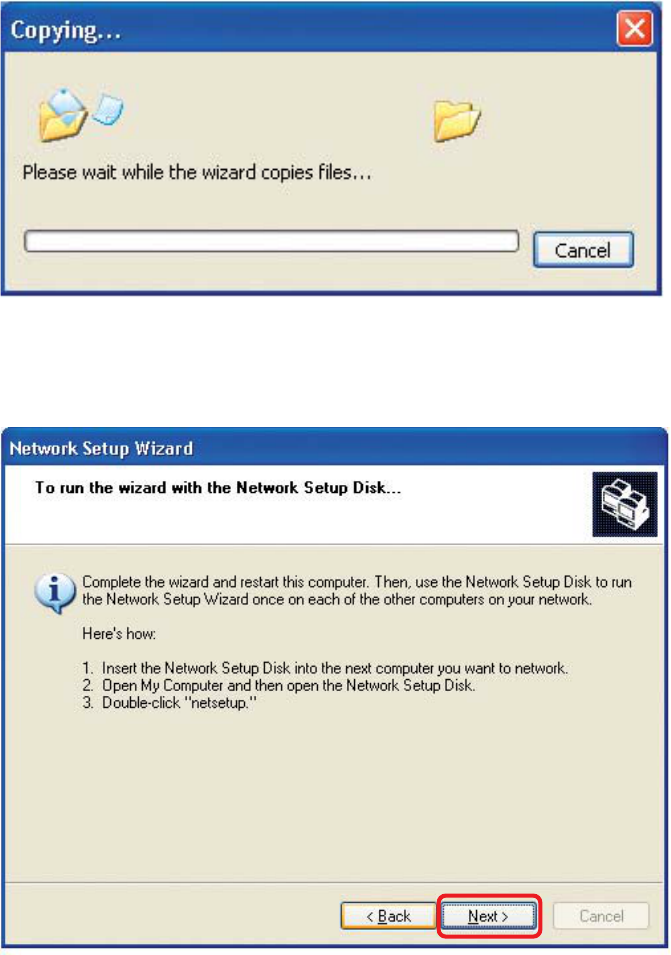

Please read the information under Here’s how in the screen below. After you complete
the Network Setup Wizard you will use the Network Setup Disk to run the Network
Setup Wizard once on each of the computers on your network. To continue, click
Next.
24
Networking Basics (continued)
Please read the information on this screen, then click Finish to complete the Network
Setup Wizard.
The new settings will take effect when you restart the computer. Click Yes to restart the
computer.
You have completed configuring this computer. Next, you will need to run the Network
Setup Disk on all the other computers on your network. After running the Network
Setup Disk on all your computers, your new wireless network will be ready to use.
25
Networking Basics (continued)
Naming your Computer

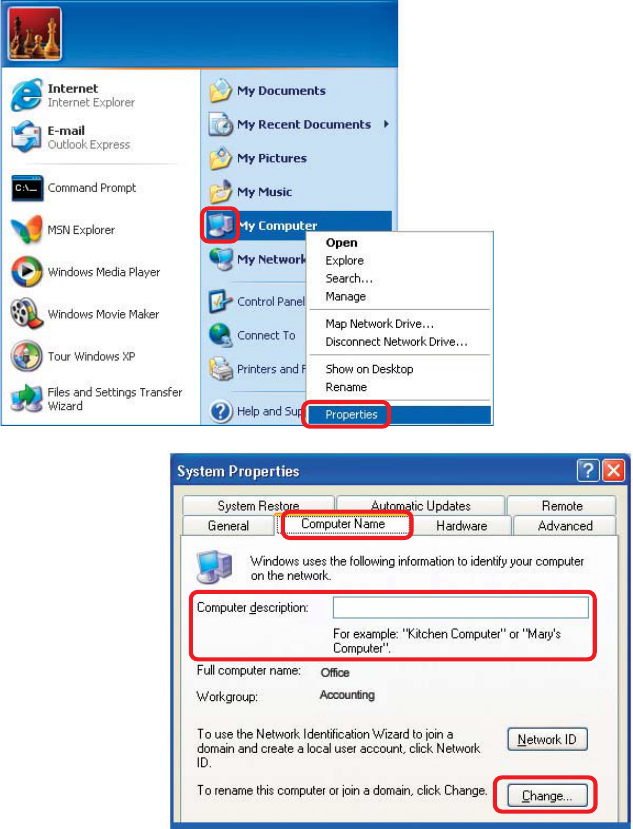

To name your computer in Windows XP, please follow these directions:
Click Start (in the lower left corner of the screen).
Right-click on My Computer.
Select Properties.
Select the Computer
Name Tab in the System
Properties window.
You may enter a Com-
puter Description if you
wish; this field is optional.
To rename the computer
and join a domain, click
Change.
26
Networking Basics (continued)
Naming your Computer
Checking the IP Address in Windows XP
The wireless adapter-equipped computers in your network must be in the same IP ad-
dress range (see Getting Started in this manual for a definition of IP address range.) To
check on the IP address of the adapter, please do the following:
Right-click on the
Local Area
Connection icon
in the task bar.
Click on Status.
Click OK.
All computers on your network
must have the same
Workgroup name.
Select Workgroup and enter
the name of the Workgroup.
In this window, enter the
Computer name.
27
Networking Basics (continued)
Checking the IP Address in Windows XP

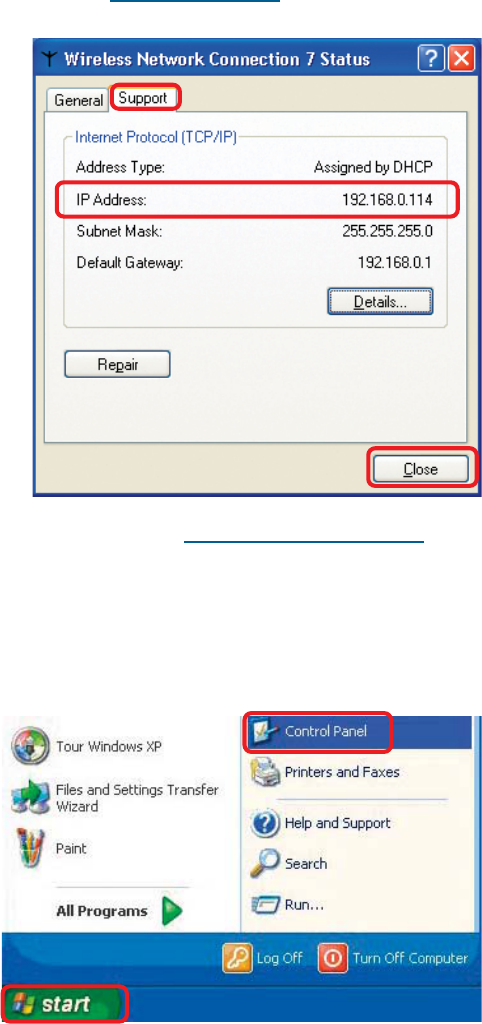

This window will appear.
Click the
Support tab.
Click Close.
Assigning a Static IP Address in Windows XP/2000
Note: DHCP-capable routers will automatically assign IP addresses to the computers on
the network, using DHCP (Dynamic Host Configuration Protocol) technology. If you are
using a DHCP-capable gateway/router you will not need to assign static IP addresses.
If you are not using a DHCP capable gateway/router, or you need to assign a static IP
address, please follow these instructions:
Go to Start.

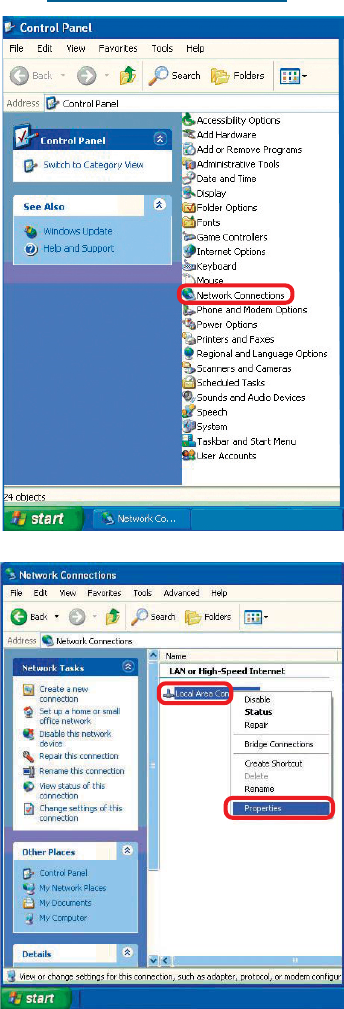

Double-click on
Control Panel.
28
Networking Basics (continued)
Assigning a Static IP Address in Windows XP/2000
Double-click on
Network
Connections.
Double-click on
Properties.
Right-click on Local Area
Connections.
29
Networking Basics
(continued)
You have completed the assignment of a static IP address. (You do not need to assign
a static IP address if you have a DHCP-capable gateway/router.)
Click on Internet Protocol
(TCP/IP)
Click Properties.
IP Address:
e.g., 192.168.0.2
Subnet Mask:
255.255.255.0
Default Gateway:
Enter the LAN IP address of
the wireless router. (D-Link
wireless routers have a LAN IP
address of 192.168.0.1).
In the window below, select Use the following IP address. Input your IP
address and subnet mask. (The IP addresses on your network must be
within the same range. For example, if one computer has an IP address of
192.168.0.2, the other computers should have IP addresses that are
sequential, like 192.168.0.3 and 192.168.0.4. The subnet mask must be
the same for all the computers on the network.)
Click OK.
Select Use the following
DNS server address. Enter
the LAN IP address of the
wireless router. (D-Link
wireless routers have a LAN
IP address of 192.168.0.1).
D-Link AirPlus XtremeG DWL-650 Wireless Cardbus Adapter
Assigning a Static IP
Address
in Windows XP/2000
30
Networking Basics (continued)
Checking the Wireless Connection by Pinging in
Windows XP/2000
Checking the Wireless Connection by Pinging in
Windows Me/98SE
Go to Start > Run >
type cmd. A window
similar to this one
will appear. Type
ping
xxx.xxx.xxx.xxx,
where xxx is the IP
address of the
wireless router or
access point. A good
wireless connection
will show four replies
from the wireless
router or access
point, as shown.
Go to Start > Run
> type command.
A window similar to
this will appear.
Type ping
xxx.xxx.xxx.xxx
where xxx is the IP
address of the
wireless router or
access point. A
good wireless
connection will
show four replies
from the wireless
router or access
point, as shown.
31
1. How do I check that the drivers for the DWL-G510 are
installed properly?
Click Device
Manager.
Select the
Hardware
Tab.
Troubleshooting
This chapter provides solutions to problems that can occur during the installation and
operation of the DWL-G510. Read the following descriptions if you are having problems.
(The examples below are illustrated in Windows XP. If you do not use Windows XP, the
screens on your computer will still look similar to the following examples.)

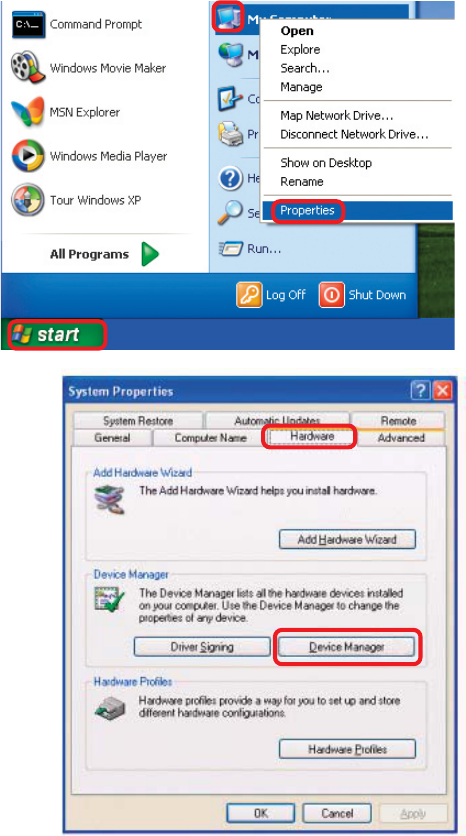

Go to Start > My
Computer >
Properties.
32
Troubleshooting (continued)
Double-click
on Network
Adapters.
Right-click on D-Link
DWL-G510 Wireless PCI
Adapter.
Select Properties
to check that the
drivers are in-
stalled properly.
Click OK.
D-Link AirPro DWL-AB650 Wireless Cardbus Adapter
Look under Device
status to check that
the device is working
properly.
D-Link DWL-G510 Wireless PCI Adapter
D-Link AirPlus G DWL-G510
D-Link AirPlus G DWL-G510
802.11g/2.4GHz Wireless PCI Adapter
TM
33
Troubleshooting (continued)
Make sure that the DWL-G510 Wireless PCI Adapter is properly seated in
the computer’s PCI slot.
If Windows does not detect the hardware upon insertion of the adapter,
make sure to completely remove drivers that were previously loaded. To
remove the drivers, do the following:
5. What should I do when the computer does not
recognize the DWL-G510 Wireless PCI Adapter?
4. I forgot my Encryption key. What should I do?
Reset the access point to its factory default settings and restore the DWL-
G510 Wireless PCI Adapter to the factory default settings.
3. Why aren’t the Power and Link lights on?
Check to see if the DWL-G510 Wireless PCI Adapter is firmly inserted
into the PCI slot of your laptop computer.
2. Why can’t I connect to the access point or the
wireless router?
Make sure that the SSID on the DWL-G510 Wireless PCI Adapter is
exactly the same as the SSID on the access point or wireless router.
Move the DWL-G510 and the access point or wireless router into the
same room and then test the wireless connection.
Disable all security settings. (WEP, MAC address control, AES).
Make sure that the access point/router is not set to a different frequency.
Turn off your access point and the computer with the DWL-G510. Turn on
the access point, and then turn on the computer with the DWL-G510.
Refresh the DWL-G510 Utility.
34
Check that the LED indicators for the broadband modem are indicating
normal activity. If not, there may be a problem with the broadband connection.
Check that the LED indicators on the wireless router are functioning properly.
If not, check that the AC power and Ethernet cables are firmly connected.
Check that the IP address, subnet mask, gateway, and DNS settings are
correctly entered for the network.
In Infrastructure mode, make sure the same Service Set Identifier (SSID)
is specified on the settings for the wireless clients and access points. The
SSID factory default setting for most D-Link products is default. (Double-
click on the WLAN icon in the taskbar. The Link Info screen will display
the SSID setting.)
In Ad-Hoc mode, both wireless clients will need to have the same SSID.
Please note that it might be necessary to set up one client to establish a
BSS (Basic Service Set) and wait briefly before setting up other clients.
This prevents several clients from trying to establish a BSS at the same
time, which can result in multiple singular BSSs being established, rather
than a single BSS with multiple clients associated to it.
Troubleshooting (continued)
A. Under Tools> select Folder Options…> select View > under
Hidden files and folders > select Show hidden files and
folders.
B. Uncheck Hide extension for known file types > click on
Apply.
C. Search for previously loaded driver files. Remove these files
from the INF and SYSTEM32 (DRIVERS) folders in the Windows
directory. Note: Windows XP and Windows 2000 will rename
.inf files that have not received WHQL certification into oem.inf
files (e.g., oem1.inf.)
6. What should I do when the computer with the
DWL-G510 installed is unable to connect to the
wireless network and/or the Internet?
35
Check that the Network Connection for the wireless client is configured
properly. Select AP (Infrastructure) when connecting to an access point
and select Ad-Hoc mode when connecting without an access point. Double-
click on the WLAN icon in the taskbar > click on Configuration to change
the settings for the wireless adapter.
If Security is enabled, make sure that the correct encryption keys are
entered on both the DWL-G510 and the access point. Double-click on the
WLAN icon in the taskbar > click Encryption. Check to see that the key
selected is set to the same key as other devices on the network.
7. How can I troubleshoot distance issues using the
DWL-G510?
Move the DWL-G510 and the access point or wireless router into the
same room and then test the wireless connection.
Change the channel of the access point.
Move devices within the line of sight.
Troubleshooting (continued)
36
Technical Specifications
IEEE 802.11b
IEEE 802.11g
IEEE 802.11
Standards
Temperature
Operating: 0ºC to 55ºC (32ºF to 131ºF)
5%-95% maximum, non-condensing
Humidity:
Warranty:
3 years
0.12 lb. (55 grams)
Weight:
Antenna Type:
Built-in diversity patch antenna, 2dBi gain (max.)
PCI 2.2
PCI Standard:
Security:
Physical Dimensions:
L = 4.64 inches (114.3mm)
W = 2.13 inches (54mm)
H = 0.34 inches (8.7mm)
64-,128-bit WEP Encryption
Storage: -20ºC to 65ºC (-4ºF to 149ºF)
37
Technical Specifications (continued)
Power:
3.3 Volt ± 5%
Data Modulation Type:
DBPSK, DQPSK, CCK and OFDM
(BPSK/QPSK/16-QAM/64-QAM)
Channels:
1-11 channels (North America)
Power Consumption:
802.11g: TX 550mA, RX 330mA, Standby 300mA
802.11b: TX 580mA, RX 350mA, Standby 300mA
Regulation Compliant:
Wireless: Wi-Fi
US: FCC part 15 class B, Sec. 15.247, 15.109
Sensitivity for 802.11b:
11Mbps (CCK): -84dBm
5.5Mbps (CCK): -86dBm
2Mbps (DQPSK): -88dBm
1Mbps (DBPSK): -89dBm
typically @PER <8% packet size 1024 and @25°
Sensitivity for 802.11g:
54Mbps (OFDM): -69dbm
48Mbps (OFDM): -70dbm
36Mbps (OFDM): -74dbm
24Mbps (OFDM): -77dbm
12Mbps (OFDM): -83dbm
6Mbps (OFDM): -85dbm
typically @PER <8% packet size 1024 and @25°
Configuration:
Plug & Play setup and installation
Network:
Auto-switch to use 802.11g or 802.11b mode
38
Technical Specifications (continued)
*Environmental factors may adversely affect range.
Modulation Technology:
Orthogonal Frequency Division Multiplexing (OFDM)
15dBm ± 2dB
Transmitter Output Power:
Data Rates:
With Automatic Fallback
54Mbps; 48Mbps; 36Mbps; 24Mbps; 18Mbps; 12Mbps; 11Mbps;
9Mbps; 6Mbps; 5.5Mbps; 2Mbps; 1Mbps
Range:*
Indoors: Up to 328 feet (100 meters)
Frequency Range:
2.4GHz to 2.462GHz
39
Technical Support
You can find software updates and user documentation on the D-Link website.
D-Link provides free technical support for customers within the United States and
within Canada for the duration of the warranty period on this product.
U.S. and Canadian customers can contact D-Link technical support through our
website, or by phone.
Tech Support for customers within the United States:
D-Link Technical Support over the Telephone:
(877) 453-5465
24 hours a day, seven days a week.
D-Link Technical Support over the Internet:
http://support.dlink.com
email:support@dlink.com
Tech Support for customers within Canada:
D-Link Technical Support over the Telephone:
(800) 361-5265
Monday to Friday 8:30am to 9:00pm EST
D-Link Technical Support over the Internet:
http://support.dlink.ca
email:support@dlink.ca
40
Subject to the terms and conditions set forth herein, D-Link Systems, Inc. (“D-Link”) provides this Limited
warranty for its product only to the person or entity that originally purchased the product from:
•D-Link or its authorized reseller or distributor and
•Products purchased and delivered within the fifty states of the United States, the District of
Columbia, U.S. Possessions or Protectorates, U.S. Military Installations, addresses with an
APO or FPO.
Limited Warranty: D-Link warrants that the hardware portion of the D-Link products described
below will be free from material defects in workmanship and materials from the date of original retail
purchase of the product, for the period set forth below applicable to the product type (“Warranty
Period”), except as otherwise stated herein.
3-Year Limited Warranty for the Product(s) is defined as follows:
•Hardware (excluding power supplies and fans) Three (3) Years
•Power Supplies and Fans One (1) Year
•Spare parts and spare kits Ninety (90) days
D-Link’s sole obligation shall be to repair or replace the defective Hardware during the Warranty Period
at no charge to the original owner or to refund at D-Link’s sole discretion. Such repair or replacement will
be rendered by D-Link at an Authorized D-Link Service Office. The replacement Hardware need not be
new or have an identical make, model or part. D-Link may in its sole discretion replace the defective
Hardware (or any part thereof) with any reconditioned product that D-Link reasonably determines is
substantially equivalent (or superior) in all material respects to the defective Hardware. Repaired or
replacement Hardware will be warranted for the remainder of the original Warranty Period from the date
of original retail purchase. If a material defect is incapable of correction, or if D-Link determines in its sole
discretion that it is not practical to repair or replace the defective Hardware, the price paid by the original
purchaser for the defective Hardware will be refunded by D-Link upon return to D-Link of the defective
Hardware. All Hardware (or part thereof) that is replaced by D-Link, or for which the purchase price is
refunded, shall become the property of D-Link upon replacement or refund.
Limited Software Warranty: D-Link warrants that the software portion of the product (“Software”)
will substantially conform to D-Link’s then current functional specifications for the Software, as set forth
in the applicable documentation, from the date of original retail purchase of the Software for a period of
ninety (90) days (“Warranty Period”), provided that the Software is properly installed on approved
hardware and operated as contemplated in its documentation. D-Link further warrants that, during the
Warranty Period, the magnetic media on which D-Link delivers the Software will be free of physical
defects. D-Link’s sole obligation shall be to replace the non-conforming Software (or defective media)
with software that substantially conforms to D-Link’s functional specifications for the Software or to
refund at D-Link’s sole discretion. Except as otherwise agreed by D-Link in writing, the replacement
Software is provided only to the original licensee, and is subject to the terms and conditions of the
license granted by D-Link for the Software. Software will be warranted for the remainder of the original
Warranty Period from the date or original retail purchase. If a material non-conformance is incapable of
correction, or if D-Link determines in its sole discretion that it is not practical to replace the non-
conforming Software, the price paid by the original licensee for the non-conforming Software will be
refunded by D-Link; provided that the non-conforming Software (and all copies thereof) is first returned
to D-Link. The license granted respecting any Software for which a refund is given automatically
terminates.
Non-Applicability of Warranty: The Limited Warranty provided hereunder for hardware and software
of D-Link’s products will not be applied to and does not cover any refurbished product and any product
purchased through the inventory clearance or liquidation sale or other sales in which D-Link, the sellers,
or the liquidators expressly disclaim their warranty obligation pertaining to the product and in that case,
the product is being sold “As-Is” without any warranty whatsoever including, without limitation, the
Limited Warranty as described herein, notwithstanding anything stated herein to the contrary.
Submitting A Claim: The customer shall return the product to the original purchase point based on its
return policy. In case the return policy period has expired and the product is within warranty, the
customer shall submit a claim to D-Link as outlined below:
Warranty and Registration
(USA only)
41
•The customer must submit with the product as part of the claim a written description of the
Hardware defect or Software nonconformance in sufficient detail to allow D-Link to confirm
the same.
•The original product owner must obtain a Return Material Authorization (“RMA”) number from
the Authorized D-Link Service Office and, if requested, provide written proof of purchase of
the product (such as a copy of the dated purchase invoice for the product) before the
warranty service is provided.
•After an RMA number is issued, the defective product must be packaged securely in the
original or other suitable shipping package to ensure that it will not be damaged in transit, and
the RMA number must be prominently marked on the outside of the package. Do not include any
manuals or accessories in the shipping package. D-Link will only replace the defective portion
of the Product and will not ship back any accessories.
•The customer is responsible for all in-bound shipping charges to D-Link. No Cash on Delivery
(“COD”) is allowed. Products sent COD will either be rejected by D-Link or become the
property of D-Link. Products shall be fully insured by the customer. D-Link will not be held
responsible for any packages that are lost in transit to D-Link. The repaired or replaced
packages will be shipped to the customer via UPS Ground or any common carrier selected by
D-Link, with shipping charges prepaid. Expedited shipping is available if shipping charges are
prepaid by the customer and upon request.
•Return Merchandise Ship-To Address
USA: 17595 Mt. Herrmann, Fountain Valley, CA 92708-4160
Canada: 2180 Winston Park Drive, Oakville, ON, L6H 5W1 (Visit http://www.dlink.ca for detailed
warranty information within Canada)
D-Link may reject or return any product that is not packaged and shipped in strict compliance with the
foregoing requirements, or for which an RMA number is not visible from the outside of the package. The
product owner agrees to pay D-Link’s reasonable handling and return shipping charges for any product
that is not packaged and shipped in accordance with the foregoing requirements, or that is determined
by D-Link not to be defective or non-conforming.
What Is Not Covered: This limited warranty provided by D-Link does not cover: Products, if in D-Link’s
judgment, have been subjected to abuse, accident, alteration, modification, tampering, negligence, misuse,
faulty installation, lack of reasonable care, repair or service in any way that is not contemplated in the
documentation for the product, or if the model or serial number has been altered, tampered with, defaced
or removed; Initial installation, installation and removal of the product for repair, and shipping costs;
Operational adjustments covered in the operating manual for the product, and normal maintenance;
Damage that occurs in shipment, due to act of God, failures due to power surge, and cosmetic damage;
Any hardware, software, firmware or other products or services provided by anyone other than D-
Link; Products that have been purchased from inventory clearance or liquidation sales or other sales in
which D-Link, the sellers, or the liquidators expressly disclaim their warranty obligation pertaining to the
product. Repair by anyone other than D-Link or an Authorized D-Link Service Office will void this
Warranty.
Disclaimer of Other Warranties: EXCEPT FOR THE LIMITED WARRANTY SPECIFIED HEREIN, THE
PRODUCT IS PROVIDED “AS-IS” WITHOUT ANY WARRANTY OF ANY KIND WHATSOEVER INCLUDING,
WITHOUT LIMITATION, ANY WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE
AND NON-INFRINGEMENT. IF ANY IMPLIED WARRANTY CANNOT BE DISCLAIMED IN ANY TERRITORY
WHERE A PRODUCT IS SOLD, THE DURATION OF SUCH IMPLIED WARRANTY SHALL BE LIMITED TO
NINETY (90) DAYS. EXCEPT AS EXPRESSLY COVERED UNDER THE LIMITED WARRANTY PROVIDED
HEREIN, THE ENTIRE RISK AS TO THE QUALITY, SELECTION AND PERFORMANCE OF THE PRODUCT IS
WITH THE PURCHASER OF THE PRODUCT.
Limitation of Liability: TO THE MAXIMUM EXTENT PERMITTED BY LAW, D-LINK IS NOT LIABLE
UNDER ANY CONTRACT, NEGLIGENCE, STRICT LIABILITY OR OTHER LEGAL OR EQUITABLE THEORY
FOR ANY LOSS OF USE OF THE PRODUCT, INCONVENIENCE OR DAMAGES OF ANY CHARACTER,
WHETHER DIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL (INCLUDING, BUT NOT LIMITED TO,
DAMAGES FOR LOSS OF GOODWILL, LOSS OF REVENUE OR PROFIT, WORK STOPPAGE, COMPUTER
FAILURE OR MALFUNCTION, FAILURE OF OTHER EQUIPMENT OR COMPUTER PROGRAMS TO WHICH D-
LINK’S PRODUCT IS CONNECTED WITH, LOSS OF INFORMATION OR DATA CONTAINED IN, STORED ON,
OR INTEGRATED WITH ANY PRODUCT RETURNED TO D-LINK FOR WARRANTY SERVICE) RESULTING
FROM THE USE OF THE PRODUCT, RELATING TO WARRANTY SERVICE, OR ARISING OUT OF ANY
BREACH OF THIS LIMITED WARRANTY, EVEN IF D-LINK HAS BEEN ADVISED OF THE POSSIBILITY OF
SUCH DAMAGES. THE SOLE REMEDY FOR A BREACH OF THE FOREGOING LIMITED WARRANTY IS
REPAIR, REPLACEMENT OR REFUND OF THE DEFECTIVE OR NON-CONFORMING PRODUCT. THE MAXIMUM
42
Governing Law: This Limited Warranty shall be governed by the laws of the State of California. Some
states do not allow exclusion or limitation of incidental or consequential damages, or limitations on how
long an implied warranty lasts, so the foregoing limitations and exclusions may not apply. This limited
warranty provides specific legal rights and the product owner may also have other rights which vary
from state to state.
Trademarks: D-Link is a registered trademark of D-Link Systems, Inc. Other trademarks or registered
trademarks are the property of their respective manufacturers or owners.
Copyright Statement: No part of this publication or documentation accompanying this Product may
be reproduced in any form or by any means or used to make any derivative such as translation,
transformation, or adaptation without permission from D-Link Corporation/D-Link Systems, Inc., as
stipulated by the United States Copyright Act of 1976. Contents are subject to change without prior
notice. Copyright© 2002 by D-Link Corporation/D-Link Systems, Inc. All rights reserved.
CE Mark Warning: This is a Class B product. In a domestic environment, this product may cause radio
interference, in which case the user may be required to take adequate measures.
FCC Statement: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communication. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
•Consult the dealer or an experienced radio/TV technician for help.
For detailed warranty outside the United States, please contact corresponding local
D-Link office.
Register your D-Link product online at http://support.dlink.com/register/
(12/18/2003)
FCC Caution:
(1) The devices are restricted to indoor operations within the 5.15 to 5.25GHz range. (2) For this
device to operate in the 5.15 to 5.25GHz range, the devices must use integral antennas.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
LIABILITY OF D-LINK UNDER THIS WARRANTY IS LIMITED TO THE PURCHASE PRICE OF THE PRODUCT
COVERED BY THE WARRANTY. THE FOREGOING EXPRESS WRITTEN WARRANTIES AND REMEDIES
ARE EXCLUSIVE AND ARE IN LIEU OF ANY OTHER WARRANTIES OR REMEDIES, EXPRESS, IMPLIED OR
STATUTORY.
The manufacturer is not responsible for any radio or TV interference caused by unauthorized
modifications to this equipment; such modifications could void the user’s authority to operate the
equipment.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This device has been tested for compliance with FCC RF Exposure (SAR) limits in the typical laptop
computer configuration and this device can be used in substantially similar laptop computers with side
mounted PCMCIA slots. This device cannot be used with handheld PDAs (personal digital assistants) or
other portable host devices. This device and its antenna must not be co-located or operated in conjunction
with any other antenna or transmitter.
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one of
the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by
the party responsible for compliance could void the user's authority to
operate this equipment.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth
for an uncontrolled environment. This equipment should be installed
and operated with minimum distance 20cm between the radiator & your
body.
This transmitter must not be co-located or operating in conjunction with
any other antenna or transmitter.
