D Link IR1360A1 AC1300 Mesh-Enabled Smart Wi-Fi Router User Manual

D-Link Corporation AC1300 Mesh-Enabled Smart Wi-Fi Router

User Manual

Version 1.00| 12/20/2018
User Manual
DIR-1360
AC1300 Mesh-Enabled Smart Wi-Fi Router
iD-Link DIR-1360 User Manual
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any
person or organization of such revisions or changes.
Manual Revisions
Trademarks
D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United States or other countries.
All other company or product names mentioned herein are trademarks or registered trademarks of their respective companies.
Apple®, Apple logo®, Safari®, iPhone®, iPad®, iPod touch® and Macintosh® are trademarks of Apple Inc., registered in the U.S. and other countries.
App StoreTM is a service mark of Apple Inc.
Chrome™ browser, Google Play™ and Android™ are trademarks of Google Inc.
Internet Explorer®, Windows® and the Windows logo are trademarks of the Microsoft group of companies.
Copyright © 2018 by D-Link Corporation, Inc.
All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission from D-Link Corporation, Inc.
Power Usage
This device is an Energy Related Product (ErP) with High Network Availability (HiNA), and automatically switches to a power-saving Network
Standby mode within 1 minute of no packets being transmitted. It can also be turned o through a power switch to save energy when it is not
needed.
Network Standby: 4.87 watts
Switched O: 0.06 watts
Preface
Revision Date Description
1.00 December 20, 2018 Initial A1 release
iiD-Link DIR-1360 User Manual
Table of Contents
Table of Contents
Product Overview .............................................................. 1
Package Contents ......................................................................... 1
System Requirements ................................................................. 2
Introduction ................................................................................... 3
Features ............................................................................................ 4
Hardware Overview ..................................................................... 5
LED Indicators ........................................................................ 5
Back Panel ............................................................................... 6
Installation ......................................................................... 7
Before you Begin ........................................................................... 7
Wireless Installation Considerations ......................................8
Hardware Setup ............................................................................ 9
Completing Setup ......................................................................12
Setup Wizard ........................................................................13
D-Link Wi-Fi App .................................................................17
Conguration ...................................................................19
Home ..............................................................................................20
Internet ................................................................................... 20
DIR-1360.................................................................................21
Connected Clients ..............................................................22
Settings ..........................................................................................23
Wizard .....................................................................................23
Internet ................................................................................... 23
IPv6 .....................................................................................33
VLAN ...................................................................................53
Wireless ..................................................................................54
Guest Zone .......................................................................57
Network .................................................................................. 58
Features .......................................................................................... 60
QoS Engine............................................................................60
Firewall ...................................................................................61
IPv4/IPv6 Rules ...............................................................63
Port Forwarding ..................................................................64
Virtual Server ...................................................................65
Website Filter ........................................................................ 66
Static Routes .........................................................................67
IPv6 .....................................................................................68
Dynamic DNS .......................................................................69
IPv6 Host ...........................................................................70
Management ........................................................................71
Time & Schedule .................................................................71
Time ....................................................................................71
Schedule ...........................................................................72
System Log ............................................................................73
System Admin ......................................................................75
System ...............................................................................76
Upgrade .................................................................................77
Statistics .................................................................................78
Connect a Wireless Client to your Router ......................79
WPS Button ...................................................................................79
Windows® 10 ................................................................................80
iiiD-Link DIR-1360 User Manual
Table of Contents
Windows® 8 ................................................................................... 82
WPA/WPA2 ............................................................................82
Windows® 7 ................................................................................... 84
WPA/WPA2 ............................................................................84
WPS ..........................................................................................87
Windows Vista® ............................................................................ 91
WPA/WPA2 ............................................................................92
Troubleshooting ..............................................................94
Wireless Basics .................................................................98
What is Wireless? .........................................................................99
Tips ................................................................................................ 101
Wireless Modes ......................................................................... 102
Networking Basics .........................................................103
Check your IP address ............................................................ 103
Wireless Security ......................................................... 104
What is WPA? ................................................................ 104
Technical Specications ................................................105
Regulatory Information ................................................106
1D-Link DIR-1360 User Manual
Section 1 - Product Overview
Product Overview
Package Contents
Note: Using a power supply with a dierent voltage rating than the one included with the DIR-1360 will cause damage and void the warranty
for this product.
If any of the above items are missing or damaged, please contact your local reseller.
DIR-1360
Ethernet Cable
Power Adapter
Quick Installation Document
2D-Link DIR-1360 User Manual
Section 1 - Product Overview
Network Requirements
• An Ethernet-based cable or DSL modem
• IEEE 802.11ac/n/g/b/a wireless clients
• 10/100/1000 Ethernet
Web-based Conguration
Utility Requirements
Computer with the following:
• Windows®, Macintosh, or Linux-based operating system
• An installed Ethernet adapter
Browser Requirements:
• Internet Explorer 10 or higher
• Firefox 28 or higher
• Safari 6 or higher
• Chrome 28 or higher
Windows® Users: Make sure you have Javascript enabled.
Wi-Fi App Requirements
• iPhone®/iPad® Android™ smartphone or tablet. (Please refer
to the mobile app's store page to check whether your device is
compatible)
System Requirements
3D-Link DIR-1360 User Manual
Section 1 - Product Overview
Introduction
The D-Link DIR-1360 AC1300 Mesh-Enabled Smart Wi-Fi Router shares your Internet connection over a blazing-fast Gigabit
Wireless AC connection of up to 1300 Mbps (Up to 867 Mbps on the 5 GHz Wireless AC band and up to 400 Mbps on the 2.4
GHz Wireless N band)1 by using advanced AC beamforming technology to signicantly outperform 802.11n and other 802.11ac
devices. Equipped with a Gigabit WAN/Internet port and four Gigabit LAN ports to provide wired speeds of up to 10 times
faster than standard 10/100 ports, the DIR-1360 lets you experience networking at its best – no matter if you're using wireless
or wired Ethernet.
Featuring four antennas and a 2x2 + 2x2 Multiple In Multiple Out (MIMO) hardware and software conguration, the DIR-1360
oers better data rates, fewer dead-spots, more coverage, and better reliability. Operating exclusively in the 5 GHz band, the
DIR-1360's 802.11ac wireless connections bypasses the crowded 2.4 GHz band, giving you faster speeds while still maintaining
backward compatibility with older 802.11n/g/b devices through the 2.4 GHz band. A stronger Wi-Fi signal means you can
install more wireless surveillance cameras, baby monitors, sensors, and alarms in the places where you need them. Add these
features together, and the DIR-1360 lets you expand your Smart Home by bringing Wi-Fi to places your old signal can’t reach.
The DIR-1360's Smart Connect technology makes connecting to wireless networks easy automating multiple networks.
Since the introduction of 5 GHz multi-band wireless technology, choosing between 5 GHz or 2.4 GHz networks to optimize
range and speed involved guesswork. Smart Connect eliminates the guesswork by unifying both bands into a single network
name. Behind the scenes, when a connection is initiated, the DIR-1360's advanced algorithms determine the best band for
your device and automatically distributes each device to its optimal band – providing a faster, more reliable, and hassle-free
experience for all users.
1 Maximum wireless signal rate derived from IEEE Standard 802.11a, 802.11b, 802.11g, 802.11n and 802.11ac specications. Actual data throughput will vary. Network conditions
and environmental factors, including volume of network trac, building materials and construction, and network overhead, lower actual data throughput rate.
4D-Link DIR-1360 User Manual
Section 1 - Product Overview
• Superior Wireless Networking - The DIR-1360 provides Gigabit wireless speeds of up to a combined 1300
Mbps (867 Mbps 802.11ac 5 GHz, plus 400 Mbps 802.11n 2.4 GHz)1. These speeds rival wired connections and
allow users enjoy online activities such as HD video communication, online gaming, and Voice over IP telephony
lag-free from anywhere in your home while still oering full 802.11n/g/b backward compatibility.
• Extreme Wired LAN and WAN Networking - With four 10/100/1000 Gigabit Ethernet LAN ports, and a
10/100/1000 Gigabit Ethernet WAN port, the DIR-1360 has an enormous amount of bandwidth to take full
advantage of the fastest broadband speeds available.
• IPv6 Support - The DIR-1360 fully supports IPv6 and includes support for a variety of IPv6 connection types
including: SLAAC/DHCPv6, 6to4, 6rd, Static IPv6, IPv6 PPPoE, IPv6 in IPv4 tunneling, and local connectivity.
• Smart Connect - Creates a single wireless SSID for your devices. Behind the scenes, the DIR-1360 automatically
determines whether to connect a device to the 2.4 or 5 GHz network, thereby providing the best speed and
range for each device and optimally distributing devices to each network.
• Advanced Firewall Features - The web-based user interface displays a number of advanced network
management features. Easily apply content ltering based on MAC address, URL, and/or domain name.
Schedule these lters to be active on certain days or for a duration of hours or minutes.
• Encrypted Multiple/Concurrent Sessions - The DIR-1360 supports VPN passthroughs. It supports multiple
and concurrent IPSec and PPTP sessions, so users behind the DIR-1360 can access corporate networks through
encrypted channels.
• User-friendly Setup Wizard - Using its easy-to-use web-based user interface or D-Link Wi-Fi App, the DIR-1360
lets you quickly congure and secure your router to your specic settings in minutes.
1 Maximum wireless signal rate derived from IEEE Standard 802.11a, 802.11g, 802.11n and 802.11ac specications. Actual data throughput will vary. Network conditions and
environmental factors, including volume of network trac, building materials and construction, and network overhead, lower actual data throughput rate. Environmental
conditions will adversely aect wireless signal range.
Features
5D-Link DIR-1360 User Manual
Section 1 - Product Overview
Hardware Overview
LED Indicators

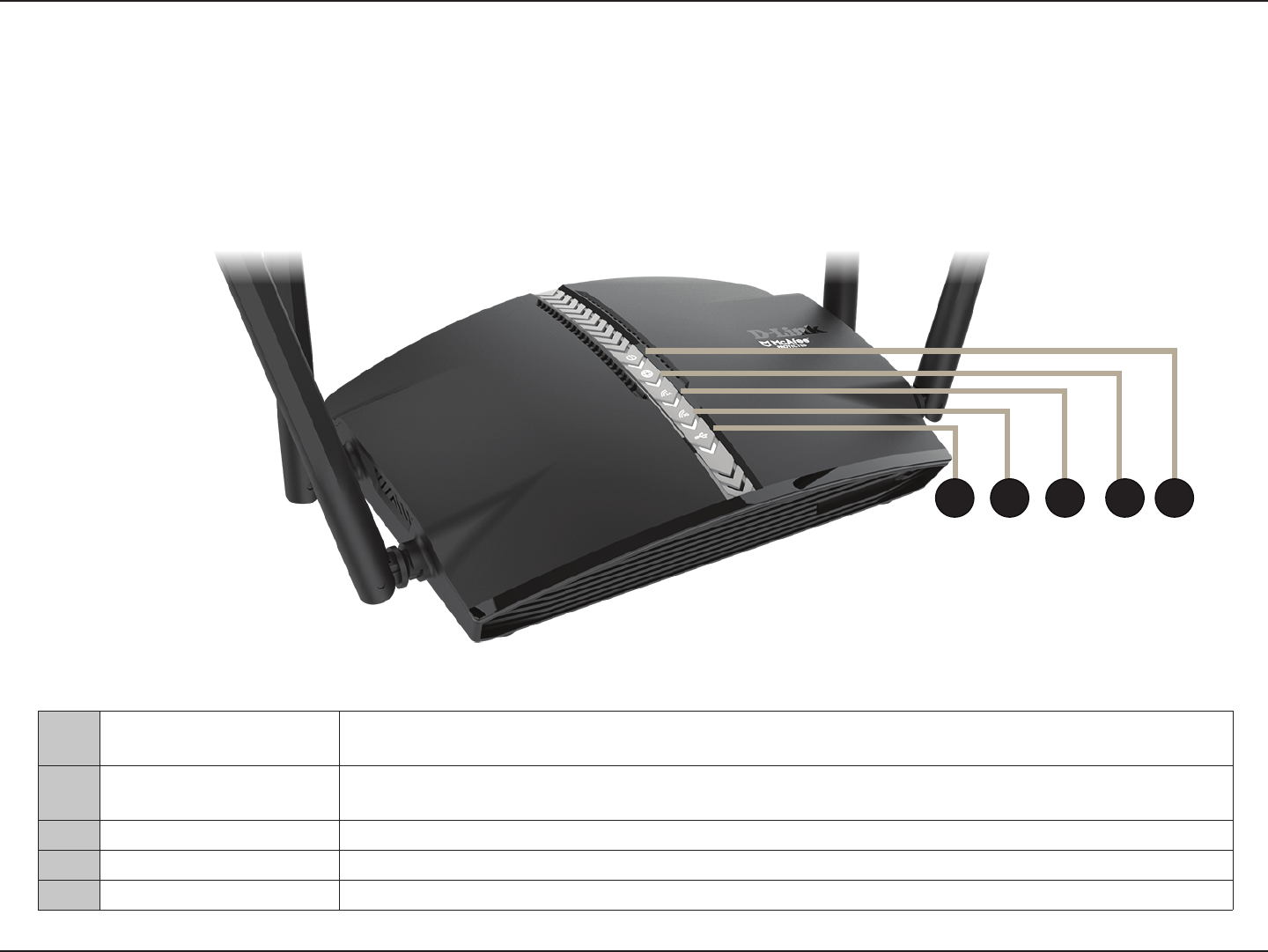

1 Power LED A solid blue light indicates a proper connection to the power supply. The light will be solid orange
during boot up.
2 Internet LED A solid blue light indicates a connection on the Internet port. If the LED is orange, the router cannot
connect to the Internet.
3 Wireless (2.4 GHz LED) A solid blue light indicates that the 2.4 GHz wireless band is enabled.
4 Wireless (5 GHz LED) A solid blue light indicates that the 5 GHz wireless band is enabled.
5 USB 3.0 Port Connect a USB storage device to share les over the network.
1
2
345
6D-Link DIR-1360 User Manual
Section 1 - Product Overview
Hardware Overview
Back Panel

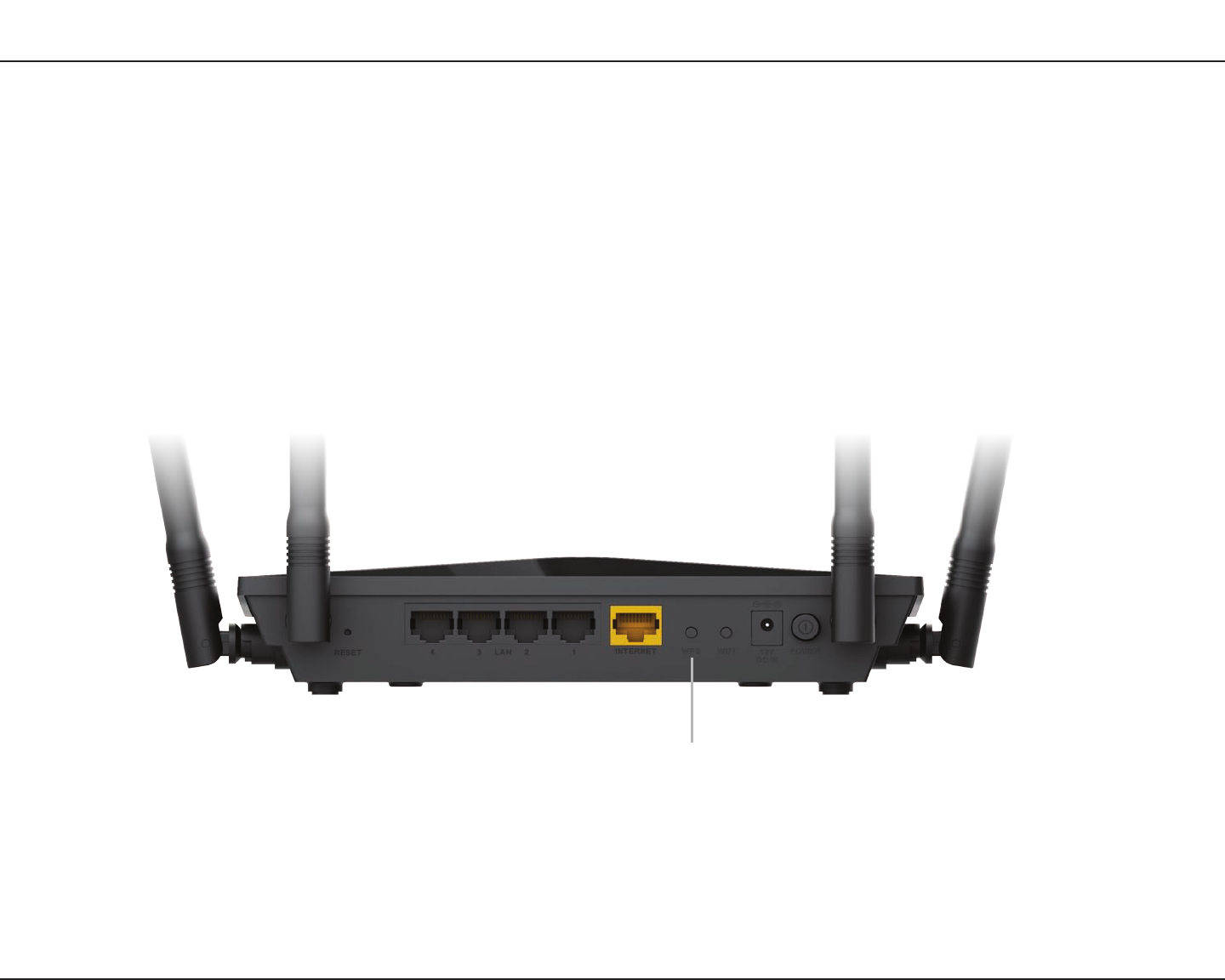

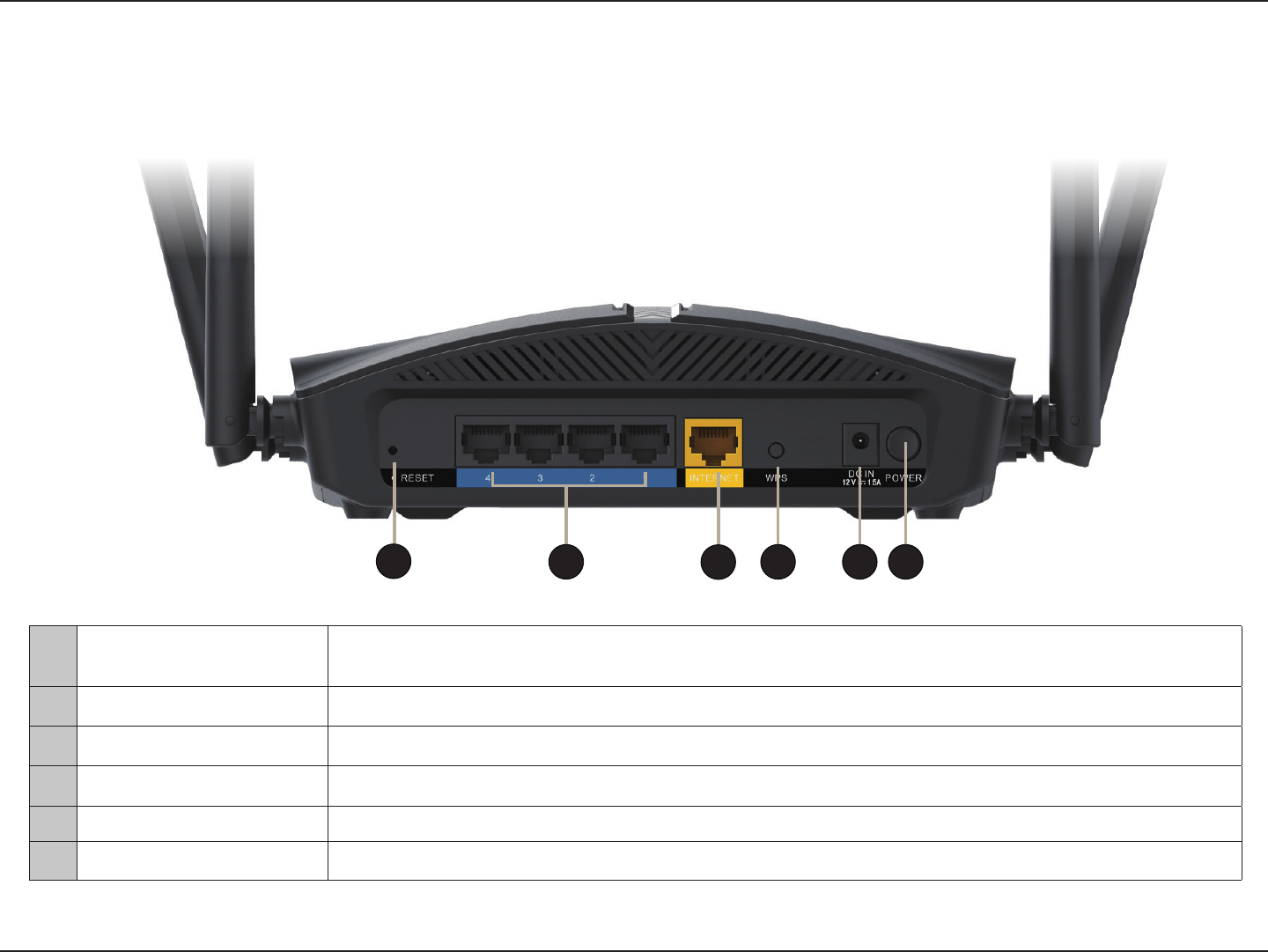

1 Reset Button Insert a paperclip in the hole to press the recessed button, hold for 10 seconds, and release to reset the
router to default settings
2 Gigabit LAN Ports (1- 4) Connect Ethernet devices such as computers, switches, storage (NAS) devices, and game consoles.
3Gigabit WAN Port Using an Ethernet cable, connect your broadband modem to this port.
4 WPS Button Press to start the WPS process and automatically create an encrypted connection to a WPS client.
5 Power Connector Connect the supplied power adapter here.
6 Power Button Press the power button to power the device on or o.
4 5 6
3
12
7D-Link DIR-1360 User Manual
Section 3 - Installation
Before you Begin
• Placement of the router is very important. Do not place the router in an enclosed area such as a closet, cabinet,
attic, or garage. This is to allow proper ventilation and prevent overheating.
• Congure the router with the computer that was last connected directly to your Internet connection. Verify that it
is connected to the Internet before connecting additional devices.
• If your Internet Service provider (ISP) provided you with a modem/router combo, you will need to set it to “bridge”
mode so the router can work properly. Please contact your ISP or refer to the user manual for your modem/router
device.
• If connecting to a DSL modem, make sure to have your DSL service information provided by your Internet Service
Provider handy. This information is likely to include your DSL account's Username and Password. Your ISP may also
supply you with additional WAN conguration settings which might be necessary to establish a connection.
• If you are connecting a considerable amount of networking equipment, it may be a good idea to take the time to
label each cable or take a picture of your existing setup before making any changes.
• If you have DSL and are connecting via PPPoE, make sure you disable or uninstall any PPPoE software such as
WinPoET, BroadJump, or EnterNet 300 from your computer or you will not be able to connect to the Internet.
This section will walk you through the installation of the DIR-1360.
Installation
8D-Link DIR-1360 User Manual
Section 3 - Installation
Wireless Installation Considerations
The D-Link wireless router lets you access your network using a wireless connection from virtually anywhere within the
operating range of your wireless network. Keep in mind that the number, thickness and location of walls, ceilings, or other
objects that the wireless signals must pass through may limit the range. Typical ranges vary depending on the types of
materials and background RF (radio frequency) noise in your home or business. The key to maximizing wireless range is to
follow these basic guidelines:
• Keep the number of walls and ceilings between the D-Link router and other network devices to a minimum -
each wall or ceiling can reduce your adapter’s range from 3-90 feet (1-30 meters.) Position your devices so that
the number of walls or ceilings is minimized.
• Be aware of the direct line between network devices. A wall that is 1.5 feet thick (0.5 meters), at a 45-degree
angle appears to be almost 3 feet (1 meter) thick. At a 2-degree angle it looks over 42 feet (14 meters) thick!
Position devices so that the signal will travel straight through a wall or ceiling (instead of at an angle) for better
reception.
• Building materials make a dierence. A solid metal door or aluminum studs may have a negative eect on
range. Try to position access points, wireless routers, and computers so that the signal passes through drywall or
open doorways. Materials and objects such as glass, steel, metal, walls with insulation, water (sh tanks), mirrors,
le cabinets, brick, and concrete will degrade your wireless signal.
• Keep your product away (at least 3-6 feet or 1-2 meters) from electrical devices or appliances that generate RF
noise.
• If you are using 2.4 GHz cordless phones or X-10 (wireless products such as ceiling fans, lights, and home
security systems), your wireless connection may degrade dramatically or drop completely. Make sure your 2.4
GHz phone base is as far away from your wireless devices as possible. The base transmits a signal even if the
phone is not in use.
9D-Link DIR-1360 User Manual
Section 3 - Installation
2. Position your DIR-1360 near your Internet-connected modem. Place it in an open area for better wireless coverage.
1. The DIR-1360 is designed to give you the fastest, most stable network connection possible. In order to maximize
performance, fully extend the antennas into a 105-degree angle (middle notch) to provide optimal wireless coverage.
Keep the router in an open area for better wireless coverage.
3. Turn o and unplug the power and Ethernet cable to your cable or DSL broadband modem. This is required. In some
cases, you may need to turn it o for up to ve minutes.
Modem
DIR-1360
Modem
Hardware Setup
105˚
DIR-1360
10D-Link DIR-1360 User Manual
Section 3 - Installation
DIR-1360
DIR-1360
DIR-1360

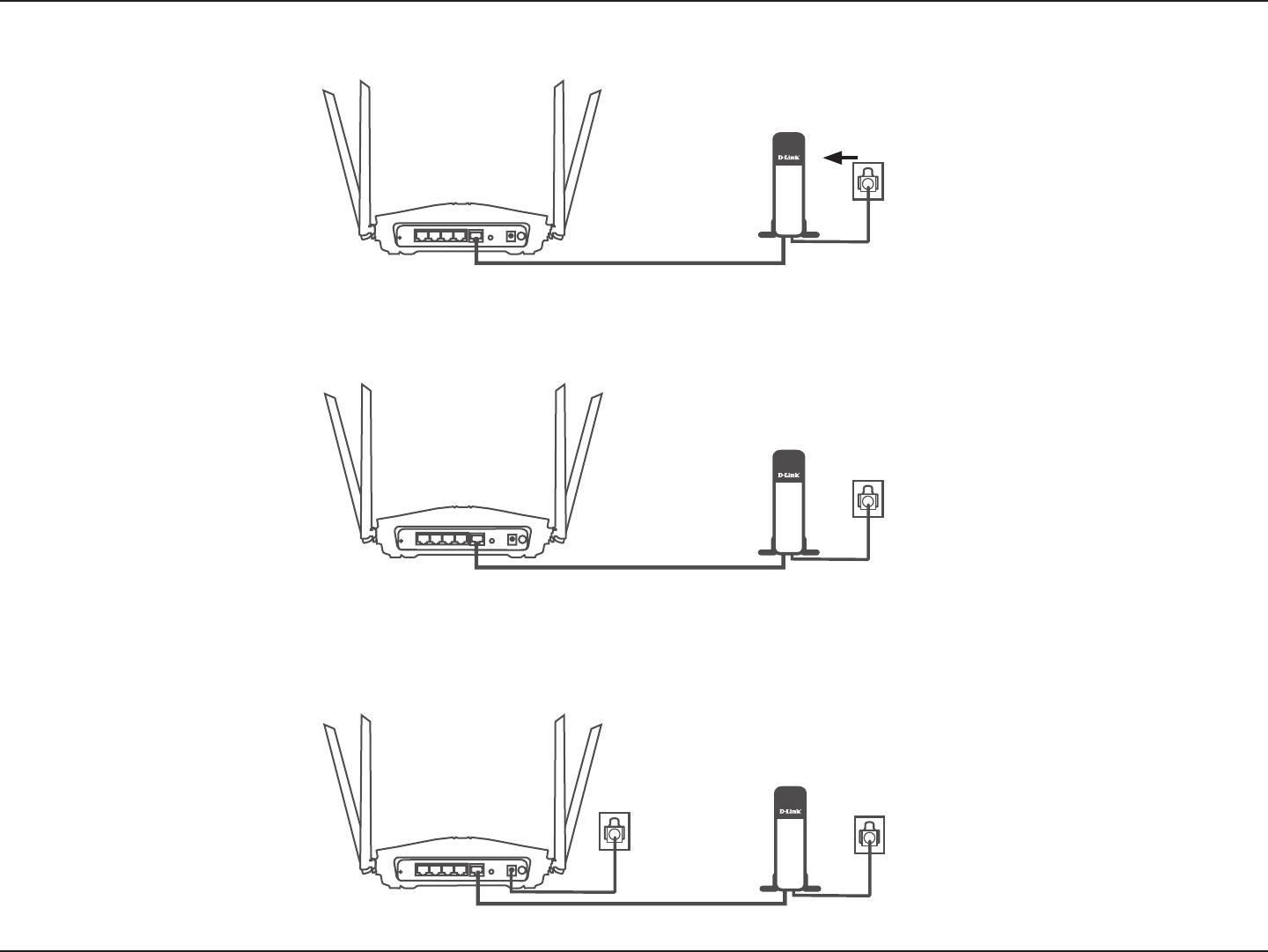

5. Turn on or plug your modem back in and wait approximately one minute before proceeding onward.
6. Connect the supplied power adapter to the router and a power outlet, press the power button, and wait approximately
one minute until the LED indicator on the front of the device changes from orange to solid blue.
Modem
4. Use the included Ethernet cable to connect your modem to the yellow port labeled INTERNET on the router.
Modem
Modem
11D-Link DIR-1360 User Manual
Section 3 - Installation
DIR-1360
DIR-1360
If you are conguring the DIR-1360 from a PC with a wired Ethernet connection, plug one end of an Ethernet cable
into the port labeled 1 on the back of the router, and the other end into the Ethernet port on your computer.
Quick Install Card
Modem

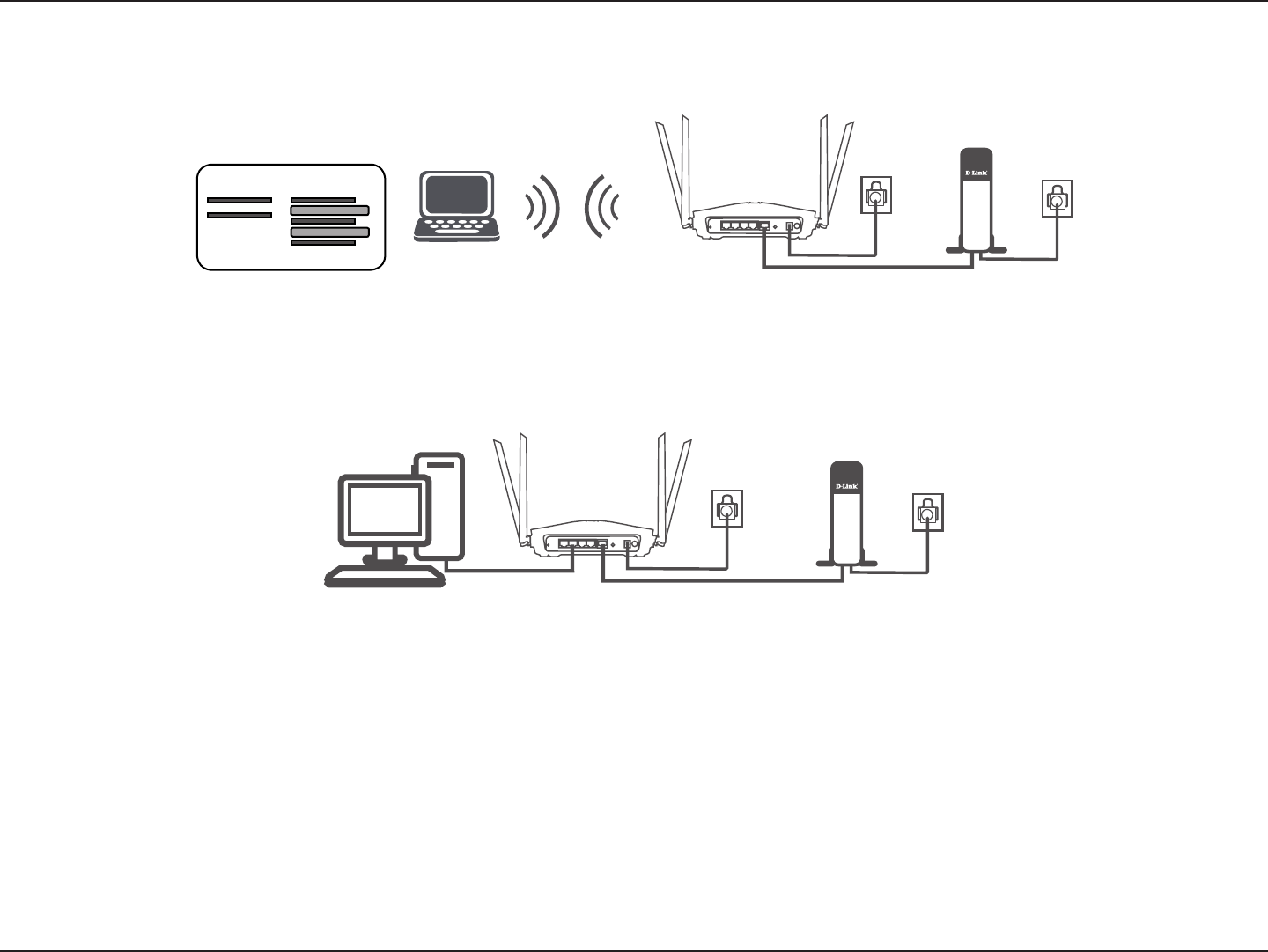

7. If you are conguring the DIR-1360 wirelessly from a PC, connect to a Wi-Fi network printed on the included Wi-Fi
Conguration Card. You can also nd the Wi-Fi network names and passwords printed on the label attached to the
bottom your router.
Modem
8. If you are connecting to a broadband service that uses a dynamic connection (not PPPoE), you may be online already.
Try opening a web browser and connecting to a website. If the website does not load, proceed to Setup Wizard on
page 13.
12D-Link DIR-1360 User Manual
Section 3 - Installation
Completing Setup
There are dierent ways you can congure your router to connect to the Internet and connect to your clients:
• D-Link Setup Wizard - This wizard will launch when you log into the router for the rst time.
Refer to Setup Wizard on page 13.
• D-Link Wi-Fi App - Use your Android™ device, iPhone™ or IPad™ to congure your router. Refer to D-Link Wi-Fi App on
page 17.
• Manual Setup - Log in to the router and manually congure your router.
Refer to Conguration on page 19.
13D-Link DIR-1360 User Manual
Section 3 - Installation
The wizard is designed to guide you through a step-by-step process to congure
your new D-Link router and connect to the Internet.
Click Next to continue.
Setup Wizard

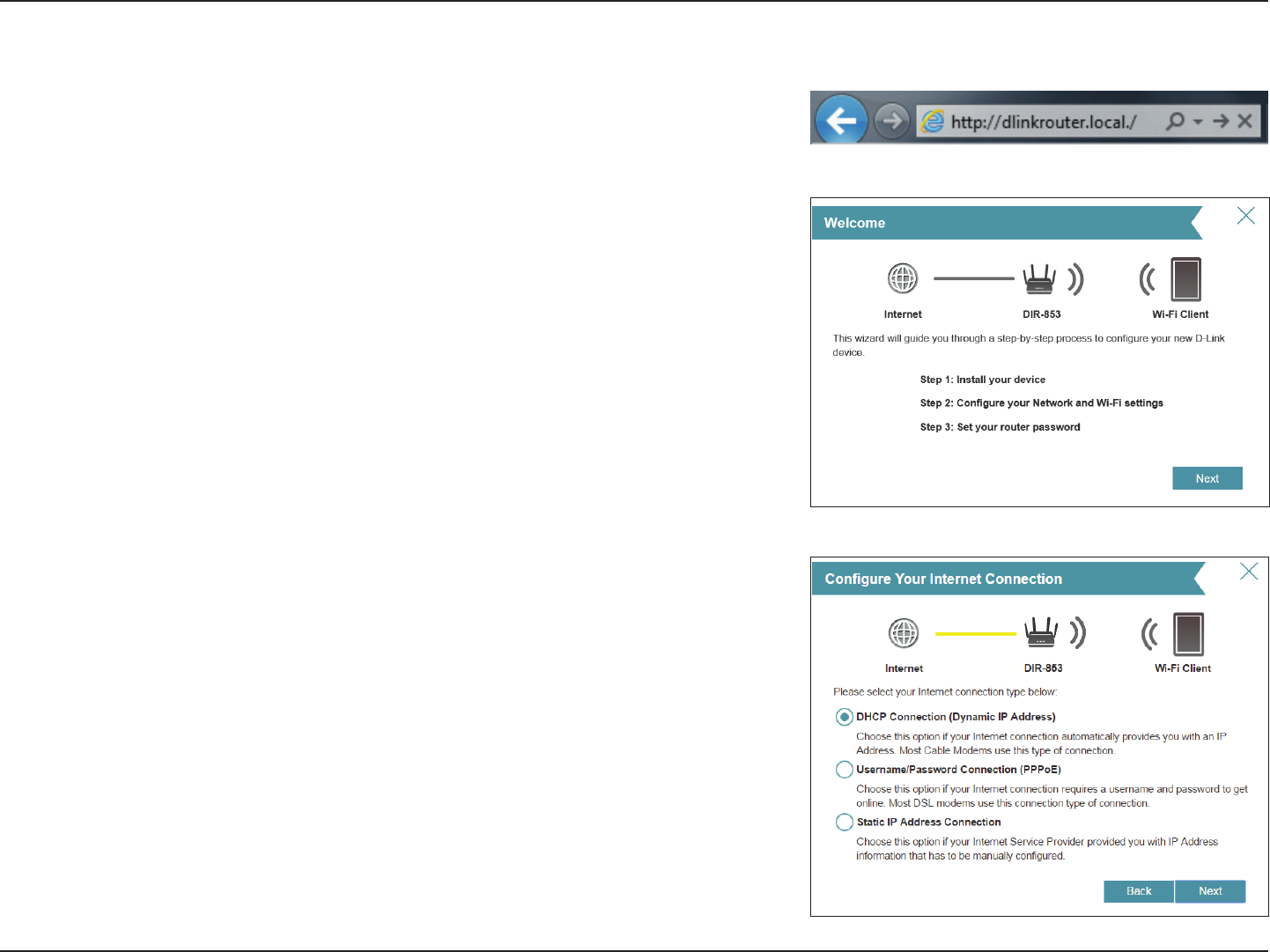

If this is your rst time installing the router, open your web browser and enter
http://dlinkrouter.local./ in the address bar. Alternatively, enter the IP address
of the router (default: http://192.168.0.1).
Please wait while your router detects your Internet connection type. If the router
detects your Internet connection, you may need to enter your ISP information
such as username and password.
If the router does not detect a valid Internet connection, a list of connection
types to choose from will be displayed.
Select your Internet connection type (this information can be obtained from
your Internet Service Provider) and click Next to continue.
14D-Link DIR-1360 User Manual
Section 3 - Installation
If the router detected or you selected PPPoE, enter your PPPoE username and
password and click Next to continue.
Note: Make sure to remove your PPPoE software from your computer. The software
is no longer needed and will not work through a router.
If the router detected or you selected Static, enter the IP and DNS settings
supplied by your ISP. Click Next to continue.
Setup Wizard (continued)
15D-Link DIR-1360 User Manual
Section 3 - Installation
Create a Wi-Fi password (between 8-63 characters). Your wireless clients will
need to have this passphrase or key entered to be able to connect to your
wireless network.
Click Next to continue.
Note: The DIR-1360's Smart Connect feature presents a single wireless network.
When connecting clients to an extension network, they will be automatically added
to the best band, either 2.4 GHz or 5 GHz. To disable the Smart Connect feature and
individually congure 2.4 GHz and 5 GHz networks, refer to Wireless on page 54.
To help protect your router, please enter a new password. You will be prompted
for this password every time you want to use the router’s web conguration
utility. Click Next to continue.
Setup Wizard (continued)
16D-Link DIR-1360 User Manual
Section 3 - Installation

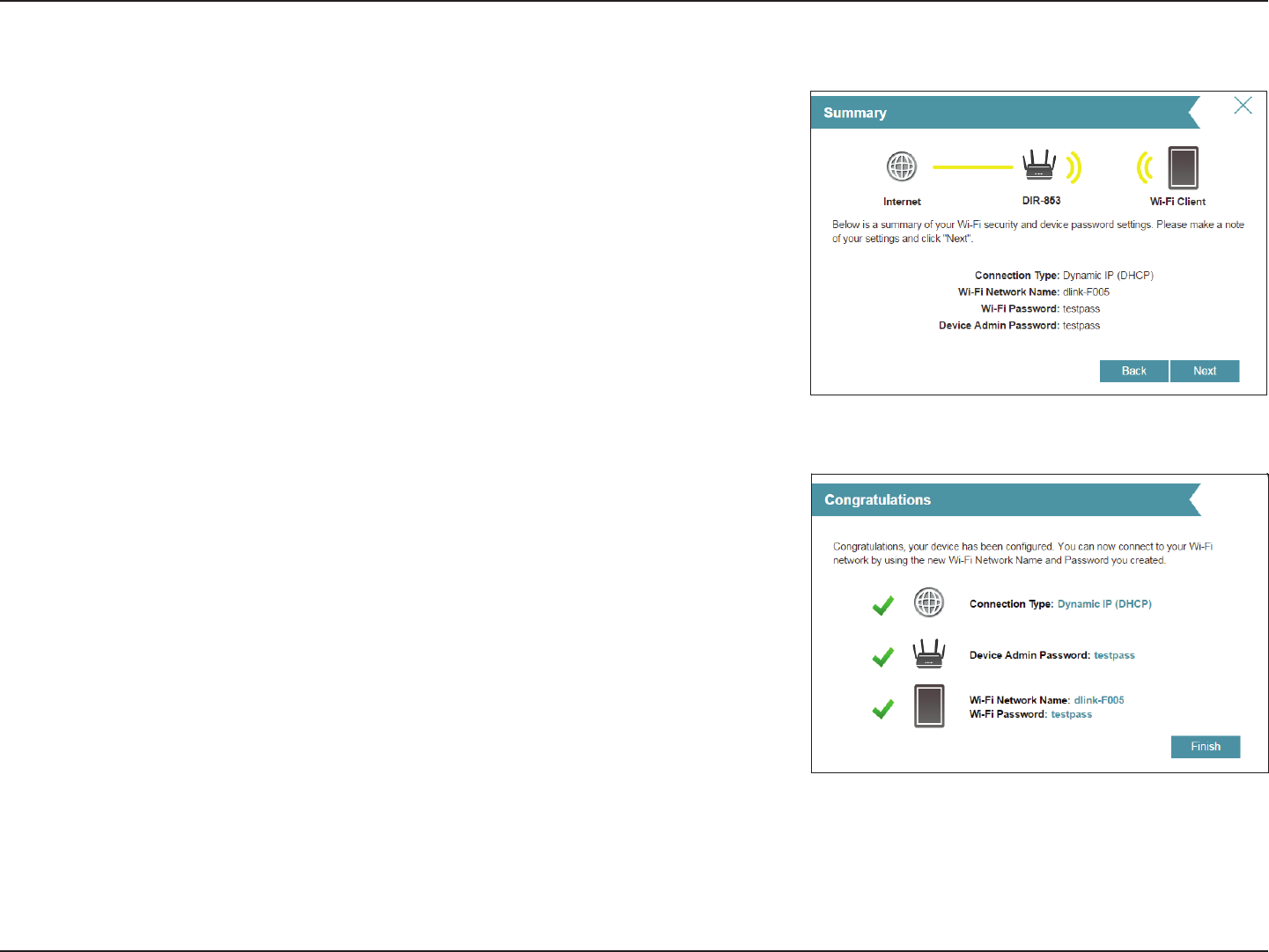

You will be presented with a summary of your settings. Click Next to nalize
the settings or Back to make changes.
At the end of the wizard, you will be presented with a nal summary of your
settings. Click Finish to close the wizard.
Congratulations, your device has been successfully congured!
Setup Wizard (continued)
17D-Link DIR-1360 User Manual
Section 3 - Installation
D-Link Wi-Fi App
The D-Link Wi-Fi App allows you to install and congure your DIR-1360 AC1300 Mesh-Enabled Smart Wi-Fi Router from your
mobile device.
Note: The screenshots may be dierent depending on your mobile device’s OS version. The following steps show the Android
interface of the D-Link Wi-Fi app. If you are using an iOS device, the appearance may be dierent from that of the screenshots, but the
process is the same.
Step 1
Search for the free D-Link Wi-Fi App on the Apple App Store or Google Play
and install. You can also scan the QR code on the right, which will take you to
the respective D-Link Wi-Fi app store page directly.
Step 2
Launch the D-Link Wi-Fi App from the Home screen of your device.
Step 3
Click on the Install Your Device Button at the bottom of the screen. (Or click on
the Menu button on the top left of the app and do the same.)
D-Link Wi-Fi
18D-Link DIR-1360 User Manual
Section 3 - Installation
D-Link Wi-Fi App (continued)
Step 4
Select from list of options the device you want to install. If you do not see your
device listed choose "Others" then tap NEXT.
Step 5
You will now be guided through a step-by-step process for setting up your
device. Simply follow the on-screen instructions to complete the installation
and DIR-1360 conguration process.
19D-Link DIR-1360 User Manual
Section 4 - Conguration
Conguration
Enter your password. If you previously followed the setup wizard, please use
the admin password you entered during the wizard. Otherwise, leave the
password blank. Click Log In to proceed.
Note: If you cannot remember your password and cannot log in, press and hold
the recessed reset button for longer than 10 seconds to restore the router to its
default settings.

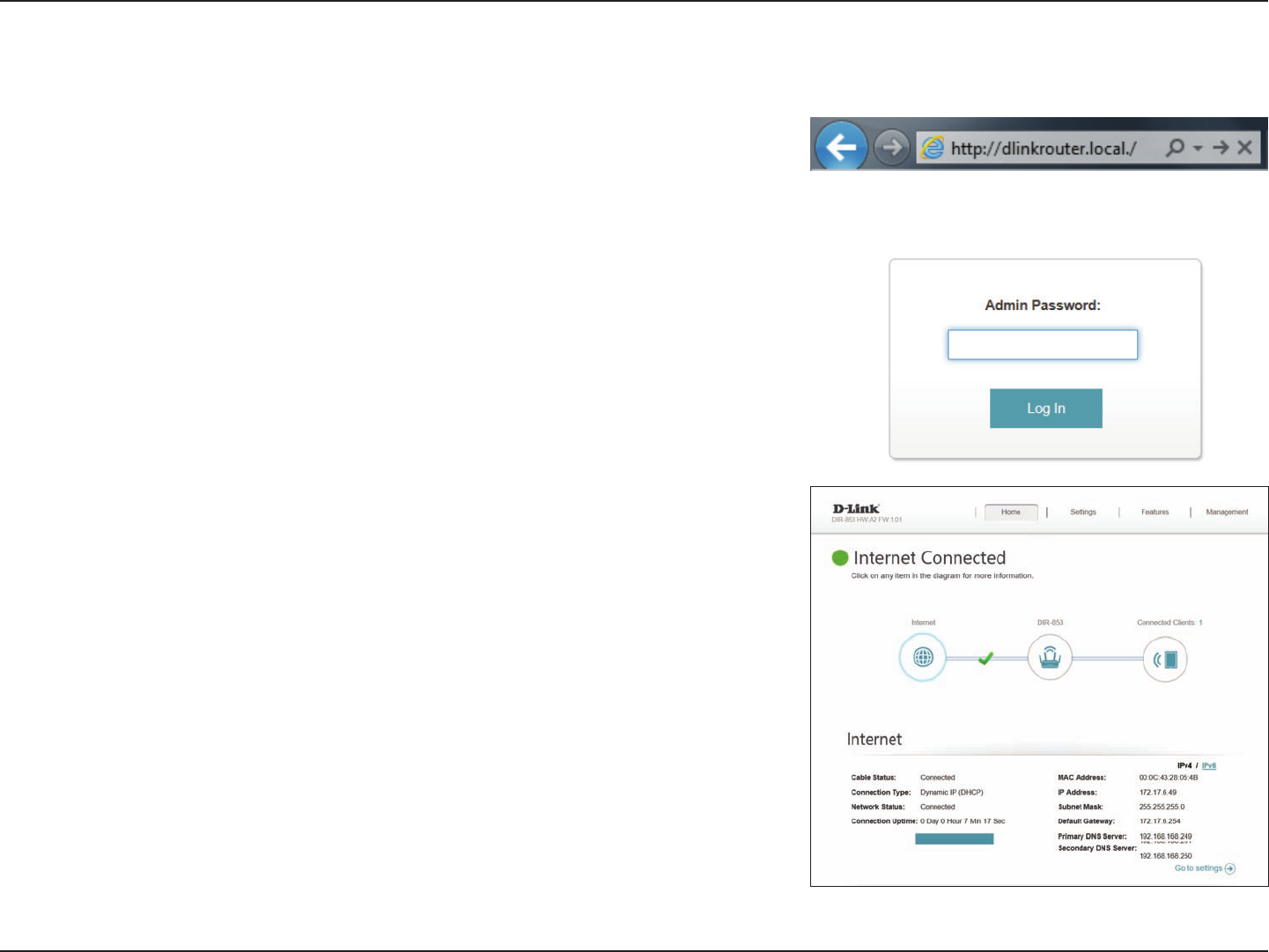

To access the conguration utility, open a web-browser such as Internet
Explorer and enter http://dlinkrouter.local./ or you may also connect by
typing the IP address of the router (by default this is http://192.168.0.1) in the
address bar.
The router’s home page will open displaying its current connection status.
The bar at the top of the page has quick access to Settings and Management
functions. You may quickly jump back Home at any time.
Note: The system will automatically log out after a period of inactivity.
20D-Link DIR-1360 User Manual
Section 4 - Conguration
Home

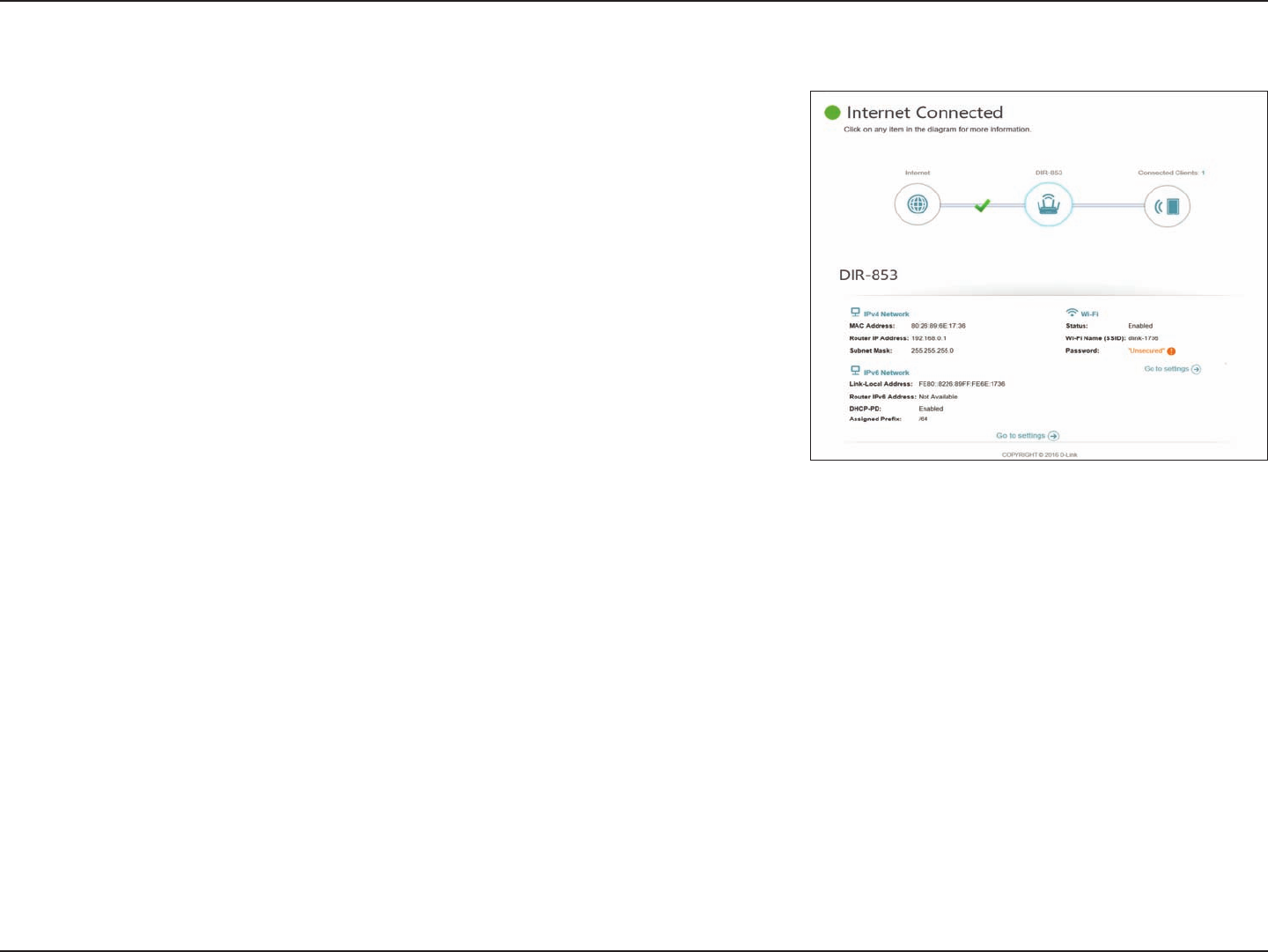

The Home page displays the current status of the router in the form of an
interactive diagram. You can click each icon to display information about each
part of the network at the bottom of the screen. The menu bar at the top of
the page will allow you to quickly navigate to other pages.
The Home page displays whether or not the router is currently connected to
the Internet. If it is disconnected, click Click to repair to bring up the setup
wizard, refer to Setup Wizard on page 13 for more information.
To bring up more details about your Internet connection, click on the
Internet icon. Click IPv4 or IPv6 to see details of the IPv4 connection and IPv6
connection respectively.
Click Release IP Address to disconnect from the Internet. If you do this and
wish to reconnect, click Renew.
To recongure the Internet settings, refer to Internet on page 23.
Internet
21D-Link DIR-1360 User Manual
Section 4 - Conguration
DIR-1360
Click on the DIR-1360 icon to view details about the router and its wireless
settings.
Here you can see the router’s current Wi-Fi network name and password, as
well as the router's MAC address, IPv4 address, and IPv6 address.
To recongure the network settings, either click Go to settings in the center,
or click Settings (at the top of the page) and then Network on the menu that
appears. Refer to Network on page 58 for more information.
To recongure the wireless settings, either click Go to settings, on the lower
right, or click Settings (at the top of the page) and then Wireless on the menu
that appears. Refer to Wireless on page 54 for more information.
22D-Link DIR-1360 User Manual
Section 4 - Conguration
Connected Clients
Click on the Connected Clients icon to view details about the router and its
wireless settings.
On this page you can see all the clients currently connected to the router, and
their IP addresses.
To edit each client’s settings, click the pencil icon on the client you want to
edit.
Name: Enter a custom name for this client.
Vendor: Displays the vendor of the device.
MAC Address: Displays the MAC address of the device.
IP Address: Displays the current IP address of this client.
Reserve IP: Enable to reserve this IP address for this client.
IP Address
(Reserved):
Specify an IP address for the DIR-1360's DHCP server to assign.
Parental Control: Allow or Block access to the router.
Click Save when you are done.
23D-Link DIR-1360 User Manual
Section 4 - Conguration
Settings
Wizard
Internet
In the Settings menu on the bar on the top of the page, click Wizard to open the setup wizard. This is the same wizard that
appears when you start the router for the rst time. Refer to Setup Wizard on page 13 for details.
In the Settings menu on the bar on the top of the page, click Internet to see the Internet conguration options.
For Dynamic IP (DHCP) refer to page 24.
For Static IP refer to page 25.
For PPPoE refer to page 26.
For PPTP refer to page 28.
For L2TP refer to page 30.
For DS-Lite refer to page 32.
To congure an IPv6 connection, click the IPv6 link. Refer to page 33.
My Internet
Connection Is:
Choose your Internet connection type from the drop-down menu. You
will be presented with the appropriate options for your connection
type. Click Advanced Settings... to expand the list and see all of the
options.
24D-Link DIR-1360 User Manual
Section 4 - Conguration
Dynamic IP (DHCP)
Select Dynamic IP (DHCP) to obtain IP address information automatically
from your Internet Service Provider (ISP). Select this option if your ISP does not
specify an IP address to use.
Advanced Settings
Host Name: The host name is optional but may be required by some ISPs. Leave
it blank if you are not sure.
Primary DNS
Server:
Enter the primary DNS server IP address assigned by your ISP. This
address is usually obtained automatically from your ISP.
Secondary DNS
Server:
Enter the secondary DNS server IP address assigned by your ISP. This
address is usually obtained automatically from your ISP.
MTU: Maximum Transmission Unit - you may need to change the MTU for
optimal performance with your ISP (Default is AUTO).
MAC Address
Clone:
The default MAC address is set to the Internet port’s physical interface
MAC address on the router. You can use the drop-down menu to
replace the Internet port’s MAC address with the MAC address of a
connected client.
Click Save when you are done.
25D-Link DIR-1360 User Manual
Section 4 - Conguration

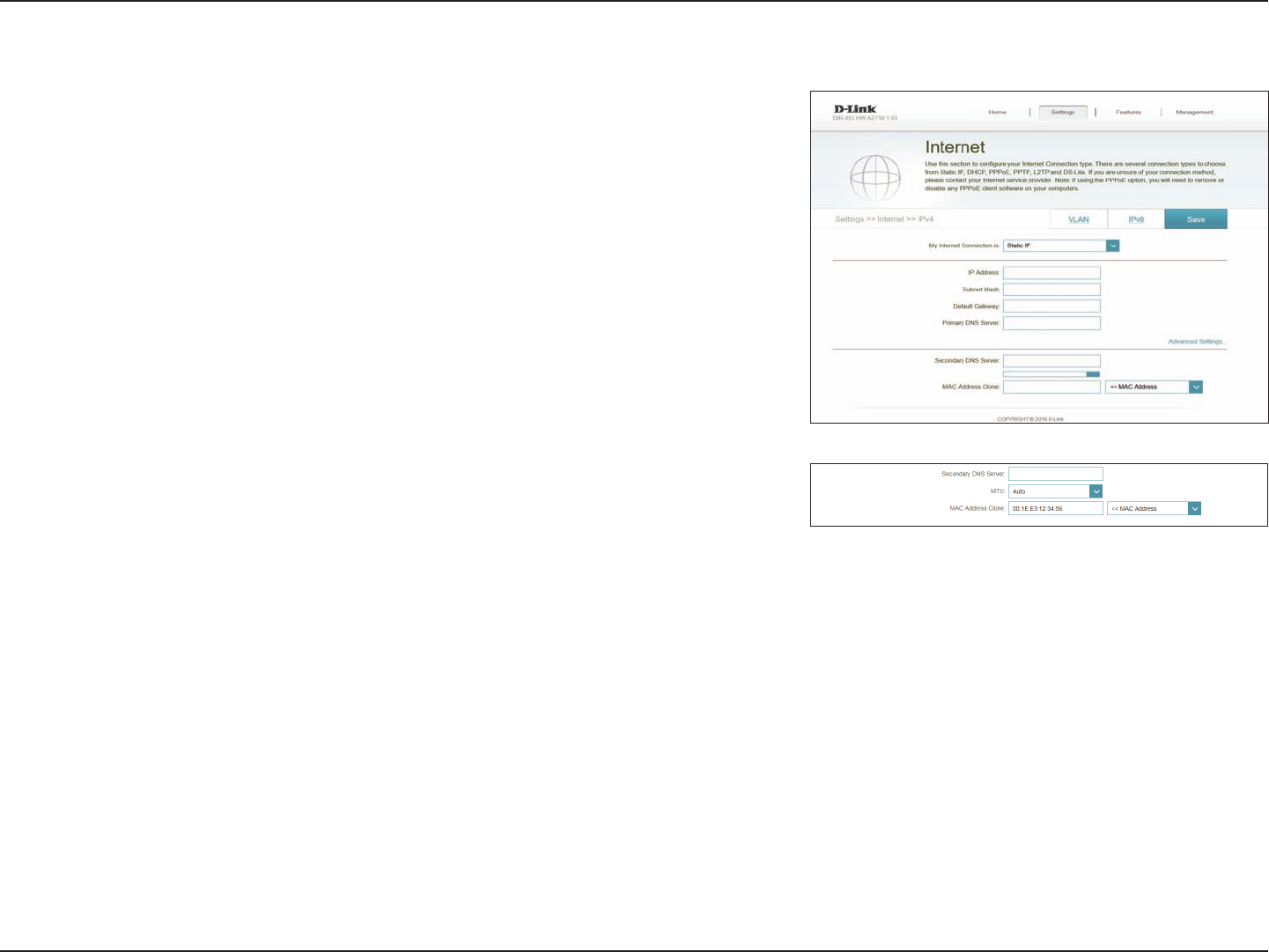

Static IP
Select Static IP if your IP information is provided by your Internet Service
Provider (ISP).
IP Address: Enter the IP address provided by your ISP.
Subnet Mask: Enter the subnet mask provided by your ISP.
Default Gateway: Enter the default gateway address provided by your ISP.
Primary DNS
Server:
Enter the primary DNS server IP address assigned by your ISP.
Advanced Settings
Secondary DNS
Server:
Enter the secondary DNS server IP address assigned by your ISP.
MTU: Maximum Transmission Unit - you may need to change the MTU for
optimal performance with your ISP. The recommended setting is Auto.
MAC Address
Clone:
The default MAC address is set to the Internet port’s physical interface
MAC address on the router. You can use the drop-down menu to
replace the Internet port’s MAC address with the MAC address of a
connected client.
Click Save when you are done.
26D-Link DIR-1360 User Manual
Section 4 - Conguration
PPPoE
Select PPPoE if your ISP provides and requires you to enter a PPPoE username
and password in order to connect to the Internet.
Username: Enter the username provided by your ISP.
Password: Enter the password provided by your ISP.
Reconnect Mode: Select either Always on, On Demand, or Manual.
Maximum Idle
Time:
Enter a maximum idle time during which the Internet connection is
maintained during inactivity. To disable this feature, select Always
on as the reconnect mode.
Advanced Settings

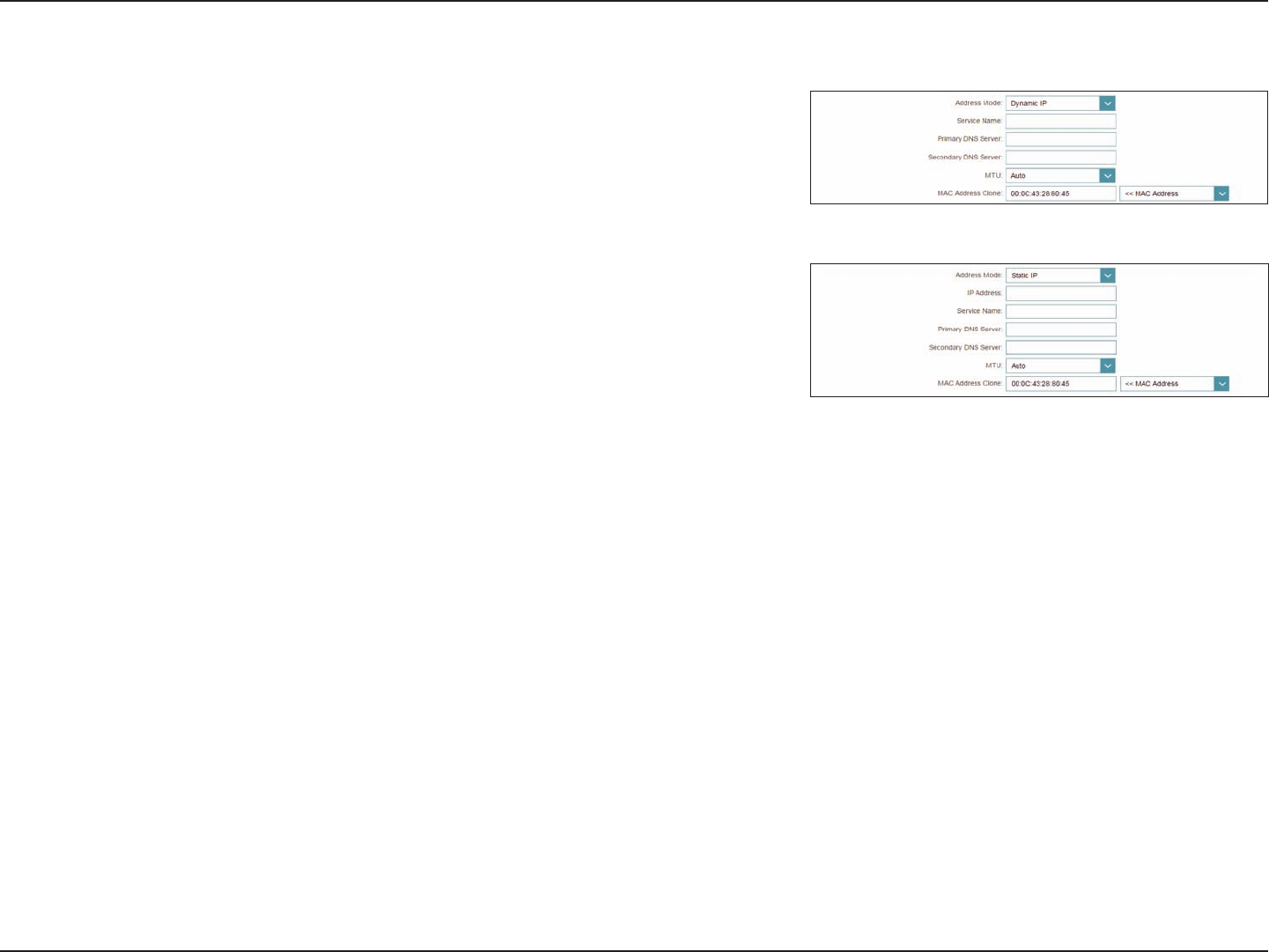

Address Mode: Select Static IP if your ISP assigned you the IP address, subnet mask,
gateway, and DNS server addresses. In most cases, select Dynamic IP.
Dynamic IP
Service Name: Enter the ISP service name (optional).
Primary DNS
Server:
Enter the primary DNS server IP address assigned by your ISP.
Secondary DNS
Server:
Enter the secondary DNS server IP address assigned by your ISP.
MTU: Maximum Transmission Unit - you may need to change the MTU for
optimal performance with your ISP. The recommended setting is Auto.
27D-Link DIR-1360 User Manual
Section 4 - Conguration
MAC Address
Clone:
The default MAC address is set to the Internet port’s physical interface
MAC address on the router. You can use the drop-down menu to
replace the Internet port’s MAC address with the MAC address of a
connected client.
Static IP
IP Address: Enter the IP address provided by your ISP.
Service Name: Enter the ISP service name (optional).
Primary DNS
Server:
Enter the primary DNS server IP address assigned by your ISP.
Secondary DNS
Server:
Enter the secondary DNS server IP address assigned by your ISP.
MTU: Maximum Transmission Unit - you may need to change the MTU for
optimal performance with your ISP. The recommended setting is Auto.
MAC Address
Clone:
The default MAC address is set to the Internet port’s physical interface
MAC address on the router. You can use the drop-down menu to
replace the Internet port’s MAC address with the MAC address of a
connected client.
Click Save when you are done.
PPPoE (continued)
28D-Link DIR-1360 User Manual
Section 4 - Conguration

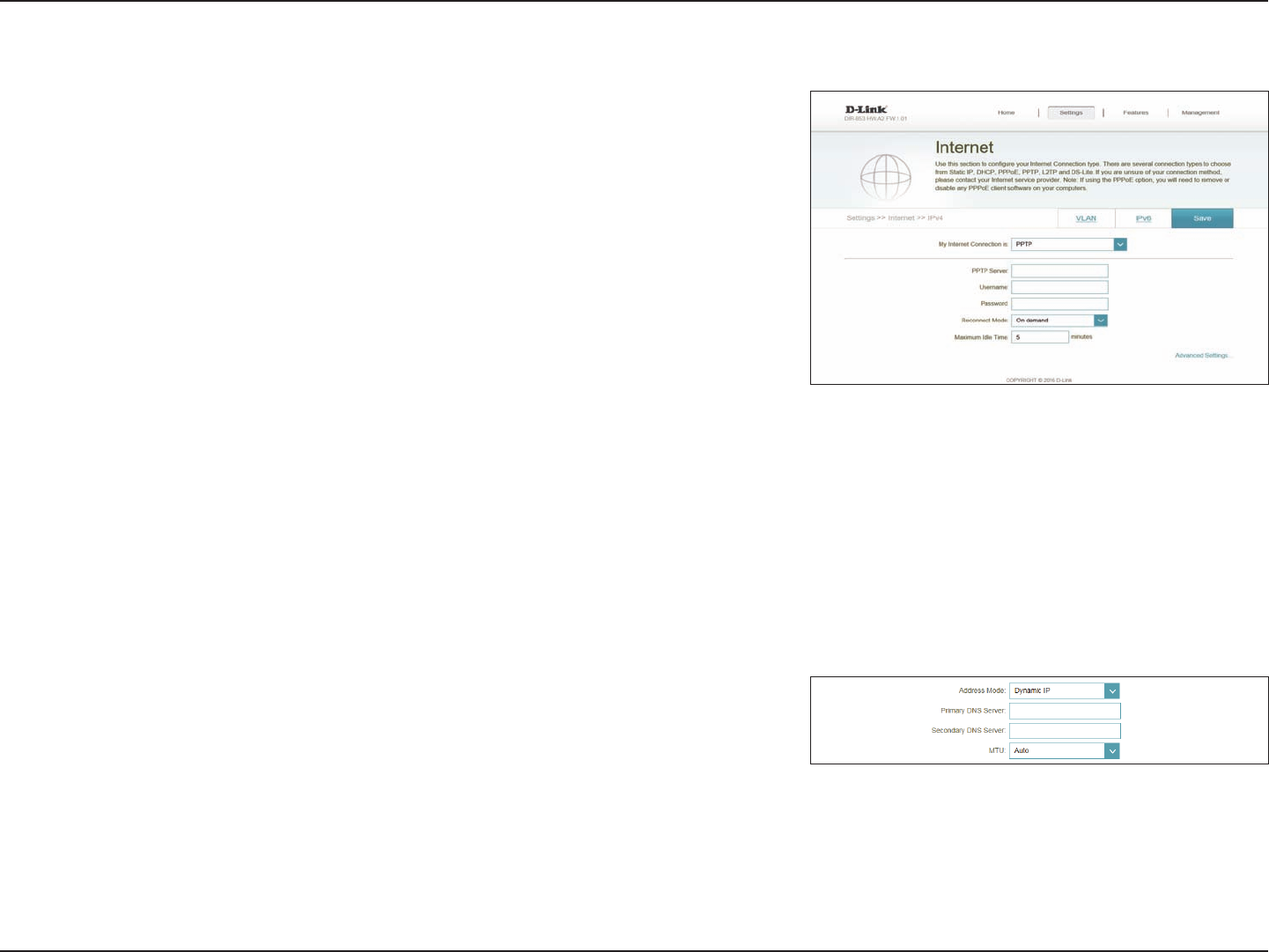

PPTP
Choose PPTP (Point-to-Point-Tunneling Protocol) if your Internet Service
Provider (ISP) uses a PPTP connection. Your ISP will provide you with a
username and password.
PPTP Server IP
Address:
Enter the PPTP server IP address provided by your ISP.
Username: Enter the username provided by your ISP.
Password: Enter the password provided by your ISP.
Reconnect Mode: Select either Always on, On demand, or Manual.
Maximum Idle
Time:
Enter a maximum idle time during which the Internet connection is
maintained during inactivity. To disable this feature, select Always
on as the reconnect mode.
Advanced Settings

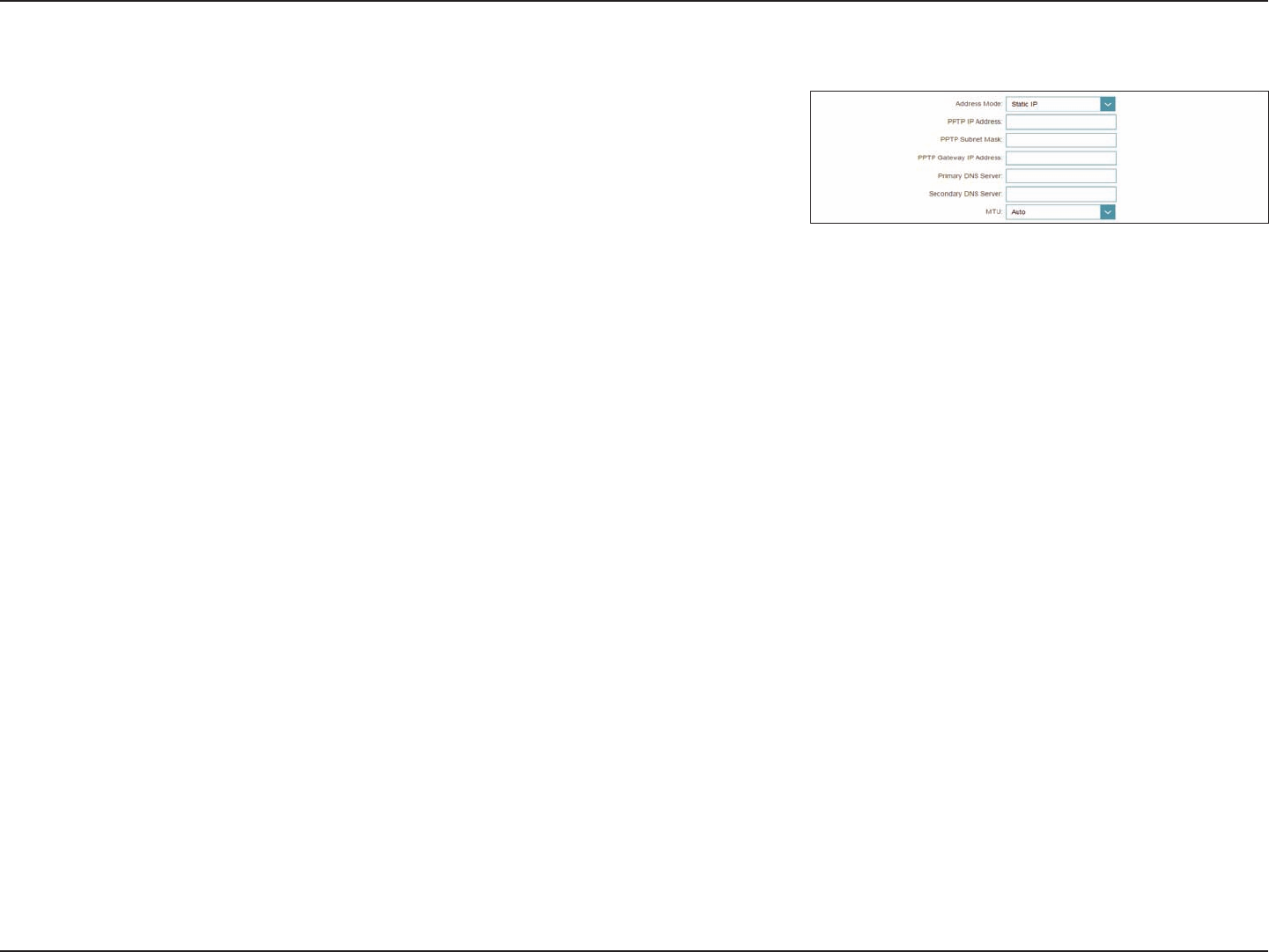

Address Mode: Select Static IP if your ISP assigned you the IP address, subnet mask,
gateway, and DNS server addresses. In most cases, select Dynamic IP.
Dynamic IP
Primary DNS
Server:
Enter the primary DNS server IP address assigned by your ISP.
Secondary DNS
Server:
Enter the secondary DNS server IP address assigned by your ISP.
MTU: Maximum Transmission Unit - you may need to change the MTU for
optimal performance with your ISP. The recommended setting is Auto.
29D-Link DIR-1360 User Manual
Section 4 - Conguration
Static IP
PPTP IP Address: Enter the IP address provided by your ISP.
PPTP Subnet
Mask:
Enter the subnet mask provided by your ISP.
PPTP Gateway IP
Address:
Enter the gateway IP address provided by your ISP.
Primary DNS
Server:
Enter the primary DNS server IP address assigned by your ISP.
Secondary DNS
Server:
Enter the secondary DNS server IP address assigned by your ISP.
MTU: Maximum Transmission Unit - you may need to change the MTU for
optimal performance with your ISP. The recommended setting is Auto.
Click Save when you are done.
PPTP (continued)
30D-Link DIR-1360 User Manual
Section 4 - Conguration
L2TP

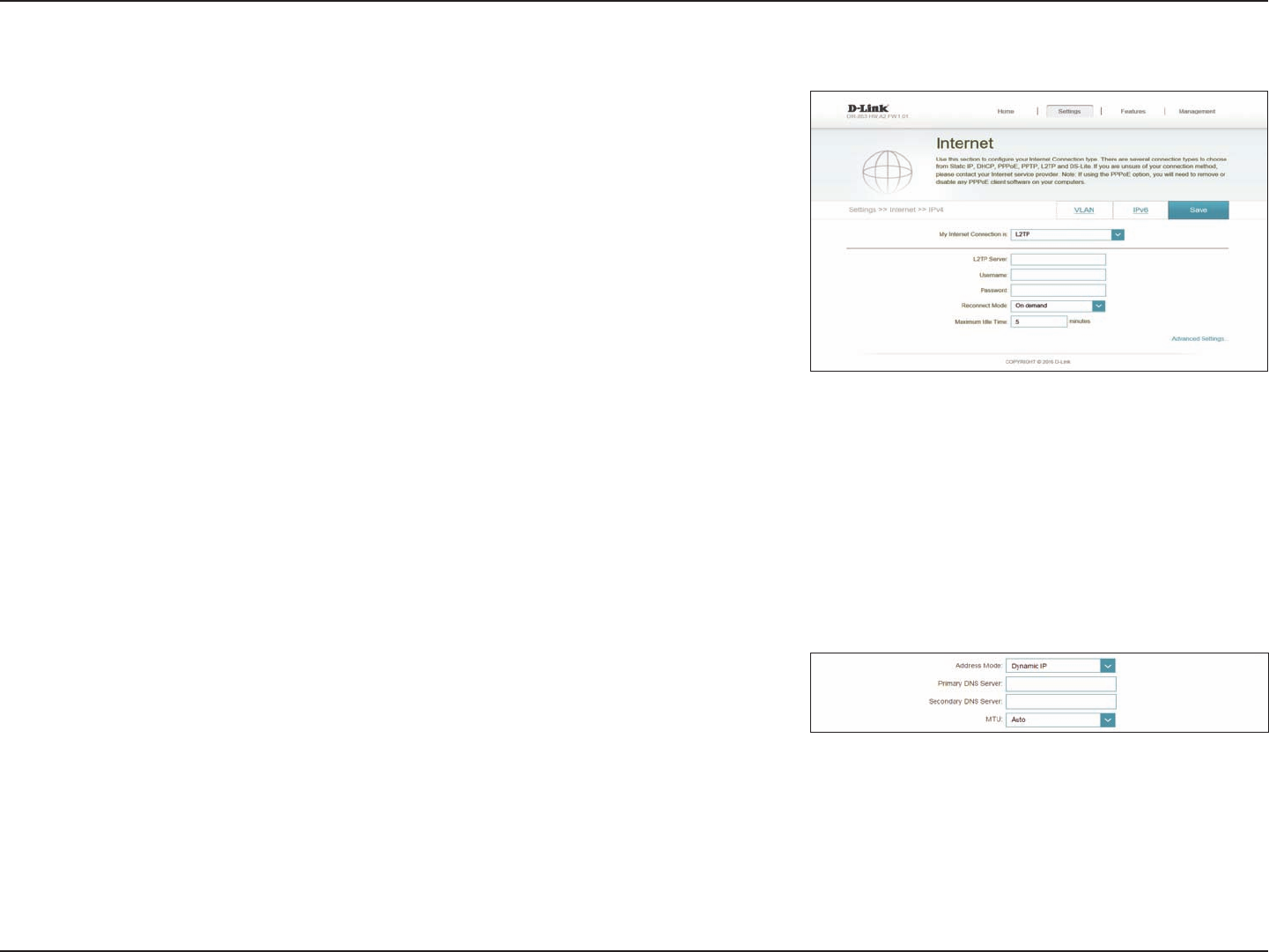

Choose L2TP (Layer 2 Tunneling Protocol) if your Internet Service Provider
(ISP) uses a L2TP connection. Your ISP will provide you with a username and
password.
L2TP Server: Enter the L2TP server IP address provided by your ISP.
Username: Enter the username provided by your ISP.
Password: Enter the password provided by your ISP.
Reconnect Mode: Select either Always on, On demand, or Manual.
Maximum Idle
Time:
Enter a maximum idle time during which the Internet connection is
maintained during inactivity. To disable this feature, select Always
on as the reconnect mode.
Advanced Settings
Address Mode: Select Static IP if your ISP assigned you the IP address, subnet mask,
gateway, and DNS server addresses. In most cases, select Dynamic IP.
Dynamic IP
Primary DNS
Server:
Enter the primary DNS server IP address assigned by your ISP.
Secondary DNS
Server:
Enter the secondary DNS server IP address assigned by your ISP.
MTU: Maximum Transmission Unit - you may need to change the MTU for
optimal performance with your ISP. The recommended setting is Auto.
31D-Link DIR-1360 User Manual
Section 4 - Conguration
Static IP
L2TP IP Address: Enter the IP address provided by your ISP.
L2TP Subnet
Mask:
Enter the subnet mask provided by your ISP.
L2TP Gateway IP
Address:
Enter the gateway IP address provided by your ISP.
Primary DNS
Server:
Enter the primary DNS server IP address assigned by your ISP.
Secondary DNS
Server:
Enter the secondary DNS server IP address assigned by your ISP.
MTU: Maximum Transmission Unit - you may need to change the MTU for
optimal performance with your ISP. The recommended setting is Auto.
Click Save when you are done.
L2TP (continued)
32D-Link DIR-1360 User Manual
Section 4 - Conguration
DS-Lite
DS-Lite is an IPV4/IPv6 hybrid connection type. After selecting DS-Lite, the
following parameters will be available for conguration:
Advanced Settings
DS-Lite
Conguration:
Select DS-Lite DHCPv6 Option to let the router allocate the AFTR
IPv6 address automatically. Select Manual Conguration to enter
the AFTR IPv6 address manually.
DS-Lite DHCPv6
B4 IPv6 Address: Enter the B4 IPv4 address value used here.
WAN IPv6
Address:
Once connected, the WAN IPv6 address will be displayed here.
IPv6 WAN Default
Gateway:
Once connected, the IPv6 WAN default gateway address will be
displayed here.
Manual
AFTR IPv6
Address:
Enter the AFTR IPv6 address used here.
B4 IPv6 Address: Enter the B4 IPv4 address value used here.
WAN IPv6
Address:
Once connected, the WAN IPv6 address will be displayed here.
IPv6 WAN Default
Gateway:
Once connected, the IPv6 WAN default gateway address will be
displayed here.
Click Save when you are done.
33D-Link DIR-1360 User Manual
Section 4 - Conguration

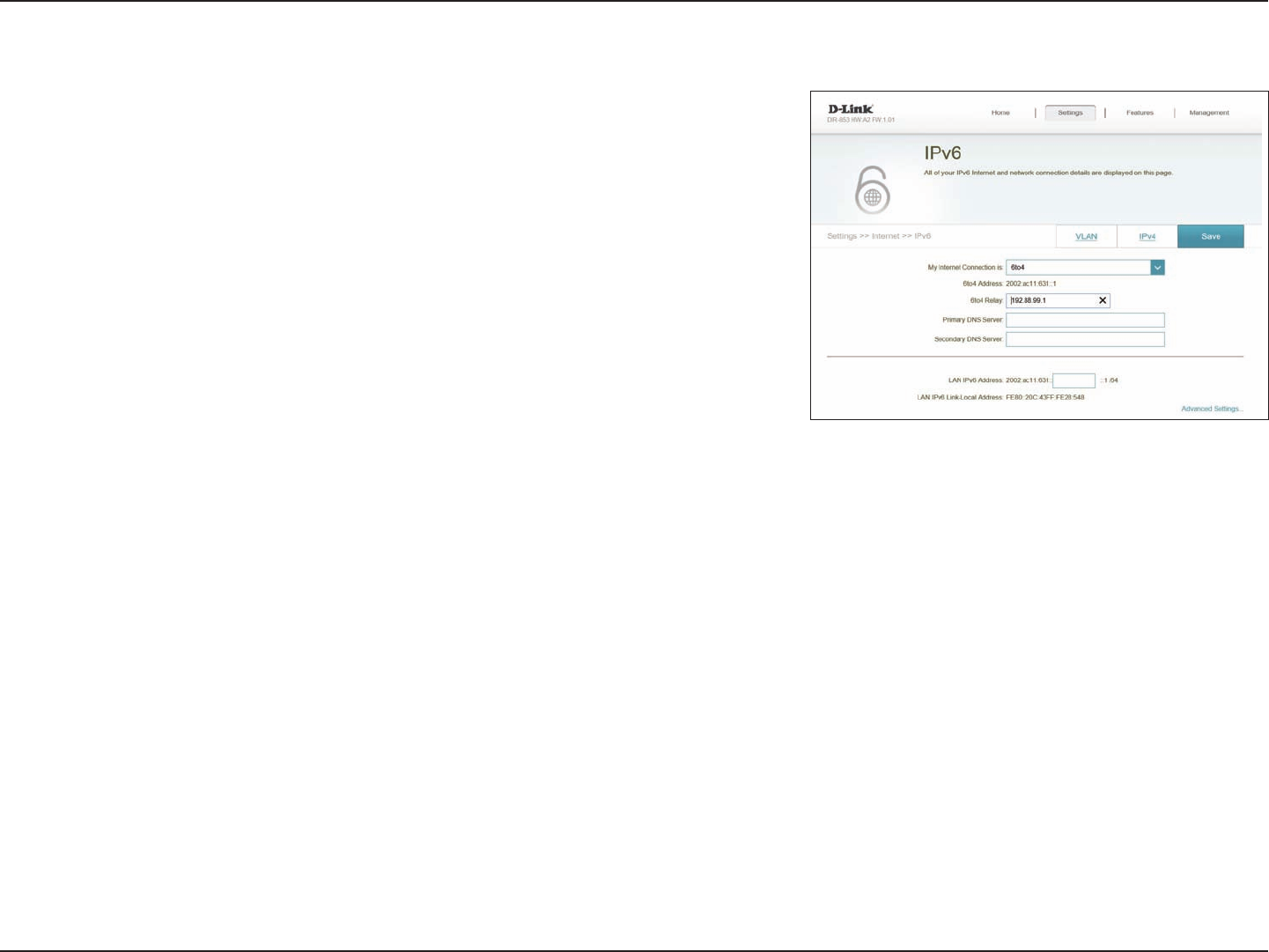

IPv6
To congure an IPv6 connection, click the IPv6 link. To return to the IPv4
settings, click IPv4.
For Auto Detection refer to page 34.
For Static IPv6 refer to page 36.
For Auto Conguration (SLAAC/DHCPv6) refer to page 38.
For PPPoE refer to page 41.
For IPv6 in IPv4 Tunnel refer to page 45.
For 6 to 4 refer to page 48.
For 6rd refer to page 50.
For Local Connectivity Only refer to page 52.
My Internet
Connection Is:
Choose your IPv6 connection type from the drop-down menu. You
will be presented with the appropriate options for your connection
type. Click Advanced Settings... to expand the list and see all of the
options.
34D-Link DIR-1360 User Manual
Section 4 - Conguration
Auto Detection

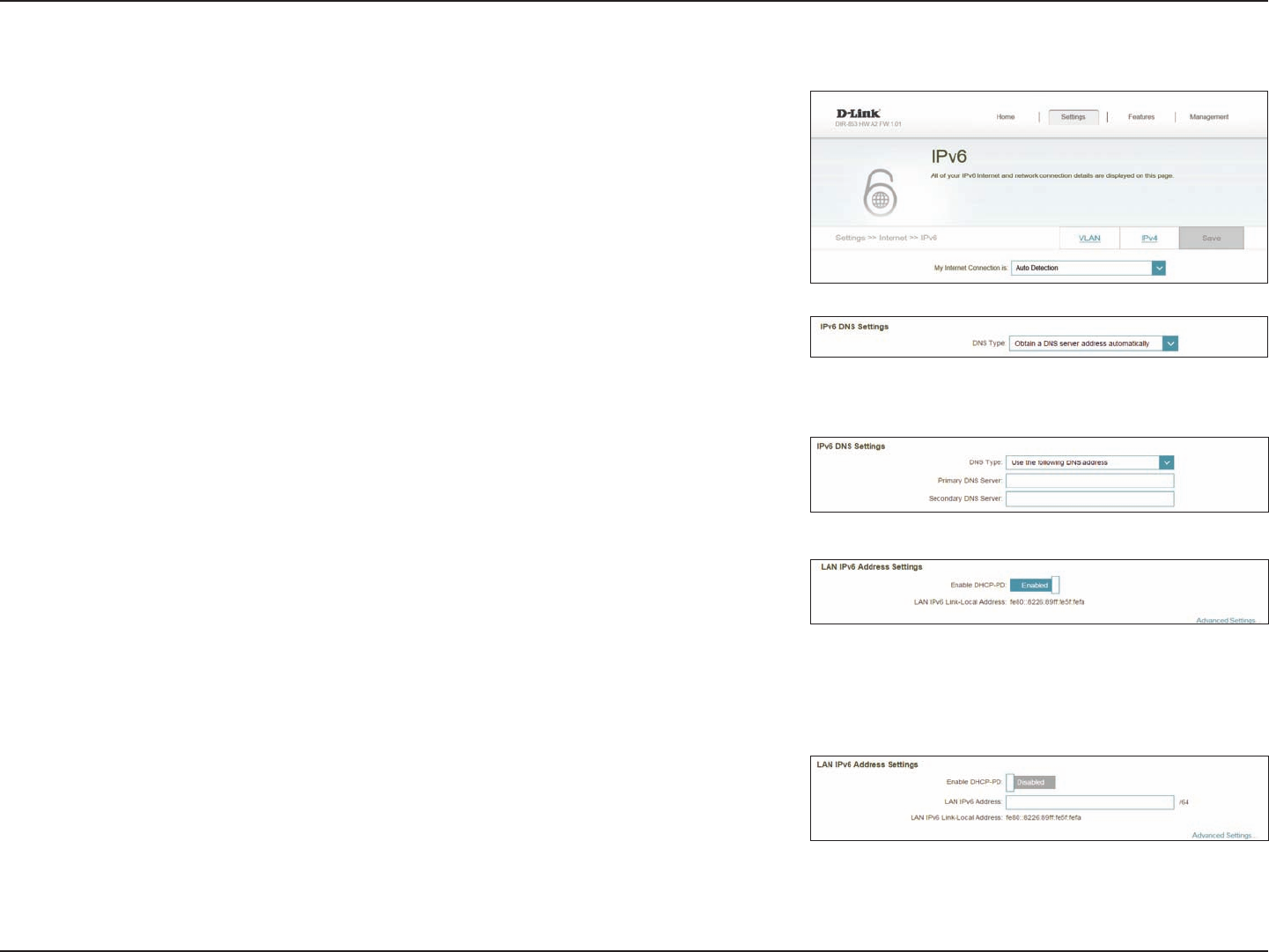

Select Auto Detection to automatically detect the IPv6 connection method
used by your Internet Service Provider (ISP). If Auto Detection fails, you can
manually select another IPv6 connection type.

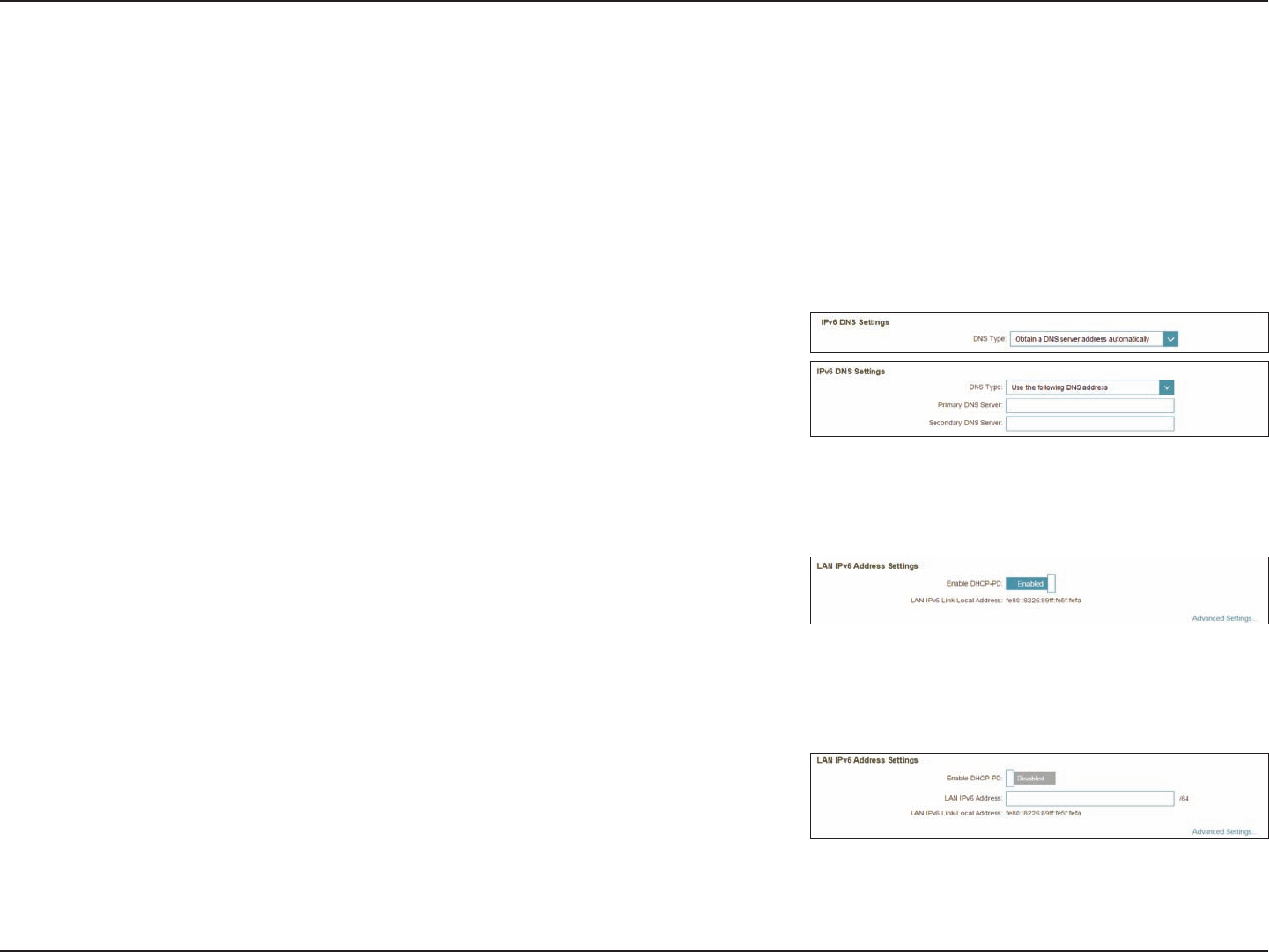

IPv6 DNS Settings
DNS Type: Select either Obtain DNS server address automatically or Use the
following DNS address.
If Use the following DNS address is selected:
Primary DNS
Server:
If you selected Use the following DNS address above, enter the
primary DNS server address.
Secondary DNS
Server:
If you selected Use the following DNS address above, enter the
secondary DNS server address.
LAN IPv6 Address Settings
Enable DHCP-PD: Enable or disable DHCP Prex Delegation.
LAN IPv6 Link-
Local Address:
Displays the router’s LAN link-local address.
If Enable DHCP-PD is disabled, these additional parameters are available for conguration:
LAN IPv6 Address: Enter a valid LAN IPv6 address.
LAN IPv6 Link-
Local Address:
Displays the router’s LAN link-local address.
35D-Link DIR-1360 User Manual
Section 4 - Conguration
Auto Detection (continued)

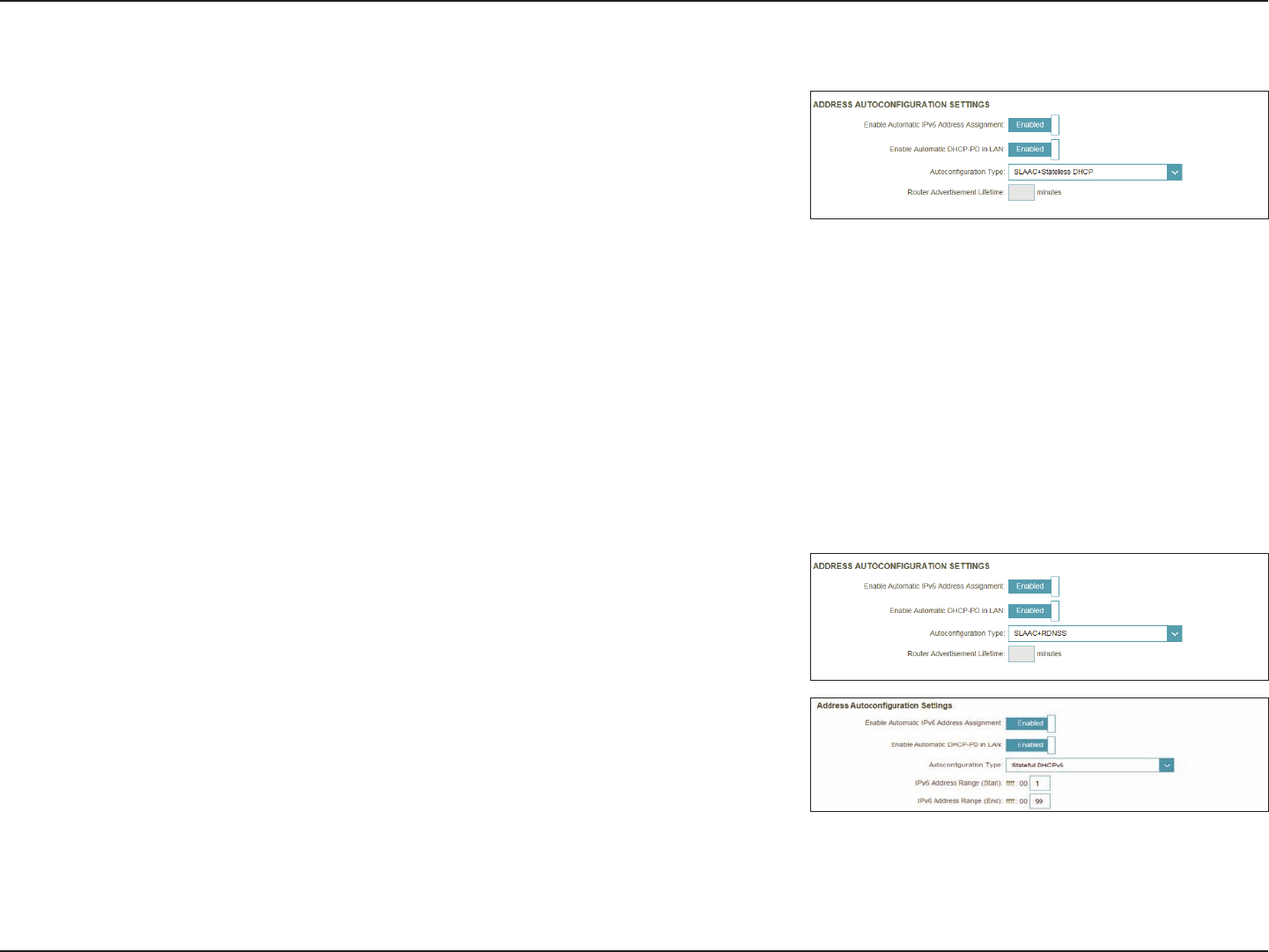

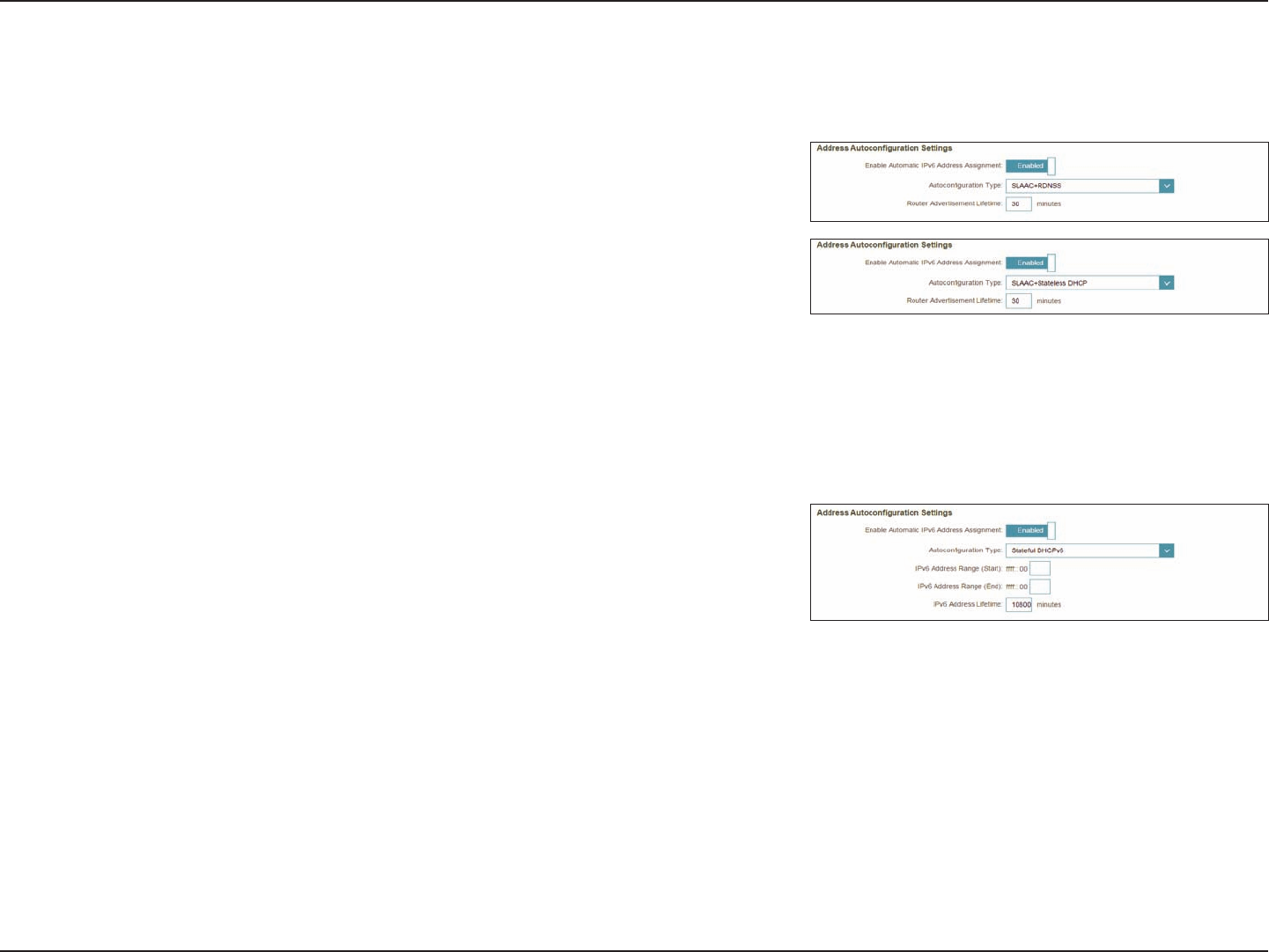

Advanced Settings - Address Autoconguration Settings
Enable Automatic
IPv6 Address
Assignment:
Enable or disable the Automatic IPv6 Address Assignment feature.
Enable Automatic
DHCP-PD in LAN:
Enable or disable DHCP-PD for other IPv6 routers connected to the
LAN interface.
Note: This feature requires a smaller subnet prex than /64 (i.e. allowing
for a larger address allocation), such as /63. Contact your ISP for more
information.

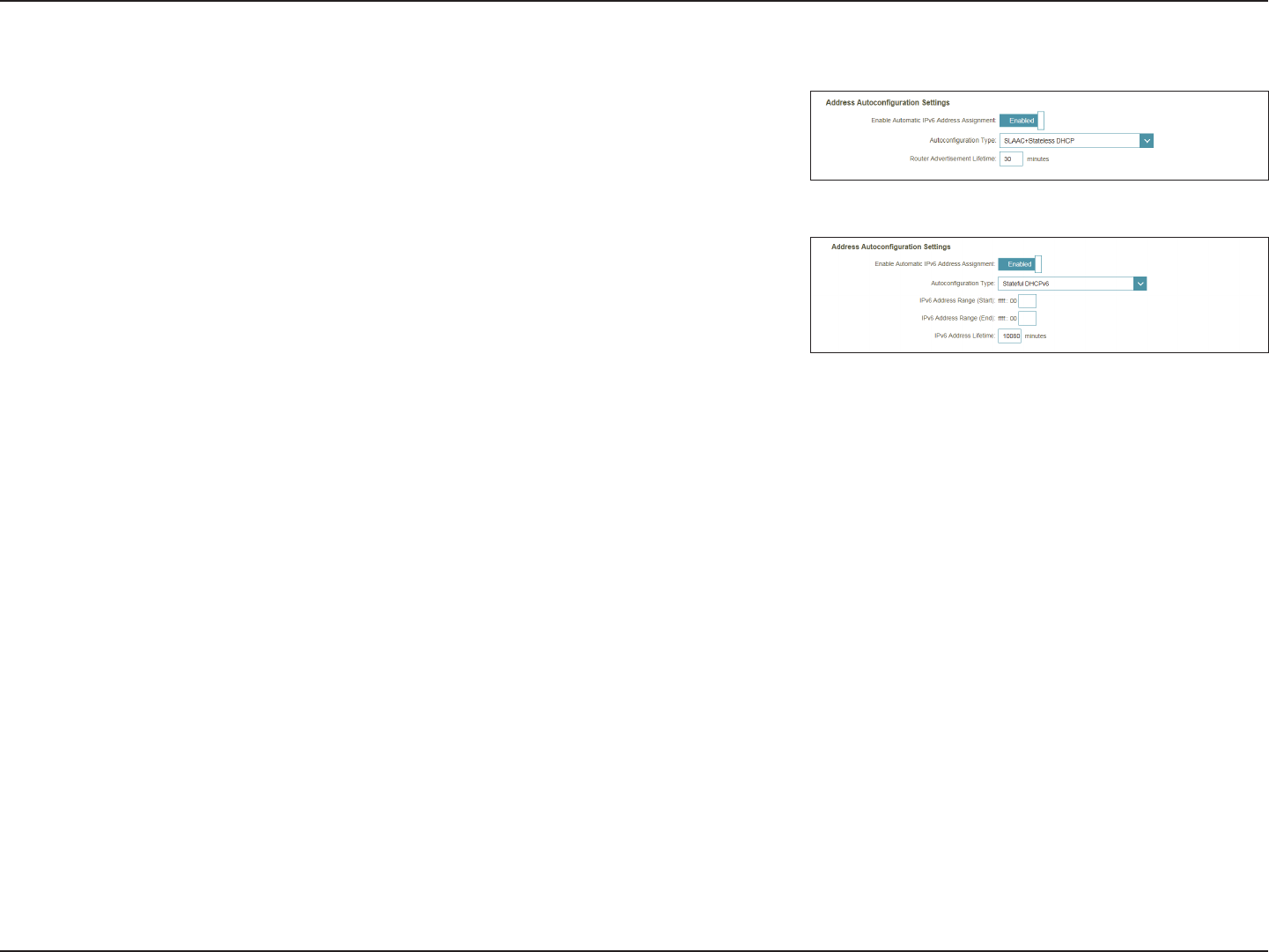

Autoconguration
Type:
Select SLAAC+RDNSS, SLAAC+Stateless DHCP, or Stateful DHCPv6.
If you selected SLAAC+RDNSS or SLAAC+Stateless DHCP as the Autoconguration Type:
Router
Advertisement
Lifetime:
Enter the router advertisement lifetime (in minutes).
If you selected Stateful DHCPv6 as the Autoconguration Type:
IPv6 Address
Range (Start):
Enter the starting IPv6 address for the DHCP server’s IPv6 assignment.
IPv6 Address
Range (End):
Enter the ending IPv6 address for the DHCP server’s IPv6 assignment.
Click Save when you are done.
36D-Link DIR-1360 User Manual
Section 4 - Conguration
Static IPv6
Select Static IP if your IPv6 information is provided by your Internet Service
Provider (ISP).
IPv6 DNS Settings
If Use the following DNS address is selected for DNS Type:
Primary DNS
Server:
Enter the primary DNS server address.
Secondary DNS
Server:
Enter the secondary DNS server address.
LAN IPv6 Address Settings
If Enable DHCP-PD is disabled these additional parameters are available for conguration:
LAN IPv6 Address: Enter the LAN (local) IPv6 address for the router.
LAN IPv6 Link-
Local Address:
Displays the router’s LAN link-local address.
Advanced Settings - Address Autoconguration Settings
Enable Automatic
IPv6 Address
Assignment:
Enable or disable the Automatic IPv6 Address Assignment feature.
Autoconguration
Type:
Select SLAAC+RDNSS, SLAAC+Stateless DHCP, or Stateful DHCPv6.
Router
Advertisement
Lifetime:
Enter the router advertisement lifetime (in minutes).
37D-Link DIR-1360 User Manual
Section 4 - Conguration
Static IPv6 (continued)
If you selected Stateful DHCPv6 as the Autoconguration Type:
IPv6 Address
Range (Start):
Enter the starting IPv6 address for the DHCP server’s IPv6 assignment.
IPv6 Address
Range (End):
Enter the ending IPv6 address for the DHCP server’s IPv6 assignment.
Click Save when you are done.
38D-Link DIR-1360 User Manual
Section 4 - Conguration
Auto Conguration (SLAAC/DHCPv6)
Select Auto Conguration if your ISP assigns your IPv6 address when your
router requests one from the ISP’s server. Some ISPs require you to adjust
settings on your side before your router can connect to the IPv6 Internet.
IPv6 DNS Settings
DNS Type: Select either Obtain DNS server address automatically or Use the
following DNS address.
If Use the following DNS address is selected:
Primary DNS
Server:
Enter the primary DNS server address.
Secondary DNS
Server:
Enter the secondary DNS server address.
LAN IPv6 Address Settings
Enable DHCP-PD: Enable or disable prex delegation services.
LAN IPv6 Link-
Local Address:
Displays the router’s LAN link-local address.
If Enable DHCP-PD is disabled, these additional parameters are available for conguration:
LAN IPv6 Address: Enter a valid LAN IPv6 address.
LAN IPv6 Link-
Local Address:
Displays the router’s LAN link-local address.
39D-Link DIR-1360 User Manual
Section 4 - Conguration
Advanced Settings - Address Autoconguration Settings
Enable Automatic
IPv6 Address
Assignment:
Enable or disable the Automatic IPv6 Address Assignment feature.
If DHCP-PD is enabled in LAN IPv6 Address Settings:
Enable Automatic
DHCP-PD in LAN:
Enable or disable DHCP-PD for other IPv6 routers connected to the
LAN interface.
Note: This feature requires a smaller subnet prex than /64 (i.e. allowing
for a larger address allocation), such as /63. Contact your ISP for more
information.

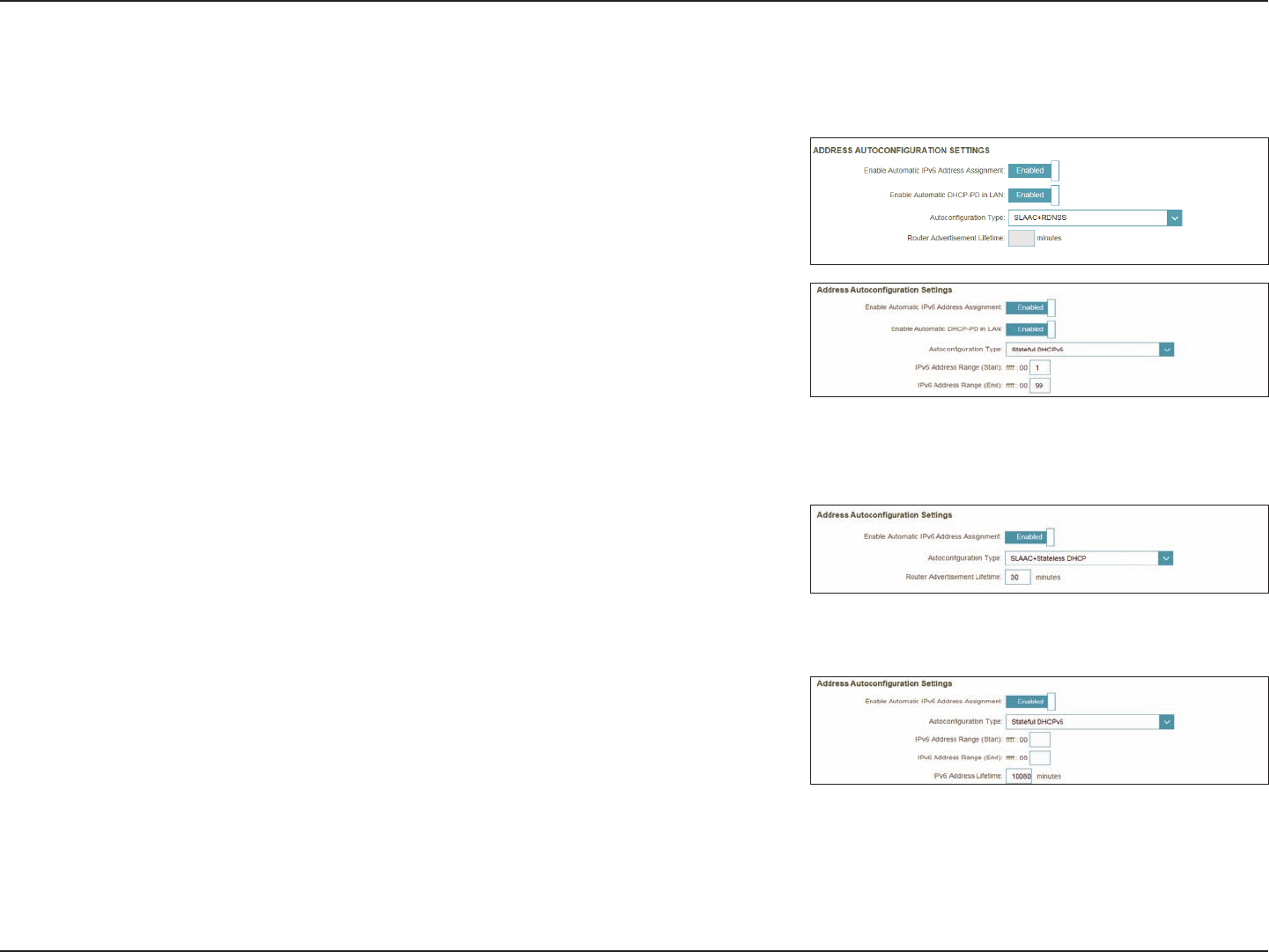

Autoconguration
Type:
Select SLAAC+RDNSS, SLAAC+Stateless DHCP, or Stateful DHCPv6.
If you selected SLAAC+RDNSS or SLAAC+Stateless DHCP as the Autoconguration Type:
Router
Advertisement
Lifetime:
Enter the router advertisement lifetime (in minutes).
If you selected Stateful DHCPv6 as the Autoconguration Type:
IPv6 Address
Range (Start):
Enter the starting IPv6 address for the DHCP server’s IPv6 assignment.
IPv6 Address
Range (End):
Enter the ending IPv6 address for the DHCP server’s IPv6 assignment.
Auto Conguration (SLAAC/DHCPv6) (continued)
40D-Link DIR-1360 User Manual
Section 4 - Conguration
Auto Conguration (SLAAC/DHCPv6) (continued)
If DHCP-PD is disabled in LAN IPv6 Address Settings and SLAAC+Stateless DHCP or
SLAAC+RDNSS is chosen as the Autoconguration Type:
Router
Advertisement
Lifetime:
Enter the router advertisement lifetime (in minutes).
If DHCP-PD is disabled in LAN IPv6 Address Settings and Stateful DHCPv6 is chosen as the
Autoconguration Type:
IPv6 Address
Range (Start):
Enter the starting IPv6 address for the DHCP server’s IPv6 assignment.
IPv6 Address
Range (End):
Enter the ending IPv6 address for the DHCP server’s IPv6 assignment.

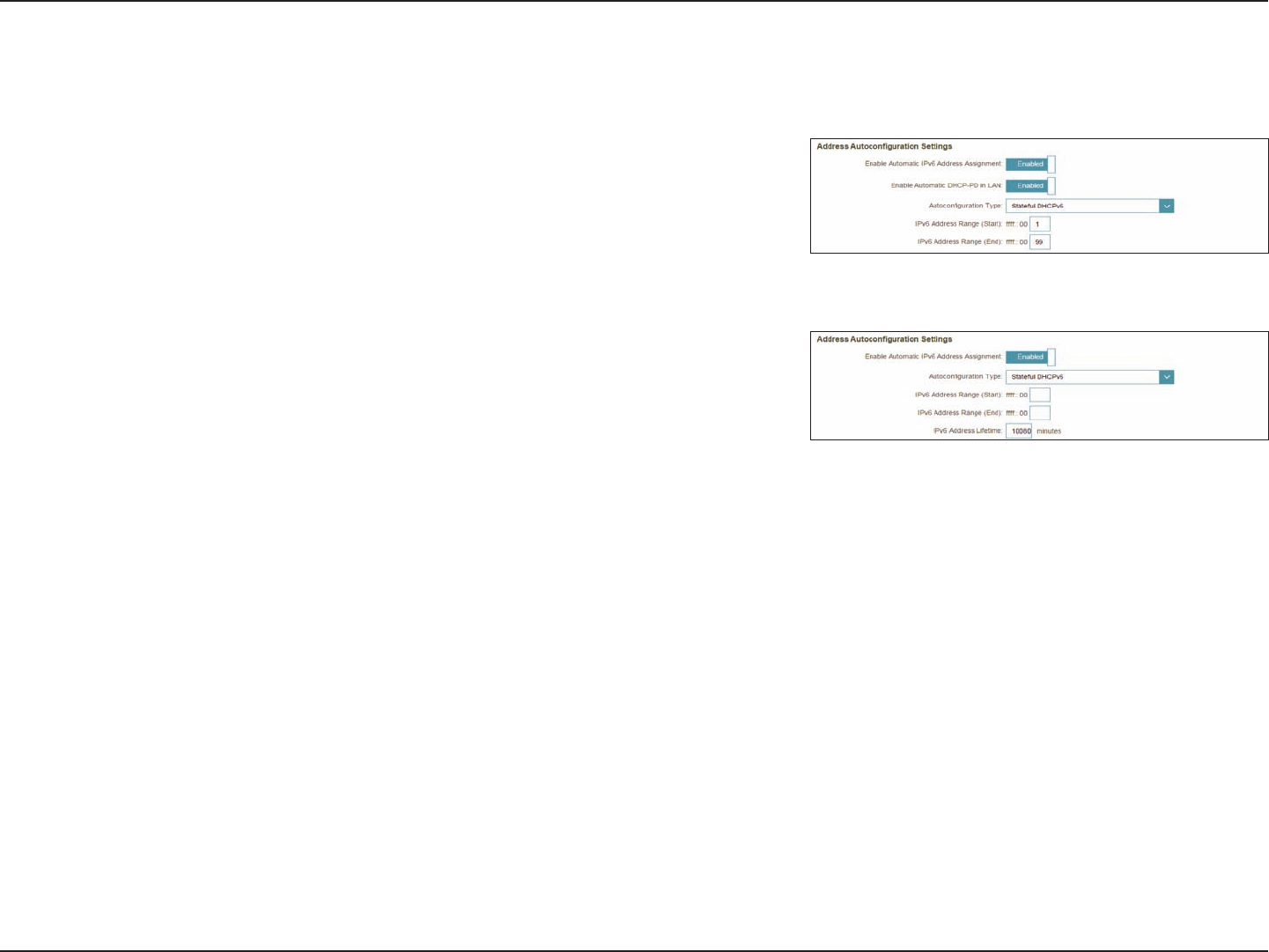

IPv6 Address
Lifetime:
Enter the IPv6 address lifetime (in minutes).
Click Save when you are done.
41D-Link DIR-1360 User Manual
Section 4 - Conguration

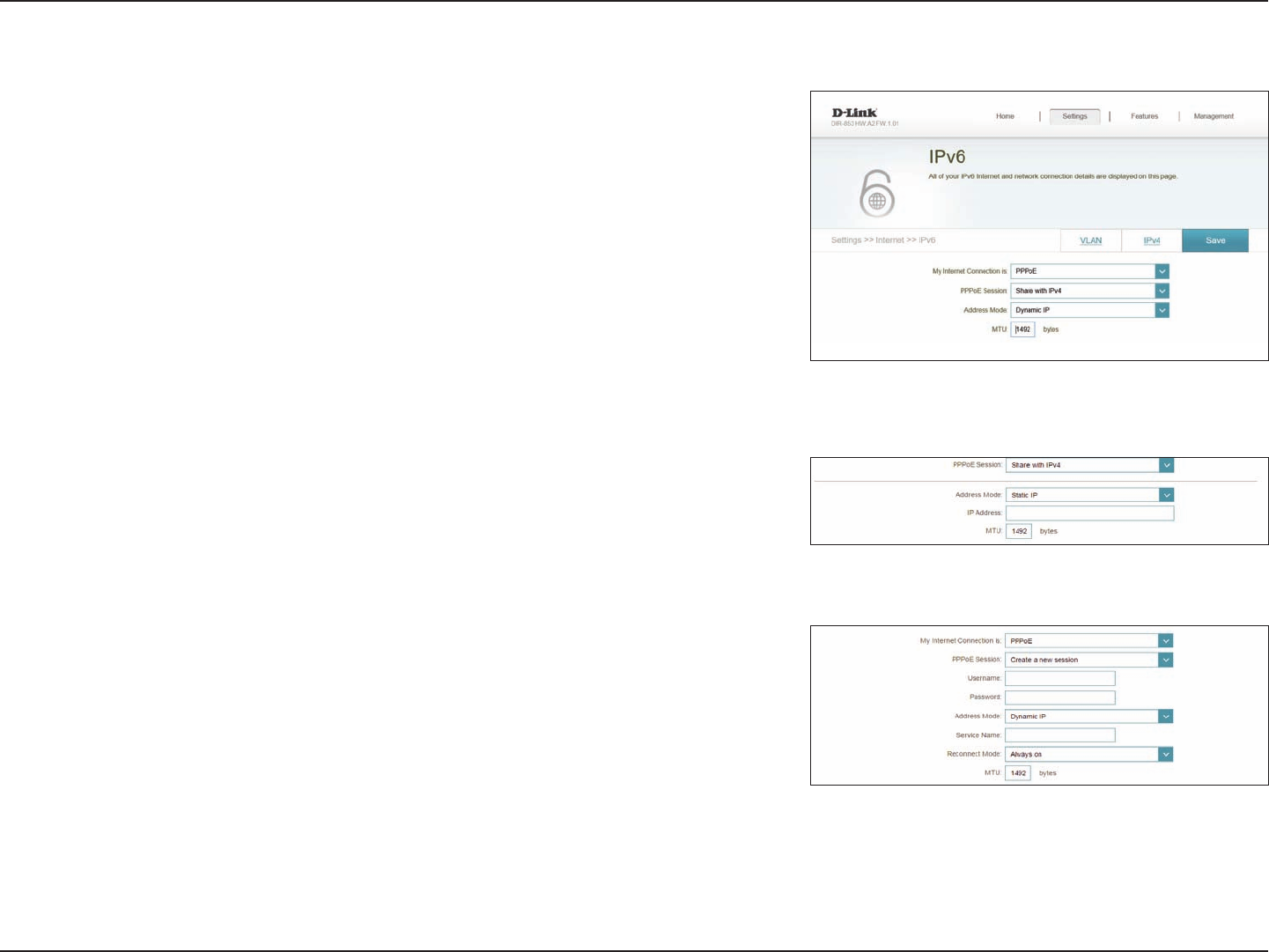

PPPoE
Select PPPoE if your ISP provides and requires you to enter a PPPoE username
and password in order to connect to the Internet.
PPPoE Session: Choose Share with IPv4 to re-use your IPv4 PPPoE username and
password, or Create a new session.
Address Mode: Select Static IP if your ISP assigned you an IP address. In most cases,
select Dynamic IP.
MTU: Maximum Transmission Unit - you may need to change the MTU for
optimal performance with your ISP.
If you selected Static IP as the Address Mode and Share with IPv4 as the PPPoE Session:
IP Address: Enter the IP address provided by your ISP.
MTU: Maximum Transmission Unit - you may need to change the MTU for
optimal performance with your ISP.
If you selected Create a new session as the PPPoE Session:
Username: Enter the username provided by your ISP.
Password: Enter the password provided by your ISP.
Address Mode: Select either Dynamic IP or Static IP.
Service Name: Enter the ISP service name (optional).
Reconnect Mode: Select either Always On or Manual.
MTU: Maximum Transmission Unit - you may need to change the MTU for
optimal performance with your ISP.
42D-Link DIR-1360 User Manual
Section 4 - Conguration
If you selected Static IP as the Address Mode and Create a new session as the PPPoE Session:
IP Address: Enter the IP address provided by your ISP
Service Name: Enter the ISP service name (optional).
Reconnect Mode: Select either Always-on or Manual.
MTU: Maximum Transmission Unit - you may need to change the MTU for
optimal performance with your ISP.
IPv6 DNS Settings
DNS Type: Select either Obtain DNS server address automatically or Use the
following DNS address.
If Use the following DNS address is selected:
Primary DNS
Server:
Enter the primary DNS server address.
Secondary DNS
Server:
Enter the secondary DNS server address.
LAN IPv6 Address Settings
Enable DHCP-PD: Enable or disable prefix delegation services. This option is only
available if you selected Dynamic IP for address mode.
LAN IPv6 Link-
Local Address:
Displays the router’s LAN link-local address.
PPPoE (continued)
43D-Link DIR-1360 User Manual
Section 4 - Conguration
PPPoE (continued)
If Enable DHCP-PD is disabled these additional parameters are available for conguration:
LAN IPv6 Address: If DHCP-PD disabled or static address mode is selected, enter the LAN
(local) IPv6 address for the router.
LAN IPv6 Link-
Local Address:
Displays the router’s LAN link-local address.
Advanced Settings - Address Autoconguration Settings
Enable Automatic
IPv6 Address
Assignment:
Enable or disable the Automatic IPv6 Address Assignment feature.
If DHCP-PD is enabled in LAN IPv6 Address Settings:
Enable Automatic
DHCP-PD in LAN:
Enable or disable DHCP-PD for other IPv6 routers connected to the
LAN interface.
Note: This feature requires a smaller subnet prex than /64 (i.e. allowing
for a larger address allocation), such as /63. Contact your ISP for more
information.
Autoconguration
Type:
Select SLAAC+RDNSS, SLAAC+Stateless DHCP, or Stateful DHCPv6.
If you selected SLAAC+RDNSS or SLAAC+Stateless DHCP as the Autoconguration Type:
Router
Advertisement
Lifetime:
Enter the router advertisement lifetime (in minutes).
44D-Link DIR-1360 User Manual
Section 4 - Conguration
PPPoE (continued)
If you selected Stateful DHCPv6 as the Autoconguration Type:
IPv6 Address
Range (Start):
Enter the starting IPv6 address for the DHCP server’s IPv6 assignment.
IPv6 Address
Range (End):
Enter the ending IPv6 address for the DHCP server’s IPv6 assignment.
If DHCP-PD is disabled in LAN IPv6 Address Settings:
IPv6 Address
Range (Start):
Enter the starting IPv6 address for the DHCP server’s IPv6 assignment.
IPv6 Address
Range (End):
Enter the ending IPv6 address for the DHCP server’s IPv6 assignment.
IPv6 Address
Lifetime:
Enter the IPv6 address lifetime (in minutes).
Click Save when you are done.
45D-Link DIR-1360 User Manual
Section 4 - Conguration
IPv6 in IPv4 Tunnel

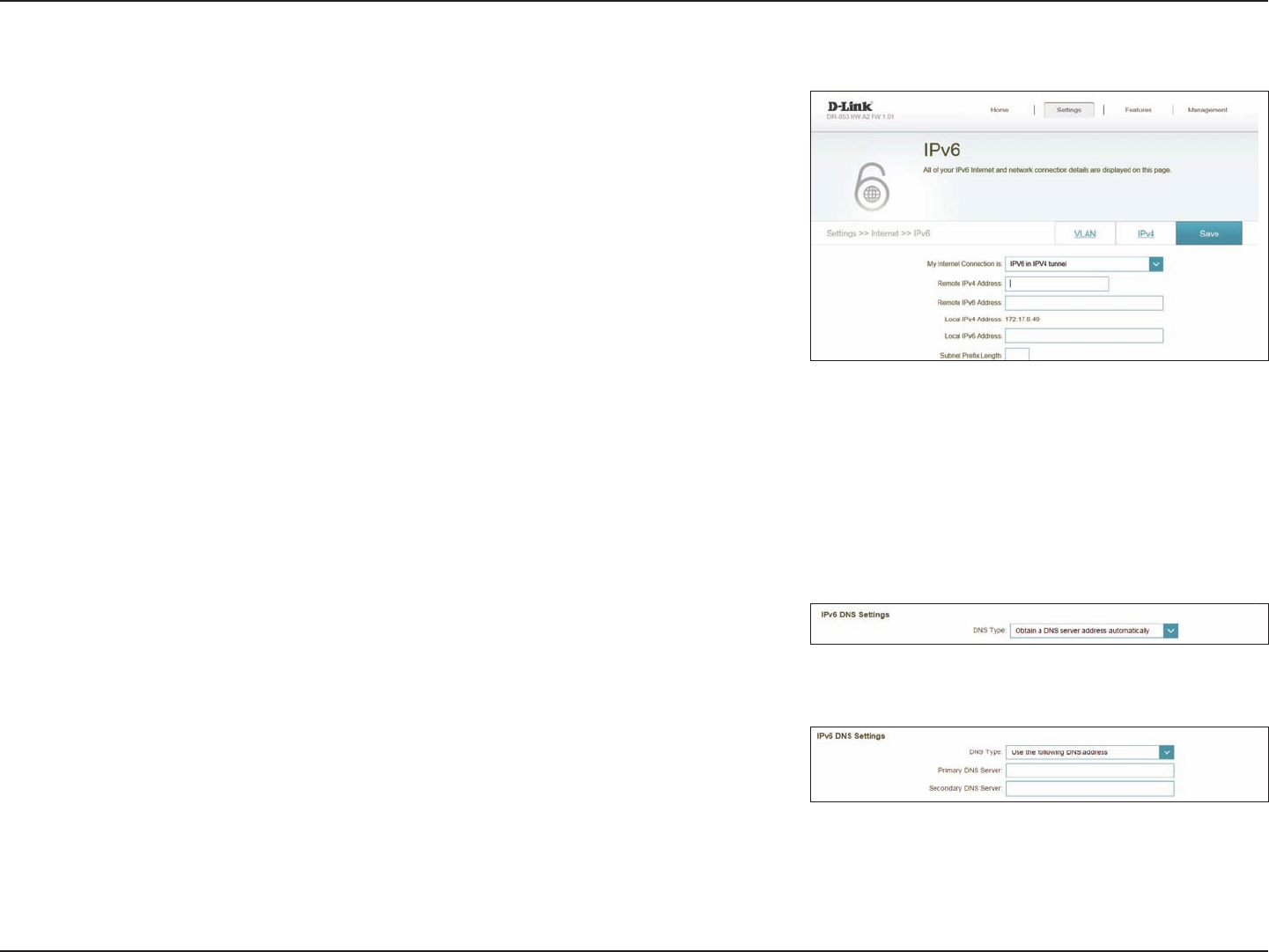

The user can congure the IPv6 connection to run in IPv4 Tunnel mode. IPv6
over IPv4 tunnelling encapsulates IPv6 packets in IPv4 packets so that IPv6
packets can be sent over an IPv4 infrastructure.
Remote IPv4
Address:
Enter the IPv4 remote address you will use.
Remote IPv6
Address:
Enter the IPv6 remote address you will use.
Local IPv4
Address:
Displays the current local IPv4 address.
Local IPv6
Address:
Enter the IPv6 local address you will use.
Subnet Prex
Length:
Enter the subnet prex length supplied by your ISP.
IPv6 DNS Settings
DNS Type: Select either Obtain DNS server address automatically or Use the
following DNS address.
If Use the following DNS address is selected:
Primary DNS
Server:
Enter the primary DNS server address.
Secondary DNS
Server:
Enter the secondary DNS server address.
46D-Link DIR-1360 User Manual
Section 4 - Conguration
LAN IPv6 Address Settings
Enable DHCP-PD: Enable or disable prefix delegation services. This option is only
available if you selected Dynamic IP for address mode.
LAN IPv6 Link-
Local Address:
Displays the router’s LAN link-local address.
If Enable DHCP-PD is disabled, these additional parameters are available for
conguration:
LAN IPv6 Address: If DHCP-PD disabled or static address mode is selected, enter the LAN
(local) IPv6 address for the router.
LAN IPv6 Link-
Local Address:
Displays the router’s LAN link-local address.
Advanced Settings - Address Autoconguration Settings
Enable Automatic
IPv6 Address
Assignment:
Enable or disable the Automatic IPv6 Address Assignment feature.
If DHCP-PD is enabled in LAN IPv6 Address Settings:
Enable Automatic
DHCP-PD in LAN:
Enable or disable DHCP-PD for other IPv6 routers connected to the
LAN interface.
Note: This feature requires a smaller subnet prex than /64 (i.e. allowing
for a larger address allocation), such as /63. Contact your ISP for more
information.
Autoconguration
Type:
Select SLAAC+RDNSS, SLAAC+Stateless DHCP, or Stateful DHCPv6.
IPv6 in IPv4 Tunnel (continued)
47D-Link DIR-1360 User Manual
Section 4 - Conguration
If you selected SLAAC+RDNSS or SLAAC+Stateless DHCP as the Autoconguration Type:
Router
Advertisement
Lifetime:
Enter the router advertisement lifetime (in minutes).
If you selected Stateful DHCPv6 as the Autoconguration Type:
IPv6 Address
Range (Start):
Enter the starting IPv6 address for the DHCP server’s IPv6 assignment.
IPv6 Address
Range (End):
Enter the ending IPv6 address for the DHCP server’s IPv6 assignment.
If DHCP-PD is disabled in LAN IPv6 Address Settings and SLAAC+Stateless DHCP or
SLAAC+RDNSS is chosen as the Autoconguration Type:
Router
Advertisement
Lifetime:
Enter the router advertisement lifetime (in minutes).
If DHCP-PD is disabled in LAN IPv6 Address Settings and Stateful DHCPv6 is chosen as the
Autoconguration Type:
IPv6 Address
Range (Start):
Enter the starting IPv6 address for the DHCP server’s IPv6 assignment.
IPv6 Address
Range (End):
Enter the ending IPv6 address for the DHCP server’s IPv6 assignment.
IPv6 Address
Lifetime:
Enter the IPv6 address lifetime (in minutes).
Click Save when you are done.
IPv6 in IPv4 Tunnel (continued)
48D-Link DIR-1360 User Manual
Section 4 - Conguration
6to4
In this section the user can congure the IPv6 6 to 4 connection settings. 6to4
is an IPv6 address assignment and automatic tunneling technology that is
used to provide unicast IPv6 connectivity between IPv6 sites and hosts across
the IPv4 Internet.
6to4 Address: Displays the 6 to 4 address.
6to4 Relay: Enter the 6 to 4 relay supplied by your ISP.
Primary DNS
Server:
Enter the primary DNS server address.
Secondary DNS
Server:
Enter the secondary DNS server address.
LAN IPv6 Address Settings
LAN IPv6 Address: Enter the LAN (local) IPv6 address for the router.
LAN IPv6 Link-
Local Address:
Displays the router’s LAN link-local address.
49D-Link DIR-1360 User Manual
Section 4 - Conguration
Advanced Settings - Address Autoconguration Settings
Enable Automatic
IPv6 Address
Assignment:
Enable or disable the Automatic IPv6 Address Assignment feature.
Autoconguration
Type:
Select SLAAC+RDNSS, SLAAC+Stateless DHCP, or Stateful DHCPv6.
If you selected SLAAC+RDNSS or SLAAC+Stateless DHCP as the Autoconguration Type:
Router
Advertisement
Lifetime:
Enter the router advertisement lifetime (in minutes).
If you selected Stateful DHCPv6 as the Autoconguration Type:
IPv6 Address
Range (Start):
Enter the starting IPv6 address for the DHCP server’s IPv6 assignment.
IPv6 Address
Range (End):
Enter the ending IPv6 address for the DHCP server’s IPv6 assignment.
IPv6 Address
Lifetime:
Enter the IPv6 address lifetime (in minutes).
Click Save when you are done.
6to4 (continued)
50D-Link DIR-1360 User Manual
Section 4 - Conguration

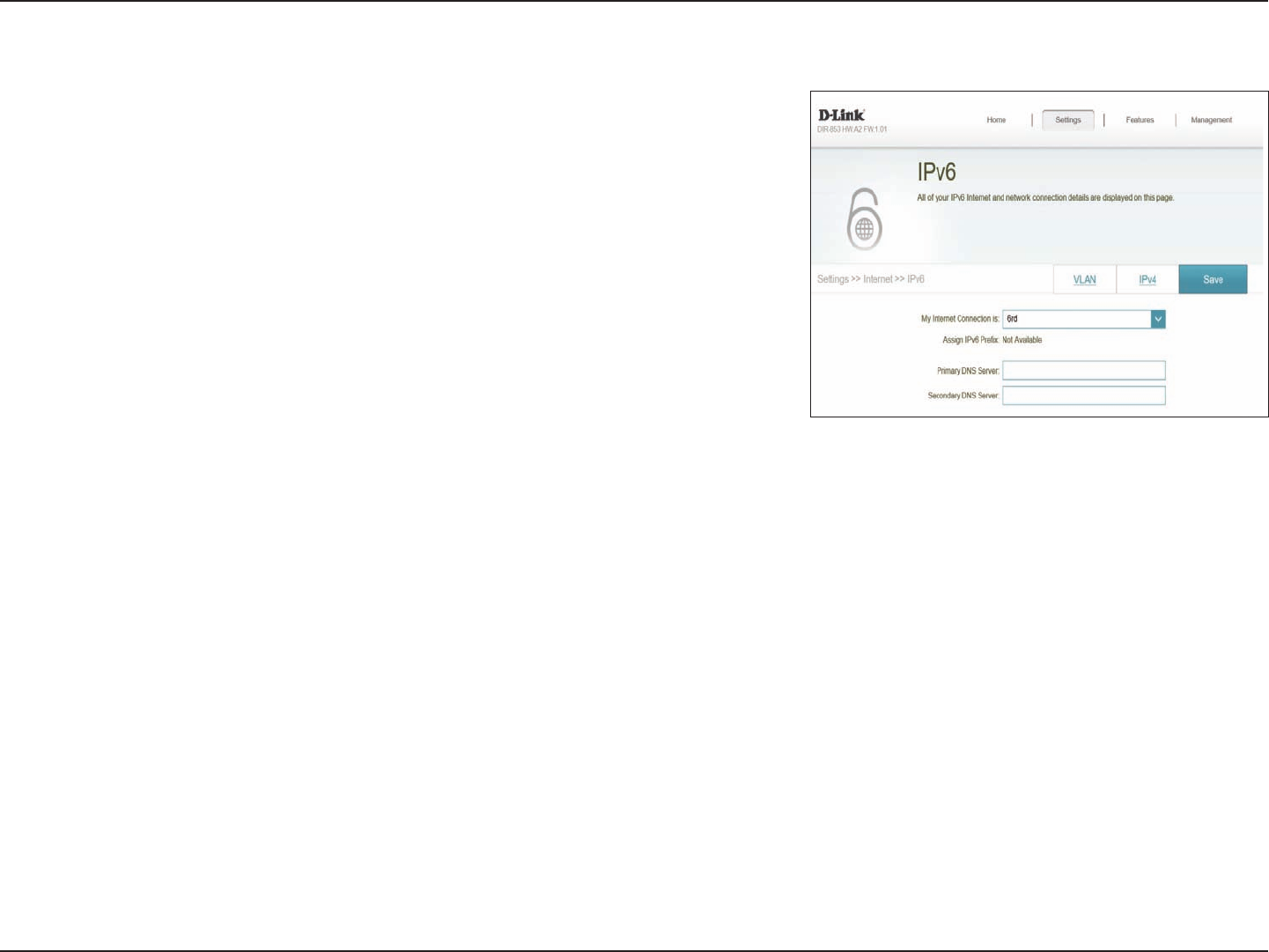

6rd
In this section the user can congure the IPv6 6rd connection settings.
Assign IPv6 Prex: Currently unsupported.
Primary DNS
Server:
Enter the primary DNS server address.
Secondary DNS
Server:
Enter the secondary DNS server address.
6rd Manual Conguration
Enable Hub and
Spoke Mode:
Enable this option if you want to minimize the number of routes to
the destination by using a hub and spoke method of networking.
6rd Conguration: Choose the 6rd DHCPv4 Option to automatically discover and
populate the data values, or Manual Conguration to enter the
settings yourself.
If you selected Manual conguration
6rd IPv6 Prex: Enter the 6rd IPv6 prex and mask length supplied by your ISP.
WAN IPv4 Address Displays the router’s IPv4 address.
6rd Border Relay
IPv4 Address:
Enter the 6rd border relay IPv4 address settings supplied by your ISP.
LAN IPv6 Address Settings
LAN IPv6 Address: Displays the router’s LAN IPv6 Address link-local address.
LAN IPv6 Link-
Local Address:
Displays the router’s LAN link-local address.
51D-Link DIR-1360 User Manual
Section 4 - Conguration
Advanced Settings - Address Autoconguration Settings
Enable Automatic
IPv6 Address
Assignment:
Enable or disable the Automatic IPv6 Address Assignment feature.
Autoconguration
Type:
Select SLAAC+RDNSS, SLAAC+Stateless DHCP, or Stateful DHCPv6.
If you selected SLAAC+RDNSS or SLAAC+Stateless DHCP as the Autoconguration Type:
Router
Advertisement
Lifetime:
Enter the router advertisement lifetime (in minutes).
If you selected Stateful DHCPv6 as the Autoconguration Type:
IPv6 Address
Range (Start):
Enter the starting IPv6 address for the DHCP server’s IPv6 assignment.
IPv6 Address
Range (End):
Enter the ending IPv6 address for the DHCP server’s IPv6 assignment.
IPv6 Address
Lifetime:
Enter the IPv6 address lifetime (in minutes).
Click Save when you are done.
6rd (continued)
52D-Link DIR-1360 User Manual
Section 4 - Conguration
Local Connectivity Only
Local Connectivity Only allows you to set up an IPv6 connection that will not
connect to the Internet.
Advanced Settings
IPv6 ULA Settings
Enable ULA: Click here to enable Unique Local IPv6 Unicast Addresses settings.
Use Default ULA
Prex:
Enable this option to use the default ULA prex.
If you selected Enable ULA and disabled Default ULA Prex:
ULA Prex: Enter your own ULA prex.
Current IPv6 ULA Settings
Current ULA
Prex:
Displays the current ULA prex.
LAN IPv6 ULA: Displays the LAN's IPv6 ULA.
Click Save when you are done.
53D-Link DIR-1360 User Manual
Section 4 - Conguration

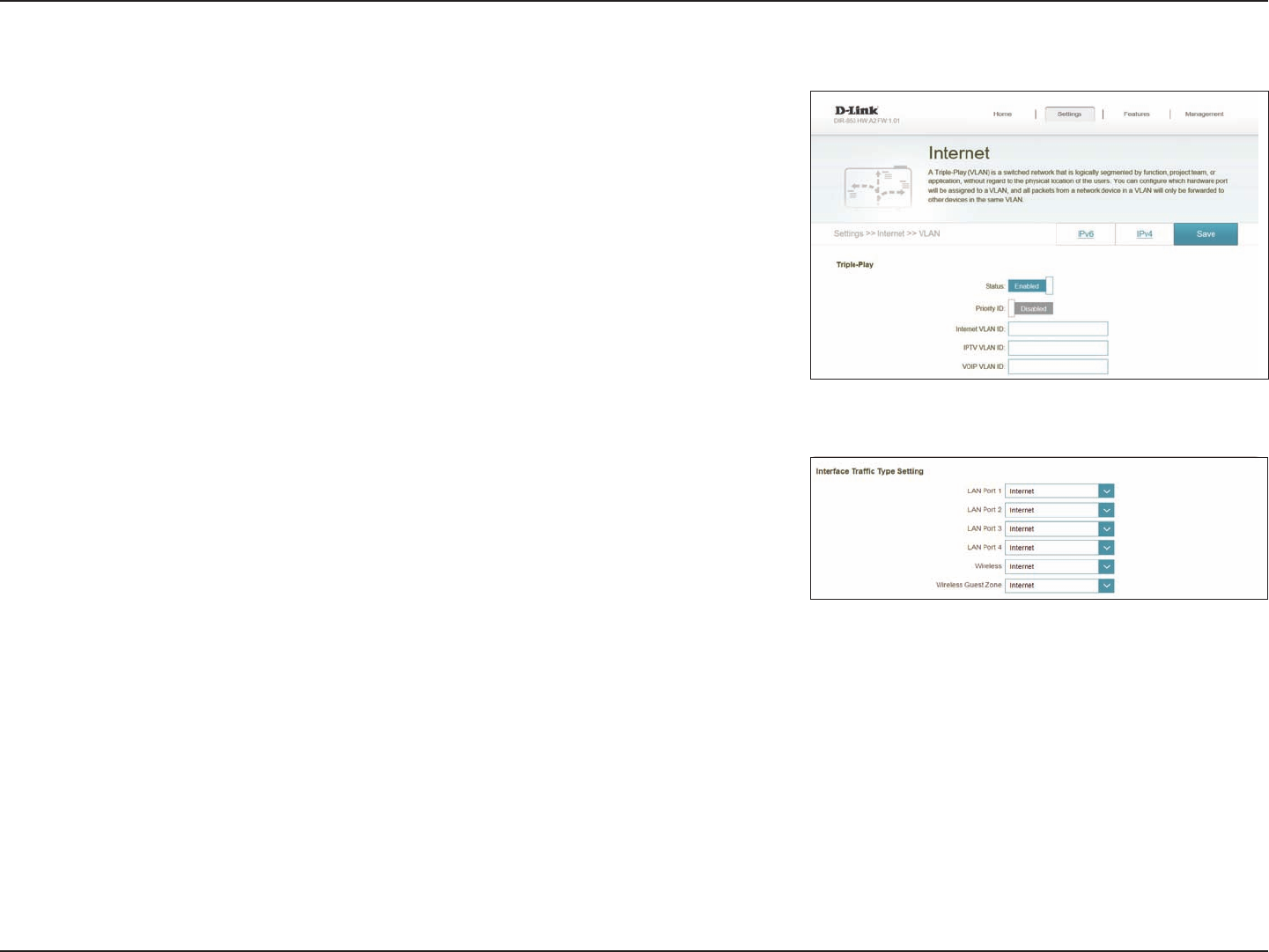

VLAN
VLAN allows for services such as Triple-Play to be used, and divides a network
into segments that can only be accessed by other devices in the same VLAN.
In the Settings menu on the bar on the top of the page, click Internet, then
click the VLAN link.
Triple-Play
Status: Click to enable or disable the Triple-Play VLAN feature.
If Status is enabled:
Internet VLAN ID Enter the VLAN ID for your Internet connection, as provided by your
ISP.
IPTV VLAN ID Enter the VLAN ID for your IPTV service, as provided by your ISP.
VOIP VLAN ID: Enter the VLAN ID for your VoIP network, as provided by your ISP.
Interface Trac Type Setting
LAN 1-4, Wireless,
Guest Zone:
From the drop-down menu, you can select the type of connection
(Internet, IPTV, or Voice over IP) coming from the WAN connection to
each interface on the DIR-1360.
Click Save when you are done.
54D-Link DIR-1360 User Manual
Section 4 - Conguration
Smart Connect
Smart Connect: Enable or disable the Smart Connect Feature. When enabled, only
a few conguration options are available to simplify conguration.
Wi-Fi Name (SSID): Create a name for your wireless network using up to 32 characters.
Password: Create a password to use for wireless security. Wireless clients will
need to enter this password to successfully connect to the network.
Advanced Settings
Security Mode: Choose None or WPA/WPA2-Personal (recommended).
Transmission
Power:
Select the desired wireless transmission power.
Schedule: Use the drop-down menu to select the time schedule that the rule
will be enabled for. The schedule may be set to Always Enable, or
you can create your own schedules in the Schedules section. Refer
to Schedule on page 72 for more information.
Wi-Fi Protected Setup
The easiest way to connect your wireless devices to the router is with Wi-Fi Protected Setup
(WPS). Using WPS-PIN is disabled by default due to security vulnerabilities.
WPS-PBC Status: Enable or disable WPS-PBC (Push Button Conguration) fuctionality.
WPS-PIN Status: Enable or disable WPS-PIN fuctionality.
Refer to the next page if you wish to disable Smart Connect or click
Save when you are done.
From this page you can congure your wireless network settings.
Wireless
55D-Link DIR-1360 User Manual
Section 4 - Conguration
If Smart Connect is disabled the following options are available:
2.4GHz / 5GHz
Status: Enable or disable the 2.4 GHz / 5 GHz wireless network.
Wi-Fi Name (SSID): Create a name for your wireless network using up to 32 characters.
Password: Create a password to use for wireless security.
Advanced Settings
Security Mode: Choose None or WPA/WPA2-Personal (recommended).
802.11 Mode
(2.4 GHz):
Select the desired wireless networking standards to use.
The available options for the 2.4 GHz wireless network are Mixed
802.11b/g/n, Mixed 802.11g/n, 802.11n only.
802.11 Mode
(5 GHz):
Select the desired wireless networking standards to use.
The available options for the 5 GHz wireless network are Mixed
802.11a/n/ac, Mixed 802.11n/ac, 802.11ac only, Mixed 802.11a/n,
Mixed 802.11n only, or 802.11a only.
Wi-Fi Channel: Select the desired channel. The default is Auto (recommended).
Transmission
Power:
Select the desired wireless transmission power.
Channel Width
(2.4 GHz):
Select Auto 20/40 if you are using both 802.11n and non-802.11n
devices, or select 20 MHz if you are not using any 802.11n devices.
Channel Width
(5 GHz):
Select Auto 20/40/80 if you are using 802.11ac, 802.11n, and 802.11a
devices, select Auto 20/40 if you are using 802.11n and 802.11a
devices, or select 20 MHz if you are only using 802.11a devices.
Wireless - Smart Connect Disabled
56D-Link DIR-1360 User Manual
Section 4 - Conguration
HT20/40
Coexistence:
(2.4 GHz):
Enable or disable HT20/40 Coexistence.
Visibility Status: The default setting is Visible. Select Invisible if you do not want to
broadcast the SSID of your wireless network.
Schedule: Use the drop-down menu to select the time schedule that the rule
will be enabled for. The schedule may be set to Always Enable, or
you can create your own schedules in the Schedules section. Refer
to Schedule on page 72 for more information.
Wi-Fi Protected Setup
The easiest way to connect your wireless devices to the router is with Wi-Fi Protected Setup
(WPS). Using WPS-PIN disabled by default due to security vulnerabilities.
WPS-PBC Status: Enable or disable WPS-PBC (Push Button Conguration) functionality.
WPS-PIN Status: Enable or disable WPS-PIN functionality.
Click Save when you are done.
57D-Link DIR-1360 User Manual
Section 4 - Conguration

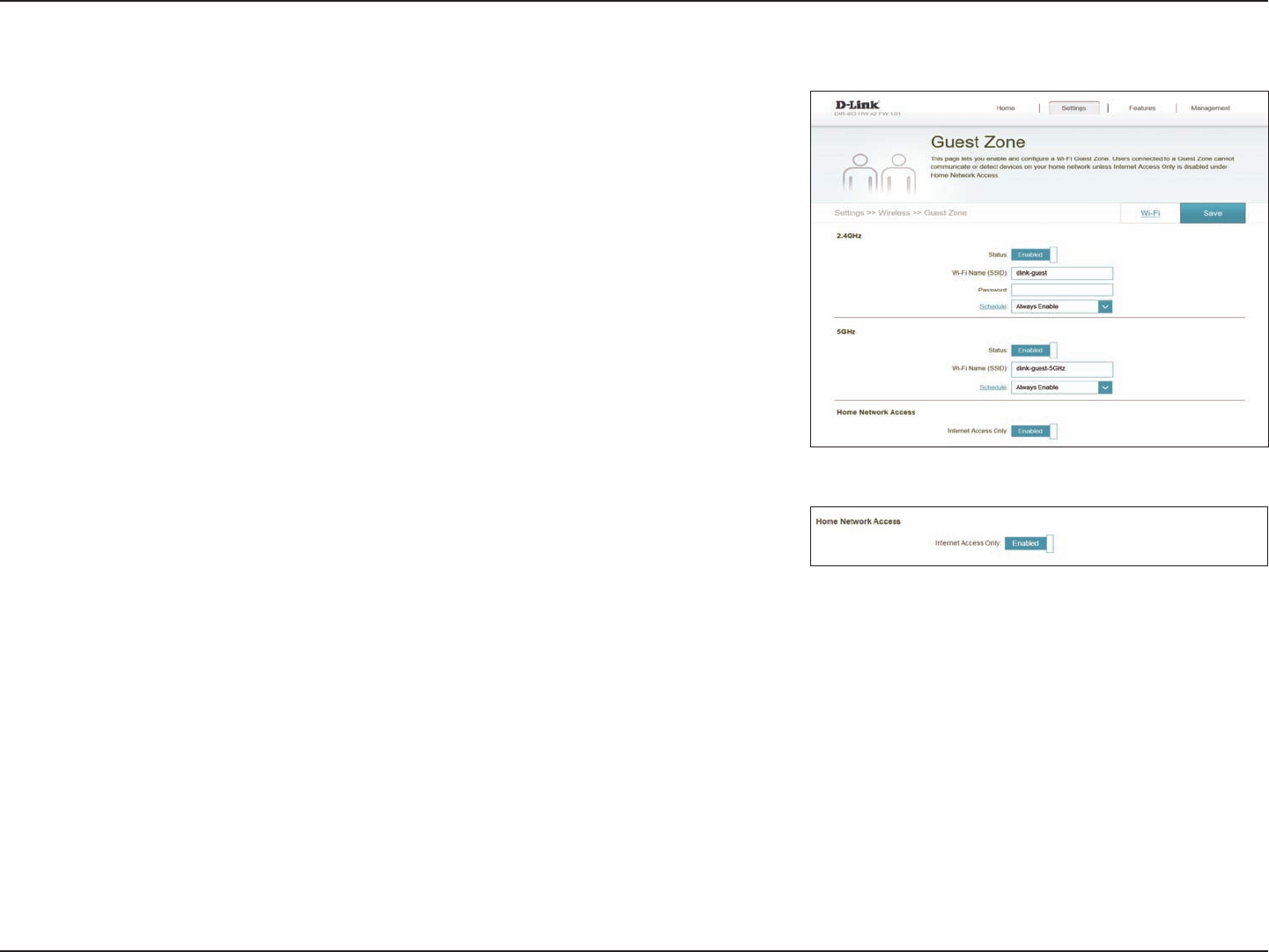

Guest Zone
In the Settings menu on the bar on the top of the page, click Wireless, then
click the Guest Zone link.
The Guest Zone feature will allow you to create temporary zones that can be
used by guests to access the Internet. These zones will be separate from your
main wireless network. You may congure dierent zones for the 2.4 GHz and
5 GHz wireless bands.
Note: If Smart Connect is enabled, Guest Zone is unavailable.
2.4 GHz / 5 GHz
Status: Enable or disable the 2.4 GHz / 5 GHz wireless network.
Wi-Fi Name (SSID): Create a name for your wireless network using up to 32 characters.
Password: Create a password to use for wireless security.
Home Network Access
Internet Access
Only:
Enabling this option will confine connectivity to the Internet,
preventing guests from accessing other local network devices.
Click Save when you are done.
58D-Link DIR-1360 User Manual
Section 4 - Conguration

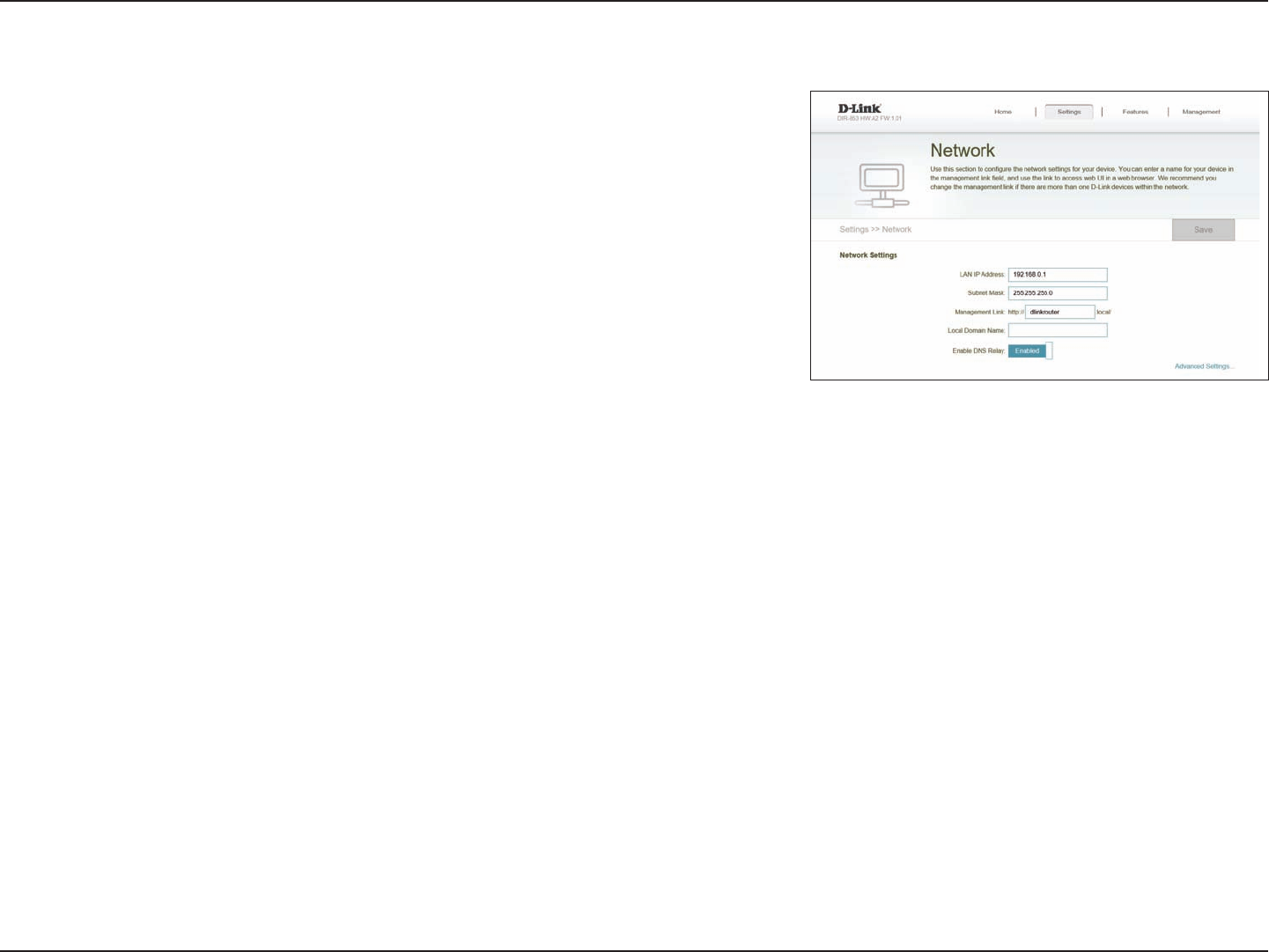

Network
This section will allow you to change the local network settings of the router
and to congure the DHCP settings. In the Settings menu on the bar on the
top of the page, click Network. Click Advanced Settings... to expand the list
and see all of the options.
Network Settings
LAN IP Address: Enter the IP address of the router. The default IP address is 192.168.0.1.
If you change the IP address, once you click Save, you will need
to enter the new IP address in your browser to get back into the
conguration utility.
Subnet Mask: Enter the subnet mask of the router. The default subnet mask is
255.255.255.0.
Management
Link:
The default address to access the router’s conguration is
http://dlinkrouter.local/ Here, you can replace dlinkrouter with a
name of your choice.
Local Domain
Name:
Enter the domain name (optional).
Enable DNS Relay: Disable to transfer the DNS server information from your ISP to your
computers. If enabled, your computers will use the router for a DNS
server.
59D-Link DIR-1360 User Manual
Section 4 - Conguration
DHCP Server
Status: Enable or disable the DHCP server.
DHCP IP Address
Range:
Enter the starting and ending IP addresses for the DHCP server’s IP
assignment.
Note: If you statically (manually) assign IP addresses to your computers
or devices, make sure the IP addresses are outside of this range or you
may have an IP conict.
DHCP Lease Time: Enter the length of time for the IP address lease in minutes.
Always Broadcast: Enable this feature to broadcast your network's DHCP server to LAN/
WLAN clients.
Advanced Settings
WAN Port Speed: You may set the port speed of the Internet port to 10 Mbps, 100
Mbps, 1000 Mbps, or Auto (recommended).
UPnP: Enable or disable Universal Plug and Play (UPnP). UPnP provides
compatibility with networking equipment, software, and peripherals.
IPv4 Multicast
Stream:
Enable to allow IPv4 multicast trac to pass through the router from
the Internet.
IPv6 Multicast
Stream:
Enable to allow IPv6 multicast trac to pass through the router from
the Internet.
Click Save when you are done.
Network (continued)
60D-Link DIR-1360 User Manual
Section 4 - Conguration
Features
QoS Engine
This Quality of Service (QoS) Engine will allow you to prioritize particular
clients over others, so that those clients receive higher bandwidth. For
example, if one client is streaming a movie and another is downloading a non-
urgent le, you might wish to assign the former device a higher priority than
the latter so that the movie streaming is not disrupted by the trac of the
other devices on the network.
In the Features menu on the bar on the top of the page, click QoS Engine.
Under Connected Clients, you will see device cards representing each
connected client. If some are o-screen, you can use the < and > buttons to
scroll through the cards.
A maximum of one device can be assigned Highest priority.
A maximum of two devices can be assigned High priority.
A maximum of eight devices can be assigned Medium priority.
If no devices are explicitly assigned a priority, they will all be treated with
equal priority. If some devices are not assigned a priority and others are, the
unassigned devices will be treated with the lowest priority.
To assign a priority level to a device, drag the device card from the All Devices
list over an empty slot and release the mouse button. The card will remain in
the slot. If you want to remove a priority assignment from a device and return
it to the All Devices list, click the cross icon in the top right of the device card.
Click Save when you are done.
61D-Link DIR-1360 User Manual
Section 4 - Conguration

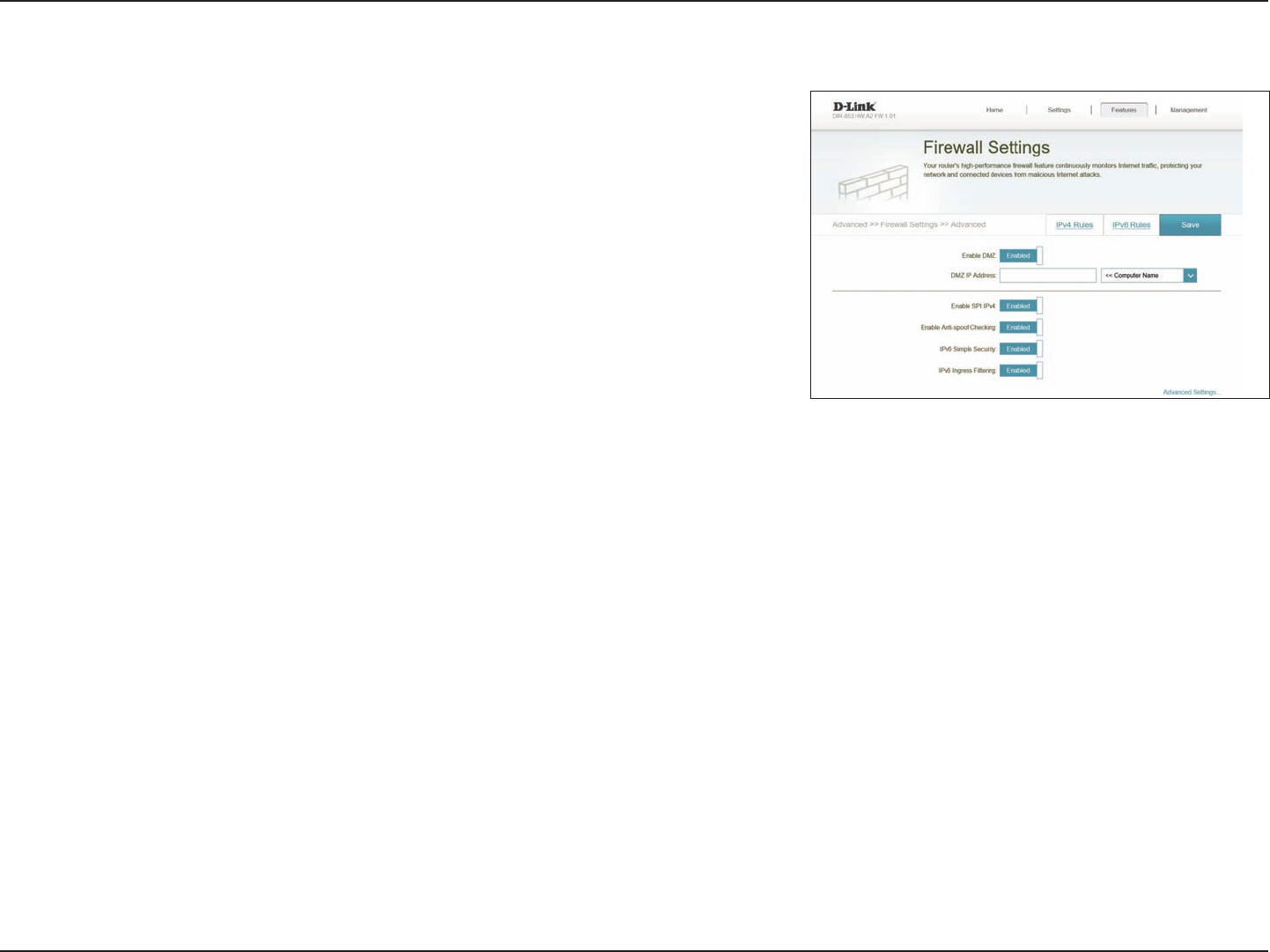

Firewall
The router’s rewall protects your network from malicious attacks over
the Internet. In the Features menu on the bar on the top of the page, click
Firewall. Click Advanced Settings... to expand the list and see all of the
options.
Enable DMZ: Enable or disable Demilitarized Zone (DMZ). This completely exposes
the client to threats over the Internet, and is not recommended in
ordinary situations.
DMZ IP Address: If you enabled DMZ, enter the IP address of the client you wish to
expose, or use the drop-down menu to quickly select it.
Enable SPI IPv4: Enabling Stateful Packet Inspection (SPI) helps to prevent cyber
attacks by validating that the trac passing through the session
conforms to the protocol.
Enable Anti-Spoof
Checking:
Enable this feature to help protect your network from certain kinds
of “spoong” attacks.
IPv6 Simple
Security:
Enable or disable IPv6 simple security.
IPv6 Ingress
Filtering:
Enable or disable IPv6 ingress ltering.
62D-Link DIR-1360 User Manual
Section 4 - Conguration
Advanced Settings - Application Level Gateway (ALG) Conguration
PPTP: Allows multiple machines on the LAN to connect to their corporate
network using the PPTP protocol.
IPSec (VPN): Allows multiple VPN clients to connect to their corporate network
using IPSec. Some VPN clients support traversal of IPSec through
NAT. This Application Level Gateway (ALG) may interfere with the
operation of such VPN clients. If you are having trouble connecting
with your corporate network, try turning this ALG o. Please check
with the system administrator of your corporate network whether
your VPN client supports NAT traversal.
RTSP: Allows applications that uses Real Time Streaming Protocol (RTSP) to
receive streaming media from the Internet.
SIP: Allows devices and applications using VoIP (Voice over IP) to
communicate across NAT. Some VoIP applications and devices have
the ability to discover NAT devices and work around them. This ALG
may interfere with the operation of such devices. If you are having
trouble making VoIP calls, try turning this ALG o.
Click Save when you are done.
Firewall Settings (continued)
63D-Link DIR-1360 User Manual
Section 4 - Conguration

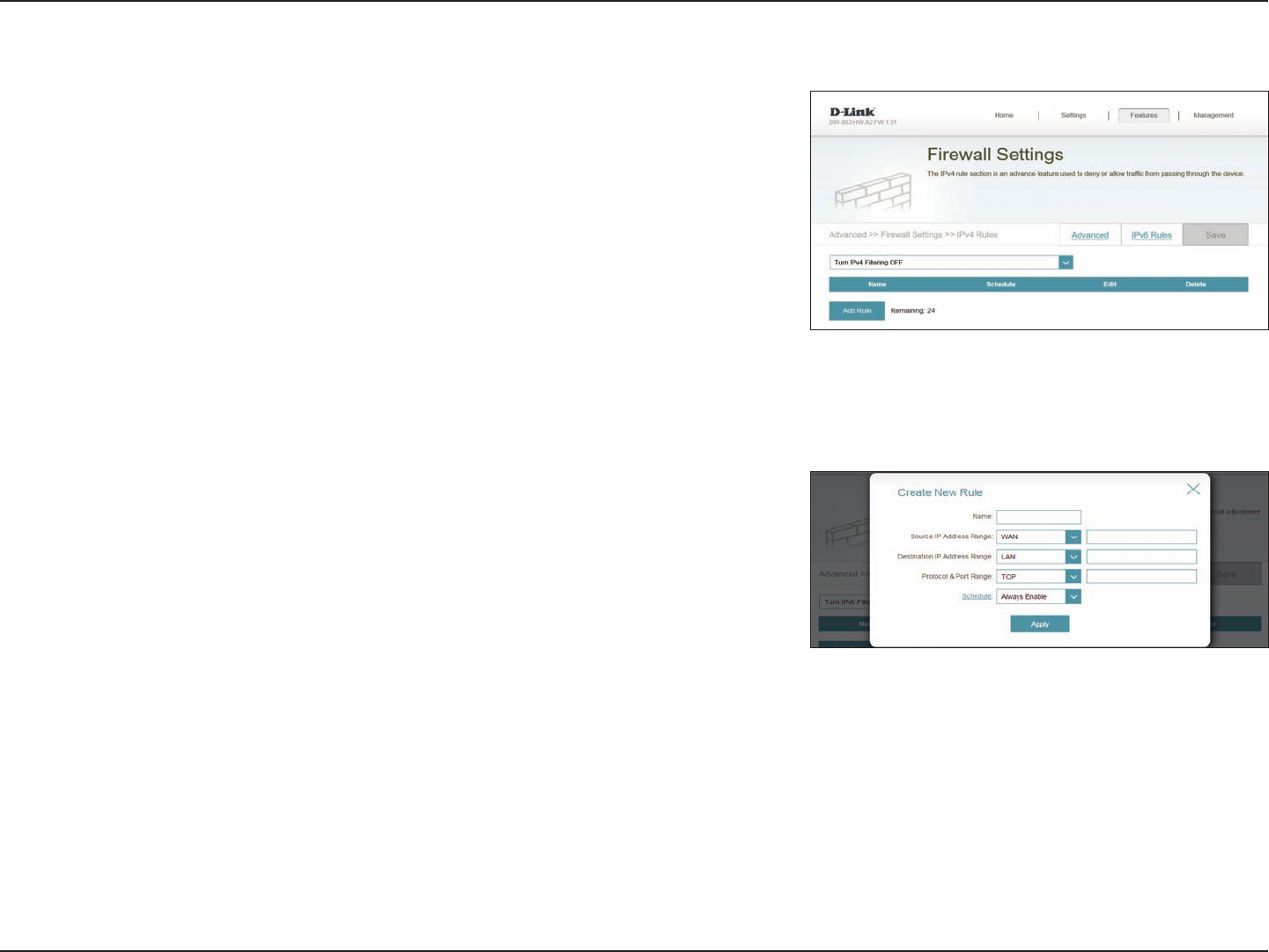

IPv4/IPv6 Rules
The IPv4/IPv6 Rules section is an advanced option that lets you congure what
kind of trac is allowed to pass through the network. To congure the IPv4
rules, from the Firewall Settings page click IPv4 Rules. To congure IPv6 rules,
from the Firewall Settings page click IPv6 Rules. To return to the main Firewall
Settings page, click Advanced.
To begin, use the drop-down menu to select whether you want to ALLOW or
DENY the rules you create. You can also choose to turn ltering OFF.
If you wish to remove a rule, click on its trash can icon in the Delete column. If
you wish to edit a rule, click on its pencil icon in the Edit column. If you wish to
create a new rule, click the Add Rule button. Click Save when you are done. If
you edit or create a rule, the following options will appear:
Name: Enter a name for the rule.
Source IP Address
Range:
Enter the source IP address range that the rule will apply to, and using
the drop-down menu, specify whether it is a WAN or LAN IP address.
Destination IP
Address Range:
Enter the destination IP address range that the rule will apply to, and
using the drop-down menu, specify whether it is a WAN or LAN IP
address.
Protocol & Port
Range:
Select the protocol of the trac to allow or deny (Any, TCP, or UDP)
and then enter the range of ports that the rule will apply to.
Schedule: Use the drop-down menu to select the time schedule that the rule
will be enabled for. The schedule may be set to Always Enable, or
you can create your own schedules in the Schedules section. Refer
to Refer to Schedule on page 72 for more information.
Click Save when you are done.
64D-Link DIR-1360 User Manual
Section 4 - Conguration
Port Forwarding
Port forwarding allows you to specify a port or range of ports to open
for specic devices on the network. This might be necessary for certain
applications to connect through the router. In the Features menu on the bar
on the top of the page, click Port Forwarding.
If you wish to remove a rule, click on its trash can icon in the Delete column. If
you wish to edit a rule, click on its pencil icon in the Edit column. If you wish to
create a new rule, click the Add Rule button. Click Save when you are done. If
you edit or create a rule, the following options will appear:
Name: Enter a name for the rule.
Local IP: Enter the IP address of the computer on your local network that you
want to allow the incoming service to. Alternatively, select the device
from the drop-down menu.
TCP Port: Enter the TCP ports that you want to open. You can enter a single
port or a range of ports. Separate ports with a comma (for example:
24,1009,3000-4000).
UDP Port: Enter the UDP ports that you want to open. You can enter a single
port or a range of ports. Separate ports with a comma (for example:
24,1009,3000-4000).
Schedule: Use the drop-down menu to select the time schedule that the rule
will be enabled for. The schedule may be set to Always Enable, or
you can create your own schedules in the Schedules section. Refer
to Schedule on page 72 for more information.
Click Save when you are done.
65D-Link DIR-1360 User Manual
Section 4 - Conguration

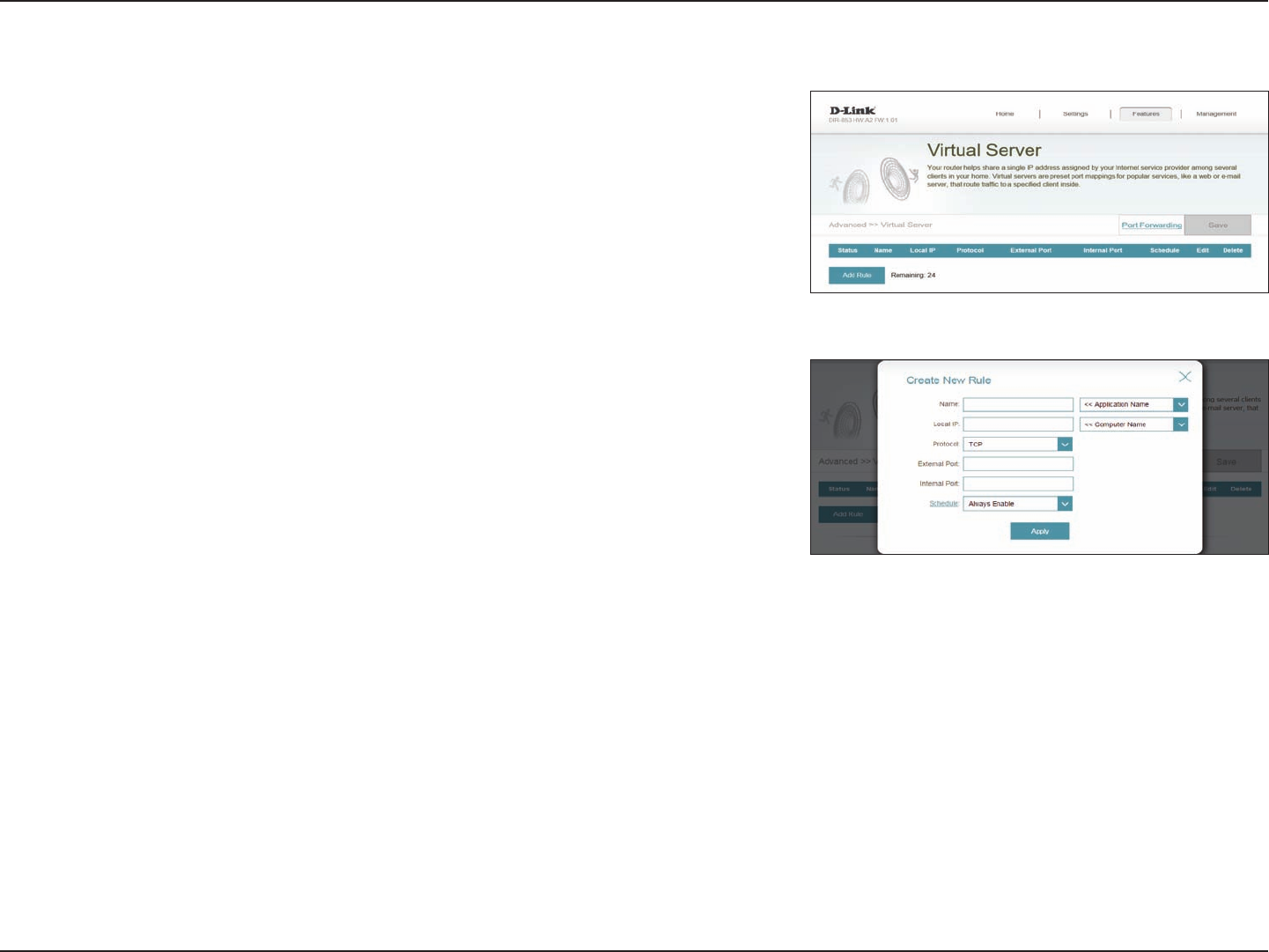

Virtual Server
The virtual server allows you to specify a single public port on your router for
redirection to an internal LAN IP address and Private LAN port. To congure
the virtual server, from the Port Forwarding page click Virtual Server. To
return to the main Port Forwarding page, click Port Forwarding.
If you wish to remove a rule, click on its trash can icon in the Delete column. If
you wish to edit a rule, click on its pencil icon in the Edit column. If you wish to
create a new rule, click the Add Rules button. Click Save when you are done. If
you edit or create a rule, the following options will appear:
Name: Enter a name for the rule. Alternatively, select the protocol/Application
from the drop-down menu.
Local IP: Enter the IP address of the computer on your local network that you
want to allow the incoming service to. Alternatively, select the device
from the drop-down menu.
Protocol: Select the protocol of the trac to allow or deny (TCP, UDP, Both,
or Other).
Protocol Number: If you entered Other above, enter the protocol number.
External Port: Enter the public port you want to open.
Internal Port: Enter the private port you want to open.
Schedule: Use the drop-down menu to select the time schedule that the rule
will be enabled for. The schedule may be set to Always Enable, or
you can create your own schedules in the Schedules section. Refer
to Schedule on page 72 for more information.
Click Save when you are done.
66D-Link DIR-1360 User Manual
Section 4 - Conguration
Website Filter
The website lter settings allow you to block access to certain web sites. You
can either create a list of sites to block, or create a list of sites to allow (with all
other sites being blocked).
In the Features menu on the bar on the top of the page, click Website Filter.
If you want to create a list of sites to block, select DENY client access to ONLY
these sites from the drop-down menu. All other sites will be accessible. If you
want to specify a list of sites to allow, select ALLOW clients access to ONLY
these sites from the drop-down menu. All other sites will be blocked.
You may specify a maximum of twenty-four web sites. To add a new site to
the list, click Add Rule. Next, under Website URL/Domain enter the URL or
domain. If you wish to remove a rule, click on the corresponding trash can
icon in the Delete column. If you wish to edit a rule, simply replace the URL or
domain.
Click Save when you are done.
67D-Link DIR-1360 User Manual
Section 4 - Conguration

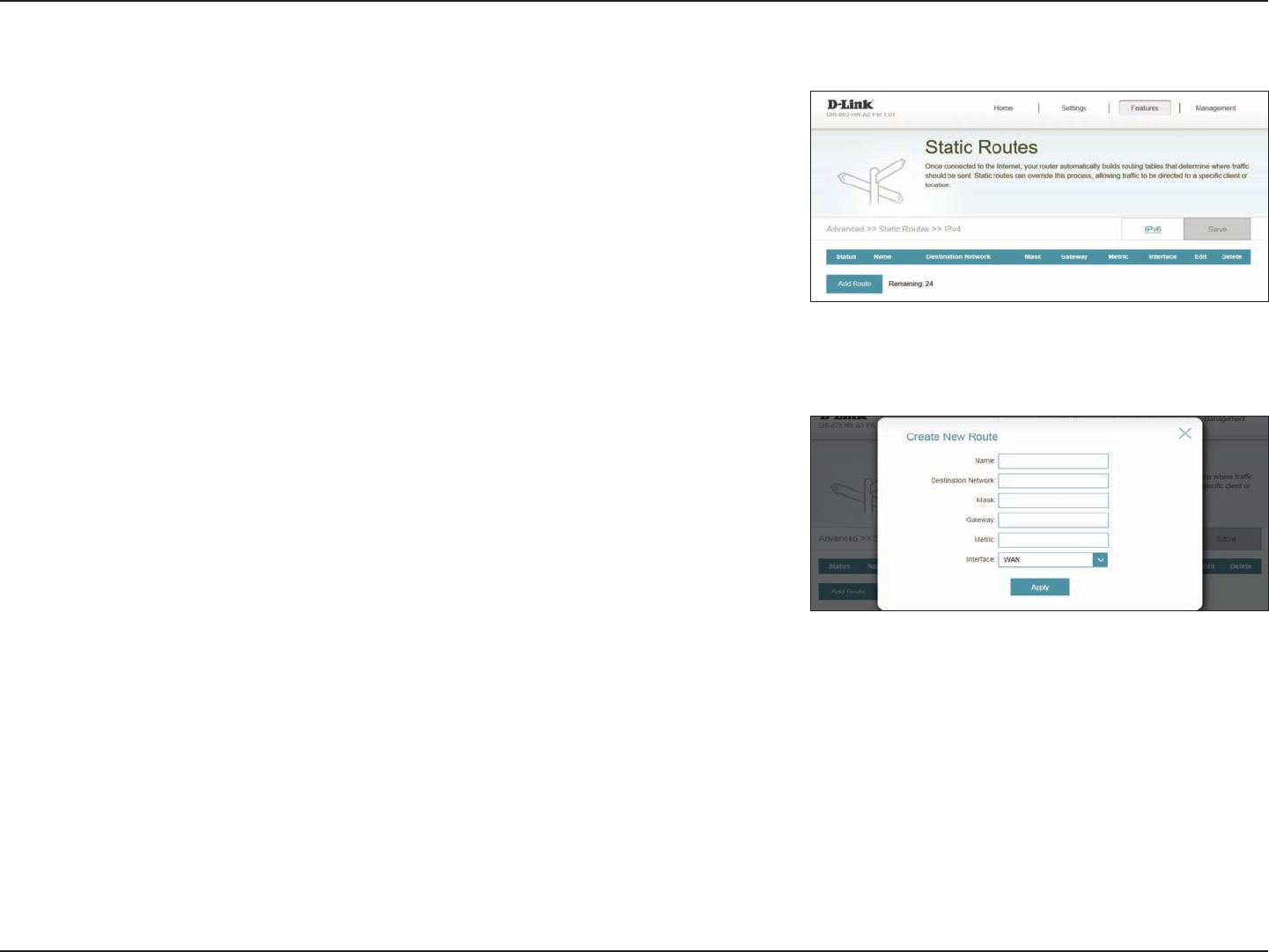

Static Routes
The Static Routes section allows you to dene custom routes to control how
data trac is moved around your network.
In the Features menu on the bar on the top of the page, click Static Route.
To congure IPv6 rules, click IPv6 and refer to IPv6 on page 68. To return to
the main IPv4 static routes page, click IPv4.
If you wish to remove a rule, click on the corresponding trash can icon in the
Delete column. If you wish to edit a rule, click on its pencil icon in the Edit
column. If you wish to create a new rule, click the Add Route button. Click
Save when you are done. If you edit or create a rule, the following options will
appear:
Name: Enter a name for the rule.
Destination
Network:
Enter the IP address of packets that will take this route.
Mask: Enter the subnet mask of the route.
Gateway: Enter your next hop gateway to be taken if this route is used.
Metric: Enter a route metric value ranging from 0 to 15. This value indicates
the cost of using this route.
Interface: Select the interface that the IP packet must use to transit out of the
router when this route is used.
Click Save when you are done.
68D-Link DIR-1360 User Manual
Section 4 - Conguration

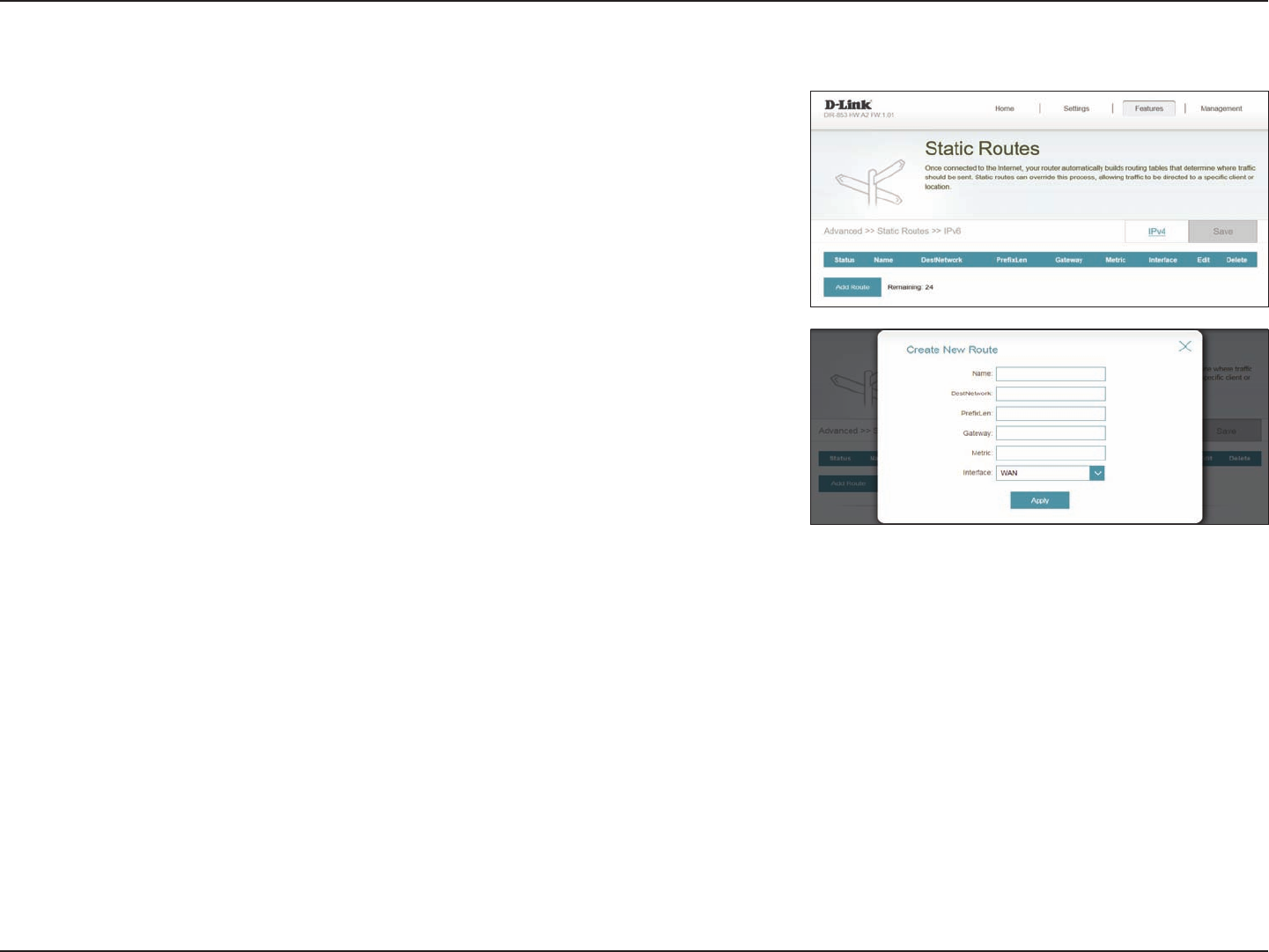

IPv6
To congure IPv6 rules, on the Static Routes page click IPv6. To return to the
main IPv4 static routes page, click IPv4.
If you wish to remove a rule, click on its trash can icon in the Delete column. If
you wish to edit a rule, click on its pencil icon in the Edit column. If you wish to
create a new rule, click the Add Rules button. Click Save when you are done. If
you edit or create a rule, the following options will appear:
Name: Enter a name for the rule.
DestNetwork: This is the IP address of the router used to reach the specified
destination.
PrexLen: Enter the IPv6 address prex length of the packets that will take this
route.
Gateway: Enter your next hop gateway to be taken if this route is used.
Metric: Enter a route metric value ranging from 0 to 15. This value indicates
the cost of using this route.
Interface: Select the interface that the IP packet must use to transit out of the
router when this route is used.
Click Save when you are done.
69D-Link DIR-1360 User Manual
Section 4 - Conguration
Dynamic DNS
Most Internet Service Providers (ISPs) assign dynamic (changing) IP addresses.
Using a dynamic DNS service provider, people can enter your domain name in
their web browser to connect to your server no matter what your IP address is.
In the Features menu on the bar on the top of the page, click Dynamic DNS.
At the bottom of the page are the IPv6 host settings. To congure an IPv6
dynamic DNS host, refer to IPv6 Host on page 70.
Enable Dynamic
DNS:
Enable or disable dynamic DNS. Enabling this feature will reveal
further conguration options.
Status: Displays the current dynamic DNS connection status.
Server Address: Enter the address of your dynamic DNS server, or select one from the
drop-down menu.
Host Name: Enter the host name that you registered with your dynamic DNS
service provider.
User Name: Enter your dynamic DNS username.
Password: Enter your dynamic DNS password.
Time Out: Enter a time out time (in hours).
Click Save when you are done.
70D-Link DIR-1360 User Manual
Section 4 - Conguration
IPv6 Host
The IPv6 host settings are found at the bottom of the Dynamic DNS page.
If you wish to remove a rule, click on its trash can icon in the Delete column. If
you wish to edit a rule, click on its pencil icon in the Edit column. If you wish to
create a new rule, click the Add Record button. Click Save when you are done.
If you edit or create a rule, the following options will appear:
Host Name: Enter the host name that you registered with your dynamic DNS
service provider.
IPv6 Address: Enter the IPv6 address of the dynamic DNS server. Alternatively, select
the server device in the drop-down menu.
Click Save when you are done.
71D-Link DIR-1360 User Manual
Section 4 - Conguration
The Time page allows you to congure, update, and maintain the correct
time on the internal system clock. From here you can set the time zone, the
Network Time Protocol (NTP) server, and enable or disable daylight saving
time.
In the Management menu on the bar on the top of the page, click Time &
Schedule.
To congure and manage your schedules, click Schedule and refer to
Schedule on page 72.
Time Conguration
Time Zone: Select your time zone from the drop-down menu.
Time: Displays the current date and time of the router.
Enable Daylight
Saving:
Enable or disable daylight saving time.
Automatic Time Conguration
Update Time
Using an NTP
Server:
Enable or disable to allow an NTP server on the Internet to synchronize
the time and date with your router. If you enable this option, select
an NTP server from the drop-down menu. To congure the router's
time and date manually, disable this option and use the drop-down
menus that appear to input the time and date.
Click Save when you are done.
Management
Time & Schedule
Time
72D-Link DIR-1360 User Manual
Section 4 - Conguration
Schedule
Some router functions can be controlled through a pre-congured schedule.
To create, edit, or delete schedules, from the Time page click Schedule. To
return to the Time page, click Time.
If you wish to remove a rule, click on its trash can icon in the Delete column. If
you wish to edit a rule, click on its pencil icon in the Edit column. If you wish to
create a new rule, click the Add Rule button. Click Save when you are done. If
you edit or create a rule, the following screen will appear:
First, enter the name of your schedule in the Name eld.
Each box represents one hour, with the time at the top of each column. To add
a time period to the schedule, simply click on the starting hour and drag to the
ending hour. You can add multiple days to the schedule.
To remove a time period from the schedule, click on the X icon.
Click Save when you are done.
73D-Link DIR-1360 User Manual
Section 4 - Conguration

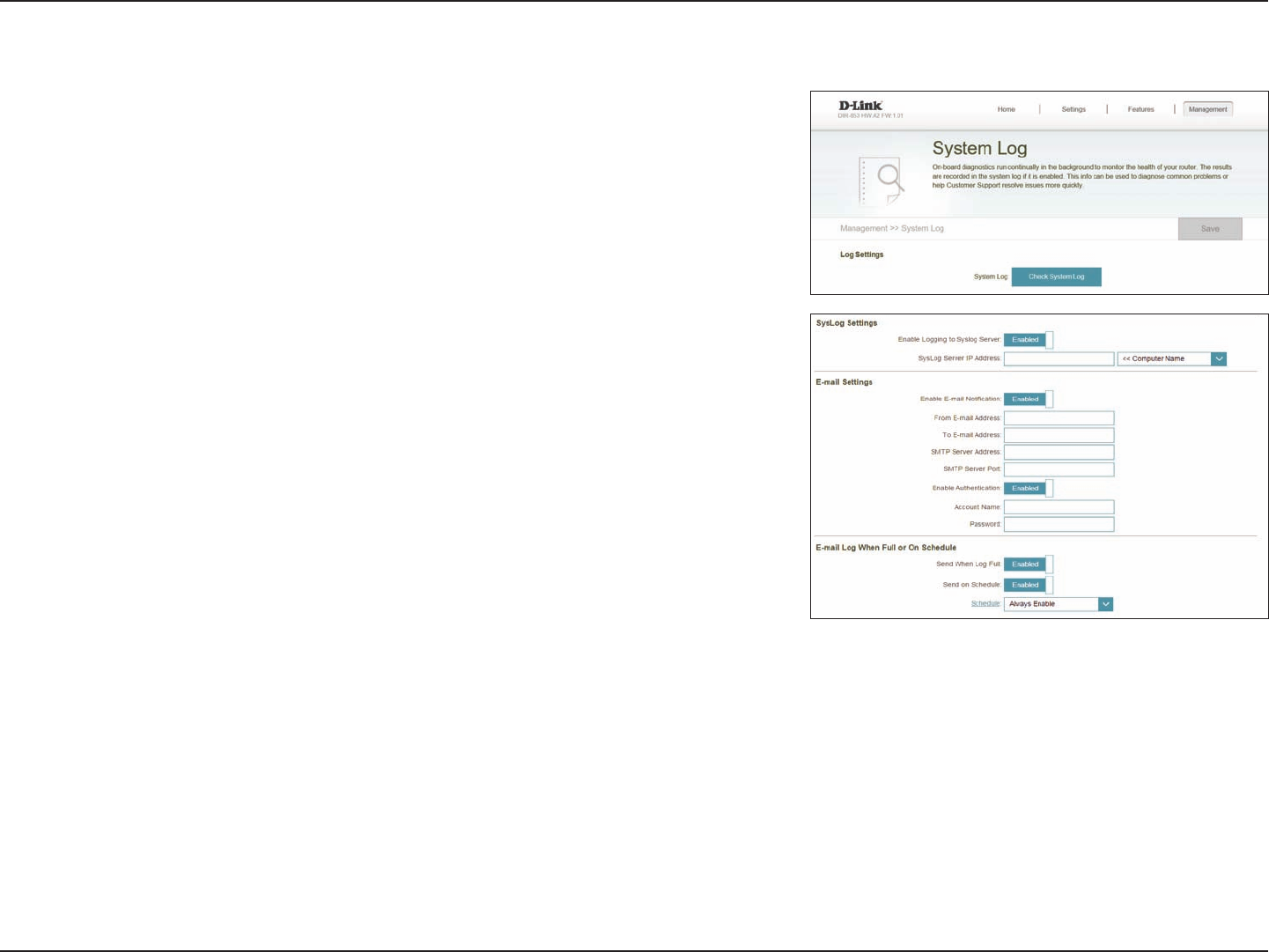

System Log
The router keeps a running log of events. This log can be sent to a Syslog
server, or sent to your email address. In the Management menu on the bar on
the top of the page, click System Log.
Log Settings
System Log Click the Check System Log button to download a text le containing
the system log.
SysLog Settings
Enable Logging to
Syslog Server:
Check this box to send the router logs to a SysLog Server.
If Logging to the Syslog Server is Enabled:
Syslog Server IP
Address:
Enter the IP address for the Syslog server. If the Syslog server is
connected to the extender, select it from the drop-down menu to
automatically populate the eld.
Email Settings
Enable E-mail
Notication:
Enable this option if you want the logs to be automatically sent to
an email address.
If E-mail notication is Enabled:
From E-mail
Address:
Enter the email address your SysLog messages will be sent from.
To E-mail Address: Enter the email address your SysLog messages will be sent to.
SMTP Server
Address:
Enter your SMTP server address.
74D-Link DIR-1360 User Manual
Section 4 - Conguration
System Log (continued)
SMTP Server Port: Enter your SMTP server port.
Enable
Authentication:
Check this box if your SMTP server requires authentication.
Account Name: Enter your SMTP account name.
Password: Enter your SMTP account's password
E-mail Log When Full or On Schedule
Send When Log
Full:
If enabled, this option will set the router to send the log when it is full.
Send on Schedule: If enabled, this option will set the router to send according to a set
schedule.
Schedule: If you enable Send On Schedule, use the drop-down menu to select
a schedule to apply. The schedule may be set to Always Enable, or
you can create your own schedules in the Schedules section. Refer
to Schedule on page 72 for more information.
Click Save when you are done.
75D-Link DIR-1360 User Manual
Section 4 - Conguration

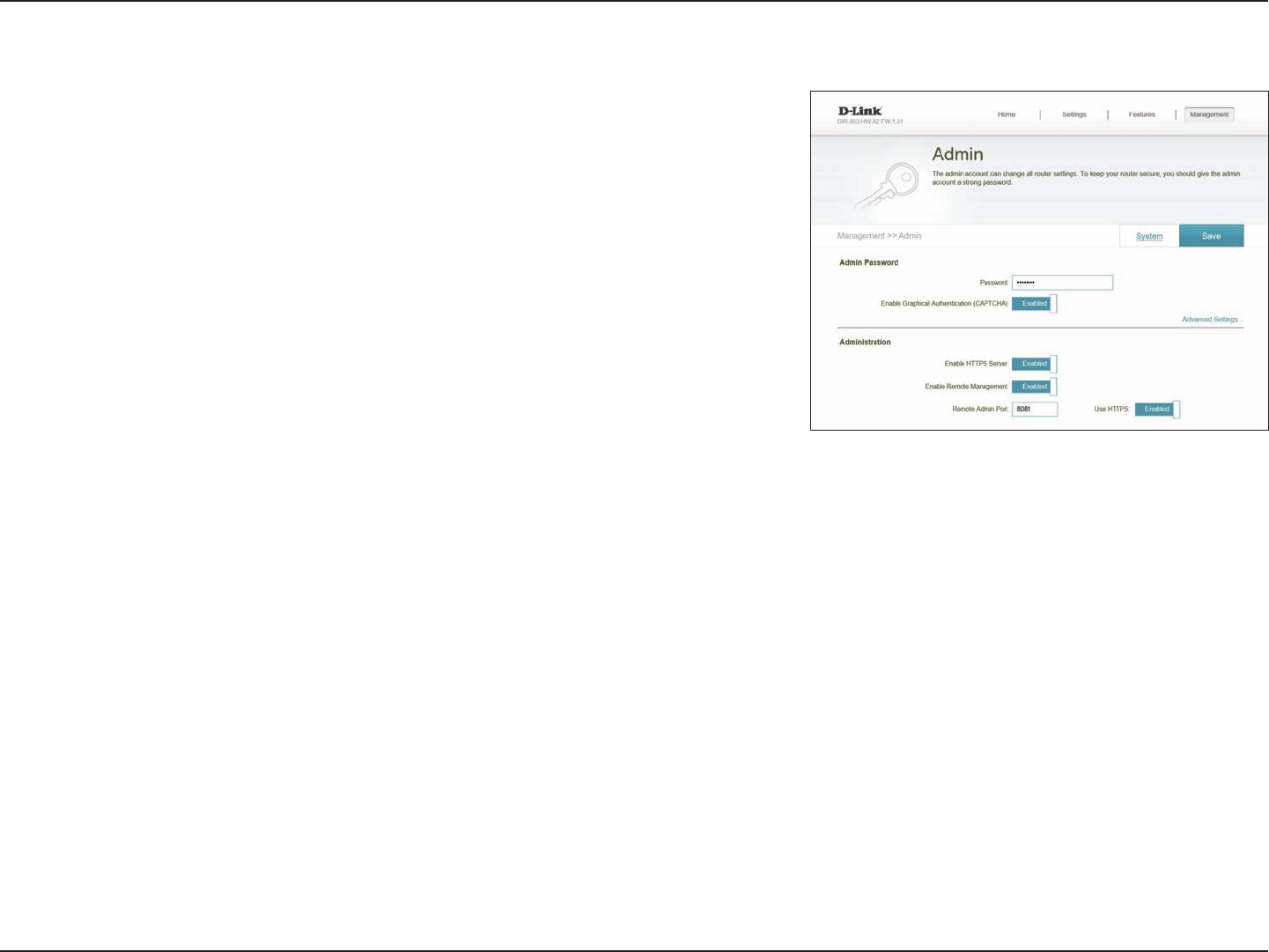

System Admin
This page will allow you to change the administrator (Admin) password and
enable remote management. In the Management menu on the bar on the top
of the page, click System Admin. To load, save, reset settings, or reboot the
router, click System and refer to Schedule on page 72.
Admin Password
Password: Enter a new password for the administrator account. You will need to
enter this password whenever you congure the router using a web
browser.
Enable Graphical
Authentication
(CAPTCHA):
Enables a challenge-response test to require users to type letters or
numbers from a distorted image displayed on the screen to prevent
online hackers and unauthorized users from gaining access to your
router’s network settings.
Advanced Settings - Administration
Enable HTTPS
Server:
Check to enable HTTPS to connect to the router securely. Instead of using
http://dlinkrouter.local./, you must use https://dlinkrouter.local./ in
order to connect to the router.
Enable Remote
Management:
Remote management allows the DIR-1360 to be congured from the
Internet by a web browser. A password is still required to access the web
management interface.
Remote Admin
Port:
The port number used to access the DIR-1360 is used in the URL. Example:
http://x.x.x.x:8080 where x.x.x.x is the WAN IP address of the DIR-1360
and 8080 is the port used for the web management interface.
Note: If you enabled Use HTTPS and wish to access the router remotely and
securely, you must enter https:// at the beginning of the address.
Click Save when you are done.
76D-Link DIR-1360 User Manual
Section 4 - Conguration

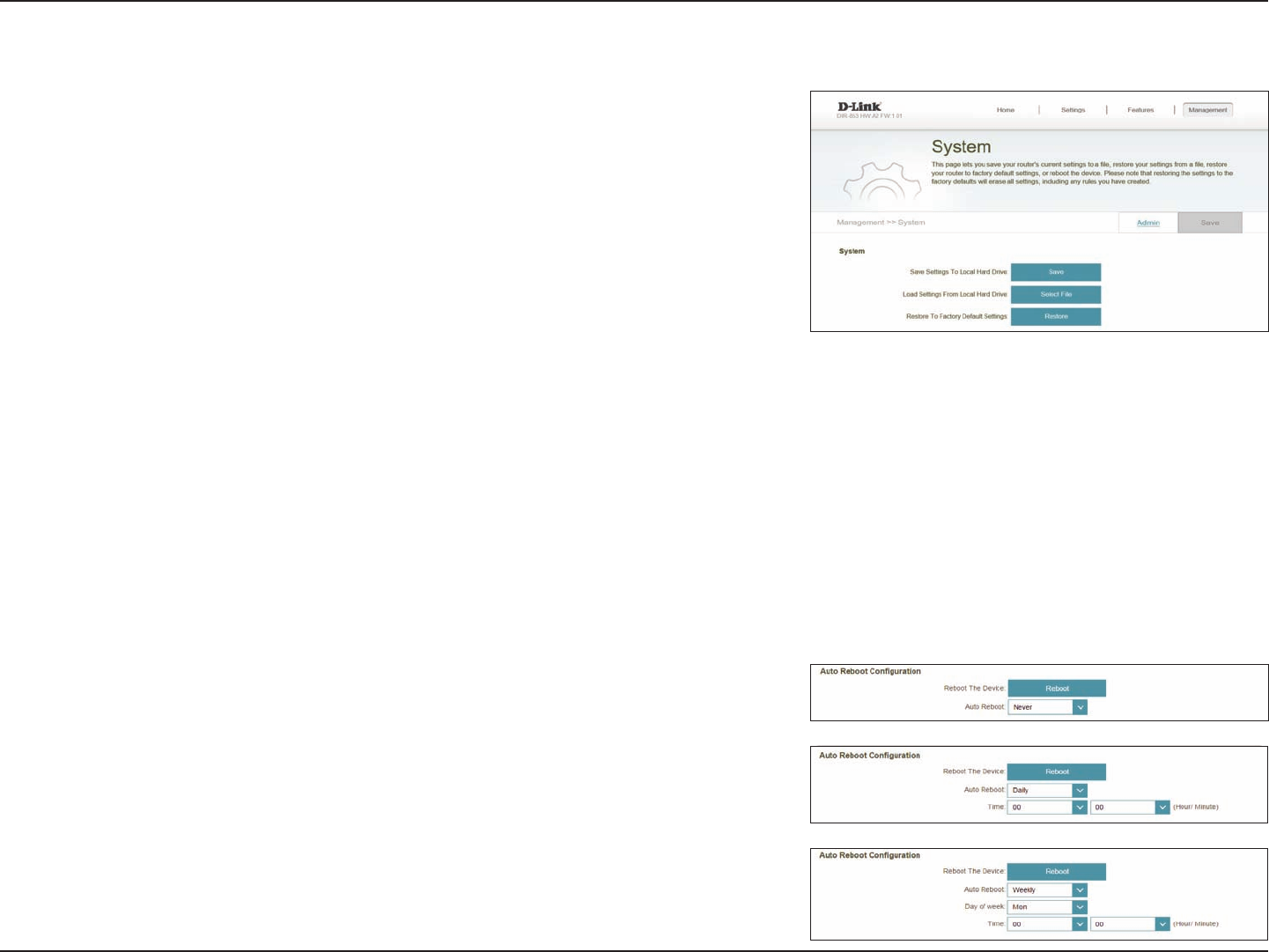

System
Save Settings To
Local Hard Drive:
This option will save the current router conguration settings to a le
on your computer.
Load Settings
From Local Hard
Drive:
This option will load a previously saved router conguration le. This will
overwrite the router’s current conguration.
Restore To Factory
Default Settings:
This option will restore all conguration settings back to the settings that
were in eect at the time the router was shipped from the factory. Any
settings that have not been saved will be lost, including any rules that
you have created. If you want to save the current router conguration
settings, use the Save Settings To Local Hard Drive button above.
Auto Reboot Conguration
Reboot The
Device:
Click to reboot the router immediately.
Auto Reboot: You may set the DIR-1360 to automatically reboot at a set time. The
options are Never, Daily, Weekly. You may set the hour using a 24
hour format, the minute, and the day you wish to have the DIR-1360
automatically reboot.
Click Save when you are done.
System
This page allows you to save the router’s current conguration, load a
previously saved conguration, reset the router to its factory default settings,
or reboot the router.
From the Admin page, click System. To return to the Admin page, click Admin.
77D-Link DIR-1360 User Manual
Section 4 - Conguration
Upgrade
This page will allow you to upgrade the router’s rmware, either automatically
or manually. To manually upgrade the rmware, you must rst download the
relevant le from http://support.dlink.com.
In the Management menu on the bar on the top of the page, click Upgrade.
Firmware Information
Current Firmware
Version/Date :
The current rmware's version and date will be displayed.
Check for New
Firmware:
Click this button to prompt the router to automatically check for a new
rmware version. If a newer version is found, it will prompt you to install it.
Upgrade Manually
Upgrade
Firmware:
If you wish to upgrade manually, rst download the rmware le you wish
to upgrade to. Next, click the Upgrade Firmware button and browse to
the le to install the new rmware. You can also browse to a language
pack le to install a new language pack.
78D-Link DIR-1360 User Manual
Section 4 - Conguration
Statistics
On the Statistics page you can view the amount of packets that pass through
the router on the WAN, LAN, and wireless segments.
In the Management menu on the bar on the top of the page, click Statistics.
You can view the Internet, LAN, Wi-Fi 2.4 GHz, or Wi-Fi 5 GHz by clicking on
the respective tabs at the top. The graph will update in real time. To clear the
information on the graph, click Clear.
The trac counter will reset if the device is rebooted.
79D-Link DIR-1360 User Manual
Section 6- Connecting a Wireless Client
Connect a Wireless Client to your Router
WPS Button
Step 2 - Within 2 minutes, press the WPS button on your wireless device (or launch the software utility and start the WPS
process).
The easiest and most secure way to connect your wireless devices to the router is with WPS (Wi-Fi Protected Setup). Most
wireless devices such as wireless adapters, media players, Blu-ray DVD players, wireless printers and cameras will have a WPS
button (or a software utility with WPS) that you can press to connect to the DIR-1360 router. Please refer to your user manual
for the wireless device you want to connect to make sure you understand how to enable WPS. Once you know, follow the steps
below:
Step 1 - Press the WPS button on the DIR-1360 for about 1 second. The LED on the front will start to blink.
Step 3 - Allow up to 1 minute for your connection to be congured. Once the Internet light stops blinking, you will be
connected and your wireless connection will be encrypted with WPA2.
WPS Button
80D-Link DIR-1360 User Manual
Section 6- Connecting a Wireless Client

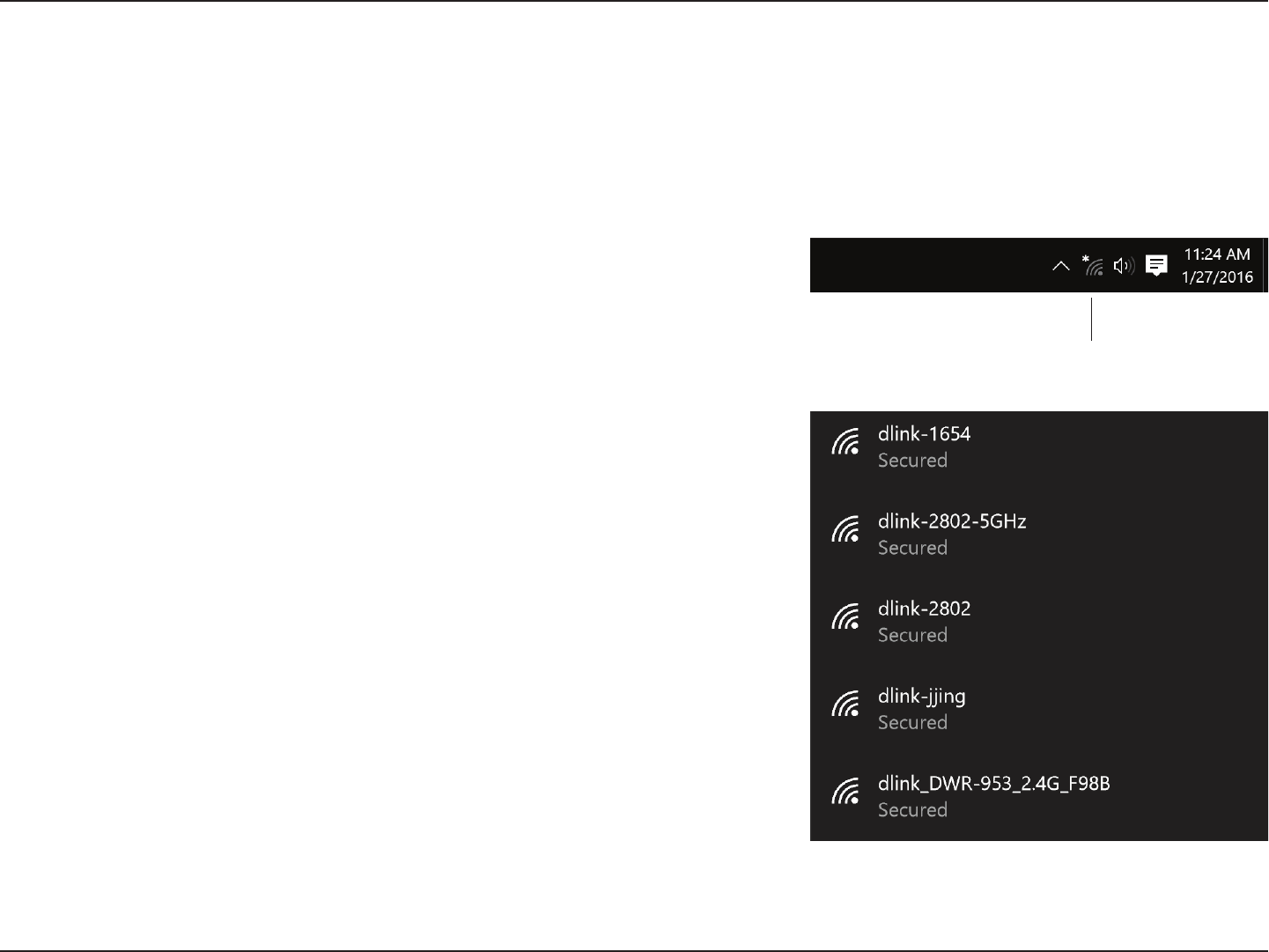

When connecting to the DIR-1360 wirelessly for the rst time, you will need to input the wireless network name (SSID) and
Wi-Fi password (security key) of the device you are connecting to. If your product has a Wi-Fi conguration card, you can
nd the default network name and Wi-Fi password here. Otherwise refer to the product label for the default Wi-Fi network
SSID and password, or enter the Wi-Fi credentials set during the product conguration.
To join an existing network, locate the wireless network icon in the taskbar,
next to the time display and click on it.
Wireless Icon
Clicking on this icon will display a list of wireless networks which are within
range of your computer. Select the desired network by clicking on the SSID.
Windows® 10
81D-Link DIR-1360 User Manual
Section 6- Connecting a Wireless Client
To connect to the SSID, click Connect.
To automatically connect with the router when your device next detects the
SSID, click the Connect Automatically check box.
You will then be prompted to enter the Wi-Fi password (network security key)
for the wireless network. Enter the password into the box and click Next to
connect to the network. Your computer will now automatically connect to this
wireless network when it is detected.
You can also use Wi-Fi Protected Setup (WPS) to connect to the router.
Press the WPS button on your D-Link device and you will be automatically
connected.
82D-Link DIR-1360 User Manual
Section 6- Connecting a Wireless Client
Windows® 8
WPA/WPA2
It is recommended that you enable wireless security (WPA/WPA2) on your wireless router or access point before conguring
your wireless adapter. If you are joining an existing network, you will need to know the security key (Wi-Fi password) being
used.
To join an existing network, locate the wireless network icon in the taskbar
next to the time display.
Wireless Icon
Clicking on this icon will display a list of wireless networks that are within
connecting proximity of your computer. Select the desired network by clicking
on the network name.
83D-Link DIR-1360 User Manual
Section 6- Connecting a Wireless Client

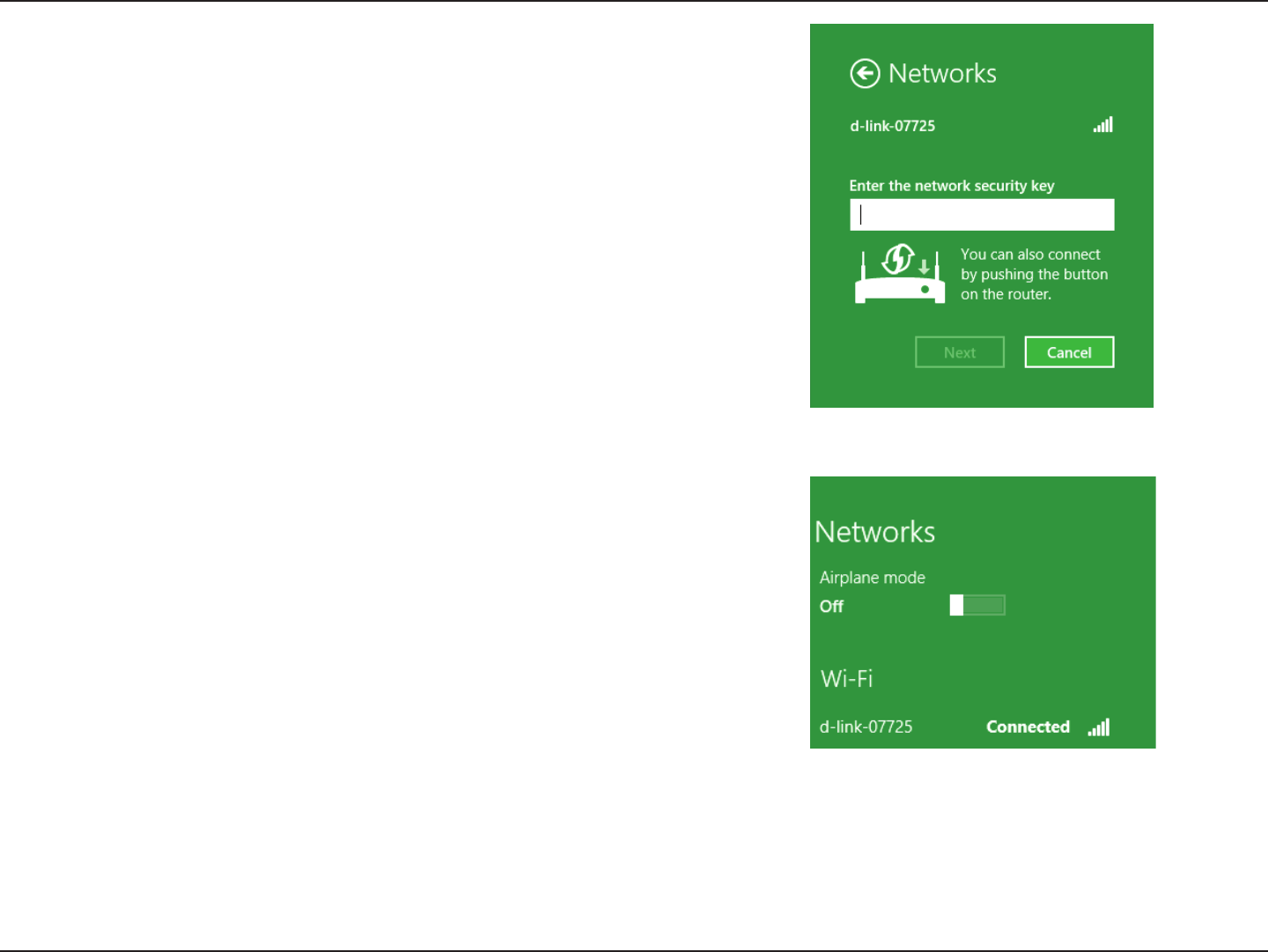

You will then be prompted to enter the network security key (Wi-Fi password)
for the wireless network. Enter the password into the box and click Next.
If you wish to use Wi-Fi Protected Setup (WPS) to connect to the router, you
can also press the WPS button on your router during this step to enable the
WPS function.
When you have established a successful connection to a wireless network, the
word Connected will appear next to the name of the network to which you
are connected to.
84D-Link DIR-1360 User Manual
Section 6- Connecting a Wireless Client

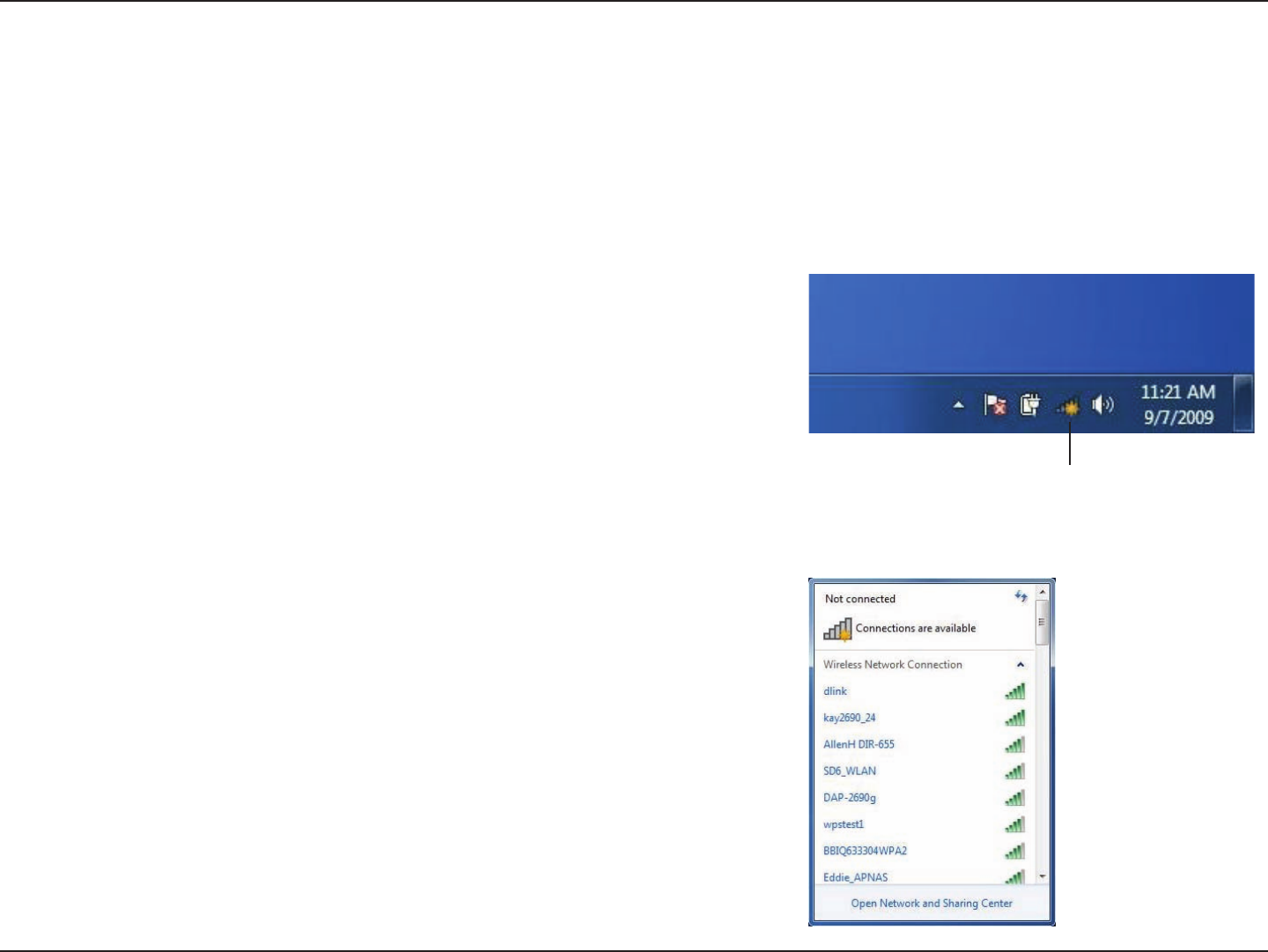

Windows® 7
It is recommended that you enable wireless security (WPA/WPA2) on your wireless router or access point before conguring
your wireless adapter. If you are joining an existing network, you will need to know the security key or passphrase being used.
Click on the wireless icon in your system tray (lower-right corner).
The utility will display any available wireless networks in your area.
Wireless Icon
WPA/WPA2
85D-Link DIR-1360 User Manual
Section 6- Connecting a Wireless Client
Highlight the wireless connection with Wi-Fi name (SSID) you would like to
connect to and click the Connect button.
If you get a good signal but cannot access the Internet, check your TCP/IP
settings for your wireless adapter. Refer to the Networking Basics section in
this manual for more information.
The following window appears while your computer tries to connect to the
router.
86D-Link DIR-1360 User Manual
Section 6- Connecting a Wireless Client

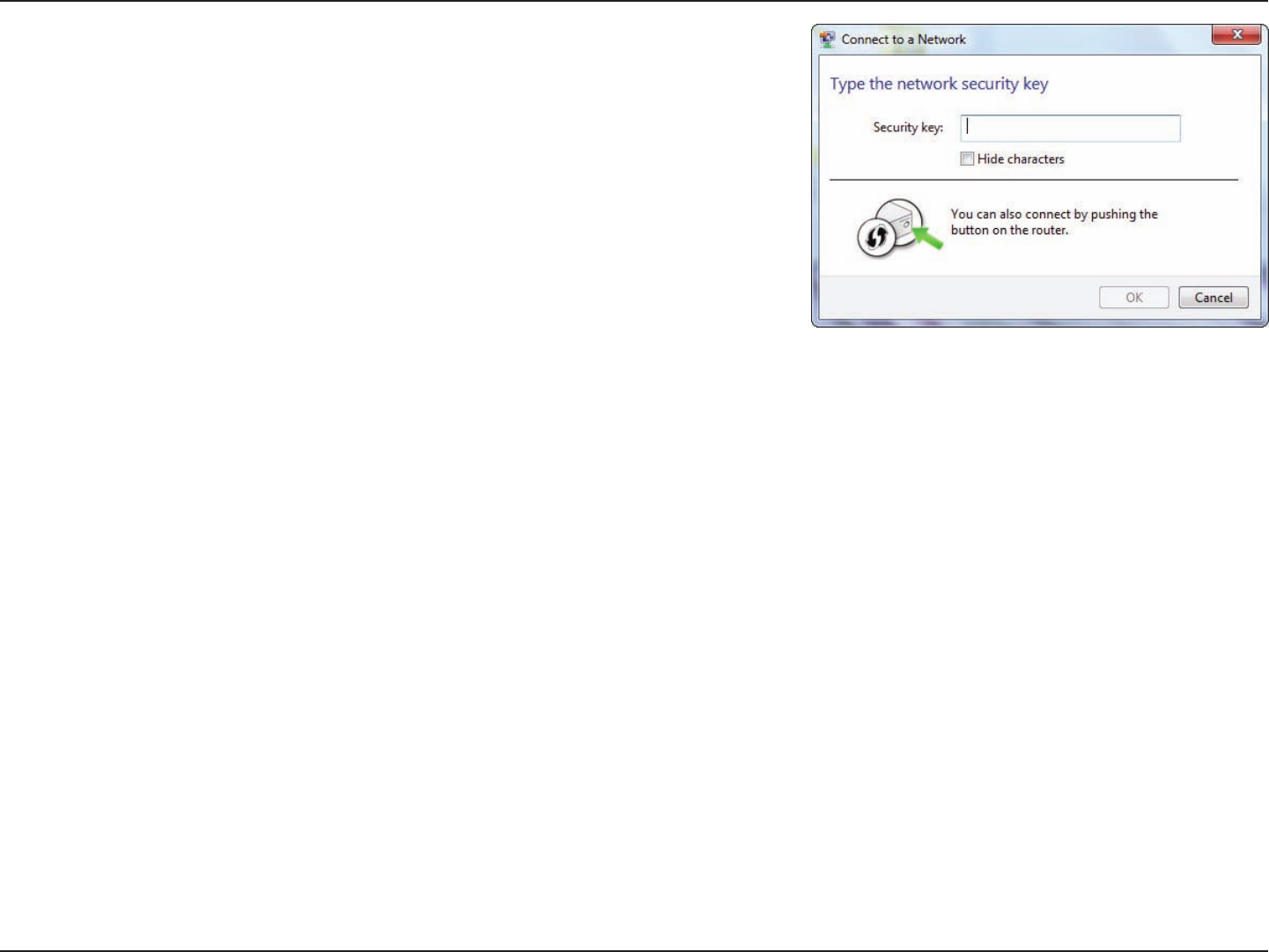

Enter the same security key or passphrase (Wi-Fi password) that is on your
router and click Connect. You can also connect by pushing the WPS button on
the router.
It may take 20-30 seconds to connect to the wireless network. If the
connection fails, please verify that the security settings are correct. The key or
passphrase must be exactly the same as the one on the wireless router.
87D-Link DIR-1360 User Manual
Section 6- Connecting a Wireless Client
WPS
The WPS feature of the DIR-1360 can be congured using Windows® 7. Carry out the following steps to use Windows® 7 to
congure the WPS feature:

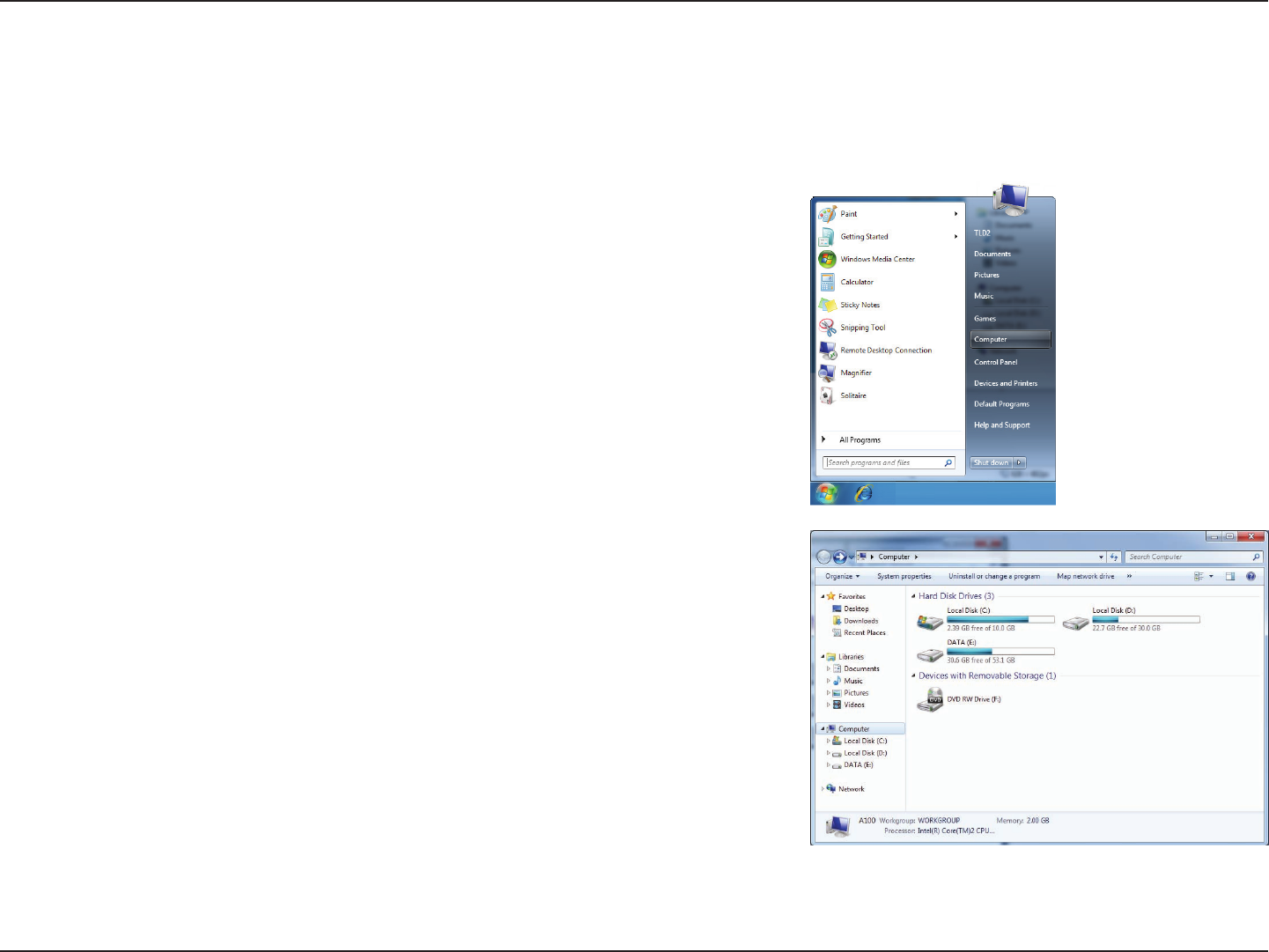

Click the Start button and select Computer from the Start menu.
Click Network on the left side.
88D-Link DIR-1360 User Manual
Section 6- Connecting a Wireless Client

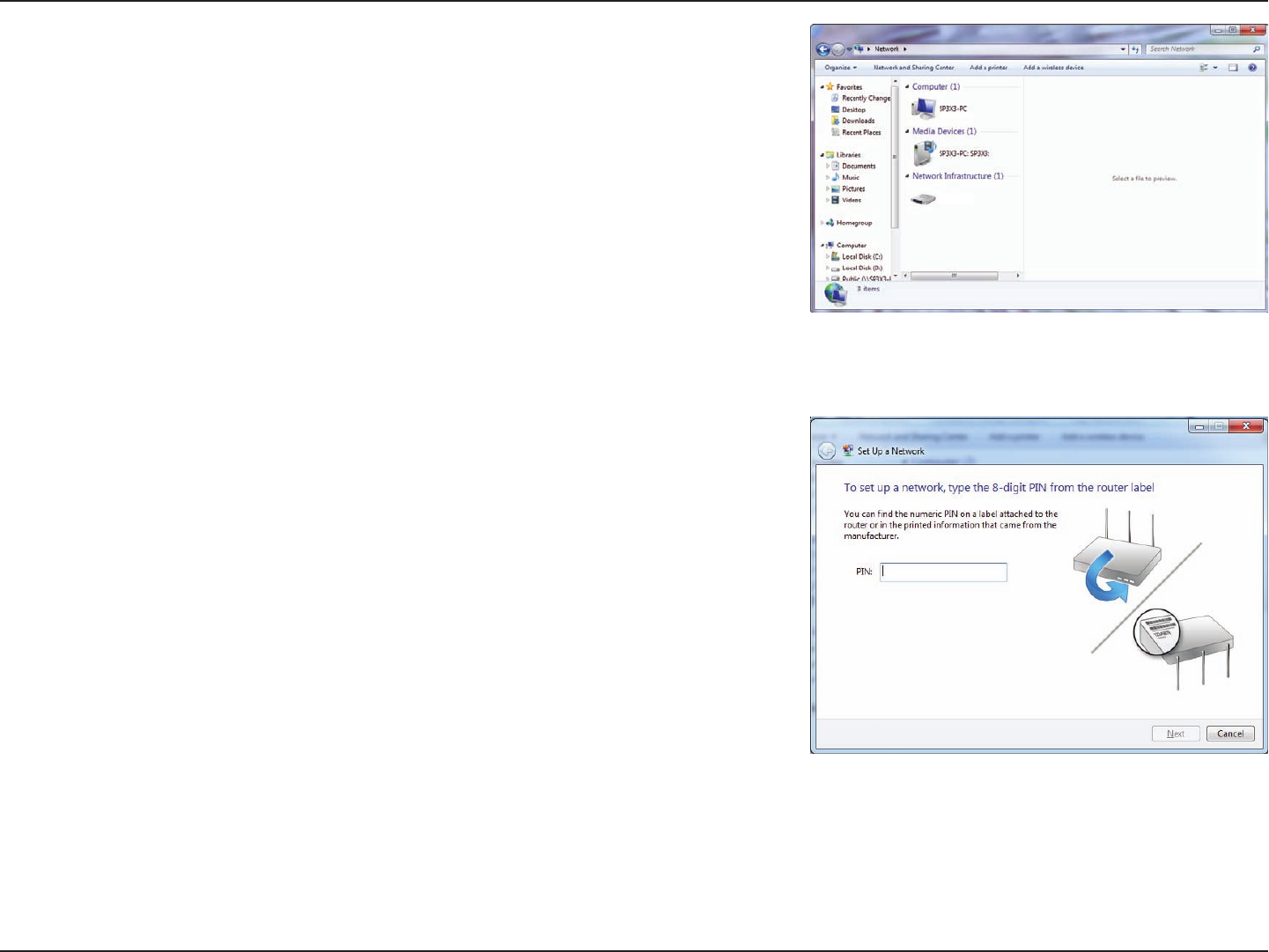

Double-click the DIR-1360.
Input the WPS PIN number (on the router label) in the Setup > Wireless Setup
menu in the Router’s Web UI) and click Next.
DIR-1360
89D-Link DIR-1360 User Manual
Section 6- Connecting a Wireless Client
Type a name to identify the network.
To congure advanced settings, click the icon.
Click Next to continue.
90D-Link DIR-1360 User Manual
Section 6- Connecting a Wireless Client
The following window appears while the DIR-1360 is being congured.
Wait for the conguration to complete.
The following window informs you that WPS on the DIR-1360 has been set up
successfully.
Make a note of the security key as you may need to provide this security key if
adding an older wireless device to the network in the future.
Click Close to complete WPS setup.
91D-Link DIR-1360 User Manual
Section 6- Connecting a Wireless Client
Windows Vista®
Windows Vista® users may use the built-in wireless utility. If you are using another company’s wireless utility, please refer to the
user manual of your wireless adapter for help connecting to a wireless network. Most wireless utilities will have a “site survey”
option similar to the Windows Vista® utility as seen below.

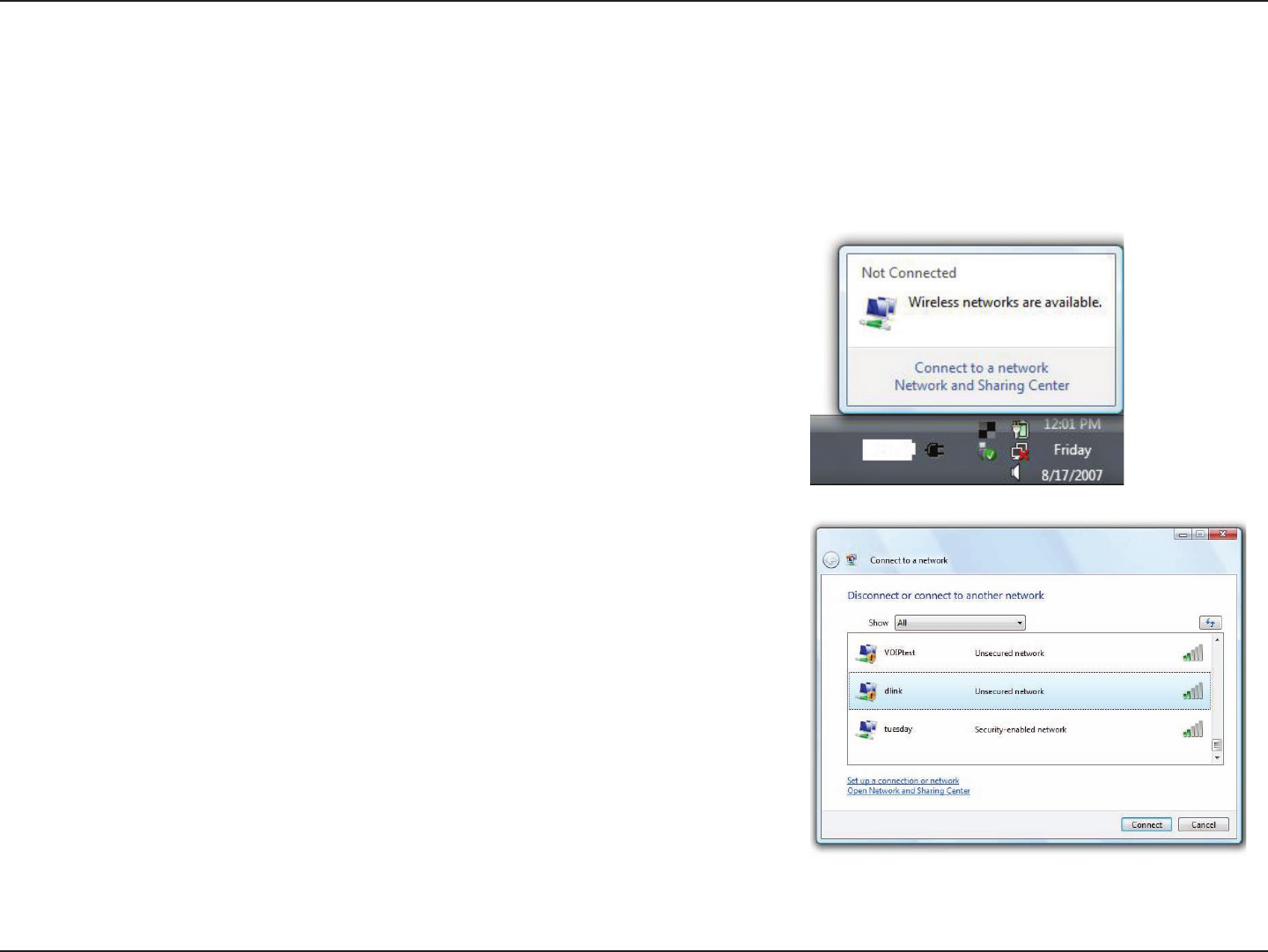

Right-click on the wireless computer icon in your system tray (lower-right
corner next to the time). Select Connect to a network.
If you receive the Wireless Networks Detected bubble, click on the center of
the bubble to access the utility.
or
The utility will display any available wireless networks in your area. Click on a
network (displayed using the SSID) and click the Connect button.
If you get a good signal but cannot access the Internet, check you TCP/IP
settings for your wireless adapter. Refer to the Networking Basics section in
this manual for more information.
92D-Link DIR-1360 User Manual
Section 6- Connecting a Wireless Client
WPA/WPA2
Highlight the Wi-Fi name (SSID) you would like to connect to and click
Connect.
Open the Windows Vista® Wireless Utility by right-clicking on the wireless
computer icon in your system tray (lower right corner of screen). Select
Connect to a network.
It is recommended that you enable wireless security (WPA/WPA2) on your wireless router or access point before conguring
your wireless adapter. If you are joining an existing network, you will need to know the security key or passphrase being used.
93D-Link DIR-1360 User Manual
Section 6- Connecting a Wireless Client
Enter the same security key or passphrase (Wi-Fi password) that is on your
router and click Connect.
It may take 20-30 seconds to connect to the wireless network. If the
connection fails, please verify that the security settings are correct. The key or
passphrase must be exactly the same as the one on the wireless router.
94D-Link DIR-1360 User Manual
Section 7 - Troubleshooting
Troubleshooting
This chapter provides solutions to problems that can occur during the installation and operation of the DIR-1360. Read the
following descriptions if you are having problems. The examples below are illustrated in Windows® XP. If you have a dierent
operating system, the screenshots on your computer will look similar to these examples.
1. Why can’t I access the web-based conguration utility?
When entering the IP address of the D-Link router (192.168.0.1 for example), you are not connecting to a website, nor do you
have to be connected to the Internet. The device has the utility built-in to a ROM chip in the device itself. Your computer must
be on the same IP subnet to connect to the web-based utility.
• Make sure you have an updated Java-enabled web browser. We recommend the following:
- Microsoft Internet Explorer® 10 or higher
- Mozilla Firefox 28 or higher
- Google™ Chrome 28 or higher
- Apple Safari 6 or higher
• Verify physical connectivity by checking for solid link lights on the device. If you do not get a solid link light, try using a
dierent cable, or connect to a dierent port on the device if possible. If the computer is turned o, the link light may not be
on.
• Disable any Internet security software running on the computer. Software rewalls such as ZoneAlarm, BlackICE, Sygate,
Norton Personal Firewall, and Windows® XP rewall may block access to the conguration pages. Check the help les
included with your rewall software for more information on disabling or conguring it.
95D-Link DIR-1360 User Manual
Section 7 - Troubleshooting
• Congure your Internet settings:
• Go to Start > Settings > Control Panel. Double-click the Internet Options Icon. From the Security tab, click
the button to restore the settings to their defaults.
• Click the Connection tab and set the dial-up option to Never Dial a Connection. Click the LAN Settings button.
Make sure nothing is checked. Click OK.
• Go to the Advanced tab and click the button to restore these settings to their defaults. Click OK three times.
• Close your web browser (if open) and open it.
• Access the web management. Open your web browser and enter the IP address of your D-Link router in the address bar. This
should open the login page for your web management.
• If you still cannot access the conguration, unplug the power to the router for 10 seconds and plug back in. Wait about 30
seconds and try accessing the conguration. If you have multiple computers, try connecting using a dierent computer.
2. What can I do if I forgot my password?
If you forgot your password, you must reset your router. This process will change all your settings back to the factory defaults.
To reset the router, locate the reset button (hole) on the rear panel of the unit. With the router powered on, use a paperclip
to hold the button down for 10 seconds. Release the button and the router will go through its reboot process. Wait about 30
seconds to access the router. The default IP address is 192.168.0.1. When logging in, leave the password box empty.
96D-Link DIR-1360 User Manual
Section 7 - Troubleshooting
3. Why can’t I connect to certain sites or send and receive emails when connecting through my router?
If you are having a problem sending or receiving email, or connecting to secure sites such as eBay, banking sites, and Hotmail,
we suggest lowering the MTU in increments of ten (Ex. 1492, 1482, 1472, etc).
To nd the proper MTU Size, you’ll have to do a special ping of the destination you’re trying to go to. A destination could be
another computer, or a URL.
• Click on Start and then click Run.
• Windows® 95, 98, and Me users type in command (Windows® NT, 2000, XP, Vista®, and 7 users type in cmd) and
press Enter (or click OK).
• Once the window opens, you’ll need to do a special ping. Use the following syntax:
ping [url] [-f] [-l] [MTU value]
Example: ping yahoo.com -f -l 1472
97D-Link DIR-1360 User Manual
Section 7 - Troubleshooting
You should start at 1472 and work your way down by 10 each time. Once you get a reply, go up by 2 until you get a
fragmented packet. Take that value and add 28 to the value to account for the various TCP/IP headers. For example, lets say
that 1452 was the proper value, the actual MTU size would be 1480, which is the optimum for the network we’re working with
(1452+28=1480).
Once you nd your MTU, you can now congure your router with the proper MTU size.
To change the MTU rate on your router follow the steps below:
• Open your browser, enter the IP address of your router (192.168.0.1) and click OK.
• Enter your username (admin) and password (blank by default). Click OK to enter the web conguration page for the
device.
• Click on Setup and then click Manual Congure.
• To change the MTU, enter the number in the MTU eld and click Save Settings to save your settings.
• Test your email. If changing the MTU does not resolve the problem, continue changing the MTU in increments of ten.
98D-Link DIR-1360 User Manual
Appendix A - Wireless Basics
D-Link wireless products are based on industry standards to provide easy-to-use and compatible high-speed wireless
connectivity within your home, business, or public access wireless networks. Strictly adhering to the IEEE standard, the D-Link
wireless family of products will allow you to securely access the data you want, when, and where you want it. You will be able to
enjoy the freedom that wireless networking delivers.
A wireless local area network (WLAN) is a cellular computer network that transmits and receives data with radio signals
instead of wires. Wireless LANs are used increasingly in both home and oce environments, and public areas such as airports,
coee shops and universities. Innovative ways to utilize WLAN technology are helping people work, and communicate more
eciently. Increased mobility and the absence of cabling and other xed infrastructure have proven to be benecial for many
users.
Wireless users can use the same applications they use on a wired network. Wireless adapter cards used on laptop and desktop
systems support the same protocols as Ethernet adapter cards.
Under many circumstances, it may be desirable for mobile network devices to link to a conventional Ethernet LAN in order to
use servers, printers or an Internet connection supplied through the wired LAN. A wireless router is a device used to provide
this link.
Wireless Basics
99D-Link DIR-1360 User Manual
Appendix A - Wireless Basics
What is Wireless?
Wireless or Wi-Fi technology is another way of connecting your computer to the network without using wires. Wi-Fi uses radio
frequency to connect wirelessly so you have the freedom to connect computers anywhere in your home or oce network.
Why D-Link Wireless?
D-Link is the worldwide leader and award winning designer, developer, and manufacturer of networking products.
D-Link delivers the performance you need at a price you can aord. D-Link has all the products you need to build your
network.
How does wireless work?
Wireless works similarly to how cordless phones work, through radio signals that transmit data from one point A to point B. But
wireless technology has restrictions as to how you can access the network. You must be within the wireless network range area
to be able to connect your computer. There are two dierent types of wireless networksl: Wireless Local Area Network (WLAN),
and Wireless Personal Area Network (WPAN).
Wireless Local Area Network (WLAN)
In a wireless local area network, a device called an Access Point (AP) connects computers to the network. The access point
has a small antenna attached to it, which allows it to transmit data back and forth over radio signals. With an indoor access
point the signal can travel up to 300 feet. With an outdoor access point the signal can reach out up to 30 miles to serve places
like manufacturing plants, industrial locations, university and high school campuses, airports, golf courses, and many other
outdoor venues.
100D-Link DIR-1360 User Manual
Appendix A - Wireless Basics
Wireless Personal Area Network (WPAN)
Bluetooth is the industry standard wireless technology used for WPAN. Bluetooth devices in WPAN operate in a range up to 30
feet away.
Compared to WLAN the speed and wireless operation range are both less than WLAN, but in return it doesn’t use nearly as
much power. This makes it ideal for personal devices, such as mobile phones, PDAs, headphones, laptops, speakers, and other
devices that operate on batteries.
Who uses wireless?
Wireless technology as become so popular in recent years that almost everyone is using it, whether it’s for home, oce,
business, D-Link has a wireless solution for it.
Home Uses/Benets
• Gives everyone at home broadband access
• Surf the web, check email, instant message, etc.
• Gets rid of the cables around the house
• Simple and easy to use
Small Oce and Home Oce Uses/Benets
• Stay on top of everything at home as you would at oce
• Remotely access your oce network from home
• Share Internet connection and printer with multiple computers
• No need to dedicate oce space
101D-Link DIR-1360 User Manual
Appendix A - Wireless Basics
Where is wireless used?
Wireless technology is expanding everywhere, not just at home or oce. People like the freedom of mobility and it’s becoming
so popular that more and more public facilities now provide wireless access to attract people. The wireless connection in public
places is usually called “hotspots”.
Using a D-Link USB adapter with your laptop, you can access the hotspot to connect to the Internet from remote locations like:
airports, hotels, coee shops, libraries, restaurants, and convention centers.
Wireless network is easy to setup, but if you’re installing it for the rst time it could be quite a task not knowing where to start.
That’s why we’ve put together a few setup steps and tips to help you through the process of setting up a wireless network.
Tips
Here are a few things to keep in mind, when you install a wireless network.
Centralize your router or access point
Make sure you place the router/access point in a centralized location within your network for the best performance. Try to
place the router/access point as high as possible in the room, so the signal gets dispersed throughout your home. If you have a
two-story home, you may need a repeater to boost the signal to extend the range.
Eliminate Interference
Place home appliances such as cordless telephones, microwaves, and televisions as far away as possible from the router/access
point. This would signicantly reduce any interference that the appliances might cause since they operate on same frequency.
Security
Don’t let your next-door neighbors or intruders connect to your wireless network. Secure your wireless network by turning on
the WPA or WEP security feature on the router. Refer to the product manual for detail information on how to set it up.
102D-Link DIR-1360 User Manual
Appendix A - Wireless Basics
There are basically two modes of networking:
• Infrastructure – All wireless clients will connect to an access point or wireless router.
• Ad-hoc – Directly connecting to another computer for peer-to-peer communication using wireless network adapters on
each computer, such as two or more DIR-1360 wireless network USB adapters.
An Infrastructure network contains an access point or wireless router. All the wireless devices, or clients, will connect to the
wireless router or access point.
An ad-hoc network contains only clients, such as laptops with wireless USB adapters. All the adapters must be in ad-hoc mode
to communicate.
Wireless Modes
103D-Link DIR-1360 User Manual
Appendix B - Networking Basics
Networking Basics
Check your IP address
After you install your new D-Link adapter, by default, the TCP/IP settings should be set to obtain an IP address from a DHCP
server (i.e. wireless router) automatically. To verify your IP address, please follow the steps below.
In Windows, type cmd in the Start Search box and click OK.

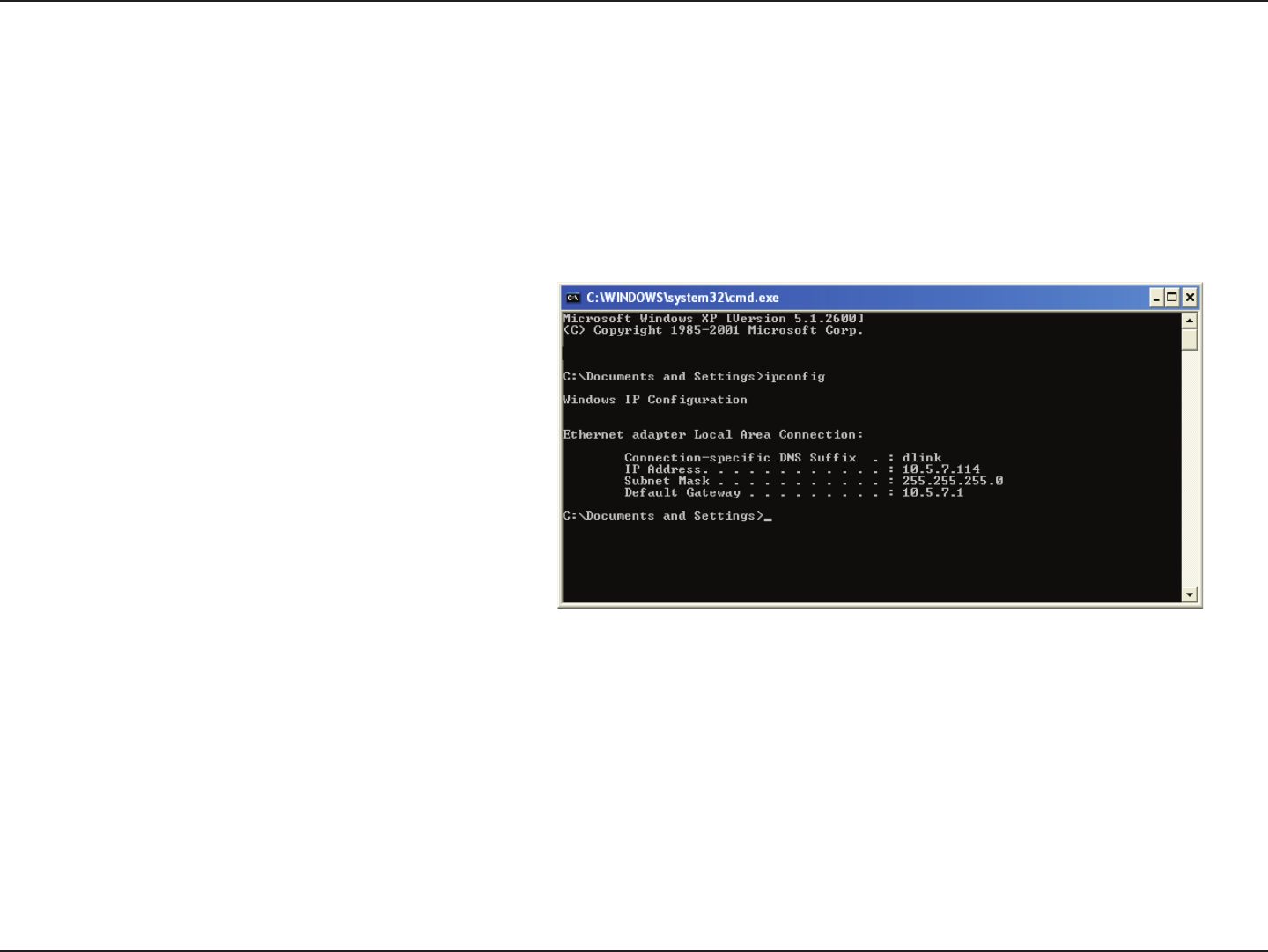

At the prompt, type ipcong and press Enter.
This will display the IP address, subnet mask, and the
default gateway of your adapter.
If the address is 0.0.0.0, check your adapter
installation, security settings, and the settings on
your router. Some rewall software programs may
block a DHCP request on newly installed adapters.
104D-Link DIR-1360 User Manual
Appendix B - Networking Basics
Wireless Security
This section will show you the dierent levels of security you can use to protect your data from intruders. The DIR-1360 oers
the following types of security:
• WPA2 (Wi-Fi Protected Access 2) • WPA2-PSK (Pre-Shared Key)
• WPA (Wi-Fi Protected Access) • WPA-PSK (Pre-Shared Key)
What is WPA?
WPA (Wi-Fi Protected Access), is a Wi-Fi standard that was designed to improve the security features of WEP (Wired Equivalent
Privacy).
The 2 major improvements over WEP:
• Improved data encryption through the Temporal Key Integrity Protocol (TKIP). TKIP scrambles the keys using a hashing
algorithm and by adding an integrity-checking feature, ensures that the keys haven’t been tampered with. WPA2 is based
on 802.11i and uses Advanced Encryption Standard (AES) instead of TKIP.
• User authentication, which is generally missing in WEP, through the extensible authentication protocol (EAP). WEP
regulates access to a wireless network based on a computer’s hardware-specic MAC address, which is relatively simple
to be snied out and stolen. EAP is built on a more secure public-key encryption system to ensure that only authorized
network users can access the network.
WPA-PSK/WPA2-PSK uses a passphrase or key to authenticate your wireless connection. The key is an alpha-numeric password
between 8 and 63 characters long. The password can include symbols (!?*&_) and spaces. This key must be the exact same key
entered on your wireless router or access point.
WPA/WPA2 incorporates user authentication through the Extensible Authentication Protocol (EAP). EAP is built on a more
secure public key encryption system to ensure that only authorized network users can access the network.
105D-Link DIR-1360 User Manual
Appendix C - Technical Specications
Technical Specications
Device Interfaces
• Wireless Interface (2.4 GHz): IEEE 802.11 b/g/n
• Wireless Interface (5 GHz): IEEE 802.11 a/n/ac
• Four 10/100/1000 Mbps LAN ports
• One 10/100/1000 Mbps WAN port
Antenna Types
• Four xed external antennas
Standards
• IEEE 802.11ac1,2,3
• IEEE 802.11n
• IEEE 802.11g
• IEEE 802.11b
• IEEE 802.11a
• IEEE 802.11d
• IEEE 802.3u
• IEEE 802.3ab
Security
• WPATM - Personal
• WPA2TM - Personal
• Wi-Fi Protected Setup (WPS) PIN/PBC
Power
• Input: 100 to 240 V AC, 50/60 Hz
• Output: 12 V DC, 1 A
Temperature
• Operating: 0 to 40°C (32 to 104 °F)
• Storage: -20 to 65 °C (-4 to 149 °F)
Humidity
• Operating: 10% to 90% maximum, non-condensing
• Storage: 5% to 95% maximum, non-condensing
Certications
• NCC
• BSMI
• IPv6
• Wi-Fi Protected Setup (WPS)
• Wi-Fi Multimedia (WMM)
Dimensions & Weight
• L x W x H: 250 x 235 x 36 mm (9.8 x 9.25 x 1.4 in)
• 253 g (0.51 lbs)
1 Maximum wireless signal rate derived from IEEE Standard 802.11a, 802.11g, 802.11n, and 802.11ac specications. Actual data throughput will vary. Network conditions and environmental factors,including volume of
network trac, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors will adversely aect wireless signal range.
2 Frequency Range varies depending on country’s regulation.
3 The DIR-1360 does not include 5.25-5.35 GHz & 5.47-5.725 GHz in some regions.
106D-Link DIR-1360 User Manual
Appendix D - Regulatory Information
Industry Canada statement:
This device complies with ISED’s licence-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Le présent appareil est conforme aux CNR d’ ISED applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux
conditions suivantes : (1) le dispositif ne doit pas produire de brouillage préjudiciable, et (2) ce dispositif doit accepter tout brouillage reçu, y
compris un brouillage susceptible de provoquer un fonctionnement indésirable.
Caution :
(i) the device for operation in the band 5150-5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel
mobile satellite systems;
(ii) where applicable, antenna type(s), antenna models(s), and worst-case tilt angle(s) necessary to remain compliant with the e.i.r.p. elevation
mask requirement set forth in section 6.2.2.3 shall be clearly indicated.
Avertissement:
(i) les dispositifs fonctionnant dans la bande 5150-5250 MHz sont réservés uniquement pour une utilisation à l’intérieur an de réduire les risques
de brouillage préjudiciable aux systèmes de satellites mobiles utilisant les mêmes canaux;
(ii) lorsqu’il y a lieu, les types d’antennes (s’il y en a plusieurs), les numéros de modèle de l’antenne et les pires angles d’inclinaison nécessaires
pour rester conforme à l’exigence de la p.i.r.e. applicable au masque d’élévation, énoncée à la section 6.2.2.3, doivent être clairement indiqués.
Radiation Exposure Statement:
This equipment complies with ISED radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and
operated with greater than 33cm between the radiator & your body.
Déclaration d'exposition aux radiations:
Cet équipement est conforme aux limites d'exposition aux rayonnements ISED établies pour un environnement non contrôlé. Cet équipement
doit être installé et utilisé à plus de 33 cm entre le radiateur et votre corps.
Regulatory Information
107D-Link DIR-1360 User Manual
Appendix D - Regulatory Information
Federal Communication Commission Interference Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to
try to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modications not expressly approved by the party responsible for compliance could void the user's authority to
operate this equipment.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
Operations in the 5.15-5.25GHz band are restricted to indoor usage only.
Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and
operated with minimum distance 29cm between the radiator & your body.
108D-Link DIR-1360 User Manual
Appendix D - Regulatory Information
以下警語適用台灣地區
依據 低功率電波輻射性電機管理辦法
第十二條: 經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、加大功率或變
更原設計之特性及功能。
第十四條: 低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用，並改善至
無干擾時方得繼續使用。前項合法通信，指依電信法規定作業之無線電通信。低功率射頻電機須忍受合法通信或工
業、科學及醫療用電波輻射性電機設備之干擾。
無線傳輸設備 (UNII)
在 5.25-5.35 秭赫頻帶內操作之無線資訊傳輸設備，限於室內使用。無線資訊傳輸設備忍受合法通信之干擾且不得干
擾合法通信；如造成干擾，應立即停用，俟無干擾之虞，始得繼續使用。無線資訊傳設備的製造廠商應確保頻率穩定
性，如依製造廠商使用手冊上所述正常操作，發射的信號應維持於操作頻帶中。
電磁波曝露量MPE標準值(MPE) 1 mW/cm2，送測產品實值為 0 mW/cm2
NCC 警 語：

Navigation menu
