D Link IR505LA1 All-in-One Mobile Companion / Travel Cloud Router User Manual

D Link Corporation All-in-One Mobile Companion / Travel Cloud Router

User Manual

iD-Link DIR-505 User Manual

D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any

person or organization of such revisions or changes.

Manual Revisions

Trademarks

D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United

States or other countries. All other company or product names mentioned herein are trademarks or registered trademarks of

their respective companies.

from D-Link Systems, Inc.

Revision Date Description

1.0 January 11, 2012 • Initial release for Revision A1

Preface

iiD-Link DIR-505 User Manual

Table of Contents

Preface ................................................................................. i

Manual Revisions ........................................................................... i

Trademarks ...................................................................................... i

Product Overview .............................................................. 1

Package Contents ......................................................................... 1

System Requirements ................................................................. 2

Introduction ................................................................................... 3

Features ............................................................................................ 4

Hardware Overview ..................................................................... 5

Connections ...........................................................................5

LEDs ...........................................................................................6

Installation ......................................................................... 7

Operation Modes ..........................................................................7

Access Point Mode ............................................................... 8

Repeater Mode ...................................................................... 9

Hot Spot Mode ....................................................................10

Wireless Installation Considerations ....................................11

Manual Setup ...............................................................................12

Connect to an Existing Router ...............................................14

Conguration ...................................................................16

Quick Router Setup Wizard (CD) ...........................................16

Quick Setup Wizard ....................................................................18

Web-based Conguration Utility ..........................................21

Internet Connection Setup .............................................22

Manual Internet Setup ..............................................................27

Dynamic (Cable) ..................................................................27

Internet Setup ......................................................................28

PPPoE .................................................................................28

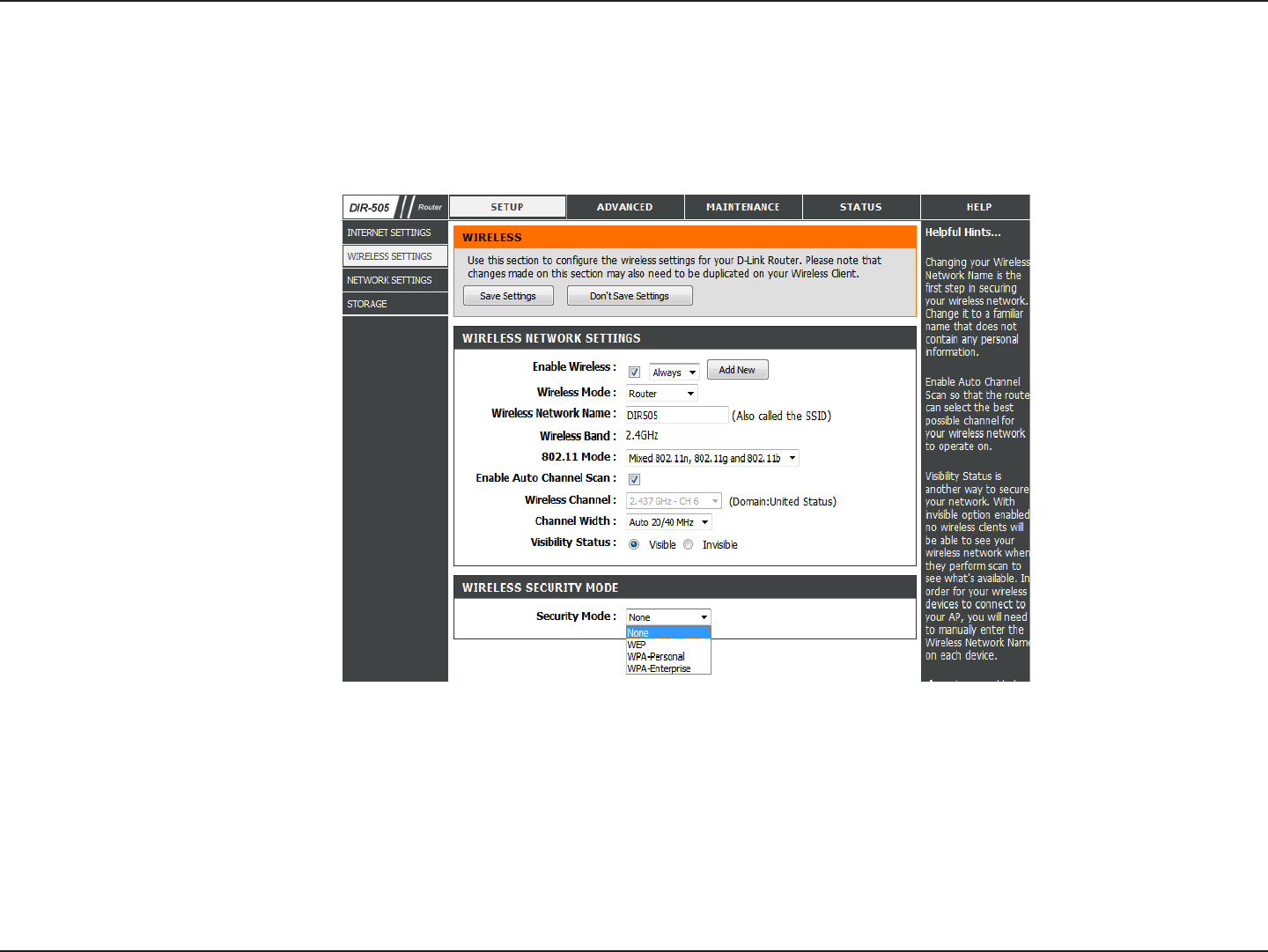

Wireless Settings .................................................................29

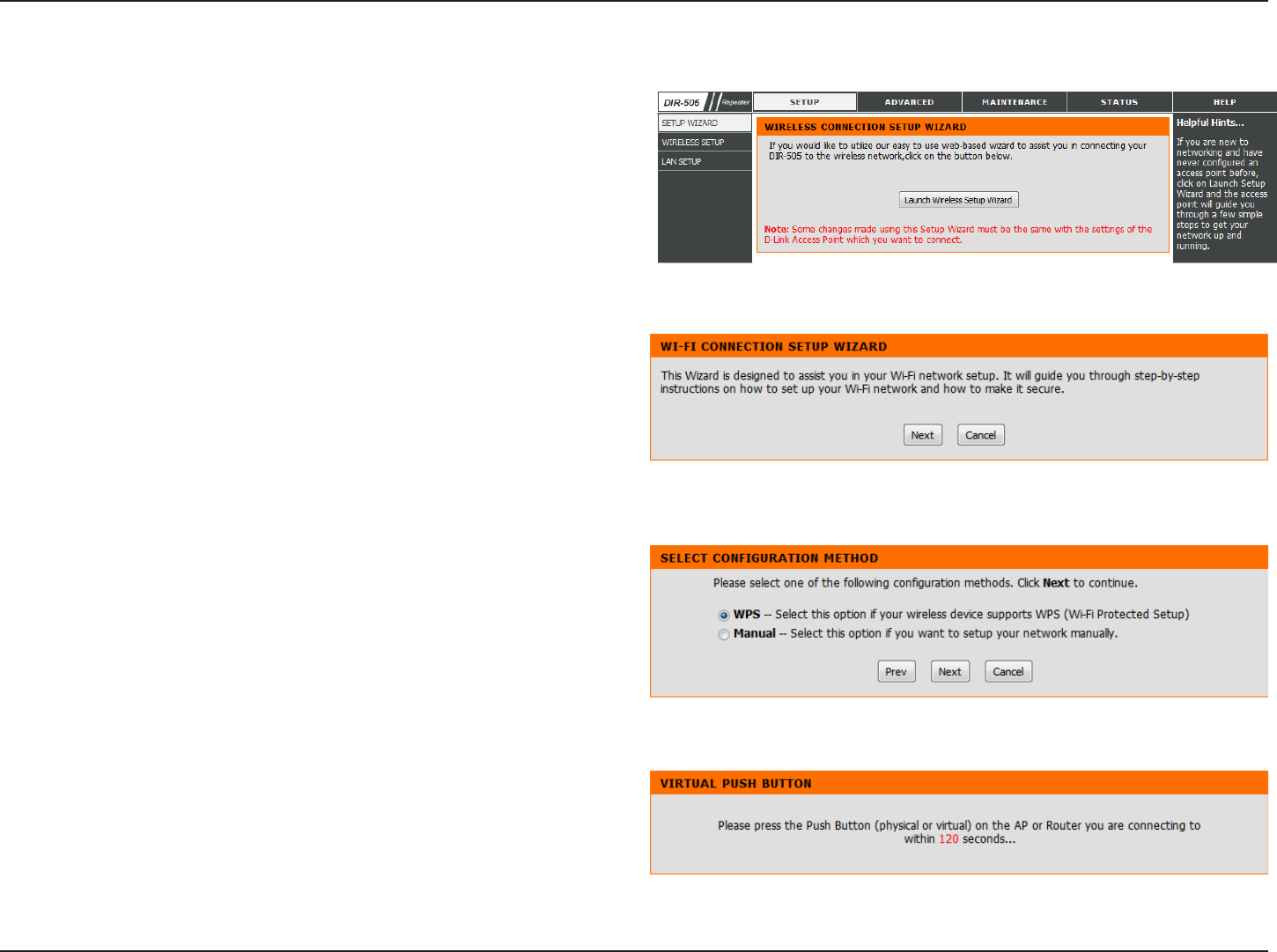

Wireless Security Setup Wizard .................................30

Manual Conguration ...............................................................32

Wireless Settings .................................................................32

Access Point Mode ........................................................33

Wireless Security .........................................................................35

What is WEP? ........................................................................35

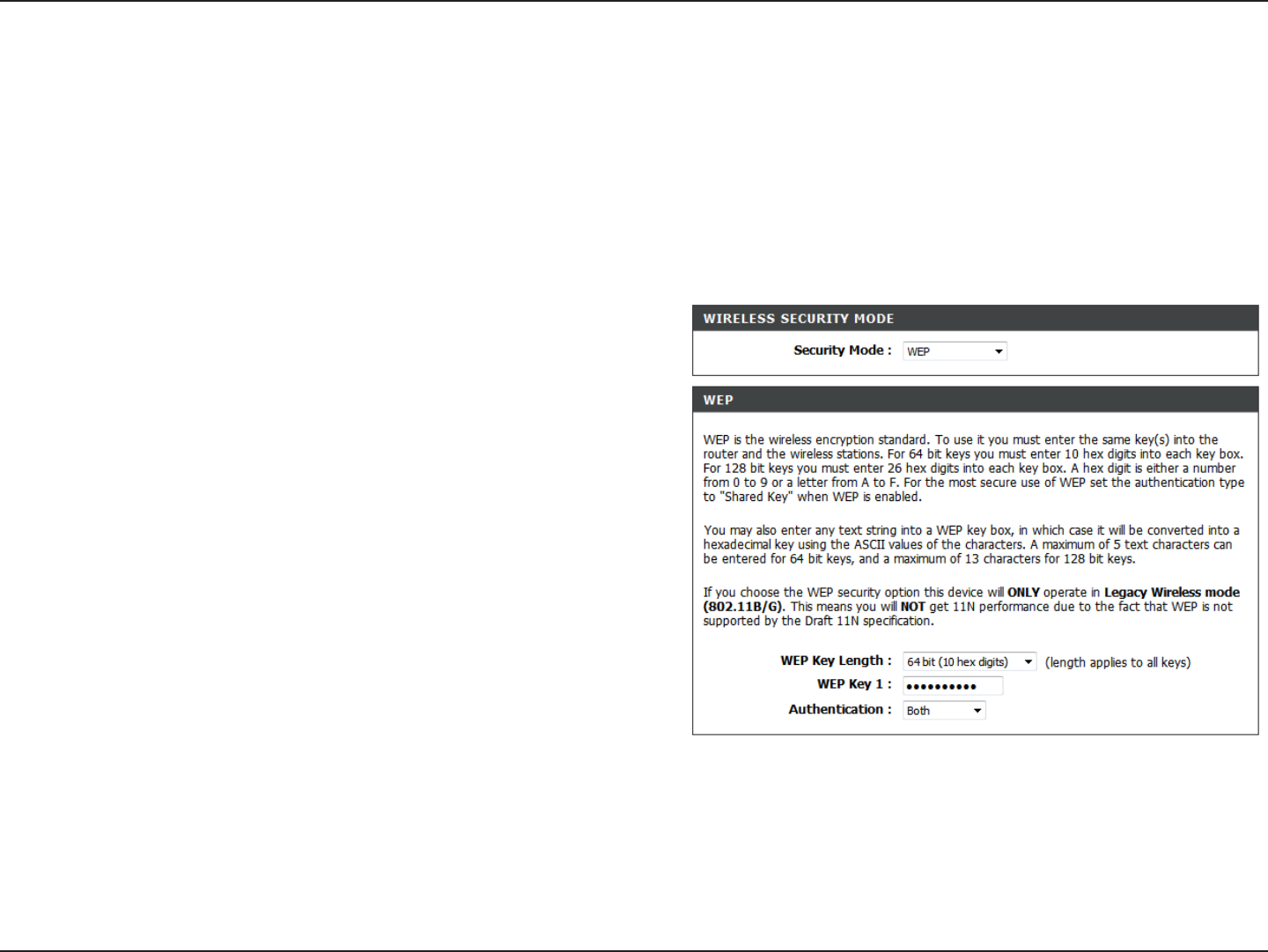

Congure WEP .............................................................................36

Congure WPA/WPA2 Personal .............................................37

Congure WPA Enterprise .......................................................38

Network Settings ................................................................39

Router Settings ...............................................................39

DHCP Reservation .........................................................40

Storage ...................................................................................41

Advanced ......................................................................................42

Virtual Server ........................................................................42

Application Rules ................................................................43

MAC Address Filter .............................................................44

Website Filters ......................................................................45

Firewall Settings ..................................................................46

Advanced Wireless .............................................................47

Wi-Fi Protected Setup (WPS) ..........................................48

UPnP Settings.......................................................................50

Table of Contents

iiiD-Link DIR-505 User Manual

Table of Contents

Guest Zone ............................................................................51

DMZ .........................................................................................52

Maintance......................................................................................53

Admin .....................................................................................53

Time .........................................................................................54

System ....................................................................................55

Firmware ................................................................................56

Dynamic DNS .......................................................................57

System Check .......................................................................58

Schedules ..............................................................................59

Status ..............................................................................................60

Device Info ............................................................................60

Logs .........................................................................................61

Statistics .................................................................................62

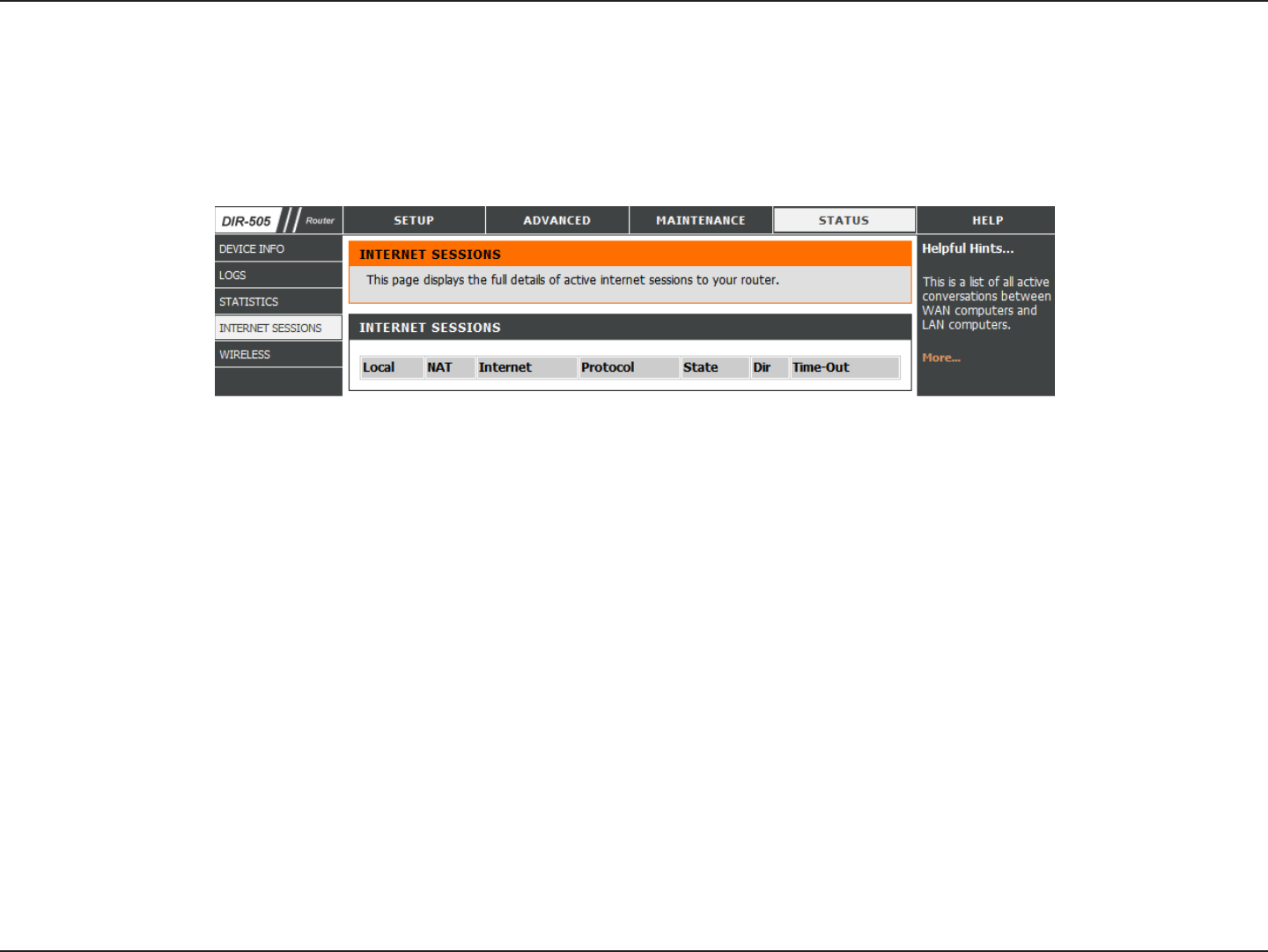

Internet Sessions .................................................................63

Wireless .................................................................................64

Help .........................................................................................65

Quick Setup Wizard ....................................................................66

Repeater Mode ....................................................................66

Setup Wizard ........................................................................68

To start the Setup Wizard click Next. ...........................68

Manual Conguration ...............................................................70

Wireless Settings .................................................................70

Repeater Mode ...............................................................71

Wireless Security .........................................................................72

What is WEP? ........................................................................72

Congure WEP .............................................................................73

Congure WPA/WPA2 Personal .............................................74

LAN Settings .........................................................................75

Static IP ..............................................................................76

Advanced ......................................................................................77

Advanced Wireless .............................................................77

Wi-Fi Protected Setup ...............................................................78

Maintenance ................................................................................79

Admin .....................................................................................79

System ....................................................................................80

Language Pack .....................................................................81

Firmware ................................................................................81

Time .........................................................................................82

Status ..............................................................................................83

Device Info ............................................................................83

Logs .........................................................................................84

Statistics .................................................................................85

Quick Setup Wizard ....................................................................86

WiFi Hot Spot ........................................................................86

Setup ...............................................................................................90

Wi-Fi Hot Spot Setup .........................................................90

Congure WPA/WPA2 Personal .............................................92

WAN Settings .......................................................................93

Wireless Setup ......................................................................94

Manual Wireless Settings .................................................95

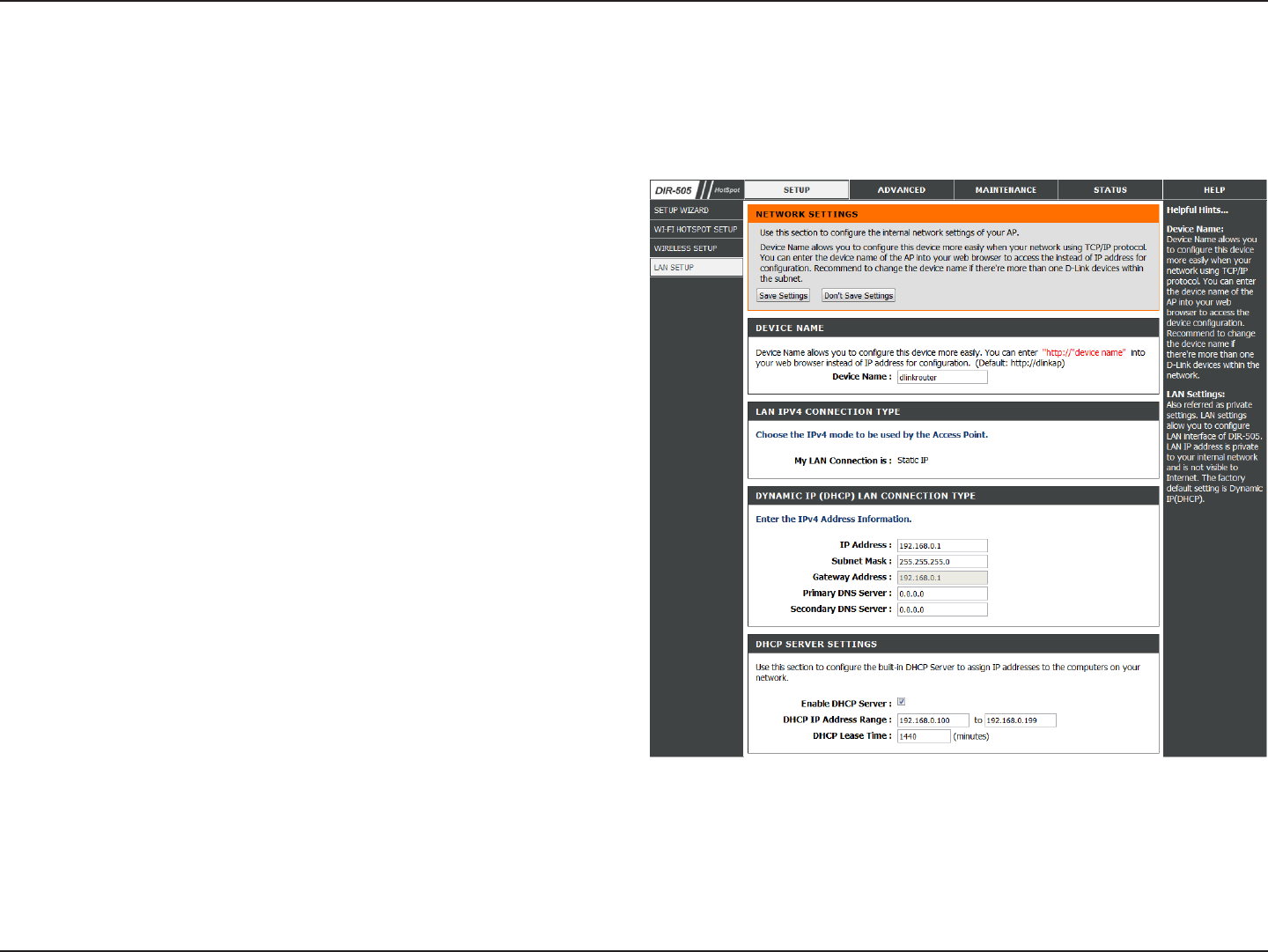

LAN Setup ..............................................................................96

Advanced ......................................................................................97

Advanced Wireless .............................................................97

Maintance......................................................................................98

Admin .....................................................................................98

ivD-Link DIR-505 User Manual

Table of Contents

System ....................................................................................99

Language Pack .................................................................. 100

Firmware ............................................................................. 100

Time ...................................................................................... 101

Status ........................................................................................... 102

Device Info ......................................................................... 102

Logs ...................................................................................... 103

Statistics .............................................................................. 104

Help .............................................................................................. 105

Connect a Wireless Client to your Router ....................106

WPS Button ................................................................................ 106

Windows® 7 ................................................................................ 107

WPA/WPA2 ......................................................................... 107

WPS ....................................................................................... 110

Windows Vista® ......................................................................... 114

WPA/WPA2 ......................................................................... 115

WPS/WCN 2.0 .................................................................... 117

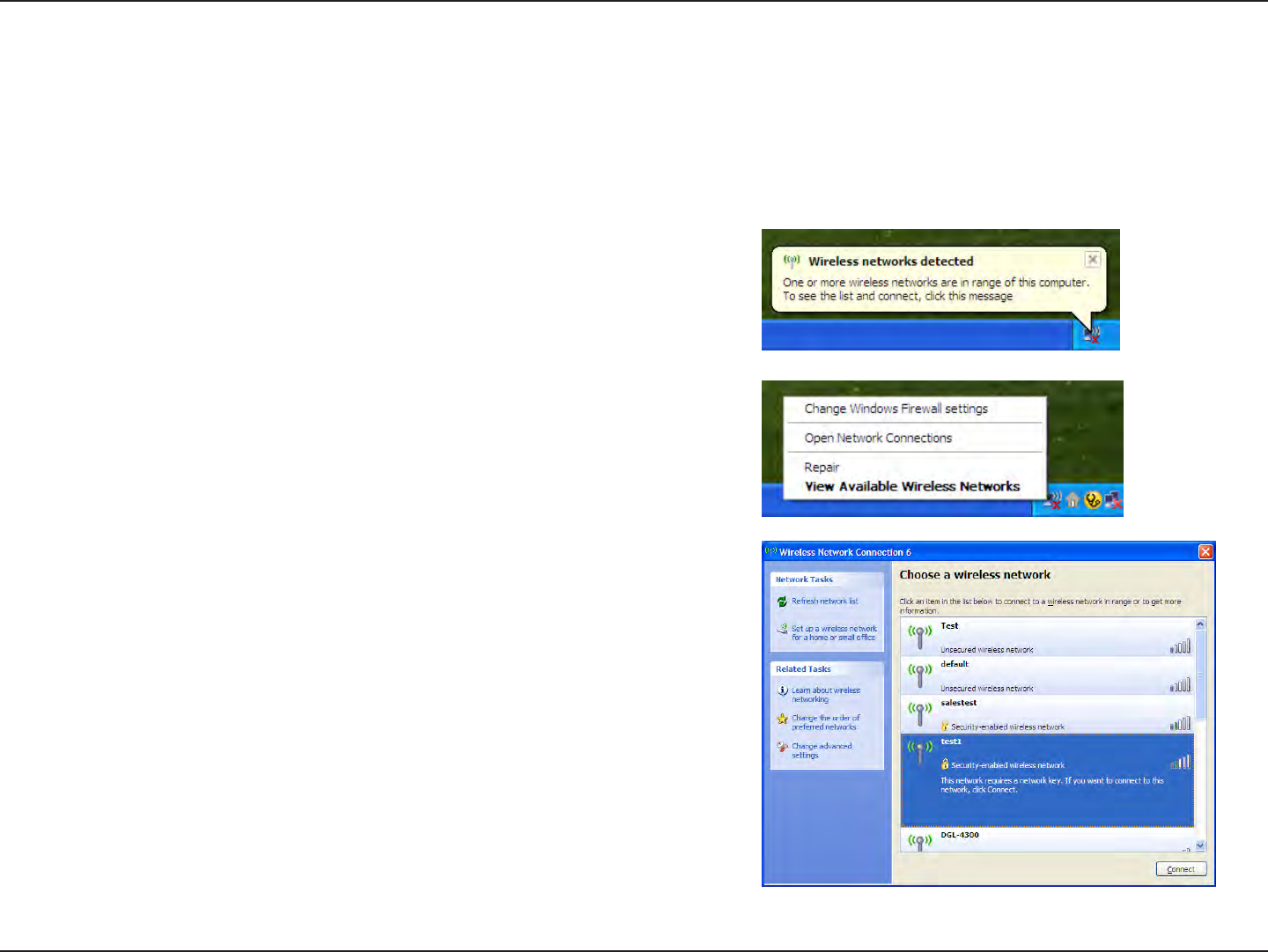

Windows® XP ............................................................................. 118

WPA/WPA2 ......................................................................... 119

Troubleshooting ............................................................121

Wireless Basics ...............................................................125

What is Wireless? ...................................................................... 126

Tips ................................................................................................ 128

Wireless Modes ......................................................................... 129

Networking Basics .........................................................130

Check your IP address ............................................................ 130

Statically Assign an IP address ............................................ 131

Technical Specications..............................................132

Contacting Technical Support....................................133

GPL Code Statement...................................................134

Warranty.......................................................................149

Registration.................................................................156

1D-Link DIR-505 User Manual

Section 1 - Product Overview

Product Overview

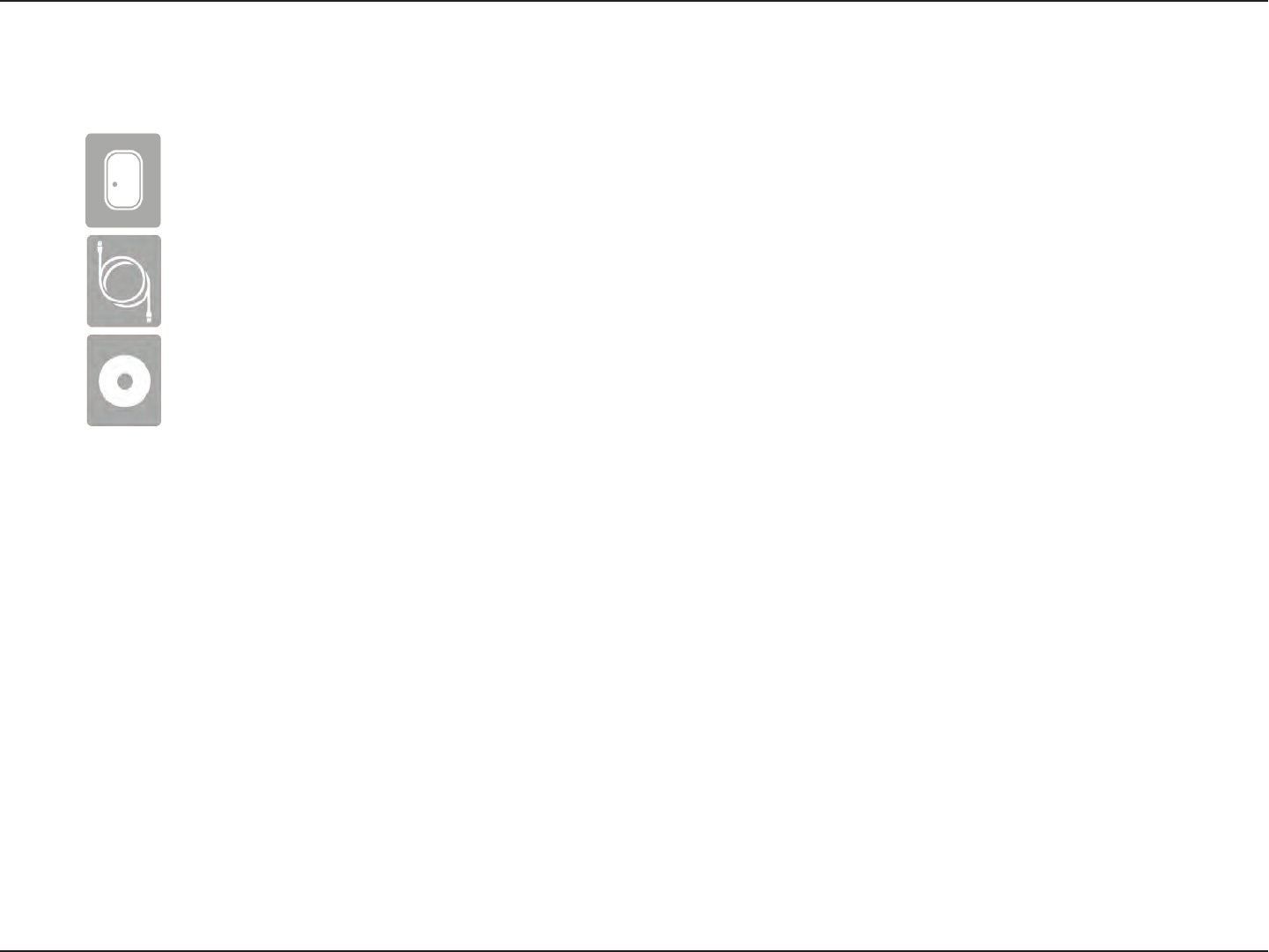

Package Contents

Note: Using a power supply with a dierent voltage rating than the one included with the DIR-505 will cause damage and void the warranty

for this product.

If any of the above items are missing, please contact your reseller.

DIR-505 All-in-One Mobile Companion

Ethernet Cable

CD-ROM with Manual and Setup Wizard

2D-Link DIR-505 User Manual

Section 1 - Product Overview

Network Requirements

• An Ethernet-based Cable or DSL modem

• IEEE 802.11n or 802.11g wireless clients

• IEEE 802.11a wireless clients

• 10/100/1000 Ethernet

Web-based Conguration

Utility Requirements

Computer with the following:

• Windows®, Macintosh, or Linux-based operating system

• An installed Ethernet adapter

Browser Requirements:

• Internet Explorer 6 or higher

• Firefox 3.0 or higher

• Safari 3.0 or higher

• Chrome 2.0 or higher

Windows® Users: Make sure you have the latest version of Java

installed. Visit www.java.com to download the latest version.

CD Installation Wizard

Requirements

Computer with the following:

• Windows® 7, Vista®, or XP (Service Pack 2 or higher)

• An installed Ethernet adapter

• CD-ROM drive

System Requirements

3D-Link DIR-505 User Manual

Section 1 - Product Overview

Introduction

TOTAL PERFORMANCE

Combines award winning router features and IEEE 802.11a/g/n wireless technology to provide the best wireless performance.

TOTAL SECURITY

The most complete set of security features including Active Firewall and WPA/WPA2 to protect your network against outside intruders.

TOTAL COVERAGE

Provides greater wireless signal rates even at farther distances for best-in-class Whole Home Coverage.

ULTIMATE PERFORMANCE

The D-Link All-in-One Mobile Companion (DIR-505) is a 802.11n/802.11a compliant device that delivers real world performance of up to

14x faster than an 802.11g wireless connection (also faster than a 100Mbps wired Ethernet connection). Create a secure wireless network

to share photos, les, music, video, printers, and network storage throughout your home. Connect the DIR-505 router to a cable or DSL

modem and share your high-speed Internet access with everyone on the network. In addition, this Router includes a Quality of Service

(QoS) engine that keeps digital phone calls (VoIP) and online gaming smooth and responsive, providing a better Internet experience.

EXTENDED WHOLE HOME COVERAGE

Powered by Wireless N technology, this high performance router provides superior Whole Home Coverage while reducing dead spots.

The router is designed for use in bigger homes and for users who demand higher performance networking. Add a Wireless N notebook

or desktop adapter and stay connected to your network from virtually anywhere in your home.

TOTAL NETWORK SECURITY

The Wireless N router supports all of the latest wireless security features to prevent unauthorized access, be it from over the wireless

network or from the Internet. Support for WPA/WPA2 standards ensure that you’ll be able to use the best possible encryption method,

regardless of your client devices. In addition, this router utilizes dual active rewalls (SPI and NAT) to prevent potential attacks from

across the Internet.

* Maximum wireless signal rate derived from IEEE Standard 802.11a, 802.11g and 802.11n specications. Actual data throughput will vary. Network conditions and environmental

factors, including volume of network trac, building materials and construction, and network overhead, lower actual data throughput rate. Environmental conditions will

adversely aect wireless signal range.

4D-Link DIR-505 User Manual

Section 1 - Product Overview

• Faster Wireless Networking - The DIR-505 provides up to 300Mbps* wireless connection with other 802.11n

wireless clients. This capability allows users to participate in real-time activities online, such as video streaming,

online gaming, and real-time audio. The performance of this 802.11n wireless router gives you the freedom of

wireless networking at speeds 14x faster than 802.11g.

• Compatible with 802.11a/g Devices - The DIR-505 is still fully compatible with the IEEE 802.11g and 802.11a

standards, so it can connect with existing 802.11g and 802.11a PCI, USB, and Cardbus adapters.

• Advanced Firewall Features - The Web-based user interface displays a number of advanced network

management features including:

• Content Filtering - Easily applied content ltering based on MAC Address, URL, and/or Domain

Name.

• Filter Scheduling - These lters can be scheduled to be active on certain days or for a duration of

hours or minutes.

• Secure Multiple/Concurrent Sessions - The DIR-505 can pass through VPN sessions. It supports

multiple and concurrent IPSec and PPTP sessions, so users behind the DIR-505 can securely access

corporate networks.

• User-friendly Setup Wizard - Through its easy-to-use Web-based user interface, the DIR-505 lets you control what

information is accessible to those on the wireless network, whether from the Internet or from your company’s

server. Congure your router to your specic settings within minutes.

* Maximum wireless signal rate derived from IEEE Standard 802.11g, 802.11a, and 802.11n specications. Actual data throughput will vary. Network conditions and environmental

factors, including volume of network trac, building materials and construction, and network overhead, lower actual data throughput rate. Environmental conditions will

adversely aect wireless signal range.

Features

5D-Link DIR-505 User Manual

Section 1 - Product Overview

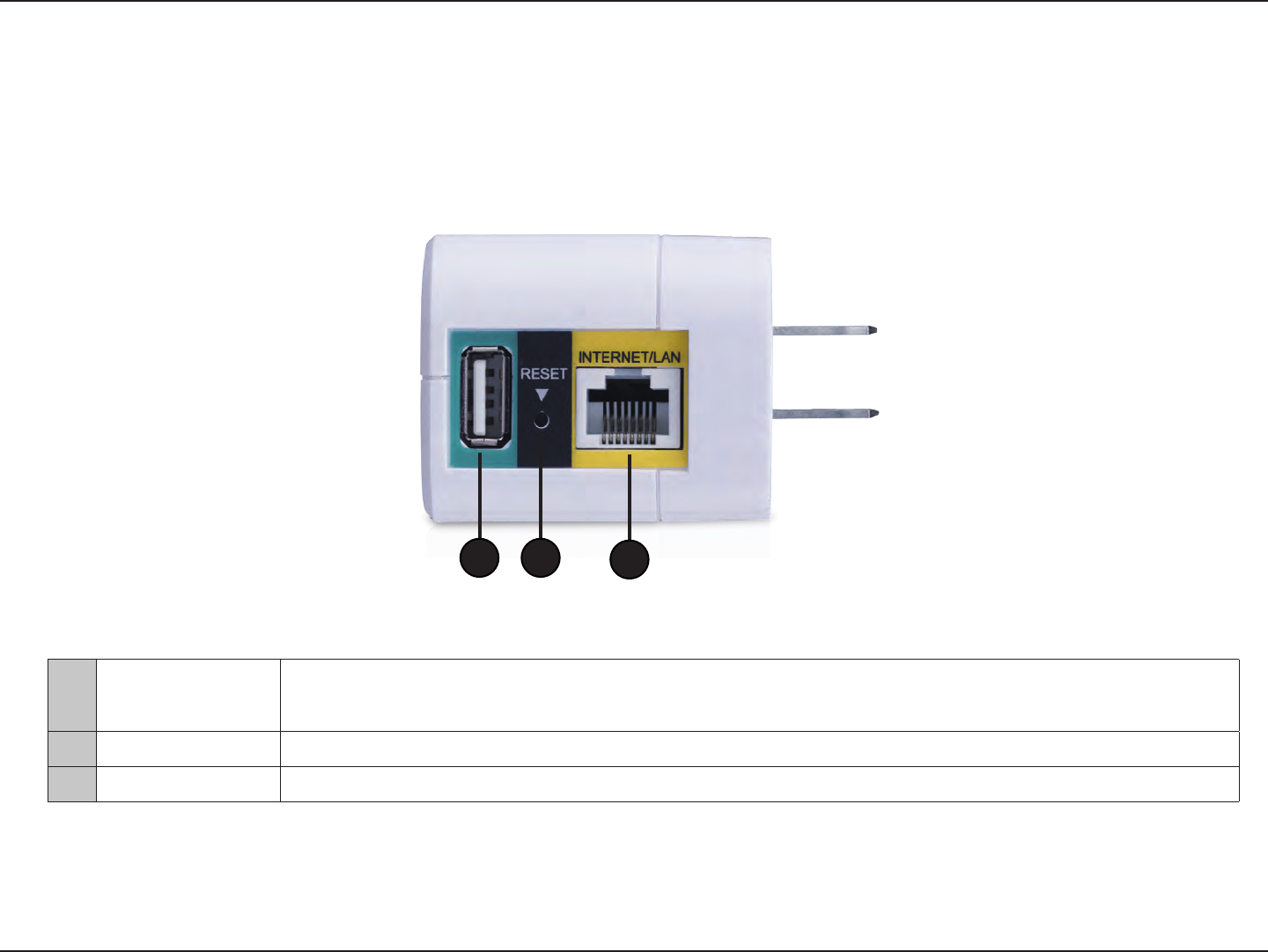

Hardware Overview

Connections

1USB Port Connect a USB 1.1 or 2.0 ash drive to congure the wireless settings using WCN and SharePort. SharePort

allows you to share a printer or storage device with your local network.

2Reset Button Pressing the Reset button restores the router to its original factory default settings.

3Ethernet Port The auto MDI/MDIX Internet port is the connection for the Ethernet cable to the cable or DSL modem.

1 2 3

6D-Link DIR-505 User Manual

Section 1 - Product Overview

Hardware Overview

LEDs

LED Indicator Color Status Description

Power/Status

Green

Solid Green The device is powered ON and operating properly

Blinking Green The device is processing WPS

Light o The device is o

Red

Solid Red During Power ON or system is defective

Blinking Red The device is under recovery mode

Light o The device is powered o

7D-Link DIR-505 User Manual

Section 1 - Product Overview

Installation

Please congure the DIR-505 with a computer connected directly to the AP. The next few pages will explain the dierent

operational modes you can use.

Operation Modes

Depending on how you want to use your DIR-505 will determine which mode you use. This section will help you gure out

which setting works with your setup.

• Access Point mode - page 13

• Wireless Client mode - page 14

• Range Extender Mode - page 15

• Bridge mode - page 16

• Bridge with AP mode - page 17

• WISP Client Router mode - page 18

• WISP Range Extender Mode - page 19

8D-Link DIR-505 User Manual

Section 2 - Installation

Access Point Mode

In the Access Point mode, the DIR-505 acts as a central connection point for any computer (client) that has a 802.11n or

backward-compatible 802.11g wireless network interface and is within range of the AP. Clients must use the same SSID (wireless

network name) and channel as the AP in order to connect. If wireless security is enabled on the AP, the client will need to enter

a password to connect to the AP. In Access Point mode, multiple clients can connect to the AP at the same time.

9D-Link DIR-505 User Manual

Section 2 - Installation

Repeater Mode

In the Wireless Client mode, the DIR-505 acts as a wireless network adapter for your Ethernet-enabled device (such as a game

console or a TV set-top box). Connect your Ethernet-enabled device to the AP using an Ethernet cable. The AP Client mode

can support multiple wired clients.

If you are going to connect several Ethernet-enabled devices to your DIR-505, connect the LAN port of the DIR-505 to an

Ethernet switch, then connect your devices to this switch.

Example: Connect a gaming console using an ethernet cable to the DIR-505. The unit is set to Wireless Client mode which will

wirelessly connect to a wireless router on your network.

10D-Link DIR-505 User Manual

Section 2 - Installation

Hot Spot Mode

In Range Extender Mode, the DIR-505 increases the range of your wireless network by extending the wireless coverage of

another AP or wireless router. The APs and wireless router (if used) must be within range of each other. Make sure that all clients,

APs, and the wireless router all use the same SSID (wireless network name), channel, and security settings.

11D-Link DIR-505 User Manual

Section 2 - Installation

Wireless Installation Considerations

The D-Link wireless router lets you access your network using a wireless connection from virtually anywhere within the

operating range of your wireless network. Keep in mind, however, that the number, thickness and location of walls, ceilings,

or other objects that the wireless signals must pass through, may limit the range. Typical ranges vary depending on the types

of materials and background RF (radio frequency) noise in your home or business. The key to maximizing wireless range is to

follow these basic guidelines:

1. Keep the number of walls and ceilings between the D-Link router and other network devices to a minimum -

each wall or ceiling can reduce your adapter’s range from 3-90 feet (1-30 meters.) Position your devices so that

the number of walls or ceilings is minimized.

2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (.5 meters), at a 45-degree angle

appears to be almost 3 feet (1 meter) thick. At a 2-degree angle it looks over 42 feet (14 meters) thick! Position

devices so that the signal will travel straight through a wall or ceiling (instead of at an angle) for better reception.

3. Building Materials make a dierence. A solid metal door or aluminum studs may have a negative eect on range.

Try to position access points, wireless routers, and computers so that the signal passes through drywall or open

doorways. Materials and objects such as glass, steel, metal, walls with insulation, water (sh tanks), mirrors, le

cabinets, brick, and concrete will degrade your wireless signal.

4. Keep your product away (at least 3-6 feet or 1-2 meters) from electrical devices or appliances that generate RF

noise.

5. If you are using 2.4GHz cordless phones or X-10 (wireless products such as ceiling fans, lights, and home security

systems), your wireless connection may degrade dramatically or drop completely. Make sure your 2.4GHz phone

base is as far away from your wireless devices as possible. The base transmits a signal even if the phone in not

in use.

12D-Link DIR-505 User Manual

Section 2 - Installation

1. Turn o and unplug your cable or DSL broadband modem. This is required.

Manual Setup

Important: for best results, insert the Installation CD and follow the on-screen instructions. If you are unable to use the CD or

are using Mac or Linux, please use the following installation steps:

2. Position your router close to your modem and a computer. Place the router in an open area of your intended

work area for better wireless coverage.

3. Unplug the Ethernet cable from your modem (or existing router if upgrading) that is connected to your computer.

Plug it into the blue port labeled 1 on the back of your router. The router is now connected to your computer.

13D-Link DIR-505 User Manual

Section 2 - Installation

4. Plug one end of the included blue Ethernet cable that came with your router into the yellow port labeled

INTERNET on the back of the router. Plug the other end of this cable into the Ethernet port on your modem.

5. Reconnect the power adapter to your cable or DSL broadband modem and wait for two minutes.

6. Connect the supplied power adapter into the power port on the back of the router and then plug it into a power

outlet or surge protector. Press the power button and verify that the power LED is lit. Allow 1 minute for the

router to boot up.

7. If you are connecting to a Broadband service that uses a dynamic connection (not PPPoE), you may be online

already. Try opening a web browser and enter a web site. If you connect, you are nished with your Internet setup.

Please skip to page 13 to congure your router and use the manual setup procedure to congure your network

and wireless settings. If you did not connect to the Internet, use the D-Link Setup Wizard (refer to page 15).

14D-Link DIR-505 User Manual

Section 2 - Installation

Note: It is strongly recommended to replace your existing router with the DIR-505 instead of using both. If your modem is a combo

router, you may want to contact your ISP or manufacturer’s user guide to put the router into Bridge mode, which will ‘turn o’ the

router (NAT) functions.

If you are connecting the DIR-505 router to an existing router to use as a wireless access point and/or switch, you will have to

do the following to the DIR-505 before connecting it to your network:

• Disable UPnP™

• Disable DHCP

• Change the LAN IP address to an available address on your network. The LAN ports on the router cannot accept

a DHCP address from your other router.

To connect to another router, please follow the steps below:

1. Plug the power into the router. Connect one of your computers to the router (LAN port) using an Ethernet cable. Make sure

your IP address on the computer is 192.168.0.xxx (where xxx is between 2 and 254). Please see the Networking Basics

section for more information. If you need to change the settings, write down your existing settings before making any

changes. In most cases, your computer should be set to receive an IP address automatically in which case you will not have

to do anything to your computer.

2. Open a web browser, enter http://192.168.0.1 and press Enter. When the login window appears, set the user name to

Admin and leave the password box empty. Click Log In to continue.

3. Click on Advanced and then click Advanced Network. Uncheck the Enable UPnP checkbox. Click Save Settings to continue.

4. Click Setup and then click Network Settings. Uncheck the Enable DHCP Server checkbox. Click Save Settings to continue.

Connect to an Existing Router

15D-Link DIR-505 User Manual

Section 2 - Installation

5. Under Router Settings, enter an available IP address and the subnet mask of your network. Click Save Settings to save your

settings. Use this new IP address to access the conguration utility of the router in the future. Close the browser and change

your computer’s IP settings back to the original values as in Step 1.

6. Disconnect the Ethernet cable from the router and reconnect your computer to your network.

7. Connect an Ethernet cable in one of the LAN ports of the router and connect it to your other router. Do not plug anything

into the Internet (WAN) port of the D-Link router.

8. You may now use the other 3 LAN ports to connect other Ethernet devices and computers. To congure your wireless network,

open a web browser and enter the IP address you assigned to the router. Refer to the Conguration and Wireless Security

sections for more information on setting up your wireless network.

16D-Link DIR-505 User Manual

Section 2 - Installation

There are several dierent ways you can congure your router to connect to the Internet and connect to your clients:

• Quick Router Setup Wizard - Insert the supplied CD and launch the setup wizard (see below).

• D-Link Setup Wizard - This wizard will launch if you do not run the CD wizard and log into the router for the rst time.

Refer to page 15.

• Manual Setup - Log into the router and manually congure your router (advanced users only). Refer to page 21.

To run the Quick Router Setup Wizard, insert the CD in the CD-ROM drive. When the autorun screen appears, click English

(or French), and then click the Install button.

Note: If the CD Autorun function does not automatically start on your computer, go to Start > Run. In the run box type D:\autorun.exe

(where D: represents the drive letter of your CD-ROM drive).

Conguration

Quick Router Setup Wizard (CD)

17D-Link DIR-505 User Manual

Section 3 - Conguration

When the Wizard appears, select your language from the drop-down menu and then click Next to continue. Follow the on-screen

instructions to congure your router.

Once you are nished, you may skip to page 21 and will be able to log into the web-based conguration utility and congure

more advanced features.

18D-Link DIR-505 User Manual

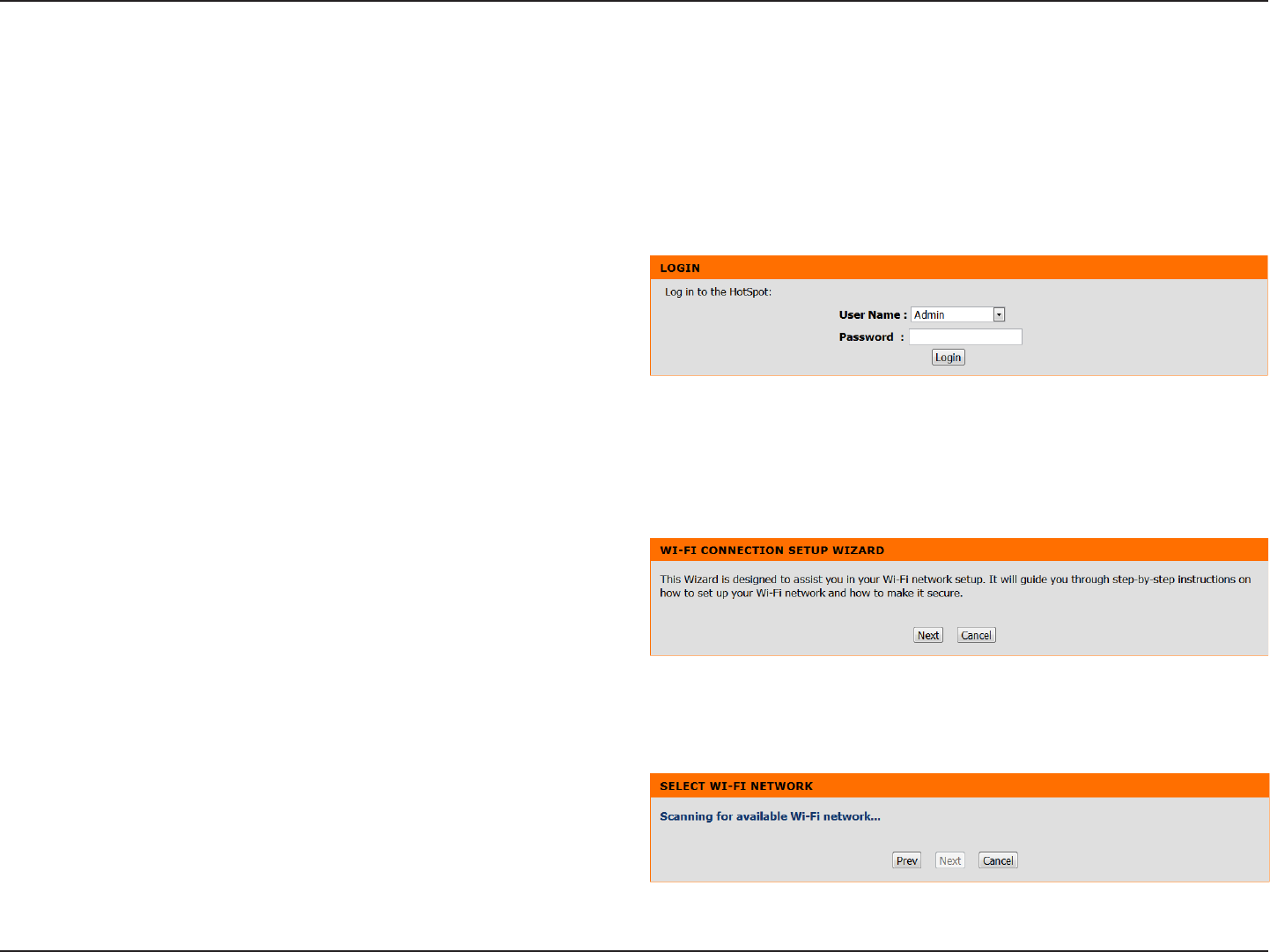

Section 3 - Conguration

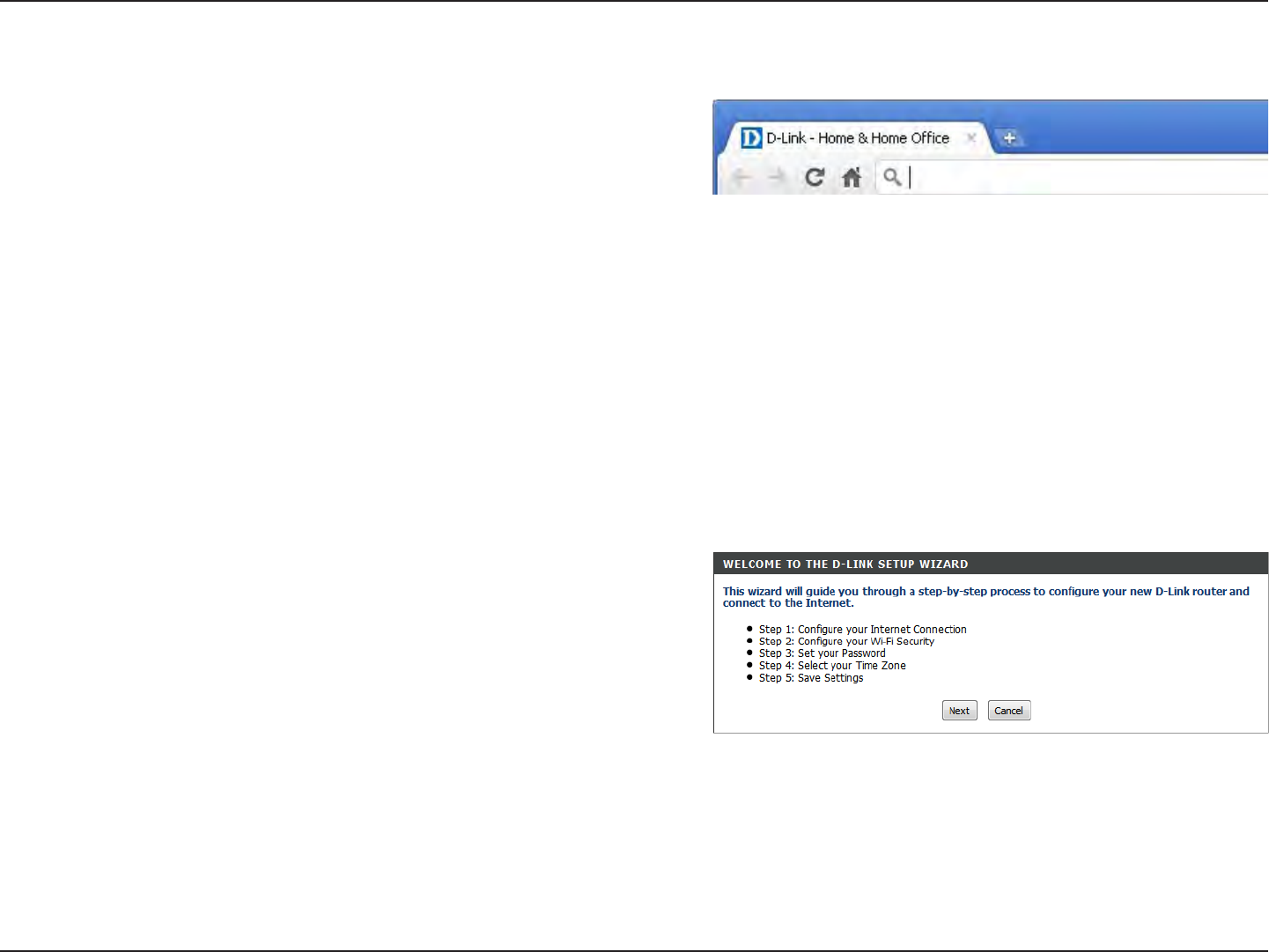

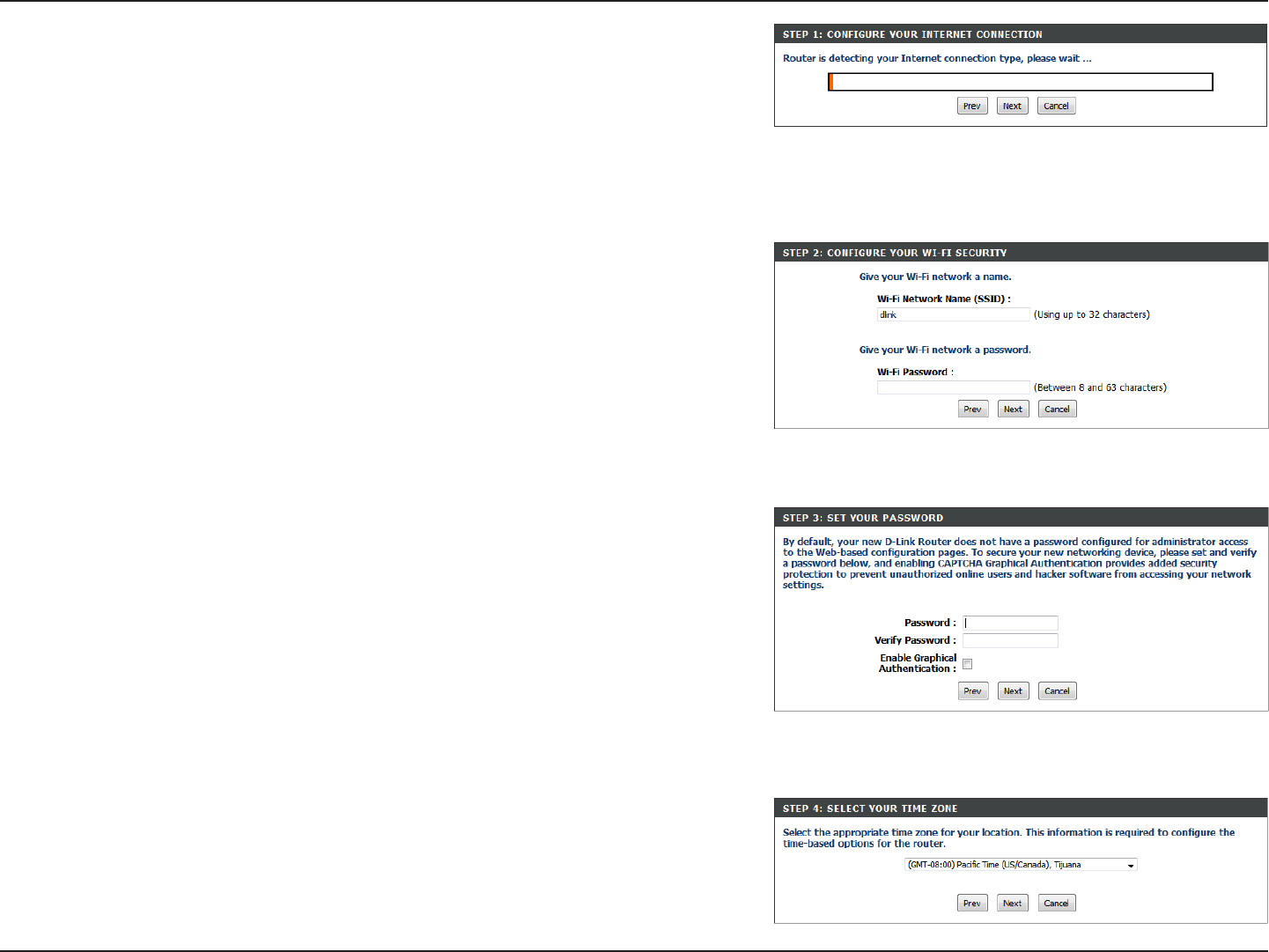

If you did not run the setup wizard from the CD and this is the rst

time logging into the router, this wizard will start automatically.

This wizard is designed to guide you through a step-by-step

process to congure your new D-Link router and connect to the

Internet.

Click Next to continue.

Quick Setup Wizard

If this is your rst time installing the router, open your web

browser. You will automatically be directed to the Wizard Setup

Screen.

If you have already congured your settings and you would like

to access the conguration utility, please refer to page 20.

19D-Link DIR-505 User Manual

Section 3 - Conguration

Please wait while your router detects your internet connection type.

If the router detects your Internet connection, you may need to enter

your ISP information such as username and password.

Create a wireless security passphrase or key (between 8-63 characters).

Your wireless clients will need to have this passphrase or key entered

to be able to connect to your wireless network.

Click Next to continue.

In order to secure your router, please enter a new password. Check the

Enable Graphical Authentication box to enable CAPTCHA authentication

for added security. Click Next to continue.

Select your time zone from the drop-down menu and click Next to

continue.

20D-Link DIR-505 User Manual

Section 3 - Conguration

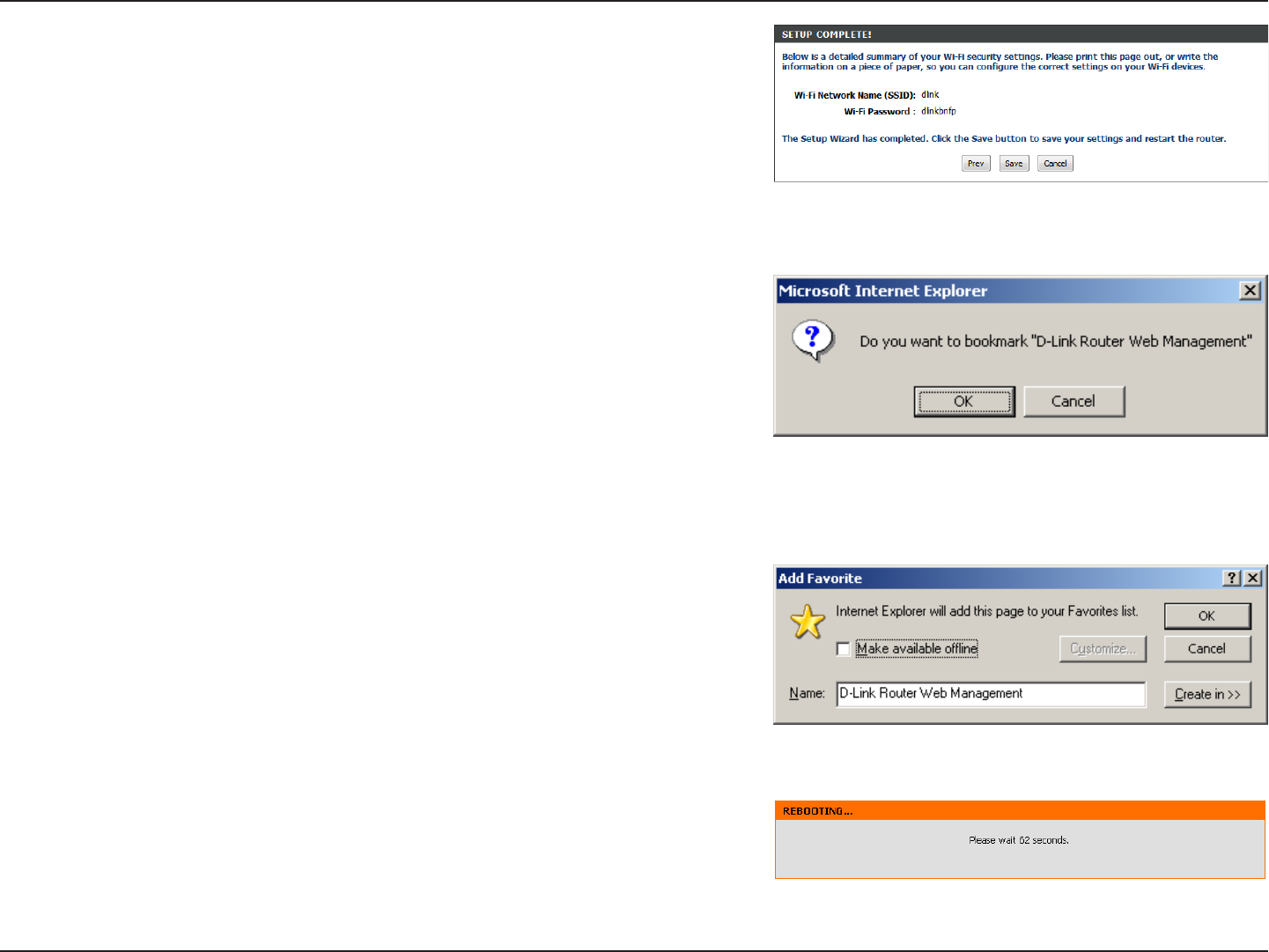

The Setup Complete window will display your wireless settings. Click

Save to continue.

If you want to create a bookmark to the router, click OK. Click Cancel if

you do not want to create a bookmark.

If you clicked Yes, a window may appear (depending on what web

browser you are using) to create a bookmark.

The router will now reboot. Please allow a minute or two. Click the

Continue button once it is active.

21D-Link DIR-505 User Manual

Section 3 - Conguration

Web-based Conguration Utility

Select Admin from the drop-down menu and then enter your

password. Leave the password blank by default.

To access the conguration utility, open a web-browser such

as Internet Explorer and enter the IP address of the router

(http://192.168.0.1).

Windows and Mac users may also connect by typing

http://dlinkrouter or http://dlinkrouter.local in the address bar.

22D-Link DIR-505 User Manual

Section 3 - Conguration

Internet Connection Setup

Click Manual Internet Connection Setup to congure your

connection manually and continue to the next page.

If you want to congure your router to connect to the Internet

using the wizard, click Internet Connection Setup Wizard.

You will be directed to the Quick Setup Wizard. Please skip

to page 24.

23D-Link DIR-505 User Manual

Section 3 - Conguration

If you did not run the setup wizard from the CD and this is the rst

time logging into the router, this wizard will start automatically.

This wizard is designed to guide you through a step-by-step process

to congure your new D-Link router and connect to the Internet.

Click Next to continue.

In order to secure your router, please enter a new password. Check

the Enable Graphical Authentication box to enable CAPTCHA

authentication for added security. Click Next to continue.

Select your time zone from the drop-down menu and click Next

to continue.

24D-Link DIR-505 User Manual

Section 3 - Conguration

Select your Internet connection type and click Next to continue.

Verify that you are connected to the D-Link Router with the PC

that was originally connected to your broadband connection,

and if you are, then click the Clone MAC button to copy your

computer’s MAC Address.

Click Next to continue.

Your setup is complete. Click Connect to save your settings and

reboot your router.

25D-Link DIR-505 User Manual

Section 3 - Conguration

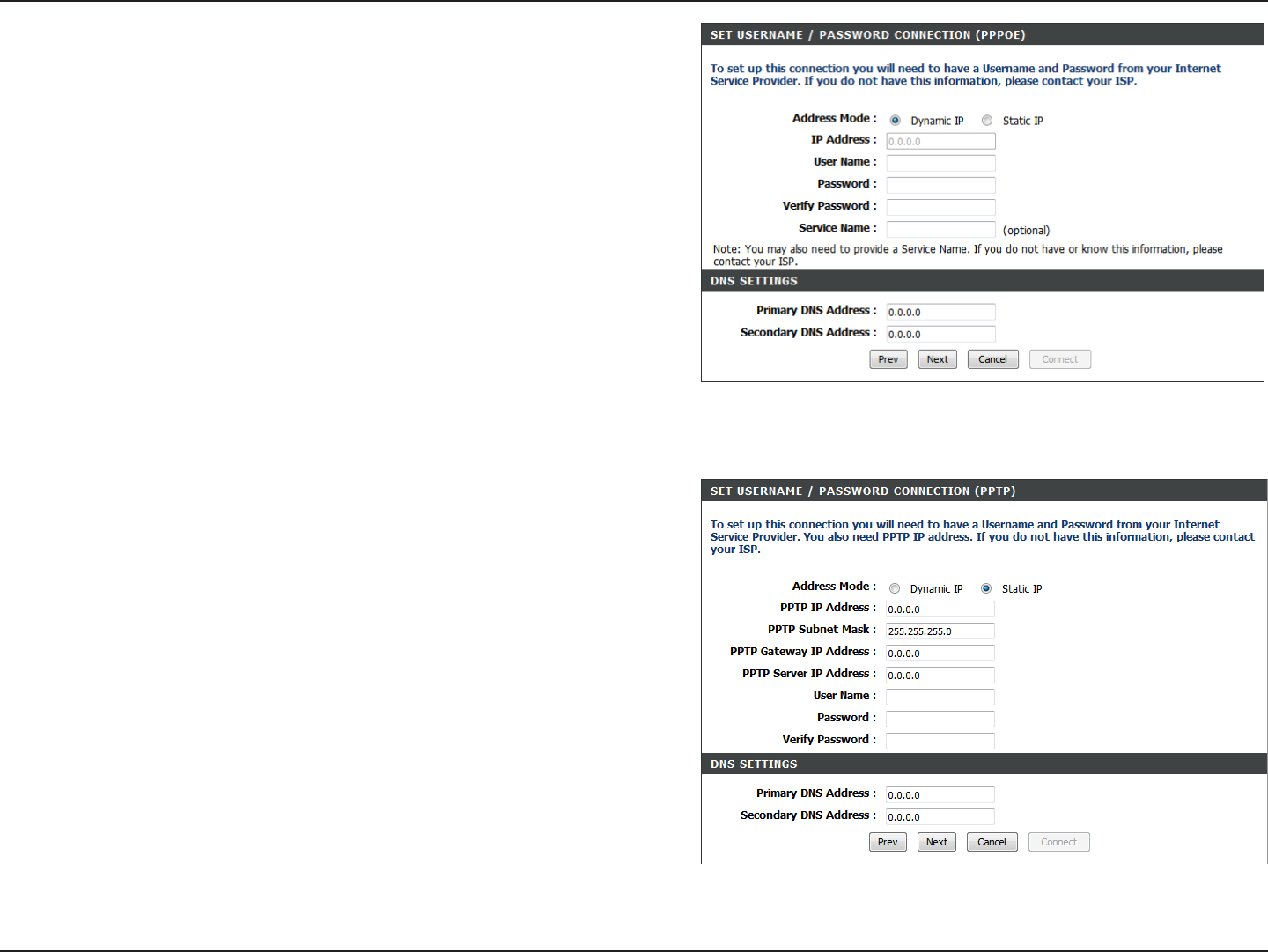

If the router detected or you selected PPPoE, enter your PPPoE

username and password and click Next to continue.

Note: Make sure to remove your PPPoE software from your computer.

The software is no longer needed and will not work through a router.

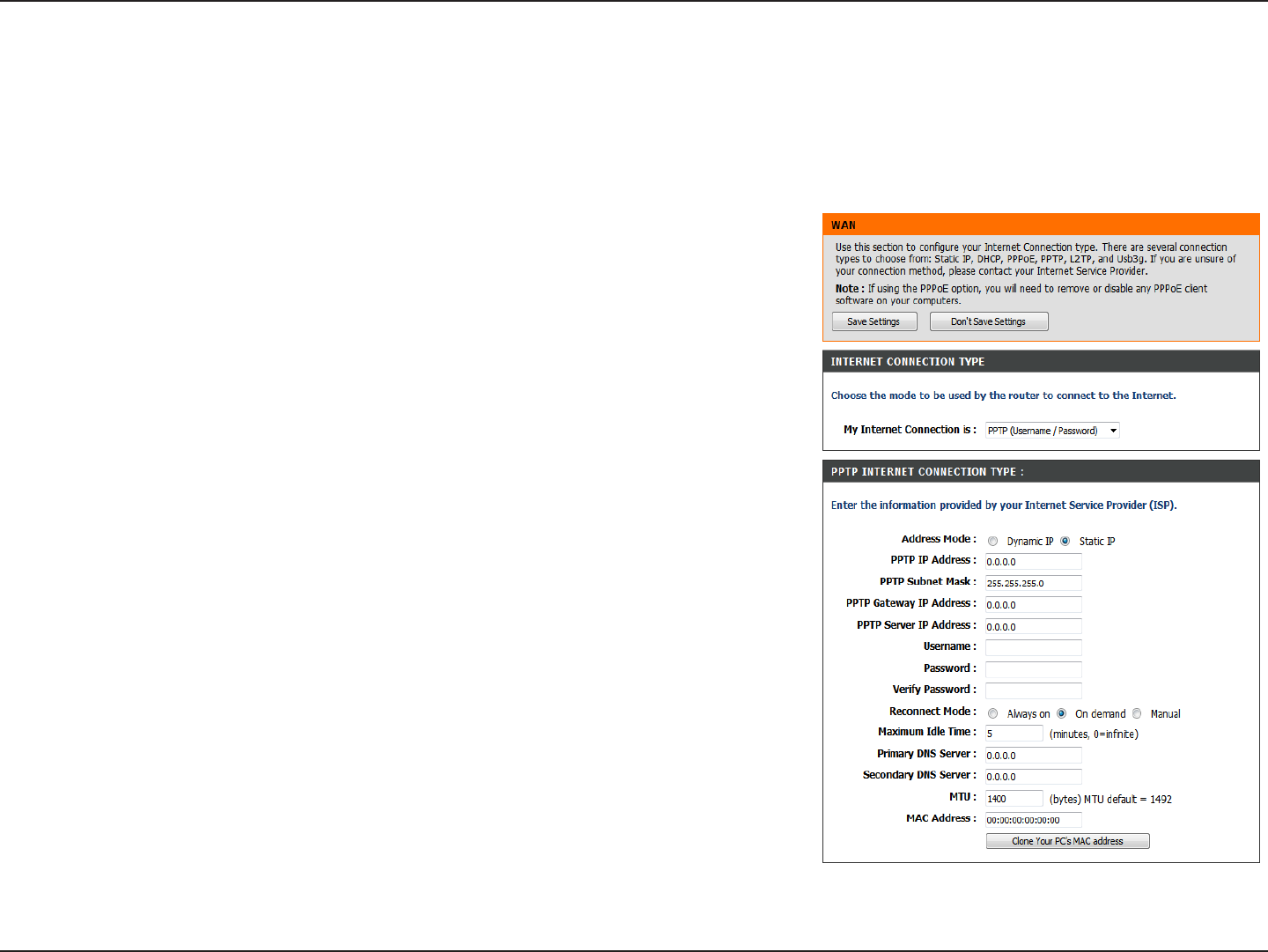

If the router detected or you selected PPTP, enter your PPTP

username, password, and other information supplied by your ISP.

Click Next to continue.

26D-Link DIR-505 User Manual

Section 3 - Conguration

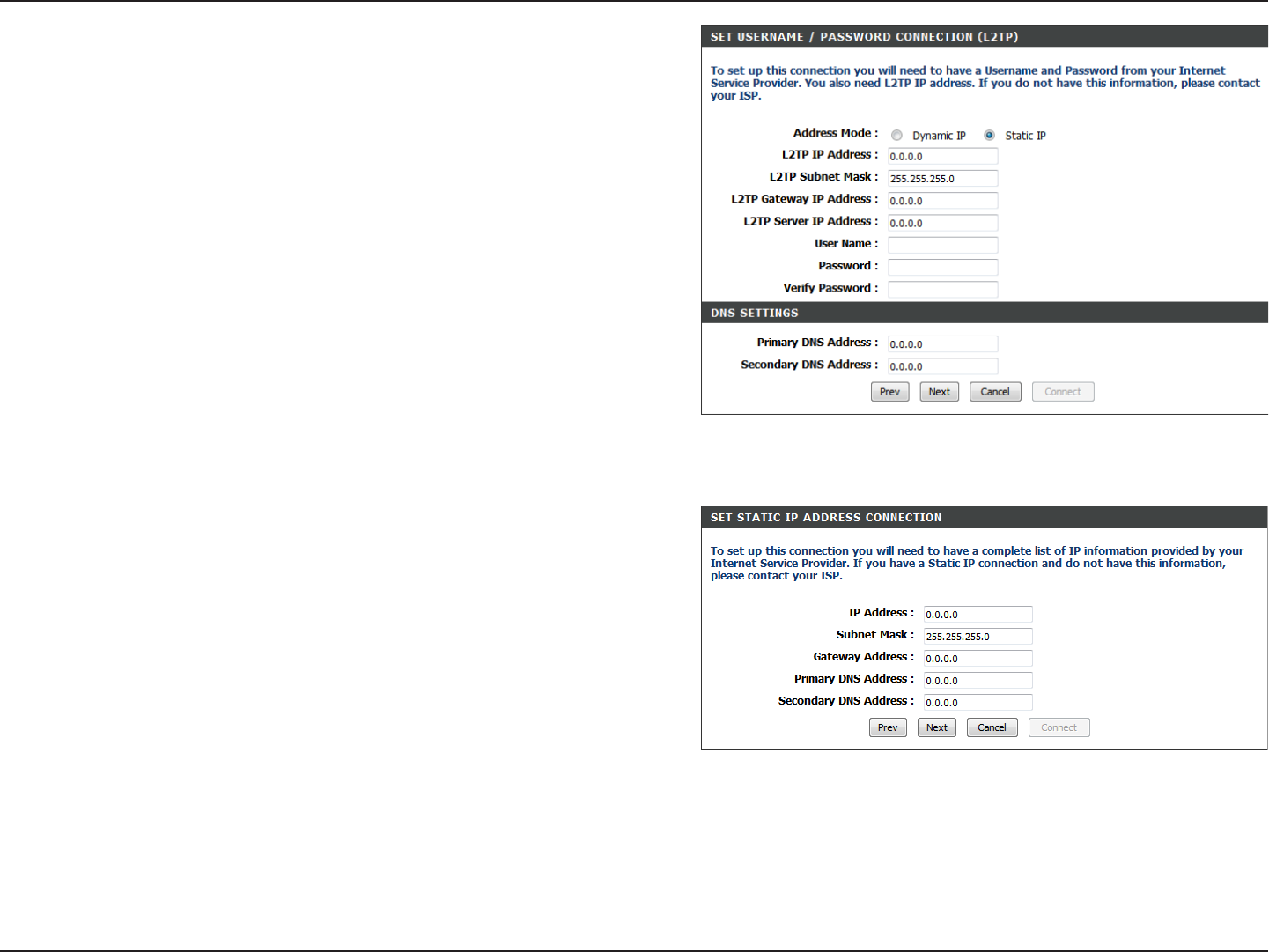

If the router detected or you selected L2TP, enter your L2TP

username, password, and other information supplied by your ISP.

Click Next to continue.

If the router detected or you selected Static, enter the IP and DNS

settings supplied by your ISP. Click Next to continue.

27D-Link DIR-505 User Manual

Section 3 - Conguration

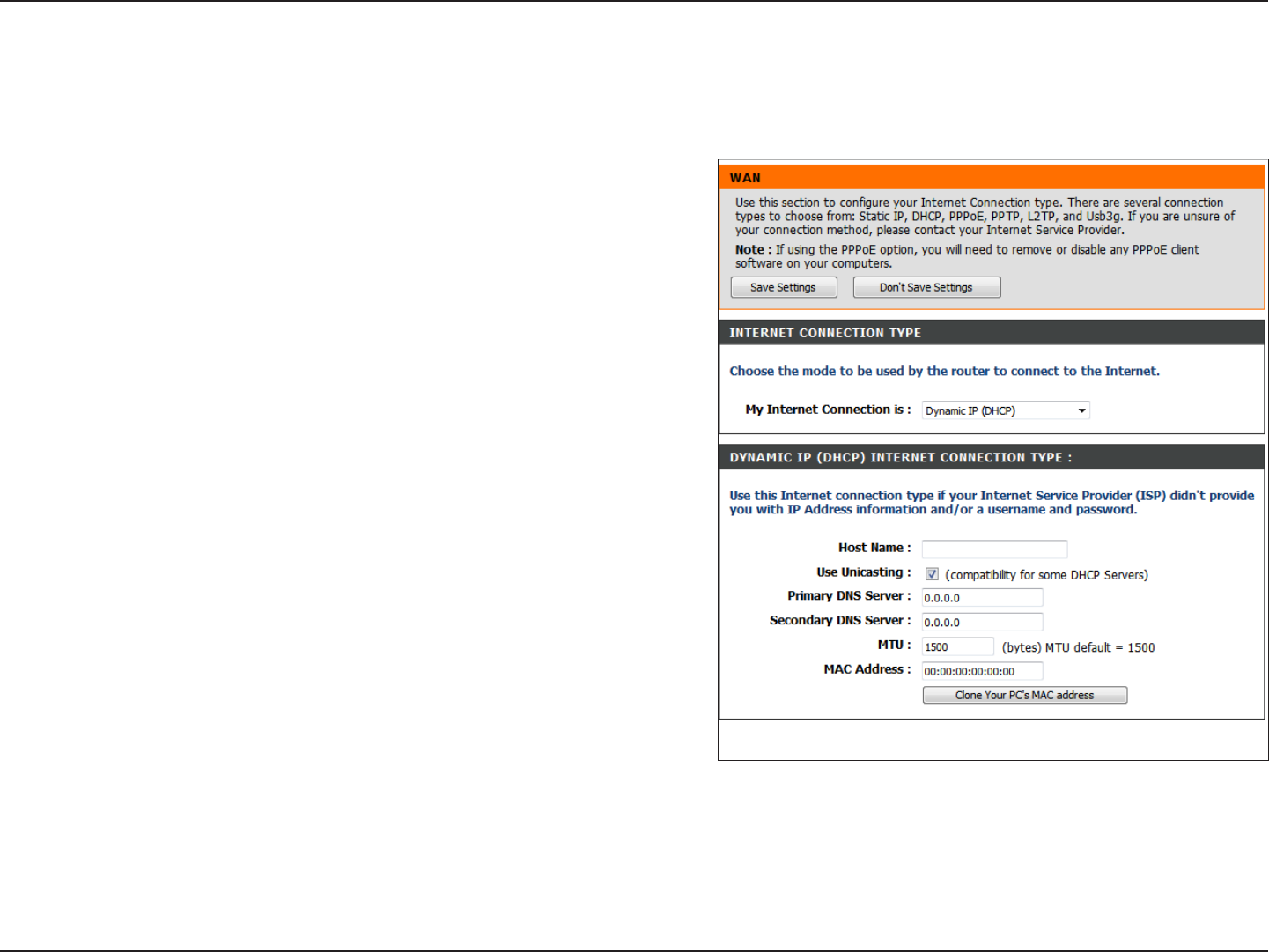

Select Dynamic IP (DHCP) to obtain IP Address information

automatically from your ISP. Select this option if your ISP does

not give you any IP numbers to use. This option is commonly

used for cable modem services.

The Host Name is optional but may be required by some ISPs.

Leave blank if you are not sure.

Check the box if you are having problems obtaining an IP

address from your ISP.

Enter the Primary and secondary DNS server IP addresses

assigned by your ISP. These addresses are usually obtained

automatically from your ISP. Leave at 0.0.0.0 if you did not

specically receive these from your ISP.

Maximum Transmission Unit - you may need to change the

MTU for optimal performance with your specic ISP. 1500 is

the default MTU.

The default MAC Address is set to the Internet port’s physical

interface MAC address on the Broadband Router. It is not

recommended that you change the default MAC address unless

required by your ISP. You can use the Copy Your PC’s MAC

Address button to replace the Internet port’s MAC address

with the MAC address of your Ethernet card.

My Internet

Connection:

Host Name:

MAC Address:

Primary/Secondary

DNS Server:

MTU:

Use Unicasting:

Manual Internet Setup

Dynamic (Cable)

28D-Link DIR-505 User Manual

Section 3 - Conguration

Select PPPoE (Username/Password) from the drop-down menu.

Select Static IP if your ISP assigned you the IP address, subnet mask, gateway,

and DNS server addresses. In most cases, select Dynamic.

Enter the IP address (Static PPPoE only).

Enter your PPPoE user name.

Enter your PPPoE password and then retype the password in the next box.

Enter the ISP Service Name (optional).

Select either Always-on, On-Demand, or Manual.

Enter a maximum idle time during which the Internet connection is maintained

during inactivity. To disable this feature, enable Auto-reconnect.

Enter the Primary and Secondary DNS Server Addresses (Static PPPoE only).

Maximum Transmission Unit - you may need to change the MTU for optimal

performance with your specic ISP. 1492 is the default MTU.

The default MAC Address is set to the Internet port’s physical interface MAC

address on the Broadband Router. It is not recommended that you change the default MAC address unless required by your ISP.

You can use the Copy Your PC’s MAC Address button to replace the Internet port’s MAC address with the MAC address of your

Ethernet card.

My Internet

Connection:

Address Mode:

IP Address:

User Name:

Password:

Service Name:

Reconnect

Mode:

Maximum Idle

Time:

Primary DNS

Server:

MTU:

MAC Address:

Internet Setup

PPPoE

Choose PPPoE (Point to Point Protocol over Ethernet) if your ISP uses a PPPoE connection. Your ISP will provide you with a

username and password. This option is typically used for DSL services. Make sure to remove your PPPoE software from your

computer. The software is no longer needed and will not work through a router.

29D-Link DIR-505 User Manual

Section 3 - Conguration

Wireless Settings

If you want to congure the wireless settings on your router using

the wizard, click Wireless Security Setup Wizard and refer to

page 38.

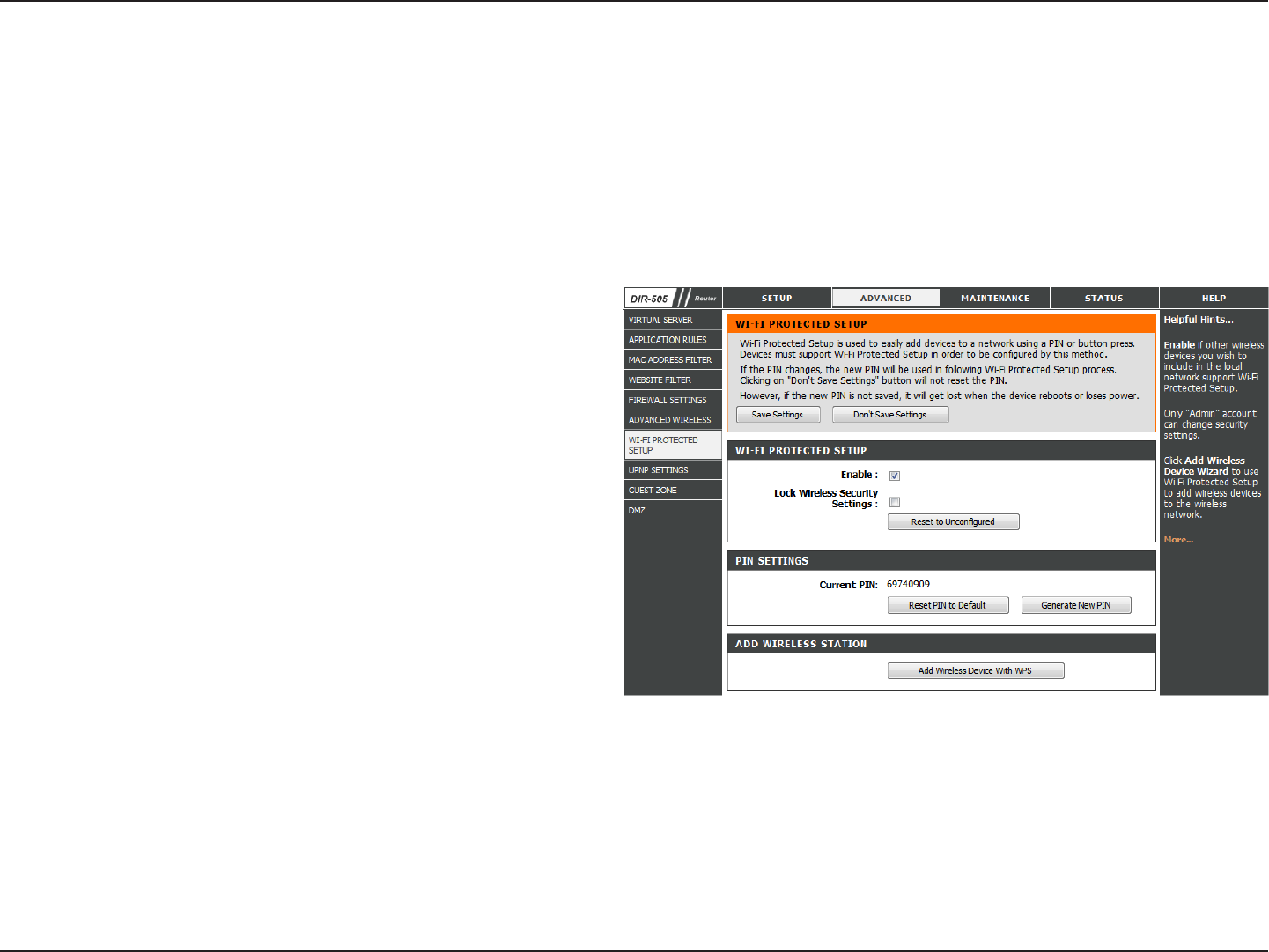

Click Add Wireless Device with WPS if you want to add a wireless

device using Wi-Fi Protected Setup (WPS) and refer to page 41.

If you want to manually congure the wireless settings on your

router click Manual Wireless Network Setup and refer to the

next page.

30D-Link DIR-505 User Manual

Section 4 - Security

Wireless Security Setup Wizard

To run the security wizard, click on Setup at the top and then click

Wireless Network Setup Wizard.

Check the Manually set 5GHz band Network Name... box to

manually set your desired wireless network name for the 5GHz band.

Type your desired wireless network name (SSID).

Automatically: Select this option to automatically generate

the router’s network key and click Next.

Manually: Select this option to manually enter your network

key and click Next.

31D-Link DIR-505 User Manual

Section 4 - Security

If you selected Automatically, the summary window will display

your settings. Write down the security key and enter this on your

wireless clients. Click Save to save your settings.

If you selected Manually, the following screen will appear once

the setup is complete.

Select Manually to manually enter your network key and click

Next.

32D-Link DIR-505 User Manual

Section 4 - Security

Manual Conguration

Wireless Settings

33D-Link DIR-505 User Manual

Section 4 - Security

Access Point Mode

Enable Wireless:

Wireless Mode:

Wireless

Network Name:

802.11 Mode:

Wireless

Channel:

Enable Auto

Channel Scan:

Check the box to enable the wireless function. If

you do not want to use wireless, uncheck the box to

disable all the wireless functions. You may also set up

a specic time range (schedule). Select a schedule

from the drop-down menu or click Add New to create

a new schedule.

Select Access Point from the drop-down menu.

When you are browsing for available wireless

networks, this is the name that will appear in the list

(unless Visibility Status is set to Invisible, see below).

This name is also referred to as the SSID. For security

purposes, it is highly recommended to change from

the default network name.

Select one of the following:

802.11b Only - Select if you are only using 802.11b

wireless clients.

802.11g Only - Select if you are only using 802.11g

wireless clients.

802.11n Only - Select if you are only using 802.11n wireless clients.

Mixed 802.11g and 802.11b - Select if you are using a mix of 802.11g and 11b wireless clients.

Mixed 802.11n and 802.11g - Select if you are using a mix of 802.11n and 11g wireless clients.

Mixed 802.11n, 802.11g and 802.11b - Select if you are using a mix of 802.11n, 11g, and 11b wireless clients.

Indicates the channel setting for the DIR-505. The Channel can be changed to t the channel setting for an existing wireless

network or to customize the wireless network. If you enable Auto Channel Scan, this option will be grayed out.

The Auto Channel Scan setting can be selected to allow the DIR-505 to choose the channel with the least amount of interference.

34D-Link DIR-505 User Manual

Section 4 - Security

Select the Channel Width:

Auto 20/40 - Select if you are using both 802.11n and non-802.11n wireless devices.

20MHz - Select if you are not using any 802.11n wireless clients.

Check the box if you do not want the SSID of your wireless network to be broadcasted by the DIR-505. If checked, the SSID of

the DIR-505 will not be seen by Site Survey utilities so your wireless clients will have to know the SSID of your DIR-505 in order

to connect to it.

Refer to page 30 for more information regarding the wireless security.

Channel Width:

Visibility Status:

Security Mode:

35D-Link DIR-505 User Manual

Section 4 - Security

Wireless Security

This section will show you the dierent levels of security you can use to protect your data from intruders. The

DIR-605L oers the following types of security:

• WPA2 (Wi-Fi Protected Access 2) • WPA2-PSK (Pre-Shared Key)

• WPA (Wi-Fi Protected Access) • WPA-PSK (Pre-Shared Key)

• WEP (Wired Equivalent Privacy)

What is WEP?

WEP stands for Wired Equivalent Privacy. It is based on the IEEE 802.11 standard and uses the RC4 encryption algorithm. WEP

provides security by encrypting data over your wireless network so that it is protected as it is transmitted from one wireless

device to another.

To gain access to a WEP network, you must know the key. The key is a string of characters that you create. When using WEP,

you must determine the level of encryption. The type of encryption determines the key length. 128-bit encryption requires a

longer key than 64-bit encryption. Keys are dened by entering in a string in HEX (hexadecimal - using characters 0-9, A-F) or

ASCII (American Standard Code for Information Interchange – alphanumeric characters) format. ASCII format is provided so

you can enter a string that is easier to remember. The ASCII string is converted to HEX for use over the network. Four keys can

be dened so that you can change keys easily.

36D-Link DIR-505 User Manual

Section 4 - Security

Congure WEP

It is recommended to enable encryption on your wireless router before your wireless network adapters. Please establish

wireless connectivity before enabling encryption. Your wireless signal may degrade when enabling encryption due to the

added overhead.

1. Log into the web-based conguration by opening a web browser and entering the IP address of the router (192.168.0.1).

Click on Wireless Setup on the left side.

2. In the Security Mode section, select WEP from the drop-down

menu.

3. In WEP Key Length, select either 64Bit or 128Bit encryption from

the drop-down menu.

5. Next to WEP Key 1, enter a WEP key that you create. Make sure

you enter this key exactly on all your wireless devices. You may

enter up to four dierent keys either using Hex or ASCII. Hex is

recommended (letters A-F and numbers 0-9 are valid). In ASCII all

numbers and letters are valid.

6. Click Save Settings to save your settings. If you are conguring

the router with a wireless adapter, you will lose connectivity until

you enable WEP on your adapter and enter the same WEP key as

you did on the router.

37D-Link DIR-505 User Manual

Section 4 - Security

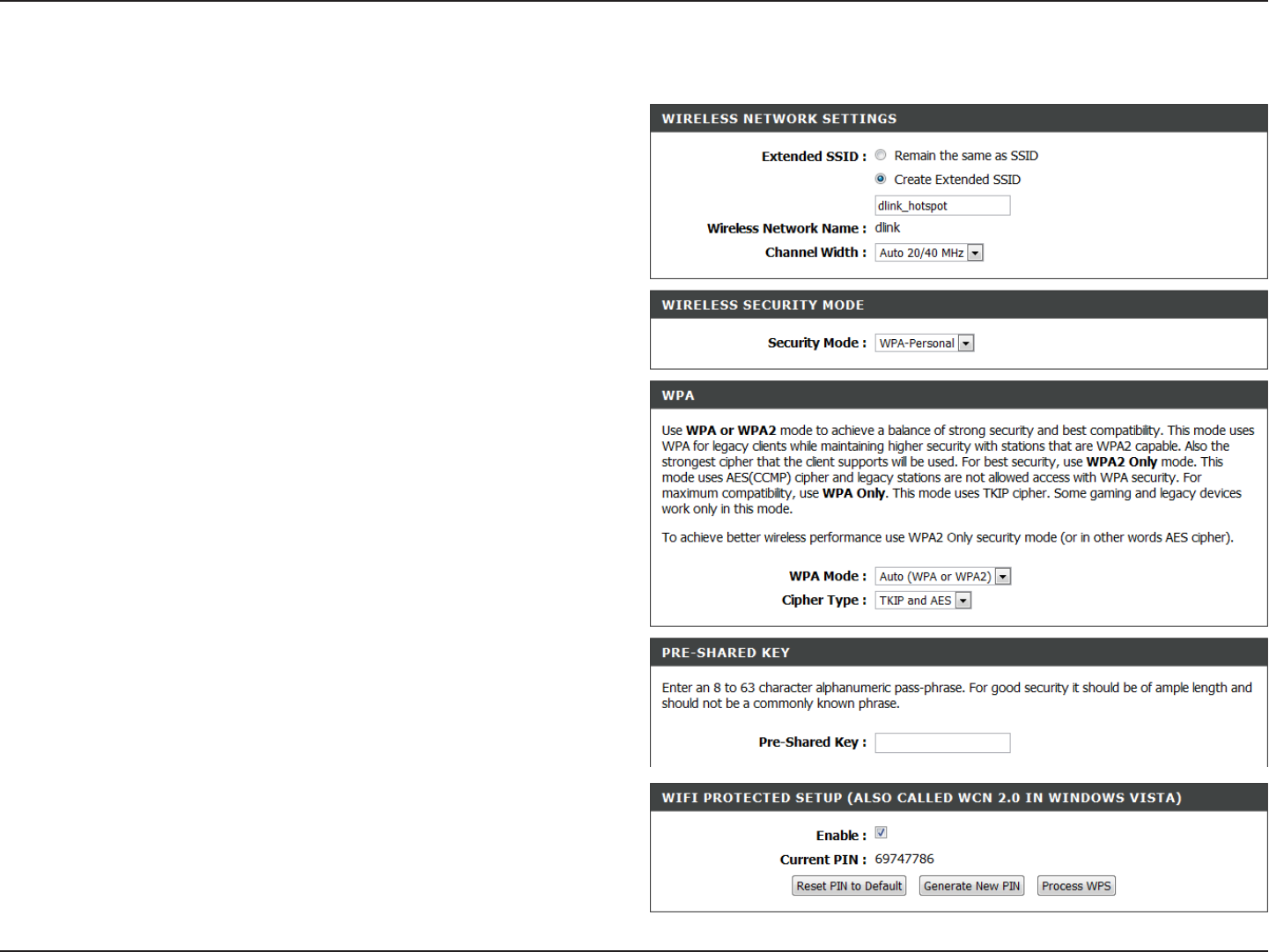

Congure WPA/WPA2 Personal

It is recommended to enable encryption on your wireless access

point before your wireless network adapters. Please establish

wireless connectivity before enabling encryption. Your wireless

signal may degrade when enabling encryption due to the added

overhead.

1. Log into the web-based conguration by opening a web browser

and entering the IP address of the access point (192.168.0.50).

Click on Setup and then click Wireless Settings on the left side.

2. Next to Security Mode, select WPA-Personal.

3. Next to Cipher Type, select TKIP, AES, or Auto.

4. Next to Passphrase, enter a key. The key is entered as a passphrase

in ASCII format at both ends of the wireless connection. The

passphrase must be between 8-63 characters.

6. Click Save Settings at the top of the window to save your settings.

If you are conguring the access point with a wireless adapter, you will lose connectivity until you enable WPA-PSK on your

adapter and enter the same passphrase as you did on the access point.

38D-Link DIR-505 User Manual

Section 4 - Security

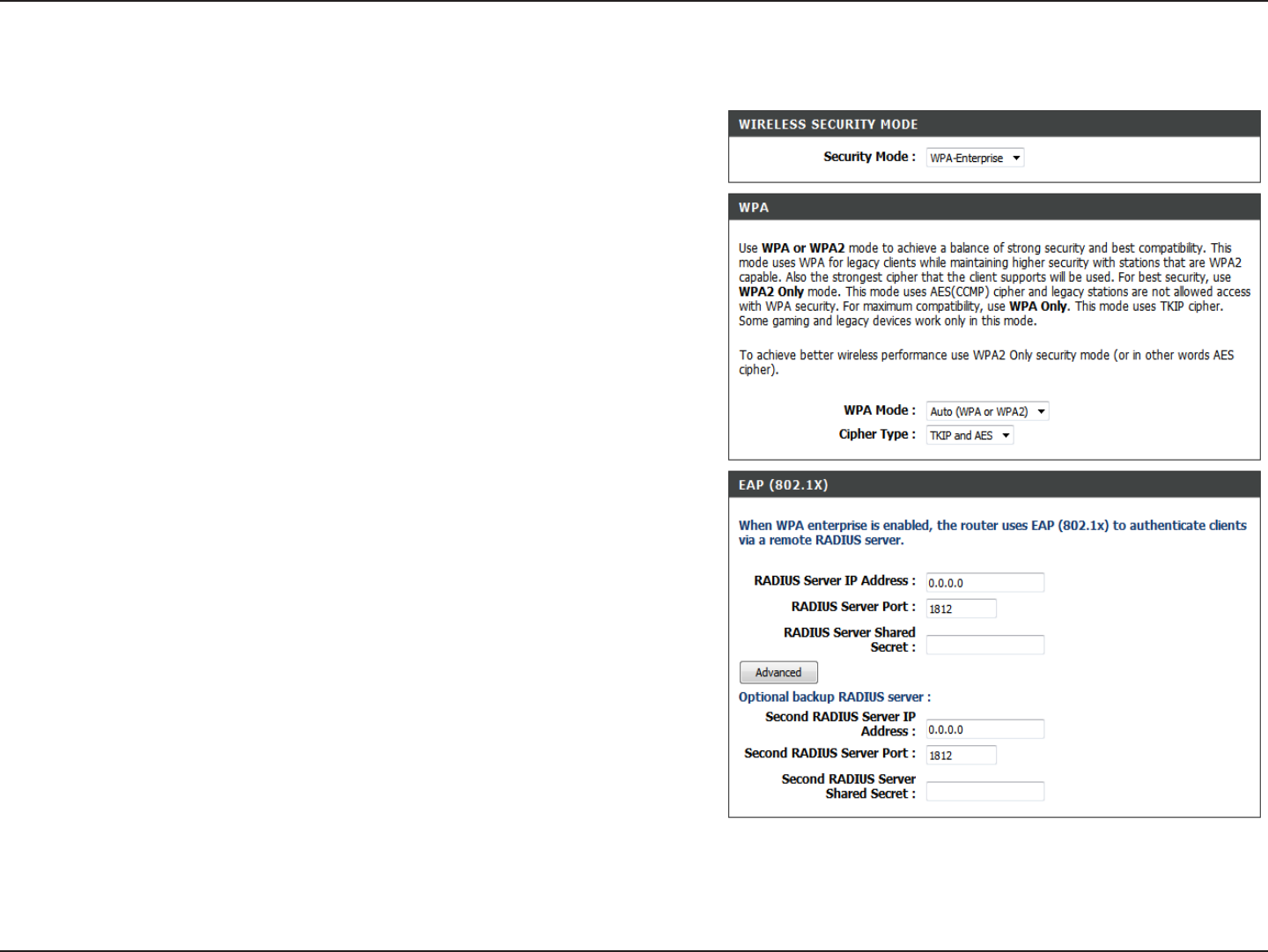

Congure WPA Enterprise

It is recommended to enable encryption on your wireless access

point before your wireless network adapters. Please establish wireless

connectivity before enabling encryption. Your wireless signal may

degrade when enabling encryption due to the added overhead.

1. Log into the web-based conguration by opening a web browser

and entering the IP address of the access point (192.168.0.50). Click

on Setup and then click Wireless Settings on the left side.

2. Next to Security Mode, select WPA-Enterprise.

3. Next to WPA Mode select Auto (WPA or WPA2).

4. Next to Cipher Mode, select TKIP, AES, or Auto.

5. Next to RADIUS Server, enter the IP Address of your RADIUS server.

6. Next to RADIUS Server Port, enter the port you are using with your

RADIUS server. 1812 is the default port.

7. Next to Shared Secret, enter the security key.

8. Click Save Settings to save your settings.

39D-Link DIR-505 User Manual

Section 3 - Conguration

This section will allow you to change the local network settings of the router and to congure the DHCP settings.

Network Settings

Enter the IP address of the router. The default IP address

is 192.168.0.1.

If you change the IP address, once you click Save Settings,

you will need to enter the new IP address in your browser

to get back into the conguration utility.

Enter the Subnet Mask. The default subnet mask is

255.255.255.0.

Enter a name for the router.

Enter the Domain name (Optional).

Uncheck the box to transfer the DNS server information

from your ISP to your computers. If checked, your

computers will use the router for a DNS server.

Router IP

Address:

Subnet Mask:

Device Name:

Local Domain:

Enable DNS

Relay:

Router Settings

40D-Link DIR-505 User Manual

Section 3 - Conguration

DHCP Reservation

If you want a computer or device to always have the same IP address assigned, you can create a DHCP reservation. The router will assign the IP

address only to that computer or device.

Note: This IP address must be within the DHCP IP Address Range.

Check this box to enable the reservation.

Enter the computer name or select from the drop-down

menu and click <<.

Enter the IP address you want to assign to the computer

or device. This IP Address must be within the DHCP IP

Address Range.

Enter the MAC address of the computer or device.

If you want to assign an IP address to the computer you

are currently on, click this button to populate the elds.

Click Save to save your entry. You must click Save Settings

at the top to activate your reservations.

Displays any reservation entries. Displays the host name

(name of your computer or device), MAC Address, and IP

address.

Check to enable the reservation.

Click the edit icon to make changes to the reservation entry.

Click to remove the reservation from the list.

Enable:

Computer Name:

IP Address:

MAC Address:

Clone Your PC’s

MAC Address:

Save:

DHCP

Reservations List:

Enable:

Edit:

Delete:

DHCP Reservations List

41D-Link DIR-505 User Manual

Section 3 - Conguration

Storage

This page will allow you to access les from a USB external hard drive or thumb drive that is plugged into the router from your

local network or from the Internet using either a web browser or an app for your smartphone or tablet. You can create users

to be allowed to access these les.

Check to enable sharing les on your USB storage device

that is plugged in your router.

Check to enable HTTP access to your router’s storage. You

will have to type HTTP in the URL.

Enter a port (8181 is default). You will have to enter this port

in the URL when connecting to the shared les. For example:

(http://192.168.0.1:8181).

Check to enable HTTPS (secure) access to your router’s

storage. You will have to type HTTPS in the URL.

Enter a port (4433 is default). You will have to enter this port

in the URL when connecting to the shared les. For example:

(https://192.168.0.1:8181).

To create a new user, enter a user name.

Enter a password for this account.

Re-enter the password. Click Add/Edit to create the user.

Displays the accounts. The Admin and Guest accounts are

built-in to the router.

Displays the USB device plugged into the router.

Enable Web File

Access:

Enable HTTP

Storage Remote

Access:

Remote Access

Port:

Enable HTTPS

Storage Remote

Access:

Remote HTTPS

Port:

User Name:

Password:

Verify Password:

User List:

Number of

Devices:

42D-Link DIR-505 User Manual

Section 3 - Conguration

This will allow you to open a single port. If you would like to open a range of ports, refer to the next page.

Enter a name for the rule or select an application from

the drop-down menu. Select an application and click

<< to populate the elds.

Enter the IP address of the computer on your local

network that you want to allow the incoming

service to. If your computer is receiving an IP address

automatically from the router (DHCP), you computer

will be listed in the “Computer Name” drop-down

menu. Select your computer and click <<.

Enter the port that you want to open next to Private

Port and Public Port. The private and public ports are

usually the same. The public port is the port seen from

the Internet side, and the private port is the port being

used by the application on the computer within your

local network.

Select TCP, UDP, or Both from the drop-down menu.

Name:

IP Address:

Private Port/

Public Port:

Protocol Type:

Virtual Server

Advanced

43D-Link DIR-505 User Manual

Section 3 - Conguration

Enter a name for the rule. You may select a

pre-dened application from the drop-down menu

and click <<.

This is the port used to trigger the application. It

can be either a single port or a range of ports.

Select the protocol of the trigger port (TCP, UDP,

or Both).

This is the port number on the Internet side that

will be used to access the application. You may

dene a single port or a range of ports. You can

use a comma to add multiple ports or port ranges.

Select the protocol of the rewall port (TCP, UDP,

or Both).

The schedule of time when the Application Rule

will be enabled. The schedule may be set to Always,

which will allow the particular service to always

be enabled. You can create your own times in the

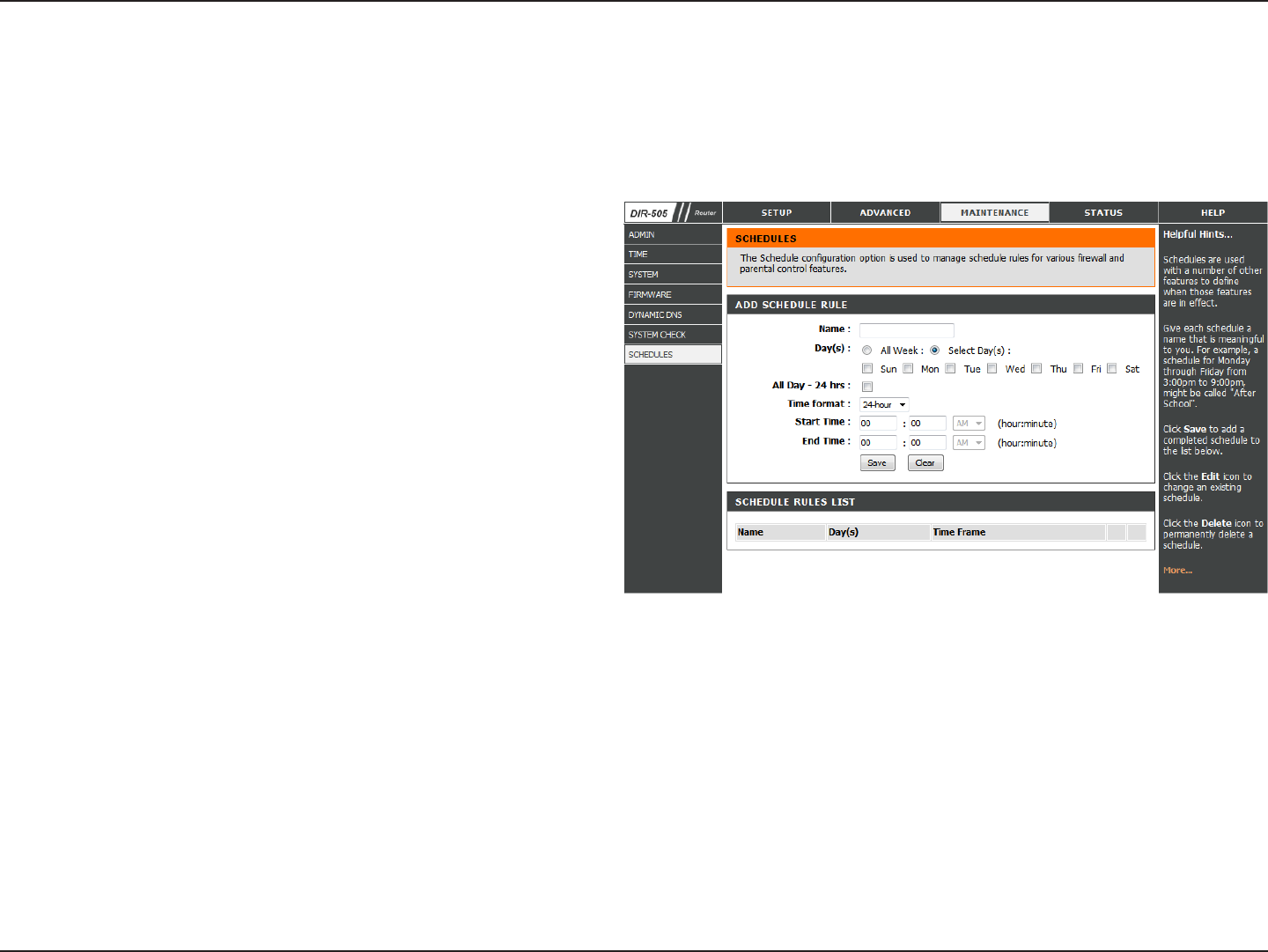

Tools > Schedules section.

Name:

Trigger:

Trac Type:

Firewall:

Trac Type:

Schedule:

Application Rules

Some applications require multiple connections, such as Internet gaming, video conferencing, Internet telephony and others.

These applications have diculties working through NAT (Network Address Translation). Special Applications makes some of

these applications work with the DIR-505. If you need to run applications that require multiple connections, specify the port

normally associated with an application in the “Trigger Port” eld, select the protocol type as TCP or UDP, then enter the rewall

(public) ports associated with the trigger port to open them for inbound trac.

The DIR-505 provides some predened applications in the table on the bottom of the web page. Select the application you

want to use and enable it.

44D-Link DIR-505 User Manual

Section 3 - Conguration

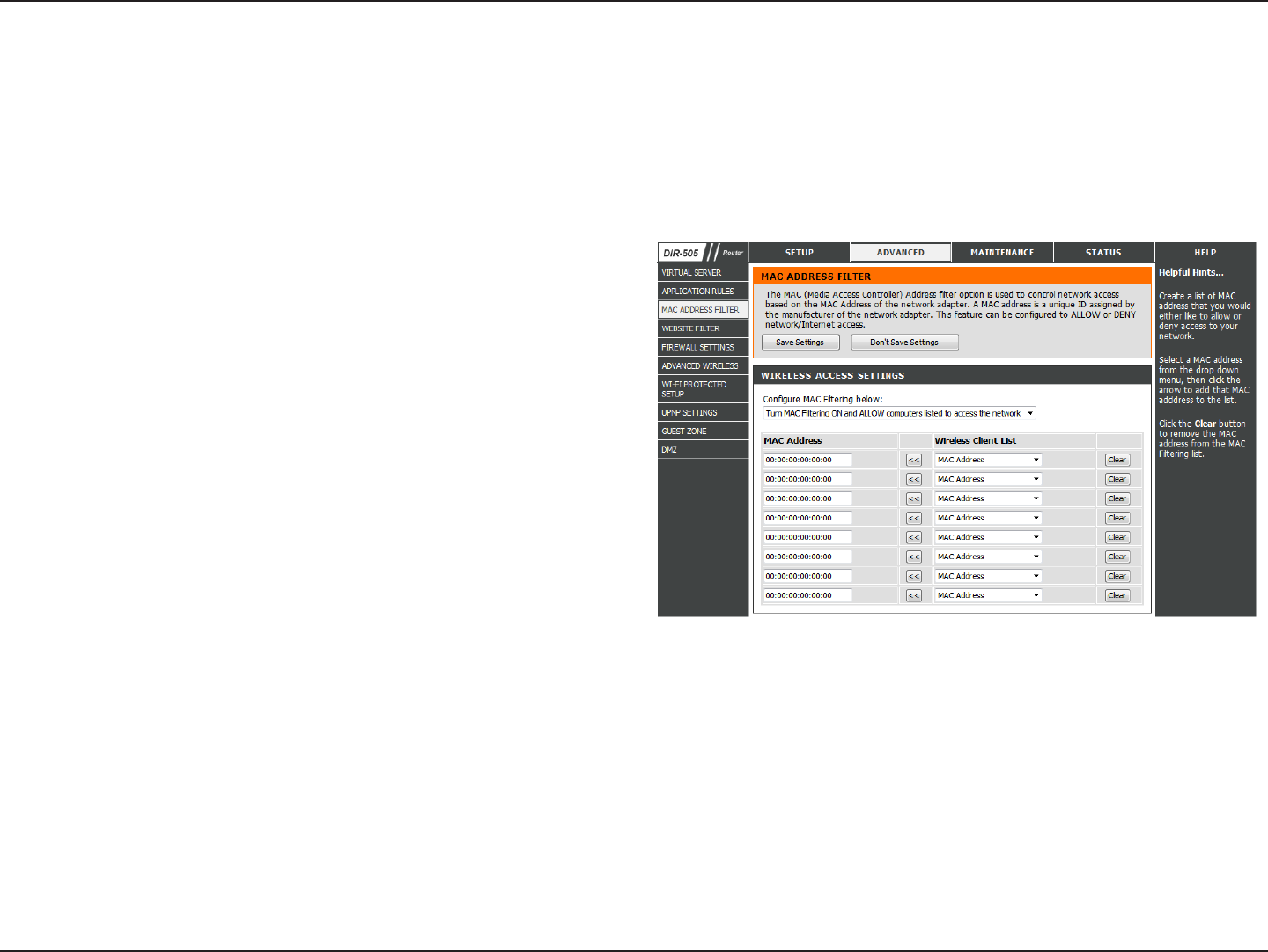

MAC Address Filter

The MAC address lter section can be used to lter network access by machines based on the unique MAC addresses of their

network adapter(s). It is most useful to prevent unauthorized wireless devices from connecting to your network. A MAC address

is a unique ID assigned by the manufacturer of the network adapter.

Congure

MAC Filtering:

Add MAC

Filtering

Rule:

When you Turn MAC Filtering OFF is selected, MAC

addresses are not used to control network access. When

Turn MAC Filtering ON and ALLOW computers listed

to access the network is selected, only computers with

MAC addresses listed in the MAC Address List are granted

network access. When Turn MAC Filtering ON and DENY

computers listed to access the network is selected, any

computer with a MAC address listed in the MAC Address

List is refused access to the network.

This parameter allows you to manually add a MAC ltering

rule. Click the Add button to add the new MAC ltering rule

to the MAC Filtering Rules list at the bottom of this screen.

45D-Link DIR-505 User Manual

Section 3 - Conguration

Add Website

Filtering Rule:

Website URL/

Domain:

Website Filters

Select either DENY computers access to ONLY

these sites or ALLOW computers access to ONLY

these sites.

Enter the keywords or URLs that you want to allow

or block. Click Save Settings.

Website Filters are used to allow you to set up a list of Web sites that can be viewed by multiple users through the network.

To use this feature select to Allow or Deny, enter the domain or website and click Save Settings. You must also select Apply

Web Filter under the Access Control section (page 33).

46D-Link DIR-505 User Manual

Section 3 - Conguration

SPI (Stateful Packet Inspection, also known as dynamic

packet ltering) helps to prevent cyber attacks by tracking

more state per session. It validates that the trac passing

through the session conforms to the protocol.

Enable this feature to protect your network from certain

kinds of “spoong” attacks.

Enable SPI:

Anti-Spoof

Check:

Firewall Settings

A rewall protects your network from the outside world. The DIR-505 oers a rewall type functionality. The SPI feature helps

prevent cyber attacks. Sometimes you may want a computer exposed to the outside world for certain types of applications.

If you choose to expose a computer, you can enable DMZ. DMZ is short for Demilitarized Zone. This option will expose the

chosen computer completely to the outside world.

47D-Link DIR-505 User Manual

Section 3 - Conguration

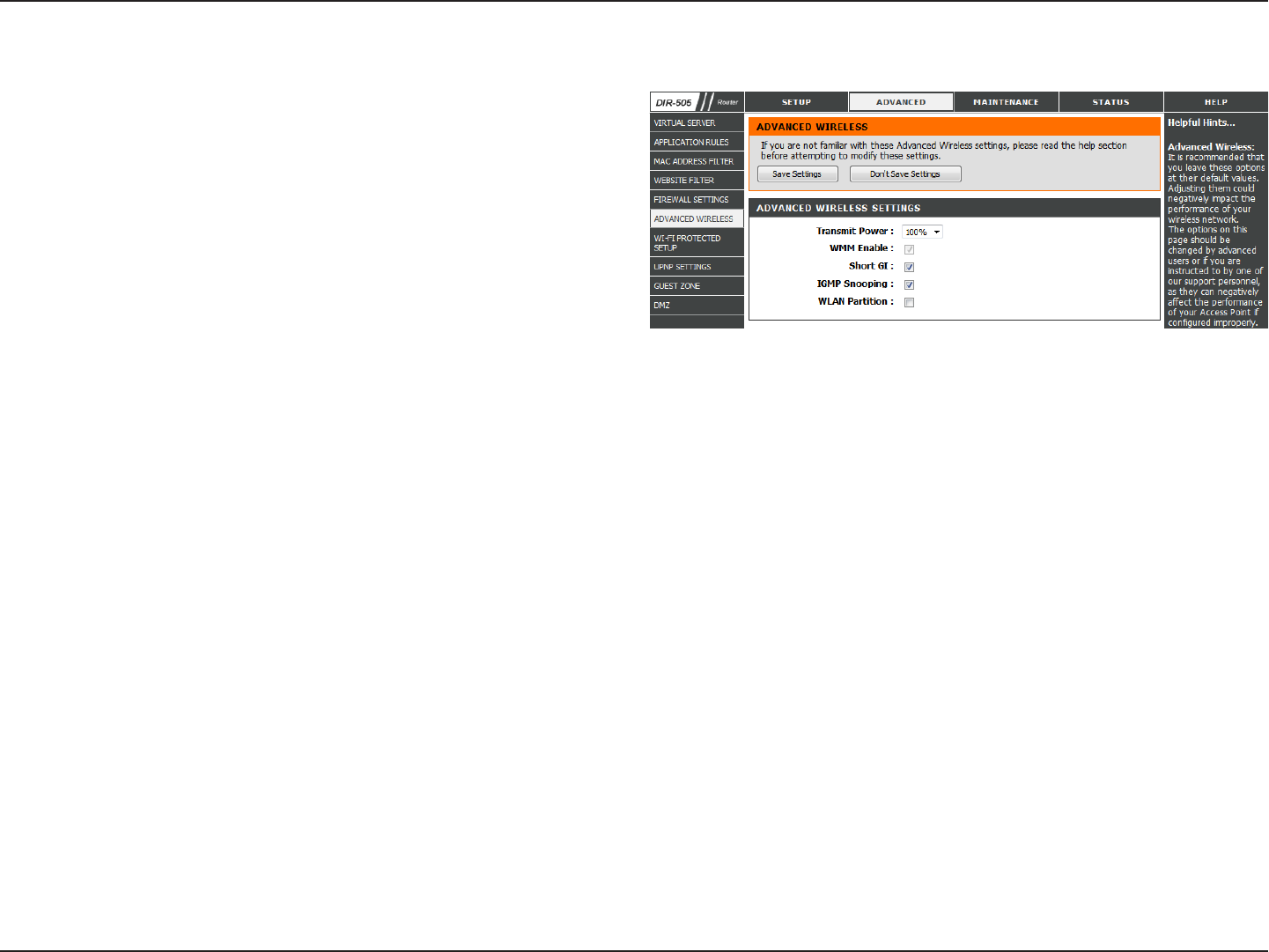

Advanced Wireless

Set the transmit power of the antennas.

WMM is QoS for your wireless network. This will improve

the quality of video and voice applications for your

wireless clients.

Check this box to reduce the guard interval time therefore

increasing the data capacity. However, it’s less reliable

and may create higher data loss.

Check to enable this feature.

This enables 802.11d operation. 802.11d is a wireless

specification developed to allow implementation of

wireless networks in countries that cannot use the 802.11

standard. This feature should only be enabled if you are

in a country that requires it.

Transmit

Power:

WMM Enable:

Short GI:

IGMP

Snooping:

WLAN

Partition:

48D-Link DIR-505 User Manual

Section 3 - Conguration

Wi-Fi Protected Setup (WPS)

Enable the Wi-Fi Protected Setup feature.

Note: if this option is unchecked, the WPS button on the

side of the router will be disabled.

Locking the wireless security settings prevents the

settings from being changed by the Wi-Fi Protected

Setup feature of the router. Devices can still be added

to the network using Wi-Fi Protected Setup. However,

the settings of the network will not change once this

option is checked.

A PIN is a unique number that can be used to add

the router to an existing network or to create a new

network. Only the Administrator (“admin” account) can

change or reset the PIN.

Shows the current PIN.

Restore the default PIN of the router.

Create a random number that is a valid PIN. This becomes

the router’s PIN. You can then copy this PIN to the user

interface of the wireless client.

Enable:

Lock Wireless

Security

Settings:

PIN Settings:

Current PIN:

Reset PIN to

Default:

Generate New

PIN:

Wi-Fi Protected Setup (WPS) System is a simplied method for securing your wireless network during the “Initial setup” as well

as the “Add New Device” processes. The Wi-Fi Alliance (WFA) has certied it across dierent products as well as manufactures.

The process is just as easy as pressing a button for the Push-Button Method or correctly entering the 8-digit code for the Pin

Code Method. The time reduction in setup and ease of use are quite benecial, while the highest wireless Security setting of

WPA2 is automatically used.

49D-Link DIR-505 User Manual

Section 3 - Conguration

This Wizard helps you add wireless devices to the wireless network.

The wizard will either display the wireless network settings to guide you through manual conguration, prompt you to enter the

PIN for the device, or ask you to press the conguration button on the device. If the device supports Wi-Fi Protected Setup and has a

conguration button, you can add it to the network by pressing the conguration button on the device and then the on the router

within 60 seconds. The status LED on the router will ash three times if the device has been successfully added to the network.

There are several ways to add a wireless device to your network. A “registrar” controls access to the wireless network. A registrar

only allows devices onto the wireless network if you have entered the PIN, or pressed a special Wi-Fi Protected Setup button on the

device. The router acts as a registrar for the network, although other devices may act as a registrar as well.

Click to start the wizard.

Add Wireless

Station:

Add Wireless

Device Wizard:

You can also simply press the WPS button on the side of the router, and then press the WPS

button on your wireless client to automatically connect without logging into the router.

Refer to page 106 for more information.

WPS Button

50D-Link DIR-505 User Manual

Section 3 - Conguration

To use the Universal Plug and Play (UPnP™) feature click on

Enabled. UPnP provides compatibility with networking

equipment, software and peripherals.

Enable UPnP:

UPnP Settings

51D-Link DIR-505 User Manual

Section 3 - Conguration

Guest Zone

Check to enable the Guest Zone feature.

The schedule of time when the Guest Zone will be

active. The schedule may be set to Always, which will

allow the particular service to always be enabled. You

can create your own times in the Tools > Schedules

section.

Enter a wireless network name (SSID) that is dierent

from your main wireless network.

Check to allow network connectivity between the

dierent zones created.

Select the type of security or encryption you would

like to enable for the guest zone.

Enable Guest

Zone:

Add New

Schedule:

Wireless

Network Name:

Enable Routing

Between Zones:

Security Mode:

The Guest Zone feature will allow you to create temporary zones that can be used by guests to access the Internet. These zones

will be separate from your main wireless network. You may congure dierent zones for the 2.4GHz and 5GHz wireless bands.

52D-Link DIR-505 User Manual

Section 3 - Conguration

DMZ

This feature allows you to set a single computer from your network to outside of the router and get unrestricted Internet access.

Check the box to enable DMZ.

Enter the DMZ IP Address.

Enable DMZ:

DMZ IP Address:

53D-Link DIR-505 User Manual

Section 3 - Conguration

Admin

This page will allow you to change the Administrator and User passwords. You can also enable Remote Management. There are

two accounts that can access the management interface through the web browser. The accounts are admin and user. Admin

has read/write access while user has read-only access. User can only view the settings but cannot make any changes. Only the

admin account has the ability to change both admin and user account passwords.

Maintance

Enter a new password for the Administrator Login Name. The

administrator can make changes to the settings.

Enter the new password for the User login. If you login as the User,

you cannot change the settings (you can only view them).

Enables a challenge-response test to require users to type letters

or numbers from a distorted image displayed on the screen to

prevent online hackers and unauthorized users from gaining

access to your router’s network settings.

Check to enable HTTPS to connect to the router securely. This

means to connect to the router, you must enter https://192.168.0.1

(for example) instead of http://192.168.0.1.

Remote management allows the DIR-505 to be congured from the Internet by a web browser. A username/password is still required to

access the Web Management interface.

The port number used to access the DIR-505 is used in the URL. Example: http://x.x.x.x:8080 whereas x.x.x.x is the Internet IP address of

the DIR-505 and 8080 is the port used for the Web Management interface.

If you have enabled HTTPS Server, you must enter https:// as part of the URL to access the router remotely.

Admin

Password:

User Password:

Enable Graphical

Authentication:

Enable HTTPS

Server:

Enable Remote

Management:

Remote Admin

Port:

54D-Link DIR-505 User Manual

Section 3 - Conguration

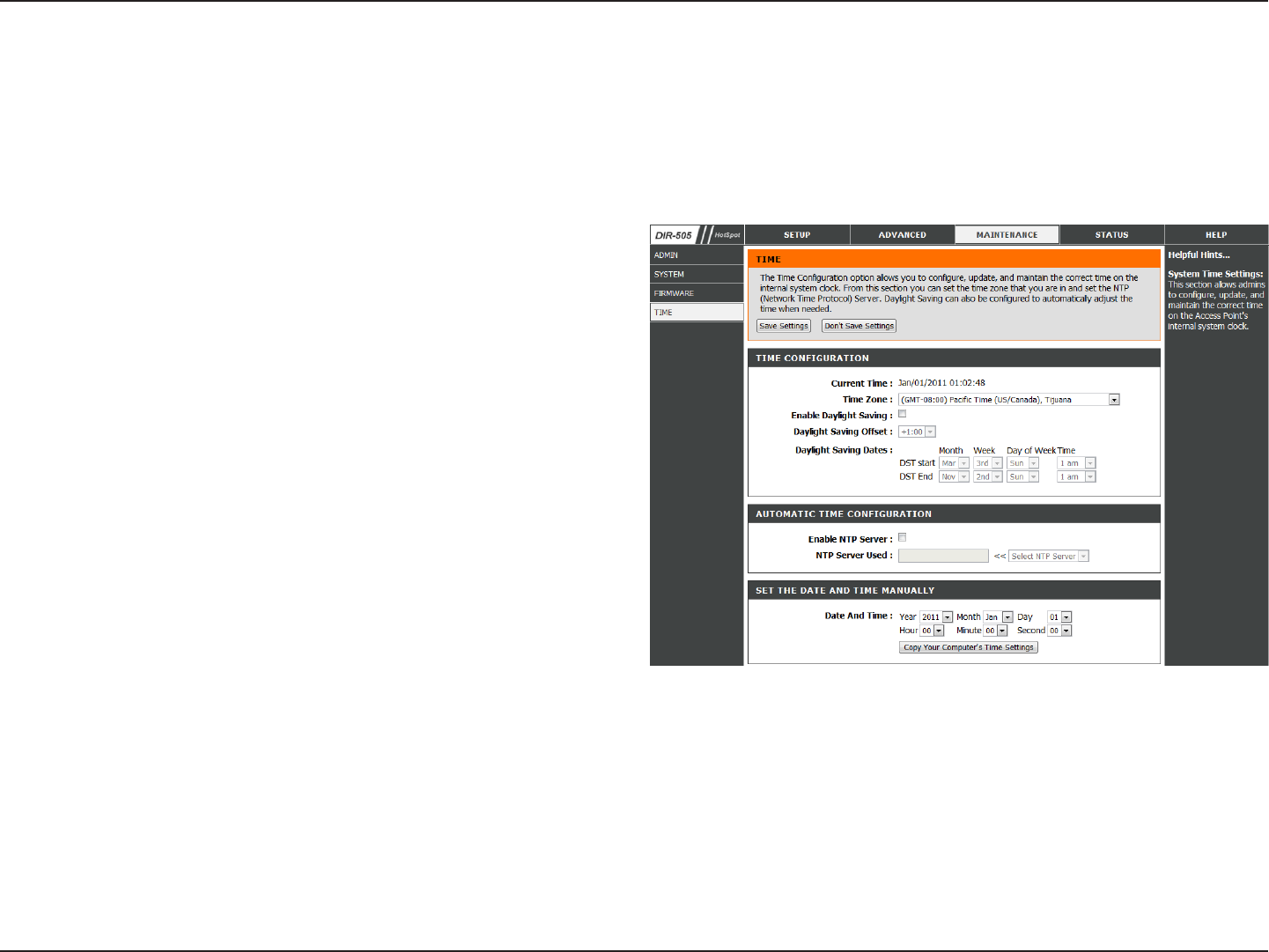

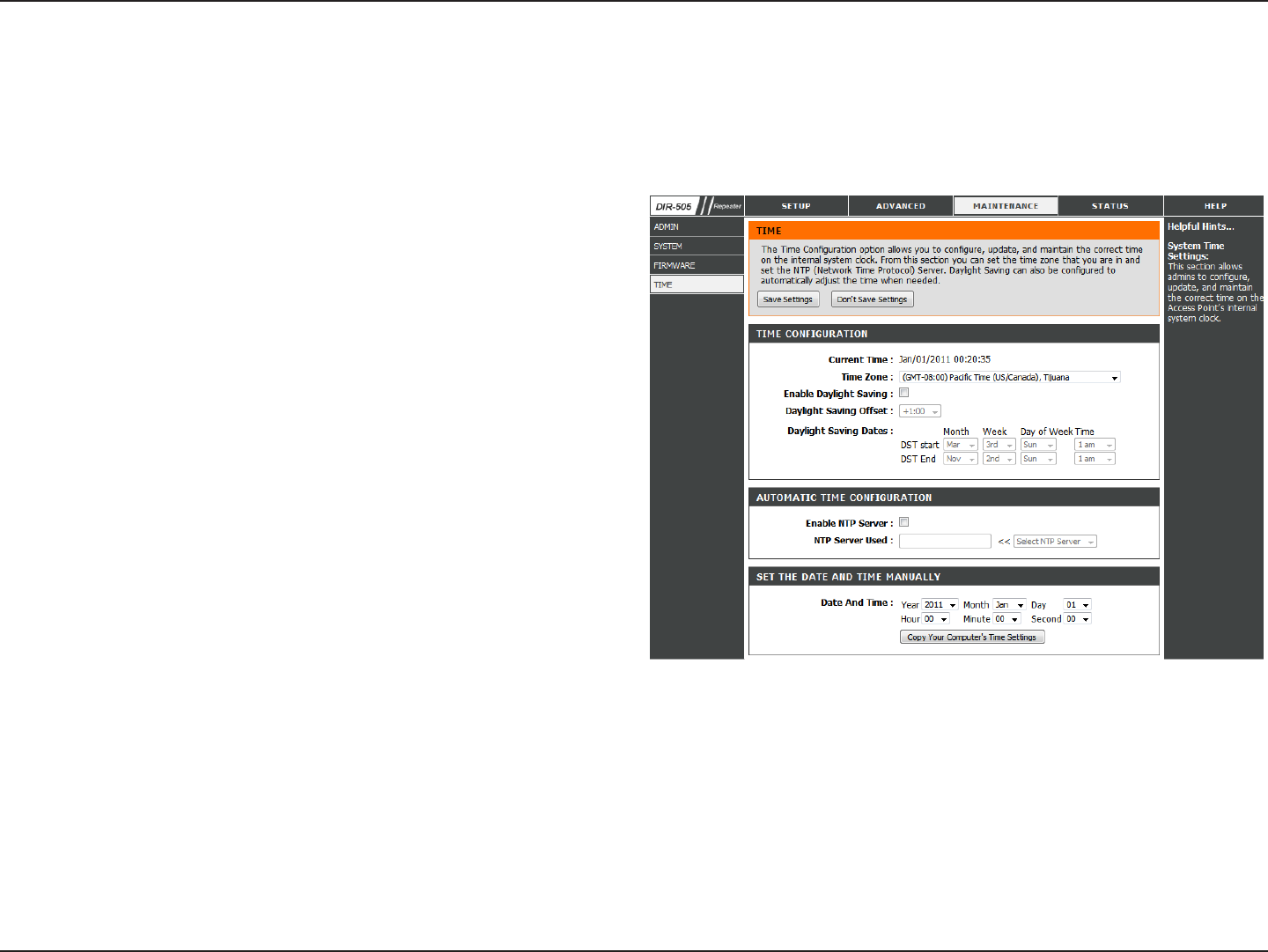

Time

Displays the current date and time of the router.

Select your Time Zone from the drop-down menu.

To select Daylight Saving time manually, select enabled

or disabled, and enter a start date and an end date for

daylight saving time.

NTP is short for Network Time Protocol. A NTP server will

synch the time and date with your router. This will only

connect to a server on the Internet, not a local server.

Check the box to enable this feature.

Enter the IP address of a NTP server or select one from

the drop-down menu.

To manually input the time, enter the values in these

elds for the Year, Month, Day, Hour, Minute, and Second

and then click Set Time.

You can also click Copy Your Computer’s Time Settings

to synch the date and time with the computer you are

currently on.

Current Router

Time:

Time Zone:

Enable Daylight

Saving:

Enable NTP Server:

NTP Server Used:

Set the Date and

Time Manually:

The Time Conguration option allows you to congure, update, and maintain the correct time on the internal system clock.

From this section you can set the time zone that you are in and set the Time Server. Daylight Saving can also be congured to

automatically adjust the time when needed.

55D-Link DIR-505 User Manual

Section 3 - Conguration

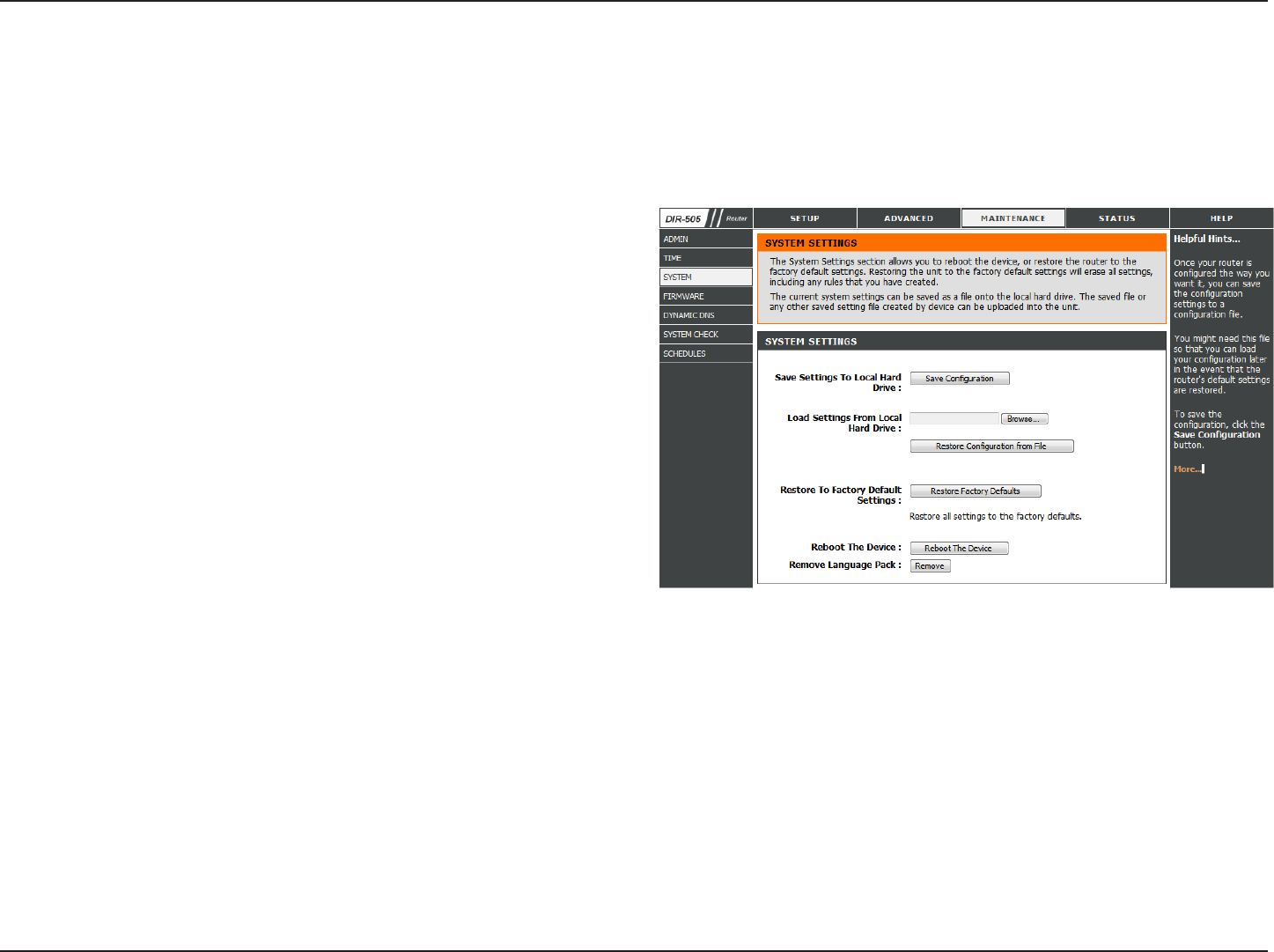

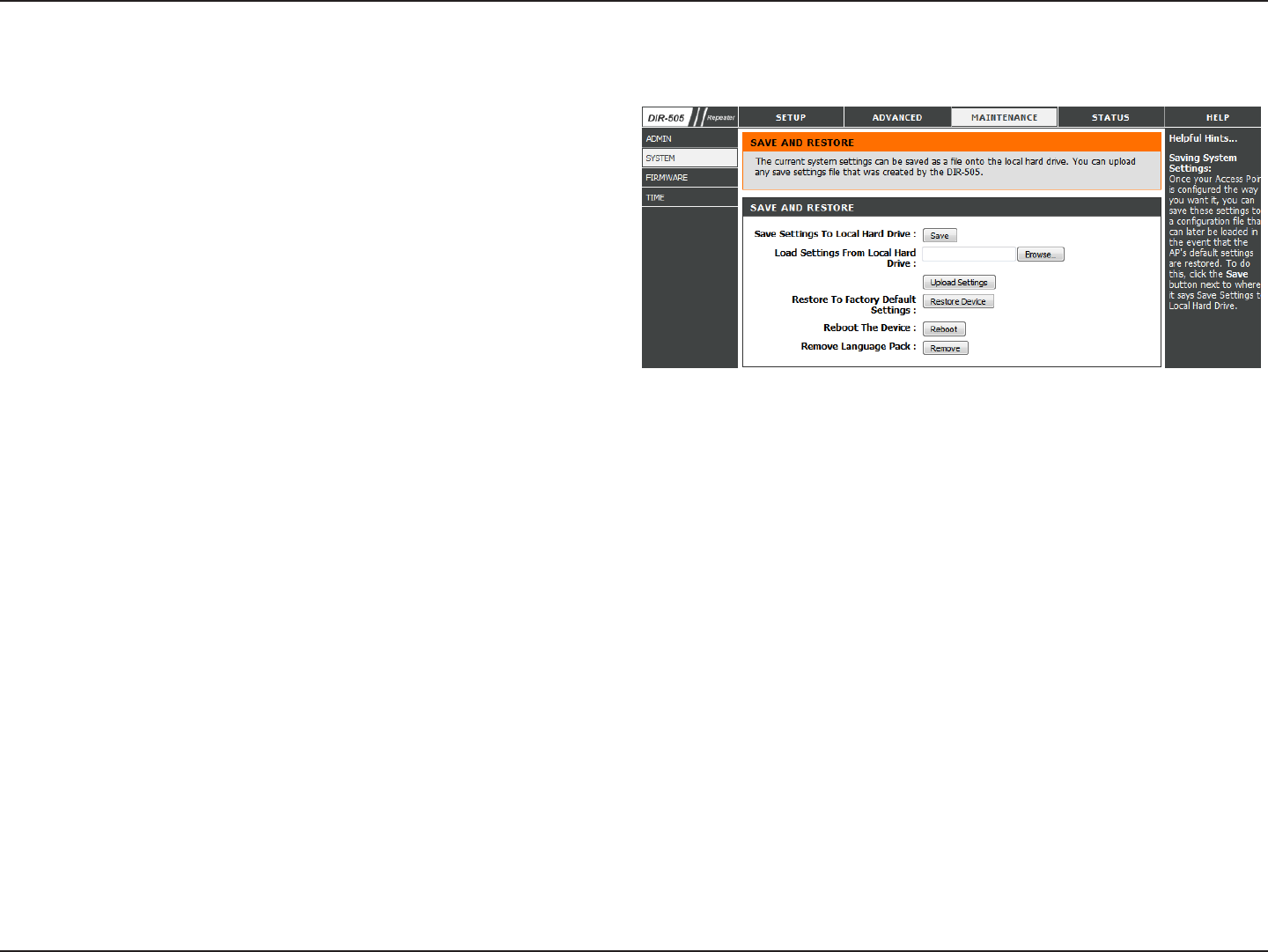

System

Use this option to save the current router conguration

settings to a le on the hard disk of the computer you

are using. First, click the Save button. A le dialog will

appear, allowing you to select a location and le name

for the settings.

Use this option to load previously saved router conguration

settings. First, use the Browse option to nd a previously

saved le of conguration settings. Then, click the Upload

Settings button below to transfer those settings to the

router.

This option will restore all conguration settings back

to the settings that were in eect at the time the router

was shipped from the factory. Any settings that have

not been saved will be lost, including any rules that

you have created. If you want to save the current router

conguration settings, use the Save button above.

Click to reboot the router.

If you previously installed a language pack and want to

revert all the menus on the Router interface back to the

default language settings, click the Clear button.

Save Settings

to Local Hard

Drive:

Load Settings

from Local Hard

Drive:

Restore to

Factory Default

Settings:

Reboot Device:

Clear Language

Pack:

This section allows you to manage the router’s conguration settings, reboot the router, and restore the router to the factory

default settings. Restoring the unit to the factory default settings will erase all settings, including any rules that you’ve created.

56D-Link DIR-505 User Manual

Section 3 - Conguration

Firmware

This section displays information about the rmware

that is loaded on the Router. Click the Check Now

button to nd out if there is an updated rmware; if so,

download the new rmware to your hard drive.

After you have downloaded the new rmware, click

Browse to locate the rmware update on your hard

drive. Click Upload to complete the rmware upgrade.

If you want to change the Router’s language pack, click

Browse to locate the language pack. Click Upload to

complete the load the new language pack.

Firmware

Information:

Firmware

Upgrade:

Language Pack

Upgrade:

Use the Firmware window to upgrade the rmware of the Router and install language packs. If you plan to install new rmware, make

sure the rmware you want to use is on the local hard drive of the computer. If you want to install a new language pack, make sure that

you have the language pack available. Please check the D-Link support site for rmware updates at http://support.dlink.com. You can

download rmware upgrades to your hard drive from the D-Link support site.

57D-Link DIR-505 User Manual

Section 3 - Conguration

Dynamic Domain Name System is a method of keeping

a domain name linked to a changing IP Address. Check

the box to enable DDNS.

Select your DDNS provider from the drop-down menu

or enter the DDNS server address.

Enter the Host Name that you registered with your DDNS

service provider.

Enter the Username or key for your DDNS account.

Enter the Password or key for your DDNS account.

Enter a timeout time (in hours).

Displays the current connection status.

Enable

Dynamic DNS:

Server

Address:

Host Name:

Username or

Key:

Password or

Key:

Timeout:

Status:

Dynamic DNS

The DDNS feature allows you to host a server (Web, FTP, Game Server, etc…) using a domain name that you have purchased

(www.whateveryournameis.com) with your dynamically assigned IP address. Most broadband Internet Service Providers assign

dynamic (changing) IP addresses. Using a DDNS service provider, your friends can enter in your domain name to connect to

your server no matter what your IP address is.

58D-Link DIR-505 User Manual

Section 3 - Conguration

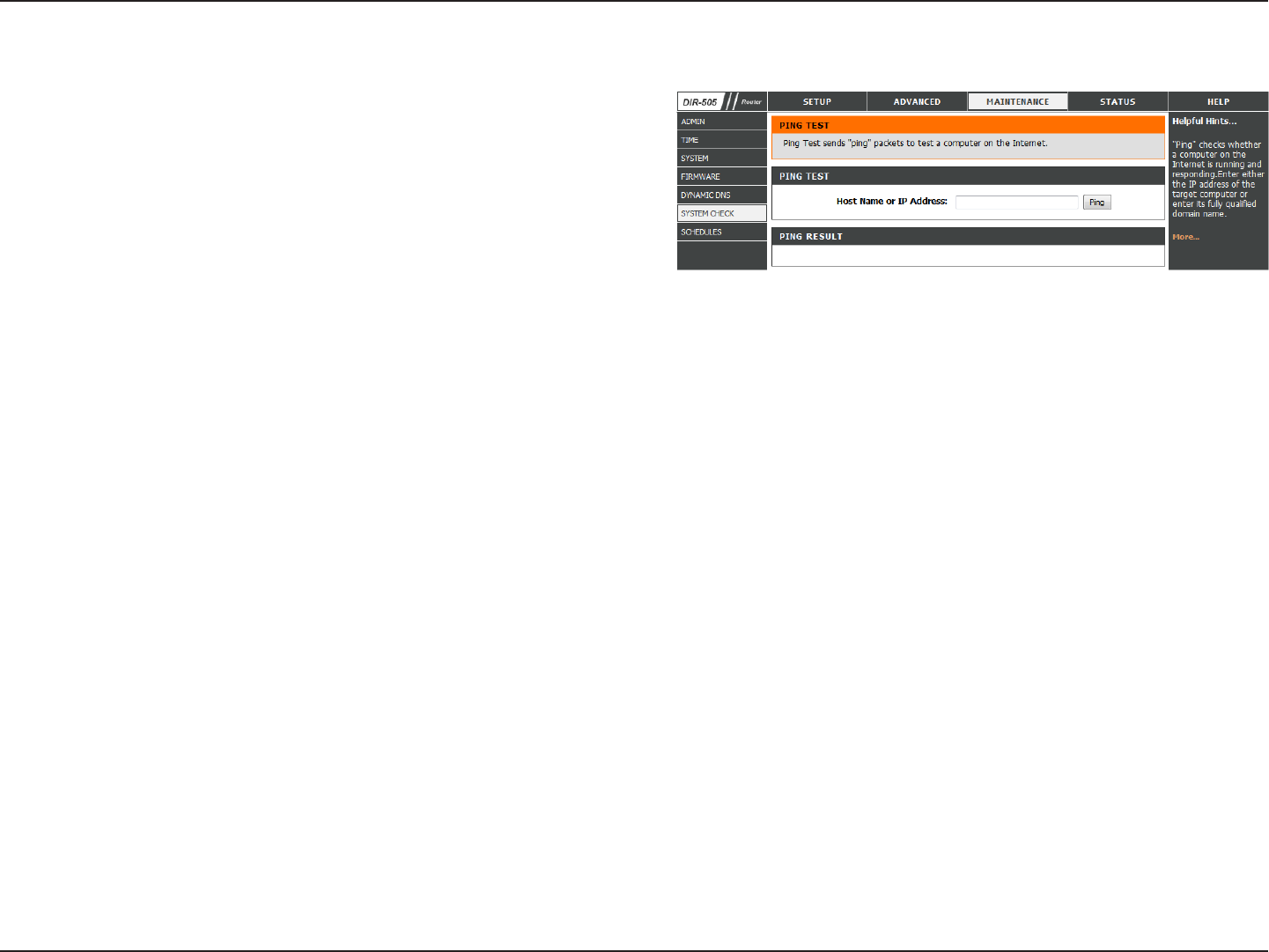

The Ping Test is used to send Ping packets to test if a

computer is on the Internet. Enter the IP address that you

wish to Ping and click Ping.

Enter the IPv6 address that you wish to Ping and click Ping.

The results of your ping attempts will be displayed here.

System Check

Ping Test:

IPv6 Ping Test:

Ping Results:

59D-Link DIR-505 User Manual

Section 3 - Conguration

Enter a name for your new schedule.

Select a day, a range of days, or All Week to include

every day.

Check All Day - 24hrs or enter a start and end

time for your schedule.

You must click Save Settings at the top for your

schedules to go into eect.

The list of schedules will be listed here. Click the

Edit icon to make changes or click the Delete icon

to remove the schedule.

Name:

Days:

Time format:

Save:

Schedule Rules

List:

Schedules

Schedules can be created for use with enforcing rules. For example, if you want to restrict web access to Mon-Fri from 3pm to

8pm, you could create a schedule selecting Mon, Tue, Wed, Thu, and Fri and enter a Start Time of 3pm and End Time of 8pm.

60D-Link DIR-505 User Manual

Section 3 - Conguration

This page displays the current information for the DIR-505. It will display the LAN, WAN (Internet), and Wireless information. If

your Internet connection is set up for a Dynamic IP address then a Release button and a Renew button will be displayed. Use

Release to disconnect from your ISP and use Renew to connect to your ISP.

If your Internet connection is set up for PPPoE, a Connect button and a Disconnect button will be displayed. Use Disconnect

to drop the PPPoE connection and use Connect to establish the PPPoE connection.

Displays the router’s time and rmware version.

Displays the MAC address and the public IP settings for

the router.

Displays the MAC address and the private (local) IP settings

for the router.

Displays the wireless MAC address and your wireless

settings such as SSID and Channel.

General:

WAN:

LAN:

Wireless LAN:

Device Info

Status

61D-Link DIR-505 User Manual

Section 3 - Conguration

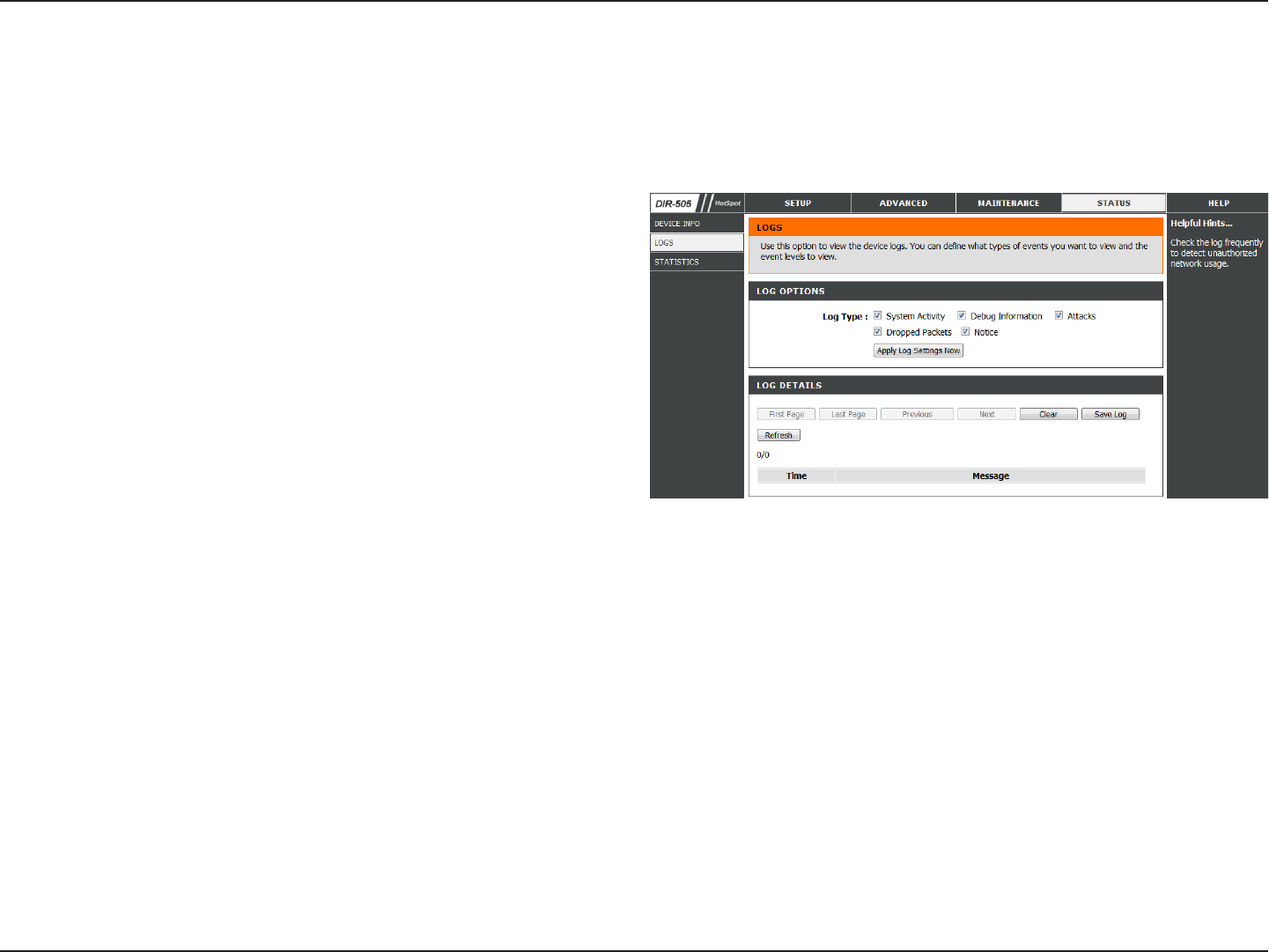

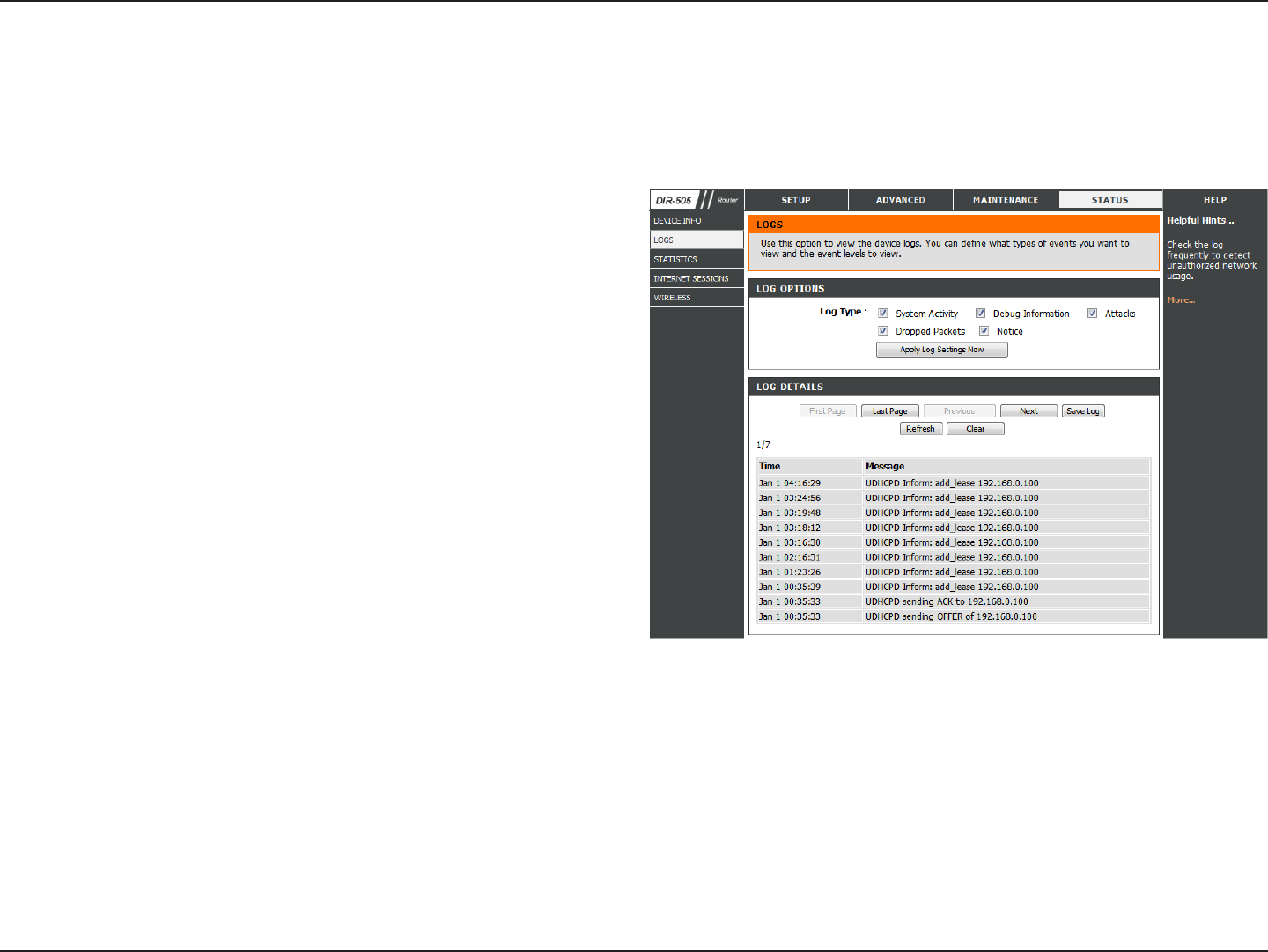

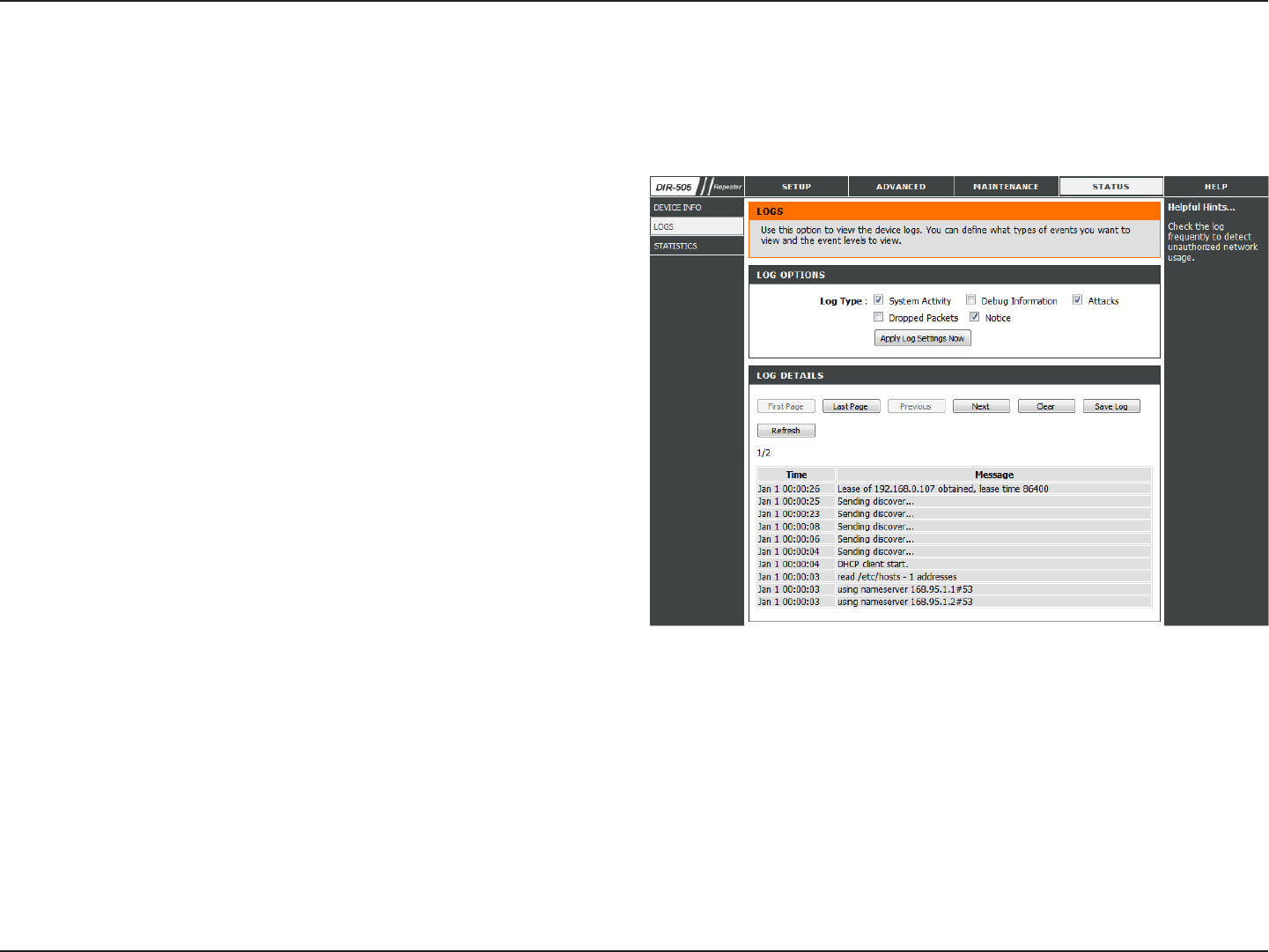

Logs

The Broadband Router keeps a running log of events and activities occurring on the Router. You may send these logs to a

SysLog server on your network.

Log Type:

Log Level:

Log Files:

First Page:

Last Page:

Clear:

Use the radio buttons to select the types of messages

that you want to display from the log. System, Firewall

& Security, and Router Status messages can be selected.

There are three levels of message importance: Critical,

Warning, and Information. Select the levels that you

want displayed in the log.

Use this section to view and manage the Router’s log

entries.

Click this button to view the rst page of the Router logs.

Click this button to view the last page of the Router logs.

Click this button to view the previous page of the Router

logs.

Click this button to view the next page of the Router logs.

Clears all of the log contents.

62D-Link DIR-505 User Manual

Section 3 - Conguration

Statistics

The screen below displays the Trac Statistics. Here you can view the amount of packets that pass through the DIR-505 on both

the WAN, LAN ports and both the 802.11n/g (2.4GHz) and 802.11n/a (5GHz) wireless bands. The trac counter will reset if the

device is rebooted.

Refresh:

Reset:

Click the Refresh button to refresh the Router’s trac

statistics.

Click the Reset button to reset the Router’s traffic

statistics.

63D-Link DIR-505 User Manual

Section 3 - Conguration

Internet Sessions

The Internet Sessions page displays full details of active Internet sessions through your router. An Internet session is a

conversation between a program or application on a LAN-side computer and a program or application on a WAN-side computer.

64D-Link DIR-505 User Manual

Section 3 - Conguration

Wireless

The wireless client table displays a list of current connected wireless clients. This table also displays the connection time and

MAC address of the connected wireless clients.

65D-Link DIR-505 User Manual

Section 3 - Conguration

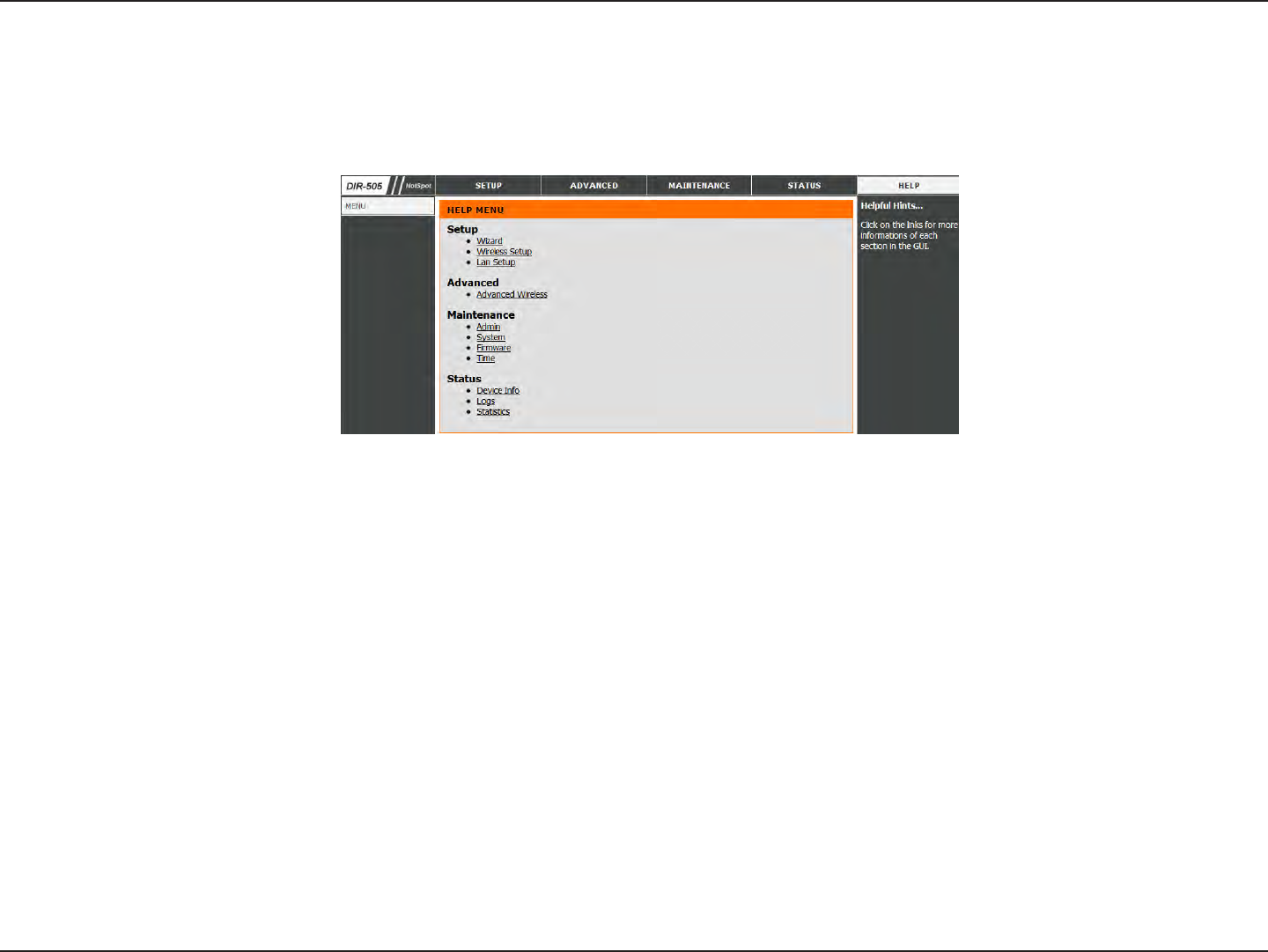

Help

66D-Link DIR-505 User Manual

Section 3 - Conguration

Quick Setup Wizard

Repeater Mode

This Wizard is designed to assist you in conguring your DIR-505 as an repeater.

Select WPS as the conguration method only if your wireless

device supports Wi-Fi Protected Setup (WPS). For Manual setup,

skip to page 67.

Click Next to continue.

Press down the Push Button on the Wireless device you are adding

to your wireless network.

To start the Setup Wizard click Next.

67D-Link DIR-505 User Manual

Section 3 - Conguration

Select Manual as the configuration method to set up your

network manually.

Click Next to continue.

Please wait while your device scans for available Wi-Fi networks.

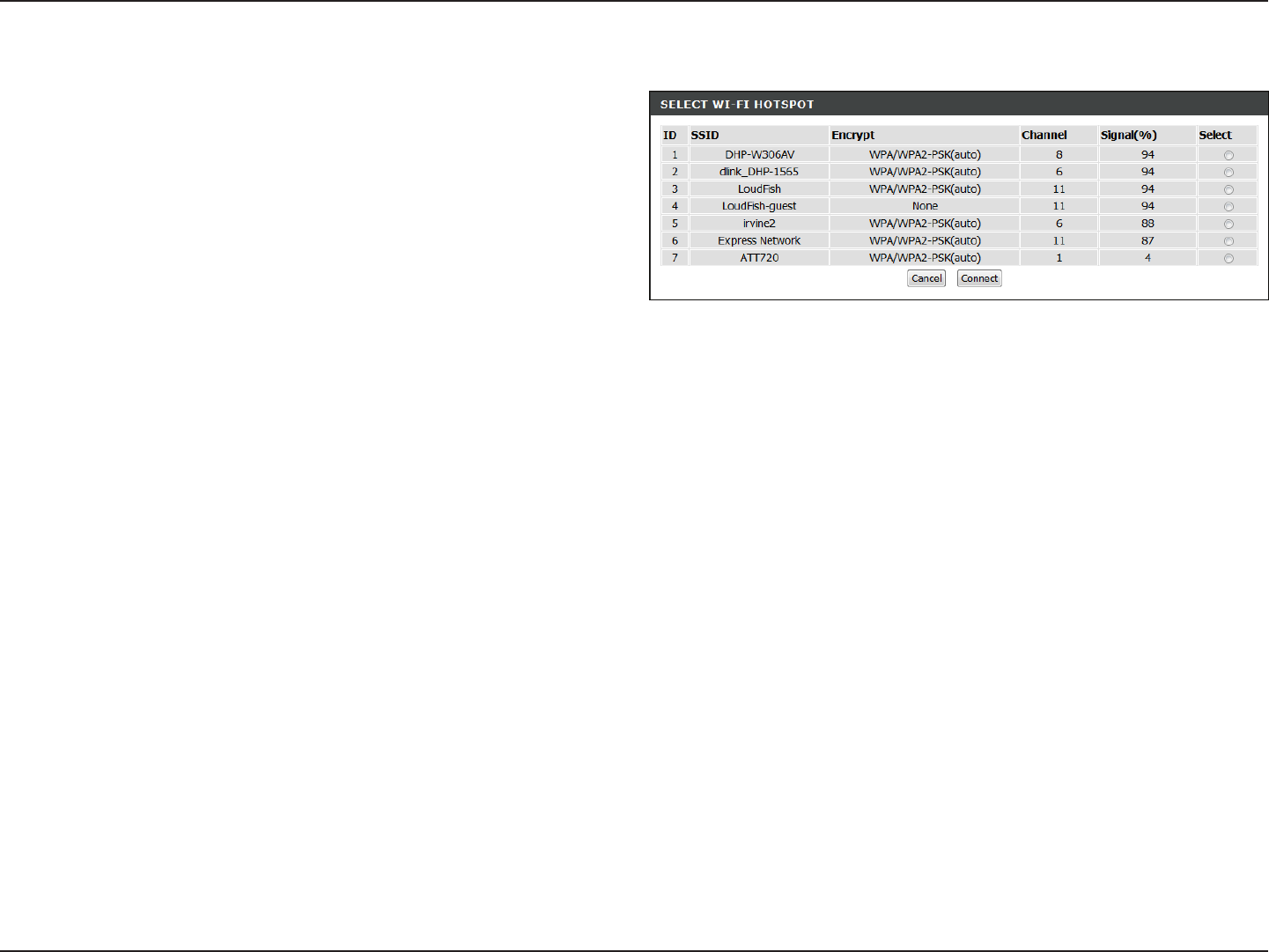

Select the network you would like your device to connect to.

68D-Link DIR-505 User Manual

Section 3 - Conguration

Setup Wizard

Click Launch Wireless Setup Wizard to begin the Setup

Wizard.

To start the Setup Wizard click Next.

Select WPS as the conguration method only if your wireless

device supports Wi-Fi Protected Setup (WPS).

Click Next to continue.

Press down the Push Button on the Wireless device you are

adding to your wireless network.

69D-Link DIR-505 User Manual

Section 3 - Conguration

Select Manual as the conguration method to set up your

network manually.

Click Next to continue.

Select the network you would like your device to connect

to.

70D-Link DIR-505 User Manual

Section 3 - Conguration

Manual Conguration

Wireless Settings

71D-Link DIR-505 User Manual

Section 3 - Conguration

Repeater Mode

Enable Wireless:

Wireless Mode:

Wireless

Network Name:

Channel Width:

Security Mode:

Check the box to enable the wireless function. If you do

not want to use wireless, uncheck the box to disable all

the wireless functions. You may also set up a specic time

range (schedule). Select a schedule from the drop-down

menu or click Add New to create a new schedule.

Select Repeater Mode from the drop-down menu.

When you are browsing for available wireless networks,

this is the name that will appear in the list (unless Visibility

Status is set to Invisible, see below). This name is also

referred to as the SSID. For security purposes, it is highly

recommended to change from the default network name.

Select the appropriate channel width between 20MHz or

Auto 20/40MHz from the drop-down menu.

Select WEP or WPA Personal.

72D-Link DIR-505 User Manual

Section 3 - Conguration

Wireless Security

This section will show you the dierent levels of security you can use to protect your data from intruders. The

DIR-605L oers the following types of security:

• WPA2 (Wi-Fi Protected Access 2) • WPA2-PSK (Pre-Shared Key)

• WPA (Wi-Fi Protected Access) • WPA-PSK (Pre-Shared Key)

• WEP (Wired Equivalent Privacy)

What is WEP?

WEP stands for Wired Equivalent Privacy. It is based on the IEEE 802.11 standard and uses the RC4 encryption algorithm. WEP

provides security by encrypting data over your wireless network so that it is protected as it is transmitted from one wireless

device to another.

To gain access to a WEP network, you must know the key. The key is a string of characters that you create. When using WEP,

you must determine the level of encryption. The type of encryption determines the key length. 128-bit encryption requires a

longer key than 64-bit encryption. Keys are dened by entering in a string in HEX (hexadecimal - using characters 0-9, A-F) or

ASCII (American Standard Code for Information Interchange – alphanumeric characters) format. ASCII format is provided so

you can enter a string that is easier to remember. The ASCII string is converted to HEX for use over the network. Four keys can

be dened so that you can change keys easily.

73D-Link DIR-505 User Manual

Section 3 - Conguration

Congure WEP

It is recommended to enable encryption on your wireless router

before your wireless network adapters. Please establish wireless

connectivity before enabling encryption. Your wireless signal may

degrade when enabling encryption due to the added overhead.

1. Log into the web-based conguration by opening a web browser

and entering the IP address of the router (192.168.0.1).

Click on Wireless Setup on the left side.

2. In the Security Mode section, select WEP from the drop-down

menu.

3. In WEP Key Length, select either 64Bit or 128Bit encryption from

the drop-down menu.

5. Next to WEP Key 1, enter a WEP key that you create. Make sure

you enter this key exactly on all your wireless devices. You may

enter up to four dierent keys either using Hex or ASCII. Hex is

recommended (letters A-F and numbers 0-9 are valid). In ASCII all

numbers and letters are valid.

6. Click Save Settings to save your settings. If you are conguring the router with a wireless adapter, you will lose connectivity

until you enable WEP on your adapter and enter the same WEP key as you did on the router.

74D-Link DIR-505 User Manual

Section 3 - Conguration

Congure WPA/WPA2 Personal

It is recommended to enable encryption on your wireless access point before your wireless network adapters. Please establish

wireless connectivity before enabling encryption. Your wireless signal may degrade when enabling encryption due to the

added overhead.

1. Log into the web-based configuration by opening a web

browser and entering the IP address of the access point

(192.168.0.50). Click on Setup and then click Wireless Settings

on the left side.

2. Next to Security Mode, select WPA-Personal.

3. Next to Cipher Type, select TKIP, AES, or Auto.

4. Next to Passphrase, enter a key. The key is entered as a

passphrase in ASCII format at both ends of the wireless

connection. The passphrase must be between 8-63 characters.

6. Click Save Settings at the top of the window to save your

settings. If you are conguring the access point with a wireless

adapter, you will lose connectivity until you enable WPA-PSK

on your adapter and enter the same passphrase as you did on

the access point.

75D-Link DIR-505 User Manual

Section 3 - Conguration

This section will allow you to change the local network settings of the access point and to congure the DHCP settings.

Device Name:

LAN Connection

Type:

My IPv6

Connection Type:

IP Address:

Subnet Mask:

Gateway

Address:

Enter the Device Name of the AP. It is recommended to

change the Device Name if there is more than one D-Link

device within the subnet.

Use the drop-down menu to select Dynamic IP (DHCP)

to automatically obtain an IP address on the LAN/private

network.

Select from the drop-down menu the type of IPv6

connection you would like to use.

Enter the IP address of the access point. The default IP

address is 192.168.0.50. If you change the IP address, once

you click Apply, you will need to enter the new IP address

in your browser to get back into the conguration utility.

Enter the Subnet Mask assigned by your ISP.

Enter the Gateway assigned by your ISP.

LAN Settings

76D-Link DIR-505 User Manual

Section 3 - Conguration

Device Name:

LAN Connection

Type:

IP Address:

Subnet Mask:

Default Gateway:

Enter the Device Name of the AP. It recommended to

change the Device Name if there is more than one D-Link

device within the subnet. You can enter the device name

of the AP into your web browser to access the instead of

IP address for conguration. If you are using the device

name to connect, ensure that your PC and your DIR-505

are on the same network.

Select Static IP from the drop-down menu.

Enter the IP address of the access point. The default IP

address is 192.168.0.50. If you change the IP address, once

you click Apply, you will need to enter the new IP address

in your browser to get back into the conguration utility.

Enter the Subnet Mask assigned by your ISP.

Enter the Gateway assigned by your ISP.

Static IP

Select Static IP Address if all the Internet port’s IP information is provided to you by your ISP. You will need to enter in the IP

address, subnet mask, gateway address, and DNS address(es) provided to you by your ISP. Each IP address entered in the elds

must be in the appropriate IP form, which are four octets separated by a dot (x.x.x.x). The Access point will not accept the IP

address if it is not in this format.

77D-Link DIR-505 User Manual

Section 3 - Conguration

Advanced

Advanced Wireless

Transmit Power:

HT 20/40

Coexistance:

Sets the transmit power of the antennas.

Check to enable or disable this feature.

78D-Link DIR-505 User Manual

Section 3 - Conguration

Wi-Fi Protected Setup

Check this box to enable the function

Locking the wireless security settings prevents the

settings from being changed by the Wi-Fi Protected

Setup feature of the router. Devices can still be added

to the network using Wi-Fi Protected Setup. However,

the settings of the network will not change once this

option is checked.

Press the button to generate a new PIN or Reset to

Default.

Shows the current value of the router’s PIN.

Restore the default PIN of the access point.

Create a random number that is a valid PIN. This becomes

the router’s PIN. You can then copy this PIN to the user

interface of the registrar.

Press the button to start with the wizard to setup the

WPS.

Enable:

Lock Wireless

Security Settings:

Pin Settings:

Current PIN:

Reset PIN to

Default:

Generate New

PIN:

Add Wireless

Station:

Wi-Fi Protected Setup (WPS) System is a simplied method for securing your wireless network during the “Initial setup” as well

as the “Add New Device” processes. The Wi-Fi Alliance (WFA) has certied it across dierent products as well as manufactures.

The process is just as easy, as depressing a button for the Push-Button Method or correctly entering the 8-digit code for the

Pin-Code Method. The time reduction in setup and ease of use are quite benecial, while the highest wireless Security setting

of WPA2 is automatically used.

79D-Link DIR-505 User Manual

Section 3 - Conguration

Password:

Conrm

Password:

Enable

Graphical

Authentication:

Enter a new password for the Administrator Login Name.

The administrator can make changes to the settings.

Enter the same password that you entered in the

previous textbox in order to conrm its accuracy.

Check to enable this feature.

Maintenance

Admin

This page will allow you to change the Administrator password. The administrator password has read/write access.

80D-Link DIR-505 User Manual

Section 3 - Conguration

Save to Local

Hard Drive:

Upload from

Local Hard Drive:

Restore to

Factory Default:

Reboot the

Device:

Use this option to save the current access point

conguration settings to a le on the hard disk of the

computer you are using. Click the Save button. You will

then see a le dialog where you can select a location

and le name for the settings.

Use this option to load previously saved access point

conguration settings. Click Browse to nd a previously

saved conguration le. Then, click the Upload Settings

button to transfer those settings to the access point.

This option will restore all conguration settings back

to the settings that were in eect at the time the access

point was shipped from the factory. Any settings that

have not been saved will be lost, including any rules that

you have created. If you want to save the current access

point conguration settings, use the Save button above.

Note: Restoring the factory default settings will not reset

the Wi-Fi Protected Status to Not Congured.

Click to reboot the access point.

System

81D-Link DIR-505 User Manual

Section 3 - Conguration

Firmware

Upgrade:

Browse:

Upload:

Click on Check Now to nd out if there is an updated

rmware; if so, download the new rmware to your

hard drive.

After you have downloaded the new rmware, click

Browse to locate the rmware update on your hard

drive. Click Upload to complete the rmware upgrade.

Once you have a rmware update on your computer,

use this option to browse for the le and then upload

the information into the access point.

Firmware

You can upgrade the rmware of the access point here. Make sure the rmware you want to use is on the local hard drive of

the computer. Click on Browse to locate the rmware le to be used for the update. Please check the D-Link support website

for rmware updates at http://support.dlink.com. You can download rmware upgrades to your hard drive from this site.

After you have downloaded the new language pack,

click Browse to locate the language pack le on your

hard drive. Click Upload to complete the language

pack upgrade.

Language Pack

You can change the language of the web UI by uploading

available language packs.

Browse:

82D-Link DIR-505 User Manual

Section 3 - Conguration

Time Zone:

Daylight

Saving:

Enable NTP

Server:

NTP Server

Used:

Date and Time:

Select the Time Zone from the drop-down menu.

To select Daylight Saving time manually, click the Enable

Daylight Saving check box. Next use the drop-down

menu to select a Daylight Saving Oset and then enter a

start date and an end date for daylight saving time.

NTP is short for Network Time Protocol. NTP synchronizes

computer clock times in a network of computers. Check

this box to use a NTP server. This will only connect to a

server on the Internet, not a local server.

Enter the NTP server or select one from the drop-down

menu.

To manually input the time, enter the values in these

elds for the Year, Month, Day, Hour, Minute, and Second

and then click Save Settings. You can also click the Copy

Your Computer’s Time Settings button at the bottom

of the screen.

Time

The Time Conguration option allows you to congure, update, and maintain the correct time on the internal system clock.

From this section you can set the time zone that you are in. Daylight Saving can also be congured to automatically adjust the

time when needed.

83D-Link DIR-505 User Manual

Section 3 - Conguration

General:

LAN:

Wireless LAN:

Displays the access point’s time and firmware

version.

Displays the MAC address and the private (local) IP

settings for the access point.

Displays the wireless MAC address and your

wireless settings such as SSID and Channel.

Status

Device Info

This page displays the current information for the DIR-505. It will display the LAN and wireless LAN information.

84D-Link DIR-505 User Manual

Section 3 - Conguration

Log Options:

First Page:

Last Page:

Clear Log:

Log Settings:

Refresh:

There are several types of logs that can be viewed:

System Activity, Debug Information, Attacks,

Dropped Packets and Notice.

This button directs you to the rst page of the log.

This button directs you to the last page of the log.

This button directs you to the previous page of

the log.

This button directs you to the next page of the log.

This button clears all current log content.

This button opens a new menu where you can

congure the log settings.

This button refreshes the log.

Logs

The DIR-505 keeps a running log of events and activities occurring on the AP. If the AP is rebooted, the logs are automatically

cleared. You can save the log les under Log Setting.

85D-Link DIR-505 User Manual

Section 3 - Conguration

Statistics

The DIR-505 keeps statistics of the trac that passes through it. You can view the amount of packets that pass through the

LAN and wireless portions of the network. The trac counter will reset if the access point is rebooted.

86D-Link DIR-505 User Manual

Section 3 - Conguration

Quick Setup Wizard

WiFi Hot Spot

If this is your rst time using this device, you will be directed

to the Pre-Setup Wizard. If you have already completed the

Pre-Setup Wizard, please continue to page 88.

Enter Admin in the User Name eld. Leave the password blank

by default.

Click Next to continue.

Please wait while your device scans for an available Wi-Fi

Network.

87D-Link DIR-505 User Manual

Section 3 - Conguration

Select the Network you would like your device to connect

to and click Connect.

Enter the Wi-Fi password and click Next to continue.

Select Use the same Wi-Fi Network name for the extended

Network and click Next.

Your setup is now complete. Click Save to nish.

88D-Link DIR-505 User Manual

Section 3 - Conguration

Please wait while your device scans for an available Wi-Fi

Network.

Select the Network you would like your device to connect

to and click Connect.

To start the Wizard, click Next to continue.

89D-Link DIR-505 User Manual

Section 3 - Conguration

Enter the Wi-Fi password and click Next to continue.

Select Use the same Wi-Fi Network name for the extended

Network and click Next.

Your setup is now complete. Click Save to nish.

90D-Link DIR-505 User Manual

Section 3 - Conguration

Setup

Wi-Fi Hot Spot Setup

Enable Wireless:

Wireless Mode:

Wireless

Network Name:

Channel Width:

Security Mode:

Check the box to enable the wireless function. If you do

not want to use wireless, uncheck the box to disable all

the wireless functions. You may also set up a specic time

range (schedule). Select a schedule from the drop-down

menu or click Add New to create a new schedule.

Select Wi-Fi Hot Spot Mode from the drop-down menu.

When you are browsing for available wireless networks,

this is the name that will appear in the list (unless

Visibility Status is set to Invisible, see below). This name

is also referred to as the SSID. For security purposes,

it is highly recommended to change from the default

network name.

Select the appropriate channel width between 20MHz

or Auto 20/40MHz from the drop-down menu.

Select WEP or WPA Personal.

91D-Link DIR-505 User Manual

Section 3 - Conguration

Please Select the Wi-Fi Hotspot you would like to connect to

with your device.

92D-Link DIR-505 User Manual

Section 3 - Conguration

Congure WPA/WPA2 Personal

It is recommended to enable encryption on your wireless access

point before your wireless network adapters. Please establish wireless

connectivity before enabling encryption. Your wireless signal may

degrade when enabling encryption due to the added overhead.

1. Log into the web-based conguration by opening a web browser

and entering the IP address of the access point (192.168.0.50).

Click on Setup and then click Wireless Settings on the left side.

2. Next to Security Mode, select WPA-Personal.

3. Next to WPA Mode, select Auto (WPA or WPA2).

4. Next to Cipher Type, select TKIP, AES, or Auto.

5. Next to Passphrase, enter a key. The key is entered as a passphrase

in ASCII format at both ends of the wireless connection. The

passphrase must be between 8-63 characters.

7. Click Save Settings at the top of the window to save your settings.

If you are conguring the access point with a wireless adapter, you

will lose connectivity until you enable WPA-PSK on your adapter and enter the same passphrase as you did on the access

point.

93D-Link DIR-505 User Manual

Section 3 - Conguration

This section will allow you to change the local network settings of the access point and to congure the DHCP settings.

My Internet

Connection is:

Host Name:

MTU:

Mac Address:

Use the drop-down menu to select Dynamic IP (DHCP)

to automatically obtain an IP address on the LAN/private

network.

The Host Name is optional but may be required by some

ISPs. Leave blank if you are

not sure.

Maximum Transmission Unit - you may need to change

the MTU for optimal performance with your specic ISP.

1500 is the default MTU.

The default MAC Address is set to the Internet port’s

physical interface MAC address on the Broadband Router.

It is not recommended that you change the default

MAC address unless required by your ISP. You can use

the Clone Your PC’s MAC Address button to replace the

Internet port’s MAC address with the MAC address of your

Ethernet card.

WAN Settings

94D-Link DIR-505 User Manual

Section 3 - Conguration

Wireless Setup

Extended SSID:

Channel Width:

Security Mode:

Use the drop-down menu to select Dynamic IP (DHCP)

to automatically obtain an IP address on the LAN/private

network.

20MHz - Select if you are not using any 802.11n wireless

clients.

40MHz - Select if you are using 802.11n wireless clients

only.

Select from the drop-down menu the type of security

mode you would like to use.

95D-Link DIR-505 User Manual

Section 3 - Conguration

Manual Wireless Settings

Extended SSID:

Channel Width:

Security Mode:

WPA Mode:

Cipher Type:

Pre-Shared Key:

Select Remain the same as SSID or Create Extended

SSID.

20MHz - Select if you are not using any 802.11n wireless

clients.

40MHz - Select if you are using 802.11n wireless clients

only.

Select from the drop-down menu the type of security

mode you would like to use.

Select Auto, WPA2 Only, or WPA Only. Use Auto if you

have wireless clients using both WPA and WPA2.

Select TKIP and AES, TKIP, or AES.

Enter a key (passphrase). The key is entered as a passphrase

in ASCII format at both ends of the wireless connection.

The pass-phrase must be between 8-63 characters.

96D-Link DIR-505 User Manual

Section 3 - Conguration

LAN Setup

This section will allow you to change the local network settings of the access point and to congure the DHCP settings.

Device Name:

LAN Connection

Type:

IP Address:

Subnet Mask:

Gateway

Address:

Enter the Device Name of the AP. It is recommended to

change the Device Name if there is more than one D-Link

device within the subnet.

Use the drop-down menu to select Dynamic IP (DHCP)

to automatically obtain an IP address on the LAN/private

network.

Enter the IP address of the access point. The default IP

address is 192.168.0.50. If you change the IP address, once

you click Apply, you will need to enter the new IP address

in your browser to get back into the conguration utility.

Enter the Subnet Mask assigned by your ISP.

Enter the Gateway assigned by your ISP.

97D-Link DIR-505 User Manual

Section 3 - Conguration

Advanced

Advanced Wireless

Transmit Power:

HT 20/40

Coexistance:

Sets the transmit power of the antennas.

Check to enable or disable this feature.

98D-Link DIR-505 User Manual

Section 3 - Conguration

Maintance

Admin

Password:

Conrm

Password:

Enable

Graphical

Authentication:

Enter a new password for the Administrator Login Name.

The administrator can make changes to the settings.

Enter the same password that you entered in the

previous textbox in order to conrm its accuracy.

Check to enable this feature.

This page will allow you to change the Administrator password. The administrator password has read/write access.

99D-Link DIR-505 User Manual

Section 3 - Conguration

System

Save to Local

Hard Drive:

Upload from

Local Hard Drive:

Restore to

Factory Default:

Reboot the

Device:

Use this option to save the current access point

conguration settings to a le on the hard disk of the

computer you are using. Click the Save button. You will

then see a le dialog where you can select a location

and le name for the settings.

Use this option to load previously saved access point

conguration settings. Click Browse to nd a previously

saved conguration le. Then, click the Upload Settings

button to transfer those settings to the access point.

This option will restore all conguration settings back

to the settings that were in eect at the time the access

point was shipped from the factory. Any settings that

have not been saved will be lost, including any rules that

you have created. If you want to save the current access

point conguration settings, use the Save button above.

Note: Restoring the factory default settings will not reset

the Wi-Fi Protected Status to Not Congured.

Click to reboot the access point.

100D-Link DIR-505 User Manual

Section 3 - Conguration

Firmware

Upgrade:

Browse:

Upload:

Click on Check Now to nd out if there is an updated

rmware; if so, download the new rmware to your

hard drive.

After you have downloaded the new rmware, click

Browse to locate the rmware update on your hard

drive. Click Upload to complete the rmware upgrade.

Once you have a rmware update on your computer,

use this option to browse for the le and then upload

the information into the access point.

You can upgrade the rmware of the access point here. Make sure the rmware you want to use is on the local hard drive of

the computer. Click on Browse to locate the rmware le to be used for the update. Please check the D-Link support website

for rmware updates at http://support.dlink.com. You can download rmware upgrades to your hard drive from this site.

After you have downloaded the new language pack,

click Browse to locate the language pack le on your

hard drive. Click Upload to complete the language

pack upgrade.

Language Pack

You can change the language of the web UI by uploading

available language packs.

101D-Link DIR-505 User Manual

Section 3 - Conguration

Time

Time Zone:

Daylight

Saving:

Enable NTP

Server:

NTP Server

Used:

Date and Time:

Select the Time Zone from the drop-down menu.

To select Daylight Saving time manually, click the Enable

Daylight Saving check box. Next use the drop-down

menu to select a Daylight Saving Oset and then enter a

start date and an end date for daylight saving time.

NTP is short for Network Time Protocol. NTP synchronizes

computer clock times in a network of computers. Check

this box to use a NTP server. This will only connect to a

server on the Internet, not a local server.

Enter the NTP server or select one from the drop-down

menu.

To manually input the time, enter the values in these

elds for the Year, Month, Day, Hour, Minute, and Second

and then click Save Settings. You can also click the Copy

Your Computer’s Time Settings button at the bottom

of the screen.

The Time Conguration option allows you to congure, update, and maintain the correct time on the internal system clock.

From this section you can set the time zone that you are in. Daylight Saving can also be congured to automatically adjust the

time when needed.

102D-Link DIR-505 User Manual

Section 3 - Conguration

Status

Device Info

This page displays the current information for the DIR-505. It will display the LAN, WAN (Internet), and Wireless information. If

your Internet connection is set up for a Dynamic IP address then a Release button and a Renew button will be displayed. Use

Release to disconnect from your ISP and use Renew to connect to your ISP.

If your Internet connection is set up for PPPoE, a Connect button and a Disconnect button will be displayed. Use Disconnect

to drop the PPPoE connection and use Connect to establish the PPPoE connection.

Displays the router’s time and rmware version.

Displays the MAC address and the public IP settings for

the router.

Displays the MAC address and the private (local) IP settings

for the router.

Displays the wireless MAC address and your wireless

settings such as SSID and Channel.

General:

WAN:

LAN:

Wireless LAN:

103D-Link DIR-505 User Manual

Section 3 - Conguration

Logs

The DIR-505 keeps a running log of events and activities occurring on the AP. If the AP is rebooted, the logs are automatically

cleared. You can save the log les under Log Setting.

Log Type:

Log Level:

Log Files:

First Page:

Last Page:

Clear:

Use the radio buttons to select the types of messages

that you want to display from the log. System, Firewall

& Security, and Router Status messages can be selected.

There are three levels of message importance: Critical,

Warning, and Information. Select the levels that you

want displayed in the log.

Use this section to view and manage the Router’s log

entries.

Click this button to view the rst page of the Router logs.

Click this button to view the last page of the Router logs.

Click this button to view the previous page of the Router

logs.

Click this button to view the next page of the Router logs.

Clears all of the log contents.

104D-Link DIR-505 User Manual

Section 3 - Conguration

Statistics

The DAP-505 keeps statistics of the trac that passes through it. You can view the amount of packets that pass through the

LAN and wireless portions of the network.

105D-Link DIR-505 User Manual

Section 3 - Conguration

Click the desired hyperlink to get more information about how to use the Router.

Help

106D-Link DIR-505 User Manual

Section 4 - Security

Connect a Wireless Client to your Router

WPS Button

Step 2 - Within 2 minutes, press the WPS button on your wireless client (or launch the software utility and start the WPS

process).

The easiest and most secure way to connect your wireless devices to the router is WPS (Wi-Fi Protected Setup). Most wireless

devices such as wireless adapters, media players, Blu-ray DVD players, wireless printers and cameras will have a WPS button

(or a software utility with WPS) that you can press to connect to the DIR-505 router. Please refer to your user manual for the

wireless device you want to connect to make sure you understand how to enable WPS. Once you know, follow the steps below:

Step 1 - Press the WPS button on the DIR-505 for about 1

second. The WPS button will start to blink.

Step 3 - Allow up to 1 minute to congure. Once the WPS light stops blinking, you will be connected and your wireless

connection will be secure with WPA2.

107D-Link DIR-505 User Manual

Section 4 - Security

Windows® 7

It is recommended to enable wireless security (WPA/WPA2) on your wireless router or access point before conguring your

wireless adapter. If you are joining an existing network, you will need to know the security key or passphrase being used.

1. Click on the wireless icon in your system tray (lower-right corner).

2. The utility will display any available wireless networks in your area.

Wireless Icon

WPA/WPA2

108D-Link DIR-505 User Manual

Section 4 - Security

3. Highlight the wireless network (SSID) you would like to connect to

and click the Connect button.

If you get a good signal but cannot access the Internet, check your

TCP/IP settings for your wireless adapter. Refer to the Networking

Basics section in this manual for more information.

4. The following window appears while your computer tries to

connect to the router.

109D-Link DIR-505 User Manual

Section 4 - Security

5. Enter the same security key or passphrase that is on your router and

click Connect. You can also connect by pushing the WPS button on

the router.

It may take 20-30 seconds to connect to the wireless network. If the

connection fails, please verify that the security settings are correct. The

key or passphrase must be exactly the same as on the wireless router.

110D-Link DIR-505 User Manual

Section 4 - Security

WPS

The WPS feature of the DIR-505 can be congured using Windows® 7. Carry out the following steps to use Windows® 7 to

congure the WPS feature:

1. Click the Start button and select Computer from the Start menu.

2. Click Network on the left side.

111D-Link DIR-505 User Manual

Section 4 - Security

3. Double-click the DIR-505.

4. Input the WPS PIN number (displayed in the WPS window on the

Router’s LCD screen or in the Setup > Wireless Setup menu in

the Router’s Web UI) and click Next.

112D-Link DIR-505 User Manual

Section 4 - Security

5. Type a name to identify the network.

6. To congure advanced settings, click the icon.

Click Next to continue.

113D-Link DIR-505 User Manual

Section 4 - Security

7. The following window appears while the Router is being

congured.

Wait for the conguration to complete.

8. The following window informs you that WPS on the router has

been setup successfully.

Make a note of the security key as you may need to provide this

security key if adding an older wireless device to the network in

the future.

9. Click Close to complete WPS setup.

114D-Link DIR-505 User Manual

Section 5 - Connecting to a Wireless Network

Windows Vista®

Windows Vista® users may use the built-in wireless utility. If you are using another company’s utility or Windows® 2000, please

refer to the user manual of your wireless adapter for help with connecting to a wireless network. Most utilities will have a “site

survey” option similar to the Windows Vista® utility as seen below.

Right-click on the wireless computer icon in your system tray (lower-right

corner next to the time). Select Connect to a network.

If you receive the Wireless Networks Detected bubble, click on the

center of the bubble to access the utility.

The utility will display any available wireless networks in your area. Click

on a network (displayed using the SSID) and click the Connect button.

If you get a good signal but cannot access the Internet, check you TCP/

IP settings for your wireless adapter. Refer to the Networking Basics

section in this manual for more information.

115D-Link DIR-505 User Manual

Section 5 - Connecting to a Wireless Network

WPA/WPA2

It is recommended to enable wireless security (WPA/WPA2) on your wireless router or access point before conguring your

wireless adapter. If you are joining an existing network, you will need to know the security key or passphrase being used.

2. Highlight the wireless network (SSID) you would like to connect

to and click Connect.

1. Open the Windows Vista® Wireless Utility by right-clicking on the

wireless computer icon in your system tray (lower right corner of

screen). Select Connect to a network.

116D-Link DIR-505 User Manual

Section 5 - Connecting to a Wireless Network

3. Enter the same security key or passphrase that is on your router and

click Connect.

It may take 20-30 seconds to connect to the wireless network. If the

connection fails, please verify that the security settings are correct. The

key or passphrase must be exactly the same as on the wireless router.

117D-Link DIR-505 User Manual

Section 5 - Connecting to a Wireless Network

WPS/WCN 2.0

The router supports Wi-Fi protection, referred to as WCN 2.0 in Windows Vista®. The following instructions for setting this up

depends on whether you are using Windows Vista® to congure the router or third party software.

When you rst set up the router, Wi-Fi protection is disabled and uncongured. To enjoy the benets of Wi-Fi protection, the

router must be both enabled and congured. There are three basic methods to accomplish this: use Windows Vista’s built-in

support for WCN 2.0, use software provided by a third party, or manually congure.

If you are running Windows Vista®, log into the router and click the Enable checkbox in the Basic > Wireless section. Use the

Current PIN that is displayed on the Advanced > Wi-Fi Protected Setup section or choose to click the Generate New PIN

button or Reset PIN to Default button.

If you are using third party software to set up Wi-Fi Protection, carefully follow the directions. When you are nished, proceed

to the next section to set up the newly-congured router.

118D-Link DIR-505 User Manual

Section 5 - Connecting to a Wireless Network

Windows® XP

Windows® XP users may use the built-in wireless utility (Zero Conguration Utility). The following instructions are for Service

Pack 2 users. If you are using another company’s utility, please refer to the user manual of your wireless adapter for help with

connecting to a wireless network. Most utilities will have a “site survey” option similar to the Windows® XP utility as seen below.

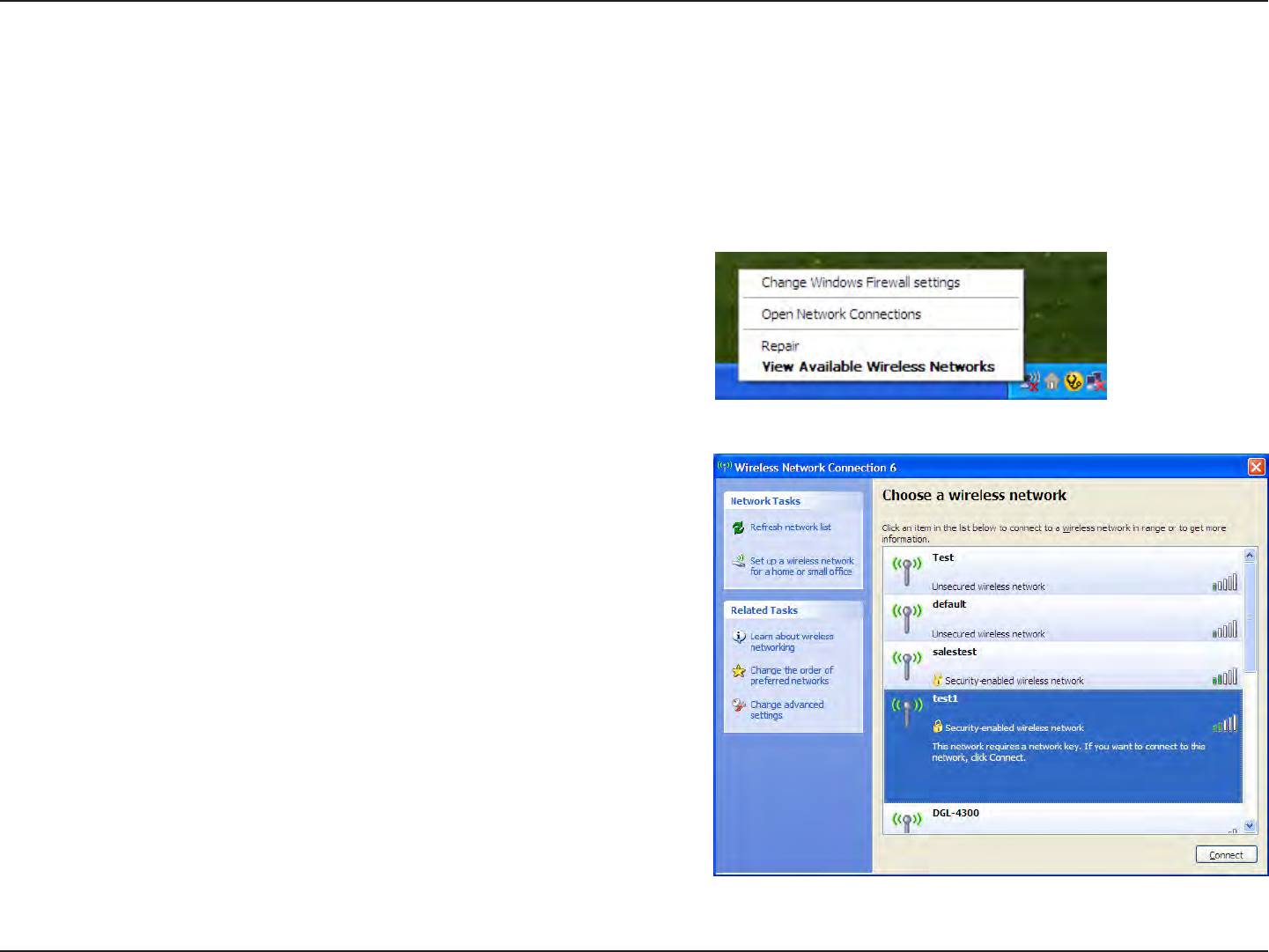

Right-click on the wireless computer icon in your system tray (lower-right

corner next to the time). Select View Available Wireless Networks.

If you receive the Wireless Networks Detected bubble, click on the

center of the bubble to access the utility.

The utility will display any available wireless networks in your area. Click

on a network (displayed using the SSID) and click the Connect button.

If you get a good signal but cannot access the Internet, check you TCP/

IP settings for your wireless adapter. Refer to the Networking Basics

section in this manual for more information.

119D-Link DIR-505 User Manual

Section 5 - Connecting to a Wireless Network

It is recommended to enable WPA on your wireless router or access point before conguring your wireless adapter. If you are

joining an existing network, you will need to know the WPA key being used.

2. Highlight the wireless network (SSID) you would like to

connect to and click Connect.

1. Open the Windows® XP Wireless Utility by right-clicking on the

wireless computer icon in your system tray (lower-right corner

of screen). Select View Available Wireless Networks.

WPA/WPA2

120D-Link DIR-505 User Manual

Section 5 - Connecting to a Wireless Network

3. The Wireless Network Connection box will appear. Enter the WPA-PSK

passphrase and click Connect.

It may take 20-30 seconds to connect to the wireless network. If the

connection fails, please verify that the WPA-PSK settings are correct. The

WPA-PSK passphrase must be exactly the same as on the wireless router.

121D-Link DIR-505 User Manual

Section 6 - Troubleshooting

Troubleshooting

This chapter provides solutions to problems that can occur during the installation and operation of the DIR-505. Read the

following descriptions if you are having problems. The examples below are illustrated in Windows® XP. If you have a dierent

operating system, the screenshots on your computer will look similar to the following examples.

1. Why can’t I access the web-based conguration utility?

When entering the IP address of the D-Link router (192.168.0.1 for example), you are not connecting to a website nor do you

have to be connected to the Internet. The device has the utility built-in to a ROM chip in the device itself. Your computer must

be on the same IP subnet to connect to the web-based utility.

• Make sure you have an updated Java-enabled web browser. We recommend the following:

- Microsoft Internet Explorer® 6.0 and higher

- Mozilla Firefox 3.0 and higher

- Google™ Chrome 2.0 and higher

- Apple Safari 3.0 and higher

• Verify physical connectivity by checking for solid link lights on the device. If you do not get a solid link light, try using a

dierent cable or connect to a dierent port on the device if possible. If the computer is turned o, the link light may not be

on.

• Disable any Internet security software running on the computer. Software rewalls such as Zone Alarm, Black Ice, Sygate,

Norton Personal Firewall, and Windows® XP rewall may block access to the conguration pages. Check the help les included

with your rewall software for more information on disabling or conguring it.

122D-Link DIR-505 User Manual

Section 6 - Troubleshooting

• Congure your Internet settings:

• Go to Start > Settings > Control Panel. Double-click the Internet Options Icon. From the Security tab, click

the button to restore the settings to their defaults.

• Click the Connection tab and set the dial-up option to Never Dial a Connection. Click the LAN Settings button.

Make sure nothing is checked. Click OK.

• Go to the Advanced tab and click the button to restore these settings to their defaults. Click OK three times.

• Close your web browser (if open) and open it.

• Access the web management. Open your web browser and enter the IP address of your D-Link router in the address bar. This

should open the login page for your web management.

• If you still cannot access the conguration, unplug the power to the router for 10 seconds and plug back in. Wait about 30

seconds and try accessing the conguration. If you have multiple computers, try connecting using a dierent computer.

2. What can I do if I forgot my password?

If you forgot your password, you must reset your router. Unfortunately this process will change all your settings back to the

factory defaults.

To reset the router, locate the reset button (hole) on the rear panel of the unit. With the router powered on, use a paperclip

to hold the button down for 10 seconds. Release the button and the router will go through its reboot process. Wait about 30

seconds to access the router. The default IP address is 192.168.0.1. When logging in, the username is admin and leave the

password box empty.

123D-Link DIR-505 User Manual

Section 6 - Troubleshooting

3. Why can’t I connect to certain sites or send and receive emails when connecting through my router?

If you are having a problem sending or receiving email, or connecting to secure sites such as eBay, banking sites, and Hotmail,

we suggest lowering the MTU in increments of ten (Ex. 1492, 1482, 1472, etc).

To nd the proper MTU Size, you’ll have to do a special ping of the destination you’re trying to go to. A destination could be

another computer, or a URL.

• Click on Start and then click Run.

• Windows® 95, 98, and Me users type in command (Windows® NT, 2000, XP, Vista®, and 7 users type in cmd) and

press Enter (or click OK).

• Once the window opens, you’ll need to do a special ping. Use the following syntax:

ping [url] [-f] [-l] [MTU value]

Example: ping yahoo.com -f -l 1472

124D-Link DIR-505 User Manual

Section 6 - Troubleshooting

You should start at 1472 and work your way down by 10 each time. Once you get a reply, go up by 2 until you get a fragmented

packet. Take that value and add 28 to the value to account for the various TCP/IP headers. For example, lets say that 1452 was the

proper value, the actual MTU size would be 1480, which is the optimum for the network we’re working with (1452+28=1480).

Once you nd your MTU, you can now congure your router with the proper MTU size.

To change the MTU rate on your router follow the steps below:

• Open your browser, enter the IP address of your router (192.168.0.1) and click OK.

• Enter your username (admin) and password (blank by default). Click OK to enter the web conguration page

for the device.

• Click on Setup and then click Manual Congure.

• To change the MTU enter the number in the MTU eld and click Save Settings to save your settings.

• Test your email. If changing the MTU does not resolve the problem, continue changing the MTU in increments

of ten.

125D-Link DIR-505 User Manual

Appendix A - Wireless Basics

D-Link wireless products are based on industry standards to provide easy-to-use and compatible high-speed wireless

connectivity within your home, business or public access wireless networks. Strictly adhering to the IEEE standard, the D-Link

wireless family of products will allow you to securely access the data you want, when and where you want it. You will be able

to enjoy the freedom that wireless networking delivers.

A wireless local area network (WLAN) is a cellular computer network that transmits and receives data with radio signals instead of

wires. Wireless LANs are used increasingly in both home and oce environments, and public areas such as airports, coee shops

and universities. Innovative ways to utilize WLAN technology are helping people to work and communicate more eciently.

Increased mobility and the absence of cabling and other xed infrastructure have proven to be benecial for many users.

Wireless users can use the same applications they use on a wired network. Wireless adapter cards used on laptop and desktop

systems support the same protocols as Ethernet adapter cards.

Under many circumstances, it may be desirable for mobile network devices to link to a conventional Ethernet LAN in order to

use servers, printers or an Internet connection supplied through the wired LAN. A Wireless Router is a device used to provide

this link.

Wireless Basics

126D-Link DIR-505 User Manual

Appendix A - Wireless Basics

What is Wireless?

Wireless or Wi-Fi technology is another way of connecting your computer to the network without using wires. Wi-Fi uses radio

frequency to connect wirelessly, so you have the freedom to connect computers anywhere in your home or oce network.

Why D-Link Wireless?

D-Link is the worldwide leader and award winning designer, developer, and manufacturer of networking products. D-Link

delivers the performance you need at a price you can aord. D-Link has all the products you need to build your network.

How does wireless work?

Wireless works similar to how cordless phone work, through radio signals to transmit data from one point A to point B. But

wireless technology has restrictions as to how you can access the network. You must be within the wireless network range area

to be able to connect your computer. There are two dierent types of wireless networks Wireless Local Area Network (WLAN),

and Wireless Personal Area Network (WPAN).

Wireless Local Area Network (WLAN)

In a wireless local area network, a device called an Access Point (AP) connects computers to the network. The access point has

a small antenna attached to it, which allows it to transmit data back and forth over radio signals. With an indoor access point

as seen in the picture, the signal can travel up to 300 feet. With an outdoor access point the signal can reach out up to 30 miles

to serve places like manufacturing plants, industrial locations, college and high school campuses, airports, golf courses, and

many other outdoor venues.

127D-Link DIR-505 User Manual

Appendix A - Wireless Basics

Wireless Personal Area Network (WPAN)

Bluetooth is the industry standard wireless technology used for WPAN. Bluetooth devices in WPAN operate in a range up to

30 feet away.

Compared to WLAN the speed and wireless operation range are both less than WLAN, but in return it doesn’t use nearly as

much power which makes it ideal for personal devices, such as mobile phones, PDAs, headphones, laptops, speakers, and other

devices that operate on batteries.

Who uses wireless?

Wireless technology as become so popular in recent years that almost everyone is using it, whether it’s for home, oce, business,

D-Link has a wireless solution for it.

Home

• Gives everyone at home broadband access

• Surf the web, check email, instant message, etc.

• Gets rid of the cables around the house

• Simple and easy to use

Small Oce and Home Oce

• Stay on top of everything at home as you would at oce

• Remotely access your oce network from home

• Share Internet connection and printer with multiple computers

• No need to dedicate oce space

128D-Link DIR-505 User Manual

Appendix A - Wireless Basics

Where is wireless used?

Wireless technology is expanding everywhere not just at home or oce. People like the freedom of mobility and it’s becoming

so popular that more and more public facilities now provide wireless access to attract people. The wireless connection in public

places is usually called “hotspots”.

Using a D-Link Cardbus Adapter with your laptop, you can access the hotspot to connect to Internet from remote locations

like: Airports, Hotels, Coee Shops, Libraries, Restaurants, and Convention Centers.

Wireless network is easy to setup, but if you’re installing it for the rst time it could be quite a task not knowing where to start.

That’s why we’ve put together a few setup steps and tips to help you through the process of setting up a wireless network.

Tips

Here are a few things to keep in mind, when you install a wireless network.

Centralize your router or Access Point

Make sure you place the router/access point in a centralized location within your network for the best performance. Try to

place the router/access point as high as possible in the room, so the signal gets dispersed throughout your home. If you have

a two-story home, you may need a repeater to boost the signal to extend the range.

Eliminate Interference

Place home appliances such as cordless telephones, microwaves, and televisions as far away as possible from the router/access

point. This would signicantly reduce any interference that the appliances might cause since they operate on same frequency.

Security

129D-Link DIR-505 User Manual

Appendix A - Wireless Basics

Don’t let you next-door neighbors or intruders connect to your wireless network. Secure your wireless network by turning on

the WPA or WEP security feature on the router. Refer to product manual for detail information on how to set it up.

There are basically two modes of networking:

• Infrastructure – All wireless clients will connect to an access point or wireless router.

• Ad-Hoc – Directly connecting to another computer, for peer-to-peer communication, using wireless network

adapters on each computer, such as two or more DIR-505 wireless network Cardbus adapters.

An Infrastructure network contains an Access Point or wireless router. All the wireless devices, or clients, will connect to the

wireless router or access point.

An Ad-Hoc network contains only clients, such as laptops with wireless cardbus adapters. All the adapters must be in Ad-Hoc

mode to communicate.

Wireless Modes

130D-Link DIR-505 User Manual

Appendix B - Networking Basics

Networking Basics

Check your IP address

After you install your new D-Link adapter, by default, the TCP/IP settings should be set to obtain an IP address from a DHCP

server (i.e. wireless router) automatically. To verify your IP address, please follow the steps below.

Click on Start > Run. In the run box type cmd and click OK. (Windows® 7/Vista® users type cmd in the Start Search box.)

At the prompt, type ipcong and press Enter.

This will display the IP address, subnet mask, and the

default gateway of your adapter.

If the address is 0.0.0.0, check your adapter installation,

security settings, and the settings on your router.

Some rewall software programs may block a DHCP

request on newly installed adapters.

131D-Link DIR-505 User Manual

Appendix B - Networking Basics

Statically Assign an IP address

If you are not using a DHCP capable gateway/router, or you need to assign a static IP address, please follow the steps below:

Step 1

Windows® 7 - Click on Start > Control Panel > Network and Internet > Network and Sharing Center.

Windows Vista® - Click on Start > Control Panel > Network and Internet > Network and Sharing Center > Manage Network

Connections.

Windows® XP - Click on Start > Control Panel > Network Connections.

Windows® 2000 - From the desktop, right-click My Network Places > Properties.

Step 2

Right-click on the Local Area Connection which represents your network adapter and select Properties.

Step 3

Highlight Internet Protocol (TCP/IP) and click Properties.

Step 4

Click Use the following IP address and enter an IP address that is on the same subnet

as your network or the LAN IP address on your router.

Example: If the router´s LAN IP address is 192.168.0.1, make your IP address 192.168.0.X

where X is a number between 2 and 99. Make sure that the number you choose is not

in use on the network. Set the Default Gateway the same as the LAN IP address of your

router (I.E. 192.168.0.1).

Set Primary DNS the same as the LAN IP address of your router (192.168.0.1). The

Secondary DNS is not needed or you may enter a DNS server from your ISP.

Step 5

Click OK twice to save your settings.

132D-Link DIR-505 User Manual

Appendix C - Technical Speci cations

Technical Speci cations

Standards

• IEEE 802.11n

• IEEE 802.11g

• IEEE 802.3

• IEEE 802.3u

Security

• WPA™ - Personal/Enterprise

• WPA2™ - Personal/Enterprise

Wireless Signal Rates1

IEEE 802.11n 2.4GHz(HT20/40):

• 72.2Mbps (150) · 65Mbps (135)

• 57.8Mbps (120) · 43.3Mbps (90)

• 28.9Mbps (60) · 21.7Mbps (45)

•14.4Mbps (30) · 7.2Mbps (15)

IEEE 802.11g:

• 54Mbps • 48Mbps • 36Mbps

• 24Mbps • 18Mbps • 12Mbps

• 11Mbps • 9Mbps • 6Mbps

• 5.5Mbps • 2Mbps • 1Mbps

Frequency Range2 (North America)

• 2.412GHz to 2.462GHz (802.11g/n)

Operating Temperature

• 32°F to 104°F ( 0°C to 40°C)

Humidity

• 95% maximum (non-condensing)

Safety & Emissions

• FCC

• CE

• C-Tick

• UL

• IC

Dimensions

• 2.68” x 1.65” x 2”

(68 x 42 x 51mm)

Warranty

• 1 Year

AC Input

• 110~240VAC, 50/60MHz, 0.3A

1 Maximum wireless signal rate derived from IEEE Standard 802.11g and 802.11n speci cations. Actual data throughput will vary. Network conditions and environmental factors, including volume

of network tra c, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors will adversely a ect wireless signal range.

2 Frequency Range varies depending on country’s regulation.

133D-Link DIR-505 User Manual

Appendix D - Contacting Technical Support

Contacting Technical Support

U.S. and Canadian customers can contact D-Link technical support through our web site or by phone.

Before you contact technical support, please have the following ready:

• Model number of the product (e.g. DIR-505)

• Hardware Revision (located on the label on the bottom of the router (e.g. rev C1))

• Serial Number (s/n number located on the label on the bottom of the router).

You can nd software updates and user documentation on the D-Link website as well as frequently asked questions and

answers to technical issues.

For customers within the United States:

Phone Support:

(877) 453-5465

Internet Support:

http://support.dlink.com

For customers within Canada:

Phone Support:

(800) 361-5265

Internet Support:

http://support.dlink.ca

134D-Link DIR-505 User Manual

Appendix E - GNU General Public License

GPL Code Statement

This D-Link product includes software code developed by third parties, including software code subject to the GNU General

Public License (“GPL”) or GNU Lesser General Public License (“LGPL”). As applicable, the terms of the GPL and LGPL, and

information on obtaining access to the GPL code and LGPL code used in this product, are available to you at:

http://tsd.dlink.com.tw/GPL.asp

The GPL code and LGPL code used in this product is distributed WITHOUT ANY WARRANTY and is subject to the copyrights

of one or more authors. For details, see the GPL code and the LGPL code for this product and the terms of the GPL and LGPL.

WRITTEN OFFER FOR GPL AND LGPL SOURCE CODE

Where such specic license terms entitle you to the source code of such software, D-Link will provide upon written request

via email and/or traditional paper mail the applicable GPL and LGPLsource code les via CD-ROM for a nominal cost to cover

shipping and media charges as allowed under the GPL and LGPL.

Please direct all inquiries to:

Email: GPLCODE@DLink.com

Snail Mail:

Attn: GPLSOURCE REQUEST

D-Link Systems, Inc.

17595 Mt. Herrmann Street

Fountain Valley, CA 92708

GNU GENERAL PUBLIC LICENSE

Version 3, 29 June 2007

copies of this license document, but changing it is not allowed.

135D-Link DIR-505 User Manual

Appendix E - GNU General Public License

Preamble

The GNU General Public License is a free, copyleft license for software and other kinds of works.

The licenses for most software and other practical works are designed to take away your freedom to share and change the

works. By contrast, the GNU General Public License is intended to guarantee your freedom to share and change all versions

of a program--to make sure it remains free software for all its users. We, the Free Software Foundation, use the GNU General

Public License for most of our software; it applies also to any other work released this way by its authors. You can apply it to

your programs, too.

When we speak of free software, we are referring to freedom, not price. Our General Public Licenses are designed to make

sure that you have the freedom to distribute copies of free software (and charge for them if you wish), that you receive source

code or can get it if you want it, that you can change the software or use pieces of it in new free programs, and that you know

you can do these things.

To protect your rights, we need to prevent others from denying you these rights or asking you to surrender the rights. Therefore,

you have certain responsibilities if you distribute copies of the software, or if you modify it: responsibilities to respect the

freedom of others.

For example, if you distribute copies of such a program, whether gratis or for a fee, you must pass on to the recipients the

same freedoms that you received. You must make sure that they, too, receive or can get the source code. And you must show

them these terms so they know their rights.

Developers that use the GNU GPL protect your rights with two steps:

(1) assert copyright on the software, and (2) oer you this License giving you legal permission to copy, distribute and/or

modify it.

For the developers’ and authors’ protection, the GPL clearly explains that there is no warranty for this free software. For both

users’ and authors’ sake, the GPL requires that modied versions be marked as changed, so that their problems will not be

attributed erroneously to authors of previous versions.

Some devices are designed to deny users access to install or run modied versions of the software inside them, although

the manufacturer can do so. This is fundamentally incompatible with the aim of protecting users’ freedom to change the

software. The systematic pattern of such abuse occurs in the area of products for individuals to use, which is precisely where it

is most unacceptable. Therefore, we have designed this version of the GPL to prohibit the practice for those products. If such

problems arise substantially in other domains, we stand ready to extend this provision to those domains in future versions of

the GPL, as needed to protect the freedom of users.

136D-Link DIR-505 User Manual

Appendix E - GNU General Public License

Finally, every program is threatened constantly by software patents. States should not allow patents to restrict development

and use of software on general-purpose computers, but in those that do, we wish to avoid the special danger that patents

applied to a free program could make it eectively proprietary. To prevent this, the GPL assures that patents cannot be used

to render the program non-free.

The precise terms and conditions for copying, distribution and modication follow.

TERMS AND CONDITIONS

0. Denitions.

“This License” refers to version 3 of the GNU General Public License.

“Copyright” also means copyright-like laws that apply to other kinds of works, such as semiconductor masks.

“The Program” refers to any copyrightable work licensed under this License. Each licensee is addressed as “you”. “Licensees”

and “recipients” may be individuals or organizations.

To “modify” a work means to copy from or adapt all or part of the work in a fashion requiring copyright permission, other than

the making of an exact copy. The resulting work is called a “modied version” of the earlier work or a work “based on” the

earlier work.

A “covered work” means either the unmodied Program or a work based on the Program.

To “propagate” a work means to do anything with it that, without permission, would make you directly or secondarily liable

for infringement under applicable copyright law, except executing it on a computer or modifying a private copy. Propagation

includes copying, distribution (with or without modication), making available to the public, and in some countries other

activities as well.

To “convey” a work means any kind of propagation that enables other parties to make or receive copies. Mere interaction with

a user through a computer network, with no transfer of a copy, is not conveying.

An interactive user interface displays “Appropriate Legal Notices” to the extent that it includes a convenient and prominently

visible feature that (1) displays an appropriate copyright notice, and (2) tells the user that there is no warranty for the work

(except to the extent that warranties are provided), that licensees may convey the work under this License, and how to view a

copy of this License. If the interface presents a list of user commands or options, such as a menu, a prominent item in the list

meets this criterion.

137D-Link DIR-505 User Manual

Appendix E - GNU General Public License

1. Source Code.

The “source code” for a work means the preferred form of the work for making modications to it. “Object code” means any

non-source form of a work.

A “Standard Interface” means an interface that either is an ocial standard dened by a recognized standards body, or, in the

case of interfaces specied for a particular programming language, one that is widely used among developers working in that

language.

The “System Libraries” of an executable work include anything, other than the work as a whole, that (a) is included in the

normal form of packaging a Major Component, but which is not part of that Major Component, and (b) serves only to enable

use of the work with that Major Component, or to implement a Standard Interface for which an implementation is available

to the public in source code form. A “Major Component”, in this context, means a major essential component (kernel, window

system, and so on) of the specic operating system (if any) on which the executable work runs, or a compiler used to produce

the work, or an object code interpreter used to run it.

The “Corresponding Source” for a work in object code form means all the source code needed to generate, install, and (for

an executable work) run the object code and to modify the work, including scripts to control those activities. However, it

does not include the work’s System Libraries, or general-purpose tools or generally available free programs which are used

unmodied in performing those activities but which are not part of the work. For example, Corresponding Source includes

interface denition les associated with source les for the work, and the source code for shared libraries and dynamically

linked subprograms that the work is specically designed to require, such as by intimate data communication or control ow

between those subprograms and other parts of the work.

The Corresponding Source need not include anything that users can regenerate automatically from other parts of the

Corresponding Source.

The Corresponding Source for a work in source code form is that same work.

138D-Link DIR-505 User Manual

Appendix E - GNU General Public License

2. Basic Permissions.

All rights granted under this License are granted for the term of copyright on the Program, and are irrevocable provided the

stated conditions are met. This License explicitly arms your unlimited permission to run the unmodied Program. The

output from running a covered work is covered by this License only if the output, given its content, constitutes a covered

work. This License acknowledges your rights of fair use or other equivalent, as provided by copyright law.

You may make, run and propagate covered works that you do not convey, without conditions so long as your license oth-

erwise remains in force. You may convey covered works to others for the sole purpose of having them make modications

exclusively for you, or provide you with facilities for running those works, provided that you comply with the terms of this

License in conveying all material for which you do not control copyright. Those thus making or running the covered works

for you must do so exclusively on your behalf, under your direction and control, on terms that prohibit them from making any

copies of your copyrighted material outside their relationship with you.

Conveying under any other circumstances is permitted solely under the conditions stated below. Sublicensing is not allowed;

section 10 makes it unnecessary.

3. Protecting Users’ Legal Rights From Anti-Circumvention Law.

No covered work shall be deemed part of an eective technological measure under any applicable law fullling obligations

under article 11 of the WIPO copyright treaty adopted on 20 December 1996, or similar laws prohibiting or restricting

circumvention of such measures.

When you convey a covered work, you waive any legal power to forbid circumvention of technological measures to the extent

such circumvention

is eected by exercising rights under this License with respect to the covered work, and you disclaim any intention to limit

operation or modication of the work as a means of enforcing, against the work’s users, your or third parties’ legal rights to

forbid circumvention of technological measures.

139D-Link DIR-505 User Manual

Appendix E - GNU General Public License

4. Conveying Verbatim Copies.

You may convey verbatim copies of the Program’s source code as you receive it, in any medium, provided that you conspicuously

and appropriately publish on each copy an appropriate copyright notice; keep intact all notices stating that this License and

any non-permissive terms added in accord with section 7 apply to the code; keep intact all notices of the absence of any

warranty; and give all recipients a copy of this License along with the Program.

You may charge any price or no price for each copy that you convey, and you may oer support or warranty protection for a

fee.

5. Conveying Modied Source Versions.

You may convey a work based on the Program, or the modications to produce it from the Program, in the form of source

code under the terms of section 4, provided that you also meet all of these conditions:

a) The work must carry prominent notices stating that you modied it, and giving a relevant date.

b) The work must carry prominent notices stating that it is released under this License and any conditions added

under section 7. This requirement modies the requirement in section 4 to “keep intact all notices”.

c) You must license the entire work, as a whole, under this License to anyone who comes into possession of a

copy. This License will therefore apply, along with any applicable section 7 additional terms, to the whole of

the work, and all its parts, regardless of how they are packaged. This License gives no permission to license the

work in any other way, but it does not invalidate such permission if you have separately received it.

d) If the work has interactive user interfaces, each must display Appropriate Legal Notices; however, if the Program

has interactive interfaces that do not display Appropriate Legal Notices, your work need not make them do so.

A compilation of a covered work with other separate and independent works, which are not by their nature extensions of

the covered work, and which are not combined with it such as to form a larger program, in or on a volume of a storage or

distribution medium, is called an “aggregate” if the compilation and its resulting copyright are not used to limit the access or

legal rights of the compilation’s users beyond what the individual works permit. Inclusion of a covered work in an aggregate

does not cause this License to apply to the other parts of the aggregate.

140D-Link DIR-505 User Manual

Appendix E - GNU General Public License

6. Conveying Non-Source Forms.

You may convey a covered work in object code form under the terms of sections 4 and 5, provided that you also convey the

machine-readable Corresponding Source under the terms of this License, in one of these ways:

a) Convey the object code in, or embodied in, a physical product (including a physical distribution medium),

accompanied by the Corresponding Source xed on a durable physical medium customarily used for software

interchange.

b) Convey the object code in, or embodied in, a physical product (including a physical distribution medium),

accompanied by a written oer, valid for at least three years and valid for as long as you oer spare parts or

customer support for that product model, to give anyone who possesses the object code either (1) a copy

of the Corresponding Source for all the software in the product that is covered by this License, on a durable

physical medium customarily used for software interchange, for a price no more than your reasonable cost of

physically performing this conveying of source, or (2) access to copy the Corresponding Source from a network

server at no charge.

c) Convey individual copies of the object code with a copy of the written oer to provide the Corresponding

Source. This alternative is allowed only occasionally and noncommercially, and only if you received the object

code with such an oer, in accord with subsection 6b.

d) Convey the object code by oering access from a designated place (gratis or for a charge), and oer equivalent

access to the Corresponding Source in the same way through the same place at no further charge. You need

not require recipients to copy the Corresponding Source along with the object code. If the place to copy the

object code is a network server, the Corresponding Source may be on a dierent server (operated by you or

a third party) that supports equivalent copying facilities, provided you maintain clear directions next to the

object code saying where to nd the Corresponding Source. Regardless of what server hosts the Corresponding

Source, you remain obligated to ensure that it is available for as long as needed to satisfy these requirements.

e) Convey the object code using peer-to-peer transmission, provided you inform other peers where the object

code and Corresponding Source of the work are being oered to the general public at no charge under

subsection 6d.

A separable portion of the object code, whose source code is excluded from the Corresponding Source as a System

Library, need not be included in conveying the object code work.

141D-Link DIR-505 User Manual

Appendix E - GNU General Public License

A “User Product” is either (1) a “consumer product”, which means any tangible personal property which is normally used for

personal, family, or household purposes, or (2) anything designed or sold for incorporation into a dwelling. In determining

whether a product is a consumer product, doubtful cases shall be resolved in favor of coverage. For a particular product

received by a particular user, “normally used” refers to a typical or common use of that class of product, regardless of the status

of the particular user or of the way in which the particular user actually uses, or expects or is expected to use, the product. A

product is a consumer product regardless of whether the product has substantial commercial, industrial or non-consumer

uses, unless such uses represent the only signicant mode of use of the product.

“Installation Information” for a User Product means any methods, procedures, authorization keys, or other information required

to install and execute modied versions of a covered work in that User Product from a modied version of its Corresponding

Source. The information must suce to ensure that the continued functioning of the modied object code is in no case

prevented or interfered with solely because modication has been made.

If you convey an object code work under this section in, or with, or specically for use in, a User Product, and the conveying

occurs as part of a transaction in which the right of possession and use of the User Product is transferred to the recipient in

perpetuity or for a xed term (regardless of how the transaction is characterized), the Corresponding Source conveyed under

this section must be accompanied by the Installation Information. But this requirement does not apply if neither you nor any

third party retains the ability to install modied object code on the User Product (for example, the work has been installed in

ROM).

The requirement to provide Installation Information does not include a requirement to continue to provide support service,

warranty, or updates for a work that has been modied or installed by the recipient, or for the User Product in which it has

been modied or installed. Access to a network may be denied when the modication itself materially and adversely aects

the operation of the network or violates the rules and protocols for communication across the network.

Corresponding Source conveyed, and Installation Information provided, in accord with this section must be in a format that is

publicly documented (and with an implementation available to the public in source code form), and must require no special

password or key for unpacking, reading or copying.

142D-Link DIR-505 User Manual

Appendix E - GNU General Public License

7. Additional Terms.

“Additional permissions” are terms that supplement the terms of this License by making exceptions from one or more of its

conditions. Additional permissions that are applicable to the entire Program shall be treated as though they were included in

this License, to the extent that they are valid under applicable law. If additional permissions apply only to part of the Program,

that part may be used separately under those permissions, but the entire Program remains governed by this License without

regard to the additional permissions.

When you convey a copy of a covered work, you may at your option remove any additional permissions from that copy, or

from any part of it. (Additional permissions may be written to require their own removal in certain cases when you modify

the work). You may place additional permissions on material, added by you to a covered work, for which you have or can give

appropriate copyright permission.

Notwithstanding any other provision of this License, for material you add to a covered work, you may (if authorized by the

a) Disclaiming warranty or limiting liability dierently from the terms of sections 15 and 16 of this License; or

b) Requiring preservation of specied reasonable legal notices or author attributions in that material or in the

Appropriate Legal Notices displayed by works containing it; or

c) Prohibiting misrepresentation of the origin of that material, or requiring that modied versions of such material

be marked in reasonable ways as dierent from the original version; or

d) Limiting the use for publicity purposes of names of licensors or authors of the material; or

e) Declining to grant rights under trademark law for use of some trade names, trademarks, or service marks; or

f) Requiring indemnication of licensors and authors of that material by anyone who conveys the material (or

modied versions of it) with contractual assumptions of liability to the recipient, for any liability that these

contractual assumptions directly impose on those licensors and authors.

143D-Link DIR-505 User Manual

Appendix E - GNU General Public License

All other non-permissive additional terms are considered “further restrictions” within the meaning of section 10. If the Program

as you received it, or any part of it, contains a notice stating that it is governed by this License along with a term that is a

further restriction, you may remove that term. If a license document contains a further restriction but permits relicensing

or conveying under this License, you may add to a covered work material governed by the terms of that license document,

provided that the further restriction does not survive such relicensing or conveying.

If you add terms to a covered work in accord with this section, you must place, in the relevant source les, a statement of the

additional terms that apply to those les, or a notice indicating where to nd the applicable terms.

Additional terms, permissive or non-permissive, may be stated in the form of a separately written license, or stated as

exceptions; the above requirements apply either way.

8. Termination.

You may not propagate or modify a covered work except as expressly provided under this License. Any attempt otherwise to

propagate or modify it is void, and will automatically terminate your rights under this License (including any patent licenses

granted under the third paragraph of section 11).

However, if you cease all violation of this License, then your license from a particular copyright holder is reinstated (a)

provisionally, unless and until the copyright holder explicitly and nally terminates your license, and (b) permanently, if the

Moreover, your license from a particular copyright holder is reinstated permanently if the copyright holder noties you of the

violation by some reasonable means, this is the rst time you have received notice of violation of this License (for any work)

from that copyright holder, and you cure the violation prior to 30 days after your receipt of the notice.

Termination of your rights under this section does not terminate the licenses of parties who have received copies or rights

144D-Link DIR-505 User Manual

Appendix E - GNU General Public License

from you under this License. If your rights have been terminated and not permanently reinstated, you do not qualify to

receive new licenses for the same material under section 10.

9. Acceptance Not Required for Having Copies.

You are not required to accept this License in order to receive or run a copy of the Program. Ancillary propagation of a

covered work occurring solely as a consequence of using peer-to-peer transmission to receive a copy likewise does not

require acceptance. However, nothing other than this License grants you permission to propagate or modify any covered

work. These actions infringe copyright if you do not accept this License. Therefore, by modifying or propagating a covered

work, you indicate your acceptance of this License to do so.

10. Automatic Licensing of Downstream Recipients.

Each time you convey a covered work, the recipient automatically receives a license from the original licensors, to run, modify

and propagate that work, subject to this License. You are not responsible for enforcing compliance by third parties with this

License.

An “entity transaction” is a transaction transferring control of an organization, or substantially all assets of one, or subdividing

an organization, or merging organizations. If propagation of a covered work results from an entity transaction, each party

to that transaction who receives a copy of the work also receives whatever licenses to the work the party’s predecessor in

interest had or could give under the previous paragraph, plus a right to possession of the Corresponding Source of the work

from the predecessor in interest, if the predecessor has it or can get it with reasonable eorts.

You may not impose any further restrictions on the exercise of the rights granted or armed under this License. For example,

you may not impose a license fee, royalty, or other charge for exercise of rights granted under this License, and you may not

initiate litigation (including a cross-claim or counterclaim in a lawsuit) alleging that any patent claim is infringed by making,

using, selling, oering for sale, or importing the Program or any portion of it.

145D-Link DIR-505 User Manual

Appendix E - GNU General Public License

11. Patents.

A “contributor” is a copyright holder who authorizes use under this License of the Program or a work on which the Program is

based. The work thus licensed is called the contributor’s “contributor version”.

A contributor’s “essential patent claims” are all patent claims owned or controlled by the contributor, whether already acquired

or hereafter acquired, that would be infringed by some manner, permitted by this License, of making, using, or selling its

contributor version, but do not include claims that would be infringed only as a consequence of further modication of

the contributor version. For purposes of this denition, “control” includes the right to grant patent sublicenses in a manner

consistent with the requirements of this License.

Each contributor grants you a non-exclusive, worldwide, royalty-free patent license under the contributor’s essential patent

claims, to make, use, sell, oer for sale, import and otherwise run, modify and propagate the contents of its contributor version.

In the following three paragraphs, a “patent license” is any express agreement or commitment, however denominated, not

to enforce a patent (such as an express permission to practice a patent or covenant not to sue for patent infringement). To

“grant” such a patent license to a party means to make such an agreement or commitment not to enforce a patent against the

party.

If you convey a covered work, knowingly relying on a patent license, and the Corresponding Source of the work is not available

for anyone to copy, free of charge and under the terms of this License, through a publicly available network server or other

readily accessible means, then you must either (1) cause the Corresponding Source to be so available, or (2) arrange to deprive

yourself of the benet of the patent license for this particular work, or (3) arrange, in a manner consistent with the requirements

of this License, to extend the patent license to downstream recipients. “Knowingly relying” means you have actual knowledge

that, but for the patent license, your conveying the covered work in a country, or your recipient’s use of the covered work in a

country, would infringe one or more identiable patents in that country that you have reason to believe are valid.

If, pursuant to or in connection with a single transaction or arrangement, you convey, or propagate by procuring conveyance

of, a covered work, and grant a patent license to some of the parties receiving the covered work authorizing them to use,

propagate, modify or convey a specic copy of the covered work, then the patent license you grant is automatically extended

to all recipients of the covered work and works based on it.

146D-Link DIR-505 User Manual

Appendix E - GNU General Public License

A patent license is “discriminatory” if it does not include within the scope of its coverage, prohibits the exercise of, or is

conditioned on the non-exercise of one or more of the rights that are specically granted under this License. You may not

convey a covered work if you are a party to an arrangement with a third party that is in the business of distributing software,

under which you make payment to the third party based on the extent of your activity of conveying the work, and under which

the third party grants, to any of the parties who would receive the covered work from you, a discriminatory patent license (a)

in connection with copies of the covered work conveyed by you (or copies made from those copies), or (b) primarily for and in

connection with specic products or compilations that contain the covered work, unless you entered into that arrangement,

or that patent license was granted, prior to 28 March 2007.

Nothing in this License shall be construed as excluding or limiting any implied license or other defenses to infringement that

may otherwise be available to you under applicable patent law.

12. No Surrender of Others’ Freedom.

If conditions are imposed on you (whether by court order, agreement or otherwise) that contradict the conditions of this

License, they do not excuse you from the conditions of this License. If you cannot convey a covered work so as to satisfy

simultaneously your obligations under this License and any other pertinent obligations, then as a consequence you may not

convey it at all. For example, if you agree to terms that obligate you to collect a royalty for further conveying from those to

whom you convey the Program, the only way you could satisfy both those terms and this License would be to refrain entirely

from conveying the Program.

13. Use with the GNU Aero General Public License.

Notwithstanding any other provision of this License, you have permission to link or combine any covered work with a work

licensed under version 3 of the GNU Aero General Public License into a single combined work, and to convey the resulting

work. The terms of this License will continue to apply to the part which is the covered work, but the special requirements of

the GNU Aero General Public License, section 13, concerning interaction through a network will apply to the combination

as such.

147D-Link DIR-505 User Manual

Appendix E - GNU General Public License

14. Revised Versions of this License.

The Free Software Foundation may publish revised and/or new versions of the GNU General Public License from time to time.

Such new versions will be similar in spirit to the present version, but may dier in detail to address new problems or concerns.

Each version is given a distinguishing version number. If the Program species that a certain numbered version of the GNU

General Public License “or any later version” applies to it, you have the option of following the terms and conditions either of

that numbered version or of any later version published by the Free Software Foundation. If the Program does not specify

a version number of the GNU General Public License, you may choose any version ever published by the Free Software

Foundation. If the Program species that a proxy can decide which future versions of the GNU General Public License can

be used, that proxy’s public statement of acceptance of a version permanently authorizes you to choose that version for the

Program.

Later license versions may give you additional or dierent permissions. However, no additional obligations are imposed on

any author or copyright holder as a result of your choosing to follow a later version.

15. Disclaimer of Warranty.

THERE IS NO WARRANTY FOR THE PROGRAM, TO THE EXTENT PERMITTED BY APPLICABLE LAW. EXCEPT WHEN OTHERWISE

STATED IN WRITING THE COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROVIDE THE PROGRAM “AS IS” WITHOUT WARRANTY OF

ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY

AND FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE PROGRAM IS

WITH YOU. SHOULD THE PROGRAM PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY SERVICING, REPAIR OR

CORRECTION.

16. Limitation of Liability.

IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY COPYRIGHT HOLDER, OR ANY

OTHER PARTY WHO MODIFIES AND/OR CONVEYS THE PROGRAM AS PERMITTED ABOVE, BE LIABLE TO YOU FOR DAMAGES,

INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO

USE THE PROGRAM (INCLUDING BUT NOT LIMITED TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR LOSSES

SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE PROGRAM TO OPERATE WITH ANY OTHER PROGRAMS), EVEN IF

SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

148D-Link DIR-505 User Manual

Appendix E - GNU General Public License

17. Interpretation of Sections 15 and 16.

If the disclaimer of warranty and limitation of liability provided above cannot be given local legal eect according to their

terms, reviewing courts shall apply local law that most closely approximates an absolute waiver of all civil liability in connection

with the Program, unless a warranty or assumption of liability accompanies a copy of the Program in return for a fee.

149D-Link DIR-505 User Manual

Appendix F - Warranty

Warranty

Subject to the terms and conditions set forth herein, D-Link Systems, Inc. (“D-Link”) provides this Limited Warranty:

• Only to the person or entity that originally purchased the product from D-Link or its authorized reseller or distributor, and

• Only for products purchased and delivered within the fty states of the United States, the District of Columbia, U.S. Possessions

or Protectorates, U.S. Military Installations, or addresses with an APO or FPO.

Limited Warranty:

D-Link warrants that the hardware portion of the D-Link product described below (“Hardware”) will be free from material defects in workmanship

and materials under normal use from the date of original retail purchase of the product, for the period set forth below (“Warranty Period”), except

as otherwise stated herein.

• Hardware (excluding power supplies and fans): One (1) year

• Power supplies and fans: One (1) year

• Spare parts and spare kits: Ninety (90) days

The customer’s sole and exclusive remedy and the entire liability of D-Link and its suppliers under this Limited Warranty will be, at

D-Link’s option, to repair or replace the defective Hardware during the Warranty Period at no charge to the original owner or to refund the actual

purchase price paid. Any repair or replacement will be rendered by D-Link at an Authorized D-Link Service Oce. The replacement hardware

need not be new or have an identical make, model or part. D-Link may, at its option, replace the defective Hardware or any part thereof with any

reconditioned product that D-Link reasonably determines is substantially equivalent (or superior) in all material respects to the defective Hardware.

Repaired or replacement hardware will be warranted for the remainder of the original Warranty Period or ninety (90) days, whichever is longer,

and is subject to the same limitations and exclusions. If a material defect is incapable of correction, or if D-Link determines that it is not practical

to repair or replace the defective Hardware, the actual price paid by the original purchaser for the defective Hardware will be refunded by D-Link

upon return to D-Link of the defective Hardware. All Hardware or part thereof that is replaced by D-Link, or for which the purchase price is refunded,

shall become the property of D-Link upon replacement or refund.

150D-Link DIR-505 User Manual

Appendix F - Warranty

Limited Software Warranty:

D-Link warrants that the software portion of the product (“Software”) will substantially conform to D-Link’s then current functional specications

for the Software, as set forth in the applicable documentation, from the date of original retail purchase of the Software for a period of ninety (90)

days (“Software Warranty Period”), provided that the Software is properly installed on approved hardware and operated as contemplated in its

documentation. D-Link further warrants that, during the Software Warranty Period, the magnetic media on which D-Link delivers the Software will be

free of physical defects. The customer’s sole and exclusive remedy and the entire liability of D-Link and its suppliers under this Limited Warranty will

be, at D-Link’s option, to replace the non-conforming Software (or defective media) with software that substantially conforms to D-Link’s functional

specications for the Software or to refund the portion of the actual purchase price paid that is attributable to the Software. Except as otherwise

agreed by D-Link in writing, the replacement Software is provided only to the original licensee, and is subject to the terms and conditions of the

license granted by D-Link for the Software. Replacement Software will be warranted for the remainder of the original Warranty Period and is subject

to the same limitations and exclusions. If a material non-conformance is incapable of correction, or if D-Link determines in its sole discretion that it

is not practical to replace the non-conforming Software, the price paid by the original licensee for the non-conforming Software will be refunded by

D-Link; provided that the non-conforming Software (and all copies thereof) is rst returned to D-Link. The license granted respecting any Software

for which a refund is given automatically terminates.

Non-Applicability of Warranty:

The Limited Warranty provided hereunder for Hardware and Software portions of D-Link’s products will not be applied to and does not cover any

refurbished product and any product purchased through the inventory clearance or liquidation sale or other sales in which D-Link, the sellers, or

the liquidators expressly disclaim their warranty obligation pertaining to the product and in that case, the product is being sold “As-Is” without any

warranty whatsoever including, without limitation, the Limited Warranty as described herein, notwithstanding anything stated herein to the contrary.

Submitting A Claim (USA):

The customer shall return the product to the original purchase point based on its return policy. In case the return policy period has expired and

the product is within warranty, the customer shall submit a claim to D-Link as outlined below:

• The customer must submit with the product as part of the claim a written description of the Hardware defect or Software

nonconformance in sucient detail to allow DLink to conrm the same, along with proof of purchase of the product (such as a

copy of the dated purchase invoice for the product) if the product is not registered.

• The customer must obtain a Case ID Number from D-Link Technical Support at 1-877-453-5465, who will attempt to assist the

customer in resolving any suspected defects with the product. If the product is considered defective, the customer must obtain a

Return Material Authorization (“RMA”) number by completing the RMA form and entering the assigned Case ID Number at https://

rma.dlink.com/.

• After an RMA number is issued, the defective product must be packaged securely in the original or other suitable shipping package

151D-Link DIR-505 User Manual

Appendix F - Warranty

to ensure that it will not be damaged in transit, and the RMA number must be prominently marked on the outside of the package.

Do not include any manuals or accessories in the shipping package. D-Link will only replace the defective portion of the product

and will not ship back any accessories.

• The customer is responsible for all in-bound shipping charges to D-Link. No Cash on Delivery (“COD”) is allowed. Products sent COD

will either be rejected by D-Link or become the property of D-Link. Products shall be fully insured by the customer and shipped

to D-Link Systems, Inc., 17595 Mt. Herrmann, Fountain Valley, CA 92708. D-Link will not be held responsible for any packages that

are lost in transit to D-Link. The repaired or replaced packages will be shipped to the customer via UPS Ground or any common

carrier selected by D-Link. Return shipping charges shall be prepaid by D-Link if you use an address in the United States, otherwise

we will ship the product to you freight collect. Expedited shipping is available upon request and provided shipping charges are

prepaid by the customer. D-Link may reject or return any product that is not packaged and shipped in strict compliance with the

foregoing requirements, or for which an RMA number is not visible from the outside of the package. The product owner agrees to

pay D-Link’s reasonable handling and return shipping charges for any product that is not packaged and shipped in accordance

with the foregoing requirements, or that is determined by D-Link not to be defective or non-conforming.

Submitting A Claim (Canada):

The customer shall return the product to the original purchase point based on its return policy. In case the return policy period has expired and

the product is within warranty, the customer shall submit a claim to D-Link as outlined below:

• Customers need to provide their receipt (proof of purchase) even if the product is registered. Without a receipt, no warranty service will

be done. The registration is not considered a proof of purchase.

• The customer must submit with the product as part of the claim a written description of the Hardware defect or Software nonconformance

in sucient detail to allow D-Link to conrm the same, along with proof of purchase of the product (such as a copy of the dated purchase

invoice for the product) if the product is not registered.

• The customer must obtain a Case ID Number from D-Link Technical Support at 1-800-361-5265, who will attempt to assist the customer

in resolving any suspected defects with the product. If the product is considered defective, the customer must obtain a Return Material

Authorization (“RMA”) number by completing the RMA form and entering the assigned Case ID Number at https://rma.dlink.ca/.

• After an RMA number is issued, the defective product must be packaged securely in the original or other suitable shipping package to

ensure that it will not be damaged in transit, and the RMA number must be prominently marked on the outside of the package. Do not

include any manuals or accessories in the shipping package. D-Link will only replace the defective portion of the product and will not ship

back any accessories.

• The customer is responsible for all in-bound shipping charges to D-Link. No Cash on Delivery (“COD”) is allowed. Products sent COD will

152D-Link DIR-505 User Manual

Appendix F - Warranty

be rejected by D-Link. Products shall be fully insured by the customer and shipped to D-Link Networks, Inc., 2525 Meadowvale Boulevard

Mississauga, Ontario, L5N 5S2 Canada. D-Link will not be held responsible for any packages that are lost in transit to D-Link. The repaired

or replaced packages will be shipped to the customer via Purolator Canada or any common carrier selected by D-Link. Return shipping

charges shall be prepaid by D-Link if you use an address in Canada, otherwise we will ship the product to you freight collect. Expedited

shipping is available upon request and provided shipping charges are prepaid by the customer. D-Link may reject or return any product

that is not packaged and shipped in strict compliance with the foregoing requirements, or for which an RMA number is not visible from

the outside of the package. The product owner agrees to pay D-Link’s reasonable handling and return shipping charges for any product

that is not packaged and shipped in accordance with the foregoing requirements, or that is determined by D-Link not to be defective or

non-conforming.

• RMA phone number: 1-800-361-5265 Hours of Operation: Monday-Friday, 9:00AM – 9:00PM EST

What Is Not Covered:

The Limited Warranty provided herein by D-Link does not cover:

Products that, in D-Link’s judgment, have been subjected to abuse, accident, alteration, modi cation, tampering, negligence, misuse, faulty installation,

lack of reasonable care, repair or service in any way that is not contemplated in the documentation for the product, or if the model or serial number

has been altered, tampered with, defaced or removed; Initial installation, installation and removal of the product for repair, and shipping costs;

Operational adjustments covered in the operating manual for the product, and normal maintenance; Damage that occurs in shipment, due to act

of God, failures due to power surge, and cosmetic damage; Any hardware, software,  rmware or other products or services provided by anyone

other than D-Link; and Products that have been purchased from inventory clearance or liquidation sales or other sales in which D-Link, the sellers,

or the liquidators expressly disclaim their warranty obligation pertaining to the product.

While necessary maintenance or repairs on your Product can be performed by any company, we recommend that you use only an Authorized D-Link

Service O ce. Improper or incorrectly performed maintenance or repair voids this Limited Warranty.

Disclaimer of Other Warranties:

EXCEPT FOR THE LIMITED WARRANTY SPECIFIED HEREIN, THE PRODUCT IS PROVIDED “AS-IS” WITHOUT ANY WARRANTY OF ANY KIND WHATSOEVER

INCLUDING, WITHOUT LIMITATION, ANY WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT.

IF ANY IMPLIED WARRANTY CANNOT BE DISCLAIMED IN ANY TERRITORY WHERE A PRODUCT IS SOLD, THE DURATION OF SUCH IMPLIED WARRANTY

SHALL BE LIMITED TO THE DURATION OF THE APPLICABLE WARRANTY PERIOD SET FORTH ABOVE. EXCEPT AS EXPRESSLY COVERED UNDER THE

LIMITED WARRANTY PROVIDED HEREIN, THE ENTIRE RISK AS TO THE QUALITY, SELECTION AND PERFORMANCE OF THE PRODUCT IS WITH THE

PURCHASER OF THE PRODUCT.

Limitation of Liability:

TO THE MAXIMUM EXTENT PERMITTED BY LAW, D-LINK IS NOT LIABLE UNDER ANY CONTRACT, NEGLIGENCE, STRICT LIABILITY OR OTHER LEGAL

OR EQUITABLE THEORY FOR ANY LOSS OF USE OF THE PRODUCT, INCONVENIENCE OR DAMAGES OF ANY CHARACTER, WHETHER DIRECT, SPECIAL,

153D-Link DIR-505 User Manual

Appendix F - Warranty

INCIDENTAL OR CONSEQUENTIAL (INCLUDING, BUT NOT LIMITED TO, DAMAGES FOR LOSS OF GOODWILL, LOSS OF REVENUE OR PROFIT, WORK

STOPPAGE, COMPUTER FAILURE OR MALFUNCTION, FAILURE OF OTHER EQUIPMENT OR COMPUTER PROGRAMS TO WHICH D-LINK’S PRODUCT

IS CONNECTED WITH, LOSS OF INFORMATION OR DATA CONTAINED IN, STORED ON, OR INTEGRATED WITH ANY PRODUCT RETURNED TO D-LINK

FOR WARRANTY SERVICE) RESULTING FROM THE USE OF THE PRODUCT, RELATING TO WARRANTY SERVICE, OR ARISING OUT OF ANY BREACH OF

THIS LIMITED WARRANTY, EVEN IF D-LINK HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. THE SOLE REMEDY FOR A BREACH OF

THE FOREGOING LIMITED WARRANTY IS REPAIR, REPLACEMENT OR REFUND OF THE DEFECTIVE OR NONCONFORMING PRODUCT. THE MAXIMUM

LIABILITY OF D-LINK UNDER THIS WARRANTY IS LIMITED TO THE PURCHASE PRICE OF THE PRODUCT COVERED BY THE WARRANTY. THE FOREGOING

EXPRESS WRITTEN WARRANTIES AND REMEDIES ARE EXCLUSIVE AND ARE IN LIEU OF ANY OTHER WARRANTIES OR REMEDIES, EXPRESS, IMPLIED

OR STATUTORY.

Governing Law:

This Limited Warranty shall be governed by the laws of the State of California. Some states do not allow exclusion or limitation of incidental or

consequential damages, or limitations on how long an implied warranty lasts, so the foregoing limitations and exclusions may not apply. This

Limited Warranty provides speci c legal rights and you may also have other rights which vary from state to state.

Trademarks:

D-Link is a registered trademark of D-Link Corporation/D-Link Systems, Inc. Other trademarks or registered trademarks are the property of their

respective owners.

No part of this publication or documentation accompanying this product may be reproduced in any form or by any means or used to make any

derivative such as translation, transformation, or adaptation without permission from D-Link Corporation/D-Link Systems, Inc., as stipulated by the

United States Copyright Act of 1976 and any amendments thereto. Contents are subject to change without prior notice.

CE Mark Warning:

This is a Class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take

adequate measures.

Federal Communication Commission Interference Statement:

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful

interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate

154D-Link DIR-505 User Manual

Appendix F - Warranty

radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio

or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by

one of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit di erent from that

to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

FCC Caution:

Any changes or modi cations not expressly approved by the party responsible for compliance could void the user’s authority to operate this

equipment.

This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and

operated with minimum distance 20cm between the radiator & your body.

Note:

The country code selection is for non-US model only and is not available to all US model. Per FCC regulation, all WiFi product marketed in US must

 xed to US operation channels only.

Industry Canada statement:

This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions: (1) This device may not cause

harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Ce dispositif est conforme à la norme CNR-210 d’Industrie Canada applicable aux appareils radio exempts de licence. Son fonctionnement est sujet

aux deux conditions suivantes: (1) le dispositif ne doit pas produire de brouillage préjudiciable, et (2) ce dispositif doit accepter tout brouillage reçu,

y compris un brouillage susceptible de provoquer un fonctionnement indésirable.

Radiation Exposure Statement:

This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and

155D-Link DIR-505 User Manual

Appendix F - Warranty

operated with minimum distance 20cm between the radiator & your body.

Déclaration d’exposition aux radiations:

Cet équipement est conforme aux limites d’exposition aux rayonnements IC établies pour un environnement non contrôlé. Cet équipement doit

être installé et utilisé avec un minimum de 20 cm de distance entre la source de rayonnement et votre corps.

ICC Notice:

Operation is subject to the following two conditions:

(1) This device may not cause interference and

(2) This device must accept any interference, including interference that may cause undesired operation of the device.

IMPORTANT NOTE:

IC Radiation Exposure Statement:

This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. End users must follow the speci c operating

instructions for satisfying RF exposure compliance. This equipment should be installed and operated with minimum distance 20cm between the

radiator & your body.

Règlement d’Industry Canada

Les conditions de fonctionnement sont sujettes à deux conditions:

(1) Ce périphérique ne doit pas causer d’interférence et.

(2) Ce périphérique doit accepter toute interférence, y compris les interférences pouvant perturber le bon fonctionnement de

ce périphérique.

156D-Link DIR-505 User Manual

Appendix G - Registration

Version 1.0

January 11, 2012

Product registration is entirely voluntary and failure to complete or return this form will not diminish your warranty rights.

Registration

D Link IR505LA1 All-in-One Mobile Companion / Travel Cloud Router User Manual

D Link Corporation All-in-One Mobile Companion / Travel Cloud Router

User Manual
